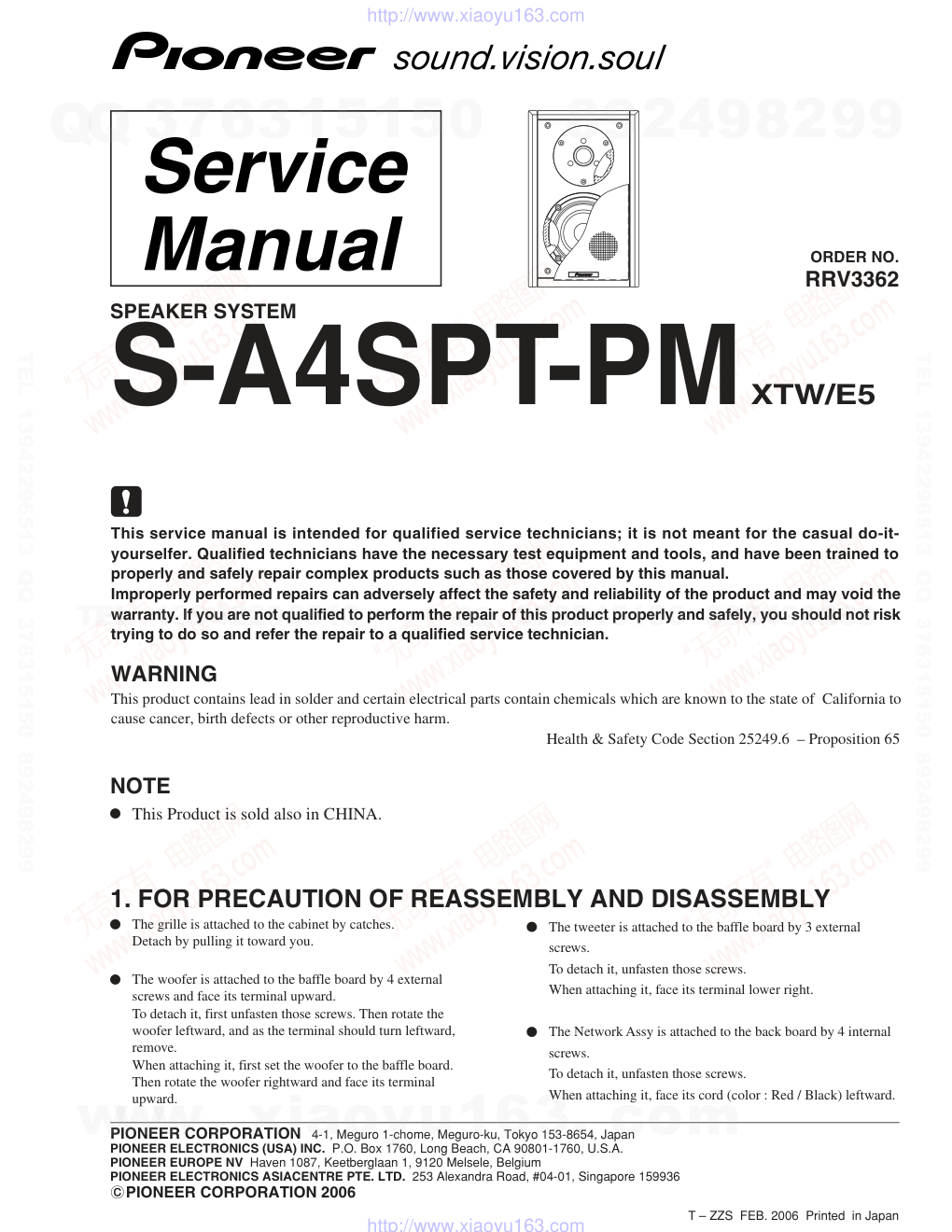

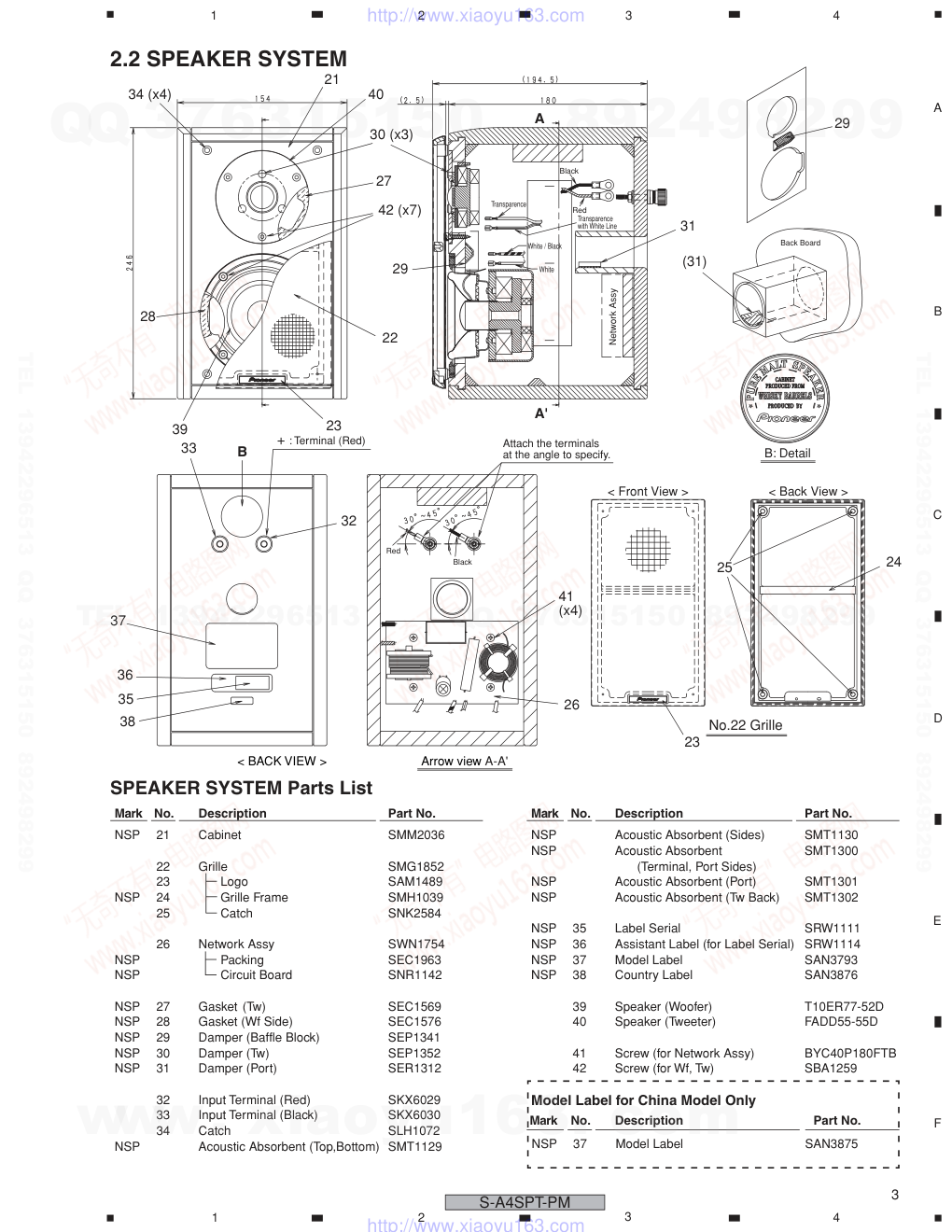

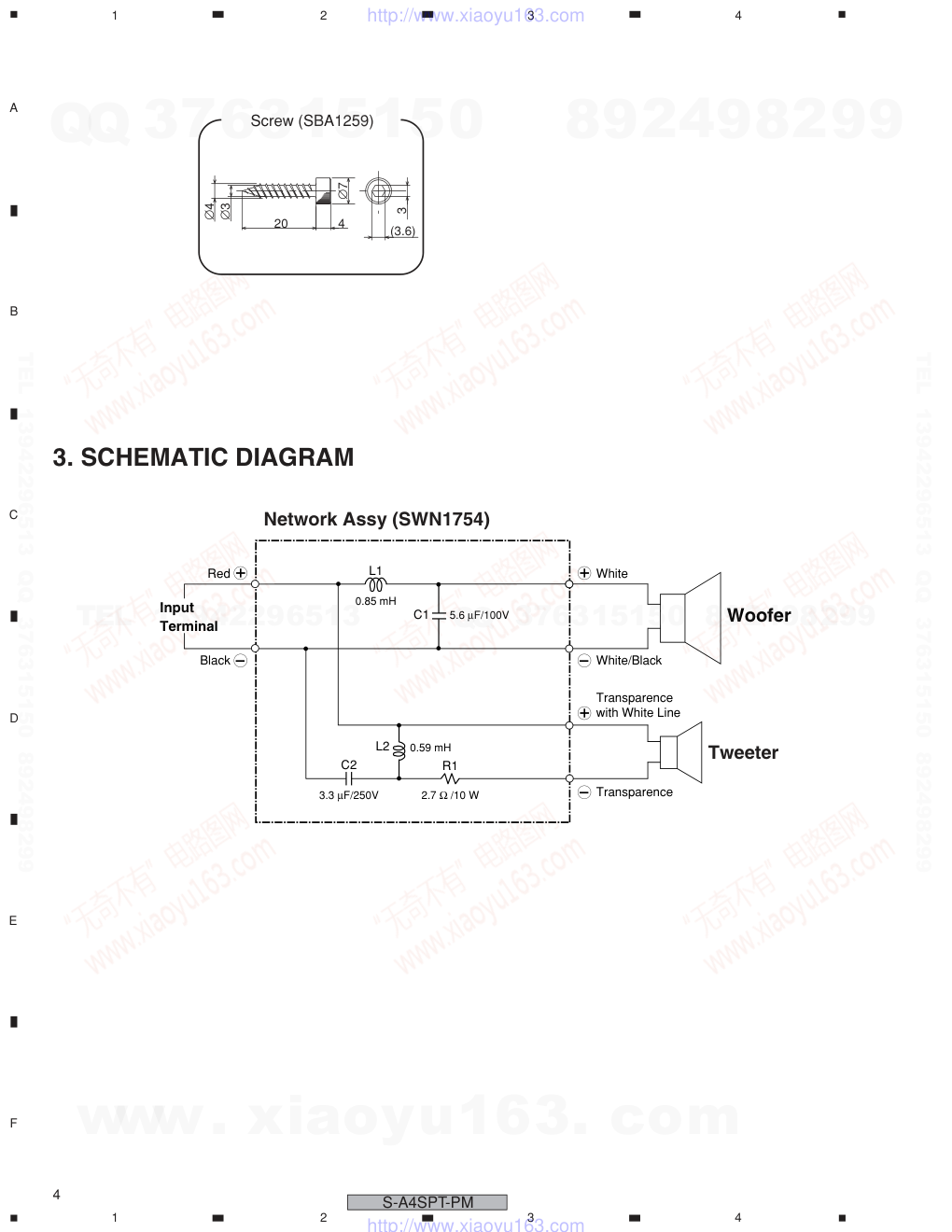

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 T – ZZS FEB. 2006 Printed in Japan RRV3362 1. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The grille is attached to the cabinet by catches. Detach by pulling it toward you. The woofer is attached to the baffle board by 4 external screws and face its terminal upward. To detach it, first unfasten those screws. Then rotate the woofer leftward, and as the terminal should turn leftward, remove. When attaching it, first set the woofer to the baffle board. Then rotate the woofer rightward and face its terminal upward. The tweeter is attached to the baffle board by 3 external screws. To detach it, unfasten those screws. When attaching it, face its terminal lower right. The Network Assy is attached to the back board by 4 internal screws. To detach it, unfasten those screws. When attaching it, face its cord (color : Red / Black) leftward. This service manual is intended for qualified service technicians; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 SPEAKER SYSTEM S-A4SPT-PM XTW/E5 NOTE This Product is sold also in CHINA. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-A4SPT-PM 6 8 7 5 No.4: Accessory Set No.1: Accessories Set 2 3 13 (x2 /B, B' side) No. 11 Speaker System 10 9 12 4 1 No. NSP 1 Accessories Set SME3671 2 Speaker Wire SDS1106 3 Polyethylene Bag S1 SHL1252 NSP 4 Accessory Set SME3719 5 Polyethylene Bag S2 SHL1295 6 Operating Instructions SRD1313 (English, French, German, Italian, Duch, Swedish, Spanish, Portuguese, Russian, Danish, Norwegian, Finnish, Simp-Chinese, Trad-Chinese) NSP Accessories Set SME3672 7 Non Skid Pad SEC1964 8 Polyethylene Bag S0 SHL1259 9 Protector (Top) SHB6027 10 Protector (Bottom) SHB6028 11 Packing Case SHG6220 12 Polyethylene Bag S3 SHL1401 NSP 13 Label Serial SRW1112 2. PARTS LIST 2.1 PACKING NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. PACKING Parts List Mark No. Description Part No. NSP 11 Packing Case SHG2743 Packing Case SHG6220 NSP Label for Packing Case • • • • • • Packing Case for China Model Only Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-A4SPT-PM 39 23 22 28 34 (x4) 21 40 30 (x3) 29 42 (x7) 27 33 41 (x4) 26 37 36 31 (31) 32 35 38 Arrow view A-A' < BACK VIEW > B: Detail Back Board 29 + : Terminal (Red) Network Assy Black Red White White / Black Transparence Transparence with White Line Red Black Attach the terminals at the angle to specify. A' A B 25 24 23 < Front View > < Back View > No.22 Grille 2.2 SPEAKER SYSTEM NSP 21 Cabinet SMM2036 22 Grille SMG1852 23 Logo SAM1489 NSP 24 Grille Frame SMH1039 25 Catch SNK2584 26 Network Assy SWN1754 NSP Packing SEC1963 NSP Circuit Board SNR1142 NSP 27 Gasket (Tw) SEC1569 NSP 28 Gasket (Wf Side) SEC1576 NSP 29 Damper (Baffle Block) SEP1341 NSP 30 Damper (Tw) SEP1352 NSP 31 Damper (Port) SER1312 32 Input Terminal (Red) SKX6029 33 Input Terminal (Black) SKX6030 34 Catch SLH1072 NSP Acoustic Absorbent (Top,Bottom) SMT1129 NSP Acoustic Absorbent (Sides) SMT1130 NSP Acoustic Absorbent SMT1300 (Terminal, Port Sides) NSP Acoustic Absorbent (Port) SMT1301 NSP Acoustic Absorbent (Tw Back) SMT1302 NSP 35 Label Serial SRW1111 NSP 36 Assistant Label (for Label Serial) SRW1114 NSP 37 Model Label SAN3793 NSP 38 Country Label SAN3876 39 Speaker (Woofer) T10ER77-52D 40 Speaker (Tweeter) FADD55-55D 41 Screw (for Network Assy) BYC40P180FTB 42 Screw (for Wf, Tw) SBA1259 SPEAKER SYSTEM Parts List Mark No. Description Part No. Mark No. Description Part No. NSP 37 Model Label SAN3875 Model Label for China Model Only Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-A4SPT-PM 3. SCHEMATIC DIAGRAM Input Terminal Red L1 0.85 mH 0.59 mH 5.6 µF/100V 3.3 µF/250V C1 L2 C2 Black White Transparence Transparence with White Line White/Black Woofer Tweeter R1 2.7 Ω /10 W Network Assy (SWN1754) 3 (3.6) ∅7 4 ∅3 ∅4 20 Screw (SBA1259) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
