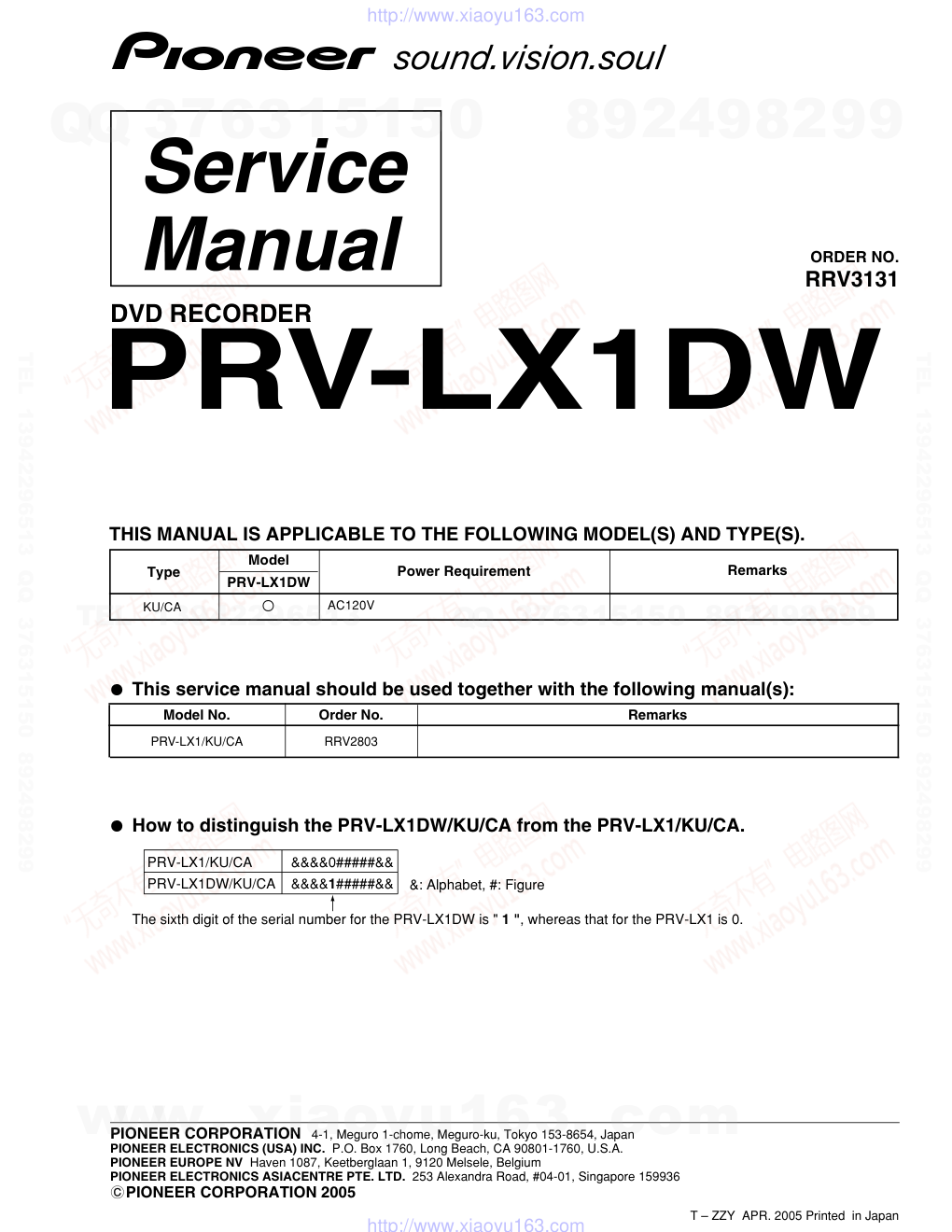

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3131 T – ZZY APR. 2005 Printed in Japan THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model PRV-LX1DW Type Power Requirement Remarks KU/CA PRV-LX1DW ‡ AC120V DVD RECORDER ¶ This service manual should be used together with the following manual(s): Model No. Order No. Remarks PRV-LX1/KU/CA RRV2803 The sixth digit of the serial number for the PRV-LX1DW is " 1 ", whereas that for the PRV-LX1 is 0. PRV-LX1/KU/CA &&&&0#####&& PRV-LX1DW/KU/CA &&&&1#####&& &: Alphabet, #: Figure ¶ How to distinguish the PRV-LX1DW/KU/CA from the PRV-LX1/KU/CA. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D 1 2 3 4 1 2 3 4 PRV-LX1DW 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 PRV-LX1DW/KU/CA and PRV-LX1/KU/CA are constructed the same except for the following : PACKING SECTION P15 - 7 Operating Instructions DRC1228 or DRC1258 DRC1258 (English/ French) P15 -16 Packing Case DHG2346 DHG2458 REAR PANEL SECTION P23 - 4 Rear Panel DNC1696 DNC1709 [ Drive 1 ] [ Drive 2 ] [ Drive 1 ] [ Drive 2 ] (option) EXTERIOR SECTION (2/3) P19 - 6 Drive Assy LX1 DXX2532 - DXX2532 DXX2532 No.1 P19 - 11 Silicone Spacer A DEB1600 - DEB1600 DEB1600 No.2 P19 - 12 Heat Sink DNG1087 - DNG1087 DNG1087 No.3 P19 - 35 Screw BBZ30P060FMC - BBZ30P060FMC BBZ30P060FMC No.4 P19 - 36 Screw AMZ30P060FZK - AMZ30P060FZK AMZ30P060FZK No.5 FRONT PANEL SECTION P25 - 14 NSP Tray Filter DEC2528 - DEC2528 DEC2528 No.6 P25 - 15 Tray Holder DNV1038 - DNV1038 DNV1038 No.7 P25 - 16 Tray Spring DBH1515 - DBH1515 DBH1515 No.8 P25 - 17 Drive 2 Blind Panel DNV1040 - Not used Not used P25 - 21 Drive Lens DNV1039 - DNV1039 DNV1039 No.9 P25 - 13 NSP Tray Panel 1 DNV1037 - DNV1037 Not used NSP Tray Panel 2 Not used - Not used DNV1044 No.10 Tray Button 2 Not used - Not used DAC2110 No.11 Drive Lens Support Plate Not used - Not used DEC2536 No.12 Drive 2 Panel Not used - Not used DNV1045 No.13 Tray Panel 1 Assy DXA1961 - DXA1961 Not used Tray Panel 2 Assy Not used - Not used DXA1962 No.14 Screw VBA1034 VBA1034 VBA1034 No.15 Screw Not used - Not used BPZ20P060FZK No.16 CONTRAST TABLE Part No. PRV-LX1/ KU/CA Ref. No. Symbol and Description Remarks Mark PRV-LX1DW/ KU/CA Note : The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 A B C D 5 6 7 8 5 6 7 8 PRV-LX1DW EXPLODED VIEWS • EXTERIOR SECTION and FRONT SECTION (DRIVE 2 SECTION) • Drive 2 Front Section • Drive 2 Section No.1 No.5 No.2 No.4 No.3 No.7 No.9 No.6 No.10 No.14 No.8 No.15 No.11 No.12 No.16 No.13 No.9 Drive Base Front Bridge Screw (BBZ30P060FMC) Screw (BBZ30P060FMC) Screw (BBZ30P060FMC) Drive 1 Drive 2 Drive 2 Drive 2 Drive 1 Front Bridge Screw Screw (BBZ30P060FMC) (BBZ30P060FMC) Screw (BBZ30P060FMC) Drive Base mark Towards front ANLOG AUDIO CABLE SELECT SLAVE MASTER A L S M 40 39 S C Short-circuit socket Note: When replacing Drive Assy LX1 with one for servicing in a case where the DVD-R/RW writer unit on the drive-2 side is in failure, be sure to attach the short-circuiting socket to the device configuration jumper Pin 2, located inside the rear panel. Drive Assy LX1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 A B C D 1 2 3 4 1 2 3 4 PRV-LX1DW 2. OVERALL WIRING DIAGRAM A 1/3 - A 3/3 JKIB ASSY (DWZ1120) A JKDB ASSY (DWZ1117) B F 1/2 - F 2/2 DECB ASSY (DWP1081) F G 1/4 - G 4/4 PCIB ASSY (DWP1080) G C 422IB ASSY (DWZ1116) C JKOB ASSY (DWZ1121) E HPVB ASSY (DWZ1115) D H 1/6 - H 6/6 AVIB ASSY (DWV1198) H 27MHz CLOCK ADJ. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 A B C D 5 6 7 8 5 6 7 8 PRV-LX1DW USBB ASSY (DWZ1158) N HDD 120G 4R120L0 (VXF1015) DRIVE ASSY LX1 (DXX2532) DRIVE ASSY LX1 (DXX2532) MOTHER BOARD ASSY (DXF1007) PWRB (POLY) ASSY (DWZ1129) I FLKB ASSY (DWZ1162) J KEYB ASSY (DWZ1156) K DRV1B ASSY (DWZ1160) L DRV2B ASSY (DWZ1161) M DC FAN MOTOR (AXM7014) ATX POWER SUPPLY UNIT (DXF1001) (DXF1005) or www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
