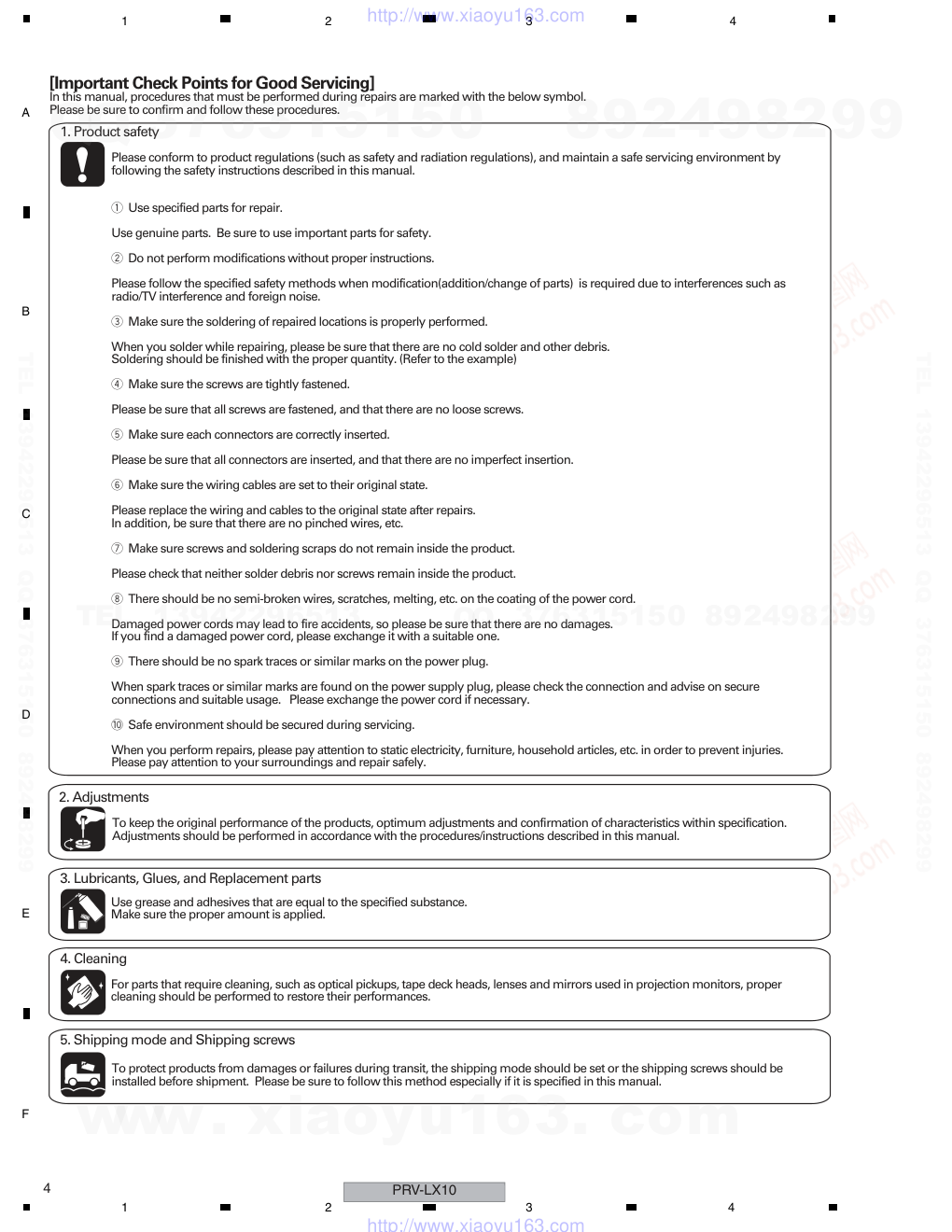

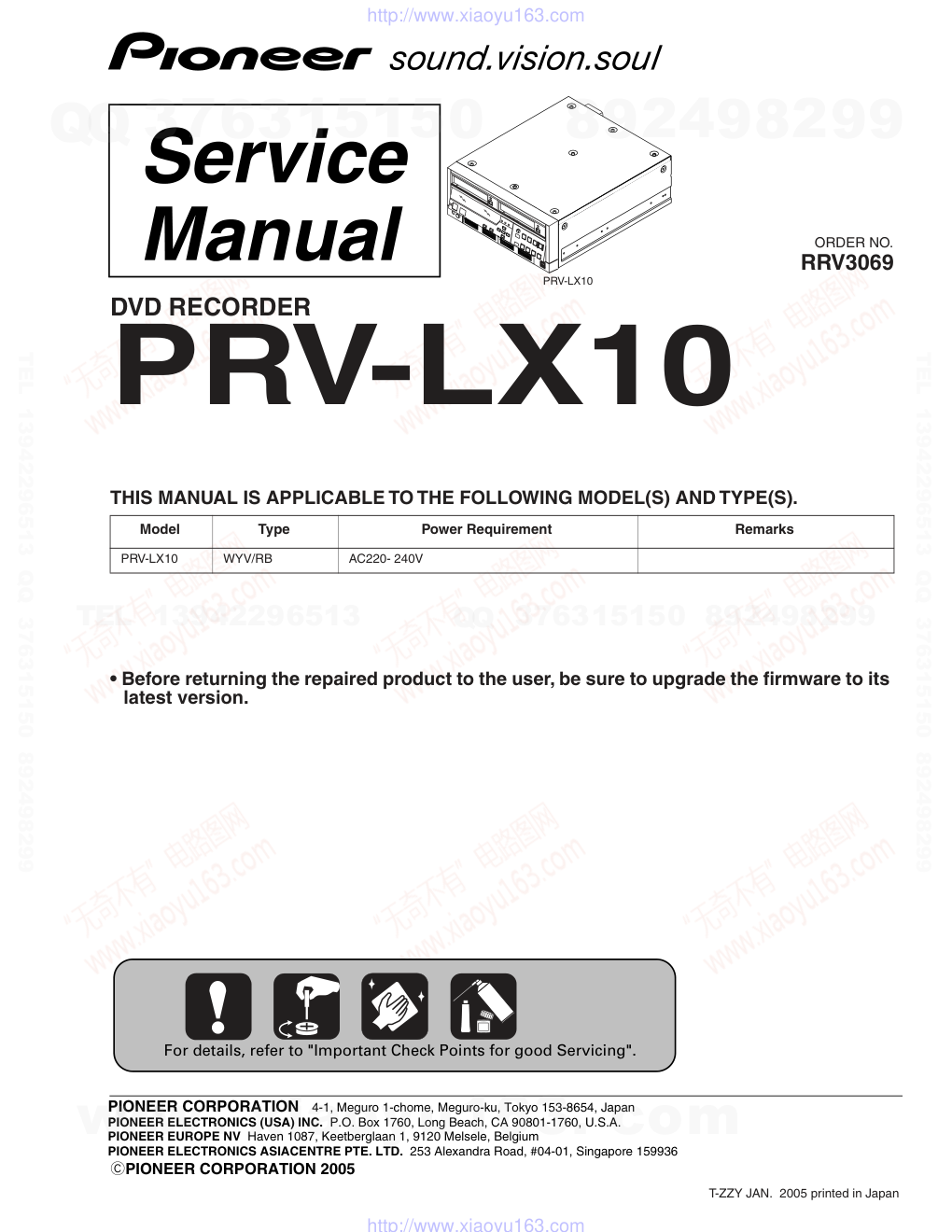

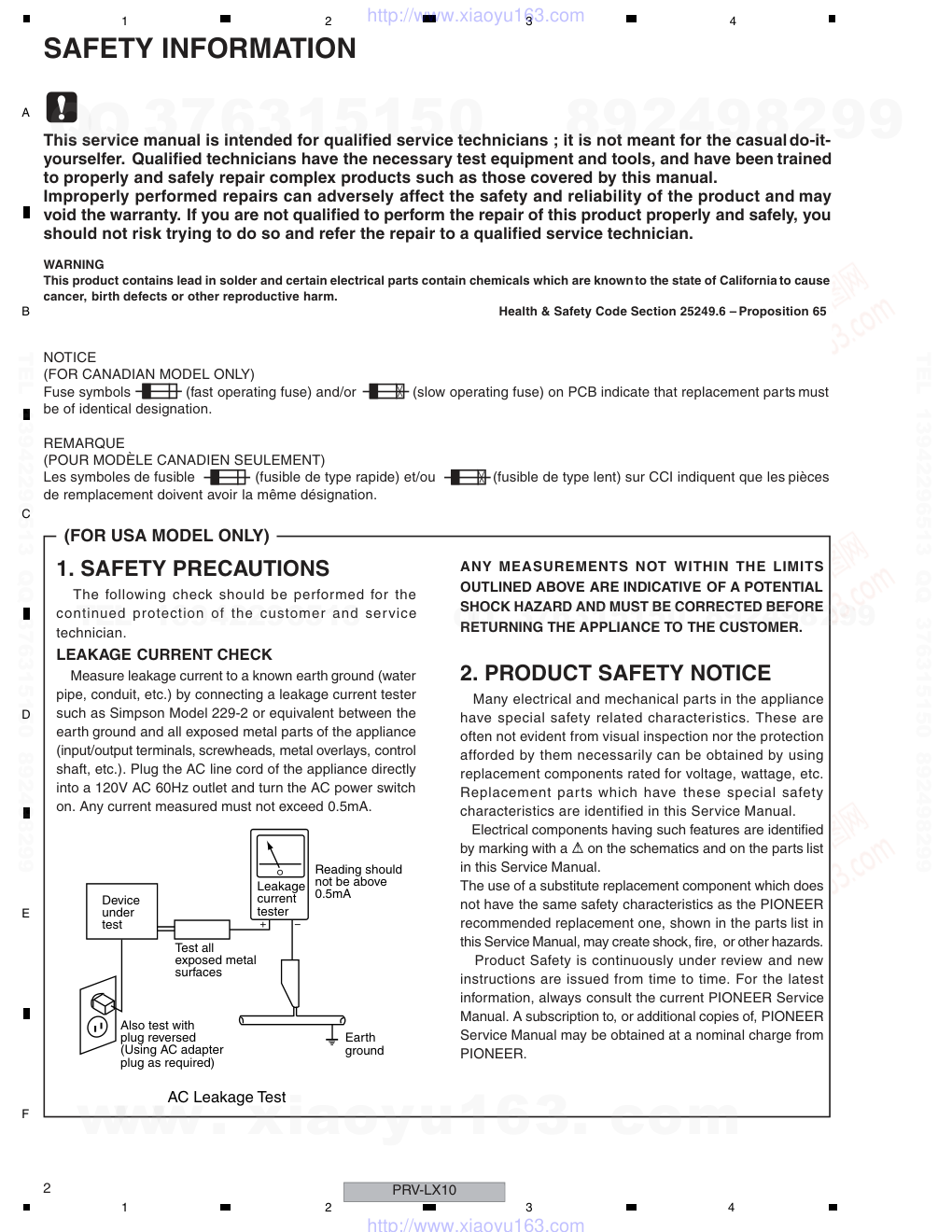

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 PRV-LX10 RRV3069 DVD RECORDER PRV-LX10 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). • Before returning the repaired product to the user, be sure to upgrade the firmware to its latest version. Model Type Power Requirement Remarks PRV-LX10 WYV/RB AC220- 240V For details, refer to "Important Check Points for good Servicing". T-ZZY JAN. 2005 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 3 5 6 7 8 5 6 7 8 C D F A B E IMPORTANT THIS PIONEER APPARATUS CONTAINS INVISIBLE LASER OF CLASS 3b and VISIBLE LASER OF CLASS 2. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 25 mW WAVELENGTH: 654 - 662 nm LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 36 mW WAVELENGTH: 780 - 787 nm LABEL CHECK (DRW2109) (DRW2185) (DRW2162) (DRW2069) DRIVE Assy LX1 Note: You will see one of the following two labels attached. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 4 1 2 3 4 1 2 3 4 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 5 5 6 7 8 5 6 7 8 C D F A B E CONTENTS 1. SPECIFICATIONS ............................................................................................................................................................. 7 1.1 SPECIFICATIONS CHECKS ......................................................................................................................7 1.2 FUNCTION MENU......................................................................................................................................9 1.3 SPECIFICATIONS ....................................................................................................................................12 2. EXPLODED VIEWS AND PARTS LIST ....................................................................................................................... 14 2.1 PACKING ..................................................................................................................................................14 2.2 EXTERIOR SECTION (1/3)......................................................................................................................16 2.3 EXTERIOR SECTION (2/3)......................................................................................................................18 2.4 EXTERIOR SECTION (3/3)......................................................................................................................20 2.5 REAR PANEL SECTION ..........................................................................................................................22 2.6 FRONT PANEL SECTION ........................................................................................................................24 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..................................................................................................... 26 3.1 BLOCK DIAGRAM.................................................................................................................................................... 26 3.1.1 OVERALL BLOCK DIAGRAM......................................................................................................................... 26 3.1.2 I/O BLOCK.......................................................................................................................................................... 28 3.1.3 DECB ASSY....................................................................................................................................................... 29 3.1.4 PCIB ASSY......................................................................................................................................................... 30 3.1.5 AVIB ASSY ......................................................................................................................................................... 31 3.1.6 PWRB, FLKB, KEYB, DRV1B, DRV2B and USBB ASSYS .......................................................................33 3.1.7 PWRB ASSY...................................................................................................................................................... 34 3.1.8 WAVEFORMS .................................................................................................................................................... 35 3.2 OVERALL WIRING DIAGRAM............................................................................................................................... 40 3.3 JKIB ASSY (1/3) ....................................................................................................................................................... 42 3.4 JKIB ASSY (2/3) ....................................................................................................................................................... 44 3.5 JKIB ASSY (3/3) ....................................................................................................................................................... 46 3.6 JKDB and 422IB ASSYS......................................................................................................................................... 48 3.7 HPVB and JKOB ASSYS ........................................................................................................................................ 50 3.8 DECB ASSY (1/2)..................................................................................................................................................... 52 3.9 DECB ASSY (2/2)..................................................................................................................................................... 54 3.10 PCIB ASSY (1/4) .................................................................................................................................................... 56 3.11 PCIB ASSY (2/4) .................................................................................................................................................... 58 3.12 PCIB ASSY (3/4) .................................................................................................................................................... 60 3.13 PCIB ASSY (4/4) .................................................................................................................................................... 62 3.14 AVIB ASSY (1/6)..................................................................................................................................................... 64 3.15 AVIB ASSY (2/6)..................................................................................................................................................... 66 3.16 AVIB ASSY (3/6)..................................................................................................................................................... 68 3.17 AVIB ASSY (4/6)..................................................................................................................................................... 70 3.18 AVIB ASSY (5/6)..................................................................................................................................................... 72 3.19 AVIB ASSY (6/6)..................................................................................................................................................... 74 3.20 PWRB(POLY) ASSY .............................................................................................................................................. 76 3.21 FLKB(WYV/RB) ASSY .......................................................................................................................................... 78 3.22 KEYB(WYV/RB) ASSY.......................................................................................................................................... 80 DVD video DVD-RW DVD-R Logo Logo Attributes 12cm, single-sided, single layer disc Approx. max. recording time: 360 minutes (4.7GB) 12cm, double-sided, single layer disc Approx. max. recording time: 720 minutes (9.4GB) • Recordable discs • Playback only discs ∗ This unit does not support use of 8 cm DVD-R discs. • CD-R/CD-RW discs cannot be recorded on this unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 6 1 2 3 4 1 2 3 4 C D F A B E 3.23 DRV1B and DRV2B ASSYS ................................................................................................................................ 82 3.24 USBB ASSY............................................................................................................................................................ 84 4. PCB CONNECTION DIAGRAM.................................................................................................................................... 85 4.1 JKIB, JKDB, 422IB and HPVB ASSYS................................................................................................................. 86 4.2 DECB ASSY.............................................................................................................................................................. 90 4.3 PCIB ASSY................................................................................................................................................................ 92 4.4 AVIB ASSY................................................................................................................................................................ 94 4.5 PWRB ASSY............................................................................................................................................................. 98 4.6 FLKB, KEYB, DRV1B, DRV2B and USBB ASSYS .......................................................................................... 100 4.7 JKOB ASSY............................................................................................................................................................. 104 4.8 MOTHER BOARD ASSY ...................................................................................................................................... 105 5. PCB PARTS LIST .......................................................................................................................................................... 108 6. ADJUSTMENT ............................................................................................................................................................... 116 6.1 27MHz CLOCK ADJUSTMENT........................................................................................................................... 116 7. GENERAL INFORMATION .......................................................................................................................................... 117 7.1 DIAGNOSIS............................................................................................................................................................. 117 7.1.1 TESTMODE ..................................................................................................................................................... 117 7.1.2 TEST MODE CODE ....................................................................................................................................... 120 7.1.3 LED SPECIFICATIONS ................................................................................................................................. 122 7.1.4 POWER-ON SEQUENCE ............................................................................................................................. 127 7.1.5 HOW TO CHECK THE ERROR LOG.......................................................................................................... 130 7.1.6 ERROR LOG DISPLAY.................................................................................................................................. 135 7.1.7 DEBUGGING DISPLAY MODE.................................................................................................................... 139 7.1.8 LIST OF BIOS SETTING VALUE ................................................................................................................. 143 7.1.9 REWRITING OF THE GUIDS....................................................................................................................... 145 7.1.10 CAUTIONS ON HANDLING THE HDD..................................................................................................... 146 7.1.11 HDD REPLACEMENT PROCEDURES.................................................................................................... 148 7.1.12 HOW TO CHECK THE HDD.......................................................................................................... 149 7.1.13 CLEANING..................................................................................................................................................... 149 7.1.14 HOW TO INSTALL THE OS OR PROGRAM ........................................................................................... 150 7.1.15 TROUBLE SHOOTING ................................................................................................................................ 152 7.1.16 DISASSEMBLY.............................................................................................................................. 158 7.2 IC INFORMATION.................................................................................................................................................. 170 8. PANEL FACILITIES ....................................................................................................................................................... 190 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 7 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS 1.1 SPECIFICATIONS CHECKS • Recommended media • Conditions diagram • Front panel section Power voltage: PRV-LX10/WYV/RB: 220- 240V±10% AC, 50/60 Hz Power consumption: PRV-LX10/WYV/RB: 1A max. when all optional accessories are mounted Ambient temperature: 5-35°C, relative humidity: 85% or less Note: Because the HDD is mounted on the unit, be sure not to impart shock or vibration to the unit while it is operating. For the test of the unit, use the following recommended media: DVD-R: (GGV1139) DVD-RW: (GGV1050) Test Specifications • Conditions and connections for the test • Conditions for the test Standard Phones ( Impedance 32Ω) Keyboard to be connected to the USB connector: TK-U109JPW2 manufactured by Elecom, or equivalent Mouse to be connected to the USB connector: USB by Microsoft Wheel Mouse, or equivalent www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 8 1 2 3 4 1 2 3 4 C D F A B E • Rear Panel section [The connection figure of measuring instruments] AC Power supply Video Analyzer VM700, or equivalent 232C LoopBack jig Oscilloscope Oscilloscope Oscilloscope 422A Cross Cable Monitor DVD Player DVD Player Monitor VGA Monitor Manufactured by iiyama AX3819UT, or equivalent Note: 232C LoopBack Jig For TXD-RXD loopback, short-circuit Pin 2 and Pin 3 of the RS232C connector. Note ∗: According to the TV system (PAL or NTSC) of signals to be output/input, connect appropriate equipment to the video input/output connectors. Note: Only connect a recommended USB device to one of the USB connectors on the rear panel. A device other than those recommended may not be recognized on startup. B.B ROUTER Manufactured by I-O data NP-BBRE, or equivalent AV AMP Manufactured by Pioneer VSA-C100, or equivalent Video SG ∗ [NTSC] MG6301A, or equivalent [PAL] TG19CA, or equivalent (Black Burst) Media Converter Manufactured by data video DAC-100, or equivalent Audio Analyzer RCA : AD725C, or equivalent XLR : AM51A, or equivalent DVD Player Video SG ∗ [NTSC] S/CV : MG6301A, or equivalent Component : TSG-300, or equivalent [PAL] S/CV : TG19CA, or equivalent Component : TG19CA, or equivalent TC Gen. Manufactured by SONY BVG-1600PS, or equivalent LINE CONVERTER Manufactured by TASCAM LA81, or equivalent Institutional Video recorder Manufactured by SONY.DVCAM, or equivalent Audio SG RCA : AG15B, or equivalent XLR : AM51A, or equivalent Keyboard to be connected to the USB connector: TK-U109JPW2 manufactured by Elecom, or equivalent Mouse to be connected to the USB connector: USB by Microsoft Wheel Mouse, or equivalent www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 9 5 6 7 8 5 6 7 8 C D F A B E 1.2 FUNCTION MENU Function Menu Prestore (reference) EDIT DVD Menu Menu Setting Menu Edit To hyymmdd_xx Menu Type / Font Menu Type Title Menu Font Helvetica Del/Init Library Type Background Design Select BG2.bmp Menu TV System PAL Menu Design Design Select Type A Thumbnail Go to Video Button Text Number Menu Modification Background Default Image Default Disc Name Select Color Default Active Color Default Navigation Cmd First Play PGC Stop Introduction Clip Disabled Title Post Cmd Stop Project Record Name Name hyymmdd_xx Protect Disabled Record To HDD Num of Clips 0 Num of Titles 0 Last Modified Date yyyy.mm.dd hh:mm:ss Total Capacity 0 MB Copy Project Copy To Copy Clip Copy From No Item Source Drive HDD Clip No Item Delete Delete No Item DVD Disc Make Disc Image Target Image hyymmdd_xx.img Target DVD 1 APP Auto Capture IN/OUT Point Preroll Time 5 Seconds Offsest(Frame) -17 Frames Record As Title(Stop) IN/OUT Point 00:00:00:00 Chapter Point Chapter Point 00:00:00:00 EDL Command Command Finalize EDL EDL Save No Item EDL Load/Delete Load No Item Delete No Item Save To edl000.edl Copy/Impt/Bku Disc Image Copy Source DVD 1 Input Image Name disc00000.img Image Copy/Del Source Image No Item Destination DVD 1 Menu Import Type Background Source Import Directory Source File No Item EDL Import Source Import Directory Source File No Item Menu item Setting (Blank) (Blank) cx_hyymmdd_xx www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 10 1 2 3 4 1 2 3 4 C D F A B E SET UP System System Settings Keyboard English(GB) Key Repeat Speed Medium Mouse Generic Mouse Speed Medium Time Zone London Date(mm/dd/yyyy) mm/dd/yyyy Time(hh:mm:ss) hh:mm:ss F-Key Set 1 - 6 F-Key Enable F-Key Only F1 Not Set F2 Not Set F3 Not Set F4 Not Set F5 Not Set F6 Not Set F-Key Set 7 - 12 F7 Not Set F8 Not Set F9 Not Set F10 Not Set F11 Not Set F12 Not Set Network Network OFF DHCP/Manual DHCP MAC Address ---.---.---.--- UPS Setting Model Disabled Shutdown Delay 30 seconds x.xx-x/x.xx Information System Version Power-On Time xxxx(h) HDD Access xxxx(h) Drive 1(R/W) xxxx(h)/xxxx(h) Service Info x Remaining Capacity 100.87(GB) Drive 2(R/W) xxxx(h)/xxxx(h) HDD Tools Target Drive HDD Operation Control Settings Control Local Port RS-422A Time Code RS-422A Eject Setting Eject Video Settings External Sync Disabled OSD Enabled Composite Out Source Monitor Background Color Black DV OUT Disabled Test Signal Start HDD Recording Time Shift PLAY Enabled Info Language Language English(GB) Menu item Setting www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 11 5 6 7 8 5 6 7 8 C D F A B E TOP STATUS Drive HDD Project [NEW]hyymmdd_xx V Input Composite A Input RCA TV System PAL • Front panel Setting of the VOLUME control: MIN • Rear panel Setting of the Terminate switch: ON (upper position) Menu item Setting SETUP Recording Video/Audio Video Encode Rate 9.644Mbps Video Filter(NR) OFF Audio Encode Dolby Digital Audio Level L : +0 / R : +0 Aspect 4:3 Setup Level (Blank) Others Auto Chapter Manual REC Button REC Start Playback Video Aspect 4:3(LB) Still Mode Frame Audio Dolby Digital OUT Dolby Digital DTS OUT OFF 96kHz PCM OUT Convert To 48kHz MPEG OUT MPEG Language Audio English Subtitle English DVD Menu English Others Parental Level 8 Country Code us Factory-preset values for the main unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 12 1 2 3 4 1 2 3 4 C D F A B E 1.3 SPECIFICATIONS General Power rating : AC 220V- 240V, 50/60 Hz Power consumption : Maximum 1.0 A Power consumption during Standby : 6.5 W Peak inrush current (Power on) : 30 A Weight : 16.5 kg (36 lb 6 oz) External dimensions : 427 (W) x 179.5 (H) x 539.5 (D) mm (including projecting parts) 16-13/16 (W) x 7-1/16 (H) x 21-1/4 (D) in (including projecting parts) Ambient temperature during use : +5 °C to +35 °C (+41 °F to +95 °F) Ambient humidity during use : 5 - 85% RH (without condensation) Recording Recording format : DVD: DVD-Video HDD : VOB FILE Recordable discs : DVD-R DVD-RW Video recording format Sampling frequency : 13.5 MHz Compression : MPEG Audio recording format Sampling frequency : 48 kHz Compression format : Dolby Digital and Linear PCM (non-compressed) Recording time DVD-R/RW (manual rate) : About 1 - 6 hours HDD (manual rate) : About 23 - 100 hours Playback Playable discs : DVD-Video, DVD-R, DVD-RW (CD-R, CD-RW, and CD-ROM are supported for data read only) Video input Composite : BNC x 1, 1.0 Vp-p, 75 Ω S-VIDEO : 4-pin mini DIN x 1 Y: 1.0 Vp-p, 75 Ω C: 0.286 Vp-p (NTSC), 0.300 Vp-p (PAL), 75 Ω Component : BNC x 3 Y: 1.0 Vp-p, 75 Ω B-Y: 0.525/0.7 Vp-p selectable (NTSC), 0.525 Vp-p (PAL), 75 Ω (with 75% color bar) R-Y: 0.525/0.7 Vp-p selectable (NTSC), 0.525 Vp-p (PAL), 75 Ω (with 75% color bar) Video Output Composite : BNC x 1, 1.0 Vp-p, 75 Ω S-VIDEO : 4P mini DIN x 1 Y:1.0 Vp-p, 75 Ω C: 0.286 Vp-p (NTSC), 0.300 Vp-p (PAL), 75 Ω Component : BNC x 3 Y: 1.0 Vp-p, 75 Ω Pb: 0.7 Vp-p, 75 Ω Pr: 0.7 Vp-p, 75 Ω S/N ratio : Composite/S-VIDEO(Y)/Component(Y): More than 60 dB (playback) • DVD RECODER [PRV-LX10] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 13 5 6 7 8 5 6 7 8 C D F A B E Air filter replacement set: Operating Instructions: x1 GE Sub Manual: x1 Air filter: x4 (DEC2530) Power cord: x1 (ADG1214) Ferrite core: x1 (DTX1007) Remote control unit : x1 (DXX2527) AA batteries (R6P,AA): x2 PLAY PAUSE DISPLAY REPEAT AUDIO SCAN STEP RPT A-B ANGLE SUBTITLE PREV NEXT SETUP ENTER RETURN SEARCH CLEAR 1 2 3 4 5 6 7 8 9 0 1 0 > TITLE/CHP FRM/TIME MENU TOP MENU FRM/TIME STOP DXX2527 Audio input L, R: unbalanced: Pin jack x 2, 2 Vrms (0 dBfs), 22 k Ω(or more) CH1 (L), CH2 (R) : balanced: XLR (female) x 2, +4 dBu, 600Ω Audio output L, R: unbalanced : Pin jack x 2, 2 Vrms (0 dBfs), 1.5 k Ω(or less) Frequency response : 4 Hz to 22 kHz (DVD fs: 48 kHz) S/N ratio : More than 60 dB Distortion (THD+N) : Less than 0.02 % CH1 (L), CH2 (R): balanced : XLR (male) x 2, 0 dBu, 600 Ω load, low-impedance Frequency response : 4 Hz to 22 kHz (DVD fs: 48 kHz) S/N ratio : More than 60 dB Distortion (THD+N) : Less than 0.02 % Digital: unbalanced : Pin jack x 1, 0.5 Vp-p, 75 Ω External Sync Input : BNC x 2, black burst, 0.286 Vp-p (NTSC), 0.300 Vp-p (PAL), 75 Ω (ON/OFF) Other: DV input/output : 4 pin (i.Link/IEEE 1394 compatible) x 1 LTC input : BNC x 1, 0.5-8 Vp-p, 3 kΩ Remote input : D-sub 9-pin (female) RS-422A compatible x 1 (Inch threads) Remote output : D-sub 9-pin (female) RS-422A compatible x 1 (Inch threads) UPS control : D-sub 9-pin (male) RS-232C compatible x 1 (Inch threads) VGA output : Mini D-sub 15-pin (female) x 1 (Inch threads) Mouse/keyboard connectors : 4P type A (USB 2.0 compatible) x 4 Ethernet : 8P type (IEEE802.3 compatible, category 5) x 1 Accessories: Remote control unit .............................................. 1 AA batteries ......................................................... 2 Air filter replacement set ...................................... 1 Power cord ........................................................... 1 Ferrite core ........................................................... 1 Operating Instructions .......................................... 1 GE Sub Manual .................................................... 1 ¶ Specifications and appearance are subject to change without notice. Air Filter Replacement Instructions and Precautions: x1 (DRH1078) [ Accessories ] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 14 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 23 19 13 14 15 16 6 5 10 21 22 10 22 20 17 18 11 9 8 4 3 1 2 ×4 7 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 15 5 6 7 8 5 6 7 8 C D F A B E PACKING Parts List Mark No. Description Part No. > 1 Power Cord ADG1214 2 Air Filter DEC2530 3 Operating Instructions DRE1028 (English/French) 4 Air Filter Replacement DRH1078 Instructions and Precautions (EU) 5 Remote Control Unit DXX2527 6 Battery Cover VNK4403 NSP 7 Dry Cell Battery (R6P, AA) VEM1031 NSP 8 Polyethylene Bag Z21-004 (60 x 120 x 0.03) NSP 9 Polyethylene Bag Z21-010 (100 x 230 x 0.018) NSP 10 Polyethylene Bag Z21-019 (235 x 320 x 0.06) 11 Bottom Pad DHA1571 12 • • • • • 13 Accessory Plate DHA1651 14 Accessory Plate 2 DHA1652 15 Accessory Base DHA1653 16 Top Pad 2 DHA1655 17 F Pad 2 DHA1656 18 R Pad 2 DHA1657 19 FE Sheet 2 DHA1675 20 Packing Case EU DHG2456 21 Mirror Mat Bag DHL1124 22 Packing Sheet RHC1052 23 Ferrite Core DTX1007 NSP 24 GE Sub Manual DRH1084 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 16 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION (1/3) Refer to "2.3 EXTERIOR SECTION (2/3)" "2.4 EXTERIOR SECTION (3/3)" "2.5 REAR PANEL SECTION". Refer to "2.6 FRONT PANEL SECTION". 5 6 4 6 ∗1 ∗1 ∗2 ∗3 ∗3 ∗3 ∗3 ∗3 ∗3 ∗3 ∗2 5 7 3 2 3 8 10 10 14 13 12 13 14 14 11 9 18 18 18 18 18 18 18 18 18 18 17 17 17 17 17 17 17 17 17 17 17 19 19 19 17 17 Gasket B Bonnet 16 10 12 15 1 17 Note ∗1: When removing the front panel section, be sure to remove this screw. Note ∗2: Gasket locations 11 12 To PWRB (CN3) To MOTHER (COM2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 17 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION Parts List Mark No. Description Part No. 1 Bonnet Assy DXA2021 NSP 2 Bonnet DNE1502 3 Gasket B DEC2738 4 Volume Knob 2 DAC2175 5 Filter Cover DNV1036 6 Air Filter DEC2530 7 Panel Caution Label EU DRW2236 NSP 8 Inner Cover F DNE1520 NSP 9 Inner Cover R DNE1521 10 Gasket ICF DEC2739 11 Gasket ICR1 DEC2740 12 Gasket RB DEC2742 13 Gasket ICR2 DEC2800 14 Gasket C3 DEC2801 NSP 15 Side Cover DNE1503 16 Binder ZCA-SKB90BK 17 Screw BBZ30P060FMC 18 Screw BMZ40P080FZK 19 Screw DBA1258 Mark No. Description Part No. Note ∗3: Notes on locations where gaskets are adhered At the locations where gaskets are to be adhered on each part, engraved marks are provided. (a) Rectangular gaskets Adhere a rectangular gasket by aligning it with the engraved corner marks. If no marks are provided on the part, adhere the gasket aligned with the four corners of the part. (b) L-shaped gaskets Adhere an L-shaped gasket by aligning the outer corner of the gasket with the engraved mark on the part. In cases of the chassis and side covers, adhere the gasket by aligning both ends of the gasket with the two engraved marks. If no marks are provided on the part, adhere the gasket by referring to the corresponding "Exploded views". Engraved mark Engraved mark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 18 1 2 3 4 1 2 3 4 C D F A B E 2.3 EXTERIOR SECTION (2/3) C D D F E A J K L F N N A M L J G H O P P K I M E H O C B B I CONTACT SIDE NON-CONTACT SIDE FAN Cleaning Cleaning paper (GED-008) G To DECB (CN1811) H A E N D 6 35 35 35 35 35 59 63 62 47 44 35 35 35 35 35 35 35 35 35 35 35 35 61 35 34 50 55 43 10 49 33 48 35 35 35 35 48 52 52 45 45 53 51 35 35 35 4 35 35 54 64 64 54 35 39 65 39 25 24 67 68 17 15 41 42 16 20 20 19 21 22 10 23 38 39 39 40 40 18 3 2 5 35 38 60 35 35 35 38 35 30 29 28 37 37 37 37 27 31 32 31 32 26 35 35 35 35 57 58 56 7 7 6 1 8 36 9 13 14 11 12 14 36 36 12 35 11 69 70 66 57 56 46 46 ∗1 ∗2 ∗2 ∗2 ∗2 ∗2 ∗2 Note ∗1: When disassembling/reassembling No. 6 Drive Assy LX1, make sure that No. 11 Silicone spacer A is not torn or damaged. If it is, replace with a new one. Note ∗4: Attach the earth spring AVIB (CU) after the AVI base EU, AVI shield EU, and AVIB Assy have been assembled but before they are reassembled into the unit. Note ∗2: When replacing JKIB Assy or JKOB Assy, be sure to remove 3P BNC earth plate, BNC earth plate, 2P earth plate and 1P earth plate (only JKOB Assy) from the old Assy and attach them to the new Assy. Note ∗3: See "note ∗3" on the section "2.2 EXTERIOR SECTION (1/3)". Refer to "2.4 EXTERIOR SECTION (3/3)" "2.5 REAR PANEL SECTION". ∗3 ∗4 ∗3 ∗3 ∗3 ∗3 ∗3 ∗3 X (EU) X (EU) X (EU) X (EU) X (EU) X (EU) Note ∗5: The " x (EU)" mark part and AVI shield which are printed by AVIB Assy are fixed with a screw. (Four places) ∗5 ∗5 ∗5 ∗5 To ATX POWER SUPPLY UNIT To ATX POWER SUPPLY UNIT 35 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 19 5 6 7 8 5 6 7 8 C D F A B E Mark No. Description Part No. 1 AVIB Assy DWV1202 2 JKIB Assy DWZ1126 3 JKOB Assy DWZ1127 4 HPVB Assy DWZ1128 5 USBB Assy DWZ1159 > 6 DRIVE Assy LX1 DXX2532 NSP 7 Drive Base DNH2548 8 Flat Cable Clamp DEC2534 NSP 9 Wire Saddle DEC2543 10 Cord Holder RNH-184 11 Silicone Spacer A DEB1600 12 Heat Sink DNG1087 13 Cord Holder RNH1005 NSP 14 Front Bridge DNE1525 NSP 15 AVI Shield DNE1505 16 Radiation Sheet L VEB1332 NSP 17 Rear Bridge EU DNE1526 NSP 18 AVI Base EU DNE1504 19 Flexible Cable (30P) DDD1229 20 Flexible Cable (50P) DDD1226 21 Connector Assy 4P DKP3640 22 Housing Assy 6P DKP3658 23 Flexible Cable (20P) DDD1228 24 Connector Assy 7P DKP3639 25 Flexible Cable (30P) DDD1230 26 Connector Assy 8P DKP3643 27 Nut NKX2FUC NSP 28 Panel Stay Assy DNE1501 NSP 29 Protector DNK1340 30 Flat Cable Clamp DEC1850 > 31 DC Fan Motor AXM7014 NSP 32 Fan Duct EU DNK4447 33 Gasket RB DEC2742 34 Gasket FC DEC2802 35 Screw BBZ30P060FMC 36 Screw AMZ30P060FZK 37 Screw BPZ30P350FZK 38 Screw BPZ30P080FZK 39 Screw BBT30P060FZK 40 Screw PPZ30P100FMC 41 EMC Sheet S DEB1624 42 EMC Sheet DEB1620 43 Binder DEC2803 44 Gasket AVI DEC2747 45 3P BNC Earth Plate (CU) DBK1273 46 BNC Earth Plate (CU) DBK1274 47 Earth Spring AVIB (CU) DBK1275 48 Cover Sheet BR DEC2834 NSP 49 Flexible Cover DNE1506 50 FC Earth Metal (CU) DBK1278 51 Cover Sheet BC DEC2833 52 2P Earth Plate ANK1156 53 1P Earth Plate ANK1228 54 Gasket Fan DEC2741 NSP 55 Earth Lead Jumper DE006VD0 56 Binder ZCA-SKB90BK 57 Gasket C1 DEC2745 58 Front Bridge Assy DXA2031 59 Screw AMZ30P060FMC 60 Cover Sheet FC DEC2837 61 Locking Wire Saddle DEC1305 62 Cover Sheet AV1 DEC2835 63 Cover Sheet AV2 DEC2836 64 Gasket PS DEC2744 65 Screw BCZ30P060FNI 66 Connector 40P DKP3671 67 Connector 14P DKP3636 68 Flexible Cable 30P DDD1229 69 Connector 10P DKP3646 70 Connector 3P DKP3655 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 20 1 2 3 4 1 2 3 4 C D F A B E 2.4 EXTERIOR SECTION (3/3) H B A A J E D C G F H K K J I L L E F I D G C CONTACT SIDE NON-CONTACT SIDE To USBB (CN681) To JKIB (CN7801) To AVIB (CN6002) To AVIB (CN3001) To AVIB (CN3301) To AVIB (CN3002) To FLKB (CN504) To ATX Power Supply Unit FAN Cleaning Cleaning paper (GED-008) Terminal cover Assy Gasket S Main chassis EU Note: Gasket locations B G F I 1 46 60 60 6 46 46 6 2 7 7 46 46 8 46 10 9 46 55 46 49 49 49 Lithium Battery (3.0V) PANASONIC : CR2032 SONY : CR2032 TOSHIBA : CR2032 MAXELL : CR2032 49 49 23 59 21 20 22 18 26 19 5 4 11 46 46 46 26 37 38 39 34 29 48 28 27 25 24 28 46 46 46 46 46 46 46 46 50 50 50 50 50 46 48 48 10 33 46 46 45 58 26 36 36 36 17 41 43 44 44 51 51 42 56 56 42 40 3 15 26 30 54 31 15 16 17 46 46 47 12 13 47 14 Refer to "2.5 REAR PANEL SECTION". 53 53 32 53 53 53 57 57 57 57 46 52 To USSB (CN684) To AVIB (CN3201) To FLKB (CN501) To Fan (Left) To Drive Assy To Fan (Right) ∗1 ∗2 Note ∗1: Be careful of sharp edges while working around this section. Note ∗2: When the HDD is removed, order No.30 Label (for service) and attach it to cover the hole for the screw. The label is a tamper-evident seal. The printing on the label stuck on the product is in black, but that on the label for service is in orange. Note ∗3: See "note ∗3" on the section "2.2 EXTERIOR SECTION (1/3)". ∗3 ∗3 ∗3 ∗3 Note ∗4: The Memory, CPU and CPU Cooler are provided together as the components of the MOTHER BOARD Assy (DXF1007) service parts. ∗4 ∗4 ∗4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 21 5 6 7 8 5 6 7 8 C D F A B E Mark No. Description Part No. 1 PCIB Assy DWP1080 2 DECB Assy DWP1081 3 PWRB (POLY) Assy DWZ1129 > 4 MOTHER BOARD Assy DXF1007 > 5 ATX Power Supply Unit DXF1005 NSP 6 Board Stay R DNF1677 NSP 7 Board Stay F DNF1679 NSP 8 PCI Cover DNE1449 NSP 9 Center Stay DNE1444 10 Cord Holder RNH1005 11 Locking Wire Saddle DEC1717 NSP 12 HDD Handle DNE1450 NSP 13 HDD Base DNH2549 > 14 HDD 120G 4R120L0 VXF1016 15 Cord Holder RNH-184 16 Edge Sheet DEC2567 NSP 17 FR Plate DND1246 18 Connector Assy 10P-3P DKP3645 19 Connector Assy 4P DKP3656 20 Connector Assy 40P DKP3671 21 Connector Assy 40P DKP3647 22 Connector Assy 10P DKP3646 23 Connector Assy 9P-6P DKP3635 24 Connector Assy 2P DKP3638 25 Connector Assy 11P DKP3642 26 Binder ZCA-SKB90BK NSP 27 Main Chassis EU DNA1312 NSP 28 PCB Support VEC1267 29 Card Spacer QEC1012 30 Label (for service) BAX1238 NSP 31 Label VRW-348 32 Lithium Battery Caution Label DRW2162 33 Connector Assy 6P DKP3644 34 Edge Guard A DEC2566 NSP 35 Wire Saddle DEC2543 NSP 36 Wire Saddle (8S) DEC1760 37 Connector Assy 20P DKP3657 38 Connector Assy 2P DKP3736 39 Connector Assy 14P DKP3636 40 Connector Assy 20P DKP3637 41 Connector Assy 3P DKP3655 NSP 42 Card Edge Spacer DEC1211 43 Screw Guard DEB1447 44 Leg DEC2583 NSP 45 Jack Stay DNE1446 46 Screw BBZ30P060FMC 47 Screw DBA1125 48 Screw AMZ30P060FZK 49 Screw BMP30P060FNI 50 Screw BBT30P060FZK 51 Screw BBZ30P100FMC > 52 DC Fan Motor DZM1001 53 Driver Sheet Assy VEC2242 54 Caution Label (EU) DRW2214 NSP 55 Terminal Cover Assy DNE1539 56 Cover Sheet FR DEC2838 57 Gasket C1 DEC2745 58 Gasket C2 DEC2746 59 Gasket S DEC2855 60 Flexible Cable 50P DDD1226 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 22 1 2 3 4 1 2 3 4 C D F A B E 2.5 REAR PANEL SECTION To DECB (CN1471) To PCIB (CN2102) FAN Cleaning Cleaning paper (GED-008) To PWRB (CN9) B C 1 2 14 7 14 20 4 17 Gasket RP 18 6 9 10 11 13 (Torque : 0.65 N•m) 5 15 19 16 12 Note: When removing the JKDB Assy or 4221B Assy, be sure to remove the rear panel first. Note: When replacing the JKDB Assy, be sure to remove the 3P BNC earth plate (CU) from the old Assy and attach it to the new Assy. Note: Gasket locations www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 23 5 6 7 8 5 6 7 8 C D F A B E REAR PANEL SECTIN Parts List Mark No. Description Part No. 1 JKDB Assy DWZ1134 2 422IB Assy DWZ1133 3 • • • • • NSP 4 Rear Panel DNC1703 NSP 5 Terminal Cover DNK4154 NSP 6 Blind Plate DNF1678 7 Earth Terminal DKE-102 NSP 8 Guard Tape DEC2587 9 Fan Spacer AMR7265 > 10 DC Fan Motor AXM7014 11 Fan Cover AMR7264 12 Fan Plate DEC2692 13 Screw ABA7003 14 Screw BBT30P060FZK 15 Screw BBA1051 16 3P BNC Earth Plate (CU) DBK1273 17 Gasket RP DEC2743 18 Rear Panel Assy DXA2022 19 Washer WH30FNI 20 Screw BBZ30P060FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 24 1 2 3 4 1 2 3 4 C D F A B E 2.6 FRONT PANEL SECTION CONTACT SIDE NON-CONTACT SIDE 45 L J M K 6 10 7 11 11 8 5 9 1 2 43 20 19 36 36 36 44 23 22 21 21 18 42 21 21 40 41 46 35 16 14 13 12 37 24 25 26 27 28 29 30 3 23 4 33 32 36 36 36 36 36 36 31 36 34 36 35 16 14 15 39 38 15 ∗1 ∗1 ∗2 Note ∗1: This part must be placed with the correct side facing up. Be careful of the direction during attachment. Note ∗2: for lead dressing: Do NOT bend the flexible cable at points very near the reinforcing plates that are provided at the two ends of the flexible cable. Such bending may lead to breakage of the cable. Note: For this screw, use a medium-sized Phillips screwdriver. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 25 5 6 7 8 5 6 7 8 C D F A B E Mark No. Description Part No. 1 FLKB(WYV/RB) Assy DWZ1164 2 DRV1B Assy DWZ1160 3 DRV2B Assy DWZ1161 4 KEYB(WYV/RB) Assy DWZ1157 5 Front Panel EU Assy DXA2023 NSP 6 FL Window DAK1001or DEC2849 NSP 7 Front Panel EU DAX1014 NSP 8 Air Seal A DED1164 NSP 9 Air Seal B DED1165 NSP 10 FL Filter DEC2531 11 Drive Filter DED1163 12 Tray Panel 1 Assy DXA1961 NSP 13 Tray Panel 1 DNV1037 NSP 14 Tray Filter DEC2528 15 Tray Holder DNV1038 16 Tray Spring DBH1515 17 • • • • • 18 Power Lens DNV1043 19 Power Button DAC2105 20 IR Window DNV1042 21 Drive Lens DNV1039 22 Tray Button 1 DAC2099 23 Flexible Cable (6P) DDD1231 24 ETC Button DAC2103 25 Drive Select Lens DNV1041 26 Cursor Button DAC2104 27 Drive Select Button DAC2102 28 Preview Button DAC2107 29 Play Button 1 DAC2100 30 Play Button 2 DAC2101 31 Earth Metal B (CU) DBK1277 32 Barrier FL DEC2748 33 Barrier 2 DEC2533 34 Flexible Cable (25P) DDD1232 35 Screw VBA1034 36 Screw BPZ30P080FZK 37 Screw BPZ30P250FMC 38 Tray Panel 2 Assy DXA1962 NSP 39 Tray Panel 2 DNV1044 40 Tray Button 2 DAC2110 41 Drive Lens Support Plate DEC2536 42 Drive 2 Panel DNV1045 43 Barrier D1 DEC2765 44 Barrier D2 DEC2766 45 Earth Metal F (CU) DBK1276 46 Screw BPZ20P060FZK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 26 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 3.1.1 OVERALL BLOCK DIAGRAM JA7961 XLR CH1/L XLR CH2/R JA7403 Y IN Cb IN Cr IN JA7601 L IN R IN JA7402 CV IN JA7401 S IN Y C Beta SMPTE Thru Beta SMPTE Beta SMPTE JA7404 DV I/O Thru Thru CN7611 12 14 10 8 19 17 VIDEO SEL2 3 4 2 Beta/SMPTE SEL 5 AUDIO SEL 6 Thru IC7409 MM1117XF 3 1 7 IC7414 MM1117XF 1 3 7 5 VIDEO SEL1 IC7418 MM1117XF 1 3 IC7423 MM1117XF 1 3 7 7 IC7614 TC4W53FU 7 6 1 IC7618 TC4W53FU 7 6 1 2 3 4 5 CN7402 1 2 3 4 JA7854 Y OUT Cb OUT Cr OUT JA7852 S OUT JA7981 XLR CH1/L XLR CH2/R JA7851 L OUT R OUT 12 14 16 10 8 20 6 28 22 30 24 26 HOT COLD HOT COLD SPDIF OUT JA7853 CV OUT CN7851 (20P) (30P) (6P) 2 4 5 CN661 (8P) MUTE 2 3 5 JA661 HEAD PHONE OUT 7 1 HP_R HP_L IC661 BH3544F 7 +5V 19 17 15 21 23 11 25 3 9 1 7 5 CN7802 (30P) JA7855 SPDIF OUT 2 29 IC7803 LA73054 28 31 18 13 30 Y C Y C C-DC C-DC 33 25 23 21 CV COMPONENT-Y COMPONENT-Cb COMPONENT-Cr 6dB IC7802 TC4W53FU Thru Y C SQZ LTR P/I COMPONENT-Y COMPONENT-Cb COMPONENT-Cr CV 3 4 13 8 6 2 11 14 16 6 7 1 Thru 6 7 1 Thru 6 7 1 IC7702 TC4W53FU IC7705 TC4W53FU 2 4 5 (8P) 7 +5V CN7801 (30P) 28 26 19 23 15 8 13 6 3 27 21 11 10 1 3 5 7 (7P) CN7701 CN7613 +9V +9V -9V +5V JA7941 EXSYNC LTC IN CN7901 REMOTE OUT S7941 IC7941 LM1881M SYNC SEP 2 1 422 DRV CN7951 REMOTE IN 1 2 3 4 CN7952 (6P) 422-OUT 422+OUT 422+IN 422-IN 2 7 3 8 2 7 3 8 1 2 3 4 CN7903 (6P) 10 9 11 12 13 14 16 15 1 7 8 9 1 CN7941 (2P) CN7902 (11P) 10 8 7 1 2 5 2 4 +5V +12V -12V IC7901 DS8922M CN3501 9 7 11 13 2 4 18 17 19 16 15 (20P) IC3501 PD0272 VIDEO ADC George 135 122 118 120 IC3801 TC9412A EVolume 4 21 IC3802 PCM1800-A AUDIO ADC 3 22 1 5 IC6003 PE7004A AUDIO I/F Aprilia IC5004 XC2S50-5PQ LTC_SW Xilinx CN5501(30P) CN5502(26P) CN5503(30P) OPTIONAL CONNECTOR CN3203(4P) 2 3 CN3204(4P) 2 3 +5V 12,53-63 15- 24 13-15 29-31 33-35 127-129 IC6004 CS8420-CSZD1 SRC 132-137 12-14 16-18 5 27 7 10 14 IC6002 uPD61003 DDCE Audery 84-120 17,44-68 IC7004 DVXCEL-B A1 DV CODEC MPEG VIDEO ENCODER DVxcel 168-180 IC4002 TSB41AB2PAP DV Phy IC4001 TSB42AB4PDT DV Link 1-13 2 3 4 5 CN4001 (6P) 34 XTPB TPB XTPA TPA 35 36 37 19 82-96 77 20,23 1-9 19-24 2-12 CN3002 (50P) 11-26 CN6002 (30P) 6-8 2 29 AV1 AUDIO DATA 81-89 68-70 DV OUT 656(ANALOG) 28-30 1 3 5 7 (7P) CN3202 +9V +9V -9V +5V CN3001 (50P) MPU BUS X3301 27MHz VCXO PCO IC5002 PD6342A TBC/DNR Vaikilt 44-54 117-126 55-64 156-165 131 PCO 29 27 27MOPB 27MSDI 27MOPB 27MSDI IC3306 SN74AHC IC3309 PLL1700E PLL 27MAV1 1 3 7 6 1 6 17 13 27MDVX 27MVAI 27MFPGA 27MAUD 18MSRC 18MA/D 18MAUD 36MFPGA 36MAPR 36MDEC 2 4 CN3301 (4P) 40MGEO 40MPLD 40MAPR 36MDEC 27MAV1 29 27MSDO 27MSDO 94 (11P) CN2102 +5V +12V -12V 1 7 8 9 10 5 2 4 422TXDIN 422RXDIN 422TXDOUT 422RXDOUT LTC 1 CN1471 (2P) CSYNC AV1 VIDEO DATA IC5001 M2V64S50DTP SDRAM 64M W986432DH SDRAM 64MX2 IC7002 IC7003 BitStream 49 LTC LTC 7 CN1811 (30P) 3 5 12 8 16 23 18 25 28 4 10 20 21 IC1711 AD7172KST IC1851 SN74AHC2G53 IC1852 SN74AHC2G53 IC1853 SN74AHC2G53 PRGA_Y PRGA_B 1 1 1 6 6 6 7 7 7 XMUTE 28 25 24 VIDEO ENCODER 35 33 29 Y C CV IC1751 PCM1718E AUDIO DAC AOUTL AOUTR 16 13 SPDIF PRGA_R MPEG DECODER AV1 IC1513 M65776AFP IC1512 K4S641632F SDRAM 64M 53-102 AV1 AUDIO DATA VIDEO DATA IC1311 XC2S100PQ208 PCI INTERFACE Xilinx PCI I/F 168-181 185-206 IC1211 HD6417709AF100B MPU SH3 IC1611 K4S643232H SDRAM 64M 2,4,201-208 180-192 159-176 BitStream MPU BUS IC1612 PD6454C8 FLASH 32M SQZ LTR P/XI SQZ LTR P/XI 112 119 185 AV1 AUDIO DATA 177 VSS1146 36MDEC DVCLK 3 6 1 6 7 8 6 7 IC1411 PLL BU2288FV IC1412 27MHz PLL CY2081SL SN74AHC2G53 IC1417 SN74AHC2G53 IC1418 9 27MCLK 36MCLK 1 21 1-3 2-14,48 PRGA_Y PRGA_B PRGA_R 122 116 119 656 (ANALOG) (DV IN) 27 27MDEC 185 27MDEC 3,7,16 AV1CKV 183 XSYNCIN CSYNC XSYNCIN 199 178 DV I/O DV I/O DV I/O MUTE MUTE 656(ANALOG) DV I/O AV1 3-59 X1411 VCXO 13.824MHz DSS1117 JKIB ASSY A AVIB ASSY (1/3) H DECB ASSY (1/3) F G AVIB ASSY (2/3) DECB ASSY (3/3) PCIB ASSY(2/2) B F JKDB ASSY C 422IB ASSY D HPVB ASSY E JKOB ASSY H CIN VIDEO Y IN CB IN CR IN AUDIO IN L AUDIO IN R L OUT CV OUT R OUT Power (with no specifically designated destination) Signal (with no specifically designated destination) Signal (to the destination with the same name within the same Assy) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 27 5 6 7 8 5 6 7 8 C D F A B E 11-26 CN1651 (30P) 6-8 2 29 36MDEC DVCLK 2-12 CN2103 (50P) CN2104 (50P) 2 4 CN2101 (4P) MPU BUS CLK40AVI CLK27S IC2001 PD5219A DMA CONTROL Slarom IC2003 HY57V641620HGT SDRAM 64M BitStream IC2309 XC2S100-5PQ208C PCI INTERFACE Xilinx PCI I/F LTC IC2405 HD6417709AF100B MPU SH3 IC2404 K4S643232H SDRAM 64M IC2406 PD6453C8 FLASH 32M 422TXDIN 422TXDOUT 171 172 422RXDIN 422RXDOUT IC2401 TC74VHC125 166 164 49 167-181 AV1 VIDEO DATA AV1 AUDIO DATA X2401 40MHz XTL DSS1101 CLK40H CLK40D CLK40P CLK40C CLK40S CLK40AVI IC2403 TC74LCX541 3 2-8 18 17 16 15 14 13 11 8 12 9 MAIN POWER AC IN 1 +3.3V 2 4 +5V 6 19 20 18 -5V 11 9 +5VSB 10 +12V 8 PWR OK 12 -12V 14 PS ON# 3 4 5 6 (10P) CN681 3 (3P) CN684 +5V JA681 FRONT USB 2 6 3 7 1,5 -D_USB1 -D_USB2 +D_USB2 +D_USB1 CN4 (20P) 1 3 5 CN6 (6P) 3 (3P) CN5 1 2 CN9 (2P) 1 2 1 2 CN10 (2P) CN11 (2P) +12V -12V FAN (REAR) FAN (DRV1) FAN (DRV2) FAN_CONT1 FAN_CONT2 FAN_CONT3 1 2 4 6 19 20 18 11 9 10 8 12 14 RY2 BSR1014 4 5 1 +5V CN1 (20P) 1 2 4 6 19 20 18 11 9 10 8 12 14 +5V +5VSB -5V +3.3V +12V -12V PS_ON_I# +5V -5V +3.3V +12V -12V PS_ON_O# 3 4 7 CN3 (20P) 8 10 12 13 6 9 14 16 18 15 17 19 3 4 7 CN2 (14P) 8 10 12 13 +5V +12V -12V REG IC201 BP5233-33A 9-11 2-3 REG IC101 BP5232-25A 2-3 9-11 3 4 7 8 10 12 13 +5V +12V -12V +3.3V +2.5V CN3201 (14P) +5VSB FAN_CONT1 FAN_CONT2 FAN_CONT2 RESET PWR_SW HDD_LED PWR OK PS_ON_I# PS_ON_O# PWR_SW# +5V V-24V V-28V V-31V V-28V V-24V IC501 uPD78F0058GC FL uCOM 3 4 7 CN501 (20P) 8 10 12 13 6 9 14 16 18 15 17 19 3 2 3 2 CN504 (3P) 9 8 IC503 PT6315 FL DRV IC502 PT6315 FL DRV V502 DAW1019 FL TUBE V501 DAW1019 FL TUBE 11-14 15-18 6-9 6-9 V-31V V+5V S501-S507 KEY • UP • RIGHT • DOWN • LEFT • ENTER • SETUP • DISPLAY CN503(25P) 6-12 24 13-16 20-23 V+5V 6,40 53,54 37,39 43,52 5,38 50,51 V+5V CN601(25P) 2 10-13 14-20 3-6 S601-S610 KEY • RSTEP • NR/KR • FSTEP • NF/KF • DRV SEL • PREVIEW • REC • STOP • PAUSE • PLAY V+5V V+5V CN602(6P) 4-6 2 3 CN502(6P) 4-6 2 3 CN641(6P) 1-3 5 S641 DRV2 OPEN/CLOSE 4 V+5V S631 DRV1 OPEN/CLOSE CN631(6P) 1-3 5 4 V+5V PCI SLOT3 PCI SLOT2 COM2 USB2 FPIO ATX POWER IDE 1 120GB HDD MASTER IDE 2 1 4 +5V +12V 3 4 +12V (20P) (4P) (4P) P4 (20P) (40P) (40P) (10P) (10P) (9P) (124P) (4P) (124P) (4P) (4P) (4P) 27 DTCLK +12V REG IC451 AN8015SH 6 V-31V 5 REG IC401 AN8015SH 6 V-28V 5 REG IC301 BA9743AFV 6 V-24V 7 D603,D606 D608,D611 LED • REC • PAUSE • PLAY • STOP D641,D642 LED • DISC IN • ACCESS D631,D632 LED • DISC IN • ACCESS RY1 BSR1014 4 5 1 PWR_SW# PWR OK (9P) UPS VGA (15P) Ethernet(15P) REAR USB(4Px2) MASTER DRIVE1 SLAVE DRIVE2 FAN_DET FAN_DET 185-206 3-59 Not Use USBB ASSY ATX POWER SUPPLY UNIT (1/2) N PWRB (POLY) ASSY (1/2) MOTHER BOARD ASSY I PWRB (POLY) ASSY (2/2) I AVIB ASSY (3/3) DECB ASSY(2/3) PCIB ASSY(1/2) H F G FLKB (WYV/RB) ASSY DRV2B ASSY DRV1B ASSY J K M L Notes: • Replace the whole MOTHER BOARD Assy. No part in the MOTHER BOARD Assy is provided as a repair part. • A schematic diagram is not provided, because no repair part is provided. SIN SOUT ATX POWER SUPPLY UNIT (2/2) KEYB (WYV/RB) ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 28 1 2 3 4 1 2 3 4 C D F A B E 3.1.2 I/O BLOCK AMP AMP AMP AMP AMP AMP AMP Thru CLAMP 6dB JKIB ASSY JKDB ASSY JKOB ASSY HPVB ASSY 422IB ASSY C Y Y L XLR CH1/L R DV CV Cb Cr AMP(Beta) AMP(Beta) AMP(SMPTE) Thru JA7401 JA7402 JA7403 JA7601 JA7852 JA7853 JA7961 JA7404 Y Y/Cb/Cr Cb Cr JA7854 AMP(SMPTE) AMP(Beta) AMP(SMPTE) COMP CN7611 CN7402 CN7801 CN7851 CN661 CN7941 CN7902 CN7903 CN7952 CN7802 CN7701 CN7613 AMP AMP AMP AMP Thru Thru Y/Cb/Cr LTR/SQZ L R JA7851 JA7981 JA661 Y/C CV JA7855 SPDIF XLR CH1/L XLR CH2/R 6dB Y/C IC7803 CV SPDIF L R MUTE MUTE 6dB P/I Y/Cb/Cr Y/C CV +5V V Select 2 Thru A Select Beta/SMPTE +9V +9V -9V Thru XLR CH2/R Thru SYNC SEP. 422 DRV/RCV Ex Sync LTC JA7941 CN7901 S7941 CN7951 CN3501 H CN2102 G A B C D E CN4001 H CN1811 F CN3202 H CN1471 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 29 5 6 7 8 5 6 7 8 C D F A B E 3.1.3 DECB ASSY IC1311 PCI I/F Xilinx FPGA IC1512 64M SDRAM IC1612 32M FLASH IC1611 64M SDRAM IC1851-IC1853 ANALOG SW IC1711 VIDEO Enc. IC1751 AUDIO DAC IC1513 MPEG Dec. AV-1 IC1211 MPU SH-3 PCI BUS SH-3_ADRS SH-3_DATA SH-3_CTRL MPEG_ BITSTREAM Y/Pb/Pr Y/Cb/Cr Component Composite S-VIDEO (Y/C) Audio (L/R) : Digital AV Signal : Analog Video Signal : Analog Audio Signal : Digital Signal and Control Signal AV-1_VIDEO AV-1_AUDIO P/XI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 30 1 2 3 4 1 2 3 4 C D F A B E 3.1.4 PCIB ASSY IC2405 HD6417709AF100B MPU IC2406 PD6453C8 32M FLASH ROM RS232C RS422 MPU BUS PCI BUS MPEG Stream IC2309 XC2S100-5PQ208C Pcif Xilinx IC2001 PD5219 Slalom (DMA Control, CPU IF, etc.) IC2003 HY57V641620HGT-7 64M SDRAM (Stream Buffer) IC2404 K4S643232H-TC60 64M SDRAM (Main Memory) MOTHER BOARD ASSY PCIB ASSY CN2405 (7 pin) CN1183 (7 pin) CN2101 (4 pin), CN2103 (50 pin), CN2104 (50 pin) CN3301 (4 pin), CN3002 (50 pin), CN3001 (50 pin) CN2102 (11 pin) CN7902 (11 pin) CN2301, CN2302 (PCI Card Edge: 124 pin) JKDB ASSY B DECB ASSY F AVIB ASSY H G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 31 5 6 7 8 5 6 7 8 C D F A B E 3.1.5 AVIB ASSY Digital Video Signal PCO PLL Control Signal A B DV I/O Signal Analog Video V or Y Analog Video C Analog Video Cb Analog Video Cr CN3501 CN5501 CN4001 CN5503 CN6002 CN8203 CN8602 CN1651 CN3002 CN3001 CN2103 CN2104 Multiplexer AHC2G53 Video656 data Video656 data R_ADD0,7 SDI_D0,7 Video656 data Video656 data SDO_D0,7 Video656 data AVI_D0,7 Video656 data D_DVD0,7 EBSDW0,7 MPEG data EBS0,7 MPEG data Video656 data DV Stream data DV Stream data 1394 Differential D_DVDR0,7 DVI0,7 PHY0,7 F_AD0,7 IC3501 George Video A/D L_D0,7 L_A0,7 L_D0,7 L_D0,15 L_D0,15 L_A0,7 L_A1,9 L_A1,9 L_A0,15 C_A0,15 L_D0,15 C_D0,15 L_D0,15 L_A1,3 IC5004 LTC_SW XILINX IC5002 Vaikilt TBC/DNR IC5001 64M SDRAM IC7004 DVXcel MPEGENC DV CODEC IC7002 64M SDRAM IC7003 64M SDRAM IC3002,IC3003 BUF IC3002,IC3003 BUF IC3004 BUF IC4001 DV-Link IC4002 DV- Physical VCXO 27MHz Oscillation Block From Vaikilt IC3309 PLL1700 PLL IC IC3310 BUF IC3308 27MHz BUF To SDIB From SDIB 27MHz which was locked with SDI signal 27MHz To each device 18.432MHz To each device 36.864MHz To each device Host Address/Data Bus Host Address/Data Bus AVIB ASSY DECB ASSY From DINB ASSY (OPTION) From DOOB ASSY (OPTION) F H CN7611 JKIB ASSY A CN7402 JKIB ASSY A PCIB ASSY G PCIB ASSY G 135 120 12 53-63 15-24 34-37 1-13 19 77 82-96 1-9 20-23 118 120 6 7 6 17 13 1,3,5 9,13 2,4,6,8 12.8 1 6 11 2-9 IC3306 Video Section Clock Oscillation Section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 32 1 2 3 4 1 2 3 4 C D F A B E Digital Audio Signal DV I/O Signal Analog Audio RCA or XLR IC3801 TC9412A EVolume IC3802 PCM1800 Audio A/D IC5004 LTC_SW XILINX IC6003 Aplilia Audio I/F IC7004 DVXcel MPEGENC DV CODEC IC6002 Audery AC3ENC IC6004 SRC Recording only CN3501 ADATI, BCKI, LRCKI CN5501 SDI_DAI,SDI_BCK, SDI_LRCK,AESI_DAI, AESI_BCK,AESI_LRCKI CN5503 CN6002 SDO_DAI, SDO_BCK, SDO_LRCK AV1_DAI,AV1_BCK, AV1_LRCK FADATI,FBCKI, FLRCKI L_AD0,7 ADATAO,BCKAO, LRCKAO ADATSR,BCKSR, LRCKSR ADATDX,BCKAU, LRCKAU ADATSO,BCKSOI, LRCKSO ADATSI,BCKSI, LRCKSI ADATX,BCKAPX, LRCKX ADATDV, BCKDV, LRCKDV IC7002 64M SDRAM IC7003 64M SDRAM CN4001 CN3001 DV Stream data DV Stream data 1394 Differential DVI0,7 PHY0,7 L_D0,7 L_D0,15 L_D0,15 L_A0,7 L_A1,9 L_A0,15 L_A0,15 C_A0,15 L_D0,15 C_D0,15 L_D0,15 L_A1,3 IC3002,IC3003 BUF IC3004 BUF IC4001 DV-Link IC4002 DV- Physical Host Address/Data Bus Host Address/Data Bus CN3002 EBSDW0,7 MPEG data EBS0,7 MPEG data IC3002,IC3003 BUF CN8203 CN8602 CN1651 AVIB ASSY DECB ASSY From DINB ASSY (OPTION) From DOOB ASSY (OPTION) F H CN7611 JKIB ASSY A CN7402 JKIB ASSY A CN2103 CN2104 PCIB ASSY G PCIB ASSY G 4-21 3,22 34-37 1-13 19 77 82-96 1-9 20-23 1,5 13,15 29-31 Audio Section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 33 5 6 7 8 5 6 7 8 C D F A B E 3.1.6 PWRB, FLKB, KEYB, DRV1B, DRV2B and USBB ASSYS IC501 FL UCOM IC503 FL DRIVER IC502 FL DRIVER V502 FL TUBE V501 FL TUBE CN501 CN503 CN502 CN601 CN631 CN3 CN11 CN10 CN9 CN5 CN684 CN681 CN2 Serial Communication Block LED Block AVIB Block SW Block SIN SOUT V+5V_FLK USB+5V +D1, -D1, +D2, -D2 FANCONT(Rear) PWR_OK PWR_SW PS_ON +5VSB ATX PSU MOTHER BOARD ASSY +3.3,±5,±12V +5VSB,PWR_OK +3.3,±5,±12V, PWR_OK +5V FANCONT(DRV1) FANCONT(DRV2) FLKB ASSY KEYB ASSY DRV2B ASSY DRV1B ASSY USBB ASSY PWRB ASSY LED Block LED Block LED Block SW Block SW Block SW Block CN602 CN641 CN4 CN1 CN504 COM2 9 3 2 1 I N J K M L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 34 1 2 3 4 1 2 3 4 C D F A B E 3.1.7 PWRB ASSY CN1 CN4 +5V PWR_OK USBB ASSY FLKB ASSY FLKB ASSY FLKB ASSY, PWRB ASSY To MOTHER BOARD ASSY CN4 To MOTHER BOARD ASSY FAN_CONT(DRV1) FAN_CONT(DRV2) FAN_CONT(Rear) FLKB ASSY FLKB ASSY AVIB ASSY AVIB ASSY FAN PWR_SW Power Control Block +5VSB +5VB FAN FAN FAN Detection Block FAN Power Control Block +3.3V +5V +12V -12V -5V +2.5V Power Generation Block +3.3V Power Generation Block +12V Power Generation Block -24V FL Power Generation Block (-23.5V) -28V FL Power Generation Block (-27.0V) -31V FL Power Generation Block (-30.5V) PWRB(POLY) ASSY I To ATX POWER SUPPLY UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 35 5 6 7 8 5 6 7 8 C D F A B E 3.1.8 WAVEFORMS 1 IC7409 - pin 7 (CVBS IN) V: 1V/div. H: 10µsec/div. 7 IC7403 - pin 7 (S-C IN) V: 1V/div. H: 10µsec/div. 13 IC7621 - pin 1 (XLR_ch1 IN) V: 2V/div. H: 1msec/div. 19 IC7803 - pin 23 (Cb/B OUT) V: 1V/div. H: 10µsec/div. 2 IC7409 - pin 7 (S-Y IN) V: 1V/div. H: 10µsec/div. 8 IC7413 - pin 1 (Y (SMPTE) IN) V: 1V/div. H: 10µsec/div. 14 IC7401 - pin 3 (C SYNC) V: 1V/div. H: 10µsec/div. 20 IC7803 - pin 21 (Cr/R OUT) V: 1V/div. H: 10µsec/div. 3 IC7413 - pin 7 (Y (Beta) IN) V: 1V/div. H: 10µsec/div. 9 IC7419 - pin 1 (Cb (SMPTE) IN) V: 1V/div. H: 10µsec/div. 15 IC7402 - pin 5 (SYNC PULS) V: 1V/div. H: 10µsec/div. 21 IC7803 - pin 33 (CV_THRU OUT) V: 1V/div. H: 10µsec/div. 4 IC7419 - pin 7 (Cb (Beta) IN) V: 1V/div. H: 10µsec/div. 10 IC7420 - pin 1 (Cr (SMPTE) IN) V: 1V/div. H: 10µsec/div. 16 IC7803 - pin 33 (CVBS OUT) V: 1V/div. H: 10µsec/div. 22 IC7803 - pin 31 (S-C OUT) V: 1V/div. H: 10µsec/div. 5 IC7420 - pin 7 (Cr (Beta) IN) V: 1V/div. H: 10µsec/div. 11 IC7613 - pin 1 (RCA_L IN) V: 2V/div. H: 1msec/div. 17 IC7803 - pin 28 (S-Y OUT) V: 1V/div. H: 10µsec/div. 23 IC7803 - pin 25 (Prog Y/G OUT) V: 1V/div. H: 10µsec/div. 6 IC7404 - pin 7 (CV_THRU IN) V: 1V/div. H: 10µsec/div. 12 IC7613 - pin 7 (L_THRU IN) V: 2V/div. H: 1msec/div. 18 IC7803 - pin 25 (Y/G OUT) V: 1V/div. H: 10µsec/div. 24 IC7803 - pin 23 (Prog Cb/B OUT) V: 1V/div. H: 10µsec/div. JKIB ASSY A GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 A 2/3 A 2/3 A 1/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 A 2/3 Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : Video input (playback) signal : 75/0/75/0 color-bar (NTSC) Audio input (playback) signal : 1kHz 0dB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 36 1 2 3 4 1 2 3 4 C D F A B E 25 IC7803 - pin 21 (Prog Cr/R OUT) V: 1V/div. H: 10µsec/div. 37 IC7420 - pin 1 (Cr IN) V: 1V/div. H: 10µsec/div. 43 IC7803 - pin 23 (Cb/B OUT) V: 1V/div. H: 10µsec/div. 26 IC7703 - pin 7 (RCA_L OUT) V: 2V/div. H: 1msec/div. 38 IC7401 - pin 3 (C SYNC) V: 1V/div. H: 10µsec/div. 27 IC7703 - pin 7 (L_THRU OUT) V: 2V/div. H: 1msec/div. 28 IC7709 - pin 1 (XLR_1ch_ H OUT) V: 2V/div. H: 1msec/div. 40 IC7803 - pin 33 (CVBS OUT) V: 1V/div. H: 10µsec/div. 29 IC7709 - pin 7 (XLR_1ch_C OUT) V: 2V/div. H: 1msec/div. 30 CN7802 - pin 29 (SPDIF OUT) V: 0.5V/div. H: 400nsec/div. GND GND GND 44 IC7803 - pin 21 (Cr/R OUT) V: 1V/div. H: 10µsec/div. GND 45 IC7803 - pin 33 (CV_THRU OUT) V: 1V/div. H: 10µsec/div. GND 46 IC7803 - pin 31 (S_C OUT) V: 1V/div. H: 10µsec/div. GND GND 39 IC7402 - pin 5 (SYNC PULS) V: 1V/div. H: 10µsec/div. GND 41 IC7803 - pin 28 (S_Y OUT) V: 1V/div. H: 10µsec/div. GND 42 IC7803 - pin 25 (Y/G OUT) V: 1V/div. H: 10µsec/div. GND GND GND GND GND GND GND A 3/3 A 2/3 A 2/3 A 2/3 A 2/3 A 3/3 31 IC7409 - pin 7 (CVBS IN) V: 1V/div. H: 10µsec/div. 32 IC7409 - pin 7 (S_Y IN) V: 1V/div. H: 10µsec/div. 33 IC7404 - pin 7 (CV_THRU IN) V: 1V/div. H: 10µsec/div. 34 IC7403 - pin 7 (S_C IN) V: 1V/div. H: 10µsec/div. 35 IC7413 - pin 1 (Y IN) V: 1V/div. H: 10µsec/div. 36 IC7419 - pin 1 (Cb IN) V: 1V/div. H: 10µsec/div. GND GND GND GND GND GND A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 JKIB ASSY A Measurement condition : Video input (Recording/Playback) signal: 100/0/75/0 EBU color-bar (PAL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 37 5 6 7 8 5 6 7 8 C D F A B E 1 JA7941 - pin 5 (BlackBurst IN) V: 1V/div. H: 10µsec/div. 1 JA661 - pin 3 (HP_L OUT) V: 2V/div. H: 1msec/div. 2 CN7941 - pin 1 (SIG) V: 1V/div. H: 10µsec/div. 4 IC7921 - pin 11 (LTC) V: 1V/div. H: 400µsec/div. JKDB ASSY B HPVB ASSY D GND GND GND GND 1 CN1811 - pin 8 (CVBS) V: 0.5V/div. H: 10µsec/div. 7 CN1811 - pin 10 (S-C) V: 0.5V/div. H: 10µsec/div. 2 CN1811 - pin 12 (S-Y) V: 0.5V/div. H: 10µsec/div. 8 CN1811 - pin 16 (Y prog) V: 0.5V/div. H: 10µsec/div. 3 CN1811 - pin 16 (Y) V: 0.5V/div. H: 10µsec/div. 9 CN1811 - pin 18 (Cb prog) V: 0.5V/div. H: 10µsec/div. 4 CN1811 - pin 18 (Cb) V: 0.5V/div. H: 10µsec/div. 10 CN1811 - pin 20 (Cr prog) V: 0.5V/div. H: 10µsec/div. 5 CN1811 - pin 20 (Cr) V: 0.5V/div. H: 10µsec/div. 6 CN1611 - pin 23 (Lch) V: 2V/div. H: 1msec/div. DECB ASSY F GND GND GND GND GND GND GND GND GND GND F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 Measurement condition : Video input (playback) signal : 75/0/75/0 color-bar (NTSC) Audio input (playback) signal : 1kHz 0dB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 38 1 2 3 4 1 2 3 4 C D F A B E 11 CN1811 - pin 8 (CVBS) V: 0.5V/div. H: 10µsec/div. 1 CN3501 - pin 7 (CVBS) V: 1V/div. H: 10µsec/div. 7 CN3502 - pin 2 (Lch) V: 2V/div. H: 1msec/div. 12 CN1811 - pin 12 (S-Y) V: 0.5V/div. H: 10µsec/div. 2 CN3501 - pin 7 (S-Y) V: 1V/div. H: 10µsec/div. 13 CN1811 - pin 16 (Y) V: 0.5V/div. H: 10µsec/div. 3 CN3501 - pin 9 (S-C) V: 1V/div. H: 10µsec/div. 14 CN1811 - pin 18 (Cb) V: 0.5V/div. H: 10µsec/div. 4 CN3501 - pin 7 (Y beta/SMPTE) V: 1V/div. H: 10µsec/div. 15 CN1811 - pin 20 (Cr) V: 0.5V/div. H: 10µsec/div. 5 CN3501 - pin 11 (Cb Beta/SMPTE) V: 1V/div. H: 10µsec/div. 16 CN1611 - pin 10 (S-C) V: 0.5V/div. H: 10µsec/div. 6 CN3501 - pin 13 (Cr Beta/SMPTE) V: 1V/div. H: 10µsec/div. DECB ASSY F AVIB ASSY H AVIB ASSY H GND GND GND GND GND GND GND GND GND GND GND GND GND F 2/2 F 2/2 F 2/2 H 2/6 H 2/6 H 2/6 H 2/6 H 2/6 H 2/6 H 2/6 F 2/2 F 2/2 F 2/2 8 CN3501 - pin 7 (CVBS) V: 1V/div. H: 10µsec/div. 9 CN3501 - pin 7 (S-Y) V: 1V/div. H: 10µsec/div. 10 CN3501 - pin 9 (S-C) V: 1V/div. H: 10µsec/div. 11 CN3501 - pin 7 (Y) V: 1V/div. H: 10µsec/div. 12 CN3501 - pin 11 (Cb) V: 1V/div. H: 10µsec/div. 13 CN3501 - pin 13 (Cr) V: 1V/div. H: 10µsec/div. GND GND GND GND GND GND H 2/6 H 2/6 H 2/6 H 2/6 H 2/6 H 2/6 Measurement condition : Video input (playback) signal : 75/0/75/0 EBU color-bar (PAL) Measurement condition : Video input (Recording) signal 100/0/75/0 EBU color-bar (PAL) Measurement condition : Video input (playback) signal : 75/0/75/0 color-bar (NTSC) Audio input (playback) signal : 1kHz 0dB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 39 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 40 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL WIRING DIAGRAM JKDB ASSY (DWZ1134) B C 422IB ASSY (DWZ1133) C HPVB ASSY (DWZ1128) D F 1/2 - F 2/2 DECB ASSY (DWP1081) F G 1/4 - G 4/4 PCIB ASSY (DWP1080) G H 1/6 - H 6/6 AVIB ASSY (DWV1202) H 27MHz CLOCK ADJ. AKM1278 AKM1293 AKM1275 DKP3673 DKP3674 DDD1266 AKM1292 AKN7032 AKM1277 DDD1267 DDD1267 AKM1275 AKM1300 JKOB ASSY (DWZ1127) E A 1/3 - A 3/3 JKIB ASSY (DWZ1126) A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 41 5 6 7 8 5 6 7 8 C D F A B E PWRB(POLY) ASSY (DWZ1129) I KEYB(WYV/RB) ASSY (DWZ1157) K DRV1B ASSY (DWZ1160) L DRV2B ASSY (DWZ1161) M USBB ASSY (DWZ1159) N MOTHER BOARD ASSY (DXF1007) HDD 120G 4R120L0 (VXF1015) DRIVE ASSY LX1 (DXX2532) DRIVE ASSY LX1 (DXX2532) ATX POWER SUPPLY UNIT (DXF1005) (Rear) (Left) (Right) DC FAN MOTOR (FRONT) (AXM7014) DC FAN MOTOR (REAR) (AXM7014) DKP3676 VKN1943 AKM1274 AKM1274 DKP3671 DKP3671 AC 220-240V 50/60Hz AC POWER CORD ADG1214 FLKB(WYV/RB) ASSY (DWZ1164) J Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 42 1 2 3 4 1 2 3 4 C D F A B E 3.3 JKIB ASSY (1/3) A 1/3 A 2/3 A 2/3 A 3/3 A 3/3 Input Video Selector Input Video Selector Input Video Selector Input Video Selector Input Video Selector Input Video Selector Input Video Selector Input Video Selector Input Video Thrugh Selector 4.1VDC 4.3VDC 1.8VDC 2.5VDC 2.4VDC 1.9VDC 2.5VDC 1.7VDC 1.8VDC 2.5VDC 2.5VDC 1.8VDC 2.5VDC 3.5VDC 3.5VDC 2.5VDC 3.4VDC 3.4VDC 2.5VDC 2.5VDC 2.5VDC 4.3VDC 4.3VDC 1.8VDC 5.0VDC 5.0VDC 6dB 6dB 6dB 5.8dB 2.8dB 2.8dB A 1/3 JKIB ASSY (DWZ1126) VKN1072 (R_A) (R_V) (R_V) (R_V) (R_V) (R_GY) (R_GY) (R_GY) (R_GY) (R_Y) (R_GY) (R_GY) (R_Y) (R_Y) (R_Y) (R_C) (R_C) (R_C) (R_C) (R_Cb) (R_Cb) (R_Cb) (R_Cb) (R_Cb) (R_Cr) (R_Cr) (R_Cr) (R_Cr) (R_Cr) 7 34 1 2 31 32 35 8 9 36 4 10 37 3 5 6 33 , , www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 43 5 6 7 8 5 6 7 8 C D F A B E A 1/3 CN4001 H 3/6 A 2/3 A 2/3 A 2/3 A 2/3 Sync. Sepa. Keyed Clamp Input Filter Input Filter Input Filter Input Filter 2.4VDC 4.9VDC 4.2VDC 3.9VDC 3.9VDC 5.4VDC 4.8VDC 3.9VDC 2.0VDC 4.5VDC 4.5VDC 5.9VDC 5.2VDC 2.0VDC 4.5VDC 5.9VDC 5.2VDC 0.3V 2.0V 5.0V 5.0V 5.0V 0V 1.9V 0.9V 8.5V 0V 0V 0.7V 0.2V 0.2V 8.9V 8.4V 8.8V 1.5V 2.7V 1.6V 8.5V 1.3V 7.8V 0.03V 2.7VDC 7.2VDC 6.5VDC 6.0VDC 6.0VDC 4.9VDC 4.2VDC 4.9VDC 4.2VDC 4.5VDC 7dB AKM1277 : Recording Signal Route (Composite Video) (R_V) : Recording Signal Route (S-Video_Y) (R_Y) : Recording Signal Route (Component_Y) (R_GY) : Recording Signal Route (S-Video_C) (R_C) : Recording Signal Route (Component_Cb) (R_Cb) : Recording Signal Route (Component_Cr) (R_Cr) : Recording Signal Route (Analog Audio L ch) (R_A) : Recording Signal Route (Digital Audio/Video) (R_DAV) (R_DAV) : Playback Signal Route (Digital Audio/Video) (P_DAV) (P_DAV) (R_V) (R_Y) (R_V) (R_V) (R_V) (R_Y) (R_Y) (R_Y) (R_C) (R_C) (R_C) (R_C) (R_C) (R_C) (R_Cb) (R_Cb) (R_Cb) (R_Cb) (R_Cb) (R_Cr) (R_Cr) (R_Cr) (R_Cr) (R_Cr) 14 38 15 39 (R_GY) (R_GY) (R_GY) (R_GY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 44 1 2 3 4 1 2 3 4 C D F A B E 3.4 JKIB ASSY (2/3) A 2/3 CN3202 H 1/6 CN3501 H 2/6 A 1/3 A 1/3 A 1/3 A 3/3 A 3/3 A 3/3 A 3/3 A 1/3 A 1/3 A 1/3 Input Audio Through Selector Input Audio Through Selector Input Audio Through Selector Input Audio Through Selector Relay for Audio Mute 0dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB –9dB –9dB 0VDC 0VDC 0VDC 0VDC 0VDC 0VDC 2.8V 0.1V A 2/3 JKIB ASSY (DWZ1126) CEVWNP100M25 CEVWNP100M25 CEVWNP100M25 CEVWNP100M25 BTH1119 BTH1119 AKM1278 BTH1119 BTH1119 (R_A) (R_A) (R_A) (R_A) (R_A) (R_A) (R_A) (R_A) (R_A) (R_A) (R_V)(R_GY) (R_Y) (R_C) (R_Cb) (R_Cr) 12 13 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 45 5 6 7 8 5 6 7 8 C D F A B E A 2/3 CN661 D A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 A 3/3 Input Audio Through Selector Input Audio Through Selector 6dB 6dB 6dB 6dB 6dB 6dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB 0VDC 0VDC 0VDC 0VDC 0VDC : The power supply is shown with the marked box. CEVWNP470M10 CEVWNP470M10 CEVWNP470M10 CEVWNP470M10 CEVWNP470M10 CEVWNP470M10 : Recording Signal Route (Composite Video) (R_V) : Recording Signal Route (S-Video_Y) (R_Y) : Recording Signal Route (S-Video_C) (R_C) : Recording Signal Route (Component_Cb) (R_Cb) : Recording Signal Route (Component_Cr) (R_Cr) : Recording Signal Route (Analog Audio L ch) (R_A) : Playback Signal Route (Analog Audio L ch) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) 29 28 27 26 : Recording Signal Route (Component_Y) (R_GY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 46 1 2 3 4 1 2 3 4 C D F A B E 3.5 JKIB ASSY (3/3) A 3/3 CN1811 CN7851 F 2/2 A 1/3 A 2/3 A 2/3 A 2/3 A 2/3 E Through Video Selector Video Amp. 0.1V 2.3VDC 2.8VDC 2.3VDC 2.3VDC 2.8VDC 2.8VDC 2.5VDC 2.5VDC 1.7VDC 1.4VDC 2.4VDC 1.3VDC 2.2VDC (Letter Box) 4.3VDC (Squeeze) A 3/3 JKIB ASSY (DWZ1126) : Playback Signal Route (Composite Video) (P_V) : Playback Signal Route (S-Video_Y) (P_Y) : Playback Signal Route (S-Video_C) (P_C) : Playback Signal Route (Component_Cb) (P_Cb) : Playback Signal Route (Component_Cr) (P_Cr) : Recording Signal Route (Analog Audio L ch) (R_A) : Playback Signal Route (Analog Audio L ch) (P_A) (R_A) (R_A) (P_A) (P_A) (P_V) (P_Y) (P_GY) (P_C) (P_Cb) (P_Cr) : Playback Signal Route (Digital Audio) (P_D) (P_D) (P_D) (P_D) (P_D) (P_V) (P_GY) (P_Y) (P_C) (P_Cb) (P_Cr) 21 45 16 40 46 22 23 19 24 43 20 25 44 18 42 17 41 30 : Recording Signal Route (Component_Y) (P_GY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 47 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 48 1 2 3 4 1 2 3 4 C D F A B E 3.6 JKDB and 422IB ASSYS B C CN1471 F 2/2 JKDB ASSY (DWZ1134) B 422IB ASSY (DWZ1133) C LTC Comparator 0V 0V 0V 0V 1 2 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 49 5 6 7 8 5 6 7 8 C D F A B E IB B CN2102 G 2/4 RS-422 Driver / Receiver : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 50 1 2 3 4 1 2 3 4 C D F A B E 3.7 HPVB and JKOB ASSYS D CN7701 A 2/3 HPVB ASSY (DWZ1128) D Headphone Amp. 0VDC 2.0VDC 2.0VDC : The power supply is shown with the marked box. : Playback Signal Route (Composite Video) (P_V) : Playback Signal Route (S-Video_Y) (P_Y) : Playback Signal Route (S-Video_C) (P_C) : Playback Signal Route (Component_Cb) (P_Cb) : Playback Signal Route (Component_Cr) (P_Cr) : Playback Signal Route (Analog Audio L ch) (P_A) : Playback Signal Route (Digital Audio) (P_D) (P_A) (P_A) (P_A) (P_A) 1 : Playback Signal Route (Component_Y) (P_GY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 51 5 6 7 8 5 6 7 8 C D F A B E E CN7802 A 3/3 JKOB ASSY (DWZ1127) E (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_A) (P_D) (P_D) (P_D) (P_D) (P_V) (P_V) (P_V) (P_V) (P_GY) (P_GY) (P_Y) (P_Y) (P_Y) (P_C) (P_C) (P_C) (P_Cb) (P_Cb) (P_Cr) (P_Cr) (P_GY) (P_Cb) (P_Cr) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 52 1 2 3 4 1 2 3 4 C D F A B E 3.8 DECB ASSY (1/2) F 1/2 F 1/2 DECB ASSY (DWP1081) 3.3V Reg. 2.5V Reg. 1.8V Reg. MPU IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 53 5 6 7 8 5 6 7 8 C D F A B E : The power supply is shown with the marked box. F 1/2 MOTHER BOARD ASSY J2 (PCI SLOT) F 2/2 F 2/2 F 2/2 Reset IC : Playback Signal Route (Digital Audio/Video) (P_DAV) (P_DAV) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-S2.3, MFD BY ROHM CO., LTD. FOR IC1351. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 54 1 2 3 4 1 2 3 4 C D F A B E 3.9 DECB ASSY (2/2) F 2/2 F 1/2 CN7941 B F 1/2 F 1/2 F 1/2 27/36MHz Clock Select Clock PLL IC MPEG2 Encoder IC 3.5V : Playback Signal Route (Composite Video) (P_V) : Playback Signal Route (S-Video_Y) (P_Y) : Playback Signal Route (Component_Y) (P_GY) : Playback Signal Route (S-Video_C) (P_C) : Playback Signal Route (Component_Cb) (P_Cb) : Playback Signal Route (Component_Cr) (P_Cr) : Playback Signal Route (Digital Video) (P_DV) : Playback Signal Route (Analog Audio L ch) (P_A) : Playback Signal Route (Digital Audio) (P_D) : Playback Signal Route (Digital Audio/Video) (P_DAV) (P_DV) (P_DV) (P_D) (P_D) (P_D) (P_D) (P_D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 55 5 6 7 8 5 6 7 8 C D F A B E F 2/2 F 2/2 DECB ASSY (DWP1081) CN6002 H 5/6 CN7801 A 3/3 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 Interlace / Progressive 0.36V 0.36V 0.36V 0.46V 1.1V 1.1V 0.46V 0V (0.32V) 0V (0.67V) 0.64V (1.3V) 0.64V (0.95V) 0.64V (1.9V) 0V (1.2V) 2.5V 0.67V 0.99V 0.99V 0.99V 1.3V 2.5V Display : Black ( V) : Progressive (P_DV) (P_DV) (P_D) (P_D) (P_D) (P_D) (P_DV) (P_D) (P_A) (P_A) (P_A) (P_A) (P_V) (P_V) (P_V) (P_Y) (P_GY) (P_GY) (P_GY) (P_GY) (P_Y) (P_Y) (P_C) (P_C) (P_C) (P_Cb) (P_Cb) (P_Cb) (P_Cb) (P_Cr) (P_Cr) (P_Cr) (P_Cr) 1 11 7 16 2 12 3 4 8 13 9 14 5 10 15 6 K4S643232H-TC60 PD6454D8 , , , www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 56 1 2 3 4 1 2 3 4 C D F A B E 3.10 PCIB ASSY (1/4) G 1/4 G 3/4 G 3/4 G 2/4 G 4/4 DMA Control CPU I/F, etc. (R_DAV) (R_DAV) (R_DAV) (R_DAV) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 57 5 6 7 8 5 6 7 8 C D F A B E G 1/4 G 1/4 PCIB ASSY (DWP1080) G 2/4 - 4/4 G 2/4, 3/4 Stream Buffer : Recording Signal Route (Digital Audio/Video) (R_DAV) (R_DAV) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 58 1 2 3 4 1 2 3 4 C D F A B E 3.11 PCIB ASSY (2/4) G 2/4 CN7902 CN3001 H 1/6 G 3/4 G 1/4, 3/4, 4/4 G 1/4, 3/4 B G 1/4, 3/4, 4/4 G 1/4, 3/4, 4/4 3 → 5 Converter www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 59 5 6 7 8 5 6 7 8 C D F A B E G 2/4 G 2/4 PCIB ASSY (DWP1080) CN3301 H 1/6 CN3002 H 1/6 G 4/4 G 1/4 G 1/4 : Recording Signal Route (Digital Audio/Video) (R_DAV) (R_DAV) (R_DAV) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 60 1 2 3 4 1 2 3 4 C D F A B E 3.12 PCIB ASSY (3/4) G 3/4 G 3/4 PCIB ASSY (DWP1080) MOTHER BOARD ASSY J3 (PCI SLOT) G 4/4 G 1/4 G 1/4 G 4/4 G 4/4 G 2/4 Reset IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 61 5 6 7 8 5 6 7 8 C D F A B E : The power supply is shown with the marked box. G 3/4 G 4/4 G 1/4, 2/4, 4/4 G 1/4, 2/4 G 2/4 PCI I/F XC2S100-5PQ208C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 62 1 2 3 4 1 2 3 4 C D F A B E 3.13 PCIB ASSY (4/4) G 4/4 G 3/4 MPU 5 → 3 Converter www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 63 5 6 7 8 5 6 7 8 C D F A B E G 4/4 G 4/4 PCIB ASSY (DWP1080) G 3/4 G 3/4 G 1/4 G 1/4 - 3/4 G 3/4 G 3/4 G 1/4 G 1/4 Main Memory Flash ROM PD6453D8 K4S643232H-TC60 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 64 1 2 3 4 1 2 3 4 C D F A B E 3.14 AVIB ASSY (1/6) H 1/6 H 1/6 CN2104 G 2/4 CN2103 G 2/4 AVIB ASSY (DWV1202) 4/6 H 2/6 - 6/6 H 2/6 - 6/6 H 2/6 - 6/6 H 6/6 H 6/6 H 6/6 H 5/6 H 4/6 H 3/6, 4/6 H 8 bit Buffer 8 bit Buffer BUS Transeiver 8 bit Buffer 8 bit Buffer 3 → 5 Converter (R_DAV) (R_DAV) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 65 5 6 7 8 5 6 7 8 C D F A B E H 1/6 CN2 DINB(OPTION) CN8201 DOOB(OPTION) CN8601 CN2101 G 2/4 CN7613 A 2/3 I 4/6 H 4/6 H 4/6 H 6/6 H 2/6 H 4/6 H 5/6 H 5/6 H 5/6 H 5/6 H 5/6 H 5/6 H 5/6 H 4/6 H 2/6 H 2/6, 4/6 H 6/6 H 4/6 H Power Circuit Block Clock Circuit Block Multiplexer Multiplexer VCXO PLL IC 8 bit Buffer 8 bit Buffer 1.65VDC DV input DVCSEL L Others H SDI input SDICKSEL H Others L : The power supply is shown with the marked box. CEHVKW CEHVKW CEHVKW : Recording Signal Route (Digital Audio/Video) (R_DAV) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-S2.3, MFD BY ROHM CO., LTD. FOR IC3205. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 66 1 2 3 4 1 2 3 4 C D F A B E 3.15 AVIB ASSY (2/6) H 2/6 H 2/6 AVIB ASSY (DWV1202) CN7611 A 2/3 4/6 H Electric VR 4.5VDC 4.5VDC 4.5VDC 4.5VDC 4.5VDC 4.5VDC 2.1VDC 1.5VDC 4.5VDC 2.1VDC 0.63VDC 0VDC 0VDC 6.5VDC 4.8VDC 0.63VDC 1.5VDC 1.5VDC 1.5VDC 5.2VDC 5.2VDC ∗1 ∗1 : at SELECTOR is S-Video input. Others is 0VDC. ∗2 : at SELECTOR is Component Video input. Others is 0VDC. ∗2 ∗2 THROUOUT SELECT NON THROU AUDIO SELECT RCA XLR VIDEO SELECT 1 CVBS S VIDEO SELECT 2 CV/S YPbPr BETA/SMPTE SELECT BETA SMPTE L (default) H : Recording Signal Route (Composite Video) (R_V) : Recording Signal Route (S-Video_Y) (R_Y) : Recording Signal Route (S-Video_C) (R_C) : Recording Signal Route (Component_Cb) (R_Cb) : Recording Signal Route (Component_Cr) (R_Cr) (R_V) (R_Y) (R_C) (R_Cb) (R_Cr) (R_V) (R_Y) (R_C) (R_Cb) (R_Cr) : Recording Signal Route (Digital Video) (R_DV) : Recording Signal Route (Analog Audio L ch) (R_A) : Recording Signal Route (Digital Audio) (R_D) (R_A) (R_A) (R_A) (R_A) (R_A) (R_A) (R_A) (R_A) (R_D) 5 12 6 13 8 9 11 7 , , 1 2 4 , , 3 10 , www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 67 5 6 7 8 5 6 7 8 C D F A B E H 2/6 1/6 H 1/6 H 1/6 H 1/6 H 1/6 H 1/6 H 4/6 H 4/6 H Video Decoder (R_V) (R_Y) (R_C) (R_Cb) (R_Cb) (R_Cr) (R_Cr) (R_DV) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 68 1 2 3 4 1 2 3 4 C D F A B E 3.16 AVIB ASSY (3/6) H 3/6 H 3/6 AVIB ASSY (DWV1202) 4/6 H 4/6 H DV Block IEEE1394 Link IC (R_DAV) (P_DAV) (R_DAV) (P_DAV) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 69 5 6 7 8 5 6 7 8 C D F A B E H 3/6 CN7402 A 1/3 1/6 H 4/6 - 6/6 H 1/6 H 6/6 H iEEE1394 Physical IC AKM1292 : Recording Signal Route (Digital Audio/Video) (R_DAV) : Playback Signal Route (Digital Audio/Video) (P_DAV) (R_DAV) (P_DAV) (R_DAV) (P_DAV) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 70 1 2 3 4 1 2 3 4 C D F A B E 3.17 AVIB ASSY (4/6) H 4/6 3/6 H 1/6 H 1/6 H 1/6 H 1/6 H 3/6, 5/6, 6/6 H 6/6 H 6/6 H TBC & Digital Video Switch Block Video Pre/Post LSI : Recording Signal Route (Digital Video) (R_DV) : Playback Signal Route (Digital Video) (P_DV) : Recording Signal Route (Digital Audio) (R_D) (R_DV) (P_DV) (P_DV) (R_DV) (R_DV) (R_DV) (R_DV) (R_DV) (R_DV) (R_DV) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 71 5 6 7 8 5 6 7 8 C D F A B E H 4/6 H 4/6 AVIB ASSY (DWV1202) DINB (OPTION) CN8203 DINB (OPTION) CN8202 DOOB (OPTION) CN8602 5/6 H 1/6 H 1/6, 5/6 H 3/6 H 5/6 H 1/6 H 1/6 H 6/6 H 3/6 H 6/6 H 1/6 H 1/6 H 2/6 H 5/6 H 6/6 H 3/6 H Vaikilit, LTC Switch Block LTC / AV Switch IC (R_DV) (R_DV) (R_DV) (R_DV) (R_DV) (R_DV) (R_DV) (P_DV) (P_DV) (P_DV) (P_DV) (P_DV) (R_D) (R_D) (R_D) (R_D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 72 1 2 3 4 1 2 3 4 C D F A B E 3.18 AVIB ASSY (5/6) H 5/6 CN1651 F 2/2 1/6 H 6/6 H 1/6 H 1/6 H 4/6 H 1/6 H 4/6 H 1/6, 4/6 H 8 bit Buffer 8 bit Buffer (P_DV) (P_DV) (P_D) (P_D) (P_D) (R_D) (R_D) (P_D) (R_D) (P_D) (R_D) (P_D) (R_D) (P_D) (R_D) (P_D)(R_D) (P_D)(R_D) (R_D) (R_D) (R_D) (R_D) (R_D) (R_D) (R_D) (R_D) (R_D) (R_D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 73 5 6 7 8 5 6 7 8 C D F A B E H 5/6 H 5/6 AVIB ASSY (DWV1202) 1/6 H 6/6 H 4/6 H 3/6, 4/6, 6/6 H Sampling Rate Converter DD Audio Codec DD Codec & Audio Switch Block : Playback Signal Route (Digital Video) (P_DV) : Recording Signal Route (Digital Audio) (R_D) : Playback Signal Route (Digital Audio) (P_D) (P_D) (P_D) (R_D) (R_D) (P_D) (R_D) (P_D) (R_D) (R_D) (R_D) (R_D) (R_D) (R_D) (R_D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 74 1 2 3 4 1 2 3 4 C D F A B E 3.19 AVIB ASSY (6/6) H 6/6 H 6/6 AVIB ASSY (DWV1202) 1/6 H 1/6 H 4/6 H MPEG Video Codec (R_DAV) (R_DAV) (R_DAV) (R_DAV) (R_DV) (R_DV) (R_DV) (R_DV) (R_DV) (R_DV)(P_DV) (R_DV)(P_DV) (R_DV) (P_DV) (R_DV) (P_DV) (R_DA) (P_DA) (R_DA) (R_DA) (R_DA) (P_DA) (R_DA) (P_DA) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 75 5 6 7 8 5 6 7 8 C D F A B E : The power supply is shown with the marked box. H 6/6 4/6 H 1/6 H 4/6 H 3/6 H 1/6 H 1/6 H 4/6 H 4/6 H 5/6 H 3/6, 4/6, 5/6 H 8 bit Buffer 64M SDRAM 64M SDRAM MPEG & DV Codec Block : Recording Signal Route (Digital Video) (R_DV) : Playback Signal Route (Digital Video) (P_DV) : Recording Signal Route (Digital Audio) (R_D) : Playback Signal Route (Digital Audio) (P_D) : Recording Signal Route (Digital Audio/Video) (R_DAV) : Playback Signal Route (Digital Audio/Video) (P_DAV) (R_DAV) (R_DAV) (R_DAV) (P_DAV) (R_DV) (R_DV) (R_DV)(P_DV) (R_DV)(P_DV) (R_DA) (P_DA) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 76 1 2 3 4 1 2 3 4 C D F A B E 3.20 PWRB(POLY) ASSY I CN684 N ATX POWER SUPPLY UNIT P1 MOTHER BOARD ASSY PWR MOTHER BOARD ASSY JFP 3.3V 5V 5V 12V –5V –12V 3.44V 3.3 to 3.4V 0.59V 0.92V 11.7V 11.5V 2.38 to 2.53V 0.6V Relay Control (USB +5V) Relay Control (Mother +5VSB) FAN DET. FAN Control DC - DC Converter 5V → 2.5V DC - DC Converter 5V → 3.3V DC - DC Converter 12V → -31V 0.27V 0.6V 0.37V 1.2V 0.5V 3.7V 11.7V 11.1V 5.2V 4.6V 4.5V 10.7V -11.9V -12V -11.3V 11.7V -11.3V -11.9V -12V 1.2V 11.7V 11.7V 14.8V 10.3V 0.7V 5.6µs 12.1V 7.9V -13V -32.2V 15.6V -32.8V 7.3V 13.4V 10.7V 11.7V 5.2V 4.5V CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-N10, MFD BY ROHM CO., LTD. FOR IC4 AND IC5. AKM1274 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 77 5 6 7 8 5 6 7 8 C D F A B E : The power supply is shown with the marked box. There is the case that FL disappears when touches it. I PWRB(POLY) ASSY (DWZ1129) I CN3201 CN501 H 1/6 J 2.59V -22.2V -31.2V -31.2V DC - DC Converter -28V → -24V DC - DC Converter +12V → -28V 0V 0V -1.2V 0.6V 2 is N. -26.2V 5.2V 4.5V 11.3V -12V -11.9V 10.7V 11.7V 0.5V 1.2V -26.8V 11.5V -23.4V -23.4V -26V -25.9V -25.8V -25.9V -25.5V -25.1V -26.8V -24.3V -26.7V 2.5 to 2.7V -24.4V 0V 0.1V -21.7V -26.8V -10.8V -28V -1.8V -27.4V 11.6V 10.5V 11.8V -28.2V 1.18V 0.33V 11.5V 0.5V 0.94V 0.45V 10.92V 0.64V -0.32V 10.46V D10 (ORG) STB ON OFF OFF OFF ON ON ON ON ON D11 (ORG) D12 (ORG) D13 (ORG) D25 (YEL) STB ON OFF ON OFF ON OFF ON ∗1 ∗1 : OFF at FAN is abnormal ∗2 : ON at access to HDD ∗2 D19 (ORG) D24 (YEL) D9 (ORG) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-N10, MFD BY ROHM CO., LTD. FOR IC6. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-S2.3, MFD BY ROHM CO., LTD. FOR IC8. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 78 1 2 3 4 1 2 3 4 C D F A B E 3.21 FLKB(WYV/RB) ASSY J MOTHER BOARD ASSY COM2 CPU FL Driver FL Driver Buffer 232C Level Shifter LED Driver L : Checker mode H : Normal 5.0V 4.3V 5.0V -30.5V -27V -23.5V SWITCHES: S501: UP S502: DOWN S503: LEFT S504: RIGHT S505: ENTER S506: FUNCTION S507: DISPLAY S509: STANDBY/ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 79 5 6 7 8 5 6 7 8 C D F A B E J CN601 K CN3 For Flash I CN631 L Remote Receiver POWER SW LED Driver Reset IC FL Driver Power Supply Control 5.0V 5.0V 4.3V (RED) (GRN) D506 ORG GRN STB ON : The power supply is shown with the marked box. FLKB(WYV/RB) ASSY (DWZ1164) J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 80 1 2 3 4 1 2 3 4 C D F A B E 3.22 KEYB(WYV/RB) ASSY K KEYB(WYV/RB) ASSY (DWZ1157) K CN503 J SW Name: S601: e REV STEP S602: E FWD STEP S603: 4 SCAN/ SKIP S604: ¢ SCAN/ SKIP S605: DRIVE SELECT S606: PREVIEW S607: ÷ REC S608: 3 PLAY S609: 8 PAUSE S610: 7 STOP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 81 5 6 7 8 5 6 7 8 C D F A B E K CN641 M LED Driver Key for Digital Key for Analog S601-S610: VSG1024 D603, D606, D608, D611: NSPW310BS-4113 : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 82 1 2 3 4 1 2 3 4 C D F A B E 3.23 DRV1B and DRV2B ASSYS L CN502 DRV1B ASSY (DWZ1160) L J LED Driver Key for Digital (RED) (GRN) (ORG) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 83 5 6 7 8 5 6 7 8 C D F A B E : The power supply is shown with the marked box. M DRV2B ASSY (DWZ1161) M CN602 K LED Driver Key for Digital (RED) (GRN) (ORG) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 84 1 2 3 4 1 2 3 4 C D F A B E 3.24 USBB ASSY N CN5 USBB ASSY (DWZ1159) N I MOTHER BOARD ASSY FRONT_USB D681 OFF ORG STB ON : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 85 5 6 7 8 5 6 7 8 C D F A B E 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 86 1 2 3 4 1 2 3 4 C D F A B E 4.1 JKIB, JKDB, 422IB and HPVB ASSYS LEVER EXISTS 1 8 8 1 5 4 1 4 5 8 8 1 5 4 1 4 5 8 8 1 5 4 1 8 5 4 1 8 5 4 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 8 1 5 4 1 4 5 8 1 4 5 8 8 1 5 4 1 4 5 8 1 4 5 8 8 1 5 4 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 9 10 18 1 8 5 4 1 8 5 4 8 1 5 4 1 8 5 4 Q7412 1 8 5 4 1 4 5 8 1 9 10 18 1 8 5 4 1 9 10 18 1 8 5 4 1 8 5 4 1 4 5 8 1 4 5 8 1 9 10 18 1 4 5 8 1 8 5 4 8 1 5 4 1 8 5 4 1 4 5 8 1 6 1 18 19 36 1 30 R7533 JA7961 C7816 C7818 C7817 C7813 R7834 CN7701 C7703 C7616 C7615 R7611 C7612 R7702 IC7611 C7705 IC7612 IC7614 IC7613 IC7702 R7509 R7503 IC7418 Q7419 IC7416 R7502 R7835 R7498 C7463 C7464 Q7416 R7482 IC7413 Q7421 R7485 C7467 IC7415 C7712 R7563 R7714 C7711 C7714 Q7426 R7713 IC7701 C7707 R7619 C7622 C7621 R7620 R7711 C7619 C7709 C7718 C7716 F7831 C7730 C7737 C7731 C7732 C7635 IC7706 IC7705 C7729 C7728 R7728 R7729 C7723 IC7704 IC7617 C7722 R7632 IC7618 C7633 C7632 C7630 R7633 C7721 C7725 C7720 C7719 IC7616 R7780 IC7703 C7627 C7626 R7626 R7718 C7623 C7717 IC7615 L7402 C7831 R7736 R7738 C7646 IC7619 C7642 R7649 R7746 C7641 R7648 C7644 C7741 C7740 IC7707 IC7709 C7647 C7745 C7742 C7748 C7744 R7651 R7655 IC7620 C7645 C7738 R7735 R7740 R7640 C7735 C7736 C7734 R7779 C7638 C7636 R7638 C7733 C7634 IC7708 IC7710 C7659 C7658 C7752 C7753 R7762 C7656 C7657 C7654 R7760 C7751 R7761 R7664 C7655 C7757 C7755 R7663 C7749 R7756 C7747 R7755 C7652 IC7621 C7810 R7517 R7508 R7773 R7534 R7435 C7458 C7460 C7459 R7491 Q7420 C7456 R7513 C7454 F7403 IC7422 R7836 C7808 Q7831 F7417 JA7404 R7776 F7802 JA7601 JA7401 C7476 C7448 Q7401 C7481 C7469 C7455 Q7402 C7488 C7429 C7428 R7402 R7479 R7511 R7480 R7476 R7514 R7515 IC7409 Q7405 Q7404 R7564 C7403 IC7402 7401 R7497 C7411 C7406 IC7403 C7408 F7419 F7418 C7412 C7414 R7428 Q7410 C7431 F7416 C7427 R7424 R7422 Q7407 R7421 C7417 C7415 C7418 C7416 C7423 C7422 Q7408 IC7404 R7448 IC7405 R7433 R7451 R7450 Q7414 Q7415 JA7402 F7401 Q7413 C7809 C7434 C7430 IC7407 R7443 Q7409 R7464 C7441 R7449 R7459 Q7411 C7438 F7402 R7484 C7446 C7447 C7451 R7468 R7466 R7467 C7444 C7445 C7436 C7435 C7453 R7478 IC7414 IC7412 C7450 Q7418 R7486 Q7417 R7487 R7471 IC7410 C7468 R7518 R7501 R7551 JA7403 R7523 R7507 C7461 F7415 F7414 R7504 R7506 R7492 C7470 C7484 R7535 C7480 C7479 IC7419 F7404 IC7420 R7550 R7538 Q7423 R7553 R7552 Q7424 R7542 R7545 R7544 R7546 C7486 C7483 IC7423 KN7402 R7804 R7438 R7807 R7812 C7807 IC7802 R7548 Q7422 R7556 Q7802 Q7425 R7557 R7565 R7784 L7401 C7487 IC7401 R7413 R7416 D7401 C7489 IC7421 R7562 CN7402 F7411 R7636 IC7711 D7622 Q7804 R7499 IC7803 F7412 D7619 C7803 Q7803 R7436 C7806 C7805 CN7801 C7815 C7812 R7437 R7677 4.HP_L 8.CR IN 28.SQEEZE DV CV_IN GY_IN Cr_IN 2.HP_R VIDEO) 27.PROGLE. 1.GND DNP2096-A 5.MUTE VIDEO) Cb_IN JKIB 3.GNDA 12.C IN R_IN 26.LETTER_BOX 18.GND 25.GND L_IN 1.GNDA 24.GND AUDIO) 5.GND 16.GND 6.GNDA 7.V+5A 8.GNDA 15.G/Y 10.MUTE 9.GND 14.GND 13.B/CB 11.R/CR 14.VIDEO, 23.COMP/V V+5V 22.GND 12.GND 17.GND 16.GND 4.GND 3.SPDIF 2.GND 21.C OUT 10.CB IN 1 1 1 1 1 20.GND 4.VIDEOSERECT1 CT2 2.BATA/SMPTE V+9V 19.Y OUT 18.GND 6.RCH 7.GND 8.LCH L_IN 1 1 20.GND 1 1 1 AUDIO) 6.THRUSELECT CT C_IN R_IN Y_IN 6.GND 5.TPA 4.XTPA 3.TPB 2.XTPB 1.GND 30.GND 29.GND 1 3 4 5 6 7 8 1 1 4 5 8 1 4 5 8 1 4 5 8 1 8 4 5 1 8 4 5 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 8 4 5 2 1 3 4 1 8 4 5 1 4 5 8 1 8 4 5 1 8 4 5 1 4 5 8 1 8 4 5 1 8 4 5 1 8 4 5 1 4 5 8 1 2 1 4 5 8 1 4 5 8 1 8 4 5 1 4 5 8 2 3 4 5 6 7 1 8 4 5 1 4 5 8 1 6 IN GND OUT 1 18 19 36 1 30 JKIB ASSY A CN1811 F CN4001 H CN7801 CN7402 CN7701 IC7422 Q7831 IC7704 IC7708 IC7710 IC7707 IC7709 IC7702 IC7611 IC7705 IC7616 IC7618 IC7617 IC7410 IC7415 IC7421 IC7405 Q7417 Q7420 Q7423 Q7418 Q7421 Q7424 Q7414 Q7415 IC7621 Q IC7703 IC7701 IC7711 IC7402 Q7425 Q7408 Q7407 Q7422 Q7419 Q7416 Q7404 Q7402 Q7405 Q7401 Q7426 IC7414 IC7423 IC7418 IC7407 Q7409-Q7412 IC7401 IC7413 IC7420 IC7419 IC7416 Q7802-Q7804 IC7412 IC7802 IC7803 IC7404 IC7409 IC7403 IC7612 IC7616 IC7615 IC7619 IC7620 IC7613 A SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 87 5 6 7 8 5 6 7 8 C D F A B E LEVER 1 20 1 4 5 8 1 7 L7621 L7620 1 4 5 8 3 1 5 4 L7624 L7625 9 8 12 10 1 3 4 5 1 30 R7567 JA7961 Q7612 R7509 Q7421 CN7611 R C76 R7612 C7646 C7642 R7649 C7641 R7648 C7644 C7647 R7651 R7655 Q7611 IC7620 C7645 R7640 C7638 C7636 C7659 CN7613 C7658 C7657 C7654 R7664 C7655 R7663 C7653 C7652 IC7621 IC7622 R7508 C7458 C7459 C7611 F7417 R7669 R7566 RY7611 R7497 F7419 F7418 F7416 C7417 C7418 R7451 R7450 Q7415 R7464 KN7401 C7446 C7447 Q7418 R7486 Q7417 R7487 R7523 R7667 R7670 R7668 C7480 C7479 R7553 R7552 Q7424 D7621 CN7802 D7623 KN7961 D7624 D7620 R7562 R7636 R7677 23.CB OUT 24.GND 8.CR IN 25.CR OUT 26.GND 27.GND 28.GND 2.GND 17.C OUT 18.GND 19.Y OUT 1.+9V(VIDEO) 15.GND 20.GND 9.R OUT 21.GY OUT 22.GND 8.GND 9.GND 7.XR-OUT 11.L OUT 3.+5V(VIDEO) 10.GND 12.C IN 18.GND L_IN 13.GND 5.+9V(AUDIO) 16.GND 5.XR+OUT 3.XL-OUT 1.XL+OUT 2.GND 30.GND 4.GND 12.GND 16.GND 15.CVBSOUT 14.VIDEO, 6.GND 14.GND 29.SPDIF OUT 10.CB IN 11.GND 13.DC-OUT 6.GND 4.VIDEOSERECT1 3.VIDEO SELECT2 2.BATA/SMPTE 1.GND 7.GND 4.GND V-9A 19.AUDIO IN L 1 20.GND 1 7.-9V(AUDIO) 6.THRUSELECT 5.AUDIO SELECT V+9A 17.AUDIO IN R 1 2 3 5 7 1 20 1 7 1 3 4 5 9 8 12 10 1 3 4 5 1 30 1 2 3 4 7 16 1 9 8 1 4 5 8 1 7 8 14 1 2 1 4 5 8 11 1 1 6 R7912 IC7901 L7906 C7901 R7915 R7914 R7909 L7909 R7913 L7908 L7907 R7911 R7948 R7947 D7926 D7925 D7927 R7946 F7921 F7923 F7905 F7922 F7941 C7929 C7927 JA7941 R7910 R7908 R7907 R7941 C7941 C7943 R7927 R7929 R7921 C7924 R7933 C7921 C7922 C7925 R7925 IC7941 C7942 C7926 R7922 IC7921 R7926 R7928 C7928 R7934 R7944 C7945 C7944 R7942 R7945 CN7941 S7941 R7943 IC7923 CN7901 L7903 L7902 L7901 R7901 L7904 R7902 R7905 R7906 R7903 R7904 CN7902 CN7903 8.IN- 9.GND 6.GND 5.GND 11.GNDD 2.OUT+ 1.OUT- 3.IN+ +12V 10.422TXDIN 9.422RXDIN 8.422TXDOUT 7.422RXDOUT 6.GNDD 5.+5V 3.GNDD 2.+12V 1.LTC 1.SIG JKDB SYNC LTC 422OUT -12V 4.-12V TERM.SW 2.GND 4.IN- 5.N.C. 3.IN+ 2.OUT- 1.GND 6.GND 7.OUT+ +5V 9 16 8 1 1 2 1 4 5 8 14 1 7 8 2 1 1 4 5 9 1 6 11 1 6 1 FC ICT 1 6 CN7951 CN7952 4.GND 5.N.C. 1.OUT- 6.GND 8.IN- 5.GND 9.GND 1.GND 2.OUT- 6.GND 7.OUT+ 4.IN- 3.IN+ 2.OUT+ 422IB 422IN 3.IN+ 5 9 1 6 6 1 1 8 5 4 1 8 C666 C673 R674 C670 L664 JA661 VR661 IC661 R679 C680 R673 R676 R672 CN661 Q661 C681 C675 C682 R680 C677 R665 R671 R666 R669 C668 D661 C676 R664 R662 R663 L661 L663 L662 C664 C663 C671 6.GNDA 2.HP_R V+5A 3.GNDA 7.V+5A 8.GNDA 4.HP_L 5.MUTE 1 HEADPHONE HP Vol. 1.GNDA HPVB 1 2 3 4 5 6 7 1 2 3 4 5 1 8 4 5 8 1 JKDB ASSY B 422IB ASSY C HPVB ASSY D (DNP2096-A) CN1471 F CN2102 G CN7851 E CN7941 CN7902 CN7903 CN7802 CN3501 H CN7611 CN3202 H CN7613 CN7952 CN661 (DNP2096-A) (DNP2096-A) (DNP2096-A) 417 420 423 Q7418 IC7622 IC7901 IC7941 IC7921 IC7923 IC661 Q661 Q7421 Q7424 414 Q7415 IC7621 Q7611Q7612 IC7620 A B C D SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 88 1 2 3 4 1 2 3 4 C D F A B E R7657 R7665 R7666 R7961 L7961 L7962 L7964 R7963 R7966 L7963 R7621 C7643 C7660 C7661 R7646 R7658 R7659 R7653 R7650 D7615 D7616 C7648 R7652 R7660 R7654 R7661 R7645 R7642 R7641 Q7613 C7651 D7618 D7617 R7662 R7656 R7972 C7961 R7521 C7963 C7964 C7962 R7463 R7522 R7964 R7561 C7649 R7560 A B C D D7904 D7908 D7907 D7903 D7924 D7923 D7921 D7922 D7901 D7906 D7905 D7902 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A D7952 D7956 D7951 D7953 D7955 D7957 D7954 D7958 C679 C678 R681 C674 JKIB ASSY A JKDB ASSY B 422IB ASSY C HPVB ASSY D (DNP2096-A) A B C D CN661 SIDE B (DNP2096-A) (DNP2096-A) Q7613 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 89 5 6 7 8 5 6 7 8 C D F A B E R7530 R7831 C7704 R7614 R7615 C7613 Q7701 Q7702 R7704 R7701 R7657 L7964 R7966 L7963 R7682 R7706 C7706 R7707 R7710 R7708 R7613 R7616 C7617 C7966 R7500 C7452 R7496 R7519 R7525 R7783 C7713 R7618 R7622 R7621 R7617 C7620 C7715 R7782 R7781 R7733 Q7704 R7734 R7732 R7730 C7643 R7726 R7631 R7634 R7635 R7630 Q7703 R7721 R7720 R7681 C7726 R7725 R7724 R7625 R7629 R7723 C7628 R7722 R7627 R7628 R7717 R7743 R7737 R7745 Q7706 R7646 D7614 R7644 C7639 R7741 Q7705 R7647 D7613 R7674 R7742 R7744 R7748 R7749 R7752 R7747 Q7707 R7753 R7751 Q7708 R7653 R7650 D7615 D7616 C7648 R7683 R7660 R7750 R7654 R7661 R7645 R7643 D7612 R7642 R7641 R7675 C7637 D7611 R7639 R7637 R7767 R7769 R7771 R7772 Q7712 R7774 R7768 Q7711 R7770 R7766 R7765 Q7710 R7759 R7764 R7758 Q7709 R7757 R7763 C7651 D7618 D7617 Q7714 R7662 R7673 R7656 R7528 R7972 C7961 D7411 D7412 D7413 D7409 D7408 R7777 Q7716 C7968 Q7713 R7775 R7495 R7489 R7521 R7494 R7524 C7963 Q7715 D7701 C7964 C7962 R7778 C7602 C7601 R7401 R7406 C7413 R7412 C7433 C7405 R7415 C7477 C7474 C7475 R7414 R7410 R7411 R7405 R7602 R7601 D7602 D7601 R7403 C7401 C7404 D7402 C7409 D7405 D7404 D7403 R7442 R7427 C7420 R7431 C7426 R7423 C7425 R7430 C7424 R7429 R7420 R7419 C7442 R7460 R7446 R7444 R7434 D7406 C7432 R7463 R7461 R7454 C7440 D7407 C7439 R7458 R7457 R7447 R7455 C7437 R7445 R7470 R7493 R7477 R7456 R7462 C7457 C7473 D7410 C7465 R7522 R7520 R7512 R7964 R7543 R7559 R7561 R7537 R7558 C7492 C7649 C7485 R7684 C7967 R7554 D7604 R7407 D7603 R7408 R7560 R7676 R7974 R7809 R7806 R7833 R7803 C7965 R7832 A B C ASSY A SIDE B (DNP2096-A) Q7701 Q7702Q7715 Q7716 Q7710 Q7712 Q7709 Q7711 Q7707 Q7713 Q7714 Q7706 Q7703 Q7704 Q7708 Q7705 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 90 1 2 3 4 1 2 3 4 C D F A B E 4.2 DECB ASSY SIDE A SIDE A F F DECB ASSY F for Debug for Debug for Service CN1173 CN1174 CN1172 CN1171 CN1183 CN6002 H CN1651 CN7941 B CN1471 (DNP2053-B) VC1411 IC1414 IC1412 IC1452 IC1417 IC1411 IC1415 IC1111 IC1711 IC1101 IC1311 IC1351 IC1391 IC1121 IC1151 IC1153 IC1172 Q1211 IC1211 IC1392 Q1391 IC1513 IC1651 IC1652 IC1131 Q1471 Q1472 IC1416 IC1413 VR1411 Q1812 Q1813 Q1817 IC1751 Q1852 Q1853 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 91 5 6 7 8 5 6 7 8 C D F A B E SIDE B SIDE B F F DECB ASSY F CN7801 MOTHER BOARD ASSY J2 (PCI SLOT) A CN1811 CN1352 CN1351 (DNP2053-B) Q1854 Q1752 Q1751 Q1753 Q1754 Q1815 IC1851 IC1853 IC1653 IC1511 IC1512 IC1612 IC1611 IC1852 Q1814 Q1811 Q1412 Q1411 IC1418 Q1851 Q1816 Q1818 Q1819 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 92 1 2 3 4 1 2 3 4 C D F A B E 4.3 PCIB ASSY 11 20 10 1 1 20 1 A Y 10 1 20 11 20 11 10 1 20 11 10 1 11 20 1 10 48 25 24 1 11 20 1 10 1 20 11 10 11 20 10 1 1 50 20 11 10 1 4 1 20 11 10 1 11 1 5 4 1 8 10 20 30 40 49 52 60 B1 105 104 53 52 1 208 156 157 8 14 1 7 5 1 3 4 8 14 1 7 86 44 43 1 52 1 208 157 156 105 104 53 1 10 11 20 4 1 8 5 11 7 1 8 14 1 7 1 24 25 48 R2516 R2037 R2031 R2029 IC2002 R2025 R2036 C2030 R2045 C2031 R2028 R2032 L2001 X2001 C2024 R2078 R2073 R2068 R2071 R2069 R2076 R2070 R2072 R2077 R2075 R2074 IC2003 C2025 C2022 R2044 R2065 R2066 F2006 R2038 R2067 R2064 C2029 C2026 R2027 IC2001 R2022 R2023 R2012 C2003 R2001 R2010 R2009 R2008 F2003 C2001 C2002 R2006 R2005 R2004 R2003 R2050 R2052 R2053 R2054 R2055 R2062 R2063 R2024 R2033 R2034 R2035 R2039 R2040 R2041 L2002 TP2001 TP2002 TP2004 TP2003 TP2008 TP2007 TP2006 TP2005 TP2021 TP2019 TP2018 TP2017 TP2015 TP2016 TP2010 TP2009 TP2029 TP2028 TP2027 TP2026 TP2024 TP2025 TP2023 TP2022 TP2032 TP2033 TP2031 TP2030 TP2020 TP2013 TP2014 TP2012 TP2011 F2005 F2004 R2042 R2043 R2061 R2026 R2011 R2014 R2015 R2016 R2017 R2018 R2019 R2020 IC2104 C2122 IC2106 C2146 IC2108 C2168 IC2105 C2143 IC2110 IC2103 C2107 IC2111 C2208 CN2103 R2125 R2120 R2123 R2126 R2127 R2129 R2130 R2136 R2142 R2177 R2181 R2187 R2188 R2195 R2176 R2170 R2169 IC2107 C2156 R2162 R2155 R2154 R2146 CN2104 R2208 R2207 R2200 R2197 R2198 R2193 R2192 R2184 R2183 R2164 R2172 R2171 R2165 R2158 R2157 R2152 R2151 R2139 R2134 R2135 R2119 R2117 C2190 IC2109 CN2101 R2115 R2116 L2101 CN2105 IC2101 C2101 C2186 C2192 C2198 C2200 C2164 C2162 C2155 C2153 C2182 C2176 C2171 C2170 C2215 C2201 C2196 C2187 C2189 C2206 C2213 C2203 C2204 C2108 C2113 C2209 C2210 C2211 C2212 C2216 C2217 C2218 C2117 C2119 C2137 C2144 C2145 C2181 C2179 C2174 C2172 C2166 C2160 C2158 C2151 C2147 C2141 C2139 C2135 C2130 C2128 C2124 C2121 C2133 C2132 C2131 TP2402 TP2401 TP2307 TP2306 TP2305 TP2304 TP2034 R2360 TP2111 TP2112 TP2113 TP2404 TP2403 TP2308 R2359 R2358 D2102 D2101 C2375 C2221 C2220 C2374 C2224 C2222 R2189 R2112 R2114 R2111 R2113 C2106 C2109 C2110 C2105 C2111 C2104 C2112 C2103 C2116 CN2102 C2114 C2115 IC2102 C2102 R2110 R2109 R2159 R2166 TP2158 R2212 R2216 R2217 TP2193 TP2201 TP2202 TP2207 TP2208 R2211 R2203 C2370 C2368 C2369 C2367 C2366 C2364 C2365 C2362 C2363 R2354 C2361 C2360 R2351 R2348 R2347 R2349 R2346 C2358 C2359 C2356 C2357 R2338 C2355 C2350 C2354 R2336 C2353 R2339 C2352 C2351 C2349 R2334 R2333 C2345 C2339 C2344 C2337 C2341 C2342 CN2301 C2340 R2328 IC2309 R2327 C2333 C2332 C2331 C2330 C2329 C2328 C2327 C2326 C2325 C2335 C2323 C2334 R2319 IC2307 R2318 D2303 IC2306 C2322 C2324 R2316 C2320 C2318 C2319 R2315 C2317 C2315 C2314 C2313 C2312 C2311 R2313 IC2303 R2312 C2316 F2304 IC2305 R2309 F2305 C2308 C2307 C2306 C2305 C2304 C2303 D2301 C2301 C2309 R2320 R2329 F2303 R2303 F2301 TH2351 F2302 IC2304 C2310 S2301 C2321 IC2308 IC2302 F2306 F2307 F2308 R2332 R2331 R2326 D2304 C2336 C2338 R2324 R2322 R2323 R2325 Q2301 C2448 C2447 R2497 R2512 X2402 CN2404 C2446 IC2407 R2491 C2445 R2511 R2509 R2507 R2505 R2503 C2444 C2443 C2442 C2441 C2440 C2439 R2488 R2489 C2436 C2438 C2434 C2437 C2435 R2486 C2433 C2432 R2480 C2430 R2481 C2431 C2429 R2478 C2424 C2428 C2427 C2426 C2425 C2422 C2421 C2423 C2420 IC2404 C2419 C2418 IC2405 C2417 C2413 C2412 C2416 R2452 C2415 R2445 C2414 C2411 R2451 R2449 R2444 C2409 C2408 R2435 X2401 C2407 C2406 CN2402 C2402 R2436 L2408 IC2403 L2404 IC2402 R2431 R2428 R2433 R2430 L2406 L2405 F2402 C2405 R2429 R2418 L2403 F2401 C2403 CN2403 R2414 R2413 R2404 R2405 IC2401 C2401 R2443 R2446 R2447 R2448 R2450 R2437 L2409 R2419 CN2401 C2404 IC2406 R2417 R2434 L2407 D2307 D2302 D2306 D2305 R2515 R2514 D2308 R2513 +5V B2 E2 PCIB 1 C E2 B C2 DWP1080-A F.C. 4 3 5 11 10 1 20 A A 50 1 1 10 B B C C -12V DNP2052-A ACCESS +12V 1 10 11 20 54 28 27 1 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 24 25 48 1 10 11 20 1 10 11 20 1 50 1 10 11 20 1 50 1 10 11 20 4 1 1 10 1 10 11 20 11 1 1 4 5 8 10 20 30 40 49 52 60 B1 1 7 8 14 1 3 4 5 1 10 11 20 1 1 5 1 7 8 14 1 86 44 43 1 52 53 104 105 156 157 208 1 6 1 10 11 20 1 4 5 8 1 1 7 8 14 48 25 24 1 SIDE A SIDE A G G PCIB ASSY G for Debug CN2105 CN3002 H CN2103 CN3301 H CN2101 CN3001 H CN2104 CN7902 B CN2102 CN2401 CN2404 CN2403 CN2402 (DNP2052-A) IC2407 IC2405 IC2401 IC2404 IC2309 IC2402 IC2403 IC2105 IC2102 IC2406 IC2101 IC2303 Q2301 IC2302 IC2308 IC2307 IC2306 IC2002 IC2003 IC2001 IC2109 IC2111 IC2106 IC2107 IC2110 IC2108 IC2304 IC2104 IC2103 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 93 5 6 7 8 5 6 7 8 C D F A B E 10 20 30 40 49 52 60 A1 1 7 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A C2013 C2028 C2016 C2017 C2015 R2030 C2014 C2012 C2010 C2011 C2021 C2020 C2018 C2019 C2027 C2009 C2008 C2007 C2006 C2005 C2004 R2021 R2013 R2007 R2002 R2051 R2046 R2047 R2048 R2049 R2057 R2058 R2059 R2060 R2056 C2023 C2194 R2122 R2128 R2124 R2131 R2132 R2137 R2138 R2143 R2180 R2175 R2185 R2186 R2194 R2168 R2167 R2161 R2160 R2153 R2147 R2148 R2210 R2209 R2202 R2201 R2196 R2191 R2190 R2182 R2178 R2179 R2174 R2173 R2163 R2156 R2150 R2149 R2144 R2140 R2145 R2141 R2121 R2133 R2118 R2103 R2101 R2104 R2199 R2205 R2204 R2206 R2213 R2215 R2214 C2185 C2191 C2193 C2199 C2163 C2161 C2154 C2150 C2183 C2175 C2169 C2177 C2219 C2195 C2197 C2184 C2188 C2214 C2207 C2202 C2205 C2118 C2120 C2138 C2149 C2148 C2180 C2178 C2173 C2167 C2165 C2159 C2157 C2152 C2142 C2140 C2136 C2134 C2129 C2125 C2123 C2127 TP2115 TP2312 TH2302 TH2301 TP2114 TP2406 TP2405 TP2311 TP2310 TP2309 TP2303 TP2302 TP2301 TP2211 R2357 R2228 R2227 R2226 R2225 R2224 R2223 TP2109 TP2110 R2222 R2221 R2220 R2219 C2223 R2102 R2105 R2106 R2108 R2107 TP2209 TP2210 R2218 C2126 TP2103 TP2102 TP2101 TP2104 TP2105 TP2106 TP2107 TP2108 C2373 C2371 C2372 R2355 R2356 R2353 R2352 C2348 C2346 C2347 C2343 CN2302 CN2405 R2345 R2343 R2344 R2341 R2342 R2340 R2337 R2335 R2350 R2500 R2501 R2498 R2499 R2496 R2495 R2494 R2493 R2492 R2490 R2453 R2457 R2502 R2510 R2508 R2506 R2504 R2487 R2484 R2485 R2482 R2483 R2479 R2473 R2476 R2477 R2470 R2472 R2475 R2474 R2466 R2469 R2471 R2465 R2468 R2467 R2463 R2458 R2464 R2459 R2454 C2410 R2439 R2440 R2438 R2427 R2426 R2425 R2416 R2424 R2415 R2412 R2411 R2410 R2420 R2409 R2422 R2407 R2423 R2421 R2408 R2403 R2402 R2460 R2461 R2401 R2406 R2441 R2442 R2455 KN2302 KN2301 TP2313 TP2118 TP2117 TP2116 TP2035 TP2314 TP2315 TP2408 TP2407 Produciton Code GUID SIDE B SIDE B G G PCIB ASSY G (DNP2052-A) for Service CN2405 MOTHER BOARD ASSY J3 (PCI SLOT) CN2302 CN2301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 94 1 2 3 4 1 2 3 4 C D F A B E 4.4 AVIB ASSY 10 1 20 11 1 48 2 1 1 10 14 8 1 20 11 10 1 8 5 4 1 72 37 36 1 144 109 108 73 8 5 4 1 1 20 6 1 256 1 64 65 208 1 157 156 105 104 53 52 4 5 1 3 30 1 A B C 1 0 0 3 2 1 0 9 8 7 6 5 4 3 2 1 0 1 I C3102 R3001 IC3004 C3103 X3301 C3 L3309 C3 L3 L3 L IC3308 R3337 C3316 IC3310 R3331 R3353 L3328 C3318 R5775 R3336 L R3351 L3326 CN3001 C3101 IC3002 R3003 R3005 R3006 R3007 R3008 R3009 R3010 R3011 R3022 R3021 R3020 R3019 R3018 R3017 R3016 R3015 R3014 R3013 R3012 R3026 R3027 R3023 R3024 R3025 R3043 R3042 R3041 R3040 R3039 R3038 R3035 R3036 R3037 R3031 R3032 R3033 R3034 R3028 R3029 R3030 R3044 R3045 R3046 R3047 R3048 R3051 R3049 R3054 R3052 R3056 R3062 R3058 R3060 R3064 R3077 R3073 R3075 R3071 R3069 R3065 R3067 R3079 R3081 R3088 R3086 R3082 R3084 L CN R5772 R5771 R5058 C3543 C3539 R3554 R3549 R3548 R3547 R3546 C3550 R3544 R3545 C3549 R3543 C3546 C3542 C3541 C3540 C3536 C3535 C3534 C3530 C3525 C3524 R3536 VR3501 C3529 R3535 R3527 IC3501 C3528 C3523 C3527 R3523 R3522 C3521 C3520 R3525 R3520 C3515 R3516 C3514 C3516 R3519 C3513 R3518 R3510 R3509 C3508 R3514 R3512 R3507 C3509 R3824 C3507 IC3502 C3815 R3823 C3506 C3505 C3504 C3503 C3502 R3501 C3808 C3809 R5773 IC3803 R3552 R3553 R3558 R3560 R3537 D3503 D3504 D3502 D3501 R3503 R3508 R3515 R3513 F3501 F3502 R3528 R3506 F3503 C3510 C3512 R3511 C3538 C3537 D3802 D3801 D3804 D3803 L3501 L3502 R3502 R3521 C3545 C3544 C3548 C3547 CN3501 D5005 C4031 C4029 C4028 R4046 C4020 C4019 C4030 R4068 R4067 C4008 C4018 C4025 R4042 R4045 R4044 R4036 R4035 R4052 R4043 R4033 R4034 R4010 R4055 C4026 R4020 R4028 D4004 D4008 D4003 D4007 D4002 D4006 D4001 D4005 R4014 F4002 R4066 CN4001 C4808 C4809 R4810 C4811 C4810 R4807 R4808 IC4802 R4805 F4803 C4807 L4801 C5048 C5049 C5047 C5045 C5046 C5051 C5052 C5043 C5040 C5038 C5032 C5036 C5031 C5029 C5028 C5020 C5018 C5019 C5016 C5017 C5012 C5014 IC5002 C5021 C5015 C5013 C5001 R5002 R5003 R5004 R5010 R5011 R5012 R5013 R5021 R5022 R5025 R5031 R5041 R5039 R5038 R5036 R5030 R5043 R5044 R5045 R5047 R5048 R5049 R5050 R5034 F5001 L5001 L5003 C5116 C5115 C5114 C5113 C5112 C5111 F5006 R5101 C5110 C5109 C5108 C5107 C5106 C5105 C5103 C5104 C5101 C5102 C5099 C5100 C5098 C5097 IC5004 C5096 C5095 C5094 C5092 C5093 C5091 C5090 C5089 R5097 R5099 R5091 R5088 R5107 R5100 R5087 R5086 R5084 D5001 IC5003 F3310 R5108 R5098 R5092 R5094 R5103 R5083 R5082 R5080 R5078 R5079 R5077 R5076 R5075 R5073 R5074 R6503 C6503 R6501 R6502 R6510 R6508 R6506 R6516 R6514 R6512 R6520 R6518 R6504 R6505 R6507 R6517 R6519 R6523 R6522 R6509 R6511 R6513 R6515 R6521 CN6002 KN3005 KN3004 KN3001 R3099 R6528 R5770 R5055 F3308 R5063 D5003 D5004 D5002 R5062 R5064 R5061 AVIB 50 DWV1202-A 94V-0 B A A PC +9V GND +5V GND +9V GND -9V 20 1 1 1 48 1 2 1 10 1 14 8 50 1 20 11 10 1 8 5 4 1 144 109 108 73 72 37 36 1 20 1 6 1 256 65 64 1 208 157 156 105 104 53 52 1 30 1 H SIDE A AVIB ASSY H CN7611 A CN3501 CN7402 A CN4001 CN1651 F CN6002 CN2104 G CN3001 IC3803 IC3501 IC3502 IC4802 IC5004 IC5003 IC7501 IC3302 IC3303 IC3307 VC3301 IC5002 IC3310 IC3002 IC3003 IC3004 IC3304 IC3005 IC3006 IC3007 IC7004 IC6002 IC3203 IC3204 IC3201 IC3202 IC3308 VR3501 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 95 5 6 7 8 5 6 7 8 C D F A B E 11 10 1 20 10 1 20 11 24 1 48 25 10 1 20 11 14 1 2 3 4 1 4 3 1 5 4 1 8 5 11 20 1 10 3 4 5 1 14 1 7 8 1 1 50 4 1 1 20 11 10 1 10 1 10 11 20 1 7 56 65 128 129 192 193 04 53 4 5 1 3 1 26 1 30 30 1 1 25 26 50 51 75 76 100 1 43 44 86 86 44 43 1 1 A B C IC3005 C3104 IC3003 C3102 IC3004 C3103 C3106 IC3007 CN3201 C3314 C3313 VC3301 X3301 C3315 D3301 R3326 C3311 R3329 R3330 L3309 R3327 C3312 R3325 R3324 R3323 R3317 IC3303 R3316 C3304 R3315 R3310 R3305 C3303 R3302 R3301 C3301 R3303 R3304 IC3302 R3332 R3333 R3339 R3346 R3347 R3352 L3312 L3313 L3315 L3322 L3323 L3327 IC3308 R3337 IC3307 C3316 C3307 IC3310 R3331 R3353 L3328 R3344 R3345 R3350 L3320 L3321 L3325 C3318 R5775 R3336 R3341 L3319 R3351 L3326 CN3002 R3002 R3004 R3043 R3041 R3039 R3035 R3037 R3033 R3045 R3050 R3053 R3057 R3055 R3063 R3061 R3059 R3076 R3072 R3074 R3070 R3068 R3066 R3078 R3080 R3089 R3087 R3083 R3085 C3216 F3205 L3208 CN3301 IC3304 R3306 C3302 R3348 L3324 L3305 R3312 L3306 R3313 L3307 R3314 R3320 R3321 R3096 R3095 R3094 R3097 R3093 R3092 R3091 R3090 CN3003 L3314 R3338 R3114 R3115 IC3006 C3105 R3322 F3303 F3302 C3206 C3205 IC3202 C3203 IC3201 C3202 C3209 C3208 IC3203 C3211 IC3204 C3201 CN3202 CN3203 C3226 C3227 CN3204 D3202 D3203 D3204 D3201 R3098 C5050 C5053 C5054 C5048 C5049 C5047 C5045 C5046 C5051 C5052 C5044 C5041 C5039 C5034 C5037 C5033 C5027 C5026 C5020 C5018 C5019 C5016 C5017 C5014 R3221 R3222 C5021 C5022 C5015 C5013 5002 R5003 R5004 R5010 R5015 R5011 R5012 R5013 R5014 R5016 R5017 R5018 R5019 R5023 R5024 C5030 R5037 R5040 R5045 R5047 R5048 R5049 R5050 R5051 R5052 R5053 R5054 R5027 R5035 C5023 R5028 L5003 F5006 R5101 C5110 C5108 C5106 C5103 C5104 C5099 C5100 C5096 F3201 R5100 R5518 R5519 R5520 R5521 R5517 R5516 R5515 R5514 R5513 R5512 R5511 R5508 R5507 R5506 R5505 R5504 R5510 R5087 R5086 R5523 R5522 C5524 C5526 IC5003 F3310 R5098 R3101 F3202 R5524 R5509 R5033 R5032 CN5502 C5523 C5521 CN5501 R5501 R5502 R5503 R5078 R5079 C5816 C5815 C5814 C5813 C5812 C5811 C5810 C5809 C5808 C5807 C5806 C5805 C5804 C5803 CN5503 C6040 C6039 C6030 C6029 R6050 R6051 R6043 C6025 C6024 R6039 C6021 C6022 C6018 R6035 C6019 C6014 C6016 C6017 R6020 R6018 R6019 R6024 C6013 IC6002 C6012 R6017 C6008 C6007 C6033 C6032 R6071 R6072 R6022 R6028 R6032 R6037 R6031 F6002 R6013 F6005 R6076 F6006 R6077 R6046 R6057 R6056 R6040 R6036 R6068 R6073 R6010 R6044 R6045 R7095 R7094 R7092 C7050 R7086 R7085 R7082 R7073 R7072 C7069 C7072 C7073 C7071 C7070 C7068 R7069 C7048 R7090 R7039 R7037 C7034 IC7003 C7027 R7034 R7001 IC7002 C7026 X7001 C7010 R7024 R7025 R7029 R7016 R7015 IC7004 C7006 C7004 R7023 R7022 R7021 R7019 R7013 R7010 R7009 R7007 R7068 R7063 R7003 R7005 R7006 R7042 R7056 R7059 R7066 R7067 R7062 R7061 R7060 R7049 R7047 R7048 R7050 R7045 R7046 R7043 R7036 R7035 R7032 R7031 R7030 R7028 R7027 R7018 R7033 R7058 R7008 R7011 F7003 F7009 L7007 F7002 R7070 D7002 D7003 R7071 C3222 C3221 C3219 C7051 C7060 C7063 C7064 C7503 R7507 C7505 C7504 R7505 R7502 F7501 R7504 IC7501 C7501 R7501 R7096 KN3007 KN3006 KN3003 KN3002 F3203 D3205 F3304 F3308 C3220 D3206 IC3205 TP7501 TP3316 C7506 C7507 C7508 C7509 F7502 F7503 F7504 F7505 2.5V +12V 5V 3.3V DNP2136-A X (EU) X (EU) 94V-0 B 4 1 GND V+2.5V SIDE CONTACT CONTACT SIDE CONTACT SIDE +5V +5V GND 4 GND +5V +5V 1 +9V GND +5V GND +9V GND -9V GND GND 1 GND ICP-S2.3 GND V+3.3V V+3.3V GND GND V+2.5V GND V+5V V+12V V-12V GND 20 11 10 1 20 11 10 1 48 25 24 1 20 11 10 1 14 1 2 1 3 4 5 4 3 1 8 5 4 1 20 11 10 1 5 4 3 1 14 8 7 1 1 50 1 4 1 20 11 10 1 10 1 20 11 10 1 OUT GND IN OUT GND IN OUT GND IN OUT GND IN 7 1 4 1 4 1 256 193 192 129 128 65 64 104 53 26 1 30 1 30 1 100 76 75 51 50 26 25 1 43 44 86 1 43 44 86 1 H SIDE A 611 04 CN2101 G CN3301 CN2103 G CN3002 CN3003 CN7613 A CN3202 CN2 I DINB (OPTION) CN8201 CN3201 CN3203 DINB (OPTION) CN8202 CN5502 DOOB (OPTION) CN8601 CN3204 DOOB (OPTION) CN8602 CN5503 DINB (OPTION) CN8203 CN5501 (DNP2136-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 96 1 2 3 4 1 2 3 4 C D F A B E 1 8 5 4 4 3 1 5 11 10 1 20 1 4 5 8 1 7 8 14 8 1 14 1 28 15 11 20 1 10 8 5 4 1 TP3214 TP3213 TP3212 TP3210 TP3209 TP3208 TP3211 TP3207 TP3206 TP3205 R7508 TP3204 TP3203 TP3202 TP3201 R7512 R7510 IC3301 IC3305 L3308 R3309 C3310 R3308 C3308 C3309 C3305 R6011 R3307 R3318 C3322 C3319 C3321 C3320 R3 IC3309 R3342 IC3306 C3306 R3328 R3319 R3349 R3108 R3107 F3305 C3213 C3215 F3207 L3210 C3218 F3206 C3214 C3217 L3209 R6012 TP3216 R7511 F3301 F3209 R3110 R3111 R3112 R3113 R3109 R3106 R3105 C3207 C3204 C3210 C3212 R3119 C3224 C3225 R3208 R3209 R3210 R3207 R5057 R5056 TP3315 R3827 R3829 R3826 R3 R4 R4 R4 R4 R4 R4 R4029 R4 R4027 R4019 R4037 R4038 R3357 R3354 R3355 C5042 TP3218 R3220 R3223 R5006 R5007 R5008 R5009 C5010 C5025 R5020 R5026 L5007 F5004 F5002 L5005 L5002 R5538 R5537 R5536 R5535 R5534 R5533 R5532 R5531 R5528 R5530 R5529 R5540 C5535 C5519 C5518 C5517 C5513 C5514 C5515 C5516 C5509 C5510 C5511 C5512 C5525 C5527 C5528 C5529 C5530 C5531 C5532 C5533 C5534 C5501 C5502 C5503 C5504 C5505 C5507 C5508 C5536 L3310 IC6005 F3309 F3208 F3204 C5520 C5506 R5539 R5526 R5525 R5527 C5522 C5802 C5801 R5802 R5801 R5816 R5815 R5814 R5813 R5812 R5811 R5810 R5809 R5807 R5808 R5806 R5805 R5803 R5804 R6089 R6085 R6091 R6092 R6090 R6086 R6087 R6088 R6084 C6046 C6044 C6045 IC6004 C6043 R6078 R6081 R6082 R6083 C6041 R6080 R6079 C6042 C6038 C6037 R6055 R6054 R6052 R6053 IC6003 R6034 R6026 R6027 R6025 C6010 C6034 C6027 C6004 C6020 C6031 C6005 C6035 C6036 C6028 C6015 C6006 C6003 C6011 C6026 C6001 C6002 C6023 R6070 R6074 R6075 R6063 R6049 R6042 R6033 R6029 R6006 R6005 R6004 R6003 R6002 R6041 R6048 R6038 R6001 R6023 R6062 F6001 R6008 R6014 F6003 R6030 R6058 R6069 R6007 R6067 R6066 R6047 R6059 R6060 R6061 R6065 R6064 R3311 TP3215 R7093 R7091 R7089 R7088 R7087 R7083 R7081 R7080 R7084 R7079 R7078 R7077 R7076 R7075 R7074 C7041 C7040 C7039 C7038 C7042 C7043 C7049 C7047 C7046 C7045 C7044 R7065 R7064 R7054 R7053 C7023 R7051 C7021 R7052 C7020 C7037 C7035 C7022 R7038 C7033 C7036 C7032 C7017 C7018 C7019 C7031 C7030 C7028 C7016 C7015 C7014 C7025 C7029 C7024 C7012 C7011 C7009 C7013 C7007 C7005 C7003 C7001 R7014 C7002 R7020 R7002 R7004 R7044 R7041 R7040 R7057 R7055 F7005 F7008 L7006 F7004 F7006 F7007 R7012 R7026 IC7001 R7017 C7008 C3818 C3323 C3819 C7052 C7053 C7054 C7055 C7056 C7057 C7058 C7059 C7061 C7062 C7065 C7066 C7067 F3306 R7097 R7098 TP3217 IC3311 R7513 F3210 R7509 R3 R3356 D3208 R3832 TP7502 R7514 D3209 D3210 C6009 C3816 L7008 D3207 R7099 R5059 R5060 1 36 109 72 37 108 73 144 1 3 4 5 20 11 10 1 8 5 4 1 14 8 7 1 1 14 15 28 144 109 108 73 72 37 36 1 20 11 10 1 8 5 4 1 H SIDE B AVIB ASSY H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 97 5 6 7 8 5 6 7 8 C D F A B E 4 5 11 10 1 20 8 13 24 1 12 13 24 1 12 128 97 96 65 64 33 32 1 32 33 48 49 64 1 16 17 34 33 12 11 1 44 44 86 1 43 8 5 4 1 10 1 20 11 10 1 20 11 8 5 4 1 R6524 R6526 R6527 IC3305 R3309 C3310 R3308 C3309 C3305 R5781 R5779 R5780 C3322 C3319 C3321 C3320 R3343 IC3309 R3342 R5776 C3317 R3334 R3340 R5777 R3335 R3834 R3349 F3301 C3001 C3002 C3003 C3004 C3005 C3006 C3007 C3008 C3009 C3010 C3011 C3012 C3013 C3014 C3015 C3016 C3017 C3018 C3019 C3020 C3021 C3022 C3023 C3024 C3025 C3026 C3027 C3028 C3029 C3030 C3031 C3032 C3033 R5057 R5056 R3835 TP3315 R3557 R3556 R3555 R3551 R3550 R3541 R3542 C3532 R3540 R3539 C3533 R3538 C3531 R3531 R3529 C3519 R3532 C3517 R3530 R3534 C3518 R3833 R3526 C3511 R3505 R3504 C3501 R3813 R3810 R3822 R3821 R3820 R3827 R3812 R3829 C3813 C3812 R3819 R3818 R3817 R3816 C3807 C3805 L3803 L3802 C3814 C3811 C3810 IC3802 C3806 IC3801 C3804 C3803 C3801 C3802 R3559 R3524 R3814 R3815 F3802 R3807 F3801 R3801 R3533 C3522 C3526 R3826 R3561 R3562 R3563 R3564 R3805 R3804 R3803 R3802 R3831 R3830 IC4001 IC4002 C4005 C4004 C4007 C4016 C4023 C4027 C4015 C4006 R4011 R4021 R4030 R4039 R4057 R4069 R4070 R4071 R4072 R4073 R4074 R4065 R4058 R4047 R4009 R4008 R4007 R4006 R4005 R4063 R4062 R4056 C4011 C4017 C4022 C4024 C4009 C4013 C4021 C4012 C4014 R4023 R4025 R4026 C4010 R4013 C4003 C4001 C4002 R4022 R4031 R4032 R4040 R4041 R4018 R4059 R4060 R4049 R4050 R4051 R4029 R4004 R4003 R4001 R4048 R4053 R4054 R4064 R4061 R4027 R4019 R4017 R4012 F4001 F4003 R4016 X4001 R4015 R4024 R4002 R4037 R4038 C4805 R4804 C4806 C4804 C4803 IC4801 C4802 C4801 R3357 F4802 R4802 F4801 R4801 R3354 R3355 C5042 TP3218 C5009 C5008 C5007 C5006 C5005 C5004 C5003 C5002 IC5001 R5001 R5005 R5006 R5007 R5008 R5009 C5011 C5024 25 R5020 R5029 F5003 R5046 R5026 R5042 C5035 L5004 F5005 L5006 C5118 C5117 R5102 F5007 R5093 L3310 IC3804 F3803 F3309 R5166 R5081 C6504 C6505 C6508 C6507 C6506 C6512 C6511 C6510 C6509 C6513 R3311 IC6502 C6502 IC6501 C6501 3818 C3817 C3323 C3819 F3307 F3306 R5774 R6525 IC3311 R3828 R3356 R3832 R5778 R5782 C3816 R5060 23 22 4 5 20 11 10 1 24 13 12 1 1 12 13 24 128 97 96 65 64 33 32 1 64 49 48 33 32 17 16 1 44 34 33 23 22 12 11 1 43 44 86 1 20 11 10 1 20 11 10 1 8 5 4 1 H SIDE B (DNP2136-A) IC6005 IC6003 IC7001 IC3311 IC3309 IC3306 IC3305 IC3301 IC3804 IC3801 IC5001 IC4001 IC6502 IC6501 IC4002 IC4801 IC3802 IC6004 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 98 1 2 3 4 1 2 3 4 C D F A B E 4.5 PWRB ASSY 1 2 1 20 1 2 R 1 14 8 1 1 3 1 14 1 11 20 10 20 10 1 11 10 MARKING SIDE 1 L303 2 1 1 12 10 9 8 5 4 3 1 MARKING SIDE 11 Q451 C101 Q15 R406 R464 R30 C4 C22 R408 Q452 C451 R70 R412 D452 C409 J12 R404 R103 R72 RY2 CN10 D453 D8 CN3 C201 R409 R39 C1 R36 L301 CN11 R312 R21 R112 Q401 R81 Q29 Q302 R79 C8 C305 R104 D402 C308 Q22 R13 J16 Q10 C457 R402 D11 Q17 C33 C21 Q28 D4 C41 R461 Q301 D7 C32 CN6 C37 R319 Q402 R417 R66 C452 Q26 C303 C104 C407 R31 C19 R420 D403 C16 R460 R28 R68 R10 IC8 C24 R453 R51 C202 Q11 R62 R44 C313 R57 D10 R212 Q20 IC451 Q3 C44 C404 Q13 Q12 R91 R59 R84 IC6 IC401 C408 Q21 R19 R306 Q16 R458 D101 C401 R204 R18 C3 R52 D302 D21 C306 R313 R205 R467 R34 C90 D451 L451 R49 R459 R85 R86 D20 C103 J18 C102 J11 R53 R405 R451 C38 R307 R16 R105 R317 R41 IC301 D1 D12 IC3 D2 R80 D24 Q4 R61 D401 R22 R35 C29 D17 Q2 R302 R82 IC4 R454 R87 C309 CN5 R1 R8 R311 R469 C204 KN1 C6 D9 R42 R211 D201 R3 Q101 D23 C458 R95 R414 C304 R64 R24 R25 R40 Q23 D22 D18 CN2 R43 R457 KN3 R71 R29 R26 CN4 C454 R33 CN1 C10 IC101 Q5 R94 R93 C39 C455 R83 R309 R37 IC5 VR101 R12 R304 D5 C20 C315 R465 C42 R206 D19 R14 R38 R308 R110 J9 R45 R455 R303 R96 C314 R46 CN9 C402 D6 RY1 C13 C403 C406 R11 R2 R301 C312 C453 C302 D13 Q27 Q7 C307 C301 R403 C14 C2 R318 C9 C11 L401 R100 C5 C7 Q18 C12 Q6 R20 R6 R4 R69 C18 Q1 R92 R98 R5 R210 R50 R65 D14 Q14 R416 R54 R23 IC201 R17 R32 Q8 C310 R76 R75 Q19 R60 D3 Q9 C35 Q25 R411 R452 R407 R106 R27 R111 KN2 R55 C410 J10 R67 R9 Q24 C40 C43 C203 R48 Q30 R58 J17 C405 D15 R102 D301 C311 D16 R305 R456 R15 C456 R401 R56 C23 TH1 Q201 D25 VR201 R47 MINISMDM160 1.6A TO AVIB 5 PWR_SW2 6 10 1 5VSB_M 10:+12V PWRB(POLY) 4 GND DWZ1129-A 8 2.GND 8 3 12 9 ICP-N10 ICP-N10 TO FAN TO FLKB TO FAN TO ATX MOTHERBOARD TO ATX MOTHERBOARD 8:PWR_OK 10.FAN_CONT3 _CONT1 PWR_OK VFD_ FROM ATX PSU HDD_IND 16.PWR_SW# FLDC 20.GND +5VSB 18.HDD 17:GND 16:GND 1 10 9:+5VSB 15:GND 14.PS_ON_O# 12.PS_ON_I# 13:GND FLDC 6 FAN_DET 1 4,+2.5V +12V PWR PS_ON_I# 16 ICP-N10 (-) +12V 18:-5V -12V 11:+3.3V 3,+2.5V (Left) 12:-12V 8.FAN_CONT2 19:+5V 9 1,GND 6:+5V 5:GND 20:+5V 14:PS_ON# 5 10 7:GND 13,+12V 14,GND ICP-S2.3 2:+3.3V 1:+3.3V 2,GND 5 TO FAN(R) 4,PWR SW P# 5,RESET_N 4:+5V -12V 6,RESET P# (+) 1 3:GND +12V +3.3V +2.5V +3.3V GND -12V (Right) 2.5V 3.3V 5V 5VSB 12,-12V _IND# 3,PWR_SW_N 2,HDD LED N# 1,HDD_LED_P 5,GND 11,GND 10,+5V 9,GND 8,+3.3V 7,+3.3V 6,GND -12V 6.FAN GND 4.FAN_DET RESET# GND GND 5 4 3 1 10 12 8 9 1 20 1 1 6 1 1 5 10 6 1 5 10 6 9 8 1 16 8 7 1 14 3 1 14 1 11 1 10 20 11 1 10 20 10 1 1 5 4 3 1 10 12 8 9 11 1 SIDE A SIDE A I I PWRB(POLY) ASSY I (DNP2054-C) CN684 N CN5 CN3201 H CN501 J CN2 MOTHER BOARD ASSY JFP CN6 DC FAN MOTOR (REAR) DC FAN MOTOR (LEFT) CN9 CN10 DC FAN MOTOR (RIGHT) MOTHER BOARD ASSY PWR CN11 CN4 ATX POWER SUPPLY UNIT P1 CN1 CN3 Q26 Q7 Q23 Q201 Q9 Q5 Q29 Q27 Q11 Q10 Q101 VR101 Q6 IC3 Q8 Q13 Q12 Q14 Q302 Q19 Q15 Q301 IC5 Q18 IC4 Q451 Q452 IC451 Q401 Q402 IC8 IC6 Q21 Q16 Q28 Q20 Q4 Q3 Q1 Q2 Q22 IC401 IC101 VR201 IC201 Q30 Q24 Q25 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 99 5 6 7 8 5 6 7 8 C D F A B E 1 CN2 14 C45 R208 R63 R108 R74 R73 R89 R90 R201 TO AVIB R88 R101 C15 R78 R77 C36 R7 R421 C34 7:GND 10:+12V DWZ1129-A 8:PWR_OK 9:+5VSB 6:+5V 3:GND 4:+5V 2:+3.3V CN3 CN11 CN1 -12V -12V PWRB (POLY) 1 8.FAN_CONT2 20 13:GND CN10 10 1 9.PWR_OK CN9 TO FLKB 12:-12V 19:+5V 10.FAN_CONT3 1:+3.3V 5:GND 18.HDD 16.PWR_SW# FROM ATX PSU IC101 IC201 11:+3.3V _CONT1 -12V 11.GND 5.GND 20 (Left) 2.GND (Right) 20:+5V 10 3.+5VSB TO ATX MOTHERBOARD 19.PWR_SW2 1 +12V CN4 10 11 20.GND 11 1.GND TO FAN 15.FLDC(-) 4.FAN_DET 20 12.PS_ON_I# +12V 1 1 TO FAN(R) 14.PS_ON_O# +5V GND +3.3V TO FAN 7.RESET# +12V _IND# 6.FAN 13.FLDC(+) 1 14:PS_ON# 15:GND 16:GND 18:-5V 17:GND 11 1 1 17.VFD_PWR SIDE B SIDE B I I PWRB(POLY) ASSY I (DNP2054-C) CN2 CN2 CN6 CN6 CN9 CN10 CN11 CN4 CN1 CN3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 100 1 2 3 4 1 2 3 4 C D F A B E 4.6 FLKB, KEYB, DRV1B, DRV2B and USBB ASSYS 1 35 4 5 1 3 1 9 1 R V501 Q509 R566 R560 IC504 C504 R600 R559 R510 D506 S509 D504 C503 R628 S508 CN505 R569 V502 C508 L501 R599 R570 S510 R543 R565 R550 Q511 C513 X501 F501 R508 C522 IC505 R509 R532 R571 C R568 C521 C523 STANDBY 1,GND_FLK 5,NC 2,Vcc FLK 3,SIF 9,NC -27V -27V 2,SOF -23.5V 4,CKF 8,Vpp 7,VDD DISPLA 6,XRESET DNP2054-C 4,DRV1 DISC 3,DRV1 OPCL 1,GND /ON 5 4 3 1 1 9 1 1 5 R ICT FC S606 S610 D606 D603 D611 CN603 S603 S601 C602 S605 S602 CN601 CN602 D608 S607 S608 S609 S604 REC STOP KEYB 19.K_STOP 21.GND_KEY 25.GND_KEY TO FLK-CN503 24.GND_KEY 9.CST 7.SIOT 8.SCT 12.LD_PLAY 13.LD_REC 11.LD_PAUSE 18.K_PAUSE 1 2.Vcc_KEY 2,Vcc_DRV2 TO DRV2-CN641 3,DRV2_OPCL FWD 1,GND_DRV2 2,GND 4,DRV2_DISC 5,DRV2_LD_ACCESS(RED) SELECT 5.DRV2_LD_ACCESS(RED) 6.DRV2_LD_ACCESS(GREEN) 16.K_REC PLAY SCAN/SKIP 6,DRV2_LD_ACCESS(GREEN) 14.K_DRV_SEL PC 22.GND_KEY 25 STEP 20.K_SCAN_STEP 10.LD_STOP DRIVE REV 3,SIOT 1,Vcc+5V PREVIEW TO Thermo-CN651 3.DRV2_OPCL 4,SCT 5,CST 4.DRV2_DISC 6 1 15.K_PREVIEW 17.K_PLAY 1.GND_KEY PAUSE 23.GND_KEY 1 5 25 1 6 1 J K SIDE A KEYB(WYV/RB) ASSY K FLKB(WYV/RB) ASSY J (DNP2054-C) CN505 CN603 CN601 CN602 CN641 IC505 IC504 Q509 Q511 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 101 5 6 7 8 5 6 7 8 C D F A B E 4 5 1 3 1 20 6 1 9 35 R579 CN504 S503 R566 S501 IC504 CN501 R573 D510 CN502 C511 R580 D509 C501 S502 C512 R507 R574 R575 R565 C513 S505 CN503 R572 D508 S504 C517 C518 C519 S507 S506 C509 R568 D507 R577 D502 7,RESET#( → PWRB) 6,FAN_CONT1 1,GND DOWN 1,GND_FLK 3,TxD 2,RxD 4,FAN_DET 23,DRV2_OPCL TO DRV1-CN631 TO MOTHER TO PWR-CN3 3,+5VSB 1 HDD 1,GND_FLK 2,GND_FLK 9,K_PLAY 12,K_DRV_SEL (RED) 7,K_STOP 12,PS_ON_I# 13,FLDC_+(-23.5V) 11,GND_FLK 9,PWR_OK_I -23.5V 2,Vcc FLK 10,FAN_CONT3 24,VCC_FLK 8,FAN_CONT2 FUNCTION ENTER LEFT RIGHT DRIVE1 DRIVE2 13,LD_REC 16,LD_STOP 15,LD_PAUSE 14,LD_PLAY 21,DRV2_LD_ACCESS (GREEN) 20,DRV2_LD_ACCESS 19,SIOT 18,SCT 17,CST 22,DRV2_DISC 6,K_SCAN_STEP 1 14,PS_ON_O#( → PWRB) 15,FLDC- 8,K_PAUSE ( ← PWRB) UP TO KEY-CN601 ( ← PWRB) 5,DRV1 LD ACCESS(RED) DISPLAY P2054-C 4,DRV1 DISC 6,DRV1 LD ACCESS(DREEN) 25,GND_FLK 5,GND_FLK 25 (-27V) 3,DRV1 OPCL 16,PWR_SW# ( → PWRB) 10,K_REC 5,GND_FLK 4,GND_FLK 19,PWR_SW2( → PWRB) 20,GND_FLK 1,GND_FLK 2,GND_FLK 3,GND_FLK 17,VFD_PWR(-30.5V) 18,HDD_IND#( ← PWRB) 11,K_PREVIEW 5 4 3 1 20 1 6 1 25 1 1 6 R D641 S641 CN641 C641 D642 DRV2B 1.DRV2 LD ACCESS (GREEN) 3.DRV2 DISC 2.DRV2 LD ACCESS (RED) 6.GND_DRV2 5.Vcc DRV2 TO FLK-CN602 4.DRV2 OPCL 6 1 R 3 1 R709 R708 C684 JA681 CN681 C685 C691 R707 C681 CN684 D681 R706 KN682 1.VCC_USB 3.-D_USB1 2.VCC_USB 5.+D_USB1 8.GNB_USB 6.+D_USB2 7.GND_USB 10 2 10.GND_USB 4.-D_USB2 9.GND_USB (COM2) To Mother 1 USBB +5V 8 5 4 1 2 1 10 3 1 R 1 D631 S631 D632 CN631 4.DRV1 OPCL 3.DRV1 DISC 2.DRV1 LD ACCESS (RED) 1.DRV1 LD ACCESS (GREEN) 5.Vcc DRV1 TO FLK-CN502 DRV1B 6 6.GND_DRV1 6 1 J L M N SIDE A DRV2B ASSY M DRV1B ASSY L USBB ASSY N CN3 MOTHER BOARD ASSY COM2 MOTHER BOARD ASSY FRONT_USB I CN5 I CN504 CN501 (DNP2054-C) (DNP2054-C) (DNP2054-C) (DNP2054-C) CN503 CN502 CN631 CN641 CN684 CN681 IC504 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 102 1 2 3 4 1 2 3 4 C D F A B E A B C 1 0 0 3 2 1 0 9 8 7 6 5 4 3 2 1 0 1 6 1 34 44 1 11 12 22 23 33 R R584 C515 R541 R593 R542 R501 R596 C510 R585 C520 R539 C514 Q503 R583 R595 Q506 R563 R713 R562 R598 Q507 R582 R537 R503 D514 R549 D511 R590 R587 R597 R589 R581 R540 R594 R556 IC503 R591 Q508 D512 R538 C516 R564 R635 R588 Q505 R504 D521 R567 Q504 R548 R592 R502 R712 D520 R578 R586 R506 R505 R576 DNP2054-C TxD 4,FAN_DET -23.5V (To PWRB) 12,PS_ON_I# TO KEY-CN601 TO PWR-CN3 20 ENTER 2,Vcc FLK _CONT3 10,FAN 9,PWR_OK_I 1 2,GND_FLK 7,K_STOP 21,DRV2_LD_ACCESS 17,CST DRIVE2 1,GND_FLK 24,VCC_FLK TO MOTHER 14,PS_ON_O#(To PWRB) (GREEN) 11,K_PREVIEW 14,LD_PLAY 16,LD_STOP 8,FAN_CONT2 (From PWRB) 3,+5VSB 25,GND_FLK FUNCTION 16,PWR_SW# CN503 GND 7,RESET#(To PWRB) TO DRV1-CN631 25 19,SIOT CN502 5,GND_FLK 13,LD_REC 6,DRV1 LD ACCESS(DREEN) 1,GND_FLK 20,DRV2_LD_ACCESS DRIVE1 18,SCT 19,PWR_SW2 DOWN 9,K_PLAY 2,GND_FLK 5,DRV1 LD ACCESS(RED) 13,FLDC_+ (From PWRB) 15,FLDC- RxD CN504 23,DRV2_OPCL (RED) CN0501 3,DRV1 OPCL 1,GND_FLK 12,K_DRV_SEL RIGHT UP 4,DRV1 DISC 15,LD_PAUSE 6,FAN_CONT1 18,HDD_IND#(From PWRB) 17,VFD_PWRB 6,K_SCAN_STEP 20,GND_FLK 22,DRV2_DISC 11,GND_FLK LEFT 8,K_PAUSE 3,GND_FLK 5,GND_FLK 4,GND_FLK 10,K_REC DISPLAY HDD 1 44 34 33 23 22 12 11 1 R R644 R642 Q643 R641 R643 Q642 Q641 1.DRV2 LD ACCESS (GREEN) 6 3.DRV2 DISC 2.DRV2 LD ACCESS (RED) TO FLK-CN602 5.Vcc DRV2 4.DRV2 OPCL 6.GND_DRV2 1 DWZ1161-A DWZ1111-A CN641 R R694 C682 R695 R696 R710 R693 C683 CN681 CN684 KN682 C691 2 10 1 8 5 JA681 4 1 +5V DWZ1158-A DWZ1159-A R Q633 R632 R633 R634 C631 Q632 Q631 R631 6.GND_DRV1 DWZ1160-A 4.DRV1 OPCL CN631 1 5.Vcc DRV1 DWZ1110-A 2.DRV1 LD ACCESS (RED) 3.DRV1 DISC 1.DRV1 LD ACCESS (GREEN) 6 TO FLK-CN502 J L M N SIDE B DRV2B ASSY M DRV1B ASSY L FLKB(WYV/RB) ASSY J USBB ASSY N CN504 CN501 (DNP2054-C) (DNP2054-C) (DNP2054-C) CN603 CN503 CN502 CN631 CN684 CN681 Q643 Q642 Q641 Q633 Q632 Q631 Q508 Q505 Q504 Q503 Q507 Q506 IC503 CN641 CN602 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 103 5 6 7 8 5 6 7 8 C D F A B E 34 33 23 22 12 11 1 44 21 40 41 60 61 80 1 20 34 44 1 11 R R517 D505 R554 Q501 C510 IC502 R547 R552 D516 R535 C502 R639 D518 R529 R511 Q502 R528 R521 R713 R527 R681 R627 R533 D515 R518 D514 D517 D511 R526 R523 R524 IC501 R626 R683 R513 R536 R546 R561 D503 R682 R637 R553 R515 R545 R531 R638 D513 R692 C505 D512 R530 C506 R636 Q510 D519 R534 R558 R635 R555 R520 R557 R544 R522 R516 R684 C507 D521 R567 R551 R512 R712 D520 R519 R514 D501 R525 NP2054-C /ON -27V -27V DWZ1155-A -23.5V FLKB(/JJ) STANDBY DWZ1154-A FLKB(/KU/CA) FLKB(WYV/RB) DWZ1119-A DWZ1162-A FLKB(/KU/CA) DWZ1163-A FLKB(/JJ) DWZ1164-A FLKB(WYV/RB) GND GND 44 34 33 23 22 12 11 1 80 61 60 41 40 21 20 1 44 34 33 12 11 1 R R618 R608 Q602 R614 R623 R617 R613 R615 R625 Q605 R620 R603 R621 Q609 C601 R624 R606 R611 Q612 R622 D613 R616 R619 1 LD_STOP 22.GND_KEY SELECT PREVIEW DRIVE 21.GND_KEY 17.K_PLAY 1.GND_KEY 11.LDPAUSE 9.CST 4.DRV2_DISC 25 5.DRV2_LD_ACCESS(RED) 13.LD_REC 23.GND_KEY LD_PAUSE 12.LD_PLAY LD_PLAY REC 25.GND_KEY FWD CN602 STEP 2.Vcc_KEY 7.SIOT 6 SCAN/SKIP REV 2,Vcc_DRV2 3,DRV2_OPCL 10.LD_STOP 8.SCT DWZ1156-A 1 5,DRV2_LD_ACCESS(RED) STOP CN601 PLAY 3.DRV2_OPCL 24.GND_KEY 16.K_REC 1,GND_DRV2 4,DRV2_DISC 19.K_STOP 18.L_PAUSE 14.K_DRV_SEL 15.K_PREVIEW DWZ1157-A KEYB(WYV/RB) TO FLK-CN503 TO DRV2-CN641 20.K_SCAN_STEP PAUSE 6.DRV2_LD_ACCESS(GREEN) LD_REC 6,DRV2_LD_ACCESS(GREEN) KEYB(/KU/CA,/JJ) J K SIDE B KEYB(WYV/RB) ASSY K (DNP2054-C) CN505 CN603 CN601 C503 IC501 IC502 Q502 Q609 Q602 Q612 Q605 Q501 Q510 CN641 CN602 (DNP2054-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 104 1 2 3 4 1 2 3 4 C D F A B E 4.7 JKOB ASSY C7854 C7858 R7862 R7994 R7981 C7873 C7860 C7865 D7852 C7869 C7870 C7866 C7857 C7856 R7855 R7853 D7857 C7875 R7984 D7856 L7983 D7853 R7997 R7861 D7858 D7855 C7863 C7881 R7996 R7856 D7860 D7859 R7992 R7857 R7995 R7860 R7859 C7878 R7858 D7865 D7854 D7862 D7864 D7861 D7866 D7863 D7867 D7868 C7867 D7851 C7862 C7874 L7984 R7986 R7983 C7877 C7880 C7879 C7876 L7982 L7981 LEVER NOTHING NP NP NP NP 1 30 C7855 C7872 R7852 JA7851 JA7852 C7868 C7851 C7981 C7859 C7983 R7851 C7982 KN7981 C7852 C7864 L7851 C7984 JA7853 R7854 JA7854 JA7855 CN7851 C7861 C7853 JA7981 8.CB_OUT 13.GND OUT GNDA GNDV 14.C_OUT 29.GND 15.GND 16.CVBS 17.GND 18.DC 19.GND GNDS JKOB 7.GND 6.CR _OUT OUT L_OUT 30.XL+OUT 5.GND 26.XR+ 20.L_OUT 12.Y_OUT 25.GND C_OUT 23.GND 22.R_OUT 27.GND 24.XR- OUT 21.GND 1.GND 10.GY 11.GND 4.GND 9.GND 2.SPDIF Y_OUT OUT 28.XL- Cb_OUT Cr_OUT L_OUT R_OUT SPDIF_OUT GY_OUT PC CV_OUT OUT OUT OUT R_OUT 3.GND 2 1 3 4 1 2 3 4 5 6 7 1 2 1 30 1 2 3 4 5 6 7 SIDE A SIDE B E E JKOB ASSY E JKOB ASSY E CN7802 A CN7851 CN7851 (DNP2096-A) (DNP2096-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 105 5 6 7 8 5 6 7 8 C D F A B E 4.8 MOTHER BOARD ASSY Connection Diagram of the MOTHER BOARD ASSY CN2301 CN2302 G J3 CN681 N CN1351 ATX POWER SUPPLY UNIT P8 CN1352 F CN504 J J2 J8 JP17 DDR MEMORY PORT HDD 120G 4R120L0 JP10 JP3 CN6 I CN4 I JP18 DRIVE ASSY LX1 Be careful when assembling, because the wires easily become detached from the connectors. JP11 J9 J8 (DKP3656): For CPU_12 V. The connector has a different shape to prevent erroneous connection. J9 (DKP3657): For ATX power supply. The connector has a different shape to prevent erroneous connection. JP3 (DKP3646): For USB. The black tube is attached to the cable on the side of the Motherboard. The connector is designed to prevent erroneous connection to a 9-pin connector. JP10 (DKP3647): For the IDE Primary (HDD). The connector has a different shape to prevent erroneous connection. JP11 (DKP3648): For the IDE Secondary (DVD drive). The connector has a different shape to prevent erroneous connection. JP17 (DKP3645): For COM2. To prevent erroneous connection to a 10-pin connector, some of the pin holes are filled. JP18 (DKP3635): For FPIO. Be careful of the direction. Align the white mark with Pin 1. Make sure that the cable is not twisted after connection. LITHIUM BATTERY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 106 1 2 3 4 1 2 3 4 C D F A B E Notes on the Connectors Mounted on the MOTHER BOARD Assy JP16 JP13 JP8 JP18 JP14 JP9 JP5 JP4 JP6 J6 J7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 107 5 6 7 8 5 6 7 8 C D F A B E Initial setting of the jumper switches JP18 : Jumper switch for Power button, Reset, HDD LED, and Power LED • The figure is a top view of a jumper switch. • Above Pin 1 of a switch, a gray mark (shown in the figure on the right) is provided. With some switches, there will be a white mark above Pin 1 on the Motherboard. • The position of the latch of a switch is indicated with a thick line, as shown in the figure on the right. • The initial setting of a jumper switch is indicated by double lines, as shown in the figure on the right. 1 (–) - 2 (+) IDE LED 3 (+) - 4 (+) 5 (–) Power LED 6 (+) - 7 (–) Power button 8 (–) - 9 (+) Reset button JP14 : CMOS clear 1 - 2 : Position for normal use (factory-preset position) 2 - 3 : CMOS clear DKP3635 (Color of the cable: white) to Pin 1 of the jumper switch, as shown above. If inappropriately connected, the unit will not start up. 9 8 7 6 5 4 3 2 1 2 1 2 1 4 3 6 5 8 7 10 9 3 2 1 1 - 2 : CPU select (factory-preset position) 2 - 3 : 100MHz EMPTY : 133MHz 3 2 1 JP4 : SERIRQ for PCI Slot 3 OPEN : SERIRQ invalid (factory-preset position, SERIRQ not supported) SHORT : SERIRQ valid JP9 : Connector for audio and front panel At the shipping, the jumper pins are connected to Pins 5-6 and Pins 9-10. JP16 : Selection of the clock frequency No jumper pin or wire is connected to JP4, JP5, JP6, JP8, JP13, or J6. MIC_IN_FP MIC_BIAS R_FNTOUT NOT connected L_FNT_OUT AUD_JACK_GND V_5P0_AUD_ANALOG R_RETIN NOT connected L_RETIN J7 : CPU fan jumper switch Connect a CPU fan whose rotation-speed monitoring is supported. Note: The CPU fan is installed in this unit at the factory. 1 2 3 GND +12V CPU-fan-rotation-speed monitoring (by SIO) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 108 1 2 3 4 1 2 3 4 C D F A B E 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES NSP 1..ETC1 ASSY DWM2160 2..PWRB(POLY) ASSY DWZ1129 2..FLKB(WYV/RB) ASSY DWZ1164 2..KEYB(WYV/RB) ASSY DWZ1157 2..USBB ASSY DWZ1159 2..DRV1B ASSY DWZ1160 2..DRV2B ASSY DWZ1161 NSP 1..ETC2 ASSY DWM2189 2..JKIB ASSY DWZ1126 2..JKOB ASSY DWZ1127 2..HPVB ASSY DWZ1128 2..422IB ASSY DWZ1133 2..JKDB ASSY DWZ1134 1..PCIB ASSY DWP1080 1..DECB ASSY DWP1081 1..AVIB ASSY DWV1202 > 1..MOTHER BOARD ASSY DXF1007(*1) (*1) • Replace the whole MOTHER BOARD Assy. No part in the MOTHER BOARD Assy is provided as a repair parts. • MOTHER BOARD Assy is supplied with lithium battery. Mark No. Description Part No. AJKIB ASSY SEMICONDUCTORS IC7401 BA7046F IC7803 LA73054 IC7418, IC7423 MM1113XF IC7403 MM1114XF IC7404, IC7412, IC7414, IC7416, IC7422 MM1117XF IC7409 MM1118XF IC7701, IC7703, IC7704, IC7706 NJM4556AM IC7707-IC7710 NJM5532MD >IC7711 NJM78M05DL1A IC7622 PST9245 IC7611, IC7614, IC7615, IC7618, IC7702 TC4W53FU IC7705, IC7802 TC4W53FU IC7402 TC7WH123FU IC7405, IC7410, IC7413, IC7415 TK15420M IC7419-IC7421 TK15420M IC7612, IC7613, IC7616, IC7617 UPC4570G2 IC7619-IC7621 UPC4570G2 Q7702, Q7714, Q7716 2SA1037K Q7409, Q7413, Q7414, Q7417, Q7420 2SA1576A Q7423 2SA1576A Q7831 2SC2412K Q7415, Q7418, Q7421, Q7424, Q7425 2SC4081 Q7703-Q7712 2SD2114K Q7412 2SK210 Q7426, Q7701, Q7713, Q7715 DTC114YK Q7613 DTC143EK Q7408, Q7410 HN1A01FU Q7416, Q7419, Q7422 HN1B01FU Q7407, Q7411 HN1C01FU Q7401, Q7402, Q7404, Q7405 RN4982 Q7611, Q7612, Q7802-Q7804 RN4982 D7611-D7618, D7623, D7624, D7701 1SS355 D7401 MA111 D7619-D7622 SML-310DT D7402-D7413, D7601-D7604 UDZS5R1(B) COILS AND FILTERS L7620, L7621, L7624, L7625 BTH1119 F7412, F7414-F7419, F7802, F7831 DTF1069 F7401-F7404 DTF1110 L7961-L7964 VTL1089 SWITCHES AND RELAYS RY7611 BSR1014 CAPACITORS C7437, C7635, C7644, C7646, C7654 CCSRCH100D50 C7413, C7433, C7474, C7475, C7477 CCSRCH101J50 C7636, C7642, C7647, C7655, C7737 CCSRCH220J50 C7741, C7748, C7753, C7961, C7963 CCSRCH220J50 C7965, C7967 CCSRCH220J50 C7409, C7601, C7602 CCSRCH221J50 C7405 CCSRCH390J50 C7706, C7726 CCSRCH471J50 C7707, C7723 CCSRCH750J50 C7805, C7817 CEVW101M10 C7417, C7423, C7427, C7438 CEVW101M16 C7445, C7446, C7458, C7460, C7479 CEVW101M16 C7612, C7619, C7638, C7652 CEVW101M16 C7656-C7659, C7718, C7719, C7731 CEVW101M16 C7734, C7745 CEVW101M16 C7738, C7740, C7751, C7752 CEVW220M35 C7714 CEVW470M16 C7634, C7641, C7645, C7653 CEVWNP100M25 C7705, C7709, C7717, C7721, C7722 CEVWNP470M10 C7730 CEVWNP470M10 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 109 5 6 7 8 5 6 7 8 C D F A B E C7404 CKSRYB102K50 C7436, C7442, C7456, C7457, C7470 CKSRYB103K50 C7473, C7489, C7492, C7611 CKSRYB103K50 C7403, C7406, C7408, C7411, C7412 CKSRYB104K16 C7414, C7415, C7418, C7420, C7422 CKSRYB104K16 C7424-C7426, C7430, C7439-C7441 CKSRYB104K16 C7444, C7447, C7451, C7455, C7459 CKSRYB104K16 C7461, C7463, C7464, C7469, C7480 CKSRYB104K16 C7483, C7484, C7488, C7613 CKSRYB104K16 C7615, C7616, C7620-C7623 CKSRYB104K16 C7626, C7627, C7630, C7632, C7633 CKSRYB104K16 C7637, C7639, C7643, C7648, C7649 CKSRYB104K16 C7651, C7660, C7661, C7703, C7704 CKSRYB104K16 C7711-C7713, C7715, C7716, C7720 CKSRYB104K16 C7725, C7728, C7729, C7732, C7733 CKSRYB104K16 C7735, C7736, C7742, C7744, C7747 CKSRYB104K16 C7749, C7755, C7757, C7803, C7807 CKSRYB104K16 C7809, C7810, C7812, C7815, C7816 CKSRYB104K16 C7831 CKSRYB104K16 C7401, C7416, C7434, C7435, C7448 CKSRYB105K6R3 C7476, C7481, C7617, C7628, C7806 CKSRYB105K6R3 C7808, C7813, C7818 CKSRYB105K6R3 C7450, C7453, C7454, C7467, C7468 CSZSR100M16 C7486, C7487 CSZSR100M16 RESISTORS R7706, R7724 RN1/16SE1602D R7707, R7725 RN1/16SE3302D R7479 RS1/16S1001F R7444, R7448, R7484, R7506, R7550 RS1/16S1801F R7449, R7450, R7485, R7486 RS1/16S2201F R7507, R7508, R7551, R7552 RS1/16S2201F R7446, R7457, R7459, R7460, R7480 RS1/16S4700F R7492, R7493, R7518, R7519 RS1/16S4700F R7557, R7558 RS1/16S4700F R7451, R7487, R7509, R7553 RS1/16S5600F R7431, R7470, R7500, R7537 RS1/16S5601F R7466, R7467, R7476, R7478 RS1/16S7500F R7502, R7503, R7533, R7534 RS1/16S7500F R7419, R7420, R7434, R7524, R7525 RS1/16S75R0F R7530 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS CN7402 PH CONNECTOR AKM1277 CN7613 PH CONNECTOR AKM1278 JA7601 2P PIN JACK BKB1017 CN7801, CN7802 CONNECTOR CKS4361 JA7402 BNC CONNECTOR DKN1267 JA7403 BNC CONNECTOR DKN1268 JA7961 CANNON CONNECTOR DKN1269 CN7701 8P CONNECTOR S8B-ZR-SM3A 7401 PCB BINDER VEF1040 JA7404 DV-TERMINAL VKB1186 JA7401 4P MINIDINSOCKET VKN1072 CN7611 20PCONNECTOR VKN1589 KN7401, KN7402 VNF1084 WRAPPING TERMINAL KN7961 SCREW PLATE VNE1948 Mark No. Description Part No. BJKDB ASSY SEMICONDUCTORS IC7901 DS8922M IC7941 LM1881M IC7921 LM361M IC7923 NJM4558M D7923, D7924 1SS355 D7925-D7927 SML-310DT D7901-D7908, D7921, D7922 UDZS5R1(B) COILS AND FILTERS F7905, F7921-F7923, F7941 DTF1069 L7901-L7904, L7906-L7909 VTL1079 SWITCHES AND RELAYS S7941 VSH1009 CAPACITORS C7927, C7928 CCSRCH221J50 C7945 CCSRCH471J50 C7922, C7929 CEVW101M16 C7926, C7943 CEVW470M16 C7901, C7921, C7924, C7925 CKSRYB104K16 C7941, C7942, C7944 CKSRYB104K16 RESISTORS R7901, R7907, R7909 RAB4C220J R7943 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS JA7941 BNC CONNECTOR DKN1268 CN7901 D-SUB CONNECTOR DKN1271 CN7902 11P CONNECTOR S11B-ZR-SM3A CN7941 ZR CONNECTOR S2B-ZR-SM3A CN7903 6P CONNECTOR S6B-ZR-SM3A C422IB ASSY SEMICONDUCTORS D7951-D7958 UDZS5R1(B) OTHERS CN7951 D-SUB CONNECTOR DKN1271 CN7952 6P CONNECTOR S6B-ZR-SM3A DHPVB ASSY SEMICONDUCTORS IC661 BH3544F Q661 RN4982 D661 SML-310DT COILS AND FILTERS L661-L664 QTL1015 CAPACITORS C670, C671 CCSRCH101J50 C663, C668, C677 CEVW101M16 C675 CEVW470M16 C664, C676 CKSRYB104K16 C666, C673, C674 CKSRYB105K6R3 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 110 1 2 3 4 1 2 3 4 C D F A B E RESISTORS VR661 DCS1063 Other Resistors RS1/16S###J OTHERS CN661 8P CONNECTOR S8B-ZR-SM3A JA661 HEADPHONE JACK VKN1802 EJKOB ASSY SEMICONDUCTORS D7851-D7868 UDZS5R1(B) COILS AND FILTERS L7981-L7984 VTL1089 CAPACITORS C7857, C7860, C7865, C7866, C7869 CCSRCH101J50 C7874, C7877, C7878, C7881 CCSRCH220J50 C7851, C7852, C7873 CCSRCH221J50 C7856 CCSRCH390J50 C7981-C7984 CEANP471M10 C7855, C7859, C7861, C7864, C7868 CEAT102M10 C7872 CEVW101M10 C7853, C7854, C7858, C7862, C7863 CKSRYB104K16 C7867, C7870 CKSRYB104K16 RESISTORS R7853, R7855-R7859 RS1/16S68R0F R7860 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS JA7851 2P PIN JACK BKB1017 CN7851 CONNECTOR CKS4361 JA7853 BN CCONNECTOR DKN1267 JA7854 BN CCONNECTOR DKN1268 JA7981 CANNON CONNECTOR DKN1270 JA7855 1P PIN JACK VKB1159 JA7852 4P MINI DIN SOCKET VKN1072 KN7981 SCREW PLATE VNE1948 FDECB ASSY SEMICONDUCTORS IC1711 ADV7172KST >IC1101 BA033FP IC1411 BU2288FV IC1412 CY2081SL-655 IC1211 HD6417709AF100B >IC1351 ICP-S2.3 IC1512 K4S641632H-TC75 IC1611 K4S643232H-TC60 IC1513 M65776AFP IC1413 NJM2100M IC1751 PCM1716E IC1612 PD6454D8 >IC1111 PQ025EZ01ZP >IC1121 PQ070XZ02ZP IC1391 PST9142N Mark No. Description Part No. IC1416-IC1418, IC1851-IC1853 SN74AHC2G53HDCT IC1153, IC1415, IC1511, IC1651-IC1653TC74LCX541FT IC1172 TC74VHC04FT IC1171 TC74VHC125FT IC1392 TC74VHC14FT IC1151, IC1414 TC7WU04FU IC1311 XC2S100-5PQ208C Q1811-Q1819 2SA1576A Q1752 2SC4081 Q1211 2SK2033 Q1851 DTA124EUA Q1411, Q1412, Q1471, Q1751, Q1852 DTC124EUA Q1391 UMH1N D1391, D1751 1SS355 D1411 1SV323 D1137 SML-310DT D1181, D1182, D1185, D1186, D1311 SML-310YT COILS AND FILTERS F1152, F1153, F1412, F1651-F1653 DTF1069 F1851 DTF1069 F1751, F1755, F1756 VTF1096 L1151 VTL1084 L1411, L1462, L1781 VTL1157 CAPACITORS C1233 CCSRCH180J50 C1234 CCSRCH220J50 C1212, C1213 CCSRCH471J50 C1415 CCSRCH560J50 C1426 CCSRCH5R0C50 C1102, C1111 CEVW100M16 C1462 CEVW101M10 C1121, C1414, C1417, C1711, C1717 CEVW101M6R3 C1752, C1759-C1761, C1782 CEVW101M6R3 C1393 CEVW1R0M50 C1104, C1113 CEVW220M6R3 C1123, C1216, C1333, C1335, C1516 CEVW221M4 C1523, C1615, C1622 CEVW221M4 C1101, C1115, C1154, C1171, C1424 CKSRYB103K50 C1427, C1651-C1653 CKSRYB103K50 C1153, C1172-C1174, C1183, C1211 CKSRYB104K16 C1214, C1215, C1218-C1232 CKSRYB104K16 C1311-C1332, C1337-C1342 CKSRYB104K16 C1353-C1356, C1363-C1368 CKSRYB104K16 C1375-C1377, C1391, C1392, C1413 CKSRYB104K16 C1416, C1421-C1423, C1461, C1463 CKSRYB104K16 C1512, C1513, C1518-C1522 CKSRYB104K16 C1524-C1529, C1533-C1539 CKSRYB104K16 C1541-C1551, C1611-C1614 CKSRYB104K16 C1617-C1621, C1624, C1713, C1716 CKSRYB104K16 C1718-C1725, C1751, C1753 CKSRYB104K16 C1755-C1758, C1762, C1763, C1781 CKSRYB104K16 C1783, C1851-C1853 CKSRYB104K16 C1412, C1418, C1419, C1474, C1511 CKSRYB105K6R3 C1515, C1530-C1532 CKSRYB105K6R3 C1420 CKSRYB332K50 C1103, C1112 CKSRYB334K10 C1411 CKSRYB472K50 C1754, C1764 CKSRYF105Z10 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 111 5 6 7 8 5 6 7 8 C D F A B E RESISTORS R711-R714, R732, R734 RAB4C103J R745, R746, R755, R756 RAB4C103J R715-R731, R733, R735-R744 RAB4C220J R1123 RN1/16SE1001D R1439 RN1/16SE1202D R1420 RN1/16SE3000D R1438 RN1/16SE4701D R1411 RN1/16SE6800D R1824, R1828 RS1/16S1000F R1820 RS1/16S1500F R1719 RS1/16S1502F R1513 RS1/16S1801F R1829, R1833, R1835 RS1/16S2200F R1512 RS1/16S3001F R1520 RS1/16S3301F R1125 RS1/16S3900F R1724, R1734 RS1/16S4701F R1720 RS1/16S4702F R1813, R1816, R1821 RS1/16S62R0F R1723, R1732 RS1/16S6800F R1721 RS1/16S6801F R1811, R1815, R1818 RS1/16S82R0F R1522 RS1/8S4R7J Other Resistors RS1/16S###J OTHERS X1212 CRYSTAL RESONATOR BSS1091 CN1811 CONNECTOR CKS4361 CN1651 30P FLEXIBLE CONNECTOR DKN1192 X1151 CHIP CERALOCK (40MHz) DSS1101 X1411 CRYSTAL RESONATOR DSS1117 CN1171 CONNECTOR 11P S11B-ZR-SM3A CN1471 ZR CONNECTOR S2B-ZR-SM3A CN1174 CONNECTOR 5P S5B-ZR-SM3A CN1172 CONNECTOR 6P S6B-ZR-SM3A CN1173 CONNECTOR 7P S7B-ZR-SM3A CN1183 7P FFC CONNECTOR VKN1299 KN1811, KN1812 VNF1109 GPCIB ASSY SEMICONDUCTORS >IC2302 BA033FP IC2405 HD6417709AF100B IC2003 HY57V641620HGT-7 IC2404 K4S643232H-TC60 IC2406 PD6453D8 IC2001 PE5219A >IC2305 PQ025EZ01ZP >IC2303 PQ070XZ02ZP IC2306 PST9142N IC2110 TC74LCX16245AFT IC2002, IC2103-IC2108, IC2308, IC2403TC74LCX541FT IC2109 TC74LCX574FT IC2407 TC74VHC04FT IC2401 TC74VHC125FT IC2307 TC74VHC14FT Mark No. Description Part No. IC2304 TC7SH08FU IC2102 TC7WT126FU IC2402 TC7WU04FU IC2309 XC2S100-5PQ208C Q2301 UMH1N D2303 1SS355 D2101, D2102, D2301 SML-310DT D2304-D2308 SML-310YT >TH2301, TH2302 MINISMDC020 >TH2351 MINISMDM160 COILS AND FILTERS F2003-F2006, F2306-F2308 DTF1070 F2401, F2402 DTF1070 F2301, F2302 VTH1040 L2101, L2403-L2409 VTL1079 L2001, L2002 VTL1084 CAPACITORS C2180 CCSRCH101J50 C2447, C2448 CCSRCH180J50 C2412, C2413 CCSRCH471J50 C2301, C2303, C2304, C2306, C2307 CEVW100M16 C2309, C2311, C2313, C2314 CEVW100M16 C2317-C2319, C2333, C2337, C2416 CEVW100M16 C2418 CEVW100M16 C2323 CEVW1R0M50 C2001-C2003, C2026 CEVW221M4 C2308, C2310, C2315, C2320, C2322 CKSRYB103K50 C2324-C2332, C2336, C2338-C2348 CKSRYB103K50 C2350, C2351, C2353-C2373 CKSRYB103K50 C2401-C2405, C2408, C2409, C2411 CKSRYB103K50 C2414, C2415, C2417, C2419-C2430 CKSRYB103K50 C2432-C2446 CKSRYB103K50 C2004-C2022, C2024, C2025 CKSRYB104K16 C2027-C2031, C2101, C2102, C2107 CKSRYB104K16 C2122, C2143, C2146, C2156, C2168 CKSRYB104K16 C2190, C2194, C2321 CKSRYB104K16 C2117 CKSRYB105K6R3 C2305, C2312, C2316 CKSRYB224K10 RESISTORS R2008-R2010, R2013, R2023-R2025 RAB4C0R0J R2027, R2029, R2031 RAB4C0R0J R2002, R2014-R2020, R2050, R2051 RAB4C103J R2409-R2416 RAB4C103J R2003-R2007, R2012, R2021, R2028 RAB4C220J R2030, R2037, R2042, R2043 RAB4C220J R2064-R2068, R2070-R2073 RAB4C220J R2075-R2078, R2478-R2480, R2484 RAB4C220J R2486, R2487, R2503-R2510 RAB4C220J R2316 RN1/16SE1001D R2313 RS1/16S3900F Other Resistors RS1/16S###J OTHERS CN2403 CONNECTOR 11P B11B-ZR-SM3 CN2404 CONNECTOR 5P B5B-ZR-SM3 CN2402 CONNECTOR 6P B6B-ZR-SM3 CN2401 CONNECTOR 7P B7B-ZR-SM3 X2402 CRYSTAL RESONATOR BSS1091 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 112 1 2 3 4 1 2 3 4 C D F A B E X2401 CHIPCERA LOCK(40MHz) DSS1101 CN2102 CONNECTOR 11P S11B-ZR-SM3A CN2101 4P CONNECTOR S4B-ZR-SM3A CN2405 7P FFC CONNECTOR VKN1299 CN2103, CN2104 50P CONNECTOR VKN1590 KN2301, KN2302 EARTH METAL VNF1109 X2001 CRYSTAL RESONATOR VSS1138 HAVIB ASSY SEMICONDUCTORS IC3803 BA4558F-HT IC6004 CS8420-CSZD1 IC7004 DVXCEL-BA1 >IC3205 ICP-S2.3 IC5001 M2V64S50DTP-6 IC3501 NJM13404V IC3301 NJM2115M >IC3202 NJM78M05DL1A >IC3201, IC3203 NJM78M09DL1A >IC3204 NJM79M09DL1A IC3802 PCM1800-1 IC3502 PD0272A1 IC5002 PD6342A IC6003 PE7004A IC3309 PLL1700E >IC7501 PQ070XZ02ZP IC3302, IC3306 SN74AHC2G53HDCT IC3004 TC74LCX16245AFT IC3002, IC3003, IC3006, IC3007, IC3304TC74LCX541FT IC3308, IC6501, IC6502, IC7001 TC74LCX541FT IC6005 TC74LCX74FT IC3005 TC74VHCT541AFT IC3310 TC74VHCU04FT IC3307 TC7SH04F IC5003 TC7SH08FU IC3303, IC3305 TC7SLU04F IC3801 TC9412AF IC4002 TSB41AB2PAP IC4001 TSB42AB4PDT IC3804 UPC4570G2 IC6002 UPD61003 IC7002, IC7003 W986432DH-7 IC5004 XC2S50-5PQ208C D3501-D3504, D3801-D3804 1SS355 D4001-D4008 1SS355 D3301 1SV323 D7002, D7003 EP10QY03 D3201-D3204 SML-310DT D5001-D5005 SML-310YT COILS AND FILTERS F7502-F7505 CTF1558 F3301-F3305, F3307-F3310, F3803 DTF1069 F507 DTF1069 F3201-F3204, F3208-F3210, F501 DTF1070 F706, F707 DTF1070 Mark No. Description Part No. L3501, L3502 LCYA100J2520 L3309 LCYA1R2J2520 F3205-F3207, F4002, F4003 VTF1171 F5002-F5005, F7002-F7004 VTF1171 F7006, F7007, F7501 VTF1171 L3312 VTL1078 L3305-L3308, L3313, L3314 VTL1079 L3319-L3321, L3323-L3328, L7008 VTL1079 CAPACITORS C4026, C6037, C6042 CCSRCH102J50 C4001, C4002 CCSRCH120J50 C4025 CCSRCH221J50 C3312, C7050-C7067 CCSRCH470J50 C3810, C3811 CCSRCH471J50 C3315 CCSRCK2R0C50 C3204, C3210, C3212 CEHVKW470M16 C3207, C3213-C3215, C3224, C3225 CEVW101M16 C3801, C3804, C3815, C3818 CEVW101M16 C3309, C3310, C3320, C3509-C3511 CEVW101M6R3 C3522, C3526, C3533, C4012 CEVW101M6R3 C6039, C6040 CEVW101M6R3 C3317, C3507, C5010, C5011 CEVW221M4 C5117, C5118, C6002, C6010, C6033 CEVW221M4 C7005, C7007, C7009, C7021 CEVW221M4 C7024, C7025, C7503, C7505 CEVW221M4 C3805-C3809, C3813, C3816, C3817 CEVW330M25 C3513, C3534, C7012, C7013, C7018 CKSRYB102K50 C7020, C7041 CKSRYB102K50 C3311, C3529, C6043, C6046, C7014 CKSRYB103K50 C7016, C7019, C7040, C7043, C7504 CKSRYB103K50 C3101-C3106, C3201-C3203 CKSRYB104K16 C3205, C3206, C3208, C3209, C3211 CKSRYB104K16 C3216-C3222, C3226, C3227 CKSRYB104K16 C3301-C3308, C3314, C3316 CKSRYB104K16 C3318, C3319, C3321, C3322 CKSRYB104K16 C3502-C3506, C3508, C3512 CKSRYB104K16 C3514-C3521, C3523-C3525 CKSRYB104K16 C3527, C3528, C3530-C3532 CKSRYB104K16 C3535-C3537, C3539-C3542, C3544 CKSRYB104K16 C3547, C3549, C3550, C3802, C3803 CKSRYB104K16 C3819, C4003-C4005, C4007 CKSRYB104K16 C4009-C4011, C4013, C4015-C4017 CKSRYB104K16 C4019-C4024, C4027, C4029-C4031 CKSRYB104K16 C5002-C5009, C5012-C5023 CKSRYB104K16 C5026-C5034, C5036-C5054 CKSRYB104K16 C5089-C5116, C6001, C6003-C6009 CKSRYB104K16 C6011-C6032, C6034-C6036, C6038 CKSRYB104K16 C6041, C6501, C6502, C7001-C7004 CKSRYB104K16 C7006, C7008, C7010, C7011, C7015 CKSRYB104K16 C7017, C7022, C7023, C7026-C7039 CKSRYB104K16 C7042, C7044-C7049, C7068-C7073 CKSRYB104K16 C7501 CKSRYB104K16 C3538, C3545, C3548 CKSRYB105K6R3 C6045 CKSRYB472K50 C4014, C4018 CKSRYF105Z10 C6044 CKSRYF224Z16 VC3301 (20p) VCM1008 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 113 5 6 7 8 5 6 7 8 C D F A B E RESISTORS R3526, R3534, R3538, R3542 RAB4C0R0J R3555-R3557, R5027, R5035 RAB4C0R0J R4019, R4020, R4027, R4028 RAB4C102J R3504, R3505, R3540, R3546 RAB4C103J R3548-R3551, R4010, R4056 RAB4C103J R4067, R4068, R6030, R6036, R6040 RAB4C103J R6044-R6046, R7091-R7095 RAB4C103J R4005-R4009, R4011, R4021, R4022 RAB4C220J R4030-R4032, R4039, R4047 RAB4C220J R4057, R4058, R4065, R4069-R4074 RAB4C220J R5002, R5003, R5005, R5006, R5010 RAB4C220J R5015-R5017, R5021-R5025, R5031 RAB4C220J R5034, R5036-R5041, R5043-R5045 RAB4C220J R5047-R5054, R5056, R5057 RAB4C220J R5076-R5079, R5082, R5084, R5088 RAB4C220J R5091-R5094, R5770-R5774 RAB4C220J R5776-R5782, R6001-R6007 RAB4C220J R6022, R6023, R6028, R6029 RAB4C220J R6032, R6033, R6037, R6038 RAB4C220J R6041, R6042, R6048, R6049, R6063 RAB4C220J R6070-R6072, R6074, R6075 RAB4C220J R6525, R6526, R7003-R7006, R7044 RAB4C220J R7056, R7063, R7068 RAB4C220J R4033, R4034, R4042, R4043 RN1/16SC56R0D R3306, R3331, R3335, R3336, R3340 RS1/10S0R0J R3503, R3506, R3801, R3807 RS1/10S0R0J R3814, R3815, R4012, R502 RS1/10S0R0J R505, R506, R5101, R5102, R6008 RS1/10S0R0J R6013, R6014, R6076, R6077, R7017 RS1/10S0R0J R7096-R7098, R7501 RS1/10S0R0J R7054 RS1/10S100J R7053 RS1/10S150J R7507 RS1/16S1001D R3532 RS1/16S1001F R3528 RS1/16S1002F R3501 RS1/16S1003F R3529 RS1/16S1301F R3524 RS1/16S1802F R3531 RS1/16S3601F R7504 RS1/16S5600F R4023 RS1/16S6341D Other Resistors RS1/16S###J OTHERS CN3203, CN3204 CONNECTOR 4P AKM1275 CN4001 CONNECTOR 4P B4B-ZR-SM3 CN3202 CONNECTOR AKM1293 CN3201 PH CONNECTOR 14P AKM1300 CN3301 CONNECTOR 4P B4B-ZR-SM3 CN3001, CN3002 CONNECTOR CKS3930 CN5501, CN5503, CN6002 CKS4361 CONNECTOR CN5502 26P CONNECTOR VKN1566 CN3501 CONNECTOR 20P VKN1589 KN3001-KN3007 VNF1109 X3301 CRYSTAL RESONATOR VSS1146 (27.000MHz) X4001 CRYSTAL RESONATOR VSS1151 (24.576MHz) Mark No. Description Part No. X7001 CRYSTAL RESONATOR VSS1153 (27.500MHz) IPWRB(POLY) ASSY SEMICONDUCTORS IC401, IC451 AN8015SH IC301 BA9743AFV IC101 BP5232-25A IC201 BP5233-33A >IC4-IC6 ICP-N10 >IC8 ICP-S2.3 IC3 TC74HC05AF Q101, Q201 2SA1037K Q14-Q16, Q21, Q26, Q28 2SA1162 Q5, Q9 2SA1162 Q301, Q302, Q401, Q402, Q451 2SA1900 Q18-Q20 2SD2114K Q24 DTA124EUA Q1, Q12, Q13, Q2 DTC124EUA Q22, Q23, Q25, Q29 DTC124EUA Q3, Q4, Q6-Q8 DTC124EUA Q10, Q17, Q27, Q30 UMH1N D1, D14-D18, D2 1SS355 D20, D21, D23, D3-D8 1SS355 D302, D402, D403, D452, D453 RB400D D10-D13, D19, D9 SML-310DT D24, D25 SML-310YT >TH1 MINISMDM160 COILS AND FILTERS L303 BTH1119 L301, L401 DTH1191 L451 DTH1192 SWITCHES AND RELAYS RY1, RY2 BSR1014 CAPACITORS C309, C407, C455 CCSRCH221J50 C101, C201, C90 CEAT102M16 C305, C306 CEAT470M35 C103, C203 CEAT471M10 C33, C35, C37 CEAT471M35 C21-C23, C308, C403, C453 CEVW100M35 C10, C12, C2, C4 CEVW100M50 C457, C458, C6, C8 CEVW100M50 C312-C314 CEVW101M10 C405 CEVW101M16 C410 CEVW330M35 C401, C451 CKSRYB102K50 C1, C11, C13-C16 CKSRYB103K50 C18-C20, C24, C29, C3 CKSRYB103K50 C32, C34, C36, C38-C45 CKSRYB103K50 C5, C7, C9 CKSRYB103K50 C315 CKSRYB104K16 C102, C202, C307, C310, C402 CKSRYF104Z25 C452 CKSRYF104Z25 C301, C304, C408, C456 CKSRYF105Z10 C404, C454 CSZS100M10 C311 CSZS330M6R3 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 114 1 2 3 4 1 2 3 4 C D F A B E RESISTORS R409, R459 RN1/16SE1203D R312, R318 RN1/16SE1502D R112 RN1/16SE2402D R212, R421 RN1/16SE2702D R307 RN1/16SE3302D R401, R453 RN1/16SE3601D R311 RN1/16SE3902D R464 RN1/16SE4702D R319 RN1/16SE5102D R306 RN1/16SE6202D R403, R451 RN1/16SE8201D R404, R455 RN1/16SE9101D R101, R108, R201, R208 RS1/10S0R0J R302, R303, R317, R408, R411 RS1/10S0R0J R420, R452, R469, R85-R87 RS1/10S0R0J R69, R70, R73, R74 RS1/10S270J R77, R78 RS1/10S270J R405, R456 RS1/10S680J R308, R309 RS1/10S752J VR201 (1k) VCP1125 VR101 (2.2k) VCP1127 Other Resistors RS1/16S###J OTHERS CN3 PLUG 20-P AKM1149 CN5 3P PH CONNECTOR AKM1274 CN2 KRCONNECTOR 14P B14B-PH-K-S CN6 CONNECTOR 6P B6B-ZR-SM3 CN1, CN4 FORAT XPSU CONNECTOR DKN1272 CN9-CN11 PLUG (2P) KM200SA2 KN1-KN3 WRAPPING TERMINAL VNF1084 JFLKB(WYV/RB) ASSY SEMICONDUCTORS IC501 PE5392B8 IC504 PST9142N IC502, IC503 PT6315 IC505 RPM7140-H4 Q511 2SA1162 Q509 2SB1260 Q504, Q505 DTA124EUA Q501, Q502, Q506-Q508 DTA143EUA Q510 DTC124EUA D501, D504, D511-D520 1SS355 D508-D510 SLR-343MC D506 SPR-39MVWF(MN) D502, D503, D505 UDZS6R2(B) COILS AND FILTERS L501 QTL1015 F501 VTH1009 SWITCHES AND RELAYS S501-S507, S509 VSG1024 Mark No. Description Part No. CAPACITORS C521-C523 CEVW101M16 C503, C511 CEVW101M6R3 C513, C517-C520 CKSRYB103K50 C501, C502, C504-C509, C512 CKSRYF104Z25 C514-C516 CKSRYF104Z25 RESISTORS All Resistors RS1/16S###J OTHERS CN502 CONNECTOR 6P 52492-0620 CN503 CONNECTOR 25P 52492-2520 CN504 CONNECTOR 3P 53025-0310 CN501 PLUG20P BKM1070 V501, V502 FL TUBE DAW1019 0 LED SPACER DEC2592 CN505 9P CONNECTOR VKN1947 X501 CHIP CERAMIC RESONATOR VSS1102 (5MHz) KKEYB(WYV/RB) ASSY SEMICONDUCTORS Q602, Q605, Q609, Q612 DTA124EUA D603, D606, D608, D611 NSPW310BS-4113 D613 UDZS6R2(B) SWITCHES AND RELAYS S601-S610 VSG1024 CAPACITORS C601, C602 CKSRYF104Z25 RESISTORS All Resistors RS1/16S###J OTHERS CN602 CONNECTOR 6P 52492-0620 CN601 CONNECTOR 25P 52492-2520 CN603 CONNECTOR VKN1943 LDRV1B ASSY SEMICONDUCTORS Q631-Q633 DTA143EUA D631 SLR-343DC D632 SPR-39MVWF(MN) SWITCHES AND RELAYS S631 VSG1024 CAPACITORS C631 CKSRYF104Z25 RESISTORS All Resistors RS1/16S###J OTHERS CN631 CONNECTOR 6P 52492-0620 0 LED SPACER DEC2592 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 115 5 6 7 8 5 6 7 8 C D F A B E MDRV2B ASSY SEMICONDUCTORS Q641-Q643 DTA143EUA D641 SLR-343DC D642 SPR-39MVWF(MN) SWITCHES AND RELAYS S641 VSG1024 CAPACITORS C641 CKSRYF104Z25 RESISTORS All Resistors RS1/16S###J OTHERS CN641 CONNECTOR 6P 52492-0620 0 LED SPACER DEC2592 NUSBB ASSY SEMICONDUCTORS D681 SML-310DT CAPACITORS C684 CCSRCH102J50 C691 CEAT471M10 C681 CKSRYF104Z25 RESISTORS R706, R707 RS1/10S0R0J Other Resistors RS1/16S###J OTHERS CN684 3P PH CONNECTOR AKM1274 JA681 USBCONNECTOR DKN1273 CN681 RF HEADER DKN1274 KN682 WRAPPING TERMINAL VNF1084 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 116 1 2 3 4 1 2 3 4 C D F A B E 6. ADJUSTMENT 6.1 27MHz CLOCK ADJUSTMENT POWER ON Screwdriver (small) Exchange the AVIB Assy VC3301 (27MHz Clock Adjustment) VC3301 (27MHz Clock Adjustment) Side A: TP3316 (Side B: TP3315) (TP-point of 27MHz Clock Adjustment ) Jigs and Measuring Instruments Adjustment and Adjustment Points How to Adjust Necessary Adjustment Points When Adjustment Points 2 3 4 1 4 3 1 5 4 1 8 5 20 1 3 4 5 1 14 1 7 8 C3314 C3313 VC3301 X3301 C3315 D3301 R3326 C3311 R3329 R3330 L3309 R3327 C3312 R3325 R3324 R3323 R3317 IC3303 R3316 C3304 R3315 R3310 R3305 C3303 R3302 R3301 C3301 R3303 R3304 IC3302 R3332 R3333 IC3307 C3307 IC3310 R3353 L3328 L3320 L3321 L3325 R3351 L3326 F3302 KN3003 F3304 TP3316 2 1 3 4 5 4 3 1 8 5 4 1 20 1 5 4 3 1 14 8 7 1 + 27MHz ± 130Hz TP3316 GND AVIB ASSY SIDE A H AVIB ASSY H SIDE A Front Adjustment conditions: While adjusting, there must be no video input connected. 11 10 1 20 10 1 20 11 24 1 48 25 10 1 20 11 14 1 2 3 4 1 4 3 1 5 4 1 8 5 11 20 1 10 3 4 5 1 14 1 7 8 1 20 11 10 1 1 50 4 1 1 20 11 10 1 10 1 10 11 20 1 7 8 5 4 1 72 37 36 1 144 109 108 73 8 5 4 1 1 20 6 1 256 1 64 65 128 129 192 193 208 1 157 156 105 104 53 52 4 5 1 3 1 26 1 30 30 1 1 25 26 50 51 75 76 100 30 1 1 43 44 86 86 44 43 1 1 A B C 1 0 0 3 2 1 0 9 8 7 6 5 4 3 2 1 0 1 IC3005 C3104 IC3003 C3102 R3001 IC3004 C3103 C3106 IC3007 CN3201 C3314 C3313 VC3301 X3301 C3315 D3301 R3326 C3311 R3329 R3330 L3309 R3327 C3312 R3325 R3324 R3323 R3317 IC3303 R3316 C3304 R3315 R3310 R3305 C3303 R3302 R3301 C3301 R3303 R3304 IC3302 R3332 R3333 R3339 R3346 R3347 R3352 L3312 L3313 L3315 L3322 L3323 L3327 IC3308 R3337 IC3307 C3316 C3307 IC3310 R3331 R3353 L3328 R3344 R3345 R3350 L3320 L3321 L3325 C3318 R5775 R3336 R3341 L3319 R3351 L3326 CN3001 C3101 IC3002 CN3002 R3002 R3003 R3004 R3005 R3006 R3007 R3008 R3009 R3010 R3011 R3022 R3021 R3020 R3019 R3018 R3017 R3016 R3015 R3014 R3013 R3012 R3026 R3027 R3023 R3024 R3025 R3043 R3042 R3041 R3040 R3039 R3038 R3035 R3036 R3037 R3031 R3032 R3033 R3034 R3028 R3029 R3030 R3044 R3045 R3046 R3047 R3048 R3051 R3050 R3049 R3053 R3054 R3052 R3057 R3055 R3056 R3063 R3062 R3061 R3058 R3060 R3059 R3064 R3077 R3076 R3072 R3073 R3074 R3075 R3071 R3069 R3070 R3068 R3065 R3067 R3066 R3079 R3078 R3080 R3081 R3089 R3088 R3086 R3087 R3083 R3082 R3084 R3085 C3216 F3205 L3208 CN3301 IC3304 R3306 C3302 R3348 L3324 L3305 R3312 L3306 R3313 L3307 R3314 R3320 R3321 R3096 R3095 R3094 R3097 R3093 R3092 R3091 R3090 CN3003 L3314 R3338 R3114 R3115 IC3006 C3105 R3322 F3303 F3302 C3206 C3205 IC3202 C3203 IC3201 C3202 C3209 C3208 IC3203 C3211 IC3204 C3201 CN3202 CN3203 C3226 C3227 CN3204 D3202 D3203 D3204 D3201 R3098 R5772 R5771 R5058 C3543 C3539 R3554 R3549 R3548 R3547 R3546 C3550 R3544 R3545 C3549 R3543 C3546 C3542 C3541 C3540 C3536 C3535 C3534 C3530 C3525 C3524 R3536 VR3501 C3529 R3535 R3527 IC3501 C3528 C3523 C3527 R3523 R3522 C3521 C3520 R3525 R3520 C3515 R3516 C3514 C3516 R3519 C3513 R3518 R3510 R3509 C3508 R3514 R3512 R3507 C3509 R3824 C3507 IC3502 C3815 R3823 C3506 C3505 C3504 C3503 C3502 R3501 C3808 C3809 R5773 IC3803 R3552 R3553 R3558 R3560 R3537 D3503 D3504 D3502 D3501 R3503 R3508 R3515 R3513 F3501 F3502 R3528 R3506 F3503 C3510 C3512 R3511 C3538 C3537 D3802 D3801 D3804 D3803 L3501 L3502 R3502 R3521 C3545 C3544 C3548 C3547 CN3501 D5005 C4031 C4029 C4028 R4046 C4020 C4019 C4030 R4068 R4067 C4008 C4018 C4025 R4042 R4045 R4044 R4036 R4035 R4052 R4043 R4033 R4034 R4010 R4055 C4026 R4020 R4028 D4004 D4008 D4003 D4007 D4002 D4006 D4001 D4005 R4014 F4002 R4066 CN4001 C4808 C4809 R4810 C4811 C4810 R4807 R4808 IC4802 R4805 F4803 C4807 L4801 C5050 C5053 C5054 C5048 C5049 C5047 C5045 C5046 C5051 C5052 C5044 C5043 C5041 C5040 C5039 C5038 C5034 C5037 C5032 C5036 C5033 C5031 C5027 C5029 C5028 C5026 C5020 C5018 C5019 C5016 C5017 C5012 C5014 R3221 R3222 IC5002 C5021 C5022 C5015 C5013 C5001 R5002 R5003 R5004 R5010 R5015 R5011 R5012 R5013 R5014 R5016 R5017 R5018 R5019 R5023 R5024 R5021 C5030 R5037 R5040 R5022 R5025 R5031 R5041 R5039 R5038 R5036 R5030 R5043 R5044 R5045 R5047 R5048 R5049 R5050 R5051 R5052 R5053 R5054 R5027 R5035 C5023 R5034 R5028 F5001 L5001 L5003 C5116 C5115 C5114 C5113 C5112 C5111 F5006 R5101 C5110 C5109 C5108 C5107 C5106 C5105 C5103 C5104 C5101 C5102 C5099 C5100 C5098 C5097 IC5004 C5096 C5095 C5094 C5092 C5093 C5091 C5090 C5089 R5097 R5099 R5091 F3201 R5088 R5107 R5100 R5518 R5519 R5520 R5521 R5517 R5516 R5515 R5514 R5513 R5512 R5511 R5508 R5507 R5506 R5505 R5504 R5510 R5087 R5086 R5523 R5522 C5524 C5526 R5084 D5001 IC5003 F3310 R5108 R5098 R5092 R5094 R3101 F3202 R5103 R5524 R5509 R5033 R5032 R5083 CN5502 C5523 C5521 CN5501 R5501 R5502 R5503 R5082 R5080 R5078 R5079 R5077 R5076 R5075 C5816 C5815 C5814 C5813 C5812 C5811 C5810 C5809 C5808 C5807 C5806 C5805 C5804 C5803 CN5503 R5073 R5074 C6040 C6039 C6030 C6029 R6050 R6051 R6043 C6025 C6024 R6039 C6021 C6022 C6018 R6035 C6019 C6014 C6016 C6017 R6020 R6018 R6019 R6024 C6013 IC6002 C6012 R6017 C6008 C6007 C6033 C6032 R6071 R6072 R6022 R6028 R6032 R6037 R6031 F6002 R6013 F6005 R6076 F6006 R6077 R6046 R6057 R6056 R6040 R6036 R6068 R6073 R6010 R6044 R6045 R6503 C6503 R6501 R6502 R6510 R6508 R6506 R6516 R6514 R6512 R6520 R6518 R6504 R6505 R6507 R6517 R6519 R6523 R6522 R6509 R6511 R6513 R6515 R6521 CN6002 R7095 R7094 R7092 C7050 R7086 R7085 R7082 R7073 R7072 C7069 C7072 C7073 C7071 C7070 C7068 R7069 C7048 R7090 R7039 R7037 C7034 IC7003 C7027 R7034 R7001 IC7002 C7026 X7001 C7010 R7024 R7025 R7029 R7016 R7015 IC7004 C7006 C7004 R7023 R7022 R7021 R7019 R7013 R7010 R7009 R7007 R7068 R7063 R7003 R7005 R7006 R7042 R7056 R7059 R7066 R7067 R7062 R7061 R7060 R7049 R7047 R7048 R7050 R7045 R7046 R7043 R7036 R7035 R7032 R7031 R7030 R7028 R7027 R7018 R7033 R7058 R7008 R7011 F7003 F7009 L7007 F7002 R7070 D7002 D7003 R7071 C3222 C3221 C3219 C7051 C7060 C7063 C7064 C7503 R7507 C7505 C7504 R7505 R7502 F7501 R7504 IC7501 C7501 R7501 R7096 KN3007 KN3006 KN3005 KN3004 KN3003 KN3002 KN3001 R3099 F3203 R6528 R5770 D3205 F3304 R5055 F3308 C3220 R5063 D5003 D5004 D3206 D5002 R5062 R5064 IC3205 TP7501 TP3316 R5061 C7506 C7507 C7508 C7509 F7502 F7503 F7504 F7505 2.5V +12V 5V 3.3V AVIB DNP2136-A X (EU) 50 DWV1202-A 94V-0 B B A A 4 1 GND V+2.5V SIDE CONTACT CONTACT SIDE CONTACT SIDE PC +5V +5V GND 4 GND +5V +5V 1 +9V GND +5V GND +9V GND -9V GND GND 1 GND ICP-S2.3 GND V+3.3V V+3.3V GND GND V+2.5V GND V+5V V+12V V-12V GND 20 11 10 1 20 11 10 1 48 25 24 1 20 11 10 1 14 1 2 1 3 4 5 4 3 1 8 5 4 1 20 11 10 1 5 4 3 1 14 8 7 1 50 1 20 11 10 1 50 1 4 1 20 11 10 1 10 1 20 11 10 1 OUT GND IN OUT GND IN OUT GND IN OUT GND IN 7 1 4 1 4 1 8 5 4 1 144 109 108 73 72 37 36 1 20 1 6 1 256 193 192 129 128 65 64 1 208 157 156 105 104 53 52 1 26 1 30 1 30 1 100 76 75 51 50 26 25 1 30 1 43 44 86 1 43 44 86 1 2 3 4 1 4 3 1 5 4 1 8 5 3 4 5 1 1 7 C3313 VC3301 X3301 D3301 R3330 R3324 R3323 R3317 IC3303 R3316 C3304 R3310 R3305 R3302 IC3302 IC3307 C3307 F3302 F3304 TP3316 2 1 3 4 5 4 3 1 8 5 4 1 5 4 3 1 7 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 117 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TESTMODE 1) How to enter Test mode Using the GGF1067 remote control unit for service, press the [ESC] key then the [TEST] key to enter Test mode. To quit Test mode, press the [ESC] key. 2) Description of various Test modes 2-1) FAN Test mode ( [CX] - [0] to [7], [9] ) After entering Test mode, press the [CX] key to enter FAN Test mode, then press a numeric key corresponding to a fan (fans) to be tested. The fans that can be tested are two fans in the front section and one fan in the rear section (a fan not used for the power-supply block). [0]: All fans ON [1]: All fans OFF [2]: Left fan in the front section ON (the other fans retain their previous statuses.) [3]: Left fan in the front section OFF (the other fans retain their previous statuses.) [4]: Right fan in the front section ON (the other fans retain their previous statuses.) [5]: Right fan in the front section OFF (the other fans retain their previous statuses.) [6]: The fan in the rear section ON (the other fans retain their previous statuses.) [7]: The fan at the rear section OFF (the other fans retain their previous statuses.) [9]: Terminating FAN Test mode 2-2) LED/FL Test mode ( [P.RUN] - [0] , [1] , [2] ) After entering Test mode, press the [P.RUN] key to enter LED/FL Test mode: [0]: Terminating LED/FL Test mode [1]: Lighting all LEDs and FLs [2]: Distinguishing all LEDs and FLs 2-3) Front-Panel-Button-Input Test mode ( [TV/LDP] ) After entering Test mode, press the [TV/LDP] key to enter Front-Panel-Button-Input Test mode then press all the buttons on the front panel one by one. The segments on the FL display are also extinguished one by one. When all buttons on the front panel are pressed, all segments except for the three on the right (two in a case of the 2-drive unit) are extinguished. When pressing the [STANDBY/ON] button, do NOT hold it pressed. Otherwise, the unit will be turned off. When pressed, some buttons may activate their corresponding operations. [0]: Terminating Front-Panel-Button-Input Test mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 118 1 2 3 4 1 2 3 4 C D F A B E 2-4) System-Information-Display Test mode ( [REP.A] - [0] , [1] to [9] ) After entering Test mode, press the [REP.A] key to display data on the hardware. [0]: Terminating System-Information-Display Test mode [1]: Main CPU : The data (operation clock) on the mounted CPU can be checked. Memory : The capacity of installed memory can be checked. User Data : The total vacant capacity in the User Data area on the HDD can be checked. This vacant capacity is different from that displayed in normal operation. PCI : Whether the Encoder board or Decoder board can be recognized by Linux or not can be checked. Being recognized does not mean that the boards are operable, but if not recognized, the boards may have some trouble. [2]: USB (The connected USB devices will be displayed.) IMPORTANT: During the USB Test, if a connected USB device, such as a mouse, is operated, the unit may hang up. Do NOT operate a connected USB device during the USB Test. [3]: Network IP Address/Netmask/MAC Address If Network is set to ON on the Function menu, the IP address can be confirmed. If it is not set to ON, "!!!!!NO ID ADDRESS!!!!!" is displayed. 10 base/100 base The connection conditions of the network (Ethernet) can be confirmed: No Link: No connection to the network 10base T: The 10BaseT standard is used. (This indication is also displayed when the hub used does not support 100Base.) 100base Tx-FD: The 100Base standard is used. [4]: HDD (IDE Primary-Master) Data on the HDD. The SMART data are also confirmed. [5]: HDD (IDE Primary-Slave) Normally, no data are displayed. [6]: DVD-R/RW Drive 1 The data on Drive 1 are displayed. [7]: DVD-R/RW Drive 2 The data on Drive 2 are displayed if it is connected. [8]: DVD-R/RW Drive 1 error log The error log for Drive 1 is displayed. [9]: DVD-R/RW Drive 2 error log The error log for Drive 2 is displayed if it is connected. 2-5) Loopback Test mode ( [REP.B] - [0] , [1] to [4] ) After entering Test mode, press the [REP.B] key to enter Loopback Test mode for the RS-422A and RS-232C ports: [0]: Terminating Loopback Test mode [1]: Starting the RS-422A Loopback Test [2]: Starting the RS-232C Loopback Test [3]: Starting the RS-422A Loopback Test (but stopping when an error is generated) [4]: Starting the RS-232C Loopback Test (but stopping when an error is generated) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 119 5 6 7 8 5 6 7 8 C D F A B E 2-6) Clearing data on cumulative power-on time, etc. ( [A.MON] - [0] , [1] , [7], [8] , [9] ) After entering Test mode, press the [A.MON] key to enter Test mode for clearing data on cumulative power-on time, etc.: [0]: Clearing cumulative time for accessing to the HDD [1]: Clearing cumulative power-on time of the product (Cumulative time of accessing the HDD is not cleared.) [7]: Preparing to download the Setup file (obtainable via FTP for users) [8]: Copying the Setup file (obtainable via FTP for users) [9]: Copying the Log file (obtainable via FTP for users) 2-7) Error-Rate-Measurement Test mode ( [PLAY] ) After entering Test mode, insert a disc and press the [PLAY] key to enter Error-Rate-Measurement Test mode for Drive 1. For measurement for Drive 2, press the [2] key. Measurement starts from address 0. To change the address for measurement, use [SCAN F] or [SCAN R]. [SCAN F]: Advancing the address for measurement by 0x10000 [SCAN R]: Setting the address for measurement back by 0x10000 [1]: Starting measurement for Drive 1 [2]: Starting measurement for Drive 2 [OP/ST]: Terminating measurement 2-8) Test mode with result (OK/NG) displayed ( [0] , [1] to [7] ) After entering Test mode, press one of the numeric keys. The corresponding test will be performed and the result (OK/NG) is displayed. To proceed to the next test and clear the OK/NG result, press the [CLEAR] key. [0]: Consecutive testing of [1] - [4] below (Testing stops when the test result becomes NG.) [1]: RS-422A Loopback Test Perform this test after connecting the IN and OUT RS-422A ports with a cable. [1]: RS-232C Loopback Test Perform this test after connecting the jig for loopback testing to the RS-232C port. [3]: LAN Test Perform this test after connecting the unit to the valid network with a LAN cable. [4]: USB Test Perform this test after connecting keyboards or mice to all the USB ports on the front and rear panels. [5]: Error Rate Test (Drive 1) Perform this test after loading a disc into Drive 1. [6]: Error Rate Test (Drive 2) Perform this test after loading a disc into Drive 2. [7]: LTC display The LTC being input is displayed on the FL display. In this mode, OK/NG judgment is not performed. [CLEAR]: (When entered after one of the above test) To clear the result display Note: About error-rate measurement, see the note on it in "7.1.2 List of Codes in Test Mode." 2-9) How to copy the Setup file to another PRV-LX10 1 On a PRV-LX10 (hereinafter referred to as the PRV-LX10(S)) whose Setup file is to be copied, execute the command for copying the Setup file in Test mode for clearing data on cumulative power-on time, etc. ([ESC]-[TEST]-[A.MON]-[8]). See "2-6 Clearing data on cumulative power-on time, etc.". 2 With a PC that is connected with the PRV-LX10(S) through a network, log in on the FTP server as described in the instruction manual (User name: PRVUser, password: prv-lx1). Then copy the Setup file (system.xml) from the first-layer directory. 3 Connect the PRV-LX10 (hereinafter referred to as the PRV-LX10(D)) that will receive the copied Setup file with the PC used in Step 2 above, through a network. Then log in on the FTP server (User name: PRVUser, password: prv-lx1) in the same way as in Step 2. Move the Setup file copied in Step 2 to the first-layer directory of the FTP server. 4 Execute the command for preparing for downloading the Setup file in Test mode for clearing data on cumulative power-on time, etc. ([ESC]-[TEST]-[A.MON]-[7]). See "2-6 Clearing data on cumulative power-on time, etc.". 5 Turn off the power to the PRV-LX10(D). 6 Turn on the power to the PRV-LX10(D) again. The new Setup file will be applied. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 120 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 TEST MODE CODE No. Code Input Operation/Usage Remarks 1 [ESC]+[TEST] TEST MODE 2 [CX] FAN TEST MODE 3 [0] All fans ON 4 [1] All fans OFF 5 [2] Left FAN ON 6 [3] Left FAN OFF 7 [4] Right FAN ON 8 [5] Right FAN OFF 9 [6] Rear FAN ON 10 [7] Rear FAN OFF 11 [9] Terminating 12 [P.RUN] LED/FL TEST 13 [0] All LEDs/FLs lit 14 [1] All LEDs/FLs extinguished 15 [2] Terminating 16 [TV/LDP] Starting Front-Panel-Button-Input Test mode Each time a button on the front panel is pressed, one segment on the FL display is extinguished. 17 [0] Terminating 18 [STEREO]+[8] Drive 1 Region display 19 [STEREO]+[9] Drive 2 Region display Effective when an optional drive is mounted 20 [REP.A] System information display 21 [0] Terminating 22 [1] Main system information display Built-in CPU (operation clock), capacity of the installed memory devices, vacant HDD capacity for User Data, recognition of PCI Boards (Encoder/Decoder) 23 [2] USB-related data display Data on the connected devices 24 [3] Network-related data display When Network is set to ON: Confirmation of IP address/Netmask/MAC address display, connection conditions (No Link/10BaseT/100Base Tx-FD) 25 [4] Primary Master Drive data display HDD SMART data display 26 [5] Primary Slave Drive data display Normally, no drive connected 27 [6] Secondary Master Drive data display 28 [7] Secondary Slave Drive data display Effective when an optional drive is mounted 29 [8] Drive 1 error log 30 [9] Drive 2 error log Effective when an optional drive is mounted Obtainable via FTP for users Obtainable via FTP for users 31 [REP.B] Loopback TEST 32 [0] Terminating 33 [1] RS-422A Loopback TEST 34 [2] RS-232C Loopback TEST 35 [3] RS-422A Loopback TEST (Error Stop) 36 [4] RS-232C Loopback TEST (Error Stop) 37 [A.MON] Power On Time Clear 38 [0] HDD Access Time 39 [1] Power On Time 41 40 [8] Copying the Setup file Obtainable via FTP for users [7] Preparing to download the Setup file 42 [9] Copying the Log file 43 [PLAY] Error Rate TEST 44 [SCAN F] +0x10000 45 [SCAN R] -0x10000 46 [1] Starting measurement for Drive 1 47 [2] Starting measurement for Drive 2 48 [OP/ST] Terminating measurement With the aid of the GGF1067 remote control unit for service, Test mode is operated. 49 [0] External I/F TEST (NG STOP) Consecutive testing from 1 to 4 50 [1] RS-422A Loopback TEST REMOTE IN-OUT connection 51 [2] RS-232C Loopback TEST TXD-RXD connection 52 [3] LAN TEST DHCP setting, obtaining an IP address www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 121 5 6 7 8 5 6 7 8 C D F A B E No. Code Input Operation/Usage Remarks 53 [4] USB TEST USB devices must be connected to four ports. Do not operate the connected USB devices during the USB test. For example, if the connected mouse is operated during the USB test, the unit may hang up. 54 [5] Error Rate TEST (Drive 1) The error rate is measured at 0x30000 three times, and the average value is judged. The command must be input during playback stop. ROM Th value 3.3x10E-3 R, RW Th value 3.3x10E-3 55 [6] Error Rate TEST (Drive 2) Effective when an optional drive is mounted 56 [7] LTC display Input TC is displayed on the FL display 57 [CLEAR] Terminating result display 58 [ESC+[PAUSE] [ESC] Canceling Test mode 59 Shortcut command 60 [1] V IN- Composite 61 [2] V IN-S 62 [3] V IN-Component (Beta) 63 [4] V IN-Component (SMPTE) 64 [5] V IN-DV 65 [6] V IN-SDI Effective when an optional board is mounted 66 [7] A IN-RCA 67 [8] A IN-XLR 68 [9] A IN-DV 69 [0] A IN-SDI Effective when an optional board is mounted 70 [+10] A IN-AES/EBU Effective when an optional board is mounted 71 [TEST] Target DRV - HDD 72 [CX] Target DRV - DVD 1 73 [REP.A] Target DRV - DVD 2 Effective when an optional board is mounted 74 [REP.B] Target DRV - DVD 1 & 2 Effective when an optional board is mounted 75 [STEREO] External Sync. OFF Effective only during playback or recording stop 76 [P.RUN] External Sync. NTSC Effective only during playback or recording stop 77 [A.MON] External Sync. PAL Effective only during playback or recording stop 78 [SPEED-] Progressive OFF Effective only during playback or recording stop 79 [SPEED+] Progressive ON Effective only during playback or recording stop 80 [SIDE.A] TC PORT - LTC 81 [SIDE.B] TC PORT - RS-422A 82 [TV/LDP] TC PORT - DV 83 [SCAN.F] DV OUT ON 84 [SCAN.R] DV OUT OFF 85 [x3 FWD] REC 86 [x3 REV] REC STOP 87 [STEP F] Initialize 88 [STEP R] Finalize 89 [ESC]+[OPEN/STOP] Open/Close 90 [ESC+[DISP] Display of data for debugging-Page 1: System data 91 [DISP] To next page Page 1: DVD-playback-related data, FAN/PS-ON operation data, destination/region data (DECB/DRV1/DRV2), GUID data Page 2: DVD-playback-related data Page 3: Decoding-related data (DECB) Page 4: Encoding-related data (PCIB/AVIB) Page 5: Encoding-related data (APL) Page 6: Linux-related data ÷ How the [ESC] code is processed • When the [ESC] code is received, ESCAPE mode is entered, but in combination with the code(s) that follow(s), a specific meaning is added. • ESCAPE mode is canceled if another code is received after the [ESC] code. • If [ESC] codes are received continuously, ESCAPE mode is retained. ÷ For playback-related operations, use the remote control unit supplied with the main unit. ÷ The factory preset mode of the unit at power-on is Standby. To start up the unit, press the [STOP] button, then press the [STANDBY/ON] button while in Standby mode. ÷ If the error rate being measured is distinctly degraded because of scratches on the media or defective media, a command cannot be sent from the drive, and proper error-rate-measurement may not be performed. If an error rate is not displayed, or OK/NG is not displayed on the monitor, restart the PRV-LX10 (by resetting the drive) and perform the error-rate- measurement again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 122 1 2 3 4 1 2 3 4 C D F A B E 7.1.3 LED SPECIFICATIONS Assy ST LED Function Operation while the LED is lit/remarks PWRB(POLY) Assy (DWZ1129) D9 HDD_IND HDD access indicator In the process of accessing the HDD D10 V+5VSB Confirming STB +5 V power supply Outputting +5 VSB from ATX power supply D11 V+5V Confirming +5 V power supply Outputting +5 V from ATX power supply D12 V+3.3VD Confirming +3.3 V power supply Outputting +3.3 V from IC201 D13 V+2.5VD Confirming +2.5 V power supply Outputting +2.5 V from IC101 D19 V+5VSB_M Confirming STB +5 V power supply for MB Outputting +5 VSB from RY1 D24 FAN DET Confirming fan operation STB or normal operation (rotation) of fans A fan being stopped by the fan control signal is not detected. Without an optional drive: Monitoring the rear fan and the fan for Drive 1 With an optional drive: Monitoring the rear fan and the fans for Drives 1 and 2 D25 PS_ON Confirming PS_ON signal from the MB output STB, or MB output set to H When D25 is lit, D11/12/13 are not lit (ATX power output disabled) Sequences: 1. When the Power switch on the rear panel is turned ON, D10, D24, and D25 light. 2. When the STANDBY/ON button on the front panel is set to ON, D19 lights, D25 is extinguished, D11, D12, and D13 light, then USBB D681 lights. FLKB(WYV/ RB) Assy − KEYB(WYV/ RB) Assy − USBB Assy (DWZ1159) D681 USB_PWR Confirming the power supply to USBB Outputting +5 V from PWRB RY2, supplying USB_PWR to USB terminals on the front panel DRV1B Assy (DWZ1160) − DRV2B Assy (DWZ1161) − JKIB Assy (DWZ1126) D7619 V+9V Confirming +9 V supply for video Outputting +9 V from AVIB IC3201 D7620 V+9A Confirming +9 V supply for audio Outputting +9 V from AVIB IC3203 D7621 V-9A Confirming -9 V supply for audio Outputting -9 V from AVIB IC3204 D7622 V+5A Confirming +5 V supply for video Outputting +5 V from AVIB IC3202 JKOB Assy (DWZ1127) − HPVB Assy (DWZ1128) D661 V+5HP Confirming +5 V supply Outputting +5 V from JKIB IC7711 422IBAssy (DWZ1133) − JKDB Assy (DWZ1134) D7925 V+12_LTC Confirming +12 V supply for LTC Outputting +12 V from MB via PCIB Checker Chip Monitor Point − − − − − − − − − − − D7926 V-12_LTC Confirming -12 V supply for LTC Outputting -12 V from MB via PCIB D7927 V+5D Confirming +5 V supply Outputting +5 V from MB via PCIB LED specifications www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 123 5 6 7 8 5 6 7 8 C D F A B E Assy ST LED Function Operation while the LED is lit/remarks Checker Chip Monitor Point PCIB Assy (DWP1080) D2101 V-12V Confirming PCI-12 V supply Outputting -12 V from MB TP2034 54MHz clock D2102 V+12V Confirming PCI+12 V supply Outputting +12 V from MB TP2111 -12 V power supply D2301 V+5M Confirming PCI+5 V supply Outputting +5 V from MB, normal operation of TH2351 (Poly switch) TP2112 +12 V power supply D2304 FPGA_ACTIVE Confirming Xilinx operational status Default: lit (Config. completed), during Master transmission: flashing TP2113 27MHz clock D2305 PTD [0] Confirming encoder operational status (0) Error display on startup Notes: • When encoding starts after the device check, the LED display changes to the encode debugging display. • If errors are generated simultaneously for several devices, the error of the highest- priority device is displayed. TP2304 GND D2306 PTD [1] Confirming encoder operational status (1) TP2305 GND D2307 PTD [2] Confirming encoder operational status (2) TP2306 +2.5 V power supply D2308 PTD [3] Confirming encoder operational status (3) TP2307 +5 V power supply TP2308 +5 V power supply (after passing TH point at the Poly switch) TP2401 +3.3 V power supply TP2402 +1.8 V power supply TP2403 32.768kHz clock TP2404 40-MHz clock DECB Assy (DWP1081) D1137 V+SH3 Confirming +1.8V-supply for SH3 Outputting +1.8 V from IC1121 TP1101 GND D1181 PTD [0] Confirming DECB operational status During normal operation: Error Status: TP1102 GND D1182 PTD [1] TP1103 GND D1185 PTD [2] TP1104 GND D1186 PTD [3] TP1111 GND TP1112 GND TP1113 GND TP1114 GND TP1152 40MHz TP1211 1.8V TP1212 3.3V D1311 FPGA ACTIVE Confirming Xlinx operational status Default: Lit (Config. completed), during transmission of SH3-AV1 data: flashing, then extinguished when Xilinx is written to the FIFO stack, and lit when the stack is empty (FIFO EMPTY). TP1311 2.5V TP1312 3.3V TP1413 27MHz TP1414 16.9344MHz TP1511 3.3V TP1512 1.8V TP1781 GND TP1782 GND TP1785 12V TP1787 5V TP1953 5V TP1954 5V TP1957 3.3V TP1958 3.3V TP1961 2.5V TP1962 2.5V TP1965 1.8V TP1966 1.8V TP1969 1.8V TP1970 1.8V Device check [3] [2] [1] [0] No error 0000 PCIB Xilinx (IC2309) 0001 AVIB Xilinx (IC5004) 0010 reserved 0011 SDRAM (IC2404) 0100 Slalom (IC2001) 0101 Slalom SDRAM (IC2003) 0110 George (IC3502) 0111 Vaikilt (IC5002) 1000 Aprilia (IC6003) 1001 Celynx (IC4001) 1010 During playback Randomly lit During stop All LEDs extinguished Failure in writing to flash All LEDs lit Xilinx configuration error All LEDs flashing (at intervals of 1 sec) SH SDRAM error D1181 lights. Video encoder Initialize error D1182 lights. AV1 initialize error D1185 lights. AV1 SDRAM error D1186 lights. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 124 1 2 3 4 1 2 3 4 C D F A B E Assy ST LED Function Operation while the LED is lit/remarks Checker Chip Monitor Point AVIB Assy (DWV1202) D3201 V+12I Confirming +12 V supply Outputting +12 V from PWRB − D3202 V+5DI Confirming +5 V supply Outputting +5 V from PWRB, normal operation of IC3205 (ICP-S2.3) D3203 V+3_3I Confirming +3.3 V supply Outputting +3.3 V from PWRB D3204 V+2_5I Confirming +2.5 V supply Outputting +2.5 V from PWRB D5001 ENC OK Confirming Xlinx operational status Default: lit (Config. completed), during ENC operation: flashing D5002 WMKD7 Confirming encoder operational status (3) Error indications at startup are the same as for PCIB D2305-D2308. D5003 WMKD6 Confirming encoder operational status (2) D5004 WMKD5 Confirming encoder operational status (1) D5005 WMKD4 Confirming encoder operational status (0) Announcement functions of the LED and buzzer Item Function Description Remarks Buzzer 1 Protection of the HD boot sector Protection of the HD boot sector (security function against computer viruses) The warning message is displayed, with repeated peep sound. 2 Video error This code indicates that a video error was generated. The BIOS cannot initialize the video screen for displaying additional data. Following two peeps, a single beep sounds. 3 DRAM error This code indicates that a DRAM error was generated. Repeated beeps sound. LED 1 Power LED S0 mode LED ON S1 mode The LED flashes at a 1-Hz rate. The LED flashes once per second. S3 mode The LED flashes at a 1-Hz rate. The LED flashes once per second. S4 mode LED off S5 mode LED off 2 HDD LED The LED flashes. The LED flashes while the data are being accessed (read/write). 3 RJ45 LED 100M Green LED ON 10M Green LED OFF Link Yellow LED flashes Active Yellow LED ON 1 2 3 6 No. Signal 1 TD+ 2 TD- 3 RX+ 6 RX- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 125 5 6 7 8 5 6 7 8 C D F A B E Note: Be careful to wiring of the DKP3640 (Connector Assy 4P) because there is the case that cannot see LED. ST LED arrangement diagram of the PCIB and DECB Assys D2308 D2307 D2306 D2305 D1186 D1185 D1182 D1181 D2301 D2101 D2102 D2304 D1311 D1137 DECB Assy DECB Assy PCIB Assy PCIB Assy PCIB Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 126 1 2 3 4 1 2 3 4 C D F A B E D7925 D7926 D7927 D5005 D5004 D5003 D5002 D7620 D7621 D7619 D7622 D3201 D9 D24 D19 D25 D10 D11 D12 D13 D661 D3202 D3203 D3204 D681 PWRB(POLY) Assy HPVB Assy USBB Assy AVIB Assy JKIB Assy AVIB Assy JKDB Assy ST LED arrangement diagram of the JKIB, AVIB, JKDB, HPVB, PWRB(POLY) and USBB Assys www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 127 5 6 7 8 5 6 7 8 C D F A B E 7.1.4 POWER-ON SEQUENCE Operation *1 FL Display (left) FL Display (right) Video Output VGA Output Power on POWER --ON-- − − Starting BIOS PLEASE WAIT Start of opening logo display BIOS startup screen Searching for the drive to be started *2 (Starting from HDD) Running boot loader Starting kernel Start of opening logo display Starting execution of startup script, successful communication with Front-panel- microcomputer POWER-ON = Starting checking Root file system *3 POWER-ON == Completion of checking root file system POWER-ON === Completion of remounting root file system POWER-ON ==== Checking other file systems *4 POWER-ON FSCK POWER-ON FSCK-HOME POWER-ON FSCK-VAR POWER-ON FSCK-RECVER POWER-ON FSCK-DATA Completion of mounting file systems POWER-ON ===== Completion of sorting out file systems POWER-ON ====== Completing all the following initialization processes for the Recorder: • Initialization for each destination • Checking the region code • Updating "poweron.log" • Checking the PCI board *5 • Checking the firmware version *6 • Disposal of unnecessary files POWER-ON ======= Starting initialization of the network *7 POWER-ON ======== Completing initialization of the network POWER-ON ========= Initializing the system log POWER-ON ========== Completing initialization processes POWER-ON =========== End of opening logo display End of opening logo display Starting the application *8 00 : 00 : 00 : 00 00 : 00 : 00 : 00 Black or blue screen Screen with an X-shape mouse pointer Completing startup of application Throughout, or black or blue screen PRV-LX10 logo display *1: The displays indicated in the FL-display, video-output, or VGA-output columns are to be displayed at the point when each corresponding operation finishes. *2: In the BIOS, the HDD is programmed to be the first drive to be started. If the HDD cannot be recognized as a startup drive because of a defect, etc., the following message is displayed on the VGA output: DISK BOOT FAILURE, INSERT SYSTEM DISK AND PRESS ENTER In this case, check the connections at the HDD connector block. If there is any loose connection, turn off the power and clear the CMOS data (by changing the position of JP14). If this does not improve the situation, reinstall the OS. If OS reinstallation is impossible, replace the HDD then install the OS. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 128 1 2 3 4 1 2 3 4 C D F A B E *3: If an error is detected during root-file-system check, automatic restoration is performed. In this case, the indications on the FL displays change as follows: *4: If an unrecoverable error exists in another file system, one or more messages, as indicated below, will be displayed on the FL displays. *5: If the Encoder or Decoder board cannot be detected at startup, restarting is automatically executed. If the board cannot be detected for a second time, the application program will not be started. One of the following will be displayed on the FL displays: In this case, the following sentences are added to the log files: Error displays for the Encoder board: First error display : !!!!!!!!!! NO ENCODER BOARD ERROR (REBOOT) !!!!!!!!!! Second error display : !!!!!!!!!! NO ENCODER BOARD ERROR AGAIN !!!!!!!!!! (If this is displayed, the unit was not started) Error displays for the Decoder board: First error display : !!!!!!!!!! NO DECODER BOARD ERROR (REBOOT) !!!!!!!!!! Second error display : !!!!!!!!!! NO DECODER BOARD ERROR AGAIN !!!!!!!!!! (If this is displayed, the unit was not started) Although the system can be started up even after the above messages are displayed, reinstall the OS anyway, because the system may be unstable. (In this case, an installation leaving the user data intact will suffice.) If automatic restoration is repeatedly executed, reinstall the OS. After automatic restoration is executed, the following sentence is added to the log file: !!!!!! The root file system has been recovered !!!!!!!! Operation FL Display (left) FL Display (right) Error detection POWER-ON ROOT-ERROR Executing reboot for restoration POWER-ON ROOT-ERROR Rebooting starts START RECVER= In the process of restoration START RECVER== ∼ RECVER==== Completing restoration START RECVER===== Restarting booting START RECVER===== FL Display (left) FL Display (right) FSCK-ERROR BOOT/USR FSCK-ERROR HOME FSCK-ERROR VAR POWER-ON FSCK-ERROR Operation FL Display (left) FL Display (right) In a case when the Encoder board could not be detected -NO-BOARD- ENCODER In a case when the Decoder board could not be detected -NO-BOARD- DECODER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 129 5 6 7 8 5 6 7 8 C D F A B E *6: Whether or not the firmware versions for the Encoder board, Decoder board, and drive are identical to those of the application software is checked. If not identical, the application will not start up. Inconsistency of versions may result in most cases after replacing the above parts for repair. In such a case, install the latest firmware program. *7: Initialization of the network is not executed if Network is not set to Enabled on the Function menu. If the network cable is not connected, initialization of the network is not executed even if Network is set to Enabled. If the DHCP server does not exist even if DHCP is assigned in the network setting, the startup time will be delayed more than 30 seconds. *8: Normally, the application starts up. However, in the following cases, the application does not start up: 1 When the Encoder or Decoder board could not be detected In this case, "-NO-BOARD-DECODER" or "-NO-BOARD-ENCODER" is displayed on the FL display, and only the STANDBY/ON button will be active. 2 When the firmware version for the Encoder board, Decoder board, or drive is not identical to that in the application software In this case, "ERROR FIRM-VERSION" is displayed on the FL displays, and only the [STANDBY/ON] button will be active. This may result after replacing the PCI board with one having the old firmware when repairing. In this case, press the [STANDBY/ON] button while holding the [ENTER] button on the front panel pressed, and install the latest firmware program. 3 When the [STANDBY/ON] button is pressed while the [ENTER] button on the front panel is held pressed, Program- Install mode is activated. In this case, "PGM-INSTALL" is displayed on the FL displays. 4 If the region set for the drive is different from the destination setting for the unit, Region-Resetting mode is activated. In this case, "CHANGE-RGN" is displayed on the FL displays. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 130 1 2 3 4 1 2 3 4 C D F A B E 7.1.5 HOW TO CHECK THE ERROR LOG 1) Perform the setting for the network. (An example is shown below, but the connection is possible in a different way.) 1 Make preparations for the PC. Make the network settings for the PC, assigning the IP address as indicated below: IP address : 192.168.0.15 Subnet mask : 255.255.255.0 Gateway : 192.168.0.1 2 Turn off the PC. 3 Make the manual settings for the network of the PRV-LX10 on the Function menu (then selecting System, then Network). IP address : 192.168.0.16 Subnet mask : 255.255.255.0 Gateway : 192.168.0.1 4 Turn off the PRV-LX10. 5 Connect the PRV-LX10 and the PC directly, using an Ethernet cross cable. 6 Turn on the PRV-LX10 and the PC. 2) Open the log file using a Web browser (IE, etc.). Using the Web browser on the PC, access: ftp://192.168.0.16 Enter the following user name and password: User : DVDRecService Password : DVDRecService Open the "poweron.log" or "service_info.jog" file using the Web browser. The PRV-LX10 is provided with a log file in which the data at the point when the power is turned on are stored. In the log file, the number of times the power is turned on, time when the power is turned on and off, and error data can be checked. How to check the log file Note: • If user settings have been made, return the settings to the original ones after servicing. • Please copy a Log file beforehand. (Refer to " [9]: Copying the Log file of 2-6 Clearing data on comulative power-on time, etc." on page 119. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 131 5 6 7 8 5 6 7 8 C D F A B E The log file consists of the following items: POWER-ON=7 1 : Power On : Mon Jun 23 21:19:26 EDT 2003 Shimuke=x, Region=x,x,x PowerOnKey=xxxxx ENC OK(2.253.0.0/2.253.0.0) • • • • • • ===== VERSION CHECK OK ===== Power Off : Mon Jun 23 22:12:16 EDT 2003 2 : Power On : Tue Jul 8 10:10:12 EDT 2003 Shimuke=x, Region=x,x,x PowerOnKey=xxxxx ENC OK(2.253.0.0/2.253.0.0) • • • • • • ===== VERSION CHECK OK ===== 3 : Power On : Tue Jul 8 10:12:32 EDT 2003 Shimuke=x, Region=x,x,x PowerOnKey=xxxxx ----- Found a power failure in the previous power on ----- ENC OK(2.253.0.0/2.253.0.0) • • • • • • ===== VERSION CHECK OK ===== Power Off : Tue Jul 8 10:15:16 EDT 2003 4 : Power On : Tue Jul 8 14:10:22 EDT 2003 Shimuke=x, Region=x,x,x PowerOnKey=xxxxx !!!!!! The root file system has been recovered !!!!!!!! ENC OK(2.253.0.0/2.253.0.0) • • • • • • ===== VERSION CHECK OK ===== Power Off : Tue Jul 8 14:12:16 EDT 2003 5 : Power On : Tue Jul 8 15:10:22 EDT 2003 Shimuke=x, Region=x,x,x PowerOnKey=xxxxx ENC OK(2.253.0.0/2.253.0.0) • • • • • • ===== VERSION CHECK OK ===== !!!!!! NO DECODER BOARD ERROR (REBOOT) !!!!!!!! 6 : Power On : Tue Jul 8 16:10:22 EDT 2003 Shimuke=x, Region=x,x,x PowerOnKey=xxxxx ENC OK(2.253.0.0/2.253.0.0) • • • • • • ===== VERSION CHECK OK ===== !!!!!! NO DECODER BOARD ERROR AGAIN !!!!!!!! !!!!!<<<<>>>>(Date)Tue Jul 8 16:12 11 EDT 2003 Power Off : Tue Jul 8 16:12:16 EDT 2003 7 : Power On : Tue Jul 8 18:10:22 EDT 2003 Shimuke=x, Region=x,x,x PowerOnKey=xxxxx ENC OK(2.253.0.0/2.253.0.0) • • • • • • ===== VERSION CHECK OK ===== 1 Number of times the power was turned on since recording of the log file started (normally, after shipment). In the example above, the unit was turned on 7 times. 2 Date and time the power was turned on 3 Date and time the power was turned off 4 This message indicates that the previous power-off process was not completed normally. If this message appears many times, it is suspected that the HDD is damaged. The user should be urged to turn off the unit using the STANDBY/ON button on the front panel. The user should even be urged to use the UPS (uninterruptible power supply), depending on the power-supply conditions. 5 This message indicates that the root file system was damaged because of inappropriate interruption of the power supply, etc., and that automatic restoration has been performed to retry to start up the root file system. This itself does not pose a problem, because restoration has been completed, but if this often occurs, the following problems are suspected: (1) Because of the poor power-supply conditions on the user's side, sudden power interruptions occurred while the unit was in operation. (2) Because the HDD was in poor conditions, sometimes files were not read properly. 6 This message indicates that the Decoder board was not detected on the first try. In this case, the unit is automatically rebooted, and the unit retries detection of the Decoder board. If this occurs many times, the Decoder board may be defective. 7 This message indicates that the Decoder board was not detected on the second try. The application is not started, the error message is displayed on the FL displays, and only the STANDBY/ON button is active. If this occurs many times, the Decoder board may be defective. 8 This is the result of confirmation of whether the versions of the firmware and the application program are identical or not. If the result is not OK, the application program will not start up. Reinstall, using the correct version of the program. 9 If errors are generated on the PCI bus, the total number of errors detected while the power is on is recorded when the power is turned off. Unlike the service_info.log mentioned below, where error data are recorded as soon as an error is generated, in this log, the total number of errors detected is recorded, if any, when the power is turned off. Details on the log file 1 3 2 3 2 2 8 8 8 8 3 2 2 8 3 2 2 8 8 9 4 6 5 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 132 1 2 3 4 1 2 3 4 C D F A B E In the service_info.log file, detailed data on Service Info, which can be accessed by selecting Function Menu, System, Information, then Service Info, are recorded, as shown below: <<<<< Start PRV-LX10 >>>>> Mon Oct 20 06:25:22 EDT 2003 -- HDD SMART:Val(Max)/Thrsh --<> fd(fd)/3f <> fd(fc)/00 <> fd(fc)/9d <> fd(fc)/00 Lecel=0 !!!!!<<<<< PCI Access Error Count = 1 >>>>> (Date) Mon Oct 20 06:25:51 EDT 2003 !!!!!<<<<< PCI Access Error Count = 2 >>>>> (Date) Mon Oct 20 06:27:23 EDT 2003 <>:Mon Oct 20 06:28:15 EDT 2003 -- HDD SMART:Val(Max)/Thrsh --<> fd(fd)/3f <> fd(fc)/00 <> fd(fc)/9d <> fd(fc)/00 Lecel=0 <<<<< Start PRV-LX10 >>>>> Mon Oct 20 06:30:43 EDT 2003 -- HDD SMART:Val(Max)/Thrsh --<> fd(fd)/3f <> fd(fc)/00 <> fd(fc)/9d <> fd(fc)/00 Lecel=0 <<<<< Start PRV-LX10 >>>>> Mon Oct 20 07:09:38 EDT 2003 -- HDD SMART:Val(Max)/Thrsh --<> fd(fd)/3f <> fd(fc)/00 <> fd(fc)/9d <> fd(fc)/00 Lecel=0 1 Time when the PRV-LX10 starts up 2 Data from "--HDD SMART:Val(max)/Thrsh--" to "Level=0" indicate SMART data regarding the built-in HDD confirmed when the PRV-LX10 starts up. The results of confirmation on SMART data are recorded in the log file when System is selected by opening Function Menu then System, as well as at startup. The levels of self-diagnosis results are as shown below. It should be noted that the descriptions of the levels are different from those used on the Function Menu. For details, see "Levels of the self-diagnosis results of the HDD and measures to be taken for them." 0: Normal operation 1: Level calling for the user's attention (indicated as 0+ on the Function Menu) 2: Level calling for the user's attention (indicated as 1 on the Function Menu) 3: Warning symptoms of an HDD failure (indicated as 2 on the Function Menu) 4: On the brink of an HDD failure (indicated as 3 on the Function Menu) 5: HDD failure (indicated as 4 on the Function Menu) 3 A total number of errors generated on the PCI bus after the PRV-LX10 starts up is recorded (Each time the power is turned on, the number of errors is counted from 0). If errors are frequently generated, it may because of a defective Motherboard or PCI board, or poor connection caused by inappropriate installation of the PCI board. Error data are recorded in the log file each time an error is generated. Error data are also indicated on the Service Info page, which can be accessed by selecting Function Menu, System, Information, then Service Info, only when an error is generated (the first figure indicates the level of the self-diagnosis results of the HDD, and the second indicates the total number of PCI bus errors). 4 Each time the unit starts up, and each time System is selected (select Function Menu then System), the level of the self -diagnosis results of the HDD is confirmed and recorded in the log file. Data from "<>" to "Level=0" are the results of confirmed SMART data to be recorded when System is selected (select Function Menu then System). Details on the log file (service_info.log) 1 1 3 3 4 4 2 2 1 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 133 5 6 7 8 5 6 7 8 C D F A B E In the service_info.log file, detailed data on Service Info, which can be accessed by selecting Function Menu, System, Information, then Service Info, are recorded, as shown below: Measures to be taken for each level of the self-diagnosis results of the HDD are shown below. The levels of the self-diagnosis results of the HDD can be confirmed from the log file (service_info.log), as well as on the Function Menu. However, it should be noted that the descriptions of the levels are different between those used in the log file and on the Function Menu (for example, Level 2 in the log file is equivalent to Level 1 on the Function Menu). • Level 0 (Level 0 on the Function Menu): Normal operation No problem • Level 1 (Level 0+ on the Function Menu): Level calling for the user's attention Although it has not constituted a problem yet, the user should be notified to make backups of data on the HDD, following the procedure in the instruction manual. Check if the HDD has been exposed to any inappropriate environment, such as extreme temperature, vibration, noise, or temporary blackout, on the user's side. Especially, check if the user turns off the power in a correct way. If user's handling of the HDD is inappropriate, he/she must be instructed on appropriate handling of the HDD. • Level 2 (Level 1 on the Function Menu): Level calling for the user's attention Although it has not constituted a problem yet, replace the HDD if symptoms as shown below appear. Even if such symptoms do not appear, the user should be strongly recommended to make backups of data on the HDD, following the procedure in the instruction manual. Check if the HDD has been exposed to any inappropriate environment, such as extreme temperature, vibration, noise, or temporary blackout, on the user's side. Especially, check if the user turns off the power in a correct way. If user's handling of the HDD is inappropriate, he/she must be instructed on appropriate handling of the HDD. Case 1: Although the power was turned off by pressing the POWER button on the front panel of the main unit, the following symptoms appear when the unit starts up. (The following symptoms are likely to appear if the power was forcibly turned off with the power switch on the rear panel. Be sure to check how the user turned the power off.) 1 The unit occasionally does not start up normally. 2 While the program is starting up, it often occurs that the messages [POWER-ON] and [ROOT-ERROR] are displayed on the FL display and that the time required for startup becomes longer. (If the message [ROOT-ERROR] is displayed occasionally, it is not a problem. But if it is often displayed, it is a problem.) 3 While the program is starting up, it often occurs that the messages [POWER-ON] and [FSCK-XXXX] are displayed on the FL display for more than 30 seconds and that the time required for startup becomes longer. (If the message [FSCK- XXXX] is displayed occasionally for more than 30 seconds, it is not a problem. But if it is often displayed, it is a problem.) Case 2: Although the Decoder board is normal, one of the following symptoms appears when data recorded on the HDD are played back: 1 playback stops around many particular points (in many sessions), or 2 the playback picture is disturbed around many particular points (in many sessions.) Case 3: When checking of the HDD is executed by selecting Function Menu, System, HDD Tools, then Check, the program freezes up (checking is not finished even after 30 minutes or more). Case 4: Other symptoms likely to be caused by a failure in the HDD Levels of the self-diagnosis results of the HDD and measures to be taken for them www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 134 1 2 3 4 1 2 3 4 C D F A B E • Level 3 (Level 2 on the Function Menu): Warning symptoms of an HDD failure As this level may have resulted from a temporary cause, it is defined as a level that requires careful use of the HDD as per the instruction manual. The cause may not be a problem if the user does not recognize any symptom. Thus, even if the result level is 3, it does not mean that replacement of the HDD is necessary. However, it is not recommended that the user continue using the unit as is. Therefore, if servicing is requested by the user, even if the request for servicing is for another reason, replacement of the HDD should be also performed. In such a case, check if the HDD has been exposed to any inappropriate environment, such as extreme temperature, vibration, noise, or temporary blackout, on the user's side. Especially, check if the user turns off the power in a correct way. If user's handling of the HDD is inappropriate, he/she must be instructed on appropriate handling of the HDD. • Level 4 (Level 3 on the Function Menu): On the brink of an HDD failure • Level 5 (Level 4 on the Function Menu): HDD failure Replace the HDD. If failures of these levels occurred several times within 2 years after installation, it is likely that the HDD has suffered from mishandling by the user. If it is the case, the user must be instructed on appropriate handling of the HDD. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 135 5 6 7 8 5 6 7 8 C D F A B E 7.1.6 ERROR LOG DISPLAY How to display the Error log • Start the PRV-LX10 and let it run idle (in the state in which the Function menu is not displayed and neither recording nor playback is performed). • On the remote control unit for service, press the [ESC], [TEST], [REP.A], and [8] keys, in that order. The error log for Drive 1 is displayed. • To display the error log for Drive 2, press the [ESC], [TEST], [REP.A], and [9] keys, in that order. Outline of the Error log Up to 8 error records (16-byte data per record) are held for each drive (see Table 1 "Error record"). If there are more than 8 errors, the oldest record is deleted each time a new one is logged. Description of the Error log The order of error generation and error codes are described here. 1. Order of error generation One byte of data at the beginning of each record (Byte 0) is called the Identity code. The Identity code of the latest record is FFh, and for other records it is 00h. However, if an error is generated for the first time after the power was turned on, FFh is rewritten as BBh. Therefore, from the record having "FFh" Identity code back to the record immediately before that having "BBh" as its Identity code are the error records generated from the latest power-on until the present (or the latest power-off). Note: At the initial setting, all codes of any record are set FFh. If all codes in a record are FFh, it means that the record has no valid data. 2. Error codes At Byte 7 of each record, an error code is stored. For details on error codes, see Table 2. Ignore any record whose code for Byte 8 (execute task) is 88h, because it means that the record is for obtaining data on internal status. Note: The data displayed on the error-log screen are directly dumped from the error-log data stored in memory for the drive, and no process (including data sorting) is added on the part of the PRV-LX10 application. Table 1: Error record 0 1 2 3 4 5 6 7 Identify aging No. aging pointer controller command controller step host command endeco command error code 8 9 10 11 12 13 14 15 excute task error address (H) error address (M) error address (L) error detail (H) error detail (L) aging cycle (H) aging cycle (L) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 136 1 2 3 4 1 2 3 4 C D F A B E Table 2: Description on error codes Code Content Supplementary information 01h DECODE_ERROR Failure in reading PreGap (CD), improper results of RFEndSeek (DVD) 02h RF_NOT_EXIST, Read-request address not recorded 03h RMD_NOT_DETECT, RMD not detected 04h LIN_NOT_DETECT, Lead-in not detected 05h LIN_NOT_COMPLETE, Incomplete lead-in 06h ILLEGALL_NUMBER_OF_BYTE, Illegal CD mode detected (Illegal Mode for This Track Error) 07h IF_ABORT_DET, Processing aborted upon the request of I/F 08h MECHA_TIMEOUT, Timeout waiting for search 09h BUFFERING_TIMEOUT, Combo Chip decoding not started (the screen is frozen but remains active) 0Ah RETRY_TIMEOVER, Number of times of retrial over 0Bh READ_TIMEOUT, Timeout waiting for read process 0Ch RECOVERED_DATA, "Recovered error" detected 0Dh VERIFY_ERROR, An error was generated while the Verify command was being processed 10h M63_INTERNAL_ERR Failure in internal processing 11h M63_FORMATTER_ERR, Failure in detecting a sync 12h M63_IDOVER_ERR, Target-ID exceeded 13h M63_HDCMP_ERR, Header-compare error 14h M63_UNCORRECTABLE_ERR, Unrecoverable error 15h M63_CRC_ERR, CRC error 16h M63_ETC_ERR, Other errors of Combo Chip 17h M63_BLK_ERR, CIRC unrecoverable error 18h M63_HDC2_ERR, Header C2 error 19h Internal Timeout Timeout waiting for Combo Chip internal processing 1Ah M63_TRX_ERR Failure in transmitting data to the host computer 1Bh Mecha Not Active Mechanical-control computer not ready for search (tray opened, etc.) 1Ch FIFO Error Internal FIFO error 1Dh Buffering Abort Failure in obtaining DVD-data-type information 1Eh Too Far From Target ID Improper address after search (too far before the target address) 1Fh M63 Replay Req. Combo-Chip decoding not started (the unit arbitrarily returns to idling status) 20h Buffer Full 21h Buffer Under Run 22h Panic in 23h Discontinuous time data 24h Wobble servo phase difference exceeded 25h ASYOVR allowable count number exceeded 26h ASYNC allowable interpolation number exceeded 27h Invalid Cue Sheet 28h Non Cue Sheet 29h Disc Full 2Ah Reserved Track Full www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 137 5 6 7 8 5 6 7 8 C D F A B E Code Content Supplementary information 2Bh Address Error 2Ch Abort because of a mechanical error 2Dh Abort by the host computer 2Eh Invalid Command 2Fh Target Address Over 30h OPC record error (before encoding) 31h OPC record error (after encoding) 32h OPC playback error (during playback) 33h OPC playback error (data error) 34h OPC upper limit of power exceeded 35h OPC lower limit of power exceeded 36h Encode Start Error 37h Unexpected Status Error 38h CD Over Power Error 39h Shock Detect Error 40h Buffer full 41h Buffer underrun 42h Lower OPC power 43h Higher OPC power 44h OPC failure 45h Encoding failure 46h DMA failure 47h DECSS measures 48h Inconsistency in rotation speed of the spindle 49h Write power 0 4Ah OPC record failure (retry is possible) 60h Command Sequence Error */ 61h Logical Unit Communication Failure */ 62h Illegal Logical Block Address */ 63h Internal Controller Error */ 64h Prevent Medium Removal */ 65h System Resource Failure */ 66h Authentication Failure */ 67h Key Not Present */ 68h Key Not Established */ 69h Authentication Not End */ 6Ah Incompatible Format */ 6Bh Region Mismatch */ 6Ch Region Reset Count Error */ 6Dh De-Compression CRC Error */ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 138 1 2 3 4 1 2 3 4 C D F A B E Code Content Supplementary information 6Eh OPC area full */ 6Fh OPC area almost full */ 70h Parameter Value Invalied */ 71h Media detect error */ 72h RMA almost full */ 73h Media not Present */ 74h Long Write In Progress */ 75h Session is not full */ 76h Subcode-Q is not valid */ 77h track start arress is not valid */ 78h track end arress is not valid */ 79h track end arress error at incomplete track 7Ah Pregap read error 7Bh PMA is not complete 7Ch Vender reset Sequence Error 7Fh Data compare error ( for aging ) 80h Unsupported Command 81h Illegal Mode 82h Illegal Request 83h Aborted 84h Timeout 88h Loading Mecha NG 89h TOC Read Error 8Ah PrePit Read Error 8Bh BCA READ ERROR 90h Search Address Error 91h Illegal Track Request A0h No Disc A1h Disc NG A8h Servo NG Stop A9h Line Adjustment NG Aah Auto Adjustment Data NG B0h Focus Close Fail B1h Focus Servo Failure B5h Focus Jump Fail B8h RF not exist C0h Track Close Fail C1h Track Servo NG C2h Track Jump NG D0h Spindle Start Fail D1h Spindle Stop Fail D2h Spindle High Speed Fail D3h Spindle Low Speed Fail D4h Spindle DVD Wob In Fail D5h OPC end search Error D6h RF end search Error D7h Spindle DPLL ON Error D8h Spindle RF Error D9h Tilt Adjustment Error www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 139 5 6 7 8 5 6 7 8 C D F A B E 7.1.7 DEBUGGING DISPLAY MODE 1) To enter ( [ESC] - [DISPLAY] ) To enter Debugging Display mode, press the [ESC] key on the remote control unit for service then the [DISPLAY] key. 2) To advance a page ( [DISPLAY] ) After entering Debugging Display mode, press the [DISPLAY] key. Each time the key is pressed, the page advances by one. You cannot turn the page backward. 3) To advance a subpage ( [SIDE-A] or [SIDE-B] ) Some pages have subpages. You can advance or go back one subpage using the [SIDE-A] or [SIDE-B] key. 4) To exit ( [ESC] ) To exit Debugging Display mode, press the [ESC] key. If the [ESC] key then the [DISPLAY] key are pressed to enter Debugging Display mode again, the last page previously displayed is displayed. 1) Version information (Page 1) The version for each program is displayed. (*1) If "XX.XX-XX" is displayed as the program version, only the OS has been installed, but the application program has not been installed. Install the correct program. (*2) IC501 PE5392A9 FLCOM:137 PE5392B8 FLCOM:138 (*3) Breakdown of destination: 0: J (Japan), 1: KU (North America), 2: WY (Europe) The data on region in the above example are "(1/1/-1)," expressing "(region for the Decoder board/region for Drive 1/region for Drive 2)" ("-1" means that Drive 2 does not exist). (*4) "OK" is displayed when two fans in the front section and a fan at the rear section (a fan not for the power-supply block) are operating properly. "GUID=xxxxx" is for DV. How to operate in Debugging Display mode Description of pages Program : 3.01 OS : 1.04 -------------------------- DVDRec : 1.90.2.10 : : FLCOM : 137 -------------------------- DVD-RW PRV-LX1 1.31U 03/05/19 PIONEER -------------------------- Shimuke=2 PON=∗∗∗∗∗∗∗∗∗ (2/2/2) FAN OK(1)/PSON OK(1) GUID=∗∗∗∗∗∗∗ 3.12P2 Version of the program (*1) Version of the OS Data to be used by engineers Version of the front-panel microcomputer (*2) Version of Drive 1 Version of Drive 2 Data on destination and region (*3) Data on the fans and GUID (*4) Version of BIOS ∗ : Arbitrary www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 140 1 2 3 4 1 2 3 4 C D F A B E 2) Disc playback data (Page 2) The internal data regarding disc playback are displayed. On this page, the error rate during disc playback can be confirmed. To start measuring the error rate, enter Debugging Display mode then press the PLAY key on the remote control unit for servicing. The results are displayed in the order of measured address and measured value. The indication "XXXXXXXX_0.000000e+00" as shown in the figure below indicates the status before a measuring task starts. To cancel measuring in progress, press the CLEAR key on the remote control unit for servicing. Debug Information(DVD-Video) -page 2-- Libpdec.so Revision = Error Rate : XXXXXXXX _ 0.000000e+00 (Loop Time) . . : : Error rate indication Measured error rate Measured address www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 141 5 6 7 8 5 6 7 8 C D F A B E 3) Data on the Decoder board (Page 3) The data on the Decoder board are displayed. One among several subpages is for the error log for the Decoder board. You can go forward or back one subpage using the [SIDE-A] or [SIDE-B] key. To see the error log for initialization and self- diagnosis, after entering Page 3, press the [SIDE-A] key once. The following screen is displayed. Note: If the Decoder board is defective, in many cases the TV output becomes unavailable. Therefore, the error records explained below may not be confirmed. The error records are displayed as shown below. If no error was generated in the past, "No device error" is displayed. In the above example, 4 error records are recorded. The first two digits in each record stand for the error type, and the following 12 digits express the time of occurrence: The time of error occurrence is expressed as "YYMMDDHHMMSS." So, "030110112345" means 11 o'clock 23 min 45 sec, January 10, 2003. The breakdown of 2-digit error codes is as follows: 1 : Xilinx Configuration Error Configuration of Xilinx (FPGA for PCI interface) failed. 4 : SH SDRAM Access Error Reading from or writing in the SDRAM connected to the SH bus failed. 10 : Video Encoder Initialize Error Communication with the Video Encoder (ADV7172) failed. 20 : AV Decoder Initialization Error The AV Decoder (M65776AFP) failed to start up, or access to the AV Decoder failed. 40 : AV Decoder SDRAM Access Error Reading from or writing in the SDRAM connected to the AV Decoder bus failed. Some of the above errors may occur simultaneously. For example, "50" means the errors of error codes 10 (Video Encoder Initialize Error) and 40 (AV Decoder SDRAM Access Error) were generated at the same time. Device Error History 10-030305210700 40-030306093005 50-030401112233 04-030405131500 Time of error occurrence Error code www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 142 1 2 3 4 1 2 3 4 C D F A B E 4) Data on the Encoder board (Page 4) The data on the Encoder board are displayed. If the [SIDE-A] key is pressed on this page, the error log for the Encoder board can be checked. An error record is expressed as shown below: (Example) 2003/07/01 10:30:20 == 09 03 == Error code (last 2 digits) Task ID (used in some error codes) Date and time of occurrence The meaning of the error codes and correction measures are described below: Code Content of Error Correction Measures 01 Data Read Timeout Error Turn the power off then on again. 02 Copy Protection Error As the selected input signal is copy-protected, recording could not be performed. When this error is generated even if the video signal from the disc created by the PRV-LX1 is to be recorded, replace the AVIB board. 03 (task ID : 09(h))Illegal frame number Error Turn the power off then on again. (task ID : 32(h))No digital signal Error Because no digital signal is input to the selected digital input connectors, recording could not be performed. When this error is generated even if the digital signal is confirmed to be input to the DV connectors, etc., replace the AVIB board. 04 PCI Destination Address Timeout Error Turn the power off then on again. 05 PCI Map Timeout Error Turn the power off then on again. C9 Hard Error Check wiring or connections. If the problem persists after corrective measures are taken, replace the AVIB board. CA Reset Error Check wiring or connections. If the problem persists after corrective measures are taken, replace the AVIB board. (task ID : 0A(hex))Stream Buffer Full Error Turn the power off then on again. CB Initialize Error Check wiring or connections. If the problem persists after corrective measures are taken, replace the AVIB board. CC Standby Error Turn the power off then on again. CD Command Error Turn the power off then on again. CE Stream Timeout Error Turn the power off then on again. CF Command Timeout Error Turn the power off then on again. D0 Buffer Full Error Turn the power off then on again. D2 Hard Error(Audio Enc.) Check wiring or connections. If the problem persists after corrective measures are taken, replace the AVIB board. D3 Reset Error(Audio Enc.) Check wiring or connections. If the problem persists after corrective measures are taken, replace the AVIB board. D4 Initialize Error(Audio Enc.) Check wiring or connections. If the problem persists after corrective measures are taken, replace the AVIB board. D5 Standby Error (Audio Enc.) Turn the power off then on again. D6 Command Error (Audio Enc.) Turn the power off then on again. D7 Command Timeout Error (Audio Enc.) Turn the power off then on again. DC Hard Error (Video Enc.) Check wiring or connections. If the problem persists after corrective measures are taken, replace the AVIB board. DD Reset Error (Video Enc.) Check wiring or connections. If the problem persists after corrective measures are taken, replace the AVIB board. DE Initialize Error (Video Enc.) Check wiring or connections. If the problem persists after corrective measures are taken, replace the AVIB board. DF Standby Error (Video Enc.) Turn the power off then on again. E0 Command Error (Video Enc.) Turn the power off then on again. E1 DV Decode Error Turn the power off then on again. E2 DV Encode Error Turn the power off then on again. E3 FS Change Error (before) Turn the power off then on again. E4 FS Change Error (after) Turn the power off then on again. E5 Command Timeout Error (Video Enc.) Turn the power off then on again. E6 Command Execute Error (Video Enc.) Turn the power off then on again. 5) Recording data (Page 5) The internal data on recording are displayed. 6) Application data (Page 6) The internal data on the application are displayed. Note on the drive error log: The drive error log can be displayed in Test mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 143 5 6 7 8 5 6 7 8 C D F A B E 7.1.8 LIST OF BIOS SETTING VALUE Customized Default Values Ver3.12P2 Standard CMOS Features Date (mm:dd:yy) G.M.T (Greenwich Mean Time) Time (hh:mm:ss) G.M.T (Greenwich Mean Time) IDE Primary Master Depends on assembled IDE Device IDE Primary Slave Depends on assembled IDE Device IDE Secondary Master Depends on assembled IDE Device IDE Secondary Slave Depends on assembled IDE Device Drive A None Drive B None Video EGA/VGA Halt On All, But Disk/Key Advanced BIOS Features Virus Warning Disabled CPU L1 & L2 Cache Enabled Quick Power On Self Test Enabled First Boot Device HDD-0 Second Boot Device CD-ROM Third Boot Device Disabled Boot Other Device Disabled Swap Floppy Drive Disabled Boot up Floppy Seek Disabled Boot up Numlock Status On Gate A20 Option Fast Typematic Rate Setting Disabled Typematic Rate (Chars/Sec) N/A Typematic Delay (Msec) N/A Security Option Setup APIC Mode Enabled MPS Version Control For OS 1.4 OS Select For DRAM > 64MB Non-OS2 Report No FDD For WIN 95 Yes Small Logo(EPA) Show Disabled Advanced Chipset Features DRAM Timing Selectable By SPD CAS Latency Time N/A Active to Precharge Delay N/A DRAM RAS# to CAS# Delay N/A DRAM RAS# Precharge N/A Turbo Mode Disabled Memory Frequency For Auto System BIOS Cacheable Enabled Video BIOS Cacheable Disabled Memory Hole at 15M-16M Disabled Delayed Transaction Enabled Delay Prior to Thermal 16 Min AGP Aperture Size (MB) 64 On-Chip VGA Enabled On-Chip Frame Buffer Size 8MB Customized Default Values Ver3.12P2 Integrated Peripherals IDE DMA transfer access Enabled On-Chip Primary PCI IDE Enabled IDE Primary Master PIO Auto IDE Primary Slave PIO Auto IDE Primary Master UDMA Auto IDE Primary Slave UDMA Auto On-Chip Secondary PCI IDE Enabled IDE Secondary Master PIO Auto IDE Secondary Slave PIO Auto IDE Secondary Master UDMA Auto IDE Secondary Slave UDMA Auto USB Controller Enabled USB 2.0 Controller Enabled USB Keyboard Support Enabled USB Mouse Support Enabled AC97 Audio Disabled Init Display First Onboard/AGP Onboard LAN Enabled Onboard LAN boot ROM Disabled IDE HDD Block Mode Enabled POWER ON Function BUTTON ONLY KB Power ON Password N/A Hot Key Power ON N/A Onboard FDC controller Enabled Onboard Serial Port 1 3F8/IRQ4 Onboard Serial Port 2 2F8/IRQ3 Onboard Parallel Port Disabled Parallel Port Mode N/A ECP Mode Use DMA N/A Power Management Setup ACPI Suspend Type S1(POS) Run VGABIOS if S3 Resume N/A Power Management User Define Video Off Method DPMS Video Off In Suspend Yes Suspend Type Stop Grant MODEM Use IRQ 3 Suspend Mode Disabled HDD Power Down Disabled Soft-Off by PWR-BTTN Instant-Off After Power Loss Stay Off Wake-Up by PCI card Enabled Power On By Ring(S5/DOS) Disabled USB KB Wake-Up From S3 N/A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 144 1 2 3 4 1 2 3 4 C D F A B E Customized Default Values Ver3.12P2 Power Management Setup Date(of Month) Alarm N/A Resume by Alarm Disabled Time(hh:mm:ss) Alarm N/A **Reload Global Timer Events** Primary IDE 0 Disabled Primary IDE 1 Disabled Secondary IDE 0 Disabled Secondary IDE 1 Disabled FDD,COM,LPT Port Disabled PCI PIRQ[A-D]# Disabled PnP/PCI Configurations Reset Configuration Data Disabled Resource Controlled by Auto(ESCD) IRQ Resources N/A Frequency Control Auto Detect PCI Clk Enabled Spread Spectrum Enabled Set Supervisor Password Disabled Set User Password Disabled www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 145 5 6 7 8 5 6 7 8 C D F A B E 7.1.9 REWRITING OF THE GUIDS GUID label RS-232C cable DVD interface jig (GGF1348) CN2405 PCIB ASSY SIDE B Notes: • Because the GUIDs are written on the PCIB Assy before shipping, rewriting of the GUIDs is not necessary when replacing the PCIB Assy. • When IC2406 (PD6453D8) on the PCIB Assy is replaced, rewriting of the GUIDs is required. Procedures: 1. Take note of the numbers written on the GUID label stuck on the PCIB Assy. 2. Install the PCIB Assy in the unit. Connect the COM port of your PC and CN2405 on the PCIB Assy, using the DVD interface jig (GGF1348). Format of the GUID label (for reference) The IEEE1394 Interface is mounted in the unit, and the EUI-64 codes are written in the flash ROM (IC2406) on the PCIB Assy. On the GUID label, this content is described. 1. Printing format Label: The part No. of the label is VRW1877. Print color: Black Printed content: Barcode: CODE128 Numerics: GUID serial No. (last 7 digits) 2. Relationship between the ID of the Assy and the serial number The values written on the Assy are the ID of the product (0x015) and the GUID serial No. specific to each product. The relationship between these numbers and the serial numbers printed on the label is as shown below: 3. Turn the unit on. After the unit starts up, enter "/15∗∗∗∗∗/SW" from the PC then press [ENTER] key to send the command ("∗∗∗∗∗" stands for a specific GUID). Note: The value written on the GUID label is in decimal notation and must be converted to hexadecimal for writing a command. For details, see "Format of the GUID label." 4. Enter "SR" from the PC then press [ENTER] key to send the command. As "GUID: 15∗∗∗∗∗" is displayed, check that this value is the same as that entered in Step 3. When rewriting the GUIDs, connect the COM port of your PC and the connector for servicing mounted on the PCIB Assy of the unit. For transmission of commands, use general-purpose RS-232C communication software. Communication settings are as follows: Bit rate : 57600 bps Data bits : 8 Parity : None Stop bit : 1 Flow control : None Two digits at the beginning: 00 Last 7 digits: GUID serial No. (0000001-1048575) Values (in hex) to be written on the Assy Serial numbers (in decimal) printed on the label 01500001 01500002 : : 015f f f f f 000000001 000000002 : : 001048575 Relationship between the ID of the Assy and the serial number www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 146 1 2 3 4 1 2 3 4 C D F A B E 7.1.10 CAUTIONS ON HANDLING THE HDD Reference: Main specifications on damage to the HDD The HDD is about 10 times as sensitive to shock during operation than during nonoperation. During operation During nonoperation Shock G (acceleration) Primary/Master) 2)[DOWN] Quit 6. Hold the [UP] button on the front panel pressed at least 2 seconds then hold the [ENTER] button pressed at least 2 seconds. Copying of data from the old HDD to the new HDD starts. (The time required for copying varies depending on the amount of user data, but the approximate maximum time is 2 hours.) 7. After copying is completed, the disc is automatically ejected, then the unit restarts. Check operations after startup is completed. If there is no problem, turn off the unit. 8. Set the POWER switch on the rear panel to OFF. Disconnect the old HDD connected to the cables from Drive 2. 9. Check the cable connections. Note: If Drive 2 is available, make the connections as they were originally made. *1 If an HDD that has already been used with another unit is to be used as a new HDD (copy-destination HDD), copying cannot be done if there are project data on that HDD. In this case, first delete all project data from the HDD, using the Function menus. When using a reused HDD without project data, copying of only the user's data becomes possible. In this case, the following optional menu is added in the message displayed in Step 5: 3)[LEFT] DATA Copy (Secondary/Slave –> Primary/Master) 1. After checking that the POWER switch on the rear panel is set to OFF, replace the built-in HDD with a new one. IMPORTANT: During the following procedures, be sure NOT to impart shock to the HDD. 2. Using the forced-eject pin (DEX1008), open the tray for Drive 1 then load the OS installation disc for the PRV-LX10 into the tray. Note: Push the tray in a little then turn on the power. 3. Following the procedures for "OS installation," install the OS, using the OS installation disc (GGV1177) for the PRV-LX10. See "7.1.14 How to Install the OS or Program." 4. Following the procedures for "Program installation," install the program, using the Program installation disc (GGV1234, Ver. 3.01) for the PRV-LX10. See "7.1.14 How to Install the OS or Program." In a case where the HDD being installed operates normally, but is to be replaced for maintenance, etc. → Perform copying of HDD data. In a case where the HDD being installed does not physically operate → After replacement of the HDD, reinstall the software program. Note: Before discarding an old HDD, physically destroy it so that the data on it cannot be extracted. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 149 5 6 7 8 5 6 7 8 C D F A B E 7.1.12 HOW TO CHECK THE HDD 7.1.13 CLEANING • How to check the HDD that is mounted on the product is described below: 1 Select Function Menu, Setup, System, HDD Tools, then Check, and execute. "HDD File System Check" is executed, and recoverable errors are corrected. The results can be checked on the monitor screen. 2 The HDD check can also be performed from the following menu displayed during OS installation: (1) [UP] : Full Install (Delete all data) (2) [DOWN] : Install (Keep user's data) (3) [LEFT] : HDD File System Check (4) [RIGHT] : HDD Test (Bad Block Check) (5) [SCAN R] : Quit Select (3) or (4), and execute. The result can be checked on the monitor screen. For details on how to enter the menu, see "OS installation" in "7.1.14 How to Install the OS or Program." Notes: • An HDD Test (4 above) may take 10 hours or more, depending on the capacity of the HDD. • If the menu does not appear in the process of the normal OS installation procedures, change the setting of BIOS "First Boot Device" to CD-ROM then restart the unit from the OS installation disc. • In the above case, after the HDD Check is finished, be sure to return the setting of BIOS "First Boot Device" to HDD. Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Pickup lenses Cleaning tools Cleaning liquid : GEM1004 Cleaning paper : GED-008 Position to be cleaned Cleaning tools Fans Cleaning paper : GED-008 • Pickup • Fan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 150 1 2 3 4 1 2 3 4 C D F A B E 7.1.14 HOW TO INSTALL THE OS OR PROGRAM OS installation 1 While holding the [ENTER] button on the front panel pressed, press the [STANDBY/ON] button to start the unit. 2 "PGM-INSTALL" is displayed on the FL display, and the tray for the DVD Drive opens. Display on the monitor screen: ---------------------------------------- - PRV-LX10 Program Installer - ---------------------------------------- PLEASE INSERT INSTALLATION CD IN DRIVE ONE, THEN PRESS [ENTER] BUTTON ON FRONT PANEL FOR 2 SECONDS TO BEGIN UPDATE. >> 3 Load the OS installation disc into the tray then press the [ENTER] button. The tray will close, and changing of the BIOS settings starts. Display on the FL display: DOWNLOAD FULL Display on the monitor screen: ======================== = PRV-LX10 Program Installer = ======================== The PRV-LX10 will automatically start power off after 5 seconds later. Please press the power button after power off. PLEASE WAIT A MINUTE. Completed changing the BIOS settings. 4 When the unit is automatically turned off, turn it back on. 5 If the following menu* appears on the screen, select the operation you wish. Use the corresponding buttons on the front panel for selection. (For example, press the [UP] button to select full installation.) (1) [UP] : Full Install (Delete all data) (2) [DOWN] : Install (Keep user's data) (3) [LEFT] : HDD File System Check (4) [RIGHT] : HDD Test(Bad Block Check) (5) [SCAN R] : Quit (1) [UP]: Full Install (Delete all data) • The whole HDD is formatted, then the OS is installed. • All data, including the user data, are deleted. Installation is completed in about 10 minutes, then rebooting starts. • During installation, the progress is displayed on the screen. If the screen does not change after about 15 minutes, or if the installation process has not been completed after about 30 minutes, turn off the power and restart the OS installation process. If installation cannot be completed on the second try, replace the HDD. IMPORTANT!: After OS installation, be sure to install the program. (2) [DOWN]: Install (Keep user's data) • Only the OS is installed, leaving the user's data intact. This does not mean, however, that the integrity of the user's data is guaranteed. • Installation is completed in about 8 minutes, then rebooting starts. • During installation, the progress is displayed on the screen. If the screen does not change after about 15 minutes, or if the installation process has not been completed after about 30 minutes, turn off the power and restart the OS installation process. If installation cannot be completed on the second try, replace the HDD. IMPORTANT!: After OS installation, be sure to install the program. (3) [LEFT]: HDD File System Check • A logical check of all files on the HDD is performed, then the results are displayed. • To return to the menu, press the [ENTER] button on the front panel. (4) [RIGHT]: HDD Test (Bad Block Check) • A physical check of the HDD is performed, then the results are displayed. It must be noted that this test takes 10 hours or more. • To return to the menu, press the [ENTER] button on the front panel. (5) [SCAN R]: Quit • To terminate the installation program and start rebooting *With some installation discs for production lines, full installation starts automatically, without displaying the menu. 6 Execute the selected item. • After execution, rebooting starts automatically. 7 Turn off the power. 8 Start up the unit by pressing the [STANDBY/ON] button on the front panel, then make sure that the version of the OS is updated, using the Debug screen (ESC + DISP). 9 Proceed to program installation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 151 5 6 7 8 5 6 7 8 C D F A B E Program installation 1 Hold the [ENTER] button on the front panel pressed and press the [STANDBY/ON] button to start up the unit. 2 "PGM-INSTALL" is displayed on the FL display, and the tray for the DVD drive opens. Display on the monitor screen: ---------------------------------------- - PRV-LX10 Program Installer - ---------------------------------------- PLEASE INSERT INSTALLATION CD IN DRIVE ONE, THEN PRESS [ENTER] BUTTON ON FRONT PANEL FOR 2 SECONDS TO BEGIN UPDATE. >> 3 Load the program installation disc (GGV1234, Ver. 3.01) into the tray and press the [ENTER] button on the front panel. The tray will close, and upgrading of the version starts. Display on the FL display: DOWNLOAD FULL Display on the monitor screen: ============================== = PRV-LX10 Program Installer = ============================== Setup Directories ... Start Program Download ... = Setup Drives. = --> The message changes according to the progress. ==== --> Progress bar 4 When installation is finished, the PRV-LX10's startup display appears on the monitor screen, the tray for DVD Drive opens, and "DOWNLOAD COMPLETED" is displayed on the FL display. Then the unit is automatically turned off. 5 Start up the unit by pressing the [STANDBY/ON] button on the front panel, then make sure that the version of the program is updated, using the Debug screen (ESC + DISP). Note: If a program whose version is older than the currently installed one is to be installed, the following message is displayed: On the monitor screen: Current Version : 1.07 Installation CD Version : 1.05 Newer version programs have already been installed. Press appropriate front panel button for 2 seconds followed by [ENTER] button for 2 seconds. (1) [ UP ] Force to install (2) [ DOWN ] Quit. >> • To continue the installation process, press the [UP] button then the [ENTER] button on the front panel. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 152 1 2 3 4 1 2 3 4 C D F A B E 7.1.15 TROUBLE SHOOTING Operation Sequence Symptom Check Item Measures to be taken Startup From power on, supply of STB + 5 V power, to startup of the FL microcomputer STB_LED: Orange STB_SW ON STB_LED: Green Startup of the ATX power, start of the FL display The unit does not enter Standby mode even if the POWER switch is set to ON. Check the following connections: The LED (D10) for STB +5 V power supply on the PWRB remains unlit: Disconnect the cable that connects the PWRB (CN3) and FLKB (CN501) then turn on the power. → D10 lights up. Disconnect the cable that connects the PWRB (CN3) and FLKB (CN501) then turn on the power. → D10 remains unlit. The LED (D10) for STB +5 V power supply on the PWRB is lit: Check the connections for the ATX power supply, PWRB, and FLKB: Reconnect the 20-pin cable of the ATX power supply (DXF1005), or replace the ATX power supply. If it is suspected that the FLKB (DWZ1164) is defective, replace it. If it is suspected that the PWRB (DWZ1129) is defective, replace it. Replace ICP (IC8) on the PWRB (DWZ1129). Reconnect or replace the 20-pin cable (DKP3637) between the PWRB (CN3) and FLKB (CN501). If it is suspected that the FLKB (DWZ1164) is defective, replace it. Even if the STB switch is pressed, its indicator remains lit in orange, and the unit does not start. Check the following connections: The PWR_SW on the PWRB is set to L: The LED (D19) for STB +5 V power supply for the MB on the PWRB remains unlit. The PWR_SW on the PWRB is set to H: The LED (D19) for STB +5 V power supply for the MB on the PWRB is lit. Check the connections for the FLKB, PWRB, and MB: Reconnect or replace the 20-pin cable (DKP3637) between the PWRB and FLKB. If it is suspected that the FLKB (DWZ1164) is defective, replace it. If it is suspected that the PWRB (DWZ1129) is defective, replace it. Reconnect or replace the 20-pin cable (DKP3657) between the MB and PWRB. If it is suspected that the MB (DXF1007) is defective, replace it. Even if the STB switch is pressed, its indicator remains lit in green, and the unit does not start. Check the following connections: PWR_SW2 on the PWRB is set to L: PWR_SW2 on the PWRB is set to H: The LEDs (D11, D12, and D13) for power supply on the PWRB remain unlit. The LEDs (D11, D12, and D13) for power supply on the PWRB are lit. Check the connections for the ATX power supply, PWRB, MB, and FLKB: Reconnect or replace the 20-pin cable (DKP3637) between the PWRB and FLKB. If it is suspected that the FLKB (DWZ1164) is defective, replace it. Reconnect or replace the 6-pin to 9-pin cable (DKP3635) between the MB and PWRB. If it is suspected that the MB (DXF1007) is defective, replace it. Reconnect the 20-pin cable of the ATX power supply (DXF1005), or replace the ATX power supply. Reconnect or replace the 20-pin cable (DKP3637) between the PWRB (CN3) and FLKB (CN501). If it is suspected that the FLKB (DWZ1164) is defective, replace it. If it is suspected that the PWRB (DWZ1129) is defective, replace it. Misc.: Black screen (POST screen not displayed) Reinstall or replace the CPU and the memory module. Clear the data in the CMOS RAM for BIOS (by short-circuiting Pins 1 and 2 of the JP14 jumper switch on the MB). BIOS startup Searching for the boot drive Even if the STB switch is pressed, the message on the FL display remains "PLEASE WAIT," and the unit does not start. Check the connections (for power supply) Check the connections between the ATX power supply and the HDD, or among the ATX power supply, PWRB, and MB: Reinstall the power supply for peripheral devices between the ATX power supply and the HDD. Or replace the ATX power supply. Reconnect or replace the 4-pin cable (DKP3656) for power supply for the CPU on the MB (PWR_P4). Check the connections (for signals) Check the connections between the MB and HDD, or the MB and FLKB: Reconnect or replace the IDE flat cable (DKP3647) between the MB and HDD. Reconnect or replace the 3-pin to 10-pin cable (DKP3645) between MB and FLKB (CN504). VGA screen display "CMOS checksum error - Defaults loaded" "Non-System Disk or Disk error, Replace and press any key when ready" "Detecting IDE drivers . . . " "DISK BOOT ERROR, INSERT SYSTEM DISK AND PRESS ENTER" If the battery is discharged (2.5 V DC or less), replace it. If it is suspected that the MB (DXF1007) is defective, replace it. If checking of BIOS data fails, press the F1 key then reload the BIOS data. If the data on the HDD are damaged, reinstall the data. If it is suspected that the HDD (VXF1015) is defective, replace it. The settings for the connected HDD or DVD Drive are wrong: If it is suspected that the HDD (VXF1015) is defective, replace it. If it is suspected that the DVD Drive (DVR-105-PLX) is defective, replace it. Check on the BIOS screen if the HDD is recognized: Set the jumper pin of the HDD to MASTER. If it is suspected that HDD (VXF1015) is defective, replace it. Beep sounds: One long Two long Two short-long combinations This means a memory error. Reinstall or replace the DDR memory module. This means a memory error. Reinstall or replace the DDR memory module. This means a video error. If it is suspected that the MB (DXF1007) is defective, replace it. Misc.: Noise from the HDD If it is suspected that the HDD (VXF1015) is defective, replace it. If it is suspected that the FLKB (DWZ1164) is defective, replace it. If it is suspected that the MB (DXF1007) is defective, replace it. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 153 5 6 7 8 5 6 7 8 C D F A B E Operation Sequence Symptom Check Item Measures to be taken Startup Execution of startup script The following message is displayed on the FL display: "FSCK-ERROR BOOT/USR" Reinstall the OS (Installation leaving the user's data intact is also possible). The following message is displayed on the FL display: "FSCK-ERROR HOME" Reinstall the OS (Installation leaving the user's data intact is also possible). The following message is displayed on the FL display: "FSCK-ERROR VAR" Reinstall the OS (Installation leaving the user's data intact is also possible). The following message is displayed on the FL display: "POWER ON FSCK-ERROR" Reinstall the OS (Installation leaving the user's data intact is also possible). The following message is displayed on the FL display: "NO BOARD ENCODER" Check the connections. The "Xilinx_STA" LED on the PCIB remains unlit during startup. The "Encode_STA" LED on the PCIB remains lit during startup. Check attachment of the PCI card to the DECB and MB. It is suspected that the PCIB (DWP1080) is defective replace it. It is suspected that the PCIB (DWP1080) is defective, replace it. Misc.: Check the power of the PCIB (DWP1080): D2101: The LED for -12 V power supply remains unlit D2102: The LED for +12 V power supply remains unlit D2301: The LED for +5 V power supply remains unlit The message "!!!!!!!!!!NO ENCODER BOARD ERROR AGAIN!!!!!!!!!!" is displayed in the log file. Check the LED for power supply on the PCIB (DWP1080). It is suspected that the PCIB (DWP1080) is defective, replace it. It is suspected that the PCIB (DWP1080) is defective, replace it. It is suspected that the PCIB (DWP1080) is defective, replace it. Reinstall the PCIB (DWP1080). The following message is displayed on the FL display: "NO BOARD ENCODER" Check the connections. The "Xilinx_STA" LED on the DECB remains unlit during startup. The "Decode_STA" LED on the DECB remains lit during startup. Check attachment of the PCI card to the DECB and MB. It is suspected that the DECB (DWP1081) is defective,replace it. It is suspected that the DECB (DWP1081) is defective,replace it. Misc.: Check the power supply for the DECB (DWP1081): The LED (D1137) for +1.8 V power supply is unlit. The message "!!!!!!!!!!NO DECODER BOARD ERROR AGAIN!!!!!!!!!!" is displayed in the log file. Check the LED for power supply on the DECB (DWP1081). It is suspected that the DECB (DWP1081) is defective,replace it. If it is suspected that ICP (IC1351) is broken, replace it. Reinstall the DECB (DWP1081). Starting application Completion of application startup Even if the STB SW is pressed, the message on the FL display remains "000. . . ." and the unit does not start. Check the connections: The "Xilinx_STA" LED on the AVIB remains unlit during startup. The "Encode_STA" LED on the AVIB remains lit during startup. The "Xilinx_STA" LED on the PCIB remains unlit during startup. The "Encode_STA" LED on the PCIB remains lit during startup. Check the connections between the AVIB and PCIB. Reconnect the 50-pin FFCs (DDD1226) that connect the AVIB (CN3001 and CN3002) and PCIB (CN2103 and CN2104), or replace them. Reconnect or replace the 4-pin cable (DKP3640) that connects the AVIB (CN3301) and PCIB (CN2101). If it is suspected that the AVIB (DWV1198) is defective, replace it. If it is suspected that the AVIB (DWV1198) is defective, replace it. If it is suspected that the AVIB (DWV1198) is defective, replace it. If it is suspected that the AVIB (DWV1198) is defective, replace it. Misc.: Check the positions of the jumper pins in DVD Drive 1 and Drive 2. Set the jumper pin of Drive 1 to MASTER and that of Drive 2 to SLAVE. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 154 1 2 3 4 1 2 3 4 C D F A B E Operation Symptom Check Item Measures to be taken Recording/ playback No input to the RCA, XLR, CVBS, S, YCbCr, and DV connectors (signals cannot be output or recorded during preview or recording) No input to the RCA and XLR No input to the CVBS, S, and YCbCr connectors No input to the DV connector "NO DV INPUT" displayed Check the connections (for power supply): The LEDs for power supply (D3201, D3202, D3203, and D3204) on the AVIB remain unlit. When the AVIB (CN3201) connector is disconnected, no DC voltage is applied to the PWRB connector pin. When the AVIB (CN3201) connector is disconnected, DC voltage is applied to the PWRB connector pin. The LEDs for power supply (D7619, D7620, D7621, and D7622) on the JKIB remain unlit. When the JKIB (CN7613) connector is disconnected, no DC voltage is applied to the AVIB connector pin. When the JKIB (CN7613) connector is disconnected, DC voltage is applied to the AVIB connector pin. The LEDs for power supply (D2101, D2102, and D2301) on the PCIB remain unlit. Check the connections for the PWRB, AVIB and JKIB, and connections between MB and PCIB: Reconnect or replace the 14-pin cable (DKP3636) between PWRB (CN2) and AVIB (CN3201). If it is suspected that the PWRB (DWZ1129) is defective, replace it. If it is suspected that the AVIB (DWV1202) is defective, replace it. Reconnect or replace the 7-pin cable (DKP3639) between AVIB (CN3201) and JKIB (CN7613). If it is suspected that the AVIB (DWV1202) is defective, replace it. If it is suspected that JKIB (DWZ1126) is defective, replace it. Securely reinstall the PCIB (DWP1080) on the MB. If it is suspected that the PCIB (DWP1080) is defective, replace it. Check the connections (for AV signals): No analog signal input to the AVIB connector pin Analog signal is input to the AVIB connector pin. The "Xilinx_STA" LED on the AVIB remains lit during encoding. The "Encode_STA" LED on the PCIB randomly lights during encoding. The "Xilinx_STA" LED on the AVIB remains lit during encoding. The "Encode_STA" LED on the PCIB randomly lights during encoding. Check the connections for the JKIB, AVIB, and PCIB: Reconnect or replace the 20-pin FFC (DDD1228) that connect AVIB (CN3501) and JKIB (CN7611). If it is suspected that JKIB (DWZ1126) is defective, replace it. If it is suspected that the AVIB (DWV1202) is defective, replace it. Reconnect or replace the two 50-pin FFCs (DDD1226) that connect the AVIB (CN3001 and CN3002) and PCIB (CN2103 and CN2104). If it is suspected that the AVIB (DWV1202) is defective, replace it. If it is suspected that the PCIB (DWP1080) is defective, replace it. Reconnect or replace the 6-pin cable (DKP3658) between the AVIB (CN4001) and JKIB (CN7402). If it is suspected that the AVIB (DWV1202) is defective, replace it. If it is suspected that the PCIB (DWP1080) is defective, replace it. Check which of the following will be the case: No THRU output even with the SOURCE MONITOR setting The THRU output is available with the SOURCE MONITOR setting. Playback is possible. Recording is possible. If it is suspected that JKIB (DWZ1126) is defective, replace it. If it is suspected that the JKOB (DWZ1127) is defective, replace it. If it is suspected that the AVIB (DWV1202) is defective, replace it. If it is suspected that JKIB (DWZ1126) is defective, replace it. If it is suspected that the DECB (DWP1081) is defective, replace it. Check the format. Check the input source. Check the format of connected devices. If the input source is copy-protected, it cannot be recorded. No output from the RCA, XLR, SPDIF, CVBS, S, YCbCr, and DV connectors (signals cannot be output during playback) No output from the RCA, XLR, and HP connectors No output from the CVBS, S, and YCbCr connectors No output from the DV connector Check the connections (for power supply): The LEDs for power supply (D3201, D3202, D3203, and D3204) on the AVIB remain unlit. When the AVIB (CN3201) connector is disconnected, no DC voltage is applied to the PWRB connector pin. When the AVIB (CN3201) connector is disconnected, DC voltage is applied to the PWRB connector pin. The LEDs for power supply (D7619, D7620, D7621, and D7622) on the JKIB remain unlit. When the JKIB (CN7613) connector is disconnected, no DC voltage is applied to the AVIB connector pin. When the JKIB (CN7613) connector is disconnected, DC voltage is applied to the AVIB connector pin. The LED (D1137) for power supply on the DECB remains unlit. Check the connections for the PWRB, AVIB, and JKIB, and connections between the MB and DECB: Reconnect or replace the 14-pin cable (DKP3636) between PWRB (CN2) and AVIB (CN3201). If it is suspected that the PWRB (DWZ1129) is defective, replace it. If it is suspected that the AVIB (DWV1202) is defective, replace it. Reconnect or replace the 7-pin cable (DKP3639) between AVIB (CN3201) and JKIB (CN7613). If it is suspected that the AVIB (DWV1202) is defective, replace it. If it is suspected that JKIB (DWZ1126) is defective, replace it. Securely reinstall the DECB (DWP1081) on the MB. If it is suspected that the DECB (DWP1081) is defective, replace it. Check the connections (for AV signals): The "Decode_STA" LED (D1182) on the DECB remains unlit during decoding. The "Decode_STA" LED (D1182) on the DECB flashes during decoding. Check if there is analog output other than the DV output. → No Check if there is analog output other than the DV output. → Yes The THRU output is available with the SOURCE MONITOR setting. No THRU output even with the SOURCE MONITOR setting. Check the connections for the DECB, JKIB, and JKOB: Reconnect or replace the 30-pin FFC (DDD1229) that connects the DECB (CN1811) and JKIB (CN7801). If it is suspected that the DECB (DWP1081) is defective, replace it. If it is suspected that JKIB (DWZ1126) is defective, replace it. Reconnect or replace the 6-pin cable (DKP3658) between the AVIB (CN4001) and JKIB (CN7402). Reconnect or replace the 30-pin FFC (DDD1229) that connects the AVIB (CN1651) and DECB (CN6002). Reconnect or replace the 14-pin cable (DKP3636) between PWRB (CN2) and AVIB (CN3201). If it is suspected that the AVIB (DWV1202) is defective, replace it. Reconnect or replace the 30-pin FFC (DDD1229) that connects the DECB (CN1811) and JKIB (CN7801). If it is suspected that JKIB (DWZ1126) is defective, replace it. Reconnect or replace the 30-pin FFC (DDD1230) that connects the JKIB (CN7802) and JKOB (CN7851). If it is suspected that the JKOB (DWZ1127) is defective, replace it. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 155 5 6 7 8 5 6 7 8 C D F A B E Operation Symptom Check Item Measures to be taken Recording/ playback Check to see if the Progressive signal is set to be output. No output from the CVBS or S terminal To change the setting, run the unit idle then press the DOWN then STOP keys. No video or audio output even with the SOURCE MONITOR setting Check input/output settings. The LEDs (D3201, D3202, D3203, and D3204) for power supply on the AVIB remain unlit. Disconnect the 7-pin cable that connects the AVIB (CN3202) and JKIB (CN7613). → No DC voltage applied to the terminals Disconnect the 7-pin cable that connects the AVIB (CN3202) and JKIB (CN7613). → DC voltage applied to the terminals The LEDs (D7619, D7620, D7621, and D7622) for power supply on the JKIB remain unlit. Is the THRU_SW signals from the AVIB switched? Disconnect the 20-pin FFC cable that connects the AVIB (CN3501) and JKIB (CN7611). → THRU_SW signal from the AVIB is set to L. Disconnect the 20-pin FFC cable that connects the AVIB (CN3501) and JKIB (CN7611). → THRU_SW signal from AVIB is set to H. On the Function menu, set AV INPUT to CVBS or RCA, then input the corresponding signal. Reconnect or replace the 14-pin cable (DKP3636) between the PWRB (CN2) and AVIB (CN3201). If it is suspected that the AVIB (DWV1202) is defective, replace it. If it is suspected that the JKIB (DWZ1126) is defective, replace it. Reconnect or replace the 7-pin cable (DKP3639) between the AVIB (CN3202) and JKIB (CN7613). If it is suspected that the JKIB (DWZ1126) is defective, replace it. Reconnect or replace the 20-pin FFC (DDD1228) that connects the AVIB (CN3501) and JKIB (CN7611). If it is suspected that the AVIB (DWV1202) is defective, replace it. If it is suspected that the JKIB (DWZ1126) is defective, replace it. Reconnect or replace the 30-pin FFC (DDD1230) that connects the JKIB (CN7802) and JKOB (CN7851). If it is suspected that the JKOB (DWZ1127) is defective, replace it. No HP audio output Check the connections (for power supply): The LEDs (D3201, D3202, D3203, and D3204) for power supply on the AVIB remain unlit. Disconnect the AVIB (CN3201) connector. → No DC voltage applied to the PWRB connector pin Disconnect the AVIB (CN3201) connector. → DC voltage applied to the PWRB connector pin The LEDs (D7619, D7620, D7621, and D7622) for power supply on the JKIB remain unlit. Disconnect the AVIB (CN3202) connector. → No DC voltage applied to the AVIB connector pin Disconnect the AVIB (CN3202) connector. → DC voltage applied to the AVIB connector pin The LED (D661) for power supply on the HPVB remain unlit. Disconnect the HPVB (CN7701) connector. → No DC voltage applied to the JKIB connector pin Disconnect the HPVB (CN7701) connector. → DC voltage applied to the JKIB connector pin Check the connections for the PWRB, AVIB, JKIB, and HPVB: Reconnect or replace the 14-pin cable (DKP3636) between the PWRB (CN2) and AVIB (CN3201). If it is suspected that the PWRB (DWZ1129) is defective, replace it. If it is suspected that the AVIB (DWV1202) is defective, replace it. Reconnect or replace the 7-pin cable (DKP3639) between the AVIB (CN3202) and JKIB (CN7613). If it is suspected that the AVIB (DWV1202) is defective, replace it. If it is suspected that the JKIB (DWZ1126) is defective, replace it. Reconnect or replace the 8-pin cable (DKP3643) between the JKIB (CN7701) and HPVB (CN661). If it is suspected that the JKIB (DWZ1126) is defective, replace it. If it is suspected that the HPVB (DWZ1128) is defective, replace it. Check the connections (for audio signals): Audio not output from the HP, RCA, and XLR connectors Audio not output only from the HP connector Check the connections for the DECB, JKIB, and HPVB: Reconnect or replace the 30-pin FFC (DDD1229) that connects the DECB (CN1811) and JKIB (CN7801). If it is suspected that the DECB (DWP1081) is defective, replace it. If it is suspected that the JKIB (DWZ1126) is defective, replace it. Reconnect or replace the 8-pin cable (DKP3643) between the JKIB (CN7701) and HPVB (CN661). If it is suspected that the HPVB (DWZ1128) is defective, replace it. DVD recording/playback impossible Check the connections: Press Function, and check the lower-right part of the screen to see if the connected drive is recognized. No DVD1 indication No DVD2 indication Check the connections between the MB and DVD_Drives 1-2, and between the ATX power supply and DVD_Drives 1-2. Reconnect or replace the IDE cable (DKP3671) between MB and DRV: If it is suspected that the DVD Drive 1 (DVR-105-PLX) is defective, replace it. If it is suspected that the DVD Drive 2 (DVR-105-PLX) is defective, replace it. Reinstall the power supply for peripheral devices between the ATX power supply and the DVR. Or replace the ATX power supply. Check the media you use. Use a DVD-R or DVD-RW disc whose standard is supported by this unit. Check the input source. If the input source is copy-protected, it cannot be recorded. ENCODER ERROR "FF000002" is displayed on the screen. Preview impossible Check the connections. Check the connections between the AVIB and PCIB: Reconnect or replace the two 50-pin FFCs (DDD1226) that connect AVIB (CN3001 and CN3002) and PCIB (CN2103 and CN2104). If it is suspected that the AVIB (DWV1202) is defective, replace it. If it is suspected that the PCIB (DWP1081) is defective, replace it. No synchronization with the external sync Check the connections: The LEDs (D7925, D7926, and D7927) for power supply on the JKDB remain unlit. Disconnect the JKDB (CN7902) connector. → No DC voltage applied to the PCIB connector pin Disconnect the JKDB (CN7902) connector. → DC voltage applied to the PCIB connector pin Check the signals. Check the connections between the PCIB and JKDB, and between the DECB and JKDB: Reconnect or replace the 11-pin cable (DKP3642) between the PCIB (CN2102) and JKDB (CN7902). If it is suspected that the PCIB (DWP1081) is defective, replace it. If it is suspected that the JKDB (DWZ1134) is defective, replace it. Reconnect or replace the 2-pin cable (DKP3638) between the DECB (CN1471) and JKDB (CN7941). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 156 1 2 3 4 1 2 3 4 C D F A B E Operation Symptom Check Item Measures to be taken Misc No operation possible with a USB device (mouse/keyboard) connected to one of the USB connector on the front panel Check the connections: The LED (D681) for the power supply on the USBB remains unlit: Disconnect the USBB (CN684) connector. → No DC voltage applied to the PWRB connector pin Disconnect the USBB (CN684) connector. → DC voltage applied to the PWRB connector pin Check the USB signal. Check the connections between the PWRB and USBB, and the MB and USBB. Reconnect or replace the 3-pin cable (DKP3655) for power supply between the PWRB (CN5) and USBB (CN684). If it is suspected that the PWRB (DWZ1129) is defective, replace it. If it is suspected that the USBB (DWZ1159) is defective, replace it. Reconnect or replace the 10-pin cable (DKP3646) for USB communication between the MB and USBB (CN681). If it is suspected that the MB (DXF1007) is defective, replace it. If it is suspected that the USBB (DWZ1159) is defective, replace it. Control from an external device through RS-422 impossible Check the connections: The LEDs (D7925, D7926, and D7927) for the power supply on the JKDB remains unlit: Disconnect the JKDB (CN7902) connector. → No DC voltage applied to the PCIB connector pin Disconnect the JKDB (CN7902) connector. → DC voltage applied to the PCIB connector pin Check the settings and connected devices. Check the connections among the PCIB, JKDB, and 422IB: Reconnect or replace the 11-pin cable (DKP3642) between the PCIB (CN2102) and JKDB (CN7902). If it is suspected that the PCIB (DWP1081) is defective, replace it. If it is suspected that the JKDB (DWZ1134) is defective, replace it. Reconnect or replace the 6-pin cable (DKP3644) between the JKDB (CN7903) and 422IB (CN7952). The external RS-422 device may be one that cannot control this unit. → Refer to the Web site of Pioneer. Control of an external device through RS-422 impossible Check the connections: The LEDs (D7925, D7926, and D7927) for the power supply on the JKDB remains unlit: Disconnect the JKDB (CN7902) connector. → No DC voltage applied to the PCIB connector pin Disconnect the JKDB (CN7902) connector. → DC voltage applied to the PCIB connector pin Check the settings and connected devices. Check the connections between the PCIB and JKDB: Reconnect or replace the 11-pin cable (DKP3642) between the PCIB (CN2102) and JKDB (CN7902). If it is suspected that the PCIB (DWP1081) is defective, replace it. If it is suspected that the JKDB (DWZ1134) is defective, replace it. The external RS-422 device may be one that this unit cannot control.→ Refer to the Web site of Pioneer. LAN communication impossible Check the connections. Check the settings. The LINK LED (yellow) corresponding to the LAN terminal does not light. Connect the unit to a router, etc. with a straight cable. If NETWORK is set to OFF, set it to ON. If it is suspected that the MB (DXF1007) is defective, replace it. No operation of DVD-DRV1 DRV2 operates instead of DRV1 Check the connections. Press [FUNCTION] key then check the lower-right part of the screen to see if the connected drives are recognized. Check if the correct keys are pressed. Check the connections between the MB and DVD_Drive 1, and between the ATX power supply and DVD_Drive 1. Reconnect the 4-pin power cable for the DVD-Drive 1. Reconnect or replace the IDE cable (DKP3671) between the MB and Drive 1. If it is suspected that the DVD Drive 1 (DVR-105-PLX) is defective, replace it. Reconnect or replace the 6-pin FFC (DDD1231) that connects the FLKB (CN502) and DRV1B (CN631). No operation of DVD-DRV2 Check the connections. Press [FUNCTION] key then check the lower-right part of the screen to see if the connected drives are recognized. Check if the correct keys are pressed. Check the connections between the MB and DVD_Drive 2, and between the ATX power supply and DVD_Drive 2. Reconnect the 4-pin power cable for the DVD-Drive 2. Reconnect or replace the IDE cable (DKP3671) between the MB and Drive 2. If it is suspected that the DVD Drive 2 (DVR-105-PLX) is defective, replace it. Reconnect or replace the 6-pin FFC (DDD1231) that connects the KEYB (CN602) and DRV2B (CN641). Key input disabled, or malfunctioning Check the connections: It is suspected that the key signals from another device remain to be input to FL UCOM (IC501) and that signals from the corresponding keyboard are not accepted. Check the key input from the remote control unit for service: As each segment on the FL display corresponds to a particular key on the remote control unit for service. If any segment on the FL display was already unlit, there had already been key input. Check the connections among the FLKB, KEYB, DRV1B, and DRV2B: Reconnect or replace the 25-pin FFC (DDD1232) that connects the FLKB (CN503) and KEYB (CN601). Reconnect or replace the 25-pin FFC (DDD1232) that connects the FLKB (CN503) and KEYB (CN601). Reconnect or replace the 6-pin FFC (DDD1231) that connects the KEYB (CN602) and DRV2B (CN641). To enter Front-Panel-Button-Input Test mode, press the [ESC], [TEST], then [TV/LDP] keys, in that order. To quit Test mode, press the [ESC] key. Repair/replace the Assy corresponding to the inoperable key. FLKB (DWZ1164): STB, Disp, Func, Function operations (×5) KEYB (DWZ1157): Drv_Sel, Preview, Main operations (×8) DRV1B (DWZ1160): Drv1_Eject DRV2B (DWZ1161): Drv2_Eject Repair/replace the Assy. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 157 5 6 7 8 5 6 7 8 C D F A B E Operation Symptom Check Item Measures to be taken Misc. Remote control unit not effective Check the connections: Signals from the remote control unit may not be accepted because FL UCOM (IC501), which handles those signals, is occupied with other key signals that are kept input, although the remote control signals themselves are correctly processed in the FLKB. Check the connections among the FLKB, KEYB, DRV1B, and DRV2B: Reconnect or replace the 25-pin FFC (DDD1232) that connects the FLKB (CN503) and KEYB (CN601). Reconnect or replace the 6-pin FFC (DDD1231) that connects the FLKB (CN502) and DRV1B (CN631). Reconnect or replace the 6-pin FFC (DDD1231) that connects the FLKB (CN602) and DRV2B (CN641). Check key input from the remote control unit for service: Key input from the remote control unit for service is not accepted. As each segment on the FL display corresponds to a particular key of the remote control unit for service. If any segment on the FL display was already unlit, there had already been key input. To enter Front-Panel-Button-Input Test mode, press the [ESC], [TEST], then [TV/LDP] keys, in that order. To quit Test mode, press the [ESC] key. If it is suspected that the FLKB (DWZ1164) is defective, replace it. Repair/replace the Assy corresponding to the inoperable key. FLKB (DWZ1164): STB, Disp, Func, Function operation (x5) KEYB (DWZ1157): Drv_Sel, Preview, Main operation (x8) DRV1B (DWZ1160): Drv1_Eject DRV2B (DWZ1161): Drv2_Eject Repair/replace the Assy. All or part of the FL display is dark, or no FL display Check the connections. Check the connections between the PWRB and FLKB. Reconnect or replace the 20-pin cable (DKP3637) between the PWRB and FLKB. Check the display on the FL display, using the remote control unit for service. To enter LED/FL Test mode, press the [ESC], [TEST], then [P.RUN] keys, in that order. To quit Test mode, press the [ESC] key. Check the FLKB (DWZ1164) or PWRB (DWZ1129) if all or part of the FL display is dark. Check the power supply for the FL display. If the power supply from the PWRB (DWZ1129) is insufficient, replace the board. IC301 : -23.4V IC401 : -26.8V IC451 : -31.2V Misc. The FL (DAW1019) on the FLKB (DWZ1164) is at the end of its life. Replace the FLKB board. Installation Installation not completed Check the settings and connections. Check the connections between the MB and HDD, MB and DVD_Drive 1, and between the MB and DVD_Drive 2: The HDD (VXF1015) must be connected to Master IDE_Primary. The DVD Drive 1 (DVR-105-PLX) must be connected to Master IDE_Secondary. The DVD Drive 2 (DVR-105-PLX) must be connected to Slave IDE_Secondary. "DISK BOOT FAILURE, INSERT SYSTEM DISK AND PRESS ENTER" is displayed on the VGA screen. Reinstall the OS. After replacement of the HDD, reinstall the OS. "!!!!!!The root file system has been recovered!!!!!!!!" is displayed in the log file. If the same message was recorded many times, reinstall the OS. Parts Inoperable CPU cooler Check connections. Check the connections between the MB and CPU_FAN, and among the ATX power supply, PWRB, and MB. Reconnect the connector for the CPU cooler. No power supply to the CPU cooler Reconnect the 20-pin cable of the ATX power supply (DXF1005), or replace the ATX power supply. Reconnect or replace the 20-pin cable (DKP3657) between the MB and PWRB (CN4). The CPU cooler is defective. Replace the CPU cooler. Inoperable fans Check connections. Check the connections between the PWRB and the two fans in the front section and one fan in the rear section: Reconnect or replace the 2-pin relay cable (DKP3676) that connects the PWRB (CN9) and the fan at the rear section. Reconnect the 2-pin cable that connects the PWRB (CN10) and Fan 1 at the front section, or replace the fan (AXM7014). Reconnect the 2-pin cable that connects the PWRB (CN11) and Fan 2 at the front section, or replace the fan (AXM7014). The FAN_DET LED (D24) on the PWRB remains unlit. If it is suspected that the fan (AXM7014) is defective, replace it. If it is suspected that the PWRB (DWZ1129) is defective, replace it. The unit will not start even after MB replacement Check connections. Check the connections among the ATX power supply, PWRB, MB and FLKB. Check the connections between the MB and HDD. "CMOS checksum error-Defaults loaded" is displayed on the VGA screen. If the BIOS data check fails, press the F1 key then reload the BIOS values. Check the date and time: At startup, press the [DEL] key to check the date and time on the BIOS screen (standard CMOS features). (The range of recognition at the APL level is from 2002.01.01 to 2037.12.31.) Set the date and time according to the current Greenwich mean time. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 158 1 2 3 4 1 2 3 4 C D F A B E 7.1.16 DISASSEMBLY 1 1 1 1 1 2 4 1 5 Remove the four screws. 2 Remove the fifteen screws. 3 Remove the bonnet Assy. Note: When attaching the bonnet Assy, tighten the screws in the following order: 1-a, 1-b, 2-a to 2-g, 1-c, then 1-d. Bonnet Assy Tray panel Section Tray panel Section Bonnet Assy 1 1 Press the STANDBY/ON button to turn on the power. 2 Press the two 0 EJECT buttons to open the two trays. 3 Remove the two tray panel Section. 4 Press the two 0 EJECT buttons to close the two trays. 5 Press the STANDBY/ON button to turn off the power. Tray panel Section 2 Note 1 : Do NOT look directly into the pickup lens. The laser beam may cause eye injury. Note 2 : When disassembling, be careful not to injure yourself with a burr, etc. Place the unit on a flat, level surface to perform servicing. Note 3 : Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures described here are common. Rear view 2 2 3 ×3 2 ×2 2 ×2 2 ×3 2 ×2 2 ×2 2 4 2 4 3 3 2 4 Tray panel Long thin pole Emergency eject hole How to open the tray when the power cannot be on When the product cannot eject tray due to power failure or any other reasons, use a long thin pole and push the emergency eject hole under the tray panel to eject. ~ Remove the bonnet Assy. (See step ¥) -a -b -d -c -d -a -e -b -c -g -f www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 159 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the two filter covers. ~ Remove the bonnet Assy. (See step ¥) Ÿ Remove the tray panel Section. (See step ø) Filter cover Filter cover Air filter Air filter 2 Remove the two air filters. 3 Remove the two screws. 4 Remove the three screws. Front panel Section 3 5 Unhook the five hooks. 6 Remove the front panel Section. 1 2 1 2 5 5 5 5 6 5 Front panel Section FLKB Assy HPVB Assy Shield finger 3 3 4 4 4 KEYB Assy DRV1B Assy DRV2B Assy Shield finger USBB Assy When reattaching the front panel Section to the main unit, pull the wires shown in the figure below in the direction of the arrow and adjust the length of the wires so as not to deform the shield finger. Note: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 160 1 2 3 4 1 2 3 4 C D F A B E Inner cover F and Inner cover R 4 1 Remove the six screws. 2 Remove the inner cover R. 3 Remove the thirteen screws. Note: When attaching the inner cover R, tighten screws 1-a then 1-b, then tighten other screws. Note: When attaching the inner cover F, tighten screws 3-a then 3-b, then tighten other screws. 4 Remove the inner cover F. ~ Remove the bonnet Assy. (See step ¥) Inner cover R Inner cover R Hook Hook Rear panel EU DRIVE Assy LX1 (DRIVE 2) DRIVE Assy LX1 (DRIVE 1) Silicone spacer A 2 Inner cover F 1 1 1 1 1 1 2 2 2 2 2 2 2 2 1 1 1 3 3 3 3 3 3 3 3 3 3 3 3 3 1 4 DRIVE Assy LX1 5 1 Disconnect the four connectors. 2 Remove the eight screws. 3 Remove the two DRIVE Assy LX1s. ~ Remove the bonnet Assy. (See step ¥) Ÿ Remove the tray panel Section. (See step ø) ! Remove the inner cover F. (See step [) Rear view Silicone spacer A 3 3 Note: When disassembling/reassembling DRIVE Assy LX1, make sure that silicone spacer A is not torn or damaged. If it is, replace with a new one. Note: To remove the inner cover R, lift the front side of it about 30° then remove it so as not to deform the two hooks. When reattaching it, securely insert the two hooks into the two holes at the rear panel EU then slide the inner cover R about 2-3 mm toward the rear. Hole Hole -a -b -b -a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 161 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the two screws. 2 Remove the two screws. 3 Remove the drive base. 9 Remove the four screws. 10 Remove the clamper holder. 11 Clean the pickup lens. 6 Remove the front bezel by unhooking the two hooks. 7 Remove the one screw. 8 Remove the UP case. 4 Remove the four screws. 5 Remove the low case. Cleanning the pickup lens Front side Front side Low case UP case Front bezel Hook Hook Clamper holder Pickup lens Drive base Drive base 1 1 2 2 Bottom view 4 4 5 4 10 4 9 9 9 9 7 6 6 6 8 Before shipment, be sure to clean the pickup lens, using the following cleaning materials: Cleaning liquid : GEM1004 Cleaning paper : GED-008 Caution : Do NOT look directly into the pickup lens. The laser beam may cause eye injury. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 162 1 2 3 4 1 2 3 4 C D F A B E HDD Section 6 1 Remove the six screws. 2 Remove the side cover. 3 Remove the label. Note: ~ Remove the bonnet Assy. (See step ¥) Ÿ Remove the inner cover R. (See step [) 4 Disconnect the two connectors. 5 Remove the four screws. 6 Remove the HDD Section by pulling the HDD handle. Note: When removing the HDD Section, be careful of the edges of the HDD base and HDD handle. Label Side cover HDD handle When attaching the HDD, tighten this screw first. HDD base HDD 120G 4R120L0 3 1 2 1 1 1 When the HDD is removed, label and attach it to cover the hole for the screw. The label is a tamper-evident seal. The printing on the label stuck on the product is in black, but that on the label for service is in orange. 5 4 6 4 5 5 5 ×2 ×2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 163 5 6 7 8 5 6 7 8 C D F A B E AVIB Assy to MOTHER BOARD Assy 1 AVIB Assy 2 JKIB Assy and JKOB Assy 7 1 Remove the four screws. 3 Remove the three screws. 2 Remove the rear bridge. 4 Disconnect the some connectors at need. 5 Remove the six screws. 6 Remove the AVIB Assy with AVI shield, AVI base and flexible cover. ~ Remove the bonnet Assy. (See step ¥) Ÿ Remove the inner cover F and R. (See step [) 1 Remove the six screws. (use with a medium-sized Phillips screwdriver.) 2 Remove the fifteen screws. 3 Disconnect the some connectors at need. 4 Remove the four screws. 5 Remove the JKIB Assy with PCI cover and jack stay. 6 Disconnect the some connectors at need. AVI shield JKIB Assy Jack stay PCI cover Flexible cover AVIB Assy AVI base Rear bridge 2 1 ×2 ×3 ×3 ×7 1 3 3 3 5 5 5 5 5 6 5 ×2 1 2 1 ×6 2 4 4 4 4 2 2 Rear view Rear view 5 When replacing the JKIB and JKOB Assys, be sure to remove the 3P BNC earth plate and BNC earth plate from the old Assys and attach them to the new Assys. Note: BPZ30P080FZK BBT30P080FCC BPZ30P080FZK BBT30P060FZK BBT30P060FZK PPZ30P100FMC BBT30P060FZK BCZ30P060FNI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 164 1 2 3 4 1 2 3 4 C D F A B E 3 DECB Assy and PCIB Assy (PCI slot) 4 MOTHER BOARD Assy 1 Remove the two screws. 2 Disconnect the some connectors at need. 3 Remove the two screws. 4 Pull out the DECB Assy from the PCI slot. 5 Pull out the PCIB Assy from the PCI slot. 1 Disconnect the some connectors at need. 2 Remove the eight screws. 3 Remove the MOTHER BOARD Assy. DECB Assy PCIB Assy MOTHER BOARD Assy 1 1 3 2 3 2 2 2 2 2 2 2 3 5 4 Rear view • After removing the DECB and PCIB Assys, be careful not to touch the edges of the PCI card. • If the edges of the PCI card are dirty, clean the edges by IPA before reassembling. • Make sure that dust does not become attached within the PCI slot on the MOTHER BOARD Assy. Note 1: Because the IDE cable (40 pins) is fragile, care must be taken not to damage the cable with the edges when removing the MOTHER BOARD Assy. (When dressing the IDE cable, bend the cable to 45 degrees at the joint of the connector and the cable.) Note ∗1: When attaching the Connector Assy 4P from the MOTHER BOARD Assy on the center stay with the holder, care must be taken so that nothing will touch the sharp edges of the center stay. Note ∗2: ∗1 ∗2 After replacing the DECB and PCIB Assys, or after replacing the built-in flash ROM, be sure to reinstall the application and update the firmware. Note 2: 7 Remove the JKOB Assy. JKOB Assy 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 165 5 6 7 8 5 6 7 8 C D F A B E PWRB Assy 8 1 Release the cord holder and the wire saddle. 2 Remove the twenteen screws. 3 Remove the front bridge with the heat sink Section. 4 Disconnect the some connectors at need. 5 Remove the three screws. 6 Unhook the two card edge spacers. 7 Remove the PWRB Assy. ~ Remove the bonnet Assy. (See step ¥) Ÿ Remove the tray panel Section. (See step ø) ! Remove the inner cover F. (See step [) ⁄ Remove the two DRIVE Assy LX1s. (See step “) DC Fan motor (for rear Section) 9 1 Disconnect the connector Assy 2P. 2 Release the cord holder. 3 Remove the two screws. (Tighten torque : 0.65 N•m) 4 Remove the fan Section. ~ Remove the bonnet Assy. (See step ¥) Ÿ Remove the inner cover R. (See step [) Front bridge Front bridge PWRB Assy Fan spacer DC fan motor Fan cover Fan plate Heat sink Heat sink 1 1 2 ×2 2 ×2 2 2 2 2 3 1 2 7 2 5 5 6 6 5 ×2 2 ×2 Rear view Rear view Be careful, because the connector Assy 20P is firmly attached. Note: Note: When reassembling, dress the wires from the fan so that they will not touch the fan. Note when replacing the DC fan motor: Be careful handling the DC fan motor, because even a light shock to it may result in noise during operation. 3 3 4 FAN Cleaning Cleaning paper (GED-008) Slit Connector Assy 2P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 166 1 2 3 4 1 2 3 4 C D F A B E DC Fan motor (for front Section) 10 1 Remove the six screws. 2 Disconnect the two connectors. 3 Pull up the two fan Sections. 4 Remove the two fan Sections. 5 Remove the two screws. ~ Remove the bonnet Assy. (See step ¥) Ÿ Remove the tray panel Section. (See step ø) ! Remove the front panel Section. (See step π) ⁄ Remove the inner cover F. (See step [) @ Remove the two DRIVE Assy LX1s. (See step “) ¤ Remove the front bridge and heat sink Section. (See step \) DC fan motor Fan duct Note when replacing the DC fan motor: Be careful handling the DC fan motor, because even a light shock to it may result in noise during operation. FAN Cleaning Cleaning paper (GED-008) 1 1 2 4 4 2 5 1 1 1 2 1 2 2 1 4 2 3 3 3 3 ×2 ATX Power supply Unit ATX Power supply Unit Wire saddle (8S) Wire saddle (8S) Binder Binder Cord holder ATX Power supply Unit 11 1 Remove the one screw. 2 Remove the four screws. 3 Disconnect the some connectors at need. 4 Remove the ATX Power supply Unit. ~ Remove the bonnet Assy. (See step ¥) Ÿ Remove the inner cover R. (See step [) Arrangement of the cables for the ATX Power supply Unit Front side PWRB Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 167 5 6 7 8 5 6 7 8 C D F A B E How to replace the fan in the ATX Power Supply unit Hook the slots. Close. 1 Remove the switch-barrier fixing screw on the ATX Power Supply unit (DXF1005) then slide the switch barrier, as indicated in the figure. 1 Connect the harness to the fan connector and install the fan into the panel. Push the harness inside. 2 Attach the fan guard. 3 Slide the switch barrier and tighten the screw. 2 Remove the fan guard, then remove the fan and disconnect the harness from the fan connector. ATX Power Supply Unit (DXF1005) Switch barrier Switch-barrier fixing screw Fan connector Remove the fan. Note: Be sure to set the POWER switch to OFF and disconnect the AC power cord from the AC outlet before starting this step. Notes: • Place the fan so that the name plate of the fan can be seen from the front. • Use the Fan Unit (DZM1001) dedicated to the ATX Power Supply unit (DXF1005). Push the harness inside so that it will not come out. Name plate can be seen. 1. Slide 2. Tighten the screw. Removing the fan Attaching the fan Fan Cleaning Cleaning paper : GED-008 Fan Cleaning Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 168 1 2 3 4 1 2 3 4 C D F A B E About the parts on the MOTHER BOARD Assy To remove the memory board, unhook the hooks on the both sides by pressing on them. When reattaching, align the indentation at bottom center with the corresponding notch at the slot opening and push the board in. Screwdriver (small) MOTHER BOARD Assy Lithium battery Memory board Cutout 1 Disconnect the cable from the connector. Before reinstalling the CPU, apply the thermal compound, referring to "Notes on using the thermal compound," on the next page. 2 Unhook. 3 Remove the CPU fan and heat sink. 4 Lift upon the lever. 5 Remove the CPU. CPU fan, heat sink Lever CPU 1 3 2 2 2 2 4 5 Lever CPU Grease: G751 On replacement of the CPU On the lithium battery On replacement and expansion of the memory board When removing the lithium battery, pry it up gently using a small slot screwdriver, as shown in the figure below. Note: When removing the lithium battery, be careful that it does not touch other parts. Lithium battery: 3.0 V CR2032 Panasonic: CR2032 Sony: CR2032 Toshiba: CR2032 Maxell: CR2032 Note: Before reinstalling the lithium battery, check its voltage, because it may have become discharged. (The cutoff voltage for the lithium battery is defined to be 2.5 V.) Fan Cleaning Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 169 5 6 7 8 5 6 7 8 C D F A B E 11S73P1801Z∗∗∗∗∗###### IBM Parts No. :73P1801 DXF1002- 1Z7WA DXF1004- 1Z8CX 1Z8CZ 1Z90V DXF1007- 1Z9V4 DXF1001- (PRV-LX1) 3####### 41###### 42###### 43###### DXF1005- (PRV-LX10) 44###### 45###### 46###### 47###### 48###### 49###### 4X###### 4Y###### 4Z###### 5####### 44••••••••• ∗∗###### A B C D E F G A B C D E F G A B C D E F G eNSP-300P-S24-00S eNSP-300P-S24-00S MADE IN JAPAN DXF1001- (PRV-LX1) DXF1005- (PRV-LX10) ATX Power Supply Unit MOTHER BOARD Assy How to identify the MOTHER BOARD Assy and the ATX Power Supply Unit Number for custom-made models by Pioneer Serial number for the maker Note: The model numbers for the DXF1001 and DXF1005 are identical. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 170 1 2 3 4 1 2 3 4 C D F A B E 7.2 IC INFORMATION PE5392B8 (FLKB(WYV/RB) ASSY : IC501) PE5392B8, XC2S50-5PQ208C, HD6417709AF100B, XC2S100-5PQ208C, HD6417709AF100B, M65776AFP No. Pin Name Pin Function I/O 1 SETUP2 I Destination setting S1 2 OEM I Not used (default H) 3 AN17 − Not used 4 AVSS − GND 5 DRV1_OPCL I Disc eject signal of DRIVE1 High: when S631 is pressed, Low: normally 6 DRV2_OPCL I Disc eject signal of DRIVE2 High: when S631 is pressed, Low: normally 7 AVREF1 I AVref 5V 8 PCRXD I Receive a signal from the Mother Board 9 PCTXD O Transmit a signal to the Mother Board 10 P72 − Not used 11 FD1SI I Not used (Data receiving from the FL driver (IC502)) 12 FD1SO O Data transmission to the FL driver (IC502) 13 FD1SCK O Clock output to the FL driver (IC502) 14 FD1STB O Strobe output to the FL driver (IC502) 15 FD2STB O Strobe output to the FL driver (IC503) 16 FD2SI I Not used (Data receiving from the FL driver (IC503)) 17 FD2SO O Data transmission to the FL driver (IC503) 18 FD2SCK O Clock output to the FL driver (IC503) 19 PS_ON_I# I Capture of a PS_ON signal from the Mother Board 20 PWR_OK_I I Capture of a PWR_OK signal from the ATX PSU 21 CHECKER I Assy check mode L: Assy check mode, H: Normal mode 22 AUTO_PON I Automatic start setting at AC ON H: Start at AC ON, L: STB at AC ON 23 FAN_DET I Not used (FAN detection) 24 P45 − Not used 25 P46 − Not used 26 P47 − Not used 27 SIOT I Not used (Data I/O for temperature sensor) 28 SCT O Not used (Clock output for temperature sensor) 29 CST O Not used (Chip select for temperature sensor) 30 K_PREVIEW I PREVIEW key H: Normally, L: PUSH 31 K_PLAY I PLAY key H: Normally, L: PUSH 32 K_REC I REC key H: Normally, L: PUSH 33 VSS1 − Vss1 34 K_PAUSE I PAUSE key H: Normally, L: PUSH 35 K_STOP I STOP key H: Normally, L: PUSH 36 K_DRV_SEL I DRIVE SELECT key H: Normally, L: PUSH 37 LD_PLAY O PLAY LED control H: Normally (Extinguish), L: Light 38 DRV1_DISC O Disc existence of DRIVE1 H: No DISC (Extinguish), L: DISC exists (Light) 39 LD_PAUSE O PAUSE LED control H: Normally (Extinguish), L: Light 40 DRV2_LD_ACCESS (GREEN) O Access LED (GREEN) control of DRIVE2 H: Normally (Extinguish), L: Light • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. List of IC • FL Microcomputer Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 171 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name Pin Function I/O 41 LD_SB O STANDBY/ON LED control H: Normally (Extinguish), L: Light 42 LD_ON O STANDBY/ON LED control H: Normally (Extinguish), L: Light 43 LD_REC O REC LED control H: Normally (Extinguish), L: Light 44 SIF I SIF (for flash writing) 45 SOF O SOF (for flash writing) 46 CKF I CKF (for flash writing) 47 LD_DRV1 O DRIVE 1 LED control of drive select LED H: Normally (Extinguish), L: Light 48 LD_DRV2 O DRIVE 2 LED control of drive select LED H: Normally (Extinguish), L: Light 49 LD_HDD O HDD LED control of drive select LED H: Normally (Extinguish), L: Light 50 DRV1_LD_ACCESS (GREEN) O Access LED (GREEN) control of DRIVE 1 H: Normally (Extinguish), L: Light 51 DRV1_LD_ACCESS (RED) O Access LED (RED) control of DRIVE 1 H: Normally (Extinguish), L: Light 52 LD_STOP O STOP LED control H: Normally (Extinguish), L: Light 53 DRV2_DISC O Disc existence of DRIVE 2: No DISC (Extinguish), L: DISC exists (Light) 54 DRV2_LD_ACCESS (RED) O Access LED (RED) control of DRIVE 2 H: Normally (Extinguish), L: Light 55 PON I STANDBY/ON key (S509) check H: PUSH, L: Normally 56 RSTBTN I Not used 57 PS_ON_O# O Output the PS_ON signal which received from the Mother Board to the ATX power 58 PWR_SW# O Output a relay control signal for supply +5VSB to the Mother Board 59 RESET# O Reset output H: Normally, L: Reset 60 XRESET I For flash writing 61 IRIN I Remote control signal receive 62 FAN_CONT1 O FAN control for the rear 63 FAN_CONT2 O FAN control for the DRIVE 1 64 FAN_CONT3 O FAN control for the DRIVE 2 65 PWR_SW2# O Power SW signal to the Mother Board H: Normally, L: PUSH 66 P05/INTP5 − Not used 67 VSS0 − Not used 68 VDD1 − Power supply 5V 69 X2 − Crystal connection pin for clock oscillation 70 X1 I Crystal connection pin for clock oscillation (input) 71 VPP − Vpp (for flash writing) 72 XT2 − Not used 73 XT1/P07 − Not used 74 VDD0 I Power supply 5V 75 AVREF0 I AVref0 5V 76 UP,DOWN,LEFT,RIGHT I Analog input UP: 4.25V, DOWN: 2.8V, LEFT: 1.24V, RIGHT: 0V 77 REGION I Destination setting R 78 K_SCAN_STEP I Analog input SCAN/SKIP_FWD: 4.25V, SCAN/SKIP_REV: 2.8V, STEP_FWD: 1.24V, STEP_REV: 0V 79 ENTER,SETUP,DISPLAY I Analog input ENTER: 4.25V, FUNCTION: 2.8V, DISPLAY: 1.24V 80 SIMUKE1 I Destination setting S0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 172 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 GNDDI − GND 46 DVREQ I DV control signal 2 TMS − TEST Pin 47 DVACK O DV control signal 3 27MWMK O 27MHz clock for WMIC 48 DVFRM I DV control signal 4 LTC IN I Time code input 49 WAITDVX I DVXcel wait signal 5 B/XS O Component level switch "L"=BETA, "H"=SMPTE 50 M1 I Mode setting (pull-up) 6 RESERVE − Resereved 51 GNDDI − GND 7 THSW O AV through output switch "L"=Non, "H"=THROU 52 M0 I Mode setting (ground) 8 SCL O For I2C communication (not used) 53 V+3_3I − +3.3V 9 SDA. O For I2C communication (not used) 54 M2 I Mode setting (pull-up) 10 VSEL1 O Input video switching signal "L"=CVBS, "H"=S 55 N.C. − Not used 11 GNDDI − GND 56 N.C. − Not used 12 V+3_3I − +3.3V 57 TBCLK O Clock for DVXceL 13 V+2_5I − +2.5V 58 SDICKSEL O Clock selection at SDI input at SDI select: H 14 VSEL2 O Input video switching signal "L"=CV/S, "H"=TCbCr 59 DVCSEL I PLL gain switch of DV input at DV input: L 15 G_ADD7 I George656 video data 60 DVOEN I DV control signal 16 G_ADD6 I George656 video data 61 XWAITV O DV control signal 17 G_ADD5 I George656 video data 62 WAITDVSH O DV control signal 18 G_ADD4 I George656 video data 63 LXRD I Host bus read signal 19 GNDDI − GND 64 GNDDI − GND 20 G_ADD3 I George656 video data 65 V+3_3I − +3.3V 21 G_ADD2 I George656 video data 66 V+2_5I − 2.5V 22 G_ADD1 I George656 video data 67 SEL27M O Not used 23 G_ADD0 I George656 video data 68 AV1_LRCK I Decoder audio LR clock 24 G_NONSI I Nonstandard 656 flag 69 AV1_BCK I Decoder audio clock 25 GNDDI − GND 70 AV1_DAI I Decoder audio data 26 V+3_3I − +3.3V 71 SDI_CHSEL O SDI audio switch "L"=Ch3/4, "H"=Ch1/2 27 XSELXLR O Audio input switching signal "L"=RCA, "H"=XLR 72 GNDDI − GND 28 V+2_5I − +2.5V 73 AES_ERROR I Error signal of AES/EBU signal "L"= Error exists, "H"= no error 29 ADATI I ADC data 74 SDI_RST I System reset signal to DINB 30 BCKI I ADC block clock 75 SDI_LOCK I Lock ok signal to SDI audio "L"= Unlock, "H"= Lock 31 LRCKI I ADC LR clock 76 V+2_5I − +2.5V 32 GNDDI − GND 77 36MFPGA I 36.864MHz clock for audio 33 FDATI O Multiplex audio data 78 V+3_3I − +3.3V 34 FBCKI O Multiplex audio clock 79 GNDDI − GND 35 FLRCKI O Multiplex audio LR clock 80 40MPLD I 40MHz clock for configuration 36 RESERVE − Reserved 81 AV1_D7 I Decoder 656 video data 37 MCIF_ACKZ I DV acknowledge signal 82 AV1_D6 I Decoder 656 video data 38 V+2_5I − +2.5V 83 AV1_D5 I Decoder 656 video data 39 V+3_3I − +3.3V 84 AV1_D4 − Decoder 656 video data 40 GNDDI − GND 85 GNDDI − GND 41 MCIF_STRBZ O DV strobe signal 86 AV1_D3 I Decoder 656 video data 42 GPIO3_WM0 I DV control signal 87 AV1_D2 − Decoder 656 video data 43 HSDIA_AV I DV control signal 88 AV1_D1 I Decoder 656 video data 44 HSDIA_EN O DV control signal 89 AV1_D0 − Decoder 656 video data 45 HSDIA_CLK O Clock for DV (LINK) IC 90 PCC1 I Copy protection existence flag "H" = Copy protection exists XC2S50-5PQ208C (AVIB ASSY : IC5004) • LTC Switch FPGA Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 173 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 91 V+2_5I − +2.5V 136 SDO_LRCK O Audio LR clock for SDIOUT 92 V+3_3I − +3.3V 137 GNDDI − GND 93 GNDDI − GND 138 SDI_D0 I 656 video data for SDIIN 94 27MSDO O 27kHz clock for SDI OUT 139 SDI_D1 I 656 video data for SDIIN 95 L_A0 I Host address bus 140 LXWE0 I Host bus read signal 96 L_A1 I Host address bus 141 SDI_DAI I Audio data for SDIIN 97 L_A2 I Host address bus 142 L_D2 I/O CPU Data/configuration Data 98 L_A3 I Host address bus 143 V+2_5I − +2.5V 99 L_A4 I Host address bus 144 V+3_3I − +3.3V 100 L_A5 I Host address bus 145 GNDI − GND 101 L_A6 I Host address bus 146 L_D1 I/O CPU Data/configuration Data 102 L_A7 I Host address bus 147 SDI_D2 I 656 video data for SDIIN 103 GNDDI − GND 148 SDI_D3 I 656 video data for SDIIN 104 DONE I for configuration 149 SDI_D4 I 656 video data for SDIIN 105 V+3_3I − +3.3V 150 SDI_D5 I 656 video data for SDIIN 106 XPROGRAM I for configuration 151 SDI_D6 I 656 video data for SDIIN 107 XINT I for configuration 152 SDI_D7 I 656 video data for SDIIN 108 L_D0 I/O CPU Data/configuration Data 153 L_D0 I/O CPU Data/configuration Data 109 APLILIA_DATA I Audio data of APLILIA output 154 ENC OK O LED port for operation check 110 APLILIA_BCK I Audio clock of APLILIA output 155 CCLK I for configuration 111 APLILIA_LRCK I Audio clock of APLILIA output 156 V+3_3I − +3.3V 112 AES_VALID I SDI N/PAL distinction signal "L"=PAL, "H"=NTSC 157 TDO − Not used 113 SDI_VALID I Valid signal of SDI signal "L"= invalid "H"= valid 158 GNDDI − GND 114 DINB_EXIST I DINB mounting existence signal "L"= nothing, "H" = exists 159 TDI − Not used 115 L_D6 I/O CPU Data/configuration Data 160 LXCS40 I Chip select from the host 116 GNDDI − GND 161 LXCS40 I Chip select from the host 117 V+3_3I − +3.3V 162 LXCS56 I Chip select from the host 118 V+2_5I − +2.5V 163 SDI_BCK I Audio clock for SDIIN 119 L_D5 I/O CPU Data/configuration Data 164 SDI_LRCK I Audio LR clock for SDIIN 120 SDO_D0 O 656 video data for SDIOUT 165 AESI_LRCK I AES/EBU audio LR clock input 121 SDO_D1 O 656 video data for SDIOUT 166 AESI_BCK I AES/EBU audio clock input 122 SDO_D2 O 656 video data for SDIOUT 167 AESI_DAI I AES/EBU audio data input 123 SDO_D3 O 656 video data for SDIOUT 168 F_ADD0 O 656 video data to VAIKILT 124 GNDDI − GND 169 GNDDI − GND 125 SDO_D4 O 656 video data for SDIOUT 170 V+3_3I − +3.3V 126 L_D4 I/O CPU Data/configuration Data 171 V+2_5I − +2.5V 127 SDO_D5 O 656 video data for SDIOUT 172 F_ADD1 O 656 video data to VAIKILT 128 V+2_5I − +2.5V 173 F_ADD2 O 656 video data to VAIKILT 129 SDO_D6 O 656 video data for SDIOUT 174 F_ADD3 O 656 video data to VAIKILT 130 V+3_3I − +3.3V 175 F_ADD4 O 656 video data to VAIKILT 131 GNDDI − GND 176 F_ADD5 O 656 video data to VAIKILT 132 SDO_D7 O 656 video data for SDIOUT 177 GNDDI − GND 133 SDO_DAI O Audio data for SDIOUT 178 F_ADD6 O 656 video data to VAIKILT 134 SDO_BCK O Audio clock for SDIOUT 179 F_ADD7 O 656 video data to VAIKILT 135 L_D3 I/O CPU Data/configuration Data 180 F_NONSI O Nonstandard 656 flag to VAIKILT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 174 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 181 SDO_ENA O Digital output switching signal 195 DV_VAIKILTD7 I 656 video data of VAIKILT output 182 27MFPGA I 27MHz clock for FPGA 196 V+2_5I − +2.5V 183 GNDDI − GND 197 V+3_3I − +3.3V 184 V+3_3I − +3.3V 198 GNDDI − GND 185 27MDEC I 27MHz clock of AV1 output 199 WMKD0 O 656 video data for water mark 186 V+2_5I − +2.5V 200 WMKD1 O 656 video data for water mark 187 DV_VAIKILTD0 I 656 video data of VAIKILT output 201 WMKD2 O 656 video data for water mark 188 DV_VAIKILTD1 I 656 video data of VAIKILT output 202 WMKD3 O 656 video data for water mark 189 DV_VAIKILTD2 I 656 video data of VAIKILT output 203 WMKD4 O 656 video data for water mark (LED port for operation check) 190 GNDDI − GND 204 WMKD5 O 656 video data for water mark (LED port for operation check) 191 DV_VAIKILTD3 I 656 video data of VAIKILT output 205 WMKD6 O 656 video data for water mark (LED port for operation check) 192 DV_VAIKILTD4 I 656 video data of VAIKILT output 206 WMKD7 O 656 video data for water mark (LED port for operation check) 193 DV_VAIKILTD5 I 656 video data of VAIKILT output 207 TCK − Not used 194 DV_VAIKILTD6 I 656 video data of VAIKILT output 208 GNDI − Connect to +3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 175 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 MD1 I CLK mode setting fixed to H 46 D5 I/O Data bus 2 MD2 I CLK mode setting fixed to H 47 VccQ − Core power supply (1.8V) 3 Vcc-RTC − Power supply for RTC (1.8V) 48 D4 I/O Data bus 4 XTAL2 0 RTC output (32.768 kHz) 49 D3 I/O Data bus 5 EXTAL2 I RTC input (32.768 kHz) 50 D2 I/O Data bus 6 Vss-RTC − Ground 51 D1 I/O Data bus 7 NMI I NMI interruption (not used) 52 D0 I/O Data bus 8 IREQ0 I Not used 53 A0 O Address bus 9 IREQ1 I Not used 54 A1 O Address bus 10 IREQ2 I DVXCel interruption (L: active) 55 A2 O Address bus 11 IREQ3 I Audery (L: active) 56 A3 O Address bus 12 IREQ4 I Pcif (Xilinx) interruption (L: active) 57 VssQ − Ground 13 D31 I/O Data bus 58 A4 O Address bus 14 D30 I/O Data bus 59 VccQ − Core power supply (1.8V) 15 D29 I/O Data bus 60 A5 O Address bus 16 D28 I/O Data bus 61 A6 O Address bus 17 D27 I/O Data bus 62 A7 O Address bus 18 D26 I/O Data bus 63 A8 O Address bus 19 VssQ − Ground 64 A9 O Address bus 20 D25 I/O Data bus 65 A10 O Address bus 21 VccQ − Core power supply (1.8V) 66 A11 O Address bus 22 D24 I/O Data bus 67 A12 O Address bus 23 D23 I/O Data bus 68 A13 O Address bus 24 D22 I/O Data bus 69 VssQ − Ground 25 D21 I/O Data bus 70 A14 O Address bus 26 D20 I/O Data bus 71 VccQ − Core power supply (1.8V) 27 Vss − Ground 72 A15 O Address bus 28 D19 I/O Data bus 73 A16 O Address bus 29 Vcc − I/O power supply (3.3V) 74 A17 O Address bus 30 D18 I/O Data bus 75 A18 O Address bus 31 D17 I/O Data bus 76 A19 O Address bus 32 D16 I/O Data bus 77 A20 O Address bus 33 VssQ − Ground 78 A21 O Address bus 34 D15 I/O Data bus 79 Vss − Ground 35 VccQ − Core power supply (1.8V) 80 A20 O Address bus 36 D14 I/O Data bus 81 Vcc − I/O power supply (3.3V) 37 D13 I/O Data bus 82 A23 O Address bus 38 D12 I/O Data bus 83 VssQ − Ground 39 D11 I/O Data bus 84 A24 O Address bus 40 D10 I/O Data bus 85 VccQ − Core power supply (1.8V) 41 D9 I/O Data bus 86 A25 O Address bus 42 D8 I/O Data bus 87 BS O Starts bus cycle 43 D7 I/O Data bus 88 RD O Read strobe 44 D6 I/O Data bus 89 WE0 O Write strobe 45 VssQ − Ground 90 WE1 O Write strobe HD6417709AF100B (PCIB ASSY : IC2405) • MPU IC Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 176 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 91 WE2 O Write strobe 136 TRST I For debugging 92 WE3 O Write strobe 137 TMS I For debugging 93 RDWR O Read / Write 138 TDI I For debugging 94 AUDSYNC O For debugging 139 TCK I For debugging 95 VssQ − Ground 140 INTB I Slalom interruption (L: active) 96 CS0 O Chip select 0 141 INTA I Not used 97 VccQ − Core power supply (1.8V) 142 INT9 I Not used 98 CS2 O Chip select 2 143 INT8 I Slalom interruption (L: active) 99 CS3 O Chip select 3 144 MD0 I CLK mode setting fixed to H 100 CS4 O Chip select 4 145 Vcc-PLL1 − Power supply for PLL (1.8V) 101 CS5 O Chip select 5 146 CAP1 − Capacitor pin for PLL 102 CS6 O Chip select 6 147 Vss-PLL1 − Ground 103 DVOEN O DV REQ MASK 148 Vss-PLL2 − Ground 104 XRSTAU O Reset for Audery 149 CAP2 − Capacitor pin for PLL 105 CKE O CKE for SDRAM 150 Vcc-PLL2 − Power supply for PLL (1.8V) 106 RAS3 O RAS for SDRAM 151 AUDC O For debugging 107 N.C. − Not used 152 Vss − Ground 108 CASL O CAS for SDRAM 153 Vss − Ground 109 VssQ − Ground 154 Vcc − I/O power supply (3.3V) 110 XPHRST O Reset for 1394PHY 155 XTAL O CPU clock 111 VccQ − Core power supply (1.8V) 156 EXTAL I CPU clock 112 WMRST O Not used 157 DVCSEL O Control the output signal to LTC_SW (Xilinx) Dvexcel or ceLynx 113 LXPROGRAM O LTC_SW (Xilinx) configuration program signal 158 N.C. − Not used 114 DAC0 O Slalom DMA ACK 159 N.C. − Not used 115 DAC1 O Pcif(Xilinx)DMA ACK 160 IRQOUT O Interruption output 116 PPROGRAM O Pcif (Xilinx) configuration program signal 161 VssQ − Ground 117 DONE I PCIF (Xilinx) configuration termination signal 162 CKIO I System clock input (40MHz) 118 PINI I/O PCIF (Xilinx) configuration initial signal 163 VccQ − Core power supply (1.8V) 119 DRST O Dvxcel reset signal 164 TXD0 O RS422 input TXD 120 TDO O For debugging 165 N.C. − Not used 121 BACK O Not used 166 TXD1 O RS422 output TXD 122 BREQ I Not used 167 N.C. − Not used 123 WAIT I Wait signal 168 TXD2 O RS232C TXD 124 RESET I Reset input 169 N.C. − Not used 125 N.C. − Not used 170 RTS2 O RS232C RTS 126 N.C. − Not used 171 RXD0 I RS422 input RXD 127 ASMD I For debugging 172 RXD1 I RS422 output RXD 128 ASBR O For debugging 173 Vss − Ground 129 WDVS I Wait input from LTC_SW (Xilinx) Dvexcel 174 RXD2 I RS232C RXD 130 AUD3 O For debugging 175 Vcc − I/O power supply (3.3V) 131 AUD2 O For debugging 176 CTS2 I RS232C CTS 132 Vss − Ground 177 LXINIT I/O LTC_SW (Xilinx) configuration initial signal 133 AUD1 O For debugging 178 LDONE I LTC_SW (Xilinx) configuration termination signal 134 Vcc − SH I/O power supply (3.3V) 179 INT5 I Vaikilt interruption input (L: active) 135 AUD0 O For debugging 180 INT4 I Vaikilt interruption input (L: active) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 177 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 181 VssQ − Ground 195 MD3 I Bus width setting of area 0 fixed to H 182 PTD3 O Status LED 196 MD4 I Bus width setting of area 0 fixed to H 183 VccQ − Core power supply (1.8V) 197 MD5 I Bus width setting of area 0 fixed to L 184 PTD2 O Status LED 198 Avss − Ground 185 INT3 I Celynx interruption input (L: active) 199 DBP0 I Audery DBP0 186 INT2 I Not used 200 DBP1 I Audery DBP1 187 INT1 I Not used 201 DBP2 I Audery DBP2 188 INT0 I George interruption input (L: active) 202 DBP3 I Audery DBP3 189 PTD1 O Status LED 203 SRER I SRC lock signal 190 PTD0 O Status LED 204 WBSY − Not used 191 DREQ0 I DMA REQ for Slalom 205 Avcc − Power supply for analog (3.3V) 192 DREQ1 I DMA REQ for Pcif (Xilinx) 206 PTL6 − Not used 193 RESET I Reset input 207 PTL7 − Not used 194 CA I Chip active 208 Avss − Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 178 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 GND − Ground 46 AD06 I/O PCI address/data 2 N.C. − Not used 47 AD05 I/O PCI address/data 3 AD28 I/O PCI address/data 48 AD04 I/O PCI address/data 4 AD27 I/O PCI address/data 49 AD03 I/O PCI address/data 5 AD26 I/O PCI address/data 50 M1 I Configuration mode switch fixed to H 6 AD25 I/O PCI address/data 51 GND − Ground 7 AD24 I/O PCI address/data 52 M0 I Configuration mode switch fixed to L 8 CBE3 I/O PCI bus command / byte enable 53 VccO − I/O power supply (3.3V) 9 IDSE I PCI initialization device select 54 M2 I Configuration mode switch fixed to H 10 AD23 I/O PCI address/data 55 N.C. − Not used 11 GND − Ground 56 N.C. − Not used 12 VccO − I/O power supply (3.3V) 57 AD02 I/O PCI address/data 13 Vccint − Core power supply (2.5V) 58 AD01 I/O PCI address/data 14 AD22 I/O PCI address/data 59 AD00 I/O PCI address/data 15 AD21 I/O PCI address/data 60 N.C. − Not used 16 AD20 I/O PCI address/data 61 XBSOUT O Signal for LTC_SW (Xilinx) configuration 17 AD19 I/O PCI address/data 62 WE0 I SH write strobe 18 AD18 I/O PCI address/data 63 N.C. − Not used 19 GND − Ground 64 GND − Ground 20 AD17 I/O PCI address/data 65 VccO − I/O power supply (3.3V) 21 AD16 I/O PCI address/data 66 Vccint − Core power supply (2.5V) 22 CBE2 I/O PCI bus command / byte enable 67 BREQ − Not used 23 FRM I/O PCI frame 68 BACK − Not used 24 IRDY I/O PCI initiator ready 69 CASL I CAS for SH SDRAM 25 GND − Ground 70 RAS3 I RAS for SH SDRAM 26 VccO − I/O power supply (3.3V) 71 CKE I CKE for SH SDRAM 27 TRDY I/O PCI target ready 72 GND − Ground 28 Vccint − Core power supply (2.5V) 73 CS3 I SH chip select 3 29 DEV I/O PCI device select 74 RDWR I SH read/write 30 PAR I/O PCI parity 75 WE3 I SH write strobe 31 CBE1 I/O PCI bus command / byte enable 76 Vccint − Core power supply (2.5V) 32 GND − Ground 77 I.GCK1 − Not used 33 AD15 I/O PCI address/data 78 Vcc0 I SH write strobe 34 AD14 I/O PCI address/data 79 GND − Ground 35 AD13 I/O PCI address/data 80 I.GCK0 I SH system clock (40 MHz) 36 AD12 I/O PCI address/data 81 WE2 I SH write strobe 37 AD11 I/O PCI address/data 82 WE1 I SH write strobe 38 Vccint − Core power supply (2.5V) 83 DRQ1 0 DMA REQ for SH 39 VccO − I/O power supply (3.3V) 84 DAC1 I DMA ACK for SH 40 GND − Ground 85 GND − Ground 41 AD10 I/O PCI address/data 86 A15 I SH address bus 42 AD09 I/O PCI address/data 87 A14 I SH address bus 43 AD08 I/O PCI address/data 88 A13 I SH address bus 44 CBE0 I/O PCI bus command / byte enable 89 A12 I SH address bus 45 AD07 I/O PCI address/data 90 A11 I SH address bus XC2S100-5PQ208C (PCIB ASSY : IC2309) • PCIF XILINX Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 179 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 91 Vccint − Core power supply (2.5V) 136 D17 I/O SH data bus 92 VccO − I/O power supply (3.3V) 137 GND − Ground 93 GND − Ground 138 D16 I/O SH data bus 94 A10 I SH address bus 139 D15 I/O SH data bus 95 A09 I SH address bus 140 D14 I/O SH data bus 96 A08 I SH address bus 141 D13 I/O SH data bus 97 A07 I SH address bus 142 D02 I/O SH data bus 98 A06 I SH address bus 143 Vccint − Core power supply (2.5V) 99 A05 I SH address bus 144 VccO − I/O power supply (3.3V) 100 A04 I SH address bus 145 GND − Ground 101 A03 I SH address bus 146 D01 I/O SH data bus 102 A02 I SH address bus 147 D12 I/O SH data bus 103 GND − Ground 148 D11 I/O SH data bus 104 DONE O PCIF (Xilinx) configuration termination signal 149 D10 I/O SH data bus 105 VccO − I/O power supply (3.3V) 150 D09 I/O SH data bus 106 PROGRAM I Pcif (Xilinx) configuration program signal 151 D08 I/O SH data bus 107 PINI I/O PCIF (Xilinx) configuration initial signal 152 IRQOUT − Not used 108 D07 I/O SH data bus 153 D00 I/O SH data bus 109 A01 I SH address bus 154 STATUS O Status LED 110 A00 I SH address bus 155 CCLK I Configuration CLK (40 MHz) 111 D31 I/O SH data bus 156 VccO − I/O power supply (3.3V) 112 D30 I/O SH data bus 157 N.C. − Not used 113 D29 I/O SH data bus 158 GND − Ground 114 D28 I/O SH data bus 159 N.C. − Not used 115 D06 I/O SH data bus 160 CS6 I SH chip select 6 116 GND − Ground 161 CS6 I SH chip select 6 117 VccO − I/O power supply (3.3V) 162 RD I SH read 118 Vccint − Core power supply (2.5V) 163 BS I SH bus start 119 D05 I/O SH data bus 164 WAIT O WAIT output 120 D27 I/O SH data bus 165 IRQ4 O Interruption output 121 D26 I/O SH data bus 166 N.C. − Not used 122 D25 I/O SH data bus 167 SWAIT I WAIT input from Slalom 123 D24 I/O SH data bus 168 KAWA_D7 − Not used 124 GND − Ground 169 GND − Ground 125 D23 I/O SH data bus 170 VccO − I/O power supply (3.3V) 126 D04 I/O SH data bus 171 Vccint − Core power supply (2.5V) 127 D22 I/O SH data bus 172 KAWA_D6 − Not used 128 Vccint − Core power supply (2.5V) 173 KAWA_D5 − Not used 129 D21 I/O SH data bus 174 KAWA_D4 − Not used 130 VccO − I/O power supply (3.3V) 175 KAWA_D3 − Not used 131 GND − Ground 176 KAWA_D2 − Not used 132 D20 I/O SH data bus 177 GND − Ground 133 D19 I/O SH data bus 178 KAWA_D1 − Not used 134 D18 I/O SH data bus 179 KAWA_D0 − Not used 135 D03 I/O SH data bus 180 KAWA_DACK − Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 180 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 181 KAWA_DREQ − Not used 195 STOP I/O PCI stop 182 CLK27FPGA I 27MHz CLK input 196 Vccint − Core power supply (2.5V) 183 GND − Ground 197 VccO − I/O power supply (3.3V) 184 VccO − I/O power supply (3.3V) 198 GND − Ground 185 CLK I PCI clock (33 MHz) 199 LOCK I/O PCI lock 186 Vccint − Core power supply (2.5V) 200 PERR I/O PCI parity error 187 PIRA I PCI interruption 201 SDON I/O PCI snoop completion 188 PIRB I PCI interruption 202 SBO I/O PCI snoop back off 189 PIRC I PCI interruption 203 SERR I/O PCI system error 190 GND − Ground 204 AD31 I/O PCI address/data 191 PIRD I PCI interruption 205 AD30 I/O PCI address/data 192 GNT I/O PCI ground 206 AD29 I/O PCI address/data 193 REQ I/O PCI request 207 N.C. − Not used 194 PME I PCI power management 208 VccO − I/O power supply (3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 181 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 GNDD − Ground 46 AD06 I/O PCI address/data 2 RESERVE − Resereved 47 AD05 I/O PCI address/data 3 AD28 I/O PCI address/data 48 AD04 I/O PCI address/data 4 AD27 I/O PCI address/data 49 AD03 I/O PCI address/data 5 AD26 I/O PCI address/data 50 M1 I Configuration mode switch fixed to H 6 AD25 I/O PCI address/data 51 GNDD − Ground 7 AD24 I/O PCI address/data 52 M0 I Configuration mode switch fixed to L 8 CBE3 I/O PCI bus command / byte enable 53 V+3M − I/O power supply (+3.3V) 9 IDSE I PCI initialization device select 54 M2 I Configuration mode switch fixed to H 10 AD23 I/O PCI address/data 55 N.C. − Not used 11 GNDD − Ground 56 N.C. − Not used 12 V+3M − I/O power supply (+3.3V) 57 AD02 I/O PCI address/data 13 V+2X − Core power supply (+2.5V) 58 AD01 I/O PCI address/data 14 AD22 I/O PCI address/data 59 AD00 I/O PCI address/data 15 AD21 I/O PCI address/data 60 RESERVE − Resereved 16 AD20 I/O PCI address/data 61 RESERVE − Resereved 17 AD19 I/O PCI address/data 62 RESERVE − Resereved 18 AD18 I/O PCI address/data 63 RESERVE − Resereved 19 GNDD − Ground 64 GNDD − Ground 20 AD17 I/O PCI address/data 65 V+3M − I/O power supply (+3.3V) 21 AD16 I/O PCI address/data 66 V+2X − Core power supply (+2.5V) 22 CBE3 I/O PCI bus command / byte enable 67 RESERVE − Resereved 23 FRM I/O PCI frame 68 RESERVE − Resereved 24 IRDY I/O PCI initiator ready 69 RESERVE − Resereved 25 GNDD − Ground 70 RESERVE − Resereved 26 V+3M − I/O power supply (+3.3V) 71 RESERVE − Resereved 27 TRDY I/O PCI target ready 72 GNDD − Ground 28 V+2X − Core power supply (+2.5V) 73 RESERVE − Resereved 29 DEV I/O PCI device select 74 RESERVE − Resereved 30 PAR I/O PCI parity 75 RESERVE − Resereved 31 CBE1 I/O PCI bus command / byte enable 76 V+2X − Core power supply (+2.5V) 32 GNDD − Ground 77 I.GCK1 − Not used 33 AD15 I/O PCI address/data 78 V+3M − I/O power supply (+3.3V) 34 AD14 I/O PCI address/data 79 GNDD − Ground 35 AD13 I/O PCI address/data 80 CLK40P I 40MHz clock input (1) 36 AD12 I/O PCI address/data 81 RESERVE − Resereved 37 AD11 I/O PCI address/data 82 RESERVE − Resereved 38 V+2X − Core power supply (+2.5V) 83 DRQ1 0 DMA REQ for SH 39 V+3M − I/O power supply (+3.3V) 84 DAC1 I DMA ACK for SH 40 GNDD − Ground 85 GNDD − Ground 41 AD10 I/O PCI address/data 86 AD15 I/O PCI address/data 42 AD09 I/O PCI address/data 87 AD14 I/O PCI address/data 43 AD08 I/O PCI address/data 88 AD13 I/O PCI address/data 44 CBE0 I/O PCI bus command / byte enable 89 AD12 I/O PCI address/data 45 AD07 I/O PCI address/data 90 AD11 I/O PCI address/data XC2S100-5PQ208C (DECB ASSY : IC1311) • XILINX FPGA Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 182 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 91 V+2X − Core power supply (+2.5V) 136 D17 I/O SH data bus 92 V+3M − I/O power supply (+3.3V) 137 GNDD − Ground 93 GNDD − Ground 138 D16 I/O SH data bus 94 AD10 I/O PCI address/data 139 D15 I/O SH data bus 95 AD09 I/O PCI address/data 140 D14 I/O SH data bus 96 AD08 I/O PCI address/data 141 D13 I/O SH data bus 97 AD07 I/O PCI address/data 142 D02 I/O SH data bus 98 AD06 I/O PCI address/data 143 V+2X − Core power supply (+2.5V) 99 AD05 I/O PCI address/data 144 V+3M − I/O power supply (+3.3V) 100 AD04 I/O PCI address/data 145 GNDD − Ground 101 AD03 I/O PCI address/data 146 D01 I/O SH data bus 102 AD02 I/O PCI address/data 147 D12 I/O SH data bus 103 GNDD − Ground 148 D11 I/O SH data bus 104 DONE O PCIF (Xilinx) configuration termination signal 149 D10 I/O SH data bus 105 V+3M − I/O power supply (+3.3V) 150 D09 I/O SH data bus 106 SYSRST I Reset input 151 D08 I/O SH data bus 107 PTE2 I/O PCIF (Xilinx) configuration initial signal 152 D00 (IRQOUT) − Not used 108 D07 I/O SH data bus 153 D00 I/O SH data bus 109 A01 I SH address bus 154 RESERVE (STATUS) O Status LED 110 A00 I SH address bus 155 CLK40P I 40MHz clock input (2) 111 D31 I/O SH data bus 156 V+3M − I/O power supply (+3.3V) 112 D30 I/O SH data bus 157 RESERVE − Resereved 113 D29 I/O SH data bus 158 GNDD − Ground 114 D28 I/O SH data bus 159 RESERVE − Resereved 115 D06 I/O SH data bus 160 CS6 I SH chip select 6 116 GNDD − Ground 161 WE0 I Write enable 0 Connect to CS6 117 V+3M − I/O power supply (+3.3V) 162 RD I SH read 118 V+2X − Core power supply (+2.5V) 163 BS I SH bus start 119 D05 I/O SH data bus 164 WAIT O WAIT output 120 D27 I/O SH data bus 165 IRQ4 O Interruption output 121 D26 I/O SH data bus 166 RESERVE − Resereved 122 D25 I/O SH data bus 167 BWAIT I WAIT input from AV-1 123 D24 I/O SH data bus 168 BD7 − MPEG bit stream output 124 GNDD − Ground 169 GNDD − Ground 125 D23 I/O SH data bus 170 V+3M − I/O power supply (+3.3V) 126 D04 I/O SH data bus 171 V+2X − Core power supply (+2.5V) 127 D22 I/O SH data bus 172 BD6 − MPEG bit stream output 128 V+2X − Core power supply (+2.5V) 173 BD5 − MPEG bit stream output 129 D21 I/O SH data bus 174 BD4 − MPEG bit stream output 130 V+3M − I/O power supply (+3.3V) 175 BD3 − MPEG bit stream output 131 GNDD − Ground 176 BD2 − MPEG bit stream output 132 D20 I/O SH data bus 177 GNDD − Ground 133 D19 I/O SH data bus 178 BD1 − MPEG bit stream output 134 D18 I/O SH data bus 179 BD0 − MPEG bit stream output 135 D03 I/O SH data bus 180 BDACK − MPEG bit stream acknowledge www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 183 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 181 BDREQ − MPEG bit stream request 195 STOP I/O PCI stop 182 CLK27P I 40MHz clock input 196 Vccint − Core power supply (2.5V) 183 GNDD − Ground 197 VccO − I/O power supply (3.3V) 184 V+3M − I/O power supply (+3.3V) 198 GNDD − Ground 185 CLK I PCI clock (33 MHz) 199 LOCK I/O PCI lock 186 V+2X − Core power supply (+2.5V) 200 PERR I/O PCI parity error 187 PIRA I PCI interruption 201 SDON I/O PCI snoop completion 188 PIRB I PCI interruption 202 SBO I/O PCI snoop back off 189 PIRC I PCI interruption 203 SERR I/O PCI system error 190 GNDD − Ground 204 AD31 I/O PCI address/data 191 PIRD I PCI interruption 205 AD30 I/O PCI address/data 192 GNT I/O PCI ground 206 AD29 I/O PCI address/data 193 REQ I/O PCI request 207 RESERVE − Reserved 194 PME I PCI power management 208 V+3M − I/O power supply (+3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 184 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 MD1 I CLK mode setting (H) 46 D5 I/O Data bus 2 MD2 I CLK mode setting (H) 47 VccQ − Core power supply (+1.8V) 3 Vcc-RTC − Power supply for RTC (+1.8V) 48 D4 I/O Data bus 4 XTAL2 0 RTC output (32.768 KHz) 49 D3 I/O Data bus 5 EXTAL2 I RTC input (32.768 KHz) 50 D2 I/O Data bus 6 Vss-RTC − Ground 51 D1 I/O Data bus 7 NMI I NMI interruption (Not used) 52 D0 I/O Data bus 8 IREQ0 I AV-1 interruption (active L) 53 A0 O Address bus 9 IREQ1 I AV-1 interruption (active L) 54 A1 O Address bus 10 IREQ2 I Not used 55 A2 O Address bus 11 IREQ3 I Not used 56 A3 O Address bus 12 IREQ4 I Pcif (Xilinx) interruption (active L) 57 VssQ − Ground 13 D31 I/O Data bus 58 A4 O Address bus 14 D30 I/O Data bus 59 VccQ − Core power supply (+1.8V) 15 D29 I/O Data bus 60 A5 O Address bus 16 D28 I/O Data bus 61 A6 O Address bus 17 D27 I/O Data bus 62 A7 O Address bus 18 D26 I/O Data bus 63 A8 O Address bus 19 VssQ − Ground 64 A9 O Address bus 20 D25 I/O Data bus 65 A10 O Address bus 21 VccQ − Core power supply (+1.8V) 66 A11 O Address bus 22 D24 I/O Data bus 67 A12 O Address bus 23 D23 I/O Data bus 68 A13 O Address bus 24 D22 I/O Data bus 69 VssQ − Ground 25 D21 I/O Data bus 70 A14 O Address bus 26 D20 I/O Data bus 71 VccQ − Core power supply (+1.8V) 27 Vss − Ground 72 A15 O Address bus 28 D19 I/O Data bus 73 A16 O Address bus 29 Vcc − I/O power supply (+3.3V) 74 A17 O Address bus 30 D18 I/O Data bus 75 A18 O Address bus 31 D17 I/O Data bus 76 A19 O Address bus 32 D16 I/O Data bus 77 A20 O Address bus 33 VssQ − Ground 78 A21 O Address bus 34 D15 I/O Data bus 79 Vss − Ground 35 VccQ − Core power supply (+1.8V) 80 A20 O Address bus 36 D14 I/O Data bus 81 Vcc − I/O power supply (+3.3V) 37 D13 I/O Data bus 82 A23 O Address bus 38 D12 I/O Data bus 83 VssQ − Ground 39 D11 I/O Data bus 84 A24 O Address bus 40 D10 I/O Data bus 85 VccQ − Core power supply (+1.8V) 41 D9 I/O Data bus 86 A25 O Address bus 42 D8 I/O Data bus 87 BS O Bus cycle start 43 D7 I/O Data bus 88 RD O Read strobe 44 D6 I/O Data bus 89 WE0 O Write enable 45 VssQ − Ground 90 WE1 O Write enable HD6417709AF100B (DECB ASSY : IC1211) • MPU IC (SH-3) Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 185 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 91 WE2 O Write enable 136 XTRST I For debugging 92 WE3 O Write enable 137 TMS I For debugging 93 RDWR O Read / Write 138 TDI I For debugging 94 AUDSYC O For debugging 139 TCK I For debugging 95 VssQ − Ground 140 PINT11 I Not used 96 CS0 O Chip select 0 141 PINT10 I Not used 97 VccQ − Core power supply (+1.8V) 142 PINT9 I Not used 98 CS2 O Chip select 2 143 PINT8 I Not used 99 CS3 O Chip select 3 144 SHMD0 I CLK mode setting (H) 100 CS4 O Chip select 4 145 Vcc-PLL1 − Power supply for PLL (+1.8V) 101 CS5 O Chip select 5 146 CAP1 − Capacitor pin for PLL 102 CS6 O Chip select 6 147 Vss-PLL1 − Ground 103 AV1RST O AV-1 reset 148 Vss-PLL2 − Ground 104 CE2B − Not used 149 CAP2 − Capacitor pin for PLL 105 CKE O CKE for SDRAM 150 Vcc-PLL2 − Power supply for PLL (+1.8V) 106 RAS3L O RAS for SDRAM 151 AUDCK O For debugging 107 SDA1 O Video encoder (IC1711) SDA 152 Vss − Ground 108 CASLL O CAS for SDRAM 153 Vss − Ground 109 VssQ − Ground 154 Vcc − I/O power supply (+3.3V) 110 XPHRST O Reset for 1394PHY 155 XTAL O CPU clock 111 VccQ − Core power supply (+1.8V) 156 EXTAL I CPU clock 112 SQZ O Squeeze signal 157 PALNTSC O PAL/NTSC selection control signal 113 CASHH − Not used 158 PXRST O Video encoder (IC1711) reset 114 DACK0 − Not used 159 FSEL O 16M clock selection control signal 115 XDAC1 O Pcif (Xilinx) DMA ACK 160 IRQOUT O Interruption output (Not used) 116 SCL1 O Video encoder (IC1711) SCL 161 VssQ − Ground 117 DONE I PCIF (Xilinx) configuration termination signal 162 CLK40S I System clock input (40MHz) 118 PTE2 O Pcif (Xilinx) configuration program signal 163 VccQ − Core power supply (+1.8V) 119 LTR O Letter box signal 164 TXD0 − Not used 120 TDO O For debugging 165 SCK0 − Not used 121 BACK O Not used 166 TXD1 − Not used 122 BREQ I Not used 167 SCK1 − Not used 123 XWAIT I Wait input (Xilinx) 168 TXD2 O RS232C TXD 124 SYSRST I Reset input 169 SCK2 − Not used 125 N.C. − Not used 170 RTS2 O RS232C RTS 126 N.C. − Not used 171 RXD0 − Not used 127 ASEMD0 I For debugging 172 RXD1 − Not used 128 XASKAK O For debugging 173 Vss − Ground 129 N.C. − Not used 174 RXD2 I RS232C RXD 130 ADATA3 O For debugging 175 Vcc − I/O power supply (+3.3V) 131 ADATA2 O For debugging 176 CTS2 I RS232C CTS 132 Vss − Ground 177 MCS7 − Not used 133 ADATA1 O For debugging 178 MCS6 − Not used 134 Vcc − SH I/O power supply (+3.3V) 179 ADJ/SYNC O Control signal of asynchronous / external synchronous selection 135 ADATA0 O For debugging 180 INT/EXT O Control signal of 27MHz clock internal / external selection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 186 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 181 VssQ − Ground 195 SHMD3 I Bus width setting of area 0 fixed to L 182 PTD3 O Status LED 196 SHMD4 I Bus width setting of area 0 fixed to H 183 VccQ − Core power supply (+1.8V) 197 SHMD5 I Bus width setting of area 0 fixed to L 184 PTD2 O Status LED 198 Avss − Ground 185 P/XI O Progressive / interlace 199 XCYNCIN I External synchronous flag input 186 CPP2 O Copy inhibit signal for internal control 200 AN1 − Not used 187 MCS1 − Not used 201 AN2 − Not used 188 CPP1 O Copy inhibit signal for external output 202 AN3 − Not used 189 PTD1 O Status LED 203 AN4 − Not used 190 PTD0 O Status LED 204 AN5 − Not used 191 XDREQ I DMA REQ for AV-1 205 Avcc − Power supply for analog (+3.3V) 192 XDREQ1 I DMA REQ for Pcif (Xilinx) 206 AN6 − Not used 193 SYSRST I Reset input 207 AN7 − Not used 194 CA I Chip active (H) 208 Avss − Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 187 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 GND − Ground 46 RDY O Data ready 2 BCLK I Bit stream clock 47 INT1 O Interruption request 3 BDEN I Not used 48 INT2 O Interruption request 4 BDREQ 0 Bit stream request 49 INT3 O Interruption request 5 BSECH I Not used 50 GND − Ground 6 HD<0> I/O Data input/output 51 DREQ O DMA request 7 HD<1> I/O Data input/output 52 DACK I DMA acknowledge 8 HD<2> I/O Data input/output 53 MA<3> O SDRAM address 9 HD<3> I/O Data input/output 54 MA<4> O SDRAM address 10 HD<4> I/O Data input/output 55 MA<2> O SDRAM address 11 HD<5> I/O Data input/output 56 VDD18 − Power supply for internal circuit (+1.8V) 12 VDD18 − Power supply for internal circuit (+1.8V) 57 VDD33 − I/O power supply (+3.3V) 13 VDD33 − I/O power supply (+3.3V) 58 MA<5> O SDRAM address 14 HD<6> I/O Data input/output 59 MA<1> O SDRAM address 15 HD<7> I/O Data input/output 60 MA<6> O SDRAM address 16 HD<8> I/O Data input/output 61 MA<0> O SDRAM address 17 HD<9> I/O Data input/output 62 MA<7> O SDRAM address 18 HD<10> I/O Data input/output 63 MA<10> O SDRAM address 19 HD<11> I/O Data input/output 64 GND − Ground 20 GND − Ground 65 MA<8> O SDRAM address 21 HD<12> I/O Data input/output 66 MBA[1] O SDRAM bank selection 22 HD<13> I/O Data input/output 67 MA<9> O SDRAM address 23 HD<14> I/O Data input/output 68 MBA[0] O SDRAM bank selection 24 HD<15> I/O Data input/output 69 MA<11> O SDRAM address 25 HA<0> I Address input 70 DCS O SDRAM chip selection 26 HA<1> I Address input 71 VDD18 − Power supply for internal circuit (+1.8V) 27 VDD18 − Power supply for internal circuit (+1.8V) 72 VDD33 − I/O power supply (+3.3V) 28 VDD33 − I/O power supply (+3.3V) 73 DCS2 O SDRAM chip selection 29 HA<2> I Address input 74 DCS3 O SDRAM chip selection 30 HA<3> I Address input 75 DCS4 O SDRAM chip selection 31 HA<4> I Address input 76 DCS5 O SDRAM chip selection 32 HA<5> I Address input 77 RAS O SDRAM-RAS 33 HA<6> I Address input 78 CAS O SDRAM-CAS 34 HA<7> I Address input 79 MCLK O SDRAM clock 35 GND − Ground 80 DWE O SDRAM write enable 36 HA<8> I Address input 81 GND − Ground 37 HA<9> I Address input 82 DQMU O SDRAM-DQM upper byte 38 HA<10> I Address input 83 DQML O SDRAM-DQM lower byte 39 HA<11> I Address input 84 MD<7> I/O SDRAM data input/output 40 CS I Chip select 85 MD<8> I/O SDRAM data input/output 41 RE I Read enable 86 MD<6> I/O SDRAM data input/output 42 VDD18 − Power supply for internal circuit (+1.8V) 87 MD<9> I/O SDRAM data input/output 43 VDD33 − I/O power supply (+3.3V) 88 VDD18 − Power supply for internal circuit (+1.8V) 44 WE I Write enable 89 VDD33 − I/O power supply (+3.3V) 45 BHE I Byte high enable 90 MD<5> I/O SDRAM data input/output M65776AFP (DECB ASSY : IC1513) • AV-1 Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 188 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 91 MD<10> I/O SDRAM data input/output 136 N.C. − Not used 92 MD<4> I/O SDRAM data input/output 137 N.C. − Not used 93 MD<11> I/O SDRAM data input/output 138 N.C. − Not used 94 MD<3> I/O SDRAM data input/output 139 N.C. − Not used 95 MD<12> I/O SDRAM data input/output 140 N.C. − Not used 96 GND − Ground 141 N.C. − Not used 97 MD<2> I/O SDRAM data input/output 142 N.C. − Not used 98 MD<13> I/O SDRAM data input/output 143 N.C. − Not used 99 MD<1> I/O SDRAM data input/output 144 N.C. − Not used 100 MD<14> I/O SDRAM data input/output 145 GND − Ground 101 MD<0> I/O SDRAM data input/output 146 N.C. − Not used 102 MD<15> I/O SDRAM data input/output 147 N.C. − Not used 103 VDD18 − Power supply for internal circuit (+1.8V) 148 N.C. − Not used 104 VDD33 − I/O power supply (+3.3V) 149 N.C. − Not used 105 CLKO O 27MHz clcok output 150 N.C. − Not used 106 CLKI I 27MHz clock input 151 N.C. − Not used 107 AVDD18 − Power supply for internal PLL (+1.8V) 152 N.C. − Not used 108 AGND18 − Ground for internal PLL 153 N.C. − Not used 109 N.C. − Not used 154 N.C. − Not used 110 N.C. − Not used 155 VDD18 − Power supply for internal circuit (+1.8V) 111 N.C. − Not used 156 VDD33 − I/O power supply (+3.3V) 112 GND − Ground 157 N.C. − Not used 113 AVDD33 − Analog power supply (+3.3V) 158 N.C. − Not used 114 DAOUTB − Not used (connect to ground) 159 LRCLK O Audio channel distinction clock 115 AVRI I Reference voltage 160 CDLRCLK I Not used 116 PAB O Pb current output 161 CDBCK I Not used 117 IREF I Reference current 162 CDDATA I Not used 118 BIAS2 I Bias voltage for power source 163 CDDIN I Not used 119 PAY O Y (progressive) current output 164 AO0 O PCM serial data for DAC 120 BIAS1 I Bias voltage for power source 165 GND − Ground 121 AVDD33 − Analog power supply (+3.3V) 166 AO1 O PCM serial data for DAC (Not used) 122 PAR O Pr current output 167 AO2 O PCM serial data for DAC (Not used) 123 AVDD33 Analog power supply (+3.3V) 168 AOD O PCM serial data for DAC (Not used) − 124 AGND33 − Analog ground 169 AAD O Not used 125 GND − Ground 170 DOUT0 O Digital audio (S/PDIF) output 126 N.C. − Not used 171 DOUT1 O S/PDIF output (Not used) 127 N.C. − Not used 172 ACLKI I Audio clock 128 N.C. − Not used 173 DACCLK O DAC oversampling operating clock (Not used) 129 N.C. − Not used 174 VDD18 − Power supply for internal circuit (+1.8V) 130 N.C. − Not used 175 VDD33 − I/O power supply (+3.3V) 131 N.C. − Not used 176 DOCLK O PCM bit clock 132 N.C. − Not used 177 PWD O Phase comparator output of external sync. signal 133 N.C. − Not used 178 CSYNC I Composite SYNC signal input 134 VDD18 − Power supply for internal circuit (+1.8V) 179 OSDKEY O Not used 135 VDD33 − I/O power supply (+3.3V) 180 VSYNC O Vertical sync. signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 189 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 181 HSYNC O Horizontal sync. signal output 195 HMODE<1> I Mode setting input (H) 182 PXCLKP O 54MHz pixel clock 196 TEST[0] I Not used (L) 183 PXCLK O 27MHz pixel clock 197 TEST[1] I Not used (L) 184 PD<0> O Digital pixel data 198 VDD18 − Power supply for internal circuit (+1.8V) 185 PD<1> O Digital pixel data 199 VDD33 − I/O power supply (+3.3V) 186 PD<2> O Digital pixel data 200 TEST[2] I Not used (L) 187 GND − Ground 201 BD<0> I Bit stream data input 188 PD<3> O Digital pixel data 202 BD<1> I Bit stream data input 189 PD<4> O Digital pixel data 203 BD<2> I Bit stream data input 190 PD<5> O Digital pixel data 204 BD<3> I Bit stream data input 191 PD<6> O Digital pixel data 205 BD<4> I Bit stream data input 192 PD<7> O Digital pixel data 206 BD<5> I Bit stream data input 193 RESET I SH-3 AV1RST 207 BD<6> I Bit stream data input 194 HMODE<0> I Mode setting input (L) 208 BD<7> I Bit stream data input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 190 1 2 3 4 1 2 3 4 C D F A B E 8. PANEL FACILITIES • Front Panel Facilities • DVD RECODER [ PRV-LX10 ] No. 1 2 3 4 5 6 7 8 9 Name STANDBY/ON button Display sections PLAY/REC indicator for DVD 1 drive DISC indicator for DVD 1 drive DVD1, DVD2, HDD (Hard disk Drive) indicators PREVIEW button DRIVE SELECT button Function When the unit is in the standby condition, pressing this button causes the power to come on; the power indicator (to the left of the button) changes from orange to green. The main display section indicates system startup. After system startup is completed, the unit enters “idling condition,” and as the unit’s display changes to show the current time, the STOP button lights. When the unit is in the standby condition, if this button is pressed while holding the STOP button depressed, the Function Menu’s setting values will be reset to their factory defaults, and the power will then turn ON. If the button is held depressed for one second or more when the unit is in the idling condition, the unit will perform system shutdown, followed by return to the standby mode (the power indicator will change from green to orange). In the event operation becomes unstable and manual forced shutdown is required, hold the button depressed for four seconds or more. Lights to indicate operating state of DVD1 drive. Appears green during PLAY mode, and orange during REC mode. Located to the right side of DVD1, this indicator light (orange) to indicate that a disc is loaded. (*1) Press to open/close DVD1 disc tray. The DISC indicator flashes from the time the button is pressed until the disc tray closes fully. These indicators light to show which drive has been selected with the DRIVE SELECT button (the indicator for the selected drive lights green). When this button is pressed with the unit in the idling condition, a preview image/sound of the selected input (following encode and decode processing) is supplied to all output connectors except DV; when the button is pressed again, the unit returns to idling condition. Functions to stop recording or playback. Until all internal operations are completed, the indicator flashes (white), and when fully completed, the unit returns to the idling condition and the indicator lights (white). Also, during idle condition, pressing the STOP button while holding down the CURSOR (bottom pointing arrow) button turns progressive encoding ON/OFF. (*2) To switch the selected TV system format (NTSC/PAL), hold the CURSOR (upward pointing arrow) button depressed and press the STOP button. 2 3 4 5 6 7 8 9 10 11 12 15 14 13 16 17 18 19 20 21 22 23 24 25 1 26 27 28 EJECT button ( ) for DVD 1 drive STOP button ( ) Use to select the playback source and destination drive for recording. The selection changes in the order HDD (Hard disk Drive) DVD1 DVD2 DVD1&2. When a drive is selected, the corresponding indicator lights (green). When DVD1&2 is selected, DVD1 is designated as the playback source. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 191 5 6 7 8 5 6 7 8 C D F A B E No. 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 Name PLAY/REC indicator for DVD 2 drive DISC indicator for DVD 2 drive MOUSE/KEYBOARD connectors ENTER button Filter cover (2) FUNCTION button (*4) DISPLAY button VOLUME knob PHONES jack Function When this button is pressed, playback begins from selected source (DVD drive or HDD), and the indicator lights (white). When HDD is designated as the recording destination and time shift playback has been set, this button responds even during recording, and initiates playback from the recording start. When pressed, recording or playback is temporarily interrupted and the indicator lights (white). During recording, allows automatic setting of chapters. To resume recording from the recording pause mode, press the REC button. When pressed, recording begins to the selected recording destination (drive or project), and the indicator lights (white). Lights to indicate operating state of DVD2 drive. Appears green during PLAY mode, and orange during REC mode. Located to the right side of DVD2, this indicator light (orange) to indicate that a disc is loaded. (*1) Press to open/close DVD2 disc tray. The DISC indicator flashes from the time the button is pressed until the disc tray closes fully. Allows connection of a USB mouse, USB keyboard and USB HDD to the unit. (*3) During normal playback, press for frame advance. Hold depressed for slow motion playback; during slow mode, press again to increase playback speed. (*5) During normal playback, press for frame playback in reverse direction. Hold depressed for slow motion playback; during slow mode, press to decrease playback speed. (*5) During playback, press to move to next title or chapter. Hold depressed to initiate scan mode. During playback, press to move to previous title or chapter. Hold depressed to initiate scan mode. Press to select function menu items and commands, and to input DVD menu items and commands (during DVD playback). During recording, press to insert chapter marks at optional locations. Use when selecting function menu items, and for DVD menu control (during DVD playback). These are ventilation ports provided to prevent excessive heating of internal parts. During installation and operation, do not allow these ports to become blocked, since malfunctions may result. * Air filters are installed inside these filter covers, and must be removed and replaced at regular intervals. Continuing to use the unit with clogged filters may result in malfunction. Consult the appended instruction sheet “Air Filter Replacement Instructions and Precautions”. Press to enable and disable the monitor’s on-screen function menu display (default setting: DISABLED). When disabled, the unit returns to idling condition. Press to turn on-screen display (OSD) ON/OFF (default setting: OFF). This button does not operate when on-screen function display is set to DISABLED. Receives signals from the remote control unit. Do not allow this part to be blocked by other objects. Use to adjust output level to the headphones jack. Use to connect headphones. *1 A disc created on the PRV-LX10 or PRV-LX1 that contains many titles may take dozens of seconds to recognize when loaded. The DISC indicator flashes and the disc recording and playback cannot be started during disc recognition. *2 Progressive is supported only during NTSC output. • Connect to progressive-scan TV monitor. Non-progressive monitors will not produce correct playback. • When progressive is set to ON, no video is output to any output connectors except the component output. *3 Functionality of connected devices is not guaranteed. If USB mouse and keyboard operation is unstable, try disconnecting and reconnecting the USB connector. If a USB hard disk drive is not recognized, or if operation is unstable, change to a hub supporting USB 2.0. If operation continues to be erratic, inquire your Pioneer dealer or one of the service centers listed at the end of this manual. *4 This operates the same as the remote control unit’s SETUP button. The FUNCTION button operates only in the idling condition. *5 When performing reverse slow-motion playback with progressive output (NTSC only), the speed cannot be changed. PLAY button ( ) PAUSE button ( ) REC button ( ) EJECT button ( ) for DVD 2 drive STEP FWD button ( ) STEP REV button ( ) SCAN/SKIP FWD button ( / ) SCAN/SKIP REV button ( / ) CURSOR buttons ( , , , ) Remote control sensor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 192 1 2 3 4 1 2 3 4 C D F A B E • Rear Panel Facilities No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Name AC IN connector Main power switch AUDIO CH1/L CH2/R IN/OUT connectors S-VIDEO IN/OUT connectors COMPOSITE VIDEO IN/OUT connectors COMPONENT VIDEO IN/OUT connectors DV connector (*6) Fan motor LTC connector (*2) EXT SYNC IN and through Output connector Terminate switch SIGNAL GND terminal REMOTE IN/OUT connectors ETHERNET connector MOUSE/KEYBOARD connectors VGA (GUI) connector UPS connector Expansion slot 1 Expansion slot 2 Function Connect to power cord. When set to ON, the unit enters standby condition and front panel indicator lights orange. Input/output connectors for analog audio CH1/L CH2/R signals. Input/output connectors for S-VIDEO video signal. Output is compatible with S2. Input/output connectors for analog composite video signals. Note: Use coaxial cables (impedance: 75-ohm) to connect with BNC plugs. Input/output connectors for analog component video signals. (*1) Note: Use coaxial cables (impedance: 75-ohm) to connect with BNC plugs. Connect to DV connector of professional use VTR or similar component. Fan motor for cooling internal parts. Connector for obtaining time code from VHS, VTR, etc. Note: Use a coaxial cable (impedance: 75-ohm) to connect with BNC plugs. Use for connecting external sync signal, and for pass-through signals. Note: Use coaxial cables (impedance: 75-ohm) to connect with BNC plugs. Use to terminate sync signal. Set to ON when used alone or when connected to a terminating unit. Ground terminal for signals. When using the unit in environments exposed to high levels of electronic noise, malfunctions may occur to mouse and other control devices. In such cases, connect a ground wire between the components to reduce the noise. This is not an electric safety ground. RS-422A compatible external control connector. The protocol is compatible with SONY format. (*3) Digital audio output connector. Note: Use a coaxial cable (impedance: 75-ohm) to connect with RCA in plugs. Use for network connection. Allows connection of a USB mouse, USB keyboard and USB HDD to the unit. (*4) Connect to VGA monitor for expanded operation. (*5) Connect when using UPS. Provided to allow installation of the optional SDI AES/EBU input board (PRA-BD11). • Consult your dealer regarding installation. Provided to allow installation of the optional SDI AES/EBU output board (PRA-BD12). • Consult your dealer regarding installation. SIGNAL GND 19 20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 PCM/ DIGITAL OUT connector *1 Inputs are compatible with signal levels for both BETA and SMPTE (NTSC only). However, since outputs are based on DVD format, they differ from BETA and SMPTE levels. As a result, outputs should be used only for monitoring. LTC is not supported in drop frame mode. SONY is a trademark of Sony Corporation. Frame precision is not guaranteed when this unit is used as a playback unit for editing. This component does not support control from an editing machine. Functionality of connected devices is not guaranteed. If a USB hard disk drive is not recognized, or if operation is unstable, change to a hub supporting USB 2.0. If USB mouse and keyboard operation is unstable, try disconnecting and reconnecting the USB connector. If operation continues to be erratic, inquire your Pioneer dealer or one of the service centers listed at the end of this manual. The VGA output connector is provided for future expansion use; at present, the connector does not support the output of GUI display signals Whenever connecting a DV cable to the rear panel DV connector, be sure to attach the accessory ferrite core to the cable. *2 *3 *4 *5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 193 5 6 7 8 5 6 7 8 C D F A B E No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Name REPEAT button DISPLAY button RPT A-B button (repeat playback between two points) AUDIO select button ANGLE button SUBTITLE button MENU button TOP MENU button SETUP menu button *1 Number buttons (0–9, >10) SCAN (fast forward/reverse) buttons ( , ) Chapter skip PREV button ( ) ENTER button RETURN button Title, chapter, frame, time button (TITLE/CHP/FRM/ TIME) Frame/time button (FRM/TIME) SEARCH button CLEAR button *1 This key operates the same as the FUNCTION button on the main unit. STOP button ( ) PLAY button ( ) PAUSE button ( ) STEP / Slow buttons ( , ) Chapter skip NEXT button ( ) Cursor buttons ( , , , ) • Remote control unit PLAY PAUSE DISPLAY REPEAT AUDIO SCAN STEP RPT A-B ANGLE SUBTITLE PREV NEXT SETUP ENTER RETURN SEARCH CLEAR 1 2 3 4 5 6 7 8 9 0 10 > TITLE/CHP FRM/TIME MENU TOP MENU FRM/TIME STOP DXX2527 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRV-LX10 194 1 2 3 4 1 2 3 4 C D F A B E Jigs list JIG No. JIG Name Remarks GGF1067 Service Remote control unit Test mode operated GGF1348 DVD Interface jig Rewriting of GUID GGV1139 DVD-R GGV1050 DVD-RW GGV1176 HDD Copy Disc for PRV-LX1 GGV1177 OS Install Disc for PRV-LX1 HDD Replacement GGV1234 Program Install Disc for PRV-LX1(Ver.3.01) Frequency counter Clock adjustment DEX1008 Forced ejection pin Open the tray for Drive1 and Drive2 GEM1004 Cleaning liquid Pickup lenses GED-008 Cleaning paper Pickup lenses and Fans www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
