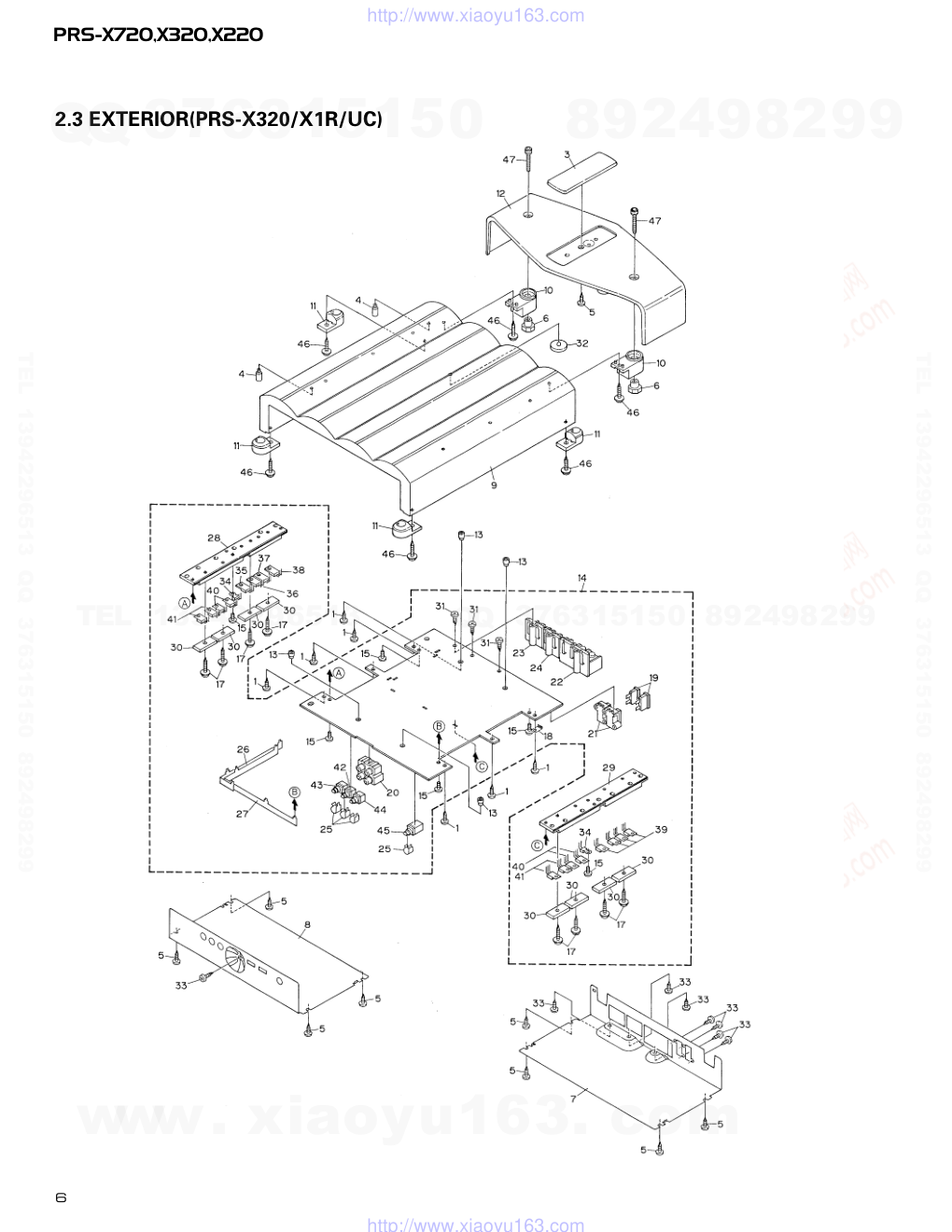

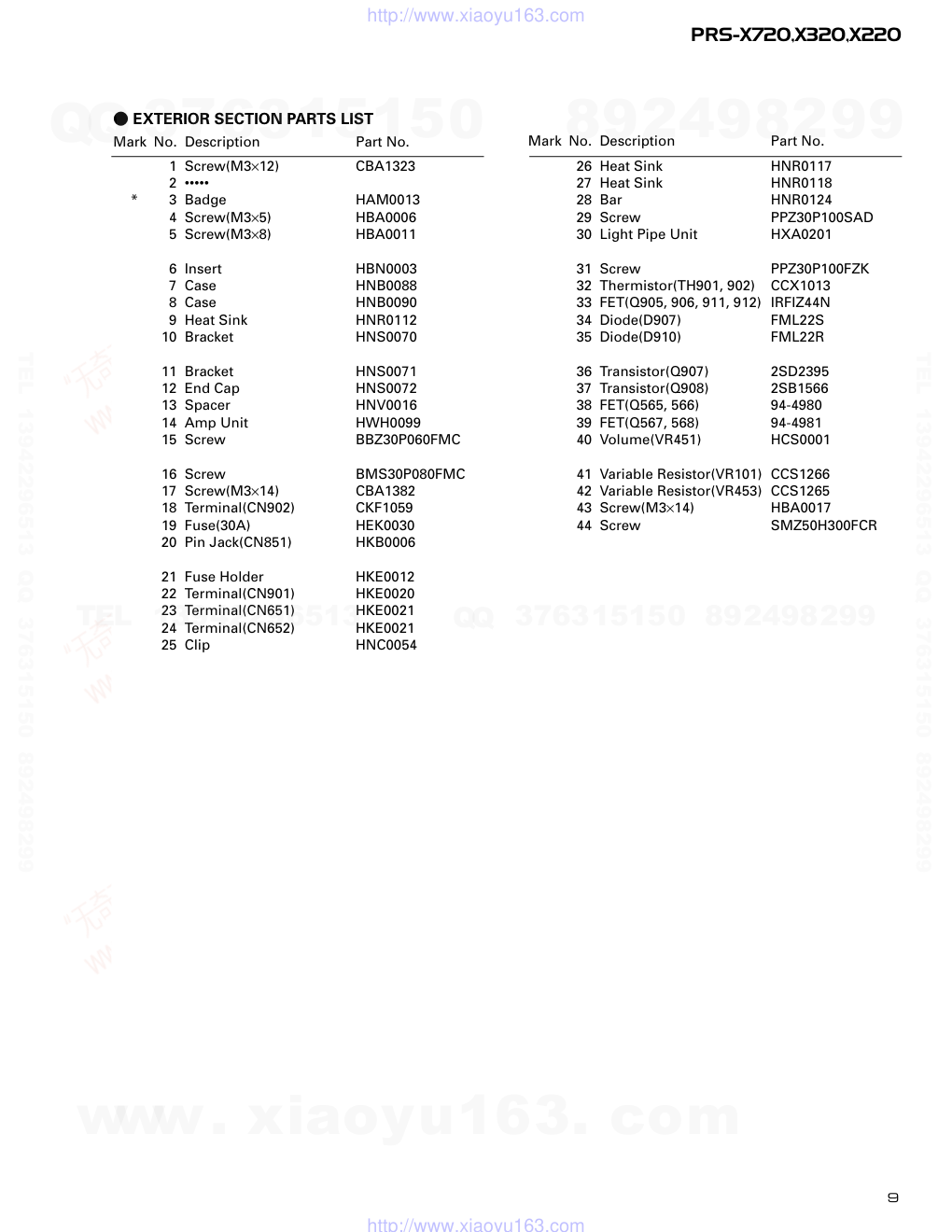

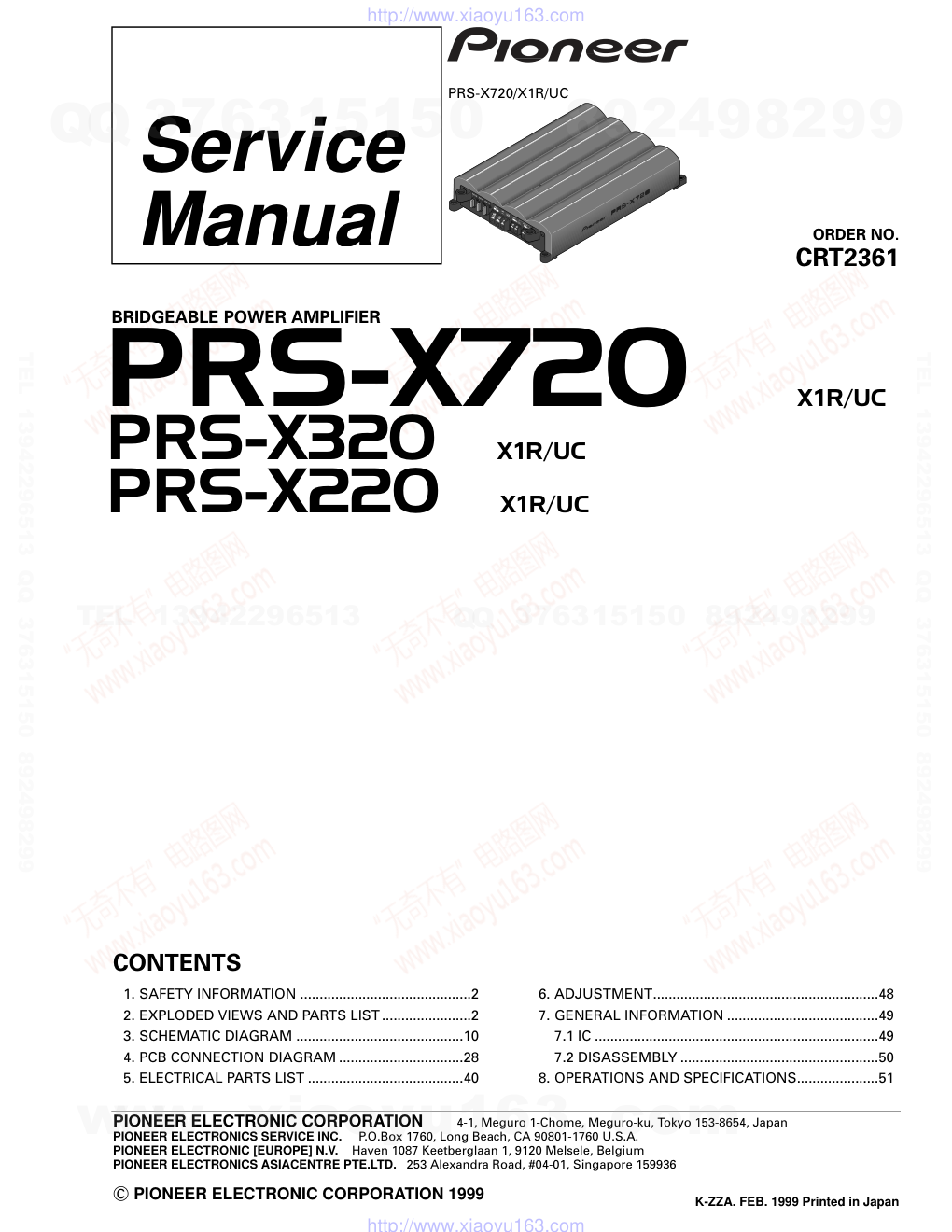

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER ELECTRONIC CORPORATION 1999 K-ZZA. FEB. 1999 Printed in Japan ORDER NO. CRT2361 BRIDGEABLE POWER AMPLIFIER PRS-X720�X1R/UC Service Manual CONTENTS 1. SAFETY INFORMATION ............................................2 2. EXPLODED VIEWS AND PARTS LIST.......................2 3. SCHEMATIC DIAGRAM ...........................................10 4. PCB CONNECTION DIAGRAM ................................28 5. ELECTRICAL PARTS LIST ........................................40 6. ADJUSTMENT..........................................................48 7. GENERAL INFORMATION .......................................49 7.1 IC .........................................................................49 7.2 DISASSEMBLY ...................................................50 8. OPERATIONS AND SPECIFICATIONS.....................51 PRS-X320�X1R/UC PRS-X220�X1R/UC PRS-X720/X1R/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 PRS-X720,X320,X220 CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 1. SAFETY INFORMATION 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 3 - Owner’s Manual Model Part No. Language PRS-X720/X1R/UC HRD0087 English, French PRS-X320/X1R/UC PRS-X220/X1R/UC - PACKING SECTION PARTS LIST NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. Part No. Mark No. Description PRS-X720/X1R/UC PRS-X320/X1R/UC PRS-X220/X1R/UC 1 Screw Assy HEA0047 HEA0047 HEA0047 2 Screw BYC40P180FZK BYC40P180FZK BYC40P180FZK 3 Polyethylene Bag HEG0011 HEG0011 HEG0011 4 Screw SMZ50H300FCR SMZ50H300FCR SMZ50H300FCR 5 Polyethylene Bag HEG0022 HEG0022 HEG0022 6 Carton HHG0170 HHG0171 HHG0172 7 Contain Box HHL0170 HHL0171 HHL0172 8 Protector HHP0043 HHP0043 HHP0043 9 Protector HHP0063 HHP0064 HHP0065 * 10 Spec Sheet HRB0044 HRB0043 HRB0040 11 Owner’s Manual HRD0087 HRD0087 HRD0087 * 12 Warranty Card HRY1070 HRY1070 HRY1070 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 PRS-X720,X320,X220 2.2 EXTERIOR(PRS-X720/X1R/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 PRS-X720,X320,X220 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 Screw(M3×12) CBA1323 2 ••••• * 3 Badge HAM0013 4 Screw(M3×5) HBA0006 5 Screw(M3×8) HBA0011 6 Insert HBN0003 7 Case HNB0087 8 Case HNB0089 9 Heat Sink HNR0110 10 Bracket HNS0070 11 Bracket HNS0071 12 End Cap HNS0072 13 Spacer HNV0016 14 Amp Unit HWH0091 15 Screw BBZ30P060FMC 16 ••••• 17 Screw(M3×14) CBA1382 18 Terminal(CN905) CKF1059 19 Fuse(30A) HEK0030 20 Pin Jack(CN851) HKB0006 21 Fuse Holder HKE0012 22 Terminal(CN901) HKE0020 23 Terminal(CN551) HKE0021 24 Terminal(CN552) HKE0021 25 Clip HNC0054 26 Heat Sink HNR0113 27 Heat Sink HNR0114 28 Bar HNR0124 29 Screw PPZ30P100SAD 30 Light Pipe Unit HXA0201 31 Screw PPZ30P100FZK 32 Thermistor(TH901, 902) CCX1013 33 FET(Q561-566) 94-4980 34 FET(Q905, 906, 911-914) STP50NE08 35 Transistor(Q907) 2SD2395 36 Diode(D907) FML22S 37 FET(Q567-572) 94-4981 38 Transistor(Q908) 2SB1566 39 Diode(D910) FML22R 40 Variable Resistor(VR453) CCS1265 41 Volume(VR451) HCS0001 42 Variable Resistor(VR452) CCS1263 43 Variable Resistor(VR101) CCS1266 44 Screw(M3×14) HBA0017 45 Screw SMZ50H300FCR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 PRS-X720,X320,X220 2.3 EXTERIOR(PRS-X320/X1R/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 PRS-X720,X320,X220 1 Screw(M3×12) CBA1323 2 ••••• * 3 Badge HAM0013 4 Screw(M3×5) HBA0006 5 Screw(M3×8) HBA0011 6 Insert HBN0003 7 Case HNB0086 8 Case HNB0089 9 Heat Sink HNR0111 10 Bracket HNS0070 11 Bracket HNS0071 12 End Cap HNS0072 13 Spacer HNV0016 14 Amp Unit HWH0095 15 Screw BBZ30P060FMC 16 ••••• 17 Screw(M3×14) CBA1382 18 Terminal(CN902) CKF1059 19 Fuse(30A) HEK0030 20 Pin Jack(CN851) HKB0006 21 Fuse Holder HKE0012 22 Terminal(CN901) HKE0020 23 Terminal(CN651) HKE0021 24 Terminal(CN652) HKE0021 25 Clip HNC0054 26 Buss Bar HNC0064 27 Buss Bar HNC0065 28 Heat Sink HNR0115 29 Heat Sink HNR0116 30 Bar HNR0124 31 Screw PPZ30P100SAD 32 Light Pipe Unit HXA0201 33 Screw PPZ30P100FZK 34 Thermistor(TH901, 902) CCX1013 35 Transistor(Q908) 2SB1566 36 Transistor(Q907) 2SD2395 37 Diode(D907) FML22S 38 Diode(D910) FML22R 39 FET(Q905, 906, 911, 912) STP50NE08 40 FET(Q563, 564, 565, 566) 94-4980 41 FET(Q567, 568, 569, 570) 94-4981 42 Volume(VR451) HCS0001 43 Variable Resistor(VR453) CCS1265 44 Variable Resistor(VR452) CCS1263 45 Variable Resistor(VR101) CCS1266 46 Screw(M3×14) HBA0017 47 Screw SMZ50H300FCR - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 PRS-X720,X320,X220 2.4 EXTERIOR(PRS-X220/X1R/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 PRS-X720,X320,X220 1 Screw(M3×12) CBA1323 2 ••••• * 3 Badge HAM0013 4 Screw(M3×5) HBA0006 5 Screw(M3×8) HBA0011 6 Insert HBN0003 7 Case HNB0088 8 Case HNB0090 9 Heat Sink HNR0112 10 Bracket HNS0070 11 Bracket HNS0071 12 End Cap HNS0072 13 Spacer HNV0016 14 Amp Unit HWH0099 15 Screw BBZ30P060FMC 16 Screw BMS30P080FMC 17 Screw(M3×14) CBA1382 18 Terminal(CN902) CKF1059 19 Fuse(30A) HEK0030 20 Pin Jack(CN851) HKB0006 21 Fuse Holder HKE0012 22 Terminal(CN901) HKE0020 23 Terminal(CN651) HKE0021 24 Terminal(CN652) HKE0021 25 Clip HNC0054 26 Heat Sink HNR0117 27 Heat Sink HNR0118 28 Bar HNR0124 29 Screw PPZ30P100SAD 30 Light Pipe Unit HXA0201 31 Screw PPZ30P100FZK 32 Thermistor(TH901, 902) CCX1013 33 FET(Q905, 906, 911, 912) IRFIZ44N 34 Diode(D907) FML22S 35 Diode(D910) FML22R 36 Transistor(Q907) 2SD2395 37 Transistor(Q908) 2SB1566 38 FET(Q565, 566) 94-4980 39 FET(Q567, 568) 94-4981 40 Volume(VR451) HCS0001 41 Variable Resistor(VR101) CCS1266 42 Variable Resistor(VR453) CCS1265 43 Screw(M3×14) HBA0017 44 Screw SMZ50H300FCR - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A 1 2 3 1 2 3 3. SCHEMATIC DIAGRAM 3.1 AMP UNIT(GUIDE PAGE)(PRS-X720/X1R/UC) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A 10 A A-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 94-4980 94-4980 94-4980 94-4981 94-4981 94-4981 94-4980 94-4980 94-4980 94-4981 94-4981 94-4981 A-b 11 A A-a A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A A-a A-a A-b A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 13 1 1 2 3 2 3 A-a A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A 94-4980 94-4980 94-4980 94-4981 94-4981 94-4981 94-4980 94-4980 94-4980 A-a A-b A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 15 94-4981 94-4981 94-4981 A-b A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A 1 1 2 3 2 3 3.2 AMP UNIT(GUIDE PAGE)(PRS-X320/X1R/UC) A-a A 16 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 94-4980 94-4980 94-4980 94-4980 94-4981 94-4981 94-4981 94-4981 A-b 17 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A A-a A-a A-b A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 1 2 3 1 2 3 A-a A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A 94-4980 94-4980 94-4980 94-4980 94-4981 94-4981 A-a A-b A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 94-4981 94-4981 A-b A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A 1 1 2 3 2 3 3.3 AMP UNIT(GUIDE PAGE)(PRS-X220/X1R/UC) A-a A 22 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 94-4980 94-4980 94-4981 94-4981 A-b 23 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A A-a A-a A-b A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 2 1 2 3 1 3 A-a A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A 94-4980 94-4980 94-4981 94-4981 A-a A-b A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 94-4981 A-b A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 4. PCB CONNECTION DIAGRAM 4.1 AMP UNIT(PRS-X720/X1R/UC) NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 L+ L- R- R+ B REMOTE GND +B A SIDE A 2. Viewpoint of PCB diagrams Capacitor Connector P.C.Board Chip Part SIDE A SIDE B A AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A A A AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A 1 2 3 1 2 3 1 2 3 1 2 3 3 2 1 3 2 1 3 2 1 3 2 1 4.2 AMP UNIT(PRS-X320/X1R/UC) A A AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 3 2 1 3 2 1 3 2 1 3 2 1 L+ L- R- R+ B REMOTE GND +B 33 A SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A A A AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 35 A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A 1 2 3 1 2 3 1 2 3 1 2 3 G +B 4.3 AMP UNIT(PRS-X220/X1R/UC) A A AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A 3 2 1 3 2 1 3 2 1 3 2 1 L+ L- R- R+ B REMOTE GND A SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 PRS-X720,X320,X220 1 2 3 4 1 2 3 4 D C B A A A AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 PRS-X720,X320,X220 5 6 7 8 5 6 7 8 D C B A A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 PRS-X720,X320,X220 5. ELECTRICAL PARTS LIST NOTES: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number : HWH0091(PRS-X720/X1R/UC) Unit Name : Amp Unit MISCELLANEOUS IC 101 IC NJM2068D IC 102 IC NJM2068D IC 103 IC NJM2068D IC 104 IC NJM2068D IC 105 IC NJM2068D IC 106 IC NJM2068D IC 451 IC NJM2068D IC 452 IC NJM2068D IC 651 IC PA2027A IC 851 IC NJM2068D IC 852 IC NJM2068D IC 853 IC NJM2068D IC 901 IC UPC494C Q 203 Transistor DTA124ES Q 204 Transistor 2SC2458 Q 205 Transistor 2SC2458 Q 551 Transistor 2SA1928 Q 552 Transistor 2SA1928 Q 555 Transistor 2SC1845 Q 556 Transistor 2SC1845 Q 557 Transistor 2SA992 Q 558 Transistor 2SA992 Q 559 Transistor 2SC1845 Q 560 Transistor 2SC1845 Q 561 FET 94-4980 Q 562 FET 94-4980 Q 563 FET 94-4980 Q 564 FET 94-4980 Q 565 FET 94-4980 Q 566 FET 94-4980 Q 567 FET 94-4981 Q 568 FET 94-4981 Q 569 FET 94-4981 Q 570 FET 94-4981 Q 571 FET 94-4981 Q 572 FET 94-4981 Q 573 Transistor 2SC1845 Q 574 Transistor 2SC1845 Q 653 Transistor 2SA1048 Q 654 Transistor 2SC2458 Q 655 Transistor 2SC2458 Q 657 Transistor 2SA1048 Q 658 Transistor 2SC2458 Q 659 Transistor 2SA1048 Q 660 Transistor 2SB1243 Q 661 Transistor 2SC2458 Q 663 Transistor 2SD1768S Q 664 Transistor 2SD1768S Q 902 Transistor 2SA1048 Q 903 Transistor 2SB1277 Q 904 Transistor 2SB1277 Q 905 FET STP50NE08 Q 906 FET STP50NE08 Q 907 Transistor 2SD2395 Q 908 Transistor 2SB1566 Q 909 Transistor 2SD1919 Q 910 Transistor 2SD1919 Q 911 FET STP50NE08 Q 912 FET STP50NE08 Q 913 FET STP50NE08 Q 914 FET STP50NE08 D 501 Diode HZS5(C3) D 502 Diode HZS5(C3) D 551 Diode 1SS133 D 552 Diode 1SS133 D 601 LED SML210LT(LMN) D 651 Diode RM4Z D 652 Diode RM4Z D 653 Diode 1SS133 D 654 Diode HZS7L(B2) D 655 Diode 1SS133 D 656 Diode 1SS133 D 658 Diode 1SS133 D 659 Diode 1SS133 D 661 Diode 1SS133 D 907 Diode FML22R D 908 Diode HZS16L(1) D 909 Diode HZS16L(1) D 910 Diode FML22S D 911 Diode 1SS133 D 912 Diode ALO1ZWS D 913 Diode ALO1ZWS D 914 Diode ALO1ZWS D 915 Diode ALO1ZWS T 901 Transformer HTT0003 TH 901 Thermistor CCX1013 TH 902 Thermistor CCX1013 TH 903 Thermistor CCX1035 S 101 Switch(LPF/HPF) CSH1029 S 102 Switch(Subsonic) CSH1021 VR 101 Variable Resistor 20kΩ(E) CCS1266 VR 451 Volume 20kΩ(C) HCS0001 VR 452 Variable Resistor 50kΩ(C) CCS1263 VR 453 Variable Resistor 10kΩ(A) CCS1265 VR 551 Semi-fixed 10kΩ(B) CCP1319 VR 552 Semi-fixed 10kΩ(B) CCP1319 FU 902 Fuse 30A HEK0030 FU 903 Fuse 30A HEK0030 FU 904 Fuse 30A HEK0030 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 41 RESISTORS R 101 RS1/10S103J R 102 RS1/10S103J R 103 RS1/10S103J R 104 RS1/10S103J R 105 RS1/10S103J R 106 RS1/10S103J R 107 RS1/10S472J R 108 RS1/10S472J R 109 RS1/10S562J R 110 RS1/10S562J R 111 RS1/10S103J R 112 RS1/10S103J R 113 RS1/10S123J R 114 RS1/10S123J R 115 RS1/10S103J R 116 RS1/10S103J R 119 RS1/10S123J R 120 RS1/10S123J R 123 RS1/10S392J R 124 RS1/10S392J R 125 RS1/10S103J R 126 RS1/10S103J R 127 RS1/10S123J R 128 RS1/10S123J R 129 RS1/10S392J R 130 RS1/10S392J R 131 RS1/10S393J R 132 RS1/10S393J R 203 RD1/4PU222J R 204 RD1/4PU222J R 455 RS1/10S182J R 456 RS1/10S182J R 459 RS1/10S822J R 460 RS1/10S822J R 461 RS1/10S221J R 462 RS1/10S221J R 465 RD1/4PU101J R 466 RD1/4PU101J R 467 RS1/10S222J R 468 RS1/10S222J R 469 RS1/10S473J R 470 RS1/10S473J R 501 RD1/4PU102J R 502 RD1/4PU102J R 503 RD1/4PU392J R 504 RD1/4PU392J R 505 RD1/4PU103J R 506 RD1/4PU103J R 507 RD1/4PU105J R 508 RD1/4PU105J R 549 RD1/4PU243J R 550 RD1/4PU243J R 551 RD1/4PU473J R 552 RD1/4PU473J R 553 RD1/4PU563J R 554 RD1/4PU563J R 555 RD1/4PU512J R 556 RD1/4PU512J R 557 RD1/4PU512J R 558 RD1/4PU512J R 559 RD1/4PU131J R 560 RD1/4PU131J R 561 RD1/4PU133J R 562 RD1/4PU133J R 563 RD1/4PU101J R 564 RD1/4PU101J R 565 RD1/4PU243J R 566 RD1/4PU243J R 567 RD1/4PU101J R 568 RD1/4PU101J R 569 RD1/4PU101J R 570 RD1/4PU101J R 571 RS1/10S101J R 572 RS1/10S101J R 573 RS1/10S101J R 574 RS1/10S101J R 575 RS1/10S101J R 576 RS1/10S101J R 577 RS1/10S101J R 578 RS1/10S101J R 579 RS1/10S101J R 580 RS1/10S101J R 581 RS1/10S101J R 582 RS1/10S101J R 583 SPR30R1J R 584 SPR30R1J R 585 SPR30R1J R 586 SPR30R1J R 587 SPR30R1J R 588 SPR30R1J R 589 SPR30R1J R 590 SPR30R1J R 591 SPR30R1J R 592 SPR30R1J R 593 SPR30R1J R 594 SPR30R1J R 595 RS1/2PMF100J R 596 RS1/2PMF100J R 605 RD1/4PU331J R 606 RD1/4PU331J R 657 RD1/4PU104J R 658 RD1/4PU472J R 659 RD1/4PU103J R 660 RD1/4PU102J R 661 RD1/4PU472J R 662 RD1/4PU221J R 663 RD1/4PU563J R 664 RD1/4PU473J R 665 RD1/4PU103J R 666 RD1/4PU103J R 667 RD1/4PU222J R 668 RD1/4PU472J R 669 RD1/4PU222J R 671 RD1/4PU221J R 672 RD1/4PU152J R 676 RD1/4PU222J R 678 RD1/4PU472J R 679 RD1/4PU101J R 680 RD1/4PU472J R 681 RD1/4PU562J R 682 RD1/4PU562J R 683 RD1/4PU103J R 684 RD1/4PU223J R 685 RD1/4PU223J R 686 RD1/4PU223J R 687 RD1/4PU563J R 688 RD1/4PU563J R 689 RD1/4PU563J R 690 RD1/4PU563J R 691 RD1/4PU563J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 PRS-X720,X320,X220 R 692 RD1/4PU563J R 693 RD1/4PU564J R 694 RD1/4PU564J R 695 RD1/4PU473J R 696 RD1/4PU473J R 851 RS1/10S471J R 852 RS1/10S471J R 853 RS1/10S223J R 854 RS1/10S223J R 855 (RN1/10SE1002D) GGC1320 R 856 (RN1/10SE1002D) GGC1320 R 857 (RN1/10SE1002D) GGC1320 R 858 (RN1/10SE1002D) GGC1320 R 859 (RN1/10SE1002D) GGC1320 R 860 (RN1/10SE1002D) GGC1320 R 861 (RN1/10SE1002D) GGC1320 R 862 (RN1/10SE1002D) GGC1320 R 865 RS1/10S821J R 866 RS1/10S821J R 867 RS1/10S223J R 868 RS1/10S223J R 869 RS1/10S472J R 870 RS1/10S472J R 871 RS1/10S472J R 872 RS1/10S222J R 902 RS1/2PMF220J R 907 RS1/10S473J R 909 RS1/2PMF220J R 910 RS1/10S153J R 911 RS1/10S102J R 912 RD1/4PU272J R 913 RS1/10S472J R 914 RS1/10S472J R 915 RS1/10S472J R 916 RD1/4PU332J R 917 RD1/4PU332J R 918 RS1/2PMF220J R 919 RS1/2PMF220J R 920 RD1/4PU472J R 921 RD1/4PU472J R 922 RD1/4PU472J R 923 RD1/4PU472J R 924 RD1/4PU680J R 925 RD1/4PU680J R 926 RD1/4PU680J R 927 RD1/4PU680J R 928 RD1/4PU680J R 929 RD1/4PU680J R 932 RD1/4PU104J R 935 RS1/10S392J R 936 RS1/10S223J R 937 RS1/10S103J R 938 RD1/4PU272J R 939 RD1/4PU272J R 947 RS1/2PMF560J R 948 RS1/2PMF560J R 949 RD1/4PU113J R 950 RS1/10S101J R 951 RD1/4PU823J R 952 RD1/4PU101J R 953 RD1/4PU101J CAPACITORS C 101 CCSQCH470J50 C 102 CCSQCH470J50 C 103 CFTNA104J50 C 104 CFTNA104J50 C 105 CFTNA104J50 C 106 CFTNA104J50 C 107 CFTLA824J50 C 108 CFTLA824J50 C 109 CFTLA824J50 C 110 CFTLA824J50 C 111 CFTLA824J50 C 112 CFTLA824J50 C 113 CFTLA824J50 C 114 CFTLA824J50 C 201 CEAS470M10 C 202 CEAS470M10 C 451 CKSQYB273K25 C 452 CKSQYB273K25 C 453 CEAS4R7M35 C 454 CEAS4R7M35 C 455 CKSYB224K25 C 456 CKSYB224K25 C 457 CEAS101M16 C 458 CEAS101M16 C 501 CEAS1R0M50 C 502 CEAS1R0M50 C 551 CEAS100M16 C 552 CEAS100M16 C 553 CKPUYB221K50 C 554 CKPUYB221K50 C 555 CEAS221M10 C 556 CEAS221M10 C 557 CFTLA103J50 C 558 CFTLA103J50 C 559 CCPUCH150J50 C 560 CCPUCH150J50 C 561 CMA330J2H C 562 CMA330J2H C 565 CFTNA333J50 C 566 CFTNA333J50 C 567 CQMA102J50 C 568 CQMA102J50 C 651 220µF/10V CCH1036 C 652 CFTLA103J50 C 653 CEAS100M16 C 654 CEAS100M16 C 655 CFTLA103J50 C 656 470µF/16V CCH1183 C 657 470µF/16V CCH1183 C 658 CEAS220M16 C 659 470µF/16V CCH1183 C 660 CFTLA105J50 C 661 CFTLA103J50 C 662 CFTLA103J50 C 851 CKSQYB471K50 C 852 CKSQYB471K50 C 853 CEAS100M16 C 854 CEAS100M16 C 855 CQMA472J50 C 856 CQMA472J50 C 857 CCSQCH470J50 C 858 CCSQCH470J50 C 859 CCSQCH470J50 C 860 CCSQCH470J50 C 861 CKSQYB471K50 C 862 CKSQYB471K50 C 863 CEAS4R7M35 C 864 CEAS4R7M35 C 865 CCSQCH470J50 C 902 CEAS221M10 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 43 C 903 CEAS2R2M50 C 904 CEAS101M16 C 905 CQMA472J50 C 906 CQMA472J50 C 907 4700µF/16V CCH1310 C 908 4700µF/16V CCH1310 C 909 4700µF/16V CCH1310 C 910 478LBA050M2DC C 911 478LBA050M2DC C 912 478LBA050M2DC C 913 478LBA050M2DC C 914 CQMA102J50 C 915 CQMA102J50 C 916 CEAS470M16 C 917 CEAS470M16 C 918 337RZM050M1020 C 919 337RZM050M1020 C 920 337RZM050M1020 C 921 337RZM050M1020 C 922 CFTLA224J50 C 923 CFTLA224J50 C 924 CFTLA564J50 C 925 CCG-081 C 926 CCG-081 C 927 CQMA102J50 C 930 337RZM050M1020 C 931 337RZM050M1020 C 932 CEAS470M10 Unit Number : HWH0095(PRS-X320/X1R/UC) Unit Name : Amp Unit MISCELLANEOUS IC 101 IC NJM2068D IC 102 IC NJM2068D IC 103 IC NJM2068D IC 104 IC NJM2068D IC 105 IC NJM2068D IC 106 IC NJM2068D IC 451 IC NJM2068D IC 452 IC NJM2068D IC 651 IC PA2027A IC 851 IC NJM2068D IC 852 IC NJM2068D IC 853 IC NJM2068D IC 901 IC UPC494C Q 203 Transistor DTA124ES Q 204 Transistor 2SC2458 Q 205 Transistor 2SC2458 Q 551 Transistor 2SA1928 Q 552 Transistor 2SA1928 Q 555 Transistor 2SC1845 Q 556 Transistor 2SC1845 Q 557 Transistor 2SA992 Q 558 Transistor 2SA992 Q 559 Transistor 2SC1845 Q 560 Transistor 2SC1845 Q 563 FET 94-4980 Q 564 FET 94-4980 Q 565 FET 94-4980 Q 566 FET 94-4980 Q 567 FET 94-4981 Q 568 FET 94-4981 Q 569 FET 94-4981 Q 570 FET 94-4981 Q 571 Transistor 2SD1768S Q 572 Transistor 2SD1768S Q 573 Transistor 2SC1845 Q 574 Transistor 2SC1845 Q 653 Transistor 2SA1048 Q 654 Transistor 2SC2458 Q 655 Transistor 2SC2458 Q 657 Transistor 2SA1048 Q 658 Transistor 2SC2458 Q 659 Transistor 2SA1048 Q 660 Transistor 2SB1243 Q 661 Transistor 2SC2458 Q 902 Transistor 2SA1048 Q 903 Transistor 2SB1277 Q 904 Transistor 2SB1277 Q 905 FET STP50NE08 Q 906 FET STP50NE08 Q 907 Transistor 2SD2395 Q 908 Transistor 2SB1566 Q 909 Transistor 2SD1919 Q 910 Transistor 2SD1919 Q 911 FET STP50NE08 Q 912 FET STP50NE08 D 501 Diode HZS5(C3) D 502 Diode HZS5(C3) D 551 Diode 1SS133 D 552 Diode 1SS133 D 557 Diode 1SS133 D 558 Diode 1SS133 D 601 LED SML210LT(LMN) D 653 Diode 1SS133 D 654 Diode HZS7L(B2) D 658 Diode 1SS133 D 659 Diode 1SS133 D 661 Diode 1SS133 D 903 Diode RM4Z D 907 Diode FML22R D 908 Diode HZS16L(1) D 909 Diode HZS16L(1) D 910 Diode FML22S D 911 Diode 1SS133 T 901 Transformer HTT0004 TH 901 Thermistor CCX1013 TH 902 Thermistor CCX1013 TH 903 Thermistor CCX1035 S 101 Switch(LPF/HPF) CSH1029 S 102 Switch(Subsonic) CSH1021 VR 101 Variable Resistor 20kΩ(E) CCS1266 VR 451 Volume 20kΩ(C) HCS0001 VR 452 Variable Resistor 50kΩ(C) CCS1263 VR 453 Variable Resistor 10kΩ(A) CCS1265 VR 551 Semi-fixed 10kΩ(B) CCP1319 VR 552 Semi-fixed 10kΩ(B) CCP1319 FU 902 Fuse 30A HEK0030 FU 903 Fuse 30A HEK0030 RESISTORS R 101 RS1/10S103J R 102 RS1/10S103J R 103 RS1/10S103J R 104 RS1/10S103J R 105 RS1/10S103J R 106 RS1/10S103J R 107 RS1/10S472J R 108 RS1/10S472J R 109 RS1/10S562J R 110 RS1/10S562J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 PRS-X720,X320,X220 R 111 RS1/10S103J R 112 RS1/10S103J R 113 RS1/10S123J R 114 RS1/10S123J R 115 RS1/10S103J R 116 RS1/10S103J R 119 RS1/10S123J R 120 RS1/10S123J R 125 RS1/10S103J R 126 RS1/10S103J R 127 RS1/10S123J R 128 RS1/10S123J R 129 RS1/10S392J R 130 RS1/10S392J R 131 RS1/10S393J R 132 RS1/10S393J R 203 RD1/4PU472J R 204 RD1/4PU472J R 451 RS1/10S392J R 452 RS1/10S392J R 455 RS1/10S182J R 456 RS1/10S182J R 459 RS1/10S822J R 460 RS1/10S822J R 461 RS1/10S221J R 462 RS1/10S221J R 465 RD1/4PU111J R 466 RD1/4PU111J R 467 RS1/10S222J R 468 RS1/10S222J R 469 RS1/10S473J R 470 RS1/10S473J R 501 RD1/4PU102J R 502 RD1/4PU102J R 503 RD1/4PU392J R 504 RD1/4PU392J R 505 RD1/4PU103J R 506 RD1/4PU103J R 507 RD1/4PU105J R 508 RD1/4PU105J R 551 RD1/4PU473J R 552 RD1/4PU473J R 553 RD1/4PU563J R 554 RD1/4PU563J R 555 RD1/4PU512J R 556 RD1/4PU512J R 557 RD1/4PU512J R 558 RD1/4PU512J R 559 RD1/4PU201J R 560 RD1/4PU201J R 561 RD1/4PU133J R 562 RD1/4PU133J R 563 RD1/4PU101J R 564 RD1/4PU101J R 565 RD1/4PU243J R 566 RD1/4PU243J R 567 RD1/4PU101J R 568 RD1/4PU101J R 569 RD1/4PU101J R 570 RD1/4PU101J R 573 RS1/10S101J R 574 RS1/10S101J R 575 RS1/10S101J R 576 RS1/10S101J R 577 RS1/10S101J R 578 RS1/10S101J R 579 RS1/10S101J R 580 RS1/10S101J R 587 SPR30R1J R 588 SPR30R1J R 589 SPR30R1J R 590 SPR30R1J R 591 SPR30R1J R 592 SPR30R1J R 593 SPR30R1J R 594 SPR30R1J R 597 RD1/4PU564J R 598 RD1/4PU564J R 599 RD1/4PU473J R 600 RD1/4PU473J R 601 RS1/2PMF100J R 602 RS1/2PMF100J R 605 RD1/4PU331J R 606 RD1/4PU331J R 657 RD1/4PU104J R 658 RD1/4PU472J R 659 RD1/4PU103J R 660 RD1/4PU102J R 661 RD1/4PU472J R 662 RD1/4PU221J R 663 RD1/4PU563J R 664 RD1/4PU473J R 665 RD1/4PU103J R 666 RD1/4PU103J R 667 RD1/4PU222J R 668 RD1/4PU472J R 669 RD1/4PU222J R 671 RD1/4PU221J R 672 RD1/4PU152J R 676 RD1/4PU222J R 678 RD1/4PU472J R 679 RD1/4PU101J R 680 RS1/10S472J R 681 RD1/4PU132J R 682 RD1/4PU132J R 683 RD1/4PU103J R 684 RD1/4PU223J R 685 RD1/4PU223J R 686 RD1/4PU223J R 689 RD1/4PU563J R 690 RD1/4PU563J R 691 RD1/4PU563J R 692 RD1/4PU563J R 701 RD1/4PU243J R 702 RD1/4PU243J R 851 RS1/10S471J R 852 RS1/10S471J R 853 RS1/10S223J R 854 RS1/10S223J R 855 (RN1/10SE1002D) GGC1320 R 856 (RN1/10SE1002D) GGC1320 R 857 (RN1/10SE1002D) GGC1320 R 858 (RN1/10SE1002D) GGC1320 R 859 (RN1/10SE1002D) GGC1320 R 860 (RN1/10SE1002D) GGC1320 R 861 (RN1/10SE1002D) GGC1320 R 862 (RN1/10SE1002D) GGC1320 R 865 RS1/10S821J R 866 RS1/10S821J R 867 RS1/10S223J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 PRS-X720,X320,X220 R 868 RS1/10S223J R 869 RS1/10S472J R 870 RS1/10S472J R 871 RS1/10S472J R 872 RS1/10S222J R 902 RS1/2PMF220J R 907 RS1/10S153J R 909 RS1/2PMF220J R 910 RS1/10S153J R 911 RS1/10S102J R 912 RD1/4PU272J R 913 RS1/10S472J R 914 RS1/10S472J R 915 RS1/10S472J R 916 RD1/4PU332J R 917 RD1/4PU332J R 918 RS1/2PMF220J R 919 RS1/2PMF220J R 920 RD1/4PU472J R 921 RD1/4PU472J R 922 RD1/4PU472J R 923 RD1/4PU472J R 924 RD1/4PU470J R 925 RD1/4PU470J R 928 RD1/4PU470J R 929 RD1/4PU470J R 932 RD1/4PU104J R 935 RS1/10S392J R 936 RS1/10S223J R 937 RS1/10S103J R 938 RD1/4PU272J R 939 RD1/4PU272J R 947 RS1/2PMF560J R 948 RS1/2PMF560J R 949 RD1/4PU163J R 950 RS1/10S101J R 951 RD1/4PU124J CAPACITORS C 101 CCSQCH470J50 C 102 CCSQCH470J50 C 103 CFTNA104J50 C 104 CFTNA104J50 C 105 CFTNA104J50 C 106 CFTNA104J50 C 107 CFTLA824J50 C 108 CFTLA824J50 C 109 CFTLA824J50 C 110 CFTLA824J50 C 111 CFTLA824J50 C 112 CFTLA824J50 C 113 CFTLA824J50 C 114 CFTLA824J50 C 451 CFTNA273J50 C 452 CFTNA273J50 C 453 CEAS4R7M35 C 454 CEAS4R7M35 C 455 CFTLA224J50 C 456 CFTLA224J50 C 457 CEAS101M16 C 458 CEAS101M16 C 459 CEAS470M10 C 460 CEAS470M10 C 501 CEAS1R0M50 C 502 CEAS1R0M50 C 551 CEAS100M16 C 552 CEAS100M16 C 553 CKPUYB221K50 C 554 CKPUYB221K50 C 555 CEAS221M10 C 556 CEAS221M10 C 557 CFTLA103J50 C 558 CFTLA103J50 C 559 CCPUCH150J50 C 560 CCPUCH150J50 C 561 337RZM050M1020 C 562 337RZM050M1020 C 563 337RZM050M1020 C 564 337RZM050M1020 C 567 CFTNA333J50 C 568 CFTNA333J50 C 569 CQMA102J50 C 570 CQMA102J50 C 571 CMA330J2H C 572 CMA330J2H C 651 220µF/10V CCH1036 C 652 CFTLA103J50 C 653 CEAS100M16 C 654 CEAS100M16 C 655 CFTLA103J50 C 656 470µF/16V CCH1183 C 658 CEAS220M16 C 659 470µF/16V CCH1183 C 660 CFTLA105J50 C 661 CFTLA103J50 C 662 CFTLA103J50 C 663 CFTLA824J50 C 664 470µF/16V CCH1183 C 851 CKSQYB471K50 C 852 CKSQYB471K50 C 853 CEAS100M16 C 854 CEAS100M16 C 855 CQMA472J50 C 856 CQMA472J50 C 857 CCSQCH470J50 C 858 CCSQCH470J50 C 859 CCSQCH470J50 C 860 CCSQCH470J50 C 861 CKSQYB471K50 C 862 CKSQYB471K50 C 863 CEAS4R7M35 C 864 CEAS4R7M35 C 865 CCSQCH470J50 C 902 CEAS221M10 C 903 CEAS2R2M50 C 904 CEAS101M16 C 905 CQMA472J50 C 906 CQMA472J50 C 907 4700µF/16V CCH1310 C 908 478LBA050M2DC C 909 478LBA050M2DC C 912 CEAS470M16 C 913 CEAS470M16 C 914 CQMA102J50 C 915 CQMA102J50 C 919 4700µF/16V CCH1310 C 920 CFTLA564J50 C 927 CQMA102J50 C 932 CEAS470M10 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 PRS-X720,X320,X220 Unit Number : HWH0099(PRS-X220/X1R/UC) Unit Name : Amp Unit MISCELLANEOUS IC 101 IC NJM2068D IC 102 IC NJM2068D IC 103 IC NJM2068D IC 104 IC NJM2068D IC 451 IC NJM2068D IC 452 IC NJM2068D IC 651 IC PA2027A IC 851 IC NJM2068D IC 852 IC NJM2068D IC 853 IC NJM2068D IC 901 IC UPC494C Q 203 Transistor DTA124ES Q 204 Transistor 2SC2458 Q 205 Transistor 2SC2458 Q 551 Transistor 2SA1928 Q 552 Transistor 2SA1928 Q 555 Transistor 2SC1845 Q 556 Transistor 2SC1845 Q 557 Transistor 2SA992 Q 558 Transistor 2SA992 Q 559 Transistor 2SC1845 Q 560 Transistor 2SC1845 Q 565 FET 94-4980 Q 566 FET 94-4980 Q 567 FET 94-4981 Q 568 FET 94-4981 Q 571 Transistor 2SD1768S Q 572 Transistor 2SD1768S Q 573 Transistor 2SC1845 Q 574 Transistor 2SC1845 Q 653 Transistor 2SA1048 Q 654 Transistor 2SC2458 Q 655 Transistor 2SC2458 Q 657 Transistor 2SA1048 Q 658 Transistor 2SC2458 Q 659 Transistor 2SA1048 Q 660 Transistor 2SB1243 Q 661 Transistor 2SC2458 Q 902 Transistor 2SA1048 Q 903 Transistor 2SB1277 Q 904 Transistor 2SB1277 Q 905 FET IRFIZ44N Q 906 FET IRFIZ44N Q 907 Transistor 2SD2395 Q 908 Transistor 2SB1566 Q 909 Transistor 2SD1919 Q 910 Transistor 2SD1919 Q 911 FET IRFIZ44N Q 912 FET IRFIZ44N D 501 Diode HZS5(C3) D 502 Diode HZS5(C3) D 551 Diode 1SS133 D 552 Diode 1SS133 D 557 Diode 1SS133 D 558 Diode 1SS133 D 601 LED SML210LT(LMN) D 653 Diode 1SS133 D 654 Diode HZS7L(B2) D 658 Diode 1SS133 D 659 Diode 1SS133 D 661 Diode 1SS133 D 903 Diode RM4Z D 907 Diode FML22S D 908 Diode HZS16L(1) D 909 Diode HZS16L(1) D 910 Diode FML22R D 911 Diode 1SS133 T 901 Transformer HTT0005 TH 901 Thermistor CCX1013 TH 902 Thermistor CCX1013 TH 903 Thermistor CCX1035 S 101 Switch(LPF/HPF) CSH1029 VR 101 Variable Resistor 20kΩ(E) CCS1266 VR 451 Volume 20kΩ(C) HCS0001 VR 453 Variable Resistor 10kΩ(A) CCS1265 VR 551 Semi-fixed 10kΩ(B) CCP1319 VR 552 Semi-fixed 10kΩ(B) CCP1319 FU 901 Fuse 30A HEK0030 RESISTORS R 101 RS1/10S103J R 102 RS1/10S103J R 103 RS1/10S103J R 104 RS1/10S103J R 105 RS1/10S103J R 106 RS1/10S103J R 107 RS1/10S472J R 108 RS1/10S472J R 109 RS1/10S562J R 110 RS1/10S562J R 111 RS1/10S103J R 112 RS1/10S103J R 113 RS1/10S123J R 114 RS1/10S123J R 115 RS1/10S103J R 116 RS1/10S103J R 119 RS1/10S123J R 120 RS1/10S123J R 203 RD1/4PU222J R 204 RD1/4PU222J R 451 RS1/10S392J R 452 RS1/10S392J R 455 RS1/10S182J R 456 RS1/10S182J R 459 RS1/10S333J R 460 RS1/10S333J R 461 RS1/10S221J R 462 RS1/10S221J R 465 RD1/4PU101J R 466 RD1/4PU101J R 467 RS1/10S222J R 468 RS1/10S222J R 469 RS1/10S473J R 470 RS1/10S473J R 501 RD1/4PU102J R 502 RD1/4PU102J R 503 RD1/4PU392J R 504 RD1/4PU392J R 505 RD1/4PU103J R 506 RD1/4PU103J R 507 RD1/4PU105J R 508 RD1/4PU105J R 551 RD1/4PU473J R 552 RD1/4PU473J R 553 RD1/4PU683J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 PRS-X720,X320,X220 R 554 RD1/4PU683J R 555 RD1/4PU512J R 556 RD1/4PU512J R 557 RD1/4PU512J R 558 RD1/4PU512J R 559 RD1/4PU271J R 560 RD1/4PU271J R 561 RD1/4PU153J R 562 RD1/4PU153J R 563 RD1/4PU101J R 564 RD1/4PU101J R 565 RD1/4PU123J R 566 RD1/4PU123J R 567 RD1/4PU680J R 568 RD1/4PU680J R 569 RD1/4PU101J R 570 RD1/4PU101J R 575 RS1/10S101J R 576 RS1/10S101J R 577 RS1/10S101J R 578 RS1/10S101J R 591 SPR30R1J R 592 SPR30R1J R 593 SPR30R1J R 594 SPR30R1J R 595 RD1/4PU563J R 596 RD1/4PU563J R 597 RD1/4PU564J R 598 RD1/4PU564J R 599 RD1/4PU473J R 600 RD1/4PU473J R 601 RS1/2PMF100J R 602 RS1/2PMF100J R 605 RD1/4PU331J R 606 RD1/4PU331J R 657 RD1/4PU104J R 658 RD1/4PU472J R 659 RD1/4PU103J R 660 RD1/4PU102J R 661 RD1/4PU472J R 662 RD1/4PU221J R 663 RD1/4PU563J R 664 RD1/4PU473J R 665 RD1/4PU103J R 666 RD1/4PU103J R 667 RD1/4PU222J R 668 RD1/4PU472J R 669 RD1/4PU222J R 671 RD1/4PU221J R 672 RD1/4PU152J R 676 RD1/4PU222J R 678 RD1/4PU472J R 679 RD1/4PU101J R 680 RS1/10S472J R 681 RD1/4PU361J R 682 RD1/4PU361J R 683 RD1/4PU103J R 684 RD1/4PU223J R 685 RD1/4PU223J R 686 RD1/4PU223J R 851 RS1/10S471J R 852 RS1/10S471J R 853 RS1/10S223J R 854 RS1/10S223J R 855 (RN1/10SE1002D) GGC1320 R 856 (RN1/10SE1002D) GGC1320 R 857 (RN1/10SE1002D) GGC1320 R 858 (RN1/10SE1002D) GGC1320 R 859 (RN1/10SE1002D) GGC1320 R 860 (RN1/10SE1002D) GGC1320 R 861 (RN1/10SE1002D) GGC1320 R 862 (RN1/10SE1002D) GGC1320 R 865 RS1/10S821J R 866 RS1/10S821J R 867 RS1/10S223J R 868 RS1/10S223J R 869 RS1/10S472J R 870 RS1/10S472J R 871 RS1/10S472J R 872 RS1/10S222J R 902 RS1/2PMF220J R 907 RS1/10S473J R 909 RS1/2PMF220J R 910 RS1/10S153J R 911 RS1/10S102J R 912 RD1/4PU272J R 913 RS1/10S472J R 914 RS1/10S472J R 915 RS1/10S472J R 916 RD1/4PU332J R 917 RD1/4PU332J R 918 RS1/2PMF220J R 919 RS1/2PMF220J R 920 RD1/4PU472J R 921 RD1/4PU472J R 922 RD1/4PU472J R 923 RD1/4PU472J R 924 RD1/4PU470J R 925 RD1/4PU470J R 928 RD1/4PU470J R 929 RD1/4PU470J R 932 RD1/4PU104J R 935 RS1/10S392J R 936 RS1/10S223J R 937 RS1/10S103J R 938 RD1/4PU272J R 939 RD1/4PU272J R 947 RS1/2PMF560J R 948 RS1/2PMF560J R 949 RD1/4PU153J R 950 RS1/10S101J R 951 RD1/4PU563J CAPACITORS C 101 CCSQCH470J50 C 102 CCSQCH470J50 C 103 CFTNA104J50 C 104 CFTNA104J50 C 105 CFTNA104J50 C 106 CFTNA104J50 C 451 CFTNA273J50 C 452 CFTNA273J50 C 453 CEAS4R7M35 C 454 CEAS4R7M35 C 455 CFTLA224J50 C 456 CFTLA224J50 C 457 CFTLA473J50 C 458 CFTLA473J50 C 459 CEAS470M16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 PRS-X720,X320,X220 C 460 CEAS470M16 C 501 CEAS1R0M50 C 502 CEAS1R0M50 C 551 CEAS100M16 C 552 CEAS100M16 C 553 CKPUYB221K50 C 554 CKPUYB221K50 C 555 CEAS101M16 C 556 CEAS101M16 C 557 CFTLA103J50 C 558 CFTLA103J50 C 559 CCPUCH150J50 C 560 CCPUCH150J50 C 561 337RZM050M1020 C 562 337RZM050M1020 C 563 337RZM050M1020 C 564 337RZM050M1020 C 565 CMA330J2H C 566 CMA330J2H C 567 CFTNA333J50 C 568 CFTNA333J50 C 569 CQMA102J50 C 570 CQMA102J50 C 651 220µF/10V CCH1036 C 652 CFTLA103J50 C 653 CEAS100M16 C 654 CEAS100M16 C 655 CFTLA103J50 C 656 470µF/16V CCH1183 C 657 470µF/16V CCH1183 C 658 CEAS220M16 C 659 470µF/16V CCH1183 C 660 CFTLA105J50 C 661 CFTLA103J50 C 662 CFTLA103J50 C 851 CKSQYB471K50 C 852 CKSQYB471K50 C 853 CEAS100M16 C 854 CEAS100M16 C 855 CQMA472J50 C 856 CQMA472J50 C 857 CCSQCH470J50 C 858 CCSQCH470J50 C 859 CCSQCH470J50 C 860 CCSQCH470J50 C 861 CKSQYB471K50 C 862 CKSQYB471K50 C 863 CEAS4R7M35 C 864 CEAS4R7M35 C 865 CCSQCH470J50 C 901 3300µF/16V CCH1211 C 902 CEAS221M10 C 903 CEAS2R2M50 C 904 CEAS101M16 C 905 CQMA472J50 C 906 CQMA472J50 C 907 3300µF/16V CCH1211 C 908 478LBA035M2BD C 909 478LBA035M2BD C 912 CEAS470M16 C 913 CEAS470M16 C 914 CQMA102J50 C 915 CQMA102J50 C 920 CFTLA564J50 C 927 CQMA102J50 C 932 CEAS470M10 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 6. ADJUSTMENT IDLE CURRENT ADJUSTMENT Conditions: Terminate inputs with 1kΩ resistors. No load connected to output. 14.4V DC power ON for 30 seconds then adjust. • PRS-X720/X1R/UC Turn power on. Measure the voltage across resistor R586. After 30 seconds from turn on of amplifier, adjust VR552 so voltage is 4.5mV ± 0.5mV. Repeat this step with R585 and VR551. • PRS-X320/X1R/UC Turn power on. Measure the voltage across resistor R588. After 30 seconds from turn on of amplifier, adjust VR552 so voltage is 4.5mV ± 0.5mV. Repeat this step with R587 and VR551. • PRS-X220/X1R/UC Turn power on. Measure the voltage across resistor R594. After 30 seconds from turn on of amplifier, adjust VR552 so voltage is 4.5mV ± 0.5mV. Repeat this step with R593 and VR551. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 49 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 VCC Stby DET1 DET2 DET_R GND NC NC IN1 IN2 IN3 Cont_V Filter Vs_out TC Mute_out + - zz 2V + - zz 2V + - zz 2V + - 2V zz + - 2V 20µA + - zz 2V + - zz 50µA 4.7kΩ Transient voltage detector Bandgap Circuit motion:on + - 5.6V + - Q S R Oneshot (1µsec) Bandgap:on Switch:on 0.13V PA2027A 7. GENERAL INFORMATION 7.1 IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 PRS-X720,X320,X220 - Removing the Amp Unit(not shown) (PRS-X720/X1R/UC)Remove the eleven screws. (PRS-X320/X1R/UC)Remove the seven screws. (PRS-X220/X1R/UC)Remove the six screws. Remove the Amp Unit. Case Fig.1 7.2 DISASSEMBLY - Removing the two Cases(Fig.1) Remove the two screws. Remove the two brackets. Remove the eight screws. Remove the four screws. (PRS-X720/X1R/UC)Remove the six screws. (PRS-X320/X1R/UC)Remove the four screws. (PRS-X220/X1R/UC)Remove the two screws. Remove the two Cases. Case Bracket Bracket www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 51 8. OPERATIONS AND SPECIFICATIONS 8.1 OPERATIONS Setting the Unit Gain Control If the sound level is too low, even when the volume of the car stereo used along with this power amplifier is turned up, turn gain control on the back of the power amplifier clockwise. If the sound distorts when the volume is turned up, turn the gain control counter-clockwise. • When using with an RCA equipped car stereo (standard output of 500 mV), set to the NORMAL position. When using with an RCA equipped Pioneer car stereo with max. output of 4 V or more, adjust level to match the car stereo ouput level. Power Indicator The power indicator lights when the power is switched on. Bass Boost Level Control Bass boost level control can boost the level around the frequency selected by the bass boost frequency control from 0 to 18 dB. Cut Off Frequency Control If the LPF/HPF select switch is set to LPF (or HPF), you can select a cut off frequency from 50 to 120 Hz. LPF (Low-Pass Filter)/HPF (High-Pass Filter) Select Switch Set the LPF/HPF select switch as follows according to the type of speak- er that is connected to the speaker output connector and the car stereo system: LPF/HPF Select Audio frequency range Speaker Remarks Switch to be output Type LPF (left) * — 50 to 120 Hz Sub-woofer Connect a sub-woofer. OFF (center) Full range Full range HPF (right) * 50 to 120 Hz — Full range Use if you want to cut the very-low-frequency range* because it is not necessary for the speakers you are using. * See the “Cut Off Frequency Control” section. Bass Boost Frequency Control (PRS-X720 and PRS-X320) You can select a bass boost frequency from 40 to 120 Hz with the bass boost control. • Bass Boost Level Control and Bass Boost Frequency Control can be adjusted only when the LPF/HPF select switch is set to a position other than HPF. Subsonic Select Switch (PRS-X720 and PRS-X320) The subsonic filter cuts inaudible fre- quencies below 15 Hz to eliminate unwanted vibrations and minimize power loss. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 PRS-X720,X320,X220 Connection Diagram Connecting the Unit Fuse (30 A) × 3 Grommet RCA input Special red battery wire After making all other connections at the amplifier, connect the battery wire terminal of the amplifier to the positive (+) terminal of the battery. Ground wire (black) Connect to metal body or chassis. Amplifier with RCA input jacks PRS-X720: Fuse (30 A) × 3 PRS-X320: Fuse (30 A) × 2 PRS-X220: Fuse (30 A) × 1 Car stereo with RCA output jacks External Output Connecting wires with RCA pin plugs (sold separately). RCA input jack RCA output jack Speaker output terminal See the “Connecting the Speaker wires” section for speaker connection instructions. System remote control wire (sold separately). Connect the male terminal of this wire to the system remote con- trol terminal of the car stereo (SYSTEM REMOTE CONTROL). The female terminal can be connected to the auto-antenna relay control terminal. If the car stereo does not have a system remote control terminal, connect the male terminal to the power terminal through the ignition switch. Reverse side [RD-223] (sold separately) Cannot be used with the PRS-X220. [RD-222] (sold separately) Cannot be used with the PRS-X320. To prevent damage • Do not ground the speaker wire directly or con- nect a negative (–) lead wire for several speakers. • This unit is for vehicles with a 12-volt battery and negative grounding. Before installing it in a recre- ational vehicle, truck, or bus, check the battery voltage. • If the car stereo is kept on for a long time while the engine is at rest or idling, the battery may go dead. Turn the car stereo off when the engine is at rest or idling. • If the system remote control wire of the amplifier is connected to the power terminal through the ignition switch (12 V DC), the amplifier will always be on when the ignition is on— regardless of whether the car stereo is on or off. Because of this, the battery could go dead if the engine is at rest or idle. • Install and route the separately sold battery wire as far away as possible from the speaker wires. Install and route the separately sold battery wire and ground wire, speaker wires, and the amplifier as far away as possible from the antenna, antenna cable and tuner. • Cords for this product and those for other prod- ucts may be different colors even if they have the same function. When connecting this product to another product, refer to the supplied Installation manuals of both products and connect cords that have the same function. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRS-X720,X320,X220 53 8.2 SPECIFICATIONS Power source.............................................................................................................. 14.4 V DC (10.8 — 15.1 V allowable) Grounding system ............................................................................................................................................ Negative type Current consumption (PRS-X720) ...................................................................................... 46 A (at continuous power, 4 Ω) (PRS-X320) .................................................................................. 32.5 A (at continuous power, 4 Ω) (PRS-X220) .................................................................................. 19.2 A (at continuous power, 4 Ω) Average current drawn* (PRS-X720) ...................................................................................... 15 A (4 Ω for two channels) 28 A (4 Ω for one channel) (PRS-X320) ...................................................................................... 11 A (4 W for two channels) 20 A (4 Ω for one channel) (PRS-X220) ...................................................................................... 6.5 A (4 Ω for two channels) 10 A (4 Ω for one channel) Fuse (PRS-X720) ...................................................................................................................................................... 30 A × 3 (PRS-X320) ...................................................................................................................................................... 30 A × 2 (PRS-X220) ...................................................................................................................................................... 30 A × 1 Dimensions (PRS-X720) .................................................................................................. 264 (W) × 65 (H) × 345 (D) mm [10-3/8 (W) × 2-1/2 (H) × 13-5/8 (D) in] (PRS-X320) .................................................................................................... 264 (W) × 65 (H) × 290 (D) mm [10-3/8 (W) × 2-1/2 (H) × 11-3/8 (D) in] (PRS-X220) .................................................................................................... 264 (W) × 65 (H) × 240 (D) mm [10-3/8 (W) × 2-1/2 (H) × 9-1/2 (D) in] Weight (PRS-X720) .................................................................................. 6.5 kg (14.3 lbs) (Leads for wiring not included) (PRS-X320) .................................................................................. 5.5 kg (12.2 lbs) (Leads for wiring not included) (PRS-X220) .................................................................................... 4.5 kg (9.9 lbs) (Leads for wiring not included) Continuous power output (PRS-X720) .................................... 100 W × 2 (at 14.4 V, 4 Ω, 20 — 20,000 Hz, 0.08% THD) 400 W × 1 (at 14.4 V, 4 Ω, 20 — 20,000 Hz, 0.8% THD) 200 W × 2 (at 14.4 V, 2 Ω, 20 — 20,000 Hz, 0.8% THD) (PRS-X320) ...................................... 50 W × 2 (at 14.4 V, 4 Ω, 20 — 20,000 Hz, 0.08% THD) 200 W × 1 (at 14.4 V, 4 Ω, 20 — 20,000 Hz, 0.8% THD) 100 W × 2 (at 14.4 V, 2 Ω, 20 — 20,000 Hz, 0.8% THD) (PRS-X220) ...................................... 30 W × 2 (at 14.4 V, 4 Ω, 20 — 20,000 Hz, 0.08% THD) 120 W × 1 (at 14.4 V, 4 Ω, 20 — 20,000 Hz, 0.8% THD) 60 W × 2 (at 14.4 V, 2 Ω, 20 — 20,000 Hz, 0.8% THD) *Average current drawn • The average current drawn is nearly the maximum current drawn by this unit when an audio signal is input. Use this value when working out total current drawn by multiple power amplifiers. Specifications Load impedance ............................................................................................................................ 4 Ω (1 — 8 Ω allowable) (Bridge connection: 2 — 8 Ω allowable) Frequency response (PRS-X720) ...................................................................................... 10 — 50,000 Hz (+0 dB, –1 dB) (PRS-X320) ...................................................................................... 10 — 50,000 Hz (+0 dB, –1 dB) (PRS-X220) ...................................................................................... 10 — 50,000 Hz (+0 dB, –1 dB) Signal-to-noise ratio (PRS-X720) .................................................................................................. 105 dB (IHF-A network) (PRS-X320) .................................................................................................. 100 dB (IHF-A network) (PRS-X220) .................................................................................................. 100 dB (IHF-A network) Distortion (PRS-X720) ........................................................................................................................ 0.01% (10 W, 1 kHz) (PRS-X320) ........................................................................................................................ 0.01% (10 W, 1 kHz) (PRS-X220) ........................................................................................................................ 0.01% (10 W, 1 kHz) Separation (PRS-X720) .................................................................................................................................. 70 dB (1 kHz) (PRS-X320) .................................................................................................................................. 70 dB (1 kHz) (PRS-X220) .................................................................................................................................. 60 dB (1 kHz) Low pass filter .................................................................................................................... Cut off frequency: 50 — 120 Hz Cut off slope: –12 dB/oct High pass filter .................................................................................................................. Cut off frequency: 50 — 120 Hz Cut off slope: –12 dB/oct Bass boost (PRS-X720) ................................................................................................................ Frequency: 40 — 120 Hz Gain: 0 — 18 dB (PRS-X320) ................................................................................................................ Frequency: 40 — 120 Hz Gain: 0 — 18 dB (PRS-X220) .............................................................................................................................. Frequency: 60 Hz Gain: 0 — 18 dB Subsonic filter (PRS-X720) ...................................................................................................................... Frequency: 15 Hz Slope: –24 dB/oct (PRS-X320) ...................................................................................................................... Frequency: 15 Hz Slope: –24 dB/oct Maximum input level / impedance ............................................................................................ 6.5 V/22 kΩ (0.4 — 6.5 V) Note: • Specifications and the design are subject to possible modification without notice due to improvements. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
