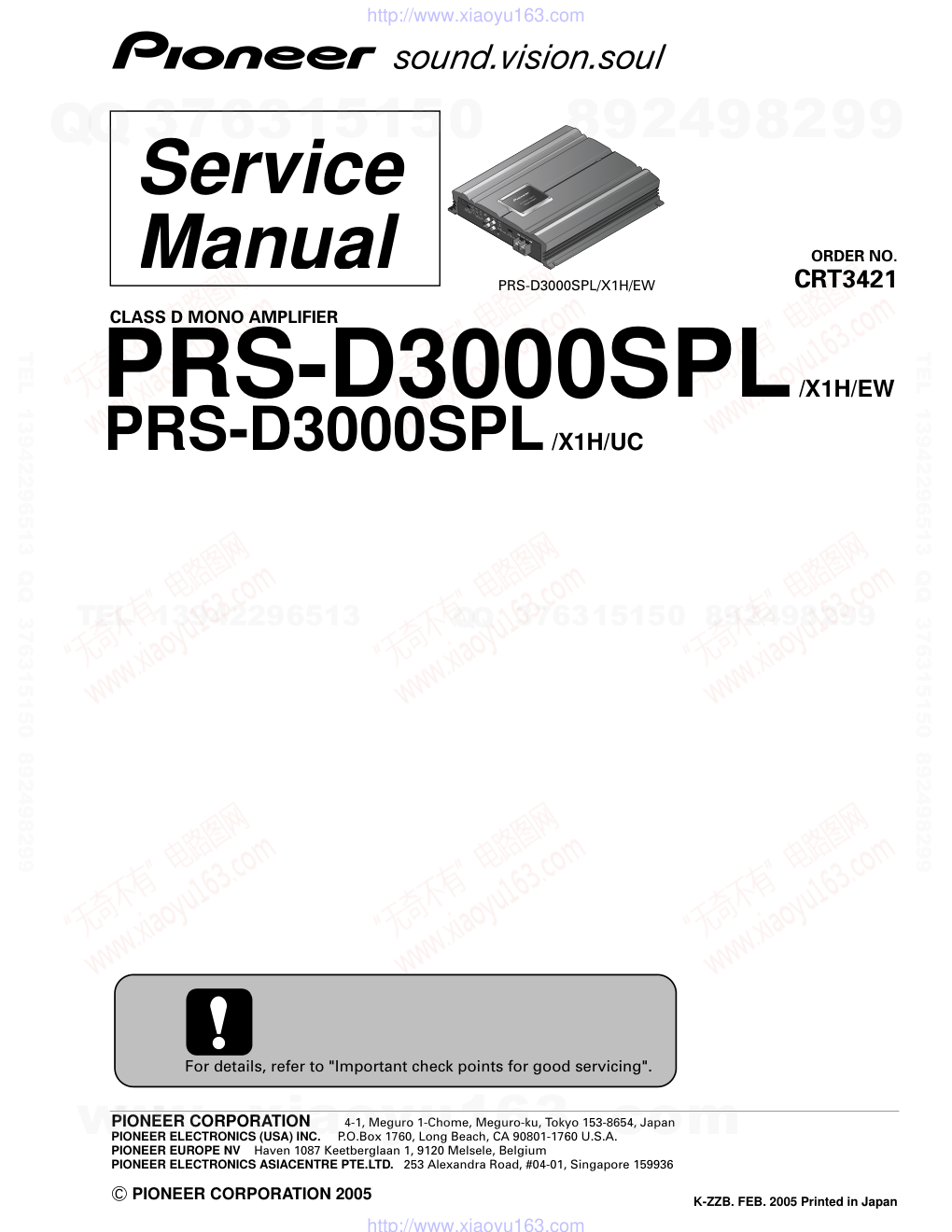

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2005 K-ZZB. FEB. 2005 Printed in Japan ORDER NO. CRT3421 CLASS D MONO AMPLIFIER PRS-D3000SPL /X1H/EW Service Manual PRS-D3000SPL/X1H/EW For details, refer to "Important check points for good servicing". PRS-D3000SPL /X1H/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW SAFETY INFORMATION - Service Precaution You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW CONTENTS SAFETY INFORMATION............................................2 1. SPECIFICATIONS.......................................................5 2. EXPLODED VIEWS AND PARTS LIST ......................6 2.1 PACKING..............................................................6 2.2 EXTERIOR............................................................8 3. SCHEMATIC DIAGRAM...........................................10 3.1 SCHEMATIC DIAGRAM (GUIDE PAGE) ...........10 4. PCB CONNECTION DIAGRAM................................16 4.1 AMP UNIT..........................................................16 5. ELECTRICAL PARTS LIST........................................20 6. ADJUSTMENT.........................................................24 7. GENERAL INFORMATION.......................................25 7.1 DIAGNOSIS .......................................................25 7.1.1 DISASSEMBLY.........................................25 7.1.2 CONNECTOR FUNCTION DESCRIPTION ......26 8. OPERATIONS...........................................................27 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW 1. SPECIFICATIONS Power source........................................................................................ 14.4 V DC (10.8 — 15.1 V allowable) Grounding system .................................................................................................................. Negative type Backup current ............................................................................................................................ 3 mA or less Current consumption ................................................................................ 42 A (at continuous power, 4 Ω) Average current drawn* .................................................................................... 8.3 A (4 Ω for one channel) ........................................................................................................................9.0 A (2 Ω for one channel) Fuse (external) ........................................................................................................................................ 100 A Dimensions .................................................................................................. 300 (W) x 64 (H) x 279 (D) mm Weight .............................................................................................. 5.9 kg (Leads for wiring not included) Maximum power output .................................................................... 1,000 W x 1 (4 Ω) / 2,000 W x 1 (2 Ω) Continuous power output (EW)...................... 800 W x 1 (4 Ω) / 1,400 W x 1 (2 Ω) (DIN45324, +B=14.4 V) Continuous power output (UC) .................................... 500 W x 1 (at 14.4 V, 4 Ω, 20 —240 Hz 1.0% THD) ................................................................................1,000 W x 1 (at 14.4 V, 2 Ω, 20 —240 Hz 2.0% THD) Load impedance ................................................................ 4 Ω (2 — 8 Ω allowable), (Ex. Bridge 4 — 16 Ω) Frequency response .......................................................................................... 10 — 240 Hz (+0 dB, –1 dB) S/N ratio ...................................................................................................................... 90 dB (IEC-A network) Distortion .................................................................................................................... 0.05 % (50 W, 100 Hz) Low pass filter ............................................................................................ Cut off frequency: 40 — 240 Hz ............................................................................................................................Cut off slope: –24 dB/oct Subsonic filter (HPF) .......................................................................................................... Frequency: 20 Hz ..............................................................................................................................................Slope: –18 dB Bass boost ............................................................................................................................ Level: 0 — 12 dB ............................................................................................................................ Frequency: 40 — 120 Hz Phase control ...................................................................................................................... SYNC, SYNC INV Gain control .......................................................................................................................... 200 mV — 6.5 V Maximum input level / impedance .................................................................................. RCA: 6.5 V / 22 kΩ Note: • Specifications and the design are subject to possible modification without notice due to improvements. *Average current drawn • The average current drawn is nearly the maximum current drawn by this unit when an audio signal is input. Use this value when working out total current drawn by multiple power amplifiers. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW 2. EXPLODED VIEWS AND PARTS LIST 13(1/2) 12 10 1 11 13(2/2) 2 8 3 3 9 7 7 16 6 5 4 15 14 NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - Screws adjacent to ∇ mark on the product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. ( In the case of no amount instructions, apply as you think it appropriate.) 2.1 PACKING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW - PACKING SECTION PARTS LIST - Owner's Manual Part No. Language HRD0242 English, French HRD0243 English, Spanish, German, French, Italian, Dutch 1 Screw Assy HEA3794 2 Polyethylene Bag HEG0011 3 Lock Tie HNV0071 4 Polyethylene Bag HEG0022 5 Contain Box HHL0449 6 Carton(EW) HHG0453 Carton(UC) HHG0449 7 Protector HHP0269 8 Screw BYC40P180FZK * 9-1 Warranty Card(EW) HRY1157 9-2 Owner’s Manual(EW) HRD0243 Owner’s Manual(UC) HRD0242 10 Fuse Holder Unit HXC1937 * 11 Install Card HRP1298 > 12 Fuse(100A) HEK1292 13 Fuse Holder HKR1026 14 Cover HNS0112 * 15 Caution Card HRP1299 16 Cushion(Wrap) HNM8415 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 9 9 9 6 24 50 23 26 27 28 51 34 35 38 36 43 45 37 44 16 16 16 16 42 40 39 32 33 17 14 13 21 41 46 46 51 31 29 30 26 20 20 20 20 20 26 26 26 26 11 11 11 11 11 11 11 7 16 16 16 16 7 4 4 3 4 1 1 3 3 3 3 3 2 2 5 5 5 10 4 4 2 2 49 49 25 15 4 4 48 19 22 8 1 1 1 1 8 8 8 8 8 10 10 12 8 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW 1 Screw BBZ30P060FTC 2 Screw BBZ30P060FZK 3 Screw BBZ30P120FTC 4 Screw BMZ30P050FTC 5 Screw BSZ30P050FZK * 6 Badge(EW) HAM0040 * Badge(UC) HAM0033 7 Screw HBA0028 8 Screw HBA1636 9 Screw HBA1639 10 Screw PPZ30P120FZK 11 Stud HLA0022 12 Case HNB0237 13 Cover HNB0272 14 Panel HNB0273 15 Panel HNB0274 16 Clip HNC0189 17 Holder HNC0207 18 ••••• 19 Insulator HNM0206 20 Insulator HNM0208 21 Insulator HNM0209 22 Insulator HNM0215 23 Heat Sink HNR0278 24 Plate HNS0122 25 Cover HNS7622 26 Spacer HNV0016 27 Amp Unit(EW) HWH0220 Amp Unit(UC) HWH1298 28 Screw BBZ30P060SAD 29 Cushion(CN303)(EW) CNM6825 30 Cushion(CN304)(EW) CNM6825 31 Cord Assy HDE0065 32 Pin Jack(CN801) HKB0004 33 Terminal(CN301) HKE0069 34 Terminal(CN903) HKE1050 35 Terminal(CN601) HKF0001 36 Terminal(CN602) HKF0001 37 Terminal(CN603) HKF0001 38 Terminal(CN604) HKF0001 39 Terminal(CN605) HKF0001 40 Terminal(CN607) HKF0001 41 Terminal(CN608) HKF0001 42 Terminal(CN609) HKF0001 43 Terminal(CN610) HKF0001 44 Terminal(CN611) HKF0001 45 Terminal(CN612) HKF0001 46 Clip HNC0054 47 ••••• 48 Terminal Unit(CN901) HXA0448 49 Screw PPZ30P080FZK 50 Light Pipe HXA0426 51 Screw PPZ30P100SAD Mark No. Description Part No. Mark No. Description Part No. - EXTERIOR SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". A-a A > > > > > > > > > > > 10 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW 3. SCHEMATIC DIAGRAM 3.1 SCHEMATIC DIAGRAM (GUIDE PAGE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW A-b A BFC SWITCH 1.0µH EW A AMP UNIT Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW A-a A-b A-a A-a A-b 1 2 3 4 5 > > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW A-a A-b A-a A-a A-b 6 7 8 > > > > > > > > > > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW A-a A-b A-b 1 2 3 4 5 A AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW A-a A-b A-b 6 7 8 BFC SWITCH 1.0µH EW Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4. PCB CONNECTION DIAGRAM 4.1 AMP UNIT Capacitor Connector P.C.Board Chip Part A A AMP UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams 1 2 3 4 5 6 9 10 11 12 Lch Rch SYNC INPUT SYNC OUTPUT SUB SONIC FILTER SWITCH MODE SELECT SWITCH 16 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW A SIDE A BFC SWITCH FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW A A AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW A SIDE B 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Unit Number : HWH0220(EW) Unit Number : HWH1298(UC) Unit Name : Amp Unit MISCELLANEOUS IC 101 (A,27,132) IC NJM2068D IC 102 (A,40,54) IC NJM2068D IC 103 (A,55,113) IC NJM2068D IC 104 (A,27,54) IC NJM2068D IC 301 (A,104,168) IC TDA7570 IC 600 (A,199,112) IC PA2027A IC 601 (A,260,33) IC UPC494C IC 602 (A,259,176) IC UPC494C IC 603 (A,96,66) IC NJM2903M IC 605 (B,147,122) IC NJM2068MD IC 801 (A,38,92) IC NJM2068D IC 802 (A,38,115) IC NJM2068D IC 803 (A,38,73) IC NJM2068D IC 804 (A,38,40) IC NJM2068D Q 202 (B,76,80) Transistor DTC114EK Q 203 (B,76,90) Transistor DTC143EK Q 204 (B,76,85) Transistor 2SA1037K Q 303 (A,95,133) Transistor 2SA992 Q 304 (A,95,140) Transistor 2SA992 Q 305 (A,124,145) Transistor 2SC1845 Q 306 (A,124,138) Transistor 2SC1845 Q 307 (A,72,191) Transistor 2SC4730 Q 308 (A,135,194) Transistor 2SA1826 Q 309 (A,51,190) Transistor 2SC4730 Q 310 (A,58,191) Transistor 2SA1826 Q 311 (A,121,188) Transistor 2SC4730 Q 312 (A,128,188) Transistor 2SA1826 Q 313 (A,65,191) Transistor 2SA1826 Q 314 (A,114,188) Transistor 2SC4730 Q 315 (A,29,215) FET IRF9640 Q 316 (A,47,215) FET IRF9640 Q 317 (A,61,215) FET IRF9640 Q 318 (A,79,215) FET IRF9640 Q 319 (A,94,215) FET IRF9640 Q 321 (A,126,215) FET IRF640N Q 322 (A,144,215) FET IRF640N Q 323 (A,112,215) FET IRF640N Q 325 (A,102,129) Transistor DTC124EK Q 326 (A,122,132) Transistor DTA124EK Q 327 (B,91,117) Transistor DTA124EK Q 328 (A,107,128) Transistor DTC124EK Q 600 (B,120,107) Transistor KSC1623 Q 601 (A,120,95) Transistor 2SA1048 Q 602 (A,249,166) Transistor 2SB1243 Q 603 (A,260,62) Transistor 2SB1243 Q 608 (A,267,218) Transistor 2SD1862 Q 609 (A,267,214) Transistor 2SB1240 Q 610 (A,270,225) Transistor 2SB1240 Q 611 (A,267,221) Transistor 2SD1862 Q 612 (A,241,55) Transistor 2SD1862 Q 613 (A,241,51) Transistor 2SB1240 Q 614 (A,241,63) Transistor 2SB1240 Q 615 (A,241,59) Transistor 2SD1862 Q 617 (A,215,215) FET IRF2807 Q 618 (A,233,215) FET IRF2807 Q 619 (A,182,215) FET IRF2807 Q 620 (A,200,215) FET IRF2807 Q 623 (A,220,23) FET IRF2807 Q 624 (A,238,23) FET IRF2807 Q 625 (A,187,23) FET IRF2807 Q 626 (A,205,23) FET IRF2807 Q 628 (B,205,99) Transistor KSC1623 Q 629 (B,180,115) Transistor DTA114EK Q 630 (B,186,122) Transistor DTC114TK Q 631 (B,205,105) Transistor DTC114TK Q 632 (B,209,122) Transistor KSC1623 Q 661 (A,268,22) Transistor 2SA1048 Q 700 (A,47,23) Transistor 2SC5511E Q 701 (A,29,23) Transistor 2SA2005E Q 702 (A,79,23) Transistor 2SC5511E Q 703 (A,61,23) Transistor 2SA2005E Q 902 (B,76,108) Transistor KSA812 Q 903 (B,76,103) Transistor KSC1623 Q 904 (B,84,103) Transistor KSC1623 Q 905 (B,91,110) Transistor KSC1623 Q 910 (A,115,115) Transistor KSA812 D 201 (A,57,86) Diode 1SS133 D 202 (A,85,94) Diode 1SS133 D 203 (A,85,88) Diode 1SS133 D 204 (A,71,85) Diode MTZJ3R9(A) D 301 (A,69,73) Diode 1SS133 D 302 (A,72,73) Diode 1SS133 D 303 (A,71,209) Diode FML22S D 304 (A,103,209) Diode FML22S D 305 (A,39,209) Diode FML22S D 306 (A,84,130) Diode MTZJ39(B) D 307 (A,84,126) Diode MTZJ9R1(B) D 308 (A,117,131) Diode MTZJ9R1(B) D 309 (A,116,136) Diode MTZJ39(B) D 310 (A,94,122) Diode MTZJ30(B) D 311 (A,113,131) Diode MTZJ39(B) D 312 (A,116,110) Diode MTZJ30(A) D 600 (A,257,117) Diode RM4Z-LFJ4 D 601 (A,250,110) Diode RM4Z-LFJ4 D 602 (A,269,81) Diode RM4Z-LFJ4 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A 20 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW NOTE: Parts whose parts numbers are omitted are subject to being not supplied. The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... The > mark found on some component parts indicatesthe importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V 5. ELECTRICAL PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW D 605 (A,109,99) Diode HZS7L(B2) D 606 (A,183,102) Diode ERA15-02VH D 607 (A,183,99) Diode ERA15-02VH D 608 (B,238,119) LED DB1112H D 610 (A,183,111) Diode 1SS133 D 612 (A,183,107) Diode 1SS133 D 613 (A,244,154) Diode 1SS133 D 620 (A,100,25) Diode MTZJ18(B) D 621 (A,261,155) Diode 1SS133 D 622 (A,89,68) Diode 1SS133 D 623 (A,103,68) Diode 1SS133 D 624 (B,157,125) Diode 1SS355 D 625 (B,157,120) Diode 1SS355 D 626 (B,136,125) Diode 1SS355 D 627 (B,136,120) Diode 1SS355 D 658 (A,193,140) Diode 1SS133 D 701 (A,111,23) Diode MUR1620CT D 702 (A,129,23) Diode MUR1620CTR D 703 (A,143,23) Diode MUR1620CT D 704 (A,161,23) Diode MUR1620CTR D 712 (A,60,30) Diode HZS16L(1) D 713 (A,38,29) Diode HZS16L(1) D 714 (A,74,42) Diode MTZJ22(B) D 715 (A,69,42) Diode MTZJ22(B) D 901 (A,82,110) Diode 1SS133 L 301 (A,59,183) Inductor HTH0023 L 601 (A,238,93) Choke Coil 1.0µH HTH1306 L 700 (A,122,65) Inductor HTH1305 L 701 (A,158,65) Inductor HTH1305 L 801 (A,19,99) Ferri-Inductor CTF1007 L 802 (A,19,107) Ferri-Inductor CTF1007 L 803 (A,18,83) Ferri-Inductor CTF1007 T 700 (A,215,179) Transformer HTT0037 T 701 (A,214,60) Transformer HTT0037 TH 601 (A,170,215) Thermistor HCX0002 TH 602 (A,173,24) Thermistor HCX0002 TH 603 (A,191,183) Thermistor HCX0001 TH 604 (A,199,80) Thermistor HCX0001 TH 605 (A,71,151) Thermistor HCX0001 TH 606 (B,264,115) Thermistor HCX0004 S 102 (A,10,31) Switch(MODE SELECT) CSH1029 S 103 (A,10,152) Switch(SUB SONIC FILTER) CSH1021 S 601 (A,270,28) Switch(BFC)(EW) HSH-156 VR 101 (A,15,122) Volume 20kΩ(E) CCS1266 VR 105 (A,15,67) Volume 10kΩ(A) CCS1265 VR 106 (A,15,55) Volume 50kΩ(C) CCS1263 VR 107 (A,15,44) Volume 10kΩ(A) CCS1265 VR 301 (A,68,68) Semi-fixed Resistor 2.2kΩ(OB) HCP1461 VR 600 (A,271,10) Semi-fixed 100kΩ(B) RH063MC15R VR 601 (A,115,72) Semi-fixed 100kΩ(B) RH063MC15R FU 602 (A,221,210) Fuse 30A HEK0041 FU 603 (A,235,201) Fuse 30A HEK0041 FU 604 (A,191,210) Fuse 30A HEK0041 FU 605 (A,197,210) Fuse 30A HEK0041 FU 608 (A,213,29) Fuse 30A HEK0041 FU 609 (A,235,30) Fuse 30A HEK0041 FU 610 (A,183,29) Fuse 30A HEK0041 FU 611 (A,200,29) Fuse 30A HEK0041 FU 701 (A,88,30) Fuse 0.375A HEK0042 FU 702 (A,88,36) Fuse 0.375A HEK0042 FU 801 (B,8,91) Fuse 3A HEK0043 RESISTORS R 101 (B,42,106) RS1/16S432J R 102 (B,38,126) RS1/16S432J R 103 (B,20,119) RS1/16S432J R 105 (B,30,129) RS1/16S432J R 107 (B,26,114) RS1/16S432J R 108 (B,50,65) RS1/16S222J R 110 (B,44,64) RS1/16S182J R 111 (B,44,52) RS1/16S822J R 112 (B,42,57) RS1/16S221J R 113 (B,38,64) RS1/16S222J R 114 (B,32,64) RS1/16S560J R 115 (B,32,58) RS1/16S822J R 116 (B,33,58) RS1/16S222J R 117 (B,53,69) RS1/16S202J R 118 (B,55,127) RS1/16S103J R 119 (B,62,117) RS1/16S123J R 120 (B,55,117) RS1/16S392J R 121 (B,59,117) RS1/16S393J R 122 (B,29,148) RS1/16S473J R 124 (B,27,66) RS1/16S331J R 204 (A,62,82) RD1/4PU101J R 205 (A,65,78) RD1/4PU472J R 209 (A,80,85) RD1/4PU102J R 210 (A,80,82) RD1/4PU202J R 211 (A,70,82) RD1/4PU223J R 212 (A,85,91) RD1/4PU222J R 213 (A,80,97) RD1/4PU333J R 301 (A,90,155) RS1/16S101J R 302 (A,90,159) RS1/16S103J R 303 (A,122,161) RD1/4PU561J R 304 (A,122,150) RD1/4PU102J R 305 (A,126,159) RS1PMF133J R 306 (A,119,174) RS1/16S101J R 307 (A,108,180) RS1/16S101J R 308 (A,112,180) RS1/16S103J R 309 (A,90,141) RS1/16S393J R 310 (A,123,141) RS1/16S393J R 311 (A,121,174) RS1/16S103J R 314 (A,149,196) RD1/4PU0R0J R 315 (A,90,197) RD1/4PU0R0J R 316 (A,81,133) RS1/2PMF223J R 317 (A,116,104) RS1/2PMF223J R 318 (A,65,202) RS1/2PMF241J R 319 (A,86,190) RS1/2PMF221J R 320 (A,130,183) RS1/2PMF221J R 321 (A,160,186) RS1/2PMF241J R 322 (A,84,193) RD1/4PU100J R 323 (A,133,189) RD1/4PU100J R 324 (A,88,137) RS1/16S910J R 325 (A,125,130) RS1/16S910J R 326 (A,74,53) RS2LMF301J R 327 (A,81,53) RS2LMF301J R 328 (A,101,76) RS2LMF221J R 329 (A,74,118) RS2LMF221J R 330 (A,138,201) RS1/2PMF4R7J R 331 (A,43,188) RS1/2PMF4R7J R 332 (A,85,200) RD1/4PU104J R 333 (A,152,196) RD1/4PU104J R 334 (A,23,210) RD1/4PU272J R 335 (A,152,205) RD1/4PU272J R 336 (A,18,204) RS1/2PMF100J R 337 (A,49,199) RS1/2PMF100J R 338 (A,57,205) RS1/2PMF100J R 339 (A,81,199) RS1/2PMF100J R 340 (A,89,205) RS1/2PMF100J R 342 (A,136,205) RS1/2PMF100J R 343 (A,140,205) RS1/2PMF100J R 344 (A,113,199) RS1/2PMF100J R 348 (A,99,204) 0.01Ω HCN0011 R 349 (A,165,192) 0.01Ω HCN0011 R 350 (A,79,166) RS2PMF220J R 351 (A,27,167) RS2PMF2R2J R 352 (A,97,122) RD1/4PU473J R 353 (A,126,122) RD1/4PU473J R 354 (A,86,119) RD1/4PU393J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- > > > > > > > > > > > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW R 355 (A,105,122) RD1/4PU393J R 356 (A,106,118) RS1/2PMF822J R 357 (A,18,161) RS2PMF2R2J R 358 (A,64,58) RS1/16S472J R 359 (A,69,58) RS1/16S472J R 360 (A,64,63) RS1/16S203J R 361 (A,69,63) RS1/16S153J R 600 (A,113,93) RD1/4PU102J R 601 (A,108,96) RD1/4PU473J R 602 (A,114,102) RD1/4PU103J R 603 (A,114,106) RD1/4PU103J R 604 (A,125,103) RD1/4PU222J R 605 (A,201,119) RS1/16S391J R 606 (B,202,118) RS1/16S391J R 607 (A,198,108) RD1/4PU103J R 608 (A,120,99) RD1/4PU472J R 609 (B,202,123) RS1/16S472J R 610 (B,195,116) RS1/16S223J R 611 (B,195,120) RS1/16S223J R 612 (A,126,115) RD1/4PU223J R 613 (A,254,148) RD1/4PU331J R 614 (A,259,152) RD1/4PU331J R 615 (A,246,72) RD1/4PU152J R 616 (A,254,163) RD1/4PU152J R 617 (B,264,46) (EW) RS1/16S105J R 618 (B,257,49) RS1/16S183J R 619 (B,239,39) RS1/16S102J R 620 (B,248,36) RS1/16S273J R 621 (A,245,38) RD1/4PU0R0J R 622 (B,265,37) RS1/16S242J R 623 (B,255,38) RS1/16S472J R 624 (B,257,35) RS1/16S472J R 625 (B,187,117) RS1/16S272J R 626 (B,186,109) RS1/16S272J R 627 (B,187,115) RS1/16S272J R 632 (A,259,213) RD1/4PU621J R 633 (A,257,221) RD1/4PU621J R 634 (A,238,47) RD1/4PU621J R 635 (A,248,68) RD1/4PU621J R 636 (A,256,218) RD1/4PU472J R 637 (A,270,229) RD1/4PU472J R 638 (A,231,43) RD1/4PU472J R 639 (A,238,62) RD1/4PU472J R 641 (A,225,215) RS1/2PMF470J R 642 (A,228,215) RS1/2PMF470J R 643 (A,178,215) RS1/2PMF470J R 644 (A,204,204) RS1/2PMF470J R 647 (A,225,23) RS1/2PMF470J R 648 (A,229,23) RS1/2PMF470J R 649 (A,195,23) RS1/2PMF470J R 650 (A,202,34) RS1/2PMF470J R 652 (A,233,196) RS1/2PMF220J R 653 (A,180,203) RS1/2PMF220J R 654 (A,242,29) RS1/2PMF220J R 655 (A,184,40) RS1/2PMF220J R 656 (B,268,40) RS1/16S122J R 657 (B,261,32) RS1/16S101J R 658 (B,257,33) RS1/16S223J R 659 (B,257,31) RS1/16S103J R 660 (B,255,190) RS1/16S472J R 661 (B,255,188) RS1/16S472J R 662 (B,255,192) RS1/16S472J R 664 (A,244,182) RD1/4PU104J R 665 (A,248,193) RD1/4PU512J R 667 (B,140,125) RS1/16S563J R 668 (A,257,24) RD1/4PU104J R 669 (A,257,28) RD1/4PU472J R 670 (B,249,160) RS1/16S222J R 671 (B,186,105) RS1/16S272J R 672 (B,256,179) RS1/16S242J R 673 (B,153,125) RS1/16S563J R 674 (B,142,125) RS1/16S103J R 675 (B,153,120) RS1/16S563J R 676 (B,140,120) RS1/16S563J R 677 (B,142,120) RS1/16S103J R 678 (B,202,129) RS1/16S103J R 679 (B,134,125) RS1/16S333J R 680 (A,93,60) RS1/16S1602D R 681 (A,97,71) RS1/16S1602D R 682 (A,95,60) RS1/16S1803D R 683 (A,97,60) RS1/16S2203D R 684 (A,95,56) RS1/16S1102D R 685 (A,97,56) RS1/16S1501D R 686 (A,95,71) RS1/16S2401D R 687 (A,90,65) RS1/16S2401D R 688 (A,93,71) RS1/16S433J R 689 (A,99,71) RS1/16S433J R 690 (B,138,125) RS1/16S153J R 691 (B,202,125) RS1/16S822J R 692 (B,202,127) RS1/16S104J R 698 (B,252,172) RS1/16S272J R 699 (A,100,38) RD1/4PU151J R 700 (A,188,174) RS1/2PMF220J R 701 (A,188,76) RS1/2PMF220J R 712 (A,51,33) RD1/4PU153J R 713 (A,35,33) RD1/4PU153J R 714 (A,79,34) RD1/4PU333J R 715 (A,69,34) RD1/4PU333J R 800 (B,22,101) RS1/16S471J R 801 (B,42,89) RS1/16S223J R 802 (B,41,96) RN1/10SE1002D R 803 (B,39,96) RN1/10SE1002D R 804 (B,44,96) RN1/10SE1002D R 805 (B,42,102) RN1/10SE1002D R 806 (B,22,109) RS1/16S471J R 807 (B,42,112) RS1/16S223J R 808 (B,40,119) RN1/10SE1002D R 809 (B,35,120) RN1/10SE1002D R 810 (B,44,119) RN1/10SE1002D R 811 (B,42,125) RN1/10SE1002D R 812 (B,22,86) RS1/16S471J R 813 (B,42,71) RS1/16S223J R 814 (B,41,77) RN1/10SE1002D R 815 (B,39,77) RN1/10SE1002D R 816 (B,41,83) RN1/10SE1002D R 817 (B,44,77) RN1/10SE1002D R 819 (B,14,76) RS1/16S471J R 821 (B,28,58) RS1/16S472J R 823 (B,40,44) RS1/16S472J R 824 (B,39,38) RS1/16S472J R 890 (B,28,42) RS1/16S222J R 891 (B,23,41) RS1/16S152J R 892 (B,42,50) RS1/16S472J R 893 (B,44,44) RS1/16S562J R 901 (A,67,134) RD1/4PU473J R 902 (A,65,103) RD1/4PU104J R 903 (A,97,110) RD1/4PU103J R 904 (A,70,100) RD1/4PU472J R 905 (A,96,115) RD1/4PU103J R 907 (A,121,119) RD1/4PU563J R 908 (A,110,115) RD1/4PU221J R 915 (A,114,118) RD1/4PU472J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- CAPACITORS C 101 (A,32,146) CFTNA154J50 C 102 (A,32,116) CFTNA103J50 C 103 (A,23,139) CFTNA473J50 C 105 (A,18,134) CFTNA154J50 C 107 (A,23,144) CFTNA474J50 C 110 (A,47,67) CFTNA273J50 C 111 (A,53,65) CFTNA224J50 C 112 (B,30,58) CKSRYB272K50 C 113 (A,32,68) CEAT4R7M50 C 114 (A,49,52) CFTNA103J50 C 115 (A,52,86) CFTNA103J50 C 116 (A,32,50) CFTNA103J50 C 117 (A,23,69) CFTNA103J50 C 118 (A,40,132) CFTNA824J50 C 119 (A,59,139) CFTNA824J50 C 120 (A,52,125) CFTNA824J50 C 121 (A,59,130) CFTNA824J50 C 122 (A,40,138) CFTNA103J50 C 123 (A,51,119) CFTNA103J50 C 124 (A,58,65) CFTNA103J50 C 125 (A,41,146) CFTNA103J50 C 201 (A,94,101) CEAT100M50 C 202 (A,76,96) CEATR47M50 C 203 (A,65,92) CEAT471M25 C 204 (A,62,77) CEAT100M50 C 301 (A,110,132) CEAT100M50 C 302 (A,57,70) CEAT100M50 C 303 (A,104,132) CEAT100M50 C 304 (A,110,140) CEAT100M50 C 305 (A,104,140) CEAT1R0M50 C 306 (A,110,149) CEAT1R0M50 C 307 (A,89,166) CEATR22M50 C 308 (A,117,150) CEAT1R0M50 C 309 (A,118,161) CKSRYB223K25 C 310 (A,93,171) CKSRYB103K50 C 311 (A,116,165) CKSRYB103K50 C 312 (A,94,173) CKSRYB104K25 C 313 (A,117,174) CKSRYB473K50 C 314 (A,103,181) CKSRYB224K16 C 315 (A,110,180) CKSRYB473K50 C 321 (A,89,187) CCSRCH101J50 C 322 (A,146,194) CCSRCH101J50 C 325 (A,92,137) CKSRYB224K16 C 326 (A,130,154) CKSRYB224K16 C 327 (B,66,209) CKSRYB682K50 C 328 (A,87,182) 0.1µF HCE0003 C 329 (A,157,195) 0.1µF HCE0003 C 330 (B,149,209) CKSRYB103K50 C 341 (A,130,200) 1µF HCE0004 C 342 (A,28,205) 0.1µF HCE0003 C 343 (A,33,201) 100µF/100V HCH0026 C 344 (A,175,192) 0.1µF HCE0003 C 346 (A,130,208) 1µF HCE0004 C 347 (A,80,185) 560pF HCE0002 C 353 (A,116,171) CKSRYB332K50 C 354 (A,92,165) CKSRYB332K50 C 355 (A,103,179) CKSRYB332K50 C 360 (A,23,176) 4.7µF HCE0005 C 361 (A,27,153) 22µF/100V HCH0028 C 362 (A,33,153) 22µF/100V HCH0028 C 364 (A,79,127) CQMA472J50 C 365 (A,126,126) CQMA472J50 C 366 (A,102,107) CEAT220M50 C 370 (A,84,154) CEAT101M25 C 371 (A,84,163) CEAT101M25 C 600 (B,267,115) CKSRYB104K25 C 601 (B,268,150) CKSRYB223K50 C 602 (A,124,91) CFTNA103J50 C 603 (B,202,114) CKSRYB103K50 C 604 (A,189,141) CEAT100M50 C 605 (B,202,116) CKSRYB223K50 C 606 (A,198,136) CEAT100M50 C 607 (B,202,120) CKSRYB223K50 C 609 (B,202,112) CKSRYB223K50 C 610 (A,198,104) CFTNA105J50 C 611 (B,195,114) CKSRYB103K50 C 612 (A,193,89) CEAT471M25 C 613 (A,189,134) CEAT220M50 C 614 (B,195,112) CKSRYB104K25 C 615 (A,266,44) CQMA102J50 C 616 (A,248,42) CFTNA223J50 C 617 (A,251,59) CEAT471M25 C 618 (A,254,95) CKSRYB332K50 C 619 (B,257,42) CKSRYB472K50 C 620 (A,243,200) CQMA472J50 C 622 (A,211,128) 4700µF/25V HCH0022 C 623 (A,211,147) 4700µF/25V HCH0022 C 624 (A,184,199) CQMA472J50 C 625 (A,244,43) CQMA472J50 C 626 (A,229,147) 4700µF/25V HCH0022 C 627 (A,229,128) 4700µF/25V HCH0022 C 629 (A,189,36) CQMA472J50 C 630 (B,195,118) CKSRYB103K50 C 631 (A,251,13) 220µF/10V HCH0012 C 632 (A,265,32) CFTNA473J50 C 633 (A,249,170) CFTNA223J50 C 634 (A,264,193) CFTNA473J50 C 635 (A,263,201) CEAT471M25 C 636 (A,243,189) CFTNA564J50 C 637 (A,257,21) CFTNA564J50 C 639 (A,193,144) CEAT220M50 C 640 (B,261,184) CKSRYB472K50 C 641 (B,248,185) CKSRYB222K50 C 642 (B,138,120) CKSRYB103K50 C 643 (B,155,125) CKSRYB103K50 C 644 (A,188,80) CEAT100M50 C 664 (A,265,35) CEAT100M50 C 697 (A,96,79) CFTNA103J50 C 698 (A,90,51) CEAT220M50 C 699 (A,100,49) CEAT220M50 C 700 (A,192,164) CQMA102K2E C 701 (A,185,66) CQMA102K2E C 702 (A,137,107) 3900µF/80V HCH0037 C 703 (A,137,138) 3900µF/80V HCH0037 C 704 (A,137,169) 3900µF/80V HCH0037 C 705 (A,163,91) 3900µF/80V HCH0037 C 706 (A,163,122) 3900µF/80V HCH0037 C 707 (A,163,153) 3900µF/80V HCH0037 C 724 (A,55,34) CEAT100M50 C 725 (A,43,33) CEAT100M50 C 726 (A,35,29) CEAT470M25 C 727 (A,46,29) CEAT470M25 C 728 (A,90,26) 0.1µF HCE0003 C 729 (A,95,40) 0.1µF HCE0003 C 730 (A,79,46) CFTNA104J50 C 731 (A,64,46) CFTNA104J50 C 732 (A,64,51) CFTNA334J50 C 734 (A,74,30) 220µF/35V HCH0032 C 735 (A,69,30) 220µF/35V HCH0032 C 736 (A,79,38) CEAT100M50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C 737 (A,64,38) CEAT100M50 C 800 (B,32,102) CKSRYB471K50 C 801 (A,33,109) CEAT100M50 C 802 (A,28,103) CQMA472J50 C 803 (B,46,96) CCSRCH271J50 C 804 (B,42,105) CCSRCH271J50 C 805 (A,50,98) CFTNA103J50 C 806 (B,31,107) CKSRYB471K50 C 807 (A,42,109) CEAT100M50 C 808 (B,41,127) CCSRCH271J50 C 809 (B,46,119) CCSRCH271J50 C 810 (A,49,74) CFTNA103J50 C 811 (A,34,79) CFTNA103J50 C 812 (A,24,111) CQMA472J50 C 813 (B,24,84) CKSRYB471K50 C 814 (A,34,89) CEAT100M50 C 815 (B,41,85) CKSRYB272K50 C 816 (B,46,77) CKSRYB272K50 C 817 (A,52,139) CFTNA103J50 C 818 (A,34,102) CFTNA103J50 C 819 (A,23,79) CFTNA104J50 C 820 (B,36,58) CKSRYB272K50 C 822 (A,24,50) CEAT100M50 C 823 (B,14,90) CKSRYB332K50 C 824 (B,14,93) CKSRYB332K50 C 826 (A,23,129) CFTNA103J50 C 830 (B,14,95) CKSRYB332K50 C 831 (B,39,36) CKSRYB272K50 C 890 (B,42,44) CKSRYB272K50 C 891 (A,49,43) CFTNA103J50 C 892 (A,32,41) CFTNA103J50 C 901 (A,65,109) 220µF/10V HCH0012 6. ADJUSTMENT There is no information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY 1 1 - Removing the Case (Fig.1) - Removing the Amp Unit (Fig.2) Remove the two screws. Remove the screw. Fig.1 Fig.2 Case 2 Remove the two screws. 3 Remove the two screws and then remove the Panel. 2 Remove the four screws. 3 3 3 3 2 2 2 2 Amp Unit 3 3 3 3 Remove the seven screws and then remove the Case. 6 6 7 7 7 7 7 7 7 7 7 1 1 3 3 7 7 7 7 7 5 5 7 2 2 1 4 4 4 Remove the two screws. 5 Remove the two screws and then remove the Panel. 6 Remove the fourteen screws. 7 Remove the fifteen screws and then remove the Amp Unit. Panel Panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 1 2 3 4 1 2 3 4 F E D C B A PRS-D3000SPL/X1H/EW 7.1.2 CONNECTOR FUNCTION DESCRIPTION (PRS-D3000SPL/X1H/EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 5 6 7 8 F E D C B A 5 6 7 8 PRS-D3000SPL/X1H/EW 8. OPERATIONS Bass Boost Frequency Control You can select a bass boost frequency from 40 to 120 Hz with the bass boost control. Gain Control If the sound level is too low, even when the vol- ume of the car stereo used along with this power amplifier is turned up, turn gain control on the front of the power amplifier clockwise. If the sound distorts when the volume is turned up, turn the gain control counter-clockwise. • When using with an RCA equipped car stereo (standard output of 500 mV), set to the NOR- MAL position. When using with an RCA equipped Pioneer car stereo with max. output of 4 V or more, adjust level to match the car stereo output level. • For synced amplifier’s gain control, see the “Setting the Gain for Synced Amplifier” section. MODE SELECT Switch You can select amplifier’s sync mode from MAS- TER, SYNC and SYNC INV. For the position of the MODE SELECT switch, see the “Connecting the Speaker Wires” section. Bass Boost Level Control Bass boost level control can boost the level around the frequency selected by the bass boost frequency control from 0 to 12 dB. Subsonic Select Switch The subsonic filter cuts inaudible fre- quencies below 20 Hz to eliminate unwanted vibrations and minimize power loss. BFC (Beat Frequency Control) Switch If you hear a beat while listening to an MW/LW broadcast with your car stereo, change the BFC switch using a small stan- dard tip screwdriver. Cut Off Frequency Control for LPF You can select a cut off frequency from 40 to 240 Hz. Power Indicator The power indicator lights when the power is switched on. (EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
