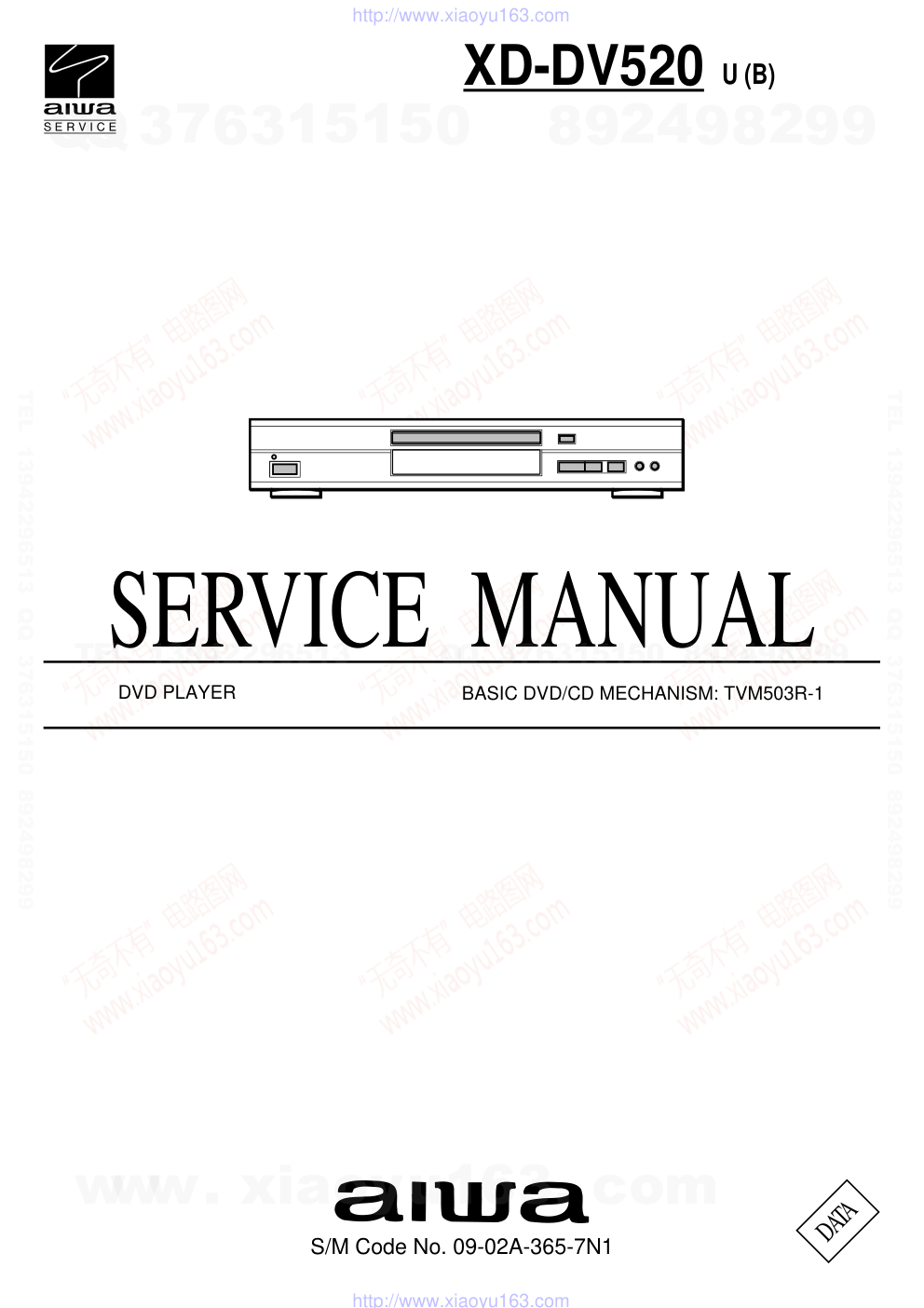

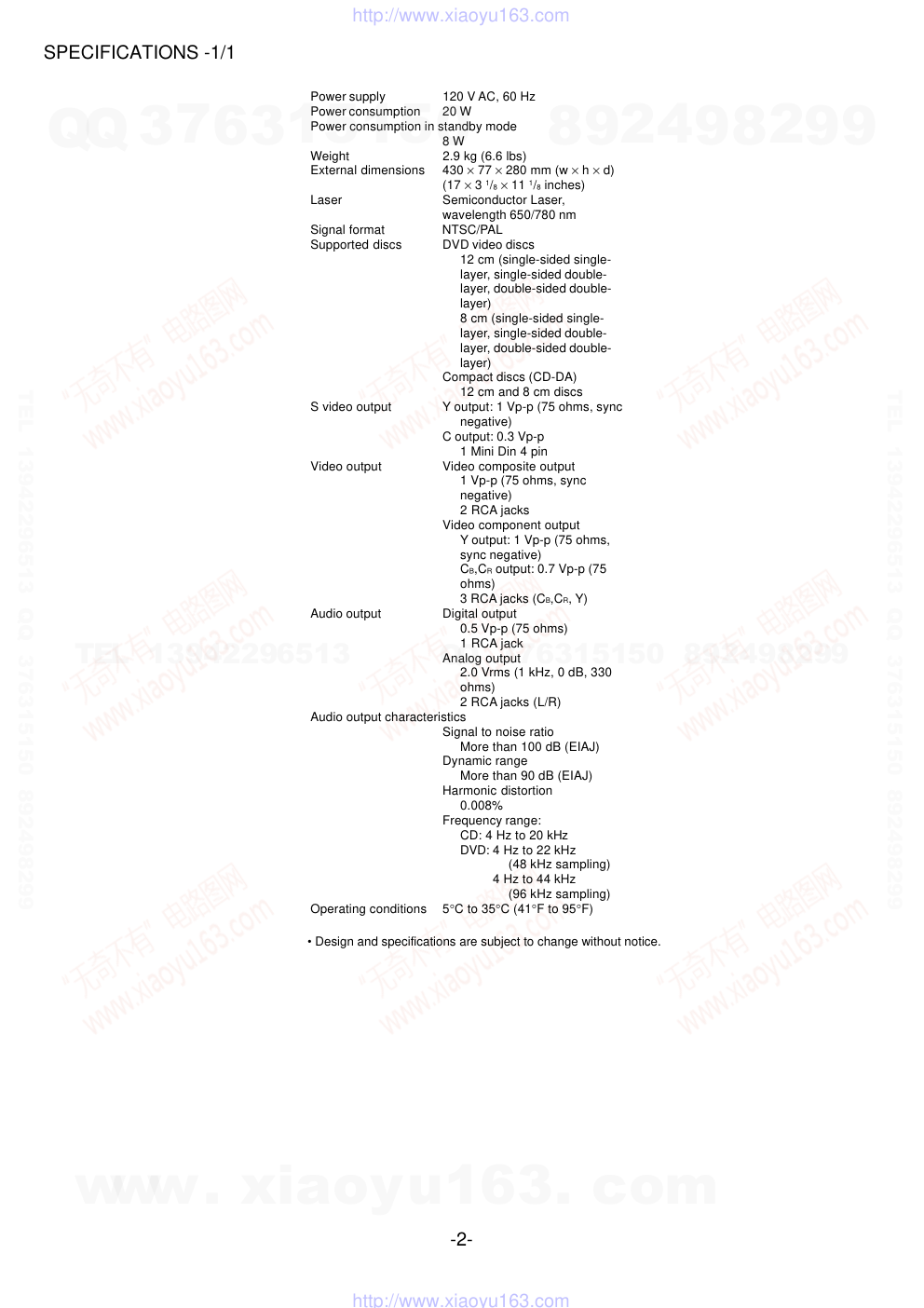

SERVICE MANUAL DATA S/M Code No. 09-02A-365-7N1 XD-DV520 DVD PLAYER U (B) BASIC DVD/CD MECHANISM: TVM503R-1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -2- SPECIFICATIONS -1/1 • Design and specifications are subject to change without notice. Power supply 120 V AC, 60 Hz Power consumption 20 W Power consumption in standby mode 8 W Weight 2.9 kg (6.6 lbs) External dimensions 430 × 77 × 280 mm (w × h × d) (17 × 3 1/8 × 11 1/8 inches) Laser Semiconductor Laser, wavelength 650/780 nm Signal format NTSC/PAL Supported discs DVD video discs 12 cm (single-sided single- layer, single-sided double- layer, double-sided double- layer) 8 cm (single-sided single- layer, single-sided double- layer, double-sided double- layer) Compact discs (CD-DA) 12 cm and 8 cm discs S video output Y output: 1 Vp-p (75 ohms, sync negative) C output: 0.3 Vp-p 1 Mini Din 4 pin Video output Video composite output 1 Vp-p (75 ohms, sync negative) 2 RCA jacks Video component output Y output: 1 Vp-p (75 ohms, sync negative) CB,CR output: 0.7 Vp-p (75 ohms) 3 RCA jacks (CB,CR, Y) Audio output Digital output 0.5 Vp-p (75 ohms) 1 RCA jack Analog output 2.0 Vrms (1 kHz, 0 dB, 330 ohms) 2 RCA jacks (L/R) Audio output characteristics Signal to noise ratio More than 100 dB (EIAJ) Dynamic range More than 90 dB (EIAJ) Harmonic distortion 0.008% Frequency range: CD: 4 Hz to 20 kHz DVD: 4 Hz to 22 kHz (48 kHz sampling) 4 Hz to 44 kHz (96 kHz sampling) Operating conditions 5°C to 35°C (41°F to 95°F) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -3- LASER DIODE SHORT SOLDER (TVM503R-1) This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. Caution: Invisible laser radiation when open and interlocks defeated avoid exposure to beam. Advarsel: Usynlig laserståling vedåbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsÊttelse for stråling. VAROITUS! Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saataa altistaa käyt-täjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle. VARNING! Om apparaten används på annat sätt än vad som specificeras i denna bruksanvising, kan användaren utsättas för osynling laserstrålning, som överskrider gränsen för laserklass 1. PROTECTION OF EYES FROM LASER BEAM DURING SERVICING -1/1 CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herin may result in hazardous radiation exposure. ATTENTION L'utillisation de commandes, réglages ou procédures autres que ceux spécifiés peut entraîner une dangereuse exposition aux radiations. ADVARSEL Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude af funktion. Undgå udsættelse for stråling. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT Precaution to replace Optical block (TVM503R-1) Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode. 1) After the connection, remove solder shown in right figure. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ! = ! SAFTY PARTS C = Components marked All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service. Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers. Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers. UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL -4- ACCESSORIES PARTS LIST -1/1 XD-DV520 UBC O AS1001 8C-AVE-903-010 OPERATIONAL MANUAL DVD110 ENG a O AS1002 8C-AVE-621-110 RC UNIT,RC-CVL51 a O AS1003 S1-700-201-619 AV CABLE W/SHIELDING X 3 COLO a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -5- DISASSEMBLY INSTRUCTIONS -1/2 1. Top Case 3. Front Panel 2. Tray Door 4. Rear Plate 1. Release 7 screws [A]. (See Fig.2-1) 2. Lift the top case with holding the back of it, and remove it in the direction of the arrow. 1. Release 2 screws [C]. (See Fig.2-3) 2. Pull the front panel toward you while pressing. 3. Stoppers to disengage, and remove the front panel. 1. The AC cord is connected and a power switch is turned on. 2. Eject the disc tray. 3. Release 2 screws [B]. (See Fig.2-2) 4. Remove it in the direction of the arrow. 1. Release 9 screws [D]. (See Fig.2-4) 2. Remove it in the direction of the arrow. Fig.2-1 Fig.2-3 Fig.2-2 Fig.2-4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -6- DISASSEMBLY INSTRUCTIONS -2/2 1. Disassembling of Main Circuit Board and Power Board 2. Key and Power Led Circuit Board 1. Remove the front panel. (See Fig.2-6) 2. Release 10 screws [F], and remove the Key and Power Led Circuit Board. 1. Remove the top case. (See Fig.2-5) 2. Release 15 screws [E]. 3. Remove FF-cable [HX1, B600], and remove the DVD Mechanism. 4. Remove cable [JP1, J804, HF1] and remove Main Cir- cuit Board and Power Board. J804 DVD Mechanism Power Cord Main Circuit Board Power Board Fig.2-5 Fig.2-6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ! = ! SAFTY PARTS C = Components marked All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service. Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers. Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers. UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL -7- ELECTRICAL PARTS LIST - 1/8 XD-DV520 UBC FRONT X CF 0002 S0-102-055-155 CAP CER SMD 1nF 50V 10% X7R 0 a FRONT X CF 0003 S0-102-055-155 CAP CER SMD 1nF 50V 10% X7R 0 a FRONT O CF 0005 S3-470-022-002 CAP ELEC GR 47uF 16V 20% RAD a FRONT X CF 0006 S0-222-055-155 CAP CER SMD 2.2nF 50V 10% X7R a FRONT X CF 0007 S0-222-055-155 CAP CER SMD 2.2nF 50V 10% X7R a FRONT O CF 0008 S3-100-052-002 CAP ELEC GR 10uF 50V 20% RAD a FRONT O CF 0010 S3-470-042-002 CAP ELEC GR 47uF 35V 20% RAD a FRONT O CF 0011 S3-470-042-002 CAP ELEC GR 47uF 35V 20% RAD a FRONT O CN 0001 S0-226-747-009 CABLE ASSY 2 WAYS #26 2.0P UL a FRONT O CP 0001 S3-101-022-002 CAP ELEC GR 100uF 16V 20% RAD a FRONT X CP 0002 S0-103-055-155 CAP CER SMD 10nF 50V 10% X7R a FRONT X CP 0003 S0-300-055-125 CAP CER SMD 30pF 50V 10% NPO a FRONT X CP 0004 S0-300-055-125 CAP CER SMD 30pF 50V 10% NPO a FRONT O CP 0005 S3-100-022-002 CAP ELEC GR 10uF 16V 20% RAD a FRONT O CP 0007 S3-101-022-002 CAP ELEC GR 100uF 16V 20% RAD a FRONT X CP 0008 S0-103-055-155 CAP CER SMD 10nF 50V 10% X7R a FRONT S DF 0001 S0-000-000-001 DIODE SW 4NS D035 BULK 1N4148 a FRONT S DF 0002 S0-000-000-001 DIODE SW 4NS D035 BULK 1N4148 a FRONT S DF 0008 S3-247-902-002 DIODE ZENER BZX55-C4.7V a FRONT O J 0001 S1-126-745-009 CABLE ASSY 11 WAYS #26 2.0P U a XD-DV520 UBC FRONT O J 0002 S0-326-126-039 CABLE ASSY 3 WAYS #26 2.5P UL a FRONT O LP 0001 S0-470-107-002 IND PEAK 47uH 10% AXIAL SER E a FRONT S QF 0001 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a FRONT S QF 0002 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a FRONT S QF 0003 S0-000-110-004 XTR SS NPN TO-92 9014C a FRONT S QF 0004 S0-100-110-004 XTR SS PNP TO-92 9015C a FRONT S QF 0009 S0-100-110-004 XTR SS PNP TO-92 9015C a FRONT S QP 0001 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a FRONT X RF 0002 S0-470-227-110 RES SMD 47K OHM 5% 1/10W 0805 a FRONT X RF 0003 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RF 0004 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RF 0005 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RF 0006 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RF 0007 S0-220-127-110 RES SMD 2.2K OHM ?% 1/10W 080 a FRONT X RF 0008 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RF 0009 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RF 0010 S0-100-127-110 RES SMD 1K OHM 5% 1/10W 0805 a FRONT X RF 0011 S0-100-127-110 RES SMD 1K OHM 5% 1/10W 0805 a FRONT X RF 0012 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RF 0013 S0-560-227-110 RES SMD 56K OHM 5% 1/10W 0805 a XD-DV520 UBC FRONT X RF 0014 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RF 0015 S0-000-027-110 RES SMD 0 OHM 5% 1/10W 0805 T a FRONT X RF 0016 S0-220-227-110 RES SMD 22K OHM 5% 1/10W 0805 a FRONT X RF 0017 S0-330-127-110 RES SMD 3.3K OHM 5% 1/10W 080 a FRONT X RF 0020 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RF 0021 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RF 0022 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RF 0023 S0-100-127-110 RES SMD 1K OHM 5% 1/10W 0805 a FRONT X RP 0001 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RP 0003 S0-100-227-110 RES SMD 10K OHM ?% 1/10W 0805 a FRONT X RP 0004 S0-470-227-110 RES SMD 47K OHM 5% 1/10W 0805 a FRONT X RP 0020 S0-100-127-110 RES SMD 1K OHM 5% 1/10W 0805 a FRONT X RP 0049 S0-100-927-110 RES SMD 10 OHM 5% 1/10W 0805 a FRONT O TSW0002 S1-001-115-006 SW TACT NO 1PIT 50mA 12V VER a FRONT O TSW0003 S1-001-115-006 SW TACT NO 1PIT 50mA 12V VER a FRONT O TSW0004 S1-001-115-006 SW TACT NO 1PIT 50mA 12V VER a FRONT O TSW0005 S1-001-115-006 SW TACT NO 1PIT 50mA 12V VER a FRONT O TSW0007 S1-001-115-006 SW TACT NO 1PIT 50mA 12V VER a FRONT O TSW0008 S1-001-115-006 SW TACT NO 1PIT 50mA 12V VER a FRONT S UF 0003 S9-000-000-186 IC,FL DRIVER OPV270018 a XD-DV520 UBC FRONT S UP 0001 S1-086-400-048 IC, SRAM PLCC M6759 a FRONT O UP 0003 S6-941-381-101 IR RX GP1U271R a FRONT O VFD0001 S4-110-000-001 VACUUM FLUORESCENT 6-BT-332GNK a FRONT X W 0013 S0-101-200-000 RES CF 100 OHM 5% 1/6W AXIAL a FRONT O XP 0001 S5-110-200-021 CRYSTAL 11.0592MHz 30ppm HC-4 a FRONT S ZP 0001 S3-256-902-000 DIODE ZENER BZX55-C5.6V a LED O LED0001 S0-011-028-001 LED RED(HIGHT) 2R4HW-2 a MAIN O B 0600 S1-020-010-391 HEADER 2 PINS 2.5mm ST a MAIN X BS 0002 S0-061-002-008 JUMPER 2 PIN (MULTI-JUMPER) O a MAIN O C 0600 S3-100-022-004 CAP ELEC SS 10uF 16V 20% RAD a MAIN O C 0601 S3-106-052-004 CAP ELEC GR 1uF 50V 20% RAD H a MAIN X C 0603 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X C 0604 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CA 0001 S0-101-055-525 CAP CER SMD 100pF 50V 10% NPO a MAIN X CA 0002 S0-101-055-525 CAP CER SMD 100pF 50V 10% NPO a MAIN X CA 0003 S0-101-055-525 CAP CER SMD 100pF 50V 10% NPO a MAIN X CA 0004 S0-101-055-525 CAP CER SMD 100pF 50V 10% NPO a MAIN O CA 0005 S3-470-022-004 CAP ELEC SS 47uF 16V 20% RAD a MAIN O CA 0006 S3-470-022-004 CAP ELEC SS 47uF 16V 20% RAD a MAIN O CA 0007 S3-471-022-014 CAP ELEC SS 470uF 16V 20% RAD a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ! = ! SAFTY PARTS C = Components marked All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service. Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers. Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers. UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL -8- ELECTRICAL PARTS LIST - 2/8 XD-DV520 UBC MAIN O CA 0008 S3-470-022-004 CAP ELEC SS 47uF 16V 20% RAD a MAIN O CA 0009 S3-336-022-000 CAP ELEC SM 3.3uF 16V 20% RAD a MAIN O CA 0010 S3-336-022-000 CAP ELEC SM 3.3uF 16V 20% RAD a MAIN X CA 0011 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CA 0012 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN O CA 0013 S3-220-032-002 CAP ELEC GR 22uF 25V 20% RAD a MAIN X CA 0014 S0-181-055-555 CAP CER SMD 180pF 50V 10% X7R a MAIN O CA 0015 S3-220-032-002 CAP ELEC GR 22uF 25V 20% RAD a MAIN X CA 0016 S0-181-055-555 CAP CER SMD 180pF 50V 10% X7R a MAIN O CA 0017 S3-100-052-004 CAP ELEC SS 10uF 50V 20% RAD a MAIN X CA 0018 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN O CA 0019 S3-100-052-004 CAP ELEC SS 10uF 50V 20% RAD a MAIN O CA 0020 S3-220-032-002 CAP ELEC GR 22uF 25V 20% RAD a MAIN O CA 0021 S3-471-002-004 CAP ELEC SS 470uF 6.3V 20% RA a MAIN X CA 0022 S0-122-055-555 CAP CER SMD 1200pF 50V 10% X7 a MAIN X CA 0023 S0-122-055-555 CAP CER SMD 1200pF 50V 10% X7 a MAIN X CA 0024 S0-122-055-555 CAP CER SMD 1200pF 50V 10% X7 a MAIN X CA 0025 S0-122-055-555 CAP CER SMD 1200pF 50V 10% X7 a MAIN X CA 0026 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CA 0027 S0-470-055-525 CAP CER SMD 47PF 50V 10% X7R a XD-DV520 UBC MAIN X CA 0028 S0-470-055-525 CAP CER SMD 47PF 50V 10% X7R a MAIN O CA 0029 S3-471-002-004 CAP ELEC SS 470uF 6.3V 20% RA a MAIN X CA 0030 S0-200-054-525 CAP CER SMD 20pF 50V 5% NPO 0 a MAIN X CA 0031 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CA 0032 S0-103-055-555 CAP CER SMD 10nF 50V 10% X7R a MAIN X CA 0033 S0-101-055-525 CAP CER SMD 100pF 50V 10% NPO a MAIN X CM 0005 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CM 0006 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CM 0010 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CM 0011 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CM 0012 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CM 0013 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CM 0019 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CM 0020 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CM 0021 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN O CM 0022 S3-100-022-004 CAP ELEC SS 10uF 16V 20% RAD a MAIN O CN 0001 S3-221-022-004 CAP ELEC SS 220uF 16V 20% RAD a MAIN X CN 0002 S0-222-055-555 CAP CER SMD 2.2nF 50V 10% X7R a MAIN O CN 0003 S3-101-012-004 CAP ELEC SS 100uF 10V 20% RAD a MAIN X CN 0004 S0-391-055-555 CAP CER SMD 390pF 50V 10% X7R a XD-DV520 UBC MAIN X CN 0005 S0-391-055-555 CAP CER SMD 390pF 50V 10% X7R a MAIN X CN 0006 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN O CN 0007 S3-221-022-004 CAP ELEC SS 220uF 16V 20% RAD a MAIN X CN 0008 S0-222-055-555 CAP CER SMD 2.2nF 50V 10% X7R a MAIN O CN 0009 S3-101-012-004 CAP ELEC SS 100uF 10V 20% RAD a MAIN X CN 0010 S0-391-055-555 CAP CER SMD 390pF 50V 10% X7R a MAIN X CN 0011 S0-391-055-555 CAP CER SMD 390pF 50V 10% X7R a MAIN X CN 0012 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN O CN 0013 S3-221-022-004 CAP ELEC SS 220uF 16V 20% RAD a MAIN X CN 0014 S0-222-055-555 CAP CER SMD 2.2nF 50V 10% X7R a MAIN O CN 0015 S3-101-012-004 CAP ELEC SS 100uF 10V 20% RAD a MAIN X CN 0016 S0-391-055-555 CAP CER SMD 390pF 50V 10% X7R a MAIN X CN 0017 S0-391-055-555 CAP CER SMD 390pF 50V 10% X7R a MAIN X CN 0018 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN O CP 0001 S3-101-022-004 CAP ELEC SS 100uF 16V 20% RAD a MAIN O CP 0002 S3-101-012-004 CAP ELEC SS 100uF 10V 20% RAD a MAIN O CP 0003 S3-470-022-004 CAP ELEC SS 47uF 16V 20% RAD a MAIN O CP 0030 S3-101-012-004 CAP ELEC SS 100uF 10V 20% RAD a MAIN O CP 0031 S3-101-012-004 CAP ELEC SS 100uF 10V 20% RAD a MAIN O CP 0032 S3-101-012-004 CAP ELEC SS 100uF 10V 20% RAD a XD-DV520 UBC MAIN X CS 0001 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0002 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0003 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0004 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN O CS 0005 S3-100-052-004 CAP ELEC SS 10uF 50V 20% RAD a MAIN X CS 0006 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0007 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0008 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0009 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0010 S0-103-055-555 CAP CER SMD 10nF 50V 10% X7R a MAIN X CS 0011 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0012 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0013 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0014 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0015 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0016 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0017 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0018 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0019 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0025 S2-474-150-320 CAP MONO 0.47uF 50V 10% RAD S a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ! = ! SAFTY PARTS C = Components marked All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service. Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers. Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers. UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL -9- ELECTRICAL PARTS LIST - 3/8 XD-DV520 UBC MAIN O CS 0027 S3-106-052-004 CAP ELEC GR 1uF 50V 20% RAD H a MAIN X CS 0028 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0031 S0-470-055-525 CAP CER SMD 47PF 50V 10% X7R a MAIN X CS 0032 S0-470-055-525 CAP CER SMD 47PF 50V 10% X7R a MAIN X CS 0033 S0-470-055-525 CAP CER SMD 47PF 50V 10% X7R a MAIN X CS 0034 S0-103-055-555 CAP CER SMD 10nF 50V 10% X7R a MAIN O CS 0035 S3-470-022-004 CAP ELEC SS 47uF 16V 20% RAD a MAIN X CS 0036 S0-470-055-525 CAP CER SMD 47PF 50V 10% X7R a MAIN X CS 0037 S0-470-055-525 CAP CER SMD 47PF 50V 10% X7R a MAIN X CS 0038 S0-120-054-524 CAP CER SMD 12PF 50V 5% NPO 0 a MAIN X CS 0039 S0-120-054-524 CAP CER SMD 12PF 50V 5% NPO 0 a MAIN X CS 0040 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0041 S0-103-055-555 CAP CER SMD 10nF 50V 10% X7R a MAIN O CS 0042 S3-221-022-002 CAP ELEC GR 220uF 16V 20% RAD a MAIN X CS 0043 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CS 0044 S0-103-055-555 CAP CER SMD 10nF 50V 10% X7R a MAIN O CS 0045 S3-221-022-002 CAP ELEC GR 220uF 16V 20% RAD a MAIN X CSM0005 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CSM0006 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN O CV 0001 S3-221-022-004 CAP ELEC SS 220uF 16V 20% RAD a XD-DV520 UBC MAIN X CV 0002 S0-272-055-555 CAP CER SMD 2.7nF 50V 10% X7R a MAIN O CV 0003 S3-101-012-004 CAP ELEC SS 100uF 10V 20% RAD a MAIN X CV 0004 S0-101-055-525 CAP CER SMD 100pF 50V 10% NPO a MAIN X CV 0005 S0-221-055-555 CAP CER SMD 220pF 50V 10% X7R a MAIN X CV 0006 S0-390-055-525 CAP CER SMD 39pF 50V 10% NPO a MAIN X CV 0007 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN O CV 0008 S3-221-022-004 CAP ELEC SS 220uF 16V 20% RAD a MAIN X CV 0009 S0-272-055-555 CAP CER SMD 2.7nF 50V 10% X7R a MAIN O CV 0010 S3-101-012-004 CAP ELEC SS 100uF 10V 20% RAD a MAIN X CV 0011 S0-391-055-555 CAP CER SMD 390pF 50V 10% X7R a MAIN X CV 0012 S0-391-055-555 CAP CER SMD 390pF 50V 10% X7R a MAIN X CV 0013 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN O CV 0014 S3-221-022-004 CAP ELEC SS 220uF 16V 20% RAD a MAIN X CV 0015 S0-272-055-555 CAP CER SMD 2.7nF 50V 10% X7R a MAIN O CV 0016 S3-101-012-004 CAP ELEC SS 100uF 10V 20% RAD a MAIN X CV 0017 S0-391-055-555 CAP CER SMD 390pF 50V 10% X7R a MAIN X CV 0018 S0-391-055-555 CAP CER SMD 390pF 50V 10% X7R a MAIN X CV 0019 S0-104-057-575 CAP CER SMD 0.1uF 50V +80/-20 a MAIN X CX 0004 S0-680-055-555 CAP CER SMD 68PF 50V 10% X7R a MAIN X CX 0005 S0-680-055-555 CAP CER SMD 68PF 50V 10% X7R a XD-DV520 UBC MAIN S D 0601 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S D 0602 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S D 0603 S3-268-902-002 DIODE ZENER BZX55-C6V8 a MAIN S D 0604 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DA 0001 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DN 0001 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DN 0002 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DN 0003 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DN 0004 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DN 0005 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DN 0006 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DS 0001 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DS 0002 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DS 0003 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DS 0004 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DV 0001 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DV 0002 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DV 0003 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN S DV 0004 S0-000-000-040 DIODE SW 4NS SOD80 SMD LL4148 a MAIN O HF 0001 S1-117-010-009 HEADER 11 PINS 2.0mm ST a XD-DV520 UBC MAIN O HS 0004 S1-401-010-318 HEADER 40 PINS X 1 2.54mm ST a MAIN O HX 0001 S1-196-000-460 HEADER 19 PINS ST FFC a MAIN S IC 0060 S3-007-016-204 IC,MOTOR DRIVE LB1641 a MAIN S ICA0001 S3-000-501-071 IC,REG 5V 0.1A UPC78L05J a MAIN S ICA0002 S7-008-330-180 IC,AUDIO DUAL AMP LM833D a MAIN S ICA0003 S9-433-400-185 IC,STEREO DAC CS4334-KS a MAIN S ICA0004 S7-008-330-180 IC,AUDIO DUAL AMP LM833D a MAIN S ICM0001 S2-501-607-249 IC,SDRAM VT3664164T-7H a MAIN S ICM0002 S9-290-022-180 IC,FLASH MEMORY M29W800AB-90N1 a MAIN S ICS0001 S9-551-900-180 IC,DVD HOST PROCESSOR STI5519 a MAIN S ICS0002 S3-002-501-196 IC,VOLT REG AMS2501CS-2.5 a MAIN S ICS0003 S0-804-990-180 IC,LOGIC M74HCU04MIR a MAIN S ICS0004 S3-002-501-191 IC,VOLT REG PQ025EZ01ZP a MAIN O JP 0001 S1-100-010-009 HEADER 10 PINS 2.5mm a MAIN O LA 0001 S0-220-107-002 IND CHOKE 22uH 10% AXIAL EC24 a MAIN O LM 0010 S4-000-012-000 FERRITE P/N 711380 a MAIN O LN 0001 S0-220-107-002 IND CHOKE 22uH 10% AXIAL EC24 a MAIN O LN 0002 S0-279-107-002 IND PEAK 2.7uH 10% AXIAL EC24 a MAIN O LN 0003 S0-220-107-002 IND CHOKE 22uH 10% AXIAL EC24 a MAIN O LN 0004 S0-279-107-002 IND PEAK 2.7uH 10% AXIAL EC24 a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ! = ! SAFTY PARTS C = Components marked All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service. Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers. Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers. UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL -10- ELECTRICAL PARTS LIST - 4/8 XD-DV520 UBC MAIN O LN 0005 S0-220-107-002 IND CHOKE 22uH 10% AXIAL EC24 a MAIN O LN 0006 S0-279-107-002 IND PEAK 2.7uH 10% AXIAL EC24 a MAIN O LP 0001 S4-000-012-000 FERRITE P/N 711380 a MAIN O LP 0031 S4-000-012-000 FERRITE P/N 711380 a MAIN O LP 0032 S4-000-012-000 FERRITE P/N 711380 a MAIN O LS 0001 S0-220-107-002 IND CHOKE 22uH 10% AXIAL EC24 a MAIN O LS 0002 S0-220-107-002 IND CHOKE 22uH 10% AXIAL EC24 a MAIN O LS 0004 S0-220-107-002 IND CHOKE 22uH 10% AXIAL EC24 a MAIN O LS 0005 S0-220-107-002 IND CHOKE 22uH 10% AXIAL EC24 a MAIN O LV 0001 S0-220-107-002 IND CHOKE 22uH 10% AXIAL EC24 a MAIN O LV 0002 S0-279-107-002 IND PEAK 2.7uH 10% AXIAL EC24 a MAIN O LV 0003 S0-220-107-002 IND CHOKE 22uH 10% AXIAL EC24 a MAIN O LV 0004 S0-279-107-002 IND PEAK 2.7uH 10% AXIAL EC24 a MAIN O LV 0005 S0-220-107-002 IND CHOKE 22uH 10% AXIAL EC24 a MAIN O LV 0006 S0-279-107-002 IND PEAK 2.7uH 10% AXIAL EC24 a MAIN X LX 0001 S0-000-027-110 RES SMD 0 OHM 5% 1/10W 0805 T a MAIN X LX 0002 S0-000-027-110 RES SMD 0 OHM 5% 1/10W 0805 T a MAIN X LX 0003 S0-000-027-110 RES SMD 0 OHM 5% 1/10W 0805 T a MAIN X LX 0004 S0-000-027-110 RES SMD 0 OHM 5% 1/10W 0805 T a MAIN O P 0001 S4-210-300-018 SVHS JACK 1 BLACK PWB MOUNT K a XD-DV520 UBC MAIN O P 0002 S4-140-800-018 PIN JACK 4 Y-R-W PWB MOUNT (W a MAIN O P 0003 S4-031-820-018 RCA JACK 3 R-BL-GN PCB MOUNT/ a MAIN O P 0004 S4-111-500-008 PIN JACK 1 ORANGE PWB MOUNT ( a MAIN S Q 0600 S0-100-210-840 XTR SS 2SA812 PNP HFE200 180M a MAIN S Q 0601 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QA 0001 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QA 0002 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QA 0003 S0-100-210-840 XTR SS 2SA812 PNP HFE200 180M a MAIN S QA 0004 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QA 0005 S0-100-210-840 XTR SS 2SA812 PNP HFE200 180M a MAIN S QA 0006 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QA 0007 S0-100-210-840 XTR SS 2SA812 PNP HFE200 180M a MAIN S QM 0001 S0-100-210-840 XTR SS 2SA812 PNP HFE200 180M a MAIN S QM 0002 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QM 0003 S0-100-210-840 XTR SS 2SA812 PNP HFE200 180M a MAIN S QN 0001 S0-100-280-840 XTR SS PNP SOT-23 SMD T2907A a MAIN S QN 0002 S0-100-280-840 XTR SS PNP SOT-23 SMD T2907A a MAIN S QN 0003 S0-100-280-840 XTR SS PNP SOT-23 SMD T2907A a MAIN S QS 0001 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QS 0002 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a XD-DV520 UBC MAIN S QS 0003 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QS 0004 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QS 0005 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QV 0001 S0-100-280-840 XTR SS PNP SOT-23 SMD T2907A a MAIN S QV 0002 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QV 0003 S0-100-280-840 XTR SS PNP SOT-23 SMD T2907A a MAIN S QV 0004 S0-100-280-840 XTR SS PNP SOT-23 SMD T2907A a MAIN S QV 0005 S0-000-200-840 XTR SS 2SC1623 NPN HFE200 180 a MAIN S QV 0006 S0-100-210-840 XTR SS 2SA812 PNP HFE200 180M a MAIN X R 0600 S0-100-227-110 RES SMD 10K OHM 5% 1/10W 0805 a MAIN X R 0601 S0-180-127-110 RES SMD 1.8K OHM 5% 1/10W 080 a MAIN X R 0602 S0-470-027-110 RES SMD 470 OHM 5% 1/10W 0805 a MAIN X R 0603 S0-000-027-110 RES SMD 0 OHM 5% 1/10W 0805 T a MAIN X R 0604 S0-680-227-110 RES SMD 68K OHM 5% 1/10W 0805 a MAIN X R 0605 S0-100-227-110 RES SMD 10K OHM 5% 1/10W 0805 a MAIN X R 0606 S0-510-127-110 RES SMD 5.1K OHM 5% 1/10W 080 a MAIN X R 0607 S0-470-027-110 RES SMD 470 OHM 5% 1/10W 0805 a MAIN X R 0608 S0-470-027-110 RES SMD 470 OHM 5% 1/10W 0805 a MAIN X R 0609 S0-470-227-110 RES SMD 47K OHM 5% 1/10W 0805 a MAIN X R 0619 S0-000-027-110 RES SMD 0 OHM 5% 1/10W 0805 T a XD-DV520 UBC MAIN X RA 0001 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RA 0002 S0-270-230-000 RES CF 27 OHM 5% 1/2W AXIAL a MAIN X RA 0003 S0-750-120-510 RES SMD 7.5K OHM 5% 1/16W 060 a MAIN X RA 0004 S0-750-120-510 RES SMD 7.5K OHM 5% 1/16W 060 a MAIN X RA 0005 S0-750-120-510 RES SMD 7.5K OHM 5% 1/16W 060 a MAIN X RA 0006 S0-220-220-510 RES SMD 22K OHM 5% 1/16W 0603 a MAIN X RA 0007 S0-750-120-510 RES SMD 7.5K OHM 5% 1/16W 060 a MAIN X RA 0008 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RA 0009 S0-330-220-510 RES SMD 33K OHM 5% 1/16W 0603 a MAIN X RA 0010 S0-330-220-510 RES SMD 33K OHM 5% 1/16W 0603 a MAIN X RA 0011 S0-220-220-510 RES SMD 22K OHM 5% 1/16W 0603 a MAIN X RA 0012 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RA 0013 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RA 0014 S0-100-120-510 RES SMD 1K OHM 5% 1/16W 0603 a MAIN X RA 0015 S0-100-120-510 RES SMD 1K OHM 5% 1/16W 0603 a MAIN X RA 0016 S0-470-220-510 RES SMD 47K OHM 5% 1/16W 0603 a MAIN X RA 0017 S0-270-320-510 RES SMD 270K OHM 5% 1/16W 060 a MAIN X RA 0018 S0-750-120-510 RES SMD 7.5K OHM 5% 1/16W 060 a MAIN X RA 0019 S0-100-220-510 RES SMD 10K OHM 5% 1/16W 0603 a MAIN X RA 0020 S0-560-120-510 RES SMD 5.6K OHM 5% 1/16W 060 a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ! = ! SAFTY PARTS C = Components marked All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service. Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers. Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers. UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL -11- ELECTRICAL PARTS LIST - 5/8 XD-DV520 UBC MAIN X RA 0021 S0-180-220-510 RES SMD 18K OHM 5% 1/16W 0603 a MAIN X RA 0022 S0-270-320-510 RES SMD 270K OHM 5% 1/16W 060 a MAIN X RA 0023 S0-750-120-510 RES SMD 7.5K OHM 5% 1/16W 060 a MAIN X RA 0024 S0-100-220-510 RES SMD 10K OHM 5% 1/16W 0603 a MAIN X RA 0025 S0-560-120-510 RES SMD 5.6K OHM 5% 1/16W 060 a MAIN X RA 0026 S0-180-220-510 RES SMD 18K OHM 5% 1/16W 0603 a MAIN X RA 0027 S0-180-020-510 RES SMD 180 OHM 5% 1/16W 0603 a MAIN X RA 0028 S0-100-020-510 RES SMD 100 OHM 5% 1/16W 0603 a MAIN X RA 0029 S0-470-120-510 RES SMD 4.7K OHM 5% 1/16W 060 a MAIN X RA 0031 S0-000-020-510 RES SMD 0 OHM 5% 1/16W 0603 T a MAIN X RM 0001 S0-100-120-510 RES SMD 1K OHM 5% 1/16W 0603 a MAIN X RM 0002 S0-470-220-510 RES SMD 47K OHM 5% 1/16W 0603 a MAIN O RM 0003 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN O RM 0004 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN X RM 0005 S0-100-120-510 RES SMD 1K OHM 5% 1/16W 0603 a MAIN X RM 0006 S0-100-120-510 RES SMD 1K OHM 5% 1/16W 0603 a MAIN X RM 0007 S0-470-220-510 RES SMD 47K OHM 5% 1/16W 0603 a MAIN O RM 0008 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN O RM 0010 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN X RM 0011 S0-470-120-510 RES SMD 4.7K OHM 5% 1/16W 060 a XD-DV520 UBC MAIN X RM 0012 S0-470-120-510 RES SMD 4.7K OHM 5% 1/16W 060 a MAIN O RM 0013 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN O RM 0014 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN O RM 0015 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN O RM 0016 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN O RM 0017 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN O RM 0018 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN O RM 0019 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN O RM 0020 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN O RM 0021 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN O RM 0022 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN X RM 0023 S0-470-220-510 RES SMD 47K OHM 5% 1/16W 0603 a MAIN X RM 0024 S0-470-220-510 RES SMD 47K OHM 5% 1/16W 0603 a MAIN X RM 0025 S0-470-220-510 RES SMD 47K OHM 5% 1/16W 0603 a MAIN O RM 0026 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN X RM 0027 S0-000-020-510 RES SMD 0 OHM 5% 1/16W 0603 T a MAIN O RM 0030 S4-470-920-910 RES CHIP NETWORK 47 X 4 OHM 5 a MAIN X RM 0033 S0-100-120-510 RES SMD 1K OHM 5% 1/16W 0603 a MAIN X RM 0051 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RM 0056 S0-000-020-510 RES SMD 0 OHM 5% 1/16W 0603 T a XD-DV520 UBC MAIN X RM 0060 S0-470-220-510 RES SMD 47K OHM 5% 1/16W 0603 a MAIN X RM 0062 S0-470-220-510 RES SMD 47K OHM 5% 1/16W 0603 a MAIN X RM 0064 S0-470-220-510 RES SMD 47K OHM 5% 1/16W 0603 a MAIN X RM 0065 S0-470-220-510 RES SMD 47K OHM 5% 1/16W 0603 a MAIN X RN 0001 S0-220-120-510 RES SMD 2.2K OHM 5% 1/16W 060 a MAIN X RN 0002 S0-750-920-510 RES SMD 75 OHM 5% 1/16W 0603 a MAIN X RN 0003 S0-820-020-512 RES SMD 820 OHM 5% 1/16W 0603 a MAIN X RN 0004 S0-120-920-510 RES SMD 12 OHM 5% 1/16W 0603 a MAIN X RN 0005 S0-829-020-512 RES SMD 8.2 OHM 5% 1/16W 0603 a MAIN X RN 0006 S0-270-020-510 RES SMD 270 OHM 5% 1/16W 0603 a MAIN X RN 0007 S0-220-120-510 RES SMD 2.2K OHM 5% 1/16W 060 a MAIN X RN 0008 S0-750-920-510 RES SMD 75 OHM 5% 1/16W 0603 a MAIN X RN 0009 S0-820-020-512 RES SMD 820 OHM 5% 1/16W 0603 a MAIN X RN 0010 S0-120-920-510 RES SMD 12 OHM 5% 1/16W 0603 a MAIN X RN 0011 S0-829-020-512 RES SMD 8.2 OHM 5% 1/16W 0603 a MAIN X RN 0012 S0-270-020-510 RES SMD 270 OHM 5% 1/16W 0603 a MAIN X RN 0013 S0-220-120-510 RES SMD 2.2K OHM 5% 1/16W 060 a MAIN X RN 0014 S0-750-920-510 RES SMD 75 OHM 5% 1/16W 0603 a MAIN X RN 0015 S0-820-020-512 RES SMD 820 OHM 5% 1/16W 0603 a MAIN X RN 0016 S0-120-920-510 RES SMD 12 OHM 5% 1/16W 0603 a XD-DV520 UBC MAIN X RN 0017 S0-829-020-512 RES SMD 8.2 OHM 5% 1/16W 0603 a MAIN X RN 0018 S0-270-020-510 RES SMD 270 OHM 5% 1/16W 0603 a MAIN X RS 0003 S0-470-127-110 RES SMD 4.7K OHM 5% 1/10W 080 a MAIN X RS 0005 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RS 0006 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RS 0010 S0-220-920-510 RES SMD 22 OHM 5% 1/16W 0603 a MAIN X RS 0014 S0-100-220-510 RES SMD 10K OHM 5% 1/16W 0603 a MAIN X RS 0015 S0-100-020-510 RES SMD 100 OHM 5% 1/16W 0603 a MAIN X RS 0016 S0-000-020-510 RES SMD 0 OHM 5% 1/16W 0603 T a MAIN X RS 0018 S0-470-120-510 RES SMD 4.7K OHM 5% 1/16W 060 a MAIN X RS 0019 S0-470-120-510 RES SMD 4.7K OHM 5% 1/16W 060 a MAIN X RS 0020 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RS 0021 S0-174-220-510 RES SMD 17.4K OHM 1% 1/16W 06 a MAIN X RS 0022 S0-174-220-510 RES SMD 17.4K OHM 1% 1/16W 06 a MAIN X RS 0023 S0-470-120-510 RES SMD 4.7K OHM 5% 1/16W 060 a MAIN X RS 0024 S0-100-120-510 RES SMD 1K OHM 5% 1/16W 0603 a MAIN X RS 0026 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RS 0027 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RS 0028 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RS 0030 S0-100-120-510 RES SMD 1K OHM 5% 1/16W 0603 a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ! = ! SAFTY PARTS C = Components marked All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service. Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers. Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers. UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL -12- ELECTRICAL PARTS LIST - 6/8 XD-DV520 UBC MAIN X RS 0032 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RS 0033 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RS 0034 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RS 0035 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RS 0036 S0-220-220-510 RES SMD 22K OHM 5% 1/16W 0603 a MAIN X RS 0038 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RS 0041 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RS 0043 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RS 0045 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RS 0047 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RS 0049 S0-100-220-510 RES SMD 10K OHM 5% 1/16W 0603 a MAIN X RS 0050 S0-100-220-510 RES SMD 10K OHM 5% 1/16W 0603 a MAIN X RS 0051 S0-100-220-510 RES SMD 10K OHM 5% 1/16W 0603 a MAIN X RS 0052 S0-100-220-510 RES SMD 10K OHM 5% 1/16W 0603 a MAIN X RS 0053 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RS 0054 S0-270-120-510 RES SMD 2.7K OHM 5% 1/16W 060 a MAIN X RS 0055 S0-270-120-510 RES SMD 2.7K OHM 5% 1/16W 060 a MAIN X RS 0056 S0-470-120-510 RES SMD 4.7K OHM 5% 1/16W 060 a MAIN X RS 0057 S0-560-220-510 RES SMD 56K OHM 5% 1/16W 0603 a MAIN X RS 0058 S0-560-920-510 RES SMD 56 OHM 5% 1/16W 0603 a XD-DV520 UBC MAIN X RS 0059 S0-470-920-510 RES SMD 47 OHM 5% 1/16W 0603 a MAIN X RS 0065 S0-470-120-510 RES SMD 4.7K OHM 5% 1/16W 060 a MAIN X RS 0074 S0-100-420-510 RES SMD 1M OHM 5% 1/16W 0603 a MAIN X RS 0075 S0-100-020-510 RES SMD 100 OHM 5% 1/16W 0603 a MAIN X RS 0077 S0-100-220-510 RES SMD 10K OHM 5% 1/16W 0603 a MAIN X RV 0001 S0-220-120-510 RES SMD 2.2K OHM 5% 1/16W 060 a MAIN X RV 0002 S0-680-920-510 RES SMD 68 OHM 5% 1/16W 0603 a MAIN X RV 0003 S0-820-020-512 RES SMD 820 OHM 5% 1/16W 0603 a MAIN X RV 0004 S0-120-920-510 RES SMD 12 OHM 5% 1/16W 0603 a MAIN X RV 0005 S0-829-020-512 RES SMD 8.2 OHM 5% 1/16W 0603 a MAIN X RV 0006 S0-270-020-510 RES SMD 270 OHM 5% 1/16W 0603 a MAIN X RV 0007 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RV 0008 S0-100-120-510 RES SMD 1K OHM 5% 1/16W 0603 a MAIN X RV 0009 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RV 0010 S0-560-920-510 RES SMD 56 OHM 5% 1/16W 0603 a MAIN X RV 0011 S0-220-120-510 RES SMD 2.2K OHM 5% 1/16W 060 a MAIN X RV 0012 S0-750-920-510 RES SMD 75 OHM 5% 1/16W 0603 a MAIN X RV 0013 S0-820-020-512 RES SMD 820 OHM 5% 1/16W 0603 a MAIN X RV 0014 S0-120-920-510 RES SMD 12 OHM 5% 1/16W 0603 a MAIN X RV 0015 S0-829-020-512 RES SMD 8.2 OHM 5% 1/16W 0603 a XD-DV520 UBC MAIN X RV 0016 S0-270-020-510 RES SMD 270 OHM 5% 1/16W 0603 a MAIN X RV 0017 S0-220-120-510 RES SMD 2.2K OHM 5% 1/16W 060 a MAIN X RV 0018 S0-750-920-510 RES SMD 75 OHM 5% 1/16W 0603 a MAIN X RV 0019 S0-820-020-512 RES SMD 820 OHM 5% 1/16W 0603 a MAIN X RV 0020 S0-120-920-510 RES SMD 12 OHM 5% 1/16W 0603 a MAIN X RV 0021 S0-829-020-512 RES SMD 8.2 OHM 5% 1/16W 0603 a MAIN X RV 0022 S0-270-020-510 RES SMD 270 OHM 5% 1/16W 0603 a MAIN X RV 0023 S0-560-920-510 RES SMD 56 OHM 5% 1/16W 0603 a MAIN X RV 0024 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RV 0025 S0-470-020-510 RES SMD 470 OHM 5% 1/16W 0603 a MAIN X RX 0001 S0-470-120-510 RES SMD 4.7K OHM 5% 1/16W 060 a MAIN X RX 0011 S0-220-020-510 RES SMD 220 OHM 5% 1/16W 0603 a MAIN X RX 0012 S0-220-020-510 RES SMD 220 OHM 5% 1/16W 0603 a MAIN X SW 0001 S0-102-055-555 CAP CER SMD 1nF 50V 10% X7R 0 a MAIN X SW 0002 S0-102-055-555 CAP CER SMD 1nF 50V 10% X7R 0 a MAIN X SW 0003 S0-102-055-555 CAP CER SMD 1nF 50V 10% X7R 0 a MAIN X SW 0004 S0-102-055-555 CAP CER SMD 1nF 50V 10% X7R 0 a MAIN O XS 0001 S5-270-200-023 CRYSTAL 27MHz 30ppm 10pF HC49 a POWER ! O C 0801 S9-471-330-003 VARISTOR 470V 10% CLAMPING 77 a POWER ! O C 0802 S3-680-152-304 CAP ELEC KM 68uF 400V 20% VER a XD-DV520 UBC POWER O C 0804 S3-470-051-003 CAP ELEC GS 47uF 50V 10% RAD a POWER X C 0805 S1-104-170-213 CAP CER KK 0.1uF 50V +80/-20% a POWER X C 0806 S1-222-960-200 CAP CER KX 2200pF 250VAC 20% a POWER O C 0807 S3-102-012-304 CAP ELEC GL 1000uF 10V 20% RA a POWER O C 0810 S3-102-012-304 CAP ELEC GL 1000uF 10V 20% RA a POWER O C 0811 S3-101-022-002 CAP ELEC GR 100uF 16V 20% RAD a POWER O C 0812 S3-101-042-002 CAP ELEC GR 100uF 35V 20% RAD a POWER X C 0813 S1-222-160-283 CAP CER KK 2.2nF 50V 20% Z5U a POWER O C 0815 S3-101-042-002 CAP ELEC GR 100uF 35V 20% RAD a POWER X C 0816 S4-110-303-102 CAP MYLAR MCC-R 10nF 100V 10 a POWER O C 0817 S3-226-052-002 CAP ELEC EX 2.2uF 50V 20% VER a POWER O C 0818 S3-102-012-304 CAP ELEC GL 1000uF 10V 20% RA a POWER O C 0819 S3-101-042-002 CAP ELEC GR 100uF 35V 20% RAD a POWER O C 0820 S3-101-022-002 CAP ELEC GR 100uF 16V 20% RAD a POWER X C 0821 S1-221-150-094 CAP CER KT 220PF 50V 10% SL R a POWER ! O C 0822 S4-222-412-203 CAP MPF 0.22uF 250VAC 20% PA2 a POWER O C 0823 S3-101-042-002 CAP ELEC GR 100uF 35V 20% RAD a POWER O C 0824 S3-100-052-002 CAP ELEC GR 10uF 50V 20% RAD a POWER O C 0825 S3-100-052-002 CAP ELEC GR 10uF 50V 20% RAD a POWER O C 0826 S3-101-022-002 CAP ELEC GR 100uF 16V 20% RAD a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ! = ! SAFTY PARTS C = Components marked All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service. Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers. Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers. UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL -13- ELECTRICAL PARTS LIST - 7/8 XD-DV520 UBC POWER ! X C 0828 S1-221-650-174 CAP CER CCB 220pF 1KV 10% Y5P a POWER O C 0829 S3-100-052-002 CAP ELEC GR 10uF 50V 20% RAD a POWER X C 0830 S1-104-170-213 CAP CER KK 0.1uF 50V +80/-20% a POWER X C 0831 S1-104-170-213 CAP CER KK 0.1uF 50V +80/-20% a POWER O C 0832 S3-100-052-002 CAP ELEC GR 10uF 50V 20% RAD a POWER X C 0833 S1-104-170-213 CAP CER KK 0.1uF 50V +80/-20% a POWER X C 0834 S1-104-170-213 CAP CER KK 0.1uF 50V +80/-20% a POWER X C 0840 S1-104-170-213 CAP CER KK 0.1uF 50V +80/-20% a POWER ! S D 0801 S1-001-401-202 DIODE RECT 1A/400V 1N4004 a POWER ! S D 0802 S1-001-401-202 DIODE RECT 1A/400V 1N4004 a POWER ! S D 0803 S1-001-401-202 DIODE RECT 1A/400V 1N4004 a POWER ! S D 0804 S1-001-401-202 DIODE RECT 1A/400V 1N4004 a POWER ! S D 0805 S2-801-601-903 DIODE SHRY 1A 600V BYV26C a POWER S D 0806 S0-000-000-001 DIODE SW 4NS DO35 BULK 1N4148 a POWER S D 0807 S2-803-600-404 DIODE SHKY 3A/60V SB360 a POWER S D 0808 S2-803-600-404 DIODE SHKY 3A/60V SB360 a POWER S D 0809 S2-901-600-204 DIODE SHKY 1A/60V D0-41 SR160 a POWER S D 0810 S2-601-401-200 DIODE RECT HER105 1A 400V D0- a POWER S D 0811 S2-601-401-200 DIODE RECT HER105 1A 400V D0- a POWER S D 0812 S1-001-401-202 DIODE RECT 1A/400V 1N4004 a XD-DV520 UBC POWER S D 0813 S0-000-000-001 DIODE SW 4NS DO35 BULK 1N4148 a POWER S D 0814 S0-000-000-001 DIODE SW 4NS DO35 BULK 1N4148 a POWER S D 0815 S1-001-401-202 DIODE RECT 1A/400V 1N4004 a POWER S D 0816 S0-000-000-001 DIODE SW 4NS DO35 BULK 1N4148 a POWER S D 0817 S0-000-000-001 DIODE SW 4NS DO35 BULK 1N4148 a POWER ! S F 0801 S0-171-002-008 FUSE TIME-LAG 1.25A/250VAC 5 a POWER O FC 0801 S1-000-003-007 FUSE CLIP 0.05mm FL-50LS a POWER ! O J 0801 S1-027-010-009 HEADER 2 PINS 10mm A2361WV2-2 a POWER O J 0802 S1-022-126-009 CABLE ASSY 10 WAYS #22 2.5P U a POWER O J 0804 S1-030-010-009 HEADER 3 PINS 2.5mm ST5394T 2 a POWER ! O L 0802 S5-393-011-012 LINE FILTER IF UU-20 39mH NC- a POWER O L 0803 S0-689-126-100 IND CHOKE 6.8uH 10% RADIAL a POWER O L 0805 S5-101-011-002 LINE CHOKE 100uH 1A 250VAC UL a POWER O L 0806 S5-101-011-002 LINE CHOKE 100uH 1A 250VAC UL a POWER O L 0807 S5-101-011-002 LINE CHOKE 100uH 1A 250VAC UL a POWER O L 0808 S5-101-011-002 LINE CHOKE 100uH 1A 250VAC UL a POWER S Q 0801 S1-036-002-500 XTR PW 3A/60V TO-126 2SB772P a POWER S Q 0802 S0-000-110-004 XTR SS NPN TO-92 9014C a POWER S Q 0804 S0-100-110-002 XTR SS PNP TO-92 9015C a POWER S Q 0805 S0-100-110-002 XTR SS PNP TO-92 9015C a XD-DV520 UBC POWER S Q 0806 S0-000-110-004 XTR SS NPN TO-92 9014C a POWER ! X R 0801 S0-824-220-000 RES CF 820K OHM 5% 1/4W AXIAL a POWER X R 0803 S0-689-200-000 RES CF 6.8 OHM 5% 1/6W AXIAL a POWER X R 0804 S0-561-200-000 RES CF 560 OHM 5% 1/6W AXIAL a POWER X R 0805 S0-151-220-000 RES CF 150 OHM 5% 1/4W AXIAL a POWER X R 0806 S0-221-220-000 RES CF 220 OHM 5% 1/4W AXIAL a POWER X R 0807 S1-180-100-000 RES MF 1.8K OHM 1% 1/6W AXIAL a POWER X R 0808 S1-470-100-000 RES MF 4.7K OHM 1% 1/6W AXIAL a POWER X R 0809 S0-103-200-000 RES CF 10K OHM 5% 1/6W AXIAL a POWER X R 0810 S0-103-200-000 RES CF 10K OHM 5% 1/6W AXIAL a POWER X R 0811 S0-821-230-000 RES CF 820 OHM 5% 1/2W AXIAL a POWER X R 0813 S0-271-200-000 RES CF 270 OHM 5% 1/6W AXIAL a POWER ! X R 0815 S3-393-280-000 RES WW 39K OHM 5% 5W AXIAL a POWER X R 0816 S0-101-200-000 RES CF 100 OHM 5% 1/6W AXIAL a POWER X R 0817 S0-103-200-000 RES CF 10K OHM 5% 1/6W AXIAL a POWER X R 0818 S0-103-200-000 RES CF 10K OHM 5% 1/6W AXIAL a POWER X R 0822 S0-103-200-000 RES CF 10K OHM 5% 1/6W AXIAL a POWER X R 0823 S0-103-200-000 RES CF 10K OHM 5% 1/6W AXIAL a POWER X R 0824 S0-152-200-000 RES CF 1.5K OHM 5% 1/6W AXIAL a POWER X R 0827 S0-472-200-000 RES CF 4.7K OHM 5% 1/6W AXIAL a XD-DV520 UBC POWER ! O SW 0801 S0-102-119-007 SW POWER 2P2T LOCK W/BKT PS-5 a POWER ! O T 0801 S0-030-028-110 XFORMER PW ER-28 90-250V VDE a POWER S U 0801 S9-223-000-004 IC,SWITCHER PWM TOP223P a POWER O U 0802 S3-000-009-021 PHOTO-COUPLER PC817 a POWER S U 0803 S9-431-000-076 IC,VOLT REFERENCE TO-92 AP431 a POWER S U 0804 S3-000-501-191 IC,VOLTREG TO-220 PQ05RD11 a POWER S U 0805 S3-000-501-191 IC,VOLTREG TO-220 PQ05RD11 a POWER S U 0807 S3-000-801-131 IC,VOLT REG 8V 1A NJM7808FA a POWER S Z 0803 S3-212-002-000 DIODE ZENER BZX55-C12V a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 8 A Resistor Code Chip Resistor Part Coding Figure Value of resistor Chip resistor Wattage Type Tolerance 1/16W 1/10W 1/8W 1608 2125 3216 5% 5% 5% CJ CJ CJ Form L W t 1.6 0.8 0.45 2 1.25 0.45 3.2 1.6 108 118 128 : A : A CHIP RESISTOR PART CODE 0.55 Resistor Code Dimensions (mm) Symbol 1/16W 1005 5% CJ 1.0 0.5 0.35 104 L t W • Regarding connectors, they are not stocked as they are not the initial order items. The connectors are available after they are supplied from connector manufacturers upon the order is received. -14- ELECTRICAL PARTS LIST - 8/8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -15- TRANSISTOR ILLUSTRATION -1/1 2SB772P 2SA812 2SA1464 2SC1623 T2907A 9014C 9015C E C B E B C B C E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -16- BLOCK DIAGRAM - 1/2 (OVERALL SECTION) IC60 LB1641 ICS1 ICM1 VT3664164T-7H ICM2 M29W800AB-90N1 ICA3 CS4334 ICA2,4 LM833 QA6,7 ICS3 XS1 27MHz MAIN C.B POWER C.B FRONT C.B AC120 60Hz U801 TOP223P U802 PC817A T801 U803 D801-D804 UF3 OPV270018 UF2 GP1UM271RK UP1 XP1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -17- BLOCK DIAGRAM - 2/2 (DVD SECTION) VFD1 UF3 OPV270018 ICS1 ICM1 VT3664164T-7H ICM2 M29W800AB-90N1 UP3 ICA2,ICA4 LM833 ICA3 CS4334 IC60 LB1641 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -18- SCHEMATIC DIAGRAM - 1/5 (FRONT SECTION) FRONT C.B LED C.B To POWER C.B J804 To MAIN C.B -2/3 HF1 REMOTE SENSOR OPV270018 VFD DRIVER VFD DISPLAY BZX55-C5.6V C C C BZX55-C4.7V 6-BT-332GNK LED1 2R4HW-2 STANDBY W13 100 : WAVEFORMS No. 1 (VFD1 PIN34,35-GND) 2 (J804 PIN2-GND) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FRONT C.B -Top View- FRONT C.B -Bottom View- LED C.B To MAIN C.B HF1 To POWER C.B J804 1 5 10 15 20 25 30 35 44 1 6 7 17 18 28 29 39 40 1 5 10 15 20 25 30 35 VFD1 (VFD DISPLAY) WHT WHT WHT WHT WHT WHT TSW8 TSW7 TSW5 TSW4 TSW3 TSW2 OPEN/CLOSE PAUSE STOP PLAY 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 A B C D E F G H I J K L M N O P Q R S T U 1 2 3 4 5 6 7 8 9 25 26 27 28 29 30 31 32 WIRING - 1/4 (FRONT C.B) -19- w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -20- SCHEMATIC DIAGRAM - 2/5 (POWER SECTION) AC INPUT 120V 60Hz NJM7808FA 8V REG. PQ05RD11 U805 5V REG. PQ05RD11 U804 5V REG. POWER C.B To MAIN C.B -2/3 JP1 To FRONT C.B J2 PWM CONTROL AP431 POWER 1.25A 6.8 /250V 150 /100V B B DZX55-C12V P 4.7K w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 A B C D E F G H I J K L M N O P Q R S T U 1 2 3 4 5 6 7 8 9 25 26 27 28 29 30 31 32 WIRING - 2/4 (POWER C.B) -21- POWER C.B AC INPUT AC120V 60Hz SW801 POWER STANDBY To MAIN C.B JP1 To FRONT C.B J2 FC801 1 1 1 2 4 1 2 1 2 4 3 3 4 5 6 7 8 9 10 11 3 2 4 3 2 1 4 1 1 3 4 WHT BLK WHT GRY PUL BLU GRN YEL ORG RED BRN BLK 10 1 -Top View- w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -22- SCHEMATIC DIAGRAM - 3/5 (MAIN -1/3, CPU SECTION) 3V3 5VD 2V5 3V3 3V3 3V3 3V3 3V3 3V3 2V5 2V5 2V5 3V3 3V3 2V5 2V5 2V5 3V3 3V3 2V5 15D 23D 12D 14D 10D 11D MAIN C.B (CPU SECTION) 22D 21D 24D 25D 26D 29D 32D 31D 33D 30D 16D 17D 18D 19D 13D 34D 6C 3C 2C 5C 4C 10C 9D 8D 7D 6D 5D 4D 1D 2D 3D 1C 12C 11C 9C 7C 8C 20D 3E 2E 1E To MAIN C.B -2/3 To MAIN C.B -2/3 To MAIN C.B -3/3 To MAIN C.B -2/3 To MAIN C.B -2/3 ICS1 STI5519 CPU LL LL LL LL 2SC1623 2SC1623 2SC1623 M74HCU04MIR RM7 47K RM23 47K RM25 47K /50V /16V /16V /16V NOTE : 10n = 0.01uF 100n = 0.1uF 4K7 = 4.7k NOT USED 8 9 10 11 12 : WAVEFORMS No. : VIDEO SIGNAL : AUDIO SIGNAL : RGB SIGNAL : Y SIGNAL : CHROMA SIGNAL R R G G B B R G B 14 (AT TRAY CLOSE) 13 (AT TRAY OPEN) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -23- SCHEMATIC DIAGRAM - 4/5 (MAIN -2/3, MEMORY/POWER SECTION) 3.3VM MAIN C.B -2/3 (MEMORY/POWER SECTION) 1E 2E 3E 5B 4B 3B 2B 1B 34D 33D 32D 31D 30D 29D 2V5 3V3 5VD GND 5VD 12V 3V3 5VA 26D 25D 24D 23D 22D 21D 20D 19D 18D 17D 16D 15D 14D 13D 12D 11D 10D 9D 8D 7D 6D 5D 4D 3D 2D 1D To MAIN C.B -1/3 To MAIN C.B -1/3 To MAIN C.B -1/3 To MAIN C.B -1/3 To MAIN C.B -3/3 To FRONT C.B J1 To POWER C.B J802 To DVD MECHANISM To DVD MECHANISM VT3664164T-7H M29W800AB-90N1 FLACH MEMORY MOTOR DRIVE GND OUT1 P1 VZ IN1 IN2 VCC1 VCC2 P2 OUT2 2SA812 2SC1623 /16V /16V /50V LL LL LL BZX55-C6V8 /10V /16V /10V /10V 2SC1623 2SC1623 /10V CS ICS4 PQ025EZ01ZP RS3 4.7K 1 3 4 5 2 OUT IN CNRL GND NC 2SC1623 2SA812 2SA812 NOTE : 10n = 0.01uF 100n = 0.1uF 4K7 = 4.7k M1 CHASSIS M3 CHASSIS M2 CHASSIS M4 CHASSIS 5VA 12V GND IR 8VSS 8VS 7 6 : WAVEFORMS No. 5 4 3 /16V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -24- SCHEMATIC DIAGRAM - 5/5 (MAIN -3/3, AUDIO/VIDEO OUT SECTION) 5VA 5VA 5VA 5VA 5VA 5VA 5VAA 5VA 5VA 1B 1C 5B 2B 3B 2C 3C 4C 5C 6C 7C 8C 9C 4B 10C 11C 12C MAIN C.B -3/3 (AUDIO/VIDEO OUT SECTION) GND To MAIN C.B -2/3 To MAIN C.B -1/3 /6.3V /6.3V /16V /16V /50V /16V /16V 2SC1623 UPC78L05J -KS 3.3U/16V 3.3U/16V /50V D D /50V /25V /25V 2SA812 2SA812 2SC1623 2SC1623 AUDIO OUT R VIDEO OUT 1 AUDIO OUT L VIDEO OUT 2 56 56 /16V 2SC1623 2SC1623 2SA812 /10V T2907A 68 2SC1623 2SA812 DIGITAL OUT COAXIAL LL4148 LL4148 LL4148 LL4148 /16V /16V /10V /10V T2907A T2907A S-VIDEO OUT /10V /10V /10V T2907A T2907A T2907A /16V /16V /16V LL4148 LL4148 LL4148 LL4148 LL4148 LL4148 NOTE : 10n = 0.01uF 100n = 0.1uF 4K7 = 4.7k Y P3 CB CR : VIDEO SIGNAL : AUDIO SIGNAL : RGB SIGNAL : Y SIGNAL : CHROMA SIGNAL R L R R R L L L R B G R R R B B B G G G COMPONENT VIDEO OUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WIRING - 3/4 (MAIN C.B -Top View-) -25- MAIN C.B -Top View- To POWER C.B J802 To DVD MECHANISM To DVD MECHANISM To FRONT C.B J1 AUDIO OUT R AUDIO OUT L VIDEO OUT 1 VIDEO OUT 2 S-VIDEO OUT COMPONENT VIDEO OUT Y/CB/CR DIGITAL OUT COAXIAL 10 1 1 1 4 8 5 10 5 28 27 54 1 1 1 3 3 5 7 9 11 13 15 17 19 19 17 15 13 11 9 7 5 3 1 1 1 1 1 6 5 11 24 48 25 7 14 8 20 18 16 14 12 10 8 6 4 2 2 4 6 8 10 12 14 16 18 1 4 8 5 1 4 8 5 1 4 8 5 3 1 2 NOT USED 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 A B C D E F G H I J K L M N O P Q R S T U 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WIRING - 4/4 (MAIN C.B -Bottom View-) -26- MAIN C.B -Bottom View- 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 A B C D E F G H I J K L M N O P Q R S T U 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -27- VOLTAGE CHART -1/2 (MAIN CB.) ICS1(STi5519) PIN NO. DVD PB EE CD PB PIN NO. DVD PB EE CD PB PIN NO. DVD PB EE CD PB 1 1.66 0.13 1.72 52 0.85 0 0.84 125 3.28 3.29 3.28 2 3.35 3.37 3.35 53, 54 0.01 0 0.01 126, 127 NC NC NC 3 NC NC NC 55, 56, 57 1.69 1.69 1.69 128 to130 3.37 3.37 3.37 4 3.37 3.4 3.37 58 to 63 Add. Bus Add. Bus Add. Bus 131 0 0 0 5 0 0 0 64 2.47 2.47 2.47 132 2.11 2.62 2.6 6, 7, 8 NC NC NC 65 0 0 0 133 , 134 NC NC NC 9 1.63 1.65 1.63 66 to 73 Add Bus Add Bus Add Bus 135 3.31 3.37 3.31 10 4.48 4.52 4.49 74 2.51 2.54 2.53 136 3.37 3.37 3.37 11 1.64 1.65 1.64 75 2.8 2.63 2.73 137 0 0 0 12 NC NC NC 76 2.3 3.32 2.97 138 NC NC NC 13 1.67 1.9 1.74 77 3.1 3.04 3.04 139 3.31 3.35 3.31 14 2.47 2.5 2.47 78 3.11 3.34 2.77 140 3.37 3.37 3.37 15 0 0 0 79 0.02 0.01 0.13 141 to 148 Data Bus Data Bus Data Bus 16 1.3 0.03 0.23 80 0.02 0.01 0.12 149 2.46 2.46 2.46 17 1.62 1.65 1.63 81 3.37 3.37 3.37 150 0 0 0 18 1.74 0.03 0.35 82 1.53 1.71 1.57 151 to 158 Data Bus Data Bus Data Bus 19 0.01 0.03 0.01 83 0 0 0 159 3.37 3.37 3.37 20 to 22 NC NC NC 84 to 93 Data Bus Data Bus Data Bus 160 0 0 0 23 2.46 2.49 2.46 94 2.47 2.47 2.47 161 to 170 Add. Bus Add. Bus Add. Bus 24 0 0 0 95 1.63 1.69 1.53 171 2.45 2.45 2.45 25 0.57 0.61 0.59 96 0 0 0 172 0 0 0 26 0.53 0.93 0.91 97 to 102 Data Bus Data Bus Data Bus 173 to 183 Add. Bus Add. Bus Add. Bus 27 0.61 0.61 0.59 103 2.13 1.93 2.01 184 3.37 3.38 3.37 28 0 0 0 104 2.16 1.98 2.02 185 0 0 0 29 1.26 1.28 1.26 105 2.16 1.94 2 186 to 188 NC NC NC 30 2.46 2.48 2.46 106 1.64 1.62 1.6 189 4.43 4.63 4.56 31 0 0 0 107 3.37 3.38 3.37 190 4.61 4.63 4.61 32 0.66 0.92 0.89 108, 109 0 0 0 191 4.48 4.63 4.52 33 0.59 0.62 0.59 110 3.37 3.37 3.37 192 4.33 4.63 4.52 34 0.66 0.91 0.89 111 1.18 1.42 0.84 193 NC NC NC 35 0 0 0 112, 113 3.37 3.37 3.37 194, 195 3.31 3.36 3.34 36 1.27 1.29 1.27 114 NC NC NC 196 NC NC NC 37 2.48 2.5 2.48 115 0.02 0.02 0.02 197 1.86 2.2 1.73 38 to 40 0 0 0 116 NC NC NC 198 2.45 2.46 2.45 41 3.37 3.4 3.37 117 2.2 2.7 2.7 199 0 0 0 42 3.37 3.39 3.37 118 1.7 1.69 1.69 200, 201 0.01 0.01 0.01 43 3.37 2.28 3.37 119 2.46 2.46 2.46 202 0.87 1.2 0.22 44 to 46 NC NC NC 120 1.64 1.63 1.65 203 0.01 0.01 0.01 47 3.37 3.4 3.37 121 0 0 0 204 NC NC NC 48 2.46 2.48 2.46 122 2.41 2.41 2.41 205, 206 0.01 0.01 0.01 49, 50 0 0 0 123 0 0 0 207, 208 NC NC NC 51 1.69 1.68 1.69 124 3.37 3.37 3.37 ICA2(LM833) ICA3(CS4334) ICS3(74HCU04) PIN NO. DVD PB EE CD PB PIN NO. DVD PB EE CD PB PIN NO. DVD PB EE CD PB 1 5.61 5.6 5.62 1 0.85 0 0.73 1 1.73 1.73 1.73 2 5.61 5.6 5.62 2 1.69 1.69 1.69 2, 6, 9, 10 NC NC NC 3 5.61 5.6 5.62 3 1.69 1.69 1.69 3 1.73 1.73 1.73 4 0 0 0 4 1.69 1.69 1.68 4 1.64 1.67 1.65 5 5.61 5.6 5.62 5 2.26 2.25 2.26 5, 7, 8, 11 0 0 0 6 5.62 5.6 5.62 6 0 0 0 12 1.73 1.73 1.73 7 5.63 5.61 5.63 7 5.03 5.03 5.04 13 1.71 1.72 1.7 8 11.22 11.19 11.24 8 2.26 2.25 2.26 14 3.37 3.37 3.37 ICS2(AMS2501) ICA4(LM833) IC60(LB1641) PIN NO. DVD PB EE CD PB PIN NO. DVD PB EE CD PB PIN NO. DVD PB EE CD PB 1 3.3 3.31 3.31 1 5.61 5.6 5.62 1 0 0 0 2, 3, 4 2.5 2.5 2.5 2 5.62 5.6 5.63 2, 10 0.02 0.02 0.02 5, 6, 7 NC NC NC 3 5.61 5.6 5.62 3, 9 0.76 0.75 0.76 8 4.89 4.9 4.89 4 0 0 0 4 0.21 0.8 0.51 5 5.61 5.6 5.62 5, 6 0.01 0 0.01 6 5.62 5.6 5.62 7, 8 8.02 8.03 8.03 7 5.63 5.61 5.64 8 11.22 11.19 11.24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -28- VOLTAGE CHART -2/2 (FRONT CB.) ICM1(SDRAM 4*16) ICM(2M29W800) UP1(M6759) PIN NO. DVD PB EE CD PB PIN NO. DVD PB EE CD PB PIN NO. DVD PB EE CD PB 1 3.31 3.32 3.3 1 to 9 Add. Bus Add. Bus Add. Bus 1 to 9 NC NC NC 2 Data Bus Data Bus Data Bus 10 NC NC NC 10 0 0.02 0 3 3.31 3.32 3.3 11 3.37 3.37 3.37 11 to 12 NC NC NC 4, 5 Data Bus Data Bus Data Bus 12 3.31 3.32 3.3 13 4.84 4.85 4.84 6 0 0 0 13, 14 0 0 0 14 4.9 4.92 4.9 7, 8 Data Bus Data Bus Data Bus 15 NC NC NC 15 to 19 NC NC NC 9 3.31 3.32 3.3 16 to 25 Add. Bus Add. Bus Add. Bus 20 2.58 2.43 2.55 10, 11 Data Bus Data Bus Data Bus 26 2 2.6 2.6 21 1.99 2.01 2.01 12 0 0 0 27 0 0 0 22 0 0 0 13 Data Bus Data Bus Data Bus 28 2.2 2.72 2.7 23 to 34 NC NC NC 14 3.31 3.32 3.3 29 to 36 Data Bus Data Bus Data Bus 35,44 4.91 4.92 4.91 15 0.02 0.02 0.05 37 3.31 3.32 3.3 36 to 43 NC NC NC 16 2.74 2.62 2.76 38 to 45 Data Bus Data Bus Data Bus 17 2.7 2.86 2.7 46 0 0 0 18 2.53 2.53 2.52 47 3.31 3.32 3.3 19 2.52 2.55 2.52 48 Add. Bus Add. Bus Add. Bus 20 to 26 Add. Bus Add. Bus Add. Bus 27 3.31 3.32 3.3 28 0 0 0 29 to 35 Add. Bus Add. Bus Add. Bus 36 0 0 0 37 3.31 3.32 3.3 38 1.7 1.6 1.64 39 0.02 0.02 0.04 40, 41 0 0 0 42 Data Bus Data Bus Data Bus 43 3.31 3.32 3.3 44, 45 Data Bus Data Bus Data Bus 46 0 0 0 47, 47 Data Bus Data Bus Data Bus 49 3.31 3.32 3.3 50, 51 Data Bus Data Bus Data Bus 52 0 0 0 53 Data Bus Data Bus Data Bus 54 0 0 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -29- WAVEFORMS -1/3 1 VFD1 PIN1, 2 At the time of GND Pin 34, 35 2 VFD1 PIN1, 2 At the time of GND J804 Pin 2 (GND) 3 HX1 PIN9, 10 4 HX1 PIN14 5 HX1 PIN15 6 HX1 PIN16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -30- WAVEFORMS -2/3 7 HX1 PIN17 8 ICS1 PIN51 9 ICS1 PIN55 10 ICS1 PIN56 11 ICS1 PIN57 12 ICS1 PIN34 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -31- WAVEFORMS -3/3 13 ICS1 PIN205, PIN206 Tray Opening 14 ICS1 PIN205, PIN206 Tray Closing ICS1 Pin 206 ICS1 Pin 205 ICS1 Pin 205 ICS1 Pin 206 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -32- FL DISPLAY -1/1 GRID ASSIGNMENT ANODE CONNECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -33- IC BLOCK DIAGRAM -1/5 IC, TOP223P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -34- IC BLOCK DIAGRAM -2/5 IC, LM833D IC, VT3664164T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -35- IC BLOCK DIAGRAM -3/5 IC, M74HCU04MIR IC, ANS2501CS IC, LB1641 -35- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -36- IC BLOCK DIAGRAM -4/5 IC, M29W800AB IC, CS4334 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -37- IC BLOCK DIAGRAM -5/5 IC, STI5519 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Pin No. Pin Name I/O Description -38- IC DESCRIPTION -1/4 (TOP223P) -1/1 – – – – Y package-Output MOSFET source connection for high voltage power return.Primary side circuit common and reference point. P and G package-Primary side control circuit common and reference point. Error amplifier and feedback current input pin for duty cycle control.Internal shunt regulator connection to provide internal bias current during normal operation. It is also used as the connection point for the supply bypass and auto-restart/compensation capacitor. Output MOSFET drain connection.Provides internal bias current during start-up operation via an internal switched high-voltage current source.Internal current sense point. Output MOSFET source connection for high voltage power return. 1 ~ 3 4 5 6 ~ 8 SOURCE CONTROL DRAIN SOURCE(HV RTN) (P and G package only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Pin No. Pin Name I/O Description -39- IC DESCRIPTION -2/4 (VT3664164T) -1/1 1, 14, 27 2, 4, 5, 7, 8, 10, 11, 13, 42, 44, 45, 47, 48, 50, 51, 53 3, 9, 43, 49 6, 12, 46, 52 15, 39 16 17 18 19 20, 21 22-26, 29-35 28,41,54 36,40 37 38 VDD DQ0 ~ DQ15 VDDQ VSSQ DQM ___ WE ____ CAS ____ RAS ___ CS BA0, BA1 A0 ~ A11 VSS NC CKE CLK Power for input buffers and logic circuit inside DRAM. Multiplexed pins for data output and input. Separated power from VDD,to improve DQ noise immunity. Separated power from VSS,to improve DQ noise immunity. Makes data output Hi-z.Block data input when DQM active. Enable Enables write operation and row precharge. ____ Latches column addresses on the positive going edge of the CLK with CAS low. ____ Latches row addresses on the positive going edge of the CLK with CAS low. Disable or enable the command decoder. Select bank to activate during row address latch time,or bank to read/write during address latch time. Multiplexed pins for row and column address.Row address:A0-A11, Column address:A0-A7. Ground for input buffers and logic circuit inside DRAM. No Connection CKE controls the clock activation and deactivation.When CKE is low, Power Down mode, Suspend mode or Self Refresh mode is entered. System clock used to sample inputs on the rising edge of clock. – I – – I I I I I/O I/O I/O – – I/O I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Pin No. Pin Name I/O Description -40- IC DESCRIPTION -3/4 (CS4334) -1/1 1 2 3 4 5 6 7 8 SDATA DEM/SCLK LRCK MCLK AOUTR AGND VA AOUTL(RTS1) I/ Serial Audio Data Input - two's complement MSB-first serial data is input on this pin. The data is clocked into the CS4334 via internal or external SCLK,and the channel is determined by LRCK. De-Emphasis/External Serial Clock Input - used for de-emphasis filter control or external serial clock input. Left/Right Clock - determines whick channel is currently being input on the Audio Serial Data Input pin,SDATA. Master Clock - frequency must be 256x,384x,or 512x the input sample rate in BRM and either 128x or 192x the input sample rate in HRM. Analog Right Channel Output - typically 3.5 Vp-p for a full-scale input signal. Analog Ground - analog ground reference is 0V. Analog Power - analog power supply is nominally +5V. Analog Left Channel Output - typically 3.5 Vp-p for a full-scale input signal. I I I I O I I O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -41- IC DESCRIPTION -4/4 (STI5519) -1/6 Pin No. Pin name Main function Alternate function Dir func. Input Output Left Side 1 PIO2[5] PIO2[5] I/O 2 PIO2[6] PIO2[6] I/O 3 PIO2[7] PIO2[7] I/O 4 VDD3_3 3.3 V POWER SUPPLY POWER 5 VSS GROUND POWER 6 PIO3[0] PIO3[0] MAFEIF_SCLK PARA_DATA{0] I/O 7 PIO3[1] PIO3[1] MAFEIF_DIN PARA_DATA[1] I/O 8 PIO3[2] PIO3[2] MAFEIF_FSI PARA_DATA[2] I/O 9 PIO3[3] PIO3[3] CAPTURE_IN0 PARA_DATA[3] I/O 10 PIO3[4] PIO3[4] CAPTURE_IN1 PARA_DATA[4] UART1 RTS (RTS1) I/O 11 PIO3[5] PIO3[5] CAPTURE_IN2 PARA_DATA[5] UART2 RTS (RTS2) I/O 12 PIO3[6] PIO3[6] PARA_DATA[6] UART1 CTS (CTS1) COMP_OUT1 I/O 13 PIO3[7] PIO3[7] PARA_DATA[7] UART2 CTS (CTS2) COMP_OUT0 I/O 14 VDD2_5 2.5V POWER SUPPLY POWER 15 VSS GROUND POWER 16 B_DATA I2S DATA SER_DATA I 17 B_BCLK I2S BIT CLOCK SER_BCLK I 18 B_FLAG I2S ERROR FLAG DVD SER_VALID I 19 B_SYNC I2S SECTOR/ABS TIME SER_SYNC I 20 PIO5[0] PIO5[0] B_WCLK I/O SSC1_DATA/NRSS_CLOCK1 21 PIO5[1] PIO5[1] B_V4 NRSS_OUT 2 and 1 1 I/O SSC1_CLOCK 22 PIO5[2] PIO5[2] IRB_IRin/NRSS_IN2 I/O 23 VDD_RGB VDDA_RGB=2.5V POWER 24 VSS_RGB VSSA_RGB=GND POWER 25 B_OUT B_OUT O 26 G_OUT G_OUT O 27 R_OUT R_OUT O 28 V_REF_RGB V_REF_DAC_RGB I 29 I_REF_RGB I_REF_DAC_RGB I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -42- IC DESCRIPTION -4/4 (STI5519) -2/6 30 VDD_YCC VDDA_YCC=2.5V POWER 31 VSS_YCC VSSA_YCC=GND POWER 32 Y_OUT Y_OUT O 33 C_OUT C_OUT O 34 CV_OUT CV_OUT O 35 V_REF_YCC V_REF_DAC_YCC I 36 I_REF_YCC I_REF_DAC_YCC I 37 VDD2_5 2.5V POWER SUPPLY POWER 38 VSS GROUND POWER 39 PIO4[0] PIO4[0] YC[0] I/O 40 PIO4[1] PIO4[1] YC[1] I/O 41 PIO4[2] PIO4[2] YC[2] I/O 42 PIO4[3] PIO4[3] YC[3] I/O 43 PIO4[4] PIO4[4] YC[4] I/O 44 PIO4[5] PIO4[5] YC[5] I/O 45 PIO4[6] PIO4[6] YC[6] I/O 46 PIO4[7] PIO4[7] YC[7] I/O 47 VDD3_3 3.3 V POWER SUPPLY POWER 48 VDD_PCM VDD FREQ SYNTH=2.5V POWER 49 VSS_PCM VSS FREQ SYNTH=GND POWER 50 VSS GROUND POWER 51 DAC_SCLK SAMPLING CLK EXT_AUD_CLK O 52 DAC_PCMOUT0 PCM_OUT0 EXT_AUD_DATA O Bottom side 53 DAC_PCMOUT1 PCM_OUT1 EXT_AUD_REQ I/O 54 DAC_PCMOUT2 PCM_OUT2 O 55 DAC_PCMCLK PCM_CLOCK I/O 56 DAC_LRCLK LEFT/RIGHT CLK EXT_AUD_WCLK O 57 SPDIF_OUT SPDIF_OUT O 58 SMI_ADR[4] Adress bus SDRAM O 59 SMI_ADR[5] Adress bus SDRAM O 60 SMI_ADR[6] Adress bus SDRAM O 61 SMI_ADR[7] Adress bus SDRAM O 62 SMI_ADR[8] Adress bus SDRAM O 63 SMI_ADR[9] Adress bus SDRAM O 64 VDD2_5 2.5V POWER SUPPLY POWER 65 VSS GROUND POWER 66 SMI_ADR[3] Adress bus SDRAM O 67 SMI_ADR[2] Adress bus SDRAM O 68 SMI_ADR[1] Adress bus SDRAM O Pin No. Pin name Main function Alternate function Dir func. Input Output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -43- IC DESCRIPTION -4/4 (STI5519) -3/6 69 SMI_ADR[0] Adress bus SDRAM O 70 SMI_ADR[10] Adress bus SDRAM O 71 SMI_ADR[11] Adress bus SDRAM O 72 SMI_ADR[12] Adress bus SDRAM O 73 SMI_ADR[13] Adress bus SDRAM O 74 SMI_CS[0] Chip select bank 0 O 75 SMI_CS[1] Chip select bank 1 O 76 SMI_RAS RAS SDRAM O 77 SMI_CAS CAS SDRAM O 78 SMI_WE SDRAM write enable O 79 SMI_DQML DQ MASK EN LOW O 80 SMI_DQMU DQ MASK EN UP O 81 VDD3_3 3.3 V POWER SUPPLY POWER 82 SMI_CLKIN SDRAM CLOCK IN I 83 VSS GROUND POWER 84 SMI_DATA[0] Data bus SDRAM I/O 85 SMI_DATA[1] Data bus SDRAM I/O 86 SMI_DATA[2] Data bus SDRAM I/O 87 SMI_DATA[3] Data bus SDRAM I/O 88 SMI_DATA[4] Data bus SDRAM I/O 89 SMI_DATA[5] Data bus SDRAM I/O 90 SMI_DATA[6] Data bus SDRAM I/O 91 SMI_DATA[7] Data bus SDRAM I/O 92 SMI_DATA[8] Data bus SDRAM I/O 93 SMI_DATA[9] Data bus SDRAM I/O 94 VDD2_5 2.5V POWER SUPPLY POWER 95 SMI_CLKOUT SDRAM CLOCK OUT O 96 VSS GROUND POWER 97 SMI_DATA[10] Data bus SDRAM I/O 98 SMI_DATA[11] Data bus SDRAM I/O 99 SMI_DATA[12] Data bus SDRAM I/O 100 SMI_DATA[13] Data bus SDRAM I/O 101 SMI_DATA[14] Data bus SDRAM I/O 102 SMI_DATA[15] Data bus SDRAM I/O 103 PIO5[3] PIO5[3] IRB_UHFin3 I/O 104 PIO5[4] PIO5[4] IRB_PPMout I/O Right side 105 PIO5[5] PIO5[5] IRB_drive0orZ4 I/O 106 Reserved Reserved output O 107 VDD3_3 3.3 V POWER SUPPLY POWER Pin N¡ Pin name Main function Alternate function Dir func. Input Output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -44- IC DESCRIPTION -4/4 (STI5519) -4/6 108 VSS GROUND POWER 109 TRST5 TEST RESET I 110 TMS TEST MODE SELECT I 111 TDO TEST DATA OUT O 112 TDI TEST DATA IN I 113 TCK TEST CLOCK I 114 PWM2 Pulse Width Modul 2 VSYNC I/O 115 PWM1 Pulse Width Modul 1 BOOT_FROM_ROM6 I/O 116 PWM0 Pulse Width Modul 0 HSYNC I/O 117 CPU_OE OUTPUT ENABLE I/O 118 CPU_PROCLK SDRAM CLOCK O 119 VDD2_5 2.5V POWER SUPPLY POWER 120 PIX _CLK 27 MHz main clock I 121 VSS GROUND POWER 122 VDD_PLL VDD PLL=2.5V POWER 123 VSS_PLL GND PLL=GND POWER 124 RESET CHIP RESET I 125 IRQ[2] IRQ[2] (MD_IRQ) I 126 IRQ[1] IRQ[1] (ATAPI IRQ) I 127 IRQ[0] IRQ[0] (SERVO_IRQ) I 128 CPU_BE[0] BYTE 0 ENABLE DQM[0] O 129 CPU_BE[1] BYTE 1 ENABLE DQM[1] O 130 CPU_RW READ-NOT WRITE NOT_SDRAM_WE O 131 CPU_WAIT WAIT STATE I 132 CPU_CE[3] CHIP SEL. BANK 3 CS_SUB_BANK3 O 133 CPU_CE[2] CHIP SEL. BANK 2 O 134 CPU_CE[1] CHIP SEL. BANK 1 O 135 CPU_CE[0] DRAM_RAS0 SDRAM_RAS O 136 VDD3_3 3.3 V POWER SUPPLY POWER 137 VSS GROUND POWER 138 CPU_RAS1 DRAM RAS NOT_SDRAM_CS1 I/O 139 CPU_CAS0 DRAM CAS0 SDRAM_CAS CPU_ADR[22] O 140 CPU_CAS1 DRAM NOT_SDRAM_CS0 O 141 CPU_DATA[0] DATA[0] I/O 142 CPU_DATA[1] DATA[1] I/O 143 CPU_DATA[2] DATA[2] I/O 144 CPU_DATA[3] DATA[3] I/O 145 CPU_DATA[4] DATA[4] I/O 146 CPU_DATA[5] DATA[5] I/O Pin No. Pin name Main function Alternate function Dir func. Input Output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -45- IC DESCRIPTION -4/4 (STI5519) -5/6 147 CPU_DATA[6] DATA[6] I/O 148 CPU_DATA[7] DATA[7] I/O 149 VDD2_5 2.5V POWER SUPPLY POWER 150 VSS GROUND POWER 151 CPU_DATA[8] DATA[8] I/O 152 CPU_DATA[9] DATA[9] I/O 153 CPU_DATA[10] DATA[10] I/O 154 CPU_DATA[11] DATA[11] I/O 155 CPU_DATA[12] DATA[12] I/O 156 CPU_DATA[13] DATA[13] I/O Top side 157 CPU_DATA[14] DATA[14] I/O 158 CPU_DATA[15] DATA[15] I/O 159 VDD3_3 3.3 V POWER SUPPLY POWER 160 VSS GROUND POWER 161 CPU_ADR[1] ADR[1] O 162 CPU_ADR[2] ADR[2] O 163 CPU_ADR[3] ADR[3] O 164 CPU_ADR[4] ADR[4] O 165 CPU_ADR[5] ADR[5] O 166 CPU_ADR[6] ADR[6] O 167 CPU_ADR[7] ADR[7] O 168 CPU_ADR[8] ADR[8] O 169 CPU_ADR[9] ADR[9] O 170 CPU_ADR[10] ADR[10] O 171 VDD2_5 2.5V POWER SUPPLY POWER 172 VSS GROUND POWER 173 CPU_ADR[11] ADR[11] O 174 CPU_ADR[12] ADR[12] O 175 CPU_ADR[13] ADR[13] O 176 CPU_ADR[14] ADR[14] O 177 CPU_ADR[15] ADR[15] O 178 CPU_ADR[16] ADR[16] O 179 CPU_ADR[17] ADR[17] O 180 CPU_ADR[18] ADR[18] O 181 CPU_ADR[19] ADR[19] O 182 CPU_ADR[20] ADR[20] O 183 CPU_ADR[21] ADR[21] O 184 VDD3_3 3.3 V POWER SUPPLY POWER 185 VSS GROUND POWER Pin No. Pin name Main function Alternate function Dir func. Input Output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -46- IC DESCRIPTION -4/4 (STI5519) -6/6 186 PIO0[0] PIO0[0] UART0_DATA I/O 187 PIO0[1] PIO0[1] ATAPI_RD I/O 188 PIO0[2] PIO0[2] ATAPI_WR I/O 189 PIO0[3] PIO0[3] I/O 190 PIO0[4] PIO0[4] I/O 191 PIO0[5] PIO0[5] I/O 192 PIO0[6] PIO0[6] I/O 193 PIO0[7] PIO0[7] I/O 194 PIO1[0] PIO1[0] SSC0_DATA (MTSROut/MRSTin) I/O 195 PIO1[1] PIO1[1] SSC0_CLOCK I/O 196 PIO1[2] PIO1[2] PARA_DVALID I/O 197 PIO1[3] PIO1[3] UART2_TXD I/O 198 VDD2_5 2.5V POWER SUPPLY POWER 199 VSS GROUND POWER 200 PIO1[4] PIO1[4] UART2_RXD I/O 201 PIO1[5] PIO1[5] PARA_SYNC UART1_TXD I/O 202 TRIGGER_IN TRIGGER_IN for DCU I/O 203 TRIGGER_OUT TRIGGER_OUT for DCU I/O 204 PIO2[0] PIO2[0] UART3_DATA I/O 205 PIO2[1] PIO2[1] UART1_RXD MAFEIF_DOUT PARA_REQ I/O 206 PIO2[2] PIO2[2] PARA_STR MAFEIF_HC1 I/O 207 PIO2[3] PIO2[3] I/O 208 PIO2[4] PIO2[4] I/O 1. FEI_CFG bits 8 and 9 must be programmed according to the required NRSS configuration. 2. The NRSS_IN and NRSS_OUT pins are swapped around on the STi5519 compared to the STi5508. 3. Inverted. ATTENTI0N! the PIO is also inverted. 4. The PIO must be configured in open drain 5. Tie low whenever JTAG is not used 6. BOOT_FROM_ROM is active during reset. Pin No. Pin name Main function Alternate function Dir func. Input Output Table 2 Pins sorted by number www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -47- MECHANICAL EXPLODED VIEW -1/1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ! = ! SAFTY PARTS C = Components marked All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service. Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers. Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers. UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL -48- MECHANICAL PARTS LIST -1/1 XD-DV520 UBC O MC1001 S0-110-713-140 TOP CASE DVD110 GALVANIZED ST a O MC1002 S0-300-602-040 MECHINE SCREW M3X6 WASHER HEA a O MC1003 S0-300-803-720 SELF TAPPING SCREW -3X8 B/H T a X MC1004 S0-110-000-003 PWB ASSY DV110 LED BOARD R.0 a O MC1005 S0-110-035-700 DISPLAY BRACKET HT-DV110 ABS( a O MC1006 S4-110-000-001 VACUUM FLUORESCENT DISPLY 6 G a O MC1007 S0-110-072-710 EJECT/FUNCTION BUTTON SET DVD a O MC1008 S0-110-000-010 “AIWA” BRAND BADGE DVD110 BLA a O MC1009 S0-110-049-000 COMPRESS SPRING HT-DV11O 0.4m a O MC1010 S0-110-062-710 POWER BUTTON DVD110 BLACK R.0 a O MC1011 S0-110-000-000 PLASTIC DVD LOGO(LASER PATTER a O MC1012 S0-110-021-110 DVD DOOR DVD110 HOT STAMP BLA a O MC1013 S0-110-011-030 DISPLAY LENS DVD110 PMMA DARK a O MC1014 S0-110-000-710 FRONT PANEL HT-DV110 ABS(94V0 a X MC1015 S0-110-000-000 PWB ASSY DV110 FRONT PANEL BO a O MC1016 S0-301-003-720 SELF TAPPING SCREW _3X10 B/H a O MC1017 S0-300-600-020 MECHINE SCREW M3X6 P/H NI-PLT a O MC1018 S0-020-301-022 RUBBER PAD FOR FOOT O/D 20 X a O MC1019 S0-220-000-000 FOOT ABS BLACK HOT STAMPING ( a O MC1020 S4-000-013-002 FERRITE CORE CT 25X15X10 a XD-DV520 UBC O MC1021 S0-981-283-072 FOOTPAD _12.8 X 7.5mm BLK RUB a X MC1022 S0-110-704-800 BTM CASE HT-DV110 GALVANIZED a O MC1023 S0-110-009-000 REAR PLATE HT-DV110 0.6mm THK a O MC1024 S0-300-600-540 SELF TAPING SCREW _3X6 P/H TA a X MC1025 S0-110-000-000 PWB ASSY DV110 MAIN BOARD (FO a O MC1026 S0-050-300-030 TVM503R-1 a ! O MC1027 S2-060-010-079 POWER CORD a X MC1028 S0-110-059-000 GROUND PLATE HT-DV110 0.3mm T a O MC1029 S0-000-004-000 SPACER HEAD ABS (94V0) NATURA a O MC1030 S0-301-600-020 MECHINE SCREW M3X16 P/H NI-PL a ! X MC1031 S0-110-000-000 PWB ASSY DV110 POWER SUPPLY B a O MC1032 S0-000-005-000 SPACER ABS(94V0)11mm HTGH NAT a O MC1033 S0-110-042-700 POWER BOTTON BUSHING HT-DV110 a O MC1034 S0-110-052-700 POWER BUTTON ADAPTOR HT-DV110 a O MC1035 S1-181-271-162 BUSHING 11.8X 12.7 1.6mm THK a X MC1036 S0-101-585-800 SHIELD COVER 0.50THK GALVANIZ a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com -49- COLOR NAME TABLE -1/1 Basic color symbol Color Basic color symbol Color Basic color symbol Color B Black C Cream D Orange G Green H Gray L Blue LT Transparent Blue N Gold P Pink R Red S Silver ST Titan Silver T Brown V Violet W White WT Transparent White Y Yellow YT Transparent Yellow LM Metallic Blue LL Light Blue GT Transparent Green LD Dark Blue DT Transparent Orange GM Metallic Green YM Metallic Yellow DM Metallic Orange PT Transparent Pink LA Aqua Blue GL Light Green HT Transparent Gray HM Metallic Gray NH Champagne Gold M Wood Pattern www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ! = ! SAFTY PARTS C = Components marked All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service. Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers. Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers. UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL -50- OTHER PARTS LIST -1/1 XD-DV520 UBC X S5-005-001-009 LABEL “QC PASSED” 9mm a X S8-071-140-000 LABEL I.C. FLASH 4mm R.0 a X S8-070-002-008 LABEL SA NO. J700 15 X 8mm 1- a X S0-110-000-013 POLYBAG HD PE MANUAL-FOR AIWA a X S0-110-000-003 POLYBAG HD PE UNIT-FOR AIWA M a X S0-040-007-010 POLYBAG WITH SILKSCREEN (222 a X S0-200-000-000 POLYBAG WITH SILKSCREEN 90 X a X S0-110-010-000 POLYFOAM (L) HT-DV110 DVD/AMP a X S0-110-009-000 POLYFOAM (R) HT-DV110 DVD/AMP a X S0-110-000-000 POLYFOAM STEEL 55 X 50 X 30mm a X S8-110-000-053 ADDENDUM SHEET DVD110 “AIWA X a X S8-110-000-063 ADDENDUM SHEET DVD110 148 X 1 a X S0-110-000-003 CARTON BOX DVD110(500 X 380 X a X S8-110-000-053 LABEL BARCODE DVD110 “XD-DV52 a X S8-928-000-000 LABEL DHHS DATE C928 50 X 6mm a X S0-110-000-003 LABEL SERIAL NO. DVD110 “AIWA a X S8-110-000-033 LABEL USA 1-800 DVD110 145 X a X S8-110-000-003 WARRENTY CARD DVD110 “AIWA XD a X S0-101-585-800 SHIELD COVER 0.50THK GALVANIZ a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111 H251941 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
