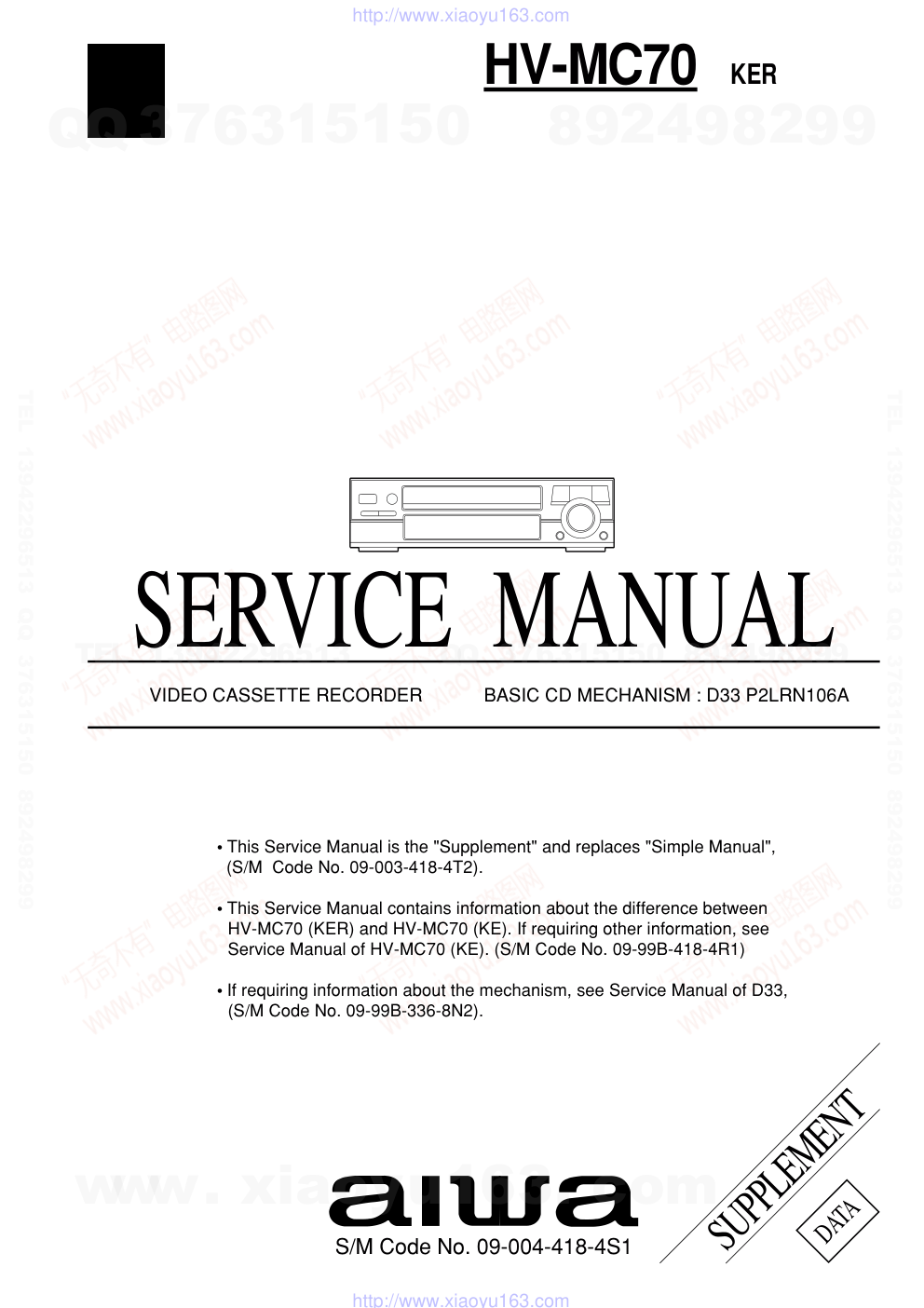

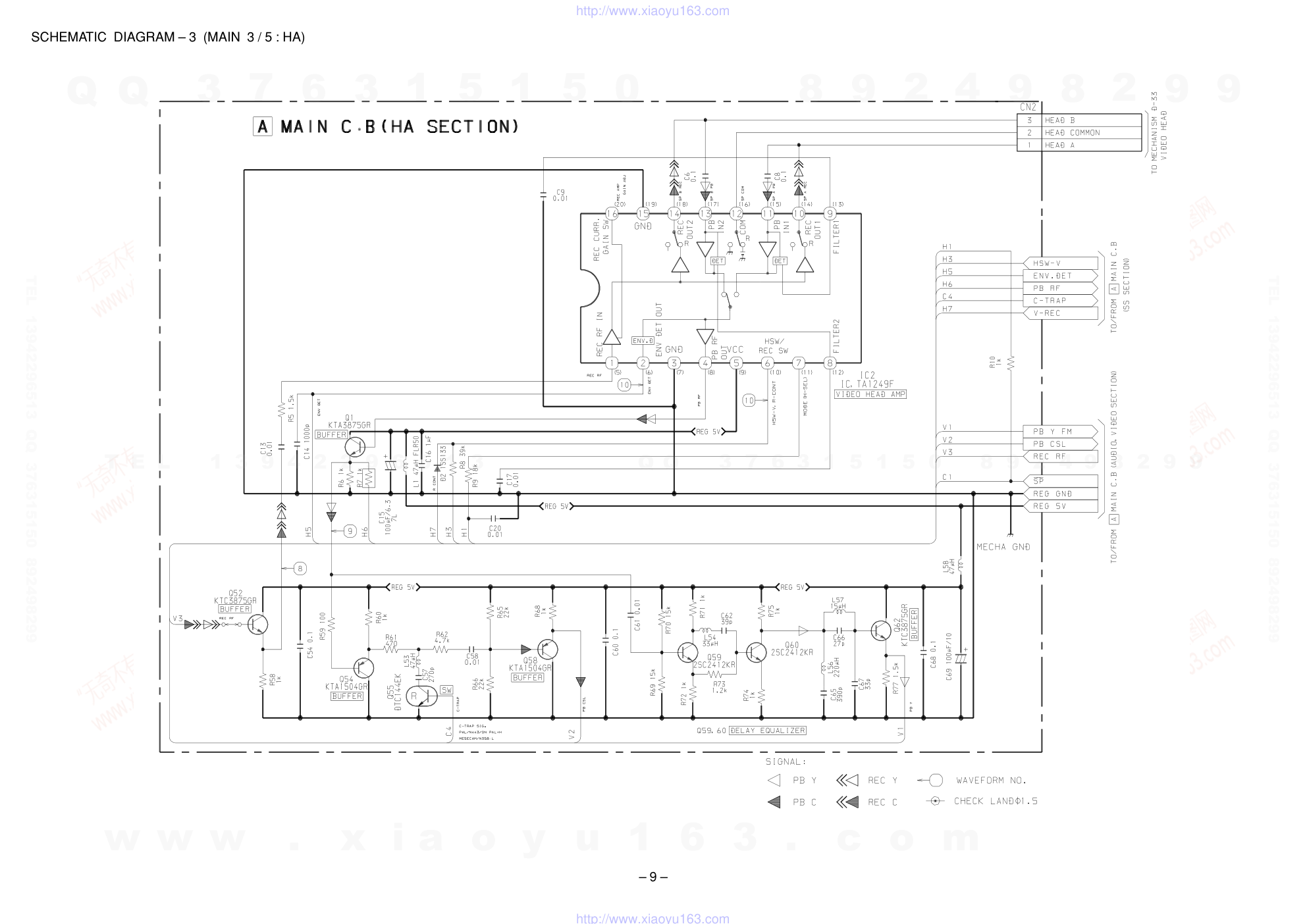

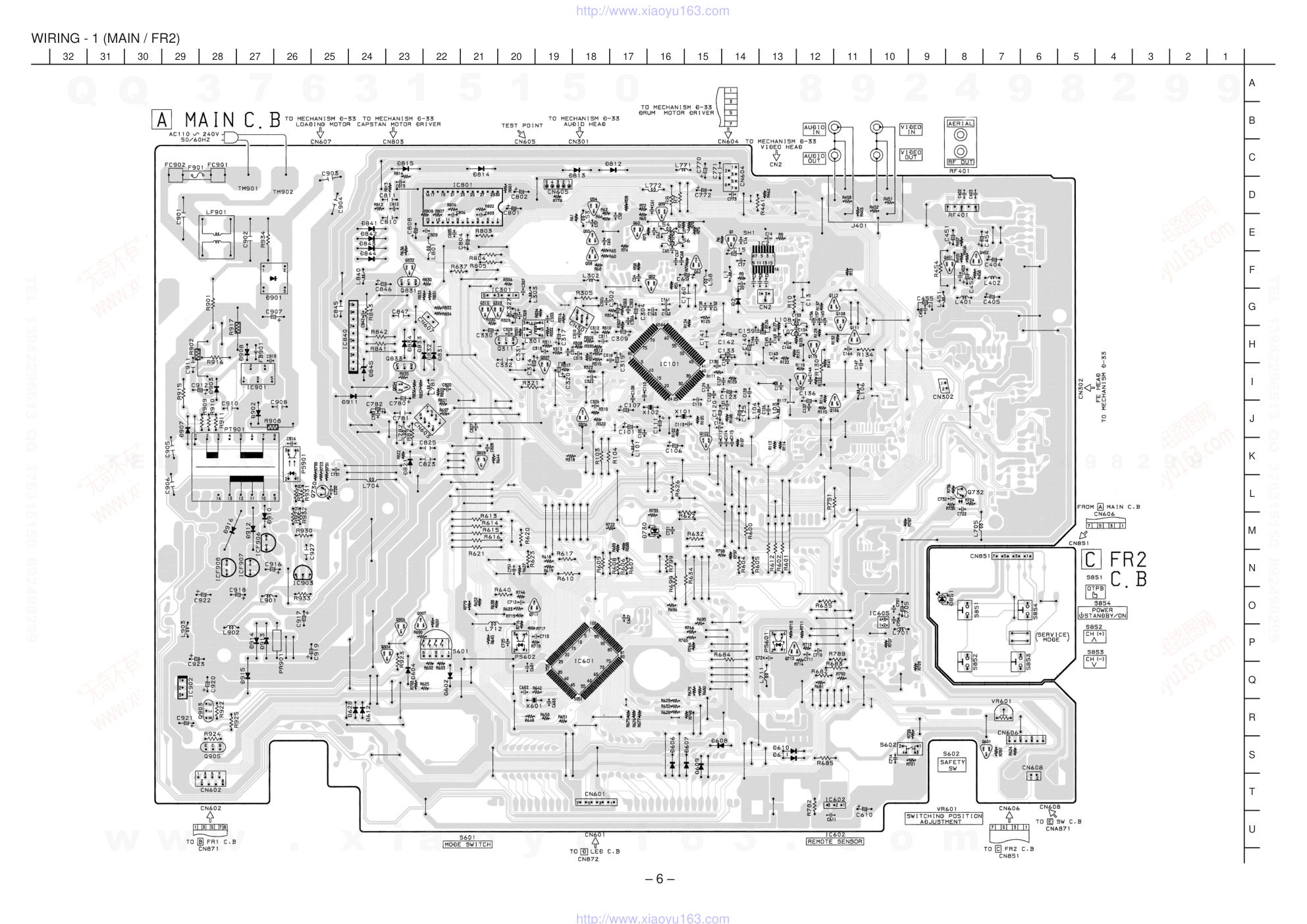

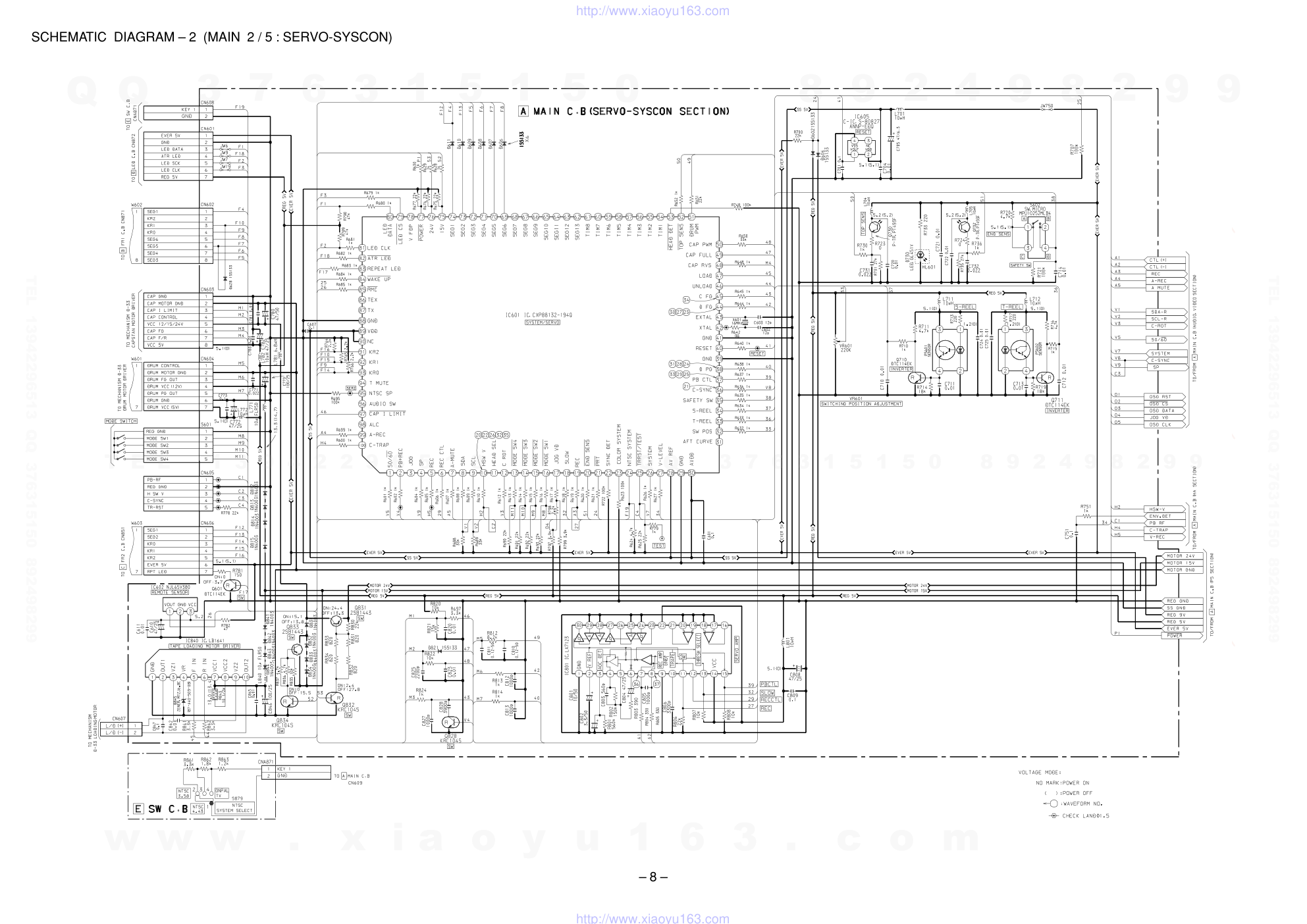

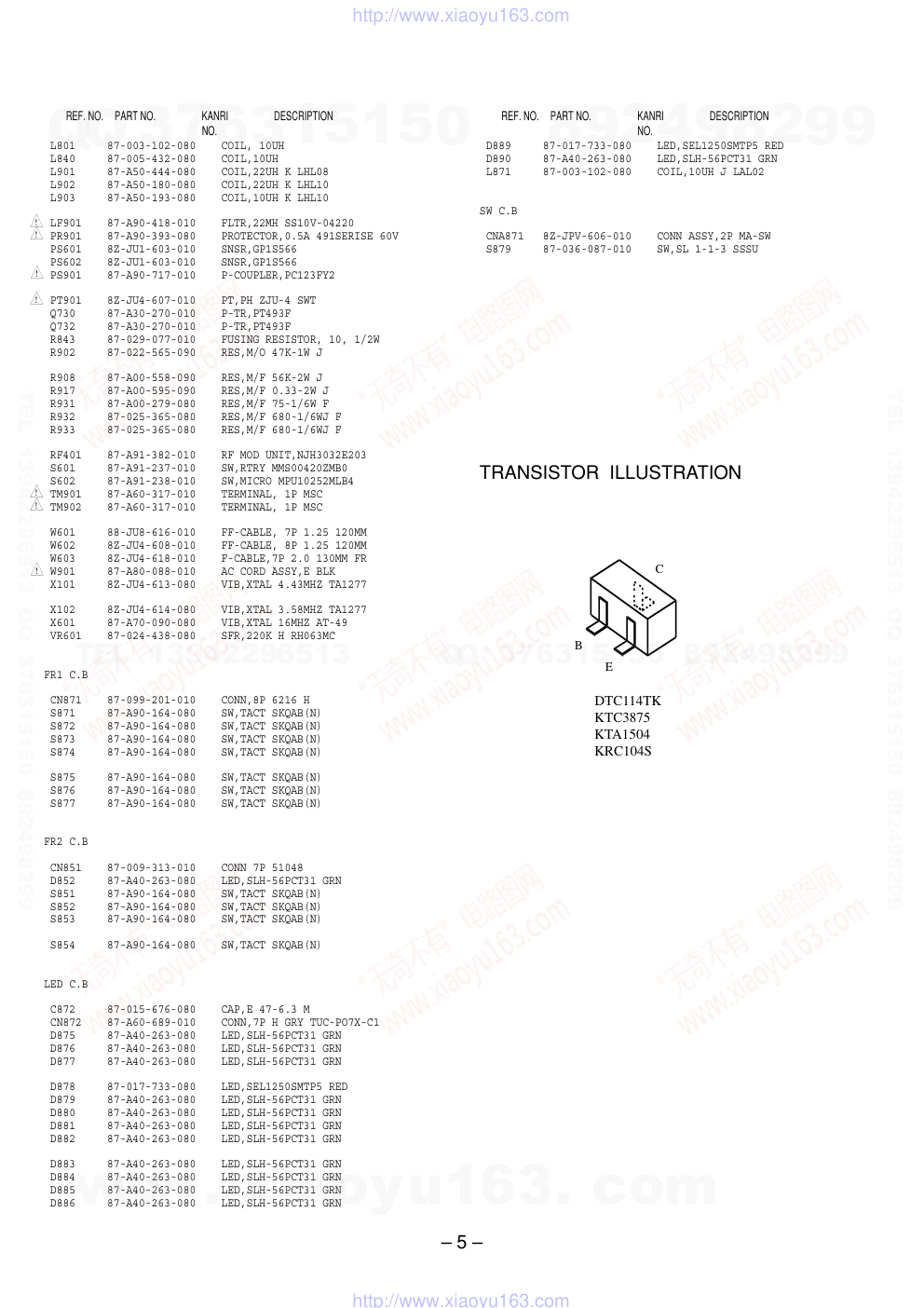

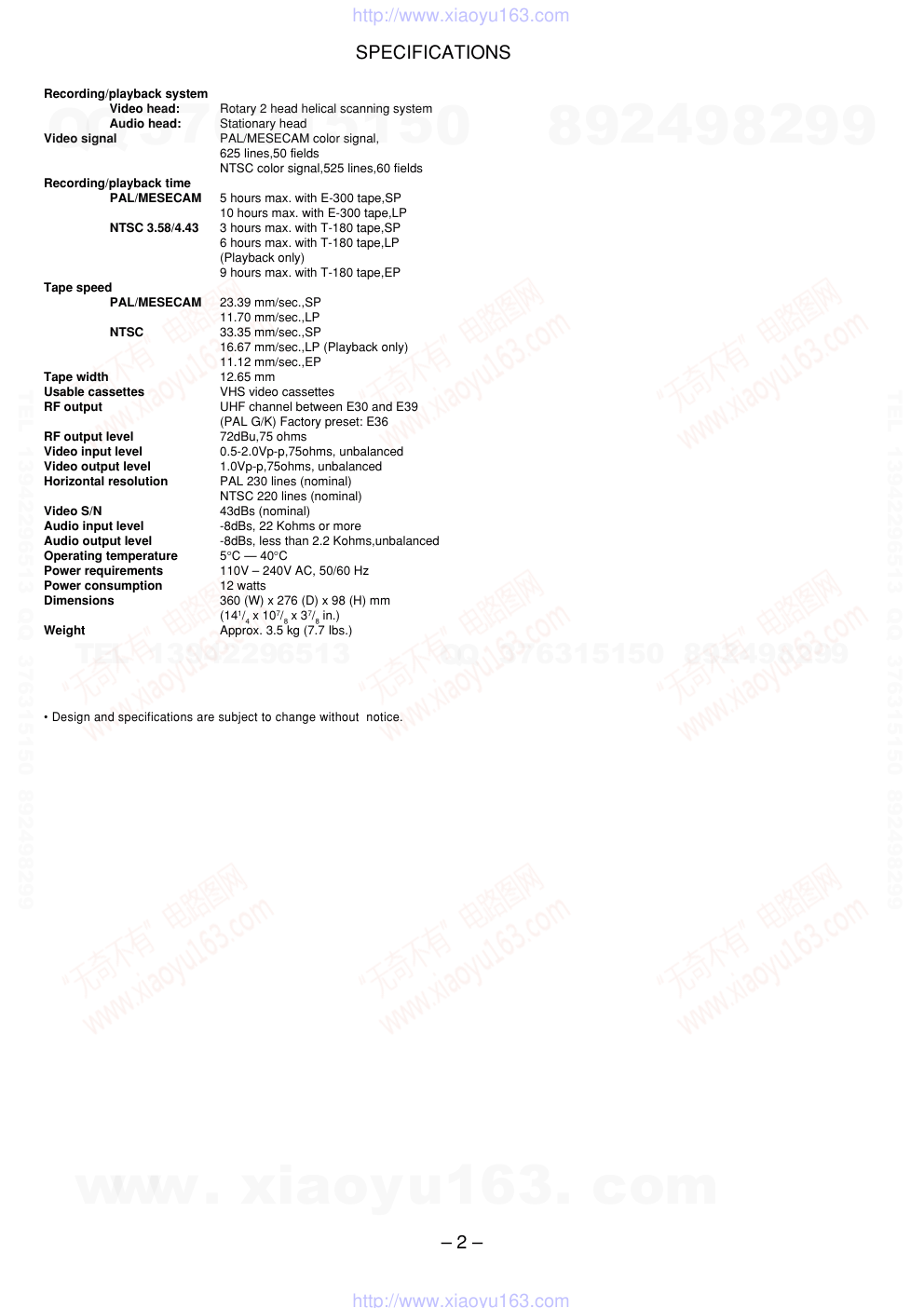

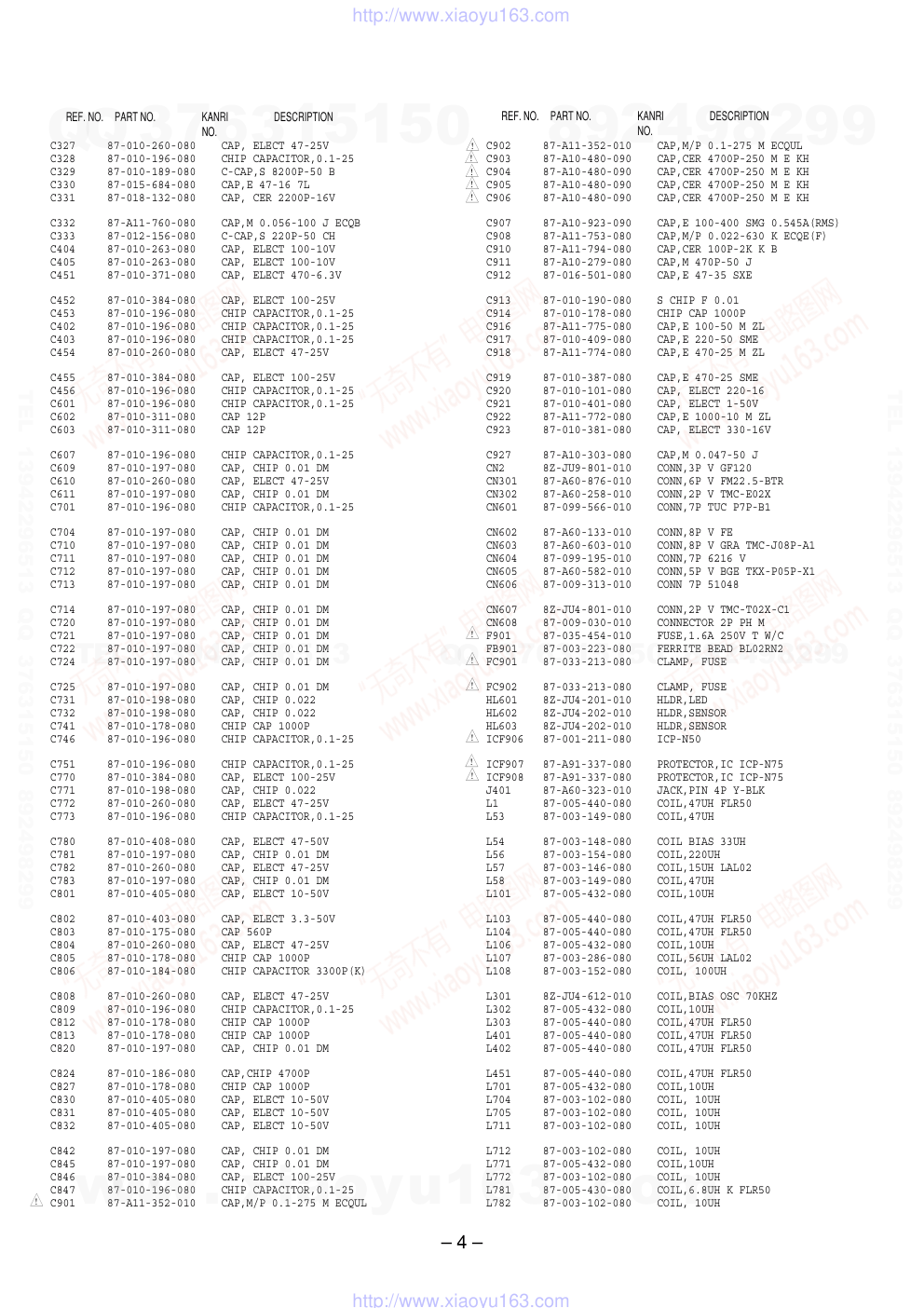

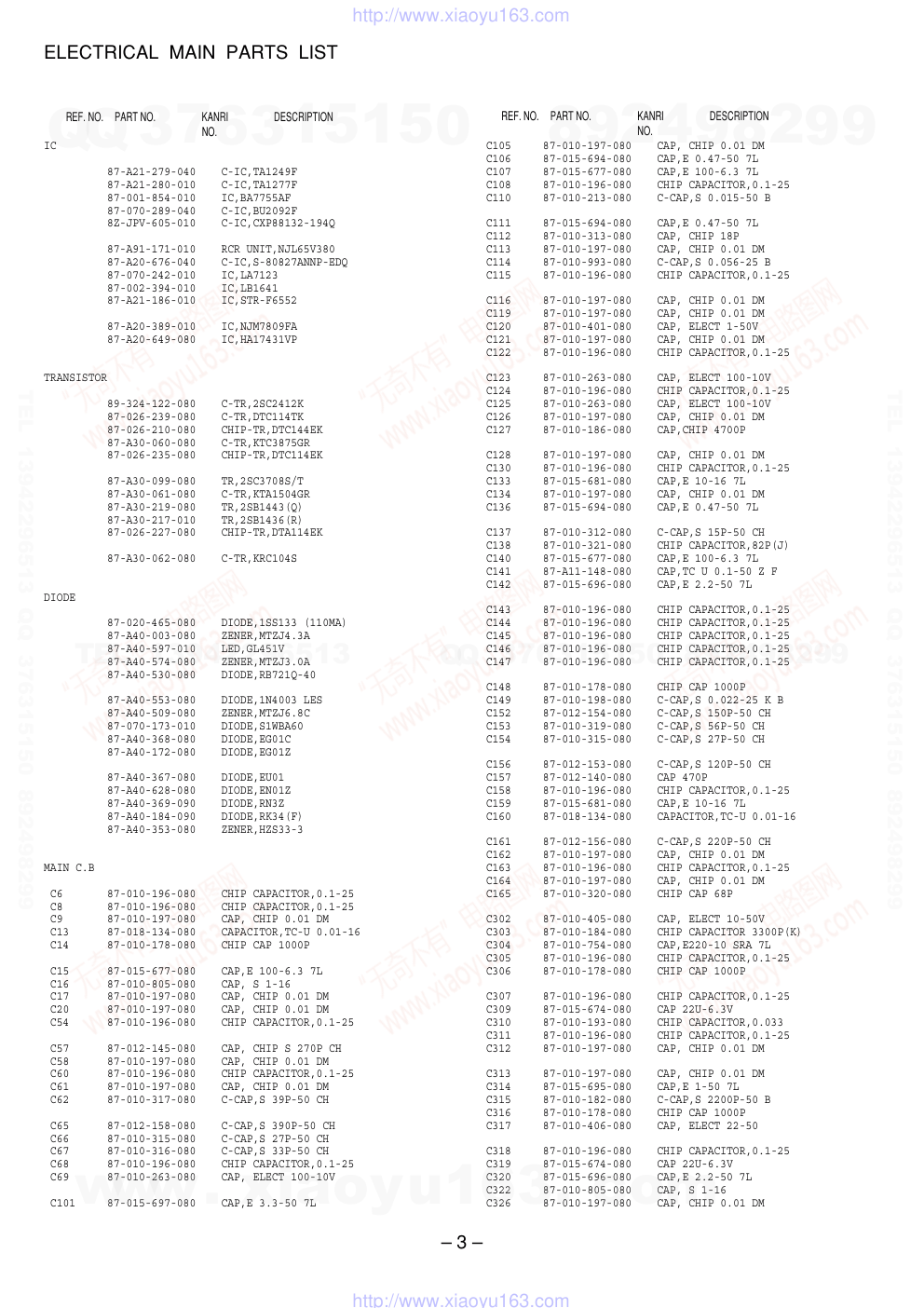

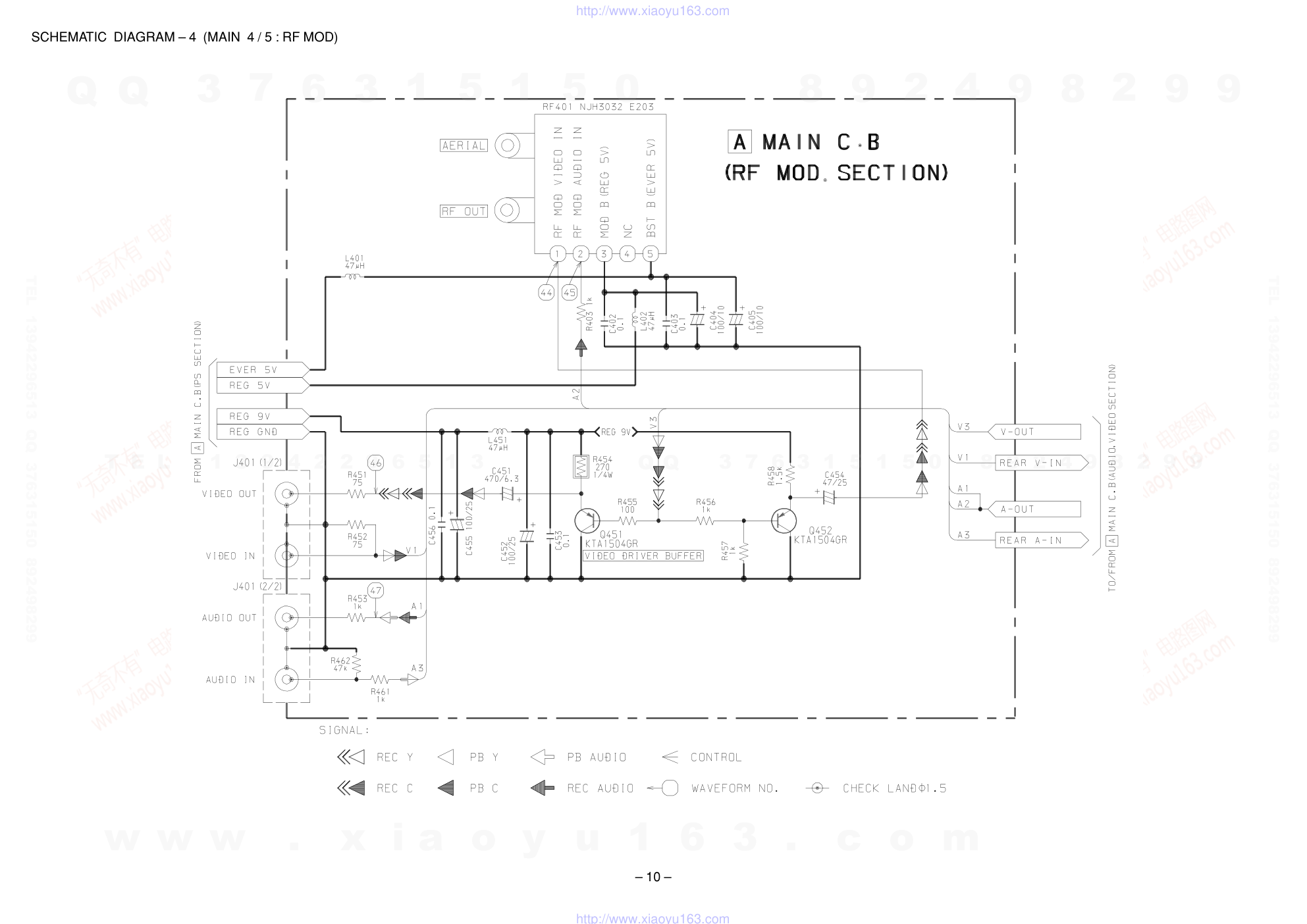

SERVICE MANUAL DATA VIDEO CASSETTE RECORDER BASIC CD MECHANISM : D33 P2LRN106A HV-MC70 KER S/M Code No. 09-004-418-4S1 SUPPLEMENT • This Service Manual is the "Supplement" and replaces "Simple Manual", (S/M Code No. 09-003-418-4T2). • This Service Manual contains information about the difference between HV-MC70 (KER) and HV-MC70 (KE). If requiring other information, see Service Manual of HV-MC70 (KE). (S/M Code No. 09-99B-418-4R1) • If requiring information about the mechanism, see Service Manual of D33, (S/M Code No. 09-99B-336-8N2). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – Recording/playback system Video head: Rotary 2 head helical scanning system Audio head: Stationary head Video signal PAL/MESECAM color signal, 625 lines,50 fields NTSC color signal,525 lines,60 fields Recording/playback time PAL/MESECAM 5 hours max. with E-300 tape,SP 10 hours max. with E-300 tape,LP NTSC 3.58/4.43 3 hours max. with T-180 tape,SP 6 hours max. with T-180 tape,LP (Playback only) 9 hours max. with T-180 tape,EP Tape speed PAL/MESECAM 23.39 mm/sec.,SP 11.70 mm/sec.,LP NTSC 33.35 mm/sec.,SP 16.67 mm/sec.,LP (Playback only) 11.12 mm/sec.,EP Tape width 12.65 mm Usable cassettes VHS video cassettes RF output UHF channel between E30 and E39 (PAL G/K) Factory preset: E36 RF output level 72dBu,75 ohms Video input level 0.5-2.0Vp-p,75ohms, unbalanced Video output level 1.0Vp-p,75ohms, unbalanced Horizontal resolution PAL 230 lines (nominal) NTSC 220 lines (nominal) Video S/N 43dBs (nominal) Audio input level -8dBs, 22 Kohms or more Audio output level -8dBs, less than 2.2 Kohms,unbalanced Operating temperature 5°C — 40°C Power requirements 110V – 240V AC, 50/60 Hz Power consumption 12 watts Dimensions 360 (W) x 276 (D) x 98 (H) mm (141/4 x 107/8 x 37/8 in.) Weight Approx. 3.5 kg (7.7 Ibs.) SPECIFICATIONS • Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – ELECTRICAL MAIN PARTS LIST DESCRIPTION REF. NO. KANRI NO. PART NO. DESCRIPTION REF. NO. KANRI NO. PART NO. IC 87-A21-279-040 C-IC,TA1249F 87-A21-280-010 C-IC,TA1277F 87-001-854-010 IC,BA7755AF 87-070-289-040 C-IC,BU2092F 8Z-JPV-605-010 C-IC,CXP88132-194Q 87-A91-171-010 RCR UNIT,NJL65V380 87-A20-676-040 C-IC,S-80827ANNP-EDQ 87-070-242-010 IC,LA7123 87-002-394-010 IC,LB1641 87-A21-186-010 IC,STR-F6552 87-A20-389-010 IC,NJM7809FA 87-A20-649-080 IC,HA17431VP TRANSISTOR 89-324-122-080 C-TR,2SC2412K 87-026-239-080 C-TR,DTC114TK 87-026-210-080 CHIP-TR,DTC144EK 87-A30-060-080 C-TR,KTC3875GR 87-026-235-080 CHIP-TR,DTC114EK 87-A30-099-080 TR,2SC3708S/T 87-A30-061-080 C-TR,KTA1504GR 87-A30-219-080 TR,2SB1443(Q) 87-A30-217-010 TR,2SB1436(R) 87-026-227-080 CHIP-TR,DTA114EK 87-A30-062-080 C-TR,KRC104S DIODE 87-020-465-080 DIODE,1SS133 (110MA) 87-A40-003-080 ZENER,MTZJ4.3A 87-A40-597-010 LED,GL451V 87-A40-574-080 ZENER,MTZJ3.0A 87-A40-530-080 DIODE,RB721Q-40 87-A40-553-080 DIODE,1N4003 LES 87-A40-509-080 ZENER,MTZJ6.8C 87-070-173-010 DIODE,S1WBA60 87-A40-368-080 DIODE,EG01C 87-A40-172-080 DIODE,EG01Z 87-A40-367-080 DIODE,EU01 87-A40-628-080 DIODE,EN01Z 87-A40-369-090 DIODE,RN3Z 87-A40-184-090 DIODE,RK34(F) 87-A40-353-080 ZENER,HZS33-3 MAIN C.B C6 87-010-196-080 CHIP CAPACITOR,0.1-25 C8 87-010-196-080 CHIP CAPACITOR,0.1-25 C9 87-010-197-080 CAP, CHIP 0.01 DM C13 87-018-134-080 CAPACITOR,TC-U 0.01-16 C14 87-010-178-080 CHIP CAP 1000P C15 87-015-677-080 CAP,E 100-6.3 7L C16 87-010-805-080 CAP, S 1-16 C17 87-010-197-080 CAP, CHIP 0.01 DM C20 87-010-197-080 CAP, CHIP 0.01 DM C54 87-010-196-080 CHIP CAPACITOR,0.1-25 C57 87-012-145-080 CAP, CHIP S 270P CH C58 87-010-197-080 CAP, CHIP 0.01 DM C60 87-010-196-080 CHIP CAPACITOR,0.1-25 C61 87-010-197-080 CAP, CHIP 0.01 DM C62 87-010-317-080 C-CAP,S 39P-50 CH C65 87-012-158-080 C-CAP,S 390P-50 CH C66 87-010-315-080 C-CAP,S 27P-50 CH C67 87-010-316-080 C-CAP,S 33P-50 CH C68 87-010-196-080 CHIP CAPACITOR,0.1-25 C69 87-010-263-080 CAP, ELECT 100-10V C101 87-015-697-080 CAP,E 3.3-50 7L C105 87-010-197-080 CAP, CHIP 0.01 DM C106 87-015-694-080 CAP,E 0.47-50 7L C107 87-015-677-080 CAP,E 100-6.3 7L C108 87-010-196-080 CHIP CAPACITOR,0.1-25 C110 87-010-213-080 C-CAP,S 0.015-50 B C111 87-015-694-080 CAP,E 0.47-50 7L C112 87-010-313-080 CAP, CHIP 18P C113 87-010-197-080 CAP, CHIP 0.01 DM C114 87-010-993-080 C-CAP,S 0.056-25 B C115 87-010-196-080 CHIP CAPACITOR,0.1-25 C116 87-010-197-080 CAP, CHIP 0.01 DM C119 87-010-197-080 CAP, CHIP 0.01 DM C120 87-010-401-080 CAP, ELECT 1-50V C121 87-010-197-080 CAP, CHIP 0.01 DM C122 87-010-196-080 CHIP CAPACITOR,0.1-25 C123 87-010-263-080 CAP, ELECT 100-10V C124 87-010-196-080 CHIP CAPACITOR,0.1-25 C125 87-010-263-080 CAP, ELECT 100-10V C126 87-010-197-080 CAP, CHIP 0.01 DM C127 87-010-186-080 CAP,CHIP 4700P C128 87-010-197-080 CAP, CHIP 0.01 DM C130 87-010-196-080 CHIP CAPACITOR,0.1-25 C133 87-015-681-080 CAP,E 10-16 7L C134 87-010-197-080 CAP, CHIP 0.01 DM C136 87-015-694-080 CAP,E 0.47-50 7L C137 87-010-312-080 C-CAP,S 15P-50 CH C138 87-010-321-080 CHIP CAPACITOR,82P(J) C140 87-015-677-080 CAP,E 100-6.3 7L C141 87-A11-148-080 CAP,TC U 0.1-50 Z F C142 87-015-696-080 CAP,E 2.2-50 7L C143 87-010-196-080 CHIP CAPACITOR,0.1-25 C144 87-010-196-080 CHIP CAPACITOR,0.1-25 C145 87-010-196-080 CHIP CAPACITOR,0.1-25 C146 87-010-196-080 CHIP CAPACITOR,0.1-25 C147 87-010-196-080 CHIP CAPACITOR,0.1-25 C148 87-010-178-080 CHIP CAP 1000P C149 87-010-198-080 C-CAP,S 0.022-25 K B C152 87-012-154-080 C-CAP,S 150P-50 CH C153 87-010-319-080 C-CAP,S 56P-50 CH C154 87-010-315-080 C-CAP,S 27P-50 CH C156 87-012-153-080 C-CAP,S 120P-50 CH C157 87-012-140-080 CAP 470P C158 87-010-196-080 CHIP CAPACITOR,0.1-25 C159 87-015-681-080 CAP,E 10-16 7L C160 87-018-134-080 CAPACITOR,TC-U 0.01-16 C161 87-012-156-080 C-CAP,S 220P-50 CH C162 87-010-197-080 CAP, CHIP 0.01 DM C163 87-010-196-080 CHIP CAPACITOR,0.1-25 C164 87-010-197-080 CAP, CHIP 0.01 DM C165 87-010-320-080 CHIP CAP 68P C302 87-010-405-080 CAP, ELECT 10-50V C303 87-010-184-080 CHIP CAPACITOR 3300P(K) C304 87-010-754-080 CAP,E220-10 SRA 7L C305 87-010-196-080 CHIP CAPACITOR,0.1-25 C306 87-010-178-080 CHIP CAP 1000P C307 87-010-196-080 CHIP CAPACITOR,0.1-25 C309 87-015-674-080 CAP 22U-6.3V C310 87-010-193-080 CHIP CAPACITOR,0.033 C311 87-010-196-080 CHIP CAPACITOR,0.1-25 C312 87-010-197-080 CAP, CHIP 0.01 DM C313 87-010-197-080 CAP, CHIP 0.01 DM C314 87-015-695-080 CAP,E 1-50 7L C315 87-010-182-080 C-CAP,S 2200P-50 B C316 87-010-178-080 CHIP CAP 1000P C317 87-010-406-080 CAP, ELECT 22-50 C318 87-010-196-080 CHIP CAPACITOR,0.1-25 C319 87-015-674-080 CAP 22U-6.3V C320 87-015-696-080 CAP,E 2.2-50 7L C322 87-010-805-080 CAP, S 1-16 C326 87-010-197-080 CAP, CHIP 0.01 DM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – C327 87-010-260-080 CAP, ELECT 47-25V C328 87-010-196-080 CHIP CAPACITOR,0.1-25 C329 87-010-189-080 C-CAP,S 8200P-50 B C330 87-015-684-080 CAP,E 47-16 7L C331 87-018-132-080 CAP, CER 2200P-16V C332 87-A11-760-080 CAP,M 0.056-100 J ECQB C333 87-012-156-080 C-CAP,S 220P-50 CH C404 87-010-263-080 CAP, ELECT 100-10V C405 87-010-263-080 CAP, ELECT 100-10V C451 87-010-371-080 CAP, ELECT 470-6.3V C452 87-010-384-080 CAP, ELECT 100-25V C453 87-010-196-080 CHIP CAPACITOR,0.1-25 C402 87-010-196-080 CHIP CAPACITOR,0.1-25 C403 87-010-196-080 CHIP CAPACITOR,0.1-25 C454 87-010-260-080 CAP, ELECT 47-25V C455 87-010-384-080 CAP, ELECT 100-25V C456 87-010-196-080 CHIP CAPACITOR,0.1-25 C601 87-010-196-080 CHIP CAPACITOR,0.1-25 C602 87-010-311-080 CAP 12P C603 87-010-311-080 CAP 12P C607 87-010-196-080 CHIP CAPACITOR,0.1-25 C609 87-010-197-080 CAP, CHIP 0.01 DM C610 87-010-260-080 CAP, ELECT 47-25V C611 87-010-197-080 CAP, CHIP 0.01 DM C701 87-010-196-080 CHIP CAPACITOR,0.1-25 C704 87-010-197-080 CAP, CHIP 0.01 DM C710 87-010-197-080 CAP, CHIP 0.01 DM C711 87-010-197-080 CAP, CHIP 0.01 DM C712 87-010-197-080 CAP, CHIP 0.01 DM C713 87-010-197-080 CAP, CHIP 0.01 DM C714 87-010-197-080 CAP, CHIP 0.01 DM C720 87-010-197-080 CAP, CHIP 0.01 DM C721 87-010-197-080 CAP, CHIP 0.01 DM C722 87-010-197-080 CAP, CHIP 0.01 DM C724 87-010-197-080 CAP, CHIP 0.01 DM C725 87-010-197-080 CAP, CHIP 0.01 DM C731 87-010-198-080 CAP, CHIP 0.022 C732 87-010-198-080 CAP, CHIP 0.022 C741 87-010-178-080 CHIP CAP 1000P C746 87-010-196-080 CHIP CAPACITOR,0.1-25 C751 87-010-196-080 CHIP CAPACITOR,0.1-25 C770 87-010-384-080 CAP, ELECT 100-25V C771 87-010-198-080 CAP, CHIP 0.022 C772 87-010-260-080 CAP, ELECT 47-25V C773 87-010-196-080 CHIP CAPACITOR,0.1-25 C780 87-010-408-080 CAP, ELECT 47-50V C781 87-010-197-080 CAP, CHIP 0.01 DM C782 87-010-260-080 CAP, ELECT 47-25V C783 87-010-197-080 CAP, CHIP 0.01 DM C801 87-010-405-080 CAP, ELECT 10-50V C802 87-010-403-080 CAP, ELECT 3.3-50V C803 87-010-175-080 CAP 560P C804 87-010-260-080 CAP, ELECT 47-25V C805 87-010-178-080 CHIP CAP 1000P C806 87-010-184-080 CHIP CAPACITOR 3300P(K) C808 87-010-260-080 CAP, ELECT 47-25V C809 87-010-196-080 CHIP CAPACITOR,0.1-25 C812 87-010-178-080 CHIP CAP 1000P C813 87-010-178-080 CHIP CAP 1000P C820 87-010-197-080 CAP, CHIP 0.01 DM C824 87-010-186-080 CAP,CHIP 4700P C827 87-010-178-080 CHIP CAP 1000P C830 87-010-405-080 CAP, ELECT 10-50V C831 87-010-405-080 CAP, ELECT 10-50V C832 87-010-405-080 CAP, ELECT 10-50V C842 87-010-197-080 CAP, CHIP 0.01 DM C845 87-010-197-080 CAP, CHIP 0.01 DM C846 87-010-384-080 CAP, ELECT 100-25V C847 87-010-196-080 CHIP CAPACITOR,0.1-25 C901 87-A11-352-010 CAP,M/P 0.1-275 M ECQUL C902 87-A11-352-010 CAP,M/P 0.1-275 M ECQUL C903 87-A10-480-090 CAP,CER 4700P-250 M E KH C904 87-A10-480-090 CAP,CER 4700P-250 M E KH C905 87-A10-480-090 CAP,CER 4700P-250 M E KH C906 87-A10-480-090 CAP,CER 4700P-250 M E KH C907 87-A10-923-090 CAP,E 100-400 SMG 0.545A(RMS) C908 87-A11-753-080 CAP,M/P 0.022-630 K ECQE(F) C910 87-A11-794-080 CAP,CER 100P-2K K B C911 87-A10-279-080 CAP,M 470P-50 J C912 87-016-501-080 CAP,E 47-35 SXE C913 87-010-190-080 S CHIP F 0.01 C914 87-010-178-080 CHIP CAP 1000P C916 87-A11-775-080 CAP,E 100-50 M ZL C917 87-010-409-080 CAP,E 220-50 SME C918 87-A11-774-080 CAP,E 470-25 M ZL C919 87-010-387-080 CAP,E 470-25 SME C920 87-010-101-080 CAP, ELECT 220-16 C921 87-010-401-080 CAP, ELECT 1-50V C922 87-A11-772-080 CAP,E 1000-10 M ZL C923 87-010-381-080 CAP, ELECT 330-16V C927 87-A10-303-080 CAP,M 0.047-50 J CN2 8Z-JU9-801-010 CONN,3P V GF120 CN301 87-A60-876-010 CONN,6P V FM22.5-BTR CN302 87-A60-258-010 CONN,2P V TMC-E02X CN601 87-099-566-010 CONN,7P TUC P7P-B1 CN602 87-A60-133-010 CONN,8P V FE CN603 87-A60-603-010 CONN,8P V GRA TMC-J08P-A1 CN604 87-099-195-010 CONN,7P 6216 V CN605 87-A60-582-010 CONN,5P V BGE TKX-P05P-X1 CN606 87-009-313-010 CONN 7P 51048 CN607 8Z-JU4-801-010 CONN,2P V TMC-T02X-C1 CN608 87-009-030-010 CONNECTOR 2P PH M F901 87-035-454-010 FUSE,1.6A 250V T W/C FB901 87-003-223-080 FERRITE BEAD BL02RN2 FC901 87-033-213-080 CLAMP, FUSE FC902 87-033-213-080 CLAMP, FUSE HL601 8Z-JU4-201-010 HLDR,LED HL602 8Z-JU4-202-010 HLDR,SENSOR HL603 8Z-JU4-202-010 HLDR,SENSOR ICF906 87-001-211-080 ICP-N50 ICF907 87-A91-337-080 PROTECTOR,IC ICP-N75 ICF908 87-A91-337-080 PROTECTOR,IC ICP-N75 J401 87-A60-323-010 JACK,PIN 4P Y-BLK L1 87-005-440-080 COIL,47UH FLR50 L53 87-003-149-080 COIL,47UH L54 87-003-148-080 COIL BIAS 33UH L56 87-003-154-080 COIL,220UH L57 87-003-146-080 COIL,15UH LAL02 L58 87-003-149-080 COIL,47UH L101 87-005-432-080 COIL,10UH L103 87-005-440-080 COIL,47UH FLR50 L104 87-005-440-080 COIL,47UH FLR50 L106 87-005-432-080 COIL,10UH L107 87-003-286-080 COIL,56UH LAL02 L108 87-003-152-080 COIL, 100UH L301 8Z-JU4-612-010 COIL,BIAS OSC 70KHZ L302 87-005-432-080 COIL,10UH L303 87-005-440-080 COIL,47UH FLR50 L401 87-005-440-080 COIL,47UH FLR50 L402 87-005-440-080 COIL,47UH FLR50 L451 87-005-440-080 COIL,47UH FLR50 L701 87-005-432-080 COIL,10UH L704 87-003-102-080 COIL, 10UH L705 87-003-102-080 COIL, 10UH L711 87-003-102-080 COIL, 10UH L712 87-003-102-080 COIL, 10UH L771 87-005-432-080 COIL,10UH L772 87-003-102-080 COIL, 10UH L781 87-005-430-080 COIL,6.8UH K FLR50 L782 87-003-102-080 COIL, 10UH DESCRIPTION REF. NO. KANRI NO. PART NO. DESCRIPTION REF. NO. KANRI NO. PART NO. ! ! ! ! ! ! ! ! ! ! ! ! www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – L801 87-003-102-080 COIL, 10UH L840 87-005-432-080 COIL,10UH L901 87-A50-444-080 COIL,22UH K LHL08 L902 87-A50-180-080 COIL,22UH K LHL10 L903 87-A50-193-080 COIL,10UH K LHL10 LF901 87-A90-418-010 FLTR,22MH SS10V-04220 PR901 87-A90-393-080 PROTECTOR,0.5A 491SERISE 60V PS601 8Z-JU1-603-010 SNSR,GP1S566 PS602 8Z-JU1-603-010 SNSR,GP1S566 PS901 87-A90-717-010 P-COUPLER,PC123FY2 PT901 8Z-JU4-607-010 PT,PH ZJU-4 SWT Q730 87-A30-270-010 P-TR,PT493F Q732 87-A30-270-010 P-TR,PT493F R843 87-029-077-010 FUSING RESISTOR, 10, 1/2W R902 87-022-565-090 RES,M/O 47K-1W J R908 87-A00-558-090 RES,M/F 56K-2W J R917 87-A00-595-090 RES,M/F 0.33-2W J R931 87-A00-279-080 RES,M/F 75-1/6W F R932 87-025-365-080 RES,M/F 680-1/6WJ F R933 87-025-365-080 RES,M/F 680-1/6WJ F RF401 87-A91-382-010 RF MOD UNIT,NJH3032E203 S601 87-A91-237-010 SW,RTRY MMS00420ZMB0 S602 87-A91-238-010 SW,MICRO MPU10252MLB4 TM901 87-A60-317-010 TERMINAL, 1P MSC TM902 87-A60-317-010 TERMINAL, 1P MSC W601 88-JU8-616-010 FF-CABLE, 7P 1.25 120MM W602 8Z-JU4-608-010 FF-CABLE, 8P 1.25 120MM W603 8Z-JU4-618-010 F-CABLE,7P 2.0 130MM FR W901 87-A80-088-010 AC CORD ASSY,E BLK X101 8Z-JU4-613-080 VIB,XTAL 4.43MHZ TA1277 X102 8Z-JU4-614-080 VIB,XTAL 3.58MHZ TA1277 X601 87-A70-090-080 VIB,XTAL 16MHZ AT-49 VR601 87-024-438-080 SFR,220K H RH063MC FR1 C.B CN871 87-099-201-010 CONN,8P 6216 H S871 87-A90-164-080 SW,TACT SKQAB(N) S872 87-A90-164-080 SW,TACT SKQAB(N) S873 87-A90-164-080 SW,TACT SKQAB(N) S874 87-A90-164-080 SW,TACT SKQAB(N) S875 87-A90-164-080 SW,TACT SKQAB(N) S876 87-A90-164-080 SW,TACT SKQAB(N) S877 87-A90-164-080 SW,TACT SKQAB(N) FR2 C.B CN851 87-009-313-010 CONN 7P 51048 D852 87-A40-263-080 LED,SLH-56PCT31 GRN S851 87-A90-164-080 SW,TACT SKQAB(N) S852 87-A90-164-080 SW,TACT SKQAB(N) S853 87-A90-164-080 SW,TACT SKQAB(N) S854 87-A90-164-080 SW,TACT SKQAB(N) LED C.B C872 87-015-676-080 CAP,E 47-6.3 M CN872 87-A60-689-010 CONN,7P H GRY TUC-PO7X-C1 D875 87-A40-263-080 LED,SLH-56PCT31 GRN D876 87-A40-263-080 LED,SLH-56PCT31 GRN D877 87-A40-263-080 LED,SLH-56PCT31 GRN D878 87-017-733-080 LED,SEL1250SMTP5 RED D879 87-A40-263-080 LED,SLH-56PCT31 GRN D880 87-A40-263-080 LED,SLH-56PCT31 GRN D881 87-A40-263-080 LED,SLH-56PCT31 GRN D882 87-A40-263-080 LED,SLH-56PCT31 GRN D883 87-A40-263-080 LED,SLH-56PCT31 GRN D884 87-A40-263-080 LED,SLH-56PCT31 GRN D885 87-A40-263-080 LED,SLH-56PCT31 GRN D886 87-A40-263-080 LED,SLH-56PCT31 GRN D889 87-017-733-080 LED,SEL1250SMTP5 RED D890 87-A40-263-080 LED,SLH-56PCT31 GRN L871 87-003-102-080 COIL,10UH J LAL02 SW C.B CNA871 8Z-JPV-606-010 CONN ASSY,2P MA-SW S879 87-036-087-010 SW,SL 1-1-3 SSSU DESCRIPTION REF. NO. KANRI NO. PART NO. DESCRIPTION REF. NO. KANRI NO. PART NO. ! ! ! ! ! ! ! TRANSISTOR ILLUSTRATION E B C DTC114TK KTC3875 KTA1504 KRC104S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WIRING - 1 (MAIN / FR2) – 6 – 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 A B C D E F G H I J K L M N O P Q R S T U 1 2 3 4 5 6 7 8 9 25 26 27 28 29 30 31 32 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – SCHEMATIC DIAGRAM – 1 (MAIN 1 / 5 : AUDIO/VIDEO) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – SCHEMATIC DIAGRAM – 2 (MAIN 2 / 5 : SERVO-SYSCON) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – SCHEMATIC DIAGRAM – 3 (MAIN 3 / 5 : HA) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – SCHEMATIC DIAGRAM – 4 (MAIN 4 / 5 : RF MOD) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – SCHEMATIC DIAGRAM – 5 (MAIN 5 / 5 : PS) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WIRING - 2 (FR1 / LED / SW) – 12 – 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 A B C D E F G H I J K L M N O P Q R S T U 1 2 3 4 5 6 7 8 9 25 26 27 28 29 30 31 32 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – SCHEMATIC DIAGRAM – 6 (FR1/FR2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 14 – SCHEMATIC DIAGRAM – 7 (LED) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 15 – MECHANICAL EXPLODED VIEW 1 / 1 1 2 3 4 5 6 9 A 10 11 P.C.B P.C.B P.C.B P.C.B 17 24 16 7 26 6 8 12 13 14 15 18 PLATE,E-SIDE 27 P.C.B CABI, MAIN B A A 19 A D33P2LRN 106A D B D C 20 C 23 A A 25 21 22 F PLATE,E TUNER PANEL,REAR 25 PLATE, BOTTOM 16 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 16 – MECHANICAL PARTS LIST 1 / 1 COLOR NAME TABLE Basic color symbol Color Basic color symbol Color Basic color symbol Color B Black C Cream D Orange G Green H Gray L Blue LT Transparent Blue N Gold P Pink R Red S Silver ST Titan Silver T Brown V Violet W White WT Transparent White Y Yellow YT Transparent Yellow LM Metallic Blue LL Light Blue GT Transparent Green LD Dark Blue DT Transparent Orange GM Metallic Green YM Metallic Yellow DM Metallic Orange DESCRIPTION REF. NO. KANRI NO. PART NO. 1 8Z-JPV-010-010 WINDOW,FR 2 2 8Z-JU9-002-010 CAP, SHUTTLE 9 3 8Z-JU9-003-110 KNOB,RTRY SHUTTLE 9 4 87-JU8-210-010 SPR-T,SHUTTLE 5 8Z-JU4-008-010 CAP, RING 6 84-JP9-021-110 PLATE,FOOT HAIR 7 82-NE6-067-010 BADGE,AIWA 30N 8 8Z-JPV-001-210 CABI,FR V 9 8Z-JU4-006-110 KEY,MAIN 10 8Z-JU4-007-010 KEY,REC 11 8Z-JU4-012-010 KEY,PAUSE 12 8Z-JPV-004-010 BTN,REPEAT 13 8Z-JPV-006-010 KEY,POWER V 14 8Z-JPV-002-010 DOOR,CASS V 15 84-JP9-202-010 SPR-T,DOOR 16 81-JUK-045-010 FELT,FOOT 8-8 17 8Z-JU4-618-010 F-CABLE,7P 2.0 130MM FR 18 8Z-JPV-005-010 KNOB,SL V 19 8Z-JPV-201-010 HLDR,FLY/REC 20 8Z-JU4-013-010 CABI,STEEL 21 88-JU8-616-010 FF-CABLE, 7P 1.25 120MM 22 8Z-JU4-201-010 HLDR,LED 23 8Z-JU4-202-010 HLDR,SENSOR 24 8Z-JU4-608-010 FF-CABLE, 8P 1.25 120MM 25 8Z-JU4-206-010 PLATE,MECHA 26 8Z-JPV-009-110 PLATE,WIN V 27 87-A80-088-010 AC CORD ASSY,E BLK A 87-067-579-010 TAPPING SCREW, BVT2+3-8 B 87-067-703-010 TAPPING SCREW, BVT2+3-10 C 87-067-660-010 TAPPING SCREW, BVT2+3-8 D 87-761-096-410 VFT2+3-10 GLD E 87-067-761-010 TAPPING SCREW, BVT2+3-10 F 87-067-688-010 BVTT+3-6 ! www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 17 – ACCESSORIES / PACKAGE LIST DESCRIPTION REF. NO. KANRI NO. PART NO. 1 8Z-JPV-901-110 IB,KE (ECRAP) MC70-M 2 87-034-796-010 CORD,RF PAL S 3 8Z-JPV-608-010 RC UNIT,RC-ZVP01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 Printed in Singapore 9820527 0251431 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
