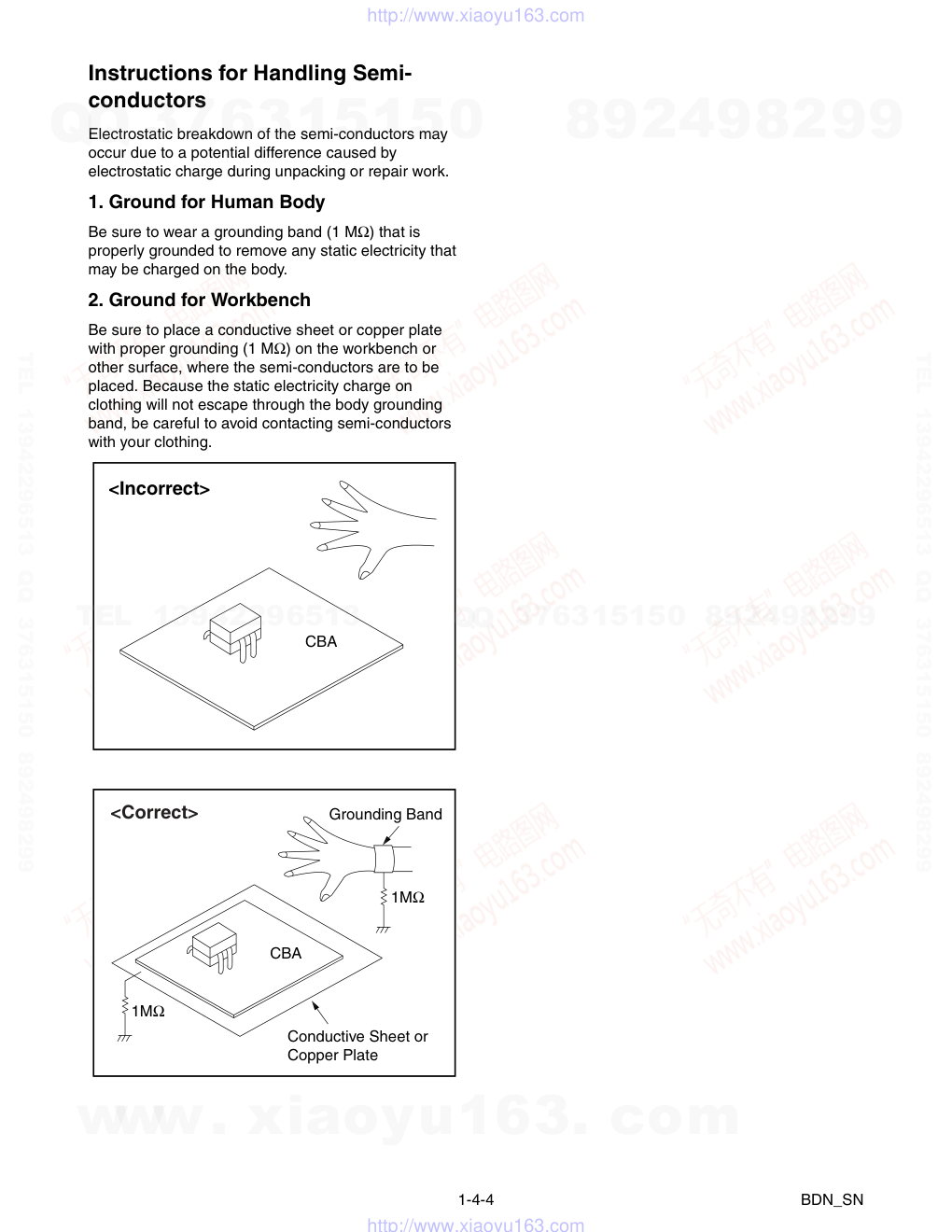

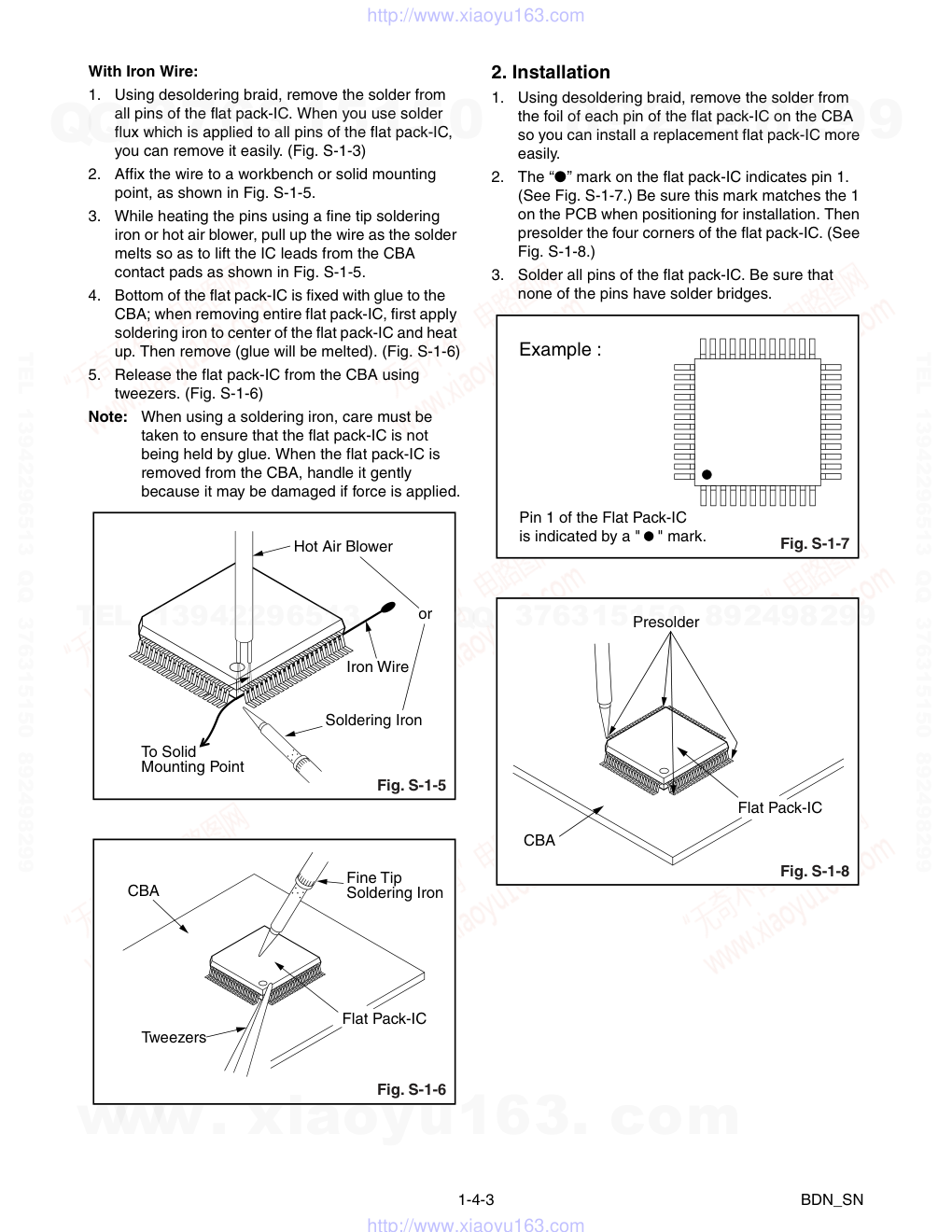

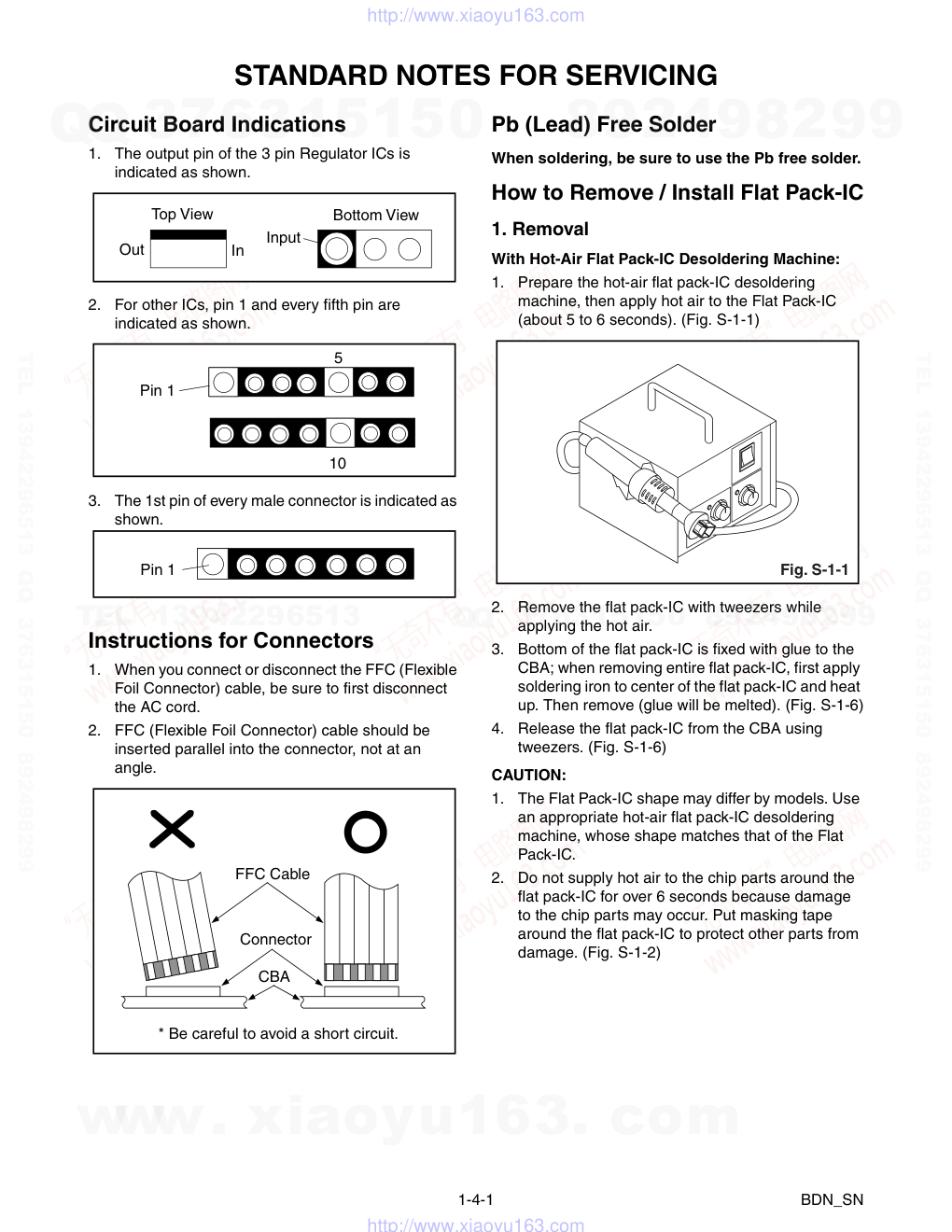

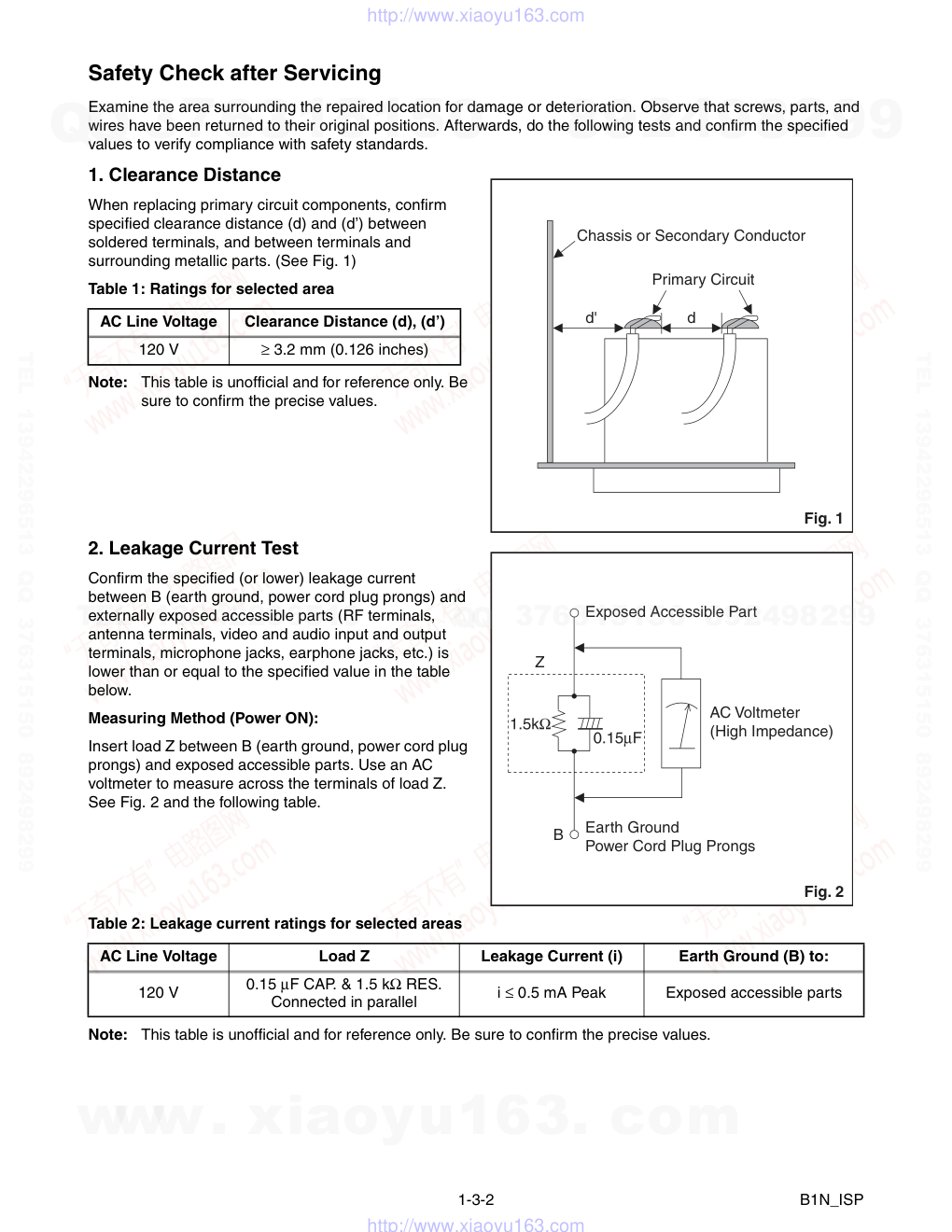

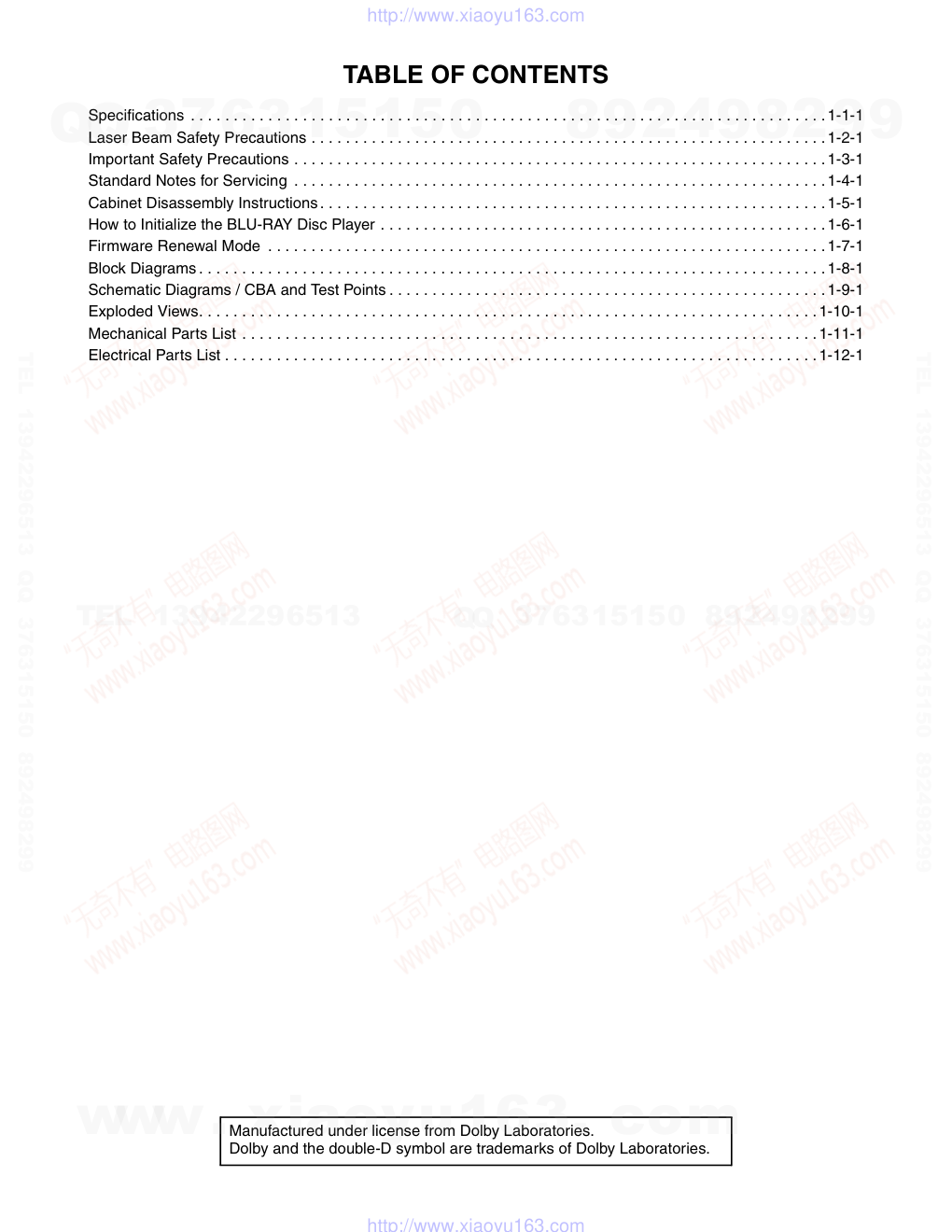

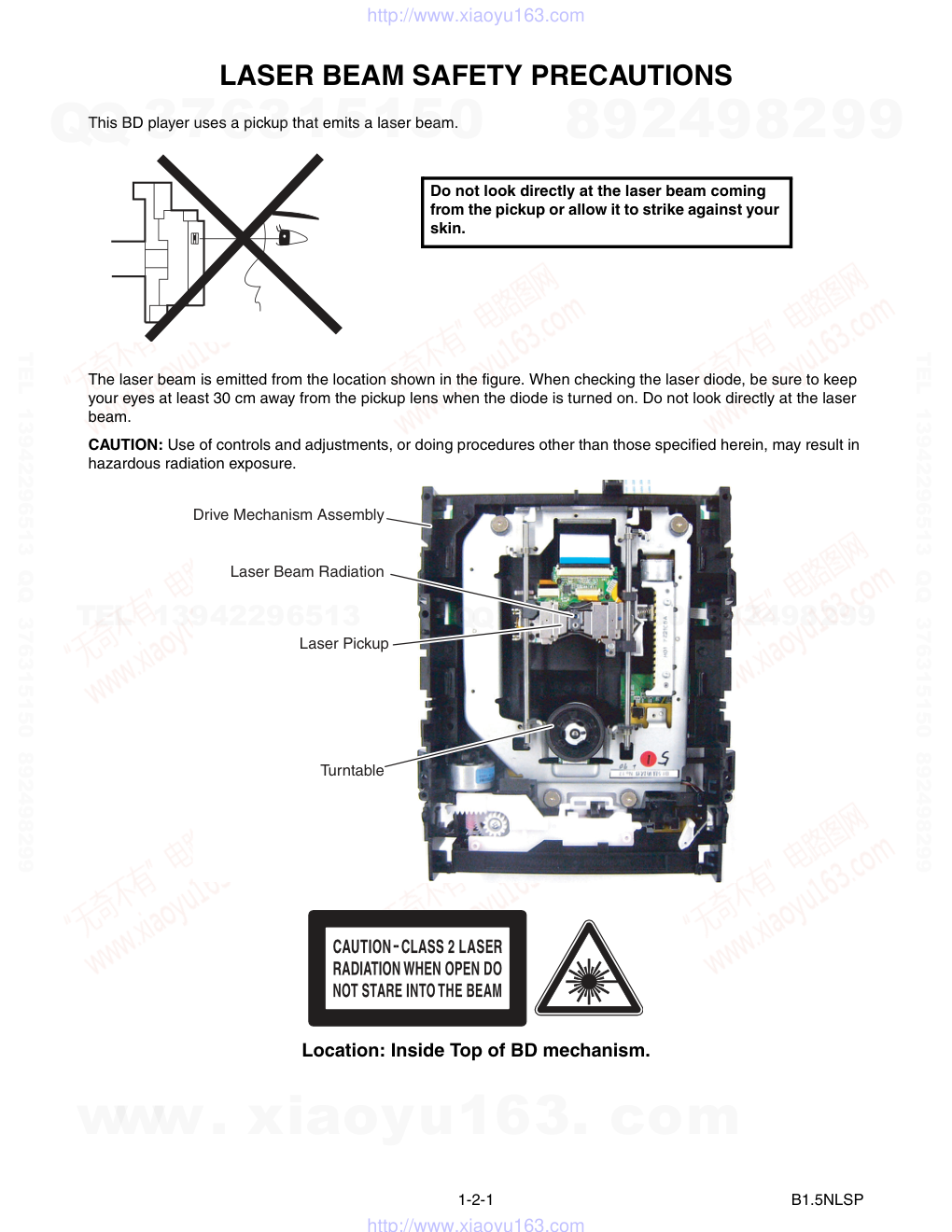

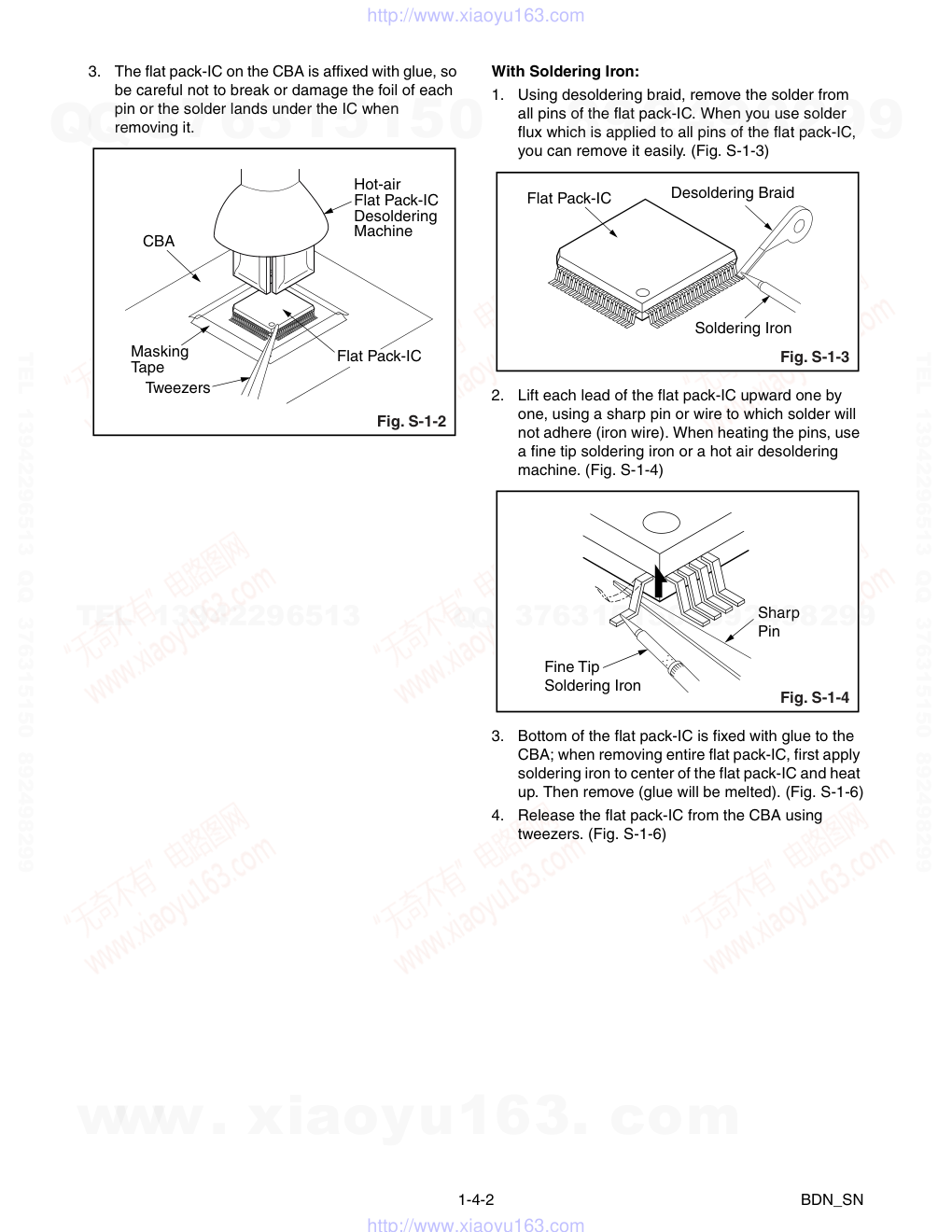

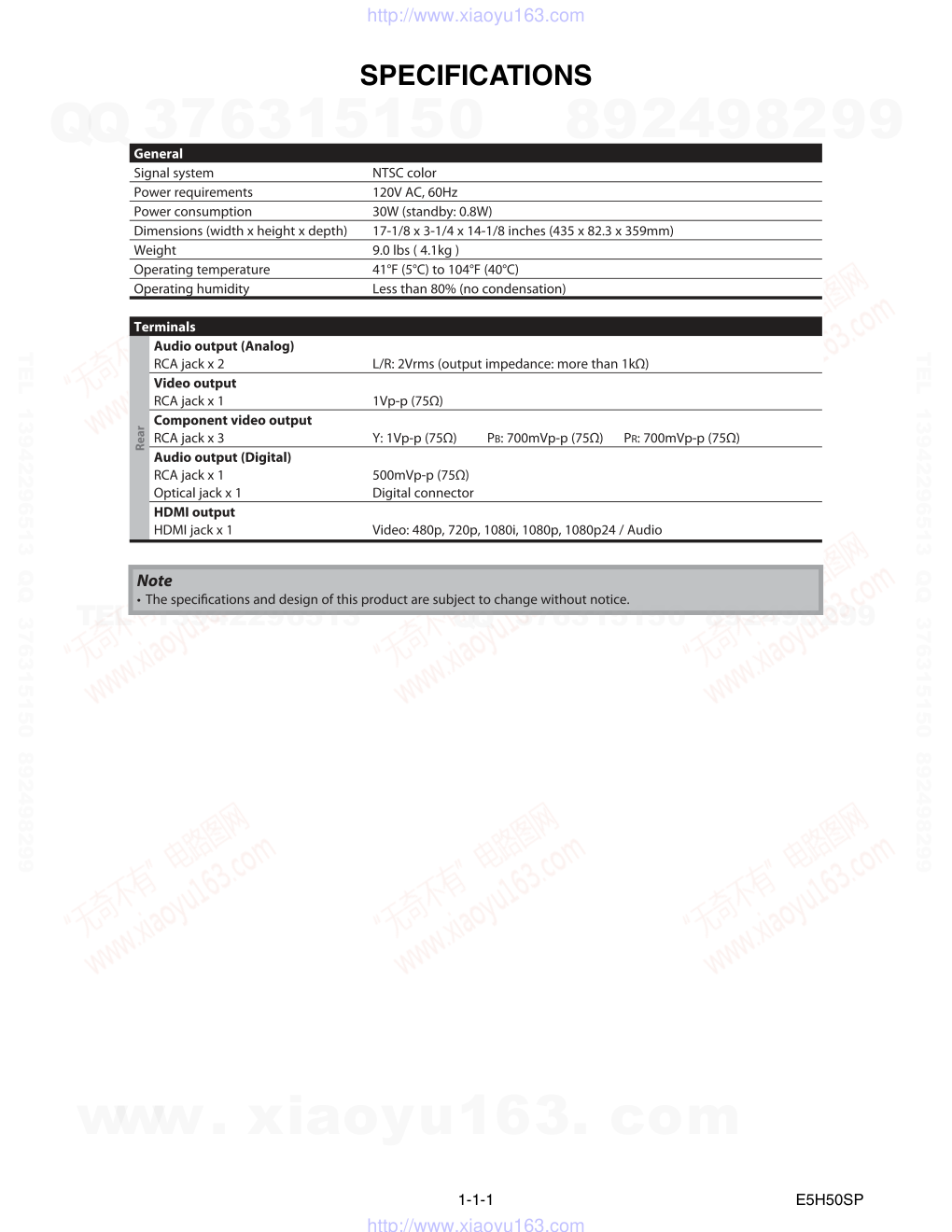

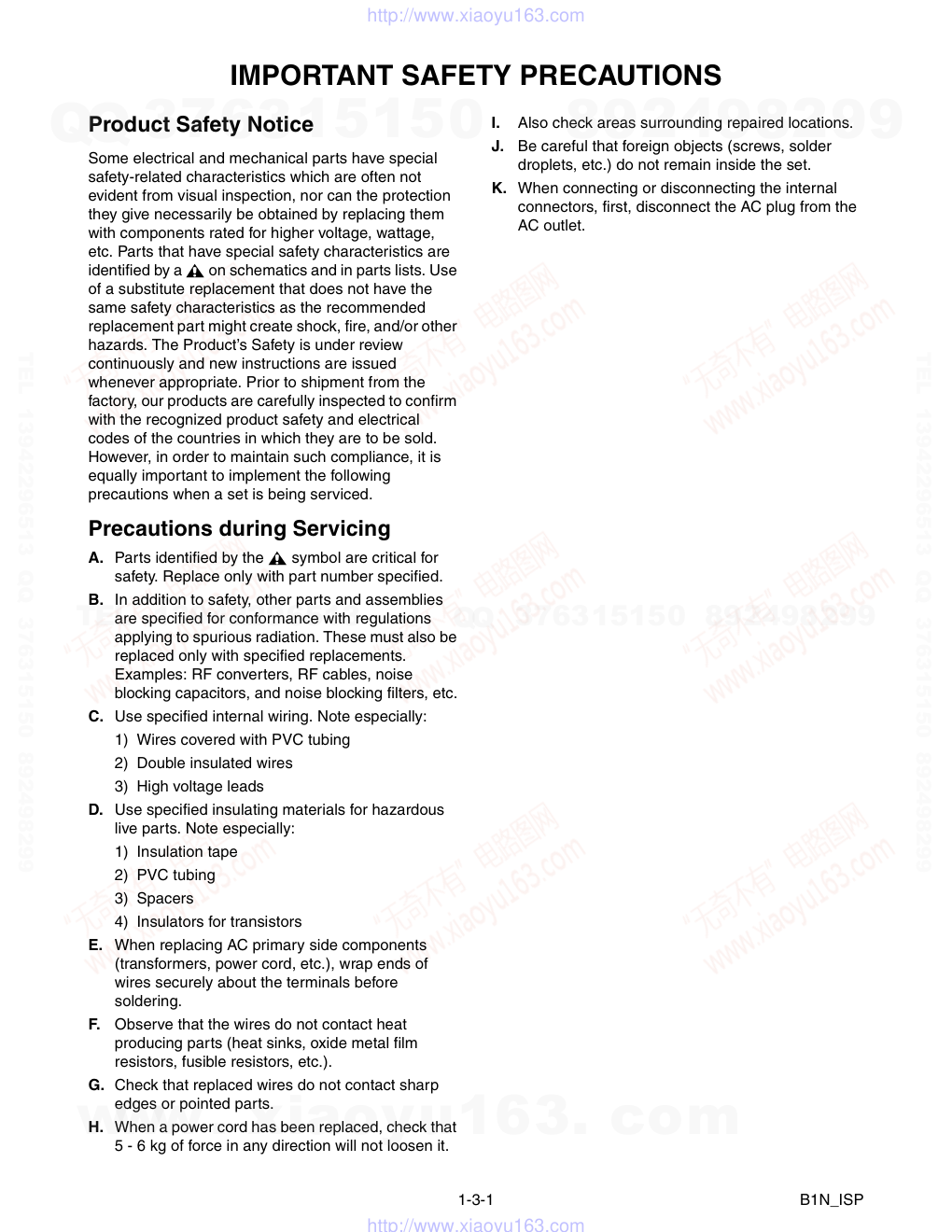

DV-BD606 SERVICE MANUAL SERVICE MANUAL BLU-RAY DISC PLAYER Black model MODEL DV-BD606 120V AC, 60Hz BCDC Ref. No. 4115 102008 For CDC1N RC-730DV SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TABLE OF CONTENTS Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1-1 Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2-1 Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3-1 Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4-1 Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1 How to Initialize the BLU-RAY Disc Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-1 Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7-1 Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1 Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9-1 Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1 Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1 Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1 Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-1-1 E5H50SP SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-2-1 B1.5NLSP LASER BEAM SAFETY PRECAUTIONS This BD player uses a pickup that emits a laser beam. The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser beam. CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in hazardous radiation exposure. Location: Inside Top of BD mechanism. Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin. Drive Mechanism Assembly Laser Beam Radiation Laser Pickup Turntable www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-3-1 B1N_ISP IMPORTANT SAFETY PRECAUTIONS Product Safety Notice Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product’s Safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are carefully inspected to confirm with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced. Precautions during Servicing A. Parts identified by the # symbol are critical for safety. Replace only with part number specified. B. In addition to safety, other parts and assemblies are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc. C. Use specified internal wiring. Note especially: 1) Wires covered with PVC tubing 2) Double insulated wires 3) High voltage leads D. Use specified insulating materials for hazardous live parts. Note especially: 1) Insulation tape 2) PVC tubing 3) Spacers 4) Insulators for transistors E. When replacing AC primary side components (transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering. F. Observe that the wires do not contact heat producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.). G. Check that replaced wires do not contact sharp edges or pointed parts. H. When a power cord has been replaced, check that 5 - 6 kg of force in any direction will not loosen it. I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder droplets, etc.) do not remain inside the set. K. When connecting or disconnecting the internal connectors, first, disconnect the AC plug from the AC outlet. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-3-2 B1N_ISP Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards. 1. Clearance Distance When replacing primary circuit components, confirm specified clearance distance (d) and (d’) between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1) Table 1: Ratings for selected area Note: This table is unofficial and for reference only. Be sure to confirm the precise values. 2. Leakage Current Test Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below. Measuring Method (Power ON): Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across the terminals of load Z. See Fig. 2 and the following table. Table 2: Leakage current ratings for selected areas Note: This table is unofficial and for reference only. Be sure to confirm the precise values. AC Line Voltage Clearance Distance (d), (d’) 120 V ≥ 3.2 mm (0.126 inches) AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to: 120 V 0.15 µF CAP. & 1.5 kΩ RES. Connected in parallel i ≤ 0.5 mA Peak Exposed accessible parts Chassis or Secondary Conductor Primary Circuit Fig. 1 d' d AC Voltmeter (High Impedance) Exposed Accessible Part B Earth Ground Power Cord Plug Prongs Z Fig. 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4-1 BDN_SN STANDARD NOTES FOR SERVICING Circuit Board Indications 1. The output pin of the 3 pin Regulator ICs is indicated as shown. 2. For other ICs, pin 1 and every fifth pin are indicated as shown. 3. The 1st pin of every male connector is indicated as shown. Instructions for Connectors 1. When you connect or disconnect the FFC (Flexible Foil Connector) cable, be sure to first disconnect the AC cord. 2. FFC (Flexible Foil Connector) cable should be inserted parallel into the connector, not at an angle. Pb (Lead) Free Solder When soldering, be sure to use the Pb free solder. How to Remove / Install Flat Pack-IC 1. Removal With Hot-Air Flat Pack-IC Desoldering Machine: 1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1) 2. Remove the flat pack-IC with tweezers while applying the hot air. 3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) 4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6) CAUTION: 1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC. 2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2) Top View Out In Bottom View Input 5 10 Pin 1 Pin 1 FFC Cable Connector CBA * Be careful to avoid a short circuit. Fig. S-1-1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4-2 BDN_SN 3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it. With Soldering Iron: 1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3) 2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4) 3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) 4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6) Hot-air Flat Pack-IC Desoldering Machine CBA Flat Pack-IC Tweezers Masking Tape Fig. S-1-2 Flat Pack-IC Desoldering Braid Soldering Iron Fig. S-1-3 Fine Tip Soldering Iron Sharp Pin Fig. S-1-4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4-3 BDN_SN With Iron Wire: 1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3) 2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5. 3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5. 4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) 5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6) Note: When using a soldering iron, care must be taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied. 2. Installation 1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily. 2. The “●” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.) 3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges. To Solid Mounting Point Soldering Iron Iron Wire or Hot Air Blower Fig. S-1-5 Fine Tip Soldering Iron CBA Flat Pack-IC Tweezers Fig. S-1-6 Example : Pin 1 of the Flat Pack-IC is indicated by a " " mark. Fig. S-1-7 Presolder CBA Flat Pack-IC Fig. S-1-8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4-4 BDN_SN Instructions for Handling Semi- conductors Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body. 2. Ground for Workbench Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing. CBA Grounding Band Conductive Sheet or Copper Plate 1MΩ 1MΩ CBA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5-1 E5H50DC CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart This flowchart indicates the disassembly steps to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route, and dress the cables as they were originally. 2. Disassembly Method Note: (1) Identification (location) No. of parts in the figures (2) Name of the part (3) Figure Number for reference (4) Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2) (5) Refer to “Reference Notes.” Reference Notes 1. CAUTION 1: Locking Tabs (L-1) and (L-2) are fragile. Be careful not to break them. 2. The FE Main CBA & BD Mechanism Assembly is adjusted as a unit at factory. Therefore, do not disassemble it. Replace the FE Main CBA & BD Mechanism Assembly as a unit. ID/ Loc. No. Part Removal Fig. No. Remove/*Unhook/ Unlock/Release/ Unplug/Desolder Note [1] Top Cover D1 6(S-1) --- [2] Front Assembly D2 *5(L-1), *3(L-2), (S-2), *CN2001 1 [3] Front CBA D2 4(S-3), *CN3001 --- [4] Power SW CBA D2 (S-4), PCB Cover --- [5] FE Main CBA & BD Mechanism Assembly D3 4(S-5), *CN2601, *CN6401 2 [6] BE Main CBA Unit D3 (S-6), (S-7), *CN7001, *CN7401, *CN7602, Locking Card Spacers --- [7] Power Supply CBA D4 4(S-8), (S-9), 2(S-10), *CN2600, Power PCB Holder --- [8] Rear Panel D5 3(S-11), 4(S-12), *CN2004 --- [9] Motor DC Fan D5 2(S-13) --- [10] AV CBA D5 5(S-14), (S-15) --- [11] SD CBA D5 2(S-16), (S-17), SD Card Holder --- [4] Power SW CBA [2] Front Assembly [1] Top Cover [7] Power Supply CBA [6] BE Main CBA Unit [8] Rear Panel [9] Motor DC Fan [12] Front Bracket R [13] BE PCB Holder Assembly [5] FE Main CBA & BD Mechanism Assembly [10] AV CBA [3] Front CBA [11] SD CBA [12] Front Bracket R D5 (S-18) --- [13] BE PCB Holder Assembly D5 (S-19) --- ↓ (1) ↓ (2) ↓ (3) ↓ (4) ↓ (5) ID/ Loc. No. Part Removal Fig. No. Remove/*Unhook/ Unlock/Release/ Unplug/Desolder Note www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5-2 E5H50DC [1] Top Cover (S-1) (S-1) (S-1) Fig. D1 [3] Front CBA [2] Front Assembly (S-3) (S-4) CN2001 PCB Cover (L-1) (L-1) (L-1) (L-2) CN3001 Wire [4] Power SW CBA (S-2) Fig. D2 [6] BE Main CBA Unit [5] FE Main CBA& BD Mechanism Assembly CN7001 CN7401 CN2601 CN7602 CN6401 (S-6) (S-7) Locking Card Spacers (S-5) Fig. D3 Fig. D4 [7] Power Supply CBA (S-9) CN2600 Power PCB Holder (S-10) (S-8) (S-8) (S-8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5-3 E5H50DC 3. How to Eject Manually 1. Remove the Top Cover. 2. Insert a screwdriver, etc. into the Hole A straightly so that the Portion A is pushed. 3. Pull the tray out manually and remove a disc. [10] AV CBA [8] Rear Panel [11] SD CBA (S-18) (S-16) (S-17) SD Card Holder (S-14) (S-15) CN2004 (S-14) (S-14) [9] Motor DC Fan [13] BE PCB Holder Assembly [12] Front Bracket R (S-12) (S-11) (S-11) (S-13) (S-11) (S-19) Fig. D5 Screwdriver, hexagon wrench Hole A Portion A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-6-1 E5H50INT HOW TO INITIALIZE THE BLU-RAY DISC PLAYER To put the program back at the factory-default, initialize the BD player as the following procedure. 1. Turn the power on. 2. Remove the disc on the tray and close the tray. 3. Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order. Fig. a appears on the screen. 4. Press [STOP] button on the remote control unit. Fig. b appears on the screen and Fig. c appears on the VFD. 5. To exit this mode, press [ON/STANDBY] button. Fig. a "*******" differ depending on the models. Model Name Version Region Version Info : ******* : *.*** : *-* EXIT EEPROM CLEAR Fig. b "*******" differ depending on the models. Model Name Version Region Version Info : ******* : *.*** : *-* EXIT EEPROM CLEAR EEPROM CLEAR : OK Fig. c www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-7-1 E5H50FW FIRMWARE RENEWAL MODE 1. Turn the power on and remove the disc on the tray. 2. To put the BD player into version up mode, press [9], [8], [7], [6], and [POP UP MENU/MENU] buttons on the remote control unit in that order. The tray will open automatically. Fig. a appears on the screen and Fig. b appears on the VFD. The BD player can also enter the version up mode with the tray open. In this case, Fig. a will be shown on the screen while the tray is open. 3. Load the disc for version up. 4. The BD player enters the F/W version up mode automatically. Fig. c appears on the screen and Fig. d appears on the VFD. If you enter the F/W for different models, “Disc Error” will appear on the screen, then the tray will open automatically. The appearance shown in (*1) of Fig. c is described as follows: 5. After programming is finished, the checksum on the VFD (Fig. f). At this time, no button is available. 6. Unplug the AC cord from the AC outlet. Then plug it again. 7. Turn the power on. 8. Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order. Fig. g appears on the screen. F/W VERSION UP MODE Model No. ******* Ver. *.*** Please insert a Disc for F/W Version Up "*******" differs depending on the models. Fig. a Version Up Mode Screen Fig. b VFD in Version Up Mode 1. ALL Now Loading... Ver. *.*** ************A*.bin (*1) "*******" differs depending on the models. Fig. c Programming Mode Screen (Example) F/W VERSION UP MODE Model No. ******* Ver. *.*** EXIT : POWER Fig. d VFD in Programming Mode (Example) No. Appearance State 1 Now Loading... Loading the disc 2 Reading... Sending files into the memory. After reading, automatically the tray opens. 3 Remove the Disc Reading has finished. Remove the disc and close the tray. 4 See FL Display Writing new version data, the progress will be displayed as shown in Fig. e. Fig. e VFD in Version Up Mode Fig. f VFD upon Finishing the Programming Mode (Example) Fig. g "*******" differ depending on the models. Model Name Version Region Version Info : ******* : *.*** : *-* EXIT EEPROM CLEAR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-7-2 E5H50FW 9. Press [STOP] button on the remote control unit. Fig. h appears on the screen and Fig. i appears on the VFD. 10. To exit this mode, press [ON/STANDBY] button. How to Verify the Firmware Version 1. Turn the power on. 2. Remove the disc on the tray and close the tray. 3. Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order. Fig. j appears on the screen. 4. To exit this mode, press [ON/STANDBY] button. Fig. h "*******" differ depending on the models. Model Name Version Region Version Info : ******* : *.*** : *-* EXIT EEPROM CLEAR EEPROM CLEAR : OK Fig. i Fig. j "*******" differ depending on the models. Model Name Version Region Version Info : ******* : *.*** : *-* EXIT EEPROM CLEAR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8-1 BLOCK DIAGRAMS System Control Block Diagram E5H50BLS IC2000 IC6905 (EEPROM) IC6001 (SUB MICRO CONTROLLER) (MAIN MICRO CONTROLLER) 4 CN2001 15 15 KEY-1 14 14 REMOTE 13 13 FL-RESET 12 12 FL-CS 11 11 FL-SCL 10 10 FL-SDA CN7001 XRST XTRST CN2000 CN7001 CN2000 15 15 SUB-TXD 14 14 SYS-RESET 13 13 RDY 16 16 SUB-RXD 19 19 CEC-IN 18 18 CEC-OUT 18 18 STANDBY-LED BE MAIN CBA UNIT AV CBA 27 20 34 33 44 60 43 M3 Q2002 BUFFER LED DRIVE 14 8 9 RESET 29 PWSW2 37 PWSW3 40 48 SUB-TXD 49 L3 A16 SUB-RXD 28 CEC-IN CEC 52 CEC-OUT 13 IIC-BUS SCL 39 IIC-BUS SDA IIC-BUS SCL IIC-BUS SDA PWSW2 PWSW3 STANDBY-LED SYS-RESET RDY RDY B18 TXD1 G18 A18 A17 RXD1 SCL SDA SCL SDA FL-SDA FL-SCL FL-CS REMOTE KEY-1 OSC2 OSC1 8MHz X'TAL X2000 EV+3.3V IC2001 RESET D+3.3V D+3.3V Q2003 BUFFER Q7501 BUFFER Q7502 JK7501 Q6702 Q6703 Q6701 26 FL-SW FL-SW TO POWER SUPPLY BLOCK DIAGRAM TO VIDEO BLOCK DIAGRAM 31 AUDIO-MUTE AUDIO-MUTE 45 FAN-CONT FAN-CONT TO AUDIO BLOCK DIAGRAM Q6704 SWITCHING Q7503, Q7504 5 6 RESET IC6702 1 D+3.3V Either IC6701 or IC6702 is used for BE MAIN CBA UNIT. D+3.3V RESET IC6701 2 1 3 19 20 21 22 SW3100 D3101 STANDBY CN3100 CN3000 FL3000 VFD CN3001 1 1 STANDBY-KEY 2 2 STANDBY-LED STANDBY POWER SW CBA FRONT CBA RS3000 REMOTE SENSOR KEY SWITCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8-2 Digital Signal Process 1 Block Diagram E5H50BLD1 BD MECHANISM FE MAIN CBA W 1 V 2 U 3 HU(+) 5 HU(-) 6 HV(+) 7 HV(-) 8 HW(+) 9 HW(-) 10 CN903 IC001 (MAIN MICRO CONTROLLER/FE DIGITAL SIGNAL PROCESS) IC902 (MOTOR DRIVE) IC301 (OP AMP) TRACKING ACTUATOR DRIVE OEIC (CD/DVD) IC903 (MOTOR DRIVE) IC904 IC301 (OP AMP) (MOTOR DRIVE) 16MBIT NOR FLASH ROMDQ(0-15) ROMA(1-20) A(0-11) DQ(0-15) IC402 (NOR FLASH) IC002 (RF AMP) TO DIGITAL SIGNAL PROCESS 2 BLOCK DIAGRAM (CN6401) CN501 3-18 AG22-AG24, AH20-AH24, AJ20-AJ22, AK20-AK24 21,22,24, 25,27,29 AH12-AH18, AG15-AG19 2-13, 42-53 1-9, 16-25,48 29-36, 38-45 22-26, 29-35 AJ11-AJ15, AJ18,AJ19, AK10-AK13, AK15-AK19 N27,N28,N30, P27-P30,R27-R30, T27-T30,U27,U29, U30,V27,W27 H28-H30,J28-J30, K27-K30,L27,L28, L30,M27,M28,M30 IDE1D(0-15) 37,38,40, 42,45,47 A5-A7, B5-B7 C5-C7, D5-D7 64MBIT SDRAM IC401 (SDRAM) IC403 (EEPROM) ATAPI I/F MEMORY I/F FE DIGITAL SIGNAL PROCESS MATRIX RF EQ AG28 AH4 AG5 U4 U3 T2 R3 T1 R4 AA1 Y3 K4 100 125-128 AH29 AH28 AH30 2 4 7 9 10 11 12 13 14 SLD2(+) 4 SLD2(-) 3 SLD1(+) 2 SLD1(-) 1 CN902 LOAD(+) 5 LOAD(-) 6 LDSNS1 2 LDSNS2 1 CN901 TD 3 TR 4 FD1 1 FR1 2 EXPA(+) 9 EXPA(-) 7 EXPB(+) 10 EXPB(-) 8 A-D 21-24 E-H 26-29 OEVC 25 RF(+) 17 RF(-) 18 BDRF(+) 14 BDRF(-) 15 SDATA 40 SCLK SDATA SCLK SDATA SCLK 38 CN101 CN101 15 16 17 18 14 13 12 11 14 13 15 16 LOADING MOTOR DRIVE 10 9 COLLIMATE LENS MOTOR DRIVE SLED MOTOR DRIVE SPINDLE MOTOR DRIVE FOCUS 1 ACTUATOR DRIVE TRKCTL-2 ADR(0-5) ADW(0-5) SWRF TRKCTL-1 PCS1-B PCS1-A PCS2-B PCS2-A SLED1-CONTROL SLED2-CONTROL LOAD1-CONTROL LDSNS1 LDSNS2 SPINDLE-CONTROL SPINDLE-FG LOAD2-CONTROL LOAD-CONTROL EXPA-CONTROL EXPB-CONTROL 5 26 17 18 FOCUS 2 ACTUATOR DRIVE 23 24 5 27 6 U2 U1 23 26 1 2 V4 AG10 AK5 3 V1 22 14 13 W1 19 115-118 114 141 140 143 142 75 74 J2 K2 102 103 SE PI K1 J3 104 105 TE CE H3 106 FE C2 C1 8 9 RF ADC WOB ADC WOB FE 1 3 2 T4 T3 OEIC (BD) LASER DIODE DRIVE SLED MOTOR TRAY -OUT TRAY -IN SPINDLE MOTOR FD2 6 FR2 5 LOADING MOTOR VIDEO SIGNAL AUDIO SIGNAL SCK SI SCK_0 SO_0 6 5 /CE E2CS 1 SO SI_0 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8-3 E5H50BLD2 Digital Signal Process 2 Block Diagram SD CBA BE MAIN CBA UNIT STREAM CONTROL ATAPI I/F ED (0-7) ED (0-15) ED (0-15) EA (1-22) C0DQ (0-31) PC0A (0-12) C1DQ (0-31) PC1A (0-12) MEDIA PROCESSOR Java (BD-J) MPEG-2 DECODER HD (TS) SD (PS) COPY PROTECT AACS /BD+ SD CARD SLOT TO DIGITAL SIGNAL PROCESS 1 BLOCK DIAGRAM (CN501) CN4001 CN7602 CN6401 CN4002 MEMORY I/F SD I/F IC6001 (BE DIGITAL SIGNAL PROCESS) IC6704 (CLOCK GENE.) F25 A3 C14 C13 B14 IC6901 (NAND FLASH MEMORY) NAND FLASH MEMORY (64Mbit) IC6902 (NOR FLASH MEMORY) (DDR SDRAM) NOR FLASH MEMORY (8Mbit) IC6501,IC6502,IC6503,IC6504 DDR SDRAM (512Mbit x 4) 3-18 IDE1D(0-15) 13 13 SDDAT0 15 15 SDDAT1 1 1 SDDAT2 3 3 SDDAT3 11 11 SDCLK (DDR SDRAM) IC6507,IC6508,IC6509,IC6510 DDR SDRAM (512Mbit x 4) D33,D34,E32-E34, F32-F34,G30,G32, H29,H30,H32, J28-J30 A8,A9,A11,B8,B10,B11, C11,E12,E13,F14,G13,G14 A10,A12,A13,B9,B12,B13, C10,C12,E14,F13,F15,G15 A27,B27, F26,G26 GRAPHICS /OSD PIXEL DATA I/F VIDEO DAC CLK VS HS SD CLOCK SD DATA(0-3) TO VIDEO BLOCK DIAGRAM VIDEO PRMCLK PRMVS PRMHS PRMC(0-11) PRMY(0-11) SCL 33M CLOCK 33M CLOCK 74M CLOCK 27M CLOCK 768K CLOCK SCL SDA HDMI-DATA0 HDMI-DATA1 HDMI-DATA2 HDMI-DATA3 HDMI-MCK HDMI-BCK HDMI-LRCK HDMI-SPDIF X6701 27MHz OSC CLOCK GENE. SDA VIDEO-Y(I/P) VIDEO-Pb/Cb VIDEO-Pr/Cr VIDEO SIGNAL AUDIO SIGNAL E9 C5 G9 SCL B16 SDA C16 TO VIDEO BLOCK DIAGRAM E11 AP2 F11 D10 A6 C7 G11 B6 A5 2 3 1 16 7 8 9 10 F28 A31 B30 A28 MC MD SCK BCK LRCK MS1 DATA SPDIF TO AUDIO BLOCK DIAGRAM G19 G20 L1 K5 K3 M34 K2 M7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8-4 Video Block Diagram AV CBA BE MAIN CBA UNIT 1 1 VIDEO-Y(I/P) 3 3 VIDEO-Pb/Cb 9 9 VIDEO 5 5 VIDEO-Pr/Cr HDMI-DATA0 HDMI-DATA1 HDMI-DATA2 HDMI-DATA3 HDMI-MCK HDMI-BCK HDMI-LRCK HDMI-SPDIF 70-73,75-78, 92,94,102,103 50,51,53-57,59, 87,88,90,91 TO DIGITAL SIGNAL PROCESS 2 BLOCK DIAGRAM TO DIGITAL SIGNAL PROCESS 2 BLOCK DIAGRAM IC2300 (VIDEO DRIVER) DC SHIFT 6dB AMP LPF DRIVER 17 DC SHIFT 6dB AMP LPF DRIVER 3 15 DC SHIFT IIC I/F IIC-BUS SCL VIDEO SCL SDA PRMCLK PRMVS PRMHS PRMC(0-11) PRMY(0-11) VIDEO-Y(I/P) VIDEO-Pb/Cb VIDEO-Pr/Cr TO SYSTEM CONTROL BLOCK DIAGRAM IIC-BUS SDA 6dB AMP LPF DRIVER 5 VIDEO-Pb/Cb OUT VIDEO-Y OUT VIDEO-Pr/Cr OUT JK2300 C2314 1 20 T.M.D.S DATA2- T. M.D.S DATA2+ T.M.D.S DATA1- T.M.D.S DATA1+ T.M.D.S DATA0- T.M.D.S DATA0+ T.M.D.S CLOCK+ T.M.D.S CLOCK- JK7501 HDMI-CONNECTOR DDC DATA DDC CLOCK HOT PLUG DETECT IC7501 (HDMI INTERFACE) 6 4 9 7 10 12 3 1 15 19 16 REGISTER IIC I/F VIDEO I/F DDC I/F AUTHENT /CATION KEY EXCHANGE IC7502 Q7505,Q7506 3.3V<-->5V CONVERTER AUDIO I/F HDCP CIPHER/ ENCRYPTOR TMDS ENCODER AV CONTROLLER TMDS SERIALIZER 6 5 2 3 46 45 44 42 41 39 36 35 DRIVE 23 25 19 21 15 17 13 11 113 116 118 120 119 VIDEO SIGNAL AUDIO SIGNAL CLK CN2000 CN7001 VS HS 121 83 84 IC2301 (VIDEO DRIVER) 4dB AMP LPF 6 8dB AMP DRIVER 3 VIDEO OUT (COMPOSITE) 9 10 E5H50BLV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8-5 Audio Block Diagram E5H50BLA AV CBA BE MAIN CBA UNIT AUDIO SIGNAL IC7000 (AUDIO D/A CONVERTER) AUDIO DAC 3 4 5 8 2 7 6 (L-CH) (R-CH) 1 R-CH MUTE L-CH MUTE 16 14 15 AUDIO(L)- OUT AUDIO(R)- OUT Q2203 MUTE-ON Q2202 MUTE-ON Q2200 DRIVE Q2201 DRIVE JK2200 IC2200 (OP AMP) 7 1 6 2 27 27 AUDIO(L) 25 25 AUDIO(R) 28 28 AUDIO(L)-MUTE 23 23 AUDIO(R)-MUTE 22 22 SPDIF CN7001 CN2000 DIGITAL AUDIO OUT (COAXIAL) TO SYSTEM CONTROL BLOCK DIAGRAM AUDIO-MUTE TO DIGITAL SIGNAL PROCESS 2 BLOCK DIAGRAM MC MD SCK BCK LRCK MS1 DATA SPDIF DIGITAL AUDIO OUT (OPTICAL) JK2100 JK2400 BUFFER Q2100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8-6 Power Supply Block Diagram CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. NOTE: The voltage for parts in hot circuit is measured using hot GND as a common terminal. "Ce symbole reprèsente un fusible à fusion rapide." CAUTION ! For continued protection against fire hazard, replace only with the same type fuse. ATTENTION : Pour une protection continue les risqes d'Incele n'utiliser que des fusible de même type. Risk of fire-replace fuse as marked. "This symbol means fast operating fuse." A V F E5H50BLP IC1001 (SWITCHING CONTROL) HOT COLD Q2600 Q2604 Q2606 Q2603 J2188 Q2607 Q2602 Q2601 Q1011 D1009 Q2605 Q1003 VDD POWER SUPPLY CBA 2 4 7 6 T1001 11 12 15 13 10 9 16 14 A V AC1002 F1001 2A/250V LINE FILTER L1001 F 3 4 IC1003 ERROR VOLTAGE DET 1 2 P-ON+14.5V(2) SHUNT REG. IC2601 IC2600 D1001 - D1004 BRIDGE RECTIFIER SWITCHING CONTROL 5 2 2 AL+14.5V(1) 15-17 AL+14.5V(2) 3-5 AL+5V 1 AL+2.5V 20 F1 22 F2 23 FL 6 EV+3.3V 18 2 15-17 3-5 1 20 22 23 6 18 EV+5V CN1001 7-10 AL+5V 1 EV+3.3V CN1002 CN2600 FAN-VCC 1 2 FAN-LOCK CN2004 +3.3V REG. 1-3 P-ON+10.5V 7,8 P-ON+5V(1) CN2601 14,15 P-ON+3.3V 11 P-ON+1.2V SW+14.5V EV+5V EV+3.3V AUDIO+3.3V TO FE MAIN CBA (CN001) TO BE MAIN CBA UNIT (CN7401) P-ON+3.3V F1 F2 FL TO SYSTEM CONTROL BLOCK DIAGRAM PWSW3 PWSW2 FL-SW P-ON+5V(2) SW+10.5V SW+5V SW+5V +3.3V REG. +1.2V REG. 6 1 3 HOT CIRCUIT. BE CAREFUL. FAN AV CBA Q2014 Q2012 Q2013 FAN-CONT FAN CONTROL Q2000,Q2001 (LOW SPEED) AC CORD Q2101 FL REG. Q2005 14.5V REG. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-1 B1N_SC SCHEMATIC DIAGRAMS / CBA AND TEST POINTS Standard Notes WARNING Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards. Notes: 1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared. 2. All resistance values are indicated in ohms (K = 103, M = 106). 3. Resistor wattages are 1/4W or 1/6W unless otherwise specified. 4. All capacitance values are indicated in µF (P = 10-6 µF). 5. All voltages are DC voltages unless otherwise specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-2 B1N_SC LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE. RISK OF FIRE-REPLACE FUSE AS MARKED. 2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. 3. Note: 1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared. 2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual. 4. Voltage indications for PLAY and STOP mode on the schematics are as shown below: 5. How to read converged lines 6. Test Point Information A V F This symbol means fast operating fuse. Ce symbole represente un fusible a fusion rapide. 2 3 1 5.0 (2.5) 5.0 The same voltage for both PLAY & STOP modes Indicates that the voltage is not consistent here. PLAY mode STOP mode (Unit: Volt) 3 2 1 A B C D 1-B1 1-D3 AREA D3 AREA B1 1-D3 Distinction Area Line Number (1 to 3 digits) Examples: 1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3". 2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1". : Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-3 AV 1/3 Schematic Diagram E5H50SCAV1 * NOTE IC2001 PST3630NR PST8430NR Group A Group B C2013 0.1 0.01 These components (IC2001, C2013) can be used in any models. However, you cannot mix components under Group A with the ones under Group B. You can choose either Group. The difference between Group A and Group B is shown below. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-4 AV 2/3 Schematic Diagram E5H50SCAV2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-5 AV 3/3 Schematic Diagram E5H50SCAV3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-6 Power Supply Schematic Diagram E5H50SCP CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. NOTE: The voltage for parts in hot circuit is measured using hot GND as a common terminal. "Ce symbole reprèsente un fusible à fusion rapide." CAUTION ! For continued protection against fire hazard, replace only with the same type fuse. ATTENTION : Pour une protection continue les risqes d'Incele n'utiliser que des fusible de même type. Risk of fire-replace fuse as marked. "This symbol means fast operating fuse." A V F w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-7 Front & Power SW Schematic Diagram E5H50SCF w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-8 E5H50SCSD SD Schematic Diagram w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-9 FE Main 1/5 Schematic Diagram E5H50SCFM1 The order of pins shown in this diagram is different from that of actual IC001. IC001 is divided into four and shown as IC001 (1/4) ~ IC001 (4/4) in this FE Main Schematic Diagram Section. 1 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-10 FE Main 2/5 Schematic Diagram E5H50SCFM2 The order of pins shown in this diagram is different from that of actual IC001. IC001 is divided into four and shown as IC001 (1/4) ~ IC001 (4/4) in this FE Main Schematic Diagram Section. 1 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-11 FE Main 3/5 Schematic Diagram E5H50SCFM3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-12 FE Main 4/5 Schematic Diagram E5H50SCFM4 The order of pins shown in this diagram is different from that of actual IC001. IC001 is divided into four and shown as IC001 (1/4) ~ IC001 (4/4) in this FE Main Schematic Diagram Section. 1 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-13 FE Main 5/5 Schematic Diagram E5H50SCFM5 The order of pins shown in this diagram is different from that of actual IC001. IC001 is divided into four and shown as IC001 (1/4) ~ IC001 (4/4) in this FE Main Schematic Diagram Section. 1 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-14 BE Main 1/10 Schematic Diagram E5H50SCBM1 The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section. 2 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-15 BE Main 2/10 Schematic Diagram E5H50SCBM2 The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section. 2 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-16 BE Main 3/10 Schematic Diagram E5H50SCBM3 The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section. 2 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-17 BE Main 4/10 Schematic Diagram E5H50SCBM4 The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section. 2 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-18 BE Main 5/10 Schematic Diagram E5H50SCBM5 The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section. 2 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-19 BE Main 6/10 Schematic Diagram E5H50SCBM6 The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section. 2 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-20 BE Main 7/10 Schematic Diagram E5H50SCBM7 The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section. 2 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-21 BE Main 8/10 Schematic Diagram E5H50SCBM8 The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section. 2 NOTE: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-22 BE Main 9/10 Schematic Diagram E5H50SCBM9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-23 BE Main 10/10 Schematic Diagram E5H50SCBM10 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-24 AV CBA Top View BE5H50F01072A w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-25 AV CBA Bottom View BE5H50F01072A w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-26 CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. "Ce symbole reprèsente un fusible à fusion rapide." CAUTION ! For continued protection against fire hazard, replace only with the same type fuse. ATTENTION : Pour une protection continue les risqes d'Incele n'utiliser que des fusible de même type. Risk of fire-replace fuse as marked. "This symbol means fast operating fuse." A V F Because a hot chassis ground is present in the power supply circut, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly, when troubleshooting this type power supply circuit, a variable isolation transformer is required. NOTE: The voltage for parts in hot circuit is measured using hot GND as a common terminal. BE5E10F01063 Power Supply CBA Top View w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-27 BE5E10F01063 Power Supply CBA Bottom View CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. "Ce symbole reprèsente un fusible à fusion rapide." CAUTION ! For continued protection against fire hazard, replace only with the same type fuse. ATTENTION : Pour une protection continue les risqes d'Incele n'utiliser que des fusible de même type. Risk of fire-replace fuse as marked. "This symbol means fast operating fuse." A V F Because a hot chassis ground is present in the power supply circut, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly, when troubleshooting this type power supply circuit, a variable isolation transformer is required. NOTE: The voltage for parts in hot circuit is measured using hot GND as a common terminal. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9-28 BE5H50F01072C Front CBA Top View Front CBA Bottom View BE5E20F01042 SD CBA Bottom View Power SW CBA Top View Power SW CBA Bottom View BE5H50F01072B w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-10-1 E5H50CEX EXPLODED VIEWS Cabinet B34 B38 B53 2L085 2L044 2L026 2L056 2L026 2L034 2L037 2L050 2L055 2L034 2L044 FM01 A4 2L044 2L086 2L086 B15 2L051 2L051 2L081 2L070 W08 2L034 2L034 B47 B12 2L085 FE Main CBA & BD Mechanism Assembly 2L027 B49 2L027 2L015 2L047 W01 2L034 B14 B14 A3 B52 W07 W04 2L083 2L070 2L081 2L072 2L081 2L071 A2 W09 A10 A10 B13 A1X W11 A6 2L038 2L018 2L082 2L082 2L082 2L082 2L082 2L082 B4 Power Supply CBA AV CBA BE Main CBA Unit SD CBA See Electrical Parts List for parts with this mark. Some Ref. Numbers are not in sequence. Front CBA Power SW CBA B47 W06 A6 A20 B54 F1001 A22 A6 A6 2L043 B66 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-10-2 E5H50PEX Packing S2 A20 S3 S1 X19 S1 X10 X1-A X6 X14 X15 X32 Lower Side Upper Side X40 X1-B Some Ref. Numbers are not in sequence. A20 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20080907 1-11-1 E5H50CA MECHANICAL PARTS LIST PRODUCT SAFETY NOTE: Products marked with a # have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing. NOTE: Parts that are not assigned part numbers (---------) are not available. Ref. No. Description Part No. A1X FRONT ASSEMBLY E5H50UD 1VM122339 A2 CHASSIS E5H50UD 1VM225696 A3 TOP COVER E5J20ED 1VM225860 A4 REAR PANEL E5H50UD 1VM225818 A6 FOOT ASSEMBLY E5H50UD 1VM430199 A10 BOTTOM GUIDE E5E20UD 1VM224296D A20 BAR CODE LABEL E5H50UD ---------- A22 LICENSE LABEL E5H50UD ---------- 2L015 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 2L018 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 2L026 SCREW C-TIGHT M3X6 E5610UD 0VM412937A 2L027 SCREW C-TIGHT M3X6 E5610UD 0VM412937A 2L034 SCREW S-TIGHT M3X6 E5E10UD 1VM429667 2L037 SCREW C-TIGHT M3X6 E5610UD 0VM412937A 2L038 SCREW C-TIGHT M3X6 E5610UD 0VM412937A 2L043 SCREW P-TIGHT M3X10 BIND HEAD+ GBJP3100 2L044 SCREW P-TIGHT M3X6 BIND HEAD+ GBJP3060 2L047 SCREW P-TIGHT M3X10 BIND HEAD+ GBJP3100 2L050 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 2L051 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 2L070 B-TIGHT SCREW M3X8 E5E00UD 1VM428563 2L071 B-TIGHT SCREW M3X8 E5E00UD 1VM428563 2L072 SCREW TAP TIGHT M3X8 BIND PAN HEAD+BLK NI GPHB3080 2L081 S-TIGHT SCREW M3X6 E5E00UD 1VM428564 2L082 SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI GBHC3050 2L083 S-TIGHT SCREW M3X6 E5E00UD 1VM428564 2L085 SCREW C-TIGHT M3X6 E5610UD 0VM412937A 2L086 SCREW C-TIGHT M3X6 E5610UD 0VM412937A B4 POWER PCB HOLDER E5E10UD 1VM121339E B12 BE PCB HOLDER ASSEMBLY E5H40UD 1VM327680 B13 FRONT BRAKET R E5E10UD 1VM425934 B14 LOCKING CARD SPACER KGLS-22S XP0U039WD001 B15 SD CARD HOLDER E5E20UD 1VM326404 B34 DOUBLE SIDE TAPE E5E10UD 1VM427670 B38 CORE FERRITE HF70SH25*0.7*10 XL05028TE001 B52 CUSHIION E5E10UD 1VM428082 B53 CONDUCTIVE TAPE CSTK-026065 XT1H000WD001 B54 CONDUCTIVE TAPE CSTK-040055 XT1H000WD002 B66 PCB COVER E5H50UD 1VM327720 FM01 MOTOR DC FAN 2D65BL100190 MMEZR12XNR08 W01 WX1E5E10-001 11/110/AWG24 WX1E5E10-001 W04 WX1E5E10-004 28/75/1.0 WX1E5E10-004 W06 WIRE ASSEMBLY FFC 15/218/1.0 WX1E5E10-012 W07 WX1E5E10-007 40/240/0.5 WX1E5E10-007 W08 WIRE ASSEMBLY FFC 16/125/1.0 WX1E5E20-002 W09 WIRE ASSEMBLY 15/BLACK WX1E5E10-009 W11 WIRE ASSEMBLY 38/BLACK WX1E5E10-011 PACKING S1 SIDE PAD E5H50UD 1VM122220 S2 GIFT BOX CARTON E5H50UD 1VM327879 S3 UNIT BAG E5500UD 0VM411683 ACCESSORIES X1-A# OWNERS MANUAL(EN) E5H50UD 1VMN26319 X1-B# OWNERS MANUAL(ES/FR) E5H50UD 1VMN26320 X6 MANGANESE DRY BATTERY R6UWC/2SK XB0M311MS002 X10 ACCESSORY BAG E5795ED 0VM416059 X14 AV CORD WPZ0102TM015 WPZ0102TM015 X15# AC CORD WITH A GND WIRE UL/CSA/ 162/ NO/BLACK WAV0162LW001 X19 REMOTE CONTROL UNIT NB821UD NB821UD X32 FCC ADDENDUM SHEET E8E70UD 1VMN26033 X40 WARRANTY CARD E5H50UD 1VMN26325 Ref. No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20080907 1-12-1 E5H50EL ELECTRICAL PARTS LIST PRODUCT SAFETY NOTE: Products marked with a # have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing. NOTES: 1. Parts that are not assigned part numbers (---------) are not available. 2. Tolerance of Capacitors and Resistors are noted with the following symbols. FE MAIN CBA & BD MECHANISM ASSEMBLY BE MAIN CBA UNIT AV ASSEMBLY AV CBA C.....±0.25% D.....±0.5% F.....±1% G.....±2% J......±5% K.....±10% M.....±20% N.....±30% Z.....+80/-20% Ref. No. Description Part No. FE MAIN CBA & BD MECHANISM ASSEMBLY N7JR0AUN Ref. No. Description Part No. BE MAIN CBA UNIT 1VSA20044 Ref. No. Description Part No. AV ASSEMBLY Consists of the following: 1VSA20064 AV CBA POWER SW CBA FRONT CBA ---------- ---------- ---------- Ref. No. Description Part No. AV CBA Consists of the following: ---------- CAPACITORS C2000 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C2001 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C2004 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470 C2005 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2007 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2009 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C2011 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2012 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 If C2013 is 0.1µF, then IC2001 is PST3630NR. C2013 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 IC2001 RESET IC PST3630NR QSZBA0TMM180 If C2013 is 0.01µF, then IC2001 is PST8430NR. C2013 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 IC2001 RESET IC PST8430NR QSZBA0TMM203 C2015 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C2016 ELECTROLYTIC CAP. 22µF/6.3V M CE0KMASDL220 C2018 ELECTROLYTIC CAP. 47µF/6.3V M CE0KMASDL470 C2019 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C2100 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C2104 ELECTROLYTIC CAP. 47µF/6.3V M CE0KMASDL470 C2106 CHIP CERAMIC CAP. CH D 8pF/50V CHD1JD3CH8R0 C2107 ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASDL221 C2108 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2180 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2181 ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASDL221 C2204 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C2205 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471 C2206 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2207 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100 C2208 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100 C2209 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221 C2210 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221 C2211 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100 C2212 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100 C2213 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2215 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C2216 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C2280 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2281 ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASDL221 C2282 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C2283 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C2284 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2286 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2300 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100 C2301 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2302 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101 C2303 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C2304 ELECTROLYTIC CAP. 22µF/16V M CE1CMASDL220 C2305 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C2307 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C2309 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2310 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C2311 CHIP CERAMIC CAP.(1608) B K 0.47µF/10V CHD1AK30B474 C2312 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2313 ELECTROLYTIC CAP. 47µF/6.3V M CE0KMASDL470 C2314 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471 C2315 ELECTROLYTIC CAP. 47µF/6.3V M CE0KMASDL470 C2316 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C2317 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471 C2318 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471 C2319 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471 C2600 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C2601 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C2602 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C2603 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C2604 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100 C2605 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C2606 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101 C2607 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C2608 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C2609 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101 C2610 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C2611 CHIP CERAMIC CAP.(2125) F Z 10µF/10V CHE1AZ30F106 C2614 CHIP CERAMIC CAP.(1608) B K 0.33µF/10V CHD1AK30B334 C2705 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271 C2760 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271 Ref. No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20080907 1-12-2 E5H50EL C2762 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271 CONNECTORS CN2000 FFC CONNECTOR IMSA-9615S-28A-PP-A JC96J28ER007 CN2001 FFC CONNECTOR IMSA-9615S-18A-PP-A JC96J18ER007 CN2004 PH CONNECTOR TOP 2P B2B-PH-K-S (LF)(SN) J3PHC02JG029 CN2600 BOARD CONNECTOR 23P(PB FREE) 127301123K2 JCTWA23TG004 CN2601 FFC CONNECTOR 15P IMSA-9615S-15A-PP-A JC96J15ER007 DIODES D2000 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2001 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2002 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2003 DIODE ZENER 36BSA-T26 NDTA036BST26 D2004 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2005 DIODE ZENER 12BSB-T26 NDTB012BST26 D2006 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2007 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2280 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D2600 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2601 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2602 DIODE 1N5406 NDLZ001N5406 D2605 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2606 DIODE ZENER 11BSC-T26 NDTC011BST26 D2608 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2609 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2610 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2611 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2612 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2613 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F D2614 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F ICS IC2000 IC SUB MICON MN101C77AFS3 QSAD0R0MS002 If IC2001 is PST3630NR, then C2013 is 0.1µF. IC2001 RESET IC PST3630NR QSZBA0TMM180 C2013 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 If IC2001 is PST8430NR, then C2013 is 0.01µF. IC2001 RESET IC PST8430NR QSZBA0TMM203 C2013 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 IC2200 IC OP AMP UTC4580E NSZBA0T2H010 IC2300 VIDEO DRIVER BH7602FS-E2 QSZBA0TRM105 IC2301 DRIVER FOR DVD MM1636XWRE QSZBA0TMM108 IC2600 IC VOLTAGE REGULATOR PQ070XF02SZH QSZBA0SSH073 IC2601 IC REGULATOR PQ035ZN01ZPH QSZBA0TSH074 COILS L2100 INDUCTOR(0.47µH K) LAP02TAR47K LLAXKATTUR47 L2180 PCB JUMPER D0.6-P5.0 JW5.0T L2300 RADIAL TYPE CHOKE COIL CW68-470K- 841040NP LLBD00PKV023 L2301 CHIP BEAD MMZ1608R102CT XL06001TE002 L2400 CHOKE COIL 22µH-K LLBD00PKV021 L2600 CHOKE COIL 22µH-K LLBD00PKV021 L2601 CHOKE COIL 22µH-K LLBD00PKV021 TRANSISTORS Q2000 TRANSISTOR KTA1267-Y-AT/P NQSYKTA1267P Q2001 NPN TRANSISTOR KRC103M-AT/P NQSZKRC103MP Q2002 NPN TRANSISTOR KRC102M-AT/P NQSZKRC102MP Q2003 PNP TRANSISTOR DIGITAL SMD KRA101S- RTK/P NQ1ZKRA101SP Q2005 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q2012 TRANSISTOR KTA1267-Y-AT/P NQSYKTA1267P Q2013 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q2014 TRANSISTOR KTA1267-Y-AT/P NQSYKTA1267P Q2100 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Ref. No. Description Part No. Q2101 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q2200 RES. BUILT-IN TRANSISTOR KRA105M-AT/P NQSZ0KRA105M Q2201 RES. BUILT-IN TRANSISTOR KRA105M-AT/P NQSZ0KRA105M Q2202 MUTE TRANSISTOR 2SD2144S QQSZ2SD2144S Q2203 MUTE TRANSISTOR 2SD2144S QQSZ2SD2144S Q2280 TRANSISTOR KTC3205-Y-AT/P NQSYKTC3205P Q2300 TRANSISTOR (PB FREE) KTA1271-Y-AT/P NQSYKTA1271P Q2301 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q2600 NPN TRANSISTOR KRC103M-AT/P NQSZKRC103MP Q2601 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P Q2602 TRANSISTOR KTA1267-Y-AT/P NQSYKTA1267P Q2603 TRANSISTOR (PB FREE) KTA1271-Y-AT/P NQSYKTA1271P Q2604 TRANSISTOR KTA1273-Y-AT/P NQSYKTA1273P Q2605 TRANSISTOR KTC3203-Y-AT/P NQSYKTC3203P Q2606 TRANSISTOR KTA1273-Y-AT/P NQSYKTA1273P Q2607 TRANSISTOR(PB FREE) KTC2026-Y/P NQEYKTC2026P RESISTORS R2000 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R2002 CHIP RES. 1/10W J 5.6k Ω RRXAJR5Z0562 R2005 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2006 CARBON RES. 1/4W J 300 Ω RCX4JATZ0301 R2007 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2010 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2012 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2014 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2015 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2016 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2017 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2018 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2019 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2020 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2021 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2022 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2023 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2024 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R2025 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R2026 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2029 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2030 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2031 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2032 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R2033 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R2034 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R2035 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2036 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682 R2037 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R2038 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2043 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2045 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2047 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2048 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2049 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2050 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2051 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2052 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2053 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2055 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R2057 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2058 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2059 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2062 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2065 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 Ref. No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20080907 1-12-3 E5H50EL POWER SW CBA FRONT CBA R2067 CARBON RES. 1/4W J 300 Ω RCX4JATZ0301 R2068 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2077 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2078 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R2091 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R2092 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R2093 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2094 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R2095 CHIP RES. 1/10W J 3.9k Ω RRXAJR5Z0392 R2096 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2099 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2100 CHIP RES. 1/10W J 2k Ω RRXAJR5Z0202 R2101 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R2102 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R2103 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R2104 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R2105 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R2109 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2110 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2112 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2115 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2116 CARBON RES. 1/4W J 5.6 Ω RCX4JATZ05R6 R2117 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R2118 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100 R2124 CHIP RES. 1/10W J 270 Ω RRXAJR5Z0271 R2125 CHIP RES. 1/10W J 270 Ω RRXAJR5Z0271 R2129 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2141 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2208 CHIP RES. 1/10W F 20k Ω RRXAFR5H2002 R2209 CHIP RES. 1/10W F 20k Ω RRXAFR5H2002 R2210 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822 R2211 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822 R2212 CHIP RES. 1/10W F 30k Ω RRXAFR5H3002 R2213 CHIP RES. 1/10W F 30k Ω RRXAFR5H3002 R2214 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R2215 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R2216 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R2217 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R2218 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R2219 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R2220 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R2221 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R2223 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R2224 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R2226 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R2227 CHIP RES. 1/10W J 820 Ω RRXAJR5Z0821 R2228 CHIP RES. 1/10W J 820 Ω RRXAJR5Z0821 R2229 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R2230 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R2280 CHIP RES. 1/10W J 820 Ω RRXAJR5Z0821 R2281 CHIP RES. 1/10W J 820 Ω RRXAJR5Z0821 R2284 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R2301 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 R2308 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2309 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R2310 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R2311 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R2312 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R2313 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R2323 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2324 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182 R2327 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2400 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 Ref. No. Description Part No. R2402 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2403 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2600 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R2601 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R2602 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R2603 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R2604 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R2606 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R2607 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R2608 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R2609 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R2610 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R2612 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R2613 CHIP RES. 1/10W F 10k Ω RRXAFR5H1002 R2615 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R2616 CHIP RES. 1/10W F 15k Ω RRXAFR5H1502 R2617 CHIP RES. 1/10W F 2k Ω RRXAFR5H2001 R2619 CHIP RES. 1/10W F 1.1k Ω RRXAFR5H1101 R2620 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R2621 CARBON RES. 1/4W J 82 Ω RCX4JATZ0820 R2622 CARBON RES. 1/4W J 82 Ω RCX4JATZ0820 R2623 PCB JUMPER D0.6-P12.5 JW12.5T R2626 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2636 CARBON RES. 1/4W J 33 Ω RCX4JATZ0330 R2742 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2793 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R2795 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 MISCELLANEOUS 2L055 SCREW S-TIGHT M3X8 BIND HEAD+ GBJS3080 B47 POWER HEATSINK E4340UD 1VM422057E JK2100 RCA JACK(BLACK) MSP-251V-01 NI FE LF JXRL010LY125 JK2200 PIN JACK 2P MSD-242V-01 NI FE LF JXRL020LY123 JK2300 JACK RCA PCB L MSP-244V10-46 NI FE JXRL040LY145 JK2400 FIBER OPTIC TRANS.MODULE 0C-0805T*002 JWHHA00JD002 X2000 CERAMIC RESONATOR ZTT8.00MT47 FY0805PLN004 Ref. No. Description Part No. POWER SW CBA Consists of the following: ---------- CONNECTOR CN3100 WIRE ASSEMBLY PH 3/230/AGW26 WX1E5H50-002 DIODE D3101 LED(RED) 1254IT NPQZ0012541T SWITCH SW3100 TACT SWITCH SKQSAB SST0101AL038 Ref. No. Description Part No. FRONT CBA Consists of the following: ---------- CAPACITORS C3000 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C3001 ELECTROLYTIC CAP. 22µF/50V M H7 CE1JMASSL220 C3002 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C3003 ELECTROLYTIC CAP. 100µF/6.3V M H7 CE0KMASSL101 C3005 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C3006 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C3007 ELECTROLYTIC CAP. 100µF/6.3V M H7 CE0KMASSL101 C3008 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 Ref. No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20080907 1-12-4 E5H50EL POWER SUPPLY CBA CONNECTORS CN3000 WX1E5E10-003 18/155/1.0 WX1E5E10-003 CN3001 CONNECTOR PRINT OSU S3B-PH-K- S(LF)(SN) J3PHC03JG030 COIL L3000 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101 RESISTORS R3000 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R3001 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R3002 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R3004 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R3005 CHIP RES.(1608) 1/10W 0 Ω RRXAJR5Z0000 R3006 CHIP RES.(1608) 1/10W 0 Ω RRXAJR5Z0000 R3008 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R3009 CHIP RES. 1/10W J 180 Ω RRXAJR5Z0181 R3010 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R3012 CHIP RES. 1/10W J 330 Ω RRXAJR5Z0331 R3014 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682 R3015 CHIP RES. 1/10W J 560 Ω RRXAJR5Z0561 R3018 CHIP RES. 1/10W J 22 Ω RRXAJR5Z0220 R3019 CHIP RES. 1/10W J 1.2k Ω RRXAJR5Z0122 R3020 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R3021 CHIP RES.(1608) 1/10W 0 Ω RRXAJR5Z0000 SWITCHES SW3002 TACT SWITCH SKQSAB SST0101AL038 SW3003 TACT SWITCH SKQSAB SST0101AL038 SW3004 TACT SWITCH SKQSAB SST0101AL038 SW3005 TACT SWITCH SKQSAB SST0101AL038 MISCELLANEOUS FL3000 FL DM182-GINK TVFD150FT018 RS3000 SENSOR REMOTE RECEIVER KSM-713TH2E USESJRSKK046 Ref. No. Description Part No. POWER SUPPLY CBA Consists of the following: 1VSA20204 CAPACITORS C1001 CERAMIC CAP. B K 1000pF/2KV CCD3DKP0B102 C1002# CAP METALIZED FILM 0.1µF/300V K 4.5MM CT2F104DC003 C1003# SAFETY CAP. 2200pF/250V CCG2EMA0F222 C1004 CHIP CERAMIC CAP.(1608) CH J 22pF/50V CHD1JJ3CH220 C1005 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1006 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1007# SAFETY CAP. 2200pF/250V CCG2EMA0F222 C1008 CAP ELECTROLYTIC 470µF/200V M CA2D471DYG07 C1009 ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470 C1010 METALIZED FILM CAP. 0.0022µF/400V K CT2H222DT034 C1013 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1014 POLYESTER FILM CAP. (PB FREE) 0.0068µF/ 100V J CA2A682DT018 C1015 CERAMIC CAP. B K 470pF/500V CCD2JKP0B471 C1016 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221 C1017 ELECTROLYTIC CAP. 1000µF/25V M CE1EMASDL102 C1018 ELECTROLYTIC CAP. 2200µF/25V SL CE1EMZADL222 C1019 ELECTRIC CAP. 4700µF/10V CE1AMZADL472 C1020 ELECTROLYTIC CAP. 2200µF/6.3V M CE0KMASDL222 C1021 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C1022 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C1023 ELECTROLYTIC CAP. 220µF/25V M CE1EMASDL221 C1024 ELECTROLYTIC CAP. 2200µF/25V SL CE1EMZADL222 C1025 ELECTRIC CAP. 4700µF/10V CE1AMZADL472 C1033 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 Ref. No. Description Part No. CONNECTORS CN1001 TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001 CN1002 PH CONNECTOR TOP 11P B11B-PH-K- S(LF)(SN) J3PHC11JG029 DIODES D1001 DIODE 1N5397-B NDLZ001N5397 D1002 DIODE 1N5397-B NDLZ001N5397 D1003 DIODE 1N5397-B NDLZ001N5397 D1004 DIODE 1N5397-B NDLZ001N5397 D1006 DIODE FR154 NDLZ000FR154 D1007 RECTIFIER DIODE BA157 NDQZ000BA157 D1008 RECTIFIER DIODE BA157 NDQZ000BA157 D1009 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D1010 RECTIFIER DIODE BA157 NDQZ000BA157 D1011 SCHOTTKY BARRIER DIODE SB390 NDQZ000SB390 D1012 PCB JUMPER D0.6-P10.0 JW10.0T D1013 SCHOTTKY BARRIER DIODE SB540-B/P NDLZ000SB540 D1014 SCHOTTKY BARRIER DIODE SB540-B/P NDLZ000SB540 D1015 SCHOTTKY BARRIER DIODE SB540-B/P NDLZ000SB540 D1016 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340 D1017 DIODE ZENER 5V1BSB-T26 NDTB5R1BST26 D1018 RECTIFIER DIODE BA157 NDQZ000BA157 D1019 DIODE ZENER 18BSB-T26 NDTB018BST26 D1020 DIODE ZENER 18BSB-T26 NDTB018BST26 D1021 DIODE ZENER 6V8BSB-T26 NDTB6R8BST26 D1022 SCHOTTKY BARRIER DIODE SB140 NDQZ000SB140 D1023 SCHOTTKY BARRIER DIODE SB390 NDQZ000SB390 D1024 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1025 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1031 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D1036 DIODE ZENER 27BSB-T26 NDTB027BST26 D1037 DIODE ZENER 27BSB-T26 NDTB027BST26 ICS IC1001 IC SWITCHING FA5542N-A2-TE1 SOP8 QSZBA0TFD005 IC1003# PHOTOCOUPLER PS2561A-1(W) QPEWPS2561A1 COILS L1001# COIL LINE FILTER ST0707ET24-010 LLEG0Z0Y2026 L1003 POWER INDUCTORS CWKBNP-220K LLF2200KV002 L1004 RADIAL TYPE CHOKE COIL CW68-470K- 841040NP LLBD00PKV023 L1005 POWER INDUCTORS CWKBNP-220K LLF2200KV002 TRANSISTORS Q1003# FET MOS 2SK3563(Q M) QFQZSK3563QM Q1011 TRANSISTOR KTC3203-Y-AT/P NQSYKTC3203P RESISTORS R1004 CARBON RES. 1/4W J 75k Ω RCX4JATZ0753 R1005 CARBON RES. 1/4W J 33 Ω RCX4JATZ0330 R1006 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R1007 CEMENT RESISTOR 5W J 1.2 Ω H 10MM RW051R2PAK10 R1008 CARBON RES. 1/4W J 56 Ω RCX4JATZ0560 R1009 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R1011 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100 R1012 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R1013 METAL OXIDE FILM RES. 2W J 47k Ω RN02473ZU001 R1014 METAL OXIDE FILM RES. 2W J 0.68 Ω RN02R68ZU001 R1016 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R1017 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1018 CHIP RES.(1608) 1/10W J 0.47 Ω RRXAR47HH007 R1019 CHIP RES. 1/10W J 680 Ω RRXAJR5Z0681 R1020 CHIP RES. 1/10W F 2k Ω RRXAFR5H2001 R1021 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R1022 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R1024 CHIP RES. 1/10W F 100 Ω RRXAFR5H1000 Ref. No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20080907 1-12-5 E5H50EL SD CBA R1025 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R1026 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R1039 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1040 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R1041 PCB JUMPER D0.6-P5.0 JW5.0T R1046 CHIP RES. 1/10W F 1.5k Ω RRXAFR5H1501 R1047 CHIP RES. 1/10W F 100 Ω RRXAFR5H1000 R1048 CHIP RES. 1/10W F 4.7k Ω RRXAFR5H4701 MISCELLANEOUS 2L056 SCREW S-TIGHT M3X8 BIND HEAD+ GBJS3080 AC1002 AC INLET 0P YKE31-0149N JTDC0L0JC001 B49 POWER HEATSINK E4340UD 1VM422057E F1001# FUSE TIME RAG FSL 250V 2A(EM) PDGJAB0NG202 FH1001 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 FH1002 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 JW1001 PCB JUMPER D0.6-P14.5 JW14.5T SA1001# SURGE ABSORBER 470V+-10PER NVQZ10D471KB T1001# TRANS POWER 7730 LTT3PC0KT038 Ref. No. Description Part No. SD CBA Consists of the following: 1VSA20070 CAPACITORS C4001 CHIP ELECTROLYTIC CAP. 33µF/6.3V M(WR) CA0K330NC180 C4002 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 CONNECTORS CN4001 CONNECTOR IC CARD MES 9PIN 1939115-1 JF18090AP001 CN4002 FFC/FPC CONNECTOR 16P+ 04 6232 116 102 800+ JC62D16UG014 COIL L4001 CHIP BEAD GZ1608D121T(F) XL06001SSN04 RESISTORS R4008 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R4009 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R4010 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R4012 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R4013 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R4015 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R4019 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R4020 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R4021 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R4023 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R4024 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 R4034 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000 Ref. No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-BD606 bd_Region Map ONKYO EUROPE UK Office Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ UNITED KINGDOM Tel: +44-(0)1494-681515 Fax: +44(0)-1494-680452 ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/ ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/ Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8163 ONKYO CORPORATION http://www.onkyo.com/ HOMEPAGE ONKYO CHINA LIMITED Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.ch.onkyo.com/ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
