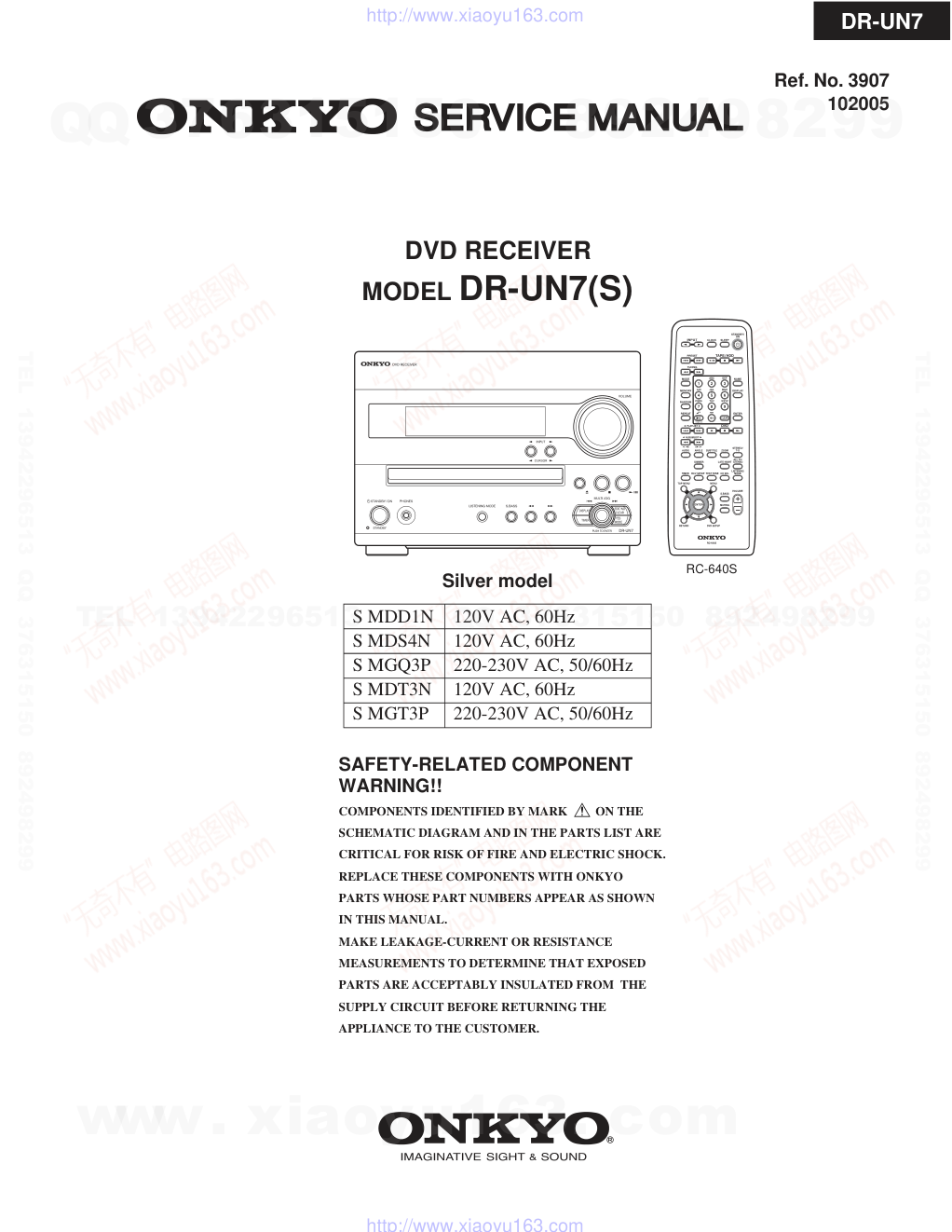

DR-UN7 SERVICE MANUAL SERVICE MANUAL DVD RECEIVER Silver model MODEL DR-UN7(S) Ref. No. 3907 102005 120V AC, 60Hz 120V AC, 60Hz 220-230V AC, 50/60Hz 120V AC, 60Hz 220-230V AC, 50/60Hz S MDD1N S MDS4N S MGQ3P S MDT3N S MGT3P RC-640S SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 SPECIFICATIONS-1 Power Supply Power Consumption Stand-by Power Consumption Dimensions (W x H x D) Weight Audio Input Digital Inputs Analog Inputs Audio Output Analog Outputs Multichannel Pre Outputs Speaker Terminals Phones Operation Condition Temperature/Humidity Disc Compatibility North American, some Asian: AC 120 V, 60 Hz Others: AC 220 - 230 V, 50 Hz US and Canada: 115 W Mexican: 105 W Others: 79 W 0.2 W 8-1/16" x 5-13/16" x 13-7/8" 205 W x 147 H x 353 D mm 5.4 kg, 11.9 lbs Optical: 1 LINE, TAPE TAPE 3.1 ch Front Speakers 1 5 ˚C - 35 ˚C (41 F - 95 F) / 5 % - 85 % SACD, DVD-Audio, DVD-video, DVD-R/RW(VR, VIDEO), CD, CD-R/RW, Video CD, SVCD, WMA, MP3, JPEG Disc that have not been property finalized may only be partially playable or not playable at all. Power Output North American 2ch driven: 1ch driven: Asian, Australian 2ch driven: THD (Total Harmonic Distortion) Damping Factor Input Sensitivity and Impedance Output Level and Impedance Frequency Response Tone Control Signal to Noise Ratio Speaker Impedance 16 W + 16 W (8 , 1 kHz, FTC) 23 W + 23 W (4 , 1 kHz, FTC) 30 W (4 , 1 kHz, FTC) 17 W + 17 W (8 , 1 kHz, JEITA) 26 W + 26 W (4 , 1 kHz, JEITA) 5 % (Power Rated) 0.4 % (1 kHz, 1W) 70 (Front, l kHz, 8 ) 150 mV/47 k (LINE) 120 mV/2.2 k (REC OUT) 10 Hz - 100 kHz +/-3 dB (LINE) +/-10 dB, 100 Hz (BASS) +/-10 dB, 10 kHz (TREBLE) +4.5 dB, 80 Hz (S.BASS 1) +7.5 dB, 80 Hz (S.BASS 2) 100 dB (LINE, IHF-A) 4 - 16 Amplifier section General www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 SPECIFICATIONS-2 FM Tuning Frequency Range Usable Sensitivity Signal to Noise Ratio THD Frequency response Stereo Separation AM Tuning Frequency Range Usable Sensitivity Signal to Noise Ratio THD North American: 87.5 MHz - 107.9 MHz Others: 87.5 MHz - 108.0 MHz Stereo: 22.2 dBf (75 IHF) Mono: 15.2 dBf (75 IHF) Stereo: 67 dB (IHF-A) Mono: 73 dB (IHF-A) Stereo: 0.5 % (1 kHz) Mono: 0.3 % (1 kHz) 30 Hz - 15 kHz +/-1 dB 40 dB (1kHz) North American: 530 kHz - 1710 kHz Others: 522 kHz - 1611 kHz 300 V 40 dB 0.7 % VIDEO Signal System Composite Output / Impedance S Video Output / Impedance Component Video Output / Impedance Component Video Frequency Response AUDIO Frequency Response DVD Audio: DVD Linear Sound: Audio CD Wow and Flutter Specifications and features are subject to change without notice. DVD Tuner Section North American: NTSC Others: PAL/NTSC 1.0 V (p-p)/75 negative sync, RCA/phono Y: 0.7 V (p-p)/75 negative sync, 4-pin mini DIN C: 0.286 V (p-p) / 75 Y: 1.0 V (p-p)/75 PB/PR: 0.7 V (p-p)/75 RCA/phono 5 Hz - 50 MHz 4 Hz - 88 kHz (192 kHz) 4 Hz - 44 kHz (96 kHz) 4 Hz - 22 kHz (48 kHz) 4 Hz - 20 kHz (44.1 kHz) Below threshold of measurability www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 EXPLODED VIEW DR-UN7 A003 x 4 pcs. A016 x 4 pcs. A016 x 4 pcs. A022 x 4 pcs. A024 x 5 pcs. A026 x 3 pcs. A051 x 6 pcs. A075 x 4 pcs. A073 x 2 pcs. A231 x 2 pcs. A231 x 2 pcs. A208 x 2 pcs. A076 x 6 pcs. A222 x 8 pcs. A075 x 13 pcs. A031 x 3 pcs. A103 x 13 pcs. A027 x 7 pcs. A024 x 4 pcs. A015 x 4 pcs. P901 Q559 Q923 Q931 Q932 Q974 Q973 Q557 Q558 Q560 Z301 F901 T901 U01 U11 U06 U07 U09 U05 U08 U02 U12 U04 U03 A061 A201 E101 E102 E101 A301 A211 A213 A203 A205 A223 A221 A215 Z001 A013 A053 A026 A023 A021 A052 A010 P1301 P2002 P2501 P204 P2003 P7002 A055 A101 A105 A223 A071 A078 A079 A001 U10 A080 A104 x 4 pcs. A223 A225 A225 A224 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAMS-1 PRE-AMPLIFIER SECTION DR-UN7 +10V SD STEREO PLLSDO PLLCLK TUNER_L SIGNAL RDSDATA TUNER_R RI AMUT SWIN +BSWC GNDSWC SWPRL S LINE_R LINE_L DVDREC_L DVDREC_R FL- FR+ FR- FL+ TUNER_R TUNER_L MDPLAY_L MDPLAY_R GNDVD FR- FL+ FR+ FL- GNDXM GNDXM +V GND GNDXM D- D+ DAC_SW DAC_SL DAC_CT DAC_FR DAC_FL GND GNDD DAC_SR GNDD SELDAT SELCLK SELSTB CDR_L CDR_R GND PREOUT CENTER SUBWOOFER SURR L SURR R L R L R LINE / TV IN IN OUT L R RI SUBWOOFER CONTROL TAPE / HDD NADG-8692 (1/2) MDD1N Only Q4022 RN1441 C4012 R4011 220K R4252 47K C4252 221 R4028 270 Q4027 RN1441 R4212 12K R4211 12K R4210 10K R4255 22K R4254 4.7K R4253 220K C4253 330 R4248 0 R4247 0 R4246 NC R4245 NC R4243 22K R4242 10K R4241 10K C4202 NC C4201 NC R4209 10K R4208 NC R4207 NC R4206 8.2K R4205 8.2K R4204 NC R4202 27K R4203 NC R4201 27K Q4024 RN1441 Q4028 RN1441 Q4023 RN1441 Q4026 RN1441 Q4025 RN1441 R4027 270 R4026 270 R4025 270 R4024 100 R4023 100 R4022 100 R4017 220K R4018 220K R4009 100 R4008 100 R4007 100 R4010 100 R4020 220K R4019 220K R4016 220K R4015 220K R4012 220K R4003 2.2K R4014 220K R4013 220K R4006 330 R4002 330 +8VDAC R7303 2.2K R7304 RXE010 R1304 27K R1313 1K R1312 1K R1302 2.2K R1301 2.2K R1303 27K +3.3VDG +12VA C4001 101 C4002 101 C4003 101 R4004 2.2K C4004 101 C4005 101 C4006 101 C4007 101 C4008 101 C4009 101 C4010 101 C7304 104 L7301 BLM21B222 C7302 104 C7301 101 -8VDAC +8VDAC -8VDAC +8VDAC -8VDAC R7301 470 R7305 NC C4021 22/50 + C4022 22/50 + C4024 22/50 + C4060 10/50 + C4059 10/50 + C4058 10/50 + C4057 10/50 + C4056 47/25 + C4055 47/25 + C4054 47/25 + C4053 47/25 + C4051 47/25 + C4052 47/25 + C4062 10/50 + C4061 10/50 + C1307 102 P2005B P4002 7 Q4201:B NE5532 7 6 5 Q4201:A 8 1 4 3 2 Q4241:B NE5532 7 6 5 Q4241:A 8 1 4 3 2 R7302 10K C7305 NC + Q7301 2SB1068-U R7306 NC Q7302 RN1407 D1301 RL1N4003 R4251 1K C4251 22/50 + C4023 22/50 + C4203 22/50 + C4204 22/50 + C6527 22/50 + C6528 22/50 + C1002 NC R4001 330 Q4251:B NE5532 6 5 7 Q4251:A 1 8 2 3 4 C709 NC R1314 15 C7307 102 C7306 102 C7308 NC R4244 22K C6521 22/50+ C6522 22/50+ C6525 22/50+ C6523 22/50+ C6524 22/50+ C6526 22/50+ C1001 102 C1003 NC R1001 0 R1002 0 C7303 104 P1002 P1001 D- D+ +V GND Q4021 RN1441 R4021 100 J6401C J4091B J3002B J4070B C1305 470/16 + P7301 P4001 10 R4005 330 Q4001 NJW1157 51 L1IN 52 R1IN 53 L2IN 54 R2IN 55 L3IN 56 R3IN 57 L4IN 58 R4IN 59 L5IN 60 R5IN 61 L6IN 62 R6IN 63 L7IN 64 R7IN 65 L8IN 66 R8IN 67 L9IN 68 R9IN 69 L10IN 70 R10IN 71 L11IN 72 R11IN 73 L12IN 74 R12IN 75 NC 76 DGND 77 DATA 78 CLOCK 79 LATCH 80 LAIN 81 RAIN 82 CAIN 83 LSAIN 84 RSAIN 85 LBAIN 86 RBAIN 87 SWAIN 88 LBIN 89 RBIN 90 CBIN 91 LSBIN 92 RSBIN 93 LBBIN 94 RBBIN 95 SWBIN 96 GND 97 GND 98 VSS2 99 VDD2 100 TCCAP LOU ROU COU LSOU RSOU LBOU RBOU SWOU DC_L DC_L FIL_B FIL_T DC_R DC_R FIL_B FIL_T GN GN V REC_A1 REC_A1 REC_A2 REC_A2 REC_A3 REC_A3 REC_B1 REC_B1 REC_B2 REC_B2 31 DCCAP_L 32 DCCAP_R 33 DCCAP_C 34 GND 35 GND 36 DCCAP_LS 37 DCCAP_RS 38 DCCAP_LB 39 DCCAP_RB 40 DCCAP_SW 41 DCL_OUT 42 DCL_IN 43 DCR_OUT 44 DCR_IN 45 FL+ 46 FL- 47 FR+ 48 FR- 49 VDD 50 VSS U01 PRE-AMPLIFIER & DSP PC BOARD XM To NARF-8688 (SD-6 : E2) To NADG-8692 (2/2) (SD-2 : A4) To NAETC-8698 (SD-4 : A4) To TUNER UNIT C4001 - C4010 MDD1N 101 MDS4N 471 MGQ3P, MDT3N, MGT3P 471 Refer to following table about the parts displayed by mark " ". +10.5V A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 CDR_RECL CDR_RECR SBASS2 SBASS1 RDSCLK GNDMC PRE_C PRE_LS PRE_R PRE_L MDLOUT PLLCLK PLLSDO STEREO SD SIGNAL RDSDATA RDSCLK GNDMC -12VA +12VA PRE_RS PRE_SW AMUT RECMUT MDRIN MDLIN MDROUT XM_L XM_R GNDD SELDAT SELCLK SELSTB SBASS2 SBASS1 AMUT SWIN RI SWPRL +BSWCTRL MDMUT MDMMUT PRER GND GND PREL GNDPS GNDMDA GNDMDA (1/2W) (1/2W) (1/2W) MDD1N Only MDD1N Only NC (1/2W) C4063 1/50 + -8VA +8VA C4105 101 R4109 56K Q4112 RN1441 C4106 101 C4101 NC C4108 333J C4110 333J C4107 333J C4109 333J R4134 1K R4116 4.7M R4108 4.7M R4107 4.7M R4115 4.7M C4103 NC R4112 68K R4111 68K C4119 NC C4120 NC R4133 1K R4104 100K R4123 220K R4124 220K C4102 NC R4106 68K R4122 100K R4121 100K R4125 220K R4101 1K R4102 1K R4120 2.2K Q4104 RN1441 Q4106 RN1441 R4110 56K R4118 1K R4113 NC R4103 100K R4114 NC Q4103 RN1441 C4104 NC Q4105 RN1441 R4105 68K R4119 2.2K R4117 1K Q4111 RN1441 +8VA -8VA +8VPR +8VPR -8VPR R3031 NC C3008 331J C3007 331J C3010 681 C3009 681 Q3003 NC R3025 220K R3026 220K R3023 1K R3024 1K R3022 2.7K R3019 4.7K R3017 3.3K R3029 NC R3020 4.7K R3018 3.3K R3027 22K R3028 22K R3015 NC R3016 NC Q3004 NC C3015 NC C3012 NC C3011 NC -8VA Q3005:B NJM2100M 6 5 7 R3008 0 R3010 3.3K R3009 3.3K R3007 0 R3011 100K R3012 100K Q3002 RN1441 R3032 220K C3002 2.2/50 + R3005 100K R3013 1.5K R3006 100K R3014 1.5K C3005 220/6.3 + R3030 150K C3006 NC C3001 2.2/50 + Q3001 RN1441 +8VA -8VMD R4032 47 R4031 47 C4091 2.2/50 + C4092 2.2/50 + -8VPR -8VMD Q3005:A NJM2100M 3 2 8 1 4 -8VMD +8VMD +8VMD +8VMD -8VMD +8VMD R1313 1K -8VPR -8VPR C3003 10/50 + C3004 10/50 + C4113 22/50 + C4114 22/50 + Q3006:A NE5532 1 8 2 3 4 Q3006:B NE5532 7 5 6 Q4107:B NE5532 6 5 7 C1304 3.3/50 + C1310 3.3/50 + C1311 101 R1310 100K C1302 101 R1306 NC C1301 101 C1303 104 Q4108 RN2407 Q4109 RN2407 JL905A C4067 4.7/50 + C4066 472J C4065 224J C4068 224J C4064 4.7/50 + C3013 22/50 + C3014 22/50 + C4111 22/50 + C4112 22/50 + C4117 1/50 + Q4107:A NE5532 3 2 8 1 4 1:B 32 7 R4130 2.2K C4073 NC C4093 10/50 + C4094 10/50 + -12VA +12VA P1301 D3001 NC D3002 NC P4101A D4092 NC +8VA -8VA D4091 NC D4093 NC Q4091 78M08 3 O 2 G 1 I Q4092 79M08 3 O 2 I 1 G D4094 NC J4091A 1 C4072 NC C4069 472J J4070A R3021 2.7K R3001 47K R3003 22K R3002 47K R3004 22K R3041 0.22 R3042 0.22 R4131 0.22 R4132 0.22 C3017 NC + C3018 NC + C4071 470/16 + C4070 470/16 + C4115 NC + C4116 NC + 1 LOUT 2 ROUT 3 COUT 4 SOUT 5 SOUT 6 BOUT 7 BOUT 8 OUT 9 C_L1 10 C_L2 11 IL_BL 12 IL_TL 13 C_R1 14 C_R2 15 IL_BR 16 IL_TR 17 GND 18 GND 19 V+ 20 V- 21 _A1L 22 _A1R 23 _A2L 24 _A2R 25 _A3L 26 _A3R 27 _B1L 28 _B1R 29 _B2L 30 _B2R JL1002A To NARF-8688 (SD-6 : E3) To NAPS-8696 (SD-7 : A1) To NADG-8692 (2/2) (SD-2 : A3) To NADG-8692 (2/2) (SD-2 : A3) To NAAF-8695 (SD-3 : A4) THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL). ALL PNP TRANSISTORS ARE EQUIVALENT TO 2SA1015-GR UNLESS OTHERWISE NOTED. ALL NPN TRANSISTORS ARE EQUIVALENT TO 2SC1815-GR UNLESS OTHERWISE NOTED. ALL DIODES ARE EQUIVALENT TO 1SS133 UNLESS OTHERWISE NOTED. ELECTROLYTIC CAPACITORS ( ) ARE IN uF/WV. ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED. EX) 030- 3pF 330- 33pF 331- 330pF 333- 0.033uF ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED. THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS. EX) PRINTING SIDE CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT. ! NOTE NC = No mount of parts. SD-Z : XY Location of connected terminal in schematic diagrams. SD-Z = Schematic diagrams-Z. X = A to H, Y = 1 to 5. +12V -7.9V +7.9V E F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HT24LC16 SCHEMATIC DIAGRAMS-2 DSP SECTION DR-UN7 DIGCLK DIGSDO DIRCS DIRINT DIRRST 2VDIGSDI DMS DDI DCK DDO DRST IC RESET MDLOUT MDROUT MDRIN DSPFINT DSPINT 2VDSPBSY DIGSDI 2VDIGSDI DSPBUSY 2VDSPFINT 2VDSPINT MDCLK RCDATA RCREQ MDRST SEL_D DAC_FL1 DAC_FR1 DVDVDET DVDACK DVDSCK DINPUT1 DINPUT2 FL- FR+ FR- FL+ DAC_SL DAC_SR DAC_SW DAC_CT DAC_FR DAC_FL RDSCLK SELDAT SELCLK SELSTB AMUT SBASS1 MDMUT SWPRL SWIN SIGNAL SIGNAL PLLCLK PLLSDO STEREO STEREO SD MDLOUT MDRIN MDMMUT XMRST GNDMC XMREQ2 XMSDI MDDATA MDREQ 5VDVDPOW 5VDVDRST 5VDVDRDY 5VDVDSO DVDSI DVDREADY DVDRST DVDPOW DVDSO GNDV ROMSCL ROMSDA SBASS2 RECMUT RI RDSDATA 3VRCREQ 3VRCDATA MDLIN MDAMUTE +5VMD +5VMD 3VSEL_D 3VMDRST 3VMDCLK +5VMD MDPCNT +3.3VMD MDPCNT 3VRCREQ 3VRCDATA XMSDO XMCLK XMREQ1 3VMDDATA 3VMDREQ 3VMDREQO MDDOUT 3VMDPDWN 3VMDPDWN MDPDWN 3VMDRST +3.3VMD ACPOWER RCPOWER SPRLF FANCNT PROTECT DVDMUTIN GNDMD GNDMD GNDMD GNDMD 3VMDDATAO +5VHMD 3VMDCLK GNDMD 3VSEL_D +5VMMD GNDMD +5VMMD 3VDOUT SEL_D MDDOUT DIRMCLK -8VDAC MDLIN GNDD GNDMD +5VDG +8VDAC MDROUT GNDMDA GNDMDA To NAPS-8696 (SD-7 : A3) NC JTAG To NADG-8692 (1/2) (SD-1 : C1) C6324 10/50 + C6323 10/50 + C6322 10/50 + C6321 10/50 + R6322 56 R6321 56 R6325 3.9K R6326 3.9K D6308 D6306 D6304 D6302 C6316 104 C6312 220/6.3 + R6319 47 R6318 47 R6317 47 L6313 LM182 R6315 47 R6314 47 C6315 104 R6313 47 L6311LM182 R6312 47 L6312 LM182 R6303 47 R6309 220 R6304 220 R6305 220 R6306 220 R6307 220 R6308 220 D6307 D6303 D6301 R6311 2.7K C6310 473K C6301 220/6.3 + C6171 104 R6171 1M C6173 120 C6174 104 R6323 56 R6324 56 R6301 47 Q6171 TC7WU04FU 1 2 3 4 GND 5 6 7 8 VD C6405 472J C6406 472J C6404 333J C6403 472J R6456 4.7K R6446 4.7K R6445 4.7K R6455 4.7K R6454 4.7K R6444 4.7K R6443 4.7K R6453 4.7K R6473 180 R6463180 R6464 180 R6474 180 R6475 180 R6465 180 R6466 180 R6476 180 R6416 3.3K R6406 3.3K R6405 3.3K R6415 3.3K R6425 470 R6435 470 R6414 3.3K R6404 3.3K R6434 470 R6424 470 R6403 3.3K R6423 470 R6413 3.3K R6433 470 R6426 470 R6436 470 R6412 3.3K R6402 3.3K R6401 3.3K R6411 3.3K R6472 180 R6462 180 R6461 180 R6471 180 C6325 222 C6326 222 C6423 681J C6413 681J C6425 681J C6415 681J C6416 681J C6424 153J C6414 153J R6482 22 -8VA D6305 +2.5VDG Q7201 DTC114YKA Q7204 DTC114YKA R7219 220K R7220 10K Q720 DTA114 C7015 NC R7236 100 R7136 2.2K R7234 0 R7235 100 R7231 NC R7232 NC R7233 NC Q7202 DTA114YKA R7217 100 R7218 100 R7141 22K R7140 22K R7142 22K R7139 22K R3416 47 R3415 47 R3414 47 R3413 47 R3412 47 R3411 47 R6701 47 R6702 47 C6701 104 R6703 47 R6705 220 R6704 47 Q6701 TC74VHCT08AFT 7 6 5 4 3 2 1 14 13 12 11 10 9 8 VCC GND R3301 47 +8VA C6426 681J L6172 LM182 R3426 47 L6171 022M L6301 022M R6601 10K R6611 10K R6621 1.5K R6631 22K R6641 22K R6651 22K R6661 22K R6662 22K R6652 22K R6642 22K R6632 22K R6622 1.5K R6602 10K R6612 10K C6601 272J C6611 122J C6602 272J C6612 122J C6311 104 C6309 222 C6319 104 C6305 NC C6318 104 R6706 3.3K +5VDG R2102 47 R2104 47 Q2101 TC74VHCT08AFT 7 6 5 4 3 2 1 14 13 12 11 10 9 8 VCC GND C2101 104 R3423 47 R3424 47 R3425 22K R3304 22K R2105 22K R2108 22K R2107 22K R2106 22K JL1001A C3206 104 C3208 220/6.3 + C3301 104 R3421 47 C3401 104 R3302 47 C6317 104 C6333 330 R3422 47 C3203 104 R6333 330 L6303 022M R2103 330 R2101 330 Q6601:B 2 3 1 Q6601:A 4 5 6 8 7 Q6403:A 7 4 5 6 8 Q6403:B 1 2 3 Q6402:A 7 4 5 6 8 Q6402:B 1 2 3 Q6401:A 7 4 5 6 8 Q6401:B 1 2 3 Q3202 RN2407 +5VST R3303 22K R3305 47 R6334 VAL C6302 104 C6313 104 R6432 470 R6422 470 R6452 4.7K R6442 4.7K C6422 331 C6412 331 C6411 331 C6421 331 R6441 4.7K R6451 4.7K R6421 470 R6431 470 Q6602:A 4 5 6 8 7 R6681 1.5K Q6602:B 2 3 1 Q6603:B 2 3 1 R6671 1.5K R6605 22K R6603 22K R6682 1.5K Q6603:A 4 5 6 8 7 R6604 22K R6672 1.5K R6606 22K +3.3VDG C6923 100/16 + C6924 100/16 + C6921 100/16 + P2004B P3001A JL903A Q6421 CS42518-CQ 17 VQ 18 FLT+ 19 REFGND 20 AOUTB4- 21 AOUTB4+ 22 AOUTA4+ 23 AOUTA4- 24 VA 25 AGND1 26 AOUTB3- 27 AOUTB3+ 28 AOUTA3+ 29 AOUTA3- 30 AOUTB2- 31 AOUTB2+:31 32 AOUTA2+:32 33 AOUTA2- 34 AOUTB1- 35 AOUTB1+ 36 AOUTA1+ 37 AOUTA1- 38 MUTEC 39 LPFLT 40 AGND2 41 VARX 42 RXP7/GP7 43 RXP6/GP6 44 RXP5/GP5 45 RXP4/GP4 46 RXP3/GP3 47 RXP2/GP2 48 RXP1/GP1 49 49:RXP0 50 50:TXP 51 VD2 52 DGND2 53 VLS 54 SAI_SDOUT 55 RMCK 56 CX_SDOUT 57 ADCIN2 58 ADCIN1 59 OMCK 60 SAI_LRCK 61 SAI_SCLK 62 62:CX_SDIN4 63 63:CX_SDIN3 64 64:CX_SDIN2 1 CX_SDIN1 2 CX_SCLK 3 CX_LRCK 4 VD1 5 DGND1 6 VLC 7 CCLK/SCL 8 CDOUT/SAD 9 CDIN/AD1 10 CS/AD0 11 INT1 12 _RST 13 AINR- 14 AINR+ 15 AINL+ 16 AINL- C6304 47/25 + C6306 47/25 + L6921 022M Q7275 4 GND 3 A2 2 A1 1 A0 8 VCC 7 WP 6 SCL 5 SDA C3202 104 C3210 104 R6175 47 R6176 47 L6173 LM182 L6174 LM182 R6173 47 R3427 47 C3207 220/6.3 + C3209 1000/6.3 + +12VA -12VA Q6172 TC74VHC157FT 9 3Y 10 3B 11 3A 12 4Y 13 4B 14 4A 15 ST 16 VCC 1 SEL 2 1A 3 1B 4 1Y 5 2A 6 2B 7 2Y 8 GND C6481 220/25 + C6172 180 R7015 0 C6303 NC JL901A P7040B R6481 22 J3001A C3205 104 R3221 NC L6302 100M R3100 NC J3001B J6401A J2001B C7401 NC C7404 NC C2102 NC C6332 NC R6332 100 C6307 104 Q6922 MPC2925T 1 I 2 G 3 O Q6921 MPC2933T 1 I 2 G 3 O X6171 12.288MHz C6308 470/6.3 + C7016 220J C7115 TRIM Q3401 TC74VHC541FT 20 VCC 19 G2 18 Y1 17 Y2 16 Y3 15 Y4 14 Y5 13 Y6 12 Y7 11 Y8 10 GND 9 A8 8 A7 7 A6 6 A5 5 A4 4 A3 3 A2 2 A1 1 G1 Q3301 TC74VHCT08AFT 7 6 5 4 3 2 1 14 13 12 11 10 9 8 VCC GND C7402 NC J3002A X7015 DT-38 To NAPS-8696 (SD-7 : A2) To NAETC-8698 (SD-4 : B1) To NADG-8692 (1/2) (SD-1 : G1, G5) Q6401 - 6403 : NE5532 MDD1N Only To NARF-8688 (SD-6 : E3) NC Q6601 - 6603 : NE5532 +3.23V +5.1V +5.1V +3.3V +4.8V +5.1V -6.8V +6.8V +5.07V +5.1V +3.3V A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 RMCK CXSCLK CXSCLK DACDA2 DACDA1 BT_OE A12 A15 A16 A18 A17 A14 A13 A9 A11 CXLRCK CXLRCK DSPCLKIN SAILRCK DSPRST A4 A5 A6 A7 BT_WE A8 D0 A2 A3 A1 A0 A10 D7 D6 D5 D4 D3 D2 D1 BT_CS DVDDATA1 DVDDATA2 CXSDOUT DACDA4 DACDA3 +VDSP 2VDIGSDI RI STBYLED SUBSDO SUBSDI SUBRST HPIN PROTECT SUBREQ SUBCL REMIN IC MDRST PLLCLK DSPINT DSPBUSY SPRLF SWPRL DVDPOW DVDREADY DVDRST RCREQ DVDSO DVDSCK DVDACK DVDMUTIN MDREQ MDDATA RCDATA MDCLK FHS DSPFINT DIGSDO ROMSDA ROMSCL RDSDATA RDSCLK SD STEREO SIGNAL K0 DSPRST DSPCS DSPFCS DIRCS DIRRST DIRINT DIRMCLK ACPOWER RCPOWER SBASS1 SBASS2 SELCLK SELDAT SELSTB PLLSDO DDI DDO DCK DMS INTK0 DRST DVDMUT DINPUT2 DINPUT1 DIGSDI SWIN DVDVDET -VP POFF FLAC1 FLAC2 FANCNT +3.3VMC DVDLRCK DVDLRCK DVDDATA0 DVDDATA0 DVDBCK DVDBCK SEL_D DVDVOFF FREQCAL +3.3DSPIO +PLLVDD GNDMC GNDMC +VBOOT FLAC2 FLAC1 -VP +3.3VDIS GNDMC GNDMC SUBREQ SUBSDO SUBRST GNDMC REMIN STBYLED K0 GNDMC INTK0 HPIN FHS IC +3.3VST RESET SUBCL SUBSDI SUBSDO CL DA MDPDWN GNDMC RESET VRST VRST DVDSI AMUT RECMUT GNDMC BT_OE A10 A18 A17 A16 A15 A14 A13 A12 A11 DSPCS 2VDSPBSY D0 D2 D1 BT_WE BT_CS A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 D7 D6 D5 D3 D4 DIGSDO DSPFCS 2VDSPFINT 2VDSPINT DIGCLK POFF DIGCLK SAISDOUT SAISCLK SUBCL SUBSDI AMUT MDMUT GNDMC +3.3VST +5VST +5VST BCLK LRCK DATA0 DATA1 DATA2 GNDD GNDD +5VDG MCLK SEL_D GNDD GNDD FLASH WRITER To NAPS-8696 (SD-7 : A3) C6203 100/16 + Q6203 MX29LV040 17 A3 18 A2 19 A1 20 A0 21 DQ0 22 DQ1 23 DQ2 24 VSS 25 DQ3 26 DQ4 27 DQ5 28 DQ6 29 DQ7 30 _CE 31 A10 32 _OE 1 A11 2 A9 3 A8 4 A13 5 A14 6 A17 7 _WE/A18 8 VCC 9 A18/VPP 10 A16 11 A15 12 A12 13 A7 14 A6 15 A5 16 A4 R6277 10K C6213 104 R6228 47 R6226 47 R6227 47 R6229 47 R6230 47 R6231 47 R6270 220 C6218 104 R6316 47 R6245 47 R6246 47 R6302 47 R6254 47 R6255 10K C6217 104 C6219 101 C6282 104 C6281 100/16 + R6225 10K R6224 10K R6271 10K R6267 47 R6261 10K R6251 10K R6244 47 R6243 47 R6242 10K R6237 47 R6236 10K R6232 47 R6233 47 R6238 47 C6216 104 R6279 10K R6278 10K R6273 10K C6208 104 C6211 104 C6204 2.2M + R6257 330 R6258 2.7K C6206 680J R6223 10K R6222 10K R6221 10K R6220 10K R6219 10K R6218 10K R6217 10K R6216 10K R6212 10K R620510K R62023.3K R62013.3K C6215 104 R6249 10K R6234 10K R6235 10K R6239 10K R6240 10K C6214 104 R6276 10K R6275 10K R6274 10K C6210 104 C6209 104 R6272 10K R6269 3.3K R6266 10K R6260 10K R6259 47 R6256 10K R6250 10K R6203 3.3K R6215 3.3K R6280 220 R6252 47 R6253 47 C6201 100/16 + C6205 122J R6281 NC R62113.3K R62103.3K C6207 104 R620910K R620810K R7003 100 R7004 100 R7008 10K R7017 100 R7018 100 R7023 100 R7025 100 R7121 22K R7122 22K C7121 330 C7022 330 Q7203 A114YKA C7009 104 C7010 4.7/50 + C7197 NC R7197 22K R7186 22K R7196 2.7K C7196 102 R7185 22K R7191 22K R7190 22K C7014 104 R7114 47K R7138 220K C7138 102 R7032 100 R7035 100 R7029 100 R7028 100 R7049 100 R7048 100 R7047 100 R7046 100 R7045 100 R7044 100 R7036 100 R7031 100 R7030 100 R7180 22K R7078 100 R7084 100 R7081 100 R7082 100 R7083 100 R7087 100 R7079 100 R7097 10K R7096 0 R7090 100 R7091 100 R7088 100 R7094 100 R7093 100 R7092 100 R7089 100 R7100 R7099 R7199 R7200 R7107 100K R7163 100 R7064 22K R7062 1K R7058 100 R7057 100 R7072 100 R7071 100 R7061 100 R7060 100 R7068 100 R7059 100 R7056 100 R7055 100 R7054 100 R7053 100 R7052 100 C7001 104 R7006 0 R7043 100 R7027 100 R7130 22K R7129 22K R7095 100 R7195 22K R7026 100 R7131 22K R7132 22K R7147 22K R7148 22K R7135 2.2K R7136 2.2K R7019 100 C7034 104 R7037 10K R7065 100 R7077 100 R7098 100 L7001 470K +3.3VST L6201 022M L6202 022M R6293 47 R6294 47 R6295 47 DVDVOFF DVDMUT FREQ L6203 022M L6281 022M +5VDG C6212 104 C6293 102 C6292 101 L7002 022M C7100 100/16 + P7001 R6291 47 R6292 47 R6296 47 R7198 1K R7021 220 R7022 220 R7024 220 R7103 22K R7298 100K C6202 220/6.3 + C7235 104 C7114 NC D7014 1SS355 C7214 4.7/50 + R7120 22K Q7014 RN1407 Q7015 RN1407 R7050 220 R7051 330 R7066 100 R7067 330 +5VST Q7049 RN1407 +5VST C7185 470/6.3 + R7073 100 R7075 10K R7074 10K D7198 1SS355 C7070 104 Q7149 RN2407 L6291 022M C6294 102 R6175 47 Q7001 UPD70F3261 1 AVREF0 2 AVSS 3 PROTECT 4 FAN 5 AVREF1 6 LEDSTBY 7 HPIN 8 IC 9 VDD 10 REGC 11 VSS 12 X1 13 X2 14 RESET 15 XT1 16 XT2 17 SYSOUT 18 SYSIN 19 REMIN 20 DRST 21 SUBREQ 22 SUBSDO/FSDO 23 SUBSDI/FSDI 24 SUBCLK/FCLK 25 SUBRST 26 POFF 27 DIGCLK 28 DIGSDO 29 DIGSDI 30 DSPBUSY 31 DSPINT 32 DSPFINT 33 EVSS 34 EVDD 35 ROMSDA 36 ROMSCL 37 NC 38 KEYINT 39 DDI 40 DDO 41 DCK 42 DMS 43 PLLSDO 44 PLLCLK 45 SD 46 STEREO 47 RDSDAT 48 RDSCLK 49 AMUT2 50 DVDSI 51 DVDSO 52 DVDSCK 53 MDDATA/XMSDI 54 RCDATA/XMSDO 55 MDCLK/XMCLK 56 MDREQ/XMREQ 57 DVDACK 58 DVDMUTIN 59 MDRST/XMRST 60 MDPDWN 61 FHS 62 FREQCAL 63 RCREQ/SCREQ 64 MDMUT 65 DINPUT1 66 DINPUT2 67 DVDXRDY 68 DVDRST 69 BVSS 70 BVDD 71 DVDPOW 72 DVDMUT 73 DVDVOFF 74 NC 75 NC 76 FLMD1 77 SWIN 78 SPRLF 79 SWPRL 80 SELSTB 81 SELDAT 82 SELCLK 83 SBASS2 84 SBASS1 85 AMUT 86 RECMUT 87 RCPOWER 88 ACPOWER 89 DIRMCLK 90 DIRINT 91 DIRRST 92 DIRCS 93 DSPFCS 94 DSPCS 95 DSPRST 96 KEY 97 SIGNAL 98 DVDVDET 99 MODEL 100 DVDDST R7115 NC 7015 0 JL902A P7002B Q7064 Q7085 RN2407 Q7086 +BMUTE +3.3VDG C7087 NC Q7087 NC 3 O 1 G 2 I D7085 NC +5VDG +BMUTE D7015 1SS355 C7013 NC R7076 10K R7177100K D7177 NC D7049 1SS355 R7080 100 D7064 1SS355 R7182 NC R7181 NC P2001B J2001A C7403 NC C6291 NC R7007 2.2K C6295 104 X7012 5M Q6201 CS494003 109 AUDATA1 AUDATA0 CMPCLK,FSCLKN2 HDATA2,GPIO2 VSS3 VDD3 HDATA3,GPIO3 HDATA0,GPIO0 110 111 112 113 114 115 116 117 CMPREQ,FLRCLKN2 118 CMPDAT,FSDATAN2 119 FLRCLKN1 120 _WR,_DS,GPIO10 121 _RD,R/_W,GPIO11 122 PLLVSS 123 FILT2 124 FILT1 125 PLLVDD 126 XTALO 127 CLKIN,XTALI 128 CLKSEL 129 _CS,GPIO9 130 A0,GPIO13 131 FSDATAN1 132 VDD4 133 VSS4 134 FSCLKN1,STCCLK2 135 _SCS 136 SCDIN 137 VSS5 138 VDD5 139 A1,GPIO12 140 SCDOUT,SCDIO 141 HINBSY,GPIO8 142 SCCLK 143 UHS,_CS_OUT,GPIO17 144 _RESET 1 UHS0,GPIO18 2 UHS1,GPOI19 3 _INTREQ 4 FA1,FSCDIN 5 GPOI20 6 FA0,FSCCLK 7 FSCDIO,FSCDOUT 8 GPIO21 9 FDAT7 10 VDD6 11 VSS6 12 FHS0,_FWR,_FDS 13 FSH1,_FRD,FR/_W 14 FDAT6 15 _FCS 16 _FINTREQ 17 FDBCK 18 FDAT5 19 FDAT4 20 VDD7 21 VSS7 22 FDAT3 23 FDBDA 24 FDAT2 25 DBDA 26 DBCK 27 FDAT1 28 TEST 29 FDAT0 30 _NV_WE,GPIO16 31 _NV_OE,GPIO15 32 _NV_CS,GPIO14 33 _SD_WE 34 SD_DATA0,EXTD0 35 SD_DATA1,EXTD1 36 SD_DATA2,EXTD2 37 SD_DATA3,EXTD3 38 SD_DATA4,EXTD4 39 SD_DQM0 40 SD_DATA5,EXTD5 41 VSSSD4 42 VDDSD4 43 SD_DATA6,EXTD6 44 SD_DATA7,EXTD7 45 SD_DQM1 46 SD_DATA15,EXTA18 47 SD_DATA14,EXTA17 48 NC5 49 SD_DATA13,EXTA16 50 VSSSD3 51 VDDSD3 52 SD_DATA12,EXTA15 53 SD_DATA11,EXTA14 54 SD_DATA10,EXTA13 55 SD_DATA9,EXTA11 56 SD_ADAT8,EXTA11 57 VSSSD2 58 VDDSD2 59 SD_CLK_OUT 60 SD_ADDR9,EXTA9 61 SD_CLK_IN 62 SD_ADDR8,EXTA8 63 SD_ADDR7,EXTA7 64 SD_CLK_EN 65 SD_ADDR6,EXTA6 66 SD_ADDR5,EXTA5 67 SD_ADDR4,EXTA4 68 _SD_CS 69 VSSSD1 70 VDDSD1 71 SD_BA,EXTA19 72 SD_ADDR10,EXTA10 73 SD_ADDR0,EXTA0 74 SD_ADDR1,EXTA1 75 SD_ADDR2,EXTA2 76 SD_ADDR3,EXTA3 77 _SD_RAS 78 _SD_CAS 79 SDATAN3,GPIO27 80 SDATAN2,GPIO26 81 SDATAN1,GPIO25 82 SDATAN0,GPIO24 83 NC4 84 NC3 85 LRCLKN,GPIO23 86 SCLKN,GPIO22 87 LRCLK1 88 NC2 89 NC1 90 VDD1 91 VSS1 92 AUDATA7,XMT958B,GPIO31 93 AUDATA6,GPIO30 94 AUDATA5,GPIO29 95 HDATA7,GPIO7 96 HDATA6,GPIO6 97 HDATA5,GPIO5 98 SCLK1 99 MCLK 100 VDD2 101 VSS2 102 AUDATA4,GPIO28 103 HDATA4,GPIO4 104 SCLK0 105 HDATA3,GPIO3 106 AUDATA3,XMT958A 107 AUDATA2 108 LRCLK0 109 110 111 112 113 114 115 116 THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL). ALL PNP TRANSISTORS ARE EQUIVALENT TO 2SA1015-GR UNLESS OTHERWISE NOTED. ALL NPN TRANSISTORS ARE EQUIVALENT TO 2SC1815-GR UNLESS OTHERWISE NOTED. ALL DIODES ARE EQUIVALENT TO 1SS133 UNLESS OTHERWISE NOTED. ELECTROLYTIC CAPACITORS ( ) ARE IN uF/WV. ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED. EX) 030- 3pF 330- 33pF 331- 330pF 333- 0.033uF ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED. THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS. EX) PRINTING SIDE CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT. ! NOTE U01 PRE-AMPLIFIER & DSP PC BOARD NADG-8692 (2/2) To NADIS-8700 (SD-5 : A3) To NAETC-8698 (SD-4 : A1) Refer to following table about the parts displayed by mark " ". NC = No mount of parts. SD-Z : XY Location of connected terminal in schematic diagrams. SD-Z = Schematic diagrams-Z. X = A to H, Y = 1 to 5. 72 71 70 69 68 67 66 139 140 141 142 143 144 43 42 41 40 39 38 37 NC NC R7200 R7199 R7099 MGQ3P, MGT3P MDT3N MDS4S 33K 10K 4.7K 56K 4.7K 33K 33K 33K MDD1N 0 No 33K 4.7K 10K 33K 10K 33K R7100 Refer to following table about the parts displayed by mark " ". +3.23V +3.23V +3.23V +2.3V +2.3V +2.3V +3.3V +3.3V +3.3V +3.3V +2.3V E F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 SCHEMATIC DIAGRAMS-3 POWER AMPLIFIER SECTION DR-UN7 GND PREL GND ACAMP1 ACAMP2 HPL HPR GND PROTECT RCPOWER RCPOWER SPRLF RLGND -BA FAN PRER GND PROTECT PREL PRER NAAF-8695 To T901 (SD-7 : C3) To NAETC-8697 (SD-7 : C2) To NADG-8692 (SD-1 : G4) R513 R514 3.3K Q509,Q510, Q511,Q512, Q515,Q516 3.9K 6.8K 4.7K L R R555 R556 R523 R524 R553 R554 560F 2SA949-O,Y 2SA1015-GR 4.7KF 680F MGQ3P, MDT3N, MGT3P MDD1N, MDS4N Q517,Q518, Q519,Q520 2SC2229-O,Y 2SC1815-GR 2SC2713-GR 2SC2712-GR Q581,Q582 Q551,Q552, 2SC3421-O,Y 2SC2235-O,Y Q553,Q554 Q555,Q556 2SA1358-O,Y 2SA965-O,Y Q557,Q558 2SC4511-O,Y 2SC3851-O,Y Q559,Q560 2SA1725-O,Y 2SA1488-O,Y Q561,Q562 Q583 2SA1163-BL 2SA1162-GR 5.6K 6.8K R583, R584 NO R512 820 R526 18K R528 18K R585 33K R551 1.5KF R525 18K R582 12K R521 39(1/2W) R577 560 C582 NC R527 18K R557 82(1/2W) R559 0.22 (2W) C951 334 R511 820 C952 334 R562 0.22(2W) R560 0.22(2W) R539 180 R537 180 R540 180 R507 470 R509 820 R510 820 R508 470 C508 NC R506 22K C506 22/16 R505 22K R503 12K D501 1SS352 C507 NC R561 0.22 (2W) R536 39(1/2W) R538 180 C512 2P C511 2P R519 39(1/2W) C581 NC R593 100K R596 47K R597 12K R598 22K R599 2.2K P903 R522 39(1/2W) R520 39(1/2W) R558 82(1/2W) R578 560 D502 1SS352 R504 12K D951 D3SBA20 4 3 1 2 C595 100/6.3 C505 22/16 D503 UDZS5.6B R513 R514 C517 10/50 C518 10/50 C591 104Z Q503 2SC1622A Q595 2SC2712 Q596 2SA1162-GR Q502 2SC1622A Q504 2SC1622A Q562 2SA1162-GR Q501 2SC1622A C510 220/6.3 C509 220/6.3 C513 NC C514 NC R567 390(1/2W) R568 390(1/2W) L571 S-1.3C J501A J502A J502B JL502B C556 C555 P501 GND J501B RL591 Q591 DTC123JS Q592 DTA114YKA R581 12K P4101B C553 473 C503 221 C504 221 D591 1SS352 D595 1SS355 Q509 Q511 Q517 Q519 R534 33(1/2W) Q512 Q510 Q520 Q518 Q516 R552 1.5KF Q552 Q554 Q556 Q555 Q553 Q559 Q557 Q560 Q558 C552 10/50 C551 10/50 Q561 Q581 R588 18K R586 33K Q582 Q515 C554 473 J503A J505A J504B J503B R592 82(1W) R591 82(1W) Q583 R587 10K R541 22(1/2W) R542 22(1/2W) C541 100/35 + C542 100/35 + R535 39(1/2W) R533 33(1/2W) D504 UDZS5.6B Q506 2SC2712-GR Q505 2SC2712-GR P907A R575 22K R573 33K R574 33K D581 UDZS5.1B C583 1/50 J506A J507B J507A R515 1.2K R516 1.2K R523 R524 C953 3300/35 + C954 3300/35 + R555 Q551 R553 R554 R556 R595 18K R543 470 R545 56K R546 56K R517 100K R518 100K R544 470 C501 47/50 R501 56K C502 47/50 R502 56K R5581 3.9K R5582 6.8K R589 NC R563 8.2(1/2W) R564 8.2(1/2W) R583 R584 R547 100K R548 100K J551 J504A P504 C557 102 C558 102 R571 5.6(1/2W) L572 S-1.3C J552 R572 5.6(1/2W) J505C J506C C525 22p C526 22p C559 472 Refer to following table about the parts displayed by mark " ". THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL). ALL PNP TRANSISTORS ARE EQUIVALENT TO 2SA1015-GR UNLESS OTHERWISE NOTED. ALL NPN TRANSISTORS ARE EQUIVALENT TO 2SC1815-GR UNLESS OTHERWISE NOTED. ALL DIODES ARE EQUIVALENT TO 1SS133 UNLESS OTHERWISE NOTED. ELECTROLYTIC CAPACITORS ( ) ARE IN uF/WV. ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED. EX) 030- 3pF 330- 33pF 331- 330pF 333- 0.033uF ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED. THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS. EX) PRINTING SIDE CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT. ! NOTE U02 POWER AMPLIFIER PC BOARD NC = No mount of parts. SD-Z : XY Location of connected terminal in schematic diagrams. SD-Z = Schematic diagrams-Z. X = A to H, Y = 1 to 5. FRONT SPEAKERS L R NC NC 102 102 GND L-OUT R-OUT L871 - 873 : BK1608LM182-T P873 P874 L872 C871 102J C872 102J P871 5 4 2 3 7 8 1 C877 104 JL502A C873 102 L871 L873 L875 L877 L874 L876 P4003A R871 NC R872 NC NAETC-8705 U09 HEADPHONE JACK PC BOARD PHONES For Idling check ! ! ! ! 0V +3.2V +22.1V -22.1V +0.6V -0.6V +22.1V -22.1V +1.1V -1.1V +20.4V -15.2V +0.6V L874 - 877 : BK1608HS102-T To NASW-8701 (SD-5 : E3) A 1 2 3 4 B C D E www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 SCHEMATIC DIAGRAMS-4 VIDEO SECTION DR-UN7 SC Y SY_2 SC_2 Pr_D Pb_D Y_D VGND CV SY Pb Pr DIN DOUT +5V DGND NAVD-8703 P204C (CN902) R230 75 R231 75 C231 CE04W10 1000/6.3(VR) + C230 CE04W10 1000/6.3(VR) + C235 CE04W10 1000/6.3(VR) + C236 CE04W10 1000/6.3(VR) + C237 CE04W10 1000/6.3(VR) + P230 7 3 1 5 2 4 8 6 C232 CE04W10 1000/6.3(VR) + R236 75 L233 182 L234 182 R237 75 L235 182 R238 75 P231 R243 NC C259 104Z R232 75 C683 104Z C682 10/16 C681 104Z U682 IN V GND R251 100 U681 OUT G VCC L681 2.2 P205C C233 C1608 104Z R233 NC L230 182 L231 182 L232 182 R234 NC R235 NC C215 NC C219 NC C218 NC C212 NC R240 470 R241 470 R239 470 R242 470 U08 VIDEO PC BOARD NAETC-8698 U05 TERMINAL PC BOARD DVDMUTIN DVDACK DVDSO 5VDVDSI DVDSCK 5VDVDRDY 5VDVDRST 5VDVDPOW DVDVDET DVDDOUT +8MVPR +8MVPR +8VPR +8VPR GNDM GNDM +12VDVD DVDMUTIN DVDVDET DVDACK DVDSO 5VDVDSI DVDSCK 5VDVDRDY 5VDVDRST 5VDVDPOW DINPUT1 DINPUT2 GND +8VDVD +8VDVDM +BSWC GNDSW GNDDVD GND GND DIN DOUT +5VDSP GNDD GNDD GNDD GNDD GNDD GNDD GNDD MCLK LRCK DATA0 DATA1 DATA2 BCLK MCLK GNDD SEL_D +5VDG BCLK DATA2 DATA1 DATA0 LRCK GNDD R2001 47 R2002 47 R2003 47 R2004 47 R2005 47 R2006 47 P2002 To DVD MAIN BOARD P2001A To NADG-8692(2/2) (SD-2 : G3) P2004A To NADG-8692(2/2) (SD-2 : A2) C3501 104 C2005 104 C2003 104 C2004 104 P2003 To DVD MAIN BOARD JL904A To NAPS-8696 (SD-7 : A2) P2005A To NADG-8692(1/2) (SD-1 : B5) P205A R2304 NC R2306 330 Q2301 TC74VHCT00AFT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 VCC GND R2305 330 R2301 330 R2302 330 R2303 100 NC To DVD MAIN BOARD AUDIO IN DIGITAL OPTICAL NC VIDEO S VIDEO PR PB Y COMPONENT VIDEO OUT NC = No mount of parts. SD-Z : XY Location of connected terminal in schematic diagrams. SD-Z = Schematic diagrams-Z. X = A to H, Y = 1 to 5. (CN951) (CN901) A 1 2 3 4 B C D E www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 SCHEMATIC DIAGRAMS-5 DISPLAY SECTION DR-UN7 P3 P2 P4 P1 P36 P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29 P30 P35 12G 11G 10G 9G 8G 7G 6G 5G 4G 2G 1G 3G G13 G14 G15 12G G15 G14 KEY0 GND P18 P5 P6 P7 P8 P9 P10 P11 P12 P14 P15 P16 P17 P13 P3 P2 P1 P36 9G 8G 11G 10G P4 FL-H1 7G 6G 5G 4G 3G 2G 1G VAJ VBJ -VP FL-H1 FL-H2 G13 SUBRST SUBSO SUBSI SUBCLK P31 P32 P33 P34 FL-H2 -VP -VP K0 INT_K0 GND1 GND2 INT_K0 STBYLED HPIN K0 GND1 SUBSI SUBSO SUBRST REMIN EV3.3V GND2 SUBCLK SUBREQ SUBREQ +3.3V +3.3V +3.3V +3.3V GND GND GND2 GND1 K0 GND STBY HPIN NC STOP VOLUME NC NC TIMER PLAY OPEN/ CLOSE EDIT/NO CLEAR INPUT UP INPUT DOWN MODE/YES DISPLAY NADIS-8700 To NADG-8692 (SD-2 : G1) LISTENING MODE STANDBY/ON S.BASS STANDBY NASW-8701 Q801 MPD780232GC-091-8BT 61 P4 62 P3 63 P2 64 P1 65 P36 66 15G 67 14G 68 13G 69 12G 70 11G 71 10G 72 9G 73 8G 74 7G 75 6G 76 5G 77 4G 78 3G 79 2G 80 1G 1 5V 2 GND 3 CLOCK1 4 CLOCK2 5 FRAIC 6 RESET 7 SUBCL 8 SUBSI 9 SUBSO 10 SUBREQ 11 VOLA 12 VOLB 13 STLED 14 LED1 15 IRIN 16 LED2 17 NC 18 AVSS 19 KEY3 20 KEY2 21 KEY1 22 KEY0 23 VSS 24 AVDD 25 VDD 26 JOGA 27 JOGB 28 P35 29 P34 30 P33 31 P32 32 P31 33 P30 34 P29 35 P28 36 P27 37 P26 38 P25 39 P24 40 P23 41 P22 42 P21 43 P20 44 P19 45 P18 46 P17 47 P16 48 P15 49 P14 50 P13 51 P12 52 P11 53 P10 54 P9 55 P8 56 P7 57 P6 58 P5 59 VDD2 60 VDISP R816 470 C812 104Z C811 104Z R814 0 R811 2.7K C806 101 R810 2.7K S816 R851 3.9K R847 470 R846 390 S811 Q805 2SC2712 Q804 2SC2712 Q803 2SC2712 Q802 HNA-15SM09 1 F11 2 F12 6 G01 7 G02 8 G03 9 G04 10 G05 11 G06 12 G07 13 G08 14 G09 15 G10 16 G11 17 G12 18 13G 19 14G 20 15G 21 NC 22 NC 23 NC 24 NC 25 P36 26 P01 27 P02 28 P03 29 P04 30 P05 31 P06 32 P07 33 P08 34 P09 35 P10 36 P11 37 P12 38 P13 39 P14 40 P15 41 P16 42 P17 43 P18 44 P19 45 P20 46 P21 47 P22 48 P23 49 P24 50 P25 51 P26 52 P27 53 P28 54 P29 55 P30 56 P31 57 P32 58 P33 59 P34 60 P35 64 F21 65 F22 R813 10K R812 10K R820 1M C815 330 C819 330 C818 330 C817 330 C816 330 R818 470 R815 470 C807 NC C809 NC D801 UDZS5.6B C805 NC C808 NC R828 10K R827 10K S801 5 2 4 3 1 C814 NC C813 NC R860 3.3K C801 47/6.3 + C802 NC+ C804 NC R809 10K R808 10K R804 100K R803 100K R802 100K R801 100K S826 R857 1.8K S824 S825 R856 1K R855 820 R854 470 R853 390 S823 S822 C803NC R840 390 R842 820 R843 1K R844 1.8K S806 S807 R845 3.9K S803 S805 S809 S802 4 3 1 2 5 C822 221 R805 22K R806 22K R807 22K C823 221 C824 221 X801 5MHz R859 100 R858 100 C821 47/6.3 + C820 104Z R824 470 R863 22K U801 R839 22K R817 220 R819 100 R831 100 C810 104 P7002A P7004 R848 820 R849 1K R850 1.8K S821 S812 S815 S813 S814 D811 C878 P4003B P7004A R841 470 U06 DISPLAY PC BOARD U07 SWITCH PC BOARD THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL). ALL PNP TRANSISTORS ARE EQUIVALENT TO 2SA1015-GR UNLESS OTHERWISE NOTED. ALL NPN TRANSISTORS ARE EQUIVALENT TO 2SC1815-GR UNLESS OTHERWISE NOTED. ALL DIODES ARE EQUIVALENT TO 1SS133 UNLESS OTHERWISE NOTED. ELECTROLYTIC CAPACITORS ( ) ARE IN uF/WV. ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED. EX) 030- 3pF 330- 33pF 331- 330pF 333- 0.033uF ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED. THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS. EX) PRINTING SIDE CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT. ! NOTE NC = No mount of parts. SD-Z : XY Location of connected terminal in schematic diagrams. SD-Z = Schematic diagrams-Z. X = A to H, Y = 1 to 5. FL TUBE MULTI JOG To NAxx-XXXX (SD-xx : xx) -34.4V A 1 2 3 4 B C D E www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 SCHEMATIC DIARGAMS-6 XM RADIO SECTION DR-UN7 DACCS DACCLK I2S_SDO I2S_SCLK I2S_LRCLK MSDO MCLK MSDI XM_COM_SEL XM_RESET XM_ERR_IRQ XM_PWR_CTRL XM_PWR_CTRL I2S_OCLK DACCS DACCLK DACSDO +3.3V XMSDI_L XMSDO_L XM_COM_SEL XM_ERR_IRQ XM_RESET XMRST +5V XMSDO XMSDI XMCLK XMREQ2 XMREQ1 GND L_OUT AGND R_OUT +12V -12V DAB_RXD DAB_TXD +3.3V GND DABR AGND DABL XMREQ1 XMSDO XMCLK XMRST MCLK MSDI RESET MHREQ MHREQ MSREQ L_OUT R_OUT DAB_TXD DAB_RXD XMSDI_L XMSDO_L MSREQ MSDO RESET CNVSS +5V_DAC CNVSS RESET GND VCC FW_RXD FW_SCLK FW_TXD FW_BUSY DACSDO DAC_RESET DAC_RESET R7026-R7031 DR only (DR 0) NC 0 1 2 3 4 5 6 7 FLASH WRITER R7105 100K C7120 104Z R7113 100 R7114 100 C7122 104Z C7006 104Z C7132 100/16 Q7001 M30281FAHP 1 P91 2 P90 3 CNVSS 4 P87 5 P86 6 RESET 7 XOUT 8 VSS 9 XIN 10 VCC 11 P85 12 P84 13 P83 14 P82 15 P81 16 P80 17 P77 18 P76 19 P75 20 P74 21 P73 22 P72 23 P71 24 P70 25 P67 26 P66 27 P65 28 P64 29 P33 30 P32 31 P31 32 P30 33 P63 34 P62 35 P61 36 P60 37 P27 38 P26 39 P25 40 P24 41 P23 42 P22 43 P21 44 P20 45 P17 46 P16 47 P15 48 P03 49 P02 50 P01 51 P00 52 P107 53 P106 54 P105 55 P104 56 P103 57 P102 58 P101 59 AVSS 60 P100 61 VREF 62 AVCC 63 P93 64 P92 R7001 1K R7002 10K C7001 104Z C7002 104Z R7010 220 R7011 220 R7012 220 R7009 1K R7008 1K R7007 1K R7006 1K R7005 1K R7024 1K R7021 1K R7022 1K R7023 1K R7126 0 R7127 0 R7128 0 R7117 100 R7119 330 R7118 330 R7120 330 R7028 0 R7029 0 R7030 0 R7031 0 L7103 BK1608LM182 R7141 22 R7140 22 C7133 100/16 X7001 20MHz C7108 C7107 L7101 BLM21PG221SN1 R7104 100K R7103 100K R7102 100K R7101 100K C7103 104Z C7105 104Z C7106 104Z R7111 1K C7104 104Z C7115 104Z C7116 104Z C7118 104Z C7101 104Z C7134 104Z C7135 104Z Q7101 XMDTIC F2602-01 1 LSDP 2 VSS 3 SC_TX_OUT 4 VDD 5 SC_RX_IN 6 VSS 7 CMD_SEL 8 VDD 9 ERR_IRQ 10 VSS 11 RST 12 SLAVE_SEL 13 COMM_RX_DIG 14 COMM_TX_DIG 15 COMM_TX_EN 16 VSS 17 VDD 18 COMM_RX_P 19 COMM_RX_M 20 VDD 21 VSS 22 COMM_TX_M 23 COMM_TX_P 24 VSS 25 VSS 26 OSC_OUT 27 VDD 28 OSC_IN 29 VSS 30 TEST 31 VSS 32 HSDP_DA 33 VDD 34 HSDP_CLK 35 VSS 36 HSDP_EN 37 I2S_DA 38 VSS 39 I2S_CLK 40 VDD 41 I2S_LRCLK 42 VSS 43 I2S_OCLK 44 VSS 45 SAII_CLK 46 VDD 47 SAII_DA 48 SAII_EN D7101 D7102 C7136 100/16 C7003 100/16 C7111 100/16 L7001 022K Q7004 TA48033AF 3 O 2 G 1 I P291B JL101B JL5502B P7104 P7101A L7102 BLM21PG221SN1 C7008 C7121 10/50 Q7104 TPS2011AD 1 GND 2 IN 3 IN 4 EN 5 OUT 6 OUT 7 OUT 8 OUT R7124 R7123 C7004 104Z Q7002 TC74VHC541FT 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _G2 20 VCC 1 _G1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND C7126 821J C7127 821J C7128 821J R7137 2.2K R7135 3.3K R7143 100K R7142 100K R7134 3.3K R7136 2.2K C7129 821J R7003 1K Q7103 NE5532APSR 3 2 1 8 Q7103 NE5532APSR 6 5 4 7 R7112 1K C7007 470/6.3 C7125 10/50 C7124 10/50 C7130 10/50 C7131 10/50 C7123 470/6.3 Q7102 AK4384ET 1 MCLK 2 BICK 3 SDTI 4 LRCK 5 PDN 6 SMUTE/CSN 7 ACKS/CCLK 8 DIF0/CDTI 9 P/S 10 AOUTR 11 AOUTL 12 VCOM 13 VSS 14 VDD 15 DZFR 16 DZFL R7020 220 R7019 220 R7018 220 R7017 220 R7026 0 R7027 0 Q7003 TC74HCT7007AF 1 2 3 4 5 6 7 GND 8 OUT4 9 IN4 10 OUT5 11 IN5 12 OUT6 13 IN6 14 VCC D7001 UDZS5.1B C7005 104Z C7114 104Z R7116 1M C7102 102K R7139 22 R7144 0 R7145 0 R7033 10K R7032 NC R7004 10K Q7105 78L05 1 O 3 I 2 G C7137 104Z X7101 45.1584MHz R7025 220 C7119 102K R000 R001 R002 R003 R004 R005 R006 R007 R7115 680 C7113 080D C7112 040C R7130 2.2K R7132 2.2K R7131 2.2K R7133 2.2K P7001A R7013 220 R7034 R7015 R7014 1K R7016 R7122 R7121 0 L7104 022K L7105 022K L7106 022K R7138 22 C7117 NC To NADG-8692(1/2) (SD-1 : A2) GND +V D- D+ To NADG-8692(1/2) (SD-1 : E1) To NAPS-8696 (SD-7 : A2) To NADG-8692(2/2) (SD-2 : D1) NC NC NC = No mount of parts. SD-Z : XY Location of connected terminal in schematic diagrams. SD-Z = Schematic diagrams-Z. X = A to H, Y = 1 to 5. U10 XM DIGITAL TRANSCEIVER PC BOARD NARF-8688 +4.9V +10.5V +4.9V +5.3V +3.3V +3.3V +5.3V A 1 2 3 4 B C D E www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 SCHEMATIC DIAGRAMS-7 POWER SUPPLY SECTION DR-UN7 +12VDVD +12VDVD +8VDVD ACPOWER FANCNT RCPOWER SPRLF PROTECT +3.3VMD +5VMD DVDGND -BA +BA +5VST +5VDSP +5VDSP +5VMD MDPWRCNT +BSWCTRL -VP FLAC2 FLAC1 FANCNT PROTECT RCPOWER SPRLF DGGND +5VST POFF +3.3VST ACPOWER DGGND +3.3VMD +8VDVDM +3.3VST +10VA POFF DGGND AGND -10VA FAN-CONT PROTECT RCPOWER -BA SPRLF RCPOWER PROTECT GND GND +BA RLGND FAN-CONT SPRLF -BA RLGND FAN or Y or Y NC MDD1N Only MDD1N Only or Y AXT850 NAPS-8696 NAETC-8697 2.5A 125V 2.5A 125V C931 334J R932 2.2(1/2W) P906B R931 2.2(1/2W) C932 334J C971 334J C976 100/16 C961 334J D961 D3SBA20 C942 223 R943 8.2K R944 8.2K Q902 2SA1015 C943 104J P901 C902 472/250 C903 103M/275V R945 33K D971 D3SBA20 D973 RN1N4003 D972 RN1N4003 C974 100/16 R976 4.7(1/2W) R975 0.22(1/2W) C924 100/6.3 C925 100/6.3 L901 2 1 4 3 E901 C967 220/6.3 D943 UDZS27B Q975 29M08 3 O 2 G 1 I Q973 29M08 3 O 2 G 1 I D931 D932 D933 D934 P908A C979 47/16 Q976 78L12 3 O 2 G 1 I JL901B JL904B P904B C978 100/35 R977 4.7K R978 4.7K D942 UDZS7.5B C923 47/16 C972 4700/25 Q974 2SA1488-O D974 NC C964 100/6.3 C968 47/16 C969 100/6.3 R965 22(1/2W) Q967 2SA1488 Q968 S-812C53AUA 3 O 1 G 2 I Q966 2905 3 O 2 G 1 I R966 22K R967 1.8K R968 1.8K Q965 RN1407 C966 NC C963 NC D935 UDZ11SB D936 UDZS11B C937 104Z C938 104Z Q932 2SA1488-O Q931 2SC3851-O C935 220/16 C936 220/16 R934 1K C933 2200/25 C934 1000/25 R962 10(1/2W) JL903B JL902B C926 10/50 Q922 S-812C33AUA 3 O 1 G 2 I Q921 S-812C50AUA 3 O 1 G 2 I Q923 MPC2905 3 O 2 G 1 I R946 1(1/2W) C944 104J R942 22(1/2W) C965 4700/16 Q964 2SB1068 Q963 MPC29L33J 3 O 2 G 1 I C962 22000/16 D921 D3SBA20 C905 223 P902B C907 2200/16 D912 1SS355 D913 1SS355 R903 18K Q904 S-80127CN 4 OUT 3 NC 2 VSS 1 VSS 5 VDD C911 104Z D901 S1NB60-4062 D906 1SS352 Q901 DTC123JKA C912 103Z RL901 C910 104Z C904 104Z D903 RN1N4003 D902 RN1N4003 R904 33K R902 15K D905 UDZ5.1B C909 4.7/50 + C922 10000/16 JL905B C921 334J J941 R921 J942 R922 D922 RN1N4003 C941 220/63 + C906 470/16 + P911A R901 68(1/2W) R924 56(1/2W) C9301 10/50 P907B P908B D9301 R9301 56(1W) R9302 56(1W) R9310 470 R9312 1M Q9301 2SK365-GR 2 1 3 P9301 R9309 220K D9302 UDZS8.2B C9303 104Z C9302 47/35 Q9304 2SC2120-Y Q9302 2SC2712 Q9305 DTC114EKA Q9303 2SC2712 R9303 22K R9304 220K R9306 18K R9307 39K R9305 3.3K R9308 3.3K R9311 2.2K R925 3.9K R933 820 C939 220/16 C940 220/16 P903A P902A P904A P905A P906A T901 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 2 1 T902 5 6 8 9 4 1 F901 C901 472/250 D923 RN1N4003 D944 RN1N4003 D941 RN1N4003 P905B C977 47/35 R971 R961 C973 47/35 C975 47/35 THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL). ALL PNP TRANSISTORS ARE EQUIVALENT TO 2SA1015-GR UNLESS OTHERWISE NOTED. ALL NPN TRANSISTORS ARE EQUIVALENT TO 2SC1815-GR UNLESS OTHERWISE NOTED. ALL DIODES ARE EQUIVALENT TO 1SS133 UNLESS OTHERWISE NOTED. ELECTROLYTIC CAPACITORS ( ) ARE IN uF/WV. ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED. EX) 030- 3pF 330- 33pF 331- 330pF 333- 0.033uF ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED. THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS. EX) PRINTING SIDE CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT. ! NOTE U03 POWER SUPPLY PC BOARD U04 FAN DRIVE PC BOARD Cooling Fan To NAAF-8695 (SD-3 : C4) AC IN NC = No mount of parts. SD-Z : XY Location of connected terminal in schematic diagrams. SD-Z = Schematic diagrams-Z. X = A to H, Y = 1 to 5. To NAAF-8695 (SD-3 : C4) D931 - 934 : RN1N4003 D921 To NADG-8692(1/2) (SD-1 : F1) To NAETC-8698 (SD-4 : A3) To NADG-8692(2/2) (SD-2 : A2) ! ! To NADG-8692(2/2) (SD-2 : G1) To NADG-8692(2/2) (SD-2 : A3) To NARF-8688 (SD-6 : E3) ! ! ! ! ! ! ! ! MDD1N ,MD4NS MGQ3P, MGT3P NPT-1519GQ NPT-1520JQ NPT-1520JQ T902 NPT-1532D NPT-1533D NPT-1533G T901 T630mA/250V MDT3N F901 1.6A 125V 1.6A 125V Refer to following table about the parts displayed by mark " ". Z301 ! ! +3.0V +10.9V +5.1V -34.3V +10.8V +14.2V +8.1V +17.2V -17.2V +11.2V -11.2V AC IN MDD1N , MDS4N, MDT3N : MGQ3P, MGT3P : 120V, 60Hz 220-230V, 50/60Hz A 1 2 3 4 B C D E www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 PACKING PROCEDURE DR-UN7(S) DR-UN7(S) DR-UN7(S) DR-815(S) DR-815(S) F R A701 A601 A714 A705 (F & R) A711 A707 A702 A702 A804 A802 A806 A805 A803 A706 (OUTER) A707 (INNER) A715 A601 A601 A907 A909 A910 A911 A907 A907 Rear side marking Front side Front side Front side marking DR-UN7 (for CS-V720) MDD1N, MDS4N ---> Refer to service manual of "CS-V720" www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1/1 PAGE DR-UN7 PACKING PROCEDURES PARTS LIST : DR-UN7 USA model : DR-UN7 Hong Kong model : DR-UN7 Taiwan model : DR-UN7 Southeast agian model DR-UN7 for CS-V720 MDD1N / MDS4N ---> Refer to service manual of "CS-V720" REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS PV A601 TAPE NITTO NO.29 (1) 29110149 PV A701 CARTON --- 1 29054465A PV A701 CARTON --- 1 29054415A PV A701 CARTON --- 1 29054415A PV A701 CARTON --- 1 29054415A PV A702 TAPE NITTO 3703 W50L100 (1) 29110176 PV A702 or PP TAPE W48 OPP TAPE (1) 29110148 PV A705 PAD AS 1 29092300B PV A706 POLY BAG POLY BAG (430 x 550) 1 29100123C PV A707 SHEET 300 x 300 1 29095862 PV A711 UPC LABEL --- 1 29364293 PV A711 EAN LABEL --- 1 29364295 PV A711 EAN LABEL --- 1 29364295 PV A711 EAN LABEL --- 1 29364295 PV A712 LABEL (CARTON) 2 29364298 PV A712 LABEL (CARTON) 2 29364299 PV A712 LABEL (CARTON) 2 29364306 PV A714 POLY BAG 350 x 250 1 29100097-1A PV A715 POLY BAG 350 x 250 1 29100097-1A PV A802 PIN CORD AS RCA-1P(Y) 1.5M 1 2010398 PV A803 ANT COIL NMA-3057 1 232140 PV A804 FM ANT AS Type W 1 292191 PV A805 REMO CON RC-640S 1 24140640A PV A806 BATTERY R6/AA(UM-3) 2 3010054 PV A903 INS MANUAL En(DR-UN7) 1 29344125 PV A906 INS MANUAL Ct(DR-UN7) 1 29344128 PV A906 INS MANUAL Ct(DR-UN7) 1 29344128 PV A906 INS MANUAL Ct(DR-UN7) 1 29344128 PV A907 WRNTY CARD MGQ 1 29365099A PV A909 WRNTY CARD (ONKYO) 1 29365102A PV A910 HANDBILL (DS-A2US) 1 29380145 PV A911 INST SHEET XM RADIO(E) 1 29355602 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1/34 PAGE DR-UN7 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. EXPLODED VIEW PARTS LIST : DR-UN7 for CS-V720 USA model / DR-UN7 USA model : DR-UN7 for CS-V720 South American model : DR-UN7 Hongkong model : DR-UN7 Taiwan model : DR-UN7 Southeast agian model REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS EV A001 CHASSIS --- 1 27100469A EV A003 SCREW 4TTC+6C(3BC) 4 830440069GR EV A010 HOLDER (ML) 1 27191264A EV A013 HOLDER (MR) 1 27191265A EV A015 SCREW 3TTB+8B(3BC) 4 838430088GR EV A016 SCREW 3TTB+8B(CU)SR 8 801618 EV A021 BRACKET (HT) 1 27130909 EV A022 SCREW 5TTB+10B(3BC) 4 838450108GR EV A023 HEAT SINK 223DIE RG-418576 1 27160580 EV A024 SCREW 3TTB+10B(3BC) 9 838430108GR EV A026 SCREW 3TTB+8B(CU)SR 4 801618 EV A027 SCREW 3TTB+8B(CU)SR 7 801618 EV A028 SCREW 3TTB+10B(3BC) 1 838430108GR EV A031 SCREW 3TTB+8B(CU)SR 3 801618 EV A051 HOLDER KGLS-6RT 6 27190693A EV A052 HOLDER KGPS-6RF 1 27191112 EV A053 CLAMP HL-28-0 1 27301396 EV A053 or HOLDER HOLDER KGLS-18S (1) 27190470 EV A055 BUSHING S-RELIEF #2271 1 27300750 ! EV A061 BRACKET (MD) 1 27130992 EV A071 F BRACKET (AS) 1 27111407E EV A073 CUSHION T4 x 10 x 7 2 28141653 EV A075 SCREW 3TTB+8B(CU)SR 17 801618 EV A076 SCREW 3TTB+8B(CU)SR 6 801618 EV A078 IB CUSHION W15 x 3t TAPE 1 28141585 EV A079 IB CUSHION W15 x 3t TAPE 1 28141585 EV A080 LABEL(DVD2) --- 1 29362648 ! EV A081 LABEL (ID) 1 29363026 EV A101 REAR PANEL --- 1 27123515B EV A101 REAR PANEL --- 1 27123520A EV A101 REAR PANEL MGQ3P 1 27123516A EV A101 REAR PANEL MDT3N 1 27123518A EV A101 REAR PANEL MGQ3P 1 27123516A EV A103 SCREW 3TTB+8B(3BC) 14 838430088GR EV A104 SCREW 3TTB+8B(CU)SR 4 801618 EV A105 RIVET P3535 1 880051 EV A201 CLEAR PLT --- 1 28192069 EV A203 GUIDE (VOL) 1 27268141 EV A205 FACET (S) 1 28200003 NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE ONLY WITH PART NUMBER SPECIFIED. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2/34 PAGE EV A208 SCREW 3TTB+8B(3BC) 2 838430088GR EV A211 KNOB (VOL) 1 28326508 EV A213 KNOB (JOG) 1 28326495 EV A215 DOOR (DVD) 1 28148615 EV A221 COVER --- 1 28184948A EV A222 SCREW 3TTB+8B(3CM) 8 838130088GR EV A223 TAPE TAPE(CLOTH-16U) (1) 29110083 EV A225 CUSHION --- 2 28141489 EV A231 CUSHION --- 4 28141489 EV A301 F PANEL --- 1 27212852 EV A301 F PANEL --- 1 27212854 EV A301 F PANEL --- 1 27212854 EV A301 F PANEL --- 1 27212854 EV A301 F PANEL --- 1 27212854 EV E101 CLIP CS-1U 2 27255004 EV E102 WIRE TIE BSK-1 2 260208 EV F901 FUSE 1.6A-T/UL-ST2 1 252252GR !, EV F901 or FUSE 1.6A-UL/T-233 (1) 252319GR !, EV F901 FUSE 1.6A-T/UL-ST2 1 252252GR !, EV F901 or FUSE 1.6A-UL/T-233 (1) 252319GR !, EV F901 FUSE 0.63A-SE-EAWK FUSE 1 252084GR !, EV F901 FUSE 1.6A-T/UL-ST2 1 252252GR !, EV F901 or FUSE 1.6A-UL/T-233 (1) 252319GR !, EV F901 FUSE 0.63A-SE-EAWK FUSE 1 252084GR !, EV P1301 FFC NCFC7-131072 1 2047131072 EV P2002 FFC NCFC4-13046 1 204413046 EV P2003 FFC NCFC5-250512 1 2045250512 EV P204 FFC NCFC5-272022 1 2045272022 EV P2501 SOCKET AS NSAS-10P1548 1 20044191005UL EV P7002 FFC NCFC3-19019 1 204319019 EV P901 AC CORD AS-UC-2 1 253368LTK !, EV P901 or AC CORD AS-UC-2 (1) 253333VOL !, EV P901 or AC CORD AS-UC-2 (1) 253368YUN !, EV P901 AC CORD AS-UC-2 1 253368LTK !, EV P901 or AC CORD AS-UC-2 (1) 253333VOL !, EV P901 or AC CORD AS-UC-2 (1) 253368YUN !, EV P901 AC CORD AS-BS 1 253345HRK !, EV P901 AC CORD AS-UC-2 1 253368LTK !, EV P901 or AC CORD AS-UC-2 (1) 253333VOL !, EV P901 or AC CORD AS-UC-2 (1) 253368YUN !, EV P901 AC CORD AS-CEE 1 253336VOL !, EV Q557 TR 2SC4511-O 1 2202063 EV Q557 or TR 2SC4511-Y (1) 2202064 EV Q557 TR 2SC4511-O 1 2202063 EV Q557 or TR 2SC4511-Y (1) 2202064 EV Q557 TR 2SC3851-O 1 2203383 EV Q557 or TR 2SC3851-Y (1) 2203384 EV Q557 TR 2SC3851-O 1 2203383 EV Q557 or TR 2SC3851-Y (1) 2203384 EV Q557 TR 2SC3851-O 1 2203383 EV Q557 or TR 2SC3851-Y (1) 2203384 EV Q558 TR 2SC4511-O 1 2202063 EV Q558 or TR 2SC4511-Y (1) 2202064 EV Q558 TR 2SC4511-O 1 2202063 EV Q558 or TR 2SC4511-Y (1) 2202064 EV Q558 TR 2SC3851-O 1 2203383 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3/34 PAGE EV Q558 or TR 2SC3851-Y (1) 2203384 EV Q558 TR 2SC3851-O 1 2203383 EV Q558 or TR 2SC3851-Y (1) 2203384 EV Q558 TR 2SC3851-O 1 2203383 EV Q558 or TR 2SC3851-Y (1) 2203384 EV Q559 TR 2SA1725-O 1 2202053 EV Q559 or TR 2SA1725-Y (1) 2202054 EV Q559 TR 2SA1725-O 1 2202053 EV Q559 or TR 2SA1725-Y (1) 2202054 EV Q559 TR 2SA1488-O 1 2203393 EV Q559 or TR 2SA1488-Y (1) 2203394 EV Q559 TR 2SA1488-O 1 2203393 EV Q559 or TR 2SA1488-Y (1) 2203394 EV Q559 TR 2SA1488-O 1 2203393 EV Q559 or TR 2SA1488-Y (1) 2203394 EV Q560 TR 2SA1725-O 1 2202053 EV Q560 or TR 2SA1725-Y (1) 2202054 EV Q560 TR 2SA1725-O 1 2202053 EV Q560 or TR 2SA1725-Y (1) 2202054 EV Q560 TR 2SA1488-O 1 2203393 EV Q560 or TR 2SA1488-Y (1) 2203394 EV Q560 TR 2SA1488-O 1 2203393 EV Q560 or TR 2SA1488-Y (1) 2203394 EV Q560 TR 2SA1488-O 1 2203393 EV Q560 or TR 2SA1488-Y (1) 2203394 EV EV Must use the same HFE rank mutually about the following parts. EV Ref. No. : Q557 - Q559, Q558 - Q560 EV Q923 IC MPC2905HF 1 22278005DNE EV Q923 or IC MPC2905BHF (1) 22278005DBNE EV Q931 TR 2SC3851-O 1 2203383 EV Q931 or TR 2SC3851-Y (1) 2203384 EV Q932 TR 2SA1488-O 1 2203393 EV Q932 or TR 2SA1488-Y (1) 2203394 EV Q967 TR 2SA1488-O 1 2203393 EV Q967 or TR 2SA1488-Y (1) 2203394 EV Q973 IC MPC29M08HF 1 22278008ENE EV Q974 TR 2SA1488-O 1 2203393 EV Q974 or TR 2SA1488-Y (1) 2203394 EV T901 P TRANS NPT-1532D 1 2301855 !, EV T901 P TRANS NPT-1532D 1 2301855 !, EV T901 P TRANS NPT-1533G 1 2301857 !, EV T901 P TRANS NPT-1533D 1 2301856 !, EV T901 P TRANS NPT-1533G 1 2301857 !, EV U01 PRE-AMPLIFIER & DSP PC board ass'y NADG-8692-1C 1 1B092592-1C EV U01 PRE-AMPLIFIER & DSP PC board ass'y NADG-8692-1F 1 1B092592-1F EV U01 PRE-AMPLIFIER & DSP PC board ass'y NADG-8692-1D 1 1B092592-1D EV U01 PRE-AMPLIFIER & DSP PC board ass'y NADG-8692-1D 1 1B092592-1D EV U01 PRE-AMPLIFIER & DSP PC board ass'y NADG-8692-1E 1 1B092592-1E EV U02 POWER AMPLIFIER PC board ass'y NAAF-8695-1C 1 1B092595-1C EV U02 POWER AMPLIFIER PC board ass'y NAAF-8695-1F 1 1B092595-1F EV U02 POWER AMPLIFIER PC board ass'y NAAF-8695-1D 1 1B092595-1D EV U02 POWER AMPLIFIER PC board ass'y NAAF-8695-1D 1 1B092595-1D EV U02 POWER AMPLIFIER PC board ass'y NAAF-8695-1E 1 1B092595-1E EV U03 POWER SUPPLY PC board ass'y NAPS-8696-1C 1 1B092596-1C EV U03 POWER SUPPLY PC board ass'y NAPS-8696-1F 1 1B092596-1F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4/34 PAGE EV U03 POWER SUPPLY PC board ass'y NAPS-8696-1D 1 1B092596-1D EV U03 POWER SUPPLY PC board ass'y NAPS-8696-1D 1 1B092596-1D EV U03 POWER SUPPLY PC board ass'y NAPS-8696-1E 1 1B092596-1E EV U04 FAN DRIVE PC board ass'y NAETC-8697-1C 1 1B092597-1C EV U04 FAN DRIVE PC board ass'y NAETC-8697-1F 1 1B092597-1F EV U04 FAN DRIVE PC board ass'y NAETC-8697-1D 1 1B092597-1D EV U04 FAN DRIVE PC board ass'y NAETC-8697-1D 1 1B092597-1D EV U04 FAN DRIVE PC board ass'y NAETC-8697-1E 1 1B092597-1E EV U05 TERMINAL PC board ass'y NAETC-8698-1C 1 1B092598-1C EV U05 TERMINAL PC board ass'y NAETC-8698-1F 1 1B092598-1F EV U05 TERMINAL PC board ass'y NAETC-8698-1D 1 1B092598-1D EV U05 TERMINAL PC board ass'y NAETC-8698-1D 1 1B092598-1D EV U05 TERMINAL PC board ass'y NAETC-8698-1E 1 1B092598-1E EV U06 DISPLAY PC board ass'y NADIS-8700-1C 1 1B092500-1C EV U06 DISPLAY PC board ass'y NADIS-8700-1F 1 1B092500-1F EV U06 DISPLAY PC board ass'y NADIS-8700-1D 1 1B092500-1D EV U06 DISPLAY PC board ass'y NADIS-8700-1E 1 1B092500-1E EV U07 SWITCH PC board ass'y NASW-8701-1C 1 1B092501-1C EV U07 SWITCH PC board ass'y NASW-8701-1F 1 1B092501-1F EV U07 SWITCH PC board ass'y NASW-8701-1D 1 1B092501-1D EV U07 SWITCH PC board ass'y NASW-8701-1D 1 1B092501-1D EV U07 SWITCH PC board ass'y NASW-8701-1E 1 1B092501-1E EV U08 VIDEO PC board ass'y NAVD-8703-1C 1 1B092503-1C EV U08 VIDEO PC board ass'y NAVD-8703-1F 1 1B092503-1F EV U08 VIDEO PC board ass'y NAVD-8703-1D 1 1B092503-1D EV U08 VIDEO PC board ass'y NAVD-8703-1D 1 1B092503-1D EV U08 VIDEO PC board ass'y NAVD-8703-1E 1 1B092503-1E EV U08 HEADPHONE JACK PC board ass'y NAETC-8705-1C 1 1B092505-1C EV U08 HEADPHONE JACK PC board ass'y NAETC-8705-1F 1 1B092505-1F EV U08 HEADPHONE JACK PC board ass'y NAETC-8705-1D 1 1B092505-1D EV U08 HEADPHONE JACK PC board ass'y NAETC-8705-1D 1 1B092505-1D EV U08 HEADPHONE JACK PC board ass'y NAETC-8705-1E 1 1B092505-1E EV U10 XM DIGITAL TRANSCEIVER PC board ass'yNARF-8688-4A 1 1B092588-4A EV U11 DVD MAIN PC board ass'y DB-VPB702 1 24150072 EV U12 TUNER UNIT ENG06507QFUS 1 240156 EV U12 or TUNER UNIT FAE385-A11US (1) 240152 EV U12 TUNER UNIT ENG06507QFUS 1 240156 EV U12 or TUNER UNIT FAE385-A11US (1) 240152 EV U12 TUNER UNIT FAE485-E12EX 1 240155 EV U12 TUNER UNIT FAE485-E12EX 1 240155 EV U12 TUNER UNIT FAE485-E12EX 1 240155 EV Z001 DVD MECHANISM ass'y DB-VLD702-009 1 24801029 EV Z301 FAN D05X-12TL 1 24502317 DR-UN7 PC BOARD PARTS LIST : DR-UN7 USA model / DR-UN7 for CS-V720 USA model : DR-UN7 for CS-V720 South American model : DR-UN7 Hongkong model : DR-UN7 Taiwan model : DR-UN7 Southeast agian model PCB1 U01 PRE-AMPLIFIER & DSP PC BOARD (NADG-8692-1C / 1D / 1E / 1F) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5/34 PAGE PCB1 PCB1 CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS PCB1 Q2101 IC TC74VHCT08AFT� EKJ) 1 22274008G1R2TO PCB1 Q2101 or IC TC74VHCT08AFT (1) 22274008GR2TO PCB1 Q2101 or IC SN74HCT08APW (1) 22274008KR2TI PCB1 Q2101 or IC SN74AHCT08PWR (1) 22274008GR2TI PCB1 Q3006 IC NE5532APSR 1 22242283R2 PCB1 Q4001 IC NJW1157B 1 22242193R3 PCB1 Q4091 IC 78M08HF(NJM78M08FA) 1 222780085JRC PCB1 Q4092 IC 79M08HF(NJM79M08FA) 1 222790085JRC PCB1 Q4107 IC NE5532APSR 1 22242283R2 PCB1 Q4201 IC NE5532APSR 1 22242283R2 PCB1 Q4241 IC NE5532APSR 1 22242283R2 PCB1 Q4251 IC NE5532APSR 1 22242283R2 PCB1 Q6171 IC TC7WU04FU(TE12L_F) 1 22240935R2 PCB1 Q6172 IC TC74VHC157FT 1 22274157ER2TO PCB1 Q6201 IC CS494003CQZ 1 22242039R3 PCB1 Q6203 IC EN29LV040A-70TCP 1 W0043R31746M100 PCB1 Q6203 or IC MX26LV040-70 (1) W0037R31746M100 PCB1 Q6401 IC NE5532APSR 1 22242283R2 PCB1 Q6402 IC NE5532APSR 1 22242283R2 PCB1 Q6403 IC NE5532APSR 1 22242283R2 PCB1 Q6421 IC CS42518-CQZR-D 1 22242229R2 PCB1 Q6421 or IC CS42518-CQZR-D (1) 22242229R3 PCB1 Q6601 IC NE5532APSR 1 22242283R2 PCB1 Q6602 IC NE5532APSR 1 22242283R2 PCB1 Q6603 IC NE5532APSR 1 22242283R2 PCB1 Q6701 IC TC74VHCT08AFT� EKJ) 1 22274008G1R2TO PCB1 Q6701 or IC TC74VHCT08AFT (1) 22274008GR2TO PCB1 Q6701 or IC SN74HCT08APW (1) 22274008KR2TI PCB1 Q6701 or IC SN74AHCT08PWR (1) 22274008GR2TI PCB1 Q6921 IC MPC2933T 1 22278033DR2NE PCB1 Q6921 or IC NJM2391DL1-33 (1) 22278033DR2JR PCB1 Q6922 IC MPC2925T 1 22278025DR2NE PCB1 Q6922 or IC NJM2391DL1-25 (1) 22278025DR2JR PCB1 Q7001 IC MPD70F3261YGC-8EA 1 222W0006R3 PCB1 Q7275 IC HT24LC16 1 22242281R2 PCB1 Q4021 TR RN1441 1 2215410R2 PCB1 Q4022 TR RN1441 1 2215410R2 PCB1 Q4023 TR RN1441 1 2215410R2 PCB1 Q4024 TR RN1441 1 2215410R2 PCB1 Q4025 TR RN1441 1 2215410R2 PCB1 Q4026 TR RN1441 1 2215410R2 PCB1 Q4027 TR RN1441 1 2215410R2 PCB1 Q4028 TR RN1441 1 2215410R2 PCB1 Q4103 TR RN1441 1 2215410R2 PCB1 Q4104 TR RN1441 1 2215410R2 PCB1 Q4105 TR RN1441 1 2215410R2 PCB1 Q4106 TR RN1441 1 2215410R2 PCB1 Q4108 TR RN2407(TE85L_F) 1 2216360R2 PCB1 Q4108 or TR KRA107S (1) 2216350R2 PCB1 Q4109 TR RN2407(TE85L_F) 1 2216360R2 PCB1 Q4109 or TR KRA107S (1) 2216350R2 PCB1 Q4111 TR RN1441 1 2215410R2 PCB1 Q4112 TR RN1441 1 2215410R2 PCB1 Q7014 TR RN1407 1 2216260R2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6/34 PAGE PCB1 Q7014 or TR KRC107S (1) 2216340R2 PCB1 Q7015 TR RN1407 1 2216260R2 PCB1 Q7015 or TR KRC107S (1) 2216340R2 PCB1 Q7049 TR RN1407 1 2216260R2 PCB1 Q7049 or TR KRC107S (1) 2216340R2 PCB1 Q7085 TR RN2407(TE85L_F) 1 2216360R2 PCB1 Q7085 or TR KRA107S (1) 2216350R2 PCB1 Q7149 TR RN2407(TE85L_F) 1 2216360R2 PCB1 Q7149 or TR KRA107S (1) 2216350R2 PCB1 Q7201 TR DTC114YKA 1 2216470R2 PCB1 Q7202 TR DTA114YKA 1 2216480R2 PCB1 Q7203 TR DTA114YKA 1 2216480R2 PCB1 Q7204 TR DTC114YKA 1 2216470R2 PCB1 Q7301 TR 2SB1068-U 1 2212855 PCB1 Q7301 or TR 2SB1068-K (1) 2212853 PCB1 Q7302 TR RN1407 1 2216260R2 PCB1 Q7302 or TR KRC107S (1) 2216340R2 PCB1 D1301 DIODE RL1N4003 1 22380260 PCB1 D1301 or DIODE GP104003E (1) 22380035 PCB1 D6301 C-DIODE 1SS355 1 223269R2 PCB1 D6301 or C-DIODE 1SS352 (1) 223234R2 PCB1 D6302 C-DIODE 1SS355 1 223269R2 PCB1 D6302 or C-DIODE 1SS352 (1) 223234R2 PCB1 D6303 C-DIODE 1SS355 1 223269R2 PCB1 D6303 or C-DIODE 1SS352 (1) 223234R2 PCB1 D6304 C-DIODE 1SS355 1 223269R2 PCB1 D6304 or C-DIODE 1SS352 (1) 223234R2 PCB1 D6305 C-DIODE 1SS355 1 223269R2 PCB1 D6305 or C-DIODE 1SS352 (1) 223234R2 PCB1 D6306 C-DIODE 1SS355 1 223269R2 PCB1 D6306 or C-DIODE 1SS352 (1) 223234R2 PCB1 D6307 C-DIODE 1SS355 1 223269R2 PCB1 D6307 or C-DIODE 1SS352 (1) 223234R2 PCB1 D6308 C-DIODE 1SS355 1 223269R2 PCB1 D6308 or C-DIODE 1SS352 (1) 223234R2 PCB1 D7014 C-DIODE 1SS355 1 223269R2 PCB1 D7014 or C-DIODE 1SS352 (1) 223234R2 PCB1 D7015 C-DIODE 1SS355 1 223269R2 PCB1 D7015 or C-DIODE 1SS352 (1) 223234R2 PCB1 D7049 C-DIODE 1SS355 1 223269R2 PCB1 D7049 or C-DIODE 1SS352 (1) 223234R2 PCB1 D7064 C-DIODE 1SS355 1 223269R2 PCB1 D7064 or C-DIODE 1SS352 (1) 223234R2 PCB1 D7198 C-DIODE 1SS355 1 223269R2 PCB1 D7198 or C-DIODE 1SS352 (1) 223234R2 PCB1 X6171 CRYSTAL HC-49U0312.288MHz 1 3010414 PCB1 X7012 CERA LOCK CSTCR5M00G53-B0 1 3010356R2 PCB1 X7015 CRYSTAL DT-38 1 3010282 PCB1 L6171 CHOKE COIL NCH-1471 1 231237M022R2 PCB1 L6171 or CHOKE COIL NCH-1587-022K (1) 233533K022R2 PCB1 L6172 EMIFIL BK1608LM182-T 1 230958R1 PCB1 L6173 EMIFIL BK1608LM182-T 1 230958R1 PCB1 L6174 EMIFIL BK1608LM182-T 1 230958R1 PCB1 L6201 CHOKE COIL NCH-1471 1 231237M022R2 PCB1 L6201 or CHOKE COIL NCH-1587-022K (1) 233533K022R2 PCB1 L6202 CHOKE COIL NCH-1471 1 231237M022R2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7/34 PAGE PCB1 L6203 CHOKE COIL NCH-1471 1 231237M022R2 PCB1 L6203 or CHOKE COIL NCH-1587-022K (1) 233533K022R2 PCB1 L6281 CHOKE COIL NCH-1471 1 231237M022R2 PCB1 L6281 or CHOKE COIL NCH-1587-022K (1) 233533K022R2 PCB1 L6291 CHOKE COIL NCH-1471 1 231237M022R2 PCB1 L6291 or CHOKE COIL NCH-1587-022K (1) 233533K022R2 PCB1 L6301 CHOKE COIL NCH-1471 1 231237M022R2 PCB1 L6301 or CHOKE COIL NCH-1587-022K (1) 233533K022R2 PCB1 L6302 CHOKE COIL NCH-1475 1 231237K100R2 PCB1 L6303 CHOKE COIL NCH-1471 1 231237M022R2 PCB1 L6303 or CHOKE COIL NCH-1587-022K (1) 233533K022R2 PCB1 L6311 EMIFIL BK1608LM182-T 1 230958R1 PCB1 L6312 EMIFIL BK1608LM182-T 1 230958R1 PCB1 L6313 EMIFIL BK1608LM182-T 1 230958R1 PCB1 L6921 CHOKE COIL NCH-1471 1 231237M022R2 PCB1 L7001 CHOKE COIL NCH-1479 1 231237K470R2 PCB1 L7002 CHOKE COIL NCH-1471 1 231237M022R2 PCB1 L7301 CHOKE COIL BLM21B222SPT 1 230921R2 PCB1 C1001 C-CERA C CC725CH1E-102J1 1 342111024R1 PCB1 C1301 C-CERA C CC725CH1H-101J1 1 342101014R1 PCB1 C1302 C-CERA C CC725CH1H-101J1 1 342101014R1 PCB1 C1303 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C1304 VR C CE04W50V-3.3M(VR) 1 394680337 PCB1 C1304 or ELECT C CE04W50V-3.3M(SC) (1) 394780337 PCB1 C1305 VR C CE04W16V-470M(VR) 1 394644717 PCB1 C1305 or ELECT C CE04W16V-470M(SC) (1) 394744717 PCB1 C1307 C-CERA C CC725CH1E-102J1 1 342111024R1 PCB1 C1310 VR C CE04W50V-3.3M(VR) 1 394680337 PCB1 C1310 or ELECT C CE04W50V-3.3M(SC) (1) 394780337 PCB1 C1311 C-CERA C CC725CH1H-101J1 1 342101014R1 PCB1 C2101 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C3007 TF C ECQ-B50V-331K 1 374723315 PCB1 C3008 TF C ECQ-B50V-331K 1 374723315 PCB1 C3009 TF C ECQ-B50V-681J 1 374726814 PCB1 C3010 TF C ECQ-B50V-681J 1 374726814 PCB1 C3013 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C3014 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4001 TF C ECQ-B50V-101K 1 374721015 PCB1 C4001 TF C ECQ-B50V 471K 1 374724715 PCB1 C4001 TF C ECQ-B50V 471K 1 374724715 PCB1 C4001 TF C ECQ-B50V 471K 1 374724715 PCB1 C4001 TF C ECQ-B50V 471K 1 374724715 PCB1 C4002 TF C ECQ-B50V-101K 1 374721015 PCB1 C4002 TF C ECQ-B50V 471K 1 374724715 PCB1 C4002 TF C ECQ-B50V 471K 1 374724715 PCB1 C4002 TF C ECQ-B50V 471K 1 374724715 PCB1 C4002 TF C ECQ-B50V 471K 1 374724715 PCB1 C4003 TF C ECQ-B50V-101K 1 374721015 PCB1 C4003 TF C ECQ-B50V 471K 1 374724715 PCB1 C4003 TF C ECQ-B50V 471K 1 374724715 PCB1 C4003 TF C ECQ-B50V 471K 1 374724715 PCB1 C4003 TF C ECQ-B50V 471K 1 374724715 PCB1 C4004 TF C ECQ-B50V-101K 1 374721015 PCB1 C4004 TF C ECQ-B50V 471K 1 374724715 PCB1 C4004 TF C ECQ-B50V 471K 1 374724715 PCB1 C4004 TF C ECQ-B50V 471K 1 374724715 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8/34 PAGE PCB1 C4004 TF C ECQ-B50V 471K 1 374724715 PCB1 C4005 TF C ECQ-B50V-101K 1 374721015 PCB1 C4005 TF C ECQ-B50V 471K 1 374724715 PCB1 C4005 TF C ECQ-B50V 471K 1 374724715 PCB1 C4005 TF C ECQ-B50V 471K 1 374724715 PCB1 C4005 TF C ECQ-B50V 471K 1 374724715 PCB1 C4006 TF C ECQ-B50V-101K 1 374721015 PCB1 C4006 TF C ECQ-B50V 471K 1 374724715 PCB1 C4006 TF C ECQ-B50V 471K 1 374724715 PCB1 C4006 TF C ECQ-B50V 471K 1 374724715 PCB1 C4006 TF C ECQ-B50V 471K 1 374724715 PCB1 C4007 TF C ECQ-B50V-101K 1 374721015 PCB1 C4007 TF C ECQ-B50V 471K 1 374724715 PCB1 C4007 TF C ECQ-B50V 471K 1 374724715 PCB1 C4007 TF C ECQ-B50V 471K 1 374724715 PCB1 C4007 TF C ECQ-B50V 471K 1 374724715 PCB1 C4008 TF C ECQ-B50V-101K 1 374721015 PCB1 C4008 TF C ECQ-B50V 471K 1 374724715 PCB1 C4008 TF C ECQ-B50V 471K 1 374724715 PCB1 C4008 TF C ECQ-B50V 471K 1 374724715 PCB1 C4008 TF C ECQ-B50V 471K 1 374724715 PCB1 C4009 TF C ECQ-B50V-101K 1 374721015 PCB1 C4009 TF C ECQ-B50V 471K 1 374724715 PCB1 C4009 TF C ECQ-B50V 471K 1 374724715 PCB1 C4009 TF C ECQ-B50V 471K 1 374724715 PCB1 C4009 TF C ECQ-B50V 471K 1 374724715 PCB1 C4010 TF C ECQ-B50V-101K 1 374721015 PCB1 C4010 TF C ECQ-B50V 471K 1 374724715 PCB1 C4010 TF C ECQ-B50V 471K 1 374724715 PCB1 C4010 TF C ECQ-B50V 471K 1 374724715 PCB1 C4010 TF C ECQ-B50V 471K 1 374724715 PCB1 C4012 C-CERA C CK725F1H-103Z1 1 332151030R1 PCB1 C4021 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4022 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4023 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4024 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4051 VX C CE04W25V-47M(VX) 1 393354707 PCB1 C4052 VX C CE04W25V-47M(VX) 1 393354707 PCB1 C4053 VX C CE04W25V-47M(VX) 1 393354707 PCB1 C4054 VX C CE04W25V-47M(VX) 1 393354707 PCB1 C4055 VX C CE04W25V-47M(VX) 1 393354707 PCB1 C4056 VX C CE04W25V-47M(VX) 1 393354707 PCB1 C4057 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C4058 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C4059 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C4060 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C4061 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C4062 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C4063 VX C CE04W50V-1M(VX) 1 393380107 PCB1 C4064 VX C CE04W50V-4.7M(VX) 1 393380477 PCB1 C4065 TF C ECQ-V50V-224J 1 374722244 PCB1 C4066 TF C ECQ-B50V-472J 1 374724724 PCB1 C4067 VX C CE04W50V-4.7M(VX) 1 393380477 PCB1 C4068 TF C ECQ-V50V-224J 1 374722244 PCB1 C4069 TF C ECQ-B50V-472J 1 374724724 PCB1 C4070 VX C CE04W16V-470M(VX) 1 393344717 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9/34 PAGE PCB1 C4071 VX C CE04W16V-470M(VX) 1 393344717 PCB1 C4091 VX C CE04W50V-2.2M(VX) 1 393380227 PCB1 C4092 VX C CE04W50V-2.2M(VX) 1 393380227 PCB1 C4093 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C4094 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C4105 C-CERA C CC725CH1H-101J1 1 342101014R1 PCB1 C4106 C-CERA C CC725CH1H-101J1 1 342101014R1 PCB1 C4107 TF C ECQ-V50V-333J 1 374723334 PCB1 C4108 TF C ECQ-V50V-333J 1 374723334 PCB1 C4109 TF C ECQ-V50V-333J 1 374723334 PCB1 C4110 TF C ECQ-V50V-333J 1 374723334 PCB1 C4111 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4112 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4113 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4114 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4117 VR C CE04W50V-1M(VR) 1 394680107 PCB1 C4117 or ELECT C CE04W50V-1M(SC) (1) 394780107 PCB1 C4203 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4204 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4251 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C4252 TF C ECQ-B50V-221K 1 374722215 PCB1 C4253 C-CERA C CC725CH1H-330J1 1 342103304R1 PCB1 C6171 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6172 C-CERA C CC725CH1H-180J1 1 342101804R1 PCB1 C6173 C-CERA C CC725CH1H-120J1 1 342101204R1 PCB1 C6174 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6201 VR C CE04W16V-100M(VR) 1 394641017 PCB1 C6201 or ELECT C CE04W16V-100M(SC) (1) 394741017 PCB1 C6202 VR C CE04W6.3V-220M(VR) 1 394622217 PCB1 C6202 or ELECT C CE04W6.3V-220M(SC) (1) 394722217 PCB1 C6203 VR C CE04W16V-100M(VR) 1 394641017 PCB1 C6203 or ELECT C CE04W16V-100M(SC) (1) 394741017 PCB1 C6204 CHIP TANTAL CS772SB1C-2.2M 1 395640227R2 PCB1 C6205 C SERA C CC725CH1H-122J1 1 342101224R1 PCB1 C6206 C-CERA C CC725CH1H-680J1 1 342106804R1 PCB1 C6207 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6208 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6209 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6210 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6211 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6212 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6213 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6214 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6215 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6216 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6217 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6218 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6219 C-CERA C CC725CH1H-101J1 1 342101014R1 PCB1 C6281 VR C CE04W16V-100M(VR) 1 394641017 PCB1 C6281 or ELECT C CE04W16V-100M(SC) (1) 394741017 PCB1 C6282 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6292 C-CERA C CC725CH1H-101J1 1 342101014R1 PCB1 C6293 C-CERA C CC725CH1E-102J1 1 342111024R1 PCB1 C6294 C-CERA C CC725CH1E-102J1 1 342111024R1 PCB1 C6295 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6301 VR C CE04W6.3V-220M(VR) 1 394622217 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10/34 PAGE PCB1 C6301 or ELECT C CE04W6.3V-220M(SC) (1) 394722217 PCB1 C6302 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6304 RFS C CE04W25V-47M(RFS) 1 395954707 PCB1 C6306 VX C CE04W25V-47M(VX) 1 393354707 PCB1 C6307 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6308 VR C CE04W6.3V-470M(VR) 1 394624717 PCB1 C6309 C-CERA C CK725B1H-222K1 1 332102225R1 PCB1 C6310 C-CERA C CK725B1H-473K1 1 332104735R1 PCB1 C6311 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6312 VR C CE04W6.3V-220M(VR) 1 394622217 PCB1 C6312 or ELECT C CE04W6.3V-220M(SC) (1) 394722217 PCB1 C6313 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6315 TF C ECQ-V50V-104J 1 374721044 PCB1 C6316 TF C ECQ-V50V-104J 1 374721044 PCB1 C6317 TF C ECQ-V50V-104J 1 374721044 PCB1 C6318 TF C ECQ-V50V-104J 1 374721044 PCB1 C6319 TF C ECQ-V50V-104J 1 374721044 PCB1 C6321 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C6322 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C6323 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C6324 VX C CE04W50V-10M(VX) 1 393381007 PCB1 C6325 TF C ECQ-B50V-222J 1 374722224 PCB1 C6326 TF C ECQ-B50V-222J 1 374722224 PCB1 C6403 TF C ECQ-B50V-472J 1 374724724 PCB1 C6404 TF C ECQ-V50V-333J 1 374723334 PCB1 C6405 TF C ECQ-B50V-472J 1 374724724 PCB1 C6406 TF C ECQ-B50V-472J 1 374724724 PCB1 C6411 TF C ECQ-B50V-331K 1 374723315 PCB1 C6412 TF C ECQ-B50V-331K 1 374723315 PCB1 C6413 TF C ECQ-B50V-681J 1 374726814 PCB1 C6414 TF C ECQ-B50V-153J 1 374721534 PCB1 C6415 TF C ECQ-B50V-681J 1 374726814 PCB1 C6416 TF C ECQ-B50V-681J 1 374726814 PCB1 C6421 TF C ECQ-B50V-331K 1 374723315 PCB1 C6422 TF C ECQ-B50V-331K 1 374723315 PCB1 C6423 TF C ECQ-B50V-681J 1 374726814 PCB1 C6424 TF C ECQ-B50V-153J 1 374721534 PCB1 C6425 TF C ECQ-B50V-681J 1 374726814 PCB1 C6426 TF C ECQ-B50V-681J 1 374726814 PCB1 C6481 VX C CE04W25V-220M(VX) 1 393352217 PCB1 C6521 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C6522 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C6523 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C6524 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C6525 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C6526 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C6527 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C6528 VX C CE04W50V-22M(VX) 1 393382207 PCB1 C6601 TF C ECQ-B50V-272J 1 374722724 PCB1 C6602 TF C ECQ-B50V-272J 1 374722724 PCB1 C6611 TF C ECQ-B50V-122J 1 374721224 PCB1 C6612 TF C ECQ-B50V-122J 1 374721224 PCB1 C6701 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C6921 VR C CE04W16V-100M(VR) 1 394641017 PCB1 C6921 or ELECT C CE04W16V-100M(SC) (1) 394741017 PCB1 C6923 VR C CE04W16V-100M(VR) 1 394641017 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11/34 PAGE PCB1 C6923 or ELECT C CE04W16V-100M(SC) (1) 394741017 PCB1 C6924 VR C CE04W16V-100M(VR) 1 394641017 PCB1 C6924 or ELECT C CE04W16V-100M(SC) (1) 394741017 PCB1 C7001 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C7009 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C7010 VX C CE04W50V-4.7M(VX) 1 393380477 PCB1 C7014 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C7016 C-CERA C CC725CH1H-220J1 1 342102204R1 PCB1 C7022 C-CERA C CC725CH1H-330J1 1 342103304R1 PCB1 C7034 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C7070 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C7100 VR C CE04W16V-100M(VR) 1 394641017 PCB1 C7100 or ELECT C CE04W16V-100M(SC) (1) 394741017 PCB1 C7115 TRIM C NTC-45P27 1 3060031 PCB1 C7121 C-CERA C CC725CH1H-330J1 1 342103304R1 PCB1 C7138 C-CERA C CC725CH1E-102J1 1 342111024R1 PCB1 C7185 VR C CE04W6.3V-470M(VR) 1 394624717 PCB1 C7185 or ELECT C CE04W6.3V-470M(SC) (1) 394724717 PCB1 C7196 C-CERA C CC725CH1E-102J1 1 342111024R1 PCB1 C7214 VX C CE04W50V-4.7M(VX) 1 393380477 PCB1 C7235 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C7301 C-CERA C CC725CH1H-101J1 1 342101014R1 PCB1 C7302 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C7303 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C7304 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB1 C7306 C-CERA C CC725CH1E-102J1 1 342111024R1 PCB1 C7307 C-CERA C CC725CH1E-102J1 1 342111024R1 PCB1 R1001 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R1002 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R1301 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB1 R1302 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB1 R1303 C-CARBON R RN72K1J-273JE 1 435032734R1 PCB1 R1304 C-CARBON R RN72K1J-273JE 1 435032734R1 PCB1 R1310 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB1 R1312 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R1313 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R1314 METAL O R RS1/2WBJ-15 1 443521504 PCB1 R2101 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB1 R2102 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R2103 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB1 R2104 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R2105 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R2106 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R2107 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R2108 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R3017 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R3018 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R3019 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R3020 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R3021 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB1 R3022 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB1 R3023 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R3024 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R3025 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R3026 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R3027 C-CARBON R RN72K1J-223JE 1 435032234R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12/34 PAGE PCB1 R3028 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R3041 METAL R RNU1/2WCJ-0.22 1 453532294 PCB1 R3042 METAL R RNU1/2WCJ-0.22 1 453532294 PCB1 R3100 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R3303 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R3304 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R3423 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R3424 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R3425 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R4001 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB1 R4002 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB1 R4003 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB1 R4004 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB1 R4005 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB1 R4006 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB1 R4007 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R4008 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R4009 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R4010 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R4011 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4012 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4013 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4014 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4015 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4016 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4017 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4018 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4019 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4020 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4021 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R4022 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R4023 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R4024 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R4025 C-CARBON R RN72K1J-271JE 1 435032714R1 PCB1 R4026 C-CARBON R RN72K1J-271JE 1 435032714R1 PCB1 R4027 C-CARBON R RN72K1J-271JE 1 435032714R1 PCB1 R4028 C-CARBON R RN72K1J-271JE 1 435032714R1 PCB1 R4031 METAL O R RS1/2WBJ-47 1 443524704 PCB1 R4032 METAL O R RS1/2WBJ-47 1 443524704 PCB1 R4101 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R4102 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R4103 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB1 R4104 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB1 R4105 C-CARBON R RN72K1J-683JE 1 435036834R1 PCB1 R4106 C-CARBON R RN72K1J-683JE 1 435036834R1 PCB1 R4107 C-CARBON R RN72K1J-475JE 1 435034754R1 PCB1 R4108 C-CARBON R RN72K1J-475JE 1 435034754R1 PCB1 R4109 C-CARBON R RN72K1J-563JE 1 435035634R1 PCB1 R4110 C-CARBON R RN72K1J-563JE 1 435035634R1 PCB1 R4111 C-CARBON R RN72K1J-683JE 1 435036834R1 PCB1 R4112 C-CARBON R RN72K1J-683JE 1 435036834R1 PCB1 R4115 C-CARBON R RN72K1J-475JE 1 435034754R1 PCB1 R4116 C-CARBON R RN72K1J-475JE 1 435034754R1 PCB1 R4117 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R4118 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R4119 C-CARBON R RN72K1J-222JE 1 435032224R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13/34 PAGE PCB1 R4120 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB1 R4121 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB1 R4122 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB1 R4123 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4124 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4125 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4130 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB1 R4131 METAL R RNU1/2WCJ-0.22 1 453532294 PCB1 R4132 METAL R RNU1/2WCJ-0.22 1 453532294 PCB1 R4133 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R4134 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R4201 C-CARBON R RN72K1J-273JE 1 435032734R1 PCB1 R4202 C-CARBON R RN72K1J-273JE 1 435032734R1 PCB1 R4205 C-CARBON R RN72K1J-822JE 1 435038224R1 PCB1 R4206 C-CARBON R RN72K1J-822JE 1 435038224R1 PCB1 R4209 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R4210 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R4211 C-CARBON R RN72K1J-123JE 1 435031234R1 PCB1 R4212 C-CARBON R RN72K1J-123JE 1 435031234R1 PCB1 R4241 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R4242 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R4243 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R4244 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R4247 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R4248 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R4251 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R4252 C-CARBON R RN72K1J-473JE 1 435034734R1 PCB1 R4253 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R4254 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R4255 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6171 C-CARBON R RN72K1J-105JE 1 435031054R1 PCB1 R6173 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6175 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6176 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6201 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6202 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6203 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6205 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6208 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6209 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6210 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6211 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6212 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6215 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6216 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6217 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6218 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6219 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6220 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6221 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6222 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6223 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6224 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6225 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6226 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6227 C-CARBON R RN72K1J-470JE 1 435034704R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14/34 PAGE PCB1 R6228 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6229 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6230 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6231 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6232 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6233 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6234 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6235 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6236 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6237 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6238 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6239 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6240 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6242 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6243 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6244 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6245 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6246 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6249 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6250 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6251 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6252 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6253 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6254 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6255 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6256 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6257 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB1 R6258 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB1 R6259 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6260 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6261 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6266 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6267 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6269 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6270 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R6271 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6272 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6273 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6274 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6275 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6276 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6277 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6278 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6279 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6280 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R6291 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6292 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6293 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6294 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6295 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6296 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6301 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6302 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6303 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6304 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R6305 C-CARBON R RN72K1J-221JE 1 435032214R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15/34 PAGE PCB1 R6306 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R6307 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R6308 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R6309 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R6311 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB1 R6312 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6313 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6314 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6315 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6316 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6317 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6318 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6319 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6321 C-CARBON R RN72K1J-560JE 1 435035604R1 PCB1 R6322 C-CARBON R RN72K1J-560JE 1 435035604R1 PCB1 R6323 C-CARBON R RN72K1J-560JE 1 435035604R1 PCB1 R6324 C-CARBON R RN72K1J-560JE 1 435035604R1 PCB1 R6325 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB1 R6326 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB1 R6332 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R6333 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R6334 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R6401 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6402 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6403 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6404 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6405 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6406 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6411 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6412 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6413 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6414 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6415 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6416 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R6421 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6422 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6423 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6424 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6425 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6426 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6431 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6432 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6433 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6434 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6435 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6436 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R6441 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R6442 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R6443 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R6444 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R6445 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R6446 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R6451 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R6452 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R6453 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R6454 C-CARBON R RN72K1J-472JE 1 435034724R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16/34 PAGE PCB1 R6455 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R6456 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R6461 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6462 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6463 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6464 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6465 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6466 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6471 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6472 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6473 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6474 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6475 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6476 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB1 R6481 METAL O R RS1/2WBJ-22 1 443522204 PCB1 R6482 METAL O R RS1/2WBJ-22 1 443522204 PCB1 R6601 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6602 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6603 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6604 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6605 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6606 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6611 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6612 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R6621 C-CARBON R RN72K1J-152JE 1 435031524R1 PCB1 R6622 C-CARBON R RN72K1J-152JE 1 435031524R1 PCB1 R6631 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6632 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6641 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6642 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6651 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6652 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6661 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6662 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R6671 C-CARBON R RN72K1J-152JE 1 435031524R1 PCB1 R6672 C-CARBON R RN72K1J-152JE 1 435031524R1 PCB1 R6681 C-CARBON R RN72K1J-152JE 1 435031524R1 PCB1 R6682 C-CARBON R RN72K1J-152JE 1 435031524R1 PCB1 R6701 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6702 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6703 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6704 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB1 R6705 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R6706 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB1 R7003 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7004 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7006 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R7007 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB1 R7008 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R7015 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R7017 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7018 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7019 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7021 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R7022 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R7023 C-CARBON R RN72K1J-101JE 1 435031014R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17/34 PAGE PCB1 R7024 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R7025 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7026 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7027 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7028 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7029 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7030 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7031 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7032 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7035 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7036 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7037 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R7043 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7044 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7045 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7046 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7047 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7048 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7049 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7050 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB1 R7051 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB1 R7052 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7053 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7054 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7055 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7056 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7057 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7058 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7059 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7060 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7061 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7062 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R7064 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7065 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7066 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7067 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB1 R7068 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7071 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7072 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7073 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7074 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R7075 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R7076 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R7077 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7078 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7079 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7080 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7081 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7082 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7083 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7084 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7087 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7088 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7089 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7090 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7091 C-CARBON R RN72K1J-101JE 1 435031014R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18/34 PAGE PCB1 R7092 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7093 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7094 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7095 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7096 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R7097 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R7098 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7099 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R7099 C-CARBON R RN72K1J-333JE 1 435033334R1 PCB1 R7099 C-CARBON R RN72K1J-333JE 1 435033334R1 PCB1 R7099 C-CARBON R RN72K1J-333JE 1 435033334R1 PCB1 R7099 C-CARBON R RN72K1J-333JE 1 435033334R1 PCB1 R7100 C-CARBON R RN72K1J-333JE 1 435033334R1 PCB1 R7103 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7107 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB1 R7114 C-CARBON R RN72K1J-473JE 1 435034734R1 PCB1 R7120 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7121 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7122 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7129 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7130 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7131 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7132 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7135 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB1 R7136 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB1 R7138 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R7139 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7140 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7141 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7142 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7147 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7148 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7163 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7177 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB1 R7180 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7185 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7186 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7190 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7191 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7195 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7196 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB1 R7197 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB1 R7198 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB1 R7199 C-CARBON R RN72K1J-563JE 1 435035634R1 PCB1 R7199 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R7199 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R7199 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R7200 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB1 R7200 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R7200 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R7200 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R7200 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R7217 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7218 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7219 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB1 R7220 C-CARBON R RN72K1J-103JE 1 435031034R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19/34 PAGE PCB1 R7234 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB1 R7235 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7236 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB1 R7298 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB1 R7301 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB1 R7302 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB1 R7303 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB1 R7304 THERMISTOR RXE010 1 4000213 PCB1 P1001 SOCKET CAM-C16 1 25053104R2 PCB1 P1002 SOCKET AS NSAS-12P1547 1 2009990972UL PCB1 P1003 WS CLAMP CB-71694(L=30) 1 260260 PCB1 P1004 WS CLAMP CB-71683(L=50) 1 260261 PCB1 P1005 WS CLAMP CB-71694(L=30) 1 260260 PCB1 P1301 SOCKET NSCT-13P1607 1 25051820 PCB1 P2001B SOCKET NSCT-12P1027 1 25051237 PCB1 P2004B SOCKET NSCT-12P1027 1 25051237 PCB1 P2005B SOCKET NSCT-4P1313 1 25051526 PCB1 P4001 PIN JACK NPJ-6PDWWWRRR561 1 25045779 PCB1 P4001 or PIN JACK NPJ-6PDRW386 (1) 25045571 PCB1 P4002 PIN JACK NPJ-4PDLGEP633 1 25045855 PCB1 P4002 or PIN JACK NPJ4PDLGEP528 (1) 25045742 PCB1 P4101A SOCKET AS NSAS-8P1544 1 2009990971UL PCB1 P7001 PLUG NPLG-8P660 1 25055704 PCB1 P7002B SOCKET NSCT-19P1613 1 25051826 PCB1 P7301 JACK HSJ1003-01-020 1 25045172 PCB1 J2001 PVC 1007#24 .2/7HAND R 1 --- NSP PCB1 J3002 PVC 1007#24 .2/7HAND B 1 --- NSP PCB1 J4070 PVC 1007#24 .2/7HAND R 1 --- NSP PCB1 J4091 PVC 1007#24 .2/7HAND B 1 --- NSP PCB1 J6401 PVC 1007#24 .2/7HAND B 1 --- NSP PCB1 JL901 JMP LEAD JL4 120 B 1 --- NSP PCB1 JL901A WIRE HOL NSCT-4P875 1 25051088 PCB1 JL902 JUMPER LEAD JL9 200 B 1 --- NSP PCB1 JL902A WIRE HOL NSCT-9P880 1 25051093 PCB1 JL903 JUMPER LEAD JL10 150B(6-6) 1 --- NSP PCB1 JL903A WIRE HOL NSCT-10P881 1 25051094 PCB1 JL905 JUMPER LEAD JL3 100 B(6-6) 1 --- NSP PCB1 JL905A WIRE HOL NSCT-3P874 1 25051087 PCB1 JL1001 JUMPER LEAD JL7 200 B 1 --- NSP PCB1 JL1001A WIRE HOL NSCT-7P878 1 25051091 PCB1 JL1002 JUMPER LEAD JL5 250 B 1 --- NSP PCB1 JL1002A WIRE HOL NSCT-5P876 1 25051089 PCB2 U02 POWER AMPLIFIER PC BOARD (NAAF-8695-1C / 1D / 1E / 1F) PCB2 U03 POWER SUPPLY PC BOARD (NAPS-8696-1C / 1D / 1E / 1F) PCB2 U04 FAN DRIVE PC BOARD (NAETC-8697-1C / 1D / 1E / 1F) PCB2 U05 TERMINAL PC BOARD (NAETC-8698-1C / 1D / 1E / 1F) PCB2 PCB2 CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS PCB2 Q904 IC S-80127CNMC-JKM-T2 1 22241642R2 PCB2 Q921 IC S-812C50AUA-C3E 1 22242240R2 PCB2 Q922 IC S-812C33AUA-C2N 1 22242222R2 PCB2 Q968 IC S-812C53AUA-C3HT2G 1 22242270R2 PCB2 Q975 IC MPC29M08HF 1 22278008ENE PCB2 Q976 IC 78L12 1 222780123 PCB2 Q2301 IC TC74VHCT00AFT� EKJ) 1 22274000G1R2TO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20/34 PAGE PCB2 Q2301 or IC TC74VHCT00AFT (1) 22274000GR2TO PCB2 Q501 TR 2SC1622A(D17) 1 2216153R2 PCB2 Q501 or TR 2SC1622A(D18) (1) 2216154R2 PCB2 Q502 TR 2SC1622A(D17) 1 2216153R2 PCB2 Q502 or TR 2SC1622A(D18) (1) 2216154R2 PCB2 Q503 TR 2SC1622A(D17) 1 2216153R2 PCB2 Q503 or TR 2SC1622A(D18) (1) 2216154R2 PCB2 Q504 TR 2SC1622A(D17) 1 2216153R2 PCB2 Q504 or TR 2SC1622A(D18) (1) 2216154R2 PCB2 Q505 TR 2SC2712-GR 1 2213145R2 PCB2 Q506 TR 2SC2712-GR 1 2213145R2 PCB2 Q509 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q509 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q509 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q509 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q509 TR 2SA1015-GR 1 2211455 PCB2 Q509 TR 2SA1015-GR 1 2211455 PCB2 Q509 TR 2SA1015-GR 1 2211455 PCB2 Q510 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q510 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q510 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q510 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q510 TR 2SA1015-GR 1 2211455 PCB2 Q510 TR 2SA1015-GR 1 2211455 PCB2 Q510 TR 2SA1015-GR 1 2211455 PCB2 Q511 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q511 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q511 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q511 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q511 TR 2SA1015-GR 1 2211455 PCB2 Q511 TR 2SA1015-GR 1 2211455 PCB2 Q511 TR 2SA1015-GR 1 2211455 PCB2 Q512 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q512 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q512 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q512 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q512 TR 2SA1015-GR 1 2211455 PCB2 Q512 TR 2SA1015-GR 1 2211455 PCB2 Q512 TR 2SA1015-GR 1 2211455 PCB2 Q515 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q515 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q515 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q515 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q515 TR 2SA1015-GR 1 2211455 PCB2 Q515 TR 2SA1015-GR 1 2211455 PCB2 Q515 TR 2SA1015-GR 1 2211455 PCB2 Q516 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q516 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q516 TR 2SA949-O(TPE6_F) 1 2211353 PCB2 Q516 or TR 2SA949-Y(TPE6_F) (1) 2211354 PCB2 Q516 TR 2SA1015-GR 1 2211455 PCB2 Q516 TR 2SA1015-GR 1 2211455 PCB2 Q516 TR 2SA1015-GR 1 2211455 PCB2 Q517 TR 2SC2229-O(TPE6_F) 1 2211633 PCB2 Q517 or TR 2SC2229-Y(TPE6_F) (1) 2211634 PCB2 Q517 TR 2SC2229-O(TPE6_F) 1 2211633 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21/34 PAGE PCB2 Q517 or TR 2SC2229-Y(TPE6_F) (1) 2211634 PCB2 Q517 TR 2SC1815-GR 1 2211255 PCB2 Q517 TR 2SC1815-GR 1 2211255 PCB2 Q517 TR 2SC1815-GR 1 2211255 PCB2 Q518 TR 2SC2229-O(TPE6_F) 1 2211633 PCB2 Q518 or TR 2SC2229-Y(TPE6_F) (1) 2211634 PCB2 Q518 TR 2SC2229-O(TPE6_F) 1 2211633 PCB2 Q518 or TR 2SC2229-Y(TPE6_F) (1) 2211634 PCB2 Q518 TR 2SC1815-GR 1 2211255 PCB2 Q518 TR 2SC1815-GR 1 2211255 PCB2 Q518 TR 2SC1815-GR 1 2211255 PCB2 Q519 TR 2SC2229-O(TPE6_F) 1 2211633 PCB2 Q519 or TR 2SC2229-Y(TPE6_F) (1) 2211634 PCB2 Q519 TR 2SC2229-O(TPE6_F) 1 2211633 PCB2 Q519 or TR 2SC2229-Y(TPE6_F) (1) 2211634 PCB2 Q519 TR 2SC1815-GR 1 2211255 PCB2 Q519 TR 2SC1815-GR 1 2211255 PCB2 Q519 TR 2SC1815-GR 1 2211255 PCB2 Q520 TR 2SC2229-O(TPE6_F) 1 2211633 PCB2 Q520 or TR 2SC2229-Y(TPE6_F) (1) 2211634 PCB2 Q520 TR 2SC2229-O(TPE6_F) 1 2211633 PCB2 Q520 or TR 2SC2229-Y(TPE6_F) (1) 2211634 PCB2 Q520 TR 2SC1815-GR 1 2211255 PCB2 Q520 TR 2SC1815-GR 1 2211255 PCB2 Q520 TR 2SC1815-GR 1 2211255 PCB2 Q551 TR 2SC2713-GR(TE85R_F) 1 2213135R2 PCB2 Q551 TR 2SC2713-GR(TE85R_F) 1 2213135R2 PCB2 Q551 TR 2SC2712-GR 1 2213145R2 PCB2 Q551 TR 2SC2712-GR 1 2213145R2 PCB2 Q551 TR 2SC2712-GR 1 2213145R2 PCB2 Q552 TR 2SC2713-GR(TE85R_F) 1 2213135R2 PCB2 Q552 TR 2SC2713-GR(TE85R_F) 1 2213135R2 PCB2 Q552 TR 2SC2712-GR 1 2213145R2 PCB2 Q552 TR 2SC2712-GR 1 2213145R2 PCB2 Q552 TR 2SC2712-GR 1 2213145R2 PCB2 Q553 TR 2SC3421-O 1 2212653 PCB2 Q553 or TR 2SC3421-Y(Q) (1) 2212654 PCB2 Q553 TR 2SC3421-O 1 2212653 PCB2 Q553 or TR 2SC3421-Y(Q) (1) 2212654 PCB2 Q553 TR 2SC2235-O(TPE6_F) 1 2211653 PCB2 Q553 or TR 2SC2235-Y(TPE6_F) (1) 2211654 PCB2 Q553 TR 2SC2235-O(TPE6_F) 1 2211653 PCB2 Q553 or TR 2SC2235-Y(TPE6_F) (1) 2211654 PCB2 Q553 TR 2SC2235-O(TPE6_F) 1 2211653 PCB2 Q553 or TR 2SC2235-Y(TPE6_F) (1) 2211654 PCB2 Q554 TR 2SC3421-O 1 2212653 PCB2 Q554 or TR 2SC3421-Y(Q) (1) 2212654 PCB2 Q554 TR 2SC3421-O 1 2212653 PCB2 Q554 or TR 2SC3421-Y(Q) (1) 2212654 PCB2 Q554 TR 2SC2235-O(TPE6_F) 1 2211653 PCB2 Q554 or TR 2SC2235-Y(TPE6_F) (1) 2211654 PCB2 Q554 TR 2SC2235-O(TPE6_F) 1 2211653 PCB2 Q554 or TR 2SC2235-Y(TPE6_F) (1) 2211654 PCB2 Q554 TR 2SC2235-O(TPE6_F) 1 2211653 PCB2 Q554 or TR 2SC2235-Y(TPE6_F) (1) 2211654 PCB2 Q555 TR 2SA1358-O 1 2212643 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22/34 PAGE PCB2 Q555 or TR 2SA1358-Y(Q) (1) 2212644 PCB2 Q555 TR 2SA1358-O 1 2212643 PCB2 Q555 or TR 2SA1358-Y(Q) (1) 2212644 PCB2 Q555 TR 2SA965-O(TPE6_F) 1 2211643 PCB2 Q555 or TR 2SA965-Y(TPE6_F) (1) 2211644 PCB2 Q555 TR 2SA965-O(TPE6_F) 1 2211643 PCB2 Q555 or TR 2SA965-Y(TPE6_F) (1) 2211644 PCB2 Q555 TR 2SA965-O(TPE6_F) 1 2211643 PCB2 Q555 or TR 2SA965-Y(TPE6_F) (1) 2211644 PCB2 Q556 TR 2SA1358-O 1 2212643 PCB2 Q556 or TR 2SA1358-Y(Q) (1) 2212644 PCB2 Q556 TR 2SA1358-O 1 2212643 PCB2 Q556 or TR 2SA1358-Y(Q) (1) 2212644 PCB2 Q556 TR 2SA965-O(TPE6_F) 1 2211643 PCB2 Q556 or TR 2SA965-Y(TPE6_F) (1) 2211644 PCB2 Q556 TR 2SA965-O(TPE6_F) 1 2211643 PCB2 Q556 or TR 2SA965-Y(TPE6_F) (1) 2211644 PCB2 Q556 TR 2SA965-O(TPE6_F) 1 2211643 PCB2 Q556 or TR 2SA965-Y(TPE6_F) (1) 2211644 PCB2 Q561 TR 2SA1163-BL(TE85L_F) 1 2216756R2 PCB2 Q561 TR 2SA1163-BL(TE85L_F) 1 2216756R2 PCB2 Q561 TR 2SA1162-GR 1 2214375R2 PCB2 Q561 TR 2SA1162-GR 1 2214375R2 PCB2 Q561 TR 2SA1162-GR 1 2214375R2 PCB2 Q562 TR 2SA1163-BL(TE85L_F) 1 2216756R2 PCB2 Q562 TR 2SA1163-BL(TE85L_F) 1 2216756R2 PCB2 Q562 TR 2SA1162-GR 1 2214375R2 PCB2 Q562 TR 2SA1162-GR 1 2214375R2 PCB2 Q562 TR 2SA1162-GR 1 2214375R2 PCB2 Q581 TR 2SC2713-GR(TE85R_F) 1 2213135R2 PCB2 Q581 TR 2SC2713-GR(TE85R_F) 1 2213135R2 PCB2 Q581 TR 2SC2712-GR 1 2213145R2 PCB2 Q581 TR 2SC2712-GR 1 2213145R2 PCB2 Q581 TR 2SC2712-GR 1 2213145R2 PCB2 Q582 TR 2SC2713-GR(TE85R_F) 1 2213135R2 PCB2 Q582 TR 2SC2713-GR(TE85R_F) 1 2213135R2 PCB2 Q582 TR 2SC2712-GR 1 2213145R2 PCB2 Q582 TR 2SC2712-GR 1 2213145R2 PCB2 Q582 TR 2SC2712-GR 1 2213145R2 PCB2 Q583 TR 2SA1163-BL(TE85L_F) 1 2216756R2 PCB2 Q583 TR 2SA1163-BL(TE85L_F) 1 2216756R2 PCB2 Q583 TR 2SA1162-GR 1 2214375R2 PCB2 Q583 TR 2SA1162-GR 1 2214375R2 PCB2 Q583 TR 2SA1162-GR 1 2214375R2 PCB2 Q591 TR DTC123JS 1 2213640 PCB2 Q592 TR DTA114YKA 1 2216480R2 PCB2 Q595 TR 2SC2712-GR 1 2213145R2 PCB2 Q596 TR 2SA1162-GR 1 2214375R2 PCB2 Q901 TR DTC123JKA 1 2216690R2 PCB2 Q902 TR 2SA1015-GR 1 2211455 PCB2 Q9301 TR 2SK365-GR 1 2212445 PCB2 Q9302 TR 2SC2712-GR 1 2213145R2 PCB2 Q9303 TR 2SC2712-GR 1 2213145R2 PCB2 Q9304 TR 2SC2120-Y 1 2211164 PCB2 Q9305 TR DTC114EKA 1 2216250R2 PCB2 D501 C-DIODE 1SS352 1 223234R2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23/34 PAGE PCB2 D501 or C-DIODE 1SS355 (1) 223269R2 PCB2 D502 C-DIODE 1SS352 1 223234R2 PCB2 D502 or C-DIODE 1SS355 (1) 223269R2 PCB2 D503 ZENER D UDZS5.6B 1 224550560R2 PCB2 D503 or ZENER D HZU5.6B (1) 224660564R2 PCB2 D504 ZENER D UDZS5.6B 1 224550560R2 PCB2 D504 or ZENER D HZU5.6B (1) 224660564R2 PCB2 D581 ZENER D UDZS5.1B 1 224550510R2 PCB2 D581 or ZENER D HZU5.1B (1) 224660514R2 PCB2 D591 C-DIODE 1SS352 1 223234R2 PCB2 D591 or C-DIODE 1SS355 (1) 223269R2 PCB2 D595 C-DIODE 1SS352 1 223234R2 PCB2 D595 or C-DIODE 1SS355 (1) 223269R2 PCB2 D901 C-DIODE S1NB60-4062 1 22380318R2 PCB2 D902 DIODE RL1N4003 1 22380260 PCB2 D902 or DIODE GP104003E (1) 22380035 PCB2 D903 DIODE RL1N4003 1 22380260 PCB2 D903 or DIODE GP104003E (1) 22380035 PCB2 D905 ZENER D UDZS5.1B 1 224550510R2 PCB2 D905 or ZENER D HZU5.1B (1) 224660514R2 PCB2 D906 C-DIODE 1SS352 1 223234R2 PCB2 D906 or C-DIODE 1SS355 (1) 223269R2 PCB2 D912 C-DIODE 1SS355 1 223269R2 PCB2 D912 or C-DIODE 1SS352 (1) 223234R2 PCB2 D913 C-DIODE 1SS355 1 223269R2 PCB2 D913 or C-DIODE 1SS352 (1) 223234R2 PCB2 D921 DIODE D3SBA20 1 22380271F PCB2 D921 or DIODE RBV402 (1) 22380022F PCB2 D921A HEAT-SINK HEAT-SINK(DX-200) 1 27160166 PCB2 D921B SCREW 3P+10FN(3BC) 1 82143010GR PCB2 D922 DIODE RL1N4003 1 22380260 PCB2 D922 or DIODE GP104003E (1) 22380035 PCB2 D923 DIODE RL1N4003 1 22380260 PCB2 D923 or DIODE GP104003E (1) 22380035 PCB2 D931 DIODE RL1N4003 1 22380260 PCB2 D931 or DIODE GP104003E (1) 22380035 PCB2 D932 DIODE RL1N4003 1 22380260 PCB2 D932 or DIODE GP104003E (1) 22380035 PCB2 D933 DIODE RL1N4003 1 22380260 PCB2 D933 or DIODE GP104003E (1) 22380035 PCB2 D934 DIODE RL1N4003 1 22380260 PCB2 D934 or DIODE GP104003E (1) 22380035 PCB2 D935 ZENER D UDZS11B 1 224551100R2 PCB2 D935 or ZENER D HZU11B (1) 224661104R2 PCB2 D936 ZENER D UDZS11B 1 224551100R2 PCB2 D936 or ZENER D HZU11B (1) 224661104R2 PCB2 D941 DIODE RL1N4003 1 22380260 PCB2 D941 or DIODE GP104003E (1) 22380035 PCB2 D942 ZENER D UDZS7.5B 1 224550750R2 PCB2 D942 or ZENER D HZU7.5B (1) 224660754R2 PCB2 D943 ZENER D UDZS27B 1 224552700R2 PCB2 D943 or ZENER D HZU27B (1) 224662704R2 PCB2 D944 DIODE RL1N4003 1 22380260 PCB2 D944 or DIODE GP104003E (1) 22380035 PCB2 D951 DIODE D3SBA20 1 22380271F PCB2 D951 or DIODE RBV402 (1) 22380022F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24/34 PAGE PCB2 D951A HEAT-SINK HEAT-SINK(DX-200) 1 27160166 PCB2 D951B SCREW 3P+10FN(3BC) 1 82143010GR PCB2 D961 DIODE D3SBA20 1 22380271F PCB2 D961 or DIODE RBV402 (1) 22380022F PCB2 D971 DIODE D3SBA20 1 22380271F PCB2 D971 or DIODE RBV402 (1) 22380022F PCB2 D972 DIODE RL1N4003 1 22380260 PCB2 D973 DIODE RL1N4003 1 22380260 PCB2 D9301 C-DIODE 1SS355 1 223269R2 PCB2 D9301 or C-DIODE 1SS352 (1) 223234R2 PCB2 D9302 ZENER D UDZS8.2B 1 224550820R2 PCB2 D9302 or ZENER D HZU8.2B (1) 224660824R2 PCB2 T902 P TRANS NPT-1520JQ 1 2301812 !, PCB2 T902 P TRANS NPT-1519GQ 1 2301811 !, PCB2 T902 P TRANS NPT-1520JQ 1 2301812 !, PCB2 T902 P TRANS NPT-1520JQ 1 2301812 !, PCB2 L571 S COIL S-1.3C 1 231176S PCB2 L572 S COIL S-1.3C 1 231176S PCB2 L901 CHOKE COIL NCH-3581 1 231301 ! PCB2 L901 or CHOKE COIL NCH-3489 (1) 231252 ! PCB2 L901 or CHOKE COIL NCH-3567 (1) 231287 ! PCB2 L901 or CHOKE COIL NCH-3584 (1) 231305 ! PCB2 C501 VX C CE04W50V-47M(VX) 1 393384707 PCB2 C502 VX C CE04W50V-47M(VX) 1 393384707 PCB2 C503 TF C ECQ-B50V-221K 1 374722215 PCB2 C504 TF C ECQ-B50V-221K 1 374722215 PCB2 C505 VX C CE04W16V-22M(VX) 1 393342207 PCB2 C506 VX C CE04W16V-22M(VX) 1 393342207 PCB2 C509 VX C CE04W6.3V-220M(VX) 1 393322217 PCB2 C510 VX C CE04W6.3V-220M(VX) 1 393322217 PCB2 C511 C-CERA C CC725CH1H-020C1 1 342100201R1 PCB2 C512 C-CERA C CC725CH1H-020C1 1 342100201R1 PCB2 C517 VX C CE04W50V-10M(VX) 1 393381007 PCB2 C518 VX C CE04W50V-10M(VX) 1 393381007 PCB2 C525 C-CERA C CC725CH1H-220J1 1 342102204R1 PCB2 C526 C-CERA C CC725CH1H-220J1 1 342102204R1 PCB2 C541 VX C CE04W35V-100M(VX) 1 393361017 PCB2 C542 VX C CE04W35V-100M(VX) 1 393361017 PCB2 C551 VX C CE04W50V-10M(VX) 1 393381007 PCB2 C552 VX C CE04W50V-10M(VX) 1 393381007 PCB2 C553 TF C ECQ-V50V-473J 1 374724734 PCB2 C554 TF C ECQ-V50V-473J 1 374724734 PCB2 C555 C-CERA C CK725B1H-102K1 1 332101025R1 PCB2 C556 C-CERA C CK725B1H-102K1 1 332101025R1 PCB2 C557 C-CERA C CK725B1H-102K1 1 332101025R1 PCB2 C558 C-CERA C CK725B1H-102K1 1 332101025R1 PCB2 C559 C-CERA C CK725B1H-472K1 1 332104725R1 PCB2 C583 VR C CE04W50V-1M(VR) 1 394680107 PCB2 C591 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB2 C595 VR C CE04W6.3V-100M(VR) 1 394621017 PCB2 C901 IS C DE1007E472M-KY 1 3300063 ! PCB2 C902 IS C DE1007E472M-KY 1 3300063 ! PCB2 C903 IS C MKP R46 103M 1 3500202S ! PCB2 C904 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB2 C905 TF C ECQ-B50V-223J 1 374722234 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25/34 PAGE PCB2 C906 VR C CE04W16V-470M(VR) 1 394644717 PCB2 C907 VR C CE04W16V-2200M(VR) 1 394642227S PCB2 C909 VR C CE04W50V-4.7M(VR) 1 394680477 PCB2 C910 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB2 C911 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB2 C912 C-CERA C CK725F1H-103Z1 1 332151030R1 PCB2 C921 TF C ECQ-V50V-334J 1 374723344 PCB2 C922 VR C CE04W16V-10000M(VR) 1 394641037S PCB2 C923 VR C CE04W16V-47M(VR) 1 394644707 PCB2 C924 VR C CE04W6.3V-100M(VR) 1 394621017 PCB2 C925 VR C CE04W6.3V-100M(VR) 1 394621017 PCB2 C926 VR C CE04W50V-10M(VR) 1 394681007 PCB2 C931 TF C ECQ-V50V-334J 1 374723344 PCB2 C932 TF C ECQ-V50V-334J 1 374723344 PCB2 C933 VR C CE04W25V-2200M(VR) 1 394652227S PCB2 C934 VR C CE04W25V-1000M(VR) 1 394651027S PCB2 C935 VR C CE04W16V-220M(VR) 1 394642217 PCB2 C936 VR C CE04W16V-220M(VR) 1 394642217 PCB2 C937 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB2 C938 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB2 C939 VR C CE04W16V-220M(VR) 1 394642217 PCB2 C940 VR C CE04W16V-220M(VR) 1 394642217 PCB2 C941 VR C CE04W63V-220M(VR) 1 394672217 PCB2 C942 C-CERA C CK725F1H-223Z1 1 332152230R1 PCB2 C943 TF C ECQ-V50V-104J 1 374721044 PCB2 C944 TF C ECQ-V50V-104J 1 374721044 PCB2 C951 TF C ECQ-V50V-334J 1 374723344 PCB2 C952 TF C ECQ-V50V-334J 1 374723344 PCB2 C953 VX C CE04W35V-3300M(VX) 1 393363327S PCB2 C954 VX C CE04W35V-3300M(VX) 1 393363327S PCB2 C961 TF C ECQ-V50V-334J 1 374723344 PCB2 C965 VR C CE04W16V-4700M(VR) 1 394644727S PCB2 C968 VR C CE04W16V-47M(VR) 1 394644707 PCB2 C969 VR C CE04W6.3V-100M(VR) 1 394621017 PCB2 C971 TF C ECQ-V50V-334J 1 374723344 PCB2 C972 VR C CE04W25V-4700M(VR) 1 394654727S PCB2 C973 VR C CE04W35V-47M(VR) 1 394664707 PCB2 C974 VR C CE04W16V-100M(VR) 1 394641017 PCB2 C975 VR C CE04W35V-47M(VR) 1 394664707 PCB2 C976 VR C CE04W16V-100M(VR) 1 394641017 PCB2 C977 VR C CE04W35V-47M(VR) 1 394664707 PCB2 C978 VR C CE04W35V-100M(VR) 1 394661017 PCB2 C979 VR C CE04W16V-47M(VR) 1 394644707 PCB2 C2003 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB2 C2004 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB2 C2005 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB2 C3501 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB2 C9301 VX C CE04W50V-10M(VX) 1 393381007 PCB2 C9302 VX C CE04W35V-47M(VX) 1 393364707 PCB2 C9303 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB2 R501 C-CARBON R RN72K1J-563JE 1 435035634R1 PCB2 R502 C-CARBON R RN72K1J-563JE 1 435035634R1 PCB2 R503 C-CARBON R RN72K1J-123JE 1 435031234R1 PCB2 R504 C-CARBON R RN72K1J-123JE 1 435031234R1 PCB2 R505 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB2 R506 C-CARBON R RN72K1J-223JE 1 435032234R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26/34 PAGE PCB2 R507 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB2 R508 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB2 R509 C-CARBON R RN72K1J-821JE 1 435038214R1 PCB2 R510 C-CARBON R RN72K1J-821JE 1 435038214R1 PCB2 R511 C-CARBON R RN72K1J-821JE 1 435038214R1 PCB2 R512 C-CARBON R RN72K1J-821JE 1 435038214R1 PCB2 R513 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB2 R513 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB2 R513 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB2 R513 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB2 R513 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB2 R514 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB2 R514 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB2 R514 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB2 R514 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB2 R514 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB2 R515 C-CARBON R RN72K1J-122JE 1 435031224R1 PCB2 R516 C-CARBON R RN72K1J-122JE 1 435031224R1 PCB2 R517 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB2 R518 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB2 R519 METAL O R RS1/2WBJ-39 1 443523904 PCB2 R520 METAL O R RS1/2WBJ-39 1 443523904 PCB2 R521 METAL O R RS1/2WBJ-39 1 443523904 PCB2 R522 METAL O R RS1/2WBJ-39 1 443523904 PCB2 R523 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB2 R523 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB2 R523 C-CARBON R RN72K1J-682JE 1 435036824R1 PCB2 R523 C-CARBON R RN72K1J-682JE 1 435036824R1 PCB2 R523 C-CARBON R RN72K1J-682JE 1 435036824R1 PCB2 R524 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB2 R524 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB2 R524 C-CARBON R RN72K1J-682JE 1 435036824R1 PCB2 R524 C-CARBON R RN72K1J-682JE 1 435036824R1 PCB2 R524 C-CARBON R RN72K1J-682JE 1 435036824R1 PCB2 R525 C-CARBON R RN72K1J-183JE 1 435031834R1 PCB2 R526 C-CARBON R RN72K1J-183JE 1 435031834R1 PCB2 R527 C-CARBON R RN72K1J-183JE 1 435031834R1 PCB2 R528 C-CARBON R RN72K1J-183JE 1 435031834R1 PCB2 R533 METAL O R RS1/2WBJ-33 1 443523304 PCB2 R534 METAL O R RS1/2WBJ-33 1 443523304 PCB2 R535 METAL O R RS1/2WBJ-39 1 443523904 PCB2 R536 METAL O R RS1/2WBJ-39 1 443523904 PCB2 R537 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB2 R538 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB2 R539 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB2 R540 C-CARBON R RN72K1J-181JE 1 435031814R1 PCB2 R541 METAL O R RS1/2WBJ-22 1 443522204 PCB2 R542 METAL O R RS1/2WBJ-22 1 443522204 PCB2 R543 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB2 R544 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB2 R545 C-CARBON R RN72K1J-563JE 1 435035634R1 PCB2 R546 C-CARBON R RN72K1J-563JE 1 435035634R1 PCB2 R547 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB2 R548 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB2 R551 C-CARBON R RN72K1J-152FE 1 435031522R1 PCB2 R552 C-CARBON R RN72K1J-152FE 1 435031522R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27/34 PAGE PCB2 R553 C-CARBON R RN72K1J-561FE 1 435035612R1 PCB2 R553 C-CARBON R RN72K1J-561FE 1 435035612R1 PCB2 R553 C-CARBON R RN72K1J-681FE 1 435036812R1 PCB2 R553 C-CARBON R RN72K1J-681FE 1 435036812R1 PCB2 R553 C-CARBON R RN72K1J-681FE 1 435036812R1 PCB2 R554 C-CARBON R RN72K1J-561FE 1 435035612R1 PCB2 R554 C-CARBON R RN72K1J-561FE 1 435035612R1 PCB2 R554 C-CARBON R RN72K1J-681FE 1 435036812R1 PCB2 R554 C-CARBON R RN72K1J-681FE 1 435036812R1 PCB2 R554 C-CARBON R RN72K1J-681FE 1 435036812R1 PCB2 PCB2 Circuit No. : R551 - R554 ---> Resistance tolerance : F class (+1 / -1 %) PCB2 R555 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB2 R555 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB2 R555 C-CARBON R RN72K1J-472FE 1 435034722R1 PCB2 R555 C-CARBON R RN72K1J-472FE 1 435034722R1 PCB2 R555 C-CARBON R RN72K1J-472FE 1 435034722R1 PCB2 R556 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB2 R556 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB2 R556 C-CARBON R RN72K1J-472FE 1 435034722R1 PCB2 R556 C-CARBON R RN72K1J-472FE 1 435034722R1 PCB2 R556 C-CARBON R RN72K1J-472FE 1 435034722R1 PCB2 PCB2 Circuit No. : R555 - R556 ---> Resistance tolerance : F class (+1 / -1 %) MDD1N / MDS4N PCB2 R557 METAL O R RS1/2WBJ-82 1 443528204 PCB2 R558 METAL O R RS1/2WBJ-82 1 443528204 PCB2 R559 METAL O R RS2WBJ-0.22 1 442722294PF PCB2 R559 or METAL R RNU2WCJ-0.22 (1) 452732294F PCB2 R560 METAL O R RS2WBJ-0.22 1 442722294PF PCB2 R560 or METAL R RNU2WCJ-0.22 (1) 452732294F PCB2 R561 METAL O R RS2WBJ-0.22 1 442722294PF PCB2 R561 or METAL R RNU2WCJ-0.22 (1) 452732294F PCB2 R562 METAL O R RS2WBJ-0.22 1 442722294PF PCB2 R562 or METAL R RNU2WCJ-0.22 (1) 452732294F PCB2 R563 METAL R RNU1/2WCJ-8.2 1 453530824 PCB2 R564 METAL R RNU1/2WCJ-8.2 1 453530824 PCB2 R567 METAL O R RS1/2WBJ-390 1 443523914 PCB2 R568 METAL O R RS1/2WBJ-390 1 443523914 PCB2 R571 METAL R RNU1/2WCJ-5.6 1 453530564 PCB2 R572 METAL R RNU1/2WCJ-5.6 1 453530564 PCB2 R573 C-CARBON R RN72K1J-333JE 1 435033334R1 PCB2 R574 C-CARBON R RN72K1J-333JE 1 435033334R1 PCB2 R575 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB2 R577 C-CARBON R RN72K1J-561JE 1 435035614R1 PCB2 R578 C-CARBON R RN72K1J-561JE 1 435035614R1 PCB2 R581 C-CARBON R RN72K1J-123JE 1 435031234R1 PCB2 R582 C-CARBON R RN72K1J-123JE 1 435031234R1 PCB2 R583 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB2 R583 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB2 R583 C-CARBON R RN72K1J-562JE 1 435035624R1 PCB2 R583 C-CARBON R RN72K1J-562JE 1 435035624R1 PCB2 R583 C-CARBON R RN72K1J-562JE 1 435035624R1 PCB2 R584 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB2 R584 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB2 R584 C-CARBON R RN72K1J-562JE 1 435035624R1 PCB2 R584 C-CARBON R RN72K1J-562JE 1 435035624R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28/34 PAGE PCB2 R584 C-CARBON R RN72K1J-562JE 1 435035624R1 PCB2 R585 C-CARBON R RN72K1J-333JE 1 435033334R1 PCB2 R586 C-CARBON R RN72K1J-333JE 1 435033334R1 PCB2 R587 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB2 R588 C-CARBON R RN72K1J-183JE 1 435031834R1 PCB2 R591 METAL O R RS1WBJ-82 1 443628204 PCB2 R592 METAL O R RS1WBJ-82 1 443628204 PCB2 R593 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB2 R595 C-CARBON R RN72K1J-183JE 1 435031834R1 PCB2 R596 C-CARBON R RN72K1J-473JE 1 435034734R1 PCB2 R597 C-CARBON R RN72K1J-123JE 1 435031234R1 PCB2 R598 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB2 R599 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB2 R901 METAL O R RS1/2WBJ-68 1 443526804 PCB2 R902 C-CARBON R RN72K1J-153JE 1 435031534R1 PCB2 R903 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB2 R904 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB2 R924 METAL O R RS1/2WBJ-56 1 443525604 PCB2 R925 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB2 R925 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB2 R925 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB2 R932 METAL R RNU1/2WCJ-2.2 1 453530224 PCB2 R933 C-CARBON R RN72K1J-821JE 1 435038214R1 PCB2 R934 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB2 R942 METAL O R RS1/2WBJ-22 1 443522204 PCB2 R943 C-CARBON R RN72K1J-822JE 1 435038224R1 PCB2 R944 C-CARBON R RN72K1J-822JE 1 435038224R1 PCB2 R945 C-CARBON R RN72K1J-333JE 1 435033334R1 PCB2 R946 METAL R RNU1/2WCJ-1 1 453530104 PCB2 R961 FUSE 2.5A-T/UL/SE-125V 1 252315 !, PCB2 R965 METAL O R RS1/2WBJ-22 1 443522204 PCB2 R971 FUSE 2.5A-T/UL/SE-125V 1 252315 ! PCB2 R975 METAL R RNU1/2WCJ-0.22 1 453532294 PCB2 R976 METAL O R RS1/2WBJ-10 1 443521004 PCB2 R977 C-CARBON R RN72K1J-681JE 1 435036814R1 PCB2 R978 C-CARBON R RN72K1J-681JE 1 435036814R1 PCB2 R931 METAL R RNU1/2WCJ-2.2 1 453530224 PCB2 R2001 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB2 R2002 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB2 R2003 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB2 R2004 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB2 R2005 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB2 R2006 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB2 R2301 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB2 R2302 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB2 R2303 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB2 R2305 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB2 R2306 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB2 R2991 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB2 R2992 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB2 R5581 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB2 R5582 C-CARBON R RN72K1J-822JE 1 435038224R1 PCB2 R9301 METAL O R RS1WBJ-56 1 443625604 PCB2 R9302 METAL O R RS1WBJ-56 1 443625604 PCB2 R9303 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB2 R9304 C-CARBON R RN72K1J-224JE 1 435032244R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29/34 PAGE PCB2 R9305 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB2 R9306 C-CARBON R RN72K1J-183JE 1 435031834R1 PCB2 R9307 C-CARBON R RN72K1J-393JE 1 435033934R1 PCB2 R9308 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB2 R9309 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB2 R9310 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB2 R9311 C-CARBON R RN72K1J-222JE 1 435032224R1 PCB2 R9312 C-CARBON R RN72K1J-105JE 1 435031054R1 PCB2 RL591 RELAY NRL-2P5A-DC12-160 1 25065632 PCB2 RL901 RELAY NRL-1P5A-DC9-179 1 25065669 ! PCB2 P501 TRM NTM-4PDML381 1 25060452 PCB2 P502 HOLDER HOLDER(CLAMP) 1 27190540-1 PCB2 P503 HOLDER HOLDER(CLAMP) 1 27190540-1 PCB2 P901 PLUG NPLG-2P631 1 25055675 ! PCB2 P902B PLUG NPLG-2P631 1 25055675 PCB2 P903 PLUG NPLG-3P838 1 25055882 PCB2 P904B PLUG NPLG-3P117 1 25055133 PCB2 P905B PLUG NPLG-4P118 1 25055134 PCB2 P905B PLUG NPLG-4P118 1 25055134 PCB2 P905B PLUG NPLG-2P116 1 25055132 PCB2 P905B PLUG NPLG-2P116 1 25055132 PCB2 P905B PLUG NPLG-2P116 1 25055132 PCB2 P906B PLUG NPLG-6P120 1 25055136 PCB2 P907A PLUG NPLG-6P658 1 25055702 PCB2 P907B SOCKET NSCT-6P1021 1 25051231 PCB2 P908A PLUG NPLG-8P660 1 25055704 PCB2 P908B SOCKET NSCT-8P1023 1 25051233 PCB2 P911A SOCKET AS NSAS-4P1546 1 200C4190420UL PCB2 P2001A PLUG NPLG-12P664 1 25055708 PCB2 P2002 SOCKET NSCT-13P1724 1 25051937 PCB2 P2003 SOCKET NSCT-25P1736 1 25051949 PCB2 P2004A PLUG NPLG-12P664 1 25055708 PCB2 P2005A PLUG NPLG-4P760 1 25055804 PCB2 P205A PLUG NPLG-6P658 1 25055702 PCB2 P4101B PLUG NPLG-4P351 1 25055368 PCB2 P9301 PLUG NPLG-2P83 1 25055099 PCB2 E901 TRM NTM-1P233(M1969) 1 25060302 PCB2 E951 RETAINER (BUS) 1 27141882 PCB2 F901A FUSE HOL NSCT-1P2031 1 25052133 ! PCB2 F901B FUSE HOL NSCT-1P2031 1 25052133 ! PCB2 F901C FUSE LABEL T630mAL250V 1 29364044 !, PCB2 F901C FUSE LABEL T630mAL250V 1 29364044 !, PCB2 J501 PVC 1007#24 .2/7HAND B 1 --- NSP PCB2 J502 PVC 1007#24 .2/7HAND B 1 --- NSP PCB2 J503 PVC 1430#24 .2/7HAND R 1 --- NSP PCB2 J504 PVC 1430#24 .2/7HAND R 1 --- NSP PCB2 J505 PVC 1430#24 .2/7HAND BLU 1 --- PCB2 J506 PVC 1430#24 .2/7HAND BLU 1 --- PCB2 JL502B SOCKET NSCT-3P108 1 25050280 PCB2 JL901B WIRE TRAP NPLG-4P587 1 25055625 PCB2 JL902B WIRE TRAP NPLG-9P592 1 25055630 PCB2 JL903B WIRE TRAP NPLG-10P593 1 25055631 PCB2 JL904 JUMPER LEAD JL8 150 B 1 --- NSP PCB2 JL904A WIRE HOL NSCT-8P879 1 25051092 PCB2 JL904B WIRE TRAP NPLG-8P591 1 25055629 PCB2 JL905B WIRE TRAP NPLG-3P586 1 25055624 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30/34 PAGE PCB3 U06 DISPLAY PC BOARD (NADIS-8700-1C / 1D / 1E / 1F) PCB3 U07 SWITCH PC BOARD (NASW-8701-1C / 1D / 1E / 1F) PCB3 U08 VIDEO PC BOARD (NAVD-8702-1C / 1D / 1E / 1F) PCB3 U09 HEADPHONE JACK PC BOARD (NAVD-8705-1C / 1D / 1E / 1F) PCB3 PCB3 CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS PCB3 U681 PHT CP GP1FAV51RKF5 1 24120129 PCB3 U801 REMO SENS GP1UM271XK0FH=12MM 1 241360 PCB3 Q801 IC MPD780232GC-710-8BT-A 1 22242286R3 PCB3 Q802 FL TUBE HNA-15SM09 1 212256A PCB3 Q802A HOLDER (FL) 1 27191241 PCB3 Q803 TR 2SC2712-GR 1 2213145R2 PCB3 Q804 TR 2SC2712-GR 1 2213145R2 PCB3 Q805 TR 2SC2712-GR 1 2213145R2 PCB3 D801 ZENER D UDZS5.6B 1 224550560R2 PCB3 D801 or ZENER D HZU5.6B (1) 224660564R2 PCB3 D811 LED SLI-343URC-T32 1 225436 PCB3 X801 CERA LOCK CSTLS5M00G56-A0 1 3010406 PCB3 L230 EMIFIL BK1608LM182-T 1 230958R1 PCB3 L231 EMIFIL BK1608LM182-T 1 230958R1 PCB3 L232 EMIFIL BK1608LM182-T 1 230958R1 PCB3 L233 EMIFIL BK1608LM182-T 1 230958R1 PCB3 L234 EMIFIL BK1608LM182-T 1 230958R1 PCB3 L235 EMIFIL BK1608LM182-T 1 230958R1 PCB3 L681 CHOKE COIL NCH-1471 1 231237M022R2 PCB3 L871 EMIFIL BK1608LM182-T 1 230958R1 PCB3 L872 EMIFIL BK1608LM182-T 1 230958R1 PCB3 L873 EMIFIL BK1608LM182-T 1 230958R1 PCB3 L874 EMIFIL BK1608HS102-T 1 230955R2 PCB3 L875 EMIFIL BK1608HS102-T 1 230955R2 PCB3 L876 EMIFIL BK1608HS102-T 1 230955R2 PCB3 L877 EMIFIL BK1608HS102-T 1 230955R2 PCB3 C230 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB3 C231 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB3 C232 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB3 C233 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB3 C235 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB3 C236 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB3 C237 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB3 C259 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB3 C681 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB3 C682 VX C CE04W16V-10M(VX) 1 393341007 PCB3 C801 ELECT C CE04W6.3V-47M 1 355724709 PCB3 C806 C-CERA C CC725CH1H-101J1 1 342101014R1 PCB3 C810 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB3 C811 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB3 C812 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB3 C815 C-CERA C CC725CH1H-330J1 1 342103304R1 PCB3 C816 C-CERA C CC725CH1H-330J1 1 342103304R1 PCB3 C817 C-CERA C CC725CH1H-330J1 1 342103304R1 PCB3 C818 C-CERA C CC725CH1H-330J1 1 342103304R1 PCB3 C819 C-CERA C CC725CH1H-330J1 1 342103304R1 PCB3 C820 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB3 C821 ELECT C CE04W6.3V-47M 1 355724709 PCB3 C822 C-CERA C CC725CH1H-221J1 1 342102214R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31/34 PAGE PCB3 C823 C-CERA C CC725CH1H-221J1 1 342102214R1 PCB3 C824 C-CERA C CC725CH1H-221J1 1 342102214R1 PCB3 C871 C-CERA C CC725CH1H-102J1 1 342101024R1 PCB3 C872 C-CERA C CC725CH1H-102J1 1 342101024R1 PCB3 C873 C-CERA C CC725CH1H-102J1 1 342101024R1 PCB3 C877 C-CERA C CK725F1H-104Z1 1 332151040R1 PCB3 R230 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB3 R231 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB3 R232 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB3 R236 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB3 R237 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB3 R238 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB3 R239 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB3 R240 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB3 R241 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB3 R242 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB3 R244 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB3 R245 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB3 R246 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB3 R247 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB3 R251 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB3 R801 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB3 R802 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB3 R803 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB3 R804 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB3 R805 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB3 R806 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB3 R807 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB3 R808 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB3 R809 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB3 R810 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB3 R811 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB3 R812 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB3 R813 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB3 R814 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB3 R815 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB3 R816 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB3 R817 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB3 R818 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB3 R819 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB3 R820 C-CARBON R RN72K1J-105JE 1 435031054R1 PCB3 R824 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB3 R827 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB3 R828 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB3 R831 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB3 R839 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB3 R840 C-CARBON R RN72K1J-391JE 1 435033914R1 PCB3 R841 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB3 R842 C-CARBON R RN72K1J-821JE 1 435038214R1 PCB3 R843 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB3 R844 C-CARBON R RN72K1J-182JE 1 435031824R1 PCB3 R845 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB3 R846 C-CARBON R RN72K1J-391JE 1 435033914R1 PCB3 R847 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB3 R848 C-CARBON R RN72K1J-821JE 1 435038214R1 PCB3 R849 C-CARBON R RN72K1J-102JE 1 435031024R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32/34 PAGE PCB3 R850 C-CARBON R RN72K1J-182JE 1 435031824R1 PCB3 R851 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB3 R853 C-CARBON R RN72K1J-391JE 1 435033914R1 PCB3 R854 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB3 R855 C-CARBON R RN72K1J-821JE 1 435038214R1 PCB3 R856 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB3 R857 C-CARBON R RN72K1J-182JE 1 435031824R1 PCB3 R858 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB3 R859 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB3 R860 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB3 R861 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB3 R863 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB3 S801 R ENCODE EC12E2470802 1 25065630 PCB3 S802 R ENCODE EC12E2424404 1 25065631 PCB3 S803 PUSH SW NPS-111-S681 1 25035718 PCB3 S805 PUSH SW NPS-111-S681 1 25035718 PCB3 S806 PUSH SW NPS-111-S681 1 25035718 PCB3 S807 PUSH SW NPS-111-S681 1 25035718 PCB3 S809 PUSH SW NPS-111-S681 1 25035718 PCB3 S812 PUSH SW NPS-111-S681 1 25035718 PCB3 S813 PUSH SW NPS-111-S681 1 25035718 PCB3 S814 PUSH SW NPS-111-S681 1 25035718 PCB3 S815 PUSH SW NPS-111-S681 1 25035718 PCB3 S816 PUSH SW NPS-111-S681 1 25035718 PCB3 S821 PUSH SW NPS-111-S681 1 25035718 PCB3 S822 PUSH SW NPS-111-S681 1 25035718 PCB3 S823 PUSH SW NPS-111-S681 1 25035718 PCB3 S826 PUSH SW NPS-111-S681 1 25035718 PCB3 P204C SOCKET NSCT-27P2261 1 25052364 PCB3 P204C or SOCKET NSCT-27P2445 (1) 25052548 PCB3 P205C SOCKET NSCT-6P1021 1 25051231 PCB3 P208 WS CLAMP CB-71683(L=50) 1 260261 PCB3 P230 PIN JACK NPJ-5PDBY622 1 25045843 PCB3 P230 or PIN JACK NPJ-5PDBY479 (1) 25045682 PCB3 P231 PIN JACK NPJ-3PDGLR436 1 25045629 PCB3 P4003A SOCKET NSCT-4P1313 1 25051526 PCB3 P4003B PLUG NPLG-4P760 1 25055804 PCB3 P7002A SOCKET NSCT-19P2149 1 25052252 PCB3 P7004 SOCKET AS NSAS-16P1543 1 200EE391607UL PCB3 P871 ST JACK YKB21-5100A 1 25045563 PCB3 P873 CRIMP AS CRIMP AS 1 2061712200UL PCB3 P874 TRM NTM-1P233(M1969) 1 25060302 PCB3 JL502 JUMPER LEAD JL3 300 H 1 --- NSP PCB3 JL502A WIRE HOL NSCT-3P894 1 25051107 PCB4 U10 XM DIGITAL TRANSCEIVER PC BOARD (NARF-8688-4A) PCB4 MDD1N Only PCB4 PCB4 CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS PCB4 Q7001 IC M30281FAHP 1 W0041R301681D100 PCB4 Q7004 IC TA48033AF(TE16L_NQ) 1 22278033DR2 PCB4 Q7004 or IC BA33BC0FP (1) 22278033DR2RH PCB4 Q7004 or IC NJM2391DL1-33 (1) 22278033DR2JR PCB4 Q7101 IC F2602E-01 1 22242266R2 PCB4 Q7102 IC AK4384ET 1 22242280R2 PCB4 Q7104 IC MAX1930ESA 1 22242279R2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33/34 PAGE PCB4 Q7104 or IC TPS2011ADR (1) 22242273R2 PCB4 Q7105 IC 78L05(NJM78L05UA) 1 222780053R2JR PCB4 X7001 CERA LOCK CSTCW2000MX01 1 3010342R2 PCB4 X7101 CRYSTAL DSX840GA 45.1584MHz 1 3010420R2 PCB4 L7001 CHOKE COIL NCH-1471 1 231237K022R2 PCB4 L7001 or CHOKE COIL NCH-1587-022K (1) 233533K022R2 PCB4 L7101 CHOKE COIL BLM21PG221SN1 1 230949R2 PCB4 L7102 CHOKE COIL BLM21PG221SN1 1 230949R2 PCB4 L7103 EMIFIL BK1608LM182-T 1 230958R1 PCB4 L7104 CHOKE COIL NCH-1471 1 231237K022R2 PCB4 L7104 or CHOKE COIL NCH-1587-022K (1) 233533K022R2 PCB4 L7105 CHOKE COIL NCH-1471 1 231237K022R2 PCB4 L7105 or CHOKE COIL NCH-1587-022K (1) 233533K022R2 PCB4 C7001 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7002 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7003 VR C CE04W16V-100M(VR) 1 394641017 PCB4 C7006 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7007 VR C CE04W6.3V-470M(VR) 1 394624717 PCB4 C7101 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7102 C-CERA C CK725B1H-102K1 1 332101025R1 PCB4 C7103 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7104 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7105 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7106 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7111 VR C CE04W16V-100M(VR) 1 394641017 PCB4 C7112 C-CERA C CC725CH1H-040C1 1 342100401R1 PCB4 C7113 C-CERA C CC725CH1H-080D1 1 342100802R1 PCB4 C7114 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7115 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7116 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7118 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7119 C-CERA C CK725B1H-102K1 1 332101025R1 PCB4 C7120 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7121 VX C CE04W50V-10M(VX) 1 393381007 PCB4 C7122 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7123 VR C CE04W6.3V-470M(VR) 1 394624717 PCB4 C7124 VX C CE04W50V-10M(VX) 1 393381007 PCB4 C7125 VX C CE04W50V-10M(VX) 1 393381007 PCB4 C7134 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7135 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 C7136 VR C CE04W16V-100M(VR) 1 394641017 PCB4 C7137 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB4 R7001 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7002 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB4 R7003 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7004 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7005 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7006 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7007 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7008 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7009 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7010 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB4 R7011 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB4 R7012 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB4 R7013 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB4 R7014 C-CARBON R RN72K1J-102JE 1 435031024R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34/34 PAGE PCB4 R7017 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB4 R7018 C-CARBON R RN72K1J-221JE 1 435032214R1 PCB4 R7021 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7022 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7023 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7024 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7026 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7027 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7028 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7029 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7030 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7031 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7033 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB4 R7101 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB4 R7102 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB4 R7103 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB4 R7104 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB4 R7105 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB4 R7111 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7112 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB4 R7113 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB4 R7114 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB4 R7115 C-CARBON R RN72K1J-681JE 1 435036814R1 PCB4 R7116 C-CARBON R RN72K1J-105JE 1 435031054R1 PCB4 R7117 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB4 R7118 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB4 R7119 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB4 R7120 C-CARBON R RN72K1J-331JE 1 435033314R1 PCB4 R7121 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7126 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7127 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7128 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7140 C-CARBON R RN72K1J-220JE 1 435032204R1 PCB4 R7141 C-CARBON R RN72K1J-220JE 1 435032204R1 PCB4 R7142 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB4 R7143 C-CARBON R RN72K1J-104JE 1 435031044R1 PCB4 R7144 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 R7145 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB4 P291B PLUG NPLG-2P130 1 25055146 PCB4 P7001A SOCKET NSCT-9P2400 1 25052503 PCB4 P7104 PLUG NPLG-6P134 1 25055150 PCB4 JL101B WIRE TRAP NPLG-7P590 1 25055628 PCB4 JL5502B WIRE TRAP NPLG-5P588 1 25055626 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DR-UN7 ONKYO EUROPE UK Office Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ UNITED KINGDOM Tel: +44-(0)1494-681515 Fax: +44(0)-1494-680452 ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/ ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/ Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8124 ONKYO CORPORATION http://www.onkyo.com/ HOMEPAGE ONKYO CHINA LIMITED Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.ch.onkyo.com/ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
