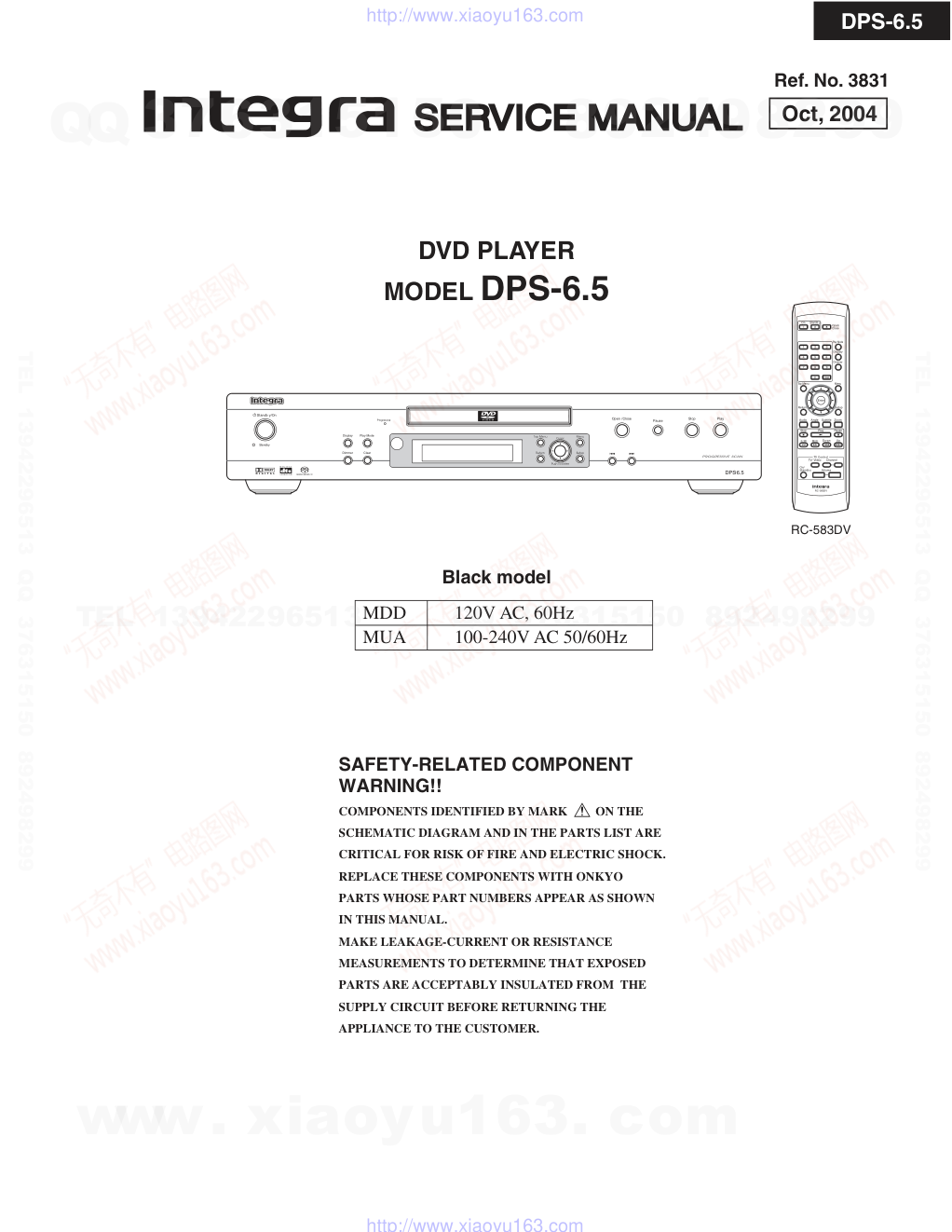

DPS-6.5 SERVICE MANUAL SERVICE MANUAL Black model Ref. No. 3831 Oct, 2004 DVD PLAYER MODEL DPS-6.5 MDD MUA 120V AC, 60Hz 100-240V AC 50/60Hz RC-583DV DPS-6.5 Open /Close Pause Stop Play Standb y/On Standby Progressive Play Mode Clear Display Dimmer On Standb y Open/ Close Play Mode Display 1 2 3 4 5 6 7 8 9 0 Clear Dimmer Top Menu Menu Return Setup Audio Angle Subtitle Zoom Stop Play Pause Down Up T V Contr ol T V/ Video Channel On/ Standb y Volume RC - 583DV Enter SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 SPECIFICATION DPS-6.5 General Specifications and features subject to change without notice. Signal System North American model: NTSC Australian model: PAL/NTSC Composite Video Output/Impedance 1.0 V (p-p)/75 negative sync, RCA S Video Output/Impedance Y: 1.0 V (p-p)/75 negative sync, 4-pin mini DIN C: 0.286 V (p-p)/75 Component Video Output/Impedance Y: 1.0 V (p-p)/75 PB/PR: 0.7 V (p-p)/75 RCA/ phono Component Video Frequency Response 5 Hz-50 MHz Frequency response DVD Audio 4 Hz-88 kHz (192 kHz) DVD Linear Sound 4 Hz-44 kHz (96kHz) 4 Hz-22 kHz (48kHz) Audio CD 4 Hz-20 kHz (44.1kHz) S/N Ratio 106 dB Audio Dynamic Range 96 dB THD (Total Harmonic Distortion) 0.003 % (1kHz) Wow and Flutter Below threshold of measurability Audio Output (Digital/Optical) -22.5 dBm Audio Output/Impedance (Digital/Coaxial) 0.5 p-p/75 Audio Output/Impedance (Analog) 2.0 V (rms)/440 Power Supply North American model: AC 120 V, 60 Hz Australian model: AC 100-240 V, 50/60 Hz Power Consumption 11 W Stand-by Power Consumption North American model: 0.6 W Australian model: 0.8 W Dimensions (W x H x D) 435 W x 81 H x 312 D mm (17 1/8 W x 3 3/16 H x 12 5/16 D inches) Weight 3.5 kg (7.7 lbs) Operation Condition Temperature/Humidity 5 C-35 C (41 F-95 F)/5 %-85% Disc Compatibility SACD, DVD-Audio, DVD-video, DVD-R/RW (VR, VIDEO), CD, CD-R/RW, Video CD, SVCD, WMA, MP3, WMA, JPEG Disc that have not been property finalized may only be partially playable or not playable at all www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 SERVICE PROCEDURES-1 PROTECTION OF EYES FROM LASER BEAM DURING SERVICING This set employs a laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING!! SERVICE WARNING : DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICKUP BLOCK. Laser Diode Properties LASER WARNING Wavelength: 650/780nm (DVD/CD) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS WARNING This unit contains a semiconductor laser system and is classified as a "CLASS 1 LASER PRODUCT". So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure. VISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE INTO BEAM. THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. The label on the right is applied on the rear panel except for USA and Canadian models. 1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet. 2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel. "CLASS 1 LASER PRODUCT" CAUTION: CAUTION: SERVICE PROCEDURE 1. Replacing the fuses REF. NO. PART NO. DESCRIPTION This symbol located near the fuse indicates that the fuse used is show operating type, For continued protection against fire hazard, replace with same type fuse , For fuse rating, refer to the marking adjest to the symbol. Ce symbole indique que le fusible utilise est e lent. Pour une protection permanente, n'utiliser que des fusibles de meme type. Ce demier est indique la qu le present symbol est apposre. F1 252252 or 1.6A-TL/T-ST2 > 252147 1.6A-TSC LASER BEAM CAUTION LABEL 252310 2.5A-TH250V Except F1 : North American model : Australian model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 SERVICE PROCEDURES-2 Factory-shipped condition. Connect the power cord to inlet terminal lighting the LED Press the [STOP] and [STANDBY] same time with NO DISC condition. Push button "STANDBY". Pull out the power cord. INITIALIZING 2. Safety-check out (Only U.S.A. model) After correcting the original service problem perform the following safety check before releasing the set to the customer Connect the insulating-resistance tester between the plug of power supply cord and terminal GND on the back panel. Specifications: More than 10M ohm at 500V REMOVE THE SOLDER OF LASER DIODE SHORT When replace the mechanism or DVD main PC board. Shorting the solder of Shot-circuit land. (2 positions) Short Land Mechanism www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 DPS-6.5 EXPLODED VIEW A055 A051 A052 A010 A018 A008 x2 A018 U05 U02 U01 U06 U04 U03 S731 A040 A025 A027 A001 A403 A028 A026 A401 Z106 Z101 Z103 Z102 CN103 CN201 CN451 A007 A020 P901A P910 F1 A411 A415 A013 A415 A056 x 6 Z104 x 4 A007 x 4 A007 x 4 A033 x 3 A007 x 2 A029 x 2 A404 x 2 A056 x 3 A007 x 10 A056 x 15 A007 x 4 A015 x 2 A414 x 2 A003 x 4 A012 x 3 A005 x 8 A007 x 4 CN1 Z107 DAC A034 x 2 A009 x6 F2 CP1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 EXPLODED VIEW (DVD MECHANISM) LOADER MECHANISM A A To DVDM CN101 (Pickup) To DVDM CN104 (Stepping Motor) To DVDM CN102 (Spindle Motor) To DVDM CN103 2 25 3 5 4 12 23 13 17 21 16 22 15 14 22 22 22 20 19 9 1 7 10 11 6 8 8 8 8 18 24 A Mark No. Description Part No. NSP 1 LOAB Assy 2 Traverse Mecha. Assy-S DXX2536 3 Loading Motor Assy VXX2912 4 Motor Pulley PNW1634 NSP 5 Motor 6 Flexible Cable (24P) VDA1990 7 Connector Assy 2P VKP2325 8 Floating Rubber VEB1351 9 Belt VEB1358 10 Stabilizer VNE2253 11 Loading Base VNL1917 12 Float Base 04 VNL1968 13 Drive Cam VNL1919 14 Gear Pulley VNL1921 15 Loading Gear VNL1922 16 Drive Gear VNL1923 17 SW Lever VNL1925 18 Clamper Plate 04 VNE2342 19 Bridge 04 VNE2343 20 Clamper 04 VNL1969 21 Screw JGZ17P028FNI 22 Screw VBA1093 23 Tray VNL1920 24 Clamp Magnet VMG1029 25 03 SD Pickup Assy-S OXX8005 Mark No. Description Part No. PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAMS-1 A 1 2 3 4 5 B C D R72 R726 R725 R716 R712 R709 R724 DPS-6.5 1K 47 1.8K 3.3K R722 R718 R717 R774 N.C 2.7K NC R731 R730 DPS-6.5 2.7K 10K 8.2K 4.7K 4.7K 33K MUK MUQ MUT MUR 3 6 18K 4 56K MUA MUS MDC MDD 1 2 MJJ NC 0 Region 10K 10K MUP 2 R738 R739 Q702 HNV-13SS15T F11 F12 F21 F22 G1 G10 G11 G12 G13 G2 G3 G4 G5 G6 G7 G8 G9 P1 P10 P11 P12 P13 P14 P15 P2 P3 P4 P5 P6 P7 P8 P9 1 2 45 44 41 32 31 30 29 40 39 38 37 36 35 34 33 19 10 9 8 7 6 5 18 17 16 15 14 13 12 11 D703 D702 NC Q712 NC Q711 KRC107S Q708 KRC107S R746 0 R749 R740 NC R723 22K R747 0 R744 NC R743 10 R711 1M R710 0 R701 10K R706 0 R705 0 R704 0 R703 100 R702 0 R707 0 R708 0 R736 0 R737 NC R734 0 R733 NC R731 * R730 * R715 100 R714 100 R727 0 R719 10K R738 * R739 * R741 NC R742 0 R728 * R729 * C702 104Z C703 104Z C705 22/50 C701 100/6.3 C706 100/6.3 X701 5.00MHZ Q707 RPM7238-H9 Q709 KRA107S Q710 KRA107S D701 1SS355 Q706 2SD655 Q704 S-80127 CNMC-JKM-T2 1 2 3 4 5 R709 * R725 * R718 * R717 * R720 10K R713 220K R735 NC R732 0 R724 * R726 * R721 10K R722 * R712 * R716 * P702 Q701 MPD780232GC-707-8BT AVDD 24 AVSS 18 DEST 19 FLON_OFF 31 G1 80 G10 71 G11 70 G12 69 G13 68 G2 79 G3 78 G4 77 G5 76 G6 75 G7 74 G8 73 G9 72 GND1 14 GND2 17 IC 5 IRIN 16 K0 22 K1 21 K2 20 MODEL 26 MOS_0 27 MOS_1 28 MOS_2 29 NC1 41 NC10 67 NC2 42 NC3 43 NC4 44 NC5 45 NC6 46 NC7 47 NC8 65 NC9 66 P1 64 P10 53 P11 52 P12 51 P13 50 P14 49 P15 48 P2 63 P3 62 P4 61 P5 58 P6 57 P7 56 P8 55 P9 54 PON 11 R232BUS 36 R232REQ 35 R232RST 40 R232SCK 37 R232SI 38 R232SO 39 REGION_AUTO/XMANU 30 REMO 15 RESET 6 STBYLED 32 SYSIN1 33 SYSOUT1 34 VDD0 25 VDD1 1 VDD2 59 VLOAD 60 VSS0 23 VSS1 2 X1 3 X2 4 XACK 13 XRDY 10 XRESET12 XSCK 7 XSI 8 XSO 9 P706 N.C E3 -28 E5 E3 E3 E3 P902B P902A P901A GND +5V MSO_0 MSO_1 MSO_2 INIT1 MODEL AUTO G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 G11 G12 G13 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 REMO K0 K1 AUTO K2 STB_L MSO_2 MSO_1 MSO_0 MODEL INIT1 IRIN REMO +5V R232RST R232SO R232SI R232SCK R232BUS R232REQ LED1 SYSIN LED1 RI FL_ON/OFF SYSOUT EV+3.3V GND P15 ACK SI P14 RESET SO P13 PON SCK P12 XRDY P11 SO EV+3.3V P10 SI IC P9 SCK P8 P7 P6 P5 P4 P3 P2 P1 G13 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 G1 NAPS-8420 CN301A,CN301B CN451A,CN451B CN2A,CN2B CN2 S.RESET EV+6 EV+6 GND SW+ GND GND SW+ EV+4 P_O GND FL D FL D -28V BLA C GND R/C/ GND G/Py SQU B/Pb GND AUDI GND AUDI V+5V GND V/Y ASP Y RI GND EV+5V EV+6.8V(B) EV+6.8V(A) GND SW+12V GND GND SW+3.3V EV+4V P_ON GND FL DC- FL DC+ -28V U03 AUDIO/VIDEO OUTPUT PC BOARD NAAR-8419 U06 POWER SUPPLY UNIT NGPS-0047 (100-120V) NGPS-0048 (100-240V) U01 FRONT DISPLAY PC BOARD NADIS-8416 U04 INLET TERMINAL PC BOARD NAPS-8420 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 E F G H R729 R728 8.2K 1K D721 SEL4110R STANDBY D703 NC D704 SEL2E10C Q713 NC Q714 KRC107S R779 470 R749 NC R750 150 R748 0 R745 0 744 NC R762 1K R770 1K R769 820 R768 470 R767 390 R761 820 R760 470 R759 390 R763 1.8K R771 1.8K R765 10K R764 3.9K R773 10K R772 3.9K R754 820 R753 470 R752 390 R755 1K R766 2.7K R758 2.7K R751 2.7K S716 STANDBY S706 MENU S703 STOP S713 PLAY MODE S702 PLAY S714 DISPLAY S712 CLEAR S715 DIMMER S710 OPEN S704 T.MENU S708 DOWN S705 RETURN S709 UP S701 PAUSE S707 SETUP ENTER P703 E LENT.POUR UNE PROTECTION PERMANENTE,N'UTILISER ATTENTION FOR CONTINUED PROTECTION AGAINST FIRE AGAINST FIRE HAZARD, REPLACE RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL. INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE. QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE THIS SYMBOL LOCATED NEAR THE FUSE INDICATES THAT THE FUSE USED IS SLOW OPERATING TYPE V A ET CALIBRATION COMME INDIQUE. D'INCENDIE, REMPLACER UNIQUEMENT PERMANENTE CONTRE LES RISQUES AFIN D'ASSURER UNE PROTECTION PAR UN FUSIBLE DE MEME TYPE V A FOR CONTINUED PROTECTION AND RATING INDICATED. ONLY WITH FUSE OF SAME TYPE CAUTION NOTE THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY FOR SAFETY REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL) ELECTROLYTIC CAPACITORS ( ) ARE IN uF/WV. ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED. EX) 030- 3pF 330- 33pF 331- 330pF 333- 0.033uF THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS. EX) PRINTING SIDE CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT. CN201A JL703B JL703A P701A E3 GND R232RST R232SI R232SO R232SCK R232BUS R232REQ IRIN RESET XRDY SO PON SI SCK ACK K1 STB_L K0 K2 UP RIGHT ENTER DOWN LEFT NADIS-8316 NADIS-8417 CN101 CN102 CN104 CN103 CN201 CN301 CN451 EV+3.3V LOADING MOTOR CARRIAGE MOTOR SPINDLE MOTER PU SYSTEM EV+6.8V(A) EV+6.8V(B) GND SW+12V GND GND SW+3.3V EV+4V P_ON GND FL DC- FL DC+ -28V BLANK/IP C GND R/C/Pr GND G/Py SQUEEZE B/Pb GND AUDIO L GND AUDIO R V+5V GND V/Y ASPECT Y RESET GND FLDC- GND -28V FLDC+ ACK SCK XRESET SI P_ON SO XREADY XNOR U05 DVD MAIN PC BOARD DB-VPB613 U02 STANDBY LED PC BOARD NADIS-8417 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAMS-2 A 1 2 3 4 5 B C D Q504 BA7664AFV 1 2 3 4 5 6 7 8 CN21B P506 5 10 11 1 6 4 9 2 3 7 8 Q502 MPD789071MC-011-5A4 BUSY 12 IC 3 NC 14 PORT1 17 PORT10 26 PORT11 27 PORT12 28 PORT13 29 PORT14 30 PORT15 1 PORT16 2 PORT2 18 PORT3 19 PORT4 20 PORT5 21 PORT6 22 PORT7 23 PORT8 24 PORT9 25 REQ 13 RESET 4 RXD 15 SCK 11 SI 10 SO 9 TXD 16 VDD 8 VSS 7 X1 6 X2 5 Q503 74VHCT32AFT GND 7 1 10 11 12 13 2 3 4 5 6 8 9 VCC 14 C2 11 COAX1 16 COAX2 15 G15 7 G22 12 G23 9 G24 13 G25 14 10 Q501 MPD4721GS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L513 BLM41P750 L512 NC L511 NC L519 BLM41P750 L515 LM182 L516 LM182 L517 LM182 L518 LM182 L510 NC Q509 KRC107S R557 0 R538 0 R537 47 R556 0 R540 47 R539 10K R553 10K R533 47 R532 47 R531 47 R522 75 R524 0 R521 75 R523 0 R534 470K R530 47 R551 47 R552 47 R544 1M R543 0 R536 47 R535 47 R515 R516 75 R519 0 R520 0 R54 10K R54 10K C535 104 C516 104Z C510 104 C534 470/6.3 C517 220/6.3 C511 22/16 C512 470/6.3 C526 1/50 C525 1/50 C521 1/50 C522 1/50 C524 100/6.3 C528 100/6.3 X501 5.00MHZ P701B C533 104Z C531 104Z C523 104Z C527 104Z E5 SW5 E5 E5 R232RST R232SI R232SO R232SCK R232BUS R232REQ IRIN NAAR-8419 ON/OFF -28V FL DC+ FL DC- GND P_ON EV+4V SW+3.3V GND EV+6.8V(B) EV+6.8V(A) GND SW+12V GND U03 AUDIO/VIDEO OUTPUT PC BOARD NAAR-8419 RS-232C Connector From Power supply unit CN2 To Fron display board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 E F G H CN301B 12 8 P501 4 P505 HSJ1002011020 Q505 ON3131 P502 P503 C1 4 G11 1 G12 5 G13 2 G14 6 G21 8 Y1 3 Y2 10 P504 1 2 3 4 Q508 NJM78M05 G I O L504 NC L505 NC L506 NC L514 LM182 L503 NC L502 NC L501 NC L509 NC L508 NC L507 NC Q506 KRC102S Q507 KRC102S R525 470 R545 1K R510 0 R511 0 R512 0 R526 100 R527 10K R528 10K R529 3.3K R547 1K R548 1K R546 1K R501 75 R502 75 R503 75 R506 0 R505 0 R504 0 R507 75 R508 75 R509 75 R513 75 R514 75 R515 75 R519 0 R517 0 R518 0 R549 10K R550 10K 542 0K 541 0K C536 NC 04 C519 104Z C518 104Z C520 223 C515 104 C508 104 .3 C514 470/6.3 C532 100/6.3 C529 1000/6.3 C530 10/16 C501 470/6.3 C502 470/6.3 C503 1000/6.3 C504 470/6.3 C505 470/6.3 C506 1000/6.3 C507 470/6.3 C509 470/6.3 P702B CN451B E5 E7 E5 GND E+5V ON/OFF EV+6.8V(B) EV+6.8V(A) GND SW+12V GND GND SW+3.3V EV+4V P_ON GND FL DC- FL DC+ -28V BLANK/IP C GND R/C/Pr GND G/Py SQUEEZE B/Pb GND AUDIO L GND AUDIO R V+5V GND V/Y ASPECT Y To DVD Main board CN301 To Front display board To DVD Main board CN541 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAMS-3 A 1 2 3 4 5 B C D U05 DVD MAIN PC BOARD-1 DB-VPB613 B 1/3 PICKUP ASSY-S CN1013 SPINDLE MOTOR STEPPING MOTOR CN601 B 1/3 LD Driver for CD LD Driver for DVD Focus, Tracking, Stepping, Spindle and Loading Driver NC (F) (F) (T) (T) (F) (F) (T) (T) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 E F G H B 1/3 3/3 B 2/3 B 2/3 B 2/3 B 2/3 B 3/3 B DVD IC K4S641632H-7C75-K : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) : RF SIGNAL ROUTE (RF) (T) : S VIDEO SIGNAL ROUTE (Y) (SY) : S VIDEO SIGNAL ROUTE (C) (SC) : VIDEO SIGNAL ROUTE (V) (V) : VIDEO SIGNAL ROUTE (G/Y) (G/Y) : VIDEO SIGNAL ROUTE (R/CR) (R/CR) : VIDEO SIGNAL ROUTE (B/CB) (B/CB) : AUDIO SIGNAL ROUTE (DIGITAL ch) (D) : AUDIO DATA SIGNAL ROUTE (AD) (D) (D) (AD) (AD) (AD) (SY) (SY) (SC) (SC) (G/Y) (G/Y) (R/CR) (R/CR) (B/CB) (B/CB) (V) (V) To Front Display PC (NADIS-8316) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAMS-4 A 1 2 3 4 5 B C D only U05 DVD MAIN PC BOARD-2 DB-VPB613 To CN301A AUDIO/ VIDEO PC B 2/3 B 2/3 5V Regulator 3V Regulator 1/3 B 1/3 B 1/3 B 1/3 B 1.8V Regulator DVD IC DVD IC BA00BC0WT R321 33K (F) R323 33K (F) R322 33K (F) (SY) (SC) (V) (G/Y) (R/CR) (B/CB) (G/Y) (R/CR) (B/CB) (G/Y) (R/CR) (B/CB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 E F G H CN451A SCART PC (NAAR-8418) B 2/3 VIDEO OUT COMPONENT VIDEO OUT Y PB PR Video Driver Amp. Video Driver Amp. Video DAmp. with SW 3/3 B CN451A SCART PC : S VIDEO SIGNAL ROUTE (Y) (SY) : S VIDEO SIGNAL ROUTE (C) (SC) : VIDEO SIGNAL ROUTE (V) (V) : VIDEO SIGNAL ROUTE (G/Y) (G/Y) : VIDEO SIGNAL ROUTE (R/CR) (R/CR) : VIDEO SIGNAL ROUTE (B/CB) (B/CB) (SY) (SY) (SY) (SY) (SY) (SY) (SY) (SY) (SC) (SC) (SC) (SC) (SC) (V) (V) (V) (V) (V) (V) (G/Y) (R/CR) (B/CB) (G/Y) (R/CR) (R/CR) (B/CB) (G/Y) (B/CB) : AUDIO SIGNAL ROUTE (Front L ch) (FL) (FL) only only only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAMS-5 A 1 2 3 4 5 B C D U05 DVD MAIN PC BOARD-3 DB-VPB613 B 3/3 DIGITAL AUDIO OUT COAXIAL OPTICAL B 3/3 1/3 B 1/3 B 1/3 B : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) : AUDIO SIGNAL ROUTE (DIGITAL ch) (D) : AUDIO DATA SIGNAL ROUTE (AD) (D) (D) (D) (D) (D) (AD) (AD) (AD) (C) (SW) (SL) (FL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 E F G H B 3/3 CENTER L SURROUND R SUB WOOFER L FRONT R L AUDIO OUT (2 ch) AUDIO OUT (5.1 ch) R 1/3 B 1/3 B 1/3 B 2/3 B 2/3 B SW for Mute Control SW for Mute Control Mute SW Mute SW Mute SW Mute SW Mute SW Mute SW SW for Mute Control Reference Voltage Gen. for Audio Amp. (C) (SW) (C) (C) (SW) (SW) (SL) (SL) (SL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) only only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 SCHEMATIC DIAGRAMS-6 A 1 2 3 4 5 B C D U06 POWER SUPPLY UNIT NGPS-0047 (100-120V) NGPS-0048 (100-240V) AEK7008 800mA CN2 CN1 AC IN CP1 NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS OF FUSE. CAUTION - To NAAR-8418 (AUDIO/ VIDEO BOARD) CN301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 SCHEMATIC DIAGRAMS-1 A 1 2 3 4 5 B C D E F G H R729 R728 R726 R725 R716 R712 R709 R724 DPS-6.5 8.2K 1K 47 1.8K 3.3K R722 R718 R717 R774 N.C 2.7K NC R731 R730 DPS-6.5 2.7K 10K 8.2K 4.7K 4.7K 33K MUK MUQ MUT MUR 3 6 18K 4 56K MUA MUS MDC MDD 1 2 MJJ NC 0 Region 10K 10K MUP 2 R738 R739 Q702 HNV-13SS15T F11 F12 F21 F22 G1 G10 G11 G12 G13 G2 G3 G4 G5 G6 G7 G8 G9 P1 P10 P11 P12 P13 P14 P15 P2 P3 P4 P5 P6 P7 P8 P9 1 2 45 44 41 32 31 30 29 40 39 38 37 36 35 34 33 19 10 9 8 7 6 5 18 17 16 15 14 13 12 11 D721 SEL4110R STANDBY D703 NC D704 SEL2E10C D702 NC Q713 NC Q714 KRC107S Q712 NC Q711 KRC107S Q708 KRC107S R746 0 R779 470 R749 NC R750 150 R740 NC R723 22K R748 0 R747 0 R745 0 R744 NC R743 10 R711 1M R710 0 R701 10K R706 0 R705 0 R704 0 R703 100 R702 0 R707 0 R708 0 R736 0 R737 NC R734 0 R733 NC R731 * R730 * R715 100 R714 100 R727 0 R719 10K R762 1K R770 1K R769 820 R768 470 R767 390 R761 820 R760 470 R759 390 R763 1.8K R771 1.8K R765 10K R764 3.9K R773 10K R772 3.9K R754 820 R753 470 R752 390 R755 1K R766 2.7K R758 2.7K R751 2.7K R738 * R739 * R741 NC R742 0 R728 * R729 * S716 STANDBY S706 MENU S703 STOP S713 PLAY MODE S702 PLAY S714 DISPLAY S712 CLEAR S715 DIMMER S710 OPEN S704 T.MENU S708 DOWN S705 RETURN S709 UP S701 PAUSE S707 SETUP ENTER P703 C702 104Z C703 104Z C705 22/50 C701 100/6.3 C706 100/6.3 X701 5.00MHZ Q707 RPM7238-H9 Q709 KRA107S Q710 KRA107S D701 1SS355 Q706 2SD655 Q704 S-80127 CNMC-JKM-T2 1 2 3 4 5 E LENT.POUR UNE PROTECTION PERMANENTE,N'UTILISER ATTENTION FOR CONTINUED PROTECTION AGAINST FIRE AGAINST FIRE HAZARD, REPLACE RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL. INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE. QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE THIS SYMBOL LOCATED NEAR THE FUSE INDICATES THAT THE FUSE USED IS SLOW OPERATING TYPE V A ET CALIBRATION COMME INDIQUE. D'INCENDIE, REMPLACER UNIQUEMENT PERMANENTE CONTRE LES RISQUES AFIN D'ASSURER UNE PROTECTION PAR UN FUSIBLE DE MEME TYPE V A FOR CONTINUED PROTECTION AND RATING INDICATED. ONLY WITH FUSE OF SAME TYPE CAUTION NOTE THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY FOR SAFETY REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL) ELECTROLYTIC CAPACITORS ( ) ARE IN uF/WV. ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED. EX) 030- 3pF 330- 33pF 331- 330pF 333- 0.033uF THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS. EX) PRINTING SIDE CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT. R709 * R725 * R718 * R717 * R720 10K R713 220K R735 NC R732 0 R724 * R726 * R721 10K R722 * R712 * R716 * CN201A JL703B JL703A P702 Q701 MPD780232GC-707-8BT AVDD 24 AVSS 18 DEST 19 FLON_OFF 31 G1 80 G10 71 G11 70 G12 69 G13 68 G2 79 G3 78 G4 77 G5 76 G6 75 G7 74 G8 73 G9 72 GND1 14 GND2 17 IC 5 IRIN 16 K0 22 K1 21 K2 20 MODEL 26 MOS_0 27 MOS_1 28 MOS_2 29 NC1 41 NC10 67 NC2 42 NC3 43 NC4 44 NC5 45 NC6 46 NC7 47 NC8 65 NC9 66 P1 64 P10 53 P11 52 P12 51 P13 50 P14 49 P15 48 P2 63 P3 62 P4 61 P5 58 P6 57 P7 56 P8 55 P9 54 PON 11 R232BUS 36 R232REQ 35 R232RST 40 R232SCK 37 R232SI 38 R232SO 39 REGION_AUTO/XMANU 30 REMO 15 RESET 6 STBYLED 32 SYSIN1 33 SYSOUT1 34 VDD0 25 VDD1 1 VDD2 59 VLOAD 60 VSS0 23 VSS1 2 X1 3 X2 4 XACK 13 XRDY 10 XRESET12 XSCK 7 XSI 8 XSO 9 P701A P706 N.C E3 -28 E5 E3 E3 E3 E3 P902B P902A P901A GND GND +5V R232RST R232SI R232SO R232SCK R232BUS R232REQ IRIN RESET XRDY SO PON SI SCK ACK K1 MSO_0 MSO_1 MSO_2 INIT1 MODEL AUTO G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 G11 G12 G13 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 REMO STB_L K0 K1 AUTO K2 STB_L MSO_2 MSO_1 MSO_0 MODEL INIT1 IRIN REMO +5V R232RST R232SO R232SI R232SCK R232BUS R232REQ K0 LED1 SYSIN LED1 RI FL_ON/OFF SYSOUT K2 UP RIGHT ENTER EV+3.3V DOWN LEFT GND P15 ACK SI P14 RESET SO P13 PON SCK P12 XRDY P11 SO EV+3.3V P10 SI IC P9 SCK P8 P7 P6 P5 P4 P3 P2 P1 G13 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 G1 NADIS-8316 NADIS-8417 NAPS-8420 CN101 CN102 CN104 CN103 CN201 CN301A,CN301B CN451A,CN451B CN2A,CN2B CN301 CN451 CN2 S.RESET EV+3.3V LOADING MOTOR CARRIAGE MOTOR SPINDLE MOTER PU SYSTEM EV+6.8V(A) EV+6.8V(B) GND SW+12V GND GND SW+3.3V EV+4V P_ON GND FL DC- FL DC+ -28V BLANK/IP C GND R/C/Pr GND G/Py SQUEEZE B/Pb GND AUDIO L GND AUDIO R V+5V GND V/Y ASPECT Y RESET GND FLDC- GND -28V FLDC+ ACK SCK XRESET SI P_ON SO XREADY RI GND EV+5V XNOR EV+6.8V(B) EV+6.8V(A) GND SW+12V GND GND SW+3.3V EV+4V P_ON GND FL DC- FL DC+ -28V U03 AUDIO/VIDEO OUTPUT PC BOARD NAAR-8419 U06 POWER SUPPLY UNIT NGPS-0047 (100-120V) NGPS-0048 (100-240V) U05 DVD MAIN PC BOARD DB-VPB613 U02 STANDBY LED PC BOARD NADIS-8417 U01 FRONT DISPLAY PC BOARD NADIS-8416 U04 INLET TERMINAL PC BOARD NAPS-8420 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 SCHEMATIC DIAGRAMS-2 A 1 2 3 4 5 B C D E F G H Q504 BA7664AFV 1 2 3 4 5 6 7 8 CN301B CN21B 12 8 P501 4 P506 5 10 11 1 6 4 9 2 3 7 8 Q502 MPD789071MC-011-5A4 BUSY 12 IC 3 NC 14 PORT1 17 PORT10 26 PORT11 27 PORT12 28 PORT13 29 PORT14 30 PORT15 1 PORT16 2 PORT2 18 PORT3 19 PORT4 20 PORT5 21 PORT6 22 PORT7 23 PORT8 24 PORT9 25 REQ 13 RESET 4 RXD 15 SCK 11 SI 10 SO 9 TXD 16 VDD 8 VSS 7 X1 6 X2 5 P505 HSJ1002011020 Q505 ON3131 Q503 74VHCT32AFT GND 7 1 10 11 12 13 2 3 4 5 6 8 9 VCC 14 P502 P503 C1 4 C2 11 COAX1 16 COAX2 15 G11 1 G12 5 G13 2 G14 6 G15 7 G21 8 G22 12 G23 9 G24 13 G25 14 Y1 3 Y2 10 Q501 MPD4721GS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 P504 1 2 3 4 Q508 NJM78M05 G I O L513 BLM41P750 L504 NC L505 NC L506 NC L512 NC L511 NC L519 BLM41P750 L515 LM182 L516 LM182 L517 LM182 L518 LM182 L514 LM182 L503 NC L502 NC L501 NC L510 NC L509 NC L508 NC L507 NC Q509 KRC107S Q506 KRC102S Q507 KRC102S R557 0 R538 0 R537 47 R556 0 R525 470 R540 47 R539 10K R553 10K R545 1K R510 0 R511 0 R512 0 R533 47 R532 47 R531 47 R522 75 R524 0 R521 75 R523 0 R534 470K R526 100 R527 10K R528 10K R529 3.3K R530 47 R551 47 R552 47 R544 1M R543 0 R536 47 R535 47 R547 1K R548 1K R546 1K R501 75 R502 75 R503 75 R506 0 R505 0 R504 0 R507 75 R508 75 R509 75 R513 75 R514 75 R515 75 R516 75 R519 0 R520 0 R517 0 R518 0 R549 10K R550 10K R542 10K R541 10K C536 NC C535 104 C516 104Z C519 104Z C518 104Z C520 223 C515 104 C510 104 C508 104 C534 470/6.3 C514 470/6.3 C517 220/6.3 C511 22/16 C512 470/6.3 C526 1/50 C525 1/50 C521 1/50 C522 1/50 C524 100/6.3 C532 100/6.3 C529 1000/6.3 C530 10/16 C528 100/6.3 C501 470/6.3 C502 470/6.3 C503 1000/6.3 C504 470/6.3 C505 470/6.3 C506 1000/6.3 C507 470/6.3 C509 470/6.3 X501 5.00MHZ P702B P701B CN451B C533 104Z C531 104Z C523 104Z C527 104Z E5 E5 SW5 E5 E5 E7 E5 GND E+5V R232RST R232SI R232SO R232SCK R232BUS R232REQ IRIN NAAR-8419 ON/OFF ON/OFF -28V FL DC+ FL DC- GND P_ON EV+4V SW+3.3V GND EV+6.8V(B) EV+6.8V(A) GND SW+12V GND EV+6.8V(B) EV+6.8V(A) GND SW+12V GND GND SW+3.3V EV+4V P_ON GND FL DC- FL DC+ -28V BLANK/IP C GND R/C/Pr GND G/Py SQUEEZE B/Pb GND AUDIO L GND AUDIO R V+5V GND V/Y ASPECT Y U03 AUDIO/VIDEO OUTPUT PC BOARD NAAR-8419 RS-232C Connector From Power supply unit CN2 To Fron display board To DVD Main board CN301 To Front display board To DVD Main board CN541 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 SCHEMATIC DIAGRAMS-3 A 1 2 3 4 5 B C D E F G H U05 DVD MAIN PC BOARD-1 DB-VPB613 B 1/3 PICKUP ASSY-S CN1013 SPINDLE MOTOR STEPPING MOTOR CN601 B 1/3 B 1/3 3/3 B 2/3 B 2/3 B 2/3 B 2/3 B 3/3 B LD Driver for CD LD Driver for DVD Focus, Tracking, Stepping, Spindle and Loading Driver DVD IC K4S641632H-7C75-K NC : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) : RF SIGNAL ROUTE (RF) (T) : S VIDEO SIGNAL ROUTE (Y) (SY) : S VIDEO SIGNAL ROUTE (C) (SC) : VIDEO SIGNAL ROUTE (V) (V) : VIDEO SIGNAL ROUTE (G/Y) (G/Y) : VIDEO SIGNAL ROUTE (R/CR) (R/CR) : VIDEO SIGNAL ROUTE (B/CB) (B/CB) : AUDIO SIGNAL ROUTE (DIGITAL ch) (D) : AUDIO DATA SIGNAL ROUTE (AD) (F) (F) (T) (T) (F) (F) (T) (T) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (D) (D) (AD) (AD) (AD) (SY) (SY) (SC) (SC) (G/Y) (G/Y) (R/CR) (R/CR) (B/CB) (B/CB) (V) (V) To Front Display PC (NADIS-8316) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 SCHEMATIC DIAGRAMS-4 A 1 2 3 4 5 B C D E F G H only U05 DVD MAIN PC BOARD-2 DB-VPB613 CN451A SCART PC (NAAR-8418) To CN301A AUDIO/ VIDEO PC B 2/3 B 2/3 B 2/3 VIDEO OUT COMPONENT VIDEO OUT Y PB PR 5V Regulator 3V Regulator Video Driver Amp. Video Driver Amp. Video DAmp. with SW 1/3 B 1/3 B 1/3 B 1/3 B 3/3 B 1.8V Regulator DVD IC DVD IC CN451A SCART PC BA00BC0WT R321 33K (F) R323 33K (F) R322 33K (F) : S VIDEO SIGNAL ROUTE (Y) (SY) : S VIDEO SIGNAL ROUTE (C) (SC) : VIDEO SIGNAL ROUTE (V) (V) : VIDEO SIGNAL ROUTE (G/Y) (G/Y) : VIDEO SIGNAL ROUTE (R/CR) (R/CR) : VIDEO SIGNAL ROUTE (B/CB) (B/CB) (SY) (SC) (SY) (SY) (SY) (SY) (SY) (SY) (SY) (SY) (SC) (SC) (SC) (SC) (SC) (V) (G/Y) (R/CR) (B/CB) (V) (V) (V) (V) (V) (V) (G/Y) (R/CR) (B/CB) (G/Y) (R/CR) (B/CB) (G/Y) (R/CR) (R/CR) (B/CB) (G/Y) (B/CB) (G/Y) (R/CR) (B/CB) : AUDIO SIGNAL ROUTE (Front L ch) (FL) (FL) only only only w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 SCHEMATIC DIAGRAMS-5 A 1 2 3 4 5 B C D E F G H U05 DVD MAIN PC BOARD-3 DB-VPB613 B 3/3 DIGITAL AUDIO OUT COAXIAL OPTICAL B 3/3 B 3/3 CENTER L SURROUND R SUB WOOFER L FRONT R L AUDIO OUT (2 ch) AUDIO OUT (5.1 ch) R 1/3 B 1/3 B 1/3 B 1/3 B 1/3 B 1/3 B 2/3 B 2/3 B SW for Mute Control SW for Mute Control Mute SW Mute SW Mute SW Mute SW Mute SW Mute SW SW for Mute Control Reference Voltage Gen. for Audio Amp. : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) : AUDIO SIGNAL ROUTE (DIGITAL ch) (D) : AUDIO DATA SIGNAL ROUTE (AD) (D) (D) (D) (D) (D) (AD) (AD) (AD) (C) (SW) (C) (SW) (C) (C) (SW) (SW) (SL) (SL) (SL) (SL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) only only w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com LOAB ASSY LOADER ASSY TRAVERSE MECHA. ASSY LOADING MOTOR ASSY SPINDLE MOTOR STEPPING MOTOR AC IN A SD PICKUP ASSY-S INNER S101 VSK1011 U06 : POWER SUPPLY UNIT U03 : AUDIO/ VIDEO PC BOARDU03 NAAR-8419 NEUTRAL LIVE CN1 CN602 CN601 CN103 CN103 CN102 CN101 CN301A CN301 CN104 CN451B CN451 CN2 GND SW+12V GND EV+6V (B) EV+6V (A) GND SW+3.3V EV+4V POWER O GND FL DC+ FL DC+ -28V JA901 1 2 3 P306 1 2 3 GND SW3.3V ASPDIF U0 NGPS-0047 (100-120V) NGPS-0048 (100-240V) 1 2 3 To Front display board RI RI GND EV+5V P702B Component out Component out RS-232 RI IN R232REQ R232BUS R232SCK R232SO R232SI R232RST 1 2 3 4 5 6 7 8 P701B To Front display board (F) (F) (T) (T) (RF) (RF) (RF) (RF) (RF) (RF) PC BOARD CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com U01 : FRONT DISPLAY PC BOARD NADIS-8416 1 2 3 JL703A STB_L K1 GND 1 2 3 JL703B U02 : STADBY LED BOARD NADIS-8417 CN201 CN201A 05 : DVD MAIN BOARD DB-VPB613 RI IN R232REQ R232BUS R232SCK R232SO R232SI R232RST 1 2 3 4 5 6 7 8 P701A From Audo/video output board : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) : RF SIGNAL ROUTE (RF) (T) DPS-6.5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com LOAB ASSY LOADER ASSY TRAVERSE MECHA. ASSY LOADING MOTOR ASSY SPINDLE MOTOR STEPPING MOTOR AC IN A SD PICKUP ASSY-S INNER S101 VSK1011 U06 : POWER SUPPLY UNIT U03 : AUDIO/ VIDEO PC BOARDU03 NAAR-8419 U01 : FRONT DISPLAY PC BOARD NADIS-8416 1 2 3 JL703A STB_L K1 GND 1 2 3 JL703B U02 : STADBY LED BOARD NADIS-8417 NEUTRAL LIVE CN1 CN602 CN601 CN103 CN103 CN102 CN101 CN301A CN301 CN104 CN451B CN451 CN2 GND SW+12V GND EV+6V (B) EV+6V (A) GND SW+3.3V EV+4V POWER O GND FL DC+ FL DC+ -28V JA901 1 2 3 P306 1 2 3 GND SW3.3V ASPDIF CN201 CN201A U05 : DVD MAIN BOARD DB-VPB613 NGPS-0047 (100-120V) NGPS-0048 (100-240V) 1 2 3 To Front display board RI RI GND EV+5V P702B Component out Component out RS-232 RI IN R232REQ R232BUS R232SCK R232SO R232SI R232RST 1 2 3 4 5 6 7 8 P701A RI IN R232REQ R232BUS R232SCK R232SO R232SI R232RST 1 2 3 4 5 6 7 8 P701B To Front display board From Audo/video output board : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) : RF SIGNAL ROUTE (RF) (T) (F) (F) (T) (T) (RF) (RF) (RF) (RF) (RF) (RF) DPS-6.5 PC BOARD CONNECTION DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRINTED CIRCUIT BOARD VIEWS-1 A 1 2 3 4 5 B C D U01 FRONT DISPLAY PC BOARD (NADIS-8416) Soldering side Component side view from soldering side U02 STANDBY LED PC BOARD (NADIS-8417) Component side view from soldering side Soldering side C702 C703 D701 Q701 Q704 Q708 Q709 Q710 Q711 R701 R702 R703 R704 R705 R706 R707 R708 R709 R710 R711 R712 R713 R714 R715 R716 R717 R718 R719 R720 R722 R723 R724 R725 R726 R728 R729 R730 R731 R732 R733 R734 R735 R736 R737 R738 R739 R741 R742 R744 R758 R759 R760 R761 R762 R763 R764 R765 R766 R767 R768 R769 R770 R771 R772 R773 R745 R747 R748 20 21 4 1 GND GND FLDC- -28V 3.3V FLDC+ ACK SCK NC XRESET SI P_ON SO XREADY RESET IRIN REQ BUS SCK SO SI RESET 5V GND RI NC R779 C701 CN201A P703 P706 P701A P702 Q706 S701 S702 S703 S704 S705 S706 S707 S708 S709 S710 X701 J713 J714 J715 J716 J717 J718 J720 J727 J723 J724 J726 J722 J734 J721 J733 J735 J737 J739 J740 J741 J742 J736 J730 J731 J732 J719 J725 J729 J738 J728 PLAY STOP PAUSE OPEN/CLOSE UP DOWN MENU SETUP TOP_MENU RETURN D721 JL703B S716 NCDIS-8417 25138417 1 2 2 2 2 2 2 2 2 2 2 15 3 12 20 12 7 7 20 7 15 15 20 12 12 12 15 12 22 7 7 20 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 E F G H U04 INLET TERMINAL PC BOARD (NAPS-8420) Component side view from soldering side Q701 R711 R721 R727 R743 R751 R752 R753 R754 R755 R750 R749 R740 Q714 Q713 Q712 1 40 41 60 61 80 R746 C705 C706 JL703A Q702 Q702 Q707 Q707 S712 S713 S714 S715 J710 J711 J701 J705 J707 J708 J706 J712 J709 J704 J703 D702 D703 D704 J702 NCDIS-8416 25138416A 1 R774 PLAY_MODE CLEAR DISPLAY DIMMER P901A P901A P902A P902B BLUE WHITE NCPS-8420 25138420 1 DPS-6.5 ONLY N L 2 2 2 2 30 30 25 20 17 20 30 15 15 7 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 PRINTED CIRCUIT BOARD VIEWS-2 A 1 2 3 4 5 B C D U03 AUDIO / VIDEO OUTPUT PC BOARD (NAAR-8419) Component side view from soldering side Soldering side C508 C510 C515 C516 C518 C519 C520 C523 C527 C531 C533 L501 L502 L503 L504 L505 L506 L507 L508 L509 L510 L511 L512 L513 L514 L515 L516 L517 L518 L519 Q501 Q501 Q502 Q502 Q503 Q503 Q504 Q506 Q507 Q508 Q509 R501 R502 R503 R504 R505 R506 R507 R508 R509 R510 R511 R512 R513 R514 R515 R516 R517 R518 R519 R520 R521 R522 R523 R524 R525 R526 R527 R528 R529 R530 R531 R532 R533 R534 R535 R536 R537 R538 R539 R540 R541 R542 R543 R544 R545 R546 R547 R548 R549 R550 R551 R552 R553 R556 1 1 1 8 16 15 30 10 11 20 C535 R557 1 C536 C501 C502 C503 C503 C504 C505 C506 C506 C507 C509 C511 C512 C514 C517 C521 C522 C524 C525 C526 C528 C529 C530 C532 CN21B CN301B CN451B P501 P501 P502 P502 P503 P503 P504 P504 P505 P505 P506 P506 P701B P702B Q505 Q505 X501 J522 J526 J524 J523 J525 J521 J514 J513 J509 J518 J520 J519 J517 J516 J503 J515 J511 J506 J508 J501 J502 J504 J510 J505 NCAR-8419 25138419 0 J512 C534 E801 E802 GND GND GND GND SW12V E6.8V E6.8V SW3.3V EV4V P_ON FL_DC- FL_DC+ -28V RI GND EV5V IRIN REQ BUS SCK SO SI RET C GNDY ASPECTNC NC PR GND PY NC PB GNDNC GNDNC 5V GND J507 7 7 7 25 15 7 7 12 12 12 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRINTED CIRCUIT BOARD VIEWS-3 A 1 2 3 4 5 B C D U05 DVD MAIN PC BOARD DB-VPB613 Top View 4 1 5 1 2 1 24 23 42 22 21 1 5 4 3 1 2 1 9 10 8 5 4 1 25 24 1 48 2 1 29 30 27 28 54 1 256 193 192 129 128 65 64 1 4 1 3 4 5 1 CN201 4 5 1 3 13 1 5 4 3 2 1 C73 CN102 R115 R35 R116 R103 C102 C9 CN104 C120 C118 C116 CN103 C71 R25 R42 R27 R104 R106 R107 R119 R118 R120 R117 C132 C139 C142 R38 R40 CN101 C74 IC101 C112 C113 C114 R43 R41 C125 C72 R75 R73 R72 R71 C130 C134 C136 C43 C44 C45 C46 R30 R28 C12 C152 R39 R36 R37 C6 C10 R26 L8 L9 R74 R15 Q4 R14 R13 R18 Q7 R22 Q8 R21 C124 R10 Q5 C219 C244 R282 C245 R286 C290 CN203 R221 R222 IC204 IC203 R285 R284 C289 C224 C225 C226 C228 C223 C222 R225 CN202 C231 R227 C285 R226 C286 C287 C232 R228 C288 C233 R229 C284 C234 C283 C282 IC202 C235 C281 C236 IC201 C253 C241 C240 C239 R201 R202 R205 R206 C207 C208 C211 C212 R233 R218 R219 R232 R224 C227 C210 R204 R210 C209 R230 R27 R278 R275 R269 R2 X201 R272 R2 R263 R251 R2 R266 CN204 R252 C256 R253 C261 C262 C263 C264 C265 C266 C267 R255 C268 C269 C270 C271 C272 R256 C273 C202 C201 C237 C221 R295 Q291 R294 R236 R293 IC205 C216 C291 C292 C293 C294 C295 R223 C203 C204 C205 C206 R231 R241 R R243 R244 R245 R246 R248 Q372 R373 R372 Q373 R375 R374 Q371 R371 R302 R341 C342 IC341 C341 R301 CN301 C213 C242 C243 R207 C331 C302 C301 R312 C11 C312 C313 C311 IC311 C405 C246 D311 C322 C321 IC321 C503 D341 C215 C214 R211 R216 R220 R247 C217 C220 C247 D321 R217 R209 C248 R234 R208 C297 R235 R279 R280 R249 R257 C296 C298 R237 R296 R238 C303 C304 R239 R215 C230 R213 R212 L311 1 13.Pow 7.ACK 15.XREA VWS1584 2.SW12 4.6.8vB 7.SW33 8.EV4 VWS1583 VWS1582 VNP1966- D I 9.Pow VWS 3.GND 8.RESET VWS1585 9.NC 10.SCK 1/2 4.-28v 11.XRES 12.MtoF PC P 11.FLDC- 5.6.8vA 12.FLDC+ 14.FtoM 1.GND 6.FLDC+ 2.FLDC- 5.V+3E 13.-28v 1 12 15 1 12 1 4 1 5 1 2 23 24 1 3 4 5 1 2 9 10 1 4 5 8 24 25 1 48 30 29 1 2 54 28 27 1 1 64 65 128 129 192 193 256 1 2 4 1 3 4 5 1 15 1 3 4 5 1 13 5 4 1 3 SIDE A M M CN102 03 SD PICKUP ASSY-S STEPPING MOTOR SPINDLE MOTOR CN101 CN104 CN2 CN301 CN601 CN103 CN101 CN201 DVDM ASSY B Q8 Q7 IC101 IC203 Q291 IC204 IC205 IC202 IC321 IC311 IC201 IC341 Q4 Q5 Q372 Q371 Q373 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 E F G H 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A 1 3 4 6 6 4 1 3 28 15 14 1 8 1 16 9 1 3 4 5 9 16 1 8 16 1 8 9 1 8 9 16 1 4 5 8 8 1 4 5 4 5 8 1 C593 C257 3 R277 5 9 R274 R268 C252 C251 R271 R272 R262 3 R264 6 C254 R254 C258 C255 C260 C259 62 264 65 7 5 C237 IC472 IC471 D481 D474 D473 D472 D471 R241 R242 R243 5 6 C492 R301 R332 R312 C482 C491 R424 L422 C424 C416 R422 R423 L421 C423 C413 C414 C415 C404 C422 R474 R473 R472 C412 R421 C421 C401 C402 IC401 C403 C411 R401 Q401 C475 C453 C454 C481 C476 C461 C462 C463 C451 IC451 C452 C434 C433 C431 C432 JA401 COLOR Q471 R471 CN451 C474 R481 R482 R483 C508 C501 C502 C507 3 C505 C504 R908 R841 IC841 C473 R906 C902 R904 R903 JA901 C913 R907 R905 C901 Q901 R902 R901 C903 R494 R491 R492 R493 IC501 R911 C912 C911 C506 R501 C602 C607 C604 C605 C601 R836 R835 C606 IC601 C707 R826 C702 C701 C704 C705 R825 R487 IC701 D801 C804 IC801 D802 C801 C706 Q491 Q481 Q482 R484 R485 R486 C592 D591 Q592 C591 R489 C471 Q492 R488 R556 Q593 R591 R554 R555 Q546 R553 Q545 R552 C516 R519 R514 R546 R545 R544 Q542 C522 IC502 R518 C518 C514 R513 C512 Q541 R542 R531 R532 C517 R521 C513 R523 R543 R551 Q544 R541 C521 C515 R517 R511 R512 C511 R550 R549 C531 C532 R516 R548 R547 Q543 Q561 C841 R563 Q562 R561 R562 R619 R646 R645 R632 C622 IC602 C616 C618 R618 R614 R613 C612 R643 Q641 Q642 R644 R631 C617 R621 C613 C614 R623 R642 R641 C621 R617 R612 C611 C632 C615 R616 R611 Q661 Q662 R663 R661 R662 C722 C716 R718 R719 R714 R713 C712 R746 R744 R745 Q742 R732 IC702 C718 C714 R723 R742 R741 R743 Q741 R731 C721 C717 R721 C713 C711 C732 C715 R716 R717 R711 R712 R763 Q761 R761 Q762 R762 R515 R520 R615 R620 R715 R720 C472 JA501 RED&WHITE JA502 BLACK C842 7 R592 C509 CN452 Heat Resistance Pri-Flux E90142 FC DC (17PIN) (5PIN) 5 17 1 1 6 4 3 1 6 4 3 1 28 15 14 1 9 16 8 1 1 17 1 4 5 1 8 9 16 1 8 9 16 1 8 9 16 1 5 CN901 or CN911 CN451 CN452 Q761 Q762 Q471 Q491 Q492 Q481 Q482 Q401 Q901 Q741 Q742 Q662 Q661 Q641 Q642 Q546 Q561 Q562 Q541-Q545 Q593 Q592 IC501 IC502 IC601 IC701 IC602 IC801 IC451 IC472 IC471 IC401 IC702 IC841 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRINTED CIRCUIT BOARD VIEWS-4 A 1 2 3 4 5 B C D U05 DVD MAIN PC BOARD DB-VPB613 Bottom View 17 1 1 5 SIDE B CN451 CN452 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 E F G H 5 1 1 15 13 1 1 4 1 12 CN102 CN101 CN104 CN301 CN103 CN201 DVDM ASSY B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 PRINTED CIRCUIT BOARD VIEWS-5 A 1 2 3 4 5 B C D LOAB PC BOARD 1 5 5 1 C102 C101 LOAD- LOAD+ GND SW2 (V+5D) V+3D GB-04 CN601 CN602 1 5 2 1 1 5 CN601 CN602 S101 VWG2346- -CN LOAB VNP1879-B VWG SIDE A SIDE B LOADING MOTOR ASSY M LOAB ASSY A LOAB ASSY A CN103 B CN601 CN602 CN601 CN602 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 PRINTED CIRCUIT BOARD VIEWS-1 A 1 2 3 4 5 B C D E F G H U01 FRONT DISPLAY PC BOARD (NADIS-8416) Soldering side Component side view from soldering side U02 STANDBY LED PC BOARD (NADIS-8417) Component side view from soldering side U04 INLET TERMINAL PC BOARD (NAPS-8420) Component side view from soldering side Soldering side C702 C703 D701 Q701 Q701 Q704 Q708 Q709 Q710 Q711 R701 R702 R703 R704 R705 R706 R707 R708 R709 R710 R711 R712 R713 R714 R715 R716 R717 R718 R719 R720 R721 R722 R723 R724 R725 R726 R727 R728 R729 R730 R731 R732 R733 R734 R735 R736 R737 R738 R739 R741 R742 R743 R744 R751 R752 R753 R754 R755 R758 R759 R760 R761 R762 R763 R764 R765 R766 R767 R768 R769 R770 R771 R772 R773 R745 R747 R748 R750 R749 R740 Q714 Q713 Q712 1 20 21 40 41 60 61 80 R746 1 GND GND FLDC- -28V 3.3V FLDC+ ACK SCK NC XRESET SI P_ON SO XREADY RESET IRIN REQ BUS SCK SO SI RESET 5V GND RI NC R779 C701 C705 C706 CN201A JL703A P703 P706 P701A P702 Q702 Q702 Q706 Q707 Q707 S701 S702 S703 S704 S705 S706 S707 S708 S709 S710 S712 S713 S714 S715 X701 J710 J711 J713 J701 J705 J707 J708 J706 J712 J709 J704 J714 J715 J716 J717 J718 J720 J727 J723 J724 J726 J722 J734 J721 J733 J735 J737 J739 J740 J741 J742 J736 J703 D702 D703 D704 J702 NCDIS-8416 25138416A 1 J730 J731 J732 J719 J725 J729 J738 J728 R774 PLAY STOP PAUSE OPEN/CLOSE UP DOWN MENU SETUP TOP_MENU RETURN PLAY_MODE CLEAR DISPLAY DIMMER D721 JL703B S716 NCDIS-8417 25138417 1 P901A P901A P902A P902B BLUE WHITE NCPS-8420 25138420 1 DPS-6.5 ONLY N L 2 2 2 2 2 2 2 2 2 2 2 2 2 2 30 30 15 25 20 17 20 30 15 15 12 20 12 7 7 20 7 15 15 20 7 7 12 12 12 15 12 22 7 7 20 2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 PRINTED CIRCUIT BOARD VIEWS-3 A 1 2 3 4 5 B C D E F G H U05 DVD MAIN PC BOARD DB-VPB613 Top View 4 1 5 1 2 1 24 23 42 22 21 1 5 4 3 1 2 1 9 10 8 5 4 1 25 24 1 48 2 1 29 30 27 28 54 1 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A 256 193 192 129 128 65 64 1 4 1 3 4 5 1 CN201 1 3 4 6 6 4 1 3 4 5 1 3 13 1 5 4 3 2 1 28 15 14 1 8 1 16 9 1 3 4 5 9 16 1 8 16 1 8 9 1 8 9 16 1 4 5 8 8 1 4 5 4 5 8 1 C73 CN102 R115 R35 R116 R103 C102 C9 CN104 C120 C118 C116 CN103 C71 R25 R42 R27 R104 R106 R107 R119 R118 R120 R117 C132 C139 C142 R38 R40 CN101 C74 IC101 C112 C113 C114 R43 R41 C125 C72 R75 R73 R72 R71 C130 C134 C136 C43 C44 C45 C46 R30 R28 C12 C152 R39 R36 R37 C6 C10 R26 L8 L9 R74 R15 Q4 R14 R13 R18 Q7 R22 Q8 R21 C124 R10 Q5 C219 C244 R282 C245 R286 C290 CN203 R221 R222 IC204 IC203 R285 R284 C289 C224 C225 C226 C228 C223 C222 R225 CN202 C231 R227 C285 R226 C286 C287 C232 R228 C288 C233 R229 C284 C234 C283 C282 IC202 C235 C281 C236 C593 IC201 C257 C253 C241 C240 C239 R201 R202 R205 R206 C207 C208 C211 C212 R233 R218 R219 R232 R224 C227 C210 R204 R210 C209 R230 R277 R278 R275 R269 R274 R268 C252 X201 C251 R271 R272 R262 R263 R251 R264 R266 CN204 R252 C254 R254 C258 C256 C255 R253 C261 C260 C259 C262 C263 C264 C265 C266 C267 R255 C268 C269 C270 C271 C272 R256 C273 C202 C201 C237 C221 R295 Q291 R294 R236 R293 IC205 C216 C291 C292 C293 C294 C295 R223 C203 C204 C205 C206 R231 IC472 IC471 D481 D474 D473 D472 D471 R241 R242 R243 R244 R245 R246 C492 R248 Q372 R373 R372 Q373 R375 R374 Q371 R371 R302 R341 C342 IC341 C341 R301 CN301 R332 C213 C242 C243 R207 C331 C302 C301 R312 C11 C312 C313 C311 IC311 C482 C491 R424 L422 C424 C416 R422 R423 L421 C423 C405 C413 C414 C415 C404 C422 R474 R473 R472 C412 R421 C421 C401 C402 IC401 C403 C411 R401 Q401 C475 C453 C454 C481 C476 C461 C462 C463 C451 C246 IC451 C452 C434 C433 C431 C432 JA401 COLOR Q471 R471 CN451 C474 D311 C322 C321 IC321 R481 R482 R483 C508 C501 C502 C507 C503 C505 C504 R908 R841 IC841 C473 R906 C902 R904 R903 JA901 C913 R907 R905 C901 Q901 R902 R901 C903 R494 R491 R492 R493 IC501 R911 C912 C911 C506 R501 C602 C607 C604 C605 C601 R836 R835 C606 IC601 C707 R826 C702 C701 C704 C705 R825 R487 IC701 D801 D341 C804 IC801 D802 C801 C706 Q491 Q481 Q482 R484 R485 R486 C592 D591 Q592 C591 R489 C471 Q492 R488 R556 Q593 R591 R554 R555 Q546 R553 Q545 R552 C516 R519 R514 R546 R545 R544 Q542 C522 IC502 R518 C518 C514 R513 C512 Q541 R542 R531 R532 C517 R521 C513 R523 R543 R551 Q544 R541 C521 C515 R517 R511 R512 C511 R550 R549 C531 C532 R516 R548 R547 Q543 Q561 C841 R563 Q562 R561 R562 R619 R646 R645 R632 C622 IC602 C616 C618 R618 R614 R613 C612 R643 Q641 Q642 R644 R631 C617 R621 C613 C614 R623 R642 R641 C621 R617 R612 C611 C632 C615 R616 R611 Q661 Q662 R663 R661 R662 C722 C716 R718 R719 R714 R713 C712 R746 R744 R745 Q742 R732 IC702 C718 C714 R723 R742 R741 R743 Q741 R731 C721 C717 R721 C713 C711 C732 C715 R716 R717 R711 R712 R763 Q761 R761 Q762 R762 R515 R520 R615 R620 R715 R720 C472 JA501 RED&WHITE JA502 BLACK C215 C214 R211 R216 R220 R247 C217 C220 C247 D321 C842 R217 R209 C248 R234 R208 C297 R235 R279 R280 R249 R257 C296 C298 R237 R296 R238 R592 C303 C304 R239 C509 R215 CN452 C230 R213 R212 L311 1 13.Pow 7.ACK 15.XREA VWS1584 2.SW12 4.6.8vB 7.SW33 8.EV4 Heat Resistance Pri-Flux E90142 VWS1583 VWS1582 VNP1966- FC DC D I (17PIN) 9.Pow (5PIN) VWS 3.GND 8.RESET VWS1585 9.NC 10.SCK 1/2 4.-28v 11.XRES 12.MtoF PC P 11.FLDC- 5.6.8vA 12.FLDC+ 14.FtoM 1.GND 6.FLDC+ 5 17 1 2.FLDC- 5.V+3E 13.-28v 1 12 15 1 12 1 4 1 5 1 2 23 24 1 3 4 5 1 2 9 10 1 4 5 8 24 25 1 48 30 29 1 2 54 28 27 1 1 64 65 128 129 192 193 256 1 2 4 1 3 4 5 1 15 1 6 4 3 1 6 4 3 1 3 4 5 1 13 5 4 1 3 28 15 14 1 9 16 8 1 1 17 1 4 5 1 8 9 16 1 8 9 16 1 8 9 16 1 5 SIDE A M M CN102 03 SD PICKUP ASSY-S STEPPING MOTOR SPINDLE MOTOR CN101 CN104 CN2 CN301 CN601 CN103 CN101 CN201 CN901 or CN911 CN451 CN452 DVDM ASSY B Q8 Q7 Q761 Q762 Q471 Q491 Q492 Q481 Q482 Q401 Q901 Q741 Q742 Q662 Q661 Q641 Q642 Q546 Q561 Q562 Q541-Q545 Q593 Q592 IC101 IC203 Q291 IC204 IC205 IC202 IC501 IC502 IC601 IC701 IC602 IC801 IC321 IC311 IC451 IC472 IC471 IC401 IC702 IC841 IC201 IC341 Q4 Q5 Q372 Q371 Q373 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 PRINTED CIRCUIT BOARD VIEWS-4 A 1 2 3 4 5 B C D E F G H U05 DVD MAIN PC BOARD DB-VPB613 Bottom View 5 1 1 15 17 13 1 1 1 5 1 4 1 12 SIDE B CN102 CN101 CN104 CN301 CN103 CN201 CN451 CN452 DVDM ASSY B w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTIONS MT1389EE-L1 (DVDM ASSY : IC201) DVD IC-1 Pin Arrangement 1 OSN 2 OSP 3 4 DVDRFIP 5 DVDRFIN 6 MA 7 MB 8 MC 9 MD 10 11 SB 12 SC 13 SD 14 CDFON 15 CDFOP 16 TNI 17 TPI 18 MDI1 19 MDI2 20 LDO2 21 LDO1 22 V2REFO 23 VREFO 24 V20 25 TEO 26 FEO 27 28 29 HRFZC 30 CRTPLP 31 RFRPDC 32 RFRPAC 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 256 IREF 255 RFGC 254 253 RFLVL / RFON 252 251 250 249 248 247 246 245 244 243 242 241 240 239 238 237 236 235 234 233 232 231 230 229 228 227 226 225 224 223 222 221 220 219 218 217 216 215 214 213 212 211 210 209 208 207 206 205 204 203 202 201 200 199 198 197 196 195 194 193 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 SA DVSS IOA1 IOA0 IOA3 IOA4 IOA2 DMO FG / V_ADIN8 FMO IOA5 IOA6 IOA7 APLLVSS DVDD3 DVDD3 AD3 AD1 AD0 AD2 HIGHA0 HIGHA3 HIGHA1 HIGHA2 HIGHA5 AD6 AD5 AD7 AD4 HIGHA4 HIGHA6 HIGHA7 A16 A17 IOA18 IOA19 IOA20 DVDD3 UP3_5 IOOE# INT0# UP1_7 UP3_4 UP3_0 RD4 RD6 RD3 RD2 RD1 RD0 RWE# CAS# RAS# RCS# RD14 RD13 RD12 BA0 RD15 RD10 RD9 RD11 RD7 DVSS DVSS DVDD18 IOCS# IOWR# UP1_2 UP1_3 UP1_4 UP1_5 UP1_6 UP3_1 URD# IR UWR# ALE RD8 APLLVDD3 CKE RA11 RCLK DVSS RA9 RA8 TRO FOO LPFIN PLLVDD3 JITFN JITFO LPFOP PLLVSS CEQP LPFIP LPFON TROPENPWM PWMOUT1 / V_ADIN9 YUV4/G YUV6/R YUV7 PRST# DVSS DVDD18 SPBCK DACVSSB DACVDDA DACVDDB DACVDDC HSYN / V_ADIN2 VSYN / V_ADIN1 USB_VDD3 ICE XTALI XTALO YUV2/C YUV1/Y YUV3/CVBS SPLRCK SPDATA SPMCLK DACVSSA YUV5/B ADCVSS ADCVDD3 RA4 RA7 RA6 RA5 RD26 DQM1 RA0 DQM0 RD30 RA10 RA1 RA2 RA3 RD31 DVDD18 RD29 RD28 RD27 RD21 RD25 RD24 DQM2 RD22 RD23 DQM3 RD18 RD19 RD20 DVDD18 ABCK RD16 ASDATA2 ASDATA1 DVSS ALRCK ASDATA0 ACLK DVDD3 VREF DACVSSC FS YUV0/CIN ASDATA3 ASDATA4 SPDIF MC_DATA BA1 DQS0 DQS1 RCLKB RVREF / V_ADIN DVDD3 DVSS DVSS RD5 DVDD3 DVDD3 DVSS DVSS DVDD3 AVDD3 AGND SVDD3 SGND DVDD3 CEQN RFVDD3 RFGND TEZISLV CSO / RFOP USBP USBM DVDA DVDB DVDC DVDD DVDD3 USB_VSS IOA21 / V_ADIN0 DVDD18 DVSS DVSS TCK / V_ADIN6 TMS / V_ADIN5 TDI / V_ADIN4 TDO / V_ADIN7 OP_INP OP_OUT OP_INN RD17 DVDD18 DVSS S_VREFN IDACEXLP S_VCM APLLCAP RFVDD18 RFGND18 S_VREFP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTIONS MT1389EE-L1 (DVDM ASSY : IC201) DVD IC-2 Block Diagram DVD PUH Module Motor Drive Servo I/O Servo Processor Audio DSP Video Input Audio Output Audio DAC CCIR601/65 CVBS, Y/C Component Video SPDIF PCM / DSD Audio Input SACD Processor System Parser CPPM/CPRM DRM 30-bit RISC Debug Port 108 MHz TV Encoder Video Processor MPEG-1/2 MPEG-4 JPEG Video Decoder Deinterlacer Spindle Control Memory Controller USB Controller System CPU Flash ROM DRAM USB GPIO IR/VFD RF Amplifier I2S MIC Video DAC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTIONS MT1389EE-L1 (DVDM ASSY : IC201) DVD IC-3 ADC for SACD (5) ALPC (4) No. Name Alt. I/O Function 226 RFGND18 Ground Analog ground 227 RFVDD18 Power Analog power 1.8V 250 CEQP Analog output EQ offset loop capacitance 251 CEQN Analog output EQ offset loop capacitance 252 OSP Analog output RF Offset cancellation capacitor connecting 253 OSN Analog output RF Offset cancellation capacitor connecting 254 RFGC Analog output RF AGC loop capacitor connecting for DVD-ROM 255 IREF Analog Input Current reference input. It generates reference current for RF path. Connect an external 15K resistor to this pin and AVSS. 256 AVDD3 Power Analog power 3.3V 1 AGND Ground Analog ground 2 DVDA Analog Input AC coupled input path A 3 DVDB Analog Input AC coupled input path B 4 DVDC Analog Input AC coupled input path C 5 DVDD Analog Input AC coupled input path D 6 DVDRFIP Analog Input AC coupled DVD RF signal input RFIP 7 DVDRFIN Analog Input AC coupled DVD RF signal input RFIN 8 MA Analog Input DC coupled main-beam RF signal input A 9 MB Analog Input DC coupled main-beam RF signal input B 10 MC Analog Input DC coupled main-beam RF signal input C 11 MD Analog Input DC coupled main-beam RF signal input D 12 SA Analog Input DC coupled sub-beam RF signal input A 13 SB Analog Input DC coupled sub-beam RF signal input B 14 SC Analog Input DC coupled sub-beam RF signal input C 15 SD Analog Input DC coupled sub-beam RF signal input D 16 CDFON Analog Input CD focusing error negative input 17 CDFOP Analog Input CD focusing error positive input 18 TNI Analog Input 3 beam satellite PD signal negative input 19 TPI Analog Input 3 beam satellite PD signal positive input No. Name Alt. I/O Function 20 MDI1 Analog Input Laser power monitor input 21 MDI2 Analog Input Laser power monitor input 22 LDO2 Analog Output Laser driver output 23 LDO1 Analog Output Laser driver output No. Name Alt. I/O Function 239 ADCVDD3 Power Analog 3.3V Power for ADC 240 S_VCM Analog Inout SACD- Common mode reference 241 ADCVSS Ground Analog ground for ADC 242 S_VREFP Analog Inout SACD- TOP Reference 243 S_VREFN Analog Inout SACD- Bottom Reference Reference Voltage (3) No. Name Alt. I/O Function 28 V2REFO Analog output Reference voltage 2.8V 29 V20 Analog output Reference voltage 2.0V 30 VREFO Analog output Reference voltage 1.4V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTIONS MT1389EE-L1 (DVDM ASSY : IC201) DVD IC-4 Motor and Actuator Driver Interface (10) RF Data PLL Interface (9) Analog Monitor Output (7) No. Name Alt. I/O Function 24 SVDD3 Power Analog power 3.3V 25 CSO RFOP Analog output Central servo Positive main beam summing output 26 RFLVL RFON Analog output RFRP low pass, or Negative main beam summing output 27 SGND Ground Analog ground 31 FEO Analog output Focus error monitor output 32 TEO Analog output Tracking error monitor output 33 TEZISLV Analog output TE Slicing Level Analog Servo Interface (6) No. Name Alt. I/O Function 244 RFVDD3 Power Analog Power 245 RFRPDC Analog output RF ripple detect output 246 RFRPAC Analog Input RF ripple detect input(through AC-coupling) 247 HRFZC Analog Input High frequency RF ripple zero crossing 248 CRTPLP Analog output Defect level filter capacitor connecting 249 RFGND Ground Analog Ground No. Name Alt. I/O Function 230 JITFO Analog output The output terminal of RF jitter meter. 231 JITFN Analog Input The input terminal of RF jitter meter. 232 PLLVSS Ground Ground pin for data PLL and related analog circuitry. 233 IDACEXLP Analog output Data PLL DAC Low-pass filter 234 PLLVDD3 Power Power pin for data PLL and related analog circuitry. 235 LPFON Analog Output The negative output of loop filter amplifier 236 LPFIP Analog Input The positive input terminal of loop filter amplifier. 237 LPFIN Analog Input The negative input terminal of loop filter amplifier. 238 LPFOP Analog Output The positive output of loop filter amplifier No. Name Alt. I/O Function 34 OP_OUT Analog output Op amp output. 35 OP_INN Analog input Op amp negative input 36 OP_INP Analog input Op amp positive input 37 DMO Analog Output Disk motor control output. PWM output. 38 FMO Analog Output Feed motor control. PWM output. 39 TROPENPWM Analog Output Tray PWM output / Tray open output. 40 PWMOUT1 V_ADIN9 Analog Output 1st General PWM output, or Version AD input 9 41 TRO Analog Output Tracking servo output. PDM output of tracking servo compensator. 42 FOO Analog Output Focus servo output. PDM output of focus servo compensator 47 FG (Digital pin) V_ADIN8 LVTTL 3.3V Input, Schmitt Input, pull-up , with analog input path for V_ADIN8 Motor Hall sensor input, or Version AD input 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTIONS MT1389EE-L1 (DVDM ASSY : IC201) DVD IC-5 Micro Controller and Flash Interface (48) General Power / Ground (32) No. Name Alt. I/O Function 52, 97, 122, 152, 173, 221 DVDD18 Power 1.8V power pin for internal digital circuitry 85, 116, 144, 163, 216 DVSS Ground 1.8V Ground pin for internal digital circuitry 73, 80, 108, 127, 141, 155, 167, 182, 212 DVDD3 Power 3.3V power pin for internal digital circuitry 62, 94, 119, 134, 148, 161, 175, 223 DVSS Ground 3.3V Ground pin for internal digital circuitry 204 DVDD3 Power 3.3V power pin Video DAC digital circuitry only 63 APLLCAP Analog Inout APLL External Capacitance connection 64 APLLVSS Ground Ground pin for audio clock circuitry 65 APLLVDD3 Power 3.3V Power pin for audio clock circuitry No. Name Alt. I/O Function 59 HIGHA0 Inout, 2-16MA, SR, PU Microcontroller address 8 75 HIGHA1 Inout, 2-16MA, SR, PU Microcontroller address 9 74 HIGHA2 Inout, 2-16MA, SR, PU Microcontroller address 10 72 HIGHA3 Inout, 2-16MA, SR, PU Microcontroller address 11 71 HIGHA4 Inout, 2-16MA, SR, PU Microcontroller address 12 70 HIGHA5 Inout, 2-16MA, SR, PU Microcontroller address 13 69 HIGHA6 Inout, 2-16MA, SR, PU Microcontroller address 14 68 HIGHA7 Inout, 2-16MA, SR, PU Microcontroller address 15 91 AD7 Inout, 2-16MA, SR Microcontroller address/data 7 88 AD6 Inout, 2-16MA, SR Microcontroller address/data 6 87 AD5 Inout, 2-16MA, SR Microcontroller address/data 5 86 AD4 Inout, 2-16MA, SR Microcontroller address/data 4 84 AD3 Inout, 2-16MA, SR Microcontroller address/data 3 83 AD2 Inout, 2-16MA, SR Microcontroller address/data 2 82 AD1 Inout, 2-16MA, SR Microcontroller address/data 1 81 AD0 Inout, 2-16MA, SR Microcontroller address/data 0 93 IOA0 Inout, 2-16MA, SR, PU Microcontroller address 0 / IO 78 IOA1 Inout, 2-16MA, SR, PU Microcontroller address 1 / IO 53 IOA2 Inout, 2-16MA, SR, PU Microcontroller address 2 / IO 54 IOA3 Inout, 2-16MA, SR, PU Microcontroller address 3 / IO 55 IOA4 Inout, 2-16MA, SR, PU Microcontroller address 4 / IO 56 IOA5 Inout, 2-16MA, SR, PU Microcontroller address 5 / IO 57 IOA6 Inout, 2-16MA, SR, PU Microcontroller address 6 / IO 58 IOA7 Inout, 2-16MA, SR, PU Microcontroller address 7 / IO 67 A16 Output, 2-16MA, SR Flash address 16 92 A17 Output, 2-16MA, SR Flash address 17 60 IOA18 Inout, 2-16MA, SR, SMT Flash address 18 / IO 61 IOA19 Inout, 2-16MA, SR, SMT Flash address 19 / IO 76 IOA20 Inout, 2-16MA, SR, SMT Flash address 20 / IO 89 IOA21 V_ADIN0 Inout, 2-16MA, SR, SMT Flash address 21 / IO While External FLASH size <= 2MB: Version AD input port 0, or GPIO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTIONS MT1389EE-L1 (DVDM ASSY : IC201) DVD IC-6 No. Name Alt. I/O Function 90 ALE Inout, 2-16MA, SR, PU, SMT Microcontroller address latch enable 79 IOOE# Inout, 2-16MA, SR, SMT Flash output enable, active low / IO 66 IOWR# Inout, 2-16MA, SR, SMT Flash write enable, active low / IO 77 IOCS# Inout, 2-16MA, SR, PU, SMT Flash chip select, active low / IO 95 UWR# Inout, 2-16MA, SR, PU, SMT Microcontroller write strobe, active low 96 URD# Inout, 2-16MA, SR, PU, SMT Microcontroller read strobe, active low 98 UP1_2 Inout, 4MA, SR, PU, SMT Microcontroller port 1-2 99 UP1_3 Inout, 4MA, SR, PU, SMT Microcontroller port 1-3 100 UP1_4 Inout, 4MA, SR, PU, SMT Microcontroller port 1-4 101 UP1_5 Inout, 4MA, SR, PU, SMT Microcontroller port 1-5 102 UP1_6 SCL Inout, 4MA, SR, PU, SMT Microcontroller port 1-6 I2C clock pin 103 UP1_7 SDA Inout, 4MA, SR, PU, SMT Microcontroller port 1-7 I2C data pin 104 UP3_0 RXD Inout, 4MA, SR, PU, SMT Microcontroller port 3-0 8032 RS232 RXD 105 UP3_1 TXD Inout, 4MA, SR, PU, SMT Microcontroller port 3-1 8032 RS232 TXD 106 UP3_4 RXD SCL Inout, 4MA, SR, PU, SMT Microcontroller port 3-4 Hardwired RD232 RXD I2C clock pin 107 UP3_5 TXD SDA Inout, 4MA, SR, PU, SMT Microcontroller port 3-5 Hardwired RD232 TXD I2C data pin 111 IR Input, SMT IR control signal input 112 INT0# Inout, 2-16MA, SR, PU, SMT Microcontroller external interrupt 0, active low www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTIONS MT1389EE-L1 (DVDM ASSY : IC201) DVD IC-7 Audio Interface (14) No. Name Alt. I/O Function 208 SPMCLK SCLK0 Inout Audio DAC master clock of SPDIF input While SPDIF input is not used: Serial interface port 0 clock pin GPIO 209 SPDATA SDIN0 Inout Audio data of SPDIF input While SPDIF input is not used: Serial interface port 0 data-in GPIO 210 SPLRCK SDO0 Inout Audio left/right channel clock of SPDIF input While SPDIF input is not used: Serial interface port 0 data-out GPIO 211 SPBCK SDCS0 ASDATA5 Inout Audio bit clock of SPDIF input While SPDIF input is not used: Serial interface port 0 chip select Audio serial data 5 part I : DSD data sub-woofer channel or Microphone output GPIO 213 ALRCK Inout 4MA, PD, SMT Audio left/right channel clock Trap value in power-on reset: 1 : use external 373 0: use internal 373 214 ABCK Fs64 Output 4MA Audio bit clock Phase de-modulation 215 ACLK Inout, 4MA Audio DAC master clock 217 ASDATA0 Inout, 4MA, PD SMT Audio serial data 0 (Front-Left/Front-Right) DSD data left channel Trap value in power-on reset : 1 : manufactory test mode 0 : normal operation 218 ASDATA1 Inout, 4MA, PD SMT Audio serial data 1 (Left-Surround/Right-Surround) DSD data right channel Trap value in power-on reset : 1 : manufactory test mode 0 : normal operation While only 2 channels output: GPIO 219 ASDATA2 Inout, 4MA, PD SMT Audio serial data 2 (Center/LFE) DSD data left surround channel Trap value in power-on reset : 1 : manufactory test mode 0 : normal operation While only 2 channels output: GPIO 220 ASDATA3 Inout, 4MA, PD SMT Audio serial data 3 (Center-back/ Center-left-back/Center-right-back, in 6.1 or 7.1 mode) DSD data right surround channel Trap value in power-on reset : 1 : manufactory test mode 0 : normal operation While only 2 channels output: GPIO 222 ASDATA4 INT1# Inout, 4MA, PD SMT Audio serial data 4 (Down-mixed Left/Right) DSD data center channel Trap value in power-on reset : 1 : manufactory test mode 0 : normal operation While only 2 channels output: Microcontroller external interrupt 1 GPIO 224 MC_DATA INT2# Inout Microphone serial input While not support Microphone: Microcontroller external interrupt 2 GPIO 225 SPDIF Output, 2-16MA, SR : ON/OFF SPDIF output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTIONS MT1389EE-L1 (DVDM ASSY : IC201) DVD IC-8 Video Interface (18) No. Name Alt. I/O Function 189 DACVDDC Power 3.3V power pin for VIDEO DAC circuitry 190 VREF Analog Bandgap reference voltage 191 FS Analog Full scale adjustment 192 YUV0 CIN Output 4MA, SR Video data output bit 0 Compensation capacitor 193 DACVSSC Ground Ground pin for VIDEO DAC circuitry 194 YUV1 Y Output 4MA, SR Video data output bit 1 Analog Y output 195 DACVDDB Power 3.3V power pin for VIDEO DAC circuitry 196 YUV2 C Output 4MA, SR Video data output bit 2 Analog chroma output 197 DACVSSB Ground Ground pin for VIDEO DAC circuitry 198 YUV3 CVBS Output 4MA, SR Video data output bit 3 Analog composite output 199 DACVDDA Power 3.3V power pin for VIDEO DAC circuitry 200 YUV4 Y/G Output 4MA, SR Video data output bit 4 Green or Y 201 DACVSSA Ground Ground pin for VIDEO DAC circuitry 202 YUV5 B/Cb/Pb Output 4MA, SR Video data output bit 5 Blue or CB 203 YUV6 R/Cr/Pr Output 4MA, SR Video data output bit 6 Red or CR 205 VSYN V_ADIN1 Inout 4MA, SR SMT Vertical sync input/output While no External TV-encoder: Vertical sync for video-input Version AD input port 1 GPIO 206 YUV7 INT3# ASDATA5 Inout 4MA, SR SMT Video data output bit 7 While no External TV-encoder: Microcontroller external interrupt 3 Audio serial data 5 part II : DSD data sub-woofer channel or Microphone output GPIO 207 HSYN INT4# V_ADIN2 Inout 4MA, SR SMT Horizontal sync input/output While no External TV-encoder: Horizontal sync for video-input Microcontroller external interrupt 4 Version AD input port 2 GPIO MISC (8) No. Name Alt. I/O Function 43 USB_VSS USB Ground USB ground pin 44 USBP Analog Inout USB port DPLUS analog pin 45 USBM Analog Inout USB port DMINUS analog pin 46 USB_VDD3 USB Power USB Power pin 3.3V 110 PRST# Input PU, SMT Power on reset input, active low 109 ICE Input PD, SMT Microcontroller ICE mode enable 228 XTALO Output 27M crystal out 229 XTALI Input 27M crystal in www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTIONS MT1389EE-L1 (DVDM ASSY : IC201) DVD IC-9 DRAM Interface (63)(sorted by position) No. Name Alt. I/O Function 188 RD16 LLC_CLK SMPTE_C[0] Inout Pull-Down DRAM data 16 While using 16-bits wide DRAM: Line Locked Clock input/output Digital Video output C bit 0 GPIO 187 RD17 YUVIN0 SMPTE_C[1] Inout Pull-Down DRAM data 17 While using 16-bits wide DRAM: Video input data 0 Digital Video output C bit 1 GPIO 186 RD18 YUVIN1 SMPTE_C[2] Inout Pull-Down DRAM data 18 While using 16-bits wide DRAM: Video input data 1 Digital Video output C bit 2 GPIO 185 RD19 YUVIN2 SMPTE_C[3] Inout Pull-Down DRAM data 19 While using 16-bits wide DRAM: Video input data 2 Digital Video output C bit 3 GPIO 184 RD20 YUVIN3 SMPTE_C[4] Inout Pull-Down DRAM data 20 While using 16-bits wide DRAM: Video input data 3 Digital Video output C bit 4 GPIO 183 RD21 YUVIN4 SMPTE_C[5] Inout Pull-Down DRAM data 21 While using 16-bits wide DRAM: Video input data 4 Digital Video output C bit 5 GPIO 181 RD22 YUVIN5 SMPTE_C[6] Inout Pull-Down DRAM data 22 While using 16-bits wide DRAM: Video input data 5 Digital Video output C bit 6 GPIO 180 RD23 YUVIN6 SMPTE_C[7] Inout Pull-Down DRAM data 23 While using 16-bits wide DRAM: Video input data 6 Digital Video output C bit 7 GPIO 179 DQM2 YUVIN7 Inout Pull-Up Data Mask 2 While using 16-bits wide DRAM: Video input data 7 GPIO 178 DQM3 INT6# SMPTE_CLK USB_CLK Inout Pull-Up Data Mask 3 While using 16-bits wide DRAM: Microcontroller external interrupt 6 Digital Video output Clock USB port CLK input (48MHz) part II GPIO 177 RD24 SDIN1 MS_BS SMPTE_Y[0] Inout Non-pull DRAM data 24 While using 16-bits wide DRAM: Serial interface port 1 data-in MS Card BS pin part II Digital Video output Y bit 0 GPIO 176 RD25 SDO1 MS_SDIO SMPTE_Y[1] Inout Non-pull DRAM data 25 While using 16-bits wide DRAM: Serial interface port 1 data-out MS Card SDIO pin part II Digital Video output Y bit 1 GPIO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTIONS MT1389EE-L1 (DVDM ASSY : IC201) DVD IC-10 No. Name Alt. I/O Function 174 RD26 SDCS1 MSCLK SMPTE_Y[2] Inout Non-pull DRAM data 26 While using 16-bits wide DRAM: Serial interface port 1 chip select Memory Stick Clock part II Digital Video output Y bit 2 GPIO 172 RD27 SCLK2 SDCLK SMPTE_Y[3] Inout Non-pull DRAM data 27 While using 16-bits wide DRAM: Serial interface port 2 clock pin Security Disk Clock part II Digital Video output Y bit 3 GPIO 171 RD28 SDIN2 SD_CMD SMPTE_Y[4] Inout Non-pull DRAM data 28 While using 16-bits wide DRAM: Serial interface port 2 data-in SD Card CMD pin part II Digital Video output Y bit 4 GPIO 170 RD29 SDO2 SD_DAT SMPTE_Y[5] Inout Non-pull DRAM data 29 While using 16-bits wide DRAM: Serial interface port 2 data-out SD Card Data pin part II Digital Video output Y bit 5 GPIO 169 RD30 SDCS2 SMPTE_Y[6] Inout Pull-Up DRAM data 30 While using 16-bits wide DRAM: Serial interface port 2 chip select Digital Video output Y bit 6 GPIO 168 RD31 INT5# ASDATA5 SMPTE_Y[7] Inout Pull-Up DRAM data 31 While using 16-bits wide DRAM: Microcontroller external interrupt 5 Audio serial data 5 part III : DSD data sub-woofer channel or Microphone output Digital Video output Y bit 7 GPIO 166 RA4 Inout DRAM address 4 165 RA5 Inout DRAM address 5 164 RA6 Inout DRAM address 6 162 RA7 Inout DRAM address 7 160 RA8 Inout DRAM address 8 159 RA9 Inout DRAM address 9 158 RA11 GPIO Inout Pull-Down DRAM address bit 11 While using DRAM size <=4MB: GPIO 157 CKE output DRAM clock enable 156 RCLK Inout DRAM clock 154 RCLKB USB_CLK Inout DRAM clock invert While not using DDR: I) USB port CLK input (48MHz) part I 153 RVREF V_ADIN3 Analog Inout Reference voltage for DDR DRAM While not using DDR : Version AD input port 3 151 RA3 Inout DRAM address 3 150 RA2 Inout DRAM address 2 149 RA1 Inout DRAM address 1 147 RA0 Inout DRAM address 0 146 RA10 Inout DRAM address 10 145 BA1 Inout DRAM bank address 1 143 BA0 Inout DRAM bank address 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTIONS MT1389EE-L1 (DVDM ASSY : IC201) DVD IC-11 No. Name Alt. I/O Function 142 RCS# output DRAM chip select, active low 140 RAS# output DRAM row address strobe, active low 139 CAS# output DRAM column address strobe, active low 138 RWE# output DRAM Write enable, active low 137 DQM1 Inout Data mask 1 136 DQS1 INT7# MS_BS Inout Data strobe 1 for DDR DRAM While not using DDR: Microcontroller external interrupt 7 MS Card BS pin part I GPIO 135 RD8 Inout DRAM data 8 133 RD9 Inout DRAM data 9 132 RD10 Inout DRAM data 10 131 RD11 Inout DRAM data 11 130 RD12 Inout DRAM data 12 129 RD13 Inout DRAM data 13 128 RD14 Inout DRAM data 14 126 RD15 Inout DRAM data 15 125 RD0 Inout DRAM data 0 124 RD1 Inout DRAM data 1 123 RD2 Inout DRAM data 2 121 RD3 Inout DRAM data 3 120 RD4 Inout DRAM data 4 118 RD5 Inout DRAM data 5 117 RD6 Inout DRAM data 6 115 RD7 Inout DRAM data 7 114 DQS0 SCLK1 MS_SDIO Inout Data strobe 0 for DDR DRAM While not using DDR: Serial interface port 1 clock pin MS Card SDIO pin part I GPIO 113 DQM0 Inout Data mask 0 JTAG Interface (4) No. Name Alt. I/O Function 48 TDI SDO3 V_ADIN4 SD_DAT Inout JTAG data in While not using Boundary Scan: Serial interface port 3 data-out Version AD input port 4 SD Card Data pin part I GPIO 49 TMS SDIN3 V_ADIN5 SD_CMD Inout While not using Boundary Scan: Serial interface port 3 data-in Version AD input port 5 SD Card CMD pin part I GPIO 50 TCK SCLK3 V_ADIN6 SDCLK Inout JTAG clock While not using Boundary Scan: Serial interface port 3 clock pin Version AD input port 6 Security Disk Clock part I GPIO 51 TDO SDCS3 V_ADIN7 MSCLK Inout JTAG data out While not using Boundary Scan: Serial interface port 3 chip-select Version AD input port 7 Memory Stick Clock part I GPIO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 FL TUBE VIEW P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 1G a h l k b f m g c e r p n d 2G a h j k b f m g c e r p n d 3G a h j k b f m g c e e p n d col 4G a h j k b f m g c e r p n d 5G a h j k b f m g c e r p n d col 6G a h j k b f m g c e r p n d Hp 7G a h j k b f m g c e r p n d 8G a h j k b f m g c e r p n d 9G a h j k b f m g c e r p n d Hp 10G a h j k b f m g c e r p n d 11G 12G 13G RANDOM PROGRESSIVE MP3 DVD -AUDIO SACD V CD VIDEO OFF TITLE GROUP TRACK CHP TOTAL REMAIN GUI GUI RANDOM MEMORY D PRO LOGIC A-B a b c d e f g h j k m n p r (1G-10G) 11G 12G 13G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G Col Col Hp Hp D PRO LOGIC PROGRESSIVE MP3 GROUP TRACK V -B A Q702: HNV-13SS15T 5.1CH D.MIX 5.1CH GUI D.MIX ANODE CONNECTION GRID ASSIGNMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 MICROPROCESSOR TERMINAL DESCRIPTION-1 No. PIN NAME SIGNAL I/O DESCRIPTION 1 VDD1 VDD1 - Power supply port 2 VSS1 VSS1 - Ground port 3 X1 X1 - Connect to clock oscillator of main micro processor 4 X2 X2 - Connect to clock oscillator of main micro processor 5 IC IC I Connect to VSS1 6 ~RESET ~RESET I System reset input port 7 P27/~SCK1 XSCK I Clock output port for write the flash ROM 8 P26/SI1 XSI I Data input port for write the flash ROM 9 P25/SO1 XSO O Data output port for write the flash ROM 10 P24/BUSY XRDY O XRDY output port 11 P23 DVDPOW O Power ON/OFF control output port to system controller.. Active "H": Power is ON 12 P22 XRESET O System reset control port. 13 P21/SO3 XACK I ACK input port. 14 P20/~SCK3 NOT USED(GND) I Not used. To connect to GND. 15 P00/INTP0 ~REMO I Remote control signal input port. Active "L": Remote control mode 16 P01/INTP1 ~IRIN I IR remote control input port. Not used. 17 P02/TI NOT USED(GND) O Not used. To connect to GND. 18 AVSS AVSS - Ground port of A/D converter. 19 ANI3 DEST I Destination setting port. 20 ANI2 K2 I Key input port. 21 ANI1 K1 I Key input port. 22 ANI0 K0 I Key input port. 23 VSS0 VSS0 - GNG port. 24 AVDD AVDD - Reference analog power supply port. = VDD1 25 VDD0 VDD0 - Power supply port. 26 P64/FIP52 MODEL I Select a model port. L= DV-SP502 27 P63/FIP51 MS0_0 I Model select input port. 28 P62/FIP50 MS0_1 I Model select input port. 29 P61/FIP49 MS0_2 I Model select input port. 30 P60/FIP48 Region Auto I Regional code setting port. L= Automatically. 31 P57/FIP47 FLON_OFF O FL filament control output port. 32 P56/FIP46 STBY_LED O Standby LED control output port. 33 P55/FIP45 SYSIN I System signal bus input port. 34 P54/FIP44 SYSOUT O System signal bus output port. 35 P53/FIP43 R232REQ I REQ signal input port from RS232 microprocessor. 36 P52/FIP42 R232BUSY I BUSY signal input port from RS232 microprocessor. 37 P51/FIP41 R232SCK O SCK signal output port from RS232 microprocessor. 38 P50/FIP40 R232SI I SI signal input port from RS232 microprocessor. 39 P47/FIP39 R232SO O SO signal output port from RS232 microprocessor. 40 P46/FIP38 R232RST O RSTsignal output port from RS232 microprocessor. 41 P45/FIP37 NOT USED(OPEN) O Not used. Open port. 42 P44/FIP36 NOT USED(OPEN) O Not used. Open port. 43 P43/FIP35 NOT USED(OPEN) O Not used. Open port. 44 P42/FIP34 NOT USED(OPEN) O Not used. Open port. 45 P41/FIP33 NOT USED(OPEN) O Not used. Open port. Q701 : MPD780232GC-707 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 46 P40/FIP32 NOT USED(OPEN) O Not used. Open port. 47 P37/FIP31 NOT USED(OPEN) O Not used. Open port. 48 P36/FIP30 P15 O Segment (P15) control output port for FL. 49 P35/FIP29 P14 O Segment (P14) control output port for FL. 50 P34/FIP28 P13 O Segment (P13) control output port for FL. 51 P33/FIP27 P12 O Segment (P25) control output port for FL. 52 P32/FIP26 P11 O Segment (P11) control output port for FL. 53 P31/FIP25 P10 O Segment (P10) control output port for FL. 54 P30/FIP24 P9 O Segment (P9) control output port for FL. 55 FIP23 P8 O Segment (P8) control output port for FL. 56 FIP22 P7 O Segment (P7) control output port for FL. 57 FIP21 P6 O Segment (P6) control output port for FL. 58 FIP20 P5 O Segment (P5) control output port for FL. 59 VDD2 VDD2 Power supply for FL 60 VLOAD VLOAD Connect to a pull down resistor. 61 FIP19 P4 O Segment (P4) control output port for FL. 62 FIP18 P3 O Segment (P3) control output port for FL. 63 FIP17 P2 O Segment (P2) control output port for FL. 64 FIP16 P1 O Segment (P1) control output port for FL. 65 FIP15 NC(OPEN) O Not used. Open port. 66 FIP14 NC(OPEN) O Not used. Open port. 67 FIP13 NC(OPEN) O Not used. Open port. 68 FIP12 13G O Grid (13G) control output port. 69 FIP11 12G O Grid (12G) control output port. 70 FIP10 11G O Grid (11G) control output port. 71 FIP9 10G O Grid (10G) control output port. 72 FIP8 9G O Grid (9G) control output port. 73 FIP7 8G O Grid (8G) control output port. 74 FIP6 7G O Grid (7G) control output port. 75 FIP5 6G O Grid (6G) control output port. 76 FIP4 5G O Grid (5G) control output port. 77 FIP3 4G O Grid (4G) control output port. 78 FIP2 3G O Grid (3G) control output port. 79 FIP1 2G O Grid (2G) control output port. 80 FIP0 1G O Grid (1G) control output port. MICROPROCESSOR TERMINAL DESCRIPTION-2 No. PIN NAME SIGNAL I/O DESCRIPTION Q701 : MPD780232GC-707 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Confirm the Regional code and Firmware version. 1. Connect the TV monitor to the DPS-6.5. 2. Turn ON the standby switch ON. (No Disc) 3. Press "SET UP" key. Appear a HOME MENU. (Photo-1) 4. Select "Initial Settings" menu and press "ENTER". 5. Select "Options" menu, and press the "DISPLAY" button of the front panel. 6. Appear regional code and firmware ROM number. Confirm the regional cord and firmware version. When close the menu, press "RETURN" button of the unit. Make advanced settings Move Select ENTER ENTER Exit HOME MENU HOME MENU DVD Video Adjust Audio Settings Initial Settings Play Mode Disc Navigator Initial Settings Parental Lock DVD Playback Mode SACD Playback DTS Downmix Off(us) DVD-Audio 2ch Area STEREO REGION 3 ROM VERSION : 2.05 Move Select ENTER Exit HOME MENU (Photo-1) (Photo-2) (Photo-2) Digital Audio OUT Video Output Language Display Options Speakers Download the firmware 1. Newest FW is written in CD-R with a personal computer. 2. Prees "Standby" button and "Disc Tray" button . 3. Set the CD-R on the Disc tray and press "Play" button. Waiting 2 seconds and open the tray automatically. DISC TRAY waits for about 2 minutes in the tray open condition. Cautions: Do not close the disc tray. Close the tray automatically. 4. Pull out the power cord from inlet terminal. And insert the power cord again. 5. Press "Standby" button . Confirm the regional code and firmware version at above method. Writing CD-R for upgrade firmware 1. Install the newest firmware data. 2. Making the folder. Volume label name or holder name is " Pioneer". 3. Put in a newest firmware data in the "Pioneer" folder. PIONEER Volume label or Folder name FW data Ex: B4GA2056.BIN When exchanged the DVD main board assy Setup Navigator Except Ex: B4GA2056.BIN Ex: B4HA2056.BIN DPS-6.5 FIRMWARE DOWN LOADING EX) Regional code ROM Version www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 ID NUMBER AND ID DATA SETTING-1 Caution: For the DVD players compatible with DVD-RW, for playback of a DVD-RW disc (CPRM), it is necessary that an individual ID number and ID data are set for each player. If the ID number and ID data be not properly set in the manner described below, future operations cannot be guaranteed. The ID number is written on the paper label at the DVD mechanism of the player. ID Number input mode Preparations Remote controller RC-484M ID writing disc. (0R120) TV monitor. 1. Standby switch ON. (No disc condition) 2. Press "DVD" and "1" at same time, press "RETURN" key and "STEREO" key. 3. Appear A on the TV monitor + DVD 1 and RETURN and STEREO [Player's ID Number Setting] ID Number ? 000000001 Compare > ********* Input ID Number ! [Player's ID Number Setting] ID Number ? 000000001 Exit ID Data Setting Mode Input Number ! A B [Player's ID Number Setting] Exit Insetr The Data Disc ! C 4. Input nine digits. 5. Press "PLAY" key. 6. Appear B on the monitor. 7. Press "PLAY" key. 8. Inset ID Data Disc on the tray. 9. Press "Play". C Remote controller (RC-484M) Exit [Player's ID Number Setting] ID Number [000000001] compare > Exit Input ID Number ! ********* or Label ID DVD Mechanism ID NUMBER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 PACKING PROCEDURES DPS-6.5(B) DPS-6.5(B) DPS-6.5(B) R L DPS-6.5 A606 A605 A455 A455 A607 A601 A450 A604 A606 A601 A607 FRONT SIDE FRONT SIDE Front side marking Front side marking A902 A530 A901 P981 A906 A903 A904 A905 A451 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1/8 PAGE DPS-6.5 EXPLODED VIEW PARTS LIST ! :Safety parts :North American area :Australia area REF. NO. NAME DESCRIPTION Q'TY PART NO REMARKS EXP A001 CHASSIS DV-SP402E 1 27100447 EXP A003 LEG LEG 4 27175316C EXP A005 CUSHION --- 8 28141494 EXP A007 SCREW 3TTB+8B 29 838130088 EXP A008 IB CUSHION W15x3t TAPE 1 28141585 MP0082:CM EXP A009 TAPE TAPE(CLOTH-16U) ( 1) 29110083 MP0080.18:MT EXP A010 BRACKET (DG) 1 27130963A DG PWB EXP A012 HOLDER KGLS-24RT 3 27190814 PWB-CHASSIS EXP A013 BRACKET (POW) 1 27130962A POW PWB EXP A015 SCREW 4TTC+6C(BC) 2 830440069 EXP A018 TAPE TAPE(CLOTH-8U) ( 1) 29110082 :0.12:MT EXP A020 LABEL(DVD2) --- 1 29362648 EXP A025 F BRACKET (B) 1 27111325A EXP A026 KNOB (STANDBY) 1 28325756 EXP A027 CLEAR PLT --- 1 28191993 EXP A028 B PLATE DPS-5.4(B) 1 28133410 EXP A029 TAPE --- ( 2) 29110161 FBRACKET EXP A033 SCREW 2.6TTB+8B(BC) 3 838426088 EXP A034 CUSHION --- 2 28141606 F BRACKET EXP A040 KNOB (CRS) 1 28326078 EXP A051 DOOR --- 1 28148479A EXP A052 PLATE (DVD) 1 27262744 N EXP A055 COVER (B) 1 28184864 EXP A056 SCREW 3TTB+8B(BC) 24 838430088 EXP A401 F PANEL DPS6.5(B) 1 27212706 N EXP A403 BADGE --- 1 28135278 EXP A404 FACET (S) 2 28198906 EXP A411 REAR PANEL DPS6.5MDD1N 1 27123348A N EXP A411 REAR PANEL DPS6.5MUA4P 1 27123349A N EXP A414 SCREW 4TTB+8C(BC) 2 838440089 EXP A415 TAPE TAPE(CLOTH-8U) ( 1) 29110082 RAR PANEL:0.09:MT EXP CN1 PLUG NPLG-2P632 1 25055676 NGPS-0048 EXP CN103 SOCKET AS NSAS-10P1135 1 20044391030 EXP CN201 FFC NCFC5-152022 1 2045152022 EXP CN451 FFC NCFC6-170522 1 2046170522 EXP F1 FUSE 1.6A-TL/T-ST2 1 252252 ! EXP F1 FUSE 2.5A-TH250V 1 252310 ! EXP F2 FUSE LABEL F1 1.6A125V 1 29364012 EXP CP1 Protector 491.800PAR (0.8A) 252311 EXP P901A CORE NFY-25 BLACK 1 230945 EXP P910 WIRE TIE BSK-1 4 260208 EXP S731 JOY STICK NPS-115-S673 1 25035710 EXP U01 Front display PC board AS NADIS-8416-1G 1 1H524516-1G N EXP U01 Front display PC board AS NADIS-8416-1H 1 1H524516-1H N EXP U02 Standby LED PC board AS NADIS-8417-1G 1 1H524517-1G N EXP U02 Standby LED PC board AS NADIS-8417-1H 1 1H524517-1H N EXP U03 Audio/ Video output PC board AS NAAR-8419-1G 1 1H524519-1G N EXP U03 Audio/ Video output PC board AS NAAR-8419-1H 1 1H524519-1H N EXP U04 Inlet terminal PC board AS NAPS-8420-1G 1 1H524520-1G N EXP U04 Inlet terminal PC board AS NAPS-8420-1H 1 1H524520-1H N EXP U05 DVD Main board AS DB-VPB613 1 24150062 N EXP U06 Power supply unit NGPS-0047 (100-120V) 1 24150047 EXP U06 Power supply unit NGPS-0048 (100-240V) 1 24150048 EXP Z101 DVD Mechanism DB-VLD601 1 24801024 EXP Z102 HOLDER (ML) 1 27191201 EXP Z103 HOLDER (MR) 1 27191202 NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE ONLY WITH PART NUMBER SPECIFIED. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2/8 PAGE EXP Z104 SCREW 3SMS8W.SW+14B(BC) 4 801433 EXP Z106 IB CUSHION W15x3t TAPE 1 28141585 MP0081:CM EXP Z107 CUSHION (DAC) 2 28141445 DPS-6.5 PRINTED CIRCUIT BOARD PARTS LIST U01 FRONT DISPLAY PC BOARD(NADIS-8416-1G/1H) ! :Safety parts U02 STANDBY LED PC BOARD(NADIS-8417-1G/1H) :North American area U03 AUDIO/VIDEO OUTPUT PC BOARD(NAAR-8419-1G/1H) :Australia area U04 INLET TERMINAL PC BOARD(NAPS-8420-1G/1H) REF. NO. NAME DESCRIPTION Q'TY PART NO REMARKS PCB Q501 IC MPD4721GS 1 22241537R2 PCB Q501 IC MPD4721GS 1 22241537R2 PCB Q502 IC MPD789071MC-011- 5A4 1 22241624R2 PCB Q502 IC MPD789071MC-011- 5A4 1 22241624R2 PCB Q503 IC TC74VHCT32AFT 1 22274032GR2TO PCB Q503 IC TC74VHCT32AFT 1 22274032GR2TO PCB Q504 IC BA7664AFV 1 22242164R2 PCB Q504 IC BA7664AFV 1 22242164R2 PCB Q505 PHT CP ON3131 1 24120043 PCB Q505 PHT CP ON3131 1 24120043 PCB Q506 TR KRC102S 1 2216190R2 PCB Q506 or TR RN1402 ( 1) 2214470R2 PCB Q506 or TR DTC114EKA ( 1) 2216250R2 PCB Q506 TR KRC102S 1 2216190R2 PCB Q506 or TR RN1402 ( 1) 2214470R2 PCB Q506 or TR DTC114EKA ( 1) 2216250R2 PCB Q507 TR KRC102S 1 2216190R2 PCB Q507 or TR RN1402 ( 1) 2214470R2 PCB Q507 or TR DTC114EKA ( 1) 2216250R2 PCB Q507 TR KRC102S 1 2216190R2 PCB Q507 or TR RN1402 ( 1) 2214470R2 PCB Q507 or TR DTC114EKA ( 1) 2216250R2 PCB Q508 IC(REGULATOR) 78M05HF(NJM78M05D L1A TE1) 1 222780055R2JR PCB Q508 IC(REGULATOR) 78M05HF(NJM78M05D L1A TE1) 1 222780055R2JR PCB Q509 TR KRC107S 1 2216340R2 PCB Q509 or TR RN1407 ( 1) 2216260R2 PCB Q509 or TR DTC114YKA ( 1) 2216470R2 PCB Q509 TR KRC107S 1 2216340R2 PCB Q509 or TR RN1407 ( 1) 2216260R2 PCB Q509 or TR DTC114YKA ( 1) 2216470R2 PCB Q701 IC MPD780232GC-709-8BT 1 22242204R3 PCB Q702 FL TUBE HNV-13SS15T 1 212253 PCB Q702A CUSHION t3x10x25 2 28141513 PCB Q704 IC S-80127CNMC-JKM-T2 1 22241642R2 PCB Q706 TR 2SD655-E 1 2211705 PCB Q706 or TR 2SD655-F ( 1) 2211706 PCB Q707 REMO SENS RPM7238-H9 1 241355 PCB Q708 TR KRC107S 1 2216340R2 PCB Q708 or TR RN1407 ( 1) 2216260R2 PCB Q708 or TR DTC114YKA ( 1) 2216470R2 PCB Q709 TR KRA107S 1 2216350R2 PCB Q709 or TR RN2407 ( 1) 2216360R2 PCB Q709 or TR DTA114YKA ( 1) 2216480R2 PCB Q710 TR KRA107S 1 2216350R2 PCB Q710 or TR RN2407 ( 1) 2216360R2 PCB Q710 or TR DTA114YKA ( 1) 2216480R2 PCB Q711 TR KRC107S 1 2216340R2 PCB Q711 or TR RN1407 ( 1) 2216260R2 PCB Q711 or TR DTC114YKA ( 1) 2216470R2 PCB Q714 TR KRC107S 1 2216340R2 PCB Q714 or TR RN1407 ( 1) 2216260R2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3/8 PAGE PCB Q714 or TR DTC114YKA ( 1) 2216470R2 PCB D701 C-DIODE 1SS355 1 223269R2 PCB D701 or C-DIODE 1SS352 ( 1) 223234R2 PCB D704 LED SEL2E10C 1 225374 PCB D721 LED SEL4110R 1 225290 PCB L513 CORE BLM41PG750SN1L 1 230950R2 PCB L513 CORE BLM41PG750SN1L 1 230950R2 PCB L514 EMIFIL BK1608LM182-T 1 230958R1 PCB L514 EMIFIL BK1608LM182-T 1 230958R1 PCB L515 EMIFIL BK1608LM182-T 1 230958R1 PCB L515 EMIFIL BK1608LM182-T 1 230958R1 PCB L516 EMIFIL BK1608LM182-T 1 230958R1 PCB L516 EMIFIL BK1608LM182-T 1 230958R1 PCB L517 EMIFIL BK1608LM182-T 1 230958R1 PCB L517 EMIFIL BK1608LM182-T 1 230958R1 PCB L518 EMIFIL BK1608LM182-T 1 230958R1 PCB L518 EMIFIL BK1608LM182-T 1 230958R1 PCB L519 CORE BLM41PG750SN1L 1 230950R2 PCB L519 CORE BLM41PG750SN1L 1 230950R2 PCB X501 CERA LOCK CST5.00MGW 1 3010242 PCB X501 CERA LOCK CST5.00MGW 1 3010242 PCB X701 CERA LOCK CST5.00MGW 1 3010242 PCB C501 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C501 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C502 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C502 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C503 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB C503 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB C504 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C504 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C505 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C505 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C506 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB C506 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB C507 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C507 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C508 C-CERA C CK725B1C-104K1 1 332121045R1 PCB C508 C-CERA C CK725B1C-104K1 1 332121045R1 PCB C509 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C509 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C510 C-CERA C CK725B1C-104K1 1 332121045R1 PCB C510 C-CERA C CK725B1C-104K1 1 332121045R1 PCB C511 VR C CE04W16V-22M(VR) 1 394642207 PCB C511 VR C CE04W16V-22M(VR) 1 394642207 PCB C512 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C512 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C514 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C514 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C515 C-CERA C CK725B1C-104K1 1 332121045R1 PCB C515 C-CERA C CK725B1C-104K1 1 332121045R1 PCB C516 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C516 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C517 VR C CE04W6.3V-220M(VR) 1 394622217 PCB C517 VR C CE04W6.3V-220M(VR) 1 394622217 PCB C518 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C518 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C519 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C519 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C520 C-CERA C CK725B1E-223K1 1 332112235R1 PCB C520 C-CERA C CK725B1E-223K1 1 332112235R1 PCB C521 VR C CE04W50V-1M(VR) 1 394680107 PCB C521 VR C CE04W50V-1M(VR) 1 394680107 PCB C522 VR C CE04W50V-1M(VR) 1 394680107 PCB C522 VR C CE04W50V-1M(VR) 1 394680107 PCB C523 C-CERA C CK725F1E-104Z1 1 332161040R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4/8 PAGE PCB C523 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C524 VR C CE04W6.3V-100M(VR) 1 394621017 PCB C524 VR C CE04W6.3V-100M(VR) 1 394621017 PCB C525 VR C CE04W50V-1M(VR) 1 394680107 PCB C525 VR C CE04W50V-1M(VR) 1 394680107 PCB C526 VR C CE04W50V-1M(VR) 1 394680107 PCB C526 VR C CE04W50V-1M(VR) 1 394680107 PCB C527 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C527 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C528 VR C CE04W6.3V-100M(VR) 1 394621017 PCB C528 VR C CE04W6.3V-100M(VR) 1 394621017 PCB C529 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB C529 VR C CE04W6.3V-1000M(VR) 1 394621027 PCB C530 VR C CE04W16V-10M(VR) 1 394641007 PCB C530 VR C CE04W16V-10M(VR) 1 394641007 PCB C531 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C531 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C532 VR C CE04W6.3V-100M(VR) 1 394621017 PCB C532 VR C CE04W6.3V-100M(VR) 1 394621017 PCB C533 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C533 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C534 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C534 VR C CE04W6.3V-470M(VR) 1 394624717 PCB C535 C-CERA C CK725B1C-104K1 1 332121045R1 PCB C535 C-CERA C CK725B1C-104K1 1 332121045R1 PCB C701 ELECT C CE04W6.3V-100M 1 355721019 PCB C702 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C703 C-CERA C CK725F1E-104Z1 1 332161040R1 PCB C705 ELECT C CE04W50V-22M 1 355782209 PCB C706 ELECT C CE04W6.3V-100M 1 355721019 PCB R501 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R501 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R502 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R502 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R503 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R503 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R504 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R504 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R505 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R505 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R506 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R506 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R507 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R507 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R508 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R508 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R509 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R509 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R510 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R510 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R511 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R511 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R512 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R512 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R513 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R513 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R514 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R514 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R515 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R515 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R516 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R516 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R517 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R517 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R518 C-CARBON R RN72K1J-000JE 1 435030004R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5/8 PAGE PCB R518 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R519 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R519 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R520 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R520 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R521 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R521 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R522 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R522 C-CARBON R RN72K1J-750JE 1 435037504R1 PCB R523 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R523 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R524 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R524 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R525 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB R525 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB R526 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB R526 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB R527 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R527 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R528 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R528 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R529 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB R529 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB R530 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R530 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R531 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R531 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R532 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R532 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R533 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R533 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R534 C-CARBON R RN72K1J-474JE 1 435034744R1 PCB R534 C-CARBON R RN72K1J-474JE 1 435034744R1 PCB R535 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R535 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R536 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R536 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R537 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R537 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R538 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R538 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R539 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R539 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R540 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R540 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R541 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R541 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R542 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R542 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R543 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R543 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R544 C-CARBON R RN72K1J-105JE 1 435031054R1 PCB R544 C-CARBON R RN72K1J-105JE 1 435031054R1 PCB R545 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R545 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R546 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R546 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R547 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R547 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R548 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R548 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R549 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R549 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R550 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R550 C-CARBON R RN72K1J-103JE 1 435031034R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6/8 PAGE PCB R551 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R551 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R552 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R552 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R553 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R553 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R556 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R556 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R557 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R557 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R701 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R702 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R703 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB R704 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R705 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R706 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R707 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R708 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R709 C-CARBON R RN72K1J-182JE 1 435031824R1 PCB R709 C-CARBON R RN72K1J-182JE 1 435031824R1 PCB R710 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R711 C-CARBON R RN72K1J-105JE 1 435031054R1 PCB R712 C-CARBON R RN72K1J-182JE 1 435031824R1 PCB R712 C-CARBON R RN72K1J-182JE 1 435031824R1 PCB R713 C-CARBON R RN72K1J-224JE 1 435032244R1 PCB R714 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB R715 C-CARBON R RN72K1J-101JE 1 435031014R1 PCB R716 C-CARBON R RN72K1J-182JE 1 435031824R1 PCB R716 C-CARBON R RN72K1J-182JE 1 435031824R1 PCB R717 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB R717 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB R718 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB R718 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB R719 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R720 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R721 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R722 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB R722 C-CARBON R RN72K1J-332JE 1 435033324R1 PCB R723 C-CARBON R RN72K1J-223JE 1 435032234R1 PCB R724 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R724 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R725 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R725 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R726 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R726 C-CARBON R RN72K1J-470JE 1 435034704R1 PCB R727 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R728 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R728 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R729 C-CARBON R RN72K1J-822JE 1 435038224R1 PCB R729 C-CARBON R RN72K1J-822JE 1 435038224R1 PCB R731 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB R731 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB R732 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R734 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R736 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R738 C-CARBON R RN72K1J-183JE 1 435031834R1 PCB R738 C-CARBON R RN72K1J-472JE 1 435034724R1 PCB R739 C-CARBON R RN72K1J-333JE 1 435033334R1 PCB R739 C-CARBON R RN72K1J-563JE 1 435035634R1 PCB R742 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R743 C-CARBON R RN72K1J-100JE 1 435031004R1 PCB R745 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R746 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R747 C-CARBON R RN72K1J-000JE 1 435030004R1 PCB R748 C-CARBON R RN72K1J-000JE 1 435030004R1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7/8 PAGE PCB R750 C-CARBON R RN72K1J-151JE 1 435031514R1 PCB R751 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB R752 C-CARBON R RN72K1J-391JE 1 435033914R1 PCB R753 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB R754 C-CARBON R RN72K1J-821JE 1 435038214R1 PCB R755 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R758 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB R759 C-CARBON R RN72K1J-391JE 1 435033914R1 PCB R760 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB R761 C-CARBON R RN72K1J-821JE 1 435038214R1 PCB R762 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R763 C-CARBON R RN72K1J-182JE 1 435031824R1 PCB R764 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB R765 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R766 C-CARBON R RN72K1J-272JE 1 435032724R1 PCB R767 C-CARBON R RN72K1J-391JE 1 435033914R1 PCB R768 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB R769 C-CARBON R RN72K1J-821JE 1 435038214R1 PCB R770 C-CARBON R RN72K1J-102JE 1 435031024R1 PCB R771 C-CARBON R RN72K1J-182JE 1 435031824R1 PCB R772 C-CARBON R RN72K1J-392JE 1 435033924R1 PCB R773 C-CARBON R RN72K1J-103JE 1 435031034R1 PCB R779 C-CARBON R RN72K1J-471JE 1 435034714R1 PCB P501 BNC JACK P2298 1 25045634 PCB P501 BNC JACK P2298 1 25045634 PCB P502 PIN JACK NPJ-3PDGLR429 1 25045622 PCB P502 PIN JACK NPJ-3PDGLR429 1 25045622 PCB P503 PIN JACK NPJ-10PDBY518 1 25045730 PCB P503 PIN JACK NPJ-10PDBY518 1 25045730 PCB P504 PIN JACK NPJ-2PDB400 1 25045589 PCB P504 PIN JACK NPJ-2PDB400 1 25045589 PCB P505 ST JACK HSJ1002-01-1020 1 25045647 PCB P505 ST JACK HSJ1002-01-1020 1 25045647 PCB P506 SOCKET NSCT-9P2277 1 25052379 PCB P506 SOCKET NSCT-9P2277 1 25052379 PCB P701A SOCKET AS NSAS-16P1456 1 200HA391630UL PCB P701A SOCKET AS NSAS-16P1456 1 200HA391630UL PCB P701B PLUG NPLG-8P428 1 25055446 PCB P701B PLUG NPLG-8P428 1 25055446 PCB P702 SOCKET AS NSAS-6P1140 1 2002A290625UL PCB P702B PLUG NPLG-3P423 1 25055441 PCB P702B PLUG NPLG-3P423 1 25055441 PCB P703 SOCKET NSCT-7P2241 1 25052344 PCB P703 or SOCKET NSCT-7P1676 ( 1) 25051889 PCB P703 or SOCKET NSCT-7P2425 ( 1) 25052528 PCB P901A AC INLET NPLG-2P913 1 25055960 PCB P901A AC INLET NPLG-2P913 1 25055960 PCB P902 SOCKET AS NSAS-4P0994 1 2009990712AUL PCB P902 SOCKET AS NSAS-4P0994 1 2009990712AUL PCB S701 PUSH SW NPS-111-S681 1 25035718 PCB S702 PUSH SW NPS-111-S681 1 25035718 PCB S703 PUSH SW NPS-111-S681 1 25035718 PCB S704 PUSH SW NPS-111-S681 1 25035718 PCB S705 PUSH SW NPS-111-S681 1 25035718 PCB S706 PUSH SW NPS-111-S681 1 25035718 PCB S707 PUSH SW NPS-111-S681 1 25035718 PCB S708 PUSH SW NPS-111-S681 1 25035718 PCB S709 PUSH SW NPS-111-S681 1 25035718 PCB S710 PUSH SW NPS-111-S681 1 25035718 PCB S712 PUSH SW NPS-111-S681 1 25035718 PCB S713 PUSH SW NPS-111-S681 1 25035718 PCB S714 PUSH SW NPS-111-S681 1 25035718 PCB S715 PUSH SW NPS-111-S681 1 25035718 PCB S716 PUSH SW NPS-111-S681 1 25035718 PCB E802 HOLDER (CRAMP) UA-0 V0 1 27190608-1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8/8 PAGE PCB E802 HOLDER (CRAMP) UA-0 V0 1 27190608-1 PCB CN201A SOCKET NSCT-15P1684 1 25051897 PCB CN201Aor SOCKET NSCT-15P2249 ( 1) 25052352 PCB CN201Aor SOCKET NSCT-15P2433 ( 1) 25052536 PCB CN21B SOCKET AS NSAS-26P1455 1 200C4192640UL PCB CN21B SOCKET AS NSAS-26P1455 1 200C4192640UL PCB CN301B SOCKET AS NSAS-26P1384 1 200C4192612UL PCB CN301B SOCKET AS NSAS-26P1384 1 200C4192612UL PCB CN451B SOCKET NSCT-17P1611 1 25051824 PCB CN451B SOCKET NSCT-17P1611 1 25051824 PCB CN451Bor SOCKET NSCT-17P1813 ( 1) 25052026 PCB CN451Bor SOCKET NSCT-17P1813 ( 1) 25052026 PCB CN451Bor SOCKET NSCT-17P2110 ( 1) 25052213 PCB CN451Bor SOCKET NSCT-17P2110 ( 1) 25052213 PCB JL703A WIRE HOL NSCT-3P874 1 25051087 PCB JL703B WIRE HOL NSCT-3P874 1 25051087 DPS-6.5 PACKING PROCEDURE PARTS LIST ! :Safety parts :North American area :Australia area REF. NO. NAME DESCRIPTION Q'TY PART NO REMARKS PKG A450 CARTON DPS-6.5(B) 1 29054275 N PKG A451 LABEL (RE)MUA4P 2 29363464 PKG A455 UPC LABEL DPS-6.5(B) 1 29363918 N PKG A455 EAN LABEL DPS-6.5(B) 1 29363924 N PKG A530 WRNTY CARD (INTEGRA) 1 29365089A PKG A601 PAD (AS) 1 29092194 PKG A604 POLY BAG 650x500 1 29100037-1A PKG A605 POLY BAG 350x250 1 29100097-1A PKG A606 TAPE NITTO NO.29 ( 1) 29110149 :0.3:MT PKG A607 PP TAPE W48 OPP TAPE ( 1) 29110148 :1.3:MT PKG A901 CORD AS RCA3P(YWR) 1 2010412 PKG A901 or PIN CORD AS RCA3P(YWR) ( 1) 2010379 PKG A902 BATTERY R6/AA(UM-3) 2 3010194 PKG A902 or BATTERY R6/AA(UM-3) ( 2) 3010054 PKG A903 CORD AS 3.5 MINI PLUG 1 2010431 PKG A904 INS MANUAL En(DPS6.5) 1 29343848 N PKG A905 REMO CON RC-583DV 1 24140583 N PKG A906 CORD AS (S CORD) 1 2010380 PKG A906 or CORD AS TPX3000 ( 1) 2010360 PKG P981 AC CORD AS-UC-2 1 253352TES ! PKG P981 or AC CORD AS-UC-2 ( 1) 253297KAW ! PKG P981 AC CORD AS-SAA 1 253311VOL ! NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE ONLY WITH PART NUMBER SPECIFIED. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 DVD MAIN BOARD PARTS LIST-1 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 ohm 47k ohm 0.5 ohm 1 ohm RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k ohm RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. A LOAB ASSY SWITCHES AND RELAYS S101 VSK1011 OTHERS CN602 KR CONNECTOR S2B-PH-K CN601 KR CONNECTOR S5B-PH-K PC BOARD LOAB VNP1879 B DVD MAIN BD ASSY SEMICONDUCTORS IC321 BA00BC0WT IC502,IC602,IC702 BA4560F IC204 BR24L16FV-W IC202 K4S641632H-TC75 IC101 M63018FP IC401 MM1623BF IC201 MT1389EE-L1 IC801 NJM78M05FA IC501,IC601,IC701 PCM1742KE IC311 PQ1M505M2SPQ IC205 PST3228 IC341 S-L2980A33MC-C6S IC841 TC7SHU04FU IC203 VYW2202 Q562,Q662,Q762 2SA1576A Q372,Q373 2SA1602A Q371,Q4,Q901 2SC4081 Q541,Q542,Q544,Q545 2SD2114K Q641,Q642,Q741,Q742 2SD2114K Q7,Q8 HN1A01F Q592,Q593 HN1C01FU Q5 UM5K1N Q561,Q661,Q761 UMH9N D801 1SS355 D591 UDZS6.8B COILS AND FILTERS L421,L422 CHIP BEAD VTL1089 L311 CHIP BEAD VTL1095 CAPACITORS C292,C293,C297 CCSRCH101J50 C265 CCSRCH220J50 C142,C227 CCSRCH221J50 C294,C295,C903 CCSRCH330J50 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 DVD MAIN BOARD PARTS LIST-2 C507,C515,C516,C607 CCSRCH331J50 C615,C616,C707,C715,C716 CCSRCH331J50 C254 CCSRCH391J50 C211,C212 CCSRCH561J50 C251 CCSRCH8R0D50 C252 CCSRCH9R0D50 C256,C506 CEAT100M50 C401,C405,C511,C512,C517 CEAT101M10 C611,C612,C617,C711,C712 CEAT101M10 C717,C804,C911 CEAT101M10 C281,C421,C422,C501 CEAT102M6R3 C901 CEAT1R0M50 C201,C202,C237,C302,C601 CEAT221M6R3 C701,C73 CEAT221M6R3 C10,C203,C206,C215 CEAT470M16 C521,C522,C531,C591 CEAT470M16 C621,C622,C721,C722,C801 CEAT470M16 C9 CEAT470M16 C423,C424 CEAT471M6R3 C11,C124,C230,C267,C296 CKSRYB102K50 C298,C304,C505,C913 CKSRYB102K50 C130,C134,C136,C226 CKSRYB103K50 C313,C606,C706 CKSRYB105K10 C219 CKSRYB152K50 C209 CKSRYB153K25 C112-C114,C513,C514 CKSRYB222K50 C613,C614,C713,C714 CKSRYB222K50 C269 CKSRYB333K16 C208,C210 CKSRYB472K50 C258,C259 CKSRYB473K50 C255 CKSRYB474K10 C125,C204,C205,C207 CKSRYF104Z25 C213,C214,C216,C217,C220 CKSRYF104Z25 C222-C225,C228,C231-C236 CKSRYF104Z25 C239-C241,C244-C246,C253 CKSRYF104Z25 C257,C260,C262,C264,C266 CKSRYF104Z25 C268,C270-C273,C282 CKSRYF104Z25 C284-C288,C290,C312,C402 CKSRYF104Z25 C404,C411,C415,C416,C502 CKSRYF104Z25 C532,C602,C605,C632,C702 CKSRYF104Z25 C705,C71,C72,C732,C74 CKSRYF104Z25 C102,C132,C139,C243,C261 CKSRYF105Z10 C263,C283,C289,C303,C311 CKSRYF105Z10 C321,C341,C342,C412-C414 CKSRYF105Z10 C43-C46,C504,C518 CKSRYF105Z10 C592,C593,C6,C618,C718 CKSRYF105Z10 C841,C912 CKSRYF105Z10 RESISTORS R222,R225 RAB4C330J R515,R520,R615,R620,R715 RN1/16SE1002D R720 RN1/16SE1002D R511,R514,R611,R614,R711 RN1/16SE5601D R714 RN1/16SE5601D R207-R209,R217 RS1/10S0R0J R904 RS1/10S151J R562,R662,R762 RS1/10S182J R103,R106 RS1/10S1R0J R104,R107 RS1/10S1R8J R115-R120 RS1/10S4R7J R421-R424 RS1/10S75R0F R262,R264,R268,R271,R274 RS1/16S1500F R277 RS1/16S1500F R279 RS1/16S2201F R321-R323 RS1/16S3302F R905 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS CN301 KR CONNECTOR B13B-PH-K CN103 KR CONNECTOR B5B-PH-K CN452 FFC CONNECTOR 5P HLEM5S-1 JA502 4P PIN JACK VKB1126 JA501 4P PIN JACK VKB1132 JA401 4P PIN JACK VKB1168 CN104 4P FFC CONNECTOR VKN1235 CN102 12P FFC CONNECTOR VKN1243 CN201 15P FFC CONNECTOR VKN1246 CN101 24P FFC CONNECTOR VKN1464 JA901 JACK VKX1013 X201 CRYSTAL RESONATOR VSS1168 (27MHz) B DVDM ASSY [VWS1583] SEMICONDUCTORS IC321 BA00BC0WT IC502,IC602,IC702 BA4560F IC204 BR24L16FV-W IC202 K4S641632H-TC75 IC101 M63018FP IC471 MM1505XN IC472 MM1507XN IC451 MM1566AJ IC401 MM1623BF IC201 MT1389EE-L1 IC801 NJM78M05FA IC501,IC601,IC701 PCM1742KE IC311 PQ1M505M2SPQ IC205 PST3228 IC341 S-L2980A33MC-C6S IC841 TC7SHU04FU IC203 VYW2202 Q482,Q492,Q562,Q662,Q762 2SA1576A Q372,Q373 2SA1602A Q371,Q4,Q481,Q491,Q901 2SC4081 Q541-Q546,Q641,Q642 2SD2114K Q741,Q742 2SD2114K Q401 DTC114YUA Q7,Q8 HN1A01F Q592,Q593 HN1C01FU Q5 UM5K1N Q561,Q661,Q761 UMH9N D471-D474,D481,D801 1SS355 D591 UDZS6.8B COILS AND FILTERS L421,L422 CHIP BEAD VTL1089 L311 CHIP BEAD VTL1095 CAPACITORS Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 DVD MAIN BOARD PARTS LIST-3 C292,C293,C297 CCSRCH101J50 C265 CCSRCH220J50 C142,C227 CCSRCH221J50 C294,C295,C903 CCSRCH330J50 C507,C515,C516,C607 CCSRCH331J50 C615,C616,C707,C715,C716 CCSRCH331J50 C254 CCSRCH391J50 C211,C212 CCSRCH561J50 C251 CCSRCH8R0D50 C252 CCSRCH9R0D50 C256,C471,C506 CEAT100M50 C401,C405,C454,C511,C512 CEAT101M10 C517,C611,C612,C617 CEAT101M10 C711,C712,C717,C804,C911 CEAT101M10 C281,C421,C422,C501 CEAT102M6R3 C901 CEAT1R0M50 C201,C202,C237,C302,C601 CEAT221M6R3 C701,C73 CEAT221M6R3 C10,C203,C206,C215 CEAT470M16 C521,C522,C531,C591 CEAT470M16 C621,C622,C721,C722,C801 CEAT470M16 C9 CEAT470M16 C423,C424 CEAT471M6R3 C11,C124,C230,C267,C296 CKSRYB102K50 C298,C304,C505,C913 CKSRYB102K50 C130,C134,C136,C226 CKSRYB103K50 C313,C606,C706 CKSRYB105K10 C219 CKSRYB152K50 C209 CKSRYB153K25 C112-C114,C513,C514 CKSRYB222K50 C613,C614,C713,C714 CKSRYB222K50 C269 CKSRYB333K16 C208,C210 CKSRYB472K50 C258,C259 CKSRYB473K50 C255 CKSRYB474K10 C125,C204,C205,C207 CKSRYF104Z25 C213,C214,C216,C217,C220 CKSRYF104Z25 C222-C225,C228,C231-C236 CKSRYF104Z25 C239-C241,C244-C246,C253 CKSRYF104Z25 C257,C260,C262,C264,C266 CKSRYF104Z25 C268,C270-C273,C282 CKSRYF104Z25 C284-C288,C290,C312,C402 CKSRYF104Z25 C404,C411,C415,C416,C453 CKSRYF104Z25 C461-C463,C472-C476,C482 CKSRYF104Z25 C492,C502,C532,C602,C605 CKSRYF104Z25 C632,C702,C705,C71,C72 CKSRYF104Z25 C732,C74 CKSRYF104Z25 C102,C132,C139,C243,C261 CKSRYF105Z10 C263,C283,C289,C303,C311 CKSRYF105Z10 C321,C341,C342,C412-C414 CKSRYF105Z10 C43-C46,C504,C518 CKSRYF105Z10 C592,C593,C6,C618,C718 CKSRYF105Z10 C841,C912 CKSRYF105Z10 RESISTORS R222,R225 RAB4C330J R515,R520,R615,R620,R715 RN1/16SE1002D R720 RN1/16SE1002D R511,R514,R611,R614,R711 RN1/16SE5601D R714 RN1/16SE5601D R207-R209,R217 RS1/10S0R0J R904 RS1/10S151J R562,R662,R762 RS1/10S182J R103,R106 RS1/10S1R0J R104,R107 RS1/10S1R8J R115-R120 RS1/10S4R7J R421-R424 RS1/10S75R0F R262,R264,R268,R271,R274 RS1/16S1500F R277 RS1/16S1500F R279 RS1/16S2201F R321-R323 RS1/16S3302F R905 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS CN301 KR CONNECTOR B13B-PH-K CN103 KR CONNECTOR B5B-PH-K CN451 FFC CONNECTOR 17P HLEM17S-1 JA502 4P PIN JACK VKB1126 JA501 4P PIN JACK VKB1132 JA401 4P PIN JACK VKB1168 CN104 4P FFC CONNECTOR VKN1235 CN102 12P FFC CONNECTOR VKN1243 CN201 15P FFC CONNECTOR VKN1246 CN101 24P FFC CONNECTOR VKN1464 JA901 JACK VKX1013 X201 CRYSTAL RESONATOR VSS1168 (27MHz) Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-6.5 ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.onkyo.net ONKYO CHINA LIMITED Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8124 http://www.onkyo.com/jp/ ONKYO CORPORATION Integra Division of ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.integrahometheater.com Integra Division of www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
