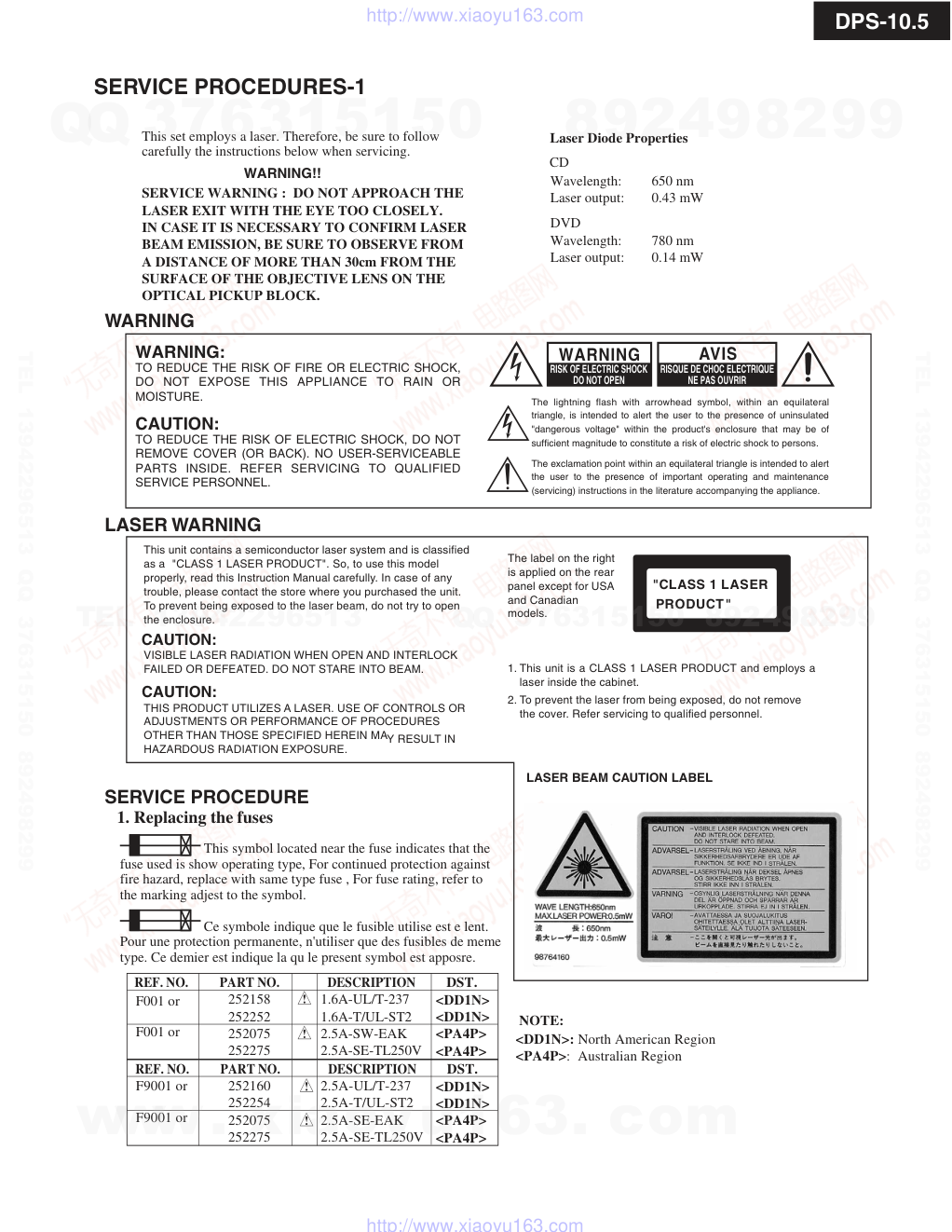

DPS-10.5 SERVICE MANUAL SERVICE MANUAL Super Audio CD & DVD Audio/Video Player MODEL DPS-10.5 120V AC, 60Hz 230-240V AC, 50Hz UDD1N UPA4P Ref. No. 3792 Nov, 2004 RC-562DV +10 0 Clear 1 2 3 4 5 6 7 8 9 Input I + - Enter S e t u p R e t u r n L4 L2 L1 V Off V In Aspect A-B Repeat Rsltn Angle Subtitle Audio L3 T o p M e n u M e n u VOL + - V3 TV Input D M S DVD Amp VCR DVD V1 V2 LM RD Zoom CH L Mode Learning Search Memory Dimmer Amp Input Display Audio Sel Zoom On Picture Control Random Step/Slow Muting Angle Subtitle Audio Aspect A-B Repeat On Standby T V T V CH T V VOL RC-562DV Last Memory Resolution Mode Amp Input Rec Open/Close Video Input Video Off SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Specifications and features subject to change without notice. Signal System North American models: NTSC Australian models: PAL/NTSC Composite Video Output/Impedance 1.0 V(p-p)/75 ohm negative sync, RCA/phono S-Video Output/Impedance Y: 1.0 V(p-p)/75 ohm negative sync, 4-pin mini DIN C: 0.286 V(p-p)/75 ohm Component Video Output/Impedance Y: 1.0 V(p-p)/75 ohm PB/PR: 0.7V(p-p)/75 ohm, RCA/phono, BNC Frequency Response DVD Audio 4 Hz - 88 kHz (192 kHz) DVD Linear Sound 4 Hz - 44 kHz (96 kHz) 4 Hz - 22 kHz (48 kHz) Audio CD 4 Hz - 20 kHz (44.1 kHz) S/N Ratio 112 dB Audio Dynamic Range 106 dB THD (Total Harmonic Distortion) 0.002 % (1 kHz) Wow and Flutter Below threshold of measurability Audio Output (Digital/Optical) -22.5 dBm Audio Output/Impedance (Digital/Coaxial) 0.5V p-p / 75 ohm Audio Output/Impedance (Analog) 2.0 V(rms) / 320 ohm HDMI socket (HDMI OUT) 19-pin i.LINK socket 4-pin (S400) Power Supply North American models: AC 120 V, 60 Hz Australian models: AC 230-240 V, 50 Hz Power Consumption 48 W Stand-by Power Consumption 7.1 W Dimensions (W x H x D) 435 W x 123 H x 376 D mm 17. 1/8 W x 4. 13/16 H x 14. 13/16 D inches Weight 12.1 kg 26.7 lbs Operation Condition Temperature 5 C - 35 C (41 F 95 F) Disc Compatibility DVD-Video, DVD-Audio, SACD, DVD-R (Video Mode), DVD-RW (Video Mode/VR mode), Music CD/CD-R/RW,Video CD, MP3, JPEG Disc that has not been property finalized may only be partially play- able or not playable at all. DPS-10.5 SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-10.5 SERVICE PROCEDURES-1 This set employs a laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING!! SERVICE WARNING : DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICKUP BLOCK. Laser Diode Properties 780 nm 0.14 mW LASER WARNING Wavelength: Laser output: 650 nm 0.43 mW Wavelength: Laser output: CD DVD WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS WARNING This unit contains a semiconductor laser system and is classified as a "CLASS 1 LASER PRODUCT". So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure. VISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE INTO BEAM. THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. The label on the right is applied on the rear panel except for USA and Canadian models. 1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet. 2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel. "CLASS 1 LASER PRODUCT" CAUTION: CAUTION: SERVICE PROCEDURE 1. Replacing the fuses REF. NO. PART NO. DESCRIPTION This symbol located near the fuse indicates that the fuse used is show operating type, For continued protection against fire hazard, replace with same type fuse , For fuse rating, refer to the marking adjest to the symbol. Ce symbole indique que le fusible utilise est e lent. Pour une protection permanente, n'utiliser que des fusibles de meme type. Ce demier est indique la qu le present symbol est apposre. F001 or 252158 252252 252075 252275 1.6A-UL/T-237 1.6A-T/UL-ST2 2.5A-SW-EAK 2.5A-SE-TL250V LASER BEAM CAUTION LABEL F9001 or 252160 252254 252075 252275 2.5A-UL/T-237 2.5A-T/UL-ST2 2.5A-SE-EAK 2.5A-SE-TL250V F001 or F9001 or NOTE: : North American Region : Australian Region REF. NO. PART NO. DESCRIPTION DST. DST. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-10.5 SERVICE PROCEDURES-2 Factory-shipped condition Push button "ON" (Mechanical SW) Except Press the [STOP] and [STANDBY] same time. (Wait until FL display "No Disc") . Push button "STANDBY". INITIALIZING Others SURR. MODE Switch -------- "1" position Mechanical power switch ---- ON 2. Safety-check out (Only U.S.A. model) After correcting the original service problem perform the following safety check before releasing the set to the customer Connect the insulating-resistance tester between the plug of power supply cord and terminal GND on the back panel. Specifications: More than 10M ohm at 500V Confirm version of Microprocessor At power ON. 1. Press "DISPLAY" key and "VIDEO OFF" key at same time. 2. Press "DISPLAY" key. a) System microprocessor b) Release version of System microprocessor c) Loader microprocessor version d) B/E version of microprocessor e) F/E version of microprocessor f) CPPM g) FL display microprocessor h) Video microprocessor i) Loader of video microprocessor j) iLINK microprocessor k) Model name l) Destination m) All segment of TL tube Note: Regional cod is displayed on the TV monitor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-10.5 EXPLODED VIEW-1 OVERALL A 1 2 3 4 5 B C D E F G H P4204B P6302B P6005B P6303B P6703A P6551B P5402B P7010B P5001A P5401A P5402A P5002A P1101A U07 U02 U03 U01 U04 U09 U08 U21 U13 U12 P9604 F001 F9001 P9102 P9104 U18 U06 U15 U20 U10 A13 x 3 A411 A203 x 4 A227 x 2 A221 x 2 A17 x 2 A19 x 11 A77 x 4 A19 x 11 A45 x 2 A09 x 2 A43 x 2 A53 x 2 A35 x 2 A625 x 4 Z701 x 4 A19 x 2 A04 x 3 L902- L905 x 4 A53 x 2 A19 x 2 A423 x 2 A09 x 4 A08 x 2 A04 x 28 A67 x 2 A05 x 4 A03 x 2 A45 x 2 A04 x 2 A49 x 2 A58 A53 x 4 A57 x 4 A79 x 4 A81 x 4 A415 x 3 A203 x 2 A221 x 2 Included A10 x 10 A91 x 4 A87 x 2 A95 x 2 A95 x 2 A97 x 7 A95 x 2 A63 x 2 A71 x 6 A67 x 3 A89 x 4 A91 x 4 A417 x 8 A04 x 5 A19 x 2 A09 x 2 A421 x 10 A325 x 3 A10 A413 A303 A207 A205 A217 A213 A617 A95 A37 A15 A16 A80 T901 A04 A47 A619 A427 A01 A73 A21 A07 A12 A14 A11 A44 A999 Z711 E1001 x 5 A51 A429 Z723 A31 A621 A04 A53 A53 A60 A06 A02 A27 A101 A23 A211 P7201 P9103 P6551 P6005 P4571 P2901 P4202 P4203 P4950 P4005 P4003 P3002 P1302 P1301 P2001 P2002 P2003 P2004 P4008 P9601 P9602 P2701 A201 A04 E1001 A301 A323 A317 A83 A85 Cloth tape A427 A50 A65 A93 A55 A39 A41 E1001 A401 A403 A405 A04 x 3 A425 A615 A613 A999 A623 L901 P1001A From Pickup P4204 Tape P5402 P6703 Tape P7010A P7010 i.Link/ RS-232C HDMI Z723 Z713 x 2 Z714 x 2 A615 x 2 Tray Z725 A09 x 2 Cloth tape Cloth tape Cloth tape Cloth tape x2 Cloth tape A39 A407 A409 (4 pcs) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Traverse Mecha. KHM-280AAA Z717 x 2 Z712 31 Z710 13 27 6 28 18 5 22 17 20 9 11 14 Z720 x 2 Z720 Z716 (GRY) x 2 Z715 (BLUE) Z715 (BLUE) 16 4 34 12 24 20 35 8 1 7 20 x 2 15 20 x 2 23 23 23 Z720 21 3 3 30 2 33 32 10 21 22 22 DPS-10.5 EXPLODED VIEW-2 DVD LOADER MECHANISM Z711: MGD-33 Parts No. 24801022 26 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com P4961 SW 3 P4961 SR 6 P4961 FR 9 P4964 SR 3 P4960 DMXR 3 P4950B D4201 UDZ12B D4202 UDZ12B C4755 104Z C4986 104Z C4985 4.7/50 R4777 2.7K R4778 47K R4995 0 R4997 0 R4996 0 P4571B FROM MAIN CPU P4005B L4956 617CM-1430 Q4756 2SC2712 Q4755 2SC2712 Q4202 2SD2394-E Q4203 2SC2712-GR Q4858 2SC2712 Q4857 2SC2712 P4962A P4962B P4959 P4958 P4955 RI 1 3 2 4 T4951 TRNS_ P4957 + - G SG Q4758 RN1404 Q4208 RN1407 Q4954 RN1402 Q4953 RN1402 Q4207 RN1407 Q4205 NC P4956 IR_IN/OUT Q4955 PC817X Q4853 HN1C03F 5 3 4 Q4852 HN1C03F 2 6 1 Q4902 HN1C03F 2 6 1 Q4903 HN1C03F 5 3 4 Q4802 HN1C03F 2 6 1 Q4803 HN1C03F 5 3 4 Q4753 HN1C03F 5 3 4 Q4752 HN1C03F 2 6 1 Q4702 HN1C03F 2 6 1 Q4703 HN1C03F 5 3 4 Q4753 HN1C03F 2 6 1 Q4752 HN1C03F 5 3 4 Q4802 HN1C03F 5 3 4 Q4803 HN1C03F 2 6 1 Q4852 HN1C03F 5 3 4 Q4853 HN1C03F 2 6 1 Q4902 HN1C03F 5 3 4 Q4903 HN1C03F 2 6 1 Q4702 HN1C03F 5 3 4 Q4703 HN1C03F 2 6 1 P4961 CENTER 1 2 P4961 FL 7 8 P4964 SL 1 2 P4961 SL 4 5 P4960 DMXL 1 2 Q4952 74HCU04F 3 4 Q4952 74HCU04F 13 12 Q4951 74HCU04F 3 4 Q4952 74HCU04F 11 10 Q4952 5 6 Q4952 74HCU04F 9 8 Q4951 74HCU04F 1 2 Q4951 13 12 Q4952 74HCU04F 1 2 Q4951 74HCU04F 11 10 Q4951 9 8 Q4951 5 6 Q4952 74HCU04F GND 7 VCC14 Q4951 74HCU04F GND 7 VCC14 Q4956 1 3 2 Q4957 1 3 2 R4999 NC R4984 0 R4717 680K R4715 1M R4921 10K R4923 1M R4924 680K R4922 10K R4980 10K R4982 1M R4983 680K R4981 10K R4703 1K R4701 1K R4910 100 R4909 100 R4859 100 R4860 100 R4858 2.2K R4857 2.2K R4246 2.2 1/2W R4975 100 R4973 180 R4971 180 R4968 330 R4985 0 R4969 100 R4964 10K R4963 10K R4961 3.3K R4962 470 R4702 1K R4767 2.7K R4765 10K R4766 10K R4768 2.7K R4241 100 R4242 100 R4236 470 R4234 10K R4232 10K R4230 10K R4235 470 R4233 10K R4231 10K R4229 10K R4244 22K R4247 10K R4245 2.2 1/2W R4243 10K R4966 220 R4965 220 R4853 1K R4854 1K R4803 1K R4804 1K R4751 1K R4752 1K R4754 1K R4753 1K R4704 1K R4915 1M R4917 680K R4916 1M R4918 680K R4908 2.2K R4907 2.2K R4809 100 R4810 100 R4808 2.2K R4807 2.2K R4758 2.2K R4760 220 R4757 2.2K R4759 220 R4979 10K R4708 2.2K R4707 2.2K R4709 100 R4710 100 R4978 10K R4762 2.2K R4764 220 R4761 2.2K R4763 220 R4813 220 R4814 220 R4812 2.2K R4811 2.2K R4863 220 R4864 220 R4861 2.2K R4862 2.2K R4912 2.2K R4911 2.2K R4913 220 R4914 220 R4712 2.2K R4713 220 R4714 220 R4711 2.2K R4773 1M R4774 680K R4801 1K R4802 1K R4852 1K R4851 1K R4872 2.7K R4871 2.7K R4870 10K R4869 10K R4901 1K R4902 1K R4903 1K R4904 1K R4775 1.8K R4776 1.8K R4770 1M R4772 680K R4769 1M R4771 680K R4756 47K R4755 47K R4805 47K R4806 47K R4815 1M R4817 680K R4816 1M R4818 680K R4855 47K R4856 47K R4865 1M R4867 680K R4866 1M R4868 680K R4905 47K R4906 47K R4716 1M R4718 680K R4976 1M R4977 680K R4705 47K R4706 47K R4954 0 R4953 R4960 22K R4958 150K R4957 100K R4974 100 R4952 R4951 0 R4959 22K R4956 150K R4955 100K R4967 330 R4970 180 R4972 180 C4921 470/6.3 C4978 470/6.3 C4706 47/50 C4705 47/50 C4205 220/16 C4206 220/16 C4203 470/6.3 C4968 100/6.3 C4958 100/6.3 C4202 470/25 C4201 470/25 C4204 470/6.3 C4702 47/16 C4701 47/16 C4754 47/50 C4753 47/50 C4803 47/50 C4804 47/50 C4853 47/50 C4854 47/50 C4903 47/50 C4904 47/50 C4977 470/6.3 C4956 100/6.3 C4966 100/6.3 C4955 100/6.3 Q4701 BA15532F 3 +B 8 2 1 Q4851 BA15532F 3 +B 8 2 1 Q4801 BA15532F 3 +B 8 2 1 Q4751 BA15532F 3 +B 8 2 1 Q4901 BA15532F 3 +B 8 2 1 Q4851 BA15532F 5 6 -B 4 7 Q4801 BA15532F 5 6 -B 4 7 Q4751 BA15532F 5 6 -B 4 7 Q4701 BA15532F 5 6 -B 4 7 Q4901 BA15532F 5 6 -B 4 7 L4999 NC L4955 022 L4953 022 L4952 022 L4954 022 L4951 022 P4203B P4202B Q4206 NC Q4805 RN2403 Q4804 RN2403 Q4855 RN2403 Q4854 RN2403 Q4905 RN2403 Q4904 RN2403 Q4704 RN2403 Q4705 RN2403 Q4757 2SA1162-GR Q4921 2SA1162-GR Q4959 2SA1162-GR Q4204 2SA1162-GR Q4201 2SB1565-E Q4958 2SA1162-GR C4979 NC C4987 NC C4999 NC C4976 220 C4967 104Z C4974 104Z C4972 104Z C4971 104Z C4970 104Z C4969 104Z C4959 223 C4957 104Z C4752 104Z C4802 104Z C4902 104Z C4901 104Z C4852 104Z C4851 104Z C4801 104Z C4751 104Z C4704 104Z C4703 104Z C4954 103K C4952 104Z C4962 330 C4953 103K C4973 104Z C4951 104Z C4961 330 C4975 220 C4965 104Z C4960 330 D4921 1SS352 D4952 1SS352 D4953 1SS352 D4851 1SS352 D4852 1SS352 D4751 1SS352 D4752 1SS352 D4951 1SS352 DAC_MUTE 5V_MUTE DOGND DIG1 MUT.DMXL DO+5 DMXL DIG1 DMXL AGND1 DIG2 DIG2 DMXR LO/LT DMXR AGND1 MUTEDRV1 RO/RT SL AGND1 RI SR MUT.DMXR CENTER +12V AGND1 EV5GND SW IRIN EV5 3DB_CTRL DIG2 DIG1 5V_MUTE MUT.LO MUT.RO MUT.SL SL MUT.SR MUT.C MUT.SW AMUTE -12V EVGND +12V 12VGND AGND1 MUT.DMXL MUT.DMXR AMUTE +12V 12VGND EV5GND -12V EV5.6 SR AGND1 AGND1 EVGND EV5 EV5 IRIN IRIN PWRCTR EV5GND RI MUT.LO PWRCTR LO/LT AGND1 A+B RO/RT MUT.RO MUTEDRV3 MUT.SL A+B SL A-B PWRCTR AGND1 SR A-B MUT.SR PWRCTR PWRCTR MUT.C CENTER AGND1 SW MUT.SW NAAF-8266 U11 : Digital output PC board NADG-8268 AUDIO OUTPUT SECTION U09 : AUDIO OUTPUT PC BOARD NAAF-8266 Not used DPS-10.5 SCHEMATIC DIAGRAM-7/18 A 1 2 3 4 5 B C D E F G H To NADG-8259 To NAAR-8263 To NAAR-8263 To NAAR-8263 To NAAR-8263 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AUDIO/ DSP SECTION Q4012 MB86344 3.3V NAAR-8263 To NADG-8257 To NADG-8262 To NADG-8272 To NADG-8257 To NAAF-8266 To NADG-8259 To NAPS-826 To NAAF-8266 SRAM Audio DSP 2nd PLL LRCK_5V Used Other Model Used Other Model DPS-10.5 SCHEMATIC DIAGRAM 5/18 U18 : AUDIO DAC PC BOARD (1/2) NAAR-8263 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com To Audio output terminal NAAF-8266 From Audio DAC section NAAR-8263 NAAR-8263 To Audio output terminal NAAF-8266 To SCART Section SW C SR SL RO/RT LO/LT VLSC x 8 channel Wolfson 8 channel Stereo DAC x 4 DMXL DMXR DPS-10.5 SCHEMATIC DIAGRAM 6/18 AUDIO/ DAC SECTION U18 : AUDIO DAC PC BOARD-2 NAAR-8263 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EVGND TRG R7202 EV5 To DVD Main board NADG-8257 (4/4) NADG-8259 U03 : DVD MAIN CPU PC BOARD (1/2) NADG-8259 AMUTE M PWRCNT To NADIS-8264 Display PC board (3/18) Q7401 BA6288FS Q7001 M30624MGP MAIN CPU SECTION To Loader Mecha. DPS-10.5 R7060 R7059 56 k ohm 10 k ohm DD1N PA4P R7063 R7062 56 k ohm 68 k ohm 10 k ohm 27 k ohm NOTE: NOTE: System Control Microprocessor DPS-10.5 SCHEMATIC DIAGRAM 1/18 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NADG-8259 VIDEO ENCODER VIDEO ENCODER HDMI IEEE1394 From NAPS-8270 Power supply-2 PC board To NAVD-8265 Component/ D-terminal/ SCART terminal board To NAVD-8258 To NAVD-8258 To NAVD-8273 To NADG-8272-1 Digital video processor section To NADG-8272-5 Video MPU section To NADG-8257 DVD Main board B/E section To Main CPU section-1 To NAAF-8266 Audio output board U03 : DVD MAIN CPU PC BOARD NADG-8259 (2/2) MAIN CPU SECTION To NADG-8262 To NAAR-8263 To NADG-8272-1 Digital video processor section DPS-10.5 SCHEMATIC DIAGRAM 2/18 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Q3502 HD64F2367VF33 Q3004 TSB43CA42A IEEE SECTION L3507 L3508 L3509 L3510 BLM21B222S232 BLM21B222S232 BLM21B222S232 BLM21B222S232 PT-TXD PT-RTS PT-RXD PT-CTS NADG-8262 To NADG-8259 IEEE 1394 Control Microprocessor To NAAR-8263 RS-232C PHAST IEEE 1394 Controller SACD IN To NADG-8257 MLPCM IN BLM41P750SPT BLM41P750SPT L3003 L3004 DPS-10.5 SCHEMATIC DIAGRAM 12/18 U19/ U20 : IEEE1394 TERMINAL PC BOARD NADG-8262 i-Link i-Link A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NADG-8272 Q8001 SiI504 Interlace to Progressive Video Scan Converter To NADG-8259 To NADG-8259 DPS-10.5 SCHEMATIC DIAGRAM 14/18 I/P CONVERTER SECTION U15 : DIGITAL VIDEO PROCESSOR PC BOARD (1/5) NADG-8272 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NADG-8272 SCALER SECTION P8101 RN-1A Q8101 Graphics Input port Q8101 RM-1A Memory port RM-1A Q8101 Video input port Q8101 RM-1A Display port Q8101 RM-1A Power port Q8101 RM-1A Control port DPS-10.5 SCHEMATIC DIAGRAM 15/18 U15 : DIGITAL VIDEO PROCESSOR PC BOARD (2/5) NADG-8272 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NADG-8272 DPS-10.5 SCHEMATIC DIAGRAM 16/18 MEMORY SECTION U15 : DIGITAL VIDEO PROCESSOR PC BOARD (3/5) NADG-8272 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com For Other Models To NAAR-8263 Audio DAC section HDMI Output Plug NADG-8272 Q8501 SiI161B Q8401 SII160 Q8301 SII9190 HDMI SECTION HDMI Reciever HDMI Transmitter R8505 R8507 C8501 R8502 HDMI in Plug For HDMI input For HDMI input HDMI Transmitter DPS-10.5 SCHEMATIC DIAGRAM 17/18 U15 : DIGITAL VIDEO PROCESSOR PC BOARD (4/5) NADG-8272 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NADG-8272 P98/SOB151 P97/SIB150 76 PDL5/FLMD 77 PDL6/AD6 To NADG-8259 DVD Main CPU section-2 Q8701 V850 Video Microprocessor 1. AVREF0 25. P30TXDA0 DPS-10.5 SCHEMATIC DIAGRAM 18/18 VIDEO MPU SECTION U15 : DIGITAL VIDEO PROCESSOR PC BOARD (5/5) NADG-8272 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com P7801B P7801A S77041 2 3 P7201B D7507 1SS352 Q7502 13-BT-211GNK 10G 45 11G 44 12G 43 13G 42 1G 54 2G 53 3G 52 4G 51 5G 50 6G 49 7G 48 8G 47 9G 46 F+ 57 F- 1 NC1 40 NC2 41 P1 4 P10 13 P11 14 P12 15 P13 16 P14 17 P15 18 P16 19 P17 20 P18 21 P19 22 P2 5 P20 23 P21 24 P22 25 P23 26 P24 27 P25 28 P26 29 P27 30 P28 31 P29 32 P3 6 P30 33 P31 34 P32 35 P33 36 P34 37 P35 38 P36 39 P4 7 P5 8 P6 9 P7 10 P8 11 P9 12 U7501 REMSENS C7531 104Z C7532 104Z C7530 104Z C7533 104Z C7504 104Z C7503 104Z C7502 104Z C7501 104Z C7527 104Z C7701 104Z C7702 104Z C7529 104Z S7506 PLAY S7505 STOP S7504 OP/CL S7503 DISPLAY S7502 DOWN S7501 UP S7705 VIDEOIN S7703 VIDEOOFF S7701 STANDBY D7511 SEL2E10C D7512 SEL2E10C D7510 SEL2E10C D7513 SEL2E10C D7502 NC D7501 SEL2E10C D7504 NC D7503 SEL2E10C D7506 NC D7505 SEL2E10C D7509 SEL2E10C D7703 SEL4410R D7701 NC D7702 SEL2E10C Q7515 IMX1A 2 6 1 Q7515 IMX1A 5 3 4 Q7513 IMX1A 2 6 1 Q7513 IMX1A 5 3 4 Q7517 IMX1A 2 6 1 Q7517 IMX1A 5 3 4 Q7505 IMX1A 5 3 4 Q7505 IMX1A 2 6 1 Q7506 IMX1A 5 3 4 Q7506 2 6 1 Q7507 IMX1A 5 3 4 Q7507 2 6 1 Q7511 IMX1A 2 6 1 Q7511 IMX1A 5 3 4 Q7701 IMX1A 2 6 1 Q7701 IMX1A 5 3 4 R7558 0 R7550 0 R7568 100K R7567 100K R7565 100K R7566 100K R7553 10K R7557 1.2K R7559 10K R7554 0 R7552 0 R7555 390 R7556 56 R7551 10K R7547 390 R7548 56 R7549 1.2K R7562 1.2K R7564 10K R7560 390 R7561 56 R7563 NC R7505 1.8K R7504 1K R7503 820 R7502 470 R7501 390 R7507 56 R7508 1.2K R7506 390 R7509 R7512 56 R7513 1.2K R7511 390 R7514 R7518 56 R7517 1.2K R7516 390 R7519 R7520 10K R7515 10K R7510 10K R7542 1.2K R7544 10K R7540 390 R7541 56 R7543 NC R7546 470 R7545 390 R7705 560 R7706 10K R7702 56 R7703 1.2K R7701 390 R7704 NC Q7514 RN1407 Q7516 RN1407 Q7518 RN1407 Q7508 RN1407 Q7509 RN1407 Q7510 RN1407 Q7512 RN1407 Q7703 RN1407 Q7702 RN1407 Q7503 2SC2712 Q7504 2SC2712 D7508 5.6B C7525 330 C7524 330 C7522 330 C7526 330 C7523 330 C7518 104Z C7519 104Z C7506 223Z C7507 223Z C7510 104Z C7511 104Z C7508 223Z C7509 104Z C7513 104Z C7517 104Z C7512 104Z C7505 100/6.3 C7703 100/6.3 C7520 100/50 C7521 10/50 C7528 100/6.3 C7516 10/16 C7515 2.2/50 R7532 10K R7531 22K R7528 100K R7527 100K R7530 100K R7529 100K R7522 2.7K R7521 2.7K R7523 2.7K R7537 22 R7536 22 R7538 1 R7533 22 R7535 22 R7534 22 R7524 2.7K R7526 4.7K R7525 4.7K X7501 5MHZ Q7501 MPD780232GC-070-8BT -VDISP 60 10G 71 11G 70 12G 69 13G 68 1G 80 2G 79 3G 78 4G 77 5G 76 6G 75 7G 74 8G 73 9G 72 AVDD+5V 24 AVSS 18 FRAIC 5 GND 2 JOGA26 JOGB27 KEY0 22 KEY1 21 KEY2 20 KEY3 19 LED1 14 LED2 16 LED3 17 LED4 11 LED5 12 NC1 66 NC2 67 P1 64 P10 53 P11 52 P12 51 P13 50 P14 49 P15 48 P16 47 P17 46 P18 45 P19 44 P2 63 P20 43 P21 42 P22 41 P23 40 P24 39 P25 38 P26 37 P27 36 P28 35 P29 34 P3 62 P30 33 P31 32 P32 31 P33 30 P34 29 P35 28 P36 65 P4 61 P5 58 P6 57 P7 56 P8 55 P9 54 STBYLED 13 SUBCL 7 SUBREQ 10 SUBSI 8 SUBSO 9 VDD+5V 1 VDD0+5V 25 VDD2+5V 59 VSS23 X1 3 X2 4 IRIN 15 RESET 6 SSCBJ SSCAJ EVGND F- P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29 P30 P31 P32 P33 P34 P35 P36 13G 12G 11G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G F+ F+ KEY1 KEY1 LED+B LED+B STBYLED STBYLED PWRLED PWRLED LEDGND P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 PWRLED PWRLED 13G STBYLED STBYLED 12G VDOFFLED VDOFFLED P4 P23 HDMILED HDMILED P3 P24 EXTLED EXTLED P2 P25 DVDLED DVDLED P1 P26 KEY1 KEY1 P36 P27 LED+B LED+B P28 SSCAJ SSCAJ P29 LEDGND LEDGND P30 SSCBJ SSCBJ P31 EVGND 11G P32 10G P33 9G P34 8G P35 7G 6G 5G 4G 3G 2G 1G KEY1 KEY1 EVGND KEY0 SUBRST SUBCL SUBSI SUBSO SUBREQ RMCN_IN F+ F- -VP -VPGND EV5 EV5 EV5 RMCN_IN LEDGND EVGND LED+B EVGND LED+B LED+B PLAYLED LEDGND LEDGND SUBRST VDOFFLED SUBCL PWRLED SUBREQ STBYLED SUBSO HDMILED SUBSI EXTLED STOPLED OPCLLED DVDLED STOPLED PLAYLED STBYLED KEY0 PWRLED VDOFFLED HDMILED OPCLLED EXTLED DVDLED LEDGND 0 ohm 0 ohm NC R7550 NC D7703 RED NC RED RED NC D7701 DPS-10.5 D7510 ORANGE ORANGE NC NC D7513 NC BLUE 0 ohm NC R7554 NC NC BLUE D7512 RDV-1.1 DVSP1000 NC NC 0 ohm R7552 ORANGE ORANGE BLUE D7511 DVD/EXT HDMI EXT DVD VIDEO OFF NC NC R7558 0 ohm DISPLAY SECTION 0 ohm NOTE: FL Tube Display Microprocessor To NADG-8259 R7552 R7554 D7510 D7511 D7512 D7513 D7701 D7703 R7550 R7558 NC 0 ohm ORANGE ORANGE NC NC RED NC 0 ohm NC VALUE DPS-10.5 SCHEMATIC DIAGRAM 3/18 U07 : DISPLAY PC BOARD NADIS-8264 U10 : JOG SWITCH PC BOARD NASW-8267 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com J9021 J9020 R9609 R9608 0 R9606 150 R9111 0.22 1/2W R9112 0.22 1/2W R9113 0.22 1/2W R9114 0.22 1/2W R9110 0.22 1/2W R9104 0.22 1/2W R9103 0.22 1/2W R9102 0.22 1/2W R9101 0.22 1/2W R9107 0.22 1/2W R9106 0.22 1/2W R9105 0.22 1/2W R9109 0.22 1/2W R9115 22K R9108 10K R9117 680 R9602 1K R9116 1.8K R9605 100 R9601 100 R9603 4.7K R9604 100 R9607 3.3K C9112 2200/25 C9111 2200/25 C9110 2200/16 C9109 2200/16 C9113 2200/25 C9115 47/6.3 C9108 3300/35 C9114 4.7/50 C9129 47/35 C9117 47/35 C9122 470/6.3 C9127 470/6.3 C9118 47/35 C9123 470/6.3 C9601 470/16 C9603 470/16 D9126 RK46 D9125 RK46 D9108 D9109 D9111 D9104 1SR154-400 D9105 D9106 D9107 D9114 D9115 D9110 D9116 D9112 D9113 D9103 D9101 1SS352 D9120 1SS352 D9123 RK16 D9121 1SS352 D9124 RK16 D9122 1SS352 D9601 RB051L-40 D9602 RB051L-40 D9604 RB051L-40 D9603 RB051L-40 D9606 1SS352 C9103 334 C9104 334 C9101 334 C9102 334 C9105 334 C9116 104 C9107 334 C9106 334 C9119 104 C9120 104 C9125 104 C9124 104 C9128 104 C9121 104 C9126 104 C9001 472M C9002 472M S9002 L9001 NCH-3567 OR NCH-3489 1 2 3 4 P9006 ORANGE WHITE P9005 YELLOW WHITE P9001A P9001 P9105B P9105A P9004A P9003A P9004B P9003B P9503A P9503B P9007 P9007A P9102A T9001 Q9101 MPC29M05HF G I O P9008 P9008A S9001 C9003 C9602 104Z F9001 Q9102 SI-8015JF GND 3 ON 5 S 4 VI 1 VO 2 Q9103 SI-8050JF GND 3 ON 5 S 4 VI 1 VO 2 Q9104 SI-8033S GND 3 ON 5 S 4 VI 1 VO 2 L9101 101 L9102 101 L9103 101 D9102 RBV602 P9604A P9601A TO VIDEO_BASE P9104A P9104B P9103A Q9601 RN1407 Q9603 RN1407 Q9602 RN2403 Q9604 2SC2120 D9605 UDZS4.7B E LENT.POUR UNE PROTECTION PERMANENTE,N'UTILISER INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE. QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST FOR CONTINUED PROTECTION AGAINST FIRE RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL. HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE THIS SYMBOL LOCATED NEAR THE FUSE INDICATES THAT THE FUSE USED IS SLOW OPERATING TYPE V A FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE ONLY WITH FUSE OF SAME TYPE AND RATING INDICATED. CAUTION P9005A P9006A P9602A TO VIDEO_BASE V+B A+B AGND VGND A-B ADAC+B AGND V-B APG+B APGGND A+B P-OFF AGND V+B VGND V-B A-B P-OFF ADAC+B SW+3.3 AGND SW+5 P-OFF SWM8V APG+B EV5.6 APGGND GND -VDISP VDISPGND PWRCNT EV5.6V F+ F- APGGND SW+5V FLOFF SW+5V APGGND APGGND SW+3.3V SW+3.3V APGGND APGGND PWR_CONT 5V -VDISP APG_GND SWM8V 3.3V PWRCNT U21 : POWER SUPPLY UNIT (NAPS-0036)---- (NAPS-0037)---- NAPS-8270 Except ONLY NASW-8271 ATTENTION ET CALIBRATION COMME INDIQUE. D'INCENDIE, REMPLACER UNIQUEMENT PERMANENTE CONTRE LES RISQUES AFIN D'ASSURER UNE PROTECTION PAR UN FUSIBLE DE MEME TYPE V A NAPS-8269 NOTE REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE (NO INPUT SIGNAL). ELECTROLYTIC CAPACITORS ( ) ARE IN uF/WV. ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED. THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS. CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT. THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY EX) 030 3pF 330 33pF 331 330pF 333 0.033uF EX) PRINTING SIDE U14 : POWER SWITCH PC BOARD To NAAR-8263 To NAAR-8274 NC DPS-10.5 SCHEMATIC DIAGRAM 4/18 A 1 2 3 4 5 B C D E F G H U12 : POWER SUPPLY PC BOARD-1 NAPS-8269 U13 : POWER SUPPLY PC BOARD-2 NAPS-8270 To DVD Main CPU PC board NADG-8259 To NADG-8259 Main CPU section-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VIDEO OUTPUT SECTION (1/3) Q6003 SiI504 Video Interface to Progressive Converter To NADG-8257 To NADG-8257 To NADG-8259 NAVD-8265 DPS-10.5 SCHEMATIC DIAGRAM 8/18 U02 : VIDEO OUTPUT TERMINAL PC BOARD NAVD-8258 (1/3) A 1 2 3 4 5 B C D E F G H NAVD-8258 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-10.5 SCHEMATIC DIAGRAM 9/18 U02 : VIDEO OUTPUT TERMINAL PC BOARD NAVD-8258 (2/3) A 1 2 3 4 5 B C D E F G H VIDEO OUTPUT SECTION (2/3) Not put on parts NAVD-8258 Q6101 ADV7314 Video Encoder 14 Bit DACs VDA+5V SC. B w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Q6501 ADV7314 NAVD-8258 NAPS-8274 To NAETC-8261 To NAPS-8269 Video Encoder DPS-10.5 SCHEMATIC DIAGRAM 10/18 VIDEO OUTPUT SECTION (3/3) U02 : VIDEO OUTPUT TERMINAL PC BOARD NAVD-8258 (3/3) U06 : POWER SUPPLY PC BOARD-3 NAPS-8274 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com P6707 P6302B PLUG_7 ENCORDER P6303B PLUG_6 ENCORDER P7010B FROM MAIN CPU P4204B PLUG_10 P6703B P5402B FROM DECODER PLUG_10 P6703A PLUG_10 P6702 2 5 P6702 1 4 P6701 2 P6701 P6781 Q6783 PC817X Q6909 NJM4565M-D 5 6 4 7 Q6909 NJM4565M-D 3 8 2 1 P6551B FROM ENCORDER PLUG_9 P6005B PLUG_08 Q6910 HN1C03F 5 3 4 Q6910 HN1C03F 2 6 1 Q6908 HN1C01F-GR 2 6 1 Q6908 HN1C01F-GR 5 3 4 D6903 1SS226 D6901 1SS226 D6902 1SS226 D6905 1SS226 D6904 1SS226 Q6781 2SA1162-GR Q6911 2SA1162-GR D6781 1SS352 D6906 1SS352 Q6907 2SC2712-GR Q6809 RN2403 Q6811 RN2403 Q6782 RN1402 Q6810 RN1407 Q6808 RN1407 P6901 SCART 1B_OUT 7 AUDIO_GND 4 AUDIO_LCH_OUT 3 AUDIO_RCH_OUT 1 BLANK 16 CONTROL 10 G_OUT 11 NC1 2 NC2 6 NC3 12 NC4 20 R/C_OUT 15 SQUEEZE 8 V/Y_OUT 19 VIDEO_GND1 5 VIDEO_GND2 9 VIDEO_GND3 13 VIDEO_GND4 14 VIDEO_GND5 17 VIDEO_GND6 18 VIDEO_GND7 21 L6709 L L6708 L L6707 L L6706 L L6705 L L6704 L L6801 L L6802 L L6803 L L6905 L L6904 L L6903 L L6901 L L6902 L L6805 L L6804 L L6806 L Q6803 TC7SET04FU GND 3 2 NC 1 4 VCC 5 Q6904 TC7SET04FU GND 3 2 NC 1 4 VCC 5 Q6704 TC7SET04FU GND 3 2 NC 1 4 VCC 5 Q6805 TC7SET08FU 3 1 2 4 5 Q6804 TC7SET08FU 3 1 2 4 5 Q6807 TC7SET08FU 3 1 2 4 5 Q6912 TC7SET08FU 3 1 2 4 5 Q6906 TC7SET08FU 3 1 2 4 5 Q6706 TC7SET08FU 3 1 2 4 5 Q6705 TC7SET08FU 3 1 2 4 5 Q6905 TC7SET08FU 3 1 2 4 5 Q6903 TC7SET08FU 3 1 2 4 5 14 8 7 1 P6801 D2 C6725 100/6.3 C6723 100/6.3 C6717 1000/6.3 C6718 1000/6.3 C6716 1000/6.3 C6703 100/6.3 C6701 100/6.3 C6705 100/6.3 C6714 100/6.3 C6712 100/6.3 C6707 100/6.3 C6917 47/16 C6919 47/16 C6912 1000/6.3 C6910 1000/6.3 C6911 1000/6.3 C6909 1000/6.3 C6907 100/6.3 C6905 100/6.3 C6803 100/6.3 C6926 10/16 C6927 10/16 C6928 470/6.3 C6901 100/6.3 C6903 100/6.3 C6807 100/6.3 C6805 100/6.3 C6801 100/6.3 C6811 104Z C6813 104Z C6781 104Z C6914 104Z C6929 104Z C6726 104Z C6724 104Z C6711 104Z C6709 104Z C6710 104Z C6704 104Z C6702 104Z C6715 104Z C6713 104Z C6708 104Z C6706 104Z C6915 104Z C6920 104Z C6918 104Z C6924 101 C6923 102J C6906 104Z C6908 104Z C6904 104Z C6902 104Z C6804 104Z C6802 104Z C6806 104Z C6808 104Z C6922 104Z C6810 104Z C6913 104Z C6925 101 C6916 104Z C6809 104Z R6797 470 R6796 470 R6761 33 R6762 15 R6759 33 R6760 15 R6757 33 R6758 15 R6718 75 R6717 75 R6716 75 R6868 75 R6867 75 R6866 75 R6895 NC R6894 NC R6896 NC R6862 1K R6861 1K R6860 1M R6859 1M R6858 24 R6854 1K R6878 NC R6879 NC R6832 1K R6877 NC R6831 1K R6830 1M R6829 1M R6827 24 R6828 27 R6882 NC R6822 1K R6813 1K R6811 1M R6812 1M R6881 NC R6880 NC R6814 1K R6809 24 R6810 27 R6891 NC R6804 1K R6892 NC R6893 NC R6750 1K R6749 1K R6748 1M R6747 1M R6746 24 R6888 NC R6742 1K R6732 1K R6890 NC R6889 NC R6731 1K R6730 1M R6729 1M R6728 24 R6887 NC R6724 1K R6886 NC R6885 NC R6712 1K R6711 1K R6710 1M R6709 1M R6708 24 R6704 1K R6995 NC R6994 NC R6996 NC R6931 1K R6929 1M R6927 24 R6930 1M R6928 27 R6932 1K R6997 NC R6922 1K R6914 1K R6998 NC R6913 1K R6912 1M R6911 1M R6909 24 R6910 27 R6915 1M R6917 1M R6916 24 R6908 27 R6918 27 R6999 NC R6904 1K R6875 0 R6876 0 R6849 1.5K R6785 1K R6783 100K R6784 4.7K R6782 100K R6781 4.7K R6788 470 R6791 470 R6795 470 R6794 470 R6793 470 R6792 470 R6789 470 R6787 470 R6790 470 R6786 470 R6853 10K R6852 10K R6851 10K R6856 1M R6855 24 R6863 1M R6864 1M R6865 24 R6857 1M R6727 1M R6726 1M R6736 27 R6737 27 R6847 10K R6848 1K R6754 27 R6755 27 R6735 2.2K R6733 2.2K R6725 24 R6723 10K R6722 10K R6721 10K R6734 470 R6756 27 R6738 27 R6703 10K R6702 10K R6701 10K R6707 1M R6705 24 R6713 2.2K R6715 2.2K R6714 470 R6706 1M R6753 2.2K R6751 2.2K R6744 1M R6745 1M R6743 24 R6741 10K R6740 10K R6739 10K R6752 470 R6950 1 R6951 1K R6982 22 R6981 22 R6980 22 R6979 22 R6966 1K R6977 1M R6978 1M R6974 10K R6973 10K R6961 1K R6960 10K R6959 5.1K R6948 0 R6946 0 R6945 0 R6938 15 R6935 1M R6933 1M R6833 1M R6834 1M R6817 1M R6815 1M R6807 1M R6806 1M R6952 1 R6943 33 R6944 15 R6941 33 R6942 15 R6939 33 R6940 15 R6937 33 R6843 33 R6844 15 R6840 33 R6841 15 R6837 33 R6838 15 R6953 150 R6954 150 R6962 10K R6926 27 R6936 27 R6958 6.8K R6957 150K R6956 22K R6955 100 R6965 1K R6970 47K R6969 47K R6971 470 R6972 470 R6964 1K R6968 1M R6963 1K R6967 1M R6975 10K R6976 47K R6947 0 R6925 1M R6924 1M R6923 24 R6921 10K R6920 10K R6919 10K R6934 24 R6906 1M R6905 1M R6907 24 R6903 10K R6902 10K R6901 10K R6846 10K R6845 0 R6839 0 R6842 0 R6826 27 R6836 27 R6818 27 R6808 27 R6825 1M R6824 1M R6823 24 R6821 10K R6820 10K R6819 10K R6835 24 R6805 24 R6803 10K R6802 10K R6801 10K R6816 24 Q6708 MAX4218 ENA 1 ENB 3 ENC 2 INA+ 5 INA- 6 INB+ 10 INB- 9 INC+ 12 INC- 13 OUTA 7 OUTB 8 OUTC14 VCC 4 VEE11 Q6702 MAX4218 ENA 1 ENB 3 ENC 2 INA+ 5 INA- 6 INB+ 10 INB- 9 INC+ 12 INC- 13 OUTA 7 OUTB 8 OUTC14 VCC 4 VEE11 Q6701 MAX4218 ENA 1 ENB 3 ENC 2 INA+ 5 INA- 6 INB+ 10 INB- 9 INC+ 12 INC- 13 OUTA 7 OUTB 8 OUTC14 VCC 4 VEE11 Q6703 MAX4218 ENA 1 ENB 3 ENC 2 INA+ 5 INA- 6 INB+ 10 INB- 9 INC+ 12 INC- 13 OUTA 7 OUTB 8 OUTC14 VCC 4 VEE11 Q6902 MAX4018 ENA 1 ENB 3 ENC 2 INA+ 5 INA- 6 INB+ 10 INB- 9 INC+ 12 INC- 13 OUTA 7 OUTB 8 OUTC14 VCC 4 VEE11 Q6901 MAX4018 ENA 1 ENB 3 ENC 2 INA+ 5 INA- 6 INB+ 10 INB- 9 INC+ 12 INC- 13 OUTA 7 OUTB 8 OUTC14 VCC 4 VEE11 Q6802 MAX4218 ENA 1 ENB 3 ENC 2 INA+ 5 INA- 6 INB+ 10 INB- 9 INC+ 12 INC- 13 OUTA 7 OUTB 8 OUTC14 VCC 4 VEE11 Q6801 MAX4218 ENA 1 ENB 3 ENC 2 INA+ 5 INA- 6 INB+ 10 INB- 9 INC+ 12 INC- 13 OUTA 7 OUTB 8 OUTC 14 VCC 4 VEE 11 VEE VEE VCC VCC EXT_THRU VDOFF VGND VEE VDOFF PR VCC PB PR PY VGND SC SY CV PB CR/R CB/B Y/G VCC VEE PY VGND PR1 PR PB PY VGND EXT_THRU2 EXT_PY VDOFF VGND EXT_PR EXT_PB PB1 EXT_PB VGND EXT_PY SC EXT_PR S/NSX PY1 SY VCC VEE PR2 EXT_THRU2 CV PB2 PY2 CR/R VGND CB/B Y/G A_LCH CV A_RCH CR/R SY CB/B SC EXT_THRU2 Y/G EXT_THRU EXT_OE VDOFF S/NSX RGBON P/IX SQEEZE LETTER LETTER VGND -12V CR/R 12VGND CB/B +12V Y/G EVGND PR EV6 PB DMIX_LT PY SW12V FSW VGND DMIX_RT AGND VEE MUTE_ PY A_LCH VDOFF DMIX_LT Y/G P/IX PB DMIX_RT A_RCH EVGND EV6 P/IX EXT_OE MUTE_ CB/B CR/R PR SQEEZE LETTER VEE ASPECT VCC PR1 VDOFF VGND PR EV5V EV5VGND PB 12VTRG_IN_SW 12VTRG_IN PY PB1 PY1 NAETC-8260 NAVD-8265 COMPONENT/ D-TERMINAL/ SCART SECTION U04 : COMPONENT OUTPUT TERMINAL BOARD To NAVD-8258 To NAAR-8263 Except U08 : COMPONENT/ D-TERMINAL/ SCART TERMINAL PC BOARD NAVD-8265 To Component output board DPS-10.5 SCHEMATIC DIAGRAM 11/18 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NAVD-8273 : For other models Q5401 AD9883A Q5001 SAA7118E VIDEO DECODER SECTION Video A/D Converter Video Decoder To NADG-8259 U16: VIDEO INPUT TERMINAL PC BOARD NAVD-8273 DPS-10.5 SCHEMATIC DIAGRAM 13/18 A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-10.5 SCHEMATIC DIAGRAM U01 : DVD MAIN BOARD NADG-8257 (1/4) F/E section A 1 2 3 4 5 B C D E F G H To DVD Mechanism Pick up Sled Motor Loading Motor Motor Driver RF Amp. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com U01 : DVD MAIN BOARD NADG-8257 (2/4) SACD Section To Audio DAC section NAAR-8263 To NADG-8262 i-Link terminal PC board DPS-10.5 SCHEMATIC DIAGRAM A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com To NAVD-8258 (1/3) To NAVD-8258 (1/3) DVD Back end Decoder To NADG-8259 Main CPU section DPS-10.5 SCHEMATIC DIAGRAM-3 U01 : DVD MAIN BOARD NADG-8257 (3/4) B/E section A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com To NADG-8259 Main CPU Section 32-Bit Microprocessor MCA12 P213 Q2101 M32102S6FP DPS-10.5 SCHEMATIC DIAGRAM U01 : DVD MAIN BOARD NADG-8257 (4/4) MPU section A 1 2 3 4 5 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com P1001 00 P 1 P1 01 001 001 P100 P1101 P1101 P1101 P1101 Q100 Q1001 Q1001 Q1100 Q 01 1 0 00 00 R1000 R1002 02 R100 R1002 0 2 R11 R1 R1003 C1007 1007 C 7 C1008 1008 C 8 C1009 C1009 C 9 C1010 C1010 C 0 1 C1011 1 C1018 C1 C1018 C1019 C1 C1019 C1020 020 1020 C10 C1021 021 C1 C1 C10023 C1 C1024 C1024 C1024 C1024 C1024 C1024 7 C1027 C1028 C1028 C1028 C1029 C1029 C1029 C1030 C10300 1030 C1030 C1030 C103 C1 31 C103 C1033 33 C10034 5 C1035 C1035 1 C 00 C100 2 C1002 C100 7 02 R1027 02 02 Q10002 02 Q100 Q1 2 02 04 R1004 04 04 R1004 R1008 00 1008 00 R1008 00 R1007 00 1 R 007 00 R1 R1013 R1013 R1013 R1013 R1 R1015 15 R1012 12 R1 R1012 12 R1 R R101 016 R1 R1 R1017 10 1 18 R101 10 1 19 199 R101 101 1020 20 R102 R1021 R1021 R10 1 21 R1021 R1021 021 R1 2 R10222 R102 R102 022 R1023 R1023 R1024 R1024 0 R1024 R1024 0 C1038 C1038 C1038 C1038 C1038 C1038 C1 C1040 1 44 44 44 C104 10 C1047 C1049 C1049 C1052 C1055 C1055 C1055 Q1003 Q 4 Q1004 1005 005 005 005 Q1 Q10 5 Q1006 Q 0 Q Q 007 10 Q L1 L1 L1001 001 001 01 01 01 L10 10 10 1 L1002 1002 0 10033 L100 L10 P2901A P2901A P2901A 101 01 101 1 R1 R1 R1 R R1102 102 1 R11 R1 R R1103 R1103 R1103 R1 R1104 R1104 05 05 R1105 05 R1105 R11 R1106 106 R110 107 10 11 1 07 R11 R11 R 1 08 0 R111 R11 R 09 0 R111 R11 R 10 1 11 R11 R 11 1 R111 R1 R 1 R 12 1 R111 R11 R 11 R111 113 111 R1 4 R111 R1 4 5 R1115 R1116 R11 11 R1117 R1117 R1117 R1117 R1117 118 18 R1 R1 R1118 R1118 R11199 R1 R1119 R1 0 2 R1112 1120 20 R 121 R112 R112 R 23 11 R112 R1 23 11 4 2 112 12 1124 24 R 25 1125 1125 R1 C1101 1 1 C11 C11 C C1102 1102 C1103 103 0 C1107 C1107 C1 110 110 C1110 C1110 C1 C C111 C 113 114 14 C11 C11 C11 Q22901 Q Q2903 P1 P112 1291 29 29 29 P1 P1 P12 P112 P 291 291 91 P1291 29 1291 P1 1 P P1292 P12 P1292 292 292 92 92 29 292 2 Q1201 20 Q120 Q1201 Q 20 20 Q1 Q1 1 2 R12 R12 R1201 R120 R1220 R1 R 202 1203 1 3 R 4 R1204 R1204 205 0 R1205 R12 R 05 05 R 20 20 12 R1206 06 R 20 12 6 R1 R R12077 R120 R12 R R1208 208 208 R112 12 8 08 08 08 20 20 R12099 R 09 09 09 R1120 R 9 12 R1121 121 21 2 0 10 12 1 0 10 R1 R R12111 2 R1 R 1 2 1 1 R R1 R 212 R 12 21 C1201 C1201 C1201 C1202 C1202 C1202 C1204 C1205 C1209 C1209 C1209 R1214 R 14 R12 R 214 14 R1 R 14 14 R12 R12 R121 R 15 188 2 1 8 R121 2 R1221 R 21 C1210 C1210 C1210 C1210 210 C1 C1211 C1211 C1 C1211 122 2 1 2 C121 2 C1213 C1 3 2144 C12 15 C121 C 15 216 C12 R122 R 22 23 23 1223 R122 2 R1224 R1224 R1224 R1225 R1225 R1225 R1 R1226 R1227 R1227 R1227 R122 R122 12 12 R 228 228 R1 R1 R1229 R1230 R1230 R1230 R1231 231 1 R R1232 R1232 23 R R1233 1233 3 R1 R 12 1224 224 224 12 12 C1 C1 C1226 C1226 C1226 C 22 22 226 2 1 C C1227 C1227 C1227 C1227 C12 C 227 C1228 C1228 C 8 C1228 C1228 C1228 C1229 C1229 C1229 C12 C1 C1230 230 12 R1239 39 R 239 12 R1240 R1240 R1240 R12411 24 R1224 2 12 R1224 24 R 41 41 231 31 C12 C1232 C 232 12 C1232 C 232 12 C1232 C 232 12 C1232 C 232 12 C1233 C1233 C1233 2 1201 201 201 201 X1201 C1 C1239 C1239 1239 C1240 240 C12 C1257 8 C1 C1 C1258 1 L1251 L1251 L1251 R130 R1130 30 301 R1 R1 301 Q1 Q13001 0 R1321 3 1 2 R 22 22 R1 R1 R132 R 325 325 R13 1325 R1336 336 336 R13 R1336 336 1 R1336 336 R1 R1335 R1335 R1335 R1335 R13 R1335 R1335 R133 R13 R1331 1 1 33 3 R 0 1302 R1 0 1303 R1303 0 1304 R1304 0 1305 R1305 0 130 307 R1307 130 30 R1308 R1323 R1323 R1323 R1324 1324 R1324 R1352 R1352 R1352 R1352 R1353 R1353 R1353 R1357 R1357 R1357 1376 376 376 R13 R1377 377 3 1 R1377 377 3 1 R1377 377 3 1 R1377 377 3 R1 R R13877 387 R13877 387 R13877 387 R Q1 Q1371 Q1371 Q1371 Q1371 Q1371 R13900 1390 390 R1390 390 R C1317 17 C1317 C 31 31 31 C 3 1 C1312 3 C1311 311 C1 C C1315 C131 C1315 C13155 13 1 C 13 C1313 C131 C13114 14 C1323 323 C C1341 C13166 C1316 1 6 31 3 C C1318 C1318 C13188 C1305 Q2002 Q2002 Q2002 Q2002 Q2002 Q200 20022 02 002 R132 R1332 R1327 327 27 R1 R132 R1 R1326 C1347 C1347 L1307 1307 L Q2902 Q2902 0 R2910 R 0 R2910 2911 9 R29911 91 R2911 2 R1372 371 71 R137 R1373 1373 R13 R1374 3 R1 R 4 7 R1374 3 1 R 4 7 378 378 R1378 37 37 R1378 78 R13788 R1379 R1379 R1379 R1379 R1379 R1379 79 R13 1380 R13 R11380 R11380 R1 381 81 R138 R 3 R1383 83 38 1 R 3 R1384 R13844 8 3 1 8 R1 R R1382 1382 R13382 R1385 85 38 1 R 5 R1388 3888 1 R13 8 38 38 38 38 1 R 1389 89 38 389 1 9 38 38 38 38 1 R R13866 8 3 1 8 R1 R 1 91 R1391 9 2 R1392 R13922 R13922 R1392 3 R1393 7 375 1 7 37 375 R1 P11 P 3033 30 3 03 P1303 C2016 C2016 R2 R2013 R2 3 0 3 01 R R202 02 2 R 29 C2015 C2015 C2015 C2015 C20422 C204 C2 C2043 R2024 R20377 R2037 R203 R20 R2 R2 R2041 20 2041 041 041 2041 2041 R204 R20 R2 R R204 R204 R 042 0 5 R2025 R2023 R2011 R2 1 01 27 C2027 27 3 C202 C 2 02 0 2 3 C2029 C2029 C2029 C2029 C2029 C203 20 C2 C 32 2022 2022 R2 2 L2002 L2002 2002 2002 L2 L2004 0 2 044 L200 C2 C2 C20 C220 200 200 001 0001 01 011 C2 C22 01 01 00 000 20 20 C200 C20 C20 C20 C 002 0002 022 00 002 02 02 C2003 C2003 C2003 C C2004 C2004 C 203 R2034 34 203 2062 06 R2062 L2001 00 2001 L200 C202 C20 20 C2024 024 024 C20 20 20 2 C 25 25 25 C202 C202 C20225 C2014 2014 014 C2 0 2020 2020 R2 R2 R2 0 2021 202 R2 1 C2052 C2 C2052 52 C202 C2028 C202 C2031 C2007 C20 200 007 07 C2 C 00 00 C2007 C22007 C2007 2007 C R2 R2 61 6 R2061 R2 5 R2035 R 35 R2035 C 2 2 C2022 200 2 2 R2036 R2036 R20366 L20 2005 L2 C2013 2013 C2 C 013 C2044 C2005 C2005 C C20 C20 C2033 032 032 32 R203 R2033 R20 3 033 203 R2 A P2701A P2701A 70 701A P2701A 20 20 C2 12 20 20 C2 12 C204 C20 204 C2 C2 C 45 45 045 C 1 02 02 C2021 200 1 2 C2009 C2 9 009 C20 20 C2 11 R2043 C20 C2017 C22020 20 0 20 2 C2008 C220 8 008 C2010 C2 0 0 0 C 05 C2051 Q2003 Q200 Q 03 C2006 C2 C2006 C C2019 C20019 19 019 19 20 200 202 202 20 20 C2 C2 C2 C 26 26 P2005A 005A P2 P2005A 005A 20 P Q2601 Q2601 Q2 Q2 Q2601 X260 60 26 X2601 260 6 R2601 R2609 R2 R 6099 26 C2607 C2607 C2607 C2608 C2608 C2609 C2609 60 C2606 C2606 C Q2106 Q2106 Q2106 Q2106 Q2106 Q2106 Q2106 Q210 Q2106 Q21066 4 R2604 04 R26 R2605 R26 5 R C2604 C2604 C26 4 04 R2606 R26 6 5 C2615 2615 5 2605 2605 C2605 C 5 C2605 R2603 R2603 2603 R2 R2 R2 R2602 2602 2602 C2 C2 C2 C2 C2612 2612 2612 2612 R202 02 2 R 28 C2034 C2034 C2034 C2034 C C2035 C2035 C2035 C2 C2035 R2001 R2001 R2001 R2105 R2105 R2105 R2105 R2105 R Q2101 Q2101 Q2 Q 1 2 0 1 9 R2149 R2149 R2149 R214 14 14 21 21 R2 R22 R 9 R21 R2 R21 R 51 51 151 R22 R2 R21 21 R 2152 15 1 R2 R221 2 2 15 15 152 5 R2153 215 R21 R2 53 53 R21 R2 R22154 R 4 54 15 R21 R2 R22155 R 5 55 15 R213 R2 R213 R21 R21 R 37 37 R2138 R2 R2138 R21 2 R2213 R2 R 8 38 9 R21399 3 1 2 R R2140 R2 0 R 4 1 2 1 R2104 R2103 2103 103 21003 13 R21 3 R2 R211 21 Q221 Q22 Q2108 2108 Q210 Q221 Q R2 32 32 21 2 R R2 29 29 21 R2 R C2103 C2102 Q2107 R2191 R2191 R2191 R2168 R2 30 30 21 2 R 50 R2150 50 50 R21500 R2150 07 R2107 07 27 27 R21 R2 R21 7 27 2 1 28 28 R2128 28 R2128 28 R L2102 9 R2169 R21699 C2125 C2125 C2125 R2145 R22145 1455 066 R2 R2106 R2147 214 147 477 R2 R21 R2 31 21 2 R R2162 R2162 R2162 R2162 R21 2108 R2 09 R210 24 124 R21 R2 R21 D2 D 1011 21 R2167 R2167 C2122 C2 C2123 C212 C2124 C2 C2 C2124 C2 C2124 C2 R2146 466 R2214 R21146 25 25 R212 R2 R21 2125 2 C2193 C2193 101 01 01 01 01 R21 R221 R2 R2210 210 10 102 102 102 0 R2 R2 R2 R2 R2144 44 R2144 R2 R22 R221 214 1444 44 R2118 1 1 R2 8 18 1 R221199 211 119 R22 R R22120 20 120 212 R22 28 C2 C22128 10 10 R211 R2166 56 56 R2156 215 156 R2 56 56 R2117 1 1 R2 7 17 1 117 21 2 R21488 214 R21 R2 R2 122 R2212 R221 2122 R2 R2123 R21 R2 R 1 2123 23 R2164 R2164 R2165 C2192 C21 C2192 R21 R21 R2 R2115 1 R2 R2 R21 R21 R R2157 21 R2 5 R 57 R2157 21 R 157 57 R211 11 21 R2 16 11 R2 R2211 21 R R211 R 111 R2 R21 R2 R2112 12 R R221211 21 12 R 2903 R2903 2901 R2 8 R29 R29 2908 90 R2907 09 R2909 09 2902 R2 904 R290 R2905 R2 R2 R2163 9 Q21991 9 2199 Q D1301 Q130 Q1306 R1338 R1338 C2908 C2908 C2907 C2907 R10 10 R 026 10 10 R 026 10 1026 R1 R1025 R R1330 R13330 1 0 33 3 R 1309 30 R1309 R132 13320 32 1 200 R R1319 319 319 19 R131 31 R13 8 R1318 318 R1 R13188 R1317 R1317 R1317 R1316 1 R1 R1316 1315 15 1 R1315 R1311 R1311 R1311 R1310 131 R 0 R1310 348 C1348 C13488 C20 C2 C2046 7 C2047 2047 2047 C 3 063 63 R206 06 20 R2 R 3 C2610 C2610 C2610 C2610 C2610 C2 C 11 C26 C 611 601 6011 L2 L2601 26601 L2602 L2602 2602 C2130 C Q2 Q 9 2109 Q2109 Q2109 109 Q2109 L2903 L2903 L2 902 902 L29022 90 L29 L2901 C290 C290 C2901 C2901 1 1 1 1 1 1 1 1 2 25 2577 57 57 5 25 2 -82 -8 -82 7 CDG- DG- NCDG B 57 57 57 57B 7 382 382 251382 1 1 P8V P8VV PGND SW SW+5V SW SW W+5V GND GND GND GND DG DG SW+3.3V SW+3.3V DGG DGND1 SW+1.8V 3 3V 3.3V 3 3V 1.8V .8VV S DS D 5V SD2.5V S D D C B AD C B A RFP RFP RF RFN RFDC RFDC RFSINN RFS R P OP RFOP AIN A N AIP AIP RFAC RFAC AC RFAC AM AM A ENN EN MPSE A K AMPSC AMPSCK AMPP A PSDT SDT DT DT PS PSDT SDTT AM M A CE CE CE AM MNTT MN M MPMNT FEI FEI FEI EI TEI EI TEI TEI I PII PI P VC16 VC166 C16 LINK DFCT DFCT C DF T N MINN MIN MLPF MLP ML M F MB MB MP MP MP MI MIR LDON L N LDONN LDON LDON DON VCC VC V D_E D E CDD__ D E _E CDD E D E CD _F _ CD_F _ CD_F VDD VD CD/DVD VD VD CD/D D/D D LD-DVD LD DVD LD-CD LD-C IOP DV IOP_DV IOP_DV IOP DV IOP_CD IOP_C V A5V A5V 5V T- T- T+ T+ F- F F+ F+ SPD+ SPD+ PD+ S SP SP SP SPD- SPD- PD- SLD++ SLD+ SLD- SLD LD- S XSPM PMUTE T U E UTE T U E XSPM SPMU M XS X X TS TSMUT UTE XFTS X TSM T X 2 M LDM LDM M2 M2 DM M LDM LDM M1 M1 PD PD SPD SP LDRSP LDRSPP SP SLD SL TDD TDD T FDD FDD F SL SLD1 SL SLD0 S TSS TS T FS FS SPD SPD1 D1 SPD1 0 SPD0 SPD0 1 W SPP SPW SPW SPW P SPWM1 WM22 SPWM DETT SPD PDET XCSII XCS XCSI XC XWR WR XW XWR WR XW XRD XRD RD XR XRD XRD XR XRDY RD XR XRDY XR XRDY RD XR XINT XINT MC MCK VDT7 DT7 VDT7 V T66 VDT6 VDT5 VDD VDT D VDT V T4 3 VDT3 VDT33 VDT3 VDDT VD VD VDT DTT3 T3 T33 T2 T2 T2 VDT VDT VDT VD VDDT DTT2 DTT2 VDT1 DT1 DT1 VD VD VD VDD VD VDT0 VDT VDT00 V ACC AC XHAC XHA XHA XH XHH XHHA HA HAC AC A VEFG VE VEF XSHD X DCKK HDRQ DRR HD Q H RQ H DRVIRQ RQ R D V R D Q RVIRQ RQ RV DRR DR DR D STT ST DRVRST DRVRS RS DRVR DRVR V RV DRV RV DR DR DR D VRR VRRS RST S DRVTXX RVT DR X TXX TX VT RVVT R D VRX RX VRX RX DRVR DRVVR DR DR DRV RVVRR VR VCLK LK VC K L VCLLK CLK LK LKK DRV RV DRV DR DRRV RV DRVC V RV DRVRDYY DR DY RD RVRDY DY RDDYY DY RD R VRR VR RV C2PO C2PO C2PO 2 C P C PO PO POO DADT D T ADT DAAD DAADT AD A DA D DOTX D X TX DO DO LRC L CK R L BCCK B JITT JITT JITT ATC ATCC ATC RFAC RFAC RFAC VCOI CO VCOI HF HF EFH F VREF V VREFL EFL VREF EF 0 1 2 3 4 5 BLK LK BLK FM M F PLC PL PLC PLCKK L PL P 3 4 5 6 7 8 9 10 10 10 10 10 11 11 11 11 11 11 11 12 12 12 12 12 12 EDCNG N C D E G DCNG N C DC ED G EDCNG CN EDC ED E NGG CLVLOCK LVL CLV CL C VLO K LOCKK LOCK C K LVL V LVLLOCK SYNCK YN SY S NCK NC SY SY S CD/XDVD D/XDVD C LDON DO LDON ON LD LDO DO DO LD L XFTSMUTE T M XF M X S T X U XFTSMUT M FT M XF S TS X U XFTSMUTE M FT M XF S TS X U FTSMUT M T M F S UTE T UTEE XSPMUTE M XSP X P S M TEE XS XS XSPMUTE M PM TE SPMUTE M PM TE XSPMUTE S TEE ST1 ST1 ST1 ST ST2 T2 ST2 ST33 T3 T3 STT STT ST44 T4 ST44 T4 ST44 T4 S TSD-M T M - S M D-M -M M TSD SD TS T RSV2 SV SV22 V2 SV SV SV R FOK FOK FOK OKK OK FO FO FO RSV0 V RSS 0 R RSV1 RSV RS 1 V1 V RSV S RSV SV SVV RS RS R 1 BUFE BUF BU BUFE FEMP MP EMP FEM B TRST TRST TRST TRST TRST TMS TMS TMS TDI TD TD CK CK TC TCK C TC O TDO T O DO D TILT TILT T L I SCK SCK SCK O SO SI SI TBX A88 A8 A9 A99 A9 A9 EX EXCK02 CK002 EXC X LRCK RCK LRCK M FRAM RAAM MNT0 NT0 MNT1 MNNTT1 M 2 MNT2 MNT3 MNT3 SA SAEX SAA DSS DSAEXT XTR C RFAC 33MHZ 33 33 + LDNNG+ LD - LDNG- LD SP A3.3VDSP A 3VDS P DS A .8VDSP A1.8VDS PM PM PM 07 Q1307 C1325 58 58 58 R1358 R135 Q1 Q1308 Q1 Q1308 58 58 C1358 R1359 R1359 R1359 Q13 Q1309 C1 C1359 C1 C1359 C1 C1359 FROMCS FROMCS FROMC FROMCS CSS CSS MC MCC M OM OM RO RO FR FRR F Pattern Pattern Layout Layout y on on Version 2b 222 1.1.333a.2.2.222b y R1361 360 360 R13 0 SW SW W SW T-S -S LMT-S Q1310 Q 10 Q13 Q1310 Q 10 Q131 Q 10 Q13 Q R1363 R1 63 3 R1 R1363 63 3 3 63 C1360 C1360 DPS-10.5 PRINTED CIRCUIT BOARD VIEW U01 : DVD MAIN PC BOARD NADG-8257 A-side pattern and A-side silk A-SIDE PATTERN B-SIDE PATTERN A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C1012 C1012 C10122 1013 013 C1013 1013 C1013 C1013 01 C10 4 C10155 015 C101 C10166 016 C10 C C1017 017 10 C 022 022 C10 C10 0 1 C 26 026 C1 C1003 1003 C1003 C1004 C10 C1004 004 C1005 C 005 C10 C1006 0 C1 1036 1036 1036 03 03 03 C1 C1 C1 037 C10 C1003 C R10066 006 R 6 R1 1005 1005 1005 00 005 R1 R1 R1 R1009 10 R10 R10 R 0 R 11 R10 10 R 0 R 1014 014 R1 R1 R10 R1028 28 R10 R 299 R102 0 9 2 C1039 039 C1 104 0441 C1104 0441 C1 C104 0441 C 04 0442 C1004 0442 C10 C1043 1043 C1045 1045 C1046 C1046 C1048 C1048 1050 C1050 C11051 C1 C C1 C 053 053 C105 Q1101 Q1101 Q1101 Q110 Q1101 Q1 Q1 01 01 Q1102 Q1102 P1102 P 02 11 P1 P11 P1 P1102 10 L1005 12 122 R11 2 R11226 R112 12 R112 R1127 R11 7 27 127 R1 R1128 28 128 11 R1 0 C1104 04 C1105 C11 C1105 05 C1 C1106 C110 C1108 08 C11099 C1109 C111 C1 1 C111 C11 11 11 1 C1112 1112 C111 11 1 2 11 115 C11 116 11 C1 C1117 C111 C10 1 C 25 Q1 Q11251 Q12 1251 Q1 Q11251 Q12 1251 Q12251 Q1251 Q1251 R 251 25 25 R1251 25 R 1 2 R1252 R 252 252 R1252 R1 R125 12 R 253 R12 R1 R 253 R125 1 R 253 R125 2 R1 R 253 R 254 25 254 254 25 R12 R1 R12 R1 R 254 2554 54 R12 1254 2 R1 R1 R112 129 29 2991 91 911 91 911 29 29 R1 R112 1 R1 R R1 R1292 92 R12 2 12 R1 R12 1293 R 29 29 1 R12 1 R1234 R1235 23 235 35 12 R 236 236 23 R12 R112 R 2 R1237 R1237 R1237 R1238 38 1 R 2 R1238 38 1 R 2 R1238 38 1 R 2 C13 135 3555 1355 C135 R1213 R12 3 C1 C1 C1203 1206 206 C12 C1207 0 207 C 7 1 8 C1208 C1208 C1208 R 1 R1216 R 1 R12117 1 R1219 2 R1220 C121 2 C12 C 7 1 C121 218 C1 C1219 C1219 C1220 C1220 C1221 C1222 C 222 C1 C1222 C1223 C1225 C1 C1225 2 C 25 12 C 5 42 R1242 42 24 R1243 44 44 24 R1244 7 C123 1 37 C123 C1234 344 234 123 C1 C1 C1 C1235 C1235 C1235 36 C1236 L12033 L1203 L12 C1238 2 8 238 C1 04 1204 204 L1204 52 52 52 52 C1255 C125 C 2 51 51 51 51 51 51 C125 C125 125 C 54 54 C12 53 53 C12553 53 C12553 53 125 C1256 C1256 C C1255 C C1242 C1242 C1243 C1243 L1201 L1201 L1201 L1201 L1202 L1202 L1202 R1329 R1329 R1329 R1329 13 13 13 R11 R1328 328 328 P1301A P1301A P 301A P1301A 1A Q1 Q1 03 0 130 303 03 Q13 Q 3 0 3 1 R1312 R1312 R131 R 2 P1302A P1302A P1302A 30 P 2A P1302A C1326 C1326 1326 13244 32 C132 L1305 L1305 L1305 L1305 C1327 C C1329 299 C1329 C13 C1 C 328 C1328 C1330 C133 1330 C11 Q20 Q2 01 Q200 Q2001 2 Q 00 R1350 1 R1351 Q1305 C1346 C1346 13 X1301 Q1304 R1345 R13 R13 13 1348 R R1347 R1 R1346 R1346 43 C1343 56 C1356 C13 C 342 C1344 C1357 1349 349 R13 R1334 R1332 1337 337 R1337 C1321 1321 C1321 C 10 C1310 C1310 354 54 R1354 R1 R1355 R1355 R1 R1356 R1356 L1303 C1350 1350 C1 C11331 31 C13 133 331 C1 C 1 Q1 Q1302 02 Q 0 13 Q 2 C1332 13 2 C133 L1306 L1 L 06 306 L13 130 C1335 35 C1133 335 C 1339 1339 R13 R 340 R1 C1337 33 C1 7 39 39 C13399 R134 R134 R134 R 1 1338 38 1 8 333 C R13342 1 2 34 344 R 43 43 43 43 34 34 R13 13 R1 R1 R13 R1134 343 343 R1 R 344 344 R1344 1 R1 336 C1 322 22 C13 C 04 L130 351 C13 C1319 C 9 1 C 319 L 01 L130 C1320 L1302 C1352 352 C13 C1349 C1304 04 C130 C 3 C13011 3 C C1380 C13800 C138 C1379 C1379 C137 C1378 C137 C1378 78 3 C133 C1 C1 7 37 371 711 C1374 C1374 C1374 C1373 C1373 C1373 C1375 C 75 7 13 5 C1372 C1372 C1372 C L1371 L1371 L1371 C13777 7 C13 C 77 13 C 81 C138 C13 C 8 C1376 C1376 C1376 01 R2016 R2016 R2016 R2017 2017 R20 2017 R 18 R20 2018 201 018 20 R 8 R2005 R2005 R2005 R2005 R2015 201 R20 5 R22 R22 R2060 6 060 2 0 R2048 048 2048 R2048 R2059 59 R 5 0 20 R2059 R2006 R2006 R2006 R P2101 P2101 0 2 1 P2 01 01 P2 P2 P2 P2102 P2102 P2102 P2102 P210 P 1 2 P 02 P20 2003A 0 3 P 003AA 03A 00 P20 P200 R2003 R2003 R2003 R2003 R2003 R20 R20 R2004 R2004 R2004 P2001A P2001AA 01 00 A P20 P2004A P2004A 004AA 00 P2004A R2014 R2 R2014 R2014 R20 20 R 12 1 R20122 201 R 2010 010 R22 R 010 09 0 R20 20 R20099 200 R R2065 R2064 Q2 Q2 Q2 Q2 Q2 Q2008 2008 Q2008 66 66 R2066 C2 C2050 C2048 20 2007 07 Q2007 R20 R20 R2 R20 R2 R2 R22068 68 68 68 R206 06 206 068 0677 67 R2067 9 C2049 04 C2 C2 9 R2069 R2008 2008 R2 R2 R200 R22007 R2007 007 C2614 614 C26 C2613 3 C2603 2 C 603 26 C2601 C2601 C C2602 C260 C2602 C2602 R2608 R2608 R2608 2608 2608 R26 R2 R2607 607 R2031 R2031 R2031 R 31 033 R20 0 300 R2 R2026 R2 R2027 R20 R2 R2019 C20300 C2030 2 C2039 2 3 0 2 C20388 2 38 03 0 C2040 C2040 C2040 C2040 C2041 041 41 204 R20477 47 9 4 049 0 2 R2 R20 2 50 50 R205 R2 5 20 52 52 R205 R2 5 20 3 5 053 53 53 0 2 R2 R20 2 R2054 54 R20 R2054 54 R220 R2054 54 R20 R2054 54 R220 5 55 55 R205 R2 5 20 7 5 05 05 05 057 0 2 R2 R2 R2 R20 20 20 2 8 5 05 05 05 058 58 58 0 2 R2 R2 R2 R20 20 20 2 6 5 05 05 05 056 56 56 0 2 R2 R2 R2 R20 2 1 5 051 0 2 R2 R20 2 200 0 R2002 0 2 C2018 C2018 C2018 00 L2003 R21266 26 126 212 2 R2114 102 02 0 102 02 02 0 21 21 2 Q 10 10 21 Q2 Q2 Q21 21 2 02 Q21022 Q21 Q2102 102 2 Q 102 102 Q C2108 C2 01 21001 01 C21001 01 101 09 C21099 04 C21004 C21004 21004 04 C21004 04 21004 C2110 C2112 112 C2112 1 1 2 C2 2 C2113 C211 C 7 C21077 C 7 21077 107 05 C21005 C2 05 105 05 105 06 C2106 06 06 C2106 06 06 106 C219 C2191 C2115 C21 C2115 15 C2114 C2 14 21144 C21 C2121 C2121 17 17 C2117 C2116 2 C2902 2906 C2290 C 6 C2904 C2904 10 C29 C2909 C2909 C290 C2905 C1054 L1004 903 C229 C Q2104 Q2104 Q2104 Q 0 36 R2136 R2213 R21 6 36 135 R21335 135 R2133 R2133 R21333 R2 33 33 33 R2134 R2134 R2134 2 R 34 34 1 C2111 C21 C2 11 111 211 21 C2 1 1 R2141 R214 R214 R2142 R2142 R2142 R2142 01 01 1 L210 L2 L2101 R2161 R2 R2216 R 161 R2160 R21660 R2160 R2 60 R2160 R2160 C2120 C 12 2 C2 20 C C2129 C21 9 C21 C21 C2127 C21 2 C 27 C 12 C2126 C2126 C2126 Q2103 Q2103 Q2103 C21 C21 C22119 119 119 19 C2 C2119 R21 21 21159 59 59 R2 R2 R2 5 P1 P10 P1 P 02 02 P1002 2 P100 0 P 0 1 02 P Q120 Q120 20 20 20 Q11 2 C1241 4 12 C 1 4 2 1 12 R1 R1333 R1306 306 R1 C1302 302 C1 C1302 C1303 C1303 C1353 C1353 C13533 C13544 C135 C1354 C1306 06 C 306 130 306 30 1306 30 13 C1 C1 13 C13307 3 C13307 1 C130 R13133 R1313 R1314 R131 R1314 R 4 C1308 C1308 C13088 09 C1309 09 C1 C1 C1345 C1 C1 C1345 C1 C1 C1345 P2002A P2002A P2 P20 A 2 2002 R2143 R2143 R21433 R2143 2143 R2143 R2143 R2143 R Q2105 210 105 05 05 Q2 Q2 C2118 18 21 C21 8 2118 18 21 C2 R2158 2158 58 58 R2 4 C134 C13440 40 C1333 C1333 C1333 C1334 334 13 C1 2901 D2901 R2906 R2906 1 1 1 1 1 1 1 1 1 C1 C1 322 032 32 032 32 32 1 1 Q2110 1 21 Q2 Q21100 1 Q2 Q21100 11 2 Q2110 10 21 Q2 Q R22 R2 R217 21 2 73 73 2 7 2 7 17 17 R21 R21 R2172 72 72 72 21 217 R2170 1 2 R2 0 R 70 17 17 17 17 R2171 R 71 17 21 R2 R2177 21 R2 R217 R 1 7 21 R2 1 FROMCS MCS OMC FRO FR F S ROOM O R CS CS C ROO RO R FRR F S OM M OM OMC MC M C2131 3 13 C2 C 2 R13622 R13622 R1362 20 20 20 20P 20 2 SACD SAC S D SACD P 16PP 6P 16 16 16 1 IEEE IE IEEE EEEE P 14P VideoCnt nt oC eoCnt Vi Vide 15P 15P 5P 1 VideoStream re d Vi e V tr St S VideoStream 0P 0P 20 20 ntt dioC oC Aud ud Au Auu Au n d 16P ream ea e m a AudioStr DPS-10.5 PRINTED CIRCUIT BOARD VIEW U01 : DVD MAIN PC BOARD NADG-8257 B-side pattern and B-side silk A-SIDE PATTERN B-SIDE PATTERN A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C8053 C 053 C88 C 53 53 C8053 C80 8053 8053 C8 C8053 R8127 R8 7 2 12 8 R81277 27 2 R811 R8 7 R8127 R 7 27 2 12 R8 R8127 R8 7 27 12 81 R8127 27 2 12 R8 R81 7 R8118 R8118 R8 R8118 R8118 R8 R8 R8 R8 R8 R8118 8118 8118 8118 R8012 8012 012 R80 R C80344 C8034 C8034 C8034 8073 073 R807 R80066 006 80 8 R 6 006 06 C8 C8065 C8066 80655 C C 6 C 6 C8066 37 37 R80 R8037 R8 R8027 R8001 R803 80 80 R 03 8003 03 031 03 803 80 803 03 03 0311 311 31 311 311 031 3 R8213 C8 C8 C80 C8050 R80422 0 2 0 R80422 0 2 04 R8 R80422 0 2 04 R80422 0 2 0 R C8015 C8015 C8015 C8015 C8015 C8015 C8015 C8015 C8015 C8015 C8015 C801 C8015 C8015 C8015 C8015 R8044 C8 C8 C 6 80600 80 C80 C8049 09 09 09 099 R800 R 0 800 R80 800 00 R8 R801 80 1 8011 R80 C 5 C8005 R8024 Q8 Q8001 077 77 R8077 R8003 C 1 C8081 C8081 08 8131 31 31 1 81 8131 3 13311 1 8131 3 131 8 R8 R8131 1 8131 8 R8 R8131 13 81311 8 R8131 3 131 81 8 R8 R8131 1 8 31 8 R8 R8131 31 1 8 82 82 082 808 808 8082 082 0882 R80 80322 322 R803 803 R80 2 6 R80466 046 R8804 R R8078 R8078 R8078 R8078 R8078 055 05 05 055 0 100 10 8100 10 811 81 8 R8 R81 8 R8 R8 R8 R8 R 100 10 R8 R8 R8 05 05 05 0 10 810 1 8110 8 R81 81 81 8 055 05 3 C8033 8 R8 R8 R8 R8121 8121 8121 8 R80488 804 048 R80 6 80 66 80 R80400 R804 R80 R8074 R80 R8074 R880 3 0 R8 C8057 R8014 R8008 R8 8 008 800 008 08 R80 R8 R8025 R8122 R8122 R8122 R8122 R8122 R8122 C8006 R8043 43 80 8 4 R 3 R8043 4 8 R804 R 3 R8 R8043 4 80 804 R 3 0433 0 8 4 R8 R8 C8010 C 0 1 C8201 05 L8005 6 C805 0 C8 C80 C805 80 C8 C80566 C8 C8 C80 C8056 R8 R8 R8 R8 R8129 8129 8129 8129 8129 C800447 8125 81 8125 25 R8125 8125 2 R8125 8 R81 5 25 2 R8125 R8 R81 5 25 1 R8125 R8 5 2 1 R8125 R8 R81 5 25 12 R8125 8 R8112255 2 R8125 81 8125 25 R8 R C88 C8 C8055 C8055 C8055 C8055 C8055 0 30 30 300 R8 R8 R8 R8 R8130 813 813 8130 8130 R8117 R811 R81177 R8117 R8117 8 R8002 8 033 0 800 Q R8005 R 05 005 800 R80 800 R8 055 R80 R80 R8013 8 R8113 13 R811 R81 R81 3 R81133 13 52 052 5 C8052 Q880 8 Q 04 0 00 R8119 R8119 R8119 R8119 R81199 R8119 R8119 R811 8 R8076 R8076 R8076 0 4 R8214 R8214 R8075 R8075 R80755 C8054 C8054 C8054 C8054 C8054 C8054 C8054 C8054 C8054 C8054 C8054 R8026 8048 80488 8 C804 2 522 R8052 804 804 C8045 399 039 R8039 R8038 R8039 8039 R8029 R8029 R8029 R8029 R8029 R8029 R8029 R8029 R8029 R8029 C8064 R8 R8 R8 R8115 8115 8115 8115 8115 R87488 R87 C8 C 9 C8055 C8059 0 050 0500 R8058 0 8 0 8 80 2 R80 80 Q 02 02 02 02 02 02 Q8702 Q870 Q870 X8002 X800022 X8002 X80002 8 C80082 C8082 C8082 C80082 R8078 R8078 C 588 5 C805 C R87499 R 9 1 1 43 43 44 44 44 44 44 86 86 86 1 5 1 2 52 522 52 3 533 53 104 104 104 104 104 105 105 05 56 566 1 57 57 157 1 7 088 20 20 208 208 1 A 800 800 800 800 R8 R8 R8 R8004 004 004 004 R 4 R8404 R8404 R8404 R8404 R8404 R830 R830 R8 R8 06 0 R830 R83 8 R 31 31 311 3 R83 83 83 R83 R8 177 17 17 C8113 C8113 13 C811 81 81 3 C 13 133 8 033 L8503 L8503 C81377 C81 813 813 C8 C8 C8 C88137 811377 3 4166 416 16 416 416 41 C8416 C8416 C84 C841 C84 6 R8707 R8 0 870 R 07 C8126 C8126 C8126 C8126 C8126 C8126 C8126 C8126 C8126 R8141 R8141 R81411 814 814 8144 814 R 5222 C85 30 3 Q83 Q83 83 Q8 Q83033 03 R8536 R8536 R85 C830 3003 03 03 C83 R8732 R873 73 73 R8137 R813 R8137 R8137 37 377 8137 81337 37 377 377 813 813 R 8512 R8 R8512 R85322 R85 C85 85 C85519 8 C85 C855 C8 C8516 516 5166 0 0 C8100 C C81 C810 0 C 0 C C8236 C8 C882236 36 236 36 34 34 823 823 82 823 C8 C8 C8 C8 C8 C8 C8 C8823 23 234 34 34 C8236 C882 6 36 R8402 R8402 02 8 0 8 0 R8510 510 R 0 C 19 199 1 C8111 81 C81111 C8 C 199 19 R87 87 R8 R8726 87266 2 R8 R8726 87266 2 R8 R8726 87266 2 R8 R8726 87266 2 R8 R87 87 8 R8726 87266 2 R8 R87 87 9 29 29 8229 22 229 8229 822 C82 C882 C8 C8 C8 29 299 C8 C 229 229 8229 8222 C82 C8 C82 C882 518 C8518 85255 R8525 314 1 311 R8 R88 R83 833 4 6 R8516 C8521 C8521 C8230 8230 C8 C8230 P8703 87 P8703 C83077 C83 C8330 C83 C8 R8502 853 853 C8127 C8127 C8127 C8127 C8127 C8127 C8127 C8127 C8127 C8127 C8127 C81211 C8 C81211 C8121 8 1 R87 R8730 R8 R8 R 730 R R870 R8703 P8501 P8501 C812 7 87722 222 22 72 R8 R8 C8703 033 C87033 870 Q8502 Q8 02 4 R8744 R 4 4 8 R 7 8 4 R8521 R8521 R8521 R8521 C810 C84 C84 C84 C884424 424 424 4244 24 244 24 4 C Q 30 8305 Q8 Q8 05 05 C8311 C8311 C8311 C8311 3 L8403 L840 L8403 L8403 36 36 3 1 R8 R 6 1 8 36 R C8 C852 8 C85 C8526 R8747 R8747 R872 R872 724 24 724 24 24 R C8310 C8310 C8310 C8310 R 9 R851 R8 19 P4000 B 03B R81022 0 R8102 02 0 R8102 0 1 R8102 0 1 R8102 0 R8102 02 0 R8102 0 1 R8100 1 2 D8701 C8109 109 09 09 C81 C8 C81 810 C 09 09 09 C8109 10 81 81 9 C8 C8 C81155 115 11155 811 C R8528 R852 R8311 R8311 R8311 R8311 C8111 11 111 C811 811 111 C8 C8 C81 81 C 19 19 C811 C8 1 8 C81 8415 C8 C 5 4 C8 5 8 R8206 R820 C8326 26 8123 123 8 C8 C81 C81 C8110 10 C8 0 C81110 1 C R8507 R850 R83 R83 R8 R8308 308 R8308 R8308 R8 406 406 8406 84 840 8406 84406 C8 C84 C 4 84 C87 8702 8702 87022 L8103 1033 03 C8131 C81331 C813 8131 C8 C88 C 38 C8 C88 C813 C881 813 C81311 C811 C811 811 C8 R 8 R851 R8 189 85 8 9 R8511 R8511 11 R8 R8 177 C85177 L8502 L85 L85 L8502 R8706 066 066 R87006 R833 R8 R83 833 0 R8320 32 8 R832 320 R 20 R83 83 R83 R8 0 R8319 1 8 R83 R 9 R8319 1 8 R83 R 9 R R8108 10 R8 R810 R8108 03 0 810 R8 R 3 R 10 R8 R 103 0 R8 R8 3 0 X8701 X8701 X8701 R83155 31 8 R8315 31 8 5 3 5 R8 R8315 1 833 5 8 R8315 315 R8 5 8315 R R872 729 872 R87 R8 R8 R 9 R8 30 8 2 R8522 R8522 R8522 R8522 R8522 R8522 R8522 R8522 R8522 R8521 R8521 R C8130 C 0 C81330 C8130C R8721 21 7211 C8 28 83288 28 2 C83 1 R8111 R81 R8 R881 83 83 83321 21 2 32 R83 1 0 20 20 R85233 R85233 R8523 R8522 R8522 R8522 R8522 R8522 R8522 R8107 07 R810 107 R8 7 R881 R R 1 01 0 Q870 Q8 0 Q870 Q870 Q8700 87 Q8 Q87 Q87 Q87 Q8701 01 0 R81 8 R8 54 54 R8 R8 R 1 4 5 R8 R8 R8509 R8500 850 R8745 R87 8745 8 R8535 R85 8 Q8 Q883 830 3002 02 30 3 8 Q 3 Q C84 C84 C884 C884 C 425 42 42 4225 25 4 C 25 25 25 C84 C8 C84 C8424 24 424 4 C C8128 C81 C8 2 128 C 8520 8520 8520 C8 C8 C85 8 R87377 3 R87 R873 R8 P8101 P81101 01 810 P R8 R8513 R85133 12 09 09 09 R87099 R87099 R8709 8 R81011 R81011 0 R81011 01 R810 R81011 0 R81011 01 R81011 01 R810 R81011 R81011 0 8 0 8 00 C8231 C88231 8231 C8231 C85 C85 85 C8 C88515 5 5 51 515 C R830 R 04 0 R830 R883006 0 R873 R873 87 R8739 39 R873 R87739 739 399 R8505 850 R8 0 8 0 0 40 40 40 40 40 40 8 Q8 Q8 Q8 Q8 Q8 Q8 Q8 Q84 84 84011 01 01 R8529 R852 R 85 85 8 1 Q83011 0 Q883 R8138 81388 R 38 R8138 R8302 R8 R 302 83022 R 2 Q8504 Q85044 R8 R8830 83 83 83007 0 R83 83 R8 R8306 300 R83 83 C830 C83303 83 8 1 Q850 850 Q8501 0 C81 8120C 8134 134 8 R8 3 8 3 8 33 8 C8 C R87 R87 873 738 873 73 738 R87 R8 R87738 388 C83066 C8306 C83 C8830 30 30 30 30 C83 C83 C8 8 R8348 R88 R 8 C8418 841 C8418 2 81 81 2 C 1 C 22 22 C8 C8 C 43 43 4 7 8 R8 R8 R 4 8 R 7 8 C8133 C8133 C8 C 3 813 813 8 33 33 C8 C8 C 8226 226 C8226 8226 C8 C 26 C82266 8226 8226 C8 C8 C R8316 R8316 R8316 R8316 R8316 R8316 R8316 R8316 R8316 R8316 5 723 23 23 72 7 R87233 R8 R 23 723 872 87 R87 R8 R C8426 42 84 6 426 C84 C 426 26 426 426 4 C84 84 84 C8 05 8054 54 R8 R 05 805 7 R8537 C8 26 C8 26 R87055 R8705 87005 C83188 C8318 C8318 C8318 C8318 53 53 53 53 7 8 R 3 7 R877 87 87 8 R8 R8 R8 87442 R8 R87 2 C8524 C8 24 R8 R88152 52 5 15 R8 R8152 52 15522 81 R8 19 199 19 C 46 R874 74 7 R 46 7 8 C8327 C8 C8327 C83 C8129 C8129 C8129 C8129 8 28 28 28 28 28 155 1 R8515 R C8314 3114 3144 14 144 C83 83 831 83 04 04 0 81 8 R8 R8 R810 810 81 8 04 04 04 04 R8 R R8517 R8 17 85 8 8 C841 C8417 C84 7 C8 C884 84 C8527 C8527 C8527 27 527 C8527 C8 C 0 R852 R8 209 R8 1 8 R8 19 C8232 C8232 C8 23 R832 R R8708 R8870 R 42 422 42 142 4 1442 814 14 814 81 811 814 C81 8 C81 C8 C8 C8 C8 C 422 422 42 42 42 C8 C88 C8 2 814 14 8 4 C 14 144 142 422 422 C8 C8 C8 C81 81 81422 C 5 C8325 8 2 3 C83 5 8212 212 R8212 212 R8135 8135 8 R C8525 C8525 744 74 74 740 40 40 400 74 8 R8 R88 R877 87 R8 L8302 L8302 L8302 C83 0 C83 0 R8734 R873 73 73 R8 32 8 3 R8 3 R8736 R8873 73 873 R8514 R85144 R8514 R8 R8 C8116 C8 6 8116 C8 C8 C8 C8 C8 C8116 C88 C8116 1 1116 R8110 R88 R8 R8 R8527 85 R85 852 5 85 885 8 85 5 8 R 8 R8318 R8 R8 R83 R 8 R R8310 R8310 R8310 R8308 R8308 R8303 R83 R8 3 R8303 R8303 R8 R8303 R83 R8 3 R85 R8526 R85266 8525 8525 R8525 R85255 R8503 R8503 C8705 C8 05 870 CR8 08 8 08 R88 0 8 R R870 8 R8702 02 877 R87200 R8720 R8720 C8 C8238 534 R8 R8534 3 R88 R8309 R83099 R8309 R8309 R8311 R8311 R8311 R8311 Q8205 8 Q8220 2 Q 5 Q 5 533 R8533 R8301 R8301 8301 R8 01 R8 R8 R8830 83 8 0 344 C8134 701 70 87 8 R88701 87 R87 0 7 C8770 70 7 C 01 011 87 8 C8 C8 C8 C8 C88427 427 27 84 7 427 84 842 42 427 8 C84 8 C8842 424 24 24 4 R81155 8 R8 R 5 1 5 C R8405 R8405 R8405RR L8404 L8404 L8 L8 4 8 L8 8228 82288 C8228 C8 8 8228 C8228 C8228 C8228 C 8 C8228 C8 C8228 8228 C8228 C8228 C8 CC8226 C82266 C8 C 32 32 13 C8 C 32 32 C 13 C8 C8 3 C 36 36 366 3 1 R8 R8 R 6 1 8 3 R C P8302 C8237 C8 C82237 C82237 C82337 C8236 C8236 82 6 3 41 41 41 41 41 7 8 R 7 R87 87 87 87 87 8 R8 R8 R8 R8 R8727 R872 727 R8727 R877277 27 405 05 05 405 C84 844 C8406 06 40 C84 C8 R8315 31 8 R88 R C81188 C8 C81 C8 C8 C 8 188 C81 C8 8 R8106 06 810 R8 R8106 106 R 6 R8 R8108 8100 8 R8 0 1 8 8 0 8 00 8 0 8 R C83244 3 8 C 2 C 4 C8 4C 0 R814 R81400 81400 40 8140 R8 3 8 33 R8138 81388 38 C85 3 C8523 C85 33 R8109 8 8 0 8 0 8 C83 83 83 5 315 315 315 315 C8 C8314 C8314 C8 C8 C8 C 28 C84 C8428 C8 Q8204 8 Q82 4 0 Q 4 19 19 R8719 R871 R871 R8719 R87199 P8702 8 2 702 8 2 7022 P R8139 R813 R8139 R8139 39 399 39 39 399 8133 813 8139 81339 3 R8 R813 8133 7225 72 R872 725 872 R87 R8 R8 R 2 R88 R Q8 Q8 Q8 Q8503 L8102 L8102 L8102 L8102 L8102 L8102 L8102 L8102 L8102 R82055 055 05 R8 05 06 0 8504 04 L850 L8504 1 811 8 C8 C81 81 811122 12 11 C8 C8 C 81 811 811 8 R81 R8 R88152 1522 522 5 R81 R 04 04 R870 R8 044 04 R85244 24 R85245 R8525 R852 1 1 54 54 5 54 54 54 54 54 54 54 54 5 1 25 25 25 25 25 2 26 26 266 266 50 50 50 50 50 51 51 51 51 75 7 76 76 100 000 0 1 1 255 26 26 26 26 26 266 26 2 50 50 50 50 50 50 500 50 50 50 50 50051 51 51 51 51 0 755 75 75 755 766 76 76 766 000 100 10000 100 00 00 00 000 10 10 100 1 255 26 266 26 26 266 26 26 2 75 75 75 75 75 766 766 76 76 76 76 76 76 76 76 766 7 50 50 50 50 51 51 51 51 5 1 166 16 177 17 32 32 32 32 322 1 33 333 48 4 644 64 64 1 1 N DMI MI MI DM DM HD HDM DMI-IN M IN IN MI-I-IN T UT O DM D HD HD I OUT I-OUT H Q8706 Q8706 Q8706 Pattern Pattern Pattern Pattern Layout Layout Layout LayoutVersion Version Version Version 1.333A.3.3.333B 1 333A 3 3 333B 1 333A 3 3 333B 1 333A 3 3 333B R8161 61 61 61 R81 R8816 16 R8 R 9 R8754 R8754 R8754 8754 R8754 K LK LK C X P HDM_PP DM_ HDM DM H M_P M_P H P HD P K CL CL CLK C X I C X K D _DD VGND_DD ND_ D_D GN GND FWSI WSS FWSO S FWSI S FW SCKK C /FWSSO SO S FW FW ESETT E E T /FWRSCK SCKK C /FWS / S LMDO DO L O FWFESET ESETT E E T FWR S HSL WF WF PRINTED CIRCUIT BOARD VIEW U13 DIGITAL VIDEO PROCESSOR PC BOARD NADG-8 A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C87 C8 C88706 C 6 C87 87706 R83355 R8733 R88733 R81433 8 R 3 1 R8 4 R88 R88 R81 81 R81 8 R81477 81 81 81 R88 R R82111 82 R8821 8211 2 8 1 211 R8 30 30 30 30 30 3 8 R 3 R8 L8401 40 8 0 840 L8 1 R 4 24 244 24 24 3 8 R 3 R8 R8 6 506 85 6 055 R8305 R83 R8 0 3 2 022 Q8 Q840 R8 R8 R882 822022 0 R8 R82 82 82 C8332 83 C 2 R83266 3 R83 R 26 2 R 6 8 R83266 3 R83 R 26 2 R 6 8 R83266 3 R83 R 26 2 R 6 8 R83266 3 R83 R 26 2 R 6 8 R83266 3 R83 R 26 2 R 6 8 R83 R8313 R 1 R 3 539 39 3 R85 C8707 C 7 8 C 0 7 7 C8707 R8132 R8132 R8132 R8132 R8132 R8132 R8132 R8132 R8132 R8132 R8132 R8132 R8132 C8242 25 25 25 25 2 32 32 32 32 32 R8 R8 R8 R8 R8735 R8735 C84 9 8419 C84 84 C8 C8 R8504 8504 R8 R85 4 7 307 307 307 307 3 83 83 83 83 83 8 7 3 Q8 Q8 Q8 Q8 R 255 2 32 32 3 R8 R88 Q8704 Q8704 C8504 04 85 4 C85 C8504 04 85 C85 C8504 04 C8 C8504 04 85 4 C85 C8504 04 C8 C8504 04 85 C85 06 06 Q850 Q8506 Q850 Q8506 R8712 R 12 8712 12 R 2 R871 R 2 R871 R871 871 R8204 R8204 R 7 C85077 C85077 C85077 C85077 C85077 C85077 C85077 C8507 C8509 509 509 C840 408 84 C8 C R8531 53 R 1 R8150 R8150 R8150 R8150 R8150 R8150 R8150 R8150 R8150 421 C84 C 7088 C87088 R8717 R8717 717 7177 R8 R8 8 728 728 728 7 R8 R87 877 8 28 R 2 C83 C8308 08 C8308 C85100 1 C8 C8 0 C8509 C 9 09 Q8310 8 C8 C88 C 313 31 C C8528 528 C8528 C8528 528 28 528 R83 R83312 R 1 R 3 R L8304 83 83 4 304 L88 L8 L8 L8304 04 304 3044 85 C8502 8 C8502 C8502 C8502 C8502 06 C850066 C8506 C8506 C850 C 066 C8506 C8506 C8506 C850 R8 R8 R88 R811 8 599 599 R8 R8 R8 R811 815 1 8 9 C8 C8413 C8413 C8413 C8413 C8 C8413 C8413 C8413 C8413 8715 R8 R8337 8337 3 8 L8 L8 L8 L83 8303 303 303 303 L R83344 C83177 3 83 8 17 C R8322 8 2 R 2 R8501 85 850 R 1 C8144 C8 C814 C814 C81411 C814 C81441 C8 C8141 C831 C8 C8316 C8316 C883 C83 C 316 Q8101 Q88 Q8101 Q881 Q8101 81 Q8101 810 Q8101 8110 Q8101 Q88 Q8101 Q881 Q8101 Q81 R88 R8811 8144 1 8144 144 1466 46 46 46 R8 R 46 46 811 811 8 R Q8304 Q8304 Q8304 Q8304 Q8304 C8503 03 85 C8503 03 85 C85033 03 C85 C85033 03 0 C85 C8503 03 85 C85033 0 C885 C8503 03 03 C85 C8503 03 85 C830 830 830 C8 C83 C8 C8 C8 C8 C883 C8 05 05 Q8309 Q8309 Q8309 C830 C8304 C83 29 29 299 29 3 8 R 3 R8 300 30 3 8 R 3 R8 R8538 R8538 C8403 C84033 Q83066 30 Q8330 Q 6 06 Q8 Q83066 3 Q83 Q 06 0 Q 6 8 Q83066 3 Q83 Q 06 0 Q8 Q83 6 83 6 3 83 6 8 R8326 R 6 3 R83 R 26 2 R8 R814 1445 R8 5 45 R 5 45 R881 R8133 R8133 R8133 R8133 R8133 R8133 R8133 R8133 R8407 R8 RC8 9 C8 C C85122 C851 C8 12 8 C85088 0 C85 C8501 C8501 C8501 8501 C88 3 C842 4 C842 C842 C842 4 3 R8 R8 11 11 11 11 R871 R871 871 R871 R R8333 83 R8333 R8339 R8339 R833 C8422 C84 2 C8422 C84 7 277 27 27 2 3 8 R 3 R83 83 8 299 29 3 8 R 3 R8 C8331 C 33 83 0 200 C8 C 0 8420 R840 406 84 R8 R 409 409 409 409 C8 C88 C8 C84 9 8 149 R8149 R8149 R8149 R8149 R8149 49 149 R8149 R8149 149 R8149 28 28 28 28 2 32 32 32 32 32 R8 R8 R8 R832 32 32 R88 R8713 8713 R8713 R8713 R8713 8713 R8209 R8 0 2 82 9 R820 R 0 2 820 2 R8209 R8 0 20 2 9 R82099 8200 2 8 R8209 8 0 20 2 9 R8209 R8 0 2 82 9 R8209 R 0 2 8 704 04 04 04 C87 02 402 L8402 L84022 C85111 C8551 C8 4 8 C8 C8410 410 410 C8709 C8709 C8709 8 09 7099 7099 099 C8709 C8709 C8709 C8709 R8 R8 R811 8155 1 8158 5 15 1 R811 8 R811 R8155 1 8 R 58 58 58 51 51 51 511 815 81155 81 811 R81 R881 R8 R8 R8815 8115 151 1551 R81 R881 R8 R8 R88 8716 8716 R8 R8 8331 3 3 1 331 3 R88331 3 3 1 331 3 R88331 3 3 1 331 3 R88331 3 3 1 331 3 R88331 3 3 1 331 3 R88331 3 3 1 331 3 R88331 3 331 3 R8 R8731 R88731 R8 R8 R8 0 8710 8710 871 8710 R 0 C85144 C8514 85144 C851 C85 C85 8 C85144 C851 51 C851 0 330 330 3300 3 833 8 C883 8 0 3 C8 C8 C8 C 0 40 40 40 8140 C814 8140 140 814 C8 C88 C8 C8 C8 C81 C881 C8 C 0 C 40 400 40 400 40 R8 8 08 5 8 7188 R87188 718 718 R8718 871 7 R8718 7188 R8718 871 7 R871 8718 7 R8718 L87001 01 L87 L87 L87001 L 8 53 R8153 R8153 R8153 R8153 R8153 R8153 R8153 R8153 R8153 R8153 50 505 Q88 05 85 Q8 Q88 Q C8 0 C8 C 0 C8505 C850 C 5 8 C8505 C850 C 5 8 C8505 C850055 C8505 C8 C 5005 C8505 C8505 C8505 C850 C 5 8 4 2 C84022 C84022 C84022 C84022 C84022 C84022 C8402 3011 301 C830 C83 83301 C8329 3 C 29 C8329 3 C 29 148 R81488 R81488 R81488 R81488 R8148 148 R81488 R8148 148 R81488 R8148 C83122 C8312 12 C8404 C8404 C8404 C8404 C8404 C8404 C8404 C8513 13 513 R8336 R8201 R8201 R81566 8 56 R81 R8156 8 56 R81 R81 8 R81 R81 8 R81 R 566 566 R81566 8 56 R81 R81 8 R81 R 6 R81566 8156 R81 R815 8 R81 R 6 0 C8710 C8710 C8710 7100 302 C8302 C8320 20 20 C832 C8 C832 832 R820 2 R82 R8 R82 82 R8 R8 R8 R8 R82 82 R8 R8 R8 R88 R8 R8 R8208 20 R 2 R8 08 08 C81355 R8203 8 R8 0 2 82 3 R8207 07 R 20 R8 R82 82 8210 1 210 10 210 1 82 82 R Q8308 83 Q 8 L85001 01C Q8507 0 2 C8319 C83 C8 C83 8319 C 9 R814 14422 42 R881 2 R881444 4 R814 83322 3332 3 R883322 32 32 33 R83 8332 32 332 3 R88332 3 332 3 R88332 32 333 3 R8 C8241 41 Q 102 81 Q R8338 8338 R88 R81 81 815 81 8157 1577 577 R 15 1 R88 7 R88 R 57 R81 81 8 577 C8412 C8412 C8412 C8309 C83 C8309 C8309 C R8714 8714 8 R8403 03 03 8 R8403 03 84 L8405 L8 055 L8405 L84 5 R8530 R8530 30 85 0 53 C83211 8 1 C 1 C 1 3 8 L88 L8301 301 L C840 407 84 C8 C R88 R8 R816 8166 8160 60 60 60 8166 8 R81 8 R 160 60 6 R 11 C8411 1 C84011 C84011 C8401 C 1 C84011 C8401 01 C8401 8 R8 R8401 01 840 C8414 C8414 C8414 C8414 C8414 C8414 C83233 832 323 3233 3 C8322 C8322 C8322 C8322 C8322 C8322 C8322 C8322 9 399 399 39 39 39 39 139 399 3 13 13 13 813 81 8 3 1 C81 C8 C81 C81 C8 C 9 C 139 1339 3 813 813 8 3 1 C81 81 C81 81 9 39 399 39 39 39 39 39 1 4 3 1 4 5 8 1 1 4 3 4 5 R8340 R8340 R83400 C8333 C8333 C8333 C 41 411 R834 R834 R834 R834 C8334 C8334 C8334 C8334 C C8 C8335 8335 C 335 C R83 83 834 34 34 833 83 R8 R8 R8342 42 342 342 R8343 C8 C 366 C 6 C833 83 C 6 4 C8104 C8104 C8 R8021 C8017 80 8 1 0 7 C80 80 80 C 7 C 7 C80 80 80 C C8062 C R8015 R8015 R8015 R801 R801 R801 R8015 8015 R C8102 C8102 C8102 C8102 C8102 C8102 026 02 C802 C 02 0 C80022 C80 C 6 C8022 C 22 C80222 C8022 C802 C802 022 22 C8022 C 9 R8049 C8 C8 C8222 088 0 1008 1 108 08 L8004 R8060 C8019 80 8 1 0 9 C80 80 80 C 9 19 19 19 1 23 2 023 C8023 2 72 72 72 R8072 R8072 C8078 C80444 C80444 L8101 L8101 L8101 L8101 L8101 27 C8027 27 80227 802 C8027 C802 C D80055 D800 C8008 8068 06 C8 R8067 R R80633 R8063 8069 C88 C8069 08 08 088 Q8000 Q8000 Q8 8 4 1 01 01 01 01 01 0 8 C 4 0 C 1 C80 80 80 80 80 8 01 01 01 0 4 8124 R8041 R8041 R8041 8041 7 Q8007 R81122 R811 112 12 12 R88 R 122 122 C8101 C81 C8 C 1001 810 C8101 C8063 C8063 C8063 C800 800 80007 8 7 80 8 0 C 5 8105 64 R806 R80 Q8703 36 36 3 1 6 136 C8021 C8021 C8021 C8021 C8021 C 1 C X8001 X8001 X8001 X8001 X8001 X8001 R8071 R8066 R8066 Q8002 02 002 Q8 Q80 Q C 039 039 039 039 C8039 C80 80 C8039 C80 R80 R8 R8053 80 R8 80 80 R8 R8 R 30 8 R 0 0 0 8 3 030 030 03 03 R R8128 R8128 R8 R8128 C8035 035 C80 C 2 R8053 R805 0 R8 Q8 Q882 8220 20 2003 03 8203 Q 0 C8 C8 C8 C8036 8036 8036 C8036 L8006 31 C8031 3 C8033 C8031 C8072 C8043 C8043 C8043 C8220 C8220 C8220 C8220 C8220 C8220 8220 8220 R8023 8 R8018 C80 80 80 C8018 80 8 1 0 8 C 8 C8018 80 8 1 0 8 C80 80 8 C801 80 8 1 0 CC8017 0 80 8 1 0 7 C800 80 80 C C R803 8 R80 8 R8034 34 8 R 4 R8033 8 R 344 34 R8069 R80 2 80 2 80 80 8 02 02 02 02 022 0 8 R8 R8 R8 R8 R8 R 2 80 80 80 80 80 80 8 R C 0 R80200 R 74 7 C80 C80 C80 4 P8001A P8001A P8001A 8003 8003 8003 L80033 L 2 R8070 R80 1 80 1 Q8005 Q8005 Q8005 D8 D8 D8001 03 03 810 810 C8 C8 C 3 C 1 C8 C8 C88 03 03 10033 603A 0 6003AA 60 603A 860 86 860 86 866 P88 P8 P86 P8 P8 P 03A 03A 0 A 3AA 3AA P8 P8 P8 P8 P8 P860 6 866003 P86 8 P88 P86 A 3A 03A 03AA 86 86 86003A 3A 03A 603A 60 603A Q8202 Q882 2 02 0 C8011 023 02 2 C8012 C8011 C8011 C8218 C821 C8218 C8218 C821 C8218 21 21 C8218 21 C 8C C8080 L8003 8003 6 Q8006 02 C80 C80 C80 C 4 244 R8055 1 R8061 C8002 D8004 D8004 D800 8005 80055 C8 C8009 C8008 C R8114 1 R811 R81144 11 R88 R81144 R81114 1 8 R8051 R C8 C8 C8 C8 C8 C 13 13 13 13 13 01 01 01 01 800 800 C 3 C 0 80 80 80 80011 011 8 C 028 2 R80 R8 R 2 80 80 R C R80577 40 C804 C80 8 6 R8 R806 71 71 7 C807 C807 8071 7 R8124 R8124 R8 R8124 8 R8 R8 R 24 R8124 RR8128 8 R R8059 R C8206 C8206 C8206 2 R8752 3 R81200 81 R81200 R812 120 R8 R8 20 20 R81200 12 R 5 C8125 C81255 C8214 8134 134 8 R8 3 062 06 06 80 80 80 8 R 62 62 0 8 62 62 R 4 04 C8204 04 04 C 04 C82 82 C8820 204 755 7 C807 C807 8075 L8002 C880677 0 8 677 6 C8 0 8 R808 D8 D8 D8003 C8003 133 1333 13 1333 33 32 32 C8032 C8076 C8020 C802 C8020 C802 288 C80228 802288 802 C 8 2 C802 C802 C 7 R8017 R801778 R8018 R8018 8001 L P8701AA P8701A P8701 P8701A P8701AA P8701A P8701AA P8701A 255 C802 C80 C 5 25 25 C802255 25 25 25 R80366 8 R 6 R80366 R8 R80 R8 R80366 8 R 6 R803 R80 R8 3 0 3 33 6 C8016 C8210 C8221100 C8210 211 C82 0 C8210 211 C82 0 C8210 C82210 100 R80355 8 R8035 8 R80355 8 R80355 8 R80 8 R 5 R R8036 8036 8 R 6 R8019 R8018 R8018 R8 R8750 R8 R R C8073 30 C80330 80330 803 C 0 C 31 C803 C C8004 56 R805 202 20 8202 202 20 8 C8 C8 C 2 C8 C8 C8 02 82 82 82202 20 202 C82133 821 2 C82133 C82 3 21 21 C8213 C82 3 2 3 1 C8213 822 C8 3 13 C8213 21 8 C8 13 C8213 822 C8 3 213 1 C8213 C882 3 213 1 C82133 C8 3 21 2 299 C802 C 299 80229 C802 C8 30 30 C803 C80330 300 C803 C803 R807 R8079 R807 R807 477 477 4 R804779 80 9 6 R80167 R8017 R8017 R8065 R8065 70 C807 C8807 C807 C807 C 0 R8126 8 R8 R8126 1 R881 8 R 26 R8126 81 8 26 114 114 1 R8 R8 R88 14 14 1 R81244 R8 R 24 R8751 R8751 D8 D8 D8002 R8116 16 R8116 166 R8116 R8 R8 R8 R8116 16 R811166 16 R8112 8112 R 8 0 8 00 8 Q8201 Q820 201 41 41 41 41 044 04 80041 4 04 0 C8 C8 C8 C8 C 705 Q87 870 C 21 21 21 21 21 C822 C822 C822 C8222 C82 0 32 32 1332 32 13336 36 366 3 1 6 13 C80 C8079 C806 8061 C8205 C8 5 C82 820 205 82005 C8 05 CC8204 C8204 C 4 C822 8 04 C81188 C8 C81 C8 C8 C 8 188 C81 C8 8 C8106 1 6 81 81 C 066 06 C8 C 1 6 C8042 C 0 8 R8022 80 R8023 80 1 8 R808 R8123 233 R8 R8 23 233 R8 R8 RR8120 R88 200 20 R 02A P800 P8 C800 C8001 0 C8 C 0 C 0 1 01 C 36 36 36 3 81 81 811 81 81 81 8 C8 C8 C8 C 6 C 13 13 1 C8 C88 C8 C81 81 8 366 366 36 36 36 C8037 C8 C8 C8037 037 C8036 803 80 C C8 C8 C80 C880 C8 C88 C8038 C8038 8038 8038 038 C8 C8 CC8 C8039 8039 45 455 804 04 R8045 80 80 R8058 C8212 12 2 2 C8212 122 21 C82 C822122 12 C821 2 C8212 122 21 C82 2 C82122 1 C8221 2 C8212 12 2 2 C8210 C8210 210 2 0 C C8213 C8213 C82 C8 1 2 1 4 1 15 15 28 28 1 1 24 25 25 25 25 25 25 48 4 80 8 48 25 25 25 25 25 25 25 25 25 25 244 244 24 244 244 24 244 2 1 1 1 1 1 1 1 1 54 54 54 54 54 54 54 54 54 544 54 1 2 722 72 272 72 27 NCDG-827 8 7 8 NC G NCDG N DG G C G D CD 8227 NCDG-822 8 NC G N D N DG C G D C 82 NCDG-82 - 2 -8 G C G N D N DG DG C G C NC 82 NCDG 8 G 82 G C G NCDD N DG D NC G C NC 8 2 72 NCDG-82 827 8 NC G N D N DG G C G D C 822 2 72 NCDG 8 G 8 G C G NCD N DG D N G C NC 8 2 NCDG-82 - 2 -8 G- C G N D N DG DG C G CD NCC 82 NCDG 822 G C G N D N DG D C G C NC 8 2 722 722 72 NCDG-827 8 7 8 CDG NC G C G D CD 27 25138272BB 3827 8 3 2551 51 722 82 2B 2 B 25138272BB 3 27 38 3 1 251 72 8 2 82 B 25138272 3 27 3 1 25 25 72 8 2 8 2 25138272BB 8 72 8 3 2551 51 2 2B 2 B 2 B 25138272BB 8 72 2 8 3 2513 2 2B 2 B 7 B 25138272BB 38 7 8 3 251 51 2 82 B 2 B 25138272B 3 27 38 3 1 25 2551 72 8 2 82 2 25138272BB 8 722 2 8 3 2513 2 2B 2 B 7 B 25138272BB 3 27 8 3 1 2551 722 8 2 2 B 25138272BB 8 72 82 38 3 2551 513 2 2B 2 B 27 B 2 3 83 83 R8083 32PD P 32PD80 8 22PD P 2PD80 8 VIDE D IDEO D XC PIXX PIX I NPI P NPP NP N VIN INN VI VI V X PIX VINN V N VIN V NP INPI NPIX PIX P NP CLK LK XCLK DOE OE DO VDOE D VDD /DVD E D VD /D /D E OEE DVD DVD /DV E OEE DOO DOE /EXTOE /EXTOE /EXTOE TO /EXTOE DPS-10.5 8272 A-SIDE VIEW B-SIDE VIEW A-SIDE PATTERN B-SIDE PATTERN E F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C4701 470 C4701 470 C4701 470 C 02 7002 C4 C4 2 022 470 470 C470 703 70 4 C4470 70 7 C4 C4 03 C47 4 C 704 C4705 C4705 C4706 C47 C4706 C4706 4 C4751 51 C4752 47522 C44752 C475 C47 C475 C4753 C4754 54 C4 54 54 C4754 54 4801 4801 C48 022 C4802 C 3 033 C4803 C4 04 04 4804 480 C 4 04 C4 C48511 C4851 C 85 8 48 C 852 85 852 C48 48 C4 4853 4853 C485 C48 3 C4853 C48554 54 C485 C485 C49 C44901 C4902 4 C4902 C49 C44903 4903 49 C4 C4 C 03 903 C4 C4904 C4904 904 C49 C492 4921 21 921 C4921 92 C49211 21 C49 C49 C4977 97 C C4978 C49788 C497 C497 C497 D4 D4 D4 D44751 D4752 D4 D4752 D4752 D4 D4752 D4752 D4 D4752 D4 D44851 D4852 D4 D4852 D4852 D4 D4852 D4852 D4 D4852 D4852 D4 D4852 921 D4921 D4951 D4951 D 2 4952 4952 D4953 953 P4960 P4960 P4 0 4960 60 P P4961 6 P49 P4961 64 4964 P4964 P4964 P4964 P4 B 022 02B 2 02B P4202 420 P P4202B 0 P4202B 2 P 0 P4202B 0 4203B 4203BB P4 P4203B 20 B P4203B 420 P4203B 03 P4 B P4571BB 71 57 P4 P4571BB 71 P4571B 71B P45 4571B Q470 Q4701 Q47 Q447 Q4702 4702 4702 703 Q470 Q4 Q 04 044 Q470 Q470 705 7055 70 705 05 Q4 Q4 Q4775 Q47 Q47 Q475 751 Q4 Q4 Q47752 Q4 Q47 Q44 Q4753 755 Q475 755 Q475 Q 755 Q475 Q47566 Q475566 5 Q4 Q4801 48 Q4801 Q48801 Q4801 48 Q4802 0 48 Q 2 803 03 Q48 3 803 03 Q48 805 055 05 Q48 48 Q4 04 04 044 Q480 Q480 Q480 4851 485 Q Q485 Q485 Q4 Q4852 852 3 Q48533 Q4853 Q4854 Q4854 Q4854 Q4 Q4 Q488 48855 855 55 55 55 Q48 48 Q485 85 48 Q 7 577 57 Q4857 Q4 Q 7 85 Q4858 858 Q4858 Q4901 Q4902 Q4902 3 Q4903 Q4903 Q49044 49905 90 9005 05 Q49 Q4 Q49 Q4921 Q4921 Q492 Q4958 Q49 49959 9599 495 9559 59 Q4 Q4 Q R4701 2 R4702 R4702 7003 03 R47 4 R4704 R470 R4704 R470 4 R47 4705 R470 4705 R47 R4705 R4706 R 06 R4706 R4 06 R4706 4706 R4707 R4707 470 4707 R R47088 R470 R4 4709 7009 R47 R4 R R47 R 710 1 711 71 711 R47 47 R47 R4712 712 471 71 R 2 7113 71 71 713 R47 4 R4714 4 R4715 R4715 R47 R4716 R R4717 R4717 R4717 R 8 R4718 1 R4751 R4751 R4752 52 R4752 R4 R44753 47753 753 753 R4753 R44753 753 753 R4 R 54 R4754 R4755 R4755 R47566 R47 755 R47557 57 R4758 R R4759 59 R47660 R47600 R476 R476 R4761 R476 R4762 762 R4763 R476 R476 R4764 R4764 R R4765 R4765 R476 4766 R476 4766 R4 R4767 4767 R4768 R4768 R4476 R447 R4 9 769 477 77 R4770 R4 R477 77 R4771 77 77 R4772 R44777 4773 R477 4773 R477 4774 R4 5 R477 77 6 R4776 R4 R4801 R48 R4802 R4802 R4802 R4 R480 4 R4803 R4803 804 04 8 4 R4 R4 R4805 05 R480 806 06 806 R48 R48 R48 077 R48 R480 R4 R44808 0 48 R4 R 809 809 810 10 R4 R48 811 81 R4 R4 81 812 12 8 R48 R48 R48 R4813 813 813 813 4 R4814 R4814 815 815 815 R48 R48 R48 R48 R48816 816 R48 817 817 817 R48 R48 R48 818 818 R48 R48 R4851 51 R485 R48511 4851 4851 851 R48511 R485 R R48552 52 85 48 48 48 R R4853 R4853 R4853 4 R 854 854 R4 R44 R4855 R 855 4885 R R4856 R485 R 6 R48 R4857 58 58 R48 485 R4859 R4859 R4860 R4860 R4861 R4861 R48 48862 862 R4863 R 863 R4863 R48 R4864 65 R4865 R4 R4865 R4866 R4866 R4866 R48867 R48 R4 R4 R4 R4867 867 867 R4868 R4868 R486 4869 R4 R4869 8669 R48 486 48869 R4 R48 4870 70 70 87 87 87 R4 R R4871 R4871 R4871 R4872 R487 R4872 R490 901 R49 R R4 R490 9002 02 49 49 R 490 90 49 R49 49 R49903 03 903 R4904 R49 R4904 R4904 R4905 490 R4 5 R4906 906 R4 R4906 R 9066 R490 7 07 R4 R490 R4908 R4908 R4909 R4 R4909 R4910 R4910 R4910 R4911 491 R R4912 4913 13 R4 R4914 R4914 4915 915 R4915 R 4916 R49 R4917 R49 R R4918 R 8 R492 921 R R4922 R4923 R4924 R49766 R497 976 R4977 R4977 R4978 R4979 R498 R498 R4980 800 R R4981 R4982 R4982 R4982 4982 4982 R4 R4983 4983 C49951 C C4952 952 4 C4953 54 C495 55 55 4955 9 C4 C4 C4956 57 C4957 49 9588 C4495 C4959 C4959 96 9 0 C499 C 0 C4961 49 C4 C4 C49622 C4965 C4966 C 66 C4967 C49668 C4969 969 C C4970 C4971 71 C4971 C4971 C49722 C4 4973 C 3 C49744 C4974 C4975 C4976 E4953 E4953 L4951 L 52 L49 4952 L49533 L4954 L49 L495 955 5 P4005B P4955 P4955 955 P P4956 P4956 56 P4956 P4962A 962 P4 A P4962A P Q4951 51 Q495 Q49 Q49 Q4951 9 Q4952 49 Q4952 Q4 2 Q Q4952 Q4 Q4953 Q4953 Q4954 4954 955 Q49 955 55 Q4955 Q4956 495 Q4956 Q49 Q49577 Q495 R4951 R495 R49952 R4953 R4954 R4955 R4955 R4956 57 R495 58 R495 R495 R4959 4960 R49 R49 R49 R4961 R 61 R49662 963 R49 4964 4964 R4 R4 R4965 R4966 R49677 R4968 R49968 R4969 969 0 R4970 R4971 497 72 R4972 R497 4973 974 R4974 R4 R4975 R4984 R49 R4985 T4951 T44951 T 956 95 L49 L 6 P4958 P4959 P4959 L4999 C4 C4999 99 NCAF-826 NCAF-8266 382 25138266 1 1 1 P4950B 950 P4 0B C4201 C4201 1 C4201 C4202 C4202 C4202 P4011 P4011 C42 4206 C4 C4205 C4205 Q4202 4202 Q Q42001 Q42 Q4203 Q4203 Q4203 Q4204 04 6 36 R42366 R4235 R R4242 42 42 R42 R4241 Q4205 Q4205 06 4206 Q420 420 R4229 R4229 R4231 231 R4233 R4233 4 44 R424 300 30 R423 R4232 4232 R42 R42 R4234 R4234 R4243 R42 203 20 C42 C42 C4204 C42 4 1 D4201 D4202 R4 R42477 R424 077 Q4207 4207 R4245 R4246 8 4758 4758 Q4 Q4 Q4757 R4777 R4 R4778 R4778 C4755 C4755 5 C4985 C4986 R4995 R4996 R4997 R4997 C4987 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 3 E4601 022 E4602 E4603 E4604 Q4208 Q4208 C4979 DPS-10.5 PRINTED CIRCUIT BOARD VIEW DPS-10.5 U09 : AUDIO OUTPUT PC BOARD NAAF-8266 A-SIDE VIEW A-SIDE PATTERN B-SIDE PATTERN www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C4701 4701 C4701 4701 C4701 4701 02 02 02 C4 C47 C4 02 470 470 470 C4 C 703 C44 C47 4703 03 C4 4 704 7004 C47 C4705 C4705 C4 C47 6 C4706 C4706 51 C475 C4 C4752 C47 C 52 C47 C475 C47 C475 C4753 C47 C475544 54 54 C47554 480 C48801 C C4 C4802 C 3 C4803 C4 04 04 4804 480 C 4 51 C4851 C48511 48 4885 C48 C48 C4 52 485 852 4853 4853 C4853 C48 C4853 C48554 54 C485 C485 901 0 C490 902 02 C49 C4903 C4903 49 C4 C4 C 03 903 C4 C4 C 904 4904 904 C49 C492 4921 21 921 4921 92 C49211 21 C49 C49 C4977 97 C C4978 9788 C497 C497 C497 51 51 755 D47 752 52 D47752 52 D47752 52 D47 1 D4851 51 D485 852 52 D48852 52 D48852 52 D48852 52 D48 921 D4921 D4951 D4951 D 2 4952 4952 D4953 4 D P4960 P4960 60 P496 P4 0 P4961 4 P44961 4961 P P4 P49 4964 4964 P4 P4 P4964 P4 P42 42 P42 P42 4202B 02 2 B P4202B 2 P4202B 0 B 2 P4202B 2 3 P4203 P4203 P B 3B P4203B 20 P4203B 203 P4203B 42 3B P P4571BB 71 57 P4 P4571B 71B P45 4571B Q470 Q4701 Q47 Q447 Q4702 4702 4702 Q44703 7033 04 044 Q470 Q470 705 055 70 705 05 Q4 Q4 4751 4751 4751 Q4751 Q4 52 52 52 7 Q4 753 753 53 75 Q475 5 Q44755 Q4 Q4475 Q4 55 Q4475 Q4 Q4756 Q4756 5 Q4 Q4 6 5 Q4801 4801 Q4801 801 Q4801 48 Q4802 Q4802 Q Q48 Q480 Q4 Q4803 805 055 05 Q48 48 Q48 04 04 044 Q480 Q480 Q480 4 51 85 Q Q4852 48 Q4 Q4852 852 3 Q48533 Q4853 Q4854 Q4854 Q4854 Q4 Q4 Q488 48855 855 55 55 55 Q48 48 Q485 85 48 Q Q4 Q4 Q48577 855 Q48 Q4858 Q4 Q4858 Q4901 Q4902 Q4902 3 03 Q4903 Q49044 49905 90 9005 05 Q49 Q4 Q49 Q4921 Q4921 Q492 8 Q495 Q49 49959 9599 4959 959 Q4 Q4 Q R4701 2 R4702 R4702 70 7003 03 R47 4 R47044 704 47 R 4705 0 R4705 0 R47 4705 0 R47705 0 R47 R47066 R4 R4706 706 R47066 R47 R4707 R4707 R470 R4707 R4708 R4708 708 4709 7009 R47 R4 R R47 R 710 1 711 71 711 R47 47 R47 R4712 712 471 71 R 2 713 71 713 R47 4 R4714 4 R4715 R4715 R47 R44716 R R4717 R4717 R4717 R 8 R4718 1 R4751 R4751 R4752 52 R4752 R4 R44753 47753 753 753 R4753 R44753 753 753 R4 R 54 R4754 R4755 R475 6 R47 R4756 47 4757 R4 R4 58 R4758 R47599 R4766 R4760 R476 R476 R4761 R476 R4762 762 R4763 R4763 R4 R476 R476 R4764 R4764 R R4765 R4765 R476 4766 R476 4766 R4 R4767 4767 R4768 R4768 4 R476 R4 R47 R4 9 769 477 77 R4770 R4 R477 77 R4771 77 77 R4772 R44777 4773 R477 4773 R477 4774 R4 R4775 R47 R4776 R4 R4801 R480 R4802 R4802 R4802 R4 R480 4 R4803 R4803 R48 R48 R 804 04 R4805 R 5 4805 8066 806 R4 R4 R44 R4 R 8077 480 08 08 R480 480 R4 R 809 809 810 10 R4 R48 811 81 R4 R4 81 812 12 8 R48 R48 R48 R4813 813 813 813 4 R4814 R4814 815 815 815 R48 R48 R48 R48 R48816 816 R48 817 817 817 R48 R48 R48 818 818 R48 R48 R4851 51 R485 R48511 4851 4851 851 R48511 R485 R R48552 52 85 48 48 48 R R4853 R4853 R4853 4 85 R488 R48 R 544 5 R48555 R48 R 85 48 5 R48566 R48566 R 48577 R485 R4858 R4858 48 R4859 R4859 R4860 R4860 R4861 R4861 R48 48862 862 R4863 R 863 R4863 R48 R4864 65 R4865 R4 R4865 R4866 R4866 R4866 R48867 R48 R4 R4 R4 R4867 867 867 R4868 R4868 R486 4869 R4 R4869 8669 R48 486 48869 R4 R48 4870 70 70 87 87 87 R4 R R4871 R4871 R4871 R4872 R487 R4872 R490 901 R49 R R4 R490 9002 02 49 49 R 490 90 49 R49 49 R4 R49903 03 903 4 R4904 904 R4904 R4904 R4905 490 905 R R4906 R4906 R49066 R49 R 06 06 9 R49 R4 07 4907 R49088 R490 R R4909 R4 R4909 R4910 R4910 R4910 R4911 491 R R4912 4913 13 R4 R4914 R4914 4915 915 R4915 R 4916 R49 R4917 R49 R R4918 R 8 492 49 R4 21 R4922 R4923 R4924 R49766 R497 976 R4977 R4977 8 R4978 9 R497 R498 R498 R4980 800 R R4981 R4982 R4982 R4982 4982 4982 R4 R4983 4983 95 C4 51 C4952 C49 4 C4953 54 C495 C495 C4 C 955 55 566 C4956 C4 C4957 95 C4958 C495 C4959 C4959 96 9 0 C499 C 0 C4961 49 C4 C4 C49622 C4965 C49666 C C4967 4968 C4 C4969 969 C C4970 C4971 C4 C4971 C4971 C4972 C 72 C49773 C C4974 C4974 C4975 C49776 E4953 E4953 L4951 L 52 L49 4952 L4953 L L4954 L49 L495 955 5 P4005B P4955 P4955 P49 5 P4956 P4956 P4956 P4962A 962 P4 P4962A P Q4951 51 Q495 Q499 Q4951 9 Q4952 49 Q4952 Q4 2 Q Q4952 Q4 Q4953 Q4953 Q4954 Q495 Q49 4955 Q49 Q4955 Q4956 Q495 Q4956 956 Q4957 Q4957 R4951 R495 R49952 R4953 R4954 R4955 R4955 R4956 57 R495 58 R495 R495 R4959 R4960 R49 R49 R4961 R R4962 R4963 R496 49664 64 R4965 R4966 R49677 R4968 R49968 R4969 969 0 R4970 R4971 497 72 R4972 R497 4973 974 R4974 755 R497 R4984 R49 R4985 T4951 51 T495 6 L49 499566 L P4958 59 P495 P4959 L49999 L 99 999 C499 C CAF-8266 NCAF-8266 138 25138266 1 1 1 P4950B 950 P4 0B C4201 C4201 1 C4201 C4202 C4202 C4202 P4011 P4011 P 206 C42006 C4205 C4205 Q4202 Q4202 Q4201 Q4201 Q4203 Q4203 Q4203 Q4204 Q4 R4236 R4 R4236 R42355 R4242 R4 R44242 41 R4241 Q4205 Q4205 06 4206 Q420 420 R4229 R4229 R4231 231 R4233 R4233 4 44 R424 300 30 R423 R4232 4232 R42 R42 R4234 R4234 R4243 R42 C44203 4203 C4204 204 C D4201 D4202 R4 R42477 R424 Q4207 420 Q R4245 R4246 Q4758 Q4758 Q4757 R4777 77 R4778 R4778 C4755 C4755 5 C4985 C4986 R4995 R4996 R4997 R4997 C4987 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 3 E4601 E4 E4602 E4603 E4604 Q4208 Q4208 Q4208 C4979 DPS-10.5 PRINTED CIRCUIT BOARD VIEW DPS-10.5 U09 : AUDIO OUTPUT PC BOARD NAAF-8266 A-SIDE PATTERN B-SIDE PATTERN B-SIDE VIEW www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4001 C 01 40 4001 C4 03 033 C400 C400 40 400 C400 004 4005 005 C40055 C4005 C4000 C400 C40066 40 6 07 C400 08 088 008 0008 00 C 08 08 08 C400 40 C400 C400 C 099 09 009 009 009 C4 C4 C4 0 40 4 C44 C40100 10 0 C4010 C4010 C4012 C C40 C40 C40 C40013 013 013 013 C4 C4 C4 4 C4014 C4016 401166 C 016 C4 C4 8 C4018 C 8 C4018 C4019 C4 9 19 019 401 019 C4 C4021 C4021 C4021 C4021 C4021 C4021 C402 C402 C C4022 22 022 C4 C4023 C4 C40 3 022 C4026 C4027 C 0 C4027 C4027 8 C4028 C40 4 C4030 C4030 C4031 4031 4031 C4 C4 C4 C44 C 031 C4032 C4032 2 C4032 C4032 C C40333 C4033 C403 C4034 C4034 C4034 C C4035 C 035 C C4036 3 C40 C4 6 C4037 C4038 C4038 C4038 C4039 C4 C4039 C4040 40 C4041 C40 C C4042 42 4042 C 042 C 43 433 C4043 4 04 4 C4044 40 C44044 044 44 C C4045 C 45 C4004 C40 40 C4 455 45 C404 C 04 C40045 45 044 C 46 46 40 40 C4 C4 C404 044 C 46 466 C40447 047 C40 C4047 047 47 C40 C 048 C4 499 C404 C C4050 4050 C4 C 05 C4051 C 05 C4051 2 522 C405 3 C4053 405 05 0 C 3 C4054 C4054 C4055 C4055 C4055 56 C405 05 C40 C40 C44056 C4057 405 C4057 057 C40558 C 05 05 C40558 C405 C40558 C4059 0599 C C4059 C40 C4059 C 0 C4059 C4060 C4302 C 02 02 430 4 033 30 C43 4 C C430 C 055 C43 077 077 C4307 C C44308 C C4309 43309 C43 C4 C4312 C4321 43 C C4322 C4 22 C4323 C C4324 C4325 43 C4325 C43 C4326 3 C4326 C43 4327 432 4 C43 C43327 32 C4328 3 C4 C4329 C4329 C4330 C4330 C43 43 4330 30 C 4331 331 C4 332 332 332 332 332 332 C4 C4 C4 C4343 C4343 C4343 C4343 C4344 C4344 C4339 C 9 C4339 C4339 C4339 C433 C4340 C4340 4341 C4341 C434 C 41 C4341 C4 C4342 C4342 402 02 C4 C4 C44 4 4403 C 403 05 C4 C440 C 07 C4407 C4408 0 4440 408 C4409 C44409 C4 C C4412 4421 442 42 C4 C4 C4422 44 C C4423 C44233 C4424 C4425 C442 C4425 C4426 42 442 4 C 4427 4427 C4 C4428 C4428 C4428 C4429 C4429 C44 C44 C44429 429 C C44330 30 30 30 C443 C443 C443 431 431 431 C4 C4 C4 C4432 C44 C4432 C4 C44 C4443 C4443 C4444 C4444 C4439 C4439 C4440 C4440 C4441 C4441 C4442 C4442 C4502 C 02 45 C4503 C4503 505 C4 C C4507 4508 4508 508 C4508 C450 C4509 C45 C C4512 C4512 C4521 521 C4 C4522 C4 22 5 C4523 C4524 C4 C4524 4 C4 C4 5 C4525 C4525 C4525 C452 C4526 C45 C4526 C4 4527 4 27 C4 C4 C4528 52 4528 52 4528 52 C4 52 52299 29 C45 C452 C4530 530 C4 4531 4531 4531 4531 C 532 532 C4 C4543 C4543 C4543 C4544 C4544 C4544 C4539 C4539 C4539 40 40 40 40 40 40 45 45 45 C4 C4 C4 C 54 54 54 4 0 541 41 C455 4 C4542 C 5 C4542 C4542 C4602 C 02 0 C4 C 2 60 600 C4600 C46 C4603 03 605 05 C46 C4607 C4607 C4607 C4607 C4607 C C46088 08 C4600 4609 4609 C4 C4 C46 C446 C4612 C4621 C462 C4 C4 4622 62 C4 C4 C4623 C4624 C4625 4 C4625 C4 C4626 C4626 C4 C4626 C4626 C4627 C 7 C4628 62 C462 6 C 628 2 299 C462 63 63 C46 C46300 30 631 C4631 4632 C4632 C4 C46 C4643 C4643 C4643 C4644 C4644 C4644 C4644 C4639 C4639 C4639 C4640 C4640 C4640 C4641 C4641 C4641 C4641 C4642 C4642 C4642 C4642 C4642 0 40 4 D4 D440022 02 02 0 40 400 4 D4 D4003 033 0 4301 D443 D4301 430 D4301 D430 D4302 4 2 D4302 4 D44011 401 D444 D4402 D4501 501 450 D4502 D4601 46601 D4602 60 D4602 02 E4001 L4006 L4006 R4145 R4145 R4145 414 4145 L4 L44013 02B 0 P910 2B P9102B P910 P3002B P3002B P3002B 3002B 300 B 00 00 3000 P B P3002 3 02 P P4003A P4003 P4003A 00 400 P4003 P4003A P4003 00 P4003 P4003A P4003A P4003A P4003A P2004B P2004B P2004B 00 4BB P22 P2004B 04B 2000 0 P2004B 0 B 20 P22004 20 P4005A 005A P4005A 05 P4005A P 0 P4005A 0 P2003BB P 0 P2 03 P2003BB 2 P 03 00 B P40077 0 P 0 P4007 P4007 P4008A P4008A P P4008A P4 08A 30 P1302B P1302B 1302 30 P1 02B 302 302B P1302 302B P4202A P420 A P4202A P4203A P 20 42 3A P4203 P 20 42 3 P4 P4 P4203AA 42 P4 04A 4 P420 42 P42 42 P42 42 P4204 42 4 04A 4 P4204A P4204A P4204A P4204A P4204A 4001 Q40 40 40 Q4 Q44005 4005 005 Q Q4005 400 Q 06 06 06 Q400 Q4006 Q4 Q4006 006 06 400 Q40 Q4 Q40088 Q4008 08 400 Q 8 Q40 Q4010 1 40100 Q4 Q4010 Q4 0 40 Q4010 Q4 0 0 Q4010 Q4 0 40 Q40100 Q4 Q4012 2 12 Q40 Q Q4013 Q4013 Q 013 Q4014 Q4 Q4015 4 15 Q4015 4001 01 Q Q4016 Q4016 Q4016 Q4016 Q4016 Q 0 6 Q 7 Q4017 40017 Q4 Q4017 1 0 40 Q4018 1 Q4018 0 Q43022 Q Q4302 Q430 Q 2 Q4 Q4 Q 02 02 Q4321 Q432 Q4321 4 322 322 Q44 Q4 Q 3222 322 322 Q44022 Q 2 02 02 Q444 Q44 Q44 2 0 421 421 Q4 Q4 Q4 Q 421 4421 4 4422 4422 Q4 Q4 Q4422 4422 442 Q4502 Q 02 5 Q Q4502 Q45002 Q Q4521 Q4 Q4521 Q4 Q4522 Q452 4522 45 Q Q4602 460 Q4602 Q4602 460 4 2 4621 462 Q4 Q4 Q 621 46 4621 62 Q4622 Q4 Q46 Q4622 Q4 01 01 01 001 400 R400 R 1 01 00 00 R440 R 2 02 02 0 002 00 400 R40 R40 R4 R 2 0 400 002 0 R40 R4 R4 3 03 03 003 00 400 400 R4 R40 R4 R 3 003 03 R40 R40 400 R4 R4 R 4 044 04 0 0004 00 400 0 40 R4 R40 R4 R 4 004 04 0 400 R4000 0 400 R4 R4 R R4008 0 008 4 R 0 R4 09 R400 R40 R4 R40 4009 R R4010 1 010 4 R 0 R4 2 R4012 40112 R 014 R4014 014 R4015 0155 R40 R4016 016 01 R4 7 011 01 0 7 17 17 1 R40 R4 R 0 40 018 01 0 8 18 R40 R440 4 8 401 0 401 R4 R4 019 0 R4019 R4 R4 R4019 40 R4 R R4020 R4020 R402 R40 R4020 R4 R 02 400 4021 02 4 2 R4021 40 R4 R 02 R4021 4 R 0 R4021 0 4 2 R4021 40 R4 R 02 4022 22 022 R4022 2 0 R4 2 R4 R4022 22 02 4 2 R4022 2 40 R4 2 0222 2 R4023 R 0 4 23 R4 3 02 R4024 R 0 4 2 R4 4 02 R4025 40 5 4 2 0 5 R4026 40 6 4 2 0 6 R4026 40 6 4 2 0 6 R4027 R40 7 4 2 0 7 R4027 R40 7 4 2 0 R4028 R40 8 4 2 0 8 0288 2 0 R4029 R40 9 4 2 0 9 R4029 R40 9 4 2 0 R4030 R4030 4 3 0 0 030 30 3 0 R4031 0 4 1 R403 R4032 4032 4 3 0 2 R4033 40 R 3 03 R4 3 R4034 40 R 3 03 R4 4 R4035 35 40 5 0 4 R R4036 36 40 6 0 4 R R44 R44 R4037 4037 3 8 R4038 R40 R 033 9 R4039 R4 R 0339 0 R4040 R4404 R4040 R 1 R404 4044 R404 R40 2 R4042 42 R44004 3 R4043 404 043 43 R4045 R40 R4045 04 R4046 R 046 R4047 47 R4050 50 40 R4050 405 R 4051 51 400 R4 R4 4052 52 400 R4 R4 R4 R4 R4053 4005533 R4 R4 R4054 R405 40544 5 555 R405 R4 R 6 566 R405 R4 R 4058 58 400 R4 R4 4059 4059 40 R4 R4 4060 4060 R4 R4 R R4061 R40 4061 061 R4062 R40 4062 62 3 633 R406 R4 R 4 644 R406 R4 R 5 655 R406 R4 R 6 R4066 R40 4 R4067 R4 R R4071 407 R4 R 2 R4072 R40 4 R4073 7 R40 R R4074 7 R40 R 0 R 5 R4075 R440 R4 R4 R4077 R4078 R 78 07 R440 40 40 4079 0 9 079 079 R4 R4 R4 40 R4080 81 81 0 40 40 4 R 1 R 1 08 08 0 R4 R44 2 82 82 82 0 40 40 40 40 4 R 2 08 08 08 08 0 R4 R4 R4 R44 3 83 833 8 0 40 40 40 4 R 3 088 08 0 R4 R4 R44 R40 R4084 5 R4085 R40085 40885 6 R4086 R40 R4 866 408 7 R4087 R40887 087 R4 8 R4088 R4408 R40 R 8 088 0 R4090 R4 R 90 09 40 0 1 R4091 R409 R40 R4091 91 922 9 09 099 R40 400 R4 R4 R40922 R4 R40 4 R 2 9 0922 099 409 4009 R4093 093 4 R44093 R4093 R44093 R4094 R409 R40 R40944 5 9 09 0 R4 R4 R4 R 9 0 400 5 R4096 0 R4 R 09966 9 09 0 R44 R4 R 9 0 400 7 9 09 0 4 R4 R 9 0 400 8 R4099 R40 R 09999 0 1 4 R4 R 0 1 411000 4101 R4 01 0 R4102 R4410 102 02 R4103 03 R 103 R4 R4104 R 04 4 R4105 R4 R41 41005 R41 R4106 7 07 0 R41 4107 R4 R41088 4 08 410 R 099 R4 R4109 0 10 1 R41 R4110 R4 R4 R44111 11 R4 R411 2 12 1 1 41 41 4 R4112 R44 R4 3 13 1 1 41 4 R4113 R4 R4 4 R41144 14 R41 R411 R4 R4115 R 5 11 R4 15 41 R4 5 1115 1 5 R41166 1 41 6 1 4111 1 R4 R4 R4 R41 4 6 R4117 R 7 1 41 7 1 4 177 17 1 R4 R 1177 1 1 7 1 R4 R4 41188 411 R4118 R41 4 R411 411 4 8 R4 R4 R4119 R4119 R4119 R4119 R4120 R4120 R4120 R4120 R4120 R4120 R4121 R4121 R4121 R4121 R4121 R4121 R4122 R4122 R4122 R4122 R4122 R4122 R4123 R4123 R4123 R4123 4 R4124 12 41 4 24 R4 R4125 R 5 R 2 41 5 1 4 25 1225 1 R R41266 2 41 6 1 4 266 26 1 R4 R4 R4 R41 41266 2 1 6 1 R 7 R4127 2 41 7 1 4 R412 R 2 411 4 R4 R4127 R 2 411 4127 2 41 7 1 R4128 R4128 R4128 R4128 R4128 R4128 R4128 R4129 R4129 R4129 R4130 R4130 R4130 131 R4 R4131 1 R4 R4 32 33 R4133 R4133 R4133 R4133 4 R4134 R4134 R41 R4 355 R4136 7 R4137 4133 1 R 7 R4138 4 8 3 R4139 R4139 40 4 R41 R44 R4 40 4 1 41 4 R4 R441411 41 4 R42100 10 R42 R421 R4211 2111 R421 R42 12 12 R4 R 12 R4212 R4212 42 42 R44 R4 R4 R42 42 4213 213 R 214 14 21 421 2 42 R42 4 R42 42 421 21 2144 14 R44 R4 15 15 215 15 21 2155 15 R421 R421 42 R4216 R42 R4 6 7 R421 R 217 4218 4 R 218 R4 R4 R R42199 R4219 R4219 R4219 R4219 37 377 R4 R4237 237 R423 38 388 238 23 238 38 388 R423 42 R4 9 39 39 239 423 423 R42 R42 9 42 4223 2339 39 R4 R4 40 400 240 424 42 R42 R4 R4 R 0 40 240 240 R4 R4 R42 R424 424 R4301 R4 R43 3 0 3 43 4 R4 R44 R 033 30 3 3 4 0 3 43 4 R4 R44 R 0 3 4 5 0 3 43 4 R4 R44 R 0 3 5 06 0 3 43 4 R4 R44 R 0 3 6 43 R43 R4 R44 R4 R 3077 4307 08 088 308 300 43 43 R4 R4 R43 R4 R4 R 08 08 430 43308 9 30 30 30 433 R44 R4 R 3 43 43 43 R4 R44 R 9 09 09 09 0 1 43 43 4 R4 R4 R4 R 1 3 0 1 1 3 R43 4 R4 R 1 3 1 2 1 43 43 4 R4 R4 R4 R 1 3 2 3 1 43 43 4 R4 R44 R 1 3 3 432 3221 21 R4 R4 R4322 R 22 32 32 323 23 R43 43 R4 R 432 3224 24 R4 R43 R4325 R4326 4327 3 4 R4 R 328 3 4 R4 R44 R43 43 R4329 43 R44330 43 R4331 31 R 4332 R4332 4341 34 R44 R44 R4341 43 34 344 R4342 3442 R4342 3442 3 4 R434 R 3 4 434 3 4 44 R434 344 R43 R4345 34 4345 4 R R4346 4 43 R4346 4 R4346 4 R4401 4 01 0 R R44033 4 03 0 R 4 04 R4404 4 04 0 R 5 05 R4405 4 05 R R4406 R4 R R4407 407 440 40 44 44408 08 408 R44 R44 4 R4409 09 R4409 R4 R4410 410 441 R4410 R4411 44 4 1 R4411 R4412 44 4 12 R4412 R4413 44 4 1 R4413 R4413 44 4 1 R4413 R4413 44 4 1 R4413 R442 R442 R 21 21 R4422 423 23 44 R 42 4224 24 R44 R4 R4425 R4425 R4426 R4426 R44277 4288 4 4 R4 R44 44 R4429 4 R4 R4429 R4 R4 R4 R44300 4 R4431 4431 R R4432 R4432 R4432 R4432 R4432 R4441 44 R44441 44 R4441 44 R4442 444 R44442 4 R4442 444 433 43 R444 4 4 4 44 444 4 R44 4 44 444 R4445 44 44 R4445 R44 R4445 44 R4446 R44 R4 R4 46 R4501 R450 R4503 R450 R4504 R450 R4505 R450 R4 R4506 R450 5066 R R4507 507 450 R4508 R4 R4508 45 R4 9 R4509 R45 R4 0 R4510 R 510 1 1 R45 R45 R45 2 1 R455 R45 3 1 R45 45 R45 R R452 R452 R4 21 21 222 2 4552 R4522 523 23 R45 52 5224 24 R44 R4455 R4525 R4525 R4525 R4525 R4525 R4526 R4527 R45277 R4528 4 R44 R 5 R4529 R455299 R4530 R4 R 5300 5 R4531 R4531 R4532 R4532 32 4541 45 R45 4541 4 4541 454 4542 54 5 R44 R4542 45 3 43 43 4 R4543 4 R45 R454 44 4 455 R4 4 54 54 R 4 4 R4545 R454 R454 54 R4546 R454 54 54 R4601 R46 4 01 6 1 R4601 R46 4 01 6 1 R4601 R46 4 01 6 1 60 60 6 R4603 R4 R 60 4 03 R4603 R4 R 60 4 3 60 60 R4604 R4 R 604 04 46 R4605 R4 R 5 605 R4 R4 R4606 R4 R 6 R4607 R4608 608 R4609 R4609 609 6 R46100 1 R461 R R46111 11 6 4 R4 R46122 12 6 4 R4 46133 13 6 4 R4 R462 6221 21 R4622 R4622 R462 R46223 23 62 6224 24 R4 R46 46 R4625 R4625 R4626 R4626 R4626 R4626 R4627 627 4627 R46 R46 628 62 R4 R4 R 6 R4629 46 R46 46629 6 9 0 R463 R463 R46 R4 300 R4631 4631 R R4632 R463 R4641 R46 R464 6 R4641 R46 4642 6 R4642 464 R4642 464 643 43 64 R46 R 6 4 R4 44 44 R4644 6 R4 R R4645 R464 64 6 R4645 64 R4646 R46 46 464 4002 4002 400 X4 X4 X4 4003 40 X4 X4 C4061 C4061 C4061 40 C40 4061 062 C4062 C4207 2 C42 C42207 8 C4208 208 2 C42 8 2 420 C4 09 09 C4 C420 420 C4210 C4210 C4210 P4011 P4012 P4012 1 10 16 17 17 17 177 17 17 25 25 25 25 32 32 322 322 322 32 32 16 16 16 16 16 177 0 100 32 32 32 32 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 366 36 37 37 37 72 72 733 73 733 73 733 73 7 108 108 108 109 09 0 10099 09 144 1444 1 1 1 1 1 1 1 1 -8263 R- R NCAR 3 14 1 28 28 28 28 288 28 28 14 14 144 16 16 14 14 1 Q4011 11 Q4011 Q 011 2 R4142 R41 4 3 R4143 R41 4 44 444 R414 R4 R Q4019 Q4019 Q 0 Q4019 Q 3 C4063 C4063 50A 0 P495 P49950A 950 P4950AA 1 A +B A_+B A +B A GND A_GND A_- A_-B A B A_DDAC B A_DAC+B A_ A_DACGND AP +B4APG + 4APGGND 4 P_OFF P OFF A_+B A_G _GND WRCTR WR WRCTR TR P 2VV -112 122V GND G D N +12VV 12 A_ B A_-BB R4147 R4147 L4012 L40 46 R414 X4001 X4001 X40 X4 X40 X40011 0 7 C4017 C4017 C4017 C C40 C44024 V +12 +1 + V D A_GN GN A G A_ D N V 12V 2V 12 - V D N GND S_MUT S__M S_MUT MUT S_MUT MUT 2V 2V SW1 SW S 12V 2V DWXR DW DWX WXL WXXL X DW DW DWX WX DW DW .6 . EV_5 _5 EV_ EV 6 5 GN G EV_G _G EV_ EV ND N G 8263C 8 3 25138 50 R4150 R 149 R4 488 R4148 151 5 R4 R441511 5 R4 R4 R 0 4 Q40 400 Q4 Q4 20 20 20 C4064 C4064 C4064 C4064 C4064 C4064 C4064 R4153 1 R4153 153 R4153 1 R4153 1 1 4052 40522 Q4 Q40 Q405 051 Q440 1 Q40 4051 Q4 R4156 56 4 R 1 R4 Q4022 400 Q 22 2 4 2 Q C4066 40 C 6 06 C4 6 C406 C4 C4067 C4067 JL4006B JL4006A A 5A 05A 05 005 00 00 A 0 005A 05A 5A L4 JL4 J 40 L40 JL JL JL4005B 90 D4901 D4 0 901 D4 0 900 D49 D49902 902 9 490 49 D4 D4 DPS-10.5 PRINTED CIRCUIT BOARD VIEW U18 : AUDIO DAC PC BOARD NAAR-8263 A-SIDE PATTERN B-SIDE PATTERN A-SIDE VIEW A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4002 C44002 C44 C44002 1 C4011 C4015 15 401 C 0 C4020 C402 C4025 C4029 C4 01 430 0 C43004 C4306 C4306 C43100 3 43 C4 1 C4 C4311 C4313 C4313 3 C4333 34 C4334 C4335 C43 C4336 C 4001 44 C4 1 C4404 04 4 C444004 440 C C4 C4 C44406 4406 4406 C C444100 10 4 C4 0 C44 C 411 3 C4413 C441 C4433 C4434 C44435 C C4 C4436 0 5001 01 0 C4450 C C 50 50044 04 0 45 C45 4 450 506 C4506 06 C45 C4510 C4 45 C4511 45 C4513 3 C4533 5334 C45 45 C4535 C4 C4536 C460 C4 C 01 C4604 C4604 C4604 C C4606 C4606 C C4 C4610 6 6 C4611 6 C4613 33 C4633 344 C463 C4635 C C44636 C D 001 D4 D40 D4203 D4203 D4203 D4203 D4203 D4203 D4204 420 D4205 D4206 L4001 L4 L4001 4001 L4001 L4001 L4001 L4002 L4 L 0 4 02 L4002 L4 L 0 4 02 L4003 L4003 L4004 L400 L400055 L4005 L4005 L4 L4007 8 L4008 L 0088 L4009 L4009 L4009 L40100 L40 L40010 010 L4011 L4011 011 L4 L4 1 301 L430 3 L4 L4302 3 L4303 430 L43303 L4 L4304 L4304 0 L4304 L4304 0 L44001 L444 L4 L44 L444 L4 L44001 L444 L4 2 L4402 L44 L4403 44 L4403 44 L 403 4 04 0 L44 L44 L44 L450 L 50 L45 L4501 L 50 L45 L4501 L 50 L45 1 4 L4502 502 45 L4 L4503 4 L L4504 L4601 0 6 L4602 L4602 L460 L4603 L4603 0 603 46 L4604 04 60 6 Q4002 Q4002 3 Q4003 Q44004 7 Q4007 Q4007 Q40 Q 7 Q400 Q400 Q40 Q40 Q 09 009 7 Q4 Q4207 Q4208 Q4208 01 4330 Q4 Q43 43 Q 3233 3 Q4 3 Q Q4323 43 4323 323 323 4323 3 Q4323 43 Q43 43 Q 24 244 3 Q4 4 Q4324 24 Q43244 4324 2 Q4324 24 Q43244 401 Q4401 401 Q44 Q4423 23 233 44233 Q4423 42 423 23 233 23 23 Q 423 2 Q4424 244 44244 Q4424 42 4424 24 4424 42 4424 24 50 Q4501 5 Q45 Q4 Q44523 4523 4 3 Q4523 4523 5233 45233 Q4 Q44524 4524 24 4 Q 244 2 Q4524 24 4524 52 Q4524 24 01 Q4601 Q4601 Q4601 46 Q4623 6223 2 Q4 Q 23 2 Q4623 462 623 23 Q4623 4623 462 Q4623 6 Q4624 24 Q Q46 Q44624 244 6 4 244 4624 624 Q 4 R4 R4 05 05 4000 40 4 R4 06 06 00 40 007 0 R40 7 R4 07 0 00 40 011 1 R40 4 R40444 04 R4044 R4048 R4 48 R404 R404 R4049 R4068 R4069 R4070 R4076 R4206 0 R4206 R4206 0 R4206 R4206 0 R4206 R4207 422 7 0 R4207 2 7 0 4207 422 7 0 R4 R4208 0 R4208 R4 R42099 20 209 4 R4220 4220 R422 42221 21 2 R4 R4 1 R4 R42222 22 222 4 R42222 22 222 4 R42222 22 222 4 R4 R42 4223 23 23 R42 R4 3 223 2 422 22 R42 4 R422 42224 24 24 2 22 22 R42 42 R44 R R42 42 422 422 225 25 25 2 225 22 42 42 4 R44 R422 R422 R4226 R42 6 26 266 2 R4226 R42 6 2 R422 R42 R R4227 R4227 R4227 R4227 R4227 R4227 R4227 R4227 8 28 R4228 28 2 R42228 R42228 28 R4228 28 R42 R4 7 247 2 4302 4302 R43 R4 R R4314 R4314 R4315 4315 R43 R4 155 R4316 R43 R4 R4333 R4333 R4333 R4334 R4334 R4334 R4334 43 5 335 R4 R4336 R4337 R4337 R4337 R4338 R4338 R43 R4338 38 R4339 R4339 R4340 R4340 R4340 R4347 R4347 R43 R4348 R4348 R43 R4 R44349 49 R4350 R4351 R4352 R4352 R4353 R43 R4353 353 R4354 R4354 R435 R4354 R 35 R4355 R4355 R4356 R435 R433 R4357 3577 R435 3 R43577 3 7 R43588 R435 R43588 43599 R43599 R4360 R4 R4369 R4369 R R4370 R4370 R4371 R4 R R4372 R437 R44 R4 R4402 R4414 R4414 R4415 R4415 R4415 6 R4416 R4433 R4433 R4433 R 4 R4434 R4434 R4434 R4434 R4435 R4436 R4436 R4436 R4437 R4437 R44 R44437 437 R443 R44 R4 38 38 4438 R4439 R4439 R4439 R4440 R4440 R4440 R4447 R4447 R4 R4 R44488 R44 R4449 R4450 R4451 R4451 R4452 R4452 R4452 R4453 R445 R4453 5 R4453 53 R4453 R445 R4453 53 R4454 R 4 R445 R4454 R R4455 R4455 R4455 R4456 R4456 R4456 R R4455 R44577 5 R44 R4457 5 R4458 R44 R4458 R44599 R44599 R4460 R4460 R4469 R4469 R44 R44 R4470 R447 R44 0 R4471 R44 R4472 R4 2 R4502 R4514 R45144 R4514 R4515 R4515 R4515 R 16 R451 R R4533 R4533 R4533 R4534 R4534 R4534 R4534 R4534 535 35 R4535 366 R453366 453366 R453 53 53 53 R45 R45 R4537 37 37 R4538 R4538 R453 R45 R45 R4538 38 38 R4 R4539 R4 R4539 R4 R4539 R4540 R4540 R4540 R4547 R4547 454 R4547 R4548 R 548 R4 R4548 R R4549 R4549 R4550 R4550 R4551 R4551 R4551 R4552 R4552 R455 R4553 5 3 533 R4 R455 R45533 R45544 R4554 R4 4 R45 R4554 R 4 4554 R4 4 R4555 R4555 R4555 R4556 R45 R4556 R45 R45557 57 57 R455 R4557 577 R4558 R4 R45588 R4559 R4559 R R45660 R4560 60 R4569 R4569 R4570 R4570 R4571 R4 1 R4572 R4 R460 R4 02 4614 R46 R4615 R446155 R4616 R4633 R4633 R4633 634 34 R46634 34 R463 5 R4635 636 R44636 R 37 R463 R46 7 37 R46 R4638 463 63 R4 R 38 R4639 R4639 R4639 R 64 R46 R46440 R46 R4647 47 R464 R R4648 R4 R4648 R4648 R4 R46 4 R4649 46 9 R4650 R4650 R4650 R4651 R4652 R4652 R4652 R4652 R46533 R46533 R46533 R46533 6533 R4654 R465 R4654 R4654 R4654 R4654 65 R4655 65 R4655 R465 R4656 R4656 R4657 5 R4657 5 R465 R4657 5 R4 R4658 R4658 R4658 R465 R4 R4659 R R466 660 R46660 R4669 R4669 R46700 R46770 R4671 R46 R R4672 R46 1 1 1 1 1 1 1 1 1 1 0 100 18 18 9 19 25 30 36 36 4244 2488 48 R4 R424 R42499 R Q4213 Q4213 Q4 R4250 42 R4674 R4673 R R4574 R45733 R4474 R4473 R4374 R R4373 R 40 40 4021 02 02 Q4 Q44 R41 41 4154 R4 R4 R 54 40 4 65 655 066 0 C R41555 R4155 R4155 R4155 R4155 R4155 D49004 D449 D49004 D44 D4903 D4 906 4906 906 D49 D4 D49 D49 4906 49906 905 90 90 49 499 D4 D44 D4905 055 D4907 D4907 D D49 49908 9088 9 D4 D4 8 DPS-10.5 PRINTED CIRCUIT BOARD VIEW U18 : AUDIO DAC PC BOARD NAAR-8263 A-SIDE PATTERN B-SIDE PATTERN B-SIDE VIEW A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C7201 C7201 C7202 C7 C70066 C C7007 C7007 C7007 P70 P70010A 010A X7 X7 7 X7 X7 P3503B 3 P 3B 03B 3B 03B 503 5 P350 P3550 P35 P3503 5 P350 P3550 C7101 C7101 C7102 C7103 C71 7104 C Q7101 Q710 Q7102 02 71 C7109 7105 C77105 06 C710 106 C71 C7106 C 06 C710 C7106 C71 C7107 C7108 C7108 S4 S4751 S475 E7111 E7112 P9601B P9601B P9601B P9601B P2901B P2901B P2901B P2901B P2901B R7 R7202 7202 R R720 7204 R R7203 R7203 R7201 R720 R72011 R7201 01 C70044 004 C7 C70 1 R7134 1 R7134 1 R7134 1 R7133 1 R7133 1 R7133 1 R7132 1 R7132 1 R7132 R71 R7131 R71 R7131 R71 R7 R 131 R713 R7 30 R71 R 130 R7129 R7 R71299 R7205 0 R7205 0 NCDG-8259 NCDG-8259 25138259 V D V VDDD V 3.3V 3 V DD VD .3 GN D3 D VG 3V ND VD V D5 GN DD D VG 5V NDD DD V VDD5V D W NDD SW WGN W D W SW V SW W+8V W VDD3.3VGND D3. DD 3VVGNDD VDD3.3VGND D3. DD 3VVGNDD VDD3.3VG D3. DD 3VVGND VDD3.3VG D3. DD 3VVGND VDD3.3V DD V D3.3V VDD3 3V DD V D3 3V VDD3.3V DD V D3.3V VDD3.3V DD V D3.3V VDD3.3V DD V D3.3V VDD5VGND D5 VD 5VGND VDD5VGND D5 VD VGGND VDD5V VD V D5V D5VV VDD5V V V12P 1 1P 1P 1P SW+8V SW SW SW+8V W+8V +8V W+ SW V SWGND ND ND SWGN WGND SWGND G S G SWGNDD SWGND 5.6 EV5.6 5.6V -VP VP V -VPGND ND -VPGN F- F+ F+ PWRCNT PWRCNTT LO FLO FL FL F LOFF FF OFF LOFFF P 14P TS1 TS1 S1 CTS CT CTS RTS1 RTS D1 RXD1 TXD1 D VGND ATE0 E0 A 0 TE TE AT AT FLOW_R FLOW R ATE A 1 TE AT FLOW_R HG HG STR_CH RR RRR SYS_ER ERR POWE WRITE WR WRRITE RITE WRIT RST RTS CTS CLK TX TXD RXD EVGND G EVG D GND EV5.6V EV5.6V P 1P P8003B P88003B P8003BB P8003B P8003B P4008BB P400 P4008B P4571A 4 P 5 P44571A 4571A 571A P4571A 4571A 9602B 9602B P9 P96 960 P9602B EV5.6V EV5.6VV EVGND EVGND EV G EVGN GND EVG 3 E7113 E7113 E7113 R7219 1 R72 VGND VGND PRINTED CIRCUIT BOARD VIEW U03 DVD MAIN CPU PC BOARD NADG-8259 A-SID A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 Q740 Q74001 011 0 Q7 Q74 7401 40 74 7401 Q 1 S73011 S7301 S7301 S73011 P7401AA P740 40 P P7401A P7401A R74001 R 1 740 R7 R7 R74 R74 7403 R 3 R7740 403 03 7404 R7404 740 R 4 04 04 R74 R7405 05 740 R7 R R77406 R 6 40 4 7 6 R C7401 4 7 01 C 0 C74002 C7 C 2 7400 C77403 C 3 400 4 7 C 04 C740 C7 0 05 C74005 0 C D74401 D 1 40 74 7 D D7402 D7 2 02 4 7 D C70055 0 00 7 5 C7 R7105 R 05 10 R7 R7 5 71 R7106 R7 R7 6 R7107 R 7 07 7 R7 07 R77108 R77108 R77108 R R77109 R R 110 R71110 R C7110 7110 C7110 7110 C7111 C7111 2 C71 C71 7112 C7 C7 C7113 C7113 C77113 C7 C7113 C77113 C7 C7 C773 7306 7 C 6 30 D73 73 73310 D7 D7 1 31 31 31 3 D 0 7 P6001B P6001B P6001B 002 02 02 X70 X70 700 00 X7002 X7002 P5001BB 500 P P5001B 00 B 1 50 P5 3B 3BB 3BB 03 03 86 860 60 P8 P8 P8 P8 P8 03B 3B 0 6003 0 60 P86 86 P 0 P8001B 0 0 P8 B P8001B 0 0 P8 B P8001B P 1 0 B P80 P8002BB 800 P8002B 8 2 0 P 2B C7305 C7305 R74002 R 2 740 R7322 22 73 R73221 73 R7320 20 73 R73199 19 73 R7318 18 R7318 18 R7317 R73 R7317 R731 P55401B 1 P6003B 3 P60 P6 P6003B OPPEN_SW N_ PE O W SW W O S _ W P CLOOSE_SW SE O C W _SS C W L _ E_ W L GND GNND POS_SW S_ O W SW W P S _S P GND GNND LD- D- LD+ LDD+ SUBVDDD S B U V BV D VD S DD SUBGND S B U G BG D G S ND DSTBX ST S D TB TB D BXX DSPCLK D P S C PCC D LKK DSPSI S D PS D SI DSPSO S D PS D SO STBYX TB T S BY BY S X DVDLED ED VDL D EXTLEDD XTLE E DMILED MILE HD OFFLEDD FFLE VDO PWRLED WRRL P STBYLED BYLE STBYLED BYLE ST PLAYLED AYLE STOPLED OPPLE OP_CLLED CLLE SUB_SO00 B_SO SUB_SI0 B_SI SUB_REQ00 B_REQ SUB_CL0 SUB UB_C SUBRST0 SUBR LEDGND L ND ND LEDGND GND LED+B +B LED+ +B LED ED+B LED VGNND EV D EVG E EVG VGND ND GND EV EV+5 EV+5 EV+ EV+5 EV E -VPGND -V -VP F- F+ VGND B1 B3 VGND B5 B7 VGND G1 G3 VGND G5 G7 VGND R1 R3 VGND R5 R7 VGND D VGND NDD ND VGND S_HD HD _HDD S_H VS_ VGND GN VGNND VG D V COAST COA CO T COAASST VGND B0 B2 D VGND B4 B6 GND VGND 0 G0 G2 VGND ND 4 G44 G6 VGND ND R0 R2 N VGNND 4 R4 R6 R6 N VGNND ND PIXCLK VGNND HS_HD VGND VGND VGND VGNND CLLUMP CLU LUMP CLLUMP C U CLUUMP COAST VGND VS_HD D VGNDD GNND VGNND ND VGN VGND R7 R7 R5 R5 VGN VGND R3 R3 R1 R1 VGN VGND G7 G7 G5 G5 VG VG VGND G3 G1 VGND VGND B7 B7 B5 B5 VGND VGND B3 B3 B1 VGND CLU LUMP CL VGND D HS_HD VGND PIXCLK VGND R6 R4 ND VGND R2 R0 NDD VGND G66 G6 G6 G44 G4 G GNDD ND N VG G2 G2 G G0 G0 G GN GND ND N VG VG B6 B B44 B GNDD ND N G VG B22 B B00 B GNDD ND N VG P8003B P88003B P8003BB P8003B P8003B 1P 48P B P5401B 1P 1P 48P 48 48P 1P 1P SCL H SCL SCL_HD3 SDA_HD3 VGND STT VDRSSTT VDRST VD_SCK SCK _SC VD_SCK VD_S VD_S VD_SI VD S VD_SO _ VD STB VDOFF VDOFF VDOFF EXT_OE EXT OE DVD OE DVD OE DVD OE _O EX_THR EX THR EX THR VGND VGND BE_SD7 BE_SD7 BE SD7 BE SD6 BE_SD6 BE_SD5 _ BE SD5 BE_SD4 BE_SD4 BE SD4 BE_SD3 BE SD2 BE SD2 BE_SD2 VGND VGND BE_SD1 BE_SD1 BE SD1 BE_SD0 BE SD0 VGND VGND _ BE_PIXCLK VGND _ _ BE_HSYNC BE VSYNC VSYNC BE_VSYNC GND GND VG SD7 D VGND D VGND SD6 SD5 D4 SD4 D3 SD3 SD2 SD1 SD0 GND VGND VGND SCLK_SD VGND SD HS_SD _SDD VS_S N VGND ND VG EC VDECCRS VDECRST SCL_VF SDA_VF P2701BB P2 P2701B P7201A P7 P7 P7201A P 2 A 1 7 P8701B 701 P8701B 701 P8701B P8701 P7302 WHT BLU BLU BLU BLU BLU BLU U BLUU K BLKK D REDD K BLKK K BLKK K BLKK D REDD DPS-10.5 A-SIDE PATTERN B-SIDE PATTERN IDE VIEW E F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Q7303 Q7303 Q7303 Q7303 R7312 R7312 R7312 R7313 R7313 R7313 R7313 R7311 311 R7311 R7312 R7312 C7311 D720 D72 72 72201 201 D7 D7 Q7 Q730 Q73 7304 04 73 7304 Q73 Q7 Q7 Q7 4 C70 C7 C70 C70 C70 70008 088 08 088 008 00 700 700 Q7 Q7 Q73 730 730 305 05 30 730 305 Q73 Q73 Q7 Q7 5 C73 C773 C73 73312 12 122 312 312 731 31 R73 R77315 315 R73 R77315 R7 R 15 6 R730 73 73 R 06 R R7310 R7310 R7310 R7310 C7310 C7310 C7310 C7310 D7305 D7305 D7305 R7041 R7042 R7043 R7044 R7045 R7046 R7047 R7048 R7049 R7050 R7051 R7051 R7051 2 R7052 R 2 R70522 R7052 053 533 R705 R705 053 533 R70533 R705 R 533 R705 R70544 705 054 R7 R70544 705 7054 0554 R70 R 305 055 R730 R7730 R73305 2 730 73 73 7 D 02 D 1 30 73 73 73 D 0 D 2033 Q72 D7202 D7 D720 202 202 02 D7 D7 D7 D7 D72 72 C72033 0 R7207 R72 R7 R7208 R7208 R7209 R7210 1 R7211 12 212 1 R7212 12 2133 R72 2144 R72 155 R72 2166 R72 7217 R72 C7204 04 2 C7 4 C720 2 C7 04 04 C7204 0 2 C7 R7123 R7124 R7124 R7124 R7125 R7127 R7126 R7128 1 Q7 Q7201 Q7201 Q7201 Q7201 Q7202 Q72 Q7202 02 72 Q7200 72 Q7202 02 72 Q R7122 R7121 R7120 R7118 R7119 R7117 R7116 15 R7115 7114 R71 R7113 R7113 R 112 R7112 R71 R7111 1 14 14 8 1 1 1 R7 R7 R7218 7218 2188 72 7221 R7 R772 70 R707 70 R70 70 R707 7 0 R70 0 R70 R70 70 7220 R7 0 7222 PRINTED CIRCUIT BOARD VIEW U03 DVD MAIN CPU PC BOARD NADG-8259 FROM B-SID A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D7303 03 D7303 03 D7303 D C7001 C7001 Q7 Q7001 Q7 Q7 Q7 Q7001 70001 001 Q70 C7002 C7000 C7 02 C D7304 D7304 D7304 044 C730 7 C 04 3 022 R730 7 R 02 3 3 R73303 3 R73303 3 R73303 Q7302 Q7302 Q7302 Q7302 C73033 C 30 7 C7302 C7302 C7302 C7302 C7302 4 R7304 R730 301 C73301 C73 R74077 R74 R 01 30 R7301 Q7301 Q7301 Q7301 70001 R70 R 01 0 R77 R7 R7002 7002 0022 02 70 2 7 70 R7003 70 R7003 R7 R7004 70044 70 7 7005 R7 05 7 R7 R 7 R7 R770006 700 700 R7 700 R77 R7 R700 7 077 007 08 R700 099 00 R70 9 0 R7010 R7010 R701 11 R7011 R7011 R70 R70133 R70144 R70155 R70166 R7017 0177 R7018 R 8 1 R7019 R70 9 19 R7020 R 0 2 R70 R70 702 0221 2 0 R70 R70 R70 7022 022 0222 22 2 0 R70 R70 7023 0223 2 0 R70 R7 R7 R7024 70024 02 70 7 R7025 R7 25 R702 702 R 7026 R70 6 026 702 R7 R7 R7027 70027 02 R70 R7 R7028 R70228 R702 R702 R 7029 R70 9 029 702 R7 R7 R70300 0300 R70 R 0 R703 R7003 03 R70 R70 R 1 R7032 R7032 03 03 R70 R70 R 2 R7033 03 R70 R 3 R7034 R7003 03 R70 R70 R 4 R7035 R7003 03 R70 R70 R 5 R7036 R70036 03 R703 R70 R 6 R70377 7037 R70 R7038 R70388 038 038 R70 R70 R R7040 R7040 R7040 4 R7039 7039 3 R7055 7005555 R70566 R705 R70577 R77005 05 R70558 0 R70058 05 R7058 58 R7058 R70 R7059 R7059 R705 059 R70 R70 R7 R7060 R70 R77060 R7 R7060 R70611 R7061 6 70 1 R 2 R70622 R70622 R7062 633 R7063 633 R7063 R 633 R706 64 R70644 64 64 064 R7 D7202 D7 D720 202 202 02 D7 D7 D7 D7 D72 72 06 R7206 06 R720 R7206 7 7204 04 2 7 4 720 2 7 04 04 7204 0 2 7 C7009 R7101 R7102 C7010 3 R7103 104 R7104 R7104 1 51 511 5 R73144 R731 R 31 3 4 R7 R70122 C70033 0033 C70 1 1 001 X700 001 065 R70665 R 06 06 066 0 5 R7 R7067 R7067 R 06 70 7 R7 R7 R7068 R7068 R7068 R7068 R7068 R7070 R7070 R7070 R7072 R7072 R7072 R7074 R7074 R7074 R7074 R7074 R7076 R7076 R7076 R7077 R7077 R7077 R7077 R7077 R7077 R7075 R7075 R7075 R7073 R7073 R7073 R7073 R7073 R7071 R7071 R7071 R7069 R7069 R7069 R7069 R R70 R77066 6 70 700 6 R7 70 R7078 70 R70 70 R7078 78 079 R7079 799 79 0779 R707 R70 707 080 70800 800 8 08 R7 R770 R70 7220 R7 0 7222 DPS-10.5 A-SIDE PATTERN B-SIDE PATTERN E VIEW E F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com P3506 P3506 P3019 P3019 P3020 P3020 P3503 P3503 Q30 Q3004 Q3004 0 3 4 04 R3512 1 5 2 3 R C35 C3537 355 3 R3511 1 5 3 1 R3511 1 5 3 1 R3511 1 5 3 1 R R3514 1 5 R3 R3514 R3514 1 5 R3 R3514 R3514 1 5 R3 R3514 R3516 R3 R3 R3 R33515 15 35 5 X30 30 30 X3001 X 01 3001 C302 C3027 C30 C302 30228 C 9 Q3509 Q3509 4 C3534 L3507 L3508 L3509 L3509 L3510 L3510 L3009 L3010 L3011 L3012 R3546 46 R3546 35 R35466 R R3549 R354 R3549 3549 3549 4 R354 51 5 5 3 R3 R3551 R3554 5 4 3 54 R3564 5 4 3 6 35655 6 5 3 R35655 6 5 3 R R3004 R3300 R 04 R30055 0 0 3 R3006 006 3 R3007 3 R30 R R3008 30 R 8 R3009 0 R3 09 300 0 3 09 R3009 0 R3 0 R3009 0 R3 09 Q3502 Q 2 Q3502 Q3502 3538 3 38 38 R3 R3 R3 R3542 R3 2 R3542 54 R3545 R3545 3545 R3547 R354477 R35 R3550 50 3 R 5 R3 R 048 R3 R 048 R3 R 048 R R3045 R3045 R3043 R3043 P3002A P3002A P3002A P3002A P13 P1 P1301B P B P1301B P3003 00 P 3 3 P3003 0 3 P3003 00 P 3 P3 P3003 03 P30 003 003 003 0003 P3 P33 P30 30 30122 122 0 P3 P3 P3 P 01 011 0 2 P 2 P30 P3 P30 Q30 Q30 Q3010 Q3008 Q 00 0 Q3006 0 Q300 0 Q3006 0 3006 Q3006 Q3006 Q3006 Q3005 0055 Q3 Q3005 R3 R33518 1 R351 3 R 511 5117 17 R3517 199 R351 5 R35225 R3552 R3 R3526 526 R35 R35 Q3007 R3 R3352 5220 200 200 R3 R35 3552 52 R352 352 R3 R3521 211 R35 R3552 52 R3 211 Q3009 3009 Q3009 Q3009 Q3009 Q3009 36 36 C353 C35366 36 3080 080 R3 R3109 1 C305 C3044 C3044 C 98 R309 6 096 R3096 C3060 12 Q3012 Q301 Q3 Q30012 3 R3113 113 11 R3113 113 1 R3113 311 11 R3113 35 35 35 R3524 2 35 R3524 R3524 2 35 R3524 R3524 2 35 R3524 053 53 53 5 0 R30 30 R 3 R30 30 3 500 50 05 05 R3 R3 R R3082 R3082 R3083 83 308 R30844 244 C3024 R3023 R3025 R3094 R3095 R3101 R3101 R3102 02 R310 R31 03 03 R3103 R3107 R3110 10 R3 R R3108 R3108 R3105 1 R311 R3091 R3091 087 087 R3 R3 R3 R30 30 3 R3086 86 0 R3 81 R308 0 60 6 0 3 R3 R 06 0660 60 3 R3 0 30 30 30 2 7 5 3 R 57 57 5772 72 R3 R3 2 35 35 R30 R3059 R3 5 R3 R3 R3055 R3055 3 1 0 C 19 C30 2 R3002 R3003 C3003 Q3001 001 01 00 Q300 R3 R330 301 0 R3010 010 R3011 R 30422 42 0 2 042 4 04 R3 R30 R33044 044 044 044 44 R3 R30 R3046 R3097 3099 R3099 0 R3100 R31000 4 35 35 P3504 P3507 P3507 P3507 P3509 3509 P3 10 10 100 P351 P351 P3510 P3511 P3511 P3512 P3512 P3512 P351 P351 P35 3 R3505 3 0 5 R 5 R35 3505 05 5 R 5 R3506 3 0 5 R 6 R3506 3 0 5 R 6 R3506 3 0 5 R 6 R3507 3 0 5 R 7 R3507 3 0 5 R 7 R3507 3 0 5 R 7 350 3 0 5 R3508 3 0 5 R 8 R3508 3 0 5 R 8 R3508 3 0 5 R 8 R3508 3 0 5 R 8 3509 3 0 5 9 R3509 3 R 0 5 R 9 R3509 3 R 0 5 R 9 R3509 3 R 0 5 R R35 35 R3502 R35 35 R3503 R3510 R35100 510 351 R3 R 1 R3531 R3531 R35322 R3532 R3532 R3532 R35322 R3532 R35322 R R3535 R3 6 R3536 R3 R35 35 R3537 R3541 R3541 35 R3541 Q3511 Q3511 Q 11 C353 C35 C3535 R3 R3566 Q35 Q 5 Q3 05 Q355 Q3 06 C3510 C35 0 C3510 1 C35 C3511 C3 C 4 R3544 35 R 4 35 Q3503 03 Q Q3508 508 508 350 Q350 X3 X3 X35011 0 5 X R3552 R3553 C3524 C35177 C35177 C35177 C35177 C3 C35 35 C3351 518 518 5 351 35 3 8 C33 C3 C3015 30 C33015 0 C3 C3015 C30 30 R3029 29 02 R3028 3027 3027 R3027 7 R3047 R3047 R30 R30 R3 R3020 Q3501 Q3501 Q3501 01 Q3501 R35633 6 R35 R R3569 56 R 9 69 R3356 569 69 3 R3570 3 7 5 R 0 C3505 C33505 R3501 3 0 5 R 1 1 10 1 11 20 20 20 1 7 8 14 1 4 5 8 1 44 44 9 89 89 132 132 13 45 88 88 133 133 176 176 1 24 244 5 25 48 488 4 1 1 1 10 10 10 7 8 14 11 11 20 20 20 20 1 388 38 65 65 65 102 1 2 102 0 39 39 64 6 1033 03 10 28 28 28 128 12 NCDG-8 NCDG-8262 5138262 3 25138262B 2 DPS-10.5 PRINTED CIRCUIT BOARD VIEW U20 IEEE1394 TERMINAL PC BOARD NADG-8262 FROM A-SIDE VIEW A-SIDE PATTERN B-SIDE PATTERN A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R3567 R3567 1 C3531 53 3 C33530 C3533 C3533 3 2 C3532 R3522 R3522 3 2 5 R 2 R3 R3 R3 R3 R35233 R35 R C3016 16 C30 3016 Q3011 L30 30 L3002 L30 30 L3002 L30 30 L3002 1 511 11 511 1 L3511 C303 303 303 303 C3035 C 39 39 39 39 C3039 039 C30 30 C3034 C3034 C3034 C3040 C3042 C303 C3032 C3041 C3021 C30588 C3058 0588 5 305 305 C30 C3 C C3012 C3008 C3 C 0088 C3009 3 C 0 9 09 C3010 C330 C 0 C3013 C 01 3 3 013 01 C3013 C 01 3 3 C3020 3 0 C 0 C3020 3 2 C C3050 30 C3050 C3030 C3030 C C3043 C3043 C3033 L3004 3004 L3004 3004 L3004 3004 L30 L3003 499 C304 222 C302 233 C302 266 C302 C3031 C3025 25 302 C30255 30025 C3 C3045 C30 5 C3045 R3104 104 R 2 C3052 052 C3 C 31066 10 R31 3 53 53 C305 C3046 C3046 R3089 0889 30 R3 9 R R3092 R3092 R3090 30 R3 R 09900 R3021 R 1 2 3 R3041 R 1 4 3 R3 R3051 R 1 5 3 052 0522 5 R30 R300 056 056 0 6 5 R30 30 R3 058 05 R3058 0 R3 R 30 3029 3029 C30 R30799 R307 R30799 307 R3019 R 9 1 3 R3015 R 5 1 3 05 05 C3055 C3057 L3005 C3056 C3056 C3056 C3047 C3047 C3047 30 30 C30 30 C3038 R3057 R3062 6 C3036 C30366 C3 C3037 3037 R3001 L30 L30011 L30 L3001 R3049 C3006 C30006 C3006 C3006 C3006 30006 R3 R30 3 6 016 R 3017 1 3 7 0 7 R3017 1 3 R3 R 7 0 8 30188 018 R3018 R3022 R3022 R302 R3085 R3093 0622 62 C306 C3017 R3573 R3573 C306 C30061 R3061 R3061 018 018 C3018 R3112 R3112 C3059 R3534 R35 R3534 53 53 R35344 R3539 539 539 R3 C3004 C3300 C 4 004 C3001 233 C352 5 C3525 R3054 Q3003 Q3003 Q3003 C30 C30 30 C30 C33005 055 R3577 R3577 R3577 R3576 576 576 R3575 R35 R3575 575 R3 R3575 R3575 R3556 R 56 56 56 R355 R 6 R3556 30 30007 007 007 C3 C3 512 5 C3512 6 C3516 5 6 1 C3 C350 C350 C350 50 50 50 C3509 09 09 52 522 C3527 C3527 C35 C35 C35 C35 C335 C3 C3526 526 526 044 04 04 044 0 C350 C35033 C3503 503 503 C35 51 C35144 C3 C 4 1 5 R3540 R3574 R3574 R C3011 C3520 520 C3520 C3 C3521 35 C 2 C3521 21 21 3521 352 521 C3 C3 R3543 R 3 43 354 R3543 R 3 3554 R35433 43 35 R R3571 R3 R3 R3 R3557 3 57 5 R 5 R3555 R3558 58 R355 R35 8 58 R3558 58 014 01 0 4 R301 R 0 R30 4 14 014 14 R30 30 R33013 0113 3 R33 R3 R33 R33012 30 2 012 R33 R3 L3512 L335 2 L3512 L3 2 5 3512 35 2 R35688 6 5 R3 R3504 0 35 4 R C3501 C3501 C3501 502 C35502 C35 055 L3505 05 L3505 055 L350 C3 4 C30144 C30 30 R3533 1 4 5 8 DPS-10.5 PRINTED CIRCUIT BOARD VIEW U20 IEEE1394 TERMINAL PC BOARD NADG-8262 FROM B-SIDE VIEW A-SIDE PATTERN B-SIDE PATTERN A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com P780 7801AA 0 Q7502 Q7 Q7502 Q7502 Q7502 Q7502 Q7 Q7 PRINTED CIRCUIT BOARD VIEW U07 DISPLAY PC BOARD NADIS-8264 A-SIDE VIEW A-SIDE B-SIDE A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C7501 C7502 C7502 C7503 C 503 C75044 C7 C7505 C75 C75 7506 C7507 50 50 C7 C 7 7 C75 C7 C7508 50 5009 C7509 50 C7 09 C7510 751 5 C 0 C 0 7 C75 C75 7511 C7512 C7 C7512 C7 7517 C7517 C7516 75166 C C775 C77515 7515 5115 155 155 7 C7 C75 7 C7513 C7513 513 C75 C7 C7518 5 C75519 75 C 0 7520 7520 C 521 C752 C7 C75 75 7522 C7 C75 75 7523 C75266 C7526 C7526 C75255 C7525 7525 C7524 C7524 7524 C75 C7 C75 C7528 C7528 C7528 C7528 C7 C7 C755 75 752 5 7529 29 529 529 29 2 C75 75 C7 C7 C752 5 75 7 7507 7507 D 508 D7508 D Q75011 Q75011 Q75011 Q7501 Q 1 Q7 Q7 1 7500 7550 Q7503 Q75 Q7503 Q7504 Q7505 Q7506 Q7507 Q 50 508 Q75 Q75 Q7509 5 Q7510 5 Q 0 R75 75 7501 R75 R75 7501 7502 R7502 03 03 5003 750 7 R75 7 R7503 5003 03 03 R75 7 R R7504 7550 R75044 R7 044 R7505 0 R7 5006 R75 5007 R75 5008 R75 R75 R75 50 50 5009 09 09 R75 R75 R75 R7510 R75111 R7 R7512 R7512 R751 513 R R7514 515 R755 R7516 R7517 R7517 R7518 R7519 R7520 R75 R7 R7521 R7522 7522 52 R 2 7 R75233 R7 R7524 R7 R7525 5 5 2 7 R 5 75 R7525 5 5 2 7 R 5 75 R 526 526 2 R752 522 7 R75 R 27 R752 28 R752 R7529 R7530 R7531 R7532 R7 R7 R753 5 7 33 R75 R75 753 R7 R753 75 7534 R7 R75 75 7 R7537 R7537 R7537 R753 R753 R75 R7536 3 75 6 R7536 36 75 6 535 53 5 R7 R75355 53 75 8 R75 R75 7538 S7501 S77502 503 S750 5033 03 S7504 S7505 S7506 U7501 U7501 U75 501 01 01 U7 U75 U7 U750 750 7501 X7501 1 1 1 1 P7201B 2 1 P 01 2011B P72 72 P7720 20 B NCDIS-82 NCDIS-82 NCDIS 82264 264 264 2 25138264CC D7506 D7505 D77504 04 D77503 2 022 D7502 7 D7 D 0 D7 D7502 75 2 502 D7501 D 1 56 5668 68 R75 7 R75 R 75 7556 567 67 R7 R7 7566 7566 5666 R7 R7565 7 5 75 75565 565 R 2 2 2 2 2 2 2 DPS-10.5 E PATTERN E PATTERN E F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com P6703B 03 6 P6703B P P6703B P6703B 6 03 Q6708 Q 700 67 Q6708 Q6708 Q67 C6 C6725 26 67226 726 C672 C6723 R6866 R6868 R6867 86 R686 865 64 R6864 63 63 6 R686 R68 R6862 R6861 R6860 R6859 8 68 R6858 7 R685776 R6856 5 R6855 85 85 8554 54 5 68 R68 68 5 8553 53 8553 R688 R6 685 85 R 52 68 6851 851 R 1 68 C67 C6724 707 P67 P6707 1 144 25138260 NCETC-8260 NCETC-8260 2 6 R6894 R6895 R6896 R L6801 L6 L6 L6802 680 L6803 03B 3 P67 67 P6703BB P6703B P6703B P6703B Q6 Q 708 700 67 Q6708 Q6708 6708 255 C6725 C6 C67 C66726 3 C6723 R6866 R6868 R6867 86 R686 865 64 R6864 63 63 6 R686 R68 R6862 R6861 R6860 R6859 8 68 R6858 7 R68576 R6856 5 R6855 85 85 8554 54 5 68 R688 68 5 8553 5 853 53 R6 R 8 6 6 R 85 8552 68 6 R 851 851 68 4 724 C6724 P6707 7 P670 1 14 1 NCETC-8260 NCETC-8260 2 6 R6894 R6895 R6896 R L6801 L6 L6 L6802 680 L6803 DPS-10.5 PRINTED CIRCUIT BOARD VIEW DPS-10.5 U04 COMPONENT OUTPUT TERMINAL BOARD NAETC-8260 A-SIDE VIEW B-SIDE VIEW A- SIDE PATTERN B- SIDE PATTERN www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S9002 S9002 P9001A P9001A L9001 L9001 F9001A F9001B P9102A C9109 C9109 C9110 C9110 C9113 C9113 C9112 C9112 C9111 C9111 P9007A P9007A P9008A P9008A R9107 R9101 P9004A P9003A C9002 Q9101 R9102 R9103 E9004 E9003 C9102 C9101 R9106 R9105 C9106 C9107 C9108 C9108 R9104 C9105 C9103 C9104 C9001 J9010 R9113 R9112 C9115 J9001 120V 220-230V P9503A P9503B T2.5AL250V R9110 R9111 R9114 R9109 J9002 F9001 NCPS-8269 2 C9122 C9117 D9124 Q9103 Q9103 L9102 L9101 Q9102 Q9102 D9123 C9129 C9127 P9104A P9103A D9102 J9011 Q9104 Q9104 C9114 J9015 J9016 L9103 J9014 C9118 D9125 J9012 C9123 J9013 E9001 J9017 J9019 J9018 A+B AGND A-B ADAC+B ADACGND APG+B APGGND POFF EV5.6V APGGND SW+5V SW+5V APGGND APGGND SW+3.3V SW+3.3V APGGND APGGND V+B VGND V-B P-OFF PWR-CONT BLUE WHITE AC-H AC-G J9003 J9004 P9005A P9006A 25138269B R9604 R9605 J9022 P9105A P9105B J9023 J9024 J9020 J9021 D9126 J9025 N L C9120 C9125 D9121 D9120 C9128 C9119 R9116 C9124 R9117 D9103 D9101 R9108 R9115 C9121 C9126 D9122 R9120 R9121 D9110 D9111 D9109 D9108 D9113 D9112 D9115 D9114 D9116 C9116 D9106 D9107 D9104 D9105 R9607 R9606 R9609 R9608 223 OR6 20 27 27 7 7 7 15 7 30 12 7 12 DPS-10.5 PRINTED CIRCUIT BOARD VIEW U12 POWER SUPPLY PC BOARD-1 NAPS-8269 FROM B-SIDE VIEW FROM A-SIDE VIEW A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com E9604 E9602 E9601 E9603 P9104B P9604A P9601A P-ON EV+5V GND GND SW+5V SW+3.3V SW+8V SW+8V GND EV+12V GND EV-12V EV-30V AC5V AC5V EV5.6V APGGND APGGND APGGND APGGND APGGND SW+3.3V SW+3.3V SW+5V SW+5V GND GND GND GND GND GND SW+5V SW+5V SW+3.3V SW+3.3V SW+3.3V SW+3.3V SMW8V SMW8V GND GND GND EV5.6V -VDIP VDISPGND F- F+ PWRCNT FLOFF J9605 J9607 J9608 J9601 PWR-CNT Q9604 J9610 J9609 J9611 J9606 J9603 C9603 C9603 C9601 C9601 J9604 NCPS-8270 1 P9602A J9602 25138270 GND EV5.6V D9602 D9603 D9601 D9604 Q9603 Q9602 Q9601 D9606 R9602 C9602 D9605 R9601 R9603 27 20 20 15 25 7 7 15 27 DPS-10.5 PRINTED CIRCUIT BOARD VIEW U13 POWER SUPPLY PC BOARD-2 NAPS-8270 FROM TOP VIEW FROM BOTTOM VIEW A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C7527 C7527 C7530 C7531 C7532 3 C7533 C7701 01 7702 C7 C7 7 C7703 7801B P780 7801B P7 0 Q7511 75122 Q7 Q7 3 7513 Q7514 Q Q7515 Q7516 75 Q751 7 177 Q75 8 Q7518 7518 Q7701 0 Q 701 Q Q7702 Q77 Q7703 03 Q7 R7540 R75 0 R 41 411 R754 R754 7542 42 5 R7 R7543 R7 R R7544 54 5 R7544 54 R7545 R7545 R7546 R7547 7548 R R7549 R7549 R7550 50 R7550 R7550 R7551 R7552 R7553 R7554 7554 R R7555 R7555 R7555 6 R7556 R7556 R7557 557 R7558 R7558 R7559 R755 R75 R75600 R7562 5633 63 R7563 R7 64 R7564 R7564 R756 R77701 7 R 70 R7702 70 7 R R7703 R7703 R7704 7704 04 R R7705 7705 R7 R7706 R7561 01 01 S770 S770 S7703 S7704 S7704 S7705 NCSW-8267 3826 25138267 D7513 D7513 D D7512 5 D7512 D7512 D7512 D7511 D D7 D7510 D7510 7510 099 D7509 D7 9 3 D77033 D7702 D7702 D77 D7701 2 C7527 C7527 C7530 C7531 C7532 3 C7533 C7701 01 70 70022 02 77 C77 7 C7703 7801B P780 7801B P7 0 Q7511 Q75 Q 512 13 Q75 Q7514 Q Q7515 Q7516 51 Q751 7 177 518 Q751 751 Q Q770 7 0 Q77 1 Q7702 702 Q770 Q 03 R7540 R75 0 R 41 41 R754 R754 7542 42 5 R7 R7543 R7 R R7544 54 R7544 54 R7545 R7545 R7546 R7547 7548 R R7549 R7549 R 0 R7550 R7550 R7551 R7552 R7553 R7554 7554 R R7555 R7555 R7555 6 R7556 R7556 R7557 557 R7 R7558 R7559 R755 R75 R75600 R7562 5633 633 R7563 R7 64 R75664 R75664 R756 R77701 7 R R770 7702 70 7 R R7703 R7703 R77044 7704 04 R R7705 7705 R7 R7706 R7561 S7701 S7701 S7703 S7704 S7704 S7705 NCSW-8267 8 25138267 D7513 D7513 D D7512 D7512 D7512 D7511 D D7 D7510 D7510 7510 D7 D7509 509 D7509 D7703 D D7702 D7702 7701 701 D7 2 2 2 2 2 2 2 DPS-10.5 PRINTED CIRCUIT BOARD VIEW U10 JOG SWITCH PC BOARD NASW-8267 FROM A-SIDE VIEW FROM B-SIDE VIEW A-SIDE PATTERN B-SIDE PATTERN A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-10.5 PACKING VIEW DPS-10.5 DPS-10.5 DPS-10.5 DPS-10.5 Instruction Manual R L PE-LD A505 A515 E303 A601 E306 A607 E308 E901 E305 E301 E302 A513 A506 A602 E010 E006 E001 A513 A501 A509 A501 A601 A513 A515 A502 Right side marking Upper side marking Left side marking Upper side marking FRONT SIDE FRONT SIDE A507 E307 E311 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1/113 PAGE PRINTED CIRCUIt BOARD PARTS LIST DPS-10.5 N: New part, !: Safety part PCB NO. CIRCUIT NPART NAME DESCRIPTION PART NO. REMARKS DG8257 C1001 C-CERA C CK725B1C-104K1 332121045R1 1 DG8257 C1002 C-CERA C CK725B1C-104K1 332121045R1 1 DG8257 C1003 C-CERA C CC725CH1H-220J1 342102204R1 1 DG8257 C1004 C-CERA C CC725CH1H-220J1 342102204R1 1 DG8257 C1005 C-CERA C CC725CH1H-220J1 342102204R1 1 DG8257 C1006 C-CERA C CC725CH1H-220J1 342102204R1 1 DG8257 C1007 C-CERA C CK725B1H-222K1 332102225R1 1 DG8257 C1008 C-CERA C CK725B1H-222K1 332102225R1 1 DG8257 C1009 C-CERA C CK725B1H-222K1 332102225R1 1 DG8257 C1010 C-CERA C CK725B1H-222K1 332102225R1 1 DG8257 C1011 C-CERA C CC725CH1H-331J1 342103314R1 1 DG8257 C1012 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1013 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8257 C1014 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1015 C-CERA C CK725B1E-333K1 332113335R1 1 DG8257 C1016 C-CERA C CK725B1E-333K1 332113335R1 1 DG8257 C1017 C-CERA C CC725CH1H-151J1 342101514R1 1 DG8257 C1018 C-CERA C CK725B1A-474K1 332134745R1 1 DG8257 C1019 C-CERA C CK725B1A-474K1 332134745R1 1 DG8257 C1020 C-CERA C CK725B1C-104K1 332121045R1 1 DG8257 C1021 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1022 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8257 C1023 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1024 C-CERA C CK725B1H-473K1 332104735R1 1 DG8257 C1025 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1026 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8257 C1027 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8257 C1028 C-CERA C CK725B1C-104K1 332121045R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2/113 PAGE DG8257 C1029 C-CERA C CK725B1C-104K1 332121045R1 1 DG8257 C1030 C-CERA C CK725B1C-104K1 332121045R1 1 DG8257 C1031 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1032 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8257 C1033 C-CERA C CK725B1C-104K1 332121045R1 1 DG8257 C1034 C-CERA C CK725B1C-104K1 332121045R1 1 DG8257 C1035 C-CERA C CK725B1H-103K1 332101035R1 1 DG8257 C1036 C-CERA C CC725CH1H-100D1 342101002R1 1 DG8257 C1037 C-CERA C CC725CH1H-100D1 342101002R1 1 DG8257 C1038 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1039 CHIP ELECT C CEWX6.3V-47M 356724709R2 1 DG8257 C1040 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8257 C1041 CHIP ELECT C CEWX16V-10M 356741009R2 1 DG8257 C1042 CHIP ELECT C CEWX16V-10M 356741009R2 1 DG8257 C1043 CHIP ELECT C CEWX6.3V-47M 356724709R2 1 DG8257 C1044 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8257 C1045 CHIP ELECT C CEWX16V-10M 356741009R2 1 DG8257 C1046 CHIP ELECT C CEWX16V-10M 356741009R2 1 DG8257 C1047 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8257 C1048 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8257 C1049 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1050 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8257 C1051 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1052 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8257 C1053 CHIP ELECT C CEWX50V-1M 356780109R2 1 DG8257 C1054 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C1101 C-CERA C CC725CH1H-221J1 342102214R1 1 DG8257 C1102 C-CERA C CC725CH1H-101J1 342101014R1 1 DG8257 C1103 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8257 C1104 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1105 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1106 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8257 C1107 C-CERA C CK725F1E-104Z1 332161040R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3/113 PAGE DG8257 C1108 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1109 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8257 C1110 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1111 CHIP ELECT C CEWX16V-10M 356741009R2 1 DG8257 C1112 CHIP ELECT C CEWX16V-10M 356741009R2 1 DG8257 C1113 C-CERA C CK725B1H-223K1 332102235R1 1 DG8257 C1114 C-CERA C CK725B1H-223K1 332102235R1 1 DG8257 C1115 C-CERA C CK725B1E-473K1 332114735R1 1 DG8257 C1116 C-CERA C CK725B1E-473K1 332114735R1 1 DG8257 C1117 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1201 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1202 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1203 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1206 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1207 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1208 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1209 C-CERA C CK725B1E-223K1 332112235R1 1 DG8257 C1210 C-CERA C CC725CH1H-151J1 342101514R1 1 DG8257 C1211 C-CERA C CK725B1E-223K1 332112235R1 1 DG8257 C1212 C-CERA C CK725B1C-104K1 332121045R1 1 DG8257 C1213 C-CERA C CC725CH1H-101J1 342101014R1 1 DG8257 C1214 C-CERA C CK725B1E-223K1 332112235R1 1 DG8257 C1215 C-CERA C CC725CH1H-101J1 342101014R1 1 DG8257 C1216 C-CERA C CK725B1A-154K1 332131545R1 1 DG8257 C1217 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1218 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1219 C-CERA C CC725CH1H-331J1 342103314R1 1 DG8257 C1220 C-CERA C CC725CH1H-331J1 342103314R1 1 DG8257 C1221 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1222 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1223 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1224 C-CERA C CK725B1H-473K1 332104735R1 1 DG8257 C1225 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4/113 PAGE DG8257 C1226 C-CERA C CK725B1H-103K1 332101035R1 1 DG8257 C1227 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1228 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1229 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1230 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1232 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1233 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1234 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C1235 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C1236 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C1237 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C1238 CHIP ELECT C CEWX16V-10M 356741009R2 1 DG8257 C1239 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1240 C-CERA C CC725CH1H-560J1 342105604R1 1 DG8257 C1241 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1242 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1243 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1251 C-CERA C CC725CH1H-471J1 342104714R1 1 DG8257 C1252 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1253 C-CERA C CC725CH1H-471J1 342104714R1 1 DG8257 C1254 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1255 C-CERA C CC725CH1H-471J1 342104714R1 1 DG8257 C1256 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8257 C1257 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C1258 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1301 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1302 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8257 C1304 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1305 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1306 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1307 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1308 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1309 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5/113 PAGE DG8257 C1310 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1311 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1312 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1313 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1314 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1315 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1316 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1317 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1318 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1319 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C1320 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C1321 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C1322 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C1323 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1324 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8257 C1325 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1326 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1327 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1328 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1329 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1330 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1331 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1332 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8257 C1333 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8257 C1334 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8257 C1335 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1336 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1337 C-CERA C CK725B1H-103K1 332101035R1 1 DG8257 C1338 C-CERA C CC725CH1H-020C1 342100201R1 1 DG8257 C1339 C-CERA C CC725CH1H-020C1 342100201R1 1 DG8257 C1340 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1341 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C1342 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6/113 PAGE DG8257 C1343 C-CERA C CC725CH1H-100D1 342101002R1 1 DG8257 C1344 C-CERA C CC725CH1H-100D1 342101002R1 1 DG8257 C1345 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1347 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1348 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1349 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1350 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1351 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1352 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1358 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1359 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1360 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1371 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8257 C1372 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1373 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1374 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1375 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1376 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1377 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1378 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1379 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8257 C1380 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C1381 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2001 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2002 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2003 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2004 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2005 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2006 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2007 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2008 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2009 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2010 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7/113 PAGE DG8257 C2011 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2012 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2013 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2014 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2015 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2016 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2017 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2018 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2019 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2020 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2021 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2022 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2023 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2024 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2025 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2026 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2027 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2028 CHIP ELECT C CEWX16V-47M 356744709R2 1 DG8257 C2030 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2031 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2032 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2033 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2034 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2035 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2038 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2039 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2040 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2041 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2043 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2044 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2045 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8257 C2046 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2047 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8/113 PAGE DG8257 C2048 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2049 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2051 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2052 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2101 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2102 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2103 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8257 C2104 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2105 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2106 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2107 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2108 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2109 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2110 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2111 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2112 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2113 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2114 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2115 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2116 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2117 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2118 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2119 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2120 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8257 C2121 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2122 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2123 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2124 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2125 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2126 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2127 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2128 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2129 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9/113 PAGE DG8257 C2130 C-CERA C CK725B1H-103K1 332101035R1 1 DG8257 C2131 C-CERA C CK725B1A-474K1 332134745R1 1 DG8257 C2191 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2192 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2193 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2601 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8257 C2602 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8257 C2603 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2604 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2605 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2606 C-CERA C CC725CH1H-120J1 342101204R1 1 DG8257 C2608 C-CERA C CC725CH1H-120J1 342101204R1 1 DG8257 C2610 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2611 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8257 C2612 C-CERA C CC725CH1H-560J1 342105604R1 1 DG8257 C2901 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8257 C2902 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2903 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2904 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2905 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2906 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2907 CHIP ELECT C CEWX16V-10M 356741009R2 1 DG8257 C2908 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 C2909 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8257 C2910 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8257 D1301 LED SEC1801C 225386R2 1 DG8257 D2101 C-DIODE 1SS352 223234R2 1 DG8257 D2901 LED SEC1801C 225386R2 1 DG8257 L1001 CHOKE COIL NCH-1479 231237K470R2 1 DG8257 L1002 CHOKE COIL NCH-1479 231237K470R2 1 DG8257 L1003 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1004 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1005 CHOKE COIL NCH-1471 231237M022R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10/113 PAGE DG8257 L1201 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1202 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1203 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1204 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1251 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1301 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1302 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1303 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1304 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1305 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1306 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1307 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L1371 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L2001 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L2002 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L2003 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L2004 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L2005 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L2101 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L2102 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L2601 CHOKE COIL NCH-1473 231237M047R2 1 DG8257 L2602 CHOKE COIL NCH-1473 231237M047R2 1 DG8257 L2901 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L2902 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 L2903 CHOKE COIL NCH-1471 231237M022R2 1 DG8257 P1001 SOCKET NSCT-26P2671 25052775R2 1 DG8257 P1101 PLUG NPLG-6P932 25055979R2 1 DG8257 P1301A PLUG SM16B-SURS-TF 25056399R2 N 1 DG8257 P1302A PLUG SM20B-SURS-TF 25056401R2 N 1 DG8257 P2001A PLUG SM14B-SURS-TF 25056397R2 N 1 DG8257 P2002A PLUG SM15B-SURS-TF 25056398R2 N 1 DG8257 P2003A PLUG SM20B-SURS-TF 25056401R2 N 1 DG8257 P2004A PLUG SM16B-SURS-TF 25056399R2 N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11/113 PAGE DG8257 P2101 SOCKET NSCT-14P2665 25052769R2 1 DG8257 P2701A PLUG NPLG-7P933 25055980R2 1 DG8257 P2901A PLUG NPLG-6P932 25055979R2 1 DG8257 Q1001 IC CXD1881BR 22241902R3 1 DG8257 Q1002 IC NJM2115V 22241676R2 1 DG8257 Q1003 TR 2SK3019 2216520R2 1 DG8257 Q1004 TR 2SK3019 2216520R2 1 DG8257 Q1005 TR 2SK3019 2216520R2 1 DG8257 Q1006 TR 2SB1132 2216400R2 1 DG8257 Q1007 TR 2SB1132 2216400R2 1 DG8257 Q1101 IC FAN8042 22241905R3 1 DG8257 Q1102 IC BA4510FV 22241907R2 1 DG8257 Q1201 IC CXD1885Q 22241903R3 1 DG8257 Q1202 IC 74LVC1G08GW 22242071R2PH N 1 DG8257 Q1202 or IC TC7SZ08FU 22242071R2TO N ( 1) DG8257 Q1251 IC IC41LV16100-50T 22241909R2 1 DG8257 Q1251 or IC IC41LV16100-50T 22241909R3 ( 1) DG8257 Q1301 IC CXD2753R 22241829R3 1 DG8257 Q1302 IC AD8062 22242066R2 N 1 DG8257 Q1303 IC IC42S16100-7T 22242046R3 N 1 DG8257 Q1303 or IC IC42S16100-7T 22242046R2 N ( 1) DG8257 Q1304 IC TC7SZU04F 22242073R2TO N 1 DG8257 Q1305 IC 74LVC2G241DP 22242076R2PH N 1 DG8257 Q1305 or IC TC7WH241FU 22242076R2TO N ( 1) DG8257 Q1306 TR 2SK3019 2216520R2 1 DG8257 Q1307 IC TC7SZ08FU 22242071R2TO N 1 DG8257 Q1308 IC TC7SZ08FU 22242071R2TO N 1 DG8257 Q1309 IC TC7SZ08FU 22242071R2TO N 1 DG8257 Q1310 IC TC7SZ125FU 22241895R2 1 DG8257 Q1371 IC EPM3128A-Harmony-8LI 22242067R3 N 1 DG8257 Q2001 IC M65776CFP 22242044R3 N 1 DG8257 Q2002 IC IC42S16400-7T 22241910R2 1 DG8257 Q2002 or IC IC42S16400-7T 22241910R3 ( 1) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12/113 PAGE DG8257 Q2007 IC 74LVC2G241DP 22242076R2PH N 1 DG8257 Q2007 or IC TC7WH241FU 22242076R2TO N ( 1) DG8257 Q2008 IC TC7SZ125FU 22241895R2 1 DG8257 Q2101 IC M32102S6FP 22242045R3 N 1 DG8257 Q2102 IC TC74VHCT374AFT 22274374GR2TO 1 DG8257 Q2103 IC 74LVC1G32GW 22242077R2PH N 1 DG8257 Q2103 or IC TC7SZ32FU 22242077R2TO N ( 1) DG8257 Q2104 IC BR24L08FV-W 22242070R2 N 1 DG8257 Q2105 IC 74LVC1G04GW 22242074R2PH N 1 DG8257 Q2105 or IC TC7SZ04FU 22242074R2TO N ( 1) DG8257 Q2106 IC MX29LV320ABTC-90 (0102) 22241862R301020 1 DG8257 Q2107 IC S-80127CNMC-JKM-T2 22241642R2 1 DG8257 Q2108 IC TC7SZ125FU 22241895R2 1 DG8257 Q2109 IC 74AHCT125PW 22241894R2PH N 1 DG8257 Q2191 IC NJM2880U25 22242085R2 N 1 DG8257 Q2601 IC BU2288FV 22241911R2 1 DG8257 Q2901 IC BA33B00FP 22242086R2 N 1 DG8257 Q2902 IC LM1117MPX-ADJ 22241648R2 1 DG8257 Q2903 IC(REGURATOR) MPC2918T 22278018ER2NE 1 DG8257 R1001 C-R NET RM7LJ152X04 43484715204R2 N 1 DG8257 R1002 C-R NET RM7LJ000X04 43484700004R2 N 1 DG8257 R1003 C-CARBON R RN72K1J-123FE 435031232R1 1 DG8257 R1004 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1005 C-CARBON R RN72K1J-223JE 435032234R1 1 DG8257 R1006 C-CARBON R RN72K1J-223JE 435032234R1 1 DG8257 R1007 C-CARBON R RN72K1J-223JE 435032234R1 1 DG8257 R1009 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1010 C-CARBON R RN72K1J-223JE 435032234R1 1 DG8257 R1011 C-CARBON R RN72K1J-223JE 435032234R1 1 DG8257 R1012 C-CARBON R RN72K1J-223JE 435032234R1 1 DG8257 R1014 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1015 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8257 R1016 C-CARBON R RN72K1J-330JE 435033304R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13/113 PAGE DG8257 R1017 C-CARBON R RN72K1J-330JE 435033304R1 1 DG8257 R1018 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8257 R1019 C-CARBON R RN72K1J-330JE 435033304R1 1 DG8257 R1020 C-CARBON R RN72K1J-330JE 435033304R1 1 DG8257 R1021 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1022 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R1023 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1027 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8257 R1028 C-CARBON R RN72K1J-392JE 435033924R1 1 DG8257 R1029 C-CARBON R RN72K1J-104JE 435031044R1 1 DG8257 R1101 C-CARBON R RN72K1J-563FE 435035632R1 1 DG8257 R1102 C-CARBON R RN72K1J-153JE 435031534R1 1 DG8257 R1103 C-CARBON R RN72K1J-563JE 435035634R1 1 DG8257 R1104 C-CARBON R RN72K1J-333JE 435033334R1 1 DG8257 R1105 C-CARBON R RN72K1J-563JE 435035634R1 1 DG8257 R1106 C-CARBON R RN72K1J-333JE 435033334R1 1 DG8257 R1107 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1108 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1109 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1110 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1111 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1112 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1113 C-CARBON R RN72K1J-333JE 435033334R1 1 DG8257 R1114 C-CARBON R RN72K1J-752JE 435037524R1 1 DG8257 R1115 C-CARBON R RN72K1J-333JE 435033334R1 1 DG8257 R1116 C-CARBON R RN72K1J-752JE 435037524R1 1 DG8257 R1117 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8257 R1118 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8257 R1119 C-CARBON R RN72K1J-223JE 435032234R1 1 DG8257 R1120 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1121 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1122 C-CARBON R RN72K1J-104JE 435031044R1 1 DG8257 R1123 C-CARBON R RN72K1J-223JE 435032234R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14/113 PAGE DG8257 R1124 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1125 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1126 C-CARBON R RN72K1J-104JE 435031044R1 1 DG8257 R1127 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1128 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1202 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1205 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1206 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1207 C-CARBON R RN72K1J-181JE 435031814R1 1 DG8257 R1208 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1209 C-R NET RM7LJ330X04 43484733004R2 N 1 DG8257 R1210 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1211 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1212 C-R NET RM7LJ181X04 43484718104R2 N 1 DG8257 R1213 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8257 R1214 C-CARBON R RN72K1J-473FE 435034732R1 1 DG8257 R1215 C-CARBON R RN72K1J-473FE 435034732R1 1 DG8257 R1216 C-CARBON R RN72K1J-154FE 435031542R1 1 DG8257 R1217 C-CARBON R RN72K1J-471FE 435034712R1 1 DG8257 R1218 C-CARBON R RN72K1J-683FE 435036832R1 1 DG8257 R1219 C-CARBON R RN72K1J-473FE 435034732R1 1 DG8257 R1220 C-CARBON R RN72K1J-104FE 435031042R1 1 DG8257 R1221 C-CARBON R RN72K1J-182FE 435031822R1 1 DG8257 R1222 C-CARBON R RN72K1J-182FE 435031822R1 1 DG8257 R1223 C-CARBON R RN72K1J-223FE 435032232R1 1 DG8257 R1224 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1225 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1226 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1227 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1228 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1229 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1230 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1231 C-CARBON R RN72K1J-333JE 435033334R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15/113 PAGE DG8257 R1232 C-CARBON R RN72K1J-152JE 435031524R1 1 DG8257 R1233 C-CARBON R RN72K1J-333JE 435033334R1 1 DG8257 R1234 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1235 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1236 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1237 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1238 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1239 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1240 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1241 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1242 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1243 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1244 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1251 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1252 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1253 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1254 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1291 C-R NET RM6KJ103X08 43474610308R1 1 DG8257 R1292 C-R NET RM6KJ103X08 43474610308R1 1 DG8257 R1293 C-R NET RM6KJ103X08 43474610308R1 1 DG8257 R1301 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R1302 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R1303 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R1304 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R1305 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R1306 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1307 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8257 R1308 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1309 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1310 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1311 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1312 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1313 C-CARBON R RN72K1J-220JE 435032204R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16/113 PAGE DG8257 R1314 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1315 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1316 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1317 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1318 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1319 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1320 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1321 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8257 R1322 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8257 R1323 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1324 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R1325 C-R NET RM7LJ470X04 43484747004R2 N 1 DG8257 R1326 C-R NET RM7LJ470X04 43484747004R2 N 1 DG8257 R1327 C-R NET RM7LJ470X04 43484747004R2 N 1 DG8257 R1328 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8257 R1329 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8257 R1330 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1331 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1332 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1333 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1334 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1335 C-R NET RM7LJ470X04 43484747004R2 N 1 DG8257 R1336 C-R NET RM7LJ470X04 43484747004R2 N 1 DG8257 R1337 C-R NET RM7LJ470X04 43484747004R2 N 1 DG8257 R1338 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8257 R1339 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8257 R1340 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8257 R1341 C-CARBON R RN72K1J-202JE 435032024R1 1 DG8257 R1342 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8257 R1343 C-CARBON R RN72K1J-202JE 435032024R1 1 DG8257 R1344 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8257 R1345 C-CARBON R RN72K1J-105JE 435031054R1 1 DG8257 R1346 C-CARBON R RN72K1J-821FE 435038212R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17/113 PAGE DG8257 R1347 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1348 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1349 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1350 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1351 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R1354 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1355 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1356 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1357 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R1358 C-CARBON R RN72K1J-100JE 435031004R1 1 DG8257 R1359 C-CARBON R RN72K1J-100JE 435031004R1 1 DG8257 R1360 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1361 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1362 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1363 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R1371 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R1374 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1375 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8257 R1376 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1377 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1378 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R1379 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R1380 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R1381 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R1382 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R1383 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R1384 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R1387 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1388 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R1389 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8257 R1390 C-R NET RM7LJ101X04 43484710104R2 N 1 DG8257 R1391 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R1393 C-CARBON R RN72K1J-101JE 435031014R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18/113 PAGE DG8257 R2001 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R2002 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R2003 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2004 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2005 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2006 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2007 C-CARBON R RN72K1J-150JE 435031504R1 1 DG8257 R2009 C-CARBON R RN72K1J-150JE 435031504R1 1 DG8257 R2010 C-CARBON R RN72K1J-150JE 435031504R1 1 DG8257 R2011 C-CARBON R RN72K1J-150JE 435031504R1 1 DG8257 R2012 C-CARBON R RN72K1J-150JE 435031504R1 1 DG8257 R2013 C-CARBON R RN72K1J-150JE 435031504R1 1 DG8257 R2014 C-CARBON R RN72K1J-150JE 435031504R1 1 DG8257 R2015 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2016 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2017 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2018 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2019 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2023 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2024 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2025 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2030 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8257 R2031 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8257 R2041 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2042 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2043 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2047 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2048 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8257 R2049 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2050 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2051 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2052 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2053 C-CARBON R RN72K1J-220JE 435032204R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19/113 PAGE DG8257 R2054 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R2055 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2056 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2058 EMIFIL BK1608LL241-T 230959R1 1 DG8257 R2059 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2060 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2061 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2062 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2063 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8257 R2064 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2065 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R2066 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2067 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R2068 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2069 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2101 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R2102 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R2103 C-R NET RM7LJ470X04 43484747004R2 N 1 DG8257 R2104 C-R NET RM7LJ470X04 43484747004R2 N 1 DG8257 R2105 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8257 R2106 C-CARBON R RN72K1J-273JE 435032734R1 1 DG8257 R2107 C-CARBON R RN72K1J-471JE 435034714R1 1 DG8257 R2108 C-CARBON R RN72K1J-105JE 435031054R1 1 DG8257 R2109 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2110 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2111 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2112 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2113 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8257 R2114 C-R NET RM7LJ470X04 43484747004R2 N 1 DG8257 R2115 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2116 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2117 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2118 C-CARBON R RN72K1J-220JE 435032204R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20/113 PAGE DG8257 R2119 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2120 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2121 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2122 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2123 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2124 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2125 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2126 C-R NET RM7LJ470X04 43484747004R2 N 1 DG8257 R2127 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R2128 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R2129 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R2130 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R2131 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R2132 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R2133 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8257 R2134 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8257 R2135 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2136 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2137 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2138 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2139 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2140 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2141 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R2142 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R2143 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R2144 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2145 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R2146 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R2147 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R2148 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2149 C-R NET RM7LJ470X04 43484747004R2 N 1 DG8257 R2150 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2151 C-R NET RM7LJ150X04 43484715004R2 N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21/113 PAGE DG8257 R2152 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2153 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2154 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2155 C-R NET RM7LJ150X04 43484715004R2 N 1 DG8257 R2156 C-CARBON R RN72K1J-150JE 435031504R1 1 DG8257 R2157 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8257 R2158 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8257 R2159 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R2160 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R2161 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8257 R2162 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8257 R2163 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2164 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2165 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2166 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2167 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2168 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2169 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2191 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8257 R2601 C-CARBON R RN72K1J-561FE 435035612R1 1 DG8257 R2602 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2603 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R2604 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8257 R2605 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8257 R2608 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2609 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2901 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2902 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2903 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8257 R2906 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8257 R2907 C-CARBON R RN72K1J-333FE 435033332R1 1 DG8257 R2908 C-CARBON R RN72K1J-133FE 435031332R1 1 DG8257 R2909 C-CARBON R RN72K1J-911FE 435039112R1 N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22/113 PAGE DG8257 R2910 C-CARBON R RN72K1J-121FE 435031212R1 1 DG8257 R2911 C-CARBON R RN72K1J-121FE 435031212R1 1 DG8257 X1301 CRYSTAL FCX03-33.868MHz 3010391R2 N 1 DG8257 X2601 CRYSTAL FCX-03-27MHz 3010353R2 1 PCB NO. CIRCUIT NPART NAME DESCRIPTION PART NO. REMARKS VD8258 A051 HOLDER HOLDER(CLAMP) 27190540-1 1 VD8258 C6001 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6002 CHIP ELECT C CEWX16V-22M 356742209R2 1 VD8258 C6003 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6004 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6005 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6006 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6007 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6008 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6009 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6010 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6011 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6012 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6013 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6014 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6015 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6020 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6021 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6022 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6023 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6024 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6029 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6030 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6031 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6032 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6033 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6034 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23/113 PAGE VD8258 C6035 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6036 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6037 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6038 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6039 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6040 C-CERA C CC725CH1E-102J1 342111024R1 1 VD8258 C6041 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6042 CHIP ELECT C CEWX16V-22M 356742209R2 1 VD8258 C6043 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6044 C-CERA C CC725CH1H-101J1 342101014R1 1 VD8258 C6045 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6046 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 VD8258 C6047 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6048 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 VD8258 C6049 C-CERA C CC725CH1E-102J1 342111024R1 1 VD8258 C6051 C-CERA C CC725CH1H-050C1 342100501R1 1 VD8258 C6052 C-CERA C CC725CH1H-050C1 342100501R1 1 VD8258 C6054 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6055 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6056 CHIP ELECT C CEWX16V-100M 356741019R2 1 VD8258 C6062 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6063 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 VD8258 C6064 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6065 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6066 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6067 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6068 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6069 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6070 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6071 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6072 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6073 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6074 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24/113 PAGE VD8258 C6075 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6080 C-CERA C CC725CH1H-050C1 342100501R1 1 VD8258 C6091 CHIP ELECT C CEWX16V-10M 356741009R2 1 VD8258 C6092 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6093 CHIP ELECT C CEWX16V-10M 356741009R2 1 VD8258 C6101 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6102 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 VD8258 C6103 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6104 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6105 C-CERA C CC725CH1E-102J1 342111024R1 1 VD8258 C6106 C-CERA C CK725B1H-392K1 332103925R1 1 VD8258 C6107 C-CERA C CC725CH1E-821J1 342118214R1 1 VD8258 C6108 C-CERA C CK725B1C-104K1 332121045R1 1 VD8258 C6109 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6110 C-CERA C CK725B1C-104K1 332121045R1 1 VD8258 C6111 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6112 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6113 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6114 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 VD8258 C6115 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6116 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 VD8258 C6117 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6118 CHIP ELECT C CEWX16V-47M 356744709R2 1 VD8258 C6119 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6120 CHIP ELECT C CEWX16V-10M 356741009R2 1 VD8258 C6121 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6122 CHIP ELECT C CEWX16V-47M 356744709R2 1 VD8258 C6123 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6124 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6125 CHIP ELECT C CEWX50V-1M 356780109R2 1 VD8258 C6126 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6127 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6128 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25/113 PAGE VD8258 C6129 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6151 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6152 CHIP ELECT C CEWX50V-1M 356780109R2 1 VD8258 C6160 C-CERA C CC725CH1H-030C1 342100301R1 1 VD8258 C6172 C-CERA C CC725CH1H-030C1 342100301R1 1 VD8258 C6191 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6192 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6193 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6194 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6195 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6196 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6197 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6198 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6199 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6201 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6202 CHIP ELECT C CEWX50V-1M 356780109R2 1 VD8258 C6251 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6252 CHIP ELECT C CEWX50V-1M 356780109R2 1 VD8258 C6253 C-CERA C CK725B1C-104K1 332121045R1 1 VD8258 C6254 C-CERA C CK725B1H-103K1 332101035R1 1 VD8258 C6255 C-CERA C CK725B1C-104K1 332121045R1 1 VD8258 C6256 C-CERA C CK725B1H-103K1 332101035R1 1 VD8258 C6297 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6299 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6301 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6302 CHIP ELECT C CEWX50V-1M 356780109R2 1 VD8258 C6351 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6352 CHIP ELECT C CEWX50V-1M 356780109R2 1 VD8258 C6392 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6393 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6394 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6395 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6396 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26/113 PAGE VD8258 C6397 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6398 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6399 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6401 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6402 CHIP ELECT C CEWX50V-1M 356780109R2 1 VD8258 C6451 CHIP ELECT C CEWX16V-47M 356744709R2 1 VD8258 C6452 CHIP ELECT C CEWX16V-47M 356744709R2 1 VD8258 C6453 CHIP ELECT C CEWX16V-47M 356744709R2 1 VD8258 C6454 CHIP ELECT C CEWX16V-47M 356744709R2 1 VD8258 C6455 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6456 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6501 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 VD8258 C6502 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6503 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 VD8258 C6504 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6505 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6506 C-CERA C CC725CH1E-102J1 342111024R1 1 VD8258 C6507 C-CERA C CK725B1H-392K1 332103925R1 1 VD8258 C6508 C-CERA C CC725CH1E-821J1 342118214R1 1 VD8258 C6509 C-CERA C CK725B1C-104K1 332121045R1 1 VD8258 C6510 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6511 C-CERA C CK725B1C-104K1 332121045R1 1 VD8258 C6512 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6513 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6514 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 VD8258 C6515 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6516 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6517 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6518 CHIP ELECT C CEWX16V-47M 356744709R2 1 VD8258 C6522 CHIP ELECT C CEWX50V-1M 356780109R2 1 VD8258 C6523 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6524 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6525 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27/113 PAGE VD8258 C6526 CHIP ELECT C CEWX16V-47M 356744709R2 1 VD8258 C6527 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6528 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6529 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6531 C-CERA C CC725CH1H-100D1 342101002R1 1 VD8258 C6532 C-CERA C CC725CH1H-100D1 342101002R1 1 VD8258 C6551 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6552 CHIP ELECT C CEWX50V-1M 356780109R2 1 VD8258 C6553 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6554 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6555 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6556 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6557 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6601 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6602 CHIP ELECT C CEWX50V-1M 356780109R2 1 VD8258 C6651 C-CERA C CK725F1A-105Z1 332181050R1 1 VD8258 C6652 CHIP ELECT C CEWX50V-1M 356780109R2 1 VD8258 C6723 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6724 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C6725 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C6726 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7001 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7002 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7003 C-CERA C CC725CH1H-220J1 342102204R1 1 VD8258 C7004 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7005 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C7006 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7007 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C7008 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7009 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7010 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7101 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C7102 C-CERA C CK725F1E-104Z1 332161040R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28/113 PAGE VD8258 C7103 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C7104 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7105 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C7106 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7107 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C7108 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7109 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7110 CHIP ELECT C CEWX6.3V-47M 356724709R2 1 VD8258 C7111 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7112 CHIP ELECT C CEWX6.3V-47M 356724709R2 1 VD8258 C7113 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7201 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C7202 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7203 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7204 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7301 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7302 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7303 C-CERA C CK725B1H-103K1 332101035R1 1 VD8258 C7304 C-CERA C CK725B1H-103K1 332101035R1 1 VD8258 C7305 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 VD8258 C7306 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7310 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7311 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7312 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7401 CHIP ELECT C CEWX16V-100M 356741019R2 1 VD8258 C7402 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7403 CHIP ELECT C CEWX16V-10M 356741009R2 1 VD8258 C7404 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 C7405 C-CERA C CK725F1E-104Z1 332161040R1 1 VD8258 D6001 LED SEC1401C 225383R2 1 VD8258 D6002 LED SEC1401C 225383R2 1 VD8258 D6003 LED SEC1401C 225383R2 1 VD8258 D6004 LED SEC1401C 225383R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29/113 PAGE VD8258 D6005 LED SEC1401C 225383R2 1 VD8258 D6006 LED SEC1401C 225383R2 1 VD8258 D6151 C-DIODE 1SS352 223234R2 1 VD8258 D6201 C-DIODE 1SS352 223234R2 1 VD8258 D6251 C-DIODE 1SS352 223234R2 1 VD8258 D6301 C-DIODE 1SS352 223234R2 1 VD8258 D6351 C-DIODE 1SS352 223234R2 1 VD8258 D6401 C-DIODE 1SS352 223234R2 1 VD8258 D6451 ZENER D UDZS5.6B 224550560R2 1 VD8258 D6452 ZENER D UDZS5.6B 224550560R2 1 VD8258 D6551 C-DIODE 1SS352 223234R2 1 VD8258 D6601 C-DIODE 1SS352 223234R2 1 VD8258 D6651 C-DIODE 1SS352 223234R2 1 VD8258 D7201 ZENER D UDZS5.6B 224550560R2 1 VD8258 D7202 C-DIODE 1SS352 223234R2 1 VD8258 D7301 C-DIODE 1SS352 223234R2 1 VD8258 D7302 C-DIODE 1SS352 223234R2 1 VD8258 D7303 C-DIODE 1SS352 223234R2 1 VD8258 D7304 C-DIODE 1SS352 223234R2 1 VD8258 D7305 C-DIODE 1SS352 223234R2 1 VD8258 D7310 LED SEC1201C 225385R2 1 VD8258 D7401 C-DIODE 1SR154-400 22380284R2 1 VD8258 D7402 ZENER D UDZS3.6B 224550360R2 1 VD8258 E7111 RETAINER E PLATE 2714059 1 VD8258 E7112 RETAINER E PLATE 2714059 1 VD8258 F6451 FUSE ICP-S1.0 252223R2 1 VD8258 F6452 FUSE ICP-S1.0 252223R2 1 VD8258 L6001 CHOKE COIL NCH-1471 231237K022R2 1 VD8258 L6002 CHOKE COIL NCH-1471 231237K022R2 1 VD8258 L6003 CHOKE COIL NCH-1471 231237K022R2 1 VD8258 L6004 CHOKE COIL NCH-1471 231237K022R2 1 VD8258 L6006 CHOKE COIL NCH-1471 231237K022R2 1 VD8258 L6201 CHOKE COIL NCH-1471 231237K022R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30/113 PAGE VD8258 L6202 CHOKE COIL NCH-1471 231237K022R2 1 VD8258 L6203 CHOKE COIL NCH-1471 231237K022R2 1 VD8258 L6501 CHOKE COIL NCH-1471 231237K022R2 1 VD8258 L6502 CHOKE COIL NCH-1471 231237K022R2 1 VD8258 L6503 CHOKE COIL NCH-1471 231237K022R2 1 VD8258 L6551 LC BLOCK CY4W(15MHz) 3030049R2 N 1 VD8258 L6601 LC BLOCK CY4W(15MHz) 3030049R2 N 1 VD8258 L6651 LC BLOCK CY4W(15MHz) 3030049R2 N 1 VD8258 L6801 CORE N1608Z601T01 230981R2 1 VD8258 L6802 CORE N1608Z601T01 230981R2 1 VD8258 L6803 CORE N1608Z601T01 230981R2 1 VD8258 P2001B PLUG SM14B-SURS-TF 25056397R2 N 1 VD8258 P2002B PLUG SM15B-SURS-TF 25056398R2 N 1 VD8258 P2701B PLUG NPLG-7P920 25055967R2 1 VD8258 P2901B PLUG NPLG-6P919 25055966R2 1 VD8258 P3503B SOCKET(B to B) IMSA-9850S-22Y900 25052814R2 N 1 VD8258 P4008B PLUG NPLG-5P918 25055965R2 1 VD8258 P4571A PLUG NPLG-8P1105 25056166R2 N 1 VD8258 P5001B SOCKET(B to B) IMSA-9850S-22Y900 25052814R2 N 1 VD8258 P5401B SOCKET CPB8148-0211 25053023R2 N 1 VD8258 P6001A PLUG(B to B) IMSA-9850B-16Y900 25056203R2 N 1 VD8258 P6001B SOCKET(B to B) IMSA-9850S-16Y900 25052811R2 N 1 VD8258 P6003A PLUG(B to B) IMSA-9850B-28Y900 25056209R2 N 1 VD8258 P6003B SOCKET(B to B) IMSA-9850S-28Y900 25052817R2 N 1 VD8258 P6005A PLUG NPLG-8P1105 25056166R2 N 1 VD8258 P6151 PIN JACK NPJ-10PDBY459 25045660 1 VD8258 P6301 PIN JACK NPJ-3PDGLR429 25045622 1 VD8258 P6452A PLUG(B to B) IMSA-9852B-08Y900 25056366R2 N 1 VD8258 P6452B SOCKET(B to B) IMSA-9850S-08Y900 25052807R2 1 VD8258 P6551A PLUG NPLG-9P1106 25056167R2 N 1 VD8258 P6703B PLUG NPLG-10P1107 25056168R2 1 VD8258 P6707 BNC JACK P2298-C 25045760 1 VD8258 P7010A PLUG NPLG-4P1101 25056162R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31/113 PAGE VD8258 P7201A SOCKET NSCT-26P2696 25052800R2 N 1 VD8258 P7302 PLUG NPLG-8P660 25055704 1 VD8258 P7401A PLUG NPLG-7P920 25055967R2 1 VD8258 P8001B SOCKET(B to B) IMSA-9850S-28Y900 25052817R2 N 1 VD8258 P8002B SOCKET(B to B) IMSA-9850S-20Y900 25052813R2 N 1 VD8258 P8603B SOCKET CPB8148-0211 25053023R2 N 1 VD8258 P8701B SOCKET(B to B) IMSA-9850S-10Y900 25052808R2 N 1 VD8258 P9103B PLUG NPLG-4P917 25055964R2 1 VD8258 P9601B PLUG NPLG-12P925 25055972R2 1 VD8258 P9602B PLUG NPLG-14P927 25055974R2 N 1 VD8258 Q6001 IC TC74VCX162244FT 2227C244DR2TO 1 VD8258 Q6002 IC TC74VCX162244FT 2227C244DR2TO N 1 VD8258 Q6003 IC Sil504 22242049R3 1 VD8258 Q6004 IC IC42S32200L-7TG 22242056R2 N 1 VD8258 Q6004 or IC IS42S32200B-7T 22242031R3 ( 1) VD8258 Q6005 IC MC504 22242050R9 N 1 VD8258 Q6008 TR NDC7002N 2216870R2 N 1 VD8258 Q6009 TR DTC114EE 2216730R2 1 VD8258 Q6010 TR 2SK3019 2216520R2 1 VD8258 Q6011 TR NDC7002N 2216870R2 N 1 VD8258 Q6091 IC LM1117MPX-ADJ 22241648R2 1 VD8258 Q6101 IC ADV7310 22242058R3 1 VD8258 Q6102 IC NJM2880U25 22242085R2 N 1 VD8258 Q6103 IC 74AHCT1G08GW 22242072R2PH N 1 VD8258 Q6103 or IC TC7SET08FU 22242072R2TO N ( 1) VD8258 Q6104 TR DTC144EE 2216390R2 1 VD8258 Q6105 TR DTC144EE 2216390R2 1 VD8258 Q6106 TR DTA144EE 2216380R2 1 VD8258 Q6107 TR DTA144EE 2216380R2 1 VD8258 Q6108 IC 74AHCT1G04GW 22242079R2PH N 1 VD8258 Q6108 or IC TC7SET04FU 22242079R2TO N ( 1) VD8258 Q6109 IC 74AHCT1G08GW 22242072R2PH N 1 VD8258 Q6109 or IC TC7SET08FU 22242072R2TO N ( 1) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32/113 PAGE VD8258 Q6110 IC TK15420M 22241443R2 1 VD8258 Q6111 IC TK15420M 22241443R2 1 VD8258 Q6112 IC NJM2373AF 22241897R2 1 VD8258 Q6113 IC EL4581CS 22241527R2 1 VD8258 Q6114 IC 74AHCT1G02GW 22242089R2PH N 1 VD8258 Q6114 or IC TC7SET02FU 22242089R2TO N ( 1) VD8258 Q6115 IC TC7SZ125FU 22241895R2 1 VD8258 Q6151 TR 2SA1162-GR 2214375R2 1 VD8258 Q6152 TR 2SC2712-GR 2213145R2 1 VD8258 Q6153 IC LA7106MFP 22241465R2 1 VD8258 Q6154 IC MAX4018ESD 22241440R2 1 VD8258 Q6155 IC MAX4018ESD 22241440R2 1 VD8258 Q6201 TR 2SA1162-GR 2214375R2 1 VD8258 Q6202 TR 2SC2712-GR 2213145R2 1 VD8258 Q6251 TR 2SA1162-GR 2214375R2 1 VD8258 Q6252 TR 2SC2712-GR 2213145R2 1 VD8258 Q6253 TR DTA144EE 2216380R2 1 VD8258 Q6254 TR DTA144EE 2216380R2 1 VD8258 Q6301 TR 2SA1162-GR 2214375R2 1 VD8258 Q6302 TR 2SC2712-GR 2213145R2 1 VD8258 Q6303 IC LA7106MFP 22241465R2 1 VD8258 Q6304 IC MAX4018ESD 22241440R2 1 VD8258 Q6351 TR 2SA1162-GR 2214375R2 1 VD8258 Q6352 TR 2SC2712-GR 2213145R2 1 VD8258 Q6401 TR 2SA1162-GR 2214375R2 1 VD8258 Q6402 TR 2SC2712-GR 2213145R2 1 VD8258 Q6451 TR 2SB1565-E 2202715 1 VD8258 Q6451 or TR 2SB1565-F 2202716 ( 1) VD8258 Q6451A HEAT SINK SP211K 27160442 1 VD8258 Q6451B SCREW 3P+10FN(BC) 82143010 1 VD8258 Q6451C NUT N-3FN(BC) 863430 1 VD8258 Q6451Cor NUT N-3FN 863130 ( 1) VD8258 Q6452 TR 2SD2394-E 2202705 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33/113 PAGE VD8258 Q6452 or TR 2SD2394-F 2202706 ( 1) VD8258 Q6452A HEAT SINK SP211K 27160442 1 VD8258 Q6452B SCREW 3P+10FN(BC) 82143010 1 VD8258 Q6452C NUT N-3FN(BC) 863430 1 VD8258 Q6452Cor NUT N-3FN 863130 ( 1) VD8258 Q6453 TR 2SC2712-GR 2213145R2 1 VD8258 Q6454 TR 2SA1162-GR 2214375R2 1 VD8258 Q6455 TR DTC144EE 2216390R2 1 VD8258 Q6456 TR DTA144EE 2216380R2 1 VD8258 Q6501 IC ADV7314 22242057R2 N 1 VD8258 Q6502 IC NJM2880U25 22242085R2 N 1 VD8258 Q6521 IC EL4581CS 22241527R2 1 VD8258 Q6522 IC 74AHCT1G02GW 22242089R2PH N 1 VD8258 Q6522 or IC TC7SET02FU 22242089R2TO N ( 1) VD8258 Q6523 IC NJM2373AF 22241897R2 1 VD8258 Q6524 IC TK15420M 22241443R2 1 VD8258 Q6525 IC TK15420M 22241443R2 1 VD8258 Q6551 TR 2SA1162-GR 2214375R2 1 VD8258 Q6552 TR 2SA1162-GR 2214375R2 1 VD8258 Q6553 TR 2SC2712-GR 2213145R2 1 VD8258 Q6554 IC MAX4018ESD 22241440R2 1 VD8258 Q6601 TR 2SA1162-GR 2214375R2 1 VD8258 Q6602 TR 2SA1162-GR 2214375R2 1 VD8258 Q6603 TR 2SC2712-GR 2213145R2 1 VD8258 Q6651 TR 2SA1162-GR 2214375R2 1 VD8258 Q6652 TR 2SA1162-GR 2214375R2 1 VD8258 Q6653 TR 2SC2712-GR 2213145R2 1 VD8258 Q6708 IC MAX4218ESD 22241442R2 1 VD8258 Q7001 IC M30624FGPFP (0087) NSP N 1 VD8258 Q7101 IC(REGULATOR) SI-3033LUS 22278033CR2 1 VD8258 Q7102 IC NJM2370U05 22241289R2 1 VD8258 Q7201 IC 74AHCT125PW 22241894R2PH N 1 VD8258 Q7202 IC 74LV125PW 22274125CR2PH N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34/113 PAGE VD8258 Q7203 TR RN2403 2214540R2 1 VD8258 Q7301 IC S-80127CNMC-JKM-T2 22241642R2 1 VD8258 Q7302 IC TC7WU04FU 22240935R2 1 VD8258 Q7303 IC TC7W74FU 22241408R2 1 VD8258 Q7304 IC TC7SH08FU 22241830R2TO 1 VD8258 Q7305 IC 74LVC1G04GW 22242074R2PH N 1 VD8258 Q7305 or IC TC7SZ04FU 22242074R2TO N ( 1) VD8258 Q7401 IC BA6288FS 22241656R2 1 VD8258 R6001 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R6002 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R6003 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R6004 C-R NET RM7LJ100X04 43484710004R2 N 1 VD8258 R6005 C-R NET RM7LJ100X04 43484710004R2 N 1 VD8258 R6006 C-R NET RM7LJ100X04 43484710004R2 N 1 VD8258 R6007 C-R NET RM7LJ100X04 43484710004R2 N 1 VD8258 R6008 C-R NET RM7LJ100X04 43484710004R2 N 1 VD8258 R6009 C-R NET RM7LJ100X04 43484710004R2 N 1 VD8258 R6010 C-R NET RM7LJ100X04 43484710004R2 N 1 VD8258 R6011 C-R NET RM7LJ100X04 43484710004R2 N 1 VD8258 R6012 C-R NET RM7LJ100X04 43484710004R2 N 1 VD8258 R6019 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6020 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6023 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6024 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6025 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6026 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6027 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6028 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6031 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6032 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6033 C-R NET RM7LJ103X04 43484710304R2 N 1 VD8258 R6034 C-R NET RM7LJ103X04 43484710304R2 N 1 VD8258 R6035 C-CARBON R RN72K1J-104FE 435031042R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35/113 PAGE VD8258 R6036 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6037 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6038 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6039 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6040 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6043 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6044 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6046 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6047 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6049 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6052 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6053 C-CARBON R RN72K1J-105FE 435031052R1 1 VD8258 R6054 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6055 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6056 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6057 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6058 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6059 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6060 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6061 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6062 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6063 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6064 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6065 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6066 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6069 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6074 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6075 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6076 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6077 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6078 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6079 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6080 C-CARBON R RN72K1J-000JE 435030004R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36/113 PAGE VD8258 R6081 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6082 C-CARBON R RN72K1J-100FE 435031002R1 N 1 VD8258 R6083 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6086 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6087 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6088 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6089 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6090 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6091 C-CARBON R RN72K1J-121FE 435031212R1 1 VD8258 R6094 C-CARBON R RN72K1J-241FE 435032412R1 1 VD8258 R6095 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6097 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6098 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6099 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6101 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6103 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6104 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6105 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6106 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6107 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6108 C-CARBON R RN72K1J-681FE 435036812R1 1 VD8258 R6109 C-CARBON R RN72K1J-681FE 435036812R1 1 VD8258 R6110 C-CARBON R RN72K1J-681FE 435036812R1 1 VD8258 R6111 C-CARBON R RN72K1J-272FE 435032722R1 1 VD8258 R6112 C-CARBON R RN72K1J-272FE 435032722R1 1 VD8258 R6113 C-CARBON R RN72K1J-681FE 435036812R1 1 VD8258 R6114 C-CARBON R RN72K1J-681FE 435036812R1 1 VD8258 R6115 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6117 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6119 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6120 C-CARBON R RN72K1J-473FE 435034732R1 1 VD8258 R6121 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6122 C-CARBON R RN72K1J-122FE 435031222R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37/113 PAGE VD8258 R6123 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6124 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6125 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6127 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6128 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6129 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6130 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6133 C-CARBON R RN72K1J-152FE 435031522R1 1 VD8258 R6134 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6135 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6136 C-CARBON R RN72K1J-224FE 435032242R1 1 VD8258 R6137 C-CARBON R RN72K1J-221FE 435032212R1 1 VD8258 R6138 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6140 C-CARBON R RN72K1J-564FE 435035642R1 1 VD8258 R6142 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6143 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6144 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6146 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6147 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6151 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6152 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6153 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6154 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6155 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6156 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6157 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6158 C-CARBON R RN72K1J-151FE 435031512R1 1 VD8258 R6159 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6160 C-CARBON R RN72K1J-203FE 435032032R1 1 VD8258 R6162 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6164 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6165 C-CARBON R RN72K1J-750FE 435037502R1 1 VD8258 R6166 C-CARBON R RN72K1J-000JE 435030004R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38/113 PAGE VD8258 R6167 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6171 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6172 C-CARBON R RN72K1J-203FE 435032032R1 1 VD8258 R6174 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6176 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6177 C-CARBON R RN72K1J-750FE 435037502R1 1 VD8258 R6191 C-CARBON R RN72K1J-101JE 435031014R1 1 VD8258 R6201 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6202 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6203 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6204 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6205 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6206 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6207 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6208 C-CARBON R RN72K1J-151FE 435031512R1 1 VD8258 R6209 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6210 C-CARBON R RN72K1J-223FE 435032232R1 1 VD8258 R6212 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6214 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6215 C-CARBON R RN72K1J-750FE 435037502R1 1 VD8258 R6216 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6217 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6221 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6222 C-CARBON R RN72K1J-223FE 435032232R1 1 VD8258 R6224 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6226 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6227 C-CARBON R RN72K1J-750FE 435037502R1 1 VD8258 R6233 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6251 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6252 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6253 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6254 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6255 C-CARBON R RN72K1J-273FE 435032732R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39/113 PAGE VD8258 R6256 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6257 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6258 C-CARBON R RN72K1J-151FE 435031512R1 1 VD8258 R6259 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6260 C-CARBON R RN72K1J-223FE 435032232R1 1 VD8258 R6262 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6264 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6265 C-CARBON R RN72K1J-750FE 435037502R1 1 VD8258 R6266 C-CARBON R RN72K1J-822FE 435038222R1 1 VD8258 R6267 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6268 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6269 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6271 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6272 C-CARBON R RN72K1J-223FE 435032232R1 1 VD8258 R6274 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6276 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6277 C-CARBON R RN72K1J-750FE 435037502R1 1 VD8258 R6278 C-CARBON R RN72K1J-822FE 435038222R1 1 VD8258 R6279 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6286 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6287 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6301 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6302 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6303 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6304 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6305 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6306 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6307 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6308 C-CARBON R RN72K1J-151FE 435031512R1 1 VD8258 R6309 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6310 C-CARBON R RN72K1J-203FE 435032032R1 1 VD8258 R6312 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6314 C-CARBON R RN72K1J-103FE 435031032R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40/113 PAGE VD8258 R6315 C-CARBON R RN72K1J-750FE 435037502R1 1 VD8258 R6317 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6351 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6352 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6353 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6354 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6355 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6356 C-CARBON R RN72K1J-223FE 435032232R1 1 VD8258 R6357 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6358 C-CARBON R RN72K1J-151FE 435031512R1 1 VD8258 R6359 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6360 C-CARBON R RN72K1J-243FE 435032432R1 1 VD8258 R6362 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6364 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6365 C-CARBON R RN72K1J-750FE 435037502R1 1 VD8258 R6367 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6401 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6402 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6403 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6404 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6405 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6406 C-CARBON R RN72K1J-223FE 435032232R1 1 VD8258 R6407 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6408 C-CARBON R RN72K1J-151FE 435031512R1 1 VD8258 R6409 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6410 C-CARBON R RN72K1J-243FE 435032432R1 1 VD8258 R6412 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6414 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6415 C-CARBON R RN72K1J-750FE 435037502R1 1 VD8258 R6417 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6455 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6456 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6457 C-CARBON R RN72K1J-222FE 435032222R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41/113 PAGE VD8258 R6458 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6459 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6460 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6461 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6462 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6465 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6466 C-CARBON R RN72K1J-223FE 435032232R1 1 VD8258 R6467 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6468 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6469 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6470 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6471 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6472 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6501 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6503 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6504 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6505 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6506 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6507 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6508 C-CARBON R RN72K1J-681FE 435036812R1 1 VD8258 R6509 C-CARBON R RN72K1J-272FE 435032722R1 1 VD8258 R6510 C-CARBON R RN72K1J-681FE 435036812R1 1 VD8258 R6511 C-CARBON R RN72K1J-681FE 435036812R1 1 VD8258 R6512 C-CARBON R RN72K1J-272FE 435032722R1 1 VD8258 R6513 C-CARBON R RN72K1J-681FE 435036812R1 1 VD8258 R6514 C-CARBON R RN72K1J-681FE 435036812R1 1 VD8258 R6515 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6516 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6517 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6518 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6519 C-CARBON R RN72K1J-473FE 435034732R1 1 VD8258 R6521 C-CARBON R RN72K1J-152FE 435031522R1 1 VD8258 R6522 C-CARBON R RN72K1J-153FE 435031532R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42/113 PAGE VD8258 R6523 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6524 C-CARBON R RN72K1J-104FE 435031042R1 1 VD8258 R6525 C-CARBON R RN72K1J-564FE 435035642R1 1 VD8258 R6526 C-CARBON R RN72K1J-684FE 435036842R1 1 VD8258 R6527 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6529 C-CARBON R RN72K1J-221FE 435032212R1 1 VD8258 R6530 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6531 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6532 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6533 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6541 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6542 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6543 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6544 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6545 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6546 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6547 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6548 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6549 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6551 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6552 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6553 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6554 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6555 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6556 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6557 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6558 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6559 C-CARBON R RN72K1J-562FE 435035622R1 1 VD8258 R6560 C-CARBON R RN72K1J-821FE 435038212R1 1 VD8258 R6561 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6562 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6563 C-CARBON R RN72K1J-681FE 435036812R1 1 VD8258 R6564 C-CARBON R RN72K1J-682FE 435036822R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43/113 PAGE VD8258 R6565 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6566 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6567 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6568 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6571 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6572 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6573 C-CARBON R RN72K1J-222FE 435032222R1 1 VD8258 R6574 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6575 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6576 C-CARBON R RN72K1J-270FE 435032702R1 N 1 VD8258 R6601 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6602 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6603 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6604 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6605 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6606 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6607 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6608 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6609 C-CARBON R RN72K1J-682FE 435036822R1 1 VD8258 R6610 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6611 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6612 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6613 C-CARBON R RN72K1J-181FE 435031812R1 1 VD8258 R6614 C-CARBON R RN72K1J-821FE 435038212R1 1 VD8258 R6615 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6616 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6617 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6618 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6626 C-CARBON R RN72K1J-270FE 435032702R1 N 1 VD8258 R6631 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6632 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6633 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6634 C-CARBON R RN72K1J-000JE 435030004R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44/113 PAGE VD8258 R6635 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6636 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6637 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6638 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6639 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6640 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R6651 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6652 C-CARBON R RN72K1J-332FE 435033322R1 1 VD8258 R6653 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6654 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6655 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6656 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R6657 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6658 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R6659 C-CARBON R RN72K1J-682FE 435036822R1 1 VD8258 R6660 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6661 C-CARBON R RN72K1J-101FE 435031012R1 1 VD8258 R6662 C-CARBON R RN72K1J-471FE 435034712R1 1 VD8258 R6663 C-CARBON R RN72K1J-331FE 435033312R1 1 VD8258 R6664 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R6665 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R6666 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6667 C-CARBON R RN72K1J-122FE 435031222R1 1 VD8258 R6676 C-CARBON R RN72K1J-270FE 435032702R1 N 1 VD8258 R6851 C-CARBON R RN72K1J-103JE 435031034R1 1 VD8258 R6852 C-CARBON R RN72K1J-103JE 435031034R1 1 VD8258 R6853 C-CARBON R RN72K1J-103JE 435031034R1 1 VD8258 R6854 C-CARBON R RN72K1J-102JE 435031024R1 1 VD8258 R6855 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6856 C-CARBON R RN72K1J-105JE 435031054R1 1 VD8258 R6857 C-CARBON R RN72K1J-105JE 435031054R1 1 VD8258 R6858 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6859 C-CARBON R RN72K1J-105JE 435031054R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45/113 PAGE VD8258 R6860 C-CARBON R RN72K1J-105JE 435031054R1 1 VD8258 R6861 C-CARBON R RN72K1J-102JE 435031024R1 1 VD8258 R6862 C-CARBON R RN72K1J-102JE 435031024R1 1 VD8258 R6863 C-CARBON R RN72K1J-105JE 435031054R1 1 VD8258 R6864 C-CARBON R RN72K1J-105JE 435031054R1 1 VD8258 R6865 C-CARBON R RN72K1J-240FE 435032402R1 1 VD8258 R6866 C-CARBON R RN72K1J-750JE 435037504R1 1 VD8258 R6867 C-CARBON R RN72K1J-750JE 435037504R1 1 VD8258 R6868 C-CARBON R RN72K1J-750JE 435037504R1 1 VD8258 R7001 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7002 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7003 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7004 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7005 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7006 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7007 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7008 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7009 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7010 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7011 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7012 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7013 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7014 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7015 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7016 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7017 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7018 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7020 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7021 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7022 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7023 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7024 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7025 C-CARBON R RN72K1J-220FE 435032202R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46/113 PAGE VD8258 R7026 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7027 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7028 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7029 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7030 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7031 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7032 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7033 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7034 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7035 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7036 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7037 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7038 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7039 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7040 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7041 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7042 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7043 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7044 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7045 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7046 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7047 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7048 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7049 C-CARBON R RN72K1J-221FE 435032212R1 1 VD8258 R7050 C-CARBON R RN72K1J-221FE 435032212R1 1 VD8258 R7051 C-CARBON R RN72K1J-221FE 435032212R1 1 VD8258 R7052 C-CARBON R RN72K1J-221FE 435032212R1 1 VD8258 R7053 C-CARBON R RN72K1J-221FE 435032212R1 1 VD8258 R7054 C-CARBON R RN72K1J-221FE 435032212R1 1 VD8258 R7055 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R7056 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R7057 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R7058 C-CARBON R RN72K1J-472FE 435034722R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47/113 PAGE VD8258 R7059 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7060 C-CARBON R RN72K1J-563FE 435035632R1 1 VD8258 R7061 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R7062 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7062 C-CARBON R RN72K1J-273FE 435032732R1 1 VD8258 R7063 C-CARBON R RN72K1J-563FE 435035632R1 1 VD8258 R7063 C-CARBON R RN72K1J-683FE 435036832R1 1 VD8258 R7064 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7069 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7071 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7073 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7075 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7077 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7078 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7079 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R7080 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R7101 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7102 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7103 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7104 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7105 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7106 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7107 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7108 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7109 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7110 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7111 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7112 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7113 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7114 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7115 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7116 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7117 C-CARBON R RN72K1J-000JE 435030004R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48/113 PAGE VD8258 R7118 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7119 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7120 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7121 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7122 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7123 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7124 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7125 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7126 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7127 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7128 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7129 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7130 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7131 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7132 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7133 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7134 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7201 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7202 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7203 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7204 C-CARBON R RN72K1J-220FE 435032202R1 1 VD8258 R7205 C-CARBON R RN72K1J-472FE 435034722R1 1 VD8258 R7206 C-CARBON R RN72K1J-224FE 435032242R1 1 VD8258 R7207 C-CARBON R RN72K1J-473FE 435034732R1 1 VD8258 R7208 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7209 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7210 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7211 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7212 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7213 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7214 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7215 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7216 C-CARBON R RN72K1J-000JE 435030004R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49/113 PAGE VD8258 R7217 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7218 C-CARBON R RN72K1J-471JE 435034714R1 1 VD8258 R7301 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7302 C-CARBON R RN72K1J-223FE 435032232R1 1 VD8258 R7303 C-CARBON R RN72K1J-223FE 435032232R1 1 VD8258 R7304 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7305 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7306 C-CARBON R RN72K1J-104FE 435031042R1 1 VD8258 R7310 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7311 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7312 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7313 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7314 C-CARBON R RN72K1J-102FE 435031022R1 1 VD8258 R7315 C-CARBON R RN72K1J-103FE 435031032R1 1 VD8258 R7317 C-CARBON R RN72K1J-470FE 435034702R1 1 VD8258 R7318 C-CARBON R RN72K1J-470FE 435034702R1 1 VD8258 R7319 C-CARBON R RN72K1J-470FE 435034702R1 1 VD8258 R7320 C-CARBON R RN72K1J-470FE 435034702R1 1 VD8258 R7321 C-CARBON R RN72K1J-470FE 435034702R1 1 VD8258 R7322 C-CARBON R RN72K1J-470FE 435034702R1 1 VD8258 R7401 C-CARBON R RN72K1J-152FE 435031522R1 1 VD8258 R7402 C-CARBON R RN72K1J-152FE 435031522R1 1 VD8258 R7403 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7404 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7405 C-CARBON R RN72K1J-000JE 435030004R1 1 VD8258 R7406 C-CARBON R RN72K1J-224FE 435032242R1 1 VD8258 S4751 SLIDE SW NSS-22155 25065414 1 VD8258 S7301 PUSH SW NPS-111-S681 25035718 1 VD8258 X6151 CRYSTAL FCX03-20.000MHz 3010389R2 N 1 VD8258 X7001 CERA LOCK CSTCE12M0G 3010395R2 N 1 VD8258 X7002 PIEZO PKM13EPY-4002 3010309 1 PCB NO. CIRCUIT NPART NAME DESCRIPTION PART NO. REMARKS www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50/113 PAGE DIS8264 C4201 VX C CE04W25V-470M(VX) 393354717 1 DIS8264 C4202 VX C CE04W25V-470M(VX) 393354717 1 DIS8264 C4203 VX C CE04W16V-220M(VX) 393342217 1 DIS8264 C4204 VX C CE04W16V-220M(VX) 393342217 1 DIS8264 C4205 VX C CE04W16V-220M(VX) 393342217 1 DIS8264 C4206 VX C CE04W16V-220M(VX) 393342217 1 DIS8264 C4701 VX C CE04W16V-47M(VX) 393344707 1 DIS8264 C4702 VX C CE04W16V-47M(VX) 393344707 1 DIS8264 C4705 RFS C CE04W25V-47M(RFS) 395954707 N 1 DIS8264 C4706 RFS C CE04W25V-47M(RFS) 395954707 N 1 DIS8264 C4753 VX C CE04W50V-47M(VX) 393384707 1 DIS8264 C4754 VX C CE04W50V-47M(VX) 393384707 1 DIS8264 C4755 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C4803 RFS C CE04W25V-47M(RFS) 395954707 N 1 DIS8264 C4804 RFS C CE04W25V-47M(RFS) 395954707 N 1 DIS8264 C4853 VX C CE04W50V-47M(VX) 393384707 1 DIS8264 C4854 VX C CE04W50V-47M(VX) 393384707 1 DIS8264 C4903 VX C CE04W50V-47M(VX) 393384707 1 DIS8264 C4904 VX C CE04W50V-47M(VX) 393384707 1 DIS8264 C4921 VX C CE04W6.3V-470M(VX) 393324717 1 DIS8264 C4951 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C4952 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C4953 C-CERA C CK725B1H-103K1 332101035R1 1 DIS8264 C4954 C-CERA C CK725B1H-103K1 332101035R1 1 DIS8264 C4955 VX C CE04W6.3V-100M(VX) 393321017 1 DIS8264 C4956 VX C CE04W6.3V-100M(VX) 393321017 1 DIS8264 C4957 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C4958 VX C CE04W6.3V-100M(VX) 393321017 1 DIS8264 C4959 C-CERA C CK732B1H 223K 337322235R1 1 DIS8264 C4960 C-CERA C CC725CH1H-330J1 342103304R1 1 DIS8264 C4961 C-CERA C CC725CH1H-330J1 342103304R1 1 DIS8264 C4962 C-CERA C CC725CH1H-330J1 342103304R1 1 DIS8264 C4965 C-CERA C CK725F1E-104Z1 332161040R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51/113 PAGE DIS8264 C4966 VX C CE04W6.3V-100M(VX) 393321017 1 DIS8264 C4967 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C4968 VX C CE04W6.3V-100M(VX) 393321017 1 DIS8264 C4969 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C4970 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C4971 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C4972 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C4973 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C4974 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C4975 C-CERA C CC725CH1H-220J1 342102204R1 1 DIS8264 C4976 C-CERA C CC725CH1H-220J1 342102204R1 1 DIS8264 C4977 VX C CE04W6.3V-470M(VX) 393324717 1 DIS8264 C4978 VX C CE04W6.3V-470M(VX) 393324717 1 DIS8264 C4999 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C6781 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7501 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7502 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7503 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7504 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7505 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DIS8264 C7506 C-CERA C CK725B1H-223K1 332102235R1 1 DIS8264 C7507 C-CERA C CK725B1H-223K1 332102235R1 1 DIS8264 C7508 C-CERA C CK725B1H-223K1 332102235R1 1 DIS8264 C7509 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7510 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7511 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7512 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7513 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7515 CHIP ELECT C CEWX50V-2.2M 356780229R2 1 DIS8264 C7516 CHIP ELECT C CEWX16V-10M 356741009R2 1 DIS8264 C7517 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7518 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7519 C-CERA C CK725F1E-104Z1 332161040R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52/113 PAGE DIS8264 C7520 CHIP ELECT C CEWX16V-100M 356741019R2 1 DIS8264 C7521 CHIP ELECT C CEWX50V-10M 356781009R2 1 DIS8264 C7522 C-CERA C CC725CH1H-330J1 342103304R1 1 DIS8264 C7528 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DIS8264 C7529 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7530 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7531 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7702 C-CERA C CK725F1E-104Z1 332161040R1 1 DIS8264 C7703 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DIS8264 D4201 ZENER D UDZS13B 224551300R2 N 1 DIS8264 D4202 ZENER D UDZS13B 224551300R2 N 1 DIS8264 D4751 C-DIODE 1SS352 223234R2 1 DIS8264 D4751 or C-DIODE 1SS355 223269R2 ( 1) DIS8264 D4752 C-DIODE 1SS352 223234R2 1 DIS8264 D4752 or C-DIODE 1SS355 223269R2 ( 1) DIS8264 D4851 C-DIODE 1SS352 223234R2 1 DIS8264 D4851 or C-DIODE 1SS355 223269R2 ( 1) DIS8264 D4852 C-DIODE 1SS352 223234R2 1 DIS8264 D4852 or C-DIODE 1SS355 223269R2 ( 1) DIS8264 D4921 C-DIODE 1SS352 223234R2 1 DIS8264 D4921 or C-DIODE 1SS355 223269R2 ( 1) DIS8264 D4951 C-DIODE 1SS352 223234R2 1 DIS8264 D4951 or C-DIODE 1SS355 223269R2 ( 1) DIS8264 D4952 C-DIODE 1SS352 223234R2 1 DIS8264 D4952 or C-DIODE 1SS355 223269R2 ( 1) DIS8264 D4953 C-DIODE 1SS352 223234R2 1 DIS8264 D4953 or C-DIODE 1SS355 223269R2 ( 1) DIS8264 D6781 C-DIODE 1SS352 223234R2 1 DIS8264 D6781 or C-DIODE 1SS355 223269R2 ( 1) DIS8264 D7501 LED SEL2E10C 225374 1 DIS8264 D7503 LED SEL2E10C 225374 1 DIS8264 D7505 LED SEL2E10C 225374 1 DIS8264 D7507 C-DIODE 1SS352 223234R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53/113 PAGE DIS8264 D7507 or C-DIODE 1SS355 223269R2 ( 1) DIS8264 D7508 ZENER D UDZ2.4B 224490240R2 1 DIS8264 D7509 LED SEL2E10C 225374 1 DIS8264 D7510 LED SEL2910A-TP6 225390 1 DIS8264 D7511 LED SEL2910A-TP6 225390 1 DIS8264 D7701 LED SEL4110R 225290 1 DIS8264 E4602 CLAMP WS-2NS 27300833 1 DIS8264 E4603 CLAMP WS-2NS 27300833 1 DIS8264 E4953 RETAINER KANAGU(ｱｰｽ) 27141059 1 DIS8264 L4951 CHOKE COIL NCH-1471 231237M022R2 1 DIS8264 L4952 CHOKE COIL NCH-1471 231237M022R2 1 DIS8264 L4953 CHOKE COIL NCH-1471 231237M022R2 1 DIS8264 L4954 CHOKE COIL NCH-1471 231237M022R2 1 DIS8264 L4955 CHOKE COIL NCH-1471 231237M022R2 1 DIS8264 L4956 CHOKE COIL NCH-1571 233530R2 1 DIS8264 L4999 EMIFIL BK1608LM182-T 230958R1 1 DIS8264 P4005B PLUG NPLG-5P119 25055135 1 DIS8264 P4011 BUS BAR BBL40 27141867 1 DIS8264 P4202B PLUG BM15B-SRSS-TB 25056378R2 N 1 DIS8264 P4203B PLUG NPLG-14P1111 25056172R2 N 1 DIS8264 P4571B PLUG NPLG-8P1105 25056166R2 N 1 DIS8264 P4950B PLUG NPLG-7P135 25055151 1 DIS8264 P4955 PIN JACK NPJ-2PDB400 25045589 1 DIS8264 P4956 ST JACK HSJ1002-01-1020 25045647 1 DIS8264 P4958 PIN JACK NPJ-1PDOR442 25045636 1 DIS8264 P4959 PIN JACK NPJ-1PDOR442 25045636 1 DIS8264 P4960 PIN JACK NPJ-2PDWR404 25045593 1 DIS8264 P4961 PIN JACK NPJ-6PDWRLEGP506 25045715 1 DIS8264 P4964 PIN JACK NPJ-2PDLE507 25045716 1 DIS8264 P6005B PLUG NPLG-8P1105 25056166R2 1 DIS8264 P6551B PLUG NPLG-9P1106 25056167R2 1 DIS8264 P6703A PLUG NPLG-10P1107 25056168R2 1 DIS8264 P6781 ST JACK HSJ1501-011010 25045581R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54/113 PAGE DIS8264 P7010B PLUG NPLG-4P1101 25056162R2 1 DIS8264 P7201B SOCKET NSCT-26P2696 25052800R2 N 1 DIS8264 P7801A WIRE HOL NSCT-12P883 25051096 1 DIS8264 P7801B WIRE TRAP NPLG-12P595 25055633 1 DIS8264 P7801C JUMPER LEAD UL2651#26 2J100606B15 1 DIS8264 Q4201 TR 2SB1565-E 2202715 1 DIS8264 Q4201 or TR 2SB1565-F 2202716 ( 1) DIS8264 Q4201A HEAT SINK RAD-157 27160491 1 DIS8264 Q4201B SCREW 3P+10FN(BC) 82143010 1 DIS8264 Q4202 TR 2SD2394-E 2202705 1 DIS8264 Q4202 or TR 2SD2394-F 2202706 ( 1) DIS8264 Q4202A HEAT SINK RAD-157 27160491 1 DIS8264 Q4202B SCREW 3P+10FN(BC) 82143010 1 DIS8264 Q4203 TR 2SC2712-GR 2213145R2 1 DIS8264 Q4204 TR 2SA1162-GR 2214375R2 1 DIS8264 Q4207 TR RN1407 2216260R2 1 DIS8264 Q4207 or TR DTC114YKA 2216470R2 ( 1) DIS8264 Q4208 TR DTC114YKA 2216470R2 1 DIS8264 Q4701 IC NJM4580M-D 22241448R2 1 DIS8264 Q4702 TR HN1C03F-B 2216141R2 1 DIS8264 Q4703 TR HN1C03F-B 2216141R2 1 DIS8264 Q4704 TR RN2403 2214540R2 1 DIS8264 Q4704 or TR DTA124EKA 2216240R2 ( 1) DIS8264 Q4705 TR RN2403 2214540R2 1 DIS8264 Q4705 or TR DTA124EKA 2216240R2 ( 1) DIS8264 Q4751 IC NJM4580M-D 22241448R2 1 DIS8264 Q4752 TR HN1C03F-B 2216141R2 1 DIS8264 Q4753 TR HN1C03F-B 2216141R2 1 DIS8264 Q4755 TR 2SC2712-GR 2213145R2 1 DIS8264 Q4756 TR 2SC2712-GR 2213145R2 1 DIS8264 Q4757 TR 2SA1162-GR 2214375R2 1 DIS8264 Q4758 TR RN1407 2216260R2 1 DIS8264 Q4758 or TR DTC114YKA 2216470R2 ( 1) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55/113 PAGE DIS8264 Q4801 IC NJM4580M-D 22241448R2 1 DIS8264 Q4802 TR HN1C03F-B 2216141R2 1 DIS8264 Q4803 TR HN1C03F-B 2216141R2 1 DIS8264 Q4804 TR RN2403 2214540R2 1 DIS8264 Q4804 or TR DTA124EKA 2216240R2 ( 1) DIS8264 Q4805 TR RN2403 2214540R2 1 DIS8264 Q4805 or TR DTA124EKA 2216240R2 ( 1) DIS8264 Q4851 IC NJM4580M-D 22241448R2 1 DIS8264 Q4852 TR HN1C03F-B 2216141R2 1 DIS8264 Q4853 TR HN1C03F-B 2216141R2 1 DIS8264 Q4854 TR RN2403 2214540R2 1 DIS8264 Q4854 or TR DTA124EKA 2216240R2 ( 1) DIS8264 Q4855 TR RN2403 2214540R2 1 DIS8264 Q4855 or TR DTA124EKA 2216240R2 ( 1) DIS8264 Q4857 TR 2SC2712-GR 2213145R2 1 DIS8264 Q4858 TR 2SC2712-GR 2213145R2 1 DIS8264 Q4901 IC NJM4580M-D 22241448R2 1 DIS8264 Q4902 TR HN1C03F-B 2216141R2 1 DIS8264 Q4903 TR HN1C03F-B 2216141R2 1 DIS8264 Q4904 TR RN2403 2214540R2 1 DIS8264 Q4904 or TR DTA124EKA 2216240R2 ( 1) DIS8264 Q4905 TR RN2403 2214540R2 1 DIS8264 Q4905 or TR DTA124EKA 2216240R2 ( 1) DIS8264 Q4921 TR 2SA1162-GR 2214375R2 1 DIS8264 Q4951 IC 74HCU04F 222740046R2 1 DIS8264 Q4952 IC 74HCU04F 222740046R2 1 DIS8264 Q4953 TR RN1402 2214470R2 1 DIS8264 Q4953 or TR DTC114EKA 2216250R2 ( 1) DIS8264 Q4954 TR RN1402 2214470R2 1 DIS8264 Q4954 or TR DTC114EKA 2216250R2 ( 1) DIS8264 Q4955 PHT CP PC817X 24120080 1 DIS8264 Q4956 PHT CP TOTX179 24120094 1 DIS8264 Q4957 PHT CP TOTX179 24120094 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56/113 PAGE DIS8264 Q4958 TR 2SA1162-GR 2214375R2 1 DIS8264 Q4959 TR 2SA1162-GR 2214375R2 1 DIS8264 Q6781 TR 2SA1162-GR 2214375R2 1 DIS8264 Q6782 TR RN1402 2214470R2 1 DIS8264 Q6782 or TR DTC114EKA 2216250R2 ( 1) DIS8264 Q6783 PHT CP PC817X 24120080 1 DIS8264 Q7501 IC MPD780232GC-091-8BT 22241989R3 1 DIS8264 Q7502 FL TUBE 13-BT-211GNK 212247 N 1 DIS8264 Q7502A HOLDER (FL) 27191114 1 DIS8264 Q7503 TR 2SC2712-GR 2213145R2 1 DIS8264 Q7504 TR 2SC2712-GR 2213145R2 1 DIS8264 Q7505 TR IMT1A 2216270R2 1 DIS8264 Q7506 TR IMT1A 2216270R2 1 DIS8264 Q7507 TR IMT1A 2216270R2 1 DIS8264 Q7508 TR RN1407 2216260R2 1 DIS8264 Q7508 or TR DTC114YKA 2216470R2 ( 1) DIS8264 Q7509 TR RN1407 2216260R2 1 DIS8264 Q7509 or TR DTC114YKA 2216470R2 ( 1) DIS8264 Q7510 TR RN1407 2216260R2 1 DIS8264 Q7510 or TR DTC114YKA 2216470R2 ( 1) DIS8264 Q7511 TR IMT1A 2216270R2 1 DIS8264 Q7512 TR RN1407 2216260R2 1 DIS8264 Q7512 or TR DTC114YKA 2216470R2 ( 1) DIS8264 Q7513 TR IMT1A 2216270R2 1 DIS8264 Q7514 TR RN1407 2216260R2 1 DIS8264 Q7514 or TR DTC114YKA 2216470R2 ( 1) DIS8264 Q7515 TR IMT1A 2216270R2 1 DIS8264 Q7516 TR RN1407 2216260R2 1 DIS8264 Q7516 or TR DTC114YKA 2216470R2 ( 1) DIS8264 Q7517 TR IMT1A 2216270R2 1 DIS8264 Q7518 TR RN1407 2216260R2 1 DIS8264 Q7518 or TR DTC114YKA 2216470R2 ( 1) DIS8264 Q7703 TR RN1407 2216260R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57/113 PAGE DIS8264 Q7703 or TR DTC114YKA 2216470R2 ( 1) DIS8264 R4229 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4230 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4231 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4232 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4233 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4234 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4235 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R4236 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R4241 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4242 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4243 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4244 C-CARBON R RN72K1J-223JE 435032234R1 1 DIS8264 R4245 METAL O R RS1/2WBJ-2.2 443520224 1 DIS8264 R4246 METAL O R RS1/2WBJ-2.2 443520224 1 DIS8264 R4247 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4701 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4702 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4703 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4704 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4705 C-CARBON R RN72K1J-473JE 435034734R1 1 DIS8264 R4706 C-CARBON R RN72K1J-473JE 435034734R1 1 DIS8264 R4707 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4708 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4709 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4710 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4711 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4712 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4713 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4714 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4715 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4716 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4717 C-CARBON R RN72K1J-684JE 435036844R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58/113 PAGE DIS8264 R4718 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4751 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4752 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4753 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4754 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4755 C-CARBON R RN72K1J-473JE 435034734R1 1 DIS8264 R4756 C-CARBON R RN72K1J-473JE 435034734R1 1 DIS8264 R4757 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4758 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4759 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4760 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4761 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4762 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4763 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4764 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4765 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4766 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4767 C-CARBON R RN72K1J-272JE 435032724R1 1 DIS8264 R4768 C-CARBON R RN72K1J-272JE 435032724R1 1 DIS8264 R4769 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4770 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4771 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4772 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4773 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4774 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4775 C-CARBON R RN72K1J-182JE 435031824R1 1 DIS8264 R4776 C-CARBON R RN72K1J-182JE 435031824R1 1 DIS8264 R4777 C-CARBON R RN72K1J-272JE 435032724R1 1 DIS8264 R4778 C-CARBON R RN72K1J-473JE 435034734R1 1 DIS8264 R4801 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4802 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4803 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4804 C-CARBON R RN72K1J-102JE 435031024R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59/113 PAGE DIS8264 R4805 C-CARBON R RN72K1J-473JE 435034734R1 1 DIS8264 R4806 C-CARBON R RN72K1J-473JE 435034734R1 1 DIS8264 R4807 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4808 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4809 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4810 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4811 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4812 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4813 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4814 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4815 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4816 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4817 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4818 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4851 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4852 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4853 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4854 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4855 C-CARBON R RN72K1J-473JE 435034734R1 1 DIS8264 R4856 C-CARBON R RN72K1J-473JE 435034734R1 1 DIS8264 R4857 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4858 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4859 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4860 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4861 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4862 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4863 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4864 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4865 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4866 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4867 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4868 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4869 C-CARBON R RN72K1J-103JE 435031034R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60/113 PAGE DIS8264 R4870 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4871 C-CARBON R RN72K1J-272JE 435032724R1 1 DIS8264 R4872 C-CARBON R RN72K1J-272JE 435032724R1 1 DIS8264 R4901 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4902 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4903 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4904 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R4905 C-CARBON R RN72K1J-473JE 435034734R1 1 DIS8264 R4906 C-CARBON R RN72K1J-473JE 435034734R1 1 DIS8264 R4907 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4908 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4909 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4910 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4911 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4912 C-CARBON R RN72K1J-222JE 435032224R1 1 DIS8264 R4913 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4914 C-CARBON R RN72K1J-221JE 435032214R1 1 DIS8264 R4915 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4916 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4917 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4918 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4921 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4922 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4923 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4924 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4951 C-CARBON R RN72K1J-000JE 435030004R1 1 DIS8264 R4954 C-CARBON R RN72K1J-000JE 435030004R1 1 DIS8264 R4955 C-CARBON R RN72K1J-104JE 435031044R1 1 DIS8264 R4956 C-CARBON R RN72K1J-154JE 435031544R1 1 DIS8264 R4957 C-CARBON R RN72K1J-104JE 435031044R1 1 DIS8264 R4958 C-CARBON R RN72K1J-154JE 435031544R1 1 DIS8264 R4959 C-CARBON R RN72K1J-223JE 435032234R1 1 DIS8264 R4960 C-CARBON R RN72K1J-223JE 435032234R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61/113 PAGE DIS8264 R4961 C-CARBON R RN72K1J-332JE 435033324R1 1 DIS8264 R4962 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R4963 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4964 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4967 C-CARBON R RN72K1J-331JE 435033314R1 1 DIS8264 R4968 C-CARBON R RN72K1J-331JE 435033314R1 1 DIS8264 R4969 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4970 C-CARBON R RN72K1J-181JE 435031814R1 1 DIS8264 R4971 C-CARBON R RN72K1J-181JE 435031814R1 1 DIS8264 R4972 C-CARBON R RN72K1J-181JE 435031814R1 1 DIS8264 R4973 C-CARBON R RN72K1J-181JE 435031814R1 1 DIS8264 R4974 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4975 C-CARBON R RN72K1J-101JE 435031014R1 1 DIS8264 R4976 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4977 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R4978 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4979 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4980 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4981 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R4982 C-CARBON R RN72K1J-105JE 435031054R1 1 DIS8264 R4983 C-CARBON R RN72K1J-684JE 435036844R1 1 DIS8264 R6781 C-CARBON R RN72K1J-472JE 435034724R1 1 DIS8264 R6782 C-CARBON R RN72K1J-104JE 435031044R1 1 DIS8264 R6783 C-CARBON R RN72K1J-104JE 435031044R1 1 DIS8264 R6784 C-CARBON R RN72K1J-472JE 435034724R1 1 DIS8264 R6785 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R6786 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R6788 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R6790 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R6792 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R6794 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R6796 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R7501 C-CARBON R RN72K1J-391JE 435033914R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62/113 PAGE DIS8264 R7502 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R7503 C-CARBON R RN72K1J-821JE 435038214R1 1 DIS8264 R7504 C-CARBON R RN72K1J-102JE 435031024R1 1 DIS8264 R7505 C-CARBON R RN72K1J-182JE 435031824R1 1 DIS8264 R7506 C-CARBON R RN72K1J-391JE 435033914R1 1 DIS8264 R7507 C-CARBON R RN72K1J-560JE 435035604R1 1 DIS8264 R7508 C-CARBON R RN72K1J-122JE 435031224R1 1 DIS8264 R7509 C-CARBON R RN72K1J-000JE 435030004R1 1 DIS8264 R7510 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R7511 C-CARBON R RN72K1J-391JE 435033914R1 1 DIS8264 R7512 C-CARBON R RN72K1J-560JE 435035604R1 1 DIS8264 R7513 C-CARBON R RN72K1J-122JE 435031224R1 1 DIS8264 R7514 C-CARBON R RN72K1J-000JE 435030004R1 1 DIS8264 R7515 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R7516 C-CARBON R RN72K1J-391JE 435033914R1 1 DIS8264 R7517 C-CARBON R RN72K1J-122JE 435031224R1 1 DIS8264 R7518 C-CARBON R RN72K1J-560JE 435035604R1 1 DIS8264 R7519 C-CARBON R RN72K1J-000JE 435030004R1 1 DIS8264 R7520 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R7521 C-CARBON R RN72K1J-272JE 435032724R1 1 DIS8264 R7522 C-CARBON R RN72K1J-272JE 435032724R1 1 DIS8264 R7523 C-CARBON R RN72K1J-272JE 435032724R1 1 DIS8264 R7524 C-CARBON R RN72K1J-272JE 435032724R1 1 DIS8264 R7525 C-CARBON R RN72K1J-472JE 435034724R1 1 DIS8264 R7526 C-CARBON R RN72K1J-472JE 435034724R1 1 DIS8264 R7527 C-CARBON R RN72K1J-472JE 435034724R1 1 DIS8264 R7528 C-CARBON R RN72K1J-153JE 435031534R1 1 DIS8264 R7529 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R7530 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R7531 C-CARBON R RN72K1J-223JE 435032234R1 1 DIS8264 R7532 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R7533 C-CARBON R RN72K1J-220JE 435032204R1 1 DIS8264 R7534 C-CARBON R RN72K1J-220JE 435032204R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63/113 PAGE DIS8264 R7535 C-CARBON R RN72K1J-220JE 435032204R1 1 DIS8264 R7536 C-CARBON R RN72K1J-220JE 435032204R1 1 DIS8264 R7537 C-CARBON R RN72K1J-220JE 435032204R1 1 DIS8264 R7538 C-CARBON R RN72K1J-000JE 435030004R1 1 DIS8264 R7540 C-CARBON R RN72K1J-391JE 435033914R1 1 DIS8264 R7541 C-CARBON R RN72K1J-560JE 435035604R1 1 DIS8264 R7542 C-CARBON R RN72K1J-122JE 435031224R1 1 DIS8264 R7544 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R7545 C-CARBON R RN72K1J-391JE 435033914R1 1 DIS8264 R7546 C-CARBON R RN72K1J-471JE 435034714R1 1 DIS8264 R7547 C-CARBON R RN72K1J-391JE 435033914R1 1 DIS8264 R7548 C-CARBON R RN72K1J-560JE 435035604R1 1 DIS8264 R7549 C-CARBON R RN72K1J-122JE 435031224R1 1 DIS8264 R7551 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R7553 C-CARBON R RN72K1J-103JE 435031034R1 1 DIS8264 R7554 C-CARBON R RN72K1J-000JE 435030004R1 1 DIS8264 R7555 C-CARBON R RN72K1J-391JE 435033914R1 1 DIS8264 R7556 C-CARBON R RN72K1J-560JE 435035604R1 1 DIS8264 R7557 C-CARBON R RN72K1J-122JE 435031224R1 1 DIS8264 R7558 C-CARBON R RN72K1J-000JE 435030004R1 1 DIS8264 R7565 C-CARBON R RN72K1J-104JE 435031044R1 1 DIS8264 R7566 C-CARBON R RN72K1J-104JE 435031044R1 1 DIS8264 R7567 C-CARBON R RN72K1J-104JE 435031044R1 1 DIS8264 R7568 C-CARBON R RN72K1J-104JE 435031044R1 1 DIS8264 R7705 C-CARBON R RN72K1J-561JE 435035614R1 1 DIS8264 S7501 PUSH SW NPS-111-S681 25035718 1 DIS8264 S7502 PUSH SW NPS-111-S681 25035718 1 DIS8264 S7503 PUSH SW NPS-111-S681 25035718 1 DIS8264 S7504 PUSH SW NPS-111-S681 25035718 1 DIS8264 S7505 PUSH SW NPS-111-S681 25035718 1 DIS8264 S7506 PUSH SW NPS-111-S681 25035718 1 DIS8264 S7701 PUSH SW NPS-111-S681 25035718 1 DIS8264 S7703 PUSH SW NPS-111-S681 25035718 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64/113 PAGE DIS8264 S7705 PUSH SW NPS-111-S681 25035718 1 DIS8264 U7501 REMO SENS PIC-37043TH2 241336 1 DIS8264 X7501 CERA LOCK CST5.00MGW 3010242 1 PCB NO. CIRCUIT NPART NAME DESCRIPTION PART NO. REMARKS PS8269 D9101 C-DIODE 1SS352 223234R2 1 PS8269 D9102 DIODE RBV602 22380038F 1 PS8269 D9103 C-DIODE 1SS352 223234R2 1 PS8269 D9104 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9105 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9106 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9107 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9108 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9109 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9110 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9111 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9112 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9113 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9114 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9115 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9116 C-DIODE 1SR154-400 22380284R2 1 PS8269 D9121 C-DIODE 1SS352 223234R2 1 PS8269 D9122 C-DIODE 1SS352 223234R2 1 PS8269 D9123 DIODE RK16 22380320 1 PS8269 D9124 DIODE RK16 22380320 1 PS8269 D9125 DIODE RK46 22380296F 1 PS8269 D9126 DIODE RK46 22380296F 1 PS8269 D9601 C-DIODE RB051L-40 223265R2 1 PS8269 D9602 C-DIODE RB051L-40 223265R2 1 PS8269 D9603 C-DIODE RB051L-40 223265R2 1 PS8269 D9604 C-DIODE RB051L-40 223265R2 1 PS8269 D9605 ZENER D UDZS5.1B 224550510R2 1 PS8269 D9606 C-DIODE 1SS352 223234R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65/113 PAGE PS8269 Q9101 IC(REGULATOR) MPC29M05HF 22278005ENE 1 PS8269 Q9102 IC SI-8015JF 22242082 N 1 PS8269 Q9103 IC SI-8050JF 22242083 N 1 PS8269 Q9104 IC SI-8033S 22242084 N 1 PS8269 Q9601 TR RN1407 2216260R2 1 PS8269 Q9602 TR RN2403 2214540R2 1 PS8269 Q9603 TR RN1407 2216260R2 1 PS8269 Q9604 TR 2SC2120-Y 2211164 1 PS8269 L9001 CHOKE COIL NCH-3561 231280 1 PS8269 L9101 CHOKE COIL NCH-3582K101 231303K101 1 PS8269 L9102 CHOKE COIL NCH-3582K101 231303K101 1 PS8269 L9103 CHOKE COIL NCH-3582K101 231303K101 1 PS8269 C9001 IS C DE1310E472M-KH 3300054 1 PS8269 C9002 IS C DE1310E472M-KH 3300054 1 PS8269 C9101 TF C ECQ-V50V-334J 374723344 1 PS8269 C9102 TF C ECQ-V50V-334J 374723344 1 PS8269 C9103 TF C ECQ-V50V-334J 374723344 1 PS8269 C9104 TF C ECQ-V50V-334J 374723344 1 PS8269 C9105 TF C ECQ-V50V-334J 374723344 1 PS8269 C9106 TF C ECQ-V50V-334J 374723344 1 PS8269 C9107 TF C ECQ-V50V-334J 374723344 1 PS8269 C9108 ELECT C CE69W35V-3300M 3504317 1 PS8269 C9109 VX C CE04W16V-2200M(VX) 393342227S 1 PS8269 C9110 VX C CE04W16V-2200M(VX) 393342227S 1 PS8269 C9111 ELECT C CE69W25V-2200M 3504369 1 PS8269 C9112 ELECT C CE69W25V-2200M 3504369 1 PS8269 C9113 ELECT C CE69W25V-2200M 3504369 1 PS8269 C9114 VX C CE04W50V-4.7M(VX) 393380477 1 PS8269 C9115 VX C CE04W6.3V-47M(VX) 393324707 1 PS8269 C9116 C-CERA C CK725F1H-104Z1 332151040R1 1 PS8269 C9117 VX C CE04W35V-47M(VX) 393364707 1 PS8269 C9118 VX C CE04W35V-47M(VX) 393364707 1 PS8269 C9119 C-CERA C CK725F1H-104Z1 332151040R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66/113 PAGE PS8269 C9120 C-CERA C CK725F1H-104Z1 332151040R1 1 PS8269 C9121 C-CERA C CK725F1H-104Z1 332151040R1 1 PS8269 C9122 VX C CE04W6.3V-470M(VX) 393324717 1 PS8269 C9123 VX C CE04W6.3V-470M(VX) 393324717 1 PS8269 C9124 C-CERA C CK725F1H-104Z1 332151040R1 1 PS8269 C9125 C-CERA C CK725F1H-104Z1 332151040R1 1 PS8269 C9126 C-CERA C CK725F1H-104Z1 332151040R1 1 PS8269 C9127 VX C CE04W6.3V-470M(VX) 393324717 1 PS8269 C9128 C-CERA C CK725F1H-104Z1 332151040R1 1 PS8269 C9129 VX C CE04W35V-47M(VX) 393364707 1 PS8269 C9601 VX C CE04W16V-470M(VX) 393344717 1 PS8269 C9602 C-CERA C CK725F1H-104Z1 332151040R1 1 PS8269 C9603 VX C CE04W16V-470M(VX) 393344717 1 PS8269 R9101 METAL R RNU1/2WCJ-0.22 453532294 1 PS8269 R9102 METAL R RNU1/2WCJ-0.22 453532294 1 PS8269 R9103 METAL R RNU1/2WCJ-0.22 453532294 1 PS8269 R9104 METAL R RNU1/2WCJ-1 453530104 1 PS8269 R9105 METAL R RNU1/2WCJ-0.22 453532294 1 PS8269 R9106 METAL R RNU1/2WCJ-0.22 453532294 1 PS8269 R9107 METAL R RNU1/2WCJ-0.22 453532294 1 PS8269 R9108 C-CARBON R RN72K1J-103JE 435031034R1 1 PS8269 R9109 METAL R RNU1/2WCJ-0.22 453532294 1 PS8269 R9110 METAL R RNU1/2WCJ-0.22 453532294 1 PS8269 R9111 METAL R RNU1/2WCJ-0.22 453532294 1 PS8269 R9112 METAL R RNU1/2WCJ-0.22 453532294 1 PS8269 R9113 METAL R RNU1/2WCJ-0.22 453532294 1 PS8269 R9114 METAL R RNU1/2WCJ-1 453530104 1 PS8269 R9115 C-CARBON R RN72K1J-223JE 435032234R1 1 PS8269 R9116 C-CARBON R RN72K1J-182JE 435031824R1 1 PS8269 R9117 C-CARBON R RN72K1J-681JE 435036814R1 1 PS8269 R9120 C-CARBON R RN72K1J-000JE 435030004R1 1 PS8269 R9121 C-CARBON R RN72K1J-000JE 435030004R1 1 PS8269 R9601 C-CARBON R RN72K1J-101JE 435031014R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67/113 PAGE PS8269 R9602 C-CARBON R RN72K1J-102JE 435031024R1 1 PS8269 R9603 C-CARBON R RN72K1J-472JE 435034724R1 1 PS8269 R9604 METAL O R RS1/2WBJ-100 443521014 1 PS8269 R9605 METAL O R RS1/2WBJ-100 443521014 1 PS8269 R9606 C-CARBON R RN72K1J-151JE 435031514R1 1 PS8269 R9607 C-CARBON R RN72K1J-332JE 435033324R1 1 PS8269 R9608 C-CARBON R RN72K1J-000JE 435030004R1 1 PS8269 E9001 CLAMP WS-2NS 27300833 1 PS8269 E9601 TRM NTM-1P243(M1699) 25060312 1 PS8269 E9602 TRM NTM-1P243(M1699) 25060312 1 PS8269 E9603 TRM NTM-1P243(M1699) 25060312 1 PS8269 E9604 TRM NTM-1P243(M1699) 25060312 1 PS8269 F9001A FUSE HOL NSCT-1P2031 25052133 1 PS8269 F9001B FUSE HOL NSCT-1P2031 25052133 1 PS8269 P9005A PLUG NPLG-2P632 25055676 1 PS8269 P9007A PLUG NPLG-3P150 25055166 1 PS8269 P9008A PLUG NPLG-7P154 25055170 1 PS8269 P9102A PLUG NPLG-8P136 25055152 1 PS8269 P9103A PLUG NPLG-4P132 25055148 1 PS8269 P9104A PLUG NPLG-11P139 25055155 1 PS8269 P9104B PLUG NPLG-11P358 25055375 1 PS8269 P9105 CRIMP AS CRIMP AS 2069943106UL 1 PS8269 P9503 SOCKET AS NSAS-4P0994 2009990712AUL 1 PS8269 P9601A PLUG NPLG-12P140 25055156 1 PS8269 P9602A PLUG NPLG-14P142 25055158 1 PS8269 P9604A PLUG NPLG-15P143 25055159 1 PS8269 Q9102A RADIATOR RAD51(B) 27160220-1 1 PS8269 Q9102B SCREW 3P+6FN(BC) 82143006 1 PS8269 Q9103A RADIATOR RAD51(B) 27160220-1 1 PS8269 Q9103B SCREW 3P+6FN(BC) 82143006 1 PS8269 Q9104A RADIATOR RAD51(B) 27160220-1 1 PS8269 Q9104B SCREW 3P+6FN(BC) 82143006 1 PS8269 P9001A AC INLET NPLG-2P913 25055960 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68/113 PAGE PS8269 E9801 LABEL T2.5AL250V 29361747 1 PS8269 P9001A AC INLET NPLG-2P913 25055960 1 PS8269 E9801 FUSE LABEL 2.5A125V 29363738 N, 1 PCB NO. CIRCUIT NPART NAME DESCRIPTION PART NO. REMARKS DG8272 C5001 C-CERA C CK725B1E-473K1 332114735R1 1 DG8272 C5002 C-CERA C CK725B1E-473K1 332114735R1 1 DG8272 C5003 C-CERA C CK725B1E-473K1 332114735R1 1 DG8272 C5004 C-CERA C CK725B1E-473K1 332114735R1 1 DG8272 C5005 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8272 C5006 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5007 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5008 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5009 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5010 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5011 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5012 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5013 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5015 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5016 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5017 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5018 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5019 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5020 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5021 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5022 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5023 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5024 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5025 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5026 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5027 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5028 C-CERA C CC725CH1H-180J1 342101804R1 1 DG8272 C5029 C-CERA C CC725CH1H-150J1 342101504R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69/113 PAGE DG8272 C5030 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5031 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5033 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8272 C5034 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8272 C5035 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5037 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8272 C5038 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5039 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5040 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5041 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5042 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C5043 C-CERA C CC725CH1H-102J1 342101024R1 1 DG8272 C5044 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8272 C5045 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8272 C5046 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8272 C5101 C-CERA C CK725F1H-473Z1 332154730R1 1 DG8272 C5201 C-CERA C CK725F1H-473Z1 332154730R1 1 DG8272 C5251 C-CERA C CK725F1H-473Z1 332154730R1 1 DG8272 C5503 C-CERA C CK725B1E-473K1 332114735R1 1 DG8272 C5504 C-CERA C CK725B1E-473K1 332114735R1 1 DG8272 C5603 C-CERA C CK725B1E-473K1 332114735R1 1 DG8272 C5703 C-CERA C CK725B1E-473K1 332114735R1 1 DG8272 C8001 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8002 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8003 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8004 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8006 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8010 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8011 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8012 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8013 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8014 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8019 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70/113 PAGE DG8272 C8020 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8021 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8022 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8023 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8024 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8025 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8026 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8027 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8028 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8029 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8030 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8272 C8031 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8032 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8272 C8033 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8034 C-CERA C CC725CH1H-101J1 342101014R1 1 DG8272 C8035 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8272 C8036 C-CERA C CC725CH1H-050C1 342100501R1 1 DG8272 C8038 C-CERA C CC725CH1H-050C1 342100501R1 1 DG8272 C8040 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8041 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8042 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8043 CHIP ELECT C CEWX16V-10M 356741009R2 1 DG8272 C8044 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8045 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8047 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8048 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8049 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8050 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8052 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8053 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8054 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8055 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8056 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71/113 PAGE DG8272 C8057 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8272 C8058 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8059 C-CERA C CC725CH1H-100D1 342101002R1 1 DG8272 C8060 C-CERA C CC725CH1H-100D1 342101002R1 1 DG8272 C8061 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8062 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8063 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8064 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8067 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8272 C8068 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8069 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8070 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8071 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8072 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8073 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8074 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8075 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8076 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8078 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8272 C8079 CHIP ELECT C CEWX16V-10M 356741009R2 1 DG8272 C8080 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8101 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8102 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8103 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8104 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8105 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8106 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8108 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8109 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8110 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8111 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8112 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8113 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72/113 PAGE DG8272 C8115 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8116 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8118 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8119 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8120 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8121 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8122 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8123 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8124 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8125 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8126 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8127 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8128 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8129 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8130 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8131 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8132 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8133 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8134 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8135 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8136 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8137 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8138 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8139 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8272 C8140 C-CERA C CC725CH1H-220J1 342102204R1 1 DG8272 C8141 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8142 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8201 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8272 C8202 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8204 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8205 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8206 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8210 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73/113 PAGE DG8272 C8212 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8213 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8214 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8218 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8220 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8221 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8222 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8226 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8228 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8229 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8230 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8231 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8232 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8234 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8236 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8237 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8238 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8241 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8272 C8242 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8301 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8302 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8303 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8272 C8304 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8305 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8306 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8307 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8272 C8308 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8309 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8310 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8311 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8312 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8313 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8314 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74/113 PAGE DG8272 C8315 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8272 C8316 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8317 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8318 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8319 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8320 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8321 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8322 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8323 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8324 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8325 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8326 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8327 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8328 CHIP ELECT C CEWX16V-22M 356742209R2 1 DG8272 C8329 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8330 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8331 CHIP ELECT C CEWX16V-10M 356741009R2 1 DG8272 C8332 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8701 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8702 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8703 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8704 CHIP ELECT C CEWX50V-4.7M 356780479R2 1 DG8272 C8705 C-CERA C CK725F1E-104Z1 332161040R1 1 DG8272 C8706 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8707 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8708 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 C8709 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8272 C8710 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8272 D5101 C-DIODE 1SS226 223266R2 1 DG8272 D5201 C-DIODE 1SS226 223266R2 1 DG8272 D5251 C-DIODE 1SS226 223266R2 1 DG8272 D8001 LED SEC1801C 225386R2 1 DG8272 D8002 LED SEC1401C 225383R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75/113 PAGE DG8272 D8003 LED SEC1201C 225385R2 1 DG8272 D8004 LED SEC1201C 225385R2 1 DG8272 D8005 LED SEC1401C 225383R2 1 DG8272 D8701 C-DIODE 1SS352 223234R2 1 DG8272 L5001 CHOKE COIL NCH-1471 231237K022R2 1 DG8272 L5002 CHOKE COIL NCH-1471 231237K022R2 1 DG8272 L5003 CHOKE COIL NCH-1471 231237K022R2 1 DG8272 L5004 CHOKE COIL NCH-1471 231237K022R2 1 DG8272 L5005 CHOKE COIL NCH-1471 231237K022R2 1 DG8272 L8001 CHOKE COIL NCH-1471 231237M022R2 1 DG8272 L8002 CHOKE COIL NCH-1471 231237M022R2 1 DG8272 L8003 CHOKE COIL NCH-1471 231237M022R2 1 DG8272 L8004 CHOKE COIL NCH-1471 231237M022R2 1 DG8272 L8005 CHOKE COIL NCH-1471 231237M022R2 1 DG8272 L8006 CHOKE COIL NCH-1471 231237M022R2 1 DG8272 L8101 CHOKE COIL NCH-1471 231237M022R2 1 DG8272 L8102 CHOKE COIL NCH-1471 231237M022R2 1 DG8272 L8103 CHOKE COIL NCH-1471 231237M022R2 1 DG8272 L8301 CHOKE COIL NCH-1473 231237M047R2 1 DG8272 L8302 CHOKE COIL NCH-1471 231237M022R2 1 DG8272 L8303 CHOKE COIL NCH-1473 231237M047R2 1 DG8272 L8304 CHOKE COIL NCH-1471 231237M022R2 1 DG8272 L8701 CHOKE COIL NCH-1473 231237M047R2 1 DG8272 P4003B PLUG NPLG-4P930 25055977R2 N 1 DG8272 P5001A PLUG(B to B) IMSA-9850B-22Y900 25056206R2 1 DG8272 P5002A PLUG NPLG-6P932 25055979R2 1 DG8272 P5101 PIN JACK NPJ-1PDYE402 25045591 1 DG8272 P5201 SOCKET NSCT-4P1742 25051955 1 DG8272 P5401A PLUG CPB8348-0211 25056437R2 1 DG8272 P8001A PLUG(B to B) IMSA-9850B-28Y900 25056209R2 N 1 DG8272 P8002A PLUG(B to B) IMSA-9850B-20Y900 25056205R2 1 DG8272 P8302 HDMI JACK DC1R019JDA 25052956R3 N 1 DG8272 P8701A PLUG(B to B) IMSA-9850B-10Y900 25056200R2 N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76/113 PAGE DG8272 P8702 PLUG NPLG-8P660 25055704 1 DG8272 Q5001 IC SAA7118E 22242060R3 1 DG8272 Q5002 IC TC74VCX162244FT 2227C244DR2TO 1 DG8272 Q5004 TR 2SK3019 2216520R2 1 DG8272 Q5005 TR 2SK3019 2216520R2 1 DG8272 Q8001 IC Sil504 22242049R3 1 DG8272 Q8002 IC MC504 22242050R9 N 1 DG8272 Q8003 IC IC42S32200L-7TG 22242056R2 N 1 DG8272 Q8003 or IC IS42S32200B-7T 22242031R3 ( 1) DG8272 Q8004 IC TC7WZU04FU 22242078R2TO N 1 DG8272 Q8005 IC TC74VCX162244FT 2227C244DR2TO N 1 DG8272 Q8006 IC TC74VCX162244FT 2227C244DR2TO 1 DG8272 Q8007 IC LM1117MPX-ADJ 22241648R2 1 DG8272 Q8008 TR 2SK3019 2216520R2 1 DG8272 Q8101 IC REMBRANDT-1A 22242051R3 1 DG8272 Q8102 IC(REGURATOR) MPC2918T 22278018ER2NE 1 DG8272 Q8201 IC IC42S16400-7T 22241910R2 1 DG8272 Q8201 or IC IC42S16400-7T 22241910R3 ( 1) DG8272 Q8202 IC IC42S16400-7T 22241910R2 1 DG8272 Q8202 or IC IC42S16400-7T 22241910R3 ( 1) DG8272 Q8203 IC IC42S16400-7T 22241910R2 1 DG8272 Q8203 or IC IC42S16400-7T 22241910R3 ( 1) DG8272 Q8204 IC IC42S16400-7T 22241910R2 1 DG8272 Q8204 or IC IC42S16400-7T 22241910R3 ( 1) DG8272 Q8205 IC IC42S16400-7T 22241910R2 1 DG8272 Q8205 or IC IC42S16400-7T 22241910R3 ( 1) DG8272 Q8301 IC SiI9190CTG64 22242052R3 1 DG8272 Q8302 IC TC7SZ125FU 22241895R2 1 DG8272 Q8303 IC TC7SZ125FU 22241895R2 1 DG8272 Q8304 IC NJM2860F3-33 22242087R2 N 1 DG8272 Q8305 IC NJM2860F3-05 22242105R2 N 1 DG8272 Q8306 TR HN1C03F-B 2216141R2 1 DG8272 Q8307 TR 2SA1774 2216410R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77/113 PAGE DG8272 Q8308 TR 2SB1132 2216400R2 1 DG8272 Q8309 TR NDC7002N 2216870R2 N 1 DG8272 Q8701 IC MPD70F3261YGC-8EA(0089) NSP N 1 DG8272 Q8702 TR NDC7002N 2216870R2 N 1 DG8272 Q8703 TR NDC7002N 2216870R2 N 1 DG8272 Q8704 IC BR24L08FV-W 22242070R2 N 1 DG8272 Q8705 TR NDC7002N 2216870R2 N 1 DG8272 Q8706 IC S-80127CNMC-JKM-T2 22241642R2 1 DG8272 R5001 C-R NET RM7LJ220X04 43484722004R2 1 DG8272 R5002 C-R NET RM7LJ220X04 43484722004R2 1 DG8272 R5003 C-CARBON R RN72K1J-220FE 435032202R1 1 DG8272 R5004 C-CARBON R RN72K1J-220FE 435032202R1 1 DG8272 R5005 C-CARBON R RN72K1J-220FE 435032202R1 1 DG8272 R5006 C-CARBON R RN72K1J-220FE 435032202R1 1 DG8272 R5007 C-CARBON R RN72K1J-220FE 435032202R1 1 DG8272 R5009 C-CARBON R RN72K1J-332FE 435033322R1 1 DG8272 R5011 C-CARBON R RN72K1J-332FE 435033322R1 1 DG8272 R5012 C-CARBON R RN72K1J-220FE 435032202R1 1 DG8272 R5016 C-CARBON R RN72K1J-220FE 435032202R1 1 DG8272 R5017 C-CARBON R RN72K1J-222FE 435032222R1 1 DG8272 R5018 C-CARBON R RN72K1J-222FE 435032222R1 1 DG8272 R5021 C-CARBON R RN72K1J-220FE 435032202R1 1 DG8272 R5022 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5023 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5024 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5025 C-CARBON R RN72K1J-222FE 435032222R1 1 DG8272 R5026 C-CARBON R RN72K1J-222FE 435032222R1 1 DG8272 R5091 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5092 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5093 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5094 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5095 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5096 C-CARBON R RN72K1J-000JE 435030004R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78/113 PAGE DG8272 R5101 C-CARBON R RN72K1J-180FE 435031802R1 1 DG8272 R5102 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8272 R5201 C-CARBON R RN72K1J-180FE 435031802R1 1 DG8272 R5202 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8272 R5251 C-CARBON R RN72K1J-180FE 435031802R1 1 DG8272 R5252 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8272 R5308 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5309 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5310 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5391 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5392 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5393 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5394 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5395 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5396 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R5511 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8272 R5611 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8272 R5711 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8272 R8001 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8002 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8003 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8004 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8272 R8005 C-R NET RM7LJ100X04 43484710004R2 N 1 DG8272 R8006 C-R NET RM7LJ100X04 43484710004R2 N 1 DG8272 R8008 C-R NET RM7LJ100X04 43484710004R2 N 1 DG8272 R8009 C-R NET RM7LJ100X04 43484710004R2 N 1 DG8272 R8011 C-R NET RM7LJ100X04 43484710004R2 N 1 DG8272 R8012 C-R NET RM7LJ100X04 43484710004R2 N 1 DG8272 R8013 C-CARBON R RN72K1J-100JE 435031004R1 1 DG8272 R8018 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8019 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8024 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8025 C-CARBON R RN72K1J-000JE 435030004R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79/113 PAGE DG8272 R8026 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8027 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8028 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8029 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8032 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8034 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8035 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8036 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8037 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8038 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8272 R8041 C-CARBON R RN72K1J-101JE 435031014R1 1 DG8272 R8042 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8272 R8043 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8272 R8044 C-CARBON R RN72K1J-104JE 435031044R1 1 DG8272 R8045 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8047 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8050 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8051 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8053 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8272 R8054 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8055 C-CARBON R RN72K1J-105JE 435031054R1 1 DG8272 R8056 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8057 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8058 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8059 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8060 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8061 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8062 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8064 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8065 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8066 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8272 R8067 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8068 C-CARBON R RN72K1J-102JE 435031024R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80/113 PAGE DG8272 R8071 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8073 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8074 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8075 C-CARBON R RN72K1J-105FE 435031052R1 1 DG8272 R8076 C-CARBON R RN72K1J-102FE 435031022R1 1 DG8272 R8078 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8079 C-CARBON R RN72K1J-151FE 435031512R1 1 DG8272 R8080 C-CARBON R RN72K1J-391FE 435033912R1 1 DG8272 R8081 C-CARBON R RN72K1J-272FE 435032722R1 1 DG8272 R8101 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8104 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8105 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8106 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8107 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8108 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8112 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8113 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8114 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8115 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8116 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8117 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8118 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8119 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8120 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8121 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8122 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8123 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8124 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8125 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8126 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8127 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8128 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8129 C-CARBON R RN72K1J-000JE 435030004R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81/113 PAGE DG8272 R8130 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8131 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8132 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8133 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8272 R8134 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8135 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8136 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8137 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8138 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8139 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8140 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8141 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8142 C-R NET RM7LJ220X04 43484722004R2 1 DG8272 R8143 C-R NET RM7LJ220X04 43484722004R2 1 DG8272 R8144 C-R NET RM7LJ220X04 43484722004R2 1 DG8272 R8145 C-R NET RM7LJ220X04 43484722004R2 1 DG8272 R8146 C-R NET RM7LJ220X04 43484722004R2 1 DG8272 R8147 C-R NET RM7LJ220X04 43484722004R2 1 DG8272 R8148 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8272 R8149 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8272 R8150 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8272 R8151 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8272 R8152 C-CARBON R RN72K1J-151JE 435031514R1 1 DG8272 R8153 C-CARBON R RN72K1J-151JE 435031514R1 1 DG8272 R8161 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8201 C-R NET RM7LJ471X04 43484747104R2 1 DG8272 R8202 C-R NET RM7LJ471X04 43484747104R2 1 DG8272 R8203 C-R NET RM7LJ471X04 43484747104R2 1 DG8272 R8204 C-R NET RM7LJ471X04 43484747104R2 1 DG8272 R8205 C-R NET RM7LJ471X04 43484747104R2 1 DG8272 R8206 C-R NET RM7LJ471X04 43484747104R2 1 DG8272 R8207 C-CARBON R RN72K1J-471JE 435034714R1 1 DG8272 R8209 C-R NET RM7LJ471X04 43484747104R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82/113 PAGE DG8272 R8210 C-R NET RM7LJ471X04 43484747104R2 1 DG8272 R8211 C-R NET RM7LJ471X04 43484747104R2 1 DG8272 R8212 C-R NET RM7LJ471X04 43484747104R2 1 DG8272 R8214 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8301 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8302 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8303 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8304 C-CARBON R RN72K1J-471JE 435034714R1 1 DG8272 R8305 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8306 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8272 R8307 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8272 R8308 C-CARBON R RN72K1J-104JE 435031044R1 1 DG8272 R8309 C-CARBON R RN72K1J-104JE 435031044R1 1 DG8272 R8310 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8311 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8312 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8313 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8314 C-CARBON R RN72K1J-561FE 435035612R1 1 DG8272 R8315 C-R NET RM7LJ000X04 43484700004R2 N 1 DG8272 R8316 C-R NET RM7LJ000X04 43484700004R2 N 1 DG8272 R8317 C-R NET RM7LJ000X04 43484700004R2 N 1 DG8272 R8318 C-R NET RM7LJ000X04 43484700004R2 N 1 DG8272 R8319 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8320 C-R NET RM7LJ000X04 43484700004R2 N 1 DG8272 R8321 C-R NET RM7LJ000X04 43484700004R2 N 1 DG8272 R8322 C-CARBON R RN72K1J-473JE 435034734R1 1 DG8272 R8323 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8324 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8325 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8326 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8327 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8272 R8328 C-CARBON R RN72K1J-332JE 435033324R1 1 DG8272 R8329 C-CARBON R RN72K1J-332JE 435033324R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83/113 PAGE DG8272 R8331 C-CARBON R RN72K1J-182JE 435031824R1 1 DG8272 R8332 C-CARBON R RN72K1J-332JE 435033324R1 1 DG8272 R8333 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8272 R8334 C-CARBON R RN72K1J-202JE 435032024R1 1 DG8272 R8335 C-CARBON R RN72K1J-202JE 435032024R1 1 DG8272 R8337 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8338 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8339 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8348 C-CARBON R RN72K1J-150FE 435031502R1 N 1 DG8272 R8349 C-CARBON R RN72K1J-102FE 435031022R1 1 DG8272 R8702 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8705 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8706 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8707 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8708 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8709 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8710 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 R8713 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8714 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8715 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8716 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8717 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8718 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8719 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8720 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8721 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8722 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8272 R8723 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8272 R8724 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8272 R8725 C-CARBON R RN72K1J-470JE 435034704R1 1 DG8272 R8726 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8272 R8727 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8272 R8728 C-R NET RM7LJ103X04 43484710304R2 N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84/113 PAGE DG8272 R8729 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8730 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8272 R8731 C-CARBON R RN72K1J-473JE 435034734R1 1 DG8272 R8732 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8733 C-CARBON R RN72K1J-473JE 435034734R1 1 DG8272 R8734 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8735 C-CARBON R RN72K1J-473JE 435034734R1 1 DG8272 R8736 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8737 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8272 R8738 C-CARBON R RN72K1J-473JE 435034734R1 1 DG8272 R8739 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8272 R8740 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8741 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8742 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8743 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8744 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8745 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8746 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8748 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8749 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8750 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8751 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8272 R8752 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8272 R8753 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8272 R8754 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8272 X5001 CRYSTAL FCX-03-24.576MHz 3010385R2 1 DG8272 X8001 CRYSTAL FCX03-20.000MHz 3010389R2 N 1 DG8272 X8002 CRYSTAL FCX-03MX-27MHz 3010355R2 N 1 DG8272 X8701 CERA LOCK CSTCR5M00G53-B0 3010356R2 1 PCB NO. CIRCUIT NPART NAME DESCRIPTION PART NO. REMARKS AR8263 C4004 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4005 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85/113 PAGE AR8263 C4008 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4009 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4010 CHIP ELECT C CEWX6.3V-220M 356722219R2 1 AR8263 C4011 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4012 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 AR8263 C4013 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 AR8263 C4014 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4015 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4016 CHIP ELECT C CEWX6.3V-220M 356722219R2 1 AR8263 C4017 C-CERA C CC725CH1H-120J1 342101204R1 1 AR8263 C4018 CHIP ELECT C CEWX6.3V-220M 356722219R2 1 AR8263 C4019 CHIP ELECT C CEWX6.3V-220M 356722219R2 1 AR8263 C4020 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4021 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4022 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4023 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4024 C-CERA C CC725CH1H-120J1 342101204R1 1 AR8263 C4026 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4028 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4031 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4032 CHIP ELECT C CEWX6.3V-220M 356722219R2 1 AR8263 C4033 C-CERA C CC725CH1H-080D1 342100802R1 1 AR8263 C4034 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4035 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4036 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4037 C-CERA C CC725CH1H-080D1 342100802R1 1 AR8263 C4038 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4039 C-CERA C CC725CH1H-220J1 342102204R1 1 AR8263 C4040 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4041 C-CERA C CC725CH1H-150J1 342101504R1 1 AR8263 C4042 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4043 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4044 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86/113 PAGE AR8263 C4045 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4046 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4047 C-CERA C CC725CH1H-150J1 342101504R1 1 AR8263 C4048 CHIP ELECT C CEWT6.3V-470M 395724717R2 1 AR8263 C4049 CHIP ELECT C CEWX6.3V-220M 356722219R2 1 AR8263 C4050 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4051 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4052 C-CERA C CC725CH1H-220J1 342102204R1 1 AR8263 C4053 C-CERA C CC725CH1H-470J1 342104704R1 1 AR8263 C4054 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4055 C-CERA C CC725CH1H-220J1 342102204R1 1 AR8263 C4056 C-CERA C CC725CH1H-102J1 342101024R1 1 AR8263 C4057 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4058 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4059 CHIP ELECT C CEWX6.3V-220M 356722219R2 1 AR8263 C4060 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4063 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4064 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4065 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4066 C-CERA C CK725F1A-105Z1 332181050R1 1 AR8263 C4207 CHIP ELECT C CEWX25V-100M 356751019R2 N 1 AR8263 C4208 CHIP ELECT C CEWX25V-100M 356751019R2 N 1 AR8263 C4209 CHIP ELECT C CEWX25V-100M 356751019R2 N 1 AR8263 C4210 CHIP ELECT C CEWX25V-100M 356751019R2 N 1 AR8263 C4302 CHIP ELECT C CEWX16V-10M 356741009R2 1 AR8263 C4303 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4305 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 AR8263 C4307 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 AR8263 C4309 CHIP ELECT C CE30W6.3V-100M(RVO) 396121017R2 N 1 AR8263 C4312 CHIP ELECT C CE30W6.3V-100M(RVO) 396121017R2 N 1 AR8263 C4321 TF C ECQ-B50V-821J 374728214 1 AR8263 C4322 TF C ECQ-B50V-821J 374728214 1 AR8263 C4323 TF C ECQ-B50V-821J 374728214 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87/113 PAGE AR8263 C4324 TF C ECQ-B50V-821J 374728214 1 AR8263 C4325 TF C ECQ-B50V-391K 374723915 1 AR8263 C4326 TF C ECQ-B50V-391K 374723915 1 AR8263 C4327 TF C ECQ-B50V-391K 374723915 1 AR8263 C4328 TF C ECQ-B50V-391K 374723915 1 AR8263 C4329 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4330 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4331 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4332 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4339 TF C ECQ-B50V-122J 374721224 1 AR8263 C4340 TF C ECQ-B50V-122J 374721224 1 AR8263 C4341 TF C ECQ-B50V-471J 374724714 1 AR8263 C4342 TF C ECQ-B50V-471J 374724714 1 AR8263 C4343 TF C ECQ-B50V-101K 374721015 1 AR8263 C4344 TF C ECQ-B50V-101K 374721015 1 AR8263 C4402 CHIP ELECT C CEWX16V-10M 356741009R2 1 AR8263 C4403 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4405 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 AR8263 C4407 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 AR8263 C4409 CHIP ELECT C CE30W6.3V-100M(RVO) 396121017R2 N 1 AR8263 C4412 CHIP ELECT C CE30W6.3V-100M(RVO) 396121017R2 N 1 AR8263 C4421 TF C ECQ-B50V-821J 374728214 1 AR8263 C4422 TF C ECQ-B50V-821J 374728214 1 AR8263 C4423 TF C ECQ-B50V-821J 374728214 1 AR8263 C4424 TF C ECQ-B50V-821J 374728214 1 AR8263 C4425 TF C ECQ-B50V-391K 374723915 1 AR8263 C4426 TF C ECQ-B50V-391K 374723915 1 AR8263 C4427 TF C ECQ-B50V-391K 374723915 1 AR8263 C4428 TF C ECQ-B50V-391K 374723915 1 AR8263 C4429 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4430 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4431 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4432 CHIP ELECT C CEWX16V-47M 356744709R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88/113 PAGE AR8263 C4439 TF C ECQ-B50V-122J 374721224 1 AR8263 C4440 TF C ECQ-B50V-122J 374721224 1 AR8263 C4441 TF C ECQ-B50V-471J 374724714 1 AR8263 C4442 TF C ECQ-B50V-471J 374724714 1 AR8263 C4443 TF C ECQ-B50V-101K 374721015 1 AR8263 C4444 TF C ECQ-B50V-101K 374721015 1 AR8263 C4502 CHIP ELECT C CEWX16V-10M 356741009R2 1 AR8263 C4503 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4505 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 AR8263 C4507 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 AR8263 C4509 CHIP ELECT C CE30W6.3V-100M(RVO) 396121017R2 N 1 AR8263 C4512 CHIP ELECT C CE30W6.3V-100M(RVO) 396121017R2 N 1 AR8263 C4521 TF C ECQ-B50V-821J 374728214 1 AR8263 C4522 TF C ECQ-B50V-821J 374728214 1 AR8263 C4523 TF C ECQ-B50V-821J 374728214 1 AR8263 C4524 TF C ECQ-B50V-821J 374728214 1 AR8263 C4525 TF C ECQ-B50V-391K 374723915 1 AR8263 C4526 TF C ECQ-B50V-391K 374723915 1 AR8263 C4527 TF C ECQ-B50V-391K 374723915 1 AR8263 C4528 TF C ECQ-B50V-391K 374723915 1 AR8263 C4529 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4530 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4531 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4532 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4539 TF C ECQ-B50V-122J 374721224 1 AR8263 C4540 TF C ECQ-B50V-122J 374721224 1 AR8263 C4541 TF C ECQ-B50V-471J 374724714 1 AR8263 C4542 TF C ECQ-B50V-471J 374724714 1 AR8263 C4543 TF C ECQ-B50V-101K 374721015 1 AR8263 C4544 TF C ECQ-B50V-101K 374721015 1 AR8263 C4602 CHIP ELECT C CEWX16V-10M 356741009R2 1 AR8263 C4603 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4605 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89/113 PAGE AR8263 C4607 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 AR8263 C4609 CHIP ELECT C CE30W6.3V-100M(RVO) 396121017R2 N 1 AR8263 C4612 CHIP ELECT C CE30W6.3V-100M(RVO) 396121017R2 N 1 AR8263 C4621 TF C ECQ-B50V-821J 374728214 1 AR8263 C4622 TF C ECQ-B50V-821J 374728214 1 AR8263 C4623 TF C ECQ-B50V-821J 374728214 1 AR8263 C4624 TF C ECQ-B50V-821J 374728214 1 AR8263 C4625 TF C ECQ-B50V-391K 374723915 1 AR8263 C4626 TF C ECQ-B50V-391K 374723915 1 AR8263 C4627 TF C ECQ-B50V-391K 374723915 1 AR8263 C4628 TF C ECQ-B50V-391K 374723915 1 AR8263 C4629 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4630 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4631 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4632 CHIP ELECT C CEWX16V-47M 356744709R2 1 AR8263 C4639 TF C ECQ-B50V-122J 374721224 1 AR8263 C4640 TF C ECQ-B50V-122J 374721224 1 AR8263 C4641 TF C ECQ-B50V-471J 374724714 1 AR8263 C4642 TF C ECQ-B50V-471J 374724714 1 AR8263 C4643 TF C ECQ-B50V-101K 374721015 1 AR8263 C4644 TF C ECQ-B50V-101K 374721015 1 AR8263 D4002 C-DIODE 1SS355 223269R2 1 AR8263 D4003 C-DIODE 1SS355 223269R2 1 AR8263 D4204 C-DIODE 1SS355 223269R2 1 AR8263 D4205 C-DIODE 1SS355 223269R2 1 AR8263 D4206 C-DIODE 1SS355 223269R2 1 AR8263 D4301 C-DIODE 1SS355 223269R2 1 AR8263 D4302 C-DIODE 1SS355 223269R2 1 AR8263 D4401 C-DIODE 1SS355 223269R2 1 AR8263 D4402 C-DIODE 1SS355 223269R2 1 AR8263 D4501 C-DIODE 1SS355 223269R2 1 AR8263 D4502 C-DIODE 1SS355 223269R2 1 AR8263 D4601 C-DIODE 1SS355 223269R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90/113 PAGE AR8263 D4602 C-DIODE 1SS355 223269R2 1 AR8263 E4001 RETAINER KANAGU(ｱｰｽ) 27141059 1 AR8263 L4001 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4002 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4005 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4007 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4008 CORE BLM41PG750SN1L 230950R2 1 AR8263 L4009 CORE BLM41PG750SN1L 230950R2 1 AR8263 L4010 CORE BLM41PG750SN1L 230950R2 1 AR8263 L4011 CORE BLM41PG750SN1L 230950R2 1 AR8263 L4301 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4302 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4303 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4401 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4402 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4403 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4501 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4502 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4503 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4601 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4602 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 L4603 CORE BLM41PG750SN1L 230950R2 N 1 AR8263 P1302B PLUG SM20B-SURS-TF 25056401R2 N 1 AR8263 P2003B PLUG SM20B-SURS-TF 25056401R2 N 1 AR8263 P2004B PLUG SM16B-SURS-TF 25056399R2 N 1 AR8263 P3002B PLUG SM11B-SRSS-TB 25056388R2 1 AR8263 P4003A PLUG NPLG-4P930 25055977R2 N 1 AR8263 P4005A PLUG NPLG-5P220 25055236 1 AR8263 P4007 PLUG NPLG-6P1103 25056164R2 N 1 AR8263 P4008A PLUG NPLG-5P931 25055978R2 1 AR8263 P4011 BUS BAR BBL40 27141867 1 AR8263 P4012 BUS BAR BBL15 27141869 1 AR8263 P4202A PLUG SM15B-SRSS-TB 25056392R2 N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91/113 PAGE AR8263 P4203A PLUG SM14B-SRSS-TB 25056391R2 N 1 AR8263 P4950A PLUG NPLG-7P933 25055980R2 1 AR8263 P9102B PLUG NPLG-8P934 25055981R2 1 AR8263 Q4005 IC CY7C1019BV33-15VCT 22241612R2 1 AR8263 Q4005 or IC CY7C1019CV33-15VCT 22241887R2 ( 1) AR8263 Q4006 IC CY7C1019BV33-15VCT 22241612R2 1 AR8263 Q4006 or IC CY7C1019CV33-15VCT 22241887R2 ( 1) AR8263 Q4007 IC 74HCT00AF(TC74HCT00AF) 222740007R2TO 1 AR8263 Q4008 IC TC7WH241FK 22242075R2TO N 1 AR8263 Q4009 IC(REGURAT NJM2391DL1-285 22278028DR2JR 1 AR8263 Q4010 IC TC74VHC74FT 22274074ER2TO 1 AR8263 Q4012 IC MB86344BPFV 22241847R3 1 AR8263 Q4013 IC TC7WT74FU 22242081R2TO 1 AR8263 Q4014 IC NJU6321PE 22241288R2 1 AR8263 Q4015 IC TC7WH241FK 22242075R2TO 1 AR8263 Q4016 IC NJU6321PE 22241288R2 1 AR8263 Q4017 IC TC9246F 22240928R2 1 AR8263 Q4018 IC TC7WH241FK 22242075R2TO N 1 AR8263 Q4019 IC TC7WH241FK 22242075R2TO N 1 AR8263 Q4020 IC TC7SZ125FU 22241895R2 1 AR8263 Q4021 IC TC7SZ125FU 22241895R2 1 AR8263 Q4022 IC TC7SZ125FU 22241895R2 1 AR8263 Q4207 TR RN1404 2214490R2 1 AR8263 Q4208 TR RN1404 2214490R2 1 AR8263 Q4213 TR RN1404 2214490R2 1 AR8263 Q4301 IC NJM2370U05 22241289R2 1 AR8263 Q4302 IC WM8719EDS 22242068R2 N 1 AR8263 Q4321 IC NJM4580M-D 22241448R2 1 AR8263 Q4322 IC NJM4580M-D 22241448R2 1 AR8263 Q4323 IC NJM4580M-D 22241448R2 1 AR8263 Q4324 IC NJM4580M-D 22241448R2 1 AR8263 Q4401 IC NJM2370U05 22241289R2 1 AR8263 Q4402 IC WM8719EDS 22242068R2 N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92/113 PAGE AR8263 Q4421 IC NJM4580M-D 22241448R2 1 AR8263 Q4422 IC NJM4580M-D 22241448R2 1 AR8263 Q4423 IC NJM4580M-D 22241448R2 1 AR8263 Q4424 IC NJM4580M-D 22241448R2 1 AR8263 Q4501 IC NJM2370U05 22241289R2 1 AR8263 Q4502 IC WM8719EDS 22242068R2 N 1 AR8263 Q4521 IC NJM4580M-D 22241448R2 1 AR8263 Q4522 IC NJM4580M-D 22241448R2 1 AR8263 Q4523 IC NJM4580M-D 22241448R2 1 AR8263 Q4524 IC NJM4580M-D 22241448R2 1 AR8263 Q4601 IC NJM2370U05 22241289R2 1 AR8263 Q4602 IC WM8719EDS 22242068R2 N 1 AR8263 Q4621 IC NJM4580M-D 22241448R2 1 AR8263 Q4622 IC NJM4580M-D 22241448R2 1 AR8263 Q4623 IC NJM4580M-D 22241448R2 1 AR8263 Q4624 IC NJM4580M-D 22241448R2 1 AR8263 R4001 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4004 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4008 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4012 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4014 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4015 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4016 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4017 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4018 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4019 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4020 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4021 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4022 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4023 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4024 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4025 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4026 C-CARBON R RN72K1J-000JE 435030004R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93/113 PAGE AR8263 R4027 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4028 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4029 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4030 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4031 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4032 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4033 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4036 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4037 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4038 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4039 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4040 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4041 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4042 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4043 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4050 METAL R RNU1/2WCJ-0.82 453538294T 1 AR8263 R4051 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4052 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4053 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4054 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4055 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4056 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4058 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4059 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4060 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4061 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4062 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4063 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4064 C-CARBON R RN72K1J-472JE 435034724R1 1 AR8263 R4065 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4066 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4067 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4071 C-CARBON R RN72K1J-560JE 435035604R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94/113 PAGE AR8263 R4072 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4073 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4074 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4075 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4076 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4077 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4078 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4079 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4081 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4082 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4083 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4084 C-CARBON R RN72K1J-103JE 435031034R1 1 AR8263 R4085 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4086 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4087 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4088 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4090 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4091 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4092 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4093 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4094 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4096 C-CARBON R RN72K1J-221JE 435032214R1 1 AR8263 R4097 C-CARBON R RN72K1J-331JE 435033314R1 1 AR8263 R4098 C-CARBON R RN72K1J-331JE 435033314R1 1 AR8263 R4099 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4100 C-CARBON R RN72K1J-331JE 435033314R1 1 AR8263 R4101 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4102 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4103 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4105 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4106 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4107 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4108 C-CARBON R RN72K1J-103JE 435031034R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95/113 PAGE AR8263 R4109 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4110 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4111 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4112 C-CARBON R RN72K1J-331JE 435033314R1 1 AR8263 R4113 C-CARBON R RN72K1J-331JE 435033314R1 1 AR8263 R4114 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4117 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4118 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4119 C-CARBON R RN72K1J-331JE 435033314R1 1 AR8263 R4120 C-CARBON R RN72K1J-331JE 435033314R1 1 AR8263 R4121 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4122 C-CARBON R RN72K1J-331JE 435033314R1 1 AR8263 R4123 C-CARBON R RN72K1J-331JE 435033314R1 1 AR8263 R4124 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4126 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4127 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4128 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4129 C-CARBON R RN72K1J-560JE 435035604R1 1 AR8263 R4130 C-CARBON R RN72K1J-331JE 435033314R1 1 AR8263 R4132 C-CARBON R RN72K1J-100JE 435031004R1 1 AR8263 R4133 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4134 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4135 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4136 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4137 C-CARBON R RN72K1J-562JE 435035624R1 1 AR8263 R4138 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4139 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4140 C-CARBON R RN72K1J-101JE 435031014R1 1 AR8263 R4141 C-CARBON R RN72K1J-103JE 435031034R1 1 AR8263 R4142 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4143 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4144 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4145 C-CARBON R RN72K1J-100JE 435031004R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96/113 PAGE AR8263 R4147 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4150 EMIFIL BK1608LL241-T 230959R1 1 AR8263 R4151 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4153 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4154 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4155 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4156 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4206 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4207 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4208 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4209 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4210 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4211 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4212 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4213 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4214 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4215 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4216 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4217 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4218 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4220 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4221 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4223 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4224 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4225 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4226 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4227 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4228 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4238 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4239 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4247 C-CARBON R RN72K1J-103JE 435031034R1 1 AR8263 R4250 C-CARBON R RN72K1J-472JE 435034724R1 1 AR8263 R4301 C-CARBON R RN72K1J-102JE 435031024R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97/113 PAGE AR8263 R4303 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4304 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4305 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4306 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4307 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4308 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4309 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4310 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4311 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4312 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4313 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4316 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4321 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4322 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4323 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4324 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4325 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4326 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4327 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4328 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4329 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4330 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4331 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4332 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4333 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4334 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4335 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4336 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4337 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4338 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4339 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4340 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4341 C-CARBON R RN72K1J-822JE 435038224R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98/113 PAGE AR8263 R4342 C-CARBON R RN72K1J-822JE 435038224R1 1 AR8263 R4343 C-CARBON R RN72K1J-182JE 435031824R1 1 AR8263 R4344 C-CARBON R RN72K1J-182JE 435031824R1 1 AR8263 R4345 C-CARBON R RN72K1J-103JE 435031034R1 1 AR8263 R4346 C-CARBON R RN72K1J-103JE 435031034R1 1 AR8263 R4347 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4348 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4349 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4350 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4351 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4352 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4353 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4354 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4355 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4356 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4357 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4358 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4359 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4360 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4369 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4370 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4371 C-CARBON R RN72K1J-183JE 435031834R1 1 AR8263 R4372 C-CARBON R RN72K1J-183JE 435031834R1 1 AR8263 R4373 C-CARBON R RN72K1J-682JE 435036824R1 1 AR8263 R4374 C-CARBON R RN72K1J-682JE 435036824R1 1 AR8263 R4401 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4403 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4404 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4405 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4406 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4407 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4408 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4409 C-CARBON R RN72K1J-470JE 435034704R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99/113 PAGE AR8263 R4410 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4411 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4412 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4413 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4416 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4421 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4422 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4423 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4424 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4425 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4426 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4427 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4428 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4429 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4430 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4431 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4432 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4433 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4434 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4435 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4436 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4437 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4438 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4439 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4440 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4441 C-CARBON R RN72K1J-822JE 435038224R1 1 AR8263 R4442 C-CARBON R RN72K1J-822JE 435038224R1 1 AR8263 R4443 C-CARBON R RN72K1J-182JE 435031824R1 1 AR8263 R4444 C-CARBON R RN72K1J-182JE 435031824R1 1 AR8263 R4445 C-CARBON R RN72K1J-103JE 435031034R1 1 AR8263 R4446 C-CARBON R RN72K1J-103JE 435031034R1 1 AR8263 R4447 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4448 C-CARBON R RN72K1J-152JE 435031524R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100/113 PAGE AR8263 R4449 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4450 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4451 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4452 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4453 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4454 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4455 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4456 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4457 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4458 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4459 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4460 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4469 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4470 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4471 C-CARBON R RN72K1J-183JE 435031834R1 1 AR8263 R4472 C-CARBON R RN72K1J-183JE 435031834R1 1 AR8263 R4473 C-CARBON R RN72K1J-682JE 435036824R1 1 AR8263 R4474 C-CARBON R RN72K1J-682JE 435036824R1 1 AR8263 R4501 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4503 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4504 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4505 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4506 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4507 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4508 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4509 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4510 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4511 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4512 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4513 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4516 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4521 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4522 C-CARBON R RN72K1J-272JE 435032724R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101/113 PAGE AR8263 R4523 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4524 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4525 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4526 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4527 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4528 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4529 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4530 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4531 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4532 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4533 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4534 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4535 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4536 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4537 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4538 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4539 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4540 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4541 C-CARBON R RN72K1J-822JE 435038224R1 1 AR8263 R4542 C-CARBON R RN72K1J-822JE 435038224R1 1 AR8263 R4543 C-CARBON R RN72K1J-182JE 435031824R1 1 AR8263 R4544 C-CARBON R RN72K1J-182JE 435031824R1 1 AR8263 R4545 C-CARBON R RN72K1J-103JE 435031034R1 1 AR8263 R4546 C-CARBON R RN72K1J-103JE 435031034R1 1 AR8263 R4547 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4548 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4549 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4550 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4551 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4552 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4553 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4554 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4555 C-CARBON R RN72K1J-223JE 435032234R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102/113 PAGE AR8263 R4556 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4557 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4558 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4559 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4560 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4569 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4570 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4571 C-CARBON R RN72K1J-183JE 435031834R1 1 AR8263 R4572 C-CARBON R RN72K1J-183JE 435031834R1 1 AR8263 R4573 C-CARBON R RN72K1J-682JE 435036824R1 1 AR8263 R4574 C-CARBON R RN72K1J-682JE 435036824R1 1 AR8263 R4601 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4603 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4604 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4605 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4606 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4607 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4608 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4609 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4610 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4611 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4612 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4613 C-CARBON R RN72K1J-470JE 435034704R1 1 AR8263 R4616 C-CARBON R RN72K1J-000JE 435030004R1 1 AR8263 R4621 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4622 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4623 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4624 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4625 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4626 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4627 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4628 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4629 C-CARBON R RN72K1J-272JE 435032724R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103/113 PAGE AR8263 R4630 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4631 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4632 C-CARBON R RN72K1J-272JE 435032724R1 1 AR8263 R4633 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4634 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4635 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4636 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4637 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4638 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4639 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4640 C-CARBON R RN72K1J-220JE 435032204R1 1 AR8263 R4641 C-CARBON R RN72K1J-822JE 435038224R1 1 AR8263 R4642 C-CARBON R RN72K1J-822JE 435038224R1 1 AR8263 R4643 C-CARBON R RN72K1J-182JE 435031824R1 1 AR8263 R4644 C-CARBON R RN72K1J-182JE 435031824R1 1 AR8263 R4645 C-CARBON R RN72K1J-103JE 435031034R1 1 AR8263 R4646 C-CARBON R RN72K1J-103JE 435031034R1 1 AR8263 R4647 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4648 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4649 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4650 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4651 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4652 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4653 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4654 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4655 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4656 C-CARBON R RN72K1J-223JE 435032234R1 1 AR8263 R4657 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4658 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4659 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4660 C-CARBON R RN72K1J-152JE 435031524R1 1 AR8263 R4669 C-CARBON R RN72K1J-102JE 435031024R1 1 AR8263 R4670 C-CARBON R RN72K1J-102JE 435031024R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104/113 PAGE AR8263 R4671 C-CARBON R RN72K1J-183JE 435031834R1 1 AR8263 R4672 C-CARBON R RN72K1J-183JE 435031834R1 1 AR8263 R4673 C-CARBON R RN72K1J-682JE 435036824R1 1 AR8263 R4674 C-CARBON R RN72K1J-682JE 435036824R1 1 AR8263 X4001 CRYSTAL XTL-13.5M 3010368R2 1 AR8263 X4002 CRYSTAL FCX03-22.579MHz 3010390R2 N 1 AR8263 X4003 CRYSTAL FCX-03-24.576MHz 3010385R2 N 1 PCB NO. CIRCUIT NPART NAME DESCRIPTION PART NO. REMARKS DG8262 C3001 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8262 C3003 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3004 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8262 C3006 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8262 C3007 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3008 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3009 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3010 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3011 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3012 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3013 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3014 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3015 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3016 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8262 C3017 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3018 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3019 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3020 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3021 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3022 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3023 C-CERA C CK725B1C-104K1 332121045R1 1 DG8262 C3024 C-CERA C CK725B1C-104K1 332121045R1 1 DG8262 C3025 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8262 C3026 C-CERA C CK725F1A-105Z1 332181050R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105/113 PAGE DG8262 C3027 C-CERA C CC732CH1H-180J 347341804R1 1 DG8262 C3028 C-CERA C CC732CH1H-150J 347341504R1 1 DG8262 C3029 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3030 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3031 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8262 C3032 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3033 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3034 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3035 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3036 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3037 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8262 C3038 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3039 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8262 C3040 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8262 C3041 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8262 C3042 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8262 C3043 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8262 C3044 C-CERA C CK725B1C-104K1 332121045R1 1 DG8262 C3045 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3046 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3047 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3049 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8262 C3050 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8262 C3051 C-CERA C CK725B1C-104K1 332121045R1 1 DG8262 C3052 C-CERA C CC732CH1H-221J 347342214R1 1 DG8262 C3053 C-CERA C CC732CH1H-221J 347342214R1 1 DG8262 C3055 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8262 C3056 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3057 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8262 C3058 C-CERA C CC725CH1E-102J1 342111024R1 1 DG8262 C3059 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3060 C-CERA C CK725B1A-224K1 332132245R1 1 DG8262 C3061 C-CERA C CC732CH1H-470J 347344704R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106/113 PAGE DG8262 C3062 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3501 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8262 C3502 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3503 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3504 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3505 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3509 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3510 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3511 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3512 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3514 C-CERA C CK725B1C-104K1 332121045R1 1 DG8262 C3516 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3517 C-CERA C CC732CH1H-180J 347341804R1 1 DG8262 C3518 C-CERA C CC732CH1H-180J 347341804R1 1 DG8262 C3520 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8262 C3521 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3523 CHIP ELECT C CEWX6.3V-100M 356721019R2 1 DG8262 C3524 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3525 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8262 C3526 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3527 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3530 CHIP ELECT C CEWX50V-1M 356780109R2 1 DG8262 C3531 CHIP ELECT C CEWX50V-1M 356780109R2 1 DG8262 C3532 CHIP ELECT C CEWX50V-1M 356780109R2 1 DG8262 C3533 CHIP ELECT C CEWX50V-1M 356780109R2 1 DG8262 C3534 CHIP ELECT C CEWX50V-1M 356780109R2 1 DG8262 C3535 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3536 C-CERA C CK725F1A-105Z1 332181050R1 1 DG8262 C3537 CHIP ELECT C CEWX4V-220M 3567A2219R2 1 DG8262 E4002 HOLDER (CLAMP) 27191220 N 1 DG8262 L3001 CORE BLM41PG750SN1L 230950R2 N 1 DG8262 L3002 CORE BLM41PG750SN1L 230950R2 N 1 DG8262 L3003 CORE BLM41PG750SN1L 230950R2 N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107/113 PAGE DG8262 L3004 CORE BLM41PG750SN1L 230950R2 N 1 DG8262 L3005 CORE BLM41PG750SN1L 230950R2 N 1 DG8262 L3009 CORE DLP11SN161SL2L 230977R2 N 1 DG8262 L3010 CORE DLP11SN161SL2L 230977R2 N 1 DG8262 L3011 CORE DLP11SN161SL2L 230977R2 N 1 DG8262 L3012 CORE DLP11SN161SL2L 230977R2 N 1 DG8262 L3505 CORE BLM41PG750SN1L 230950R2 N 1 DG8262 L3507 CHOKE COIL BLM21B222SPT 230921R2 1 DG8262 L3508 CHOKE COIL BLM21B222SPT 230921R2 1 DG8262 L3509 CHOKE COIL BLM21B222SPT 230921R2 1 DG8262 L3510 CHOKE COIL BLM21B222SPT 230921R2 1 DG8262 L3511 CORE BLM41PG750SN1L 230950R2 N 1 DG8262 L3512 CORE BLM41PG750SN1L 230950R2 N 1 DG8262 P1301B PLUG SM16B-SURS-TF 25056399R2 N 1 DG8262 P3002A PLUG NPLG-11P1108 25056169R2 N 1 DG8262 P3003 PLUG NPLG-10P1107 25056168R2 N 1 DG8262 P3012 PLUG NPLG-11P1108 25056169R2 N 1 DG8262 P3019 SOCKET CSS5004-1062G 25053028R3 N 1 DG8262 P3020 SOCKET CSS5004-1062G 25053028R3 N 1 DG8262 P3503 PLUG(B to B) IMSA-9850B-22Y900 25056206R2 N 1 DG8262 P3506 SOCKET NSCT-9P2277 25052379 1 DG8262 P3507 PLUG NPLG-6P932 25055979R2 1 DG8262 P3509 PLUG NPLG-6P932 25055979R2 1 DG8262 P3510 PLUG NPLG-2P29 25055038 1 DG8262 P3511 PLUG NPLG-7P933 25055980R2 1 DG8262 P3512 PLUG NPLG-6P932 25055979R2 1 DG8262 P3513 PLUG NPLG-2P29 25055038 1 DG8262 Q3001 IC LM1117MPX-ADJ 22241648R2 1 DG8262 Q3004 IC TSB43CA42PGF 22242061R3 N 1 DG8262 Q3005 IC 74AHC541PW 22274541ER2PH N 1 DG8262 Q3006 IC TC74VHC74FT 22274074ER2TO 1 DG8262 Q3007 IC TC7SH08FU 22241830R2TO 1 DG8262 Q3008 IC TC7SZ125FU 22241895R2 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108/113 PAGE DG8262 Q3009 IC TLC2932IPWLE 22242062R2 N 1 DG8262 Q3010 IC TC7WT241FU 22241546R2 1 DG8262 Q3011 IC TC7WH241FU 22242076R2TO N 1 DG8262 Q3012 IC 74AHC541PW 22274541ER2PH N 1 DG8262 Q3501 IC MBM29LV800TA-90PFTN (0126) NSP N 1 DG8262 Q3502 IC HD64F2367VF33(0095) 222W0008R300954 DISCON N 1 DG8262 Q3503 TR DTC144EE 2216390R2 1 DG8262 Q3505 IC TC7SH08FU 22241830R2TO 1 DG8262 Q3506 IC TC7SH08FU 22241830R2TO 1 DG8262 Q3508 IC LM1117MPX-ADJ 22241648R2 1 DG8262 Q3509 IC MPD4721GS 22241537R2 1 DG8262 Q3511 IC S-80127CNMC-JKM-T2 22241642R2 1 DG8262 R3001 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3002 C-CARBON R RN72K1J-121FE 435031212R1 1 DG8262 R3003 C-CARBON R RN72K1J-201FE 435032012R1 N 1 DG8262 R3004 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3005 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3006 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3007 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3008 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3009 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3010 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3011 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3012 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3013 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8262 R3014 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3015 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8262 R3016 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8262 R3017 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8262 R3018 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3019 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8262 R3020 C-R NET RM7LJ103X04 43484710304R2 N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109/113 PAGE DG8262 R3021 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8262 R3022 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3023 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3025 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3027 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8262 R3028 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8262 R3029 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8262 R3041 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8262 R3042 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3043 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8262 R3044 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3045 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8262 R3046 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3047 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8262 R3048 C-R NET RM7LJ103X04 43484710304R2 N 1 DG8262 R3049 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3050 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3051 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3052 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3053 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3054 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3056 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3057 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3058 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3059 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3060 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3061 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3062 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3079 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3080 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3081 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3082 C-CARBON R RN72K1J-103FE 435031032R1 1 DG8262 R3083 C-CARBON R RN72K1J-153FE 435031532R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110/113 PAGE DG8262 R3084 C-CARBON R RN72K1J-102FE 435031022R1 1 DG8262 R3085 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3086 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3087 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3089 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3090 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3091 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3092 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3093 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3094 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3095 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3096 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8262 R3097 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3098 C-CARBON R RN72K1J-102JE 435031024R1 1 DG8262 R3099 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3100 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3101 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8262 R3102 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8262 R3103 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8262 R3104 C-CARBON R RN72K1J-512FE 435035122R1 1 DG8262 R3105 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8262 R3106 C-CARBON R RN72K1J-512FE 435035122R1 1 DG8262 R3107 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8262 R3108 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8262 R3109 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8262 R3110 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8262 R3111 C-CARBON R RN72K1J-560FE 435035602R1 1 DG8262 R3112 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3113 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3501 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3502 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8262 R3503 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8262 R3504 C-R NET RM7LJ472X04 43484747204R2 N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 111/113 PAGE DG8262 R3505 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3506 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3507 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3508 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3509 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3510 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3511 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3512 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3514 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3515 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3516 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3517 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3518 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3519 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3520 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3521 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3524 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3525 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3526 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3531 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3532 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3533 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3534 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3535 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3536 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8262 R3537 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8262 R3538 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3539 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8262 R3540 C-CARBON R RN72K1J-181JE 435031814R1 1 DG8262 R3541 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3542 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3543 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8262 R3544 C-CARBON R RN72K1J-000JE 435030004R1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112/113 PAGE DG8262 R3545 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3546 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3547 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3549 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3550 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3551 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3552 C-CARBON R RN72K1J-121FE 435031212R1 1 DG8262 R3553 C-CARBON R RN72K1J-201FE 435032012R1 N 1 DG8262 R3554 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3555 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8262 R3557 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3558 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8262 R3563 C-CARBON R RN72K1J-220JE 435032204R1 1 DG8262 R3564 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3565 C-R NET RM7LJ220X04 43484722004R2 N 1 DG8262 R3566 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8262 R3567 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3568 C-CARBON R RN72K1J-000JE 435030004R1 1 DG8262 R3569 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8262 R3570 C-CARBON R RN72K1J-222JE 435032224R1 1 DG8262 R3571 C-CARBON R RN72K1J-472JE 435034724R1 1 DG8262 R3574 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3575 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3576 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 R3577 C-CARBON R RN72K1J-103JE 435031034R1 1 DG8262 X3001 CRYSTAL FCX-03-24.576MHz 3010385R2 N 1 DG8262 X3501 CRYSTAL FCX-03-16.000MHz 3010384R2 N 1 DG8257 P001 PWB NCDG-8257 25138257B 1 VD8258 P002 PWB NCVD-8258 25138258D N 1 VD8258 P011 PWB NCDG-8259 25138259 N { 1} VD8258 P012 PWB NCETC-8260 25138260 N { 0} VD8258 P012 PWB NCETC-8260 25138260 UDD1N { 1} www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 113/113 PAGE VD8258 P012 PWB NCETC-8260 25138260 UPA4P { 1} VD8258 P013 PWB NCETC-8261 25138261 N { 0} VD8258 P014 PWB NCPS-8274 25138274 N { 1} DIS8264 P001 PWB NCDIS-8264 25138264C N { 1} DIS8264 P002 PWB NCVD-8265 25138265 N { 0} DIS8264 P002 PWB NCVD-8265 25138265 { 1} DIS8264 P003 PWB NCAF-8266 25138266 N { 1} DIS8264 P004 PWB NCSW-8267 25138267 N { 1} DIS8264 P005 PWB NCDG-8268 25138268 N { 0} DIS8264 P005 PWB NCDG-8268 25138268 { 0} PS8269 P004 PWB NCPS-8269 25138269B N 1 UDD1N P006 PWB NCSW-8271 25138271 { 0} UPA4P P006 PWB NCSW-8271 25138271 N { 0} PS8269 P005 PWB NCPS-8270 25138270 N { 1} DG8272 P0010 PWB NCVD-8273 25138273 { 0} DG8272 P005 PWB NCDG-8272 25138272B N 1 AR8263 P001 PWB NCAR-8263 25138263C N 1 AR8263 P002 PWB NCDG-8262 25138262 N { 0} DG8262 P002 PWB NCDG-8262 25138262B N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1/6 PAGE EXPLODED VIEW PARTS LIST DPS-10.5 N: New part, !: Safety part REF.. NO. PART NAME DESCRIPTION PART NO. REMARKS A01 CHASSIS -- 27100441A 1 A02 REAR PANEL UDD1N 27123211A N 1 A02 REAR PANEL UPA4P 27123212A N 1 A03 RETAINER (SIDE) 27141888 2 A05 SCREW USUATAMA3*8 801613 4 A04 SCREW 3TTB+8B(BC) 838430088 38 A06 SCREW 3P+6FN(BC) 82143006 2 A07 RETAINER (PC) 27141889 1 A08 SCREW M1.6*6(BC) 82141606 2 A09 SCREW 3TTB+8B(CU) 801612 5 A10 F PANEL AS (B)UDDDPS-10.5 27212603A N 1 A11 BRACKET (C) 27130915A 1 A12 CLAMP WS-2NS 27300833 1 A13 SCREW 3TTB+8B(BC) 838430088 5 A14 CUSHION (SCREW) 28141420 1 A15 BRACKET (F) 27130916B 1 A16 SHEET (F.BRA) 27150495 1 A17 HOLDER (CLAMP) 27191220 2 A19 SCREW 3TTB+8B(BC) 838430088 39 A21 BRACKET (R) 27130917A 1 A23 RETAINER (CHA) 27141890 1 A27 RETAINER (HEAT) 27141770-1 1 A31 RETAINER (R) 27141891 1 A35 BUSHING -- 28170070 2 A37 BUSHING L162 28170082 1 A39 BUSHING L130 28170079 2 A41 BUSHING L40 28170080 1 A43 BUSHING L18.5 28170081 2 A44 SHLD PLT (FFC) 27150492 1 A45 HOLDER KGLS-12RT 27190266 4 A47 HOLDER KGLS-18RT 27190657 1 A49 HOLDER KGLS-22S 27190369 2 A50 HOLDER KGLS-4S 27190009 1 A51 RETAINER (MPWB) 27141892A 1 A53 SCREW 3TTB+8B(CU) 801612 26 A55 SCREW 3P+6FN(BC) 82143006 2 A57 SCREW 4TTC+8C(BC) 830440089 4 A58 SCREW 3TTC+8B(CU) 830030088 2 A60 SCREW 3SMH10W.SW+15B(CU) 801606 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2/6 PAGE A63 RETAINER (PCALL1) 27141893 2 A65 RETAINER (PCALL2) 27141894 1 A67 CUSHION T4L100D10 28141565 3 A71 SCREW 3TTB+8B(CU) 801612 6 A73 BOTTOM BRD -- 27170334A 1 A77 BOTTOM LEG (AS) 27175400 4 A79 CUSHION -- 28141559 4 A80 CUSHION (LEG) 28141591 1 A81 SCREW 4TTC+10C(BC) 830440109 4 A83 S PANEL(L) (B) 27212571A 1 A85 S PANEL(R) (B) 27212575A 1 A87 RETAINER (COVER) 27141895A 2 A89 SCREW USUATAMA3*8 801613 4 A91 SCREW RCTK4*10(BC) 801616A 8 A93 COVER (B) 28184879A 1 A95 CUSHION T4L20D10 28141566 9 A97 SCREW RCTK4*10(BC) 801616A 7 A101 CUSHION -- 28141409A 1 A201 DOOR -- 28148567 N 1 A203 SCREW 2.6TTB+8B(BC) 838426088 2 SCREW 2.6TTB+8B(BC) 838426088 2 SCREW 2.6TTB+8B(BC) 838426088 2 SCREW 2.6TTB+8B(BC) 838426088 2 A205 PLATE (DOOR) 27262704 N 1 A207 BRACKET (MECHA) 27130845 1 A211 SLIDER -- 27220063 1 A213 END CAP (MECHABOX-L) 28125388 1 A217 END CAP (MECHABOX-R) 28125389 1 A221 SPACER (MARU) 27270425 4 A227 TAPE (CU) 29110168 2 A301 CLEAR PLT -- 28192013A N 1 A303 KNOB (ST)AS10.5 28326116 N 1 A317 KNOB (FF)AS 28325842 1 A323 KNOB (GUIDE-PLAY) 28325844 1 A325 KNOB (PLAY)AS 28325843A N 3 A401 END CAP (L)(B) 28125400A 1 A403 END CAP (R)(B) 28125403A 1 A405 BADGE (integraAL) 28135296 N 1 A406 STOPPER SPN-1.5 890035 2 A407 BADGE VIDEO/AUDIO(B) 28135291A 1 A409 BADGE (SACD) 28135288A 1 A411 FACET (7) 28198977 1 A413 GUIDE (VC)10.5(B) 27268088 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3/6 PAGE A415 SCREW 3TTB+8B(CU) 801612 3 A417 SCREW 3P+6FN(BC) 82143006 8 A421 WIRE TIE BSK-1 260208 10 A423 SCREW 4TTB+8C(BC) 838440089 2 A425 LABEL (PT)10.5 29363647 N 1 A427 LABEL LABEL Flash 29360778 2 A429 BUSHING CE-016 100MM 28170039 1 A609 TAPE CLOTH-8U 29110082-1 1 A611 TAPE TAPE (CLOTH-16U) 29110083-1 1 A613 ANTI VIB 15 x 5 x 3 24847051 1 A615 ANTI VIB 8 x 5 x 3 24847052 3 A617 SHEET (PAPER) 29095972 1 A619 SPACER -- 27270439 1 A621 SPACER t0.5 x φ8 x φ3.2 27270438 1 A623 CUSHION 75 x 10 x t0.75 28141602 1 A625 CUSHION (BUTYL) t0.8 x 10 x 10 28141552 4 A999 SPACER -- 27270443 2 E1001 CLIP CS-1U 27255004 5 F001 FUSE 1.6A-UL/T-237 252158 ! 1 F001 or FUSE 1.6A-T/UL-ST2 252252 ! ( 1) F001 FUSE 2.5A-SE-EAK FUSE 252075 ! 1 F001 or FUSE 2.5A-SE-TL250V 252275 ! ( 1) F9001 FUSE 2.5A-UL/T-237 252160 ! 1 F9001 or FUSE 2.5A-T/UL-ST2 252254 ! ( 1) F9001 FUSE 2.5A-SE-EAK FUSE 252075 ! 1 F9001 or FUSE 2.5A-SE-TL250V 252275 ! ( 1) L901 CORE TFCK-23-11-14 230923 1 L902 CORE ESD-R-19DB 230983 N 1 L903 CORE ESD-R-19DB 230983 N 1 L904 CORE ESD-R-19DB 230983 N 1 L905 CORE ESD-R-19DB 230983 N 1 P1001A FFC NCFCD-26003 204D26003 1 P1101A SOCKET AS NSAS-12P0829 20022261220 1 P1301 SOCKET AS NSAS-32P1325 200KK503240UL 1 P1302 SOCKET AS NSAS-40P1296 200KK584035UL 1 P2001 SOCKET AS NSAS-28P1291 200KK582820UL 1 P2002 SOCKET AS NSAS-30P1290 200KK583020UL 1 P2003 SOCKET AS NSAS-40P1324 200KK504020UL 1 P2004 SOCKET AS NSAS-32P1289 200KK583225UL 1 P2701 SOCKET AS NSAS-14P1319 20022391435UL 1 P2901 SOCKET AS NSAS-12P1272 20044191220UL 1 P3002 SOCKET AS NSAS-22P1413 200JJ392250UL N 1 P4003 SOCKET AS NSAS-8P1389 2009990896UL N 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4/6 PAGE P4005 SOCKET AS NSAS-10P1321 2009990872UL N 1 P4008 SOCKET AS NSAS-10P1273 20044191050UL 1 P4202 SOCKET AS NSAS-30P1387 200JJ393015UL N 1 P4203 SOCKET AS NSAS-28P1388 200JJ392815UL N 1 P4571 SOCKET AS NSAS-16P1297 200JJ391625UL 1 P4950 SOCKET AS NSAS-14P1323 20044191415UL 1 P5402 SOCKET AS NSAS-20P1279 200JJ392030UL 1 P6005 SOCKET AS NSAS-16P1344 200JJ391620UL 1 P6551 SOCKET AS NSAS-18P1345 2009990880UL 1 P6703 SOCKET AS NSAS-20P1280 200JJ392010UL 1 P7010 SOCKET AS NSAS-8P1285 200JJ390830UL 1 P7201 FFC NCFC4-26043 204426043 N 1 P9102 SOCKET AS NSAS-16P1271 20044191615UL 1 P9103 SOCKET AS NSAS-8P1274 20044190840UL 1 P9104 SOCKET AS NSAS-22P1269 20044192210UL 1 P9601 SOCKET AS NSAS-24P1268 20044192445UL 1 P9602 SOCKET AS NSAS-28P1275 20044192845UL 1 P9604 SOCKET AS NSAS-30P1341 20044193005UL 1 T901 P TRANS NPT-1489D 2301731 ! 1 T901 P TRANS NPT-1489P 2301732 ! 1 U01 DVD Main board AS NADG-8257-1A 1H516557-1A 1 U02 Video output terminal board AS NAVD-8258-1M 1H516558-1M N 1 U02 Video output terminal board AS NAVD-8258-1N 1H516558-1N N 1 U03 DVD Main CPU PC board AS NADG-8259-1M 1H516559-1M N 1 U03 DVD Main CPU PC board AS NADG-8259-1N 1H516559-1N N 1 U04 Component output terminal PC board AS NAETC-8260-1M 1H516560-1M N 1 U04 Component output terminal PC board AS NAETC-8260-1N 1H516560-1N N 1 U06 Power supply PC board-3 AS NAPS-8274-1M 1H516574-1M N 1 U06 Power supply PC board-3 AS NAPS-8274-1N 1H516574-1N N 1 U07 Display circuit PC board AS NADIS-8264-1H 1H516564-1H N 1 U08 Component/ D-terminal PC board AS NAVD-8265-1H 1H516565-1H N 1 U09 Audio output PC board AS NAAF-8266-1H 1H516566-1H N 1 U10 JOG switch PC board AS NASW-8267-1H 1H516567-1H N 1 U12 Power supply PC board-1 AS NAPS-8269-1G 1H516569-1G N 1 U12 Power supply PC board-1 AS NAPS-8269-1J 1H516569-1J N 1 U13 Power supply PC board-2 AS NAPS-8270-1G 1H516570-1G N 1 U13 Power supply PC board-2 AS NAPS-8270-1J 1H516570-1J N 1 U15 Digital video processor PC board AS NADG-8272-1C 1H516572-1C 1 U16 Video input terminal PC board AS NAVD-8273-1C 1H516573-1C U18 Audio DAC PC board AS NAAR-8263-1D 1H516563-1D N 1 U20 IEEE1394 terminal PC board AS NADG-8262-1 1H516562-1 1 U21 Power supply unit NGPS-0036-100-120V 24150036 ! 1 U21 Power supply unit NGPS-0037-100-240V 24150037 ! 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5/6 PAGE Z701 SCREW 3TTW+8B(BC) 831430088 4 DVD M KHM-280AAA 24801016 1 Z711 LOADER MACHA MGD-33 24801022 1 Z712 HOLDER (PU) 24826029 Ref. to Exp. Mecha. view 1 Z713 WASHER W2.6X7.5 87760309 2 Z714 ST SCREW 2.6TTB+6B(BC) 838426068 2 Z715 INSULATOR (A) 24818055 Ref. to Exp. Mecha. view 2 Z716 INSULATOR (C) 24818061 Ref. to Exp. Mecha. view 2 Z717 CUSHION (MARU) 28141584 Ref. to Exp. Mecha. view 2 Z720 SCREW (A) 801589 Ref. to Exp. Mecha. view 4 Z722 TAPE TAPE(CLOTH-16U) 29110083 Ref. to Exp. Mecha. view 1 Z723 CUSHION CUSHION 28140803 1 Z725 LABEL(DVD2) -- 29362648 1 Z727 CUSHION T4L100D10 28141565 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6/6 PAGE PACKING VIEW PARTS LIST DPS-10.5 N: New part, !: Safety part REF.. NO. PART NAME DESCRIPTION PART NO. REMARKS A501 PAD (AS) 29092145 1 A502 CARTON 10.5 29054149 N 1 A505 UPC LABEL DPS-10.5 29363626 N 1 A505 EAN LABEL DPS-10.5 29363622 N 1 A506 CASE -- 29105220 1 A507 LABEL UPA4P 29363233 2 A509 SHEET -- 29095847 1 A513 TAPE NITTO NO.29 29110149 1 A515 TAPE NITTO 3703 W50L100 29110176 1 A601 POLY BAG 350*250 29100097-1A 2 A602 WRNTY CARD (INTEGRA) 29365089A 1 E301 PIN CORD AS RCA3P(YWR)1.5MT 2010388 1 E302 CORD AS MINIDIN4P1.5MT 2010389 1 E303 REMO CON RC-562DV 24140562 N 1 E305 CORD AS IEEE1394 1.0M 2010430 1 E306 CORD AS HDMI 1.5M 2010429 1 E307 BATTERY LR6/AA(UM-3) 3010358 3 A607 POLY BAG, Battery t0.1*70*100 29100217 1 E308 CORD AS 3.5-MINI PLUG 2010375 1 E308 or CORD AS RI CORD 2010397 ( 1) E311 LABEL (PE-LD) 29361573 1 E901 AC CORD AS-UC-2 253301HIT ! 1 E901 AC CORD AS-SAA 253391VOL ! 1 E001 INS MANUAL En(DPS-10.5) 29343659 N 1 E006 INST SHEET En 29355487B 1 E010 INST SHEET En 29355502 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPS-105 Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8124 http://www.onkyo.com/ ONKYO CORPORATION Integra Division of ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.integrahometheater.com Integra Division of PN 0Mxxxx D05xx Printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
