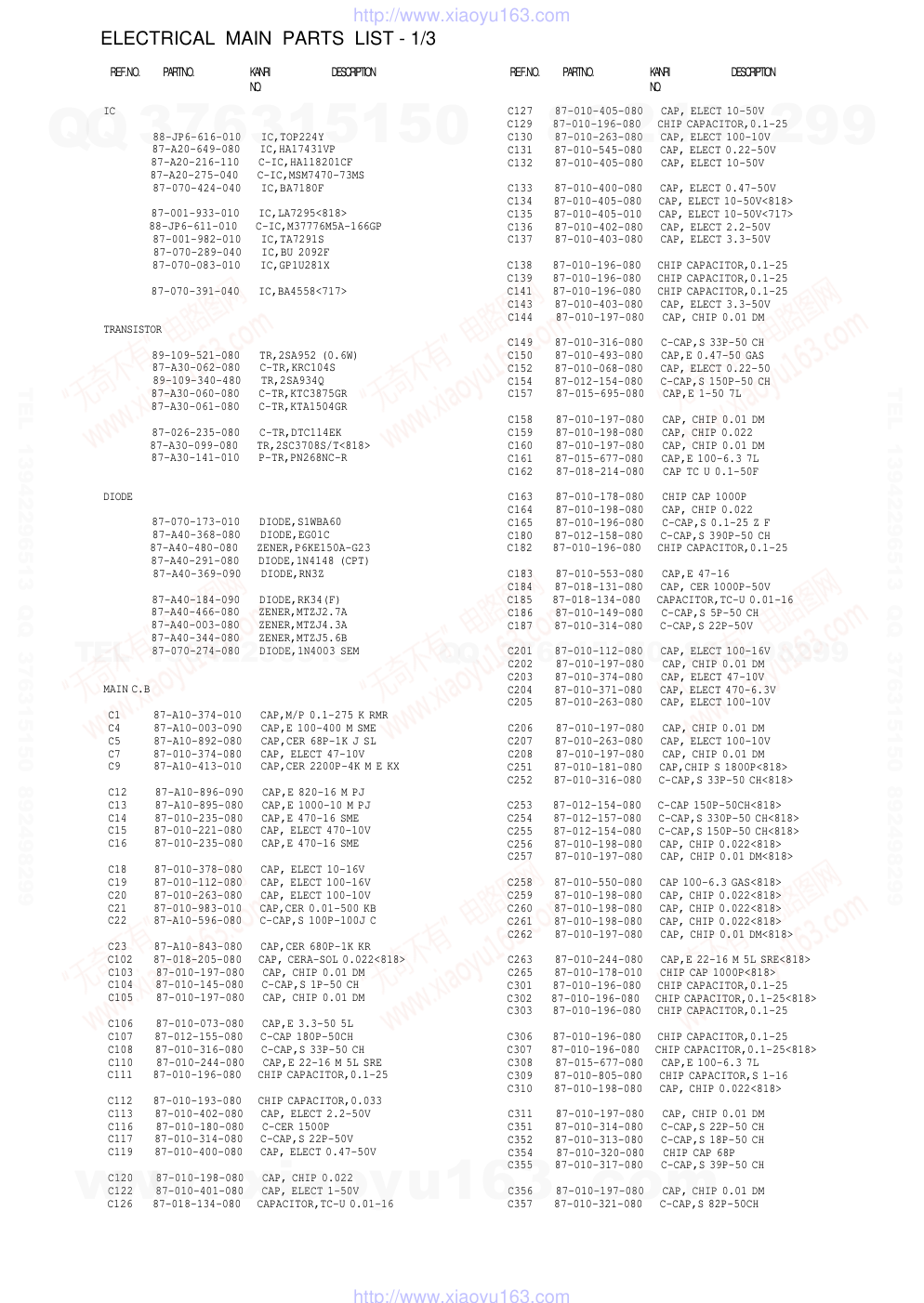

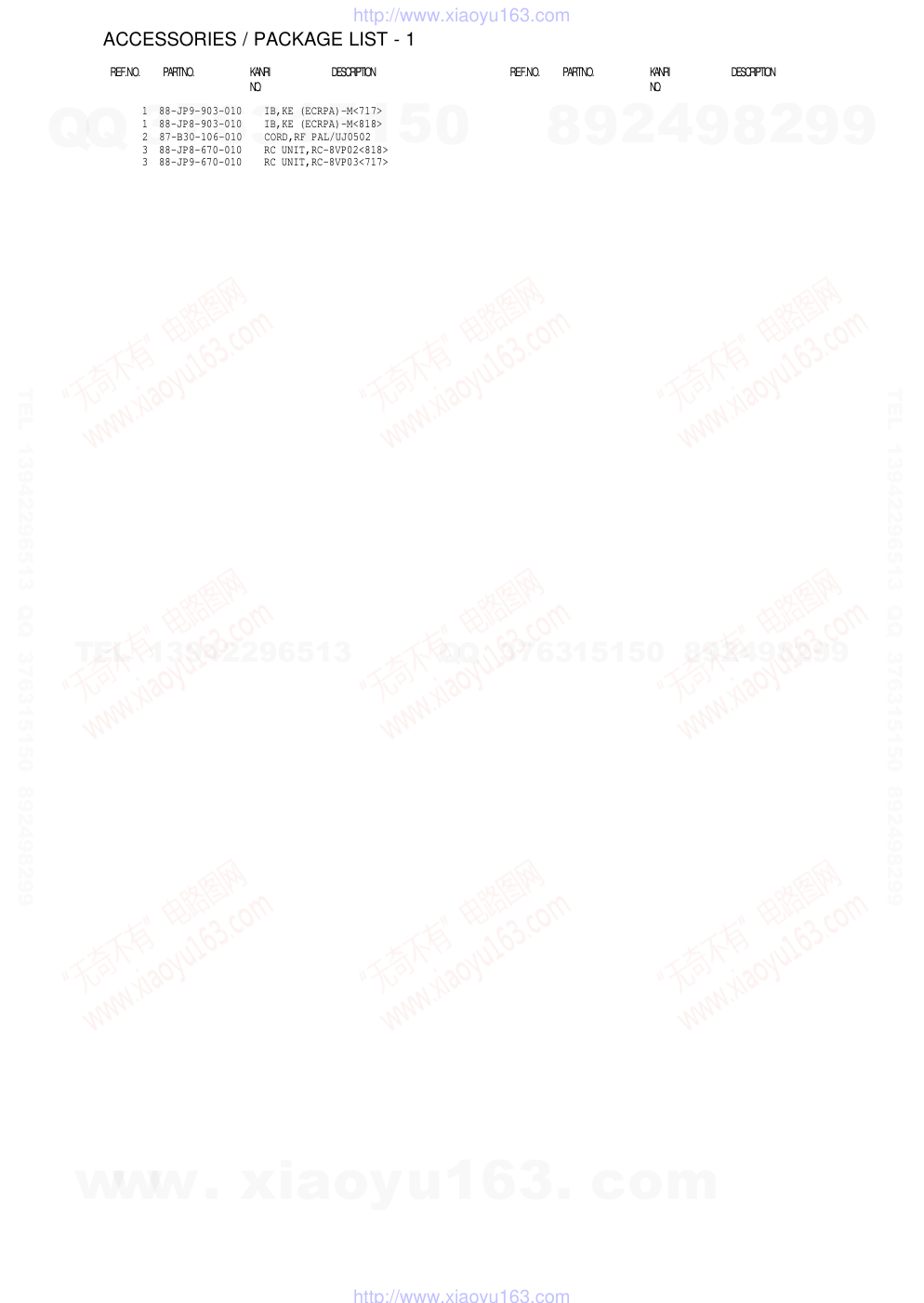

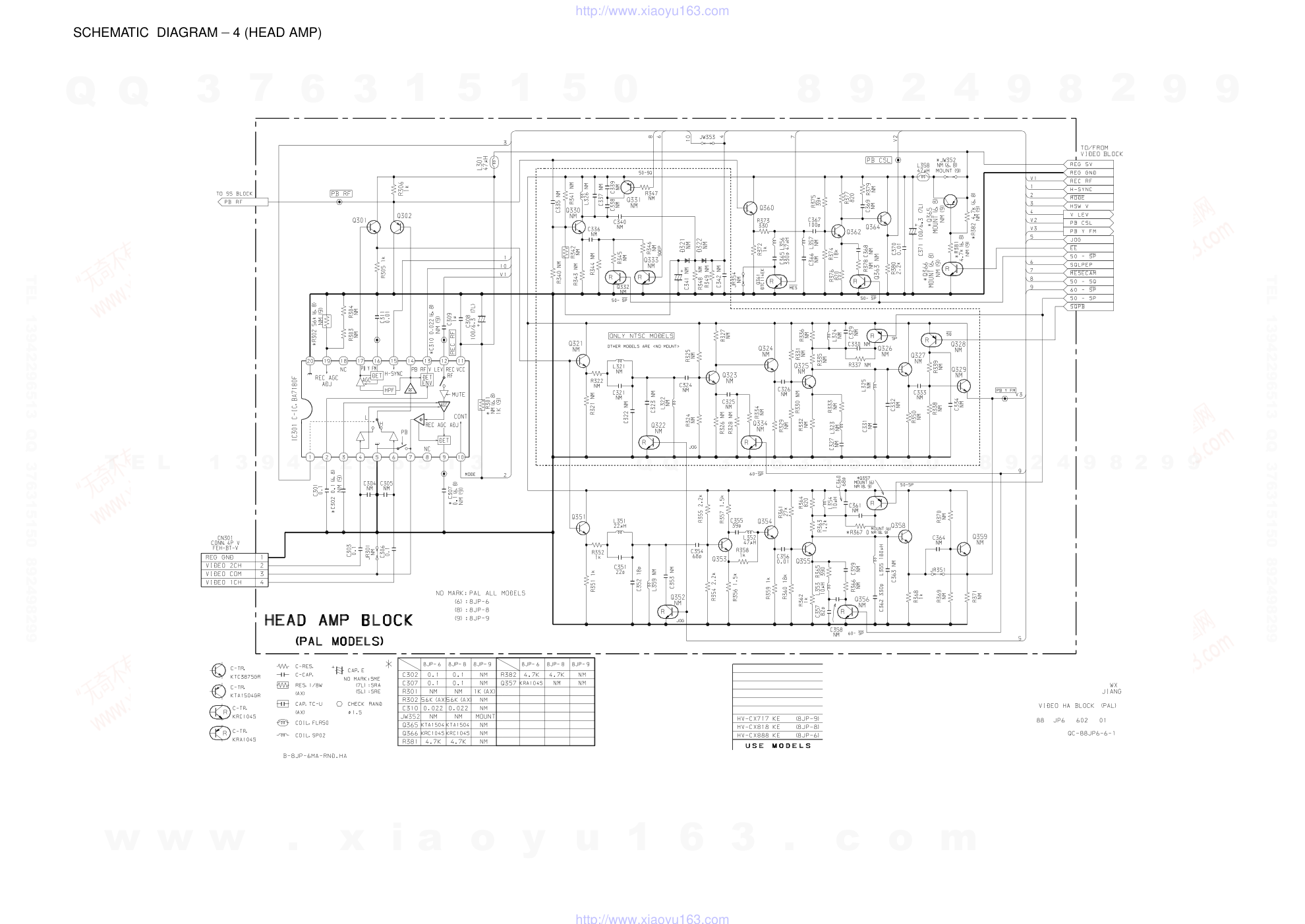

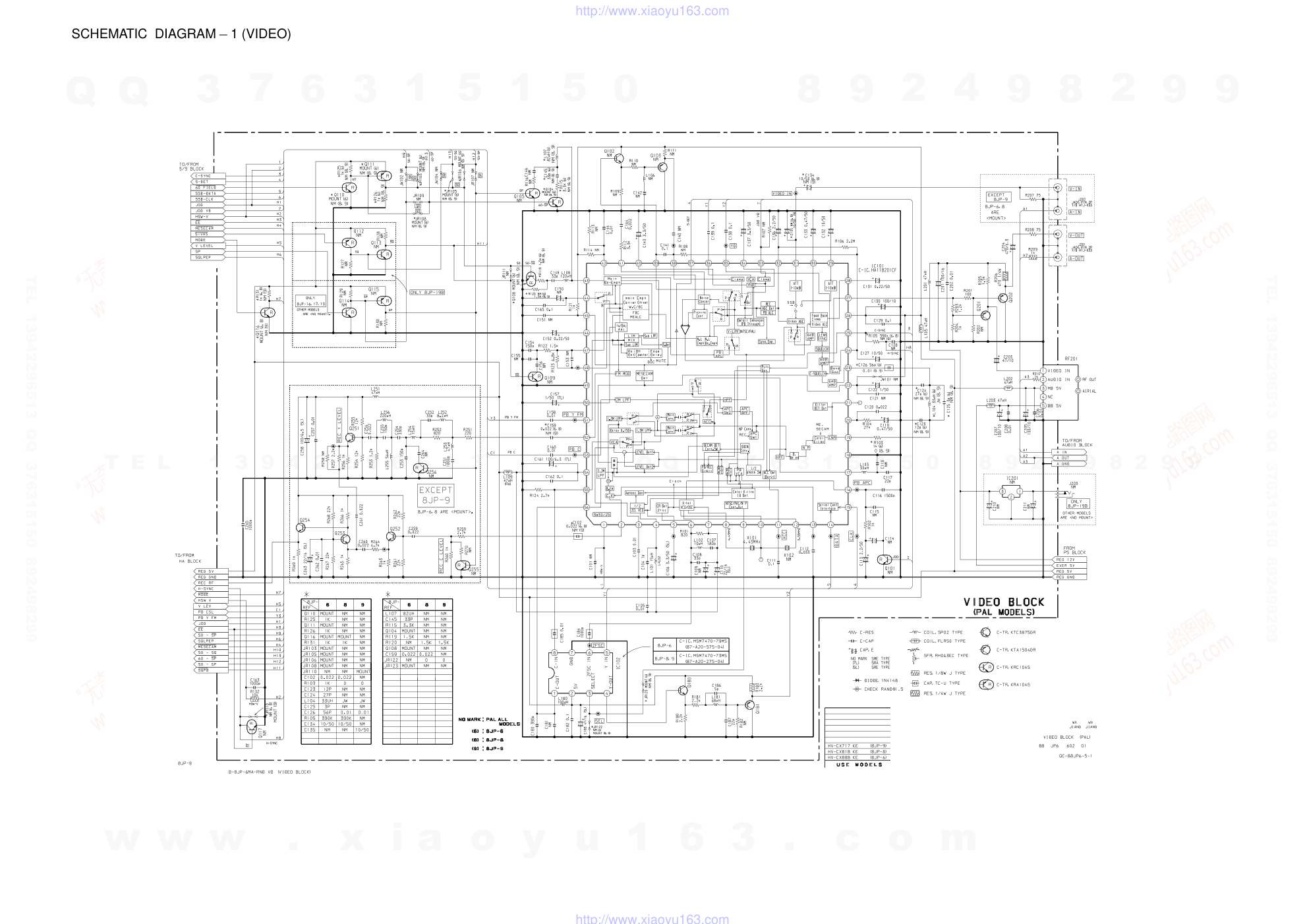

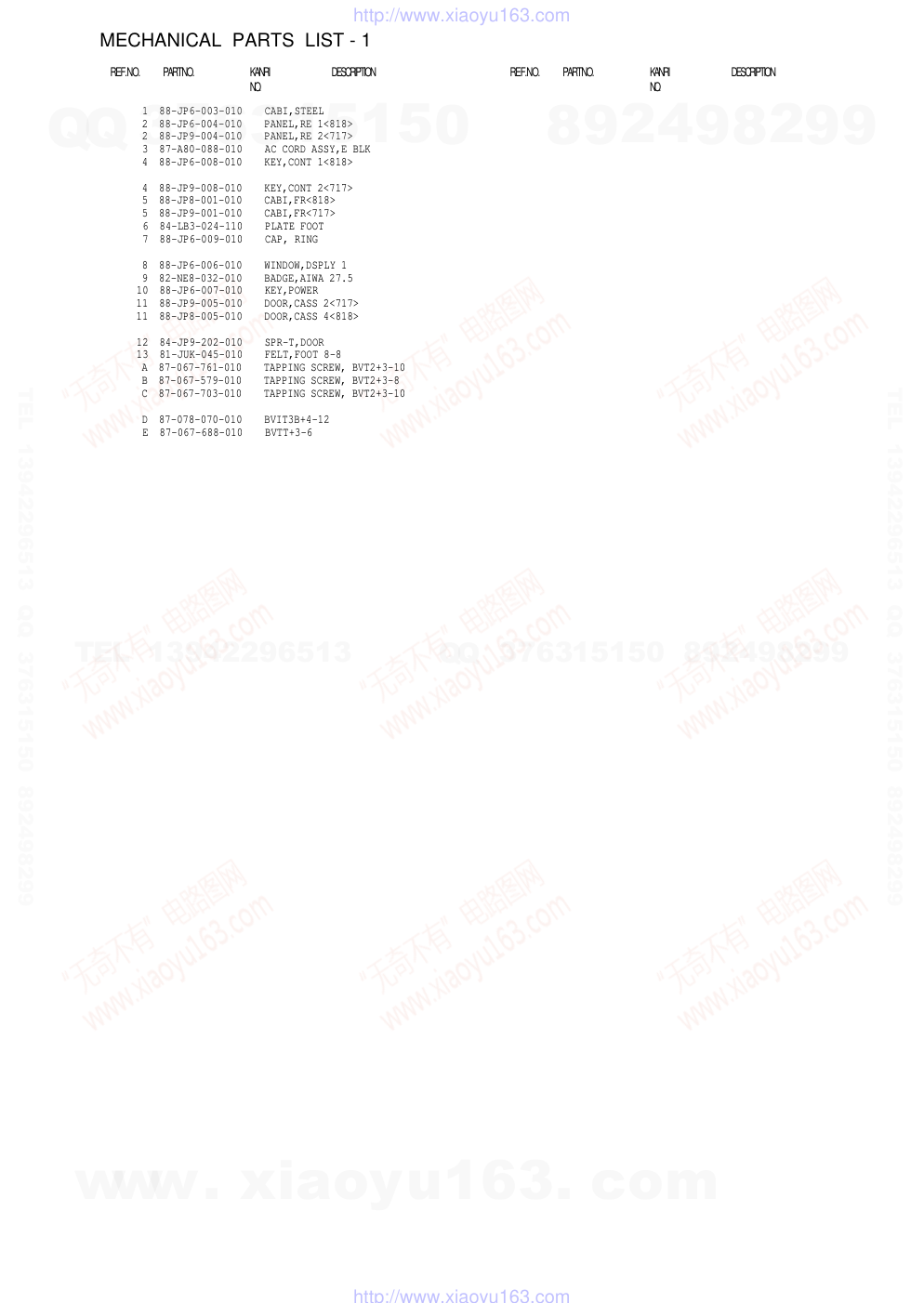

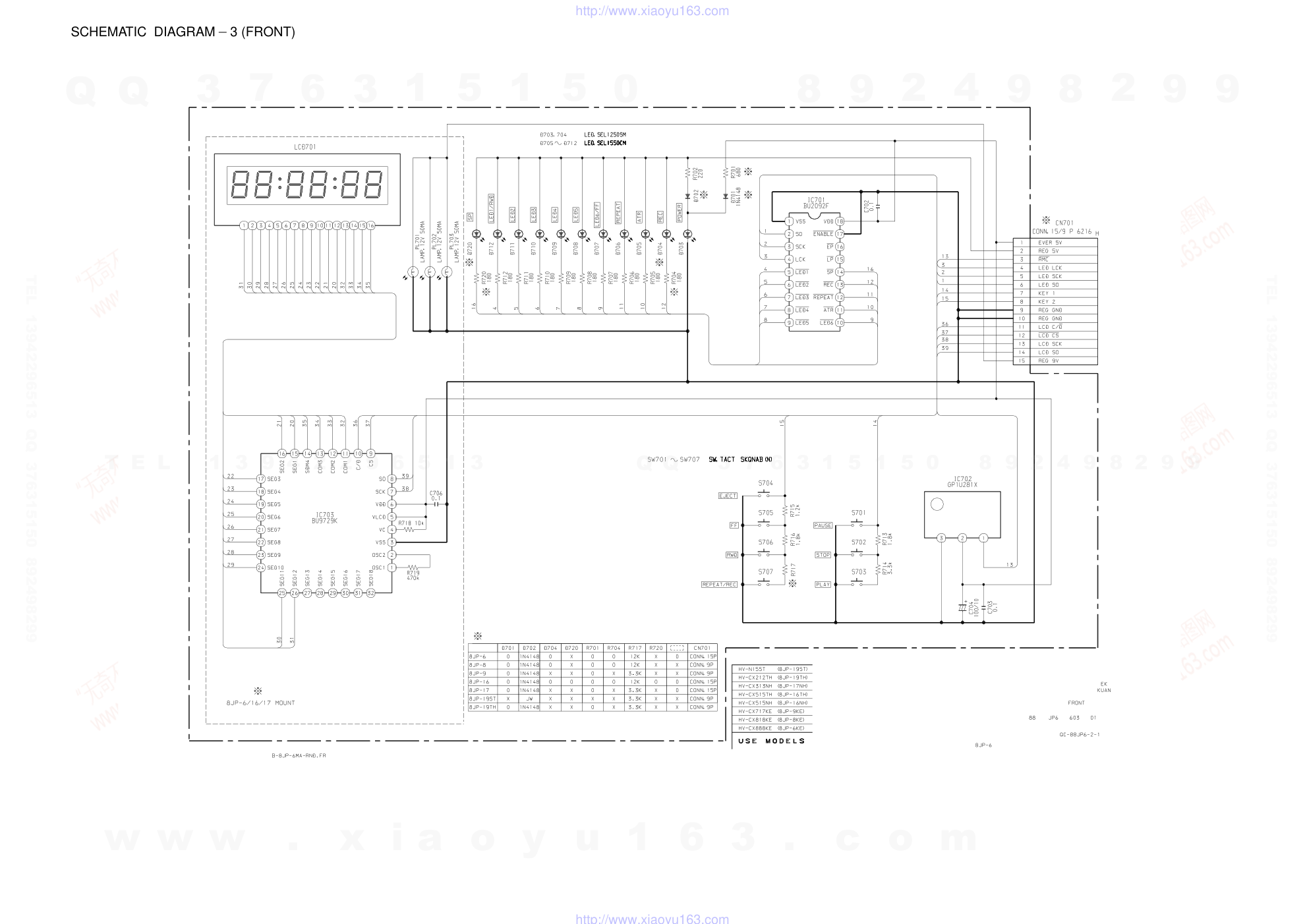

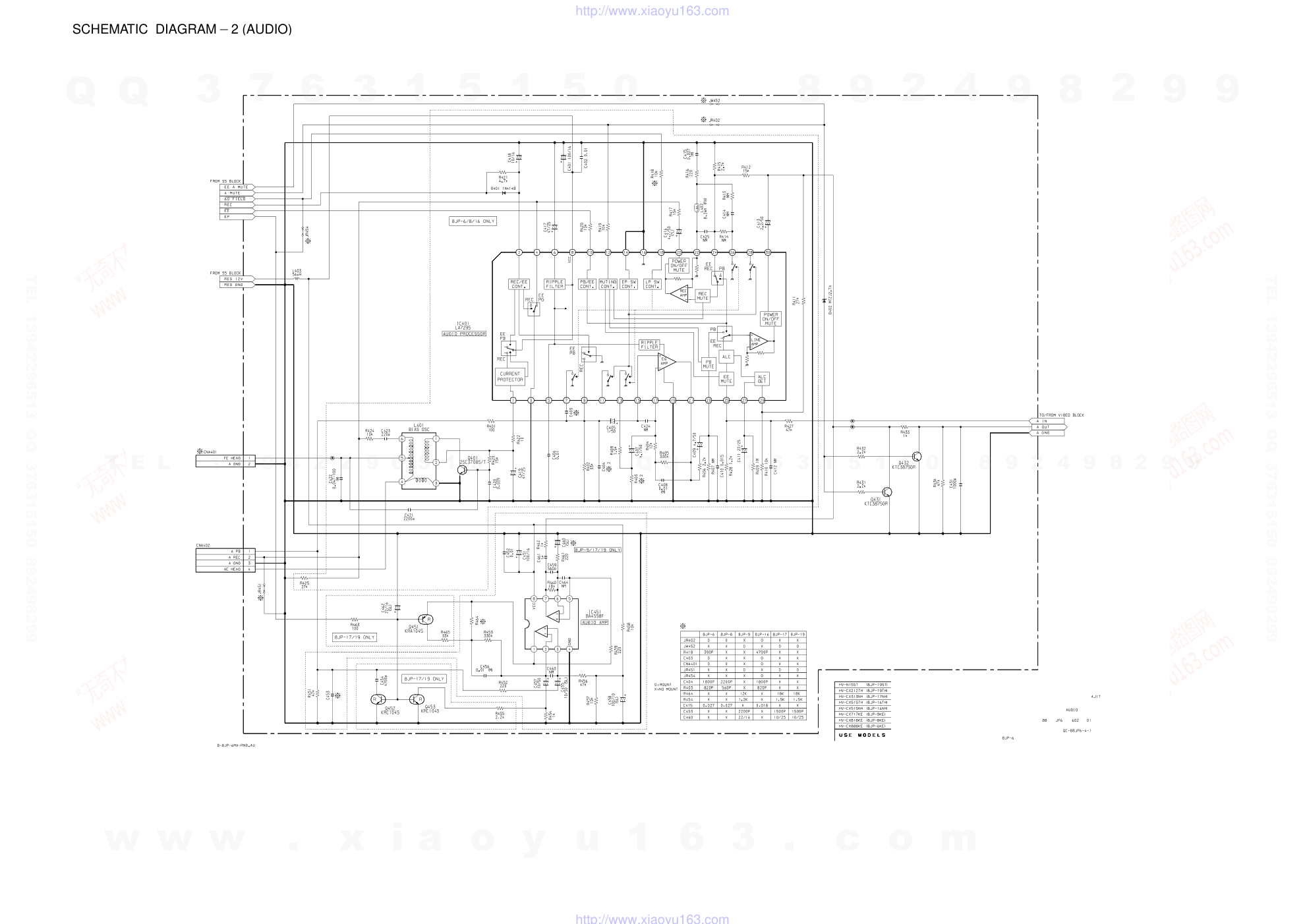

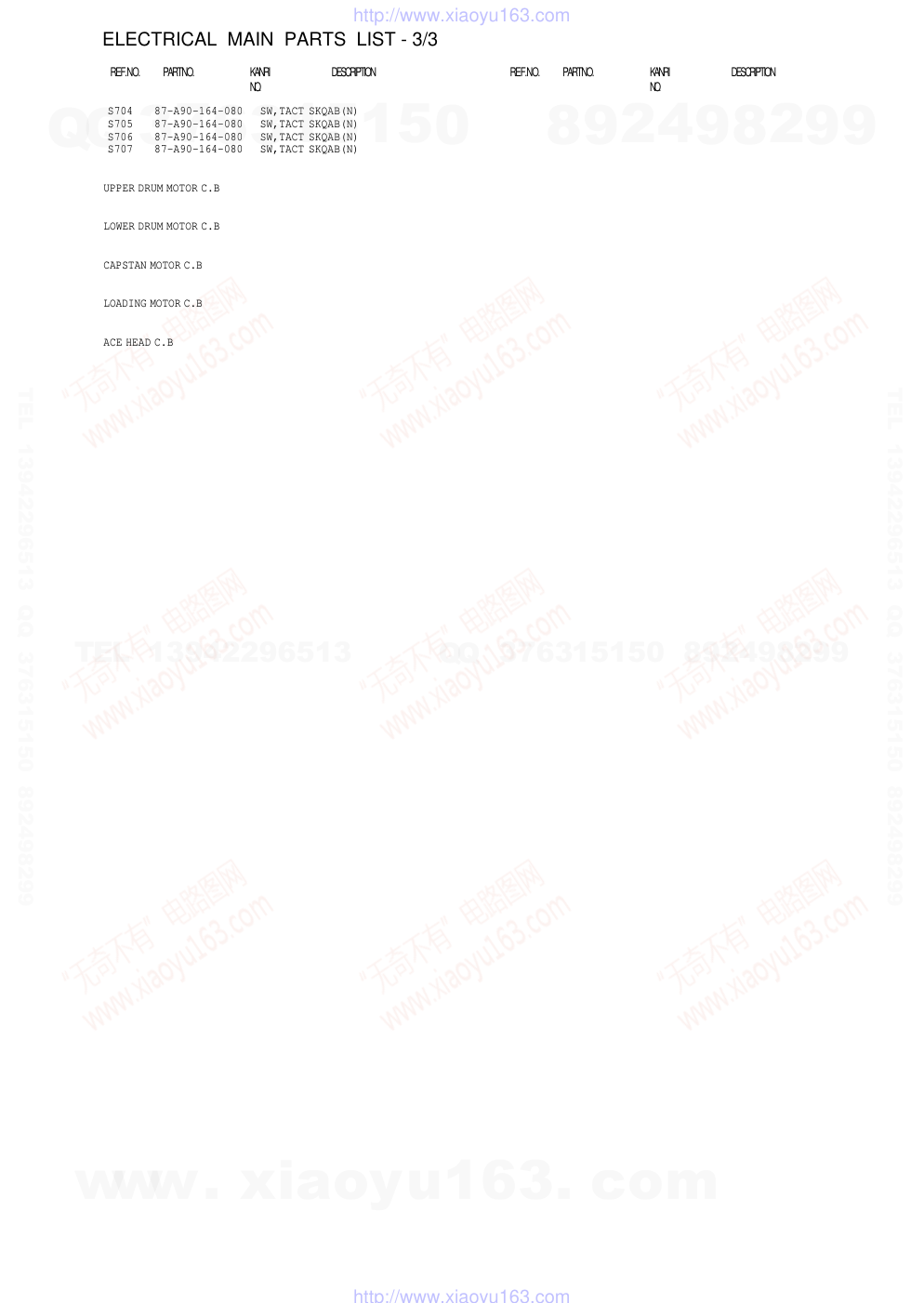

S E R V I C E M A N U A L SIMPLE MANUAL • Replace this Service Manual with ”Revision Publishing” when it is issued. HV-CX717 HV-CX818 • TYPE: KE VIDEO CASSETTE PLAYER • BASIC VIDEO MECHANISM: K-P2SPN 104P-C<717> K-P2SRN 104R-C<818> S/M Code No. 09–985–276–4FP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DESCRIPTION REF. NO. KANRI NO. PART NO. KANRI NO. REF. NO. DESCRIPTION PART NO. ELECTRICAL MAIN PARTS LIST - 1/3 IC 88-JP6-616-010 IC,TOP224Y 87-A20-649-080 IC,HA17431VP 87-A20-216-110 C-IC,HA118201CF 87-A20-275-040 C-IC,MSM7470-73MS 87-070-424-040 IC,BA7180F 87-001-933-010 IC,LA7295<818> 88-JP6-611-010 C-IC,M37776M5A-166GP 87-001-982-010 IC,TA7291S 87-070-289-040 IC,BU 2092F 87-070-083-010 IC,GP1U281X 87-070-391-040 IC,BA4558<717> TRANSISTOR 89-109-521-080 TR,2SA952 (0.6W) 87-A30-062-080 C-TR,KRC104S 89-109-340-480 TR,2SA934Q 87-A30-060-080 C-TR,KTC3875GR 87-A30-061-080 C-TR,KTA1504GR 87-026-235-080 C-TR,DTC114EK 87-A30-099-080 TR,2SC3708S/T<818> 87-A30-141-010 P-TR,PN268NC-R DIODE 87-070-173-010 DIODE,S1WBA60 87-A40-368-080 DIODE,EG01C 87-A40-480-080 ZENER,P6KE150A-G23 87-A40-291-080 DIODE,1N4148 (CPT) 87-A40-369-090 DIODE,RN3Z 87-A40-184-090 DIODE,RK34(F) 87-A40-466-080 ZENER,MTZJ2.7A 87-A40-003-080 ZENER,MTZJ4.3A 87-A40-344-080 ZENER,MTZJ5.6B 87-070-274-080 DIODE,1N4003 SEM MAIN C.B C1 87-A10-374-010 CAP,M/P 0.1-275 K RMR C4 87-A10-003-090 CAP,E 100-400 M SME C5 87-A10-892-080 CAP,CER 68P-1K J SL C7 87-010-374-080 CAP, ELECT 47-10V C9 87-A10-413-010 CAP,CER 2200P-4K M E KX C12 87-A10-896-090 CAP,E 820-16 M PJ C13 87-A10-895-080 CAP,E 1000-10 M PJ C14 87-010-235-080 CAP,E 470-16 SME C15 87-010-221-080 CAP, ELECT 470-10V C16 87-010-235-080 CAP,E 470-16 SME C18 87-010-378-080 CAP, ELECT 10-16V C19 87-010-112-080 CAP, ELECT 100-16V C20 87-010-263-080 CAP, ELECT 100-10V C21 87-010-983-010 CAP,CER 0.01-500 KB C22 87-A10-596-080 C-CAP,S 100P-100J C C23 87-A10-843-080 CAP,CER 680P-1K KR C102 87-018-205-080 CAP, CERA-SOL 0.022<818> C103 87-010-197-080 CAP, CHIP 0.01 DM C104 87-010-145-080 C-CAP,S 1P-50 CH C105 87-010-197-080 CAP, CHIP 0.01 DM C106 87-010-073-080 CAP,E 3.3-50 5L C107 87-012-155-080 C-CAP 180P-50CH C108 87-010-316-080 C-CAP,S 33P-50 CH C110 87-010-244-080 CAP,E 22-16 M 5L SRE C111 87-010-196-080 CHIP CAPACITOR,0.1-25 C112 87-010-193-080 CHIP CAPACITOR,0.033 C113 87-010-402-080 CAP, ELECT 2.2-50V C116 87-010-180-080 C-CER 1500P C117 87-010-314-080 C-CAP,S 22P-50V C119 87-010-400-080 CAP, ELECT 0.47-50V C120 87-010-198-080 CAP, CHIP 0.022 C122 87-010-401-080 CAP, ELECT 1-50V C126 87-018-134-080 CAPACITOR,TC-U 0.01-16 C127 87-010-405-080 CAP, ELECT 10-50V C129 87-010-196-080 CHIP CAPACITOR,0.1-25 C130 87-010-263-080 CAP, ELECT 100-10V C131 87-010-545-080 CAP, ELECT 0.22-50V C132 87-010-405-080 CAP, ELECT 10-50V C133 87-010-400-080 CAP, ELECT 0.47-50V C134 87-010-405-080 CAP, ELECT 10-50V<818> C135 87-010-405-010 CAP, ELECT 10-50V<717> C136 87-010-402-080 CAP, ELECT 2.2-50V C137 87-010-403-080 CAP, ELECT 3.3-50V C138 87-010-196-080 CHIP CAPACITOR,0.1-25 C139 87-010-196-080 CHIP CAPACITOR,0.1-25 C141 87-010-196-080 CHIP CAPACITOR,0.1-25 C143 87-010-403-080 CAP, ELECT 3.3-50V C144 87-010-197-080 CAP, CHIP 0.01 DM C149 87-010-316-080 C-CAP,S 33P-50 CH C150 87-010-493-080 CAP,E 0.47-50 GAS C152 87-010-068-080 CAP, ELECT 0.22-50 C154 87-012-154-080 C-CAP,S 150P-50 CH C157 87-015-695-080 CAP,E 1-50 7L C158 87-010-197-080 CAP, CHIP 0.01 DM C159 87-010-198-080 CAP, CHIP 0.022 C160 87-010-197-080 CAP, CHIP 0.01 DM C161 87-015-677-080 CAP,E 100-6.3 7L C162 87-018-214-080 CAP TC U 0.1-50F C163 87-010-178-080 CHIP CAP 1000P C164 87-010-198-080 CAP, CHIP 0.022 C165 87-010-196-080 C-CAP,S 0.1-25 Z F C180 87-012-158-080 C-CAP,S 390P-50 CH C182 87-010-196-080 CHIP CAPACITOR,0.1-25 C183 87-010-553-080 CAP,E 47-16 C184 87-018-131-080 CAP, CER 1000P-50V C185 87-018-134-080 CAPACITOR,TC-U 0.01-16 C186 87-010-149-080 C-CAP,S 5P-50 CH C187 87-010-314-080 C-CAP,S 22P-50V C201 87-010-112-080 CAP, ELECT 100-16V C202 87-010-197-080 CAP, CHIP 0.01 DM C203 87-010-374-080 CAP, ELECT 47-10V C204 87-010-371-080 CAP, ELECT 470-6.3V C205 87-010-263-080 CAP, ELECT 100-10V C206 87-010-197-080 CAP, CHIP 0.01 DM C207 87-010-263-080 CAP, ELECT 100-10V C208 87-010-197-080 CAP, CHIP 0.01 DM C251 87-010-181-080 CAP,CHIP S 1800P<818> C252 87-010-316-080 C-CAP,S 33P-50 CH<818> C253 87-012-154-080 C-CAP 150P-50CH<818> C254 87-012-157-080 C-CAP,S 330P-50 CH<818> C255 87-012-154-080 C-CAP,S 150P-50 CH<818> C256 87-010-198-080 CAP, CHIP 0.022<818> C257 87-010-197-080 CAP, CHIP 0.01 DM<818> C258 87-010-550-080 CAP 100-6.3 GAS<818> C259 87-010-198-080 CAP, CHIP 0.022<818> C260 87-010-198-080 CAP, CHIP 0.022<818> C261 87-010-198-080 CAP, CHIP 0.022<818> C262 87-010-197-080 CAP, CHIP 0.01 DM<818> C263 87-010-244-080 CAP,E 22-16 M 5L SRE<818> C265 87-010-178-010 CHIP CAP 1000P<818> C301 87-010-196-080 CHIP CAPACITOR,0.1-25 C302 87-010-196-080 CHIP CAPACITOR,0.1-25<818> C303 87-010-196-080 CHIP CAPACITOR,0.1-25 C306 87-010-196-080 CHIP CAPACITOR,0.1-25 C307 87-010-196-080 CHIP CAPACITOR,0.1-25<818> C308 87-015-677-080 CAP,E 100-6.3 7L C309 87-010-805-080 CHIP CAPACITOR,S 1-16 C310 87-010-198-080 CAP, CHIP 0.022<818> C311 87-010-197-080 CAP, CHIP 0.01 DM C351 87-010-314-080 C-CAP,S 22P-50 CH C352 87-010-313-080 C-CAP,S 18P-50 CH C354 87-010-320-080 CHIP CAP 68P C355 87-010-317-080 C-CAP,S 39P-50 CH C356 87-010-197-080 CAP, CHIP 0.01 DM C357 87-010-321-080 C-CAP,S 82P-50CH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DESCRIPTION REF. NO. KANRI NO. PART NO. KANRI NO. REF. NO. DESCRIPTION PART NO. ELECTRICAL MAIN PARTS LIST - 2/3 C360 87-010-320-080 C-CAP,S 68P-50 CH C362 87-012-157-080 C-CAP,S 330P-50 CH C365 87-012-157-080 C-CAP,S 330P-50 CH C367 87-010-322-080 C-CAP,S 100P-50 CH C370 87-010-197-080 CAP, CHIP 0.01 DM C371 87-015-677-080 CAP, ELECT 100-6.3 M 7L C401 87-010-112-080 CAP, ELECT 100-16V<818> C402 87-010-197-080 CAP, CHIP 0.01 DM<818> C404 87-010-182-080 C-CAP,S 2200P-50 B<818> C405 87-010-401-080 CAP, ELECT 1-50V<818> C406 87-010-197-080 CAP, CHIP 0.01 DM<818> C407 87-010-404-080 CAP, ELECT 4.7-50V<818> C409 87-010-404-080 CAP, ELECT 4.7-50V<818> C410 87-010-213-080 C-CAP,S 0.015-50 B<818> C411 87-010-382-080 CAP, ELECT 22-25V<818> C413 87-010-402-080 CAP, ELECT 2.2-50V<818> C415 87-012-365-080 C-CAP,S 0.027-25VBK<818> C416 87-015-698-080 CAP,E 4.7-50 7L<818> C417 87-010-260-080 CAP, ELECT 47-25V<818> C418 87-010-378-080 CAP, ELECT 10-16V<818> C419 87-010-260-080 CAP, ELECT 47-25V<818> C420 87-010-427-080 C-CAP,S 0.039-25 Z F<818> C421 87-010-182-080 C-CAP,S 2200P-50 B<818> C423 87-012-156-080 C-CAP,S 220P-50 CH<818> C431 87-010-178-080 CHIP CAP 1000P C451 87-010-112-080 CAP, ELECT 100-16V<717> C452 87-010-197-080 C-CAP,S 0.01-25 K B<717> C453 87-010-182-080 C-CAP,S 2200P-50 B<717> C455 87-010-405-080 CAP, ELECT 10-50V<717> C457 87-010-405-080 CAP, ELECT 10-50V<717> C458 87-010-263-080 CAP,ELECT 100-10V<717> C459 87-010-175-080 C-CAP,S 560P-50 J SL<717> C460 87-010-244-080 C-CAP,E 22-16 M 5L SRE<717> C461 87-010-805-080 C-CAP,S 1-16 Z F<717> C462 87-010-197-080 C-CAP,S 0.01-25 K B<717> C602 87-010-197-080 CAP, CHIP 0.01 DM<818> C603 87-010-196-080 CHIP CAPACITOR,0.1-25 C604 87-015-677-080 CAP,E 100-6.3 7L C605 87-010-154-080 C-CAP,S 10P-50V C606 87-010-154-080 C-CAP,S 10P-50V C609 87-010-178-080 CHIP CAP 1000P C610 87-010-178-080 CHIP CAP 1000P C611 87-010-178-080 CHIP CAP 1000P C612 87-015-695-080 CAP,E 1-50 7L C613 87-010-184-080 CHIP CAPACITOR 3300P(K) C614 87-010-196-080 CHIP CAPACITOR,0.1-25 C615 87-010-375-080 CAP,E 330-10 SME C616 87-015-681-080 CAP,E 10-16 7L C617 87-010-193-080 CHIP CAPACITOR,0.033 C618 87-015-681-080 CAP,E 10-16 7L C619 87-010-263-080 CAP, ELECT 100-10V C620 87-010-196-080 CHIP CAPACITOR,0.1-25 C622 87-010-805-080 CAP, S 1-16 C623 87-010-196-080 CHIP CAPACITOR,0.1-25 C628 87-010-196-080 CHIP CAPACITOR,0.1-25 C629 87-010-260-080 CAP, ELECT 47-25V C630 87-010-197-080 CAP, CHIP 0.01 DM C631 87-015-680-080 CAP,E 47-10 7L C632 87-010-197-080 CAP, CHIP 0.01 DM C633 87-010-197-080 CAP, CHIP 0.01 DM C634 87-015-684-080 CAP,E 47-16 7L C635 87-010-197-080 CAP, CHIP 0.01 DM C636 87-015-684-080 CAP,E 47-16 7L C637 87-010-197-080 CAP, CHIP 0.01 DM CN604 87-099-197-010 CONN, 9P 6216 V CNA402 88-JP6-622-010 CONN ASSY,6P ACE CNA602 88-JP6-623-010 CONN ASSY,7P MOTOR D604 87-070-418-010 LED,LN66A F1 87-035-454-010 FUSE,1.6A 250V T W/C F000 88-909-121-110 FF-CABLE,9P 12CM FC1 87-A90-505-080 FUSE CLAMP,TP00351-51 FC2 87-A90-505-080 FUSE CLAMP,TP00351-51 J201 87-A60-240-010 JACK,PIN 2P Y/B HTJ-033<818> J202 87-A60-240-010 JACK,PIN 2P Y/B HTJ-033 L2 87-A50-180-080 COIL,22UH K LHL10 L3 87-A50-180-080 COIL,22UH K LHL10 L4 87-A50-180-080 COIL,22UH K LHL10 L101 87-003-146-080 COIL,15UH K LAL02 L102 87-005-730-080 COIL,10UH J SP02 L103 87-005-736-080 COIL,33UH J SP02 L105 87-005-481-080 COIL,47UH J FLR50 L108 87-005-743-080 COIL,120UH J SP02 L109 87-005-481-080 COIL,47UH J FLR50 L180 87-005-742-080 COIL,100UH J SP02 L181 87-005-740-080 COIL,68UH J SP02 L201 87-005-738-080 COIL,47UH J SP02 L202 87-005-481-080 COIL,47UH J FLR50 L203 87-005-481-080 COIL,47UH J FLR50 L251 87-005-738-080 COIL,47UH J SP02<818> L252 87-005-729-080 COIL,8.2UH J SP02<818> L253 87-005-738-080 COIL,47UH J SP02<818> L254 87-005-732-080 COIL,15UH J SP02<818> L255 87-005-739-080 COIL,56UH J SP02<818> L256 87-005-746-080 COIL,220UH J SP02<818> L301 87-005-481-080 COIL,47UH J FLR50 L351 87-005-734-080 COIL,22UH J SP02 L352 87-005-738-080 COIL,47UH J SP02 L353 87-005-730-080 COIL,10UH J SP02 L354 87-005-730-080 COIL,10UH J SP02 L355 87-005-745-080 COIL,180UH J SP02 L356 87-005-738-080 COIL,47UH J SP02 L358 87-005-481-080 COIL,47UH J FLR50 L401 88-JP6-615-010 COIL,BIAS OSC 70KHZ<818> L402 87-005-398-080 COIL,8.2MH LHL06<818> L403 87-005-739-080 COIL,56UH J SP02<818> L601 87-005-481-080 COIL,47UH J FLR50 L602 87-005-481-080 COIL,47UH J FLR50 LF1 87-A90-869-010 FLTR,LINE LF2020-333 PS1 87-A90-717-010 P-COUPLER,PC123FY2 PS601 87-A90-834-010 SNSR,SG-258S PS602 87-A90-834-010 SNSR,SG-258S PT1 88-JP6-630-010 PT,KER SWT R8 87-A00-414-090 RES,M/F 8.2-1W J RNS R10 87-025-425-080 RES,M/F 12K-1/8W F R11 87-022-629-080 RES,M/F 11K-1/6WF R12 87-A00-363-090 RES,M/F 68K-2W J RSS2X RF201 87-A90-740-010 RF MOD UNIT,NJH3032E20 G/K S601 87-A90-873-080 SW,TACT SKQNAJ S602 87-036-110-010 SW,MICRO SPPB62 SFR601 87-024-177-080 SEMI-FIXED RESISTER, 220K TM1 87-A60-317-010 TERMINAL, 1P MSC TM2 87-A60-317-010 TERMINAL, 1P MSC X101 87-A70-019-080 VIB,XTAL 4.43MHZ X601 87-A70-090-080 VIB,XTAL 16MHZ AT-49 FRONT C.B C702 87-010-196-080 CHIP CAPACITOR,0.1-25 C703 87-010-196-080 CHIP CAPACITOR,0.1-25 C704 87-010-263-080 CAP, ELECT 100-10V CN701 87-099-202-010 CONN,9P 6216 H D703 87-017-733-080 LED,SEL1250SM D704 87-017-733-080 LED,SEL1250SM<818> D705 87-017-350-080 LED,SEL1550CM D706 87-017-350-080 LED,SEL1550CM D707 87-017-350-080 LED,SEL1550CM D708 87-017-350-080 LED,SEL1550CM D709 87-017-350-080 LED,SEL1550CM D710 87-017-350-080 LED,SEL1550CM D711 87-017-350-080 LED,SEL1550CM D712 87-017-350-080 LED,SEL1550CM S701 87-A90-164-080 SW,TACT SKQAB(N) S702 87-A90-164-080 SW,TACT SKQAB(N) S703 87-A90-164-080 SW,TACT SKQAB(N) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DESCRIPTION REF. NO. KANRI NO. PART NO. KANRI NO. REF. NO. DESCRIPTION PART NO. ELECTRICAL MAIN PARTS LIST - 3/3 S704 87-A90-164-080 SW,TACT SKQAB(N) S705 87-A90-164-080 SW,TACT SKQAB(N) S706 87-A90-164-080 SW,TACT SKQAB(N) S707 87-A90-164-080 SW,TACT SKQAB(N) UPPER DRUM MOTOR C.B LOWER DRUM MOTOR C.B CAPSTAN MOTOR C.B LOADING MOTOR C.B ACE HEAD C.B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DESCRIPTION REF. NO. KANRI NO. PART NO. KANRI NO. REF. NO. DESCRIPTION PART NO. MECHANICAL PARTS LIST - 1 1 88-JP6-003-010 CABI,STEEL 2 88-JP6-004-010 PANEL,RE 1<818> 2 88-JP9-004-010 PANEL,RE 2<717> 3 87-A80-088-010 AC CORD ASSY,E BLK 4 88-JP6-008-010 KEY,CONT 1<818> 4 88-JP9-008-010 KEY,CONT 2<717> 5 88-JP8-001-010 CABI,FR<818> 5 88-JP9-001-010 CABI,FR<717> 6 84-LB3-024-110 PLATE FOOT 7 88-JP6-009-010 CAP, RING 8 88-JP6-006-010 WINDOW,DSPLY 1 9 82-NE8-032-010 BADGE,AIWA 27.5 10 88-JP6-007-010 KEY,POWER 11 88-JP9-005-010 DOOR,CASS 2<717> 11 88-JP8-005-010 DOOR,CASS 4<818> 12 84-JP9-202-010 SPR-T,DOOR 13 81-JUK-045-010 FELT,FOOT 8-8 A 87-067-761-010 TAPPING SCREW, BVT2+3-10 B 87-067-579-010 TAPPING SCREW, BVT2+3-8 C 87-067-703-010 TAPPING SCREW, BVT2+3-10 D 87-078-070-010 BVIT3B+4-12 E 87-067-688-010 BVTT+3-6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DESCRIPTION REF. NO. KANRI NO. PART NO. KANRI NO. REF. NO. DESCRIPTION PART NO. ACCESSORIES / PACKAGE LIST - 1 1 88-JP9-903-010 IB,KE (ECRPA)-M<717> 1 88-JP8-903-010 IB,KE (ECRPA)-M<818> 2 87-B30-106-010 CORD,RF PAL/UJ0502 3 88-JP8-670-010 RC UNIT,RC-8VP02<818> 3 88-JP9-670-010 RC UNIT,RC-8VP03<717> www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM _ 1 (VIDEO) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM _ 2 (AUDIO) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM _ 3 (FRONT) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM _ 4 (HEAD AMP) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM _ 5 (SYSCON/SERVO) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM _ 6 (POWER) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Printed in Singapore Tokyo Japan 4 9630466,9301978 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
