INSTRUCTION MANUAL
LCD-22XR9DKH
LCD TV
Before connecting, operating or adjusting this product, please read the manual completely.
Please keep this manual for future reference.

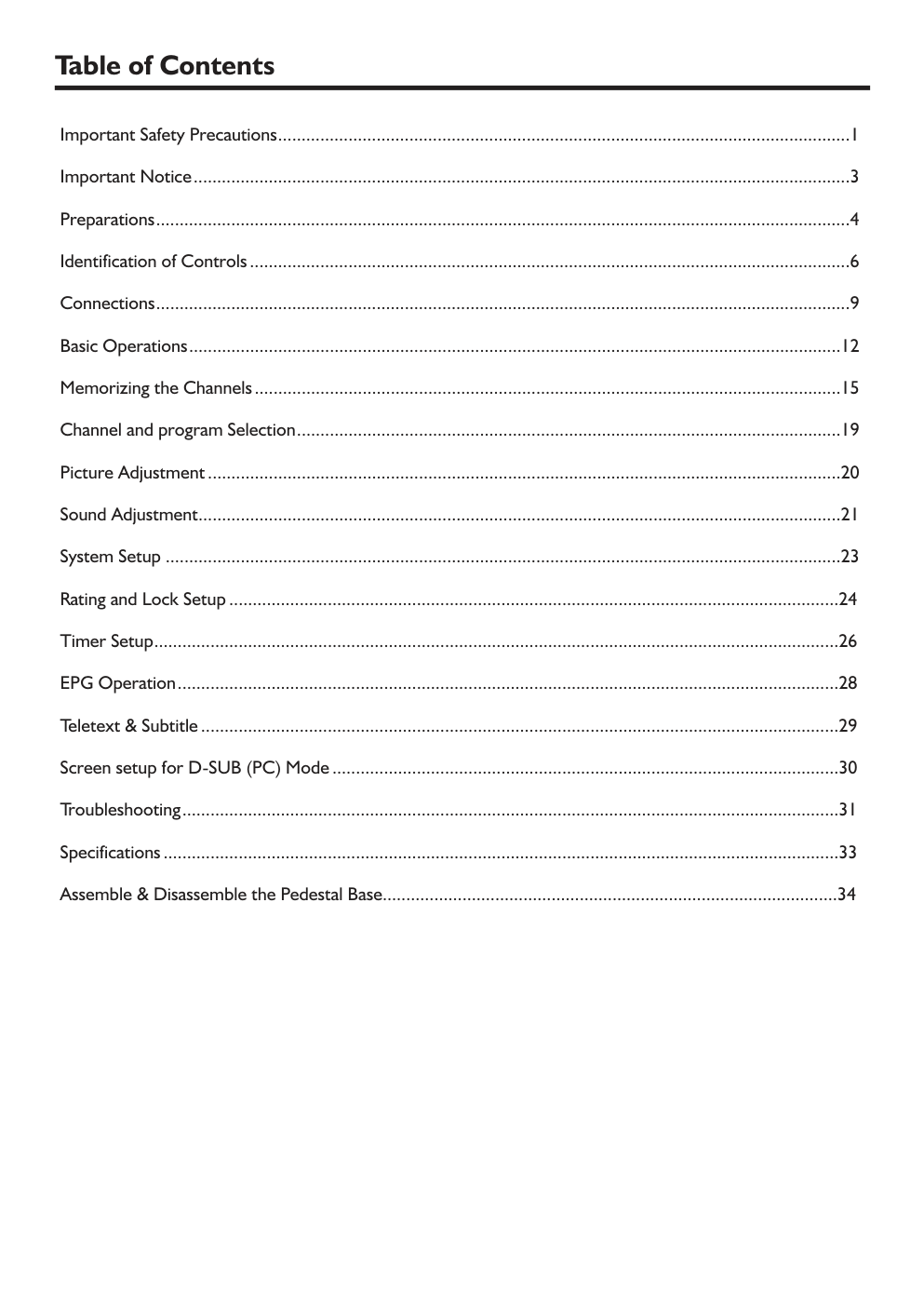

Table of Contents
Important Safety Precautions..........................................................................................................................1
Important Notice............................................................................................................................................3
Preparations....................................................................................................................................................4
Identification of Controls................................................................................................................................6
Connections....................................................................................................................................................9
Basic Operations...........................................................................................................................................12
Memorizing the Channels.............................................................................................................................15
Channel and program Selection....................................................................................................................19
Timer Setup..................................................................................................................................................26
EPG Operation.............................................................................................................................................28
Teletext & Subtitle
Specifications................................................................................................................................................33
Assemble & Disassemble the Pedestal Base.................................................................................................34
Picture Adjustment.......................................................................................................................................20
Sound Adjustment.........................................................................................................................................21
System Setup ................................................................................................................................................23
Rating and Lock Setup ..................................................................................................................................24
........................................................................................................................................29
Screen setup for D-SUB (PC) Mode............................................................................................................30
Troubleshooting............................................................................................................................................31
1
Important Safety Precautions
Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly
handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN
RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please read the
following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of
your new TV product, please read the following precautions carefully before using the product.
1. Read these instructions---All operating instructions must be read and understood before the product is operated.
2. Keep these instructions---These safety and operating instructions must be kept in a safe place for future reference.
3. Heed all warnings---All warnings on the product and in the instructions must be observed closely.
4. Follow all instructions---All operating instructions must be followed.
7.Power cord protection---Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Note: where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain
readily operable.
5.Attachments---Only use attachments/accessories specified by the manufacturer. Do not use attachments not
recommended by the manufacturer. Use of improper attachments can result in accidents.
8.Overloading---Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can
result in a risk of fire or electric shock.
6. Power source---This product is intended to be supplied by a listed power supply indicated on the marking label. If you are
not sure of the type of power supply to your home, consult your product dealer or local power company. For added
protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the cable system.
9.Entering of objects and liquids---Never insert an object into the product through vents or openings. High voltages are
present in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do
not spill water or liquid on the product.
10. Servicing---Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
11.Damage requiring service---If any of the following conditions occurs, unplug the power cord from the AC outlet, and
request a qualified service person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid is spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not
described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.
e. If the product has been dropped or the cabinet has been damaged in any way.
f. When the product displays an abnormal condition or exhibits a distinct change in performance. Any noticeable abnormality
in the product indicates that the product needs servicing.
12. Replacement parts---In case the product needs replacement parts, make sure that the service person replaces parts
specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of
unauthorized parts can result in fire, electric shock and/or other danger.
13. Safety checks---Upon completion of service or repair work, request the service technician to perform safety checks to
ensure that the product is in proper operating condition.
14. Wall or ceiling mounting---When mounting the product on a wall or ceiling, be sure to ask a authorized service
personnel to carry out setup. This is a safety feature.
Important Safety Precautions (Continued)
2

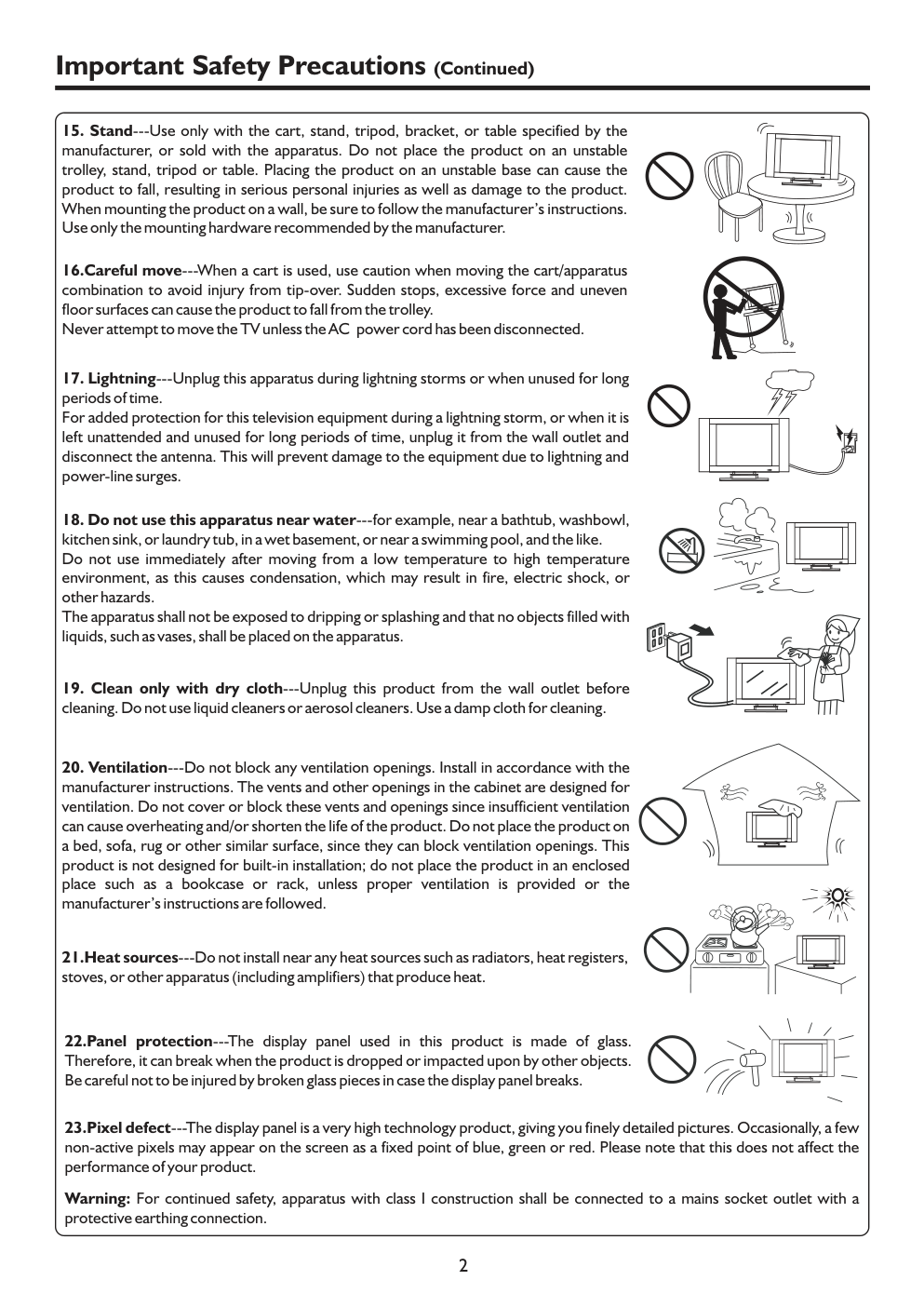

15. Stand---Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. Do not place the product on an unstable
trolley, stand, tripod or table. Placing the product on an unstable base can cause the
product to fall, resulting in serious personal injuries as well as damage to the product.
When mounting the product on a wall, be sure to follow the manufacturer’s instructions.
Use only the mounting hardware recommended by the manufacturer.
16.Careful move---When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over. Sudden stops, excessive force and uneven
floor surfaces can cause the product to fall from the trolley.
Never attempt to move the TV unless the AC power cord has been disconnected.
17. Lightning---Unplug this apparatus during lightning storms or when unused for long
periods of time.
For added protection for this television equipment during a lightning storm, or when it is
left unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna. This will prevent damage to the equipment due to lightning and
power-line surges.
18. Do not use this apparatus near water---for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
Do not use immediately after moving from a low temperature to high temperature
environment, as this causes condensation, which may result in fire, electric shock, or
other hazards.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
19. Clean only with dry cloth---Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
20. Ventilation---Do not block any ventilation openings. Install in accordance with the
manufacturer instructions. The vents and other openings in the cabinet are designed for
ventilation. Do not cover or block these vents and openings since insufficient ventilation
can cause overheating and/or shorten the life of the product. Do not place the product on
a bed, sofa, rug or other similar surface, since they can block ventilation openings. This
product is not designed for built-in installation; do not place the product in an enclosed
place such as a bookcase or rack, unless proper ventilation is provided or the
manufacturer’s instructions are followed.
21.Heat sources---Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
22.Panel protection---The display panel used in this product is made of glass.
Therefore, it can break when the product is dropped or impacted upon by other objects.
Be careful not to be injured by broken glass pieces in case the display panel breaks.
23.Pixel defect---The display panel is a very high technology product, giving you finely detailed pictures. Occasionally, a few
non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the
performance of your product.
Warning: For continued safety, apparatus with class I construction shall be connected to a mains socket outlet with a
protective earthing connection.

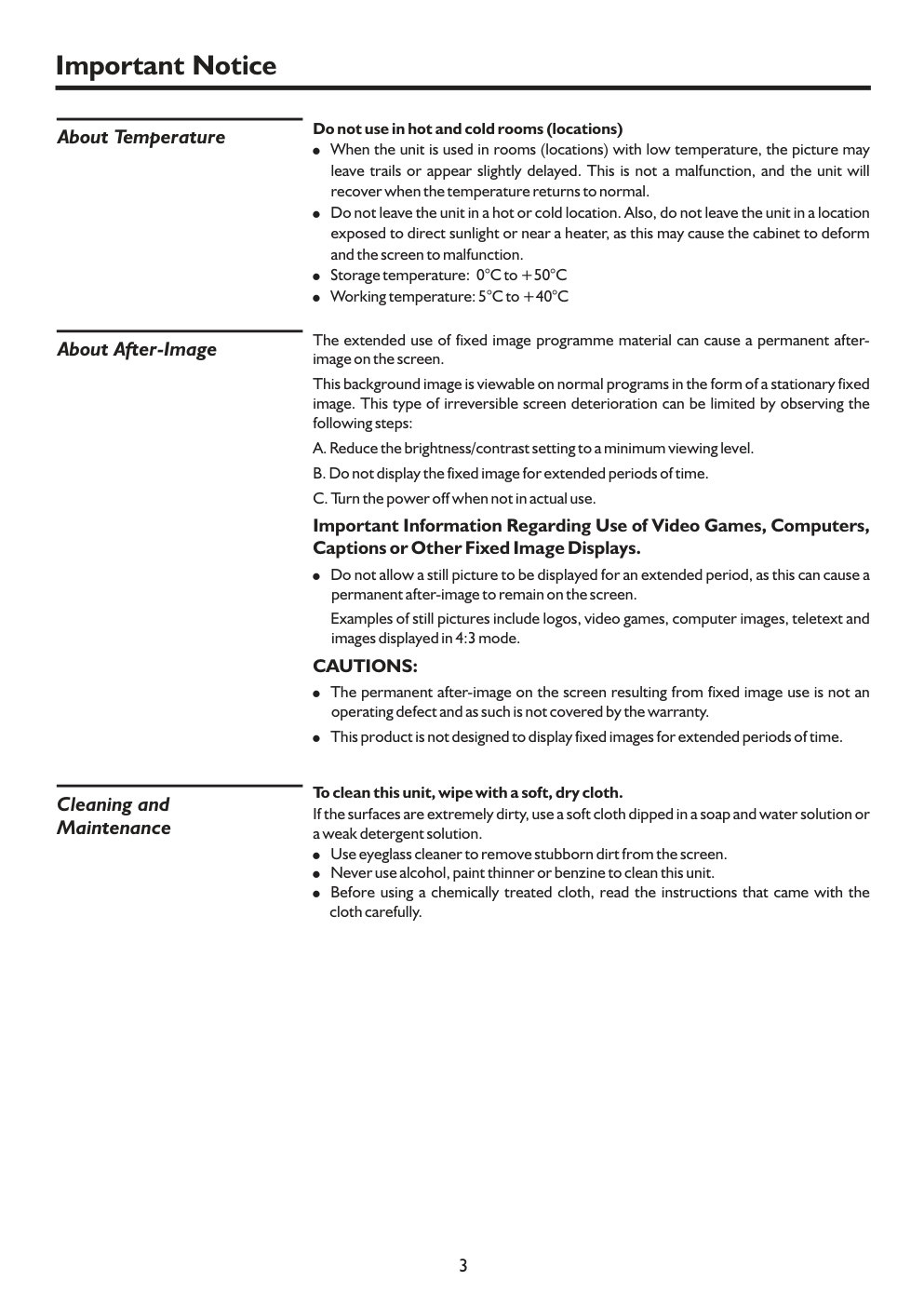

Do not use in hot and cold rooms (locations)
! When the unit is used in rooms (locations) with low temperature, the picture may
leave trails or appear slightly delayed. This is not a malfunction, and the unit will
recover when the temperature returns to normal.
! Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location
exposed to direct sunlight or near a heater, as this may cause the cabinet to deform
and the
to malfunction.
! Storage temperature: 0°C to +50°C
! Working temperature: 5°C to +40°C
screen
About Temperature
About After-Image
The extended use of fixed image programme material can cause a permanent
on the screen.
This background image is viewable on normal programs in the form of a stationary fixed
image. This type of irreversible screen deterioration can be limited by observing the
following steps:
A. Reduce the brightness/contrast setting to a minimum viewing level.
B. Do not display the fixed image for extended periods of time.
C. Turn the power off when not in actual use.
Important Information Regarding Use of Video Games, Computers,
Captions or Other Fixed Image Displays.
after-
! Do not allow a still picture to be displayed for an extended period, as this can cause a
permanent after-image to remain on the screen.
Examples of still pictures include logos, video games, computer images, teletext and
images displayed in 4:3 mode.
CAUTIONS:
! The permanent after-image on the screen resulting from fixed image use is not an
operating defect and as such is not covered by the warranty.
! This product is not designed to display fixed images for extended periods of time.
Cleaning and
Maintenance
To clean this unit, wipe with a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or
a weak detergent solution.
!
!
!
Use eyeglass cleaner to remove stubborn dirt from the screen.
Never use alcohol, paint thinner or benzine to clean this unit.
Before using a chemically treated cloth, read the instructions that came with the
cloth carefully.
Important Notice
3
<
Use the remote control by pointing it towards the remote sensor window of the
set. Objects between the remote control and sensor window may prevent proper
operation.
Cautions regarding use of remote control
<
Do not expose the remote control to shock. In addition, do not expose the remote
control to liquids, and do not place in an area with high humidity.
<
Do not install or place the remote control under direct sunlight. The heat may cause deformation
of the unit.
<
The remote control may not work properly if the remote sensor window of the main unit is under direct sunlight or strong
lighting. In such a case, change the angle of the lighting or the TV set, or operate the remote control closer to the remote
sensor window.
If the remote control fails to operate the TV functions, replace the batteries in the remote control.
Precaution on battery use
Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.
<
Place batteries with their terminals corresponding to the (+) and (–) indications.
<
Different types of batteries have different characteristics. Do not mix batteries of different types.
<
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old
batteries to leak chemicals.
<
Remove batteries as soon as they are non-operable. Chemicals that leak from batteries can cause a rash. If chemical
leakage is found, wipe with a cloth.
<
If the remote control is not used for an extended period of time, remove the batteries from the remote control.
<
The batteries (battery pack of batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
Open the battery cover.
1
<
(Place the batteries with their terminals corresponding to the (+)
and (–) indications in the battery compartment.)
Insert two size-AAA batteries.
2
Replace the cover.
3
Preparations
Using the Remote Control
Installing the Batteries
4
30
30
5m
5

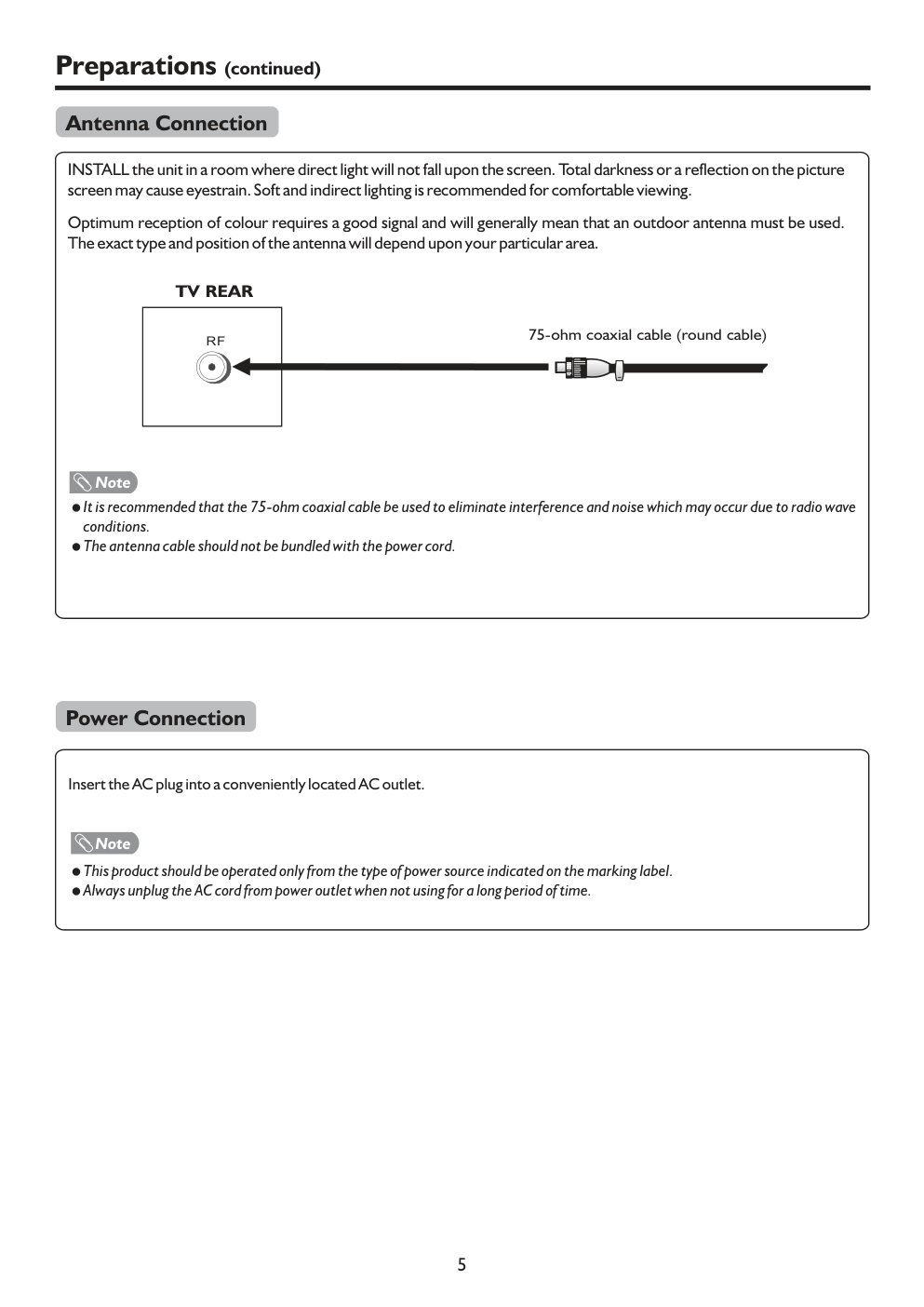

Insert the AC plug into a conveniently located AC outlet.
=
This product should be operated only from the type of power source indicated on the marking label.
=
Always unplug the AC cord from power outlet when not using for a long period of time.
75-ohm coaxial cable (round cable)
INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture
screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
Optimum reception of colour requires a good signal and will generally mean that an outdoor antenna must be used.
The exact type and position of the antenna will depend upon your particular area.
=
It is recommended that the 75-ohm coaxial cable be used to eliminate interference and noise which may occur due to radio wave
conditions.
=
The antenna cable should not be bundled with the power cord.
TV REAR
RF
Antenna Connection
Power Connection
Note
Note
Preparations (continued)
6
Main Unit (front view/side view)
Identification of Controls
Power Indicator
Remote Sensor
Functions of CH+/-, VOL+/-, MENU, SOURCE and POWER are also provided to the remote control. This operation
manual provides a description based on operating functions with the remote control.
1. CH+/-
Press these two buttons to directly change the TV channel.
In OSD menu, press these buttons to choose the OSD items.
2. VOL+/-
Press the VOL+ or VOL- button to directly increase or decrease the sound volume level;
In OSD menu, press these buttons to adjust the value or setting of each item.
3. MENU
Press this button to access Menu main page.
4. SOURCE
To access input source select menu.
5. POWER
Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY.
Note
1
2
4
5
3
SOURCE
MENU
CH+
CH-
VOL+
VOL-
Power Switch
7
Main Unit (rear view)
Identification of Controls (Continued)
1. USB port
For software upgrade only. The user cannot use it.
2. HDMI interface
To connect with those equipments with HDMI or DVI interface, for example, Set-top box or DVD player. (A
HDMI-to-DVI adapter cable is required when you are connecting a DVI-equipped device to this TV.)
3. D-SUB input
Connect to the D-SUB/AUDIO output jack on your computer.
4. COMPONENT inputs
Connect to the audio and component output jacks of a DVD player or Set-Top Box.
5. AV1/AV2 inputs (Video, Audio L, R)
Receive video/audio signal from external sources such as VCR or DVD player.
6. Antenna input
Connect to your cable system or outdoor antenna.
7. S/PDIF digital audio out terminal(coaxial)
Connect to the digital audio input of a digital audio component.
8. Headphone jack
Connect to your headphones.
9. RS232 interface
For service use . The user cannot operate the unit through this terminal.
8
5
9
RS-232
AV2 IN
upgrade only
USB
RF
D-SUB
HDMI
AV1 IN
COMPONENT IN
1
2
4
5
7
6
3
Remote Control Unit
Identification of Controls (Continued)
POWER: Switches the TV power on or Standby.
TV/Radio: Switches between TV and Radio mode. (DTV only)
EPG: Displays the Electronic program Guide (DTV only).
FAV.LIST: Displays the favorite channel list.
FAV+/ FAV–: Selects the favorite channel.
0 – 9 number buttons: Press to enter channel numbers or
input password.
ZOOM: Selects the screen size.
MENU: Displays the main menu screen.
5
/6
/3
/4
/OK: Press the arrows to navigate through the
menus or adjust an item. Press OK to confirm a selection or
enter a sub-menu.
MUTE: Mutes the sound.
INFO: Displays the information banner.
VOL+/–: Increases or decreases the volume.
S.MODE: Selects sound mode.
STEREO: Selects bilingual, stereo or mono ( ATV only ), or
audio track(DTV only).
FREEZE: To freeze current picture.
SLEEP: Sets the sleep timer.
RECALL: Returns to the previous channel.
EXIT: Exits the menu screen.
SOURCE: Displays input source menu.
LIST: Displays the channel list.
P.MODE: Selects picture mode.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
CH / : Changes channel up and down.
8
23
24
25
26
27
28
31
Below is teletext control buttons:
Coloured buttons (RED/GREEN/YELLOW/BLUE):
Functional button.
TTX: Used to enter or exit teletext mode. (Teletext)
Subtitle: Displays the subtitle (DTV only), or the teletext
subpage (ATV only).
Size: Press this button several times to display the upper, then
the lower part of the screen and then return to the normal size
teletext page. (Teletext)
Index: Press this button to view the main index page.(Teletext)
Reveal: To reveal or hide the concealed information. (Teletext)
29 Hold: To stop or resume sub-page acquisition. (Teletext)
30 Update:
(Teletext)
Press the button to view the updated teletext page.
Mix:
. (Teletext)
Press the button to display the Teletext on the screen with
transparent background while viewing the TV programme
simultaneously
1
3
4
8
12
2
5
6
7
9
10
11
24
13
23
25
27
26
17
18
19
21
20
22
29
31
30
28
16
15
14
Carefully check the terminals for position and type before making any connections.
The illustration of the external equipment may be different depending on your model.
Loose connectors can result in image or colour problems. Make sure that all connectors are securely inserted into their
terminals.
Refer to the operating manual of the external device as well.
When connecting an external device, turn the power off to avoid any issues.
Cautions Before Connecting
Connections
9
RF
AV1 IN
COMPONENT IN
RF
AV1 IN
COMPONENT IN
Connecting a Camcorder
TV REAR
AV cable
or
Camcorder
“Play Station”
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and camcorder.
How to connect:
To playback Camcorder
The operations of the camcorder may be different and is dependent on your model. Please read the user manual of your camcorder
to confirm operation.
1. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press 5
or6
to select AV1 or AV2, then press OK to confirm.
3. Turn on your camcorder and set it to output mode. (For details, refer to your camcorder user manual.)
4. Insert the tape into the camcorder and press Play button.
Note
For a full Home Theater sound experience, you must connect your Hi-Fi or
Audio processor to the S/PDIF OUT(Coaxial) terminal on the TV rear.
The S/PDIF OUT jack is available only when a digital TV channel is received.
Audio Processor
HIFi System
or
S/PDIF IN
(Coaxial)
Coaxial audio cable
Connecting Digital Coaxial Audio
Note
AV cable
TV REAR
10
Connections (Continued)
upgrade only
USB
D-SUB
HDMI
RF
AV1 IN
COMPONENT IN
Connecting Component Video
To connect a device using component video:
1. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press 5
or6
to select Component, then press OK to confirm.
3. Turn on your external device and set it to the correct mode. See the device’s user guide for more information.
To play component video from an external device:
Connect the Component Video cable between the Y, Cb/Pb, Cr/Pr input jacks on the unit and Y, Cb/Pb, Cr/Pr output jacks
on the device .
Connect the Audio cable between the AUDIO input jacks on the unit and AUDIO output jacks on the device.
Connecting a Computer
1. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press5
or6
to select D-SUB, then press OK to confirm.
3. Turn on your computer, and adjust the display properties as required.
To play video from a computer
Connect a D-Sub cable between the D-SUB jack on the computer and the D-SUB input jack on the unit.
Connect an Audio cable between the AUDIO output on the computer and AUDIO input jack on the unit.
D-Sub cable
(analog RGB)
To audio output jack
Audio cable
(stereo mini plugs)
(15-pin D-Sub)
To monitor port
DVD Player
Audio cable
Component video cable
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
How to connect:
TV REAR
TV REAR
upgrade only
USB
D-SUB
HDMI
Connections (Continued)
11
RS-232
AV2 IN
Connecting an HDMI device
Connect the HDMI cable between the HDMI interface on the unit and HDMI output on the device.
To play from the device using HDMI:
How to connect a device using HDMI Connection:
1. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press 5
or6
to select HDMI, then press OK to confirm.
3. Turn on your device and set it to the correct mode. See the device’s user guide for more information.
If the external device has DVI output only, use a DVI to HDMI adapter cable to connect to the HDMI terminal. Connect the audio
cable to the D-SUB AUDIO IN jack on the TV rear.
Note
HDMI cable
HDMI output
Equipment with
TV REAR
Connecting Headphones
Insert the plug of the headphone into the TV’s Headphone jack.
When using headphones, adjust the headphone volume so as to avoid excessive levels, as hearing damage may result.
TV SIDE
Headphones
1
3
With the power on, press MENU and the main menu screen displays.
Within the menu, press 5
, 6
,3
or4
navigate through the options or adjust
an option. Press OK to confirm a selection or enter a sub-menu.
Press 3
or4
to select menu. Press 6
or OK to access the menu.
2
4
Press MENU to return to previous menu. Press EXIT to exit the menu screen
directly. Or you may wait for a few seconds and the on-screen menu will
disappear from the screen automatically.
List of main menus to help you with operations
Main Menu Overview
PICTURE menu
SOUND menu
TIME menu
OPTION menu
LOCK menu
CHANNEL menu
To navigate through the OSD main menu
Basic Operations
12
=
Some menu items may be different when the unit works in different mode, and menu items that are not selectable are grayed out.
=
The Picture and Sound menu have more than one page, please use 5
or 6
to scroll through.
=
The illustrations and on-screen displays in this manual are for explanation purpose (some are enlarged, others cropped) and may
vary slightly from the actual ones.
Note
Sound
Time
Option
Lock
Channel
Select
Move
MENU
Return
Clock
01/Jan/2009 15:30
Off Time
On Time
Auto Sleep
Sleep Timer
Time Zone
Off
GMT+8
Off
Off
Off
Sound
Time
Option
Lock
Channel
Select
Move
MENU
Return
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Auto Tuning
Sound
Time
Option
Lock
Channel
Select
Move
MENU
Return
Change Password
Block Program
Parental Guidance
No Block
Lock System
Off
Restore Factory Default
Sound
Time
Option
Lock
Channel
Select
Move
MENU
Return
Sound Mode
User
Treble
50
Bass
50
Auto Volume
Balance
0
Surround Sound
Off
Off
Prev Page
Next Page
Sound
Time
Option
Lock
Channel
Picture Mode
User
Contrast
75
Brightness
45
Sharpness
50
Colour
50
Select
Move
MENU
Return
Tint
0
Prev Page
Next Page
Sound
Time
Option
Lock
Channel
Select
Move
MENU
Return
Subtitle Language
Audio Language
中文
Hearing Impaired
Off
Language
English
繁体中文
S/PDIF Output
PCM
Basic Operations (Continued)
13
Installation Guide
EXIT
EXIT
Language
English
Start
OK
Auto Tuning
region selection
HONGKONG
Cancel
Start
First Time Setup
1
3
Make sure that:
The first time you use the TV, you need to set up the TV.
! You have installed the batteries in the remote control.
! You have connected the TV to an antenna or cable TV outlet.
! You have connected the power cord.
2 Press POWER to turn on the TV. After a few seconds the
Installation Guide screen opens.
Highlight Language item, press 3
or4
to select a desired OSD
language.
With the power on, press the Power button on the remote control to turn off the unit, and put the unit in standby mode. To
cut off the power completely, press the Power Switch directly.
Turning On
Insert the power cord into the wall outlet. Press the Power Switch on the unit to power on.
If the unit is in standby mode, press Power button on the unit or the remote control to turn on the unit, and you will be ready
to use its features.
Turning Off
Turning On/Off the Power
Installation Guide
EXIT
EXIT
Language
English
Start
OK
Auto Tuning
Installation Guide
EXIT
EXIT
Start
OK
Auto Tuning
Language
English
Press 5
or6
to select Auto Tuning item, and press 4
or OK to
access.
4 Now a confirmation box appears on the screen. Press 3
or4
to
highlight Start item, and press OK to begin the auto channel
search. (To select Cancel item, use OK to confirm, then return to
previous menu.)
=
In the confirmation box, the region selection item is defaulted to be HONGKONG and cannot be adjusted.
Note
Basic Operations (Continued)
14
Displaying the Information Banner
Press the INFO button to display the information banner. The information banner displays current status information such as
the channel number and signal source.
Depending on the mode, different information is displayed. In DTV mode, more information will be displayed. Below is an
example banner in DTV mode.
=
The above OSD is only served as an example, and it is in DTV mode.
=
Information banner content varies, depending on the broadcaster and your settings.
In DTV mode, the information banner may contain:
! Channel number and name.
! Current time.
! Current program name, start and end play times.
! Next program name and start and end play times.
! TV or Radio.
! Audio mode, audio track.
! Signal strength for current channel.
! Signal resolution.
! Subtitle, teletext.
Selecting the Input Signal Source
Note
2 ABC TV iNews
MPEG SD
DTV
11:08
British Isles: A Natural History
Reserved for future use
Fri, Feb 27 2008 11:05
12:00
Subtitle English Teletext 576i
Alan Titchmarsh continues his epic journey around the British Isles
and discovers why they are so diverse.
Next
Freezing the Picture
Press the FREEZE button to freeze the image on the screen (the video sources still run). Press it again to reactivate the image.
=
If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on the screen and remain visible.
Therefore do not freeze the picture for a long time.
=
In some mode, the FREEZE function can not work.
Note
1
2
3
Press SOURCE button.
Press 3
,4
or OK to confirm the selection.
Press 6
or 5
to select the input source. Options include:
!
DTV — Watch the DTV signal.
!
ATV — Watch the ATV signal.
!
AV1 — Watch the signal from the AV1 input terminals.
!
AV2 — Watch the signal from the AV2 input terminals.
!
Component — Watch the signal from the COMPONENT input terminals.
!
D-SUB — Watch the signal from the D-SUB input jack.
!
HDMI — Watch the signal from the HDMI input jack.
Select
Move
DTV
AV1
D-SUB
HDMI
Input Source
ATV
Component
AV2
Memorizing the Channels
Note: Be sure to select the proper input source (ATV/DTV) before operation.
1
Highlight UHF CH item, press 3
or4
button to select your desired
channel number.
In Channel menu, press 6
or5
to select DTV Manual Tuning
item, then press4
or OK to access.
2
If desired digital programs cannot be searched by Auto Tuning, you can
make use of DTV Manual Tuning to search programs manually.
Press OK to begin the manual DTV channel search.
3
At the bottom of the menu screen the DTV Signal strength bar is
displayed. You can make use of it to check how strong your DTV
signal is and whether you need to adjust your antenna or digital cable
input. The higher the signal strength is, the less likely you are to
experience picture degradation.
15
Sound
Time
Option
Lock
Channel
Select
Move
MENU
Return
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Auto Channel Search
You should perform an auto channel search to search for all channels available and stores them in memory.
1
Press MENU and the main menu screen displays.
Then the TV begins memorizing all ATV/DTV channels available in
your area. During the process, you can press MENU to skip the
search, or EXIT to exit the search.
Auto Tuning
3
Highlight Auto Tuning item, and press 4
or OK to access.
2
Press 3
or4
to select Channel menu, press 6
or OK to access the
menu.
4
5
Now a confirmation box appears on the screen. Press 3
or4
to
highlight Start item, and press OK to begin the auto channel
search.(To select Cancel item, use OK to confirm, then return to
previous menu.)
Channel Tuning
2 %...
TV
ATV
DTV
Radio
Press
