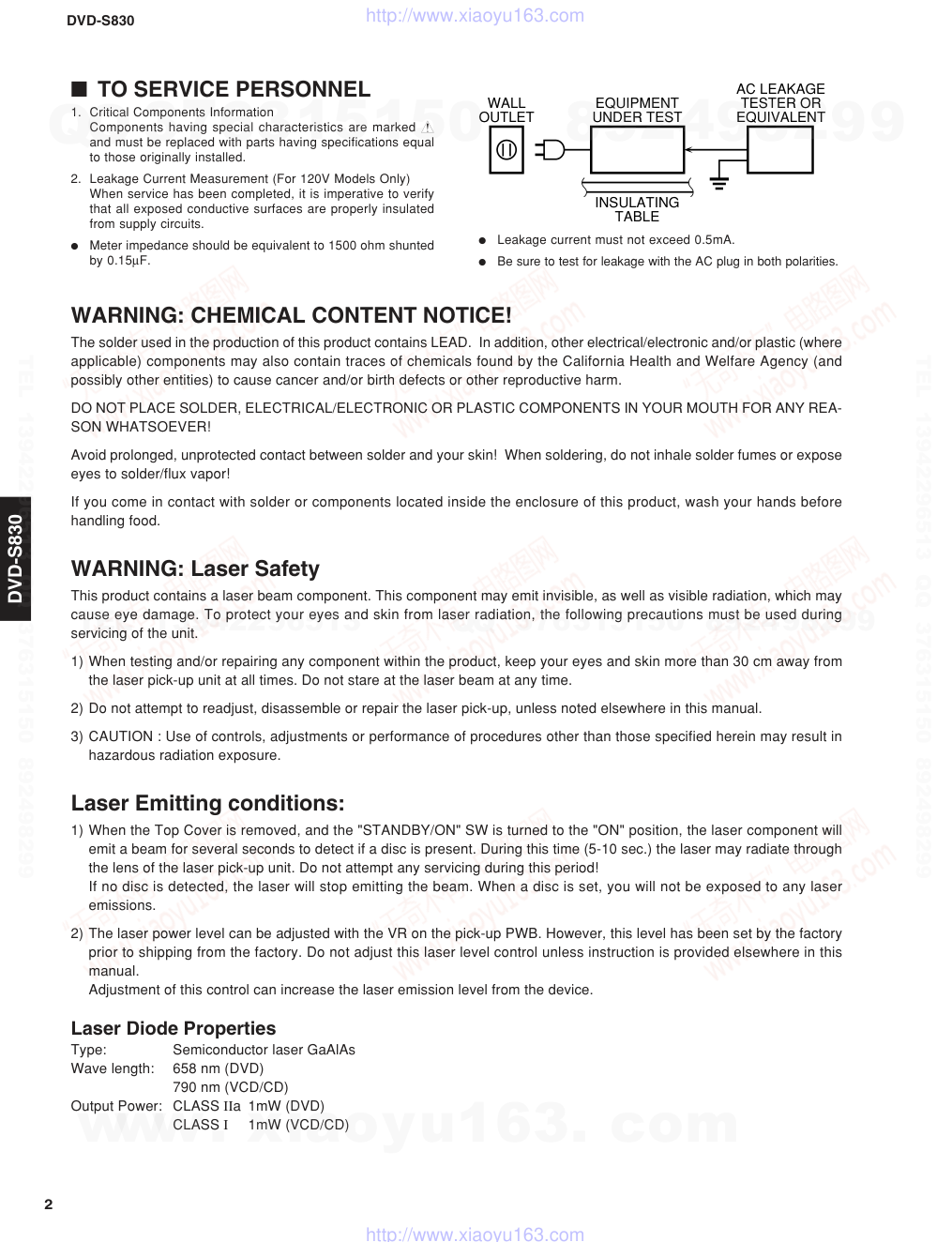

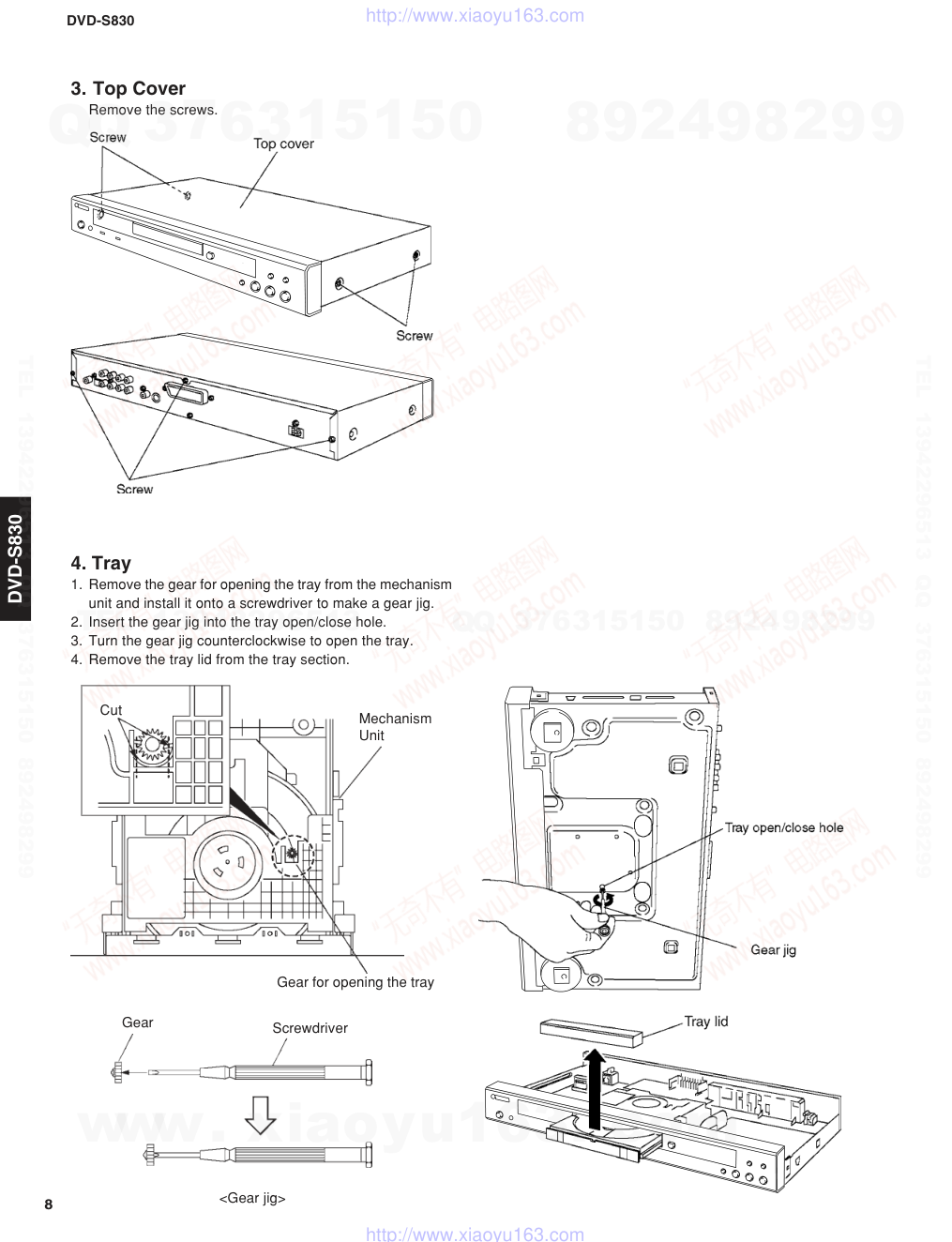

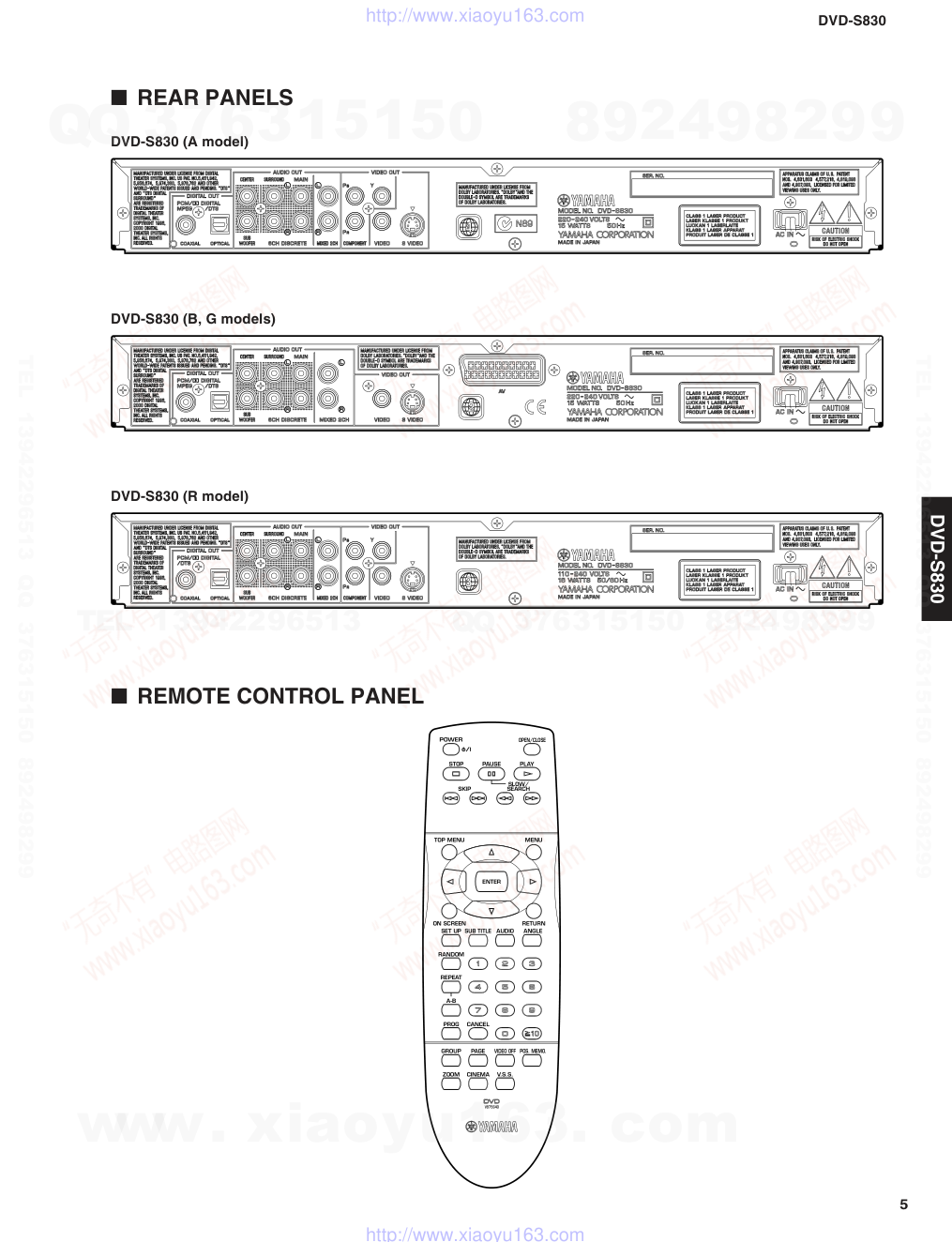

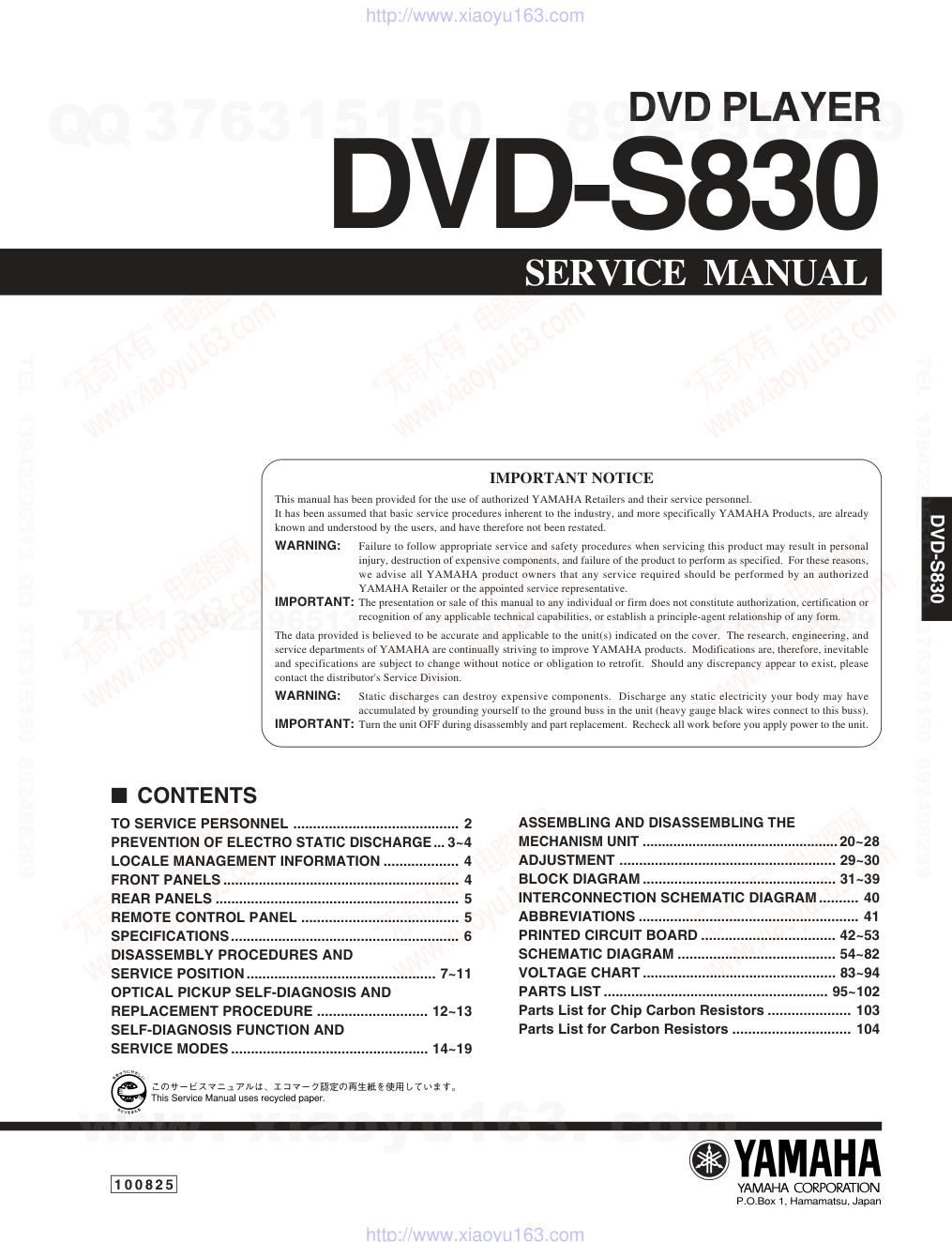

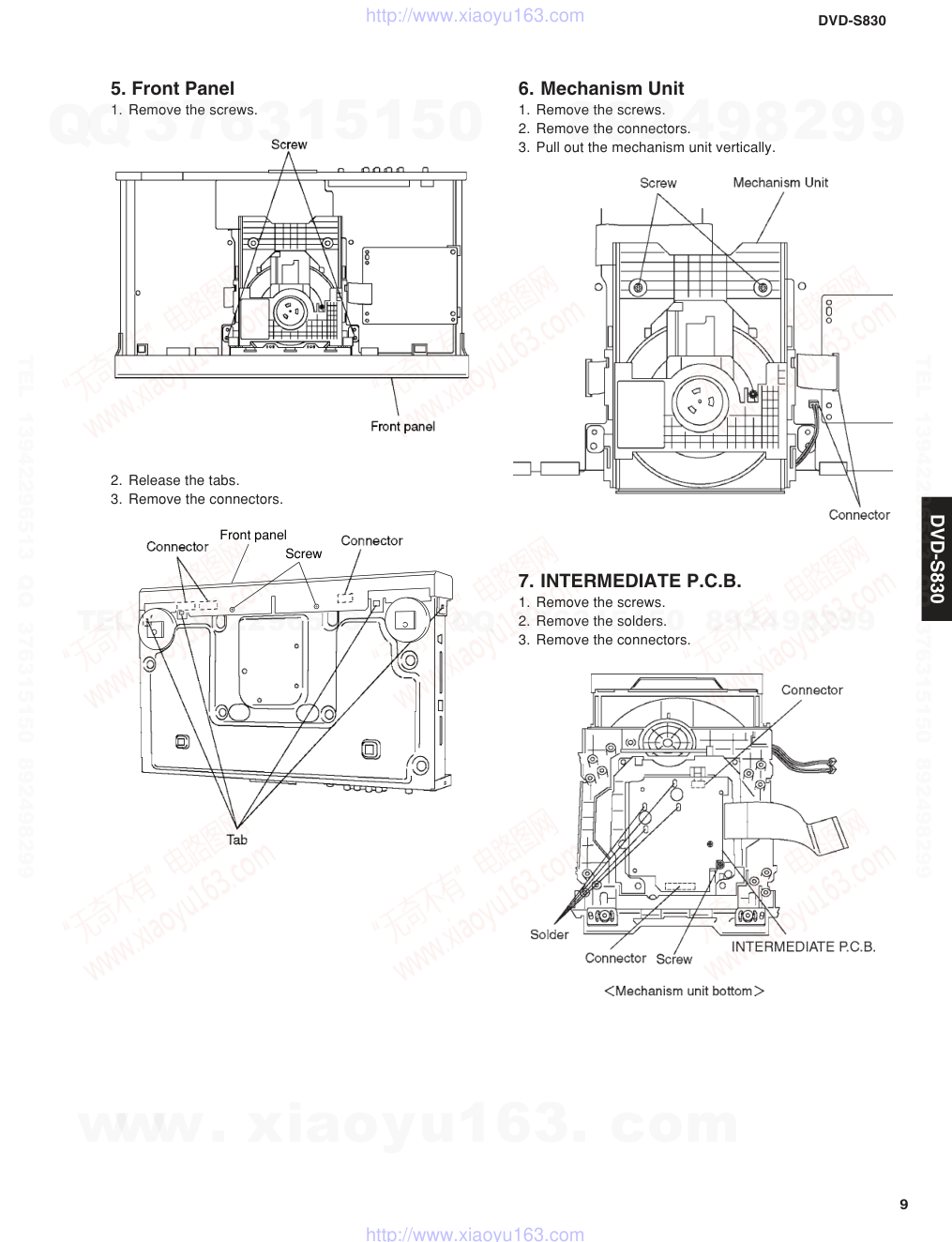

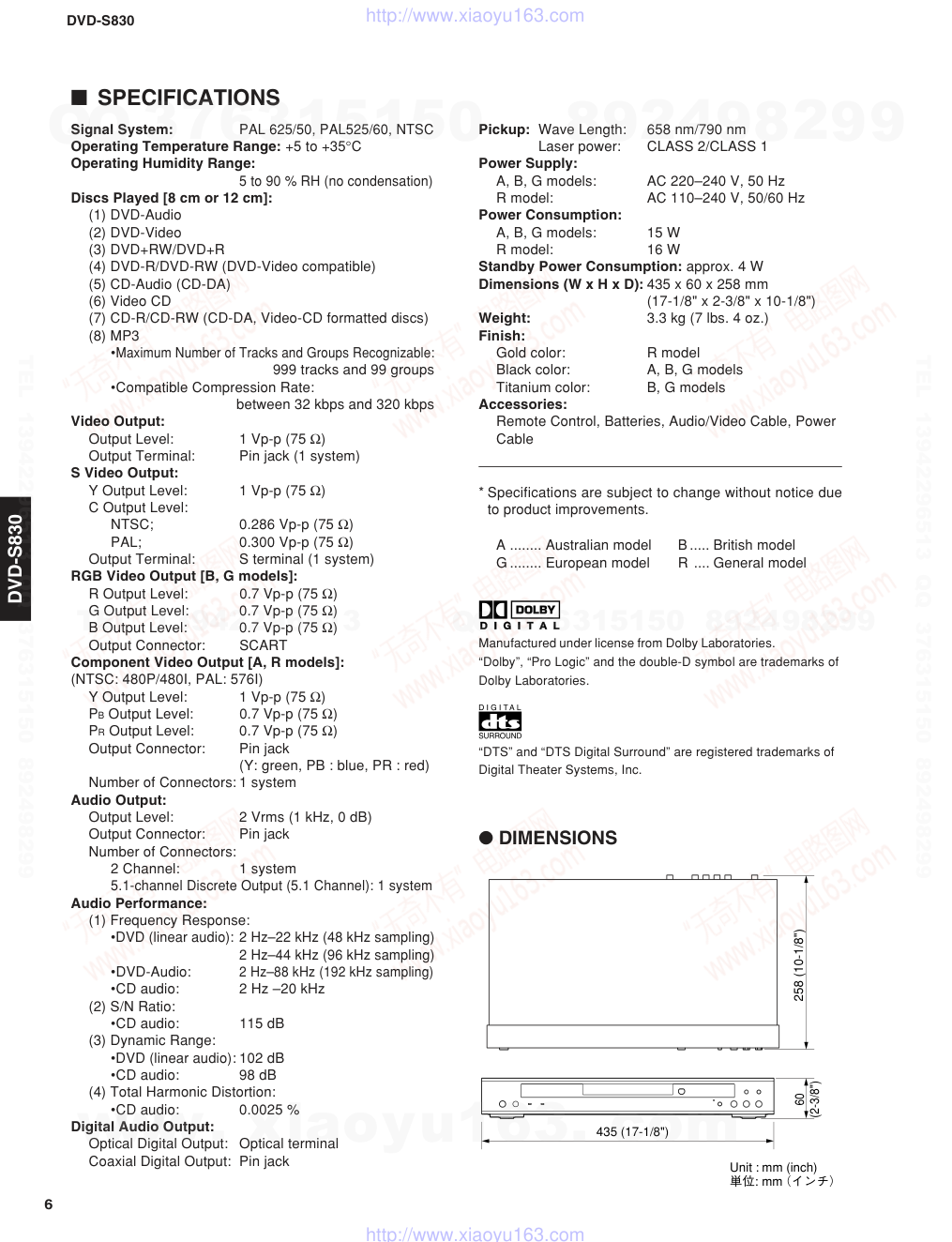

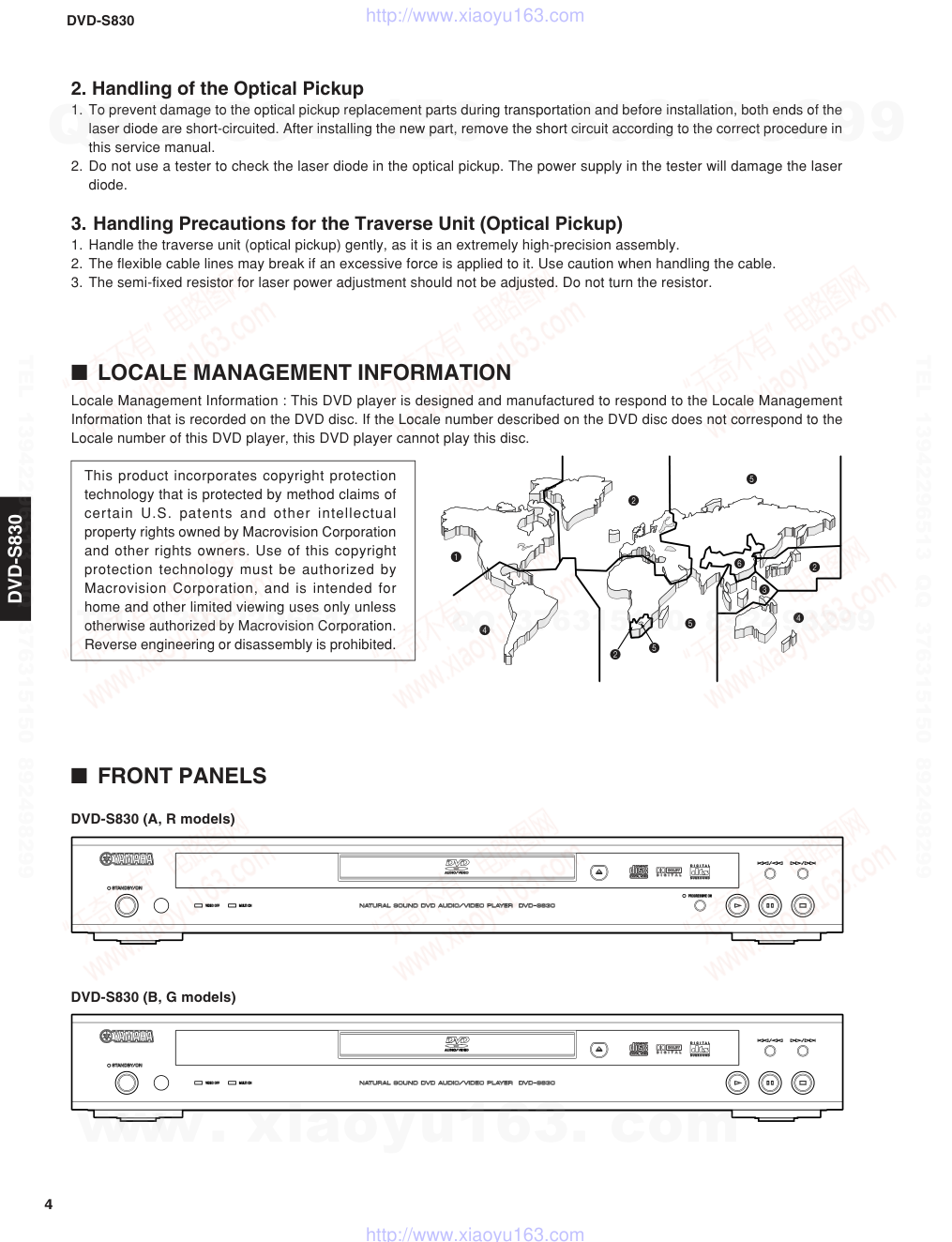

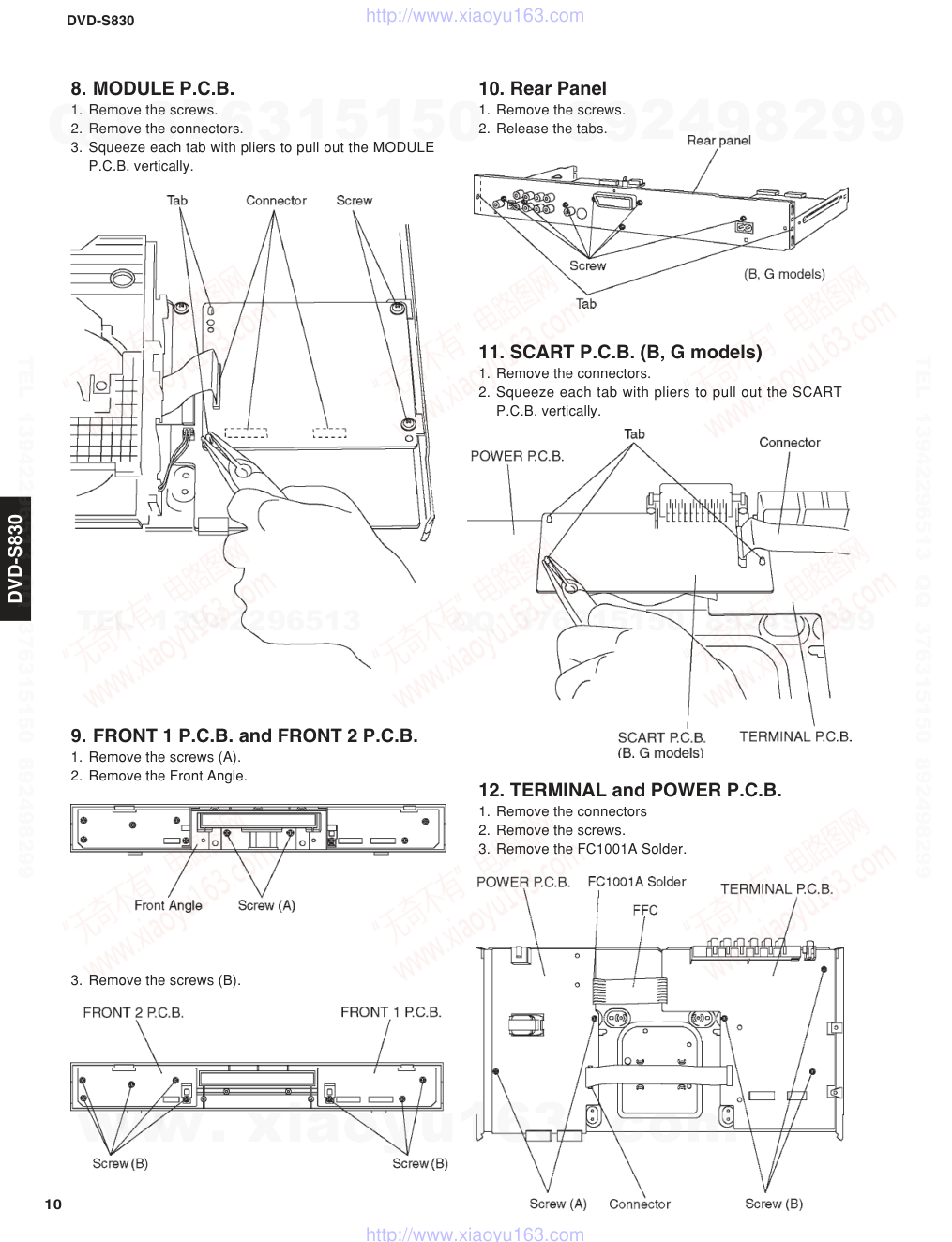

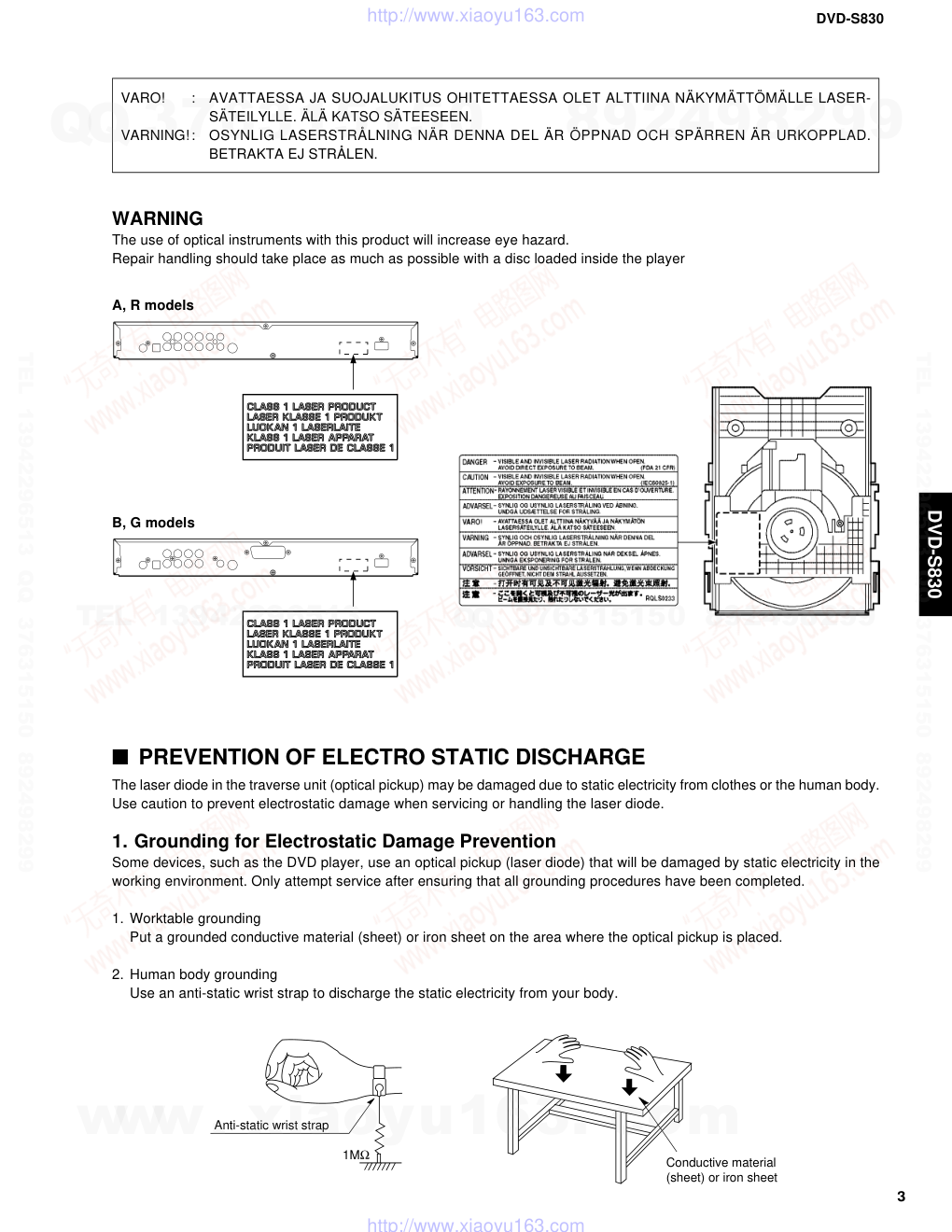

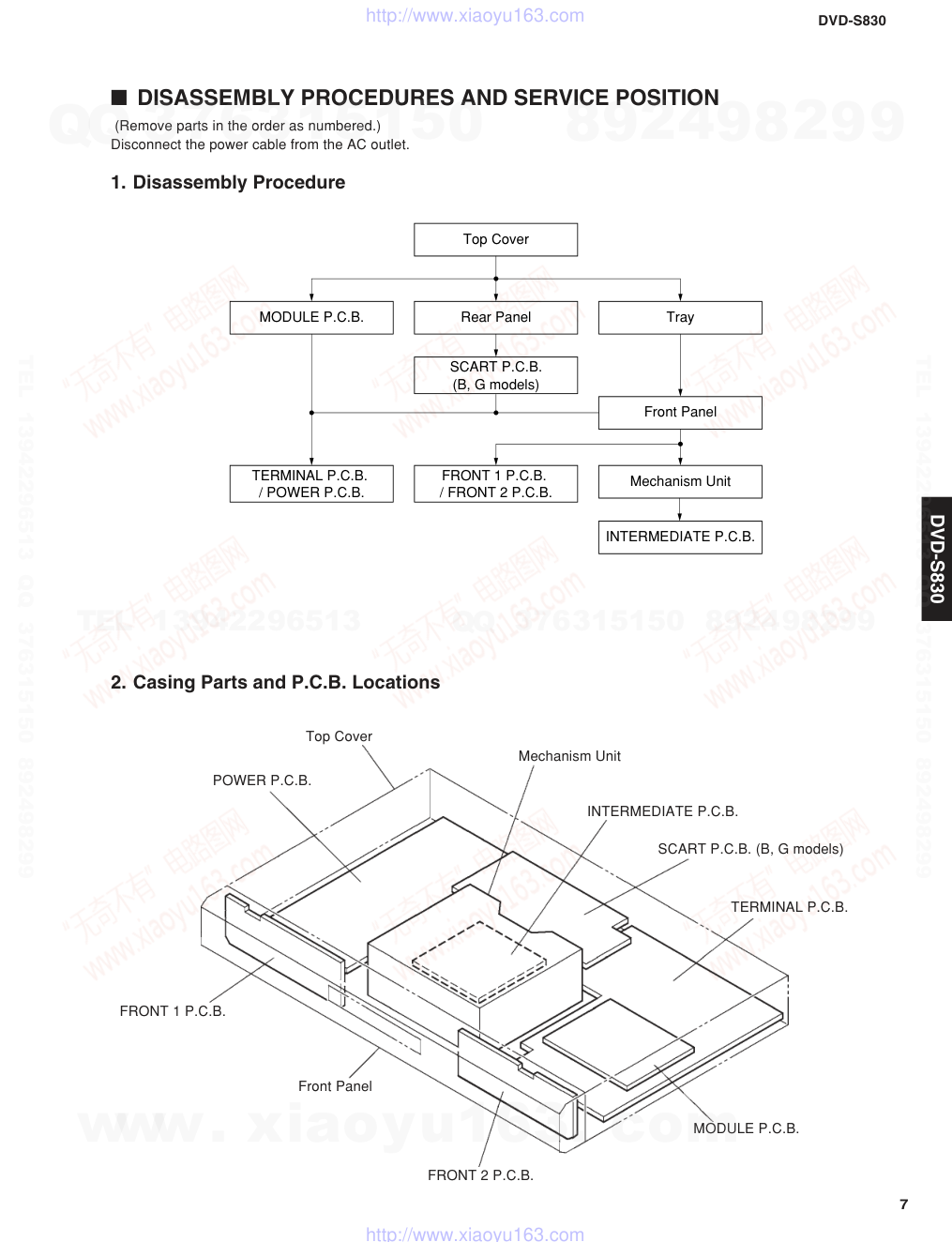

DVD-S830 1 0 0 8 2 5 P.O.Box 1, Hamamatsu, Japan I CONTENTS TO SERVICE PERSONNEL .......................................... 2 PREVENTION OF ELECTRO STATIC DISCHARGE... 3~4 LOCALE MANAGEMENT INFORMATION ................... 4 FRONT PANELS ............................................................ 4 REAR PANELS .............................................................. 5 REMOTE CONTROL PANEL ........................................ 5 SPECIFICATIONS.......................................................... 6 DISASSEMBLY PROCEDURES AND SERVICE POSITION ................................................ 7~11 OPTICAL PICKUP SELF-DIAGNOSIS AND REPLACEMENT PROCEDURE ............................ 12~13 SELF-DIAGNOSIS FUNCTION AND SERVICE MODES .................................................. 14~19 ASSEMBLING AND DISASSEMBLING THE MECHANISM UNIT ...................................................20~28 ADJUSTMENT ....................................................... 29~30 BLOCK DIAGRAM ................................................. 31~39 INTERCONNECTION SCHEMATIC DIAGRAM.......... 40 ABBREVIATIONS ........................................................ 41 PRINTED CIRCUIT BOARD .................................. 42~53 SCHEMATIC DIAGRAM ........................................ 54~82 VOLTAGE CHART ................................................. 83~94 PARTS LIST ......................................................... 95~102 Parts List for Chip Carbon Resistors ..................... 103 Parts List for Carbon Resistors .............................. 104 SERVICE MANUAL DVD PLAYER DVD-S830 IMPORTANT NOTICE This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 2 DVD-S830 WALL OUTLET EQUIPMENT UNDER TEST AC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING: Laser Safety This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during servicing of the unit. 1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from the laser pick-up unit at all times. Do not stare at the laser beam at any time. 2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual. 3) CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser Emitting conditions: 1) When the Top Cover is removed, and the "STANDBY/ON" SW is turned to the "ON" position, the laser component will emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through the lens of the laser pick-up unit. Do not attempt any servicing during this period! If no disc is detected, the laser will stop emitting the beam. When a disc is set, you will not be exposed to any laser emissions. 2) The laser power level can be adjusted with the VR on the pick-up PWB. However, this level has been set by the factory prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this manual. Adjustment of this control can increase the laser emission level from the device. Laser Diode Properties Type: Semiconductor laser GaAlAs Wave length: 658 nm (DVD) 790 nm (VCD/CD) Output Power: CLASS IIa 1mW (DVD) CLASS I 1mW (VCD/CD) I TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. G Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. G Leakage current must not exceed 0.5mA. G Be sure to test for leakage with the AC plug in both polarities. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 3 DVD-S830 VARO! : AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASER- SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. VARNING!: OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN. WARNING The use of optical instruments with this product will increase eye hazard. Repair handling should take place as much as possible with a disc loaded inside the player B, G models A, R models I PREVENTION OF ELECTRO STATIC DISCHARGE The laser diode in the traverse unit (optical pickup) may be damaged due to static electricity from clothes or the human body. Use caution to prevent electrostatic damage when servicing or handling the laser diode. 1. Grounding for Electrostatic Damage Prevention Some devices, such as the DVD player, use an optical pickup (laser diode) that will be damaged by static electricity in the working environment. Only attempt service after ensuring that all grounding procedures have been completed. 1. Worktable grounding Put a grounded conductive material (sheet) or iron sheet on the area where the optical pickup is placed. 2. Human body grounding Use an anti-static wrist strap to discharge the static electricity from your body. 1M Conductive material (sheet) or iron sheet Anti-static wrist strap www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 4 DVD-S830 I FRONT PANELS 2. Handling of the Optical Pickup 1. To prevent damage to the optical pickup replacement parts during transportation and before installation, both ends of the laser diode are short-circuited. After installing the new part, remove the short circuit according to the correct procedure in this service manual. 2. Do not use a tester to check the laser diode in the optical pickup. The power supply in the tester will damage the laser diode. 3. Handling Precautions for the Traverse Unit (Optical Pickup) 1. Handle the traverse unit (optical pickup) gently, as it is an extremely high-precision assembly. 2. The flexible cable lines may break if an excessive force is applied to it. Use caution when handling the cable. 3. The semi-fixed resistor for laser power adjustment should not be adjusted. Do not turn the resistor. 1 2 4 2 5 5 4 2 6 3 5 I LOCALE MANAGEMENT INFORMATION Locale Management Information : This DVD player is designed and manufactured to respond to the Locale Management Information that is recorded on the DVD disc. If the Locale number described on the DVD disc does not correspond to the Locale number of this DVD player, this DVD player cannot play this disc. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. DVD-S830 (A, R models) DVD-S830 (B, G models) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 5 DVD-S830 DVD-S830 (A model) DVD-S830 (B, G models) I REAR PANELS DVD-S830 (R model) I REMOTE CONTROL PANEL ZOOM SET UP ON SCREEN RETURN TOP MENU MENU ENTER PAUSE STOP SKIP PLAY SLOW/ SEARCH OPEN/CLOSE POWER CINEMA SUB TITLE PROG A-B REPEAT RANDOM CANCEL V.S.S. V975640 AUDIO ANGLE GROUP PAGE VIDEO OFF POS. MEMO. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 6 DVD-S830 G DIMENSIONS 435 (17-1/8") 60 (2-3/8") 258 (10-1/8") Unit : mm (inch) 単位: mm（インチ）� I SPECIFICATIONS Signal System: PAL 625/50, PAL525/60, NTSC Operating Temperature Range: +5 to +35°C Operating Humidity Range: 5 to 90 % RH (no condensation) Discs Played [8 cm or 12 cm]: (1) DVD-Audio (2) DVD-Video (3) DVD+RW/DVD+R (4) DVD-R/DVD-RW (DVD-Video compatible) (5) CD-Audio (CD-DA) (6) Video CD (7) CD-R/CD-RW (CD-DA, Video-CD formatted discs) (8) MP3 •Maximum Number of Tracks and Groups Recognizable: 999 tracks and 99 groups •Compatible Compression Rate: between 32 kbps and 320 kbps Video Output: Output Level: 1 Vp-p (75 Ω) Output Terminal: Pin jack (1 system) S Video Output: Y Output Level: 1 Vp-p (75 Ω) C Output Level: NTSC; 0.286 Vp-p (75 Ω) PAL; 0.300 Vp-p (75 Ω) Output Terminal: S terminal (1 system) RGB Video Output [B, G models]: R Output Level: 0.7 Vp-p (75 Ω) G Output Level: 0.7 Vp-p (75 Ω) B Output Level: 0.7 Vp-p (75 Ω) Output Connector: SCART Component Video Output [A, R models]: (NTSC: 480P/480I, PAL: 576I) Y Output Level: 1 Vp-p (75 Ω) PB Output Level: 0.7 Vp-p (75 Ω) PR Output Level: 0.7 Vp-p (75 Ω) Output Connector: Pin jack (Y: green, PB : blue, PR : red) Number of Connectors: 1 system Audio Output: Output Level: 2 Vrms (1 kHz, 0 dB) Output Connector: Pin jack Number of Connectors: 2 Channel: 1 system 5.1-channel Discrete Output (5.1 Channel): 1 system Audio Performance: (1) Frequency Response: •DVD (linear audio): 2 Hz–22 kHz (48 kHz sampling) 2 Hz–44 kHz (96 kHz sampling) •DVD-Audio: 2 Hz–88 kHz (192 kHz sampling) •CD audio: 2 Hz –20 kHz (2) S/N Ratio: •CD audio: 115 dB (3) Dynamic Range: •DVD (linear audio): 102 dB •CD audio: 98 dB (4) Total Harmonic Distortion: •CD audio: 0.0025 % Digital Audio Output: Optical Digital Output: Optical terminal Coaxial Digital Output: Pin jack Pickup: Wave Length: 658 nm/790 nm Laser power: CLASS 2/CLASS 1 Power Supply: A, B, G models: AC 220–240 V, 50 Hz R model: AC 110–240 V, 50/60 Hz Power Consumption: A, B, G models: 15 W R model: 16 W Standby Power Consumption: approx. 4 W Dimensions (W x H x D): 435 x 60 x 258 mm (17-1/8" x 2-3/8" x 10-1/8") Weight: 3.3 kg (7 lbs. 4 oz.) Finish: Gold color: R model Black color: A, B, G models Titanium color: B, G models Accessories: Remote Control, Batteries, Audio/Video Cable, Power Cable * Specifications are subject to change without notice due to product improvements. A ........ Australian model B ..... British model G ........ European model R .... General model Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 7 DVD-S830 I DISASSEMBLY PROCEDURES AND SERVICE POSITION (Remove parts in the order as numbered.) Disconnect the power cable from the AC outlet. 1. Disassembly Procedure 2. Casing Parts and P.C.B. Locations Rear Panel MODULE P.C.B. Tray Mechanism Unit Top Cover FRONT 1 P.C.B. � / FRONT 2 P.C.B. TERMINAL P.C.B. � / POWER P.C.B. SCART P.C.B.� (B, G models) Front Panel INTERMEDIATE P.C.B. Mechanism Unit INTERMEDIATE P.C.B. SCART P.C.B. (B, G models) TERMINAL P.C.B. MODULE P.C.B. FRONT 2 P.C.B. Front Panel FRONT 1 P.C.B. POWER P.C.B. Top Cover www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 8 DVD-S830 3. Top Cover Remove the screws. 4. Tray 1. Remove the gear for opening the tray from the mechanism unit and install it onto a screwdriver to make a gear jig. 2. Insert the gear jig into the tray open/close hole. 3. Turn the gear jig counterclockwise to open the tray. 4. Remove the tray lid from the tray section. Mechanism Unit Gear for opening the tray Cut Gear Screwdriver www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 9 DVD-S830 2. Release the tabs. 3. Remove the connectors. 6. Mechanism Unit 1. Remove the screws. 2. Remove the connectors. 3. Pull out the mechanism unit vertically. 5. Front Panel 1. Remove the screws. Screw Front panel 7. INTERMEDIATE P.C.B. 1. Remove the screws. 2. Remove the solders. 3. Remove the connectors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 10 DVD-S830 10. Rear Panel 1. Remove the screws. 2. Release the tabs. 9. FRONT 1 P.C.B. and FRONT 2 P.C.B. 1. Remove the screws (A). 2. Remove the Front Angle. 8. MODULE P.C.B. 1. Remove the screws. 2. Remove the connectors. 3. Squeeze each tab with pliers to pull out the MODULE P.C.B. vertically. 3. Remove the screws (B). 11. SCART P.C.B. (B, G models) 1. Remove the connectors. 2. Squeeze each tab with pliers to pull out the SCART P.C.B. vertically. 12. TERMINAL and POWER P.C.B. 1. Remove the connectors 2. Remove the screws. 3. Remove the FC1001A Solder. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 11 DVD-S830 1 TX946370 26 pins PS4201 (MODULE P.C.B.) – PP4301 (TERMINAL P.C.B.) JGS0098 2 AAX16610 22 pins PS3201 (MODULE P.C.B.) – PP3201 (TERMINAL P.C.B.) JGS0116 13.2. Servicing position of the INTERMEDIATE P.C.B. 13. Servicing Position 13.1. Servicing position of the MODULE P.C.B. 13.3. List of the Extension Cables SCART P.C.B.� (B, G models) SCART P.C.B.� (B, G models) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 12 DVD-S830 I OPTICAL PICKUP SELF-DIAGNOSIS AND REPLACEMENT PROCEDURE 1. Self-diagnosis An optical pickup self-diagnosis function and tilt adjustment check function have been included in this unit. When repairing, use the following procedure for effective Self-diagnosis and tilt adjustment. Be sure to use the self-diagnosis function before replacing the optical pickup when "NO DISC" is displayed. As a guideline, you should replace the optical pickup when the value of the CD laser drive current is more than 55 (70 for DVD). Note: Press the STANDBY/ON button to turn on the power. Check the value within three minutes before the unit warms up. (Otherwise, the result will be incorrect.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 13 DVD-S830 2. Cautions to Be Used Before Replacing the Optical Pickup Unit and Spindle Motor Assembly Before replacing the optical pickup unit and spindle motor assembly, check the total usage hours for each of them. The checking method is as follows: Note: Each of these procedures should start with the unit stopped. Cautions to be taken when replacing the optical pickup The optical pickup may become damaged due to static electricity from the human body. Take proper protection measures against static electricity before repairing the parts around the optical pickup. (See the page describing the PREVENTION OF ELECTRO STATIC DISCHARGE.) 1. Do not touch the areas around the laser diode and actuator. 2. Do not judge the laser diode with a tester. (The tester will damage the diode.) 3. It is recommended to use an anti-static soldering iron for soldering or desoldering on the pickup. (Recommended soldering iron) HAKKO ESD Product 4. Solder the land of the flexible cable in the optical pickup. Note: • When using a soldering iron which is not anti-static, short-circuit the terminal face of the flexible cable with a clip. After that, short-circuit the land. • After the repairing work is completed, remove the solder according to the correct procedure shown in this service manual. Optical pickup unit Flexible cable Ground with a clip. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 14 DVD-S830 I SELF-DIAGNOSIS FUNCTION AND SERVICE MODES 1. Service Mode Table Pressing various button combinations on the player and remote control unit can activate the service modes. Note: For jitter check, load the DVD test disc or the CD test disc. (See page 29) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 15 DVD-S830 Use of operation time display function When repairing a trouble, check these figures and use them for reference. When performing replacement, be sure to check the total operation time and reset the time after replacement. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 16 DVD-S830 LD: Laser Diode 3. Servo Process Display Mode In starting operation of the player, a number is allotted to each servo process so that the operation of each step can be seen. Use that number in combination with the error code, RAM learned value in ADSC and others for reference when diagnosing troubles. The relation between the process and the displayed number are as follows: Number allotment to the servo process 2. Servo Process Flow www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 17 DVD-S830 4. Sales Demonstration Lock Function This function prevents discs from being lost when the unit is used for sales demonstrations by disabling the disc eject function. "LOCK" is displayed on the unit, and ordinary operation is disabled. 4.1. Setting The sales demonstration lock is set by simultaneously pressing the " a aa aa " button on the player and the "POWER" button on the remote control unit for a few second. 4.2. Cancellation The lock can be cancelled by the same procedure as used in setting. "UNLOCK" is displayed on cancellation. (Disconnecting the power cable from the power outlet does not cancel the lock function.) 5. Service Precautions 5.1. Recovery after the DVD player is repaired When a FROM or an EEPROM in and on the module P.C.B. has been replaced, carry out the recovery disc procedure to optimize the drive. Playback the disc above to perform the recovery automatically, Recovery disc: RFKZD5TR006 (AAX42050) 1. Load the recovery disc in the player and play it. 2. The recovery function is automatically executed and a message indicating its end appears on the screen. 3. Take out the disc. 4. Turn off the power. Note: This unit requires no initialization procedure carried out as when traditional DVD players were repaired. When the recovery measures are taken, the customer setting will return to the factory setting and the player will be reset. 5.2. Firmware version-up of the DVD player The firmware of the DVD player may be updated to improve the quality, including optimizing operation ability and playability with substandard discs. The version-update disc also has a recovery function so that you don't need to use the recovery disc again. Detailed information on supply of the version-update disc will be provided in Service News. Note: If the AC power supply is lost during version-updating due to a power failure, the version-update is improperly carried out. In such a case, replace the FROM and carry out the version-update again. 6. Handling After Completing Repairs Use the following procedure after completing repairs. 6.1. Method Confirm that the power is turned on: 1. Press the "OPEN/CLOSE" button to close the tray. 2. Press the "POWER" button to turn off the power. 3. Disconnect the power plug from the outlet. 6.2. Precautions Do not disconnect the power plug from the outlet with the tray still open, then close the tray manually. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 18 DVD-S830 Error Code Error Content Additional error explanation Defect 1 Defect 2 Defect 3 Defect 4 U, H error U11 Focus error H01 Tray loading error H02 Spindle servo error (Spindle servo, DSC (IC2001) SP motor, CLV servo error) H03 Traverse servo error H04 Tracking servo error H05 Seek error H06 Power error Cannot switch off the power because of the panel and system computer communication error H07 Spindle motor drive error DSC related F500 DSC error DSC (IC2001) stops in the occurence of servo error (starup, focus error, etc) Optical pickup ADSC (IC2001) FEP (IC5201) servo drive F501 DSC not Ready DSC-system computer communication error (Communication failure caused by idling of DSC) ADSC (IC2001) CPU (IC6201) F502 DSC Time out error Similar disposal as F500 Optical pickup ADSC (IC2001) FEP (IC5201) servo drive F503 DSC communication Failure Communication error (result error occured although communication command was sent) ADSC (IC2001) FEP (IC5201) EEPROM (IC6221) F505 DSC Attention error Similar disposal as F500 Optical pickup ADSC (IC2001) FEP (IC5201) servo drive F506 Invalid media Disc is flipped over, TOC unreadable, incompatible disc DISC FEP (IC5201) ADSC (IC2001) ODC (IC2001) ODC related F600 Access failure to management information caused by demodulation error Operation stopped because navigation data is not accessible caused by the demodulation defect ODC (IC2001) FEP (IC5201) ADSC (IC2001) F601 Indeterminate sector ID requested Operation stopped caused by the request to access abnormal ID data ODC (IC2001) FEP (IC5201) ADSC (IC2001) F602 Access failure to LEAD- IN caused by demodulation error LEAD IN data unreadable F603 Access failure to KEYDET caused by demodulation error Access failure to CSS data of disc F610 ODC abnormality No permission for command execution ODC (IC2001) F611 6626 QCODE don’t read Error Access failure to seek address in CD series ODC (IC2001) F612 No CRC OK for a specific time Access failure to ID data in DVD series ODC (IC2001) F630 No reply to KEY DET enquiry (for internal use only) F631 CPPM KEY DET is not available till the FILE terminal (CPPM file system is unreadable caused by scratches) DISC CPPM (*1) F632 CPPM KEY DET is not available Been revoked or falsified DISC EEPROM (IC6221) CPPM (*1) Disc code F103 Illegal highlight Position Big possibility of disc specification violation during highlight display DISC HIC Error F4FF Force initialize failure (time out) EEPROM (IC6221) CPU (IC6201) FEP (IC5201) ADSC (IC2001) Micro computer error F700 MBX overflow When replying message to disc manager F701 Message command does not end Next message is sent before replying to disc manager F702 Message command changes Message is changed before it is sent as a reply to disc manager 7. Error Code www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 19 DVD-S830 Error Code Error Content Additional error explanation Defect 1 Defect 2 Defect 3 Defect 4 F880 Task number is not appropriate Message coming from a non-existing task F890 Sending message when message is being sent to AV task Sending message to AV task F891 Message couldn’t be sent to AV task Begin sending message to AV task F893 FROM falsification FROM (IC6301) CPU (IC6201) F894 EEPROM abnormality EEPROM (IC6221) Serial communicat ion on lone F895 Language area abnormality Firm version agreement check for factory preset setting failure prevention FROM (IC6301) Jumper(*2) F896 No existence model Firm version agreement check for factory preset setting failure prevention Jumper(*2) F897 Initialize is not completed Initialize completion check for factory preset setting failure prevention F8A0 Message command is not appropriate Begin sending message to AV task Note: An error code will be canceled if a power supply is turned OFF. *1: CPPM is the copy guard function beforehand written in the disk for protection of copyrights. *2: Jumper ... R6022, R6024 and R6026. 8. Last Error Code Saved During NO PLAY Error code Error content System computer Setting task System computer internal error code F0BF 6) Cannot playback because physical � layer is not recoginizable PCND_NOPLAY_PHYSICAL 0x50 Drive Manager 0xD0BF F0C0 8) DVD: Cannot playback because it � is not DVD Video/Audio/VR PCND_NOPLAY_VIDEO 0x70 Disc Manager 0xD0C0 F0C1 9) DVD: Prohibited by the restricted � region code PCND_NOPLAY_RCD 0x80 Disc Manager 0xD0C1 F0C2 A) DVD: PAL restricted playback PCND_NOPLAY_PAL 0x90 Disc Manager 0xD0C2 F0C3 B) DVD: Parental lock setting prohibits � the playback of the entire title PCND_NOPLAY_PTL 0xA0 Disc Manager 0xD0C3 F0C4 C) VCD: Prohibited because it is in � PHOTO CD format PCND_NOPLAY_PHOTOCD 0xB0 Disc Manager 0xD0C4 F0C5 D) VCD/CD: Prohibited because it is � CD-ROM without CD-DA PCND_NOPLAY_CDROM 0xC0 Disc Manager 0xD0C5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 20 DVD-S830 2. INTERMEDIATE P.C.B. 1. Remove the screws. 2. Remove the solder from the motor connections. 3. Remove the connectors. 3. Clamp Plate Unit Spread the stopper with hand to slide the tabs and remove the clamp plate unit. Solder Connector Screw INTERMEDIATE P.C.B. Connector Tab Tab Clamp plate unit Stopper Stopper I ASSEMBLING AND DISASSEMBLING THE MECHANISM UNIT 1. Disassembly Procedure Tab Clamp plate unit Stopper www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 21 DVD-S830 4. Tray Lift the tray. • Reassemble the tray so that it is in the backmost position. 1. Turn traverse gear until cam gear lever comes to the lever adjusting position at the end of the mechanical chassis unit. Tray Lever Cam gear mechanical chassis unit Lever adjusting point Convex phase Traverse gear Tray Concave phase Drive gear Drive gear Tray 2. Check the position of convex phase on back of the tray, and that of concave phase on drive gear. a. Place the tray on the unit from rearward. Tray (Rear side) (Front side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 22 DVD-S830 5. Traverse Block 1. Lift the traverse block while spreading the hook of the mechanical chassis unit. 2. Disengage the tabs from the holes of the mechanical chassis unit. Traverse block Tab ditch Hook mechanical chassis unit Caution: Make sure to mate convex phase and concave phase properly, so that the gap between turntable and tray becomes 5mm or less. Tray b. Inch the tray frontward until convex phase and concave phase mate. Tray Turntable 5mm or less (Rear side) (Front side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 23 DVD-S830 mechanical chassis unit T r a v e r s e block Lever adjusting position Cam gear Slot B Lever Slot A Tab A Tab B Hook Tab C Traverse gear Trigger lever • Take the following precautions when reassembling the traverse block. 1. Turn traverse gear on the traverse block to let trigger lever turn rightward. 2. Bring cam gear lever to the lever adjusting position at the end of mechanical chassis unit. 3. Put tabs A and B into slots A and B respectively. Place tabs C into hooks to mount the traverse block on mechanical chassis unit. (Slot A... Mechanical Chassis, Slot B... Cam Gear) Note: The traverse gear B is under the traverse gear C. 6. Traverse Gear B, C 1. Disengage the tabs from the traverse gear. 2. Remove the traverse gears B and C. Tab of traverse gear Traverse gears B and C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 24 DVD-S830 7.1 Precautions on optical pickup replacement The optical pickup can be damaged by static electricity from your body. Be sure to take static electricity countermeasures when working around the optical pickup. (Refer to the related page in this Manual about the countermeasures.) 1. Do not touch the laser diode, actuator or their associated parts. 2. Do not use a tester to check the laser diode. (Laser diode can be damaged easily.) 3. Use an anti-static soldering iron when adding or removing the laser diode shorting jumper. 4. Solder the land on flexible cable of optical pickup unit. Caution • When using the soldering iron without anti-static feature, short-circuit the flexible cable terminal with a clip before short-circuiting the land. • After completing the repair, remove the solder from the laser diode shorting jumper properly following the procedures described in this Manual. Optical pickup unit Flexible cable Use a clip or other item to ground the unit. 7. Optical Pickup Unit 1. Remove the screws. 2. Remove the spring holders and the springs. 3. Pull out the drive shaft and guide shaft. Pickup unit Spring holder Screw Guide shaft Screw Spring holder Drive shaft Spring holder Screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 25 DVD-S830 7.3 Cautions to Be Taken When Replacing the Optical Pickup An antistatic flexible sheet (FPC) is connected with the new optical pickup. Replace the optical pickup according to the following procedure. 1. Install the Terminal FPC, TRV feed rack on the optical pickup. (See Fig. A) 2. Install the Terminal FPC in the connector on the Terminal P.C.B.. Antistatic flexible sheet (FPC) 7.2 Disassembling the Optical Pickup Unit 1. Remove 2 screws (A) and remove the TRV feed rack. 2. Remove the screw (B) and remove the Terminal FPC. 3. Remove the optical pickup. Screw A TRV feed rack Optical pickup Terminal FPC Screw B Connector Terminal FPC Ground the optical pickup with a clip. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 26 DVD-S830 Spring holder (spring) Optical pickup unit (Rear side) Spring holder (spring) Rubber cushion Drive shaft (Front side) Spring holder (spring) Rubber cushion Guide shaft Traverse block 3. Install the optical pickup unit, spring drive shaft, guide shaft, rubber cushion, and spring holder on the traverse block. Optical pickup installation position (rear end of the guide shaft) Cautions to be taken when assembling the unit: Install the pickup unit so that it is located at the rear end of the guide shaft. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 27 DVD-S830 4. Cut the antistatic flexible sheet for the optical pickup unit. Cutting line Antistatic FPC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 28 DVD-S830 8. Disassembling the Middle Chassis 1. Remove the holder pins. 2. Remove the tab. 3. Lift up the upper part in the direction of the arrow. Holder pin Tab Middle chassis Traverse gear A Screw FG unit 10. Disassembling the Spindle Motor Unit Remove the floating rubbers. 9. Disassembling the Traverse Gear A/FG unit 1. Remove the screw. 2. Remove the traverse gear A. Spindle motor unit Floating rubber Floating rubber www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 29 DVD-S830 Application Name Number Tilt adjustment DVD test disc DVDT-S15 (AAX07320) or DVDT-S01 Hex wrench JZS0100 (TX946380) Inspection Extension cable 26P JGS0098 (TX946370) (MODULE P.C.B. to TERMINAL P.C.B.) Extension cable 22P JGS0116 (AAX16610) (MODULE P.C.B. to TERMINAL P.C.B.) Others Screw lock RZZ0L01 (TX946400) Grease 1 RFKXGAK152 (AAX27800) Grease 2 PFKXPG641（AAX46440） Oil RFKXGA1280 (AAX27790) Confirmation CD test disc PVCD-K06 (TX946090) or any other commercially available disc VCD test disc PVCD-K06 (TX946090) or any other commercially available disc Recovery disc RFKZD5TR006 (AAX42050) I ADJUSTMENT 1. Service Tools and Equipment 2. Important Points in Adjustment • Before starting optical pickup tilt adjustment, be sure to take anti-static measures. • Optical pickup tilt adjustment is necessory after replacement of the following components. 1. Optical pickup unit 2. Spindle motor unit 3. Optical pickup peripheral parts (such as the rail) Notes Adjustment is generally unnecessary after replacing the other parts of the traverse unit. However, make adjustment if there is a noticeable degradation in picture quality. Optical adjustments cannot be made inside the optical pickup. Adjustment is generally unnecessary after replacing the traverse unit. 3. Storing and Handling Test Discs • Surface precision is vital for DVD test discs. Be sure to store and handle them carefully. 1. Do not place discs directly onto the workbench, etc., after use. 2. Handle discs carefully in order to maintain their flatness. Place them into their case after use and store them vertically. Store discs in a cool place where they are not exposed to direct sunlight or air from air conditioners. 3. Accurate adjustment will not be possible if the disc is warped when placed on a surface made of glass, etc. If this happens, use a new test disc to make optical adjustments. 4. If adjustment is done using a warped disc, the adjustment will be incorrect and some discs will not be playable. Adjustment point Tangential adjustment screw, Tilt adjustment screw Mode T01 (inner periphery) play, T43 (outer periphery) play Disc DVDT-S15 (AAX07320) or DVDT-S01 Measuring equipment None (Use main unit servicing display.) Adjustment value Adjust to the minimum jitter value. 4. Optical Pickup Tilt Adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 30 DVD-S830 4.3. Check after Adjustment Play a test disc or any other disc to make sure that there is no picture degradation in the inner, middle and outer peripheries, and no audio skipping. After adjustment is finished, lock each adjustment screw in position using screw lock. 4.4. Procedure for Screw Lock 1. After adjustment, remove the top cover, tray, clamper base and traverse unit in this sequence. 2. Lay the traverse unit upside down, and lock the adjustment screw with screw lock. 3. After locking, reassemble the traverse unit, clamper base, tray and top cover. • Jitter value depends on the model: 1. If the jitter value changes like B, the optimum point is easy to find. 2. If the jitter value changes like A, set the optimum point near the middle. Change in jitter value Optimum point Adjustment angle Tangential adjustment screw Front Rear Tilt adjustment screw 1 Tilt adjustment screw 2 4.1. Adjustment Procedure 1. While pressing the " ddddd " button and the " fffff " button on the main unit, press the "5" button on the remote control unit. 2. Confirm that "J_xxx_yyy_zz" is shown on the front display. For your Information: "xxx" is the jitter rate. "yyy" is the error counter, while "zz" is the focus drive value. 3. Play test disc T01 (inner periphery). 4. Adjust tangential adjustment screw so that the jitter value is minimized. 5. Play test disc T43 (outer periphery). 6. Adjust tilt adjustment screw 1 so that the jitter value is minimized. 7. Play test disc T43 (outer periphery). 8. Adjust tilt adjustment screw 2 so that the jitter value is minimized. 9. Repeat adjusting tilt adjustment screws 1 and 2 alternately until the jitter value is minimized. 4.2. Important Points 1. Make tangential adjustment first, and then make tilt adjustment. 2. Repeat adjusting two or three times to find the optimum point. 3. Finish the procedure with tilt adjustment. Screw lock (adjustment screw) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 DVD-S830 31 IC6561 INTERMEDIATE P.C.B. MOTOR TRAVERSE TRAY CLK TERMINAL P.C.B. SCART P.C.B. IC3061 IC6001 IC2501 ACTUATOR MECHANISM UNIT MODULE P.C.B. POWER P.C.B. MIX L MIX R L OUT R OUT FL FR SL SR CNT SW DIGITAL AUDIO OUT (OPTICAL) DIGITAL AUDIO OUT (COX) IC4211 CONVERTER D/A AUDIO IC3001 (DATA BUS) (ADDRESS BUS) IC6301 IC2001 IC5201 (AV DEC) DECODER AV SDRAM 64Mbit CPU OPERATION KEY REMOTE CTL LED FL (DSC/ODC) CONTROLLER DISC OPTICAL DRIVE MOTOR MOTOR SPINDLE FLASH ROM 16Mbit IC6801 WM IC6201 MAIN CPU IC6221 EEP-ROM (FEP) PROCESSOR END FRONT UNIT PICK UP OPTICAL IC3841 V.SELECT SW. IC3201 VIDEO DAC IC3801 VIDEO OUT (AV 21 PIN) V/Y SELECT SW. IC3842 BUFFER S-VIDEO OUT VIDEO OUT (LINE) B G AV 21 PIN AV 21 PIN R IC3501 BUFFER VIDEO B, G models I BLOCK DIAGRAM OVERALL BLOCK DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 DVD-S830 6 32 A, R models IC6561 IC3761 IC3901 INTERMEDIATE P.C.B. MOTOR TRAVERSE TRAY CLK 64M SDRAM VIDEO DAC PROGRESSIVE IC3701 TERMINAL P.C.B. IC3061 IC6001 IC2501 ACTUATOR MECHANISM UNIT MODULE P.C.B. POWER P.C.B. PR PB Y S-VIDEO OUT VIDEO OUT MIX L MIX R FL FR SL SR CNT SW DIGITAL AUDIO OUT (OPTICAL) DIGITAL AUDIO OUT (COX) IC3501 IC4211 BUFFER VIDEO CONVERTER D/A AUDIO IC3001 (DATA BUS) (ADDRESS BUS) IC6301 IC2001 IC5201 (AV DEC) DECODER AV SDRAM 64Mbit CPU OPERATION KEY REMOTE CTL LED FL (DSC/ODC) CONTROLLER DISC OPTICAL DRIVE MOTOR MOTOR SPINDLE FLASH ROM 16Mbit IC6801 WM IC6201 MAIN CPU IC6221 EEP-ROM (FEP) PROCESSOR END FRONT UNIT PICK UP OPTICAL OVERALL BLOCK DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 DVD-S830 33 QR6102 (LED DRIVE) QR6101 (LED DRIVE) L KEYIN3 KEYIN1 KEYIN2 525P REMOCON (REG.D+2.5V) IC1125 OSC1 B1 B2 B3 B4 OSC2 X6001 10 42 43 SHUTTLE 44 2 1 1 2 C C 45 9 P.OFF 40 S6153 STOP S6152 PLAY S6151 PAUSE S6155 OPEN/CLOSE S6101 PA31 PA11 PA21 STANDBY/ON S6156 S6158 PROGRESSIVE ON FWD-SKIP S6157 RVS-SKIP 19 KEYIN0 16 17 18 RECEIVER IR 1 IC6101 33 525P (PROGRESSIVE) D6153 QR6056 7 DRIVE 525P-LED STBY STANDBY/ON D6103 QR6052 DRIVE STBY-LED AD.ONLY-LED VIDEO OFF D+5V D6102 94 MULTI-LED MULTI-CH D6101 96 SEG7 64 80 SEG23 FL(DL6001) 1G-9G F+ F- P1-P17 DGT1 DGT9 63 55 (OPERATION CPU) IC6001 SECONDARY CIRCUIT PRIMARY CIRCUIT Q1051 Q1021, Q1052 [A, B, G models] CONTROL VOLTAGE CONSTANT NSW+5V D+2.5V COUPLER PHOTO REG. SHUNT 2 3 1 OUT IN ON/OFF IC1101 FL DRIVE Q6095 SWITCH QR1115 18 Q1115 D+5V A+5V G D S REG.+5V 15 (REG.M+9V) IC1151 M+9V 2 3 1 OUT IN ON/OFF 14 NSW-10V 20 NSW+10V 19 FL-30.8V 13 11 12 TRANSFORMER POWER T1021 ,C1011 D1011 RECTIFIER L1001 FILTER LINE D1002 KILLER SURGE F1001 AC SOCKET P1001 COUNT S6161 DIRECTION S6162 1 IC1021 [R model] SWITCHING REG. POWER BLOCK DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 DVD-S830 6 34 65 TE OFTR BDO TBAL BIAS1 BIAS2 MUTE CH3 FG UNIT FG1 FG2 CNT MUTE CH4 MUTE CH1,2 - + SHIFT LEVEL - + + - + - SHIFT LEVEL - + - + + - SHIFT LEVEL - + + - + - SHIFT LEVEL - + + - + - OPIN- 5 OPIN+ 4 SPINDLE MOTOR M2501 TRAVERS MOTOR M2502 IC6001-27,28PIN FROM LDIN 24 SW2501 (OPERATION CPU) IC6001 P6005-1PIN (TRAY OPEN SW.) FROM 37 TRV-SW+ TRAY-SW- TRAYMUT TRAY/TRV TRAY/TRV SW TRAY-MUTE TRAY CLOSE TRAY OPEN 47 31 OPOUT 6 69 7.2Vp-p(20usec./div.) IC2501-11,12,13,14 RF SIGNAL MOTOR DRIVE SIGNAL TRACKING ERROR SIGNAL FOCUS ERROR SIGNAL TILT HDD15 STD0 - - STD7 TILTP FG 56 FG ENB TRS-DRV DAC 0 DAC 1 SPDRV VIN3 VIN2 VIN1 TRIN MUTE12 IN SW MUTE3 SPDIN FOIN TRIN TRVSIN MUTE4 LD CNT VO2- VO2+ VO1- VO1+ VO3- VO3+ VO4- VO4+ 172 168 166 164 160 158 151 149 IC3001 (AV DECORDER) PWM5 61 HDD8 73 76 78 81 71 70 68 115 AD5 DMV 122 114 67 2 26 9 27 20 28 11 12 13 14 18 17 16 15 23 3 (MOTOR DRIVE) IC2501 ACT T- ACT T+ ACT F- ACT F+ OPTICAL PICK UP UNIT ACTUATOR COIL TRACKING COIL FOCUS OPTICAL PICK UP UNIT LASER DIODE LASER DIODE PHOTO DETECTOR B3 B4 B2 B1 A3 A4 A2 A1 AMP HEAD Q5111 LD DRIVE LD DRIVE Q5115 LPC2 LPCO2 LPC1 LPCO1 RFINP CRFHP1 PEAK RSCL CRFHP2 RFINN VIN10 VIN9 VIN4 VIN3 VIN2 VIN1 VIN8 VIN7 VIN6 VIN5 8 98 RFTE 12 STDIO SCK SEN 20 19 18 REG LOGIC AMP LPC 3 4 1 2 63 62 TEFLT + - 11 FBAL 7 14 FE 13 FS + - + - FBAL DET. PHASE ENTIAL DEFFER- DET. PHASE ENTIAL DEFFER- COMP. HPF EQ COMP. HPF EQ COMP. HPF EQ COMP. HPF EQ 61 60 59 58 (FEP) IC5201 REFNV 49 TESTSG 43 DCAGC 31 DCFLT 36 POFLT CONT. LEVEL TEFLT DET. DPDOFT CONT. LEVEL DET. MIRROR 21 22 DET. BDO CONT. LEVEL CONT. GD FLTON SAG FLTOP FLTON FLTOP 35 34 - + DET. ENV CONT. AGC CONT. LEVEL - + EQ CONT. BOOST CONT. FC VGA LPF AMP AMP AMP AMP AMP AMP TBAL AMP AMP AMP AMP AMP AMP AMP AMP 54 53 52 51 + - HOLD S LINE NW DET + - + - - + 47 46 PWM1 PWM2 PWM3 53 54 55 AD1 RFDIF TBAL FBAL 66 AD0 AD2 OFTR 51 (DSC/ODC) IC2001 BDO 52 NARF ARF TSTSG AD3 82 120 111 110 119 117 118 38 SERVO BLOCK DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 DVD-S830 35 XWR XRD HCLK XCS NAVCS SYSCLK NRD NWEL 22 XRST NRST 23 26 24 3 2 18 7 35 36 28 11 P/N RFIN DCRF VREF VREF A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 MA10 MA9 MA8 MA7 MA6 MA5 MA4 MA3 MA2 MA1 DQ14 DQ13 DQ12 DQ11 DQ10 DQ9 DQ8 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 MDQ14 MDQ13 MDQ12 MDQ11 MDQ10 MDQ9 MDQ8 MDQ7 MDQ6 MDQ5 MDQ4 MDQ3 MDQ2 MDQ1 16bit DATA MEMORY MDQ15 MDQ0 (MAIN CPU) IC6201 (16M FLASH ROM) IC6301 (DSC/ODC) IC2001 ADDRESS 16bit DATA MEMORY DQ15 DQ0 A11 A0 CLK /WE /CAS /RAS /CS MCK XWE XCAS XRAS XCSM 185 193 195 196 199 - - - - - - - - - - - - - - - DATA NCS2 BOSC NRE NWEL P56 ADDRESS ADDRESS DATA XWE XOE D15 D0 A19 A0 HA17 HA1 A16 A0 DQ15 DQ0 STD7 STD6 STD5 STD4 STD3 STD2 STD1 STD0 HDD8 HDD9 HDD10 HDD11 HDD12 HDD13 HDD14 HDD15 NRD NWEL (64M SDRAM) IC3061 38 16 17 18 19 53 51 50 48 47 45 44 42 13 11 10 8 7 5 4 2 35 22 34 33 32 31 30 29 26 25 24 73 74 75 76 78 79 80 81 100 93 91 84 42 40 35 33 26 16 13 45 38 36 29 48 1 8 18 24 25 42 38 - 47 44 36 32 30 27 65 66 HD15 67 63 DATA HD1 62 60 58 56 54 52 49 47 12bit ADDRESS MEMORY 23 12bit ADDRESS MEMORY MA11 MA0 158 161 164 167 170 173 177 180 181 178 175 171 168 165 162 159 203 206 201 204 207 3 6 8 10 7 4 2 DATA CPUDT(0-7) CPUDT(0-15) (WM) IC6801 DATA ADDRESS HD7 NHRE NHCS HD0 HA0 HA2 HA1 35 29 28 27 26 17 10 14 23 21 9 37 41 CPUDT0 CPUDT7 9 30 ADDRESS ADR17 CPU NWEL NRD NWR NRD ADR0 CPU 37 38 39 41 42 44 43 40 RFENV RFENV 49 IC5201 (FEP) RF ENV VIN10 VIN9 VIN8 VIN7 VIN6 VIN5 VIN4 VIN3 VIN2 VIN1 + - - + - + HOLD 63 62 54 53 52 51 61 60 59 58 UNIT PICK UP OPTICAL MODULE P.C.B. INTERMEDIATE P.C.B. (AV DECORDER) IC3001 160 158 151 149 120 164 166 168 172 A B INV. QR6215 11 13 B, G models VIDEO BLOCK DIAGRAM 1/2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 DVD-S830 6 36 B, G models MODULE P.C.B. TERMINAL P.C.B. SCART P.C.B. (AV DECORDER) IC3001 A B MAIN SIGNAL 2.0Vp-p(20usec./div.) IC3501-24,25 2.0Vp-p(20usec./div.) IC3501-32 1.5Vp-p(20usec./div.) IC3501-29,30 S2-VIDEO V OUT 27 26 22 23 24 25 Y OUT V OUT C OUT (VIDEO BUFFER) IC3501 24 25 29 30 32 YOUT1 C OUT MIX OUT1 MIX OUT2 Y OUT2 6dB 75Ω L.P.F. 6MHz 75Ω 75Ω 6dB 6dB + 5 B.P.F. 1.5-6MHz AMP Q3811 AMP Q3821 AMP R G B Q3831 AMP Q3241 3 C Y CIN YIN B G R DAC A INC INB INA OUTC1 OUTC2 OUTB2 OUTB1 OUTA2 OUTA1 10 9 12 13 14 15 7 4 2 V-OUT TERMINAL AV 21-PIN JK3871 BLUE I/O GREEN I/O RED I/O 2 4 6 8 10 12 14 16 18 20 1 3 5 7 9 11 13 15 17 19 21 14 4 15 IC3201 (VIDEO DAC) (V.SELECT SW.) IC3841 IC3842 (BUFFER) (V/Y SELECT SW) IC3801 2 6 4 12 5 2 1 VD7 VD6 VD5 VD4 VD3 VD2 VD1 VD0 P7 P6 P5 P4 P3 P2 P1 P0 155 154 153 152 150 149 148 147 8 7 6 5 4 3 2 1 VD0-VD7 45 AMP Q3236 DAC B 44 AMP Q3231 DAC C 41 AMP Q3226 DAC E 37 AMP Q3221 DAC F 36 VIDEO BLOCK DIAGRAM 2/2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 DVD-S830 37 A, R models XWR XRD HCLK XCS NAVCS SYSCLK NRD NWEL 22 23 26 24 3 2 18 7 35 36 28 11 P/N RFIN DCRF VREF VREF A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 MA10 MA9 MA8 MA7 MA6 MA5 MA4 MA3 MA2 MA1 DQ14 DQ13 DQ12 DQ11 DQ10 DQ9 DQ8 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 MDQ14 MDQ13 MDQ12 MDQ11 MDQ10 MDQ9 MDQ8 MDQ7 MDQ6 MDQ5 MDQ4 MDQ3 MDQ2 MDQ1 16bit DATA MEMORY MDQ15 MDQ0 (MAIN CPU) IC6201 (16M FLASH ROM) IC6301 (DSC/ODC) IC2001 ADDRESS 16bit DATA MEMORY DQ15 DQ0 A11 A0 CLK /WE /CAS /RAS /CS MCK XWE XCAS XRAS XCSM 185 193 195 196 199 - - - - - - - - - - - - - - - DATA NCS2 BOSC NRE NWEL ADDRESS ADDRESS DATA XWE XOE D15 D0 A19 A0 HA17 HA1 A16 A0 DQ15 DQ0 STD7 STD6 STD5 STD4 STD3 STD2 STD1 STD0 HDD8 HDD9 HDD10 HDD11 HDD12 HDD13 HDD14 HDD15 NRD NWEL (64M SDRAM) IC3061 38 16 17 18 19 53 51 50 48 47 45 44 42 13 11 10 8 7 5 4 2 35 22 34 33 32 31 30 29 26 25 24 73 74 75 76 78 79 80 81 100 93 91 84 42 40 35 33 26 16 13 45 38 36 29 48 1 8 18 24 25 42 38 - 47 44 36 32 30 27 65 66 HD15 67 63 DATA HD1 62 60 58 56 54 52 49 47 12bit ADDRESS MEMORY 23 12bit ADDRESS MEMORY MA11 MA0 158 161 164 167 170 173 177 180 181 178 175 171 168 165 162 159 203 206 201 204 207 3 6 8 10 7 4 2 DATA CPUDT(0-7) CPUDT(0-15) (WM) IC6801 DATA ADDRESS HD7 NHRE NHWE HD0 HA0 HA2 HA1 35 29 28 27 26 17 10 14 23 21 9 37 41 CPUDT0 CPUDT7 9 30 ADDRESS ADR17 CPU NWEL NRD NWR NRD ADR0 CPU 37 38 39 41 42 44 43 40 RFENV RFENV 49 IC5201 (FEP) RF ENV VIN10 VIN9 VIN8 VIN7 VIN6 VIN5 VIN4 VIN3 VIN2 VIN1 + - - + - + HOLD 63 62 54 53 52 51 61 60 59 58 UNIT PICK UP OPTICAL MODULE P.C.B. INTERMEDIATE P.C.B. (AV DECORDER) IC3001 160 158 151 149 120 164 166 168 172 QR6215 IC6201-11PIN FROM NRST L D C B A 13 116 VCROUT VCBOUT 126 0.64Vp-p(20usec./div.) IC3001-126 0.68Vp-p(20usec./div.) IC3001-116 0.9Vp-p(20usec/div) IC3001-121 1.0Vp-p(20usec/div) IC3001-131 XRST NRST VCOUT VYOUT C CB/B CR/R Y 121 131 VIDEO BLOCK DIAGRAM 1/2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 DVD-S830 6 38 A, R models - - - - - - - - - YTRAP BPF 1.5-6M 6dB 75 6dB 75 + CLAMP AMP Q3116 AMP Q3101 AMP Q3111 6dB 75 LPF 6M CTRAP CbTRAP 75 6dB 75 6dB LPF 6M LPF 6M D C B A 2 1 15 5 3 4 12 13 14 29 30 21 22 24 25 TERMINAL P.C.B. JK4501 MAIN SIGNAL 1.9Vp-p(20usec./div.) IC3501-24,25 2.2Vp-p(20usec./div.) IC3501-29,30 1.8Vp-p(20usec./div.) IC3501-32 MODULE P.C.B. JK4501 VIDEO OUT (VIDEO BUFFER) IC3501 (VIDEO DAC) 32 COUT MIXOUT1 MIXOUT2 CIN YOUT1 YOUT2 PYTRAP 6dB 75 LPF 12M 8 5 YIN 3 CR/R CB/B C Y AMP Q3926 17 19 14 12 CROUT (Y) CBOUT CRIN PYIN CBIN PB Y PR QR3521 WIDE1 29PIN IC6001- FROM JK4501 S-VIDEO OUT PYOUT1 PYOUT2 L RESETB NRST 49 SCL SCLOCK SDATA SDA 47 48 IC3901 IC3261 IC3261 IC3261 89 91 92 25 27 28 36 29 117 72 71 70 69 68 67 66 65 99 98 97 94 93 100 101 102 30 SCL SDA RESETB 31 40 4 5 6 7 8 9 10 11 49 48 47 46 45 44 43 42 G/YOUT9 G/YOUT2 B/CbOUT9 B/CbOUT2 H/CSYNC0 VSYNC/CREF0 VREF0 YCLK0 NHSYNC NVSYNC DACA DACC DACB DV/CLKOUT CLKIN Y[0] Y[7] U[7] U[0] FA-HSYNC FA-VSYNC NPROGDV PVCLK FA-HSYNC FA-VSYNC NPROGDV PVCLK 66 2 4 5 7 8 10 11 13 31 33 34 36 37 39 40 42 45 47 48 50 51 53 74 76 77 79 80 82 83 85 17 60 27 25 24 125 131 136 133 139 143 150 146 157 153 166 160 176 119 18 121 19 120 22 122 68 118 169 CLK BSO RAS CAS WE DQ29 DQ0 A10 A9 A0 MEMCLKO BSEL RASN CASN WEN DATA29 DATA0 ADDR0 ADDR10 AMP Q3921 32 AMP Q3931 PR PB PY 34 (64M SDRAM) IC3761 (PROGRESSIVE) IC3701 1.3Vp-p(20usec./div.) IC3501-17,19 FROM/TO IC6201-56PIN FROM IC6201-53PIN VIDEO BLOCK DIAGRAM 2/2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 DVD-S830 39 TERMINAL AV 21-PIN JK3871 2 4 6 8 10 12 14 16 18 20 1 3 5 7 9 11 13 15 17 19 21 MDI MC MDO VOUT1 VOUT2 VOUT3 VOUT4 RSTB VOUT5 VOUT6 ML VOUT7 VOUT8 BCKIN LRCIN DATA4 DIN3 DIN2 DIN1 NRST EXBCK0 EXLRCK0 DIN2 DIN1 DIN0 37 MIX L MIX R SW CNT SL SR FR FL IC6201 (MAIN CPU) ADOUT0 ADOUT1 ADOUT2 IECOUT SRCK LRCK DMIX 92 91 90 88 87 84 83 53 31 40 41 16 20 36 9 10 47 IC6801 (WM) 19 47 31 54 58 12 11 46 SBO1 SBT1 SBIO NRST NBREQ AMUTE SBI1 11 9 71 68 70 72 IC4211 (AUDIO DAC) 34 35 33 14 13 45 (AV DECODER) IC3001 JK4501 JK4751 JK4501 JK4501 JK4501 L OUT R OUT IC4302 IC4302 2 6 7 1 IC4303 IC4303 1 7 6 2 6 2 1 7 IC4304 IC4304 1 7 6 2 IC4301 IC4301 AMP AMP AMP AMP AMP AMP AMP AMP MAIN SIGNAL [B, G models] FRONT ROUT FRONT LOUT MIX R OUT DIGITAL AUDIO OUT COAXIAL JK4501 DIGITAL AUDIO OUT OPTICAL MIX L OUT SUB- WOOFER OUT CENTER OUT SURROUND ROUT SURROUND LOUT AUDIO BLOCK DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 40 I INTERCONNECTION SCHEMATIC DIAGRAM FP2501 FG UNIT FG1 FG2 FG2 FG3 2 1 3 4 11 10 9 8 7 6 G 7 10 9 8 D+3.3V KMODE SCSIEN 5 2 1 6 4 3 SBI1 SBT1 196BSY D GND SBO1 PS6201 25BSY D1 18 D2 17 D3 16 D4 15 D5 14 D6 13 D7 12 D8 11 D9 PS6002 S15 S12 S11 S10 S13 S14 S17 S16 S9 10 9 8 7 1 6 2 5 3 4 22 21 20 TRAY MUT 19 18 TRAY/TRV 17 525P/YCL 16 B3 15 525P LED 14 B4 13 REMASTER LED 12 B2 11 PA11 FP6001 POWER OFF POWER MUTE TRAY SW - TRAY DRV TRV SW + PA31 B1 PA21 TRAY REF 10 9 8 7 1 6 2 5 3 4 DSP CLK 15 STAT 14 CMD 13 D GND 12 M GND 11 A GND FC1001A WIDE 1 A +5V D +2.5V NSW -10V A DAC GND D +5V M +9V NSW +10V 10 9 8 7 1 6 2 5 3 4 S8 18 S7 17 S6 16 S5 15 S4 14 S3 13 S2 12 S1 11 FIL + PS6001 MULTI LED D +5V REMOCON NSW +3.3V POWER SW FIL - AD.ONLY LED D GND 10 9 8 7 1 6 2 5 3 4 7 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 TRAY MUT DWIDE1/RGBH DWIDE2/COMPL DWIDE1/RGBH DWIDE2/COMPL TRAY/TRV 525P/YCL B3 525P LED B4 REMASTER LED B2 PA11 PA21 POWER OFF B1 PA31 TRV SW + FP6002 TRAY DRV POWER MUTE TRAY SW - TRAY REF 1 6 5 4 2 3 DSP CLK 15 STAT 14 CMD 13 D GND 12 M GND 11 7 WIDE 1 M +9V 8 9 D +5V A GND A DAC GND FC1001B NSW -10V A +5V ADAC5V ADAC5V D +2.5V NSW +10V 1 6 5 4 2 3 10 D1 18 D2 17 D3 16 D4 15 D5 14 D6 13 D7 12 D8 11 7 S 15 S16 8 9 S 17 D9 S14 S13 PP6002 S10 S12 S11 S9 1 6 5 4 2 3 10 7 B 2 B3 8 9 B 4 REMASTER LED B1 525P LED PS6003 PA11 PA31 PA21 D GND 1 6 5 4 2 3 10 S8 18 S7 17 S6 16 S5 15 S4 14 S3 13 S2 12 S1 11 10 FIL + FIL - 9 8 AD.ONLY LED MULTI LED 7 POWER P.C.B. P1001 ZFLAG A MUT A DAC 5V MIX R A DAC GND MIX L A DAC GND AC3H/DAC MUT FR A DAC GND FL A DAC GND SR A DAC GND SL ZFLAG A MUT A DAC 5V MIX R 24 25 23 26 26 25 24 23 B1 525P LED B4 D GND B3 PA11 PA21 PA31 D GND REMASTER LED F E D C B A 5 4 3 2 1 / I FRONT1 P.C.B. MODULE P.C.B. SCART P.C.B. [B, G models] TERMINAL P.C.B. FP5201 FG1 FG3 LPC01 A GND A GND 3.3VHFM FE1(CD) RFP RFN F1(DVD) F2(DVD) GAINH/L PIN(DVD) VREF2.2V TRAY/TRV TA(DVD) TD(DVD) TC(DVD) TB(DVD) VCC+5V A GND LPC02 T1(CD) FE2(CD) T2(CD) PIN(CD) A GND VHALF LD CUR IN SW TRV IN SPD IN TR IN FO IN DMV MUTE3 MUTE12 TRAYREF M GND M GND M GND M +9V M +9V M +9V TRAY IN(D+5V) D +5V D +5V MUTE4 D GND 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 28 1 27 D GND FRONT2 P.C.B. 7 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 Y/PY/G CR/PR/R V GND C V GND Y A GND A +5V D GND D +2.5V D GND D +2.5V D GND M GND M +9V D +5V D GND CMD PS3201 V GND STATUS DSP CLK CB/PB/B 1 6 5 4 2 3 7 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 Y/PY/G CR/PR/R V GND C V GND Y A GND A +5V D GND D +2.5V D GND D +2.5V D GND M GND M +9V D +5V D GND CMD PP3201 V GND STATUS DSP CLK CB/PB/B 1 6 5 4 2 3 7 19 18 17 16 15 14 13 12 11 10 9 8 RGBH B COMPL G YCL R WIDE1 LOUT GND ROUT COUT GND GND YOUT GND FP3802 A+5V VOUT GND NSW+12V RGBH B COMPL G YCL R WIDE1 LOUT GND ROUT COUT GND GND YOUT GND A+5V VOUT GND NSW+12V 1 6 5 4 2 3 13 1 2 3 4 5 6 7 8 9 10 11 12 FP3801 19 14 15 16 18 17 7 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 A DAC GND SW CNT TRAY REF A DAC GND TRAY DRV TRAY MUT PS4201 D GND TRV SW(+) TRAY/TRV AUDIO DIGITAL 1 6 5 4 2 3 7 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 A DAC GND MIX L A DAC GND AC3H/DAC MUT FR A DAC GND FL A DAC GND SR A DAC GND SL A DAC GND SW A DAC GND CNT TRAY REF TRAY DRV TRAY MUT PP4301 D GND TRV SW(+) TRAY/TRV AUDIO DIGITAL 1 6 5 4 2 3 PP6003 PP6001 POWER SW STBY-LED STBY-LED D +5V REMOCON NSW +3.3V B2 1 6 5 4 2 3 10 9 8 7 6 5 4 3 2 1 INTERMEDIATE P.C.B. FP5102 FG1 FG3 D GND D GND MUTE4 D +5V D +5V TRAY IN(D+5V) M +9V M +9V M +9V M GND M GND M GND TRAYREF MUTE12 MUTE3 DMV FO IN TR IN SPD IN TRV IN IN SW LD CUR VHALF A GND PIN(CD) T2(CD) FE2(CD) T1(CD) LPC02 A GND FE1(CD) VCC+5V TB(DVD) TC(DVD) TD(DVD) TA(DVD) TRAY/TRV VREF2.2V PIN(DVD) GAINH/L F2(DVD) F1(DVD) RFN RFP A GND LPC01 A GND 3.3VHFM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 FP5101 P6005 D GND TRAY SW(-) 2 1 T(+) F(+) F(-) T(-) 3.3V HFM GND LD(+) GND GND RF P RF N F1 F2 GAIN H/L P IN V REF2.2 TA TD TC TB VCC 5V FE1 GND LD(+) T1 V REF2.2 FE2 T2 P IN GND 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 PICK UP UNIT OPTICAL MECHANISM UNIT SWITCH OPEN 　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　� w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 41 ABBREVIATIONS DEFINITIONS A A0～UP ADDRESS ACLK AUDIO CLOCK AD0～UP ADDRESS BUS ADATA AUDIO PACKET DATA ALE ADDRESS LATCH ENABLE AMUTE AUDIO MUTE AREQ AUDIO PACKET REQUEST ARF AUDIO RF ASI SERVO AMP INVERTED INPUT ASO SERVO AMP OUTPUT ASYNC AUDIO WORD DISTINCTION SYNC B BCK BIT CLOCK (PCM) BCKIN BIT CLOCK INPUT BDO BLACK DROP OUT BLKCK SUB CODE BLOCK CLOCK BOTTOM CAP. FOR BOTTOM HOLD BYP BYPASS BYTCK BYTE CLOCK C CAV CONSTANT ANGULAR VELOCITY CBDO CAP. BLACK DROP OUT CD COMPACT DISC CDSCK CD SERIAL DATA CLOCK CDSRDATA CD SERIAL DATA CDRF CD RF (EFM) SIGNAL CDV COMPACT DISC-VIDEO CHNDATA CHANNEL DATA CKSL SYSTEM CLOCK SELECT CLV CONSTANT LINEAR VELOCITY COFTR CAP. OFF TRACK CPA CPU ADDRESS CPCS CPU CHIP SELECT CPDT CPU DATA CPUADR CPU ADDRESS LATCH CPUADT CPU ADDRESS DATA BUS CPUIRQ CPU INTERRUPT REQUEST CPRD CPU READ ENABLE CPWR CPU WRITE ENABLE CS CHIP SELECT CSYNCIN COMPOSITE SYNC IN CSYNCOUT COMPOSITE SYNC OUT D DACCK D/A CONVERTER CLOCK DEEMP DEEMPHASIS BIT ON / OFF DEMPH DEEMPHASIS SWITCHING DIG0～UP FL DIGIT OUTPUT DIN DATA INPUT DMSRCK DIM SERIAL DATA READ CLOCK DMUTE DIGITAL MUTE CONTROL DO DROP OUT DOUTO～UP DATA OUTPUT DRF DATA SLICE RF (BIAS) DRPOUT DROP OUT SIGNAL DREQ DATA REQUEST DRESP DATA RESPONSE DSC DIGITAL SERVO CONTROLLER DSLF DATA SLICE LOOP FILTER DVD DIGITAL VIDEO DISC E EC ERROR TORQUE CONTROL ECR ERROR TORQUE CONTROL REFERENCE ENCSEL ENCODER SELECT ETMCLK EXTERNAL M CLOCK (81MHz/40.5MHｚ) ETSCLK EXTERNAL S CLOCK (54MHz) I ABBREVIATIONS ABBREVIATIONS DEFINITIONS F FBAL FOCUS BALANCE FCLK FRAME CLOCK FE FOCUS ERROR FFI FOCUS ERROR AMP INVERTED INPUT FEO FOCUS ERROR AMP OUTPUT FG FREQUENCY GENERATOR FSC FREQUENCY SUB CARRIER FSCK FS (384 OVER SAMPLING) CLOCK G GND COMMON GROUNDING (EARTH) H HA0～UP HOST ADDRESS HD0～UP HOST DATA HINT HOST INTERRUPT HRXW HOST READ/WRITE I IECOUT IEC958 FORMAT DATA OUTPUT IPFLAG INTERPOLATION FLAG IREF I (CURRENT) REFERENCE ISEL INTERFACE MODE SELECT L LDON LASER DIODE CONTROL LPC LASER POWER CONTROL LRCK L CH/R CH DISTINCTION CLOCK M MA0～UP MEMORY ADDRESS MCK MEMORY CLOCK MCKI MEMORY CLOCK INPUT MCLK MEMORY SERIAL COMMAND CLOCK MDATA MEMORY SERIAL COMMAND DATA MDQ0～UP MEMORY DATA INPUT/OUTPUT MDQM MEMORY DATA I/O MASK MLD MEMORY SERIAL COMMAND LOAD MPEG MOVING PICTURE EXPERTS GROUP O ODC OPTICAL DISC CONTROLLER OFTR OFF TRACKING OSCI OSCILLATOR INPUT OSCO OSCILLATOR OUTPUT OSD ON SCREEN DISPLAY P P1～UP PORT PCD CD TRACKING PHASE DIFFERENCE PCK PLL CLOCK PDVD DVD TRACKING PHASE DIFFERENCE PEAK CAP. FOR PEAK HOLD PLLCLK CHANNEL PLL CLOCK PLLOK PLL LOCK PWMCTL PWM OUTPUT CONTROL PWMDA PULSE WAVE MOTOR DRIVE A PWMOA,B PULSE WAVE MOTOR OUT A, B R RE READ ENABLE RFENV RF ENVELOPE RFO RF PHASE DIFFERENCE OUTPUT RS (CD-ROM) REGISTER SELECT RSEL RF POLARITY SELECT RST RESET RSV RESERVE S SCK SERIAL CLOCK SCKR AUDIO SERIAL CLOCK RECEIVER SCL SERIAL CLOCK SCLK SERIAL CLOCK SDA SERIAL DATA SDI0,1 SERIAL DATA INPUT SDO0 SERIAL DATA OUTPUT SDT0,1 SERIAL DATA CLOCK SEG0～UP FL SEGMENT OUTPUT SELCLK SELECT CLOCK ABBREVIATIONS DEFINITIONS S SEN SERIAL PORT ENABLE SIN1,2 SERIAL DATA IN SOUT1,2 SERIAL DATA OUT SPDI SERIAL PORT DATA INPUT SPDO SERIAL PORT DATA OUTPUT SPEN SERIAL PORT R/W ENABLE SPRCLK SERIAL PORT READ CLOCK SPWCLK SERIAL PORT WRITE CLOCK SQCK SUB CODE Q CLOCK SQCX SUB CODE Q DATA READ CLOCK SRDATA SERIAL DATA SRMADR SRAM ADDRESS BUS SRMDT0～7 SRAM DATA BUS 0~7 SS START/STOP STAT STATUS STCLK STREAM DATA CLOCK STD0～UP STREAM DATA STENABLE STREAM DATA INPUT ENABLE STSEL STREAM DATA POLARITY SELECT STVALID STREAM DATA VALIDITY SUBC SUB CODE SERIAL SBCK SUB CODE CLOCK SUBQ SUB CODE Q DATA SYSCLK SYSTEM CLOCK T TE TRACKING ERROR TIBAL BALANCE CONTROL TRCRS TRACK CROSS SIGNAL TRON TRACKING ON TRSON TRAVERSE SERVO ON V VBLANK V BLANKING VCC COLLECTOR POWER SUPPLY VOLTAGE VCDCONT VIDEO CD CONTROL (TRACKING BALANCE) VDD DRAIN POWER SUPPLY VOLTAGE VFB VIDEO FEED BACK VREF VOLTAGE REFERENCE VSS SOURCE POWER SUPPLY VOLTAGE W WAIT SUB CYCLE WAIT WDCK WORD CLOCK WEH WRITE ENABLE HIGH WSR WORD SELECT RECEIVER X X X'TAL XALE X ADDRESS LATCH ENABLE XAREQ X AUDIO DATA REQUEST XCDROM X CD ROM CHIP SELECT XCS X CHIP SELECT XCSYNC X COMPOSITE SYNC XDS X DATA STROBE XHSYNCO X HORIZONTAL SYNC OUTPUT XHINT XH INTERRUPT REQUEST XI X'TAL OSCILLATOR INPUT XINT X INTERRUPT XMW X MEMORY WRITE ENABLE XO X'TAL OSCILLATOR OUTPUT XRE X READ ENABLE XSRMCE X SRAM CHIP ENABLE XSRMOE X SRAM OUTPUT ENABLE XSRMWE X SRAM WRITE ENABLE XVCS X V-DEC CHIP SELECT XVDS X V-DEC CONTROL BUS STROBE XVSYNCO X VERTICAL SYNC OUTPUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 72 A, R models POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V S I SCHEMATIC DIAGRAM MODULE P.C.B. 1/8 (FEP SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 73 T A, R models POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V I SCHEMATIC DIAGRAM MODULE P.C.B. 2/8 (SODC SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 74 U A, R models POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V I SCHEMATIC DIAGRAM MODULE P.C.B. 3/8 (AVDEC SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 75 V A, R models POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V I SCHEMATIC DIAGRAM MODULE P.C.B. 4/8 (PROGRESSIVE SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 76 W A, R models POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V I SCHEMATIC DIAGRAM MODULE P.C.B. 5/8 (VIDEO-DAC SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 77 X A, R models POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V I SCHEMATIC DIAGRAM MODULE P.C.B. 6/8 (AUDIO DAC SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 78 Y A, R models POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V I SCHEMATIC DIAGRAM MODULE P.C.B. 7/8 (WM SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 79 Z A, R models POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V I SCHEMATIC DIAGRAM MODULE P.C.B. 8/8 (CPU SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 65 L B, G models POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page F AO1 SECTION:Page G AO2 SECTION:Page H FEP SECTION:Page L SODC SECTION:Page M AD SECTION:Page P WM SECTION:Page Q CPU SECTION:Page R AVDEC SECTION:Page N VD SECTION:Page O I SCHEMATIC DIAGRAM MODULE P.C.B. 1/7 (FEP SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 66 M POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page C AO1 SECTION:Page D AO2 SECTION:Page E FEP SECTION:Page F SODC SECTION:Page G AD SECTION:Page J WM SECTION:Page K CPU SECTION:Page L AVDEC SECTION:Page H VD SECTION:Page I B, G models I SCHEMATIC DIAGRAM MODULE P.C.B. 2/7 (SODC SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 67 N B, G models POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page F AO1 SECTION:Page G AO2 SECTION:Page H FEP SECTION:Page L SODC SECTION:Page M AD SECTION:Page P WM SECTION:Page Q CPU SECTION:Page R AVDEC SECTION:Page N VD SECTION:Page O I SCHEMATIC DIAGRAM MODULE P.C.B. 3/7 (AVDEC SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 68 O B, G models POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page F AO1 SECTION:Page G AO2 SECTION:Page H FEP SECTION:Page L SODC SECTION:Page M AD SECTION:Page P WM SECTION:Page Q CPU SECTION:Page R AVDEC SECTION:Page N VD SECTION:Page O I SCHEMATIC DIAGRAM MODULE P.C.B. 4/7 (VIDEO-DAC SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 69 P B, G models POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page F AO1 SECTION:Page G AO2 SECTION:Page H FEP SECTION:Page L SODC SECTION:Page M AD SECTION:Page P WM SECTION:Page Q CPU SECTION:Page R AVDEC SECTION:Page N VD SECTION:Page O I SCHEMATIC DIAGRAM MODULE P.C.B. 5/7 (AUDIO DAC SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 70 Q B, G models POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page F AO1 SECTION:Page G AO2 SECTION:Page H FEP SECTION:Page L SODC SECTION:Page M AD SECTION:Page P WM SECTION:Page Q CPU SECTION:Page R AVDEC SECTION:Page N VD SECTION:Page O I SCHEMATIC DIAGRAM MODULE P.C.B. 6/7 (VM SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 71 RFKFRP65D160 R B, G models POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page F AO1 SECTION:Page G AO2 SECTION:Page H FEP SECTION:Page L SODC SECTION:Page M AD SECTION:Page P WM SECTION:Page Q CPU SECTION:Page R AVDEC SECTION:Page N VD SECTION:Page O I SCHEMATIC DIAGRAM MODULE P.C.B. 7/7 (CPU SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 80 I SCHEMATIC DIAGRAM INTERMEDIATE P.C.B. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 81 I SCHEMATIC DIAGRAM FRONT 1 and FRONT 2 P.C.B. FRONT 1 P.C.B. FRONT 2 P.C.B. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 82 B, G models I SCHEMATIC DIAGRAM SCART P.C.B. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 83 DVD-S830 Ref No. MODE K R A 1 2 3 4 5 1 2 3 4 5 PLAY 2.5 0 3.7 3.7 3.2 2.7 1.2 0 9.7 3.2 9.0 - 0 STOP 2.5 0 3.6 3.7 3.1 2.7 1.2 0 9.7 3.1 9.0 - 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 3.3 3.3 1.0 2.8 3.0 3.2 3.3 1.5 1.6 0 0 3.3 0 0 3.3 3.3 3.3 3.3 3.3 STOP 3.2 3.2 3.2 1.0 2.7 2.9 3.2 3.2 1.5 1.6 0 0 3.2 0 0 3.2 3.2 3.2 3.2 3.2 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0 1.0 2.0 3.3 0 3.3 1.6 1.6 3.2 3.3 3.2 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0 3.2 STOP 0 1.0 1.9 3.2 0 3.2 1.6 1.6 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.3 0 3.2 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 0 3.2 3.3 3.3 3.3 3.3 3.3 3.2 3.2 2.9 - - - - 27.7 -27.6 -27.7 -27.7 -27.6 -27.7 STOP 0 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 2.9 - - - - 27.3 -27.3 -27.3 -27.3 -27.3 -27.3 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY -27.8 -27.8 -28.3 -23.9 -24.0 -17.2 -10.4 -7.1 -13.7 -27.3 -27.3 -23.9 -24.2 24.1 -24.2 -27.5 -27.5 -7.3 -17.5 -13.9 STOP -27.5 -27.4 -27.9 -26.9 -30.2 -23.6 -16.9 -20.3 -20.2 -26.9 -23.5 -26.7 -20.7 -23.9 -27.1 -23.8 -30.4 -17.2 -17.2 -13.7 Ref No. MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 PLAY 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 - - 3.2 - - - - 3.1 -4.7 -31.0 STOP 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 - - 3.2 - - - - 3.1 -4.7 -30.5 Ref No. MODE PLAY STOP Ref No. MODE 1 2 3 4 PLAY - 0 3.3 3.3 STOP - 0 3.3 3.3 Ref No. MODE 1 2 3 1 2 3 4 1 2 3 1 2 3 4 5 6 PLAY 0 51.0 -0.3 5.2 4.1 0.7 13.0 0 -0.2 0 5.1 5.1 0 5.1 5.1 5.1 STOP 0 165.7 -0.2 5.2 4.1 0.8 12.6 0 -0.2 0 5.1 5.1 0 5.1 5.1 5.1 Ref No. MODE E C B E C B E C B E C B E C B PLAY 3.3 5.1 4.0 -24.5 -24.5 -23.8 0 0 3.2 3.3 -0.4 3.3 3.3 0 3.2 STOP 3.3 5.1 3.9 -24.1 -24.1 -23.4 0 0 3.1 3.3 -0.3 3.3 3.3 0 3.2 Ref No. MODE E C B PLAY 3.2 0 3.2 STOP 3.2 0 3.2 Q1115 Q6091 IC6011 Q1021 Q1051 Q1052 IC6001 IC6001 IC6001 IC1101 IC1125 IC1151 IC6001 IC6001 Q6095 QR1115 QR6052 QR6056 QR6057 B, G models I VOLTAGE CHART 1. POWER P.C.B. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 84 DVD-S830 A model Ref No. MODE K R A 1 2 3 4 5 1 2 3 4 5 PLAY 3.7 2.5 0 3.7 3.0 2.7 1.3 0 9.8 3.1 9.1 - 0 STOP 3.6 2.5 0 3.7 3.0 2.7 1.3 0 9.8 3.1 9.1 - 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 3.3 3.3 1.0 2.8 3.0 3.2 3.3 1.5 1.0 0 0 3.3 0 0 3.3 3.3 3.3 3.3 3.3 STOP 3.2 3.2 3.2 1.0 2.7 2.9 3.2 3.2 1.5 1.0 0 0 3.2 0 0 3.2 3.2 3.2 3.2 3.2 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0 1.5 1.1 3.3 0 3.3 1.6 1.6 3.2 3.3 3.2 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0 3.2 STOP 0 1.5 1.1 3.2 0 3.2 1.6 1.6 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.3 0 3.2 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 0 3.2 3.3 3.3 3.3 3.3 3.3 3.2 3.2 2.9 -0.8 -0.8 -0.8 -0.8 -27.8 -27.6 -27.7 -27.7 -27.6 -27.7 STOP 0 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 2.9 -0.8 -0.8 -0.8 -0.8 -27.8 -27.3 -27.3 -27.3 -27.3 -27.3 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY -27.8 -27.8 -28.3 -27.5 -20.7 -20.6 -10.4 -10.4 -17.2 -27.3 -27.5 -27.4 -27.5 -20.6 -27.5 -30.8 -20.6 -13.8 -17.5 -20.7 STOP -27.5 -27.4 -27.9 -27.5 -20.7 -20.6 -10.4 -10.4 -17.2 -26.9 -27.5 -27.4 -27.5 -20.6 -27.5 -30.8 -20.6 -13.8 -17.2 -20.7 Ref No. MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 PLAY 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 - - 3.2 0 - 0 - 3.3 3.3 -31.0 STOP 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 - - 3.2 0 - 0 - 3.3 3.3 -30.5 Ref No. MODE 1 2 3 4 PLAY - 0 3.3 3.3 STOP - 0 3.3 3.3 Ref No. MODE 1 2 3 1 2 3 4 1 2 3 1 2 3 4 5 6 PLAY 0 126.3 0.3 5.2 4.1 0.2 1.8 0 0.3 0.1 5.1 5.1 0 5.1 5.1 5.1 STOP 0 119.3 0.2 5.2 4.1 0.1 1.7 0 0.2 0.1 5.1 5.1 0 5.1 5.1 5.1 Ref No. MODE E C B E C B 1 2 3 E C B E C B PLAY 3.3 5.1 4.0 -24.8 -24.7 -24.0 0 0 3.0 3.3 0 3.3 3.3 0.1 3.3 STOP 3.3 5.1 3.9 -24.2 -24.1 -23.4 0 0 3.0 3.3 -0.1 3.3 3.3 0.1 3.3 Ref No. MODE E C B E C B PLAY 3.3 0 3.3 3.2 0 3.2 STOP 3.3 0 3.3 3.2 0 3.2 QR6056 QR6055 Q6091 Q6095 QR1115 QR6052 QR6057 IC6011 Q1051 Q1052 Q1115 Q1021 IC6001 IC6001 IC1101 IC1125 IC1151 IC6001 IC6001 IC6001 R model Ref No. MODE 1 2 3 4 5 6 7 K R A 1 2 3 4 5 PLAY 24.5 0.1 0 0 18.6 0.5 0.3 4.1 2.5 0 5.2 3.0 2.7 1.3 0 STOP 34.4 0.1 0 0 18.2 0.5 0.2 4.1 2.5 0 5.2 3.0 2.7 1.3 0 Ref No. MODE 1 2 3 4 5 PLAY 9.9 3.0 9.0 - 0 STOP 10.0 3.0 9.0 - 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 3.3 3.3 1.1 2.8 3.0 3.2 3.3 1.5 1.0 0 0 3.3 0 0 3.3 3.3 3.3 3.3 3.3 STOP 3.2 3.2 3.3 1.1 2.7 2.9 3.2 3.2 1.5 1.0 0 0 3.2 0 0 3.2 3.2 3.2 3.2 3.2 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0 1.5 1.1 3.3 0 3.3 1.6 1.6 3.2 3.3 3.2 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0 3.2 STOP 0 1.5 1.1 3.2 0 3.2 1.6 1.6 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.3 0 3.2 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 0 3.2 3.3 3.3 3.3 3.3 3.3 3.2 3.2 3.3 -0.8 -0.8 -0.8 -0.8 -27.8 -27.6 -27.7 -27.7 -27.6 -27.7 STOP 0 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.3 -0.8 -0.8 -0.8 -0.8 -27.8 -27.3 -27.3 -27.3 -27.3 -27.3 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY -27.8 -27.8 -28.3 -27.5 -20.7 -20.6 -10.4 -10.4 -17.2 -27.3 -27.5 -27.4 -27.5 -20.6 -27.5 -30.8 -20.6 -13.8 -17.3 -20.7 STOP -27.5 -27.4 -27.9 -27.5 -20.7 -20.6 -10.4 -10.4 -17.2 -26.9 -27.5 -27.4 -27.5 -20.6 -27.5 -30.8 -20.6 -13.8 -17.2 -20.7 Ref No. MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 PLAY 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 - - 3.3 0 - 0 - 3.3 3.3 -31.2 STOP 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 - - 3.3 0 - 0 - 3.3 3.3 -31.2 Ref No. MODE 1 2 3 4 PLAY - 0 3.3 3.3 STOP - 0 3.3 3.3 Ref No. Ref No. MODE 1 2 3 4 1 2 3 4 5 6 E C B PLAY 5.2 4.2 0.5 17.9 5.1 5.1 0.1 5.2 5.1 5.1 3.3 5.2 4.0 STOP 5.2 4.2 0.5 17.5 5.1 5.1 0.1 5.2 5.1 5.1 3.3 5.2 4.0 MODE 1 2 3 E C B E C B E C B E C B PLAY 0 0 3.0 3.3 -0.8 3.3 3.3 0.1 3.3 3.3 -0.6 3.3 3.3 -0.6 3.3 STOP 0 0 3.0 3.3 -0.4 3.3 3.3 0.1 3.3 3.3 -0.1 3.3 3.3 -0.1 3.3 QR6057 QR1115 QR6052 QR6055 QR6056 IC6001 Q1051 Q1115 Q6091 IC6011 IC6001 IC6001 IC6001 IC6001 IC1021 IC1101 IC1125 IC1151 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 85 DVD-S830 B, G models Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 2.1 5.0 2.8 0 2.6 5.0 0 2.5 0 1.9 5.0 2.8 0 2.8 5.0 2.2 2.3 - 2.3 0 STOP 2.1 5.0 2.8 2.4 2.4 5.0 0 2.4 0 1.8 5.0 2.8 0 2.8 5.0 2.2 2.3 - 2.3 0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 1 2 3 PLAY 2.1 2.1 0 2.0 2.1 0 1.9 0 2.0 2.0 0 2.3 8.9 0 5.1 STOP 1.7 1.7 0 1.7 1.7 0 1.8 0 1.7 1.6 0 2.3 8.9 0 5.1 Ref No. MODE 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 PLAY 0 0 0 -10.4 0 0 0 10.2 0 0 0 -9.7 0 0 0 9.0 STOP 0 0 0 -10.3 0 0 0 10.1 0 0 0 -9.6 0 0 0 9.0 Ref No. MODE 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 PLAY 0 0 0 -9.7 0 0 0 9.0 0 0 0 -9.7 0 0 0 9.0 STOP 0 0 0 -9.6 0 0 0 9.0 0 0 0 -9.6 0 0 0 9.0 Ref No. MODE 1 2 3 PLAY 4.9 0 9.0 STOP 4.9 0 9.0 Ref No. MODE E C B E C B E C B E C B E C B PLAY 0 2.8 0 0 0 -0.4 0 0 -4.7 0 0 -4.7 0 0 -4.7 STOP 0 0 0 0 0 -0.3 0 0 0.7 0 0 0.7 0 0 0.7 Ref No. MODE E C B E C B E C B E C B E C B PLAY 0 0 -4.7 0 0 -4.7 0 0 -4.7 0 0 -4.7 0 0 -4.7 STOP 0 0 -4.7 0 0 0.7 0 0 0.7 0 0 0.7 0 0 0.7 Ref No. MODE E C B E C B E C B E C B E C B PLAY 0 0 -4.7 0 0 -4.7 1.7 4.9 2.4 9.1 9.8 9.7 -9.7 -10.4 -10.4 STOP 0 0 0.7 0 0 0.7 1.8 4.9 2.4 9.1 9.8 9.7 9.0 9.7 9.6 Ref No. MODE E C B E C B E C B E C B E C B PLAY 9.8 9.7 9.8 -10.4 -10.4 -10.4 0 0 3.2 0 3.5 0 0 2.8 0 STOP 9.7 9.7 9.7 -10.3 -10.3 -10.3 0 0 3.2 0 3.5 0 0 0 3.2 Ref No. MODE E C B E C B E C B E C B E C B PLAY 0 0.1 2.8 0.1 -4.7 0 0 -0.4 0 0 0 3.2 9.8 9.8 0 STOP 0 1.5 0 1.5 1.3 0 0 -0.3 0 0 0 3.2 9.7 9.7 0 MODE E C B E C B E C B PLAY -10.4 -10.4 9.8 0 0 3.0 9.8 9.8 0 STOP -10.3 -10.3 9.7 0 0 3.0 9.7 9.7 0 Q4416 Q4417 Q4418 Q4302 Q4413 Q4414 Q4415 IC3501 IC4303 IC4304 IC4305 IC3501 IC3581 IC4301 IC4302 Q4410 Q4315 Q4411 Q4412 Q4419 Q4751 Q4901 Q4911 QR4301 QR4302 QR4304 QR4316 QR4317 QR4901 Q4921 Q4931 QR3521 QR3523 QR4902 QR4903 QR4904 Ref No. 2. TERMINAL P.C.B. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 86 DVD-S830 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 2.1 5.0 2.8 0 2.6 5.0 0 2.5 0 1.9 5.0 2.8 0 2.8 5.0 2.2 2.3 - 2.3 0 STOP 2.1 5.0 2.8 2.4 2.4 5.0 0 2.4 0 1.8 5.0 2.8 0 2.8 5.0 2.2 2.3 - 2.3 0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 1 2 3 PLAY 2.1 2.1 0 2.0 2.1 0 1.9 0 2.0 2.0 0 2.3 8.9 0 5.1 STOP 1.7 1.7 0 1.7 1.7 0 1.8 0 1.7 1.6 0 2.3 8.9 0 5.1 Ref No. MODE 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 PLAY 0 0 0 -10.4 0 0 0 10.2 0 0 0 -9.7 0 0 0 9.0 STOP 0 0 0 -10.3 0 0 0 10.1 0 0 0 -9.6 0 0 0 9.0 Ref No. MODE 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 PLAY 0 0 0 -9.7 0 0 0 9.0 0 0 0 -9.7 0 0 0 9.0 STOP 0 0 0 -9.6 0 0 0 9.0 0 0 0 -9.6 0 0 0 9.0 Ref No. MODE 1 2 3 PLAY 4.9 0 9.0 STOP 4.9 0 9.0 Ref No. MODE E C B E C B E C B E C B E C B PLAY 0 2.8 0 0 0 -0.4 0 0 -4.7 0 0 -4.7 0 0 -4.7 STOP 0 0 0 0 0 -0.3 0 0 0.7 0 0 -4.7 0 0 0.7 Ref No. MODE E C B E C B E C B E C B E C B PLAY 0 0 -4.7 0 0 -4.7 0 0 -4.7 0 0 -4.7 0 0 -4.7 STOP 0 0 0.7 0 0 0.7 0 0 0.7 0 0 0.7 0 0 0.7 Ref No. MODE E C B E C B E C B E C B E C B PLAY 1.7 4.9 2.4 9.1 9.8 9.7 -9.7 -10.4 -10.4 9.8 9.7 9.8 -10.4 -10.4 -10.4 STOP 1.8 4.9 2.4 9.1 9.8 9.7 9.0 9.7 9.6 9.7 9.7 9.7 -10.3 -10.3 -10.3 Ref No. MODE E C B E C B E C B E C B E C B PLAY 0 0 3.2 0 0 3.2 0 3.5 0 0 2.8 0 0 0.1 2.8 STOP 0 0 3.2 0 0 3.2 0 3.5 0 0 0 3.2 0 1.5 0 Ref No. Ref No. MODE E C B E C B E C B E C B E C B PLAY 0.1 -4.7 0 0 -0.4 0 0 0 3.2 9.8 9.8 0 -10.4 -10.4 9.8 STOP 1.5 1.3 0 0 -0.3 0 0 0 3.2 9.7 9.7 0 -10.3 -10.3 9.7 MODE E C B E C B PLAY 0 0 3.0 9.8 9.8 0 STOP 0 0 3.0 9.7 9.7 0 IC3501 IC3581 Q4415 IC4305 Q4416 Q4419 Q4417 Q4418 IC3501 Q4302 Q4315 Q4410 Q4413 Q4414 IC4301 IC4302 IC4303 IC4304 Q4751 Q4901 QR3501 QR3521 Q4911 QR3523 QR4301 QR4302 Q4921 Q4931 QR4304 QR4316 QR4317 QR4901 QR4902 QR4904 QR4903 A, R models www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 87 DVD-S830 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 0 3.3 3.3 0 3.3 3.3 0 0 2.3 2.1 2.3 2.3 2.4 2.5 2.4 2.4 2.5 1.8 0 1.8 STOP 0 3.3 3.3 0 3.3 3.3 0 0 2.7 2.6 2.7 2.8 2.7 2.7 2.6 2.7 3.1 1.8 0 1.8 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0 2.4 2.5 2.7 2.5 2.7 2.6 2.6 2.7 2.0 3.3 0 3.3 3.3 3.3 2.6 2.8 2.8 2.7 2.7 STOP 0 3.1 3.1 3.1 2.8 2.4 1.3 2.0 2.0 3.1 3.3 0 3.3 3.3 3.3 3.0 3.1 3.1 3.0 3.3 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 2.7 2.7 2.6 2.7 1.4 0 3.2 0 3.3 3.3 0 0 0 0 3.3 0.1 3.3 1.8 0 0 STOP 3.0 3.1 3.0 3.0 1.4 0 3.2 0 3.3 3.3 3.3 0 0 0 3.3 3.3 3.3 1.8 0 0 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY 3.3 3.3 3.3 0 1.6 1.3 1.6 2.1 1.2 3.3 3.3 0 3.3 3.3 0 1.8 0 3.3 1.5 1.5 STOP 3.3 3.3 0 0 1.6 1.3 1.6 1.6 3.3 0 0 1.2 3.3 3.3 0 1.8 0 3.3 1.5 1.5 Ref No. MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 PLAY 0 0 0 1.6 0 1.6 1.6 3.3 0 1.6 1.6 0 0 0 1.6 1.6 1.4 1.6 3.3 1.3 STOP 0 0 0 1.6 0 1.6 3.3 3.3 0 1.6 1.6 0 0 0 1.6 1.6 1.4 1.6 3.3 0 Ref No. MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 PLAY 1.3 0 1.5 2.2 3.1 1.6 1.4 1.6 3.3 1.6 1.6 2.0 0 1.7 1.6 3.3 1.6 1.7 2.4 2.4 STOP 0 0 1.5 2.2 2.8 1.6 1.5 1.6 3.3 1.6 1.6 2.3 0 0 1.6 3.3 1.6 1.6 1.6 1.6 Ref No. MODE 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 PLAY 2.1 2.2 1.3 1.4 3.3 0 0 0 0 0 3.2 3.3 0 3.3 3.3 1.7 3.3 0 3.3 0 STOP 2.4 1.6 1.4 0.1 3.3 0 0 0 0 0 3.3 3.3 0 3.3 3.3 1.7 3.3 0 3.3 0 Ref No. MODE 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 PLAY 0.5 3.3 3.3 0 0 1.4 3.3 3.3 1.0 0 1.0 1.8 0 0 0 3.3 0 0 0 1.0 STOP 0 3.3 3.3 0 0 1.6 2.4 3.3 0 0 0 1.8 0 0 0 3.3 0 0 0 0 Ref No. MODE 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 PLAY 0 3.3 0 1.0 0 1.8 0 1.0 3.3 0 0 1.0 0 3.3 3.3 3.3 STOP 0 3.3 0 1.0 0 0 0 0 3.3 0 0 0 0 3.3 3.3 3.3 Ref No. MODE 1 2 3 4 5 PLAY 1.6 1.6 0 0 5.0 STOP 1.6 1.6 0 0 5.0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 0.2 1.5 0.1 1.8 1.7 0.1 1.5 0 1.6 3.3 3.3 3.2 0 0 1.8 3.2 3.2 3.3 0 STOP 3.3 0 1.1 0 1.8 1.1 0.1 1.0 0 1.1 3.3 3.3 3.2 0 0 1.8 3.2 3.3 3.3 0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 3.2 3.2 2.6 3.2 3.3 1.5 3.3 0 3.3 3.3 0 0 0 0 0 0 1.8 2.5 2.4 2.5 STOP 3.3 3.3 3.0 3.2 3.3 1.5 3.0 3.0 3.0 3.0 0 2.9 3.0 2.8 2.8 2.8 1.8 2.7 2.6 2.7 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 2.3 2.3 0 2.2 2.0 2.2 2.5 3.3 2.5 2.7 2.7 2.6 0 2.7 2.8 2.8 1.8 2.6 2.5 0.7 STOP 2.7 2.8 0 2.7 2.6 2.7 3.0 3.3 2.9 3.0 3.0 3.0 0 3.0 3.0 3.1 1.8 3.0 3.0 3.0 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY 3.3 2.7 2.8 0 2.7 2.8 2.8 3.3 0.5 1.6 3.2 0 0.6 0.7 0.6 0.7 1.8 1.7 1.1 0.9 STOP 3.3 3.0 3.0 0 3.0 3.1 3.1 3.3 0 1.6 0 0 0 0 0 0 1.8 000 Ref No. MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 PLAY 0.8 0 1.6 1.2 3.3 1.4 1.6 1.6 0 1.2 0 0 3.3 0 0 1.5 1.8 0 1.8 1.6 STOP 0 0 1.6 0 3.3 1.5 1.6 1.6 0 0 0 0 3.3 0 0 1.5 1.8 0 1.8 1.5 Ref No. MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 PLAY 3.3 0.1 0 0 3.3 3.3 1.8 0 3.3 0 0 3.3 0 0 2.9 0 3.3 0 0 2.9 STOP 3.3 0.1 0 0 3.3 0 1.8 0 3.3 0 0 3.3 0 0 2.9 0 3.3 0 0 2.9 Ref No. MODE 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 PLAY 0 0 0 0 2.9 0 3.3 0 0 2.8 0 0 0 0 0 1.5 0 STOP 0 0 0 0 2.9 0 3.3 0 0 2.8 0 0 0 0 0 1.5 0 0 0 0 0 0 0 Ref No. MODE 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 PLAY 3.3 0 0 3.2 3.0 1.8 1.2 1.1 1.0 1.1 0 1.3 1.3 1.3 2.0 3.3 0 2.5 2.7 3.3 STOP 3.3 0 0 3.3 3.0 1.8 1.1 0.4 0.5 0.6 0 1.9 0.2 0.2 1.3 3.3 0 2.9 2.8 3.3 Ref No. MODE 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 PLAY 2.6 2.4 2.6 2.5 3.3 2.6 3.0 2.5 0 2.4 2.7 3.3 2.5 1.8 2.6 0 2.6 2.6 3.3 2.8 STOP 2.5 2.6 0 2.5 2.7 3.3 2.9 2.7 0 2.6 3.0 3.3 2.6 1.8 2.6 0 2.6 2.6 3.3 2.8 Ref No. MODE 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 PLAY 2.9 0 1.7 1.8 1.7 0 3.3 3.3 1.7 0.8 1.8 1.8 3.1 0 3.0 3.1 3.3 1.6 2.9 0 STOP 0 2.6 2.6 3.3 1.7 0 3.3 3.3 2.4 0.1 1.8 2.4 3.2 0 3.2 3.2 3.3 3.3 3.0 0 IC3001 IC3001 IC2001 IC2001 IC3001 IC3001 IC2001 IC2001 IC2001 IC2001 IC2001 IC3001 IC3001 IC3001 IC2101 IC3001 IC3001 IC3001 IC2001 IC2001 B, G models 3. MODULE P.C.B. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 88 DVD-S830 B, G models Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 1.2 1.3 1.1 1.0 1.4 1.2 1.3 1.8 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0 3.3 3.3 STOP 1.1 0.5 0.6 0.6 1.9 0.3 0.2 1.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0 3.3 3.3 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 3.3 0 0 0 3.3 0 1.5 - 3.3 3.3 3.3 0 0 1.2 1.5 0.7 0.6 3.3 0 0 STOP 2.1 0 0 0 3.3 0 1.5 - 3.3 3.3 3.3 0 0 1.2 1.5 0.7 0.3 3.3 0 0 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 0.4 0 3.3 0.2 0.4 1.5 1.2 1.2 3.2 3.0 3.3 0 - 3.3 0 0 - STOP 0.1 0 3.3 0.1 0.1 1.5 1.2 1.2 3.2 3.0 3.3 0 - 3.3 0 0 - - - - - - - Ref No. MODE 61 62 63 64 STOP - - 3.3 0 PLAY - - 3.3 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 3.3 0 0 0 0 - 2.4 2.4 2.5 2.4 2.5 2.4 2.5 2.5 2.5 0 4.9 0 2.4 STOP 0 0 0 0 0 0 - 1.0 2.4 2.5 2.4 2.5 2.4 2.5 2.4 2.5 0 4.9 0 2.4 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0 4.9 0 4.9 0 4.9 0 4.9 - - 1.2 3.3 3.3 3.3 2.8 3.3 3.2 1.6 1.4 1.6 STOP 0 4.9 0 4.9 0 4.9 0 4.9 - - 0 0 3.3 3.3 2.8 3.3 3.2 1.6 1.5 1.6 Ref No. MODE 41 42 43 44 45 46 47 48 PLAY 1.7 0 3.3 0 1.2 0 0 3.2 STOP 1.7 0 3.3 0 0 0 0 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 0.5 3.2 0 4.9 1.4 - 1.6 1.6 1.6 - 1.6 0 2.4 1.6 1.6 0 3.2 3.3 3.3 0 STOP 0 4.9 0 4.9 1.6 - 1.6 1.6 1.6 - 1.6 0 1.6 1.6 1.6 0 3.2 3.3 3.3 0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0 0 3.3 0 3.3 - 0.5 0 1.3 1.2 1.8 1.1 3.3 1.8 1.8 1.7 1.0 1.4 0 - STOP 3.3 0 3.3 0 3.3 - 0.5 0 1.1 1.1 1.9 1.1 3.3 1.8 1.8 1.7 1.0 0.6 0 - Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 0 0 1.7 0.9 0 2.1 2.1 2.0 2.3 5.0 2.2 2.2 2.3 2.3 2.2 1.8 - 2.3 2.2 2.2 STOP 0 0 1.7 0.9 0 2.1 2.1 1.6 1.6 5.0 2.2 2.2 2.2 2.2 2.2 1.8 - 2.2 2.2 2.2 Ref No. MODE 61 62 63 64 PLAY 2.2 2.2 2.2 0 STOP 2.2 2.2 2.2 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 2.6 3.2 3.2 3.3 3.3 3.2 2.5 0 3.3 0 0.1 1.9 2.7 2.6 2.6 3.3 1.3 0 3.3 STOP 3.3 3.0 3.3 3.3 3.3 3.3 3.2 3.0 3.2 3.3 0 3.3 2.6 3.0 3.0 2.9 3.3 1.3 0 3.3 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 3.3 3.3 1.6 1.5 3.3 2.6 2.5 2.6 2.5 2.4 2.5 2.4 2.4 3.3 2.5 2.4 2.3 2.2 2.0 2.2 STOP 3.3 3.3 1.6 1.5 3.3 3.0 2.9 3.3 3.3 2.8 2.8 2.7 2.6 3.3 2.7 2.7 2.8 0 0 0 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 2.5 1.9 0 1.8 1.8 3.3 0 0 3.3 3.0 1.1 2.7 3.3 3.3 3.2 3.3 3.3 0 0 3.2 STOP 0 0 0 0 0 3.3 0 0 3.3 3.3 1.1 2.7 3.3 3.3 0 3.3 3.3 0 0 3.2 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY 0 0 0 0 0 3.3 3.2 3.3 3.3 2.8 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0.1 0.1 0.1 STOP 0 0 0 0 0 3.3 3.2 3.3 3.3 2.8 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.2 3.3 0.1 Ref No. MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 PLAY 0 3.3 3.3 2.6 2.6 2.1 2.6 2.6 2.6 2.7 2.8 0 2.6 2.5 0.1 2.6 2.7 2.7 2.8 2.8 STOP 3.3 3.3 3.3 3.0 2.9 2.0 3.0 3.0 3.0 3.0 3.1 0 2.6 2.5 3.3 3.2 3.2 3.2 3.2 3.3 Ref No. MODE 1 2 3 4 5 1 2 3 4 5 6 7 8 PLAY 0 0 0 3.3 3.3 0 0 0 0 3.3 3.3 0 3.3 STOP 0 0 0 3.3 3.3 0 0 0 0 3.3 3.3 0 3.3 IC6201 IC6211 IC6221 IC4211 IC5201 IC5201 IC5201 IC5201 IC6201 IC6201 IC6201 IC6201 IC3201 IC3201 IC3201 IC3201 IC4211 IC4211 Ref No. Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 PLAY 0 2.8 3.3 2.6 2.6 0 2.8 3.0 3.3 2.6 2.7 0 2.6 0 STOP 0 0 3.3 2.6 2.6 0 2.6 2.9 3.3 2.5 2.5 0 2.9 0 MODE 1 2 3 4 5 6 PLAY 4.9 0 4.9 1.3 0 3.3 STOP 4.9 0 4.9 1.2 0 3.3 IC3061 IC3071 Ref No. MODE 201 202 203 204 205 206 207 208 PLAY 0 1.8 1.3 0 3.3 0 1.4 0 STOP 0 1.8 1.0 0 3.3 0 1.1 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 2.8 3.3 2.5 2.8 2.5 2.5 2.8 3.3 2.7 2.8 0 2.8 3.3 1.9 3.2 3.1 3.2 3.0 1.4 STOP 3.3 2.8 3.3 2.6 2.7 0 2.7 3.0 3.3 2.6 2.6 0 2.7 3.3 2.5 3.2 3.2 3.2 3.1 1.0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0.3 0 0.2 0.2 0.2 1.6 3.3 0 1.5 1.6 1.6 1.5 0 0 1.2 - 3.3 1.7 1.9 - STOP 0.1 0 0.1 0.1 0.1 1.1 3.3 0 1.0 1.1 1.1 1.1 0 0 1.6 - 3.3 1.7 2.5 - IC3061 IC3001 IC3061 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 89 DVD-S830 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY 3.3 0 0 0 3.3 0 0 0 0 0 3.3 0 0 3.3 0 0 0 3.3 0 0 STOP 3.3 0 0 0 3.3 0 0 0 0 0 3.3 0 0 3.3 0 0 0 3.3 0 0 Ref No. MODE 1 2 3 4 5 PLAY 1.9 3.3 0 3.3 3.3 STOP 2.6 3.3 0 3.3 3.3 Ref No. MODE PLAY STOP Ref No. MODE E C B E C B E C B E C B E C B STOP 0 5.0 1.0 1.3 0 0.7 1.3 0 0.6 1.1 0 0.5 0.9 0 0.3 PLAY 0 5.0 0.6 1.3 0 0.7 1.0 0 0.3 0.7 0 0.1 0.8 0 0.1 Ref No. MODE E C B E C B E C B E C B E C B PLAY 1.1 0 0.3 0 0 3.3 3.3 3.3 0.1 3.3 3.2 0 0 3.2 0 STOP 0.7 0 0.1 0 0 3.3 3.3 0.3 3.3 3.3 -0.2 3.3 0 3.2 0 Q3241 IC6802 Q2001 Q3221 Q3226 Q3231 Q3236 IC6801 Q5271 QR5221 QR5241 QR6215 Ref No. MODE 1 2 3 4 5 6 7 1 2 3 4 5 PLAY 3.3 0 0 1.9 5.0 0 5.0 2.6 2.6 1.8 - 0 STOP 3.3 0 0 1.9 5.0 0 5.0 2.6 2.6 1.8 - 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 2.0 2.2 2.3 2.4 2.6 2.4 2.6 2.6 2.0 - 3.3 3.3 - - - 2.0 2.5 2.5 2.5 2.6 STOP 2.6 0.1 2.8 2.8 2.8 2.7 2.8 2.7 2.6 - 3.3 3.3 - - - 2.5 2.8 2.8 2.8 3.0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 2.5 2.6 2.6 2.6 2.7 2.5 0 2.6 2.6 2.5 2.5 2.5 2.7 2.7 2.6 2.7 3.3 2.6 2.7 2.6 STOP 2.9 3.0 2.9 3.0 3.0 2.9 0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.3 3.0 3.0 3.0 Ref No. MODE 41 42 43 44 45 46 47 48 PLAY 2.6 2.7 2.8 2.8 2.8 0 3.3 2.6 STOP 3.0 3.0 3.1 3.1 3.1 0 3.3 2.7 Ref No. MODE 1 2 3 4 5 PLAY - 1.6 0 1.6 3.3 STOP - 1.5 0 1.6 3.3 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 PLAY 3.3 0 1.6 1.5 3.3 0 1.5 1.6 1.3 1.6 0 3.3 1.5 3.3 1.4 3.3 STOP 3.2 0 1.6 1.5 3.3 0 1.5 1.5 1.3 1.5 0 3.3 1.4 3.3 1.4 3.3 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 2.6 1.7 0 0 3.3 0 0 2.6 2.6 0 0 3.3 2.8 3.3 0 0 3.3 0 0 STOP 3.3 2.6 1.7 0 0 3.3 0 0 3.0 3.0 0 0 3.3 1.5 3.3 0 1.8 3.3 0 0 Ref No. Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 STOP 3.3 0 3.3 3.3 3.3 3.3 3.3 0 0 2.6 3.2 0 1.7 0 2.6 3.3 3.3 0 3.3 3.3 PLAY 0.4 0 1.5 3.3 3.3 1.4 2.5 1.6 1.6 2.6 3.2 0 1.7 0 2.9 3.3 3.3 0 3.3 3.3 MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 3.3 3.3 3.3 0 0 3.3 0 0 0 0 1.3 0 1.6 1.7 0 2.6 0 0 3.3 1.3 STOP 3.0 3.3 3.3 0 0 3.3 0 0 0 0 1.3 0 1.6 1.7 0 2.6 0 0 3.3 1.3 IC6301 IC6301 IC6801 IC6801 IC6301 IC6521 IC6561 IC6801 IC6251 IC6261 B, G models www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 90 DVD-S830 A, R models Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 0.3 3.3 3.3 0 3.2 3.3 0.3 0 0.8 0.5 0.8 1.0 0.9 1.3 1.1 1.0 1.0 1.8 0 1.8 STOP 0.2 3.3 3.3 0 3.3 3.3 0.3 0 0.8 0.5 0.6 0.7 0.8 0.7 0.7 0.8 0.7 1.8 0 1.8 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0 1.1 1.4 2.5 1.6 2.7 2.3 2.7 2.4 1.9 3.3 0 3.3 3.3 3.2 2.6 1.6 1.2 1.3 2.5 STOP 0 0.8 0.7 3.0 1.4 3.0 2.4 2.9 3.0 2.6 3.2 0 3.3 3.3 3.2 3.0 1.6 0.8 1.2 2.9 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 2.2 2.1 1.9 1.9 1.4 0 3.2 0 3.3 3.3 0 0 0 0 3.3 0 3.3 1.8 0 0 STOP 2.3 2.4 2.3 2.4 1.4 0 3.2 0 3.3 3.3 3.3 0 0 0 3.3 3.3 3.3 1.8 0 0 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY 3.3 3.3 3.3 0.2 1.6 1.4 1.6 1.5 1.4 3.3 3.3 0 3.3 3.3 0 1.8 0 3.3 1.5 1.5 STOP 3.2 3.3 0 0.2 1.6 1.3 1.6 1.6 2.7 0 0 0 3.3 3.3 0 1.8 0 3.3 1.5 1.5 Ref No. MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 PLAY 0 0 0 1.6 0 1.6 1.6 3.3 0 1.6 1.6 0 0 0 0 0 1.3 1.6 3.3 1.6 STOP 0 1.0 0 1.6 0 1.6 1.6 3.2 0 1.6 1.6 0 0 0 0 0 1.3 1.6 3.2 0 Ref No. MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 PLAY 1.0 0 1.5 2.2 2.9 1.6 1.5 1.6 3.3 1.6 1.6 1.9 0 1.7 1.6 3.3 1.7 1.6 2.3 2.3 STOP 0 0 1.5 2.2 2.9 1.6 1.5 1.6 3.3 1.6 1.6 2.1 0 1.6 1.6 3.3 1.6 1.6 1.6 1.6 Ref No. MODE 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 PLAY 2.0 1.6 1.6 0.2 3.3 0 0 0 0 0 0 3.3 0 3.3 3.3 1.7 3.3 0 3.3 0 STOP 1.6 1.6 0.2 0.2 3.3 0 0 0 0 0 3.3 3.3 0 3.3 3.3 1.7 3.3 0 3.3 0 Ref No. MODE 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 PLAY 0.4 3.3 3.3 0 0 1.5 3.3 3.3 2.1 0 2.2 1.8 0 0 0 3.3 0 2.3 0 2.1 STOP 0 3.3 3.3 0 0 1.5 3.3 3.3 0 0 0 1.8 0 0 0 3.3 0 0 0 0 Ref No. MODE 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 PLAY 0 3.3 0 2.3 0 2.2 0 2.1 3.2 0 0 2.3 0 3.3 3.3 3.2 STOP 0 3.3 0 0 0 0 0 0 3.3 0 0 0 0 3.3 3.3 3.3 Ref No. MODE 1 2 3 4 5 PLAY 1.6 1.6 0 0 4.9 STOP 1.6 1.6 0 0 5.0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 0.2 1.5 0.2 1.8 1.6 0.2 1.5 0 1.6 3.3 3.3 3.2 0 0 1.8 3.1 3.2 3.2 0 STOP 3.3 0.1 1.1 0.1 1.8 1.1 0.1 1.0 0 1.1 3.3 3.3 3.3 3.2 0 0 1.8 3.2 3.2 0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 3.2 3.2 2.7 3.2 3.3 1.6 2.4 2.6 2.2 2.6 0 1.7 2.5 1.4 1.0 1.0 1.8 1.0 1.1 1.3 STOP 3.2 3.2 3.0 3.2 3.3 1.6 3.0 2.9 2.5 3.0 0 1.4 2.9 0.7 0.7 0.7 1.8 0.8 0.6 0.7 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 0.9 1.1 - 0.8 0.5 0.9 2.0 3.3 1.9 2.1 2.1 2.5 0 1.4 1.2 1.5 1.8 1.8 1.6 1.2 STOP 0.7 0.7 0 0.6 0.5 1.8 2.3 3.3 2.3 2.4 2.3 2.9 0 1.3 0.8 1.4 1.8 2.4 1.2 0 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY 3.3 1.1 2.5 0 1.0 1.3 2.3 3.3 0.5 1.7 3.2 0 0.7 0.9 1.0 1.0 1.8 0.7 0.6 0.5 STOP 3.3 0 0 0 0 0 0 3.3 0 1.6 3.3 0 0 0 0 0 1.8 0 0 0 Ref No. MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 PLAY 0.7 0 1.6 1.2 3.3 1.4 1.6 1.6 0 1.2 0 0 3.3 0 0 1.5 1.8 0 1.8 1.6 STOP 0 0 1.6 0 3.3 1.3 1.6 1.6 0 0 0 0 3.3 0 0 1.5 1.8 0 1.8 1.6 Ref No. MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 PLAY 3.3 0.3 0 0 3.3 3.3 1.8 0 3.3 0 0 3.3 0.6 0.6 2.3 0.4 3.3 0.9 0.9 2.3 STOP 3.3 0.4 0 0 3.3 3.3 1.8 0 3.3 0 0 3.3 0.6 0.6 2.3 0.4 3.3 0.9 0.9 2.3 Ref No. MODE 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 PLAY 0.6 0 0.6 0.6 2.3 0.4 3.3 1.3 1.3 2.2 0.6 0 0 0 0 1.5 0 0 0 0 STOP 0.6 0 0.6 0.6 2.3 0.4 3.3 1.3 1.3 2.2 0.4 0 0 0 0 1.5 0 0 0 0 Ref No. MODE 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 PLAY 3.3 0 0 3.2 3.0 1.8 1.2 1.2 1.1 1.2 0 1.5 1.3 1.1 1.8 3.3 0 2.4 2.5 3.3 STOP 3.3 0 0 3.2 3.0 1.8 1.3 0.6 0.6 0.7 0 1.9 0.3 0.3 1.2 3.3 0 2.8 2.8 3.3 Ref No. MODE 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 PLAY 2.7 2.5 0 2.5 2.5 3.3 2.5 2.6 0 2.5 2.3 3.3 2.4 1.8 3.1 0 2.6 3.1 3.3 2.5 STOP 2.4 2.6 0 2.4 2.7 3.3 2.9 2.7 0 2.6 3.0 3.3 2.6 1.8 2.6 0 2.6 2.6 3.3 2.9 Ref No. MODE 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 PLAY 2.8 0 1.7 1.8 1.7 0 3.3 3.3 1.9 0.3 1.8 1.9 3.1 0 3.0 3.1 3.3 1.4 2.9 0 STOP 2.6 0 1.7 1.8 1.7 0 3.3 3.3 2.4 0 1.8 2.4 3.2 0 3.1 3.2 3.3 1.4 3.1 0 Ref No. MODE 201 202 203 204 205 206 207 208 PLAY 0 1.8 1.3 0 3.3 0 1.4 0 STOP 0 1.8 1.0 0 3.3 0 1.1 0 Ref No. Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 2.7 3.3 2.8 2.5 0 2.5 2.7 3.3 2.5 2.5 0 2.9 3.3 1.9 3.1 3.0 3.2 2.9 1.3 STOP 3.3 2.8 3.3 2.6 2.7 0 2.7 3.0 3.3 2.6 2.6 0 2.6 3.3 2.4 3.2 3.2 3.2 3.1 1.0 MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0.3 0 0.2 0.2 0.2 1.6 3.3 0 1.5 1.6 1.6 1.5 0 0 1.3 - 3.3 1.7 2.0 - STOP 0.1 0 0.1 0.1 0.1 1.1 3.3 0 1.0 1.1 1.1 1.1 0 0 1.4 - 3.3 1.7 2.4 - IC3061 IC3061 IC3001 IC3001 IC3001 IC3001 IC3001 IC3001 IC2001 IC3001 IC3001 IC3001 IC3001 IC2001 IC2001 IC2001 IC2001 IC2001 IC2001 IC2001 IC3001 IC2001 IC2101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 91 DVD-S830 A, R models Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 PLAY 0 2.8 3.3 2.7 2.6 0 2.6 2.8 3.3 2.3 2.5 0 2.6 0 STOP 0 2.9 3.3 2.6 2.6 0 2.6 2.9 3.3 2.4 2.4 0 2.8 0 Ref No. MODE 1 2 3 4 5 6 PLAY 4.8 0 4.8 1.2 0 3.3 STOP 4.9 0 4.9 1.2 0 3.3 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PLAY 1.3 1.3 1.2 1.0 1.0 0 0 0 0 0 0 1.1 1.2 1.1 1.3 4.8 STOP 1.1 1.0 1.2 1.1 1.1 0 0 0 0 0 0 1.1 1.2 1.1 1.0 4.9 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 0 0 0 0 0 0 1.2 1.2 1.3 1.3 1.5 1.3 1.2 2.0 2.4 0 0 0 0 STOP 3.3 0 0 0 0 0 0 1.3 0.6 0.7 0.7 2.0 0.3 0.3 1.3 2.5 0 0 0 0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0 0 0 0 0 0 0 0 0 0 0 0 3.3 0 0 0 0 0 0 1.5 STOP 0 0 0 0 0 0 0 0 0 0 0 0 3.3 0 0 0 0 0 0 1.5 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 0 2.4 0 0 0 0 3.3 3.3 3.2 0 0 3.3 3.3 2.4 0 3.3 3.3 0 0 3.3 STOP 0 2.5 0 0 0 0 3.3 3.3 3.2 0 0 3.3 3.3 2.5 0 3.3 3.3 0 0 3.3 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 STOP 0 3.3 3.3 0 1.9 0.6 1.4 2.1 1.3 1.3 1.2 1.2 3.3 0 0.6 0 0 0 0 0 PLAY 0 3.3 3.3 0 0 0 0 3.2 0.5 0.5 0.5 0.9 3.3 0 0 0 0 0 0 0 Ref No. MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 PLAY 0 0 0 3.3 0 0 0 0 3.0 2.7 3.2 3.0 2.0 1.3 3.3 0 1.2 1.3 1.2 1.2 STOP 0 0 0 3.3 0 0 0 0 3.0 2.7 3.2 3.0 2.7 0.6 3.3 0 0.6 0.9 0.9 0.9 Ref No. MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 PLAY 1.2 1.3 0.8 0.6 3.3 0 2.4 0 0 0 0.1 0 0 3.3 0 0.7 1.6 1.7 3.1 2.5 STOP 0.6 1.8 0.4 0.3 3.3 0 2.5 0 0 0 0.1 0 0 3.3 0 0.7 1.6 1.7 3.1 2.5 Ref No. MODE 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 PLAY 2.5 1.3 3.3 0 2.5 0.7 0.7 1.6 1.6 1.6 1.6 0 1.6 2.5 0.7 0.7 3.3 0 0 0 STOP 2.5 1.3 3.3 0 2.5 0.7 0.7 1.6 1.6 1.6 1.6 0 1.6 2.5 0.7 0.7 3.3 0 0 0 Ref No. MODE 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 PLAY 1.1 1.1 1.1 3.3 0 1.1 1.5 1.1 1.1 1.5 3.3 0 0 0 1.2 1.2 1.1 2.4 0 1.5 STOP 1.3 0.5 0.6 3.3 0 0.6 2.1 0.3 0.2 1.2 3.2 0 0 0 1.3 0.6 0.6 2.5 0 0.7 Ref No. MODE 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 PLAY 1.6 1.0 1.4 1.3 0 0 3.3 0 1.2 1.2 1.1 1.2 1.6 0.8 1.1 1.7 STOP 2.1 0.3 0.3 1.2 0 0 3.3 0 1.3 0.5 0.6 0.7 2.1 0.3 0.2 1.2 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 0 3.3 0 1.2 0 1.1 1.1 3.1 1.1 1.6 0 1.1 - 3.3 0 3.1 2.5 2.5 0 STOP 3.2 0 3.2 0 1.2 0 0.5 0.6 3.2 0.7 2.1 0 0.3 - 3.3 0 3.1 2.5 2.5 0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0 1.3 0 2.5 0.7 0.7 2.5 0 3.3 - 1.3 0 2.0 1.7 3.3 1.1 0 0 0 1.2 STOP - 1.3 0 2.5 0.7 0.7 0.7 0 3.3 - 2.1 0 0.3 0.2 3.3 1.2 0 0 0 1.2 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 3.3 1.2 3.3 0 1.1 0 1.2 1.6 3.3 1.0 1.1 0 1.5 0 3.3 0 - 0 0 1.6 STOP 3.3 0.5 3.3 0 0.6 0 0.7 2.1 3.3 0.3 0.3 0 1.2 0 3.3 0 - 0 0 1.6 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY 1.6 1.6 1.6 1.6 0.7 0.7 3.3 1.7 - - 0 0 0 1.3 3.3 1.8 0 0 0 1.2 STOP 1.6 1.6 1.6 1.6 0.7 0.7 3.3 1.6 - - 0 0 - 0.3 3.3 1.2 0 0 0 1.3 Ref No. MODE 81 82 83 84 85 86 PLAY 3.3 1.3 1.1 0 0.9 0 STOP 3.3 0.5 0.6 0 0.6 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 0 3.3 1.2 1.3 1.2 1.4 2.0 1.3 1.3 1.6 3.3 0 3.3 0 0 0 0 0 0 STOP 3.3 0 3.3 0.9 0.5 0.5 0.5 3.2 0.1 0 0 3.3 0 3.3 0 0 0 0 0 0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0 0 0 3.3 1.6 0 3.0 3.2 3.0 3.2 3.2 0.5 0 0.6 3.3 0.5 1.7 1.6 1.6 3.2 STOP 0 0 0 3.3 1.6 0 3.0 3.2 3.0 3.2 3.3 0.5 0 0.4 3.3 0.5 1.7 1.6 1.6 3.2 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 PLAY 3.3 2.1 1.2 1.3 0.9 1.0 1.1 1.1 1.2 0 3.3 0 STOP 3.3 2.7 0.6 0.6 0.9 0.9 0.9 0.6 1.8 0 3.3 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 0 0 0 3.3 1.1 0 1.3 0.9 1.0 0.8 0.5 1.6 3.3 0 0 1.6 3.3 3.2 3.3 3.3 STOP 0 0 0 3.3 0 0 0 0 0 0 0 1.6 3.2 0 0 1.6 3.3 0 3.3 3.3 Ref No. Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.2 3.3 0 3.3 0 0.7 0.6 0 0.1 0.1 0 STOP 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.2 3.3 0 3.3 0 0.1 0.1 0 0.2 0.2 0 MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 0.1 1.6 0.1 1.6 0.1 0.1 1.2 0.1 0 0 0 1.6 0.1 0 3.3 3.3 0 0 0.1 0.1 STOP 0.2 1.6 0.2 1.6 0.2 0.2 0 0.2 0 0 0 1.6 0.2 0 3.3 3.3 0 0 0.2 0.3 IC3261 IC3701 IC3701 IC3701 IC3061 IC3071 IC3901 IC3901 IC3901 IC3701 IC3701 IC4001 IC4001 IC4001 IC3701 IC3701 IC3701 IC3761 IC3701 IC3761 IC3761 IC3761 IC3761 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 92 DVD-S830 A, R models Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY 3.3 3.3 3.3 3.2 3.2 0 3.2 1.6 0 0 1.5 0 1.6 1.6 3.3 0 0 3.2 0 3.3 STOP 3.3 3.3 3.2 3.2 3.2 0 3.2 1.6 0 0 1.5 0 1.6 1.6 3.3 0 0 3.2 0 3.3 Ref No. MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 PLAY 0 1.4 3.3 3.3 0.1 3.3 0 3.3 3.3 0 1.6 3.3 0 1.5 0 0.6 1.5 3.2 1.9 2.0 STOP 0 1.3 3.3 3.3 0.4 3.3 0 3.3 3.3 0 1.6 3.3 0 1.6 0 0.5 1.5 3.2 0 0 Ref No. MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 PLAY 2.1 2.1 2.4 1.4 0.9 0 3.1 0 0 0 0 3.2 1.2 1.6 1.8 1.6 1.4 1.3 2.3 0 STOP 0 0 0 0 0 0 3.1 0 0 0 0 3.2 0 0 0 0 0 0 0 Ref No. MODE 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 PLAY 1.2 1.4 2.3 0 1.6 0 2.6 0 3.2 3.2 2.4 2.6 2.1 2.5 0 1.6 2.5 1.4 1.1 1.0 STOP 0 0 0 0 1.6 0 0 0 3.2 3.2 0 0 0 0 0 0 0 0 0 0 0 Ref No. MODE 141 142 143 144 STOP 1.1 1.6 0 0 PLAY 0 1.6 0 0 Ref No. MODE 1 2 3 4 5 6 7 8 1 2 3 4 5 PLAY 0.8 0.3 2.5 0 0.8 0 0 3.3 3.3 0 3.3 1.3 1.6 STOP 0 0.2 3.3 0 0 0 0 3.3 3.3 0 3.3 1.3 1.6 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PLAY 0 1.6 0 1.6 1.2 0.2 1.2 0 1.6 0 1.6 1.6 0 1.6 0 3.3 STOP 0 1.6 0 1.6 0 0.2 0 0 1.6 0 1.6 1.6 0 1.6 0 3.3 Ref No. MODE 1 2 3 4 5 1 2 3 4 5 PLAY 3.2 3.3 0 3.3 3.3 2.5 3.2 0 2.5 3.3 STOP 3.2 3.3 0 3.2 3.3 3.0 3.3 0 3.0 3.3 Ref No. MODE 1 2 3 4 5 6 7 8 1 2 3 4 5 1 2 3 4 5 PLAY 1.6 2.6 0.7 0 2.6 3.3 3.3 3.3 - 1.9 0 1.5 3.3 1.3 3.3 0 3.3 3.3 STOP 1.6 3.0 0.3 0 3.0 3.3 3.3 3.3 - 2.5 0 0.8 3.3 0.8 3.3 0 3.3 3.3 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PLAY 1.6 1.2 1.7 0 3.3 4.9 2.5 2.4 0 2.5 3.2 0 3.3 2.7 3.3 1.6 STOP 1.6 0 1.6 0 3.3 4.9 2.5 2.4 0 2.4 0 0 3.3 2.7 3.3 1.6 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.2 3.2 -0.1 -0.1 -0.1 -0.1 - - 2.4 2.5 2.4 2.4 2.4 2.5 2.4 2.5 -0.1 4.9 -0.1 2.3 STOP 0 0 0 0 0 0 - - 2.4 2.5 2.4 2.5 2.4 2.5 2.4 2.5 -0.1 4.9 -0.1 2.3 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY -0.1 4.9 -0.1 4.9 -0.1 4.9 -0.1 4.9 - 3.2 0.8 3.2 3.3 3.2 2.7 3.2 3.2 1.6 1.5 1.6 STOP -0.1 4.9 -0.1 4.9 -0.1 4.9 -0.1 4.9 - 0 0 0 3.3 3.3 2.7 3.2 3.2 1.6 1.5 1.6 Ref No. MODE 41 42 43 44 45 46 47 48 PLAY 1.6 -0.1 3.2 -0.1 0.8 0 0 3.2 STOP 1.6 -0.1 3.2 -0.1 0 0 0 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 0.5 3.1 0 4.8 1.4 0.1 1.6 1.6 1.6 - 1.6 - 2.3 1.6 1.6 0 3.2 3.3 0 0 STOP 0 4.8 0 4.8 1.6 0.2 1.6 1.6 1.6 0.1 1.6 - 1.6 1.6 1.6 0 3.2 3.3 0 0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 0 0 3.3 0 3.2 0.1 0.5 0 1.3 1.3 1.8 1.2 3.2 1.8 1.8 1.8 1.1 1.4 0 0.2 STOP 3.2 0 3.2 0 3.2 0.1 0.5 0 1.1 1.1 2.0 1.2 3.2 1.8 1.8 1.8 1.1 0.6 0 0.2 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 0 0 1.7 0.9 - 2.1 2.1 2.0 2.3 4.9 2.2 2.2 2.3 2.3 2.2 1.8 0.1 2.3 2.3 2.3 STOP 0 0 1.7 0.9 - 2.1 2.1 1.6 1.6 4.8 2.2 2.2 2.2 2.2 2.2 1.8 0.1 2.2 2.2 2.2 Ref No. MODE 61 62 63 64 PLAY 2.3 2.2 2.2 0 STOP 2.2 2.2 2.2 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.2 2.5 3.2 3.2 3.2 3.2 3.1 2.4 0 3.2 0 0 1.8 2.4 2.6 2.1 3.2 1.5 0 3.2 STOP 3.2 0 0 0 3.2 3.2 0 3.2 3.2 3.2 0 3.2 0 0 0 0 3.2 1.5 0 3.2 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 3.2 3.2 1.6 1.5 3.2 2.6 1.6 2.5 1.4 1.1 1.1 1.1 1.1 3.2 1.4 0.9 1.1 0.9 0.5 0.8 STOP 3.2 3.2 1.6 1.5 3.2 0 0 0 0 0 0 0 0 3.2 0 0 0 0 0 0 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 2.4 1.8 0 1.8 1.8 3.2 0 0 3.2 2.9 1.0 2.7 3.2 3.2 3.2 3.2 3.2 0 0 3.2 STOP 0 0 0 0 0 3.2 0 0 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 0 0 3.2 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY 0 0 0 0 0 3.2 3.2 3.2 3.2 2.7 3.2 3.2 3.2 3.2 3.2 3.2 3.3 3.1 3.2 3.3 STOP 0 0 0 0 0 3.2 3.2 3.2 3.2 2.7 3.2 3.2 3.2 3.2 3.2 3.2 3.2 0.1 3.2 0 Ref No. Ref No. MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 PLAY 3.2 3.2 3.3 1.9 1.9 2.1 2.1 2.5 1.4 1.2 1.6 0 1.9 1.5 1.4 1.2 2.4 1.1 1.4 2.4 STOP 3.2 0 3.2 3.2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 MODE 1 2 3 4 5 1 2 3 4 5 6 7 8 PLAY 0 0 0 3.2 3.2 0 0 0 0 3.2 3.2 0 3.2 STOP 0 0 0 3.2 3.3 0 0 0 0 3.3 3.3 0 3.3 IC4201 IC4061 IC4091 IC4092 IC5201 IC4001 IC4031 IC4041 IC4051 IC4211 IC4211 IC5201 IC6201 IC6201 IC6201 IC6221 IC5201 IC4001 IC4001 IC4001 IC4001 IC6201 IC6201 IC5201 IC4011 IC4021 IC4211 IC6211 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 93 DVD-S830 A, R models Ref No. MODE 1 2 3 4 5 6 7 1 2 3 4 5 PLAY 3.3 0 0 1.9 4.9 0 4.9 2.5 2.5 1.8 - 0 STOP 3.3 0 0 1.9 4.9 0 4.9 2.5 2.5 1.8 - 0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 0.5 0.8 0.9 0.9 1.3 1.0 1.0 1.0 1.8 - 3.2 3.2 - - 0.2 1.8 2.5 1.0 1.4 2.5 STOP 0.5 0.6 0.7 0.7 0.7 0.7 0.8 0.7 2.5 - 3.3 3.3 - - 0.2 2.5 2.7 0.7 0.7 3.0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 1.7 2.5 2.1 2.7 2.4 2.4 0 2.6 1.9 1.8 2.0 1.5 2.1 1.2 2.1 1.1 3.3 2.6 2.3 1.3 STOP 1.4 3.0 2.5 2.9 2.9 2.9 0 3.0 2.3 2.4 2.2 1.2 2.4 0.8 2.3 0.7 3.3 2.9 2.9 1.3 Ref No. MODE 41 42 43 44 45 46 47 48 PLAY 1.2 1.2 1.4 1.6 2.4 0 3.3 0.8 STOP 0.7 0.8 0.7 1.5 2.9 0 3.2 0.8 Ref No. MODE 1 2 3 4 5 PLAY - 1.5 0 1.7 3.3 STOP - 1.5 0 1.7 3.3 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PLAY 3.3 0 1.6 1.4 3.3 0 1.5 1.6 1.3 1.6 0 3.2 1.5 3.3 1.6 3.2 STOP 3.3 0 1.6 1.4 3.3 0 1.5 1.6 1.3 1.6 0 3.2 1.5 3.3 1.6 3.2 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 3.3 2.5 1.7 0 0 3.3 0 0 2.2 1.9 0 0 3.3 2.4 3.3 0 2.2 3.3 0 0 STOP 3.3 2.5 1.7 0 0 3.3 0 0 2.6 2.3 0 0 3.3 2.3 3.3 0 2.3 3.3 0 0 Ref No. MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PLAY 2.4 0 1.4 3.3 3.3 1.5 1.6 2.6 2.3 2.5 3.2 - 1.7 0 2.2 3.3 3.2 0 3.3 3.3 STOP 2.7 0 0 3.3 3.3 0 0 0 0 2.5 3.2 - 1.7 0 0 3.3 0 0 3.3 3.3 Ref No. MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PLAY 2.6 3.3 3.3 0 0 3.3 0.8 0 3.3 0 1.5 0 1.6 1.6 0 2.5 0 0 3.3 1.5 STOP 0 3.2 3.1 0 0 3.3 0 0 3.3 0 1.5 0 1.6 1.6 0 2.5 0 0 3.3 1.5 Ref No. MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PLAY 3.3 0 0 0 3.3 1.6 1.6 0 0 0 3.3 0 0 3.3 0 0 0 3.3 0 0 STOP 3.3 0 0 0 3.3 1.6 1.6 0 0 0 3.3 0 0 3.3 0 0 0 3.3 0 0 Ref No. MODE 1 2 3 4 5 PLAY 1.8 3.2 0 3.3 3.3 STOP 2.5 3.3 0 3.3 3.3 Ref No. MODE E C B E C B E C B E C B E C B PLAY 0 4.9 0.1 1.3 0 0.6 1.1 0 0.4 1.0 0 0.3 1.2 0 0.5 STOP 0 4.9 0.1 1.0 0 0.4 1.1 0 0.4 1.1 0 0.4 1.2 0 0.5 Ref No. MODE E C B E C B E C B PLAY 1.1 0 0.3 1.4 0 0.6 0 0 3.2 STOP 1.2 0 0.5 1.2 0 0.4 0 0 3.2 Ref No. MODE E C B E C B E C B E C B PLAY 0 0 3.2 3.3 3.2 0.1 3.3 3.2 0 0 3.2 0 STOP 0 0 3.2 3.3 0.3 3.3 3.3 -0.4 3.3 0 3.2 0 QR5221 QR3261 Q3116 Q3101 Q3111 Q3921 IC6301 IC6561 IC6301 IC6251 IC6261 Q2001 IC6301 Q3926 Q3931 Q5271 QR5241 IC6521 IC6802 QR6215 IC6801 IC6801 IC6801 IC6801 Ref No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 94 DVD-S830 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PLAY 1.6 1.6 1.6 2.3 2.3 2.2 0 4.8 3.3 0 2.8 2.6 2.8 2.8 4.2 4.2 5.9 2.4 0 3.2 STOP 1.6 1.6 1.8 2.0 2.0 1.6 0 4.9 3.3 0 2.8 2.8 2.8 2.8 4.2 4.2 4.2 4.2 0 3.2 Ref No. MODE 21 22 23 24 25 26 27 28 PLAY 8.8 8.7 1.8 1.6 1.6 1.6 3.3 3.1 STOP 8.9 8.8 1.6 1.6 1.6 1.6 3.3 3.2 Ref No. Q5111 Q5115 MODE E C B E C B PLAY 5.0 2.2 4.6 5.0 1.2 4.6 STOP 4.0 0.9 3.3 5.0 1.2 4.6 IC2501 IC2501 4. INTERMEDIATE P.C.B. Ref No. QR6101 QR6102 MODE 1 2 3 E C B E C B PLAY 3.2 3.3 0 0 5.0 0 0 5.0 0 STOP 3.2 3.3 0 0 5.0 0 0 5.0 0 IC6101 5. FRONT 1 P.C.B. Ref No. MODE 1 2 3 4 5 6 PLAY 0 2.2 5.0 1.9 0 1.8 STOP 0 1.6 5.0 1.9 0 1.5 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PLAY 0.7 0.7 0 0.5 0.5 0 0 0 0 0 0 0.4 0 0.4 0.6 5.0 STOP 0.7 0.3 0 0 0.3 0 0 0 0 0 0 0.3 0 0.3 0.3 5.0 Ref No. MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PLAY 3.7 0.3 0 0.5 0 - 0.5 0 2.7 2.9 - 2.7 2.9 2.7 2.9 5.0 STOP 3.7 0 0 0.3 0 - 0.3 0 2.7 2.9 - 2.7 2.9 2.7 2.9 5.0 Ref No. MODE 1 2 3 4 5 6 PLAY 5.0 4.9 5.0 0 0 0 STOP 5.0 4.9 5.0 0 0 0 Ref No. MODE PLAY STOP Ref No. Ref No. MODE E C B E C B E C B E C B PLAY 0.3 5.0 1.0 0.7 5.0 1.3 0.4 5.0 1.2 11.8 12.5 12.4 STOP 0.3 5.0 0.9 0.3 5.0 0.9 0.3 5.0 0.9 11.6 12.3 12.2 MODE E C B E C B E C B E C B E C B PLAY 0 0 3.1 0 3.7 0 0 12.3 0 0 0 5.0 11.8 11.8 0 STOP 0 0 3.1 0 3.7 0 0 0 12.2 0 0 5.0 11.7 11.6 0 IC3801 QR3852 QR3853 Q3811 QR3841 QR3842 QR3851 IC3841 IC3842 IC3851 Q3821 Q3831 Q3851 B, G models 6. SCART P.C.B. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 42 I PRINTED CIRCUIT BOARD POWER P.C.B. 1 A B C D E F 2 3 4 5 6 7 8 9 C E B C E B C E B C E B W079 K6075 R6074 K6074 TC6028 TC6026 TC6027 TC6025 TC6023 TC6022 TC6021 TC6001 TC6010 TC6007 TC6019 TC6018 1 18 PS6002 1 18 PS6001 TC6020 TC6017 TC6016 TC6015 TC6014 TC6024 TC6029 TC6084 TC6086 TC6087 TC6085 TC6031 TC6033 TC6035 TC6036 TC6034 TC6032 TC6030 W078 R6067 R6073 R6038 R6037 W076 R6036 R6035 W174 K6071 R6066 R6064 TC6081 IC6001 W073 W455 TC6082 TC6083 R6063 W077 W273 W175 W177 TC6055 TC6062 TC6061 TC6059 TC6041 TC6044 TC6046 TC6048 TC6054 TC6052 TC6043 TC6057 TC6047 TC6051 TC6053 R6065 C6012 W176 W173 W172 W171 TC6056 W457 TC6060 W456 TC6042 TC6045 TC6049 W274 C6061 R6061 R6062 FP6001 1 2 21 22 IC6011 R6026 R6022 R6021 R6023 R6025 R6024 W661 51 75 25 1 50 26 76 100 W454 W453 C1125 C1121 C1111 D1101 C1141 K1121 L1131 TL1103 TL1101 L1141 C1143 W355 TP1102 W170 D1141 D1131 20 11 9 2 T1021 W161 D1054 COLD HOT D1121 W352 D1111 W452 W451 W068 R1181 TC6050 C6001 X6001 3 1 W353 K6056 TL1114 TP1114 R1125 R1127 R1126 W070 TP1107 TP1104 TL1107 D1126 1 5 2 4 IC1125 D1132 C1131 TP1101 TP1103 C1133 TL1102 W072 W071 R6034 R6033 R6032 R6031 C6034 C6033 C6032 C6031 W069 W169 W167 W265 TP1115 TL1106 C1153 L1151 C1151 R1161 W262 1 5 TP1106 TP1105 TL1105 TL1115 W266 R6056 K6076 R6075 C6004 W066 C1154 L6001 D6091 C6092 LB6001 L6002 TC6003 W264 W162 TC6004 R6057 C6005 R6082 R6085 R6083 R6084 W074 W075 TC6012 TC6011 TC6008 TC6013 R6088 R6089 LB6005 LB6004 R6086 R6087 W168 W272 W271 W166 W165 W164 W269 QR1115 Q1115 IC1151 QR6056 QR6057 K6054 K6053 K6052 LB6002 TC6006 R6076 R6077 LB6003 TC6005 W354 W267 TC6002 W268 R6052 C6095 TC6009 W063 W062 R6095 W263 Q6095 QR6052 Q6091 W065 W163 TL1113 TP1113 TP1111 TP1108 L1115 R1115 R1116 C1115 TL1104 C1117 R6091 C6091 TP1112 TP1118 TL1112 TL1118 TL1108 C1116 W064 TL1111 1 6 3 4 L1111 TP1117 TP1116 C1112 C1171 D1172 D1162 D1152 D1151 D1161 C1161 W261 PR1161 PR1171 D1171 W061 R1101 R1106 R1102 C1102 C1101 R1107 R1104 R1105 IC1101 Q1051 R1103 C1005 LR1041 11 22 44 33 FC1001A 1 15 W270 R1041 R1042 Q1052 C1021 C1041 D1041 2 3 W067 D1031 C1011 C1012 W351 D1053 R1054 R1043A R1043 1 Q1021 D1052 C1053 R1053 C1052 R1052 C1051 D1051 R1051 C1031 R1031 R1032 C1002 K1002 C1003 DZ1001 D1001 K1005 K1006 K1008 K1007 D1002 C1001 F1001 P1001 L1001 2 1 3 4 D1011 + - ~ ~ TL1117 TL1116 TC6058 1 ZA6001 ZA1002 ZA1001 ZA1111 ZA1011 Q1021 C-7 Q1051 A-6 Q1052 C-7 Q1115 B-4 Q6091 A-2 Q6095 B-1 QR1115 B-4 QR6052 B-1 QR6052 B-2 QR6057 C-2 IC1101 A-5 IC1125 D-4 IC1151 A-3 IC6001 D-2 IC6011 D-3 TC6001 B-1 TC6002 B-1 TC6003 B-1 TC6004 B-2 TC6005 C-1 TC6006 C-1 TC6007 C-1 TC6008 C-1 TC6009 B-1 TC6010 C-1 TC6011 C-1 TC6012 C-1 TC6013 C-1 TC6014 C-1 TC6015 D-1 TC6016 D-1 TC6017 D-1 TC6018 D-1 TC6019 D-1 TC6020 D-1 TC6021 D-1 TC6022 D-1 TC6023 D-1 TC6024 D-1 TC6025 D-1 TC6026 D-1 TC6027 D-1 TC6028 D-1 TC6029 D-1 TC6030 D-1 TC6031 E-1 TC6032 E-1 TC6033 E-1 TC6034 E-1 TC6035 E-1 TC6036 E-1 TC6041 E-3 TC6042 D-3 TC6043 E-3 TC6044 E-3 TC6045 E-3 TC6046 E-3 TC6047 E-3 TC6048 E-3 TC6049 E-3 TC6050 C-3 TC6051 E-3 TC6052 E-3 TC6053 E-3 TC6054 E-4 TC6055 E-3 TC6056 E-4 TC6057 E-3 TC6058 C-2 TC6059 E-3 TC6060 E-4 TC6061 E-3 TC6062 E-3 TC6081 D-2 TC6082 D-2 TC6083 D-2 TC6085 E-2 TC6086 E-2 TC6087 E-2 TL1101 E-5 TL1102 D-5 TL1103 D-5 TL1104 B-3 TL1105 B-4 TL1106 B-3 TL1107 D-4 TL1108 B-4 TL1111 B-4 TL1112 A-3 TL1113 B-3 TL1114 C-3 TL1115 C-4 TL1116 A-4 TL1117 A-4 TL1118 A-3 TP1101 D-6 TP1102 D-6 TP1103 D-6 TP1104 D-4 TP1105 B-3 TP1106 B-3 TP1107 D-4 TP1108 B-3 TP1111 B-3 TP1113 B-3 TP1114 C-3 TP1115 B-3 TP1116 A-4 TP1117 A-4 TP1118 A-3 DZ1001 C-9 FC1001AE-7 FP6001 E-3 P1001 B-9 PS6001 C-1 PS6002 D-1 B, G models w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 43 I PRINTED CIRCUIT BOARD POWER P.C.B. 1 A B C D E F 2 3 4 5 6 7 8 9 C E B C E B C E B C E B W079 TC6028 TC6026 TC6027 TC6025 TC6023 TC6022 TC6021 TC6001 TC6010 TC6007 TC6019 TC6018 1 18 PS6002 1 18 PS6001 TC6020 TC6017 TC6016 TC6015 TC6014 TC6024 TC6029 TC6084 TC6086 TC6087 TC6085 TC6031 TC6033 TC6035 TC6036 TC6034 TC6032 TC6030 W078 R6067 R6038 R6037 W076 R6036 R6035 W174 R6066 R6064 TC6081 IC6001 W073 W455 TC6082 TC6083 R6063 W077 W273 W175 W177 TC6055 TC6062 TC6061 TC6059 TC6041 TC6044 TC6046 TC6048 TC6054 TC6052 TC6043 TC6057 TC6047 TC6051 TC6053 R6065 C6012 W176 W173 W172 W171 TC6056 W457 TC6060 W456 TC6042 TC6045 TC6049 W274 C6061 R6061 R6062 FP6001 1 2 21 22 IC6011 R6026 R6022 R6021 R6023 R6025 R6024 W661 51 75 25 1 50 26 76 100 W454 W453 C1125 C1121 C1111 D1101 C1141 K1121 L1131 TL1103 TL1101 L1141 C1143 W355 TP1102 W170 D1141 D1131 20 11 9 2 T1021 W161 D1054 COLD HOT D1121 W352 D1111 W452 W451 W068 R1181 TC6050 C6001 X6001 3 1 W353 TL1114 TP1114 R1125 R1127 R1126 W070 TP1107 TP1104 TL1107 D1126 1 5 2 4 IC1125 D1132 C1131 TP1101 TP1103 C1133 TL1102 W072 W071 R6034 R6033 R6032 R6031 C6034 C6033 C6032 C6031 W069 W169 K6055 W167 W265 TP1115 TL1106 C1153 L1151 C1151 R1161 W262 1 5 TP1106 TP1105 TL1105 TL1115 W266 R6056 C6004 W066 C1154 L6001 D6091 C6092 L6002 TC6003 W264 W162 TC6004 R6057 C6005 W074 W075 TC6012 TC6011 TC6008 TC6013 LB6005 LB6004 W168 W272 W271 W166 W165 W164 W269 QR6055 QR1115 Q1115 IC1151 QR6056 QR6057 K6054 K6052 LB6002 TC6006 R6076 R6077 TC6005 W354 W267 TC6002 W268 C6095 TC6009 W063 W062 R6095 W263 Q6095 W065 W163 TL1113 TP1113 TP1111 TP1108 L1115 R1115 R1116 C1115 TL1104 C1117 TP1112 TP1118 TL1112 TL1118 TL1108 C1116 W064 TL1111 1 6 3 4 L1111 TP1117 TP1116 C1112 C1171 D1172 D1162 D1152 D1151 D1161 C1161 W261 PR1161 PR1171 D1171 W061 R1101 R1106 R1102 C1102 C1101 R1107 R1104 R1105 IC1101 Q1051 R1103 C1005 LR1041 1 2 4 3 FC1001A 1 15 W270 R1041 R1042 Q1052 C1021 C1041 D1041 2 3 W067 D1031 C1011 C1012 W351 D1053 R1054 R1043A R1043 1 Q1021 D1052 C1053 R1053 C1052 R1052 C1051 D1051 R1051 C1031 R1031 R1032 C1002 C1003 DZ1001 D1001 D1002 C1001 F1001 P1001 L1001 2 1 3 4 D1011 + - ~ ~ TL1117 TL1116 TC6058 1 ZA6001 ZA1002 ZA1001 ZA1111 ZA1011 LB6003 R6052 R6053 C E B QR6052 LB6001 R6091 Q6091 C6091 K1002 R1002 1 2 A model Q1021 C-7 Q1051 A-6 Q1052 C-7 Q1115 B-4 Q6091 B-3 Q6095 B-1 QR1115 B-4 QR6052 B-1 QR6055 B-2 QR6056 B-2 QR6057 C-2 IC1101 A-5 IC1125 D-4 IC1151 A-3 IC6001 D-2 IC6011 D-3 TC6001 B-1 TC6002 B-1 TC6003 B-1 TC6004 B-2 TC6005 C-1 TC6006 C-1 TC6007 C-1 TC6008 C-1 TC6009 B-1 TC6010 C-1 TC6011 C-1 TC6012 C-1 TC6013 C-1 TC6014 C-1 TC6015 D-1 TC6016 D-1 TC6017 D-1 TC6018 D-1 TC6019 D-1 TC6020 D-1 TC6021 D-1 TC6022 D-1 TC6023 D-1 TC6024 D-1 TC6025 D-1 TC6026 D-1 TC6027 D-1 TC6028 D-1 TC6029 D-1 TC6030 D-1 TC6031 E-1 TC6032 E-1 TC6033 E-1 TC6034 E-1 TC6035 E-1 TC6036 E-1 TC6041 E-3 TC6042 D-3 TC6043 E-3 TC6044 E-3 TC6045 E-3 TC6046 E-3 TC6047 E-3 TC6048 E-3 TC6049 E-3 TC6050 C-3 TC6051 E-3 TC6052 E-3 TC6053 E-3 TC6054 E-4 TC6055 E-3 TC6056 E-4 TC6057 E-3 TC6058 C-2 TC6059 E-3 TC6060 E-4 TC6061 E-3 TC6062 E-3 TC6081 D-2 TC6082 D-2 TC6083 D-2 TC6084 E-1 TC6085 E-2 TC6086 E-2 TC6087 D-2 TL1101 E-5 TL1102 D-5 TL1103 D-5 TL1104 B-3 TL1105 C-4 TL1106 B-3 TL1107 D-4 TL1108 B-4 TL1111 B-4 TL1112 A-3 TL1113 B-3 TL1114 C-3 TL1115 C-4 TL1116 A-4 TL1117 A-4 TL1118 A-3 TP1101 D-6 TP1102 D-6 TP1103 D-6 TP1104 D-4 TP1105 B-3 TP1106 B-3 TP1107 D-4 TP1108 B-3 TP1111 B-3 TP1112 A-3 TP1113 B-3 TP1114 C-3 TP1115 B-3 TP1116 A-4 TP1117 A-4 TP1118 A-3 DZ1001 C-9 FC1001AE-7 FP6001 E-3 P1001 B-9 PS6001 C-1 PS6002 D-1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 44 I PRINTED CIRCUIT BOARD C E B C E B C E B C E B W082 TC6028 TC6026 TC6027 TC6025 TC6023 TC6022 TC6021 TC6001 TC6010 TC6007 TC6019 TC6018 1 18 PS6002 1 18 PS6001 TC6020 TC6017 TC6016 TC6015 TC6014 TC6024 TC6029 TC6084 TC6086 TC6087 TC6085 TC6031 TC6033 TC6035 TC6036 TC6034 TC6032 TC6030 W081 R6067 R6038 R6037 W079 R6036 R6035 W176 R6066 R6064 TC6081 IC6001 W077 W456 TC6082 TC6083 R6063 W080 W272 W177 W175 TC6055 TC6062 TC6061 TC6059 TC6041 TC6044 TC6046 TC6048 TC6054 TC6052 TC6043 TC6057 TC6047 TC6051 TC6053 R6065 C6012 W178 W174 W173 W172 TC6056 W457 TC6060 W458 TC6042 TC6045 TC6049 W273 C6061 R6061 R6062 FP6001 1 2 21 22 IC6011 R6026 R6022 R6021 R6023 R6025 R6024 W661 51 75 25 1 50 26 76 100 W454 W452 W453 C1121 C1111 C1112 C1141 L1131 LB1031 LB1022 LB1021 TL1103 TL1101 L1141 C1143 W356 TP1102 W171 D1141 D1131 18 10 8 2 T1021 D1052 D1051 COLD HOT W261 W351 W163 W164 R1181 TC6050 C6001 X6001 3 1 W354 TL1114 TP1114 R1125 R1126 R1127 W076 W070 W069 W065 W075 TP1107 TL1107 D1126 1 5 2 4 IC1125 C1131 C1114 TP1101 TP1104 TP1103 C1133 TL1102 W073 W071 R6034 R6033 R6032 R6031 C6034 C6033 C6032 C6031 W072 W169 K6055 W165 W267 TP1115 TL1106 C1153 L1151 L1111 ZA1125 C1151 R1161 W263 1 5 TP1106 TP1105 TL1105 TL1115 W265 R6056 R6053 R1153 R1152 R1151 R6052 C6004 W068 C1154 L6001 D6091 D6092 C6092 L6002 LB6001 LB6003 TC6003 W264 W162 TC6004 R6057 R6091 C6005 W078 W074 TC6012 TC6011 TC6008 TC6013 LB6005 LB6004 W170 W271 W270 W168 W167 W166 W266 QR6055 QR1115 Q1115 IC1151 QR6056 C E B QR6052 QR6057 K6054 K6052 K6051 K6053 LB6002 TC6006 R6076 R6088 R6086 R6084 R6085 R6082 R6083 R6087 R6089 R6077 TC6005 W355 W268 TC6002 W269 C6095 TC6009 W063 K6095 W062 W064 R6095 W352 Q6095 Q6091 W067 W161 TL1113 TP1113 TP1111 TP1108 L1112 R1115 R1111 R1114 R1112 R1113 R1116 C1115 TL1104 C1117 TP1112 TP1118 TL1112 TL1118 TL1108 C1116 W066 TL1111 1 6 3 4 TP1117 TP1116 K1161 C1171 D1172 D1173 D1162 D1152 D1151 D1161 C1161 W262 PR1161 K1171 PR1171 D1171 W061 R1101 R1102 C1101 R1106 R1104 R1105 IC1101 Q1051 R1103 C1005 1 2 4 3 FC1001A 1 15 W455 R1042 R1031 R1062 D1061 R1041 C1032 C1061 C1051 D1031 C1011 C1062 C1041 C1012 W451 W353 D1062 D1042 D1022 R1022 R1023 R1064 R1051 IC1021 D1041 R1043 R1044 R1045 R1021 R1032 R1063 R1061 C1002 C1031 C1003 K1002 DZ1001 D1001 D1002 D1112 D1111 C1001 F1001 L1001 2 1 1 7 3 4 D1011 + - ~ ~ TL1117 TL1116 TC6058 1 ZA1002 ZA1001 ZA1111 ZA6001 K1172 K1173 R1002 ZA1115 P1001 1 2 ZA1011 C6091 R model Q1051 A-6 Q1115 B-4 Q6091 B-3 Q6095 B-1 QR1115 B-4 QR6052 B-1 QR6055 B-2 QR6056 B-2 QR6057 C-2 IC1021 B-7 IC1101 A-5 IC1125 D-4 IC1151 A-3 IC6001 D-2 IC6011 D-3 TC6001 B-1 TC6002 B-1 TC6003 B-1 TC6004 B-2 TC6005 C-1 TC6006 C-1 TC6007 C-1 TC6008 C-1 TC6009 B-1 TC6010 C-1 TC6011 C-1 TC6012 C-1 TC6013 C-1 TC6014 C-1 TC6015 D-1 TC6016 D-1 TC6017 D-1 TC6018 D-1 TC6019 D-1 TC6020 D-1 TC6021 D-1 TC6022 D-1 TC6023 D-1 TC6024 D-1 TC6025 D-1 TC6026 D-1 TC6027 D-1 TC6028 D-1 TC6029 D-1 TC6030 D-1 TC6031 E-1 TC6032 E-1 TC6033 E-1 TC6034 E-1 TC6035 E-1 TC6036 E-1 TC6041 E-3 TC6042 D-3 TC6043 E-3 TC6044 E-3 TC6045 E-3 TC6046 E-3 TC6047 E-3 TC6048 E-3 TC6049 E-3 TC6050 C-3 TC6051 E-3 TC6052 E-3 TC6053 E-3 TC6054 E-4 TC6055 E-3 TC6056 E-4 TC6057 E-3 TC6058 C-2 TC6059 E-3 TC6060 E-4 TC6061 E-3 TC6062 E-3 TC6081 D-2 TC6082 D-2 TC6083 D-2 TC6084 E-1 TC6085 E-2 TC6086 E-2 TC6087 D-2 TL1101 E-5 TL1102 D-5 TL1103 D-5 TL1104 B-3 TL1105 C-4 TL1106 B-3 TL1107 D-4 TL1108 B-4 TL1111 B-4 TL1112 A-3 TL1113 B-3 TL1114 C-3 TL1115 C-4 TL1116 A-4 TL1117 A-4 TL1118 A-3 TP1101 E-6 TP1102 D-6 TP1103 D-6 TP1104 E-5 TP1105 B-3 TP1106 B-3 TP1107 D-4 TP1108 B-3 TP1111 B-3 TP1112 A-3 TP1113 B-3 TP1114 C-3 TP1115 B-3 TP1116 A-4 TP1117 A-4 TP1118 A-3 DZ1001 C-9 FC1001AE-7 FP6001 E-3 P1001 B-9 PS6001 C-1 PS6002 D-1 A B C D E F 5 6 7 8 9 1 2 3 4 POWER P.C.B. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 45 I PRINTED CIRCUIT BOARD K3502 W003 C4588 C4589 R3531 LB3531 LB3532 R3532 C3523 R3502 C3508 17 16 32 1 C3511 C3512 R4422 C3509 C3532 C3504 C3534 W113 W015 W012 W016 W013 W017 W014 R4424 R4434 R4435 W025 W023 W026 W024 R4432 W115 C3510 C3531 R4449 W009 R3533 W002 W005 W006 C3502 W101 TL1205 W004 W301 W601 W602 W603 W401 W302 C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B N FC1001B 1 15 TL1212 TL1209 C3533 1 A B C D E F 2 3 4 5 6 7 W204 W205 Q4411 Q4410 Q4413 Q4414 Q4415 Q4416 Q4417 Q4418 Q4751 Q4412 QR3521 IC3581 IC3501 W402 W201 W202 W102 W103 W203 L3505 C3501 C3503 W010 R4437 C3520 W008 R4455 W114 W309 W310 R4448 R4423 R4454 C4430 C4429 C4424 C4425 R4463 R4439 R4467 R4464 R4465 C4428 C4426 C4431 C4432 16 19 23 22 27 26 24 25 13 10 JK4501 7 4 3 3 2 JK4751 C4752 5 1 2 1 LB3533 R4428 R4459 R4429 C4423 R4460 C4427 R4446 R4447 R4450 R4451 R4452 R4453 14 12 11 9 8 6 5 15 17 18 20 21 Q4419 R4440 R4441 R4443 R4433 C4781 C4782 W111 C3505 W007 W605 W501 W606 W404 W405 W406 W308 TL1207 TL1201 TL1203 W503 W504 R3521 R4436 W112 R4427 W207 R4461 R4462 R4444 R4442 W409 W410 W621 W623 W607 W620 W110 W123 W124 C3582 W122 W212 TL1206 W121 W619 W314 W027 K3582 W411 R3501 W209 W604 W403 W307 W306 W305 W304 W303 W011 W105 W313 W206 W018 12 11 10 5 1 PP3201 PP4301 15 20 22 13 10 5 14 1 26 25 15 20 W211 W617 W616 W615 W118 R4332 R4327 R4338 C4319 R4336 R4337 R4349 R4356 C4337 W407 W408 C4336 C4315 R4330 R4355 R4331 W117 W618 W128 W129 TL1210 W104 W109 W108 W107 W106 W022 W021 W020 PR4912 W019 PS6003 1 10 P6005 1 W311 W116 W210 W608 W614 W613 W612 W611 W610 W609 W315 W127 W506 R4347 R4326 R4325 C4334 C3581 1 3 TL1208 R3508 W125 LB4751 R4756 R4755 R4754 R4753 R4752 C4753 W219 K4781 R4751 C4751 W029 C4416 C4417 C4421 C4420 C4419 C4422 C4415 C4414 W126 W318 W317 W221 W130 W624 W417 W416 W220 1 4 8 5 IC4301 QR4904 QR4903 QR4901 QR4902 Q4921 Q4931 QR4302 Q4315 QR4316 QR4317 Q4911 Q4901 IC4305 QR4304 QR4301 Q4302 1 4 8 5 IC4302 1 4 8 5 IC4303 1 4 8 5 IC4304 W213 W214 W215 W216 W208 W312 TL1202 TL1211 TL1204 22 21 2 1 FP6002 W502 L3201 C4913 C4902 W120 PR4911 TL1213 TL1214 TL1215 W217 W218 W316 W319 W508 W509 W413 W414 W415 W134 W628 R4362 TL4902 W119 R4921 D4921 C4923 C4311 C4302 K4301 W626 W627 W420 W133 W222 R4334 R4339 R4351 C4333 W418 W419 C4338 W131 W622 W505 R4348 C4335 W412 W507 W510 W031 W625 R4358 W132 W030 R4335 R4346 R4328 R4340 R4357 C4321 W032 C4323 R4922 R4931 R4932 D4931 TL4901 R4902 C4922 C4932 R4304 R4305 R4306 C4931 R4903 C4934 C4921 C4933 C4924 R4301 C4312 C4322 W135 C4324 C4313 W028 D4301 TL4301 R4302 R4313 L4301 TL4303 K4304 R4329 K4303 R4324 K4305 K4306 C4308 C4314 C4309 C4587 C4320 C4310 R4359 R4333 R4350 C4307 C4332 C4316 C4318 C4331 C4317 ZA4753 ZA4751 ZA4752 FP3801 1 19 2 18 B, G models TERMINAL P.C.B. Q4302 A-6 Q4315 A-4 Q4410 D-1 Q4411 D-1 Q4412 D-2 Q4413 D-1 Q4414 C-2 Q4415 C-2 Q4416 C-2 Q4417 C-2 Q4418 B-2 Q4419 D-1 Q4751 A-1 Q4901 B-7 Q4911 B-6 Q4921 C-6 Q4931 C-6 QR3521 D-2 QR4301 B-5 QR4302 B-6 QR4304 B-6 QR4316 A-4 QR4317 A-4 QR4901 C-7 QR4902 C-6 QR4903 C-6 QR4904 C-7 IC3501 D-2 IC3581 C-2 IC4301 C-5 IC4302 B-4 IC4303 B-5 IC4304 A-5 IC4305 A-6 TL1201 D-3 TL1202 C-4 TL1203 D-3 TL1204 C-4 TL1205 F-2 TL1206 B-2 TL1207 C-3 TL1208 C-2 TL1209 E-3 TL1210 C-5 TL1211 D-4 TL1212 F-3 TL1213 C-6 TL1214 C-6 TL1215 C-6 TL4301 B-6 TL4303 A-6 TL4901 C-7 TL4902 C-6 FC1001B F-2 FP3801 B-3 FP6002 D-5 JK4501 D-1 JK4751 B-1 P6005 D-5 PP3201 C-6 PP4301 B-6 PS6003 D-7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 46 I PRINTED CIRCUIT BOARD K3502 W003 C4588 C4589 R3574 R3577 R3575 R3531 LB3531 LB3532 R3532 C3508 K3501 C3516 C3513 17 16 32 1 C3511 C3512 R4422 C3509 C3504 C3534 W113 W015 W012 W016 W013 W017 W014 R4424 R4434 R4435 W025 W023 W026 W024 R4432 W115 C3506 C3510 C3531 R3522 W009 C3514 K3503 R3533 C3515 W002 W005 W006 C3524 C3502 W101 TL1205 W004 W301 W601 W602 W603 W401 W302 C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B C E B FC1001B 1 15 TL1212 TL1209 C3533 R3528 R3578 R3571 LB3571 R3572 LB3572 R3573 LB3573 R3576 W204 W205 QR3523 QR3571 QR3572 QR3501 Q4410 Q4413 Q4414 Q4415 Q4416 Q4417 Q4418 Q4751 QR3521 IC3581 IC3501 QR3573 1 7 6 14 8 9 13 JK3571 2 R3581 R3580 R3579 W402 W201 W202 W102 W103 W203 L3503 C3501 C3503 W010 C3520 W008 W114 W309 W310 R4448 R4423 R4454 C4430 C4429 C4424 C4425 R4463 R4439 R4467 R4464 R4465 C4428 C4426 C4431 R3536 C4432 16 19 23 22 27 26 24 25 13 10 JK4501 7 4 3 3 2 JK4751 C4752 5 1 2 1 R3535 LB3535 LB3533 R3534 LB3534 LB3536 R4428 R4459 R4429 C4423 R4460 C4427 R4446 R4447 R4450 R4451 R4452 R4453 14 12 11 9 8 6 5 15 17 18 20 21 Q4419 R4440 R4441 R4443 R4433 C4781 C4782 W111 C3505 W007 W605 W501 W606 W404 W405 W406 W308 TL1207 TL1201 TL1203 W503 W504 R3521 W112 R4427 W207 R4461 R4462 R4444 R4442 W409 W410 W621 W623 W607 W620 W110 W123 W124 C3582 W122 W212 TL1206 W121 W619 W314 W027 K3582 W411 W209 W604 W403 W307 W306 W305 W304 W303 W011 W105 W313 W206 W018 12 11 10 5 1 PP3201 PP4301 15 20 22 13 10 5 14 1 26 25 15 20 W211 W617 W616 W615 W118 R4332 R4327 R4338 C4319 R4336 R4337 R4349 R4356 C4337 W407 W408 C4336 C4315 R4330 R4355 R4331 W117 W618 W128 W129 TL1210 W104 W109 W108 W107 W106 W022 W021 W020 PR4912 W019 PS6003 1 10 P6005 1 W311 W116 W210 W608 W614 W613 W612 W611 W610 W609 W315 W127 W506 R4347 R4326 R4325 C4334 C3581 1 3 TL1208 C3507 R3508 W125 LB4751 R4756 R4755 R4754 R4753 R4752 C4753 W219 K4781 R4751 C4751 W029 C4416 C4417 C4421 C4420 C4419 C4422 C4415 C4414 W126 W318 W317 C4325 W221 W130 W624 W417 W416 W220 1 4 8 5 IC4301 QR4904 QR4903 QR4901 QR4902 Q4921 Q4931 QR4302 Q4315 QR4316 QR4317 Q4911 Q4901 IC4305 QR4304 QR4301 Q4302 1 4 8 5 IC4302 1 4 8 5 IC4303 1 4 8 5 IC4304 W213 W214 W215 W216 W208 W312 TL1202 TL1211 TL1204 22 21 2 1 FP6002 W502 L3201 C4913 C4902 W120 PR4911 TL1213 TL1214 TL1215 W217 W218 W316 W319 W508 W509 W413 W414 W415 W134 W628 R4362 TL4902 W119 R4921 D4921 C4923 C4311 C4302 K4301 W626 W627 W420 W133 W222 R4334 R4339 R4351 C4333 W418 W419 C4338 W131 W622 W505 R4348 C4335 W412 W507 W510 W031 W625 R4358 W132 W030 R4335 R4346 R4328 R4340 R4357 C4321 W032 C4323 R4922 R4931 R4932 D4931 TL4901 R4902 C4922 C4932 R4304 R4305 R4306 C4931 R4903 C4934 C4921 C4933 C4924 R4301 C4312 C4322 W135 C4324 C4313 W028 D4301 TL4301 R4302 R4313 L4301 TL4303 K4304 R4329 K4303 R4324 K4305 K4306 C4308 C4314 C4309 C4587 C4320 C4310 R4359 R4333 R4350 C4307 C4332 C4316 C4318 C4331 C4317 ZA4753 ZA4751 ZA4752 K3581 L3504 C3519 C4433 L4781 L3501 K4304 C4304 L3505 A, R models TERMINAL P.C.B. Q4302 A-6 Q4315 A-4 Q4410 D-1 Q4413 C-2 Q4414 C-2 Q4415 C-2 Q4416 C-2 Q4417 C-2 Q4418 B-2 Q4419 D-1 Q4751 A-1 Q4901 B-7 Q4911 B-6 Q4921 C-6 Q4931 C-6 QR3501 E-2 QR3521 D-2 QR3523 F-2 QR3571 F-2 QR3572 F-2 QR3573 F-1 QR4301 B-5 QR4302 B-6 QR4304 B-6 QR4316 A-4 QR4317 A-4 QR4901 C-7 QR4902 C-6 QR4903 C-6 QR4904 C-7 IC3501 D-2 IC3581 C-2 IC4301 C-5 IC4302 B-4 IC4303 B-5 IC4304 A-5 IC4305 A-6 TL1201 D-3 TL1202 C-4 TL1203 D-3 TL1204 C-4 TL1205 F-2 TL1206 B-2 TL1207 C-3 TL1208 C-2 TL1209 E-3 TL1210 C-5 TL1211 D-4 TL1212 F-3 TL1213 C-6 TL1214 C-6 TL1215 C-6 TL4301 B-6 TL4303 A-6 TL4901 C-7 TL4902 C-6 FC1001B F-2 FP6002 D-5 JK3571 F-1 JK4501 D-1 JK4751 B-1 P6005 D-5 PP3201 C-6 PP4301 B-6 PS6003 D-7 1 2 3 4 5 6 7 A B C D E F w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 47 I PRINTED CIRCUIT BOARD TL6201 TL6202 TL6207 TL6208 TL6205 TL6204 TL6203 TL6209 TL6206 TL6210 C2073 R6203 R6204 C6204 C6211 C6221 RA6206 IC6211 IC6221 1 50 7 5 1 4 FP5201 IC6201 IC6261 IC3761 IC3201 IC6251 IC3001 IC4001 IC2101 CP2031 CP2053 CP2030 CP2052 CP2033 CP2034 CP2032 C2066 R2050 C5203 C5201 TL5205 TL5202 TL5208 TL2004 TL2001 TL5279 C6801 C6802 L5202 C5234 C5205 CP2015 C2010 CP5255 CP5254 CP5230 CP5202 CP6822 CP6219 CP6825 CP5288 CP5249 C2034 C2009 R2021 C2055 C2054 LB6201 C6806 C6814 C6815 C3701 C3702 C3729 C3220 C3773 C3738 C3772 CP6216 CP6301 CP6215 CP6213 CP6337 5 4 1 2 3 IC6802 5 4 1 2 3 RA6202 RA6203 C2019 CP6221 CP6222 CP6226 CP6227 CP6228 CP6229 C6205 R2053 R2054 C2102 R2104 R6801 K6801 K3201 R6802 R3201 C3205 R3202 R3205 R3204 R3203 R2103 RA2022 RA2101 R2039 C2049 C2012 C2020 R2031 R2035 R2033 R2034 C2043 C5299 C5290 C5264 C5282 C5271 R5320 RA6204 CP6230 CP5203 CP2013 CP2012 CP2050 CP6231 LB3702 LB3701 LB6801 C6201 RA4004 RA4002 RA5201 CP2007 CP6220 L2002 L2001 L2021 50 26 76 100 51 25 75 1 1 2 3 5 4 9 10 1 2 PS6201 CP6212 CP6235 LB6202 C6202 CP6207 52 105 53 1 156 208 157 104 C6261 C3010 C6203 C3011 C3012 C3013 C3014 CP6336 CP6209 CP6202 CP6205 C3002 LB3001 LB3002 C3001 CP3003 CP3001 C3035 C3034 C3033 C3032 C3029 C3028 C3027 C3026 R3001 K4027 CP6203 R6202 R6201 RA6201 R3002 K2003 K6813 K5202 K5201 C3016 C3017 C3015 RA4006 CP3034 C3019 CP4023 CP4020 CP4019 CP4018 CP4015 CP4014 CP4030 CP4013 CP4032 CP4017 CP4016 C3769 C3768 C3767 C3018 C3766 R3083 R3090 R3089 R3086 C3089 C3702 C3703 R3085 C3086 R3007 R3006 R4006 R4009 R4010 R4005 TP4003 TP4002 L3001 C4010 C3083 R3082 C3087 C3085 C3088 C3084 C3080 C3100 C4206 C4233 C4232 C2021 C2001 C2002 C4015 C4012 C4013 C4014 K4025 CP6328 CP6332 CP6330 CP6334 CP6329 44 43 86 1 CP6225 CP6335 CP6333 CP6331 CP6223 CP6232 C6206 CP6234 CP6233 RA6205 R5232 R5231 R5202 R5241 C4004 R4001 R3705 C4003 C3737 C4001 C3765 C4005 C3764 C3763 C3762 RA3009 RA3010 C6501 L6501 L6502 LB6502 LB6501 C6504 2 X6501 1 C6505 C4219 C6502 C4210 TP4005 TP4006 TP4007 TP4009 TP4008 TP4004 LB4200 L4211 C4216 C4222 C4223 C4201 LB4213 LB4218 LB4215 LB4217 LB4212 L3702 LB4211 LB3209 RA3203 FL6254 LB4214 C4007 C4008 R4002 C4006 C2101 C2068 C6251 C2030 CP4028 CP4035 CP4024 CP4034 CP4033 CP4036 CP4025 C3770 C3771 C6816 C6803 C2029 C6810 C5232 C5233 C5292 C5262 C5204 16 33 1 48 17 32 16 9 1 8 64 49 IC5201 48 1 33 16 49 64 32 17 LB4206 LB4207 LB4208 LB4209 LB4205 LB4204 LB4203 LB4202 C6252 LB3202 LB3203 LB3204 K3202 C6257 FL6253 FL6255 LB3206 LB3207 FL6251 LB3201 R3264 R3262 R3263 LB4210 C B E QR5241 IC3261 RA4003 RA4001 RA4005 C3740 C3739 C3201 LB5203 LB5202 LB5219 LB5232 LB5227 LB5207 LB5212 LB6802 C6811 C3210 C3202 C3203 C3206 C3208 C3207 C3261 C3211 C3204 C3209 C3735 C3734 C3725 C3730 C3212 CP6324 1 2 3 4 5 CP6320 CP6322 CP4021 CP4022 CP4001 1 4 8 5 R6207 CP2041 CP2040 CP2039 CP2038 CP2037 CP2036 CP2035 C6207 R6205 CP2005 CP2004 CP2006 CP2016 CP5228 CP5251 CP5250 CP5284 CP5229 R2023 R2052 R2051 C2032 C2031 C2035 R2028 R2022 TL5204 TL2006 TL2005 TL5203 C2065 C2064 C2063 C2062 C2061 C2025 C2058 C2024 C2052 C2053 R2038 C2023 C2047 CP2025 CP2049 CP2048 CP2019 CP2018 CP2051 R2047 R2055 R2046 R2045 R2044 R2102 R2101 C2028 C5283 R5281 C2050 C2044 R2043 R2042 C2060 C2059 CP5281 CP2008 CP2047 R2027 R2025 R2026 C3761 C5202 C6253 C3723 C3724 CP3033 CP3035 C4002 109 108 1 73 36 144 72 37 C4231 C4230 CP4004 CP4002 CP4006 CP4005 CP4003 CP4007 CP4008 CP4009 CP3009 CP3010 CP3008 CP3007 CP3006 CP3005 CP3029 CP3030 D2001 CP5256 C5272 R5295 C5256 C5254 R5294 L3701 B, G models MODULE P.C.B. 1/2 (COMPONENT SIDE) QR5241 B-2 IC2101 E-3 IC3001 E-6 IC3201 B-3 IC3261 B-3 IC3761 D-4 IC4001 C-6 IC5201 D-2 IC6201 E-4 IC6211 F-4 IC6221 F-3 IC6251 B-2 IC6261 F-5 IC6802 C-3 CP2004 D-3 CP2005 D-3 CP2006 D-3 CP2007 E-3 CP2008 E-2 CP2012 E-3 CP2013 E-3 CP2015 D-3 CP2016 E-3 CP2018 E-2 CP2019 E-2 CP2025 F-2 CP2030 F-2 CP2031 F-2 CP2032 F-2 CP2033 F-2 CP2034 F-3 CP2035 F-3 CP2036 F-3 CP2037 F-3 CP2038 F-3 CP2039 F-3 CP2040 F-3 CP2041 F-3 CP2047 E-3 CP2048 E-2 CP2049 E-2 CP2050 E-2 CP2051 E-2 CP2052 F-2 CP2053 F-2 CP3001 F-7 CP3003 F-7 CP3005 D-7 CP3006 D-7 CP3007 D-7 CP3008 D-7 CP3009 D-7 CP3010 D-7 CP3029 D-7 CP3030 C-7 CP3033 D-6 CP3034 D-5 CP3035 D-6 CP4001 C-5 CP4002 C-5 CP4003 C-5 CP4004 C-5 CP4005 C-5 CP4006 C-5 CP4008 B-5 CP4009 B-5 CP4013 B-6 CP4014 B-6 CP4015 B-6 CP4016 B-6 CP4017 B-6 CP4018 B-6 CP4019 C-6 CP4020 C-6 CP4021 C-6 CP4022 C-6 CP4023 D-5 CP4024 B-5 CP4025 B-5 CP4028 B-5 CP4030 B-6 CP4032 B-6 CP4032 B-6 CP4033 B-5 CP4034 B-5 CP4035 B-5 CP4036 B-5 CP5202 D-2 CP5203 E-3 CP5228 D-2 CP5229 D-1 CP5230 D-2 CP5249 D-2 CP5250 D-2 CP5251 D-2 CP5254 D-2 CP5255 D-2 CP5256 D-3 CP5281 E-2 CP5284 D-1 CP5288 D-2 CP6202 E-5 CP6203 E-5 CP6205 E-5 CP6207 E-5 CP6209 E-5 CP6212 E-5 CP6213 F-4 CP6215 F-4 CP6216 F-4 CP6219 C-2 CP6220 E-3 CP6221 E-4 CP6222 E-4 CP6223 E-4 CP6225 E-4 CP6226 E-3 CP6227 E-4 CP6228 E-4 CP6229 E-4 CP6230 E-3 CP6231 D-3 CP6232 E-4 CP6233 D-4 CP6234 D-4 CP6235 D-4 CP6235 E-5 CP6301 F-4 CP6320 F-6 CP6322 F-6 CP6324 F-6 CP6328 E-4 CP6329 D-4 CP6330 E-4 CP6331 D-4 CP6332 E-4 CP6333 D-4 CP6334 E-4 CP6336 E-5 CP6337 F-4 CP6822 C-3 CP6825 C-3 TL2001 D-1 TL2004 D-1 TL2005 F-2 TL2006 F-2 TL5202 D-1 TL5203 F-2 TL5204 F-2 TL5205 E-1 TL5208 D-1 TL5279 D-1 TL6201 F-3 TL6202 F-3 TL6203 F-3 TL6204 F-3 TL6205 F-4 TL6206 F-4 TL6207 F-3 TL6208 F-4 TL6209 F-4 TL6210 F-4 TP4002 C-7 TP4003 C-7 TP4004 C-7 TP4005 C-7 TP4006 C-7 TP4007 C-7 TP4008 C-7 TP4009 C-7 FP5201 C-1 PS6201 F-5 1 A B C D E F 2 3 4 5 6 7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 48 I PRINTED CIRCUIT BOARD C3004 C3003 28 54 27 1 C3005 C3006 C3008 C3007 C3009 C6215 C3065 C3060 C3036 C6305 C6304 C3066 C3064 C3063 C3062 C3061 C3067 C3023 C3024 C3072 C3071 C6503 C6512 LB6522 R6512 C6511 R6511 C4041 C4011 C4061 C4031 C4071 C4081 C4016 1 8 16 9 C4202 CP3024 CP3022 CP3023 CP3025 TP6505 C3111 C4051 C4091 C4092 CP6805 C3708 C3709 C3710 C3711 C3712 C2008 C2011 CP2009 CP2014 CP2045 CP6803 CP6802 CP6801 TC2006 CP2046 C2022 C6805 C6804 C6807 C6808 C3706 C3705 C3707 C3736 C6809 C3704 C3703 C3241 C4229 R3243 R3238 R3233 R3224 R3229 C3236 C3231 C3221 C3226 C6813 C6812 C5235 C5291 TC5230 C4225 C4227 C4226 C3718 C3719 C3720 C3721 C3722 C3726 C3727 C3728 R3704 C3731 C3732 C3733 R3748 C3746 C3741 C3751 R3744 R3753 R3261 C4023 C4209 C4009 C4022 C4021 C3713 C3714 C3715 C3716 C3717 C3020 C3021 C3082 C3081 C3051 C3022 C3052 C3031 C3030 C3025 R3061 IC3061 IC6561 IC4031 IC6301 LB6515 LB6521 LB6514 LB6512 LB6511 LB4201 LB6513 C3073 C6262 C4213 C4215 C4217 C4207 C4220 R6515 R6513 R4201 R4213 R4211 R3080 R6514 R5262 R3031 104 157 208 105 53 52 156 1 C3054 C3055 C3056 C3057 C3058 C3059 PS4201 IC3701 IC6801 IC2001 C B E C B E C B E K3003 C B E C B E K6252 K6251 C3106 C3116 C3101 R3103 R3108 R3113 K3106 K3111 R4008 R4004 R3118 R3106 R3087 R3088 R3747 R3746 R3743 R3741 R3752 R3751 R3242 R3242 R3241 R3227 R3237 R3236 R3232 R3231 R3222 R3221 RA3201 RA3202 R3223 R3226 R3228 R3742 R3265 R3107 R3111 R3112 R3084 R3116 R3117 R3101 R3102 Q3101 IC3071 C B E Q3116 C B E Q3106 Q3111 C B E C B E K3116 K3101 CP3018 CP3019 CP3021 CP3020 CP4011 CP4031 IC4211 36 37 24 48 13 25 1 12 TP6503 TP6501 16 1 9 8 TP6504 TC3001 TC4201 1 8 16 9 IC4201 K3002 K3001 RA3033 RA3031 RA3032 LB4216 FL4201 TC4211 TC3209 TC3208 TC3207 TP6252 TP6251 TC3206 TC4212 TC4214 TC4216 TC4217 TC4219 26 14 1 13 TC4218 TC4220 TC4202 TC4203 TC4205 TC4207 TC4209 TC4204 TC4206 TC4208 TC4210 TC3201 TC3202 TC3203 TC3204 TC3205 TP6257 TP6255 TP6253 TP6258 TP6256 TC4215 TC4213 PS3201 22 12 1 11 LB3205 LB3208 LB6221 C6222 C6223 C3213 LB5221 LB5222 LB5224 LB5226 LB5215 LB5229 LB5231 R5203 LB5235 LB5237 LB5238 LB5216 LB5210 LB5208 LB5205 TC5234 K5203 LB5218 LB5223 LB5225 LB5228 LB5230 LB5233 LB5236 LB5217 LB5213 LB5209 LB5206 LB5211 LB5214 LB5240 K5204 R5242 FL6252 CP6804 CP6826 CP5231 CP6813 CP6810 CP6811 CP5273 CP5253 CP5272 CP5276 CP5252 CP5271 CP6817 CP5274 CP5275 CP5290 CP5201 L5201 CP6319 CP6318 CP6317 CP6315 CP6304 CP6306 CP6308 CP6310 CP6312 CP6314 CP6316 CP6313 CP6311 CP6309 CP6307 CP6305 CP6303 CP6326 CP6327 CP6224 CP6206 CP6217 TC6311 CP6338 CP6218 CP6211 CP6302 24 1 25 48 CP3014 CP3015 CP3012 CP3013 CP3011 CP3016 CP3017 CP3004 CP6210 CP6201 CP6208 CP6204 CP6325 D3071 R5233 D6261 RA6207 RA3001 RA2021 TC6201 TP6210 TP6206 TP6209 TP6203 TP6204 TP6205 TP6208 TP6207 TP6202 TP6201 TC2005 TC2004 TC2003 TC2002 TC2001 R6215 R6216 R6206 K6301 R2036 R2048 R2041 R2040 R2049 K6302 QR6215 C B E QR5221 Q2001 Q5271 C B E D6215 C6212 C2016 C2017 C2018 C2003 C2004 C2005 C2013 C2014 C2015 C2006 C2007 C2045 C2040 R2032 R2030 R2029 TC5254 CP2003 CP2002 CP2001 C2036 C2041 C2048 R2037 C2057 C2056 C2051 C2046 C2042 C2038 C2039 C5236 C2067 IC4051 1 2 3 5 4 IC4041 IC4061 1 2 3 5 4 IC6521 1 2 3 5 4 IC4091 1 2 3 5 4 IC4092 1 2 3 5 4 IC6222 1 2 3 5 4 IC6223 1 2 3 5 4 IC4071 1 2 3 5 4 IC4081 1 2 3 5 4 TC5205 TC5210 R5310 R5311 R5221 LB5239 TC5253 TC5207 TC5209 TC5212 TC5214 TC5246 TC5217 TC5223 TC5219 TC5224 TC5228 TC5226 TC5201 TC5241 TC5239 TC5236 TC5235 TC5233 TC5203 TC5232 TC5229 C2027 TP6259 TP6254 K6253 W2001 TC5206 TC5204 C5221 R5201 TC5231 TC5257 TP5279 TP5059 TP5057 TP5058 TC5227 CP6815 CP6816 20 44 89 1 132 45 88 176 133 1 41 60 21 80 40 61 CP6814 CP6812 CP6809 CP6808 CP6827 CP6807 CP6806 CP6323 CP6321 CP3002 R6211 TC5252 TC5251 C2026 R5204 K6221 K3221 K3226 K6222 R5292 R5257 C5273 C5274 CP6824 CP6823 RA3008 RA3002 RA3004 RA3003 RA3007 RA3006 RA3005 L3071 C4211 C4208 C4224 CP4026 C4228 CP4010 CP4027 4 1 5 8 IC4011 4 1 5 8 K4026 K4008 K4023 K4024 K4005 R4007 K4011 K4009 K4010 K4006 K4004 K4012 K4002 K4003 K4001 K4031 C6521 TP6506 6 5 4 1 2 3 IC4021 1 2 3 5 4 TC5211 TC5213 TC5215 TC5216 TC5218 TC5221 TC5220 TC5225 TC5238 TC5202 TC5244 TC5240 TC5237 TC5243 TC5242 TC5245 TC5208 Q3746 Q3741 Q3751 QR3261 C B E C B E Q3241 Q3236 Q3231 Q3211 Q3226 C B E C B E C B E C B E R3701 R3701 B, G models MODULE P.C.B. 2/2 (FOIL SIDE) Q3101 C-2 Q3116 C-2 Q3106 C-3 Q3111 C-3 Q3746 B-5 Q3741 B-5 Q3751 B-5 Q3241 B-5 Q3236 B-6 Q3231 B-6 Q3211 B-6 Q3226 B-6 Q5271 D-6 Q2001 E-7 QR3261 B-5 QR5221 D-7 QR6215 F-5 IC2001 E-6 IC3061 E-2 IC3071 C-1 IC3701 C-4 IC4011 B-2 IC4021 B-3 IC4031 B-3 IC4041 C-2 IC4051 C-3 IC4061 C-3 IC4071 B-3 IC4081 B-3 IC4091 C-3 IC4092 C-3 IC4201 B-2 IC4211 A-2 IC6222 C-6 IC6223 C-6 IC6301 E-4 IC6521 B-2 IC6561 B-2 IC6801 C-6 CP2001 D-5 CP2002 D-5 CP2003 D-5 CP2009 D-6 CP2014 D-6 CP2045 D-6 CP2046 D-6 CP3002 E-2 CP3004 D-3 CP3011 D-3 CP3012 D-3 CP3013 D-3 CP3014 D-3 CP3015 D-3 CP3016 D-3 CP3017 D-3 CP3018 D-1 CP3019 D-1 CP3020 D-1 CP3021 D-2 CP3022 D-2 CP3023 D-2 CP3024 D-2 CP3025 D-2 CP4010 B-3 CP4011 B-3 CP4026 B-3 CP4027 B-3 CP4031 B-3 CP5201 E-7 CP5231 B-7 CP5252 D-7 CP5253 D-7 CP5271 D-7 CP5272 D-7 CP5273 D-7 CP5274 D-7 CP5275 D-7 CP5290 D-7 CP6003 F-2 CP6004 F-2 CP6005 F-2 CP6006 F-2 CP6007 F-2 CP6008 F-2 CP6009 F-2 CP6010 F-2 CP6201 E-4 CP6204 E-4 CP6206 E-5 CP6208 E-4 CP6210 E-4 CP6211 E-4 CP6217 F-6 CP6218 E-5 CP6224 E-5 CP6302 E-4 CP6311 F-3 CP6312 F-3 CP6313 F-3 CP6314 F-3 CP6315 F-3 CP6316 F-3 CP6317 F-3 CP6318 F-3 CP6319 F-3 CP6321 E-3 CP6323 E-3 CP6325 E-3 CP6326 E-3 CP6327 E-3 CP6338 F-6 CP6801 D-6 CP6802 D-6 CP6803 C-6 CP6803 D-6 CP6804 D-6 CP6805 C-5 CP6807 C-6 CP6808 C-6 CP6809 C-6 CP6810 B-7 CP6811 B-7 CP6812 C-6 CP6813 B-7 CP6814 D-6 CP6815 D-6 CP6816 D-6 CP6817 D-6 CP6823 C-6 CP6824 C-6 CP6826 D-6 CP6827 C-6 TC2001 E-7 TC2002 E-7 TC2003 F-7 TC2004 F-7 TC2005 F-7 TC2006 D-6 TC3001 D-3 TC3201 A-5 TC3202 A-6 TC3203 A-6 TC3204 A-6 TC3205 A-6 TC3206 B-6 TC3207 B-6 TC3208 B-6 TC3209 B-5 TC4201 A-3 TC4202 A-3 TC4203 A-4 TC4204 A-4 TC4205 A-4 TC4206 A-4 TC4207 A-4 TC4208 A-4 TC4209 A-4 TC4210 A-5 TC4211 B-5 TC4212 B-4 TC4213 B-4 TC4214 B-4 TC4215 B-4 TC4216 B-4 TC4217 B-4 TC4218 B-4 TC4219 B-3 TC4220 B-3 TC5201 B-7 TC5202 B-7 TC5203 B-7 TC5204 B-7 TC5205 D-7 TC5206 B-7 TC5207 D-7 TC5208 B-7 TC5209 B-7 TC5210 D-7 TC5211 B-7 TC5212 B-7 TC5213 B-7 TC5214 B-7 TC5215 B-7 TC5216 B-7 TC5217 B-7 TC5218 B-7 TC5219 B-7 TC5220 B-7 TC5221 B-7 TC5223 B-7 TC5224 B-7 TC5225 B-7 TC5226 B-7 TC5227 D-7 TC5228 B-7 TC5229 B-7 TC5230 D-7 TC5231 D-7 TC5232 B-7 TC5233 B-7 TC5234 B-7 TC5235 B-7 TC5236 B-7 TC5237 B-7 TC5238 B-7 TC5239 B-7 TC5240 B-7 TC5241 B-7 TC5242 B-7 TC5243 B-7 TC5244 B-7 TC5245 B-7 TC5246 B-7 TC5251 E-7 TC5252 E-7 TC5253 D-7 TC5254 D-6 TC5257 D-7 TC6201 F-4 TC6311 F-6 TP5057 D-7 TP5058 D-6 TP5059 D-7 TP5279 D-7 TP6201 F-6 TP6202 F-6 TP6203 F-6 TP6204 F-6 TP6205 F-4 TP6205 F-6 TP6206 F-6 TP6207 F-6 TP6208 F-6 TP6209 F-6 TP6210 F-4 TP6251 B-6 TP6252 B-6 TP6253 A-7 TP6254 B-7 TP6255 A-6 TP6256 A-6 TP6257 A-6 TP6258 A-6 TP6501 B-1 TP6503 C-2 TP6504 C-2 TP6505 C-1 TP6506 B-2 PS3201 A-6 PS4201 A-4 1 A B C D E F 2 3 4 5 6 7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 49 I PRINTED CIRCUIT BOARD TL6201 TL6202 TL6207 TL6208 TL6205 TL6204 TL6203 TL6209 TL6206 TL6210 C2073 R6203 R6204 C6204 C6211 C6221 RA6206 IC6211 IC6221 1 50 7 5 1 4 FP5201 IC6201 IC6261 IC3761 IC3901 IC6251 IC3001 IC4001 IC2101 CP2031 CP2053 CP2030 CP2052 CP2033 CP2034 CP2032 C2066 R2050 C5203 C5201 TL5205 TL5202 TL5208 TL2004 TL2001 TL5279 C6801 C6802 C3901 L5202 C5234 C5205 CP2015 C2010 CP5255 CP5254 CP5230 CP5202 CP6822 CP6825 CP5288 CP5249 C2034 C2009 R2021 C2055 C2054 LB6201 C6806 C6814 C6815 C3701 C3702 C3773 C3772 R3702 CP6216 CP6301 CP6215 CP6213 CP6337 5 4 1 2 3 IC6802 5 4 1 2 3 RA6202 RA6203 C2019 CP6221 CP6222 CP6226 CP6227 CP6228 CP6229 C6205 R2053 R2054 C2102 R2104 R6801 K6801 R6802 R2103 RA2022 RA2101 R2039 C2049 C2012 C2020 R2031 R2035 R2033 R2034 C2043 C5299 C5290 C5264 C5282 C5271 R5320 RA6204 RA3905 RA3906 CP6230 CP5203 CP2013 CP2012 CP2050 CP6231 LB3702 LB3701 LB6801 C6201 RA4004 RA4002 RA3701 RA3901 RA5201 RA3902 RA3904 RA3903 CP2007 CP6220 L2002 L2001 L2021 50 26 76 100 51 25 75 1 1 2 3 5 4 9 10 1 2 PS6201 CP6212 CP6235 LB6202 C6202 CP6207 52 105 53 1 156 208 157 104 C6261 C3010 C6203 C3011 C3012 C3013 C3014 CP6336 CP6209 CP6202 CP6205 C3002 LB3001 LB3002 C3001 CP3003 CP3001 C3035 C3034 C3033 C3032 C3029 C3028 C3027 C3026 R3001 K4027 CP6203 R6202 R6201 RA6201 R3002 K2003 K6813 K5202 K5201 C3016 C3017 C3015 RA4006 CP3034 C3019 CP4023 CP4020 CP4019 CP4018 CP4015 CP4014 CP4030 CP4013 CP4032 CP4017 CP4016 C3769 C3768 C3767 C3018 C3766 R3083 R3090 R3089 R3086 C3089 R3085 C3086 R3007 R3006 R4006 R4009 R4010 R4005 TP4003 TP4002 L3001 C4010 C3083 R3082 C3087 C3085 C3088 C3084 C3080 C3100 C4206 C4233 C4232 C2021 C2001 C2002 C4015 C4012 C4013 C4014 K4025 CP6328 CP6332 CP6330 CP6334 CP6329 44 43 86 1 CP6225 CP6335 CP6333 CP6331 CP6223 CP6232 CP6233 C6206 CP6234 CP6233 RA6205 R5232 R5231 R5202 R5241 C3721 C4004 R4001 C4003 C4001 C3765 C4005 C3764 C3763 C3762 RA3009 RA3010 C6501 L6501 L6502 LB6502 LB6501 C6504 2 X6501 1 C6505 C4219 C6502 C4210 TP4005 TP4006 TP4007 TP4009 TP4008 TP4004 LB4200 L4211 C4216 C4222 C4223 C4201 LB4213 L3701 LB4218 LB4215 LB4217 LB4212 LB4211 LB3209 FL6254 LB4214 C4007 C4008 R4002 C4006 C2101 C2068 C6251 C2030 K4204 K4202 K4201 K4203 CP6219 CP4028 CP4035 CP4024 CP4034 CP4033 CP4036 CP4025 C3723 C3770 C3771 C6816 C6803 C2029 C6810 C3910 C3911 C3907 C5232 C5233 C5292 C5262 C5204 13 27 1 39 14 26 16 9 1 8 52 40 IC5201 48 1 33 16 49 64 32 17 LB4206 LB4207 LB4208 LB4209 LB4205 LB4204 LB4203 LB4202 R3261 R3903 R3901 R3902 C3917 C3261 C3909 C3908 C3905 C6252 LB3202 LB3203 LB3204 K3202 C6257 FL6253 FL6255 LB3206 LB3207 FL6251 LB3201 LB4210 C B E QR3261 C B E QR5241 IC3261 RA4003 RA4001 RA4005 C3920 LB5203 LB5202 LB5219 LB5232 LB5227 LB5207 LB5212 LB6802 C6811 C3902 C3903 CP6324 1 2 3 4 5 CP6320 CP6322 CP4021 CP4022 CP4001 1 4 8 5 R6207 CP2041 CP2040 CP2039 CP2038 CP2037 CP2036 CP2035 C6207 R6205 CP2005 CP2004 CP2006 CP2016 CP5228 CP5251 CP5250 CP5284 CP5229 R2023 R2052 R2051 C2032 C2031 C2035 R2028 R2022 TL5204 TL2006 TL2005 TL5203 C2065 C2064 C2063 C2062 C2061 C2025 C2058 C2024 C2052 C2053 R2038 C2023 C2047 CP2025 CP2049 CP2048 CP2019 CP2018 CP2051 R2047 R2055 R2046 R2045 R2044 R2102 R2101 C2028 C5283 R5281 C2050 C2044 R2043 R2042 C2060 C2059 CP5281 CP2008 CP2047 R2027 R2025 R2026 C3761 C5202 C6253 C3720 CP3033 CP3035 C4002 109 108 1 73 36 144 72 37 C4231 C4230 CP4004 CP4006 CP4003 CP4002 CP4005 CP4007 CP4008 CP4009 CP3009 CP3010 CP3008 CP3007 CP3006 CP3005 CP3029 CP3030 D2001 CP5256 C5272 R5295 C5256 C5254 R5294 A, R models MODULE P.C.B. 1/2 (COMPONENT SIDE) QR3261 B-4 QR5241 B-2 IC2101 E-3 IC3001 E-6 IC3261 B-3 IC3761 D-4 IC3901 C-3 IC4001 C-6 IC5201 D-2 IC6201 E-4 IC6211 F-4 IC6221 F-4 IC6251 B-2 IC6261 F-5 IC6802 C-3 CP2004 D-3 CP2005 D-3 CP2006 D-3 CP2007 E-3 CP2008 E-3 CP2012 E-3 CP2013 E-3 CP2015 D-3 CP2016 E-3 CP2018 E-2 CP2019 E-2 CP2025 F-2 CP2030 F-2 CP2031 F-2 CP2032 F-2 CP2033 F-2 CP2034 F-3 CP2035 F-3 CP2036 F-3 CP2037 F-3 CP2038 F-3 CP2039 F-3 CP2040 F-3 CP2041 F-3 CP2047 E-3 CP2048 E-2 CP2049 E-2 CP2050 E-2 CP2051 E-2 CP2052 F-2 CP2053 F-2 CP3001 F-7 CP3003 F-7 CP3005 D-7 CP3006 D-7 CP3007 D-7 CP3008 D-7 CP3009 D-7 CP3010 D-7 CP3029 D-7 CP3030 D-7 CP3033 D-6 CP3034 D-5 CP3035 D-6 CP4001 C-5 CP4002 C-5 CP4003 C-5 CP4004 C-5 CP4005 C-5 CP4006 C-5 CP4007 C-5 CP4008 C-5 CP4009 C-5 CP4013 B-6 CP4014 B-6 CP4015 B-6 CP4016 B-6 CP4017 B-6 CP4018 C-6 CP4019 C-6 CP4020 C-6 CP4021 C-6 CP4022 C-6 CP4023 D-5 CP4024 B-5 CP4025 B-5 CP4028 B-5 CP4030 B-6 CP4032 B-6 CP4033 B-5 CP4034 B-5 CP4035 B-5 CP4036 B-5 CP5202 D-2 CP5203 E-3 CP5228 D-2 CP5229 D-1 CP5230 D-2 CP5249 D-2 CP5250 D-2 CP5251 D-2 CP5254 D-2 CP5255 D-2 CP5256 D-3 CP5281 E-2 CP5284 D-2 CP5288 D-2 CP6202 E-5 CP6203 E-5 CP6205 E-5 CP6207 E-5 CP6209 E-5 CP6212 E-5 CP6213 F-4 CP6215 F-4 CP6216 F-4 CP6219 B-5 CP6220 E-3 CP6221 E-4 CP6222 E-4 CP6223 E-4 CP6225 E-4 CP6226 E-3 CP6227 E-4 CP6228 E-4 CP6229 E-4 CP6230 E-3 CP6231 D-3 CP6232 E-4 CP6233 E-4 CP6233 D-4 CP6234 E-4 CP6235 E-5 CP6301 F-4 CP6320 F-6 CP6322 F-6 CP6324 F-6 CP6328 E-4 CP6329 D-4 CP6330 E-4 CP6331 D-4 CP6332 E-4 CP6333 D-4 CP6334 E-4 CP6335 D-4 CP6336 E-5 CP6337 F-4 CP6822 C-3 CP6825 C-3 TL2001 D-1 TL2004 D-1 TL2005 F-2 TL2006 F-2 TL5202 D-1 TL5203 F-2 TL5204 F-2 TL5205 E-1 TL5208 D-1 TL5279 D-1 TL6201 F-3 TL6202 F-3 TL6203 F-3 TL6204 F-3 TL6205 F-4 TL6206 F-4 TL6207 F-3 TL6208 F-4 TL6209 F-4 TL6210 F-4 TP4002 C-7 TP4003 C-7 TP4004 C-7 TP4005 C-7 TP4006 C-7 TP4007 C-7 TP4008 C-7 TP4009 C-7 FP5201 C-1 PS6201 F-5 1 A B C D E F 2 3 4 5 6 7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 50 I PRINTED CIRCUIT BOARD C3004 C3003 28 54 27 1 C3005 C3006 C3008 C3007 C3009 C6215 C3065 C3060 C3036 C6305 C6304 C3066 C3064 C3063 C3062 C3061 C3067 C3023 C3024 C3072 C3071 C6503 C6512 LB6522 R6512 C6511 R6511 C4041 C4011 C4061 C4031 C4071 C4081 C4016 1 8 16 9 C4202 CP3024 CP3022 CP3023 CP3025 TP6505 C3111 C4051 C4091 C4092 C3916 C3921 C3706 C3707 C3705 C3704 C3703 CP6805 C3708 C3709 C3710 C3711 C3712 C2008 C2011 CP2009 CP2014 CP2045 CP6803 CP6802 CP6801 TC2006 CP2046 C2022 C6805 C6804 C6807 C3722 C6808 C6809 C3906 C6813 C6812 C5235 C5291 TC5230 C3904 C3931 C3926 C4229 C4225 C4227 C4226 C3724 C4023 C4209 C4009 C4022 C4021 C3719 C3718 C3717 C3716 C4228 C3713 C3714 C3715 C3020 C3021 C3082 C3081 C3051 C3022 C3052 C3031 C3030 C3025 R3061 IC3061 IC6561 IC4031 IC6301 LB6515 LB6521 LB6514 LB6512 LB6511 LB4201 LB6513 C3073 C6262 C4213 C4215 C4217 C4207 C4220 R6515 R6513 R4201 R4213 R4211 R3080 R6514 R3928 R3923 K3921 R3933 R3926 R3931 R3922 R3932 R3927 R3701 R5262 R3921 R3031 176 45 133 88 1 44 132 89 C3054 C3055 C3056 C3057 C3058 C3059 Q3926 PS4201 IC3701 IC6801 IC2001 C B E K3003 Q3931 C B E Q3921 C B E C B E C B E K6252 K6251 K3931 K3926 C3106 C3116 C3101 R3103 R3108 R3113 K3106 K3111 R4008 R4004 R3118 R3106 R3087 R3088 R3107 R3111 R3112 R3084 R3116 R3117 R3101 R3102 Q3101 IC3071 C B E Q3116 C B E Q3106 Q3111 C B E C B E K3116 K3101 CP3018 CP3019 CP3021 CP3020 CP4011 CP4031 IC4211 36 37 24 48 13 25 1 12 TP6503 TP6501 16 1 9 8 TP6504 TC3001 TC4201 1 8 16 9 IC4201 K3002 K3001 RA3033 RA3031 RA3032 RA3702 LB4216 FL4201 TC4211 TC3209 TC3208 TC3207 TP6252 TP6251 TC3206 TC4212 TC4214 TC4216 TC4217 TC4219 26 14 1 13 TC4218 TC4220 TC4202 TC4203 TC4205 TC4207 TC4209 TC4204 TC4206 TC4208 TC4210 TC3201 TC3202 TC3203 TC3204 TC3205 TP6257 TP6255 TP6253 TP6258 TP6256 TC4215 TC4213 PS3201 22 12 1 11 LB3205 LB3208 LB6221 C6222 C6223 LB5221 LB5222 LB5224 LB5226 LB5215 LB5229 LB5231 R5203 LB5235 LB5237 LB5238 LB5216 LB5210 LB5208 LB5205 TC5234 K5203 LB5218 LB5223 LB5225 LB5228 LB5230 LB5233 LB5236 LB5217 LB5213 LB5209 LB5206 LB5211 LB5214 LB5240 K5204 R5242 FL6252 CP6804 CP6826 CP5231 CP6813 CP6810 CP6811 CP5273 CP5253 CP5272 CP5276 CP5252 CP5271 CP6817 CP5274 CP5275 CP5290 CP5201 L5201 CP6319 CP6318 CP6317 CP6315 CP6304 CP6306 CP6308 CP6310 CP6312 CP6314 CP6316 CP6313 CP6311 CP6309 CP6307 CP6305 CP6303 CP6326 CP6327 CP6224 CP6206 CP6217 TC6311 CP6338 CP6218 CP6211 CP6302 24 1 25 48 CP3014 CP3015 CP3012 CP3013 CP3011 CP3016 CP3017 CP3004 CP6210 CP6201 CP6208 CP6204 CP6325 D3071 R5233 D6261 RA6207 RA3001 RA2021 TC6201 TP6210 TP6206 TP6209 TP6203 TP6204 TP6205 TP6208 TP6207 TP6202 TP6201 TC2005 TC2004 TC2003 TC2002 TC2001 R6215 R6216 R6206 K6301 R2036 R2048 R2041 R2040 R2049 K6302 QR6215 C B E QR5221 Q2001 Q5271 C B E D6215 C6212 C2016 C2017 C2018 C2003 C2004 C2005 C2013 C2014 C2015 C2006 C2007 C2045 C2040 R2032 R2030 R2029 TC5254 CP2003 CP2002 CP2001 C2036 C2041 C2048 R2037 C2057 C2056 C2051 C2046 C2042 C2038 C2039 C5236 C2067 IC4051 1 2 3 5 4 IC4041 IC4061 1 2 3 5 4 IC6521 1 2 3 5 4 IC4091 1 2 3 5 4 IC4092 1 2 3 5 4 IC6222 1 2 3 5 4 IC6223 1 2 3 5 4 IC4071 1 2 3 5 4 IC4081 1 2 3 5 4 TC5205 TC5210 R5310 R5311 R5221 LB5239 TC5253 TC5207 TC5209 TC5212 TC5214 TC5246 TC5217 TC5223 TC5219 TC5224 TC5228 TC5226 TC5201 TC5241 TC5239 TC5236 TC5235 TC5233 TC5203 TC5232 TC5229 C2027 TP6259 TP6254 K6253 W2001 TC5206 TC5204 C5221 R5201 TC5231 TC5257 TP5279 TP5059 TP5057 TP5058 TC5227 CP6815 CP6816 20 44 89 1 132 45 88 176 133 1 41 60 21 80 40 61 CP6814 CP6812 CP6809 CP6808 CP6827 CP6807 CP6806 CP6323 CP6321 CP3002 R6211 TC5252 TC5251 C2026 R5204 K6221 K6222 R5292 R5257 C5273 C5274 CP6824 CP6823 RA3008 RA3002 RA3004 RA3003 RA3007 RA3006 RA3005 L3071 C4211 C4208 C4224 CP4026 CP4010 CP4027 4 1 5 8 IC4011 4 1 5 8 K4026 K4033 K4032 K4006 K4008 K4022 K4023 K4024 K4005 R4007 K4011 K4009 K4010 K4004 K4012 K4002 K4003 K4001 K4031 C6521 TP6506 6 5 4 1 2 3 IC4021 1 2 3 5 4 TC5211 TC5213 TC5215 TC5216 TC5218 TC5221 TC5220 TC5225 TC5238 TC5202 TC5244 TC5240 TC5237 TC5243 TC5242 TC5245 TC5208 A, R models MODULE P.C.B. 2/2 (FOIL SIDE) Q2001 E-7 Q3101 C-2 Q3106 C-3 Q3111 C-3 Q3116 C-2 Q3921 B-6 Q3926 B-6 Q3931 B-6 QR5221 E-7 QR6215 F-5 IC2001 E-6 IC3061 E-2 IC3071 C-1 IC3701 C-4 IC4011 B-2 IC4021 B-3 IC4031 B-3 IC4041 C-2 IC4051 C-3 IC4061 C-3 IC4071 B-3 IC4081 B-3 IC4091 C-3 IC4092 C-3 IC4201 B-2 IC4211 A-3 IC6222 C-6 IC6223 C-6 IC6301 E-4 IC6521 B-2 IC6561 B-2 IC6801 D-6 CP2001 D-5 CP2002 D-5 CP2003 D-5 CP2009 D-6 CP2014 D-6 CP2045 D-6 CP2046 D-6 CP3002 E-2 CP3004 D-3 CP3011 D-3 CP3012 D-3 CP3013 D-3 CP3014 E-3 CP3015 D-3 CP3016 E-3 CP3017 E-3 CP3018 D-1 CP3019 D-1 CP3020 D-2 CP3021 D-2 CP3022 D-2 CP3023 D-2 CP3024 D-2 CP3025 D-2 CP4010 B-3 CP4011 B-3 CP4026 B-3 CP4027 B-3 CP4031 B-3 CP5201 E-7 CP5231 D-7 CP5252 D-7 CP5253 D-7 CP5271 D-7 CP5272 D-7 CP5273 D-7 CP5274 D-7 CP5275 D-7 CP5276 D-7 CP5290 D-7 CP6201 E-4 CP6204 E-4 CP6206 E-5 CP6208 E-4 CP6210 E-4 CP6211 E-4 CP6217 F-5 CP6218 E-5 CP6224 E-5 CP6302 E-4 CP6303 F-2 CP6304 F-2 CP6305 F-2 CP6306 F-2 CP6307 F-2 CP6308 F-2 CP6309 F-2 CP6310 F-2 CP6311 F-3 CP6312 F-3 CP6313 F-3 CP6314 F-3 CP6315 F-3 CP6316 F-3 CP6317 F-3 CP6318 F-3 CP6319 F-3 CP6321 E-3 CP6323 E-3 CP6325 E-3 CP6326 E-3 CP6327 E-3 CP6338 F-5 CP6801 D-6 CP6802 D-6 CP6803 D-6 CP6804 D-6 CP6805 D-5 CP6806 C-6 CP6807 C-6 CP6808 C-6 CP6809 C-6 CP6810 C-7 CP6811 C-7 CP6812 C-6 CP6813 D-7 CP6814 D-7 CP6815 D-6 CP6816 D-6 CP6817 D-6 CP6823 C-6 CP6824 C-6 CP6826 D-6 CP6827 C-6 TC2001 E-7 TC2002 F-7 TC2003 F-7 TC2004 F-7 TC2005 F-7 TC3001 D-3 TC3201 A-5 TC3202 A-6 TC3203 A-6 TC3204 A-6 TC3205 A-6 TC3206 B-6 TC3207 B-6 TC3208 B-6 TC3209 B-5 TC4201 A-3 TC4202 A-3 TC4203 A-4 TC4204 A-4 TC4205 A-4 TC4206 A-4 TC4207 A-4 TC4208 A-4 TC4209 A-4 TC4210 A-5 TC4211 B-5 TC4212 B-4 TC4213 B-4 TC4214 B-4 TC4215 B-4 TC4216 B-4 TC4217 B-4 TC4218 B-4 TC4219 B-3 TC4220 B-3 TC5201 C-7 TC5202 C-7 TC5203 B-7 TC5204 C-7 TC5205 D-7 TC5206 C-7 TC5207 D-7 TC5208 B-7 TC5209 D-7 TC5210 D-7 TC5211 D-7 TC5212 C-7 TC5213 C-7 TC5214 C-7 TC5215 C-7 TC5216 C-7 TC5217 C-7 TC5218 C-7 TC5219 C-7 TC5220 C-7 TC5221 C-7 TC5223 C-7 TC5224 C-7 TC5225 C-7 TC5226 C-7 TC5227 D-7 TC5228 C-7 TC5229 B-7 TC5230 D-7 TC5231 D-7 TC5232 B-7 TC5233 B-7 TC5234 B-7 TC5235 B-7 TC5236 C-7 TC5237 C-7 TC5238 C-7 TC5239 C-7 TC5240 C-7 TC5241 C-7 TC5242 B-7 TC5243 B-7 TC5244 C-7 TC5245 B-7 TC5246 C-7 TC5251 E-7 TC5252 E-7 TC5253 D-7 TC5254 D-6 TC5257 D-7 TC6201 F-4 TC6311 F-5 TP5057 D-7 TP5058 D-6 TP5059 D-7 TP5279 D-7 TP6201 F-6 TP6202 F-5 TP6203 F-5 TP6204 F-6 TP6205 F-5 TP6206 F-5 TP6207 F-5 TP6208 F-5 TP6209 F-5 TP6210 F-4 TP6251 B-6 TP6252 B-6 TP6253 A-7 TP6254 B-7 TP6255 A-6 TP6256 A-6 TP6257 A-6 TP6258 A-6 TP6259 B-6 TP6501 B-1 TP6503 C-2 TP6504 C-2 TP6505 C-1 PS3201 A-6 PS4201 A-4 1 A B C D E F 2 3 4 5 6 7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 51 I PRINTED CIRCUIT BOARD INTERMEDIATE P.C.B. 1/2 (COMPONENT SIDE) Q5111 D-1 Q5115 D-1 TC5101 E-4 TC5105 D-2 TC5107 D-1 TC5109 E-2 TC5115 E-3 TC5116 D-3 TC5117 D-3 TC5120 E-1 TC5121 E-3 TC5123 B-4 TC5124 B-3 TC5127 D-2 TC5130 C-1 FP2501 A-4 FP5101 E-3 FP5102 C-4 INTERMEDIATE P.C.B. 2/2 (FOIL SIDE) IC2501 B-6 CP5101 C-7 CP5102 B-7 CP5103 C-7 CP5104 D-7 CP5105 D-8 TC2522 B-7 TC2523 B-8 TC2524 B-8 TC2525 C-8 TC5102 D-8 TC5103 D-8 TC5104 D-8 TC5106 D-8 TC5108 D-8 TC5110 D-7 TC5111 D-7 TC5112 D-7 TC5113 D-7 TC5114 D-6 TC5118 D-6 TC5119 D-6 TC5122 A-6 TC5125 A-6 TC5129 D-9 TP5101 A-6 TP5102 A-6 TP5103 A-6 TP5104 B-6 TP5105 A-6 TP5106 A-6 TP5107 A-6 TP5108 B-6 TP5109 B-6 TP5110 B-6 TP5111 B-6 TP5112 B-5 TP5113 A-6 TP5114 B-5 TP5115 B-6 TP5116 D-5 TP5117 C-5 TP5118 D-5 TP5119 D-5 TP5120 D-6 TP5121 D-6 TP5122 C-5 TP5123 C-6 TP5124 C-5 TP5125 C-6 TP5126 C-5 TP5127 C-6 TP5128 C-5 TP5129 C-6 TP5130 C-6 TP5131 C-5 TP5132 C-6 TP5133 B-5 TP5134 B-6 TP5135 B-5 TP5136 B-6 TP5137 D-5 C2502 C2508 R2506 M2501 M2502 C5111 C5115 R5115 R5104 R5105 1 3 2 R5114 R5113 R5117 TC5130 SW2501 C5101 R5102 R5111 Q5115 LB5101 LB5105 C5152 C5103 C5102 C5123 FP5101 1 15 30 C5151 LB5106 D5151 R5151 R5152 R5124 C2506 R5118 R5119 C2503 C2509 C2501 FP5102 50 25 1 C2505 C2504 FP2501 1 4 R5120 R5106 RA5103 L5101 R5116 R5112 R5110 R5123 R5122 R5121 R5103 R5101 R5108 R2502 R2504 R2501 C2513 C2510 C2507 R5107 R2507 R5109 R2503 R2505 C2511 D2511 D2512 RA2501 RA5102 RA5101 C2512 IC2501 1 A B C D E 2 3 4 5 6 7 8 9 TC5124 TC5123 TC5107 TC5105 TC5101 TC5116 TP5137 TP5116 TP5118 TP5119 TP5122 TP5124 TP5117 TP5128 TP5126 TP5131 TP5133 TP5135 TP5114 TP5112 TP5121 TP5120 TP5123 TP5125 TP5129 TP5127 TP5130 TP5132 TP5134 TP5136 TP5111 TP5108 TP5115 TP5109 TP5105 TP5106 TC5122 1 7 8 29 14 28 22 21 30 15 TC5125 TC2523 TC2522 TC2524 TC5111 TC5110 CP5104 TC5114 TC5118 TC5119 TC5112 TC5113 TC2525 TC5102 CP5105 TC5108 TC5104 TC5106 TC5103 TC5129 CP5102 CP5103 CP5101 TP5101 TP5113 TP5110 TP5104 TP5103 TP5102 TP5107 TC5117 TC5115 TC5121 TC5109 TC5127 TC5120 1 3 2 Q5111 Test Points w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 52 I PRINTED CIRCUIT BOARD FRONT 1 P.C.B. 1 A B C D E F 2 3 4 5 6 7 8 9 FRONT 2 P.C.B. A, R models only w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 53 I PRINTED CIRCUIT BOARD SCART P.C.B. Q3811 B-4 Q3821 B-4 Q3831 B-5 Q3851 B-3 QR3841 B-4 QR3842 B-4 QR3851 B-3 QR3852 B-3 QR3853 B-4 IC3801 C-2 IC3841 B-6 IC3842 C-6 IC3851 C-3 FP3802 B-2 1 A B C D 2 3 4 5 6 7 R3871 R3877 L3871 R3878 C3803 R3802 R3801 R3803 R3804 R3842 R3851 R3856 R3855 R3843 R3844 R3841 R3854 R3857 R3853 R3859 D3851 R3852 R3814 R3831 R3815 R3813 R3812 R3811 R3821 R3824 30 2 21 1 R3876 R3874 R3873 R3858 R3875 R3872 C B E Q3811 C B E C B E Q3821 C B E Q3851 Q3831 C B E QR3842 C B E QR3841 C B E QR3853 C B E QR3852 C B E QR3851 IC3801 3 4 1 6 IC3851 4 3 6 1 C3811 C3821 C3874 C3871 C3872 C3873 C3864 LB3874 LB3873 LB3872 LB3871 W381 FP3802 2 1 18 19 W382 L3861 L3862 K3862 C3862 C3861 C3801 R3833 2 1 5 4 8 7 3 6 9 R3832 FL3811 R3822 R3823 IC3841 1 6 15 10 9 5 8 R3825 W092 C3848 C3849 C3847 C3844 C3845 C3846 R3835 16 1 9 8 R3848 R3845 R3834 R3846 R3847 IC3842 W293 W190 W188 W085 W086 W087 W090 W089 W186 W195 W189 W290 W380 W291 W292 W383 W294 W187 W192 W191 W193 W194 W185 W088 W091 W094 W093 W095 C3842 C3843 C3831 C3863 C3802 C3841 L3872 J3871 SCART P.C.B. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 54 A B, G models POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page F AO1 SECTION:Page G AO2 SECTION:Page H FEP SECTION:Page L SODC SECTION:Page M AD SECTION:Page P WM SECTION:Page Q CPU SECTION:Page R AVDEC SECTION:Page N VD SECTION:Page O I SCHEMATIC DIAGRAM POWER P.C.B. 1/2 (POWER SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 55 B B, G models POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page F AO1 SECTION:Page G AO2 SECTION:Page H FEP SECTION:Page L SODC SECTION:Page M AD SECTION:Page P WM SECTION:Page Q CPU SECTION:Page R AVDEC SECTION:Page N VD SECTION:Page O I SCHEMATIC DIAGRAM POWER P.C.B. 2/2 (OPERATION SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 56 C A model POWER SECTION:Page C OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T AD SECTION:Page X WM SECTION:Page Y CPU SECTION:Page Z AVDEC SECTION:Page U VD SECTION:Page W I SCHEMATIC DIAGRAM POWER P.C.B. 1/2 (POWER SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 57 D POWER SECTION:Page D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V R model I SCHEMATIC DIAGRAM POWER P.C.B. 1/2 (POWER SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 58 E POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V A, R models I SCHEMATIC DIAGRAM POWER P.C.B. 2/2 (OPERATION SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 59 F B, G models POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page F AO1 SECTION:Page G AO2 SECTION:Page H FEP SECTION:Page L SODC SECTION:Page M AD SECTION:Page P WM SECTION:Page Q CPU SECTION:Page R AVDEC SECTION:Page N VD SECTION:Page O I SCHEMATIC DIAGRAM TERMINAL P.C.B. 1/3 (VIDEO OUT SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 60 G B, G models POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page F AO1 SECTION:Page G AO2 SECTION:Page H FEP SECTION:Page L SODC SECTION:Page M AD SECTION:Page P WM SECTION:Page Q CPU SECTION:Page R AVDEC SECTION:Page N VD SECTION:Page O I SCHEMATIC DIAGRAM TERMINAL P.C.B. 2/3 (AUDIO OUT 1 SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 61 H B, G models POWER SECTION:Page A OP SECTION:Page B VO SECTION:Page F AO1 SECTION:Page G AO2 SECTION:Page H FEP SECTION:Page L SODC SECTION:Page M AD SECTION:Page P WM SECTION:Page Q CPU SECTION:Page R AVDEC SECTION:Page N VD SECTION:Page O I SCHEMATIC DIAGRAM TERMINAL P.C.B. 3/3 (AUDIO OUT 2 SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 62 I A, R models POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V I SCHEMATIC DIAGRAM TERMINAL P.C.B. 1/3 (VIDEO OUT SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 63 J POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V A, R models I SCHEMATIC DIAGRAM TERMINAL P.C.B. 2/3 (AUDIO OUT 1 SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 64 K POWER SECTION:Page (A model) C Page (R model) D OP SECTION:Page E VO SECTION:Page I AO1 SECTION:Page J AO2 SECTION:Page K FEP SECTION:Page S SODC SECTION:Page T VD SECTION:Page W CPU SECTION:Page Z AD SECTION:Page X WM SECTION:Page Y AVDEC SECTION:Page U PRG SECTION:Page V A, R models I SCHEMATIC DIAGRAM TERMINAL P.C.B. 3/3 (AUDIO OUT 2 SECTION) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 DVD-S830 95 I WARNING Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. G Carbon resistors (1/6W or 1/4W) and chip carbon resistors are not included in the ELECTRICAL PARTS List. For the parts No. of them, refer to last two pages. ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS: C.A.EL.CHP : CHIP ALUMI.ELECTROLYTIC CAP C.CE : CERAMIC CAP C.CE.ARRAY : CERAMIC CAP ARRAY C.CE.CHP : CHIP CERAMIC CAP C.CE.ML : MULTILAYER CERAMIC CAP C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP C.CE.SAFTY : RECOGNIZED CERAMIC CAP C.CE.TUBLR : CERAMIC TUBULAR CAP C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP C.EL : ELECTROLYTIC CAP C.MICA : MICA CAP C.ML.FLM : MULTILAYER FILM CAP C.MP : METALLIZED PAPER CAP C.MYLAR : MYLAR FILM CAP C.MYLAR.ML : MULTILAYER MYLAR FILM CAP C.PAPER : PAPER CAPACITOR C.PLS : POLYSTYRENE FILM CAP C.POL : POLYESTER FILM CAP C.POLY : POLYETHYLENE FILM CAP C.PP : POLYPROPYLENE FILM CAP C.TNTL : TANTALUM CAP C.TNTL.CHP : CHIP TANTALUM CAP C.TRIM : TRIMMER CAP CN : CONNECTOR CN.BS.PIN : CONNECTOR,BASE PIN CN.CANNON : CONNECTOR,CANNON CN.DIN : CONNECTOR,DIN CN.FLAT : CONNECTOR,FLAT CABLE CN.POST : CONNECTOR,BASE POST COIL.MX.AM : COIL,AM MIX COIL.AT.FM : COIL,FM ANTENNA COIL.DT.FM : COIL,FM DETECT COIL.MX.FM : COIL,FM MIX COIL,OUTPT : OUTPUT COIL DIOD.ARRAY : DIODE ARRAY DIODE.BRG : DIODE BRIDGE DIODE.CHP : CHIP DIODE DIODE.SHOT : SCHOTTKY BARRIER DIODE DIODE.VAR : VARACTOR DIODE DIOD.Z.CHP : CHIP ZENER DIODE DIODE.ZENR : ZENER DIODE DSCR.CE : CERAMIC DISCRIMINATOR FER.BEAD : FERRITE BEADS FER.CORE : FERRITE CORE FET.CHP : CHIP FET FL.DSPLY : FLUORESCENT DISPLAY FLTR.CE : CERAMIC FILTER FLTR.COMB : COMB FILTER MODULE FLTR.LC.RF : LC FILTER,EMI GND.MTL : GROUND PLATE GND.TERM : GROUND TERMINAL HOLDER.FUS : FUSE HOLDER IC.PRTCT : IC PROTECTOR JUMPER.CN : JUMPER CONNECTOR JUMPER.TST : JUMPER,TEST POINT L.DTCT : LIGHT DETECTING MODULE L.EMIT : LIGHT EMITTING MODULE LED.DSPLY : LED DISPLAY LED.INFRD : LED,INFRARED MODUL.RF : MODULATOR,RF PHOT.CPL : PHOTO COUPLER PHOT.INTR : PHOTO INTERRUPTER PHOT.RFLCT : PHOTO REFLECTOR PIN.TEST : PIN,TEST POINT PLST.RIVET : PLASTIC RIVET R.ARRAY : RESISTOR ARRAY R.CAR. : CARBON RESISTOR R.CAR.CHP : CHIP RESISTOR R.CAR.FP : FLAME PROOF CARBON RESISTOR R.FUS : FUSABLE RESISTOR R.MTL.CHP : CHIP METAL FILM RESISTOR R.MTL.FLM : METAL FILM RESISTOR R.MTL.OXD : METAL OXIDE FILM RESISTOR R.MTL.PLAT : METAL PLATE RESISTOR RSNR.CE : CERAMIC RESONATOR RSNR.CRYS : CRYSTAL RESONATOR R.TW.CEM : TWIN CEMENT FIXED RESISTOR R.WW : WIRE WOUND RESISTOR SCR.BND.HD : BIND HEAD B-TITE SCREW SCR.BW.HD : BW HEAD TAPPING SCREW SCR.CUP : CUP TITE SCREW SCR.TERM : SCREW TERMINAL SCR.TR : SCREW,TRANSISTOR SUPRT.PCB : SUPPORT,P.C.B. SURG.PRTCT : SURGE PROTECTOR SW.TACT : TACT SWITCH SW.LEAF : LEAF SWITCH SW.LEVER : LEVER SWITCH SW.MICRO : MICRO SWITCH SW.PUSH : PUSH SWITCH SW.RT.ENC : ROTARY ENCODER SW.RT.MTR : ROTARY SWITCH WITH MOTOR SW.RT : ROTARY SWITCH SW.SLIDE : SLIDE SWITCH TERM.SP : SPEAKER TERMINAL TERM.WRAP : WRAPPING TERMINAL THRMST.CHP : CHIP THERMISTOR TR.CHP : CHIP TRANSISTOR TR.DGT : DIGITAL TRANSISTOR TR.DGT.CHP : CHIP DIGITAL TRANSISTOR TRANS : TRANSFORMER TRANS.PULS : PULSE TRANSFORMER TRANS.PWR : POWER TRANSFORMER ASS’Y TUNER.AM : TUNER PACK,AM TUNER.FM : TUNER PACK,FM TUNER.PK : FRONT-END TUNER PACK VR : ROTARY POTENTIOMETER VR.MTR : POTENTIOMETER WITH MOTOR VR.SW : POTENTIOMETER WITH ROTARY SW VR.SLIDE : SLIDE POTENTIOMETER VR.TRIM : TRIMMER POTENTIOMETER Note) Those parts marked with “#” are not included in the P.C.B. ass’y. PARTS LIST I ELECTRICAL PARTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 DVD-S830 96 Schm Ref. PART NO. Description Remarks Markets ✻ New Parts P.C.B. ✻ New Parts C4921 NX704170 C.POL 0.022uF 50V ECHR1H223JZ C4923 NX704170 C.POL 0.022uF 50V ECHR1H223JZ C4931 NX704170 C.POL 0.022uF 50V ECHR1H223JZ C4933 NX704170 C.POL 0.022uF 50V ECHR1H223JZ C5272 US135220 C.CE.CHP 0.22uF 16V C2031,32 US135100 C.CE.CHP 0.1uF 16V C2036 US135100 C.CE.CHP 0.1uF 16V C2038 US135100 C.CE.CHP 0.1uF 16V C3205 US135100 C.CE.CHP 0.1uF 16V GB C3208 US135100 C.CE.CHP 0.1uF 16V GB C5235,36 US135100 C.CE.CHP 0.1uF 16V C5274 US135100 C.CE.CHP 0.1uF 16V C6215 US135100 C.CE.CHP 0.1uF 16V * C5264 AAX44950 C.CE.CHP 0.018uF 16V ECJ1VB1C183K C2050 US034330 C.CE.M.CHP 0.033uF 16V C2034 US034390 C.CE.M.CHP 0.039uF 16V C5271 US063100 C.CE.M.CHP 1000pF 50V C5290 US063100 C.CE.M.CHP 1000pF 50V C2039 US064100 C.CE.M.CHP 0.01uF 50V C2047 US064100 C.CE.M.CHP 0.01uF 50V C3504 US064100 C.CE.M.CHP 0.01uF 50V C3531 US064100 C.CE.M.CHP 0.01uF 50V AR C3531,32 US064100 C.CE.M.CHP 0.01uF 50V GB C5282 US064100 C.CE.M.CHP 0.01uF 50V C5273 US063180 C.CE.CHP 1800pF 50V C5256 US063220 C.CE.M.CHP 2200pF 50V 1164690 C2056,57 US063270 C.CE.M.CHP 2700pF 50V C5291 US063270 C.CE.M.CHP 2700pF 50V C2066,67 US063470 C.CE.CHP 4700pF 50V C2055 US063680 C.CE.CHP 6800pF 50V C2035 US063820 C.CE.CHP 8200pF 50V C3722,23 US061100 C.CE.M.CHP 10pF 50V AR C2043 US062100 C.CE.M.CHP 100pF 50V C3520 US062100 C.CE.M.CHP 100pF 50V AR C3871-74 US062100 C.CE.M.CHP 100pF 50V GB C4331-37 US062100 C.CE.M.CHP 100pF 50V C5292 US062100 C.CE.M.CHP 100pF 50V C6212 US062100 C.CE.M.CHP 100pF 50V C2040 US063100 C.CE.M.CHP 1000pF 50V C2045,46 US063100 C.CE.M.CHP 1000pF 50V C2058 US063100 C.CE.M.CHP 1000pF 50V C2060 US063100 C.CE.M.CHP 1000pF 50V C2063-65 US063100 C.CE.M.CHP 1000pF 50V C4423-30 US063100 C.CE.M.CHP 1000pF 50V C6511 US061150 C.CE.CHP 15pF 50V C3054 US061220 C.CE.M.CHP 22pF 50V C4338 US061330 C.CE.M.CHP 33pF 50V C6251 UB446100 C.CE.CHP 1uF　　　 16V C2504-08 US035100 C.CE.M.CHP 0.1uF 16V C2510-13 US135100 C.CE.M.CHP 0.1uF 16V C5102,03 US135100 C.CE.M.CHP 0.1uF 16V C5123 US135100 C.CE.M.CHP 0.1uF 16V C5151 US135100 C.CE.M.CHP 0.1uF 16V C6803-14 US135220 C.CE.CHP 0.22uF 16V C3502,03 US064100 C.CE.M.CHP 0.01uF 50V C3533,34 US064100 C.CE.M.CHP 0.01uF 50V C3811 US064100 C.CE.M.CHP 0.01uF 50V GB C3821 US064100 C.CE.M.CHP 0.01uF 50V GB C3831 US064100 C.CE.M.CHP 0.01uF 50V GB C6031-34 US064100 C.CE.M.CHP 0.01uF 50V C6095 US064100 C.CE.M.CHP 0.01uF 50V C2003-20 US035100 C.CE.M.CHP 0.1uF 16V C2022-30 US035100 C.CE.M.CHP 0.1uF 16V * AAX44630 P.C.B. ASS'Y MODULE GB * AAX44640 P.C.B. ASS'Y MODULE AR * AAX44560 P.C.B. ASS'Y POWER GB * AAX44570 P.C.B. ASS'Y POWER A * AAX44580 P.C.B. ASS'Y POWER R * AAX44530 P.C.B. ASS'Y TERMINAL GB * AAX44540 P.C.B. ASS'Y TERMINAL A * AAX44550 P.C.B. ASS'Y TERMINAL R * AAX44520 P.C.B. ASS'Y SCART GB * AAX44590 P.C.B. ASS'Y FRONT 1 GB * AAX44600 P.C.B. ASS'Y FRONT 1 AR * AAX44610 P.C.B. ASS'Y FRONT 2 GB * AAX44620 P.C.B. ASS'Y FRONT 2 AR * AAX45650 P.C.B. ASS'Y INTERMEDIATE C1117 FX611470 C.EL 1000uF 6.3V ECA0JM102 C1121 UR829100 C.EL 1000uF 10V R C1125 FX611470 C.EL 1000uF 6.3V ECA0JM102 C3509 FX611470 C.EL 1000uF 6.3V ECA0JM102 C3511 FX611470 C.EL 1000uF 6.3V ECA0JM102 C3513 FX611470 C.EL 1000uF 6.3V ECA0JM102 AR C3501 UR818220 C.EL 220uF 6.3V C3515,16 UR818330 C.EL 330uF 6.3V AR C4312 NX703890 C.EL 470uF 10V ECA1APX471 * C4307-10 AAX44690 C.EL 47uF 16V ECA1CAD470XB C3581,82 NX702010 C.EL 220uF 16V ECA1CM221 C1133 UR848100 C.EL 100uF 25V C1143 UR848100 C.EL 100uF 25V C4902 UR848100 C.EL 100uF 25V C4913 UR848100 C.EL 100uF 25V C4922 UR848100 C.EL 100uF 25V C4932 UR848100 C.EL 100uF 25V C4924 UR848220 C.EL 220uF 25V C4934 UR848220 C.EL 220uF 25V * C1011 AAX44760 C.EL 10uF 450V ECA2WHG100B * C1012 AAX44770 C.EL 33uF 450V ECA2WHG330 C1032 FX612630 C.CE 120pF 1KV ECCZ3A121KGE R C3510 FX611590 C.EL 100uF 6.3V ECEA0JKS101 C3512 FX611590 C.EL 100uF 6.3V ECEA0JKS101 C3514 FX611590 C.EL 100uF 6.3V ECEA0JKS101 AR C3844 FX611590 C.EL 100uF 6.3V ECEA0JKS101 GB C3846 FX611590 C.EL 100uF 6.3V ECEA0JKS101 GB C3848 FX611590 C.EL 100uF 6.3V ECEA0JKS101 GB C6092 AAX26460 C.EL 47uF 6.3V ECEA0JKS470 C6101 AAX26460 C.EL 47uF 6.3V ECEA0JKS470 C6001 FX611600 C.EL 220uF 6.3V ECEA1AKS221 C3505 NX702060 C.EL 47uF 16V ECEA1CKA470 GB C3505-08 NX702060 C.EL 47uF 16V ECEA1CKA470 AR * C3861 AAX18310 C.EL 100uF 16V ECEA1CKS101 GB * C3845 AAX18320 C.EL 22uF 16V ECEA1CKS220 GB * C3847 AAX18320 C.EL 22uF 16V ECEA1CKS220 GB * C3849 AAX18320 C.EL 22uF 16V ECEA1CKS220 GB * C3801,02 AAX18330 C.EL 1uF 50V ECEA1HKS010 GB * C3841 AAX18330 C.EL 1uF 50V ECEA1HKS010 GB C6004 AAX26480 C.EL 10uF 50V ECEA1HKS100 C3901 UF008100 C.EL.CHP 100uF 4V AR C6801,02 UF008100 C.EL.CHP 100uF 4V C3720 UF017330 C.EL.CHP 33uF 6.3V AR C6201 UF017330 C.EL.CHP 33uF 6.3V C6501,02 UF017330 C.EL.CHP 33uF 6.3V C3080 UF118330 C.EL.CHP 330uF 6.3V AR C2502 UF038100 C.EL.CHP 100uF 16V C2503 UF037220 C.EL.CHP 22uF 16V C4302 NX704170 C.POL 0.022uF 50V ECHR1H223JZ Schm Ref. PART NO. Description Remarks Markets www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 DVD-S830 97 ✻ New Parts P.C.B. ✻ New Parts C2049 US035100 C.CE.M.CHP 0.1uF 16V C2052,53 US035100 C.CE.M.CHP 0.1uF 16V C2068 US035100 C.CE.M.CHP 0.1uF 16V C2073 US035100 C.CE.M.CHP 0.1uF 16V C2101,02 US035100 C.CE.M.CHP 0.1uF 16V C3003-36 US035100 C.CE.M.CHP 0.1uF 16V C3051,52 US035100 C.CE.M.CHP 0.1uF 16V C3061-67 US035100 C.CE.M.CHP 0.1uF 16V C3071,72 US035100 C.CE.M.CHP 0.1uF 16V C3081,82 US035100 C.CE.M.CHP 0.1uF 16V AR C3087-89 US035100 C.CE.M.CHP 0.1uF 16V AR C3101 US035100 C.CE.M.CHP 0.1uF 16V AR C3111 US035100 C.CE.M.CHP 0.1uF 16V AR C3116 US035100 C.CE.M.CHP 0.1uF 16V AR C3202-04 US035100 C.CE.M.CHP 0.1uF 16V GB C3206,07 US035100 C.CE.M.CHP 0.1uF 16V GB C3209-13 US035100 C.CE.M.CHP 0.1uF 16V GB C3221 US035100 C.CE.M.CHP 0.1uF 16V GB C3226 US035100 C.CE.M.CHP 0.1uF 16V GB C3231 US035100 C.CE.M.CHP 0.1uF 16V GB C3236 US035100 C.CE.M.CHP 0.1uF 16V GB C3241 US035100 C.CE.M.CHP 0.1uF 16V GB C3261 US035100 C.CE.M.CHP 0.1uF 16V AR C3703-19 US035100 C.CE.M.CHP 0.1uF 16V AR C3721 US035100 C.CE.M.CHP 0.1uF 16V AR C3724 US035100 C.CE.M.CHP 0.1uF 16V AR C3762-73 US035100 C.CE.M.CHP 0.1uF 16V AR C3902-07 US035100 C.CE.M.CHP 0.1uF 16V AR C3910 US035100 C.CE.M.CHP 0.1uF 16V AR C3916,17 US035100 C.CE.M.CHP 0.1uF 16V AR C3921 US035100 C.CE.M.CHP 0.1uF 16V AR C3926 US035100 C.CE.M.CHP 0.1uF 16V AR C3931 US035100 C.CE.M.CHP 0.1uF 16V AR C4207-10 US035100 C.CE.M.CHP 0.1uF 16V C4215 US035100 C.CE.M.CHP 0.1uF 16V C4217 US035100 C.CE.M.CHP 0.1uF 16V C4224-29 US035100 C.CE.M.CHP 0.1uF 16V C5203-05 US035100 C.CE.M.CHP 0.1uF 16V C5221 US035100 C.CE.M.CHP 0.1uF 16V C5232-34 US035100 C.CE.M.CHP 0.1uF 16V C6202-06 US035100 C.CE.M.CHP 0.1uF 16V C6211 US035100 C.CE.M.CHP 0.1uF 16V C6221 US035100 C.CE.M.CHP 0.1uF 16V C6261 US035100 C.CE.M.CHP 0.1uF 16V C6304,05 US035100 C.CE.M.CHP 0.1uF 16V C6503-05 US035100 C.CE.M.CHP 0.1uF 16V C6521 US035100 C.CE.M.CHP 0.1uF 16V C6815,16 US035100 C.CE.M.CHP 0.1uF 16V C1031 FX612780 C.CE 0.01uF 500V ECKD2H103PU R C1061 FG613100 C.CE 1000pF 50V R * C1051 FX612830 C.POL 0.01uF ECQB1H103JF R C1051 UA655100 C.MYLAR 0.1uF 50V 065269 AGB C1053 UA655100 C.MYLAR 0.1uF 50V 065269 C1041 UA654220 C.MYLAR 0.022uF 50V AGB C1102 UA654220 C.MYLAR 0.022uF 50V C1052 UA654680 C.MYLAR 0.068uF 50V 064989 * s C1001,02 AAX45550 C.SAFTY 0.1uF ECQU2A104MLC C1101 UA655100 C.MYLAR 0.1uF 50V 065269 AGB C2048 US064150 C.CE.M.CHP 0.015uF 50V C1115 UB215100 C.CE.M.CHP 0.1uF 25V C3803 UB215100 C.CE.M.CHP 0.1uF 25V GB C3842,43 UB215100 C.CE.M.CHP 0.1uF 25V GB C3862 UB215100 C.CE.M.CHP 0.1uF 25V GB C4313-21 UB215100 C.CE.M.CHP 0.1uF 25V C4431-33 UB215100 C.CE.M.CHP 0.1uF 25V C4587-89 UB215100 C.CE.M.CHP 0.1uF 25V C4753 UB215100 C.CE.M.CHP 0.1uF 25V C4782 UB215100 C.CE.M.CHP 0.1uF 25V C6005 UB215100 C.CE.M.CHP 0.1uF 25V C6012 UB215100 C.CE.M.CHP 0.1uF 25V C6061 UB215100 C.CE.M.CHP 0.1uF 25V C6091 UB215100 C.CE.M.CHP 0.1uF 25V C6512 US060800 C.CE.CHP 8pF 50V C5262 US062180 C.CE.CHP 180P 50V C2041,42 US062330 C.CE.M.CHP 330pF 50V C2061,62 US062330 C.CE.M.CHP 330pF 50V C5299 US062330 C.CE.M.CHP 330pF 50V C2044 US062390 C.CE.CHP 390P 50V C5254 US062390 C.CE.CHP 390P 50V C6252 US062470 C.CE.M.CHP 470pF 50V C5283 US062560 C.CE.CHP 560pF 50V C2051 US061680 C.CE.CHP 68pF 50V C2054 US062680 C.CE.M.CHP 680pF 50V C3524 UB051820 C.CE.M.CHP 82pF 50V AR C2059 US062820 C.CE.CHP 820pF 50V C2501 UF118220 C.EL.CHP 220uF 6.3V C2509 UF037100 C.EL.CHP 10uF 16V C2001,02 UF018100 C.EL.CHP 100uF 6.3V C2021 UF018100 C.EL.CHP 100uF 6.3V C3100 UF018100 C.EL.CHP 100uF 6.3V AR C3201 UF018100 C.EL.CHP 100uF 6.3V GB C3220 UF018100 C.EL.CHP 100uF 6.3V GB C3920 UF018100 C.EL.CHP 100uF 6.3V AR C6257 UF018100 C.EL.CHP 100uF 6.3V C5201 UF017330 C.EL.CHP 33uF 6.3V C5111 UF017470 C.EL.CHP 47uF 6.3V EEVHB0J470R C5115 UF017470 C.EL.CHP 47uF 6.3V EEVHB0J470R C5101 UF037100 C.EL.CHP 10uF 16V * C1021 AAX44810 C.CE VCK0106K221T F1B3D221A002 C3083-86 UB446100 C.CE.CHP 1uF　　　 16V C1062 UR818330 C.EL 330uF 6.3V R C4781 UR817470 C.EL 47uF 6.3V C1111 UR829100 C.EL 1000uF 10V R C1112 UR829100 C.EL 1000uF 10V R C1114 UR829220 C.EL 2200uF 10V R C1131 UR848220 C.EL 220uF 25V C1141 UR848220 C.EL 220uF 25V * C4419-22 AAX44700 C.EL 47uF 25V F2A1E470A205 * C4751,52 AAX44700 C.EL 47uF 25V F2A1E470A205 C1041 UR857470 C.EL 47uF 35V R C4216 UF018100 C.EL.CHP 100uF 6.3V C4230-33 UF017330 C.EL.CHP 33uF 6.3V C3001,02 UF118330 C.EL.CHP 330uF 6.3V C3701,02 UF118330 C.EL.CHP 330uF 6.3V AR C4222,23 UF118330 C.EL.CHP 330uF 6.3V C3073 UF037100 C.EL.CHP 10uF 16V C3761 UF037100 C.EL.CHP 10uF 16V AR C4211 UF037100 C.EL.CHP 10uF 16V C4213 UF037100 C.EL.CHP 10uF 16V C4219,20 UF037100 C.EL.CHP 10uF 16V C5202 UF037100 C.EL.CHP 10uF 16V C6253 UF037100 C.EL.CHP 10uF 16V C6262 UF037100 C.EL.CHP 10uF 16V C5152 UF037100 C.EL.CHP 10uF 16V * C4414-17 AAX44710 C.EL 47uF 6.3V VCEA0JAE470B C1112 UR829100 C.EL 1000uF 10V R C1116 UR828220 C.EL 220uF 10V Schm Ref. PART NO. Description Remarks Markets Schm Ref. PART NO. Description Remarks Markets www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 DVD-S830 98 ✻ New Parts P.C.B. ✻ New Parts C1111 UR829100 C.EL 1000uF 10V R C1121 UR829100 C.EL 1000uF 10V R * C1171 AAX44750 C.EL 180uF 10V VCEA1AJH181B C1154 UR838220 C.EL 220uF 16V 045291 * C4311 AAX44720 C.EL 100uF 25V VCEA1EAE101B * C4322-24 AAX44720 C.EL 100uF 25V VCEA1EAE101B C1153 UR848220 C.EL 220uF 25V * C1151 AAX44730 C.EL 270uF 25V VCEA1EJH271B * C1161 AAX44740 C.EL 56uF 50V VCEA1HJH560B * C1031 AAX44820 C.CE 1800pF 500V VCK0266K182T AGB s C1003 NX702590 C.CE VCK0286B471 VCK0286B471 s C1005 NX702600 C.CE VCK0286E102 VCK0286E102 s D1002 iX636910 IC ENC471D5A ENC471D5A * s D1011 AAX44840 DIODE S1WABAB0-4062 B0EBKT000002 * D1022 AAX44930 DIODE RD100E-TB RD100E-TB R D1031 iX637340 DIODE AP01C AP01C D1041 iX636960 DIODE AU01Z AU01Z * D1042 AAX44910 DIODE MA7300B-TR MAZ73000BC R D1051 iX634180 DIODE 1SS254 1SS254 A * D1051 AAX44850 DIODE MA165TA5VT MA2C165001VT R D1051,52 iX634180 DIODE 1SS254 1SS254 GB D1052 iX634180 DIODE 1SS254 1SS254 A * D1052 AAX44850 DIODE MA165TA5VT MA2C165001VT R * D1053 AAX44880 DIODE MA4022-LTA MA4022LTA AGB D1054 iX636960 DIODE AU01Z AU01Z * D1061 AAX44860 DIODE MA700-TA MA2C70000F R * D1062 AAX44900 DIODE MA4200-HTA MAZ42000HF R D1101 AAX27040 DIODE MAZ70750AC MAZ70750AC D1111 iX636940 DIODE 21DQ06FC4 21DQ06FC4 AGB D1111 NX702700 DIODE MA7D55 MA7D55 R D1121 iX636940 DIODE 21DQ06FC4 21DQ06FC4 D1126 AAX27000 DIODE 11ES1TA1 B0EAKL000031 D1131 iX637330 DIODE.SHOT 11EQS10TA1 11EQS10TA1 * D1132 AAX44890 DIODE MA7180A-TR MA7180A-TR D1141 iX637330 DIODE.SHOT 11EQS10TA1 11EQS10TA1 D1151,52 iX637330 DIODE.SHOT 11EQS10TA1 11EQS10TA1 D1161 iX636960 DIODE AU01Z AU01Z * D1162 AAX44920 DIODE MAZ80300HL MAZ80300HL D1171 iX636950 DIODE AK04 AK04 D1172 AAX27000 DIODE 11ES1TA1 B0EAKL000031 D1173 iX636950 DIODE AK04 AK04 R D3071 AAX34220 DIODE MA2J11100L MA2J11100L * D3851 AAX44870 DIODE MA152A-TX MA3X152A0L GB D4301 AAX36550 DIODE MA8047M MA8047M * D4921 AAX44830 DIODE ISS355 TE-17 B0ACCK000005 * D4931 AAX44830 DIODE ISS355 TE-17 B0ACCK000005 D5151 AAX34230 DIODE MA2J72800L MA2J72800L D6091 AAX36540 DIODE MA4039HTA MA4039HTA D6101,02 AAX27770 LED AMBER VIDEO OFF LNJ401NPYJA D6103 NX701880 LED LNJ201LPQJA LNJ201LPQJA D6151 AAX27770 LED AMBER VIDEO OFF LNJ401NPYJA AR D6215 AAX34230 DIODE MA2J72800L MA2J72800L * DL6001 AAX45580 FL.DSPLY FV779GN A2BB00000103 * s F1001 AAX45320 FUSE T1.6A 250V K5D162BK0005　 IC1021 iX637320 IC STRM6559LF STRM6559LF R * IC1101 AAX44320 IC MM1431ATT C0DAEMZ00001 * IC1125 AAX44330 IC PQ070VK01FZ C0DAEZG00010 * IC1151 AAX44310 IC PQO9DZ1M C0CBCHG00003 IC2001 AAX26200 IC MN103S26EGA MN103S26EGA IC2101 AAX26100 IC SN74AHC1G66H C0JBAS000116 * IC2501 AAX44360 IC MOTOR DRIVE C0GBG0000033 IC3001 AAX26220 IC MN677531KA MN677531KA * IC3061 AAX44420 IC 64M-SDRAM C3ABPG000121 IC3071 AAX26040 IC PQ1K333M2ZP C0CBCBD00002 IC3201 AAX26110 IC ADV7190KST C0ZBZ0000459 GB * IC3261 AAX44390 IC BU4053BCFV-E1 C0JBAR000290 AR IC3501 AAX36160 IC BH7865FS-E2 C9ZB00000394 GB * IC3501 AAX44440 IC BH7862FS-E2 C9ZB00000377 AR * IC3581 AAX44470 IC NJM78M05FA NJM78M05FA IC3701 AAX34170 IC FLI2200 C1AB00001554 AR IC3761 AAX34190 IC K4S643232E-TC601 C3ABPJ000018 AR * IC3801 AAX44400 IC MN1508XNRE C1AB00001466 GB * IC3841 AAX44380 IC MC14053BFEL C0JBAR000245 GB * IC3842 AAX44290 IC BA7660FS-E2 BA7660FS-E2 GB * IC3851 AAX44500 IC XN4601TX XN4601TX GB * IC3901 AAX44410 IC ADV7199KS C1AB00001499 AR * IC4211 AAX44350 IC PCM1609KPTR C0FBBK000031 IC4301-04 iX636760 IC NJM4580M NJM4580M * IC4305 AAX44300 IC NJM78L05A C0CAADC00008 * IC5201 AAX44280 IC AN22030A-VT AN22030A-VT * IC6001 AAX44450 IC MN101C35DCW MN101C35DCW IC6011 AAX16120 IC PST9327UR PST9327UR IC6101 AAX36100 IC GP1UD282RK B3RAD0000037 IC6201 AAX26190 IC MN102H60GFB MN102H60GFB IC6211 AAX03570 IC PST596JNR PST596JNR * IC6221 AAX44430 IC BR24C16F-E2 C3EBGC000033 IC6251 AAX34150 IC MM1563DFBE1 C0CBCBE00001 * IC6261 AAX44340 IC PQ018EZ01ZP C0DBFFG00004 * IC6301 AAX44480 IC 16M FLASH ROM RFKFRP65D160 * IC6521 AAX44370 IC AHC1GU04HDCK C0JBAB000356 IC6561 AAX34180 IC BU2286FV-E2 C1DB00000582 * IC6801 AAX44460 IC MN5B00 MN5B00 * IC6802 AAX44490 IC TC7SH32FUTL TC7SH32FUTL * J3871 AAX44780 JACK SCART TERMINAL K1FB121B0004 GB * JK4501 AAX44790 JACK LAP5130 K2YZ09000007 GB * JK4751 AAX44800 JACK YKC21 K4BK01H00002 GB s P1001 AAX36430 AC INLET HSC0609 K2AA2B000004 s PR1161 AAX04040 IC.PRT VSF0015A025 s PR1171 KX604710 IC.PRT VSF0015A10 PR4911,12 KX604710 IC.PRT VSF0015A10 * s Q1021 AAX45110 TR 2SC4908 2SC4908LF654 * s Q1051 AAX45210 TR RS2561L2-1-V-E3 W4 B3PBA0000104 * Q1052 AAX45170 TR 2SD1996 2SD1996STA Q1115 AAX36600 TR CPH6315-TL B1DHCC000029 * Q2001 AAX45130 TR 2SD1819 2SD1819A0L * Q3101 AAX45090 TR 2SB1218 2SB1218ARL AR * Q3111 AAX45090 TR 2SB1218 2SB1218ARL AR * Q3116 AAX45090 TR 2SB1218 2SB1218ARL AR * Q3221 AAX45090 TR 2SB1218 2SB1218ARL GB * Q3226 AAX45090 TR 2SB1218 2SB1218ARL GB * Q3231 AAX45090 TR 2SB1218 2SB1218ARL GB * Q3236 AAX45090 TR 2SB1218 2SB1218ARL GB * Q3241 AAX45090 TR 2SB1218 2SB1218ARL GB * Q3811 AAX45180 TR 2SD601A 2SD601A-RSTX GB * Q3821 AAX45180 TR 2SD601A 2SD601A-RSTX GB * Q3831 AAX45180 TR 2SD601A 2SD601A-RSTX GB * Q3851 AAX45180 TR 2SD601A 2SD601A-RSTX GB * Q3921 AAX45070 TR 2SA1532 2SA15320XL AR * Q3926 AAX45070 TR 2SA1532 2SA15320XL AR * Q3931 AAX45070 TR 2SA1532 2SA15320XL AR * Q4302 AAX45180 TR 2SD601A 2SD601A-RSTX * Q4315 AAX45180 TR 2SD601A 2SD601A-RSTX * Q4410 AAX45120 TR 2SD1328 2SD132800L * Q4411,12 AAX45180 TR 2SD601A 2SD601A-RSTX GB * Q4413,14 AAX45120 TR 2SD1328 2SD132800L * Q4415-18 AAX45180 TR 2SD601A 2SD601A-RSTX Schm Ref. PART NO. Description Remarks Markets Schm Ref. PART NO. Description Remarks Markets www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 DVD-S830 99 ✻ New Parts P.C.B. ✻ New Parts * Q4419 AAX45120 TR 2SD1328 2SD132800L * Q4751 AAX45180 TR 2SD601A 2SD601A-RSTX * Q4901 AAX45140 TR 2SD1862 2SD1862QRTV2 * Q4911 AAX45100 TR 2SB1240 2SB1240PRTV2 * Q4921 AAX45190 TR 2SK170V B1CACE000006 * Q4931 AAX45200 TR 2SJ74V B1CCCC000003 * Q5111 AAX45080 TR 2SB1115 2SB1115-T * Q5115 AAX45080 TR 2SB1115 2SB1115-T * Q5271 AAX45220 TR UNR5211 UNR521100L * Q6091 AAX45150 TR 2SD1992 2SD1992ARS * Q6095 AAX45160 TR 2SD1996 2SD19960HA * QR1115 AAX45030 TR.DGT UNR2213 UNR221300L * QR3261 AAX45010 TR.DGT UN5212 UN5212-TX AR QR3501 iX635550 TR.DGT UN2212 UN2212 AR QR3521 iX635550 TR.DGT UN2212 UN2212 QR3523 iX635550 TR.DGT UN2212 UN2212 AR QR3841,42 iX635550 TR.DGT UN2212 UN2212 QR3851,52 iX635550 TR.DGT UN2212 UN2212 QR3853 iX637130 TR.DGT UN2111 UN2111 GB * QR4301,02 AAX45020 TR.DGT UNR2211 UNR221100L QR4304 iX637130 TR.DGT UN2111 UN2111 QR4316 iX637130 TR.DGT UN2111 UN2111 * QR4317 AAX45020 TR.DGT UNR2211 UNR221100L * QR4901 AAX44980 TR.DGT UN2114 UN2114TX * QR4902,03 AAX44990 TR.DGT UN2114 UN2214TX * QR4904 AAX44980 TR.DGT UN2114 UN2114TX QR5221 AAX16160 TR.DGT UN2121 UN2121 * QR5241 AAX45000 TR.DGT UN511 UN511MTX * QR6052 AAX44970 TR.DGT DTA123JK-T96 B1GDCFEM0002 * QR6055,56 AAX44970 TR.DGT DTA123JK-T96 B1GDCFEM0002 AR * QR6101,02 AAX44960 TR.DGT DTA123JK-T96 B1GBCFEL0002 * QR6215 AAX45010 TR.DGT UN5212 UN5212-TX * R5112 AAX45710 R.CAR.CHP 27Ω 1/2W ERJ12YJ270H * R5116 AAX45710 R.CAR.CHP 27Ω 1/2W ERJ12YJ270H * s R1002 AAX45720 R.MTL.OXD 330KΩ 1/2W ERC12AGM334C R1052 HV753220 R.CAR.FP 2.2Ω 1/4W R1031 HV758220 R.CAR.FP 220KΩ 1/4W AGB R1032 HV758220 R.CAR.FP 220KΩ 1/4W AGB R1041 HV758220 R.CAR.FP 220KΩ 1/4W R R1042 HV758220 R.CAR.FP 220KΩ 1/4W R R1063 HV758220 R.CAR.FP 220KΩ 1/4W R R1054 HV754680 R.CAR.FP 68Ω 1/4W R1051 AAX15780 R.CAR.FP 75Ω 1/4W ERDS2TJ750 GB * R1021 HL214820 R.MTL.OXD 82Ω 1W R * R1043 HL224680 R.MTL.OXD 68Ω 2W GB R1022,23 HV455470 R.CAR.FP 470Ω 1/4W ERDS2FJ471 R R1041 HV458330 R.CAR.FP 330KΩ 1/4W ERDS2FJ334 AGB R1042 HV458330 R.CAR.FP 330KΩ 1/4W ERDS2FJ334 AGB * R1044 NX703640 R.CAR.FP 3.9MΩ 1/2W ERDS1TJ395 R * R1045 NX703650 R.CAR.FR 4.7MΩ 1/2W ERDS1TJ475 R * R1051 HV456180 R.CAR.FP 1.8KΩ 1/4W ERDS2FJ182 R R1053 HV455330 R.CAR.FP 330Ω 1/4W ERDS2FJ331 R1061 HV456150 R.CAR.FP 1.5KΩ 1/4W ERDS2FJ152 R R1062 HV455100 R.CAR.FP 100Ω 1/4W ERDS2FJ101 R R1064 HV457100 R.CAR.FP 10KΩ 1/4W ERDS2FJ103 R * R1031 AAX07250 R.MTL 39KΩ 1W ERG1SJ393 R R1043 NX703610 R.MTL.FLM 10Ω 1/2W ERG12SJ100 R S6101 KX604670 SW EVQ11G07K S6151 KX604670 SW EVQ11G07K S6152 KX604670 SW EVQ11G07K S6153 KX604670 SW EVQ11G07K S6154 KX604670 SW EVQ11G07K S6155 KX604670 SW EVQ11G07K Schm Ref. PART NO. Description Remarks Markets Schm Ref. PART NO. Description Remarks Markets S6156 KX604670 SW EVQ11G07K S6157 KX604670 SW EVQ11G07K AR * SW2501 AAX44940 SW RSH1A048-A RSH1A048-A * s T1021 AAX28030 TRANS ETS29AS136AC GB * s T1021 AAX45660 TRANS ETS29AD4S6AC R * s T1021 AAX28030 TRANS ETS29AS136AC A X6001 AAX27620 RSNR.CE RSXY8M00M06T RSXY8M00M06T GB * X6501 AAX45610 RSNR.CE VSX1044 36.864MHz H0J368500003 GB * X6501 AAX45620 RSNR.CE VSX1044 36.864MHz H0J368600005 AR s ZA1001,02 AX624190 HOLDER.FUS EYF52BC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 DVD-S830 100 I EXPLODED VIEW 9 202 203 9 26 23 24 26 200 200-1 21 21 11 11 21 21 2 27 39 17 17-4 17-3 17-5 18-1 18-2 17-6 17-2 17-1 21 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 101 ✻ New Parts Ref. No. PART NO. Description Remarks Markets * 27 AAX45250 TRAY LID GD RYF0657-N * 27 AAX45240 TRAY LID BL RYF0657-K * 27 AAX45230 TRAY LID TI RYF0657-H * 28 AAX44650 PCB HOLDER RMR1440-X GB * 29 AAX44260 FFC(19P) 19P REZ1464 GB * 30 AAX44270 FFC SHEET RGQ0341-K * 38 AAX45630 INSULATION SHEET RMZ0659 * 39 AAX45310 BARRIER RMZ0662 ACCESORRIES * 200 V9756400 REMOTE CONTROL N2QAJB000064 * 200-1 AAX45670 BATTERY COVER HTR028072002 202 MX605180 AUDIO VIDEO CABLE VJA0788 GB * 202 AAX45540 AUDIO VIDEO CABLE K2KA6CA00001 AR * s 203 AAX42070 POWER CABLE 1.9m RJA0035-2X A * s 203 AAX42060 POWER CABLE 1.9m RJA0019-2X GR * s 203 AAX42080 POWER CABLE 1.9m RJA0053-3X B BATTERY I MECHANICAL PARTS ✻ New Parts Ref. No. PART NO. Description Remarks Markets * 1 AAX45060 TOP COVER GD RKM0478-N * 1 AAX45050 TOP COVER BL RKM0478-K * 1 AAX45040 TOP COVER TI RKM0478-H 2 EX603920 BIND HEAD BONDING B-T. SCREW 3x8 MFZN2BL VHD0690 3 EX603960 SPECIAL SCREW 3x8 GD, TI VHD1094 3 EX603940 SPECIAL SCREW 3x8 BL VHD1041 * 4 AAX44630 P.C.B. ASS'Y MODULE REP3402E GB * 4 AAX44640 P.C.B. ASS'Y MODULE REP3438E AR * 5-1 AAX44560 P.C.B. ASS'Y POWER REP3389HA GB * 5-1 AAX44570 P.C.B. ASS'Y POWER REP3389JA A * 5-1 AAX44580 P.C.B. ASS'Y POWER REP3421DA R * 5-2 AAX44530 P.C.B. ASS'Y TERMINAL REP3389HB GB * 5-2 AAX44540 P.C.B. ASS'Y TERMINAL REP3389JB A * 5-2 AAX44550 P.C.B. ASS'Y TERMINAL REP3421DB R * 5-3 AAX44520 P.C.B. ASS'Y SCART REP3389CC GB * 7 AAX45330 FOOT RUBBER RKA0137-K * 8 AAX45300 PAN HEAD P-TITE SCREW 3x6 MFZN2Y XTV3+6G * 9 AAX45570 FOOT GD VYK8895 * 9 AAX45560 FOOT BL,TI RYQ0398-H * 10 AAX45520 REAR PANEL RGR0330C-C GB * 10 AAX45500 REAR PANEL RGR0330B-F A * 10 AAX45510 REAR PANEL RGR0330B-G R 11 EX604060 PAN HEAD B-TITE SCREW 3x8 MFZN2Y XTV3+8J * 12 AAX44510 PCB SUPPORT RMR1359-W 13 AAX36630 PAN HEAD SEMS S-TITE SCREW 3x8 MFZN2Y VHD1403 * 14 AAX44240 FFC(50P) 50P REZ1462 15 AAX26750 CONNECTOR CABLE 2P P6005-mecha REX1057 * 16 AAX44250 FFC(22P) 22P REZ1463 * 17 AAX45370 FRONT PANEL ASS'Y GD RYP1159A-N * 17 AAX45350 FRONT PANEL ASS'Y BL RYP1159-K GB * 17 AAX45360 FRONT PANEL ASS'Y BL RYP1159A-K A * 17 AAX45340 FRONT PANEL ASS'Y TI RYP1159-H * 17-1 AAX45440 BUTTON, OPERATION GD RGU2163A-N * 17-1 AAX45420 BUTTON, OPERATION BL RGU2163-K GB * 17-1 AAX45430 BUTTON, OPERATION BL RGU2163A-K A * 17-1 AAX45410 BUTTON, OPERATION TI RGU2163-H * 17-2 AAX45400 BUTTON, OPEN/CLOSE GD RGU2164-N * 17-2 AAX45390 BUTTON, OPEN/CLOSE BL RGU2164-K * 17-2 AAX45380 BUTTON, OPEN/CLOSE TI RGU2164-H * 17-3 AAX45470 BUTTON, POWER GD RGU2165-N * 17-3 AAX45460 BUTTON, POWER BL RGU2165-K * 17-3 AAX45450 BUTTON, POWER TI RGU2165-H * 17-4 AAX45680 LIGHTING PIECES(A) STANDBY/ON RGL0613-Q * 17-5 AAX45700 LIGHTING PIECES(C) VIDEO, MULTI RGL0615-Q * 17-6 AAX45690 LIGHTING PIECES(B) PROGRESSIVE ON RGL0614-Q AR * 18-1 AAX44590 P.C.B. ASS'Y FRONT 1 REP3456AA GB * 18-1 AAX44600 P.C.B. ASS'Y FRONT 1 REP3456BA AR * 18-2 AAX44610 P.C.B. ASS'Y FRONT 2 REP3456AB GB * 18-2 AAX44620 P.C.B. ASS'Y FRONT 2 REP3456BB AR 21 XX700860 BIND HEAD B-TITE SCREW 2.6x10 MFZN2Y XTBS26+10J * 23 AAX44660 EARTH PLATE(C) RMC0515 * 24 AAX45290 BIND HEAD SCREW 3x4 MFZN2Y XTB3+4F 26 AAX36340 EARTH PLATE B RMC0468 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 DVD-S830 6 102 I DVD-MECHANISM EXPLODED VIEW I DVD-MECHANISM PARTS ✻ New Parts Ref. No. PART NO. Description Remarks Markets 101 AAX36320 SPINDLE MOTOR ASS'Y RXQ1015 103 AAX27590 FIXED PIN RMS0712 * 106 AAX45650 P.C.B. ASS'Y INTERMEDIATE REP3406AN 106-1 AAX26260 PCB RUBBER RMG0558K * 107 AAX45280 SCREW RHD20060 108 AAX27340 FLOATING RUBBER RMG0545A 112 AAX26280 TRAVERSE GEAR(A) RDG0499 113 AAX27270 ADJUST SPRING HOLDER1 RMC0415 116 AAX27680 ADJUST SPRING RME0320 119 AAX26320 TRAVERSE DRIVE RACK RMM0251 120 AAX27170 DRIVE SHAFT RMS0710 121 AAX26360 GUIDE SHAFT RMS0711 * 122 AAX45270 SCREW RHD17045 123 AAX04350 SCREW VHD1224 124 AAX26290 TRAVERSE GEAR(B) RDG0500 125 AAX26300 TRAVERSE GEAR(C) RDG0501 126 AAX26310 TRAVERSE GEAR SPRING RME0319 128 AAX27140 TRAY RGQ0280K3 * 129 AAX45490 MECHA CHASSIS ASS'Y RXQ0727 129-1 AAX27250 SCREW XTW3+12S 129-2 AAX26350 OPEN SWITCH RSH1A049U * 130 AAX04650 MAGNET JSM0048 * 131 AAX44680 CLAMP PLATE RMR1445K * 132 AAX45480 MAGNET HOLDER RMR1447X * 133 AAX45600 WASHER XWG6FFY * 134 AAX44670 CLAMPER RMR1446X * 138 AAX45590 OPTICAL PICK-UP RAF3023A * 139 AAX45640 INTERFACE FPC RJB2308A 141 AAX26370 CUSHION RUBBER RMG0561T * 146 AAX45260 SCREW RHD14108 147 AAX25940 FG P.C.B. REP3081A w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 103 DVD-S830 Value 1/10W Type Part No. 0 Ω RD35 0000 1.0 Ω RD35 3100 2.2 Ω RD35 3220 2.4 Ω RD35 3240 4.7 Ω RD35 3470 10 Ω RD35 4100 22 Ω RD35 4220 27 Ω RD35 4270 33 Ω RD35 4330 39 Ω RD35 4390 43 Ω RD35 4430 47 Ω RD35 4470 51 Ω RD35 4510 62 Ω RD35 4620 68 Ω RD35 4680 75 Ω RD35 4750 82 Ω RD35 4820 91 Ω RD35 4910 100 Ω RD35 5100 120 Ω RD35 5120 130 Ω RD35 5130 150 Ω RD35 5150 180 Ω RD35 5180 200 Ω RD35 5200 220 Ω RD35 5220 240 Ω RD35 5240 270 Ω RD35 5270 300 Ω RD35 5300 330 Ω RD35 5330 390 Ω RD35 5390 430 Ω RD35 5430 470 Ω RD35 5470 510 Ω RD35 5510 560 Ω RD35 5560 620 Ω RD35 5620 680 Ω RD35 5680 820 Ω RD35 5820 910 Ω RD35 5910 1 kΩ RD35 6100 1.1 kΩ RD35 6110 1.2 kΩ RD35 6120 1.3 kΩ RD35 6130 1.5 kΩ RD35 6150 1.6 kΩ RD35 6160 1.8 kΩ RD35 6180 2 kΩ RD35 6200 2.2 kΩ RD35 6220 2.4 kΩ RD35 6240 2.7 kΩ RD35 6270 3 kΩ RD35 6300 3.3 kΩ RD35 6330 3.6 kΩ RD35 6360 3.9 kΩ RD35 6390 Value 1/10W Type Part No. 4.3 kΩ RD35 6430 4.7 kΩ RD35 6470 5.1 kΩ RD35 6510 5.6 kΩ RD35 6560 6.2 kΩ RD35 6620 6.8 kΩ RD35 6680 7.5 kΩ RD35 6750 8.2 kΩ RD35 6820 9.1 kΩ RD35 6910 10 kΩ RD35 7100 11 kΩ RD35 7110 12 kΩ RD35 7120 13 kΩ RD35 7130 15 kΩ RD35 7150 16 kΩ RD35 7160 18 kΩ RD35 7180 20 kΩ RD35 7200 22 kΩ RD35 7220 24 kΩ RD35 7240 27 kΩ RD35 7270 30 kΩ RD35 7300 33 kΩ RD35 7330 36 kΩ RD35 7360 39 kΩ RD35 7390 43 kΩ RD35 7430 47 kΩ RD35 7470 51 kΩ RD35 7510 56 kΩ RD35 7560 62 kΩ RD35 7620 68 kΩ RD35 7680 75 kΩ RD35 7750 82 kΩ RD35 7820 91 kΩ RD35 7910 100 kΩ RD35 8100 120 kΩ RD35 8120 150 kΩ RD35 8150 160 kΩ RD35 8160 180 kΩ RD35 8180 200 kΩ RD35 8200 220 kΩ RD35 8220 270 kΩ RD35 8270 300 kΩ RD35 8300 330 kΩ RD35 8330 390 kΩ RD35 8390 430 kΩ RD35 8430 470 kΩ RD35 8470 510 kΩ RD35 8510 680 kΩ RD35 8680 1 MΩ RD35 9100 1.5 MΩ RD35 9150 2.2 MΩ RD35 9220 4.7 MΩ RD35 9470 10 MΩ RD35 A100 Value 1/16W Type Part No. 0 Ω HX61 1040 1 Ω HX61 0750 10 Ω HX61 1160 47 Ω HX61 1150 100 Ω HX61 0900 220 Ω HX61 0960 270 Ω HX61 1120 390 Ω HX61 0990 470 Ω HX61 0890 560 Ω HX61 1010 1 kΩ HX61 0910 1.2 kΩ HX61 1100 1.5 kΩ HX61 1090 1.8 kΩ HX61 1050 2.7 kΩ HX61 1140 3.3 kΩ HX61 0980 4.7 kΩ HX61 1080 6.8 kΩ HX61 1030 10 kΩ HX61 0920 12 kΩ HX61 0780 15 kΩ HX61 0950 18 kΩ HX61 0770 22 kΩ HX61 1110 27 kΩ HX61 1130 30 kΩ HX61 0810 47 kΩ HX61 1060 56 kΩ HX61 1020 62 kΩ HX61 0790 82 kΩ HX61 1170 100 kΩ HX61 0930 120 kΩ HX61 0940 220 kΩ HX61 0970 390 kΩ HX61 1000 560 kΩ HX61 1010 1 MΩ HX61 1070 Parts List for Chip Carbon Resistors www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-S830 104 DVD-S830 10mm HJ35 1/4W Type 5mm HF85 1/6W Type HF45 1/4W Type Value 1/4W Type Part No. 1/6W Type Part No. 10 kΩ HF45 7100 HF45 7100 11 kΩ HF45 7110 HF45 7110 12 kΩ HJ35 7120 HF85 7120 13 kΩ HF45 7130 HF45 7130 15 kΩ HF45 7150 HF45 7150 18 kΩ HF45 7180 HF45 7180 22 kΩ HF45 7220 HF45 7220 24 kΩ HF45 7240 HF45 7240 27 kΩ HJ35 7270 HF85 7270 30 kΩ HF45 7300 HF45 7300 33 kΩ HF45 7330 HF45 7330 36 kΩ HF45 7360 HF45 7360 39 kΩ HF45 7390 HF45 7390 47 kΩ HF45 7470 HF45 7470 51 kΩ HF45 7510 HF45 7510 56 kΩ HF45 7560 HF45 7560 62 kΩ HF45 7620 HF45 7620 68 kΩ HF45 7680 HF45 7680 82 kΩ HF45 7820 HF45 7820 91 kΩ HF45 7910 HF45 7910 100 kΩ HF45 8100 HF45 8100 110 kΩ HF45 8110 HF45 8110 120 kΩ HF45 8120 HF45 8120 150 kΩ HF45 8150 HF45 8150 180 kΩ HF45 8180 HF45 8180 220 kΩ HJ35 8220 HF85 8220 270 kΩ HF45 8270 HF45 8270 300 kΩ HF45 8300 HF45 8300 330 kΩ HF45 8330 HF45 8330 390 kΩ HJ35 8390 HF85 8390 470 kΩ HF45 8470 HF45 8470 560 kΩ HJ35 8560 HF85 8560 680 kΩ HJ35 8680 HF85 8680 820 kΩ HJ35 8820 HF85 8820 1.0 MΩ HF45 9100 HF45 9100 1.2 MΩ HJ35 9120 ❊ 1.5 MΩ HJ35 9150 HF85 9150 1.8 MΩ HJ35 9180 HF85 9180 2.2 MΩ HJ35 9220 HF85 9220 3.3 MΩ HJ35 9330 HF85 9330 3.9 MΩ HJ35 9390 ❊ 4.7 MΩ HJ35 9470 HF85 9470 Value 1/4W Type Part No. 1/6W Type Part No. 1.0 Ω HJ35 3100 HF85 3100 1.8 Ω HJ35 3180 ❊ 2.2 Ω HJ35 3220 HF85 3220 3.3 Ω HJ35 3330 HF85 3330 4.7 Ω HJ35 3470 HF85 3470 5.6 Ω HJ35 3560 HF85 3560 10 Ω HF45 4100 HF45 4100 15 Ω HJ35 4150 HF85 4150 22 Ω HF45 4220 HF45 4220 27 Ω HJ35 4270 HF85 4270 33 Ω HF45 4330 HF45 4330 39 Ω HJ35 4470 HF85 4390 47 Ω HF45 4470 HF45 4470 56 Ω HF45 4560 HF45 4560 68 Ω HF45 4680 HF45 4680 75 Ω HF45 4750 HF45 4750 82 Ω HF45 4820 HF45 4820 91 Ω HF45 4910 HF45 4910 100 Ω HF45 5100 HF45 5100 110 Ω HJ35 5110 HF85 5110 120 Ω HF45 5120 HF45 5120 150 Ω HF45 5150 HF45 5150 160 Ω HJ35 5160 ❊ 180 Ω HF45 5180 HF45 5180 200 Ω HF45 5200 HF45 5200 220 Ω HF45 5220 HF45 5220 270 Ω HF45 5270 HF45 5270 330 Ω HF45 5330 HF45 5330 390 Ω HF45 5390 HF45 5390 430 Ω HF45 5430 HF45 5430 470 Ω HF45 5470 HF45 5470 510 Ω HF45 5510 HF45 5510 560 Ω HF45 5560 HF45 5560 680 Ω HF45 5680 HF45 5680 820 Ω HF45 5820 HF45 5820 910 Ω HF45 5910 HF45 5910 1.0 kΩ HF45 6100 HF45 6100 1.2 kΩ HF45 6120 HF45 6120 1.5 kΩ HF45 6150 HF45 6150 1.8 kΩ HF45 6180 HF45 6180 2.0 kΩ HJ35 6200 HF85 6200 2.2 kΩ HF45 6220 HF45 6220 2.4 kΩ HJ35 6240 HF85 6240 2.7 kΩ HF45 6270 HF45 6270 3.0 kΩ HF45 6300 HF45 6300 3.3 kΩ HF45 6330 HF45 6330 3.6 kΩ HJ35 6360 HF85 6360 3.9 kΩ HF45 6390 HF45 6390 4.7 kΩ HF45 6470 HF45 6470 5.1 kΩ HF45 6510 HF45 6510 5.6 kΩ HF45 6560 HF45 6560 6.8 kΩ HF45 6680 HF45 6680 8.2 kΩ HF45 6820 HF45 6820 9.1 kΩ HF45 6910 HF45 6910 Parts List for Carbon Resistors ❊ : Not available www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
