1 0 0 8 6 6
P.O.Box 1, Hamamatsu, Japan
I CONTENTS
TO SERVICE PERSONNEL .......................................... 2
PREVENTION OF ELECTRO STATIC DISCHARGE ... 4
LOCALE MANAGEMENT INFORMATION ................... 4
FRONT PANEL .............................................................. 5
REMOTE CONTROL PANEL ........................................ 5
REAR PANEL ................................................................ 6
SPECIFICATIONS.......................................................... 6

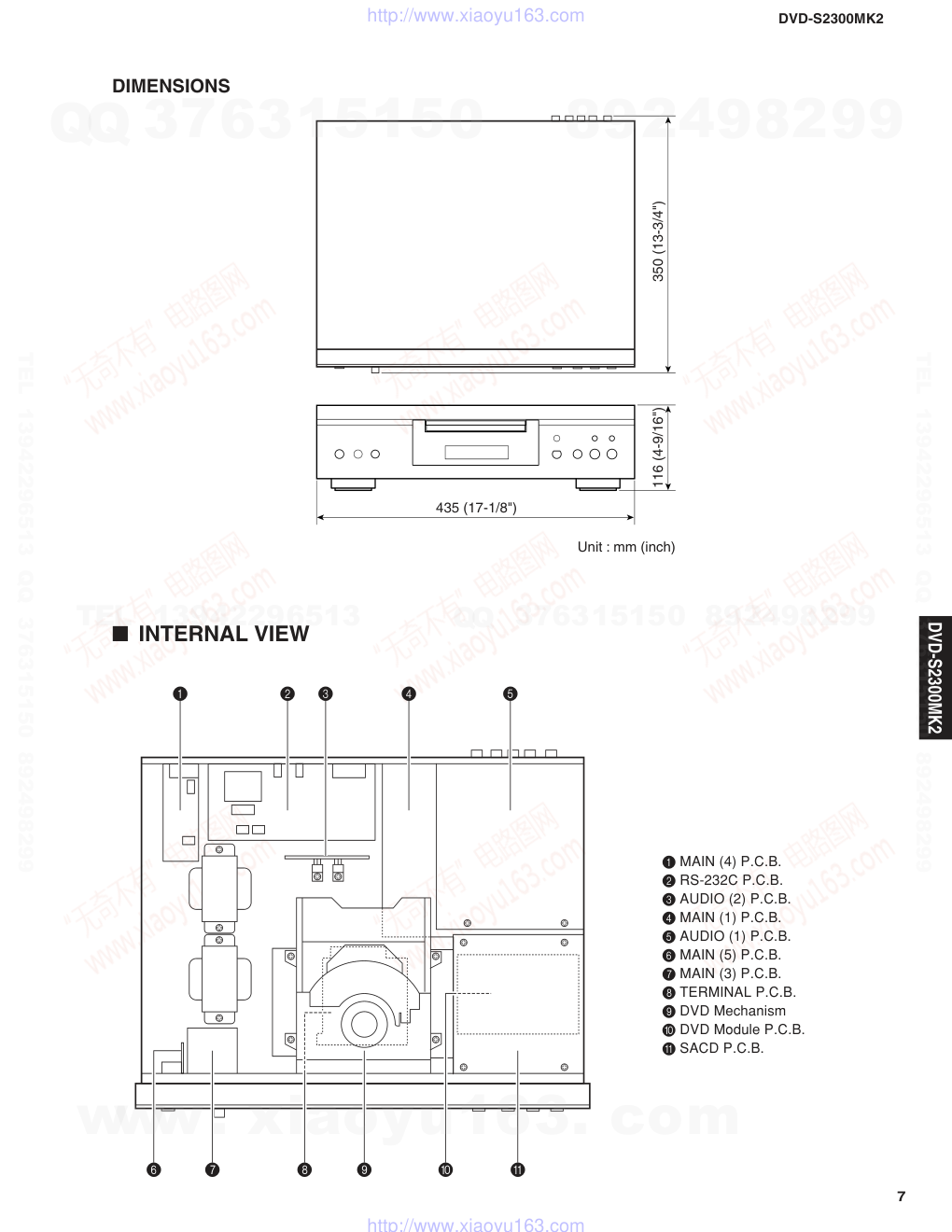

INTERNAL VIEW ........................................................... 7

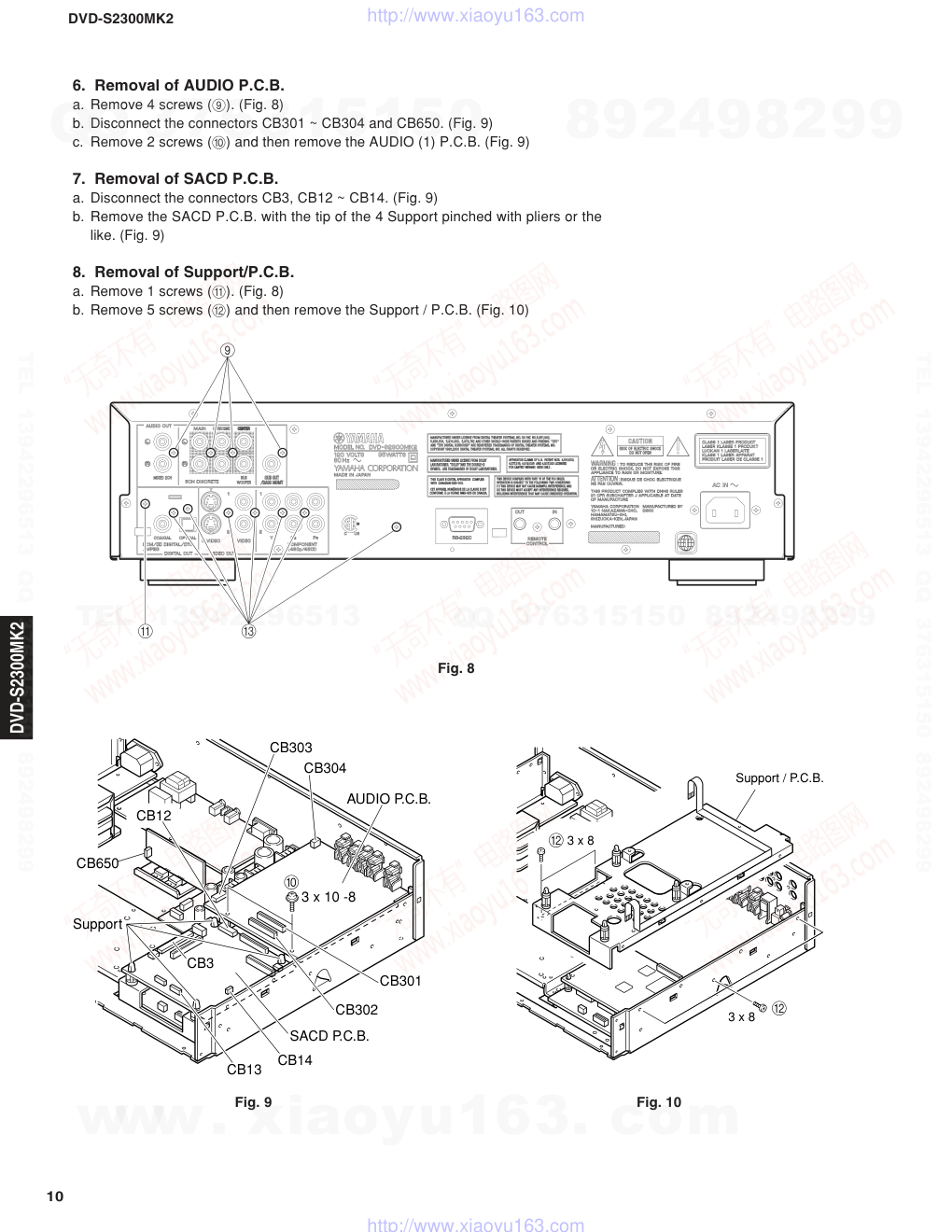

DISASSEMBLY PROCEDURES ............................. 8~12
OPTICAL PICKUP SELF-DIAGNOSIS AND
REPLACEMENT PROCEDURE .................................. 13
SERVICE MODE AND SELF-DIAGNOSIS FUNCTION ... 14~18
ASSEMBLING AND DISASSEMBLING THE
MECHANISM UNIT ................................................ 19~28
OPTICAL PICKUP TILT ADJUSTMENT ............... 29~30
ELECTRICAL CONFIRMATION ............................ 30~31
DISPLAY DATA ..................................................... 32~33
IC DATA ................................................................. 34~37
PIN CONNECTION DIAGRAM .................................... 37
PRINTED CIRCUIT BOARD .................................. 38~46
BLOCK DIAGRAM ................................................. 46~47
SCHEMATIC DIAGRAM ........................................ 48~63
PARTS LIST ........................................................... 64~74
REMOTE CONTROL.................................................... 75

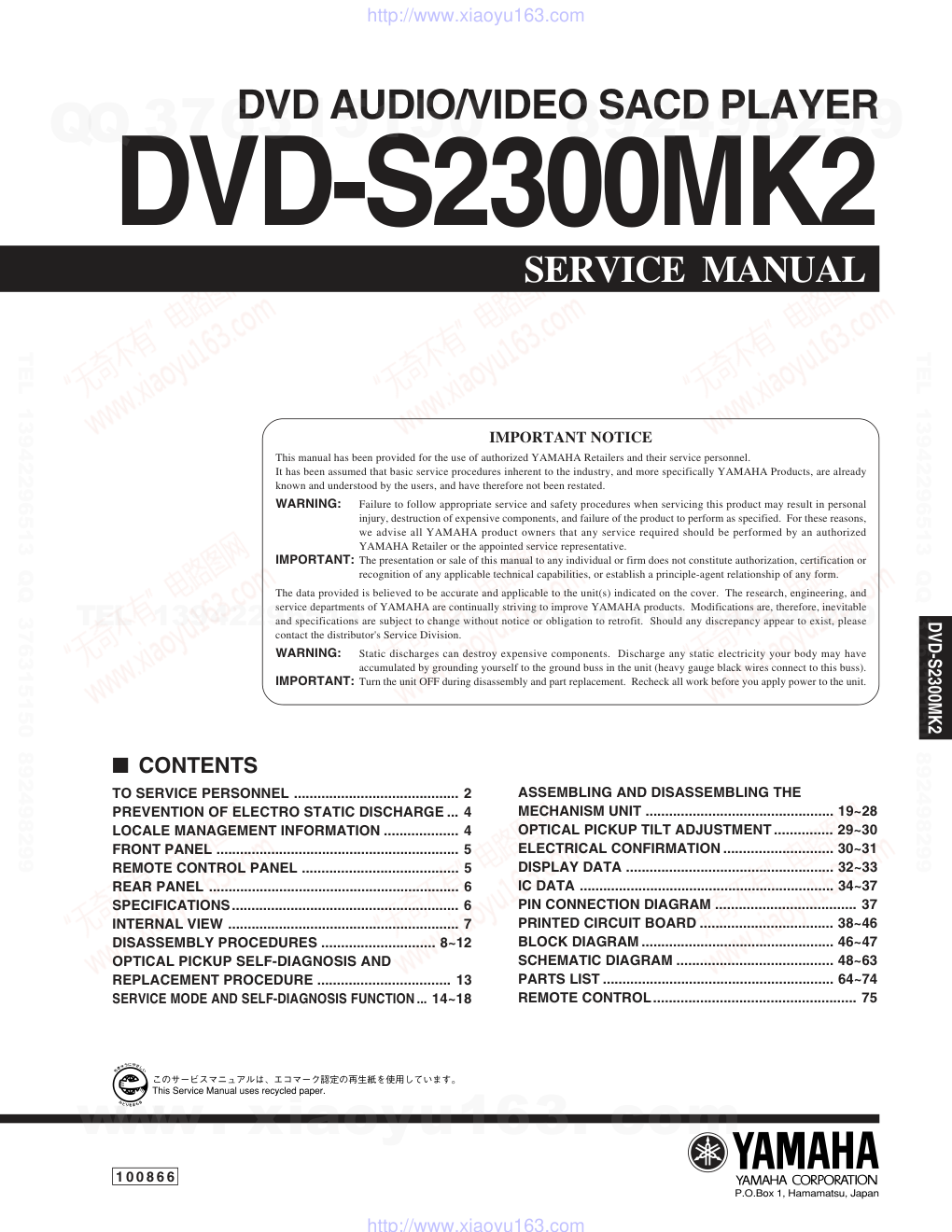

SERVICE MANUAL
DVD AUDIO/VIDEO SACD PLAYER
DVD-S2300MK2
DVD-S2300MK2
IMPORTANT NOTICE
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING:
Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
contact the distributor's Service Division.
WARNING:
Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
2
DVD-S2300MK2
WALL
OUTLET
EQUIPMENT
UNDER TEST
AC LEAKAGE
TESTER OR
EQUIVALENT
INSULATING
TABLE
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and
possibly other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-
SON WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.
WARNING: Laser Safety
This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may
cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during
servicing of the unit.
1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from
the laser pick-up unit at all times. Do not stare at the laser beam at any time.
2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual.
3) CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
Laser Emitting conditions:
1) When the Top Cover is removed, and the "POWER" SW is turned to the "ON" position, the laser component will emit a
beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through the lens
of the laser pick-up unit. Do not attempt any servicing during this period!
If no disc is detected, the laser will stop emitting the beam. When a disc is set, you will not be exposed to any laser
emissions.
2) The laser power level can be adjusted with the VR on the pick-up PWB. However, this level has been set by the factory
prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this
manual.
Adjustment of this control can increase the laser emission level from the device.
I TO SERVICE PERSONNEL
1. Critical Components Information
Components having special characteristics are marked s
and must be replaced with parts having specifications equal
to those originally installed.
2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.
G
Meter impedance should be equivalent to 1500 ohm shunted
by 0.15µF.
G
Leakage current must not exceed 0.5mA.
G
Be sure to test for leakage with the AC plug in both polarities.
THE DVD PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED
SERVICE PERSONNEL.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
3
DVD-S2300MK2

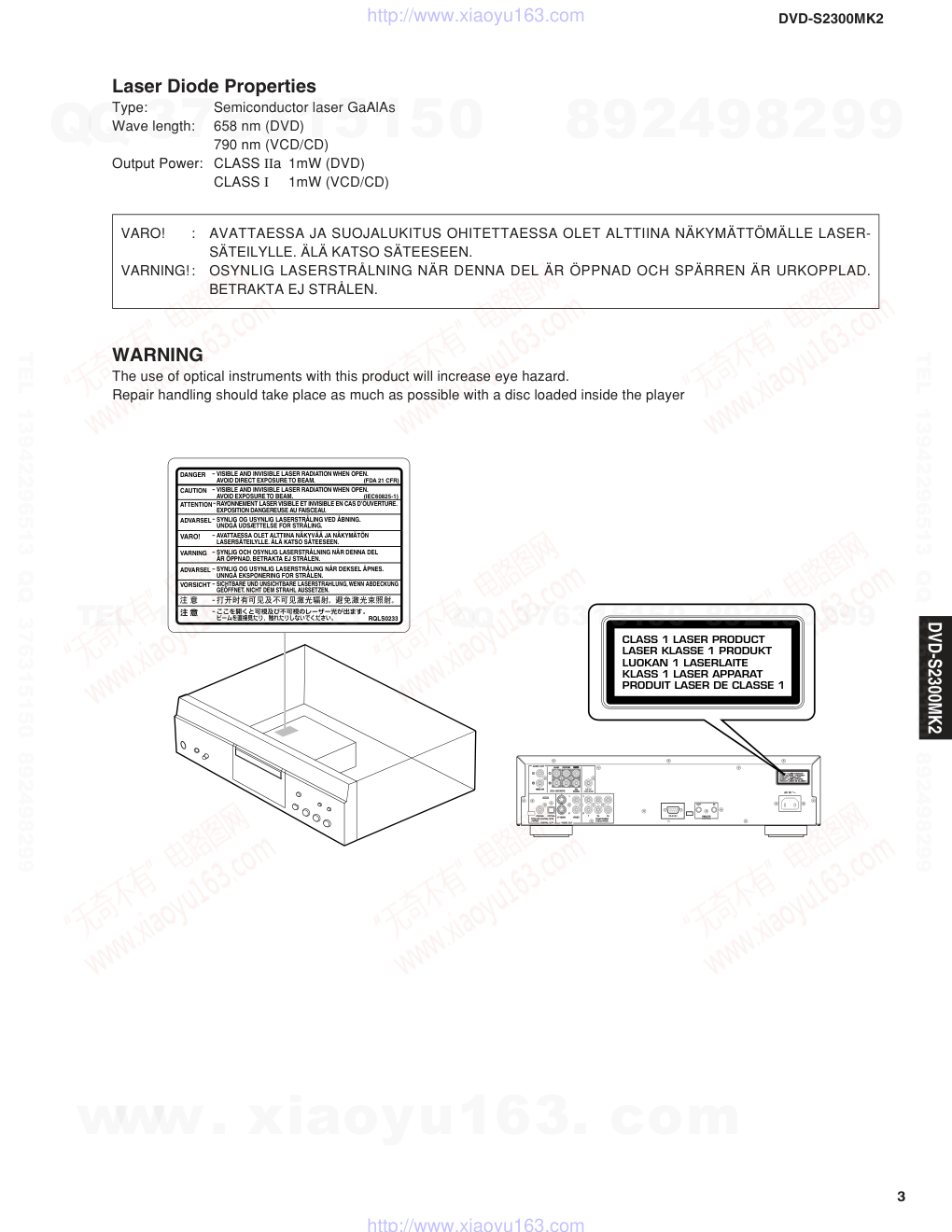

Laser Diode Properties
Type:
Semiconductor laser GaAlAs
Wave length:
658 nm (DVD)
790 nm (VCD/CD)
Output Power: CLASS IIa 1mW (DVD)
CLASS I
1mW (VCD/CD)
VARO!
:
AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASER-
SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING!:
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD.
BETRAKTA EJ STRÅLEN.
WARNING
The use of optical instruments with this product will increase eye hazard.
Repair handling should take place as much as possible with a disc loaded inside the player
CLASS 1 LASER PRODUCT
LASER KLASSE 1 PRODUKT
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
PRODUIT LASER DE CLASSE 1
RQLS0233
-
-
-
-
-
-
-
-
-
-
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM.
DANGER
(FDA 21 CFR)
(IEC60825-1)
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
CAUTION
RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE.
EXPOSITION DANGEREUSE AU FAISCEAU.
ATTENTION
SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING.
UNDGÅ UDSÆTTELSE FOR STRÅLING.
ADVARSEL
AVATTAESSA OLET ALTTIINA NÄKYVÄÄ JA NÄKYMÄTÖN
LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARO!
SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN.
VARNING
SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES.
UNNGÅ EKSPONERING FOR STRÅLEN.
ADVARSEL
SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG
GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.
VORSICHT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
4
DVD-S2300MK2

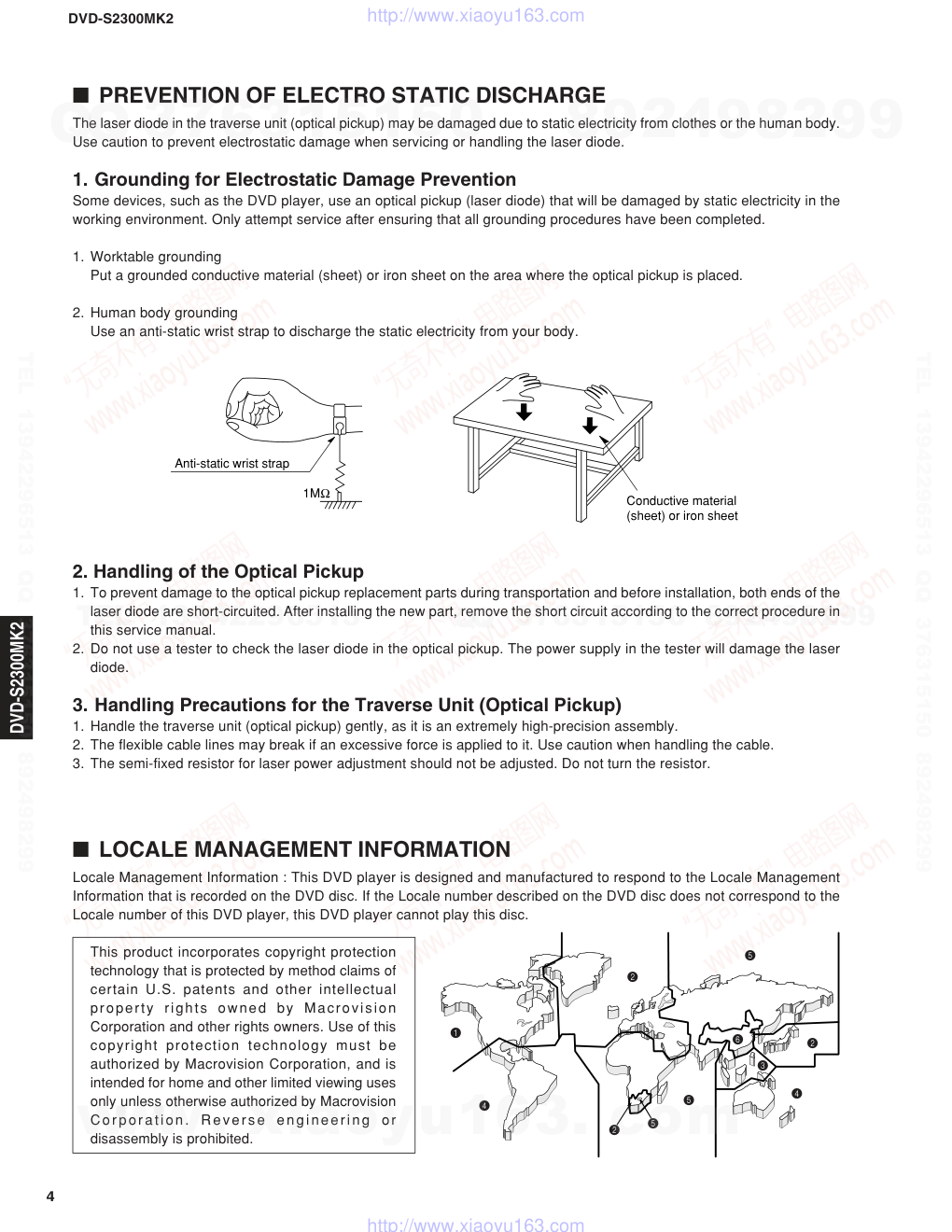

I PREVENTION OF ELECTRO STATIC DISCHARGE
The laser diode in the traverse unit (optical pickup) may be damaged due to static electricity from clothes or the human body.
Use caution to prevent electrostatic damage when servicing or handling the laser diode.
1. Grounding for Electrostatic Damage Prevention
Some devices, such as the DVD player, use an optical pickup (laser diode) that will be damaged by static electricity in the
working environment. Only attempt service after ensuring that all grounding procedures have been completed.
1. Worktable grounding
Put a grounded conductive material (sheet) or iron sheet on the area where the optical pickup is placed.
2. Human body grounding
Use an anti-static wrist strap to discharge the static electricity from your body.
2. Handling of the Optical Pickup
1. To prevent damage to the optical pickup replacement parts during transportation and before installation, both ends of the
laser diode are short-circuited. After installing the new part, remove the short circuit according to the correct procedure in
this service manual.
2. Do not use a tester to check the laser diode in the optical pickup. The power supply in the tester will damage the laser
diode.
3. Handling Precautions for the Traverse Unit (Optical Pickup)
1. Handle the traverse unit (optical pickup) gently, as it is an extremely high-precision assembly.
2. The flexible cable lines may break if an excessive force is applied to it. Use caution when handling the cable.
3. The semi-fixed resistor for laser power adjustment should not be adjusted. Do not turn the resistor.
1M
Conductive material
(sheet) or iron sheet
Anti-static wrist strap
1
2
4
2
5
5
4
2
6
3
5
I LOCALE MANAGEMENT INFORMATION
Locale Management Information : This DVD player is designed and manufactured to respond to the Locale Management
Information that is recorded on the DVD disc. If the Locale number described on the DVD disc does not correspond to the
Locale number of this DVD player, this DVD player cannot play this disc.
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of this
copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses
only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
5
DVD-S2300MK2

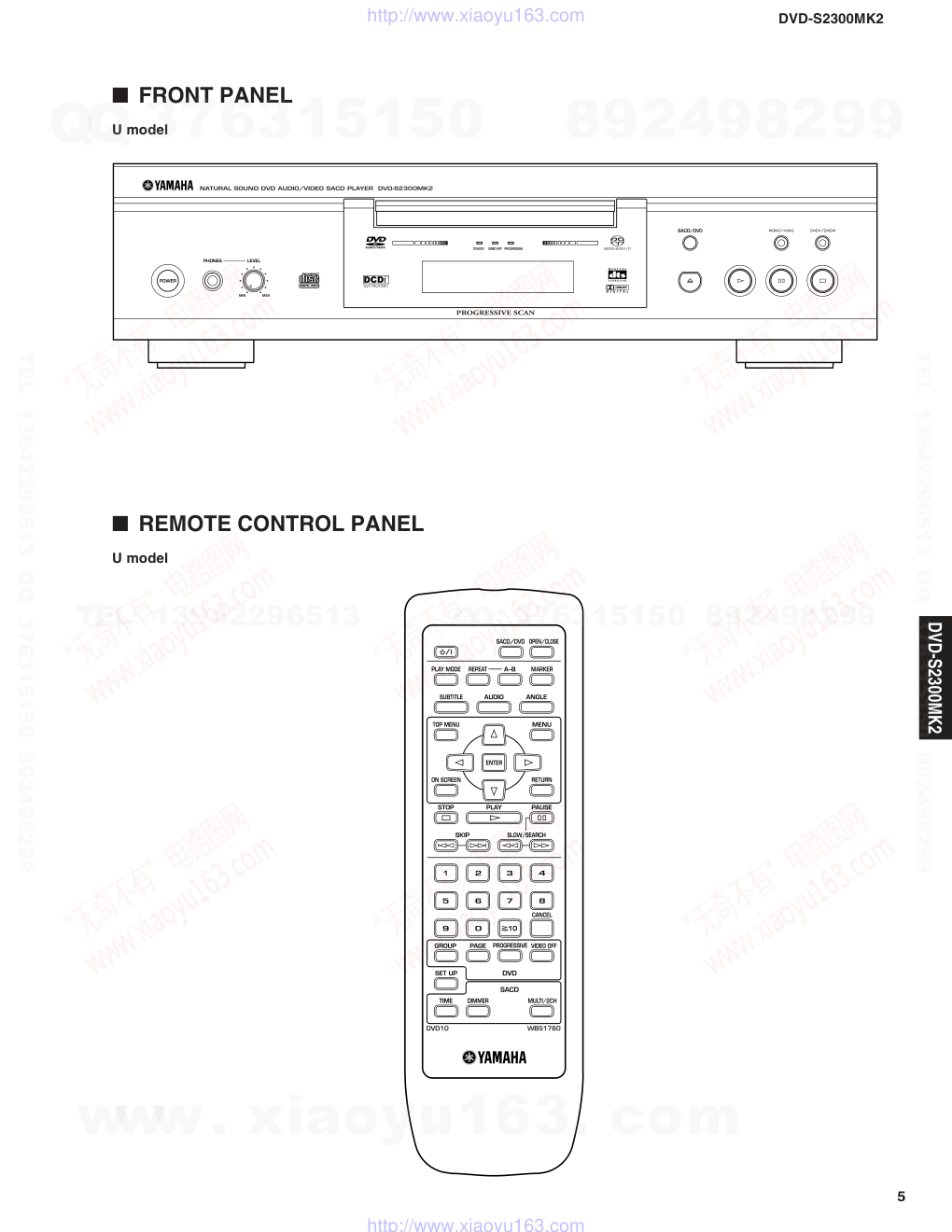

I FRONT PANEL
U model
I REMOTE CONTROL PANEL
U model
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
6
DVD-S2300MK2

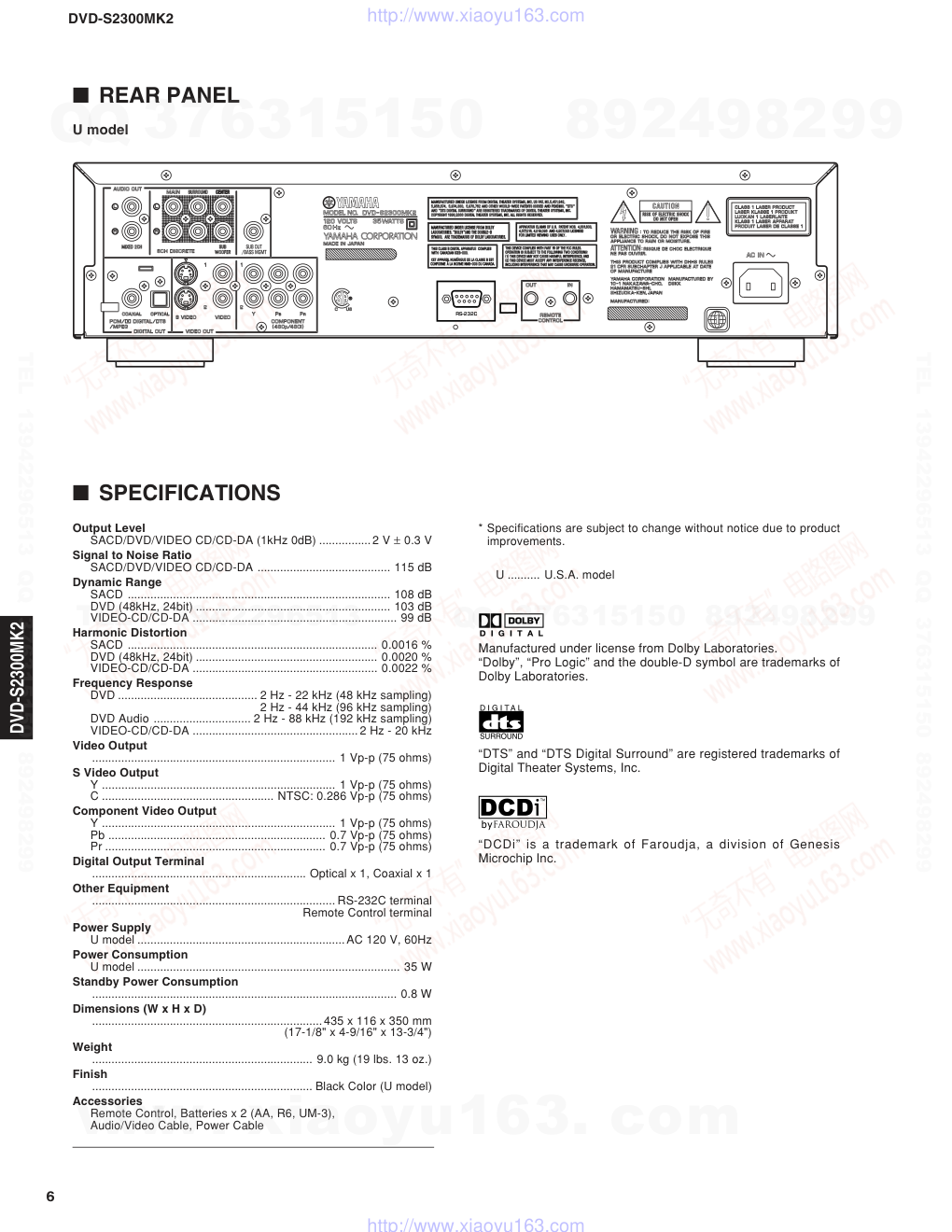

I REAR PANEL
U model
I SPECIFICATIONS
Output Level
SACD/DVD/VIDEO CD/CD-DA (1kHz 0dB) ................2 V ± 0.3 V
Signal to Noise Ratio
SACD/DVD/VIDEO CD/CD-DA ......................................... 115 dB
Dynamic Range
SACD ................................................................................. 108 dB
DVD (48kHz, 24bit) ............................................................ 103 dB
VIDEO-CD/CD-DA ............................................................... 99 dB
Harmonic Distortion
SACD ............................................................................. 0.0016 %
DVD (48kHz, 24bit) ........................................................ 0.0020 %
VIDEO-CD/CD-DA ......................................................... 0.0022 %
Frequency Response
DVD ........................................... 2 Hz - 22 kHz (48 kHz sampling)
2 Hz - 44 kHz (96 kHz sampling)
DVD Audio .............................. 2 Hz - 88 kHz (192 kHz sampling)
VIDEO-CD/CD-DA ................................................... 2 Hz - 20 kHz
Video Output
........................................................................... 1 Vp-p (75 ohms)
S Video Output
Y ........................................................................ 1 Vp-p (75 ohms)
C ..................................................... NTSC: 0.286 Vp-p (75 ohms)
Component Video Output
Y ........................................................................ 1 Vp-p (75 ohms)
Pb ................................................................... 0.7 Vp-p (75 ohms)
Pr .................................................................... 0.7 Vp-p (75 ohms)
Digital Output Terminal
.................................................................. Optical x 1, Coaxial x 1
Other Equipment
........................................................................... RS-232C terminal
Remote Control terminal
Power Supply
U model ................................................................AC 120 V, 60Hz
Power Consumption
U model ................................................................................. 35 W
Standby Power Consumption
.............................................................................................. 0.8 W
Dimensions (W x H x D)
.......................................................................435 x 116 x 350 mm
(17-1/8" x 4-9/16" x 13-3/4")
Weight
.................................................................... 9.0 kg (19 lbs. 13 oz.)
Finish
.................................................................... Black Color (U model)
Accessories
Remote Control, Batteries x 2 (AA, R6, UM-3),
Audio/Video Cable, Power Cable
* Specifications are subject to change without notice due to product
improvements.
U .......... U.S.A. model
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks of
Dolby Laboratories.
“DTS” and “DTS Digital Surround” are registered trademarks of
Digital Theater Systems, Inc.
“DCDi” is a trademark of Faroudja, a division of Genesis
Microchip Inc.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
7
DVD-S2300MK2
1
2
6
7
4
3
5
9
A
0
8
I INTERNAL VIEW
1 MAIN (4) P.C.B.
2 RS-232C P.C.B.
3 AUDIO (2) P.C.B.
4 MAIN (1) P.C.B.
5 AUDIO (1) P.C.B.
6 MAIN (5) P.C.B.
7 MAIN (3) P.C.B.
8 TERMINAL P.C.B.
9 DVD Mechanism
0 DVD Module P.C.B.
A SACD P.C.B.
435 (17-1/8")
Unit : mm (inch)
116 (4-9/16")
350 (13-3/4")
DIMENSIONS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
8
DVD-S2300MK2
OPEN
Gear Jig
Tray open/close hole
Fig. 2
Cut
DVD-Mechanism
Gear for opening the tray
Keep the Gear after using
Gear
Screwdriver
Fig. 3
2
1
1
3
3
4
I DISASSEMBLY PROCEDURES
Fig. 1
(Remove parts in the order as numbered.)
Disconnect the power cable from the AC outlet.
1. Removal of Top Cover
a. Remove 4 screws (1) and 3 screws (2). (Fig. 1)
b. Remove the top cover rearward while lifting it up. (Fig. 1)
2. Removal of Inner Cover
a. Remove 4 screws (3) and 2 screws (4). (Fig. 1)
b. Remove the inner cover. (Fig. 1)
3. Removal of Tray Lid
a. Remove the Gear for opening the tray from the DVD-
Mechanism and install it onto a Screwdriver to make a
Gear Jig. (Fig. 2)
b. Insert the Gear Jig into the tray open/close hole. (Fig. 3)
c. Turn the Gear Jig counterclockwise to open the tray.
(Fig. 3)
d. Remove the Tray Lid from the tray section. (Fig. 4)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
9
DVD-S2300MK2
SL5002
SL5001
Solder
Terminal P.C.B.
Flexible Cable
Tray Lid
Fig. 4
5
5
DVD-Mechanism
CB1
CB6
3 x 10 -8
3 x 10 -8
Fig. 5
Fig. 6
4. Removal of DVD-mechanism
CAUTION
•
When removing the DVD-Mechanism, make sure to follow steps
a. to e. below in that order to prevent the laser diode from being
damaged.
•
When installing the DVD-Mechanism, make sure to follow in the
reverse order (from e. to a.) of the following procedure.
a. Remove 4 screws (5). (Fig. 5)
b. Turn over the DVD-Mechanism. (Fig. 6)
c. Solder the lands (SL5001/SL5002) in the Terminal P.C.B.. (Fig.
6)
Notes
•
Use an anti-static soldering iron to short-circuit and unshort-
circuit laser diode.
•
After you have finished repairing the laser diode, follow the
correct procedure to remove the solder from the short-circuit
location.
d. Disconnect the connectors CB1 and CB6. (Fig. 5)
e. Remove the DVD-Mechanism.
5. Removal of Front Panel Unit
a. Remove 4 screws (6) and 1 screws (7). (Fig. 7)
b. Remove 4 screws (8) (Fig. 7)
c. Disconnect the connectors CB10, CB602, CB605, CB803 and
CB822 and then remove the Front Panel Unit. (Fig. 7)
7
6
8
6
CB602
CB803
CB822
3 x 8
Bonding
3 x 8
Bonding
CB10
CB605
Front Panel
Unit
3 x 8
3 x 8
Fig. 7
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
10
DVD-S2300MK2
B
B
Support / P.C.B.
3 x 8
3 x 8
CB303
CB304
CB301
CB302
3 x 10 -8
CB12
CB650
CB3
AUDIO P.C.B.
SACD P.C.B.
Support
CB13
CB14
0
A
C
9
Fig. 10
Fig. 8
Fig. 9
6. Removal of AUDIO P.C.B.
a. Remove 4 screws (9). (Fig. 8)
b. Disconnect the connectors CB301 ~ CB304 and CB650. (Fig. 9)
c. Remove 2 screws (0) and then remove the AUDIO (1) P.C.B. (Fig. 9)
7. Removal of SACD P.C.B.
a. Disconnect the connectors CB3, CB12 ~ CB14. (Fig. 9)
b. Remove the SACD P.C.B. with the tip of the 4 Support pinched with pliers or the
like. (Fig. 9)
8. Removal of Support/P.C.B.
a. Remove 1 screws (A). (Fig. 8)
b. Remove 5 screws (B) and then remove the Support / P.C.B. (Fig. 10)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
11
DVD-S2300MK2
35pin
15pin
Fig. 13
D
E
F
MAIN (1) P.C.B.
CB609
3 x 20
3 x 15
-8
3 x 10 -8
CB608
CB823
CB606
Support
DVD Module P.C.B.
Support
Fig. 11
Fig. 12
9. Removal of DVD Module P.C.B.
Remove the DVD module P.C.B. with the tip of the 4 Support pinched with pliers or
the like. (Fig. 11)
10.Removal of MAIN P.C.B.
a. Disconnect the connectors CB606, CB608, CB609 and CB823. (Fig. 12)
b. Remove 7 screws (C). (Fig. 8)
c. Remove 1 screw (D and E) and remove 2 screws (F) and then remove the MAIN
(1) P.C.B. (Fig. 12)
Checking the SACD P.C.B.
•
After removing the top cover and inner cover, remove the SACD P.C.B.
Set the SACD P.C.B. upright with its right side upward. (Fig. 13)
•
Replace the cables connected to the SACD P.C.B. with the following extension
cables for servicing. (Fig. 13)
35-pin extension cable (200mm) : MFA35200
15-pin extension cable (200mm) : MFA15200
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
12
DVD-S2300MK2
35pin
AUDIO P.C.B.
DVD Module P.C.B.
SACD P.C.B.
22pin
26pin
15pin
Checking the DVD Module P.C.B.
•
With the top cover, inner cover and Support / P.C.B. removed, spread cloth over
the MAIN P.C.B. and place the AUDIO P.C.B. on it. Set the SACD P.C.B. and DVD
Module P.C.B. with their right side upward. (Fig. 15)
•
Replace the cables connected to the SACD P.C.B. and DVD Module P.C.B. with
the following extension cables for servicing. (Fig. 14)
35-pin extension cable (200mm) : MFA35200
15-pin extension cable (200mm) : MFA15200
26-pin extension cable (JGS0098) : TX946370
22-pin extension cable (JGS0116) : AAX16610
Fig. 15
Yellow
White
Extension cable
CB508
Connect with care to the polarity.
Checking the AUDIO P.C.B.
•
After removing the top cover and inner cover, remove the AUDIO P.C.B.
Set the AUDIO P.C.B. upright with its rear panel side upward. (Fig. 14)
•
Disconnect the cable connected to the AUDIO P.C.B. and then reconnect it via the
following extension cable for servicing. (Fig. 14)
3-pin extension cable (100mm) : VM017100
Fig. 14
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
13
DVD-S2300MK2
Initialize the player.
Press " ", " " and
" " buttons on the
player for 3 seconds or
longer.
"NO DISC" is displayed, unit
does not play smoothly, etc.
Check the laser drive current.
Replace the optical pickup.
Check the laser drive current
after replacement.
• Write the present value into
the unit if it is 60 (DVD), 45
(CD) or less.
Replace with a new optical pickup if the
preset value is more than 60 (DVD), 45
(CD).
Cause: Damage due to static electricity
during replacement.
Do the optical pickup tilt
adjustment.
When not repaired, check the
Module P.C.B.
Use the tilt adjustment
check function.
Value is more than
70 (DVD), 55 (CD).
Value is 70 (DVD),
55 (CD) or less.
Method: With no disc in the player:
Press the "ON SCREEN" button on
the remote control unit while pressing
the " " and " " (DVD) or
" "(CD) buttons on the
player.
[Display content]
LDD ○○○ ○○○（DVD）�
LDC ○○○ ○○○（CD）�
�
Factory Setting
Present value
Method: With no disc in the player:
Press the "ON SCREEN" button on
the remote control unit while pressing
the " " and " " (DVD) or
" "(CD) buttons on the
player.
Writing method:
Press the " " button on the remote
control unit while pressing " " and
" " buttons on the player.
I OPTICAL PICKUP SELF-DIAGNOSIS AND REPLACEMENT PROCEDURE
An optical pickup self-diagnosis function and tilt adjustment check function have been included in this unit. When repairing,
use the following procedure for effective Self-diagnosis and tilt adjustment. Be sure to use the self-diagnosis function before
replacing the optical pickup when "NO DISC" is displayed. As a guideline, you should replace the optical pickup when the
value of the CD laser drive current is more than 55 (70 for DVD).
Note:
•
Check the value within three minutes after applying the power to the player. (When the unit warms up, the result will be
incorrect.)
•
Be sure to perform the following operation in the DVD mode.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
14
DVD-S2300MK2
Item
Player mode and
Function
Display
Cancellation
button combination
method
Error code
In STOP mode, press
The latest error code stored in
Error code (play_err) is expressed in
Cancelled
check
"
" and "
"
EEPROM is displayed.
the following convention.
automatically 5
buttons on the player,
Error code = 0 x DAXX is expressed: → nn UXX
seconds later.
and "0" button on the
Error code = 0 x DBXX is expressed: → nn HXX
remote control unit.
Error code = 0 x DXXX is expressed: → nn FXXX
Error code = 0 x 0000 is expressed: → nn F–––
* "nn" denotes the serial number of history.
Jitter check
In PLAY mode, press
Jitter rate is measured and
J_xxx_yyy_zz
Press STOP or
"
" and "
"
displayed.
OPEN button.
buttons on the player,
and "5" button on the
remote control unit.
Jitter rate is shown in decimal notation to
one place of decimal.
Focus drive value is shown in
hexadecimal notation.
Region
In STOP mode, press
The region numbers and video
x_yy_zzz
Cancelled
display
"
" and "
"
format are displayed.
automatically 5
buttons on the player,
seconds later.
and "6" button on the
remote control unit.
Version
In STOP mode, press
DVD module firmware version
srrr_xyzzzz
Cancelled
display
"
" and "
"
is displayed.
automatically 5
buttons on the player,
seconds later.
and "7" button on the
remote control unit.
DVD laser
In STOP mode, press
DVD laser drive current is
LDD_034_032
Cancelled
drive current "
" and "
"
measured and the result is
automatically 5
measurement buttons on the player,
displayed together with the initial
seconds later.
and "ON SCREEN"
value stored in EEPROM.
button on the remote
After the measurement, DVD
control unit.
laser emission is kept on. It is
The value denotes the current in decimal
turned off when the "POWER"
notation.
key is switched off.
The above example shows the initial
current is 34mA and the measured value
is 32mA.
Initial setting In STOP mode, press
The initial current value for each
LDO_034_028
Cancelled
of laser drive "
" and "
"
DVD laser and CD laser is
automatically 5
current
buttons on the player,
separetely saved in EEPROM.
seconds later.
and "
" button on
the remote control
unit.
The value denotes the current in decimal
notation. The above example shows the
initial current is 34mA and 28mA for DVD
laser and CD laser respectively when the
laser is switched on.
I SERVICE MODE AND SELF-DIAGNOSIS FUNCTION
1. Service Mode
a. Turn on the POWER switch.
b. Press the SACD/DVD button to set to the DVD mode, and the DVD mode indicator lights up.
c. It is possible to use the following service modes, using the buttons on the player and the remote control unit in
combination.
Note: For jitter check, load the DVD test disc. [DVDT-S15 (AAX07320) or DVDT-S01]
Focus drive value
Read error counter
Jitter rate
Jitter check mode
↑
↑
↑
↑
N: NTSC / 6: PAL60
N: noPAL / P:PAL
Region No.
↑ ↑↑
Version number
↑
Measured current
Initial current stored in EEPROM
DVD laser current measurement mode
↑
↑
↑
CD laser current measurement
DVD laser current measurement
Laser current initial setting mode
↑
↑
↑
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
15
DVD-S2300MK2
Item
Player mode and
Function
Display
Cancellation
button combination
method
CD laser
In STOP mode, press
CD laser drive current is
LDC_028_026
Cancelled
drive current "
" and "
" measured and the result is
automatically 5
measurement buttons on the player,
displayed together with the initial
seconds later.
and "ON SCREEN"
value stored in EEPROM.
button on the remote
After the measurement, CD
control unit.
laser emission is kept on. It is
The value denotes the current in decimal
turned off when the "POWER"
notation.
key is switched off.
The above example shows the initial
current is 28mA and the measured value
is 26mA.
DVD user
In STOP mode, press
All settings on the setup menu
"Initialized" is displayed on the video
settings
"
", "
" and
return to factory defaults.
monitor connected to the player.
initialization
"
" buttons on
the player for 3
seconds or longer.
Measured current
Initial current stored in EEPROM
CD laser current measurement mode
↑
↑
↑
2. Self-Diagnosis Function (UHF Display)
This unit incorporates a convenient self-diagnosis function for use in troubleshooting.
Display method
Display
Diagnosis
Service numbers
U11
Focus error
displayed during use.
H01
Tray loading error
H02
Spindle servo error
H03
Traverse error
H04
Tracking servo error
H05
Seek error
H06
Power supply error
In STOP mode, press
F0**
Disc format error
"
" and "
" buttons on
F1**
Disc code error
the player, and " 0 " button F2**
Decoder LSI error
on the remote control unit. F3**
SDRAM error
F4**
IIC BUS error
Refer to error code.
F5**
DSC error
F6**
ECC error
F7**
Microprocessor error
F8**
Microprocessor error
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
16
DVD-S2300MK2
FL Display
SODC DRAM OK or NG
DSD DRAM OK or NG
EEPROM OK or NG
TEST TONE
DrvMute Off
ShiftReg 55h
ShiftReg AAh
Video Mode 1 or 2 or 3
DVD Laser ON
CD Laser ON
Example: Ver L008
Example: SUB M004
Adj1 OK or ERR
Adj2 OK or ERR
Adj3 OK or ERR
Adj4 OK or ERR
Adj5 OK or ERR
Adj6 OK or ERR
Tr On OK or ERR
Tr Off OK or ERR
3. Test Mode
• Starting Test Mode
a. Turn on the POWER switch.
b. Press the SACD/DVD button to set to the SACD mode, and the SACD mode indicator lights up.
c. Press the "
"+"
" buttons on the player and the "PLAY" button on the remote control unit to start the
test mode. At this time, the user setting of SACD mode returns to their factory settings.
• Display provided when Test Mode started
After all segments of the FL indicator light up, the firmware version of the panel microprocessor (IC40:
MN102HF60K) is displayed. Example: Ver L008
• Canceling Test Mode
Turn off the POWER switch.
• List of Test Functions
Test functions available in the TEST mode are as follows.
Item
DVD module
initialize
P.C.B. inspection
Servo test
Operation
Press "
" on main unit and
"CANCEL" on remote controller.
Press "TOP MENU" on remote
control unit.
Press "MENU" on remote
control unit.
Press "ANGLE" on remote
control unit.
Press "AUDIO" on remote
control unit.
Press "PLAY MODE" on remote
control unit.
Every time the "MARKER"
button on the remote control
unit is pressed, pattern 1 or 2 is
selected alternately.
Every time the
"PROGRESSIVE" button on the
remote control unit is pressed,
the pattern 1, 2 or 3 is selected
one after another.
Press "DIMMER" on remote
control unit.
Press "REPEAT" on remote
control unit.
Press "A-B" on remote control
unit.
Press "STOP" on remote control
unit.
Press "VIDEO OFF" on remote
control unit.
Press "1" on remote control unit.
Press "2" on remote control unit.
Press "3" on remote control unit.
Press "4" on remote control unit.
Press "5" on remote control unit.
Press "6" on remote control unit.
Press "9" on remote control unit.
Press "0" on remote control unit.
Function
All the information included in DVD module
P.C.B. is initialized.
"Initialized" is displayed on the video
monitor connected to the player.
SODC DRAM write/read test
DSD DRAM test
EEPROM write/read test
DSD test signal output channel ON
Drive IC Mute OFF function
SHIFT register test output (2 patterns)
Pattern 1: DVD mode is displayed and
VIDEO OFF lights up.
Pattern 2: SACD mode is displayed and
PROGRESSIVE lights up.
S terminal, D terminal, SCART terminal
control signal (3 patterns)
FL, LED test pattern output (All ON →
FL:12--9AB, LED:DVD/VOFF ON/ → OFF)
DVD laser ON
CD laser ON
Servo OFF, OSD test signal OFF, Analog
Mute ON, PANEL microprocessor version
display. Standby LED ON/OFF
Sub-CPU version is displayed.
Start-up of disc rotation from servo
initialize operation (1000rpm)
Focus ON from disc detection operation
Initial adjustment after focus ON: Focus
position rough adjustment DM CLV
Tracking balance adjustment and tracking
ON
Servo automatic adjustment (Focus
position adjustment, FO/TR gain
adjustment)
FEP equalizer EQ/Boost adjustment
Tracking ON
Tracking OFF
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
17
DVD-S2300MK2
4. Sub-CPU RS-232C check mode
• Starting Sub-CPU RS-232C check mode
a. With the power turned off, short between pins No.2
(RXD) and No.3 (TXD), and between pins No.7 (RTS)
and No.8 (CTS) of the RS-232C terminal.
Also pull-up pin No.3 (TXD) to 9-15V with the resistor
10 kΩ.
(Be suer to turn off the power when shorting the pins.)
b. Turn on the power and start the test mode. ( Refer to 3.
Test Mode on page 16. )
• Checking the RS-232C connection
1) Checking the connection between pins No.2 (RXD) and
No.3 (TXD)
a. Press "GROUP" key on remote control unit.
b. When the test has succeeded, "DIAG 0 OK" is
displayed after "UART DIAG 0".
When the test has failed, "DIAG ERR" is displayed
after "UART DIAG 0".
When "DIAG ERR" is displayed, check the pattern of
RXD and TXD line.
2) Checking the connection between pins No.7 (RTS) and
No.8 (CTS)
a. Press "PAGE" key on remote control unit.
b. When the test has succeeded, "DIAG 1 OK" is
displayed after "UART DIAG 1".
When the test has failed, "DIAG ERR" is displayed
after "UART DIAG 1".
When "DIAG ERR" is displayed, check the pattern of
RTS and CTS line.
• Canceling Sub-CPU RS-232C check mode
Turn off the power.
5. Service Precautions
5.1. Recovery After the DVD Player is Repaired
When the DVD module P.C.B., or a FROM or an EEPROM
on the DVD module P.C.B. has been replaced, carry out
the recovery disc procedure to optimize the drive.
Playback the disc below to perform the recovery
automatically,
Recovery disc: RFKZD5TR006 (AAX42050)
Note:
When the recovery procedure is performed, the user
settings will be erased and the factory settings will be
restored as when the initialization procedure is used.
Therefore, it is necessary to write down the content of the
user settings before performing the recovery procedure
and reset it after that.
5.2. Firmware Version-Up of the DVD Module
The firmware of the DVD module may be updated to
improve the quality, including optimizing operationability
and playability with substandard discs.
The version-update disc also has a recovery function so
that you don't need to use the recovery disc again.
Detailed information on supply of the version-update disc
will be provided in Service News.
Note:
If the AC power supply is lost during version-updating due
to a power failure, the version-update is improperly carried
out.
In such a case, replace the FROM and carry out the
version-update again.
If recovery by using the version-update disc has failed,
start up the TEST mode and initialize the DVD module.
(Refer to the description of the previous section.)
6. Handling After Completing Repairs
Use the following procedure after completing repairs.
6.1. Method
Confirm that the power is turned on:
1. Press the "OPEN/CLOSE" button to close the tray.
2. Turn off the POWER switch.
3. Disconnect the power plug from the outlet.
6.2. Precautions
Do not disconnect the power plug from the outlet with the
tray still open, then close the tray manually.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
18
DVD-S2300MK2
Description of error
Supplementary explanation
Faulty point 1 Faulty point 2 Faulty point 3 Faulty point 4
L. H error
U11
Focus error
H01
Tray loading error
H02
Spindle servo error
(Spindle servo, DSC SP motor, CLV servo error)
H03
Traverse servo error
H04
Tracking servo error
H05
Seek error
H06
Power supply error
The power cannot be turned off due to a communication error
between the panel control and the system control.
DSC related error
F500 DSC error
DSC is stopped due to occurrence of a servo error.
(startup, focus error, etc.)
OPU
ADSC
(IC2001)
FEP
(IC5201)
Servo drive
F501 DSC not ready
Communication error between DSC and system control
(communication failure due to DSC not at work)
ADSC
(IC2001)
CPU
(IC6201)
F502 DSC time out error
To be handled in the same way as F500
OPU
ADSC
(IC2001)
FEP
(IC5201)
Servo drive
F503 DSC communication failure
Communication error (A communication command was
transmitted but an error occurred.)
ADSC
(IC2001)
FEP
(IC5201)
EEPROM
(IC6221)
F505 DSC Attention Error
To be handled in the same way as F500
OPU
ADSC
(IC2001)
FEP
(IC5201)
Servo drive
F506 Invalid media
The disc is upside down, TOC cannot be read, unusable disc Disc
FEP
(IC5201)
ADSC
(IC2001)
ODC
(IC2001)
ODC related error
F600 No control data is obtainable due to a
demodulation error
Operation is stopped because the navigation data cannot be
obtained due to a faulty condition of the demodulation system
ODC
(IC2001)
FEP
(IC5201)
ADSC
(IC2001)
ODC
(IC2001)
FEP
(IC5201)
ADSC
(IC2001)
F601 Undefined sector ID is requested.
Operation is stopped due to a request for access by an
abnormal ID data.
F602 LEAD-IN is not obtainable due to
demodulation error.
LEAD IN data cannot be read.
F603 KEY DET is not obtainable due to a
demodulation error
The CSS data of the disc cannot be obtained.
F610 ODC abnormal
Issuing a command is not permitted.
ODC
(IC2001)
F611 6626 QCODE don't read Error
No seek address is obtainable in the CD system.
ODC
(IC2001)
F612 No CRC OK is issued for a certain time.
No ID data is obtainable in the DVD system.
ODC
(IC2001)
F630 No response is provided for the inquiry of
KEY DET.
(Only when used internally)
F631 CPPM KEY DET is not usable until the
end of the file.
The CPPM file system cannot be read due to a scratch, etc.
Disc
CPPM (*1)
F632 CPPM-KEY-DET is not usable.
CPPM-KEY-DET is revoked or falsified.
Disc
EEPROM
(IC6221)
CPPM (*1)
Disc code
F103 Illegal highlight position
It is highly possible that disc code is violated when displaying
the highlight.
Disc
IIC error
F4FF Forcible initialization failure (time-out)
EEPROM
(IC6221)
CPU
(IC6201)
FEP
(IC5201)
ADSC
(IC2001)
Microprocessor error
F700 MBX overflow
When sending a message back to Disc Manager
Firm bug
F701 Message command does not end.
Next message was issued before replying to Disc Manager.
Firm bug
F702 Message command is changed.
The message is changed before replying to Disc Manager.
Firm bug
F880 Incorrect task number
When a message comes from non-existing task (error stop,
firm bug correction required)
Firm bug
F890 Message transmission is attempted while
transmitting to AV task
A message is being transmitted to AV task (error stop, firm
bug correction, etc.)
Firm bug
F891 A message cannot be transmitted to AV
task.
Transmission of a message to AV task is started. (error stop,
firm bug correction required)
Firm bug
F893 FROM is falsified.
FROM
(IC6301)
CPU
(IC6201)
F894 EEPROM abnormal
EEPROM
(IC6221)
Serial
communication
line
F8A0 Message command is not correct.
Transmission of a message to AV task is started. (error stop,
firm bug correction required)
Firm bug
OPU : Optical Pick Up, DSC : Digital Servo Controller, FEP : Front End Processor, ODC : Optical Disc Controller, FROM : Flash ROM
*1: CPPM is the copy guard function beforehand written in the disc for protection of copyrights.
7. Error Code
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
19
DVD-S2300MK2
I ASSEMBLING AND DISASSEMBLING THE MECHANISM UNIT
1. Disassembly Procedure
2. Terminal P.C.B.
1. Remove the screws.
2. Remove the solder from the motor connections.
3. Remove the connectors.
Solder
Connector
Screw
Screw
Terminal P.C.B.
Connector
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
20
DVD-S2300MK2
4. Tray
Lift the Tray.
Tray
3. Clamp Plate Unit
Spread the Stopper with hand to slide the tabs and remove the Clamp Plate Unit.
Tab
Tab
Clamp Plate Unit
Stopper
Stopper
Tab
Clamp Plate Unit
Stopper
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
21
DVD-S2300MK2
•
Reassemble the Tray so that it is in the backmost position.
1. Turn Traverse Gear until Cam Gear lever comes to the Lever adjusting position at
the end of the Mechanical chassis unit.
2. Check the position of convex phase on back of the Tray, and that of concave phase
on Drive Gear.
Lever
Cam Gear
Mechanical Chassis Unit
Lever adjusting point
Convex
phase
Traverse Gear
Tray
Concave
phase
Drive Gear
Drive Gear
Tray
a. Place the Tray on the unit from rearward.
Tray
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
22
DVD-S2300MK2
Traverse Block
Tab
ditch
Hook
Mechanical chassis unit
Tray
b. Inch the Tray frontward until convex phase and concave phase mate.
Caution:
Make sure to mate convex phase and concave phase properly, so that the gap
between Turntable and Tray becomes 5mm or less.
Tray
Turntable
5mm or less
5. Traverse Block
1. Lift the Traverse Block while spreading the Hook of the Mechanical chassis unit.
2. Disengage the Tabs from the holes of the Mechanical chassis unit.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
23
DVD-S2300MK2
•
Take the following precautions when
reassembling the Traverse Block.
1. Turn Traverse Gear on the Traverse Block to let
trigger lever turn rightward.
2. Bring cam gear lever to the lever adjusting
position at the end of Mechanical chassis unit.
3. Put tabs A and B into slots A and B respectively.
Place tabs C into hooks to mount the Traverse
Block on Mechanical chassis unit. (Slot A...
Mechanical Chassis, Slot B... Cam Gear)
Mechanical chassis unit
Traverse block
Lever adjusting position
Cam gear
Slot B
Lever
Slot A
Tab A
Tab B
Hook
Tab C
Traverse Gear
Trigger Lever
Note: The Traverse Gear B is under the Traverse Gear C.
6. Traverse Gear B, C
1. Disengage the tabs from the Traverse Gear.
2. Remove the Traverse Gears B and C.
Tab of Traverse Gear
Traverse Gears B and C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
24
DVD-S2300MK2
7.1 Precautions in Optical Pickup Replacement
The optical pickup can be damaged by static electricity from your body. Be sure to
take static electricity countermeasures when working around the optical pickup.
(Refer to the related page in this Manual about the countermeasures.)
1. Do not touch the laser diode, actuator or their associated parts.
2. Do not use a tester to check the laser diode. (Laser diode can be damaged easily.)
3. Use an anti-static soldering iron when adding or removing the laser diode shorting
jumper.
4. Solder the land on Flexible Cable of Optical Pickup Unit.
Caution
•
When using the soldering iron without anti-static feature, short-circuit the Flexible
Cable terminal with a clip before short-circuiting the land.
•
After completing the repair, remove the solder from the laser diode shorting jumper
properly following the procedures described in this Manual.
Optical Pickup Unit
Flexible Cable
Use a clip or other item to ground the unit.
7. Optical Pickup Unit
1. Remove the Screws.
2. Remove the Spring Holders and the springs.
3. Pull out the Drive Shaft and Guide Shaft.
Pickup Unit
Spring Holder
Screw
Guide Shaft
Screw
Spring Holder
Drive Shaft
Spring Holder
Screw
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
25
DVD-S2300MK2
7.3 Cautions to Be Taken When Replacing the Optical Pickup
An Antistatic Flexible Sheet (FPC) is connected with the new Optical Pickup.
1. Install the Terminal FPC, TRV feed rack on the Optical Pickup. (See Fig. A)
2. Install the Terminal FPC in the Connector on the Terminal P.C.B..
Antistatic Flexible Sheet (FPC)
7.2 Disassembling the Optical Pickup Unit
1. Remove 2 screws (A) and remove the TRV feed rack.
2. Remove the screw (B) and remove the Terminal FPC.
3. Remove the Optical Pickup.
Screw A
TRV feed rack
Optical Pickup
Terminal FPC
Screw B
Connector
Terminal FPC
Ground the Optical Pickup with a Clip.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
26
DVD-S2300MK2
Spring Holder (spring)
Optical Pickup Unit
(Rear side)
Spring Holder (spring)
Rubber Cushion
Drive Shaft
(Front side)
Spring Holder (Spring)
Rubber Cushion
Guide Shaft
Traverse block
3. Install the Optical Pickup Unit, Spring Drive Shaft, Guide Shaft, Rubber Cushion,
and Spring Holder on the Traverse Block. At this time, make sure that the Optical
Pickup Unit is installed at the rear end of the Guide Shaft.
Optical Pickup installation
position
(rear end of the Guide Shaft)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
27
DVD-S2300MK2
4. Cut the Antistatic Flexible Sheet for the Optical Pickup Unit.
Cutting Line
Antistatic FPC
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
28
DVD-S2300MK2
8. Disassembling the Middle Chassis
1. Remove the Holder Pins.
2. Remove the Tab.
3. Lift it while pulling it in the direction of the arrow.
Holder Pin
Tab
Middle Chassis
Traverse Gear A
Screw
FG Unit
10. Disassembling the Spindle Motor Unit
Remove the Rubber Isolators.
9. Disassembling the Traverse Gear A / FG Unit
1. Remove the screw.
2. Remove the Traverse Gear A.
Spindle Motor Unit
Rubber Isolators
Rubber Isolators
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
29
DVD-S2300MK2
I OPTICAL PICKUP TILT ADJUSTMENT
Adjustment point
Tangential adjustment screw,
Tilt adjustment screw
Mode
T01 (inner periphery) play, T43
(outer periphery) play
Disc
DVDT-S15 (AAX07320) or
DVDT-S01
Measuring equipment None (Use main unit servicing
display.)
Adjustment value
Adjust to the minimum jitter
value.
Tool
Hex wrench
1.2mm JZS0100 (TX946380)
Screw Lock
RZZOL01 (TX946400)
1. Important Points in Optical Pickup Tilt
Adjustment
•
Before starting optical pickup tilt adjustment, be sure to
take anti-static measures.
•
Optical pickup tilt adjustment is necessory after
replacement of the following components.
1. Optical pickup unit
2. Spindle motor unit
3. Optical pickup peripheral parts (such as the rail)
Notes
Adjustment is generally unnecessary after replacing the
other parts of the traverse unit. However, make
adjustment if there is a noticeable degradation in picture
quality. Optical adjustments cannot be made inside the
Optical pickup. Adjustment is generally unnecessary after
replacing the traverse unit.
2. Adjustment Procedure
1. Press the "SACD/DVD" button to set the DVD mode.
2. While pressing the "
" and "
" buttons on the player,
press the "5" button on the remote control unit.
3. Confirm that "J_xxx_yyy_zz" is shown on the front
display.
For your information:
"yyy" and "zz" shown to the right have nothing to do with
the jitter value. "yyy" is the error counter, while "zz" is the
focus drive value.
Note:
Jitter value appears on the front display.
4. Play test disc track01 (inner periphery).
5. Adjust tangential adjustment screw so that the jitter
value is minimized.
6. Play test disc track43 (outer periphery).
7. Adjust tilt adjustment screw 1 so that the jitter value is
minimized.
8. Play test disc track43 (outer periphery).
Tangential adjustment screw
Tilt adjustment screw 1
Rear
Front
Tilt adjustment screw 2
9. Adjust tilt adjustment screw 2 so that the jitter value is
minimized.
10. Repeat adjusting tilt adjustment screws 1 and 2
alternately until the jitter value is minimized.
3. Important Points
1. Make tangential adjustment first, and then make tilt
adjustment.
2. Repeat adjusting two or three times to find the optimum
point.
3. Finish the procedure with tilt adjustment.
4. Check after Adjustment
Play a test disc or any other disc to make sure that there is
no picture degradation in the inner, middle and outer
peripheries, and no audio skipping. After adjustment is
finished, lock each adjustment screw in position using
screw lock.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
30
DVD-S2300MK2
5. Procedure for Screw Lock
1. After adjustment, remove the top cover, tray, clamper base and traverse unit in this
sequence.
2. Lay the traverse unit upside down and lock the adjustment screw with screw lock.
3. After locking, reassemble the traverse unit, clamper base, tray and top cover.
I ELECTRICAL CONFIRMATION
Purpose: To maintain video signal output compatibility.
1. Connect the oscilloscope to the S-video output Y terminal and terminate at 75
ohms.
2. Confirm that the Y level is 1.0 Vp-p ± 20 mV.
1. Video Output (Luminance Signal) Confirmation
Measurement point
Mode
Disc
S-Video output terminal (Y OUT)
PLAY
DVDT-S15 (Title 10), DVDT-S01 (Title 48)
Color bar 100%
Measuring equipment, tools
Confirmation value
Screwdriver, Oscilloscope
1.0 Vp-p ± 20mV
200mV/div 10µsec/div
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
31
DVD-S2300MK2
Measurement point
Mode
Disc
S-Video output terminal (C OUT)
PLAY
DVDT-S15 (Title 10), DVDT-S01 (Title 48)
Color bar 100%
Measuring equipment, tools
Adjustment value
Screwdriver, Oscilloscope
779 mVp-p ± 40mV
200mV/div 10µsec/div
Purpose: To maintain video signal output compatibility.
1. Connect the oscilloscope to the S-video output C terminal and terminate at 75
ohms.
2. Confirmation that the Magenta level is 779 mVp-p ± 40 mV.
2. Video Output (Chrominance Signal) Confirmation
3. Progressive Output Confirmation
Purpose : To maintain video signal output compatibility.
1. Connect the oscilloscope to the component video output Y terminal and terminate
at 75 ohms.
2. Press the "PROGRESSIVE" button on the remote control unit. The main unit is in
the "PROGRESSIVE" output mode and the front panel indicator lights.
3. Confirm that the Y level is 1.0 Vp-p ± 20 mV.
Measurement point
Mode
Disc
Component video output terminal
PLAY
DVDT-S15 (Title 10), DVDT-S01 (Title 48)
(Y OUT)
Color bar 100%
Measuring equipment, tools
Confirmation value
Screwdriver, Oscilloscope
1.0 Vp-p ± 20mV
200mV/div 10µsec/div
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
32
DVD-S2300MK2
G PIN CONNECTION
2
F1
1
F1
3
NP
4
NP
5
P23
6
P22
7
P21
8
P20
9
P19
10
P18
11
P17
12
P16
13
P15
14
P14
15
P13
16
P12
17
P11
18
P10
19
NX
20
NX
21
NX
22
NX
23
NX
24
NX
25
NX
26
NX
27
NX
28
P9
29
P8
30
P7
31
P6
32
P5
33
P4
34
P3
35
P2
36
P1
37
IC
38
NP
39
NP
40
F2
41
F2
Pin No.
Connection
42
F2
82
F1
43
F2
44
NP
45
NP
46
IC
47
IG
48
2G
49
3G
50
4G
51
5G
52
6G
53
7G
54
8G
55
9G
56
10G
57
11G
58
12G
59
NX
60
NX
61
NX
62
NX
63
NX
64
NX
65
13G
66
14G
67
P35
68
P34
69
P33
70
P32
71
P31
72
P30
73
P29
74
P28
75
P27
76
P26
77
P25
78
P24
79
NP
80
NP
81
F1
Pin No.
Connection
Note : 1) F1, F2 ..... Filament
5) DL
..... Datum Line
2) NP
..... No pin
6) 1G~14G ..... Grid
3) NX
..... No extend pin
4) IC
..... Internal connection (IC pin should be electrically open on the PC board)
1-1
1G
3G
( 3G~14G )
4G
5G
6G
8G
9G
10G
11G
12G
13G
14G
7G
2G
2-1 3-1 4-1 5-1
1-2 2-2 3-2 4-2 5-2
1-3 2-3 3-3 4-3 5-3
1-4 2-4 3-4 4-4 5-4
1-5 2-5 3-5 4-5 5-5
1-6 2-6 3-6 4-6 5-6
1-7 2-7 3-7 4-7 5-7
G GRID ASSIGNMENT
G LEAD DETAILS
1
a
™
b
SACD
DVD AUDIO
VCD
MP3
L
RL
RR
SW
C
R
VIDEO
CD
PROG RNDMREP
ALL
GROUP TITLE TRACK
ANGLE
VSS
D. MIX
CHAP
PAGE
P. PCM
TEXT
MPEG MULTI 2 CH
ARTIST
A - B
I DISPLAY DATA
V701: 14-BT-77GN (V9910400)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
33
DVD-S2300MK2
1G
2G
3G
P1
SACD
PROG
1-1
P2
CD
RNDM
2-1
P3
DVD
REP
3-1
P4
AUDIO
A -
4-1
P5
VCD
B
5-1
P6
VIDEO
ALL
1-2
P7
MP3
TEXT
2-2
P8
L
ARTIST
3-2
P9
C
MPEG
4-2
P10
R
MULTI
5-2
P11
RL
2
1-3
P12
SW
CH
2-3
P13
RR
GROUP
3-3
P14
TITLE
4-3
P15
TRACK
5-3
P16
–
CHAP
1-4
P17
–
PAGE
2-4
P18
–
ANGLE
3-4
P19
–
D. MIX
4-4
P20
–
P.
5-4
P21
–
PCM
1-5
P22
–
VSS
2-5
P23
–
3-5
P24
–
4-5
P25
–
–
5-5
P26
–
–
1-6
P27
–
–
2-6
P28
–
–
3-6
P29
–
–
4-6
P30
–
–
5-6
P31
–
–
1-7
P32
–
–
2-7
P33
–
–
3-7
P34
–
–
4-7
P35
–
–
5-7
G ANODE CONNECTION
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
34
DVD-S2300MK2
I IC DATA
IC40: MN102HF60KYD (SACD P.C.B.)
MAIN CPU
Pin No.
u-com port
Definition
Direction
Note
1
WAIT
WAIT_SODC
Input
Bus cycle wait input terminal (SACD)
2
NRE
NRD
Output
Read enable output terminal
3
NWEL/P62
NWEL
Output
Lower level byte write enable output terminal
4
NWEH/P63
NWEH
Output
N.C
5
NCS0/P50
TRAY/TRV
Output
TRAY / TRAVESE Select
6
NCS1/P51
/CS_SODC
Output
SODC chip select output terminal
7
NCS2/P52
FL_RESET
Output
FL Driver reset
8
NCS3/P53
CS_SUBCPU
Output
Chip select output terminal for RS-232C μ-com
9
P54/NBREQ
TRAY DRV1
Output
TRAY Drive 1 output
10
P55/NBRACK
TRAY DRV2
Output
TRAY Drive 2 output
11
P56
SYSRES
Output
Reset issued to FEP/SODC/DSD decoder
12
NWORD
HFMON
Output
Power control for high frequency superimposed module
TDO
Output
Data output to rewrite jig when rewriting FLASH
13
A0
A0
Output
Address output terminal
14
A1
A1
Output
Address output terminal
15
A2
A2
Output
Address output terminal
16
A3
A3
Output
Address output terminal
17
VDD
VDD
+3.3V
18
BOSC/P80
TRAY_SW-
Input
Traverse outermost track position detect switch
19
VSS
VSS
GND
20
XI/P81
TRAY _SW+
Input
Traverse innermost track position detect switch
21
XO
XO
Output
N.C
22
VDD
VDD
+3.3V
23
OSCI
OSCI
Input
33.8688MHz Clock input
24
OSCO
OSCO
Output
Clock output
25
MODE
MODE
Input
u-com mode select (H level for current state)
26
A4
A4
Output
Address output terminal
27
A5
A5
Output
Address output terminal
28
A6
A6
Output
Address output terminal
29
A7
A7
Output
Address output terminal
30
A8
A8
Output
Address output terminal
31
A9
A9
Output
Address output terminal
32
A10
A10
Output
Address output terminal
33
A11
A11
Output
Address output terminal
34
AVDD
AVDD
Analog power terminal (3.3V)
35
A12
A12
Output
Address output terminal
36
A13
A13
Output
Address output terminal
37
A14
A14
Output
Address output terminal
38
A15
A15
Output
Address output terminal
39
A16
A16
Output
Address output terminal
40
A17
A17
Output
Address output terminal
41
A18
A18
Output
Address output terminal
42
A19/P43
A19
Output
Address output terminal
43
VREF-
VREF-
Power supply for A/D converter : GND
44
A20/P44/AN4
A20
Output
Address output terminal
45
A21/P45/AN5
A21
Output
Address output terminal
46
A22/P46/AN6
AGC
Output
AGC offset elimination filter select signal (FEP)
47
A23/P46/AN7
SAGCON
Output
SAG cancellation select signal
48
P80/DAC0
RCK
Output
RSK for IC45, 46, 612 (Shift Resister) control
49
P81/DAC1
AMUTE
Output
Audio mute signal
50
P82/DAC2
Output
N.C
51
P83/SBI3
DCFLT
Output
Capacitor select terminal for filter output (FEP)
52
P84/SBO3
CS9223
Output
Chip select output to TC9223 (phase comparator)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
35
DVD-S2300MK2
IC40: MN102HF60KYD (SACD P.C.B.)
MAIN CPU
Pin No.
u-com port
Definition
Direction
Note
53
P85/SBT3
SCK2
Output
Clock output to SUBCPU, E2PROM, FL Driver, IC45, IC46
54
VREF+
VREF+
Power supply for A/D converter : +3.3V
55
P86/SBI4
SI2
Input
Data input from SUBCPU, E2PROM, FL Driver
56
P87/SBO4
SO2
Output
Data output to SUBCPU, E2PROM, FL Driver, IC45, IC46
57
P90
CS_EPR
Output
Chip select output to E2PROM
58
P91
CS_FLD
Output
Chip select output to FL Driver
59
P92
CS_DAC
Output
Chip select output to DAC
60
P93
CS_DSD
Output
Chip select output to DSD Decoder
61
AVSS
P53
GND
62
P94/AN0
PA0
Input
Key input from front panel (Not used)
63
P95/AN1
PA1
Input
Key input from front panel (Not used)
64
P96/AN2
PA2
Input
Key input from front panel (Not used)
65
P97/AN3
PA3
Input
destination Select
66
VDD
VDD
+3.3V
67
P70/SBT0/RAS
DSPCLK
Input
Clock input from DVD-system u-com (MN102H60)
68
P71/SBI0/LCAS
CMD
Output
DATA output from DVD-system u-com (MN102H60)
69
P72/SBO0/UCAS
STATUS
Input
DATA input from DVD-system u-com (MN102H60)
70
P73/SBT1
SCK1
Output
Clock signal output to E2PROM and FL Driver
71
P74/SBI1
SI1
Input
Data signal input from E2PROM and FL Driver
72
P75/SBO1
SO1
Output
Date signal output to E2PROM and FL Driver
73
PULLUP0
TD1
Input
Built-in ROM rewrite data terminal
74
PULLUP1
TCLK
Input
Built-in ROM rewrite clock terminal
75
NNMI
NNMI
Input
Pulled up by 10KΩ
76
PA0/NIRQ0
/IR
Input
Remote control signal input (Not used)
77
PA1/NIRQ1
MSREADY
Input
DSD decoder communication complete signal input terminal
78
PA2/NIRQ2
ADSCIRQ
Input
ADSC block request signal input
79
PA3/NIRQ3
ODCIRQ
Input
ODC block request signal input
80
PA4/NIRQ4
MODULE_RES
Input
DVD module board reset signal detect input
81
ADSEP
ADSEP
Input
Address data separate/common select
82
NRST
NSRT
Input
Reset input terminal
83
VDD
VDD
+3.3V
84
D0
D0
I/O
Data input/output terminal
85
D1
D1
I/O
Data input/output terminal
86
D2
D2
I/O
Data input/output terminal
87
D3
D3
I/O
Data input/output terminal
88
D4
D4
I/O
Data input/output terminal
89
D5
D5
I/O
Data input/output terminal
90
D6
D6
I/O
Data input/output terminal
91
D7
D7
I/O
Data input/output terminal
92
VSS
VSS
GND
93
D8
D8
I/O
Data input/output terminal
94
D9
D9
I/O
Data input/output terminal
95
D10
D10
I/O
Data input/output terminal
96
D11
D11
I/O
Data input/output terminal
97
D12
D12
I/O
Data input/output terminal
98
D13
D13
I/O
Data input/output terminal
99
D14
D14
I/O
Data input/output terminal
100
D15
D15
I/O
Data input/output terminal
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
36
DVD-S2300MK2
IC823: M30626FHPFP (RS-232C P.C.B.)
16bit µ-COM (SUB CPU)
Pin No.
u-com port
Definition
Direction
Note
1
ANEX1/SOUT4
ANEX1/SOUT4
Output
N.C.
2
ANEX0/CLK4
ANEX0/CLK4
Output
N.C.
3
DA1/TB4IN
DA1/TB4IN
Output
N.C.
4
DA0/TB3IN
DA0/TB3IN
Output
N.C.
5
TB2IN/SOUT3
TB2IN/SOUT3
Output
N.C.
6
TB1IN/SIN3
TB1IN/SIN3
Output
N.C.
7
TB0IN/CLK3
TB0IN/CLK3
Output
N.C.
8
BYTE
BYTE
Input
Flash ROM writing control terminal
9
CNVss
CNVss
Input
Flash ROM writing control terminal
10
XCIN
XCIN
Output
N.C.
11
XCOUT
XCOUT
Output
N.C.
12
/RESET
/RESET
Input
Reset signal input
13
XOUT
XOUT
Output
10MHz clock output
14
VSS
VSS
GND
15
XIN
XIN
Input
10MHz clock input
16
Vcc
Vcc
+3.3v
17
/NMI
/NMI
Input
Mode select : L
18
/INT2
/INT2
Output
N.C.
19
/INT1
/IR
Input
Remote control signal input
20
/INT0
/INT0
Input
Chip select input from Panel_CPU
21
TA4IN/U
TA4IN/U
Output
N.C.
22
TA4OUT/U
TA4OUT/U
Output
N.C.
23
TA3IN
TA3IN
Output
N.C.
24
TA3OUT
TA3OUT
Output
N.C.
25
TA2IN/W
TA2IN/W
Output
N.C.
26
TA2OUT/W
TA2OUT/W
Output
N.C.
27
TA1IN/V
TA1IN/V
Output
N.C.
28
TA1OUT/V
TA1OUT/V
Output
N.C.
29
RxD2/SCL/TA0IN/TB5IN
RxD2/SCL/TA0IN/TB5IN
Output
N.C.
30
TxD2/SDA/TA0OUT
TxD2/SDA/TA0OUT
Output
N.C.
31
TxD1
TxD1
Output
Data signal output to RS-232C driver
32
RxD1
RxD1
Input
Data signal input from RS-232C driver
33
CLK1
CLK1
Output
Data signal output to RS-232C driver
34
CLKS1/CST0/RTS1/CTS1
CLKS1/CST0/RTS1/CTS1
Input
Data signal input from RS-232C driver
35
TxD0
TxD0
Output
Data signal output to Panel_CPU
36
RxD0
RxD0
Input
Data signal input from Panel_CPU
37
CLK0
CLK0
Input
Clock signal input from Panel_CPU
38
/RTS0/CTS0
/RTS0/CTS0
Output
N.C.
39
CLKOUT/RDY
CLKOUT/RDY
Output
N.C.
40
ALE
ALE
Output
N.C.
41
/HOLD
/HOLD
Input
Flash ROM writing control terminal
42
/HLDA
/HLDA
Output
N.C.
43
BCLK
BCLK
Output
N.C.
44
/RD
/RD
Output
N.C.
45
/BHE/WRH
/BHE/WRH
Output
N.C.
46
/WR/WRL
/WR/WRL
Input
Flash ROM writing control terminal
47
/CS3
/CS3
Output
N.C.
48
/CS2
/CS2
Output
N.C.
49
/CS1
/CS1
Output
N.C.
50
/CS0
/CS0
Output
N.C.
51
A19
A19
Output
N.C.
52
A18
A18
Output
N.C.
53
A17
A17
Output
N.C.
54
A16
A16
Output
N.C.
55
A15
A15
Output
N.C.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-S2300MK2
37
IC823: M30626FHPFP (RS-232C P.C.B.)
16bit µ-COM (SUB CPU)
S1WB-A-60
1N4002S
HZK3BTR
RLZ30.0A
Anode
Cathode
1SS355
D1FS4A-4063
MA3X71600L
MA8056-M
RB051L-40
Anode
Cathode
D4SBS4
D2SBA20
~
+
~
–
+
–
–
+
~
~
MN102HF60KYD
1
16
17
32
33
48
49
64
AD1955ARS
1
14
28
ON3131
TC7W53FU
TC7W74F
TC7WH74FU
TC7WU04F
TC7WU04FU
1
4
8
AN8703FH
M66003-0101FP
74LCX07MTCX
74VHC00MTCX
74VHC08MTCX
74VHC175MTCX
74VHC595MTCX
TC74HC125AF
74VHC595SJX
M5290FP
SN74LV4053APWR
74VHCT245AMTCX
SP3223ECA
PQ05RD21
PQ09RD11
M51951BHP
M62723ML
5
1
1: OUT
2: IN
3: COM
CXD2753R
MN103S26EGA
M30626FHPFP
1
10
20
NJM7909FA
AT25010
LMH6643MAX
NJM4558M-D
NJM5532M
NJU7015V
OPA2134UA/2K5
NC7SZ125P5X
PST596JNR
TC7S08F
TC7S32F
TC7SH08F
TC7SU04F
TS7ST00F
TS7ST08F
PQ1CG21H2F
PQ018EZ01ZP
PQ033EZ01ZP
1
8
16
µPC4570HA
1
3
4
5
1
7
14
1
4
BH7862FS
MD1422N
MD3221N
BA5823FM
K4S161622D-TC80
32
16
1
17
50
25
1
26
28
14
1
44
45
88
89
132
133
176
1
7
8
15
21
22
1
2
4
50
75
76
1
51
25
26
100
1
9
GND
OUT
VCC
1
3
4
2
S-808XXANNP
NJM79L05UA
COM
IN
OUT
5
1
1
7
14
1
30
31
50
51
80
81
100
3
1
2
1: VCC
2: GND
3: OUT
• ICs
• Diodes
I PIN CONNECTION DIAGRAM
2SB544
E C B
2SC1740S
B
E
C
2SC4488
E
C B
2SB1132
2SA1037K
2SA15320BL
2SC2412K
2SC3930
2SD1938F
DTA144EKA
DTC114EKA
DTC124EKA
B
E
C
BCE
2SB1565
2SD2394
E C B
• Transistors
Pin No.
u-com port
Definition
Direction
Note
56
A14
A14
Output
N.C.
57
A13
A13
Output
N.C.
58
A12
A12
Output
N.C.
59
A11
A11
Output
N.C.
60
A10
A10
Output
N.C.
61
A9
A9
Output
N.C.
62
Vcc
Vcc
+3.3v
63
A8
A8
Output
N.C.
64
Vss
Vss
GND
65
A7
A7
Output
N.C.
66
A6
A6
Output
N.C.
67
A5
A5
Output
N.C.
68
A4
A4
Output
N.C.
69
A3
A3
Output
N.C.
70
A2
A2
Output
N.C.
71
A1
A1
Output
N.C.
72
A0
A0
Output
N.C.
73
D15/INT5
D15/INT5
Output
N.C.
74
D14/INT4
D14/INT4
Output
N.C.
75
D13/INT3
D13/INT3
Output
N.C.
76
D12
D12
Output
N.C.
77
D11
D11
Output
N.C.
78
D10
D10
Output
N.C.
79
D9
D9
Output
N.C.
80
D8
D8
Output
N.C.
81
D7
MONO7
Output
Test terminal (N.C.)
82
D6
MONO6
Output
Test terminal (N.C.)
83
D5
MONO5
Output
Test terminal (N.C.)
84
D4
MONO4
Output
Test terminal (N.C.)
85
D3
MONO3
Output
Test terminal (N.C.)
86
D2
MONO2
Output
Test terminal (N.C.)
87
D1
MONO1
Output
Test terminal (N.C.)
88
D0
MONO0
Output
Test terminal (N.C.)
89
AN7/KI3
AN7/KI3
Output
N.C
90
AN6/KI2
AN6/KI2
Output
N.C
91
AN5/KI1
AN5/KI1
Output
N.C
92
AN4/KI0
AN4/KI0
Output
N.C
93
AN3
AN3
Output
N.C
94
AN2
PA2
Input
Key input from front panel
95
AN1
PA1
Input
Key input from front panel
96
Avss
Avss
GND
97
AV0
PA0
Input
Key input from front panel
98
VREF
VREF
Input
+3.3v
99
Avcc
Avcc
+3.3v
100
/ADTRG/SIN4
/ADTRG/SIN4
Output
N.C
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
A
B
C
D
E
F
G
H
I
J
1
3
4
5
7
DVD-S2300MK2
6
46
IC5201
FRONT END
PROCESSOR
AN8703FH
IC3001
AV DECODER
MN677531KA
IC3701
PROGRESSIVE
FLI2200
IC3731
64M SDRAM
IC2001
SODC
MN103S26E
IC2501
DRIVER
BA5823FM
IC6801
WM
MN67736WK
IC3261
V-OUT
SWITCHING
BU4053BCFV
IC3751
PROGRESSIVE
V- DAC
ADV7199KS
IC4211
AUDIO DAC
PCM1608YT2
IC6301
16MB
FLASH ROM
8KB
EEPROM
IC3061
64MB
SDRAM
IC6201
MAIN CPU
MN102H60GFB
PICK UP
DISC
IC6501
CLK
36.864MHz
BU2286FV
16.934MHz
33.868MHz
36.864MHz
27MHz
AUDIO OUT
MIX L/R
F L/R
S L/R
CB/CR
C
SW
Y
C
DIGITAL AUDIO OUT
SERIAL BUS
SERIAL
FRONT CPU
PARALLEL BUS
DVD MODULE
See page 55~62 and 63 SCHEMATIC DIAGRAM
I BLOCK DIAGRAM
I PRINTED CIRCUIT BOARD
RS-232C P. C. B.
(Component side)
RS-232C P. C. B.
(Foil side)
RS-232C
REMOTE CONTROL
IN
OUT
1
30
31
50
51
80 81
100
1
7
14
8
1
1
1
4
8
5
10
20
11
7
14
8
1
5
1
5
MAIN (2)
STANDBY LED
GND
PA2
PA1
PA0
D+3.3
REMOTE
MAIN (4)
WH
BE
Power Transformer
CS_232C
SCK2
GND
SO2
SI2
GND
SACD
Ref. No.
Location
D811
D2
D812
D6
D821
C6
IC821
C6
IC822
C3
IC823
B6
IC825
D7
IC826
B6
IC827
A6
IC828
B5
IC829
B5
IC830
C2
Q821
D3
Q822
C6
• Semiconductor Location
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
1
2
3
4
5
6
7
8
9
10
B
C
D
E
F
G
H
I
J
K
L
M
N
DVD-S2300MK2
BLOCK DIAGRAM
47
See page 50 - 52
MAIN P.C.B.
See page 49
AUDIO P.C.B.
See page 48
SACD P.C.B.
See page 53
RS-232C P.C.B.
See page 55 - 62
See page 52
MAIN P.C.B.
SW810
IC828
IC829
IC830
Q822
IC826
IC823
IC827
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
A
B
C
D
E
F
G
H
I
J
1
3
4
5
7
DVD-S2300MK2
6
40
AUDIO P. C. B. (1)
(Component side)
AUDIO P. C. B. (2)
(Component side)
MAIN (1)
SACD
MAIN (1)
AUDIO OUT L/R
MAIN L/R
SURROUND L/R
SUB OUT /
BASS MGMT
CENTER /
SUB WOOFER
+9
PGND
PGND
-9
+9
AGND
AGND
-9
DGND
DGND
BCKAD
DSADMR
DSAL
ZDF_FRONT
DSARS
DSACNT
ZDF_CNT
SO1
CS_DAC
SEL_SACD
AMUTE
DGND
SACD_MUTE
MODULE_RES
DGND
DGND
DAC_CLK
PHREF0
DSADML
ZDF_DM
DSAR
DSALS
ZDF_REAR
DSALFE
DGND
SCK1
DAC_RESET
NC
/MUTE
DGND
525P_MUTE
M_POWER
DGND
VOUT
GND
VIN
ADACGND
ADAC+5V
GND
D+5V
GND
MU+3.3
PGND
+B
PGND
-B
MAIN (1)
AOUT_R
GND
AOUT_L
MAIN (1)
NC
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
MAGND
MAGND
MAGND
DGND
525P_MUTE
M_POWER
NC
NC
M_MUTE
DVD_DMR
DVD_DML
DVD_FR
DVD_FL
DVD_SR
DVD_SL
DVD_SW
DVD_CNT
AC3H/DACMUT
MAGND
MAGND
DGND
SACD_MUTE
MODULW_RES
EXTRA SW
NC
1
16
17
32
1
1
1
1
1
1
1
1
1
5
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
5
5
5
8
8
8
8
1
5
8
1
5
8
1
5
8
14
14
14
15
15
28
28
15
28
1
14
15
28
8
9
16
I PRINTED CIRCUIT BOARD
Ref. No.
Location
D304
G6
D305
G5
D306
H2
D307
H3
D308
H4
D309
H4
D310
G3
D311
G3
D312
G4
D313
G5
IC301
F6
IC302
D2
IC303
D3
IC304
D4
IC305
D5
IC306
D2
IC307
E2
IC308
E3
IC309
E3
IC310
E4
IC311
E4
IC312
E5
IC313
E5
IC314
E6
IC315
F2
IC316
F3
IC317
F4
IC318
F5
IC325
H5
IC650
A6
IC651
B5
IC652
B6
Q301
F6
Q302
F6
Q304
G5
Q309
G6
Q310
G5
Q333
H5
Q334
H6
Q335
H6
• Semiconductor Location
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
B
C
D
E
F
G
H
I
J
1
2
3
4
5
6
7
DVD-S2300MK2
41
AUDIO P. C. B. (2)
(Foil side)
AUDIO P. C. B. (1)
(Foil side)
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
I PRINTED CIRCUIT BOARD
Ref. No.
Location
D301
D5
D302
D5
D303
D5
D314
F5
D315
G6
D651
A5
D652
A5
IC320
F2
IC321
F3
IC322
F4
IC323
F4
IC326
G6
IC327
G5
IC332
G5
Q307
G5
Q308
F5
Q311
F5
Q312
F5
Q313
F5
Q314
G2
Q315
G3
Q316
G3
Q317
G4
Q318
G2
Q319
G2
Q320
G3
Q321
G3
Q322
G4
Q323
G4
Q324
G5
Q325
G4
Q326
G2
Q327
G3
Q328
G4
Q329
G5
Q330
H5
Q331
H6
Q332
H6
• Semiconductor Location
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
A
B
C
D
E
F
G
H
I
J
1
3
4
5
7
DVD-S2300MK2
6
42
MAIN P. C. B. (1)
(Component side)
MAIN (3)
MAIN (2)
SACD
AUDIO (1)
AUDIO (2)
Power Transformer
Power Transformer
AUDIO (2)
AOUT_L
GND
AOUT_R
VIN
GND
VOUT
RE
RE
OR
OR
YE
YE
OR
BE
OR
RE
RE
AOUT_L
AOUT_R
PGND
PGND
PGND
+B
-B
AUDIO (1)
MU+3.3
PGND
D+5S
DGND
A+5S
MGND
-B
PGND
+B
PGND
SACD
M+9
MGND
DGND
+2.5S
DGND
D+5S
MGND
A-5
AUDIO (1)
DVD MODULE
NC
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
DGND
525P_MUTE
M_POWER
NC
NC
MU+3.3
MIXR
MIXL
FR
FL
SR
SL
SW
CNT
AC3H/DACMUT
ADACGND
ADACGND
DGND
SACD_MUTE
MODULE_RES
EXTRA SW
NC
-25
AC3.5-
AC3.5+
D+5
GND
STATUS
CMD
CUSTOM I/O
SO_S/R
SCK2
TD0
TD1
SEL_FLASH
DSPCLK
DGND
DGND
RCK
D+3.3VD
TCLK
FLASH_RESET
PR
PB
Y
COMPONENT (480p/480l)
VIDEO
S VIDEO
OPTICAL
COAXIAL
VIDEO OUT
DIGITAL OUT
I PRINTED CIRCUIT BOARD
Ref. No.
Location
D606
F3
D607
F3
D609
F2
D610
E2
D613
C2
D614
D2
IC605
C3
IC606
D3
IC608
E3
Q601
F3
• Semiconductor Location
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
B
C
D
E
F
G
H
I
J
1
2
3
4
5
6
7
DVD-S2300MK2
43
MAIN P. C. B. (1)
(Foil side)
1
1
1
8
9
16
4
5
8
16
17
32
1
16
17
32
I PRINTED CIRCUIT BOARD
Ref. No.
Location
D601
F3
D602
F3
D603
D4
D604
D4
D605
E3
D608
E3
IC502
B5
IC504
B7
IC505
B6
IC601
C3
IC603
C3
IC607
D4
IC611
E4
IC612
E6
IC613
F5
Q501
C6
Q502
C6
Q503
B5
Q506
B6
Q602
C3
Q604
C4
Q605
D3
Q606
G4
Q607
F4
Q608
G5
• Semiconductor Location
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
A
B
C
D
E
F
G
H
I
J
1
3
4
5
7
DVD-S2300MK2
6
44
MAIN (1)
SACD
RS-232C
L700
-25
AC3.5-
AC3.5+
D+5
GND
CS_FLD
SCK2
SO2
GND
REMOTE
D+3.3V
PA2
/RES_PANEL
VOFF_LED
PRGR_LED
DVD_LED
SACD_LED
PA0
PA1
MAIN P. C. B. (3)
(Component side)
MAIN P. C. B. (4)
(Component side)
MAIN P. C. B. (2)
(Component side)
MAIN P. C. B. (5)
(Component side)
BE
WH
GY
BR
BE
WH
AOUT_L
AOUT_R
PGND
PGND
PGND
+B
-B
SACD/DVD
LEVEL
POWER
AC IN
PHONES
PROGRESSIVE
SACD
DVD
VIDEO OFF
VIDEO OFF STANDBY
41
28
37
18
1
2
5
42
42
58
46
65
82
81
78
43
RS-232C
GND
STANDBY LED
REM
D+3.3
PA0
PA1
PA2
MAIN (1)
L701
I PRINTED CIRCUIT BOARD
Ref. No.
Location
D701
G5
D702
G5
D703
I5
D704
D5
D705
G5
D750
D2
D751
E2
IC750
E3
• Semiconductor Location
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
B
C
D
E
F
G
H
I
J
1
2
3
4
5
6
7
DVD-S2300MK2
45
16 17
32
33
48
49
64
1
MAIN P. C. B. (3)
MAIN P. C. B. (2)
(Foil side)
(Foil side)
I PRINTED CIRCUIT BOARD
Ref. No.
Location
IC701
G6
Q701
E5
Q702
H5
Q703
I6
Q704
D6
Q705
E6
• Semiconductor Location
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
A
B
C
D
E
F
G
H
I
J
1
3
4
5
7
DVD-S2300MK2
6
46
IC5201
FRONT END
PROCESSOR
AN8703FH
IC3001
AV DECODER
MN677531KA
IC3701
PROGRESSIVE
FLI2200
IC3731
64M SDRAM
IC2001
SODC
MN103S26E
IC2501
DRIVER
BA5823FM
IC6801
WM
MN67736WK
IC3261
V-OUT
SWITCHING
BU4053BCFV
IC3751
PROGRESSIVE
V- DAC
ADV7199KS
IC4211
AUDIO DAC
PCM1608YT2
IC6301
16MB
FLASH ROM
8KB
EEPROM
IC3061
64MB
SDRAM
IC6201
MAIN CPU
MN102H60GFB
PICK UP
DISC
IC6501
CLK
36.864MHz
BU2286FV
16.934MHz
33.868MHz
36.864MHz
27MHz
AUDIO OUT
MIX L/R
F L/R
S L/R
CB/CR
C
SW
Y
C
DIGITAL AUDIO OUT
SERIAL BUS
SERIAL
FRONT CPU
PARALLEL BUS
DVD MODULE
See page 55~62 and 63 SCHEMATIC DIAGRAM
I BLOCK DIAGRAM
I PRINTED CIRCUIT BOARD
RS-232C P. C. B.
(Component side)
RS-232C P. C. B.
(Foil side)
RS-232C
REMOTE CONTROL
IN
OUT
1
30
31
50
51
80 81
100
1
7
14
8
1
1
1
4
8
5
10
20
11
7
14
8
1
5
1
5
MAIN (2)
STANDBY LED
GND
PA2
PA1
PA0
D+3.3
REMOTE
MAIN (4)
WH
BE
Power Transformer
CS_232C
SCK2
GND
SO2
SI2
GND
SACD
Ref. No.
Location
D811
D2
D812
D6
D821
C6
IC821
C6
IC822
C3
IC823
B6
IC825
D7
IC826
B6
IC827
A6
IC828
B5
IC829
B5
IC830
C2
Q821
D3
Q822
C6
• Semiconductor Location
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
A
B
C
D
E
F
G
H
I
J
1
3
4
5
7
DVD-S2300MK2
6
38
SACD
DVD MODULE P. C. B.
(Component side)
I PRINTED CIRCUIT BOARD
MAIN ( 1 )
DVD MODULE P. C. B.
(Foil side)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
B
C
D
E
F
G
H
I
J
1
2
3
4
5
6
7
DVD-S2300MK2
39
SACD P. C. B.
(Component side)
SACD P. C. B.
(Foil side)
Note) This P.C.B. consists of 4 layers. The patterns
of the second and third layers are omitted here.
1
1
1
1
1
4
4
4
5
5
5
8
8
8
1
1
7
8
14
4
5
8
1
1
4
5
8
4
5
8
1
4
5
8
8
9
1
7
8
14
15
21
22
28
16
7
8
14
1
1
10
11
20
1
1
25
26
50
10
11
20
44
45
88
89
132
133
177
1
1
4
4
5
5
8
8
CS_232C
SCK2
SI2
SO2
MAIN (1)
MAIN (1)
DVD
MODULE
TERMINAL
MAIN (2)
AUDIO (1)
M_Power
525P_MUTE
DGND
DGND
DAC_RESET
SCK1
DGND
DSALFE
ZDF_REAR
DSALS
DSAR
ZDF_DM
DSADML
PHREFO
FG1
FG3
SP2
TRV2
GND
T2(CD)
VREF2.2V(CD)
LD+(CD)
FE1
TS(DVD)
TD(DVD)
VREF2.2V(DVD)
GAINH/L
F1(DVD)
RFP
GND
GND
T-
F+
FG1
FG3
SP2
TRV2
GND
T2(CD)
VREF2.2V(CD)
LD+(CD)
FE1
TS(DVD)
TD(DVD)
VREF2.2V(DVD)
GAINH/L
F1(DVD)
RFP
GND
GND
T-
F+
FG2
SP1
TRV1
INSW1
PIN(CD)
FE2(CD)
T1(CD)
GND
VCC5V
TC(DVD)
TA(DVD)
PIN(DVD)
F2(DVD)
RFN
GND
LD+(DVD)
3.3VHFM
F-
T+
FG2
SP1
TRV1
INSW1
PIN(CD)
FE2(CD)
T1(CD)
GND
VCC5V
TC(DVD)
TA(DVD)
PIN(DVD)
F2(DVD)
RFN
GND
LD+(DVD)
3.3VHFM
F-
T+
MODULE_RES
SACD_MUTE
DGND
AMUTE
SEL_SACD
CS_DAC
SO1
ZDF_CNT
DSAC
DSARS
ZDF_FRONT
DSAL
DSADMR
BCKA0
DGND
DGND
CS_FLD
SCK2
SO2
DGND
REM
D+3.3VD
PA2
FL_RESET
VOFF_LED
PROG_LED
DVD_LED
LED_SACD
PA0
PA1
STATUS
CMD
/IR
SO_S/R
SCK2
TCLK
TD1
SEL_FLASH
DSPCLK
DGND
DGND
RCK
D+3.3VD
TD0
FLASH_RESET
A-5
AGND
D+5S
DGND
+2.5S
DGND
SGND
M+9
1
1
1
8
16
9
1
1
1
7
8
14
1
1
8
16
9
1
1
1
7
1
1
44
45
88
89
132
133
176
1
25
26
50
51
75
76
100
7
16
8
1
1
4
8
5
7
16
8
8
14
1
4
5
8
4
5
8
4
5
8
8
16
9
7
8
14
16
17
32
33
48
49
64
8
16
9
4
5
5
8
8
DVD
Mechanism
RS-232C
I PRINTED CIRCUIT BOARD
Ref. No. Location
D1
D4
D2
J5
D3
J5
IC1
H3
IC2
H3
IC3
H3
IC4
I3
IC5
J3
IC6
I3
Ref. No. Location
IC7
E3
IC8
E3
IC9
D4
IC10
D4
IC11
H4
IC12
C4
IC13
I4
IC20
H4
IC21
E3
• Semiconductor Location
Ref. No. Location
IC22
J3
IC23
E3
IC30
C5
IC31
H5
IC32
G6
IC33
G6
IC34
G5
IC36
G5
IC40
E5
Ref. No. Location
IC41
J5
IC42
I6
IC43
E6
IC44
D4
IC45
E4
IC46
E4
IC48
E4
IC51
G3
IC53
E4
Ref. No. Location
IC54
G3
IC58
G5
IC59
G5
IC60
G5
IC61
D5
IC62
D6
IC63
D5
IC64
D5
IC65
D6
Ref. No. Location
IC66
B5
Q1
H3
Q2
H3
Q3
H3
Q4
I3
Q5
D4
Q6
D4
Q7
I3
Q8
D4
Ref. No. Location
Q9
D4
Q10
I3
Q12
D4
Q13
C3
Q14
J5
Q15
H3
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
1
2
3
4
5
6
7
8
9
10
B
C
D
E
F
G
H
I
J
K
L
M
N
DVD-S2300MK2
SCHEMATIC DIAGRAM (MAIN 1/3)
50
# All voltages are measured with a 10MΩ/V DC electronic volt meter.
# Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
# Schematic diagram is subject to change without notice.
Page 49
to AUDIO (1)
A3
Page 48
to SACD
I10
Page 60
Page 59
to DVD MODULE
G3
to DVD MODULE
I3
6dB
75ohm
6dB
75ohm
20k
6M
LPF
6dB
75ohm
IC502: BH7862FS
6 ch Video Driver
1
CTRAP
2
MUTE1
3
CIN
4
GND
5
YIN
6
VCC
7
GND
8
PYIN
9
GND
10
PYTRAP
11
VCC
12
PbIN
13
GND
14
PrIN
15
MUTE2
MUTE1
20k
MUTE2
16
PrTRAP
32 COUT
31 TEST
TEST
30 MIXOUT
29 MIXFB
28 GND
27 YTRAP
26 GND
25 YOUT
24 YFB
23 GND
22 PYOUT
21 PYFB
20 GND
19 PbOUT
18 N.C.
17 PrOUT
1.5-6M
BPF
6M
LPF
20k
6M
LPF
12M
LPF
CLAMP
CLAMP
6dB
75ohm
6dB
75ohm
6dB
75ohm
IC504: TS7ST00F
2 Input NAND Gate
1
2
3
IN B
IN A
GND
4
5
VCC
OUT Y
IC505: TC7WU04F
Triple Inverter
1A
3Y
GND
VCC
1Y
1
2
3
4
5
2A
3A
2Y
6
7
8
13
12
14
G
ACK
SER
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
11
10
SCK
SECR
9
7
6
5
4
3
2
1
15 QA
QB
QC
QD
QE
QF
QG
QH
QM SERIAL DATA
OUTPUT
PARALLEL
DATA OUTPUTS
IC612 : 74VHC595SJX
8-Bit Shift Register
IC613: TC7S32F
2 Input OR Gate
1
2
3
IN B
IN A
VSS
4
5
VDD
OUT X
MAIN (1)
VIDEO LPF AMP
SHIFT REGISTER
TTL NAND
INVERTER
PULSE
TRANSFORMER
OPTICAL
TRANSMITTER
INVERTER
DRIVER
TTL AND
INVERTER
0
0
0
3.1
3.1
5
2
1
3
4
0
3.3
3.3
2.5
2.5
1
7
5.0
0
2.5
2.5
2.6
5.0
0
8
4
3
5
5.0
0
0
2.5
5
3
2
0
6
4
1.7 2
0 1
5.0
0
0
5.0
0
0
5.0
0
0
2.4
0
1.8
1.8
0
1.9
0
1.9
1.7
0
2.0
2.3
0
2.3
2.4
5.0
2.8
0
2.5
5.0
1.9
2.5
0
0
2.8
2.8
0
5.0
2.2
5.0
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
1
2
3
4
5
6
7
8
9
10
B
C
D
E
F
G
H
I
J
K
L
M
N
DVD-S2300MK2
SCHEMATIC DIAGRAM (MAIN 2/3)
51
# All voltages are measured with a 10MΩ/V DC electronic volt meter.
# Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
# Schematic diagram is subject to change without notice.
VREF
VDD
VSS
OUT
2
4
1
IC601 : S-808XXANNP
Reset Signal Generator
IC603 : M51951BHP
System Reset
+
–
–
1
VCC
2 OUTPUT
3
GND
R
R
1.25V
IC605, 606: PQ05RD21
IC608: PQ09RD11
Regulator
IC607: MD1422N
Voltage Regulator
1
Vin
2 Vo
4 Vc
3
GND
INPUT
OUTPUT
COMMON
IC611: NJM79L05UA
Voltage Regulator
1
3
2
Page 49
to AUDIO (2)
B8
Page 52
to MAIN (2)
A2
Page 49
to AUDIO (1)
K1
Page 52
to MAIN (3)
G9
Page 48
to SACD
N8
Page 49
to AUDIO (1)
F10
Page 49
to AUDIO (2)
B10
MAIN (1)
MAIN (4)
MAIN (5)
Page 53
to RS-232C
I2
Page 53
to RS-232C
I2
Page 53
to RS-232C
K2
RESET
SIGNAL
GENERATOR
BUFFER
RESET
SIGNAL
GENERATOR
REGULATOR
REGULATOR
POWER SW
REGULATOR
REGULATOR
REGULATOR
REGULATOR
POWER SW
2.6
3.1
3.1
3.1
3.1
5.0
5.8
5.8
5.8
4.9
4.9
9.0
7.0
7.0
4.9
0
0
0
0
14.0
14.0
14.0
14.0
14.0
14.0
1.1
2.4
0
0
0
0
0
0
0
0
0
0
0
0
0.6
-25.5
-25.5
-27.3
-26.2
-19.9
-11.8
-4.6
2.8
4.9
-25.9
-22.4
-22.4
-11.8
-0.1
-0.1
11.5
11.5
11.5
3.1
3.1
8.9
13.7
13.7
6.7
AC4.2
6.7
0
0
0
-11.8
2.6
2.7
2.8
2.8
2.8
2.8
8.6
8.6
2.6
2.6
2.6
2.6
0
2.6
2.6
2.6
6.4
6.4
3.1
0
0
0
5.0
AC11.3
AC8.0
3.1
3.2
0
AC11.7
AC21.9
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
1
2
3
4
5
6
7
8
9
10
B
C
D
E
F
G
H
I
J
K
L
M
N
DVD-S2300MK2
SCHEMATIC DIAGRAM (MAIN 3/3)
52
# All voltages are measured with a 10MΩ/V DC electronic volt meter.
# Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
# Schematic diagram is subject to change without notice.
52
Display
controller
Segment
digit
select/
output
circuit
Serial
receive
circuit
Digit
output
circuit
Clock
generator
DIG11/
SEG42
51 DIG12/
SEG41
50 DIG13/
SEG40
49 DIG14/
SEG39
48 DIG15/
SEG38
47 DIG16/
SEG37
46 DIG17/
SEG36
45 SEG35
XOUT
6
Vcc1
8
Vcc2
18
Vss
5
Vp
64
XIN
7
CS
SCK
3
SDATA
4
RESET
1
SEG00
44
9 SEG34
SEG26
17
19 SEG25
Segment
output
circuit
Display code
RAM
(8-bit x 60)
CGROM
(35 bit x 166)
CGROM
(35 bit x 16)
code
select
Code
write
Code/
command
control
circuit
DIG00
63
53 DIG10
IC701: M66003-0101FP
FL Display Driver
2
data
timing
clock
dot data
write
scan pulse
IC750: µPC4570HA
Dual OP-Amp
Vcc
Vo1 -Vm1 +Vm1 VEE +Vm2 -Vm2 Vo2
Vcc
1
2
3
4
5
6
7
8
9
+
+
-
-
1
2
Page 51
to MAIN (1)
D10
Page 48
to SACD
J10
Page 53
to RS-232C
E10
Page 51
to MAIN (1)
A6
1
4
3
2
8
5
6
7
FL DRIVER
FL DISPLAY
IR REMOTE
HEADPHONE AMP
PHONES
LEVEL
PRGR LED DRIVER
VOFF LED DRIVER
DVD LED DRIVER
SACD LED DRIVER
STANDBY
LED DRIVER
PANEL KEY
MAIN (2)
MAIN (3)
3.3
3.3
0
0
3.3
0
0
3.3
3.3
5.6
3.3
3.3
3.3
3.3
3.3
3.3
-24.3
~
~
~
-24.6
~
~
~
~
~
~
-22.4
-22.5
-22.5
~
~
~
~
-22.5
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
-22.3
-24.3
-24.3
-22.3
-18.7
-18.7
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
-22.5
-22.5
-22.4
-0.8
-22.5
~
~
-24.3
~
-24.3
-24.3
~
~
~
~
~
~
~
~
~
~
~
~
~
-24.3
~
~
~
-0.7
10.9
10.9
-10.4
-10.6
-11.2
9.7
0
0
0
0
0
0
~
~
-18.7
-18.7
-18.7
-18.7
-18.7
-18.7
1.6
1.6
0
3.0
5.0
5.0
0.1
0.7
3.6
0
0
0
0
0
3.3
3.3
3.3
3.3
3.3
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
B
C
D
E
F
G
H
I
J
1
2
3
4
5
6
7
DVD-S2300MK2
55
Page 48
to SACD
A5
I SCHEMATIC DIAGRAM (DVD MODULE (1/8): FEP SECTION)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
A
B
C
D
E
F
G
H
I
J
1
3
4
5
7
DVD-S2300MK2
6
56
I SCHEMATIC DIAGRAM (DVD MODULE (2/8): SODC + DRV SECTION)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
B
C
D
E
F
G
H
I
J
1
2
3
4
5
6
7
DVD-S2300MK2
57
I SCHEMATIC DIAGRAM (DVD MODULE (3/8): AVDEC SECTION)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
A
B
C
D
E
F
G
H
I
J
1
3
4
5
7
DVD-S2300MK2
6
58
I SCHEMATIC DIAGRAM (DVD MODULE (4/8): PROGRESSIVE SECTION)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
B
C
D
E
F
G
H
I
J
1
2
3
4
5
6
7
DVD-S2300MK2
59
Page 50
to MAIN (1)
D7
I SCHEMATIC DIAGRAM (DVD MODULE (5/8): VIDEO DAC SECTION)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
A
B
C
D
E
F
G
H
I
J
1
3
4
5
7
DVD-S2300MK2
6
60
Page 50
to MAIN (1)
D3
I SCHEMATIC DIAGRAM (DVD MODULE (6/8): AUDIO DAC SECTION)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
B
C
D
E
F
G
H
I
J
1
2
3
4
5
6
7
DVD-S2300MK2
61
From
From
From
I SCHEMATIC DIAGRAM (DVD MODULE (7/8): WM SECTION)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
A
B
C
D
E
F
G
H
I
J
1
3
4
5
7
DVD-S2300MK2
6
62
To
To
To
To
To
To
To
To
To
To
I SCHEMATIC DIAGRAM (DVD MODULE (8/8): CPU SECTION)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
B
C
D
E
1
2
3
4
5
6
7
63
DVD-S2300MK2
DVD-S2300MK2
Page 48
to SACD
A3
I SCHEMATIC DIAGRAM (TERMINAL P.C.B.)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
1
2
3
4
5
6
7
8
9
10
B
C
D
E
F
G
H
I
J
K
L
M
N
DVD-S2300MK2
SCHEMATIC DIAGRAM (RS-232C)
53
# All voltages are measured with a 10MΩ/V DC electronic volt meter.
# Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
# Schematic diagram is subject to change without notice.
+
–
+
–
1
2
3
VOUT
5 ON/OFF
4 Oadj
VIN
VREF
COM
Voltage
regulator
Over current
protection
circuit
Over heat
protection
circuit
ON/OFF
circuit
Soft
start
Oscillator
ERROR AMP.
PWM COMP.
F/F
Q
S
R
IC822: PQ1CG21H2F
Voltage Regulator
IC821: M62723ML
Reset Signal Generator
IC824: TC7SH08F
2 Input OR Gate
1
2
3
IN B
IN A
GND
4
5
Vcc
OUT Y
IC
1
VIN
GND
DC output
VCC
3
2
5
IC825: PQ033EZ01ZP
Regulator
4G
13
4A
12
4Y
11
3G
10
3A
9
3Y
8
1A
2
2Y
3
2G
4
2A
5
2Y
6
GND
7
IC826, 827: TC74HC125AF
Quad Bus Buffer
Vcc
14
1G
1
IC828: TC7WU04F
Triple Inverter
1A
3Y
GND
VCC
1Y
1
2
3
4
5
2A
3A
2Y
6
7
8
IC829: SP3223ECA
RS232 Driver/Receiver
2
19
C1+
Vcc
18
GND
4
C1-
5
C2+
3
7
V+
V-
6
C2-
1
EN
20
SHUTDOWN
14
ONLINE
11
STATUS
13
T1IN
TTL/CMOS INPUTS
RS-232 OUTPUTS
17 T1OUT
12
T2IN
8
T2OUT
15
R1OUT
TTL/CMOS OUTPUTS
RS-232 INPUTS
16 R1IN
10
R2OUT
9
R2IN
1.25V
R1
R2
2
1
6
GND
COUNTER
OSC
SUPPLY VOLTAGE
OUTPUT
"L" RESET TYPE
Page 51
to MAIN (4)
to Power Transformer
to Power Transformer
L5
Page 51
K8
Page 51
J5
Page 48
to SACD
F10
Page 52
to MAIN (2)
A5
RS-232C
REMOTE CONTROL
RS-232C DRIVER
PHOTO COUPLER
SUB CPU
AND
REGULATOR
BOTTOM HOLD
RELAY DRIVER
REGULATOR
RESET
SIGNAL
GENERATOR
3-STATE
BUFFER
INVERTER
IC823 is not available.
Change the board when IC823 is defective.
Point D Pin 13 of IC823
2
3
10
8
6
5
4
7
12
11
13
1
7
2
3
6
5
3
1
2
5
4
11
12
10
1
4
13
8
9
6
8
4
3
2
14
9
1
PQ3DZ53
3-STATE BUFFER
D
AC15.3
0.1
12.6
16.6
-0.3
3.3
3.3
0
0
0
0
0
3.3
3.3
3.3
3.3
3.3
0
3.3
0
0
0
0
0
3.3
0
0.1
0
3.3
3.3
3.3
0
3.3
3.3
3.3
3.3
3.3
0
3.3
3.3
3.2
3.3
3.3
0
3.3
3.3
0
3.2
3.3
3.2
0
3.3
3.3
3.3
0
0
3.3 1.7
0 1.4 3.3 3.3
3.0 3.2
0
3.3
3.3
0
3.3
3.3
0
0
0
3.3
3.3
3.3 3.3
0
16.6
0
0
3.2
3.3
3.0
3.3
3.2
0
3.2
3.2
3.3
3.3
3.3
0
0
0
0
0
0
0
0
0
0.1
0
0.8
3.3
0
3.3
16.6 1.3 0
3.4
0
16.6
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
1
2
3
4
5
6
7
8
9
10
B
C
D
E
F
G
H
I
J
K
L
M
N
DVD-S2300MK2
SCHEMATIC DIAGRAM (SACD)
48
IC1: TC7WU04F
IC33, 42, 60: TC7WU04FU
Triple Inverter
1A
3Y
GND
VCC
1Y
1
2
3
4
5
2A
3A
2Y
6
7
8
A2
13
B2
12
O2
11
A3
10
B3
9
O3
8
B0
2
O0
3
A1
4
B1
5
O1
6
GND
7
IC2, 34, 53: 74VHC08MTCX
Quad 2-Input AND Gate
Vcc
14
A0
1
IC3: TC7S32F
2 Input OR Gate
1
2
3
IN B
IN A
VSS
4
5
VDD
OUT X
IC5, 6, 7, 8: NJM4558MD
IC9: NJU7015V
IC12, 13: LMH6643MAX
Dual OP-Amp
IC10: AN8703FH-V
DVD Front-end Processor
–
+
OUT1
–IN1
–VCC
+VCC
OUT2
1
2
3
4
5
+IN1
–IN2
+IN2
– +
6
7
8
LOGIC LEVEL
CONVERTER
OUT
IN
C
OUT
IN
C
5
2
4
GND
INH
A
1
7
6
8
VCC
CH0
CH1
COMMON
IC11: TC7W53FU
2-Channel Multiplexer / Demultiplexer
Point A Pin 5 of IC23
IC30: CXD2753R
DSD Decoder
* Samsung Electronics reserves the right to change products or specification without notice.
Bank Select
Data Input Register
512K x 16
512K x 16
Sense AMP
Output Buffer
I/O Control
Column Decoder
Latency & Burst Length
Programming Register
Address Register
Row Buffer
Refresh Counter
Row Decoder
Col. Buffer
LRAS
LCBR
LCKE
LRAS
LCBR
LWE
LDQM
CLK
CKE
CS
RAS
CAS
WE
L(U)DQM
LWE
LDQM
DQi
CLK
ADD
LCAS
LWCBR
Timing Register
IC31: K4S161622D
CMOS SDRAM
13
12
14
G
ACK
SER
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
D
G
D
G
R
11
10
SCK
SECR
9
7
6
5
4
3
2
1
15 QA
QB
QC
QD
QE
QF
QG
QH
QM SERIAL DATA
OUTPUT
PARAREL
DATA OUTPUTS
IC45, 46 : 74VHC595MTCX
8-Bit Shift Register
IC
1
VIN
GND
DC output
VCC
3
2
5
IC51: PQ033EZ01ZP
IC54: PQ018EZ01ZP
Regulator
Point B Pin 5 of IC32
Page 63
to TERMINAL
D4
Page 55
to DVD MODULE
B3
Page 50
to MAIN (1)
H1
Page 53
to RS-232C
H10
Page 52
to MAIN (2)
A4
Page 51
to MAIN (1)
A7
Page 49
to AUDIO (1)
A3
IC4, 21, 23: SN74LV4053APWR
Analog SW
11
10
9
6
7
8
16
4
3
5
1
2
13
12
14
15 2-COM
1-COM
1Y0
1Y1
2Y0
2Y1
3Y0
3Y1
3-COM
VCC
VCC
GND
GND
INH
C
B
A
IC36: TC7S08F
2 Input AND Gate
1
2
3
IN B
IN A
GND
4
5
VCC
OUT Y
1
T/R
A0
A1
A2
A3
A4
A5
A6
A7
GND
VCC
OE
B0
B1
B2
B3
B4
B5
B6
B7
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
IC58, 59: 74VHCT245AMTCX
Octal Buffer / Line Driver
IC20: MN103S26EGA
SODC
# All voltages are measured with a 10MΩ/V DC electronic volt meter.
# Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
# Schematic diagram is subject to change without notice.
D
Q
CP
CD
Q
D
Q
CP
CD
Q
D
Q
CP
CD
Q
D
Q
CP
CD
Q
MR
CP
D3
D2
D1
D0
O0
O0
O1
O1
O2
O2
O3
O3
IC64: 74VHC175MTCX
Quad D-Type Flip-Flop
IC61, 66: TC7SU04F
Inverter
1
2
3
NC
IN A
GND
4
5
VCC
OUT Y
A2
13
B2
12
O2
11
A3
10
B3
9
O3
8
B0
2
O0
3
A1
4
B1
5
O1
6
GND
7
IC62, 63: 74VHC00MTCX
Quad 2-Input NAND Gate
Vcc
14
A0
1
IC41: PST596JNR
Reset Signal Generator
to DVD-Mechanism
FEP
SODC
DSD DECODER
16M SDRAM
ANALOG SW
POWER SW
LD
POWER
CONTROL
BUS
BUFFER
BUS
BUFFER
REGULATOR
REGULATOR
ANALOG
SW
ANALOG SW
ACTUATOR
DRIVER
EEPROM
RESET SIGNAL GENERATOR
SHIFT
REGISTER
INVERTER
AMP
AMP
3
4
8
14
3
6
1
2
4
7
5
5
11
3
6
12
13
4
3
1
2
8
10
9 7
1
5
8
6
5
2
7
3
4
1
4
1
6
5
2
3
8
7
7
6
1
8
8
1
1
3
2
4
5
7
6
5
4
7
6
3
2
8
1
3
4
5
7
6
5
4
7
6
8
1
3
2
2
4
6
5
4
9
8
10
5
8
9
10
11
13
12
11
13
12
1
2
3
7
14
4
3
2
5
8
3
4
7
2
6
1
12
13
11
9
10
8
5
4
6
5
4
3
1
2
10
12
13
9
7
14
6
4
5
2
1
3
14
7
5
1
3
9
11
13
2
4
5
1
4
2
3
8
1
7
4
5
6
2
3
IC32: TC7WH74FU
D-type Flip Flop with Preset and Clear
(7)
S
(1)
C
PR
(6)
R
CLR
(2)
D
D
CK
(5)
(3) Q
Q
4
8
5
2 3
6
7
1
3
5 4
2
IC48: 74LCX07MTCX
Hex Buffer
A0
O0
O1
VCC
A3
1
2
3
4
11
A1
O3
A4
12
13
14
A2
O2
O4
A5
5
6
7
O5
8
9
10
GND
Point C Pin 4 of IC41 and Collector of Q14
Power ON
(Connect the power cord)
Power OFF
(Disconnect the power cord)
C 1
C 2
Point C Pin 4 of IC41 and Collector of Q14
Power ON
(Connect the power cord)
C 1
C 2
IC22: BA5823FM
Actuater Driver
8
VCC
6
SCK
IC44: AT25010
EEPROM
1
CS
5
SI
4
4
GND
STATUS
REGISTER
ADDRESS
DECODER
DATA
REGISTER
CLOCK
GENERATOR
MODE
DECODE
LOGIC
HOLD
MEMORY ARRAY
128/256/512 x 8
2
SO
3
WP
OUTPUT
BUFFER
IC43: NC7SZ125P5X
UHS Buffer
1
2
3
OE
A
GND
4
5
VCC
Y
0
0
3.3
3.3
3.3
0
0
0
0
0
3.3
0
3.0
2.5
0
2.3
0
0
3.3
0
0
3.0
2.5
3.3
0
0
0
3.3
3.3
0
0
0
0
0
0
0
0
2.2
2.2
5.0
2.2
2.2
2.2
2.4
3.3
5.0
5.0
5.0
5.2
1.7
1.7
1.7
0
0
0
5.2
5.2
5.0
0.5
4.3
3.3
0
0
0
2.2
2.2
2.3
2.3
2.2
2.3
2.3
5.0
2.2
2.2
2.2
2.2
2.2
2.2
1.6
1.7
1.5
1.9
0
0
0
0
2.2
5.0
1.7
1.6
1.7
0
3.3
3.3
3.9
1.4
0
0
0
0
0
0
2.1
0
0
0
0
0
0
0
5.0
0
0
0
1.3
1.3
1.2
3.3
2.1
2.1
0.4
2.2
0
2.2
2.2
2.2
2.2
2.2
2.1
5.0
1.7
4.9
0
0
0
5.0
0
0
0
0
0
0
0
0
0
0
2.1
1.3
1.7
2.0
1.2
5.0
5.0
5.0
1.2
0.2
1.7
0.5
0.5
0
2.5
2.2
1.8
0.3
5.0
0
0.3
0.9
-4.9
1.9
0.9
0.9
-4.7
1.7
0.9
5.0
0
0.3
0.3
0.3
5.0
0
0.6
-4.9
1.4
0.6
0.7
-4.7
1.5
0.8
5.0
0
0.3
0.3
0.3
3.3
0
3.3
3.3
0
1.8
0
0
0
0
0
3.3
1.8
0
3.3
0
3.3
1.8
0
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
1.8
0
0
0
0
0
0
0
0
0
0
0
0
0
3.3
3.3
3.3
3.3
3.3
3.3
0
0
0
0
0
0
5.0
0
3.3
3.3
0
3.3
0
0
0
0
0
0
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
0
3.3
3.3
0
3.3
3.3
0
0
0
0
0
0
0
0
0
0
3.3
0
0
0
3.3
3.3
1.71.7
1.7
1.7
1.5
1.5
1.5
3.1
3.1
1.5
1.3
1.4
1.7
8.9
3.3
5.3
5.3
4.1
3.9
0.1
0
0
0
0
0
0.1
0.1
1.6
1.7
1.9
1.7
1.5
1.5
5.1
8.9
1.6
1.7
1.7
1.7
0.1
0.1
0.1
0
0
0
4.9
3.1
0
0
0
0
0
0
0
3.3
3.3
0.2
0.4
0.4
0.5
0
0.4
0.1
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
0.4
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3.3
0
3.3
0
1.8
1.5
1.8
3.3
3.3
3.3
2.5
0
0
0
2.5
2.5
0
0
0
0
0
0
2.5
3.3
2.5
5.0
1.9
1.7
1.7
1.7
1.6
1.6
1.6
3.1
0
0
0
0
0
0
0
3.3
0
0
2.5
2.5
2.5
3.3
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2.5
3.3
3.3
3.3
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
5.0
3.3
3.3
3.3
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
5.0
0
0
0
0
0
5.0
0
0
0
0
5.0
5.0
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
1.8
2.6
2.6
5.0
3.3
5.0
0
0
0
5.0
5.0
0
5.0
5.0
0
0.1
0.1
0.1
0.1
3.3
3.3
0
~
0 3.3 3.3 3.3
~
0
0
0
0
0
0
0
3.3
0 3.3
0 3.3 3.3 3.3
~
0
3.3
3.3
3.3
0
0
0
0
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
0
0
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
0.1
3.3
0
0
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
0
0
0
3.3
3.3
0
0
0
3.3
3.3
3.3
3.3
0
0
0
0
0
3.3
3.3
3.3
3.3
0
0
0
0
0
0
0
0
0
0
0
3.3
3.3
0
0
0
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
1.5
1.5
0
0
0
3.3
0
3.3
0
3.3
0
1.7
1.7
3.3
0.1
3.3
0
C 1
2
B
A
C
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
1
2
3
4
5
6
7
8
9
10
B
C
D
E
F
G
H
I
J
K
L
M
N
DVD-S2300MK2
SCHEMATIC DIAGRAM (AUDIO)
49
# All voltages are measured with a 10MΩ/V DC electronic volt meter.
# Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
# Schematic diagram is subject to change without notice.
IC332: M51951BHP
System Reset
IC302~305 : AD1955ARS
DAC
+
–
–
1
VCC
2 OUTPUT
3
GND
R
R
1.25V
VCC
E– C+
NC
OUTPUT
(+5V)
DELAY
RESET OUT
BAL. ADJ.
GND
ON/OFF
E–
C–
NC
–VCC
DELAY
CIRCUIT
REFERENCE
REGULATOR
PROTECTION
ON/OFF
CONTROL
REFERENCE
IN
+
+
CURRENT
CONTROL
CURRENT
CONTROL
16
15
12
7
9
10
3
2
4
6
11
8
1
14
13
5
OUTPUT
(–5V)
CURRENT
CONTROL
IC301: M5290FP
Constant-Voltage Tracking Supply with Reset
IC650: MD3221N
Voltage Regulator
IC652: NJM7909FA
Voltage Regulator
COMMON
OUTPUT
INPUT
Page 51
to MAIN (1)
A5
Page 50
to MAIN (1)
G1
Page 48
to SACD
M7
AUDIO (2)
Page 51
to MAIN (1)
F3
Page 51
to MAIN (1)
A8
IC306: TC7WU04F
Triple Inverter
1A
3Y
GND
VCC
1Y
1
2
3
4
5
2A
3A
2Y
6
7
8
IC307~318, 320~323: OPA2134UA/2K5
Dual OP-Amp.
–
+
1
2
3
4
5
– +
6
7
8
OUT1
IN-1
IN+1
VSS
VDD
OUT2
IN-2
IN+2
IC325~327: NJM5532M
Dual OP-Amp.
1
2
3
4
5
6
7
8
A OUT
A-IN
A+IN
V-
V+
B OUT
B-IN
B+IN
IC651: PQ09RD11
Regulator
1
Vin
2 Vo
4 Vc
3
GND
AUDIO (1)
Page 51
to MAIN (1)
A8
AUDIO DAC
I-V CONVERTER
DIFFERENTIAL AMP
LPF AMP
MUTE CIRCUIT
POWER ON MUTE CIRCUIT
BUFFER
BASS MNG CIRCUIT
BUFFER
6
1 2
7
8
307
7
8
3
2
1
4
308
309
4
3
6
5
7
8
2
3
1
4
6
5
7
8
2
3
1
4
5
7
8
2
3
1
4
5
7
8
2
3
1
4
6
5
7
8
2
3
1
4
6
5
7
8
2
3
1
4
6
5
7
2
3
1
4
6
5
8
6
5
7
8
6
6
2
1
8
3
5
7
4
6
6
7
8
5
3
1
4
2
6
7
8
317
318
5
3
1
4
2
3
2
1
4
1
2
3
8
5
4
7
6
1
2
3
8
5
4
7
6
1
2
3
8
5
4
7
6
2
3
1
8
6
5
7
4
5
3
2
1
4
6
7
8
5
6
2
4
3
1
0
7
8
5
4
6
3
1
2
8
7
REGULATOR
TRACKING
REGULATOR
RESET
SIGNAL
GENERATOR
POWER ON
MUTE DRIVER
MUTE DRIVER
SW GAIN
CONTROL
24K
24K
12K
12K
1K
47
47/50
47/50
47/50
47/50
5600P/100
5600P/100
2.5
2.6
5.0
2.5
2.5
2.5
2.5
2.4
2.4
2.4
2.4
5.0
2.4
2.4
3.1
0
0
0
0
3.3
3.3
2.5
5.0
5.0
5.0
0
0
0
2.5
5.0
0
0
5.0
2.5
2.5
2.5
2.5
2.4
2.4
2.4
2.4
5.0
2.4
2.4
3.1
0
0
0
0
3.3
3.3
2.5
5.0
5.0
5.0
0
0
0
5.0
2.5
2.5
2.5
2.5
2.4
2.4
2.4
2.4
5.1
2.4
2.4
3.1
0
0
0
0
3.3
3.3
2.5
5.0
5.0
5.0
0
0
0
5.0
2.5
2.5
2.5
2.5
0.8
2.4
2.4
2.4
5.0
0.8
2.2
3.1
0
0
0
0
3.3
3.3
2.5
5.0
5.0
5.0
0
0
0
5.1
0
0
-0.9
-0.7
-8.1
2.4
2.4
2.4
2.4
8.2
-0.7
-0.7
-8.1
2.4
2.4
2.4
2.4
8.2
-0.9
-0.7
-8.1
2.4
2.4
2.4
2.4
8.2
-0.7
-0.9
-8.1
2.4
2.4
2.4
8.2
-0.9
-0.7
-8.1
2.4
2.4
2.4
2.4
8.2
-0.7
-0.7
-8.1
2.4
2.4
2.4
2.4
8.2
6.5
-6.9
-8.1
0.8
2.4
2.5
2.4
8.2
-6.9
6.6
-8.1
2.2
2.4
0.8
2.4
8.2
-1.7
8.2
-1.7
-4.3
2.4
-0.1
0.1
8.2
-0.2
-0.2
0.1
-8.1
-0.2
-0.2
-0.1
8.2
-0.2
-0.2
0.1
-8.1
-0.2
-0.1
-0.1
8.2
-0.1
-0.2
0.1
-8.1
-0.2
-1.7
-1.7
-4.3
-8.1
0
0
8.1
0
0
-8.1
0
0
0
0
8.1
0
0
-8.1
0
0
0
0
0
8.1
0
-8.1
0
0
0
0
0
8.1
0
0
0
0
-0.2
3.3
0
-0.1
-0.1
0
0
-8.1
3.3
3.1
2.6
2.6
2.6
3.1
2.6
2.6
3.1
-8.0
3.1
3.1
3.1
3.1
3.1
7.9
7.9
9.1
9.1
1.5
2.2
5.1
0
0
0
0
3.2
5.1
5.1
0
0
5.1
5.1
0
0
5.1
5.1
0
0
5.1
5.1
0
0
0
0
-8.0
0
0
-8.0
0
0
-8.0
0
0
-8.0
0
0
-8.0
0
0
-8.0
0
0
-8.0
0
0
-8.0
8.1
-8.1
0
0
0
0
0
0
1.5
5.1
0
0.1
0.8
5.1
0.1
0.8
5.0
0
0
0.1
0.8
5.0
0
0.1
8.2
-8.1
0
0
0
0
0
0
-8.1
0
0
0
0
0
0
-8.0
8.2
0.1
0
1.9
0
0
0
5.9
9.0
9.0
9.0
9.0
9.0
2.9
3.9
9.4
5.9
0
0
0
0
0
0
2.9
3.9
8.2
5.9
5.9
5.9
5.9
9.4
0.8
5.9
0
10.9
10.9
9.1
0
-11.3
-9.1
0
0
0
9.1
8.4
8.4
8.2
1.2
0
0
-9.1
-8.1
-8.1
1.4
3.1
-9.1
-8.1
-8.1
-9.1
8.2
7.9
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
