AX-496电路原理图

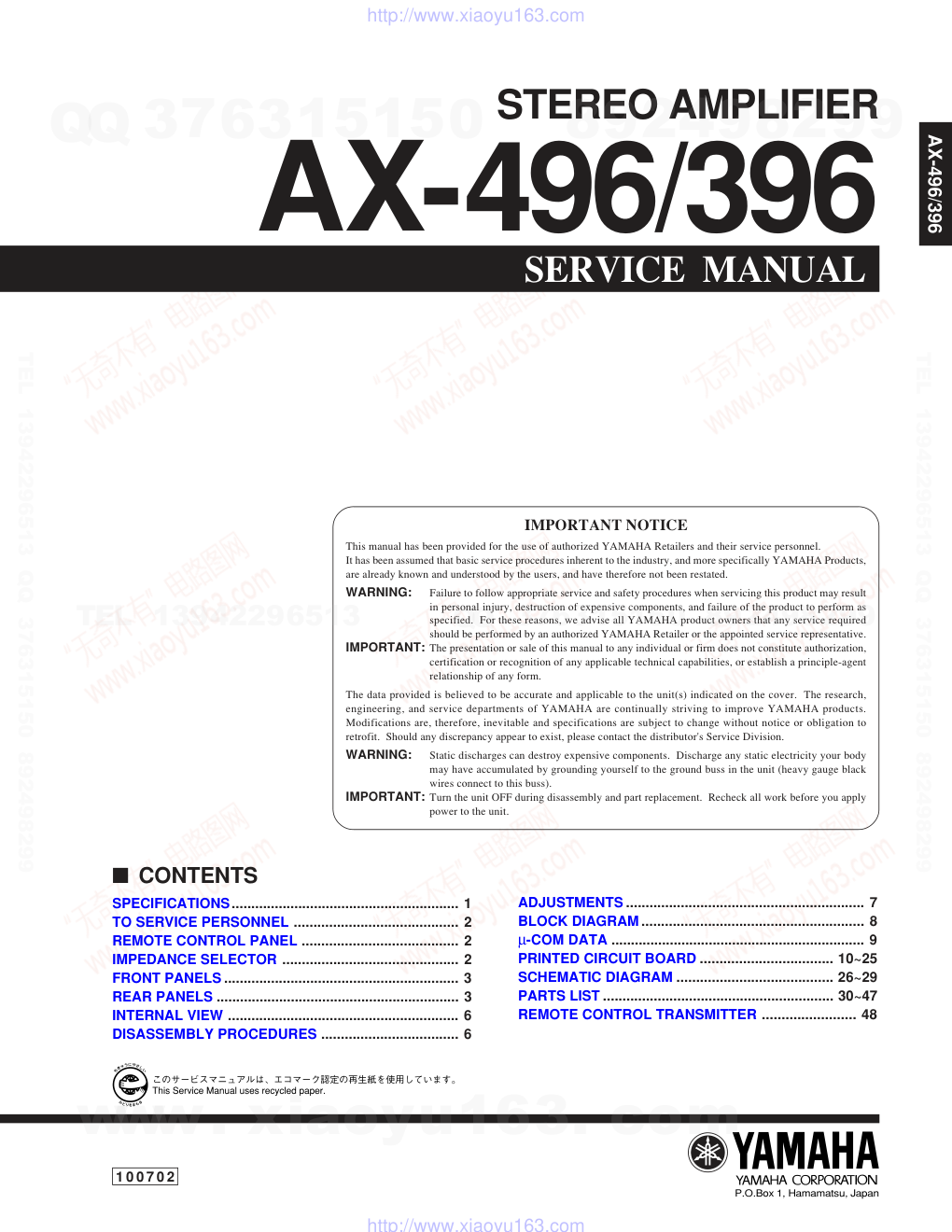

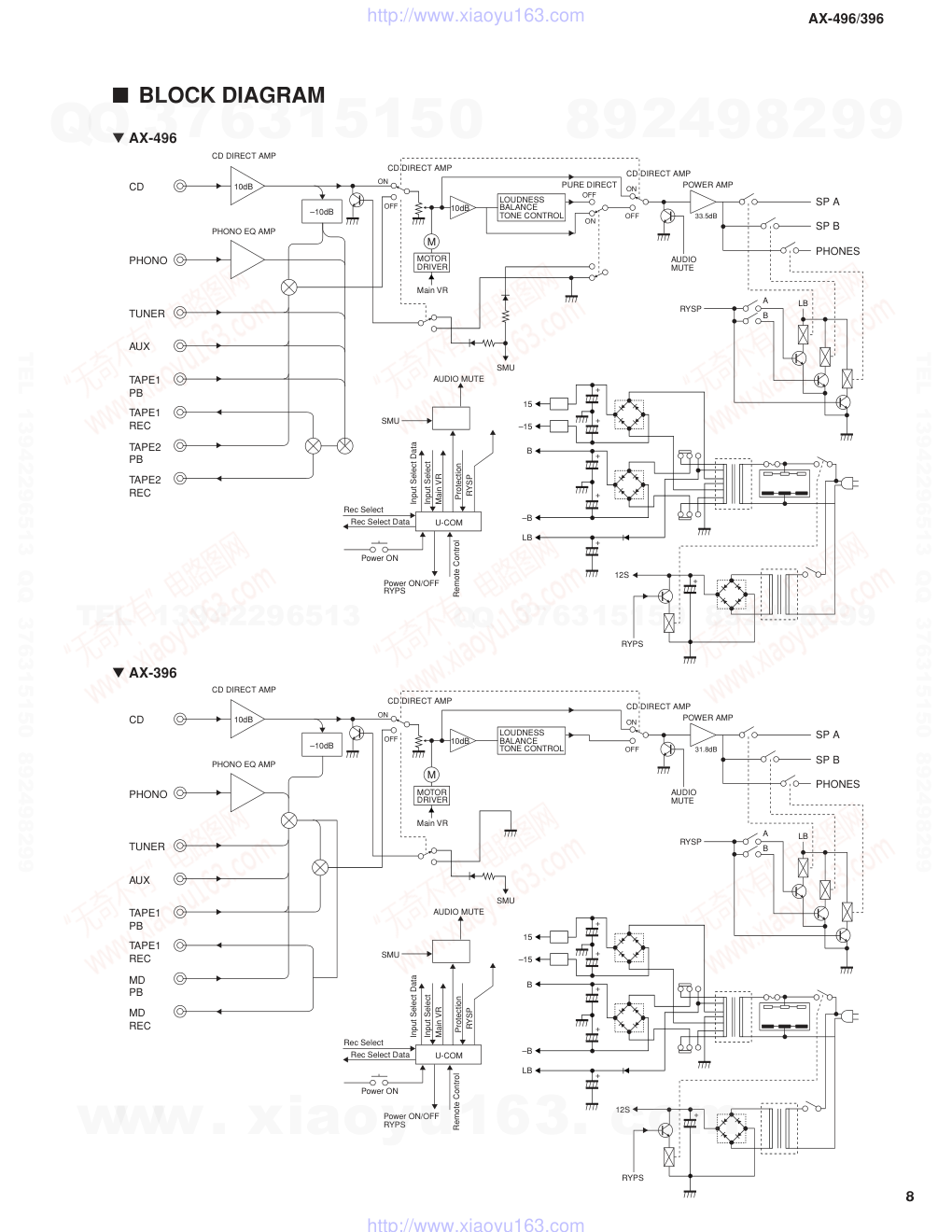

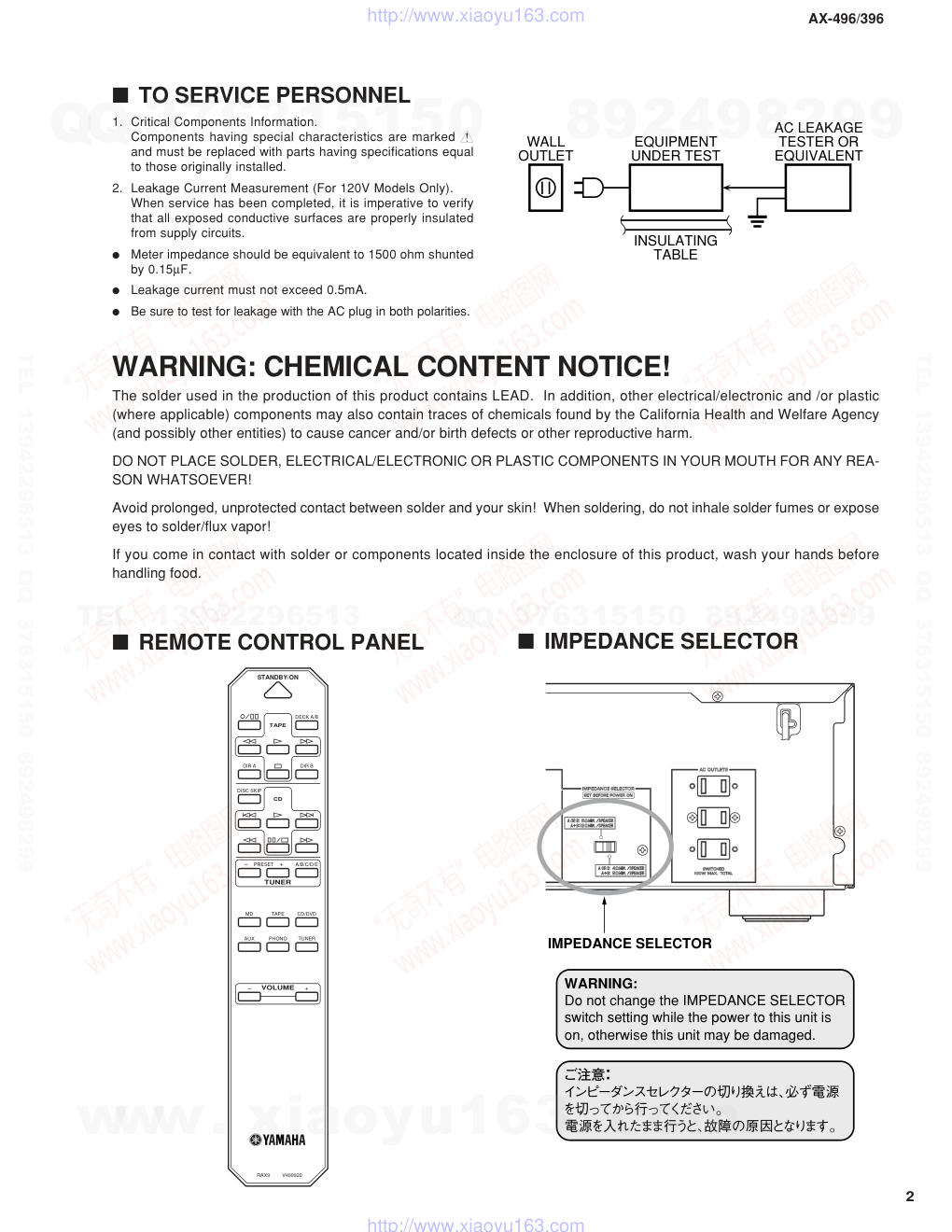

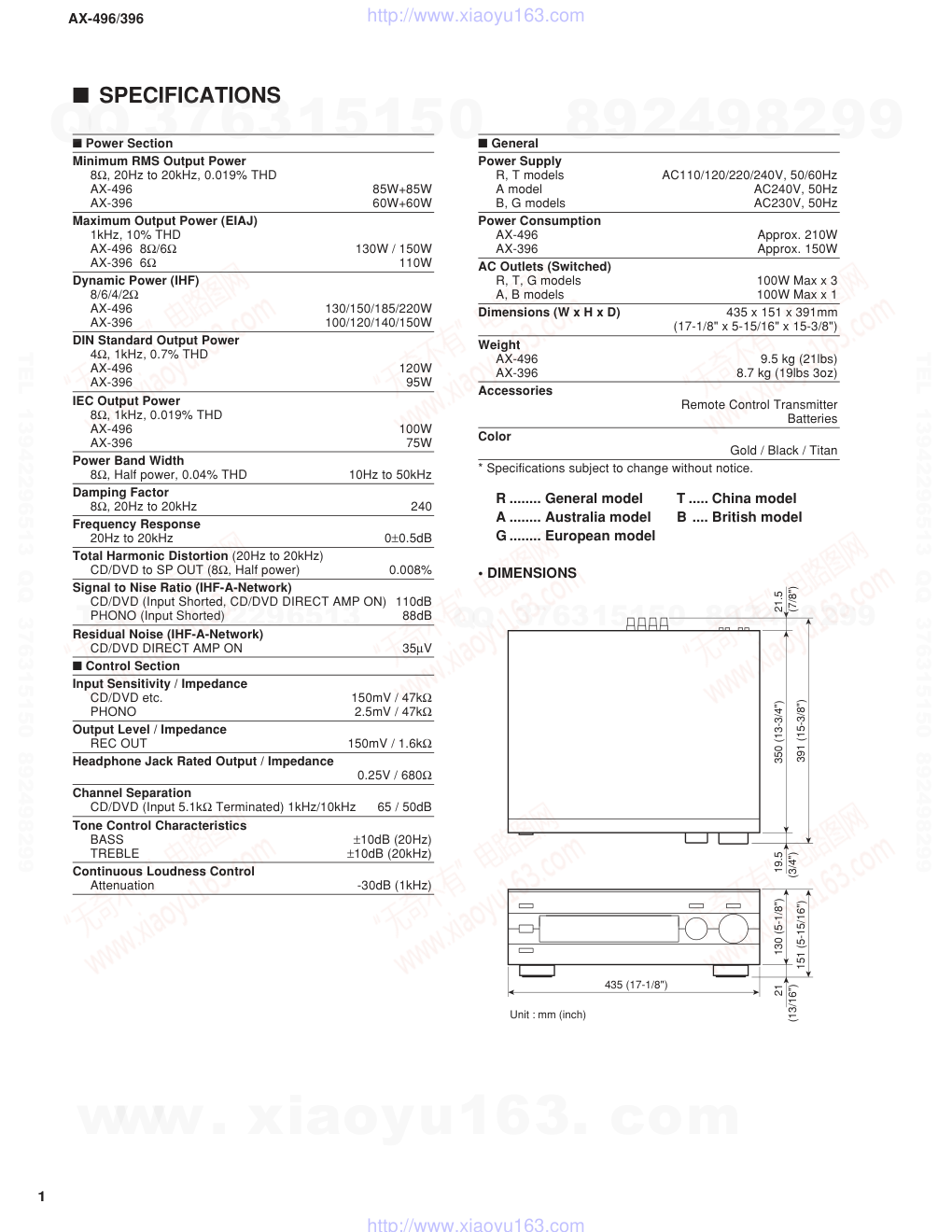

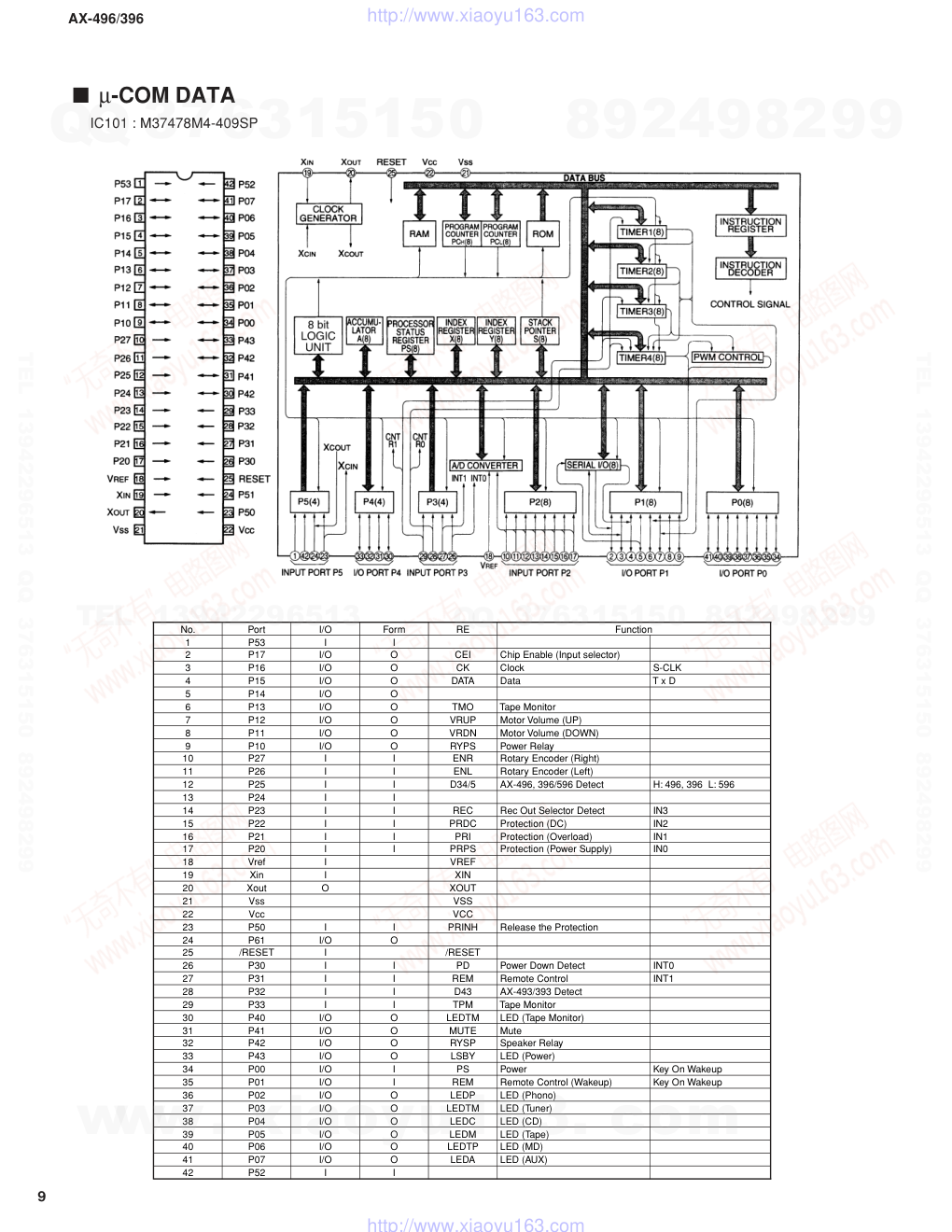

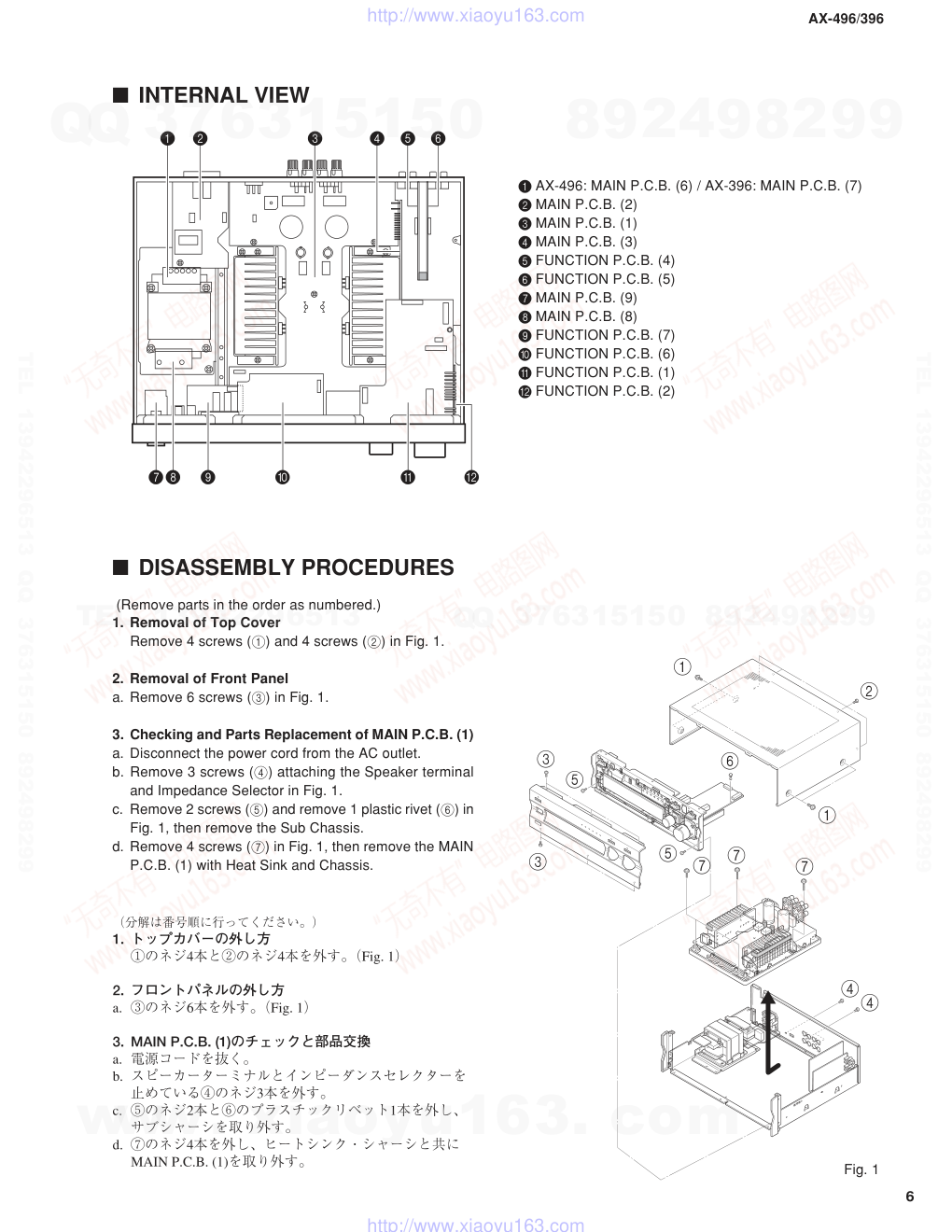

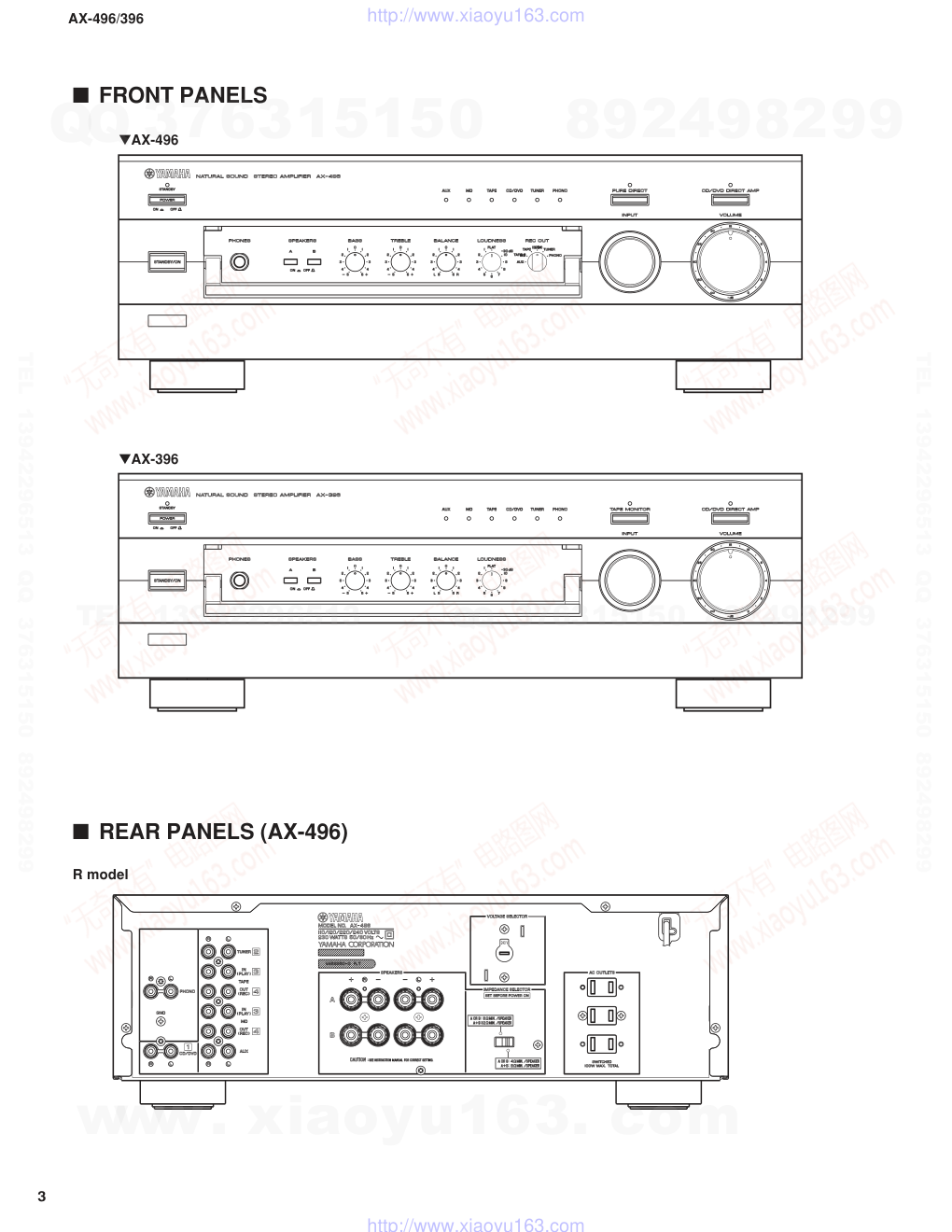

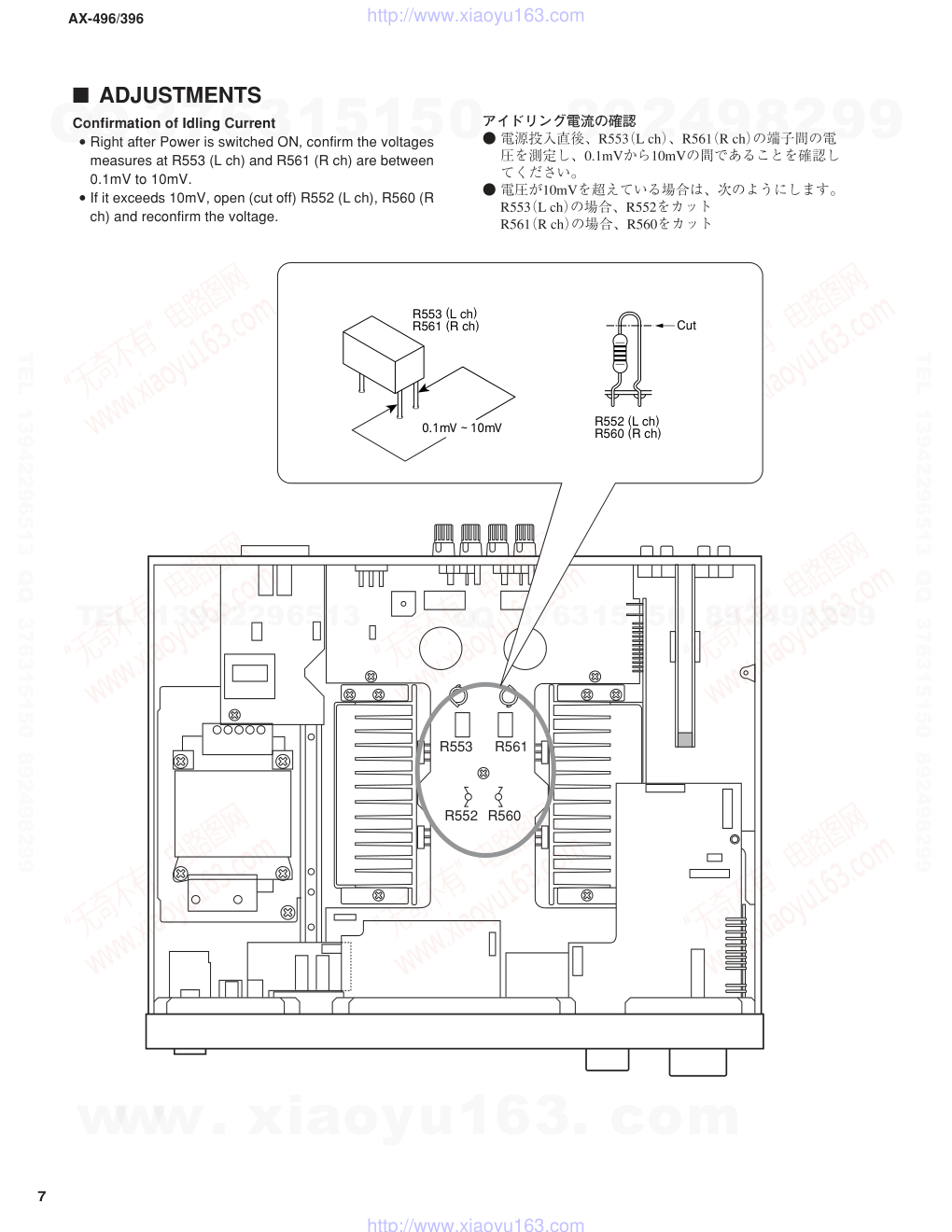

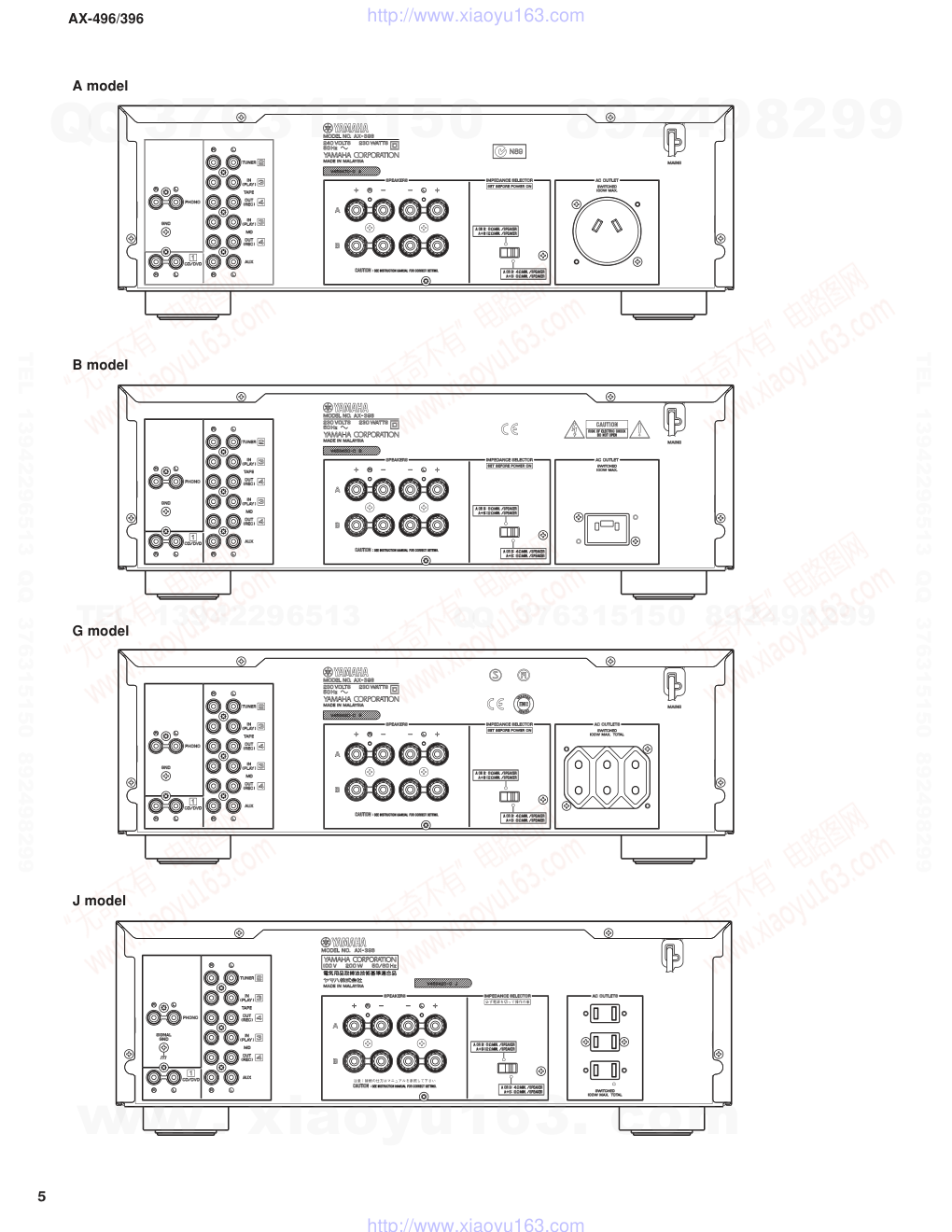

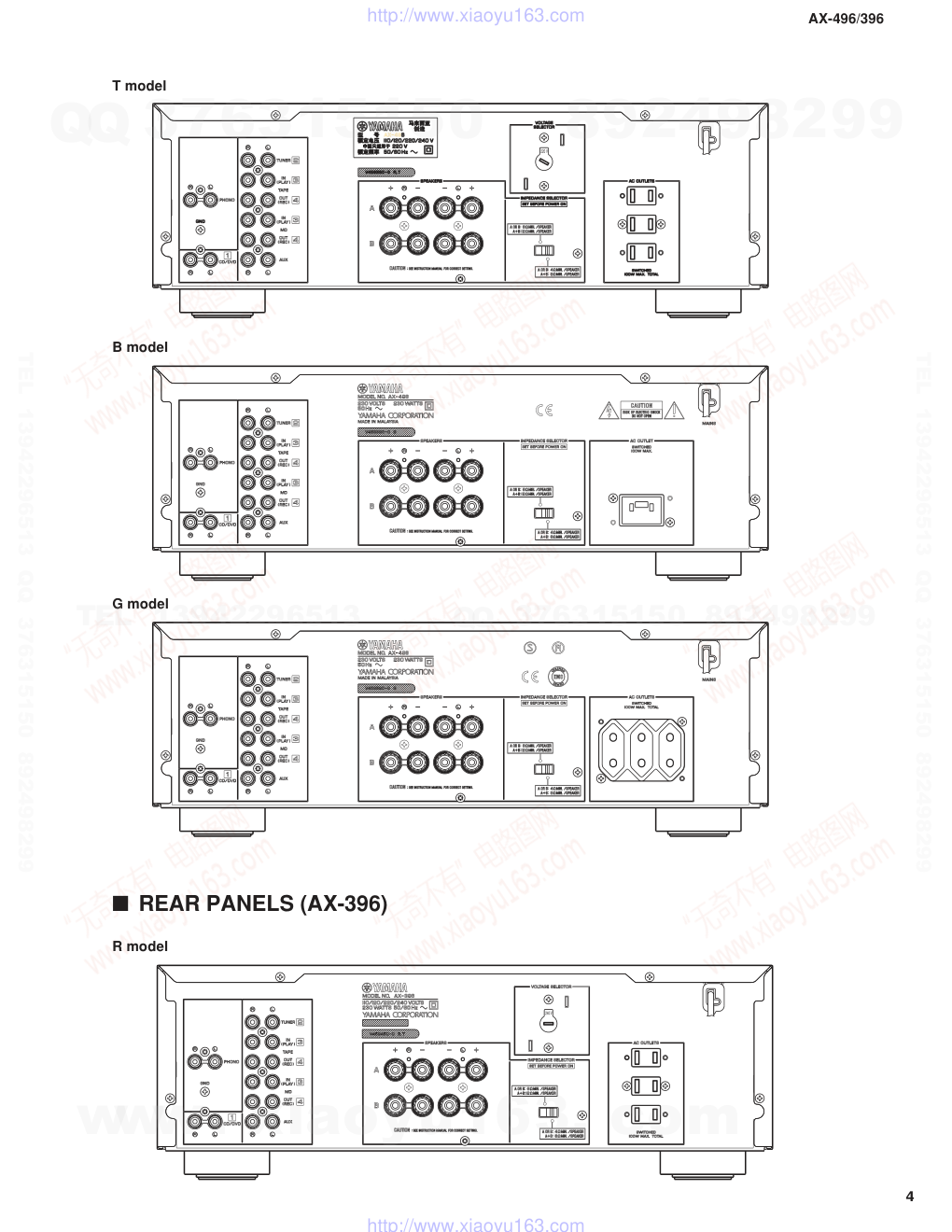

AX-496/396 SERVICE MANUAL STEREO AMPLIFIER AX-496/396 1 0 0 7 0 2 I CONTENTS SPECIFICATIONS.......................................................... 1 TO SERVICE PERSONNEL .......................................... 2 REMOTE CONTROL PANEL ........................................ 2 IMPEDANCE SELECTOR ............................................. 2 FRONT PANELS ............................................................ 3 REAR PANELS .............................................................. 3 INTERNAL VIEW ........................................................... 6 DISASSEMBLY PROCEDURES ................................... 6 ADJUSTMENTS ............................................................. 7 BLOCK DIAGRAM ......................................................... 8 µ-COM DATA ................................................................. 9 PRINTED CIRCUIT BOARD .................................. 10~25 SCHEMATIC DIAGRAM ........................................ 26~29 PARTS LIST ........................................................... 30~47 REMOTE CONTROL TRANSMITTER ........................ 48 IMPORTANT NOTICE This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. AX-496/396 P.O.Box 1, Hamamatsu, Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 1 435 (17-1/8") Unit : mm (inch) 151 (5-15/16") 130 (5-1/8") 350 (13-3/4") 21 (13/16") 19.5 (3/4") 21.5 (7/8") 391 (15-3/8") I SPECIFICATIONS I Power Section Minimum RMS Output Power 8Ω, 20Hz to 20kHz, 0.019% THD AX-496 85W+85W AX-396 60W+60W Maximum Output Power (EIAJ) 1kHz, 10% THD AX-496 8Ω/6Ω 130W / 150W AX-396 6Ω 110W Dynamic Power (IHF) 8/6/4/2Ω AX-496 130/150/185/220W AX-396 100/120/140/150W DIN Standard Output Power 4Ω, 1kHz, 0.7% THD AX-496 120W AX-396 95W IEC Output Power 8Ω, 1kHz, 0.019% THD AX-496 100W AX-396 75W Power Band Width 8Ω, Half power, 0.04% THD 10Hz to 50kHz Damping Factor 8Ω, 20Hz to 20kHz 240 Frequency Response 20Hz to 20kHz 0±0.5dB Total Harmonic Distortion (20Hz to 20kHz) CD/DVD to SP OUT (8Ω, Half power) 0.008% Signal to Nise Ratio (IHF-A-Network) CD/DVD (Input Shorted, CD/DVD DIRECT AMP ON) 110dB PHONO (Input Shorted) 88dB Residual Noise (IHF-A-Network) CD/DVD DIRECT AMP ON 35µV I Control Section Input Sensitivity / Impedance CD/DVD etc. 150mV / 47kΩ PHONO 2.5mV / 47kΩ Output Level / Impedance REC OUT 150mV / 1.6kΩ Headphone Jack Rated Output / Impedance 0.25V / 680Ω Channel Separation CD/DVD (Input 5.1kΩ Terminated) 1kHz/10kHz 65 / 50dB Tone Control Characteristics BASS ±10dB (20Hz) TREBLE ±10dB (20kHz) Continuous Loudness Control Attenuation -30dB (1kHz) I General Power Supply R, T models AC110/120/220/240V, 50/60Hz A model AC240V, 50Hz B, G models AC230V, 50Hz Power Consumption AX-496 Approx. 210W AX-396 Approx. 150W AC Outlets (Switched) R, T, G models 100W Max x 3 A, B models 100W Max x 1 Dimensions (W x H x D) 435 x 151 x 391mm (17-1/8" x 5-15/16" x 15-3/8") Weight AX-496 9.5 kg (21lbs) AX-396 8.7 kg (19lbs 3oz) Accessories Remote Control Transmitter Batteries Color Gold / Black / Titan * Specifications subject to change without notice. R ........ General model T ..... China model A ........ Australia model B .... British model G ........ European model • DIMENSIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 IMPEDANCE SELECTOR WARNING: Do not change the IMPEDANCE SELECTOR switch setting while the power to this unit is on, otherwise this unit may be damaged. 2 TAPE STANDBY/ON DECK A/B DIR B DIR A A/B/C/D/E PRESET CD/DVD MD TAPE TUNER AUX RAX9 V499920 PHONO – + CD TUNER DISC SKIP – + VOLUME WALL OUTLET EQUIPMENT UNDER TEST AC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. I TO SERVICE PERSONNEL 1. Critical Components Information. Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only). When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. G Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. G Leakage current must not exceed 0.5mA. G Be sure to test for leakage with the AC plug in both polarities. I REMOTE CONTROL PANEL I IMPEDANCE SELECTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 1 1 2 3 3 44 5 5 6 7 7 7 1 7 9 0 A 8 3 2 5 4 6 B 6 I DISASSEMBLY PROCEDURES (Remove parts in the order as numbered.) 1. Removal of Top Cover Remove 4 screws (1) and 4 screws (2) in Fig. 1. 2. Removal of Front Panel a. Remove 6 screws (3) in Fig. 1. 3. Checking and Parts Replacement of MAIN P.C.B. (1) a. Disconnect the power cord from the AC outlet. b. Remove 3 screws (4) attaching the Speaker terminal and Impedance Selector in Fig. 1. c. Remove 2 screws (5) and remove 1 plastic rivet (6) in Fig. 1, then remove the Sub Chassis. d. Remove 4 screws (7) in Fig. 1, then remove the MAIN P.C.B. (1) with Heat Sink and Chassis. Fig. 1 I INTERNAL VIEW 1 AX-496: MAIN P.C.B. (6) / AX-396: MAIN P.C.B. (7) 2 MAIN P.C.B. (2) 3 MAIN P.C.B. (1) 4 MAIN P.C.B. (3) 5 FUNCTION P.C.B. (4) 6 FUNCTION P.C.B. (5) 7 MAIN P.C.B. (9) 8 MAIN P.C.B. (8) 9 FUNCTION P.C.B. (7) 0 FUNCTION P.C.B. (6) A FUNCTION P.C.B. (1) B FUNCTION P.C.B. (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 R553 R552 R560 R561 R553 (L ch) R561 (R ch) R552 (L ch) R560 (R ch) 0.1mV～10mV Cut I ADJUSTMENTS Confirmation of Idling Current • Right after Power is switched ON, confirm the voltages measures at R553 (L ch) and R561 (R ch) are between 0.1mV to 10mV. • If it exceeds 10mV, open (cut off) R552 (L ch), R560 (R ch) and reconfirm the voltage. 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 10dB –10dB PHONO CD SP A SP B PHONES TUNER AUX TAPE1 PB TAPE1 REC MD PB MD REC CD DIRECT AMP PHONO EQ AMP CD DIRECT AMP CD DIRECT AMP MOTOR DRIVER ON ON OFF OFF 31.8dB M Main VR 10dB SMU LOUDNESS BALANCE TONE CONTROL AUDIO MUTE A B POWER AMP RYSP LB 15 –15 B –B LB 12S + + + + + + AUDIO MUTE SMU Rec Select Rec Select Data Power ON Power ON/OFF RYPS Remote Control Input Select Data Input Select Main VR Protection RYSP U-COM RYPS 10dB –10dB PHONO CD SP A SP B PHONES TUNER AUX TAPE1 PB TAPE1 REC TAPE2 PB TAPE2 REC CD DIRECT AMP PHONO EQ AMP CD DIRECT AMP CD DIRECT AMP MOTOR DRIVER ON ON ON OFF OFF OFF 33.5dB M Main VR 10dB SMU RYPS LOUDNESS BALANCE TONE CONTROL PURE DIRECT AUDIO MUTE A B POWER AMP RYSP LB 15 –15 B –B LB 12S + + + + + + AUDIO MUTE SMU Rec Select Rec Select Data Power ON Power ON/OFF RYPS Remote Control Input Select Data Input Select Main VR Protection RYSP U-COM I BLOCK DIAGRAM 8 M AX-496 M AX-396 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 No. Port I/O Form RE Function 1 P53 I I 2 P17 I/O O CEI Chip Enable (Input selector) 3 P16 I/O O CK Clock S-CLK 4 P15 I/O O DATA Data T x D 5 P14 I/O O 6 P13 I/O O TMO Tape Monitor 7 P12 I/O O VRUP Motor Volume (UP) 8 P11 I/O O VRDN Motor Volume (DOWN) 9 P10 I/O O RYPS Power Relay 10 P27 I I ENR Rotary Encoder (Right) 11 P26 I I ENL Rotary Encoder (Left) 12 P25 I I D34/5 AX-496, 396/596 Detect H: 496, 396 L: 596 13 P24 I I 14 P23 I I REC Rec Out Selector Detect IN3 15 P22 I I PRDC Protection (DC) IN2 16 P21 I I PRI Protection (Overload) IN1 17 P20 I I PRPS Protection (Power Supply) IN0 18 Vref I VREF 19 Xin I XIN 20 Xout O XOUT 21 Vss VSS 22 Vcc VCC 23 P50 I I PRINH Release the Protection 24 P61 I/O O 25 /RESET I /RESET 26 P30 I I PD Power Down Detect INT0 27 P31 I I REM Remote Control INT1 28 P32 I I D43 AX-493/393 Detect 29 P33 I I TPM Tape Monitor 30 P40 I/O O LEDTM LED (Tape Monitor) 31 P41 I/O O MUTE Mute 32 P42 I/O O RYSP Speaker Relay 33 P43 I/O O LSBY LED (Power) 34 P00 I/O I PS Power Key On Wakeup 35 P01 I/O I REM Remote Control (Wakeup) Key On Wakeup 36 P02 I/O O LEDP LED (Phono) 37 P03 I/O O LEDTM LED (Tuner) 38 P04 I/O O LEDC LED (CD) 39 P05 I/O O LEDM LED (Tape) 40 P06 I/O O LEDTP LED (MD) 41 P07 I/O O LEDA LED (AUX) 42 P52 I I 9 I µ-COM DATA IC101 : M37478M4-409SP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 5 B model G model A model J model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 4 B model G model T model I REAR PANELS (AX-396) R model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 3 MAX-496 MAX-396 I FRONT PANELS I REAR PANELS (AX-496) R model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L AX-396 28 SCHEMATIC DIAGRAM PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. BCE 2SA1695 2SC4466 2SA1145 2SA970 2SC2705 2SC1815� 2SA1015� 2SC2240� 2SA893A 2SC1890A S4VB20 2SA1358 2SC4488 2SD1915F 2SC1740S DTC144ES 2SA933S E E C C B B E C B + – ~ ~ E C B DIODES Anode Cathode NJM2068LD 1 8 LB1641 LC78211 1 10 TC4053BP 1 8 16 M37478M4-408SP 1 21 42 1 15 30 2 3 P1 5 IN 1 1 GND 4 VZ 6 IN 2 OUT 1 8 VCC 2 10 OUT 2 9 P2 INPUT LOGIC PRE DRIVER 7 VCC 1 8 7 6 5 4 3 2 1 OUT1 –Vcc +IN2 –IN2 OUT2 +Vcc +IN1 –IN1 NJM2068LD LC78211 TC4053BP LB1641 AX-396 # All voltage are measured with a 10MΩ/V DC electric volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. Point 1 and 2 Emitter of Q108 Collector of Q104 Point 3 Pin 20 of IC101 To MAIN (1) see page 29 To MAIN (1) see page 29 To/From MAIN (3) see page 29 12.5 -12.5 14.2 -14.1 0 0 0 0 0 0 0 0 0 0 0 0 0 -0.8 4.8 5.5 5.5 15.3 0 0 0 0 0.7 0.7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2.2 2.2 0 0 -9.1 -9.1 9.1 9.1 0.2 0 0 0 0 0 0 0 0 0 0 0 16.4 16.4 -14.5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.5 0.7 0.3 0.7 0 1.7 15.2 15.2 0 0 0 0 0 0 -14.2 14.3 0 0 0 0 0 0 0 0 0 0 0 -14.3 -14.3 14.4 14.4 0 0 0 0 0 0 4.8 4.7 0.7 0.7 9.3 9.8 -1.0 -1.3 -4.9 14.6 14.6 0 0 0 0 0 1 2 0 6.0 6.0 5.4 5.4 5.4 4.8 4.7 6.4 6.4 7.1 10.7 11.4 11.3 11.4 4.7 4.8 4.7 4.7 4.7 4.8 4.7 4.7 4.7 4.7 4.8 4.8 4.7 4.8 4.8 4.7 4.7 4.7 0.9 1.7 4.7 4.7 4.8 4.8 0.2 4.8 4.8 4.8 2.1 2.3 0 0 0 0 0.9 0.6 0 0 0 0 0 0 0 3 1.7 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.7 4.8 4.8 2.9 4.8 4.8 4.8 CD/DVD DIRECT AMP OFF CD/DVD DIRECT AMP ON CD/DVD DIRECT AMP OFF PHONO EQ AMP CD BUFFER INPUT SELECTOR MOTOR DRIVER SYSTEM CONTROL RESET PROTECTION VOLUME AMP TONE CONTROL AMP 8 7 5 6 8 7 5 6 2 1 4 3 2 1 4 3 8 7 5 6 2 3 4 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L SCHEMATIC DIAGRAM 29 AX-396 PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. BCE 2SA1695 2SC4466 2SA1145 2SA970 2SC2705 2SC1815� 2SA1015� 2SC2240� 2SA893A 2SC1890A S4VB20 2SA1358 2SC4488 2SD1915F 2SC1740S DTC144ES 2SA933S E E C C B B E C B + – ~ ~ E C B DIODES Anode Cathode AX-396 # All voltage are measured with a 10MΩ/V DC electric volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. To/From FUNCTION (1) see page 26 From FUNCTION (7) see page 26 From FUNCTION (6) see page 26 0 0 0 0 15.9 -15.8 -15.8 -15.2 -31.0 -33.6 34.0 15.9 15.3 31.2 0 0 0 0 0 0.1 0.1 0.1 0.1 0.7 0.7 24.5 24.5 37.2 37.9 37.2 37.2 0 0 0 6.6 6.6 0.1 11.5 11.5 13.7 13.7 12.1 12.7 12.7 13.7 AC13.8 0.7 0 0 46.5(38.5) -46.4 (-38.4) AC72.0(AC59.6) 0 0 0 0 -2.5 -2.5 0 0 0.6 0.6 0 0 -44.8 -44.8 -44.6 -44.6 -44.0 -44.8 -45.5 -45.6 -45.4 -44.8 -44.8 -44.8 -44.8 -44.8 -44.8 -44.8 -45.0 -45.0 45.7 45.1 45.4 46.4 46.4 46.4 -46.3 -46.3 -46.2 -46.2 46.2 46.5 46.3 46.3 46.3 50.0 49.5 49.5 49.0 46.1 -44.4 -1.1 -1.1 1.1 1.1 1.1 -1.1 -1.1 -1.1 -1.1 1.1 1.1 1.1 0.5 0 0 0 0 0 0 0 0 0 0 0 0 0 0.5 -0.6 -0.6 -0.6 -0.5 0.5 0.5 -0.6 -0.5 -44.8 -44.6 -44.6 -44.8 -44.8 -44.2 -44.8 0.6 0.6 POWER IMPEDANCE SELECTOR RELAY DRIVER POWER SUPPLY POWER SUPPLY POWER AMP = used w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L AX-496 # All voltage are measured with a 10MΩ/V DC electric volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. 26 SCHEMATIC DIAGRAM PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. BCE 2SA1695 2SC4466 2SA1145 2SA970 2SC2705 2SC1815� 2SA1015� 2SC2240� 2SA893A 2SC1890A S4VB20 2SA1358 2SC4488 2SD1915F 2SC1740S DTC144ES 2SA933S E E C C B B E C B + – ~ ~ E C B DIODES Anode Cathode NJM2068LD 1 8 LB1641 LC78211 1 10 TC4053BP 1 8 16 M37478M4-408SP 1 21 42 1 15 30 2 3 P1 5 IN 1 1 GND 4 VZ 6 IN 2 OUT 1 8 VCC 2 10 OUT 2 9 P2 INPUT LOGIC PRE DRIVER 7 VCC 1 8 7 6 5 4 3 2 1 OUT1 –Vcc +IN2 –IN2 OUT2 +Vcc +IN1 –IN1 NJM2068LD LC78211 Point 1 and 2 Emitter of Q108 Collector of Q104 Point 3 Pin 20 of IC101 LB1641 AX-496 To MAIN (1) see page 27 CD/DVD DIRECT AMP OFF CD/DVD DIRECT AMP ON CD/DVD DIRECT AMP & PURE DIRECT OFF To MAIN (1) see page 27 To/From MAIN (3) see page 27 12.6 -12.7 14.2 -14.3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.5 0.5 0.7 0.7 0.7 1.8 1.8 14.8 14.8 0 0 0 0 0 0 14.7 14.7 14.7 14.7 -14.8 -14.8 4.8 4.8 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.7 0.7 4.8 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.8 4.8 2.9 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.7 4.7 1.8 0.9 1.7 4.7 4.7 4.7 4.8 0.2 4.8 4.8 4.8 2.2 2.3 0 0 0 0 4.8 0 0.9 0.6 0 0 0 0 0 0 0 0 0 0 1 2 3 0 6.1 6.1 5.4 5.4 5.4 4.8 4.7 6.5 6.5 12.1 12.8 12.8 12.8 4.8 0 0 0 0 0 0 0 -14.2 14.2 0 0 4.8 4.8 0.7 -1.7 -2.0 -5.0 14.6 14.6 1.7 0 0 0 0 0 0 0 0.1 0.1 -0.1 -0.1 -14.3 -14.3 14.3 14.3 0 PHONO EQ AMP CD BUFFER INPUT SELECTOR MOTOR DRIVER SYSTEM CONTROL RESET PROTECTION VOLUME AMP TONE CONTROL AMP 8 7 5 6 8 7 5 6 2 1 4 3 2 1 4 3 8 7 5 6 2 3 4 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L SCHEMATIC DIAGRAM 27 AX-496 PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. BCE 2SA1695 2SC4466 2SA1145 2SA970 2SC2705 2SC1815� 2SA1015� 2SC2240� 2SA893A 2SC1890A S4VB20 2SA1358 2SC4488 2SD1915F 2SC1740S DTC144ES 2SA933S E E C C B B E C B + – ~ ~ E C B DIODES Anode Cathode AX-496 # All voltage are measured with a 10MΩ/V DC electric volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. To/From FUNCTION (1) see page 26 From FUNCTION (7) see page 26 From FUNCTION (6) see page 26 0 0 0 0 0 0 0 0 0 0 50.1 -50.0 5.8 6.2 0 0.1 0.1 0.1 0.1 12.8 12.8 AC12.6 AC78.0 0.1 0.7 0.7 0.7 23.6 23.6 42.9 42.9 43.1 43.1 0 0 15.8 -15.8 -15.8 -15.2 -18.3 -18.3 18.3 15.8 15.2 18.4 0 0 0 0 0 0.6 0.6 0 0 48.8 -48.8 -48.8 -48.8 -48.1 -48.8 -49.3 -49.1 -49.1 -49.0 -49.0 -49.0 -49.0 -49.0 -49.0 -49.0 -49.0 -49.0 49.2 48.9 49.3 50.0 50.0 50.0 -50.0 -50.0 -50.0 -50.0 50.0 50.0 50.0 50.0 50.0 50.0 49.5 49.5 49.0 50.0 -48.3 -1.1 -1.1 1.1 1.1 1.1 -1.1 -1.1 -1.1 -1.1 1.1 1.1 1.1 0.6 0 0 0 0 0 0 0 0 0 0 0 0 0 0.5 -0.5 -0.5 -0.5 -0.5 0.5 0.5 -0.5 -0.5 -49.0 48.7 -48.7 -48.7 -48.7 0.6 0.6 0 0 -2.5 -2.5 -0.3 RELAY DRIVER POWER SUPPLY POWER SUPPLY POWER AMP IMPEDANCE SELECTOR POWER = used w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 AX-496/396 REC OUT INPUT VOLUME CD/DVD DIRECT AMP PURE DIRECT 1 42 22 21 TLO E TRO -15 TLI 15 TRI E L E R CE DATA CL -15 L E R 15 CDDL E CDDR CDM VRG VRP PRO PRI PRPS RYPS RYSP DG DG S12 MU LSBY PH TU CD MD TA AU 5V REM DG PS GND CD-D TPMLED P-D/5V To FUNCTION (11) To FUNCTION (6) To FUNCTION (4) To FUNCTION (8) To MAIN (1) 1 8 BASS TREBLE BALANCE LOUDNESS -15 +15 E L E R E To MAIN (1) To FUNCTION (1) TLO E TRO -15 TLI 15 TRI E L E R 15 14 AX-496 I PRINTED CIRCUIT BOARD (Foil side) P.C.B. FUNCTION (1) P.C.B. FUNCTION (2) P.C.B. FUNCTION (3) P.C.B. FUNCTION (6) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 7 AX-496/396 6 CD/DVD DIRECT AMP PURE DIRECT To FUNCTION (1) GND CD-D TPMLED P-D/5V POWER To FUNCTION (8) LSBY 5V STANDBY/ON PS DG REM 5V To FUNCTION (8) PHONO TUNER CD/DVD TAPE MD AUX To FUNCTION (1) To FUNCTION (10) To FUNCTION (9) LSBY PH TU CD MD TA AU 5V REM DG PS LSBY 5V PS DG REM 5V PHONES SPEAKERS A B To MAIN (1) HL E HR RYSP A B CD/DVD PHONO To FUNCTION (4) CDR E CDL -15 PHL E PHR 15 TUNER AUX IN OUT TAPE IN OUT MD 1 1 15 15 16 16 30 30 CDR E CDL -15 PHL E PHR 15 CE DATA CL -15 L E R 15 CDDL E CDDR CDM To FUNCTION (5) To FUNCTION (1) 16 17 AX-496 I PRINTED CIRCUIT BOARD (Foil side) P.C.B. FUNCTION (4) P.C.B. FUNCTION (5) P.C.B. FUNCTION (7) P.C.B. FUNCTION (8) P.C.B. FUNCTION (9) P.C.B. FUNCTION (10) P.C.B. FUNCTION (11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 AX-496/396 To FUNCTION (7) To FUNCTION (6) HL E HR RYSP A B E R E L E 15 -15 YE BE BE RE RE OR OR To MAIN (6) IMPEDANCE SELECTOR SPEAKERS To FUNCTION (1) MU S12 GND GND RYSP RYPS PRPS PRI PRD VRP VRG 11 I PRINTED CIRCUIT BOARD (Foil side) 10 P.C.B. MAIN (3) AX-496 P.C.B. MAIN (1) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 7 AX-496/396 6 POWER To MAIN P.C.B. (2) POWER TRANSFORMER To MAIN (2) GY BR POWER TRANSFORMER To MAIN (1) RE OR BE YE BE RE OR POWER TRANSFORMER To MAIN (2) To MAIN (4) GY BR BR WH YE RE OR RE WH RE YE RE BR OR To MAIN (5) To MAIN (9) To MAIN (1) To MAIN (8) (B, G models) To MAIN (5) (R, T models) AC OUTLETS E +12 RYPS GY BR WH BE 12 I PRINTED CIRCUIT BOARD (Foil side) 13 AX-496 P.C.B. MAIN (2) P.C.B. MAIN (4) (R, T models) P.C.B. MAIN (5) (R, T models) P.C.B. MAIN (6) P.C.B. MAIN (8) (B, G models) P.C.B. MAIN (9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 AX-496/396 INPUT VOLUME CD/DVD DIRECT AMP 1 42 22 21 TLO E TRO -15 TLI 15 TRI E L E R CE DATA CL -15 L E R 15 CDDL E CDDR CDM VRG VRP PRO PRI PRPS RYPS RYSP DG DG S12 MU LSBY PH TU CD MD TA AU 5V REM DG PS GND CD-D TPMLED P-D/5V To FUNCTION (11) To FUNCTION (6) To FUNCTION (4) To FUNCTION (8) To MAIN (1) 1 8 BASS TREBLE BALANCE LOUDNESS -15 +15 E L E R E To MAIN (1) To FUNCTION (1) TLO E TRO -15 TLI 15 TRI E L E R AX-396 23 22 P.C.B. FUNCTION (1) P.C.B. FUNCTION (2) P.C.B. FUNCTION (3) P.C.B. FUNCTION (6) I PRINTED CIRCUIT BOARD (Foil side) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 7 AX-496/396 6 TAPE MONITOR To FUNCTION (2) POWER To FUNCTION (8) LSBY 5V PHONO TUNER CD/DVD TAPE MD AUX To FUNCTION (1) To FUNCTION (10) To FUNCTION (9) LSBY PH TU CD MD TA AU 5V REM DG PS LSBY 5V PS DG REM 5V CD/DVD DIRECT AMP TAPE MONITOR To FUNCTION (1) GND CD-D TPMLED P-D/5V STANDBY/ON PS DG REM 5V To FUNCTION (8) PHONES SPEAKERS A B To MAIN (1) HL E HR RYSP A B CD/DVD PHONO To FUNCTION (4) CDR E CDL -15 PHL E PHR 15 TUNER AUX IN OUT TAPE IN OUT MD 1 1 8 9 1 15 15 16 16 16 30 30 CDR E CDL -15 PHL E PHR 15 CE DATA CL -15 L E R 15 CDDL E CDDR CDM To FUNCTION (5) To FUNCTION (1) AX-396 24 25 I PRINTED CIRCUIT BOARD (Foil side) P.C.B. FUNCTION (4) P.C.B. FUNCTION (5) P.C.B. FUNCTION (7) P.C.B. FUNCTION (8) P.C.B. FUNCTION (9) P.C.B. FUNCTION (10) P.C.B. FUNCTION (11) P.C.B. FUNCTION (12) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 AX-496/396 IMPEDANCE SELECTOR SPEAKERS To FUNCTION (7) To FUNCTION (6) HL E HR RYSP A B E R E L E 15 -15 YE RE RE OR OR To MAIN (6) To FUNCTION (1) MU S12 GND GND RYSP RYPS PRPS PRI PRD VRP VRG I PRINTED CIRCUIT BOARD (Foil side) P.C.B. MAIN (3) AX-396 P.C.B. MAIN (1) 19 18 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 7 AX-496/396 6 To MAIN (9) To MAIN (1) To MAIN (8) (A, B, G models) To MAIN (5) (R model) AC OUTLETS E +12 RYPS GY BR WH BE POWER To MAIN P.C.B. (2) POWER TRANSFORMER To MAIN (2) GY BR POWER TRANSFORMER To MAIN (1) RE OR BL OR RE POWER TRANSFORMER To MAIN (2) To MAIN (4) GY BR BR WH YE RE OR RE WH RE YE RE BR OR To MAIN (5) I PRINTED CIRCUIT BOARD (Foil side) AX-396 P.C.B. MAIN (2) P.C.B. MAIN (4) (R model) P.C.B. MAIN (5) (R model) P.C.B. MAIN (7) P.C.B. MAIN (8) (A, B, G models) P.C.B. MAIN (9) 20 21 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 30 I WARNING Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally in- stalled. G Carbon resistors (1/6W or 1/4W) are not included in the ELECTRICAL PARTS List. For the parts No. of the carbon resistors, refer to last page. ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS: C.A.EL.CHP : CHIP ALUMI.ELECTROLYTIC CAP C.CE : CERAMIC CAP C.CE.ARRAY : CERAMIC CAP ARRAY C.CE.CHP : CHIP CERAMIC CAP C.CE.ML : MULTILAYER CERAMIC CAP C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP C.CE.SAFTY : RECOGNIZED CERAMIC CAP C.CE.TUBLR : CERAMIC TUBULAR CAP C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP C.EL : ELECTROLYTIC CAP C.MICA : MICA CAP C.ML.FLM : MULTILAYER FILM CAP C.MP : METALLIZED PAPER CAP C.MYLAR : MYLAR FILM CAP C.MYLAR.ML : MULTILAYER MYLAR FILM CAP C.PAPER : PAPER CAPACITOR C.PLS : POLYSTYRENE FILM CAP C.POL : POLYESTER FILM CAP C.POLY : POLYETHYLENE FILM CAP C.PP : POLYPROPYLENE FILM CAP C.TNTL : TANTALUM CAP C.TNTL.CHP : CHIP TANTALUM CAP C.TRIM : TRIMMER CAP CN : CONNECTOR CN.BS.PIN : CONNECTOR,BASE PIN CN.CANNON : CONNECTOR,CANNON CN.DIN : CONNECTOR,DIN CN.FLAT : CONNECTOR,FLAT CABLE CN.POST : CONNECTOR,BASE POST COIL.MX.AM : COIL,AM MIX COIL.AT.FM : COIL,FM ANTENNA COIL.DT.FM : COIL,FM DETECT COIL.MX.FM : COIL,FM MIX COIL,OUTPT : OUTPUT COIL DIOD.ARRAY : DIODE ARRAY DIODE.BRG : DIODE BRIDGE DIODE.CHP : CHIP DIODE DIODE.VAR : VARACTOR DIODE DIOD.Z.CHP : CHIP ZENER DIODE DIODE.ZENR : ZENER DIODE DSCR.CE : CERAMIC DISCRIMINATOR FER.BEAD : FERRITE BEADS FER.CORE : FERRITE CORE FET.CHP : CHIP FET FL.DSPLY : FLUORESCENT DISPLAY FLTR.CE : CERAMIC FILTER FLTR.COMB : COMB FILTER MODULE FLTR.LC.RF : LC FILTER,EMI GND.MTL : GROUND PLATE GND.TERM : GROUND TERMINAL HOLDER.FUS : FUSE HOLDER IC.PRTCT : IC PROTECTOR JUMPER.CN : JUMPER CONNECTOR JUMPER.TST : JUMPER,TEST POINT L.DTCT : LIGHT DETECTING MODULE L.EMIT : LIGHT EMITTING MODULE LED.DSPLY : LED DISPLAY LED.INFRD : LED,INFRARED MODUL.RF : MODULATOR,RF PHOT.CPL : PHOTO COUPLER PHOT.INTR : PHOTO INTERRUPTER PHOT.RFLCT : PHOTO REFLECTOR PIN.TEST : PIN,TEST POINT PLST.RIVET : PLASTIC RIVET R.ARRAY : RESISTOR ARRAY R.CAR. : CARBON RESISTOR R.CAR.CHP : CHIPRESISTOR R.CAR.FP : FLAME PROOF CARBON RESISTOR R.FUS : FUSABLE RESISTOR R.MTL.CHP : CHIP METAL FILM RESISTOR R.MTL.FLM : METAL FILM RESISTOR R.MTL.OXD : METAL OXIDE FILM RESISTOR R.MTL.PLAT : METAL PLATE RESISTOR RSNR.CE : CERAMIC RESONATOR RSNR.CRYS : CRYSTAL RESONATOR R.TW.CEM : TWIN CEMENT FIXED RESISTOR R.WW : WIRE WOUND RESISTOR SCR.BND.HD : BIND HEAD B-TITE SCREW SCR.BW.HD : BW HEAD TAPPING SCREW SCR.CUP : CUP TITE SCREW SCR.TERM : SCREW TERMINAL SCR.TR : SCREW,TRANSISTOR SUPRT.PCB : SUPPORT,P.C.B. SURG.PRTCT : SURGE PROTECTOR SW.TACT : TACT SWITCH SW.LEAF : LEAF SWITCH SW.LEVER : LEVER SWITCH SW.MICRO : MICRO SWITCH SW.PUSH : PUSH SWITCH SW.RT.ENC : ROTARY ENCODER SW.RT.MTR : ROTARY SWITCH WITH MOTOR SW.RT : ROTARY SWITCH SW.SLIDE : SLIDE SWITCH TERM.SP : SPEAKER TERMINAL TERM.WRAP : WRAPPING TERMINAL THRMST.CHP : CHIP THERMISTOR TR.CHP : CHIP TRANSISTOR TR.DGT : DIGITAL TRANSISTOR TR.DGT.CHP : CHIP DIGITAL TRANSISTOR TRANS : TRANSFORMER TRANS.PULS : PULSE TRANSFORMER TRANS.PWR : POWER TRANSFORMER ASS’Y TUNER.AM : TUNER PACK,AM TUNER.FM : TUNER PACK,FM TUNER.PK : FRONT-ENDTUNER PACK VR : ROTARY POTENTIOMETER VR.MTR : POTENTIOMETER WITH MOTOR VR.SW : POTENTIOMETER WITH ROTARY SW VR.SLIDE : SLIDE POTENTIOMETER VR.TRIM : TRIMMER POTENTIOMETER Note) Those parts marked with “#” are not included in the P.C.B. ass’y. PARTS LIST I ELECTRICAL PARTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 31 * V5012200 P.C.B. MAIN(RT) * V5012300 P.C.B. MAIN(B) * V5012400 P.C.B. MAIN(G) CB501 Vi878900 CN.BS.PIN 11P 01 CB502 Vi878400 CN.BS.PIN 6P CB503 VK024700 CN.BS.PIN 3P 01 CB504 Vi878100 CN.BS.PIN 3P 01 CB505 VP206500 HOLDER.FUS EYF-52BC(G) 01 s CB506 VG879900 CN.BS.PIN 2P 01 CB507 VP206500 HOLDER.FUS EYF-52BC(G) 01 CB508 VP206500 HOLDER.FUS EYF-52BCT 01 CB509 VP206500 HOLDER.FUS EYF-52BCT 01 CB510 VP206500 HOLDER.FUS EYF-52BC(RT) 01 CB511 VP206500 HOLDER.FUS EYF-52BC(RT) 01 C501 UR848100 C.EL 100uF 25V C502 UR749100 C.EL 1000uF 25V 02 C503 UR848220 C.EL 220uF 25V C504 UR848220 C.EL 220uF 25V C505 UR848100 C.EL 100uF 25V C506 UR868330 C.EL 330uF 50V C507 VG287600 C.EL 100uF 25V 01 C508 UU137100 C.EL 10uF 16V C509 UA952100 C.MYLAR 100pF 50V 01 C510 UA954100 C.MYLAR 0.01uF 50V 01 C511 UA952100 C.MYLAR 100pF 50V 01 C512 UU137100 C.EL 10uF 16V C513 UA952100 C.MYLAR 100pF 50V 01 C514 VM645500 C.PP 15uF 200V 02 C515 VG291400 C.EL 220uF 50V 01 C516 UA953100 C.MYLAR 1000pF 50V 03 C517 VK534000 C.PP 220pF 200V 01 C518 UA953100 C.MYLAR 1000pF 50V 03 C519 VG291400 C.EL 220uF 50V 01 C520 UA952100 C.MYLAR 100pF 50V 01 C521 VM645500 C.PP 15uF 200V 02 C523 UA952100 C.MYLAR 100pF 50V 01 C524 UU137100 C.EL 10uF 16V * C525 Vi550600 C.MYLAR.ML 0.1uF 50V 01 C526 UA952100 C.MYLAR 100pF 50V 01 C527 VK347900 C.EL 470uF 63V 02 C528 UA952100 C.MYLAR 100pF 50V 01 * C529 Vi550600 C.MYLAR.ML 0.1uF 50V 01 C530 UU137100 C.EL 10uF 16V C531 UA952100 C.MYLAR 100pF 50V 01 C532 UR868330 C.EL 330uF 50V C533 UR866470 C.EL 4.7uF 50V 01 * C534 Vi550600 C.MYLAR.ML 0.1uF 50V 01 C535 UA954680 C.MYLAR 0.068uF 50V 01 C536 UA954680 C.MYLAR 0.068uF 50V 01 * C537 Vi550600 C.MYLAR.ML 0.1uF 50V 01 C538 UR838100 C.EL 100uF 16V(RT) 01 C539 UR837100 C.EL 10uF 16V(RT) 01 C540 FG644100 C.CE 0.01uF 50V 01 C541 VS745400 C.POL.MTL 0.1uF 100V s C542 VS529200 C.EL 10000uF 63V C543 VS745400 C.POL.MTL 0.1uF 100V s C544 VS529200 C.EL 10000uF 63V C545 UR818100 C.EL 100uF 6.3V 01 C546 UR848330 C.EL 330uF 25V(BG) C546 UR878220 C.EL 220uF 63V(RT) C547 FG644100 C.CE 0.01uF 50V 01 C548 VS745400 C.POL.MTL 0.1uF 100V C549 FG644100 C.CE 0.01uF 50V 01 C550 FG644100 C.CE 0.01uF 50V 01 C551 UA954100 C.MYLAR 0.01uF 50V 01 C552 UA954100 C.MYLAR 0.01uF 50V 01 C553 UA954100 C.MYLAR 0.01uF 50V 01 C554 UA954100 C.MYLAR 0.01uF 50V 01 C555 UA954100 C.MYLAR 0.01uF 50V 01 C556 UA954100 C.MYLAR 0.01uF 50V 01 * C557 VP918200 C.PP 0.01uF 100V * C558 VP918200 C.PP 0.01uF 100V * s C559 V3501400 C.CE.SAFTY 0.01uF 275V C560 FG644100 C.CE 0.01uF 50V 01 C561 FG644100 C.CE 0.01uF 50V 01 * s C562 V3501400 C.CE.SAFTY 0.01uF 275V C563 UA954470 C.MYLAR 0.047uF 50V 01 D501 VM975900 DIODE.ZENR HZS162TD 16V 01 D502 VM975900 DIODE.ZENR HZS162TD 16V 01 s D503 VU264100 DIODE 1SR139-400 s D504 VU264100 DIODE 1SR139-400 s D505 VU264100 DIODE 1SR139-400 s D506 VU264100 DIODE 1SR139-400 D507 VD631600 DIODE 1SS133,176,HSS104 01 D508 VD631600 DIODE 1SS133,176,HSS104 01 D509 VD631600 DIODE 1SS133,176,HSS104 01 D510 VD631600 DIODE 1SS133,176,HSS104 01 D511 VD631600 DIODE 1SS133,176,HSS104 01 D512 VD631600 DIODE 1SS133,176,HSS104 01 D513 VD631600 DIODE 1SS133,176,HSS104 01 D514 VD631600 DIODE 1SS133,176,HSS104 01 D515 VD631600 DIODE 1SS133,176,HSS104 01 D516 VN008700 DIODE 1SS270A 01 D517 VN008700 DIODE 1SS270A 01 D518 VD631600 DIODE 1SS133,176,HSS104 01 D519 VM975600 DIODE.ZENR HZS12B2TD 12V(RT) D520 VU264100 DIODE 1SR139-400 s D521 iH001090 DIODE.BRG S4VB20 2.6A 200V 04 D522 VU264100 DIODE 1SR139-400 D523 VU264100 DIODE 1SR139-400 D524 VU264100 DIODE 1SR139-400 D525 VU264100 DIODE 1SR139-400 D526 VD631600 DIODE 1SS133,176,HSS104 01 s F501 KB001660 FUSE T1.6A 250V(BG) 02 s F501 VS823100 FUSE 6.0A 125V(RT) s F502 VT942900 FUSE TH2.5A 250V(G) s F503 KB001660 FUSE T1.6A 250V(RT) 02 G501 VR463400 TERM.GND D3.5 TP00385 01 L501 VP575600 COIL 1.5uH 01 L502 VP575600 COIL 1.5uH 01 PN501 V3750200 PIN L=70(BG) * s Q501 VC407900 TR 2SD1913 R,S 01 * s Q502 VC614000 TR 2SB1274 Q,R,S 02 Q503 VK432900 TR 2SD1915F S,T 01 Q504 VK432900 TR 2SD1915F S,T 01 * s Q505 VE198700 TR 2SA1145 O,Y 01 Q506 iA097030 TR 2SA970 GR,BL 01 Q507 iA097030 TR 2SA970 GR,BL 01 * s Q508 VE198800 TR 2SC2705 O,Y 01 Q509 iC1815I0 TR 2SC1815 Y 01 Q510 iC1815I0 TR 2SC1815 Y 01 s Q511 iA1015I0 TR 2SA1015 Y 01 Q512 iC1815I0 TR 2SC1815 Y 01 Q513 iC1815I0 TR 2SC1815 Y 01 s Q514 iA1015I0 TR 2SA1015 Y 01 * s Q515 VE198800 TR 2SC2705 O,Y 01 Schm Ref. PART NO. Description Rank ✻ New Parts AX-496 Schm Ref. PART NO. Description Rank ✻ New Parts www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 32 Q516 iA097030 TR 2SA970 GR,BL 01 Q517 iA097030 TR 2SA970 GR,BL 01 * s Q518 VE198700 TR 2SA1145 O,Y 01 Q519 iC224030 TR 2SC2240 GR,BL 01 s Q520 iP011600 TR.PAIR 2SA1358,C3421 O,Y 02 #s Q521 VV857800 TR.PAIR 2SA1492,C3856 OPY 05 s Q522 VK432900 TR 2SD1915F S,T 01 s Q525 iP011600 TR.PAIR 2SA1358,C3421 O,Y 02 #s Q526 VV857800 TR.PAIR 2SA1492,C3856 OPY 05 s Q527 VK432900 TR 2SD1915F S,T 01 Q530 iC224030 TR 2SC2240 GR,BL 01 Q531 iC224030 TR 2SC2240 GR,BL 01 Q532 VP883000 TR 2SA893A D,E s Q533 VP883100 TR 2SC1890A D,E 01 s Q534 VP883100 TR 2SC1890A D,E 01 Q535 VP768300 TR 2SC4466 O,P,Y(RT) 03 Q536 iC1815I0 TR 2SC1815 Y(RT) 01 Q537 iC174020 TR 2SC1740S R,S 01 R515 VP941000 R.MTL.OXD 680Ω 1W 01 R516 VP941000 R.MTL.OXD 680Ω 1W 01 s R517 VP940400 R.MTL.OXD 100Ω 1W 01 s R528 VP940400 R.MTL.OXD 100Ω 1W 01 s R532 VP940400 R.MTL.OXD 100Ω 1W 01 s R540 VP940400 R.MTL.OXD 100Ω 1W 01 s R544 VP941100 R.MTL.OXD 1KΩ 1W 01 R547 VS267200 R.MTL.OXD 82Ω 1W s R548 VP939700 R.MTL.FLM 4.7Ω 1W 01 s R549 HV756270 R.CAR.FP 2.7KΩ 1/4W 01 s R550 HV755220 R.CAR.FP 220Ω 1/4W 01 s R552 HV755680 R.CAR.FP 680Ω 1/4W 01 * s R553 V4466300 R.WW 0.22Ω 5W s R554 HV755820 R.CAR.FP 820Ω 1/4W 01 s R555 VP939700 R.MTL.FLM 4.7Ω 1W 01 R556 VP940200 R.MTL.OXD 47Ω 1W 01 s R557 VP939700 R.MTL.FLM 4.7Ω 1W 01 s R558 HV755820 R.CAR.FP 820Ω 1/4W 01 s R560 HV755680 R.CAR.FP 680Ω 1/4W 01 * s R561 V4466300 R.WW 0.22Ω 5W s R562 HV755220 R.CAR.FP 220Ω 1/4W 01 s R563 HV756270 R.CAR.FP 2.7KΩ 1/4W 01 s R564 VP939700 R.MTL.FLM 4.7Ω 1W 01 s R565 VP941100 R.MTL.OXD 1KΩ 1W 01 s R566 VP941100 R.MTL.OXD 1KΩ 1W 01 R578 HV754100 R.CAR.FP 10Ω 1/4W 01 s R580 VP939800 R.MTL.OXD 10Ω 1W 01 s R581 VP939800 R.MTL.OXD 10Ω 1W 01 R584 HV754100 R.CAR.FP 10Ω 1/4W 01 s R593 HV753100 R.CAR.FP 1Ω 1/4W 01 s R599 VP939700 R.MTL.FLM 4.7Ω 1W 01 s R600 VP939700 R.MTL.FLM 4.7Ω 1W 01 s RY501 VU566700 RELAY DG24D2-OS,M s RY502 VK438300 RELAY DH24D2-OT,M2 04 s RY503 VK438300 RELAY DH24D2-OT,M2 04 s RY504 V2712300 RELAY DC SDT-S-112LMR ST501 BB071360 SCR.TERM 8.3x13 01 ST502 BB071360 SCR.TERM 8.3x13 01 ST503 BB071360 SCR.TERM 8.3x13 01 s SW501 V4104200 SW.SLIDE SL13B-022-AMCS SW502 VA961800 VOLT.SELCT ESE-37247-F(RT) 05 * s SW503 V4466400 SW.PUSH SDKLA1-AP1 TV-5 s T501 XV445A00 TRANS.PWR (BG) s T501 XW607A00 TRANS.PWR (RT) * s TE501 V4466700 CN.OUTLET S2-763T-206(G) s TE501 V4746500 OUTLET.AC 3P(RT) s TE501 VU543300 OUTLET.AC 1P(B) TE502 V4811400 TERM.SP 8P(BG) TE502 VC313700 TERM.SP 8P(RT) 05 * BB070700 GND.MTL 01 * V5012600 P.C.B. FUNCTION CB101 VK026700 CN.BS.PIN 8P CB102 Vi878600 CN.BS.PIN 8P 04 * CB104 VK015400 CN.BS.PIN 13P 01 CB105 Vi878200 CN.BS.PIN 4P CB106 Vi878200 CN.BS.PIN 4P CB109 Vi878200 CN.BS.PIN 4P CB110 Vi878000 CN.BS.PIN 2P 01 CB111 Vi878900 CN.BS.PIN 11P 01 CB112 VK027000 CN.BS.PIN 11P CB113 Vi878900 CN.BS.PIN 11P 01 CB114 VK025500 CN.BS.PIN 11P 01 * CB115 VB858600 CN.BS.PIN 7P 01 CB116 VK027000 CN.BS.PIN 11P CB119 Vi878000 CN.BS.PIN 2P 01 CB120 Vi878200 CN.BS.PIN 4P CB121 VK026500 CN.BS.PIN 6P C101 VK533900 C.PP 100pF 200V 01 C102 VK533900 C.PP 100pF 200V 01 C103 VQ645600 C.MYLAR 100pF 50V C104 VQ645600 C.MYLAR 100pF 50V C106 VF466800 C.CE.TUBLR 100pF 50V 01 C107 VF466800 C.CE.TUBLR 100pF 50V 01 C108 VK533800 C.PP 47pF 200V 01 C109 VK533800 C.PP 47pF 200V 01 C110 VF466800 C.CE.TUBLR 100pF 50V 01 C111 VF466800 C.CE.TUBLR 100pF 50V 01 C112 VK533800 C.PP 47pF 200V 01 C113 VK533800 C.PP 47pF 200V 01 C115 VF466800 C.CE.TUBLR 100pF 50V 01 C116 VF466800 C.CE.TUBLR 100pF 50V 01 * C117 VQ462600 C.MYLAR 220pF 50V 01 * C118 VG286300 C.EL 220uF 10V 01 * C119 VG286300 C.EL 220uF 10V 01 * C120 VQ462600 C.MYLAR 220pF 50V 01 C121 UA952100 C.MYLAR 100pF 50V 01 C122 UU137100 C.EL 10uF 16V C123 UA952100 C.MYLAR 100pF 50V 01 C124 UU137100 C.EL 10uF 16V C125 VG287200 C.EL 10uF 50V 01 C126 UA954330 C.MYLAR 0.033uF 50V 01 C127 UA653910 C.MYLAR 9100pF 50V 01 C128 UA954330 C.MYLAR 0.033uF 50V 01 C129 UA653910 C.MYLAR 9100pF 50V 01 C130 VG287200 C.EL 10uF 50V 01 C131 VG287600 C.EL 100uF 25V 01 C132 VG287800 C.EL 330uF 16V 01 C133 VG287800 C.EL 330uF 16V 01 C134 VG287600 C.EL 100uF 25V 01 C135 Vi715900 C.MYLAR 2200pF 50V 01 C136 VG287600 C.EL 100uF 25V 01 C137 VG287600 C.EL 100uF 25V 01 C138 Vi715900 C.MYLAR 2200pF 50V 01 C141 UR838100 C.EL 100uF 16V 01 C142 UR838100 C.EL 100uF 16V 01 AX-496 Schm Ref. PART NO. Description Rank ✻ New Parts Schm Ref. PART NO. Description Rank ✻ New Parts www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 33 C143 UR838100 C.EL 100uF 16V 01 C144 UR838100 C.EL 100uF 16V 01 C145 VJ599100 C.CE.TUBLR 0.1uF 50V 01 C146 UN866100 C.EL 1uF 50V C147 UA953220 C.MYLAR 2200pF 50V 01 C148 UA953220 C.MYLAR 2200pF 50V 01 C149 VG278900 C.CE.TUBLR 680pF 50V 01 * C150 UA954560 C.MYLAR 0.056uF 50V * C151 UA954560 C.MYLAR 0.056uF 50V C152 VG278900 C.CE.TUBLR 680pF 50V 01 * C153 VG290800 C.EL 4.7uF 63V 01 C154 VK533800 C.PP 47pF 200V 01 C155 VG286500 C.EL 470uF 10V 01 C156 VG286500 C.EL 470uF 10V 01 C157 VK533800 C.PP 47pF 200V 01 * C158 VG290800 C.EL 4.7uF 63V 01 * C159 VG290300 C.EL 0.47uF 50V 01 C160 VG278400 C.CE.TUBLR 220pF 50V 01 C161 VG278400 C.CE.TUBLR 220pF 50V 01 * C162 VG290300 C.EL 0.47uF 50V 01 * C163 VG290800 C.EL 4.7uF 63V 01 C164 UA953220 C.MYLAR 2200pF 50V 01 C165 UA952330 C.MYLAR 330pF 50V 01 C166 UA952330 C.MYLAR 330pF 50V 01 C167 UA953220 C.MYLAR 2200pF 50V 01 * C168 VG290800 C.EL 4.7uF 63V 01 C169 VF466700 C.CE.TUBLR 47pF 50V 01 * C170 VG290800 C.EL 4.7uF 63V 01 * C171 VG290800 C.EL 4.7uF 63V 01 C172 VF466700 C.CE.TUBLR 47pF 50V 01 C173 VG287600 C.EL 100uF 25V 01 C174 VG287600 C.EL 100uF 25V 01 * C175 VE326100 C.MYLAR.ML 0.12uF 50V C176 VG287500 C.EL 47uF 50V 01 * C177 VE326100 C.MYLAR.ML 0.12uF 50V C178 UA954330 C.MYLAR 0.033uF 50V 01 * C179 VE326100 C.MYLAR.ML 0.12uF 50V C180 UA954330 C.MYLAR 0.033uF 50V 01 C181 VG287500 C.EL 47uF 50V 01 * C182 VE326100 C.MYLAR.ML 0.12uF 50V C183 UR818100 C.EL 100uF 6.3V 01 C184 VG287600 C.EL 100uF 25V 01 C185 VG287500 C.EL 47uF 50V 01 C186 VG287500 C.EL 47uF 50V 01 C187 VG287600 C.EL 100uF 25V 01 C188 UR817470 C.EL 47uF 6.3V C189 VU545000 C.EL 47000uF 5.5V C190 UR818220 C.EL 220uF 6.3V C191 UR866220 C.EL 2.2uF 50V C192 UR866100 C.EL 1uF 50V 01 * C193 VG286300 C.EL 220uF 10V 01 C194 VF467100 C.CE.TUBLR 4700pF 16V 01 C195 VF467100 C.CE.TUBLR 4700pF 16V 01 * C196 VG286300 C.EL 220uF 10V 01 C203 FG644100 C.CE 0.01uF 50V 01 C204 FG644100 C.CE 0.01uF 50V 01 C207 UA954100 C.MYLAR 0.01uF 50V 01 C208 UA954100 C.MYLAR 0.01uF 50V 01 C209 UA954100 C.MYLAR 0.01uF 50V 01 C210 UA954100 C.MYLAR 0.01uF 50V 01 C211 VJ599000 C.CE.TUBLR 0.047uF 16V 01 C212 UR848470 C.EL 470uF 25V 01 C213 UM397100 C.EL 10uF 16V 01 C215 UA954100 C.MYLAR 0.01uF 50V 01 D101 VM974200 DIODE.ZENR HZS5C2TD 5.0V 01 * D102 VR711500 LED(or) SLR-325DC * D103 VR711500 LED(or) SLR-325DC * D106 VR711500 LED(or) SLR-325DC * D107 VR711500 LED(or) SLR-325DC * D108 VR711500 LED(or) SLR-325DC * D109 VR711500 LED(or) SLR-325DC * D110 VR711500 LED(or) SLR-325DC * D111 VR711500 LED(or) SLR-325DC D113 VD631600 DIODE 1SS133,176,HSS104 01 D114 VD631600 DIODE 1SS133,176,HSS104 01 D115 VD631600 DIODE 1SS133,176,HSS104 01 D116 VD631600 DIODE 1SS133,176,HSS104 01 D117 VM974600 DIODE.ZENR HZS7A2TD 7.0V D118 VM974500 DIODE.ZENR HZS6C2TD 6.0V 01 D120 VS132300 LED(re) SLR-325VCT31 D126 VM974000 DIODE.ZENR HZS5A2TD 5.0V 01 D127 VM974000 DIODE.ZENR HZS5A2TD 5.0V 01 D128 VM973800 DIODE.ZENR HZS4B2TD 4.0V D129 VD631600 DIODE 1SS133,176,HSS104 01 IC101 XY346B00 IC.CPU M37478M4-409SP CPU IC102 XM356A00 IC NJM2068LD 01 IC103 XM356A00 IC NJM2068LD 01 IC104 XP894A00 IC LC78211 IC105 XP894A00 IC LC78211 IC106 XF494A00 IC LB1641 03 IC107 XM356A00 IC NJM2068LD 01 IC108 XM356A00 IC NJM2068LD 01 IC109 XM356A00 IC NJM2068LD 01 * JK101 V4478300 JACK.PHONE JY-6317Y-03-030 L101 VB056900 COIL 220uH 01 L102 VB056900 COIL 220uH 01 * PJ101 VY862900 JACK.PIN 2P * PJ102 V5266800 JACK.PIN RJ-1060-10-0541A PJ103 VV306900 JACK.PIN 4P PJ104 VV306900 JACK.PIN 4P PJ105 VV306900 JACK.PIN 4P PN101 V3750100 PIN L=50 PN102 V3750100 PIN L=50 PN104 V3750100 PIN L=50 PN105 V3750100 PIN L=50 PN106 V3750100 PIN L=50 Q101 VK432900 TR 2SD1915F S,T 01 Q102 VK432900 TR 2SD1915F S,T 01 Q104 VG722000 TR.DGT DTC144ES 03 Q105 iC1815I0 TR 2SC1815 Y 01 Q106 iA1015I0 TR 2SA1015 Y 01 Q107 VP872700 TR 2SC4488 S,T Q108 iA093320 TR 2SA933S Q,R Q109 iA1015I0 TR 2SA1015 Y 01 Q110 VK432900 TR 2SD1915F S,T 01 R151 VP940400 R.MTL.OXD 100Ω 1W 01 R152 VP940400 R.MTL.OXD 100Ω 1W 01 * R162 VP940800 R.MTL.OXD 470Ω 1W 01 * R163 VP940800 R.MTL.OXD 470Ω 1W 01 R171 HV754100 R.CAR.FP 10Ω 1/4W 01 ST101 BB071360 SCR.TERM 8.3x13 01 SW101 VV399800 SW.PUSH SPUN12 SW102 VV399900 SW.PUSH SPUN12 * SW103 V5232400 SW.RT SRBU16X001 SW104 V2014900 SW.TACT EVQ21304M * SW107 V4859200 SW.RT.ENC REB161PHB20 AX-496 Schm Ref. PART NO. Description Rank ✻ New Parts Schm Ref. PART NO. Description Rank ✻ New Parts www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 34 SW108 VV523900 SW.PUSH PBS-YM-001 U101 VU591000 L.DTCT GP1U271X * VR101 V4915000 VR.MTR A100KΩ VR103 VP700700 VR A100KΩ VR105 VP742000 VR MN100KΩ 03 VR106 VP741800 VR B20KΩ 03 VR107 VP741900 VR G25KΩ 03 XL101 VE906000 RSNR.CE 4MHz 02 AX-496 Schm Ref. PART NO. Description Rank ✻ New Parts Schm Ref. PART NO. Description Rank ✻ New Parts www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 35 AX-396 * V5011700 P.C.B. MAIN(J) * V5011800 P.C.B. MAIN(R) * V5011900 P.C.B. MAIN(A) * V5012000 P.C.B. MAIN(B) * V5012100 P.C.B. MAIN(G) CB501 Vi878900 CN.BS.PIN 11P 01 CB502 Vi878400 CN.BS.PIN 6P CB503 VK024700 CN.BS.PIN 3P 01 CB504 Vi878100 CN.BS.PIN 3P 01 CB505 VP206500 HOLDER.FUS EYF-52BC(G) 01 s CB506 VG879900 CN.BS.PIN 2P 01 CB507 VP206500 HOLDER.FUS EYF-52BC(G) 01 CB508 VP206500 HOLDER.FUS EYF-52BCT 01 CB509 VP206500 HOLDER.FUS EYF-52BCT 01 CB510 VP206500 HOLDER.FUS EYF-52BC(R) 01 CB511 VP206500 HOLDER.FUS EYF-52BC(R) 01 C501 UR848100 C.EL 100uF 25V C502 UR768470 C.EL 470uF 50V C503 UR848220 C.EL 220uF 25V C504 UR848220 C.EL 220uF 25V C505 UR848100 C.EL 100uF 25V C506 UR868330 C.EL 330uF 50V C507 VG287600 C.EL 100uF 25V 01 C508 VG287200 C.EL 10uF 50V 01 C509 UA952100 C.MYLAR 100pF 50V 01 C510 UA954100 C.MYLAR 0.01uF 50V 01 C511 UA952100 C.MYLAR 100pF 50V 01 C512 VG287200 C.EL 10uF 50V 01 C513 UA952100 C.MYLAR 100pF 50V 01 C514 VM645500 C.PP 15uF 200V 02 C515 VG291400 C.EL 220uF 50V 01 C516 UA953100 C.MYLAR 1000pF 50V 03 C517 VK534000 C.PP 220pF 200V 01 C518 UA953100 C.MYLAR 1000pF 50V 03 C519 VG291400 C.EL 220uF 50V 01 C520 UA952100 C.MYLAR 100pF 50V 01 C521 VM645500 C.PP 15uF 200V 02 C523 UA952100 C.MYLAR 100pF 50V 01 C524 VG287200 C.EL 10uF 50V 01 * C525 Vi550600 C.MYLAR.ML 0.1uF 50V 01 C526 UA952100 C.MYLAR 100pF 50V 01 C527 VK347900 C.EL 470uF 63V 02 C528 UA952100 C.MYLAR 100pF 50V 01 * C529 Vi550600 C.MYLAR.ML 0.1uF 50V 01 C530 VG287200 C.EL 10uF 50V 01 C531 UA952100 C.MYLAR 100pF 50V 01 C532 UR868330 C.EL 330uF 50V C533 UR866470 C.EL 4.7uF 50V 01 * C534 Vi550600 C.MYLAR.ML 0.1uF 50V 01 C535 UA954680 C.MYLAR 0.068uF 50V 01 C536 UA954680 C.MYLAR 0.068uF 50V 01 * C537 Vi550600 C.MYLAR.ML 0.1uF 50V 01 C538 UR838100 C.EL 100uF 16V(R) 01 C539 UR837100 C.EL 10uF 16V(R) 01 C540 FG644100 C.CE 0.01uF 50V 01 C541 VS745400 C.POL.MTL 0.1uF 100V s C542 VR024000 C.EL 6800uF 56V C543 VS745400 C.POL.MTL 0.1uF 100V s C544 VR024000 C.EL 6800uF 56V C545 UR818100 C.EL 100uF 6.3V 01 C546 UR848330 C.EL 330uF 25V(JABG) C546 UR878220 C.EL 220uF 63V(R) C547 FG644100 C.CE 0.01uF 50V 01 C548 VS745400 C.POL.MTL 0.1uF 100V C549 FG644100 C.CE 0.01uF 50V 01 C550 FG644100 C.CE 0.01uF 50V 01 C551 UA954100 C.MYLAR 0.01uF 50V(ABG) 01 C552 UA954100 C.MYLAR 0.01uF 50V(ABG) 01 C553 UA954100 C.MYLAR 0.01uF 50V(ABG) 01 C554 UA954100 C.MYLAR 0.01uF 50V(ABG) 01 C555 UA954100 C.MYLAR 0.01uF 50V(ABG) 01 C556 UA954100 C.MYLAR 0.01uF 50V(ABG) 01 * C557 VP918200 C.PP 0.01uF 100V(ABG) * C558 VP918200 C.PP 0.01uF 100V(ABG) * C559 V3501400 C.CE.SAFTY 0.01uF 275V C560 FG644100 C.CE 0.01uF 50V 01 C561 FG644100 C.CE 0.01uF 50V 01 * C562 V3501400 C.CE.SAFTY 0.01uF 275V C563 UA954470 C.MYLAR 0.047uF 50V 01 D501 VM975900 DIODE.ZENR HZS162TD 16V 01 D502 VM975900 DIODE.ZENR HZS162TD 16V 01 s D503 VU264100 DIODE 1SR139-400 s D504 VU264100 DIODE 1SR139-400 s D505 VU264100 DIODE 1SR139-400 s D506 VU264100 DIODE 1SR139-400 D507 VD631600 DIODE 1SS133,176,HSS104 01 D508 VD631600 DIODE 1SS133,176,HSS104 01 D509 VD631600 DIODE 1SS133,176,HSS104 01 D510 VD631600 DIODE 1SS133,176,HSS104 01 D511 VD631600 DIODE 1SS133,176,HSS104 01 D512 VD631600 DIODE 1SS133,176,HSS104 01 D513 VD631600 DIODE 1SS133,176,HSS104 01 D514 VD631600 DIODE 1SS133,176,HSS104 01 D515 VD631600 DIODE 1SS133,176,HSS104 01 D516 VN008700 DIODE 1SS270A 01 D517 VN008700 DIODE 1SS270A 01 D518 VD631600 DIODE 1SS133,176,HSS104 01 D519 VM975600 DIODE.ZENR HZS12B2TD 12V(R) D520 VU264100 DIODE 1SR139-400 s D521 iH001090 DIODE.BRG S4VB20 2.6A 200V 04 s D522 VU264100 DIODE 1SR139-400 D523 VU264100 DIODE 1SR139-400 D524 VU264100 DIODE 1SR139-400 D525 VU264100 DIODE 1SR139-400 D526 VD631600 DIODE 1SS133,176,HSS104 01 s F501 KB001660 FUSE T1.6A 250V(ABG) 02 s F501 VS823100 FUSE 6.0A 125V(JR) s F502 VT942900 FUSE TH2.5A 250V(G) s F503 KB001660 FUSE T1.6A 250V(R) 02 G501 VR463400 TERM.GND D3.5 TP00385 01 HS501 VS231000 HEAT.SINK OSH-1035 L501 VP575600 COIL 1.5uH 01 L502 VP575600 COIL 1.5uH 01 PN501 V3750200 PIN L=70(JABG) * s Q501 VC407900 TR 2SD1913 R,S 01 * s Q502 VC614000 TR 2SB1274 Q,R,S 02 Q503 VK432900 TR 2SD1915F S,T 01 Q504 VK432900 TR 2SD1915F S,T 01 * s Q505 VE198700 TR 2SA1145 O,Y 01 Q506 iA097030 TR 2SA970 GR,BL 01 Q507 iA097030 TR 2SA970 GR,BL 01 * s Q508 VE198800 TR 2SC2705 O,Y 01 Q509 iC1815I0 TR 2SC1815 Y 01 Q510 iC1815I0 TR 2SC1815 Y 01 s Q511 iA1015I0 TR 2SA1015 Y 01 Q512 iC1815I0 TR 2SC1815 Y 01 Schm Ref. PART NO. Description Rank ✻ New Parts Schm Ref. PART NO. Description Rank ✻ New Parts www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 36 AX-396 Q513 iC1815I0 TR 2SC1815 Y 01 s Q514 iA1015I0 TR 2SA1015 Y 01 * s Q515 VE198800 TR 2SC2705 O,Y 01 Q516 iA097030 TR 2SA970 GR,BL 01 Q517 iA097030 TR 2SA970 GR,BL 01 * s Q518 VE198700 TR 2SA1145 O,Y 01 Q519 iC224030 TR 2SC2240 GR,BL 01 s Q520 iP011600 TR.PAIR 2SA1358,C3421 O,Y 02 #s Q521 VV586400 TR.PAIR 2SA1695,C4468 OPY s Q522 VK432900 TR 2SD1915F S,T 01 s Q525 iP011600 TR.PAIR 2SA1358,C3421 O,Y 02 #s Q526 VV586400 TR.PAIR 2SA1695,C4468 OPY s Q527 VK432900 TR 2SD1915F S,T 01 Q530 iC224030 TR 2SC2240 GR,BL 01 Q531 iC224030 TR 2SC2240 GR,BL 01 Q532 VP883000 TR 2SA893A D,E s Q533 VP883100 TR 2SC1890A D,E 01 s Q534 VP883100 TR 2SC1890A D,E 01 Q535 VP768300 TR 2SC4466 O,P,Y(R) 03 Q536 iC1815I0 TR 2SC1815 Y(R) 01 Q537 iC174020 TR 2SC1740S R,S 01 * R501 VC758300 R.MTL.OXD 68Ω 2W 01 * R504 VC758700 R.MTL.OXD 100Ω 2W 01 R515 VP941000 R.MTL.OXD 680Ω 1W 01 R516 VP941000 R.MTL.OXD 680Ω 1W 01 s R517 VP940400 R.MTL.OXD 100Ω 1W 01 s R528 VP940400 R.MTL.OXD 100Ω 1W 01 s R532 VP940400 R.MTL.OXD 100Ω 1W 01 s R540 VP940400 R.MTL.OXD 100Ω 1W 01 s R544 VP941000 R.MTL.OXD 680Ω 1W 01 R547 VP940000 R.MTL.OXD 22Ω 1W 01 s R548 VP939700 R.MTL.FLM 4.7Ω 1W 01 s R549 HV756270 R.CAR.FP 2.7KΩ 1/4W 01 s R550 HV755220 R.CAR.FP 220Ω 1/4W 01 s R552 HV755680 R.CAR.FP 680Ω 1/4W 01 * s R553 V3873200 R.WW 0.22Ω 3W s R554 HV755820 R.CAR.FP 820Ω 1/4W 01 s R555 VP939700 R.MTL.FLM 4.7Ω 1W 01 R556 VP940200 R.MTL.OXD 47Ω 1W 01 s R557 VP939700 R.MTL.FLM 4.7Ω 1W 01 s R558 HV755820 R.CAR.FP 820Ω 1/4W 01 s R560 HV755680 R.CAR.FP 680Ω 1/4W 01 * s R561 V3873200 R.WW 0.22Ω 3W s R562 HV755220 R.CAR.FP 220Ω 1/4W 01 s R563 HV756270 R.CAR.FP 2.7KΩ 1/4W 01 s R564 VP939700 R.MTL.FLM 4.7Ω 1W 01 s R565 VP941000 R.MTL.OXD 680Ω 1W 01 s R566 VP941000 R.MTL.OXD 680Ω 1W 01 R578 HV754100 R.CAR.FP 10Ω 1/4W 01 s R580 VP939800 R.MTL.OXD 10Ω 1W 01 s R581 VP939800 R.MTL.OXD 10Ω 1W 01 R584 HV754100 R.CAR.FP 10Ω 1/4W 01 s R593 HV753100 R.CAR.FP 1Ω 1/4W 01 s R599 VP939700 R.MTL.FLM 4.7Ω 1W(ABG) 01 s R600 VP939700 R.MTL.FLM 4.7Ω 1W(ABG) 01 s RY501 VU566700 RELAY DG24D2-OS/M s RY502 VK438300 RELAY DH24D2-OT/M2 04 s RY503 VK438300 RELAY DH24D2-OT/M2 04 s RY504 V2712300 RELAY DC SDT-S-112LMR ST501 BB071360 SCR.TERM 8.3x13 01 ST502 BB071360 SCR.TERM 8.3x13 01 ST503 BB071360 SCR.TERM 8.3x13 01 s SW501 V4104200 SW.SLIDE SL13B-022-AMCS SW502 VA961800 VOLT.SELCT ESE-37247-F(R) 05 * s SW503 V4466400 SW.PUSH SDKLA1-AP1 TV-5 s T501 XV442A00 TRANS.PWR (J) s T501 XV445A00 TRANS.PWR (ABG) s T501 XW607A00 TRANS.PWR (R) s TE501 VV118800 OUTLET.AC 3P(J) * s TE501 V4466700 OUTLET.AC S2-763T-206(G) s TE501 V4746500 OUTLET.AC 3P(R) s TE501 VT915000 OUTLET.AC 2P(A) s TE501 VU543300 OUTLET.AC 1P(B) TE502 V4811400 TERM.SP 8P(ABG) TE502 VC313700 TERM.SP 8P(JR) 05 * BB070700 GND.MTL 01 EP630210 SCR.BND.HD 3x6 ZMC2-BL 01 * V5012500 P.C.B. FUNCTION CB101 VK026700 CN.BS.PIN 8P CB102 Vi878600 CN.BS.PIN 8P 04 * CB104 VK015400 CN.BS.PIN 13P 01 CB105 Vi878200 CN.BS.PIN 4P CB106 Vi878200 CN.BS.PIN 4P CB109 Vi878200 CN.BS.PIN 4P CB110 Vi878000 CN.BS.PIN 2P 01 CB111 Vi878900 CN.BS.PIN 11P 01 CB112 VK027000 CN.BS.PIN 11P CB113 Vi878900 CN.BS.PIN 11P 01 CB114 VK025500 CN.BS.PIN 11P 01 * CB115 VB858600 CN.BS.PIN 7P 01 CB116 VK027000 CN.BS.PIN 11P CB117 Vi878000 CN.BS.PIN 2P 01 CB118 VK024600 CN.BS.PIN 2P CB119 Vi878000 CN.BS.PIN 2P 01 CB120 Vi878200 CN.BS.PIN 4P CB121 VK026500 CN.BS.PIN 6P C101 VK533900 C.PP 100pF 200V 01 C102 VK533900 C.PP 100pF 200V 01 C103 VQ645600 C.MYLAR 100pF 50V C104 VQ645600 C.MYLAR 100pF 50V C106 VF466800 C.CE.TUBLR 100pF 50V 01 C107 VF466800 C.CE.TUBLR 100pF 50V 01 C108 VK533800 C.PP 47pF 200V 01 C109 VK533800 C.PP 47pF 200V 01 C110 VF466800 C.CE.TUBLR 100pF 50V 01 C111 VF466800 C.CE.TUBLR 100pF 50V 01 C112 VK533800 C.PP 47pF 200V 01 C113 VK533800 C.PP 47pF 200V 01 C115 VF466800 C.CE.TUBLR 100pF 50V 01 C116 VF466800 C.CE.TUBLR 100pF 50V 01 * C117 VQ462600 C.MYLAR 220pF 50V 01 * C118 VG286300 C.EL 220uF 10V 01 * C119 VG286300 C.EL 220uF 10V 01 * C120 VQ462600 C.MYLAR 220pF 50V 01 C121 UA952100 C.MYLAR 100pF 50V 01 C122 VG287200 C.EL 10uF 50V 01 C123 UA952100 C.MYLAR 100pF 50V 01 C124 VG287200 C.EL 10uF 50V 01 C125 VG287200 C.EL 10uF 50V 01 C126 UA954330 C.MYLAR 0.033uF 50V 01 C127 UA653910 C.MYLAR 9100pF 50V 01 C128 UA954330 C.MYLAR 0.033uF 50V 01 C129 UA653910 C.MYLAR 9100pF 50V 01 Schm Ref. PART NO. Description Rank ✻ New Parts Schm Ref. PART NO. Description Rank ✻ New Parts www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 37 AX-396 C130 VG287200 C.EL 10uF 50V 01 C131 VG287600 C.EL 100uF 25V 01 C132 VG287800 C.EL 330uF 16V 01 C133 VG287800 C.EL 330uF 16V 01 C134 VG287600 C.EL 100uF 25V 01 C135 Vi715900 C.MYLAR 2200pF 50V 01 C136 VG287600 C.EL 100uF 25V 01 C137 VG287600 C.EL 100uF 25V 01 C138 Vi715900 C.MYLAR 2200pF 50V 01 C143 UR838100 C.EL 100uF 16V 01 C144 UR838100 C.EL 100uF 16V 01 C145 VJ599100 C.CE.TUBLR 0.1uF 50V 01 C146 UN866100 C.EL 1uF 50V C147 UA953220 C.MYLAR 2200pF 50V 01 C148 UA953220 C.MYLAR 2200pF 50V 01 C149 VG278900 C.CE.TUBLR 680pF 50V 01 * C150 UA954560 C.MYLAR 0.056uF 50V * C151 UA954560 C.MYLAR 0.056uF 50V C152 VG278900 C.CE.TUBLR 680pF 50V 01 * C153 VG290800 C.EL 4.7uF 63V 01 C154 VK533800 C.PP 47pF 200V 01 C155 VG286500 C.EL 470uF 10V 01 C156 VG286500 C.EL 470uF 10V 01 C157 VK533800 C.PP 47pF 200V 01 * C158 VG290800 C.EL 4.7uF 63V 01 * C159 VG290300 C.EL 0.47uF 50V 01 C160 VG278400 C.CE.TUBLR 220pF 50V 01 C161 VG278400 C.CE.TUBLR 220pF 50V 01 * C162 VG290300 C.EL 0.47uF 50V 01 * C163 VG290800 C.EL 4.7uF 63V 01 C164 UA953220 C.MYLAR 2200pF 50V 01 C165 UA952330 C.MYLAR 330pF 50V 01 C166 UA952330 C.MYLAR 330pF 50V 01 C167 UA953220 C.MYLAR 2200pF 50V 01 * C168 VG290800 C.EL 4.7uF 63V 01 C169 VF466700 C.CE.TUBLR 47pF 50V 01 * C170 VG290800 C.EL 4.7uF 63V 01 * C171 VG290800 C.EL 4.7uF 63V 01 C172 VF466700 C.CE.TUBLR 47pF 50V 01 C173 VG287600 C.EL 100uF 25V 01 C174 VG287600 C.EL 100uF 25V 01 * C175 VE326100 C.MYLAR.ML 0.12uF 50V C176 VG287500 C.EL 47uF 50V 01 * C177 VE326100 C.MYLAR.ML 0.12uF 50V C178 UA954330 C.MYLAR 0.033uF 50V 01 * C179 VE326100 C.MYLAR.ML 0.12uF 50V C180 UA954330 C.MYLAR 0.033uF 50V 01 C181 VG287500 C.EL 47uF 50V 01 * C182 VE326100 C.MYLAR.ML 0.12uF 50V C183 UR818100 C.EL 100uF 6.3V 01 C184 VG287600 C.EL 100uF 25V 01 C185 VG287500 C.EL 47uF 50V 01 C186 VG287500 C.EL 47uF 50V 01 C187 VG287600 C.EL 100uF 25V 01 C188 UR817470 C.EL 47uF 6.3V C189 VU545000 C.EL 47000uF 5.5V C190 UR818220 C.EL 220uF 6.3V C191 UR866220 C.EL 2.2uF 50V C192 UR866100 C.EL 1uF 50V 01 * C193 VG286300 C.EL 220uF 10V 01 C194 VF467100 C.CE.TUBLR 4700pF 16V 01 C195 VF467100 C.CE.TUBLR 4700pF 16V 01 * C196 VG286300 C.EL 220uF 10V 01 C200 UR837470 C.EL 47uF 16V 01 C201 UR837470 C.EL 47uF 16V 01 C203 FG644100 C.CE 0.01uF 50V 01 C204 FG644100 C.CE 0.01uF 50V 01 C205 UA954100 C.MYLAR 0.01uF 50V 01 C206 UA954100 C.MYLAR 0.01uF 50V 01 C207 UA954100 C.MYLAR 0.01uF 50V 01 C208 UA954100 C.MYLAR 0.01uF 50V 01 C209 UA954100 C.MYLAR 0.01uF 50V 01 C210 UA954100 C.MYLAR 0.01uF 50V 01 C211 VJ599000 C.CE.TUBLR 0.047uF 16V 01 C212 UR848100 C.EL 100uF 25V C213 UM397100 C.EL 10uF 16V 01 C214 UA655100 C.MYLAR 0.1uF 50V 01 C215 UA954100 C.MYLAR 0.01uF 50V 01 D101 VM974200 DIODE.ZENR HZS5C2TD 5.0V 01 * D102 VR711500 LED(or) SLR-325DC * D103 VR711500 LED(or) SLR-325DC * D106 VR711500 LED(or) SLR-325DC * D107 VR711500 LED(or) SLR-325DC * D108 VR711500 LED(or) SLR-325DC * D109 VR711500 LED(or) SLR-325DC * D110 VR711500 LED(or) SLR-325DC * D111 VR711500 LED(or) SLR-325DC D113 VD631600 DIODE 1SS133,176,HSS104 01 D114 VD631600 DIODE 1SS133,176,HSS104 01 D115 VD631600 DIODE 1SS133,176,HSS104 01 D116 VD631600 DIODE 1SS133,176,HSS104 01 D117 VM974600 DIODE.ZENR HZS7A2TD 7.0V D118 VM974500 DIODE.ZENR HZS6C2TD 6.0V 01 D120 VS132300 LED(re) SLR-325VCT31 D123 VM975100 DIODE.ZENR HZS9C2TD 9.0V 01 D124 VM975100 DIODE.ZENR HZS9C2TD 9.0V 01 * D125 VM975200 DIODE.ZENR HZS11A2TD 11V D126 VM974000 DIODE.ZENR HZS5A2TD 5.0V 01 D127 VM974000 DIODE.ZENR HZS5A2TD 5.0V 01 D128 VM973800 DIODE.ZENR HZS4B2TD 4.0V D129 VD631600 DIODE 1SS133,176,HSS104 01 D131 VD631600 DIODE 1SS133,176,HSS104 01 * IC101 XY346B00 IC.CPU M37478M4-409SP CPU IC102 XM356A00 IC NJM2068LD 01 IC103 XM356A00 IC NJM2068LD 01 IC105 XP894A00 IC LC78211 IC106 XF494A00 IC LB1641 03 IC107 XM356A00 IC NJM2068LD 01 IC108 XM356A00 IC NJM2068LD 01 IC109 XM356A00 IC NJM2068LD 01 IC110 iG055100 IC TC4053BP 05 * JK101 V4478300 JACK.PHONE JY-6317Y-03-030 L101 VB056900 COIL 220uH 01 L102 VB056900 COIL 220uH 01 * PJ101 VY862900 JACK.PIN 2P * PJ102 VY862900 JACK.PIN 2P PJ103 VV306900 JACK.PIN 4P PJ104 VV306900 JACK.PIN 4P PJ105 VV306900 JACK.PIN 4P PN101 V3750100 PIN L=50 PN102 V3750100 PIN L=50 PN104 V3750100 PIN L=50 PN105 V3750100 PIN L=50 PN106 V3750100 PIN L=50 Q101 VK432900 TR 2SD1915F S,T 01 Q102 VK432900 TR 2SD1915F S,T 01 Schm Ref. PART NO. Description Rank ✻ New Parts Schm Ref. PART NO. Description Rank ✻ New Parts www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 38 AX-396 Q104 VG722000 TR.DGT DTC144ES 03 Q105 iC1815I0 TR 2SC1815 Y 01 Q106 iA1015I0 TR 2SA1015 Y 01 Q107 VP872700 TR 2SC4488 S,T Q108 iA093320 TR 2SA933S Q,R Q109 iA1015I0 TR 2SA1015 Y 01 Q110 VK432900 TR 2SD1915F S,T 01 Q111 iC1815I0 TR 2SC1815 Y 01 Q112 iC1815I0 TR 2SC1815 Y 01 R151 VP940400 R.MTL.OXD 100Ω 1W 01 R152 VP940400 R.MTL.OXD 100Ω 1W 01 * R162 VP940800 R.MTL.OXD 470Ω 1W 01 * R163 VP940800 R.MTL.OXD 470Ω 1W 01 R171 HV754100 R.CAR.FP 10Ω 1/4W 01 ST101 BB071360 SCR.TERM 8.3x13 01 * ST102 V5492900 SCR.TERM SW101 VV399800 SW.PUSH SPUN12 SW104 V2014900 SW.TACT EVQ21304M SW105 V2014900 SW.TACT EVQ21304M * SW107 V4859200 SW.RT.ENC REB161PHB20 SW108 VV523900 SW.PUSH PBS-YM-001 U101 VU591000 L.DTCT GP1U271X * VR101 V4915000 VR.MTR A100KΩ VR103 VP700700 VR A100KΩ VR105 VP742000 VR MN100KΩ 03 VR106 VP741800 VR B20KΩ 03 VR107 VP741900 VR G25KΩ 03 XL101 VE906000 RSNR.CE 4MHz 02 Schm Ref. PART NO. Description Rank ✻ New Parts Schm Ref. PART NO. Description Rank ✻ New Parts www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 3-1-4 3-1-3 1-1 2-31 2-40 2-40 2-40 2-40 2-40 2-40 2-41 1-2 1-2 1-3 1-4 1-4 1-5 2-1-1 2-1-1 2-1-5 2-1-4 2-1-6 2-1-7 3-1-1 3-1-2 3-2-4 3-2-3 3-2-2 200-1 3-2-1 3-1-3 2-1-7 2-1-5 2-1-5 2-1-6 2-1-4 3-10 3-30 3-30 3-30 3-30 3-11 3-41 3-41 3-42 3-40 3-40 3-40 3-42 3-42 3-16 3-43 3-40 3-13 3-14 3-15 5 5 5 � 6 (9) 6 � (9) 5 � (8) 5 � (6) (2) (1) 5 (3) 6 (4) 6 (3) 6 (2) 6 (1) 6 (8) 6 (11) 6 (10) 6 (6) 6 (5) (7) 8 10 12 101 102 129 106 161 155 108 130 108 142 145 112 114 118 116 120 121 125 126 132 132 133 132 134 132 169 169 158 158 158 102 158 158 168 168 168 158 158 156 170 158 158 170 160 160 161 135 169 172 157 157 200 18 110 5 � (5) 5 (6) 8 R,T models 5 (4) 156 106 R,T models 39 A B C D E 1 2 3 4 5 6 7 AX-396/496 I EXPLODED VIEW (AX-496) AX-496 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 40 I MECHANICAL PARTS * 1- 1 V4595400 FRONT PANEL BL * 1- 1 V4595500 FRONT PANEL TI * 1- 1 V4595600 FRONT PANEL GD * 1- 2 V4598400 ESCUTCHON, 5/22 BL * 1- 3 V4598800 LENS, 6P * 1- 4 V4598900 LENS, 1P 1- 5 VV185700 LENS, FILTER 7x24 # s 2-1-1 VV857800 PAIR TRANSISTOR 2SA1492/C3856 OPY Q521,Q526 2-1-4 VV903800 HEAT SINK ASS’Y 2-1-5 VV849300 SHEET 19x24 2-1-6 VP922500 DAMPER 2x10x170 2-1-7 VK173200 SCREW, TRANSISTOR 3x15 SP FCM3 2-31 VS586500 CHASSIS * 2-40 VB770200 PW HEAD P-TITE SCREW 3x10-8 FCM3 2-41 EG330030 BIND HEAD SCREW 3x6 FCRM3-BL * 3-1-1 V4596500 SUB PANEL BL * 3-1-1 V4596600 SUB PANEL TI * 3-1-1 V4596700 SUB PANEL GD * 3-1-2 V4598500 PLATE, SP BL * 3-1-2 V4598600 PLATE, SP TI * 3-1-2 V4598700 PLATE, SP GD 3-1-3 VY940400 CUSHION, LID T=0.8 * 3-1-4 VS699700 DAMPER SIDE * 3-2-1 V4596200 PANEL, LID BL * 3-2-1 V4596300 PANEL, LID TI * 3-2-1 V4596400 PANEL, LID GD * 3-2-2 V4596800 HINGE, LID L BL * 3-2-2 V4596900 HINGE, LID L TI * 3-2-2 V4597000 HINGE, LID L GD * 3-2-3 V4597100 HINGE, LID R BL * 3-2-3 V4597200 HINGE, LID R TI * 3-2-3 V4597300 HINGE, LID R GD 3-2-4 VD435300 BIND HEAD P-TITE SCREW 2.6x8 FCRM3-BL * 3-10 V4592800 SUB CHASSIS 3-11 V2467900 ESCUTCHEON, VOL BL 3-11 V2468000 ESCUTCHEON, VOL TI 3-11 V2468100 ESCUTCHEON, VOL GD 3-13 V2918800 BUTTON 3x8 BL 3-13 V2918900 BUTTON 3x8 TI 3-13 V4562700 BUTTON 3x8 GD * 3-14 V4593300 SPRING, LID 3-15 V2113300 DAMPER, GEAR * 3-16 V5274500 SUPPORT, PH 3-30 VQ368500 PUSH RIVET P3545-B 3-40 EP600830 BIND HEAD B-TITE SCREW 3x8 FCRM3-BL 3-41 EG330030 BIND HEAD SCREW 3x6 FCRM3-BL 3-42 EP630220 BIND HEAD P-TITE SCREW 3x8 ZMC2-BL 3-43 VT669300 PW HEAD B-TITE SCREW 3x8-8 MFC2 * 5 V5012200 P.C.B. ASS’Y MAIN (RT) * 5 V5012300 P.C.B. ASS’Y MAIN (B) * 5 V5012400 P.C.B. ASS’Y MAIN (G) * 6 V5012600 P.C.B. ASS’Y FUNCTION * s 8 XT064B00 POWER TRANSFORMER BL,TI (G) ✻ New Parts Ref. No. PART NO. Description Remarks Markets AX-496 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 41 ✻ New Parts Ref. No. PART NO. Description Remarks Markets AX-496 * s 8 XY163A00 POWER TRANSFORMER BL (RT) 10 V2438700 CORD STOPPER ’10P1 s 12 VN363700 POWER CORD ASS’Y (G) s 12 VV437300 POWER CORD ASS’Y (B) s 12 VZ542500 POWER CORD ASS’Y (RT) 18 VU590000 BINDING TIE CBTD001B 101 VV121300 TOP COVER BL 101 VV121500 TOP COVER TI 101 VZ884500 TOP COVER GD 102 VY758300 CHASSIS * 106 V4593500 REAR PANEL (RT) * 106 V4593800 REAR PANEL (B) * 106 V4593900 REAR PANEL (G) 108 V0042500 LEG D60xH21 GD 108 VS025000 LEG D60xH21 110 V4172900 KNOB D40 BL * 110 V4173000 KNOB D40 TI 110 V4173100 KNOB D40 GD 112 V4172600 KNOB D30 ENC BL * 112 V4172700 KNOB D30 ENC TI 112 V4172800 KNOB D30 ENC GD * 114 V4729300 KNOB, L BL * 114 V4729400 KNOB, L TI * 114 V4729500 KNOB, L GD * 116 V4728700 KNOB, L BL * 116 V4728800 KNOB, L TI * 116 V4728900 KNOB, L GD 118 VT275100 KNOB D12R BL 118 VT275200 KNOB D12R TI 118 VZ891400 KNOB D12R GD * 120 V4598100 BUTTON, 5/22 BL * 120 V4598200 BUTTON, 5/22 TI * 120 V4598300 BUTTON, 5/22 GD * 121 V5088600 BUTTON, 5/22 P BL * 121 V5088800 BUTTON, 5/22 P TI * 121 V5088900 BUTTON, 5/22 P GD * 125 V4747100 SUPPORT/INPUT * 126 V4780900 DAMPER 4/30/50 * 129 V4593000 FRAME, TRANSFORMER 130 VQ861500 CUSHION SHEET 132 VQ368600 PUSH RIVET P3555-B * 133 V4597400 PLATE SIDE L BL * 133 V4597500 PLATE SIDE L TI * 133 V4597600 PLATE SIDE L GD * 134 V4597700 PLATE SIDE R BL * 134 V4597800 PLATE SIDE R TI * 134 V4597900 PLATE SIDE R GD 135 VQ368500 PUSH RIVET P3545-B 142 VU984400 RING D14 * 145 V5247600 DAMPER 155 AA627310 GROUND TERMINAL 156 EG330030 BIND HEAD SCREW 3x6 FCRM3-BL 157 VN413300 BIND HEAD BONDING B-T. SCREW 3x8 MFZN2-BL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 42 ✻ New Parts Ref. No. PART NO. Description Remarks Markets AX-496 158 EP600830 BIND HEAD B-TITE SCREW 3x8 FCRM3-BL 160 VT669300 PW HEAD B-TITE SCREW 3x8-8 MFC2 161 VT669400 PW HEAD B-TITE SCREW 3x15-8 MFC2 168 V2728500 BIND HEAD S-TITE SCREW 4x7 MFZN2-BL 169 EP600250 BIND HEAD B-TITE SCREW 3x8 ZMC2-Y 170 21991500 PW HEAD S-TITE SCREW 4x8-10 FCRM3-BL BL 170 VD069600 PW HEAD S-TITE SCREW 4x8-10 MFNI-33 GD 170 VH313200 BW HEAD S-TITE SCREW 4x8-10 FNM3-BL TI 172 VY731200 BONDING HEAD TAPPING SCREW 3x10 MFNI33 ACCESSORIES * 200 V4999200 REMOTE CONTROL TRANSMITTER RC7060-01-0004 200-1 AAX13340 LID BLJYE 60050001 BATTERY, MANGANESE SUM-3,AA,R06 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 � 3-1-4 3-1-3 1-1 2-31 2-40 2-40 2-40 2-40 2-40 2-40 2-41 1-2 1-3 1-4 1-2 1-4 1-4 1-5 2-2-1 2-2-1 2-2-5 2-2-4 2-2-6 2-2-7 3-1-1 3-1-2 3-2-4 3-2-3 3-2-2 200-1 3-2-1 3-1-3 2-2-7 2-2-5 2-2-5 2-2-6 2-2-4 3-10 3-30 3-30 3-30 3-30 3-11 3-41 3-41 3-42 3-40 3-40 3-40 3-42 3-42 3-16 3-43 3-40 3-13 3-14 3-15 5 5 5 � 6 (9) 6 � (9) 5 � (8) 5 � (7) (2) (1) 5 (3) 6 (4) 6 (3) 6 (2) 6 (1) 6 (8) 6 (11) 6 (10) 6 (6) 6 (5) (7) 8 10 12 101 102 129 106 161 155 108 130 108 142 145 112 110 114 116 120 121 125 126 132 132 133 132 134 132 169 169 158 158 158 102 158 158 168 168 168 158 158 156 170 158 158 170 160 160 161 135 169 172 157 157 200 19 18 5 � (5) 5 (7) 8 R model 5 (4) 156 106 R model 3-42 6 (12) 3-12 3-40 43 A B C D E 1 2 3 4 5 6 7 AX-396/496 I EXPLODED VIEW (AX-396) AX-396 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 ✻ New Parts Ref. No. PART NO. Description Remarks Markets Rank 44 AX-396 * 1- 1 V4595700 FRONT PANEL BL * 1- 1 V4595900 FRONT PANEL TI * 1- 1 V4596000 FRONT PANEL GD * 1- 2 V4598400 ESCUTCHON, 5/22 BL * 1- 3 V4598800 LENS, 6P * 1- 4 V4598900 LENS, 1P 1- 5 VV185700 LENS, FILTER 7x24 # s 2-2-1 VV586400 PAIR TRANSISTOR 2SA1695/C4468 OPY Q521,Q526 * 2-2-4 V5111900 HEATSINK ASSY 2-2-5 VV849300 SHEET 19x24 01 2-2-6 VP922500 DAMPER 2x10x170 01 2-2-7 VK173200 SCREW, TRANSISTOR 3x15 SP FCM3 01 2-31 VS586500 CHASSIS * 2-40 VB770200 PW HEAD P-TITE SCREW 3x10-8 FCM3 01 2-41 EG330030 BIND HEAD SCREW 3x6 FCRM3-BL 01 * 3-1-1 V4596500 SUB PANEL BL * 3-1-1 V4596600 SUB PANEL TI * 3-1-1 V4596700 SUB PANEL GD * 3-1-2 V4605200 PLATE, SP BL * 3-1-2 V4605300 PLATE, SP TI * 3-1-2 V4605400 PLATE, SP GD 3-1-3 VY940400 CUSHION, LID T=0.8 * 3-1-4 VS699700 DAMPER SIDE * 3-2-1 V4596200 PANEL, LID BL * 3-2-1 V4596300 PANEL, LID TI * 3-2-1 V4596400 PANEL, LID GD * 3-2-2 V4596800 HINGE, LID L BL * 3-2-2 V4596900 HINGE, LID L TI * 3-2-2 V4597000 HINGE, LID L GD * 3-2-3 V4597100 HINGE, LID R BL * 3-2-3 V4597200 HINGE, LID R TI * 3-2-3 V4597300 HINGE, LID R GD 3-2-4 VD435300 BIND HEAD P-TITE SCREW 2.6x8 FCRM3-BL 01 * 3-10 V4592800 SUB CHASSIS 3-11 V2467900 ESCUTCHEON, VOL BL 3-11 V2468000 ESCUTCHEON, VOL TI 3-11 V2468100 ESCUTCHEON, VOL GD * 3-12 V4599000 BUTTON, TAPE BL * 3-12 V4599100 BUTTON, TAPE TI * 3-12 V4599200 BUTTON, TAPE GD 3-13 V2918800 BUTTON 3x8 BL 3-13 V2918900 BUTTON 3x8 TI 3-13 V4562700 BUTTON 3x8 GD * 3-14 V4593300 SPRING, LID 3-15 V2113300 DAMPER, GEAR * 3-16 V5274500 SUPPORT, PH 3-30 VQ368500 PUSH RIVET P3545-B 01 3-40 EP600830 BIND HEAD B-TITE SCREW 3x8 FCRM3-BL 01 3-41 EG330030 BIND HEAD SCREW 3x6 FCRM3-BL 01 3-42 EP630220 BIND HEAD P-TITE SCREW 3x8 ZMC2-BL 3-43 VT669300 PW HEAD B-TITE SCREW 3x8-8 MFC2 * 5 V5011700 P.C.B. ASS’Y MAIN (J) * 5 V5011800 P.C.B. ASS’Y MAIN (R) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 45 ✻ New Parts Ref. No. PART NO. Description Remarks Markets Rank AX-396 * 5 V5011900 P.C.B. ASS’Y MAIN (A) * 5 V5012000 P.C.B. ASS’Y MAIN (B) * 5 V5012100 P.C.B. ASS’Y MAIN (G) * 6 V5012500 P.C.B. ASS’Y FUNCTION * s 8 XU441B00 POWER TRANSFORMER (J) * s 8 XU442C00 POWER TRANSFORMER (R) s 8 XU443B00 POWER TRANSFORMER (BG) * s 8 XY162A00 POWER TRANSFORMER (A) 10 V2438700 CORD STOPPER ’10P1 s 12 V4007600 POWER CORD ASS’Y (J) s 12 V2296800 POWER CORD ASS’Y (A) s 12 VN363700 POWER CORD ASS’Y (G) s 12 VV437300 POWER CORD ASS’Y (B) s 12 VZ542500 POWER CORD ASS’Y (R) 18 VU590000 BINDING TIE CBTD001B 19 CB836200 BINDING TIE S-70B 02 101 VV121300 TOP COVER BL 101 VV121500 TOP COVER TI 101 VZ884500 TOP COVER GD 102 VY758300 CHASSIS * 106 V4594200 REAR PANEL (J) * 106 V4594500 REAR PANEL (R) * 106 V4594700 REAR PANEL (A) * 106 V4594800 REAR PANEL (B) * 106 V4594900 REAR PANEL (G) 108 V0042500 LEG D60xH21 GD 108 VS025000 LEG D60xH21 110 V4172900 KNOB D40 BL * 110 V4173000 KNOB D40 TI 110 V4173100 KNOB D40 GD 112 V4172600 KNOB D30 ENC BL * 112 V4172700 KNOB D30 ENC TI 112 V4172800 KNOB D30 ENC GD * 114 V4729300 KNOB, L BL * 114 V4729400 KNOB, L TI * 114 V4729500 KNOB, L GD * 116 V4728700 KNOB, L BL * 116 V4728800 KNOB, L TI * 116 V4728900 KNOB, L GD * 120 V4598100 BUTTON, 5/22 BL * 120 V4598200 BUTTON, 5/22 TI * 120 V4598300 BUTTON, 5/22 GD * 121 V5088600 BUTTON, 5/22 P BL * 121 V5088800 BUTTON, 5/22 P TI * 121 V5088900 BUTTON, 5/22 P GD * 125 V4747100 SUPPORT, INPUT * 126 V4780900 DAMPER 4x30x50 * 127 V5492700 DAMPER 6x40x90 (J) * 129 V4593000 FRAME, TRANSFORMER 130 VQ861500 CUSHION SHEET 132 VQ368600 PUSH RIVET P3555-B 01 * 133 V4597400 PLATE SIDE L BL * 133 V4597500 PLATE SIDE L TI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 46 ✻ New Parts Ref. No. PART NO. Description Remarks Markets Rank AX-396 * 133 V4597600 PLATE SIDE L GD * 134 V4597700 PLATE SIDE R BL * 134 V4597800 PLATE SIDE R TI * 134 V4597900 PLATE SIDE R GD 135 VQ368500 PUSH RIVET P3545-B 01 142 VU984400 RING D14 * 145 V5247600 DAMPER 155 AA627310 GROUND TERMINAL 01 156 EG330030 BIND HEAD SCREW 3x6 FCRM3-BL 01 157 VN413300 BIND HEAD BONDING B-T. SCREW 3x8 MFZN2-BL 01 158 EP600830 BIND HEAD B-TITE SCREW 3x8 FCRM3-BL 01 160 VT669300 PW HEAD B-TITE SCREW 3x8-8 MFC2 161 VT669400 PW HEAD B-TITE SCREW 3x15-8 MFC2 168 V2728500 BIND HEAD S-TITE SCREW 4x7 MFZN2-BL 169 EP600250 BIND HEAD B-TITE SCREW 3x8 ZMC2-Y 01 170 21991500 PW HEAD S-TITE SCREW 4x8-10 FCRM3-BL BL 01 170 VD069600 PW HEAD S-TITE SCREW 4x8-10 MFNI-33 GD 01 170 VH313200 BW HEAD S-TITE SCREW 4x8-10 FNM3-BL TI 01 172 VY731200 BONDING HEAD TAPPING SCREW 3x10 MFNI33 ACCESSORIES * 200 V4999200 REMOTE CONTROL TRANSMITTER RC7060-01-0004 200-1 AAX13340 LID BLJYE 60050001 VH214900 BATTERY, MANGANESE SUM-3,AA,R06 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 47 10mm HJ35 1/4W Type 5mm HF85 1/6W Type HF45 1/4W Type Value 1/4W Type Part No. 1/6W Type Part No. 10 kΩ HF45 7100 HF45 7100 11 kΩ HF45 7110 HF45 7110 12 kΩ HJ35 7120 HF85 7120 13 kΩ HF45 7130 HF45 7130 15 kΩ HF45 7150 HF45 7150 18 kΩ HF45 7180 HF45 7180 22 kΩ HF45 7220 HF45 7220 24 kΩ HF45 7240 HF45 7240 27 kΩ HJ35 7270 HF85 7270 30 kΩ HF45 7300 HF45 7300 33 kΩ HF45 7330 HF45 7330 36 kΩ HF45 7360 HF45 7360 39 kΩ HF45 7390 HF45 7390 47 kΩ HF45 7470 HF45 7470 51 kΩ HF45 7510 HF45 7510 56 kΩ HF45 7560 HF45 7560 62 kΩ HF45 7620 HF45 7620 68 kΩ HF45 7680 HF45 7680 82 kΩ HF45 7820 HF45 7820 91 kΩ HF45 7910 HF45 7910 100 kΩ HF45 8100 HF45 8100 110 kΩ HF45 8110 HF45 8110 120 kΩ HF45 8120 HF45 8120 150 kΩ HF45 8150 HF45 8150 180 kΩ HF45 8180 HF45 8180 220 kΩ HJ35 8220 HF85 8220 270 kΩ HF45 8270 HF45 8270 300 kΩ HF45 8300 HF45 8300 330 kΩ HF45 8330 HF45 8330 390 kΩ HJ35 8390 HF85 8390 470 kΩ HF45 8470 HF45 8470 560 kΩ HJ35 8560 HF85 8560 680 kΩ HJ35 8680 HF85 8680 820 kΩ HJ35 8820 HF85 8820 1.0 MΩ HF45 9100 HF45 9100 1.2 MΩ HJ35 9120 ❊ 1.5 MΩ HJ35 9150 HF85 9150 1.8 MΩ HJ35 9180 HF85 9180 2.2 MΩ HJ35 9220 HF85 9220 3.3 MΩ HJ35 9330 HF85 9330 3.9 MΩ HJ35 9390 ❊ 4.7 MΩ HJ35 9470 HF85 9470 Value 1/4W Type Part No. 1/6W Type Part No. 1.0 Ω HJ35 3100 HF85 3100 1.8 Ω HJ35 3180 ❊ 2.2 Ω HJ35 3220 HF85 3220 3.3 Ω HJ35 3330 HF85 3330 4.7 Ω HJ35 3470 HF85 3470 5.6 Ω HJ35 3560 HF85 3560 10 Ω HF45 4100 HF45 4100 15 Ω HJ35 4150 HF85 4150 22 Ω HF45 4220 HF45 4220 27 Ω HJ35 4270 HF85 4270 33 Ω HF45 4330 HF45 4330 39 Ω HJ35 4470 HF85 4390 47 Ω HF45 4470 HF45 4470 56 Ω HF45 4560 HF45 4560 68 Ω HF45 4680 HF45 4680 75 Ω HF45 4750 HF45 4750 82 Ω HF45 4820 HF45 4820 91 Ω HF45 4910 HF45 4910 100 Ω HF45 5100 HF45 5100 110 Ω HJ35 5110 HF85 5110 120 Ω HF45 5120 HF45 5120 150 Ω HF45 5150 HF45 5150 160 Ω HJ35 5160 ❊ 180 Ω HF45 5180 HF45 5180 200 Ω HF45 5200 HF45 5200 220 Ω HF45 5220 HF45 5220 270 Ω HF45 5270 HF45 5270 330 Ω HF45 5330 HF45 5330 390 Ω HF45 5390 HF45 5390 430 Ω HF45 5430 HF45 5430 470 Ω HF45 5470 HF45 5470 510 Ω HF45 5510 HF45 5510 560 Ω HF45 5560 HF45 5560 680 Ω HF45 5680 HF45 5680 820 Ω HF45 5820 HF45 5820 910 Ω HF45 5910 HF45 5910 1.0 kΩ HF45 6100 HF45 6100 1.2 kΩ HF45 6120 HF45 6120 1.5 kΩ HF45 6150 HF45 6150 1.8 kΩ HF45 6180 HF45 6180 2.0 kΩ HJ35 6200 HF85 6200 2.2 kΩ HF45 6220 HF45 6220 2.4 kΩ HJ35 6240 HF85 6240 2.7 kΩ HF45 6270 HF45 6270 3.0 kΩ HF45 6300 HF45 6300 3.3 kΩ HF45 6330 HF45 6330 3.6 kΩ HJ35 6360 HF85 6360 3.9 kΩ HF45 6390 HF45 6390 4.7 kΩ HF45 6470 HF45 6470 5.1 kΩ HF45 6510 HF45 6510 5.6 kΩ HF45 6560 HF45 6560 6.8 kΩ HF45 6680 HF45 6680 8.2 kΩ HF45 6820 HF45 6820 9.1 kΩ HF45 6910 HF45 6910 Parts List for Carbon Resistors ❊ : Not available www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-496/396 01 02 03 04 05 06 07 08 09 10 20 19 18 17 16 15 14 13 12 11 U1 JT7060-2 R1 1 IR-LED R2 180 VCC VCC 3V Q1 2SD1781K C1 47uF/16V X1 3.64MHz R3 200K 00 08 10 18 15 03 01 0D 11 19 16 02 0A 12 04 0C 14 1A 06 09 07 17 1F 0B 1B 4F 40 Function HEX CUSTOM DATA PLAY (TAPE) 7A 00 REWIND (TAPE) 7A 01 FORWARD (TAPE) 7A 02 STOP (TAPE) 7A 03 REC/PAUSE 7A 04 DECK A/B 7A 06 DIR A 7A 07 PLAY (CD) 7A 08 PAUSE/STOP (CD) 7A 09 PRESET + (TUNER) 7A 10 PRESET - (TUNER) 7A 11 A/B/C/D/E (TUNER) 7A 12 PHONO 7A 14 CD/DVD 7A 15 TUNER 7A 16 AUX 7A 17 TAPE 7A 18 MD 7A 19 DIR B 7A 40 FORWARD SKIP (CD) 7A 0A BACKWARD SKIP (CD) 7A 0B FORWARD SEARCH (CD) 7A 0C BACKWARD SEARCH (CD) 7A 0D VOLUME + 7A 1A VOLUME - 7A 1B STANDBY/ON 7A 1F DISC SKIP 7A 4F TAPE STANDBY/ON DECK A/B DIR B DIR A A/B/C/D/E PRESET CD/DVD MD TAPE TUNER AUX RAX9 V499920 PHONO – + CD TUNER DISC SKIP – + VOLUME I REMOTE CONTROL TRANSMITTER G SCHEMATIC DIAGRAM 48 A B C D E 1 2 3 4 5 6 7 AX-396/496 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AX-396/496 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
