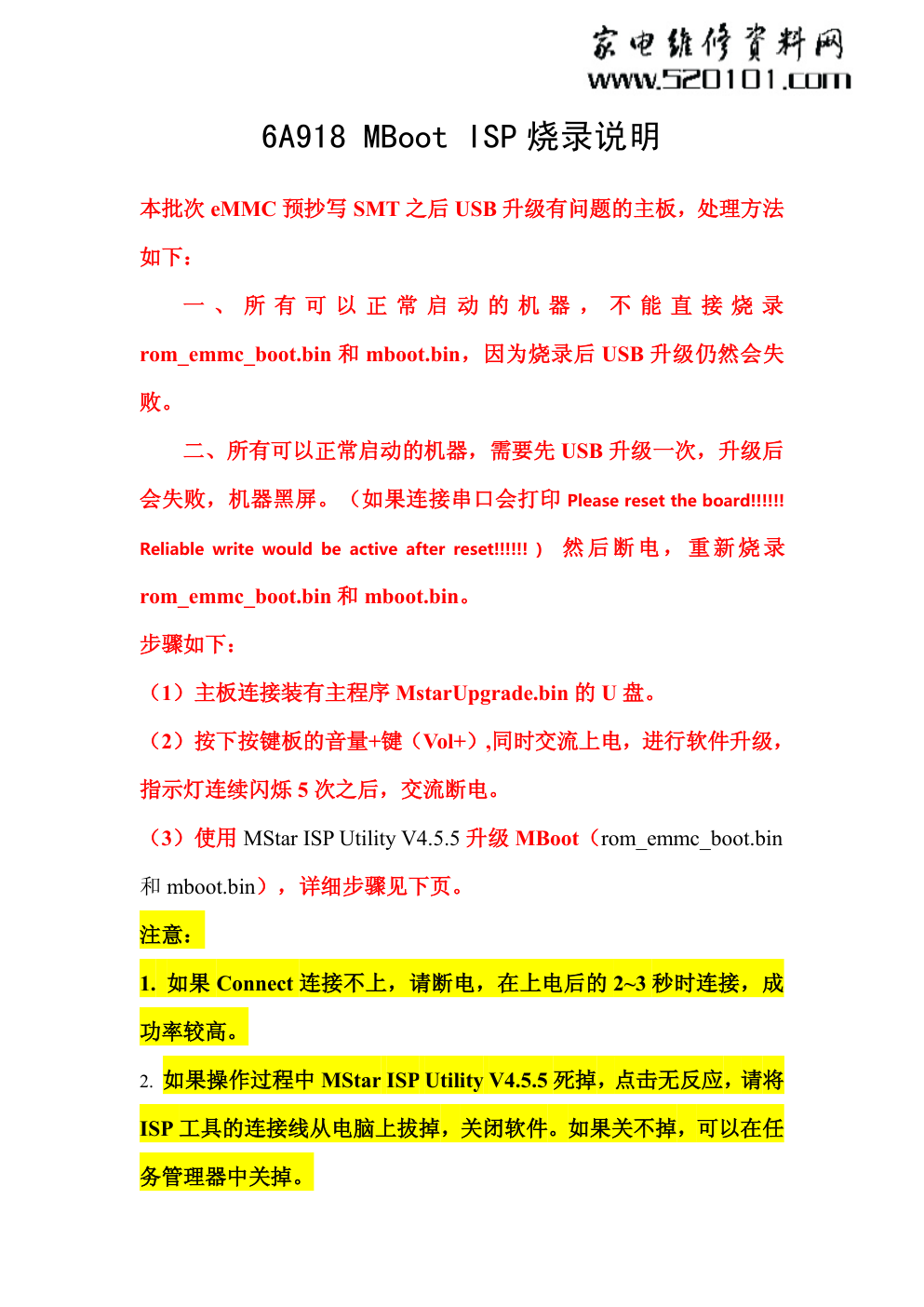

'6A918 MBoot ISP 烧录说明
本批次 eMMC 预抄写 SMT 之后 USB 升级有问题的主板，处理方法
如下：
一 、 所 有 可 以 正 常 启 动 的 机 器 ， 不 能 直 接 烧 录
rom_emmc_boot.bin 和 mboot.bin，因为烧录后 USB 升级仍然会失
败。
二、所有可以正常启动的机器，需要先 USB 升级一次，升级后
会失败，机器黑屏。（如果连接串口会打印 Please reset the board!!!!!!
Reliable write would be active after reset!!!!!! ） 然 后 断 电 ， 重 新 烧 录
rom_emmc_boot.bin 和 mboot.bin。
步骤如下：
（1）主板连接装有主程序 MstarUpgrade.bin 的 U 盘。
（2）按下按键板的音量+键（Vol+）,同时交流上电，进行软件升级，
指示灯连续闪烁 5 次之后，交流断电。
（3）使用 MStar ISP Utility V4.5.5 升级 MBoot（rom_emmc_boot.bin
和 mboot.bin），详细步骤见下页。
注意：
1. 如果 Connect 连接不上，请断电，在上电后的 2~3 秒时连接，成
功率较高。
2. 如果操作过程中 MStar ISP Utility V4.5.5 死掉，点击无反应，请将
ISP 工具的连接线从电脑上拔掉，关闭软件。如果关不掉，可以在任
务管理器中关掉。

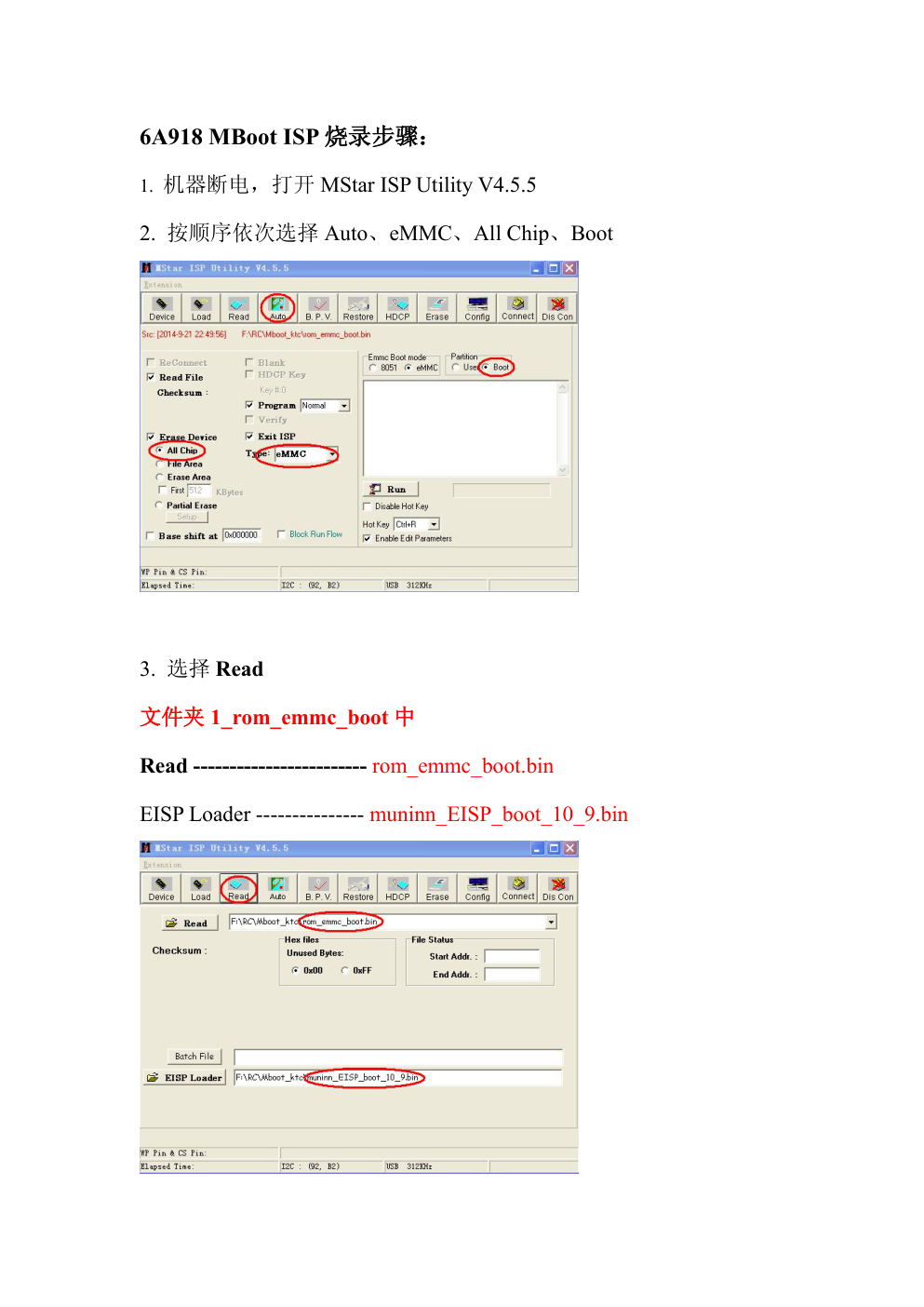

6A918 MBoot ISP 烧录步骤：
1. 机器断电，打开 MStar ISP Utility V4.5.5
2. 按顺序依次选择 Auto、eMMC、All Chip、Boot
3. 选择 Read
文件夹 1_rom_emmc_boot 中
Read ------------------------ rom_emmc_boot.bin
EISP Loader --------------- muninn_EISP_boot_10_9.bin

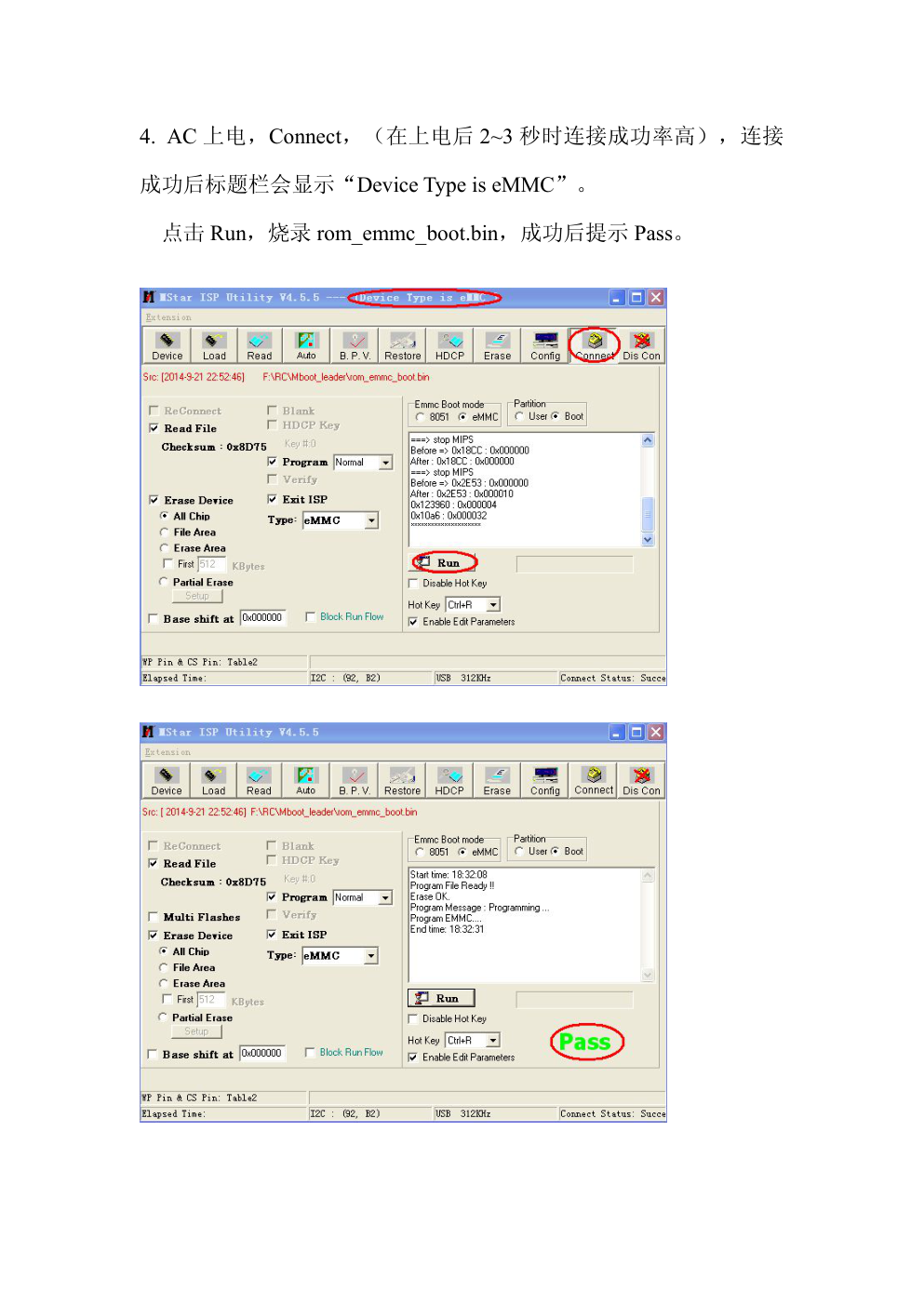

4. AC 上电，Connect，（在上电后 2~3 秒时连接成功率高），连接
成功后标题栏会显示“Device Type is eMMC”。
点击 Run，烧录 rom_emmc_boot.bin，成功后提示 Pass。

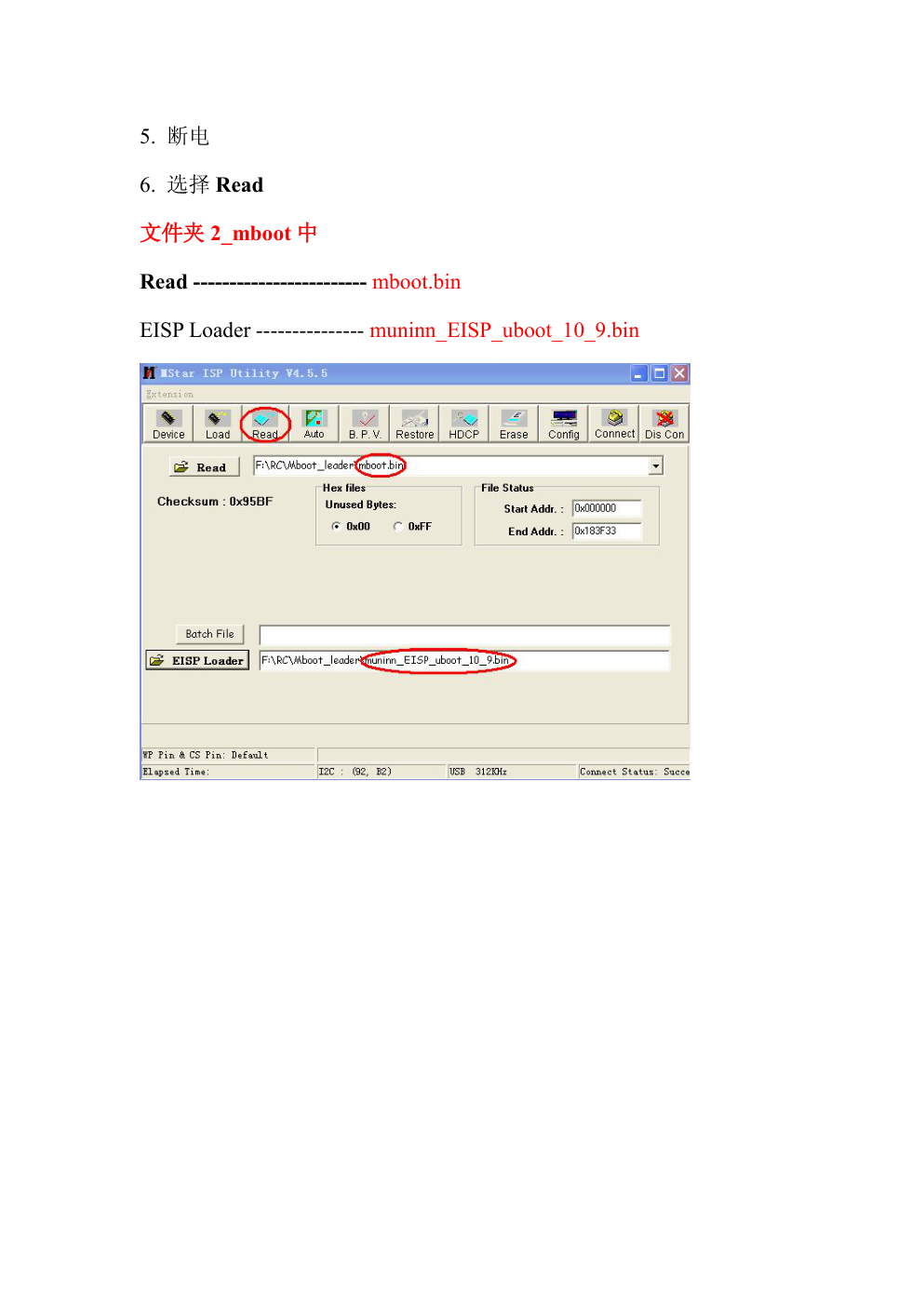

5. 断电
6. 选择 Read
文件夹 2_mboot 中
Read ------------------------ mboot.bin
EISP Loader --------------- muninn_EISP_uboot_10_9.bin

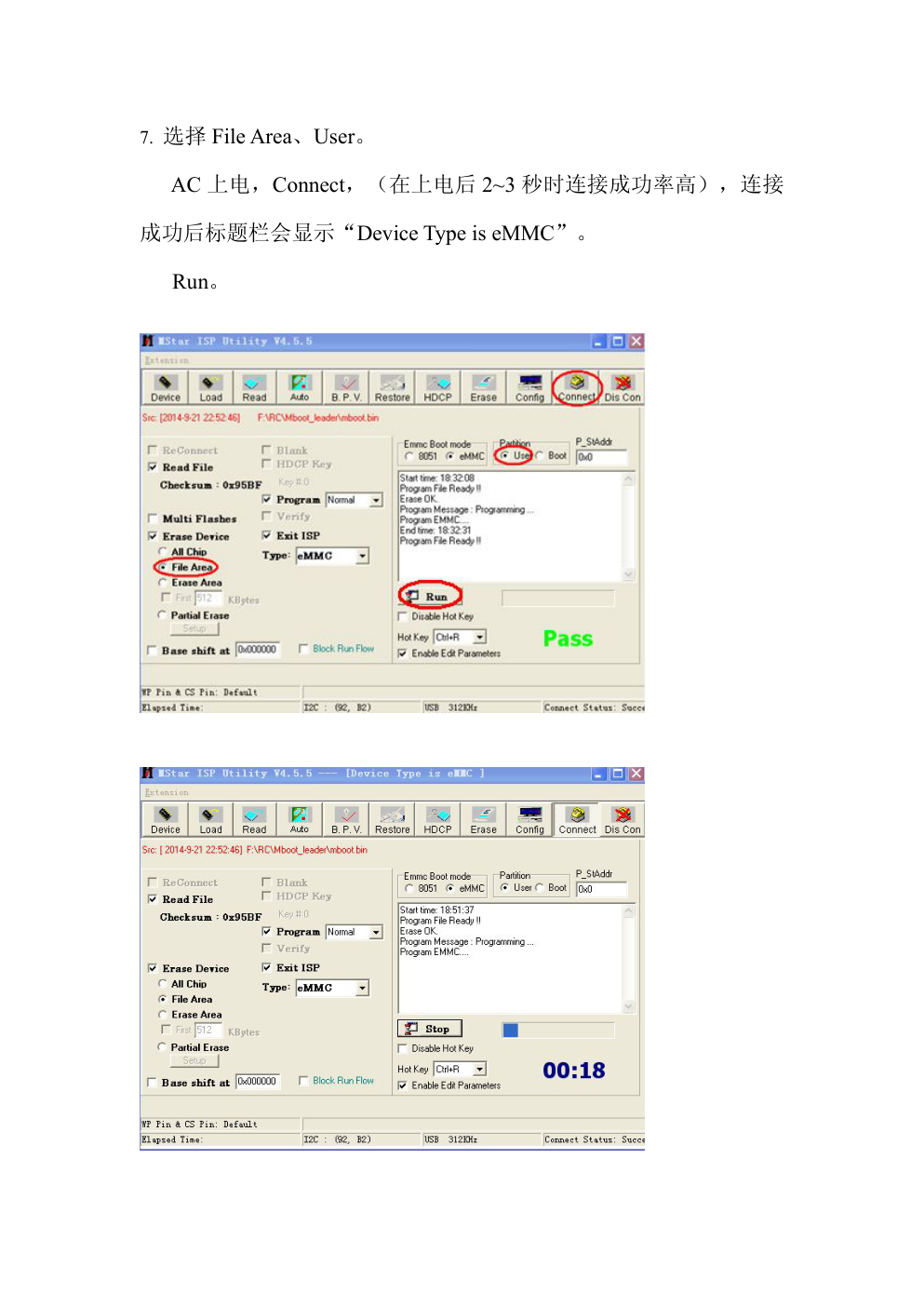

7. 选择 File Area、User。
AC 上电，Connect，（在上电后 2~3 秒时连接成功率高），连接
成功后标题栏会显示“Device Type is eMMC”。
Run。

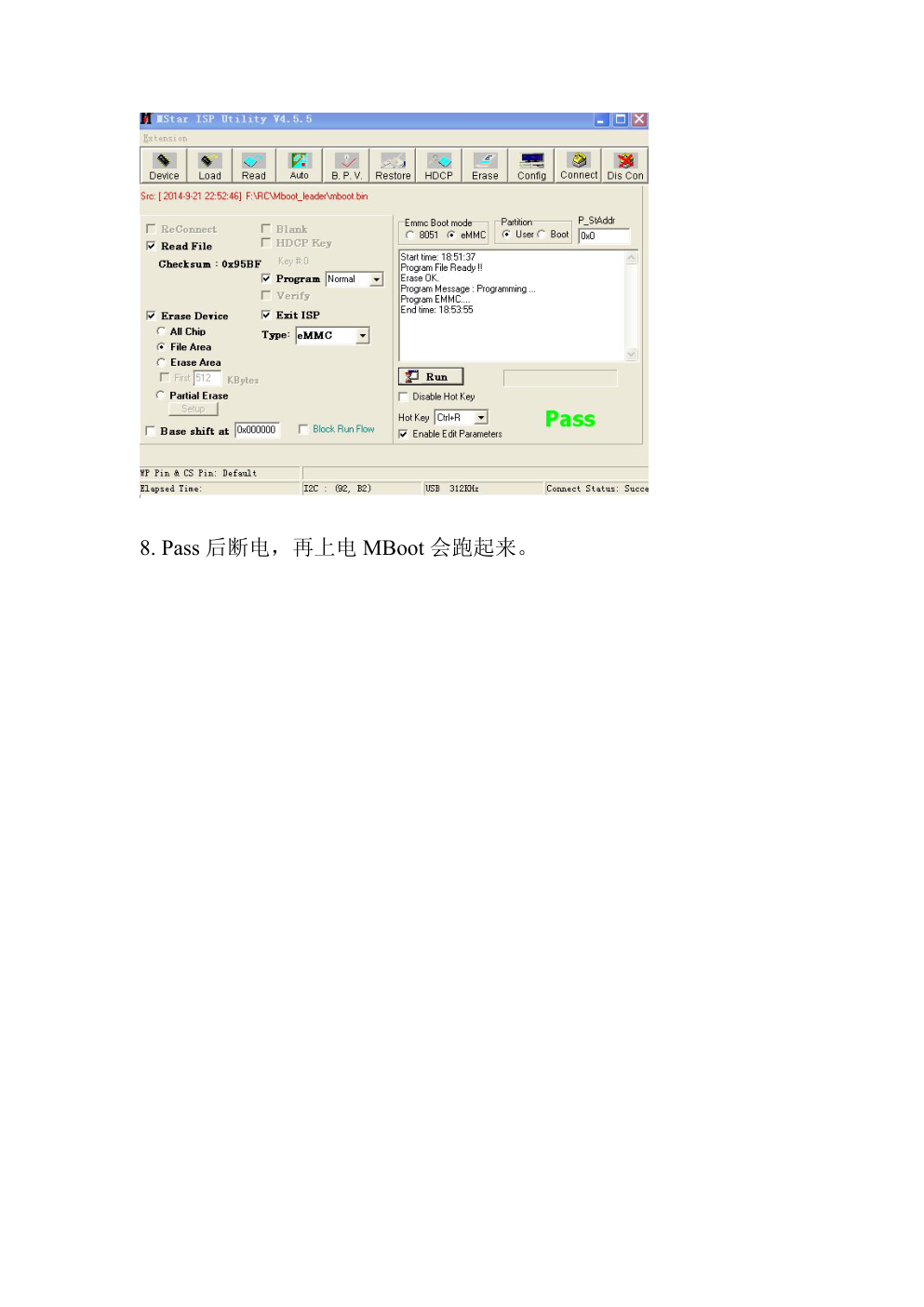

8. Pass 后断电，再上电 MBoot 会跑起来。
'
