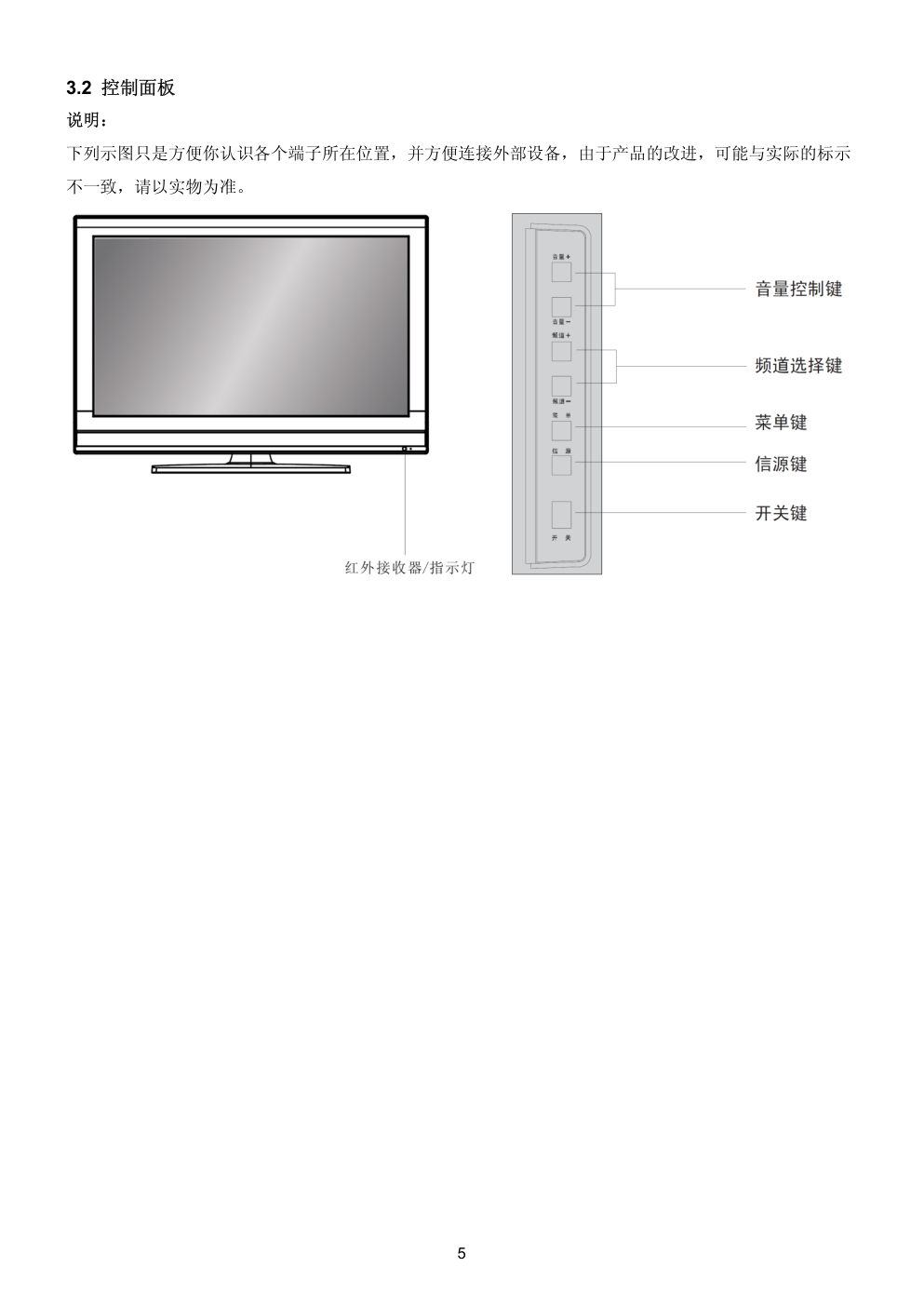

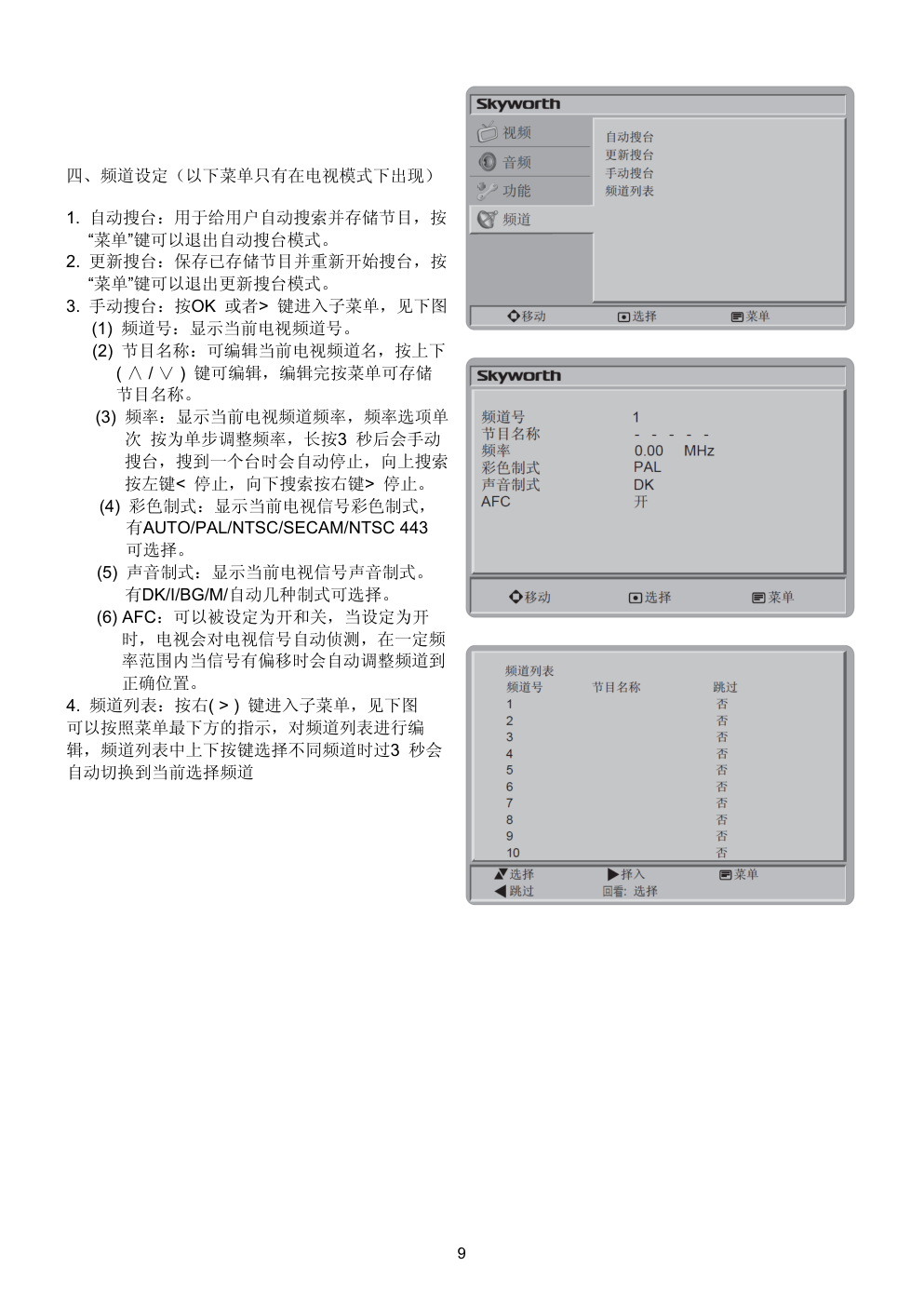

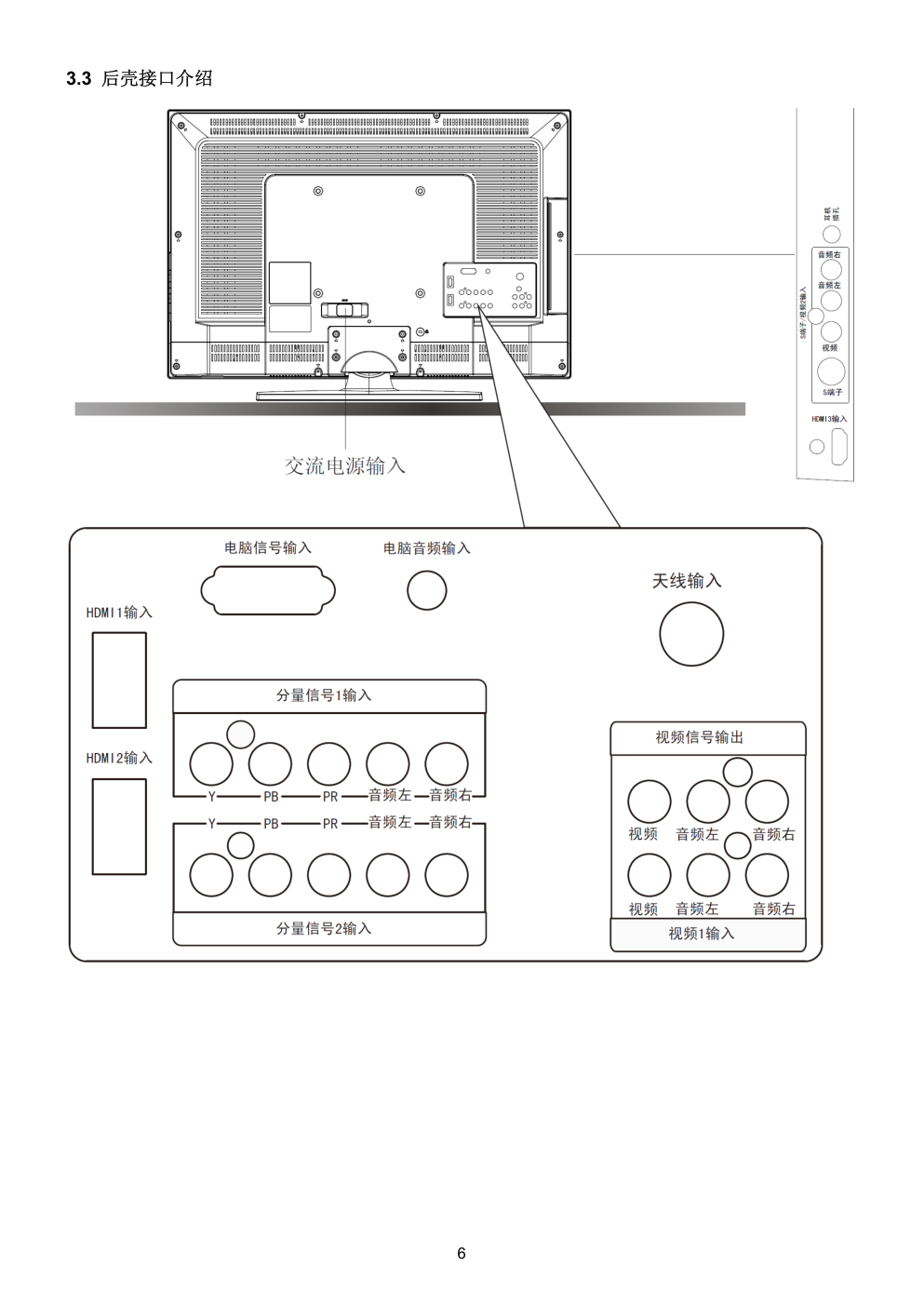

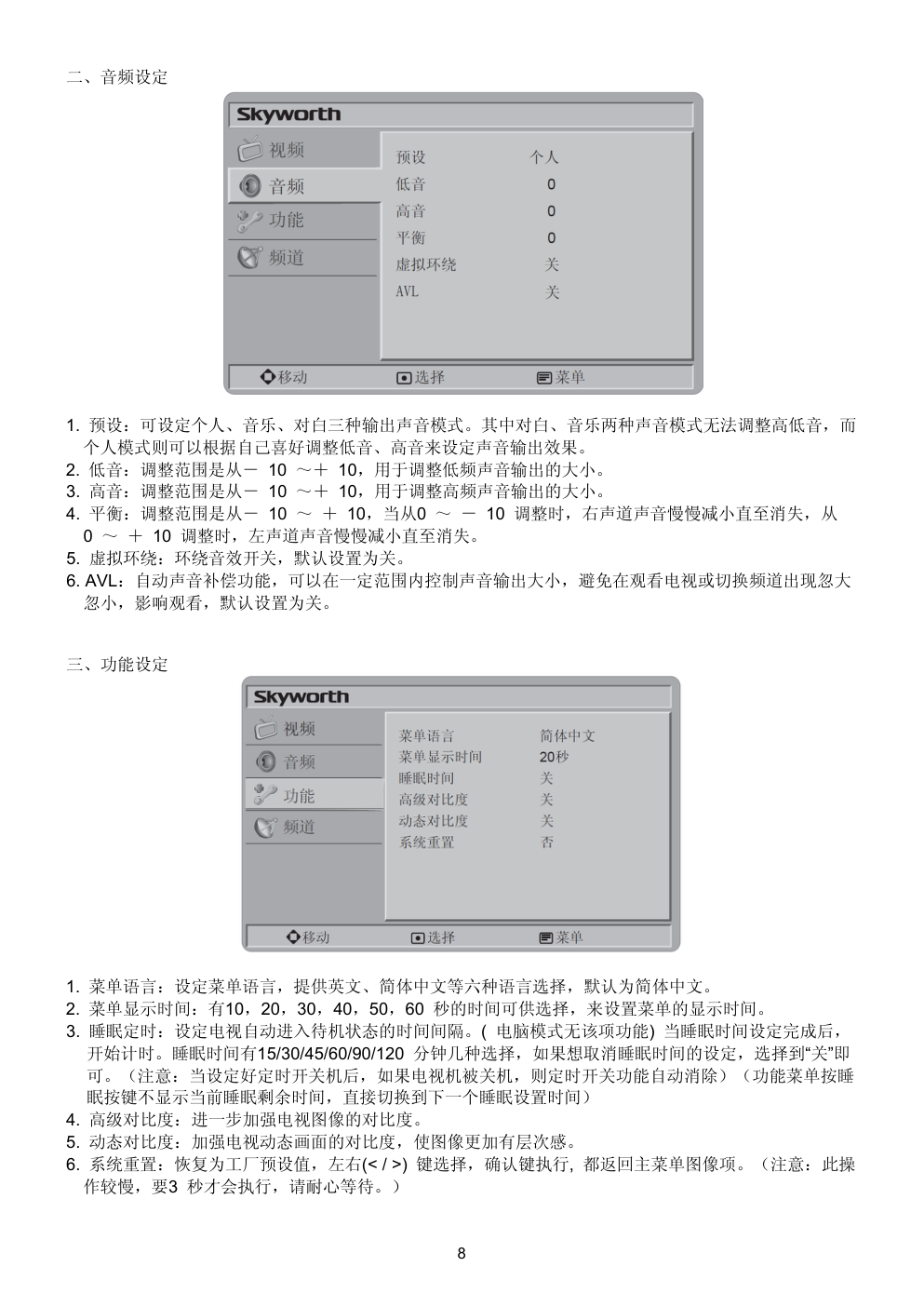

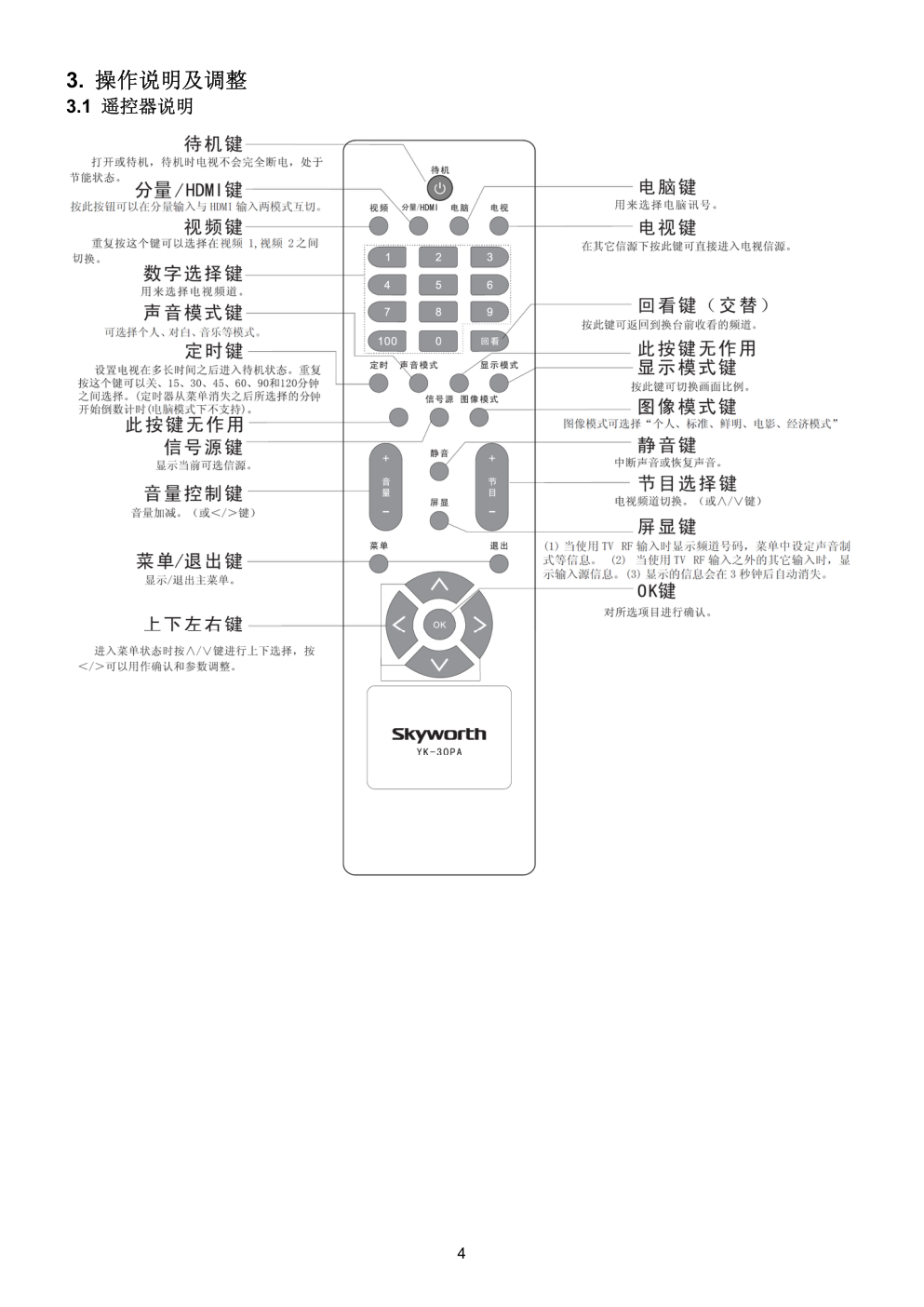

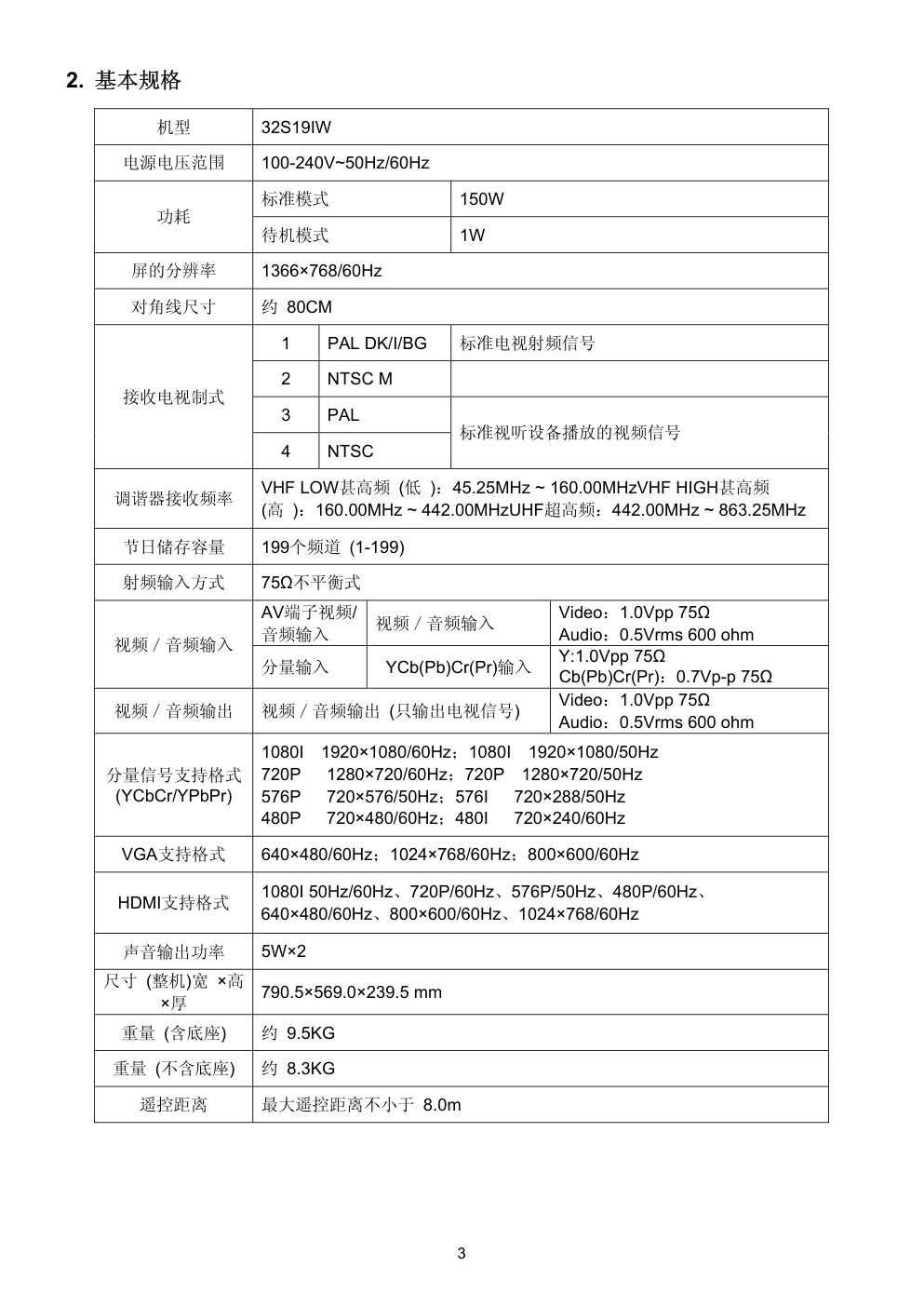

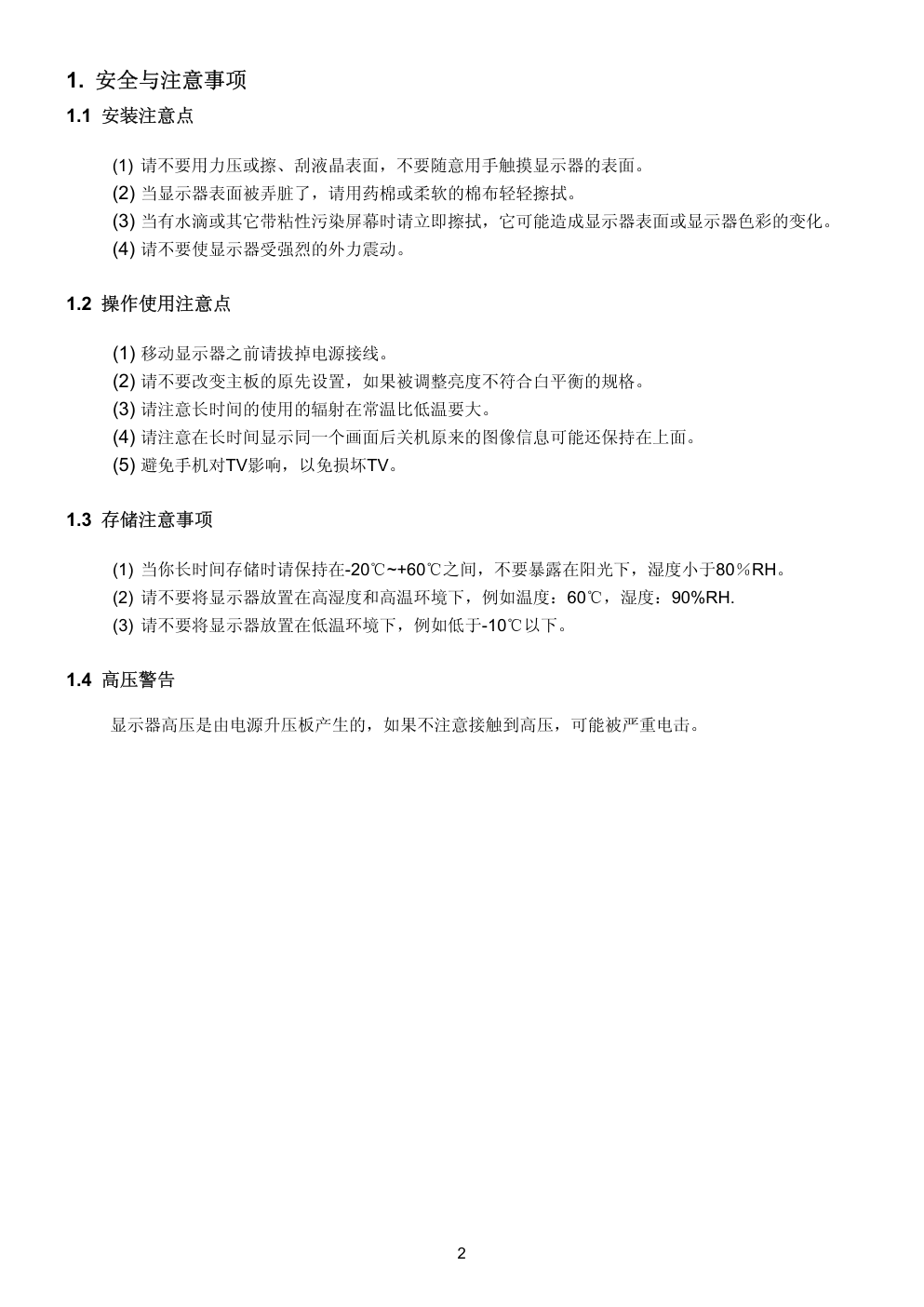

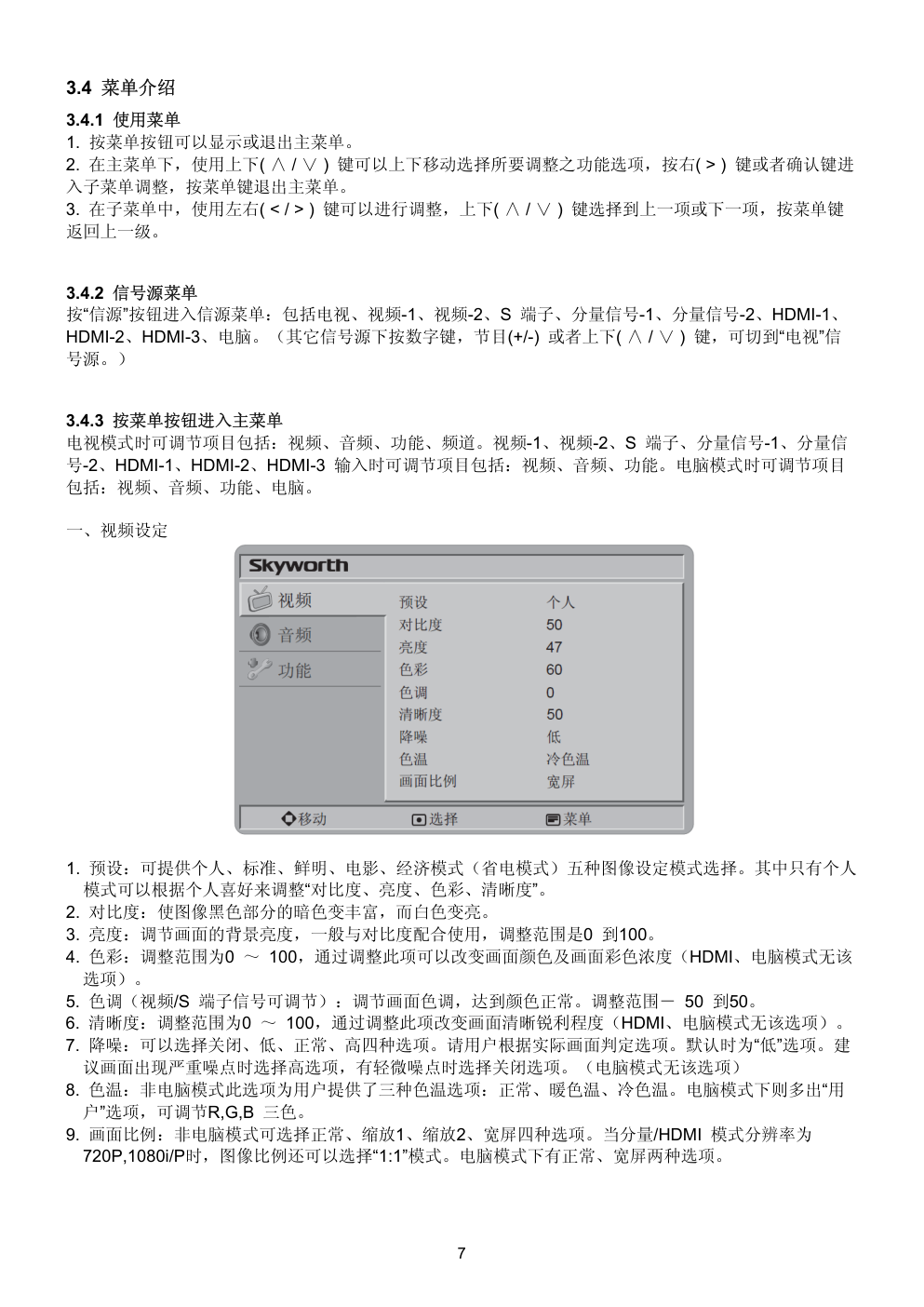

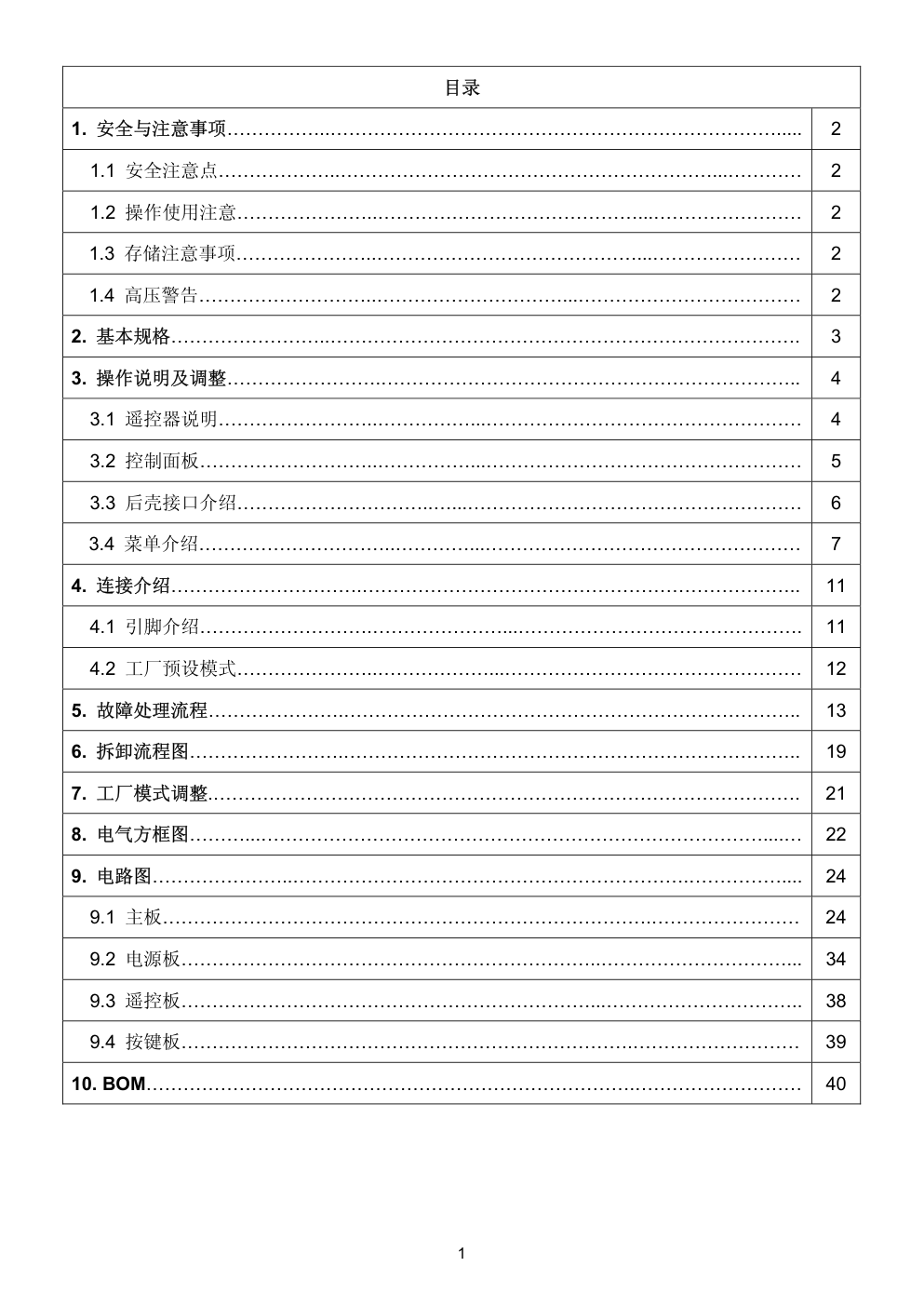

首次发布日期: 2010/9 32S19IW中文维修手册仅用于维修参考 1 目录 1. 安全与注意事项……………..………………………………………………………………..... 2 1.1 安全注意点………………..……………………………………………………...………… 2 1.2 操作使用注意…………………..……………………………………...…………………… 2 1.3 存储注意事项…………………..……………………………………...…………………… 2 1.4 高压警告………………………..…………………………...……………………………… 2 2. 基本规格……………………..…………………………………………………………………. 3 3. 操作说明及调整…………………….………………………………………………………….. 4 3.1 遥控器说明……………………..……………...…………………………………………… 4 3.2 控制面板………………………..……………...…………………………………………… 5 3.3 后壳接口介绍…………………………..…...……………………………………………… 6 3.4 菜单介绍…………………………..…………...…………………………………………… 7 4. 连接介绍………………………….…………………………………………………………….. 11 4.1 引脚介绍……………………….…………………...………………………………………. 11 4.2 工厂预设模式…………………..………………...………………………………………… 12 5. 故障处理流程………………….……………………………………………………………….. 13 6. 拆卸流程图…………………….……………………………………………………………….. 19 7. 工厂模式调整.………………….………………………………………………………………. 21 8. 电气方框图………...………………………………………………………………………....… 22 9. 电路图…………………..……………………………………………………….…………….... 24 9.1 主板…………………………………………………………………….…………………… 24 9.2 电源板…………………………………………………………..…………………………... 34 9.3 遥控板…………………………………………………………...………………………….. 38 9.4 按键板……………………………………………………………….……………………… 39 10. BOM…………………………………………………………………….……………………… 40 2 1. 安全与注意事项 1.1 安装注意点 (1) 请不要用力压或擦、刮液晶表面，不要随意用手触摸显示器的表面。 (2) 当显示器表面被弄脏了，请用药棉或柔软的棉布轻轻擦拭。 (3) 当有水滴或其它带粘性污染屏幕时请立即擦拭，它可能造成显示器表面或显示器色彩的变化。 (4) 请不要使显示器受强烈的外力震动。 1.2 操作使用注意点 (1) 移动显示器之前请拔掉电源接线。 (2) 请不要改变主板的原先设置，如果被调整亮度不符合白平衡的规格。 (3) 请注意长时间的使用的辐射在常温比低温要大。 (4) 请注意在长时间显示同一个画面后关机原来的图像信息可能还保持在上面。 (5) 避免手机对TV影响，以免损坏TV。 1.3 存储注意事项 (1) 当你长时间存储时请保持在-20℃~+60℃之间，不要暴露在阳光下，湿度小于80％RH。 (2) 请不要将显示器放置在高湿度和高温环境下，例如温度：60℃，湿度：90%RH. (3) 请不要将显示器放置在低温环境下，例如低于-10℃以下。 1.4 高压警告 显示器高压是由电源升压板产生的，如果不注意接触到高压，可能被严重电击。 3 2. 基本规格 机型 32S19IW 电源电压范围 100-240V~50Hz/60Hz 功耗 标准模式 150W 待机模式 1W 屏的分辨率 1366×768/60Hz 对角线尺寸 约 80CM 接收电视制式 1 PAL DK/I/BG 标准电视射频信号 2 NTSC M 3 PAL 标准视听设备播放的视频信号 4 NTSC 调谐器接收频率 VHF LOW甚高频 (低 )：45.25MHz ~ 160.00MHzVHF HIGH甚高频 (高 )：160.00MHz ~ 442.00MHzUHF超高频：442.00MHz ~ 863.25MHz 节日储存容量 199个频道 (1-199) 射频输入方式 75Ω不平衡式 视频／音频输入 AV端子视频/ 音频输入 视频／音频输入 Video：1.0Vpp 75Ω Audio：0.5Vrms 600 ohm 分量输入 YCb(Pb)Cr(Pr)输入 Y:1.0Vpp 75Ω Cb(Pb)Cr(Pr)：0.7Vp-p 75Ω 视频／音频输出 视频／音频输出 (只输出电视信号) Video：1.0Vpp 75Ω Audio：0.5Vrms 600 ohm 分量信号支持格式 (YCbCr/YPbPr) 1080I 1920×1080/60Hz；1080I 1920×1080/50Hz 720P 1280×720/60Hz；720P 1280×720/50Hz 576P 720×576/50Hz；576I 720×288/50Hz 480P 720×480/60Hz；480I 720×240/60Hz VGA支持格式 640×480/60Hz；1024×768/60Hz；800×600/60Hz HDMI支持格式 1080I 50Hz/60Hz、720P/60Hz、576P/50Hz、480P/60Hz、 640×480/60Hz、800×600/60Hz、1024×768/60Hz 声音输出功率 5W×2 尺寸 (整机)宽 ×高 ×厚 790.5×569.0×239.5 mm 重量 (含底座) 约 9.5KG 重量 (不含底座) 约 8.3KG 遥控距离 最大遥控距离不小于 8.0m 4 3. 操作说明及调整 3.1 遥控器说明 5 3.2 控制面板 说明： 下列示图只是方便你认识各个端子所在位置，并方便连接外部设备，由于产品的改进，可能与实际的标示 不一致，请以实物为准。 6 3.3 后壳接口介绍 7 3.4 菜单介绍 3.4.1 使用菜单 1. 按菜单按钮可以显示或退出主菜单。 2. 在主菜单下，使用上下( / ) ∧ ∨ 键可以上下移动选择所要调整之功能选项，按右( > ) 键或者确认键进 入子菜单调整，按菜单键退出主菜单。 3. 在子菜单中，使用左右( < / > ) 键可以进行调整，上下( / ) ∧ ∨ 键选择到上一项或下一项，按菜单键 返回上一级。 3.4.2 信号源菜单 按“信源”按钮进入信源菜单：包括电视、视频-1、视频-2、S 端子、分量信号-1、分量信号-2、HDMI-1、 HDMI-2、HDMI-3、电脑。（其它信号源下按数字键，节目(+/-) 或者上下( / ) ∧ ∨ 键，可切到“电视”信 号源。） 3.4.3 按菜单按钮进入主菜单 电视模式时可调节项目包括：视频、音频、功能、频道。视频-1、视频-2、S 端子、分量信号-1、分量信 号-2、HDMI-1、HDMI-2、HDMI-3 输入时可调节项目包括：视频、音频、功能。电脑模式时可调节项目 包括：视频、音频、功能、电脑。 一、视频设定 1. 预设：可提供个人、标准、鲜明、电影、经济模式（省电模式）五种图像设定模式选择。其中只有个人 模式可以根据个人喜好来调整“对比度、亮度、色彩、清晰度”。 2. 对比度：使图像黑色部分的暗色变丰富，而白色变亮。 3. 亮度：调节画面的背景亮度，一般与对比度配合使用，调整范围是0 到100。 4. 色彩：调整范围为0 ～ 100，通过调整此项可以改变画面颜色及画面彩色浓度（HDMI、电脑模式无该 选项）。 5. 色调（视频/S 端子信号可调节）：调节画面色调，达到颜色正常。调整范围－ 50 到50。 6. 清晰度：调整范围为0 ～ 100，通过调整此项改变画面清晰锐利程度（HDMI、电脑模式无该选项）。 7. 降噪：可以选择关闭、低、正常、高四种选项。请用户根据实际画面判定选项。默认时为“低”选项。建 议画面出现严重噪点时选择高选项，有轻微噪点时选择关闭选项。（电脑模式无该选项） 8. 色温：非电脑模式此选项为用户提供了三种色温选项：正常、暖色温、冷色温。电脑模式下则多出“用 户”选项，可调节R,G,B 三色。 9. 画面比例：非电脑模式可选择正常、缩放1、缩放2、宽屏四种选项。当分量/HDMI 模式分辨率为 720P,1080i/P时，图像比例还可以选择“1:1”模式。电脑模式下有正常、宽屏两种选项。 8 二、音频设定 1. 预设：可设定个人、音乐、对白三种输出声音模式。其中对白、音乐两种声音模式无法调整高低音，而 个人模式则可以根据自己喜好调整低音、高音来设定声音输出效果。 2. 低音：调整范围是从－ 10 ～＋ 10，用于调整低频声音输出的大小。 3. 高音：调整范围是从－ 10 ～＋ 10，用于调整高频声音输出的大小。 4. 平衡：调整范围是从－ 10 ～ ＋ 10，当从0 ～ － 10 调整时，右声道声音慢慢减小直至消失，从 0 ～ ＋ 10 调整时，左声道声音慢慢减小直至消失。 5. 虚拟环绕：环绕音效开关，默认设置为关。 6. AVL：自动声音补偿功能，可以在一定范围内控制声音输出大小，避免在观看电视或切换频道出现忽大 忽小，影响观看，默认设置为关。 三、功能设定 1. 菜单语言：设定菜单语言，提供英文、简体中文等六种语言选择，默认为简体中文。 2. 菜单显示时间：有10，20，30，40，50，60 秒的时间可供选择，来设置菜单的显示时间。 3. 睡眠定时：设定电视自动进入待机状态的时间间隔。( 电脑模式无该项功能) 当睡眠时间设定完成后， 开始计时。睡眠时间有15/30/45/60/90/120 分钟几种选择，如果想取消睡眠时间的设定，选择到“关”即 可。（注意：当设定好定时开关机后，如果电视机被关机，则定时开关功能自动消除）（功能菜单按睡 眠按键不显示当前睡眠剩余时间，直接切换到下一个睡眠设置时间） 4. 高级对比度：进一步加强电视图像的对比度。 5. 动态对比度：加强电视动态画面的对比度，使图像更加有层次感。 6. 系统重置：恢复为工厂预设值，左右(< / >) 键选择，确认键执行, 都返回主菜单图像项。（注意：此操 作较慢，要3 秒才会执行，请耐心等待。） 9 四、频道设定（以下菜单只有在电视模式下出现） 1. 自动搜台：用于给用户自动搜索并存储节目，按 “菜单”键可以退出自动搜台模式。 2. 更新搜台：保存已存储节目并重新开始搜台，按 “菜单”键可以退出更新搜台模式。 3. 手动搜台：按OK 或者> 键进入子菜单，见下图 (1) 频道号：显示当前电视频道号。 (2) 节目名称：可编辑当前电视频道名，按上下 ( / ) ∧ ∨ 键可编辑，编辑完按菜单可存储 节目名称。 (3) 频率：显示当前电视频道频率，频率选项单 次 按为单步调整频率，长按3 秒后会手动 搜台，搜到一个台时会自动停止，向上搜索 按左键< 停止，向下搜索按右键> 停止。 (4) 彩色制式：显示当前电视信号彩色制式， 有AUTO/PAL/NTSC/SECAM/NTSC 443 可选择。 (5) 声音制式：显示当前电视信号声音制式。 有DK/I/BG/M/自动几种制式可选择。 (6) AFC：可以被设定为开和关，当设定为开 时，电视会对电视信号自动侦测，在一定频 率范围内当信号有偏移时会自动调整频道到 正确位置。 4. 频道列表：按右( > ) 键进入子菜单，见下图 可以按照菜单最下方的指示，对频道列表进行编 辑，频道列表中上下按键选择不同频道时过3 秒会 自动切换到当前选择频道 10 五、电脑设定（以下菜单只有在电脑模式下出现） 1. 自动调整：将电脑画面调整到最佳位置。 2. 水平位置：调整范围-50 ～ 50，调整画面水平位置。 3. 垂直位置：调整范围-50 ～ 50，调整画面垂直位置。 4. 时钟，相位：调整范围-50 ～ 50，调整画面显示效果。 11 4. 连接介绍 4.1 引脚介绍 D-SUB 引脚号 功能描述 引脚号 功能描述 1. Red video 9. 5V 2. Green video 10. Sync ground 3. Blue video 11. Not Used 4. Not Used 12. Serial data for DDC 5. Ground 13. H-Sync 6. Red ground 14. V-Sync 7. Green ground 15. Serial clock for DDC 8. Blue ground HDMI 引脚号 功能描述 引脚号 功能描述 1. TMDS Data2+ 11. TMDS Clock Shield 2. TMDS Data2 shield 12. TMDS Clock- 3. TDMS Data2- 13. CEC 4. TMDS Data1+ 14. Reserved (N.C. on device) 5. TMDS Data1 shield 15. SCL 6. TMDS Data1- 16. SDA 7. TMDS Data0+ 17. DDC/CEC Ground 8. TMDS Data0 shield 18. +5V Power 9. TMDS Data0- 19. Hot Plug Detect 10. TMDS Clock+ 12 4.2 工厂预设模式 Dots × Lines Vertical Frequency (Hz) Horizontal Frequency (kHz) 720 x 400 70.1 31.5 640 x 480 59.9 31.5 800 x 600 60.0 37.9 1024 x 768 60.0 48.363 1280 x 720 60.0 44.95 1360 x 768 59.79 47.72 13 5. 故障处理流程 无法启动 检测电源板CN902的PIN8/9是否有24V电压输出 有 无 更换电源板 检测按键板的POWER键是否失灵 是 更换按键板 否 检测IR板的红外接收器U01是否失灵 是 否 更换IR板 更换主板 无电（LED不亮） 检测电源板CN902的PIN11/12是否有5V电压输出 无 有 更换电源板 检测IR板及LED灯 检测插座是否有电或硬开关是否打开 有 无 重插电源插座或开启硬开关 更换IR板 14 先更换主板 检测是否OK 无画 检测TV是否受控，能否用遥控器或按键板开关机 是 否 更换主板 检测是否有背光 是 否 检测LVDS线是否良好 是 否 检测主板上CN405的PIN5/6/7/8 是否有5V供电 重插或更换LVDS线 是 否 更换主板 否 更换Panel 检测主板CN700是否有BL信号 是 否 更换主板 检测电源板CN902的PIN8/9是否有24V电压输出 是 否 更换电源板 更换Panel 15 彩条、水波纹、画抖、画闪、 鬼影、残影、拖影等干扰 检测信号源出 信号是否正常 重新设置 信号源 是 否 检测信号线 是否良好 更换信号线 画异 是 否 检测附近是否有干扰源 是 否 排除干扰源 先更换主板 检测是否OK 否 更换Panel TV画面雪花点、重 影、细线、条纹干扰 检测TV信号线 是否接触不良 是 否 重新连接 TV信号线 检测附近是否 有高频干扰源 是 否 排除干扰源 用场强仪检测信号强度 是否在45-100db之间， 65db左右为最佳值 是 否 更换主板 太弱：加装信号放大器 太强：减少信号放大器 或加装信号衰减器 间歇性画异加温 画异冷开机画异 检测软体版本是 否需要更新 是 否 升级软体 否 取回站内 加温检测 先更换主板 检测是否OK 16 无声或声音异常 检测信号源音频接口是否正确，或TV制式是否为DK制 是 否 重插音频接口或设置TV制式 检测TV是否被静音，调整音量大小， 或进入菜单进行复位看是否OK 否 检测主板到喇叭的连接线是否断路 是 否 更换连接线 检测喇叭阻抗是否变质 (喇叭阻抗值标在喇叭上) 是 否 更换喇叭 更换主板 收不到台或收台不全 检测软体版本是否需要更新 升级软体 是 否 用场强仪检测信号强度是否在45- 100db之间，65db左右为最佳值 是 否 用别的TV测试是否能收到此台 太弱:加装信号放大器 太强:减少信号放大器或加装信号衰减器 和客户说明当地TV信号未转播此台 检测此频道是否发生频 偏，尤其是使用卫星信号 是 否 是 否 建议客户重新 设置信号源 更换主板 17 异响 喇叭异响 （破音，滋滋声） 电源板，PANEL异响 检测喇叭是否变质 更换喇叭 主板功放异常 更换主板 是 否 更换电源板/PANEL 遥控失灵 检查遥控器电池是否未安置好或没电 重新安置或更换电池 用别的遥控器测试是否可用 是 否 是 否 更换遥控器 检测IR板是否异常 是 否 更换IR板 更换主板 18 OSD不稳定或无法正常工作 按键板连接正常吗？ 接好按键板 按键正常吗？ 更换按键 是 否 按键板有无故障？ 更换按键板 检查主板 否 是 否 是 19 6. 拆卸流程图 步骤 图片 描述 准备 把 LCD-TV 平 放在干净的柔软 的平面上 拆底座 旋开红色标志的 螺丝，去底座。 拆后盖 旋开红色标志的 螺丝，去后盖。 20 拆主板， 电源板， 按键板 旋开红色标志的 螺丝，拆主板， 电源板，按键 板。 取铁框和 Inverter 板 旋开红色标志的 螺丝，取铁框和 Inverter 板。 取 Panel 旋开红色标志的 螺丝，取 Panel。 21 7. 工厂模式调整 此机种做Auto Color,无需白平衡调整，整个Auto Color的操作过程如下： 1. 先按MENU健，出现User OSD菜单，再依次按数字键 1 999，在USER OSD 菜单下面出现软 体版本，按到软体版本处进入工厂模式。(图片以其他机种为例) 图1 2.用遥控选择“Current Source”来选择不同Source色温调整（VGA/AV/YPbPr/HDMI等），此机种需要在 PC和YPbPr mode下做Auto white100%,如图1； 3.请做VGA(timing137,pat42)和YPbPr(timing311,pat185) 的Auto white100%。如图1 22 8. 电气方框图 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 A A3 1 1 Tuesday , August 11, 2009 715G3364 G 1) A_BLOCK G3364-1-X-X-7-090811 R2A15112FP SPEAKER HDMI A LVDS RAIN0/LAIN0 SIF+/- AIN 37,38,39,40 B, G, R, SOG HDMI B HDMI A AIN 41,42,43,44 SOY, Y, Pb, Pr AIN50 : CV_Y DAC_LSR/L Analog Audio Analog Audio Analog Video Analog Video Analog Video HDMI C AIN56 : CVBS_2 AIN 45,46,47,48 SOY, Y, Pb, Pr HDMI C HDMI B CVBS SPDIF SCART2R/L RAIN2/LAIN2 RAIN3/LAIN3 HDMI C HDMI B HDMI A YPbPr /AUDIO 1 VGA-AUDIO VGA SWITCH 74HC4052 TUNER AUDIO YPbPr /AUDIO 2 AUDIO MONO AUDIO Audio IF AUDIO1 CVBS1+S-VIDEO S-VIDEO_Y AV1_CVBS AV_OUT AV1_AUDIO S-VIDEO_C AV2_CVBS CVBS2+AUDIO2 CVBS_OUT AV2_AUDIO AUDIO_OUT SCART1 R/L SPDIF APA2176A HEADPHONE LVDS connector OUTPUT Other IR/LED Keypad FLASH VCO 24.576MHz AIN49 : CVBS_1 EPROM M2B AOUT2:CVBS_O RAIN1/LAIN1 AIN51 : CV_C AIN57 : T_CVBS SCL/SDA_A SCL/SDA_A SCL/SDA_A HDMI EDID C HDMI EDID B HDMI EDID A VGA EDID SDA/SCL SDA/SCL SDA/SCL SDA/SCL AOC HOTEL RX/TX RX/TX RX/TX HX6202-A 23 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 A Custom 1 1 Tuesday , August 11, 2009 715G3364 G 1)Power distribution G3364-1-X-X-7-090811 1084-33 U705 +5V_SB 5VSB VCC3 VCCK18 SC4524B U707 AO4449 Q705 VCC5 POWER_ON AP1117D33 U703 AP1117D33 U702 V33_AUD V33_HDMI_ADC V33ADC_PLL / AVDD_ADC VCC3IO / V33LV HX6202A U400 VCC18 AP1117D18 U700 VCC3 MX25L4005AM2C U402 AVDD18 / VDDD18 V18AUD HX6202A U400 V33HDMI / VCCADC / VDDA33 HX6202A U400 VCCK HX6202A U400 AP2176 U601 EARPHONE AMP PI5V33 U107 VIDEO SWITCH USB boad power 5V,5V TO 3.3v 5v to 1.8V V33AUD HX6202A U400 VCC5 VCC5 VCC5 VCC5 5VSB 5VSB V33_AUD VCCK V33ADC_PLL / AVDD_ADC VCC3IO / V33LV HX6202A U400 V33HDMI / VCCADC / VDDA33 V33AUD AVDD18 / VDDD18 / V18AUD V12_ADP +12V_SB POWER_ON AO3407 Q701 74HC4052 U600 AUDIO SWITCH VCC12 BA17808 ZD700 A1117D5.0 U300 VCC8 +24V +5VT TUNER TU100 R2A15112FP U603 V24_ADP 5VSB M24C02 U502 M24C02 U506 M24C02- U503 M24C02 U100 PANEL_VCC AO4449 Q405 M24C32 U401 PANEL PANEL PANEL_VCC AO4449 Q405 V12_ADP 5VSB 5VSB 5VSB 5VSB VCC5 PANEL_ON PANEL_ON 5VSB 5VSB USB HOST MPS2171 U711 POWER_ON 94mA 1.5A 92mA 8mA 160mA 500mA--1.0A 981mA 121mA 400mA 24 9. 电路图 9.1 主板 715G3364M01000004K GND +5VSB VS1 JGK 1 1 VS2 JGK 1 1 +24V 5VSB 3.3V StandBy VCC12 CN701 NC 1 2 3 4 5 6 VCC5 VS3 JGK 1 1 VS4 JGK 1 1 C708 2.2uF/16V AUDIO MUX 8V U702 AP1117D33L-13 ADJ(GND) 1 VOUT 2 VIN 3 + C720 100uF/16V C722 0.1uF 50V + C721 220uF/16V C719 0.1uF 50V VCC5 GND V33_HDMI_ADC GND V33_HDMI_ADC R709 NC R716 10K OHM 1/16W R713 NC R715 4.7K OHM 1/10W C714 NC 0.22uF/50V FB701 300 OHM 1 2 R714 22K OHM 1/16W U705AIC1084-33PM VIN 3 ADJ 1 VOUT 2 CN700 CONN 1 2 3 4 5 6 7 8 9 10 11 12 R718 1K OHM 1/16W FB702 300 OHM 1 2 + C729 220uF/16V + C712 100uF/16V R701 NC Q707 PMBS3904 + C710 470UF35V Q705 AO4449 -7A/-30V S 1 S 2 S 3 G 4 D 8 D 7 D 6 D 5 C700 0.1UF16V + C736 10uF/50V R706 1K OHM 1/10W C713 0.22uF V33_AUD Q706 PMBS3904 Q704 PMBS3904 C701 0.1uF 50V Q700 PMBS3904 FB703 300 OHM 1 2 C733 0.1uF 50V R717 47K 1/10W 5% R712 1K OHM 1/10W R708 1K OHM 1/10W + C707 470UF16V + C732 10uF/50V + C728 100uF/16V Q708 PMBS3904 C709 0.1uF 50V C706 0.1uF 50V R711 4.7K OHM 1/10W C730 0.1uF 50V + C702 220uF/16V C731 0.1uF 50V C711 0.1UF16V R700 1K OHM 1/10W FB700 120R/6000mA 1 2 R703 4.7K OHM 1/10W R719 1K OHM 1/16W R793 220R 1/10W 5% C727 0.1uF 50V VCC5 5VSB 5VSB V12_ADP GNDP GNDP 5VSB V33_AUD GND GND VCC5 GND GND GNDP GNDP GND GND GND +5VSB GNDP AGND +5VSB V24_ADP +5VSB AGND AGND AGND 5VSB AGND VCC3 GND BL_ON 8 PW_ON 8 POWER_ON 8,10 BL_ADJ 8 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 00 Custom 1 10 Tuesday , August 11, 2009 715G3364 G 01)power G3364-1-X-X-7-090811 R794 NC 1/10W 5% C716 0.1uF 50V + C717 100uF/16V C718 0.1uF 50V + C715 220uF/16V GND V33_AUD VCC18 GND Q712 PMBS3904 U703 AP1117D33L-13 ADJ(GND) 1 VOUT 2 VIN 3 + C778 100uF/16V 11/18 VCCK18 73T253S 46 B + C763 220uF 10V R736 2K 1/10W 5% C745 100pF 5VSB C749 0.0022uF ZD702 SM340A Vout = 1.0x(R1+R2)/R2=2.21 C761 0.1uF/16V L704 4.7uH + C746 10uF/50V C750 330NF16V C766 220pF C751 0.1uF/16V R1 FB706 300 OHM 1 2 D703 LL4148 C752 0.1uF/16V U707 SC4524BSETRT SW 1 IN 2 ROSC 3 GND 4 BST 8 FB 7 COMP 6 SS/EN 5 TH1 9 R734 2.2 OHM 1/10W R725 10K OHM 1/10W R2 C753 1UF16V R737 10K 1/10W 5% C762 22uF R738 15K OHM 1% 1/10W + C779 100uF/16V C765 0.022uF/25V R735 68K OHM 1/10W H2 JGK 1 1 H1 JGK 1 1 V1 JGK 1 1 H3 JGK 1 1 GND GND GND GND V2 JGK 1 1 GND GND H4 JGK 1 1 1.8V StandBy C780 0.1uF/16V AUDIO 3.3V VCC12 VCC8 HDMI/ADC 3.3V PWR_ON ZD700 RLZ9.1B 1 2 U700 AZ1117D-1.8-E1 ADJ/GND 1 OUTPUT 2 INPUT 3 +12V +24V +5VSB BL_ON1 FB704 NC 300 OHM 1 2 +12V SYS_PW Normal: Low Stand_By: High 5V SW 25 DDCA_SDA DDCA_SCL DDCA_SCL DDCA_SDA DDCB_SDA HDMIB_5VIN DDCB_SCL DDCB_SDA HDMIB_5VIN HDMIB_CEC HDMIB_CEC DDCB_SCL U511 NC RClamp0524P.TCT IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 D501 BAT54C R508 27K OHM 1/16W SP513 NC 1 2 SP528 NC 1 2 U503 NC/M24C02-WDW6P E0 1 E1 2 E2 3 VSS 4 SDA 5 SCL 6 WC 7 VCC 8 R501 10K OHM 1/16W R506 0R05 1/16W SP515 NC 1 2 R511 10K OHM 1/16W C501 0.22uF16V CN500 HDMI TMDSD0+ 7 TMDSD0- 9 TMDSD1+ 4 TMDSD1- 6 TMDSD2+ 1 TMDSD2- 3 SCL 15 DSHLD1 5 VCC5 18 CSHLD0 11 HPD 19 NC 14 DSHLD0 2 CEC 13 SDA 16 DDC_GND 17 DSHLD2 8 TMDSC+ 10 TMDSC- 12 SHLD_GND1 20 SHLD_GND2 21 SHLD1 22 SHLD2 23 SHLD3 24 SHLD4 25 SHLD5 26 R507 1K OHM 1/16W R524 1K OHM 1/16W R517 0R05 1/16W SP512 NC 1 2 SP521 NC 1 2 Q508 PMBS3904 SP501 NC 1 2 SP510 NC 1 2 HDMIC_CEC R505 47K 1/16W 5% SP518 NC 1 2 CN502 HDMI SHELL1 20 SHELL2 21 D2+ 1 D2 Shield 2 D2- 3 D1+ 4 D1 Shield 5 D1- 6 D0+ 7 D0 Shield 8 D0- 9 CK+ 10 CK Shield 11 CK- 12 CE Remote 13 NC 14 DDC CLK 15 DDC DATA 16 GND 17 +5V 18 HP DET 19 SHELL4 23 SHELL3 22 R515 47K 1/16W 5% Q500 PMBS3904 Q506 PMBS3904 U502 NC/M24C02-WDW6P E0 1 E1 2 E2 3 VSS 4 SDA 5 SCL 6 WC 7 VCC 8 SP514 NC 1 2 CN501 HDMI TMDSD0+ 7 TMDSD0- 9 TMDSD1+ 4 TMDSD1- 6 TMDSD2+ 1 TMDSD2- 3 SCL 15 DSHLD1 5 VCC5 18 CSHLD0 11 HPD 19 NC 14 DSHLD0 2 CEC 13 SDA 16 DDC_GND 17 DSHLD2 8 TMDSC+ 10 TMDSC- 12 SHLD_GND1 20 SHLD_GND2 21 SHLD1 22 SHLD2 23 SHLD3 24 SHLD4 25 SHLD5 26 SP507 NC 1 2 HDMIA_5VIN SP516 NC 1 2 SP523 NC 1 2 SP522 NC 1 2 SP500 NC 1 2 SP530 NC 1 2 HDMI_EDID_WP SP519 NC 1 2 SP505 NC 1 2 R503 47K 1/16W 5% SP517 NC 1 2 R525 10K OHM 1/16W SP520 NC 1 2 SP527 NC 1 2 SP524 NC 1 2 Q501 2N7002 Q504 PMBS3904 SP508 NC 1 2 R523 10K OHM 1/16W SP526 NC 1 2 SP525 NC 1 2 R518 0R05 1/16W SP509 NC 1 2 SP506 NC 1 2 R500 1K OHM 1/16W SP503 NC 1 2 SP532 NC 1 2 SP502 NC 1 2 R502 10K OHM 1/16W R527 10K OHM 1/16W SP529 NC 1 2 SP531 NC 1 2 R516 47K 1/16W 5% Q505 PMBS3904 R510 1M 1/16W 5% R526 10K OHM 1/10W SP504 NC 1 2 SP511 NC 1 2 D500 BAT54C R522 1K OHM 1/16W C503 0.22uF16V VCC3 5VSB 5VSB 5VSB 5VSB HA_CEC 6 RXA2+ 6 DDCHA_SDA 6 DDCHA_SCL 6 RXA0- 6 RXA2- 6 RXA1+ 6 RXA0+ 6 RXA1- 6 RXACLK+ 6 HPDC 6 DDCHC_SCL 6 RXACLK- 6 DDCA_SCL RXC1+ 6 RXC2+ 6 DDCHC_SDA 6 DDCA_SDA DDCA_SCL HDMIA_CEC HDMIA_5VIN DDCA_SDA RXCCLK+ 6 RXC0- 6 RXC2- 6 HDMIA_5VIN U508 NC RClamp0524P.TCT IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 RXCCLK- 6 RXC0+ 6 RXC1- 6 HDMIA_CEC HPDA 6 HPDB 6 HB5V_DET 8 HA5V_DET 8 5VSB HDMIC_5VIN DDCC_SDA DDCC_SCL HDMIC_5VIN DDCC_SDA DDCC_SCL HDMIC_CEC U510 NC RClamp0524P.TCT IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 HDMIC_CEC U507 NC RClamp0524P.TCT IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 U509 NC RClamp0524P.TCT IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 L501 NC 3 2 4 1 L502 NC 3 2 4 1 L503 NC 3 2 4 1 RXB2- 6 RXB1+ 6 RXB2+ 6 RXB1- 6 RXBCLK+ 6 RXB0- 6 RXBCLK- 6 RXB0+ 6 L500 NC 3 2 4 1 HDMIA_5VIN R792 100R 1/10W 5% D502 BAT54C R530 47K 1/16W 5% C506 0.22uF16V U506 NC/M24C02-WDW6P E0 1 E1 2 E2 3 VSS 4 SDA 5 SCL 6 WC 7 VCC 8 R531 0R05 1/16W R528 47K 1/16W 5% R533 0R05 1/16W DDCHB_SDA 6 DDCHB_SCL 6 5VSB HDMIB_5VIN HDMIB_5V_EEPROM HDMI_EDID_WP RXA1- RXA1+ R779 NC 100R 1/16W 5% R780 NC 100R 1/16W 5% DDCC_SDA HDMIC_HPD RXA2+ OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 00 Custom 2 10 Tuesday , August 11, 2009 715G3364 G 02)HDMI G3364-1-X-X-7-090811 HDMIA_5V_EEPROM DDCB_SDA DDCB_SCL R548 47K 1/10W 5% HDMIA_5VIN HDMIA_HPD DDCB_SDA DDCB_SCL HDMIB_CEC HDMIB_HPD U500 NC RClamp0524P.TCT IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 HDMIA_5VIN HDMIB_5VIN HDMIB_5VIN HDMI_EDID_WP RXA0+ RXACLK- RXACLK+ RXA0- R776 NC 100 OHM 1/10W R775 NC 100 OHM 1/10W R774 0 OHM 1/10W HDMIC_5VIN R549 47K 1/10W 5% R509 0R05 1/16W R777 NC 100 OHM 1/16W R778 NC 100 OHM 1/16W EDID_WP 4,8 HDMIC_5V_EEPROM U501 NC RClamp0524P.TCT IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 HDMIC_CEC HDMIC_5VIN HDMI_EDID_WP DDCC_SCL HDMIC_5VIN HDMIB_5VIN R550 47K 1/10W 5% DDCC_SDA Q502 PMBS3904 R512 10K OHM 1/10W R513 10K OHM 1/16W HC5V_DET 8 5VSB HDMIC_5VIN HDMIA_CEC R769 0 OHM 1/10W R770 0 OHM 1/10W U504 NC RClamp0524P.TCT IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 U505 NC RClamp0524P.TCT IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 RXC1- RXCCLK- RXCCLK+ RXC0+ RXC1+ RXC2+ RXC0- RXC2- HDMIA_CEC HDMIB_CEC DDCC_SCL 26 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 00 A4 3 10 Tuesday , August 11, 2009 715G3364 G 03)Tuner G3364-1-X-X-7-090811 ADS C322 NC 0.001uF ADS AGC SDA_TUNER C324 NC 100pF/50V TGND C321 NC 0.001uF L603 NC 1uH IF+_TUNER C309 0.01uF/25V C323 NC 0.001uF IF-_TUNER IF+_TUNER +5VT SIF- 7 SIF+ 7 2008/11/05 2008/11/05 TV_CVBS SCL_TUNER SH301 SH302 SH303 SH304 SH307 SH306 SH305 SH308 SH311 SH309 SH310 SH300 GND TGND FB300 300 OHM 1 2 5V for Tuner R309 18R 1/10W 5% R308 0 OHM 1/16W R311 56R 1/10W 5% R314 100 OHM 1/10W + C300 100uF/16V + C308 100uF/16V R300 47 OHM 1W TU100 M15WPP-2PN-E NC 1 NC 2 Vb 3 SCL 4 SDA 5 AS 6 NC 7 NC 8 NC 9 NC 10 IF_SOUND 11 CVBS 12 VS 13 AF_SOUND 14 TH1 15 TH2 16 TH3 17 TH4 18 C313 0.1uF25V C312 56pF U300 AZ1117D-5.0-E1 1 ADJ/GND OUTPUT 2 INPUT 3 R310 100 OHM 1/16W + C303 100uF/16V C304 0.1uF 50V R312 NC FB301 300 OHM 1 2 C302 0.1uF 50V C314 220PF50V R316 0 OHM 1/16W R313 0 OHM 1/16W C315 56pF C316 220PF50V + C301 100uF/16V R315 100 OHM 1/10W TGND VCC12 +5VT TGND GND GND GND TGND +5VT TGND TGND TGND TGND T_SDA 8 T_SCL 8 T_CVBS 6 TUN_AUD 7 SIF+ 7 C307 0.01uF/25V RF_AGC IF-_TUNER R236 R R237 R +5VT VCC3 R235 R Q503 NC 2N7002 RF_AGC 7 GND RF_AGC C325 NC 0.001uF R303 47 OHM 1W AGC IF_AGC 7 TGND IF_AGC R326 NC 1K 1/10W 5% C319 NC 0.1uF/25V L604 NC 22uH C326 NC 0.001uF C318 NC 0.1uF/25V L605 NC 22uH C320 NC 0.001uF R325 NC 1K 1/10W 5% 27 COM1_AUR_O COM1_AUL_O Y_GND Near to IC Y_GND PR_GND C126 NC C129 NC Y1_IN R133 100R 1/10W 5% C122 1000pF C121 NC R130 100R 1/10W 5% C120 NC R139 100R 1/10W 5% SP107 NC 1 2 R128 100R 1/10W 5% R129 75R 1/10W 5% SP108 NC 1 2 C127 NC C119 0.047uF R127 0R05 1/10W 5% C128 0.047uF R132 0R05 1/10W 5% R138 0R05 1/10W 5% SP111 NC 1 2 C124 0.047uF C130 NC PR1 6 GND GND GND PB1 6 SOY1 6 Y1 6 R135 75R 1/10W 5% PB1_IN PB_GND R140 75R 1/10W 5% PR1_IN PB1_IN VGASDA_IN VGASCL_IN BLU_GND Y1_IN PB1_IN PR1_IN VGA_5V YPbPr2 INPUT PB_GND PR_GND BLU VGA_VIN VGA_HIN HSYNC SP103 NC 1 2 VSYNC C105 NC R102 33R 1/10W 5% R109 33R 1/10W 5% SP101 NC 1 2 R110 2.2K OHM 1/10W C109 NC FB101 80 OHM 1 2 FB103 80 OHM 1 2 R104 2.2K OHM 1/10W HSYNC 6 VSYNC 6 SP112 NC 1 2 Y2_Input COM2_AUR_O COM2_AUL_O R146 5K1 1/10W 5% C125 4.7uF/16V R150 100K 1/10W 5% C123 4.7uF/16V R136 100K 1/10W 5% R137 100K 1/10W 5% R134 5K1 1/10W 5% SP109 NC 1 2 R131 5K1 1/10W 5% C132 4.7uF/16V SP113 NC 1 2 SP110 NC 1 2 R143 5K1 1/10W 5% SP114 NC 1 2 C136 4.7uF/16V R149 100K 1/10W 5% COM1_AUL 7 COM1_AUR 7 COM2_AUR 7 COM2_AUL 7 COM1_AUR_O COM1_AUL_O COM2_AUL_O COM2_AUR_O RED RED_GND VGA_5V CN103 JACK 2 1 4 3 6 5 8 7 10 9 FB102 100 OHM 1 2 SP115 NC 1 2 PB2_Input C115 0.22uF CN102 JACK 2 1 4 3 6 5 8 7 10 9 D100 BAT54C VGASCL_IN R120 10K 1/16W 5% VGASDA_IN R123 100R 1/10W 5% R119 10K 1/16W 5% R124 100R 1/10W 5% R115 68K 1/10W 5% R118 100K 1/10W 5% SP106 NC 1 2 FB100 100 OHM 1 2 CN101 PHONEJACK 1 2 3 R114 68K 1/10W 5% SP105 NC 1 2 R117 100K 1/10W 5% C113 4.7uF/16V C100 4.7uF/16V OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 00 A3 4 10 Tuesday , August 11, 2009 715G3364 G 04)VGA/YPbPr Connector G3364-1-X-X-7-090811 VGA_AUL 7 VGA_AUR 7 VGA_AUL_O VGA_AUR_O R650 75 OHM 1/10W Y2_IN 10 PR2_IN 10 PB2_IN 10 GND CN100 DB15 DB15 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 18 19 R649 75 OHM 1/10W R648 75 OHM 1/10W add 1209 GND GND R106 BEAD 60 OHM C142 NC 5VSB C138 NC C133 NC R152 0R05 1/10W 5% C141 NC C139 NC R147 0R05 1/10W 5% C134 NC R141 0R05 1/10W 5% VGA_DDCSDA 6 VGA_DDCSCL 6 R101 100R 1/10W 5% UART_TX 8 UART_RX 8 SP116 NC 1 2 PR2_Input R111 BEAD 60 OHM SP128 NC 1 2 EDID_WP 2,8 YPbPr1 INPUT SP129 NC 1 2 GRN_GND C110 0.047uF C104 NC C102 0.047uF SP104 NC 1 2 R112 100R 1/10W 5% R105 75R 1/10W 5% R107 100R 1/10W 5% SP100 NC 1 2 C101 1000pF R100 BEAD 60 OHM R103 100R 1/10W 5% C103 NC C107 NC C111 NC C108 NC SP102 NC 1 2 C106 0.047uF C112 NC RAIN 6 GND GND GND SOGAIN 6 BAIN 6 GAIN 6 RED R108 75R 1/10W 5% GRN BLU RED_GND BLU_GND R113 75R 1/10W 5% GRN_GND U100 NC M24C02-WMN6TP A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 Y_GND PB_GND PR_GND R791 100R 1/10W 5% VGA_5V_EEPROM SP130 NC 1 2 SP131 NC 1 2 GND VGA_VIN VGASDA_IN VGA_HIN GRN 28 SC_GND C782 NC GND R189 27K 1/10W 5% C167 4.7uF/16V R190 27K 1/10W 5% C168 4.7uF/16V AU1_L 7 AU1_R 7 CVBS1_IN SC_IN SY_IN R169 2.2uH C154 NC R173 2.2uH R181 2.2uH SP123 NC 1 2 CVBS1_IN SP120 NC 1 2 SP121 NC 1 2 R171 100R 1/10W 5% R172 56R 1/10W 5% R176 56R 1/10W 5% R182 18R 1/10W 5% C164 220pF R183 100R 1/10W 5% C157 NC C156 0.1uF25V R170 18R 1/10W 5% R175 100R 1/10W 5% C155 220pF C158 220pF C162 0.1uF25V R174 18R 1/10W 5% C163 NC R184 56R 1/10W 5% C153 0.1uF25V GND GND GND CVBS_1 6 SV_C 6 SV_Y 6 SC_IN SY_GND CVBS_GND SC_GND SY_IN CVBS_O AV-OUT CVBS_GND OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 00 A3 5 10 Tuesday , August 11, 2009 715G3364 G 05)SV/AV G3364-1-X-X-7-090811 C146 100pF C143 0.1uF 50V R160 10K OHM 1/16W SP126 NC 1 2 C151 470pF R157 75 OHM 1/16W C149 4.7uF/16V C150 4.7uF/16V FB106 600 OHM FB105 600 OHM R162 680 OHM 1/10W Q104 PMBS3904 C148 4.7uF/16V FB104 120 OHM 1 2 R168 47K OHM 1/10W R163 100K OHM 1/10W R166 47K OHM 1/10W Q102 MMBT3906 1 2 3 CN105B JACK 2 1 4 3 6 5 C147 4.7uF/16V R191 100K 1/10W 5% R158 270R OHM 1/16W 5% R167 4.7K OHM 1/10W R164 100K OHM 1/10W SP118 NC 1 2 G G C Y CN105A JACK 7 8 9 10 11 12 13 R165 4.7K OHM 1/10W Q103 PMBS3904 SP127 NC 1 2 R159 150 OHM 1/10W SP117 NC 1 2 R156 18K OHM 1/10W C152 470pF SP119 NC 1 2 R155 200 OHM 1/16W R161 680 OHM 1/10W CN104 5105-870-083-98 2 1 4 3 6 5 Q105 PMBS3904 R192 100K 1/10W 5% C145 220PF50V C144 10uF/16V GND VCC5 GND GND GND GND GND GND SCR_AUOUT_L 7 OFF_MUTE 8 CVBS_O 6 SCR_AUOUT_R 7 AV2/S-VIDEO-IN CVBS_GND R177 2.2uH R188 100K 1/10W 5% SP124 NC 1 2 S-video CVBS & R/L R180 56R 1/10W 5% SP122 NC 1 2 R178 18R 1/10W 5% SP125 NC 1 2 C166 4.7uF/16V R179 100R 1/10W 5% CN106 5105-870-083-98 2 1 4 3 6 5 C159 0.1uF25V 0.1uF25V C165 4.7uF/16V C160 NC C161 220pF R187 100K 1/10W 5% R186 27K 1/10W 5% R185 27K 1/10W 5% AU2_R 7 CVBS_2 6 GND GND AU2_L 7 CVBS2_IN SY_GND CVBS signal output 29 FILT : component place close to IC Trace width as width as possible VDDD18 R545 0 OHM 1/16W R544 0 OHM 1/16W S_SCL S_SDA C542 0.1uF25V C524 0.1uF25V C543 0.1uF25V C785 0.1uF 16V GND CVBS_2 5 CVBS_1 5 SV_Y 5 SV_C 5 AVDD18 CVBS_3 5 C548 1uF/16V GND C544 1uF/16V R543 390 OHM 1/16W C520 10uF/16V FB500 300 OHM 1 2 FB505 300 OHM 1 2 C521 0.1uF25V C525 0.1uF 16V R536 1.6KOHM +-1% 1/10W C527 0.1uF 16V C530 0.1uF25V C514 10uF/16V C513 100pF C522 0.1uF25V C528 10uF/16V C526 10uF/16V C537 0.1uF25V C515 0.01UF25V C510 0.1uF25V C517 0.1uF25V C518 0.1uF25V C519 0.1uF25V FB502 300 OHM 1 2 R542 390 OHM 1/16W C546 1uF/16V FB503 300 OHM 1 2 C512 0.1uF25V C509 0.1uF25V C516 0.1uF 16V C511 0.1uF25V C538 100pF C531 0.1uF25V C536 0.1uF25V V33ADC FILT V33ADC_PLL V33ADC V33HDMI VMID V33ADC_PLL VDDA33 GND GND GND V33_HDMI_ADC GND GND VCC18 GND GND GND GND GND RXACLK+ 2 RXACLK- 2 V33_HDMI_ADC GND HPDA 2 RXA0+ 2 RXA0- 2 RXA1- 2 RXA1+ 2 DDCHA_SDA 2 DDCHA_SCL 2 HPDB 2 RXA2- 2 RXA2+ 2 Remove with Analogix IP DDCHB_SCL 2 DDCHB_SDA 2 HPDC 2 RXB2+ 2 DDCHC_SCL 2 DDCHC_SDA 2 RXBCLK- 2 RXB1+ 2 RXB2- 2 RXB0- 2 RXB0+ 2 RXB1- 2 RXBCLK+ 2 RXC1+ 2 RXC2- 2 RXC2+ 2 RXC1- 2 RXCCLK+ 2 RXCCLK- 2 RXC0- 2 RXC0+ 2 CVBS_O 5 HSYNC 4 VSYNC 4 PB1 4 PB2 10 BAIN 4 RAIN 4 PR1 4 GAIN 4 SOGAIN 4 PR2 10 T_CVBS 3 V33ADC V33HDMI GND FB506 300 OHM 1 2 FB501 300 OHM 1 2 SOY1 4 AVDD18 R546 NC R547 NC FB507 300 OHM 1 2 VCC18 Y1 4 REXT2 S_SDA S_SCL SP142 NC 1 2 11/05 CN503 NC 1 2 3 4 SP143 NC 1 2 GND C545 0.1uF25V V33ADC VDDA33 VGA_DDCSCL 4 C547 0.1uF25V OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 00 Custom 6 10 Tuesday , August 11, 2009 715G3364 G 06)M2B HDMI/Analog I/O G3364-1-X-X-7-090811 VGA_DDCSDA 4 C744 10uF/16V HDMI/ADC U400A HX6202A ABVDD(3.3V) 52 AIN0_FAD 65 AIN1_FAD 64 AIN2_FAD 63 AINA1 37 AINA2 41 AINA3 45 AINA4 51 AINA5 53 AINB1 38 AINB2 43 AINB3 47 AINB4 54 AINC1 40 AINC2 44 AINC3 48 AINC4 55 AIND1 49 AIND2 50 AIND4 56 AIND5 57 SOG2 42 AOUT1 60 AOUT2 61 VDDA_AD(3.3V) 58 VDDA_AD(3.3V) 36 AVDD33_RX 8 AVDD33_RX 22 AVDD33_RX 246 AVDD33_RX 254 PVDD(3.3V) 27 PVDD(3.3V) 32 HSYNC 28 HDMI_RXA0N 9 HDMI_RXA0P 10 HDMI_RXA1N 11 HDMI_RXA1P 12 HDMI_RXA2N 13 HDMI_RXA2P 14 HDMI_RXACKN 6 HDMI_RXACKP 7 HDMI_RXB0N 18 HDMI_RXB0P 19 HDMI_RXB1N 20 HDMI_RXB1P 21 HDMI_RXB2N 23 HDMI_RXB2P 24 HDMI_RXBCKN 16 HDMI_RXBCKP 17 HDMI_RXC0N 247 HDMI_RXC0P 248 HDMI_RXC1N 249 HDMI_RXC1P 250 HDMI_RXC2N 251 HDMI_RXC2P 252 HDMI_RXCCKN 244 HDMI_RXCCKP 245 HPDA/GPIO52 235 HPDB/GPIO51 234 HPDC/GPIO_44 227 VSYNC 29 FILT 31 VDDA_APLL(1.8V) 3 VDDA_APLL(1.8V) 2 DVCC_PLL(1.8V) 15 DVCC_PLL(1.8V) 253 DSUBDDC_SCL/UART_RX1/GPIO48 231 DSUBDDC_SDA/UART_TX1/GPIO47 230 EXT_R 256 EXT_R 26 DDCHA_SCL/GPIO55 238 DDCHA_SDA/GPIO54 237 DDCHB_SCL/GPIO49 232 DDCHB_SDA/GPIO50 233 DDCHC_SCL/GPIO46 229 DDCHC_SDA/GPIO45 228 CEC/GPIO_53 236 VDDD(1.8V) 4 VDDD(1.8V) 242 AVDDA(3.3V) 62 SOG1 39 SOG3 46 MIDSCV 33 AVSS_AUD(0V) 1 AVSS_RX(0V) 25 AVSS_RX(0V) 255 VSSD(0V) 5 VSSD(0V) 243 PVSS(0V) 30 ADC_VREF 35 AVSSA(0V) 59 ABVSS(0V) 34 SOY2 10 REXT1 GND GND C529 10uF/16V C534 100pF C533 0.1uF25V FB504 300 OHM 1 2 C532 0.1uF25V V33ADC_PLL C549 10uF/16V GND VCC3 Y2 10 C535 10uF/16V V33HDMI VDDD18 C784 0.1uF 16V GND V33ADC_PLL HA_CEC 2 30 C683 10nF AU2_R 5 VGA_AUL 4 AU1_R 5 AU1_L 5 VGA_AUR 4 AU2_L 5 SPDIFO OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 00 A2 7 10 Monday , August 23, 2010 715G3364 G 07)M2B Audio G3364-1-X-X-7-090811 SPDIFO C658 0.1uF 50V FB600 300 OHM 1 2 R781 1K 1/10W 5% V33AUD R600 0 OHM 1/16W C618 0.1uF 50V VRN R622 10K OHM 1/10W RP603 10KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 C602 10uF/16V R612 1K OHM 1/10W VCM_ADC R602 1K OHM 1/16W R618 NC C634 4.7uF/16V C627 0.1uF25V C600 0.1uF25V VRP C631 10uF/16V C617 0.1uF 50V SP600 NC 1 2 C608 0.1uF 50V C649 10uF/16V R614 NC FB602 300 OHM 1 2 C642 0.33uF/50V C657 0.1uF 50V VREF_ADC C633 4.7uF/16V RP601 10KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 C635 0.1uF 50V C624 10uF/16V Q600 PMBS3904 SH602 VCM_ADC Q601 PMBS3904 SH600 RP602 10KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 C652 1UF25V + C660 470UF25V C621 0.1uF25V R606 1K OHM 1/16W C620 10uF/16V R782 1K 1/10W 5% R607 75 OHM 1/16W VBG AGSCRT C625 0.1uF25V C641 0.1uF 50V C619 0.1uF25V U600 74HC4052D 1Y0 12 2Y0 1 1Y1 14 2Y1 5 1Y2 15 2Y2 2 1Y3 11 2Y3 4 S0 10 S1 9 VEE 7 GND 8 /E 6 1Z 13 2Z 3 VCC 16 R604 1.2K OHM 1/16W R615 33K OHM 1/10W VRN VRP C611 0.1uF25V C614 10uF/16V C661 0.1uF 50V C615 0.1uF25V L600 22uH C630 10uF/16V FB601 300 OHM 1 2 R610 4.7K OHM 1/10W C603 0.1uF25V C645 10uF/16V 10uF/16V L601 22uH C626 10uF/16V C639 0.1uF 50V C629 0.1uF25V C659 0.33uF/50V + C636 470UF35V R603 22 OHM 1/16W R617 NC Q603 PMBS3904 C622 10uF/16V STBY C612 10uF/16V C638 0.1uF 50V R611 47K OHM 1/16W C601 0.1uF25V C616 10uF/16V C628 10uF/16V C643 1UF25V C613 0.1uF25V SGND R608 100 OHM 1/16W SH601 C637 0.1UF16V CN601 JACK 1 2 C644 10uF/16V 10uF/16V RP600 10KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 C632 0.1uF 50V + C640 470UF25V C654 1UF25V R601 NC VCC3 C610 10uF/16V R620 47K OHM 1/16W R605 180 OHM 1/10W C646 10uF/16V VREFI VCMI C623 0.1uF25V C607 330NF16V R613 NC CN602 CONN 1 2 3 4 C604 0.1uF25V R609 100 OHM 1/16W C609 0.1uF25V VCC_CLAMP VCC5 GND GND GND VCC8 VCC_CLAMP VRNI GND GND V33_AUD GND SGND GND GND GND SGND MUTE5V SGND GND GND GND GND GND GND V24_ADP SGND PGND GND SGND SGND SGND C666 10uF/16V SGND SGND SGND SGND SGND SGND SGND SGND PGND PGND SGND SGND V24_ADP MUTE5V SGND SPDIF_OUT SPDIF_OUT VCC_CLAMP GND FB604 120 OHM 1 2 ZD600 RLZ18B 1 2 CN600 PHONEJACK 1 7 6 2 3 4 5 SW_AMP_LIN SW_AMP_RIN SIF1+ SIF1- EN 11/05 AU_S0 9 AU_S1 9 C686 NC 10nF COM1_AUR 4 COM2_AUR 4 COM2_AUL 4 GND R796 0OHM 1/10W 5% R795 0OHM 1/10W 5% COM1_AUL 4 C687 NC 10nF INPUT S1 S0 11/05 HP_OUT_L SW_AMP_LIN HP_OUT_R SW_AMP_RIN SIF+ 3 USB_AUR 10 USB_AUL 10 OUTPUT 0 GND TUN_AUD 3 0 R783 1K 1/10W 5% FB603 300 OHM 1 2 R787 1K 1/10W 5% AVDD_ADC R788 1K 1/10W 5% SCR_AUOUT_L 5 SCR_AUOUT_R2 SCR_AUOUT_L2 COM1 0 C688 NC 10nF TUN_AUD R798 0OHM 1/10W 5% R797 0OHM 1/10W 5% C689 NC 10nF SGND + C672 100uF/16V R637 10K OHM 1/10W MONO_AUD R638 10K OHM 1/10W 5VSB Q413 PMBS3906 1 2 3 R639 10K OHM 1/10W COM2 1 MUX_AUR MUTE_HPHONE 8 R784 1K 1/10W 5% MONO_AUD MUX_AUL C606 0.1uF25V SGND MONO 1 R785 1K 1/10W 5% STYAMP_MUT 8 AVDD_ADC USB SCR_AUOUT_R 5 SPDIF_IN C665 NC L602 NC 0 CN407 NC 1 2 AUDIO U400B HX6202A RAIN0 66 RAIN1 69 RAIN2 71 RAIN3 73 SCART1L 86 SCART1R 85 SCART2L 84 SCART2R 83 SIF_VCMG 92 SIF_VREFN 93 SIF_VREFP 94 DAC_LSL 89 DAC_LSR 88 GPIO40/SPDIFO 219 LAIN0 67 LAIN1 70 LAIN2 72 LAIN3 74 PIF_VREF 91 GPIO02/I2SREFCLK/SPDIFI 109 VSSA(0V) 68 ACDD_DAC(3.3V) 82 VDDA(3.3V) 75 AGND_DAC(0V) 87 AVSS_PIF(0V) 95 AVDD_PIF(3.3V) 98 AVDD_ADC(3.3V) 99 GPIO03/I2SCLKO/I2SCLKI 110 GPIO04/I2SWSO/I2SWSI 111 VREF_ADC 76 VRN 80 VRP 81 VCM 77 ADCINN 96 ADCINP 97 AGSCRT 78 VBG 79 R786 1K 1/10W 5% R624 10K OHM 1/16W R625 10K OHM 1/16W AMP_MUT 8 5VSB GND SIF1+ R799 270K 1/10W 5% 0 1 GND 11/20 AMP5VO 0 1 SPDIF_IN MUX_AUR MUX_AUL R621 5.1K GND C662 0.1uF 50V C664 NC C663 0.1uF 50V SP603 1 2 GND GND SPGND APA2176A U601 APA2176A CP+ 1 PGND 2 CP- 3 NC 4 CVSS 5 VSS 6 LOUT 7 VDD 8 ROUT 9 LIN 10 /RSD 11 RIN 12 NC 13 GND 14 /LSD 15 PVDD 16 AU_S0 SP601 1 2 GND FB605 120 OHM 1 2 SP602 1 2 C648 1UF25V EAR_DET 8 GND Q602 PMBS3904 C655 0.1uF 50V R616 47K OHM 1/16W GND R619 10K OHM 1/16W VCC5 GND C653 1UF25V HP_OUT_R C656 1UF25V HP_OUT_L C647 1UF25V GND VCC5 C650 0.1uF 50V + C651 10uF/16V 0 GND SPGND FOR AC "PO PO" 10/31/08 0 SIF- 3 AU_S1 VRPI 11/20 SIF1- PGND SCR_AUOUT_L2 SCR_AUOUT_R2 V33AUD SGND MONO_AUD C685 10nF C684 10nF 11/05 IF_AGC 3 RF_AGC 3 U603 R2A15112FP OUT1 1 OUT1 2 NC 3 VD1 4 VD1 5 NC 6 NC 7 NC 8 NC 9 STBYL 10 GAIN1 11 IN1 12 CBIAS 13 ROSC 14 AVCC 15 GND 16 NC 17 NC 18 NC 19 NC 20 NC 21 CLOCK 22 VREF 23 PROT 24 IN2 25 GAIN2 26 MUTEL 27 NC 28 NC 29 NC 30 NC 31 VD2 32 VD2 33 NC 34 OUT2 35 OUT2 36 NC 37 VS2 38 VS2 39 NC 40 HB2 41 DVDD 42 NC 43 HB1 44 NC 45 VS1 46 VS1 47 NC 48 TGND 49 C682 10nF SP144 NC 1 2 C605 0.1uF25V VREF_ADC AGSCRT VBG 31 IRDAT 10 GND R453 10K OHM 1/16W R455 10K OHM 1/16W R454 10K OHM 1/16W IRVCC FB707 68R 1/10W 5% R755 NC 10K OHM 1/10W ADC Video_SEL 10 XTAL_IN Change on 9/30 SCK MUTE_HPHONE 7 WP T_SCL 3 T_SDA 3 ZD606 RLZ5.6B 1 2 ZD607 RLZ5.6B 1 2 AMP_MUT 7 M_SCL HA5V_DET 2 XTAL_O WP SCK SDI CSN SDO U402 MX25L4005AM2C-12G CS# 1 SO 2 W# 3 GND 4 VCC 8 HOLD# 7 SCK 6 SI 5 C400 0.22uF R400 4.7K OHM 1/16W VCC3 GND GND SDO R451 0 OHM 1/16W R452 0 OHM 1/16W ADC_KEY IRDAT VCC3 ZD608 RLZ5.6B 1 2 GND 11/18 Master IIC T_SDA UT_TX UT_RX T_SCL SP146 NC 1 2 SP145 NC 1 2 SP148 NC 1 2 SP147 NC 1 2 CN402 NC 1 2 3 4 RS-232 R415 0 OHM 1/16W R413 0 OHM 1/16W IR_EN 10 CN401 NC 1 2 3 4 R412 0 OHM 1/16W R414 0 OHM 1/16W 5VSB C781 NC 1NF16V GND POWER_KEY EPROM_WP V18AUD M_SCL M_SDA HC5V_DET 2 GND IRDAT L_Y ZD609 RLZ5.6B 1 2 L_B GND L_SEN IRVCC CN400 CONN 1 2 3 4 5 6 7 8 9 10 PW IR_D ADC C783 1000pF GND L_SEN FOR ESD ADD ON 10/25 ADD 1016 HB5V_DET 2 M_SDA TSTMD TSTMD SDI LED_G LEDG IR_D L_B U401 M24C32-WMN6TP VSS 4 VCC 8 SDA 5 SCL 6 E0 1 E1 2 E2 3 WC 7 L_Y LED_Y LEDY R409 10K OHM 1/16W UT_RX CSN FB415 300 OHM 1 2 EPROM_WP UT_TX R444 100 OHM 1/10W R445 100 OHM 1/10W POWER_KEY LEDY LEDG ADC_KEY U400D HX6202A RST_N 113 SARIN0 220 SARIN1 221 SARIN2 222 SARIN3 223 TSTMD 112 GPIO05/I2SDATO 114 GPIO06 115 GPIO07 116 GPIO08 117 GPIO09 118 GPIO10 121 GPIO11 122 GPIO12 123 GPIO13 124 GPIO14 125 GPIO15 126 GPIO16 127 GPIO17 128 GPIO27/PWM_B/DBLC 206 GPIO28/PWM_C 207 GPIO29/PWM_D 208 GPIO30/SPI_WP 209 GPIO31/MSDA 210 GPIO32/MSCL 211 GPIO33/SPI_SDI 212 GPIO34/SPI_CSN 213 GPIO35/SPI_SCK 214 GPIO36/SPI_SDO 215 GPIO37 216 GPIO38 217 GPIO39/IR_RX 218 GPIO41 224 GPIO42 225 GPIO43 226 PAD_OSCI 101 PAD_OSCO 100 GPIO00/UART_TX0 107 GPIO01/UART_RX0 108 AVSS_PL(0V) 102 AVDD_PL(1.8V) 103 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 00 A3 8 10 Monday , August 23, 2010 715G3364 G 08)M2B MCU G3364-1-X-X-7-090811 R426 NC M_SDA IRDAT UT_TX M_SCL UT_RX PW CN403 NC 2 4 6 8 1 3 5 7 SP409 NC 1 2 SP400 NC 1 2 R418 NC R419 NC SP407 NC 1 2 SP408 NC 1 2 SP406 NC 1 2 5VSB GND GND GND 5VSB GND GND GND GND Q402 NC R425 NC RST_N FB403 300 OHM 1 2 FB406 300 OHM 1 2 R422 10K OHM 1/16W C408 33pF R406 10.2K1/10W C401 0.22uF C413 100pF R401 4.7K OHM 1/16W R434 1K OHM 1/10W R403 1K OHM 1/16W SARIN1 SARIN0 FB400 NC 300 OHM 1 2 C402 100pF RP400 10KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 R424 1M OHM 1/10W X400 24.576MHz FB401 300 OHM 1 2 RP402 10KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 SP404 NC 1 2 R416 0 OHM 1/16W R423 10K OHM 1/16W C411 10uF/16V C407 100pF Q401 MMBT3906 1 2 3 R431 NC C404 100pF PW_ON 1 R417 0 OHM 1/16W C405 100pF R410 10K OHM 1/16W Q400 MMBT3906 1 2 3 RP401 10KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 RP403 10KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 SP403 NC 1 2 R421 4.7K OHM 1/10W R405 10.2K1/10W R402 4.7K OHM 1/16W FB404 300 OHM 1 2 R411 10K OHM 1/16W C403 100pF R420 4.7K OHM 1/10W R408 10K OHM 1/16W FB402 300 OHM 1 2 R407 10K OHM 1/16W add pull high 9/30. C406 100pF C409 33pF R404 1K OHM 1/16W C412 0.1uF25V FB405 300 OHM 1 2 VCC18 GND GND 5VSB VCC3 5VSB GND 5VSB 5VSB GND GND GND GND 5VSB VCC3 GND VCC3 5VSB 5VSB BL_ADJ 1 V18AUD EAR_DET 7 PANEL_ON 9 EDID_WP 2,4 OFF_MUTE 5 BL_ON 1 POWER_ON 1,10 UART_TX 4 UART_RX 4 STYAMP_MUT 7 C415 100pF C453 10uF/16V VCC3 R763 NC 22K OHM 1/10W R447 5K6 1/16W 5% L_SEN C452 NC Q410 PMBS3904 GND RST_N R446 10K OHM 1/16W GND GND R448 0 OHM 1/16W GND SYS_RST + C410 47uF/16V R759 0 OHM 1/10W + C414 10uF/16V R427 100Ω 1/10W Q403 PMBS3906 1 2 3 R430 10KΩ 1/10W R432 10KΩ 1/10W R459 1KΩ 1/10W FOR ESD ADD ON 10/25 D403 BAV99 3 1 2 5VSB GND MCU SDO to EEPROM SDI MCU SDI to EEPROM SDO R760 0 OHM 1/10W add on 1008 R754 NC 10K OHM 1/10W 32 FB410 120R/3000mA 1 2 TX3AN TXCKAN TX3AP TX1AN TXCKAP TX1AP TX2AP VCCK TXCKAP TX2AP TX1AP TX0BP TX0AP TX2BP TX1BP TX3AP TX3BP TXCKBP TX0AP TX0AN VCCK18 VCC5_IN GNDLV 11/18 C442 1uF/16V VCCK V33LV VCC5_PANEL_IN VCC5_IN TX0BN TX0BP GND CN408 NC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 TX0AN SELLVDS TX1AP TX1AN TX0AP TXCKAN VCC5_IN TX2AP TX2AN TX3AP TX3AN TXCKAP TX1AN RSDS/LVDS U400C HX6202A VCC3IO(3.3V) 241 VCC3IO(3.3V) 120 VCC3IO(3.3V) 204 VCC3IO(3.3V) 106 VCCK(1.8V) 184 VCCK(1.8V) 172 VCCK(1.8V) 90 VCCK(1.8V) 138 VCCK(1.8V) 119 VCCK(1.8V) 239 VCCK(1.8V) 104 VCCK(1.8V) 205 VCCLV(3.3V) 203 GNDK(0V) 139 GNDK(0V) 105 GNDK(0V) 240 GNDK(0V) 185 FRSB0N/LVA0N/ER6 163 FRSB0P/LVA0P/ER7 162 FRSB1N/ER4 165 FRSB1P/ER5 164 FRSB2N/ER2 167 FRSB2P/ER3 166 FRSB3N/ER0 169 FRSB3P/ER1 168 FRSCLKN/LVB0N 151 FRSCLKP/LVB0P 150 FRSG0N/LVA3N/EG6 155 FRSG0P/LVA3P/EG7 154 FRSG1N/LVACKN/EG4 157 FRSG1P/LVACKP/EG5 156 FRSG2N/LVA2N/EG2 159 FRSG2P/LVA2P/EG3 158 FRSG3N/LVA1N/EG0 161 FRSG3P/LVA1P/EG1 160 FRSR0N/LVB3N/EB6 143 FRSR0P/LVB3P/EB7 142 FRSR1N/LVBCKN/EB4 145 FRSR1P/LVBCKP/EB5 144 FRSR2N/LVB2N/EB2 147 FRSR2P/LVB2P/EB3 146 FRSR3N/LVB1N/EB0 149 FRSR3P/LVB1P/EB1 148 BRSB0N/OR6 196 BRSB0P/OR7 195 BRSB1N/OR4 198 BRSB1P/OR5 197 BRSB2N/OR2 200 BRSB2P/OR3 199 BRSB3N/OR0 202 BRSB3P/OR1 201 BRSCLKN 183 BRSCLKP 182 BRSG0N/OG6 188 BRSG0P/OG7 187 BRSG1N/OG4 190 BRSG1P/OG5 189 BRSG2N/OG2 192 BRSG2P/OG3 191 BRSG3N/OG0 194 BRSG3P/OG1 193 BRSR0N/OB6 175 BRSR0P/OB7 174 BRSR1N/OB4 177 BRSR1P/OB5 176 BRSR2N/OB2 179 BRSR2P/OB3 178 BRSR3N/OB0 181 BRSR3P/OB1 180 GPIO18/GVON 129 GPIO19/GVOFF/I2SDATI 130 GPIO20/OEV/TTL_DE 131 GPIO21/CPV/TTL_HS 132 GPIO22/STV1/TTL_VS 133 GPIO23/POL 134 GPIO24/FTP 135 GPIO25/FSTH1/TTL_CLK 136 GPIO26/BSTH1 137 PI 173 AVDD3V_LV(3.3V) 140 AVDD3V_LV(3.3V) 170 AVSS_LV(V) 186 AVSS3V_LV(0V) 171 AVSS3V_LV(0V) 141 PVDD_LV(1.8V) 152 PVSS_LV(0V) 153 PN swap for layout C443 1uF/16V FB413 120R/3000mA 1 2 TX2AN 11/18 VCCK PN swap for layout VCC3IO 5VSB C444 1uF/16V PANEL POWER 1:OFF ; 0:ON PI Panel Power VCC3IO C421 10uF/16V V33LV V33LV C440 10uF/16V VCC3IO C418 0.1uF25V C419 0.1uF25V FB407 300 OHM 1 2 C441 10uF/16V C422 0.1uF25V FB408 300 OHM 1 2 C425 0.1uF25V C417 10uF/16V C424 0.1uF25V C423 0.1uF25V C420 0.1uF25V GND VCC3 C439 10uF/16V FB412 NC 300 OHM 1 2 FB411 300 OHM 1 2 AU_S1 7 AU_S0 7 2008/11/05 AU_S1 AU_S0 change vcc3 to V33_AUD 11/15/08 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 E329MAND1WACN 00 A3 9 10 Tuesday , August 11, 2009 715G3364 G 09)M2B LVDS G3364-1-X-X-7-090811 TX1BN TXCKBN TX3BN TX2AN TX0BN TX2BN R439 4.7K OHM 1/16W TX0AN TX3AN TXCKAN R438 NC R442 4.7K OHM 1/16W C430 0.1uF25V + C427 470UF16V Q406 PMBS3904 R440 4.7K OHM 1/16W R443 4.7K OHM 1/16W R437 NC C436 0.1uF25V C435 0.1uF25V Q405 AO4449 -7A/-30V S 1 S 2 S 3 G 4 D 8 D 7 D 6 D 5 R436 13K OHM 1/10W R441 220K 1/10W 5% C429 0.1uF25V C428 10uF/16V C431 0.1uF25V C434 0.1uF25V C433 0.1uF25V C432 0.1uF25V C438 0.22uF CN405 LVDS CONN DIP 2.0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 C416 NC 0.1uF25V C437 0.1uF25V Q407 PMBS3904 C426 0.1uF 50V GND GND GND 5VSB GND GND GND V12_ADP PANEL_ON 8 SELLVDS TX3BP TX2BN TX1BN TX3BN TXCKBN TX2BP TXCKBP TX1BP 33 R470 NC 0R05 1/10W 5% C669 NC 10UF16V R193 NC 0R05 1/10W 5% usb_pr usb_pb usb_Y R202 NC 100Ω R204 NC 10KΩ R206 NC 4.7KΩ C176 NC 33pF R210 NC 10KΩ Q111 NC PMBS3904 R211 NC 100Ω C180 NC 33pF R215 NC 100Ω Q107 NC PMBS3904 Q108 NC PMBS3904 R219 NC 4.7KΩ R217 NC 4.7KΩ C182 NC 33pF R220 NC 10KΩ R209 0R05 1/10W 5% VCC5 PB_IN0 PR2_IN 4 PB2_IN 4 Low: Channel 2 /YPbPr2 High:Channel 1 /USB V_SEL R726 NC 10K OHM 1/16W Q711 NC PMBS3904 VCC5 R728 NC 1K OHM 1/16W GND R194 NC 0R05 1/10W 5% OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 A C 12 12 Thursday , September 02, 2010 715G3364 G 10)COMPONENT2 & USB INPUT G3364-1-X-X-7-090811 R195 NC 0R05 1/10W 5% VCC5 FB108 NC 300 OHM 1 2 C174 NC 100pF CVBS_3 5 Y_SCALER SP132 NC 1 2 Pr_SCALER Y_IN0 SP133 NC 1 2 SP134 NC 1 2 SP136 NC 1 2 CN208 NC CONN 1 2 3 4 5 6 7 8 9 10 USB_AUL 7 USB_AUR 7 C667 NC 10UF16V IRDAT 8 IR_EN 8 VCC5 SP138 NC 1 2 SP137 NC 1 2 SP139 NC 1 2 Pb_SCALER C679 NC 10UF16V Video_SEL 8 VCC5 C668 NC 10UF16V R471 NC 0R05 1/10W 5% usb_pb FB213 NC 30R 1 2 R200 NC 56R 1/10W 5% Y_SCALER R216 NC 5.1K OHM 1/16W R205 NC 180R 1/10W 5% C169 NC 0.1uF25V GND C171 NC C170 NC R218 NC 0R05 1/10W 5% USB_CVBS R213 0R05 1/10W 5% Pb_SCALER R233 0R05 1/10W 5% ADD ON 0930 Y2_IN 4 PR_IN3 USB_GND R472 NC 0R05 1/10W 5% usb_Y FOR EMI VBUS 1 2 3 4 CN703 NC CONNNECTOR 1 2 3 4 6 5 ZD604 NC VPORT0603100KV05 1 2 ZD605 NC VPORT0603100KV05 1 2 R789 NC 0R05 1/10W 5% R790 NC 0R05 1/10W 5% L208 NC 90OHM 3 2 4 1 USB_DP USB_DM R764 NC 0 OHM 1/10W USB_GND SP149 NC 1 2 FOR EMI ADD 10/17 SP150 NC 1 2 Y_IN3 R772 0R05 1/10W 5% Y_SCALER C670 NC 10UF16V R771 0R05 1/10W 5% R773 0R05 1/10W 5% PR_IN0 PR_IN3 Y_IN0 C671 NC 10UF16V PB_IN3 Y_IN3 PB_IN3 CN206 NC CONN 1 2 3 4 USB_GND VBUS R196 NC 0R05 1/10W 5% SP140 NC 1 2 SP141 NC 1 2 USB_DM USB_DP PB_IN0 R197 NC 0R05 1/10W 5% R198 NC 4.7KΩ R199 NC 4.7KΩ R201 NC 100R 1/10W 5% R203 NC 10KΩ C172 NC 270pF R207 NC 10KΩ R208 NC 4.7KΩ C175 NC 100pF C177 NC 270pF C178 NC 270pF R212 NC 100R 1/10W 5% C179 NC 100pF R214 NC 100R 1/10W 5% Q112 NC PMBS3904 FB109 NC 300 OHM 1 2 U107 NC PI5V330SQE DC 9 S2D 13 S1A 2 IN 1 S1B 5 S2A 3 S2B 6 S1C 11 S2C 10 DD 12 S1D 14 /EN 15 DA 4 VCC 16 GND 8 DB 7 Q109 NC PMBS3904 Q110 NC PMBS3904 FB110 NC 300 OHM 1 2 R221 NC 10KΩ R222 NC 0R05 1/10W 5% V_SEL C539 NC 0.1uF25V Pr_SCALER usb_pr R646 NC 39K 1/10W 5% USB_GND R731 NC 10K OHM 1/16W R732 NC 1K OHM 1/16W R733 NC 1K OHM 1/16W 5VSB PR_IN0 Q709 NC PMBS3904 GND C776 NC 100pF C777 NC 10uF 5VSB POWER_ON 1,8 5VSB VBUS C523 NC 10uF/16V FB414 NC 120R 1 2 U711 NC STMPS2171STR-SOT23-5 OUT 1 GND 2 FAULT 3 EN 4 IN 5 R647 NC 4.7K OHM 1/10W Active low R757 NC 0 OHM 1/10W Y_IN0 Near to IC R145 100R 1/10W 5% R153 100R 1/10W 5% C137 0.047uF C135 1000pF R148 100R 1/10W 5% R154 NC 75 OHM 1/16W R142 100R 1/10W 5% C131 0.047uF R151 NC 75 OHM 1/16W C140 0.047uF R144 NC 75 OHM 1/16W SOY2 6 GND GND GND Y2 6 PR2 6 PB2 6 PR_IN0 PB_IN0 34 9.2 电源板 715G3332P02H20003S ! ! R981 100 OHM 1/8W ! R918 10K OHM 1/8W R927 NC C903 680pF R937 4.7K OHM 1/8W IC970 EL817MC 1 2 4 3 C910 1uF/450V D906 1N4148 R950 47 OHM 1/4W R925 1M OHM 1% 1/4W R975 3.9KOHM +-5% 1/8W L902 13mH 1 2 4 3 C907 0.1uF + C941 10uF/50V C934 0.1uF C970 0.001uF FB902 BEAD 1 2 + C920 120uF M 450V CN903 NC 1 2 L N Q950 PMBS3904 L950 L L951 L B+_390V D972 SBR20010JST 1 2 3 C978 0.1uF +12V R951 100 OHM 1/4W D940 SARS01-V1 R964 2K OHM 1/8W IC971 AZ431AZ-AE1 VCC PDIM FB903 BEAD 1 2 C923 0.1uF R943 22 OHM 1/8W R968 6.8K OHM 1/4W C915 470pF,50V C912 100pF R914 10K OHM 1/8W C942 0.1uF ! CN902 CONN 1 2 3 4 5 6 7 8 9 10 11 12 A Custom 1 2 Tuesday , June 16, 2009 01.POWER OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 R926 1M OHM 1% 1/4W R980 NC L980 L R931 2.2 OHM 1/4W Q921 KTD1691P 2 3 1 FB901 BEAD 1 2 ! C957 0.001uF D902 FMN-1106S R920 680K OHM +-1% 1/4W D951 1N4148 C913 0.1uF Q924 DTC144WKA + C954 470uF 16V ZD970 MTZJ T-72 30B 1 2 A5V BBY Model + C937 10uF/50V C972 0.001uF +24V R946 0.36 OHM +-5% C908 0.1uF R998 100K OHM 1/4W + C973 470uF 35V + C946 470uF/25V R985 3.6K OHM 1/8W R970 100 OHM 1/4W IC950 EL817MC 1 2 4 3 R928 100K OHM 1/8W R936 NC R994 100K OHM 1/4W R966 6.8K OHM 1/4W D970 SBR20010JST 1 2 3 R969 6.8K OHM 1/4W D904 IN5408 IC951 EL817MC 1 2 4 3 715G3332-I ! ! C924 0.001uF/250V B+ C917 0.047uF R963 10K OHM 1/8W ZD930 MTZJ T-72 16B 1 2 R979 2KOHM +-1% 1/8W C904 0.47uF/275V R929 10K OHM 1/4W C905 470PF/250V R909 1.5 MOHM +-5% 1/4W FB ! R997 100K OHM 1/4W ZD910 NC 1 2 R982 1K OHM 1/8W +-5% RV902 NC ZD940 NC 1 2 +5V ! R973 100 OHM 1/4W R911 20K OHM 1/4W C901 0.47uF/275V C952 0.001uF R907 2.2 OHM 1/4W C930 NC C950 0.001uF T902 POWER X'FMR 1 2 3 5 6 7 8 9 10 11 12 Q901 STP20NM60FP 2 1 3 R923 13K OHM 1% 1/8W R999 100K OHM 1/4W R961 10K OHM C911 10nF t NR901 NTCR 1 2 ! - + BD901 D10XB60 2 1 3 4 R903 330K OHM 1/4W ! VCC PS_ON C935 1000PF2KV IC903 LD7523PS 1 2 3 4 5 6 7 8 BNO COMP (-)LATCH CS GND OUT VCC OVP + C933 10uF/50V R932 1R 1/8W 5% R958 8.2KOHM +-1% 1/8W R992 100K OHM 1/4W R977 100 OHM 1/4W R971 1.8K OHM 1/4W ! C951 0.001uF D903 1N4148 VCC D901 1N4007-E3/73 R917 56K OHM 1/8W R915 470 OHM 1/8W B+_390V +12V R948 0.1 ohm ! C918 0.47uF/25V D910 NC C956 0.1uF SG902 NC R904 1.5 MOHM +-5% 1/4W R957 8.2KOHM +-1% 1/8W A5V R935 1K OHM 1/4W R974 1K OHM 1/4W D950 SBT15006JST 1 2 3 C922 1uF C943 0.047uF R989 1K 1/8W 5% T901 POWER X'FMR 1 2 3 5 4 7 6 9 10 R938 4.7K OHM 1/8W Q903 STP10NK70ZFP C916 NC R987 27KOHM +-1% 1/4W + C945 470uF 35V ! ! R991 100K OHM 1/4W R941 10K OHM 1/4W C919 220pF;50V + C931 100uF/50V R921 680K OHM +-1% 1/4W RV901 NC R955 1K OHM 1/8W + C914 47uF/50V ! ! D931 AU02Z R983 1K OHM 1/8W +-5% C909 0.01uF L906 310uH 1 2 5 6 7 8 B+ +24V R947 10K OHM 1/8W R910 300K OHM 1/4W R993 100K OHM 1/4W C948 0.1uF ON/OFF R978 24K OHM 1% 1/8W D971 1N4148 SG901 NC R960 1K OHM R984 6.8K OHM 1/4W Q970 PMBS3904 R945 1KOHM +-5% 1/4W C906 470PF/250V +24V + C953 330uF 16V R902 330K OHM 1/4W R959 100K OHM 1% 1/8W ! R965 1.8K OHM 1/4W R988 1.8K OHM 1/4W CN901 SOCKET 1 2 3 R986 1.8K OHM 1/4W R913 10 OHM 1/8W R967 1.8K OHM 1/4W L901 13mH 1 2 4 3 PS_ON R996 100K OHM 1/4W D930 SARS01-V1 B+ + C975 470uF 35V R933 1R 1/8W 5% R916 0.12 OHM 2W C902 680pF R924 1M OHM 1% 1/4W IC902 A6069H 1 2 3 4 5 7 8 S/OCP BR GND FB/OLP VCC D/ST D/ST C940 NC C976 0.33uF R976 10K OHM 1/4W D942 NC D932 JUMPER C925 10nF R972 1.8K OHM 1/4W ZD952 MTZJ T-72 15B 1 2 R954 100 OHM 1/4W C921 0.1uF R952 47 OHM 1/4W F901 FUSE ! C944 220pF IC901 FAN7529MX 1 2 3 4 5 6 7 8 INV COMP MOT CS ZCD GND OUT VCC R956 1K OHM 1/8W R906 560KOHM +-5% 1/8W Q925 KTA1273 2 1 3 R922 680K OHM +-1% 1/4W R942 51KOHM +-5% 1/4W R901 330K OHM 1/4W R919 NC ! C949 0.1uF R939 10K OHM 1/4W ! C932 1000PF2KV C939 0.01uF FB +12V R908 2.2 OHM 1/4W R944 10K OHM 1/8W +5V IC952 AZ431AZ-AE1 R962 4.7M OHM 1/4W D905 1N4148 C955 0.22uF/50V R905 1.5 MOHM +-5% 1/4W C947 0.1uF 35 C821 680PF/50V ! R822 300 OHM 1/8W Q804 PMBS3904 DR1 VS D801 SCS0520P 1 2 C807 330PF/50V ISEN C812 0.022uF/25V C802 2.2uF 25V X7R R811 1.5M OHM 1/8W IS2 C814 2.2uF 25V X7R R829 1M 1/8W R807 240K OHM 1/8W R815 51K R803 100 OHM 1/8W T802 P:S=42:42 1 2 3 5 6 7 8 9 10 11 12 R809 NC IS2 C801 1uF/450V R821 9.1K OHM 1/8W R823 330 OHM 1/8W R817 2.2K OHM 1/8W +-5% R833 10K OHM 1/4W +-5% R828 68K OHM 1/8W R826 330 OHM 1/8W TB +12V TB C811 1U 25V ! IS1 TA R832 10K OHM 1/4W +-5% D802 SCS0520P 1 2 R806 3.3MOHM1/8W CN802 CONN 1 2 3 4 5 C817 47N 50V ISEN IS1 B+_390V R818 1.5K OHM 1/8W +-1% C822 1000pF Q805 PMBS3904 DR2 CN801 CONN 1 2 L N VREF C820 680PF/50V A B 2 2 Tuesday , August 18, 2009 02.INVERTER OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 C804 1uF/450V R820 100K OHM 1/8W D803 SCS0520P 1 2 ENA D807 1N4148 Q802 AOTF12N50 BBY Model ON/OFF L801 L R808 1M OHM 1/8W R804 10K OHM 1/8W VREF D805 BAV70 3 1 2 R827 510 OHM 1/8W TA C810 4N7 50V DR2 R805 62K OHM 1/8W R830 68K OHM 1/8W C818 47N 50V R813 NC + C805 470uF/25V C808 1N 50V PDIM IS1 R819 1M OHM 1/8W T801 50:50:50 1 4 5 6 7 9 10 R810 100K OHM 1/8W Q801 AOTF12N50 IS2 R831 1M 1/8W C815 220pF/25V R812 150K OHM 1/8W C819 NC(C1206) R814 51K OHM 1/8W +-5% D804 SCS0520P 1 2 C809 1U 25V IC801 OZ9976GN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 DRV1 GND ZCS RT1 CT LCT PDIM VSEN ISEN SSTCMP TIMER ADIM ENA VREF VIN DRV2 C813 4N7 50V C823 10nF C803 1000pF R825 300 OHM 1/8W 715G3332-1 C806 0.1uF/50V D806 1N4148 R824 510 OHM 1/8W R802 100 OHM 1/8W Q803 RK7002 C816 1500pF VS R801 0.1 ohm R816 51 OHM 1/8W DR1 36 715G3645P01W30003S R8806 100 OHM +-5% 1/8W R8805 100K OHM 1/8W C8804 5pF/6KV P3 R8802 100 OHM +-5% 1/8W VS CN8803 CONN 1 2 3 P3 IS1 D8817 D-BAV99-7-F 3 1 2 D8819 D-BAV99-7-F 3 1 2 C8825 6N8 50V D8811 D-BAV99-7-F 3 1 2 GPIN7 1 GPIN6 1 D8802 1N4148 D8809 D-BAV99-7-F 3 1 2 VS C8824 6N8 50V IS2 GPIN4 1 TA R8820 1K OHM 1/8W +-5% C8822 220pF; 50V T8805 POWER X'FMR 6 2 1 4 R8807 1K 1/8W TB T8806 POWER X'FMR 6 2 1 4 GPIN2 1 T8807 POWER X'FMR 6 2 1 4 CN8802 CONN 1 2 3 D8801 1N4148 GPIN8 1 C8819 330pF 50V R8816 22KOHM +-1% 1/8W C8808 5pF/6KV C Custom 1 1 Tuesday , August 18, 2009 715G3645 BBY MODEL 01.INVERTER OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 C8803 5pF/6KV C8812 5pF/6KV C8813 5pF/6KV D8821 1N4148 D8820 1N4148 TA T8804 POWER X'FMR 6 2 1 4 D8804 1N4148 R8812 510 OHM +-5% 1/8W R8813 3K6 +-1% 1/8W P1 C8821 6N8 50V D8815 D-BAV99-7-F 3 1 2 C8801 1N 50V C8820 6N8 50V C8816 6N8 50V T8803 POWER X'FMR 6 2 1 4 R8801 100 OHM +-5% 1/8W R8817 3K6 +-1% 1/8W C8805 5pF/6KV D8813 D-BAV99-7-F 3 1 2 P2 VS P2 IS2 IS1 R8814 510 OHM +-5% 1/8W T8802 POWER X'FMR 6 2 1 4 R8808 100KOHM +-5% 1/8W T8801 POWER X'FMR 6 2 1 4 CN8801 CONN 1 2 3 4 5 6 P1 TB C8818 330pF 50V R8811 510 OHM +-5% 1/8W GPIN3 1 C8817 6N8 50V C8809 5pF/6KV C8802 5pF/6KV IS2 GPIN5 1 GPIN1 1 R8818 1K OHM 1/8W +-5% T8808 POWER X'FMR 6 2 1 4 R8803 22KOHM +-1% 1/8W R8823 1K OHM 1/8W +-5% R8804 10KOHM +-5% 1/8W D8806 MTZJ T-72 5.1B R8819 1K OHM 1/8W +-5% 37 715G3652P02000003S T8804 POWER X'FMR 4 1 2 6 R8801 100 OHM +-5% 1/8W R8816 39KOHM +-1% 1/8W D8804 1N4148 D8820 1N4148 C8825 18N 50V C8801 1N 50V D8802 1N4148 T8803 POWER X'FMR 4 1 2 6 IS1 IS2 P1 GPIN4 1 D8806 MTZJ T-72 5.1B R8811 510 OHM +-5% 1/8W R8804 10KOHM +-5% 1/8W R8805 100K OHM 1/8W P1 T8802 POWER X'FMR 4 1 2 6 C8806 10pF/6KV C8820 18N 50V C8814 18N 50V T8812 POWER X'FMR 4 1 2 6 R8823 1K OHM 1/8W +-5% R8822 1K OHM 1/8W +-5% P5 GPIN3 1 P2 C8812 10pF/6KV R8814 510 OHM +-5% 1/8W C8822 18N 50V R8807 100 OHM +-5% 1/8W C8819 1NF 50V CN8802 CONN 1 2 3 CN8803 CONN 1 2 3 T8808 POWER X'FMR 4 1 2 6 P4 CN8801 CONN 1 2 3 4 5 6 GPIN2 1 P2 IS2 R8806 100 OHM +-5% 1/8W P6 C8811 10pF/6KV C8802 10pF/6KV GPIN1 1 D8813 D-BAV99-7-F 3 1 2 IS1 VS C8805 10pF/6KV T8811 POWER X'FMR 4 1 2 6 C8815 18N 50V GPIN9 1 TA R8809 100 OHM +-5% 1/8W R8812 510 OHM +-5% 1/8W C8807 10pF/6KV T8810 POWER X'FMR 4 1 2 6 D8817 D-BAV99-7-F 3 1 2 R8810 510 OHM +-5% 1/8W R8802 100 OHM +-5% 1/8W R8815 510 OHM +-5% 1/8W C8824 18N 50V T8801 POWER X'FMR 4 1 2 6 R8803 39KOHM +-1% 1/8W GPIN7 1 GPIN10 1 C8817 18N 50V GPIN6 1 R8821 1K OHM 1/8W +-5% P5 VS R8819 1K OHM 1/8W +-5% T8807 POWER X'FMR 4 1 2 6 C8816 18N 50V C8810 10pF/6KV P4 C8823 18N 50V GPIN8 1 TB R8808 100KOHM +-5% 1/8W TB GPIN11 1 TA D8821 1N4148 D8822 1N4148 C8821 18N 50V R8820 1K OHM 1/8W +-5% T8805 POWER X'FMR 4 1 2 6 D8809 D-BAV99-7-F 3 1 2 R8813 5K1 +-5% 1/8W D8805 1N4148 D8811 D-BAV99-7-F 3 1 2 IS2 D8801 1N4148 C8813 10pF/6KV T8806 POWER X'FMR 4 1 2 6 GPIN5 1 D8818 D-BAV99-7-F 3 1 2 D8808 D-BAV99-7-F 3 1 2 D8807 1N4148 R8817 5K1 +-5% 1/8W D8815 D-BAV99-7-F 3 1 2 C8803 10pF/6KV D8819 D-BAV99-7-F 3 1 2 RJ8801 0R05 1/4W C8808 10pF/6KV R8818 1K OHM 1/8W +-5% C8818 1NF 50V T8809 POWER X'FMR 4 1 2 6 C8809 10pF/6KV GPIN12 1 P6 C8804 10pF/6KV D8814 D-BAV99-7-F 3 1 2 VS D8812 D-BAV99-7-F 3 1 2 38 9.3 遥控板 715G4064R01000004S BLUE B Custom 1 1 Tuesday , December 22, 2009 715T4064-A 01-IR&LED 715T4064-A OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 RED BLUE LED01 LED 1 2 3 4 VCC GND PIN GND PIN 1 CN01 CONN 1 2 3 4 5 C01 0.1uF/16V U01 KSM-2003TN2E 1 2 3 VOUT GND VCC IRRV 81T 14 24 EL C02 NC/4.7uF/16V R11 4.7K OHM 1/10W LED_B 33T8032 5F HR LED_R RED 39 9.4 按键板 715G3293 1 SW07 SW VOL- C03 NC R05 1.8K OHM 1% 1/10W ~1.032V R08 100 OHM 1% 1/10W CH- FUNC_KEY 3V3_STB R09 NC 10.2K1/10W R01 20K OHM 1% 1/10W C07 NC C06 NC PWR-SW CH+ Power ON/OFF B Custom 1 1 Thursday , May 07, 2009 01-Keypad KEPF9YA1 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 SW06 R03 4.32K 1% 1/10W ~1.543V ~0.032V 3V3_STB R07 100R 1/10W 1% C04 NC SW02 SW C01 NC FUNC_KEY ~2.589V R04 2.74K 1% 1/10W SW01 SW ~0.518V R10 NC MENU CN01 CONN 1 2 3 4 C08 NC PWR-SW C02 NC VOL+ C05 NC SW04 SW R02 8.2K1/10W 1% 33G3802 4H ~2.070V SW03 SW SW05 SW Source Select 40 10. BOM 注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。 E329AANDW2SWNN 点位 料号 描述 备注 041T780062415A CERTIFICATE CARD 052G 1186 SMALL TAPE 052G 2191 A PAPER TAPE 089G214A18N YH POWER CORD 095G801312X658 HARNESS 12P(PLUG)-12P(PLUG) 260MM ECN602 095G8014 4W584 WIRE HARNESS 4P(PLUG)-B&R+B&W 850/650 2nd source ECN602 095G8014 4X584 WIRE HARNESS 4P(PLUG)-B&R+B&W 800/600 ECN400 095G801410D643 HARNESS 10P-6P+4P 600/650 2nd source ECN400 095G801410L643 HARNESS 10P-5P+4P 600/650 ECN802 095G8021 3D901 HARNESS 3P-3P+3P 240/220MM FQE092369HY 2nd source ECN802 095G8021 3X901 HARNESS 3P-3P+3P 240/220MM LCDXXTF0288 095T8018 3DH57 LVDS CABLE 30P-30P 350MM 098GRABD3NCSWC REMOTE CONTROL FOR 2K9 SKYWORTH 0D1G 940 6120 SCREW 0D1G 940 6120 SCREW 0D1G 940 6120 SCREW 0D1G1730 8120 SCREW 0D1G1730 8120 SCREW 0D1G1730 10120 SCREW 0M1G 130 6120 SCREW M3X6 0M1G 940 12 47 CR3 SCREW 0M1G1740 10120 SCREW 42A9940008 0Q1G 930 8 47 CR3 SCREW 0Q1G 930 8 47 CR3 SCREW 0Q1G 940 14 47 CR3 SCREW 0Q1G 940 16 47 CR3 SCREW 705TQ934JQ7 BEZEL ASS'Y 32" 0Q1G 930 6120 SCREW 3X6MM 0Q1G1030 6120 SCREW A33E0536 GMC1L0100 KEY COVER A33E0537 QV 1L0100 KEY PAD A33E0660 1 1C0100 POWER LENS A33E0661 ED 1C0100 IR LENS A34E1050 GMC5L0130 BEZEL TV32-9A5 Q01G6070 1 SCREW Q44T3231 21 27 EVA WASHER Q44T3231 21 28 EVA WASHER 705TQ934JQ8 REAR COVER ASS'Y 41 A15T0282201 BKT-VESA-BTM A34E0974 GM 2L0130 REAR COVER 32-9A Q34E7143 GM 1L0100 IO COVER FOR BACK Q36T 600 18113 CLOTH_GRIDDING Q36T 600 18114 CLOTH_GRIDDING Q36T 600 36 6 GP NONWOVEN FABRIC Q36T 600 40 1 NONWOVEN FABRIC 705TQ934JQ9 STAND ASS'Y 0Q1G 130 8 47 CR3 SCREW A15T0643101 32TV BKT_BASE-1 A34E1051 GM 1L0100 BASE Q12G6300 25 1 RUBBER FOOT M037 Q37T0134021 HINGE M037 SQ37T0134021 HINGE ASS'Y 028F0845110 SHAFT 034F0975 1101A TOP-PLASTIC A34F0976 GM 2L BOTTOM_PLASTIC 002F7015 1 NUT 004F081510T 00 WASHER 004F180820M 00 WASHER 004F1808104 00 WASHER 004F1808104 01 WASHER 004F122515M 00 WASHER 705TQ949001 COMSUPTIVE ASS'Y-A4 E750 750TVU315W2X12N000 PANEL T315XW02 VXL0 SZ AUO 756TQ9CB AD250 02 MAIN BOARD-CBPF9A4DQ8 U402 056G1133923 IC MX25L4005AM2C-12G SOP-8 U402 056G1133923 1 IC MX25L4005AM2I-12G SOP-8 SMTF-U402 100TWHVK002D21 MCU ASS'Y-056G1133923 1 040G 45762412B CBPC LABEL CN602 033G3802 4B Y W WAFER 2nd source CN405 033G8027 30 WAFER 30P 2.0MM DIP DUAL ROW CN700 033T327812D WAFER 12P PLUG CN602 033T3802 4B Y CONNECTOR CN400 033T380210B Y CONNECTOR R300 061G 208470 64 RST MOFR 47OHM +-5% 1W R303 061G 208470 64 RST MOFR 47OHM +-5% 1W C779 067G 3051014CT EC 100UF 25V KM 6.3X11MM C640 067G215P4714AV CAP 105C 470UF M 25V C660 067G215P4714AV CAP 105C 470UF M 25V C660 067G215P4714PV CAP 105C 470UF M 25V C640 067G215P4714PV CAP 105C 470UF M 25V C636 067G215P4716AV CAP 105C 470UF M 35V 42 C636 067G215P4716KV LOW ESR EC 470UF M 35V 10*20MM C710 067G215V471 6N CAP 105C 470UF M 35V CN103 088G 78 13942 C RCA JACK 1*5 G/B/R/W/R AV5-8.4-02-01 CN102 088G 78 13942 C RCA JACK 1*5 G/B/R/W/R AV5-8.4-02-01 CN102 088G 78 13942 YG RCA JACK 1*5 G/B/R/W/R RCA-512DF 2nd source CN103 088G 78 13942 YG RCA JACK 1*5 G/B/R/W/R RCA-512DF 2nd source CN104 088G 7813A38C RCA JACK 1*3 Y/W/R V/A CN106 088G 7813A38C RCA JACK 1*3 Y/W/R V/A CN105 088G 7813A39C S JACK + RCA JACK 1*3 Y/W/R 2nd source CN600 088G 30211K PHONE JACK 7PIN CN105 088T 78 13A39 YG S JACK + RCA JACK 1*3 Y/W/R RCA-333S-010 CN101 088T 30252C PHONE JACK 3.5MM 3P V/A GREEN 2nd source CN101 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN CN100 088T 35315F VC D-SUB 15PIN FEMALE VERTICAL SCREWED CN100 088T 35315FVSD D-SUB 15PIN FEMALE VERTICAL SCREWED 2nd source 090G 372 2 HEAT SINK X400 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ TU100 094T PALALL 3L TCL TUNER M15WPP-2PN-E C414 067G 3051007CT EC 10UF/50V KM 5*11MM C651 067G 3051007CT EC 10UF/50V KM 5*11MM C732 067G 3051007CT EC 10UF/50V KM 5*11MM C736 067G 3051007CT EC 10UF/50V KM 5*11MM C746 067G 3051007CT EC 10UF/50V KM 5*11MM C414 067G 3051007KT EC 10UF/50V PF 5*11MM C651 067G 3051007KT EC 10UF/50V PF 5*11MM C732 067G 3051007KT EC 10UF/50V PF 5*11MM C736 067G 3051007KT EC 10UF/50V PF 5*11MM C746 067G 3051007KT EC 10UF/50V PF 5*11MM C300 067G 3051014CT EC 100UF 25V KM 6.3X11MM C301 067G 3051014CT EC 100UF 25V KM 6.3X11MM C729 067G 3051014CT EC 100UF 25V KM 6.3X11MM C778 067G 3051014CT EC 100UF 25V KM 6.3X11MM C728 067G 3051014CT EC 100UF 25V KM 6.3X11MM C720 067G 3051014CT EC 100UF 25V KM 6.3X11MM C717 067G 3051014CT EC 100UF 25V KM 6.3X11MM C712 067G 3051014CT EC 100UF 25V KM 6.3X11MM C672 067G 3051014CT EC 100UF 25V KM 6.3X11MM C308 067G 3051014CT EC 100UF 25V KM 6.3X11MM C303 067G 3051014CT EC 100UF 25V KM 6.3X11MM C702 067G 3052214CT EC 220UF/25V KM 8*11MM C715 067G 3052214CT EC 220UF/25V KM 8*11MM C763 067G 3052214CT EC 220UF/25V KM 8*11MM C721 067G 3052214CT EC 220UF/25V KM 8*11MM 43 C715 067G 3052214ET EC 220UF 25V RGA 8X11MM C702 067G 3052214ET EC 220UF 25V RGA 8X11MM C763 067G 3052214ET EC 220UF 25V RGA 8X11MM C721 067G 3052214ET EC 220UF 25V RGA 8X11MM C410 067G 3054704CT EC 47UF 25V KM 5X11MM C410 067G 3054704KT 47UF C427 067G 3054713PT NO-SUGGEST CAP 105C 470UF M 16V 8*12 C707 067G 3054713PT NO-SUGGEST CAP 105C 470UF M 16V 8*12 L600 073T 259901 H CHOKE 22UH 10% L601 073T 259901 H CHOKE 22UH 10% 040G 457624 1B LABEL-CPU U400 056G 562595 IC HX6202-A090QAG 1080P QFP-256 U705 056G 563 7 IC AIC1084-33PMTR-R AIC U705 056G 563 30 DC/DC CONVERTER -- -- -- -- U700 056G 563 31 IC AZ1117D-1.8-E1 U702 056G 563 52 IC AP1117D33G-13 TO252-3L DIODES U703 056G 563 52 IC AP1117D33G-13 TO252-3L DIODES U300 056G 585 11 IC AZ1117D-5.0-E1 AAC U600 056G 614 1 74HC4052D S016 PHLIPS U603 056G 616518 IC R2A15112FP HTQFP48 U401 056G113353A IC M24C32-WMN6T SO-8 ST U402 056G1133923 IC MX25L4005AM2C-12G SOP-8 U402 056G1133923 1 IC MX25L4005AM2I-12G SOP-8 U707 056T 563952 IC SC4524BSETRT SO-8 U601 056T 616516 IC APA2176AQBITRG TQFN3X3-16 Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q706 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q712 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q700 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q601 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q508 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q506 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q505 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q504 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q502 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q500 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q410 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q406 057G 417 4 PMBS3904/PHILIPS-SMT(04) 44 Q105 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q104 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q103 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q102 057G 417512 MMBT3906 Q400 057G 417512 MMBT3906 Q401 057G 417512 MMBT3906 Q413 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC Q403 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC Q505 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q504 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q502 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q500 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q410 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q407 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q406 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q105 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q104 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q103 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q506 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q508 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q601 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q602 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q603 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q700 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q704 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q706 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q707 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q708 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q712 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q405 057G 763 79 FET AO4449 -7A/-30V SOIC-8 Q705 057G 763 79 FET AO4449 -7A/-30V SOIC-8 Q501 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS RP603 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W RP602 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W RP601 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W RP600 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W RP403 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W RP402 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W RP401 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W RP400 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W R308 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W 45 R313 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R316 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R416 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R600 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R545 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R544 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R533 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R531 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R518 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R517 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R509 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R506 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R452 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R451 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R448 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R417 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W R609 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R608 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R310 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R719 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R718 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R524 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R522 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R507 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R500 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R404 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R403 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R501 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R502 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R511 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R513 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R523 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R525 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R527 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R619 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R624 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R625 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R716 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R119 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R160 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R407 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R408 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R409 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W 46 R410 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R411 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R422 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R423 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R446 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R453 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R454 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R455 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R120 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R510 061G0402105 RST CHIPR 1MOHM +-5% 1/16W R155 061G0402201 JI RST 0402 200R 5% 1/16W R155 061G0402201 JT RST CHIP 200R 1/16W 5% TZAI YUAN R714 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W R158 061G0402271 RST CHIP 270R 1/16W 5% R508 061G0402273 RST CHIP 27K 1/16W 5% R542 061G0402391 RST CHIPR 390 OHM +-5% 1/16W R543 061G0402391 RST CHIPR 390 OHM +-5% 1/16W R443 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R442 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R440 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R439 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R402 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R401 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R400 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R620 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R616 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R611 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R530 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R528 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R516 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R515 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R505 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R503 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R447 061G0402562 RST CHIP 5K6 1/16W 5% R157 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R209 061G0603000 RST CHIP MAX 0R05 1/10W R213 061G0603000 RST CHIP MAX 0R05 1/10W R233 061G0603000 RST CHIP MAX 0R05 1/10W R771 061G0603000 RST CHIP MAX 0R05 1/10W R772 061G0603000 RST CHIP MAX 0R05 1/10W R773 061G0603000 RST CHIP MAX 0R05 1/10W R795 061G0603000 RST CHIP MAX 0R05 1/10W R796 061G0603000 RST CHIP MAX 0R05 1/10W 47 R797 061G0603000 RST CHIP MAX 0R05 1/10W R798 061G0603000 RST CHIP MAX 0R05 1/10W R774 061G0603000 RST CHIP MAX 0R05 1/10W R770 061G0603000 RST CHIP MAX 0R05 1/10W R769 061G0603000 RST CHIP MAX 0R05 1/10W R760 061G0603000 RST CHIP MAX 0R05 1/10W R759 061G0603000 RST CHIP MAX 0R05 1/10W R152 061G0603000 RST CHIP MAX 0R05 1/10W R147 061G0603000 RST CHIP MAX 0R05 1/10W R141 061G0603000 RST CHIP MAX 0R05 1/10W R138 061G0603000 RST CHIP MAX 0R05 1/10W R132 061G0603000 RST CHIP MAX 0R05 1/10W R127 061G0603000 RST CHIP MAX 0R05 1/10W R783 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W R784 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W R107 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R103 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R101 061G0603101 RST CHIPR 100 OHM +-5% 1/10W FB102 061G0603101 RST CHIPR 100 OHM +-5% 1/10W FB100 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R792 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R791 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R445 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R444 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R315 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R314 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R112 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R183 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R179 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R175 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R171 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R153 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R148 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R145 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R142 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R139 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R133 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R130 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R128 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R124 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R123 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R788 061G0603102 RST CHIPR 1K OHM +-5% 1/10W 48 R787 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R782 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R781 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R712 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R708 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R706 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R700 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R612 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R459 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R434 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R737 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R725 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R639 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R638 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R637 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R622 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R526 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R512 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R432 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R430 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R614 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R618 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R785 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R786 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R192 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R191 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R188 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R187 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R150 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R149 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R137 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R136 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R118 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R117 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R164 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R163 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R424 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R436 061G0603133 RST CHIPR 13 KOHM +-5% 1/10W R738 061G0603150 2F RST CHIPR 15 KOHM +-1% 1/10W R159 061G0603151 RST CHIPR 150 OHM +-5% 1/10W R536 061G0603160 1F RST CHIPR 1.6 KOHM +-1% 1/10W R170 061G0603180 JI RST 0603 18R 5% 1/10W R174 061G0603180 JI RST 0603 18R 5% 1/10W 49 R178 061G0603180 JI RST 0603 18R 5% 1/10W R182 061G0603180 JI RST 0603 18R 5% 1/10W R309 061G0603180 JI RST 0603 18R 5% 1/10W R170 061G0603180 JT RST CHIP 18R 1/10W 5% TZAI YUAN R174 061G0603180 JT RST CHIP 18R 1/10W 5% TZAI YUAN R178 061G0603180 JT RST CHIP 18R 1/10W 5% TZAI YUAN R182 061G0603180 JT RST CHIP 18R 1/10W 5% TZAI YUAN R309 061G0603180 JT RST CHIP 18R 1/10W 5% TZAI YUAN R156 061G0603183 JI RST 0603 18K 5% 1/10W R156 061G0603183 JT RST CHIP 18K 1/10W 5% TZAI YUAN R736 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W R793 061G0603221 RST CHIPR 220 OHM +-5% 1/10W R104 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W R110 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W R441 061G0603224 JI RST 0603 220K 5% 1/10W R441 061G0603224 JT RST CHIP 220K 1/10W 5% TZAI YUAN R734 061G0603229 RST CHIPR 2.2 OHM +-5% 1/10W R185 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W R186 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W R189 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W R190 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W R799 061G0603274 RST CHIPR 270 KOHM +-5% 1/10W R109 061G0603330 RST CHIPR 33 OHM +-5% 1/10W R102 061G0603330 RST CHIPR 33 OHM +-5% 1/10W R615 061G0603333 RST CHIPR 33KOHM +-5% 1/10W R703 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R711 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R715 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R610 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R421 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R165 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R167 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R420 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R166 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W R168 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W R717 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W R548 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W R549 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W R550 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W R131 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R134 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R143 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R146 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W 50 R621 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R172 061G0603560 RST CHIPR 56 OHM +-5% 1/10W R176 061G0603560 RST CHIPR 56 OHM +-5% 1/10W R180 061G0603560 RST CHIPR 56 OHM +-5% 1/10W R184 061G0603560 RST CHIPR 56 OHM +-5% 1/10W R311 061G0603560 RST CHIPR 56 OHM +-5% 1/10W FB707 061G0603680 JI RST 0603 68R 5% 1/10W TA-I FB707 061G0603680 JT RST CHIPR 68OHM +-5% 1/10W TZAI YUAN R161 061G0603681 RST CHIPR 680 OHM +-5% 1/10W R162 061G0603681 RST CHIPR 680 OHM +-5% 1/10W R735 061G0603683 RST CHIPR 68K OHM +-5% 1/10W R114 061G0603683 RST CHIPR 68K OHM +-5% 1/10W R115 061G0603683 RST CHIPR 68K OHM +-5% 1/10W R650 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R649 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R648 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R140 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R135 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R129 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R113 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R108 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R105 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R405 061T0603102 2F NO-SUGGEST RST CHIPR 10.2 KOHM +-1% 1/10 R406 061T0603102 2F NO-SUGGEST RST CHIPR 10.2 KOHM +-1% 1/10 C538 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C534 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C513 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C415 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C413 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C407 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C406 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C405 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C404 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C403 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C402 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C146 065G040210131J A CAP CHIP 0402 100PF J 50V NPO C101 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10% C122 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10% C135 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10% C307 065G040210322K Y CAP CHIP 0402 10N 25V X7R +/-10% C309 065G040210322K Y CAP CHIP 0402 10N 25V X7R +/-10% C515 065G040210322K Y CAP CHIP 0402 10N 25V X7R +/-10% C516 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% 51 C525 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C527 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C637 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C700 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C711 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C784 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C785 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C432 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C433 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C434 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C435 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C436 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C437 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C509 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C510 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C512 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C511 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C431 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C430 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C429 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C425 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C424 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C423 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C412 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C418 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C419 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C422 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C420 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C600 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C601 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C603 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C604 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C605 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C606 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C609 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C611 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C613 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C615 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C619 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C621 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C623 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C625 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C627 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z 52 C629 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C517 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C518 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C519 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C521 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C522 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C524 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C530 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C531 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C532 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C533 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C536 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C537 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C542 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C543 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C545 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C547 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C313 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C162 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C159 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C156 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C153 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z C145 065G040222131J A CAP CHIP 0402 220PF J 50V NPO C314 065G040222131J A CAP CHIP 0402 220PF J 50V NPO C316 065G040222131J A CAP CHIP 0402 220PF J 50V NPO C501 065G040222417Z A NO-SUGGEST CAP CHIP 0402 220NF Z 16V Y5V C506 065G040222417Z A NO-SUGGEST CAP CHIP 0402 220NF Z 16V Y5V C503 065G040222417Z A NO-SUGGEST CAP CHIP 0402 220NF Z 16V Y5V C408 065G040233031J A CAP 0402 33PF J 50V NPO C409 065G040233031J A CAP 0402 33PF J 50V NPO C151 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C152 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C102 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C106 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C110 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C119 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C124 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C128 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C131 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C137 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C140 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C315 065G040256031J Y CAP CHIP 0402 56PF 50V NPO +/-5% C312 065G040256031J Y CAP CHIP 0402 56PF 50V NPO +/-5% 53 C745 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG C683 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10% C682 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10% C685 065G060310332K F CAP CHIP 0603 10NF K 50V X7R C684 065G060310332K F CAP CHIP 0603 10NF K 50V X7R C780 065G0603104 12 CER2 0603 X7R 16V 100N P C761 065G0603104 12 CER2 0603 X7R 16V 100N P C752 065G0603104 12 CER2 0603 X7R 16V 100N P C751 065G0603104 12 CER2 0603 X7R 16V 100N P C718 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C716 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C709 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C706 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C701 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C663 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C662 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C661 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C658 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C143 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C302 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C304 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C426 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C632 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C635 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C638 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C639 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C641 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C650 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C655 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C657 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C733 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C731 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C730 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C727 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C722 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C719 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C442 065G0603105 12 CHIP 1UF 16VX7R 0603 C443 065G0603105 12 CHIP 1UF 16VX7R 0603 C444 065G0603105 12 CHIP 1UF 16VX7R 0603 C544 065G0603105 12 CHIP 1UF 16VX7R 0603 C546 065G0603105 12 CHIP 1UF 16VX7R 0603 C548 065G0603105 12 CHIP 1UF 16VX7R 0603 C753 065G0603105 15 0603,1.0UF,16V,X5R,+-10% 54 C652 065G0603105 22 NO-SUGGEST CAP CHIP 0603 1UF K 25V X7R C648 065G0603105 22 NO-SUGGEST CAP CHIP 0603 1UF K 25V X7R C647 065G0603105 22 NO-SUGGEST CAP CHIP 0603 1UF K 25V X7R C643 065G0603105 22 NO-SUGGEST CAP CHIP 0603 1UF K 25V X7R C653 065G0603105 22 NO-SUGGEST CAP CHIP 0603 1UF K 25V X7R C654 065G0603105 22 NO-SUGGEST CAP CHIP 0603 1UF K 25V X7R C656 065G0603105 22 NO-SUGGEST CAP CHIP 0603 1UF K 25V X7R C161 065G0603221 32 CHIP 220PF 50V X7R C164 065G0603221 32 CHIP 220PF 50V X7R C158 065G0603221 32 CHIP 220PF 50V X7R C155 065G0603221 32 CHIP 220PF 50V X7R C766 065G0603221 32 CHIP 220PF 50V X7R C749 065G0603222 22 CHIP 2200PF 25V X7R C765 065G0603223 22 CHIP 25V X7R 0603 22NF C438 065G0603224 25 CAP CHIP 0603 220N 25V X5R +/-10% C713 065G0603224 32 CHIP 0.22UF 50V X7R C401 065G0603224 32 CHIP 0.22UF 50V X7R C400 065G0603224 32 CHIP 0.22UF 50V X7R C115 065G0603224 32 CHIP 0.22UF 50V X7R C708 065G0603225 17 MLCC 0603 2.2UF Z 16V Y5V C607 065G060333412K A CAP CHIP 0603 0.33UF K 16V X7R C750 065G060333412K A CAP CHIP 0603 0.33UF K 16V X7R C750 065G060333412K F NO-SUGGEST 0603 0.33UF K 16V X7R C607 065G060333412K F NO-SUGGEST 0603 0.33UF K 16V X7R C144 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C411 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C612 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C614 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C616 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C620 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C622 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C624 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C626 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C628 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C630 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C631 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C644 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C645 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C646 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C649 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C666 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C744 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C417 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R 55 C421 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C428 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C439 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C440 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C441 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C453 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C514 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C520 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C526 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C528 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C529 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C535 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C549 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C602 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C610 065G0805106 15 NO-SUGGEST CAP CHIP 0805 10UF K 16V X5R C642 065G0805334 32 CHIP 0.33UF 50V X7R C659 065G0805334 32 CHIP 0.33UF 50V X7R C100 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C113 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C123 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C125 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C132 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C136 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C147 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C148 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C149 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C150 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C165 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C166 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C167 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C168 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C633 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C634 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R C762 065G1206226 A7 CHIP 1206 22UF Z 10V Y5V U402 070GHDCP500HDC NO-SUGGEST HDCP CODE FB300 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB301 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB406 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB407 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB408 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB411 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB500 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB502 071G 56G301 EA CHIP BEAD T1201209G301NP100 56 FB503 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB504 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB505 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB507 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB600 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB601 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB603 071G 56G301 EA CHIP BEAD T1201209G301NP100 FB700 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB701 071G 57G301 EA CHIP BEAD FB702 071G 57G301 EA CHIP BEAD FB703 071G 57G301 EA CHIP BEAD FB706 071G 57G301 EA CHIP BEAD FB410 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB413 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB605 071G 59B121 TB160808B FB604 071G 59B121 TB160808B FB104 071G 59B121 TB160808B FB105 071G 59B601 MA CHIP BEAD FB106 071G 59B601 MA CHIP BEAD R111 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA R106 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA R100 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA FB101 071G 59C800 1HIP BEAD FB103 071G 59C800 1HIP BEAD FB415 071G 59G301 CHIP BEAD 300OHM FB506 071G 59G301 CHIP BEAD 300OHM FB501 071G 59G301 CHIP BEAD 300OHM FB405 071G 59G301 CHIP BEAD 300OHM FB404 071G 59G301 CHIP BEAD 300OHM FB403 071G 59G301 CHIP BEAD 300OHM FB402 071G 59G301 CHIP BEAD 300OHM FB401 071G 59G301 CHIP BEAD 300OHM L704 073G253S 46 H SMD CHOKE 4.7UH R181 073T 6322910M CHIP INDUCTOR 0603 2.2UH 10% R177 073T 6322910M CHIP INDUCTOR 0603 2.2UH 10% R173 073T 6322910M CHIP INDUCTOR 0603 2.2UH 10% R169 073T 6322910M CHIP INDUCTOR 0603 2.2UH 10% CN500 088G 340 21 VT HDMI HEADER 21P V/T 2nd source CN501 088G 340 21 VT HDMI HEADER 21P V/T 2nd source CN502 088T 340 19 AV HDMI HEADER 19P +SCREW HOLE CN500 088T 340 21 VA HDMI HEADER 21P V/T CN501 088T 340 21 VA HDMI HEADER 21P V/T D502 093G 60230 NO-SUGGEST BAT54C SOT23 57 D501 093G 60230 NO-SUGGEST BAT54C SOT23 D500 093G 60230 NO-SUGGEST BAT54C SOT23 D100 093G 60230 NO-SUGGEST BAT54C SOT23 D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R D703 093G 6432P LL4148 ZD700 093G 39S 9 T ZENER DIODE RLZ9.1B ROHM ZD608 093G 39S 24 T RLZ 5.6B LLDS ZD606 093G 39S 24 T RLZ 5.6B LLDS ZD607 093G 39S 24 T RLZ 5.6B LLDS ZD600 093G 39S 44 T RLZ18B LLDS ZD702 093G3004 3 SM340A 715G3364M01000004K TV MAIN-PCB FR-4 225X220X1.6MM DS INTV9L88AAA8 INVERTER BOARD G3645-1-X-X-1-090817 040G 45762412B CBPC LABEL CN8802 033G3802 3B Y L CONNECTOR 3P 2.0PITCH 2nd source CN8803 033G3802 3B Y L CONNECTOR 3P 2.0PITCH 2nd source CN8803 033G3802 3B Y W CONNECTOR CN8802 033G3802 3B Y W CONNECTOR C8804 065G 6J5096ET CAP CER 5PF J 6KV C8805 065G 6J5096ET CAP CER 5PF J 6KV C8808 065G 6J5096ET CAP CER 5PF J 6KV C8809 065G 6J5096ET CAP CER 5PF J 6KV C8812 065G 6J5096ET CAP CER 5PF J 6KV C8813 065G 6J5096ET CAP CER 5PF J 6KV C8802 065G 6J5096ET CAP CER 5PF J 6KV C8803 065G 6J5096ET CAP CER 5PF J 6KV T8808 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101 T8807 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101 T8806 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101 T8805 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101 T8804 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101 T8803 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101 T8802 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101 T8801 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101 CN8801 095G 825 6D901 HARNESS 6P(SCN)-5P 300MM FQE092368HY R8801 061G0805101 JF RST 0805 100R 5% 1/8W R8802 061G0805101 JF RST 0805 100R 5% 1/8W R8806 061G0805101 JF RST 0805 100R 5% 1/8W R8801 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO R8802 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO R8806 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO R8807 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R8818 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA 58 R8819 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R8820 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R8823 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R8807 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R8818 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R8819 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R8820 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R8823 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R8804 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R8804 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN R8808 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN R8805 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN R8816 061G08052202FT RST CHIP 22K 1/8W 1% R8803 061G08052202FT RST CHIP 22K 1/8W 1% R8816 061G08052202FY RST CHIPR 22 KOHM +-1% 1/8W R8803 061G08052202FY RST CHIPR 22 KOHM +-1% 1/8W R8817 061G08053601FF RST CHIPR 3.6KOHM +-1% 1/8W FENGHUA R8813 061G08053601FF RST CHIPR 3.6KOHM +-1% 1/8W FENGHUA R8813 061G08053601FT RST CHIP 3K6 1/8W 1% R8817 061G08053601FT RST CHIP 3K6 1/8W 1% R8814 061G0805511 JF RST CHIPR 510OHM +-5% 1/8W FENGHUA R8812 061G0805511 JF RST CHIPR 510OHM +-5% 1/8W FENGHUA R8811 061G0805511 JF RST CHIPR 510OHM +-5% 1/8W FENGHUA R8811 061G0805511 JY RST CHIPR 510OHM +-5% 1/8W YAGEO R8812 061G0805511 JY RST CHIPR 510OHM +-5% 1/8W YAGEO R8814 061G0805511 JY RST CHIPR 510OHM +-5% 1/8W YAGEO RJ8801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA RJ8802 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA RJ8802 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN RJ8801 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN C8801 065G080510232K 3 CAP CHIP 0805 1N 50V X7R +/-10% C8801 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C8822 065G080522132K A NO-SUGGEST 0805 220PF K 50V X7R C8822 065G080522132K Y CAP CHIP 0805 220P 50V X7R +/-10% C8819 065G080533131J F CAP CHIP 0805 330PF J 50V NPO C8818 065G080533131J F CAP CHIP 0805 330PF J 50V NPO C8818 065G080533131J T CAP 0805 330PF J 50V NPO TAIYO YUDEN C8819 065G080533131J T CAP 0805 330PF J 50V NPO TAIYO YUDEN C8819 065G080533131J Y CAP CHIP 0805 330P 50V NPO +/-5% C8818 065G080533131J Y CAP CHIP 0805 330P 50V NPO +/-5% D8806 093G 3919552T DIODE MTZJ T-72 5.1B 500MW/5.1V DO-34 D8804 093G 64 1152T 1N4148 D8802 093G 64 1152T 1N4148 59 D8801 093G 64 1152T 1N4148 D8820 093G 64 1152T 1N4148 D8821 093G 64 1152T 1N4148 D8821 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP D8801 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP D8802 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP D8804 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP D8820 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP J8801 095G 90 23 JUMPER WIRE J8802 095G 90 23 JUMPER WIRE J8811 095G 90 23 JUMPER WIRE J8810 095G 90 23 JUMPER WIRE J8809 095G 90 23 JUMPER WIRE J8808 095G 90 23 JUMPER WIRE J8806 095G 90 23 JUMPER WIRE J8805 095G 90 23 JUMPER WIRE J8804 095G 90 23 JUMPER WIRE J8803 095G 90 23 JUMPER WIRE 715G3645P01W30003S TV POWER-PCB 373.5X106.2X1.6MM DS CEM-1 R8805 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA R8808 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA R8805 061G08051003FY RST CHIP 100K 1/8W 1% R8808 061G08051003FY RST CHIP 100K 1/8W 1% C8817 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5% C8820 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5% C8821 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5% C8824 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5% C8825 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5% C8816 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5% C8825 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP C8824 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP C8816 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP C8820 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP C8821 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP C8817 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP D8809 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8811 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8813 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8815 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8817 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8819 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8809 093G 6433S SWITCHING DIODE BAV99 D8815 093G 6433S SWITCHING DIODE BAV99 60 D8813 093G 6433S SWITCHING DIODE BAV99 D8811 093G 6433S SWITCHING DIODE BAV99 D8819 093G 6433S SWITCHING DIODE BAV99 D8817 093G 6433S SWITCHING DIODE BAV99 IRPF9QB8 IR BOARD T4064-A-X-X-1-100115 U01 056G 627911 IR 38KHZ KSM-603TM2M U01 056T 627 33 1 IR 37.9KHZ KSM-603TM2E CN01 033T8032 5F HR CONNECTOR 5P 1.25 R11 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA C01 065G0603104 12 CER2 0603 X7R 16V 100N P LED01 081T 14 24 EL CHIP LED BLUE/DARK RED 715G4064R01000004S TV IR-PCB 32*22.5*1.6MM FR-4 DS KEPF9YA1 KEY BOARD CN01 033G8032 4F HR CONNECTOR 4P 1.25 R07 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W R08 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W R05 061G0603180 1F NO-SUGGEST RST CHIPR 1.8 KOHM +-1% 1/10W R01 061G0603200 2F RST CHIPR 20 KOHM +-1% 1/10W R03 061G0603432 1F RST CHIP 4.32K 1/10W 1% R02 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W R04 061T0603274 1F NO-SUGGEST RST CHIPR 2.74 KOHM +-1% 1/10 SW06 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW04 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW05 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW01 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW02 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW03 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW07 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL 715G3293 1 TVKEY 136*23.5*1.6MM 1/7 D/D FR4 LE99J PWTV9L88AABF POWER BOARD G3332-1-EVN-X-1-090817 040G 45762412B CBPC LABEL CN802 033G3802 5B Y W WEAFER 2nd source CN801 033G8029 3A WAFER 3.96MM 3P (³É 2N) CN902 033T327812D WAFER 12P PLUG CN802 033T3802 5B Y CONNECTOR 051T 6 4503 GLUE_RTV IC950 056G 139 7 IC EL817MC M-TYPE IC951 056G 139 7 IC EL817MC M-TYPE IC970 056G 139 7 IC EL817MC M-TYPE IC950 056G 139 3B IC PC123Y82FZ0F IC951 056G 139 3B IC PC123Y82FZ0F IC970 056G 139 3B IC PC123Y82FZ0F IC902 056T 379121 IC STR- A6069H DIP-8 61 Q921 057G 761 7 KTD1691P Q921 057G 761909 T SMALLTRAN KSD1691YSTU 5A 60V TO-126 C901 063G 10747410V NO-SUGGEST 0.47UF 275VAC ARCO C904 063G 10747410V NO-SUGGEST 0.47UF 275VAC ARCO C901 063G107K474 US NO-SUGGEST 0.47UF +-10% C904 063G107K474 US NO-SUGGEST 0.47UF +-10% C801 063G213J105GFA CAP MPF 1UF 5% 450V C804 063G213J105GFA CAP MPF 1UF 5% 450V C910 063G213J105GFA CAP MPF 1UF 5% 450V C925 065G 1K103 2E6213 CAP CER 10NF K 1KV C911 065G 1K103 2E6213 CAP CER 10NF K 1KV C823 065G 1K103 2E6213 CAP CER 10NF K 1KV C925 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5U C911 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5U C823 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5U C906 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES C905 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES C924 065G306M1022B2 1000PF 400VAC/250VAC Y1 C903 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES C902 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES C920 067G 42Z12115K EC 120UF M 450V 18*45MM C953 067G204V331 3K CS CAP 330UF 16V 10*12 MM C954 067G215A4713KV EC 470UF 16V M 10*12MM C975 067G215A4716HV EC 470UF M 35V 10*21MM C973 067G215A4716HV EC 470UF M 35V 10*21MM C945 067G215A4716HV EC 470UF M 35V 10*21MM C975 067G215A4716KV EC 470UF 35V M 10*16MM C973 067G215A4716KV EC 470UF 35V M 10*16MM C945 067G215A4716KV EC 470UF 35V M 10*16MM C946 067G215P4714KV LOW ESR EC 470UF M 25V 10*16MM C805 067G215P4714KV LOW ESR EC 470UF M 25V 10*16MM C954 067G215Y471 3H ELCAP 105 470UF M 16V ℃ C805 067G215Y471 4H EC CAP 105 度 470UF 25V C946 067G215Y471 4H EC CAP 105 度 470UF 25V C920 067T 42Z12115H EC 120UF M 450V 18*45MM C953 067T204V331 3R CS CAP 330UF 16V 10*12.5 MM L901 073G 174106 DN LINE FILTER 13MH LK.TF032.A20 L902 073G 174106 DN LINE FILTER 13MH LK.TF032.A20 L906 073G 174143 L PFC CHOKE 310UH CC-011384-1 L906 073G 174143 N PFC CHOKE 310UH YUVA-1123 L980 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG L951 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG L950 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG 62 L801 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG L801 073G 253 91 L CHOKE BY LI TA L950 073G 253 91 L CHOKE BY LI TA L951 073G 253 91 L CHOKE BY LI TA L980 073G 253 91 L CHOKE BY LI TA L902 073T 174106 L LINE FILTER 13MH LF-1008108 L901 073T 174106 L LINE FILTER 13MH LF-1008108 T801 080GL26T 15 N X'FMR 840UH MIN 8.4UH YUVA-1094 T802 080GL32P 4 L X'FMR 4.4MH 25% CC-011225-10 T902 080GL37T 19 L X'FMR 550UH 5% PT-010923-3 T902 080GL37T 19 N X'FMR 550UH 5% YUVA-1089 T901 080GL52T 5 L2 X'FMR 1.0MH T901 080GL52T 5 N2 X'FMR 1.0MH 10% F901 084G 41 11 L FUSE 5A 250V CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE CN901 087G 501 47 DL AC SOCKET 2PIN + 3 SCREW HOLE 2nd source D904 093G 52 70 1 1N5408-E(SHORT PIN) 3A/1000V DO-201AD D904 093G 5255L52T DIDOE 1N5408-E3/73 3A/1000V DO-201AD 0Q1G 340 8106 CR3 SCREW 705TQ857022 Q901 ASS'Y Q901 057G 667 24 STP20NM60FP TO-220FP ST Q901 057G 667939 MOSFET STF20NM60D TO220-FP 0M1G1730 8120 SCREW HS2 Q90T0095 2 HEAT SINK 705TQ861011 NR901 ASS'Y NR901 061T 58030 WL NO-SUGGEST RST NTCR 3 OHM +-20% 5A THINK Q09T 203 8 PIN FOR NR901 705TQ893054 BD901 ASS'Y BD901 093G 50460 18 D10XB60 BD901 093G 50460 49 BRIDGE KBJ1008G 10A/800V KBJ 0M1G1730 10120 SCREW 42A9930016 HS1 P90T0027301 HEAT SINK 705TQ893055 D950 ASS'Y HS5 090G6084 1 HEAT SINK D950 093G 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS) D950 093G1506 2 FMW-2156 0M1G1730 8120 SCREW 705TQ893056 D902 ASS'Y D902 093G 52 56 DIODE FMN-1106S 10A/600V TO-220 0M1G1730 8120 SCREW HS6 Q90G6084 3 HEAT SINK 705TQ893057 D972 ASS'Y HS7 090G6064 1 HEAT SINK 63 D970 093G 60282 DIODE SP20100R TO-220FP D972 093G 60282 DIODE SP20100R TO-220FP D972 093G 60300 DIODE SBR20010JST 20A/100V TO-220ML(LS) D970 093G 60300 DIODE SBR20010JST 20A/100V TO-220ML(LS) 0M1G1730 8120 SCREW 705TQ957037 Q801/Q802 ASS'Y Q801 057G 611903 MOSFET AOTF12N50 TO-220F Q802 057G 611903 MOSFET AOTF12N50 TO-220F 0M1G1730 10120 SCREW 42A9930016 HS8 Q90T0087 2 HEAT SINK 705TQA57059 Q903 ASS'Y Q903 057G 667 21 NO-SUGGEST STP10NK70ZFP Q903 057G 667 51 MOSFET 2SK4101LS-MG5/FS 7A 650V TO-220FI 0M1G1730 8120 SCREW HS3 Q90T6084 6 HEAT SINK 709T3332 QM001 COMSUPTIVE ASS'Y 055G 23524 WELDING FLUX WITHOUT PB Q51G 6 4509 GLUE_RTV Q55G 100623 补焊锡丝 Q55G 100625 TIN STICK_LOW ARGENTUM IC901 056G 368 12 IC FAN7529MX SOP-8 IC801 056T 379122 IC OZ9976GN-C-0-TR SOP-16 IC903 056T 379133 IC LD7523A GS SOP-8 Q970 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q950 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q805 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q804 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM Q924 057G 760 5 DTC144WKA BY ROHM SMT R913 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA R913 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO R959 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA R810 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA R928 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA R820 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA R959 061G08051003FT RST CHIP 100K 1/8W 1% R928 061G08051003FY RST CHIP 100K 1/8W 1% R820 061G08051003FY RST CHIP 100K 1/8W 1% R810 061G08051003FY RST CHIP 100K 1/8W 1% R829 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA R831 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA R808 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA R819 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA 64 R829 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W R831 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W R808 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W R819 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W R981 061G0805101 JF RST 0805 100R 5% 1/8W R803 061G0805101 JF RST 0805 100R 5% 1/8W R802 061G0805101 JF RST 0805 100R 5% 1/8W R802 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO R803 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO R981 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO R955 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R956 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R982 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R983 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R989 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R955 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R956 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R982 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R983 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R989 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R963 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R947 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R944 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R918 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R914 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R804 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R804 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN R914 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN R918 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN R944 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN R947 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN R963 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN R928 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN R820 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN R810 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN R808 061G0805105 JW RST CHIPR 1MOHM +-5% 1/8W WALSIN R819 061G0805105 JW RST CHIPR 1MOHM +-5% 1/8W WALSIN R932 061G0805109 JF RST CHIPR 1 OHM +- 5% 1/8W FENGHUA R933 061G0805109 JF RST CHIPR 1 OHM +- 5% 1/8W FENGHUA R932 061G0805109 JW RST CHIPR 1OHM +-5% 1/8W WALSIN R933 061G0805109 JW RST CHIPR 1OHM +-5% 1/8W WALSIN R923 061G08051302FF RST CHIPR 13KOHM +-1% 1/8W FENGHUA R923 061G08051302FT RST CHIP 13K 1/8W 1% 65 R818 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN R818 061G08051501FY RST CHIP 1K5 1/8W 1% R811 061G08051504FF RST CHIPR 1M5 +-1% 1/8W FENGHUA R811 061G08051504FT RST CHIPR 1M5 +-1% 1/8W TZAI YUAN R812 061G0805154 JF RST CHIPR 150KOHM +-5% 1/8W FENGHUA R812 061G0805154 JW RST CHIPR 150K +-5% 1/8W WALSIN R811 061G0805155 JW RST CHIPR 1M5 +-5% 1/8W WALSIN R979 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA R979 061G08052001FT RST CHIP 2K 1/8W 1% R964 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA R964 061G0805202 JW RST CHIPR 2K +-5% 1/8W WALSIN R943 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA R943 061G0805220 JT RST CHIPR 22OHM +-5% 1/8W TZAI YUAN R817 061G0805222 JF BST CHIPR 2.2KOHM +-5% 1/8W FENGHUA R817 061G0805222 JW RST CHIPR 2K2 +-5% 1/8W WALSIN R978 061G08052402FF RST CHIPR 24KOHM +-1% 1/8W FENGHUA R978 061G08052402FT RST CHIP 24K 1/8W 1% R807 061G0805244 JF RST CHIPR 240KOHM +-5% 1/8W FENGHUA R807 061G0805244 JW RST CHIPR 240K +-5% 1/8W WALSIN R987 061G08052702FF RST CHIPR 27KOHM +-1% 1/8W FENGHUA R987 061G08052702FT RST CHIP 27K 1/8W 1% R822 061G08053000FF RST CHIPR 300 OHM +-1% 1/8W FENGHUA R825 061G08053000FF RST CHIPR 300 OHM +-1% 1/8W FENGHUA R822 061G08053000FW RST CHIPR 300OHM +-1% 1/8W WALSIN R825 061G08053000FW RST CHIPR 300OHM +-1% 1/8W WALSIN R823 061G08053300FF RST CHIPR 330 OHM +-1% 1/8W FENGHUA R826 061G08053300FF RST CHIPR 330 OHM +-1% 1/8W FENGHUA R826 061G08053300FW RST CHIPR 330OHM +-1% 1/8W WALSIN R823 061G08053300FW RST CHIPR 330OHM +-1% 1/8W WALSIN R806 061G0805335 JF RST CHIPR 3.3 MOHM +-5% 1/8W R806 061G0805335 JT RST CHIPR 3M3 +-5% 1/8W TZAI YUAN R985 061G0805362 JF RST CHIPR 3K6 +-5% 1/8W FENGHUA R985 061G0805362 JW RST CHIPR 3K6 +-5% 1/8W WALSIN R975 061G0805392 JF RST CHIPR 3.9KOHM +-5% 1/8W FENGHUA R975 061G0805392 JY RST CHIPR 3K9 +-5% 1/8W YAGEO R915 061G08054700FF RST 0805 470R 1% 1/8W R915 061G08054700FT RST CHIP 470R 1/8W 1% R938 061G0805472 JF RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA R937 061G0805472 JF RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA R937 061G0805472 JY NO-SUGGEST RST CHIPR 4.7K OHM 5% 1/8W YA R938 061G0805472 JY NO-SUGGEST RST CHIPR 4.7K OHM 5% 1/8W YA R816 061G0805510 JF RST CHIPR 51OHM +-5% 1/8W FENGHUA R816 061G0805510 JW RST CHIPR 51OHM +-5% 1/8W WALSIN 66 R827 061G08055100FF RST CHIPR 510 OHM +-1% 1/8W FENGHUA R824 061G08055100FF RST CHIPR 510 OHM +-1% 1/8W FENGHUA R824 061G08055100FT RST CHIP R 510 OHM +-1% 1/8W R827 061G08055100FT RST CHIP R 510 OHM +-1% 1/8W R814 061G0805513 JF RST CHIPR 51KOHM +-5% 1/8W FENGHUA R815 061G0805513 JF RST CHIPR 51KOHM +-5% 1/8W FENGHUA R814 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO R815 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO R917 061G0805563 JF RST CHIPR 56KOHM +-5% 1/8W FENGHUA R917 061G0805563 JY RST CHIPR 56K +-5% 1/8W YAGEO R906 061G0805564 JF RST CHIPR 560KOHM +-5% 1/8W FENGHUA R906 061G0805564 JT RST CHIPR 560K +-5% 1/8W TZAI YUAN R805 061G08056202FF RST CHIPR 62KOHM +-1% 1/8W FENGHUA R805 061G08056202FT RST CHIP 62K 1/8W 1% R828 061G0805683 JF RST CHIPR 68KOHM +-5% 1/8W FENGHUA R830 061G0805683 JF RST CHIPR 68KOHM +-5% 1/8W FENGHUA R828 061G0805683 JT RST CHIPR 68K +-5% 1/8W TZAI YUAN R830 061G0805683 JT RST CHIPR 68K +-5% 1/8W TZAI YUAN R958 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA R957 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA R957 061G08058201FT RST CHIP 8K2 1/8W 1% R958 061G08058201FT RST CHIP 8K2 1/8W 1% R821 061G08059101FF RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA R821 061G08059101FT RST CHIP 9K1 1/8W 1% R821 061G08059101FY RST CHIP 9K1 1/8W 1% JR906 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR905 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JP907 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR802 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR803 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR804 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR805 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR902 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 67 JR805 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR804 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR803 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR802 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR801 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JP907 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN R924 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA R925 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA R926 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA R924 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W R925 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W R926 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W R951 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA R970 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA R973 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA R977 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA R951 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R970 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R973 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R977 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R945 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA R935 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA R945 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN R935 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN R976 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA R941 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA R939 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA R929 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA R833 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA R832 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA R929 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R833 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R832 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R939 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R941 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R976 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R999 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA R998 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA R997 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA R996 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA R994 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA R993 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA R992 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA 68 R991 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA R994 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R993 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R992 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R991 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R996 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R997 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R998 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R999 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R905 061G1206155 JF RST CHIPR 1.5MOHM +-5% 1/4W FENGHUA R904 061G1206155 JF RST CHIPR 1.5MOHM +-5% 1/4W FENGHUA R909 061G1206155 JF RST CHIPR 1.5MOHM +-5% 1/4W FENGHUA R904 061G1206155 JT RST CHIPR 1.5MOHM +-5% 1/4W TZAI YUAN R905 061G1206155 JT RST CHIPR 1.5MOHM +-5% 1/4W TZAI YUAN R909 061G1206155 JT RST CHIPR 1.5MOHM +-5% 1/4W TZAI YUAN R988 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN R986 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN R972 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN R971 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN R967 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN R965 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN R988 061G1206182 JW NO-SUGGEST RST CHIPR 1.8KOHM +-5% 1/4W W R986 061G1206182 JW NO-SUGGEST RST CHIPR 1.8KOHM +-5% 1/4W W R972 061G1206182 JW NO-SUGGEST RST CHIPR 1.8KOHM +-5% 1/4W W R971 061G1206182 JW NO-SUGGEST RST CHIPR 1.8KOHM +-5% 1/4W W R967 061G1206182 JW NO-SUGGEST RST CHIPR 1.8KOHM +-5% 1/4W W R965 061G1206182 JW NO-SUGGEST RST CHIPR 1.8KOHM +-5% 1/4W W R911 061G1206203 JT RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN R911 061G1206203 JW NO-SUGGEST 20KOHM +-5% 1/4W R907 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA R908 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA R931 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA R907 061G1206229 JY NO-SUGGEST RST CHIPR 2.2 OHM +-5£¥ 1/4W R908 061G1206229 JY NO-SUGGEST RST CHIPR 2.2 OHM +-5£¥ 1/4W R931 061G1206229 JY NO-SUGGEST RST CHIPR 2.2 OHM +-5£¥ 1/4W R910 061G1206304 JF RST CHIPR 300KOHM +-5% 1/4W FENGHUA R910 061G1206304 JT RST CHIPR 300 KOHM +-5% 1/4W TZAI YUAN R901 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA R902 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA R903 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA R901 061G1206334 JT RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN R902 061G1206334 JT RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN R903 061G1206334 JT RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN 69 R950 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA R952 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA R950 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN R952 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN R962 061G1206475 JF RST CHIPR 4.7 MOHM +-5% 1/4W FENGHUA R962 061G1206475 JT RST CHIPR 4.7 MOHM +-5% 1/4W TZAI YUAN R942 061G1206513 JT RST CHIPR 51 KOHM +-5% 1/4W TZAI YUAN R942 061G1206513 JW NO-SUGGEST RST CHIPR 51 KOHM +-5% 1/4W W R920 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA R921 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA R922 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA R922 061G12066803FT RST CHIP 680K 1/4W 1% R921 061G12066803FT RST CHIP 680K 1/4W 1% R920 061G12066803FT RST CHIP 680K 1/4W 1% R984 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA R969 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA R968 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA R966 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA R984 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN R969 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN R968 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN R966 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN C912 065G080510132K F CAP CHIP 0805 100PF K 50V X7R C912 065G080510132K Y NO-SUGGEST 0805 100PF K 50V X7R C808 065G080510232K 3 CAP CHIP 0805 1N 50V X7R +/-10% C808 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C909 065G080510331J F NO-SUGGEST 10NF J 50V NPO FENGHUA C939 065G080510331J F NO-SUGGEST 10NF J 50V NPO FENGHUA C909 065G080510332K 3 CAP CHIP 0805 10N 50V X7R +/-10% C939 065G080510332K 3 CAP CHIP 0805 10N 50V X7R +/-10% C909 065G080510332K A CAP CHIP 0805 10NF K 50V X7R C939 065G080510332K A CAP CHIP 0805 10NF K 50V X7R C909 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10% C939 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10% C948 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C947 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C942 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C934 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C923 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C921 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C913 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C908 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C907 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 70 C806 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C949 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C956 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C978 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C978 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C956 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C949 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C948 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C947 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C942 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C934 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C923 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C921 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C913 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C908 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C907 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C806 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C809 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10% C811 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10% C809 065G080510522K T CAP 0805 1UF 10% 25V X7R C811 065G080510522K T CAP 0805 1UF 10% 25V X7R C922 065G080510537Z 3 CAP CHIP 0805 1U 50V Y5V -20%+80% C922 065G080510537Z T CAP CHIP 0805 1UF Z 50V Y5V C816 065G080515231J 3 CAP CHIP 0805 1N5 50V NPO +/-5% C816 065G080515231J Y CAP CHIP 0805 1N5 50V NPO +/-5% C816 065G080515231J Y CAP CHIP 0805 1N5 50V NPO +/-5% C812 065G080515332K A MLCC 0805 15NF 50V X7R +-10% SAMSUNG C812 065G080515332K Y CAP CHIP 0805 15N 50V X7R +/-10% C919 065G080522131G F CAP 0805 220PF 2% 50V NPO C919 065G080522131G Y CAP CHIP 0805 220PF 2% 50V NPO C815 065G080522132K A NO-SUGGEST 0805 220PF K 50V X7R C944 065G080522132K A NO-SUGGEST 0805 220PF K 50V X7R C944 065G080522132K Y CAP CHIP 0805 220P 50V X7R +/-10% C815 065G080522132K Y CAP CHIP 0805 220P 50V X7R +/-10% C955 065G080522432K F NO-SUGGEST 0805 0.22UF K 50V X7R C955 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10% C814 065G080522522K 3 CAP CHIP 0805 2U2 25V X7R +/-10% C802 065G080522522K 3 CAP CHIP 0805 2U2 25V X7R +/-10% C814 065G080522522K M MLCC 0805 CAP 2.2UF 25V X7R C802 065G080522522K M MLCC 0805 CAP 2.2UF 25V X7R C802 065G080522522K Y CAP CHIP 0805 2U2 25V X7R +/-10% C814 065G080522522K Y CAP CHIP 0805 2U2 25V X7R +/-10% C807 065G080533131G A NO-SUGGEST 0805 330PF J 50V NPO 71 C807 065G080533131G W NO-SUGGEST CAP CHIP 0805 330PF G 50V NPO C976 065G080533432K A CAP 0805 330NF 10% 50V X7R C976 065G080533432K F CAP 0805 330NF 10% 50V X7R C915 065G080547132K F NO-SUGGEST 0805 470PF K 50V X7R C915 065G080547132K Y CAP CHIP 0805 470P 50V X7R +/-10% C810 065G080547232K F CAP 0805 4.7NF 10% 50V X7R C813 065G080547232K F CAP 0805 4.7NF 10% 50V X7R C810 065G080547232K Y CAP CHIP 0805 4N7 50V X7R +/-10% C813 065G080547232K Y CAP CHIP 0805 4N7 50V X7R +/-10% C917 065G080547332K F CAP CHIP 0805 47NF K 50V X7R C818 065G080547332K F CAP CHIP 0805 47NF K 50V X7R C817 065G080547332K F CAP CHIP 0805 47NF K 50V X7R C943 065G080547332K F CAP CHIP 0805 47NF K 50V X7R C817 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10% C818 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10% C917 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10% C943 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10% C918 065G080547422K 3 CAP 0805 470NF 10% 25V X7R C918 065G080547422K T CAP CHIP 0805 0.47UF K 25V X7R C918 065G080547422K T CAP CHIP 0805 0.47UF K 25V X7R C918 065G080547422K Y CAP CHIP 0805 0.47UF K 25V X7R C820 065G080568131J F CAP 0805 680PF 5% 50V NPO C821 065G080568131J F CAP 0805 680PF 5% 50V NPO C820 065G080568131J Y CAP CHIP 0805 680P 50V NPO +/-5% C821 065G080568131J Y CAP CHIP 0805 680P 50V NPO +/-5% C970 065G120610272K T NO-SUGGEST 1206 1000PF 500V X7R C950 065G120610272K T NO-SUGGEST 1206 1000PF 500V X7R C951 065G120610272K T NO-SUGGEST 1206 1000PF 500V X7R C952 065G120610272K T NO-SUGGEST 1206 1000PF 500V X7R C957 065G120610272K T NO-SUGGEST 1206 1000PF 500V X7R C972 065G120610272K T NO-SUGGEST 1206 1000PF 500V X7R C972 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R C950 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R C951 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R C952 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R C957 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R C970 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R D805 093G 64 42 PP BAV70 SOT-23 D802 093T 60S 5 T SCS0520P SOD-123 D803 093T 60S 5 T SCS0520P SOD-123 D804 093T 60S 5 T SCS0520P SOD-123 D801 093T 60S 5 T SCS0520P SOD-123 709T3332 QS001 COMSUPTIVE ASS'Y 72 CN901 006G 31501 EYELET T802 006G 31502 1.5MM RIVET IC952 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC IC971 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC Q925 057G 420 3 T TRA KTA1273-Y- AT/ P_TO-92L KEC R974 061G 20010252T RST MFR 1K OHM +-1% 1/4W R801 061G 30310852T GP FUSE RESISTOR R948 061G 30310852T GP FUSE RESISTOR R960 061G 60210252T CFR 1K OHM +-5% 1/6W R961 061G 60210352T CFR 10KOHM +-5% 1/6W R916 061G152M12852T RST MOFR 0.12 OHM +-5% 2WS R946 061G152M36852T RST MOF 0R36 5% 2W R954 061T 20010152T 100 OHM 1% 1/4W C803 065G 1K102 2T6213 CAP CER 1000PF K 1KV Y5P C822 065G 1K102 2T6213 CAP CER 1000PF K 1KV Y5P C932 065G 2K102 2T6921 CAP CER 1000PF 2KV K Y5P C935 065G 2K102 2T6921 CAP CER 1000PF 2KV K Y5P C941 067G 2151007NT EC 10UF 20% 50V 5*11 C937 067G 2151007NT EC 10UF 20% 50V 5*11 C933 067G 2151007NT EC 10UF 20% 50V 5*11 C914 067G 2154707NT KY50VB47M-TP5 6.3*11 C933 067G215Y1007KT KY50VB10M-TP5 5*11.5 C937 067G215Y1007KT KY50VB10M-TP5 5*11.5 C941 067G215Y1007KT KY50VB10M-TP5 5*11.5 C931 067G215Y101 7N 100UF 50V NCC 6.3*11MM C931 067G215Y1017NT EC 100UF 50V 8*11.5MM C914 067G215Y4707KT 47UF 50V FB902 071G 55 23 BEAD FB903 071G 55 23 BEAD FB901 071G 55 26 S BEAD 3.5*6MM 127 OHM 25% LB3.5¡Á0.8¡Á6-2 FB901 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8 ZD952 093G 3916652T MTZJ15B (13.89-14.62) ZD930 093G 3916752T MTZJ T-72 16B ZD970 093G 3917152T TZJ T-72 30B D901 093G 52 1552T DIODE 1N4007-E3/73 1A/1000V DO-41 D931 093G 5250S52T DIODE AU02Z-V1 SANKEN D806 093G 64 1152T 1N4148 D807 093G 64 1152T 1N4148 D903 093G 64 1152T 1N4148 D905 093G 64 1152T 1N4148 D906 093G 64 1152T 1N4148 D951 093G 64 1152T 1N4148 D971 093G 64 1152T 1N4148 73 D971 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP D951 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP D906 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP D905 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP D903 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP D806 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP D807 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP ZD970 093G 39G 9 DIODE MTZJ30B DO-34 D940 093T1080 252T DIODE SARSO1-V1 SANKEN D930 093T1080 252T DIODE SARSO1-V1 SANKEN J803 095G 90 23 JUMPER WIRE J802 095G 90 23 JUMPER WIRE J801 095G 90 23 JUMPER WIRE D932 095G 90 23 JUMPER WIRE J911 095G 90 23 JUMPER WIRE J912 095G 90 23 JUMPER WIRE J913 095G 90 23 JUMPER WIRE J916 095G 90 23 JUMPER WIRE J917 095G 90 23 JUMPER WIRE J918 095G 90 23 JUMPER WIRE J919 095G 90 23 JUMPER WIRE J804 095G 90 23 JUMPER WIRE J910 095G 90 23 JUMPER WIRE J908 095G 90 23 JUMPER WIRE J907 095G 90 23 JUMPER WIRE J906 095G 90 23 JUMPER WIRE J905 095G 90 23 JUMPER WIRE J904 095G 90 23 JUMPER WIRE J903 095G 90 23 JUMPER WIRE J902 095G 90 23 JUMPER WIRE J901 095G 90 23 JUMPER WIRE J809 095G 90 23 JUMPER WIRE J808 095G 90 23 JUMPER WIRE J807 095G 90 23 JUMPER WIRE J806 095G 90 23 JUMPER WIRE J805 095G 90 23 JUMPER WIRE J927 095G 90 23 JUMPER WIRE J914 095G 90 23 JUMPER WIRE J810 095G 90 23 JUMPER WIRE J926 095G 90 23 JUMPER WIRE J925 095G 90 23 JUMPER WIRE J923 095G 90 23 JUMPER WIRE J922 095G 90 23 JUMPER WIRE 74 J921 095G 90 23 JUMPER WIRE J920 095G 90 23 JUMPER WIRE 709T3332 QA001 COMSUPTIVE ASS'Y E715 715G3332P02H20003M CEM-1,94V-0,190*250MM,T1.6MM,S/S 2nd source E715 715G3332P02H20003S CEM-1,94V-0,190*250MM,T1.6MM,S/S Q01G6070 1 SCREW Q02G7022 1 BOLT Q12G7043 1 WASHER Q36G 600 31 7 NONWOVEN FABRIC Q40G0001001 1B S/N LABEL Q40T0002001 2A WARNING LABEL Q44GJ035001 1B 32''SKYWORTH TV CARTON Q44GJ062102EPE 32 BBY SECOND PANEL Q44GJ062201EPE 32 BBY SECOND PANEL Q45G 77 5 PE PACKING (Y1900241) Q45G 99609 61 EPE COVER FOR MONITOR Q45G 99626 36 PE BAG Q50G 4 10 TIE (Y1900221) Q50T 500523 CABLE TIE Q52G 1150523 TAPE_INSULATING Q52G 1285 6 BIG TAPE FOR SKYWORTH 092GB1JX1A3DGC BATTERY FOR LR03£¨KH£©2S/G 0M1G1760 16 47 CR3 SCREW 0Q1G 940 12 47 CR3 SCREW Q41G32MV001 2C MANUAL Q41G7800001 1B WARRANTY CARD Q45G 76 28NV2 R PE BAG FOR BASE SCREW SZ02742 Q45G 76 28NV2 R PE BAG FOR BASE SCREW SZ02742 Q45G2010M0101A PE BAG FOR MANUAL 040G 58162435A P/N LABEL FOR MANUAL PE BAG Q40G 320001 1A RATING LABEL Q40G0001001 2A CARTON LABEL A15T0559101 32TV-VESA-BKT-G3 A15T0560201 32TV-BASE-SUPPORT-G3 Q15T0713201 BKT_MPCB_SUPPOT_R Q15T0788101 PCB-MIDDLE-BKT 0D1G 930 8 47 CR3 SCREW 0Q1G 930 8 47 CR3 SCREW Q34E7144 GM 1L0100 IO COVER FOR SIDE Q40G2010 32001 SIDE LABEL 078G 522 1B Y SPK 8 OHM 12W 160X42MM SUNLINK Q40G2010 32100 I/O LABEL
