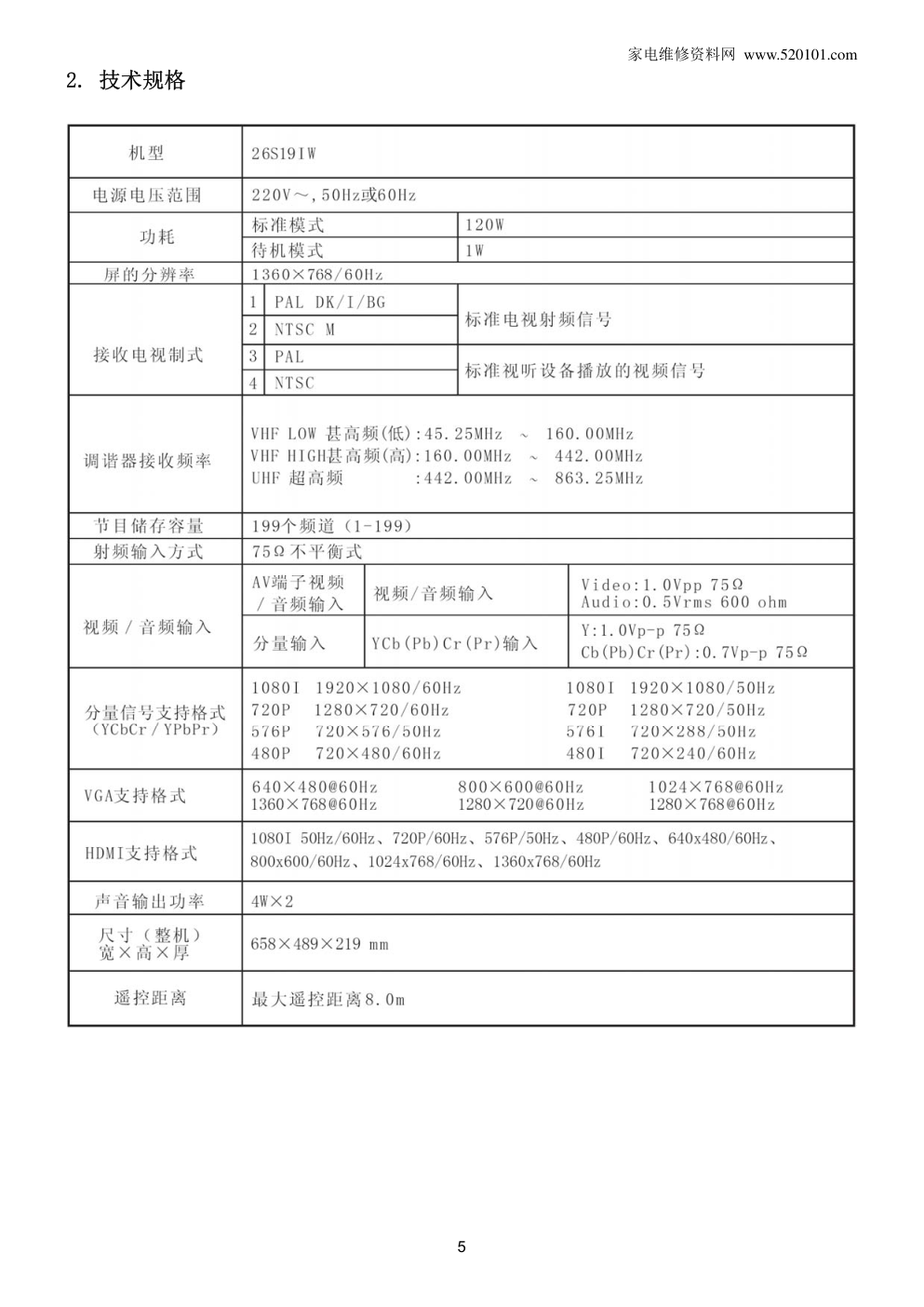

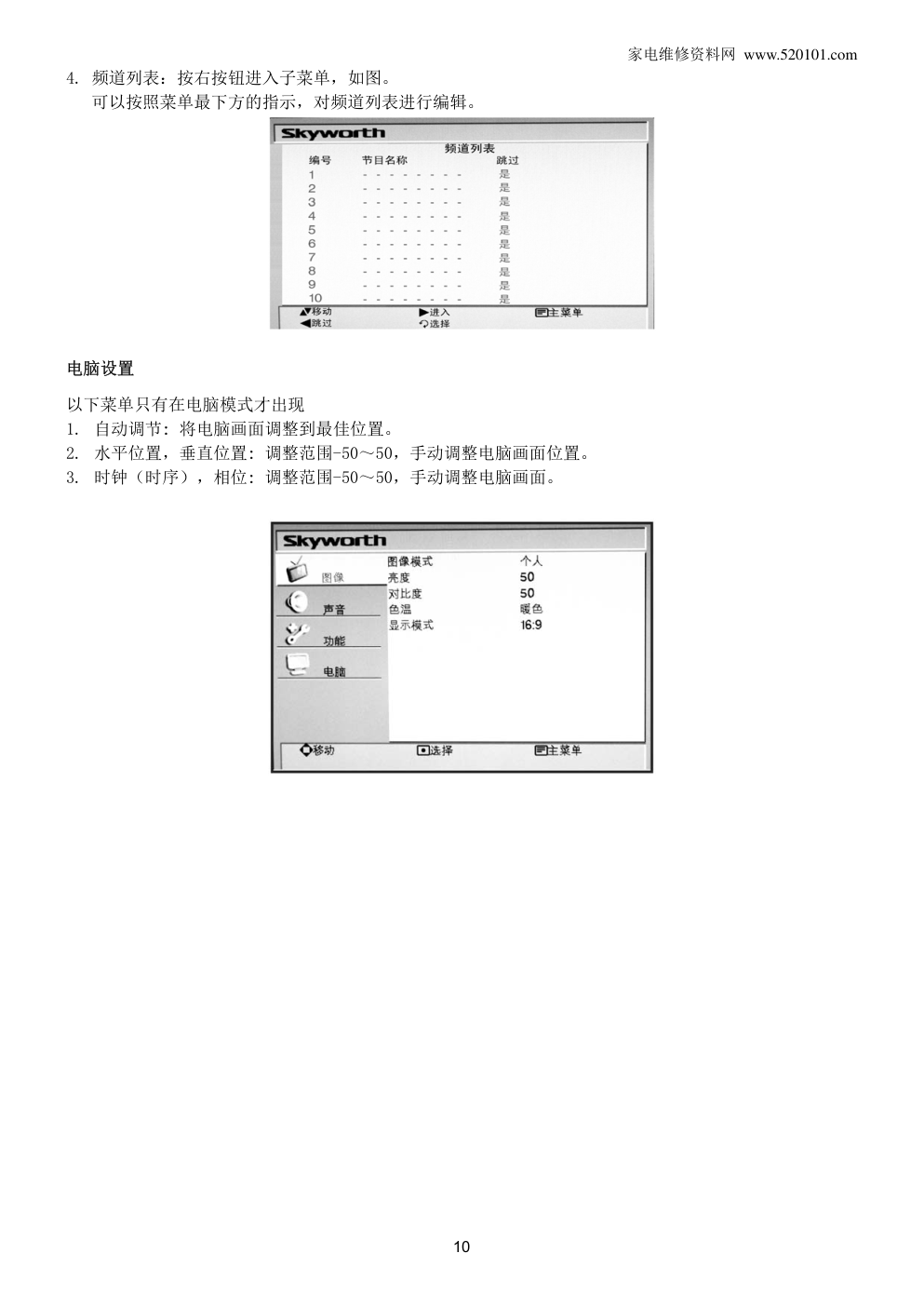

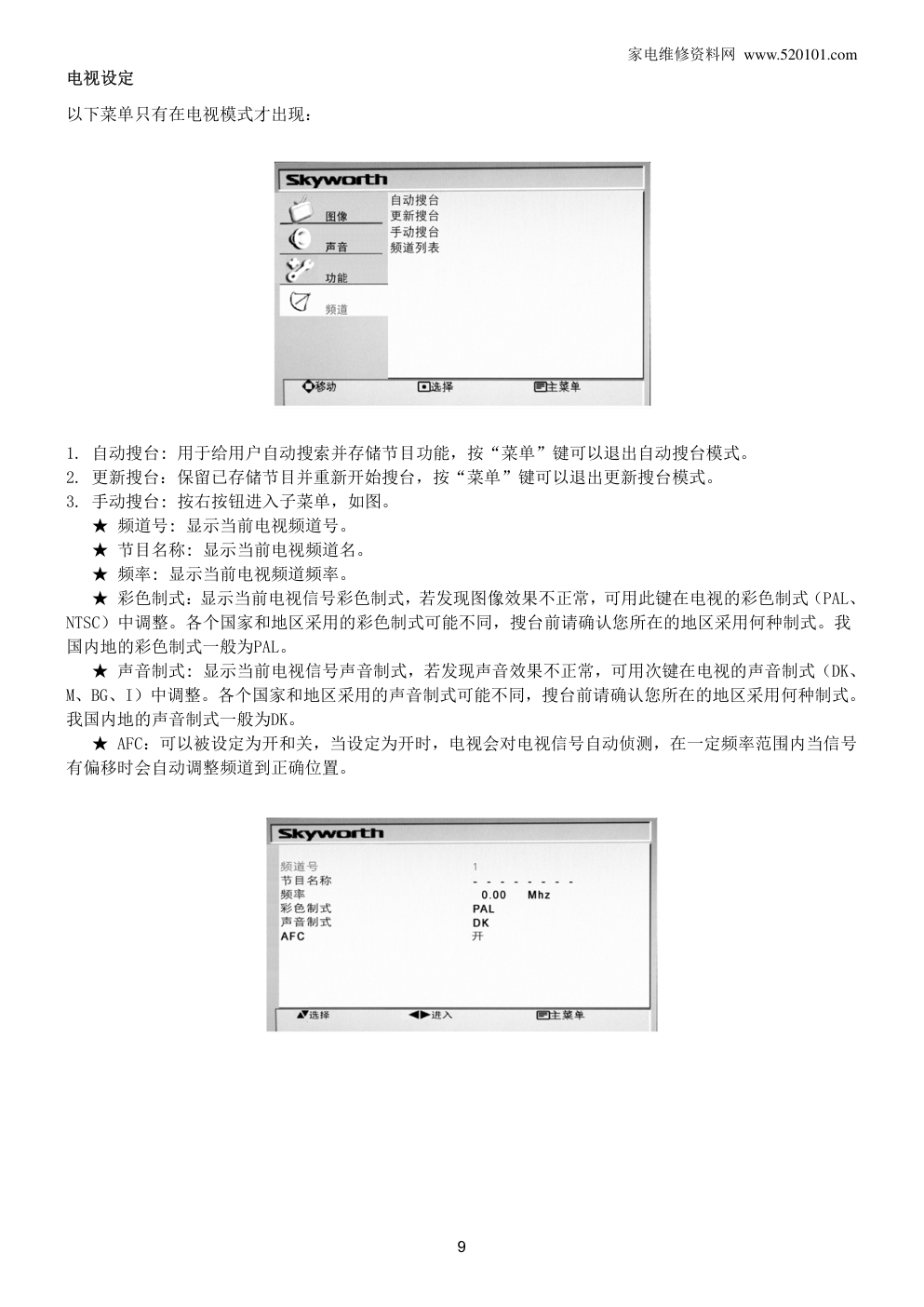

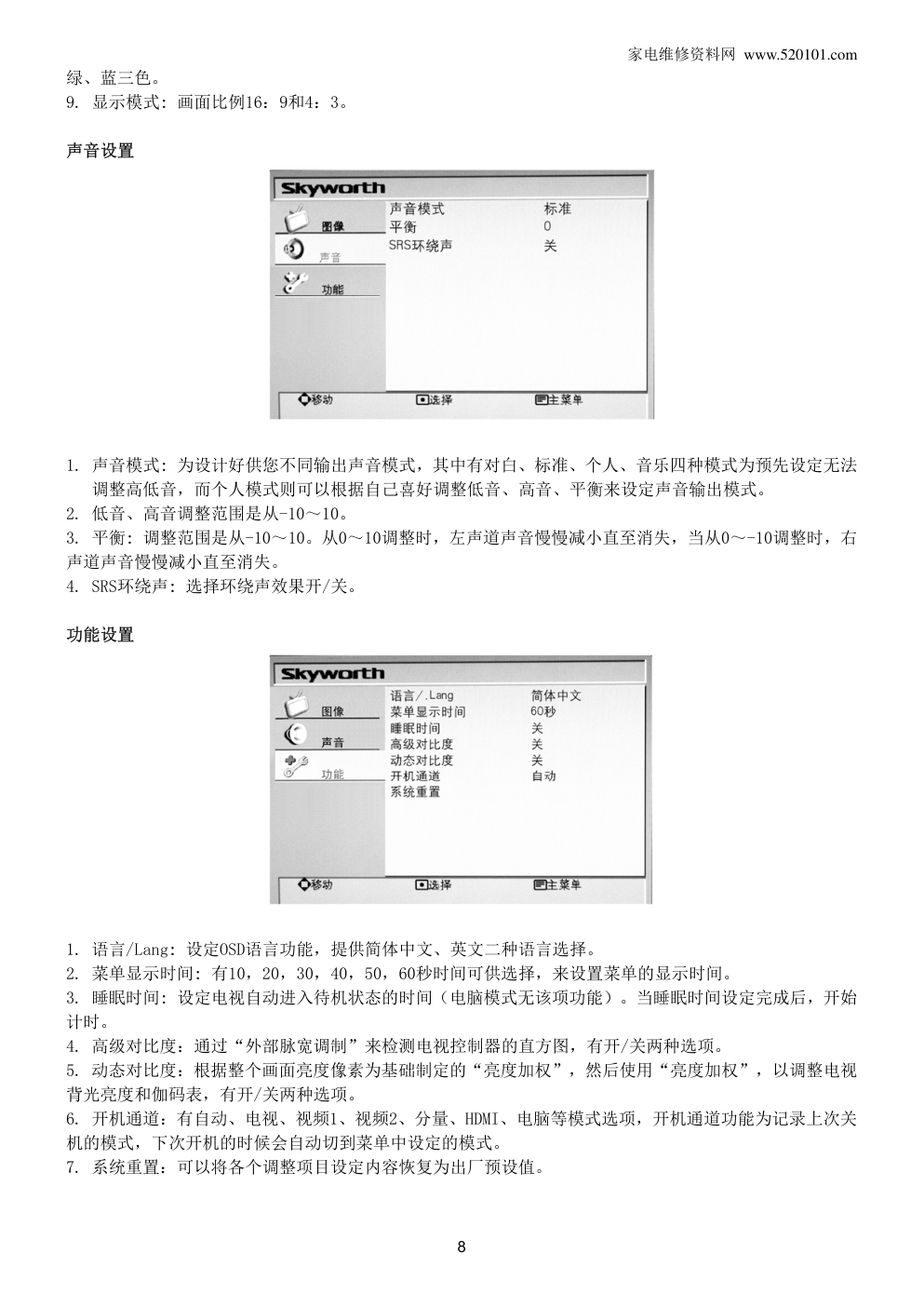

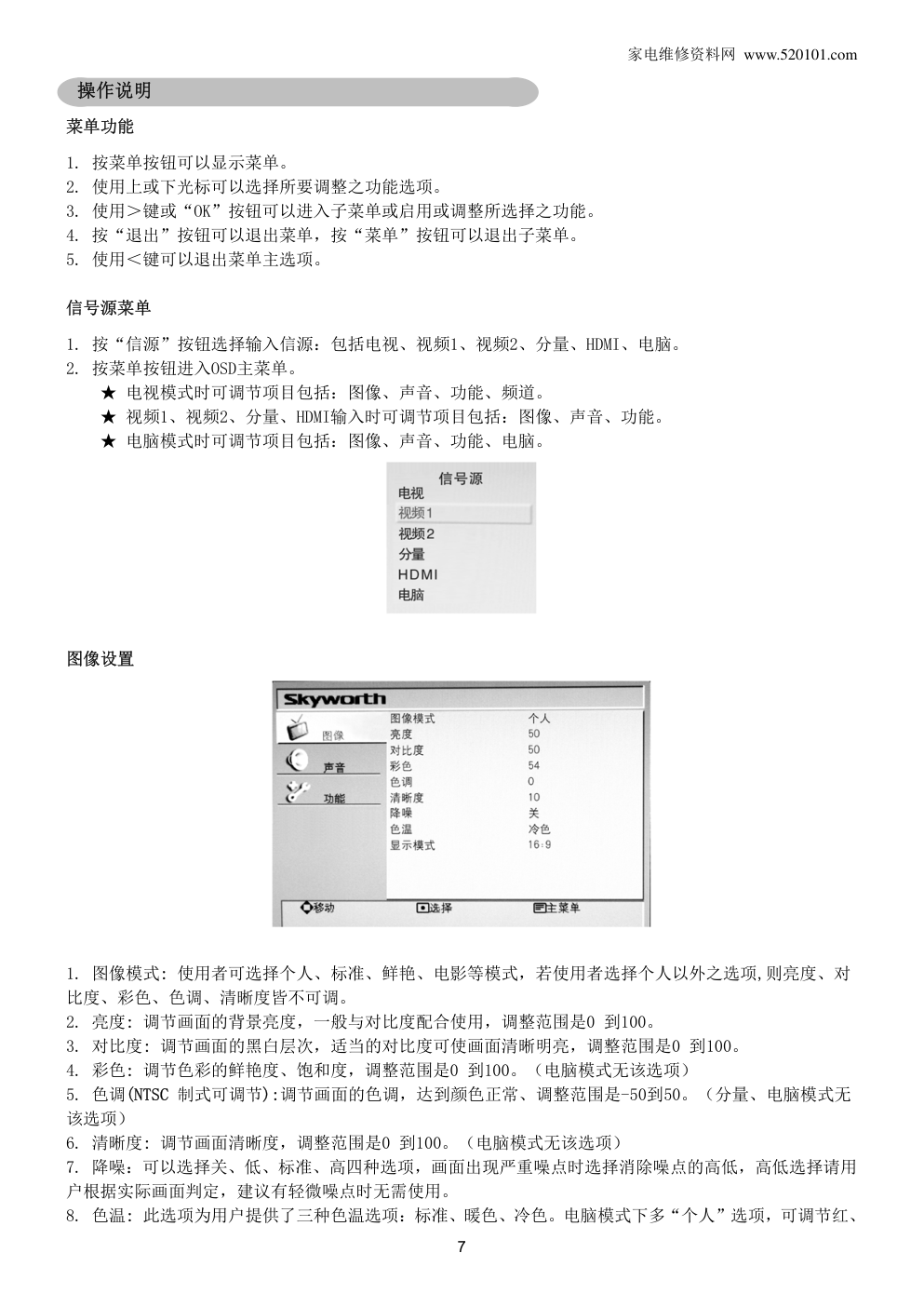

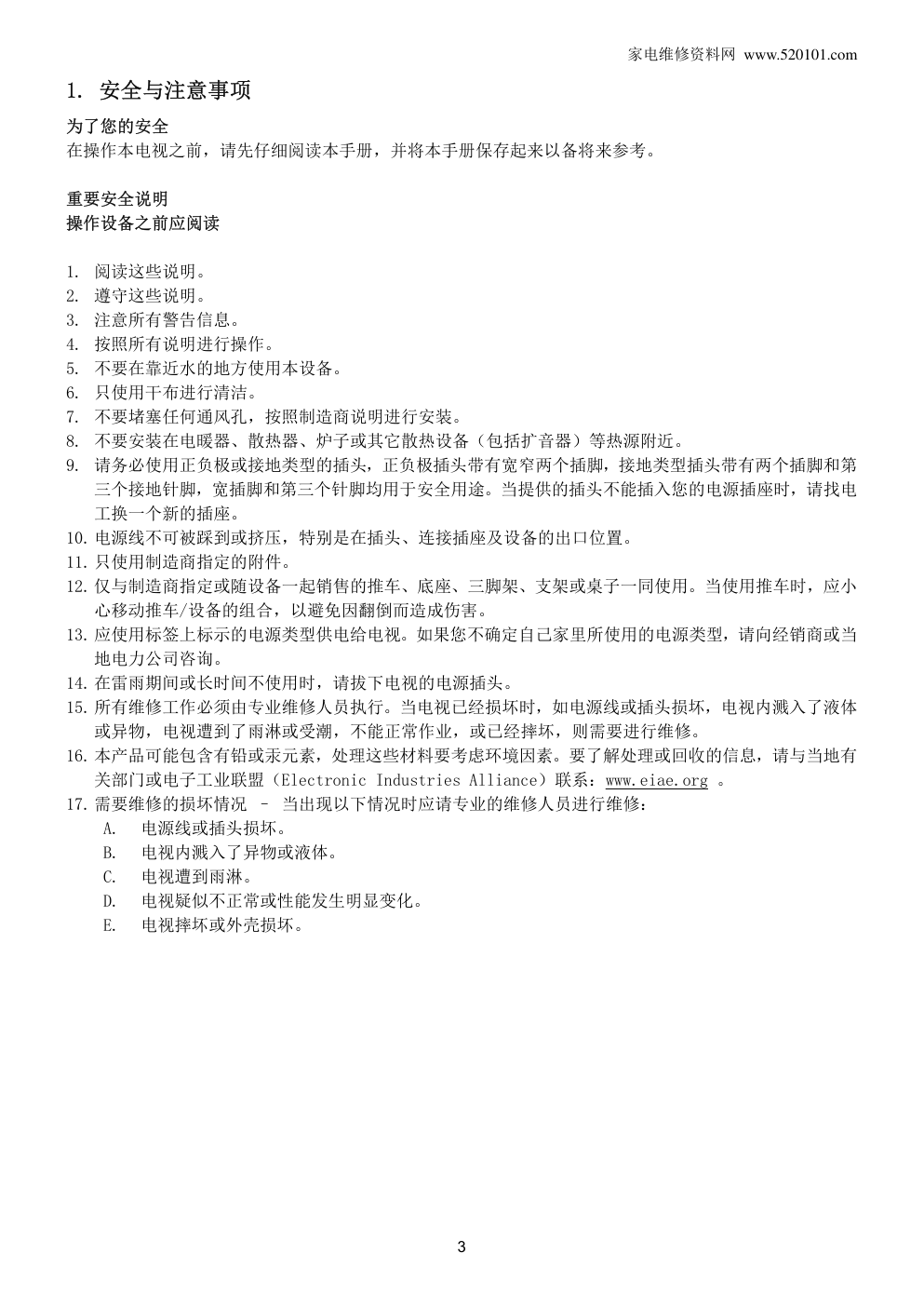

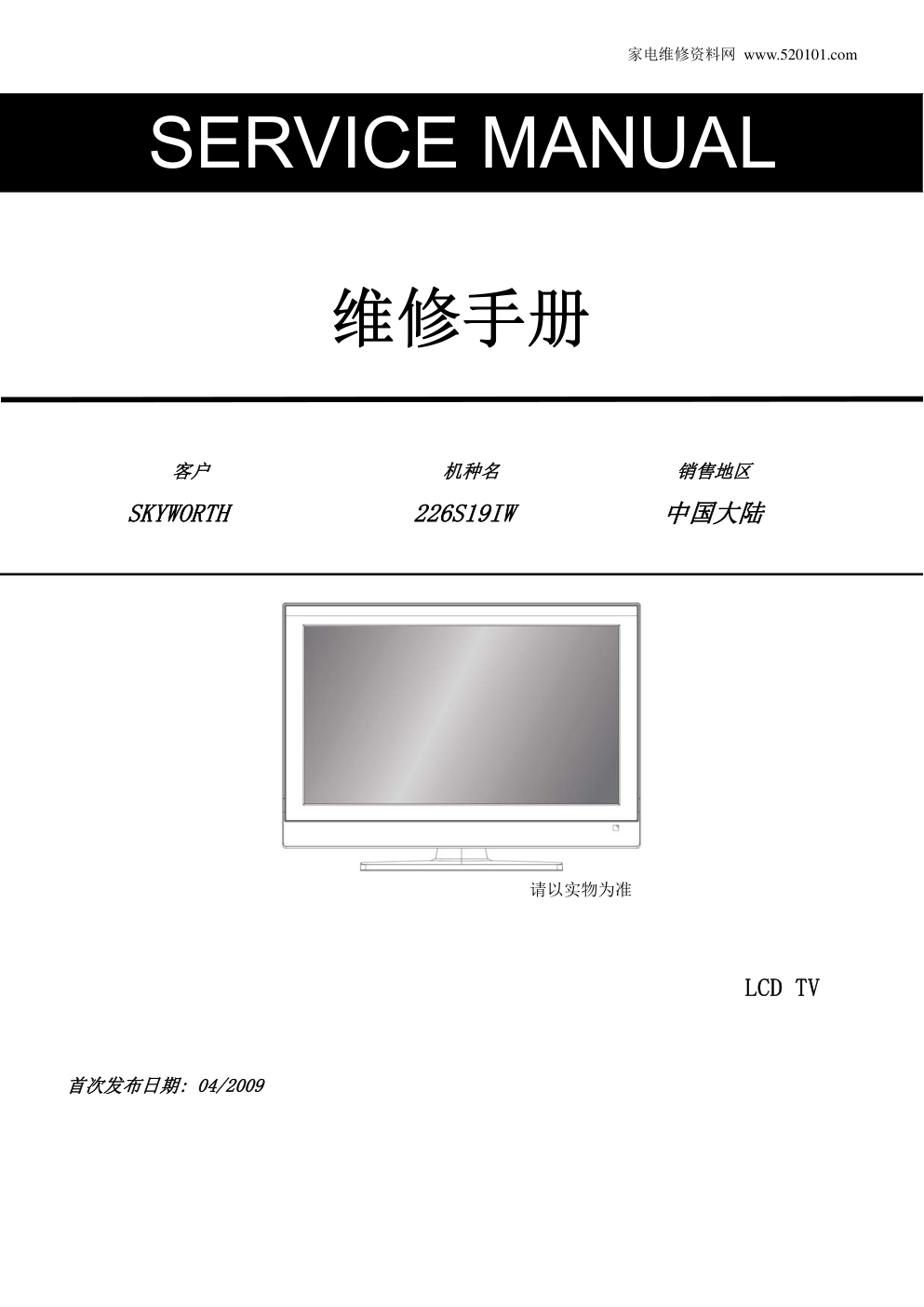

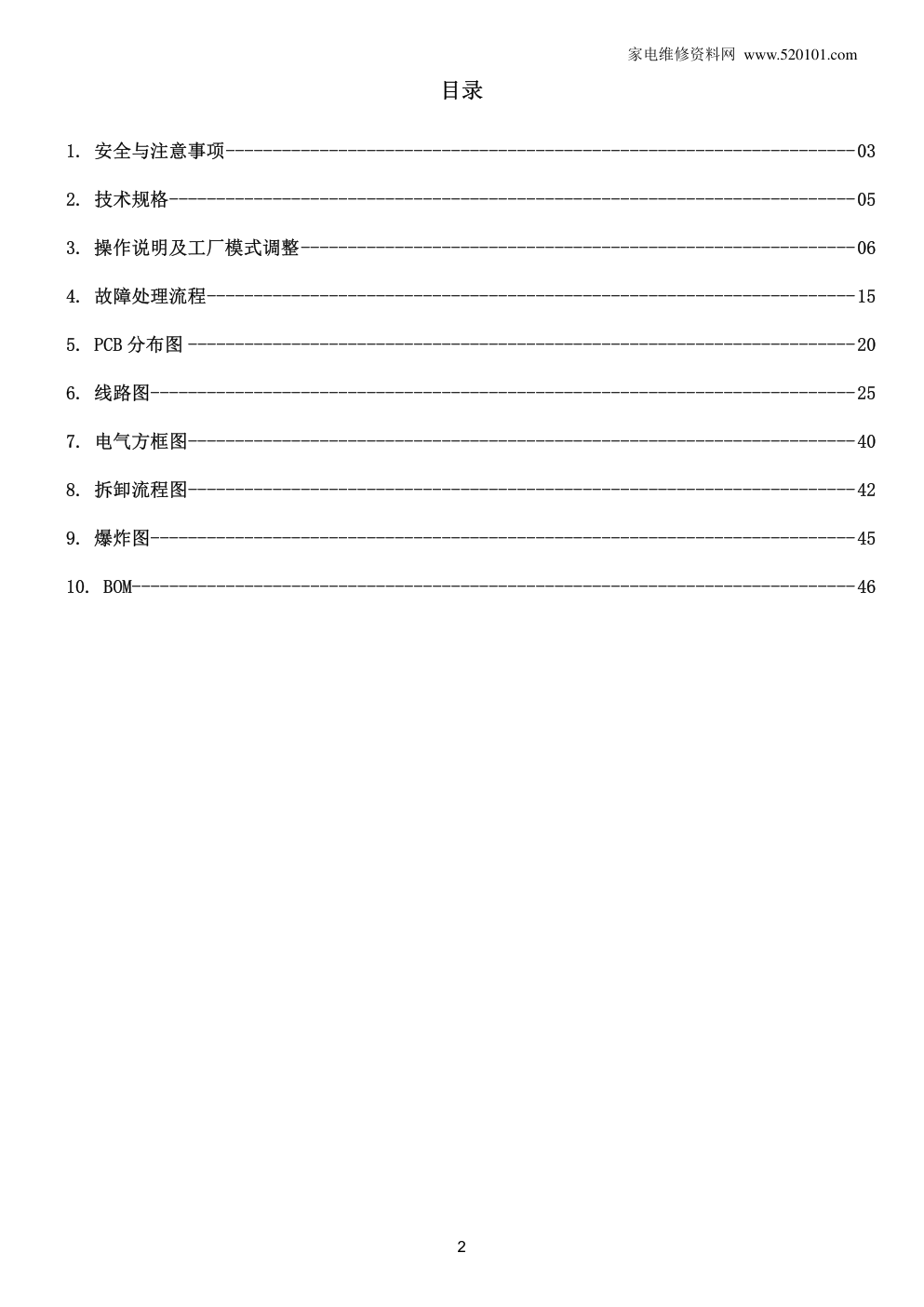

家电维修资料网 www.520101.com 维修手册 客户 机种名 销售地区 SKYWORTH 226S19IW 中国大陆 请以实物为准 LCD TV 首次发布日期: 04/2009 SERVICE MANUAL 家电维修资料网 www.520101.com 2 目录 1. 安全与注意事项 ------------------------------------------------------------------- 03 2. 技术规格 ------------------------------------------------------------------------- 05 3. 操作说明及工厂模式调整 ----------------------------------------------------------- 06 4. 故障处理流程 --------------------------------------------------------------------- 15 5. PCB 分布图 ----------------------------------------------------------------------- 20 6. 线路图 --------------------------------------------------------------------------- 25 7. 电气方框图 ----------------------------------------------------------------------- 40 8. 拆卸流程图 ----------------------------------------------------------------------- 42 9. 爆炸图 --------------------------------------------------------------------------- 45 10. BOM----------------------------------------------------------------------------- 46 家电维修资料网 www.520101.com 3 1. 安全与注意事项 为了您的安全 在操作本电视之前，请先仔细阅读本手册，并将本手册保存起来以备将来参考。 重要安全说明 操作设备之前应阅读 1. 阅读这些说明。 2. 遵守这些说明。 3. 注意所有警告信息。 4. 按照所有说明进行操作。 5. 不要在靠近水的地方使用本设备。 6. 只使用干布进行清洁。 7. 不要堵塞任何通风孔，按照制造商说明进行安装。 8. 不要安装在电暖器、散热器、炉子或其它散热设备（包括扩音器）等热源附近。 9. 请务必使用正负极或接地类型的插头，正负极插头带有宽窄两个插脚，接地类型插头带有两个插脚和第 三个接地针脚，宽插脚和第三个针脚均用于安全用途。当提供的插头不能插入您的电源插座时，请找电 工换一个新的插座。 10. 电源线不可被踩到或挤压，特别是在插头、连接插座及设备的出口位置。 11. 只使用制造商指定的附件。 12. 仅与制造商指定或随设备一起销售的推车、底座、三脚架、支架或桌子一同使用。当使用推车时，应小 心移动推车/设备的组合，以避免因翻倒而造成伤害。 13. 应使用标签上标示的电源类型供电给电视。如果您不确定自己家里所使用的电源类型，请向经销商或当 地电力公司咨询。 14. 在雷雨期间或长时间不使用时，请拔下电视的电源插头。 15. 所有维修工作必须由专业维修人员执行。当电视已经损坏时，如电源线或插头损坏，电视内溅入了液体 或异物，电视遭到了雨淋或受潮，不能正常作业，或已经摔坏，则需要进行维修。 16. 本产品可能包含有铅或汞元素，处理这些材料要考虑环境因素。要了解处理或回收的信息，请与当地有 关部门或电子工业联盟（Electronic Industries Alliance）联系：www.eiae.org 。 17. 需要维修的损坏情况 – 当出现以下情况时应请专业的维修人员进行维修： A. 电源线或插头损坏。 B. 电视内溅入了异物或液体。 C. 电视遭到雨淋。 D. 电视疑似不正常或性能发生明显变化。 E. 电视摔坏或外壳损坏。 家电维修资料网 www.520101.com 4 倾斜度/稳定性 – 所有电视在机壳设计倾斜度和稳定性方面都必须符合建议的全球国际标准。  请不要在机壳的前面或顶部用强力来检查这些设计标准，这样做可能会使电视翻倒。  另外，不要将电子设备/玩具放在机壳上，以免对自己或孩子造成伤害。这些对象可能会意外从电 视机上掉下来，从而造成产品损坏或人身伤害。 18. 墙壁或天花板安装 – 将此设备安装到墙壁或天花板上时，必须遵循制造商的建议。 19. 电力线路 – 室外天线应远离电力线路。 20. 室外天线接地 – 如果外部天线连接到接收器，确定该天线系统已接地，可以提供保护，能防止电涌和 静电聚集。 National Electric Code 的 810 节， ANSI/NFPA No. 70-1984 提供了以下方面的信息：线网正确接 地，天线引入线到天线放电装置的支撑结构接地，接地接头的大小，天线充电装置的位置，接地电极的 连接，以及接地电极的要求。请参阅下图。 按照国家电力法规天线接地的实例 CATV 系统安装者注意：CATV 系统安装者应注意 NEC 的第 820-40 条款，它规定了正确接地的原则，特 别是规定了电缆接地应连接到建筑物的接地系统，并且尽可能靠近天线接入点。 将电源插头连接到墙上插座，请确保电视有电源输入！ 21. 异物和液体进入 – 应特别注意不要使异物或液体通过槽孔进入到机壳内。 家电维修资料网 www.520101.com 5 2. 技术规格 家电维修资料网 www.520101.com 6 3. 操作说明及工厂模式调整 使用遥控器说明 菜单功能 家电维修资料网 www.520101.com 7 菜单功能 1. 按菜单按钮可以显示菜单。 2. 使用上或下光标可以选择所要调整之功能选项。 3. 使用＞键或“OK”按钮可以进入子菜单或启用或调整所选择之功能。 4. 按“退出”按钮可以退出菜单，按“菜单”按钮可以退出子菜单。 5. 使用＜键可以退出菜单主选项。 信号源菜单 1. 按“信源”按钮选择输入信源：包括电视、视频1、视频2、分量、HDMI、电脑。 2. 按菜单按钮进入OSD主菜单。 ★ 电视模式时可调节项目包括：图像、声音、功能、频道。 ★ 视频1、视频2、分量、HDMI输入时可调节项目包括：图像、声音、功能。 ★ 电脑模式时可调节项目包括：图像、声音、功能、电脑。 图像设置 1. 图像模式: 使用者可选择个人、标准、鲜艳、电影等模式，若使用者选择个人以外之选项,则亮度、对 比度、彩色、色调、清晰度皆不可调。 2. 亮度: 调节画面的背景亮度，一般与对比度配合使用，调整范围是0 到100。 3. 对比度: 调节画面的黑白层次，适当的对比度可使画面清晰明亮，调整范围是0 到100。 4. 彩色: 调节色彩的鲜艳度、饱和度，调整范围是0 到100。（电脑模式无该选项） 5. 色调(NTSC 制式可调节):调节画面的色调，达到颜色正常、调整范围是-50到50。（分量、电脑模式无 该选项） 6. 清晰度: 调节画面清晰度，调整范围是0 到100。（电脑模式无该选项） 7. 降噪：可以选择关、低、标准、高四种选项，画面出现严重噪点时选择消除噪点的高低，高低选择请用 户根据实际画面判定，建议有轻微噪点时无需使用。 8. 色温: 此选项为用户提供了三种色温选项：标准、暖色、冷色。电脑模式下多“个人”选项，可调节红、 操作说明 家电维修资料网 www.520101.com 8 绿、蓝三色。 9. 显示模式: 画面比例16：9和4：3。 声音设置 1. 声音模式: 为设计好供您不同输出声音模式，其中有对白、标准、个人、音乐四种模式为预先设定无法 调整高低音，而个人模式则可以根据自己喜好调整低音、高音、平衡来设定声音输出模式。 2. 低音、高音调整范围是从-10～10。 3. 平衡: 调整范围是从-10～10。从0～10调整时，左声道声音慢慢减小直至消失，当从0～-10调整时，右 声道声音慢慢减小直至消失。 4. SRS环绕声: 选择环绕声效果开/关。 功能设置 1. 语言/Lang: 设定OSD语言功能，提供简体中文、英文二种语言选择。 2. 菜单显示时间: 有10，20，30，40，50，60秒时间可供选择，来设置菜单的显示时间。 3. 睡眠时间: 设定电视自动进入待机状态的时间（电脑模式无该项功能）。当睡眠时间设定完成后，开始 计时。 4. 高级对比度：通过“外部脉宽调制”来检测电视控制器的直方图，有开/关两种选项。 5. 动态对比度：根据整个画面亮度像素为基础制定的“亮度加权”，然后使用“亮度加权”，以调整电视 背光亮度和伽码表，有开/关两种选项。 6. 开机通道：有自动、电视、视频1、视频2、分量、HDMI、电脑等模式选项，开机通道功能为记录上次关 机的模式，下次开机的时候会自动切到菜单中设定的模式。 7. 系统重置：可以将各个调整项目设定内容恢复为出厂预设值。 家电维修资料网 www.520101.com 9 电视设定 以下菜单只有在电视模式才出现： 1. 自动搜台: 用于给用户自动搜索并存储节目功能，按“菜单”键可以退出自动搜台模式。 2. 更新搜台：保留已存储节目并重新开始搜台，按“菜单”键可以退出更新搜台模式。 3. 手动搜台: 按右按钮进入子菜单，如图。 ★ 频道号: 显示当前电视频道号。 ★ 节目名称: 显示当前电视频道名。 ★ 频率: 显示当前电视频道频率。 ★ 彩色制式：显示当前电视信号彩色制式，若发现图像效果不正常，可用此键在电视的彩色制式（PAL、 NTSC）中调整。各个国家和地区采用的彩色制式可能不同，搜台前请确认您所在的地区采用何种制式。我 国内地的彩色制式一般为PAL。 ★ 声音制式: 显示当前电视信号声音制式，若发现声音效果不正常，可用次键在电视的声音制式（DK、 M、BG、I）中调整。各个国家和地区采用的声音制式可能不同，搜台前请确认您所在的地区采用何种制式。 我国内地的声音制式一般为DK。 ★ AFC：可以被设定为开和关，当设定为开时，电视会对电视信号自动侦测，在一定频率范围内当信号 有偏移时会自动调整频道到正确位置。 家电维修资料网 www.520101.com 10 4. 频道列表：按右按钮进入子菜单，如图。 可以按照菜单最下方的指示，对频道列表进行编辑。 电脑设置 以下菜单只有在电脑模式才出现 1. 自动调节: 将电脑画面调整到最佳位置。 2. 水平位置，垂直位置: 调整范围-50～50，手动调整电脑画面位置。 3. 时钟（时序），相位: 调整范围-50～50，手动调整电脑画面。 家电维修资料网 www.520101.com 11 控制面板 连接外部设备 家电维修资料网 www.520101.com 12 主机背板信源接口 家电维修资料网 www.520101.com 13 工厂模式调整 进行白平衡调整之前，大约需要有2小时的时间来对机器进行预热。 进行白平衡调整之前，请先对彩色分析仪Ca210进行设置。 Channel 1为北美向系列机种使用通道。 Color Temp PC CVBS，S-Video，Component Warm Cool Normal Warm Cool Normal x 0.324 0.276 0.285 0.299 0.274 0.287 y 0.354 0.298 0.310 0.305 0.284 0.295 LV Panel最大亮度 表1 白平衡调整Source及色温标准 整个白平衡调整的操作过程如下： 先按菜单健，出现主菜单，再依次按数字键 1  9  9  9，就会出现工厂OSD菜单，即进入工厂模式。 如图1所示(类似图片): 图1 工厂OSD菜单 1. 在工厂OSD菜单中选择“Source”来选择不同Source色温调整（PC/AV/S-Video/component等）； 2. 选择好Source，选择工厂菜单的“Color Temp”选择调整相应Source的色温选项,如图2所示： R、G、B R, G, B 增益调整； 图 2 家电维修资料网 www.520101.com 14 注意： 1） 所有Source调整WARM，COOL，NORMAL，其中PC timing 为137（1024*768 60hz），AV timing 为303 （NTSC 制式），YPbPr timing 为311（576I），HDMI timing为350 （1080I）。 2）在所有色温调整之前，请先做PC(timing137,pat185)和 YPbPr(timing311,pat185)的Auto Color。备注： YPbPr需要接三个线，做彩阶的YPbPr 100IRE。 3）此机种一般情况下无需调整 W/B，只需要做 Auto Color 动作即可。 家电维修资料网 www.520101.com 15 4. 故障处理流程 4.1 死机 (LED 灯不亮) NG 无LED指示灯 检测电源线及电源板接口 OK 检测按键板 更换相关元件 OK 检测F901、BD901、C925 NG 更换F901或BD901或C925 检测IC901、Q901 更换IC901或Q901 检测C954，C959及其他相关点位 OK 检测T901，T902 NG 更换T901，T902 NG OK 检测D950、D952 更换D950、D952 NG OK 家电维修资料网 www.520101.com 16 4.2 无画 (LED 橙色) 4.3 无显示（LED 绿灯） NG 更换按键板或遥控器 OK 检测 U701，U703, U707, U708 NG 更换 U701，U703, U707, U708 检测 U405 NG 更换 U405 OK OK 检测按键板及遥控器 检测 I 2C 总线 无画 OK 检测12V供电 检测Panel NG 更换Panel 检测有无背光 OK 检测LVDS接口和线材 OK 检测U405 NG 更换U405 OK 检测Q408 NG 更换Q408 NG NG OK 检测BL-ON/OFF信号 检测PS信号 OK OK 检测电源板 NG NG NG 检测Q708、Q709 更换Q708、Q709 家电维修资料网 www.520101.com 17 4.4 画异 检查 TV 制式 检查 信号源 重接信号源 检查 信号滤波电路 换 滤波电容，电阻 TV 信号 检查 TU201 AV, S-video, Comp，PC信号 检查 LVDS 线 检查 输入 换 LVDS 线 检查 panel 换 panel 画异 NG OK NG OK OK NG 更换 TU201 NG 重调制式 OK 检查U405 OK NG OK NG 更换U405 NG 家电维修资料网 www.520101.com 18 4.5 无声 检测信号源 NG OK 检测输入信号 TV SIF 检测TV制式 重调TV制式 NG 检测TU201 NG 更换TU201 检测U601 OK OK 更换U601 NG 检测U603/U604 OK NG 更换U603/U604 检测喇叭 NG 更换喇叭 检测是否被静音 关闭静音功能 NG 重接信号源 家电维修资料网 www.520101.com 19 4.6 按键板 OSD 不稳定或无法正常工作 按键板连接正常吗？ 接好按键板 按键正常吗？ 更换按键 OK NG 按键板有无故障？ 更换按键板 检查主板 NG OK NG OK 家电维修资料网 www.520101.com 20 5. PCB 分布图 5.1 主板 715G3365M0F000004K 家电维修资料网 www.520101.com 21 家电维修资料网 www.520101.com 22 5.2 电源板 5.2.1 电源适配器 715G3418P010HV003M 家电维修资料网 www.520101.com 23 5.2.2 升压板 715G3335 1 2 家电维修资料网 www.520101.com 24 5.3 按键板 715G3293 1 家电维修资料网 www.520101.com 25 6.线路图 主板 715G3365M0F000004K C710 NC GND ADC 3.3V +12V GND V33_AUD R727 1K OHM 1/16W GND R713 1K OHM 1/16W 2008-12-17 5VSB R709 10K OHM 1/10W VCC5 GND C707 0.1uF 50V VCC12 C720 0.1uF 50V GND PW_ON 12 POWER_ON 12 U705 NC 1 2 3 ADJ(GND) VOUT VIN + C716 220uF/16V V33_ADC Q705 PMBS3904 VCC18 VCC8 GND H6 NC 1 1 VCC8 +5V C732 NC C744 NC C743 0.1uF 50V V1 NC 1 1 TP402 V12_ADP C705 0.1uF/16V GND VCC5 VCC3 V_IPWM R720 1K OHM 1/16W GND GND TP403 H1 NC 1 1 VCC18 12V SW VCC3 5VSB GND Q702 AO3407 C725 4.7uF/16V FB706 300 OHM 1 2 C730 0.1uF 50V VCC12 VCC3 C738 0.1uF 50V GND H3 NC 1 1 BL_ON 12 H2 NC 1 1 5VSB C719 0.1uF 50V GND C733 0.1uF 50V GND VCC8 GND + C708 100uF/16V R729 1K OHM 1/16W + C727 470uF/16V C712 NC 5VSB BL_ON1 2008-11-11 GND V12_ADP + C734 220uF/16V R725 10K OHM 1/10W C746 NC VCC12 R728 10K OHM 1/10W GND GND R734 1K OHM 1/16W GND VCC5 2008-10-6 V33_AUD PWR_ON U707 2 3 1 VOUT VIN GND + C742 220uF/16V 2008-9-10 VCC5 GND AUDIO MUX / Amplifier 8V V33_ADC R718 NC + C703 100uF/16V R733 10K OHM 1/10W V33_AUD C717 0.1uF 50V R705 NC C747 NC 5VSB 5VSB GND AUDIO 3.3V GND C731 NC R703 NC FB709 300 OHM 1 2 PWR_ON 2009-1-22 GND C739 0.1uF 50V H4 NC 1 1 5VSB Q707 PMBS3904 C737 NC V33_ADC Q708 PMBS3904 C748 0.001uF GND C749 0.001uF H5 NC 1 1 GND R701 330R 1/10W 5% 2009-1-22 H7 NC 1 1 F A2 4 13 Tuesday, April 07, 2009 715T3365 称爹 < > 03.Power OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 + C718 220uF/16V CN701 CONN 33A3802-12B 1 2 3 4 5 6 7 8 9 10 11 12 VCC18_CORE R717 10K OHM 1/10W GND GND POWER_ON 12 R702 0 OHM 1/10W Q711 PMBS3904 + C741 220uF/16V + C715 470uF/16V C721 0.1uF 50V V33_AUD GND C736 NC U708 AIC1084-18PM 2 3 1 OUT IN GND Q703 PMBS3904 U703 AZ1117D-1.8-E1 1 2 3 ADJ/GND OUTPUT INPUT R726 10K OHM 1/16W 2008-9-10 5V SW GND 3.3V StandBy FB702 NC SYS_PW Normal: Low Stand_By: High VCC5 E_PAD GND GND GND 5V TO 3.3V TO 1.8V 2009-1-22 C735 0.1uF 50V V_IPWM C713 4.7uF/16V Q704 PMBS3904 VCC12 R719 10K OHM 1/10W + C722 100uF/16V ZD701 RLZ9.1B 1 2 C711 NC + C740 220uF/16V 5VSB C726 0.1uF 50V GND BL_ADJ 11 Q709 PMBS3904 + C704 100uF/16V 5VSB Q706 AO4449 -7A/-30V 1 2 3 4 8 7 6 5 S S S G D D D D C724 0.1uF 50V C723 NC 5VSB GND R716 22K OHM 1/16W + C701 10uF/16V V12_ADP V33_AUD VCC3 5VSB R710 10K OHM 1/16W GND GND BL_ON1 R712 1K OHM 1/16W C729 NC C728 0.1uF 50V C706 NC + C702 10uF/16V Q710 PMBS3904 C745 NC U701AIC1084-33PM 3 1 2 VIN ADJ VOUT GND R704 22K OHM 1/16W C714 0.1uF 50V R731 1K OHM 1/16W GND C709 NC FB701 300 OHM 1 2 SYS_PW Normal: Low Stand_By: High VCC5 GND 家电维修资料网 www.520101.com 26 VCC3 HDMIA_CEC R305 10K OHM 1/10W HA_CEC 9 5VSB HA5V_DET 11 SP305 1 2 RXA2P_M2 9 RXA2N_M2 SP310 1 2 R316 47K 1/16W 5% F A3 5 13 Tuesday , April 07, 2009 715T3365 称爹 < > 04.HDMI OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 RXACLKN_M2 HDMIA_5VIN HDMIA_HPD R317 NC RXA0N_M2 RXA0P_M2 9 SP303 1 2 R313 0R05 1/10W 5% SP306 1 2 DDCA_SCL 2009-1-16 DDCHA_SDA 9 SP302 1 2 5VSB HDMIA_5VIN DDCA_SCL R312 0R05 1/10W 5% SP304 1 2 HDMIA_5VIN Q302 PMBS3904 EDID_WP 12 DDCA_SCL U304 NC 1 2 3 4 5 6 7 8 9 10 IN1 IN2 GND IN3 IN4 OUT4 OUT3 GND OUT2 OUT1 U301 NC 1 2 3 4 5 6 7 8 A0 A1 A2 VSS SDA SCL WP VCC SP301 1 2 Q303 PMBS3904 DDCA_SDA RXA1N_M2 R308 1M 1/10W 5% RXA2N_M2 9 HA5V_DET HDMIA_CEC R311 NC RXA0P_M2 HDMIA_5V_EEPROM RXACLKP_M2 RXA1N_M2 9 SP308 1 2 U302 NC 1 2 3 4 5 6 7 8 9 10 IN1 IN2 GND IN3 IN4 OUT4 OUT3 GND OUT2 OUT1 DDCHA_SCL 9 DDCA_SDA RXA2P_M2 R309 47K 1/16W 5% D301 BAT54C R303 1K OHM 1/16W HDMIA_5VIN DDCA_SCL DDCA_SDA Q301 2N7002 D302 NC 1 2 RXA1P_M2 RXACLKN_M2 9 HDMIA_5VIN R307 27K OHM 1/16W RXA1P_M2 9 R306 1K OHM 1/16W HPDA 9 HDMIA_CEC 5VSB D303 NC 1 2 RXACLKP_M2 9 HDMIA_CEC CN301 HDMI 7 9 4 6 1 3 15 5 18 11 19 14 2 13 16 17 8 10 12 20 21 22 23 24 25 26 TMDSD0+ TMDSD0- TMDSD1+ TMDSD1- TMDSD2+ TMDSD2- SCL DSHLD1 VCC5 CSHLD0 HPD NC DSHLD0 CEC SDA DDC_GND DSHLD2 TMDSC+ TMDSC- SHLD_GND1 SHLD_GND2 SHLD1 SHLD2 SHLD3 SHLD4 SHLD5 U303 NC 1 2 3 4 5 6 7 8 9 10 IN1 IN2 GND IN3 IN4 OUT4 OUT3 GND OUT2 OUT1 R302 10K OHM 1/10W HDMIA_5VIN C304 NC 5VSB SP309 1 2 SP307 1 2 RXA0N_M2 9 R304 10K OHM 1/10W SP311 1 2 DDCA_SDA R310 47K 1/16W 5% 家电维修资料网 www.520101.com 27 TGND R237 0R05 1/16W R206 2.2uH R221 NC TGND R219 NC SH203 C234 NC IFAGC 10 R224 NC L207 NC +5VT TSCL +5VT ADCINP 10 TUN_AUD +5VT C208 220PF50V +5VT R215 NC 1 RFAGC 10 5V for Tuner IF_AGC SH202 C227 NC SIF C220 NC TV_CVBS AS_IF R202 NC TU201 M15WPP-2PN-E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 NC NC Vb SCL SDA AS NC NC NC NC IF_SOUND CVBS VS AF_SOUND TH1 TH2 TH3 TH4 R208 100 OHM 1/10W TV_CVBS TUN_AUD 10 T_CVBS SH206 GND T_CVBS 9 AS_IF FB202 300 OHM R238 0R05 1/16W R214 NC 1 TGND U202 AZ1117D-5.0-E1 ADJ/GND 1 2 3 ADJ/GND OUTPUT INPUT C202 0.1uF 50V C239 NC SCL_A 11 R213 NC R223 NC R203 47 OHM 1/2W SIF ADCINN 10 R216 NC SH201 R207 18R OHM 1/16W 5% +5VT GND C229 NC R212 NC R217 NC 1 GND SIF 10 C206 0.1uF 50V C205 0.1uF 50V TSCL R205 47 OHM 1/2W IF+OUT TGND GND SDA_A_Tuner 12 RF_AGC C230 NC TSDA F A3 6 13 Tuesday , April 07, 2009 715T3365 称爹 < > 05.TUNER OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 C240 NC Q201 NC + C204 100uF/16V TGND SCL_A_Tuner 12 TGND SH207 VCC12 VCC3 R218 NC TGND IF+OUT IF_AGC SH205 IF-OUT ADS +5VT TSDA IF-OUT R204 0 OHM 1/10W +5VT L208 NC SH204 R222 NC 1 C212 NC GND TUN_AUD R210 56 OHM 1/16W C207 220PF50V TGND Q202 NC TGND C213 NC L206 NC R220 NC C228 NC TGND RF_AGC C215 NC VCC3 SDA_A 11 ADS TGND + C203 100uF/16V 家电维修资料网 www.520101.com 28 SOGAIN 9 R110 75R C112 NC Y1_IN C101 0.047uF R196 20K OHM 1/10W C130 75R R111 33R 1/10W 5% D105 RLZ5.6B 1 2 R113 390 OHM 1/10W RGB_R1 R195 20K OHM 1/10W BLU_GND 5VSB GND PB1_IN SP102 NC 1 2 VGA_HIN C104 NC GRN_GND R105 390 OHM 1/10W R104 60 OHM 1 2 R197 NC R125 100 OHM 1/10W PR_GND VGA_5V PR1_IN RED_GND R106 2.2K OHM 1/10W C121 75R ZD603 NC 1 2 C128 NC RED GRN VSYNC RGB_G1 R124 NC UART_TX 11 VGASCL_IN VGASDA_IN VGASDA_IN R112 2.2K OHM 1/10W SP103 NC 1 2 CN102 DSUB15-FEM 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 18 19 SP105 NC 1 2 RED_GND D108 1 2 R119 4.7K C109 NC C107 NC R102 390 OHM 1/10W RED CN103 PHONEJACK 1 2 3 HSYNC R121 4.7K OHM 1/16W R135 0R05 1/10W 5% R144 NC EDID_WP 12 VGA_AUR_O R103 33R 1/10W 5% D109 NC 1 2 C127 75R D133 NC FB605 100R 1/10W 5% D115 NC 1 2 GRN_GND 5VSB SP106 NC 1 2 U101 NC 1 2 3 4 5 6 7 8 A0 A1 A2 VSS SDA SCL WP VCC VGA_VIN R107 75R R127 100 OHM 1/10W C131 NC C105 NC D106 NC 1 2 BAIN 9 CN104 JACK 2 1 4 3 6 5 8 7 10 9 Y_GND VGA_AUR 10 COM1_AUL 10 SP104 NC 1 2 BLU R123 NC FB102 80 OHM 1 2 PB_GND FB604 100R 1/10W 5% D101 BAT54C VGA_VIN R114 75R RGB_B1 C124 4.7uF/16V BLU_GND GND COM1_AUL_O C122 100PF VGASCL_IN R132 0R05 1/10W 5% PB2_IN C115 10uF/16V Y1_IN R118 27K OHM 1/16W D102 RLZ5.6B 1 2 R128 0R05 1/10W 5% C106 0.047uF R198 NC F A3 7 13 Tuesday , April 07, 2009 715T3365 称爹 < > 06.VGA/YPbPr Connector OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 FB101 80 OHM 1 2 R101 60 OHM 1 2 PR_GND SP112 1 2 C110 0.047uF GAIN 9 VGA_AUL 10 BLU GND PR2_IN VGA_5V_EEPROM PB_GND SP111 NC 1 2 UART_RX 11 COM1_AUR_O D111 NC 1 2 D104 1 2 PR1_IN R120 4.7K VGA_HIN SP114 NC 1 2 R108 60 OHM 1 2 Y2_IN VGA_DDCSDA 9 D112 NC 1 2 RAIN 9 GRN ZD602 NC 1 2 HSYNC 9 VGA_5V D103 1 2 C117 0.22uF COM1_AUR 10 R109 390 OHM 1/10W C103 NC C108 NC VGA_AUL_O SP108 NC 1 2 Y_GND R117 27K OHM 1/16W VSYNC 9 YPbPr1 INPUT COM1_AUR_O SP109 NC 1 2 C125 4.7uF/16V SP113 1 2 C111 NC COM1_AUL_O C116 10uF/16V D113 1 2 D114 NC 1 2 R/G/B : 75 Ohm Trace VGA_DDCSCL 9 C102 100pF SP110 NC 1 2 家电维修资料网 www.520101.com 29 SCR_Y 9 CVBS_GND R182 2.2uH Q104 NC C151 4.7uF/16V R183 18R OHM 1/16W 5% C140 NC Q107 NC 1 2 3 C145 NC R139 18R OHM 1/16W 5% R142 56 OHM 1/16W VCC5 C134 NC SP118 NC 1 2 CVBS & R/L R176 100R 1/10W 5% R138 2.2uH C135 220pF SCA1O_L C157 NC CN107B NC 2 1 4 3 6 5 D131 NC 1 2 CVBS_IN SC_IN C160 220pF C161 NC D120 NC 1 2 R189 56 OHM 1/16W R190 NC R179 56 OHM 1/16W R185 56 OHM 1/16W C158 0.1uF 50V SP131 NC 1 2 R180 NC SCA1I_L SC_IN C162 NC GND SY_GND G G C Y CN107A NC 7 8 9 10 11 12 13 SCR_AU_L 10 F A3 8 13 Tuesday , April 07, 2009 715T3365 称爹 < > 07.SCART SV/AV OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜絪 腹 SV/AV_AUR 10 C132 0.1uF 50V SCA1I_R C156 NC C163 0.1uF 50V SVAV_AUR SV/AV_AUL 10 Audio Input SCA1O_L R184 100 OHM 1/10W CVBS_GND SP127 NC 1 2 CN106 NC 2 1 4 3 6 5 R173 NC R158 NC R192 NC R172 NC SVAV_AUL SP117 NC 1 2 SV_Y 9 SCR_AU_R 10 C133 4.7uF/16V SP126 NC 1 2 R188 100 OHM 1/10W R140 100R 1/10W 5% AV_G1 SP115 NC 1 2 D130 NC 1 2 R153 NC SC_GND AVI/Y1 C159 NC R165 27K 1/16W 5% Q108 NC OFF_MUTE 12 D117 NC 1 2 CVBS signal output SCR_AUOUT_L 10 R143 27K 1/16W 5% R186 2.2uH R193 NC 2008-12-17 CVBS 9 SCR_AUOUT_R 10 SP129 1 2 D127 NC 1 2 D126 NC 1 2 R191 NC R174 18R OHM 1/16W 5% R181 NC D123 NC 1 2 D116 NC 1 2 C164 NC AVI/Y1 SVAV_AUR C136 4.7uF/16V CN108 5105-875-092-A4 2 1 4 3 6 5 SCA1O_R SY_IN SP132 NC 1 2 R178 NC SV_C 9 C167 NC C165 220pF OFF_MUTE 12 SCA1I_L SP125 NC 1 2 CVBS_O 9 R162 27K 1/16W 5% SP130 1 2 GND SVAV_AUL R141 27K 1/16W 5% Csync/CVBS/ S-Video(Y) Input C168 220pF S-video Audio Output GND C169 NC OFF_MUTE R175 2.2uH R177 NC Q105 NC CN101 5105-870-083-98 2 1 4 3 6 5 GND FB104 NC 1 2 SY_IN C166 0.1uF 50V R152 NC OFF_MUTE SY_GND SCA1O_R C149 4.7uF/16V R159 NC GND D132 NC 1 2 SC_GND SP128 NC 1 2 R187 18R OHM 1/16W 5% GND D118 NC 1 2 CVBS_IN GND SCA1I_R 家电维修资料网 www.520101.com 30 GND VGA_DDCSDA 7 C313 0.1uF 50V RXA2P_M2 5 RXA2N_M2 5 GND RXA1P_M2 5 C306 0.1uF 50V C333 0.1UF16V V33_ADC C307 0.1uF 50V GND V33_ADC C316 10uF/16V FB302 300 OHM 1 2 V33ADC_PLL FB306 300 OHM 1 2 GND C312 0.1uF 50V FB305 300 OHM 1 2 V33ADC1 RAIN 7 C315 0.1UF16V C330 100pF C325 10uF/16V VSYNC 7 SV_C 8 ADC_VREF GND RXACLKN_M2 5 HSYNC 7 AVDD18 RXA0N_M2 5 RXA1N_M2 5 V33ADC1 C319 0.1UF16V FB307 300 OHM 1 2 ADC 3.3V POWER GND GND SCR_Y 8 V33ADC VCC18 HA_CEC 5 PB1 7 GND GND C332 0.1uF 50V CVBS_O 8 C322 10uF/16V GND SOGAIN 7 VGA_DDCSCL V33HDMI C323 0.1uF 50V PR1 7 C305 10uF/16V VMID R301 0 OHM C321 0.1uF 50V RXA0P_M2 5 Y1 7 V33HDMI R314 1K621/10W C329 0.1uF 50V Slave IIC GND DDCHA_SDA 5 R318 390 OHM 1/10W C334 0.1UF16V VGA_DDCSCL 7 V18_33HDMI C320 0.1UF16V V33HDMI CN302 JST-4-2.0 33A3802-4B 1 2 3 4 FB301 300 OHM 1 2 V18_33HDMI C314 0.1uF 50V C326 0.1uF 50V RXACLKP_M2 5 GND GND GND SV_Y 8 HDMI/ADC U405A HX6201-A 23 27 31 37 24 29 33 38 26 30 34 39 35 40 43 44 13 6 7 8 9 10 11 3 4 15 16 25 28 32 48 47 46 20 21 18 170 171 172 173 168 169 42 2 174 17 1 175 176 12 5 45 41 22 36 14 19 AINA1 SOG2 SOG3 AINA5 AINB1 AINB2 AINB3 AINB4 AINC1 AINC2 AINC3 AINC4 AIND1 AIND4 AOUT1 AOUT2 EXT_R HDMI_RXA0N HDMI_RXA0P HDMI_RXA1N HDMI_RXA1P HDMI_RXA2N HDMI_RXA2P HDMI_RXACKN HDMI_RXACKP HSYNC VSYNC SOG1 AINA2 AINA3 AIN0_FAD AIN1_FAD AIN2_FAD VMIDS VREF FILT GPIO_52/HPD GPIO_53/CEC GPIO_54/HDMIDDC_SDA GPIO_55/HDMIDDC_SCL GPIO_47/DSUBDDC_SDA/UART_TX1 GPIO_48/DSUBDDC_SCL/UART_RX1 VSSA_AD(0V) VSSD(0V) VSSD_AL(0V) VSSDP_AD(0V) VDD18(1.8V) VDDA_AL(1.8V) VDDD_AL(1.8V) DVCC(1.8V) AVDD33_RX BVDDA_AD(3.3V) VDDA_AD(3.3V) VDDA_AD(3.3V) VDDD_AD(3.3V) VDDDP_AD(3.3V) VDDP_AD(3.3V) C318 0.1uF 50V VCC3 C327 0.1uF 50V GND F B 9 13 Tuesday , April 07, 2009 715T3365 称爹 < > 08.M2D HDMI/Analog I/O OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 FB303 300 OHM 1 2 C324 10uF/16V HPDA 5 V33ADC_PLL VGA_DDCSDA HDMI 3.3V POWER V33ADC_PLL C328 0.1uF 50V DDCHA_SCL 5 C331 0.1uF 50V C301 0.01UF25V VCC18 GAIN 7 R319 0 OHM V33ADC AVDD18 C311 0.1UF16V C317 0.1uF 50V FILT REXT BAIN 7 T_CVBS 6 CVBS 8 R315 0 OHM SOY1 7 V33ADC 家电维修资料网 www.520101.com 31 GND Audio Input MUX USB_AUR VCM_ADC SP604 1 2 R641 NC RP601 100 KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 VCC5 C665 NC C654 680P 50V X7R +/-10% SPGND VCC3AD GND VGA_AUR 7 + C610 100uF/16V C622 10uF/16V R633 10K OHM 1/10W F C 10 13 Tuesday , April 07, 2009 715T3365 称爹 < > 09.M2D Audio OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 ADCINN 6 C649 10uF/16V SIF1+ C601 1000pF C656 0.1uF 50V R604 NC RFAGC 6 R624 10K OHM 1/10W MONO_AUD C661 0.1uF 50V GND SV/AV_AUR 8 C648 0.1uF 50V Q604 PMBS3904 Q413 PMBS3906 1 2 3 GND C613 0.1uF 50V GND Q605 PMBS3904 GND VRP C616 1500pF C646 1000pF C641 0.1uF 50V R625 10K OHM 1/10W C605 0.1uF 50V R623 47K OHM 1/16W Q602 PMBS3904 GND R608 0 OHM R626 NC AU_S0 12 SIF_VREFP C604 10uF/16V Q603 PMBS3904 STYAMP_MUT 12 C653 680P 50V X7R +/-10% C603 0.1uF 50V MUX_AUR R612 1K 1/16W 5% GND V33AUD AUDIO U405B HX6201-A 77 78 71 70 50 53 55 57 49 52 54 56 59 60 61 62 63 64 69 68 67 66 74 75 76 73 51 86 84 85 167 79 65 58 ADCINN ADCINP DAC_LSL DAC_LSR LAIN0 LAIN1 LAIN2 LAIN3 RAIN0 RAIN1 RAIN2 RAIN3 VREF_ADC VCM AGSCRT VBG VRN VRP SCART1L SCART1R SCART2L SCART2R SIF_VCMG SIF_VREFN SIF_VREFP VREF(ForPIFADC) VSSA(0V) GPIO_02/SPDIFI GPIO_03/PIF_AGC GPIO_04/PIF_AMP GPIO_40/SPDIFO AVDD(3.3V)(ForPIFADC) AVDD_DAC(3.3V) VDDA(3.3V) C660 NC 2008-11-12 SCR_AU_R 8 FB602 300 OHM 1 2 5VSB VCC_CLAMP CN601 PHONEJACK 1 7 6 2 3 4 5 C634 0.1uF 50V PW_GND EAR_DET SCR_AUOUT_R 8 R637 10K OHM 1/10W VGA_AUL 7 VREF_ADC C643 1UF25V C637 10uF/16V ZD601 RLZ6.8C 1 2 MUX_AUL C636 4.7uF/16V AUDIO 1.8V POWER GND TP601 COM1_AUR 7 AU_S1 12 GND IFAGC 6 MUX_AUR VCC5 SW_AMP_LIN R636 10K OHM 1/10W V12_ADP CN603 CONN 1 2 3 4 R616 100 OHM 1/10W C659 0.1uF 50V GND R605 NC R611 1K 1/16W 5% R622 47K OHM 1/16W MONO_AUD R609 4K7 1/10W 5% U603 TDA7297SA 4 12 7 9 8 5 10 11 1 2 15 14 3 13 6 IN1 IN2 ST_BY S_GND PW_GND NC NC NC OUT1+ OUT1- OUT2+ OUT2- VCC VCC MUTE VCC8 VCC3AD C625 0.1uF C650 1UF25V C647 1UF25V RP602 100 KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 GND R640 NC VRN VRP R618 3 OHM 3W C623 0.1uF SW_AMP_RIN C602 0.1uF 50V R606 0 OHM GND TUN_AUD MUX_AUR GND GND EAR_DET R627 100K OHM 1/10W ADCINP 6 VBG SH602 COM1_AUL 7 GND SW_AMP_LIN V33_AUD GND R615 100 OHM 1/10W SV/AV_AUL 8 COM1_AUL SH603 SIF_VREFP TP603 R632 10K OHM 1/10W R603 10K OHM 1/10W AGSCRT C645 1UF25V SP601 1 2 VCC_CLAMP MUTE_HPHONE 12 VCC_CLAMP USB_AUL R630 47K OHM 1/16W R635 10K OHM 1/10W C666 NC SCR_AUOUT_L 8 SH601 C621 0.1uF C664 NC C629 0.1uF 5VM VCC_CLAMP SIF1- R628 75K 1/10W 5% C662 NC R629 75K 1/10W 5% R619 3 OHM 3W R621 4.7K OHM 1/16W PW_GND GND + C640 1000uF/25V MUX_AUL FB601 300 OHM 1 2 GND C642 1UF25V MONO_AUD C611 0.1uF 50V R631 47K OHM 1/16W GND VCC5 SIF_VREFN C657 1UF25V R607 NC SP603 1 2 SIF1+ C609 330NF50V C617 0.1uF 50V SW_AMP_RIN C639 0.1uF25V C635 4.7uF/16V MUX_AUL R613 0R05 1/10W 5% R602 0 OHM 1/16W C651 680P 50V X7R +/-10% R642 0R05 1/16W 5VSB TUN_AUD 6 R638 10K OHM 1/10W GND GND COM1_AUR C627 0.1uF V33AUD SIF 6 AMP_MUT 12 R620 3 OHM 3W VCC3 R643 0R05 1/16W R617 3 OHM 3W R610 4K7 1/10W 5% C638 0.1uF 50V C606 0.1uF 50V C620 0.1uF 50V PW_GND VRN GND GND SW_AMP_RIN APA2176A U604 13 16 4 1 2 3 5 6 7 8 9 10 11 12 14 15 NC PVDD NC CP+ PGND CP- CVSS VSS LOUT VDD ROUT LIN /RSD RIN GND /LSD 5VM C655 1UF25V R639 10K OHM 1/10W R634 5.1K U601 74HC4052D 12 1 14 5 15 2 11 4 10 9 7 8 6 13 3 16 1Y0 2Y0 1Y1 2Y1 1Y2 2Y2 1Y3 2Y3 S0 S1 VEE GND /E 1Z 2Z VCC RP603 100 KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 SIF1- FB606 300 OHM 1 2 GND SIF_VREFN GND SCR_AU_L 8 R614 0R05 1/10W 5% Tuner input C615 1500pF VREFI_PIF C658 0.1uF 50V RP604 100 KOHM +-5% 1/16W 1 2 3 4 8 7 6 5 C663 0.1uF 50V SW_AMP_LIN SIF_VCMG C652 680P 50V X7R +/-10% C644 1UF25V C631 0.1uF 家电维修资料网 www.520101.com 32 L_Y UART_TX R407 1K 1/10W 5% VCC3 SP406 NC 1 2 R423 4.7K OHM 1/10W LEDG 12 LU_SEN UART_TX GPIO35 SCL_A 6 IRVCC TSTMD C403 0.22uF R421 10K OHM 1/10W GND U404 M24C32-WMN6TP 4 8 5 6 1 2 3 7 VSS VCC SDA SCL E0 E1 E2 WC SARIN1 Q404 PMBS3904 GND SDA_A GPIO36 SDO GND GND WP VCC18_CORE PD1 SARIN2 SCK R414 0 OHM 1/16W R465 10K OHM 1/10W FB406 150OHM 1 2 WP Q403 PMBS3906 1 2 3 VCC3 GND C420 100pF U402 1 2 3 4 8 7 6 5 CS# SO W# GND VCC HOLD# SCK SI C408 100pF GND XTAL_IN UART_TX CN403 NC 2 4 6 8 1 3 5 7 C404 100pF R425 10K OHM 1/10W R422 10K OHM 1/10W + C410 47uF/16V UART_RX TP401 GND RST_N SP409 NC 1 2 SDI R404 10K OHM 1/10W TSTMD R432 100R RST_N PD1 UART_RX C419 0.1uF 50V X401 24.576MHz 1 2 HA5V_DET 5 IRDAT 8 LEDY R426 10K OHM 1/10W GND C423 10uF/16V SCL_A L_G R429 0 OHM 1/16W BL_ADJ 4 R430 0 OHM 1/16W R419 10K OHM 1/10W D403 BAV99 3 1 2 GND VCC3 R413 0 OHM 1/16W C418 10uF/16V 5VSB SDA_A R409 10.2K1/10W C427 NC SP408 NC 1 2 GND UART_RX R431 NC FB408 150OHM 1 2 R406 10K OHM 1/10W FB405 150OHM 1 2 5VSB GPIO33 C421 33pF R417 10K OHM 1/10W System PLL 1.8V POWER UART_RX 7 SP410 NC 1 2 C402 0.22uF R401 0 OHM 1/16W XTAL_O L_G POWER KEY VCC3 L_Y C424 10uF/16V U405D HX6201-A 83 82 81 80 90 160 161 162 163 87 88 150 151 152 153 154 155 156 157 158 159 89 AVDD_PL(1.8V) AVSS_PL(0V) PAD_OSCI PAD_OSCO RST_N SARIN0 SARIN1 SARIN2 SARIN3 GPIO_00/UART_TX0 GPIO_01/UART_RX0 GPIO_27/PWM_B/DBLC GPIO_29/PWM_D GPIO_30/SPI_WP GPIO_31/MSDA GPIO_32/MSCL GPIO_33/SPI_SDI GPIO_34/SPI_CSN GPIO_35/SPI_SCK GPIO_36/SPI_SDO GPIO_39/IR_RX TSTMD R456 5.1K OHM 1/10W GND GPIO30 SARIN0 5VSB GPIO34 Q402 PMBS3906 1 2 3 5VSB CSN SDO FB403 150OHM 1 2 GND IRDAT C425 10uF/16V CN405 JST-4-2.54 CN25-4VS 1 2 3 4 GND FB407 150OHM 1 2 5VSB R405 1K 1/10W 5% Q409 NC R416 10K OHM 1/10W SDA_A R424 4.7K OHM 1/10W FB415 300 OHM 1 2 GND GND C415 100pF VCC3 IRDAT SP411 NC 1 2 GND SP400 NC 1 2 SP407 NC 1 2 R427 100 OHM 1/10W CN401 JST-4-2.0 33A3802-4B 1 2 3 4 C409 100pF GPIO39 R438 100Ω 1/10W LEDY 12 SCL_A GND Q414 PMBS3906 1 2 3 PD0 PD0 PW C422 33pF 5VSB CN402 CONN 1 2 3 4 5 6 7 8 D404 RLZ5.6B 1 2 5VSB SDA_A 6 SCL_A VCC3 UART_TX 7 ADC R434 NC LED_G CSN R466 10K OHM 1/10W R435 NC IR_D SCK R428 100 OHM 1/10W R418 10K OHM 1/10W SCL_A GND VCC3 LEDG PW R433 NC V18AUD R415 0 OHM 1/16W R436 1K OHM 1/10W C405 100pF R402 4.7K OHM 1/16W IRDAT R455 NC R412 0 OHM 1/16W GND V18AUD R454 10K OHM 1/10W D401 RLZ5.6B 1 2 C406 100pF R441 1M OHM 1/10W D402 RLZ5.6B 1 2 LED_Y C407 100pF IR_D R420 10K OHM 1/10W R403 4.7K OHM 1/16W IRVCC R460 1KΩ 1/10W GND R408 10.2K1/10W ADC KEY MCU_WP 12 FB402 150OHM 1 2 SDI MCU_WP ADC F A3 11 13 Tuesday , April 07, 2009 715T3365 称爹 < > 10.M2D MCU OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 家电维修资料网 www.520101.com 33 PANEL_ON TX3BP TX3AP1 TX3BN TX2AP1 VCCLV CN407---26" 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R439 NC LEDY 11 MCU_WP 11 TXCKAN1 TX2AP TX0AP1 TX2AN1 C459 1UF25V TXCKAN1 TX1AN1 TX3AN TX1BP1 TX1BP TXCKBP LEDG 11 C433 0.1uF 50V VCC3IO R519 10K OHM 1/10W TX3AP1 TX0AP1 MCU_WP# CN408---22" 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 TX0AN1 TX2AN1 V33LV R569 4.7K OHM 1/16W STYAMP_MUT 10 V33LV TX2BP C454 0.1uF 50V AU_S1# AU_S1# C467 0.1uF 50V C461 1uF/25V R518 10K OHM 1/10W C460 10uF/16V 5VSB TX1AN R568 4.7K OHM 1/16W TXCKAP TX2BN R509 10K OHM 1/10W C469 0.1uF 50V BL_ON 4 TXCKAN TX0AP TXCKBP TXCKBN VCC3IO R489 13K OHM 1/10W C477 10uF/16V FB416 300 OHM 1 2 R556 NC TX2BN1 C453 1UF25V C458 0.1uF 50V R512 10K OHM 1/10W SDA_A_Tuner 6 TX1AP C462 0.1uF 50V TX2BN TX3BP AU_S0# C431 NC TX2BP1 TXCKBP1 TXCKAP1 FB420 NC 1 2 C468 1uF/25V 5VSB VCCLV TX1AP1 TX0AP1 R523 10K OHM 1/10W TXCKBN1 TX2BN1 TX1AN1 C471 NC R510 10K OHM 1/10W C465 1uF/25V TX3AP1 VCC5_IN C463 1uF/25V R565 10K 1/16W 5% TXCKAP1 IR_EN TX0AN + C432 NC AU_S0 10 C466 0.1uF 50V PW_ON 4 TX0BP TX0AN1 AU_S0# TX3BN1 SELLVDS GND TX1AP1 Q412 PMBS3904 TX1BN Q410 PMBS3904 Q406 AO4449 -7A/-30V 1 2 3 4 8 7 6 5 S S S G D D D D PN swap for layout C470 0.1uF 50V OFF_MUTE 8 C452 1UF25V R570 NC GND GND TX3AP TX2BP GND SCL_A_Tuner 6 TXCKAP C456 0.1uF 50V TXCKAN TX1BP1 GND VCC5_PANEL_IN C478 0.1uF 50V TX1BN1 VCC5_IN Q407 PMBS3904 Q415 NC AU_S1 10 TX3BN1 TX3AP1 TXCKAP1 TX0BP1 TX2AP1 C464 0.1uF 50V TXCKAN1 FB421 300 OHM 1 2 GND FB419 300 OHM 1 2 VCC18_CORE TX2AN EDID_WP# TTL/RSDS/LVDS U405C HX6201-A 91 92 93 94 95 96 97 98 99 132 103 126 165 101 102 125 164 143 166 127 100 72 114 120 119 122 121 124 123 111 110 113 112 116 115 118 117 105 104 107 106 109 108 145 144 147 146 149 148 136 135 138 137 140 139 142 141 129 128 131 130 134 133 GPIO_18/GVON GPIO_19/GVOFF GPIO_20/OEV/TTL_DE GPIO_21/CPV/TTL_HS GPIO_22/STV1/TTL_VS GPIO_23/POL GPIO_24/FTP GPIO_25/FSTH1/TTL_CLK GPIO_26/BSTH1 PI AVSS3V_LV(0V) AVSS3V_LV(0V) GNDK(0V) GNDK(0V) AVDD3V_LV(3.3V) AVDD3V_LV(3.3V) VCC3IO(3.3V) VCCLV(3.3V) VCCK(1.8V) VCCK(1.8V) VCCK(1.8V) VCCK(1.8V) PVDD_LV(1.8V) FRSB0N/LVA2N/ER6 FRSB0P/LVA2P/ER7 FRSB1N/LVA1N/ER4 FRSB1P/LVA1P/ER5 FRSB2N/LVA0N/ER2 FRSB2P/LVA0P/ER3 FRSCLKN/LVB1N FRSCLKP/LVB1P FRSG0N/LVB0N/EG6 FRSG0P/LVB0P/EG7 FRSG1N/LVA3N/EG4 FRSG1P/LVA3P/EG5 FRSG2N/LVACKN/EG2 FRSG2P/LVACKP/EG3 FRSR0N/LVB3N/EB6 FRSR0P/LVB3P/EB7 FRSR1N/LVBCKN/EB4 FRSR1P/LVBCKP/EB5 FRSR2N/LVB2N/EB2 FRSR2P/LVB2P/EB3 BRSB0N/GPO_38 BRSB0P/GPO_37 BRSB1N/GPO_44 BRSB1P/GPO_43 BRSB2N/GPO_46 BRSB2P/GPO_45 BRSCLKN BRSCLKP BRSG0N/GPO_13 BRSG0P/GPO_12 BRSG1N/GPO_15 BRSG1P/GPO_14 BRSG2N/GPO_17 BRSG2P/GPO_16 BRSR0N/GPO_07 BRSR0P/GPO_06 BRSR1N/GPO_09 BRSR1P/GPO_08 BRSR2N/GPO_11 BRSR2P/GPO_10 TXCKBP1 TX2AN1 TX3AN1 SELLVDS C455 0.1uF 50V GND TX3BN TX1AN1 TX1BN1 GND TX0BN TX1AP C457 1UF25V MUTE_HPHONE 10 TX2AP R411 4.7K OHM 1/16W VCC3 5VSB TX0BN TX3AN1 R410 4.7K OHM 1/16W TX1AN TXCKAN1 MCU_WP# Q408 PMBS3904 R522 10K OHM 1/10W GND V12_ADP TX2AP1 TX1BP TX2BP1 TX3BP1 TX1AP1 TX0AP TX2AN EDID_WP# AMP_MUT 10 TX3BP1 VCC5_IN GND GND EDID_WP 11 TXCKAP1 R566 4.7K OHM 1/16W TX1BN C451 10uF/16V Video_SEL 4 TX2AN1 R526 10K OHM 1/10W R437 4.7K OHM 1/16W TX0BN1 TX1AP1 Q411 PMBS3904 CN404----19" 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 R567 120K OHM 1/16W 5% VCC3 TXCKBN TX0AN1 GND TX3AP TX0BP1 VCC5_IN PANEL_ON GND PI TX0AN1 GNDLV TX0BN1 TX3AN1 TX3AN1 TX3AN SELLVDS TX0AN TX1AN1 GND VCC5 TX2AP1 FB417 300 OHM 1 2 GND TX0BP POWER_ON 4 TXCKBN1 F C 12 13 Tuesday , April 07, 2009 715T3365 称爹 < > 11.M2D LVDS OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜絪 腹 TX0AP1 R559 NC 家电维修资料网 www.520101.com 34 CN206 NC 1 2 3 4 PR_IN0 ZD202 NC 1 2 R263 NC PR_IN0 USB_DM R211 NC R282 NC Q213 NC Y1 9 POWER_ON R292 NC U107 NC 9 13 2 1 5 3 6 11 10 12 14 15 4 16 8 7 DC S2D S1A IN S1B S2A S2B S1C S2C DD S1D /EN DA VCC GND DB Q215 NC VCC5 Y_IN0 PR1 9 USB_DP PB_IN0 R257 NC R290 NC V_SEL V_SEL FB221 NC 1 2 C257 NC R277 NC C249 NC Q217 NC VCC5 R287 NC FB220 NC 1 2 R136 100 OHM 1/10W R259 NC C262 NC GND Y_IN0 C256 NC C120 0.047uF PB2_IN C129 0.047uF Q214 NC R269 NC Y_SCALER C251 NC VBUS SOY1 9 PB_IN0 R266 NC C259 NC VBUS USB_GND F C 12 13 Tuesday , April 07, 2009 715T3365 称爹 < > 11.M2D LVDS OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 USB_AUR C250 NC R137 NC R275 NC USB_DP Y2_IN R265 NC U711 NC 1 2 3 4 5 OUT GND FAULT EN IN R291 NC VCC5 C266 NC R258 NC USB_DM VCC5 C265 NC GND R261 NC C253 NC C255 NC USB_GND Pr_SCALER R293 NC Q212 NC R264 NC PR2_IN R267 NC C261 NC GND Pr_SCALER R268 NC R260 NC C267 NC 5VSB C254 NC FB223 NC 1 2 GND Pb_SCALER R134 NC R276 0R05 1/10W 5% ZD201 1 2 VCC5 R272 NC 5VSB R131 100 OHM 1/10W R286 NC R130 NC USB_GND USB_GND R283 NC Q211 NC R274 0R05 1/10W 5% C263 NC R280 NC R281 NC IRDAT Y_SCALER Q216 NC L209 NC 3 2 4 1 R129 100 OHM 1/10W R279 NC IR_EN C264 NC 1 2 3 4 CN703 NC 1 2 3 4 6 5 R294 NC Q210 NC VBUS 5VSB C123 1000pF GND Pb_SCALER C258 NC PR_IN0 R270 NC GND R278 NC FB222 NC 1 2 R262 NC Active low CN208 NC 1 2 3 4 5 6 7 8 9 10 USB_AUL R273 0R05 1/10W 5% R289 NC Y_IN0 PB1 9 R209 NC C260 NC Video_SEL PB_IN0 R271 NC R133 100 OHM 1/10W C252 NC R288 NC C126 0.047uF 家电维修资料网 www.520101.com 35 电源适配器 715G3418P010HV003M R917 56K OHM 1/8W + C925 82uF/450V ! R903 330K OHM 1/4W T901 POWER X'FMR 1 2 3 5 4 7 6 9 10 ! R959 NC ! D902 FMN-1106S R911 20K OHM 1/8W R943 22 OHM 1/8W +-5% R941 10K OHM 1/8W +12V R9212 100K OHM 1/4W R957 10K 1/8W 1% R945 1KOHM +-5% 1/4W A5V EE22 L903 300uH 1 2 6 10 CN901 SOCKET 1 2 R966 NC R975 3.9KOHM +-5% 1/8W R944 10K OHM 1/8W R955 1K OHM 1/8W +-5% C942 0.1uF ! R931 2.2 OHM 1/4W IC971 AZ431AZ-AE1 R908 2.7 OHM 1/4W ! Q903 STP10NK70ZFP R946 0.43 OHM +-5% 2WS +24V C920 0.01uF C950 0.001uF R915 470 OHM 1/8W +-5% ER-28S R958 10K 1/8W 1% R950 100 OHM 1/4W PS_ON C922 1uF C951 0.001uF + C914 47uF/50V R948 0.47 ohm C901 0.47uF C915 220pF R939 10K OHM 1/8W Q970 PMBS3904 T902 POWER X'FMR 6 7 9 10 2 3 4 ! FB902 BEAD 1 2 C913 0.1uF C924 NC C944 220pF R916 0.15 OHM 2W R929 10K OHM 1/8W + C959 470uF/25V R936 NC R914 10K OHM 1/8W R967 NC B+ IC952 AZ431AZ-AE1 R925 750KOHM +-5% 1/4W R926 750KOHM +-5% 1/4W RV903 NC R906 510KOHM +-5% 1/8W ! + C931 100uF/50V R961 1K OHM 1/8W +-5% C979 NC R972 2K2 1/4W 5% FB_1 RV904 NC R947 R921 680K OHM +-1% 1/4W 1.0A D952 FMEN-230A 1 2 3 D930 SARS01-V1 R969 NC R942 51KOHM +-5% 1/8W C928 0.001uF/250V ! ! ZD952 NC 1 2 C919 NC Vcc +12V Q924 DTC144WKA R954 100 OHM 1/8W C960 0.001uF +5VS A Custom 3 3 Tuesday , March 31, 2009 715G3418-P01-0HV-003M CHH MODEL 03.Power OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜絪 腹 R978 24KOHM +-1% 1/8W R9214 100K OHM 1/4W + C958 1000uF 35V C904 0.22uF/275V FB D955 NC +24V ! R935 20K OHM 1/8W +-5% + C954 470uF/16V L951 L C909 0.1uF + C953 330uF 16V IC950 PC123X2YFZOF 1 2 4 3 R9211 100K OHM 1/4W RV901 NC R963 10K OHM 1/8W R9213 100K OHM 1/4W D940 SARS01-V1 L980 NC R974 1K OHM 1/4W + C937 10uF/50V R924 750KOHM +-5% 1/4W R932 10R 1/8W 5% + C973 NC ON/OFF C903 680pF R979 NC C955 0.22uF/50V PDIM R9404 100K OHM 1/4W R901 330K OHM 1/4W ! C939 1500pF2KV Vcc_1 + C933 22uF/50V R913 33 OHM 1/8W +-5% R938 4.7K OHM 1/8W ! +5V C978 0.1uF +12V L901 13.0mH 1 4 2 3 C956 0.1uF FB_1 1.0A C916 NC ! C912 56pF R9401 100K OHM 1/4W R981 1K OHM 1/8W +-5% R920 680K OHM +-1% 1/4W L902 13.0mH 1 4 2 3 C921 0.1uF ZD951 MTZJ T-72 15B 1 2 ! R919 NC +5V D935 AU02Z B+ ! L950 L Q921 KTD1028 Vcc R907 2.7 OHM 1/4W VCC_1 R910 300K OHM 1/8W R933 1R 1/8W 5% R904 1.5 MOHM +-5% 1/4W D904 IN5408 C943 0.1uF 2.5A R922 680K OHM +-1% 1/4W Q901 2SK4087LS R949 C976 0.33uF C923 0.1uF C929 1500pF2KV R976 10K OHM 1/8W R902 330K OHM 1/4W + C975 NC R970 NC R937 4.7M OHM 1/4W +5V ! R982 10K OHM 1/8W R953 100 OHM 1/4W C971 NC Q925 KTA1273 B+_390V IC951 PC123X2YFZOF 1 2 4 3 C977 0.1uF R987 NC R905 1.5 MOHM +-5% 1/4W NR901 NTCR B+_390V B+ FB903 BEAD 1 2 ZD901 MTZJ T-72 16B 1 2 R9403 100K OHM 1/4W C970 NC R934 1K OHM 1/8W +-5% C917 0.047uF R956 1K OHM 1/8W +-5% ER28S D954 1N4148 D950 SBT15006JST 1 2 3 CN903 NC 1 2 L N +5VS C918 0.47UF/25V D906 1N4148 R971 NC VCC_1 D905 1N4148 R923 13K OHM 1% 1/8W ! PS_ON CN902 CONN 1 2 3 4 5 6 7 8 9 10 11 12 ! RV902 NC FB R9402 100K OHM 1/4W A5V R927 NC R951 100 OHM 1/4W ! D903 1N4148 C908 0.1uF IC901 FAN7529MX 1 2 3 4 5 6 7 8 INV COMP MOT CS ZCD GND OUT VCC R952 100 OHM 1/4W C902 680pF C974 0.1uF C910 1uF/450V ! R960 1K OHM 1/8W +-5% ! R968 NC R973 2K2 1/4W 5% C927 470pF/250V D901 US1M R980 6K2 1/8W 5% IC902 A6069H 1 2 3 4 5 7 8 S/OCP BR GND FB/OLP VCC D/ST D/ST C911 Q950 PMBS3904 +24V R909 1.5 MOHM +-5% 1/4W C961 0.001uF - + BD901 KBJ608G 2 1 3 4 + C941 10uF/50V R983 1K OHM 1/8W +-5% ! ! R918 10K OHM 1/8W ! FB901 BEAD 1 2 IC903 LD7523A 1 2 3 4 5 6 7 8 BNO COMP (-)LATCH CS GND OUT VCC OVP +24V C907 0.1uF R912 2K OHM 1/8W D951 NC IC970 PC123X2YFZOF 1 2 4 3 +12V R928 100K OHM 1/8W F901 FUSE 家电维修资料网 www.520101.com 36 Q803 RK7002 ! R824 100 OHM 1/8W R816 100 OHM 1/4W C810 NC IS1 A B 2 3 Tuesday , March 31, 2009 715G3418-P01-0HV-003M CHH MODEL 02.Inv erter OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 IS2 R813 2.7K OHM TB C815 220pF ! R807 10K OHM C809 1U 25V ISEN ENA FB905 BEAD 1 2 R822 240 1/8W 1% C813 4N7 50V +12V C801 1uF/450V TA VS C820 680PF/50V R803 100 OHM 1/8W D807 1N4148 R812 NC R808 NC C803 1000pF D803 SCS0520P 1 2 R827 100 OHM 1/8W R806 10K OHM R801 0.1 ohm IS1 R825 240 1/8W 1% D802 SCS0520P 1 2 IS2 ! R818 330 OHM 1/8W +-5% IS2 R810 100K OHM 1/4W Q804 PMBS3904 C906 470pF/250V R820 100K OHM 1/8W C819 680PF/50V R819 510KOHM +-5% 1/8W C822 1000pF VREF D805 BAV70 3 1 2 R829 1M OHM C811 0.01uF/25V R802 100 OHM 1/8W FB904 BEAD 1 2 C804 1uF/450V B+_390V ISEN C807 330PF/50V C806 0.1uF/50V C802 2.2uF 25V X7R + C805 470uF/25V R815 51K 1/8W 5% Q801 STP9NK60ZFP ON/OFF C817 1N 50V R817 1K OHM 1/4W D806 1N4148 R833 10K OHM 1/4W +-5% R830 10K OHM 1/8W Q802 STP9NK60ZFP C812 0.047uF R809 47K OHM 1/8W +-1% DR2 T801 50:50:50 1 4 5 6 7 9 10 C821 10nF DR1 CN801 CONN 1 2 L N PDIM R826 3K OHM TA R831 1M OHM C808 NC IC801 OZ9976GN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 DRV1 GND ZCS RT1 CT LCT PDIM VSEN ISEN SSTCMP TIMER ADIM ENA VREF VIN DRV2 VREF C818 1N 50V R832 10K OHM 1/4W +-5% ! D801 SCS0520P 1 2 R814 51K OHM 1/8W +-5% Q805 PMBS3904 R804 10K OHM 1/4W +-5% DR1 CN802 WEAFER 1 2 3 4 5 R828 10K OHM 1/8W R811 2M OHM 1/8W C814 2.2uF 25V X7R ! IS1 TB R823 3K OHM R805 100K OHM 1/8W DR2 C816 0.001uF R821 10K OHM 1/8W VS D804 SCS0520P 1 2 T802 P:S=10:8 1 2 3 5 6 7 8 9 10 11 12 家电维修资料网 www.520101.com 37 升压板 715G3335 1 2 T8801 POWER X'FMR 4 1 2 6 T8802 POWER X'FMR 4 1 2 6 D8804 1N4148 D8821 1N4148 P4 ! T8804 POWER X'FMR 4 1 2 6 C8815 0.0056uF D8806 MTZJ T-72 5.1B D8809 BAV99 3 1 2 C8819 820pF50V T8803 POWER X'FMR 4 1 2 6 R8802 100R 1/8W 5% TA C8811 5pF/6KV CN8807 CONN 1 2 3 4 5 6 7 ! R8803 39K 1/8W 5% D8808 BAV99 3 1 2 D8805 1N4148 CN8805 CONN 1 2 3 4 5 6 7 R8811 510R 1/8W 5% P4 R8813 24K 1/8W 5% C8816 0.0056uF T8810 POWER X'FMR 4 1 2 6 D8817 BAV99 3 1 2 T8805 POWER X'FMR 4 1 2 6 P2 R8812 510R 1/8W 5% IS2 CN8806 CONN 1 2 3 4 5 6 7 D8814 BAV99 3 1 2 T8809 POWER X'FMR 4 1 2 6 C8805 5pF/6KV C8806 5pF/6KV D8812 BAV99 3 1 2 D8815 BAV99 3 1 2 R8817 24K 1/8W 5% ! C8820 0.0056uF C8808 5pF/6KV ! D8818 BAV99 3 1 2 R8805 1K 1/8W 5% D8802 1N4148 VS ! ! CN8801 CONN 1 2 3 4 5 6 ! A B 1 2 Friday , March 20, 2009 715T3335 CHH MODEL 1.COVER OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 ! ! D8801 1N4148 R8808 100K 1/8W 5% ! D8811 BAV99 3 1 2 C8802 5pF/6KV IS1 R8814 510R 1/8W 5% IS1 C8817 0.0056uF C8814 0.0056uF D8820 1N4148 R8801 100R 1/8W 5% TB R8815 510R 1/8W 5% IS1 C8821 0.0056uF IS2 R8804 10K 1/8W 5% T8806 POWER X'FMR 4 1 2 6 C8822 0.0056uF CN8803 CONN 1 2 3 4 5 6 7 C8801 0.01uF CN8804 CONN 1 2 3 4 5 6 7 R8807 100R 1/8W 5% P5 T8808 POWER X'FMR 4 1 2 6 C8804 5pF/6KV CN8802 CONN 1 2 L N C8803 5pF/6KV TA P1 R8816 39K 1/8W 5% C8810 5pF/6KV TB IS2 P2 VS C8823 0.0056uF C8807 5pF/6KV P5 C8818 820pF50V R8806 100R 1/8W 5% P1 C8809 5pF/6KV T8807 POWER X'FMR 4 1 2 6 家电维修资料网 www.520101.com 38 按键板 715G3293 1 SW04 TACT SW FWRD H1.5MM R02 8.2K1/10W 1% SW05 TACT SW FWRD H1.5MM ~3.3V R03 4.32K 1% 1/10W ~2.070V SW03 TACT SW FWRD H1.5MM Source Select 1.0 Custom 2 2 Monday , September 22, 2008 715T3293 称爹 < > 02-Keypad OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 SW06 TACT SW FWRD H1.5MM 77G 607 2 FD VOL- FUNC_KEY R06 NC 10.2K OHM 1% 1/10W 33G 8032 4F HR ~1.032V C04 NC R04 2.74K 1% 1/10W PWR-SW CH- GND PIN GND PIN 1 SW01 TACT SW FWRD H1.5MM R05 1.8K OHM 1% 1/10W C02 NC 4.7uF/16V ~1.543V 3V3_STB Power ON/OFF CH+ PWR-SW SW07 TACT SW FWRD H1.5MM FUNC_KEY R01 20K OHM 1% 1/10W ~2.589V R07 100 OHM 1% 1/10W C03 NC ~0.518V MENU NONE KEY C01 NC 0.1uF/16V ~0.032V 3V3_STB SW02 TACT SW FWRD H1.5MM CN01 CONN 1 2 3 4 VOL+ R08 100 OHM 1% 1/10W 家电维修资料网 www.520101.com 39 遥控板 715G3540R0B000004M GND PIN GND PIN 1 1.0 Custom 2 2 Wednesday , February 25, 2009 715G3540 称爹 < > 02-IR&LED OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 LED_R R11 15K OHM 1/10W CN01 CONN 1 2 3 4 5 LED_B RED BLUE LED01 LED 1 2 3 4 C02 NC/4.7uF/16V 33T8032 5F HR C01 0.1uF/16V IRRV VCC U01 KSM-2003TN2E 1 2 3 VOUT GND VCC RED BLUE 81T 14 24 EL 家电维修资料网 www.520101.com 40 7．电气方框图 YPbPr Audio BACK AV Audio Line Out SCART Audio (Option) (CN106&CN105) HDMI_RXA0,A1,A2,CLK RAIN0,LAIN0 TU201 Tuner OR TU202 Tuner Tuner LVDS BUS HSYNC,VSYNC AINB4,AINC4 HDMI EDID(U301) BACK Himax M2D U405 Himax M2D Audio R,B,G,H,V ADCINN,ADCINP BACK AIND4 IR RAIN2,LAIN2 Backlight On/Off,Brightness CVBS MUX_AUL/R Himax M2D MCU PANEL IR_DAT CN107 AV&S-VIDEO CN603 Connector CVBS U603 AMP TDA7297 AIN0_FAD,AIN1_FAD AV&S-Video Audio(CN107) SC_R,SC_G,SC_B U402 SPI EEROM FB_BLANK,STATUS BACK AV1&SCART Option Audio (CN104&CN105) CN104 YPbPr CN407 LVDS I/O BACK BACK AINA2,AINB2,AINC2,SOG2 BACK Himax M2D U405 RX0,RX1,RX2,RXCLK Himax M2D U405 SIF U604 APA2176A LVDS BUS CN102 VGA U404 EEPROM 24C32 RAIN1,LAIN1 AINA5 RF/IF Tuner Option CVBS CVBS_O BACK SCL,SDA RS232 P0,P1 CN301 HDMI ADC KEY Himax M2D HDMI/ADC AINA1,AINB1,AINC1 SIDE BACK RS232 CN105 SCART SCR_AUOUT_L/R SDA,SCL U601 Switch 4052 MONO_AUD RS232 CN101 AV1 AINA3 BACK COM1_AUL/R CN601 Earphone PC Audio Y/C AINC3,AINB3,AIND1 IF Himax M2D U405 Y,Pb,Pr SIDE Hotel Pin EU/CH Option CN103 Himax M2D TTL/LVDS/RSDS AV Line Out SCART CVBS Out (Option) (CN106&CN105) U201 SAWFILTER 家电维修资料网 www.520101.com 41 VCC5 5mA AP1117D33 U705 VCC5 V18AUD / PVDD_LV 281mA V33AUD HX6201 U405 V33_AUD V33HDMI / VCCADC / VDDA33 V12_ADP 1084-33 U701 TUNER TU100 TDA7297 U603 5VSB USB boad power 5V,5V TO 3.3v 5v to 1.8V VCC5 1084_1.8 U708 PANEL_VCC AVDD18 / VCCLV HX6202A U405 V33_ADC 117mA VCC5 AP1117D18 U703 PANEL_ON 5VSB VCC5 AO3407 Q701 V12_ADP 1084_33 U707 5VSB AO4449 Q706 POWER_ON V18AUD / PVDD_LV HX6201 U405 VCC8 PANEL M24C32 U404 PANEL_VCC VCC18 M24C02 U301 VCC3 MX25L4005AM2C U402 V12_ADP VCC12 +5VT BA17808 U706 VCC3AD VCC3IO / V33LV 39mA PI5V33 U107 VIDEO SWITCH USB 2.0 HOST 5VSB VCC3AD VCC3IO / V33LV HX6201 U405 VCC3 VCC18_CORE V18_33HDMI HX6201 U405 V33AUD A1117D5.0 U202 16mA 822mA AP2176 U604 EARPHONE AMP V18_33HDMI 1077mA AO4449 Q406 160mA V33ADC / VCCADC / VDDA33 HX6201 U405 POWER_ON +12V_SB M24C02- U101 5VSB 400mA PANEL_ON AP1117D18 U709 5VSB 74HC4052 U601 AUDIO SWITCH PANEL VCC5 VCC18_PLL POWER_ON AVDD18 / VCCLV VCC5 500mA--1.0A AO4449 Q406 MPS2171 U711 VCC5 家电维修资料网 www.520101.com 42 8. 拆卸流程图   1.将 TV 放置于干净的平台上,Panel 面朝下,注意不要被尖锐物品刮伤。 2.拆除底座。 3.拆卸后壳。 家电维修资料网 www.520101.com 43 4.释放线材。 5.拆卸壁挂龙骨和支架铁片。 6.拆卸主板，电源板，升压板。 家电维修资料网 www.520101.com 44 7.拆卸 Panel。 8.拆卸 IR 板，Speaker，Key Board。 家电维修资料网 www.520101.com 45 9. 爆炸图 家电维修资料网 www.520101.com 46 9. BOM E2692ANDW4SWNN 点位 料号 描述 备注 041T780062415A CERTIFICATE CARD 049G 51 1A ERADICATOR 052G 1150 C INSULATING TAPE 052G 1185 MIDDLE TAPE 052G 1186 SMALL TAPE 052G 2191 A PAPER TAPE 089G214A18NLS9 POWER CORD 2PIN 1800MM 089T176W30N503 FFC CABLE 095G8021 3D 52 HARNESS 3P-3P 300MM 098GRABD3NCSWC REMOTE CONTROL FOR 2K9 SKYWORTH 0M1G 330 6 47 CR3 SCREW 42-D005390 0M1G 340 4 47 CR3 SCREW 0M1G 940 6120 SCREW (M4X6) 0M1G 940 6120 SCREW (M4X6) 0M1G 940 12 47 CR3 SCREW 0M1G1730 8120 SCREW 0M1G1730 10120 SCREW 42A9930016 0Q1G 330 6 47 CR3 SCREW 0Q1G 340 12 47 CR3 SCREW 0Q1G 940 12 47 CR3 SCREW 0Q1G 940 14 47 CR3 SCREW 705TQ933E03 PLASTIC ASS"Y 26" 0Q1G2430 6120 SCREW A33E0536 GMD1L0100 KEY COVER A33E0537 GM 1L0100 KEY BUTTON 705TQ934E13 BEZEL ASS"Y 26" 0Q1G1830 6120 SCREW 0Q1G1840 10120 SCREW A34E1058 GMA6L0100 BEZEL TV26W-9A6 Q33E0307 ED 1C0100 IR LENS Q33E0308 2 1C0100 POWER LENS Q36T 600 18134 NONWOVEN FABRIC Q36T 600 31 2 NONWOVEN FABRIC Q36T 600 31 3 NONWOVEN FABRIC 705TQ934E14 REAR COVER ASS"Y 26" A34E1018 GM 2A0116 REAR COVER 26" P15T8299 1 BKT-VESA Q34E0603 GM 1L0100 IO COVER Q36T 600 30 18 NONWOVEN FABRIC Q36T 600 31 1 NONWOVEN FABRIC Q36T 600 31 2 NONWOVEN FABRIC Q36T 600 36 5 GP NONWOVEN FABRIC Q36T 600 36 5 GP NONWOVEN FABRIC 家电维修资料网 www.520101.com 47 Q36T 600 37 19 GP NONWOVEN FABRIC 705TQ934E16 STAND ASS"Y 26" 0Q1G 130 6120 SCREW (T3X6) A15T0649201 BASE BKT A34E0976 GM 1L0100 STAND-NECK 32-9A A34E1020 GM 1L0100 SWIVEL A34E1059 GM 1L0100 BASE FOR 26 Q12G6082 1 FOOT PAD Q37T0135011 HINGE ASSY 750TVV260B1111N000 PANEL TPT260B1L11A01 FQ TPV 756TQ9CB AD006 MAIN BOARD-CBPF9A3DY5 U402 056G1133923 IC MX25L4005AM2C-12G SOP-8 SMTF-U402 100TWHVF001D11 MCU ASS'Y-056G1133923 A15T0532101 BKT-BASE-SUPPORT FOR LCM A15T0533101 VESA BKT FOR LCM CN603 033G3802 4B Y W WAFER CN402 033G3802 8B Y W CONNECTOR CN701 033G380212B Y WAFER CN407 033G801930F CH JS CONNECTOR R205 061G 208470 64 RST MOFR 47OHM +-5% 1W R203 061G 208470 64 RST MOFR 47OHM +-5% 1W R619 061G153M309 59 RST MOFR 3OHM +-5% 3WS R620 061G153M309 59 RST MOFR 3OHM +-5% 3WS R617 061G153M309 59 RST MOFR 3OHM +-5% 3WS R618 061G153M309 59 RST MOFR 3OHM +-5% 3WS C640 067G 305102 4 105C 1000UF +-20% 25V CN108 088G 78 13934 C RCA JACK 1*3 Y/W/R AV3-8.4-13-1 CN104 088G 78 13942 YG RCA JACK 1*5 G/B/R/W/R RCA-512DF CN101 088G 7813A38C RCA JACK 1*3 Y/W/R V/A CN601 088G 30211K PHONE JACK 5PIN CN103 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN CN102 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR 090T 372 2 HEAT SINK X401 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ TU201 094T PALALL 3L TCL TUNER M15WPP-2PN-E 705TQ956001 U603 ASS'Y U603 056T 616511 ST IC TDA7297SA ST 0M1G1730 10120 SCREW 42A9930016 Q90T0155 1 HEAT SINK FOR U602 C702 067G 305100 3T 10UF 16V C701 067G 305100 3T 10UF 16V C722 067G 305101 3T 100UF 16V 105C C708 067G 305101 3T 100UF 16V 105C C704 067G 305101 3T 100UF 16V 105C C703 067G 305101 3T 100UF 16V 105C C610 067G 305101 3T 100UF 16V 105C 家电维修资料网 www.520101.com 48 C204 067G 305101 3T 100UF 16V 105C C203 067G 305101 3T 100UF 16V 105C C742 067G 305221 3T 220UF/16V C741 067G 305221 3T 220UF/16V C740 067G 305221 3T 220UF/16V C734 067G 305221 3T 220UF/16V C716 067G 305221 3T 220UF/16V C718 067G 305221 3T 220UF/16V C410 067G 305470 3T 47UF +-20% 16V C715 067G 305471 3T 105℃ 470UF +-20% 16V C727 067G 305471 3T 105℃ 470UF +-20% 16V U701 056G 563 7 IC AIC1084-33PMTR-R AIC U703 056G 563 31 IC AZ1117D-1.8-E1 U708 056G 563 34 IC AIC1084-18PMTR-R AIC U707 056G 563 75 G1084-33T43UF TO-252 U202 056G 585 11 IC AZ1117D-5.0-E1 AAC U601 056G 614 1 74HC4052D S016 PHLIPS U404 056G113353A IC M24C32-WMN6T SO-8 ST U402 056G1133923 IC MX25L4005AM2C-12G SOP-8 U405 056T 562581 IC HX6201-A06MLAG QFP-176 U604 056T 616516 IC APA2176AQBITRL TQFN3X3-16 Q711 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q710 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q709 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q605 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q604 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q412 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q411 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q410 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q408 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q404 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q303 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q302 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q414 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q702 057G 763 5 FET AO3407 -4.1A/-30V SOT-23 家电维修资料网 www.520101.com 49 Q406 057G 763 79 FET AO4449 -7A/-30V SOIC-8 Q706 057G 763 79 FET AO4449 -7A/-30V SOIC-8 Q301 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS RP604 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W RP603 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W RP602 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W RP601 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W R643 061G0402000 RST CHIP MAX 0R05 1/16W R642 061G0402000 RST CHIP MAX 0R05 1/16W R602 061G0402000 RST CHIP MAX 0R05 1/16W R430 061G0402000 RST CHIP MAX 0R05 1/16W R429 061G0402000 RST CHIP MAX 0R05 1/16W R415 061G0402000 RST CHIP MAX 0R05 1/16W R414 061G0402000 RST CHIP MAX 0R05 1/16W R413 061G0402000 RST CHIP MAX 0R05 1/16W R237 061G0402000 RST CHIP MAX 0R05 1/16W R238 061G0402000 RST CHIP MAX 0R05 1/16W R301 061G0402000 RST CHIP MAX 0R05 1/16W R315 061G0402000 RST CHIP MAX 0R05 1/16W R319 061G0402000 RST CHIP MAX 0R05 1/16W R401 061G0402000 RST CHIP MAX 0R05 1/16W R412 061G0402000 RST CHIP MAX 0R05 1/16W R303 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R306 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R611 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R612 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R712 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R713 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R720 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R727 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R729 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R731 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R734 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R710 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R726 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R565 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R567 061G0402124 RST CHIP 120K 1/16W 5% R207 061G0402180 RST CHIP 18R 1/16W 5% R187 061G0402180 RST CHIP 18R 1/16W 5% R183 061G0402180 RST CHIP 18R 1/16W 5% R174 061G0402180 RST CHIP 18R 1/16W 5% R139 061G0402180 RST CHIP 18R 1/16W 5% R704 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W R716 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W R307 061G0402273 RST CHIP 27K 1/16W 5% R165 061G0402273 RST CHIP 27K 1/16W 5% 家电维修资料网 www.520101.com 50 R162 061G0402273 RST CHIP 27K 1/16W 5% R143 061G0402273 RST CHIP 27K 1/16W 5% R141 061G0402273 RST CHIP 27K 1/16W 5% R118 061G0402273 RST CHIP 27K 1/16W 5% R117 061G0402273 RST CHIP 27K 1/16W 5% R621 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R569 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R568 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R566 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R437 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R411 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R410 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R403 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R402 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R121 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R120 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R119 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R622 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R623 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R630 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R631 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R316 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R210 061G0402560 RST CHIP 56R 1/16W 5% R189 061G0402560 RST CHIP 56R 1/16W 5% R185 061G0402560 RST CHIP 56R 1/16W 5% R179 061G0402560 RST CHIP 56R 1/16W 5% R142 061G0402560 RST CHIP 56R 1/16W 5% R130 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R134 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R137 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R702 061G0603000 RST CHIP MAX 0R05 1/10W R614 061G0603000 RST CHIP MAX 0R05 1/10W R613 061G0603000 RST CHIP MAX 0R05 1/10W R608 061G0603000 RST CHIP MAX 0R05 1/10W R606 061G0603000 RST CHIP MAX 0R05 1/10W R313 061G0603000 RST CHIP MAX 0R05 1/10W R312 061G0603000 RST CHIP MAX 0R05 1/10W R276 061G0603000 RST CHIP MAX 0R05 1/10W R274 061G0603000 RST CHIP MAX 0R05 1/10W R273 061G0603000 RST CHIP MAX 0R05 1/10W R204 061G0603000 RST CHIP MAX 0R05 1/10W R135 061G0603000 RST CHIP MAX 0R05 1/10W R132 061G0603000 RST CHIP MAX 0R05 1/10W R128 061G0603000 RST CHIP MAX 0R05 1/10W R125 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R127 061G0603101 RST CHIPR 100 OHM +-5% 1/10W 家电维修资料网 www.520101.com 51 R129 061G0603101 RST CHIPR 100 OHM +-5% 1/10W FB605 061G0603101 RST CHIPR 100 OHM +-5% 1/10W FB604 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R616 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R615 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R438 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R432 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R131 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R133 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R136 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R140 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R176 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R184 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R188 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R208 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R436 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R460 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R405 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R407 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R603 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R526 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R523 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R522 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R519 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R518 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R512 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R510 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R509 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R466 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R465 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R454 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R422 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R421 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R420 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R419 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R418 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R417 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R304 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R305 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R404 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W 家电维修资料网 www.520101.com 52 R733 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R728 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R725 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R719 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R709 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R639 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R638 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R637 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R636 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R635 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R633 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R632 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R625 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R624 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R302 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R627 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R308 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R441 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R489 061G0603133 RST CHIPR 13 KOHM +-5% 1/10W R314 061G0603162 1F RST CHIPR 1.62 KOHM +-1% 1/10W R195 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W R196 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W R106 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W R112 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W R103 061G0603330 RST CHIPR 33 OHM +-5% 1/10W R111 061G0603330 RST CHIPR 33 OHM +-5% 1/10W R701 061G0603331 RST CHIP 330R 1/10W 5% R318 061G0603391 RST CHIPR 390 OHM +-5% 1/10W R102 061G0603391 RST CHIPR 390 OHM +-5% 1/10W R105 061G0603391 RST CHIPR 390 OHM +-5% 1/10W R109 061G0603391 RST CHIPR 390 OHM +-5% 1/10W R113 061G0603391 RST CHIPR 390 OHM +-5% 1/10W R423 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R424 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R609 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R610 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R634 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R456 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R114 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R110 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R107 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R629 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W R628 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W R408 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W R409 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W 家电维修资料网 www.520101.com 53 C102 065G0402101 32 100PF +-10% 50V X7R C330 065G0402101 32 100PF +-10% 50V X7R C404 065G0402101 32 100PF +-10% 50V X7R C405 065G0402101 32 100PF +-10% 50V X7R C406 065G0402101 32 100PF +-10% 50V X7R C407 065G0402101 32 100PF +-10% 50V X7R C408 065G0402101 32 100PF +-10% 50V X7R C409 065G0402101 32 100PF +-10% 50V X7R C415 065G0402101 32 100PF +-10% 50V X7R C420 065G0402101 32 100PF +-10% 50V X7R C123 065G0402102 32 1000PF +-10% 50V X7R C601 065G0402102 32 1000PF +-10% 50V X7R C646 065G0402102 32 1000PF +-10% 50V X7R C301 065G0402103 22 CHIP 0.01UF 25V X7R C311 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R C315 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R C320 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R C639 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V C208 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R C207 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R C421 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO C422 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO C651 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10% C652 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10% C653 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10% C654 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10% C748 065G0603102 31 CHIP 1000PF 50V NPO C749 065G0603102 31 CHIP 1000PF 50V NPO C705 065G0603104 12 CER2 0603 X7R 16V 100N P C720 065G0603104 32 CHIP 0.1UF 50V X7R C719 065G0603104 32 CHIP 0.1UF 50V X7R C327 065G0603104 32 CHIP 0.1UF 50V X7R C328 065G0603104 32 CHIP 0.1UF 50V X7R C329 065G0603104 32 CHIP 0.1UF 50V X7R C331 065G0603104 32 CHIP 0.1UF 50V X7R C332 065G0603104 32 CHIP 0.1UF 50V X7R C419 065G0603104 32 CHIP 0.1UF 50V X7R C433 065G0603104 32 CHIP 0.1UF 50V X7R C454 065G0603104 32 CHIP 0.1UF 50V X7R C455 065G0603104 32 CHIP 0.1UF 50V X7R C456 065G0603104 32 CHIP 0.1UF 50V X7R C458 065G0603104 32 CHIP 0.1UF 50V X7R C462 065G0603104 32 CHIP 0.1UF 50V X7R C464 065G0603104 32 CHIP 0.1UF 50V X7R C466 065G0603104 32 CHIP 0.1UF 50V X7R C467 065G0603104 32 CHIP 0.1UF 50V X7R 家电维修资料网 www.520101.com 54 C469 065G0603104 32 CHIP 0.1UF 50V X7R C721 065G0603104 32 CHIP 0.1UF 50V X7R C603 065G0603104 32 CHIP 0.1UF 50V X7R C605 065G0603104 32 CHIP 0.1UF 50V X7R C606 065G0603104 32 CHIP 0.1UF 50V X7R C611 065G0603104 32 CHIP 0.1UF 50V X7R C613 065G0603104 32 CHIP 0.1UF 50V X7R C617 065G0603104 32 CHIP 0.1UF 50V X7R C620 065G0603104 32 CHIP 0.1UF 50V X7R C621 065G0603104 32 CHIP 0.1UF 50V X7R C623 065G0603104 32 CHIP 0.1UF 50V X7R C625 065G0603104 32 CHIP 0.1UF 50V X7R C627 065G0603104 32 CHIP 0.1UF 50V X7R C629 065G0603104 32 CHIP 0.1UF 50V X7R C631 065G0603104 32 CHIP 0.1UF 50V X7R C634 065G0603104 32 CHIP 0.1UF 50V X7R C638 065G0603104 32 CHIP 0.1UF 50V X7R C641 065G0603104 32 CHIP 0.1UF 50V X7R C648 065G0603104 32 CHIP 0.1UF 50V X7R C656 065G0603104 32 CHIP 0.1UF 50V X7R C602 065G0603104 32 CHIP 0.1UF 50V X7R C724 065G0603104 32 CHIP 0.1UF 50V X7R C726 065G0603104 32 CHIP 0.1UF 50V X7R C728 065G0603104 32 CHIP 0.1UF 50V X7R C730 065G0603104 32 CHIP 0.1UF 50V X7R C733 065G0603104 32 CHIP 0.1UF 50V X7R C735 065G0603104 32 CHIP 0.1UF 50V X7R C738 065G0603104 32 CHIP 0.1UF 50V X7R C739 065G0603104 32 CHIP 0.1UF 50V X7R C743 065G0603104 32 CHIP 0.1UF 50V X7R C658 065G0603104 32 CHIP 0.1UF 50V X7R C659 065G0603104 32 CHIP 0.1UF 50V X7R C661 065G0603104 32 CHIP 0.1UF 50V X7R C663 065G0603104 32 CHIP 0.1UF 50V X7R C707 065G0603104 32 CHIP 0.1UF 50V X7R C714 065G0603104 32 CHIP 0.1UF 50V X7R C717 065G0603104 32 CHIP 0.1UF 50V X7R C470 065G0603104 32 CHIP 0.1UF 50V X7R C478 065G0603104 32 CHIP 0.1UF 50V X7R C326 065G0603104 32 CHIP 0.1UF 50V X7R C132 065G0603104 32 CHIP 0.1UF 50V X7R C158 065G0603104 32 CHIP 0.1UF 50V X7R C163 065G0603104 32 CHIP 0.1UF 50V X7R C166 065G0603104 32 CHIP 0.1UF 50V X7R C202 065G0603104 32 CHIP 0.1UF 50V X7R C205 065G0603104 32 CHIP 0.1UF 50V X7R 家电维修资料网 www.520101.com 55 C206 065G0603104 32 CHIP 0.1UF 50V X7R C306 065G0603104 32 CHIP 0.1UF 50V X7R C307 065G0603104 32 CHIP 0.1UF 50V X7R C312 065G0603104 32 CHIP 0.1UF 50V X7R C313 065G0603104 32 CHIP 0.1UF 50V X7R C314 065G0603104 32 CHIP 0.1UF 50V X7R C317 065G0603104 32 CHIP 0.1UF 50V X7R C318 065G0603104 32 CHIP 0.1UF 50V X7R C321 065G0603104 32 CHIP 0.1UF 50V X7R C323 065G0603104 32 CHIP 0.1UF 50V X7R C168 065G0603221 32 CHIP 220PF 50V X7R C165 065G0603221 32 CHIP 220PF 50V X7R C160 065G0603221 32 CHIP 220PF 50V X7R C135 065G0603221 32 CHIP 220PF 50V X7R C402 065G0603224 32 CHIP 0.22UF 50V X7R C117 065G0603224 32 CHIP 0.22UF 50V X7R C403 065G0603224 32 CHIP 0.22UF 50V X7R C129 065G0603473 32 CHIP 0.047UF 50V X7R C126 065G0603473 32 CHIP 0.047UF 50V X7R C120 065G0603473 32 CHIP 0.047UF 50V X7R C110 065G0603473 32 CHIP 0.047UF 50V X7R C106 065G0603473 32 CHIP 0.047UF 50V X7R C101 065G0603473 32 CHIP 0.047UF 50V X7R C461 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C463 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C465 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C468 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C115 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C649 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C637 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C622 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C604 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C477 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C460 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C451 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C425 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C424 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C423 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C418 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C325 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C324 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C322 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C316 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C305 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C116 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C725 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R 家电维修资料网 www.520101.com 56 C713 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C636 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C635 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C151 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C149 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C136 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C133 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C125 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C124 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C615 065T0402152 22 MLCC 0402 CAP 1500PF K 25V X7R C616 065T0402152 22 MLCC 0402 CAP 1500PF K 25V X7R C657 065T060310525Y MLCC 0603 1UF K 25V X5R C655 065T060310525Y MLCC 0603 1UF K 25V X5R C650 065T060310525Y MLCC 0603 1UF K 25V X5R C647 065T060310525Y MLCC 0603 1UF K 25V X5R C645 065T060310525Y MLCC 0603 1UF K 25V X5R C644 065T060310525Y MLCC 0603 1UF K 25V X5R C643 065T060310525Y MLCC 0603 1UF K 25V X5R C642 065T060310525Y MLCC 0603 1UF K 25V X5R C459 065T060310525Y MLCC 0603 1UF K 25V X5R C457 065T060310525Y MLCC 0603 1UF K 25V X5R C453 065T060310525Y MLCC 0603 1UF K 25V X5R C452 065T060310525Y MLCC 0603 1UF K 25V X5R C609 065T0603334 32 CHIP 0.33UF 50V X7R FB408 071G 56G151 B BEAD 0805 150 OHM FB407 071G 56G151 B BEAD 0805 150 OHM FB406 071G 56G151 B BEAD 0805 150 OHM FB405 071G 56G151 B BEAD 0805 150 OHM FB403 071G 56G151 B BEAD 0805 150 OHM FB402 071G 56G151 B BEAD 0805 150 OHM FB202 071G 56G301 EA BEAD 300 OHM FB301 071G 56G301 EA BEAD 300 OHM FB303 071G 56G301 EA BEAD 300 OHM FB305 071G 56G301 EA BEAD 300 OHM FB306 071G 56G301 EA BEAD 300 OHM FB307 071G 56G301 EA BEAD 300 OHM FB415 071G 56G301 EA BEAD 300 OHM FB416 071G 56G301 EA BEAD 300 OHM FB417 071G 56G301 EA BEAD 300 OHM FB419 071G 56G301 EA BEAD 300 OHM FB601 071G 56G301 EA BEAD 300 OHM FB302 071G 56G301 EA BEAD 300 OHM FB602 071G 56G301 EA BEAD 300 OHM FB606 071G 56G301 EA BEAD 300 OHM FB706 071G 57G301 EA CHIP BEAD FB709 071G 57G301 EA CHIP BEAD 家电维修资料网 www.520101.com 57 R101 071G 59C600 CHIP BEAD R104 071G 59C600 CHIP BEAD R108 071G 59C600 CHIP BEAD FB102 071G 59C800 1HIP BEAD FB101 071G 59C800 1HIP BEAD R138 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE R175 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE R182 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE R186 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE R206 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE D101 093G 60230 BAT54C(L43) D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R ZD701 093G 39S 9 T ZENER DIODE RLZ9.1B ROHM D401 093G 39S 24 T RLZ 5.6B LLDS D402 093G 39S 24 T RLZ 5.6B LLDS D404 093G 39S 24 T RLZ 5.6B LLDS ZD601 093G 39S106 T DIODE RLZ6.8C TE-11 500MW/6.8V LL-34 715G3365M0F000004K MAIN BOARD PCB D301 093G 60230 BAT54C(L43) R309 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R310 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W FB701 071G 57G301 EA CHIP BEAD CN301 088G 340 21 VT HDMI HEADER 21P V/T FB420 071G 56G301 EA BEAD 300 OHM C319 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R C333 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R C334 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R D102 093G 39S 24 T RLZ 5.6B LLDS D105 093G 39S 24 T RLZ 5.6B LLDS INTV8GAAMAA4 INVERTER BOARD 040G 45762412B CBPC LABEL CN8807 033G8020 7D U CONN.DIP R/A CN8806 033G8020 7D U CONN.DIP R/A CN8805 033G8020 7D U CONN.DIP R/A CN8804 033G8020 7D U CONN.DIP R/A CN8803 033G8020 7D U CONN.DIP R/A CN8802 033G8029 3A H B2P3S-VH C8811 065G 6J5096ET CAP CER 5PF J 6KV C8810 065G 6J5096ET CAP CER 5PF J 6KV C8809 065G 6J5096ET CAP CER 5PF J 6KV C8808 065G 6J5096ET CAP CER 5PF J 6KV C8807 065G 6J5096ET CAP CER 5PF J 6KV C8806 065G 6J5096ET CAP CER 5PF J 6KV C8805 065G 6J5096ET CAP CER 5PF J 6KV C8804 065G 6J5096ET CAP CER 5PF J 6KV C8803 065G 6J5096ET CAP CER 5PF J 6KV 家电维修资料网 www.520101.com 58 C8802 065G 6J5096ET CAP CER 5PF J 6KV T8801 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8802 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8803 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8804 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8805 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8806 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8807 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8808 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8809 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8810 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC CN8801 095G 825 6D504 HARNESS 6P(SCN)-5P(PLUG) 140MM R8801 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R8802 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R8806 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R8807 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R8805 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R8804 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R8808 061G0805104 RST CHIPR 100K OHM +-5% 1/8W R8817 061G0805243 RST CHIPR 24 KOHM +-5% 1/8W R8813 061G0805243 RST CHIPR 24 KOHM +-5% 1/8W R8803 061G0805393 RST CHIPR 39KOHM +-5% 1/8W R8816 061G0805393 RST CHIPR 39KOHM +-5% 1/8W R8811 061G0805511 RST CHIPR 510 OHM +-5% 1/8W R8812 061G0805511 RST CHIPR 510 OHM +-5% 1/8W R8814 061G0805511 RST CHIPR 510 OHM +-5% 1/8W R8815 061G0805511 RST CHIPR 510 OHM +-5% 1/8W JR801 061G1206000 RST CHIP MAX 0R05 1/4W C8801 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R C8823 065G0805562 32 CHIP 5600PF 50V X7R 0805 C8822 065G0805562 32 CHIP 5600PF 50V X7R 0805 C8821 065G0805562 32 CHIP 5600PF 50V X7R 0805 C8820 065G0805562 32 CHIP 5600PF 50V X7R 0805 C8814 065G0805562 32 CHIP 5600PF 50V X7R 0805 C8815 065G0805562 32 CHIP 5600PF 50V X7R 0805 C8816 065G0805562 32 CHIP 5600PF 50V X7R 0805 C8817 065G0805562 32 CHIP 5600PF 50V X7R 0805 C8818 065G080582131G CAP CHIP 0805 820PF G 50V NPO C8819 065G080582131G CAP CHIP 0805 820PF G 50V NPO D8818 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8817 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8815 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8814 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8812 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8811 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8809 093G 64 33 DIO SIG SM BAV99 (PHSE)R 家电维修资料网 www.520101.com 59 D8808 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8812 093G 6433S DIODE BAV99 SEMTECH D8815 093G 6433S DIODE BAV99 SEMTECH D8814 093G 6433S DIODE BAV99 SEMTECH D8818 093G 6433S DIODE BAV99 SEMTECH D8817 093G 6433S DIODE BAV99 SEMTECH D8811 093G 6433S DIODE BAV99 SEMTECH D8809 093G 6433S DIODE BAV99 SEMTECH D8808 093G 6433S DIODE BAV99 SEMTECH D8806 093G 3919552T DIODE MTZJ T-72 5.1B 500MW/5.1V DO-34 D8820 093G 64 1152T 1N4148 D8801 093G 64 1152T 1N4148 D8805 093G 64 1152T 1N4148 D8804 093G 64 1152T 1N4148 D8802 093G 64 1152T 1N4148 D8821 093G 64 1152T 1N4148 D8801 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS D8802 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS D8804 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS D8805 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS D8820 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS D8821 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS J801 095G 90 23 JUMPER WIRE J802 095G 90 23 JUMPER WIRE J803 095G 90 23 JUMPER WIRE J804 095G 90 23 JUMPER WIRE J805 095G 90 23 JUMPER WIRE J806 095G 90 23 JUMPER WIRE J807 095G 90 23 JUMPER WIRE J808 095G 90 23 JUMPER WIRE J809 095G 90 23 JUMPER WIRE J810 095G 90 23 JUMPER WIRE J811 095G 90 23 JUMPER WIRE 715G3335 1 2 INVERTER BOARD PCB 071FPE13101 00 MAGNETIC CORE P4 EEL13 071FPE13101 00 MAGNETIC CORE P4 EEL13 071FPE13101 00 MAGNETIC CORE P4 EEL13 071FPE13101 00 MAGNETIC CORE P4 EEL13 071FPE13101 00 MAGNETIC CORE P4 EEL13 071FPE13101 00 MAGNETIC CORE P4 EEL13 071FPE13101 00 MAGNETIC CORE P4 EEL13 071FPE13101 00 MAGNETIC CORE P4 EEL13 071FPE13101 00 MAGNETIC CORE P4 EEL13 071FPE13101 00 MAGNETIC CORE P4 EEL13 PWTV9GAAMQAB POWER BOARD 040G 45762412B CBPC LABEL 家电维修资料网 www.520101.com 60 009T6005 1 GROUND TERMINAL CN802 033G3802 5B Y W WEAFER CN801 033G8029 3A 3PIN (2PIN NC) IC950 056G 139 3A IC PC123Y22FZ0F IC951 056G 139 3A IC PC123Y22FZ0F IC970 056G 139 3A IC PC123Y22FZ0F IC902 056T 379121 IC STR- A6069H DIP-8 NR901 061G 58030 W NTCR 3 OHM 5A C904 063G 10722410M 0.22 UF 275VAC C901 063G107K474 US 0.47UF +-10% C910 063G213J105GFA MPF CAP C804 063T213J105GCC CAP MPE 1UF J 450V C801 063T213J105GCC CAP MPE 1UF J 450V C911 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5P C821 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5P C927 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX C906 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX C903 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX C902 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX C928 065G306M1022BM Y1.CAP.001UF 250VAC MURATA C925 067G 42Z82015K EC 82UF M 450V 18*36MM C953 067G204V331 3K CS CAP 330UF 16V 10*12 MM C958 067G215P1026KV LOW ESR EC 1000UF M 35V 12.5*25MM C954 067G215P4713KV LOW ESR EC 471UF M 16V 10*12MM C959 067G215P4714KV LOW ESR EC 470UF M 25V 10*16MM C805 067G215P4714KV LOW ESR EC 470UF M 25V 10*16MM L950 073G 253 91 L CHOKE BY LI TA L951 073G 253 91 L CHOKE BY LI TA L901 073T 174106 DN LINE FILTER 13MH LK.TF032.A20 L902 073T 174106 DN LINE FILTER 13MH LK.TF032.A20 L903 073T 174124 L PFC CHOKE 300UH PT-009584 T902 080GL26T 11 N X'FMR 680UH YUVA-1091 T802 080GL26T 14 L X'FMR 6MH CC-011223 T801 080GL26T 15 N X'FMR 840UH MIN YUVA-1094 T901 080GL52T 5 L X'FMR 1.0MH PT-009817 F901 084T 41 15 L FUSE 3.15A 250V CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE D904 093G 52 70 1 1N5408-E(SHORT PIN) 3A/1000V DO-201AD CN902 095G 82512W522 HARNESS 12P(SCN)-12P(PLUG) 160 0Q1G 340 8106 CR3 SCREW 705GQ993008 D952 ASS'Y D952 093G 60303 DIODE YG868C10RSC 30A/100V TO-220F D952 093G 60306 DIODE FMEN-230A 30A/100V TO-220 0M1G1730 8120 SCREW Q90T0176 1 HEAT SINK 705TQ857038 Q901 ASS'Y 家电维修资料网 www.520101.com 61 Q901 057G 667 55 FET 2SK4087LS 14A/600V TO-220FI(LS) HS1 090G6064 1 HEAT SINK 0M1G1730 8120 SCREW 705TQ857039 Q801/Q802 ASS'Y Q801 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS) Q802 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS) Q802 057G 724 4A STP9NK60ZFP TO-220FP BY ST Q801 057G 724 4A STP9NK60ZFP TO-220FP BY ST HS9 090G6064 1 HEAT SINK 0M1G1730 8120 SCREW 705TQ857040 Q903 ASS'Y Q903 057G 667 21 STP10NK70ZFP Q903 057G 667 54 1 TRA STF21NM60N 17A/650V TO-220FP HS8 090G6084 1 HEAT SINK 0M1G1730 8120 SCREW 705TQ893037 BD901 ASS'Y HS5 090G6064 1 HEAT SINK BD901 093G 50460 34 BRIDGE KBJ608G 6A/800V KBJ 0M1G1730 8120 SCREW 705TQ893038 D902 ASS'Y HS6 090G6084 1 HEAT SINK D902 093G 52 56 DIODE FMN-1106S 10A/600V TO-220 0M1G1730 8120 SCREW 705TQ893039 D950 ASS'Y HS4 090G6084 1 HEAT SINK D950 093G 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS) 0M1G1730 8120 SCREW IC901 056G 368 12 IC FAN7529MX SOP-8 IC801 056T 379122 IC OZ9976GN-C-0-TR SOP-16 IC903 056T 379133 IC LD7523A GS SOP-8 Q970 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q950 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q805 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q804 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM Q924 057G 760 5 DTC144WKA BY ROHM SMT R932 061G0805100 Y RST CHIPR 10 OHM +-5% 1/8W YAGEO R957 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W R958 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W R827 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R824 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R803 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R802 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R954 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R983 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R981 061G0805102 RST CHIPR 1K OHM +-5% 1/8W 家电维修资料网 www.520101.com 62 R961 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R960 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R956 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R955 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R934 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R963 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R944 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R939 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R929 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R918 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R914 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R830 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R828 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R821 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R976 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R982 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R806 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R807 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R805 061G0805104 RST CHIPR 100K OHM +-5% 1/8W R820 061G0805104 RST CHIPR 100K OHM +-5% 1/8W R928 061G0805104 RST CHIPR 100K OHM +-5% 1/8W R933 061G0805109 RST CHIPR 1 OHM +-5% 1/8W R923 061G0805130 2F RST CHIP 13K 1/8W 1% R912 061G0805202 RST CHIPR 2K OHM +-5% 1/8W R911 061G0805203 CHIP 20KOHM 1/10W R935 061G0805203 CHIP 20KOHM 1/10W R811 061G0805205 RST CHIPR 2 MOHM +-5% 1/8W R943 061G0805220 RST CHIPR 22 OHM +-5% 1/8W R822 061G0805240 0F RST CHIPR 240 OHM +-1% 1/8W R825 061G0805240 0F RST CHIPR 240 OHM +-1% 1/8W R978 061G0805240 2F RST CHIPR 24 KOHM +-1% 1/8W R910 061G0805304 RST CHIPR 300K OHM +-5% 1/8W R913 061G0805330 Y RST CHIPR 33 OHM +-5% 1/8W YAGEO R818 061G0805331 RST CHIPR 330 OHM +-5% 1/8W R975 061G0805392 3.9 KOHM 1/10W R809 061G0805470 2F RST CHIP 47K 1/8W 1% R915 061G0805471 RST CHIPR 470 OHM +-5% 1/8W R938 061G0805472 RST CHIPR 4.7 KOHM +-5% 1/8W R942 061G0805513 RST CHIPR 51K OHM +-5% 1/8W R814 061G0805513 RST CHIPR 51K OHM +-5% 1/8W R819 061G0805514 RST CHIPR 510 KOHM +-5% 1/8W R906 061G0805514 RST CHIPR 510 KOHM +-5% 1/8W R917 061G0805563 RST CHIPR 56K OHM +-5% 1/8W JR901 061G1206000 RST CHIP MAX 0R05 1/4W JR902 061G1206000 RST CHIP MAX 0R05 1/4W JR904 061G1206000 RST CHIP MAX 0R05 1/4W 家电维修资料网 www.520101.com 63 JR905 061G1206000 RST CHIP MAX 0R05 1/4W JR906 061G1206000 RST CHIP MAX 0R05 1/4W R950 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R951 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R952 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R953 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R816 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R817 061G1206102 RST CHIPR 1K OHM +-5% 1/4W R945 061G1206102 RST CHIPR 1K OHM +-5% 1/4W R974 061G1206102 RST CHIPR 1K OHM +-5% 1/4W R941 061G1206103 RST CHIPR 10K OHM +-5% 1/4W R833 061G1206103 RST CHIPR 10K OHM +-5% 1/4W R832 061G1206103 RST CHIPR 10K OHM +-5% 1/4W R804 061G1206103 RST CHIPR 10K OHM +-5% 1/4W R810 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W R9211 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W R9212 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W R9213 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W R9214 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W R9401 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W R9402 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W R9403 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W R9404 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W R904 061G1206155 RST CHIPR 1.5 MOHM +-5% 1/4W R905 061G1206155 RST CHIPR 1.5 MOHM +-5% 1/4W R909 061G1206155 RST CHIPR 1.5 MOHM +-5% 1/4W R973 061G1206222 RST CHIPR 2.2KOHM +-5% 1/4W R972 061G1206222 RST CHIPR 2.2KOHM +-5% 1/4W R931 061G1206229 RST CHIPR 2.2 OHM +-5% 1/4W R937 061G1206475 RST CHIPR 4.7 MOHM +-5% 1/4W R920 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W R921 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W R922 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W R924 061G1206754 RST CHIPR 750 KOHM +-5% 1/4W R925 061G1206754 RST CHIPR 750 KOHM +-5% 1/4W R926 061G1206754 RST CHIPR 750 KOHM +-5% 1/4W R907 061T1206279 RST CHIPR 2.7 OHM +-5% 1/4W R908 061T1206279 RST CHIPR 2.7 OHM +-5% 1/4W C816 065G0805102 32 CHIP 1000P 50VX7R 0805 C950 065G0805102 32 CHIP 1000P 50VX7R 0805 C951 065G0805102 32 CHIP 1000P 50VX7R 0805 C960 065G0805102 32 CHIP 1000P 50VX7R 0805 C961 065G0805102 32 CHIP 1000P 50VX7R 0805 C817 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C818 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C811 065G0805103 22 CHIP 0.01UF 25V X7R 0805 家电维修资料网 www.520101.com 64 C920 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R C907 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C908 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C909 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C913 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C921 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C923 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C942 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C943 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C956 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C974 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C977 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C978 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C806 065G0805104 32 GP CHIP 0.1UF 50V X7R C922 065G0805105 37 CHIP 1UF 50V Y5V C809 065G080510522K Y CAP CHIP 0805 1UF K 25V X7R C944 065G0805221 32 CHIP 220PF 50V X7R 0805 C915 065G0805221 32 CHIP 220PF 50V X7R 0805 C815 065G0805221 32 CHIP 220PF 50V X7R 0805 C955 065G0805224 32 0.22UF,K,50V,X7R C814 065G0805225 22 CHIP 2.2UF 25V X7R 0805 C802 065G0805225 22 CHIP 2.2UF 25V X7R 0805 C807 065G080533131G MLCC 0805 330PF J 50V NPO C976 065G0805334 32 GP CHIP 0805 0.33UF K 50V X7R C813 065G080547232K Y CAP CHIP 0805 4700PF K 50V X7R C812 065G0805473 32 CHIP 0.047UF 50V X7R C917 065G0805473 32 CHIP 0.047UF 50V X7R C918 065G0805474 32 0.47UF +-10% 50V X7R C912 065G0805560 31 MLCC 0805 56PF J 50V NP0 C819 065G0805681 31 CHIP 680PF 50V NPO 0805 C820 065G0805681 31 CHIP 680PF 50V NPO 0805 D805 093G 64 42 PP BAV70 SOT-23 D801 093T 60S 5 T SCS0520P SOD-123 D802 093T 60S 5 T SCS0520P SOD-123 D803 093T 60S 5 T SCS0520P SOD-123 D804 093T 60S 5 T SCS0520P SOD-123 CN901 006G 31500 EYELET IC971 056G 158 10 T IC AS431AZTR-E1 TO-92 IC952 056G 158 10 T IC AS431AZTR-E1 TO-92 R801 061G 30310852T GP FUSE RESISTOR R948 061G 30347852T GP RST FUSER 0.47OHM +-5% 1W C803 065G 1K102 5T6213 CER CAP 1000PF K 1KV TDK C939 065G 2K152 1T6921 1.5NF/2KV Y5P +-10% C929 065G 2K152 1T6921 1.5NF/2KV Y5P +-10% C933 067G 2152207NT KY50VB22M-TP5 5*11 C941 067G215Y1007KT KY50VB10M-TP5 5*11.5 家电维修资料网 www.520101.com 65 C937 067G215Y1007KT KY50VB10M-TP5 5*11.5 C931 067G215Y1017NT EC 100UF 50V 8*11.5MM C914 067G215Y4707KT 47UF 50V ZD951 093G 3916652T MTZJ15B (13.89-14.62) ZD901 093G 3916752T MTZJ T-72 16B D935 093G 5250S52T DIODE AU02Z-V1 SANKEN D954 093G 64 1152T 1N4148 D906 093G 64 1152T 1N4148 D905 093G 64 1152T 1N4148 D806 093G 64 1152T 1N4148 D807 093G 64 1152T 1N4148 D903 093G 64 1152T 1N4148 D930 093T1080 252T DIODE SARSO1-V1 SANKEN D940 093T1080 252T DIODE SARSO1-V1 SANKEN J911 095G 90 23 JUMPER WIRE J912 095G 90 23 JUMPER WIRE J914 095G 90 23 JUMPER WIRE J916 095G 90 23 JUMPER WIRE J918 095G 90 23 JUMPER WIRE J919 095G 90 23 JUMPER WIRE J920 095G 90 23 JUMPER WIRE J921 095G 90 23 JUMPER WIRE J909 095G 90 23 JUMPER WIRE J908 095G 90 23 JUMPER WIRE J907 095G 90 23 JUMPER WIRE J906 095G 90 23 JUMPER WIRE J904 095G 90 23 JUMPER WIRE J903 095G 90 23 JUMPER WIRE J902 095G 90 23 JUMPER WIRE J901 095G 90 23 JUMPER WIRE J922 095G 90 23 JUMPER WIRE J936 095G 90 23 JUMPER WIRE J935 095G 90 23 JUMPER WIRE J934 095G 90 23 JUMPER WIRE J933 095G 90 23 JUMPER WIRE J932 095G 90 23 JUMPER WIRE J931 095G 90 23 JUMPER WIRE J930 095G 90 23 JUMPER WIRE J929 095G 90 23 JUMPER WIRE J905 095G 90 23 JUMPER WIRE J928 095G 90 23 JUMPER WIRE J927 095G 90 23 JUMPER WIRE J926 095G 90 23 JUMPER WIRE J925 095G 90 23 JUMPER WIRE J924 095G 90 23 JUMPER WIRE 715G3418P010HV003M POWER BOARD PCB 家电维修资料网 www.520101.com 66 R916 061T152M15852T RST MOFR 0.15 OHM +-5% 2WS R946 061G152M43852T RST MOF 0R43 5% 2W J937 095G 90 23 JUMPER WIRE J938 095G 90 23 JUMPER WIRE J941 095G 90 23 JUMPER WIRE J942 095G 90 23 JUMPER WIRE Q921 057G 761 16 TRA KTD1028 KEC Q925 057G 420 3 T TRA KTA1273-Y- AT/ P_TO-92L KEC C822 065G 1K102 5T6213 CER CAP 1000PF K 1KV TDK FB902 071G 55 29 FERRITE BEAD FB903 071G 55 29 FERRITE BEAD FB905 071G 55 29 FERRITE BEAD FB904 071G 55 9 T FERRITE BEAD FB901 071G 55 26 S FERRITE CORE D901 093T 52S 12 T DIODE US1M 1A/1000V SMA R813 061G0805272 RST CHIPR 2.7 KOHM +-5% 1/8W R829 061G0805105 RST CHIPR 1M OHM +-5% 1/8W R831 061G0805105 RST CHIPR 1M OHM +-5% 1/8W R815 061G0805513 RST CHIPR 51K OHM +-5% 1/8W JR907 061G1206000 4 RST CHIP MAX 0R05 1/4W JR908 061G1206000 4 RST CHIP MAX 0R05 1/4W R980 061G0805622 RST CHIPR 6.2 KOHM +-5% 1/8W D901 093G 52S 10 T DIODE US1M-E3/61T 1A/1000V DO-214AC Q804 057G 417 12 T KEC 2N3904S-RTK/PS Q805 057G 417 12 T KEC 2N3904S-RTK/PS Q950 057G 417 12 T KEC 2N3904S-RTK/PS Q970 057G 417 12 T KEC 2N3904S-RTK/PS Q803 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS R901 061G1206334 RST CHIPR 330KOHM +-5% 1/4W R902 061G1206334 RST CHIPR 330KOHM +-5% 1/4W R903 061G1206334 RST CHIPR 330KOHM +-5% 1/4W R947 061T1206512 Y RST CHIPR 5.1KOHM +-5% 1/4W YAGEO R949 061T1206512 Y RST CHIPR 5.1KOHM +-5% 1/4W YAGEO R826 061G0805300 1F RST CHIPR 3 KOHM +-1% 1/8W R823 061G0805300 1F RST CHIPR 3 KOHM +-1% 1/8W Q51G 6 4509 GLUE_RTV Q01G6079 1 SCREW Q01G6079 2 SCREW Q02G7018 1 SPACE SUPPORT Q02G7019 1 SPACE SUPPORT Q11G5052 1 STRING Q11T5043 3 SUPPORT CLIP Q15T0441101 26 BKT-SIDE-SUPPORT Q40G 260001 2A RATING LABEL Q40G0002001 4A 8X02 LABEL Q40T0002001 2A WARRANTY LABEL 家电维修资料网 www.520101.com 67 Q41T7800001 1A WARRANTY BOOKLET Q44GE030 5 1A U TYPE SHEET FOR BASE Q44GE030001 1A 26 TV SKYWORTH CARTON Q44GE030101 EPS Q44GE030201 EPS Q45G 77 5 PE PACKING Q45G 77 5 PE PACKING Q45G 99609 78 EPE BAG FOR MONITOR Q45G 99626 36 PE BAG Q50G 4 10 TIE Q50T 500523 CABLE TIE Q52T 1150522 TAPE_INSULATING Q41G2202001 2A MANUA Q45G2007M0102A PE BAG FOR MANUAL 040G 58162435A P/N LABEL FOR MANUAL PE BAG Q40T0001001 1A SN LABEL Q34E0602 GM 1L0100 26 SIEDE COVER Q40G0002001 5A SIDE LABEL 078G 521 1 K SPK 8 OHM 6W 140X42 400 200 KUAIDA E078 078T 521 1 Y SPEAKER 8 OHM 6W 140X42.3MM E078 2nd source E09502 095T8014 8WH13 HARNESS 8P(PLUG)-5P(300MM)+4P(450MM) 2nd source E09502 095T8014 8XH13 HARNESS 8P(PLUG)-5P(300MM)+4P(450MM) IRPF9YA5 IR BOARD U01 056T 627 14 2 IC GP18C38BAE CN01 033T8032 5F HR CONN.1.25PITCH R11 061G0603153 RST CHIPR 15KOHM +-5% 1/10W C01 065G0603104 12 CER2 0603 X7R 16V 100N P LED01 081T 14 24 EL CHIP LED BLUE/DARK RED 715G3540R0B000004M IR BOARD PCB KEPF9YA1 KEY BOARD CN01 033G8032 4F HR CONNECTOR R07 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W R08 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W R05 061G0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W R01 061G0603200 2F RST CHIPR 20 KOHM +-1% 1/10W R03 061G0603432 1F RST CHIP 4.32K 1/10W 1% R02 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W R04 061T0603274 1F RST CHIPR 2.74 KOHM +-1% 1/10W SW01 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW02 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW03 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW04 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW05 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW06 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW07 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL 715G3293 1 KEY BOARD PCB 家电维修资料网 www.520101.com 68 Q40G0002001 6A IO LABEL
