现代L50AL50C显示器电路原理图
)
)
)
)
)
)
)
)
)
)

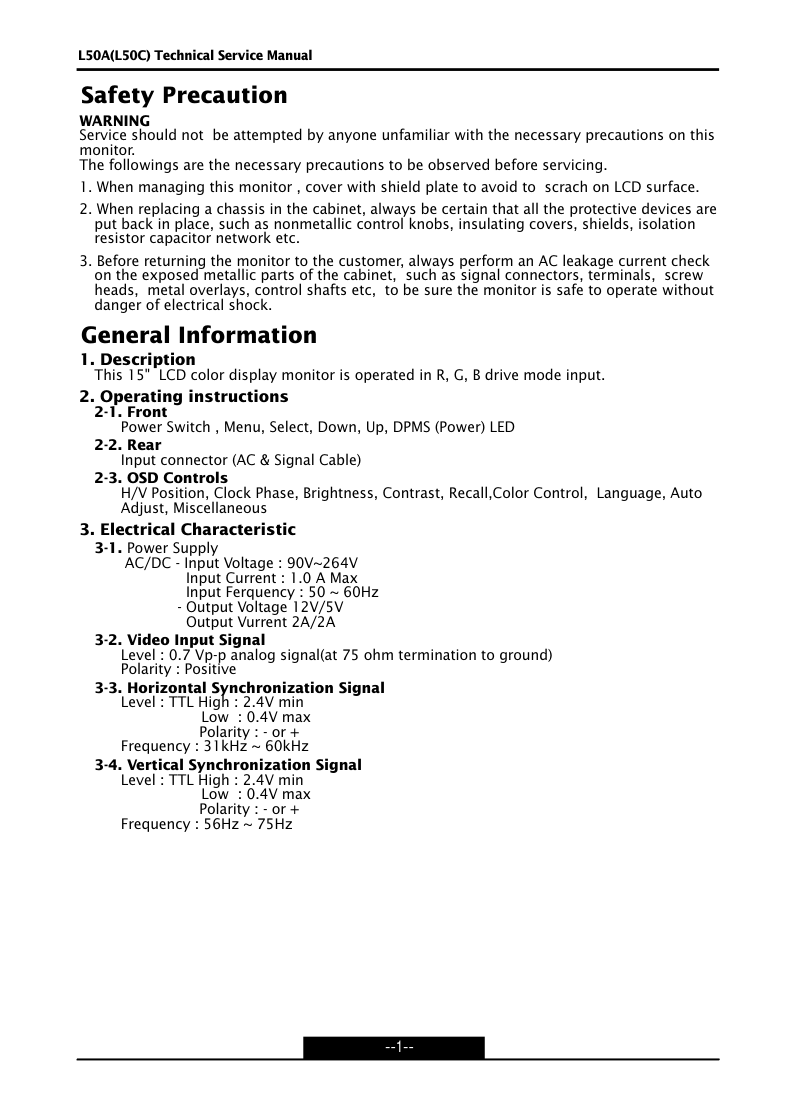

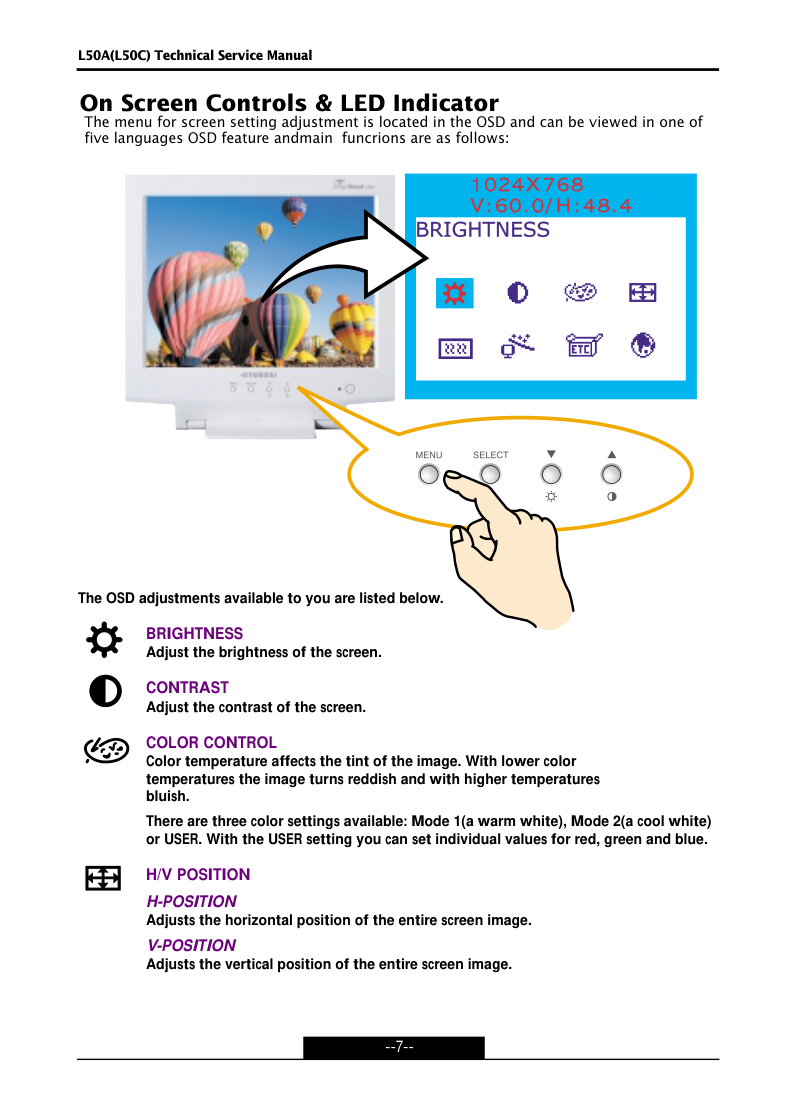

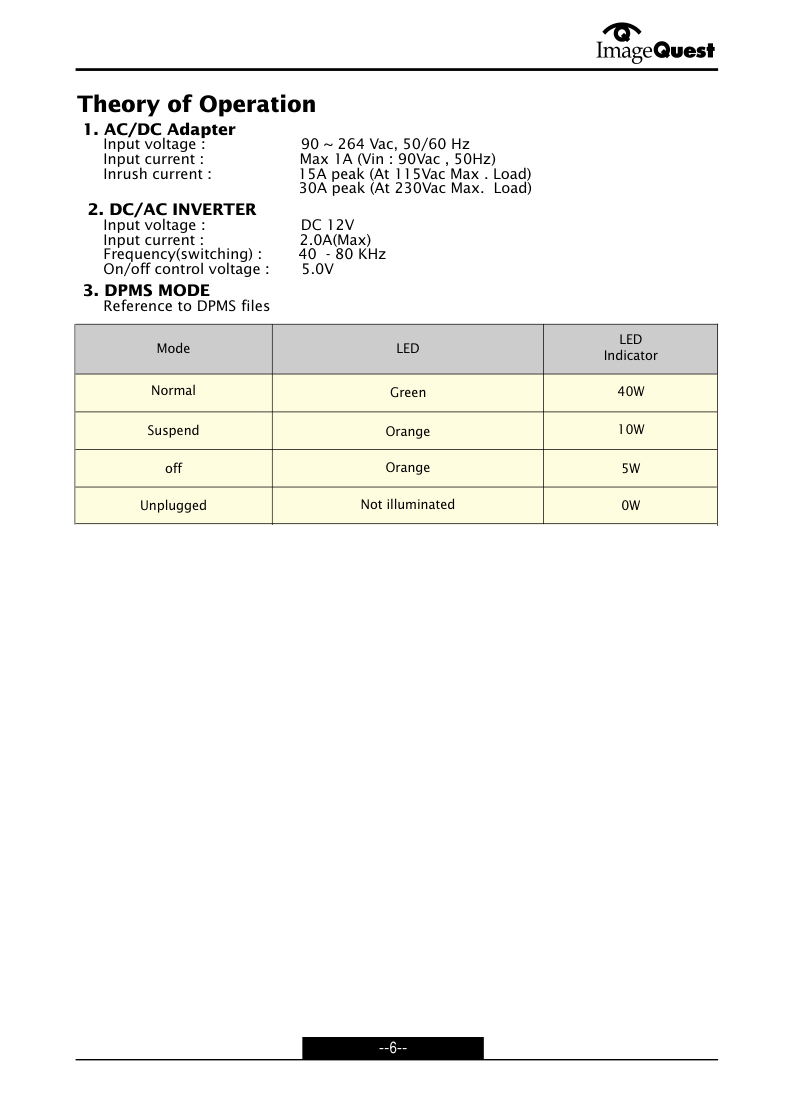

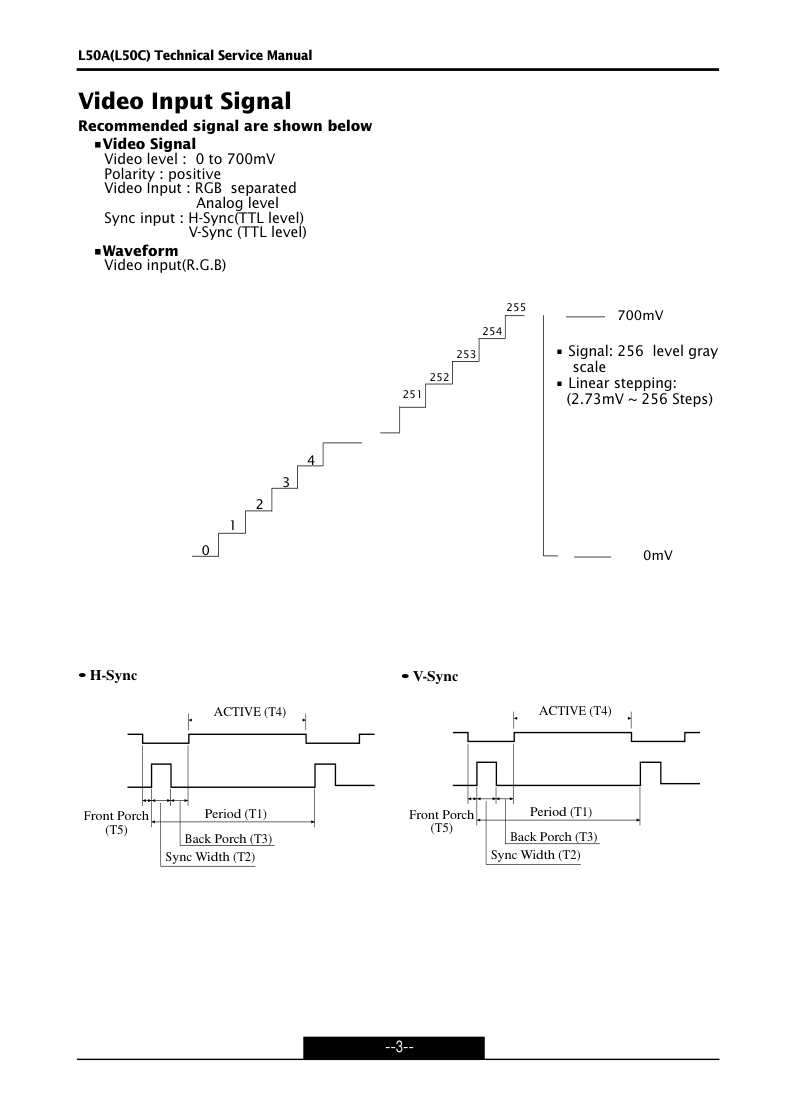

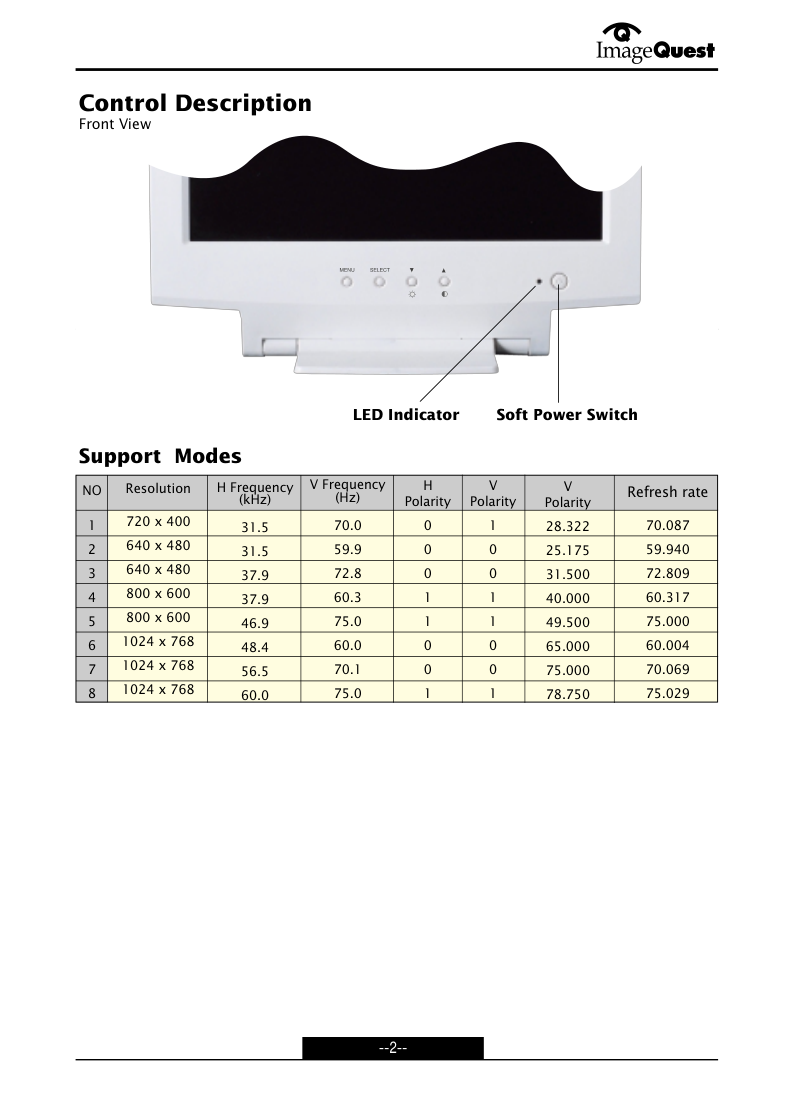

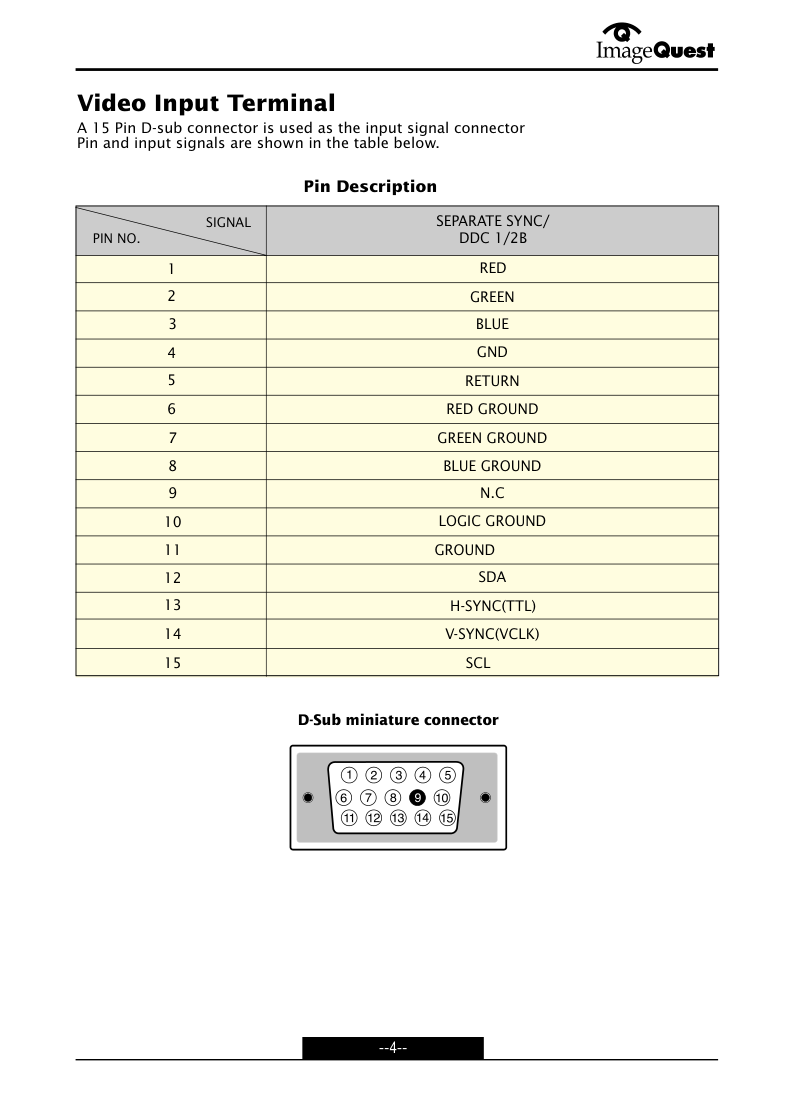

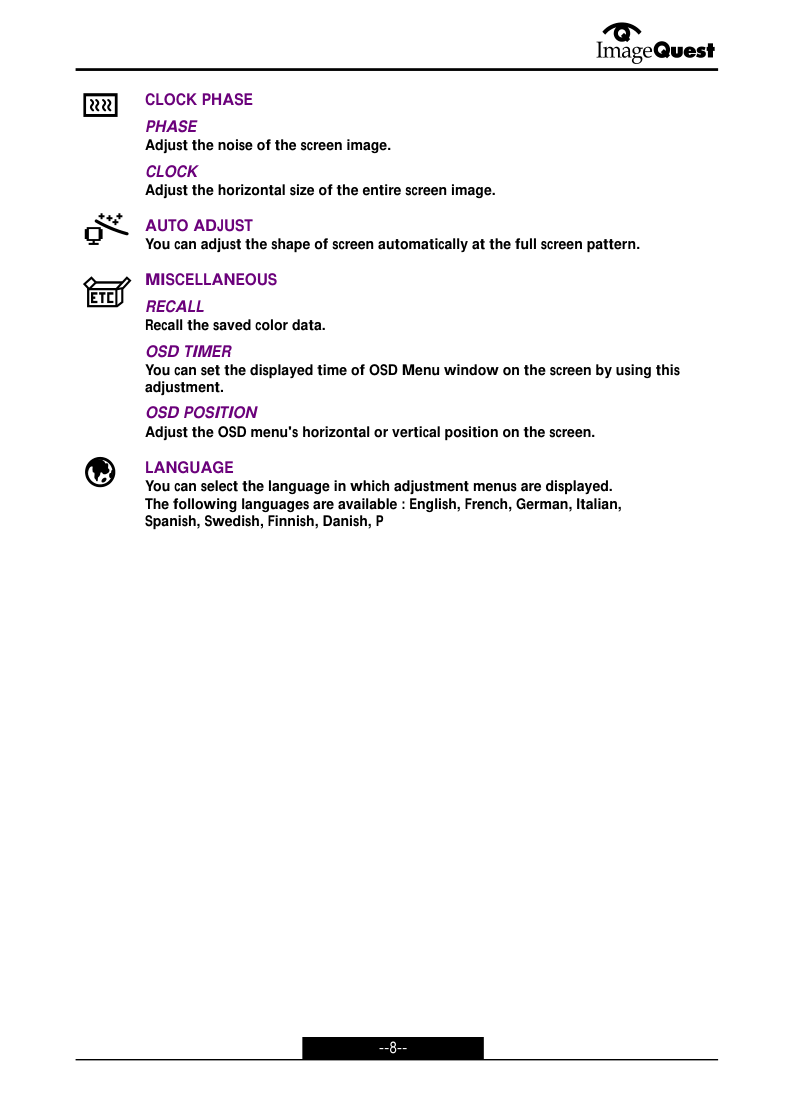

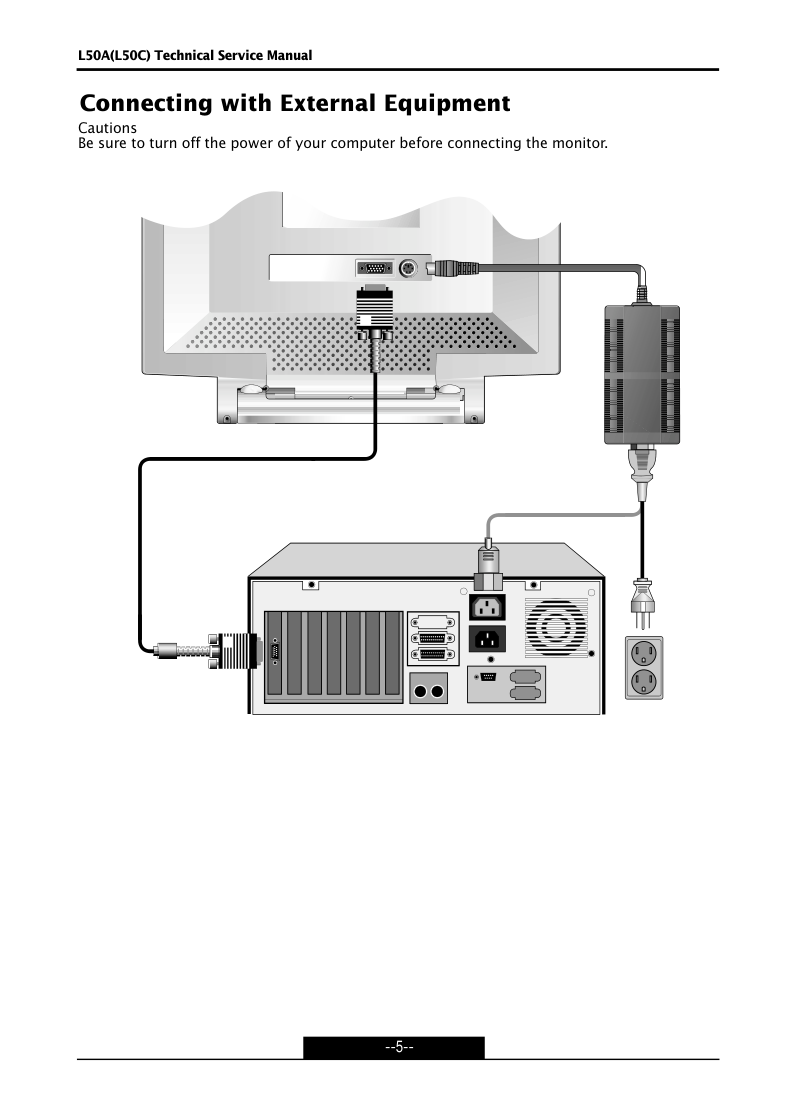

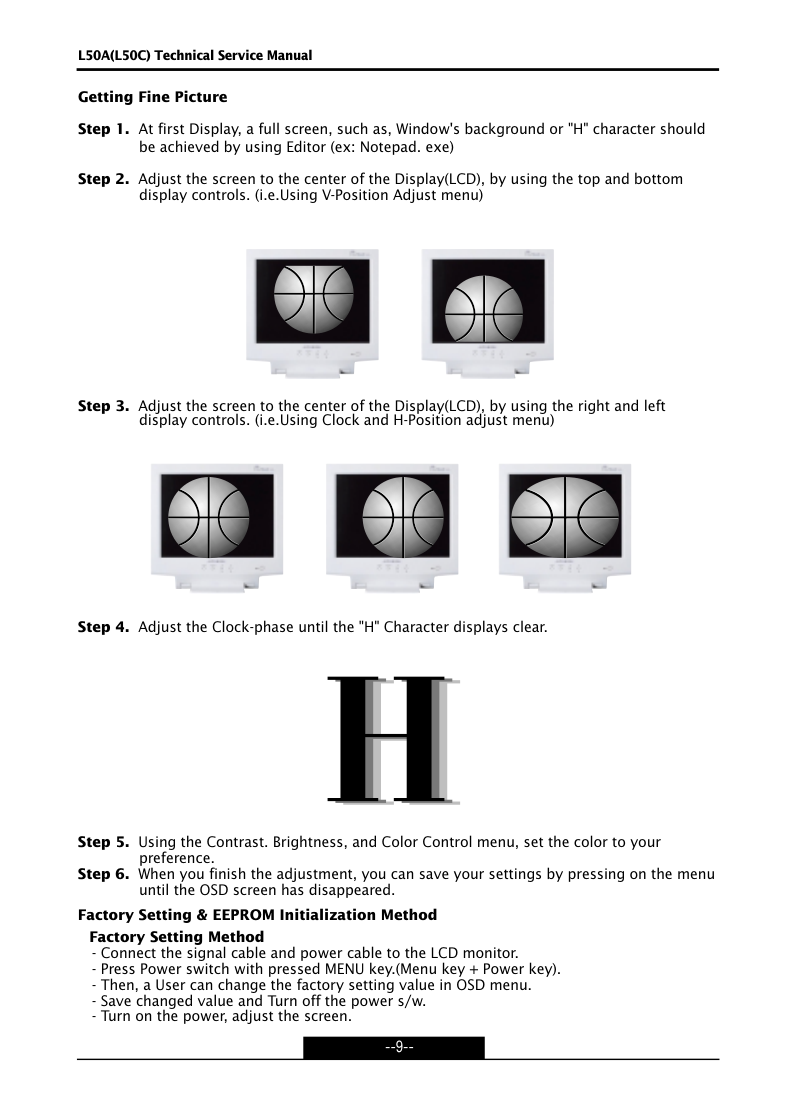

Multiscanning Color Monitor TECHNICAL SERVICE MANUAL L50A(L50C) http://monitor.hei.co.kr http://hyundaiQ.com --1-- L50A(L50C) Technical Service Manual Safety Precaution WARNING Service should not be attempted by anyone unfamiliar with the necessary precautions on this monitor. The followings are the necessary precautions to be observed before servicing. 1. When managing this monitor , cover with shield plate to avoid to scrach on LCD surface. 2. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as nonmetallic control knobs, insulating covers, shields, isolation resistor capacitor network etc. 3. Before returning the monitor to the customer, always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as signal connectors, terminals, screw heads, metal overlays, control shafts etc, to be sure the monitor is safe to operate without danger of electrical shock. General Information 1. Description This 15" LCD color display monitor is operated in R, G, B drive mode input. 2. Operating instructions 2-1. Front Power Switch , Menu, Select, Down, Up, DPMS (Power) LED 2-2. Rear Input connector (AC & Signal Cable) 2-3. OSD Controls H/V Position, Clock Phase, Brightness, Contrast, Recall,Color Control, Language, Auto Adjust, Miscellaneous 3. Electrical Characteristic 3-1. Power Supply AC/DC - Input Voltage : 90V~264V Input Current : 1.0 A Max Input Ferquency : 50 ~ 60Hz - Output Voltage 12V/5V Output Vurrent 2A/2A 3-2. Video Input Signal Level : 0.7 Vp-p analog signal(at 75 ohm termination to ground) Polarity : Positive 3-3. Horizontal Synchronization Signal Level : TTL High : 2.4V min Low : 0.4V max Polarity : - or + Frequency : 31kHz ~ 60kHz 3-4. Vertical Synchronization Signal Level : TTL High : 2.4V min Low : 0.4V max Polarity : - or + Frequency : 56Hz ~ 75Hz --2-- Control Description Front View Support Modes LED Indicator Soft Power Switch H Frequency (kHz) 31.5 31.5 37.9 37.9 46.9 48.4 56.5 60.0 V Frequency (Hz) 70.0 59.9 72.8 60.3 75.0 60.0 70.1 75.0 H Polarity 0 0 0 1 1 0 0 1 V Polarity 1 0 0 1 1 0 0 1 V Polarity 28.322 25.175 31.500 40.000 49.500 65.000 75.000 78.750 NO 1 2 3 4 5 6 7 8 Resolution 720 x 400 640 x 480 640 x 480 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 Refresh rate 70.087 59.940 72.809 60.317 75.000 60.004 70.069 75.029 Video Input Signal Recommended signal are shown below •Video Signal Video level : 0 to 700mV Polarity : positive Video Input : RGB separated Analog level Sync input : H-Sync(TTL level) V-Sync (TTL level) •Waveform Video input(R.G.B) --3-- L50A(L50C) Technical Service Manual ACTIVE (T4) � � Front Porch� (T5) Period (T1) Sync Width (T2) Back Porch (T3) ACTIVE (T4) � � Front Porch� (T5) Period (T1) Sync Width (T2) Back Porch (T3) • H-Sync • V-Sync 0 1 2 3 4 251 252 253 254 255 700mV 0mV • Signal: 256 level gray scale • Linear stepping: (2.73mV ~ 256 Steps) --4-- Video Input Terminal A 15 Pin D-sub connector is used as the input signal connector Pin and input signals are shown in the table below. Pin Description D-Sub miniature connector SIGNAL PIN NO. 3 2 1 5 4 6 7 8 9 10 11 12 13 14 SEPARATE SYNC/ DDC 1/2B RED GREEN BLUE GND RETURN RED GROUND GREEN GROUND BLUE GROUND N.C LOGIC GROUND GROUND SDA H-SYNC(TTL) V-SYNC(VCLK) 15 SCL Connecting with External Equipment Cautions Be sure to turn off the power of your computer before connecting the monitor. --5-- L50A(L50C) Technical Service Manual Theory of Operation 1. AC/DC Adapter Input voltage : 90 ~ 264 Vac, 50/60 Hz Input current : Max 1A (Vin : 90Vac , 50Hz) Inrush current : 15A peak (At 115Vac Max . Load) 30A peak (At 230Vac Max. Load) 2. DC/AC INVERTER Input voltage : DC 12V Input current : 2.0A(Max) Frequency(switching) : 40 - 80 KHz On/off control voltage : 5.0V 3. DPMS MODE Reference to DPMS files --6-- Mode Normal Suspend off LED 10W 5W LED Indicator 40W Green Orange Orange Unplugged 0W Not illuminated --7-- L50A(L50C) Technical Service Manual On Screen Controls & LED Indicator The menu for screen setting adjustment is located in the OSD and can be viewed in one of five languages OSD feature andmain funcrions are as follows: The OSD adjustments available to you are listed below. BRIGHTNESS Adjust the brightness of the screen. CONTRAST Adjust the contrast of the screen. COLOR CONTROL Color temperature affects the tint of the image. With lower color temperatures the image turns reddish and with higher temperatures bluish. There are three color settings available: Mode 1(a warm white), Mode 2(a cool white) or USER. With the USER setting you can set individual values for red, green and blue. H/V POSITION H-POSITION Adjusts the horizontal position of the entire screen image. V-POSITION Adjusts the vertical position of the entire screen image. --8-- CLOCK PHASE PHASE Adjust the noise of the screen image. CLOCK Adjust the horizontal size of the entire screen image. AUTO ADJUST You can adjust the shape of screen automatically at the full screen pattern. MISCELLANEOUS RECALL Recall the saved color data. OSD TIMER You can set the displayed time of OSD Menu window on the screen by using this adjustment. OSD POSITION Adjust the OSD menu's horizontal or vertical position on the screen. LANGUAGE You can select the language in which adjustment menus are displayed. The following languages are available : English, French, German, Italian, Spanish, Swedish, Finnish, Danish, P --9-- L50A(L50C) Technical Service Manual Getting Fine Picture Step 1. At first Display, a full screen, such as, Window's background or "H" character should be achieved by using Editor (ex: Notepad. exe) Step 2. Adjust the screen to the center of the Display(LCD), by using the top and bottom display controls. (i.e.Using V-Position Adjust menu) Step 3. Adjust the screen to the center of the Display(LCD), by using the right and left display controls. (i.e.Using Clock and H-Position adjust menu) Step 4. Adjust the Clock-phase until the "H" Character displays clear. Step 5. Using the Contrast. Brightness, and Color Control menu, set the color to your preference. Step 6. When you finish the adjustment, you can save your settings by pressing on the menu until the OSD screen has disappeared. Factory Setting & EEPROM Initialization Method Factory Setting Method - Connect the signal cable and power cable to the LCD monitor. - Press Power switch with pressed MENU key.(Menu key + Power key). - Then, a User can change the factory setting value in OSD menu. - Save changed value and Turn off the power s/w. - Turn on the power, adjust the screen. --10-- Specification LCD Module SIZE 15” Viewable diagonal Dot Pitch 0.297mm Brightness Response Time 180 cd/m2 (MIN), 250 cd/m2 (TYP) 20m- sec (Typ) Input Signal R.G.B Analog Connector 15 pin D-SUB Connector SYNC H-Freq 31.0kHz ~ 60.0kHz V-Freq 56.0Hz ~ 75Hz Display Area Color 304(H)X228(V)mm 16.2M Colors Resolution Video Bandwidth User Control & OSD Control Contrast,Brightness,H-V Position, Clock Phase, Color Control, Language, Auto Adjust, Miscellaneous Power Management VESA DPMS Standard Plug & Play VESA DDC 1/2B Safety & Regulation EMC Ergonomi Safety FCC CLASS B , CE , VCCI TCO cULus, CE, TUV-GS, SEMKO Temperature 30 to 80%(Non-condensing) 5 to 90%(Non-condensing) packed Humidity Operating Operating Storage Storage 5 to 35 °C - 5 to 45 °C Weight unpacked Dimension(WXHXD mm) * Specification is subject to change without notice for performance improvement. 4.4Kg 367X353X188.3mm 3.1Kg 1024 X 768 @ 75Hz 80MHz --11-- L50A(L50C) Technical Service Manual Critical Parts Specification 1. LCD Module HT-15X13(LTM150XH-L01 is a a-si TFT active matrix color liquid crystal comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. HT-15X13(LTM150XH-L01 has a built-in backlight display area contains 1024X768 pixels and can display full color (16.2M colors) Display area 304(H)X228(V)mm Drive system a-si TFT Display color 16.2M Colors Number of Pixel 1024X768 Pixel arrangement RGB vertical strip Pixel pitch 0.297(H)X0.297(V)mm Weight 300:1 Viewing angle Horizontal: 80 degree(3’ clock, 9’ clock)/45(12 ’ clock) 80 (6’ clock) Vertical: 40 degree(12’ clock) ,55 degree(6’ clock)/65(3 ’ clock, 9 ’ clock) Response time 20ms(Typr) Luminance 250cd/m2(Typ) Signal system Digital RGB signals, Sync signals(H, V-Sync), Dot clock(DCLK) , DE(Data Enable) Supply voltage 3.3V Backlight Edge light type: Four colt cathode fluorescent lamps With in- verter Power consumption 1.5W(TYP) without B/L 2) INTERFACE CONNEXTION 2-1) Electrical Interface CN1 Interface connector : DF14H-20P-1.25H(HIROSE) or equivalent User side connector : DF14-20S-1.25C(HIROSE)or equivalent --12-- Pin No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Symbol VDD1 VDD2 VSS VSS RIN0- RIN0+ VSS RIN0- RIN0+ VSS RIN2- RIN2+ VSS RCLKIN- RCLKIN+ VSS RIN3- RIN3+ VSS NC Remark Tx pin #48 Tx pin #47 Tx pin #46 Tx pin #45 Tx pin #42 Tx pin #41 Tx pin #40 Tx pin #39 Tx pin #38 Tx pin #37 Pin No Power Supply : +3.3V Power Supply : +3.3V Ground Ground LVDS Negative data signal (-) LVDS Negative data signal (+) Ground LVDS Negative data signal (-) LVDS Negative data signal (+) Ground LVDS Negative data signal (-) LVDS Negative data signal (+) Ground LVDS Negative data signal (-) LVDS Negative data signal (+) Ground LVDS Negative data signal (-) LVDS Negative data signal (+) Ground Reserved --13-- L50A(L50C) Technical Service Manual 2-2) LVDS Infcrface LVDS Transmitter : THC63LVDM83A or equivalent. Input signal R0 R1 R2 R3 R4 R5 G0 G1 G2 G3 G4 G5 B0 B1 B2 B3 B4 B5 HSYNC VSYNC DE MCLK R6 R7 G6 G7 B6 B7 RSVD Pin No 51 52 54 55 56 3 4 6 7 11 12 14 15 19 20 22 23 24 27 28 30 31 50 2 8 10 16 18 25 Pin No 48 47 46 45 42 41 40 39 38 37 System (Tx) OUT 0- OUT + OUT1+ OUT1+ OUT2- OUT2+ CLKOUT- CLKOUT+ OUT+ OUT- TFT-LCD (Rx) IN0- IN0+ IN1- IN1+ IN2- IN2+ CLKIN- CLKIN+ IN3- IN3+ DF14H-20P-1.25H Pin No 5 6 8 9 11 12 14 15 17 18 Remark Transmitter Interface --14-- . FFeeaattuurreess The gmZAN1 device utilizes Genesisí patented third- generation Advanced Image Magnification technology as well as a proven integrated ADC/PLL to provide excellent image quality within a cost-effective SVGA / XGA LCD monitor solution. As a pin-compatible replacement for the gmB120, the gmZAN1 incorporates all of the gmB120 features plus many enhanced features; including 10-bit gamma correction, Adaptive Contrast Enhancement (ACE) filtering, and an enhanced OSD. Features •••• Fully integrated 135MHz 8-bit triple-ADC, PLL, and pre-amplifier •••• gmZ2 scaling algorithm featuring new Adaptive Contrast Enhancement (ACE) •••• On-chip programmable OSD engine •••• Integrated PLLs •••• 10-bit programmable gamma correction •••• Host interface with 1 or 4 data bits •••• Pin-compatible with gmB120 •••• Integrated Analog Front End •••• Integrated 8-bit triple ADC •••• Up to 135MHz sampling rates •••• No additional components needed •••• All color depths up to 24-bits/pixel are supported •••• High-Quality Advanced Scaling •••• Fully programmable zoom •••• Independent horizontal / vertical zoom •••• Enhanced and adaptive scaling algorithm for optimal image quality •••• Recovery Mode / Native Mode •••• Input Format •••• Analog RGB up to XGA 85Hz •••• Output Format •••• Support for 8 or 6-bit panels (with high quality dithering) •••• One or two pixel output format •••• Built In High-Speed Clock Generator •••• Fully programmable timing parameters •••• On-chip PLLs generate clocks for the on-chip ADC and pixel clock from a single reference oscillator •••• Auto-Configuration / Auto-Detection •••• Phase and image positioning •••• Input format detection •••• Operating Modes •••• Bypass mode with no filtering •••• Multiple zoom modes: with filtering with adaptive (ACE) filtering •••• Integrated On-Screen Display •••• On-chip character RAM and ROM for better customization •••• External OSD supported for greater flexibility •••• Many other font capabilities including: blinking, overlay and transparency Package • 160-pin PQFP Applications • Multi-synchronous LCD monitors • Other fixed-resolution pixelated display devices gmZAN1 --15-- L50A(L50C) Technical Service Manual Figure 1. gmZAN1 Pin Diagram CVSS1 Reserved PSCAN Reserved Reserved PD47 PD46 RVSS1 PD45 PD44 SRVDD1 RVDD1 PD43 PD42 PD41 PD40 PD39 SRVSS1 PD38 PD37 SRVDD2 PD36 PD35 PD34 PD33 PD32 PD31 PD30 PD29 RVSS2 PD28 PD27 RVDD2 PD26 PD25 PD24 PD23 PD22 PD21 CVDD1 OSD_DATA2 OSD_DATA1 OSD_DATA0 OSD_CLK OSD_VREF OSD_HREF CVSS4 MFB0 MFB1 MFB2 MFB3 MFB4 CVDD4 MFB5 MFB6 MFB7 MFB8 HCLK MFB9 IRQ RESETn HDATA HFS N/C ADC_RVDDA RED+ RED- ADC_RGNDA ADC_GVDDA GREEN+ GREEN- ADC_GGNDA ADC_BVDDA BLUE+ BLUE- ADC_BGNDA ADC_VDDA Reserved ADC_GNDA SUB_GNDA OSD_DATA3 OSD_FSW MFB11 MFB10 DVDD DVSS DAC_DGNDA DAC_DVDDA PLL_DVDDA Reserved PLL_DGNDA SUB_DGNDA SUB_SGNDA PLL_SGNDA Reserved PLL_SVDDA DAC_SVDDA DAC_SGNDA SVDD SVSS TCLK XTAL (Reserved) PLL_RVDDA PLL_RGNDA Reserved SUB_RGNDA Reserved VSYNC SYN_VDD HSYNC/CS SYN_VSS Reserved STI_TM1 STI_TM2 SCAN_IN1 Reserved SCAN_IN2 SRVSS2 SCAN_OUT1 SCAN_OUT2 ADC_GND1 ADC_VDD1 ADC_GND2 ADC_VDD2 PPWR PBIAS PHS PVS CVSS3 PD0 PD1 PD2 PD3 PD4 PD5 RVDD3 PD6 PD7 PD8 RVSS4 Reserved Reserved CVDD2 PD9 PD10 PD11 PD12 PD13 PD14 PD15 PD16 RVSS3 PD17 PD18 PD19 PCLKB PCLKA PDISPE PD20 CVSS2 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 gmZAN1 (160-Pin PQFP) NOTE: For all power pads: C: Core R: Ring S: From pad 125 to 132, S represents Sclk DDS (source clk) D: From pad 133 to 140, D represents Dclk DDS (destination clk) NOTE: SRVSS1, SRVSS2 are connected to core VSS and SRVDD1 and SRVDD2 are connected to core VDD. NOTE: The following signals have the same function but different names in the gmB120 datasheet: OSD-HREF is here called OSD_HREF OSD-VREF is here called OSD_VREF OSD-CLK is here called OSD_CLK OSD-DATA0 is here called OSD_DATA0 OSD-DATA1 is here called OSD_DATA1 OSD-DATA2 is here called OSD_DATA2 OSD-DATA3 is here called OSD_DATA3 SYVDD is here called SYN_VDD SYVSS is here called SYN_VSS NOTE: when connected to a pull-down resistor, the MFB5 strapping option (sampled at reset) enables the use of an external crystal. MFB5 has an internal pull-up resistor, so an external oscillator is the default. NOTE: MFB6 is a strapping option to select a host data bus width of four when connected to a pull-down (sampled at reset). Since MFB6 has an internal pull-up resistor, a 1-wire host bus width is the default. Pin Out Diagram --16-- FEATURES 8051 core, 12MHz operating frequency with double CPU clock option 0.35uM process; 5V/3.3V power supply and I/O; 3.3V core operating 1024-byte RAM; 64K-byte program Flash-ROM support In System Programming (ISP) Maximum 14 channels of PWM DAC Maximum 31 I/O pins SYNC processor for composite separation/insertion, H/V polarity/frequency check and polarity adjustment Built-in low power reset circuit Built-in self-test pattern generator with four free-running timings Compliant with VESA DDC1/2B/2Bi/2B+ standard Dual slave IIC addresses; H/W auto transfer DDC1/DDC2x data Single master IIC interface for internal device communication Maximum 4-channel 6-bit ADC Watchdog timer with programmable interval Flash-ROM program code protection selection 40-pin DIP, 42-pin SDIP or 44-pin PLCC package GENERAL DESCRIPTIONS The MTV312M micro-controller is an 8051 CPU core embedded device especially tailored for CRT/LCD Monitor applications. It includes an 8051 CPU core, 1024-byte SRAM, 14 built-in PWM DACs, VESA DDC interface, 4-channel A/D converter, and a 64K-byte internal program Flash-ROM. BLOCK DIAGRAM XFR P0.0-7 P2.0-3 RD WR ALE INT1 P0.0-7 P2.0-3 RD WR ALE INT1 8051 CORE P1.0-7 P3.0-2 P3.4-5 RST X1 X2 ADC AD0-3 PWM DAC DA0-13 DDC & IIC INTERFACE ISCL ISDA HSCL HSDA AUXRAM & DDCRAM HSYNC VSYNC HBLANK VBLANK H/VSYNC CONTROL P6.0-7 P5.0-6 AUX I/O P4.0-2 • • • • • • • • • • • • • • • MTV312M64 --17-- L50A(L50C) Technical Service Manual PIN CONNECTION MTV312M 40 Pin PDIP DA2/P5.2 40 1 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 DA1/P5.1 DA0/P5.0 VDD3 VDD VSS X2 X1 ISDA/P3.4/T0 ISCL/P3.5/T1 STOUT/P4.2 P6.2/AD2/HLFHI P1.0 P1.1 P3.2/INT0 P1.2 P1.3 P1.4 P1.5 P1.6 HSYNC DA3/P5.3 VSYNC DA4/P5.4 DA8/HLFHO DA9/HALFV DA5/P5.5 HBLANK/P4.1 DA7/HCLAMP DA6/P5.6 VBLANK/P4.0 RST P6.5/DA11 P6.4/DA10 P6.6/DA12 HSCL/P3.0/Rxd P6.0/AD0 P6.1/AD1 HSDA/P3.1/Txd P1.7 MTV312M 44 Pin PLCC 7 8 9 10 11 12 13 14 15 16 17 39 38 37 36 35 34 33 32 31 30 29 P1.6 24 P1.7 P6.1/AD1 P1.5 P6.0/AD0 HSDA/P3.1/Txd P1.1 P3.2/INT0 P1.2 P1.3 P1.4 23 22 21 20 28 27 26 25 NC 6 5 4 3 2 1 44 43 42 41 40 NC VDD3 DA0/P5.0 DA1/P5.1 DA2/P5.2 VSYNC HSYNC DA3/P5.3 DA4/P5.4 DA5/P5.5 19 18 RST VDD VSS X2 X1 ISDA/P3.4/T0 ISCL/P3.5/T1 STOUT/P4.2 P6.2/AD2/HLFHI P1.0 P6.3/AD3 P6.4/DA10 HSCL/P3.0/Rxd P6.5/DA11 P6.6/DA12 DA8/HLFHO DA9/HALFV HBLANK/P4.1 DA7/HCLAMP DA6/P5.6 VBLANK/P4.0 P6.7/DA13 MTV312M 42 Pin SDIP DA2/P5.2 40 1 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 DA1/P5.1 DA0/P5.0 RST VDD VSS VDD3 NC NC HSYNC DA3/P5.3 VSYNC DA4/P5.4 DA8/HLFHO DA9/HALFV DA5/P5.5 HBLANK/P4.1 DA7/HCLAMP DA6/P5.6 VBLANK/P4.0 42 41 ISDA/P3.4/T0 ISCL/P3.5/T1 STOUT/P4.2 P6.2/AD2/HLFHI P1.0 P1.1 P3.2/INT0 P1.2 P1.3 P1.4 X2 X1 P6.6/DA12 P6.5/DA11 HSCL/P3.0/Rxd HSDA/P3.1/Txd P6.4/DA10 P6.0/AD0 P1.7 P1.6 P6.1/AD1 P1.5 --18-- PIN CONFIGURATION A ìCMOS output pinî means it can sink and drive at least 4mA current. It is not recommended to use such pin as input function. A ìopen drain pinî means it can sink at least 4mA current but only drive 10~20uA to VDD. It can be used as input or output function and needs an external pull up resistor. A ì8051 standard pinî is a pseudo open drain pin. It can sink at least 4mA current when output is at low level, and drives at least 4mA current for 160nS when output transits from low to high, then keeps driving at 100uA to maintain the pin at high level. It can be used as input or output function. It needs an external pull up resistor when driving heavy load device. POWER CONFIGURATION The MTV312M can work on 5V or 3.3V power supply system. In 5V power system, the VDD pin is connected to 5V power and the VDD3 needs an external capacitor, all output pins can swing from 0~5V, input pins can accept 0~5V input range. And ADC conversion range is 5V. However, X1 and X2 pins must be kept below 3.3V. In 3.3V power system, the VDD and VDD3 are connected to 3.3V power, all output pins swing from 0~3.3V, HSYNC, VSYNC and open drain pin can accept 0~5V input range, other pins must be kept below 3.3V. And the ADC conversion range is 3.3V. 8051 Standard Pin 4mA 4mA Output Data Pin CMOS Output Pin Open Drain Pin 2 OSC period delay 4mA 10uA Output Data 120uA Pin 4mA Input Data No Current 4mA Output Data Pin Input Data VDD VDD3 5V 10u MTV312M in 5V System 3.3V VDD VDD3 MTV312M in 3.3V System --19-- L50A(L50C) Technical Service Manual BLOCK DIAGRAM GENERAL DESCRIPTION FEATURES The CS5828 receives four sets of 7-bit data in CMOS logic level and converts them into four low- voltage differential signaling (LVDS) serial channels. The 7-bit input data is referenced to the CKIN signal. The RF pin selects either rising or falling edge trigger of CKIN. Parallel to serial conversion is performed by a 7X internal generated clock reference using on- chip PLL using CKIN. A copy of CKIN but phase- locked to the output serial streams, CLKOUT, is also converted to the fifth LVDS channel. The CS5828 offers a reliable communication media using LVDS signaling and provides low EMI dealing with wide, high-speed TTL interfaces. This is especially attractive for interfaces between GUI controller and display systems such as LCD panels for SVGA/XGA/SXGA applications. Four 7-bit serial and one clock LVDS channels. Compatible with ANSI TIA/EIA-644 LVDS stan- dard. Wide CKIN ranges from 31MHz to 85MHz. Fully integrated on-chip PLL that provides 7X CKIN serial shift clock. Pin selectable for rising or falling edge trigger. Support power-down mode. 5V/3.3V tolerant data input. Single 3.3V supply operation. CMOS low power consumption. Functional compatible with DS90C385. Available in 56-pin TSSOP package. PARALLEL-IN SERIAL-OUT 7-Bit SHIFT REGISTER PARALLEL-IN SERIAL-OUT 7-Bit SHIFT REGISTER PARALLEL-IN SERIAL-OUT 7-Bit SHIFT REGISTER SHIFT/LOAD_N DIN CLK PHASE LOCK LOOP R/F CLK 7xCLK SHIFT/LOAD_N CONTROL LOGIC D19,D20,D21,D22, D27,D5,D10,D11, RF CKIN SHTDN EN CKOP CKON CS5828 DIN CLK DIN CLK SHIFT/LOAD_N SHIFT/LOAD_N EN Y3P Y3N EN Y2P Y2N EN Y1P Y1N EN Y0P Y0N PARALLEL-IN SERIAL-OUT 7-Bit SHIFT REGISTER DIN CLK SHIFT/LOAD_N D0,D1,D2,D3, D4,D6,D7 D8,D9,D12,D13, D14,D15,D18 D24,D25,D26 D16,D17,D23 • • • • • • • • • • • CS5828 --20-- PIN CONNECTION DIAGRAM Figure-1 56-pin TSSOP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 VDD D5 D6 D7 VSS D8 D9 D10 VDD D11 D12 D13 VSS D14 D15 D16 RF D17 D18 D19 VSS D20 D21 D22 D23 VDD D24 D25 CS5828 D4 D3 D2 VSS D1 D0 D27 LVDS_VSS Y0M Y0P Y1M Y1P LVDS_VDD LVDS_VSS Y2M Y2P CKOM CKOP Y3M Y3P LVDS_VSS PLL_VSS PLL_VDD PLL_VSS SHTDN CKIN D26 VSS 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 ���� ���� ���� ���� �������� �������� �������� �������� ������ ������ ������ ������ � ���� ���������� ������������������������ � ���� ���������� ������������������������ � ���� ���������� ������������������������� � ���� ���������� ������������������������� � ���� ���������� ������������������������� � ���� ���������� ������������������������� � ���� ���������� ������������������������ � ���� ���������� ������������������������� � ���� ���������� ������������������������� �� ���� ���������� ������������������������ �� ���� ���������� ������������������������ �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������ �� ���� ���������� ������������������������� �� ���� ���������� ������������������������ �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ������������ ������������������������� �� ���� ������������ ������������������������� �� ���� ������������ ������������������������� �� ���� ������������ ������������������������� �� ���� ������������ ������������������������� �� ���� ������������ ������������������������� �� ���� ���������� ������������������������� �� ���� ������������ ������������������������ ����������� ����������� ����������� ����������� ����������� ����������� ����������� ����������� ����������� ����������� ����������� ����������� ����� ���� ���� ���� ���� �������� �������� �������� �������� ������ ������ ������ ������ ����������� ����������� ����������� ����������� ����������� ����������� ����������� ����������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������ �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������ �� ���� ���������� ������������������������ �� ���� ���������� ������������������������� �� ���� ������������ ������������������������� �� ���� ������������ ������������������������� �� ���� ������������ ����������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������ �� ���� ���������� ������������������������� �� ���� ���������� ������������������������ �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������ �� ���� ���������� ������������������������ �� ���� ���������� ������������������������� �� ���� ���������� ������������������������ �� ���� ���������� ������������������������ �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ������������ ���������������������� �� ���� ������������ ���������������������� �� ���� ������������ ���������������������� �� ���� ������������ ���������������������� ����� ���� ���� ���� ���� �������� �������� �������� �������� ������ ������ ������ ������ ����������� ����������� ����������� ����������� ����������� ����������� ����������� ����������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ���� ���������� ������������������������� �� ����� ���������� ������������������������� �� ����� ������������ ������������������ �� ����� ������������ ������������������ �� ����� ������������ ������������������������ �� ����� ���������� ������������������������� �� ���� ���������� ������������������ �� ���� ���������� ������������������ �� ���� ���������� ������������������ �� ���� ���������� ������������������ �� ���� ��������� ���������������������� �� ���� ���������� ���������������� �� ���� ���������� ���������������� �� ���� ���������� ���������������� �� ���� ���������� ������������������ �� ���� ��������� ���������������������� �� ���� ������������ ����������������������� �� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ���������� ���������������������� ��� ���� ���������� ���������������������� ��� ���� ���������� ���������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ��������������������� ��� ���� ������������ ��������������������� ��� ���� ������������ ��������������������� ��� ���� ������������ ����������������������� ����� ���� ���� ���� ���� �������� �������� �������� �������� ������ ������ ������ ������ ����������� ����������� ����������� ����������� ����������� ����������� ����������� ����������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ��������������������� ��� ���� ������������ ��������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ����������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ���������������������� ��� ���� ������������ ���������������������� ��� ���� ���������� ������������������������� ��� ���� ���������� ���������������������� ��� ���� ���������� ������������������������� ��� ���� ���������� ������������������������� ��� ���� ���������� ������������������������ ��� ���� ���������� ��������������������� ��� ���� ���������� ��������������������� ��� ���� ���������� ��������������������� ��� ���� ���������� ������������������� ��� ���� ���������� ���������������� ��� ���� ���������� ������������������������� ��� ���� ���������� ������������������������� ����� ���� ���� ���� ���� �������� �������� �������� �������� ������ ������ ������ ������ � ���������� ������������������������� � ���������� ����������� � ���������� ������������������������� � � ���������� ������������������������� � ���������� ������������������������ � ���������� ������������������������� � ���������� ������������������������� � ���������� ������������������� � ���������� ������������������� �� ���������� �������������������� �� ���������� �������������������� �� ���������� �������������������� �� ���������� ������������������� �� ���������� ������������������� �� ���������� ������������������� �� ���������� ��������������� �� ���������� ������������ �� ���������� ������������ �� ���������� ���������������� �� ���������� ��������������������� �� ���������� ������������������������ �� ���������� ���������������� �� ���������� ������������ �� ���������� ����������������� �� ���������� ������������ �� ���������� ����������������� �� ���������� �������������� �� ���������� ������������������� �� ���������� ����������������������� �� ���������� ������������������������ �� ���������� ��������������������� �� ���������� ������������������������� �� ���������� ����������������� �� ���������� ������������������������ �� ���������� ������������������� �� ���������� ������������������������� �� ���������� ������������������������� �� ���������� ���������������� ����������� ����������� ����������� ����������� ����������� ����������� ����������� ����������� �������������� �������������� �������������� �������������� ����� ���� ���� ���� ���� �������� �������� �������� �������� ������ ������ ������ ������ ����������� ����������� ����������� ����������� ����������� ����������� ����������� ����������� �� ���������� ��������������������� �� ���������� ���������������� �� ���������� ��������������������� �� ���������� ������������� �� ���������� ����������������� �� ���������� �������������������� �� ���������� ������������������������� �� ���������� ������������������������� �� ���������� ������������� �� ���������� ���������������� �� ���������� ������������������� �� ���������� ���������������������� �� ���������� ������������������������� �� ���������� ������������������ �� ���������� ��������� �� ���������� ������������������������� �� ���������� ������������������������� �� ���������� ���������������� �� ���������� ������������������������� �� ���������� ������������������������� �� ���������� ������������������������� �� ���������� ���������������������� �� ���������� �������������������� �� ���������� ���������������������� �� ������������ ������������������������ �� ������������ �������������������� �� ������������ ��������������������� �� ������������ ������������������������� �� ������������ ������������������������� �� ������������ ������������������������� �� ����������� ������������������������� �� ����������� ������������������������ �� ����������� ������������������������� �� ����������� ��������������������� �� ������������ ���������� �� ����������� ������������������ �� ����������� ������������������� �� ����������� ������������������� �� ����������� ������������� ����� A A B B C C D D E E 5 4 3 2 1 01.09.04 3 1 SHEET CONTENTS 4. LVDS & Power A Date G.H.NAM 4 2. gmZAN1/2 2 Comments Author SCHEMATIC REVISION HISTORY L50C(S527B/L550B/L1510B) Schematic 3. MCU(MTV312M) Ver Initial release ver A 1. Contents, Revision History 01.09.20 B L50C VP 01.10.10 W.S.IM W.S.IM C L50C VP-A 5 5. BLOCK DIAGRAM L50C VP-B D E.J.NAM 01.10.23 E.J.NAM E S527 NOISE SOLUTION 01.11.29 NONE E 1. Contents B 1 5 Thursday, November 29, 2001 Title Size Document Number Rev Date: Sheet of 5 5 4 4 3 3 2 2 1 1 D D C C B B A A ANALOG SUPPLY DECOUPLING ANALOG AND DIGITAL GROUNDS MUST BE INTERCONNECTED AT A SINGLE POINT NOTE: 3.3 DIGITAL SUPPLY DECOUPLING 3.3 DIGITAL SUPPLY DECOUPLING VGA INPUT CONNECTOR SOT23 SOT23 SOT23 SOT23 SOT23 SOT23 SOT23 Default R218 R211 NC REV. E REV. E U203A NC NONE E 2. gmZAN2 C 2 5 Thursday, November 29, 2001 Title Size Document Number Rev Date: Sheet of DVDDA SVDDA VDDA PD16 PD2 PD10 PD5 PD13 PD11 PD4 PD9 PD17 RVDDA PD0 PD3 PDISPE PD1 PD6 PD8 PD12 PD7 PD14 PD15 PD[0..5] PD[6..11] PD[12..17] PD37 PD38 PD39 PD40 PD41 PD36 PVS PHS PCLKA VGA_SCL VGA_VSYNC VGA_HSYNC BLUE- RED- GREEN- GREEN+ RED+ BLUE+ GREEN RED BLUE IRQ HFS MFB3 MFB9 MFB1 MFB2 MFB8 HCLK RESETn MFB7 HDATA0 MFB0 VGA_SCL VGA_SDA VGA_SDA +3.3V GND +3.3V GND ZAN1_3.3V/ ZAN2_2.5V GND ZAN1_3.3V/ ZAN2_2.5V GND GND GND GND GND +5V GND GND +5V GND GND GND +5V GND GND GND GND GND GND GND GND R217 10K U200 gmZAN1/gmZAN2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 108 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 113 112 111 110 109 107 106 105 104 144 CVSS1 RESERVED PSCAN RESERVED CVSS1A PD47 PD46 RVSS1 PD45 PD44 SRVDD1 RVDD1 PD43 PD42 PD41 PD40 PD39 SRVSS1 PD38 PD37 SRVDD2 PD36 PD35 PD34 PD33 PD32 PD31 PD30 PD29 RVSS2 PD28 PD27 RVDD2 PD26 PD25 PD24 PD23 PD22 PD21 RVDD2A CVSS2 PD20 PDISPE PCLKA PCLKB PD19 PD18 PD17 RVSS3 PD16 PD15 PD14 PD13 PD12 PD11 PD10 PD9 CVDD2 CVSS2A RVDD2B RVSS4 PD8 PD7 PD6 RVDD3 PD5 PD4 PD3 PD2 PD1 PD0 CVSS3 PVS PHS PBIAS PPWR ADC_VDD2 ADC_GND2 ADC_VDD1 ADC_GND1 SUB_GNDA ADC_GNDA RESERVED ADC_VDDA ADC_BGNDA BLUE- BLUE+ ADC_BVDDA ADC_GGNDA GREEN- GREEN+ ADC_GVDDA ADC_RGNDA RED- RED+ ADC_RVDDA N/C HFS HDATA RESETn IRQ MFB9 HCLK CVDD4 CVSS4 OSD_HREF OSD_VREF OSD_CLK OSD_DATA0 OSD_DATA1 OSD_DATA2 OSD_DATA3 OSD_FSW MFB11 MFB10 DVDD DVSS DAC_DGNDA DAC_DVDDA PLL_DVDDA RESERVED PLL_DGNDA SUB_DGNDA SUB_SGNDA PLL_SGNDA RESERVED PLL_SVDDA DAC_SVDDA DAC_SGNDA SVDD SVSS TCLK XTAL/RESERVED PLL_RVDDA RESERVED SUB_RGNDA CVSS5 VSYNC SYN_VDD HSYNC/CS SYN_VSS RESERVED STI_TM1 STI_TM2 SCAN_IN1 RESERVED SCAN_IN2 SRVSS2 SCAN_OUT1 SCAN_OUT2 MFB0 MFB1 MFB2 MFB3 MFB4 MFB5 MFB6 MFB7 MFB8 PLL_RGNDA R219 0 R213 47K C216 0.1uF R209 22 C232 0.01uF R220 0 C224 0.1uF C241 5pF C208 0.1uF C209 22uF/16V C230 0.01uF R211 0 C227 0.1uF R218 0 C218 0.1uF C233 0.01uF C213 0.1uF X200 20MHz U203B 74LCX14 SO14 3 4 14 7 C200 22uF/16V C242 5pF U203C 74LCX14 SO14 5 6 14 7 R208 100 R200 100 C228 0.1uF C229 0.1uF C235 0.01uF C243 NC C210 22uF/16V R202 100 C214 0.1uF C205 0.1uF D200 6.2V R206 75 C201 22uF/16V C202 0.1uF C217 0.1uF U203A 74LCX14 SO14 1 2 14 7 R205 75 C225 22uF/16V R203 100 R214 100 C223 22uF/16V C219 0.1uF R204 75 R210 22 D204 RLS4148 D206 KDS226 C203 0.1uF C212 0.1uF R215 100 R216 10K C206 22uF/16V D207 KDS226 D205 KDS226 D208 6.2V C226 0.1uF C207 0.1uF C239 0.1uF C231 0.01uF C222 0.1uF D201 6.2V C211 0.1uF U203D 74LCX14 SO14 9 8 14 7 CN200 DB15HD 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 D202 6.2V C220 0.1uF U202 24LC21 8P SOIC 4 8 1 2 3 7 6 5 GND VCC NC NC NC VCLK SCL SDA R207 100 R212 47K C221 0.1uF C234 0.01uF C240 47pF R201 100 C204 0.1uF C215 0.1uF D203 6.2V PD[0..5] SHEET 4 PD[6..11] SHEET 4 PD[12..17] SHEET 4 PD36 SHEET 4 PD37 SHEET 4 PD38 SHEET 4 PD39 SHEET 4 PD41 SHEET 4 PD40 SHEET 4 PVS SHEET 4 PHS SHEET 4 PDISPE SHEET 4 PCLKA SHEET 4 HCLK SHEET 3 KEY_DOWN SHEET 3 HDATAF2 SHEET 3 KEY_UP SHEET 3 SELECT SHEET 3 MENU SHEET 3 HFS SHEET 3 HDATAF3 SHEET 3 HDATAF0 SHEET 3 HDATAF1 SHEET 3 /IRQ SHEET 3 ZAN_RST SHEET 3 VGA_CON SHEET 3 5 5 4 4 3 3 2 2 1 1 D D C C B B A A KEY_UP LED_ORANGE_EN LED_GRN_EN SELECT PWM_BRIGHT INVERTER CONNECTOR HDATAF0 HDATAF1 HDATAF2 HDATAF3 Only L1510B NONE E 3. MCU(MTV312M) C 3 5 Thursday, November 29, 2001 Title Size Document Number Rev Date: Sheet of KEY_DOWN MUTE GND +5V GND GND GND +5V GND +5V GND +5V +12V +5V +5V +5V GND GND GND +12V GND +5V R301 10K C309 1uF/50V C302 0.1uF R319 470 C304 10uF/16V C305 10uF/16V R314 470 MTV312M 44Pin PLCC U303 MTV312M 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 1 2 3 4 5 6 RST VDD P6.3/AD3 VSS X2 X1 ISDA/P3.4/T0 ISCL/P3.5/T1 STOUT/P4.2 P6.2/AD2/HLFHI P1.0 P1.1 P3.2/INTO P1.2 P1.3 P1.4 P1.5 P1.6 P1.7 P6.1/AD1 P6.0/AD0 P3.1/Txd P3.0/Rxd P6.4/DA10 P6.5/DA11 P6.6/DA12 P6.7/DA13 DA6/P5.6 DA7/HCLAMP VBLANK/P4.0 HBLANK/P4.1 DA9/HALFV DA8/HALFH DA5/P5.5 DA4/P5.4 DA3/P5.3 HSYNC VSYNC DA2/P5.2 DA1/P5.1 DA0/P5.0 VDD3 NC NC C313 0.1UF C319 0.1uF C314 0.1uF R302 10K C315 0.1uF C308 18pF R313 330 C316 0.1uF R304 10K C317 0.1uF D301 RLS4148 C318 0.1uF R312 330 U301 24LC08SOIC 1 2 3 4 5 6 7 8 A0 A1 A2 VSS SDA SCL WP VCC R303 10K X300 12MHz R300 10K R307 1K R306 10K R334 10K CN303 HEADER 7 1 2 3 4 5 C303 0.1uF C306 0.1uF R315 10K CN301 HEADER 8 1 2 3 4 5 6 7 8 R321 10K R305 10K R309 4.7K C307 18pF R322 10K R308 4.7K R310 4.7K R323 10K R324 10K C301 0.1uF CN302 HEADER 6 1 2 3 4 5 6 C300 10uF/16V HDATAF[0..3] SHEET 2 HFS SHEET 2 HCLK SHEET 2 /IRQ SHEET 2 MENU SHEET 2 KEY_UP SHEET 2 KEY_DOWN SHEET 2 SELECT SHEET 2 LVDS_EN SHEET 4 ZAN_RST SHEET 2 PANEL_POWER SHEET 4 VGA_CON SHEET 2 5 4 3 2 1 D D C C B B A A 1pxl/clk RED GREEN BLUE NONE E 4. LVDS & POWER C 4 5 Thursday, November 29, 2001 Title Size Document Number Rev Date: Sheet of PD10 PD0 PD8 PD3 SLVDSR/F PD16 PD[12..17] PD36 PD13 PD4 PD14 PD12 PD40 PD5 PDISPE PD7 PD[6..11] PHS SLVDSPDN PD38 PD2 PCLKA SPLL-VCC PD[0..5] PD9 PD1 PD17 PD6 PVS PD15 PD11 PD37 PD41 PD39 SO-TD6 STTL-GND RX0- RX1+ RX1- RX0+ RX2- RX2+ RXCLK- RXCLK+ RX3- RX3+ RX0- RX0+ RX1- RX1+ RX2- RX2+ RXCLK- RXCLK+ RX3- RX3+ SPLL-GND +3.3V GND GND LVDS_3.3V ZAN1_3.3V / ZAN2_2.5V GND GND GND GND GND GND GND GND GND GND PANEL_3.3V GND GND GND LVDS_3.3V GND GND GND PANEL_3.3V GND GND GND GND +5V +12V U403 CS5824 1 56 2 55 3 54 4 53 5 52 6 51 7 50 8 49 9 48 10 47 11 46 12 45 13 44 14 43 15 42 16 41 17 40 18 39 19 38 20 37 21 36 22 35 23 34 24 33 25 32 26 31 27 30 28 29 VCC TA4 TD1 TA3 TA5 TA2 TA6 GND3 GND TA1 TB0 TA0 TB1 TD0 TD2 LVDSGND VCC1 TA- TD3 TA+ TB2 TB- TB3 TB+ GND1 LVDSVCC TB4 LVDSGND1 TB5 TC- TD4 TC+ R/F TCLK- TD5 TCLK+ TB6 TD- TC0 TD+ GND2 LVDSGND2 TC1 PLLGND TC2 PLLVCC TC3 PLLGND1 TD6 /PDWN VCC2 CLKIN TC4 TC6 TC5 GND4 C408 0.1uF C401 0.1uF R404 33 R401 1K C402 0.1uF C420 33pF R402 33 C413 22uF/16V U400 RC1117.3.3 SOT223 1 3 2 GND VIN VOUT CN400 POWER 12V 6 5V 2 GND 4 5V 5 GND 3 12V 1 R403 33 C421 33pF C426 100uF/16V C422 33pF C423 100uF/16V C424 0.1uF C405 22uF/16V C411 22uF/16V C414 22uF/16V C406 0.1uF R400 1K R406 4.7K C415 0.1uF U401 ZAN1 RC1117_3.3 / ZAN2 RC1117_2.5 SOT223 1 3 2 GND VIN VOUT C416 0.1uF C409 0.1uF C407 22uF/16V CN401 DF-14A-20P-1.25H 15 18 8 12 11 10 9 7 6 5 4 3 2 20 19 17 16 14 13 1 RXCLK+ RX3+ RX1- RX2+ RX2- GND RX1+ GND RX0+ RX0- GND GND VDD NC GND RX3- GND RXCLK- GND VDD C412 0.1uF C410 22uF/16V U402 RC1117.3.3 SOT223 1 3 2 GND VIN VOUT C425 0.1uF C404 0.1uF C400 0.1uF R405 33 C403 0.1uF C419 33pF U404 SI4435 SO8 1 2 3 4 8 7 6 5 S S S G D D D D PD[0..5] SHEET 2 PD[6..11] SHEET 2 PD[12..17] SHEET 2 PD36 SHEET 2 PD37 SHEET 2 PD38 SHEET 2 PD39 SHEET 2 PD40 SHEET 2 PD41 SHEET 2 PHS SHEET 2 PVS SHEET 2 PDISPE SHEET 2 PCLKA SHEET 2 RX0- RX1- RX1+ RX0+ RX2- RX2+ RXCLK- RXCLK+ RX3- RX3+ RX0- RX0+ RX1- RX1+ RX2- RX2+ RXCLK- RXCLK+ RX3- RX3+ PANEL_POWER SHEET 2 LVDS_EN SHEET 3 ������������������������� ��������������� ��������������� �������������������� ���������������� �������������������� ��������� ��������� ��������� ��������� ��� ����������������������� ��������������������� ���������������������� ����������������������� ������������������������ ����������������������� ��� ������������������� ���������������������� ������������������� ���������������� ���������������������� ���������������������� ��� ���������������������� ���������������� ������������������������� ������������������������� ���
