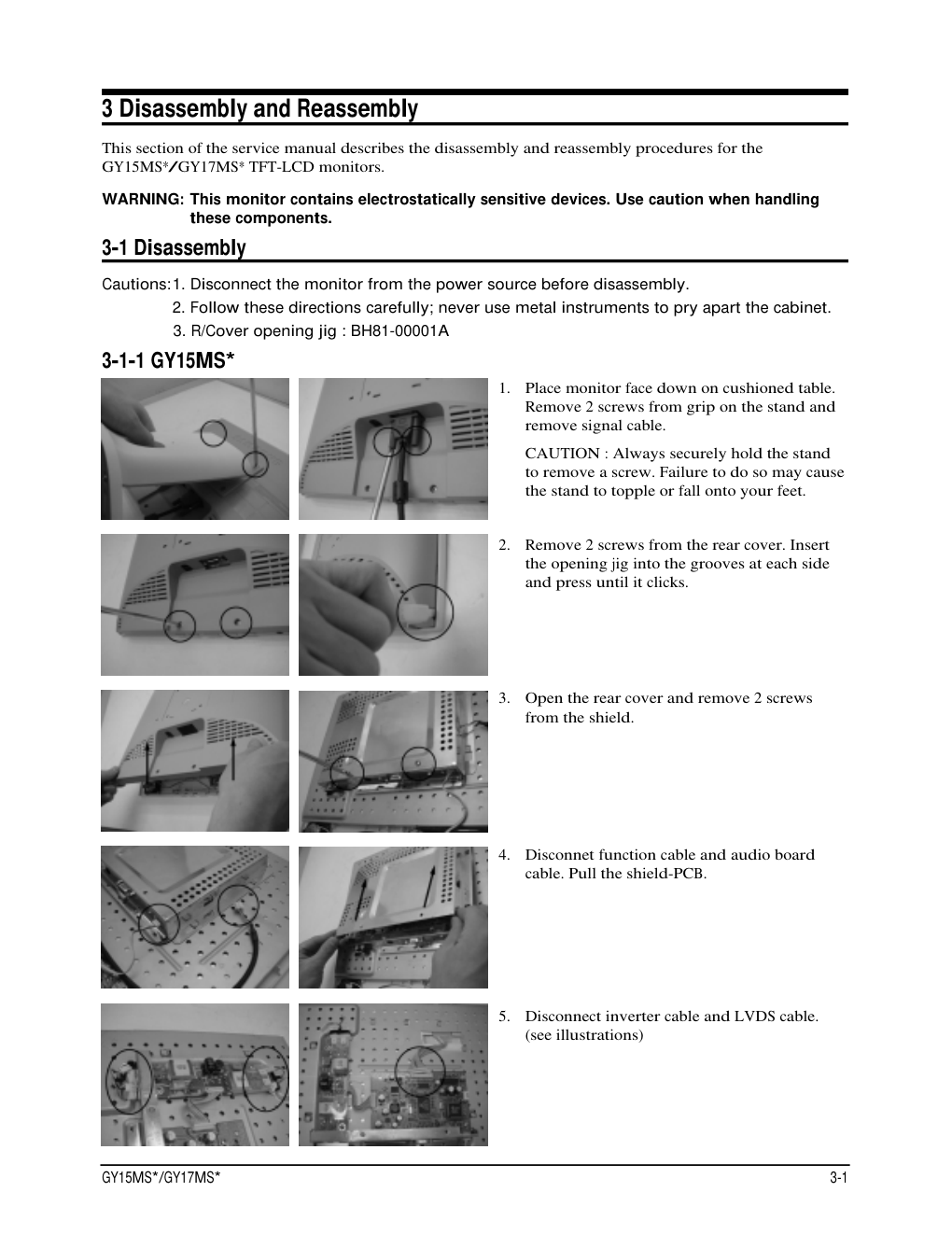

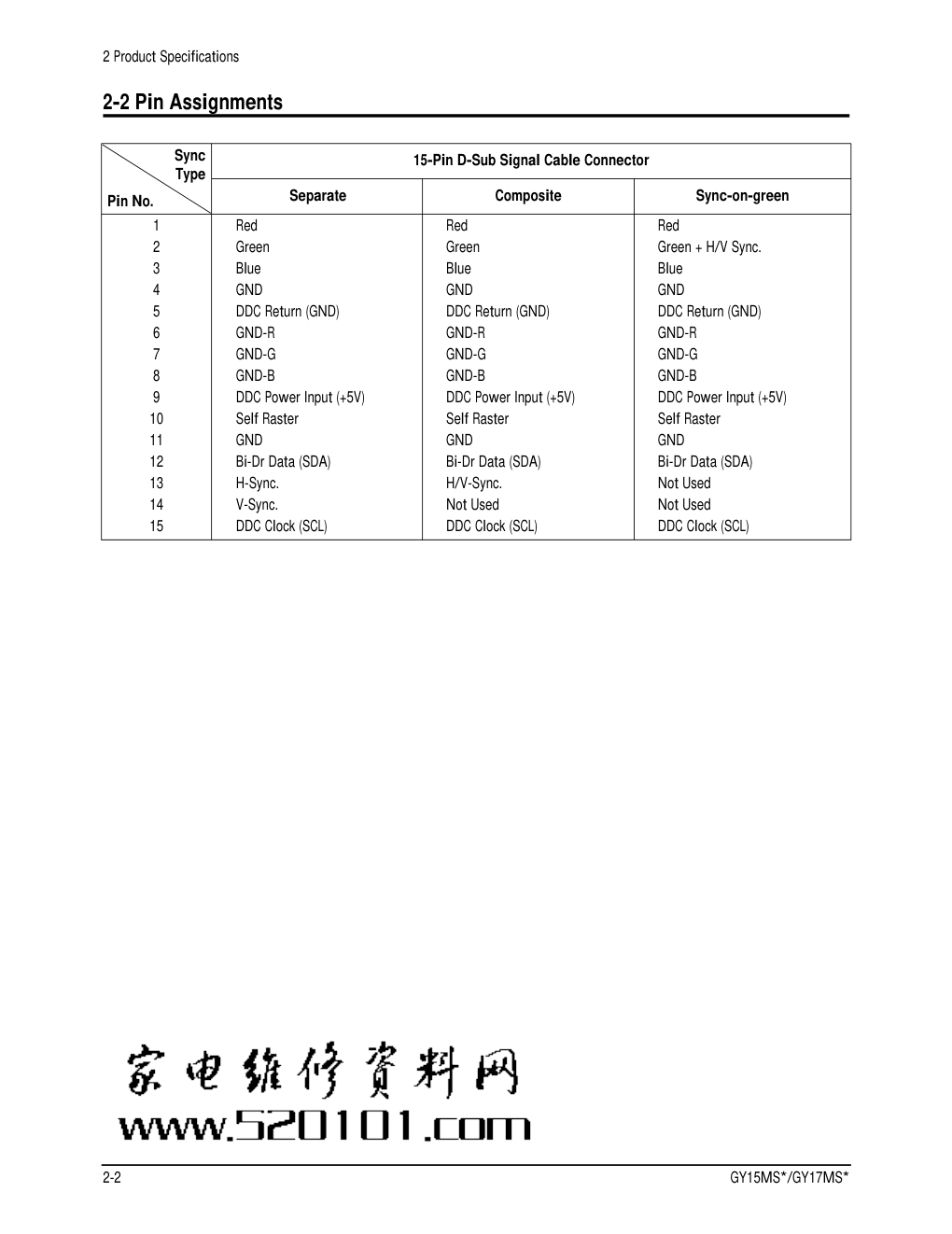

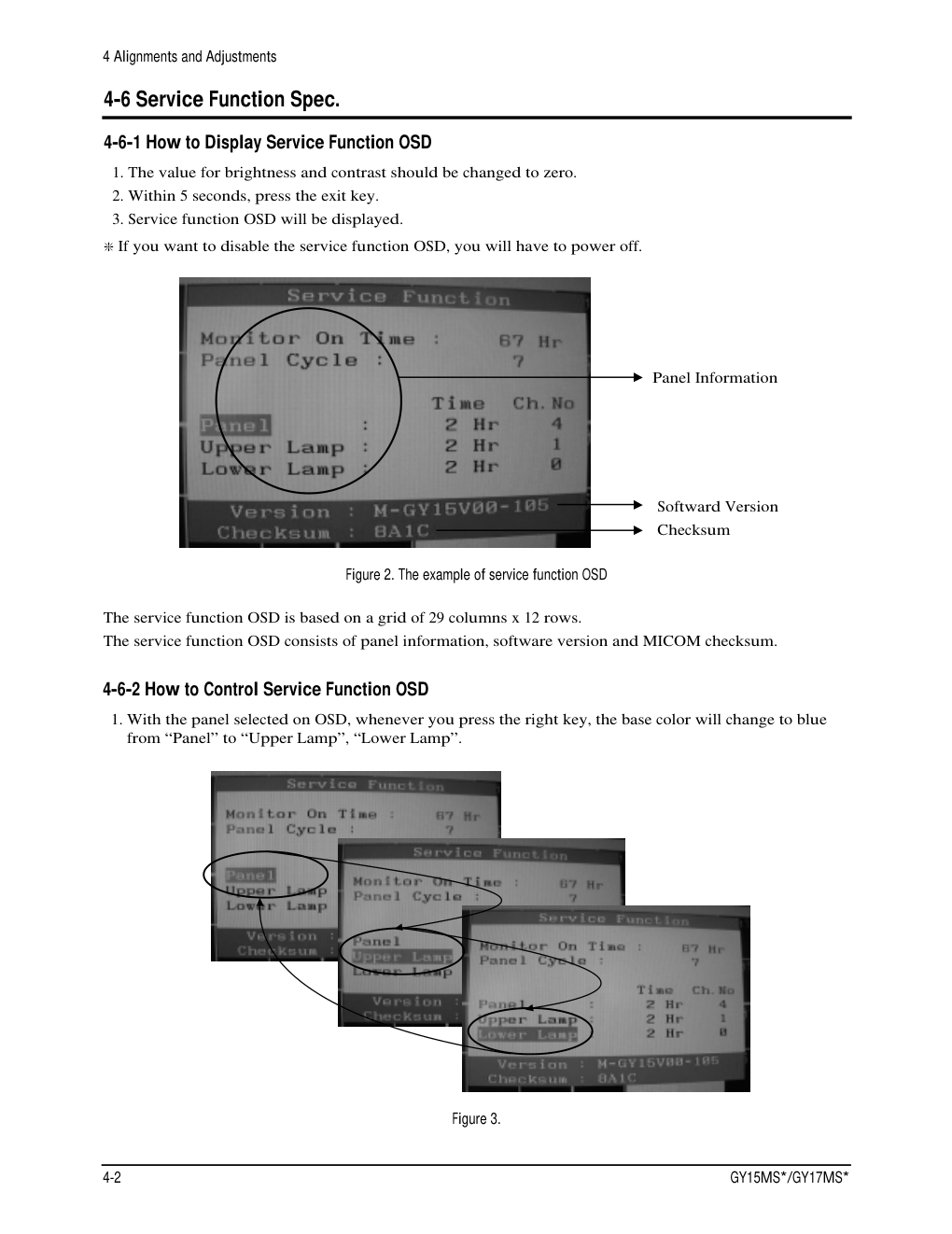

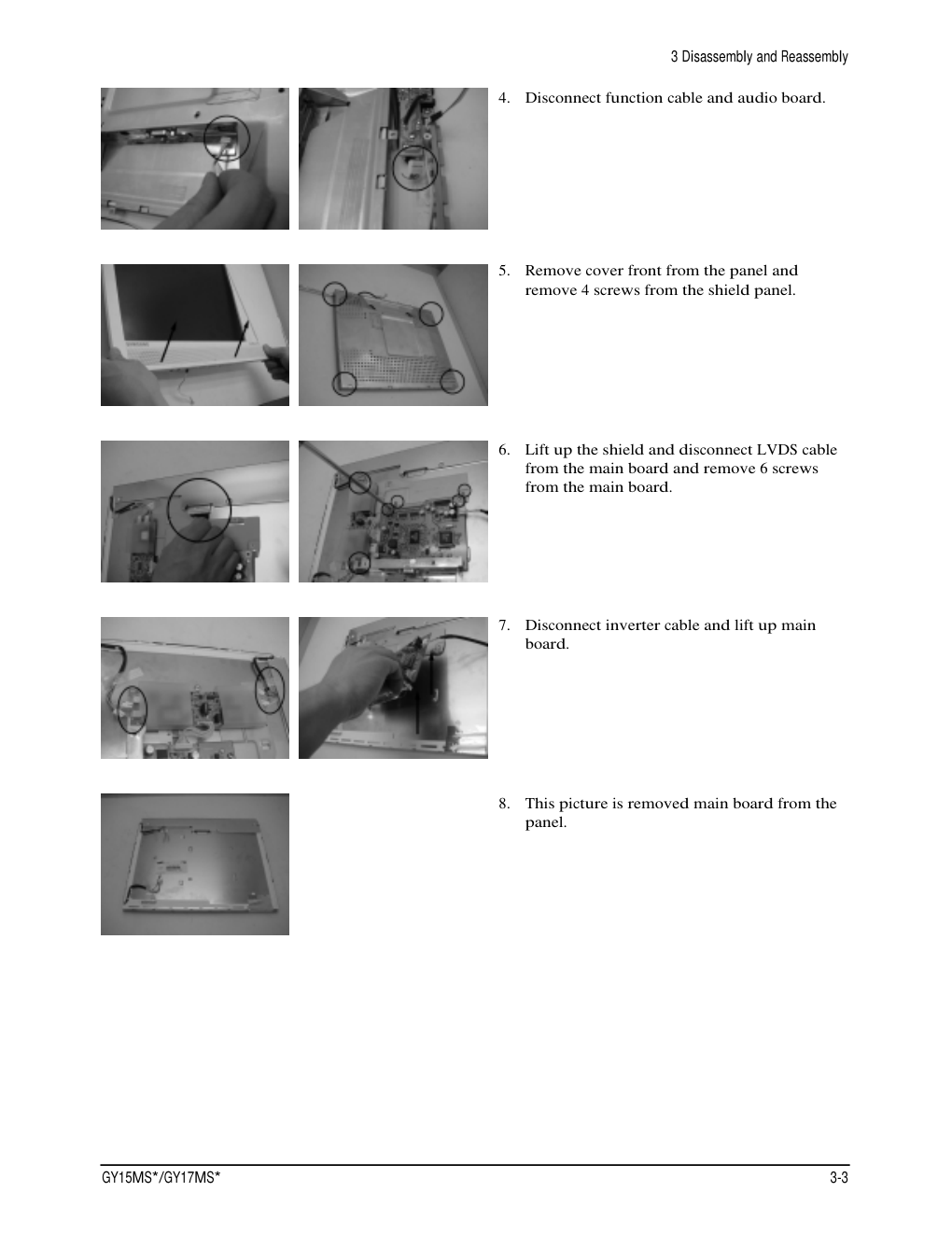

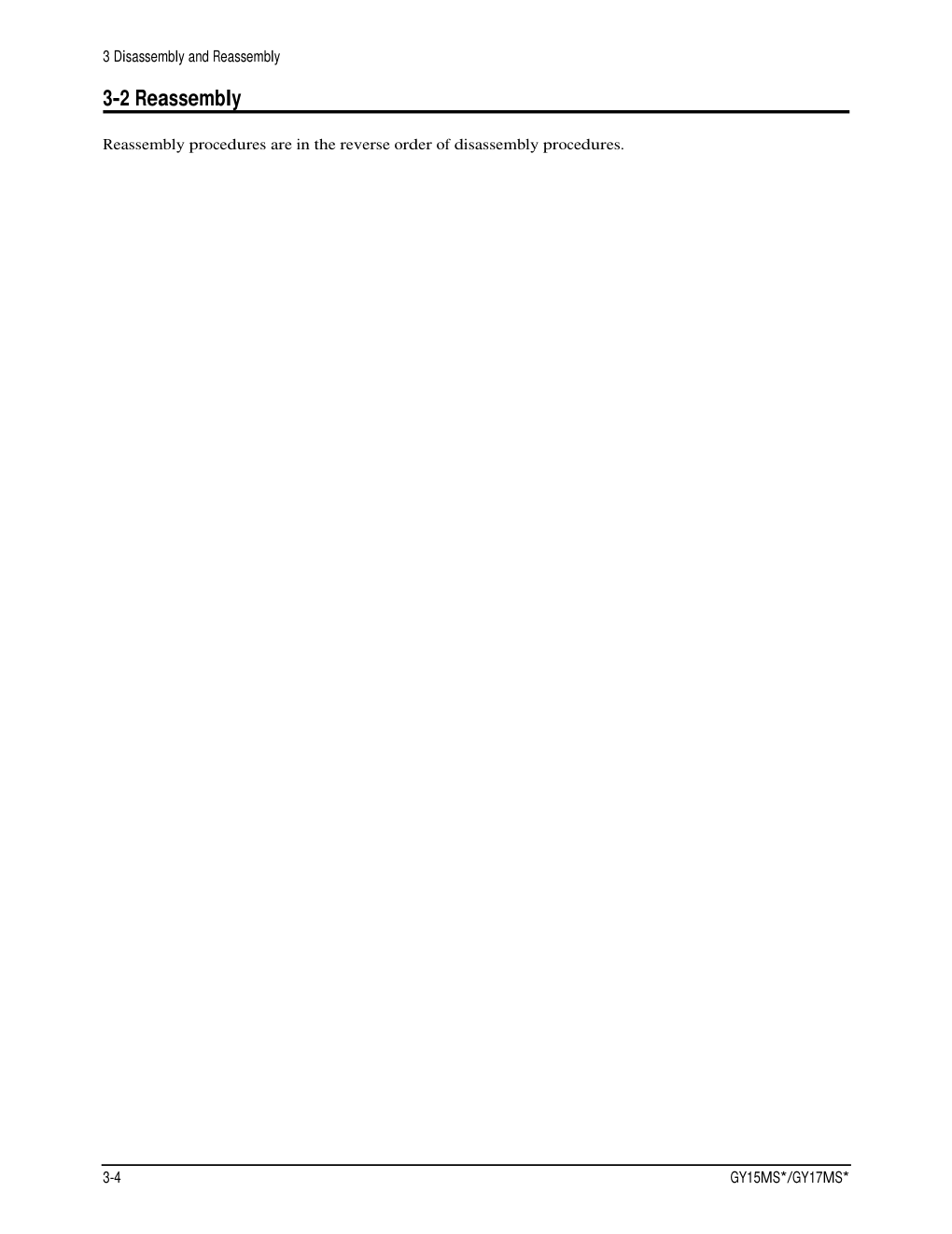

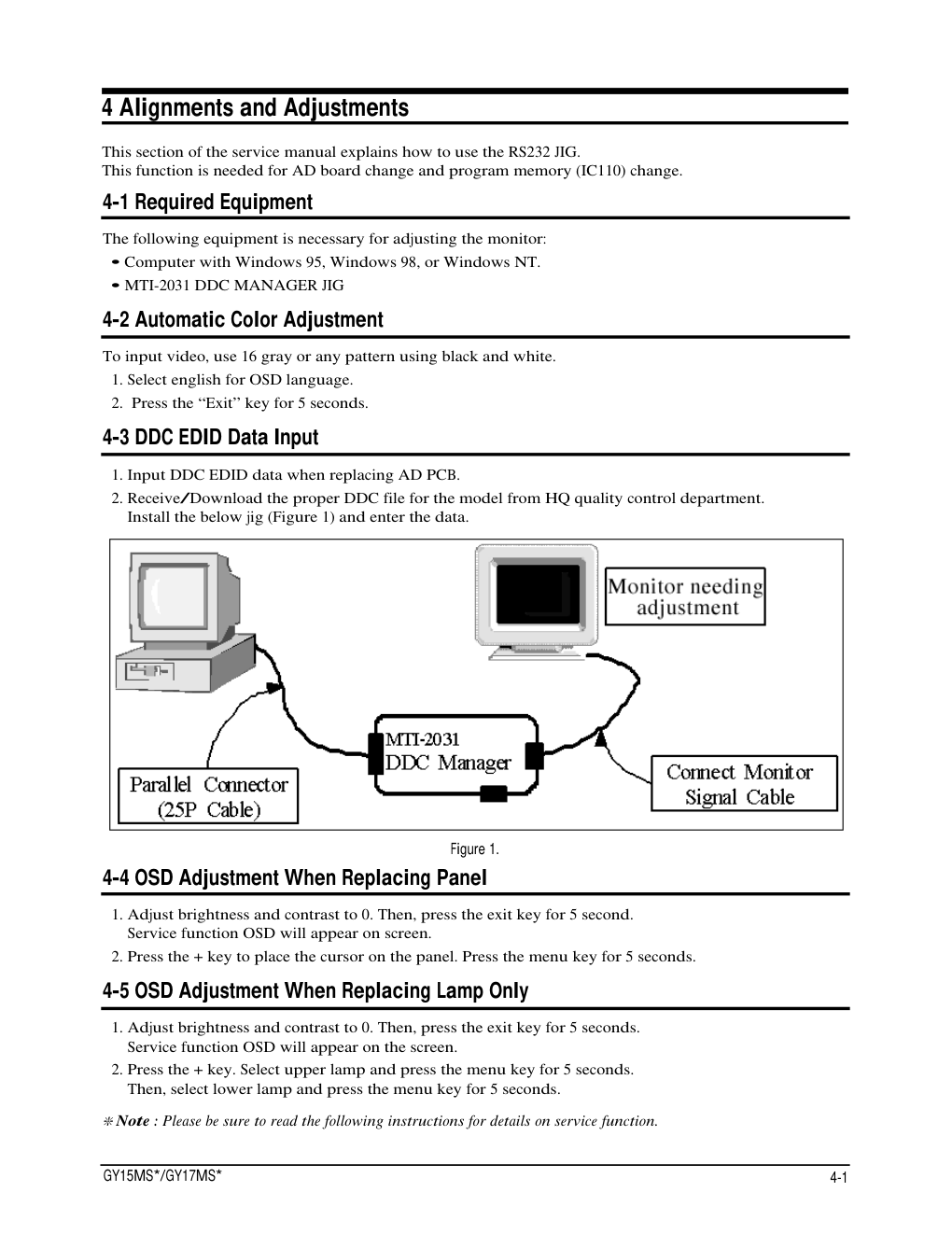

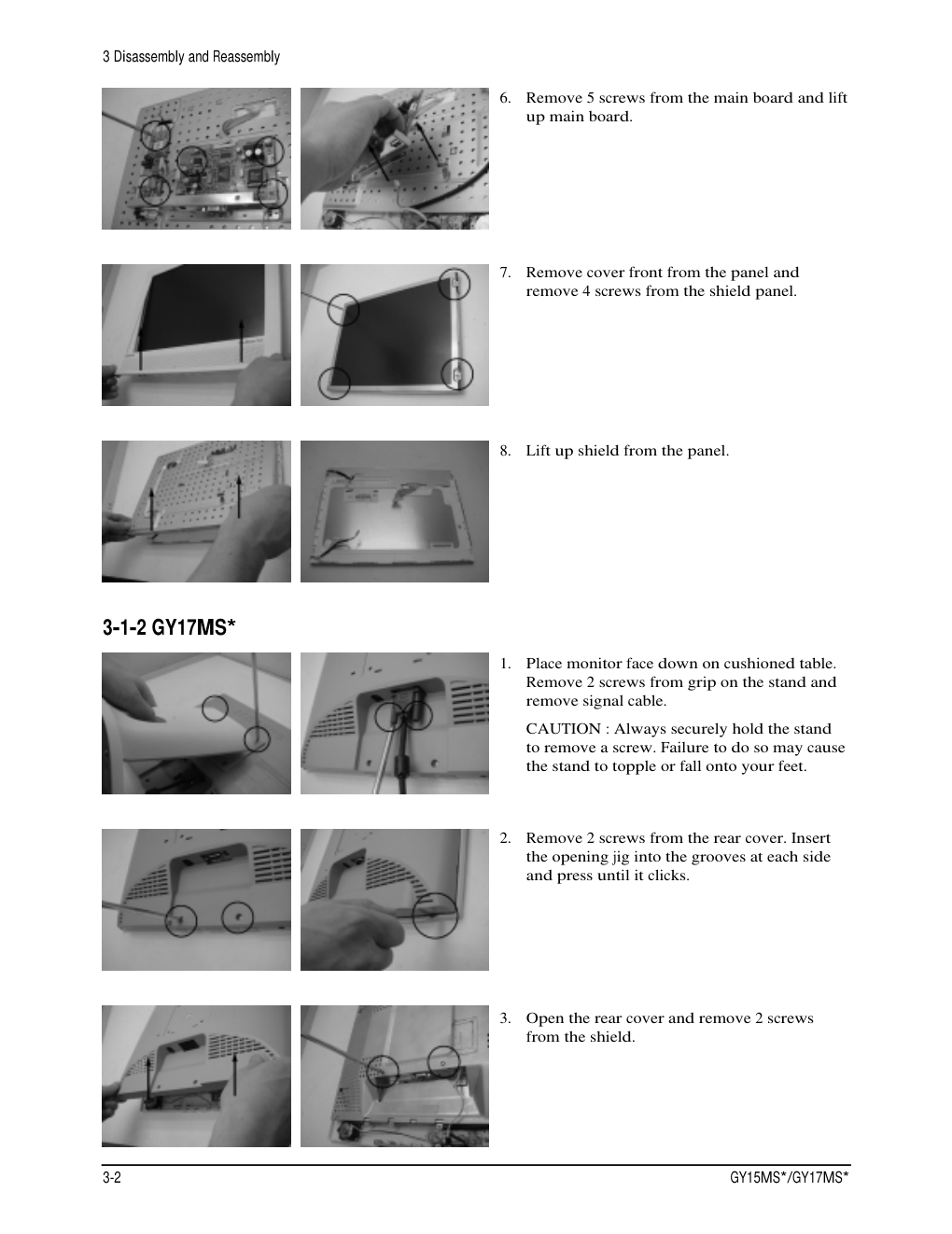

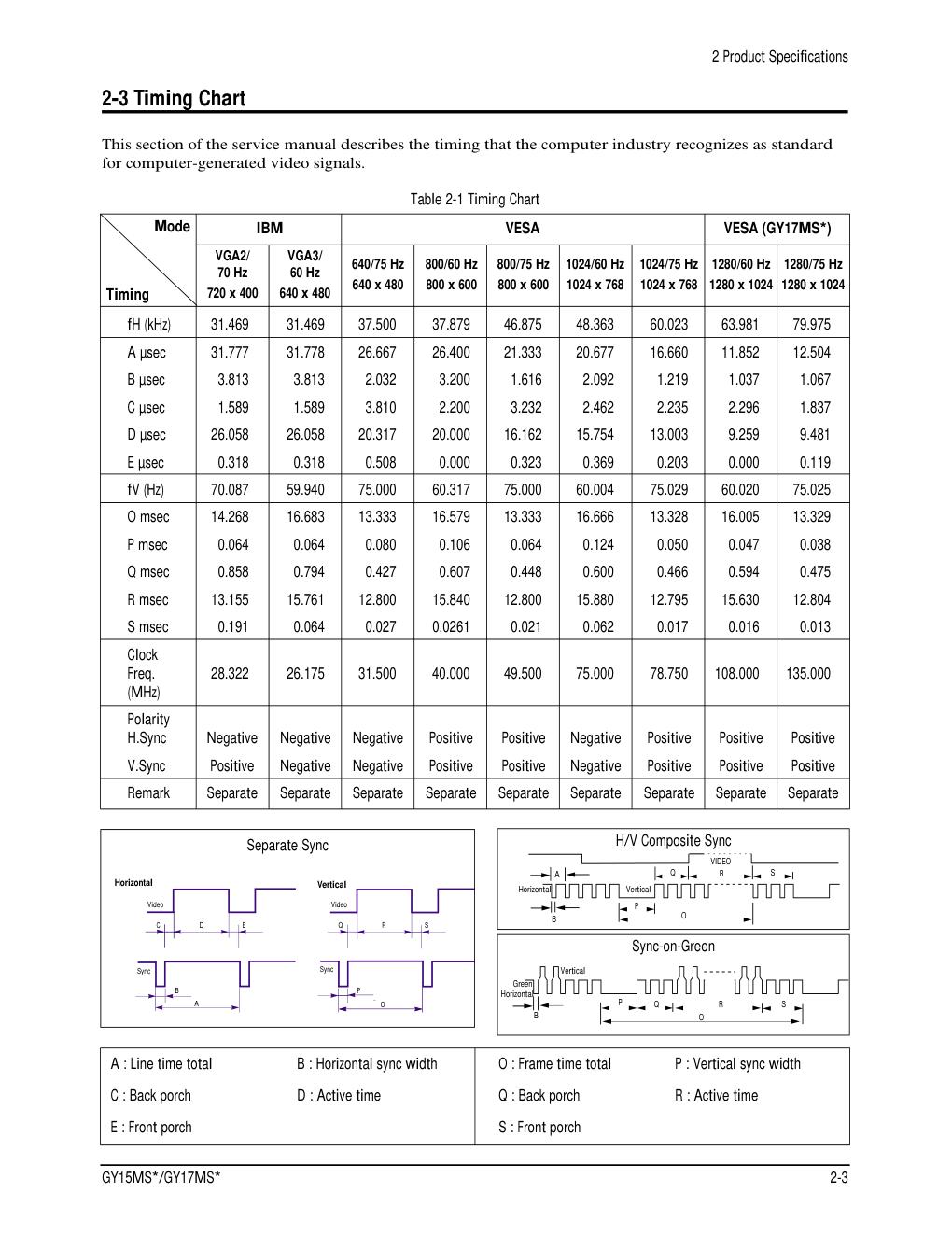

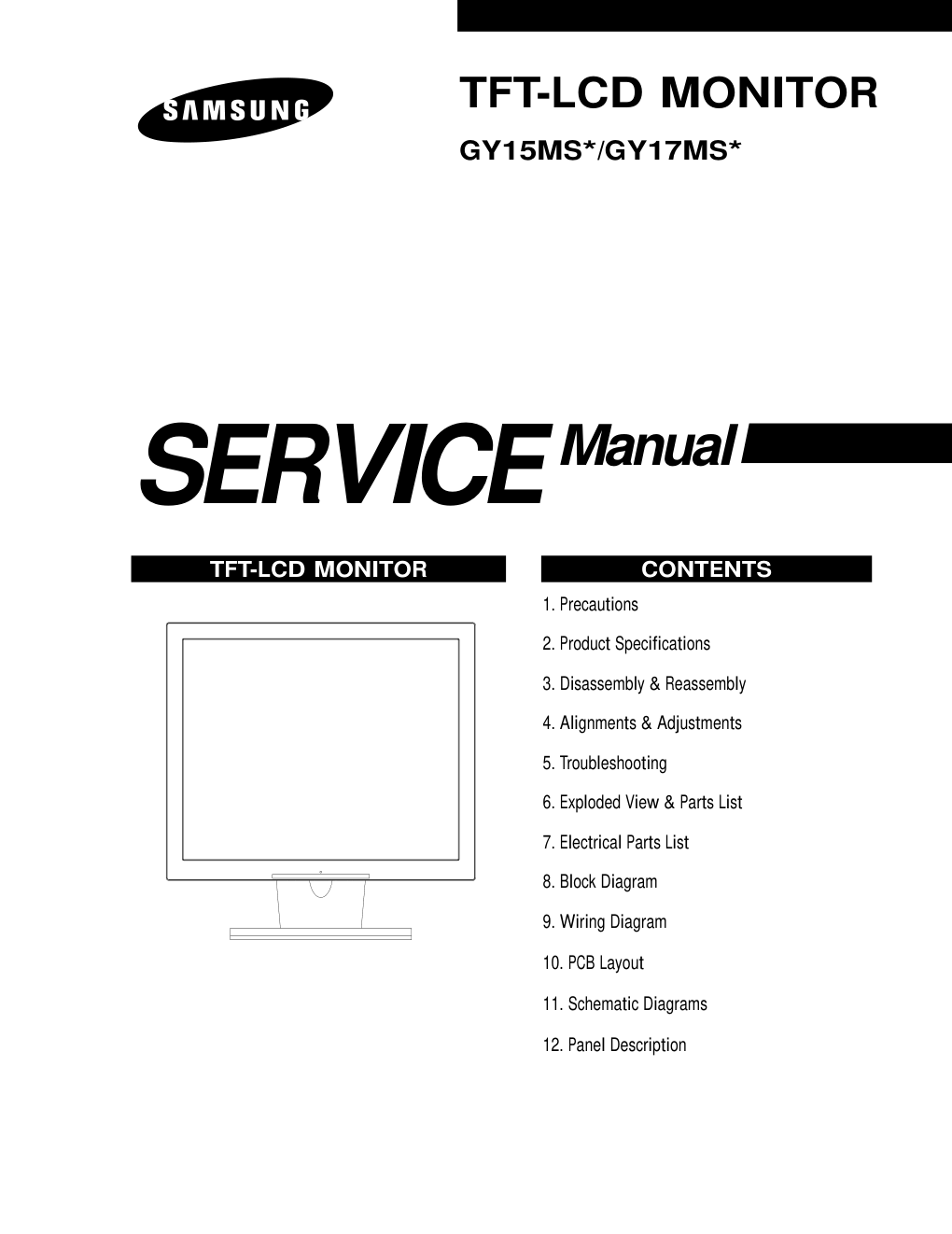

TFT-LCD MONITOR GY15MS*/GY17MS* Manual SERVICE TFT-LCD MONITOR CONTENTS 1. Precautions 2. Product Specifications 3. Disassembly & Reassembly 4. Alignments & Adjustments 5. Troubleshooting 6. Exploded View & Parts List 7. Electrical Parts List 8. Block Diagram 9. Wiring Diagram 10. PCB Layout 11. Schematic Diagrams 12. Panel Description 2 Product Specifications 2-1 Specifications LCD Panel TFT-LCD panel, RGB vertical stripe, normally black transmissive, TFT-LCD panel, RGB vertical stripe, normally black transmissive, 15-Inch viewable, 0.297 (H) x 0.297 (V) mm pixel pitch 17-Inch viewable, 0.264 (H) x 0.264 (V) mm pixel pitch Scanning Frequency Horizontal : 30 kHz ~ 61 kHz (Automatic) Horizontal : 31 kHz ~ 81 kHz (Automatic) Vertical : 56 Hz ~ 75 Hz Vertical : 56 Hz ~ 75 Hz Display Colors 16.2 Million colors Maximum Resolution Horizontal : 1024 Pixels Horizontal : 1280 Pixels Vertical : 768 Pixels Vertical : 1024 Pixels Input Video Signal Analog, 0.714 Vp-p ± 5% positive at 75 Ω, internally terminated Input Sync Signal Type : Separate H/V sync, Composite H/V Level : TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V), Sync-on-Green (≤ –0.25 V) Maximum Pixel Clock rate 80 MHz 135 MHz Active Display Horizontal/Vertical 304.1 mm / 228.1 mm 338 ± 3 mm / 270 ± 3 mm AC power voltage & Frequency AC 90 ~ 264 Volts, 60/50 Hz ± 12V / 3A AC 90 ~ 264 Volts, 60/50 Hz ± 3 Hz Power Consumption 32W (normal) 42 W (max), 40W (normal) Dimensions Set (W x D x H) 13.9 x 1.9 x 12.0 Inches (353.9 x 48.4 x 304.7 mm) Without stand 15.0 x 1.9 x 13.5 Inches (382.0 x 47.0 x 343.0 mm) Without stand 13.9 x 6.0 x 14.2 Inches (353.9 x 152.0 x 360.0 mm) With Stand 15.0 x 7.0 x 17.1 Inches (382.0 x 177.0 x 435.0 mm) With Stand Package 17.0 x 16.8 x 6.6 Inches (432.0 x 427.0 x 167.0 mm) 17.0 x 16.8 x 6.6 Inches (432.0 x 427.0 x 167.0 mm) Weight (Set/Package) Environmental Considerations Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C) Operating Humidity : 10 % ~ 80 % Storage Temperature : -13°F ~ 113°F (-25°C ~ 45°C) Storage Humidity : 5 % ~ 95 % • GY15MS*/GY17MS* complies with SWEDAC (MPRII) recommendations for reduced electromagnetic fields. • Designs and specifications are subject to change without prior notice. Description GY15MS* GY17MS* 3.8 kg (8.4 lbs) / 5.3 kg (11.7 lbs) 4.9 kg (10.8 lbs) / 6.5 kg (14.3 lbs) GY15MS*/GY17MS* 2-1 Item 2 Product Specifications 2-2 GY15MS*/GY17MS* 2-2 Pin Assignments Sync Type Pin No. 15-Pin D-Sub Signal Cable Connector Separate Composite 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Red Green Blue GND DDC Return (GND) GND-R GND-G GND-B DDC Power Input (+5V) Self Raster GND Bi-Dr Data (SDA) H-Sync. V-Sync. DDC Clock (SCL) Red Green Blue GND DDC Return (GND) GND-R GND-G GND-B DDC Power Input (+5V) Self Raster GND Bi-Dr Data (SDA) H/V-Sync. Not Used DDC Clock (SCL) Red Green + H/V Sync. Blue GND DDC Return (GND) GND-R GND-G GND-B DDC Power Input (+5V) Self Raster GND Bi-Dr Data (SDA) Not Used Not Used DDC Clock (SCL) Sync-on-green 2 Product Specifications GY15MS*/GY17MS* 2-3 Q R S P O Video Sync Sync Horizontal Vertical C D E P O B A Video Sync Sync Separate Sync 2-3 Timing Chart This section of the service manual describes the timing that the computer industry recognizes as standard for computer-generated video signals. C D A O E B P Video Sync Sync Video Q R S A : Line time total B : Horizontal sync width O : Frame time total P : Vertical sync width C : Back porch D : Active time Q : Back porch R : Active time E : Front porch S : Front porch VIDEO A B O P Q R S Horizontal Vertical B Green Vertical P Q R S O Horizontal H/V Composite Sync Sync-on-Green 79.975 12.504 1.067 1.837 9.481 0.119 75.025 13.329 0.038 0.475 12.804 0.013 135.000 Positive Positive Separate 1280/75 Hz 1280 x 1024 1280/60 Hz 1280 x 1024 63.981 11.852 1.037 2.296 9.259 0.000 60.020 16.005 0.047 0.594 15.630 0.016 108.000 Positive Positive Separate 31.469 31.777 3.813 1.589 26.058 0.318 70.087 14.268 0.064 0.858 13.155 0.191 28.322 Negative Positive Separate fH (kHz) A µsec B µsec C µsec D µsec E µsec fV (Hz) O msec P msec Q msec R msec S msec Clock Freq. (MHz) Polarity H.Sync V.Sync Remark IBM 640/75 Hz 640 x 480 800/60 Hz 800 x 600 800/75 Hz 800 x 600 1024/60 Hz 1024 x 768 1024/75 Hz 1024 x 768 VGA2/ 70 Hz 720 x 400 VGA3/ 60 Hz 640 x 480 Table 2-1 Timing Chart 31.469 31.778 3.813 1.589 26.058 0.318 59.940 16.683 0.064 0.794 15.761 0.064 26.175 Negative Negative Separate 37.500 26.667 2.032 3.810 20.317 0.508 75.000 13.333 0.080 0.427 12.800 0.027 31.500 Negative Negative Separate 37.879 26.400 3.200 2.200 20.000 0.000 60.317 16.579 0.106 0.607 15.840 0.0261 40.000 Positive Positive Separate 46.875 21.333 1.616 3.232 16.162 0.323 75.000 13.333 0.064 0.448 12.800 0.021 49.500 Positive Positive Separate 48.363 20.677 2.092 2.462 15.754 0.369 60.004 16.666 0.124 0.600 15.880 0.062 75.000 Negative Negative Separate 60.023 16.660 1.219 2.235 13.003 0.203 75.029 13.328 0.050 0.466 12.795 0.017 78.750 Positive Positive Separate Mode VESA (GY17MS*) VESA Timing GY15MS*/GY17MS* 3-1 3 Disassembly and Reassembly This section of the service manual describes the disassembly and reassembly procedures for the GY15MS*/GY17MS* TFT-LCD monitors. WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling these components. 3-1 Disassembly Cautions:1. Disconnect the monitor from the power source before disassembly. 2. Follow these directions carefully; never use metal instruments to pry apart the cabinet. 3. R/Cover opening jig : BH81-00001A 3-1-1 GY15MS* 1. Place monitor face down on cushioned table. Remove 2 screws from grip on the stand and remove signal cable. CAUTION : Always securely hold the stand to remove a screw. Failure to do so may cause the stand to topple or fall onto your feet. 2. Remove 2 screws from the rear cover. Insert the opening jig into the grooves at each side and press until it clicks. 3. Open the rear cover and remove 2 screws from the shield. 4. Disconnet function cable and audio board cable. Pull the shield-PCB. 5. Disconnect inverter cable and LVDS cable. (see illustrations) 3 Disassembly and Reassembly 3-2 GY15MS*/GY17MS* 6. Remove 5 screws from the main board and lift up main board. 7. Remove cover front from the panel and remove 4 screws from the shield panel. 8. Lift up shield from the panel. 1. Place monitor face down on cushioned table. Remove 2 screws from grip on the stand and remove signal cable. CAUTION : Always securely hold the stand to remove a screw. Failure to do so may cause the stand to topple or fall onto your feet. 2. Remove 2 screws from the rear cover. Insert the opening jig into the grooves at each side and press until it clicks. 3. Open the rear cover and remove 2 screws from the shield. 3-1-2 GY17MS* 3 Disassembly and Reassembly GY15MS*/GY17MS* 3-3 4. Disconnect function cable and audio board. 5. Remove cover front from the panel and remove 4 screws from the shield panel. 6. Lift up the shield and disconnect LVDS cable from the main board and remove 6 screws from the main board. 7. Disconnect inverter cable and lift up main board. 8. This picture is removed main board from the panel. 3 Disassembly and Reassembly 3-4 GY15MS*/GY17MS* 3-2 Reassembly Reassembly procedures are in the reverse order of disassembly procedures. 4-1 Required Equipment The following equipment is necessary for adjusting the monitor: • Computer with Windows 95, Windows 98, or Windows NT. • MTI-2031 DDC MANAGER JIG 4-2 Automatic Color Adjustment To input video, use 16 gray or any pattern using black and white. 1. Select english for OSD language. 2. Press the “Exit” key for 5 seconds. 4-3 DDC EDID Data Input 1. Input DDC EDID data when replacing AD PCB. 2. Receive/Download the proper DDC file for the model from HQ quality control department. Install the below jig (Figure 1) and enter the data. 4-4 OSD Adjustment When Replacing Panel 1. Adjust brightness and contrast to 0. Then, press the exit key for 5 second. Service function OSD will appear on screen. 2. Press the + key to place the cursor on the panel. Press the menu key for 5 seconds. 4-5 OSD Adjustment When Replacing Lamp Only 1. Adjust brightness and contrast to 0. Then, press the exit key for 5 seconds. Service function OSD will appear on the screen. 2. Press the + key. Select upper lamp and press the menu key for 5 seconds. Then, select lower lamp and press the menu key for 5 seconds. ❇ Note : Please be sure to read the following instructions for details on service function. GY15MS*/GY17MS* 4-1 4 Alignments and Adjustments This section of the service manual explains how to use the RS232 JIG. This function is needed for AD board change and program memory (IC110) change. Figure 1. 4 Alignments and Adjustments 4-2 GY15MS*/GY17MS* 4-6 Service Function Spec. 4-6-1 How to Display Service Function OSD 1. The value for brightness and contrast should be changed to zero. 2. Within 5 seconds, press the exit key. 3. Service function OSD will be displayed. ❇ If you want to disable the service function OSD, you will have to power off. Figure 2. The example of service function OSD Figure 3. Panel Information Softward Version Checksum The service function OSD is based on a grid of 29 columns x 12 rows. The service function OSD consists of panel information, software version and MICOM checksum. 4-6-2 How to Control Service Function OSD 1. With the panel selected on OSD, whenever you press the right key, the base color will change to blue from “Panel” to “Upper Lamp”, “Lower Lamp”. 4 Alignments and Adjustments GY15MS*/GY17MS* 4-3 Figure 4. 4-6-3 How to Control Service Function OSD •After change the panel or lamp, you must reset service function OSD. •The case of panel change After changeing the panel, press the menu key within 5 seconds,. Then, panel Ch. No increases one step and the panel time information is reset to zero. Simultaneously, other information is reset to zero (Upper/Lower lamp, Panel cycle). Figure 5, 6. 4-6-4 How to Control Service Function OSD •In the case of Upper Lamp or Lower Lamp change After changeing the Upper Lamp or Lower Lamp, 1. Select the Upper Lamp or Lower Lamp 2. Press the Menu key within an 5 seconds. Then, Ch. No and time will be reset to zero (selected item only). GY15MS*/GY17MS* 5-1 5-1 Troubleshooting (GY15MS*) Notes: 1. Before troubleshooting, setup the PC’s display as below. • Resolution: 1024 x 768 • H-frequency: 61 kHz • V-frequency: 75 Hz 2. If no picture appears, make sure the power cord is correctly connected. 3. Check the following circuits. • No raster appears: Stand PCB, Main PCB • 14V develop but no screen: Main PCB • 14V does not develop: Main PCB 4. If you push and hold the Exit for more than 5 seconds, the monitor automatically turns back to the factory preset. 5-1-1 No Power Does proper DC 14V appear at DC jack and Pin 1 of CN201? Check signal cable and power adaptor and CN201. Yes No Does proper DC 5V, DC 3.3V appear at Pin 2 of IC201, and Pin 3 of IC202? Check IC201, IC202 and related circuit. Yes No Does proper DC 1.8V appear at Pin 4 of IC204? Check IC204 and related circuit. Check IC402. Yes No Yes Does proper 5.0V appear at Pin 5, 6 of IC401 and Pin 7, 8 of IC401? (DC 3.3V (DPMS_ON Pin 2 and 4 (OFF_SW) of IC401 must be low level) Check IC401, IC114 and related circuit. No 5 Troubleshooting 5-2 GY15MS*/GY17MS* 5-1-2 No Video [Analog] Check signal cable and connection. Check PC signal. No No No Does the analog video signal appear at R107, R108, R109? (RED, GREEN, BLUE) Yes Check R104, R103 and related circuit. Check PC signal. Does the sync signal appear at R104 and R103? (AHS, AVS) No Check IC402 and related circuit. No Yes Does the video signal appear at the output port? 10 11 Does the video signal appear at the Pin 48, 47, 46, 45, 42, 41, 40, 39, 38, and 37 of IC302? Yes Is Pin 4 (BLIGHT_EN) of CN102 high? Check TFT-LCD panel and inverter. Yes Replace IC402. Yes 9 8 7 6 5 Check IC402 and related circuit. No Does the input signal appear at Pin 103, 105, 102 and 104 of IC402 (DHS,DVS,DEN,DCLK)? 4 3 2 1 5 Troubleshooting GY15MS*/GY17MS* 5-3 5-2 Troubleshooting (GY17MS*) Notes: 1. Before troubleshooting, setup the PC’s display as below. • Resolution: 1280 x 1024 • H-frequency: 81 kHz • V-frequency: 75 Hz 2. If no picture appears, make sure the power cord is correctly connected. 3. Check the following circuits. • No raster appears: Stand PCB, Main PCB • 14V develop but no screen: Main PCB • 14V does not develop: Main PCB 4. If you push and hold the Exit for more than 5 seconds, the monitor automatically turns back to the factory preset. 5-2-1 No Power Does proper DC 14V appear at DC jack and Pin 1 of CN103? Check signal cable and power adaptor and CN103. Yes No Does proper DC 5V, DC 3.3V appear at Pin 2 of IC104, and Pin 2 of IC107? Check IC107, IC104 and related circuit. Yes No Does proper DC 1.8V appear at Pin 4 of IC105? Check IC105 and related circuit. Check IC201. Yes No Yes Does proper 5.0V appear at Pin 5, 6 of IC106 and Pin 7, 8 of IC106? (Pin 2 (DPMS_ON) Pin 2 and 4 (PANEL_ON_OFF) of IC106 must be low level) Check IC106, IC101 and related circuit. No 5 Troubleshooting 5-4 GY15MS*/GY17MS* 5-2-2 No Video [Analog] Check signal cable and connection. Check PC signal. No No No Does the analog video signal appear at R118, R119, R120? (RED, GREEN, BLUE) Yes Check R116, R115 and related circuit. Check PC signal. Does the sync signal appear at R116 and R115? (AHS, AVS) No Check IC201 and related circuit. No Yes Does the video signal appear at the output port? 10 11 Does the video signal appear at the Pin 48, 47, 46, 45, 42, 41, 40, 39, 38, and 37 of IC301? Yes Is Pin 4 (BLIGHT_EN) of CN302 high? Check TFT-LCD panel and inverter. Yes Replace IC201. Yes 9 8 7 6 5 Check IC201 and related circuit. No Does the input signal appear at Pin 103, 105, 102 and 104 of IC201 (DHS,DVS,DEN,DCLK)? 4 3 2 1 5 Troubleshooting GY15MS*/GY17MS* 5-5 WAVEFORMS 1 2 3 4 5 6 7 8 9 10 11 GY15MS*/GY17MS* 6-1 6 Exploded View and Parts List ❈ You can search for updated part codes through CMS web site. URL : http://ecms. samsungelectronics. com/ 6-1 GY15MS* 6 Exploded View & Parts List 6-2 GY15MS*/GY17MS* 6-2 GY17MS* - BN94-00446G ASSY PCB MAIN-SX GY15MS SNA C120 2401-001363 C-AL 470uF,20%,16V,GP,TP,10x12.5,5 C214 2409-001044 C-ORGANIC 100UF,+-20%,16V,WT,TP,8X10.5,5 C243 2401-001363 C-AL 470uF,20%,16V,GP,TP,10x12.5,5 C272 2401-001363 C-AL 470uF,20%,16V,GP,TP,10x12.5,5 C273 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 C276 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 C80 2401-001363 C-AL 470uF,20%,16V,GP,TP,10x12.5,5 CIS01 0202-001044 SOLDER-WIRE. S63S-W3.0,S63S,D3,63Sn/37Pb,- SNA CIS02 0204-001677 FLUX DF-201TVS,MIX,0.820,FLUX 13%,G SNA CIS03 0202-001222 SOLDER-WIRE FLUX RS-107,RS60-1.2AA,D1.2,SN60/PB40,- SNA CIS04 0204-001095 THINNER #4520,-,-,- SNA CN101 3701-001219 CONNECTOR-DSUB 15P,3R,FEMALE,ANGLE,AUF CN201 3722-000117 JACK-DC POWER 3P,3.5MM,AG,BLK,NO SNA CN202 3711-004068 CONNECTOR-HEADER BOX,5P,1R,2MM,ANGLE,SN,WHT FT50 2701-000179 INDUCTOR-AXIAL 33uH,10%,4.2x9.8mm IC203 1204-001833 IC-VOLUME CONTROL TDA7496L,DIP,20P,-,PLASTIC,26V,6W,0TO+70C,ST,AMP&VOLUME CONTROL - BN97-00210P ASSY MICOM GY15MS SNA CIS BN82-00089X A/S MICOM GY15MS SNA IC303 0903-001266 IC-MICROCONTROLLER NT68F63,8BIT,PLCC,44P,653MIL,12MHZ,ST,CMOS,PLASTIC,5V,-,-0TO+70C,256B,4KB,-,-,MC SNA - BN97-00211G ASSY SMD-SX GY15MS SNA BD100 3301-000314 CORE-FERRITE BEAD AB,120ohm,1.6x0.8x0.8mm,150mA,TP,FERRITE,0.2ohm SNA BD101 3301-000314 CORE-FERRITE BEAD AB,120ohm,1.6x0.8x0.8mm,150mA,TP,FERRITE,0.2ohm SNA BD102 3301-000314 CORE-FERRITE BEAD AB,120ohm,1.6x0.8x0.8mm,150mA,TP,FERRITE,0.2ohm SNA C102 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C105 2203-000236 C-CERAMIC,CHIP 0.1NF,5%,50V,C0G,TP,1608 C106 2203-000626 C-CERAMIC,CHIP 0.022NF,5%,50V,C0G,TP,1608 C107 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C108 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C109 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C110 2203-000332 C-CERAMIC,CHIP 0.012NF,5%,50V,C0G,TP,1608 C111 2203-000332 C-CERAMIC,CHIP 0.012NF,5%,50V,C0G,TP,1608 C112 2203-000332 C-CERAMIC,CHIP 0.012NF,5%,50V,C0G,TP,1608 C113 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C116 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C117 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C118 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C119 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C123 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C124 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C125 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C126 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C202 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C203 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C204 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 GY15MS*/GY17MS* 7-1 Loc. No. Code No. Description Specification Remarks 7 Electrical Parts List ❈ You can search for updated part codes through CMS web site. URL : http://ecms. samsungelectronics. com/ 7-1-1 GY15MS* Main PCB Parts C205 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C206 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C207 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C208 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C209 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C210 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C211 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C212 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C213 2402-001044 C-AL,SMD 100UF,20%,25V,GP,TP,8.3X8.3X6.3MM C215 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C216 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C217 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C218 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C219 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C220 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C221 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C222 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C223 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C224 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C225 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C226 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C227 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C228 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C229 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C230 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C231 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C232 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C233 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C234 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C235 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C236 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C237 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C238 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C239 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C244 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C245 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C246 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C247 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C248 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C249 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C250 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C251 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C252 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608 C254 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C255 2402-000209 C-AL,SMD 22uF,20%,16V,WT,TP,5.3x5.3mm,1 C256 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C257 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608 C260 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608 C270 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C271 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C274 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C275 2402-000170 C-AL,SMD 1uF,20%,50V,GP,TP,4.3x4.3x5.4, 7 Electrical Parts List 7-2 GY15MS*/GY17MS* Loc. No. Code No. Description Specification Remarks C277 2402-000170 C-AL,SMD 1uF,20%,50V,GP,TP,4.3x4.3x5.4, C278 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C279 2203-000236 C-CERAMIC,CHIP 0.1NF,5%,50V,C0G,TP,1608 C280 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,- C281 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,- C282 2203-000236 C-CERAMIC,CHIP 0.1NF,5%,50V,C0G,TP,1608 C283 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C284 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4 C304 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C305 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C306 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C307 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C308 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C309 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C310 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C311 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C312 2203-000384 C-CERAMIC,CHIP 0.015NF,5%,50V,C0G,TP,1608 C313 2203-000426 C-CERAMIC,CHIP 0.018NF,5%,50V,C0G,TP,1608 C314 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C315 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C316 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C320 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C321 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C322 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C323 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C324 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C325 2203-000626 C-CERAMIC,CHIP 0.022NF,5%,50V,C0G,TP,1608 C326 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C327 2203-000626 C-CERAMIC,CHIP 0.022NF,5%,50V,C0G,TP,1608 C328 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C330 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C332 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C333 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C334 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C335 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C336 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C337 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C338 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C339 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C600 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 CIS05 0202-001162 SOLDER-CREAM RMA-20-21L,S63,-,SN63/PB36.6/AG0.4,FLUX9.5% SNA CN102 3711-000556 CONNECTOR-HEADER BOX,12P,1R,1.25mm,SMD-A,SN SNA CN103 3711-004934 CONNECTOR-HEADER BOX,5P,1R,1.25MM,SMD-A,SN,WHT CN401 3711-003161 CONNECTOR-HEADER BOX,20P,1R,1.25MM,SMD-A,SN,BEG D101 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D102 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D103 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D104 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D105 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D106 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D201 0402-000553 DIODE-RECTIFIER SS24,40V,2.0A,DO-214AA FT102 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 7 Electrical Parts List GY15MS*/GY17MS* 7-3 Loc. No. Code No. Description Specification Remarks FT201 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA FT202 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA FT301 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA FT302 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA FT303 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA FT304 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA IC113 1204-001551 IC-VIDEO SYSTEM GS1881,SOIC,8P,150MIL,PLASTIC,13.2V,-,0TO+70C,TP,VIDEO SYNC SEPARATOR IC114 0803-000117 IC-TTL 74F14,INVERTER,SOP,14P,150MIL, IC201 1203-002796 IC-DC/DC CONVERTER AP1501-33K5A,TO-263-5L,5P,-,PLASTIC,3.135/3.465V,-,-40TO+125C,3A,-,TP IC202 1203-001488 IC-POSI.FIXED REG. 7805,T0-252,3P,-,PLASTIC,4.8/5 IC204 1203-002844 IC-VOLTAGE REGULATOR AP1117D-18A,TO-252-3L,3P,6.7X5.6MM,PLASTIC,1.764/1.836V,-,0TO+150C,1A,-,TP IC205 0505-001772 FET-SILICON FDS9933A,P,-20V,-3.8A,0.075OHM,2W,SO-8 IC302 1205-002334 IC-TRANSMITTER EL-LV385,TSSOP,56P,14X6.1MM,PLASTIC,3.45V,-,0TO+70C,TP,- IC303 0903-001266 IC-MICROCONTROLLER NT68F63,8BIT,PLCC,44P,653MIL,12MHZ,ST,CMOS,PLASTIC,5V,-,-0TO+70C,256B,4KB,-,-,MC SNA IC304 1103-001023 IC-EEPROM 524C80D81,1028x8Bit,SOP,8P,150MIL,10mS,5V,10%,PLASTIC,0to+70C,110uA,CMOS,TP IC401 0505-001772 FET-SILICON FDS9933A,P,-20V,-3.8A,0.075OHM,2W,SO-8 IC402 1003-001554 IC-LCD CONTROLLER ADE3700X,PQFP,128P,20x14mm,,,TR,PLASTIC,5V,150C,,, L103 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L105 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L106 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L201 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM L202 BN27-00009A COIL CHOKE SMD 12X12X6,EOS,33UH,15%,-,0.12ߟ MAX,2A,DR10X5.0MM,18.5TS,12X12X6,1.8MM,1UEW 0. L203 2703-001778 INDUCTOR-SMD 3.3UH,20%,3.2X2.5X2.2MM L204 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L205 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L206 2703-001802 INDUCTOR-SMD 33UH,20%,2.0X1.25X1.25MM L207 2703-001802 INDUCTOR-SMD 33UH,20%,2.0X1.25X1.25MM L400 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L401 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L402 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L403 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm MP1.2 BN41-00299C PCB MAIN GY15LS/MS,FR-4,4L,1.2,1.6T,130*90 SNA Q101 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 Q201 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 Q202 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 R101 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R102 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R103 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R104 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R107 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R108 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R109 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R112 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R114 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R115 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R116 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R117 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R118 2007-000116 R-CHIP 120ohm,5%,1/10W,TP,1608 R119 2007-000458 R-CHIP 18Kohm,5%,1/10W,TP,1608 R122 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R123 2007-001114 R-CHIP 680Kohm,5%,1/10W,TP,1608 R124 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 7 Electrical Parts List 7-4 GY15MS*/GY17MS* Loc. No. Code No. Description Specification Remarks R125 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R201 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 R202 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R203 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R204 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R205 2007-000121 R-CHIP 820ohm,5%,1/10W,TP,1608 R208 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R209 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R210 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 R211 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 R213 2007-000087 R-CHIP 6.8Kohm,5%,1/10W,TP,1608 R215 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 R216 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R303 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R304 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R306 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R308 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R314 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R316 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R317 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R318 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 R320 2007-000109 R-CHIP 1Mohm,5%,1/10W,TP,1608 R321 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R322 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R323 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 R325 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R326 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R327 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R328 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R329 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R330 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R331 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R332 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R333 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 R337 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R340 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R341 2007-000132 R-CHIP 180Kohm,5%,1/10W,TP,1608 R342 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R343 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R344 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R345 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R346 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 R347 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R348 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R349 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R350 2007-000109 R-CHIP 1Mohm,5%,1/10W,TP,1608 R351 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R352 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R353 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R354 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R355 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R356 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 7 Electrical Parts List GY15MS*/GY17MS* 7-5 Loc. No. Code No. Description Specification Remarks R357 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R359 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R360 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R361 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R362 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R363 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R364 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R365 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R366 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R367 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R368 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R369 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R370 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R371 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R372 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 R373 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R375 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 R401 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R402 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R403 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R404 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R422 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 R424 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R437 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R50 2007-000881 R-CHIP 4.7ohm,5%,1/8W,TP,2012 R51 2007-000881 R-CHIP 4.7ohm,5%,1/8W,TP,2012 R52 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R60 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R600 2007-000086 R-CHIP 5.6Kohm,5%,1/10W,TP,1608 R601 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 R602 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 R61 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R62 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R63 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R64 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R65 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R66 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 RA301 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA302 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA303 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA304 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA305 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA306 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP X301 2801-003954 CRYSTAL-SMD 27MHz,30ppm,28-AAN,16pF,50ohm,TP X302 2801-003773 CRYSTAL-SMD 12MHZ,30PPM,28-AAN,20PF,50OHM,TP ZD103 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 ZD104 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 ZD105 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 ZD106 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 7 Electrical Parts List 7-6 GY15MS*/GY17MS* Loc. No. Code No. Description Specification Remarks - BN90-00490G ASSY COVER FRONT GY15MS SNA C/F+C/R 6003-001319 SCREW-TAPTITE BH,+,B,M3,L10,NI PLT,SWRCH18A,- SNA C/F BN96-00350A ASSY COVER P-FRONT GOYA153B,,ABS PC,WH11, SNA - BN90-00491G ASSY COVER REAR GY15MS SNA C/R BN96-00346A ASSY COVER P-REAR GOYA153B,ABS PC,GR86 SNA - BN90-00492G ASSY STAND GY15MS SNA STD BN96-00355A ASSY STAND P-SIMPLE GOYA153S,,ABS HB,WH11, SNA - BN91-00311A ASSY LCD-SX GD15NS,-,-,- SNA CIS BN07-00045A LCD LTM150XH-L01,CZB,8BIT,331.6*254.76*12.5,16.19M,-,0.297*0.297,-,-,AMLCD/1 LVDS,- - BN91-00607G ASSY CHASSIS-SX GY15MS INVERTER BN44-00072A INVERTER GH15L,LI-2072,48KHZ,14VDC,1.5MARMS,5.6MARMS,48KHZ,37*140*16.0,4LAMP,40~56KHZ APT BN44-00080A ADAPTOR PSCV420108(C)[AD-421,AD-4214L,100 to 240 Vac,50~60Hz,+14Vdc,3A,,42W,AC-DC,0 TO + SNA CIS BN96-00344A ASSY MISC P-SHIELD D_SUB GOYA153S,,,SPTE T0.5 SNA CIS BN63-00643A SHIELD-DSUB GOYA153S,SPTE,T0.5,,,, SNA CIS BN71-00024A EARTH-PLATE GH17LS,SUS,T0.15 SNA - BN91-00608G ASSY SHIELD GY15MS SNA CIS 0203-001160 TAPE-FILAMENT SCOTCH#8915,T0.16,W48,L55M,TRP SNA CIS BN39-00002A CBF-HARNESS -,60,BLU/WHT,-,26,- CIS BN39-00372A LEAD CONNECTOR GY15LS,UL1061#28,UL/CSA,20P,90MM,#28,12507HS-20,12507HS-20,BK,90MM,1061#28 CIS BN63-00645A SHIELD-COVER GOYA153S,SECC,T0.8,,,, SNA IN/PCB+SH/COV 6003-000117 SCREW-TAPTITE BH,+,B,M3,L6,ZPC(YEL),SWRCH18A SNA SH/COV+PAN 6003-000259 SCREW-TAPTITE BH,+,B,M3,L8,ZPC(YEL),SWRCH18A SNA SH/COV+SH/PCB 6003-000117 SCREW-TAPTITE BH,+,B,M3,L6,ZPC(YEL),SWRCH18A SNA SH/PCB+SH/D_SUB 6003-000269 SCREW-TAPTITE BH,+,S,M3,L6,ZPC(YEL),SWRCH18A SNA SIGNAL BN39-00244A CBF SIGNAL BU15AO(T541A),15P/15P,20276-N,1830MM,UL20276,BLACK,D-SUB/MALE ,DET. TYPE CIS BN96-00659B ASSY MISC P-SHIELD PCB GY15MS,SECC T0.3 SNA - BN92-00708G ASSY BOX GY15MS SNA BOX BH75-10529A UNIT-HANDLE PACKING LXA410TLMU,PE,-,WHITE,- SNA BOX BN68-00134D LABEL BAR CODE -,ALL,TCO99,W/W,ART-PAPER 90G,-,WHT,BLACK,-,-,- SNA BOX BN69-00507A BOX S/M153B,AJU+W/W,CB-SW4,YEL,A-1,L415*W420*H143 SNA CIS BN72-60001A LEVER TOP LSD210TL,PE-LD,WHITE,TFT_LCD SNA CIS BN72-60002A LEVER BOTTOM LSD210TL,PE-LD,WHITE,TFT-LCD SNA - BN92-00709G ASSY LABEL GY15MS SNA LABEL BN68-00404J LABEL RATING GY15MS,SS,PE,T0.05,90,45,BLK,POLYESTER,EDC,GY15MS SNA - BN92-00710G ASSY ACCESSORY GY15MS SNA ACCESSORY BN96-00580A ASSY ACCESSORY GY15MS ACCESSORY 0203-000214 TAPE-OPP MASKING OPP/W50/CLR,T0.05,W50,L400000, SNA ACCESSORY 6801-001073 CARD-REGISTRATION RUS,XEV,RUS,MOJO100,-,W220,L318,2,- SNA 7 Electrical Parts List GY15MS*/GY17MS* 7-7 Loc. No. Code No. Description Specification Remarks 7-1-2 GY15MS* Others ACCESSORY 6902-000110 BAG PE LDPE,T0.05,L356,W240,TRP,28,2,PE MARK SNA ACCESSORY BH39-10339H CBF POWER CORD DET,H05VV-F,250V/10,16A,BLK,25 ACCESSORY BH68-00374A CARD WARRANTY-01 ASC List,Samsung,ART100G,Russian,EDC,295,210 SNA ACCESSORY BH68-00376H MANUAL-00 WIN XP INSTALL GUIDE,SYNCMASTER,ENGLISH,W/W,MOJO100G,-,148,210,-,-,-,- SNA ACCESSORY BH68-00489A MANUAL-02 RUSSIAN W/CARD,SER,RUSSIAN,RUSSIA,MOJO100G SNA ACCESSORY BH68-00522A MANUAL USERS-00 P/CORD SETUP GUIDE,SYNCMASTER,EN,W/W,MOJO100G,250,250,00 SNA ACCESSORY BH68-70438A CARD-BLOC WARRANTY-09 TFT LCD,BASIC,EU,MOJO,100G,W21 SNA ACCESSORY BH68-70448A CARD-01 TFT LCD,SRC,RUSSIA,S/W,120,W210*L120,INSTALL CARD SNA ACCESSORY BN39-00061A CBF SIGNAL-STEREO -,2000MM,-,-,UL2851,- ACCESSORY BN59-00355A S/W DRIVER-USER MANUAL-01 153V,173V,IB/Driver,SyncMaster,W/W,13Langs SNA - BN92-00711G ASSY P/MATERIAL GY15MS SNA P/M 0203-001100 TAPE-OPP MASKING OPP/W75/CLR,T0.05,W75,L800000,CLR SNA P/M 6902-000111 BAG PE HDPE,T0.015,L800,W650,TRP,28,4,PE MARK SNA P/M BH69-00328F PAD-EDGE CN15,DW3,200,1430,-,-,YEL,-,- SNA P/M BH69-00457B PACKING-PAD GH15,FOAM,T3.0,930,1000 SNA P/M BH69-30002C BAG-PE LDPE,T0.05,W2400,NO_PRINT SNA P/M BH69-30360A BAG-AIR HDPE,T0.2,W1000*L1800,N,-,ALL SNA P/M BH69-40308C PALLET-PACKING T50,WOODEN,W1340,L920,H120,-,-,- SNA P/M BH69-40348A PACKING-PAD TOP 15’ CB-DW2,W1200*L840,500G,CMA5377 SNA P/M BH69-40379A PACKING-WRAP LDPE,W500*T0.02,-,- SNA P/M BN68-00129A LABEL SHIPPING -,LABEL SHIPPING,ART-PAPER,100G,-,WHT,BLACK,-,-,- SNA P/M BN69-00140F PAD-PALLET COVER ML17,SW,1100*3800,1248,-,-,-,-,- SNA P/M BN69-00140T PAD-PALLET COVER SUN(LSA810),SW,900,3760,-,-,-,-,- SNA P/M BN69-00466A CUSHION-L/R GOYA153B,EPS M50,,,,,,,SIMPLE SNA 7 Electrical Parts List 7-8 GY15MS*/GY17MS* Loc. No. Code No. Description Specification Remarks - BN94-00446J ASSY PCB MAIN-ET GY17MS SNA C136 2409-001044 C-ORGANIC 100UF,+-20%,16V,WT,TP,8X10.5,5 C147 2401-001363 C-AL 470uF,20%,16V,GP,TP,10x12.5,5 C149 2401-001363 C-AL 470uF,20%,16V,GP,TP,10x12.5,5 CIS BN63-00422A GASKET T541A,T541D,CONDUTIVE FABRIC,4MM,15MM,140MM,GRAY,71TSSK 15-4-140-13,71TSSK 15-4- CIS01 0202-001044 SOLDER-WIRE. S63S-W3.0,S63S,D3,63Sn/37Pb,- SNA CIS02 0204-001677 FLUX DF-201TVS,MIX,0.820,FLUX 13%,G SNA CIS03 0202-001222 SOLDER-WIRE FLUX RS-107,RS60-1.2AA,D1.2,SN60/PB40,- SNA CIS04 0204-001095 THINNER #4520,-,-,- SNA CN101 3701-001219 CONNECTOR-DSUB 15P,3R,FEMALE,ANGLE,AUF CN102 3711-004068 CONNECTOR-HEADER BOX,5P,1R,2MM,ANGLE,SN,WHT CN103 3722-000117 JACK-DC POWER 3P,3.5MM,AG,BLK,NO SNA FT107 2701-000179 INDUCTOR-AXIAL 33uH,10%,4.2x9.8mm IC108 1204-001833 IC-VOLUME CONTROL TDA7496L,DIP,20P,-,PLASTIC,26V,6W,0TO+70C,ST,AMP&VOLUME CONTROL - BN97-00210R ASSY MICOM GY17MS SNA CIS BN82-00089Z A/S MICOM GY17MS SNA IC202 0903-001266 IC-MICROCONTROLLER NT68F63,8BIT,PLCC,44P,653MIL,12MHZ,ST,CMOS,PLASTIC,5V,-,-0TO+70C,256B,4KB,-,-,MC SNA - BN97-00211J ASSY SMD-ET GY17MS SNA BD101 3301-000314 CORE-FERRITE BEAD AB,120ohm,1.6x0.8x0.8mm,150mA,TP,FERRITE,0.2ohm SNA BD102 3301-000314 CORE-FERRITE BEAD AB,120ohm,1.6x0.8x0.8mm,150mA,TP,FERRITE,0.2ohm SNA BD103 3301-000314 CORE-FERRITE BEAD AB,120ohm,1.6x0.8x0.8mm,150mA,TP,FERRITE,0.2ohm SNA BD301 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 BD302 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 C102 2203-000236 C-CERAMIC,CHIP 0.1NF,5%,50V,C0G,TP,1608 C103 2203-000236 C-CERAMIC,CHIP 0.1NF,5%,50V,C0G,TP,1608 C110 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C112 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C113 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C114 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C115 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C116 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C117 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C118 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C123 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C124 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C125 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C126 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C127 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C128 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C129 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C130 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C131 2402-001081 C-AL,SMD 100uF,20%,25V,WT,TP,8.3x8.3x10 C132 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C133 2402-001081 C-AL,SMD 100uF,20%,25V,WT,TP,8.3x8.3x10 C134 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C135 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C137 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C138 2203-005015 C-CERAMIC,CHIP 150nF,+80-20%,16V,Y5V,TP,1608 C139 2203-005015 C-CERAMIC,CHIP 150nF,+80-20%,16V,Y5V,TP,1608 C140 2203-000236 C-CERAMIC,CHIP 0.1NF,5%,50V,C0G,TP,1608 7 Electrical Parts List GY15MS*/GY17MS* 7-9 Loc. No. Code No. Description Specification Remarks 7-2-1 GY17MS* Main PCB Parts C141 2203-000236 C-CERAMIC,CHIP 0.1NF,5%,50V,C0G,TP,1608 C142 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C143 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C144 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C145 2402-001160 C-AL,SMD 330UF,20%,16V,WT,TP,1008 C146 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C148 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C150 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,- C151 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,- C152 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4 C153 2402-000209 C-AL,SMD 22uF,20%,16V,WT,TP,5.3x5.3mm,1 C154 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608 C201 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C202 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C203 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C204 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C205 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C206 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C207 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C208 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C209 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C210 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C211 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C212 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C213 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C214 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C215 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C217 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C219 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C220 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C221 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C222 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C223 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C224 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C225 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C226 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C227 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C228 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C229 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C230 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C231 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C232 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C233 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C234 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C235 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C236 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C237 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C238 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C239 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C240 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C241 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C242 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608 7 Electrical Parts List 7-10 GY15MS*/GY17MS* Loc. No. Code No. Description Specification Remarks C244 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C245 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608 C247 2203-000384 C-CERAMIC,CHIP 0.015NF,5%,50V,C0G,TP,1608 C248 2203-000426 C-CERAMIC,CHIP 0.018NF,5%,50V,C0G,TP,1608 C249 2203-000626 C-CERAMIC,CHIP 0.022NF,5%,50V,C0G,TP,1608 C250 2203-000626 C-CERAMIC,CHIP 0.022NF,5%,50V,C0G,TP,1608 C251 2203-000384 C-CERAMIC,CHIP 0.015NF,5%,50V,C0G,TP,1608 C252 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C253 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C254 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C255 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C256 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C257 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C258 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C259 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C260 2203-000626 C-CERAMIC,CHIP 0.022NF,5%,50V,C0G,TP,1608 C261 2203-000626 C-CERAMIC,CHIP 0.022NF,5%,50V,C0G,TP,1608 C262 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C263 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C265 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C267 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C302 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C303 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C304 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C305 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C306 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C307 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C308 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C309 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C310 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C311 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C312 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C314 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C315 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C316 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C317 2402-001160 C-AL,SMD 330UF,20%,16V,WT,TP,1008 C318 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C319 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C320 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C322 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C323 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C324 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C325 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C326 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C327 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C328 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C329 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C60 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C61 2203-005437 C-CERAMIC,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 C62 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608 C63 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608 C80 2402-001160 C-AL,SMD 330UF,20%,16V,WT,TP,1008 7 Electrical Parts List GY15MS*/GY17MS* 7-11 Loc. No. Code No. Description Specification Remarks CIS05 0202-001162 SOLDER-CREAM RMA-20-21L,S63,-,SN63/PB36.6/AG0.4,FLUX9.5% SNA CN301 3711-004070 CONNECTOR-HEADER BOX,30P,1R,1.25mm,SMD-A,SN CN302 3711-000556 CONNECTOR-HEADER BOX,12P,1R,1.25mm,SMD-A,SN SNA CN303 3711-004934 CONNECTOR-HEADER BOX,5P,1R,1.25MM,SMD-A,SN,WHT D101 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D102 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D103 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D104 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D105 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D106 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP D107 0402-001098 DIODE-RECTIFIER SK34,40V,3A,SMC,TP FT103 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT106 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA FT302 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA FT304 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA FT305 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA FT306 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA FT307 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA IC101 0803-000117 IC-TTL 74F14,INVERTER,SOP,14P,150MIL, IC102 1204-001551 IC-VIDEO SYSTEM GS1881,SOIC,8P,150MIL,PLASTIC,13.2V,-,0TO+70C,TP,VIDEO SYNC SEPARATOR IC104 1203-002853 IC-VOLTAGE REGULATOR G960T45R,TO-252,3P,6.35X5.97MM,PLASTIC,3.234/3.336V,-,-40TO+125C,1A,-,TP IC105 1203-002844 IC-VOLTAGE REGULATOR AP1117D-18A,TO-252-3L,3P,6.7X5.6MM,PLASTIC,1.764/1.836V,-,0TO+150C,1A,-,TP IC106 0505-001772 FET-SILICON FDS9933A,P,-20V,-3.8A,0.075OHM,2W,SO-8 IC107 1203-002843 IC-DC/DC CONVERTER AP1501-50K5A,TO-263-5L,5P,10.54X9.65MM,PLASTIC,4.75/5.25V,-,-40TO+125C,3A,-,TP IC109 0505-001772 FET-SILICON FDS9933A,P,-20V,-3.8A,0.075OHM,2W,SO-8 IC201 1003-001560 IC-LCD CONTROLLER ADE3700SX,LQFP,128P,20X14MM,-,-,TR,PLASTIC,5V,150C,-,-,- IC203 1103-001023 IC-EEPROM 524C80D81,1028x8Bit,SOP,8P,150MIL,10mS,5V,10%,PLASTIC,0to+70C,110uA,CMOS,TP IC301 1205-002334 IC-TRANSMITTER EL-LV385,TSSOP,56P,14X6.1MM,PLASTIC,3.45V,-,0TO+70C,TP,- IC302 1205-002334 IC-TRANSMITTER EL-LV385,TSSOP,56P,14X6.1MM,PLASTIC,3.45V,-,0TO+70C,TP,- IC60 1203-002844 IC-VOLTAGE REGULATOR AP1117D-18A,TO-252-3L,3P,6.7X5.6MM,PLASTIC,1.764/1.836V,-,0TO+150C,1A,-,TP IC900 1203-002853 IC-VOLTAGE REGULATOR G960T45R,TO-252,3P,6.35X5.97MM,PLASTIC,3.234/3.336V,-,-40TO+125C,1A,-,TP L105 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L106 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L107 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L108 BN27-00008A COIL CHOKE-SMD SMD12*12*8.5,GH15/17PS,22.0UH,°æ20%,-,0.045OHM MAX.,3.0A,DR10X7/SMD12X6.7,16.5TS L201 2703-001802 INDUCTOR-SMD 33UH,20%,2.0X1.25X1.25MM L202 2703-001802 INDUCTOR-SMD 33UH,20%,2.0X1.25X1.25MM L301 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L302 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L304 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L305 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L400 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L401 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L402 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L403 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm L900 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm MP1.2 BN41-00298C PCB MAIN GY17LS/MS,FR-4,4L,1.2,1.0T,135*110,GY17LS/MS SNA Q101 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 Q103 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 Q301 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 R101 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R102 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 7 Electrical Parts List 7-12 GY15MS*/GY17MS* Loc. No. Code No. Description Specification Remarks R104 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R105 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R109 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R110 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R111 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R115 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R116 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R118 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R119 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R120 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R122 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 R123 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R124 2007-000116 R-CHIP 120ohm,5%,1/10W,TP,1608 R125 2007-001114 R-CHIP 680Kohm,5%,1/10W,TP,1608 R129 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R130 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 R131 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R132 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R133 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R134 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R135 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R136 2007-000087 R-CHIP 6.8Kohm,5%,1/10W,TP,1608 R138 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 R139 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 R140 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 R141 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R142 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 R143 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 R145 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R146 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R148 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R149 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R150 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R204 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R205 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R206 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R207 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R208 2007-000109 R-CHIP 1Mohm,5%,1/10W,TP,1608 R212 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R213 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 R214 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R215 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 R216 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R217 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 R218 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 R219 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 R220 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 R222 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 R224 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 R226 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 R227 2007-000109 R-CHIP 1Mohm,5%,1/10W,TP,1608 R228 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 7 Electrical Parts List GY15MS*/GY17MS* 7-13 Loc. No. Code No. Description Specification Remarks R229 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R230 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R231 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 R232 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 R233 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R234 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R235 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R236 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R237 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R238 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R239 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R241 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R242 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R243 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R244 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R245 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R246 2007-000132 R-CHIP 180Kohm,5%,1/10W,TP,1608 R247 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R248 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R249 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R251 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R252 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R253 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R254 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R255 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R256 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R257 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R258 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R259 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R260 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R261 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 R262 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R301 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R303 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R304 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R305 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R306 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R307 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R308 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R309 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R310 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R311 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R312 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R313 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R314 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R315 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R316 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R317 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R318 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R319 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R320 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R321 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 7 Electrical Parts List 7-14 GY15MS*/GY17MS* Loc. No. Code No. Description Specification Remarks R322 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R323 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 R324 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R325 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R50 2007-000881 R-CHIP 4.7ohm,5%,1/8W,TP,2012 R51 2007-000881 R-CHIP 4.7ohm,5%,1/8W,TP,2012 R52 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 R600 2007-000086 R-CHIP 5.6Kohm,5%,1/10W,TP,1608 R601 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 R602 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 R61 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R62 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R63 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R64 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R65 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R66 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R67 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R68 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R69 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R70 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R71 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 R72 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 RA201 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA202 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA203 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA204 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA205 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA206 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA207 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA208 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA209 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA210 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA211 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP RA212 2011-001085 R-NETWORK 82OHM,5%,1/16W,L,CHIP,8P,TP X201 2801-003954 CRYSTAL-SMD 27MHz,30ppm,28-AAN,16pF,50ohm,TP X202 2801-003773 CRYSTAL-SMD 12MHZ,30PPM,28-AAN,20PF,50OHM,TP ZD103 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 ZD104 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 ZD160 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 ZD161 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 7 Electrical Parts List GY15MS*/GY17MS* 7-15 Loc. No. Code No. Description Specification Remarks - BN90-00490J ASSY COVER FRONT GY17MS SNA C/F+C/R 6003-001319 SCREW-TAPTITE BH,+,B,M3,L10,NI PLT,SWRCH18A,- SNA C/F BN96-00349A ASSY COVER P-FRONT GOYA173B,,ABS PC,WH11, SNA - BN90-00491J ASSY COVER REAR GY17MS SNA C/R BN96-00345A ASSY COVER P-REAR GOYA173B,ABS PC,GR86 SNA - BN90-00492J ASSY STAND GY17MS SNA STD BN96-00356A ASSY STAND P-SIMPLE GOYA173S,,ABS HB,WH11, SNA - BN91-00524G ASSY LCD-ET GH17AS SNA CIS BN07-00085A LCD LTM170EU-L01,GH17LS,1280*1024,17,16.19M,56,0.264*0.264,0~55,5.0,TN,- - BN91-00607J ASSY CHASSIS-ET GY17MS APT BN44-00080A ADAPTOR PSCV420108(C)[AD-421,AD-4214L,100 to 240 Vac,50~60Hz,+14Vdc,3A,,42W,AC-DC,0 TO + SNA CIS BN63-00641A SHIELD-DSUB GOYA173S,SPTE,T0.5,,,, SNA INVERTER BN44-00073B INVERTER Dell 17,LI-2070B,535Hz,DC14V,2.5mArms,6.7mArms,535Hz,160*45*14.5mm,4Lamp,48KHz, - BN91-00608J ASSY SHIELD GY17MS SNA BRKT/PCB+PAN 6001-001692 SCREW-MACHINE BH,+,M3,L3,ZPC(YEL),SWRCH18A,FP,- BRKT/PCB+POW/PCB 6003-000117 SCREW-TAPTITE BH,+,B,M3,L6,ZPC(YEL),SWRCH18A SNA CIS 0203-001160 TAPE-FILAMENT SCOTCH#8915,T0.16,W48,L55M,TRP SNA CIS BN39-00002A CBF-HARNESS -,60,BLU/WHT,-,26,- CIS BN39-00371A WIRE HARNESS GY17LS,UL1571#30,UL/CSA,30P,75mm,#30,12507HS-30,FI-X30H,BK,75mm,1571#30,CORE SNA IN/PCB+SH/D_SUB 6003-000117 SCREW-TAPTITE BH,+,B,M3,L6,ZPC(YEL),SWRCH18A SNA IN/PCB+SH/PCB 6003-000117 SCREW-TAPTITE BH,+,B,M3,L6,ZPC(YEL),SWRCH18A SNA SH/COV+PAN 6001-000131 SCREW-MACHINE BH,+,M3,L6,ZPC(YEL),SM20C,- SNA SH/COV+SH/D_SUB 6003-000269 SCREW-TAPTITE BH,+,S,M3,L6,ZPC(YEL),SWRCH18A SNA SIGNAL BN39-00244A CBF SIGNAL BU15AO(T541A),15P/15P,20276-N,1830MM,UL20276,BLACK,D-SUB/MALE ,DET. TYPE CIS BN96-00343A ASSY MISC P-SHIELD COVER GOYA173S,,,SECCT0.8 SNA CIS BH68-30003B LABEL-HIGH VOLTAGE CKA4217(C),ART,100G,YEL,BLK,W30*L30,CDT-TUBE SNA CIS BN63-00642A SHIELD-COVER GOYA173S,SECC,T0.8,,,, SNA CIS BN71-00022A EARTH PLATE RB15AS,SUS,T0.15 SNA CIS BN96-00612A ASSY MISC P-BRKT INVERTER GY17LS,SECC T0.5 SNA CIS BN61-00391A BRACKET-PCB GOYA 173S,SECC,T0.8,,,, SNA CIS BN61-00615A BRACKET-INVERTER PCB GY17LS,SECC,T0.8 SNA - BN92-00708J ASSY BOX GY17MS SNA BOX BH75-10529C UNIT-HANDLE/PACKING S/M170MP,PE-LD,PE-HD,-,WHITE,- BOX BN68-00134D LABEL BAR CODE -,ALL,TCO99,W/W,ART-PAPER 90G,-,WHT,BLACK,-,-,- SNA BOX BN69-00511A BOX S/M173B,AJU+W/W,CB-SW4,YEL,A-1,L447*W480*H156 SNA CIS BN72-60001A LEVER TOP LSD210TL,PE-LD,WHITE,TFT_LCD SNA CIS BN72-60002C LEVER BOTTOM S/M170MP,PE-HD,BLUE SNA - BN92-00709J ASSY LABEL GY17MS SNA LABEL BN68-00404E LABEL RATING GH17MS,SS,PE,T0.05,90,45,BLK,POLYESTER,EDC,GY17** SNA 7 Electrical Parts List 7-16 GY15MS*/GY17MS* Loc. No. Code No. Description Specification Remarks 7-2-2 GY17MS* Others - BN92-00710J ASSY ACCESSORY GY17MS SNA ACCESSORY BN96-00580A ASSY ACCESSORY GY15MS ACCESSORY 0203-000214 TAPE-OPP MASKING OPP/W50/CLR,T0.05,W50,L400000, SNA ACCESSORY 6801-001073 CARD-REGISTRATION RUS,XEV,RUS,MOJO100,-,W220,L318,2,- SNA ACCESSORY 6902-000110 BAG PE LDPE,T0.05,L356,W240,TRP,28,2,PE MARK SNA ACCESSORY BH39-10339H CBF POWER CORD DET,H05VV-F,250V/10,16A,BLK,25 ACCESSORY BH68-00374A CARD WARRANTY-01 ASC List,Samsung,ART100G,Russian,EDC,295,210 SNA ACCESSORY BH68-00376H MANUAL-00 WIN XP INSTALL GUIDE,SYNCMASTER,ENGLISH,W/W,MOJO100G,-,148,210,-,-,-,- SNA ACCESSORY BH68-00489A MANUAL-02 RUSSIAN W/CARD,SER,RUSSIAN,RUSSIA,MOJO100G SNA ACCESSORY BH68-00522A MANUAL USERS-00 P/CORD SETUP GUIDE,SYNCMASTER,EN,W/W,MOJO100G,250,250,00 SNA ACCESSORY BH68-70438A CARD-BLOC WARRANTY-09 TFT LCD,BASIC,EU,MOJO,100G,W21 SNA ACCESSORY BH68-70448A CARD-01 TFT LCD,SRC,RUSSIA,S/W,120,W210*L120,INSTALL CARD SNA ACCESSORY BN39-00061A CBF SIGNAL-STEREO -,2000MM,-,-,UL2851,- ACCESSORY BN59-00355A S/W DRIVER-USER MANUAL-01 153V,173V,IB/Driver,SyncMaster,W/W,13Langs SNA - BN92-00711J ASSY P/MATERIAL GY17MS SNA P/M 0203-001100 TAPE-OPP MASKING OPP/W75/CLR,T0.05,W75,L800000,CLR SNA P/M 6902-000111 BAG PE HDPE,T0.015,L800,W650,TRP,28,4,PE MARK SNA P/M BH69-00328H PAD-EDGE LN17HO,DW3,200,1350,-,-,YEL,-,- SNA P/M BH69-30002C BAG-PE LDPE,T0.05,W2400,NO_PRINT SNA P/M BH69-30360A BAG-AIR HDPE,T0.2,W1000*L1800,N,-,ALL SNA P/M BH69-40375A TOP-PAD SW4,W900*L830*H4,LXA410TLMU SNA P/M BH69-40379A PACKING-WRAP LDPE,W500*T0.02,-,- SNA P/M BN68-00129A LABEL SHIPPING -,LABEL SHIPPING,ART-PAPER,100G,-,WHT,BLACK,-,-,- SNA P/M BN69-00086A PACKING-PALLET WOODEN,972X1052X15,-,LSA700 SNA P/M BN69-00140A PAD-PALLET COVER CN15,SW,900*3650,1305,-,-,-,-,- SNA P/M BN69-00140R PAD-PALLET COVER IBM(T85),SW,1000*3500,1166,-,-,-,-,- SNA P/M BN69-00464A CUSHION-L/R GOYA173B,EPS M50,,,,,,,SIMPLE SNA 7 Electrical Parts List GY15MS*/GY17MS* 7-17 Loc. No. Code No. Description Specification Remarks GY15MS*/GY17MS* 8-1 8 Block Diagram 8-1 GY15MS* 8 Block Diagrams 8-2 GY15MS*/GY17MS* 8-2 GY17MS* GY15MS*/GY17MS* 9-1 9 Wiring Diagram 9-1 GY15MS* NC GND TXE3+ TXE3- GND TXECLK+ TXECLK- GND TXE2+ TXE2- GND TXE1+ TXE1- GND TXEO+ TXEO- GND GND 3.3V 3.3V INVERTER CN1 CN102 CN101 CN401 CN103 CN103 +14V DC +14V DC +14V DC GND GND GND GND GND BL_ON/OFF GND BRT_ADJ GND CN202 IN L IN R OUTL GND OUTR +14V DC +14V DC +14V DC GND GND GND GND GND BKLT_EN GND BRIGHT GND PGND NC +14V DSUB_SCL V_SYNC H_SYNC DSUB_SDA DSUB_GND CHK_DSUB DSUB_+5V B_GND G_GND R_GND DSUB_GND DSUB_GND B_VIDEO G_VIDEO R_VIDEO DGND KEY1 KEY2 LED_G +5V 9-2 GY17MS* 9 Wiring Diagram 9-2 GY15MS*/GY17MS* RX03+ RXE0- RXE0+ GND RXE1- RXE1+ GND RXE2- RX01- RX01+ RX00- RX00+ RX02- RX02+ GND RX0C- RX0C+ RX03- RXE2+ RXEC- RXEC+ RXE3- RXE3+ GND NC NC NC 5V 5V 5V INVERTER CN1 CN302 CN101 CN301 CN303 CN103 +14V DC +14V DC +14V DC GND GND GND GND GND BL_ON/OFF GND BRT_ADJ GND +14V DC +14V DC +14V DC GND GND GND GND GND BKLT_EN GND BRIGHT GND PGND NC +14V DSUB_SCL V_SYNC H_SYNC DSUB_SDA DSUB_GND CHK_DSUB DSUB_+5V B_GND G_GND R_GND DSUB_GND DSUB_GND B_VIDEO G_VIDEO R_VIDEO DGND KEY1 KEY2 LED_G +5V CN202 IN L IN R OUTL GND OUTR CONFIDENTIAL GY15MS*/GY17MS* 11-1 11 Schematic Diagrams 11-1-1 GY15MS* Schematic Diagram SOG Option option 33uH 1 1.5uH L103 C260 1uF TP954 R102 330 47 R104 100nF C119 C125 100nF 50V MO 1 16V C339 100nF 16V MO 75 R115 C202 100nF 50V 10nF C221 R216 1K D105 1 2 3 0 R122 C112 BD100 B 50V 12pF FT50 1 A 2 B 50V C211 10nF 1 C213 100uF 25V C237 100nF 16V MO L202 1 C219 16V 100nF C109 100nF 1.5uH L205 +3.3V +5V_SW C118 10nF C252 10V 10000nF C228 16V 100nF 10V 1uF 1 1 C206 U3 1 +14V_IN +14V_INV +3.3V +14V_INV C204 16V C223 50V 10nF 100nF 18K 50V 10nF C249 1 R119 B C E 1 1 AVDD_3.3 2SC2412K-Q Q202 1.5uH L206 +5V 50V 10nF 50V C229 10nF C210 1 50V 10nF C254 C217 16V 100nF 1 120 R118 16V C234 100nF XVDD_1.8 Q201 2SC2412K-Q B C E 330 R125 10K 1/16W D106 1 2 3 R112 L207 1.5uH 7 8 FT102 1 A 2 B C 3 GS1881-CKA IC113 1 2 3 4 5 6 D103 1 2 3 C123 MO 50V 100nF 16V 100nF 10V C244 10000nF 50V 10nF C235 C218 10K 1 BZX84C5V1LT1 ZD105 1 2 3 R215 L400 1.5uH +14V_IN +14V_IN PANEL_3.3V L401 1.5uH +5V C256 16V 100nF 1 R201 4.7K 1/16W 50V 10nF C250 1 1 MO 16V TP111 1 100UF C214 100nF C239 C247 +5V 16V IC205 8 D1 D1_1 7 6 D2 D2_1 5 G1 2 4 G2 S1 1 S2 3 16V 100nF R103 75 SI9933ADY-T1 2 VCC 14 SS24 D201 I2 5 I3 9 I4 11 I5 13 IO 1 O_1 4 6 O_2 O_3 8 O_4 10 O_5 12 O_O +5V_SW MC74F14D IC114 GND 7 I1 3 1.5uH L106 1 R205 820 1/16W C335 10nF 50V MO R210 100K 10nF C600 1 1/16W 330 R101 C107 100nF 75 R116 C338 10000nF 10V MO 1 FT202 BLM41P600S A 1 B 2 AP1117D-18A IC204 GND 1 IN 3 OUT 4 C120 470uF 16V 16V 100nF C233 10K R60 BA17805FP IC202 GND 2 IN 1 OUT 3 AVDD_1.8 C208 16V 100nF 16V 100uF C238 3 16V C209 100nF ZD103 1 2 16V C207 100nF 7 6 D2 D2_1 5 G1 2 4 G2 S1 1 S2 3 16V 100nF C246 1 IC401 SI9933ADY-T1 8 D1 D1_1 1 MO 50V 100nF C124 R109 75 MO 50V 10nF C334 2 3 C226 10nF 50V MO +3.3V_SW C126 BZX84C5V1LT1 ZD106 1 10V C257 100nF 50V MO 100nF C108 1uF 1 1 OUTPUT 2 5 SD VIN 1 FT201 A 1 B 2 1 2 3 AP1501-33K5A IC201 FB 4 GND1 3 6 GND2 C106 22pF D102 D101 1 2 3 D104 1 2 3 6 7 DVDD_1.8 BD101 B slcon7p CN103 1 2 3 4 5 C105 100pF 50V MO C336 +14V_AUDIO R107 75 16V 100nF C231 MO 50V 10nF 50V 12pF C110 MO 50V 10nF C224 L201 C111 12pF 50V +3.3V 3.3UH 16V 100nF 10V 10000nF C203 10V C215 10000nF C216 1 CN201 dcjhp_7 1 2 3 33uF C255 U121 1/16W 10K R117 100nF C116 470uF 16V 680K R123 C245 C243 L204 1.5uH 16V 100nF 16V C102 100nF 100nF C248 10V +14V_IN C212 100nF 16V MO 50V 10nF C333 +5V C227 10000nF 1 +5V_SW 1.5uH L105 R422 MO 50V 10nF C225 50V 10nF 100K 1/16W MO 50V 10nF C337 C222 B C E 1/16W 10K R124 PVDD_1.8 2SC2412K-Q Q101 L203 3.3UH 100nF 16V C113 +5V 50V 10nF C220 1/16W 10K R55 B 75 R108 BD102 R105 75 R114 ZD104 1 2 3 1/16W 1.5K 10 11 12 13 14 DVDD_3.3 +5V_SW 1 2 3 4 5 6 7 8 9 10K +3.3V_SW CN102 slcon14p_1 R401 R402 16V C251 100nF 10K 12 13 14 15 C230 100nF 16V 1 2 3 4 5 6 7 8 9 10 11 10000nF C117 CN101 d_sub15p 16V C205 100nF 100K R211 1/16W C232 50V C236 10nF PGND PGND AGND ADGND 100nF 16V AHS OFF_SW DPMS_ON AGND DGND AGND AGND AGND AGND DGND AGND AGND AGND AGND AGND AGND AGND AGND DGND AGND DGND AGND BLIGHT_EN AVS AGND KEY2 LED_G KEY1 DGND PANEL_EN PGND PGND DGND AUDIO_EN AGND DGND DGND CHK_DSUB tjunctions RED_IN SOG_SYNC BRIGHT GREEN_IN BLUE_IN AGND DDC_DATA DDC_CLK 10 11 10 11 11 Schematic Diagrams 11-2 GY15MS*/GY17MS* CONFIDENTIAL 11-1-2 GY15MS* Schematic Diagram OPTION Close to respective power pins option 6bit only 1 2 XGND XTAL_IN 30 31 XTAL_OUT XVDD18 32 FT302 BLM41P600S TCON3 12 TCON4 11 TCON5 10 9 TCON6 TCON7 8 21 TSTCLK 65 TST_SCAN VSYNC 34 XCLK 18 19 XCLK_EN 29 47 REFG 41 REFMB REFMG 48 55 REFMR REFR 54 RESET 20 SCL 16 17 SDA 15 TCON0 TCON1 14 13 TCON2 ORB6 ORB7 126 OVS 105 25 PGND_1 27 PGND_2 PVDD18_1 26 PVDD18_2 28 REFB 40 REFCB 44 51 REFCG 58 REFCR 89 ORA4 ORA5 88 87 ORA6 ORA7 86 5 ORB0 ORB1 4 3 ORB2 ORB3 2 1 ORB4 ORB5 128 127 121 120 OGB3 OGB4 115 114 OGB5 OGB6 113 112 OGB7 OHS 103 97 ORA0 ORA1 96 95 ORA2 90 ORA3 ODE 83 OGA0 OGA1 82 79 OGA2 OGA3 78 77 OGA4 OGA5 76 75 OGA6 OGA7 74 OGB0 123 122 OGB1 OGB2 67 OBA6 OBA7 66 OBB0 111 110 OBB1 109 OBB2 108 OBB3 101 OBB4 100 OBB5 OBB6 99 OBB7 98 102 119 35 HSYNC INB 42 49 ING INR 56 73 OBA0 72 OBA1 OBA2 71 OBA3 70 69 OBA4 OBA5 68 DVDD18_1 DVDD18_2 62 DVDD18_3 84 93 DVDD18_4 DVDD18_5 117 124 DVDD18_6 7 DVDD33_1 DVDD33_2 64 DVDD33_3 80 DVDD33_4 91 106 DVDD33_5 DVDD33_6 118 DGND_11 125 DGND_12 DGND_2 22 DGND_3 24 63 DGND_4 81 DGND_5 85 DGND_6 DGND_7 92 DGND_8 94 DGND_9 107 23 AVDD18_2 46 53 AVDD18_3 AVDD18_4 60 AVDD33_1 36 43 AVDD33_2 AVDD33_3 50 57 AVDD33_4 104 CCLK 33 CSYNC DGND_1 6 116 DGND_10 IC402 000086221 37 AGND_1 39 AGND_2 45 AGND_3 AGND_4 52 59 AGND_5 61 AGND_6 AVDD18_1 38 100nF C328 AVDD_1.8 C313 50V 0.018nF R316 0 R62 0 C309 10000nF R326 47 R66 R65 0 0 R64 0 DVDD_3.3 0 R63 4.7 1/10W 0 R61 R204 100 R50 R433 0 AVDD_3.3 0 R432 1.5uH L403 L402 1.5uH 0 R374 1/16W 100 R370 8 1/16W 15K R333 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 +5V RA304 R600 RA306 10K 10K 7 8 10K R602 R601 RA305 1 2 3 4 5 6 C312 15pF 50V RA303 1 2 3 4 5 6 7 8 15K 1/16W R323 RA302 1 2 3 4 5 6 7 8 10K 3 4 5 6 7 8 R52 R322 RA301 1 2 47 C308 100nF R328 47 1 R203 100 1 TP1476 1 ZD202 FT304 1 2 TP1475 C306 BLM41P600S 25V 100uF C272 10000nF 100nF C270 16V PVDD_1.8 16V C271 100nF 100 R208 16V 100uF C283 100nF C307 100nF C274 16V C330 10000nF R354 X302 100 R369 47 C316 100nF 10K R371 XVDD_1.8 10K R373 +5V R424 22 0 +5V R336 R431 VSYNCI DVDD_1.8 0 37 PC6 PC7 36 PD0 35 34 PD1 33 PD2 32 PD3 31 PD4 30 PD5 RSTB 4 V33 6 44 PB3 14 28 PB4 27 PB5 26 PB6 25 PB7 PC0 3 PC1 2 PC2 1 42 PC3 41 PC4 40 PC5 PA0 24 PA1 23 PA2 PA3 22 PA4 21 PA5 20 PA6 19 PA7 18 PB0 17 PB1 16 PB2 15 GND 7 43 HSYNCI NC1 38 NC2 39 9 OSCI 8 OSCO 10 P30 11 P31 12 P34 P35 13 29 NT68F63L IC303 CVV 5 R372 R314 22 47 R325 4.7K R404 100 100 R360 C275 150nF U141 1 U143 1 R209 1/16W 0 1/16W 6.8K R213 STBY 11 SVR 10 5 VAROUT_L 7 VAROUT_R 6 VOLUME 16 VS0 15 VS1 ZD201 GND2 13 GND3 20 GND4 19 GND5 18 GND6 4 INL 9 INR MUTE 12 8 N_C OUTL 17 OUTR 14 IC203 TDA7496L 1 GND0 2 GND1 3 C305 100nF 100nF C304 C281 50V 1 U139 1 1nF R343 10K U140 10K R342 10K R341 180K 47 R321 R340 C326 100nF 16V C324 10000nF 1 R332 47 1 2 3 4 5 +14V_AUDIO 1 1 CN202 slcon5p 1 1 150nF C277 1 16V 470uF C276 16V C278 100nF FT303 BLM41P600S 1 2 C273 470uF 16V R350 1/16W 1M PANEL_3.3V 22pF C325 MO 16V 100nF C310 100 R437 C321 10000nF R303 22 47 R329 C322 100nF 17 18 19 20 21 22 R51 4.7 1/10W 7 8 9 10 11 12 13 14 15 16 CN401 slcon22p_1 1 2 3 4 5 6 100nF C315 1 R403 10K +3.3V_SW R356 100 1 C282 100pF 50V MO 100pF 50V C279 R337 100 R202 BLM41P600S 1 2 0 R317 FT301 R318 22 1M R320 1/16W 15K 1 47 R330 1 MO 50V 15pF C331 100 R359 16V 100nF 47 R357 R355 C323 R353 100 0 10K R351 M24C08-WMN1T IC304 1 2 3 4 5 6 7 8 R361 +5V R348 100 1K R347 0 Q1 470 R346 HC-49/SM5H(27MHz,30ppm) X301 Q0 R375 R331 47 4.7K C332 10000nF 47uF C284 50V C280 U142 1 +5V 1nF R368 100 R344 10K R367 1K 100 R366 MO 50V 100nF C320 C327 22pF TXOUT0- 48 TXOUT1 45 TXOUT1- 46 TXOUT2 41 42 TXOUT2- TXOUT3 37 TXOUT3- 38 1 VCC_1 9 VCC_2 VCC_3 26 TIN27 TIN3 55 56 TIN4 TIN5 2 3 TIN6 TIN7 4 TIN8 6 7 TIN9 TXCLKOUT 39 TXCLKOUT- 40 TXOUT0 47 18 19 TIN18 TIN19 20 54 TIN2 TIN20 22 23 TIN21 TIN22 24 25 TIN23 27 TIN24 TIN25 28 30 TIN26 50 32 PWDNB TIN0 51 52 TIN1 TIN10 8 TIN11 10 11 TIN12 TIN13 12 TIN14 14 15 TIN15 TIN16 16 TIN17 GND_2 21 GND_3 GND_4 29 GND_5 53 36 LVDS_GND LVDS_GND_1 43 LVDS_GND_2 49 44 LVDS_VCC PLL_GND_1 33 PLL_GND_2 35 34 PLL_VCC IC302 EL-LV385 CLKIN 31 17 CLKSEL 5 GND_1 13 1 C311 100nF 16V MO TP1474 10K 100 R349 R365 100 +5V R352 100 R364 100 R363 1/16W 100 R362 R327 47 R308 22 75 R304 22 R306 MO 16V 100nF C314 1 R345 10K DCLK DHS DVS DHS* DVS* 1 AGND OFF_SW AGND REFCG AGND AUDIO_MUTE AUDIO_EN AUDIO_VOL DGND DGND DGND DGND PIN_2 PIN_1 AUDIO_MUTE DGND V_SYNC H_SYNC_M DGND LED_G DGND DGND DGND DDC_DATA DDC_CLK DGND DGND AUDIO_VOL DGND DGND DGND DGND PIN_1 PIN_2 AGND SOG_SYNC BLIGHT_EN AVS DGND KEY2 KEY1 BRIGHT DGND DPMS_ON PANEL_EN RESET LVDS_EN CHK_DSUB SDA SCL DGND DGND M_SCL M_SDA TXE3- DGND DGND DGND DGND AHS DCLK TXECLK+ TXECLK- DHS DVS DEN TXE0+ TXE0- TXE1+ TXE1- TXE2+ TXE2- TXE3+ ORB(1) ORB(0) ORB(6) ORB(7) ORB(5) OGB[7:0] OGB(0) OGB(1) OGB(2) OGB(6) OGB(7) OGB(3) OGB(4) OGB(5) OBB[7:0] OBB(0) OBB(6) OBB(7) OBB(1) OBB(2) OBB(3) OBB(4) OBB(5) DGND LVDS_EN RESET SDA SCL ORB(0:7) OGB(7) OGB(6) OGB(5) OGB(4) OGB(3) OGB(2) OGB(1) OGB(0) OGB(0:7) OBB(0:7) OBB(0) OBB(1) OBB(2) OBB(3) OBB(4) OBB(5) OBB(6) OBB(7) ORB[7:0] ORB(4) ORB(3) ORB(2) ORB(7) ORB(6) ORB(5) ORB(4) ORB(3) ORB(2) ORB(1) ORB(0) REFR AGND REFCR REFG REFB REFCB DEN* DEN DEN* DHS* DVS* M_SCL M_SDA AGND DGND DGND H_SYNC_M BLUE_IN GREEN_IN RED_IN V_SYNC REFB REFCB REFG REFCG REFR REFCR 3 1 4 2 9 6 5 8 7 1 2 3 4 5 6 7 8 9 11 Schematic Diagrams GY15MS*/GY17MS* 11-3 CONFIDENTIAL 11-2 GY17MS* Schematic Diagram 10 11 BD 103 L 108 22uH FT 107 CN 103 SOG Option 120ohm 120ohm 120ohm R 150 Option Q 103 IC 109 C 154 ZD 106 D 107 Audio option 10K R145 C145 100uF 25V 100 R132 16V 330uF C133 MO 16V 150nF C138 C102 100pF 1 L108 O_5 12 O_O 2 VCC 14 1 7 I1 3 I2 5 I3 9 I4 11 I5 13 IO 1 O_1 4 6 O_2 O_3 8 O_4 10 TP656 1 MC74F14D IC101 GND 1 TP655 1 C114 100nF 1 ZD105 1 LVDS3.3V R102 10K 2 3 4 5 C139 150nF 16V MO 16V 100nF slcon5p CN102 1 1.5uH +5V_SW C137 10000nF L106 4 C60 100nF C61 AP1117D-18A IC60 GND 1 IN 3 OUT MO 50V 100pF C141 16V 100nF C134 C142 100uF 16V 6.8K 1/16W CPU+5V U8 1 R136 R143 1K R148 4.7K 1/16W 10K R123 C149 470uF 16V C244 100nF 16V 10000nF C128 +14V_INV 330 1 R105 47uF R118 39 75 U7 1 C152 SK34 R115 1 S1 3 S2 C140 100pF 50V MO D107 IC106 D1 8 7 D1_1 D2 6 5 D2_1 2 G1 G2 4 75 R109 LCD+5V SI9933ADY-T1 75 R110 1 C116 10nF 1.5uH B C124 10000nF MO L105 BD102 B BD103 1 100nF C148 16V R135 1 Q101 2SC2412K-Q B C E 0 1/16W R141 100nF +14V_INV +14V_AUDIO 0 10K R149 C112 1 +5V 10000nF C130 R116 C136 16V 100UF 75 C107 4.7pF 50V SVR VAROUT_L 5 VAROUT_R 7 VOLUME 6 VS0 16 VS1 15 C103 100pF 50V MO GND4 20 GND5 19 GND6 18 INL 4 INR 9 12 MUTE N_C 8 17 OUTL 14 OUTR 11 STBY 10 TDA7496L IC108 GND0 1 GND1 2 GND2 3 GND3 13 R55 10K 1 GND 3 IN 4 OUT +14V R117 IC105 AP1117D-18A 8 D1 D1_1 7 6 D2 D2_1 5 2 G1 4 G2 S1 1 S2 3 1/16W 1.5K B C E SI9933ADY-T1 IC109 100K 1/16W R139 Q103 KSC1623-Y D104 1 2 3 PVDD_1.8 L201 1.5uH U5 1 MO 16V 100nF C241 C242 1uF 10V MO R104 DVDD_3.3 1nF C150 50V 330 1 ZD103 1 2 3 +14V_AUDIO IC107 AP1501-50K5A FB 4 3 GND1 6 GND2 OUTPUT 2 5 SD VIN TP110 1 39 R119 R120 39 7 8 9 10 11 12 13 14 15 d_sub15p CN101 1 2 3 4 5 6 3 R131 100 +14V D106 1 2 3 D103 1 2 CPU+5V D105 1 2 3 C123 100nF 1 10V 1uF C245 1 1 TP654 R138 1/16W 100K D102 1 2 3 ZD104 1 2 3 100nF C127 100nF C129 16V C146 100nF 10K R101 1 10K R52 8 ZD106 1 2 3 4 5 6 7 D101 1 2 3 GS1881-CKA IC102 TP111 1 GND IN OUT +5V L900 1.5uH +5V CPU+5V BD101 B IC900 G960T45R R124 1.5uH L107 50V C151 1nF 120 3 BLM41P600S FT107 A 1 B 2 C118 FT103 1 A 2 B C 100nF 16V G960T45R IC104 GND IN OUT L202 1.5uH 16V C143 100nF CPU+5V CPU+5V AVDD_3.3 100nF C144 16V 50V 4.7pF C108 10000nF C115 XVDD_1.8 R129 10K 50V 4.7pF C106 CPU+5V C126 10000nF 1/16W R130 4.7K 100nF 16V C135 16V 470uF C147 C153 33uF 75 R111 B 10K R140 FT106 BLM41P600S 1 A 2 R122 470 C125 100nF 1/10W 4.7 R51 100 1/10W 4.7 R50 100 R133 R134 C132 100nF 50V 1 2 3 C131 330uF 16V CN103 dcjhp_7 680K R125 4.7K AVDD_1.8 100nF C117 +5V_SW U6 1 R142 +14V R146 10K DVDD_1.8 CPU+5V 100nF C113 U4 1 10K C110 100nF CPU+5V 1uF C154 R150 PGND AGND AGND AGND AGND PGND PGND PGND AUDIO_MUTE DGND PANEL_ON_OFF DPMS_ON SOG_SYNC OFF_SW PGND AGND AGND PGND AGND AGND AGND AGND AGND AGND PIN_1 PIN_2 AGND AUDIO_EN AUDIO_VOL PIN_2 PIN_1 CHK_DSUB RED_IN GREEN_IN BLUE_IN DDC_DATA DDC_CLK AGND AVS AHS 10 11 11 Schematic Diagrams 11-4 GY15MS*/GY17MS* CONFIDENTIAL 11-3 GY17MS* Schematic Diagram RA 212 IC 203 C 267 option AUDIO OPTION 6bit only 6bit only R 262 L 202 X 202 C232 10000nF 10V MO 50V 10nF C329 C210 100nF 16V 16V 100nF C204 C203 100nF 16V C205 100nF 16V RA208 1 2 3 4 5 6 7 8 7 8 1 2 3 4 5 6 50V 10nF C208 RA202 6 7 8 50V 10nF C240 RA205 1 2 3 4 5 X202 DVDD_1.8 R254 100 R261 C263 100nF 50V MO R258 100 AVDD_1.8 DVDD_3.3 100 16V 100nF C234 10V 10000nF C219 16V 100nF C228 C233 10000nF 10V R257 100 50V 15pF C247 PVDD_1.8 AVDD_3.3 R255 10000nF C257 1/16W 15K 1K 47 R222 R252 0 R229 2 3 4 5 6 7 8 RA201 1 MO 50V 10nF C325 MO 50V 10nF C326 2 3 4 5 6 7 8 6 7 8 RA209 1 RA210 1 2 3 4 5 100 R249 1/16W 100 R259 CPU+5V 10K R243 2 3 4 5 6 7 8 RA204 1 C260 22pF 22 R204 R247 0 C201 100nF 16V 16V 100nF C211 16V 100nF C235 16V 100nF C206 470 R218 R219 470 RA206 1 2 3 4 5 6 7 8 1/16W 100 R260 R208 1M 16V 100nF C237 16V 100nF C236 3 4 5 6 7 8 RA207 1 2 10000nF C265 R215 100nF C255 100 22 MO 16V 100nF C253 R248 R206 10000nF C262 1 2 3 4 5 6 7 8 0 RA203 50V 22pF C250 R216 R217 470 TST_SCAN 65 34 VSYNC 18 XCLK XCLK_EN 19 XGND 29 30 XTAL_IN XTAL_OUT 31 32 XVDD18 10K SCL SDA 17 TCON0 15 14 TCON1 TCON2 13 12 TCON3 11 TCON4 10 TCON5 TCON6 9 8 TCON7 TSTCLK 21 40 REFB 44 REFCB REFCG 51 REFCR 58 REFG 47 REFMB 41 48 REFMG REFMR 55 54 REFR 20 RESET 16 ORB2 3 2 ORB3 ORB4 1 128 ORB5 ORB6 127 126 ORB7 105 OVS PGND_1 25 PGND_2 27 26 PVDD18_1 28 PVDD18_2 OHS ORA0 97 96 ORA1 ORA2 95 ORA3 90 ORA4 89 88 ORA5 ORA6 87 86 ORA7 ORB0 5 4 ORB1 OGA5 OGA6 75 74 OGA7 123 OGB0 OGB1 122 121 OGB2 OGB3 120 115 OGB4 OGB5 114 113 OGB6 OGB7 112 103 OBB4 101 OBB5 100 99 OBB6 98 OBB7 ODE 102 OGA0 83 82 OGA1 OGA2 79 78 OGA3 OGA4 77 76 72 71 OBA2 70 OBA3 OBA4 69 68 OBA5 OBA6 67 66 OBA7 111 OBB0 OBB1 110 OBB2 109 OBB3 108 64 DVDD33_2 80 DVDD33_3 91 DVDD33_4 DVDD33_5 106 119 DVDD33_6 HSYNC 35 42 INB ING 49 56 INR OBA0 73 OBA1 DGND_6 85 92 DGND_7 94 DGND_8 107 DGND_9 DVDD18_1 23 62 DVDD18_2 84 DVDD18_3 DVDD18_4 93 117 DVDD18_5 DVDD18_6 124 DVDD33_1 7 57 CCLK 104 CSYNC 33 6 DGND_1 DGND_10 116 DGND_11 118 DGND_12 125 22 DGND_2 24 DGND_3 DGND_4 63 DGND_5 81 52 AGND_4 AGND_5 59 AGND_6 61 38 AVDD18_1 46 AVDD18_2 AVDD18_3 53 60 AVDD18_4 36 AVDD33_1 AVDD33_2 43 50 AVDD33_3 AVDD33_4 ADE3700SX IC201 AGND_1 37 AGND_2 39 AGND_3 45 C217 10nF 50V 7 8 10K R239 M24C08-WMN1T IC203 1 2 3 4 5 6 C212 100nF 16V R244 10K 1/16W C207 10nF 50V 22pF C261 R227 1M R228 R209 47 C224 10nF 50V MO 0 C258 X201 HC-49/SM5H(27MHz,30ppm) Q0 Q1 50V 10nF C238 100nF 16V 22 R205 DVDD_1.8 MO 50V 10nF C328 16V 100nF C259 0 R240 10V 10000nF C209 100 R234 R237 1K R214 22 XVDD_1.8 R251 100 100nF C267 15pF 50V MO 100 R233 R213 75 C264 RA212 1 2 3 4 5 6 7 8 R62 22 DVDD_3.3 0 180K R246 R207 50V 10nF C221 MO 50V 10nF C225 0 R211 R210 0 R256 50V 10nF C215 R220 15K 1/16W 100 470 R226 CPU+5V 16V 100nF C202 C249 22pF 50V 16V 100nF C230 50V 10nF C226 16V 100nF C231 50V 10nF C227 R61 0 CPU+5V R236 100 CPU+5V R253 100 DVDD_3.3 50V 10nF C239 MO 50V 10nF C327 VSYNCI 44 C324 10nF 50V MO AVDD_3.3 PC5 40 PC6 37 36 PC7 35 PD0 PD1 34 PD2 33 PD3 32 PD4 31 PD5 30 4 RSTB 6 V33 PB2 14 PB3 PB4 28 PB5 27 PB6 26 PB7 25 3 PC0 2 PC1 1 PC2 PC3 42 PC4 41 PA0 29 PA1 24 PA2 23 22 PA3 21 PA4 20 PA5 19 PA6 18 PA7 17 PB0 16 PB1 15 5 CVV 7 GND HSYNCI 43 38 NC1 39 NC2 OSCI 9 OSCO 8 P30 10 P31 11 P34 12 13 P35 IC202 NT68F63L R262 C220 10000nF 10V 50V 10nF C223 10K 1 2 3 4 5 6 7 8 15K 1/16W RA211 MO 50V 10nF C222 R224 R238 100 0.018nF 50V C248 R245 100 R235 0 10K R71 R72 R70 0 0 0 R69 R67 R68 0 R66 0 R65 0 0 0 R64 10K R63 0 10K R241 R242 22 R212 C252 100nF 16V MO R600 16V 100nF C229 10K R602 10K R601 10K 10000nF C256 AVDD_1.8 C251 15pF 50V 4.7K C254 100nF 16V MO R230 10K R232 4.7K R231 16V 100nF C213 CPU+5V C214 100nF 16V OFF_SW DGND DGND AGND DGND AGND AGND AGND REFCG AUDIO_EN AUDIO_MUTE AUDIO_VOL DGND PGND DGND DGND DEG(6) DEG(7) DEB(0:7) DEB(0) DEB(1) DEB(2) DEB(3) DEB(4) DEB(5) DEB(6) DEB(7) DGND DGND DGND DGND DGND DGND DGND DGND DGND AGND AGND DER(0:7) DER(0) DER(1) DER(2) DER(3) DER(4) DER(5) DER(6) DER(7) DEG(0:7) DEG(0) DEG(1) DEG(2) DEG(3) DEG(4) DEG(5) DOG(1) DOG(0) DOG(0:7) DOB(0:7) DOB(0) DOB(1) DOB(2) DOB(3) DOB(4) DOB(5) DOB(6) DOB(7) DGND AGND PGND DGND DVS* DHS* DEN* DEN* DHS* DVS* RESET SDA SCL DGND DOR(0:7) DOG(7) DOG(6) DOG(5) DOG(4) DOG(3) DOG(2) DOR(4) DOR(3) DOR(2) DOR(1) DOR(0) REFR AGND REFCR REFG REFB REFCB DEN DVS DHS DCLK V_SYNC REFB REFCB REFG REFCG REFR REFCR DOR(7) DOR(6) DOR(5) SDA SCL M_SCL M_SDA V_SYNC H_SYNC_M LED_G M_SCL M_SDA DDC_CLK DDC_DATA AGND DGND DGND H_SYNC_M BLUE_IN GREEN_IN RED_IN AHS SOG_SYNC BLIGHT_EN AVS KEY2 KEY1 BRIGHT DPMS_ON PANEL_ON_OFF RESET LVDS_EN CHK_DSUB 3 1 4 2 1 2 3 4 11 Schematic Diagrams GY15MS*/GY17MS* 11-5 CONFIDENTIAL 11-4 GY17MS* Schematic Diagram RxE3- 5V RxO2- RxE2- L 305 RxOC+ RxO3- RxO3+ GND RxO2+ RxOC- CN 303 RxEC+ NC GND RxE3+ RxE0+ BD 302 Triger Option(GND:Falling, HIGH:Rising) NC C 323 GND Q 301 RxEC- R 325 IC 302 FT 305 RxO0- NC 5V RxE0- RxE2+ 1 RxO0+ RxO1- GND RxE1- RxE1+ RxO1+ 5V R316 47 1.5uH L305 1 1 C304 100nF 100nF C316 C302 100nF R307 47 47 47 R323 3 4 5 6 7 R306 B C E slcon7p CN303 1 2 BLM41P600S FT306 A 1 B 2 Q301 2SC2412K-Q 10000nF C308 C306 100nF 16V MO 1 R312 47 1 R305 47 1 1 C320 100nF 50V MO 1 1 1 100nF C310 R302 0 C305 100nF 16V MO 26 +14V_INV 0 R301 TXOUT0 47 TXOUT0- 48 TXOUT1 45 46 TXOUT1- TXOUT2 41 TXOUT2- 42 TXOUT3 37 38 TXOUT3- 1 VCC_1 9 VCC_2 VCC_3 30 TIN26 50 TIN27 TIN3 55 56 TIN4 TIN5 2 3 TIN6 TIN7 4 TIN8 6 7 TIN9 TXCLKOUT 39 40 TXCLKOUT- 16 TIN17 18 19 TIN18 TIN19 20 54 TIN2 TIN20 22 23 TIN21 TIN22 24 25 TIN23 27 TIN24 TIN25 28 35 34 PLL_VCC 32 PWDNB TIN0 51 52 TIN1 TIN10 8 TIN11 10 11 TIN12 TIN13 12 TIN14 14 15 TIN15 TIN16 5 GND_1 13 GND_2 21 GND_3 GND_4 29 GND_5 53 36 LVDS_GND LVDS_GND_1 43 LVDS_GND_2 49 44 LVDS_VCC PLL_GND_1 33 PLL_GND_2 EL-LV385 IC302 CLKIN 31 17 CLKSEL 1 U1 1 1 100nF C303 100nF C312 +5V BLM41P600S FT307 A 1 B 2 1 L400 1.5uH CPU+5V 16V 330uF C317 47 TXOUT0- 48 TXOUT1 45 46 TXOUT1- TXOUT2 41 TXOUT2- 42 TXOUT3 37 38 TXOUT3- 1 VCC_1 9 VCC_2 VCC_3 26 TIN26 50 TIN27 TIN3 55 56 TIN4 TIN5 2 3 TIN6 TIN7 4 TIN8 6 7 TIN9 TXCLKOUT 39 40 TXCLKOUT- TXOUT0 TIN17 18 19 TIN18 TIN19 20 54 TIN2 TIN20 22 23 TIN21 TIN22 24 25 TIN23 27 TIN24 TIN25 28 30 PLL_VCC 32 PWDNB TIN0 51 52 TIN1 TIN10 8 TIN11 10 11 TIN12 TIN13 12 TIN14 14 15 TIN15 TIN16 16 GND_1 13 GND_2 21 GND_3 GND_4 29 GND_5 53 36 LVDS_GND LVDS_GND_1 43 LVDS_GND_2 49 44 LVDS_VCC PLL_GND_1 33 PLL_GND_2 35 34 LVDS3.3V EL-LV385 IC301 CLKIN 31 17 CLKSEL 5 U3 1 1.5uH L304 1 1 10 11 12 13 14 CN302 slcon14p_1 1 2 3 4 5 6 7 8 9 1 1 1 1 47 R314 47 R313 23 24 25 26 1/16W 10K R324 12 13 14 15 16 17 18 19 20 21 22 2 3 4 5 6 7 8 9 10 11 2 3 CN301 slcon30p 27 28 29 30 1 1 2 3 BZX84C5V1LT1 BD301 1 MO 50V 100nF BZX84C5V1LT1 BD302 1 C323 1 R319 47 R311 47 1 1.5uH L301 100nF C315 MO 50V 100nF C319 1 1 1.5uH L302 C322 L403 1.5uH 1 100nF 50V MO 100uF C314 1 A 2 B C318 100nF R304 FT304 BLM41P600S 1 47 C309 100nF L401 1.5uH R325 10K 1/16W C307 100nF 16V MO 47 R318 A 1 B 2 LCD+5V 47 R310 C311 BLM41P600S FT302 1 1 100nF R317 47 47 R321 47 R322 1 47 R320 47 FT305 A 1 B 2 +5V R303 470nF C63 BLM41P600S R60 C62 470nF 1 1 4.7K 1.5uH L402 R315 1 47 R309 47 DGND DGND DGND DGND DGND 47 R308 DCLK DOB(0:7) DOG(0:7) DOR(0:7) BRIGHT BLIGHT_EN KEY2 LED_G KEY1 DGND DGND DGND DGND DGND DGND DGND DGND DOG(0) DOR(5) DOR(7) DOR(4) DOR(3) DOR(6) DEN DVS DHS DOB(5) DOB(4) DOB(3) DOR(2) DOB(2) DOB(1) DOB(7) DOB(6) DOB(0) DOG(5) DOG(4) DOG(3) DOG(7) DOG(6) DOR(1) DOR(0) TXECLK- TXECLK+ DER(0) TXOCLK- TXOCLK+ DEB(0:7) DEG(0:7) DER(0:7) TXE3- TXE3+ TXE2- TXE2+ TXE1- TXE1+ TXE0- TXE0+ DOG(2) DOG(1) TXO1- TXO1+ TXO0- TXO0+ DEG(2) DEG(1) DEG(0) DER(5) DER(7) DER(4) DER(3) DER(6) DEB(5) DEB(4) DEB(3) DER(2) DEB(2) DEB(1) DEB(7) DEB(6) DEB(0) DEG(5) DEG(4) DEG(3) DEG(7) DEG(6) DER(1) LVDS_EN TXO3- TXO3+ TXO2- TXO2+ 5 6 7 8 9 5 6 7 8 9 Samsung Electronics Co.,Ltd. 416, Maetan-3Dong, Paldal-Gu, Suwon City, Kyungki-Do, Korea, 442-742 Printed in Korea P/N : BN82-00087G-00 http : //www.samsungmonitor.com (SyncMaster Worldwide) http : //www.samsung-monitor.com (SyncMaster USA) URL : http://ecms. samsungelectronics. com/
