三星LA46A650A1H液晶显示器维修手册和原理图
液晶显示器-电视
底板：N42B
型号: LA32A650A*H
LA40A650A*H
LA46A650A*H
LA52A650A*H
维 修
手 册
薄膜液晶显示器电视
目录
LA32A650A*H/LA40A650A*H/
LA46A650A*H/LA52A650A*H
1． 注意事项
2． 产品规格
3． 拆卸和重新组装
4． 故障排除
5． 分解图和零件清单
6． 接线图
参阅 GSPN 维修手册（翻阅封底）获取更多信息。

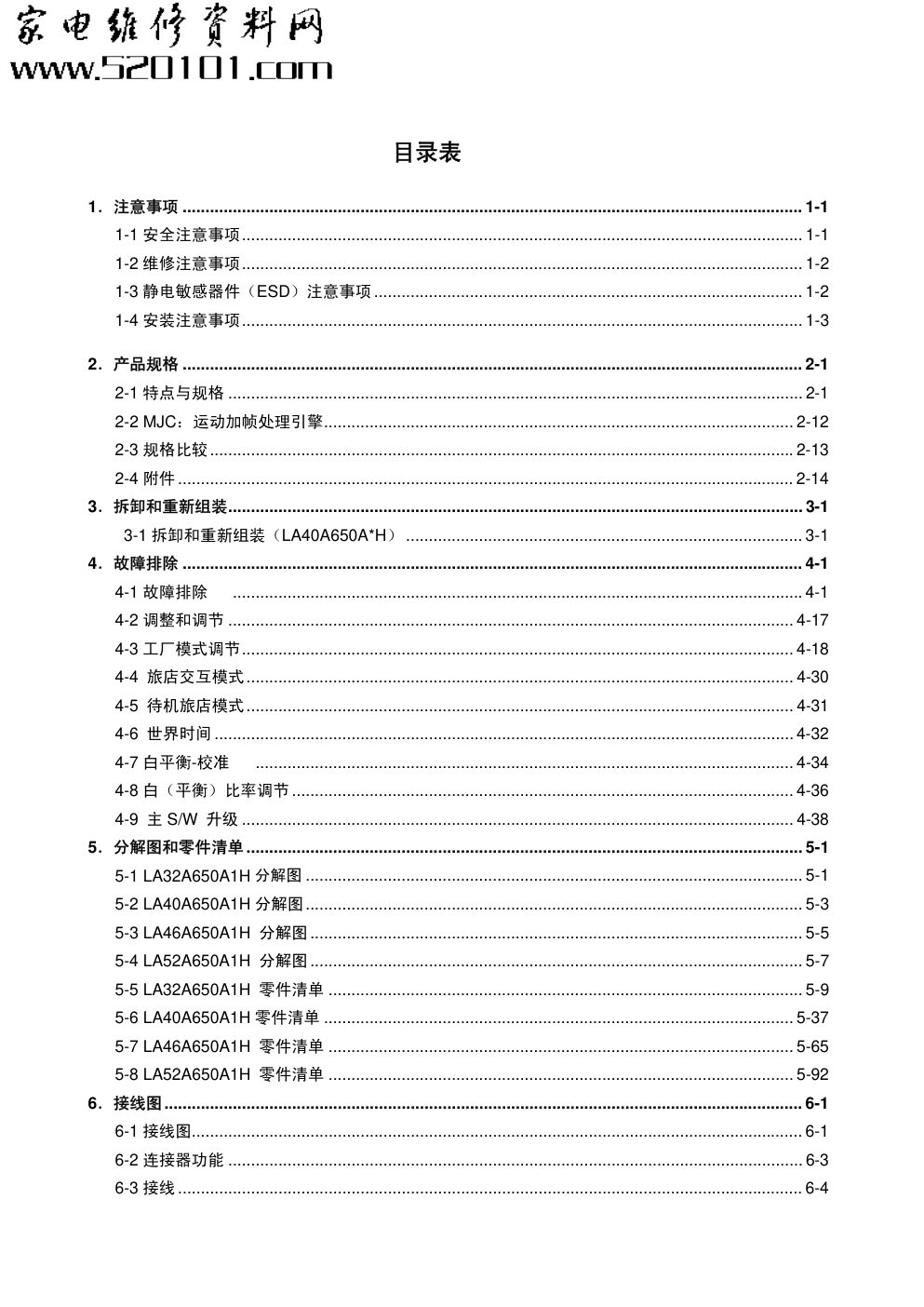

目录表
1．注意事项 ........................................................................................................................................ 1-1
1-1 安全注意事项........................................................................................................................... 1-1
1-2 维修注意事项........................................................................................................................... 1-2
1-3 静电敏感器件（ESD）注意事项.............................................................................................. 1-2
1-4 安装注意事项........................................................................................................................... 1-3
2．产品规格 ........................................................................................................................................ 2-1
2-1 特点与规格 .............................................................................................................................. 2-1
2-2 MJC：运动加帧处理引擎....................................................................................................... 2-12
2-3 规格比较................................................................................................................................ 2-13
2-4 附件 ....................................................................................................................................... 2-14
3．拆卸和重新组装.............................................................................................................................. 3-1
3-1 拆卸和重新组装（LA40A650A*H） ....................................................................................... 3-1
4．故障排除 ........................................................................................................................................ 4-1
4-1 故障排除 ............................................................................................................................. 4-1
4-2 调整和调节 ............................................................................................................................ 4-17
4-3 工厂模式调节......................................................................................................................... 4-18
4-4 旅店交互模式........................................................................................................................ 4-30
4-5 待机旅店模式........................................................................................................................ 4-31
4-6 世界时间 ............................................................................................................................... 4-32
4-7 白平衡-校准 ...................................................................................................................... 4-34
4-8 白（平衡）比率调节 .............................................................................................................. 4-36
4-9 主 S/W 升级 ......................................................................................................................... 4-38
5．分解图和零件清单 .......................................................................................................................... 5-1
5-1 LA32A650A1H 分解图 ............................................................................................................. 5-1
5-2 LA40A650A1H 分解图............................................................................................................. 5-3
5-3 LA46A650A1H 分解图............................................................................................................ 5-5
5-4 LA52A650A1H 分解图............................................................................................................ 5-7
5-5 LA32A650A1H 零件清单 ........................................................................................................ 5-9
5-6 LA40A650A1H 零件清单 ....................................................................................................... 5-37
5-7 LA46A650A1H 零件清单 ...................................................................................................... 5-65
5-8 LA52A650A1H 零件清单 ...................................................................................................... 5-92
6．接线图............................................................................................................................................ 6-1
6-1 接线图...................................................................................................................................... 6-1
6-2 连接器功能 .............................................................................................................................. 6-3
6-3 接线 ......................................................................................................................................... 6-4

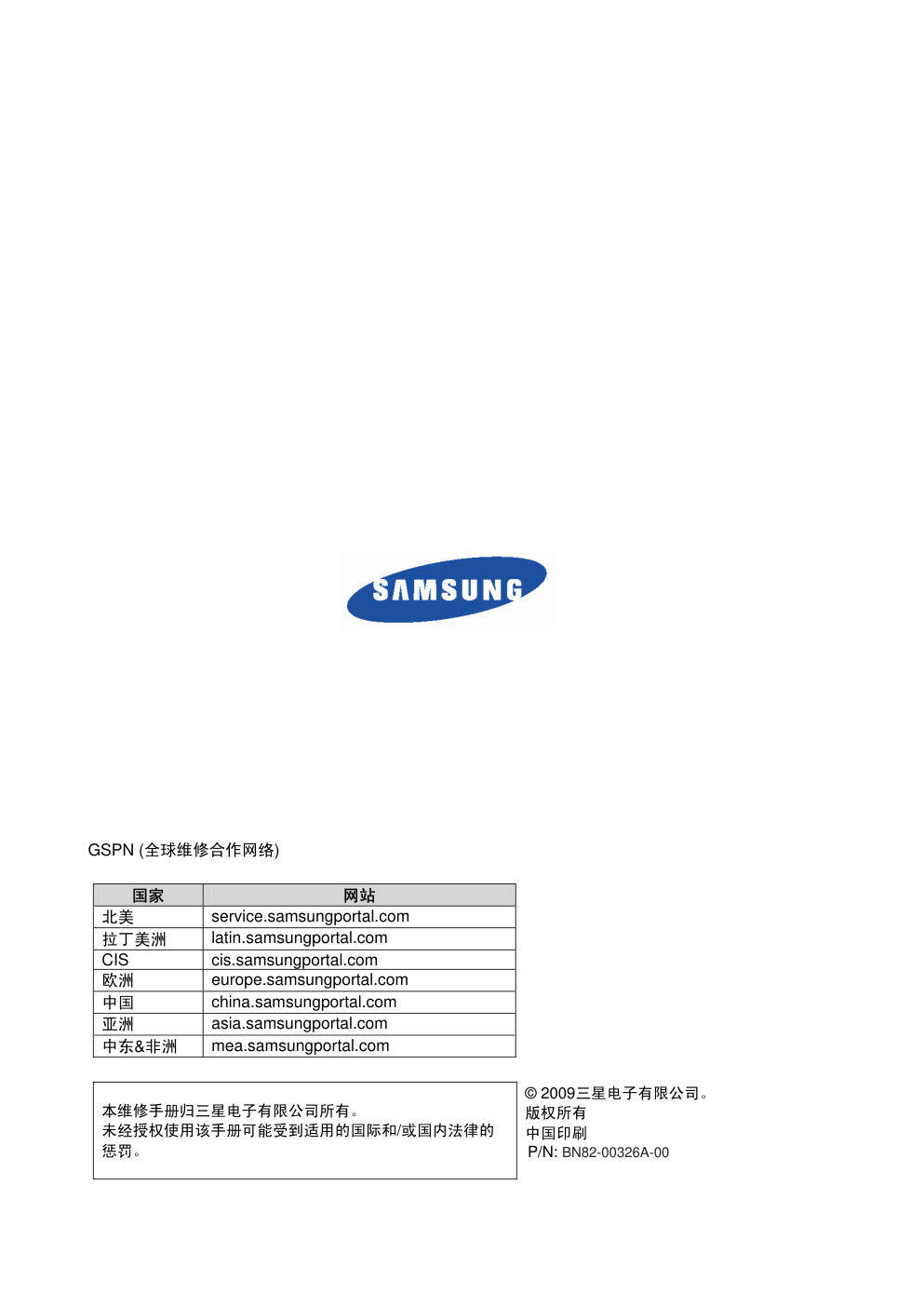

GSPN (全球维修合作网络)
国家
网站
北美
service.samsungportal.com
拉丁美洲
latin.samsungportal.com
CIS
cis.samsungportal.com
欧洲
europe.samsungportal.com
中国
china.samsungportal.com
亚洲
asia.samsungportal.com
中东&非洲
mea.samsungportal.com
本维修手册归三星电子有限公司所有。
未经授权使用该手册可能受到适用的国际和/或国内法律的
惩罚。
© 2009三星电子有限公司。
版权所有
中国印刷
P/N: BN82-00326A-00
3 拆卸和重新组装

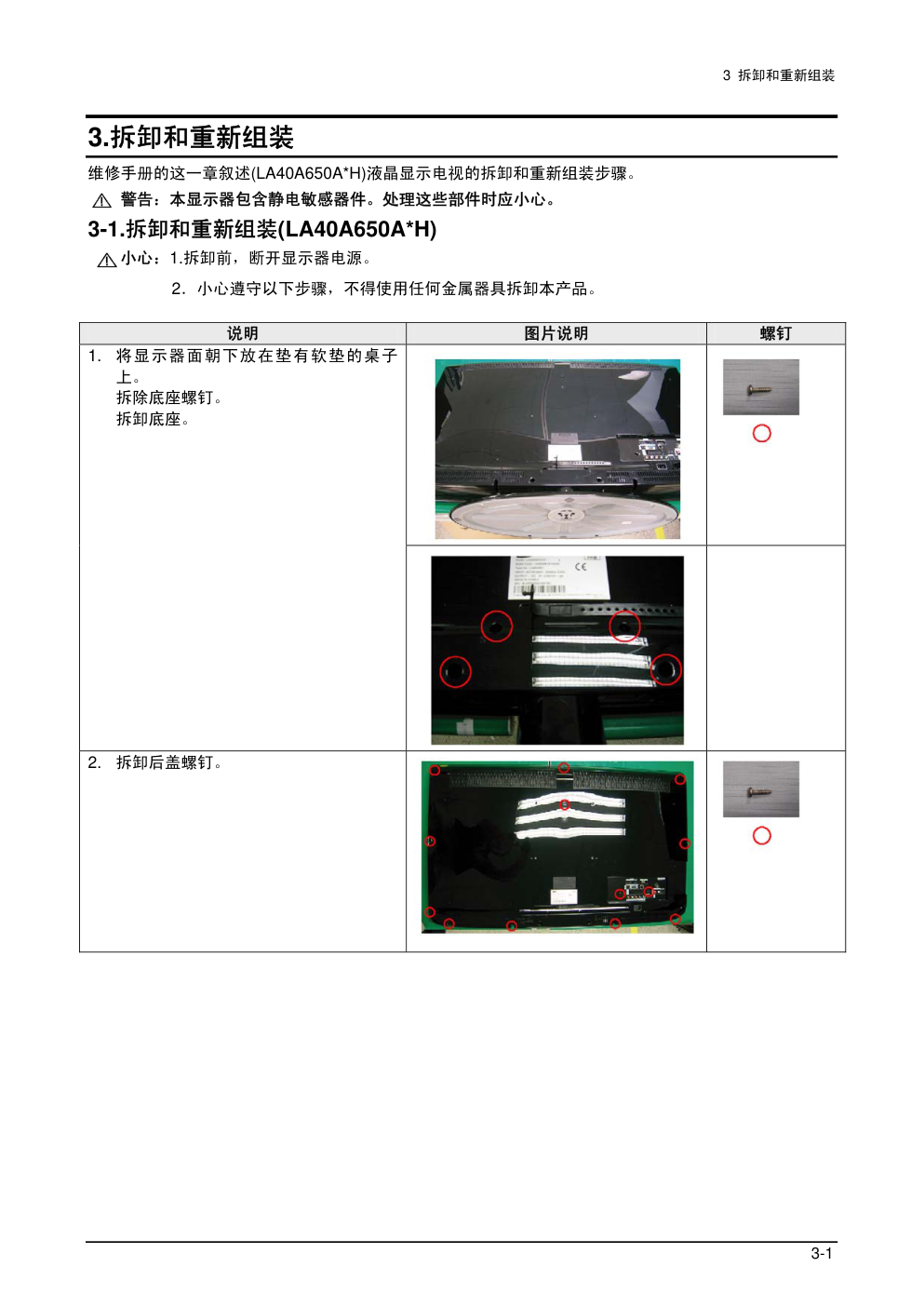

3.拆卸和重新组装
维修手册的这一章叙述(LA40A650A*H)液晶显示电视的拆卸和重新组装步骤。
警告：本显示器包含静电敏感器件。处理这些部件时应小心。
3-1.拆卸和重新组装(LA40A650A*H)
小心：1.拆卸前，断开显示器电源。
2．小心遵守以下步骤，不得使用任何金属器具拆卸本产品。
说明
图片说明
螺钉
1. 将显示器面朝下放在垫有软垫的桌子
上。
拆除底座螺钉。
拆卸底座。
2. 拆卸后盖螺钉。
3-1
3 拆卸和重新组装
说明
图片说明
螺钉

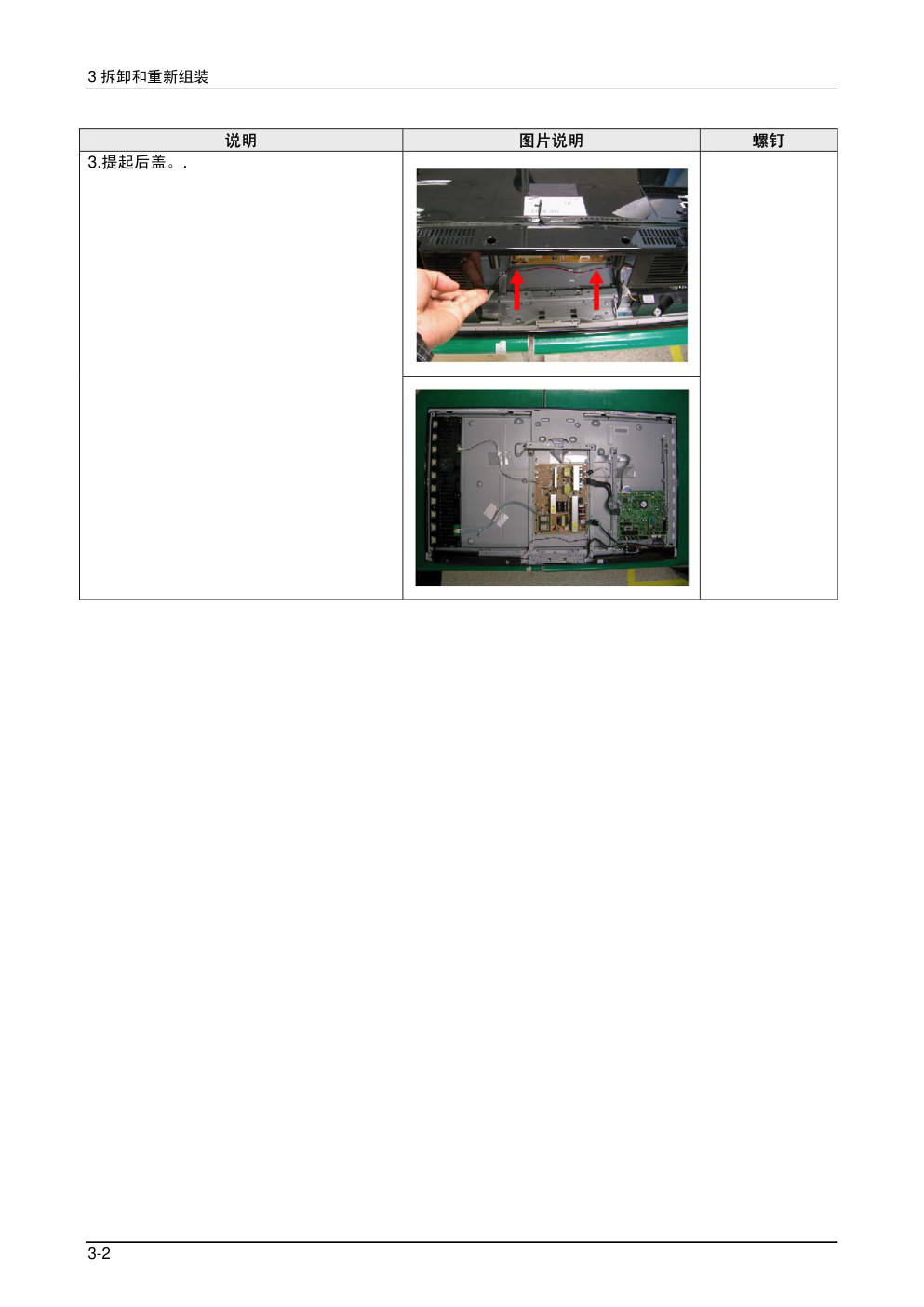

3.提起后盖。.
3-2
3 拆卸和重新组装
说明
图片说明
螺钉

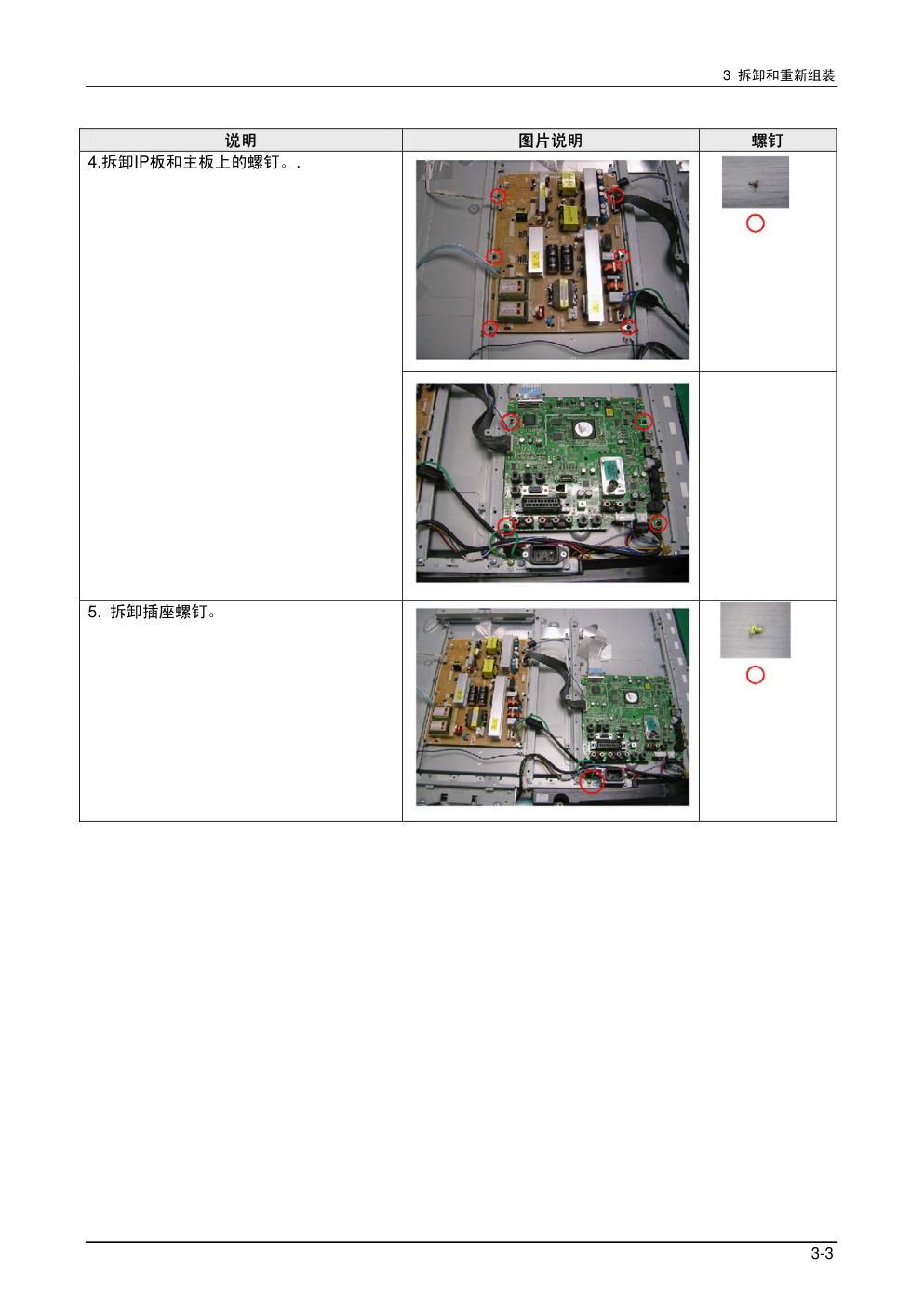

4.拆卸IP板和主板上的螺钉。.
5. 拆卸插座螺钉。
3-3
3 拆卸和重新组装
说明
图片说明
螺钉

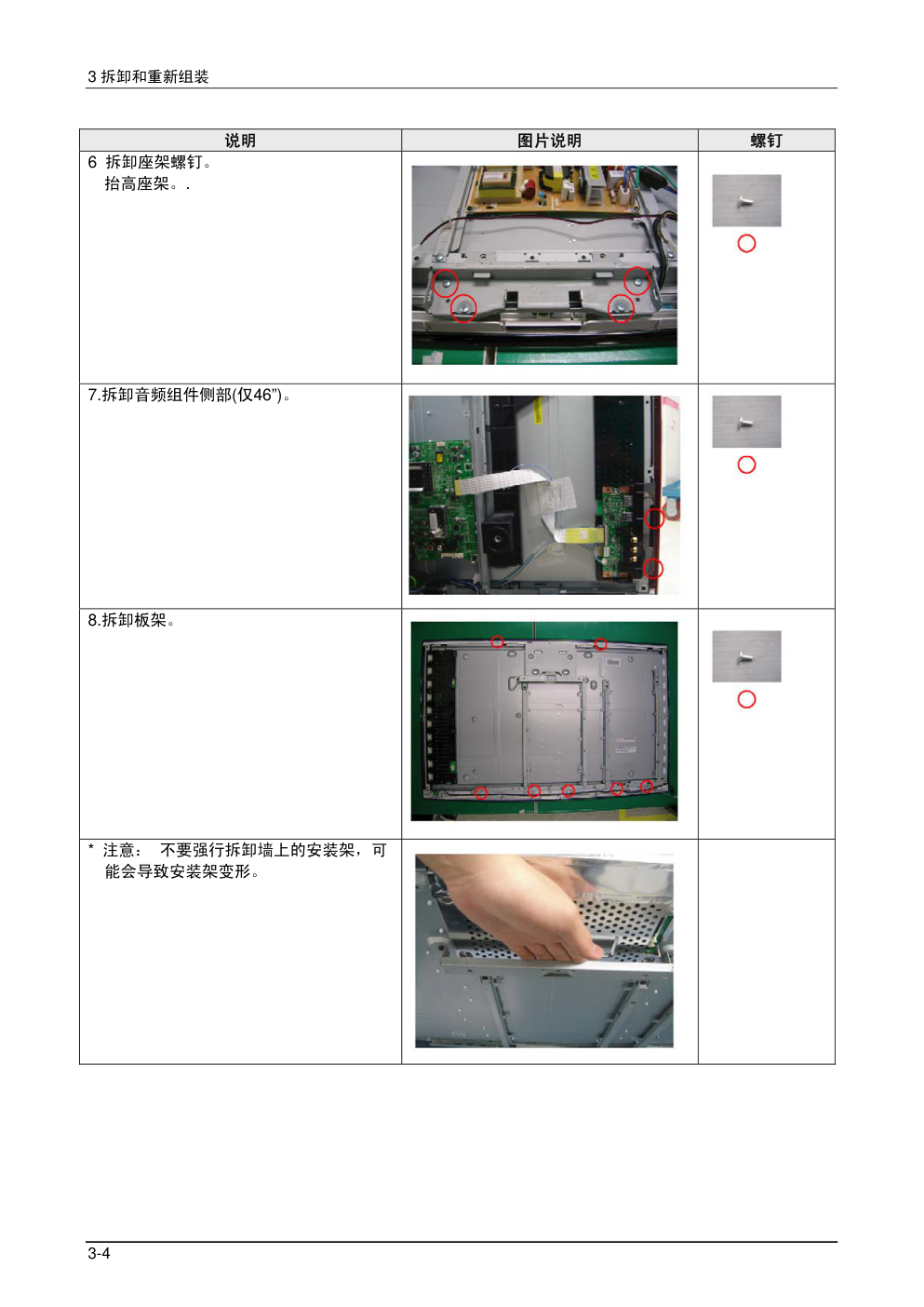

6 拆卸座架螺钉。
抬高座架。.
7.拆卸音频组件侧部(仅46”)。
8.拆卸板架。
* 注意： 不要强行拆卸墙上的安装架，可
能会导致安装架变形。
3-4
3 拆卸和重新组装
说明
图片说明
螺钉

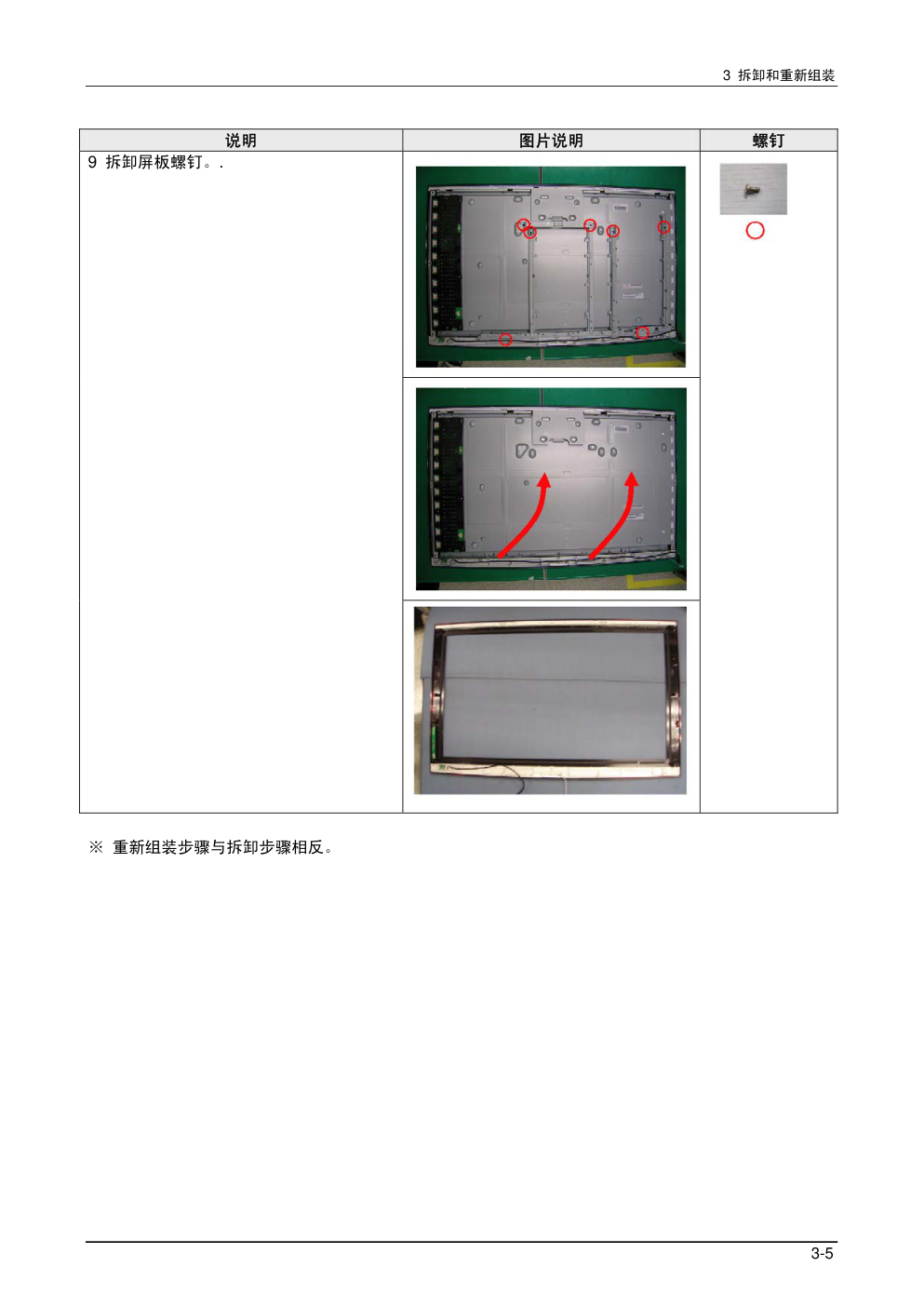

9 拆卸屏板螺钉。.
※ 重新组装步骤与拆卸步骤相反。
3-5
3 拆卸和重新组装
备忘录
3-6
5-1
5. Exploded View & Part List
5. Exploded View & Part List
5-1. LA32A650A1H Exploded View
T0003
M0215
M0027
T0764
M0013
M0014
M0254
T0175 T0447
M0115
5-2
5. Exploded View & Part List
5-1-2. LA32A650A1H Parts List
Location No.
Code No.
Description & Specifi cation
Q’ty
S.A/S.N.A
Remark
T0003
BN96-06840A
ASSY COVER P-FRONT;32,L651A,SO(HOTEL),,P
1
S.A
M0215
BN07-00520A
LCD-PANEL;LTF320HA01
1
S.A
T0175
BN96-06818B
ASSY SPEAKER P;8ohm,CORAL,L450,10W,4pin,
1
S.A
T0447
BN96-04681G
ASSY BRACKET P-PANEL;-,32R81,-,-,-,-,CMO
1
S.N.A
M0115
BN61-02947A
BRACKET-STAND LINK;JASMINE 32”,SECC,T1.6
1
S.N.A
M0254
BN61-02875X
HOLDER-SIDE AV;40,L650,SO(HOTEL),ABS+PMM
1
S.N.A
M0014
BN94-02078A
ASSY PCB MAIN;LA32A650A1HXZN
1
S.A
M0013
BN96-06888A
ASSY COVER P-REAR;32,L650,SO(HOTEL),,ABS
1
S.A
M0027
BN96-07211B
ASSY STAND P-BASE;32,L650,ABS+PMMA,HB,RD
1
S.A
5-3
5. Exploded View & Part List
5-2. LA40A650A1H Exploded View
T0003
T0175
M0215
T0447
M0115
M0254
M0014
M0013
M0027
5-4
5. Exploded View & Part List
5-2-1. LA40A650A1H Parts List
Location No.
Code No.
Description & Specifi cation
Q’ty
S.A/S.N.A
Remark
T0003
BN96-06842J
ASSY COVER P-FRONT;40,L650,SO(HOTEL),,PC
1
S.A
M0215
BN07-00516A
LCD-PANEL;T400HW01 V4
1
S.A
T0175
BN96-06809B
ASSY SPEAKER P;8ohm,L550 P2/P3,Down Firi
1
S.A
T0447
BN96-06960D
ASSY BRACKET P-PANEL;LA40A650A2HXZN,TSE,
1
S.N.A
M0115
BN61-02882A
BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-,
1
S.N.A
M0125
BN96-04817B
ASSY INLET P;LNT4081FX,XAA,250mm,250mm,-
1
S.A
M0254
BN61-02875X
HOLDER-SIDE AV;40,L650,SO(HOTEL),ABS+PMM
1
S.N.A
M0014
BN94-01744B
ASSY PCB MAIN;LA40A650A1HXZN
1
S.A
M0013
BN96-06890F
ASSY COVER P-REAR;40,L650,SO(HOTEL),ABS+
1
S.A
M0027
BN96-06259B
ASSY STAND P-BASE;40AA1,ABS+PMMA,HB,RD02
1
S.A
5-5
5. Exploded View & Part List
5-3. LA46A650A1H Exploded View
T0003
M0215
M0027
T0447
M0014
M0125
M0115
M0020
M0146
M0013
T0175
5-6
5. Exploded View & Part List
5-3-1. LA46A650A1H Parts List
Location No.
Code No.
Description & Specifi cation
Q’ty
S.A/S.N.A
Remark
T0003
BN96-06844K
ASSY COVER P-FRONT;46,L650,SO(HOTEL),PC(
1
S.A
M0215
BN07-00517A
LCD-PANEL;T460HW03 V1
1
S.A
T0175
BN96-06809A
ASSY SPEAKER P;8ohm,P750 50”,Down Firing
1
S.A
T0447
BN96-06885D
ASSY BRACKET P-PANEL;46,L650,UO,GASKET
1
S.N.A
M0115
BN61-03790A
BRACKET-STAND LINK;AMBER 46,SECC,T1.6,-,
1
S.A
M0125
BN96-05490A
ASSY INLET P;LE52M87BDX,XEC,300,300,150m
1
S.A
M0014
BN94-02078C
ASSY PCB MAIN;46 AMBER HOTEL
1
S.A
M0013
BN96-06892F
ASSY COVER P-REAR;46,L650,SO(HOTEL),ABS+
1
S.A
M0027
BN96-06873A
ASSY STAND P-BASE;46,L650A,,ABS+PMMA,HB,
1
S.A
5-7
5. Exploded View & Part List
5-4. LA52A650A1H Exploded View
T0003
T0175
M0215
T0447
M0115
M0254
M0014
M0013
M0027
5-8
5. Exploded View & Part List
5-4-1. LA52A650A1H Parts List
Location No.
Code No.
Description & Specifi cation
Q’ty
S.A/S.N.A
Remark
T0003
BN96-06845K
ASSY COVER P-FRONT;52,L650,SO(HOTEL),PC(
1
S.A
M0215
BN07-00522A
LCD-PANEL;LTF520HB01
1
S.A
T0175
BN96-06809D
ASSY SPEAKER P;8ohm,Amber,LCD 52”,10W,4p
1
S.A
T0447
BN96-06887C
ASSY BRACKET P-PANEL;52,L650A,UO,AMBER,G
1
S.N.A
M0115
BN61-03109A
BRACKET-STAND LINK;TULIP-SIDE 46,SECC,T1
1
S.N.A
M0146
BN61-03056A
BRACKET-PANEL TOP;TULIP52,SECC,T1.2
4
S.N.A
M0174
BN44-00225A
IP BOARD;IP-331501A,PEARL,15mA,116mA,150
1
S.A
M0014
BN94-02078D
ASSY PCB MAIN;52 AMBER HOTEL
1
S.A
M0112
BN91-02196G
ASSY SHIELD;LA52A650A1HXZN,AMBER HOTEL
1
S.N.A
M0027
BN96-06875A
ASSY STAND P-BASE;52,L650A,,ABS+PMMA,HB,
1
S.A
M0013
BN96-06893F
ASSY COVER P-REAR;52,L650,SO(HOTEL),ABS+
1
S.A
5-9
5. Exploded View & Part List
5-5. LA32A650A1H Parts List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
LA32A650A1HXZN
LA32A650A1H,N42B/32AA1-GAM,32,LCD-TV,UNI
0.1
M0001
BN90-01523H
ASSY COVER FRONT;32,L650,SO(HOTEL),ROSE
1
S.N.A
..2
T0175
BN96-06818B
ASSY SPEAKER P;8ohm,CORAL,L450,10W,4pin,
1
S.A
..2
T0003
BN96-06840H
ASSY COVER P-FRONT;32,L650,SO(HOTEL),,PC
1
S.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.A
...3
T0069
BN60-00027N
SPACER-FELT;L650 32,FELT,383,0.5,20
2
S.N.A
...3
CCM1
BN63-02183F
COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20
0.74
S.N.A
...3
M0112
BN63-04139F
COVER-FRONT;32,L650,SO,PC(CLR)+PC(ROSE B
1
S.N.A
...3
BN96-06843A
ASSY HOLDER P-BOSS BOTTOM;32,L650A,,ABS,
1
S.N.A
....4
BN61-03793A
HOLDER-BOSS BOTTOM;32,L650,ABS,HB,-,-,-,
1
S.N.A
....4
BN61-03261L
BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE
0.65
S.N.A
....4
BN61-03261Q
BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE
0.06
S.N.A
...3
BN96-06846A
ASSY HOLDER P-BOSS TOP;32,L650A,,ABS,HB,
1
S.N.A
....4
BN61-03791A
HOLDER-BOSS TOP;32,L650,ABS,HB,-,-,-,WH1
1
S.N.A
....4
BN61-03261K
BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE,
0.71
S.N.A
....4
BN61-03261Q
BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE
0.06
S.N.A
...3
M0175
BN96-07587C
ASSY BOARD P-TOUCH FUNCTION&IR;LA32A651A
1
S.A
...3
BN96-07658B
ASSY HOLDER P-BOSS SIDE;32,L650A,ABS+PMM
2
S.N.A
....4
BN61-03261A
BOSS-TAPE;Tulip,ACRYL,T1.1,W12mm,GRAY,TA
0.08
S.N.A
....4
BN61-04074B
HOLDER-BOSS SIDE;32,L650,ABS+PMMA,HB,BK2
1
S.N.A
...3
T0069
BN60-00027T
SPACER-FELT;L650 32,FELT,700,0.5,20
2
S.N.A
0.1
M0002
BN90-01528A
ASSY COVER REAR;32,L650,SO(HOTEL),,,,AMB
1
S.N.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
11
S.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
1
S.A
..2
M0013
BN96-06888A
ASSY COVER P-REAR;32,L650,SO(HOTEL),,ABS
1
S.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
4
S.A
...3
T0069
AA63-60131N
SPACER-FELT;L2,FELT,280*10,BLK,T0.5
2
S.N.A
...3
T0101
BN61-03348A
BRACKET-WALL;LCD TV 32,SECC T1.2,-,-,-,-
4
S.N.A
...3
CCM1
BN63-02183F
COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20
0.7
S.N.A
...3
M0006
BN63-04442D
COVER-REAR;32,L650,SO(HOTEL),ABS+PMMA,HB
1
S.N.A
...3
T0071
BN64-00865A
INLAY-TERMINAL;AMBER 46”,PS SHEET,T0.3,-
1
S.N.A
...3
T0064
BN65-00002A
CLAMPER CORE;BORDEAUX,LDPE,-,-,BLK,-
1
S.N.A
..2
M0081
6003-000282
SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW
1
S.A
0.1
M0216
BN90-01580B
ASSY STAND;32,L650,AMBER
1
S.N.A
..2
M0027
BN96-07211B
ASSY STAND P-BASE;32,L650,ABS+PMMA,HB,RD
1
S.A
...3
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
4
S.A
...3
M0081
6003-001239
SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S
4
S.A
...3
BN61-02232A
HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N
1
S.N.A
...3
BN61-02233A
HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N
1
S.N.A
...3
BN61-02236A
BRACKET-HINGE SWIVEL;BORDEAUX 32,SECC,T1
1
S.N.A
...3
BN61-02942A
BRACKET-STAND BOTTOM;32,BORDEAUX PLUS,SE
1
S.N.A
...3
T0920
BN61-03679A
GUIDE-STAND;32L450,PC+GF 20%,-,-,-,BK500
1
S.N.A
...3
T0004
BN63-03102D
COVER-STAND BASE;32,L650,ABS+PMMA,HB,RD0
1
S.N.A
...3
T0132
BN73-00052A
RUBBER FOOT;ARES 17,CR Rubber Gray,T1.5
4
S.N.A
...3
CCM1
BN63-02183D
COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20
0.4
S.N.A
5-10
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
0.1
M0017
BN91-02194A
ASSY CHASSIS;LA32A650A1HXZN
1
S.N.A
..2
M0014
BN94-01744A
ASSY PCB MAIN;LA32A650A1HXZN
1
S.A
...3
T0245
0202-001608
SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0.
0.25
S.N.A
...3
CN3003_NSI
3701-001388
CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE
1
S.A
...3
CN330
3711-000058
HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
1
S.A
...3
CN330
3711-004484
HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA
1
S.A
...3
CN330
3711-004531
HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG
1
S.A
...3
CN330
3711-005842
HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR
1
S.A
...3
JA330
3722-000143
JACK-PHONE;1P(VER),AG,BLK,ANGLE
1
S.A
...3
JA3012_NCH
3722-000498
JACK-SCART;21P,-,SN,BLK,NO
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
CN3006_NSI
3722-002275
JACK-DIN;4P,-,SN,BLK,-
1
S.A
...3
JA333
3722-002360
JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT
1
S.A
...3
JA333
3722-002362
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
1
S.A
...3
JA333
3722-002362
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
1
S.A
...3
JA333
3722-002543
JACK-PIN;3P,Sn,RED/WHT/YEL,ANGLE
1
S.A
...3
CN3011_NSI
3722-002546
JACK-USB;4P/1C,AU,BLK,ANGLE,A type
1
S.N.A
...3
CN3010
3722-002547
JACK-MODULAR;8P/4C,N,STRAIGHT,N,AU,1PORT
1
S.A
...3
CN1012_L
3722-002722
JACK-DC POWER;3P,SN,BLACK
1
S.A
...3
E-PASS
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.02
S.N.A
...3
GMES
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.02
S.N.A
...3
CIS3
BN40-00083A
TUNER;TCPS3001PD32S(H),TCPS3001PD32S(H),
1
S.A
...3
T0530
BN61-01521A
SUPPORT-PCB;ROME,SPTE,T0.5,L11.0
1
S.N.A
...3
T0174
BN97-02133A
ASSY SMD;LA32A650A1HXZN
1
S.N.A
....4
SUB05
0202-001477
SOLDER-CREAM;LST309-M,-,D20~45um,96.5Sn/
3.559
S.N.A
....4
D1006
0401-000133
DIODE-SWITCHING;RLS4148,75V,150mA,LL-34,
1
S.A
....4
D1001
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1002
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1003
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1010
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3001_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3002_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3008
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3009
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3013
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3014
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3015
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3016
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3019_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3020_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3021_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3022_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3024_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3025_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3026_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
5-11
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
D3027_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3041
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3042
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3043
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3050
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3053
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3055_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3056
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3057_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3060
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3061
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3062_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3064
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3065
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3067
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3068
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3069
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3074
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3075
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3076
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3200
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1015_L
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D1116_L
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2004
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2005
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2007
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2008
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2010
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2006
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3035
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3045_NSID
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3052_NSID
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3058
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3059_NSID
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3070
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3071
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3072
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3073
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3078
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3080
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3253
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3039
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
D3046
0403-000771
DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD
1
S.A
....4
D3106
0403-000771
DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD
1
S.A
....4
D3023
0403-001052
DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2
1
S.A
....4
D1011
0403-001425
DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23
1
S.A
....4
D0254
0404-001020
DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T
1
S.A
....4
D0254
0404-001020
DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T
1
S.A
....4
D0254
0404-001307
DIODE-SCHOTTKY;SSC54,20V,5000mA,DO-214AB
1
S.A
....4
D0254
0404-001307
DIODE-SCHOTTKY;SSC54,20V,5000mA,DO-214AB
1
S.A
....4
D3006
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
5-12
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
D3007
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3011
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3012
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3017
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3018
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3028
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3029
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3030
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3040
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3044
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3048_NSID
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3049_NSID
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3063_NSID
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3066_NSID
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3077
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3079
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3088
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3091
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3094
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3251
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3252
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3003
0406-001181
DIODE-TVS;NUP4201MR6,6/-/-V,500W,TSOP-6
1
S.A
....4
D2003
0407-000123
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT-
1
S.A
....4
D2009
0407-000123
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT-
1
S.A
....4
Q1011
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q1013_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q1014_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q101?_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q2002
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3001
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3002
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3003
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3006
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3007
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3010
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3013
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3017
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3018
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q5004
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q5030
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q6001_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q2001
0501-000669
TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2
1
S.A
....4
Q3012
0501-000669
TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2
1
S.A
....4
Q1001_L
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1007_NARM
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1010_L50
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1012_HY
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q3011
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q3014
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q3015
0501-002184
TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
1
S.A
....4
Q3016
0501-002184
TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
1
S.A
5-13
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-001170
FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0
1
S.A
....4
Q409
0505-002169
FET-SILICON;Si4435BDY-T1-E3,P,-30V,-9.1A
1
S.N.A
....4
Q409
0505-002169
FET-SILICON;Si4435BDY-T1-E3,P,-30V,-9.1A
1
S.N.A
....4
IC3002
1001-000164
IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
1
S.A
....4
IC5008
1001-001109
IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C
1
S.A
....4
IC107
1002-001482
IC-D/A CONVERTER;WM8521H9GED/R,16bit,SOI
1
S.A
....4
IC2002
1002-001509
IC-A/D&D/A CONVERTER;MT8291,24bit,LQFP,4
1
S.A
....4
IC3021
1006-001165
IC-LINE TRANSCEIVER;MAX3243CDBR,SSOP,28P
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-001385
IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P,
1
S.A
....4
IC113
1105-001828
IC-DRAM;HYB18TC256160BF,DDR2,256Mbit,16M
1
S.A
....4
IC113
1105-001828
IC-DRAM;HYB18TC256160BF,DDR2,256Mbit,16M
1
S.A
....4
DU410
1201-000166
IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
1
S.A
....4
T0124
1201-002677
IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA
1
S.A
....4
T0124
1201-002677
IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA
1
S.A
....4
T0087
1203-001815
IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA
1
S.A
....4
T0087
1203-002842
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC3007
1203-003394
IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4
1
S.A
....4
IC5001
1203-004363
IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P,
1
S.A
....4
IC2003
1203-004364
IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1
S.A
....4
IC5009_PD
1203-004364
IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1
S.A
....4
IC1005
1203-005188
IC-DC/DC CONVERTER;AOZ1021AIL,SOP,8P,4.9
1
S.A
....4
IC1019
1203-005188
IC-DC/DC CONVERTER;AOZ1021AIL,SOP,8P,4.9
1
S.A
....4
IC1021_L
1203-005219
IC-DC/DC CONVERTER;AOZ1014AIL,SOP,8P,4.9
1
S.A
....4
IC118
1204-002779
IC-VIDEO PROCESS;S4LF122X01,PBGA,208P,17
1
S.A
....4
IC118
1204-002869
IC-VIDEO PROCESS;MT8226FJ,BGA,569P,31x31
1
S.A
....4
D3107
1405-001185
VARISTOR;24Vdc,1.6x0.8x0.36mm,TP
1
S.A
....4
D3110_NSID
1405-001185
VARISTOR;24Vdc,1.6x0.8x0.36mm,TP
1
S.A
....4
D5018
1405-001185
VARISTOR;24Vdc,1.6x0.8x0.36mm,TP
1
S.A
....4
R110
2007-000043
R-CHIP;1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000043
R-CHIP;1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
5-14
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000067
R-CHIP;15Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
5-15
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
5-16
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
5-17
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
5-18
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000075
R-CHIP;220ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000076
R-CHIP;330ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
5-19
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
5-20
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
5-21
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000094
R-CHIP;22Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000096
R-CHIP;30Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000106
R-CHIP;220Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000106
R-CHIP;220Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000107
R-CHIP;470Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000107
R-CHIP;470Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000109
R-CHIP;1Mohm,5%,1/10W,TP,1608
1
S.A
5-22
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000109
R-CHIP;1Mohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000116
R-CHIP;120ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000119
R-CHIP;560ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000120
R-CHIP;680ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000239
R-CHIP;1.5Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
5-23
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000416
R-CHIP;15ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000426
R-CHIP;160ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000458
R-CHIP;18Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000591
R-CHIP;22ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000651
R-CHIP;27Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000659
R-CHIP;27ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000726
R-CHIP;300ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000763
R-CHIP;330ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000962
R-CHIP;5.1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000979
R-CHIP;5.6Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000979
R-CHIP;5.6Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
5-24
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000999
R-CHIP;510ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000999
R-CHIP;510ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001002
R-CHIP;510ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001002
R-CHIP;510ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001007
R-CHIP;51Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001010
R-CHIP;51Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-007226
R-CHIP;49.9ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-007297
R-CHIP;110ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-007297
R-CHIP;110ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-007520
R-CHIP;20ohm,1%,1/10W,TP,1608
1
S.A
....4
R5148
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5070
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5071
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5072
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5073
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5074
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5075
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5144
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5145
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5146
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5147
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6001_FBE
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6074
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6075
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6078
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6079
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
R5162
2011-001011
R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
5-25
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
5-26
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
5-27
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000332
C-CER,CHIP;0.012nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000332
C-CER,CHIP;0.012nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
5-28
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000491
C-CER,CHIP;2.2nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000552
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000552
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000815
C-CER,CHIP;0.033nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C120
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C120
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C120
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C120
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C120
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C120
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C120
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.A
5-29
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000979
C-CER,CHIP;47nF,10%,50V,X7R,TP,2012
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-001083
C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1608
1
S.A
....4
C120
2203-001083
C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1608
1
S.A
....4
C120
2203-001607
C-CER,CHIP;0.22nF,5%,50V,NP0,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
5-30
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
5-31
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.A
....4
C120
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.A
5-32
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.A
....4
C120
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.A
....4
C120
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.A
....4
C120
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.A
....4
C120
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-007176
C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 (
1
S.N.A
....4
C2037
2402-001128
C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm
1
S.A
....4
C2038
2402-001128
C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm
1
S.A
....4
C1007
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
....4
C1101_L
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
....4
C5023
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
....4
C1048
2402-001183
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
1
S.A
....4
C1034
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
....4
C1046
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
5-33
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C1106_L
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
....4
C1011
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2060
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2062
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2113
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2114
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C3083
2404-001341
C-TA,CHIP;10UF,##20%,16V,SCS,TP,3216
1
S.A
....4
T0052
2703-000125
INDUCTOR-SMD;10uH,10%,2012
1
S.A
....4
T0052
2703-000125
INDUCTOR-SMD;10uH,10%,2012
1
S.A
....4
T0052
2703-000417
INDUCTOR-SMD;220uH,5%,3225
1
S.A
....4
T0052
2703-001426
INDUCTOR-SMD;680uH,20%,7070
1
S.A
....4
T0052
2703-003362
INDUCTOR-SMD;4.7uH,20%,7070
1
S.A
....4
T0052
2703-003362
INDUCTOR-SMD;4.7uH,20%,7070
1
S.A
....4
L2001
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L2002
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L3011
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L3012
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
X202
2801-003326
CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
1
S.A
....4
X202
2801-003954
CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh
1
S.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001148
BEAD-SMD;60ohm,1608,TP,-,-
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
5-34
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
JA3001
3701-001367
CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU
1
S.A
....4
CN330
3711-005925
HEADER-BOARD TO CABLE;BOX,51P,1R,0.5mm,S
1
S.N.A
....4
T0077
BN41-01006A
PCB MAIN;PAL HOTEL 650,FR-4,4,A,1.6,192*
1
S.N.A
....4
MAIN
BN97-02149A
ASSY MICOM-MAIN;T-AMBHMEAM-1000.5,2008-0
1
S.N.A
.....5
IC115
1107-001415
IC-FLASH MEMORY;29W320D,4Mx8/2Mx16Bit,TS
1
S.N.A
....4
CCMM1
BN97-02150A
ASSY MICOM-SUB;T-AMBHPEUS-1000.2,2008-03
1
S.N.A
.....5
IC520
0903-001552
IC-MICROCONTROLLER;WT61P8-RG480WT,LQFP,4
1
S.A
....4
R110
2007-000606
R-CHIP;240ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000606
R-CHIP;240ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000869
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
T0052
2703-002801
INDUCTOR-SMD;3.9uH,20%,7070
1
S.A
....4
R110
2007-001139
R-CHIP;7.5Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000414
R-CHIP;15ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000414
R-CHIP;15ohm,1%,1/10W,TP,1608
1
S.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
R110
2007-000086
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
1
S.A
....4
C1111_L
2402-001129
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
1
S.A
....4
C1112_L
2402-001129
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
1
S.A
...3
CN3009
3701-001400
CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,Ni
1
S.A
..2
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.03
S.N.A
0.1
M0112
BN91-02196D
ASSY SHIELD;LA32A651A1HXZN
1
S.N.A
..2
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
4
S.A
..2
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
4
S.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
4
S.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.A
5-35
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
6
S.A
..2
M2893
BN39-00802A
LEAD CONNECTOR;LE32R86BDX,UL1007#26,UL/C
1
S.A
..2
M2893
BN39-00849C
LEAD CONNECTOR;LNT4081FX/XAA,UL1007 #26,
1
S.A
..2
T0764
BN44-00211A
SMPS-LCDTV;MK32P5HT,SEM,AC/DC,137W,AC100
1
S.A
..2
M0254
BN61-02875X
HOLDER-SIDE AV;40,L650,SO(HOTEL),ABS+PMM
1
S.N.A
..2
M0115
BN61-02947A
BRACKET-STAND LINK;JASMINE 32”,SECC,T1.6
1
S.N.A
..2
M0214
BN96-07161D
ASSY CABLE P-FLAT LVDS;LA32A550P1RX,FFC,
1
S.A
..2
M2893
BP39-00177B
LEAD CONNECTOR;RE40**,UL1007#26,5P,150mm
1
S.A
..2
T0447
BN96-04681G
ASSY BRACKET P-PANEL;-,32R81,-,-,-,-,CMO
1
S.N.A
...3
T0069
AA60-00171G
SPACER-FELT;43L2,FELT,505,T0.5,10
1
S.N.A
...3
M0131
AA63-01437A
GASKET;Bordeaux,Conductive Fabric,20mm,9
1
S.N.A
...3
M0131
AA63-01438A
GASKET;Bordeaux,Conductive Fabric,7mm,8m
1
S.N.A
...3
BN61-02199B
BRACKET-GUIDE POWER;Bordeaux 32,SECC,T1.
1
S.N.A
...3
BN61-02200A
BRACKET-GUIDE POWER L;Bordeaux 32,SECC,T
1
S.N.A
...3
M0146
BN61-02970A
BRACKET-PANEL TOP;32 BORDEAUX PLUS,SECC,
1
S.N.A
...3
BN61-02974A
BRACKET-PANEL BOTTOM;32 BORDEAUX PLUS,SE
1
S.N.A
...3
BN61-02978A
BRACKET-GUIDE MAIN;32 BORDEAUX PLUS,SECC
1
S.N.A
...3
M0131
BN63-03327A
GASKET;BORDEAUX PLUS,Conductive Fabric,2
1
S.N.A
...3
M0081
6003-001439
SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW
1
S.N.A
...3
T0076
BN39-00615D
CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING,
1
S.A
...3
M0081
6003-000117
SCREW-TAPTITE;BH,+,-,B,M3,L6,ZPC(WHT),SW
6
S.A
..2
M0114
BN61-02500A
HOLDER-WIRE;NYLON6.6,NATURAL
2
S.N.A
0.1
M0019
BN91-02206A
ASSY LCD;BN07-00520A,SPVA 72%
1
S.N.A
..2
M0215
BN07-00520A
LCD-PANEL;LTF320HA01
1
S.A
0.1
M0003
BN92-03198A
ASSY BOX;32,L650,SO(HOTEL),,,AMBER
1
S.N.A
..2
AA02-00013A
TAPE ETC-RIBBON;-,-,-,101CM,250MT,-,-,-
0.1
S.N.A
..2
BN69-02595B
BOX-SET;32L650,CB,A-01,DW-75,YEL,-,-,-,-
1.02
S.N.A
0.1
M0113
BN92-03203A
ASSY P/MATERIAL;32,AMBER,(650)
1
S.N.A
..2
T0376
6902-000001
BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-,-,
0.005
S.N.A
..2
T0003
6902-000604
BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP,
4.99
S.N.A
..2
L/SUMMARY
BN02-00024B
RIBBON-TAPE;W180mm,L250 M
0.021
S.N.A
..2
T0524
6902-000519
BAG PE;HDPE/NITRON,T0.015/T0.05(DOUBLE),
1
S.N.A
..2
T0214
BN74-00008A
TAPE-OPP MASKING;OPP-2,T0.05,W100,L800M,
2.1
S.N.A
0.1
M0045
BN92-03376D
ASSY ACCESSORY;LA32A651A1HXZN
1
S.N.A
..2
M0254
BN96-07474D
ASSY ACCESSORY-CABLE&MANUAL;LA32A651A1HX
1
S.A
...3
T0268
3903-000145
CBF-POWER CORD;DT,EU,FP3/YES,U(IEC C13-R
1
S.A
...3
T0524
6902-000110
BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,-,9
1
S.N.A
...3
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.02
S.N.A
...3
AA68-03242M
MANUAL FLYER-02,SAFETY GUIDE;comm,Samsun
1
S.N.A
...3
M0521
BN39-00864A
CBF IF-MODULAR/MODULAR;Bordeaux Plus HOT
1
S.A
...3
BN96-01800A
ASSY ACCESSORY-SCREW ZIPPER;ROME32,-,-,-
1
S.N.A
....4
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
4
S.A
....4
6902-000336
BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,-,-,-,
1
S.N.A
...3
T0074
BN59-00686A
REMOCON;TM-96B,49,EUROPE_READY-550
1
S.A
...3
T0531
BN63-04294B
COVER-BOTTOM;32,L650,HIPS,HB,BK500,AMBER
1
S.N.A
...3
T0511
BN68-01542A
MANUAL USERS;COMM,SAMSUNG,Eng,Asia,W/P 8
1
S.N.A
5-36
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
0.1
M0019
BN92-03382A
ASSY LABEL;LA32A651A1HXZN
1
S.N.A
..2
L/RATING
AA02-00013A
TAPE ETC-RIBBON;-,-,-,101CM,250MT,-,-,-
0.05
S.N.A
..2
L/MODEL
AA02-00015A
TAPE ETC-RIBBON;-,-,-,64CM,250MT,-,-,-
0.035
S.N.A
5-37
5. Exploded View & Part List
5-6. LA40A650A1H Parts List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
LA40A650A1HXXZ
LA40A650A1H,N42B/40AA1-GAM,40,LCD-TV,UNI
0.1
M0001
BN90-01521K
ASSY COVER FRONT;40,L650,SO(HOTEL),ROSE
1
S.N.A
..2
T0175
BN96-06809B
ASSY SPEAKER P;8ohm,L550 P2/P3,Down Firi
1
S.A
..2
T0003
BN96-06842J
ASSY COVER P-FRONT;40,L650,SO(HOTEL),,PC
1
S.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.A
...3
T0069
BN60-00027G
SPACER-FELT;L650-40,FELT,890,0.5,20
2
S.N.A
...3
T0069
BN60-00027P
SPACER-FELT;L650 40,FELT,502,0.5,20
2
S.N.A
...3
CCM1
BN63-02183H
COVER-SHEET;Rhcm,PE Vinyl,T0.05,1300mm,2
0.7
S.N.A
...3
M0112
BN63-04141E
COVER-FRONT;40,L650,SO,PC(CLR)+PC(ROSE B
1
S.N.A
...3
BN96-06849A
ASSY HOLDER P-BOSS BOTTOM;40,L650A,,ABS,
1
S.N.A
....4
BN61-03261N
BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE
0.9
S.N.A
....4
BN61-03808A
HOLDER-BOSS BOTTOM;40,L650,ABS,HB,-,-,-,
1
S.N.A
....4
BN61-03261S
BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE
0.059
S.N.A
...3
BN96-06850A
ASSY HOLDER P-BOSS TOP;40,L650A,,ABS,HB,
1
S.N.A
....4
BN61-03261K
BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE,
1
S.N.A
....4
BN61-03809A
HOLDER-BOSS TOP;40,L650,ABS,HB,-,-,-,WH1
1
S.N.A
....4
BN61-03261R
BOSS-TAPE;AMBER,ACRYL,T1.1,W16.0mm,WHITE
0.05
S.N.A
...3
M0175
BN96-07587B
ASSY BOARD P-TOUCH FUNCTION&IR;LA40A651A
1
S.A
...3
BN96-07656B
ASSY HOLDER P-BOSS SIDE;40,L650,,ABS+PMM
2
S.N.A
....4
BN61-03261H
BOSS-TAPE;Tulip,ACRYL,T1.1,W8.0mm,GRAY,T
0.07
S.N.A
....4
BN61-04079B
HOLDER-BOSS SIDE;40,L650,ABS+PMMA,HB,-,-
1
S.N.A
0.1
M0002
BN90-01526F
ASSY COVER REAR;40,L650,SO(HOTEL),AMBER
1
S.N.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
1
S.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
11
S.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
1
S.A
..2
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
1
S.A
..2
M0013
BN96-06890F
ASSY COVER P-REAR;40,L650,SO(HOTEL),ABS+
1
S.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.A
...3
T0069
AA60-00091J
SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,-
2
S.N.A
...3
T0101
BN61-03348A
BRACKET-WALL;LCD TV 32,SECC T1.2,-,-,-,-
2
S.N.A
...3
CCM1
BN63-02183G
COVER-SHEET;Rhcm,PE Vinyl,T0.05,1100mm,2
0.99
S.N.A
...3
M0006
BN63-04301D
COVER-REAR;40,L650,SO(HOTEL),ABS+PMMA,HB
1
S.N.A
...3
T0071
BN64-00851A
INLAY-TERMINAL;AMBER 46”,PS SHEET,T0.3,-
1
S.N.A
...3
T0064
BN65-00002A
CLAMPER CORE;BORDEAUX,LDPE,-,-,BLK,-
1
S.N.A
..2
M0081
6003-000282
SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW
1
S.A
0.1
M0216
BN90-01531A
ASSY STAND;40,L650A,,,RD02,AMBER
1
S.N.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
4
S.A
..2
M0027
BN96-06259B
ASSY STAND P-BASE;40AA1,ABS+PMMA,HB,RD02
1
S.A
...3
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
4
S.A
...3
M0081
6003-001239
SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S
8
S.A
...3
BN61-02248A
HOLDER-SWIVEL RING;40R71,ACETAL NATUAL,T
1
S.N.A
...3
BN61-02883A
BRACKET-STAND BOTTOM;BORDEAUX PLUS,40,SE
1
S.N.A
...3
BN61-02885A
HOLDER-SWIVEL RING;MURANO40,ACETAL NATUR
1
S.N.A
...3
BN61-02886A
BRACKET-HINGE SWIVEL;BORDEAUX PLUS,40,SE
1
S.N.A
...3
T0920
BN61-03681A
GUIDE-STAND;40L450,PC+GF 20%,-,-,-,BK500
1
S.N.A
...3
T0004
BN63-03030C
COVER-STAND BASE;40AA1,ABS+PMMA,HB,RD02,
1
S.N.A
5-38
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
...3
T0132
BN73-00052A
RUBBER FOOT;ARES 17,CR Rubber Gray,T1.5
4
S.N.A
...3
CCM1
BN63-02183E
COVER-SHEET;Rhcm,PE Vinyl,T0.05,750mm,20
0.5
S.N.A
0.1
M0017
BN91-02194B
ASSY CHASSIS;LA40A650A1HXZN
1
S.N.A
..2
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.03
S.N.A
..2
M0014
BN94-01744B
ASSY PCB MAIN;LA40A650A1HXZN
1
S.A
...3
T0245
0202-001608
SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0.
0.25
S.N.A
...3
CN3003_NSI
3701-001388
CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE
1
S.A
...3
CN330
3711-000058
HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
1
S.A
...3
CN330
3711-004484
HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA
1
S.A
...3
CN330
3711-004531
HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG
1
S.A
...3
CN330
3711-005842
HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR
1
S.A
...3
JA330
3722-000143
JACK-PHONE;1P(VER),AG,BLK,ANGLE
1
S.A
...3
JA3012_NCH
3722-000498
JACK-SCART;21P,-,SN,BLK,NO
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
CN3006_NSI
3722-002275
JACK-DIN;4P,-,SN,BLK,-
1
S.A
...3
JA333
3722-002360
JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT
1
S.A
...3
JA333
3722-002362
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
1
S.A
...3
JA333
3722-002362
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
1
S.A
...3
JA333
3722-002543
JACK-PIN;3P,Sn,RED/WHT/YEL,ANGLE
1
S.A
...3
CN3011_NSI
3722-002546
JACK-USB;4P/1C,AU,BLK,ANGLE,A type
1
S.N.A
...3
CN3010
3722-002547
JACK-MODULAR;8P/4C,N,STRAIGHT,N,AU,1PORT
1
S.A
...3
CN1012_L
3722-002722
JACK-DC POWER;3P,SN,BLACK
1
S.A
...3
E-PASS
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.02
S.N.A
...3
GMES
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.02
S.N.A
...3
CIS3
BN40-00083A
TUNER;TCPS3001PD32S(H),TCPS3001PD32S(H),
1
S.A
...3
T0530
BN61-01521A
SUPPORT-PCB;ROME,SPTE,T0.5,L11.0
1
S.N.A
...3
T0174
BN97-02133B
ASSY SMD;LA40A650A1HXZN
1
S.N.A
....4
SUB05
0202-001477
SOLDER-CREAM;LST309-M,-,D20~45um,96.5Sn/
3.559
S.N.A
....4
D1006
0401-000133
DIODE-SWITCHING;RLS4148,75V,150mA,LL-34,
1
S.A
....4
D1001
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1002
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1003
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1010
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3001_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3002_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3008
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3009
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3013
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3014
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3015
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3016
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3019_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3020_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3021_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3022_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
5-39
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
D3024_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3025_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3026_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3027_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3041
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3042
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3043
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3050
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3053
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3055_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3056
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3057_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3060
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3061
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3062_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3064
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3065
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3067
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3068
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3069
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3074
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3075
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3076
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3200
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1015_L
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D1116_L
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2004
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2005
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2007
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2008
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2010
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.A
....4
D2006
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3035
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3045_NSID
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3052_NSID
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3058
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3059_NSID
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3070
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3071
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3072
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3073
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3078
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3080
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3253
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3039
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
D3046
0403-000771
DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD
1
S.A
....4
D3106
0403-000771
DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD
1
S.A
....4
D3023
0403-001052
DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2
1
S.A
....4
D1011
0403-001425
DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23
1
S.A
....4
D0254
0404-001020
DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T
1
S.A
....4
D0254
0404-001020
DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T
1
S.A
5-40
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
D0254
0404-001307
DIODE-SCHOTTKY;SSC54,20V,5000mA,DO-214AB
1
S.A
....4
D0254
0404-001307
DIODE-SCHOTTKY;SSC54,20V,5000mA,DO-214AB
1
S.A
....4
D3006
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3007
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3011
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3012
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3017
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3018
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3028
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3029
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3030
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3040
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3044
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3048_NSID
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3049_NSID
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3063_NSID
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3066_NSID
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3077
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3079
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3088
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3091
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3094
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3251
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3252
0406-001172
DIODE-TVS;CDS3C30GTH,48/-/50V,SMD
1
S.A
....4
D3003
0406-001181
DIODE-TVS;NUP4201MR6,6/-/-V,500W,TSOP-6
1
S.A
....4
D2003
0407-000123
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT-
1
S.A
....4
D2009
0407-000123
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT-
1
S.A
....4
Q1011
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q1013_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q1014_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q101?_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q2002
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3001
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3002
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3003
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3006
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3007
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3010
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3013
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3017
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3018
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q5004
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q5030
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q6001_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q2001
0501-000669
TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2
1
S.A
....4
Q3012
0501-000669
TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2
1
S.A
....4
Q1001_L
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1007_NARM
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1010_L50
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1012_HY
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q3011
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
5-41
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
Q3014
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q3015
0501-002184
TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
1
S.A
....4
Q3016
0501-002184
TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-001170
FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0
1
S.A
....4
Q409
0505-002169
FET-SILICON;Si4435BDY-T1-E3,P,-30V,-9.1A
1
S.N.A
....4
Q409
0505-002169
FET-SILICON;Si4435BDY-T1-E3,P,-30V,-9.1A
1
S.N.A
....4
IC3002
1001-000164
IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
1
S.A
....4
IC5008
1001-001109
IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C
1
S.A
....4
IC107
1002-001482
IC-D/A CONVERTER;WM8521H9GED/R,16bit,SOI
1
S.A
....4
IC2002
1002-001509
IC-A/D&D/A CONVERTER;MT8291,24bit,LQFP,4
1
S.A
....4
IC3021
1006-001165
IC-LINE TRANSCEIVER;MAX3243CDBR,SSOP,28P
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-001385
IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P,
1
S.A
....4
IC113
1105-001828
IC-DRAM;HYB18TC256160BF,DDR2,256Mbit,16M
1
S.A
....4
IC113
1105-001828
IC-DRAM;HYB18TC256160BF,DDR2,256Mbit,16M
1
S.A
....4
DU410
1201-000166
IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
1
S.A
....4
T0124
1201-002677
IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA
1
S.A
....4
T0124
1201-002677
IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA
1
S.A
....4
T0087
1203-001815
IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA
1
S.A
....4
T0087
1203-002842
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC3007
1203-003394
IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4
1
S.A
....4
IC5001
1203-004363
IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P,
1
S.A
....4
IC2003
1203-004364
IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1
S.A
....4
IC5009_PD
1203-004364
IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1
S.A
....4
IC1005
1203-005188
IC-DC/DC CONVERTER;AOZ1021AIL,SOP,8P,4.9
1
S.A
....4
IC1019
1203-005188
IC-DC/DC CONVERTER;AOZ1021AIL,SOP,8P,4.9
1
S.A
....4
IC1021_L
1203-005219
IC-DC/DC CONVERTER;AOZ1014AIL,SOP,8P,4.9
1
S.A
....4
IC118
1204-002779
IC-VIDEO PROCESS;S4LF122X01,PBGA,208P,17
1
S.A
....4
IC118
1204-002869
IC-VIDEO PROCESS;MT8226FJ,BGA,569P,31x31
1
S.A
....4
D3107
1405-001185
VARISTOR;24Vdc,1.6x0.8x0.36mm,TP
1
S.A
....4
D3110_NSID
1405-001185
VARISTOR;24Vdc,1.6x0.8x0.36mm,TP
1
S.A
....4
D5018
1405-001185
VARISTOR;24Vdc,1.6x0.8x0.36mm,TP
1
S.A
....4
R110
2007-000043
R-CHIP;1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000043
R-CHIP;1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
5-42
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000067
R-CHIP;15Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
5-43
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
5-44
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
5-45
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
5-46
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000075
R-CHIP;220ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000076
R-CHIP;330ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
5-47
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
5-48
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
5-49
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000094
R-CHIP;22Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000096
R-CHIP;30Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000106
R-CHIP;220Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000106
R-CHIP;220Kohm,5%,1/10W,TP,1608
1
S.A
5-50
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000107
R-CHIP;470Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000107
R-CHIP;470Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000109
R-CHIP;1Mohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000109
R-CHIP;1Mohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000116
R-CHIP;120ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000119
R-CHIP;560ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000120
R-CHIP;680ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000239
R-CHIP;1.5Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.A
5-51
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000416
R-CHIP;15ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000426
R-CHIP;160ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000458
R-CHIP;18Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000591
R-CHIP;22ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000651
R-CHIP;27Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000659
R-CHIP;27ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000726
R-CHIP;300ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000763
R-CHIP;330ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000962
R-CHIP;5.1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000979
R-CHIP;5.6Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000979
R-CHIP;5.6Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
5-52
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-000999
R-CHIP;510ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000999
R-CHIP;510ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001002
R-CHIP;510ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001002
R-CHIP;510ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001007
R-CHIP;51Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001010
R-CHIP;51Kohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-007226
R-CHIP;49.9ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-007297
R-CHIP;110ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-007297
R-CHIP;110ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-007520
R-CHIP;20ohm,1%,1/10W,TP,1608
1
S.A
....4
R5148
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5070
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5071
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5072
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5073
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5074
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5075
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5144
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5145
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5146
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5147
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6001_FBE
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6074
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6075
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6078
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6079
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
R5162
2011-001011
R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
5-53
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
5-54
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
5-55
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C120
2203-000332
C-CER,CHIP;0.012nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000332
C-CER,CHIP;0.012nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
5-56
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000491
C-CER,CHIP;2.2nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000552
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000552
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000815
C-CER,CHIP;0.033nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C120
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C120
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C120
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C120
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
5-57
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C120
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C120
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.A
....4
C120
2203-000979
C-CER,CHIP;47nF,10%,50V,X7R,TP,2012
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.A
....4
C120
2203-001083
C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1608
1
S.A
....4
C120
2203-001083
C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1608
1
S.A
....4
C120
2203-001607
C-CER,CHIP;0.22nF,5%,50V,NP0,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
5-58
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
5-59
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
5-60
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C120
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C120
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.A
....4
C120
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.A
....4
C120
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.A
....4
C120
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.A
....4
C120
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.A
....4
C120
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.A
....4
C120
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C120
2203-007176
C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 (
1
S.N.A
....4
C2037
2402-001128
C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm
1
S.A
....4
C2038
2402-001128
C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm
1
S.A
....4
C1007
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
....4
C1101_L
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
....4
C5023
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
5-61
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C1048
2402-001183
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
1
S.A
....4
C1034
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
....4
C1046
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
....4
C1106_L
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
....4
C1011
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2060
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2062
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2113
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2114
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C3083
2404-001341
C-TA,CHIP;10UF,##20%,16V,SCS,TP,3216
1
S.A
....4
T0052
2703-000125
INDUCTOR-SMD;10uH,10%,2012
1
S.A
....4
T0052
2703-000125
INDUCTOR-SMD;10uH,10%,2012
1
S.A
....4
T0052
2703-000417
INDUCTOR-SMD;220uH,5%,3225
1
S.A
....4
T0052
2703-001426
INDUCTOR-SMD;680uH,20%,7070
1
S.A
....4
T0052
2703-003362
INDUCTOR-SMD;4.7uH,20%,7070
1
S.A
....4
T0052
2703-003362
INDUCTOR-SMD;4.7uH,20%,7070
1
S.A
....4
L2001
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L2002
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L3011
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L3012
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
X202
2801-003326
CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
1
S.A
....4
X202
2801-003954
CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh
1
S.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001148
BEAD-SMD;60ohm,1608,TP,-,-
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
5-62
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
JA3001
3701-001367
CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU
1
S.A
....4
CN330
3711-005925
HEADER-BOARD TO CABLE;BOX,51P,1R,0.5mm,S
1
S.N.A
....4
T0077
BN41-01006A
PCB MAIN;PAL HOTEL 650,FR-4,4,A,1.6,192*
1
S.N.A
....4
MAIN
BN97-02149A
ASSY MICOM-MAIN;T-AMBHMEAM-1000.5,2008-0
1
S.N.A
.....5
IC115
1107-001415
IC-FLASH MEMORY;29W320D,4Mx8/2Mx16Bit,TS
1
S.N.A
....4
CCMM1
BN97-02150A
ASSY MICOM-SUB;T-AMBHPEUS-1000.2,2008-03
1
S.N.A
.....5
IC520
0903-001552
IC-MICROCONTROLLER;WT61P8-RG480WT,LQFP,4
1
S.A
....4
R110
2007-000606
R-CHIP;240ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000606
R-CHIP;240ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000869
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
R110
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.A
....4
T0052
2703-002801
INDUCTOR-SMD;3.9uH,20%,7070
1
S.A
....4
R110
2007-001139
R-CHIP;7.5Kohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000414
R-CHIP;15ohm,1%,1/10W,TP,1608
1
S.A
....4
R110
2007-000414
R-CHIP;15ohm,1%,1/10W,TP,1608
1
S.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
R110
2007-000086
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
1
S.A
....4
C1111_L
2402-001129
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
1
S.A
....4
C1112_L
2402-001129
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
1
S.A
...3
CN3009
3701-001400
CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,Ni
1
S.A
0.1
M0112
BN91-02196E
ASSY SHIELD;LA40A651A1HXZN
1
S.N.A
..2
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
4
S.A
..2
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
6
S.A
5-63
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
3
S.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
1
S.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
1
S.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
2
S.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
2
S.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
5
S.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.A
..2
M2893
BN39-00789A
LEAD CONNECTOR;LA46F71BX,UL1007#26,UL100
1
S.A
..2
M2893
BN39-00802G
LEAD CONNECTOR;SPD-63P71FHD,UL1617#22,24
1
S.A
..2
M2893
BN39-00830C
LEAD CONNECTOR;LN40A450C1D,UL3443 #28,7P
1
S.A
..2
M2893
BN39-01024A
LEAD CONNECTOR;LN46A550P1FXZA,UL1007#26,
1
S.A
..2
M0174
BN44-00223A
IP BOARD;SIP408C,PEARL,15mA,130mA,150Hz,
1
S.A
..2
M0254
BN61-02875X
HOLDER-SIDE AV;40,L650,SO(HOTEL),ABS+PMM
1
S.N.A
..2
M0115
BN61-02882A
BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-,
1
S.N.A
..2
M0146
BN61-03414A
BRACKET-PANEL TOP;PEONY52,SECC T1.2
2
S.N.A
..2
T0101
BN61-03700A
BRACKET-WALL;L450 40INCH,SECC,T1.2,-,-,-
1
S.A
..2
M0214
BN96-07161X
ASSY CABLE P-FLAT LVDS;LA40A650A1HXZN,FF
1
S.A
..2
M0114
BN61-02500A
HOLDER-WIRE;NYLON6.6,NATURAL
3
S.N.A
..2
M0114
BP61-01088A
HOLDER-WIRE;SVP-42L6,NYLON
2
S.N.A
..2
T0447
BN96-06960D
ASSY BRACKET P-PANEL;LA40A650A2HXZN,TSE,
1
S.N.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.A
...3
M0081
6003-001439
SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW
1
S.N.A
...3
M0131
AA63-01438A
GASKET;Bordeaux,Conductive Fabric,7mm,8m
1
S.N.A
...3
BN61-02879A
BRACKET-GUIDE MAIN;TULIP,40,SECC,T1.2,-,
1
S.N.A
...3
BN61-02880A
BRACKET-GUIDE POWER R;TULIP,40,SECC,T1.2
1
S.N.A
...3
BN61-02881A
BRACKET-GUIDE POWER L;TULIP,40,SECC,T1.2
1
S.N.A
...3
BN61-03697A
BRACKET-GUIDE POWER R;L450 40INCH,SECC,T
1
S.N.A
...3
BN61-03861A
BRACKET-PANEL BOTTOM;L450 40INCH,SECC,T1
1
S.N.A
...3
M0131
BN63-03519A
GASKET;Tulip,Conductive Fabric,14mm,10mm
3
S.N.A
...3
M0125
BN96-04817B
ASSY INLET P;LNT4081FX,XAA,250mm,250mm,-
1
S.A
0.1
M0019
BN91-02207A
ASSY LCD;BN07-00516A,AMVA,72%
1
S.N.A
..2
M0215
BN07-00516A
LCD-PANEL;T400HW01 V4
1
S.A
0.1
M0003
BN92-03196E
ASSY BOX;40AA1,SO(HOTEL),AMBER
1
S.N.A
..2
AA02-00013A
TAPE ETC-RIBBON;-,-,-,101CM,250MT,-,-,-
0.27
S.N.A
..2
BN69-02391A
BOX-SET, IN;L650-40,CB,C-03,-,W758,L1478
1.02
S.N.A
..2
BN69-02651H
BOX-SET, OUT;L650-40,CB,C-03,DW-75,YEL,-
1.02
S.N.A
0.1
M0113
BN92-03201A
ASSY P/MATERIAL;40,AMBER,(650),UO,,,,
1
S.N.A
..2
T0524
6902-000739
BAG PE;HDPE/HDPE/NITRON,T0.015/T0.015/T1
1
S.N.A
..2
AA63-10007E
BAND PP;-,T1.0,W15,-,CLR,-,-
4.89
S.N.A
..2
T0376
6902-000001
BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-,-,
0.016
S.N.A
..2
T0214
AA61-20285C
HOLDER-BOX;CORAL,PP,BLACK,HB
2
S.N.A
..2
T0214
BN74-00008A
TAPE-OPP MASKING;OPP-2,T0.05,W100,L800M,
1.24
S.N.A
0.1
M0045
BN92-03376X
ASSY ACCESSORY;LA40A650A1HXZN
1
S.N.A
5-64
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
..2
M0254
BN96-07474G
ASSY ACCESSORY-CABLE&MANUAL;LA40A650A1HX
1
S.A
...3
T0268
3903-000145
CBF-POWER CORD;DT,EU,FP3/YES,U(IEC C13-R
1
S.A
...3
T0524
6902-000110
BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,-,9
1
S.N.A
...3
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.02
S.N.A
...3
AA68-03242M
MANUAL FLYER-02,SAFETY GUIDE;comm,Samsun
1
S.N.A
...3
M0521
BN39-00864A
CBF IF-MODULAR/MODULAR;Bordeaux Plus HOT
1
S.A
...3
T0074
BN59-00686A
REMOCON;TM-96B,49,EUROPE_READY-550
1
S.A
...3
T0531
BN63-04243B
COVER-BOTTOM;37,40L450,HIPS,HB,BK500
1
S.N.A
...3
T0511
BN68-01542A
MANUAL USERS;COMM,SAMSUNG,Eng,Asia,W/P 8
1
S.N.A
0.1
M0019
BN92-03382A
ASSY LABEL;LA32A651A1HXZN
1
S.N.A
..2
L/RATING
AA02-00013A
TAPE ETC-RIBBON;-,-,-,101CM,250MT,-,-,-
0.05
S.N.A
..2
L/MODEL
AA02-00015A
TAPE ETC-RIBBON;-,-,-,64CM,250MT,-,-,-
0.035
S.N.A
5-65
5. Exploded View & Part List
5-7. LA46A650A1H Parts List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
0
LA46A650A1HXXZ
LA46A650A1H,N42B/46AA1-GAM,46,LCD-TV,MAL
0
S.A
S.A
0.1
M0001
BN90-01520K
ASSY COVER FRONT;46,L650,SO(HOTEL),ROSE
1
S.N.A
..2
T0175
BN96-06809A
ASSY SPEAKER P;8ohm,L650 40”/46”,Down Fi
1
S.A
..2
T0003
BN96-06844K
ASSY COVER P-FRONT;46,L650,SO(HOTEL),,PC
1
S.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.N.A
...3
T0069
BN60-00027H
SPACER-FELT;L650-46,FELT,1020,0.5,20
2
S.N.A
...3
T0069
BN60-00027Q
SPACER-FELT;L650 46,FELT,570,0.5,20
2
S.N.A
...3
M0112
BN63-04142E
COVER-FRONT;46,L650,SO,PC(CLR)+PC(ROSE B
1
S.N.A
...3
BN96-06851A
ASSY HOLDER P-BOSS TOP;46,L650A,,ABS,HB,
1
S.N.A
....4
BN61-03783A
HOLDER-BOSS TOP;46,L650,ABS,HB,-,-,-,WH1
1
S.N.A
....4
BN61-04731A
BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE,
1.09
S.N.A
....4
BN61-04731B
BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE
0.05
S.N.A
...3
BN96-06852A
ASSY HOLDER P-BOSS BOTTOM;46,L650A,,ABS,
1
S.N.A
....4
BN61-03782A
HOLDER-BOSS BOTTOM;46,L650,ABS,HB,-,-,-,
1
S.N.A
....4
BN61-04731D
BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE
1.07
S.N.A
...3
BN96-07655A
ASSY HOLDER P-BOSS SIDE;46,L650,,PC V1 R
2
S.N.A
....4
BN61-04080D
HOLDER-BOSS SIDE;AMBER 46”,PC V1 RECYCLE
1
S.N.A
....4
BN61-04731A
BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE,
0.25
S.N.A
...3
BN61-04692A
BOSS-PRIMER;#94,clear,35cps
0.008
S.N.A
...3
BN61-04661A
BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H
4
S.N.A
...3
BN61-04731A
BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE,
1.34
S.N.A
...3
BN61-04731B
BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE
0.05
S.N.A
...3
BN61-04731D
BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE
1.07
S.N.A
...3
M0175
BN96-08122D
ASSY BOARD P-TOUCH FUNCTION&IR;LA46A651A
1
S.A
...3
CCM1
BN63-05199B
COVER-SHEET;AMBER,PE,T0.08,W65mm,200M,CL
3.2
S.N.A
...3
CCM1
BN63-05199F
COVER-SHEET;AMBER,PE,T0.08,W95mm,200M,CL
1.4
S.N.A
...3
CCM1
BN63-02183H
COVER-SHEET;Rhcm,PE Vinyl,T0.05,1300mm,2
2.1
S.N.A
0.1
M0002
BN90-01525F
ASSY COVER REAR;46,L650,SO(HOTEL),AMBER
1
S.N.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
14
S.N.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
1
S.N.A
..2
C/R+H/WALL
6011-001610
BOLT-ETC;M8,L18,ZPC(BLK),SWRCH18A,WSP,PH
4
S.N.A
..2
M0013
BN96-06892F
ASSY COVER P-REAR;46,L650,SO(HOTEL),ABS+
1
S.A
...3
T0069
AA60-00091J
SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,-
2
S.N.A
...3
CCM1
BN63-02183H
COVER-SHEET;Rhcm,PE Vinyl,T0.05,1300mm,2
1.2
S.N.A
...3
M0006
BN63-04307D
COVER-REAR;46,L650,SO(HOTEL),ABS+PMMA,HB
1
S.N.A
...3
T0064
BN65-00002A
CLAMPER CORE;BORDEAUX,LDPE,-,-,BLK,-
1
S.N.A
...3
T0071
BN64-00851A
INLAY-TERMINAL;AMBER 46”,PS SHEET,T0.3,-
1
S.N.A
..2
M0081
6003-000282
SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW
1
S.N.A
0.1
M0216
BN90-01530A
ASSY STAND;46,L650A,,,RD02,AMBER
1
S.N.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
4
S.N.A
..2
M0027
BN96-06873A
ASSY STAND P-BASE;46,L650A,,ABS+PMMA,HB,
1
S.A
...3
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
4
S.N.A
...3
M0081
6003-001239
SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S
8
S.N.A
...3
BN61-02533A
HOLDER-SWIVEL RING;46M7 EO,ACETAL,NATUAL
1
S.N.A
...3
BN61-02534A
HOLDER-SWIVEL RING;46M7 EO,ACETAL,NATUAL
1
S.N.A
...3
BN61-02536A
BRACKET-HINGE SWIVEL;46M7 EO,HG,T3.0
1
S.N.A
5-66
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
...3
T0920
BN61-03784A
GUIDE-STAND;L650 46,PC+G/F 20%,BLK
1
S.N.A
...3
BN61-03787A
BRACKET-STAND-BOTTOM;AMBER 46,SECC,T3.0,
1
S.N.A
...3
T0004
BN63-04276A
COVER-STAND BASE;AMBER 46,ABS+PMMA,-,-,-
1
S.N.A
...3
M0126
BN73-00052C
RUBBER-FOOT;LCD TV,CR RUBBER,T2.0 DIA19,
4
S.N.A
...3
CCM1
BN63-02183F
COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20
0.45
S.N.A
0.1
M0019
BN91-02031B
ASSY LCD;BN07-00517A,AMVA,72%
1
S.N.A
..2
M0215
BN07-00517A
LCD-PANEL;T460HW02 V5
1
S.A
0.1
M0017
BN91-02194C
ASSY CHASSIS;LA46A650A1HXZN
1
S.N.A
..2
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.03
S.N.A
..2
M0014
BN94-02078C
ASSY PCB MAIN;46 AMBER HOTEL
1
S.A
...3
T0245
0202-001608
SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0.
0.25
S.N.A
...3
CN3012_PCV
3701-001480
CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN
1
S.A
...3
CN330
3711-000058
HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
1
S.N.A
...3
CN330
3711-004349
HEADER-BOARD TO CABLE;BOX,3P,1R,2mm,STRA
1
S.A
...3
CN330
3711-004379
HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA
1
S.A
...3
CN330
3711-004531
HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG
1
S.A
...3
JA3012_NCH
3722-000498
JACK-SCART;21P,-,SN,BLK,NO
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA333
3722-002360
JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT
1
S.A
...3
JA333
3722-002362
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
1
S.A
...3
JA333
3722-002362
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
1
S.A
...3
CN3010
3722-002547
JACK-MODULAR;8P/4C,N,STRAIGHT,N,AU,1PORT
1
S.A
...3
CN1012_L
3722-002722
JACK-DC POWER;3P,SN,BLACK
1
S.A
...3
CIS3
BN40-00083A
TUNER;TCPS3001PD32S(H),TCPS3001PD32S(H),
1
S.A
...3
T0530
BN61-01521A
SUPPORT-PCB;ROME,SPTE,T0.5,L11.0
1
S.N.A
...3
T0174
BN97-02473C
ASSY SMD;46 AMBER HOTEL
1
S.N.A
....4
SUB05
0202-001477
SOLDER-CREAM;LST309-M,-,D20~45um,96.5Sn/
3.473
S.N.A
....4
D1006
0401-000133
DIODE-SWITCHING;RLS4148,75V,150mA,LL-34,
1
S.A
....4
D1001
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1002
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1003
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1010
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3008
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3009
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3013
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3014
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3015
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3016
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3041
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3042
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3043
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3050
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3053
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3056
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
5-67
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
D3060
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3061
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3064
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3065
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3067
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3068
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3069
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3074
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3075
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3076
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3200
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1015_L
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D1116_L
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2004
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2005
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2007
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2008
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2010
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2006
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3035
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3058
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3070
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3071
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3072
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3073
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3078
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3080
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3253
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3039
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
D3046
0403-000771
DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD
1
S.A
....4
D3106
0403-000771
DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD
1
S.A
....4
D3023
0403-001052
DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2
1
S.A
....4
D1011
0403-001425
DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23
1
S.A
....4
D0254
0404-001020
DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T
1
S.A
....4
D0254
0404-001020
DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T
1
S.A
....4
D0254
0404-001307
DIODE-SCHOTTKY;SSC54,20V,5000mA,DO-214AB
1
S.A
....4
D0254
0404-001307
DIODE-SCHOTTKY;SSC54,20V,5000mA,DO-214AB
1
S.A
....4
D3003
0406-001181
DIODE-TVS;NUP4201MR6,6/-/-V,500W,TSOP-6
1
S.A
....4
D2003
0407-000123
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT-
1
S.N.A
....4
D2009
0407-000123
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT-
1
S.N.A
....4
Q1011
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q1013_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q1014_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q1017_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q2002
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3001
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3002
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3003
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3006
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3007
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3010
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
5-68
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
Q3013
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3017
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3018
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q5004
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q5030
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q6001_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q2001
0501-000669
TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2
1
S.A
....4
Q3012
0501-000669
TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2
1
S.A
....4
Q1001_L
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1007_NARM
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1010_L50
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1012_HY
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q3011
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q3014
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q3015
0501-002184
TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
1
S.N.A
....4
Q3016
0501-002184
TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
1
S.N.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-001170
FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0
1
S.A
....4
Q409
0505-002169
FET-SILICON;Si4435BDY-T1-E3,P,-30V,-9.1A
1
S.N.A
....4
Q409
0505-002169
FET-SILICON;Si4435BDY-T1-E3,P,-30V,-9.1A
1
S.N.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
IC3002
1001-000164
IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
1
S.A
....4
IC5008
1001-001109
IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C
1
S.A
....4
IC107
1002-001482
IC-D/A CONVERTER;WM8521H9GED/R,16bit,SOI
1
S.A
....4
IC2002
1002-001509
IC-A/D&D/A CONVERTER;MT8291,24bit,LQFP,4
1
S.A
....4
IC3021
1006-001165
IC-LINE TRANSCEIVER;MAX3243CDBR,SSOP,28P
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-001385
IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P,
1
S.A
....4
IC113
1105-001828
IC-DRAM;HYB18TC256160BF,DDR2,256Mbit,16M
1
S.A
....4
IC113
1105-001828
IC-DRAM;HYB18TC256160BF,DDR2,256Mbit,16M
1
S.A
....4
DU410
1201-000166
IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
1
S.A
....4
T0124
1201-002677
IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA
1
S.A
....4
T0124
1201-002677
IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA
1
S.A
....4
T0087
1203-001815
IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA
1
S.A
....4
T0087
1203-002842
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC3007
1203-003394
IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4
1
S.A
5-69
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
IC5001
1203-004363
IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P,
1
S.A
....4
IC2003
1203-004364
IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1
S.A
....4
IC5009_PD
1203-004364
IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1
S.A
....4
IC1005
1203-005188
IC-DC/DC CONVERTER;AOZ1021AIL,SOP,8P,4.9
1
S.A
....4
IC1019
1203-005188
IC-DC/DC CONVERTER;AOZ1021AIL,SOP,8P,4.9
1
S.A
....4
IC1021_L
1203-005219
IC-DC/DC CONVERTER;AOZ1014AIL,SOP,8P,4.9
1
S.A
....4
IC118
1204-002779
IC-VIDEO PROCESS;S4LF122X01,PBGA,208P,17
1
S.A
....4
IC118
1204-002869
IC-VIDEO PROCESS;MT8226FJ,BGA,569P,31x31
1
S.A
....4
D3107
1405-001185
VARISTOR;24Vdc,1.6x0.8x0.36mm,TP
1
S.A
....4
D5018
1405-001185
VARISTOR;24Vdc,1.6x0.8x0.36mm,TP
1
S.A
....4
R5004
2007-000043
R-CHIP;1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R5005
2007-000043
R-CHIP;1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R1008
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1016
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1105_L
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R2034
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R2035
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R5008
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1007
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1014
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1102_L
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3559
2007-000067
R-CHIP;15Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1030
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1081_HY
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1107_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1112_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2080
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3006
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3067
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3068
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3120_NCHI
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3332
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3333
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3356
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3357
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3358
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3560
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3561
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5012_PD
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5014
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5015
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5025
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5112
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5113
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5114
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5115
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5116
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5117
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5118
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5119
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5120
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
5-70
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R5121
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5122
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5123
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5124
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5125
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5126
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5127
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5128
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5129
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5130
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5131
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5132
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5133
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5134
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5135
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5136
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5137
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5138
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5139
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5140
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5141
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5142
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5143
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5149
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5163
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5164
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5231
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6027_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6056_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6058_DIM
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6065_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6072_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6084_FB3
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6088_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6091
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6092
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6093_16B
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6094_16B
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6095
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6096
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6097_16B
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6098_16B
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6099
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6100_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6101_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3247
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3251
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5150
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5151
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5152
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5153
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
5-71
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R6043_L
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3003
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3004
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3061
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3062
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3064
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3153
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3154
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3155
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3156
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3157
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3158
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3199
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3200
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3213
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3214
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3215
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3217
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3255
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3257
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3258
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3260
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3278
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3279
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5036
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5037
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1039
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R1040
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2008
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2009
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2010
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2011
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2014
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2015
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2016
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2040
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2041
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2044
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2045
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2046
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2050
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2075
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2100
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2101
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2152
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2153
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2156
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2157
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2158
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2169
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3001
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
5-72
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R3028
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3030
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3050
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3051
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3059
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3111
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3112
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3123
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3124
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3125
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3127
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3151
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3188
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3250
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3308
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3309
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3310
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3314
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3551
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3552
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3555
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3556
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5017
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5026
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5027
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5031
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5046
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5049
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5050
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5051
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5052
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5060
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5061
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5066
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5067
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5068
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5154
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5155
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5156
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5169
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5170
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5171
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5172
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5173
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5174
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5201
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5202
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5203
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5204
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5221
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5222
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
5-73
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R5223
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5224
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5225
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5230
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5234
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5235
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6016_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6017_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6019_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6020_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6021_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6022_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6023_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6028_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6032_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6033_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6034_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6035_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6036_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6037_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6041_L
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2059
2007-000075
R-CHIP;220ohm,5%,1/10W,TP,1608
1
S.A
....4
R1032
2007-000076
R-CHIP;330ohm,5%,1/10W,TP,1608
1
S.A
....4
R2030
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R2033
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R2036
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R2037
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R3178
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R3192
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R3193
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R6044_L
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R2038
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2039
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3021
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3025
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3029
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3031
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3032
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3033
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3056
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3069
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3074
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3075
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3081
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3105
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3106
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3107
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3108
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3162
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3163
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3177
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
5-74
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R3179
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3198
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3212
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3228
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3272
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3273
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5003
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5038
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5178
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5179
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5180
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6050_L
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6054_L
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2042
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2065
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2067
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2155
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5021
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6049_L
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3558
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6051_L
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1003_L
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1004
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1020_L50
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1057_NARM
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1080_HY
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1082_HY
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2031
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2032
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2060
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2066
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2070
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2071
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2072
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2073
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2102_NFRC
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2165
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2166
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2167
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2168
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3076
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3096
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3101
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3150
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3159
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3166
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3187
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3283_SIDE
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3284
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3285
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3287
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
5-75
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R3288
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3511
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3512
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3601
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3602
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5001
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5002
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5009
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5010
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5020
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5022
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5058
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5071_L
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5109_PD
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5158
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5159
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5160
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5177
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5182
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5183
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5184
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5185
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5226
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5227
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5228
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5232
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5233
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6003_FBE
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6005_FBE
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6010_FBE
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6011_FHD
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6015_FBE
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6042_L
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6053_L
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3055_NCHI
2007-000086
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1013_L50
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1017
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1046
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1047
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1079
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1101_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1111_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1113_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1115_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1121_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1123_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2029
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2043
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2069
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2074
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2151
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
5-76
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R2154
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3091
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3094
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3095
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3097
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3098
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3099
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3100
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3141
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3142
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3202
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3203
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3207
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3274
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3276
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3603
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3604
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5006
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5007
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5059
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5161
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5175
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5176
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5186
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5205
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5208
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5209
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6030_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6040_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1044
2007-000094
R-CHIP;22Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3197
2007-000096
R-CHIP;30Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1010_12V
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1011_L50
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3019
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3020
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3026
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3027
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3104
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3109
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3122
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3134
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3252
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3254
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1041
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1110_L
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1114_L
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1119_L
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1120_L
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1122_L
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3002
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3307
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
5-77
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R5157
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3015
2007-000106
R-CHIP;220Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3016
2007-000106
R-CHIP;220Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1117_L
2007-000107
R-CHIP;470Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5181
2007-000107
R-CHIP;470Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5011
2007-000109
R-CHIP;1Mohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2002
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2003
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2004
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2005
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2006
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2007
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2047
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2048
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2159
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2160
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5032
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5033
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5035
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5043
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5044
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5047
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5048
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5053
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5064
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5111
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5165
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3005
2007-000116
R-CHIP;120ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5045
2007-000119
R-CHIP;560ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3190
2007-000120
R-CHIP;680ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1001_L
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1051_NARM
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1053_NARM
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1055_NARM
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5110_PD
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5206
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6052_L
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2017
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2018
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2021
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2022
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2023
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2024
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2025
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2026
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3196
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6013_FBE
2007-000239
R-CHIP;1.5Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3060
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3063
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3065
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3256
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
5-78
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R3259
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3261
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3083
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3084
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3085
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3086
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3087
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3088
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3089
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3090
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3400
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3401
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3402
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3403
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3404
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3405
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3406
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3407
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3424
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3425
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3426
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3427
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3428
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3429
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3430
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3431
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3450
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3451
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3452
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3458
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3459
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5094
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5095
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5096
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5097
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5098
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5099
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5100
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5101
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5200
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R1116_L
2007-000414
R-CHIP;15ohm,1%,1/10W,TP,1608
1
S.A
....4
R1118_L
2007-000414
R-CHIP;15ohm,1%,1/10W,TP,1608
1
S.A
....4
R2049
2007-000416
R-CHIP;15ohm,5%,1/10W,TP,1608
1
S.A
....4
R3317
2007-000426
R-CHIP;160ohm,5%,1/10W,TP,1608
1
S.A
....4
R3022
2007-000458
R-CHIP;18Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1019
2007-000591
R-CHIP;22ohm,1%,1/10W,TP,1608
1
S.A
....4
R1023
2007-000606
R-CHIP;240ohm,1%,1/10W,TP,1608
1
S.A
....4
R1071
2007-000606
R-CHIP;240ohm,1%,1/10W,TP,1608
1
S.A
....4
R1072
2007-000651
R-CHIP;27Kohm,1%,1/10W,TP,1608
1
S.A
....4
R3176
2007-000659
R-CHIP;27ohm,5%,1/10W,TP,1608
1
S.A
....4
R3229
2007-000691
R-CHIP;3.3Mohm,5%,1/10W,TP,1608
1
S.A
5-79
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R1078
2007-000726
R-CHIP;300ohm,1%,1/10W,TP,1608
1
S.A
....4
R3562
2007-000763
R-CHIP;330ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1073
2007-000869
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R5069
2007-000962
R-CHIP;5.1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R1015
2007-000979
R-CHIP;5.6Kohm,1%,1/10W,TP,1608
1
S.A
....4
R3557
2007-000979
R-CHIP;5.6Kohm,1%,1/10W,TP,1608
1
S.A
....4
R2061
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2062
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2063
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2064
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2161
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2162
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2163
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2164
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R1022
2007-000999
R-CHIP;510ohm,1%,1/10W,TP,1608
1
S.A
....4
R1070
2007-000999
R-CHIP;510ohm,1%,1/10W,TP,1608
1
S.A
....4
R3248
2007-001002
R-CHIP;510ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3249
2007-001002
R-CHIP;510ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1103_L
2007-001007
R-CHIP;51Kohm,1%,1/10W,TP,1608
1
S.A
....4
R3007
2007-001010
R-CHIP;51Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1104_L
2007-001139
R-CHIP;7.5Kohm,1%,1/10W,TP,1608
1
S.A
....4
R3008
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3013
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3018
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3052
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3053
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3054
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3066
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3116
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3117
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3118
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3243
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3244
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3245
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1005
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1006
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1074
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1075
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1083
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1084
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3564
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3565
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5102
2007-007226
R-CHIP;49.9ohm,1%,1/10W,TP,1608
1
S.A
....4
R1018
2007-007297
R-CHIP;110ohm,1%,1/10W,TP,1608
1
S.A
....4
R3563
2007-007297
R-CHIP;110ohm,1%,1/10W,TP,1608
1
S.A
....4
R1109_L
2007-007520
R-CHIP;20ohm,1%,1/10W,TP,1608
1
S.A
....4
R5148
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5070
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5071
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5072
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5073
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
5-80
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
RA5074
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5075
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5144
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5145
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5146
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5147
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6001_FBE
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6074
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6075
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6078
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6079
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
R5162
2011-001011
R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3
1
S.A
....4
C2092
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2093
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2094
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2095
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2135
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2141
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2142
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2143
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C1003
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C1010
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C1015
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C1020
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C1070
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C2023
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C2064
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C2125
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3012
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3069
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3070
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3077
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3095
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3119
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5002
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5003
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5006
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5007
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5008
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5010
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5011
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5013
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5014
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5016
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5017
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5018
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5019
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5020
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5021
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5022
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5028
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
5-81
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C5037
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5052
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5053
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5067
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5070
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5072
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5075
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5128
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5130
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5131
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5134
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6007_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6010_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6016_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6018_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6024_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6026_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6030_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6031_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6033_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6034_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C2051
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C2107
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3007
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3010
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3017
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3018
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3019
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3020
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3025
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3041
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3043
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3050
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3054
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3055
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3057
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C1047
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C1057
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C1059
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C1060
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C1062
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C1064
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C2057
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3001
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3027
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3028
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3029
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3030
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3031
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3071
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3072
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
5-82
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C3073
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3074
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3075
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3076
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3111
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3112
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3113
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3115
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3116
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3117
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5012
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5033
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5036
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5038
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5039
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5040
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5041
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5042
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5043
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5047
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5057
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5059
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5060
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5061
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5063
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5064
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5066
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5068
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5069
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5071
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5073
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5074
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5076
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5077
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5078
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5126_PD
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6001_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6005_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6006_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6008_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6009_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6011_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6012_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6013_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6014_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6015_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6017_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6020_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6021_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6022_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6025_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
5-83
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C6029_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6043_L
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6044_L
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5091
2203-000332
C-CER,CHIP;0.012nF,5%,50V,C0G,1608
1
S.A
....4
C5092
2203-000332
C-CER,CHIP;0.012nF,5%,50V,C0G,1608
1
S.A
....4
C3022
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C3023
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C3024
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C3046
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C3047
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C3048
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C1017
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1031
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1071
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1073
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1103_L
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1104_L
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1108_L
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2054
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2075
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2076
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2077
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2078
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2079
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2108
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2128
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2129
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2144
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2145
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5046
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5049
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5056
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5058
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5079
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5080
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5094
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C6019_FBE
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C6023_FBE
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C6027_FBE
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C6028_FBE
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C6032_FBE
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1050
2203-000491
C-CER,CHIP;2.2nF,10%,50V,X7R,1608
1
S.A
....4
C5089
2203-000552
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
1
S.N.A
....4
C5090
2203-000552
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
1
S.N.A
....4
C6037_FBE
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C3085
2203-000815
C-CER,CHIP;0.033nF,5%,50V,C0G,1608
1
S.A
....4
C1053
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C2019
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C2020
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C2029
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C2030
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
5-84
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C3114
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6035_FBE
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3104
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C3105
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C3106
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C2080
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C2081
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C2130
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C2136
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C5081
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.N.A
....4
C5082
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.N.A
....4
C5083
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.N.A
....4
C5084
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.N.A
....4
C5085
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.N.A
....4
C1055
2203-000979
C-CER,CHIP;47nF,10%,50V,X7R,TP,2012
1
S.N.A
....4
C1054
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.N.A
....4
C1058
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.N.A
....4
C3002
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.N.A
....4
C3014
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.N.A
....4
C5129
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.N.A
....4
C3108
2203-001083
C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1608
1
S.A
....4
C3109
2203-001083
C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1608
1
S.A
....4
C1052
2203-001607
C-CER,CHIP;0.22nF,5%,50V,NP0,1608
1
S.A
....4
C2061
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2065
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2068
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2072
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2117
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2119
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2122
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2123
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C1006
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1035
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1036
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1038
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1039
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1040
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1042
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1044
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1045
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1051
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1067_NARM
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2001
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2028
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2032
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2035
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2039
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2040
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2044
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2045
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2047
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
5-85
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C2050
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2055
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2058
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2066
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2067
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2102
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2104
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2106
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2110
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2111
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2112
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2115
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2116
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3009
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3033
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3036
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3037
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3038
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3039
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3045
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3121
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3122
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5001
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5093
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5098
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5100
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5101
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5102
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5103
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5104
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5105
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5106
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5107
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5108
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5109
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5110
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5112
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5113
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5114
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5115
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5116
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5117
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5118
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5119
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5122
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5123
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5124
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5125
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C6039_L
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
5-86
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C1061
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2036
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2059
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2069
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2070
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2071
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2118
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2121
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2124
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C3035
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C5065
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C6041_L
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2073
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2074
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2083
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2084
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2085
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2086
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2088
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2089
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2090
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2091
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2126
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2127
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2131
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2132
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2133
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2134
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2137
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2138
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2139
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2140
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2041
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2042
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2043
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2048
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2101
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2103
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2105
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2109
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C3006
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2005
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2006
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2009
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2010
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2011
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2012
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2013
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2014
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C1024
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
5-87
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C1027
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C1072
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C1107_L
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C1110_L
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C3021_SIDE
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C3130
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C5062
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C5088
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C1033_L50
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.N.A
....4
C3127
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.N.A
....4
C3128
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.N.A
....4
C3129
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.N.A
....4
C3003
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.N.A
....4
C3004
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.N.A
....4
C3005
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.N.A
....4
C1002
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1005
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1041
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1043
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1080
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1081
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1082
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2002
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2017
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2018
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2021
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2024
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2026
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2027
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2031
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2053
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2063
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2082
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2087
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C3058
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C3059
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C3068
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5004
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5005
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5024
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5025
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5026
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5030
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5031
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5096
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5099
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5111
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5121
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5133
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C6002_FBE
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C6003_FBE
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
5-88
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C6004_FBE
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C6040_L
2203-007176
C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 (
1
S.N.A
....4
C2037
2402-001128
C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm
1
S.A
....4
C2038
2402-001128
C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm
1
S.A
....4
C1111_L
2402-001129
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
1
S.A
....4
C1112_L
2402-001129
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
1
S.A
....4
C1007
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
....4
C1101_L
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
....4
C5023
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
....4
C1048
2402-001183
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
1
S.A
....4
C1034
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
....4
C1046
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
....4
C1106_L
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
....4
C1011
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2060
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2062
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2113
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2114
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C3083
2404-001341
C-TA,CHIP;10uF,20%,16V,SCS,TP,3216
1
S.A
....4
T0052
2703-000125
INDUCTOR-SMD;10uH,10%,2012
1
S.A
....4
T0052
2703-000125
INDUCTOR-SMD;10uH,10%,2012
1
S.A
....4
T0052
2703-000417
INDUCTOR-SMD;220uH,5%,3225
1
S.A
....4
T0052
2703-001426
INDUCTOR-SMD;680uH,20%,7070
1
S.A
....4
T0052
2703-002801
INDUCTOR-SMD;3.9uH,20%,7070
1
S.A
....4
T0052
2703-003362
INDUCTOR-SMD;4.7uH,20%,7070
1
S.A
....4
T0052
2703-003362
INDUCTOR-SMD;4.7uH,20%,7070
1
S.A
....4
L2001
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L2002
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L3011
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L3012
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
X202
2801-003326
CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
1
S.A
....4
X202
2801-003954
CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh
1
S.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001148
BEAD-SMD;60ohm,1608,TP,-,-
1
S.N.A
....4
T0568
3301-001148
BEAD-SMD;60ohm,1608,TP,-,-
1
S.N.A
....4
T0568
3301-001148
BEAD-SMD;60ohm,1608,TP,-,-
1
S.N.A
....4
T0568
3301-001148
BEAD-SMD;60ohm,1608,TP,-,-
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
5-89
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
JA3001
3701-001367
CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU
1
S.A
....4
CN330
3711-005925
HEADER-BOARD TO CABLE;BOX,51P,1R,0.5mm,S
1
S.N.A
....4
CN330
3711-006354
HEADER-BOARD TO CABLE;BOX,41P,2R,0.5mm,S
1
S.N.A
....4
T0077
BN41-01006B
PCB MAIN;PAL HOTEL 650,FR-4,4,A,1.6,192*
1
S.N.A
....4
MAIN
BN97-02149A
ASSY MICOM-MAIN;T-AMBHMEAM-1009,2008-08-
1
S.N.A
.....5
IC115
1107-001415
IC-FLASH MEMORY;29W320D,4Mx8/2Mx16Bit,TS
1
S.N.A
....4
CCMM1
BN97-02150A
ASSY MICOM-SUB;T-AMBHPEUS-1003,2008-08-1
1
S.N.A
.....5
IC520
0903-001552
IC-MICROCONTROLLER;WT61P8-RG480WT,LQFP,4
1
S.N.A
....4
D3006
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3007
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3011
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3012
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3017
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3018
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3028
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3029
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3030
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3040
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
5-90
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
D3044
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3077
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3079
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3088
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3091
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3094
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3251
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3252
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
...3
CN330
3711-006766
HEADER-BOARD TO CABLE;BOX,24P,2R,2mm,STR
1
S.A
...3
CN330
3711-006765
HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA
1
S.N.A
0.1
M0112
BN91-02196F
ASSY SHIELD;LA46A651A1HXZN
1
S.N.A
..2
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
4
S.N.A
..2
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
6
S.N.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
3
S.N.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
1
S.N.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
1
S.N.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
2
S.N.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
10
S.N.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
2
S.N.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.N.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
6
S.N.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.N.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
4
S.N.A
..2
M2893
BN39-00674A
LEAD CONNECTOR;LNR469DX/XAA,UL1007#26,5P
1
S.A
..2
M2893
BN39-00802G
LEAD CONNECTOR;SPD-63P71FHD,UL1617#22,24
1
S.A
..2
M2893
BN39-00830A
LEAD CONNECTOR;LNT4642HX/XAA,UL1061#28,7
1
S.A
..2
M2893
BN39-00948E
LEAD CONNECTOR;LN52M81BD,UL1061#28,4P,3P
1
S.A
..2
M2893
BN39-01020A
LEAD CONNECTOR;LN46A550P,UL1007#26,2pin,
1
S.A
..2
M2893
BN39-01024A
LEAD CONNECTOR;LN46A550P1FXZA,UL1007#26,
1
S.A
..2
M0174
BN44-00224A
IP BOARD;IP-291135A,PEARL,15mA,116mA,150
1
S.A
..2
M0146
BN61-03415A
BRACKET-PANEL TOP;PEONY 46,GPSP T1.2
4
S.N.A
..2
M0115
BN61-03790A
BRACKET-STAND LINK;AMBER 46,SECC,T1.6,-,
1
S.N.A
..2
M0230
BN96-06678A
ASSY CABLE P-FFC;PEONY 46”,FFC,117001-41
1
S.A
..2
M0020
BN96-07396B
ASSY BOARD P-SIDE HDMI AV;LA46A651A1HXZN
1
S.A
..2
M0152
BN96-07161E
ASSY CABLE P-FLAT CABLE;LA46A500P1RX,FFC
1
S.A
..2
T0447
BN96-06885D
ASSY BRACKET P-PANEL;46,L650,UO,GASKET
1
S.N.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.N.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.N.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.N.A
...3
M0081
6003-001439
SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW
1
S.N.A
...3
BN61-03516A
BRACKET-GUIDE POWER L;46J8 PEONY2,SECC T
1
S.N.A
...3
BN61-03520A
BRACKET-GUIDE MAIN;46J8 PEONY2,SECC T1.2
1
S.N.A
...3
BN61-03829A
BRACKET-PANEL BOTTOM;AMBER 46,SECC,T1.6,
1
S.N.A
...3
BN61-03830A
BRACKET-GUIDE POWER R;AMBER 46,SECC,T1.2
2
S.N.A
...3
M0131
BN63-03520A
GASKET;Tulip,Conductive Fabric,10mm,18mm
2
S.N.A
...3
M0131
BN63-03812A
GASKET;Tulip,Conductive Fabric,10mm,10mm
1
S.N.A
...3
M0131
BN63-03921A
GASKET;LE46F86BDX,Conductive Fabric,12mm
1
S.N.A
...3
M0125
BN96-05490A
ASSY INLET P;LE52M87BDX,XEC,300,300,150m
1
S.A
..2
M0560
BN96-07413A
ASSY HOLDER P-WALL LEFT;46,L650,,PC V1 R
1
S.N.A
...3
T0067
BN60-00079B
SPACER-SCREEN;46L650,EVA SPONGE,L125,BLK
1
S.N.A
5-91
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
...3
M0125
BN61-03788D
HOLDER-WALL;L650 46”,PC V1 RECYCLE,L
1
S.N.A
....4
BN61-02932A
BRACKET-STOPPER NUT;SUM24L
2
S.N.A
..2
M0561
BN96-07414A
ASSY HOLDER P-WALL RIGHT;46,L650,,PC V1
1
S.N.A
...3
T0067
BN60-00079A
SPACER-SCREEN;46L650,EVA SPONGE,L165,BLK
1
S.N.A
...3
M0125
BN61-03864D
HOLDER-WALL;L650 46”,PC V1 RECYCLE,R
1
S.N.A
....4
BN61-02932A
BRACKET-STOPPER NUT;SUM24L
2
S.N.A
0.1
M0003
BN92-03195E
ASSY BOX;46AA1,SO(HOTEL),AMBER
1
S.N.A
..2
AA02-00013A
TAPE ETC-RIBBON;-,-,-,101CM,250MT,-,-,-
0.27
S.N.A
..2
M0521
BN69-02381A
BOX-SET,IN;L650-46-S,CB,C-01,DY-01,AB,W1
1.01
S.N.A
..2
BN69-02636H
BOX-SET,OUT;46L650,CB,C-03,DW-80,YEL,-,-
1.02
S.N.A
0.1
M0113
BN92-03200A
ASSY P/MATERIAL;46,AMBER,(650),UO,,,,
1
S.N.A
..2
T0524
6902-000867
BAG PE;HDPE/HDPE/NITRON,T0.015/T0.015/T1
1
S.N.A
..2
AA63-10007E
BAND PP;-,T1.0,W15,-,CLR,-,-
5.2
S.N.A
..2
T0214
AA61-20285C
HOLDER-BOX;CORAL,PP,BLACK,HB
2
S.N.A
..2
T0214
BN74-00008A
TAPE-OPP MASKING;OPP-2,T0.05,W100,L800M,
1.4
S.N.A
..2
T0376
6902-000379
BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-,-,
0.023
S.N.A
0.1
M0019
BN92-03382A
ASSY LABEL;LA32A651A1HXZN
1
S.N.A
..2
L/RATING
AA02-00013A
TAPE ETC-RIBBON;-,-,-,101CM,250MT,-,-,-
0.05
S.N.A
..2
L/MODEL
AA02-00015A
TAPE ETC-RIBBON;-,-,-,64CM,250MT,-,-,-
0.035
S.N.A
0.1
M0045
BN92-03633E
ASSY ACCESSORY;LA46A650A1HXXM
1
S.N.A
..2
M0254
BN96-08272E
ASSY ACCESSORY-CABLE&MANUAL;LA46A650A1HX
1
S.A
...3
T0268
3903-000193
CBF-POWER CORD;DT,GB,GP3/YES,U(IEC C13-R
1
S.A
...3
T0524
6902-000110
BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,-,9
1
S.N.A
...3
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.02
S.N.A
...3
AA68-03242M
MANUAL FLYER-04,SAFETY GUIDE;comm,Samsun
1
S.N.A
...3
M0521
BN39-00864A
CBF IF-MODULAR/MODULAR;Bordeaux Plus HOT
1
S.A
...3
T0074
BN59-00686A
REMOCON;TM-96B,49,EUROPE_READY-550
1
S.A
...3
T0531
BN63-04288B
COVER-BOTTOM;AMBER,46,HIPS,HB,-,-,-,-,-,
1
S.N.A
...3
T0511
BN68-01542A
MANUAL USERS;COMM,SAMSUNG,Eng,Asia,W/P 8
1
S.N.A
...3
M9889
BN63-01798B
CLOTH-CLEAN;cloth,180,200,sea blue,ToC
1
S.A
0.1
M0590
BN81-01915A
AS-T-CON BOARD;T460HW02 V5,-,00517,-,-,-
1
S.A
5-92
5. Exploded View & Part List
5-8. LA52A650A1H Parts List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
LA52A650A1HXXZ
LA52A650A1H,N42B/52AA1-GAM,52,LCD-TV,THA
0.1
M0001
BN90-01519K
ASSY COVER FRONT;52,L650,SO(HOTEL),ROSE
1
S.N.A
..2
T0175
BN96-06809D
ASSY SPEAKER P;8ohm,Amber,LCD 52”,10W,4p
1
S.A
..2
T0003
BN96-06845K
ASSY COVER P-FRONT;52,L650,SO(HOTEL),,PC
1
S.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.N.A
...3
T0069
AA63-60122T
SPACER-FELT;52L650,FELT,1150,T0.5,25
1
S.N.A
...3
CCM1
BN63-02183F
COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20
0.75
S.N.A
...3
M0112
BN63-04143E
COVER-FRONT;52,L650,SO,PC(CLR)+PC(ROSE B
1
S.N.A
...3
BN96-06853A
ASSY HOLDER P-BOSS BOTTOM;52,L650A,,ABS,
1
S.N.A
....4
BN61-03836A
HOLDER-BOSS BOTTOM;52,L650,ABS,HB,-,-,-,
1
S.N.A
....4
BN61-04731D
BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE
0.06
S.N.A
....4
BN61-04731E
BOSS-TAPE;AMBER,ACRYL,T1.1,W24.0mm,WHITE
1.14
S.N.A
...3
BN96-06854A
ASSY HOLDER P-BOSS TOP;52,L650A,,ABS,HB,
1
S.N.A
....4
BN61-03838A
HOLDER-BOSS TOP;52,L650,ABS,HB,-,-,-,WH1
1
S.N.A
....4
BN61-04731A
BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE,
1.24
S.N.A
....4
BN61-04731B
BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE
0.06
S.N.A
...3
T0069
BN60-00027R
SPACER-FELT;L650 52,FELT,1150,0.35,15
1
S.N.A
...3
T0069
BN60-00027S
SPACER-FELT;L650 52,FELT,650,0.35,25
2
S.N.A
...3
CCM1
BN63-04755A
COVER-SHEET;AMBER,PE,T0.05,W150mm,200M,6
4.6
S.N.A
...3
BN96-07654A
ASSY HOLDER P-BOSS SIDE;52,L650,,PC V1 R
2
S.N.A
....4
BN61-04081D
HOLDER-BOSS SIDE;AMBER 52”,PC V1 RECYCLE
1
S.N.A
....4
BN61-04731B
BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE
0.275
S.N.A
...3
M0175
BN96-08132B
ASSY BOARD P-TOUCH FUNCTION&IR;LN52A651A
1
S.A
...3
BN61-04692A
BOSS-PRIMER;#94,clear,35cps
0.009
S.N.A
...3
BN61-04661A
BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H
4
S.N.A
0.1
M0002
BN90-01524F
ASSY COVER REAR;52,L650,SO(HOTEL),AMBER
1
S.N.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
16
S.N.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
1
S.N.A
..2
M0081
6003-000282
SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW
1
S.N.A
..2
C/R+H/WALL
6011-001610
BOLT-ETC;M8,L18,ZPC(BLK),SWRCH18A,WSP,PH
4
S.N.A
..2
M0013
BN96-06893F
ASSY COVER P-REAR;52,L650,SO(HOTEL),ABS+
1
S.A
...3
T0069
AA60-00091J
SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,-
2
S.N.A
...3
CCM1
BN63-02183H
COVER-SHEET;Rhcm,PE Vinyl,T0.05,1300mm,2
1.1
S.N.A
...3
M0006
BN63-04329D
COVER-REAR;52,L650,SO(HOTEL),ABS+PMMA,HB
1
S.N.A
...3
T0071
BN64-00851A
INLAY-TERMINAL;AMBER 46”,PS SHEET,T0.3,-
1
S.N.A
...3
T0064
BN65-00002A
CLAMPER CORE;BORDEAUX,LDPE,-,-,BLK,-
1
S.N.A
0.1
M0216
BN90-01529A
ASSY STAND;52,L650A,,,RD02,AMBER
1
S.N.A
..2
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
4
S.N.A
..2
M0027
BN96-06875A
ASSY STAND P-BASE;52,L650A,,ABS+PMMA,HB,
1
S.A
...3
BN61-02533A
HOLDER-SWIVEL RING;46M7 EO,ACETAL,NATUAL
1
S.N.A
...3
BN61-02534A
HOLDER-SWIVEL RING;46M7 EO,ACETAL,NATUAL
1
S.N.A
...3
BN61-02536A
BRACKET-HINGE SWIVEL;46M7 EO,HG,T3.0
1
S.N.A
...3
BN61-03006A
BRACKET-STAND BOTTOM;TULIP46,SECC,T3.0
1
S.N.A
...3
T0920
BN61-03837A
GUIDE-STAND;L650 52,PC+G/F 20%,BLK
1
S.N.A
...3
CCM1
BN63-02183F
COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20
0.45
S.N.A
...3
T0004
BN63-03137B
COVER-STAND BASE;52AA1,ABS+PMMA,HB,RD02,
1
S.N.A
5-93
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
...3
T0081
6002-001294
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
4
S.N.A
...3
M0081
6003-001239
SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S
8
S.N.A
...3
M0126
BN73-00052C
RUBBER-FOOT;LCD TV,CR RUBBER,T2.0 DIA19,
4
S.N.A
0.1
BN91-02032A
ASSY LCD-AMLCD;LE52A556P1FX/XC,LTF520HB0
1
S.N.A
..2
M0215
BN07-00522A
LCD-PANEL;LTF520HB01
1
S.A
0.1
M0017
BN91-02194D
ASSY CHASSIS;LA52A650A1HXZN,AMBER HOTEL
1
S.N.A
..2
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.03
S.N.A
..2
M0014
BN94-02078D
ASSY PCB MAIN;52 AMBER HOTEL
1
S.A
...3
T0245
0202-001608
SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0.
0.25
S.N.A
...3
CN3003_NSI
3701-001388
CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE
1
S.A
...3
CN3012_PCV
3701-001480
CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN
1
S.A
...3
CN330
3711-000058
HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
1
S.N.A
...3
CN330
3711-004379
HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA
1
S.A
...3
CN330
3711-004531
HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG
1
S.A
...3
JA330
3722-000143
JACK-PHONE;1P(VER),AG,BLK,ANGLE
1
S.A
...3
JA3012_NCH
3722-000498
JACK-SCART;21P,-,SN,BLK,NO
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
JA330
3722-001061
JACK-PHONE;1P,3.6PI,AG,BLK,N
1
S.A
...3
CN3006_NSI
3722-002275
JACK-DIN;4P,-,SN,BLK,-
1
S.A
...3
JA333
3722-002360
JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT
1
S.A
...3
JA333
3722-002362
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
1
S.A
...3
JA333
3722-002362
JACK-PIN;2P,Sn,WHT/RED,STRAIGHT
1
S.A
...3
JA333
3722-002543
JACK-PIN;3P,Sn,RED/WHT/YEL,ANGLE
1
S.A
...3
CN3011_NSI
3722-002546
JACK-USB;4P/1C,AU,BLK,ANGLE,A type
1
S.N.A
...3
CN3010
3722-002547
JACK-MODULAR;8P/4C,N,STRAIGHT,N,AU,1PORT
1
S.A
...3
CN1012_L
3722-002722
JACK-DC POWER;3P,SN,BLACK
1
S.A
...3
CIS3
BN40-00083A
TUNER;TCPS3001PD32S(H),TCPS3001PD32S(H),
1
S.A
...3
T0530
BN61-01521A
SUPPORT-PCB;ROME,SPTE,T0.5,L11.0
1
S.N.A
...3
T0174
BN97-02473D
ASSY SMD;52 AMBER HOTEL
1
S.N.A
....4
SUB05
0202-001477
SOLDER-CREAM;LST309-M,-,D20~45um,96.5Sn/
3.473
S.N.A
....4
D1006
0401-000133
DIODE-SWITCHING;RLS4148,75V,150mA,LL-34,
1
S.A
....4
D1001
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1002
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1003
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1010
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3001_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3002_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3008
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3009
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3013
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3014
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3015
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3016
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3019_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3020_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
5-94
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
D3021_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3022_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3024_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3025_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3026_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3027_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3041
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3042
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3043
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3050
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3053
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3055_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3056
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3057_NSID
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3060
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3061
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3064
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3065
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3067
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3068
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3069
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3074
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3075
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3076
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D3200
0401-001056
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
S.A
....4
D1015_L
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D1116_L
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2004
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2005
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2007
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2008
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2010
0401-001099
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
1
S.N.A
....4
D2006
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3035
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3045_NSID
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3052_NSID
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3058
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3059_NSID
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3070
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3071
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3072
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3073
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3078
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3080
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3253
0403-000002
DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD
1
S.A
....4
D3039
0403-000258
DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2
1
S.A
....4
D3046
0403-000771
DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD
1
S.A
....4
D3106
0403-000771
DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD
1
S.A
....4
D3023
0403-001052
DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2
1
S.A
....4
D1011
0403-001425
DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23
1
S.A
....4
D0254
0404-001020
DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T
1
S.A
5-95
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
D0254
0404-001020
DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T
1
S.A
....4
D0254
0404-001307
DIODE-SCHOTTKY;SSC54,20V,5000mA,DO-214AB
1
S.A
....4
D0254
0404-001307
DIODE-SCHOTTKY;SSC54,20V,5000mA,DO-214AB
1
S.A
....4
D3003
0406-001181
DIODE-TVS;NUP4201MR6,6/-/-V,500W,TSOP-6
1
S.A
....4
D2003
0407-000123
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT-
1
S.N.A
....4
D2009
0407-000123
DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT-
1
S.N.A
....4
Q1011
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q1013_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q1014_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q1017_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q2002
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3001
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3002
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3003
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3006
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3007
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3010
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3013
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3017
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q3018
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q5004
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q5030
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q6001_L
0501-000445
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT
1
S.A
....4
Q2001
0501-000669
TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2
1
S.A
....4
Q3012
0501-000669
TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2
1
S.A
....4
Q1001_L
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1007_NARM
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1010_L50
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q1012_HY
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q3011
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q3014
0501-002080
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
1
S.A
....4
Q3015
0501-002184
TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
1
S.N.A
....4
Q3016
0501-002184
TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
1
S.N.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-000110
FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.
1
S.A
....4
Q409
0505-001170
FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0
1
S.A
....4
Q409
0505-002169
FET-SILICON;Si4435BDY-T1-E3,P,-30V,-9.1A
1
S.N.A
....4
Q409
0505-002169
FET-SILICON;Si4435BDY-T1-E3,P,-30V,-9.1A
1
S.N.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
IC104
0801-002633
IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S
1
S.A
....4
IC3002
1001-000164
IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
1
S.A
....4
IC5008
1001-001109
IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C
1
S.A
....4
IC107
1002-001482
IC-D/A CONVERTER;WM8521H9GED/R,16bit,SOI
1
S.A
5-96
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
IC2002
1002-001509
IC-A/D&D/A CONVERTER;MT8291,24bit,LQFP,4
1
S.A
....4
IC3021
1006-001165
IC-LINE TRANSCEIVER;MAX3243CDBR,SSOP,28P
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-000129
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
1
S.A
....4
IC112
1103-001385
IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P,
1
S.A
....4
IC113
1105-001828
IC-DRAM;HYB18TC256160BF,DDR2,256Mbit,16M
1
S.A
....4
IC113
1105-001828
IC-DRAM;HYB18TC256160BF,DDR2,256Mbit,16M
1
S.A
....4
DU410
1201-000166
IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
1
S.A
....4
T0124
1201-002677
IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA
1
S.A
....4
T0124
1201-002677
IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA
1
S.A
....4
T0087
1203-001815
IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA
1
S.A
....4
T0087
1203-002842
IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC012
1203-002995
IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P,
1
S.A
....4
IC3007
1203-003394
IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4
1
S.A
....4
IC5001
1203-004363
IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P,
1
S.A
....4
IC2003
1203-004364
IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1
S.A
....4
IC5009_PD
1203-004364
IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1
S.A
....4
IC1005
1203-005188
IC-DC/DC CONVERTER;AOZ1021AIL,SOP,8P,4.9
1
S.A
....4
IC1019
1203-005188
IC-DC/DC CONVERTER;AOZ1021AIL,SOP,8P,4.9
1
S.A
....4
IC1021_L
1203-005219
IC-DC/DC CONVERTER;AOZ1014AIL,SOP,8P,4.9
1
S.A
....4
IC118
1204-002779
IC-VIDEO PROCESS;S4LF122X01,PBGA,208P,17
1
S.A
....4
IC118
1204-002869
IC-VIDEO PROCESS;MT8226FJ,BGA,569P,31x31
1
S.A
....4
D3107
1405-001185
VARISTOR;24Vdc,1.6x0.8x0.36mm,TP
1
S.A
....4
D3110_NSID
1405-001185
VARISTOR;24Vdc,1.6x0.8x0.36mm,TP
1
S.A
....4
D5018
1405-001185
VARISTOR;24Vdc,1.6x0.8x0.36mm,TP
1
S.A
....4
R5004
2007-000043
R-CHIP;1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R5005
2007-000043
R-CHIP;1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R1008
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1016
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1105_L
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R2034
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R2035
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R5008
2007-000052
R-CHIP;10Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1007
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1014
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1102_L
2007-000066
R-CHIP;20Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3559
2007-000067
R-CHIP;15Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1030
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1081_HY
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1107_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1112_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2080
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3006
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3067
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3068
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3120_NCHI
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3332
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
5-97
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R3333
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3356
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3357
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3358
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3560
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3561
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5012_PD
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5014
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5015
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5025
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5112
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5113
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5114
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5115
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5116
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5117
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5118
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5119
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5120
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5121
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5122
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5123
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5124
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5125
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5126
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5127
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5128
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5129
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5130
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5131
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5132
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5133
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5134
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5135
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5136
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5137
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5138
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5139
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5140
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5141
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5142
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5143
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5149
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5163
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5164
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5231
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6027_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6056_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6058_DIM
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6065_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6072_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
5-98
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R6084_FB3
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6088_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6091
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6092
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6093_16B
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6094_16B
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6095
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6096
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6097_16B
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6098_16B
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6099
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6100_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6101_L
2007-000070
R-CHIP;0ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3247
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3251
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5150
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5151
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5152
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5153
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6043_L
2007-000071
R-CHIP;22ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3003
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3004
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3061
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3062
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3064
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3102_NSID
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3103_NSID
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3153
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3154
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3155
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3156
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3157
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3158
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3199
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3200
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3204_NSID
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3205_NSID
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3213
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3214
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3215
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3217
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3255
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3257
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3258
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3260
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3278
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3279
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5036
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5037
2007-000072
R-CHIP;47ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1039
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R1040
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
5-99
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R2008
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2009
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2010
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2011
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2014
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2015
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2016
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2040
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2041
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2044
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2045
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2046
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2050
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2075
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2100
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2101
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2152
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2153
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2156
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2157
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2158
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2169
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3001
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3028
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3030
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3050
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3051
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3059
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3111
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3112
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3123
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3124
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3125
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3127
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3151
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3188
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3210_NSID
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3211_NSID
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3219_NSID
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3250
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3308
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3309
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3310
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3314
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3551
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3552
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3555
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R3556
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5017
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5026
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5027
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
5-100
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R5031
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5046
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5049
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5050
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5051
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5052
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5060
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5061
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5066
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5067
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5068
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5154
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5155
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5156
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5169
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5170
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5171
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5172
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5173
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5174
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5201
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5202
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5203
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5204
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5221
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5222
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5223
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5224
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5225
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5230
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5234
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R5235
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6016_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6017_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6019_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6020_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6021_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6022_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6023_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6028_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6032_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6033_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6034_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6035_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6036_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6037_FBE
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R6041_L
2007-000074
R-CHIP;100ohm,5%,1/10W,TP,1608
1
S.A
....4
R2059
2007-000075
R-CHIP;220ohm,5%,1/10W,TP,1608
1
S.A
....4
R1032
2007-000076
R-CHIP;330ohm,5%,1/10W,TP,1608
1
S.A
....4
R2030
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R2033
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
5-101
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R2036
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R2037
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R3178
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R3192
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R3193
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R6044_L
2007-000077
R-CHIP;470ohm,5%,1/10W,TP,1608
1
S.A
....4
R2038
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2039
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3021
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3025
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3029
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3031
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3032
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3033
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3056
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3069
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3074
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3075
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3081
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3105
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3106
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3107
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3108
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3162
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3163
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3177
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3179
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3198
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3208_NSID
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3209_NSID
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3212
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3228
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3272
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3273
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5003
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5038
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5178
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5179
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5180
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6050_L
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6054_L
2007-000078
R-CHIP;1Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2042
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2065
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2067
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2155
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5021
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6049_L
2007-000082
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3558
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6051_L
2007-000083
R-CHIP;3Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1003_L
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1004
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
5-102
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R1020_L50
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1057_NARM
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1080_HY
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1082_HY
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2031
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2032
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2060
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2066
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2070
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2071
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2072
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2073
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2102_NFRC
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2165
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2166
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2167
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2168
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3076
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3096
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3101
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3150
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3159
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3166
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3187
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3284
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3285
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3287
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3288
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3511
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3512
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3601
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3602
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5001
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5002
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5009
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5010
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5020
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5022
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5058
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5071_L
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5109_PD
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5158
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5159
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5160
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5177
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5182
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5183
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5184
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5185
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5226
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5227
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
5-103
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R5228
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5232
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5233
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6003_FBE
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6005_FBE
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6010_FBE
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6011_FHD
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6015_FBE
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6042_L
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6053_L
2007-000084
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3055_NCHI
2007-000086
R-CHIP;5.6Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1013_L50
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1017
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1046
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1047
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1079
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1101_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1111_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1113_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1115_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1121_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1123_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2029
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2043
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2069
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2074
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2151
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R2154
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3091
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3094
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3095
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3097
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3098
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3099
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3100
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3141
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3142
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3202
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3203
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3206_NSID
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3207
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3274
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3276
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3302_NSID
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3603
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3604
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5006
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5007
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5059
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5161
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5175
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
5-104
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R5176
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5186
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5205
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5208
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5209
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6030_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R6040_L
2007-000090
R-CHIP;10Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1044
2007-000094
R-CHIP;22Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3197
2007-000096
R-CHIP;30Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1010_12V
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1011_L50
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3019
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3020
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3026
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3027
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3104
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3109
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3122
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3134
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3189_NSID
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3191_NSID
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3252
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3254
2007-000097
R-CHIP;47Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1041
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1110_L
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1114_L
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1119_L
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1120_L
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1122_L
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3002
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3307
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R5157
2007-000102
R-CHIP;100Kohm,5%,1/10W,TP,1608
1
S.A
....4
R3015
2007-000106
R-CHIP;220Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3016
2007-000106
R-CHIP;220Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1117_L
2007-000107
R-CHIP;470Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5181
2007-000107
R-CHIP;470Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5011
2007-000109
R-CHIP;1Mohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2002
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2003
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2004
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2005
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2006
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2007
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2047
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2048
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2159
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2160
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5032
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5033
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5035
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5043
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
5-105
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R5044
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5047
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5048
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5053
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5064
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5111
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5165
2007-000113
R-CHIP;33ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3005
2007-000116
R-CHIP;120ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5045
2007-000119
R-CHIP;560ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3190
2007-000120
R-CHIP;680ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1001_L
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1051_NARM
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1053_NARM
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1055_NARM
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5110_PD
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5206
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6052_L
2007-000124
R-CHIP;2.2Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2017
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2018
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2021
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2022
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2023
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2024
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2025
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R2026
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3196
2007-000134
R-CHIP;33Kohm,5%,1/10W,TP,1608
1
S.N.A
....4
R6013_FBE
2007-000239
R-CHIP;1.5Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3060
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3063
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3065
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3256
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3259
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3261
2007-000287
R-CHIP;100ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3083
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3084
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3085
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3086
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3087
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3088
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3089
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3090
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3400
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3401
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3402
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3403
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3404
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3405
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3406
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3407
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3424
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3425
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
5-106
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R3426
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3427
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3428
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3429
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3430
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3431
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3450
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3451
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3452
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3458
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R3459
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5094
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5095
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5096
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5097
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5098
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5099
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5100
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5101
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R5200
2007-000309
R-CHIP;10ohm,5%,1/10W,TP,1608
1
S.A
....4
R1116_L
2007-000414
R-CHIP;15ohm,1%,1/10W,TP,1608
1
S.A
....4
R1118_L
2007-000414
R-CHIP;15ohm,1%,1/10W,TP,1608
1
S.A
....4
R2049
2007-000416
R-CHIP;15ohm,5%,1/10W,TP,1608
1
S.A
....4
R3317
2007-000426
R-CHIP;160ohm,5%,1/10W,TP,1608
1
S.A
....4
R3022
2007-000458
R-CHIP;18Kohm,5%,1/10W,TP,1608
1
S.A
....4
R1019
2007-000591
R-CHIP;22ohm,1%,1/10W,TP,1608
1
S.A
....4
R1023
2007-000606
R-CHIP;240ohm,1%,1/10W,TP,1608
1
S.A
....4
R1071
2007-000606
R-CHIP;240ohm,1%,1/10W,TP,1608
1
S.A
....4
R1072
2007-000651
R-CHIP;27Kohm,1%,1/10W,TP,1608
1
S.A
....4
R3176
2007-000659
R-CHIP;27ohm,5%,1/10W,TP,1608
1
S.A
....4
R3229
2007-000691
R-CHIP;3.3Mohm,5%,1/10W,TP,1608
1
S.A
....4
R1078
2007-000726
R-CHIP;300ohm,1%,1/10W,TP,1608
1
S.A
....4
R3562
2007-000763
R-CHIP;330ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R1073
2007-000869
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
1
S.N.A
....4
R5069
2007-000962
R-CHIP;5.1Kohm,1%,1/10W,TP,1608
1
S.A
....4
R1015
2007-000979
R-CHIP;5.6Kohm,1%,1/10W,TP,1608
1
S.A
....4
R3557
2007-000979
R-CHIP;5.6Kohm,1%,1/10W,TP,1608
1
S.A
....4
R2061
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2062
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2063
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2064
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2161
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2162
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2163
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R2164
2007-000987
R-CHIP;5.6ohm,5%,1/10W,TP,1608
1
S.A
....4
R1022
2007-000999
R-CHIP;510ohm,1%,1/10W,TP,1608
1
S.A
....4
R1070
2007-000999
R-CHIP;510ohm,1%,1/10W,TP,1608
1
S.A
....4
R3248
2007-001002
R-CHIP;510ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3249
2007-001002
R-CHIP;510ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1103_L
2007-001007
R-CHIP;51Kohm,1%,1/10W,TP,1608
1
S.A
....4
R3007
2007-001010
R-CHIP;51Kohm,5%,1/10W,TP,1608
1
S.A
5-107
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
R1104_L
2007-001139
R-CHIP;7.5Kohm,1%,1/10W,TP,1608
1
S.A
....4
R3008
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3013
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3018
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3052
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3053
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3054
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3066
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3116
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3117
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3118
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3194_NSID
2007-001164
R-CHIP;75ohm,1%,1/10W,TP,1608
1
S.N.A
....4
R3201_NSID
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3218_NSID
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3243
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3244
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3245
2007-001167
R-CHIP;75ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1005
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1006
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1074
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1075
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1083
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R1084
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3564
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R3565
2007-002425
R-CHIP;1ohm,5%,1/10W,TP,1608
1
S.N.A
....4
R5102
2007-007226
R-CHIP;49.9ohm,1%,1/10W,TP,1608
1
S.A
....4
R1018
2007-007297
R-CHIP;110ohm,1%,1/10W,TP,1608
1
S.A
....4
R3563
2007-007297
R-CHIP;110ohm,1%,1/10W,TP,1608
1
S.A
....4
R1109_L
2007-007520
R-CHIP;20ohm,1%,1/10W,TP,1608
1
S.A
....4
R5148
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5070
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5071
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5072
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5073
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5074
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5075
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5144
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5145
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5146
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA5147
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6001_FBE
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6074
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6075
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6078
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
RA6079
2011-001001
R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2
1
S.A
....4
R5162
2011-001011
R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3
1
S.A
....4
C2092
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2093
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2094
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2095
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2135
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
5-108
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C2141
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2142
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C2143
2203-000125
C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,-
1
S.A
....4
C1003
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C1010
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C1015
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C1020
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C1070
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C2023
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C2064
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C2125
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3012
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3034_NSID
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3069
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3070
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3077
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3095
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C3119
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5002
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5003
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5006
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5007
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5008
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5010
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5011
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5013
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5014
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5016
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5017
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5018
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5019
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5020
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5021
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5022
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5028
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5037
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5052
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5053
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5067
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5070
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5072
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5075
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5128
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5130
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5131
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C5134
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6007_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6010_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6016_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6018_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6024_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
5-109
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C6026_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6030_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6031_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6033_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C6034_FBE
2203-000189
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
1
S.N.A
....4
C2051
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C2107
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3007
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3010
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3017
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3018
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3019
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3020
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3025
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3041
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3043
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3050
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3054
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3055
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C3057
2203-000236
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
1
S.N.A
....4
C1047
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C1057
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C1059
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C1060
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C1062
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C1064
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C2057
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3001
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3027
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3028
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3029
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3030
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3031
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3071
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3072
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3073
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3074
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3075
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3076
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3111
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3112
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3113
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3115
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3116
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3117
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5012
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5033
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5036
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5038
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5039
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5040
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
5-110
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C5041
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5042
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5043
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5047
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5057
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5059
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5060
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5061
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5063
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5064
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5066
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5068
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5069
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5071
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5073
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5074
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5076
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5077
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5078
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5126_PD
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6001_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6005_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6006_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6008_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6009_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6011_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6012_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6013_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6014_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6015_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6017_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6020_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6021_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6022_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6025_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6029_FBE
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6043_L
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6044_L
2203-000257
C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
1
S.A
....4
C5091
2203-000332
C-CER,CHIP;0.012nF,5%,50V,C0G,1608
1
S.A
....4
C5092
2203-000332
C-CER,CHIP;0.012nF,5%,50V,C0G,1608
1
S.A
....4
C3022
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C3023
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C3024
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C3046
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C3047
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C3048
2203-000384
C-CER,CHIP;0.015nF,5%,50V,C0G,1608
1
S.N.A
....4
C1017
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1031
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1071
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1073
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1103_L
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
5-111
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C1104_L
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1108_L
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2054
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2075
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2076
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2077
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2078
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2079
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2108
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2128
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2129
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2144
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C2145
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C3078_NSID
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C3079_NSID
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5046
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5049
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5056
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5058
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5079
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5080
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C5094
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C6019_FBE
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C6023_FBE
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C6027_FBE
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C6028_FBE
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C6032_FBE
2203-000440
C-CER,CHIP;1nF,10%,50V,X7R,1608
1
S.A
....4
C1050
2203-000491
C-CER,CHIP;2.2nF,10%,50V,X7R,1608
1
S.A
....4
C5089
2203-000552
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
1
S.N.A
....4
C5090
2203-000552
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
1
S.N.A
....4
C3080_NSID
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C3088_NSID
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C3089_NSID
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C6037_FBE
2203-000783
C-CER,CHIP;0.33nF,5%,50V,C0G,1608
1
S.A
....4
C3085
2203-000815
C-CER,CHIP;0.033nF,5%,50V,C0G,1608
1
S.A
....4
C1053
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C2019
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C2020
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C2029
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C2030
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3114
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C6035_FBE
2203-000888
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
1
S.A
....4
C3104
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C3105
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C3106
2203-000903
C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608
1
S.A
....4
C2080
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C2081
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C2130
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C2136
2203-000925
C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012
1
S.A
....4
C5081
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.N.A
....4
C5082
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.N.A
5-112
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C5083
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.N.A
....4
C5084
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.N.A
....4
C5085
2203-000975
C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-
1
S.N.A
....4
C1055
2203-000979
C-CER,CHIP;47nF,10%,50V,X7R,TP,2012
1
S.N.A
....4
C1054
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.N.A
....4
C1058
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.N.A
....4
C3002
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.N.A
....4
C3014
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.N.A
....4
C3087_NSID
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.N.A
....4
C5129
2203-000998
C-CER,CHIP;0.047nF,5%,50V,C0G,1608
1
S.N.A
....4
C3108
2203-001083
C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1608
1
S.A
....4
C3109
2203-001083
C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1608
1
S.A
....4
C1052
2203-001607
C-CER,CHIP;0.22nF,5%,50V,NP0,1608
1
S.A
....4
C2061
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2065
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2068
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2072
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2117
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2119
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2122
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C2123
2203-002398
C-CER,CHIP;22nF,10%,50V,X7R,1608
1
S.N.A
....4
C1006
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1035
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1036
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1038
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1039
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1040
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1042
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1044
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1045
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1051
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1067_NARM
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2001
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2028
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2032
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2035
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2039
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2040
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2044
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2045
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2047
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2050
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2055
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2058
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2066
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2067
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2102
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2104
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2106
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2110
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2111
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
5-113
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C2112
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2115
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C2116
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3009
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3033
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3036
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3037
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3038
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3039
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3045
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3121
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C3122
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5001
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5093
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5098
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5100
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5101
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5102
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5103
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5104
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5105
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5106
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5107
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5108
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5109
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5110
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5112
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5113
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5114
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5115
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5116
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5117
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5118
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5119
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5120
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5122
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5123
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5124
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C5125
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C6039_L
2203-005005
C-CER,CHIP;100nF,10%,16V,X7R,1608
1
S.A
....4
C1061
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2036
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2059
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2069
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2070
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2071
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2118
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2120
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2121
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2124
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
5-114
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C3035
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C5065
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C6041_L
2203-005065
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
1
S.N.A
....4
C2073
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2074
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2083
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2084
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2085
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2086
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2088
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2089
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2090
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2091
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2126
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2127
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2131
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2132
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2133
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2134
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2137
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2138
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2139
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2140
2203-005249
C-CER,CHIP;100nF,10%,50V,X7R,1608
1
S.N.A
....4
C2041
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2042
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2043
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2048
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2101
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2103
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2105
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2109
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C3006
2203-005437
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
1
S.N.A
....4
C2005
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2006
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2009
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2010
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2011
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2012
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2013
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C2014
2203-005533
C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608
1
S.N.A
....4
C1024
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C1027
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C1072
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C1107_L
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C1110_L
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C3130
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C5062
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C5088
2203-005834
C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216
1
S.A
....4
C1033_L50
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.N.A
....4
C3127
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.N.A
....4
C3128
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.N.A
5-115
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C3129
2203-006141
C-CER,CHIP;1000nF,10%,16V,X5R,1608
1
S.N.A
....4
C3003
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.N.A
....4
C3004
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.N.A
....4
C3005
2203-006333
C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216
1
S.N.A
....4
C1002
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1005
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1041
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1043
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1080
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1081
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C1082
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2002
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2017
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2018
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2021
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2024
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2026
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2027
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2031
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2053
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2063
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2082
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C2087
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C3058
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C3059
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C3068
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5004
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5005
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5024
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5025
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5026
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5030
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5031
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5096
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5099
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5111
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5121
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C5133
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C6002_FBE
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C6003_FBE
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C6004_FBE
2203-006361
C-CER,CHIP;10000nF,10%,10V,X5R,2012
1
S.A
....4
C6040_L
2203-007176
C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 (
1
S.N.A
....4
C2037
2402-001128
C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm
1
S.A
....4
C2038
2402-001128
C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm
1
S.A
....4
C1111_L
2402-001129
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
1
S.A
....4
C1112_L
2402-001129
C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
1
S.A
....4
C1007
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
....4
C1101_L
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
....4
C5023
2402-001160
C-AL,SMD;330UF,20%,16V,WT,TP,1008
1
S.A
....4
C1048
2402-001183
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
1
S.A
....4
C1034
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
5-116
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
C1046
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
....4
C1106_L
2402-001257
C-AL,SMD;470uF,20%,16V,-,TP,8.3*10
1
S.A
....4
C1011
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2060
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2062
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2113
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C2114
2402-001323
C-AL,SMD;100uF,20%,25V,LZ,TP,6.3x8mm
1
S.A
....4
C3083
2404-001341
C-TA,CHIP;10UF,##20%,16V,SCS,TP,3216
1
S.A
....4
T0052
2703-000125
INDUCTOR-SMD;10uH,10%,2012
1
S.A
....4
T0052
2703-000125
INDUCTOR-SMD;10uH,10%,2012
1
S.A
....4
T0052
2703-000417
INDUCTOR-SMD;220uH,5%,3225
1
S.A
....4
T0052
2703-001426
INDUCTOR-SMD;680uH,20%,7070
1
S.A
....4
T0052
2703-002801
INDUCTOR-SMD;3.9uH,20%,7070
1
S.A
....4
T0052
2703-003362
INDUCTOR-SMD;4.7uH,20%,7070
1
S.A
....4
T0052
2703-003362
INDUCTOR-SMD;4.7uH,20%,7070
1
S.A
....4
L2001
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L2002
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L3011
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
L3012
2704-000018
INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh
1
S.N.A
....4
X202
2801-003326
CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
1
S.A
....4
X202
2801-003954
CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh
1
S.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001145
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
1
S.N.A
....4
T0568
3301-001148
BEAD-SMD;60ohm,1608,TP,-,-
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001163
BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz
1
S.N.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
5-117
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001324
BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm
1
S.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
T0568
3301-001569
BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90
1
S.N.A
....4
JA3001
3701-001367
CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU
1
S.A
....4
CN330
3711-005925
HEADER-BOARD TO CABLE;BOX,51P,1R,0.5mm,S
1
S.N.A
....4
T0077
BN41-01006B
PCB MAIN;PAL HOTEL 650,FR-4,4,A,1.6,192*
1
S.N.A
....4
MAIN
BN97-02149A
ASSY MICOM-MAIN;T-AMBHMEAM-1009,2008-08-
1
S.N.A
.....5
IC115
1107-001415
IC-FLASH MEMORY;29W320D,4Mx8/2Mx16Bit,TS
1
S.N.A
....4
CCMM1
BN97-02150A
ASSY MICOM-SUB;T-AMBHPEUS-1003,2008-08-1
1
S.N.A
.....5
IC520
0903-001552
IC-MICROCONTROLLER;WT61P8-RG480WT,LQFP,4
1
S.A
....4
D3006
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3007
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3011
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3012
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3017
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3018
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3028
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3029
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3030
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3040
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3044
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3048_NSID
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3049_NSID
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3062_NSID
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3063_NSID
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3066_NSID
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3077
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3079
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3088
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3091
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3094
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3251
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
....4
D3252
1405-001233
VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP
1
S.A
...3
CN330
3711-006766
HEADER-BOARD TO CABLE;BOX,24P,2R,2mm,STR
1
S.A
...3
CN330
3711-006765
HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA
1
S.N.A
5-118
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
0.1
M0112
BN91-02196G
ASSY SHIELD;LA52A650A1HXZN,AMBER HOTEL
1
S.N.A
..2
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
4
S.A
..2
M0081
6003-000115
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
6
S.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
3
S.N.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
2
S.N.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
1
S.N.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
1
S.N.A
..2
M0081
6003-000337
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR
10
S.N.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
6
S.N.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.N.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.N.A
..2
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
4
S.N.A
..2
M0081
6003-001439
SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW
1
S.N.A
..2
M2893
BH39-00362D
LEAD CONNECTOR;BEETHOVEN,UL1007#26,5P,50
1
S.A
..2
M2893
BN39-00802Q
LEAD CONNECTOR;PS58P96FDX,UL1617#22,24P/
1
S.A
..2
M2893
BN39-00851A
LEAD CONNECTOR;LE40M73BD,UL3443 #28,7P,3
1
S.A
..2
M2893
BN39-01019A
LEAD CONNECTOR;LN52A550P,UL1007#26,2pin,
1
S.A
..2
M2893
BN39-01021A
LEAD CONNECTOR;LN46A550P,UL1007#26,2pin,
1
S.A
..2
M0174
BN44-00225A
IP BOARD;IP-331135A,PEARL,15mA,116mA,150
1
S.A
..2
M0114
BN61-02500A
HOLDER-WIRE;NYLON6.6,NATURAL
3
S.N.A
..2
M0254
BN61-02875X
HOLDER-SIDE AV;40,L650,SO(HOTEL),ABS+PMM
1
S.N.A
..2
M0146
BN61-03056A
BRACKET-PANEL TOP;TULIP52,SECC,T1.2
4
S.N.A
..2
BN61-03828A
BRACKET-GUIDE MAIN;AMBER 52,SECC,T1.2,R
1
S.N.A
..2
M0125
BN96-05490A
ASSY INLET P;LE52M87BDX,XEC,300,300,150m
1
S.A
..2
T0447
BN96-06887C
ASSY BRACKET P-PANEL;52,L650A,UO,AMBER,G
1
S.N.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
2
S.N.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.N.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.N.A
...3
M0081
6003-001188
SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S
1
S.N.A
...3
BN61-03011A
BRACKET-GUIDE POWER;TULIP46,SECC,T1.2,RI
1
S.N.A
...3
BN61-03012A
BRACKET-GUIDE POWER;TULIP46,SECC,T1.2,LE
1
S.N.A
...3
BN61-03057A
BRACKET-PANEL BOTTOM;TULIP52,SECC,T1.2
1
S.N.A
...3
M0115
BN61-03109A
BRACKET-STAND LINK;TULIP-SIDE 46,SECC,T1
1
S.N.A
...3
BN61-03827A
BRACKET-GUIDE MAIN;AMBER 52,SECC,T1.2,L
1
S.N.A
...3
M0131
BN63-02870A
GASKET;LNS4096D,Conductive Fabric,26mm,1
1
S.N.A
...3
M0131
BN63-03519A
GASKET;Tulip,Conductive Fabric,14mm,10mm
1
S.N.A
...3
M0131
BN63-03921A
GASKET;LE46F86BDX,Conductive Fabric,12mm
1
S.N.A
..2
M0214
BN96-07161T
ASSY CABLE P-FLAT LVDS;LE52A552P3FXXC,FF
1
S.A
..2
M0560
BN96-07413A
ASSY HOLDER P-WALL LEFT;46,L650,,PC V1 R
1
S.A
...3
T0067
BN60-00079B
SPACER-SCREEN;46L650,EVA SPONGE,L125,BLK
1
S.N.A
...3
M0125
BN61-03788D
HOLDER-WALL;L650 46”,PC V1 RECYCLE,L
1
S.N.A
....4
BN61-02932A
BRACKET-STOPPER NUT;SUM24L
2
S.N.A
..2
M0561
BN96-07414A
ASSY HOLDER P-WALL RIGHT;46,L650,,PC V1
1
S.A
...3
T0067
BN60-00079A
SPACER-SCREEN;46L650,EVA SPONGE,L165,BLK
1
S.N.A
...3
M0125
BN61-03864D
HOLDER-WALL;L650 46”,PC V1 RECYCLE,R
1
S.N.A
....4
BN61-02932A
BRACKET-STOPPER NUT;SUM24L
2
S.N.A
0.1
M0019
BN92-03382A
ASSY LABEL;LA32A651A1HXZN
1
S.N.A
..2
L/RATING
AA02-00013A
TAPE ETC-RIBBON;-,-,-,101CM,250MT,-,-,-
0.05
S.N.A
..2
L/MODEL
AA02-00015A
TAPE ETC-RIBBON;-,-,-,64CM,250MT,-,-,-
0.035
S.N.A
5-119
5. Exploded View & Part List
Level
Location No.
Code No.
Description & Specifi cation
Q’ty
SA/SNA
Remark
0.1
M0045
BN92-03516A
ASSY ACCESSORY;LA52A650A1HXZN,AMBER HOTE
1
S.N.A
..2
M0254
BN96-07904A
ASSY ACCESSORY-CABLE&MANUAL;LA52A650A1HX
1
S.A
...3
T0524
6902-000110
BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,-,9
1
S.N.A
...3
AA02-00012A
TAPE ETC-RIBBON;-,-,-,54CM,250MT,-,-,-
0.02
S.N.A
...3
AA68-03242M
MANUAL FLYER-03,,SAFETY GUIDE;comm,Samsu
1
S.N.A
...3
M0521
BN39-00864A
CBF IF-MODULAR/MODULAR;Bordeaux Plus HOT
1
S.A
...3
T0074
BN59-00686A
REMOCON;TM-96B,49,EUROPE_READY-550
1
S.A
...3
T0531
BN63-04330B
COVER-BOTTOM;AMBER,52,HIPS,-,-,-,HB,-,BK
1
S.N.A
...3
T0511
BN68-01542A
MANUAL USERS;COMM,SAMSUNG,Eng,Asia,W/P 8
1
S.N.A
...3
BN63-01798B
CLOTH-CLEAN;cloth,180,200,sea blue,ToC
1
S.N.A
...3
T0268
3903-000343
CBF-POWER CORD;DT,TH,TP3,IEC320 C13(RA),
1
S.A
...3
M0254
AA59-00416A
ANT SHIELD BOX;UGC-AS-001A,PAL-BG,DK,I,M
1
S.N.A
...3
T0059
BN68-01420B
MANUAL-CARD;ALL LCD TV,THAI-ENG,PAPER 80
1
S.N.A
0.1
M0113
BN92-03199C
ASSY P/MATERIAL;52,AMBER(650),Tha
1
S.N.A
..2
T0524
6902-000875
BAG PE;HDPE/HDPE/NITRON,T0.015/T0.015/T0
1
S.N.A
..2
AA63-10007E
BAND PP;-,T1.0,W15,-,CLR,-,-
5.79
S.N.A
..2
T0214
BN74-00008A
TAPE-OPP MASKING;OPP-2,T0.05,W100,L800M,
1.53
S.N.A
..2
T0214
AA61-20285C
HOLDER-BOX;CORAL,PP,BLACK,HB
2
S.N.A
0.1
M0003
BN92-04201A
ASSY BOX;LA52A650A1H,Thai
1
S.N.A
..2
AA02-00013A
TAPE ETC-RIBBON;-,-,-,101CM,250MT,-,-,-
0.27
S.N.A
..2
M0521
BN69-02419A
BOX-SET,IN;L650-52-S,CB,C-01,DY-01,AB,W1
1
S.N.A
..2
BN69-02594J
BOX-SET,OUT;52L650,CB,C-03,DW-80,YEL,-,-
1
S.N.A
0.1
M0590
BN81-01701A
AS-T-CON BOARD;LTF520HB01,00522A
1
S.A
5-120
5. Exploded View & Part List
Memo
2-1
2. Product specifications
2. Product specifications
2-1. Feature & Specifications
Model
LA32A650A*H
Feature
HD_READY(FHD), RF, 2-HDMI, 1-Ext, 1-Component, 1-A/V, 1-S-video, USB2.0(WISELINK JPEG/MP3), D-SUB
Brightness : 500cd/m2
Contrast Ratio : 8000:1
Response time : 6ms
Dynamic contrast, Super-PVA
PIP(in HDMI 1,2, Component 1, PC Mode and Sub picture is available only in TV, Ext, AV mode)
�
�
�
�
�
�
Specifications
Item
Description
LCD Panel
TFT-LCD panel, RGB vertical stripe, SPVA mode, normaly black,
32-Inch viewable, 0.3635 (H) x 0.36375 (W) mm pixel pitch
Scanning Frequency
Horizontal : 67.5 kHz (Automatic)
Vertical : 48 Hz ~ 63 Hz (Automatic)
Display Colors
16.7 million colors
Maximum resolution
Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal
Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal
H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate
310MHz
Active Display
Horizontal/Vertical
698.4(H) x 392.85(V) mm
AC power voltage & Frequency
AC100 ~ 240V, 50 / 60Hz
Power Consumption
<245 W
Dimensions
865.0 x 220.0 x 561.0 mm_with stand
865.0 x 79.0 x 449.8 mm_without stand
Set (W x D x H)
Weight (Set)
13.7 Kg
TV System
Tuning
Voltage / Frequency Synthesize (Refer to detailed Frequency Table)
System
PAL - B/G, D/K, I / NTSC 3.58 / SECAM - D/K
Sound
STEREO
Audio System
- MAX Internal speaker Out : Right => 10W, Left => 10W
- BASS Control Range : -8 dB ~ + 8dB
- TREBLE Control Range : -8 dB ~ +8 dB
- Headphone Out : 10 mW MAX
- Output Frequency : RF : 80 Hz ~ 15 kHz
- A/V : 80 Hz ~ 15 kHz
Environmental Considerations
Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%, non-condensing
Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%, non-condensing
Note: Anynet+, WISELINK
2-2
2. Product specifications
Model
LA40A650A*H
Feature
HD_READY(FHD), RF, 2-HDMI, 1-Ext, 1-Component, 1-A/V, 1-S-video, USB2.0(WISELINK JPEG/MP3), D-SUB
Brightness : 500cd/m2
Contrast Ratio : 8000:1
Response time : 6ms
Dynamic contrast, Super-PVA
PIP(in HDMI 1,2, Component 1, PC Mode and Sub picture is available only in TV, Ext, AV mode)
�
�
�
�
�
�
Specifications
Item
Description
LCD Panel
TFT-LCD panel, RGB vertical stripe, SPVA mode, normaly black,
40-Inch viewable, 0.46125(H) x 0.46125(W) x 3 mm pixel pitch
Scanning Frequency
Horizontal : 67.5 kHz (Automatic)
Vertical : 59.94 Hz (Automatic)
Display Colors
1.07 Billion
Maximum resolution
Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal
Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal
H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate
310MHz
Active Display
Horizontal/Vertical
885.6(H) x 498.15(V) mm
AC power voltage & Frequency
AC100 ~ 240V, 50 / 60Hz
Power Consumption
<245 W
Dimensions
43.08 x 11.41 x 26.59 inches (1094.3 x 289.9 x 675.4mm) with stand
43.08 x 4.04 x 23.9 inches (1094.3 x 102.8 x 607.3 mm) without stand
Set (W x D x H)
Weight (Set)
Set : 20.2 kg(After installation of Stand)
Package : 25.1 kg (Stand : 3.2 Kg)
TV System
Tuning
Voltage / Frequency Synthesize (Refer to detailed Frequency Table)
System
PAL - B/G, D/K, I / NTSC 3.58 / SECAM - D/K
Sound
STEREO
Audio System
- MAX Internal speaker Out : Right => 10W, Left => 10W
- BASS Control Range : -8 dB ~ + 8dB
- TREBLE Control Range : -8 dB ~ +8 dB
- Headphone Out : 10 mW MAX
- Output Frequency : RF : 80 Hz ~ 15 kHz
- A/V : 80 Hz ~ 15 kHz
Environmental Considerations
Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%, non-condensing
Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%, non-condensing
Note: Anynet+, WISELINK
2-3
2. Product specifications
Model
LA46A650A*H
Feature
HD_READY(FHD), RF, 2-HDMI, 1-Ext, 1-Component, 1-A/V, 1-S-video, USB2.0(WISELINK JPEG/MP3), D-SUB
Brightness : 500cd/m2
Contrast Ratio : 8000:1
Response time : 6ms
Dynamic contrast, Super-PVA
PIP(in HDMI 1,2, Component 1, PC Mode and Sub picture is available only in TV, Ext, AV mode)
�
�
�
�
�
�
Specifications
Item
Description
LCD Panel
TFT-LCD panel, RGB vertical stripe, SPVA mode, normaly black,
46-Inch viewable, 0.53025 (H) x 0.52025(W) pixel pitch
Scanning Frequency
Horizontal : 67.5 kHz (Automatic)
Vertical : 59.94 Hz (Automatic)
Display Colors
1.07 Billion
Maximum resolution
Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal
Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal
H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate
310MHz
Active Display
Horizontal/Vertical
1018.08 (H) x 572.67 (V) mm
AC power voltage & Frequency
AC100 ~ 240V, 50 / 60Hz
Power Consumption
<245 W
Dimensions
43.08 x 11.41 x 26.59 inches (1094.3 x 289.9 x 675.4mm) with stand
43.08 x 4.04 x 23.9 inches (1094.3 x 102.8 x 607.3 mm) without stand
Set (W x D x H)
Weight (Set)
Set : 26.6 kg(After installation of Stand)
Package : 33.7 kg (Stand : 4.2 Kg)
TV System
Tuning
Voltage / Frequency Synthesize (Refer to detailed Frequency Table)
System
PAL - B/G, D/K, I / NTSC 3.58 / SECAM - D/K
Sound
STEREO
Audio System
- MAX Internal speaker Out : Right => 10W, Left => 10W
- BASS Control Range : -8 dB ~ + 8dB
- TREBLE Control Range : -8 dB ~ +8 dB
- Headphone Out : 10 mW MAX
- Output Frequency : RF : 80 Hz ~ 15 kHz
- A/V : 80 Hz ~ 15 kHz
Environmental Considerations
Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%, non-condensing
Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%, non-condensing
Note: Anynet+, WISELINK
2-4
2. Product specifications
Model
LA52A650A*H
Feature
HD_READY(FHD), RF, 2-HDMI, 1-Ext, 1-Component, 1-A/V, 1-S-video, USB2.0(WISELINK JPEG/MP3), D-SUB
Brightness : 500cd/m2
Contrast Ratio : 8000:1
Response time : 6ms
Dynamic contrast, Super-PVA
PIP(in HDMI 1,2, Component 1, PC Mode and Sub picture is available only in TV, Ext, AV mode)
�
�
�
�
�
�
Specifications
Item
Description
LCD Panel
TFT-LCD panel, RGB vertical stripe, SPVA mode, normaly black,
52-Inch viewable, 0.6(H) x 0.6(W) pixel pitch
Scanning Frequency
Horizontal : 67.5 kHz (Automatic)
Vertical : 59.94 Hz (Automatic)
Display Colors
1.07 Billion
Maximum resolution
Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal
Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal
H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate
310MHz
Active Display
Horizontal/Vertical
1,152(H) x 648.0(V) mm
AC power voltage & Frequency
AC100 ~ 240V, 50 / 60Hz
Power Consumption
<245 W ( < 1W, stand by )
Dimensions
43.08 x 11.41 x 26.59 inches (1094.3 x 289.9 x 675.4mm) with stand
43.08 x 4.04 x 23.9 inches (1094.3 x 102.8 x 607.3 mm) without stand
Set (W x D x H)
Weight (Set)
Set : 34.8 kg(After installation of Stand)
Package : 44.6 kg (Stand : 5.5 Kg)
TV System
Tuning
Voltage / Frequency Synthesize (Refer to detailed Frequency Table)
System
PAL - B/G, D/K, I / NTSC 3.58 / SECAM - D/K
Sound
STEREO
Audio System
- MAX Internal speaker Out : Right => 10W, Left => 10W
- BASS Control Range : -8 dB ~ + 8dB
- TREBLE Control Range : -8 dB ~ +8 dB
- Headphone Out : 10 mW MAX
- Output Frequency : RF : 80 Hz ~ 15 kHz
- A/V : 80 Hz ~ 15 kHz
Environmental Considerations
Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%, non-condensing
Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%, non-condensing
Note: Anynet+, WISELINK
2-5
2. Product specifications
CHANNEL FREQUENCY TABLE
OUTPUT FREQUENCY : ANALOG fv : 45.75MHz fs : 41.25MHz
TUNING STEP SIZE : FIRST PLL 250KHz SECOND PLL 62.5KHz
(Unit : MHz)
CH
Number
AREA
ASIA
W/EUROPE
BAND
CIS
E/EUROPE
BAND
HONG
KONG U/K
BAND
NZ/INDO
NE-SIA
BAND
SOUTH
AFRICA
BAND
C00
C01
C02
C03
C04
C05
C06
C07
C08
C09
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
C21
C22
C23
C24
C25
C26
C27
C28
C29
C30
C31
C32
C33
C34
C35
C36
C37
C38
C39
C40
C41
C42
C43
C44
C45
C46
C47
C48
C49
C50
C51
-
46.25
48.25
55.25
62.25
175.25
182.25
189.25
196.25
203.25
210.25
217.25
224.25
53.75
-
82.25
-
183.75
192.25
201.25
-
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
567.25
575.25
583.25
591.25
599.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
-
VHF
VHF
V-L
V-L
V-H
V-H
V-H
V-H
V-H
V-H
VHF
VHF
VHF
V-L
V-H
V-H
V-H
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
49.75
59.25
77.25
85.25
93.25
175.25
183.25
191.25
199.25
207.25
215.25
223.25
53.75
62.25
82.25
-
183.75
192.25
-
210.25
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
567.25
575.25
583.25
591.25
599.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
-
VHF
V-L
V-L
V-L
VHF
V-H
V-H
V-H
V-H
V-H
V-H
VHF
VHF
V-L
V-L
V-H
V-H
V-H
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
49.75
59.25
77.25
85.25
93.25
175.25
183.25
191.25
199.25
207.25
215.25
223.25
45.75
53.75
61.75
-
95.75
-
201.25
-
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
567.25
575.25
583.25
591.25
599.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
-
VHF
V-L
V-L
V-L
VHF
V-H
V-H
V-H
V-H
V-H
V-H
VHF
VHF
VHF
V-L
VHF
V-H
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
44.25
55.25
62.25
175.25
182.25
189.25
196.25
203.25
210.25
217.25
224.25
45.25
-
-
-
69.75
-
-
-
-
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
567.25
575.25
583.25
591.25
599.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
-
VHF
V-L
V-L
V-H
V-H
V-H
V-H
V-H
V-H
VHF
VHF
VHF
-
-
-
V-L
-
-
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
--
-
-
-
175.25
183.25
191.25
199.25
207.25
215.25
223.25
231.25
239.25
247.25
-
-
-
-
-
-
-
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
567.25
575.25
583.25
591.25
599.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
-
-
-
-
V-H
V-H
V-H
V-H
V-H
V-H
VHF
VHF
VHF
VHF
-
-
-
-
-
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
1.
2.
2-6
2. Product specifications
CH
Number
AREA
ASIA
W/EUROPE
BAND
CIS
E/EUROPE
BAND
HONG
KONG U/K
BAND
NZ/INDO
NE-SIA
BAND
SOUTH
AFRICA
BAND
C52
C53
C54
C55
C56
C57
C58
C59
C60
C61
C62
C63
C64
C65
C66
C67
C68
C69
C70
C71
C72
C73
C74
C75
C76
C77
C78
C79
C80
C81
C82
C83
C84
C85
C86
C86
C86
C86
C86
C86
C86
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
791.25
799.25
807.25
815.25
823.25
831.25
839.25
847.25
855.25
-
-
-
-
69.75
76.25
83.25
90.25
97.25
59.25
-
49.75
-
77.25
85.25
-
-
183.25
191.25
199.25
207.25
215.25
223.25
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
-
-
-
V-L
V-L
V-L
VHF
VHF
V-L
-
VHF
-
V-L
V-L
-
-
V-H
V-H
V-H
V-H
VHF
VHF
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
791.25
799.25
807.25
815.25
823.25
831.25
839.25
847.25
855.25
-
-
-
-
-
-
-
-
217.25
224.25
93.25
-
-
-
-
-
-
-
-
-
-
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
-
-
-
-
-
-
-
VHF
VHF
VHF
-
-
-
-
-
-
-
-
-
-
-
-
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
791.25
799.25
807.25
815.25
823.25
831.25
839.25
847.25
855.25
-
62.25
82.25
-
-
192.25
201.25
210.25
217.25
224.25
-
-
-
77.25
85.25
93.25
-
-
-
199.25
207.25
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
VHF
V-L
-
-
V-H
V-H
V-H
VHF
VHF
-
V-L
V-L
VHF
-
-
-
V-H
V-H
-
-
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
791.25
799.25
807.25
815.25
823.25
831.25
839.25
847.25
855.25
53.75
-
82.25
-
183.25
192.25
201.25
-
-
-
-
49.75
59.25
77.25
85.25
93.25
-
-
191.25
199.25
207.25
215.25
223.25
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
-
V-L
-
V-H
V-H
V-H
-
-
-
-
VHF
V-L
V-L
V-L
VHF
-
-
V-H
V-H
V-H
VHF
VHF
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
791.25
799.25
807.25
815.25
823.25
831.25
839.25
847.25
855.25
53.75
62.25
82.25
-
-
192.25
201.25
210.25
217.25
224.25
-
49.75
59.25
77.25
85.25
93.25
-
-
-
-
-
215.25
223.25
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
VHF
V-L
-
-
V-H
V-H
V-H
VHF
VHF
-
VHF
V-L
V-L
V-L
VHF
-
-
-
-
-
VHF
VHF
2-7
2. Product specifications
CH
Number
AREA
AUSTRALIA
BAND
CHINA
BAND
AMERICA
BAND
C00
C01
C02
C03
C04
C05
C06
C07
C08
C09
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
C21
C22
C23
C24
C25
C26
C27
C28
C29
C30
C31
C32
C33
C34
C35
C36
C37
C38
C39
C40
C41
C42
C43
C44
C45
C46
C47
C48
C49
C50
C51
46.25
57.25
64.25
86.25
95.25
102.25
175.25
182.25
189.25
196.25
209.25
216.25
224.25
138.25
203.25
-
-
-
-
-
-
x
x
x
x
x
x
x
527.25
534.25
541.25
548.25
555.25
562.25
569.25
576.25
583.25
590.25
597.25
604.25
611.25
618.25
625.25
632.25
639.25
646.25
653.25
660.25
667.25
674.25
681.25
688.25
VHF
V-L
V-L
V-L
VHF
VHF
V-H
V-H
V-H
V-H
V-H
VHF
VHF
V-H
V-H
-
-
-
-
-
-
-
-
-
-
-
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
49.75
57.75
65.75
77.25
85.25
168.25
176.25
184.25
192.25
200.25
208.25
216.25
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
791.25
799.25
807.25
815.25
-
VHF
V-L
V-L
V-L
V-L
VHF
V-H
V-H
V-H
V-H
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
-
55.25
61.25
67.25
77.25
83.25
175.25
181.25
187.25
193.25
199.25
205.25
211.25
471.25
477.25
483.25
489.25
495.25
501.25
507.25
513.25
519.25
525.25
531.25
537.25
543.25
549.25
555.25
561.25
567.25
573.25
579.25
585.25
591.25
597.25
603.25
609.25
615.25
621.25
627.25
633.25
639.25
645.25
651.25
657.25
663.25
669.25
675.25
681.25
687.25
693.25
-
-
V-L
V-L
V-L
V-L
V-L
V-H
V-H
V-H
V-H
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
2-8
2. Product specifications
CH
Number
AREA
AUSTRALIA
BAND
CHINA
BAND
AMERICA
BAND
C52
C53
C54
C55
C56
C57
C58
C59
C60
C61
C62
C63
C64
C65
C66
C67
C68
C69
C70
C71
C72
C73
C74
C75
C76
C77
C78
C79
C80
C81
C82
C83
C84
C85
C86
C86
C86
C86
C86
C86
C86
695.25
702.25
709.25
716.25
723.25
730.25
737.25
744.25
751.25
758.25
765.25
772.25
779.25
786.25
793.25
800.25
807.25
814.25
53.75
62.25
82.25
-
183.25
192.25
201.25
-
-
-
-
49.75
59.25
77.25
85.25
93.25
-
-
191.25
199.25
207.25
215.25
223.25
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
VHF
V-L
-
-
V-H
V-H
V-H
VHF
VHF
-
VHF
V-L
V-L
V-L
VHF
-
-
-
-
-
VHF
VHF
823.25
831.25
839.25
847.25
855.25
863.25
-
-
-
-
-
-
-
567.25
575.25
583.25
591.25
599.25
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
UHF
UHF
UHF
UHF
UHF
UHF
-
-
-
-
-
-
-
UHF
UHF
UHF
UHF
UHF
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
699.25
705.25
711.25
717.25
723.25
729.25
735.25
741.25
747.25
753.25
759.25
765.25
771.25
777.25
783.25
789.25
795.25
801.25
807.25
813.25
819.25
825.25
831.25
837.25
843.25
849.25
855.25
861.25
867.25
873.25
879.25
885.25
-
-
-
-
-
-
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
-
-
-
-
-
-
-
-
2-9
2. Product specifications
CH
Number
Cable CHANNEL
ASIA
W/EUROPE
BAND
CIS
E/EUROPE
BAND
HONG
KONG U/K
BAND
NZ/INDO
NE-SIA
BAND
SOUTH
AFRICA
BAND
S01
S02
S03
S04
S05
S06
S07
S08
S09
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S36
S37
S38
S39
S40
S41
105.25
112.25
119.25
126.25
133.25
140.25
147.25
154.25
161.25
168.25
231.25
238.25
245.25
252.25
259.25
266.25
273.25
280.25
287.25
294.25
303.25
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
103.25
111.25
119.25
127.25
135.25
143.25
151.25
159.25
167.25
231.25
239.25
247.25
253.25
263.25
271.25
279.25
287.25
295.25
303.25
-
-
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
103.25
111.25
119.25
127.25
135.25
143.25
151.25
159.25
167.25
231.25
239.25
247.25
253.25
263.25
271.25
279.25
287.25
295.25
303.25
-
-
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
105.25
112.25
119.25
126.25
133.25
140.25
147.25
154.25
161.25
168.25
231.25
238.25
245.25
252.25
259.25
266.25
273.25
280.25
287.25
294.25
303.25
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
105.25
112.25
119.25
126.25
133.25
140.25
147.25
154.25
161.25
168.25
231.25
238.25
245.25
252.25
259.25
266.25
273.25
280.25
287.25
294.25
303.25
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
2-10
2. Product specifications
CH
Number
Cable CHANNEL
AUSTRALIA
BAND
CHINA
BAND
AMERICA
BAND
S01
S02
S03
S04
S05
S06
S07
S08
S09
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S36
S37
S38
S39
S40
S41
105.25
112.25
119.25
126.25
133.25
140.25
147.25
154.25
161.25
168.25
231.25
238.25
245.25
252.25
259.25
266.25
273.25
280.25
287.25
294.25
303.25
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
112.25
120.25
128.25
136.25
144.25
152.25
160.25
224.25
232.25
240.25
248.25
256.25
264.25
272.25
280.25
288.25
296.25
304.25
312.25
320.25
328.25
336.25
344.25
352.25
360.25
368.25
376.25
384.25
392.25
400.25
408.25
416.25
424.25
432.25
440.25
448.25
456.25
x
x
x
x
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
x
x
x
x
73.25
55.25
61.25
67.25
77.25
83.25
175.25
181.25
187.25
193.25
199.25
205.25
211.25
121.25
127.25
133.25
139.25
145.25
151.25
157.25
163.25
169.25
217.25
223.25
229.25
235.25
241.25
247.25
253.25
259.25
265.25
271.25
277.25
283.25
289.25
295.25
301.25
307.25
313.25
319.25
325.25
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
2-11
2. Product specifications
CH
Number
Cable CHANNEL
AMERICA
BAND
S42
S43
S44
S45
S46
S47
S48
S49
S50
S51
S52
S53
S54
S55
S56
S57
S58
S59
S60
S61
S62
S63
S64
S65
S66
S67
S68
S69
S70
S71
S72
S73
S74
S75
S76
S77
S78
S79
S80
S81
S82
S83
S84
S85
S86
S87
S88
S99
S90
S91
S92
S93
S94
S95
S96
S97
S98
S99
331.25
337.25
343.25
349.25
355.25
361.25
367.25
373.25
379.25
385.25
391.25
397.25
403.25
409.25
415.25
421.25
427.25
433.25
439.25
445.25
451.25
457.25
463.25
469.25
475.25
481.25
487.25
493.25
499.25
505.25
511.25
517.25
523.25
529.25
535.25
541.25
547.25
553.25
559.25
565.25
571.25
577.25
583.25
589.25
595.25
601.25
607.25
613.25
619.25
625.25
631.25
637.25
643.25
91.25
97.25
103.25
109.25
115.25
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
VHF
VHF
VHF
VHF
VHF
CATV CH mark (A row) : China area : attach ‘Z’
besides area : attach ‘S’
For example) China : Z10
besides area : S10
2-12
2. Product specifications
2-2. MJC : Motion Judder Cancellation
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
