三星LA26B457C6HXXZ液晶显示器维修手册和原理图

分类：电子电工日期：2023-03-24 点击：0

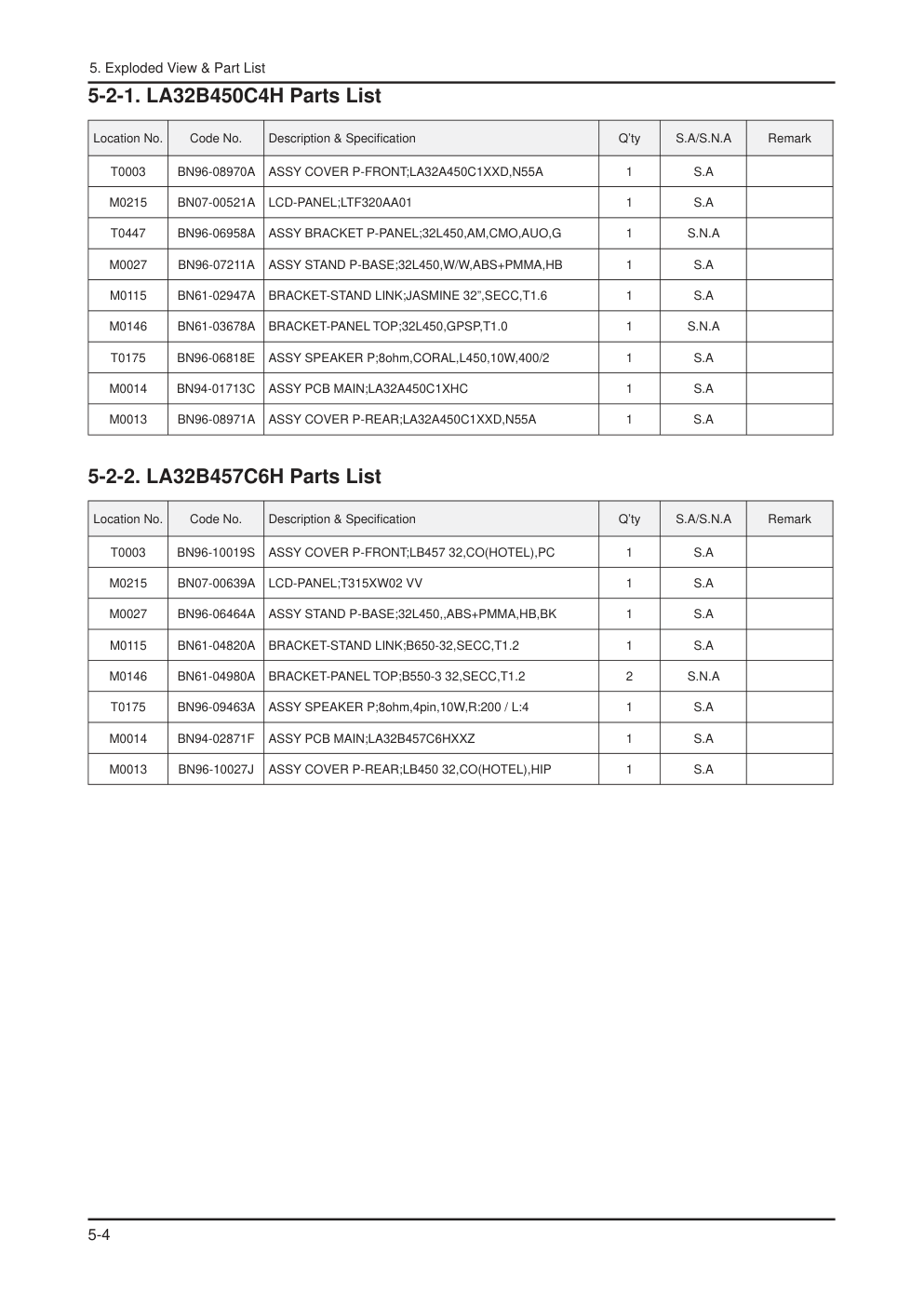

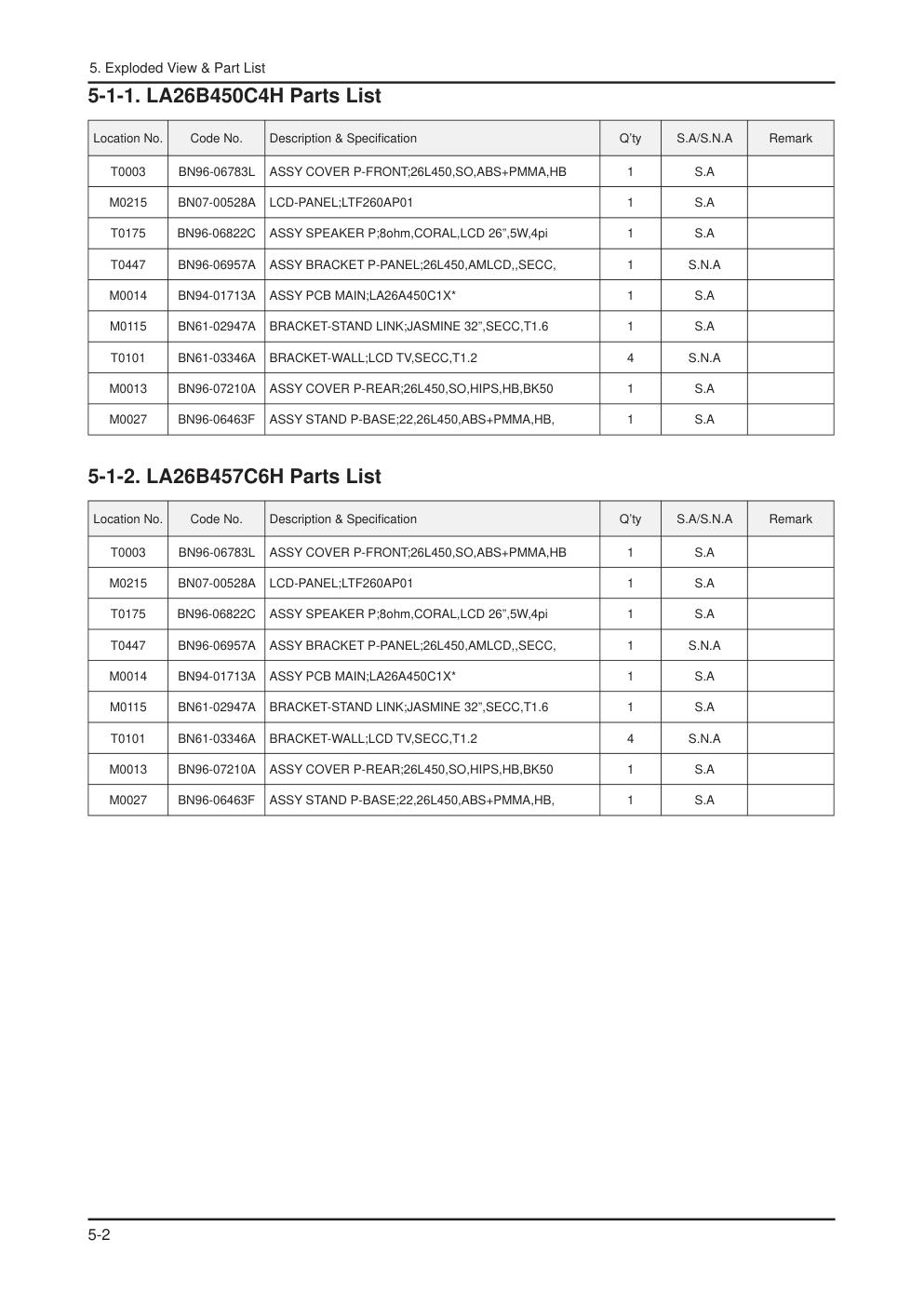

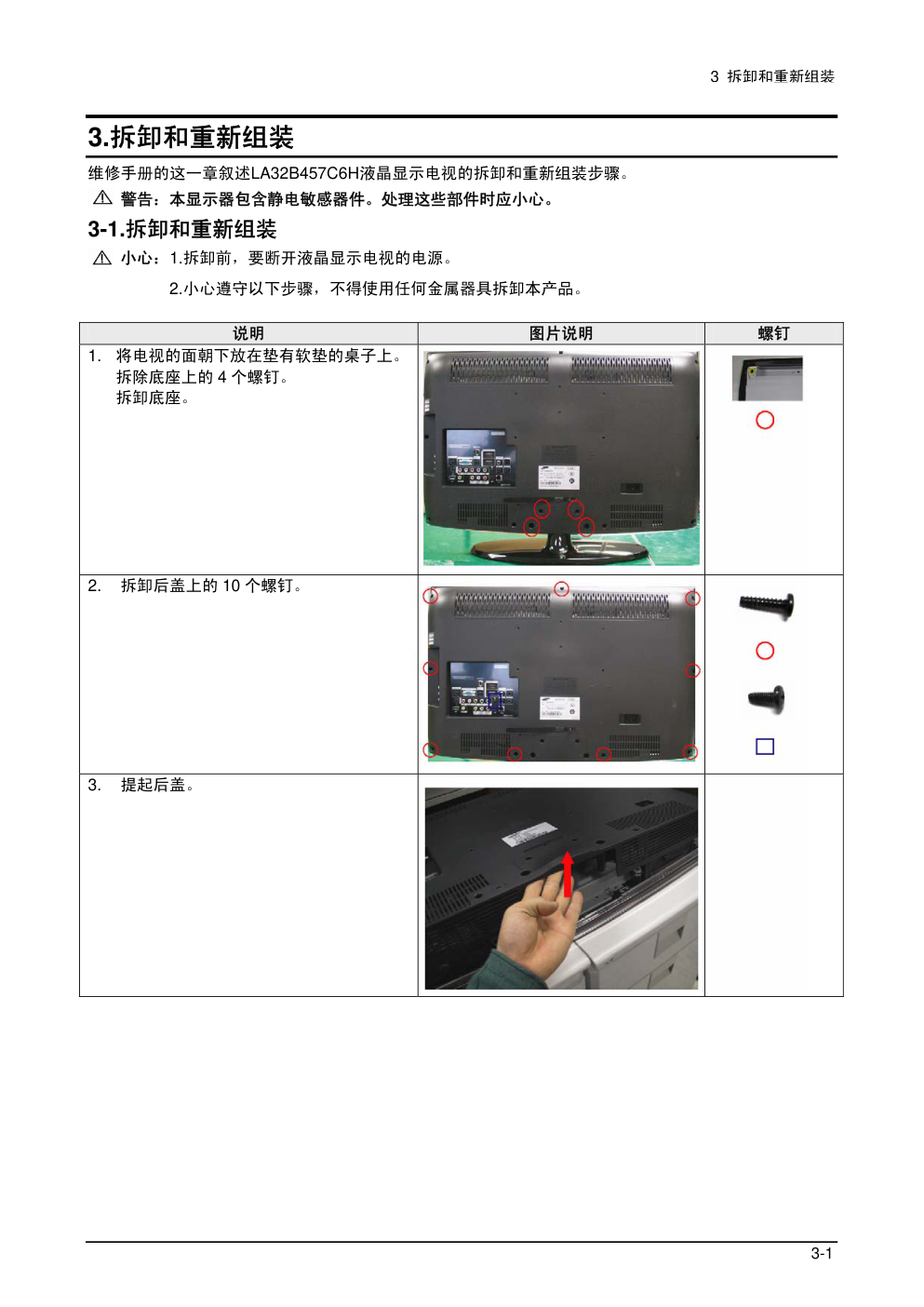

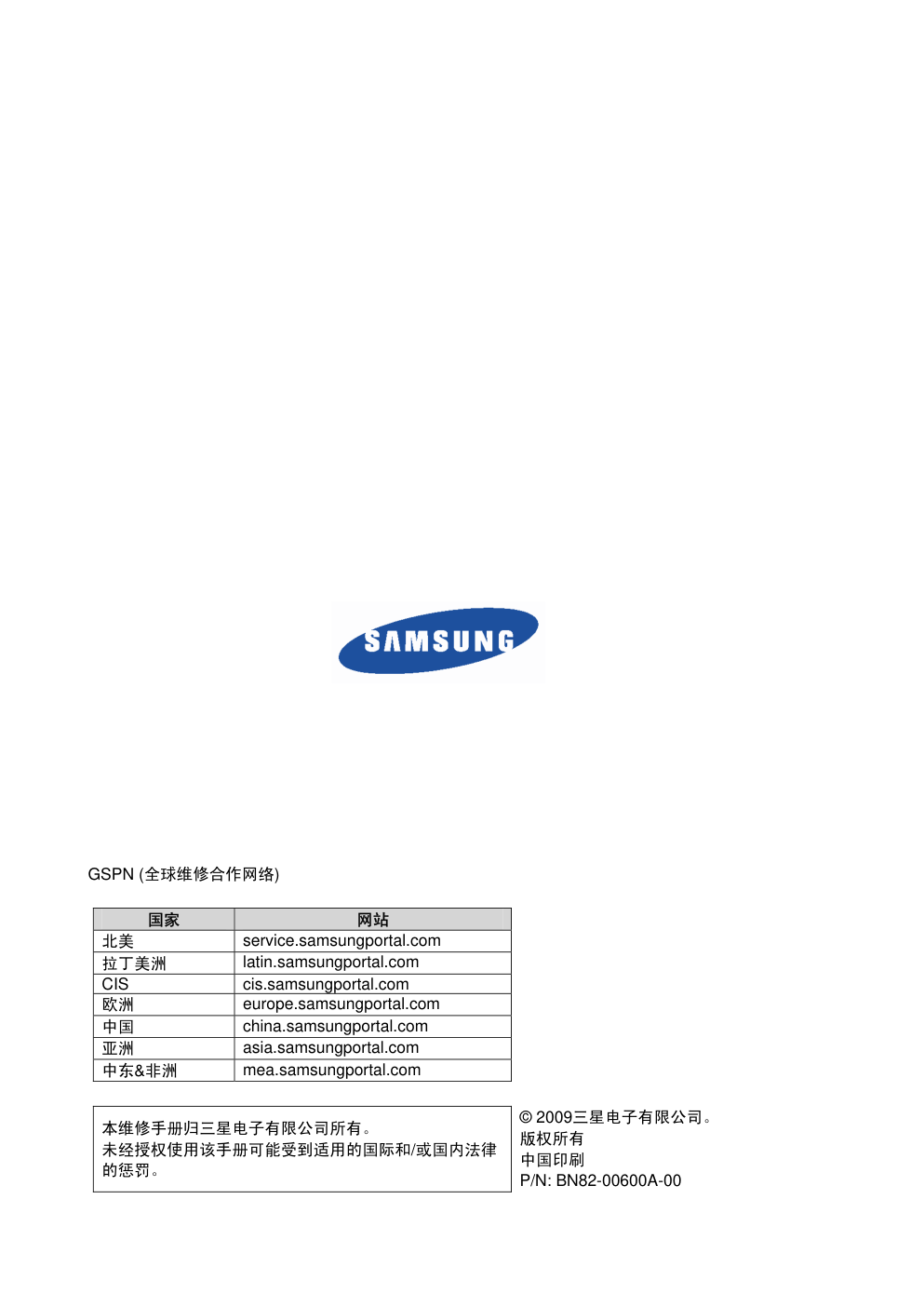

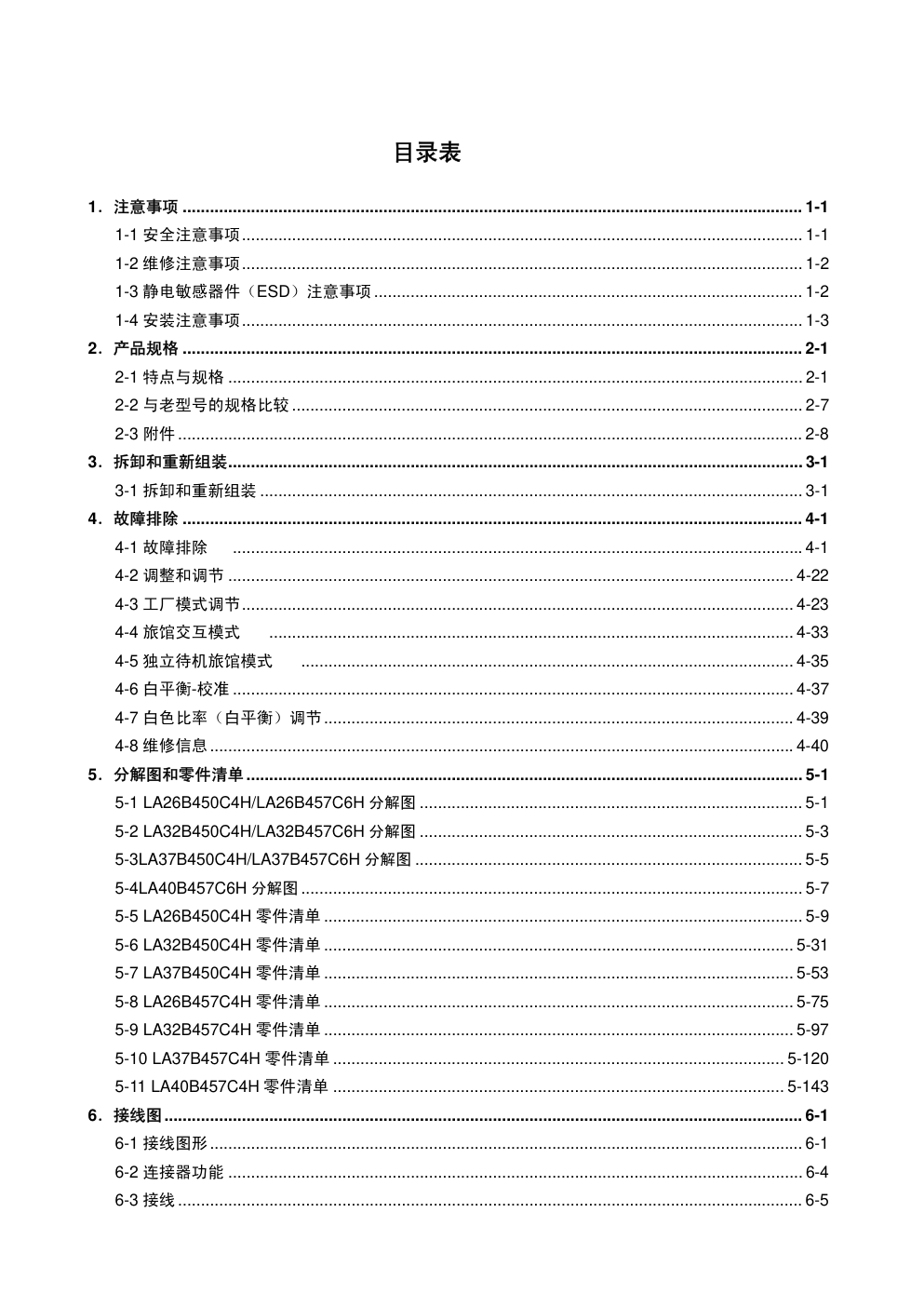

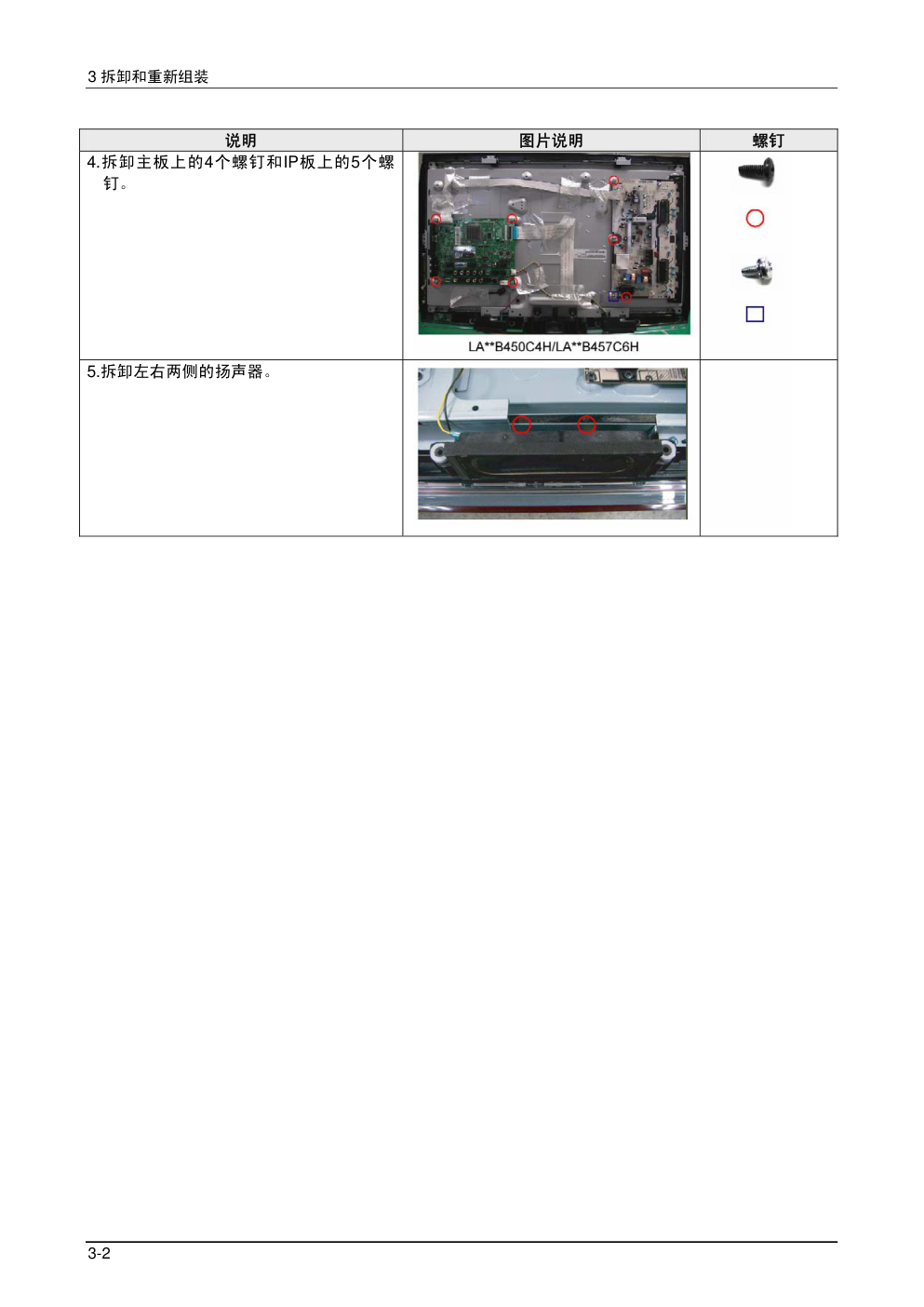

维修薄膜液晶显示器电视目录 LA26B457C6H/ LA32B457C6H/ LA37B457C6H/ LA40B457C6H/ LA26B450C4H/ LA32B450C4H/ LA37B450C4H 1．注意事项 2．产品规格 3．拆卸和重新组装 4．故障排除 5．分解图和零件清单 6．接线图参阅 GSPN 维修手册（翻阅封底）获取更多信息。液晶显示器-电视底板：N66D 型号: LA **B450C4HXXZ LA **B457C6HXXZ LA **B450C4HXZK LA **B450C6HXZK 手册目录表 1．注意事项 ........................................................................................................................................ 1-1 1-1 安全注意事项........................................................................................................................... 1-1 1-2 维修注意事项........................................................................................................................... 1-2 1-3 静电敏感器件（ESD）注意事项.............................................................................................. 1-2 1-4 安装注意事项........................................................................................................................... 1-3 2．产品规格 ........................................................................................................................................ 2-1 2-1 特点与规格 .............................................................................................................................. 2-1 2-2 与老型号的规格比较 ................................................................................................................ 2-7 2-3 附件 ......................................................................................................................................... 2-8 3．拆卸和重新组装.............................................................................................................................. 3-1 3-1 拆卸和重新组装 ....................................................................................................................... 3-1 4．故障排除 ........................................................................................................................................ 4-1 4-1 故障排除 ............................................................................................................................. 4-1 4-2 调整和调节 ............................................................................................................................ 4-22 4-3 工厂模式调节......................................................................................................................... 4-23 4-4 旅馆交互模式 ................................................................................................................... 4-33 4-5 独立待机旅馆模式 ............................................................................................................ 4-35 4-6 白平衡-校准 ........................................................................................................................... 4-37 4-7 白色比率（白平衡）调节....................................................................................................... 4-39 4-8 维修信息................................................................................................................................ 4-40 5．分解图和零件清单 .......................................................................................................................... 5-1 5-1 LA26B450C4H/LA26B457C6H 分解图 .................................................................................... 5-1 5-2 LA32B450C4H/LA32B457C6H 分解图 .................................................................................... 5-3 5-3LA37B450C4H/LA37B457C6H 分解图 ..................................................................................... 5-5 5-4LA40B457C6H 分解图.............................................................................................................. 5-7 5-5 LA26B450C4H 零件清单 ......................................................................................................... 5-9 5-6 LA32B450C4H 零件清单 ....................................................................................................... 5-31 5-7 LA37B450C4H 零件清单 ....................................................................................................... 5-53 5-8 LA26B457C4H 零件清单 ....................................................................................................... 5-75 5-9 LA32B457C4H 零件清单 ....................................................................................................... 5-97 5-10 LA37B457C4H 零件清单 ................................................................................................... 5-120 5-11 LA40B457C4H 零件清单 ................................................................................................... 5-143 6．接线图............................................................................................................................................ 6-1 6-1 接线图形.................................................................................................................................. 6-1 6-2 连接器功能 .............................................................................................................................. 6-4 6-3 接线 ......................................................................................................................................... 6-5 GSPN (全球维修合作网络) 国家网站北美 service.samsungportal.com 拉丁美洲 latin.samsungportal.com CIS cis.samsungportal.com 欧洲 europe.samsungportal.com 中国 china.samsungportal.com 亚洲 asia.samsungportal.com 中东&非洲 mea.samsungportal.com 本维修手册归三星电子有限公司所有。未经授权使用该手册可能受到适用的国际和/或国内法律的惩罚。 © 2009三星电子有限公司。版权所有中国印刷 P/N: BN82-00600A-00 3 拆卸和重新组装 3-1 3.拆卸和重新组装维修手册的这一章叙述LA32B457C6H液晶显示电视的拆卸和重新组装步骤。警告：本显示器包含静电敏感器件。处理这些部件时应小心。 3-1.拆卸和重新组装小心：1.拆卸前，要断开液晶显示电视的电源。 2.小心遵守以下步骤，不得使用任何金属器具拆卸本产品。说明图片说明螺钉 1. 将电视的面朝下放在垫有软垫的桌子上。拆除底座上的 4 个螺钉。拆卸底座。 2. 拆卸后盖上的 10 个螺钉。 3. 提起后盖。 3 拆卸和重新组装 3-2 说明图片说明螺钉 4.拆卸主板上的4个螺钉和IP板上的5个螺钉。 5.拆卸左右两侧的扬声器。 3 拆卸和重新组装 3-3 说明图片说明螺钉 6.拆卸底部座架上的 6 个螺钉。 7.提起底部的座架。（显示屏板架） 8.提起屏板。 ※ 重新组装步骤与拆卸步骤相反。 5-1 5. Exploded View & Part List 5. Exploded View & Part List 5-1. LA26B450C4H / LA26B457C6H Exploded View T0003 M0215 M0146 M0125 T0447 M0027 M0115 T0175 M0254 M0014 M0013 5-2 5. Exploded View & Part List 5-1-1. LA26B450C4H Parts List Location No. Code No. Description & Speciﬁ cation Q’ty S.A/S.N.A Remark T0003 BN96-06783L ASSY COVER P-FRONT;26L450,SO,ABS+PMMA,HB 1 S.A M0215 BN07-00528A LCD-PANEL;LTF260AP01 1 S.A T0175 BN96-06822C ASSY SPEAKER P;8ohm,CORAL,LCD 26”,5W,4pi 1 S.A T0447 BN96-06957A ASSY BRACKET P-PANEL;26L450,AMLCD,,SECC, 1 S.N.A M0014 BN94-01713A ASSY PCB MAIN;LA26A450C1X* 1 S.A M0115 BN61-02947A BRACKET-STAND LINK;JASMINE 32”,SECC,T1.6 1 S.A T0101 BN61-03346A BRACKET-WALL;LCD TV,SECC,T1.2 4 S.N.A M0013 BN96-07210A ASSY COVER P-REAR;26L450,SO,HIPS,HB,BK50 1 S.A M0027 BN96-06463F ASSY STAND P-BASE;22,26L450,ABS+PMMA,HB, 1 S.A 5-1-2. LA26B457C6H Parts List Location No. Code No. Description & Speciﬁ cation Q’ty S.A/S.N.A Remark T0003 BN96-06783L ASSY COVER P-FRONT;26L450,SO,ABS+PMMA,HB 1 S.A M0215 BN07-00528A LCD-PANEL;LTF260AP01 1 S.A T0175 BN96-06822C ASSY SPEAKER P;8ohm,CORAL,LCD 26”,5W,4pi 1 S.A T0447 BN96-06957A ASSY BRACKET P-PANEL;26L450,AMLCD,,SECC, 1 S.N.A M0014 BN94-01713A ASSY PCB MAIN;LA26A450C1X* 1 S.A M0115 BN61-02947A BRACKET-STAND LINK;JASMINE 32”,SECC,T1.6 1 S.A T0101 BN61-03346A BRACKET-WALL;LCD TV,SECC,T1.2 4 S.N.A M0013 BN96-07210A ASSY COVER P-REAR;26L450,SO,HIPS,HB,BK50 1 S.A M0027 BN96-06463F ASSY STAND P-BASE;22,26L450,ABS+PMMA,HB, 1 S.A 5-3 5. Exploded View & Part List 5-2. LA32B450C4H / LA32B457C6H Exploded View T0003 M0215 T0447 M0027 M0115 T0175 T0174 M0014 M0013 M0146 T0764 5-4 5. Exploded View & Part List 5-2-1. LA32B450C4H Parts List Location No. Code No. Description & Speciﬁ cation Q’ty S.A/S.N.A Remark T0003 BN96-08970A ASSY COVER P-FRONT;LA32A450C1XXD,N55A 1 S.A M0215 BN07-00521A LCD-PANEL;LTF320AA01 1 S.A T0447 BN96-06958A ASSY BRACKET P-PANEL;32L450,AM,CMO,AUO,G 1 S.N.A M0027 BN96-07211A ASSY STAND P-BASE;32L450,W/W,ABS+PMMA,HB 1 S.A M0115 BN61-02947A BRACKET-STAND LINK;JASMINE 32”,SECC,T1.6 1 S.A M0146 BN61-03678A BRACKET-PANEL TOP;32L450,GPSP,T1.0 1 S.N.A T0175 BN96-06818E ASSY SPEAKER P;8ohm,CORAL,L450,10W,400/2 1 S.A M0014 BN94-01713C ASSY PCB MAIN;LA32A450C1XHC 1 S.A M0013 BN96-08971A ASSY COVER P-REAR;LA32A450C1XXD,N55A 1 S.A 5-2-2. LA32B457C6H Parts List Location No. Code No. Description & Speciﬁ cation Q’ty S.A/S.N.A Remark T0003 BN96-10019S ASSY COVER P-FRONT;LB457 32,CO(HOTEL),PC 1 S.A M0215 BN07-00639A LCD-PANEL;T315XW02 VV 1 S.A M0027 BN96-06464A ASSY STAND P-BASE;32L450,,ABS+PMMA,HB,BK 1 S.A M0115 BN61-04820A BRACKET-STAND LINK;B650-32,SECC,T1.2 1 S.A M0146 BN61-04980A BRACKET-PANEL TOP;B550-3 32,SECC,T1.2 2 S.N.A T0175 BN96-09463A ASSY SPEAKER P;8ohm,4pin,10W,R:200 / L:4 1 S.A M0014 BN94-02871F ASSY PCB MAIN;LA32B457C6HXXZ 1 S.A M0013 BN96-10027J ASSY COVER P-REAR;LB450 32,CO(HOTEL),HIP 1 S.A 5-5 5. Exploded View & Part List 5-3. LA37B450C4H / LA37B457C6H Exploded View T0003 M0215 M0146 M0115 T0174 M0014 M0013 T0764 T0447 T0175 M0027 5-6 5. Exploded View & Part List 5-3-1. LA37B450C4H Parts List Location No. Code No. Description & Speciﬁ cation Q’ty S.A/S.N.A Remark T0003 BN96-06785L ASSY COVER P-FRONT;37L450,SO,ABS+PMMA,HB 1 S.A T0175 BN96-06818A ASSY SPEAKER P;8ohm,CORAL,LCD,PDP,10W,4p 1 S.A M0215 BN07-00560A LCD-PANEL;CLAA370WA03SJ 1 S.A T0447 BN96-06959A ASSY BRACKET P-PANEL;37L450,CPT,AUO,,SEC 1 S.N.A M0027 BN96-06259A ASSY STAND P-BASE;37,40L450,,ABS+PMMA,HB 1 S.A M0115 BN61-02882A BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-, 1 S.N.A M0146 BN61-03684B BRACKET-PANEL TOP;L450 37INCH,SECC,T1.0 1 S.N.A M0014 BN94-01713P ASSY PCB MAIN;LA37A450C1*,CORAL 1 S.A M0013 BN96-06789B ASSY COVER P-REAR;37L450,SO,HIPS,HB,BK50 1 S.A 5-3-2. LA37B457C6H Parts List Location No. Code No. Description & Speciﬁ cation Q’ty S.A/S.N.A Remark T0003 BN96-06785L ASSY COVER P-FRONT;37L450,SO,ABS+PMMA,HB 1 S.A T0175 BN96-06818A ASSY SPEAKER P;8ohm,CORAL,LCD,PDP,10W,4p 1 S.A M0215 BN07-00560A LCD-PANEL;CLAA370WA03SJ 1 S.A T0447 BN96-06959A ASSY BRACKET P-PANEL;37L450,CPT,AUO,,SEC 1 S.N.A M0027 BN96-06259A ASSY STAND P-BASE;37,40L450,,ABS+PMMA,HB 1 S.A M0115 BN61-02882A BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-, 1 S.N.A M0146 BN61-03684B BRACKET-PANEL TOP;L450 37INCH,SECC,T1.0 1 S.N.A M0014 BN94-01713P ASSY PCB MAIN;LA37A450C1*,CORAL 1 S.A M0013 BN96-06789B ASSY COVER P-REAR;37L450,SO,HIPS,HB,BK50 1 S.A 5-7 5. Exploded View & Part List 5-4. LA40B457C6H Exploded View T0003 M0215 M0146 M0115 T0174 M0014 M0013 T0764 T0447 T0175 M0027 5-8 5. Exploded View & Part List 5-4-1. LA40B457C6H Parts List Location No. Code No. Description & Speciﬁ cation Q’ty S.A/S.N.A Remark T0003 BN96-06785L ASSY COVER P-FRONT;37L450,SO,ABS+PMMA,HB 1 S.A T0175 BN96-06818A ASSY SPEAKER P;8ohm,CORAL,LCD,PDP,10W,4p 1 S.A M0215 BN07-00560A LCD-PANEL;CLAA370WA03SJ 1 S.A T0447 BN96-06959A ASSY BRACKET P-PANEL;37L450,CPT,AUO,,SEC 1 S.N.A M0027 BN96-06259A ASSY STAND P-BASE;37,40L450,,ABS+PMMA,HB 1 S.A M0115 BN61-02882A BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-, 1 S.N.A M0146 BN61-03684B BRACKET-PANEL TOP;L450 37INCH,SECC,T1.0 1 S.N.A M0014 BN94-01713P ASSY PCB MAIN;LA37A450C1*,CORAL 1 S.A M0013 BN96-06789B ASSY COVER P-REAR;37L450,SO,HIPS,HB,BK50 1 S.A 5-9 5. Exploded View & Part List 5-5. LA32B457C6H Parts List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark LA32B457C6HXXZ LA32B457C6H,N66D/32AC6-G4C,32,LCD-TV,CHI 0.1 M0001 BN90-02023T ASSY COVER FRONT;LB450 32 1 S.N.A ..2 T0175 BN96-09463A ASSY SPEAKER P;8ohm,4pin,10W,R:200 / L:4 1 S.A ..2 T0003 BN96-10019S ASSY COVER P-FRONT;LB457 32,CO(HOTEL),PC 1 S.A ...3 IR-PCB+C/F 6003-001188 SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A ...3 K/C+C/F 6003-001188 SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A ...3 T0069 AA60-00091K SPACER-FELT;FELT,330X10,BLK,T0.35 2 S.N.A ...3 T0069 AA60-00171E SPACER-FELT;43L2,FELT,300,T0.5,5 2 S.N.A ...3 M0279 AA63-01637A FELT;50P9,FELT,0.5,10,80 1 S.N.A ...3 T0069 AA63-60001Z SPACER-FELT;FELT,BLK,T1.0,35X8 1 S.N.A ...3 T0069 BN60-00090D SPACER-FELT;FELT,430,T0.5,20,32inch 2 S.N.A ...3 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.002 S.N.A ...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 0.895 S.N.A ...3 M0112 BN63-05772K COVER-FRONT;LB457 32,CO(HOTEL),PC,V0,TBK 1 S.N.A ...3 T0059 BN64-00379A INDICATOR LED;ROME-II,23,PC,CLEAR 1 S.N.A ...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,VIOLET 1 S.N.A ...3 T0022 BN64-00755A KNOB-CONTROL;32L450,ABS,V0,BK07 1 S.N.A ...3 M0145 BN96-07269A ASSY BOARD P-FUNCTION;LN40A450C1D,CT5000 1 S.A ...3 M0146 BN96-07640F ASSY BOARD P-POWER & IR;HOTEL TV LB4C 26 1 S.N.A ...3 CCM1 BN63-05940B COVER-SHEET;PE,T0.08,570mm,200M,CLEAR,40 0.895 S.N.A ...3 BN64-00988B DECORATION-BOTTOM;32,LB450,PC CLEAR,RED 1 S.N.A ...3 BN61-04731D BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE 0.8 S.N.A ...3 BN61-04970A HOLDER-BOSS BOTTOM;32,LB450,PS,V0,BK500 1 S.N.A ...3 T0069 BN60-00090Z SPACER-FELT;FELT,740,T0.5,26,32inch 2 S.N.A 0.1 M0002 BN90-02033J ASSY COVER REAR;LB450 32 1 S.N.A ..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 9 S.N.A ..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.N.A ..2 M0013 BN96-10027J ASSY COVER P-REAR;LB450 32,CO(HOTEL),HIP 1 S.A ...3 M0279 AA63-01638A FELT;50P9,FELT,0.5,15,40 2 S.N.A ...3 T0101 BN61-04816A BRACKET-WALL;40, B610,SECC,T1.2 4 S.N.A ...3 M0006 BN63-05395H COVER-REAR;LB450 32,CO(HOTEL),HIPS,V0,BK 1 S.N.A ...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,LDPE,BLK 1 S.N.A ...3 T0071 BN64-01033N INLAY-TERMINAL;LB450,CO(HOTEL),PS SHEET, 1 S.N.A 0.1 M0216 BN90-02038A ASSY STAND;LB450 32 1 S.N.A ..2 BN63-04356A COVER-STAND NECK;L450 32INCH,ABS+PMMA,HB 1 S.N.A ..2 M0027 BN96-06464A ASSY STAND P-BASE;32L450,,ABS+PMMA,HB,BK 1 S.A ...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.N.A ...3 BR/STAND B 6003-001239 SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR 4 S.N.A ...3 BN61-02232A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 S.N.A ...3 BN61-02233A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 S.N.A ...3 BN61-02942A BRACKET-STAND BOTTOM;32,BORDEAUX PLUS,SE 1 S.N.A ...3 BN61-03872A GUIDE-STAND BOTTOM;L450 32INCH,PC+GF(20% 1 S.N.A ....4 BN61-02932B BRACKET-STOPPER NUT;L450,M4,OD8,L24,MOLD 3 S.N.A ...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.4 S.N.A ...3 T0004 BN63-04355A COVER-STAND BASE;L450 32INCH,ABS+PMMA,HB 1 S.N.A 5-10 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ...3 M0126 BN73-00052C RUBBER-FOOT;LCD TV,CR RUBBER,T2.0 DIA19, 4 S.N.A ...3 BN61-02236B BRACKET-HINGE SWIVEL;HANARO 32,SECC,T1.6 1 S.N.A ..2 BN96-10800A ASSY COVER P-GUIDE STAND;32,LB450,PC+GF( 1 S.N.A ...3 T0524 6902-001048 BAG PE;LDPE,T0.05,W160,L300,TRP,4g 1 S.N.A ...3 T0920 BN61-04780A GUIDE-STAND;32,LB450,PC+GF(20%) V0,BLK 1 S.N.A 0.1 BN91-04059A ASSY LCD-AUO;BN07-00639A,AMVA,72% 1 S.N.A ..2 M0215 BN07-00639A LCD-PANEL;T315XW02 VV 1 S.A 0.1 M0112 BN91-04079H ASSY SHIELD;LA32B457C6HXXZ 1 S.N.A ..2 BR/LINK+PA 6003-000337 SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR 4 S.N.A ..2 BR/LINK+H/ 6003-001188 SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.N.A ..2 BR/TOP+C/F 6003-001188 SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A ..2 GROUND 6003-001439 SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC 1 S.N.A ..2 M0174 BN44-00260A IP BOARD;PSIV121C01A,H32HD_9SS,0.12mA,12 1 S.N.A ..2 M0115 BN61-04820A BRACKET-STAND LINK;B650-32,SECC,T1.2 1 S.N.A ..2 M0146 BN61-04980A BRACKET-PANEL TOP;B550-3 32,SECC,T1.2 2 S.N.A ..2 M0230 BN96-07766K ASSY CABLE P-FFC;CORAL,FFC CABLE,465mm,3 1 S.A ..2 T0081 6001-002284 SCREW-MACHINE;BH,+,M4,L8,ZPC(WHT),SWRCH1 4 S.A ..2 T0081 6001-002284 SCREW-MACHINE;BH,+,M4,L8,ZPC(WHT),SWRCH1 4 S.A ..2 M2893 BN39-01099J LEAD CONNECTOR;LB5P,LB5K,UL1007#26,30P,6 1 S.A ..2 M0563 BN96-07926J ASSY BOARD P-PMOLED CLOCK;LE37B457C4H,CT 1 S.A ...3 M0215 BN07-00541A OLED PM;PM12BJ003A 1 S.A ...3 M2893 BN39-01049D LEAD CONNECTOR;US HOTEL CORAL,UL2835#28, 1 S.A ...3 M0124 BN96-08216D ASSY BOARD P-HOTEL CLOCK PBA;LE32B457C6H 1 S.N.A ..2 BN98-02025A ASSY K/D-CONNECT;450,457,BN61-05104D 1 S.N.A ...3 M0254 BN61-05104D HOLDER-SIDE AV;B450/B460,CO,HIPS,HB,BK50 1 S.N.A ..2 T0069 AA63-60131K SPACER-FELT;54J9,62J9,FELT,T0.5,40X45 2 S.N.A ..2 T0069 BN60-00142D SPACER-FELT;FELT,L360,T0.5,W55,32” HOTEL 2 S.N.A 0.1 M0017 BN91-04094F ASSY CHASSIS;LA32B457C6HXXZ 1 S.N.A ..2 M0014 BN94-02871F ASSY PCB MAIN;LA32B457C6HXXZ 1 S.A ...3 JA3003 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A ...3 JA4005 3701-001480 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 S.A ...3 CN330 3711-004531 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG 1 S.A ...3 CN1001 3711-005884 HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG 1 S.A ...3 CN330 3711-006715 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN 1 S.N.A ...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A ...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A ...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A ...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A ...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A ...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A ...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A ...3 JA7001 3722-002516 JACK-USB;4P/1C,AU30U,BLK,STRAIGHT,A TYPE 1 S.A ...3 JA333 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 S.A ...3 JA4003 3722-002694 JACK-MODULAR;8P/6C,N,STRAIGHT,N,AU,1PORT 1 S.A ...3 JA333 3722-002703 JACK-PIN;3P,Ni,GRN/BLU/RED,STRAIGHT 1 S.A ...3 JA333 3722-002704 JACK-PIN;3P,Sn,YEL/WHT/RED,ANGLE 1 S.A ...3 JA333 3722-002749 JACK-PIN;4P,Ni,RED/WHT/YEL/YEL,STRAIGHT 1 S.A ...3 JA333 3722-002848 JACK-PIN;1P RCA,Ni,BLACK,STRAIGHT 1 S.A 5-11 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ...3 CIS3 BN40-00142B TUNER;TCPS3001PD11S(H),TCPS3001PD11S(H), 1 S.A ...3 X1005 BN61-04928A BRACKET-SUPPORT PCB;SPCC,T 0.8,SCREW-M4 1 S.N.A ...3 HDCP BN97-01987A ASSY HDCP;BN46-00018A,PS-42V6S,D73A,MSTA 1 S.N.A ....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 S.N.A ...3 T0174 BN97-03422E ASSY SMD;LA26B457C6HXXZ,BN94-02871E 1 S.N.A ....4 D2006 0401-001049 DIODE-SWITCHING;LS4148,75V,150mA,SOD-80, 1 S.A ....4 D2009 0401-001049 DIODE-SWITCHING;LS4148,75V,150mA,SOD-80, 1 S.A ....4 D2012 0401-001049 DIODE-SWITCHING;LS4148,75V,150mA,SOD-80, 1 S.A ....4 D2013 0401-001049 DIODE-SWITCHING;LS4148,75V,150mA,SOD-80, 1 S.A ....4 D2014 0401-001049 DIODE-SWITCHING;LS4148,75V,150mA,SOD-80, 1 S.A ....4 D1002 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D3007 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D3009 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D3017 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D3018 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D3019 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D3020 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D4002 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D4005 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D4009 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D4010 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D4012 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D4013 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D4014 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D5001 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D5015 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D5017 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D5022 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D5023 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D5025 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D5027 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D2002 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A ....4 D2017 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A ....4 D5018 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A ....4 D5021 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A ....4 D5024 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A ....4 D5026 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.N.A ....4 D2004 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A ....4 D5032 0403-000607 DIODE-ZENER;VLZ16C,15.69/16.51V,500mW,SO 1 S.A ....4 D2016 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A ....4 D3005 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A ....4 D3014 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A ....4 D3016 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A ....4 D4001 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A ....4 D4003 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A ....4 D4004 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A ....4 D4006 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A ....4 D4007 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A ....4 D4008 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A ....4 D6001 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A ....4 D7003 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A 5-12 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 D3001 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 D3011 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 D3012 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 D4022 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 D1001 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A ....4 D0254 0404-001020 DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T 1 S.A ....4 D0254 0404-001020 DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T 1 S.A ....4 D0254 0404-001089 DIODE-SCHOTTKY;RB551V-30,20V,500MA,SOD-3 1 S.N.A ....4 D0254 0404-001089 DIODE-SCHOTTKY;RB551V-30,20V,500MA,SOD-3 1 S.N.A ....4 D0254 0404-001089 DIODE-SCHOTTKY;RB551V-30,20V,500MA,SOD-3 1 S.N.A ....4 D0254 0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000mA,SMA,TP 1 S.A ....4 D7002 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 1 S.A ....4 Q1001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A ....4 Q1005 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A ....4 Q2003 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A ....4 Q3005 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A ....4 Q4001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A ....4 Q6001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A ....4 Q8001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A ....4 Q5002_EC 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A ....4 Q1002 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q5001_EC 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q5003_EC 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q8003 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q8004 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A ....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A ....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A ....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A ....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A ....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A ....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A ....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A ....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A ....4 Q409 0505-001165 FET-SILICON;SI3443BDV,P,-20V,+-4.4A,65mo 1 S.A ....4 IC104 0801-002378 IC-CMOS LOGIC;74VHC04,INVERTER,SOP,14P,8 1 S.N.A ....4 IC105 0909-001032 IC-REAL TIME CLOCK;PCF8563,SOP,8P,4.9x3. 1 S.A ....4 IC4003 1006-001165 IC-LINE TRANSCEIVER;MAX3243CDBR,SSOP,28P 1 S.A ....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 1 S.A ....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 1 S.A ....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 1 S.A ....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 1 S.A ....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 S.A ....4 IC7001 1105-001931 IC-DDR2 SDRAM;K4T51163Q,DDR2-800,512Mbit 1 S.N.A ....4 T0085 1201-002487 IC-AUDIO AMP;MAX9728A,QFN,12P,3x3mm,DUAL 1 S.A ....4 T0124 1201-002797 IC-POWER AMP;NTP-3200,QFN,56P,8x8mm,DUAL 1 S.A ....4 T0124 1201-002797 IC-POWER AMP;NTP-3200,QFN,56P,8x8mm,DUAL 1 S.A ....4 T0085 1201-002849 IC-AUDIO AMP;DRV603,TSSOP,14P,5x4.4mm,DU 1 S.A ....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,PLAST 1 S.A ....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A ....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A 5-13 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A ....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A ....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A ....4 IC6002 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 S.A ....4 IC2003 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A ....4 IC1008 1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. 1 S.A ....4 IC7005 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A ....4 IC7007 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A ....4 IC7008 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A ....4 IC7009 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A ....4 IC7010 1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9x1.6 1 S.A ....4 IC109 1205-003695 IC-LCD CONTROLLER;SEMS03-LF,PQFP,296P,32 1 S.A ....4 D4016 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D4017 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D4019_R 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D4021_R 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D4023 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D4025 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D5019 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D5020 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D5029 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D5031 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D5037_EC 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D5038_EC 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D5039 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D5040 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 D6002 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 VT4001 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 VT4002 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 VT4003 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 VT4004 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 VT5005 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 VT5008 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 VT5010 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 VT5013 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 VT5014 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 1 S.A ....4 R7016 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A ....4 R7017 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A ....4 R1015 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.N.A ....4 R1019 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.N.A ....4 R4045 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.N.A ....4 R2007 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2008 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2009 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2010 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2052 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2054 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2055 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2056 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3032 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3048 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A 5-14 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 R3065 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3066 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3081 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4004 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4021 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4024 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4025 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4029 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4030 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4048 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4061 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4062 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4065_R 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4066_R 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4068_R 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4070_IR1 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4085_R 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4087 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4088_R 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4089 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4090 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4091 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4092 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4093 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4094_R 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4095 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4096 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4097 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4098 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4099 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5025 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5034 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5043 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5052 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5066_EC 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5079_EC 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5214 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6004 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6005 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6034 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6036 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6037 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6038 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6039 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6041 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6042_EC 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6076 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6077 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6078 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6079 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6080 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A 5-15 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 R6081 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6082 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6083 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6084 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6085 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6095 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6097 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6099_R 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6101_R 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6103 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6104 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6106 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6108 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6109 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6111 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6113 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6115 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6116 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6120 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6121 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6135 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6136 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6137 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6145 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6147 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6148 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6149 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6150 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6151 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6155 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6156 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6157 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6158 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6159 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6160 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6161 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6162 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6163 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6165 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6166_CL 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6167_CL 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6168 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6169 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6180 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6199 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6200 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6205 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6225 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8022_PWM 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2012 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2058 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A 5-16 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 R3023 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3056 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3058 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5044 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5045 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5207 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5208 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6003 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8006 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1002 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2013 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2026 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2051 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2071 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4051 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4052 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4055 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6189 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6197 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1005 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1006 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2027 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2031 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2032 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2033 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2034 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2068 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2069 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3029 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3060 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3062 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3084 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4020 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4023 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4034_CL 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4035_CL 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4058 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6052 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6060 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6061 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6218_HD 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6220_LCD 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8005 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1009 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1011 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2020 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2025 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3037 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3039 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3041 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3049 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A 5-17 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 R3071 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3072 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3073 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3074 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3075 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3076 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3082 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3085 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4009 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4010 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4011 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4012 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4015 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4016 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4028 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4080 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4081 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5011 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5012 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5031 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5032 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5046 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5047 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5059 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5203 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5204 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5210 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6051 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6058 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6064 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6074 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6075 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6122 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6124 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6126_C 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6128 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6139 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6142 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6152_PWM 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6181 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6182 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6184 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6185 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6187 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6192 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6196 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6217 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6228 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6237 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6238 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6240 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A 5-18 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 R6241 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6242 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7015 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7039 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7040 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7050 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8009 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4017 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4022 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5033 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5038 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5048 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5049 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5063 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5064 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1023 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1027 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5101_EC 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6068 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6069 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6215 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6216 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1008 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5105 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5106 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5205 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5206 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1022 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5018 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5020 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6057 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1054 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1055 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2006 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2028 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2029 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2050 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3003 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3005 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3053 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3054 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3055 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4026 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4027 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4036_CL 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4037_CL 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4042 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4050 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4101_R 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5050 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5051 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A 5-19 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 R5053 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5065_EC 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5081 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5096_EC 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5099_C 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5211 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5212 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6032 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6033 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6048 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6049_C 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6086 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6088 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6093 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6164 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7007 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7008 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7018 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7019 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7035 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7036 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7037 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7038 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7043 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7044 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7045 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7046 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7047 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7048 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7052 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7053 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7054 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7055 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8012_PWM 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8016_PWM 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8053_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8054_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8055_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8056_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8057_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8058_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8059_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8060_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8061_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8062_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8063_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8064_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8065_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8068_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8069_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8070_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A 5-20 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 R8071_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8072_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8074 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8074_HD 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3025 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3057 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3059 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3061 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6010 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6011 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6012 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6013 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6014 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6015 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6016 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6017 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6021 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6022 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6023 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6024 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6025 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6026 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6027 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6028 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6094 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6096 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6100 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6102 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6105 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6107 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6110 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6112 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3030 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3031 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3067 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3068 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3069 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3070 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4001 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4005 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7001 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7002 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7003 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7004 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7005 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7006 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7010 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7011 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3043 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3044 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3077 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A 5-21 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 R3078 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3079 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R3080 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4013 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4014 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4040 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4041 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5041 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5042 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6006_EC 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6009 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6018 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6019 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6020 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6029 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6030 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6031 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6092 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6098 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6114 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R7009 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 S.A ....4 R4033_CL 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A ....4 R7013 2007-000640 R-CHIP;270ohm,1%,1/10W,TP,1608 1 S.A ....4 R1016 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.N.A ....4 R1021 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.N.A ....4 R5209_EC 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2062 2007-000842 R-CHIP;3Kohm,1%,1/10W,TP,1608 1 S.A ....4 R1026 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2019 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5017 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5019 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5104_EC 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6035 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6040 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8051 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5201 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A ....4 R2063 2007-000982 R-CHIP;5.6Kohm,5%,1/16W,TP,1005 1 S.A ....4 R5055 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.N.A ....4 R5056 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.N.A ....4 R5057 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.N.A ....4 R5078_EC 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.N.A ....4 R5080_EC 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.N.A ....4 R5097_EC 2007-001217 R-CHIP;82ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6134 2007-001237 R-CHIP;910ohm,1%,1/10W,TP,1608 1 S.A ....4 R2011 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2057 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6001 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6002 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6054 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6055 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5102_EC 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 S.N.A 5-22 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 R5103_EC 2007-001307 R-CHIP;180ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2014 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2053 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6053 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R6056 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R8014_PWM 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1051 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A ....4 R1052 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A ....4 R1053 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A ....4 R1056 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A ....4 R1061 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A ....4 R7014 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A ....4 R4002 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4003 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4006 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4007 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R4008 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R5027 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1003 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A ....4 R1007 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A ....4 R1057 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A ....4 R4043 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A ....4 R2061 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 1 S.A ....4 R6130 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 1 S.N.A ....4 R6131 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 1 S.N.A ....4 R2021 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2022 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2023 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2024 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2059 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R2060 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 1 S.N.A ....4 R1020 2007-007297 R-CHIP;110ohm,1%,1/10W,TP,1608 1 S.A ....4 R6059 2007-007319 R-CHIP;390ohm,1%,1/16W,TP,1005 1 S.N.A ....4 R3001 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 1 S.N.A ....4 R3051 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 1 S.N.A ....4 R3052 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 1 S.N.A ....4 R1017 2007-007549 R-CHIP;4.99Kohm,1%,1/10W,TP,1608 1 S.N.A ....4 R7012 2007-007721 R-CHIP;560ohm,1%,1/10W,TP,1608 1 S.A ....4 R5013 2007-008339 R-CHIP;30Kohm,0.5%,1/16W,TP,1005 1 S.N.A ....4 R5014 2007-008339 R-CHIP;30Kohm,0.5%,1/16W,TP,1005 1 S.N.A ....4 R5015 2007-008339 R-CHIP;30Kohm,0.5%,1/16W,TP,1005 1 S.N.A ....4 R5016 2007-008339 R-CHIP;30Kohm,0.5%,1/16W,TP,1005 1 S.N.A ....4 R1018 2007-008593 R-CHIP;750ohm,1%,1/16W,TP,1005 1 S.A ....4 R6132 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A ....4 R6133 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A ....4 R6140 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A ....4 R6141 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A ....4 R6143 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A ....4 R6144 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A ....4 R7022 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A ....4 R7023 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A 5-23 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 R7024 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A ....4 R7025 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A ....4 R7026 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A ....4 R7027 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A ....4 R7028 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A ....4 R7029 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A ....4 R7030 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A ....4 R7031 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 S.A ....4 C6052 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012 1 S.A ....4 C7062 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A ....4 C7067 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A ....4 C2012 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A ....4 C2071 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A ....4 C4003 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A ....4 C4004 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A ....4 C5008 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A ....4 C5029_EC 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A ....4 C5046 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A ....4 C5047 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A ....4 C5036 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,1608 1 S.A ....4 C5037 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,1608 1 S.A ....4 C4013_CL 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,1608 1 S.N.A ....4 C1051 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A ....4 C2010 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A ....4 C2074 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A ....4 C6006 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A ....4 C6011 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A ....4 C6057 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A ....4 C7046 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A ....4 C1024 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,1005 1 S.A ....4 C1033 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,1005 1 S.A ....4 C6050 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,1005 1 S.A ....4 C6051 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,1005 1 S.A ....4 C6061 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,1005 1 S.A ....4 C6062 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,1005 1 S.A ....4 C4006 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G,1005 1 S.N.A ....4 C4007 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G,1005 1 S.N.A ....4 C2016 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,-,1005 1 S.A ....4 C2017 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,-,1005 1 S.A ....4 C2080 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,-,1005 1 S.A ....4 C2081 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,-,1005 1 S.A ....4 C5058_EC 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A ....4 C2039 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 S.A ....4 C2040 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 S.A ....4 C2041 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 S.A ....4 C2042 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 S.A ....4 C2100 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 S.A ....4 C2101 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 S.A ....4 C2043 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A ....4 C2044 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A ....4 C2102 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A 5-24 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 C1038 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.N.A ....4 C4019 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A ....4 C4021 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A ....4 C4028 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A ....4 C5028_EC 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,1005 1 S.A ....4 C6037 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 1 S.N.A ....4 C6038 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 1 S.N.A ....4 C6002 2203-001630 C-CER,CHIP;330nF,+80-20%,16V,Y5V,1608 1 S.N.A ....4 C1028 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A ....4 C1040 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A ....4 C1041 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A ....4 C4029 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A ....4 C4030 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A ....4 C4032 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A ....4 C4005 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A ....4 C4009 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A ....4 C5012 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A ....4 C5013 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A ....4 C5019 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A ....4 C5020 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A ....4 C5026 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A ....4 C5027 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A ....4 C2053 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A ....4 C2054 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A ....4 C2055 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A ....4 C2056 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A ....4 C2107 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A ....4 C2108 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A ....4 C1018 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A ....4 C1047 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 1 S.N.A ....4 C4045 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C4046 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C4047 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C4048 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C4050 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C1049 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C1050 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C1052 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2026 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2027 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2029 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2030 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2032 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2033 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2034 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2035 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2036 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2037 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2045 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2046 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2047 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A 5-25 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 C2048 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2049 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2050 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2051 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2052 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2083 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2085 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2086 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2087 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2088 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2089 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2090 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2091 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2097 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2098 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2103 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2104 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2105 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C2109 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C4011 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 S.N.A ....4 C1016 2203-005261 C-CER,CHIP;1000nF,10%,25V,X7R,3216 1 S.N.A ....4 C1004 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C1014 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C1037 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C1043 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C6029 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C6030 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C6033 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C6034 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C6035 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C6036 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C6041 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C6053 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C6054 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C6055 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C6056 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 1 S.N.A ....4 C5063 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.N.A ....4 C5064 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.N.A ....4 C1035 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A ....4 C1036 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A ....4 C2038 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A ....4 C1042 2203-006104 C-CER,CHIP;1000nF,10%,50V,X7R,3225 1 S.A ....4 C5016 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C5018 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6005 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6007 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6008 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6009 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6010 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6012 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6017 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A 5-26 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 C6019 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6020_EC 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6021 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6022 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6023 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6024 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6025 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C6026 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A ....4 C1017 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A ....4 C4044 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A ....4 C5038 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A ....4 C5039 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A ....4 C5040 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 S.N.A ....4 C2006 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2007 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2008 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2013 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2014 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2015 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2024 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2070 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2073 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2076 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2078 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2079 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2082 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C2092 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C4020 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C4034 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C5066 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C6001 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C7031 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C7033 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C7034 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C7036 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C7039 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C7041 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C7044 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C7045 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A ....4 C5014 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 1 S.N.A ....4 C7025 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 1 S.N.A ....4 C7047 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 1 S.N.A ....4 C2019 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A ....4 C2020 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A ....4 C2021 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A ....4 C2022 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A ....4 C2028 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A ....4 C2031 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A ....4 C2084 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A ....4 C2093 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A ....4 C2094 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A 5-27 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 C2095 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A ....4 C2096 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A ....4 C2099 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 1 S.A ....4 C1013 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C1025 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C1027 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C1031 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C1034 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C1048 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C2005 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C2009 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C2069 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C2077 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C3005 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C3013 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C3014 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C4008 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C4012_CL 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C4017 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C5065 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C6003 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C6046 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C7028 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A ....4 C1005 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C1008 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C1009 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C2003 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C2004 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C2072 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C2075 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C4026 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C5021 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C5022 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C6045 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C7043 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C7055 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C7056 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C7057 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 1 S.N.A ....4 C1001 2203-006618 C-CER,CHIP;2200nF,+80-20%,16V,Y5V,TP,160 1 S.N.A ....4 C1003 2203-006618 C-CER,CHIP;2200nF,+80-20%,16V,Y5V,TP,160 1 S.N.A ....4 C1012 2203-006618 C-CER,CHIP;2200nF,+80-20%,16V,Y5V,TP,160 1 S.N.A ....4 C1010 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C3007 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C3015 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C3016 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C4010 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C4027 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C5042_EC 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C6004 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C6027 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C6028 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A 5-28 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 C6039 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C6040 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C6042 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C6043 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C6044 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C6047 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C6058 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7001 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7002 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7003 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7005 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7006 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7007 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7008 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7009 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7010 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7011 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7012 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7013 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7014 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7015 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7017 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7018 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7019 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7020 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7021 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7022 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7023 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7024 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7026 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7027 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7030 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7032 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7035 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7037 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7048 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7049 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7050 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7051 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7052 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C7054 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A ....4 C4001 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A ....4 C4002 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A ....4 C5044 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A ....4 C5045 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A ....4 C1006 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C1023 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C1030 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C1032 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C1045 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C1062 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A 5-29 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 C4035 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C4049 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C5030 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C5034 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C5035 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C5041 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C5043_EC 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C7038 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C7040 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 C7042 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A ....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A ....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 1 S.A ....4 T0052 2703-003559 INDUCTOR-SMD;4.7uH,20%,8080 1 S.A ....4 L2001 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A ....4 L2002 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A ....4 L2003 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A ....4 X202 2801-000258 CRYSTAL-SMD;0.032768MHz,20ppm,SMD,12.5pF 1 S.N.A ....4 X202 2801-003773 CRYSTAL-SMD;12MHz,30ppm,28-AAN,20pF,50oh 1 S.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP 1 S.N.A ....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP 1 S.N.A ....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 1 S.N.A ....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 1 S.N.A ....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 1 S.N.A ....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A ....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A ....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A ....4 T0568 3301-001393 BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH 1 S.N.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A 5-30 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A ....4 F4001_CL 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,Hi 1 S.N.A ....4 JA3001 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A ....4 JA3002 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A ....4 M0106 3708-001150 CONNECTOR-FPC/FFC/PIC;30P,1mm,SMD-A,SN,Y 1 S.A ....4 CN330 3711-003688 HEADER-BOARD TO CABLE;BOX,8P,1R,1.25MM,S 1 S.N.A ....4 T0077 BN41-01176A PCB MAIN;HOTEL(LOLA3),FR-4,4,1.2T,192*15 1 S.N.A ....4 M0018 BN97-03397A ASSY MICOM;T-LL5HMEAM-1002.0,2009.04.18, 1 S.N.A .....5 IC115 1107-001777 IC-FLASH MEMORY;MX25L6405DMI-12G,64Mbit, 1 S.A ....4 R3006 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 1 S.A ....4 R3007 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 1 S.A ....4 R3008 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 1 S.A ....4 R3009 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 1 S.A ....4 R3010 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 1 S.A ....4 R3011 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 1 S.A ....4 R3012 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 1 S.A ....4 R3013 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 1 S.A ....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A 2.772 S.N.A ....4 R4038_CL 2007-000242 R-CHIP;1.5Kohm,5%,1/16W,TP,1005 1 S.N.A ...3 SUB06 4302-001228 BATTERY-LI(2ND);3V,15mAH,COIN,Normal 0.1 1 S.N.A ...3 BT4001_CL 4309-001024 BATTERY-HOLDER;COIN(12.5PAI),PIN,10mm,13 1 S.A ...3 T0245 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 S.N.A ...3 T0415 BN63-05355A SHIELD-CASE;SPTE,T0.3,50X80(mm) 1 S.N.A ...3 SILICON RU BN73-00024B SILICON/RUBBER-GAP PAD;POSEIDON,SILICON, 1 S.N.A 0.1 M0003 BN92-04463R ASSY BOX;LB450 32 1 S.N.A ..2 BN69-03422P BOX-SET;32B457,CB,A-01,DW-75,YEL,W891,D6 1.01 S.N.A 0.1 M0113 BN92-04469A ASSY P/MATERIAL;LB450 32 1 S.N.A ..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,W500,L1000,TRP,370.000 0.018 S.N.A ..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,1260.0 0.005 S.N.A ..2 T0524 6902-000519 BAG PE;HDPE/NITRON,T0.015/T0.05(DOUBLE), 1 S.N.A ..2 T0003 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 3.75 S.N.A ..2 T0214 BN74-00008A TAPE-OPP MASKING;OPP-2,T0.05,W100,L800M, 1.84 S.N.A 0.1 M0045 BN92-04869N ASSY ACCESSORY;LA32B450C4HXXZ 1 S.N.A ..2 M0045 BN96-10835N ASSY ACCESSORY;LA32B450C4HXXZ 1 S.A ...3 T0268 3903-000082 CBF-POWER CORD;DT,CN,IP3/YES(A),I(IEC C1 1 S.A ...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,9.2 1 S.N.A ...3 M0521 BN39-00864A CBF IF-MODULAR/MODULAR;Bordeaux Plus HOT 1 S.A ...3 T0074 BN59-00901A REMOCON;L450H,L457H,L550H,TM950,SAMSUNG, 1 S.A ...3 T0531 BN63-05326A COVER-BOTTOM;32,LB450,PS,V0,BK500 1 S.A 5-31 5. Exploded View & Part List Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark ...3 BN68-01402A MANUAL FLYER-STAND GUIDE;COMM,SAMSUNG,En 1 S.N.A ...3 M0560 BN96-01800A ASSY ACCESSORY-SCREW ZIPPER;ROME32,SCREW 1 S.N.A ....4 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.N.A ....4 ACCESSORY 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 S.N.A ...3 M0560 BN96-01800D ASSY ACCESSORY-SCREW ZIPPER;CORAL,Withou 1 S.N.A ....4 G/S-TOP+G/ 6003-001334 SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR 3 S.N.A ....4 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 S.N.A ...3 M0254 AA59-00416A ANT SHIELD BOX;UGC-AS-001A,PAL-BG,DK,I,M 1 S.N.A ...3 AA68-03184A MANUAL FLYER-CARD-04;ALL MODEL,CHINESE,2 1 S.N.A ...3 BN68-02225E MANUAL FLYER-QSG;B450,SAMSUNG,SC,CHINA H 1 S.N.A 0.1 M0019 BN92-04893A ASSY LABEL;LA22B450C4HXZN 1 S.N.A ....4 M0107 BN61-03858A BRACKET-PCB;L450,BRASS(H62Y),T0.4,5mm,7m 1 S.N.A 1-1 1. Precautions 1. Precautions 1-1. Safety Precautions Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. 1-1-1. Warnings For continued safety, do not attempt to modify the circuit board. Disconnect the AC power and DC power jack before servicing. 1-1-2. Servicing the LCD TV When servicing the LCD TV, Disconnect the AC line cord from the AC outlet. It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this meter periodically. 1-1-3. Fire and Shock Hazard Before returning the LCD TV to the user, perform the following safety checks: Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the LCD TV. Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc. Leakage Current Hot Check (Figure 1-1): WARNING : Do not use an isolation transformer during this test. Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7). With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the power-plug prongs in the AC outlet and repeat the test. 1-1-4. Product Safety Notices Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate. 1. 2. 1. 2. 1. 2. 3. 4. DEVICE UNDER TEST (READING SHOULD) NOT BE ABOVE 0.5mA LEAKAGE CURRENT TESTER TEST ALL EXPOSED METAL SURFACES 2-WIRE CORD *ALSO TEST WITH PLUG REVERSED (USING AC ADAPTER PLUG AS REQUIRED) EARTH GROUND Figure 1-1. Leakage Current Test Circuit 1-2 1. Precautions 1-2. Servicing Precautions WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of this manual. Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions. 1-2-1 General Servicing Precautions Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test component in parallel with an electrolytic capacitor. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position. After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the area around the serviced part has not been damaged. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks). Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last. Danger of explosion if battery is incorrectely replaced. Replace only with the same or equivalent type. 1-3. Electrostatically Sensitive Devices (ESD) Precautions Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The following techniques will reduce the incidence of component damage caused by static electricity. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the LCD TV. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of an electrostatic charge. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESDs. Use only a grounded-tip soldering iron to solder or desolder ESDs. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESDs. Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution: Be sure no power is applied to the chassis or circuit and observe all other safety precautions. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting your foot from a carpeted floor can generate enough static electricity to damage an ESD. 1. 2. 3. 4. 5. 6. 7. 1. 2. 3. 4. 5. 6. 7. 8. 1-3 1. Precautions 1-4. Installation Precautions For safety reasons, more than a people are required for carrying the product. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire. Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed to moisture. Otherwise, it may cause a fire or electric shock. Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause fire or electric shock. Keep the antenna far away from any high-voltage cables and install it firmly. Contact with the highvoltage cable or the antenna falling over may cause fire or electric shock. When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. A rise in temperature within the product may cause fire. 1. 2. 3. 4. 5. 6. 7. 1-4 1. Precautions Memo 2-1 2. Product specifications 2. Product specifications 2-1. Feature & Specifications Model LA26B450C4H/LA26B457C6H Feature RF, 2_HDMI, 1-HDMI/DVI, 1-Component, 2-AV, D-Sub Brightness : 450cd/m2 Contrast Ratio : 2000:1 Response time : 8ms Dynamic contrast, PVA, TN PIP(in HDMI 1, 2, 3, Component 1, PC Mode and Sub picture is available only in TV analog mode) � � � � � � Specifications Item Description LCD Panel TFT-LCD panel, T260XW02 VS, AU26X2S,RGB vertical stripe, 1366 x 768 pixels, 26-Inch viewable, Normally Black, pixel pitch 0.4215 mm Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic) Vertical : 56 Hz ~ 75 Hz (Automatic) Display Colors 16.7 million colors Maximum resolution Horizontal : 1366 Pixels Vertical : 768 Pixels Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated Input Sync Signal H/V Separate, TTL, P. or N. Maximum Pixel Clock rate 85.5MHz Active Display Horizontal/Vertical 575.769 (H) x 323.712(V) mm AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz Power Consumption <80 W ( < 1W, stand by ) Dimensions 669.7 x 216 x 495.1 _with stand 669.7 x 75.3 x 455 _without stand Set (W x D x H) Weight (Set) 8.4kg_with stand 7kg_without stand TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table) System PAL, SECAM, NT4.43,NT3.58 Sound BG, DK, M, I Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C) Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing Audio spec. - MAX Internal speaker Out : Right => 5W, Left => 5W - BASS Control Range : -8 dB ~ + 8dB - TREBLE Control Range : -8 dB ~ +8 dB - Headphone Out : 10 mW MAX - Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz Note: Anynet+ 2-2 2. Product specifications Model LA32B450C4H/LA32B457C6H Feature RF, 2_HDMI, 1-HDMI/DVI, 1-Component, 2-AV, D-Sub Brightness : 450cd/m2 Contrast Ratio : 2000:1 Response time : 8ms Dynamic contrast, Super-PVA PIP(in HDMI 1, 2, 3, Component 1, PC Mode and Sub picture is available only in TV analog mode) � � � � � � Specifications Item Description LCD Panel TFT-LCD panel, T315XW02 VV, AU31X2V, RGB vertical stripe,1366 x 768 pixels, 32-Inch viewable, Normally Black, pixel pitch 0.51075 mm Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic) Vertical : 56 Hz ~ 75 Hz (Automatic) Display Colors 16.7 million colors Maximum resolution Horizontal : 1366 Pixels Vertical : 768 Pixels Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated Input Sync Signal H/V Separate, TTL, P. or N. Maximum Pixel Clock rate 310MHz Active Display Horizontal/Vertical 697.685 (H) x 392.256 (V) mm AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz Power Consumption <130 W ( < 1W, stand by ) Dimensions 797.7 x 252 x 576.5 mm_with stand 797.7 x 84.8 x 530.5 mm_without stand Set (W x D x H) Weight (Set) 11.4kg_with stand 9.1kg_without stand TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table) System PAL, SECAM, NT4.43,NT3.58 Sound BG, DK, M, I Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C) Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W - BASS Control Range : -8 dB ~ + 8dB - TREBLE Control Range : -8 dB ~ +8 dB - Headphone Out : 10 mW MAX - Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz Note: Anynet+ 2-3 2. Product specifications Model LA37B450C4H/LA37B457C6H Feature RF, 2_HDMI, 1-HDMI/DVI, 1-Component, 2-AV, D-Sub Brightness : 450cd/m2 Contrast Ratio : 2000:1 Response time : 8ms Dynamic contrast, Super-PVA PIP(in HDMI 1, 2, 3, Component 1, PC Mode and Sub picture is available only in TV analog mode) � � � � � � Specifications Item Description LCD Panel TFT-LCD panel, T370XW02 VF, AU37X2F, RGB vertical stripe,1366 x 768 pixels, 37-Inch viewable, Normally Black, pixel pitch Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic) Vertical : 56 Hz ~ 75 Hz (Automatic) Display Colors 16.7 million colors Maximum resolution Horizontal : 1366 Pixels Vertical : 768 Pixels Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated Input Sync Signal H/V Separate, TTL, P. or N. Maximum Pixel Clock rate 307MHz Active Display Horizontal/Vertical 819.6 (H) x 460.8 (V) mm AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz Power Consumption <150 W ( < 1W, stand by ) Dimensions 913.2 x 300 x 656.2 _with stand 913.2 x 93.3 x 605.3 _without stand Set (W x D x H) Weight (Set) 13.7kg_with stand 10.5kg_without stand TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table) System PAL, SECAM, NT4.43,NT3.58 Sound BG, DK, M, I Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C) Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W - BASS Control Range : -8 dB ~ + 8dB - TREBLE Control Range : -8 dB ~ +8 dB - Headphone Out : 10 mW MAX - Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz Note: Anynet+ 2-4 2. Product specifications Model LA40B457C6H Feature RF, 2_HDMI, 1-HDMI/DVI, 1-Component, 2-AV, D-Sub Brightness : 450cd/m2 Contrast Ratio : 2000:1 Response time : 8ms Dynamic contrast, Super-PVA PIP(in HDMI 1, 2, 3, Component 1, PC Mode and Sub picture is available only in TV analog mode) � � � � � � Specifications Item Description LCD Panel TFT-LCD panel, T400XW01 V7, AU40X17, RGB vertical stripe,1366 x 768 pixels, 40-Inch viewable, Normally Black, pixel pitch 0.648 x 0.648 mm Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic) Vertical : 56 Hz ~ 75 Hz (Automatic) Display Colors 16.7 million colors Maximum resolution Horizontal : 1366 Pixels Vertical : 768 Pixels Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated Input Sync Signal H/V Separate, TTL, P. or N. Maximum Pixel Clock rate 307MHz Active Display Horizontal/Vertical 885.168 (H) x 497.66 (V) mm AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz Power Consumption <200 W ( < 1W, stand by ) Dimensions 989.8 x 300 x 692.1 _with stand 989.8 x 93.4 x 642.8 _without stand Set (W x D x H) Weight (Set) 17.7kg_with stand 14.4kg_without stand TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table) System PAL, SECAM, NT4.43,NT3.58 Sound BG, DK, M, I Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C) Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W - BASS Control Range : -8 dB ~ + 8dB - TREBLE Control Range : -8 dB ~ +8 dB - Headphone Out : 10 mW MAX - Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz Note: Anynet+ 2-5 2. Product specifications CHANNEL FREQUENCY TABLE OUTPUT FREQUENCY : ANALOG fv:45.75MHz, fs:41.25MHz DIGITAL Fc:44MHz TUNING STEP SIZE : FIRST PLL 250KHz SECOND PLL 62.5KHz 1. 2. OSD CH NO AIR CH NO CH NO CH NO Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC 1 1 A-8 72. 00 A-8 73. 25 2 2 57 55. 25 V-L 2 55. 25 V-L 2 54. 00 2 55. 25 3 3 63 61.25 V-L 3 61.25 V-L 3 60.00 3 61.25 4 4 69 67.25 V-L 4 67.25 V-L 4 66.00 4 67.25 5 5 79 77. 25 V-L 5 77. 25 V-L A-7 78. 00 A-7 79. 25 6 6 85 83.25 V-L 6 83.25 V-L A-6 84.00 A-6 85.25 7 7 177 175. 25 V-H 7 175. 25 V-H 7 174. 00 7 175. 25 8 8 183 181.25 V-H 8 181.25 V-H 8 180.00 8 181.25 9 9 189 187.25 V-H 9 187.25 V-H 9 186.00 9 187.25 10 10 195 193.25 V-H 10 193.25 V-H 10 192.00 10 193.25 11 11 201 199.25 V-H 11 199.25 V-H 11 198.00 11 199.25 12 12 207 205.25 V-H 12 205.25 V-H 12 204.00 12 205.25 13 13 213 211.25 V-H 13 211.25 V-H 13 210.00 13 211.25 14 14 473 471. 25 UHF A 121. 25 MID A 120. 00 A 121. 25 15 15 479 477.25 UHF B 127.25 MID B 126.00 B 127.25 16 16 485 483.25 UHF C 133.25 MID C 132.00 C 133.25 17 17 491 489.25 UHF D 139.25 MID D 138.00 D 139.25 18 18 497 495.25 UHF E 145.25 MID E 144.00 E 145.25 19 19 503 501.25 UHF F 151.25 MID F 150.00 F 151.25 20 20 509 507.25 UHF G 157.25 MID G 156.00 G 157.25 21 21 515 513.25 UHF H 163.25 MID H 162.00 H 163.25 22 22 521 519.25 UHF I 169.25 MID I 168.00 I 169.25 23 23 527 525.25 UHF J 217. 25 SUPER J 216. 00 J 217. 25 24 24 533 531.25 UHF K 223.25 SUPER K 222.00 K 223.25 25 25 539 537.25 UHF L 229.25 SUPER L 228.00 L 229.25 26 26 545 543.25 UHF M 235.25 SUPER M 234.00 M 235.25 27 27 551 549.25 UHF N 241.25 SUPER N 240.00 N 241.25 28 28 557 555.25 UHF O 247.25 SUPER O 246.00 O 247.25 29 29 563 561.25 UHF P 253.25 SUPER P 252.00 P 253.25 30 30 569 567.25 UHF Q 259.25 SUPER Q 258.00 Q 259.25 31 31 575 573.25 UHF R 265.25 SUPER R 264.00 R 265.25 32 32 581 579.25 UHF S 271.25 SUPER S 270.00 S 271.25 33 33 587 585.25 UHF T 277.25 SUPER T 276.00 T 277.25 34 34 593 591.25 UHF U 283.25 SUPER U 282.00 U 283.25 35 35 599 597.25 UHF V 289.25 SUPER V 288.00 V 289.25 36 36 605 603.25 UHF W 295.25 SUPER W 294.00 W 295.25 37 37 611 609.25 UHF AA 301.25 HYPER AA 300.00 AA 301.25 38 38 617 615.25 UHF BB 307.25 HYPER BB 306.00 BB 307.25 39 39 623 621.25 UHF CC 313.25 HYPER CC 312.00 CC 313.25 40 40 629 627.25 UHF DD 319.25 HYPER DD 318.00 DD 319.25 41 41 635 633.25 UHF EE 325.25 HYPER EE 324.00 EE 325.25 42 42 641 639.25 UHF FF 331.25 HYPER FF 330.00 FF 331.25 43 43 647 645.25 UHF GG 337.25 HYPER GG 336.00 GG 337.25 44 44 653 651.25 UHF HH 343.25 HYPER HH 342.00 HH 343.25 45 45 659 657.25 UHF II 349.25 HYPER II 348.00 II 349.25 46 46 665 663.25 UHF JJ 355.25 HYPER JJ 354.00 JJ 355.25 47 47 671 669.25 UHF KK 361.25 HYPER KK 360.00 KK 361.25 48 48 677 675.25 UHF LL 367.25 HYPER LL 366.00 LL 367.25 49 49 683 681.25 UHF MM 373.25 HYPER MM 372.00 MM 373.25 50 50 689 687.25 UHF NN 379.25 HYPER NN 378.00 NN 379.25 51 51 695 693.25 UHF OO 385.25 HYPER OO 384.00 OO 385.25 52 52 701 699.25 UHF PP 391.25 HYPER PP 390.00 PP 391.25 53 53 707 705.25 UHF QQ 397.25 HYPER QQ 396.00 QQ 397.25 54 54 713 711.25 UHF RR 403.25 HYPER RR 402.00 RR 403.25 55 55 719 717.25 UHF SS 409.25 HYPER SS 408.00 SS 409.25 56 56 725 723.25 UHF TT 415.25 HYPER TT 414.00 TT 415.25 57 57 731 729.25 UHF UU 421.25 HYPER UU 420.00 UU 421.25 58 58 737 735.25 UHF VV 427.25 HYPER VV 426.00 VV 427.25 59 59 743 741.25 UHF WW 433.25 HYPER WW 432.00 WW 433.25 60 60 749 747.25 UHF XX 439.25 HYPER XX 438.00 XX 439.25 61 61 755 753.25 UHF YY 445.25 HYPER YY 444.00 YY 445.25 62 62 761 759.25 UHF ZZ 451.25 HYPER ZZ 450.00 ZZ 451.25 63 63 767 765.25 UHF AAA 457.25 HYPER AAA 456.00 AAA 457.25 64 64 773 771.25 UHF BBB 463.25 HYPER BBB 462.00 BBB 463.25 65 65 779 777.25 UHF CCC 469.25 ULTRA CCC 468.00 CCC 469.25 66 66 785 783.25 UHF DDD 475.25 ULTRA DDD 474.00 DDD 475.25 67 67 791 789.25 UHF EEE 481.25 ULTRA EEE 480.00 EEE 481.25 68 68 797 795.25 UHF FFF 487.25 ULTRA FFF 486.00 FFF 487.25 69 69 803 801.25 UHF GGG 493.25 ULTRA GGG 492.00 GGG 493.25 2-6 2. Product specifications OSD CH NO AIR CH NO CH NO CH NO Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC 70 70 HHH 499.25 ULTRA HHH 498.00 HHH 499.25 71 71 III 505.25 ULTRA III 504.00 III 505.25 72 72 JJJ 511.25 ULTRA JJJ 510.00 JJJ 511.25 73 73 KKK 517.25 ULTRA KKK 516.00 KKK 517.25 74 74 LLL 523.25 ULTRA LLL 522.00 LLL 523.25 75 75 MMM 529.25 ULTRA MMM 528.00 MMM 529.25 76 76 NNN 535.25 ULTRA NNN 534.00 NNN 535.25 77 77 OOO 541.25 ULTRA OOO 540.00 OOO 541.25 78 78 PPP 547.25 ULTRA PPP 546.00 PPP 547.25 79 79 79 553.25 ULTRA 79 552.00 79 553.25 80 80 80 559.25 ULTRA 80 558.00 80 559.25 81 81 81 565.25 ULTRA 81 564.00 81 565.25 82 82 82 571.25 ULTRA 82 570.00 82 571.25 83 83 83 577.25 ULTRA 83 576.00 83 577.25 84 84 84 583.25 ULTRA 84 582.00 84 583.25 85 85 85 589.25 ULTRA 85 588.00 85 589.25 86 86 86 595.25 ULTRA 86 594.00 86 595.25 87 87 87 601.25 ULTRA 87 600.00 87 601.25 88 88 88 607.25 ULTRA 88 606.00 88 607.25 89 89 89 613.25 ULTRA 89 612.00 89 613.25 90 90 90 619.25 ULTRA 90 618.00 90 619.25 91 91 91 625.25 ULTRA 91 624.00 91 625.25 92 92 92 631.25 ULTRA 92 630.00 92 631.25 93 93 93 637.25 ULTRA 93 636.00 93 637.25 94 94 94 643.25 ULTRA 94 642.00 94 643.25 95 95 A-5 91. 25 FM A-5 90. 00 A-5 91. 25 96 96 A-4 97.25 FM A-4 96.00 A-4 97.25 97 97 A-3 103.25 FM A-3 102.00 A-3 103.25 98 98 A-2 109.25 MID A-2 108.00 A-2 109.25 99 99 A-1 115.25 MID A-1 114.00 A-1 115.25 100 100 100 649. 25 ULTRA 100 648. 00 100 649. 25 101 101 101 655.25 ULTRA 101 654.00 101 655.25 102 102 102 661.25 ULTRA 102 660.00 102 661.25 103 103 103 667.25 ULTRA 103 666.00 103 667.25 104 104 104 673.25 ULTRA 104 672.00 104 673.25 105 105 105 679.25 ULTRA 105 678.00 105 679.25 106 106 106 685.25 ULTRA 106 684.00 106 685.25 107 107 107 691.25 ULTRA 107 690.00 107 691.25 108 108 108 697.25 ULTRA 108 696.00 108 697.25 109 109 109 703.25 ULTRA 109 702.00 109 703.25 110 110 110 709.25 ULTRA 110 708.00 110 709.25 111 111 111 715.25 ULTRA 111 714.00 111 715.25 112 112 112 721.25 ULTRA 112 720.00 112 721.25 113 113 113 727.25 ULTRA 113 726.00 113 727.25 114 114 114 733.25 ULTRA 114 732.00 114 733.25 115 115 115 739.25 ULTRA 115 738.00 115 739.25 116 116 116 745.25 ULTRA 116 744.00 116 745.25 . . . . . . . . . . . . . . . . . . 125 125 125 799.25 ULTRA 125 798.00 125 799.25 . . . . . . . . . 2-7 2. Product specifications 2-2. Specification Comparison to Old Models Model LA**B457C6H(26”/32”/37”/40”) LA**A450C1H(26”/32”/37”/40”) Design Display Type LCD TV LCD TV Built-in Tuner O O Resolution 1366 x 768 1366 x 768 LCD Panel TFT LCD Panel 60Hz TFT LCD Panel 60Hz Screen Size 22”/26”/32”/37”/40” 22”/26”/32”/37”/40” Picture ratio 16 : 9 16 : 9 Dimensions (W x D x H) 26 26.37 x 8.50 x 19.49 inches_with stand 32 30.40 x 9.92 x 22.7 inches_with stand 37 35.95 x 11.81 x 25.83 inches_with stand 40 38.67 x 11.81 x 27.25 inches_with stand 26 26.37 x 8.5 x 19.7 inches_with stand 32 31.48 x 11.81 x 25.91 inches_with stand 37 36.08 x 11.81 x 25.91 inches_with stand 40 38.97 x 11.81 x 27.33 inches_with stand Weight 26 18.5 lbs (set) 32 25.1 lbs (set) 37 30.2 lbs (set) 40 39.0 lbs (set) 26 21.38 lbs(set) 32 28.88 lbs(set) 37 40.34 lbs(set) 40 41 lbs(set) Brightness 500nit 500 nit Contrast Ratio 26”:30,000:1 32”/37”/40” : 50,000:1 8000:1 Picture Enhancer DNIe DNIe Equalizer 5 band 5 band Auto Motion Plus 120Hz Not available Not available Surround Sound SRS TruSurround HD SRS TruSurround Dolby Digital Speaker Output 26” : 5W x 2 32”/37”/40” : 10W x 2 22” : 3W x 2 26” : 5W x 2 32”/37”/40” : 10W x 2 Antenna 1 (Cable/Air) 1 (Cable/Air) 2-8 2. Product specifications 2-3. Accessories Product Description Code. No Remark Remote Control & Batteries (AAA x 2) BN59-00901A Samsung Electronics Service center Power Cord 3903-00145 Cover-Bottom BN63-04269A (26”) BN63-05326A (32”) BN63-05327A (37”/40”) Owner’s Instructions - Cleaning Cloth BN63-01798B Warranty Card / Registration Card / Safety Guide Manual (Not available in all locations) - Stand Screw x 4 6002-001294 Stand BN90-01510A (26”) BN90-02023E (32”) BN90-02024G (37”) BN90-02039B (40”) 4. 故障排除 4-1 4.故障排除 4-1.故障排除 1．首先检查各电缆连接情况。 ·检查是否有烧坏或损坏的接线。 ·检查接线是否断开，或连接处太松。 ·检查是否依据连接图连接接线。 2．检查主板的电源输入。检查 lola3 的内部图案，是否有一些画面干扰。工厂模式（信息-菜单-静音-开机_->高级菜单->MST69A84HQ->模式选择:关按下 Remocon 右按钮。如果 lola3 异常，更换主板 4．故障排除 4-2 当 30p 线缆未接入时，检查背景灯是否开启。是在 BD1003 上是否待机 DC 为 A5V？否是在 BD1006、BD1004、 BD1005 上是否出现合适的主 DC B13VS、 B13V、 B5V？否是 R1003 上是否出现合适的 DC A3.3V？更换主板组件否是在 R1057、 R1051、 R1052 上是否出现合适的 DC B3.3VD、B9V、 B1.8V？更换LVDS线缆 26” : BN96-07766J 32” : BN96-07766K 37” : BN96-07611P 40” : BN96-07611Q 否是 T-c 开的 F1 上是否出现合适的 DC B12V？否检查其它功能（无图片部分）否是 T-con开板的BT7、 BT8 上是否出现合适的 VCC18、 VCC33？更换30p线缆或更换主电源组件 26” : BN44-00259A 32” : BN44-00260A 37” : BN44-00262A 40” : BN44-00264A 否灯（背景灯）关闭，没有声音。是检查电源线的连接情况。否 4-1-1.未通电征兆 -当连接电源线时，前显示屏上的 LED 指示灯未工作。 -当连接电源线时，IP 板继电器未工作。 -本机似乎损坏。主要检查点如果接线连接不当或主板或 SMPS 有故障，当连接电源线时，前显示屏上的 SMPS /IP 板继电器或 LED 指示灯不工作。在这种情况下，检查下列各项： -检查本机内部接线连接状态。 -检查各零件的保险丝。 -检查 IP 板的输出电压。 -更换主板。诊断小心在 IP 板上工作之前，必须断电。 4. 故障排除 4-3 4．故障排除 4-4 4-1-2.无图像（模拟 PC 信号）征兆 -声音正常，但屏幕上未显示画面。主要检查点 -检查 PC 来源 -检查SEMS03。 -当断开连接主板和显示屏的 LVDS 接线时，可能出现这种情况。诊断 LA**B450C4H/LA**B457C6H 小心在 IP 板上工作之前，必须断电。电源指示灯关闭。灯（背景灯）关闭，没有图像。检查 “待机模式”或“DPMS 模式” 中的设置。否是检查 PC 来源，并检查 D 副接线的连接情况？输入模拟 PC 信号。检查连接电缆。否是 C6003 的 R6037、R6034、R6035、 R6032、 R6023 (R、G、B、H、V)上是否出现信号? 检查JA4005、PC 接线。更换主印刷电路板组件。否是 � LVDS 连接器的 R8051(HSYNC_OUT)管脚#19、 20、34、35 (LVDS 数据)的输出端是否出现数字数据？是 � 检查 LVDS 接线？更换液晶显示屏？请与技术支持部联系。否检查CN8001_HD 更换主印刷电路板组件否 4. 故障排除 4-5 4．故障排除 4-6 波形 � R、G、B 输出信号 4. 故障排除 4-7 4-1-3. 没有图像（HDMI1，2，3-数字信号）征兆 -声音正常，但屏幕上未显示画面。主要检查点 -检查 HDMI 来源 -检查HDMI切换，检查SEMS03 -当断开连接主板和显示屏的 LVDS 接线时，可能出现这种情况。诊断小心在 IP 板上工作之前，必须断电。电源指示灯关闭。灯（背景灯）关闭，没有图像。在“待机模式”中检查本机。否是检查 HDMI 来源，并检查 HDMI 接线的连接情况？输入 HDMI 信号。检查连接电缆否是在 R6025(管脚#10 , #6 )(HDMI1) R6125(管脚#10 , #6 )(HDMI2) R6014 (管脚#10 , #6 )(HDMI4) (HDMI RX_Clk , RX_Data) 上是否出现信号？检查 JA3001~3、检查 HDMI 接线。更换主板组件。否是 � 在 LVDS 上管脚#19,20,34,35 (LVDS Data clk)是否出现数字数据? 是 � 检查 LVDS 接线？更换液晶显示屏？请与技术支持部联系。否检查 CN8001_HD。更换主板组件。否 4．故障排除 4-8 4. 故障排除 4-9 波形 � 数字输出数据 � HDMI 信号（数据） 4．故障排除 4-10 4-1-4.没有图像（Tuner_CVBS）征兆 -声音正常，但屏幕上未显示画面。主要检查点 -检查 Tuner CVBS 来源 -检查Tuner，检查SEMS03。 -当断开连接主板和显示屏的 LVDS 接线时，可能出现这种情况。小心在 IP 板上工作之前，必须断电。诊断小心在 IP 板上工作之前，必须断电。检查射频源，并检查射频接线的连接情况？输入射频源正常否是调谐器的#4、#2 管脚是否出现 DC B33V、 B5V_VCCT？更换主板组件否是调谐器上的#8 管脚是否出现 CVBS 数据? 检查调谐器，更换主板组件 BN94-02709A 否是 � 在 LVDS 连接管脚#19,20,34,35 (LVDS 数据)是否出现数字数据? 是 � 检查 LVDS 接线？更换液晶显示屏？请与技术支持部联系。否检查CN8001_HD。更换主板组件否电源指示灯关闭。灯（背景灯）关闭，没有图像。是在“待机模式”中检查本机。否 4. 故障排除 4-11 4．故障排除 4-12 波形 � CVBS 输出信号 � Tuner_CVBS 输出信号 4. 故障排除 4-13 4-1-5.没有图像（Viedo CVBS 1,2）征兆 -声音正常，但屏幕上未显示画面。主要检查点诊断 -检查 Video CVBS 来源 -检查SEMS03 -当断开连接主板和显示屏的 LVDS 接线时，可能出现这种情况。 LA**B450C4H/LA**B457C6H 小心在 IP 板上工作之前，必须断电。电源指示灯关闭。灯（背景灯）关闭，没有图像。在“待机模式”中检查本机。否是检查视频源，并检查视频接线的连接情况？输入视频源正常否是 R5053(AV1)、 L5002(AV2) 上是否出现 CVBS 数据？检查JA5004 或JA5010_E 更换主板组件否是 � 在LVDS连接器管脚#19,20,34,35 (LVDS 数据)是否出现数字数据? 是 � 检查 LVDS 接线？更换液晶显示屏？请与技术支持部联系。否检查CN8001_HD。更换主板组件否 4．故障排除 4-14 4. 故障排除 4-15 波形 � CVBS 输出信号 4．故障排除 4-16 4-1-6.没有图像（分量）征兆 -声音正常，但屏幕上未显示画面。主要检查点 -检查分量来源 -检查SEMS03 -当断开连接主板和显示屏的 LVDS 接线时，可能出现这种情况。诊断小心在 IP 板上工作之前，必须断电。电源指示灯关闭。灯（背景灯）关闭，没有图像。在“待机模式”中检查本机。否是检查分量源，并检查分量接线 (Y,Pb,Pr)的连接情况？输入分量源正常否是 R5053、 R5051、 R5050(Comp1 / Y、 Pb、 Pr) 上是否出现分量数据？检查JA5007 更换主板组件否是 � 在 LVDS 连接器管脚#19,20,34,35 (LVDS 数据) 是否出现数字数据? 是 � 检查 LVDS 接线？更换液晶显示屏？请与技术支持部联系。否检查 CN8001_HD。更换主板组件 BN94-02709A。否 4. 故障排除 4-17 4．故障排除 4-18 波形 � 数字输出数据 � 模拟信号（Y,C） 4. 故障排除 4-19 4-1-7.没有声音征兆 -视频正常，但没有声音。主要检查点 -当扬声器连接断开或损坏时 -当主板的声音处理部分失去功能时 -扬声器损坏。诊断 LA**B450C4H/LA**B457C6H 小心在 IP 板上工作之前，必须断电。检查声音源并检查声音接线的连接(Comp/PC/DVI 到 HDMI).。输入声音源正常否是 R5032、 R5031(AV2 R/L)、 R5036、 R5037(AV1 R/L)、 R5017、 R5018 (Comp1 R/L)、 R5009、 R5010 (Comp2 R/L). R4012、 R4014 (PC R/L) 上是否有声音数据显现？检查 JA5004/JA5005/JA5001/JA4001 更换主板组件 BN94-02709A 否是 R2013、 BD1006 是否出现 DC B3.3VD、 B13VS？更换主板组件否是 C2056、 C2054 (R +/-) C2053、C2055 (L +/-) 是否出现声音数据? 是更换扬声器？请与技术支持部联系。否检查 IC6003 (SEMS03)。检查 IC2002(声音放大器) 更换主板组件否 4．故障排除 4-20 4. 故障排除 4-21 波形 � 输入 IC1201 的信号 � 输入 IC1202 的信号 4．故障排除 4-22 4-2.调整和调节 4-2-1 一般维修说明 1．通常，彩色液晶电视只需在安装时稍加调节。检查基本特性，如高度、水平和竖直同步。 2．使用规定的测试设备或等效品。 3．需要正确的匹配阻抗。 4．避免过载。扫描振荡器发出的过多信号可能使电视的前端过载。当插入标志信号时，不可使标志信号发生器干扰测试结果。 5．只可把电视连接到具有后盖铭牌上标定的电压和频率的交流电源上。 6．当电视机处于开机状态时，不可试图连接或断开接线。必须保证在更换任何零件时拔下电源线。 7．为了防止电击危险，应使用隔离变压器。 4 故障排除 4-23 4-3.工厂模式调节 4-3-1 进入工厂模式如欲进入“维修模式”，可按下列顺序按下遥控键： -如果没有工厂遥控器 -如果有工厂遥控器 -在维修模式中，该按钮有效。 1．遥控键：电源、向上箭头、向下箭头、向左箭头、向右箭头、菜单、确定、数字键（0~9） 2．功能控制键：电源、CH+、CH-、VOL+、VOL-、菜单、电视/视频（确定） 4-3-2 显示屏检查因如下所述进行不同的调节，所以必须检查显示屏制造商。首先，检查标签额定值！ 1）标签额定文件 -液晶显示屏标记- A：ACER（AUO） S：SEC C：CMO *如果未印刷，可以考虑S（sec）显示屏标记。 4 故障排除 4-24 4-3-3 工厂数据 �选项 �ADC/白平衡 4 故障排除 4-25 4 故障排除 4-26 �控制 �等离子选项 4 故障排除 4-27 �旅馆选项 �商店选项 �声音 4 故障排除 4-28 �MST69A84HQ 4 故障排除 4-29 �FBE �白平衡电影 4 故障排除 4-30 �EPA标准 �调节 4 故障排除 4-31 �YC延迟 �清晰度 4 故障排除 4-32 �PE �EEPROM复位 �缺陷日志 4 故障排除 4-33 4-4．旅馆交互模式 4-4-1.进入旅馆交互模式在开启电源的情况下，INFO+MENU+0+1+EXIT。 4-4-2.旅馆交互模式数据项目初始值说明 Hotel Mode On 旅馆模式（独立待机）开/关 SI Vendor Off 选择 SI Vendor Power On Channel 1 在独立待机的旅馆模式下，电视将会切换到此特殊的信道 Power on source TV 电视在初始开启时选择输入源 Power On Volume 10 在独立待机的旅馆模式下，电视将会被切换到此音量级 Min Volume 0 在独立待机的旅馆模式下，用户可设置为最小音量级 Max Volume 100 在独立待机的旅馆模式下，用户可设置为最大音量级 Panel Button Lock Off 前部显示屏（本地键）运行开/关 -关：解锁所有显示屏键 -开：锁定所有显示屏键 -电源：除电源键外锁定所有显示屏键。 Music Mode AV1 Off 如要在 AV 输入源的 MP3/音频播放器中获取音乐。 TV 声音仅在黑色图案时产生，无论是否有音频信号。 Music Mode AV2 Off 如要在 AV 输入源的 MP3/音频播放器中获取音乐。 TV 声音仅在黑色图案时产生，无论是否有音频信号。 Music Mode PC Off 如要在 PC 输入源的 MP3/音频播放器中获取音乐。 TV 声音仅在黑色图案时产生，无论是否有音频信号。 Music Mode Comp Off 如要在分量输入源的 MP3/音频播放器中获取音乐。 TV 声音仅在黑色图案时产生，无论是否有音频信号。 Welcome ON Off 显示欢迎信息（关/开） Welcome Message - 编辑欢迎信息 Music Mode Backlight On 在音乐模式下背景灯开/关选项可节能 Energy Saving Off 此功能用来调节电视亮度，以便减少电源消耗。 -关：关闭节能功能 -低：设置电视到低节能模式。 -中：设置电视到中等节能模式。 -高：设置电视到高节能模式。 Sub AMP volume 13 在初始状态下的子功放音量级 Sub AMP mode 2 确定次功放运作模式。 -0：关闭次功放功能（PWM 关闭） -1：主音的控制决定次音的大小。次音由开机音量、最小音量及最大音量决定。 Audio Loop In Off 音频循环识别或 H.P 识别选项 Clone Hotel Menu StandAl one 在独立遥控时（独立待机/交互）按下旅馆键，在屏显示调节中的交互或独立待机旅馆 TV 选项。 Menu display Off （仅独立待机模式）－开：（独立待机）显示主菜单－关：（独立待机）不显示主菜单 Active source select Off 如要更改源列表，选择启用源。 Power On Option LAST OPT 开机（交流电源开启）选项－STN-BY；待机模式－Power on：开机－LAST OPT：最后的电源状态 Auto PC Off 在待机模式，当 PC 源被连接到电视时，电视将自动开启并自动识别 PC 模式。 4 故障排除 4-34 项目初始值说明 DC Power Output 5V DC 电源输出插孔的端口控制（5V/12V） RJP AV AV2 选择 RJP AV 源（AV1/AV2） RJP Priority(AV) 1 如果优先设置插孔，当插孔被插入时会依照插孔的优先设置，相应的源会自动被设置 RJP Priority(PC) 2 如果优先设置插孔，当插孔被插入时会依照插孔的优先设置，相应的源会自动被设置 RJP Priority(HDMI) 3 如果优先设置插孔，当插孔被插入时会依照插孔的优先设置，相应的源会自动被设置 Local time Manual 升级时钟数据的方法选项 -自动：从服务器获取时钟数据 -手动：手动时钟设置（没有 TTX 数据更新） -TTX：手动时钟设置（带有 TTX 数据更新） Time Format 12hour 选择记时方式（12H/24H） PMOLED Test Off 测试 PMOLED（亮度和像素） PMOLED Normal Dimming 3 PMOLED 亮度选项 PMOLED StandBy Dimming 2 PMOLED 待机亮度选项 Cloning : TV to USB - USB 克隆：TV→USB Cloning : USB to TV - USB 克隆： USB→TV 4 故障排除 4-35 4-5．独立待机旅馆模式 4-4-1.进入独立待机旅馆模式在开启电源的情况下，MUTE+1+1+9+ENTER。 4-4-2.独立待机旅馆模式数据项目初始值说明 Hotel Mode On 旅馆模式（独立待机）开/关 SI Vendor Off 选择 SI Vendor Power On Channel 1 在独立待机的旅馆模式下，电视将会切换到此特殊的信道 Power on source TV 电视在初始开启时选择输入源 Power On Volume 10 在独立待机的旅馆模式下，电视将会被切换到此音量级 Min Volume 0 在独立待机的旅馆模式下，用户可设置为最小音量级 Max Volume 100 在独立待机的旅馆模式下，用户可设置为最大音量级 Panel Button Lock Off 前部显示屏（本地键）运行开/关 -关：解锁所有显示屏键 -开：锁定所有显示屏键 -电源：除电源键外锁定所有显示屏键。 Picture Menu Lock Off 启用或取消图片菜单 Video Mute Ch 1 如要选择的信道不显示（视频静音）例如（无线电频道），如果 1 为开启，频道 1 显示仅为黑色图案。 Video Mute Ch OnOff Off 如要选择的信道不显示（视频静音）例如（无线电频道），如果 1 为开启，频道 1 显示仅为黑色图案。 Music Mode AV1 Off 如要在 AV 输入源的 MP3/音频播放器中获取音乐。 TV 声音仅在黑色图案时产生，无论是否有音频信号。 Music Mode AV2 Off 如要在 AV 输入源的 MP3/音频播放器中获取音乐。 TV 声音仅在黑色图案时产生，无论是否有音频信号。 Music Mode PC Off 如要在 PC 输入源的 MP3/音频播放器中获取音乐。 TV 声音仅在黑色图案时产生，无论是否有音频信号。 Music Mode Comp Off 如要在分量输入源的 MP3/音频播放器中获取音乐。 TV 声音仅在黑色图案时产生，无论是否有音频信号。 Welcome ON Off 显示欢迎信息（关/开） Welcome Message - 编辑欢迎信息 Music Mode Backlight On 在音乐模式下背景灯开/关选项可节能 Energy Saving Off 此功能用来调节电视亮度，以便减少电源消耗。 -关：关闭节能功能 -低：设置电视到低节能模式。 -中：设置电视到中等节能模式。 -高：设置电视到高节能模式。 Sub AMP volume 13 在初始状态下的次功放音量级 Sub AMP mode 2 确定次功放运作模式。 -0：关闭次功放功能（PWM 关闭） -1：主音的控制决定次音的大小。次音由开机音量、最小音量及最大音量决定。 Audio Loop In Off 音频循环识别或 H.P 识别选项 Clone Hotel Menu StandAlone 在独立遥控时（独立待机/交互）按下旅馆键，在屏显示调节中的交互或独立待机旅馆 TV 选项。 Menu display Off （仅独立待机模式）－开：（独立待机）显示主菜单－关：（独立待机）不显示主菜单 4 故障排除 4-36 项目初始值说明 Power On Option LAST OPT 开机（交流电源开启）选项－STN-BY；待机模式－Power on：开机－LAST OPT：最后的电源状态 Auto PC Off 在待机模式，当 PC 源被连接到电视时，电视将自动开启并自动识别 PC 模式。 RJP AV AV2 选择 RJP AV 源（AV1/AV2） RJP Priority(AV) 1 如果优先设置插孔，当插孔被插入时会依照插孔的优先设置，相应的源会自动被设置 RJP Priority(PC) 2 如果优先设置插孔，当插孔被插入时会依照插孔的优先设置，相应的源会自动被设置 RJP Priority(HDMI) 3 如果优先设置插孔，当插孔被插入时会依照插孔的优先设置，相应的源会自动被设置 Local time Manual 升级时钟数据的方法选项 -自动：从服务器获取时钟数据 -手动：手动时钟设置（没有 TTX 数据更新） -TTX：手动时钟设置（带有 TTX 数据更新） Time Format 12hour 选择记时方式（12H/24H） PMOLED Test Off 测试 PMOLED（亮度和像素） PMOLED Normal Dimming 3 PMOLED 亮度选项 PMOLED StandBy Dimming 2 PMOLED 待机亮度选项 Cloning : TV to USB - USB 克隆：TV→USB Cloning : USB to TV - USB 克隆： USB→TV 4 故障排除 4-37 4-6.白平衡-校准 4-6-1 白平衡-校准 1.ADC 4-6-2 维修调节-在调节白平衡之前，必须使用方格图进行校准 �颜色校准调节规格 1. 来源：HDMI 2. 设置模式：1280*720@60Hz 3. 图案：图案#24（方格图）方格图 4. 使用设备：CA210 和主 MSPG925 发生器 -只有与主设备的结果比较结果后，才可使用其他设备。输入模式校准图案 CVBS 输入 (型号_#1) 在 NTSC 黑白图 #24中进行方格分量输入 (型号_#6) 在 720p 黑白图 #24中进行方格 PC模拟输入（型号_#21) 在 VESA XGA (1024x768) 黑白图 #24中进行方格 HDMI 输入在 720p 黑白图 #24 中进行方格 <表1> AV 校准 DTV校准 PC 校准 HDMI 校准 4 故障排除 4-38 �颜色校准方法（AV） 1）向 AV IN1 端口发送 NTSC 方格 (第 3 号)图信号。 2）按下来源键，可切换到“AV1”模式。 3）进入维修模式。 4）选择“Calibration”菜单。 5）选择“AV Calibration”菜单。 6）在“AV Calibration Off”状态下，按下“ � ”键进行校准。 7）校准完成时，返回上一级菜单。 8）可以看到“AV Calibration”状态从“失败”变为“成功”。 �颜色校准方法（分量） 1）向分量 IN1 端口发送 720p 方格 (第 6 号)图信号。 2）按下来源键，可切换到“Component 1”模式。 3）进入维修模式。 4）选择“Calibration”菜单。 5）选择“Comp Calibration”菜单。 6）在“Comp Calibration Off”状态下，按下“ � ”键进行校准。 7）校准完成时，返回上一级菜单。 8）可以看到“Comp Calibration”状态从“失败”变为“成功”。 �颜色校准方法（PC） 1）向 PC IN1 端口发送 VESA XGA (第 21 号)图信号。 2）按下来源键，可切换到“PC”模式。 3）进入维修模式。 4）选择“Calibration”菜单。 5）选择“PC Calibration”菜单。 6）在“PC Calibration Off”状态下，按下“�”键进行校准。 7）校准完成时，返回上一级菜单。 8）可以看到“PC Calibration”状态从“失败”变为“成功”。 �颜色校准方法（HDMI） 1）向 HDM1/DVI IN 端口发送 720p 方格 (第 6 号)图信号。 2）按下来源键，可切换到“HDMI1”模式。 3）进入维修模式。 4）选择“Calibration”菜单。 5）选择“HDMI Calibration”菜单。 6）在“HDMI Calibration Off”状态下，按下“ � ”键进行校准。 7）校准完成时，返回上一级菜单。 8）可以看到“HDMI Calibration”状态从“失败”变为“成功”。 4 故障排除 4-39 4-6-3 白平衡-调节（弱光）（强光） 3.白平衡次亮度红色偏移绿色偏移蓝色偏移次对比度红色增益绿色增益蓝色增益（白平衡调节状况，请参照下页） 4-7．白色比（平衡）调节 1．可以在工厂模式下调节白色比（1：校准，3：白平衡）。 2．因为调节值和数据值随输入源而异，所以必须在 CVBS、分量 1 和 HDMI1 模式下调节。 3．在默认设置下配置各模式的最佳值。（参照表 1、2）该项随显示屏尺寸和规格而异。 -设备：CA-210 -图案：MIK K-7256 #92“平白平衡图”，作为标准 -只有当与主设备的结果比较结果后，才可使用其他设备 -设置老化时间：60 分钟 -白平衡调节的校准和手动设置 HDMI：Time #6 720P,图案#24 方格图校准�用#92 图手动调节（720p） COMP：Time #6 720P,图案#24 方格图校准�用#92 图手动调节（720p） CVBS：Time #2 PAL,图案#24 方格图校准�用#92 图手动调节（NTSC） CVBS：Time #21 1024*768,方格图校准�用#92 图手动调节（NTSC） -如果在 HDMI 模式下完成，调节座标几乎与 AV/COMP 模式下相同。 -白平衡手动调节 4 故障排除 4-40 CA-210 x y Y(L) T(K) + MPCD - H/L 272 278 (Sub_CT:140) 11,000 (±10) CVBS (NTSC) L/L 272 278 12.2cd/m2 ( 3.52 Ft - Sub_BR:128) 11,000 (±10) - H/L 272 278 (Sub_CT:140) 11,000 (±10) COMP (720P) L/L 272 278 12.1cd/m2 ( 3.5 Ft - Sub_BR:128) 11,000 (±10) - H/L 272 278 (Sub_CT:140) 11,000 (±10) HDMI (720P) L/L 272 278 12.0cd/m2 (3.5 Ft - Sub_BR:128) 11,000 (±10) -调节规格白平衡：高光（±3）、弱光（±5）照度：高光（±0.1Ft/L）、弱光（±0.1Ft/L） 4-8.维修信息 4-8-1USB 下载方法三星公司在将来可能会提供电视固件的升级。请联系三星访问中心1-800-SAMSUNG (726-7864)接收关于下载升级的信息并使用USB驱动器。升级将会通过连接USB驱动器到安置在电视背后的USB端口上。 1. 插入包含固件升级的 USB 驱动器到电视侧部的媒体播放端口上。 2. 进入工厂模式。进行控制→子选项，然后变更“USB 升级”由关到开。 3. 从机体上拨下电源线并重新插入。 4. 电源指示灯 LED 点亮。几秒钟后，指示灯的闪烁速度加快。 5. 本机自动开启。当进入工厂模式后，你可以看到被更新后的软件版本。请注意在进行升级的过程中，不要断开电源或取下 USB 驱动。在完成固件升级后，电视将会关闭。升级完成后请检查固件版本。软件升级后，视频和音频设置将会返回到默认（工厂）设置。我们推荐您写下您的设置，那样在升级后将会很容易复位。 4 故障排除 4-41 4-8-2 旅馆选项说明本电视带有交互式功能，通过计算机控制系统与其它电视相连接，后部机箱(SBB/STB) 连接到电视，用于旅店及其它商业场所。交互式：当电视在初始在开启时，会发送命令到可识别的SBB/STB, 如果可识别的电视切换到在线模式，通过SBB/STB 完全控制，在线电视停止接收IR(三星遥控) 命令并根据端口协议执行。独立待机：如果SBB/STB不能被识别，电视在受限运转中切换至独立待机模式。运转模式当本电视 (在旅馆模式) 在SBB/STB时运行，会进入到在线或独立待机两种状态。在独立待机状态时，电视可作为旅馆电视，但是不能启用通信功能。这样可预防客人通过断开SBB/STB蒙蔽本系统。如要详细设置独立待机或交互模式，参看第15页（设置旅馆选项数据：独立待机模式和交互模式） - 一些操作可能会受限，以防客人“蒙蔽”本电视系统。 - 无主菜单(交互模式) 或频道菜单，在主菜单中插入并播放(独立待机模式) - 音量受限及屏板键锁定或解锁。 4 故障排除 4-42 通过 STB（SBB）连接到电视 1. 使用数据线连接电视的[DATA]插口到 STB（SBB）的[ETH MODEM]插口。 -使用数据通信。 -一些 STB（SBB）设备与 TV 的数据线不兼容。 -参看 SI 厂家清单的第 11 页，提供了与 TV 兼容的数据线信息。与 TV 兼容数据线的 SI 厂家清单 -参看数据线上的代码标签。 4 故障排除 4-43 连接浴室扬声器你可以按照如下的 2 种方法连接浴室扬声器。通过变量输出连接（无外部功放设备可用） 1.连接电视的可变音频[R-AUDIO-L]端口到旅馆的浴室墙壁的扬声器。信号线：扬声器+ 保护线：扬声器- 2.连接电视的[VOL-CTRL]插孔到旅馆浴室墙壁的音量控制盒的开关端口上。 -最大的扬声器输出为 4W，8 欧姆。 4 故障排除 4-44 安装音量控制 -如图所示，如果配置音量控制盒，你可以控制浴室扬声器的音量。 -连接音量控制盒到电视的插孔为普通手机插孔。 -音量控制盒的开关由智能开关构成。 -设置副功放模式 -0：关闭副功放功能（关闭电源）。 -1：依照主音量控制决定子音量。也就是，子音量由电源音量决定，旅馆模式的最大音量和最小音量。 -2：依照浴室控制板的设置决定音量大小。变量输出端口规格 -8 欧姆，2 瓦特 -扬声器接线：使用的扬声器接线长度不超过８２英尺（２５米）。音量控制盒音量降低（白色�）音量升高（黑色/红色）� 接地（保护线）� 4 故障排除 4-45 通过固定的输出端连接（无外部功放可用） 1. 连接电视的音频输出端口和带有立体接线的音频放大器的端口。 4 故障排除 4-46 连接 RJP(远程 Jack Pack 系统) 任意外接源的输出端链接到用户桌面的 RJP 系统上。 1. 连接电视上的 PC IN[PC]/[AUDIO]端口到 RJP 系统的 RCA 端口上。 2. 连接电视上的 AV IN[VIDEO]/[R-AUDIO-L]端口到 RJP 系统 RCA 端口上。 3. 连接电视上的 [HDMI]端口到 RJP 系统 HDMI 端口上。 4. 连接电视上的 RJP 系统端口和 RJP 系统的 RS/232 端口。 -RJP(远程 Jack Pack 系统)与此三星电视兼容的型号为 TeleAdapt TA-7610。 4 故障排除 4-47 RJP(远程Jack Pack系统) RJP 代表远程Jack Pack系统。RJP 是有着不同音频视频输出端口硬件模块(A/V, S-Video,Audio, PC和 HDMI) 及相应的输出。相应的输出源从RJP系统连接到电视。 RJP通过RS232与电视相连接，热插和播放功能可方便客人连接外接源到RJP系统。RJP通过启用/取消外接源与电视相连接。电视将会依照用户的优先设置切换到外界源。 - 你必须连接RJP系统上的HDMI到电视的HDMI1端口上。 - 当电视开启时，在10秒钟内连接电视和RJP系统。同时按下A/V和HDMI按钮10秒钟，RJP系统可以返回到工厂默认设置。所有的LED指示灯闪烁5次提示将会进入休息状态。 RJP系统在5分钟后将会自动关闭所有指示灯，以免旅馆中不必要的灯源照射。如果客人触摸任何按钮， LED指示灯将由关闭状态再次启动，并且5分钟计时器而将会重启。如果客人触摸其它源按钮，电视将会切换到被选源且相应的LED将会点亮。 RJP 系统复位后或电视电源关/开，大约需要10秒钟的时间在电视和RJP系统间建立连接。如下表所示为从电视到输入源的大概时间，用秒表示，基于优先设置。情况1：当无输入源接入时，情况2：当2个或更多个输入被接入时，且输入源被断开并重新连接。例如：如果RJP系统拥有所有的在线源AV, PC和HDMI被连接，AV被视为最大优先。如果RJP 系统处于 HDMI 模式，且客人搬离并重新连接AV，切换到AV的最小时间为6.5秒。如要连接音频 (Ipod 或 Mp)，应该开启音乐模式且插孔识别检测应当关闭。支持A/V, PC和HDMI输入源。 4 故障排除 4-48 音频循环由电话产生的附加功能可被安装在床头或商务桌上，以便方便用户使用。安装过程如下。（不适用于 22 英寸型号）话机的详细接线图 4 故障排除 4-49 欢迎信息欢迎信息是在电视上显示自定义信息的一种功能，客人每次在旅馆房间里开启时显示： - 欢迎信息设置在旅馆的选项菜单中。 - 欢迎信息一般只有25个字符组成，其内容可在旅馆服务菜单中更改。 - 如下为欢迎信息所支持的字符列表。 - 字母表从A 到 Z ，仅允许使用大写。 - 特殊字符仅允许使用空格键。 - 不是所有的字符都可以用于欢迎信息中。 - 欢迎信息只能在欢迎开启选项为开启时可被编辑。 - 欢迎信息可通过OSD中“编辑欢迎信息”，使用方向，色彩及输入键进行编辑。 - 旅馆模式应当为开启。 - 为了显示开机信息，欢迎信息应当被开启。 - 欢迎信息应当在旅馆选项菜单中配置。 - OSD的功能根据型号的不同而不同。 - 信息在工厂复位后将会被初始化。 - 当用户进入“编辑欢迎信息”菜单后，高亮光标将会出现在输入部分的第一个方框内。 4 故障排除 4-50 USB克隆 USB克隆是一种用于从一台电视机上下载用户配置设置 (图片、声音、信道、设置及旅馆设置) 并同时上载到其它电视机的功能。所有的用户自定义设置都会从电视机（主机）复制到USB设备上。 * 从TV到USB的克隆这种操作是将存储数据从TV的EEPROM特定区域上复制到USB设备中。. 1．插入USB的驱动到TV后部的USB端口上。 2．按顺序按下此按钮，进入到旅馆菜单。 - 交互模式： INFO → MENU → 0 → 1 → EXIT - 独立待机模式：MUTE → 1 → 1 → 9 → EN 3．按下▲ 或▼ 按钮可选择 “克隆： TV到USB”, 然后按下ENTER按钮。 4．显示信息“克隆：TV 到USB” ，然后按下ENTER按钮。 5．你可以确定USB克隆操作： - “进程中” ：在复制数据到USB时。 - “完成” ：复制操作成功完成。 - “失败” ：复制操作没有成功完成。 - “无USB” ：没有接入任何USB设备。 4 故障排除 4-51 * 从USB到TV的克隆这种操作是下载USB设备中的存储数据到TV中。. 1．插入USB的驱动到TV后部的USB端口上。 2．按顺序按下此按钮，进入到旅馆菜单。 - 交互模式： INFO → MENU → 0 → 1 → EXIT - 独立待机模式：MUTE → 1 → 1 → 9 → EN 3．按下▲ 或▼ 按钮可选择 “克隆： TV到USB”, 然后按下ENTER按钮。 4．显示信息“克隆：TV 到USB” ，然后按下ENTER按钮。你可以确定USB克隆操作： - “进程中” ：在复制数据到USB时。 - “完成” ：复制操作成功完成。 - “失败” ：复制操作没有成功完成。 - “无USB” ：没有接入任何USB设备。在按下Enter键5秒后，可进行USB到TV的复制操作。 Multi Code Remocon Multi Code Remocon 是一种特殊的发射器，可通过一个遥控来控制每个电视。此功能对于大量使用TV的地方很有用处，如医院。所设置的ID识别号码将会出现在OSD上，它可以支持 10种不同的遥控键传输Multi code，且每个TV的初始ID代码设置为“0”。 - ID代码可为0到9的数字。 - 按下蓝色按键3秒以上，用户设置数字键。 - 设置的ID OSD 将会显示在中心区域。 - 将会显示如下信息“遥控代码被设置为x, 如果想要更改遥控代码，输入要变更的数字即可。” （x 为数字）此OSD将会持续显示，至到输入退出键为止。 - 例如，如果用户按下#1，TV 和遥控将会提示设置ID代码。将会显示如下信息“遥控代码被更改为1”。拥有同样ID代码的电视可以通过一个遥控来进行控制。 - 如果ID代码与遥控和TV不匹配，将会显示如下信息： “TV ID x”(x 是指TV ID) - 如要对ID进行复位操作，按下黄色键3秒以上，电视和遥控的ID代码将会被复位为“0”。这时将会显示“遥控代码被设置为0” 4 故障排除 4-52 旅馆即插即用旅馆即插即用是指可马上自动执行旅馆模式选项、国家设置、时钟设置和图片模式设置的一种功能。 - 旅馆即插即用仅可在开机后用一次。 - 设置第一台TV和克隆TV到USB后。 - 下一台TV仅需要退出旅馆即插即用，连接USB，然后克隆USB到TV上即可。 * UI 情形 4 故障排除 4-53 *简易设置 - 初始提示：正常 - 显示时间：10 秒 - 如果选择退出键或OSD显示超时10秒，独立待机旅馆模式会被设置为默认值并且“独立待机模式被设置” OSD显示3秒。 - TV在显示“独立待机模式被设置”OSD显示3秒后会自动进入到射频模式。 - 如果选择OK键，将会显示选择旅馆TV模式OSD。 * 选择旅馆TV模式 - 初始提示：交互 - 当交互模式被选择后，将会显示交互设置菜单，按下关机键从交互菜单中退出。 - 当独立待机模式被选择后，显示“选择菜单语言”OSD信息。 * 选择菜单语言 - 当独立待机从“选择旅馆TV模式”OSD中被选择时，显示“选择菜单语言”OSD信息。 F - 初始提示：英语 - 显示时间：OSD 超时及运行将会和销售时机型一致。 - 如果按下enter键，将会显示“选择国家”OSD信息。 * 选择国家OSD - 初始提示：英国 - 显示时间：OSD 超时及运行将会和销售时机型一致。 - 选择OSD将会在选择国家后被显示出来。 - 如果按下enter键，自动搜索模式OSD将会显示出来。 * 自动信道搜索模式 - 如果选择skip选项，将会进入到时钟模式OSD。 - 如果按下enter键，信道的自动搜索功能将会执行。 - 显示时间：30 秒。 * 时钟模式OSD -初始提示：自动。 -显示时间：30秒。 -当手动被选择时，显示时钟设置项目。 -如果设置时钟自动后按下enter键，显示图片模式OSD。 * 图片模式OSD - 初始提示：动态 -图片模式OSD被显示后，我们可以选择动态或标准图片模式。 -在选择图片模式后进入到独立待机设置菜单OSD，按下关机键退出。 4 故障排除 4-54 设置时间 *进入时间设置 - 按下遥控按钮选择“时钟设置”并设置时间。菜单设置时间时钟设置 - 时间设置好后，世界时间将会自动被更新。 *设置交互模式时间 - 如果旅馆系统发射时间信息，时间将会自动被设置。 - 如果旅馆系统发射时间信息，时间将不会被显示。 - 如果时间被设置好后，时钟将会被显示在前部屏板上。 (此功能适合457机型) 6-1 6. Wiring Diagram 6. Wiring Diagram 6-1. Wiring Diagram 6-1-1. LA26/32/37B450C4H/LA26/32/37/40B457C6H 6-2 6. Wiring Diagram Power and Dimming (CN1001) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 HSYNC_OUT A5V GND A5V GND GND B13VS B13VS GND GND GND GND B5V B5V B5V 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 B5V GND GND GND B13V B13V B13V ANA_DIMMING_OUT INVERTER GND PWM_DIMMING_OUT N.C SENSE_POWER N.C N.C AV-REAR(JA5009_C) 1 2 3 4 5 6 7 8 GND SC1_SR_IN SC1_SL_IN GND IDENT_SC1 SC1_CVBS_IN GND AV_SC1_CVBS_OUT SIDE-AV 1 2 3 4 5 6 7 8 9 GND IDENT_SIDE_AV2 AV2_CVBS_IN GND SIDE_AV_SR_IN SIDE_AV_SL_IN GND SIDE_AV_SL_IN SIDE_AV_SR_IN Component 1 VIDEO (JA5008) 1 2 3 4 5 6 7 8 9 GND IDENT_AV1 COMP1_Y GND IDENT_COMP1 COMP1_PB GND COMP1_PR COMP1_PR Component 1 SOUND (JA5007) 1 2 3 4 5 6 GND COMP1_SR_IN (AV1_SR_IN) COMP1_SL_IN (AV1_SL_IN) GND COMP1_SL_IN (AV1_SL_IN) COMP1_SR_IN (AV1_SR_IN) FUNCTION & IR(CN4007) 1 2 3 4 5 6 7 8 9 10 IR GND A5V LED_STB BUZZER KEY_INPUT1 KEY_INPUT2 GND B5V N.C 6-3 6. Wiring Diagram FUNCTION & IR(CN4007) 1 2 3 4 5 6 7 8 9 10 IR GND A5V LED_STB BUZZER KEY_INPUT1 KEY_INPUT2 GND B5V N.C DVI & PC SOUND INPUT(JA4001) 1 2 3 4 5 6 7 GND PC_SR_IN PC_SL_IN PC_SL_IN PC_SL_IN PC_SR_IN PC_SR_IN HDMI 1 Connection (JA3001) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 HDMI1_RX2+ GND HDMI1_RX2- HDMI1_RX1+ GND HDMI1_RX1- HDMI1_RX0+ GND HDMI1_RX0- HDMI1_RXCLK+ GND HDMI1_RXCLK- 5.2V Zener 5.2V Zener HDMI_DDC_SCL HDMI_DDC_SDA GND HDMI_5V/Ident_HDMI HDMI_5V/Ident_HDMI GND GND HDMI 2 Connection (JA3002) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 HDMI1_RX2+ GND HDMI1_RX2- HDMI1_RX1+ GND HDMI1_RX1- HDMI1_RX0+ GND HDMI1_RX0- HDMI1_RXCLK+ GND HDMI1_RXCLK- 5.2V Zener 5.2V Zener HDMI_DDC_SCL HDMI_DDC_SDA GND HDMI_5V/Ident_HDMI HDMI_5V/Ident_HDMI GND GND HDMI 3 Connection (JA3003_3H) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 HDMI1_RX2+ GND HDMI1_RX2- HDMI1_RX1+ GND HDMI1_RX1- HDMI1_RX0+ GND HDMI1_RX0- HDMI1_RXCLK+ GND HDMI1_RXCLK- 5.2V Zener 5.2V Zener HDMI_DDC_SCL HDMI_DDC_SDA GND HDMI_5V/Ident_HDMI HDMI_5V/Ident_HDMI GND GND 6-4 6. Wiring Diagram 6-2. Connector Functions Connector Functions CN1001 <-> SMPS Supply dimming power from SMPS to Main Board. * defective symptom : abnormal Picture CN2001 <-> SPEAKERS Connection Main Board and Speaker. * defective symptom : No picture CN4007 <-> Function & IR Connection Main Board and Function & IR Assy. * defective symptom : No picture, diable Power On/Off CN8001 <-> T-CON The LVDS signal transferred from Main Board to Panel. * defective symptom : No picture but normal sound 6-5 6. Wiring Diagram 6-3. Cables 6-3-1. LA26/32/37B450C4H LA26/32/37/40B457C6H Use (1) LVDS CONNECTOR (2) CONNECTOR POWER 30P (3) ASSY-SPEAKER Code BN96-07611Q(40”) BN96-07611P(37”) BN96-07766K (32”) BN96-07766J (26”) BN39-01099B (37”/40”) BN39-01099J (32”) BN39-01099H (26”) BN96-09463B (37”/40”) BN96-09463A (32”) BN96-06822H (26”) Photo Use (4) IR to FUNCTION Code BN96-07640F (26”/32”) BN96-07640G (37”/40”) Photo
