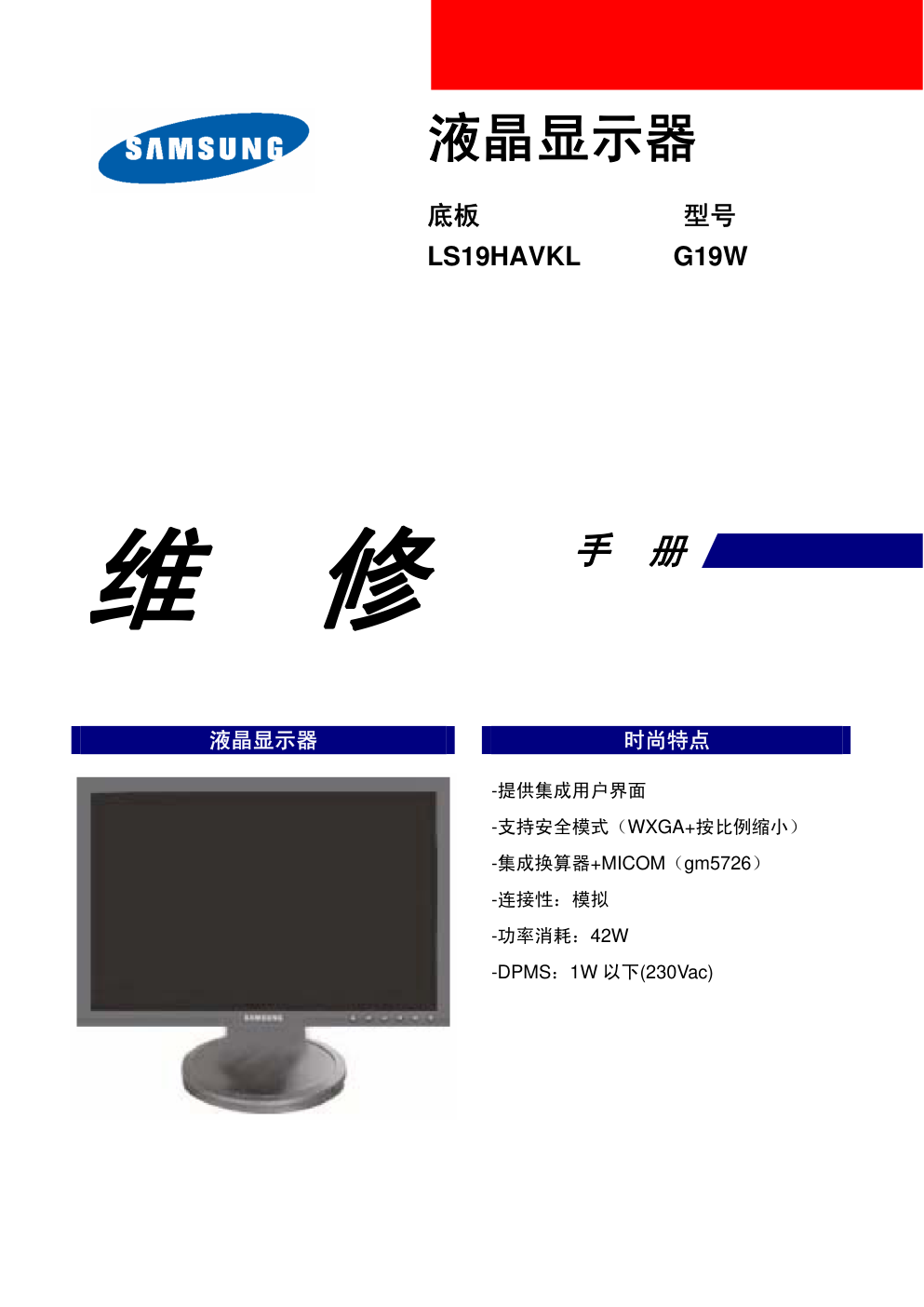

液晶显示器 底板 型号 LS19HAVKL G19W 维 修 手 册 液晶显示器 时尚特点 -提供集成用户界面 -支持安全模式（WXGA+按比例缩小） -集成换算器+MICOM（gm5726） -连接性：模拟 -功率消耗：42W -DPMS：1W 以下(230Vac) 三星电子 -本维修手册归三星电子有限公司所有。 未经允许擅自使用本手册，会受到适用的国际和/或 国内法律的惩罚。 三星电子有限公司 416, Maetan-3Dong, Yeongtong-Gu, Suwon City, Gyeonggi-Do, Korea, 443-742 中国印刷 P/N：BN82- URL：http://itself.sec.samsung.co.kr/ 1 Precautions 1-1 1-1-1 Warnings 1. For continued safety, do not attempt to modify the circuit board. 2. Disconnect the AC power and DC power jack before servicing. 1-1-2 Servicing the LCD Monitor 1. When servicing the LCD Monitor, Disconnect the AC line cord from the AC outlet. 2. It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this meter periodically. 1-1-3 Fire and Shock Hazard Before returning the monitor to the user, perform the following safety checks: 1. Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the monitor. 2. Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor- capacitor networks, mechanical insulators, etc. 3. Leakage Current Hot Check (Figure 1-1): WARNING : Do not use an isolation transformer during this test. Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7). Figure 1-1. Leakage Current Test Circuit 4. With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the power-plug prongs in the AC outlet and repeat the test. 1-1-4 Product Safety Notices Some electrical and mechanical parts have special safety- related characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate. 1 Precautions Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. 1-1 Safety Precautions 1 Precautions 1-2 1-2-1 General Servicing Precautions 1. Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test component in parallel with an electrolytic capacitor. 2. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position. 3. After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the area around the serviced part has not been damaged. 1. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the monitor. 2. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of an electrostatic charge. 3. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESDs. 4. Use only a grounded-tip soldering iron to solder or desolder ESDs. 5. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESDs. 4. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks). 5. Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500 V) to the blades of the AC plug. The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm. 6. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last. 6. Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials. 7. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution: Be sure no power is applied to the chassis or circuit and observe all other safety precautions. 8. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting your foot from a carpeted floor can generate enough static electricity to damage an ESD. 1-3 Static Electricity Precautions Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The following techniques will reduce the incidence of component damage caused by static electricity. 1-2 Servicing Precautions WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of this manual. Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions. 1 Precautions 1-3 1. For safety reasons, more than two people are required for carrying the product. 2. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock. 3. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire. 4. Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed to moisture. Otherwise, it may cause a fire or electric shock. 5. Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause fire or electric shock. 6. Keep the antenna far away from any high-voltage cables and install it firmly. Contact with the high- voltage cable or the antenna falling over may cause fire or electric shock. 7. When installing the product, leave enough space (10cm) between the product and the wall for ventilation purposes. A rise in temperature within the product may cause fire. 1-4 Installation Precautions Memo 1 Precautions 1-4 10 操作说明和安装 10 操作说明和安装 10-1 正面 1. 菜单按钮 打开 OSD 菜单。还用于退出 OSD 菜单或返回以 前的菜单。 2. MagicBright 按钮 MagicBright 是依据正在观看的图片内容提供最 佳观看环境的新功能。当前有六个不同的模式： 定制、文本、互联网、游戏、体育运动和电影。 各模式有自己的预先录制的亮度值。只需按下 MagicBright 控制按钮，即可轻松选择六个设置 之一。 1) 定制 尽管本公司的工程师仔细选择数值，但是预设值 可能让您的眼睛不舒适，取决于您的偏好。如果 出现这种情况，使用 OSD 菜单调节亮度和对比 度。 2) 文本:正常亮度 适用于涉及大量文字的文档或作品。 3) 互联网：中等亮度 适用于文字和图形等组合图像。 4) 游戏 适用于观看游戏等动画。 5) 体育运动 适用于观看体育运动等动画。 6) 电影：高亮度 适用于观看 DVD 或 VCD 等动画。 7）动态对比度 动态对比度自动检测输入视频信号的分布，并调 节出最适宜的对比度。 三星电子 10-1 10 操作说明和安装 3．亮度按钮 当屏幕上没有 OSD 时，按下该按钮调节亮度。 2,3.调节按钮 调节菜单中的项目。 4．确定按钮 启用反白显示的菜单项。 5.自动按钮 使用该按钮，自动调节。 6.电源按钮/电源指示灯 使用该按钮打开和关闭显示器。 /在正常运行过程中，本指示灯发出绿光，并且在 显示器存储调节内容时，闪烁发出绿光一次。 10-2 后部 （显示器背面的配置可能随产品而异。） 1． 电源端口 将显示器的电源线接到显示器背面的电源端口上。 2． D-sub15-针端口 将信号线接到显示器背面上的 15 针、D-sub 连接器上。 3. 电源打开/关闭按钮 (可选) 使用本按钮，打开或关闭显示器。 4. Kensington 锁： Kensington 锁是当在公共场所中使用时用于固定系统的装置。(该锁定装置必须单独购买。) 如欲获取有关使用 Kensington 锁的信息，请与授权经销商联系。 10-2 三星电子 10 操作说明和安装 10-3 连接显示器 显示器后部 计算机后部 新式 Macintosh 旧式 Macintosh 1. 将显示器的电源线接到显示器背面的电源端口上。将显示器的电源线插入旁边的插口上。 2-1. 使用视频卡上的 D-sub（模拟）连接器。 把信号电缆接到显示器背面的 15 针、D-sub 连接器上。 2-2. 连接到 Macintosh 上。 使用 D-SUB 连接电缆将显示器接到 Macintosh 计算机上。 2-3. 如果是旧式 Macintosh，需要使用特殊 Mac 适配器连接显示器。 3. 打开计算机和显示器。如果显示器显示图像，则安装完成。 三星电子 10-3 10 操作说明和安装 10-4 组装显示器 10-4 三星电子 10 操作说明和安装 10-5 安装底座 -本显示器采用 75mm x 75mm 符合 VESA 的安装接口板 A.显示器 B.安装接口板 1. 关闭显示器，并拔下电源线。 2. 将液晶显示器面向下置于平坦的表面上，在液晶显示器下面铺上垫子，以保护屏幕。 3. 拆除四个螺钉，然后从液晶显示器拆除底座。 4. 将安装接口板与后盖安装板中的孔对准，并用随臂型底座、墙上安装的挂钩或其他底座提供的四个螺钉 紧固。 三星电子 10-5 10 操作说明和安装 备忘录 10-6 三星电子 10 操作说明和安装 三星电子 10-7 11 拆卸和重新组装 11 拆卸和重新组装 维修手册的这一章叙述液晶显示器的拆卸和重新组装步骤。 警告：本显示器包含静电敏感器件。处理这些部件时应小心。 11-1 拆卸 小心：1.拆卸前，断开显示器电源。 说明 图片说明 1.将显示器面朝下放到铺有垫子的桌子上。拆除底部 的 3 个螺钉。 2.拆卸底座和前盖。 三星电子 11-1 11 拆卸和重新组装 说明 图片说明 3. 反转显示器，使其背面朝上。向上提起，并拆卸 后盖。 4.使用工具拆卸灯护板。（小心护板） 5.断开线缆。 （LVDS，转换器和功能线缆） 6.断开 FFC 线缆。 11-2 三星电子 11 拆卸和重新组装 说明 图片说明 7. 拆卸 2 个螺钉。 8.拆卸 4 个螺钉并抬起护板。 9.主印刷电路板和 IP 板。 三星电子 11-3 11 拆卸和重新组装 11-2 重新组装 -重新组装步骤与拆卸步骤相反。 11-4 三星电子 12 PCB Layout 12-1 12 PCB Diagram 12 PCB Layout 12-2 Memo 13 电路说明 13 电路说明 13-1 总体组件结构 13-1-1 电源树形图 1． 当 AD 板处于 DPMS 状态时： 1.1 通过 IP 进行设计，使 IP 运行所用功耗低于 0.6W。 1.2 换算器耗电达 37mA。 1.3 关闭显示屏电源。 2． 当 AD 板正常运行时： 2.1 显示屏灯的最大功耗如下所述（可能随显示屏制造商而异） 19”: 4*(7.5mA*720mVrms)=4*5.4 = 21.6W 2.2 显示屏控制板功耗如下：5V*720mA=3.6W 2.3 换算器功耗如下：3.3V*245mA + 1.8V*300mA = 1.35W 三星电子 13-1 13 电路说明 13-1-2 主板零件 1． 变换器：将直流额定电压/电流转换为显示屏 灯所需的高电压/电流的变换设备。 2． DC/DC（调节器）：DC 至 DC 变换设备的通 用术语。 IP 板接收 5V 并输出 1.8V 或 3.3V，向换算器 (SE657MRH-LF)供电。 3． Power MosFET：IP 板在 DPMS 模式下接收 5V 并输出较低电压，并在通常条件下向显示 屏操作板提供总共 5V 电。在这种情况下，由 Micom 控制 Power MosFET 的切换。 4． 换算器：接收数字 TMDS 和模拟 R、G、B 信号，并使用递增或递减功能将这些信号转 换为合适的分辨率。以 LDVS 格式向显示屏 传送分辨率。 5． 晶体（振荡器）：在外部使用一个 14.318MHz 振荡器同时向 MCU 和换算器供电。 6． 换算器和 EEPROM：I2C 是支持集成电路之 间通信以及 MCU、换算器和 EEPROM 之间 通信的两路双向串行总线。 特别是，MCU(GM5726)和换算器使用 SDR 直接总线相互通信，因为与旧式的串行系统 相比，DDR 直接总线提供另外 4 个地址/数据 线，所以是有效、高速的系统。 7． 功能键：击打特定键产生特定的电势，该电 势被传送到 MCU 的 ADC 输入端口，然后通 过芯片的 A/D 变换器变换为数字值。数字值 （数据）是接收输入密钥的线索。实际上， 电压被设定如下。 13-2 三星电子 13 电路说明 13-1-3 IP 板块（SMPS）零件 13-1-4 IP 板块（变换器）零件 三星电子 13-3 13 电路说明 13-1-5 IP 板（变换器）保护零件 BIZET 变换器控制器 FAN7310 有两种保护模式。 1． OVP[过电压保护]：如果串联电容器 C10 和 C15 的电压超过 2.0V，变换器被锁定。[见图 1] 2． OLP[过载保护]：如果打开变换器输出线束（未输出电流），Q1 基极导通，并将 C9 改变 2V 以上，然 后锁定变换器[见图 2] 图 1 图 2 13-4 三星电子 13 电路说明 三星电子 13-5 13-2 故障排除 13-2-1 IP 板（供电） 否 否 否 否 否 是 是 是 是 开机 检查保险丝 通常FDM0565R Vcc系统管脚 3：高电平 FDM0565R管脚1 检查漏极系统是否正常：切换 检查输出电流 检查其他线束、引入线 检查保护系统 更换保险丝 检查Vcc系统 检查主切换操作 检查反馈系统 13 电路说明 13-6 三星电子 3-2-1 IP 板（变换器） 否 否 否 否 否 是 是 是 是 开机 检查13V线 FDM0565R管脚1和2 检查保护功能是否正常： 0.6V~0.8V FDM0565R的管脚1和2 检查保护功能是否正常： 0.6V~0.8V 检查输出电流 检查其他 检查任何暗淡电路 检查供电系统 检查IC驱动 检查MOSFET 检查OVP和OLR电路 检查反馈系统 13 电路说明 13-3 IP 板（供电）原理图 三星电子 13-7 13 电路说明 13-4 IP 板（变换器）原理图 13-8 三星电子 14 Reference Infomation 14-1 14 Reference Infomation 14-1 Technical Terms -TFT-LCD (Thin film Transistor Liquid Crystal Display) ADC(Analog to Digital Converter) This is a circuit that converts from analog signal to digital signals. -PLL(Phase Locked Loop) During progressing ADC, Device makes clock syn- chronizing HSYNC with Video clock -Inverter Device that supply Power to LCD panel lamp. this device gernerate about 1,500~2,000V. AC Adapter Device that converts AC(90V~240V) to DC(+12V or 14V) -SMPS(Switching Mode Power Supply) Switching Mode Power supply. This design technol- ogy is used to step up/down the input power by switching on/off -FRC(Frame Rate Controller) Technology that change image frame quantity dis- played on screen for one second. Actually TFT-LCD panel require 60 pcs of frame for one second. so,this technology is needed to convert input image to 60 pcs regardless input frame quantity. -Image Scaler Technology that convert various input resolution to other resolution.(ex. 640* 480 to 1024*768) -Auto Configuration(Auto adjustment) This is an algorithm to adjust monitor to optimum condition by pushing one key. -OSD(On Screen Display) On screen display. customer can control the screen easily with this. -FINE "Fine" adjustment is used to adjust visibility by con- trol phase difference. -COARSE This is a adjustment by tuning with Video colck and PLL clock. -DVI (Digital Visual Interface) This provides a high speed digital connection for visual data types that is display technology inde- pendent. this interface is primarily forcused at pro- viding a connection between a computer and its display device. -L.V.D.S.(Low Voltage Differential Signaling) a kind of transmission method for Digital.It can be used from Main PBA to Panel. -T.M.D.S (Transition minimized Differential Signaling) a kind of transmission method for Digital. It can be used from Video card to Main PBA. -DDC(Display data channel) It is a communication method between Host Computer and related equipment. It can make it Plug and Play between PC and Monitor. -EDID Extended Display Identification Data PC can recog- nize the monitor information as Product data, Product name,Display mode,Serial number and Signal source,etc through DDC Line communicating with PC and Monitor. -Dot Pitch The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm 14 Reference Infomation 14-2 -Vertical Frequency The screen must be redrawn several times per sec- ond in order to create and display an image for the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate. Unit: Hz Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz. -Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz -Interlace and Non-Interlace Methods Showing the horizontal lines of the screen from the top to the bottom in order is called the Non-Interlace method while showing odd lines and then even lines in turn is called the Interlace method. The Non- Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is the same as that used in TVs. -Plug & Play This is a function that provides the best quality screen for the user by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard VESA DDC for the Plug & Play function. -Resolution The number of horizontal and vertical dots used to compose the screen image is called 'resolution'. This number shows the accuracy of the display. High resolution is good for performing multiple tasks as more image information can be shown on the screen. Example: If the resolution is 1280 x 1024 , this means the screen is composed of 1280 horizontal dots (horizontal resolution) and 1024 vertical lines (vertical resolution). 14 Reference Infomation 14-3 Sync Type Pin No. 15-Pin D-Sub Signal Cable Connector Separate Composite 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Red Green Blue GND DDC Return (GND) GND-R GND-G GND-B DDC Power Input (+5V) Self Raster GND Bi-Dr Data (SDA) H-Sync. V-Sync. DDC Clock (SCL) Red Green Blue GND DDC Return (GND) GND-R GND-G GND-B DDC Power Input (+5V) Self Raster GND Bi-Dr Data (SDA) H/V-Sync. Not Used DDC Clock (SCL) Red Green + H/V Sync. Blue GND DDC Return (GND) GND-R GND-G GND-B DDC Power Input (+5V) Self Raster GND Bi-Dr Data (SDA) Not Used Not Used DDC Clock (SCL) Sync-on-green 14-2 Pin Assignments 14 Reference Infomation 14-4 14-3 Timing Chart 79.975 12.504 1.067 1.837 9.481 0.119 75.025 13.329 0.038 0.475 12.804 0.013 135.000 Positive Positive Separate 1280/75 Hz 1280x1024 1280/60 Hz 1280x1024 63.981 11.852 1.037 2.296 9.259 0.000 60.020 16.005 0.047 0.594 15.630 0.016 108.000 Positive Positive Separate 31.469 31.777 3.813 1.589 26.058 0.318 70.087 14.268 0.064 0.858 13.155 0.191 28.322 Negative Positive Separate μ μ μ μ μ IBM 640/75 Hz 640x480 800/60 Hz 800x600 800/75 Hz 800x600 1024/60 Hz 1024x768 1024/75 Hz 1024x768 VGA2/ 70 Hz 720 x 400 VGA3/ 60 Hz 640 x 480 Table 1. Timing Chart 31.469 31.778 3.813 1.589 26.058 0.318 59.940 16.683 0.064 0.794 15.761 0.064 26.175 Negative Negative Separate 37.500 26.667 2.032 3.810 20.317 0.508 75.000 13.333 0.080 0.427 12.800 0.027 31.500 Negative Negative Separate 37.879 26.400 3.200 2.200 20.000 0.000 60.317 16.579 0.106 0.607 15.840 0.0261 40.000 Positive Positive Separate 46.875 21.333 1.616 3.232 16.162 0.323 75.000 13.333 0.064 0.448 12.800 0.021 49.500 Positive Positive Separate 48.363 20.677 2.092 2.462 15.754 0.369 60.004 16.666 0.124 0.600 15.880 0.062 75.000 Negative Negative Separate 60.023 16.660 1.219 2.235 13.003 0.203 75.029 13.328 0.050 0.466 12.795 0.017 78.750 Positive Positive Separate Mode VESA Timing This section of the service manual describes the timing that the computer industry recognizes as standard for computer- generated video signals. 14 Reference Infomation 14-5 Separate Sync C D A O E B P Video Sync Sync Video Q R S A : Line time total B : Horizontal sync width O : Frame time total P : Vertical sync width C : Back porch D : Active time Q : Back porch R : Active time E : Front porch S : Front porch H/V Composite Sync Sync-on-Green 55.935 17.878 1.427 2.178 13.521 0.751 59.887 16.698 0.107 0.447 16.090 0.054 106.500 Negative Positive Separate fH (kHz) μ μ μ μ μ fV (Hz) O msec P msec Q msec R msec S msec Clock Freq. (MHz) Polarity H.Sync V.Sync Remark IBM 1440/60 Hz 1440x900 1440/75 Hz 1440x900 Table 2. Timing Chart 70.635 14.157 1.112 1.814 10.530 0.702 74.984 13.336 0.085 0.467 12.741 0.042 136.750 Negative Positive Separate Mode Timing 14 Reference Infomation 14-6 14-4 Preset Timing Modes Sync Polarity (H/V) Pixel Clock (MHz) Vertical Frequency (Hz) Horizontal Frequency (kHz) Display Mode IBM, 640 x 350 31.469 70.086 25.175 +/- IBM, 640 x 480 31.469 59.940 25.175 -/- IBM, 720 x 400 31.469 70.087 28.322 -/+ MAC, 640 x 480 35.000 66.667 30.240 -/- MAC, 832 x 624 49.726 74.551 57.284 -/- MAC, 1152 x 870 68.681 75.062 100.000 -/- VESA, 640 x 480 37.500 75.000 31.500 -/- VESA, 640 x 480 37.861 72.809 31.500 -/- VESA, 800 x 600 35.156 56.250 36.000 -/- VESA, 800 x 600 37.879 60.317 40.000 +/+ VESA, 800 x 600 46.875 75.000 49.500 +/+ VESA, 800 x 600 48.077 72.188 50.000 +/+ VESA, 1024 x 768 48.363 60.004 65.000 -/- VESA, 1024 x 768 56.476 70.069 75.000 -/- VESA, 1024 x 768 60.023 75.029 78.750 +/+ VESA, 1152 x 864 67.500 75.000 108.000 +/+ VESA, 1280 x 1024 60.000 60.000 108.000 +/+ VESA, 1280 x 1024 79.976 75.025 135.000 +/+ VESA, 1440 x 900 55.935 59.887 106.500 -/+ VESA, 1440 x 900 70.635 74.984 136.750 -/+ -If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows. Table 1. Preset Timing Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz Vertical Frequency Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit: Hz 14 Reference Infomation 14-7 14-5 Panel Description SEC LT140X1-002 BN07-00004A SA BN68-00239H - SEC LT150XS-L01 BN07-00009A SB - SEC LT150XS-L01-B BN07-00022A SC - SEC LTM150XS-L02 BN07-00005A SD - SEC LT181E2-132 BN07-00001A SE - SEC LT150XS-T01 BN07-00010A SF - SEC LTM181E3-132 BN07-00019A SG - SEC LT170E2-131 BN07-10001D SH - SEC LT181E2-131 BN07-10001E SJ - SEC LTM170E4-L01 BN07-00018A SK - SEC LTM240W1-L01 BN07-00015A SL - SEC LTM213U3-L01 BN07-00016A SM - SEC LTM150XH-L01 BN07-00026A SN - SEC LTM150XH-L03 BN07-00027A SP - SEC LTM150XS-L01 BN07-00032A SQ DELL(ZPD) SEC LTM181E4-L01 BN07-00034A SR PVA SEC LTM170EH-L01 BN07-00036A SS TN SEC LTM170E5-L01 BN07-00037A SU PVA SEC LTM150XH-L11 BN07-00041A SV - SEC LTM213U4-L01 BN07-00039A SW PVA SEC LTM150XH-L01(ZPD) BN07-00045A SX ZPD SEC LTM150XH-L04 BN07-00046A SY New panel with high brightness SEC LTM170W1-L01 BN07-00047A SZ Panel for TV SEC LTM150XH-L06 BN07-00053A EA Panel for TV/ High luminance for 450cd _ SONY&EOS Team Panel for TV SEC LTM153W1-L01 BN07-00054A EB Use NIKE MODEL SEC LTM170EH-L05 BN07-00055A EC Panel EOS proj. for high brightness of 17" EH-L05 SEC LTM170E5-L03 BN07-00056A ED Dell 1702FP pro. E4. EH mechanicalCompatible SEC LTM190E1-L01 BN07-00057A EE DELL 1900 FP SEC LTM181E5-L01 BN07-00061A EF 18" narrow bezel GH18PS SEC LTM150XP-L01 BN07-00065A EG AMLCD PVA PANEL SEC LTM240W1-L02 BN07-00062A EH Panel for 15" Wide TV SEC LTM170EU-L01 BN07-00071A EJ Slim design, TN SEC LTM170E5-L04 BN07-00072A EK E5-L04 6 bits FRC... for IBM SEC LTA220W1-L01 BN07-00074A EL Panel for 22" TV SEC LTM170E6-L02 BN07-00075A EM AMLCD Narrow & slim design 17" PVA mode SEC LTM170W1-L01 BN07-00082A EN LTM170W1-L01 ZPD panel SEC LTM170EH-L01 BN07-00080A EP LTM170EH-L01 ZPD panel SEC LTM170E5-L01 BN07-00081A EQ LTM170E5-L01 ZPD panel SEC LTM170EH-L05 BN07-00083A ER LTM170EH-L05 ZPD panel SEC LTM170E5-L03 BN07-00084A ES LTM170E5-L03 ZPD panel SEC LTM170EU-L01 BN07-00085A ET LTM170EU-L01 ZPD panel SEC LTM170E5-L04 BN07-00086A EU LTM170E5-L04 ZPD panel SEC LTM170E6-L02 BN07-00087A EV LTM170E6-L02 ZPD panel SEC LTM150XH-L06 BN07-00091A EW Color coordinates change for LCD TV SEC LTM153W1-L01 BN07-00092A EX AMLCD WIDE 15",9/10 SEC LTM170W1-L01 BN07-00100A EY Color Coordinates change code management SEC LTM170EH-L05 BN07-00097A EZ LTM170E5-L05 Color Coordinates Change Panel Code SEC LTA400W1-L01 BN07-00109A S1 PANEL of AMLCD 40" TV SEC LTM153W1-L01 BN07-00110A S2 Color coordinates change 0.280/0.290, 10000k & ZPD Panel SEC LTM150XH-L06 BN07-00111A S3 Color coordinates change 0.280/0.290, 10000k & ZPD Panel SEC LTM170W1-L01 BN07-00112A S4 Color coordinates change 0.280/0.290, 10000k & ZPD Panel SEC LTM170EH-L05 BN07-00113A S5 Color coordinates change 0.280/0.290, 10000k & ZPD Panel SEC LTM220W1-L01 BN07-00114A S6 ZPD Panel for AMLCD 22" TV SEC LTM150XH-L06 BN07-00117A S7 ZPD Panel code SEC LTM153W1-L01 BN07-00118A S8 ZPD Panel code SEC LTM170WP-L01 BN07-00119A S9 PVA Panel for NIKE SEC LTM213U4-L01 BN07-00039A E1 21.3" NARROW SEC LTA260W1-L01 BN07-00121A E2 VENUS SEC LTA220W1-L01 BN07-00074B E3 Panel B-level panel code for 22" TV Panel Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks 14 Reference Infomation 14-8 SEC LTA320W1-L01 BN07-00108A E4 Panel for AMLCD 32" TV SEC LTM213U4-L01 BN07-00124A E5 NARROW BEZEL 21 " PANEL SEC LTM170E6-L04 BN07-00129A E6 HIGHLAND 17" LOW PANEL (Panel only for TCO03) SEC LTM190E1-L01 BN07-00088A E7 LTM190E1-L01 ZPD panel SEC M150X4-L06 BN07-00137A E8 15" Narrow & Slim panel SEC LTA170V1 BN07-00139A E9 17" Panel for Muse 4:3 VGA TV SEC LTM190E1-L02 BN07-00128A E10 New Panel from AMLCDl, Specification : 6bit Driver IC SEC LTM170EX-L01 BN07-00143A E11 Development new Panel from AMLCD SEC LTM170E8-L01 BN07-00144A E12 Development new Panel from AMLCD SEC LTM170E6-L04 BN07-00129B E13 ZPD panel for AMLCD (Panel only for TCO03) SEC LTA320W1-L02 BN07-00108B E14 Creat B-level Panel code for AMLCD 32" TV SEC LTM190E1-L03 BN07-00151A E15 Development new 19" Panel form AMLCD (Panel only for TCO03) SEC LTM240W1-L03 BN07-00134A E16 AMLCD 24" panel development SEC LTM190E1-L02 BN07-00128B E17 New Panel from AMLCD, Specification : 6bit Driver IC(ZPD) SEC LTM190E4-L01 BN07-00145A E18 AMLCD 24" new panel development SEC LTM170E8-L01 BN07-00158A E19 ZPD code derivation SEC LTM170EX-L01 BN07-00159A E20 ZPD code derivation SEC LTM190E1-L03 BN07-00151B E21 Creat new panel code for AMLCD 19" (Panel only for TCO03) SEC LTA460H1-L01 BN07-00157A E22 creat panel code for AMLCD 46" TV SEC LTM170EU-L11 BN07-00160A E23 creat new panel code for AMLCD 17" (Panel only for TCO03) SEC LTM240W1-L03 BN07-00134B E24 24" panel ZPD code derivation SEC LTM190E4-L01 BN07-00145B E25 AMLCD 19" ZPD Panel code derivation SEC LTM240W1-L03 BN07-00134B E26 24" panel ZPD code derivation SEC LTM150XO-L01 BN07-00164A E27 AMLCD 15" XO-L01 new panel development SEC LTM150XO-L01 BN07-00164B E28 AMLCD 15" XO-L01 ZPD code derivation SEC LTM170EU-L11 BN07-00160B E29 AMLCD 17" NEW panel code derivation SEC LTA320W2-L01 BN07-00172A SPZ AMLCD 32" NEW panel SEC LTM213U4-L01 BN07-00124B SPZ 21.3" Narrow PANEL ZPD Panel derivation SEC LTM170EU-L11 BN07-00189A STH AMLCD EU-L11 Pb free panel code derivtion SEC LTM170EU-L11 BN07-00189B STZ AMLCD EU-L11 Pb free panel ZPD code derivation SEC LTM240W1-L04 BN07-00188A SPH 24" A-DCC NEW panel SEC LTM240W1-L04 BN07-00188B SPZ 24" A-DCC panel ZPD code derivation SEC LTM190EX-L01 BN07-00191A STH AMLCD 19" TN NEW Panel SEC LTM190EX-L02 BN07-00191B STZ AMLCD 19" TN NEW Panel ZPD SEC LTA230W1-L02 BN07-00184A SPZ AMLCD 23" 16:9 NEW Panel SEC LTA260W2-L01 BN07-00185A SPZ AMLCD 26" 16:9 NEW Panel SEC LTA400W2-L01 BN07-00186A SPZ AMLCD 40" 16:9 NEW Panel SEC LTM240M1-L01 BN07-00195A SPH 24" high brightness panel SEC LTM150XO-L01 BN07-00197A STH AMLCD 15" XO-L01 Pb free panel code SEC LTM150XO-L01 BN07-00197B STZ AMLCD 15" XO-L01 Pb free panel ZPD code SEC LTM170EU-L21 BN07-00202A STZ AMLCD EU-L21 ZPD NEW code derivation SEC LTA460W2-L03 BN07-00187A SPZ BEETOVEN 46"ZPD NEW Panel SEC LTM240M1-L01 BN07-00195B SPZ 24" high brightness panel ZPD code derivation SEC M170EX-L21 BN07-00206A STZ AMLCD LTM170EX-L21 ZPD NEW code derivation SEC LTA460H3-L01 BN07-00200A SPZ AMLCD 46" LED BLU panel SEC LTM170EU-L15 BN07-00214A STZ High brightness For AMLCD EU-L15 TV ZPD NEW code derivation SEC LTM170E8-L21 BN07-00218A SPZ AMLCD LTM170E8-L21 PVA ZPD NEW code derivation SEC LTM190EX-L21 BN07-00222A STZ DISPLAY LCD SEC LTM201U1-L01 BN07-00190B SPZ AMLCD 20.1" Normal panel ZPD code derivation SEC LTM190E4-L21 BN07-00223A SPZ HAYDN 17" PZD code PANELderivation SEC LTA570H1-L01 BN07-00196A SPZ AMLCD 57" NEW Panel SEC LTM150XO-L21 BN07-00229A STZ AMLCD 15" XO-L21 8ms panel code SEC LTA260W2-L11 BN07-00239A SPZ AMLCD 26" 16:9 7Line NEW Panel SEC LTA400WS-LH1 BN07-00245A SPZ AMLCD 40" 16:9 SPVA 90% NEW Panel SEC LTM213U6-L01 BN07-00231A SPZ AMLCD 21.3" PVA NEW Panel Code SEC LTM213U6-L01 BN07-00231B SPH AMLCD 21.3" PVA Panel HPD Code SEC LTA320WS-LH2 BN07-00244A SPZ AMLCD 32" 16:9 SPVA 90% NEW Panel SEC LTA400WS-LH1 BN07-00245A SPZ AMLCD 40" 16:9 SPVA 90% NEW Panel SEC LTM190M2-L01 BN07-00227A STZ AMLCD 19" TN Wide NEW Panel Code Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks 14 Reference Infomation 14-9 SEC LTM201UX-L01 BN07-00249A STZ AMLCD 20.1" TN NEW Panel Code SEC LTM240M1-L02-A05 BN07-00250A SPZ 24" High brightness Slim panel ZPD code derivation SEC LTA320W3-L02 BN07-00219A SPZ AMLCD 32" NEW FFL Panel SEC LTA320W2-L11 BN07-00259A SPZ IP Board for AMLCD 32" 16:9 NEW Panel SEC LTA460WS-L02 BN07-00252A SPZ AMLCD 46" 16:9 SPVA 72% NEW Panel SEC LTA400WT-L01 BN07-00264A SPZ - SEC LTM240M2-L02 BN07-00267A SPZ All LCD Monitor 24" wide SPVA ZPD NEW code derivation SEC LTM210M2-L02 BN07-00230A SPZ - SEC LTA320WT-L11 BN07-00257A SPZ - SEC LTM190EX-L21-G BN07-00274A STZ AMLCD 19" TN Glare NEW Panel Code SEC LTA320WT-L14 BN07-00247A SPZ - SEC LTM190M2-L01-D016 BN07-00280A STZ AMLCD 19" TN Wide change Gamma Panel Code SEC LTM190EX-L31 BN07-00279A STZ AMLCD 19" TN NEW Panel Code SEC LTM190M2-L02 BN07-00287A STZ AMLCD 19" TN Wide High brightness NEW Panel Code SEC LTA400WS-L01 BN07-00246A SPZ Display-LCD (Div) 07AH SEC LTA460WS-L01 BN07-00311A SPZ - SEC LTM190E4-L31 BN07-00316A SPZ - SEC LTM170EX-L31 BN07-00278A STZ AMLCD LTM170EX-L31 ZPD SEC LTA460HS-LH1 BN07-00291A SPZ AMLCD 46" 16:9 FHD / 60Hz / 8bit / SPVA 92% SEC LTA320WT-LF1 BN07-00323A SPZ - SEC LTA460WT-L02 BN07-00284A SPZ AMLCD 46" 16:9 HD / 60Hz / 8bit / SPVA 72% / SEC LTA400WH-LH1 BN07-00271A SPZ AMLCD 40" 16:9 SPVA 92% 10bit 120Hz SEC LTM240M1-L02-D015 BN07-00331A SPZ - SEC LTM300M1-P01 BN07-00326A SPZ SEC LTM201UX-L01 BN07-00249B STH SEC LTM201M2-L01 BN07-00262A STZ All LCD Monitor 20.1" wide PVA ZPD NEW code derivation SEC LTM220M1-L01 BN07-00346A STZ SEC LTM240M2-L03 V01 BN07-00377A SPZ SEC LTM170EU-L31 BN07-00375A STZ SEC LTM270M1-L01 BN07-00373A SPZ SEC LTM170EX-L31-D BN07-00379A STZ SEC LTM190EX-L31-D BN07-00380A STZ CPT CLAA150XG09 BN07-00141A PA CPT 15" Monitor new panel development CPT CLAA170EA02 BN07-00148A PB 17" CPT NEW development panel CPT CLAA170EA02 BN07-00148B PC 17" CPT ZPD panel code derivation CPT CLAA150XG09 BN07-00141B PTZ CPT 15" panel ZPD code derivation (GOYA-PJT) CPT CLAA150XP01 BN07-00173A PTH CPT 15" PSWG code derivation CPT CLAA150XP01 BN07-00173B PTZ CPT 15" PSWG panel ZPD code derivation CPT CLAA170EA07 BN07-00174A PTH CPT 17" PSWG code derivation CPT CLAA170EA07 BN07-00174B PTZ CPT 17" PSWG type New Panel code CPT CLAA170EA07Q BN07-00220A PTZ CPT 17" PSWG R/T 8msec code derivation CPT CLAA170EA07Q BN07-00220B PTH CPT 17" PSWG R/T 8msec HPD code derivation CPT CLAA150XP01F BN07-00236A PTZ CPT 15" PSWG panel ZPD & Lead free code derivation CPT CLAA201WA03Q BN07-00269A PTZ CPT 20.1" wide TN ZPD New code derivation CPT CLAA320WA01 BN07-00276A PMZ CPT 32" 16:9 MVA 8bit 60Hz / Panel brown CPT CLAA170ES01 BN07-00261A PTZ CPT 17" Slim TN ZPD Type New code derivation CPT CLAA070VA02 BN07-00265A PTZ CPT Panel code derivation for Digital Album CPT CLAA201WA03S BN07-00269B PTH TOSHIBA LTM15C419(A) BN07-00002A TA - TOSHIBA LTM15C423(B) BN07-00006A TB - TOSHIBA LTM18C161 BN07-00008A TC - TOSHIBA LTM15C443 BN07-00031A TD - TOSHIBA LTM15C458 BN07-00043A TE - TOSHIBA LTM15C458S BN07-00077A TF TSB 15" high brightness Panel TOSHIBA LTM15C458 BN07-00078A TG Toshiba ZPD panel IBM LTM15C458S BN07-00099A TH TSB LTM15C458S ( ZPD ) Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks 14 Reference Infomation 14-10 HANNSTAR HSD150MX41A(A) BN07-00020A NA TTL type HANNSTAR HSD150MX12 BN07-00030A NB TTL type HANNSTAR HSD170ME13 BN07-00180A NTH Hannstar 17" TN new panel development HANNSTAR HSD170ME13 BN07-00180B NTZ Hannstar 17" TN new panel development ZPD code deriva- tion HANNSTAR HSD190ME12 BN07-00210A NTZ Hannstar 19" TN new panel development HANNSTAR HSD150MX17-A BN07-00226A NTZ Hannstar 15" slim panel ZPD code derivation HANNSTAR HSD190ME12-A10 BN07-00256A NTZ Hannstar 19" TN PSWG 8ms new panel development HANNSTAR HSD190ME13-D11 BN07-00270A NTZ Hannstar 19" TN Slim 5ms new panel development HANNSTAR HSD190ME13-A13 BN07-00317A NTZ HANNSTAR HSD190MGW1 BN07-00338A NTZ HANNSTAR HSD190MEN2-A BN07-00341A NTZ TORISAN TM150XG-22L03(A) BN07-00021A RA - TORISAN TM150XG-26L06 BN07-00042A RB - TORISAN TM181SX-76N01 BN07-00048A RC - TORISAN TM150XG-26L06 BN07-00059A RD 15" XGA TN MODE(ZPD) TORISAN TM290WX-71N31 BN07-00063A RE RS24NS (TORISAN 29" NEW PANEL) TORISAN TM396WX-71N31 BN07-00064A RF RS24NS (TORISAN 40" NEW PANEL) TORISAN TM150XG-26L09 BN07-00073A RG Panel for 15" TV TORISAN TM150XG-26L10 BN07-00089A RH L10(change except D/IC) ZPD TORISAN TM150XG-26L10 BN07-00090A RJ L10 NORMAL TORISAN TM190SX-70N01 BN07-00098A RK Torisan 19" Panel TORISAN TM181SX-76N01 BN07-00106A RL ZPD Panel code TORISAN TM190SX-70N01 BN07-00107A RM ZPD Panel code TORISAN TM290WX-71N31 BN07-00115A RN Color Coordinates change panel for TORISAN 29" TV TORISAN TM396WX-71N31 BN07-00116A RP,Q Color Coordinates change panel for TORISAN 40" TV TORISAN TM22OWX-71N31 BN07-00125A RR Development TORISAN 22" TV PANEL (ZPD) TORISAN TM22OWX-71N31 BN07-00127A RS Development TORISAN 22" TV PANEL (HPD) TORISAN TM396WX-71N32A BN07-00150A RT 120V inverter Exclusive panel TORISAN TM190SX-70N02 BN07-00154A RMH Torisan 6bit panel code Derivation TORISAN TM190SX-70N02 BN07-00154B RMZ Torisan 6bit panel code Derivation TORISAN TM150XG-A01 BN07-00162A RTH Torisan 15" Narrow & Slim panel development TORISAN TM150XG-A01 BN07-00162B RTZ Torisan 15" N&S panel ZPD code derivation SHARP LQ181E1DG11(A) BN07-10001C PA - SHARP LQ150X1LW71 BN07-00067A PB SHARP 15" PVA PANEL SHARP LQ370T3LZ41 BN07-00216A FAZ Rome2 HITACHI TX38D12VC0CAA(A) BN07-00003A HA - HITACHI TX43DVCOCAB BN07-00060A HB 17" SXGA PVA MODE HITACHI TX43D15VC0CAB BN07-00101A HC ZPD Panel HITACHI TX51D11VC0CAB BN07-00122A HD 20.1" NARROW HITACHI TX54D11VC0CAB BN07-00123A HE 21.3" NARROW HITACHI TX80D12VC0CAB BN07-00169A HIZ Development new panel for Hitachi 32" TV (ZPD) HITACHI TX54D11VC0CAB BN07-00123B HIZ Hitachi 21.3"ZPD panel IBM ITSX94S BN07-00017A IA - UNIPAC UM170E0 BN07-00028A UA Loaded by cisdba HYUNDAI HT15X13 BN07-00035A DA - HYUNDAI HT17E11-200 BN07-00049A DB TN MODE HYUNDAI HT17E11-300 BN07-00093A DC HT17E11-300 ZPD panel HYUNDAI HT17E11-400 BN07-00094A DD HT17E11-400 normal panel HYUNDAI HT17E11-400 BN07-00095A DE HT17E11-400 ZPD panel code HYUNDAI HT17E12 BN07-00096A DF HT17E12 ( Narow & slim Design ) HYUNDAI HT17E12 BN07-00105A DG ZPD Panel code Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks 14 Reference Infomation 14-11 HYUNDAI HT15X15-D00 BN07-00146A DH Development for Ares 15" Hydis TV HYUNDAI HT15X15-D01 BN07-00146B DJ Derivation panel HPD for Ares 15" Hydis TV HYUNDAI HT17E13-100 BN07-00167A DTH PINEHURST-2(IBM) PJT 17" HYDIS PANEL Derivation HYUNDAI HT17E13-100 BN07-00167B DTZ PINEHURST-2(IBM) Hydis 17" ZPD code Derivation HYUNDAI HT170EX1-100 BN07-00240A DTZ 17" EX compatible Hydis Slim panel development HYUNDAI HT201V01-100 BN07-00263A DTZ Hydis 20.1" 4:3 VGA Mode TN NEW Panel HYUNDAI HT170EX1-101 BN07-00266A DTZ 17" EX compatible Hydis Slim panel multi channel IC NEW Derivation ACER L170E3 BN07-00044A AA TN(ADT) ACER M170EN05 BN07-00076A AB AU 17" Panel ( Narrow & slim design ) ACER M170EN05 BN07-00102A AC ZPD Panel code ACER M190EN02 BN07-00170A AMH AU Monitor 19" new panel development (P19-1S) ACER M190EN02 BN07-00170B AMZ AU 19" ZPD code derivation (ZPD) ACER M170EN06 BN07-00171A ATH AU Monitor 17" New panel development ACER T260XW01 BN07-00163A AMZ AU 26" new panel development (NF26EO) ACER A201SN01 BN07-00177A ATZ AU TV panel 20.1" TN SVGA new panel development ACER M170EN06 BN07-00171B ATZ AU Monitor 17" ZPD code Derivation ACER T315XW01 BN07-00194A AMZ New AU 32" ACER M170EG01 BN07-00192A ATH AU TN PSWG type New Panel code ACER M170EG01 BN07-00192B ATZ AU TN PSWG type New Panel ZPD Derivation code ACER M190EN04 BN07-00203A ATH AU Monitor 19" ZPD New code Derivation ACER T260XW02 BN07-00208A AMZ AUO 26" ACER M170EG01 V8 BN07-00221A ATZ AU TN PSWG type New Panel (8msec) ZPD Derivation code ACER T260XW02 BN07-00233A AMZ AUO 26" New Panel (Cosmetic spec down grade) ACER T315XW01 BN07-00234A AMZ AUO 32" New Grade (Cosmetic spec down grade)] ACER M190EN03 BN07-00224A AMZ AU Monitor 19" MVA New code Derivation ACER T315XW01 BN07-00237A AMZ New LCD TV VE project : delete DBEF sheet * Panel, model division ve ACER T315XW01 BN07-00238A AMZ New LCD TV VE project : delete DBEF sheet + 'A-' grade * Panel ACER M201UN02 V3 BN07-00168A AMZ - ACER M201UN02 V3 BN07-00168B AMH - ACER M190EN04 V7 BN07-00248A ATZ AU Monitor 19" TN Glare ZPD New code Derivation ACER A070VW01 BN07-00235A ATZ New Panel code Derivation for Digital Album ACER T315XW01 BN07-00253A AMZ LCD TV VE item model * Panel, Model division add version: T315XW01 ACER T260XW02 BN07-00254A AMZ AUO 26" VE item apply model ACER M170EU01 BN07-00260A ATZ AUO 17" Slim TN ZPD Type New code Derivation ACER T370XW01 BN07-00255A AMZ for ROME 37" model development ACER T315XW02(V3), BN07-00324A AMZ - ACER A201SN02 V5 BN07-00314A ATZ ACER M201UN03 BN07-00332A AMZ ACER M190PW01 V0 BN07-00350A ATZ CHIMEI M170E3-LO1 BN07-00050A CA TN PANEL CHIMEI M150X3-L01 BN07-00051A CB COMPATIBLE CHIMEI M170E4-L01 BN07-00052A CC MVA PANEL CHIMEI M150X2-L01 BN07-00066A CD CHIME 15"I PVA PANEL CHIMEI M150X3-L01 BN07-00079A CE Chimei ZPD panel CHIMEI M170E3-L01 BN07-00103A CF ZPD Panel code CHIMEI M170E4-L01 BN07-00104A CG ZPD Panel code CHIMEI V296W1-L01 BN07-00120A CH MVA CHIMEI M170E6-L02 BN07-00126A CJ HIGHLAND 17" LOW PANEL CHIMEI M190E2-L01 BN07-00131A CK GH19AS,BS CHIMEI PANEL CHIMEI M150X4-L06 BN07-00137A CL 15" Narrow & Slim panel CHIMEI M170E6-L01 BN07-00133A CM 2003-03-11 vendor change CHIMEI M170E6-L01 BN07-00133B CN ZPD derivation panel CHIMEI V201V1-T01 BN07-00135A CP CHIMEI 20.1" panel development CHIMEI M170E6-L02 BN07-00126B CQ HIGHLAND 17" LOW PANEL ZPD derivation panel Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks 14 Reference Infomation 14-12 CHIMEI M170E6-L05 BN07-00152A CR CMO 17" new panel development code CHIMEI M170E6-L05 BN07-00152B CS CMO 17" ZPD panel code derivation CHIMEI M150X4-L06 BN07-00137B CT Chimei 15" Narrow & Slim panel ZPD derivation CHIMEI M170E5-L05 BN07-00165A CTH CMO 17" new panel development code (GOYA2-PJT) CHIMEI M170E5-L05 BN07-00165B CTZ CMO 17" ZPD panel(GOYA2-PJT) CHIMEI V230W1-L02 BN07-00209A CMZ CMO 23" new development CHIMEI V320B1-L01 BN07-00207A CMZ CMO 32" new development CHIMEI V270W1-L01 BN07-00136A CMZ CHI MEI 27" panel development CHIMEI M190E5-L0A BN07-00213A CTZ - CHIMEI M190E3-L0A BN07-00212A CMZ CMO M190E3-L0A MVA Type New code derivation CHIMEI M170E7-L01 BN07-00232A CTZ CMO 17" Slim TN ZPD Type New code derivation CHIMEI M190A1-L01 BN07-00228A CTZ CMO 19" Wide TN ZPD Type New code derivation CHIMEI V201V1-T03 BN07-00275A CTZ CMO 20.1" (V201V1-T01) VE model CHIMEI M201P1-L01 BN07-00268A CTZ CMO 20.1" TN ZPD derivation CHIMEI M220Z1-L01 BN07-00321A CTZ CHIMEI M190E5-L0G BN07-00337A CTZ CHIMEI M190A1-L02 BN07-00330A CTZ CHIMEI M220Z1-L02 BN07-00354A CTZ NEC SVA150XG04TB BN07-00225A BTZ SVA NEC 15" panel ZPD code NEC SVA170SX01TB BN07-00272A BTZ SVA NEC 17" panel ZPD code Brown Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks 2 产品规格 2 产品规格 2-1 时尚特点 -提供集成用户界面 -支持安全模式（WXGA+按比例缩小） -集成换算器+MICOM（gm5726） -连接性：模拟 -功率消耗：42W -DPMS：1W以下(230Vac) -功率：内部转换器功率(5V - 2A,13V - 2.0A) ， 100 ~ 240 伏特 2-2 规格 项目 说明 液晶显示屏 薄膜晶体管液晶显示屏、RGB 竖条纹、正常白色传送、17 英寸宽屏可视，0.2835 (H) x 0.2835 (V) mm 像素 扫描频率 水平 : 30 kHz ~ 81 kHz (自动) 竖直 : 56 Hz ~ 75 Hz 显示颜色 16.7M 种颜色 最大分辨率 水平：1440 像素 竖直：900 像素 视频输入信号 模拟 输入同步信号 类型：单独分开的H/V同步，复合H/V，绿色同步 电平：TTL 电平 最大像素时钟率 137 MHz 有效显示 水平/竖直 408.24 mm / 225.15 mm 交流电源电压和频 率 AC 100~240，60/50 Hz± 3Hz 功耗 42W（最大） 简易底座 HAS-底座 439 x 360.7 x 200 mm (17.2 x 14.2 x 7.8英寸) 439 x 327.3 x 200 mm (17.2 x 12.8 x 7.8 英寸) 尺寸 本机（宽×高×深） 重量（本机） 4.7 kg 5.9 kg 环境因素 工作温度：50oF~104oF（10℃~40℃） 工作湿度：10%~80% 存放温度：-4oF~113oF（-25℃~45℃） 存放湿度：5%~95% *设计和规格可能有变动，恕不事先通知 三星电子 2-1 2 产品规格 2-3 规格比较 型号 LS19HAVKL G19W LS19HANSBY 940NW plus 机型 屏幕尺寸 19”宽屏 19”宽屏 分辨率 1440X900@60Hz 1440X900@60Hz 色彩 16.7M 16.2M 亮度 300cd/m2 300cd/m2 对比度 700:1 DCR : 2000:1 900:1 DCR : 2000:1 响应时间 5ms 4ms（G 至 G） 水平频率/竖直频率 30~81kHz / 56~75Hz 30~81kHz/56~75Hz 输入同步信号 分离，合成，同步绿色 分离，合成，同步绿色 功耗 42 瓦特（最大） 42 瓦特（最大） DPMS < 1W < 1W 魔幻曲调 高级 高级 魔幻亮度 文本/互联网/游戏/体育/电影/动态对比 文本/网络/游戏/体育/电影/动态对比 2-2 三星电子 2 产品规格 2-4 选装件规格 物品 物品名称 代号 备注 快速安装指南 BN68-01014F 保修卡 （在所有地点不提供） BH75-00146B D-Sub(15 针) 线缆 BN39-00244G 电源线 3903-000082 三星电子 2-3 2 产品规格 备忘录 2-4 三星电子 3 调整和调节 3 调整和调节 维修手册本章说明如何使用 DDC 管理工具。 该功能为更换 AD 板和程序存储器（IC201）所需。 3-1 所需的设备 以下设备为调整显示器所需: - 装有Windows 95、Windows 98、Windows 2000, Windows XP或WindowsNT的计算机。 - MTI-2055、 2058或2059 DDC管理工具 3-2 自动色彩调整 若要输入图像，使用 16 级灰度或任何使用黑色和白色的图形。 1. 为 OSD 语言选择英语。 2. 按“（ 确定）”键 5 秒钟。 3-3 DDC EDID数据输入 1. 在更换 AD 印刷电路板时，输入 DDC EDID 数据。 2. 由 HQ 质量控制部门接收/下载适于该机型 DDC 文件。 安装以下装置（图 1）并输入数据。 MTI-2055 DDC 管理器 并行连接器 （25 针电缆） 连接显示器 （信号电缆） 图 1 3-4 更换显示屏时在屏显示调节 1. 调整亮度和对比度到 0。然后，按下 （确定）键 5 秒。 维修功能 OSD 出现在屏幕上。 2. 按 + 键将光标置于显示屏上。按菜单键 5 秒。 3-5 仅更换灯时在屏显示调节 1. 调整亮度和对比度到 0。然后，按退出键 5 秒。 维修功能 OSD 出现在屏幕上。 2. 按 + 键。选择上灯并按菜单键 5 秒。 然后，选择下灯并按菜单键 5 秒。 *注意：如欲了解维修功能的详情，请务必阅读以下说明。 三星电子 3-1 3 调整和调节 3-6 维修功能说明 3-6-1 检查代码版本 显示屏信息 选择自动调节 选择像素转换 定标器销售 软件版本 软件检验和 3-6-2 维修模式（确定） 1. 设置亮度和对比度值应变为零。 2. 在 5 秒内，按（确定/来源）键。 3. 维修功能 OSD 将显示。 显示屏信息 选择自动调节 选择像素转换 定标器销售 软件版本 软件检验和 维修功能 OSD 是基于 29 列×12 排的网格。 维修功能 OSD 包含显示屏信息、软件版本和 MICOM 检验和。 3-2 三星电子 3 调整和调节 1. 进行下一步，按下（+）按钮。 2.进行转换，按下（-）按钮。 -当更换显示屏时 更换显示屏后，选择显示屏项目然后按下菜单按钮 5 秒。 显示屏 Ch. No.将会增加，准时且周期性的数字将会被设置为 0。 这个数字将会被改变 三星电子 3-3 3 调整和调节 3-7 如何执行 DDC 1. 打开文件。 2. 选择端口#1. 3. 选择 DDC文件. 4.点击“下一步”按钮。 5. 输入显示器序列号，并按下确定按钮。 *模拟输入后使用数字输入重复2到5次。 3-4 三星电子 3 调整和调节 3-8 如何执行 MCU 代码 3-8-1 GProbe配置[设定配置] 3-8-2 GProbe配置[更改文件路径] 三星电子 3-5 3 调整和调节 3-8-3 代码升级 1: 运行GProbe. 2: 更改文件名称和路径到下载的十六进制文件中。 3: 输入"batch batchfilename.txt"点击运行。 4: 如果成功了，关闭显示器直到LED 也被关闭。 **如果执行 batch 文档出现错误： - 执行硬关机。 - 在命令窗口中输入 "forcesa" 。 - 执行硬关机。 - 再次运行batch文档。 3-6 三星电子 4 故障排除 4 故障排除 注意：1. 在进行故障排除之前，按如下方式设置 PC 显示器： -分辨率：1024×720 -水平频率：45 kHz -竖直频率：60 Hz 2. 如果没有图像出现，确保正确连接了电源线。 3. 检查以下电路： -没有光栅出现：功能印刷电路板组件、主印刷电路板组件、I/P 印刷电路板组件 -5V 形成，但没有画面：主印刷电路板组件 -5V 没有形成：I/P 印刷电路板组件 4. 如果选择亮度调节菜单并按住“ (确定)”按钮超过 5 秒，则显示器自动返回工厂预设值。 4-1 未通电 检查IC600和相关电路。 更换IP板。 检查功能组件。 当IC600管脚1为DC 5V时， IC600管脚3是否出现正常的 DC 3.3V？ CN600管脚4为0V时，CN600 管脚2和6、7是否分别出现正常 的DC14V 、14V、5V？ 否 否 是 是 检查IC602和相关电路。 当IC602管脚3为DC 3.3V时， 管脚2 DC 1.8V？ 否 是 *这一页面的所有点包含主印刷电路板。 三星电子 4-1 4 故障排除 4-2 没有图像 检查信号电缆及其连接。 1 是 否 R134、R135和R138是否有R、 G、B输入？ 检查输入部分。 IC300管脚89和90是否 出现水平同步、竖直同步波形？ 3 2 是 CN601管脚2~31、37~40是否 出现输出信号？ 检查IC601和相关电路。 否 是 检查IC300和有关电路。 X300振荡是否正常？ 否 更换或检查相关电路。 否 是 CN601管脚42、43和44是否有 DC 5V？ 检查R316的显示屏EN信号和 R307的BL_EL信号。 否 是 检查液晶显示屏，如果需要将 其更换。 *这一页面的所有点包含主印刷电路板。 4-2 三星电子 4 故障排除 三星电子 4-3 波 形 4 故障排除 备忘录 4-4 三星电子 6 Exploded View & Parts List 5-1 5 Exploded View and Parts List -You can search for updated part codes through ITSELF web site. URL : http://itself. sec. samsung.co.kr 5-1 LS19HAVKL/XSF Exploded View T0003 M0112 T0022 M0145 M0215 M0017 M0174 M0013 M0006 M0113 M0006 M0003 M0006 M0107 - Parts list 5 Exploded View & Parts List 5-2 Location Code.No Item & Specification Q'ty SA/SNA Remark T0003 BN96-03831Q ASSY COVER P-FRONT;G19W(BOE),,ABS HB,,BK 1 S.A M0112 BN63-02723M COVER-FRONT;LS19HAV(BOE),ABS HB,BK24,G1 1 S.N.A T0022 BN64-00377A KNOB CONTROL;HA17TS,PC CLEAR+SMOG,T2.1,9 1 S.N.A M0145 BN96-02474C ASSY BOARD P-FUNCTION;HAYDN,YWP-VD-05-05 1 S.A M0215 BN07-00407A LCD-PANEL;HT190WG1-101,Haydn,6bit Hi-FRC 1 S.A M0017 BN91-01914A ASSY CHASSIS-DTZ,W/W;LS19HAV* 1 S.A M0174 BN44-00124H IP BOARD;IP-35155A(V),MENDEL,3.0 ~5.0mA, 1 S.A M0006 BN96-03340L ASSY SHIELD P-COVER;940NW,SECC,AMLCD,NON 1 S.N.A M0107 BN63-02522L SHIELD-COVER;940NW,SECC,T1.0,AMLCD,NON M 1 S.N.A M0013 BN96-03338F ASSY COVER P-REAR;940NW,,HIPS HB,,BK24,A 1 S.A M0113 BN61-01581A BRACKET-VESA;BI17/19BS,SECC,T1.0 2 S.N.A M0006 BN63-02516D COVER-REAR;LS19HAW,HIPS,HB,BK24,ANALOG,S 1 S.N.A M0003 BN96-01947C ASSY STAND P;-,HA17AS/BS,-,HIPS,BK24,STA 1 S.A M0006 BN63-02517A COVER-REAR SUB;LS19HAW,HIPS,HB,BK24 1 S.A 6 Electrical Parts List 6-1 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA LS19HAVKL/XSF G19W,WGA2/S19B4-LHA,19,LCD-MO,CHINA 0.1 M0216 BN90-00742R ASSY STAND;LS17HAAKSB/XSH 1 S.N.A ..2 M0003 BN96-01947C ASSY STAND P;-,HA17AS/BS,-,HIPS,BK24,STA 1 S.A ...3 M0081 6003-000133 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(BLK),SW 2 S.A ...3 M0081 6003-001086 SCREW-TAPTITE;BH,+,-,B,M3,L12,ZPC(BLK),S 4 S.A ...3 M0126 BN61-00822A STAND-BRKT HINGE;GS17VS,SECC,T1.2 1 S.N.A ...3 BN63-01762B COVER-STAND FRONT;HA17AS/BS,HIPS,T2.7,BK 1 S.N.A ...3 BN63-01763B COVER-STAND REAR;HA17AS/BS,HIPS,T2.7,BK2 1 S.N.A ...3 T0054 BN96-04253A ASSY HINGE P;BI17BS,HGI T2.3 1 S.N.A 0.1 M0002 BN90-00906F ASSY COVER REAR;LS19HANSS/XTW,940NW 1 S.N.A ..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 3 S.A ..2 M0006 BN63-02517A COVER-REAR SUB;LS19HAW,HIPS,HB,BK24 1 S.A ..2 M0013 BN96-03338F ASSY COVER P-REAR;940NW,,HIPS HB,,BK24,A 1 S.A ...3 M0113 BN61-01581A BRACKET-VESA;BI17/19BS,SECC,T1.0 2 S.N.A ...3 M0006 BN63-02516D COVER-REAR;LS19HAW,HIPS,HB,BK24,ANALOG,S 1 S.N.A ...3 BN73-00089A RUBBER-SET CAP;PO24FS,Elatomer SANTOPREN 4 S.N.A 0.1 M0001 BN90-00988U ASSY COVER FRONT;LS19HAV(G19W),HSD PANEL 1 S.N.A ..2 T0003 BN96-03831Q ASSY COVER P-FRONT;G19W(BOE),,ABS HB,,BK 1 S.A ...3 M0112 BN63-02723M COVER-FRONT;LS19HAV(BOE),ABS HB,BK24,G1 1 S.N.A ...3 T0022 BN64-00377A KNOB CONTROL;HA17TS,PC CLEAR+SMOG,T2.1,9 1 S.N.A ...3 M0145 BN96-02474C ASSY BOARD P-FUNCTION;HAYDN,YWP-VD-05-05 1 S.A ....4 M0014 BN94-01300K ASSY PCB MAIN-SEDA,FUCHION PCB;HAYDN* 1 S.N.A .....5 CIS 0203-001809 TAPE-DOUBLE FACE;467MP,-,-,W7.80,L106.67 1 S.N.A .....5 SW1 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A .....5 SW2 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A .....5 SW3 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A .....5 SW4 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A .....5 SW5 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A .....5 SW6 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A .....5 M2893 BN39-00688A LEAD CONNECTOR;HAYDN,UL1571#30,4P,450mm, 1 S.A .....5 CIS BN61-01846A GUIDE-CONTROL;HA17T,ABS HB,T1.1,9,112,IV 1 S.N.A .....5 T0174 BN97-01589K ASSY SMD;HAYDN* 1 S.N.A ......6 L0405 0601-001896 LED;SMD,BLUE,1.6x0.8x0.4mm,470,1.6x0.8x0 1 S.A ......6 R110 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 S.A ......6 R110 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 S.A ......6 R110 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A ......6 R110 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A ......6 CN330 3711-005935 HEADER-BOARD TO CABLE;BOX,4P,1R,1mm,SMD- 1 S.A ......6 T0077 BN41-00633A PCB MAIN;HAYDN,FR4,2L,MP1.0,0.6T,105*8,1 1 S.N.A 0.1 CCM1 BN91-01303K ASSY LCD-DTZ;LS19MEW 1 S.N.A ..2 M0215 BN07-00407A LCD-PANEL;HT190WG1-101,Haydn,6bit Hi-FRC 1 S.A 0.1 M0017 BN91-01914A ASSY CHASSIS-DTZ,W/W;LS19HAV* 1 S.A ..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 3 S.A ..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A ..2 T0562 6046-001013 STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40 2 S.N.A ..2 M2893 BN39-00785A LEAD CONNECTOR;LS19PLMTSQ,UL1007#26,UL/C 1 S.A ..2 M0174 BN44-00124H IP BOARD;IP-35155A(V),MENDEL,3.0 ~5.0mA, 1 S.A 6 Electrical Parts List You can search for updated part codes through ITSELF web site. URL : http://itself.sec.samsung.co.kr/ 6-1 LS19HAVKL/XSF Parts list 6 Electrical Parts List 6-2 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ..2 M0014 BN94-01576K ASSY PCB MAIN-DTZ,W/W;LS19HAV** 1 S.N.A ...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.003 S.N.A ...3 CN101 3701-001219 CONNECTOR-DSUB;15P,3R,FEMALE,ANGLE,AUF 1 S.A ...3 T0174 BN97-01911H ASSY SMD;LS19HAV* 1 S.N.A ....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45##,96.5Sn/ 0.922 S.N.A ....4 D125 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D126 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D127 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D123 0403-001411 DIODE-ZENER;-,5.49-5.73V,200mW,SOD-323,T 1 S.A ....4 D124 0403-001411 DIODE-ZENER;-,5.49-5.73V,200mW,SOD-323,T 1 S.A ....4 D230 0403-001411 DIODE-ZENER;-,5.49-5.73V,200mW,SOD-323,T 1 S.A ....4 D231 0403-001411 DIODE-ZENER;-,5.49-5.73V,200mW,SOD-323,T 1 S.A ....4 D232 0406-001061 DIODE-TVS;MMQA5V6T3,5.32/5.6/5.88V,24W,S 1 S.A ....4 ZD200 0406-001061 DIODE-TVS;MMQA5V6T3,5.32/5.6/5.88V,24W,S 1 S.A ....4 Q201 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A ....4 Q302 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q409 0505-001957 FET-SILICON;NTR2101P,P,-8V,-3.7A,0.052oh 1 S.A ....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A ....4 IC112 1103-001023 IC-EEPROM;24C08,8Kbit,1Kx8Bit,SOP,8P,5x4 1 S.A ....4 IC303 1203-001212 IC-VOL. DETECTOR;7029,SOT-89,3P,-,PLASTI 1 S.A ....4 T0087 1203-003060 IC-POSI.FIXED REG.;AP1084,TO-263,3P,9.97 1 S.A ....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A ....4 IC109 1205-002899 IC-LCD CONTROLLER;GM5726-LF-AA,PQFP,128P 1 S.A ....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000083 R-CHIP;3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000083 R-CHIP;3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000083 R-CHIP;3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A 6 Electrical Parts List 6-3 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000608 R-CHIP;240ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R110 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R110 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 C120 2203-000041 C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608 1 S.A ....4 C120 2203-000041 C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608 1 S.A ....4 C120 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A ....4 C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A ....4 C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A ....4 C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A ....4 C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A ....4 C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A ....4 C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A ....4 C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A ....4 C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A ....4 C120 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C120 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A 6 Electrical Parts List 6-4 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C120 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C120 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C120 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C120 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C120 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C120 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C120 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C120 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C306 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A ....4 C608 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A ....4 C609 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A ....4 C644 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A ....4 X300 2801-003667 CRYSTAL-SMD;14.31818MHz,30ppm,28-AAN,16p 1 S.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 CN400 3708-001150 CONNECTOR-FPC/FFC/PIC;30P,1mm,SMD-A,SN,Y 1 S.A ....4 CN330 3711-005503 HEADER-BOARD TO CABLE;BOX,9P,1R,2mm,SMD- 1 S.A ....4 CN330 3711-005509 HEADER-BOARD TO CABLE;BOX,4P,1R,1.25mm,S 1 S.A ....4 T0077 BN41-00816A PCB MAIN;LS19HAN,Silver through,2,MP1.0, 1 S.N.A ....4 M0018 BN97-01909A ASSY MICOM;Haydn,LHA19VS,CHN,MX25L1005,2 1 S.N.A .....5 IC115 1107-001614 IC-FLASH MEMORY;MX25L1005,1Mbit,1Mx1Bit, 1 S.N.A ..2 M0251 BN96-02854J ASSY CABLE P;-,UL21341,FFC CABLE,120MM,1 1 S.A ..2 M0006 BN96-03340L ASSY SHIELD P-COVER;940NW,SECC,AMLCD,NON 1 S.N.A ...3 BN61-01578A BRACKET-SHIELD;BI19BS,SECC,T1.0 1 S.N.A ...3 M0001 BN63-01774A SHIELD-INSULATOR;BI17/19BS,PET,T0.35 1 S.N.A ...3 M0107 BN63-02522L SHIELD-COVER;940NW,SECC,T1.0,AMLCD,NON M 1 S.N.A 6 Electrical Parts List 6-5 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ...3 M0131 AA63-01240A GASKET;FIRENZE,Conductive Fabric,3mm,12m 1 S.N.A 0.1 M0019 BN92-01681X ASSY LABEL;LS19HAWKBQ/XSF 1 S.N.A ..2 LABEL BN68-00761F MANUAL-02,QSG;Protection Sheet,SyncMaste 1 S.N.A 0.1 M0113 BN92-03011B ASSY P/MATERIAL;LS19HAVKL/XSF 1 S.N.A ..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,L1000,W500,TRP,,, 0.005 S.N.A ..2 T0524 6902-000241 BAG PE;NITRON/HDPE,T0.5/T0.012,W600,L600 1 S.N.A ..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-- 0.002 S.N.A ..2 T0003 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 0.987 S.N.A ..2 M0081 6902-000609 BAG ROLL;LDPE,T0.05,W2400,L1000,TRP,-,- 0.1 S.N.A 0.1 M0045 BN92-03013R ASSY ACCESSORY;LS19HAVKL/XSF 1 S.N.A ..2 M0114 BN39-00244G CBF SIGNAL;D-sub cable,15P/15P,20276N,15 1 S.A ..2 M0027 BN96-02331D ASSY STAND P-BASE;-,LS17HA,-,HIPS HB,GR7 1 S.A ...3 T0524 6902-000389 BAG PE;HDPE/NITRON/HDPE,T0.015/T0.5/T0.0 1 S.N.A ...3 CIS4 BN61-01717A HOLDER-STAND;BIZET,NI PLT,CH,+,M4,L11(5) 1 S.A ...3 T0004 BN63-01989B COVER-STAND BASE;HA17AS/BS,HIPS,T2.5,BK2 1 S.N.A ...3 M0174 BN63-01990D COVER-STAND TOP;HA17AS/BS,HIPS HB,T2.5,G 1 S.N.A ...3 BN68-00786F MANUAL FLYER-02,QSG;Bizet Stand Manual,S 1 S.N.A ...3 T0132 BN73-00077A RUBBER FOOT;MATISSE,BUMPON,##13.5,T2.0,6 4 S.N.A ..2 M0045 BN96-06446B ASSY ACCESSORY;LS19HAVKL/XSF 1 S.A ...3 T0268 3903-000082 CBF-POWER CORD;DT,CN,IP3/YES(A),I(IEC C1 1 S.A ...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2 1 S.N.A ...3 M0113 BH68-70455A CARD-TESTED GOODS;ALL (CHINA),SAMAUNG,CH 1 S.N.A ...3 ACCESSORY BH75-00146B UNIT-10,WARRANTY;CHINA,-,ASS'Y-W/CARD,BH 1 S.N.A ....4 CIS BH68-00297E MANUAL FLYER-10,WARRANTY CARD;SAMSUNG BA 1 S.N.A ....4 CIS BH68-00297F MANUAL FLYER-10,WARRANTY CARD;ENVELOPE,S 1 S.N.A ...3 ACCESSORY BN68-01014F MANUAL FLYER-QSG;G19W,SyncMaster,CHINA,M 1 S.N.A 0.1 M0003 BN92-03024H ASSY BOX;LS19HAVKL/XSF 1 S.N.A ..2 BOX BN69-02167A BOX-SET;LS19HAVSB,A1,SW,W513,D416,H125 1.01 S.N.A S.A 0.1 M0112 BN91-01030C ASSY SHIELD;LS19HAWKBH/XAA,AM LCD 1 S.N.A ..2 BN63-02523A SHIELD-LAMP;LS19HAW,SPTE,T0.3 1 S.N.A 6 Electrical Parts List 6-6 Memo 7 Block Diagrams 7-1 7 Block Diagram 7-1 Power Tree AP1084 ~ 3.3 7 Block Diagrams 7-2 SCALER GM5726-LF 7-2 Main Board Part 7-3 IP Board Part (SMPS Part) 7 Block Diagrams 7-3 7-4 IP Board Part (Inverter Part) 7 Block Diagrams 7-4 8 Wiring Diagram 8-1 8 Wiring Diagram 8 Wiring Diagram 8-2 Memo 9 Schematic Diagrams 9-1 9 Schematic Diagrams - This Document can not be used without Samsung� s authorization. 9 Schematic Diagrams 9-2 - This Document can not be used without Samsung� s authorization.
