三星460DXN液晶显示器原理图

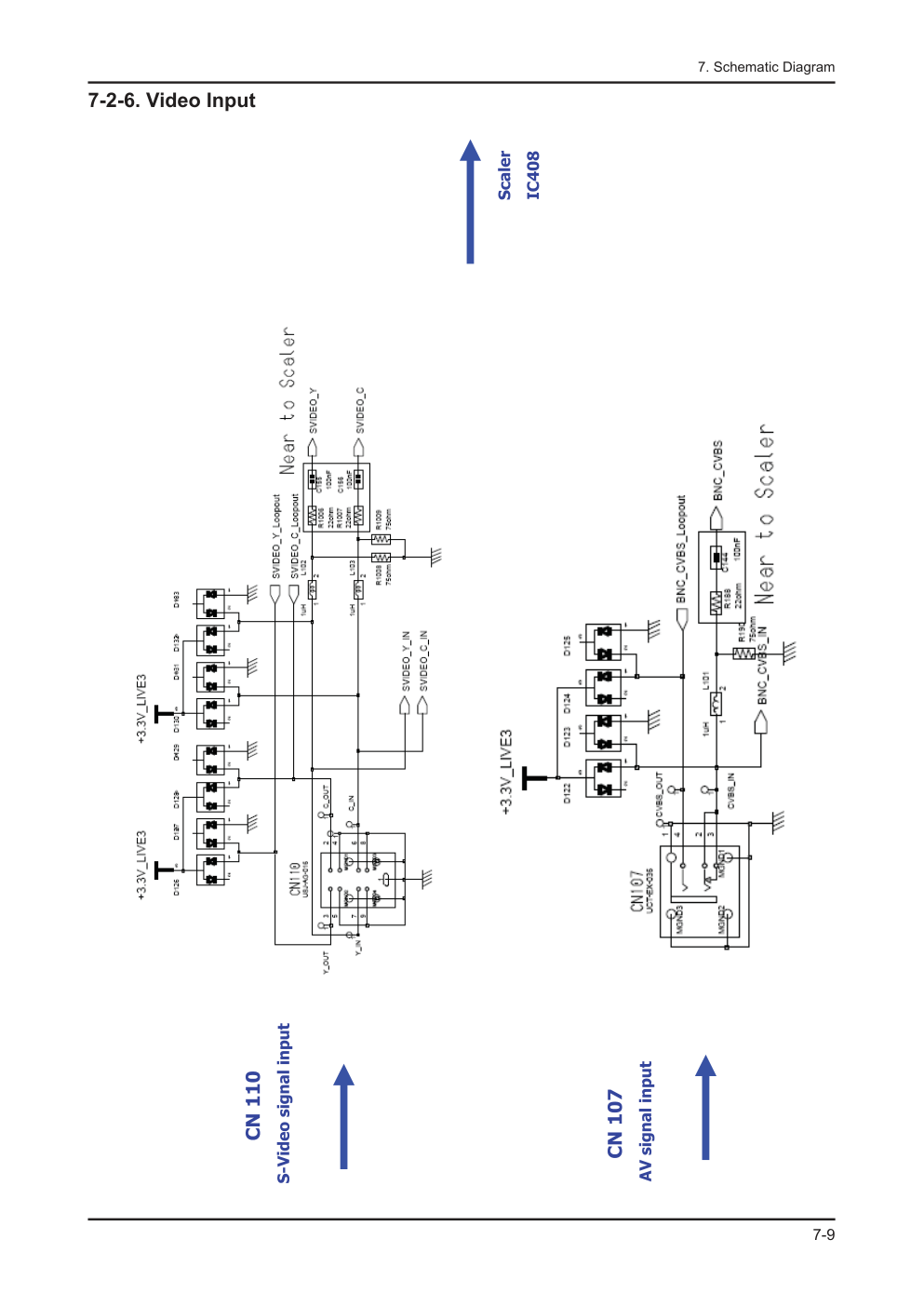

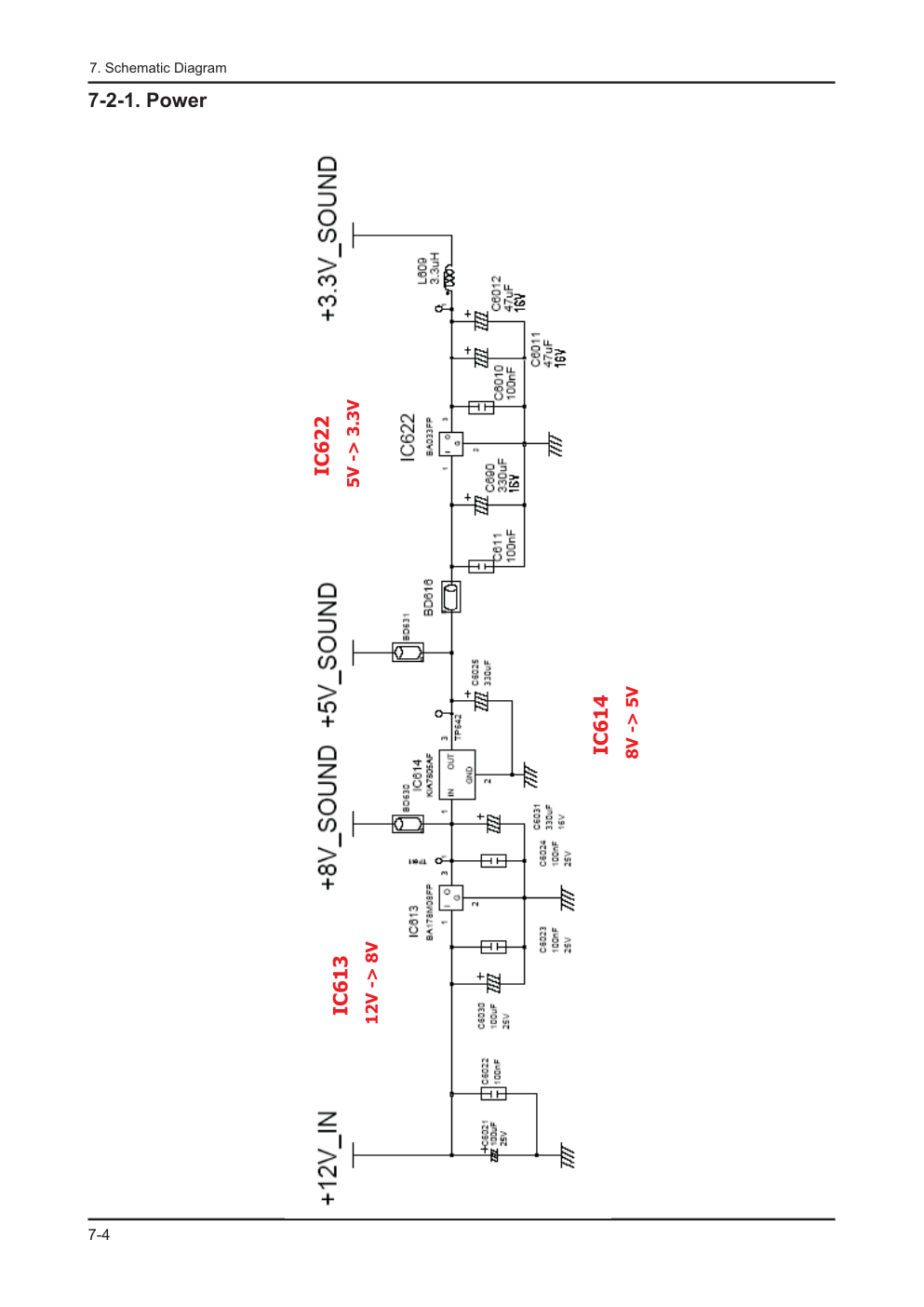

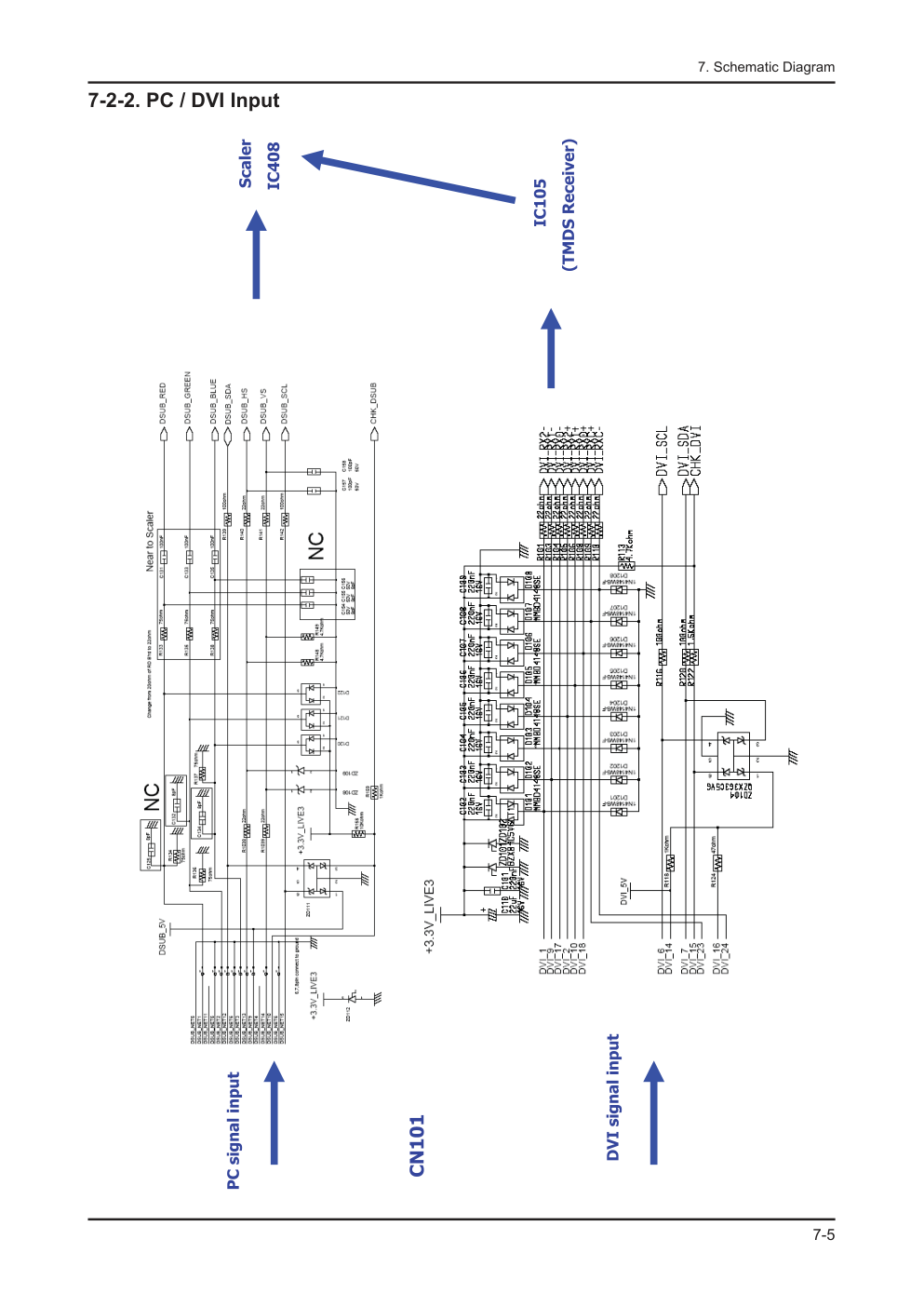

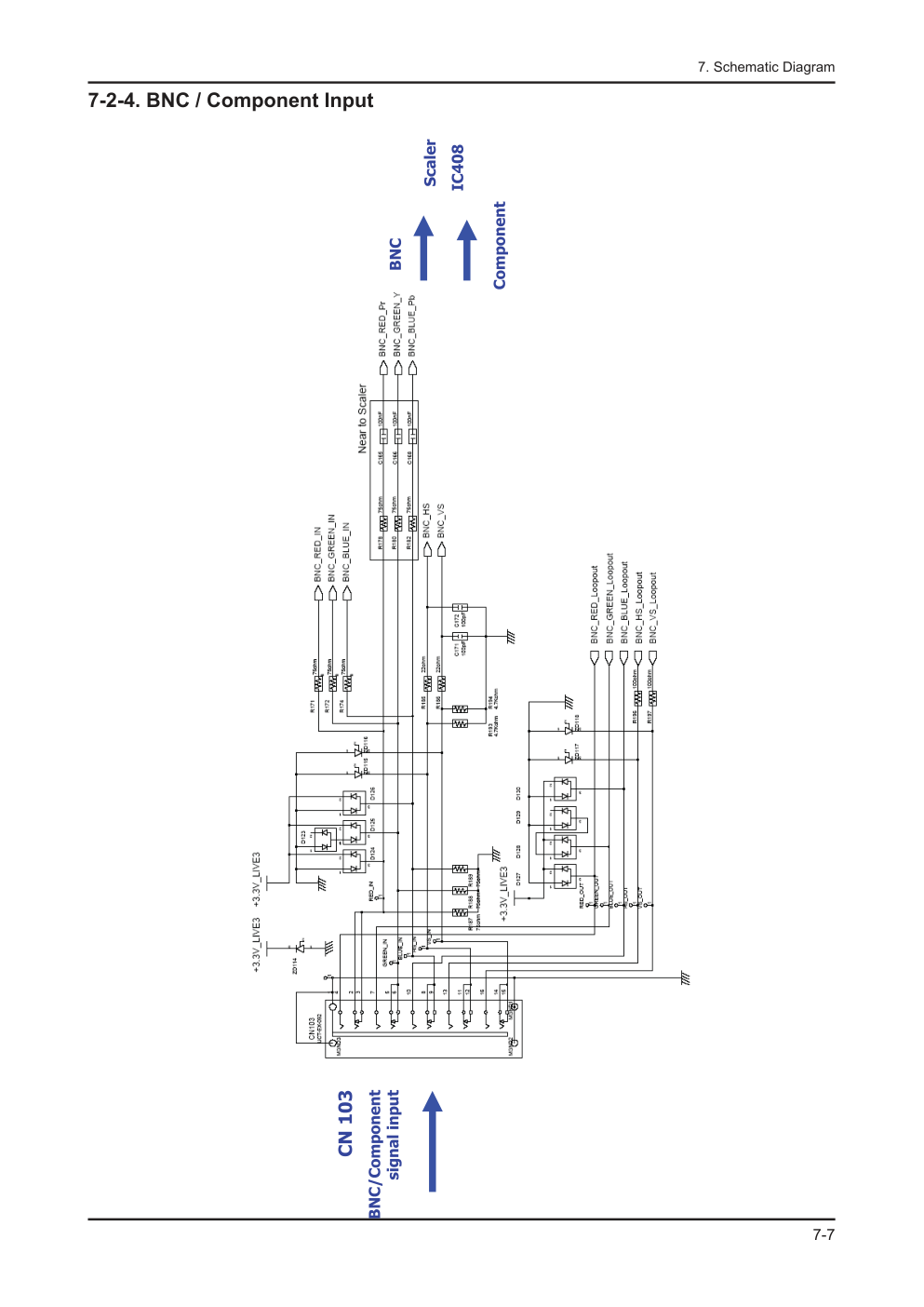

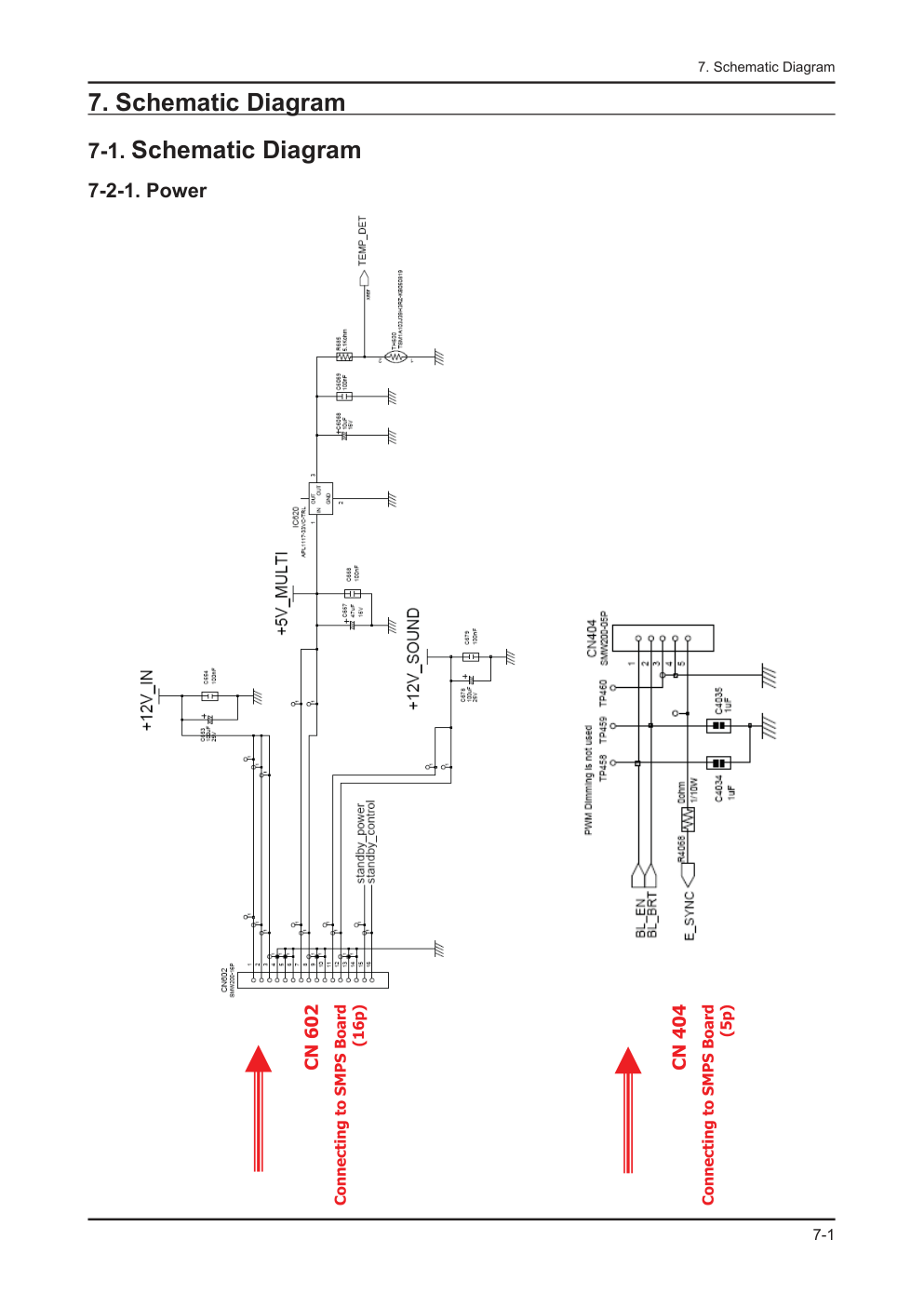

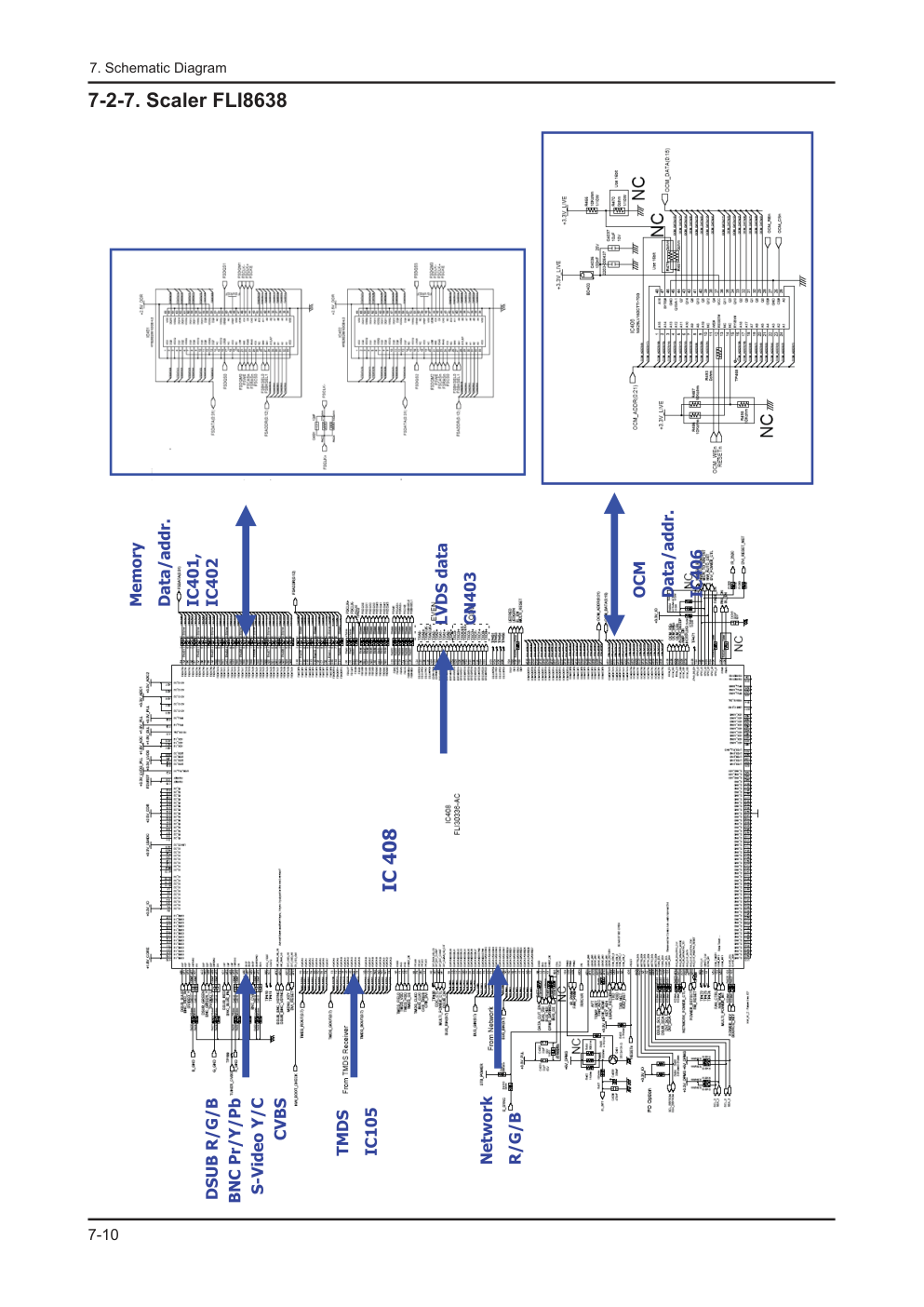

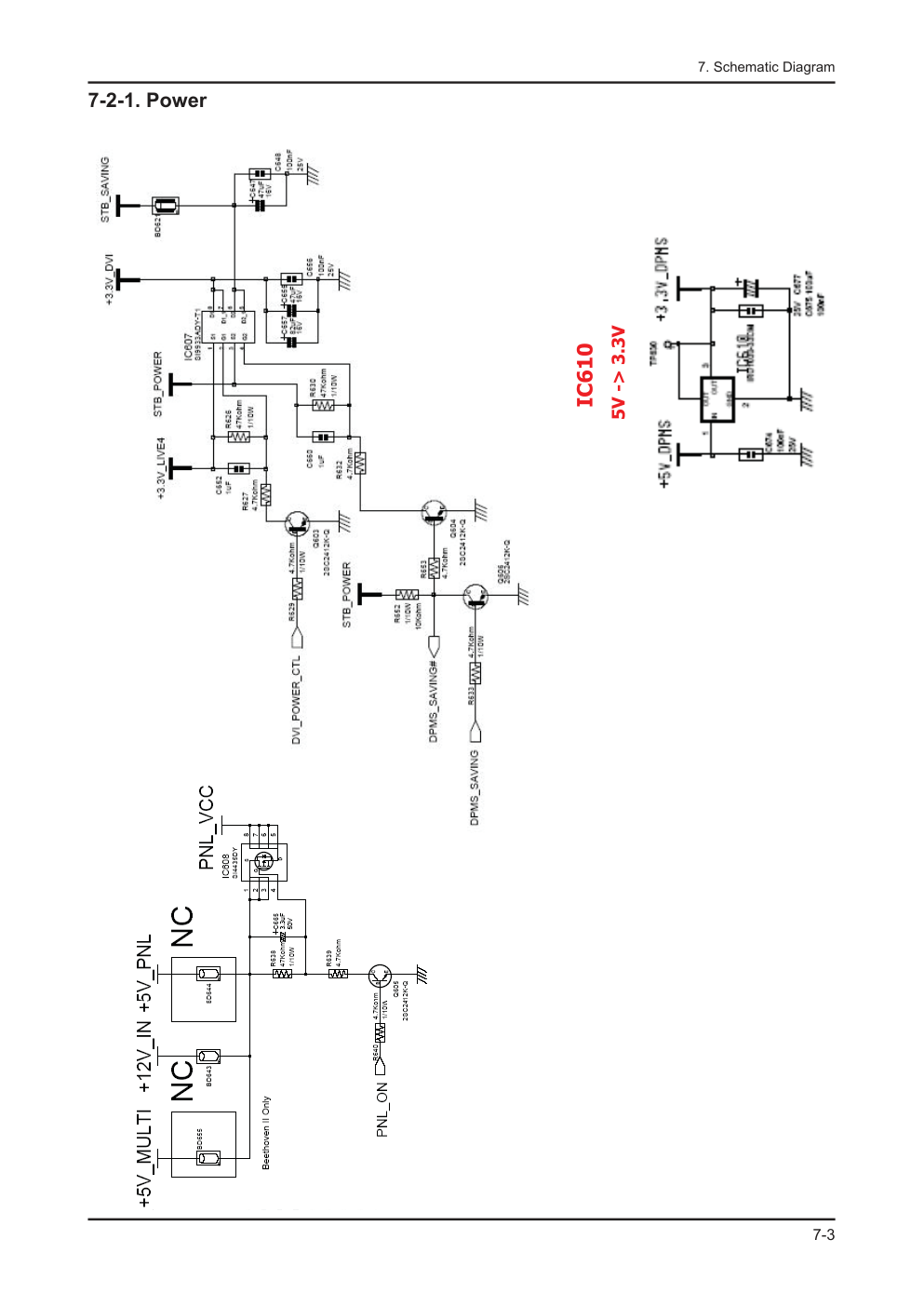

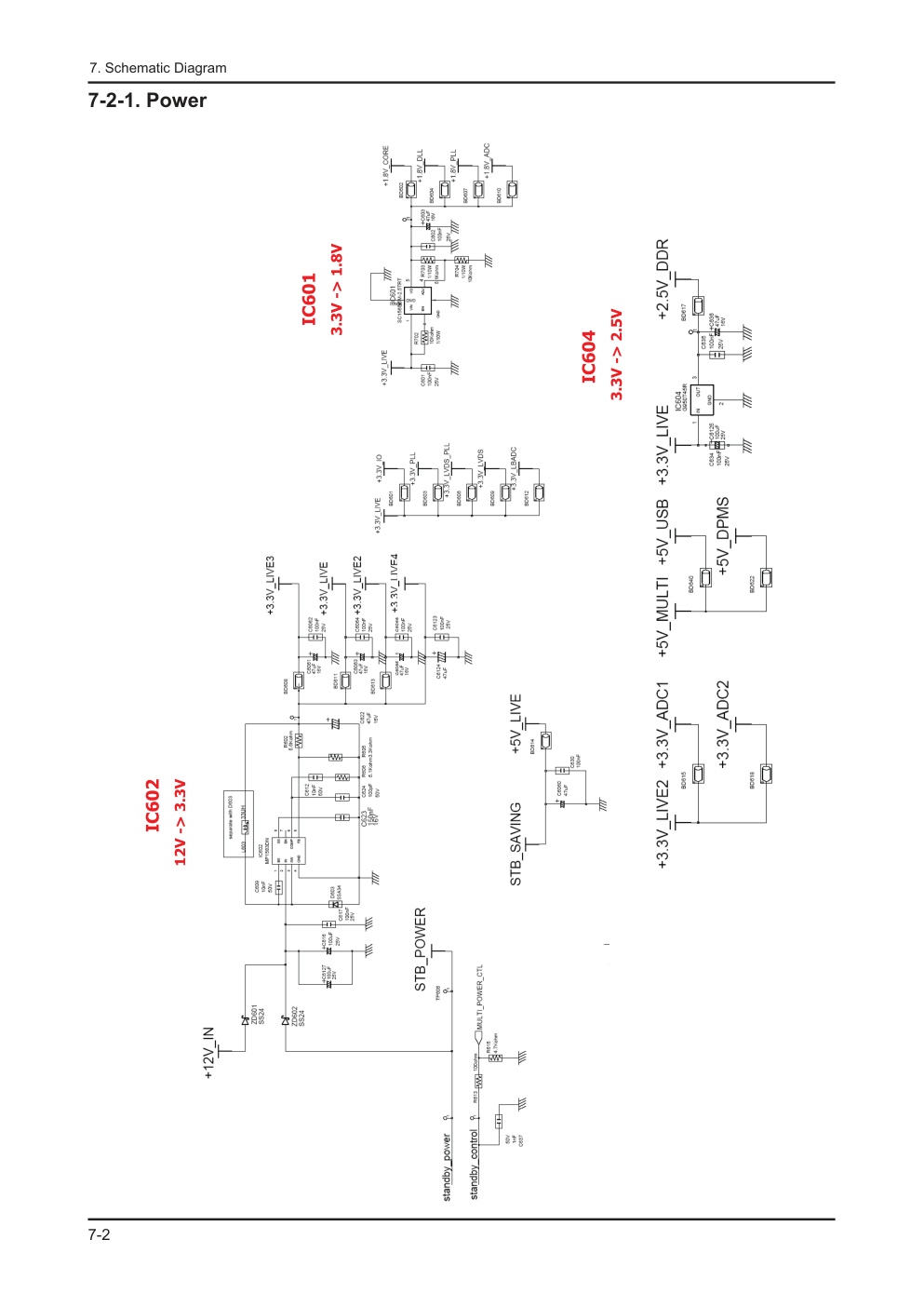

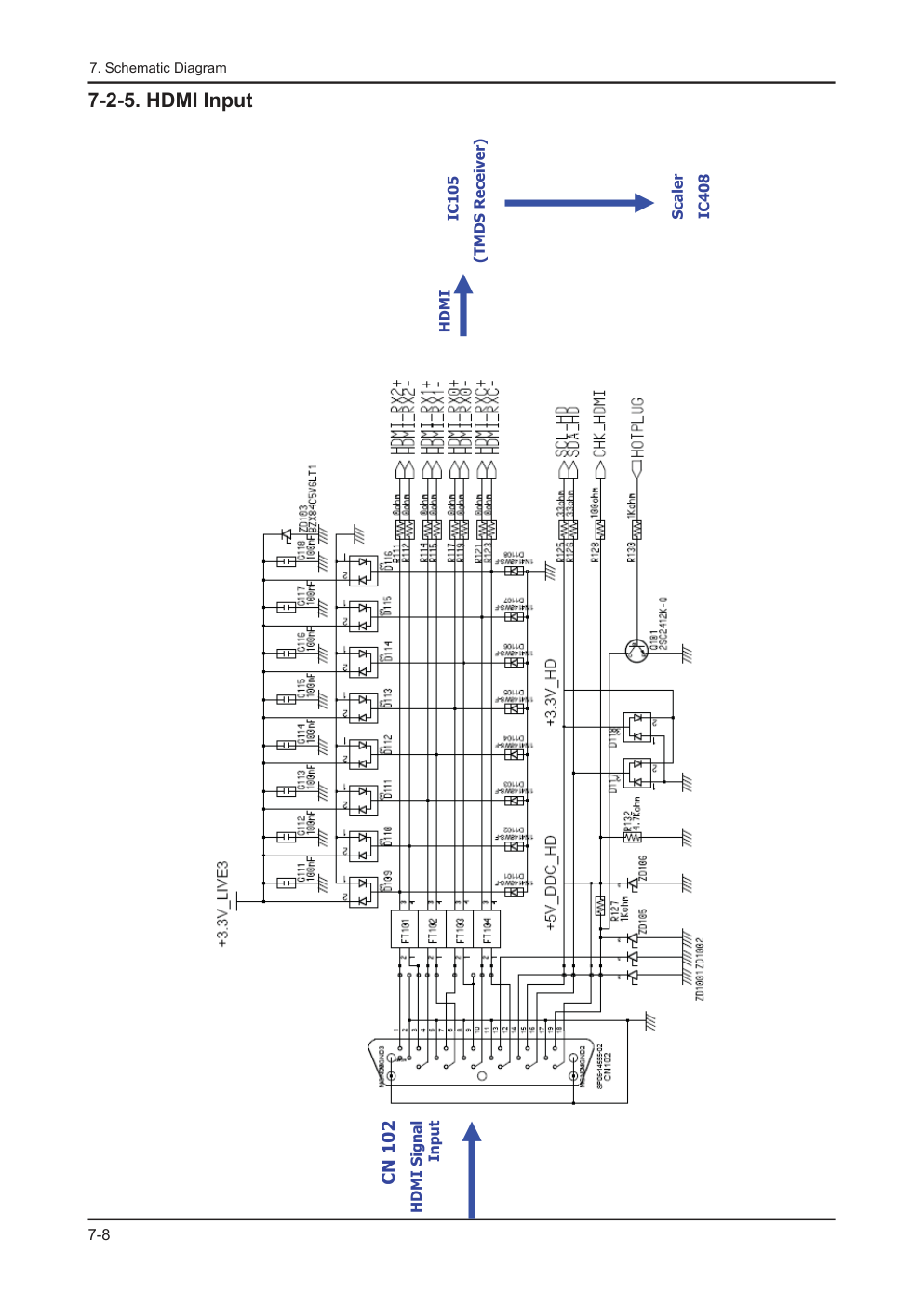

7-1 7. Schematic Diagram 7. Schematic Diagram 7-1. Schematic Diagram 7-2-1. Power 7-2 7. Schematic Diagram 7-2-1. Power 7-3 7. Schematic Diagram 7-2-1. Power 7-4 7. Schematic Diagram 7-2-1. Power 7-5 7. Schematic Diagram 7-2-2. PC / DVI Input 7-6 7. Schematic Diagram 7-2-3. DDC 7-7 7. Schematic Diagram 7-2-4. BNC / Component Input 7-8 7. Schematic Diagram 7-2-5. HDMI Input 7-9 7. Schematic Diagram 7-2-6. Video Input 7-10 7. Schematic Diagram 7-2-7. Scaler FLI8638 7-11 7. Schematic Diagram 7-2-8. Sound (Input) 7-12 7. Schematic Diagram 7-2-9. Sound Processor 7-13 7. Schematic Diagram 7-2-10. Sound AMP 7-14 7. Schematic Diagram 7-2-11. EPROM 7-15 7. Schematic Diagram 7-2-12. FAN 7-16 7. Schematic Diagram Memo 7-17 7. Schematic Diagram 7-2. Schematic Diagram This Document can not be used without Samsung’s authorization. 7-18 7. Schematic Diagram - This Document can not be used without Samsung’s authorization. 7-19 7. Schematic Diagram - This Document can not be used without Samsung’s authorization. 7-20 7. Schematic Diagram - This Document can not be used without Samsung’s authorization.
