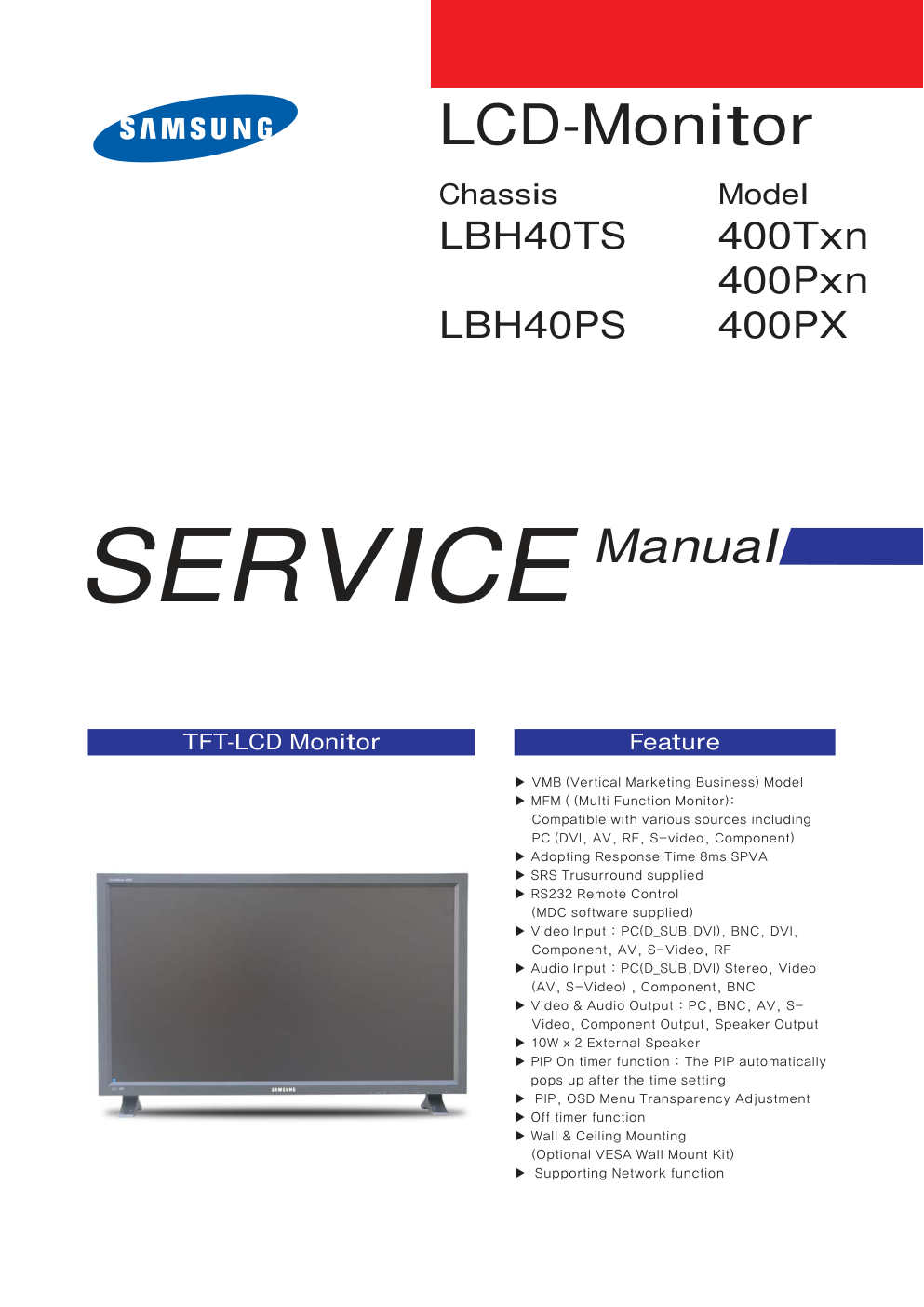

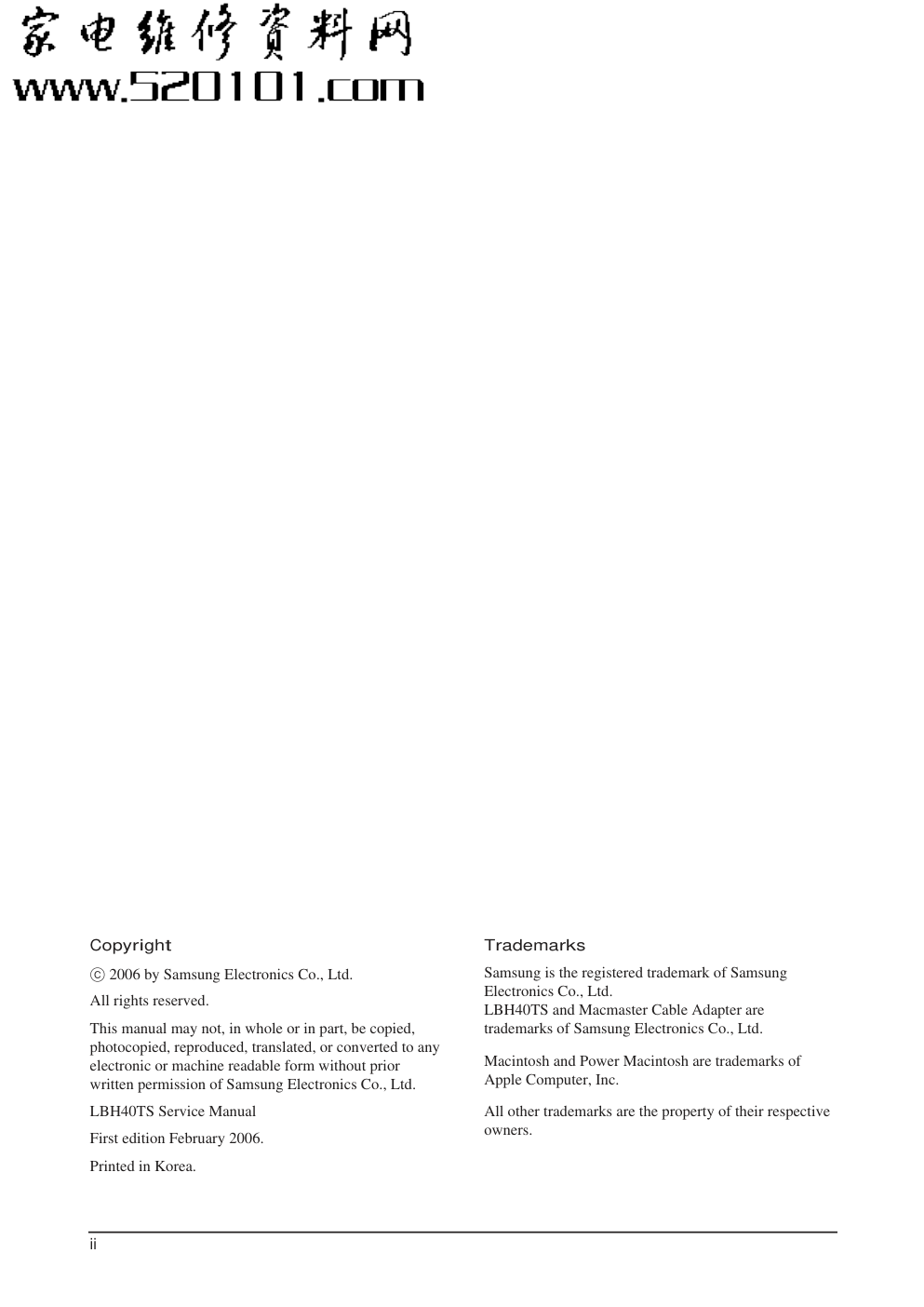

SERVICE Manual TFT-LCD Monitor Feature LCD-Monitor Chassis Model LBH40TS 400Txn 400Pxn LBH40PS 400PX ▶ VMB (Vertical Marketing Business) Model ▶ MFM ( (Multi Function Monitor): Compatible with various sources including PC (DVI, AV, RF, S-video, Component) ▶ Adopting Response Time 8ms SPVA ▶ SRS Trusurround supplied ▶ RS232 Remote Control (MDC software supplied) ▶ Video Input : PC(D_SUB,DVI), BNC, DVI, Component, AV, S-Video, RF ▶ Audio Input : PC(D_SUB,DVI) Stereo, Video (AV, S-Video) , Component, BNC ▶ Video & Audio Output : PC, BNC, AV, S- Video, Component Output, Speaker Output ▶ 10W x 2 External Speaker ▶ PIP On timer function : The PIP automatically pops up after the time setting ▶ PIP, OSD Menu Transparency Adjustment ▶ Off timer function ▶ Wall & Ceiling Mounting (Optional VESA Wall Mount Kit) ▶ Supporting Network function ii Copyright ⓒ 2006 by Samsung Electronics Co., Ltd. All rights reserved. This manual may not, in whole or in part, be copied, photocopied, reproduced, translated, or converted to any electronic or machine readable form without prior written permission of Samsung Electronics Co., Ltd. LBH40TS Service Manual First edition February 2006. Printed in Korea. Trademarks Samsung is the registered trademark of Samsung Electronics Co., Ltd. LBH40TS and Macmaster Cable Adapter are trademarks of Samsung Electronics Co., Ltd. Macintosh and Power Macintosh are trademarks of Apple Computer, Inc. All other trademarks are the property of their respective owners. Contents 1. Precautions ……………………………………………………………………………………………………………………………………1-1 1-1 Safety Precautions ……………………………………………………………………………………………………………………… 1-1 1-2 Servicing Precautions …………………………………………………………………………………………………………………… 1-2 1-3 Electrostatically Sensitive Devices (ESD) Precautions ……………………………………………………………………………… 1-2 2. Product specifications ………………………………………………………………………………………………………………………2-1 2-1 Fashion Feature…………………………………………………………………………………………………………………………… 2-1 2-2 Specifications ……………………………………………………………………………………………………………………………… 2-2 2-3 Accessories ……………………………………………………………………………………………………………………………… 2-3 2-4 Accessories(Sold Separately) …………………………………………………………………………………………………………… 2-5 3. Operating Installations and Installation……………………………………………………………………………………………………3-1 3-1 Front ……………………………………………………………………………………………………………………………………… 3-1 3-2 Installing Stand Kit………………………………………………………………………………………………………………………… 3-9 4. Alignment and Adjustments …………………………………………………………………………………………………………………4-1 4-1 Service Mode ……………………………………………………………………………………………………………………………… 4-1 4-2 Initialization of Ned ……………………………………………………………………………………………………………………… 4-1 4-3 When you want to initiate the network board ………………………………………………………………………………………… 4-1 4-4 Service Mode Menu ……………………………………………………………………………………………………………………… 4-2 4-5 Service Calibration (Fault Recovery In Terms Of Software) ……………………………………………………………………… 4-11 4-6 How to execute D DC …………………………………………………………………………………………………………………… 4-11 4-7 Program Upgrading - MAIN …………………………………………………………………………………………………………… 4-13 4-8 What To Do after Board Replacement………………………………………………………………………………………………… 4-19 5. Exploded View and Parts List…………………………………………………………………………………………………………………7-1 5-1 Exploded View …………………………………………………………………………………………………………………………… 7-1 5-2 Parts List ………………………………………………………………………………………………………………………………… 7-2 6. Electrical Parts List ……………………………………………………………………………………………………………………………8-1 6-1 Main PCB Parts …………………………………………………………………………………………………………………………… 8-1 6-2 Others………………………………………………………………………………………………………………………………………8-47 5. Disassembly and Reassembly ………………………………………………………………………………………………………………5-1 5-1 Disassembly ……………………………………………………………………………………………………………………………… 5-1 5-2 Reassembly ……………………………………………………………………………………………………………………………… 5-4 6. Troubleshooting …………………………………………………………………………………………………………………………………6-1 6-1 No Power ………………………………………………………………………………………………………………………………… 6-1 6-2 Check According to New Features (MagicNet) ……………………………………………………………………………………… 6-20 6-3 Diagnosis According To Error Mode ………………………………………………………………………………………………… 6-21 Contents 7. Block Diagram……………………………………………………………………………………………………………………………………9-1 7-1 Monitor Block ………………………………………………………………………………………………………………………………9-1 7-2 Network Block …………………………………………………………………………………………………………………………… 9-2 7-3 Main - Power Block ……………………………………………………………………………………………………………………… 9-3 7-4 Network - Power Block …………………………………………………………………………………………………………………… 9-4 8. Wiring Diagram…………………………………………………………………………………………………………………………………10-1 8-1 Main Board Wiring Diagram ……………………………………………………………………………………………………………10-1 8-2 Network Board Wiring Diagram………………………………………………………………………………………………………… 10-2 9. Schematic Diagram ……………………………………………………………………………………………………………………………12-1 10. Operating Installations and Installation …………………………………………………………………………………………………3-1 10-1 Front ……………………………………………………………………………………………………………………………………… 3-1 10-2 Installing Stand Kit ……………………………………………………………………………………………………………………… 3-9 11. Disassembly and Reassembly ……………………………………………………………………………………………………………5-1 11-1 Disassembly ……………………………………………………………………………………………………………………………… 5-1 11-2 Reassembly ……………………………………………………………………………………………………………………………… 5-4 12. PCB Diagrams ………………………………………………………………………………………………………………………………11-1 12-1 Main PCB layout ……………………………………………………………………………………………………………………… 11-1 12-2 Network PCB layout …………………………………………………………………………………………………………………… 11-3 13 Circuit Descriptions …………………………………………………………………………………………………………………………13-1 13-1 Main board part ……………………………………………………………………………………………………………………… 13-1 13-2 Network board part …………………………………………………………………………………………………………………… 13-4 14 Reference Infomation ………………………………………………………………………………………………………………………14-1 14-1 Set UP…………………………………………………………………………………………………………………………………… 14-1 14-2 Terms …………………………………………………………………………………………………………………………………… 14-7 14-3 Timing Chart …………………………………………………………………………………………………………………………… 14-9 14-4 Preset Timing Modes ………………………………………………………………………………………………………………… 14-14 14-5 Panel Description …………………………………………………………………………………………………………………… 14-15 Samsung Electronics Co.,Ltd. 416, Maetan-3Dong, Yeongtong-Gu, Suwon City, Gyeonggi-Do, Korea, 443-742 Printed in Korea P/N : BN82-00135E-01 URL : http://itself.sec.samsung.co.kr/ -This Service Manual is a property of Samsung Electronics Co., Ltd. Any unauthorized use of Manual can be punished under applicable International and/or domestic law. 1 Precautions 1-1 1-1-1 Warnings 1. For continued safety, do not attempt to modify the circuit board. 2. Disconnect the AC power and DC power jack before servicing. 1-1-2 Servicing the LCD Monitor 1. When servicing the LCD Monitor, Disconnect the AC line cord from the AC outlet. 2. It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this meter periodically. 1-1-3 Fire and Shock Hazard Before returning the monitor to the user, perform the following safety checks: 1. Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the monitor. 2. Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor- capacitor networks, mechanical insulators, etc. 3. Leakage Current Hot Check (Figure 1-1): WARNING : Do not use an isolation transformer during this test. Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7). Figure 1-1. Leakage Current Test Circuit 4. With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the power-plug prongs in the AC outlet and repeat the test. 1-1-4 Product Safety Notices Some electrical and mechanical parts have special safety- related characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate. 1 Precautions Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. 1-1 Safety Precautions 1 Precautions 1-2 1-2-1 General Servicing Precautions 1. Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test component in parallel with an electrolytic capacitor. 2. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position. 3. After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the area around the serviced part has not been damaged. 1. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the monitor. 2. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of an electrostatic charge. 3. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESDs. 4. Use only a grounded-tip soldering iron to solder or desolder ESDs. 5. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESDs. 4. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks). 5. Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500 V) to the blades of the AC plug. The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm. 6. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last. 6. Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials. 7. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution: Be sure no power is applied to the chassis or circuit and observe all other safety precautions. 8. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting your foot from a carpeted floor can generate enough static electricity to damage an ESD. 1-3 Static Electricity Precautions Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The following techniques will reduce the incidence of component damage caused by static electricity. 1-2 Servicing Precautions WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of this manual. Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions. 1 Precautions 1-3 1. For safety reasons, more than two people are required for carrying the product. 2. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock. 3. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire. 4. Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed to moisture. Otherwise, it may cause a fire or electric shock. 5. Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause fire or electric shock. 6. Keep the antenna far away from any high-voltage cables and install it firmly. Contact with the high- voltage cable or the antenna falling over may cause fire or electric shock. 7. When installing the product, leave enough space (10cm) between the product and the wall for ventilation purposes. A rise in temperature within the product may cause fire. 1-4 Installation Precautions Memo 1 Precautions 1-4 2. Product Specifications 2-1 2 Product specifications 2-1 Development Background ¢º Expansion of Wide LCD Product Market (Public facilities like airport, theater, etc.) ¢º Improving the picture quality and enhancing the extra features compatible to the current model ¢º Securing competitiveness with the strengthen Network Option and keeping up the user convenience 2-1-1 Fashion Feature VMB (Vertical Marketing Business) Model ▶ MFM ( (Multi Function Monitor) : Compatible with various sources including PC (DVI, AV, RF, S-video, Component) ▶ Adopting Response Time 8ms SPVA ▶ SRS Trusurround supplied ▶ RS232 Remote Control (MDC software supplied) ▶ Video Input : PC(D_SUB,DVI), BNC, DVI, Component, AV, S-Video, RF ▶ Audio Input : PC(D_SUB,DVI) Stereo, Video (AV, S-Video) , Component, BNC ▶ Video & Audio Output : PC, BNC, AV, S-Video, Component Output, Speaker Output ▶ 10W x 2 External Speaker ▶ PIP On timer function : The PIP automatically pops up after the time setting ▶ PIP, OSD Menu Transparency Adjustment ▶ Off timer function ▶ Wall & Ceiling Mounting (Optional VESA Wall Mount Kit) ▶ Supporting Network function 2. Product Specifications 2-2 2-2 Specifications Item Description LCD Panel LTA400WT-L01, 40 inch 885.162(H) x 497.664(V) Scanning Horizontal 30~70kHz Frequency Vertical 50~85Hz Display Colors 16.7 Million colors Maximum Horizontal 1366 Pixels Resolution Vertical 768 Pixels Input Video Signal 0.7 Vp-p ± 5% positive at 75�, Digital, TMDS internally terminated Input Sync Signal Type : separate H/V sync, Composite, automatic synchronization without external switch Level : TTL level Active Display Horizontal/Vertical 871.68 � 3 mm (H) / 523.008 � 3 mm (V) AC power voltage & Frequency AC 90~264V, 60 Hz/50 Hz � 3 Hz Power Consumption(DPMS) 230W(w/o option), 1W(Energy saving mode) Brightness 500cd/m2 Contrast Ratio 1200:1 Response Time 8 ms Range of vision angle (Left/Right/UP/Down) 89˚/ 89˚/ 89˚/ 89˚ Video System AV, S-Video, Component Sound Output Max.10W x 2ch Dimensions (W x H x D) Set 971 X 582 X 118 mm (W X H X D) 971 X 629.5 X 223 mm (W X H X D) (With Stand) - OPTION 1181 X 582 X 118 mm (W X H X D) (With Speaker) - OPTION 1181 X 629.5 X 223 mm ( W X H X D) (With Speaker,With Stand) - OPTION Package 37.3 x 12.2 x 26.9 Inches ( 947.0 x 309.0 x 684.0 mm) Weight (Set/Package) � Set : 23 kg (After installation of Stand) Package : 27 kg � Set (With Stand - (Option) : 30 kg � Set (With Speaker - (Option) : 33 kg Environmental Considerations Operating Temperature : 50�F ~ 104�F (10� ~ 40�) Operating Humidity : 10% ~ 80% Storage Temperature : -4�F ~ 113�F (-20� ~ 45�) Storage Humidity : 5% ~ 95% -Designs and specifications are subject to change without prior notice. PC Input D-SUB, DVI 2. Product Specifications 2-3 2-3 Spec Comparison to the Old Models Model Design 40"(1366x768),SPVA 500cd/m2, 1200 : 1, 178/178, 8ms D-Sub, DVI-D, BNC S-video, CVBS, Component Tunner Option 10 Watts x 2 ch SRS Trusrround 10 Watts x 2 ch VR Dolby, BBE 400Txn Panel Panel Spec. Input PC Video TV Speaker 40"(1366x768),PVA 500cd/m2, 800 : 1, 18/178, 8ms D-Sub, DVI-D, BNC S-video, CVBS, Component - 400Pn 2. Product Specifications 2-4 2-4 Accessories Product Description Quick Setup Guide BH68-00376L BH68-70438A BN59-00363L BN39-00244B 3903-000042 BN96-00452E 6003-001026 Warranty Card (Not available in all locations) User's Guide,MDC software, Natural Color software, MagicNet software D-Sub(15 Pin) Cable Power Cord Semi Stand Screw (4EA) TAPTITLE : M4 × L15 Ccde. No Remark 3705-001262 BNC to RCA Adapter Jack �4 2. Product Specifications 2-5 Remote Control BN59-00464A 4301-000121 BN96-00597C Batteries (AAA x 2) Cover-Hole Product Description Ccde. No Remark 2. Product Specifications 2-6 2-5 Accessories(Sold Separately) Wall mount KIT Model: WMB-4050P BN96-01806A BN96-00428C 3701-001173 BH39-00211A Speaker Set Stand KIT DVI Cable LAN Cable Product Description Ccde. No Remark BN39-00341A RS232C Cable 3. Alignment and Adjustments 3-1 3 Alignment and Adjustments 3-1 Service Mode 3-1-1 Entering the Factory menu on the Main board(using REMOCON) - Power OFF -> INFO -> MENU -> MUTE -> Power ON -When use the Factory remote control : INFO + Factory 1 2 3 3-1-2 Network Board Reset - Check the BAT2400 battery status - Move the jumper of the CN2400 connector in the following order: Pin 1,2 -> Pin 2,3 -> Pin 1,2 3. Alignment and Adjustments 3-2 3-2 Entering the Service Mode(using REMOCON) (1) Power Off + MUTE + 1+ 8 + 2 + Power On (2) INFO + FACTORY ( using the factory remote control) 3-3 Service Mode Menu 3. Alignment and Adjustments 3-3 - AutoColor Part PC analog Only ( 1024x768@60 16gray pattern) The Color Control properly operates only in the certain pattern with certain mode and the color warps in other patterns and modes. Also the proper color control is not supported in the mode other than XGA 60Hz. - White Balance Part Register value in the Scaler RED / BLUE / GREEN Adjust the Gain and Offset Use to adjust the color tone. Be sure not to set the color value too high to prevent the color saturation. 3. Alignment and Adjustments 3-4 - Sharpness Part (1) Adjust the picture sharpness. - Sharpness Part (2) Scaling Filter Sharpness Control - Peaking Y / Peaking UV This adjusts the sharpness of luminance(Y) and color(UV). The bigger the number is in the range of 1~127, the clearer the picture is. The bigger the number is in the range of 128~255, the more natural video is. Too high sharpness may cause the vivid noise. Noise Coring Control - Peaking Coring Display only the sharp large-edge without assuming the small- edge of the video as a noise and amplifying it. NonLinear Sharpness Control - Peaking Resion1/2 Threshold, Gain Divide the frequency area and apply the different Gain for each area rather than evenly apply the sharpness level over the whole image. Assign the threshold value to improve the sharpness. 3. Alignment and Adjustments 3-5 - Enhancers Part Adjust to display the clear and sharp image. This function is used to adjust the appropriate value for each target region. Change only when it is needed. - Back End Part The MPEG NR menu is used to reduce the Mosquito noise and Gaussian noise. The Fleshtone menu is used to display the natural skin color. 3. Alignment and Adjustments 3-6 - Panel Info Part Display the panel use time and the number of change. Time Reset : Press the menu button on the front panel for 5 seconds. - AV Size Part AV size, position Adjustment H,V size / H,V Position 3. Alignment and Adjustments 3-7 - Spread Spectrum/Reset Part Spread Spectrum Adjustment The application status of Spread spectrum Amplitude and Period Setting Reset : Factory Reset Reset the setting on the Service Menu to the default setting. Need to turn the Power On/Off after reset - Option Part Option Adjustment Baudrate Speed Setting (The default value is 9600.) Change to 115200 when the code update on the main board is required.) Function Key Setting/Unsetting Option Setting in the Network part Factory mode Setting Audio delay Setting (Set for the video and audio synchronization.) Country Selection The message display in the improper resolution mode Setting/ Unsetting Carrier Mute Setting/ Unsetting Checksum The 4 digit serial number regarding the micom code is displayed if you select this. 3. Alignment and Adjustments 3-8 3-4 DDC Input Process (DDC file number : SM400PXnA.DDC / SM400PXnD.DDC) The DDC input is available after entering the Service Mode. : Cancel the DDC Protection. 1. Open the file. 2. Select Port 1 (D-SUB) / Select Port 2(DVI) 3. Select the DDC file. 4. Click the Next(OK) button. 5: Input the monitor serial number and press Enter. Input Analog and repeat 2~5 times when input Digital. 5 3. Alignment and Adjustments 3-9 3-5 MDC(Multi Display Control) Program 1. Run the SETUP. EXE file. 2. Select I Agree. 3. Select NEXT. 4. Select Install. 3. Alignment and Adjustments 3-10 5. "Yes" Click. 6. "OK" Click. 3. Alignment and Adjustments 3-11 3-6 MDC(Multi Display Control) Program_How to use - Connect the serial port of the PC and Beethoven Board with the RS232C cable. - Option in the Factory Menu : Check if BaudRate is set to 9600 A Multiple Display Control (MDC) is an application allowing various displays to be easily and simultaneously operated on a PC. RS-232C, a standard of serial communication, is used for the communication between a PC and a display. Therefore, a serial cable should be connected between the serial port on a PC and the serial port on a display. Refer to the diagram. 1. Click the main icons to switch into each screen. 2. Allows you to enable or disable the remote control signal receiving function of the display unit. 3. Use to lock monitor functions. 4. Use to change the port. The default port is COM1. 5. Use Select All and Clear All buttons to select or clear all displays. 6. Use Grid to view brief information on selected display. The remote control Enable/Disable function operates whether or not the power is On/Off, and this applies to all displays connected to the MDC. However, all displays return to the default setting with the remote control receiving function enabled regardless of the status at the time the MDC is shut down - Start- Main Window Click Start > Program > Multiple Display Control to start the program. Select a set to see the volume of the selected set within the slider. 3. Alignment and Adjustments 3-12 1. Multiple Display Control is originally set to COM1. 2. If the port other than COM 1 is used, any port between COM1 to COM4 is selectable. 3. The port connected to the monitor and serial cable needs to be assigned with the correct name for the communications. 4. Once the port is selected, it is stored and used for the next program. - Start-Port Selection 1. Click Power Control of the main icons to display the Power Control window. - Info Grid shows some basic information necessary for Power Control. 1) Power Status 2) Input Source 3) Image Size 4) On Timer Status 5) Off Timer Status 2. Use the Select All button or Check Box to choose a display to control. Power Control allows you to control functions regarding the power of the selected display on the menu. 6) Power On/Off Turns the power of the selected display on or off. 7) Volume Adjust the volume of the selected display. The appropriate volume for the selected set is displayed as you select a set. (When you cancel the selection or choose Select All, the volume returns to the default value 10.) 8) Mute On/Off Turns on or off the Mute function of the selected monitor. The Power Control feature is available for all connected monitors. - The Volume Control and Mute features are available only for the displays whose power status is ON. - Power Control 1 2 3 4 5 6 8 7 3. Alignment and Adjustments 3-13 - Info Grid shows some basic information necessary to Input Source Control. 1) PC Changes the Input Source of the selected display to PC. 2) BNC Changes the Input Source of the selected display to BNC. 3) DVI Changes the Input Source of the selected display to DVI. 4) TV Changes the Input Source of the selected display to TV. 5) AV Changes the Input Source of the selected display to AV. 6) S-Video Changes the Input Source of the selected display to S-Video. 7) Component Changes the Input Source of the selected display to Component. 8) MagicNet The MagicNet input can be changed only in the MagicNet mode. - The Input Source Control feature is available only for the display whose power status is ON. -Input Source Control 1. Click Input Source of the main icons to display the Input Source control window. Click Select All or use Check Box to select a display to control. - Info Grid shows some basic information necessary to Image Size Control. 1) Power Shows the power status of the current display. 2) Image Size Shows the current Image Size of the display in use. 3) Input Source Shows the current Input Source of the display in use. Info Grid displays only the displays whose Input Source is PC, BNC, or DVI. 4) When you click Image Size, the PC, BNC, and DVI tabs first appear. This feature allows you to control Image Size for PC, BNC, or DV. - Image Size Control is available only for the displays for whose power status is ON. -Image Size Control - PC, BNC, DVI 1. Click Image Size of the main icons to display the Image Size control window. 1 2 3 4 3. Alignment and Adjustments 3-14 - Info Grid shows some basic information necessary to Image Size Control. 1) Click the Video Source tab to adjust the Image Size of AV, S-Video, TV, Component, or DVI(HDCP). Click Select All or use Check Box to select a display to control. 2) Info Grid displays only the display having AV, S-Video, TV, Component, or DVI(HDCP) as input source 3) Adjust the Image Size of the display. If the input signal for the component or DVI(HDCP) is 720p or 1080, Zoom1 and Zoom are not available. - The Image Size Control feature is available only for the displays whose power status is ON. -Image Size Control - Video Source 1. Click Image Size of the main icons to display the Image Size window. 1 2 3 4 - Info Grid shows some basic information necessary to Time Control. 1) Current Time Set the current time for the selected display (PC Time). Set the PC time before you change the current time. 2) On Time Setup Set the hour, minute, AM/PM of On Time, Status, Source, and Volume of the selected display. 3) Off Time Setup Set the hour, minute,, and AM/PM, and Status for Off Timer of the selected display. 4) Shows the On Timer settings. 5) Shows the Off Timer settings. - Time Control is available only for the displays for whose the power status is ON. -Time Control 1. Click Time of the main icons to display the Time Control window. 1 2 3 4 3. Alignment and Adjustments 3-15 - Info Grid shows some basic information necessary to PIP Size Control. 1) PIP Size Shows the current PIP Size of the display in use. 2) OFF Turns off the PIP of the selected display. 3) Large Turns on the PIP of the selected display and changes the size to Large. 4) Small Turns on the PIP of the selected display and changes the size to Small. 5) Double1 Turns on the PIP of the selected display and changes the size to Double 1. 6) Double2 Turns on the PIP of the selected display and changes the size to Double 2. 7) Double3 Turns on the PIP of the selected display and changes the size to Double 3. - PIP Control is available only for the displays whose power status is ON. - The set with the input source Component is not displayed on Info Grid. -PIP Control - PIP Size 1. Click PIP of the main icons to display the PIP control window. 1 2 3 4 3. Alignment and Adjustments 3-16 - Info grid shows some basic information necessary to PIP Source Control. 1) PIP Source Click the PIP Source tab to display the PIP Source list. PIP Source can be controlled only when the power of the monitor is turned on. 2) PC Changes the PIP source of the selected display to PC. 3) BNC Changes the PIP source of the selected display to BNC. 4) DVI Changes the PIP source of the selected display to DVI. 5) TV Changes the PIP source of the selected display to TV. 6) AV Changes the PIP source of the selected display to AV. 7) S-Video Changes the PIP source of the selected display to S-Video. 8) Component Changes the PIP source of the selected display to Component. Some of the PIP Sources may not be available for selection depending on the input source type of the Main Screen. The PIP control feature is available only for the displays whose power status is ON and the PIP function is set to ON. -PIP Control - PIP Source 1. Click PIP of the main icons to display the PIP control window. - Info Grid shows some basic information necessary to Setting Control. When each function is selected, the set value of the selected function is displayed in the slide. As you select Select All, the value is returned to the default setting (50). Changing a value in this screen will automatically change the mode to "CUSTOM." 1) Picture Available only for TV, AV, S-Video, Component, and DVI(HDCP). 2) Contrast Adjusts Contrast of the selected display. 3) Brightness Adjusts Brightness of the selected display. 4) Sharpness Adjusts Sharpness of the selected display. 5) Color Adjusts Color of the selected display. 6) Tint Adjusts Tint of the selected display. 7) Color Tone Adjusts Color Tone of the selected display. This feature is available only for the displays whose power status is ON and if no selection is made, the factory default is displayed. - Setting Control - Picture 1. Click Settings of the main icons to display the Settings Control screen. 3. Alignment and Adjustments 3-17 - Info Grid shows some basic information necessary to Setting Control. When each function is selected, the set value of the selected function is displayed in the slide. As you select Select All, the value is returned to the default setting (50). Changing a value in this screen will automatically change the mode to "CUSTOM." 1) Picture PC Available only for PC, BNC, and DVI. 2) Contrast Adjusts Contrast of the selected display. 3) Brightness Adjusts Brightness of the selected display. 4) Red Adjusts Red Color of the selected display. 5) Green Adjusts Green Color of the selected display. 6) Blue Adjusts Blue Color of he selected display. This feature is available only for the displays whose power status is ON and if no selection is made, the factory default is displayed. -Setting Control - Picture PC 1. Click Setting of the main icons and select the Picture PC tab to display the Setting Control window. - Info Grid shows some basic information necessary to Setting Control. When each function is selected, the set value of the selected function is displayed in the slide. As you select Select All, the value is returned to the default setting (50). Changing a value in this screen will automatically change the mode to "CUSTOM." 1) Audio Controls audio setting for all input sources. 2) Bass Adjusts Bass of the selected display. 3) Treble Adjusts Treble of the selected display. 4) Balance Adjusts Balance of the selected display. 5) SRS TSXT Turns the SRS Trusurround XT function of the selected display On/Off. 6) Sound Select Select either Main or Sub when the PIP of the selected display is turned On. This feature is available only for the displays whose power status in IN and if no selection is made, the factory default is displayed. The MagicNet Input operates only in MagicNet models. -Setting Control - Audio 1. Click Settings of the main icons and select the Audio tab to display the Setting Control window. 3. Alignment and Adjustments 3-18 - Info Grid shows some basic information necessary to Image Lock. 1) Image Lock Available only the controls for PC and BNC. 2) Coarse Adjusts Coarse of the selected display. 3) Fine Adjusts Fine of the selected display. 4) Position Adjusts Position of the selected display. 5) Auto Adjustment Automatically adjusts the screen. - This feature is available only for the displays whose power status is ON. -Setting Control - Image Lock 1. Click Settings of the main icons and select the Image tab to display the Setting Control window. - Info Grid shows some basic information necessary to Maintenance Control. 1) Lamp control Adjusts the brightness of the lamp. 2) Auto Lamp Control Automatically adjusts the backlight of the selected display at a specified time. The Auto Lamp Control automatically turns off if you adjust using the Manual Lamp Control. 3) Manual Lamp Control Allows you to adjust the backlight of the selected display regardless of the time. The Manual Lamp Control automatically turns off if you adjust using the Manual Lamp Control. - The Maintenance Control feature is available only for the displays whose Power Status is ON. -Maintenance Control - Lamp Control 1. Click Maintenance of the main icons and select the Lamp Control tab to display the Maintenance Control window. 3. Alignment and Adjustments 3-19 1) Screen Scroll Eliminates the afterimages that can result when the still image is displayed for prolonged periods. Use Interval to set the repeat cycle by time unit and use Second to set the repeat cycle by second unit. Select one of 4 types- Scroll, Pixel, Bar, Eraser. - The Maintenance Control feature is available only for the displays whose power status in ON. -Maintenance Control - Lamp Control 1. Click Maintenance of the main icons and select the Scroll tab to display the Maintenance Control. 1) Video Wall A Video Wall is a set of video screens that are connected together, so that each screen shows a part of the whole picture or so that the same picture is repeated on each screen. 2) Video Wall (Screen Divider) You can select a number of screens with a different layout when dividing. 3) On / Off Turns On or Off the Video Wall function of the selected display. 4) Format The format can be selected to see a divided screen. This feature is available only for the displays whose power status in IN and if no selection is made, the factory default is displayed. The Malignant Input operates only in MagicNet models. Full Natural -Maintenance Control - Video Wall 1. Click Maintenance of the main icons and select the Wall tab to display the Maintenance Control window. 2 * 2 3 * 3 4 * 4 1 * 2 1 * 5 5 * 1 2 * 1 3. Alignment and Adjustments 3-20 -Troubleshooting 1. The display you wish to control does not appear on the Power Control Info Grid - Check the connection of RS232C. (Check if it is properly connected to the Com1 port) - Check the displays to see if any of the other displays connected have the same ID. If more than one displays have the same ID, those displays are not properly detected by the program due to data conflict. - Check if the Display Set ID is a number between 1 and 10. (Adjust using the Display menu) note : A Display Set ID must be a value between 1 and 10. If the value is out of the range, the MDC system cannot control the display. 2. The display you wish to control does not appear on the other Control Info Grids - Check to see if the display power is ON. (You can check this in Power Control Info Grid) - Check if you can change the input source of the display. 3. The dialogue box appears repeatedly. - Check to see if the display you wish to control is selected. 4. Both On Timer and Off Timer have been set but different time is showing. - Apply current time to synchronize the display clocks. 5. The remote may not function properly when you turn off the remote Function, disconnect the RS-232C cable, or exit the program in an Irregular manner. Rerun the program and turn the remote function again to Restore normal functions. note : This program may malfunction due to problems in communication circuits or interference from electronic appliances nearby. Settings Value Display In Multiple Display Mode When there are more than one displays connected, the settings values are displayed as follows. 1. No selection: Displays the Factory Default Value. 2. Selected one display: Fetches and displays the settings value for the selected display. 3. Selected one display (ID1) and add another display (ID3): The program, which was displaying the settings value of ID 1, fetches and displays the value of ID3. 4. Selected all sets using Select All: Returns to the Factory Default Value. 3. Alignment and Adjustments 3-21 3-7 Updating the program - MAIN -. How to connect 1.Connect the serial port of the PC and the input serial port of Beethoven Board with the RS232C cable. 2. Option in the Factory Menu : Check if BaudRate is set to 115200. RS-232C, a standard of serial communication, is used for the communication between a PC and a display. Therefore, a serial cable should be connected between the serial port on a PC and the serial port on a display. Refer to the diagram. Run the .exe file and press the ¡°OK¡± button, then press ¡°Next¡± to complete the installation. (Attached) Malibu Flash Downloader 1.7 File The program is not affected by Windows OS system. When the installation is complete using the Setup.exe file , the icon appears on your desktop. Double click the icon to run the program. 3. Alignment and Adjustments 3-22 1. Flash Download in the File Select menu Set as the figure. Chip Model : Set 2MB_CORTEZ first. 2.After the installation Connection >Set as the figure SERIAL1 COM1 115200 3. Alignment and Adjustments 3-23 3. 2MB Flash Isp_16_ext. Hex Click Load Config for the auto setting. 4. Select the file you want to download on Browse. 5. Press 5 to download. Turn the power of the board off/on when the download success message appears. Check the Checksum and date to see if the right code is applied in the Factory mode. 3. Alignment and Adjustments 3-24 3-8 Network Board: BIOS Replacement BIOS Replacement You may replace the BIOS in the same or similar cases as followings: -.EX1) Picture is normal but the remote control or function key does not work. -.EX2) The SAMSUNG Logo appears but cannot perform the next step. -.EX3) Upgrading for the Software problem is in need because the problem was found after the mass production. 3-8-1 Network Board: FDM Replacement FDM Replacement You may replace the FDM in the same or similar cases as followings: -.EX1) Picture is normal but the remote control or function key does not work. -.EX2) The SAMSUNG Logo appears but cannot perform the next step. -.EX3) Upgrading for the Software problem is in need because the problem was found after the mass production. Disassemble the set as the picture (refer to the Set disassembly diagram) and remove the current BIOS from CN2300 Socket, then insert the new BIOS. ¢ºFor removing, use the the supplied JIG or a sharp object like a tweezers to insert and pull back to the groove one after the other. (Note that there can be a malfunction in the monitor if the Socket is damaged.) ¢ºConsider the direction of the IC Pin 1 when you insert and fully insert with moderate force. Disassemble the set as the picture (refer to the set disassembly diagram) and remove the current FDM from CN2000 and insert the new FDM. ¢ºUse the supplied JIG or a sharp object like a tweezers to remove the FDM Holder at the corner grooves of both sides. (Note that there can be a malfunction in the monitor if the Socket is damaged.) ¢ºHold both sides and remove the FDM. ¢ºReplace with the new FDM and assemble the set. 1107-001288 (SST49LF004B) The Programmed BIOS CN2000_FDM (DM221210H20P) 1109-001341 The programmed FDM 3. Alignment and Adjustments 3-25 3-8-2 Network Board: Battery Replacement Battery Replacement You may replace the battery in the same or similar cases as followings: -.EX1) The required information is not properly stored when the FDM and BIOS are updated. 3-8-3 Must Dos after change the Board - Main Board Check the adjusted PC color status DDC Input (Input both Analog and Digital) Reset after entering the Service mode and turn off the Hard power. - Network Board Press ¢ºII + 1 + 8 + 2 + Enter and check the version of Network. Check the versions of FDM and BIOS and see if they are the same as the version of the server program. If the version is different, refer to the descriptions above and upgrade the program Upgrade the program and turn the power off/on. Check if there are SODIMM memory, Battery, and Jumper. Disassemble as the picture (refer to the Set disassembly diagram) and remove the current battery from BAT2400, then insert the new battery. ¢º Pull back the holder on the left of the battery ¢º Hold both sides and remove the battery ¢º Replace with the new battery Battery (4301-000108 ) 3. Alignment and Adjustments 3-26 Memo 4 Troubleshooting 4-1 4 Troubleshooting Does 12 V appear at Pin 12V of CN602? Does DC 12V appear at C653? Check the IP Board. NO Check the peripheral circuit of CN602. NO Replace IC602. NO Replace IC601. NO The Scaler(IC408) is abnormal. Replace the main board. NO 4-1 No Power YES Does 3.3V appear at C622? YES Does DC 1.8V appear at C603? YES YES Does 3.3 V appear at Pin 16 ofCN602? 1 4 2 3 4 Troubleshooting 4-2 WAVEFORMS 1 2 4 3 CN602 C653 C622 C603 4 Troubleshooting 4-3 4-2 No PC(D-SUB) Video Does the waveform as the figure appear at Pin 4 (H-sync) and Pin 10 (V-sync) of IC 101? Does the LED light up when turn on the power? Check the power port. YES NO Does 5V appear at Pin 9 of CN101 D-Sub? Check the cable connection. Check the cable between the main board and panel and replace the LCD panel. NO Is TX** signal sent to Pin 14 and 15 of CN403 14, 15? The Scaler(IC408) is abnormal. Replace the main board. NO Replace IC103. NO Replace IC101. NO YES YES YES YES 5 6 Does the waveform as the figure at Pin 6 ( H-sync) and Pin 8 (V-sync) of IC103 appear? 5 6 4 Troubleshooting 4-4 5 5 WAVEFORMS IC101 is on the rear board of IC103. 4 Troubleshooting 4-5 4-3 No DVI Video Does the LED light up when turn on the power? Check the power port. YES NO Does 5 V appear at Pin 14 and 16 of CN101 DVI port? Check the cable connection. NO Does the wave form as the figure appear at R161(DVI_SCL) and R162(DVI_SDA)? Replace the main board. NO Does the signal appear at RA107(R), RA102(G), and RA105(B)? IC105 is abnormal. Replace the main board. NO Check the cable between the main board and panel and replace the LCD panel. YES YES Does the signal appear at RA107(R), RA102(G), and RA105(B)? The Scaler (IC408) is abnormal. Replace the main board. NO YES YES 7 8 4 Troubleshooting 4-6 7 8 WAVEFORMS IC101 is on the rear board of IC103. 4 Troubleshooting 4-7 4-4 No BNC Video Does 3.3 V appear at ZD109 ~ 113? Check power board. *Refer to 1.no power (previous page) YES NO Is the cable properly connected? Check LED on after pushing the power button. Check the cable between the main board and panel and replace the LCD panel. NO Does the wave form appear at Pin 10 (H-sync) and Pin 4 (V-sync) of IC 102? IC104 defect change main board. NO Does the TX** signal appear at Pin 14 and 15 of CN403? IC105 defect change main board. NO YES YES YES 9 10 Does the wave form appear at Pin 6 (H-sync) and Pin 8 (V-sync) of IC103? IC104 defect change main board. NO YES 9 10 4 Troubleshooting 4-8 5-6 WAVEFORMS 9 10 5 Exploded View & Parts List 5-1 5 Exploded View & Parts List T0003 M0215 T0152 M0412 M0014 CIS6 T0178 CIS M0013 M0003 5-1 Exploded View 5 Exploded View & Parts List 5-2 5-2 Parts List Location.No CODE-NO SPECIFICATION & DESCRIPTION Q'TY S.A/SNA T0003 BN96-01779T ASSY COVER P-FRONT;LS40BH(S/M PX),HIPS H 1 S.A M0215 BN07-00264A LCD-PANEL;LTA400WT-L01,8bit,952*551*51.0 1 S.A T0152 BN96-01792C ASSY BRACKET P-VESA;BE40PS,SECC,T1.6 1 S.N.A M0412 BN96-01782G ASSY BRACKET P-PCB;LS40BHT,SECC,T1.0 1 S.N.A M0014 BN94-00919C ASSY PCB MAIN-SPZ;LS40BHPNB/XAA 1 S.A CIS6 BN63-01710B SHIELD-JACK;BE46PS,SPTE,0.5,CHANGE CORE 1 S.N.A T0178 BN63-01735B SHIELD-PCB;BEETHOVEN40",SECC,0.8,CHANGE 1 S.N.A M0013 BN96-01780H ASSY COVER P-REAR;LS40BH,beethoven2,ABS+ 1 S.A M0003 BN96-00452E ASSY STAND P;BE46PS,AL DIECASTING,BKN-S2 1 S.A 6 Electrical Parts List -You can search for updated part codes through ITSELF web site. URL : http://itself.sec.samsung.co.kr/ 6-1 Parts List 6 Electrical Parts List 6-1 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA LS40BHPNB/XSF 400PX,WXM1/S40A2-LBH,40,LCD-MO,CHINA 0.1 M0001 BN90-00903C ASSY COVER FRONT;LS40BHPNB/XAA,400PX 1 S.N.A ..2 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 8 S.A ..2 T0003 BN96-01779T ASSY COVER P-FRONT;LS40BH(S/M PX),HIPS H 1 S.A ...3 M0081 6003-000282 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW 4 S.N.A ...3 T0081 BN61-00408A GUIDE-FUNCTION;CK40PS,ABS,GR503,HB 1 S.N.A ...3 M0112 BN63-01737C COVER-FRONT;BEETHOVEN 40",HIPS,T3.2,HB,B 1 S.N.A ...3 M0007 BN64-00156D KNOB-FUNCTION;BE46PS,ABS,HB,BK07 1 S.N.A ...3 T0299 BN64-00352A WINDOW-RMC LED;BEETHOVEN 46,PC,ACRAY,BKM 1 S.N.A ...3 M0020 BN96-03565A ASSY BOARD P;BEETHOVEN 2,FUNCTION & IR 1 S.A ...3 AA64-04419A LOGO-BADGE;Z50,AL,1.3,3g,70mm,SILVER,SAM 1 S.N.A 0.1 M0002 BN90-00904B ASSY COVER REAR;LS40BHPNB/XAA 1 S.N.A ..2 M0013 BN96-01780H ASSY COVER P-REAR;LS40BH,beethoven2,ABS+ 1 S.A ...3 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 12 S.A ...3 T0920 BN61-01572A GUIDE-STAND;BEETHOVEN 40",PPS 1 S.N.A ...3 M0114 BN61-01630A HOLDER-WIRE;BE46PS,STS,T2.0 3 S.N.A ...3 T0531 BN63-00856A COVER-BOTTOM;CK40PS,ABS HB,GR503 2 S.A ...3 BN63-00930C COVER HANDLE;LS40BH,ABS,T3.5,HB,BK07 2 S.N.A ...3 M0006 BN63-01736B COVER-REAR;BEETHOVEN,ABS+PC 5V,GR37 1 S.N.A ...3 T0578 BN64-00356F INLAY AV;BEETHOVEN2,PS,0.5 1 S.N.A 0.1 M0017 BN91-01013E ASSY CHASSIS-SPZ;LS40BHPNB/XAA 1 S.N.A ..2 M0014 BN94-00919C ASSY PCB MAIN-SPZ;LS40BHPNB/XAA 1 S.A ...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A ...3 CN109 3701-001312 CONNECTOR-DSUB;9P/2C,2R,MALE,ANGLE,AUF 1 S.A ...3 CN101 3701-001334 CONNECTOR-DVI;24P(DVI)+15P(D-SUB),6,FEMA 1 S.A ...3 CN906 3705-001360 CONNECTOR-COAXIAL;BNC,FEMALE,-,75ohm,- 1 S.A ...3 CN906 3705-001360 CONNECTOR-COAXIAL;BNC,FEMALE,-,75ohm,- 1 S.A ...3 CN906 3705-001360 CONNECTOR-COAXIAL;BNC,FEMALE,-,75ohm,- 1 S.A ...3 CN906 3705-001360 CONNECTOR-COAXIAL;BNC,FEMALE,-,75ohm,- 1 S.A ...3 CN906 3705-001360 CONNECTOR-COAXIAL;BNC,FEMALE,-,75ohm,- 1 S.A ...3 CN906 3705-001360 CONNECTOR-COAXIAL;BNC,FEMALE,-,75ohm,- 1 S.A ...3 CN906 3711-004182 CONNECTOR-HEADER;BOX,10P,1R,2MM,STRAIGHT 1 S.A ...3 CN330 3711-004349 HEADER-BOARD TO CABLE;BOX,3P,1R,2mm,STRA 1 S.A ...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A ...3 CN403 3711-005884 HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG 1 S.A ...3 CN330 3711-005942 HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,STR 1 S.A ...3 CN110 3722-002000 JACK-DIN;4P/2C,NI,BLK,ANGLE 1 S.A ...3 CN502 3722-002081 JACK-EAR PHONE;5P/2C,-,SnPb,L-BLU,- 1 S.A ...3 JA333 3722-002285 JACK-PIN;2P,NI,WHT/RED,ANGLE 1 S.A ...3 JA333 3722-002285 JACK-PIN;2P,NI,WHT/RED,ANGLE 1 S.A ...3 JA333 3722-002285 JACK-PIN;2P,NI,WHT/RED,ANGLE 1 S.A ...3 CN506 BN37-00004A CONN TERMINAL;PST038-01,BE32PXn,27.5 mm, 1 S.A ...3 T0174 BN97-00894C ASSY SMD;LS40BHPNB/XAA 1 S.N.A ....4 CIS5 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/ 3.862 S.N.A ....4 D101 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D102 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D103 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D104 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D105 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D106 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A 6 Electrical Parts List 6-2 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ....4 D107 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D108 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D109 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D110 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D111 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D113 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D114 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D115 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D116 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D117 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D118 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D119 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D120 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D122 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D123 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D124 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D125 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D126 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D127 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D128 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D129 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D130 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D131 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D132 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D133 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A ....4 D112 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A ....4 D603 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A ....4 ZD601 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A ....4 ZD602 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A ....4 D516 0402-001614 DIODE-RECTIFIER;S1G,400V,1A,DO-214AC,TP 1 S.A ....4 D513 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A ....4 D514 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A ....4 ZD403 0403-000277 DIODE-ZENER;MMBZ5226B,3.14-3.47V,225MW,S 1 S.A ....4 ZD404 0403-000277 DIODE-ZENER;MMBZ5226B,3.14-3.47V,225MW,S 1 S.A ....4 ZD101 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT 1 S.A ....4 ZD103 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT 1 S.A ....4 ZD104 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT 1 S.A ....4 ZD105 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT 1 S.A ....4 ZD107 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT 1 S.A ....4 ZD108 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT 1 S.A ....4 ZD109 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT 1 S.A ....4 ZD119 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT 1 S.A ....4 ZD124 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT 1 S.A ....4 ZD110 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD111 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD112 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD113 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD115 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD116 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD117 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD118 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD120 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD121 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD122 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD123 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A ....4 ZD102 0403-001435 DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW, 1 S.A ....4 ZD106 0403-001435 DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW, 1 S.A ....4 ZD401 0403-001435 DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW, 1 S.A ....4 ZD402 0403-001435 DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW, 1 S.A ....4 D501 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D502 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D503 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D504 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D505 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D506 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D507 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D508 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D509 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D510 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D511 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D512 0406-001163 DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD 1 S.A ....4 D515 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A ....4 Q501 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A ....4 Q102 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q103 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q401 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q502 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q503 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q504 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q505 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q506 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q603 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q604 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q605 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q606 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q607 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A ....4 Q409 0505-000275 FET-SILICON;SI4435DY,P,-30V,+-8.0A,0.014 1 S.A ....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A ....4 IC104 0801-002171 IC-CMOS LOGIC;74LCX125,BUS BUFFER,SOP,14 1 S.A ....4 IC104 0801-002267 IC-CMOS LOGIC;74LCX14,-,SOIC,14P,150MIL, 1 S.A ....4 IC104 0801-002267 IC-CMOS LOGIC;74LCX14,-,SOIC,14P,150MIL, 1 S.A ....4 IC105 0909-001032 IC-REAL TIME CLOCK;PCF8563,SOP,8P,4.9x3. 1 S.A ....4 IC501 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A ....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A ....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A ....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A ....4 IC112 1103-001195 IC-EEPROM;24C64,64Kbit,8Kx8Bit,SOP,-,5x4 1 S.A ....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A ....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A ....4 T0085 1201-002119 IC-AUDIO AMP;TPA3004D2,HTQFP,48P,7x7mm,- 1 S.A ....4 DU410 1201-002333 IC-OP AMP;EL5167,SOT-23,TP,5P,2.9x1.6mm, 1 S.A ....4 DU410 1201-002333 IC-OP AMP;EL5167,SOT-23,TP,5P,2.9x1.6mm, 1 S.A ....4 DU410 1201-002333 IC-OP AMP;EL5167,SOT-23,TP,5P,2.9x1.6mm, 1 S.A ....4 DU410 1201-002333 IC-OP AMP;EL5167,SOT-23,TP,5P,2.9x1.6mm, 1 S.A ....4 DU410 1201-002333 IC-OP AMP;EL5167,SOT-23,TP,5P,2.9x1.6mm, 1 S.A ....4 DU410 1201-002333 IC-OP AMP;EL5167,SOT-23,TP,5P,2.9x1.6mm, 1 S.A ....4 IC404 1203-001109 IC-VOL. DETECTOR;7045,SOT-89,3P,-,PLASTI 1 S.A ....4 IC407 1203-001109 IC-VOL. DETECTOR;7045,SOT-89,3P,-,PLASTI 1 S.A ....4 IC507 1203-001109 IC-VOL. DETECTOR;7045,SOT-89,3P,-,PLASTI 1 S.A ....4 T0087 1203-001293 IC-POSI.FIXED REG.;033,T0-252,3P,6.5MIL, 1 S.A ....4 T0087 1203-001816 IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA 1 S.A ....4 T0087 1203-001890 IC-POSI.FIXED REG.;3961,SOT223-5,5P,-,PL 1 S.A ....4 T0087 1203-001890 IC-POSI.FIXED REG.;3961,SOT223-5,5P,-,PL 1 S.A ....4 T0087 1203-002186 IC-POSI.FIXED REG.;18,DPAK,3P,240MIL,PLA 1 S.A ....4 T0087 1203-002186 IC-POSI.FIXED REG.;18,DPAK,3P,240MIL,PLA 1 S.A ....4 T0087 1203-002699 IC-POSI.FIXED REG.;78D05,DPAK,3P,6.6X6.1 1 S.A ....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A ....4 T0087 1203-003060 IC-POSI.FIXED REG.;AP1084,TO-263,3P,9.97 1 S.A ....4 IC108 1203-003473 IC-VOL.CONVERTER;LT1054L,SOP,8P,4.9x3.9m 1 S.A ....4 T0087 1203-003952 IC-POSI.FIXED REG.;KA7805ERTM,DPAK,3P,6. 1 S.A 6 Electrical Parts List 6-3 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA 6 Electrical Parts List 6-4 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ....4 IC502 1204-002464 IC-AUDIO PROCESSOR;STV8257DSX,TQFP,80P,1 1 S.A ....4 IC105 1205-002763 IC-RECEIVER;MST3383M-LF-170,PQFP,128P,20 1 S.A ....4 R412 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A ....4 R417 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A ....4 R466 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A ....4 R1017 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R1018 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R1019 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R134 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R135 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R142 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R143 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R4033 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R4039 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R4063 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R4068 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R444 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R445 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R456 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R458 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R459 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R477 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R481 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R493 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R538 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R543 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R547 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R548 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R555 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R557 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R568 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R571 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R572 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R574 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R575 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A ....4 R1006 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R1007 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R121 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R122 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R160 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R163 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R188 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R4034 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R432 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R460 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R461 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A ....4 R114 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A ....4 R539 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A ....4 R541 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A ....4 R1001 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R112 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R113 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R120 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R123 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R172 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R173 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R192 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R193 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R194 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R196 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R197 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R198 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R4025 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R4027 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R4070 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R4071 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R4072 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R438 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R439 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R440 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R441 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R442 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R443 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R454 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R455 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R468 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R488 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R489 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R490 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R491 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R512 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R514 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R516 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R518 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R520 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R521 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R522 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R524 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R525 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R526 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R531 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R533 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R535 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R552 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R556 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R561 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R580 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R581 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R582 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R613 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A ....4 R457 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A ....4 R478 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A ....4 R1010 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R111 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R137 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R144 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R147 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R467 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R511 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R513 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R515 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R517 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R519 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R523 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R559 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R570 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R576 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 S.A ....4 R469 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R4013 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A 6 Electrical Parts List 6-5 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA 6 Electrical Parts List 6-6 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ....4 R4014 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R4015 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R4016 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R484 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R485 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R549 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R158 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R159 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R465 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R529 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R536 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R551 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R583 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R584 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R585 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R586 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R615 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R627 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R629 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R632 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R633 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R639 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R640 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A ....4 R109 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R133 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R136 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R141 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R4018 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R4020 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R4032 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R437 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R505 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R532 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R537 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R542 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R550 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R578 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R652 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A ....4 R562 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.A ....4 R563 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.A ....4 R567 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.A ....4 R534 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A ....4 R540 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A ....4 R544 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A ....4 R546 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A ....4 R626 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A ....4 R630 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A ....4 R638 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A ....4 R501 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A ....4 R502 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A ....4 R503 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A ....4 R504 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A ....4 R506 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A ....4 R507 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A ....4 R508 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A ....4 R509 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A ....4 R577 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A ....4 R566 2007-000103 R-CHIP;120Kohm,5%,1/10W,TP,1608 1 S.A ....4 R446 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A ....4 R447 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A ....4 R448 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A ....4 R449 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A ....4 R450 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A ....4 R451 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A ....4 R452 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A ....4 R453 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A ....4 R510 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A ....4 R564 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 S.A ....4 R530 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A ....4 R131 2007-000126 R-CHIP;4.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R132 2007-000126 R-CHIP;4.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R139 2007-000126 R-CHIP;4.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R140 2007-000126 R-CHIP;4.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R565 2007-000126 R-CHIP;4.3Kohm,5%,1/10W,TP,1608 1 S.A ....4 R573 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 S.A ....4 R124 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A ....4 R125 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A ....4 R138 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A ....4 R161 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A ....4 R162 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A ....4 R169 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A ....4 R170 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A ....4 R171 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A ....4 R423 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 S.A ....4 R424 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 S.A ....4 R605 2007-000683 R-CHIP;3.3Kohm,1%,1/10W,TP,1608 1 S.A ....4 R1002 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R1003 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R1004 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R1005 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R176 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R177 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R178 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R180 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R185 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R186 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R189 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R191 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R462 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R463 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R464 2007-000729 R-CHIP;300ohm,5%,1/10W,TP,1608 1 S.A ....4 R156 2007-000821 R-CHIP;390ohm,1%,1/10W,TP,1608 1 S.A ....4 R126 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R127 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R167 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R168 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R4064 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R4065 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R4067 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R433 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R434 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R435 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R496 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R579 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A ....4 R606 2007-000965 R-CHIP;5.1Kohm,5%,1/10W,TP,1608 1 S.A ....4 R602 2007-000979 R-CHIP;5.6Kohm,1%,1/10W,TP,1608 1 S.A ....4 R426 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A ....4 R428 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A ....4 R430 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A ....4 R431 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A 6 Electrical Parts List 6-7 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA 6 Electrical Parts List 6-8 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ....4 R436 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A ....4 R117 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R118 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R119 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R128 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R129 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R130 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R152 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R155 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R157 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R425 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R427 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R429 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A ....4 R1008 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R1009 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R1011 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R1012 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R1013 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R1014 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R1015 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R1016 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R164 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R165 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R166 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R174 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R175 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R181 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R183 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R190 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R195 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R199 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A ....4 R145 2007-007520 R-CHIP;20ohm,1%,1/10W,TP,1608 1 S.A ....4 R146 2007-007520 R-CHIP;20ohm,1%,1/10W,TP,1608 1 S.A ....4 R148 2007-007520 R-CHIP;20ohm,1%,1/10W,TP,1608 1 S.A ....4 R149 2007-007520 R-CHIP;20ohm,1%,1/10W,TP,1608 1 S.A ....4 R150 2007-007520 R-CHIP;20ohm,1%,1/10W,TP,1608 1 S.A ....4 R151 2007-007520 R-CHIP;20ohm,1%,1/10W,TP,1608 1 S.A ....4 R153 2007-007520 R-CHIP;20ohm,1%,1/10W,TP,1608 1 S.A ....4 R154 2007-007520 R-CHIP;20ohm,1%,1/10W,TP,1608 1 S.A ....4 RA101 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A ....4 RA102 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A ....4 RA103 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A ....4 RA104 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A ....4 RA105 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A ....4 RA106 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A ....4 RA107 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A ....4 RA108 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A ....4 RA414 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A ....4 RA415 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A ....4 RA416 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A ....4 RA401 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA402 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA403 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA404 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA405 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA406 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA407 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA408 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA409 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA410 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA411 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA412 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 RA413 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A ....4 C511 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A ....4 C527 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A ....4 C114 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C115 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C116 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C121 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C122 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C124 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C142 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C143 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C144 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C145 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C148 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C150 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C155 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C156 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4011 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4012 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4013 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4014 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4015 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4016 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4017 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4018 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4019 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4025 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4030 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4036 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C4044 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C405 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C407 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C408 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C409 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C410 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C412 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C414 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C419 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C420 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C421 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C422 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C423 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C424 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C425 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C426 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C427 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C428 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C429 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C430 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C431 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C434 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C435 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C436 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C437 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C438 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C439 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C440 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C441 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A 6 Electrical Parts List 6-9 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA 6 Electrical Parts List 6-10 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ....4 C442 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C443 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C444 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C445 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C446 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C447 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C448 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C449 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C450 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C451 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C457 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C459 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C460 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C462 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C464 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C466 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C467 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C469 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C472 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C473 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C476 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C478 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C479 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C480 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C481 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C483 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C484 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C485 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C486 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C487 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C489 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C491 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C492 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C493 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C495 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C496 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C5013 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C5014 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C5018 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C5019 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C5020 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C5021 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C5024 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C5025 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C5026 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C5027 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C509 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C522 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C523 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C524 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C525 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C540 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C548 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C550 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C553 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C561 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C576 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C577 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C582 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C583 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C592 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C597 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C598 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C601 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C602 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C6023 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C6024 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C6036 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C6037 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C6062 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C6064 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C6066 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C617 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C634 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C635 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C648 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C654 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C656 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C674 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C675 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C679 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C687 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C688 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A ....4 C117 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A ....4 C118 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A ....4 C125 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A ....4 C126 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A ....4 C171 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A ....4 C172 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A ....4 C515 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A ....4 C624 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A ....4 C403 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C404 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C406 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C411 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C413 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C415 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C416 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C452 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C455 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C456 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C458 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C461 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C463 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C465 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C468 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C474 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C514 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C609 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C612 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A ....4 C4033 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,1608 1 S.A ....4 C4026 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C4028 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C4040 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C4042 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C5016 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C5017 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C517 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C518 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C519 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A 6 Electrical Parts List 6-11 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA 6 Electrical Parts List 6-12 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ....4 C520 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C546 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C547 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C571 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C572 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C573 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C574 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C637 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A ....4 C127 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A ....4 C128 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A ....4 C4031 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A ....4 C4032 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A ....4 C535 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A ....4 C544 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A ....4 C5012 2203-000753 C-CER,CHIP;330nF,+80-20%,50V,Y5V,TP,3216 1 S.A ....4 C5022 2203-000753 C-CER,CHIP;330nF,+80-20%,50V,Y5V,TP,3216 1 S.A ....4 C5023 2203-000753 C-CER,CHIP;330nF,+80-20%,50V,Y5V,TP,3216 1 S.A ....4 C575 2203-000753 C-CER,CHIP;330nF,+80-20%,50V,Y5V,TP,3216 1 S.A ....4 C4043 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A ....4 C551 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A ....4 C552 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A ....4 C563 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A ....4 C564 2203-000798 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608,- 1 S.A ....4 C569 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A ....4 C570 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A ....4 C529 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A ....4 C5010 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.A ....4 C5011 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.A ....4 C578 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.A ....4 C579 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.A ....4 C4022 2203-001071 C-CER,CHIP;0.056nF,5%,50V,C0G,1608 1 S.A ....4 C101 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C102 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C104 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C163 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C164 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C165 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C166 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C167 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C168 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C169 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C170 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C516 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C593 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A ....4 C4038 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A ....4 C567 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A ....4 C568 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A ....4 C512 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A ....4 C526 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A ....4 C105 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C108 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C109 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C119 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C123 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C132 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C134 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C136 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C137 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C138 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C139 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C146 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C149 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C151 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C152 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C153 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C154 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C502 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C536 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C537 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C538 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C539 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C557 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C565 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C6017 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C6019 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C6022 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C6069 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C630 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C632 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C668 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A ....4 C623 2203-005015 C-CER,CHIP;150nF,+80-20%,16V,Y5V,1608 1 S.A ....4 C4020 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C4021 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C4024 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C4034 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C4035 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C4051 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C4052 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C586 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C587 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C588 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C589 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C590 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6010 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6011 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6012 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6013 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6014 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6015 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6016 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6027 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6028 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6029 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6033 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6035 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C6040 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C652 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C660 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C691 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C692 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C693 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C694 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C695 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C696 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A ....4 C130 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C133 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C135 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C141 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C401 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A 6 Electrical Parts List 6-13 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA 6 Electrical Parts List 6-14 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ....4 C402 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C4027 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C4037 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C4041 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C4045 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C4046 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C417 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C418 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C432 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C433 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C453 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C454 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C470 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C471 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C475 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C477 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C482 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C488 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C490 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C494 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C580 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C633 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.A ....4 C585 2203-006036 C-CER,CHIP;680NF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C594 2203-006036 C-CER,CHIP;680NF,+80-20%,16V,Y5V,TP,1608 1 S.A ....4 C541 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4, 1 S.A ....4 C542 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4, 1 S.A ....4 C554 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4, 1 S.A ....4 C555 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4, 1 S.A ....4 C560 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4, 1 S.A ....4 C562 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4, 1 S.A ....4 C584 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A ....4 C599 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A ....4 C653 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A ....4 C678 2402-001081 C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10 1 S.A ....4 C129 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A ....4 C131 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A ....4 C510 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A ....4 C591 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A ....4 C6020 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A ....4 C677 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A ....4 C4023 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A ....4 C508 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A ....4 C521 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A ....4 C530 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A ....4 C665 2402-001147 C-AL,SMD;3.3UF,20%,50V,WT,TP,4X5.8MM 1 S.A ....4 C4039 2402-001160 C-AL,SMD;330UF,20%,16V,WT,TP,1008 1 S.A ....4 C566 2402-001160 C-AL,SMD;330UF,20%,16V,WT,TP,1008 1 S.A ....4 C6018 2402-001160 C-AL,SMD;330UF,20%,16V,WT,TP,1008 1 S.A ....4 C6060 2402-001160 C-AL,SMD;330UF,20%,16V,WT,TP,1008 1 S.A ....4 C5015 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C503 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C504 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C505 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C506 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C507 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C513 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C532 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C534 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C543 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C545 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C549 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C556 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C558 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C559 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C6026 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C6032 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C6034 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C6039 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C6068 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C690 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C699 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A ....4 C103 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A ....4 C501 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A ....4 C528 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A ....4 C531 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A ....4 C533 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A ....4 C6025 2409-001046 C-ORGANIC,SMD;39uF,20%,16V,WT,TP,6.3x6 m 1 S.A ....4 C4029 2409-001065 C-ORGANIC;82uF,20%,16V,WT,TP,8X6.9mm,- 1 S.A ....4 C6021 2409-001065 C-ORGANIC;82uF,20%,16V,WT,TP,8X6.9mm,- 1 S.A ....4 C6030 2409-001065 C-ORGANIC;82uF,20%,16V,WT,TP,8X6.9mm,- 1 S.A ....4 C6031 2409-001065 C-ORGANIC;82uF,20%,16V,WT,TP,8X6.9mm,- 1 S.A ....4 C6067 2409-001065 C-ORGANIC;82uF,20%,16V,WT,TP,8X6.9mm,- 1 S.A ....4 C616 2409-001065 C-ORGANIC;82uF,20%,16V,WT,TP,8X6.9mm,- 1 S.A ....4 C622 2409-001065 C-ORGANIC;82uF,20%,16V,WT,TP,8X6.9mm,- 1 S.A ....4 C603 2409-001085 C-ORGANIC;47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A ....4 C6038 2409-001085 C-ORGANIC;47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A ....4 C6061 2409-001085 C-ORGANIC;47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A ....4 C6063 2409-001085 C-ORGANIC;47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A ....4 C6065 2409-001085 C-ORGANIC;47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A ....4 C636 2409-001085 C-ORGANIC;47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A ....4 C647 2409-001085 C-ORGANIC;47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A ....4 C655 2409-001085 C-ORGANIC;47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A ....4 C667 2409-001085 C-ORGANIC;47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A ....4 C689 2409-001085 C-ORGANIC;47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A ....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 1 S.A ....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 1 S.A ....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A ....4 T0052 2703-001334 INDUCTOR-SMD;1.5uH,10%,2012 1 S.A ....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 1 S.A ....4 T0052 2703-002937 INDUCTOR-SMD;33uH,20%,12x12mm 1 S.A ....4 X401 2801-000258 CRYSTAL-SMD;0.032768MHz,20ppm,SMD,12.5pF 1 S.A ....4 X101 2801-003667 CRYSTAL-SMD;14.31818MHz,30ppm,28-AAN,16, 1 S.A ....4 X501 2801-003954 CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh 1 S.A ....4 X402 2801-004496 CRYSTAL-SMD;19.6608MHz,30ppm,HC-49/SM5H, 1 S.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A 6 Electrical Parts List 6-15 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA 6 Electrical Parts List 6-16 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A ....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A ....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A ....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A ....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A ....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A ....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A ....4 IC107 BN11-00002A IC MASK ROM;CAT24WC08W,SOIC,0to+70,5x4mm 1 S.N.A ....4 L510 BN27-00008A COIL CHOKE-SMD;SMD12*12*8.5,GH15/17PS,22 1 S.A ....4 L511 BN27-00008A COIL CHOKE-SMD;SMD12*12*8.5,GH15/17PS,22 1 S.A ....4 L513 BN27-00008A COIL CHOKE-SMD;SMD12*12*8.5,GH15/17PS,22 1 S.A ....4 L514 BN27-00008A COIL CHOKE-SMD;SMD12*12*8.5,GH15/17PS,22 1 S.A ....4 MAIN BN97-00895E ASSY MICOM-MAIN;M-BTVII40WW-1005,(6A96), 1 S.A .....5 IC115 1107-001453 IC-FLASH MEMORY;29W160E,16Mbit,2Mx8/1Mx1 1 S.N.A ....4 D140 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A ....4 D141 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A ....4 D142 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A ....4 D143 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A ....4 D144 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A ....4 D145 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A ....4 D146 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A ....4 D147 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A ....4 IC408 1003-002000 IC-CRT CONTROLLER;FLI8638-LF-BC,PBGA,416 1 S.A ....4 T0087 1203-003695 IC-POSI.FIXED REG.;NCP1117ST33T3G,SOT-22 1 S.A ....4 T0900 1404-001386 THERMISTOR-NTC;10Kohm,3975K,2.1mW/C,TP 1 S.A ....4 R685 2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,1608 1 S.A ....4 T0077 BN41-00692E PCB MAIN;BEETHOVEN 2,FR-4,4L,MP1.3,1.6T, 1 S.N.A ....4 D6020 0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000mA,SMA,TP 1 S.A ...3 CIS 6011-001445 BOLT-SOCKET;4-40 UNC,L7,NI PLT,BRASS,HEX 8 S.N.A ...3 CIS6 BN63-01710B SHIELD-JACK;BE46PS,SPTE,0.5,CHANGE CORE 1 S.N.A 0.1 M0112 BN91-01014D ASSY SHIELD;LS40BHPNB/XAA 1 S.N.A ..2 T0081 6001-001920 SCREW-MACHINE;PH,+,WWP,M5,L12,NI PLT,SWR 4 S.A ..2 M0081 6003-000282 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW 10 S.N.A ..2 M0081 6003-000282 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW 7 S.N.A ..2 M0081 6003-000282 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW 8 S.N.A ..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 4 S.A ..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 5 S.A ..2 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 8 S.A ..2 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 4 S.A ..2 M0162 6502-001067 CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/ 1 S.N.A ..2 M0114 AA61-20129A HOLDER-WIRE;-,NYLON-66,-,-,-,NTR,DAFC-25 2 S.N.A ..2 M2893 BH39-00362B LEAD CONNECTOR;RE32**,UL1007#26,5P,150mm 1 S.A ..2 M2893 BN39-00634B LEAD CONNECTOR-LVDS;LS40BHT,UL20276#30,U 1 S.A ..2 M2893 BN39-00691C LEAD CONNECTOR;LS40BHT,UL1007#26,16P,200 1 S.A ..2 M2893 BN39-00716C LEAD CONNECTOR;LS40BHT,UL3239#24,2P/4P,5 1 S.A ..2 M2893 BN39-00717A LEAD CONNECTOR;LE32R71BX/XEC,UL3443#28,5 1 S.A ..2 M2893 BN39-00728A LEAD CONNECTOR;LS40BHT,UL2464#26,10P,400 1 S.A ..2 M0174 BN44-00134B IP BOARD;SIP40B,LS40BHT,2.0~3.0mA,6.0~7. 1 S.A ..2 CIS BN61-01552C BRACKET;BE46PS,SECC,1.2,CHANGE CORE "B" 2 S.N.A ..2 CCMM1 BN73-00091C SILICON/RUBBER;BE46PS,SILICON+ALUMINA,W2 2 S.N.A ..2 CCMM1 BN73-00128A SILICON/RUBBER;LS40BHT,SILICON+ALUMINA,W 1 S.N.A ..2 M0412 BN96-01782G ASSY BRACKET P-PCB;LS40BHT,SECC,T1.0 1 S.N.A ...3 M0081 6003-000282 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW 2 S.N.A ...3 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A ...3 M0162 6502-001067 CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/ 1 S.N.A ...3 M0114 AA61-20069A HOLDER-WIRE;-,NYLON-66,-,-,-,NTR,V0,PAWH 5 S.N.A ...3 M0131 AA63-01186A GASKET;BE40TS,Conductive Fabric,7.0 mm,1 3 S.N.A ...3 M0131 AA63-01187A GASKET;BE40TS,Conductive Fabric,7 mm,13 4 S.N.A ...3 M0131 AA63-01205A GASKET;BE40TS,Conductive Fabric,8 mm,400 1 S.N.A ...3 M2893 BN39-00615H LEAD CONNECTOR;LS40BHT,1617#22,UL/CSA,3P 1 S.A ...3 M2893 BN39-00623C LEAD CONNECTOR;LS40BHT,UL1617#22,UL/CSA, 1 S.A ...3 M0107 BN61-01570E BRACKET-PCB;LS40BHT,SECC,1.0 1 S.N.A ...3 M0001 BN63-01956A SHIELD-INSULATOR;BE46PS,PET,T0.35,V2 1 S.N.A ...3 M0131 BN63-02717A GASKET;LS40BHT,Conductive Fabric,1 mm,46 1 S.N.A ..2 T0152 BN96-01792C ASSY BRACKET P-VESA;BE40PS,SECC,T1.6 1 S.N.A ...3 M0081 6003-001321 SCREW-TAPTITE;BH,+,B,M4,L8,ZPC(BLK),SWRC 8 S.A ...3 M0131 AA63-01189A GASKET;BE40TS,Conductive Fabric,10 mm,25 2 S.N.A ...3 M0146 BN61-01553B BRACKET-PANEL TOP;BE46PS,SECC,1.2 1 S.N.A ...3 M0146 BN61-01553C BRACKET-PANEL TOP;LS40BH,SECC,1.2,CHANGE 1 S.N.A ...3 M0113 BN61-01555A BRACKET-VESA;BEETHOVEN 46",SECC,T1.6 2 S.N.A ...3 BN61-01571A BRACKET-WALL REAR;BEETHOVEN 40",SECC,T1. 2 S.N.A ...3 M0131 BN63-02107A GASKET;BE40TS,Conductive Fabric,12 mm,13 2 S.N.A ..2 M0006 BN96-02408G ASSY SHIELD P-COVER;LS40BH,SECC,T1.0,NET 1 S.N.A ...3 M0131 AA63-01191A GASKET;BE40TS,Conductive Fabric,1.0 mm,1 1 S.N.A ...3 M0131 AA63-01192A GASKET;BE40TS,Conductive Fabric,1.0 mm,1 2 S.N.A ...3 M0131 AA63-01207A GASKET;BE40TS/LS40BHT,Conductive Fabric, 1 S.N.A ...3 M0131 AA63-01208A GASKET;BE40TS,Conductive Fabric,1.0 mm,1 1 S.N.A ...3 BN61-01989B BRACKET-SHIELD;LS40BH,SECC,1.0,BEETHOVEN 1 S.N.A ...3 T0514 BN61-02416A BRACKET-SUPPORT;LS40BEP,SECC,0.8 1 S.N.A ...3 T0175 BN62-00027A HEAT SINK-PS;beethoven2,A1050,T1.0,AL,13 1 S.N.A ...3 T0178 BN63-01735B SHIELD-PCB;BEETHOVEN40",SECC,0.8,CHANGE 1 S.N.A ...3 M0131 BN63-02580A GASKET;LS40BHT,Conductive Fabric,2 mm,8 1 S.N.A ...3 M0131 BN63-02581A GASKET;LS40BHT,Conductive Fabric,1 mm,6 1 S.N.A ...3 M0131 BN63-02582A GASKET;LS40BHt,Conductive Fabric,1 mm,6 1 S.N.A ...3 M0131 BN63-02585A GASKET;LS40BHT,Conductive Fabric,1 mm,15 1 S.N.A ...3 M0131 BN63-02722A GASKET;LS40BHT,Conductive Fabric,2 mm,8 1 S.N.A ..2 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.2 S.N.A 0.1 M0019 BN91-01017H ASSY LCD;LS40BHTNS6/EDC 1 S.N.A ..2 M0215 BN07-00264A LCD-PANEL;LTA400WT-L01,8bit,952*551*51.0 1 S.A 0.1 M0113 BN92-01301Y ASSY P/MATERIAL;BE40* 1 S.N.A ..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,L1000,W500,TRP,,, 0.06 S.N.A ..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-- 0.008 S.N.A 6 Electrical Parts List 6-17 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA 6 Electrical Parts List 6-18 Level Loc. No. Code No. Description & Specification Q'ty SA/SNA ..2 T0524 6902-000524 BAG PE;HDPE/NITRON,T0.015/T0.5,W1200,L11 1 S.N.A ..2 T0214 AA60-40006A PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X 2 S.N.A ..2 T0214 AA61-20285A HOLDER-BOX;CTV,PP,NTR,HB 4 S.N.A ..2 T0172 AA69-02609A BAND-PP;W18,CLEA,1G 9.3 S.N.A 0.1 M0019 BN92-01410P ASSY LABEL;LS40BEPNS/XSF,CHINA 1 S.N.A 0.1 M0003 BN92-01654X ASSY BOX;LS40BHPKB/XSF,S/M400PX 1 S.N.A ..2 BOX BN69-00980A BOX-00,IN;COMM,DW3,YEL,C-3,W1075*D247*H1 1.01 S.N.A ..2 T0130 BN69-01397G BOX-00,SET;S/M400PX(LS40BHP),DY-05,AB,YE 1.01 S.N.A 0.1 M0045 BN92-01963G ASSY ACCESSORY;LS40BHPKB/XSF,BH40PS 1 S.N.A ..2 M0003 BN96-00452E ASSY STAND P;BE46PS,AL DIECASTING,BKN-S2 1 S.A ...3 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 8 S.A ...3 M0126 BN69-00995A BOX ACCESSORY-00;COMM,SW-1,A,YEL,60,440, 1 S.N.A ...3 M0142 BH61-40002A FOOT-RUBBER;-,NR,PMS428U,GA4237,-,-,- 4 S.N.A ...3 BN61-00419C STAND-BASE R/L;CK40,AL DIECASTING,SPRAY, 2 S.N.A ...3 BN61-00424A STAND-SUPPORT;CK40PS,AL D.C 2 S.N.A ..2 M0045 BN96-03825N ASSY ACCESSORY;LS40BHPKB/XSF 1 S.A ...3 CN906 3705-001262 CONNECTOR-COAXIAL;BNC,ADAPTOR,2MOHM,75OH 4 S.A ...3 T0268 3903-000082 CBF-POWER CORD;DT,CN,IP3/YES(A),I(IEC C1 1 S.A ...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2 2 S.N.A ...3 M0113 BH68-70455A CARD-TESTED GOODS;ALL (CHINA),SAMAUNG,CH 1 S.N.A ...3 ACCESSORY BH75-00146B UNIT-09,WARRANTY;CHINA,-,ASS'Y-W/CARD,BH 1 S.N.A ....4 T0238 BH68-00297E MANUAL FLYER-WARRANTY CARD;SAMSUNG BASIC 1 S.N.A ....4 T0238 BH68-00297F MANUAL FLYER-WARRANTY CARD;ENVELOPE,SAMS 1 S.N.A ...3 M0114 BN39-00244B CBF SIGNAL;MO15PS,15P/15P,20276-N,1830mm 1 S.A ...3 T0251 BN39-00530A HARNESS;SPD-63P3HD,UL1007#22,UL/CSA,2000 2 S.A ...3 T0074 BN59-00489A REMOCON;BEETHOVEN 2,TM76B,17.5x4.5x2,Sin 1 S.A ...3 T0059 BN68-00992A MANUAL FLYER-CARD;COMM,SyncMaster,Lang11 1 S.N.A ...3 M0126 BN69-00350B BOX ACCESSORY-00;COMM,SW-1,A,YEL,KSD-21, 1 S.N.A ...3 M0246 BN96-00597E ASSY ACCESSORY-COVER/HOLE;LS40BH,beethov 1 S.N.A ....4 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 1 S.A ....4 6902-000336 BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,-,-- 1 S.N.A ....4 T0081 BN63-00681C COVER-HOLE;BE46PS,ABS,T1.5,HB,BK07 2 S.N.A ...3 M0215 BN96-03341B ASSY MANUAL P-IB+QSG;COMM,SyncMaster,W/W 1 S.N.A ....4 QSG BN68-01021B MANUAL FLYER-QSG;COMM,SyncMaster,Multe,M 1 S.N.A ....4 I/B BN59-00528C S/W DRIVER-03,IB;COMM,W/W,SyncMaster 1 S.N.A ������� 14-1 ������� ���������� � ��� ���������� � ���� ������� ������� ������� ���� �� ������ ������� ���� ��� � �� ��� �������� ��� �� ��� �� � ��� ���� ������ ����� ���� ���� ���� ����� ��� �� ��� ������� ������� ��� ��� ����� ������������� ����������������� � ��� �� ������������ ���� ���� ��������� � ����� ������������� ��������������� � ��� �� ���������� ���� ���������������������������������� ��� ���� ��������� ������ ������������� ���� �� ������ ��� ��� � �� ���������� ���� ���� ������� �� ���� ������� 14-2 ������������ � ���� ����������������� �� ����� ��� ���� ���������������� ���������������� �������� �������� ������ ���������� �������� ��� ���� ������������ ������������� ���� ������������������ �� ���� ������ ������ �� �� ���� ������������ �� �� �� �� ���� ��� ������ ������� �� ����� ����� ������� 14-3 ����������������� � ���� ������� ������������������������������� ��������� ��� �� ��� �� ���� ������ ������� ����������������������������� ��� ���� ���� ������� ������ ���� ��� ����� ������ �� �� ���� ������������ �� ���� ��� ������� ������� �� ����� ����� ������� 14-4 ������������ � ���� ������� ������ ��� ����������� ���� �� �� ��� ������ ���� ��� �� ��� ���� ������������������ �� ���� ������ ������� ��� �� ��� ���� �������������� ��� ���� ������ ������ �� �� ���� ����������� �� ���� ��� ������� ������� �� ����� ������ ������� 14-5 ���������������� � ���� �������������������������������������� ����� ��� �� ��� �� ���� ������ ������� ����������������������������� ��� ����� ������������� ���� ���� ������� ������ �� �� ���� ������������ �� ���� ��� ������� ������� 14-6 ������������ � ���� ������ ���� ��� ���� ���� �� ���� ��� ��������� ���� ���� ��� ���� ��� � ����� ����� ��� ��� �� ���� ���� ���� � ������ ������ �� ���� ���� ��� ��� �� ��� �� �� ��� ��� �� ��� �� �� �� ������� ���������� � ��� ���� ������ ���� ������������ ���� ������������������������ �� ���� ������ ������ ���� ���� �������� ������� 14-7 ����������� � ���� �� ���������� ��������� � ��� �������� ������� � �������� ��� � ����������� � �� ��������� � ������ ���� � ������ ��������������� � ���� ���� � ������������ � ��������������� �� ����� ����� ������� 14-8 ��������� � ��� ���� ����� ������� ���� �� � ������������ �� ���� ����� ���� �� ������ ���� ���� ��� ��� ��� ���� ��������� ����� ���� �������� ��� �� � ��� ��� ���� �������� ������� 14-9 ������� � �� �� � �� ����������������� ���� ��� ������������ ���� ��� ���� ��� � ��� ��� ����� � ��� ���� �������� ����� �� ��� � ��� ��� ������ ������� ������� ���� � ��� ��� ��� ���� �� �� �� ����� ��� �� ��� �� � ��� ����� ���� ��� ��� ���� ���� ��� �� ��� �� ���������������� ������� ��� �� ����� ����� �� ��� ��� ��� ���� �� ������ ����� ���� � ��� ��� ���� �� ��� ��� � �� ����� ���� � ��� ��� ����� �� �� � �� �� ����� �������� ���� ������� ��������������������������� � ����������������� �� ��� � ���� ����� ���� ���� ���� �� ���������������� �� ��� ������� ��� ���� ���� ��� ���������������� ������� ������� ��� ���� ��� � � �� ��� ����� �������������� ��� � ���� ��� ������ ����� � � ������������������ ���� ���� �� ���� ��� ���� ����� �� �� ��� ���� ��� �� � ���������� ��� � ��� ��� �� �� �� ������������ ��� ������ ������ ��� ��� ��� ����� ��� �� �� ��� �� ��� ������ ���������� �� � �� ����� ������� ����� �� ����������� ���� ����� ��� � ��� � ����� ������� � �� ���������������������� ����� �� ���� ���� ������� ����������������������� ����� ��� ��� ���� ���� ���� ���� ��� ����� � ��� ���� ����� ��� ������� ���� ��� ���� ���� ���� ��� ����� �� ��� ��� ��� ����������� ��� ��� �� ��� ��� � �� ��� ���� ��� � � ���� ������� ������� ���������� � �� �� ������� ��������� �� ����� ���������� �������� ��������������������������������� �� ����� ����������������������������������� � �� �� ����� ��� ���� ����� �� ��� � �� ��� �� ����� ������������ ����� ��� �� � �� �� ��� �������� ������� ������� 14-10 �������������������������� � ����������������� �� �� ��� ������� ��� ���� ���� ��� ���������������� ������� ������� ��� ���� ��� � � �� ��� ����� �������������� ��� � ���� ��� ������ ������ ��� ������� ���� ��� ��� ���� �������� ��� ����� �������� �� ��� � � ������ ������������� �������� ��� �� ��� ��� � �� ���� ��� ������������������� ���� ��� ��� ��� �� ��� ��� � ������ ����������������� ����� ������� ���� ���������� �� ������� ����� �� ����� ��� � ��� ���� ������ ������� �� ��� ��� �� � ������ ����������� ���� ��� ����� ����� ��� ���� ��� ������ �� ��� ������ ����� � ��������� ����� ���� ��� ��� ��� ��� ����� �� ��� ��� � � ��� �� �� � �� ��� ������������������������������ ������ ����� ��� ���� ��� �� �� �� ���� ��� ��� ��� ��� � ������ ����� ��� ���� �� ��� �� ��� ����� ��� ��� ��� ���� �� ��� ��� � � ������ �������� ���� ��� ��� ���� ��� �� � �� ������� ����� ����� ��� ���� ���������� ����� ���� �� ������� ����� ����� � ��� ��� ���������� ��� ����� � � ���� �� ������� ����� ����������� ����� ��� ���� �� ���� � �������� �� �� ���� � � �� ���� ��� ���� ������ �� ��� ���� ���� �� ��� � � ������ ������ ����� ���� ����������� ������������ � �� ����� ���� ������� ������� 14-11 �� �� ����� ��� � �� ��� ��������� ��� ����� ��� �� ���� ���� �� �� ��� ������ ����� ���� ����� ����� ��� � ������ ���� ���� ��������������� ���� �� ��� �� ��� ��� ��� ��� ������� ��� ��� � � �������� �� ���� ����� ���� ���� ���� ����� ������� 14-12 Originator Mode Name Resolution (HxV) VESA 1360/60Hz 1360x768 HORIZONTAL Frequency Total time Active time Blank time Border (L / R) Data time Front porch Sync. width Back porch Sync. polarity 47.712kHz 20.959 15.973 5.053 0.000 15.906 0.749 1.310 2.994 Positive blank blank blank VERTICAL Frequency Total time Active time Blank time Border (T / B) Data time Front porch Sync. width Back porch Sync. polarity 60Hz 16.662ms 16.097ms 0.566ms 0.000ms 16.159ms 0.063ms 0.126ms 0.377ms Positive blank blank blank Dot Clock 85.500MHz Sync. Type Scan Type * Separate N/I �������� � �� ������������ �� �� ������� ������������������������������������ * ������� 14-13 Originator Mode Name Resolution (HxV) IBM VGA1 640x350 IBM VGA2 720x400 IBM VGA3 640x480 VESA 640/72Hz 640x480 VESA 640/75Hz 640x480 HORIZONTAL Frequency Total time Active time Blank time Border (L / R) Data time Front porch Sync. width Back porch Sync. polarity 31.469kHz 31.778 26.058 5.720 0.318 25.422 0.318 3.813 1.589 Positive 31.469kHz 31.777 26.058 5.720 0.318 25.422 0.318 3.813 1.589 Negative 31.469kHz 31.778 26.058 5.720 0.318 25.422 0.318 3.813 1.589 Negative 37.861kHz 26.413 20.825 5.588 0.254 20.317 0.508 1.270 3.810 Negative 37.500kHz 26.667 20.317 6.350 0.000 20.317 0.508 2.032 3.810 Negative VERTICAL Frequency Total time Active time Blank time Border (T / B) Data time Front porch Sync. width Back porch Sync. polarity 70.086Hz 14.268ms 11.504ms 2.764ms 0.191ms 11.122ms 0.985ms 0.064ms 1.716ms Negative 70.087Hz 14.268ms 13.155ms 1.113ms 0.222ms 12.711ms 0.191ms 0.064ms 0.858ms Positive 59.940Hz 16.683ms 15.761ms 0.922ms 0.254ms 15.253ms 0.064ms 0.064ms 0.794ms Negative 72.809Hz 13.735ms 13.100ms 0.635ms 0.211ms 12.678ms 0.026ms 0.079ms 0.528ms Negative 75.000Hz 13.333ms 12.800ms 0.533ms 0.000ms 12.800ms 0.027ms 0.080ms 0.427ms Negative Dot Clock 25.175MHz 28.322MHz 25.175MHz 31.500MHz 31.500MHz Sync. Type Scan Type * Separate N/I Separate N/I Separate N/I Separate N/I Separate N/I ������������������ �� ��� ������� 14-14 Originator Mode Name Resolution (HxV) VESA 640/85Hz 640x480 MAC 640/67Hz 640x480 VESA 800/56Hz 800x600 VESA 800/60Hz 800x600 VESA 800/72Hz 800x600 HORIZONTAL Frequency Total time Active time Blank time Border (L / R) Data time Front porch Sync. width Back porch Sync. polarity 43.269kHz 23.111 17.778 5.333 0.000 17.778 1.556 1.556 2.222 Negative 35.000kHz 28.571 21.164 7.407 0.000 21.164 2.116 2.116 3.175 Negative 35.156kHz 28.444 22.222 6.222 0.000 22.222 0.667 2.000 3.556 Positive or Negative 37.879kHz 26.400 20.000 6.400 0.000 20.000 1.000 3.200 2.200 Positive 48.077kHz 20.800 16.000 4.800 0.000 16.000 1.120 2.400 1.280 Positive VERTICAL Frequency Total time Active time Blank time Border (T / B) Data time Front porch Sync. width Back porch Sync. polarity 85.008Hz 11.764ms 11.093ms 0.671ms 0.000ms 11.093ms 0.023ms 0.069ms 0.578ms Negative 66.667Hz 15.000ms 13.714ms 1.286ms 0.000ms 13.714ms 0.086ms 0.086ms 1.114ms Negative 56.250Hz 17.778ms 17.067ms 0.711ms 0.000ms 17.067ms 0.028ms 0.057ms 0.626ms Positive or Negative 60.317Hz 16.579ms 15.840ms 0.739ms 0.000ms 15.840ms 0.026ms 0.106ms 0.607ms Positive 72.188Hz 13.853ms 12.480ms 1.373ms 0.000ms 12.480ms 0.770ms 0.125ms 0.478ms Positive Dot Clock 36.000MHz 30.240MHz 36.000MHz 40.000MHz 50.000MHz Sync. Type Scan Type * Separate N/I Separate N/I Separate N/I Separate N/I Separate N/I ������������������ �� ���� ������� 14-15 Originator Mode Name Resolution (HxV) VESA 800/75Hz 800x600 VESA 800/85Hz 800x600 MAC 832/75Hz 832x624 VESA 1024/60Hz 1024x768 VESA 1024/70Hz 1024x768 HORIZONTAL Frequency Total time Active time Blank time Border (L / R) Data time Front porch Sync. width Back porch Sync. polarity 46.875kHz 21.333 16.162 5.171 0.000 16.162 0.323 1.616 3.232 Positive 53.674kHz 18.631 14.222 4.409 0.000 14.222 0.569 1.138 2.702 Positive 49.726kHz 20.110 14.524 5.171 0.000 14.524 0.559 1.117 3.910 Positive 48.363kHz 20.677 15.754 4.923 0.000 15.754 0.369 2.092 2.462 Negative 56.476kHz 17.707 13.653 4.053 0.000 13.653 0.320 1.813 1.920 Negative VERTICAL Frequency Total time Active time Blank time Border (T / B) Data time Front porch Sync. width Back porch Sync. polarity 75.000Hz 13.333ms 12.800ms 0.533ms 0.000ms 12.800ms 0.021ms 0.064ms 0.448ms Positive 85.000Hz 11.756ms 11.179ms 0.577ms 0.000ms 11.179ms 0.019ms 0.056ms 0.503ms Positive 74.551Hz 13.414ms 12.549ms 0.864ms 0.000ms 12.549ms 0.020ms 0.060ms 0.784ms Positive 60.004Hz 16.666ms 15.880ms 0.786ms 0.000ms 15.880ms 0.062ms 0.124ms 0.600ms Negative 70.069Hz 14.272ms 13.599ms 0.672ms 0.000ms 13.599ms 0.053ms 0.106ms 0.513ms Negative Dot Clock 49.500MHz 56.250MHz 49.500MHz 65.000MHz 75.000MHz Sync. Type Scan Type * Separate N/I Separate N/I Separate N/I Separate N/I Separate N/I ������������������ �� ��� ������� 14-16 Originator Mode Name Resolution (HxV) VESA 800/75Hz 800x600 VESA 800/85Hz 800x600 MAC 832/75Hz 832x624 VESA 1024/60Hz 1024x768 VESA 1024/70Hz 1024x768 HORIZONTAL Frequency Total time Active time Blank time Border (L / R) Data time Front porch Sync. width Back porch Sync. polarity 46.875kHz 21.333 16.162 5.171 0.000 16.162 0.323 1.616 3.232 Positive 53.674kHz 18.631 14.222 4.409 0.000 14.222 0.569 1.138 2.702 Positive 49.726kHz 20.110 14.524 5.171 0.000 14.524 0.559 1.117 3.910 Positive 48.363kHz 20.677 15.754 4.923 0.000 15.754 0.369 2.092 2.462 Negative 56.476kHz 17.707 13.653 4.053 0.000 13.653 0.320 1.813 1.920 Negative VERTICAL Frequency Total time Active time Blank time Border (T / B) Data time Front porch Sync. width Back porch Sync. polarity 75.000Hz 13.333ms 12.800ms 0.533ms 0.000ms 12.800ms 0.021ms 0.064ms 0.448ms Positive 85.000Hz 11.756ms 11.179ms 0.577ms 0.000ms 11.179ms 0.019ms 0.056ms 0.503ms Positive 74.551Hz 13.414ms 12.549ms 0.864ms 0.000ms 12.549ms 0.020ms 0.060ms 0.784ms Positive 60.004Hz 16.666ms 15.880ms 0.786ms 0.000ms 15.880ms 0.062ms 0.124ms 0.600ms Negative 70.069Hz 14.272ms 13.599ms 0.672ms 0.000ms 13.599ms 0.053ms 0.106ms 0.513ms Negative Dot Clock 49.500MHz 56.250MHz 49.500MHz 65.000MHz 75.000MHz Sync. Type Scan Type * Separate N/I Separate N/I Separate N/I Separate N/I Separate N/I ������������������ �� ��� ������� 14-17 ������� � �� ��� ���������� ����� ����� �� ������� �� ��� ����� ��� ��������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ���������������� ������� ������� ������� ���� ���������������� ������� ������� ������� ���� ���������������� ������� ������� ������� ���� ���������������� ������ ������� ������� �������� ���������������� ������� ������� ������� ���� ���������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ������������������ ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ����� ���� ��� ��� ������� ��� ��� ���� ��� ����� �������� ���� ��� ������� ��� ��� � ���� ������ �� � ���� ��� �� ������ ���� ��� �� �� ��� ���� ������� 14-18 ��������� SEC LT140X1-002 BN07-00004A SA BN68-00239H SEC LT150XS-L01 BN07-00009A SB SEC LT150XS-L01-B BN07-00022A SC SEC LTM150XS-L02 BN07-00005A SD SEC LT181E2-132 BN07-00001A SE SEC LT150XS-T01 BN07-00010A SF SEC LTM181E3-132 BN07-00019A SG SEC LT170E2-131 BN07-10001D SH SEC LT181E2-131 BN07-10001E SJ SEC LTM170E4-L01 BN07-00018A SK SEC LTM240W1-L01 BN07-00015A SL SEC LTM213U3-L01 BN07-00016A SM SEC LTM150XH-L01 BN07-00026A SN SEC LTM150XH-L03 BN07-00027A SP SEC LTM150XS-L01 BN07-00032A SQ DELL(ZPD) SEC LTM181E4-L01 BN07-00034A SR PVA SEC LTM170EH-L01 BN07-00036A SS TN SEC LTM170E5-L01 BN07-00037A SU PVA SEC LTM150XH-L11 BN07-00041A SV SEC LTM213U4-L01 BN07-00039A SW PVA SEC LTM150XH-L01(ZPD) BN07-00045A SX ZPD SEC LTM150XH-L04 BN07-00046A SY °íÈÖµµ ½Å±Ô Àû¿ë PANEL SEC LTM170W1-L01 BN07-00047A SZ TV¿ë PANEL SEC LTM150XH-L06 BN07-00053A EA TV¿ë PANEL/450cd °íÈÖµµ¿ë _ Sony& EOS ÆÀ TV¿ë panel SEC LTM153W1-L01 BN07-00054A EB NIKE MODEL »ç¿ë SEC LTM170EH-L05 BN07-00055A EC 17" EH-L05 °íÈÖµµ¿ë panel EOS proj. SEC LTM170E5-L03 BN07-00056A ED Dell 1702FP pro. E4´ë¿ëÀ¸·Î µµÀÔ. EH¿Í ±â±¸Àû Compatible SEC LTM190E1-L01 BN07-00057A EE DELL 1900 FP SEC LTM181E5-L01 BN07-00061A EF 18" narrow bezel GH18PS SEC LTM150XP-L01 BN07-00065A EG AMLCD PVA PANEL SEC LTM240W1-L02 BN07-00062A EH 15" Wide tv¿ë panel SEC LTM170EU-L01 BN07-00071A EJ Slim design, TN SEC LTM170E5-L04 BN07-00072A EK E5-L04 6 bits FRC... for IBM SEC LTA220W1-L01 BN07-00074A EL 22" TV¿ë PANEL SEC LTM170E6-L02 BN07-00075A EM AMLCD Narrow & slim design 17" PVA mode SEC LTM170W1-L01 BN07-00082A EN LTM170W1-L01 ZPD panel SEC LTM170EH-L01 BN07-00080A EP LTM170EH-L01 ZPD panel SEC LTM170E5-L01 BN07-00081A EQ LTM170E5-L01 ZPD panel SEC LTM170EH-L05 BN07-00083A ER LTM170EH-L05 ZPD panel SEC LTM170E5-L03 BN07-00084A ES LTM170E5-L03 ZPD panel SEC LTM170EU-L01 BN07-00085A ET LTM170EU-L01 ZPD panel SEC LTM170E5-L04 BN07-00086A EU LTM170E5-L04 ZPD panel SEC LTM170E6-L02 BN07-00087A EV LTM170E6-L02 ZPD panel SEC LTM150XH-L06 BN07-00091A EW LCD TV¿ë »öÁÂÇ¥ º¯°æ SEC LTM153W1-L01 BN07-00092A EX AMLCD WIDE 15",9/10 SEC LTM170W1-L01 BN07-00100A EY »öÁÂÇ¥ º¯ °æ ÀÌ¿øÈ- code °ü¸® SEC LTM170EH-L05 BN07-00097A EZ LTM170E5-L05 »öÁÂÇ¥ º¯ °æ Panel Code ÀÌ¿øÈ- SEC LTA400W1-L01 BN07-00109A S1 AMLCD 40" TV¿ë PANEL SEC LTM153W1-L01 BN07-00110A S2 »öÁÂÇ¥ º¯ °æ 0.280/0.290 , 10000K & ZPD ÀÌ¿øÈ- Panel SEC LTM150XH-L06 BN07-00111A S3 »öÁÂÇ¥ º¯ °æ 0.280/0.290 , 10000K & ZPD ÀÌ¿øÈ- Panel SEC LTM170W1-L01 BN07-00112A S4 »öÁÂÇ¥ º¯ °æ 0.280/0.290 , 10000K & ZPD ÀÌ¿øÈ- Panel SEC LTM170EH-L05 BN07-00113A S5 »öÁÂÇ¥ º¯ °æ 0.280/0.290 , 10000K & ZPD Panel ÀÌ¿øÈ- code SEC LTM220W1-L01 BN07-00114A S6 AMLCD 22" TV¿ë ZPDpanel SEC LTM150XH-L06 BN07-00117A S7 ZPD Panel code ÀÌ¿øÈ- Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE � � � ������� 14-19 SEC LTM153W1-L01 BN07-00118A S8 ZPD code ÀÌ¿øÈ- SEC LTM170WP-L01 BN07-00119A S9 NIKE¿ë PVA PANEL SEC LTM213U4-L01 BN07-00039A E1 21.3" NARROW SEC LTA260W1-L01 BN07-00121A E2 VENUS SEC LTA220W1-L01 BN07-00074B E3 22" TV¿ë PANELÀÇ B±Þ PANEL CODE SEC LTA320W1-L01 BN07-00108A E4 AMLCD 32" TV¿ë PANEL SEC LTM213U4-L01 BN07-00124A E5 NARROW BEZEL 21 " PANEL SEC LTM170E6-L04 BN07-00129A E6 HIGHLAND 17" LOW PANEL (TCO03 Àü¿ë PANEL) SEC LTM190E1-L01 BN07-00088A E7 LTM190E1-L01 ZPD panel SEC M150X4-L06 BN07-00137A E8 15" Narrow & Slim panel SEC LTA170V1 BN07-00139A E9 Muse 4:3 VGA TV¿ë 17" Panel SEC LTM190E1-L02 BN07-00128A E10 AMLCD»ç ½Å±Ô Panel . »ç¾ç : 6bit Driver IC SEC LTM170EX-L01 BN07-00143A E11 AMLCD»ç ½Å±Ô Panel °³¹ß SEC LTM170E8-L01 BN07-00144A E12 AMLCD»ç ½Å±Ô Panel °³¹ß SEC LTM170E6-L04 BN07-00129B E13 AMLCD»ç ZPD panel (TCO03 Àü¿ë PANEL) SEC LTA320W1-L02 BN07-00108B E14 AMLCD 32" TV B±Þ panel code ä¹ø SEC LTM190E1-L03 BN07-00151A E15 AMLCD 19" ½Å±Ô panel °³¹ß (TCO03 Àü¿ë PANEL) SEC LTM240W1-L03 BN07-00134A E16 AMLCD 24" panel °³¹ß SEC LTM190E1-L02 BN07-00128B E17 AMLCD»ç ½Å±Ô Panel . »ç¾ç : 6bit Driver IC(ZPD) SEC LTM190E4-L01 BN07-00145A E18 AMLCD»ç ½Å±Ô Panel °³¹ß SEC LTM170E8-L01 BN07-00158A E19 ZPD code ÆÄ»ý SEC LTM170EX-L01 BN07-00159A E20 ZPD code ÆÄ»ý SEC LTM190E1-L03 BN07-00151B E21 AMLCD 19" ZPD panel code ÆÄ»ý (TCO03 Àü¿ë PANEL) SEC LTA460H1-L01 BN07-00157A E22 AMLCD 46" TV panel code ä¹ø SEC LTM170EU-L11 BN07-00160A E23 AMLCD 17" ½Å±Ô panel code ÆÄ»ý (TCO03 Àü¿ë PANEL) SEC LTM240W1-L03 BN07-00134B E24 24" panel ZPD Code ÆÄ»ý SEC LTM190E4-L01 BN07-00145B E25 AMLCD 19" ZPD Panel code ÆÄ»ý SEC LTM240W1-L03 BN07-00134B E26 24" panel ZPD Code ÆÄ»ý SEC LTM150XO-L01 BN07-00164A E27 AMLCD 15" XO-L01 ½Å±Ô panel °³¹ß SEC LTM150XO-L01 BN07-00164B E28 AMLCD 15" XO-L01 ZPD codeÆÄ»ý SEC LTM170EU-L11 BN07-00160B E29 AMLCD 17" ½Å±Ô panel code ÆÄ»ý SEC LTA320W2-L01 BN07-00172A SPZ AMLCD 32" ½Å±Ô panel SEC LTM213U4-L01 BN07-00124B SPZ 21.3" Narrow PANEL ZPD Panel ÆÄ»ý SEC LTM170EU-L11 BN07-00189A STH AMLCD EU-L11 Pb free panel code ÆÄ»ý SEC LTM170EU-L11 BN07-00189B STZ AMLCD EU-L11 Pb free panel ZPD code ÆÄ»ý SEC LTM240W1-L04 BN07-00188A SPH 24" A-DCC Àû¿ë ½Å±Ô panel °³¹ß SEC LTM240W1-L04 BN07-00188B SPZ 24" A-DCC Àû¿ë panel ZPD code ÆÄ»ý SEC LTM190EX-L01 BN07-00191A STH AMLCD 19" TN ½Å±Ô Panel SEC LTM190EX-L02 BN07-00191B STZ AMLCD 19" TN ½Å±Ô Panel ZPD ÀÌ¿øÈ- ÆÄ SEC LTA230W1-L02 BN07-00184A SPZ AMLCD 23" 16:9 Panel ½Å±ÔµµÀÔ SEC LTA260W2-L01 BN07-00185A SPZ AMLCD 26" 16:9 Panel ½Å±ÔµµÀÔ SEC LTA400W2-L01 BN07-00186A SPZ AMLCD 40" 16:9 Panel ½Å±ÔµµÀÔ SEC LTM240M1-L01 BN07-00195A SPH 24" °íÈÖµµ panel °³¹ß SEC LTM150XO-L01 BN07-00197A STH AMLCD 15" XO-L01 Pb free panel code SEC LTM150XO-L01 BN07-00197B STZ AMLCD 15" XO-L01 Pb free panel ZPD code SEC LTM170EU-L21 BN07-00202A STZ AMLCD EU-L21 ZPD ½Å±Ô code ÆÄ»ý SEC LTA460W2-L03 BN07-00187A SPZ BEETOVEN 46"ZPD½Å±Ô ÆÇ³Ú SEC LTM240M1-L01 BN07-00195B SPZ 24" °íÈÖµµ panel ZPD code ÆÄ»ý SEC M170EX-L21 BN07-00206A STZ AMLCD LTM170EX-L21 ZPD ½Å±Ô code ÆÄ»ý SEC LTA460H3-L01 BN07-00200A SPZ AMLCD 46" LED BLU panel SEC LTM170EU-L15 BN07-00214A STZ AMLCD EU-L15 TV¿ë °íÈÖµµ ZPD ½Å±Ô code ÆÄ»ý SEC LTM170E8-L21 BN07-00218A SPZ AMLCD LTM170E8-L21 PVA ZPD ½Å±Ô code ÆÄ»ý SEC LTM190EX-L21 BN07-00222A STZ DISPLAY LCD SEC LTM201U1-L01 BN07-00190B SPZ ? AMLCD 20.1" Normal panel ZPD code ÆÄ»ý Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE � � � ������� 14-20 SEC LTM190E4-L21 BN07-00223A SPZ HAYDN 17" PZD ÄÚµå PANELÆÄ»ý SEC LTA570H1-L01 BN07-00196A SPZ AMLCD 57" ½Å±Ô panel °³¹ß SEC LTM150XO-L21 BN07-00229A STZ AMLCD 15" XO-L21 8ms panel code ½Åû SEC LTA260W2-L11 BN07-00239A SPZ AMLCD 26" 16:9 7Line Panel ½Å±ÔµµÀÔ SEC LTA400WS-LH1 BN07-00245A SPZ AMLCD 40" 16:9 SPVA 90% Panel ½Å±ÔµµÀÔ SEC LTM213U6-L01 BN07-00231A SPZ AMLCD 21.3" PVA ½Å±Ô Panel Code ÁøÇà SEC LTA320WS-LH2 BN07-00244A SPZ AMLCD 32" 16:9 SPVA 90% Panel ½Å±ÔµµÀÔ SEC LTA400WS-LH1 BN07-00245A SPZ AMLCD 40" 16:9 SPVA 90% Panel ½Å±ÔµµÀÔ SEC LTM190M2-L01 BN07-00227A STZ AMLCD 19" TN Wide ½Å±Ô Panel Code ÁøÇà SEC LTM201UX-L01 BN07-00249A STZ AMLCD 20.1" TN ½Å±Ô Panel Code ÁøÇà SEC LTM240M1-L02-A05 BN07-00250A SPZ 24" °íÈÖµµ Slim panel ZPD code ÆÄ»ý SEC LTA320W3-L02 BN07-00219A SPZ AMLCD 32" ¸é±¤¿ø ½Å±Ô Panel CPT CLAA150XG09 BN07-00141A PA CPT 15" Monitor¿ë ½Å±Ô panel °³¹ß CPT CLAA170EA02 BN07-00148A PB 17" CPT ½Å±Ô°³¹ß panel CPT CLAA170EA02 BN07-00148B PC 17" CPT ZPD panel code ÆÄ»ý CPT CLAA150XG09 BN07-00141B PTZ CPT 15" panel ZPD code ÆÄ»ý(GOYA-PJT) CPT CLAA150XP01 BN07-00173A PTH CPT 15" PSWG code ÆÄ»ý CPT CLAA150XP01 BN07-00173B PTZ CPT 15" PSWG panel ZPD code ÆÄ»ý CPT CLAA170EA07 BN07-00174A PTH CPT 17" PSWG code ÆÄ»ý CPT CLAA170EA07 BN07-00174B PTZ CPT 17" PSWG type ½Å±Ô Panel code ÁøÇà°Ç CPT CLAA170EA07Q BN07-00220A PTZ CPT 17" PSWG R/T 8msec code ÆÄ»ý CPT CLAA170EA07Q BN07-00220B PTH CPT 17" PSWG R/T 8msec HPD code ÆÄ»ý CPT CLAA150XP01F BN07-00236A PTZ CPT 15" PSWG panel ZPD & Lead free code ÆÄ»ý TOSHIBA LTM15C419(A) BN07-00002A TA TOSHIBA LTM15C423(B) BN07-00006A TB TOSHIBA LTM18C161 BN07-00008A TC TOSHIBA LTM15C443 BN07-00031A TD TOSHIBA LTM15C458 BN07-00043A TE TOSHIBA LTM15C458S BN07-00077A TF TSB 15" °íÈÖµµ Panel TOSHIBA LTM15C458 BN07-00078A TG Toshiba ZPD panel TOSHIBA LTM15C458S BN07-00099A TH TSB LTM15C458S ( ZPD ) HANNSTAR HSD150MX41A(A) BN07-00020A NA TTL¹æ½Ä HANNSTAR HSD150MX12 BN07-00030A NB LVDS¹æ½Ä HANNSTAR HSD170ME13 BN07-00180A NTH Hannstar 17" TN ½Å±Ô panel °³¹ß HANNSTAR HSD170ME13 BN07-00180B NTZ Hannstar 17" TN ½Å±Ô panel °³¹ß ZPD code ÆÄ»ý HANNSTAR HSD190ME12 BN07-00210A NTZ Hannstar 19" TN ½Å±Ô panel °³¹ß HANNSTAR HSD150MX17-A BN07-00226A NTZ Hannstar 15" slim panel ZPD code ÆÄ»ý TORISAN TM150XG-22L03(A) BN07-00021A RA TORISAN TM150XG-26L06 BN07-00042A RB TORISAN TM181SX-76N01 BN07-00048A RC TORISAN TM150XG-26L06 BN07-00059A RD 15" XGA TN MODE(ZPD) TORISAN TM290WX-71N31 BN07-00063A RE RS24NS (TORISAN 29" ½Å±Ô PANEL) TORISAN TM396WX-71N31 BN07-00064A RF RS24NS (TORISAN 40" ½Å±Ô PANEL) TORISAN TM150XG-26L09 BN07-00073A RG 15" TV PANEL ¿ë TORISAN TM150XG-26L10 BN07-00089A RH L10(D/IC¿Ü º¯ °æ) ZPD TORISAN TM150XG-26L10 BN07-00090A RJ L10 NORMAL TORISAN TM190SX-70N01 BN07-00098A RK Torisan 19" Panel TORISAN TM181SX-76N01 BN07-00106A RL ZPD Panel code ÀÌ¿øÈ- TORISAN TM190SX-70N01 BN07-00107A RM ZPD Panel code ÀÌ¿øÈ- TORISAN TM290WX-71N31 BN07-00115A RN Torisan 29" TV¿ë panel »öÁÂÇ¥ º¯ °æ panel Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE � � � ������� 14-21 TORISAN TM396WX-71N31 BN07-00116A RP,Q Torisan 40" TV¿ë panel »öÁÂÇ¥ º¯ °æ panel TORISAN TM22OWX-71N31 BN07-00125A RR TORISAN 22" TV PANEL °³¹ß(ZPD) TORISAN TM22OWX-71N31 BN07-00127A RS TORISAN 22" TV PANEL °³¹ß(HPD) TORISAN TM396WX-71N32A BN07-00150A RT 120V inverter Àû¿ë panel TORISAN TM190SX-70N02 BN07-00154A RMH Torisan 6bit panel code ÆÄ»ý TORISAN TM190SX-70N02 BN07-00154B RMZ Torisan 6bit panel code ÆÄ»ý TORISAN TM150XG-A01 BN07-00162A RTH Torisan 15" Narrow & Slim panel °³¹ß TORISAN TM150XG-A01 BN07-00162B RTZ Torisan 15" N&S panel ZPD code ÆÄ»ý SHARP LQ181E1DG11(A) BN07-10001C PA SHARP LQ150X1LW71 BN07-00067A PB SHARP 15" PVA PANEL SHARP LQ370T3LZ41 BN07-00216A FAZ Rome2 HITACHI TX38D12VC0CAA(A) BN07-00003A HA HITACHI TX43DVCOCAB BN07-00060A HB 17" SXGA PVA MODE HITACHI TX43D15VC0CAB BN07-00101A HC ZPD Panel ÀÌ¿øÈ- HITACHI TX51D11VC0CAB BN07-00122A HD 20.1" NARROW HITACHI TX54D11VC0CAB BN07-00123A HE 21.3" NARROW HITACHI TX80D12VC0CAB BN07-00169A HIZ Hitachi 32" TV¿ë ½Å±Ô panel °³¹ß(ZPD) HITACHI TX54D11VC0CAB BN07-00123B HIZ Hitachi 21.3"ZPD panel IBM ITSX94S BN07-00017A IA UNIPAC UM170E0 BN07-00028A UA Loaded by cisdba HYUNDAI HT15X13 BN07-00035A DA HYUNDAI HT17E11-200 BN07-00049A DB TN MODE HYUNDAI HT17E11-300 BN07-00093A DC HT17E11-300 ZPD panel HYUNDAI HT17E11-400 BN07-00094A DD HT17E11-400 normal panel HYUNDAI HT17E11-400 BN07-00095A DE HT17E11-400 ZPD panel code ÀÌ¿øÈ- HYUNDAI HT17E12 BN07-00096A DF HT17E12 ( Narow & slim Design ) HYUNDAI HT17E12 BN07-00105A DG ZPD Panel code ÀÌ¿øÈ- HYUNDAI HT15X15-D00 BN07-00146A DH Ares 15" Hydis TV¿ë Panel °³¹ß HYUNDAI HT15X15-D01 BN07-00146B DJ Ares 15" Hydis TV¿ë Panel HPD ÆÄ»ý HYUNDAI HT17E13-100 BN07-00167A DTH PINEHURST-2(IBM) PJT 17" HYDIS PANEL ÆÄ»ý HYUNDAI HT17E13-100 BN07-00167B DTZ PINEHURST-2(IBM) Hydis 17" ZPD code ÆÄ»ý HYUNDA HT170EX1-100 BN07-00240A DTZ 17" EX compatible Hydis Slim panel °³¹ß ACER L170E3 BN07-00044A AA TN(ADT) ACER M170EN05 BN07-00076A AB AU 17" Panel ( Narrow & slim design ) ACER M170EN05 BN07-00102A AC ZPD Panel code ÀÌ¿øÈ- ACER M190EN02 BN07-00170A AMH AU Monitor 19" ½Å±Ô panel °³¹ß(P19-1S) ACER M190EN02 BN07-00170B AMZ AU 19" ZPD code ÆÄ»ý(ZPD) ACER M170EN06 BN07-00171A ATH AU Monitor 17" ½Å±Ô panel °³¹ß ACER T260XW01 BN07-00163A AMZ AU 26" ½Å±Ô panel °³¹ß(NF26EO) ACER A201SN01 BN07-00177A ATZ AU TV panel 20.1" TN SVGA ½Å±Ô panel °³¹ß ACER M170EN06 BN07-00171B ATZ AU Monitor 17" ZPD code ÆÄ»ý ACER T315XW01 BN07-00194A AMZ AU 32" ½Å±ÔµµÀÔ ACER M170EG01 BN07-00192A ATH AU TN PSWG type ½Å±Ô Panel code ÁøÇà°Ç ACER M170EG01 BN07-00192B ATZ AU TN PSWG type ½Å±Ô Panel ZPD ÆÄ»ý code ÁøÇà°Ç ACER M190EN04 BN07-00203A ATH AU Monitor 19" ZPD ½Å±Ôcode ÆÄ»ý ACER T260XW02 BN07-00208A AMZ AUO 26" ÀÌ¿øÈ- µµÀÔ ACER M170EG01 V8 BN07-00221A ATZ AU TN PSWG type ½Å±Ô Panel (8msec) ZPD ÆÄ»ý code ACER T260XW02 BN07-00233A AMZ AUO 26" Panel ½Å±Ô µµÀÔ (Cosmetic spec down grade) Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE � � � ������� 14-22 ACER T315XW01 BN07-00234A AMZ AUO 32" Grade ½Å±ÔµµÀÔ (Cosmetic spec down grade)] ACER M190EN03 BN07-00224A AMZ AU Monitor 19" MVA ½Å±Ôcode ÆÄ»ý ACER T315XW01 BN07-00237A AMZ LCD TV VE project ½Å±Ô µµÀÔ : DBEF sheet »èÁ¦ * Panel Çü¸í¿¡ Model ±¸ºÐ¿ë ve ACER T315XW01 BN07-00238A AMZ LCD TV VE project ½Å±Ô µµÀÔ : DBEF sheet »èÁ¦ + 'A-' grade * Panel ACER M201UN02 V3 BN07-00168A AMZ ACER M201UN02 V3 BN07-00168B AMH ACER M190EN04 V7 BN07-00248A ATZ AU Monitor 19" TN Glare ZPD ½Å±Ôcode ÆÄ»ý ACER A070VW01 BN07-00235A ATZ ÀüÀÚ Album¿ë ½Å±Ô Panel code ÆÄ»ý ACER T315XW01 BN07-00253A AMZ LCD TV VE item Àû¿ë model * Panel Çü¸í¿¡ Model ±¸ºÐ¿ë version Ãß°¡ : T315XW01 CHIMEI M170E3-LO1 BN07-00050A CA TN PANEL CHIMEI M150X3-L01 BN07-00051A CB COMPATIBLE CHIMEI M170E4-L01 BN07-00052A CC MVA PANEL CHIMEI M150X2-L01 BN07-00066A CD CHIME 15"I PVA PANEL CHIMEI M150X3-L01 BN07-00079A CE Chimei ZPD panel CHIMEI M170E3-L01 BN07-00103A CF ZPD Panel code ÀÌ¿øÈ- CHIMEI M170E4-L01 BN07-00104A CG ZPD Panel code ÀÌ¿øÈ- CHIMEI V296W1-L01 BN07-00120A CH MVA CHIMEI M170E6-L02 BN07-00126A CJ HIGHLAND 17" LOW PANEL CHIMEI M190E2-L01 BN07-00131A CK GH19AS,BS CHIMEI PANEL CHIMEI M150X4-L06 BN07-00137A CL 15" Narrow & Slim panel CHIMEI M170E6-L01 BN07-00133A CM 2003-03-11 ¾÷üº¯°æ(Áø½Å±³D) CHIMEI M170E6-L01 BN07-00133B CN ZPD ÆÄ»ý panel CHIMEI V201V1-T01 BN07-00135A CP CHIMEI 20.1" panel °³¹ß CHIMEI M170E6-L02 BN07-00126B CQ HIGHLAND 17" LOW PANEL ZPD ÆÄ»ý panel CHIMEI M170E6-L05 BN07-00152A CR CMO 17" ½Å±Ô panel °³¹ß code CHIMEI M170E6-L05 BN07-00152B CS CMO 17" ZPD panel code ÆÄ»ý CHIMEI M150X4-L06 BN07-00137B CT Chimei 15" Narrow & Slim panel ZPD ÆÄ»ý CHIMEI M170E5-L05 BN07-00165A CTH CMO 17" ½Å±Ô panel °³¹ß code(GOYA2-PJT) CHIMEI M170E5-L05 BN07-00165B CTZ CMO 17" ZPD panel(GOYA2-PJT) CHIMEI V230W1-L02 BN07-00209A CMZ CMO 23" ½Å±Ô °³¹ß CHIMEI V320B1-L01 BN07-00207A CMZ CMO 32" ½Å±Ô °³¹ß CHIMEI V270W1-L01 BN07-00136A CMZ CHI MEI 27" panel °³¹ß CHIMEI M190E5-L0A BN07-00213A CTZ CHIMEI M190E3-L0A BN07-00212A CMZ CMO M190E3-L0A MVA Type ½Å±Ô code ÆÄ»ý CHIMEI M170E7-L01 BN07-00232A CTZ CMO 17" Slim TN ZPD Type ½Å±Ô code ÆÄ»ý NEC SVA150XG04TB BN07-00225A BTZ SVA NEC 15" panel ZPD code ½Åû Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE � � � 8-1 8 Wiring Diagram 8 Wiring Diagram 8-1 Main Board Wiring Diagram 8 Wiring Diagram 8-2 8-2 Network Board Wiring Diagram 9-1 9 ����������������� 9 Schematic Diagram -This Document can not be used without Samsung ’ s authorization. 9-1 Main board Schematics Diagram(Signal input) 6,7,8pin connect to ground 6,7,8pin connect to ground CVBS_OUT CVBS_OUT CVBS_IN CVBS_IN Y_OUT Y_OUT C_OUT C_OUT C_IN C_IN Y_IN Y_IN 1 100nF 100nF C149 C149 1 2 3 50V 50V C128 C128 22pF 22pF 3 ZD103 ZD103 2 3 D116 D116 1 2 D132 D132 1 B C +3.3V_LIVE3 +3.3V_LIVE3 100ohm 100ohm R135 R135 Q102 Q102 E ZD113 ZD113 1 2 3 R144 R144 1Kohm 1Kohm 75ohm 75ohm R128 R128 4 5 6 7 8 C152 C152 100nF 100nF RA103 RA103 1 2 3 1 2 3 4 5 6 7 8 R195 R195 RA102 RA102 75ohm 75ohm R190 R190 75ohm 75ohm 1 1 C134 C134 BLUE_OUT BLUE_OUT 1 +3.3V_LIVE3 +3.3V_LIVE3 100nF 100nF VOUT VOUT 1 -VS -VS 2 3 +IN +IN -IN -IN 4 +VS +VS 5 10uF 10uF EL5167IWZ-T7 EL5167IWZ-T7 C146 C146 10V 10V C135 C135 ZD104 ZD104 1 2 3 100nF 100nF 1 4 /OE2 /OE2 5 D2 D2 6 O2 O2 GND GND 7 O3 O3 8 9 D3 D3 1 /OE3 /OE3 10 10 11 11 O4 O4 D4 D4 12 12 13 13 /OE4 /OE4 14 14 VCC VCC D1 D1 2 O1 O1 3 B 74LCX125MX 74LCX125MX IC103 IC103 /OE1 /OE1 3 4 MGND1 MGND1 MGND2 MGND2 MGND3 MGND3 R1013 R1013 1/10W 1/10W 75ohm 75ohm UCT-EX-036 UCT-EX-036 1 2 1 D133 D133 1 2 3 ZD112 ZD112 1 2 3 1 50V 50V +5V_DPMS +5V_DPMS 14.31818MHz 14.31818MHz 22pF 22pF C127 C127 R122 R122 22ohm 22ohm X101 X101 D131 D131 1 2 3 1 VOUT VOUT 2 -VS -VS 3 +IN +IN 4 -IN -IN 5 +VS +VS 1 EL5167IWZ-T7 EL5167IWZ-T7 2 3 100ohm 100ohm R123 R123 -IN -IN 4 +VS +VS 5 D122 D122 1 EL5167IWZ-T7 EL5167IWZ-T7 VOUT VOUT 1 -VS -VS 2 3 +IN +IN ZD119 ZD119 1 2 3 ZD102 ZD102 1 2 3 4 5 6 -5V -5V 100nF 100nF 50V 50V 100pF 100pF C115 C115 D110 D110 1 2 3 C111 C111 R160 R160 1 22ohm 22ohm MGND3 MGND3 DVI_5V DVI_5V 22ohm 22ohm R152 R152 UCT-EX-036 UCT-EX-036 1 2 3 4 MGND1 MGND1 MGND2 MGND2 100ohm 100ohm 6 7 8 9 MGND1 MGND1 MGND2 MGND2 MGND3 MGND3 MGND4 MGND4 R113 R113 31 31 32 32 33 33 34 34 35 35 36 36 37 37 38 38 39 39 4 5 21 21 22 22 23 23 24 24 25 25 26 26 27 27 28 28 29 29 3 30 30 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 2 20 20 B 381R01-101A 381R01-101A CN101 CN101 1 10 10 B 75ohm 75ohm 1/10W 1/10W R1016 R1016 R1014 R1014 B R1015 R1015 1/10W 1/10W 75ohm 75ohm 100ohm 100ohm R116 R116 75ohm 75ohm 1/10W 1/10W 2 3 4 5 6 7 8 R125 R125 RA105 RA105 1 4 5 6 7 8 10ohm 10ohm RA107 RA107 1 2 3 1 2 3 4 5 6 7 8 1 VDDP VDDP RA108 RA108 1 C138 C138 100nF 100nF ZD101 ZD101 1 2 3 C110 C110 50V 50V 100pF 100pF 1 2 3 R134 R134 ZD110 ZD110 2 3 4 5 6 7 8 100ohm 100ohm 1 R143 R143 C136 C136 100nF 100nF 22ohm 22ohm 100ohm 100ohm R121 R121 100nF 100nF C108 C108 75ohm 75ohm 1/10W 1/10W R185 R185 300ohm 300ohm 1 R181 R181 3 4 5 6 7 8 3 RA106 RA106 1 2 RD8.2MB RD8.2MB ZD118 ZD118 1 2 1 2 3 1Kohm 1Kohm R111 R111 220nF 220nF D117 D117 C103 C103 100ohm 100ohm R142 R142 100ohm 100ohm 100ohm 100ohm R110 R110 D113 D113 1 2 3 R173 R173 7 8 9 MGND1 MGND1 MGND2 MGND2 MGND3 MGND3 MGND4 MGND4 +5V_DPMS +5V_DPMS USJ-AG-016 USJ-AG-016 1 2 3 4 5 6 1/10W 1/10W R1003 R1003 300ohm 300ohm D129 D129 1 2 3 BLUE_IN BLUE_IN 1 ZD122 ZD122 RD8.2MB RD8.2MB 1 2 3 +3.3V_LIVE3 +3.3V_LIVE3 3 ZD117 ZD117 RD8.2MB RD8.2MB 1 2 3 RD8.2MB RD8.2MB ZD121 ZD121 1 2 10ohm 10ohm R170 R170 100ohm 100ohm +3.3V_LIVE3 +3.3V_LIVE3 R196 R196 R147 R147 C109 C109 100nF 100nF 100nF 100nF 1Kohm 1Kohm VS_OUT VS_OUT 1 C124 C124 D112 D112 +3.3V_TEST +3.3V_TEST D106 D106 1 2 3 300ohm 300ohm R1002 R1002 1/10W 1/10W D105 D105 1 2 3 ZD106 ZD106 1 2 3 4 5 6 1 HS_OUT HS_OUT 1 R104 R104 10ohm 10ohm 10ohm 10ohm R161 R161 2 3 4 5 6 7 8 R124 R124 10ohm 10ohm RA101 RA101 1 VDVI VDVI VPLL VPLL VMPLL VMPLL C102 C102 16V 16V 220nF 220nF 1 390ohm 390ohm R156 R156 4.7Kohm 4.7Kohm 1uH 1uH L102 L102 1 2 R126 R126 4.3Kohm 4.3Kohm R139 R139 1 -5V -5V +3.3V_LIVE3 +3.3V_LIVE3 C154 C154 100nF 100nF 50V 50V 100pF 100pF 4.3Kohm 4.3Kohm R140 R140 +5V_DPMS +5V_DPMS C118 C118 1 1 2 3 RD8.2MB RD8.2MB ZD116 ZD116 1 100ohm 100ohm R172 R172 R171 R171 10ohm 10ohm CAT24WC08W-TE13F CAT24WC08W-TE13F D115 D115 1 2 3 R169 R169 10ohm 10ohm R158 R158 4.7Kohm 4.7Kohm +5V_DPMS +5V_DPMS 4.7Kohm 4.7Kohm R159 R159 1 1 1 1 1 E B C R164 R164 Q103 Q103 1 2 3 75ohm 75ohm 4.7Kohm 4.7Kohm D123 D123 +5V_LIVE +5V_LIVE R167 R167 C142 C142 100nF 100nF R1001 R1001 10uF 10uF C141 C141 1/10W 1/10W R109 R109 10Kohm 10Kohm 100ohm 100ohm BD101 BD101 B 10Kohm 10Kohm R136 R136 +3.3V_LIVE3 +3.3V_LIVE3 1 C101 C101 16V 16V 220nF 220nF R137 R137 1Kohm 1Kohm 100nF 100nF C116 C116 R107 R107 10ohm 10ohm 22ohm 22ohm R118 R118 TP669 TP669 100nF 100nF C155 C155 3 100nF 100nF C151 C151 -5V -5V D127 D127 1 2 C153 C153 100nF 100nF -5V -5V 75ohm 75ohm R174 R174 1 +3.3V_LIVE3 +3.3V_LIVE3 1 B 100pF 100pF C125 C125 75ohm 75ohm B R1012 R1012 1/10W 1/10W 75ohm 75ohm 1 R1011 R1011 1/10W 1/10W D114 D114 1 2 3 75ohm 75ohm R166 R166 1 1 1 C150 C150 100nF 100nF C148 C148 100nF 100nF 10Kohm 10Kohm R133 R133 +3.3V_LIVE3 +3.3V_LIVE3 4.7Kohm 4.7Kohm R168 R168 R112 R112 1/10W 1/10W R177 R177 300ohm 300ohm 100ohm 100ohm 4.7Kohm 4.7Kohm R115 R115 R145 R145 0ohm 0ohm R149 R149 0ohm 0ohm R148 R148 R146 R146 0ohm 0ohm D103 D103 1 2 3 0ohm 0ohm D102 D102 1 2 3 22ohm 22ohm 3 4 /Y2 /Y2 5 A3 A3 6 /Y3 /Y3 GND GND 7 /Y4 /Y4 8 9 A4 A4 R119 R119 A1 A1 1 /Y5 /Y5 10 10 11 11 A5 A5 /Y6 /Y6 12 12 13 13 A6 A6 VCC VCC 14 14 /Y1 /Y1 2 A2 A2 4 MGND1 MGND1 MGND2 MGND2 MGND3 MGND3 MGND3 MGND3 UCT-EX-036 UCT-EX-036 1 2 3 UCT-EX-036 UCT-EX-036 1 2 3 4 MGND1 MGND1 MGND2 MGND2 ZD111 ZD111 1 2 3 R101 R101 +3.3V_LIVE3 +3.3V_LIVE3 10ohm 10ohm 10ohm 10ohm 1 R102 R102 100nF 100nF C119 C119 100ohm 100ohm R192 R192 10 10 7 T2OUT T2OUT 2 V+ V+ 6 V- V- 16 16 VCC VCC R1004 R1004 300ohm 300ohm 1/10W 1/10W 3 C1- C1- 4 C2+ C2+ 5 C2- C2- 15 15 GND GND 13 13 R1IN R1IN 12 12 R1OUT R1OUT 8 R2IN R2IN 9 R2OUT R2OUT 11 11 T1IN T1IN 14 14 T1OUT T1OUT T2IN T2IN 1 MAX232ECWE MAX232ECWE C1+ C1+ 1 ZD123 ZD123 1 2 3 100ohm 100ohm RD8.2MB RD8.2MB R193 R193 R197 R197 R1010 R1010 1Kohm 1Kohm 1 100ohm 100ohm ZD107 ZD107 1 2 3 +5V_LIVE +5V_LIVE R155 R155 22ohm 22ohm 4.7Kohm 4.7Kohm R127 R127 D118 D118 1 2 3 C107 C107 100pF 100pF 50V 50V C106 C106 100pF 100pF 50V 50V D125 D125 1 2 3 +3.3V_TEST +3.3V_TEST 1 BD102 BD102 B RED_IN RED_IN 1 100nF 100nF C105 C105 C143 C143 100nF 100nF 22ohm 22ohm R1007 R1007 TP148 TP148 R103 R103 10ohm 10ohm 10ohm 10ohm R108 R108 16V 16V 100uF 100uF C129 C129 C133 C133 10uF 10uF 10V 10V C130 C130 10uF 10uF 10V 10V 100nF 100nF C145 C145 100nF 100nF C122 C122 1 VOUT VOUT 2 -VS -VS 3 +IN +IN 4 -IN -IN +VS +VS 5 100pF 100pF C113 C113 1 EL5167IWZ-T7 EL5167IWZ-T7 ZD120 ZD120 1 2 3 GREEN_IN GREEN_IN RD8.2MB RD8.2MB 1/10W 1/10W 300ohm 300ohm R189 R189 -5V -5V 300ohm 300ohm R186 R186 1/10W 1/10W 1 2 3 C131 C131 100uF 100uF 16V 16V 1 +5V_DPMS +5V_DPMS ZD115 ZD115 RD8.2MB RD8.2MB 75ohm 75ohm R194 R194 100ohm 100ohm R129 R129 100ohm 100ohm R198 R198 100nF 100nF C139 C139 75ohm 75ohm R183 R183 R178 R178 300ohm 300ohm 1/10W 1/10W UCT-EX-036 UCT-EX-036 1 2 3 4 MGND1 MGND1 MGND2 MGND2 MGND3 MGND3 1 1 D120 D120 1 2 3 3 4 /Y2 /Y2 5 A3 A3 6 /Y3 /Y3 GND GND 7 /Y4 /Y4 8 9 A4 A4 A1 A1 1 /Y5 /Y5 10 10 11 11 A5 A5 /Y6 /Y6 12 12 13 13 A6 A6 VCC VCC 14 14 /Y1 /Y1 2 A2 A2 L101 L101 1 2 1 -5V -5V 1uH 1uH R165 R165 75ohm 75ohm D107 D107 1 2 3 C112 C112 100pF 100pF R117 R117 22ohm 22ohm D109 D109 1 2 3 220nF 220nF C104 C104 1 2 3 D119 D119 1 2 3 D108 D108 R1006 R1006 22ohm 22ohm 10Kohm 10Kohm R141 R141 C144 C144 100nF 100nF 1 2 3 4 5 6 7 8 R188 R188 DSUB_5V DSUB_5V 22ohm 22ohm R105 R105 R106 R106 10ohm 10ohm 1 2 3 10ohm 10ohm 1 2 3 D128 D128 TP147 TP147 D126 D126 D124 D124 1 2 3 R132 R132 4.3Kohm 4.3Kohm VOUT VOUT 1 -VS -VS 2 +IN +IN 3 -IN -IN 4 +VS +VS 5 1 2 3 EL5167IWZ-T7 EL5167IWZ-T7 1uH 1uH 1 2 ZD105 ZD105 1 L103 L103 RED_OUT RED_OUT 1 GREEN_OUT GREEN_OUT 1 2 3 100nF 100nF C114 C114 D101 D101 R175 R175 75ohm 75ohm +3.3V_TEST +3.3V_TEST DSUB_5V DSUB_5V TP149 TP149 +5V_DPMS +5V_DPMS -5V -5V C123 C123 100nF 100nF 16V 16V ZD109 ZD109 1 2 3 +5V_DPMS +5V_DPMS 1 300ohm 300ohm R180 R180 1/10W 1/10W 1 10ohm 10ohm D111 D111 1 2 3 R162 R162 300ohm 300ohm 1/10W 1/10W 1 1 R191 R191 +3.3V_LIVE3 +3.3V_LIVE3 75ohm 75ohm 75ohm 75ohm R1009 R1009 R1008 R1008 C TP145 TP145 C120 C120 100nF 100nF 2SC2412K-Q 2SC2412K-Q Q101 Q101 E B 1 100ohm 100ohm R120 R120 100nF 100nF 100nF 100nF C121 C121 ZD108 ZD108 1 2 3 C132 C132 10ohm 10ohm R138 R138 VAUPLL VAUPLL VDDC VDDC 2 3 4 5 6 7 8 RA104 RA104 1 4.3Kohm 4.3Kohm R131 R131 300ohm 300ohm R176 R176 1/10W 1/10W MGND1 MGND1 MGND2 MGND2 MGND3 MGND3 +3.3V_LIVE3 +3.3V_LIVE3 1 UCT-EX-036 UCT-EX-036 1 2 3 4 HS_IN HS_IN 1 22ohm 22ohm 100pF 100pF C126 C126 1 R163 R163 1 VOUT VOUT 2 -VS -VS 3 +IN +IN 4 -IN -IN 5 +VS +VS D130 D130 1 2 3 EL5167IWZ-T7 EL5167IWZ-T7 100nF 100nF D104 D104 1 2 3 C137 C137 C156 C156 100nF 100nF BD106 BD106 B MGND3 MGND3 MGND4 MGND4 50V 50V 100pF 100pF C117 C117 2 3 4 5 6 7 8 9 MGND1 MGND1 MGND2 MGND2 109-2010102231-F 109-2010102231-F 1 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 1 B 1 BD107 BD107 V+ V+ +3.3V_TEST +3.3V_TEST R114 R114 47ohm 47ohm 1 FB/SHDN FB/SHDN 2 CAP+ CAP+ 3 GND GND CAP- CAP- 4 VOUT VOUT 5 6 VREF VREF OSC OSC 7 8 VDVI VDVI +3.3V_LIVE3 +3.3V_LIVE3 LT1054LCS8 LT1054LCS8 75ohm 75ohm R199 R199 50V 50V 50V 50V C159 C159 8pF 8pF 50V 50V C157 C157 8pF 8pF 8pF 8pF C158 C158 VS_IN VS_IN 1 0ohm 0ohm R154 R154 0ohm 0ohm 0ohm 0ohm R153 R153 R150 R150 1/10W 1/10W 300ohm 300ohm R1005 R1005 0ohm 0ohm R151 R151 1 R130 R130 75ohm 75ohm BNC_BLUE_IN BNC_BLUE_IN SVIDEO_Y_IN SVIDEO_Y_IN BNC_CVBS_IN BNC_CVBS_IN 22ohm 22ohm R157 R157 SDA_EEPROM SDA_EEPROM SCL_EEPROM SCL_EEPROM DVI_RESET DVI_RESET DVI_SDA DVI_SDA DVI_SCL DVI_SCL DVI_HPD DVI_HPD DVI_3 DVI_3 DVI_3 DVI_3 DVI_3 DVI_3 DVI_3 DVI_3 BNC_RED_IN BNC_RED_IN BNC_GREEN_IN BNC_GREEN_IN RX2- RX2- RX2+ RX2+ RX1- RX1- RX1+ RX1+ RX0- RX0- RX0+ RX0+ RXC+ RXC+ RXC- RXC- TXD TXD RXD RXD TMDS_GOUT(0:7) TMDS_GOUT(0:7) DVI_17 DVI_17 DVI_18 DVI_18 DVI_20 DVI_20 DVI_21 DVI_21 DVI_23 DVI_23 DVI_24 DVI_24 DVI_2 DVI_2 DVI_15 DVI_15 DVI_16 DVI_16 DVI_2 DVI_2 DVI_17 DVI_17 DVI_18 DVI_18 DVI_3 DVI_3 DVI_20 DVI_20 DVI_21 DVI_21 DVI_3 DVI_3 DVI_23 DVI_23 DVI_24 DVI_24 DVI_1 DVI_1 DVI_4 DVI_4 DVI_5 DVI_5 DVI_6 DVI_6 DVI_7 DVI_7 DVI_8 DVI_8 DVI_9 DVI_9 DVI_10 DVI_10 DVI_12 DVI_12 DVI_13 DVI_13 DVI_14 DVI_14 DVI_15 DVI_15 DVI_16 DVI_16 DSUB_NET9 DSUB_NET9 DSUB_NET6 DSUB_NET6 DSUB_NET6 DSUB_NET6 DSUB_NET6 DSUB_NET6 DSUB_NET6 DSUB_NET6 DSUB_NET4 DSUB_NET4 DSUB_NET3 DSUB_NET3 DSUB_NET2 DSUB_NET2 DSUB_NET6 DSUB_NET6 DSUB_NET6 DSUB_NET6 DSUB_NET6 DSUB_NET6 DVI_1 DVI_1 DVI_3 DVI_3 DVI_4 DVI_4 DVI_5 DVI_5 DVI_6 DVI_6 DVI_7 DVI_7 DVI_8 DVI_8 DVI_9 DVI_9 DVI_10 DVI_10 DVI_3 DVI_3 DVI_12 DVI_12 DVI_13 DVI_13 DVI_14 DVI_14 DSUB_NET2 DSUB_NET2 DSUB_NET3 DSUB_NET3 DSUB_NET4 DSUB_NET4 DSUB_NET6 DSUB_NET6 DSUB_NET9 DSUB_NET9 DSUB_NET10 DSUB_NET10 DSUB_NET11 DSUB_NET11 DSUB_NET12 DSUB_NET12 DSUB_NET13 DSUB_NET13 DSUB_NET14 DSUB_NET14 DSUB_NET15 DSUB_NET15 DSUB_NET1 DSUB_NET1 DSUB_NET1 DSUB_NET1 DSUB_NET15 DSUB_NET15 DSUB_NET14 DSUB_NET14 DSUB_NET13 DSUB_NET13 DSUB_NET12 DSUB_NET12 DSUB_NET11 DSUB_NET11 DSUB_NET10 DSUB_NET10 DSUB_VS DSUB_VS DSUB_ON DSUB_ON DSUB_OFF DSUB_OFF DSUB_VS_IN DSUB_VS_IN BNC_VS BNC_VS BNC_HS_IN BNC_HS_IN BNC_HS BNC_HS BNC_VS_IN BNC_VS_IN BNC_VS_Loopout BNC_VS_Loopout BNC_HS_Loopout BNC_HS_Loopout BNC_CVBS BNC_CVBS SVIDEO_Y SVIDEO_Y SVIDEO_C SVIDEO_C DSUB_OFF DSUB_OFF DSUB_BNC_HSYNC DSUB_BNC_HSYNC BNC_HS_IN BNC_HS_IN DSUB_HS_IN DSUB_HS_IN DSUB_ON DSUB_ON BNC_VS_IN BNC_VS_IN DSUB_BNC_VSYNC DSUB_BNC_VSYNC DSUB_VS_IN DSUB_VS_IN DSUB_HS DSUB_HS DSUB_HS_IN DSUB_HS_IN SVIDEO_Y_Loopout SVIDEO_Y_Loopout SVIDEO_C_Loopout SVIDEO_C_Loopout BNC_CVBS_IN BNC_CVBS_IN BNC_CVBS_Loopout BNC_CVBS_Loopout SVIDEO_Y_IN SVIDEO_Y_IN SVIDEO_C_IN SVIDEO_C_IN SVIDEO_C_IN SVIDEO_C_IN BNC_CVBS_Loopout BNC_CVBS_Loopout SVIDEO_Y_Loopout SVIDEO_Y_Loopout SVIDEO_C_Loopout SVIDEO_C_Loopout DSUB_SDA DSUB_SDA DSUB_SCL DSUB_SCL DDC_CTL DDC_CTL BNC_RED_Loopout BNC_RED_Loopout BNC_GREEN_IN BNC_GREEN_IN BNC_GREEN_Loopout BNC_GREEN_Loopout BNC_BLUE_IN BNC_BLUE_IN BNC_BLUE_Loopout BNC_BLUE_Loopout DVI_SCL DVI_SCL DVI_SDA DVI_SDA BNC_GREEN_Loopout BNC_GREEN_Loopout BNC_BLUE_Loopout BNC_BLUE_Loopout BNC_RED_IN BNC_RED_IN DSUB_SCL DSUB_SCL DSUB_SDA DSUB_SDA CHK_DSUB CHK_DSUB BNC_HS BNC_HS BNC_VS BNC_VS BNC_RED_Pr BNC_RED_Pr BNC_GREEN_Y BNC_GREEN_Y BNC_BLUE_Pb BNC_BLUE_Pb BNC_HS_Loopout BNC_HS_Loopout BNC_VS_Loopout BNC_VS_Loopout BNC_RED_Loopout BNC_RED_Loopout DSUB_GREEN DSUB_GREEN DSUB_BLUE DSUB_BLUE DSUB_VS DSUB_VS DSUB_HS DSUB_HS DVI_SDA DVI_SDA DVI_SCL DVI_SCL CHK_DVI CHK_DVI RX2+ RX2+ RX2- RX2- RX1+ RX1+ RX1- RX1- RX0+ RX0+ RX0- RX0- RXC+ RXC+ RXC- RXC- DSUB_RED DSUB_RED 9 ����������������� 9-2 _ + SOUND PROCESSOR COMPONENT_AUDIO_IN PIN #20 SOUND AMP HP_R LINE_OUT OPTION [NTSC] GND R444 HP_L VIDEO_AUDIO_IN [PAL] VCC R443 POP NOISE N L502 100ohm R581 C536 100nF C558 10uF 16V 1 XREF 1 1 2 3 16V C506 10uF XREF +3.3V_SOUND 16V 47uF C508 470pF C526 C509 100nF UJB-02-11B 1 2 3 R539 47ohm R536 4.7Kohm C534 10uF 10uF C580 10uF 10uF C543 C559 R551 C516 220nF 4.7Kohm 1/10W R502 68Kohm R538 0ohm 1 33nF C564 16V 1 68Kohm R508 X501 27.0MHz C528 22uF C565 100nF 10uF C556 68Kohm R506 1/10W 4.7Kohm R553 R507 68Kohm R526 100ohm C521 47uF 16V 100nF C522 R517 1Kohm 1.5nF C527 1 C545 16V 10uF 100nF C561 L509 N 1 1 C512 470pF 100nF C540 C531 22uF 16V N L507 TP508 1 16V 47uF C530 56Kohm R527 R562 12Kohm XREF 47nF C529 560ohm R510 1/10W 50V C515 100pF 100ohm R544 20Kohm 100ohm R535 R533 100uF C591 R515 C549 10uF 1Kohm R548 0ohm 7 VEE VSS 8 B 9 R519 1Kohm 13 14 1X 15 2X VDD 16 2Y 2 Y-COM 3 3Y 4 1Y 5 /EN 6 IC501 0Y 1 10 A 3X 11 12 0X X-COM 10Kohm R578 MM74HC4052M 1 C507 10uF 16V 1 1 1 50V 1uF C542 1uF 50V C541 1uF 50V C560 C562 1Kohm R570 1/10W 50V 1uF R514 100ohm Q505 2SC2412K-Q E B C 16V 10uF C505 1 2 3 2 C550 100nF L513 1 16V 10uF C513 1 2 L510 C544 22pF N L503 16V C577 68nF XREF R524 100ohm 68Kohm R501 R522 100ohm 100nF 1 100nF C524 C525 TP507 330pF 100nF C539 100nF C582 C551 10Kohm R505 C553 100nF L508 N 50V C514 10nF 2Kohm R576 1/10W 100nF C548 NL506 1Kohm +1.8V_SOUND +3.3V_SOUND 100ohm R521 R523 16V 330uF C566 XREF D502 1 2 1 1 16V 22uF C501 R550 1/10W 10Kohm R503 1/10W R559 1Kohm 68Kohm Q607 2SC2412K-Q E B C XREF XREF UJB-02-11B 1 2 3 C583 100nF 100ohm R552 C5010 47nF R566 120Kohm R574 0ohm 15Kohm C592 R540 R504 100nF 680nF C594 16V 68Kohm R543 0ohm 1/10W D506 1 2 D510 1 2 1 2 3 C R572 0ohm Q501 KSC1623-Y E B 100ohm R531 XREF C538 100nF 100nF C557 1 R513 1Kohm R545 1/10W 0ohm +1.8V_SOUND R512 +3.3V_SOUND 100ohm 56Kohm R528 0ohm R568 10Kohm R509 R537 1 2 68Kohm D505 1/10W R530 2.2Kohm 4.7nF C570 C569 4.7nF 5 +3.3V_SOUND +1.8V_SOUND 4.7Kohm R579 1/10W 1 2 3 4 D501 1 2 330pF C552 1 220pF C593 1 1uF C587 10V TP510 1uF C554 50V 1uF C586 10V 16V C5014 68nF C532 10uF R542 10Kohm 68nF C576 16V R529 4.7Kohm 12Kohm R567 B C 100nF C597 Q503 2SC2412K-Q E C511 1.5nF C598 100nF L514 1 2 10Kohm R532 L511 1 2 1 R534 15Kohm TP509 0ohm C578 47nF 100ohm R516 R547 1/10W R580 100ohm 12Kohm R563 4.3Kohm R565 KIA7045RTF IC507 1 IN 2 GND 3 OUT GND 16V C563 33nF 100uF 16V C510 8 VARDIFF 9 C5012 330nF 44 45 ROUTN 46 PVCCR PVCCR 47 48 BSRN LINP 5 LINN 6 7 AVDDREF VREF BSRP PVCCR 38 PVCCR 39 V2P5 4 40 ROUTP ROUTP 41 42 PGNDR 43 PGNDR ROUTN 3 RINP 30 /FADE VAROUTL 31 32 VAROUTR 33 AVCC 34 MODE 35 MODE_OUT 36 VCLAMPR 37 22 PVCCL PVCCL 23 BSLP 24 25 VCLAMPL 26 AGND 27 ROSC 28 COSC 29 AVDD 15 PVCCL LOUTN 16 17 LOUTN 18 PGNDL PGNDL 19 2 RINN LOUTP 20 21 LOUTP 1 /SD 10 VARMAX 11 VOLUME REFGND 12 13 BSLN 14 PVCCL L505 N TPA3004D2PHP IC504 100nF 47nF C579 C523 1uF C589 10V 2 1uF C590 10V D504 1 1uF 50V C555 D503 1 2 1uF C588 10V 100ohm R518 10Kohm R569 1/10W 0ohm R575 10uF C504 16V 6.8Kohm 0ohm R557 R556 6.8Kohm R561 100Kohm R577 1/10W 1 +1.8V_SOUND 10uF 16V C5015 1 N L515 1 C584 100uF 25V +1.8V_SOUND 2SC2412K-Q Q502 E B C 3.3Kohm R549 R555 0ohm 47nF C5011 330nF C575 3 1Kohm R511 0ohm UJB-02-11B 1 2 R558 680nF C585 16V 20Kohm R546 R582 100ohm C537 C502 100nF 470nF C568 100nF R564 1.2Kohm C567 470nF B C 27Kohm R573 2SC2412K-Q Q506 E 22pF C535 25V 100uF C599 5 6 7 8 16V 10uF C503 1 2 3 4 0ohm R571 100ohm R525 1 2 D512 1 2 D511 68nF C5013 16V R520 100ohm C5016 1nF 50V 50V 1nF C5017 1 S1G U602 R541 47ohm XREF 1 2 3 4 16V 22uF C533 E B C PST038-01 1 2 2SC2412K-Q Q504 D509 SOUND_SEL FADE_EN SPEAKER_N1 SPEAKER_P1 SPEAKER_P2 SPEAKER_N2 LINE_OUTL LINE_OUTR AMP_SLEEP AMP_SLEEP AUDIO_SLEEP AUDIO_SLEEP PC_AL PC_AR COM_AL COM_AR LOUD_OUT_R LOUD_OUT_L I2S_SCLK_AMP I2S_LRCLK_AMP I2S_DATA_AMP I2S_CLK_AMP AMP_EN AMP_SLEEP AMP_SLEEP AMP_SLEEP 9-2 Main board Schematics Diagram(SOUND) 9-3 9 ����������������� Don't mount 5 6 7 8 33ohm RA405 1 2 3 4 1 R4063 0ohm 100nF C4044 10Kohm R4028 1 2 3 4 5 6 7 8 3 4 5 6 7 8 0ohm RA425 1/16W 1/16W RA424 0ohm 1 2 R4045 0ohm 1 +1.8V_SOUND +1.8V_SOUND R461 22ohm R4036 0ohm R4038 1 0ohm 1 2 3 4 5 6 7 8 33ohm RA402 1 2 3 4 5 6 7 8 CA406 10Kohm R4030 10Kohm R4031 5 6 7 8 C4046 10uF 10V 33ohm RA404 1 2 3 4 1 10Kohm R4023 10Kohm R4029 B 10Kohm R4012 BD402 50V C411 10nF 6 7 8 3.3Kohm R4014 RA407 33ohm 1 2 3 4 5 25V C4050 100nF +5V_NW +5V_USB R401 0ohm 100nF C4049 25V 100nF C4048 25V 25V C4047 100nF C4010 15pF 1 0ohm R409 1 10Kohm R498 C4015 100nF R462 0ohm R4046 4 5 6 7 8 300ohm RA408 33ohm 1 2 3 10V 10uF C4045 TP428 1 +5V_LIVE R4037 0ohm R4035 0ohm TP432 6 10Kohm R487 ZD401 1 2 3 4 5 +5V_PNL 1 1 0ohm R4021 10Kohm R414 2.7Kohm R469 +3.3V_IO 100nF C4016 R472 10Kohm 100ohm 10uF 10V C402 R441 +3.3V_IO 0ohm R4059 8 VCC 10Kohm R4020 1 E0 E1 2 3 E2 VSS 4 SDA 5 6 SCL 7 /WC AT24C64N-10SC-2.7 0ohm R404 R489 100ohm +3.3V_LIVE3 0ohm R4019 10Kohm 15pF C499 R4039 TP458 1/10W R435 4.7Kohm R410 0ohm R408 0ohm 1/10W 10Kohm R417 FSVREF R412 10Kohm 1/10W 1/10W R434 4.7Kohm R4025 100ohm 6 7 8 0ohm R413 CA401 1 2 3 4 5 100nF C4019 TP444 C405 25V 25V C407 100nF 0ohm 100nF 0ohm R4047 R4048 100nF C4012 R497 H 100nF C4030 25V 10Kohm 1 A 2 B 3 C 4 D 5 E 6 F 7 G 8 TP464 1 PCF8563T 1 2 3 4 5 6 7 8 CA405 C4034 1uF 0ohm R411 R468 100ohm R4022 10Kohm R416 GND 0ohm KIA7045RTF IN 1 GND 2 OUT 3 1uF C4035 R4040 C4018 100nF 1 0ohm A11 6 A10 A9 7 8 A8 9 A19 TP465 Q13 Q6 42 Q14 43 44 Q7 Q15/A-1 45 46 GND BYTE# 47 A16 48 5 34 35 Q3 Q11 36 VCC 37 38 Q4 39 Q12 A12 4 Q5 40 41 GND OE# 28 Q0 29 A13 3 30 Q8 Q1 31 Q9 32 33 Q2 Q10 20 A5 21 A4 A3 22 A2 23 24 A1 25 A0 26 CE# 27 RESET# 13 NC NC 14 RY/BY# 15 A18 16 17 A17 A7 18 A6 19 A14 2 1 A15 NC 10 11 WE# 12 1/10W MX29LV160CTTI-70G 1 4.7Kohm R433 C470 10V 10uF +5V_DPMS 5 6 7 8 10V 1uF C4021 RA401 33ohm 1 2 3 4 1Kohm R437 1/10W 0ohm R4049 FSVREF 0ohm R4054 R486 10Kohm TP423 10Kohm R4024 R4018 10Kohm TP460 1/16W RA419 0ohm 1 2 3 4 5 6 7 8 1 2 3 +5V_NW_LIVE MMBZ5226BLT1 ZD404 7 8 4.7Kohm R496 1/10W CA402 1 2 3 4 5 6 DQ15 65 66 VSS DQ3 7 8 DQ4 9 VDDQ 58 VSSQ 59 DQ11 VSSQ 6 DQ12 60 61 VDDQ DQ13 62 DQ14 63 64 VSSQ 50 NC UDQS 51 52 VSSQ 53 NC DQ8 54 55 VDDQ DQ9 56 DQ10 57 43 NC CKE 44 CK 45 46 /CK 47 UDM VSS 48 VREF 49 5 DQ2 A5 36 37 A6 38 A7 A8 39 4 DQ1 A9 40 A11 41 42 A12 29 A0 VDDQ 3 A1 30 A2 31 32 A3 33 VDD VSS 34 A4 35 21 /WE /CAS 22 /RAS 23 24 /CS 25 NC BA0 26 BA1 27 28 A10,AP NC 14 VDDQ 15 LDQS 16 17 NC VDD 18 NC 19 DQ0 2 20 LDM 1 VDD DQ5 10 DQ6 11 12 VSSQ 13 DQ7 1 R4055 0ohm 1 2 3 4 5 6 7 8 0ohm RA415 1/16W 50V C416 10nF 100ohm R491 +3.3V_PLL R490 100ohm 0ohm +3.3V_LIVE R4060 10nF C452 50V 0ohm R4050 R466 TP434 TP437 1/10W 10Kohm 1 1 2 3 4 5 6 7 8 4 5 6 7 8 0ohm RA418 1/16W CA403 1 2 3 1 2 3 4 5 6 7 8 0ohm RA422 1/16W 15pF 10Kohm R4010 0ohm R407 C498 0ohm R406 TP474 1 TP473 1 R4056 R4057 0ohm 4 5 6 7 8 0ohm 8 33ohm RA410 1 2 3 1 2 3 4 5 6 7 1 33ohm RA406 R443 4 5 6 7 8 100ohm 1/16W RA414 0ohm 1 2 3 R4043 0ohm +3.3V_SOUND 0ohm R4042 R478 1/10W 220ohm 0ohm R477 2SC2412K-Q Q401 E B C R4058 0ohm 0ohm R4061 TP438 1 0ohm R4033 R4052 R4053 0ohm R4051 0ohm 0ohm R4062 0ohm 1 1 1 1 22ohm R460 R442 100ohm R495 10Kohm TP472 1 R492 10Kohm 100nF C422 25V R4041 0ohm 1 +3.3V_ADC1 7 8 R420 0ohm 1/16W RA423 0ohm 1 2 3 4 5 6 3 4 5 6 7 8 7 8 1/16W RA421 0ohm 1 2 0ohm RA420 1/16W1 2 3 4 5 6 25V C450 100nF 1 25V C445 100nF 25V C431 100nF +3.3V_SOUND 0ohm R4044 4 5 6 7 8 8 0ohm RA417 1/16W 1 2 3 1/16W RA416 0ohm 1 2 3 4 5 6 7 25V C424 100nF 25V C420 +3.3V_LVDS_PLL C418 10V 10uF 100nF 100nF C473 25V +3.3V_ADC2 C462 25V 100nF 100nF C459 25V 100ohm R454 22ohm 100ohm R455 R4034 100nF 25V C495 100nF 10V 10uF 25V C448 100nF C491 25V C432 100nF C444 25V 25V C485 100nF 10uF 10V C417 25V C483 100nF 10uF 10V C477 E219660565 19.6608MHz 100nF C423 25V C475 10V 10uF X402 100nF C419 25V FSVREF +3.3V_LVDS +1.8V_PLL Y25 VGA1_SDA VGA1_SCL Y26 Y3 AHREF_DE Y4 ADATA23 +1.8V_CORE FSVREF W25 W26 OCM_UDO_0 ADATA20 W3 W4 ADATA19 Y1 AVS AHS Y2 IO_3.3 Y23 Y24 /OCM_INT2 V25 V26 SLAVE_SCL ADATA16 V3 V4 ADATA15 ADATA22 W1 W2 ADATA21 /OCM_INT1 W23 W24 OCM_TIMER1 OCM_UDI_0 U25 PPWR PBIAS U26 ADATA12 U3 ADATA11 U4 ADATA18 V1 V2 ADATA17 V23 IO_3.3 V24 PWM0 SLAVE_SDA D_GND U13 D_GND U14 D_GND U15 U16 CORE_1.8 CORE_1.8 U17 U2 ADATA13 U23 PWM1 U24 PWM2 T25 T26 GPIO_44 ADATA8 T3 ADATA7 T4 ADATA14 U1 CORE_1.8 U10 CORE_1.8 U11 D_GND U12 T13 D_GND T14 D_GND T15 D_GND CORE_1.8 T16 T17 CORE_1.8 ADATA9 T2 IO_3.3 T23 T24 GPIO_42 GPIO_43 R25 DVS R26 R3 ADATA4 ADATA3 R4 ADATA10 T1 D_GND T10 T11 CORE_1.8 T12 D_GND R13 D_GND R14 D_GND R15 D_GND R16 R17 D_GND ADATA5 R2 GPIO_45 R23 R24 GPIO_46 GPIO_47 DHS P26 DEN P3 ADATA0 P4 IPCLK1 ADATA6 R1 R10 D_GND D_GND R11 D_GND R12 D_GND P13 D_GND P14 D_GND P15 D_GND P16 D_GND D_GND P17 ADATA1 P2 P23 IO_3.3 P24 DCLK P25 N25 N26 EBLU3/PD3 AODD N3 BODD N4 ADATA2 P1 D_GND P10 P11 D_GND P12 D_GND N13 D_GND N14 D_GND N15 D_GND N16 N17 D_GND DIP_RAW_HS_CS N2 EBLU0/PD0 N23 EBLU1/PD1 N24 EBLU2/PD2 LVDS_GND M25 M26 LVDS_3.3 DIP_EXT_COAST M3 IPCLK2 M4 IPCLK0 N1 N10 D_GND D_GND N11 N12 D_GND D_GND M13 D_GND M14 D_GND M15 D_GND M16 D_GND D_GND M17 M2 DIP_EXT_CLAMP IO_3.3 M23 M24 VCO_LV L25 EBLU7/PD7 L26 BHS L3 IO_3.3 L4 M1 DIP_CLEAN_HS_OUT D_GND M10 M11 D_GND M12 D_GND L13 D_GND L14 D_GND L15 L16 CORE_1.8 L17 D_GND L2 BVS EBLU4/PD4 L23 L24 EBLU5/PD5 EBLU6/PD6 EGRN2/PD10 EGRN3/PD11 K26 BDATA22/DORED6 K3 IO_3.3 K4 L1 IPCLK3 L10 D_GND CORE_1.8 L11 D_GND L12 D_GND K13 D_GND K14 D_GND K15 D_GND K16 CORE_1.8 CORE_1.8 K17 K2 BDATA23/DORED7 K23 EGRN0/PD8 K24 EGRN1/PD9 K25 J25 LVDS_GND LVDS_3.3 J26 J3 BDATA19/DORED3 IO_3.3 J4 K1 BHREF_DE CORE_1.8 K10 K11 CORE_1.8 K12 D_GND LVDS_GND H25 H26 LVDS_3.3 BDATA16/DORED0 H3 IO_3.3 H4 BDATA21/DORED5 J1 BDATA20/DORED4 J2 J23 EGRN4/PD12 J24 EGRN5/PD13 ERED0/PD16 ERED1/PD17 G26 G3 BDATA13/DOGRN5 G4 IO_3.3 H1 BDATA18/DORED2 H2 BDATA17/DORED1 H23 LVDS_PLL_GND LVDS_PLL_3.3 H24 ERED4/PD20 ERED5/PD21 F26 BDATA10/DOGRN2 F3 IO_3.3 F4 G1 BDATA15/DOGRN7 BDATA14/DOGRN6 G2 EGRN6/PD14 G23 G24 EGRN7/PD15 G25 LVDS_GND E25 LVDS_3.3 E26 E3 BDATA7/DOBLU7 E4 IO_3.3 BDATA12/DOGRN4 F1 F2 BDATA11/DOGRN3 F23 ERED2/PD18 F24 ERED3/PD19 F25 D6 FS_2.5 FS_2.5 D7 D8 FS_2.5 D9 FSVREFVSS E1 BDATA9/DOGRN1 BDATA8/DOGRN0 E2 E23 ERED6/PD22 E24 ERED7/PD23 D22 FS_2.5 FS_2.5 D23 FSCAS D24 OBUFC_CLK D25 D26 RPLL_3.3 BDATA4/DOBLU4 D3 FS_2.5 D4 FSCLKP D5 D15 FS_2.5 FSADDR10 D16 FS_2.5 D17 D18 FS_2.5 FSVREFVSS D19 D2 BDATA5/DOBLU5 FS_2.5 D20 D21 FSCS0 C8 FSVREF C9 BDATA6/DOBLU6 D1 FS_2.5 D10 D11 FS_2.5 FS_2.5 D12 D13 FS_2.5 D14 FS_2.5 C24 RPLL_1.8 C25 C26 TCLK C3 BDATA1/DOBLU1 FSCKE C4 FSCLKN C5 FSADDR8 C6 FSADDR7 C7 FSADDR6 C17 FSADDR0 C18 C19 FSVREF BDATA2/DOBLU2 C2 FSBKSEL1 C20 FSBKSEL0 C21 FSCS1 C22 C23 FSWE FSRAS BDATA3/DOBLU3 C10 FSADDR5 FSADDR12 C11 C12 FSADDR9 FSADDR4 C13 FSADDR11 C14 FSADDR3 C15 C16 FSADDR2 FSADDR1 B26 OCM_UDI_1 B3 B4 FSDATA0 B5 FSDATA2 B6 FSDQS0 B7 FSDATA4 B8 FSDATA6 FSDATA8 B9 C1 B19 FSDATA22 B2 OCM_UDO_1 B20 FSDATA24 FSDATA26 B21 FSDQM3 B22 FSDATA28 B23 FSDATA30 B24 B25 RPLL_DGND XTAL FSDQS1 B11 B12 FSDATA12 B13 FSDATA14 VSSA18_DLL B14 B15 FSDATA16 FSDATA18 B16 FSDQM2 B17 FSDATA20 B18 AF4 C3P AF5 AF6 CN A4P/AN2 AF7 C4P/CN2 AF8 SVN AF9 BDATA0/DOBLU0 B1 FSDATA10 B10 AF20 AF21 OCMADDR0 AF22 OCMDATA12 OCMDATA9 AF23 OCMDATA5 AF24 AF25 OCMDATA4 AF26 OCMDATA3 BN AF3 A3P AF13 AVS_IN_SCL/JTAG_CLK AF14 OCMADDR21 AF15 AF16 OCMADDR17 AF17 OCMADDR14 AF18 OCMADDR10 OCMADDR7 AF19 C2P AF2 OCMADDR3 AE6 ADC_AGND SV4P/SVN2 AE7 B4P/BN2 AE8 ADC_AGND AE9 A2P AF1 AF10 LBADC_IN1 AF11 LBADC_IN5 AIP_RAW_HS_CS AF12 EX_OSD_CLK AE22 AE23 OCMDATA8 AE24 OCMDATA2 OCMDATA1 AE25 OCMDATA0 AE26 AE3 ADC_AGND SV3P AE4 B3P AE5 OCMADDR20 OCMADDR16 AE16 OCMADDR13 AE17 OCMADDR9 AE18 AE19 OCMADDR6 B2P AE2 AE20 OCMADDR2 AE21 OCMDATA15 OCMDATA11 AD8 ADC_AGND AD9 /RESET SV2P AE1 LBADC_IN2 AE10 LBADC_IN6 AE11 AIP_RAW_VS AE12 AVS_OUT_SCL/JTAG_TDO AE13 AVS_OUT_WS/JTAG_RESET AE14 AE15 AD24 AD25 /OCM_CS0 /OCM_CS1 AD26 ADC1_3.3 AD3 AD4 ADC1_3.3 ADC1_3.3 AD5 AD6 ADC2_3.3 AD7 ADC2_3.3 OCMADDR12 AD18 OCMADDR8 OCMADDR5 AD19 AD2 ADC_AGND OCMADDR1 AD20 AD21 OCMDATA14 AD22 OCMDATA10 AD23 OCMDATA7 /ROM_CS AD1 AD10 LBADC_IN3 LBADC_RETURN AD11 AD12 AVS_IN_WS/JTAG_MODE EXT_OSD_VS AD13 AD14 AVS_OUT_DATA OCMADDR19 AD15 OCMADDR15 AD16 AD17 /OCM_WE AC3 ADC_AGND AC4 ADC_1.8 ADC_1.8 AC5 ADC_AGND AC6 VOUT2 AC7 ADC_AGND AC8 LBACD_3.3 AC9 AN OCMADDR4 B1P AC2 JTAG_BS_EN AC20 OCMDATA13 AC21 AC22 IO_3.3 AC23 OCMDATA6 AC24 /OCM_CS2 AC25 /OCM_RE AC26 AC11 LBADC_GND AVS_IN_DATA/JTAG_TDI AC12 EXT_OSD_HS AC13 IO_3.3 AC14 OCMADDR18 AC15 AC16 IO_3.3 OCMADDR11 AC17 AC18 IO_3.3 AC19 IO_3.3 AB23 AB24 IR0 AB25 MSTR2_SDA MSTR2_SCL AB26 AB3 ADC_AGND ADC_1.8 AB4 C1P AC1 AC10 LBADC_IN4 AA23 MSTR0_SDA MSTR0_SCL AA24 AA25 VGA0_SDA VGA0_SCL AA26 AA3 D_GND_ADC D_GND_ADC AA4 A1P AB1 SV1P AB2 A4 FSDATA3 A5 FSDQM0 A6 FSDATA5 A7 A8 FSDATA7 FSDATA9 A9 ADC_+TEST AA1 D_GND_ADC AA2 A20 FSDATA27 A21 FSDQS3 A22 FSDATA29 A23 FSDATA31 A24 A25 RPLL_AGND RPLL_AGND A26 MSTR1_SCL A3 FSDATA1 A13 A14 VDD18_DLL FSDATA17 A15 FSDATA19 A16 FSDQS2 A17 A18 FSDATA21 FSDATA23 A19 A2 MSTR1_SDA FSDATA25 A1 SCAN_EN FSDATA11 A10 FSDQM1 A11 A12 FSDATA13 FSDATA15 25V C460 100nF FLI8638-LF +3.3V_IO +3.3V_ADC2 220ohm 1/10W R457 25V C447 100nF 100nF C493 25V 100nF C446 25V 25V C441 10uF 10V C490 C439 25V 100nF 25V C437 100nF 100nF C433 100nF 10uF 10V 100nF C484 25V 25V C434 22pF 50V C4031 33ohm R452 25V C421 100nF R446 33ohm 50V C474 10nF +1.8V_ADC +3.3V_PLL 50V C465 10nF +3.3V_LVDS_PLL 50V C461 10nF +3.3V_LBADC +2.5V_DDR 50V C456 10nF 100nF 100nF C466 25V 25V C464 R484 100nF C496 25V 3.3Kohm TP445 1 +3.3V_ADC1 +5V_LIVE 100nF C449 25V 10uF C4027 10V 25V C492 100nF 100nF C443 25V 100nF C489 25V 25V C442 100nF 25V C438 100nF 100nF C436 25V C435 25V 100nF 100nF C486 25V 300ohm R463 +1.8V_ADC 1 2 3 4 5 6 7 8 25V C429 100nF RA413 33ohm +1.8V_CORE 100nF C425 25V 50V 22pF C4032 100nF 0ohm R479 R450 33ohm 25V C476 1 TP475 1 TP422 1 TP468 10nF C468 50V +2.5V_DDR 10nF C458 50V +1.8V_DLL C469 25V 10uF 10V C453 100nF TP410 1 +3.3V_IO 100nF C472 25V C471 TP447 1 10uF 10V R485 3.3Kohm 1 C494 10V 10uF TP441 GND 33ohm R448 R456 0ohm KIA7045RTF 1 IN 2 GND 3 OUT +3.3V_PLL C4028 1nF 50V +1.8V_PLL 25V C440 100nF +1.8V_DLL 25V C487 100nF +5V_DPMS 470nF C4038 270ohm R424 R423 270ohm 25V C428 100nF 100nF C430 25V 100nF C427 25V 100nF 100nF C478 25V +3.3V_LVDS C426 25V R453 33ohm TP430 1 R449 33ohm 0ohm 1/10W R470 TP435 33ohm R447 1 TP457 1 10nF C463 50V TP456 5 6 7 8 RA411 33ohm 1 2 3 4 TP411 1 25V C467 100nF 25V C457 100nF FSVREF C454 10V 10uF +3.3V_LBADC 10nF C455 50V MGND2 TP446 1 29 3 30 4 5 6 7 8 9 MGND1 19 2 20 21 22 23 24 25 26 27 28 1 10 11 12 13 14 15 16 17 18 1 12505WR-30A01 TP440 1 2 3 1nF C4026 50V 5 6 7 8 ZD403 MMBZ5226BLT1 RA412 1 2 3 4 10uF 10V C488 33ohm TP462 1 300ohm R464 10V 10uF C482 100nF C480 25V 25V C481 100nF 25V C479 100nF R465 4.7Kohm R493 0ohm +3.3V_DPMS 50V C4022 56pF 33ohm R451 TP439 50V C403 10nF TP433 C4017 100nF 0ohm R445 R444 0ohm 25V 100nF C4036 100ohm R488 C4023 47uF 1 10nF C413 50V R4013 3.3Kohm 10V C4041 10uF 1 L401 1.5uH TP452 TP443 R429 56ohm 25V C451 100nF C4037 10uF 10V 2203-005437 FSVREF R432 8 TP459 22ohm 33ohm 1 2 3 4 5 6 7 RA403 R467 C4039 330uF 1Kohm 16V R474 10Kohm C4029 82uF TP436 R481 0ohm R431 56ohm 100ohm R438 56ohm R428 R402 0ohm TP426 TP424 1 2 3 4 5 6 7 8 +2.5V_DDR 100nF 33ohm RA409 0ohm +2.5V_DDR C409 25V 1 R403 TP454 3.3Kohm R4015 R4016 3.3Kohm 1 TP449 1 +3.3V_IO TP448 R482 10Kohm R427 56ohm 100ohm R4027 R494 10Kohm BD403 B +3.3V_LIVE3 1 0ohm R405 1 R459 0ohm TP463 TP455 1 1 TP453 1 TP450 1 TP451 X401 M8208-12-32.768 10Kohm R473 TP442 4 5 0ohm R419 SMW200-05P 1 2 3 0ohm R421 0ohm R415 R4017 10Kohm TP429 TP431 C4013 100nF C4011 100nF R4011 10Kohm TP425 C4020 1uF 10V 100ohm R439 +3.3V_IO R422 0ohm 56ohm R430 10Kohm R483 R418 0ohm 50V C4040 1nF TP471 1 1 10nF C404 50V TP466 1 TP467 100nF 25V C410 100nF C408 25V 10Kohm R480 100nF C4025 10Kohm R471 56ohm R436 +12V_NW 50V 1nF C4042 C4033 15pF 50V 10Kohm R475 R476 10Kohm CIM10J121NC BD401 B 4.7Kohm R4065 1/10W R425 56ohm 10Kohm R4032 R4026 10Kohm R4064 4.7Kohm 1 1/10W 10nF C415 50V C4043 330pF 50V 7 8 9 1 1 10 2 3 4 5 6 JE200-A1T-10 66 7 DQ3 DQ4 8 VDDQ 9 50V C406 10nF 59 6 VSSQ 60 DQ12 VDDQ 61 62 DQ13 63 DQ14 VSSQ 64 65 DQ15 VSS UDQS VSSQ 52 NC 53 54 DQ8 VDDQ 55 56 DQ9 57 DQ10 VSSQ 58 DQ11 CKE 45 CK /CK 46 UDM 47 48 VSS 49 VREF DQ2 5 NC 50 51 37 A7 38 39 A8 DQ1 4 40 A9 41 A11 A12 42 NC 43 44 3 VDDQ 30 A1 31 A2 A3 32 VDD 33 34 VSS 35 A4 36 A5 A6 22 /CAS 23 /RAS /CS 24 NC 25 26 BA0 27 BA1 A10,AP 28 A0 29 15 VDDQ 16 LDQS NC 17 18 VDD 19 NC 2 DQ0 LDM 20 /WE 21 VDD 1 10 DQ5 11 DQ6 VSSQ 12 DQ7 13 14 NC 0ohm R458 +5V_NW 50V 330pF C497 R4066 0ohm 10V 1uF C4051 100nF C4014 C4052 1uF 10V 10Kohm TP427 ZD402 1 2 3 4 5 6 R499 100ohm 1 R440 C401 10V 10uF 25V C414 100nF 1 100nF C412 25V 1 1 1 10V 1uF C4024 56ohm R426 1 2 3 4 5 6 7 8 4.7Kohm R4067 1/10W CA404 NW_BOOT_CHECK NW_BOOT_CHECK +3.3V_IO FADE_EN OCM_ADDR(1) OCM_CSn OCM_REn OCM_DATA(0) OCM_DATA(8) OCM_DATA(1) OCM_DATA(9) OCM_DATA(2) OCM_DATA(10) OCM_DATA(3) OCM_DATA(11) OCM_DATA(4) OCM_DATA(12) OCM_DATA(5) OCM_DATA(13) OCM_DATA(6) OCM_DATA(14) OCM_DATA(7) OCM_ADDR(17) BUS_HSI BUS_CLKI BUS_VSI BUS_GIN(1) BUS_GIN(3) BUS_GIN(5) BUS_GIN(6) BUS_BIN(0) BUS_BIN(1) BUS_GIN(7) BUS_BIN(2) BUS_BIN(3) BUS_BIN(5) BUS_BIN(7) NETWORK_POWER_CTL BUS_BIN(0) BUS_HSO BUS_VSO BUS_CLKO BUS_BIN(0:7) BUS_BOUT(0:7) BUS_ROUT(7) BUS_ROUT(6) BUS_ROUT(5) BUS_ROUT(4) BUS_ROUT(3) BUS_ROUT(2) BUS_ROUT(1) BUS_ROUT(0) BUS_BIN(7) BUS_BIN(6) BUS_BIN(5) BUS_BIN(4) BUS_BIN(3) BUS_BIN(2) BUS_BIN(1) BUS_GIN(6) BUS_GIN(5) BUS_GIN(4) BUS_GIN(3) BUS_GIN(2) BUS_GIN(1) BUS_GIN(0) BUS_RIN(0:7) BUS_GIN(0:7) BUS_BOUT(7) BUS_BOUT(6) BUS_BOUT(5) BUS_BOUT(4) BUS_BOUT(3) BUS_BOUT(2) BUS_BOUT(1) BUS_BOUT(0) BUS_ROUT(0:7) BUS_GOUT(0:7) BUS_GOUT(7) BUS_GOUT(6) BUS_GOUT(5) BUS_GOUT(4) BUS_GOUT(3) BUS_GOUT(2) BUS_GOUT(1) BUS_GOUT(0) BUS_RIN(7) BUS_RIN(6) BUS_RIN(5) BUS_RIN(4) BUS_RIN(3) BUS_RIN(2) BUS_RIN(1) BUS_RIN(0) BUS_GIN(7) NETWORK_POWER_CTL FM_RESET FM_INT BL_EN BL_EN FM_CTRL POWER_KEY SOURCE_KEY KEY_AD2 I2S_DA_CTZ_TO_SP I2S_DA_SP_TO_CTZ NW_OUTR NW_AUTO_DET MON_TO_NW_INT NW_TO_MON_INT SDA_3 SCL_3 NW_WOL NW_PW_BT LEDRED BUS_VSO BUS_HSO BUS_CLKO NW_OUTL SDA_EEPROM SCL_EEPROM DVI_SCL DVI_SDA BL_BRT BL_EN POWER_KEY SOURCE_KEY LEDGRN LEDGRN LEDRED IRRCVR SDA_EEPROM SCL_EEPROM TXACLK+ TXACLK- TXA3+ TXA3- MENU_KEY KEY_AD1 LBADC_RETURN FSRASn FSCS0 FSBKSEL0 FSBKSEL1 FSDQS2 FSDQM2 FSDQM3 FSDQS3 TXA0+ TXA0- TXA1- TXA1+ TXA2- TXA2+ FSCASn FSRASn FSCS0 FSBKSEL0 FSBKSEL1 FSDQS0 FSDQM0 FSDQM1 FSDQS1 FSWE FSCKE FSCLK+ FSCLK- FSCASn RESETn NW_PW_BT NW_TO_MON_INT MON_TO_NW_INT NW_AUTO_DET DVI_POWER_CTL FSCLK- FSCLK+ FSDQS2 FSCS0 FSWE FSCASn FSRASn MULTI_RESET OCM_WEn FSDQS1 FSDQM1 FSDQS0 FSDQM0 FSDQM3 FSDQS3 FSDQM2 FSCLK+ FSCLK- FSCLK- I2S_CL I2S_WS SOUND_SEL MULTI_POWER_INT FSCKE FSBKSEL0 FSBKSEL1 DPMS_SAVING RESETn RESETn KEY_AD1 DSUB_SCL DSUB_SDA FSWE FSCKE FSCLK+ DDC_CTL MULTI_POWER_CTL DSUB_ON BL_BRT AMP_EN AUDIO_SLEEP LBADC_RETURN AFT DVI_HPD DVI_RESET BUS_HSI BUS_VSI TMDS_DE TMDS_FIELD TMDS_HSO TMDS_VSO TMDS_CLKO CHK_DSUB CHK_DVI DSUB_GREEN BNC_GREEN_Y SVIDEO_C DSUB_BLUE BNC_BLUE_Pb TUNER_CVBS BNC_CVBS DSUB_BNC_HSYNC DSUB_BNC_VSYNC MENU_KEY BNC_RED_Pr SVIDEO_Y TXACLK- BUS_CLKI PNL_ON MULTI_POWER_INT RXD TXD NW_WOL TXA0+ TXA0- TXA2+ TXA2- TXA1+ TXA1- TXA3+ TXA3- TXACLK+ SCL_3 SDA_EEPROM SCL_EEPROM DSUB_RED IRRCVR SDA_5 SCL_5 OCM_REn OCM_WEn OCM_CSn BUS_ROUT(0:7) BUS_BOUT(0:7) BUS_GOUT(0:7) SDA_3 OCM_ADDR(0:20) OCM_ADDR(21) OCM_ADDR(21) FSADDR(0:12) FSDATA(0:31) OCM_ADDR(15) OCM_ADDR(16) OCM_ADDR(18) OCM_ADDR(19) OCM_DATA(0:15) OCM_DATA(15) OCM_ADDR(20) FSADDR(0:12) FSDATA(0:31) OCM_ADDR(6) OCM_ADDR(7) OCM_ADDR(8) OCM_ADDR(9) OCM_ADDR(10) OCM_ADDR(11) OCM_ADDR(12) OCM_ADDR(13) OCM_ADDR(14) OCM_ADDR(15) OCM_ADDR(16) OCM_ADDR(17) OCM_ADDR(18) OCM_ADDR(19) OCM_ADDR(20) OCM_ADDR(0:21) OCM_ADDR(0) OCM_ADDR(2) OCM_ADDR(3) OCM_ADDR(4) OCM_ADDR(5) OCM_ADDR(6) OCM_ADDR(7) OCM_ADDR(8) OCM_ADDR(9) OCM_ADDR(10) OCM_ADDR(11) OCM_ADDR(12) OCM_ADDR(13) OCM_ADDR(14) FSADDR(8) FSADDR(0) FSADDR(1) FSADDR(2) FSADDR(10) FSADDR(3) FSADDR(11) OCM_DATA(0:15) OCM_DATA(0) OCM_DATA(1) OCM_DATA(2) OCM_DATA(3) OCM_DATA(4) OCM_DATA(5) OCM_DATA(6) OCM_DATA(7) OCM_DATA(8) OCM_DATA(9) OCM_DATA(10) OCM_DATA(11) OCM_DATA(13) OCM_DATA(12) OCM_DATA(14) OCM_DATA(15) OCM_ADDR(0:21) OCM_ADDR(0) OCM_ADDR(1) OCM_ADDR(2) OCM_ADDR(3) OCM_ADDR(4) OCM_ADDR(5) FSDATA(6) FSDATA(5) FSDATA(4) FSDATA(0) FSDATA(1) FSDATA(2) FSDATA(3) FSDATA(28) FSDATA(29) FSDATA(30) FSDATA(31) FSDATA(27) FSDATA(26) FSDATA(25) FSDATA(24) FSDATA(23) FSDATA(22) FSDATA(21) FSDATA(20) FSDATA(19) FSDATA(18) FSDATA(17) FSDATA(16) FSADDR(0:12) FSADDR(4) FSADDR(9) FSADDR(12) FSADDR(5) FSADDR(6) FSADDR(7) TMDS_BOUT(0:7) TMDS_BOUT(0) TMDS_BOUT(1) TMDS_BOUT(2) TMDS_BOUT(3) TMDS_BOUT(4) TMDS_BOUT(5) TMDS_BOUT(6) TMDS_BOUT(7) TMDS_GOUT(7) FSDATA(0:31) FSDATA(15) FSDATA(14) FSDATA(13) FSDATA(12) FSDATA(11) FSDATA(10) FSDATA(9) FSDATA(8) FSDATA(7) TMDS_ROUT(0) TMDS_ROUT(1) TMDS_ROUT(2) TMDS_ROUT(3) TMDS_ROUT(4) TMDS_ROUT(5) TMDS_ROUT(6) TMDS_ROUT(7) TMDS_GOUT(0:7) TMDS_GOUT(0) TMDS_GOUT(1) TMDS_GOUT(2) TMDS_GOUT(3) TMDS_GOUT(4) TMDS_GOUT(5) TMDS_GOUT(6) BUS_RIN(0:7) BUS_RIN(0) BUS_RIN(1) BUS_RIN(2) BUS_RIN(3) BUS_RIN(4) BUS_RIN(5) BUS_RIN(6) BUS_RIN(7) BUS_GIN(0:7) BUS_GIN(0) BUS_GIN(2) BUS_GIN(4) BUS_BIN(0:7) BUS_BIN(4) BUS_BIN(6) TMDS_ROUT(0:7) 9-3 Main board Schematics Diagram(SCALER) 9 ����������������� 9-4 S G D S G D LNA Option ADD NT: R706 : 82ohm 40" BD 643 BD 644 O O OPTION X X controlled impedence - 50 ohm Thick Trace Tuner AS Option OPTION BD701 VCC : R708 Thick Trace 46" NC PIN SEPERATE!!! - ESD controlled impedence - 50 ohm 2007-000115 C715,C716 GND : R709 OPTION Thick Trace C6034 C602 +3.3V_LIVE2 +3.3V_PLL 10uF 16V 25V 100nF 10V C647 47uF 47ohm R610 1 C6025 39uF +5V_TUNER I 1 G 2 O 3 BA17805FP D609 1 2 3 +3.3V_LIVE D608 1 2 3 C633 10uF R640 4.7Kohm 1/10W C6032 16V 10uF C6033 1uF 10V R621 100ohm R630 47Kohm 1/10W 47Kohm R609 1/10W B 1 BD643 B C 1 Q603 2SC2412K-Q E 4.7Kohm R615 TP641 1 BD604 B BD615 B 1 +3.3V_ADC2 1 C6037 100nF 25V 1 C614 470uF AFT TP614 1 1/10W R607 1Kohm 0ohm R662 C6027 1uF 10V 25V C6047 22nF 75ohm R618 XREF C629 100pF 100pF C628 B B BD612 BD609 +5V_LIVE C6031 82uF 16V C642 100nF TP642 1 25V C6054 C6052 100nF 25V BA17805FP 1 I 2 G 3 O 39uF 25V 100nF C6051 16V 82uF C6050 BA178M08FP GND IN OUT B TP687 1 BD642 1 R632 4.7Kohm +3.3V_LIVE BD645 1 A B 2 1/10W R612 1Kohm BD630 B +3.3V_ADC1 TU_SCL 1 SIF 1 100nF C648 25V +3.3V_LIVE 100nF C688 25V BD625 B 0ohm R668 1/10W +5V_NW_LIVE 10V 1uF C6040 XREF 1/10W R608 47Kohm XREF XREF BD639 A 1 2 B MGND1 MGND2 MGND3 MGND4 UCT-PA-081 1 ACB1608H-060-T BD634 B E B C 2SC2412K-Q Q604 BD613 B 50V C6044 15nF 50V C6043 10pF R653 0ohm BD644 B 82uF C6053 TP686 C6045 22nF 16V 0ohm R660 1/10W 25V 1/10W R659 0ohm 1 25V 100uF C616 MGND1 XREF E B C R652 10Kohm Q606 2SC2412K-Q BD627 B 1/10W BD603 B 4.7Kohm R627 B 10V 47uF C643 XREF BD610 14 15 16 2 3 4 5 6 7 8 9 SMW200-16P CN602 1 10 11 12 13 10V 1uF C6035 47uF 10V C655 C6049 100nF 10V 1uF C694 1 1 100nF 25V C674 TP613 1 10V C6013 1uF B B BD633 1 +3.3V_LBADC BD629 ACB1608H-060-T 1 1 1 1 +2.5V_DDR 3.3uF C665 50V 25V 100uF C697 47uF 10V C636 1 IN 2 GND 3 OUT LF18CDT B 22nF C6046 25V 1 BD617 1 1 1 BD602 B OUT C646 100nF 25V IRU1030-33CM IN 1 GND 2 OUT 3 C635 100nF BD618 B +3.3V_LIVE2 25V BD611 B 1 1 +3.3V_LVDS R638 47Kohm 1/10W 100nF C686 1/10W 4.7Kohm R629 R624 4.7Kohm B SS29 D606 +5V_LIVE BD614 BD628 B +3.3V_LIVE 4.7Kohm R625 C640 3.3uF 50V BD622 B 1/10W 47Kohm R623 1 +5V_NW +3.3V_LVDS_PLL 1 1 C690 16V 10uF 4.7Kohm R657 1 TP603 1 TP602 B BD626 1 25V 100nF C601 TU_601 1 TU_SDA 10V 47uF C685 100nF C639 16V C623 150nF C617 100nF 25V 1 4.7Kohm 1/10W R633 VT C678 100uF 25V BD607 B 10V C6038 47uF XREF 1 100nF C679 C637 1nF 50V IC612 I 1 G 2 O 3 +5V_TUNER 100ohm R665 3 100ohm R655 BZX84C16 ZD603 1 2 B 1/10W 100ohm R622 BD631 B BD632 ACB1608H-060-T BD638 B 4 GND MGND1 ACB1608H-060-T BD624 B 1 /SD 2 VIN VOUT 3 /ERROR BD623 B LP3961EMP-2.5 10V 1uF C696 10uF 16V C699 - 1 A B 2 TP606 1 BD616 1 25V 100uF C653 R658 4.7Kohm 7 8 9 1 10 2 3 4 5 6 C668 100nF SMW250-10 WHT CN603 1 1 BD620 B +1.8V_DLL 10uF 16V C6039 R656 100ohm R654 100ohm B I 1 G 2 O 3 BD637 1 IC603 BA17805FP 25V 100nF C6041 22ohm R651 1/10W CVBS 1 100ohm R616 BD619 B C649 100nF +3.3V_IO B 1 25V BD601 C698 100nF 25V C656 BD621 B 25V 100nF BD606 B 3 C6026 16V 10uF 1 2 SW 1 GND 2 OUT 3 VCC 4 50V C6048 15pF 10V 1uF C6016 +3.3V_LIVE 32.768kHz K3750HB X602 10V 1uF C6014 C6015 1uF 10V TP612 1 1 25V C634 100nF 1 IN 2 GND 3 OUT OUT TP630 IRU1030-33CM 10V 1uF C6028 C6029 1uF 10V C695 1uF 10V 0ohm R617 1/10W ZD604 BZX84C16 1 2 3 B C 8 2SC2412K-Q Q602 E 1 2 3 4 5 6 7 R661 0ohm SI4435DY 1 +12V_NW +1.8V_PLL R611 47ohm +5V_NW_LIVE C693 1uF 10V 10V 47uF C650 C687 1 TP605 1 25V 100nF C677 100uF C631 100uF 16V TU_NC 1 1 25V 100nF C6024 1/10W R666 0ohm +1.8V_CORE +5V_LIVE 1/10W R667 0ohm +5V_POD 1 10V 47uF C689 100nF 25V E B C C675 GND IN OUT BA178M08FP 16V 82uF C6021 47uF C603 10V 10V 1uF C6012 C6022 100nF R620 20Kohm C644 39uF 16V B C641 100nF BD608 Q605 E B C 50V C638 1nF 2SC2412K-Q ACB1608H-060-T B 100ohm R649 BD636 L601 10uH-K +1.8V_SOUND C6011 1uF 10V 10V 1uF C6010 1 R614 330Kohm 1 C6023 100nF 25V 1 C667 47uF 10V 100nF C618 TP604 470uF C613 B BD640 +3.3V_LIVE3 C654 100nF TU_AGC 1 TU_AS 1 XREF C6030 82uF 16V XREF 1/10W 47Kohm R626 B 1 2 3 +3.3V_LIVE BD641 MMBD4148SE D607 10V 1uF C692 R613 100ohm 1 C6036 100nF 25V R639 4.7Kohm 10V C626 22uF C691 1uF 1 SIF 33V(VT) 9 MGND1 MGND2 MGND3 MGND4 AFT VIDEO 12 2 NC 3 AGC(T.P) 4 SAS 5 SCL 6 SDA 7 5V(B+) 8 2 TCPW3001PC31S(H) TU601 1 NC AUDIO 10 11 OUT 3 1 LF18CDT IN 1 GND 2 MGND1 +3.3V_DVI LP3961EMP-2.5 /SD 1 VIN 2 3 VOUT 4 /ERROR MGND1 GND 4 5 6 7 8 SI4435DY 1 2 3 15Kohm R672 1/10W +1.8V_ADC 1/10W 1/10W R673 15Kohm R669 15Kohm 15Kohm R671 1/10W 15Kohm R670 1/10W 1/10W B R619 220Kohm BD635 ACB1608H-060-T SCL_3 SDA_3 FM_RCLK SCL_3 FM_RESET SDA_3 NETWORK_POWER_CTL TUNER_CVBS TUNER_SIF AFT SDA_5 SCL_5 FM_ANT NW_PWR_SEQ PNL_ON MULTI_POWER_CTL 9-4 Main board Schematics Diagram(Power & Tuner Option) 9-5 9 ����������������� 9-5 IP board Schematics Diagram(1) 9 ����������������� 9-6 9-6 IP board Schematics Diagram(2) 9-7 9 ����������������� 9-7 IP board Schematics Diagram(2) 9 ����������������� 9-8 9-8 Sub power Schematics Diagram 9 Schematic Diagram 9-9 9-9 NETWORK Schematics Diagram(1) 8-D4,17-B2 3-B3 1/10W R103 62ohm 0ohm R3131 VCC_CORE 1/10W R106 270ohm 50V C105 5pF 0ohm R3136 680ohm R102 SYSDATA#1 W7 NC27 NC30 Y31 Y33 SYSCHECK#1 SYSDATA#3 Y35 Y37 SYSDATA#12 NC29 Y5 NC26 SYSDATA#5 U33 SYSDATA#4 U35 U37 SYSCHECK#0 U7 NC25 NC28 W31 W33 SYSDATAINCLK#0 SYSDATA#2 W35 W37 SYSDATA#24 SYSDATA#17 Q35 Q37 SYSDATA#16 NC24 S31 S33 SYSDATA#7 SYSDATA#15 S35 S37 SYSDATA#6 S7 NC23 U31 L33 SYSCHECK#2 L35 SYSDATA#28 L37 NC21 N31 N33 SYSDATA#25 SYSDATA#27 N35 N37 SYSDATA#18 NC22 Q31 Q33 J31 SYSDATA#19 J33 SYSDATAINCLK#1 J35 SYSDATA#29 J37 NC16 J5 NC19 K30 NC18 K8 NC20 L31 SYSDATA#26 H10 NC13 H28 NC14 H30 NC15 H32 NC10 H6 NC11 H8 SYSADDOUT#0 J1 SYSADDOUT#1 J3 NC17 G27 NC8 G29 SYSADDOUT#14 G3 NC9 G31 SYSDATA#20 G33 SYSDATA#23 G35 SYSDATA#21 G37 G5 SYSADDOUT#13 NC12 E9 F30 NC2 NC1 F8 G1 SYSADDOUT#10 G11 NC3 NC4 G13 NC5 G19 NC6 G21 NC7 E29 E3 SYSADDOUTCLK# E31 SYSDATA#32 SYSCHECK#3 E33 E35 SYSDATA#31 SYSDATA#22 E37 SYSADDOUT#4 E5 E7 SYSADDOUT#6 SYSDATA#52 E13 E15 SYSDATAINCLK#3 SYSDATA#48 E17 E19 SYSDATA#58 SYSDATA#36 E21 E23 SYSDATA#46 SYSCHECK#4 E25 E27 SYSDATAINCLK#2 SYSDATA#33 C33 SYSDATA#41 C35 SYSDATAOUTCLK#1 C37 SYSADDOUT#8 C5 SYSADDOUT#2 C7 SYSDATA#54 C9 SYSADDOUT#11 E1 E11 SYSDATA#50 SYSDATA#49 C19 SYSDATA#56 C21 SYSDATA#37 C23 SYSDATA#47 C25 SYSDATA#38 C27 SYSDATA#45 C29 SYSADDOUT#9 C3 SYSDATA#43 C31 SYSDATA#42 AN37 NC64 AN7 NC65 AN9 SYSADDOUT#7 C1 SYSDATAOUTCLK#3 C11 SYSCHECK#6 C13 SYSDATA#51 C15 SYSDATA#60 C17 SYSDATA#59 AN17 RSTCLK AN19 NC67 AN25 NC68 AN27 SYSADDIN#12 AN29 SYSADDIN#14 AN31 SDATAIN_VALID# AN33 SYSADDIN#13 AN35 SYSADDIN#9 AL31 SYSADDIN#8 AL33 SYSADDIN#4 AL35 SYSADDIN#10 AL37 NC58 AL7 NC59 AL9 NC63 AM8 NC66 AN11 CLKIN AJ9 NC57 AK8 NC60 AL11 CLKIN# AL17 RSTCLK# AL19 NC61 AL25 NC62 AL27 SYSADDIN#1 AL29 SDATAOUT_VALID# NC54 AJ27 NC55 SYSADDIN#0 AJ29 AJ31 SYSFILLVALID# SYSADDINCLK# AJ33 AJ35 SYSADDIN#6 SYSADDIN#3 AJ37 AJ7 NC49 NC50 AG35 AG37 SYSADDIN#7 NC42 AG5 NC48 AH30 AH8 NC47 AJ11 NC51 AJ15 NC52 NC53 AJ17 AJ19 AF32 NC36 AF6 NC37 AF8 NC43 AG19 NC44 AG21 NC45 AG23 NC46 AG25 AG33 SYSADDIN#2 SYSADDIN#11 AD8 NC35 AE31 SYSADDIN#5 AE33 SYSDATAOUTCLK#0 AE35 SYSDATA#9 AE37 NC38 AF10 NC39 AF28 NC40 AF30 NC41 SYSDATA#8 SYSDATA#0 AA35 AA37 SYSDATA#13 NC32 AC31 SYSDATA#10 AC33 SYSDATA#14 AC35 SYSDATA#11 AC37 NC34 AD30 NC33 A31 SYSDATAOUTCLK#2 A33 SYSDATA#40 A35 SYSDATA#30 A37 SYSADDOUT#5 A5 SYSADDOUT#3 A7 SYSDATA#55 A9 NC31 AA31 AA33 A17 SYSCHECK#7 A19 SYSDATA#57 A21 SYSDATA#39 A23 SYSDATA#35 A25 SYSDATA#34 A27 SYSDATA#44 A29 SYSADDOUT#12 A3 SYSCHECK#5 IC100-1 PZ4627-001-A SYSDATA#61 A11 SYSDATA#53 A13 SYSDATA#63 A15 SYSDATA#62 5pF C101 50V 3-C2 270ohm R107 1/10W 3-C2 0ohm R3129 VCC_CORE 29-B6 29-B6 VCC_CORE R101 680ohm R3133 0ohm R3137 0ohm 17-C4 R3130 0ohm R105 300ohm 17-C4 3-C2 3-D3 0ohm R3135 680pF C106 50V 3-C2 62ohm R104 1/10W R3134 0ohm 5pF C104 50V 0ohm R3132 3-D3 680pF C107 50V 50V C103 5pF 5pF C102 50V 0ohm R3128 3-C2 DAINCLK#3 DGND SDATAINCLK#(0:3) ADINCLK# DGND SDATAINCLK#(0) SDATAINCLK#(1) SDATAINCLK#(2) SDATAINCLK#(3) SADDINCLK# SADDOUT#(13) SADDOUT#(14) SADDOUT#(2:14) SADDIN#(2:14) DAINCLK#0 DAINCLK#1 DAINCLK#2 DAINCLK#3 SDATAOUTCLK#(0:3) CPU_CLK0 CPU_CLK0# SDATAINVAL# DGND DGND DAINCLK#0 DGND DAINCLK#1 DGND DAINCLK#2 DGND SDATA#(63) SDATA#(0:63) FSB1 THERMDA THERMDC SADDIN#(3) SADDIN#(2) SADDIN#(4) SADDIN#(5) SADDIN#(6) SADDIN#(7) SADDIN#(8) SADDIN#(9) SADDIN#(10) SADDIN#(11) SADDIN#(12) SADDIN#(13) SADDIN#(14) SADDOUTCLK# SADDOUT#(2) SADDOUT#(3) SADDOUT#(4) SADDOUT#(5) SADDOUT#(6) SADDOUT#(7) SADDOUT#(8) SADDOUT#(9) SADDOUT#(10) SADDOUT#(11) SADDOUT#(12) SDATA#(31) SDATA#(32) SDATA#(33) SDATA#(34) SDATA#(35) SDATA#(36) SDATA#(37) SDATA#(38) SDATA#(39) SDATA#(40) SDATA#(41) SDATA#(42) SDATA#(43) SDATA#(44) SDATA#(45) SDATA#(46) SDATA#(47) SDATA#(48) SDATA#(49) SDATA#(50) SDATA#(51) SDATA#(52) SDATA#(53) SDATA#(54) SDATA#(55) SDATA#(56) SDATA#(57) SDATA#(58) SDATA#(59) SDATA#(60) SDATA#(61) SDATA#(62) SDATA#(1) SDATA#(2) SDATA#(3) SDATA#(4) SDATA#(5) SDATA#(6) SDATA#(7) SDATA#(8) SDATA#(9) SDATA#(10) SDATA#(11) SDATA#(12) SDATA#(13) SDATA#(14) SDATA#(15) SDATA#(16) SDATA#(17) SDATA#(18) SDATA#(19) SDATA#(20) SDATA#(21) SDATA#(22) SDATA#(23) SDATA#(24) SDATA#(25) SDATA#(26) SDATA#(27) SDATA#(28) SDATA#(29) SDATA#(30) SDATAOUTCLK#(2) SDATA#(0) SDATAOUTCLK#(0) ADINCLK# SDATAOUTCLK#(3) SDATAOUTCLK#(1) 9 Schematic Diagram 9-10 9 Schematic Diagram 9-11 short short NC NC short short 1 1-A5 +3.3V_VCC VCC_CORE TP_VAHSYNC 17-C4 1-C3 C309 10nF 50V C308 100nF 16V TP_VBDE 1 C311 10nF 50V +1.8V_VCC 25V 100nF C303 +3.3V_VCC +1.8V_VCC 1-A1 0ohm R316 1/10W 1/10W R309 49.9ohm 50V 10nF C313 TP_VBGCLK# 1 100ohm R311 TP_VAVSYNC 1 TP_VBCLK 1 16V 100nF C304 1/10W R319 330ohm +1.8V_VCC +3.3V_VCC 1/10W R301 33ohm TP_VAGCLK# 1 2-C3 1/10W R313 0ohm C315 100nF 25V +3.3V_VCC R323 0ohm R324 0ohm 0ohm R321 SADDOUT#14 W25 CPUCLKAVSS W26 CPUCLKAVDD W29 CPUCLK 1-C3 VCC_CORE SADDOUT#4 U26 SADDOUT#5 U27 SADDOUT#11 U28 SADDOUT#7 U29 SADDOUTCLK# V24 SADDOUT#13 V26 SADDOUT#9 V27 SADDOUT#10 V29 SADDOUT#3 R27 SDATA#54 R28 SDATA#55 R29 SDATAOUTCLK#3 T25 SADDOUT#6 T27 SADDOUT#8 T29 SADDOUT#2 U24 SADDOUT#12 U25 SDATA#49 P29 SDATAINCLK#3 P3 AGPCOMP_P P4 AAD1 P5 AAD3 R1 AGPCOMP_N R24 SDATA#50 R25 SDATA#52 R26 SDATA#62 N3 AAD2 N4 AAD5 N6 AAD7 P1 AGPVSSREF P2 AGPVREF P24 SDATA#61 P26 SDATA#53 P27 AAD8 M6 AAD10 N1 AAD0 N24 SDATA#51 N25 SDATA#48 N26 SDATA#58 N27 SDATA#63 N28 SDATA#60 N29 S2KPVDD L4 AAD12 L5 AAD11 M2 AAD4 M25 SDATA#56 M27 SDATA#59 M29 SDATA#57 M3 AAD6 M5 AC/BE#1 L1 AD_STBF0 L2 AD_STBS0 L24 SDATA#37 L25 SDATA#47 L26 SDATA#38 L27 VSSH L28 HSTLVREFA L29 ASTOP# K1 AC/BE#0 K24 SDATA#34 K26 SDATA#33 K27 SDATA#36 K29 SDATA#39 K3 AAD9 K4 AAD14 K6 SDATA#44 J25 SDATA#32 J26 SDATA#43 J27 SDATA#46 J28 SDATA#35 J29 SDATAINCLK#2 J3 AAD15 J5 ASERR# J6 APAR H2 ATRDY# H25 SDATA#42 H27 SDATA#45 H29 SDATAOUTCLK#2 H4 ADEVSEL# H5 AIRDY# J2 AAD13 J24 SDATA#21 G26 SDATA#19 G27 SDATA#41 G28 SDATA#40 G29 SDATA#30 G3 AAD16 G4 AC/BE#2 G6 AAD17 H1 SDATAOUTCLK#1 F3 AAD20 F5 AAD19 F6 AC/BE#3 F8 SBA3 F9 ST2 G1 AFRAME# G24 SDATA#22 G25 SADDIN#13 F2 AAD18 F20 SADDIN#4 F22 SDATA#10 F23 SDATA#12 F24 SDATA#26 F26 SDATA#25 F27 SDATA#20 F29 SDATA#23 E29 SDATAINCLK#1 E4 AAD21 E5 AAD23 E7 SBA2 E8 ADBIL F11 A1XAVSS F17 CPUPHYAVSS F19 AD_STBF1 E20 SADDIN#10 E21 SADDIN#5 E23 SDATA#8 E24 SDATA#5 E25 SDATA#18 E26 SDATA#24 E27 SDATA#31 E28 AAD29 D7 SBA0 D9 ST0 E1 AAD22 E10 AREQ# E11 A1XAVDD E17 CPUPHYAVDD E18 SADDIN#14 E2 SADDIN#2 D22 S2KPVDD D23 SDATA#14 D25 SDATA#7 D27 SDATA#29 D29 SDATA#28 D3 AAD25 D4 AAD27 D6 SBA4 C8 WBF# C9 RBF# D1 AD_STBS1 D10 GC_DET# D17 S2KCOMPPD D18 CONNECT D19 SADDIN#8 D21 SDATA#0 C25 SDATA#1 C26 SDATA#4 C27 SDATA#27 C28 SDATA#17 C29 SDATA#16 C3 AAD26 C5 SBA7 C6 S2KCOMPND C18 PROCRDY C19 SADDIN#9 C2 AAD24 C20 SADDIN#3 C21 SADDIN#11 C22 HSTLVREFB C23 SDATA#9 C24 SADDIN#7 B23 SDATA#11 B25 SDATA#3 B27 SDATA#15 B4 AAD30 B5 SBA5 B7 SB_STBF B8 PIPE#/ADBIH C17 SBA6 A6 SB_STBS A7 SBA1 A9 ST1 B10 AGNT# B11 A4XAVSS B19 SDATAINVAL# B2 AAD28 B21 SADDIN#6 A22 VSSH A23 SDATAOUTCLK#0 A24 SDATA#13 A25 SDATA#2 A26 SDATAINCLK#0 A27 SDATA#6 A3 AAD31 A4 A10 A4XAVDD A11 AGPCLK A12 CPURST# A18 CLKFWDRST A19 SADDIN#12 A20 SADDINCLK# A21 IC300-1 SIS741CXZA3 1/10W R302 33ohm VDDQ 1/10W R318 0ohm 100ohm R308 1/10W R3073 4.7Kohm 1-B5 1/10W R320 220ohm R314 10Kohm 28-B2 50V 10nF C307 C312 100nF 16V 1-B3 1/10W R307 62ohm R304 100ohm 2-B3 R310 43ohm 16V 100nF C301 1/10W C302 28-B2 2-B3 50V 10nF 10ohm R325 1/10W 28-B2 16V 100nF C314 R303 100ohm 1 2-B3 17-C4 1/10W R306 10ohm TP_VGPIO3 1 VCC_CORE 16V 100nF C306 1-B3 TP_VBCTL0 1 VCC_CORE 16V 100nF C310 TP_VADE 0ohm R322 TP_VGPIO2 1 0ohm R317 1/10W 1 TP_VBCTL1 +1.8V_VCC 1/10W R315 0ohm 1-C4 C305 10nF 50V DRR(0) DRR(3) DRR(4) DRR(5) DRR(6) DRR(7) DGG(2) DGG(0:7) DGG(3) DGG(0) DGG(1) DGG(5) DGG(4) DGG(6) DGG(7) VBCAD CPUPHYAVDD AGCLK AGCLK VAGCLK DGND VBHCLK CPUCLKAVSS DGND CPUPHYAVSS DGND DBB(0:7) DBB(0:7) DBB(0) DBB(2) DBB(3) DBB(4) DBB(5) DBB(6) DBB(7) DBB(1) DRR(1) DRR(0:7) DRR(2) A4XAVDD A4XAVSS AVREFGC DGND AGPRCOMN AGPRCOMP DGND A1XAVDD A1XAVSS DGND DGND DGND A4XAVDD A4XAVSS DGND AVREFGC DGND 741CX_CLK CPUCLKAVDD SADDOUT#(8) SADDOUT#(9) SADDOUT#(10) SADDOUT#(3) SADDOUT#(4) SADDOUT#(5) SADDOUT#(6) SADDOUT#(2) CPUCLKAVSS CPUCLKAVDD CPUPHYAVDD CPUPHYAVSS BGCLK AGP_CLK0 BGCLK FPDCLK DGND AGPRCOMN AGPRCOMP A1XAVDD A1XAVSS SADDIN#(11) SADDIN#(10) SADDIN#(9) SADDIN#(8) SADDIN#(7) SADDIN#(6) SADDIN#(5) SADDIN#(4) SADDIN#(3) SADDIN#(2) SADDOUT#(2:14) SADDOUT#(11) SADDOUT#(12) SADDOUT#(13) SADDOUT#(14) SADDOUT#(7) CONNECT CLKFWDRST SADDINCLK# SADDOUTCLK# SDATAINCLK#(0) SDATAINCLK#(1) SDATAINCLK#(2) SDATAINCLK#(3) SDATAINCLK#(0:3) SDATAOUTCLK#(0) SDATAOUTCLK#(1) SDATAOUTCLK#(2) SDATAOUTCLK#(3) SDATAOUTCLK#(0:3) SADDIN#(2:14) SADDIN#(14) SADDIN#(13) SADDIN#(12) SDATA#(57) SDATA#(58) SDATA#(59) SDATA#(60) SDATA#(61) SDATA#(62) SDATA#(63) SDATA#(0:63) S2KCOMPND S2KCOMPPD DGND HSTLVREFB HSTLVREFA HSTLVREFA HSTLVREFB SDATAINVAL# CPURST# PROCRDY SDATA#(41) SDATA#(42) SDATA#(43) SDATA#(44) SDATA#(45) SDATA#(46) SDATA#(47) SDATA#(48) SDATA#(49) SDATA#(50) SDATA#(51) SDATA#(52) SDATA#(53) SDATA#(54) SDATA#(55) SDATA#(56) SDATA#(25) SDATA#(26) SDATA#(27) SDATA#(28) SDATA#(29) SDATA#(30) SDATA#(31) SDATA#(32) SDATA#(33) SDATA#(34) SDATA#(35) SDATA#(36) SDATA#(37) SDATA#(38) SDATA#(39) SDATA#(40) SDATA#(9) SDATA#(10) SDATA#(11) SDATA#(12) SDATA#(13) SDATA#(14) SDATA#(15) SDATA#(16) SDATA#(17) SDATA#(18) SDATA#(19) SDATA#(20) SDATA#(21) SDATA#(22) SDATA#(23) SDATA#(24) FPDVS FPDHS S2KCOMPND SDATA#(0) S2KCOMPPD DGND SDATA#(1) SDATA#(2) SDATA#(3) SDATA#(4) SDATA#(5) SDATA#(6) SDATA#(7) SDATA#(8) 9 Schematic Diagram 9-12 Place Near to DDR short short 10-mil trace VSS trace and VDD trace or shielded by 25-mil clearance VSS trace and VDD trace or shielded by 10-mil trace 25-mil clearance 10 MIL WIRE Place Near to DDR R406 0ohm R441 10ohm R437 10ohm +2.5V_MEM 0ohm R415 0ohm R411 R420 0ohm 0ohm R417 0ohm R405 16V 100nF C405 0ohm R412 0ohm R410 3 4 5 6 7 8 0ohm R409 15-B4,16-A5 10ohm RA401 1/16W 1 2 1 2 3 4 5 6 7 8 1/10W R433 22ohm 1/16W RA406 10ohm R414 0ohm C401 10nF 50V R424 0ohm R401 2 3 4 5 6 7 8 150ohm 1 1/16W RA418 10ohm 1 R408 0ohm TP_CKE4 3 4 5 6 7 8 15-C2 10ohm RA405 1/16W 1 2 15-C5,16-B3 16V 100nF C404 15-C5,16-B3 0ohm R407 5 6 7 8 0ohm R3015 10ohm RA413 1/16W 1 2 3 4 1 2 3 4 5 6 7 8 R439 10ohm 1/16W RA402 10ohm R416 0ohm MD49 DDRVREFB AJ8 W27 DDRAVSS DDRAVDD W28 Y28 DLLAVSS Y29 DLLAVDD AJ20 AJ22 MAA5 AJ23 MD23 AJ25 DDRVREFA AJ26 MD14 AJ27 DQS1/CSB#1 MD58 AJ3 AJ5 MD53 AJ6 MD40 DQS5/CSB#5 AJ10 CSA#3 AJ11 SRASA# AJ13 AJ14 MD34 AJ16 FWDSDCLKO AJ17 MAA10 AJ19 DQS3/CSB#3 MD29 AH27 AH28 MD10 AH3 MD63 AH4 DQS7/CSB#7 MD60 AH5 AH6 MD51 AH7 DQS6/CSB#6 MD47 AH8 AH9 AH16 MAA3 AH18 AH19 MD25 AH2 MD59 MD24 AH21 MD22 AH22 DQS2/CSB#2 AH24 MD20 AH25 MD12 MD57 MD50 AG7 MD43 AG8 AG9 MD42 AH10 DQM5 SCASA# AH12 AH13 RAMWA# DQS4/CSB#4 AH15 SDRCLKI AG20 AG21 MAA6 AG23 MD19 AG24 MD16 MD11 AG26 MD8 AG27 MD13 AG29 AG4 MD56 AG5 CKE1 CSA#4 AG11 AG12 CSA#2 MD39 AG14 AG15 DQM4 MAA0 AG17 MAA4 AG18 AG2 DDRCOMP_P MD28 AF25 MD9 DQM1 AF26 AF28 MD2 AF29 MD0 DDRCOMP_N AF3 AF5 MD61 AF6 MD55 AF8 MD52 AG1 AF14 AF16 MD36 AF17 MAA1 AF19 MD30 AF2 CKE4 DQM3 AF20 AF22 MAA9 MD18 AF23 AE4 MD62 AE6 MD48 AE7 AE9 MD46 AF1 CKE0 MD41 AF10 CSA#5 AF11 AF13 MD35 MD33 AE2 MAA8 AE21 AE22 MAA13 MD17 AE24 MD15 AE25 MD5 AE27 AE28 MD3 CKE3 AE3 DQM7 CKE5 AE10 MD44 CSA#0 AE12 AE13 MD38 AE15 MD32 MAA12 AE16 AE18 MD26 MD31 AE19 CKE2 AD24 MD6 AD26 AD27 DQM0 DQS0/CSB#0 AD29 S3AUXSW# AD5 DQM6 AD7 MD54 AD8 MD45 AD9 AE1 AD12 MAA11 AD14 AD15 MD37 AD17 MAA2 MD27 AD18 AD20 MAA14 MAA7 AD21 DQM2 AD23 MD21 SIS741CXZA3 IC300-2 AB24 MD4 MD1 AC25 AC26 MD7 MAA15 AD11 CSA#1 R429 0ohm 10ohm R442 R430 0ohm 1 2 3 4 5 6 7 8 4 5 6 7 8 10ohm RA409 1/16W 10ohm RA417 1/16W 1 2 3 +2.5V_MEM +3.3V_VCC +3.3V_VCC 15-B4,16-A5 R422 150ohm C402 10nF 50V 15-C5 15-C5 0ohm R413 TP_CKE2 1 1 2 3 4 5 6 7 8 10ohm R438 10ohm RA415 1/16W R400 0ohm R427 0ohm 4 5 6 7 8 1/10W 15-A4,16-A3 1/16W RA408 10ohm 1 2 3 TP_CSA2 1 6 7 8 R423 150ohm 10ohm RA407 1/16W 1 2 3 4 5 1/10W R432 47ohm 15-C5,16-B3 1/10W R436 33ohm C407 100nF 16V R418 0ohm 6 7 8 50V C408 10pF 1/16W RA412 10ohm 1 2 3 4 5 1 TP_CSA5 1 5 6 7 8 TP_CSA4 1/16W RA414 10ohm 1 2 3 4 1 2 3 4 5 6 7 8 7 8 10ohm RA411 1/16W RA416 10ohm 1 2 3 4 5 6 TP_CKE5 1 1/16W 150ohm R421 8 50V 10nF C400 1 2 3 4 5 6 7 2 3 4 5 6 7 8 1/16W RA404 10ohm 10ohm RA403 1/16W 1 10ohm R435 R402 0ohm 0ohm R403 1 R404 0ohm TP_CSA3 15-C5,16-B3 TP_CKE3 1 C406 100nF 16V 2 3 4 5 6 7 8 15-C5,16-A3 +2.5V_MEM 1/16W RA410 10ohm 1 R434 10ohm 0ohm R419 0ohm R431 0ohm 15-A7,16-A4 50V 10nF C403 R428 1/10W 10ohm R440 DGND DLLAVSS DLLAVDD FWDSDCLKO SDCLKO_DDR DGND CSA#0 S3AUXSW# FWDSDCLKO DDRAVDD DDRAVSS CKE0 CKE1 DDRCOMP DDRCOMN DDRCOMP DDRCOMN DGND DDRVREFB DDRVREFA DGND DGND DGND DGND DDRAVDD DDRAVSS DGND RMAA13 RMAA12 RMAA11 RMAA10 RMAA9 RMAA8 RMAA7 RMAA6 RMAA5 RMAA4 RMAA3 RMAA2 RMAA1 RMAA0 DLLAVDD DLLAVSS DGND RDQS0 RDQS1 RDQS2 RDQS3 RDQS4 RDQS5 RDQS6 RDQS7 DDRVREFB DDRVREFA RCSA#1 RCSA#0 RCASA# RRASA# RMWA# RMAA15 RMAA14 RMD56 RMD57 RMD58 RMD59 RMD60 RMD61 RMD62 RMD63 RMAA15 RMAA14 RDQM0 RDQM1 RDQM2 RDQM3 RDQM4 RDQM5 RDQM6 RDQM7 RMD40 RMD41 RMD42 RMD43 RMD44 RMD45 RMD46 RMD47 RMD48 RMD49 RMD50 RMD51 RMD52 RMD53 RMD54 RMD55 RMD24 RMD25 RMD26 RMD27 RMD28 RMD29 RMD30 RMD31 RMD32 RMD33 RMD34 RMD35 RMD36 RMD37 RMD38 RMD39 RMD8 RMD9 RMD10 RMD11 RMD12 RMD13 RMD14 RMD15 RMD16 RMD17 RMD18 RMD19 RMD20 RMD21 RMD22 RMD23 RMAA10 RMAA7 RMAA8 RRASA# RMWA# RCASA# RCSA#0 RCSA#1 MAA(0:15) RASA# MWA# CSA#1 RMD0 RMD1 RMD2 RMD3 RMD4 RMD5 RMD6 RMD7 MAA(5) MAA(0) MAA(1) MAA(2) MAA(3) MAA(11) MAA(12) MAA(10) MAA(7) MAA(8) CASA# RMAA13 RMAA9 RMAA4 RMAA6 RMAA5 RMAA0 RMAA1 RMAA2 RMAA3 RMAA11 RMAA12 MD(19) MD(3) DQM(5) DQM(0) DQS(2) DQS(7) DQS(6) DQS(0) MAA(15) MD(0:63) DQM(0:7) DQS(0:7) MAA(14) MAA(13) MAA(9) MAA(4) MAA(6) MD(43) MD(52) MD(54) MD(48) MD(55) MD(50) MD(49) MD(51) MD(53) MD(62) MD(61) MD(60) MD(57) MD(56) MD(58) MD(18) MD(27) MD(26) MD(36) MD(32) MD(37) MD(33) MD(38) MD(35) MD(45) MD(44) DQM(4) MD(34) MD(39) MD(40) MD(42) MD(47) MD(8) MD(12) DQM(1) MD(11) MD(14) MD(15) MD(9) MD(20) MD(21) MD(17) MD(16) MD(28) MD(29) MD(25) MD(31) MD(30) DQS(1) DQS(3) DQS(4) DQS(5) DQM(6) DQM(7) DQM(2) DQM(3) MD(7) MD(1) MD(6) MD(5) MD(0) MD(2) MD(13) MD(10) RMD47 RMD43 RMD52 RMD54 RMD48 RMD55 RDQM6 RDQS6 RMD50 RMD49 RMD51 RMD53 RMD62 RMD61 RMD60 RMD57 RDQM7 RDQS7 RMD56 RMD58 RDQS2 RDQM2 RMD18 RMD19 RMD46 RMD41 RMD59 RMD63 RDQM3 RMD24 RMD22 RMD23 RMD11 RMD14 RMD15 RMD9 RMD20 RMD21 RMD17 RMD16 RMD28 RMD29 RMD25 RDQS3 RMD31 RMD30 RMD27 RMD26 RMD36 RMD32 RMD37 RMD33 RMD38 RMD35 RMD45 RMD44 RDQS4 RDQM4 RMD34 RMD39 RDQS5 RDQM5 RMD40 RMD42 MD(4) MD(23) MD(22) MD(24) MD(63) MD(59) MD(41) MD(46) RMD4 RMD7 RMD1 RMD6 RDQS0 RDQM0 RMD3 RMD5 RMD0 RMD2 RMD13 RMD10 RMD8 RMD12 RDQS1 RDQM1 9 Schematic Diagram 9-13 For Debugging Straight Type NB H/W TRAP NC NC short short short NB_TMODE1 NB_TMODE2 short CPUDLLENN NB_TRAP4 short DSUB OUTPUT short NC NC R502 install test C511 10uF 16V BD503 CIM10J800NC C516 10nF 50V 11-C2 17-C2 1/10W R3044 4.7Kohm 1/10W R3051 4.7Kohm C512 100nF 16V 1/10W R3053 10Kohm R500 4.7Kohm R502 4.7Kohm C513 10uF 10V +1.8V_VCC 11-C2 R512 0ohm 150ohm R510 1/10W CIM10J800NC BD501 16V 100nF C501 50V 10nF C500 11-C2 BD500 CIM10J800NC +3.3V_VCC 1/10W R3061 10Kohm 1/10W BD502 CIM10J800NC 11-D2 4.7Kohm R3045 R509 1/10W C504 100nF 16V 10Kohm R3058 1/10W 0ohm 4.7Kohm R3043 4.7Kohm R3042 W5 ZAD8 ZAD5 W6 Y1 ZAD6 Y3 ZAD4 ZAD7 Y4 ZAD3 Y5 5-A1 ZAD12 ZAD15 U4 ZAD13 U5 V1 ZAD14 V2 ZSTB1 V4 ZAD10 ZAD11 V6 ZSTB#1 W2 ZAD9 W3 VGPIO1 E15 DACAVDD1 E16 VRSET F12 TESTMODE2 DLLEN# F13 F14 INTA# F15 DACAVSS1 F16 VVBWN U3 ENTEST TRAP2 D12 TESTMODE1 D13 D14 VGPIO0 D15 VSYNC D16 DACAVSS2 E12 TRAP1 E13 TESTMODE0 E14 ECLKAVDD B17 DCLKAVDD TRAP4 C11 C12 TRAP3 LSYNC C13 HSYNC C14 DACAVDD2 C15 ECLKAVSS C16 D11 AD1 AD2 PWROK AUXOK AD3 AD4 Z1XAVDD TRAP0 B12 B13 CSYNC B14 ROUT B15 BOUT B16 ZDREQ ZUREQ AB6 ZCLK AC1 AC2 ZVREF AC3 ZCMP_N AC4 Z4XAVDD Z4XAVSS AC5 Z1XAVSS AC6 PCIRST# A17 AA1 ZSTB0 ZSTB#0 AA2 AA4 ZAD0 AA6 ZAD2 ZAD1 AB2 AB3 ZAD16 ZCMP_P AB4 AB5 A13 RSYNC GOUT A14 A15 VCOMP DCLKAVSS A16 VOSCI R501 4.7Kohm IC300-3 SIS741CXZA3 10Kohm R3054 1/10W 10nF 50V 11-A1 +3.3V_VCC C518 100nF 16V 8-C3,24-C4 +1.8V_VCC C503 7-C3 7-C3 7-C3 +3.3V_VCC 10Kohm R3060 1/10W 1/10W R3059 10Kohm C510 1uF 10V C519 100nF 16V 7-D3 7-C2,31-C5 7-C3 1/10W R505 0ohm C508 100nF 16V C507 100nF R3052 1/10W 5-A1 16V 5-A1 4.7Kohm 56ohm R508 1/10W 0ohm R514 25V 100nF C506 +3.3V_VCC 7-C3 1/10W 17-C2 0ohm R506 0ohm R516 130ohm R507 C502 10uF 10V 4.7Kohm R3041 C509 100nF 16V 5-A1 +3.3V_VCC 0ohm R513 R503 0ohm 7 1/10W R3057 10Kohm 7-C3 SMW200-07P 1 2 3 4 5 6 CN300 C517 10nF 50V 10V 10uF C505 0ohm R504 56ohm R515 1/10W +3.3V_VCC C515 100nF 16V C514 10nF 50V 1/10W R3046 4.7Kohm 10Kohm R3056 1/10W 1/10W R3055 10Kohm NB_TRAP0 NB_TRAP1 NB_TRAP2 NB_TRAP3 29-E7 5-A1 49.9ohm R511 1/10W GOUT BOUT HSYNC VSYNC SPCLK1 SPD1 DGND CSYNC RSYNC LSYNC DGND VSYNC HSYNC ROUT GOUT BOUT NB_TMODE0 DGND DACAVSS DACAVDD VCOMP VRSET VVBWN DGND DGND Z4XAVDD Z4XAVSS Z1XAVSS DGND Z1XAVDD DGND ZCMP_N ZCMP_P ZVREF PWRGD_NB ROUT ZCLK0 ZSTB#1 ZSTB1 Z1XAVSS Z4XAVDD Z4XAVSS ZCMP_N ZCMP_P ZVREF ZUREQ ZDREQ CSYNC RSYNC LSYNC DGND DCLKAVDD DCLKAVSS ECLKAVDD ECLKAVSS DGND ZAD(13) ZAD(12) ZAD(11) ZAD(10) ZAD(9) ZAD(8) ZAD(7) ZAD(6) ZAD(5) ZAD(4) ZAD(3) ZAD(2) ZAD(1) ZAD(0) ZSTB0 ZSTB#0 CSYNC Z1XAVDD VOSCI INT#A RSYNC LSYNC VCOMP VRSET VVBWN DACAVDD DACAVSS DACAVDD DACAVSS DCLKAVDD DCLKAVSS ECLKAVDD ECLKAVSS DGND PCI_RST0# AUXOK DGND ZAD(0:16) ZAD(16) ZAD(15) ZAD(14) 9 Schematic Diagram 9-14 Place these capacitors under 741CX 16V 100nF C659 C604 100nF 16V C645 100nF 16V VCC_CORE C614 100nF 16V 16V 100nF C620 C632 100nF 16V +2.5V_MEM VDDQ C652 100nF 16V +1.8V_VCC 16V 100nF C656 +3.3V_SB 16V 100nF C642 16V 100nF C654 16V C650 100nF C612 100nF 16V C608 1uF 10V C610 1uF VDDQ +3.3V_VCC VCC_CORE 100nF 16V 10V 16V 100nF C637 C636 C603 100nF 16V C646 100nF 16V IVDD 50V 10nF C630 10V 1uF C617 16V 100nF C644 C648 100nF 16V +2.5V_MEM 1uF C633 10V C613 100nF 16V C653 100nF 16V C641 100nF 16V C655 100nF 16V VDDQ C622 1uF 10V C611 1uF 10V V5 OVSS W4 OVSS Y6 OVSS 16V 100nF C657 VSSM VSSM V13 V14 VSSM V15 VSSM V16 VSSM V17 VSSH V18 VSSH VSSH V25 U12 OVSS OVSS U13 U14 OVSS U15 OVSS OVSS U16 VSSH U17 U18 VSSH OVSS U6 V12 T12 T13 OVSS OVSS T14 T15 OVSS OVSS T16 T17 VSSH VSSH T18 T24 VSSH VSSH R12 OVSS OVSS R13 R14 OVSS OVSS R15 R16 OVSS VSSH R17 R18 VSSH OVSS N5 OVSS OVSS P12 P13 OVSS OVSS P14 P15 OVSS OVSS P16 P17 VSSH VSSH P18 P25 N12 N13 OVSS VSSH N14 N15 VSSH VSSH N16 N17 VSSH VSSH N18 N2 OVSS OVSS M14 VSSH VSSH M15 M16 VSSH VSSH M17 M18 VSSH M24 VSSH M4 OVSS OVSS OVSS OVSS K2 K25 VSSH K5 OVSS L3 OVSS L6 OVSS M1 OVSS M12 OVSS M13 F4 OVSS F7 OVSS G2 OVSS G5 OVSS H24 VSSH H3 OVSS H6 OVSS J1 OVSS J4 OVSS E6 OVSS E9 OVSS F1 OVSS F10 OVSS F18 VSSH F21 VSSH F25 VSSH OVSS C4 OVSS C7 OVSS D2 OVSS D5 OVSS D8 OVSS E19 VSSH E22 VSSH E3 AJ24 VSSM AJ4 VSSM VSSM AJ7 AJ9 VSSM B3 OVSS B6 OVSS B9 OVSS OVSS C1 C10 VSSM AH20 VSSM AH23 VSSM AH26 VSSM VSSM AJ12 VSSM AJ15 AJ18 VSSM AJ21 VSSM AG19 VSSM VSSM AG22 AG25 VSSM AG28 VSSM AG3 VSSM VSSM AG6 AH11 VSSM AH14 VSSM AH17 VSSM AF27 VSSM VSSM AF4 AF7 VSSM AF9 VSSM VSSM AG10 AG13 VSSM AG16 VSSM VSSM AE29 VSSM AE5 VSSM VSSM AE8 AF12 VSSM AF15 VSSM AF18 VSSM AF21 VSSM AF24 AD25 VSSM AD28 VSSM VSSM AD6 VSSM AE11 VSSM AE14 AE17 VSSM AE20 VSSM AE23 VSSM AE26 OVSS AC24 VSSM AC27 VSSM AD10 VSSM AD13 VSSM AD16 VSSM AD19 VSSM AD22 VSSM IC300-5 SIS741CXZA3 A5 OVSS A8 OVSS AA5 Y9 C605 100nF 16V IVDD VDDZ Y2 VDDM Y20 VDDM Y21 Y24 VDDM VDDM Y25 Y26 VDDM VDDM Y27 AUX_IVDD VDDM Y12 VDDM Y13 VDDM Y14 VDDM Y15 VDDM Y16 VDDM Y17 VDDM Y18 VDDM Y19 W17 IVDD IVDD W18 W19 IVDD VDDM W20 VDDM W24 PVDD W9 Y10 AUX3.3 VDDM Y11 W1 VDDZ VDDZ W10 W11 IVDD IVDD W12 W13 IVDD IVDD W14 W15 IVDD IVDD W16 U9 V10 VDDZ IVDD V11 IVDD V19 V20 S2KOVDD S8KOVDD V28 V3 VDDZ PVDD V9 T9 IVDD U1 U10 IVDD U11 IVDD U19 IVDD IVDD U2 S2KOVDD U20 U21 S2KPVDD IVDD T20 S2KOVDD S2KOVDD T21 S2KOVDD T26 S9KOVDD T28 T3 IVDD IVDD T4 IVDD T5 IVDD T6 IVDD R5 IVDD R6 IVDD R9 IVDD T1 IVDD T10 IVDD T11 IVDD T19 IVDD T2 R10 R11 IVDD R19 IVDD IVDD R2 S2KOVDD R20 R21 S2KOVDD IVDD R3 IVDD R4 IVDD P10 IVDD P11 IVDD P19 P20 S2KOVDD S2KPVDD P21 S10KOVDD P28 IVDD P6 IVDD P9 IVDD S3KOVDD S11KOVDD M28 VDDQ N10 IVDD N11 N19 IVDD S2KOVDD N20 S2KOVDD N21 PVDD N9 IVDD L17 IVDD IVDD L18 L19 IVDD S2KOVDD L20 M10 VDDQ IVDD M11 IVDD M19 M20 S2KOVDD M26 K9 VDDQ L10 IVDD L11 IVDD L12 IVDD L13 IVDD L14 IVDD L15 IVDD L16 VDD3.3 K15 K16 S2KOVDD S2KOVDD K17 K18 S2KOVDD S2KOVDD K19 K20 S2KOVDD K21 S2KPVDD S12KOVDD K28 PVDD J20 S2KOVDD J21 VDDQ J9 K10 VDDQ VDDQ K11 K12 VDDQ VDDQ K13 K14 VDDQ H26 S13KOVDD H28 PVDD J10 PVDD J13 VDD3.6 J14 VDD3.5 J15 J16 VDD3.4 S2KPVDD J17 S2KPVDD B24 S17KOVDD B26 S16KOVDD B28 S7KOVDD D20 S6KOVDD D24 S5KOVDD D26 S15KOVDD D28 S14KOVDD F28 S4KOVDD AB27 VDDM AB28 AB29 VDDM VDDM AC28 AC29 VDDM S21KOVDD B18 S20KOVDD B20 S19KOVDD B22 S18KOVDD VDDM AA27 AA28 VDDM VDDM AA29 VDDZ AA3 VDDM AA9 AB1 VDDZ AB25 VDDM VDDM AB26 VDDM AA15 VDDM AA16 VDDM AA17 VDDM AA20 VDDM AA21 AA24 VDDM VDDM AA25 AA26 VDDM SIS741CXZA3 IC300-4 AA10 VDDM VDDM AA13 VDDM AA14 VDDM C609 1uF 10V IVDD 16V 100nF C635 16V 100nF C619 1uF 10V C639 16V 100nF C615 100nF 16V C631 C658 100nF 16V C638 100nF 16V C634 100nF 16V C616 10V 1uF C618 C643 100nF 16V 16V 10uF 10V 1uF C627 +2.5V_MEM +1.8V_VCC +1.8V_VCC +1.8V_VCC VCC_CORE +3.3V_VCC 16V 100nF C628 16V 100nF C640 C651 AUX_IVDD C626 10uF 16V C623 100nF 16V 16V 100nF C624 10nF 50V C625 10nF 50V 16V 100nF C649 16V 100nF C647 C606 100nF 16V 16V 10uF C600 16V 10uF C621 C602 100nF 16V 16V 10uF C607 C660 100nF 16V 16V 100nF C601 VCC_CORE DGND DGND 50V 10nF C629 DGND DGND DGND DGND DGND DGND DGND DGND DGND DGND DGND DGND DGND DGND DGND 9 Schematic Diagram 9-15 short NC NC IDE MuTIOL PCI short short 31-C3 7-D1,10-C2 +3.3V_VCC C709 100nF 16V 5-B1 C702 10nF 50V 1/10W R3083 56ohm 0ohm R701 16V 100nF C3052 +5V_VCC 1/10W 2.7Kohm R3087 R713 1/10W 0ohm R3022 1/10W C707 10nF 50V 49.9ohm CIM10J800NC BD700 18-E4 8-D3,28-C2 18-D3,31-C4 +5V_VCC 4.7Kohm R3031 1/10W 5-C2 31-B3 31-B5 18-E4,31-C4 18-E4,31-C4 18-E3,31-C4 R708 8.2Kohm 18-E4,31-C4 17-B2 +1.8V_VCC R706 8.2Kohm 4.7Kohm R3032 1/10W R3033 4.7Kohm 1/10W 20-C3 20-C3 18-E4 5-B4,31-C5 20-C3 18-D3,31-D4 0ohm R703 8.2Kohm R707 16V 100nF C704 C703 100nF 16V 0ohm R704 1/10W R3017 0ohm 18-E4 18-E4 TP_IDB7 1 20-C5 +3.3V_VCC 20-B3 8.2Kohm R705 5-B1 5-B1 +1.8V_VCC C708 100nF 16V 1/10W R3036 4.7Kohm 1/10W R3084 56ohm 4.7Kohm R3035 1/10W 10-C2 33ohm R711 5-B1 16V 100nF C700 4.7Kohm R3069 R3088 2.7Kohm R3085 2.7Kohm +3.3V_VCC 1/10W R3037 4.7Kohm 20-B1,23-B3 R702 0ohm 20-C3 50V 10nF C701 17-C2 10V 10uF C705 20-C3 100nF 16V C706 IDEAVSS Y5 IDA7 Y6 IDA6 Y7 IDA4 IDA13 Y8 Y9 IIOWA# 8-D3,28-C2 20-C3 IDB6 IDB11 Y14 Y15 IDB14 Y16 IDB0 Y17 IDREQB Y18 IDSAB2 Y2 PCICLK Y3 IDEAVDD Y4 IDECSB0# IDA8 W6 W7 IDA10 W8 IDA2 IDA15 W9 IDACKA# Y10 Y11 IIRQA IDB7 Y12 Y13 W11 IDSAA0 W12 IDB8 IDB9 W13 IDB3 W14 IDB13 W15 W16 IIOWB# W17 ICHRDYB W18 IDB12 IDB1 V15 V16 IDACKB# V17 IDSAB0 V20 ZCLK V7 IDA5 IDA11 V8 V9 IDA1 W10 ICHRDYA AD1 U8 IDA9 U9 IDA12 V1 AD0 V10 IDREQA V11 IIORA# V12 IDECSA0# V13 IDB4 V14 IDB10 U14 IDB2 U15 IDB15 U16 IDECSB1# U17 CBLIDB U19 Z1XAVSS U2 AD4 U20 Z1XAVDD U3 AD6 T20 Z4XAVDD T3 AD3 T9 IDA3 U1 AD5 U10 IDA0 U11 IDSAA1 U12 CBLIDA U13 IDA14 T11 IDSAA2 T12 IDECSA1# IDB5 T13 T14 IIORB# T15 IDSAB1 T16 IIRQB Z4XAVSS T19 T2 AD9 R18 ZCMP_P R2 AD11 R20 ZVREF R3 AD10 R4 C/BE0# R5 AD2 T1 AD8 T10 STOP# AD15 N5 P1 C/BE1# AD14 P2 ZAD16 P20 P3 AD13 P4 AD12 AD7 P5 R1 DEVSEL# ZUREQ N16 N17 ZDREQ N18 ZCMP_N N19 ZAD1 N2 PLOCK# N20 ZSTB0# N3 PAR N4 ZAD0 M18 M19 ZSTB0 M2 TRDY# ZAD4 M20 M3 FRAME# M4 C/BE2# M5 SERR# N1 ZAD7 L2 AD16 ZAD6 L20 L3 AD21 L4 AD18 AD17 L5 M1 IRDY# M16 ZAD3 ZAD2 M17 ZAD9 K2 AD22 K20 ZSTB1# C/BE3# K3 K4 AD26 K5 AD23 L1 AD19 L16 ZAD5 L18 ZSTB1 AD27 J3 AD30 J4 J5 AD31 K1 AD20 K16 ZAD11 ZAD10 K17 ZAD8 K18 K19 H2 ZAD12 H20 PGNT4# H3 H4 PGNT0# H5 PREQ1# J1 AD24 J18 ZAD13 J2 AD25 J20 INTB# G1 PGNT3# G2 PGNT2# G3 PGNT1# G4 INTD# AD28 H1 H18 ZAD15 ZAD14 H19 AD29 PCIRST# C3 E1 PREQ2# E2 INTC# E3 INTA# F1 PREQ4# F2 PREQ3# F3 PREQ0# F4 31-C5 SiS963LUAZC1 IC700-1 18-A1,31-C3 18-E4,31-C4 18-D3,31-D4 18-D3,31-C4 0ohm R719 1/10W 18-E4,31-C4 18-E3,31-C4 1/10W R718 0ohm 2.7Kohm R3086 4.7Kohm R3038 1/10W R3029 1/10W 1/10W R3030 4.7Kohm 5-B1 5-B1 4.7Kohm 1/10W R3034 4.7Kohm 150ohm R712 1/10W 0ohm R3021 1/10W R700 1/10W R3071 4.7Kohm 0ohm 20-C3 4.7Kohm R3070 33ohm R710 20-C3 AV_GNT# SZCMP_N NW_TO_MON_INT PCI_INTB# PCI_INTA# 33ohm R709 PCI_AD(13) PCI_AD(12) PCI_AD(11) PCI_AD(10) PCI_AD(9) PCI_AD(8) PCI_AD(7) PCI_AD(6) PCI_AD(5) PCI_AD(4) PCI_AD(3) PCI_AD(2) PCI_AD(1) PCI_AD(0) PCI_AD(0:31) ZAD(0) PCI_CBE3# PCI_AD(29) PCI_AD(28) PCI_AD(27) PCI_AD(26) PCI_AD(25) PCI_AD(24) PCI_AD(23) PCI_AD(22) PCI_AD(21) PCI_AD(20) PCI_AD(19) PCI_AD(18) PCI_AD(17) PCI_AD(16) PCI_AD(15) PCI_AD(14) ZSTB0 ZCLK1 PCI_RST2# PCI_RST1# PCI_RST0# PCI_CLK_SB PLOCK# PCI_DEVSEL# PCI_PAR PCI_SERR# PCI_STOP# PCI_TRDY# PCI_IRDY# PCI_FRAME# MON_TO_NW_INT LAN_GNT# LAN_REQ# AV_REQ# PCI_AD(31) PCI_AD(30) DGND ZAD(15) ZAD(14) ZAD(13) ZAD(12) ZAD(11) ZAD(10) ZAD(9) ZAD(8) ZAD(7) ZAD(6) ZAD(5) ZAD(4) ZAD(3) ZAD(2) ZAD(1) ZAD(16) ZAD(0:16) SZVREF SZ4XAVSS SZ4XAVDD SZ1XAVSS SZ1XAVDD SZCMP_P ZDREQ ZUREQ ZSTB#1 ZSTB1 ZSTB#0 SZ1XAVDD IDEDA(15) IDEDA(14) IDEDA(13) IDEDA(12) IDEDA(11) IDEDA(10) IDEDA(9) IDEDA(8) IDEDA(7) IDEDA(6) IDEDA(5) IDEDA(4) IDEDA(3) IDEDA(2) IDEDA(1) IDEDA(0) IDECS#A(0) IDECS#A(1) IDESAA(0) IDESAA(1) IDESAA(2) IDEDA(0:15) IDECS#A(0:1) IDESAA(0:2) IDACK#A IDEIOW#A IDEIOR#A CBLIDA IDEIRQA IDEREQA ICHRDYA PCI_INTD# PCI_INTC# SZCMP_N SZCMP_P VDDZCMP MINIPCI_GNT# MINIPCI_REQ# PCI_CBE0# PCI_CBE1# PCI_CBE2# VSSZCMP VSSZCMP SZVREF DGND SZ4XAVSS SZ4XAVDD SZ1XAVSS DGND 9 Schematic Diagram 9-16 from Main board (Monitor Board) NC NC short NC LED GREEN 100MB NC NC NC 28-C2 2-B2,8-D5,17-B2 R808 22ohm TP_RXDV 1 R801 22ohm 1 10V C810 1uF 1-D2,8-D5,17-B2 +3.3V_SB TP_TXEN 1 3.3Kohm R3122 1/10W TP_RXD1 1/10W R3121 3.3Kohm 10ohm R821 2-B3 TP_RXER 1 TP_GPIO12 1 24-B4 15pF C800 50V 1/10W R3080 4.7Kohm 0ohm R3165 C805 10nF 50V +3.3V_SB 10Kohm R3120 1/10W 1 C807 10nF 50V +3.3V_SB 28-C2 TP_RXD0 R825 0ohm +3.3V_SB 11-B1,19-C2,#1 8-A2 8-C3 +3.3V_SB 18-B3,31-C5 2-B3 4.7Kohm R816 23-C4 10Kohm R819 1/10W 7-B2,28-C2 1/10W R3076 4.7Kohm C806 1uF 10V 0ohm 0ohm R3168 7-B2,28-C2 2-B2,8-D5,17-B2 R3166 TP_MDC 1 R3167 0ohm TP_COL 1 29-B7 29-E6 TP_TXCLK 1 1 2 4.7Kohm R817 OP1 LTST-C150GKT TP_RXD2 1 R809 10Kohm 50V R811 0ohm C808 10pF 1 2 3 4 20pF C803 50V +3.3V_SB SW802 KTS-1102F 1/10W 30-B2 2-B2,8-D4,17-B2 4.7Kohm R3074 1/10W R824 0ohm 1/10W R3117 10Kohm 1/10W R3040 4.7Kohm 29-E6 0ohm R810 7-B2,28-C2 1/10W R3078 4.7Kohm 0ohm R3169 TP_CRS 1 11-B1 4.7Kohm R3077 1/10W 270ohm 10Mohm R805 1/10W R822 R812 22ohm 1-D2,8-D4,17-B2 TP_MDIO 1 19-C2,31-D4 19-C2,31-D4 R823 0ohm 1 R803 22ohm TP_RXD3 1 2-B3 15-C2,17-C2,#1 R806 0ohm 4.7Kohm R3039 1/10W TP_GPIO1 11-B1,19-C2,#1 51Kohm R820 50V C801 15pF R3119 10Kohm 10Kohm R3118 1/10W 1/10W Q0 1 2 Q1 3 Q2 Q3 4 7-B2,28-C2 +5V_VCC 2-B3 1 2-C3 2-B4 32.768Hz X801 DMX-26S(32.768KHz,20ppm) TP_RXCLK SW801 KTS-1102F 1 2 3 4 0ohm R3170 2-B3 28-C2 0ohm R818 1/10W C804 100nF 16V +3.3V_VCC 19-C2,31-D5 17-C4 0ohm R826 +3.3V_SB 1Mohm R800 Y19 APICCK NMI Y20 22ohm R802 GPIO4 APICD1 W19 W2 AC_SDOUT STPCLK# W20 W3 OSCI LFRAME# W4 W5 LAD3 AC_BIT_CLK Y1 U6 LAD2 U7 LDRQ# V18 APICD0 CPUSLP# V19 V2 GPIO0 V3 SPK LAD0 V5 V6 SIRQ W1 T4 T5 AC_SYNC T6 GPIO3 T7 LAD1 GPIO1 T8 U18 IGNNE# U4 GPIO6 GPIO5 U5 CRS F5 GPIO11 G5 ENTEST P16 A20M# INTR R16 R17 SMI# T17 FERR# INIT# T18 GPIO2 D7 TXD1 RXD0 D8 E13 GPIO15 RTCVSS E4 GPIO14 E5 E6 GPIO9 E7 MDIO E8 TXD0 E9 D1 PWROK GPIO17 D13 D14 PSON# OSC32KHO D2 D3 BATOK D4 GPIO12 AC_SDIN1 D5 AC_RESET# D6 C1 GPIO8 C14 OSC32KHI C2 GPIO7 C4 MDC C5 TXD2 C6 C7 RXDV RXER C8 B2 GPIO20 GPIO10 B3 TXD3 B4 B5 RXD2 TXEN B6 COL B7 MIIAVSS B8 B9 MIIAVDD RTCVDD A5 RXD1 TXCLK A6 A7 RXCLK OSC25MHI A8 A9 OSC25MHO GPIO13 B1 PME# B14 GPIO18 B15 A1 GPIO19 PWRBTN# A14 A15 ACPILED A16 GPIO16 AC_SDIN0 A2 A3 AUXOK RXD3 A4 IC700-2 SiS963LUAZC1 10Kohm R815 680ohm R3096 1/10W 4.7Kohm R3079 1/10W 10Kohm R813 1/10W R3075 4.7Kohm 100nF C809 +3.3V_RTC 10Kohm R814 2-B3 0ohm R807 2-B3 1 15pF C802 50V TP_GPIO8 1 TP_GPIO11 X800 17-C2 23-C2 HC-49/SM5H(25MHz,30ppm) SDA_3 MON_TO_NW_INT RING NW_TO_MON_INT 2-B3 5-B4,24-C4 +3.3V_VCC 22ohm R804 NW_TO_MON_INT BATOK AUXOK SDAT_GPIO SDA_3 OSC32KHO DGND PSON# DGND GPWAKE# DGND DGND CLKRUN# AC_SDATIN1 LAD(3) LAD(2) LAD(1) LAD(0) LPC_FRAME# LDRQ# PWRBTN# DGND SCL_3 OSC32KHI THERM# SDAT_GPIO SCLK_GPIO PME# SENTEST DGND AC_BIT_CLK DGND BATOK DGND PWRBTN# DGND DGND RESET_SW PWRGD_SB PW_BN FSB0 FSB1 SCL_3 MON_TO_NW_INT OSCI SPKR SENTEST PME# PSON# DGND MCLK25O MIIAVDD MIIAVSS THERM# FSB0 FSB1 DGND DGND MCLK25I MCLK25O MIIAVSS MIIAVDD DGND DGND PICCLK1 INIT# A20M# SMI# INTR NMI IGNNE# FERR# STPCLK# PICD0 PICD1 LAD(0:3) SIRQ OSC32KHI OSC32KHO SCLK_GPIO AC_SDATIN0 AC_SDATOUT AC_SYNC AC_RST# AC_BIT_CLK 9 Schematic Diagram 9-17 NC NC NC NC NC short short 50V 10nF C909 10pF C900 50V 16V 100nF C913 CIM10J800NC BD901 50V 10nF C912 +3.3V_SB 21-B1 0ohm R904 4.7Kohm R3082 1/10W +3.3V_SB 10V 10uF C907 10Mohm R900 1/10W R3081 4.7Kohm 10Kohm R3063 1/10W 1/10W R3062 10Kohm BD903 CIM10J800NC 17-C4 +3.3V_SB 4.7Kohm R903 1/10W +3.3V_SB +3.3V_SB 21-B1 22ohm R3024 1/10W R2818 0ohm 10Kohm R3125 1/10W +3.3V_SB G17 OC1# UV5+ G18 UV5- G19 OC0# G20 OC3# H16 H17 OC4# OC2# J16 USBCLK48M V4 E17 USBVDD UV3+ E18 E20 GPIO23(EEDO) USBREF F16 USBVDD F17 UV3- F18 GPIO21(EESK) F20 G16 OC5# GPIO22(EEDI) D20 D9 NC E10 NC NC E11 E12 NC E14 UV2+ E15 UV4- E16 UV4+ NC D10 NC D11 NC D12 D15 UV2- USBVDD D16 D17 USBVDD UV1+ D18 UV1- D19 C11 NC C12 NC C13 NC C15 USBPVSS C18 UV0- C19 NC C20 GPIO24(EECS) NC C9 IPB_OUT0 B10 B11 NC B12 NC NC B13 B16 OSC12MHI B18 UV0+ B20 USBREFAVDD NC C10 IPB_OUT1 A10 A11 NC NC A12 NC A13 OSC12MHO A17 USBPVDD A18 NC A19 NC A20 +3.3V_SB 21-B1 SiS963LUAZC1 IC700-3 HC-49/S-SMD(12MHz,30ppm) 12.0MHz X900 R905 0ohm 21-C1 8 C914 10uF 10V CS 1 SK 2 DI 3 4 DO 5 GND ORG 6 7 DC VCC IC900 AT93C46-10SI-2.7 390ohm C906 100nF 16V C905 10nF 50V R902 0ohm R2817 R2816 0ohm R2814 0ohm 0ohm R2815 21-C1 0ohm R2813 100nF C908 50V C901 10pF USBCLK48M OC4# DGND DGND UV2+ UV2- OC2# 21-B1 21-B1 16V UV0+ DGND DGND UV0- UV1+ UV1- OC0# DGND DGND USBPVDD3.3 USBPVSS3.3 DGND DGND USBPVSS3.3 USBPVDD3.3 USBVDD3.3 DGND USBVDD3.3 9 Schematic Diagram 9-18 +3.3V_SB C1033 100nF 16V 100nF 16V C1032 100nF 16V C1007 100nF 16V 7-C2 C1025 C1006 100nF 16V C1020 100nF 16V C1019 100nF 16V C1018 100nF 16V C1031 C1017 100nF 16V C1034 1uF 10V 16V 100nF VCC_CORE +1.8V_SB C1024 100nF 16V VCC_CORE +1.8V_VCC +1.8V_SB 10V 1uF C1026 16V 100nF C1013 C1021 100nF 16V C1023 1uF 10V 16V 10uF C1012 16V 100nF C1016 16V 100nF C1015 C1011 10uF 16V +1.8V_VCC C1008 100nF 16V 10V 1uF C1022 C1014 100nF 16V 10V 1uF C1010 C1002 100nF 16V C1001 10uF 16V 7-D1 OVDD R9 C1005 100nF 16V PVDD R12 R13 OVDD IVDD R14 R15 VTT R19 VDDZCMP IVDD R6 OVDD R7 PVDD R8 VSS N9 P15 VTT P17 VSSZ VSSZCMP P18 VDDZ P19 OVDD P6 R10 IVDD R11 OVDD VSS M9 VSS N10 N11 VSS VSS N12 N13 VSS VDDZ N15 N6 PVDD N8 VSS VSS L9 M10 VSS VSS M11 VSSZ M12 VSSZ M13 M15 IVDD OVDD M6 M8 VSS L11 VSS L12 VSSZ VSSZ L13 L15 VDDZ L17 VSSZ L19 VDDZ IVDD L6 L8 VSS K11 VSS VSSZ K12 K13 VSSZ K15 PVDDZ K6 OVDD K8 VSS VSS K9 VSS L10 VSSZ J13 VDDZ J15 J17 VSSZ VDDZ J19 PVDD J6 VSS J8 J9 VSS VSS K10 VSS H13 IVDD H15 H6 OVDD H8 VSS VSS H9 J10 VSS J11 VSS VSS J12 F7 OVDD_AUX PVDD_AUX F8 F9 IVDD_AUX G15 VDDZ G6 IVDD H10 VSS VSS H11 H12 VSS USBVSS E19 OVDD_AUX F10 OVDD_AUX F11 F12 IVDD_AUX PVDD_AUX F13 OVDD_AUX F14 F15 OVDD_AUX F19 USBVSS IC700-4 SiS963LUAZC1 B17 USBVSS USBVSS B19 IVDD_AUX C16 IVDD_AUX C17 C1004 100nF 16V +3.3V_VCC 16V 10uF C1000 16V 100nF C1003 +3.3V_SB C1009 1uF 10V C1027 50V 10nF +3.3V_VCC C1028 16V 100nF 16V 100nF C1030 DGND DGND DGND DGND DGND DGND VSSZCMP VDDZCMP DGND 16V 100nF C1029 9 Schematic Diagram 9-19 9 Schematic Diagram 9-20 9 Schematic Diagram 9-21 9 Schematic Diagram 9-22 9 Schematic Diagram 9-23 9 Schematic Diagram 9-24 9 Schematic Diagram 9-25 9 Schematic Diagram 9-26 9 Schematic Diagram 9-27 9 Schematic Diagram 9-28 9 Schematic Diagram 9-29 9 Schematic Diagram 9-30 9 Schematic Diagram 9-31 9 Schematic Diagram 9-32 9 Schematic Diagram 9-33 Memo 9 Schematic Diagram 9-34 10 Operating Instructions and Installation 10-1 10 Operating Instructions and Installation 10-1 Front 1. MENU 2. Up-Down buttons 3. Left-Right buttons 4. ENTER / FM RADIO 5. SOURCE 6. PIP 7. Power button 8. Power indicator 9. Remote Control Sensor MENU : Use this button to open or exit the OSD menu or return to the previous menu. Up-Down : Moves from one menu item to another vertically or adjusts selected menu values. Also use to adjust the TV channel. Left-Right : Moves from one menu item to another horizontally or adjusts selected menu values. Also use to adjust the volume. ENTER / FM RADIO : Activates a highlighted menu item. Listen to the FM Radio. SOURCE : Selects the video signal. Changing the source is allowed only in devices that are connected to the monitor at the time. * Video Signal Changing Order [PC] [BNC] [DVI] [TV] [AV] [S-Video] [Component] [MagicNet] 10-1-1 Rear The monitor's rear configuration may vary slightly depending on the monitor model. -Connection Terminal 1. POWER S/W 2. POWER IN 3.RS232C OUT/IN (RS232C Serial Input/Output Port): MDC(Multiple Device Control) Program Input/Output Port 4. PC IN(RGB) (PC Video Input Port) : D-Sub(15 Pin) - PC Mode (Analog PC) 5. DVI IN(HDCP) (PC Video Input Port) : DVI-D to DVI-D - DVI Mode (Digital PC) 6. PC/DVI/BNC AUDIO IN (PC/DVI/BNC Audio Input Port) 10 Operating Instructions and Installation 10-2 PIP(Picture in Picture) : Push the PIP button to turn PIP screen On or Off. BNC and Component cannot display PIP at the same time by using the same terminal. -PC / DVI : TV / AV / S-Videos / Component Mode -BNC: TV / AV / S-Video -AV/ S-Video : PC / BNC / DVI Mode -Component : PC / DVI Mode POWER : Use to turn the monitor on or off. LED : Lights up in normal mode. It blinks in green in Power Saver mode. Remote Control Sensor: Receives the remote control signal. -Connection Terminal 10 Operating Instructions and Installation 10-3 7. COMPONENT AUDIO IN [L-AUDIO-R] (Component Audio Input Port) 8. BNC/COMPONENT OUT (BNC Video Output Port/Component Output Port) BNC Mode (Analog PC) Connection : R, G, B, H, V Port Component Connection: PR, Y, PB Port Connection BNC COMPONENT 10 Operating Instructions and Installation 10-4 -Connection Terminal 10. ANT IN RF(TV) Antenna Port 11. FM ANT FM Radio Input Port 12. AV AUDIO IN [L-AUDIO-R] (Monitor Audio Connection Input Port) 13. AV OUT [VIDEO](Video Output Port): AV mode 14. AV IN [VIDEO](Video Input Port) 15. AV OUT [S-Video](S-Video Output Port) S-Video Mode 16. AV IN [S-Video](S-Video Input Port) 17. EXT SPEAKER(8 ¥Ø) Speaker Connection Port (8 ¥Ø) 18. AUDIO OUT [L-AUDIO-R] (Monitor Audio Output Port) PC, DVI, BNC Sound Output Port 10 Operating Instructions and Installation 10-5 -Connection Terminal 10 Operating Instructions and Installation 10-6 19. LAN (LAN Connection Port) MS Internet Explorer 20. USB (USB Connection Port) Keyboard/Mouse, Portable Storage Device -Connection Terminal 10-1-2 Remote Control 1) ON / OFF Use these buttons to turn the monitor on or off. 2) MAGICNET MagicNet Quick Launch Button. 3) MDC MDC Quick Launch Button. 4) LOCK This button will activate or deactivate all function keys on both the remote control and the monitor except for the Power and LOCK buttons. 5) MagicNet buttons Used for MagicNet. ? Alphanumeric: Used to enter the Internet address. - DEL: Functions as the backspace. - SYMBOL: Used to enter the symbols. (.O_-:/) - ENTER: Used to enter values. 6) +100 Press to select channels over 100. For example, to select channel 121, press "+100", then press "2" and "1". [This fuction does not work for this monitor.] 7) VOL Adjusts the audio volume. 8) MUTE Pauses (mutes) the audio output temporarily. Displayed on the lower left corner of the screen. The audio resumes if MUTE or - VOL + is pressed in the Mute mode. 9) TTX/MIX TV channels provide written information services via teletext. [This function is available only in Europe. ] 10) MENU Use this button to open the on-screen menu and exit from the menu screen or close screen adjust ment menu. 11) ENTER Activate a highlighted menu item. 12) P.MODE This button is used to return to the immediately pre vious channel. [This fuction does not work for this monitor.] 13) AUTO Adjusts the screen display automatically. If you change resolution in the control panel, auto function will be executed. 10 Operating Instructions and Installation 10-7 10-8 14) ENTER/PRE-CH This button is used to return to the immediately previous channel. [This fuction does not work for this monitor.] 15) CH/P In TV mode, selects TV channels. 16) SOURCE Push this button to change video sources. 17) INFO Current picture information displays on the upper left corner of the screen. 18) EXIT Exits from the menu screen. 19) Up-Down Left-Right buttons Moves from one menu item to another horizontally, vertically or adjusts selected menu values. 20) S.MODE When you press this button, current mode is displayed on the lower center of the screen. The monitor has a built-in high fidelity stereo amplifier. Then push button again to circle through available preconfigured modes. ( Standard ¡æ Music ¡æ Movie ¡æ Speech ¡æ Custom ) 21) STILL - Operates only for the CVBS, S-Video and RF Signal sources. Press the button once to freeze the screen. Press it again to unfreeze. 22) FM RADIO Turns on/off FM Radio. In PC/DVI mode, sets only SOUND to FM Radio. In general Video SOURCE mode, sets to FM RADIO, turning off the screen. In areas where signal is weak, noise may occur while FM radio is broadcast. 23) P.SIZE Press to change the screen size. 24) SRS SRS 25) DUAL/MTS DUAL- STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM MONO/NICAM STEREO can be operated depending on broadcasting type by using DUAL button on the remote control while watching TV. MTS- You can select the MTS (Multichannel Television Stereo) mode. 26) PIP Every time you push the button, a PIP screen appears. 27) SOURCE The PIP window's signal source changes. 28) SWAP Swapping the contents of the PIP and main image. The image in the PIP window will appear on the main screen, and the main screen image will appear in the PIP window. 29) SIZE You can switch the Picture Size. 30) REW Rewind 31) STOP Stop 32) PLAY / PAUSE Play/Pause 33) FF Fast forward 3 Operating Instructions and Installation 10 Operating Instructions and Installation 10-9 10-2 Installing Stand Kit 1. A 'Cover-Protector' is used to protect the hole at the bottom of the monitor, where the stand is inserted. Be sure to remove the 'Cover-Protector' when attaching the provided Semi Stand or stand kit (sold sepa rately) and cover the hole using the 'Cover-Hole' when attaching the wall mount kit. 2. Set up the left and right stands respectively. 3. Put the stand into the hole at the bottom of the monitor. Insert screw into the hole indicated and tighten. (M4 × L15) Left stand Make sure to install the stand with Caution label folded backward. Right stand Make sure to use the semi stand only for adjusting the screen. The company is not responsible for the damage caused by using them with other purpose. 10 Operating Instructions and Installation 10-10 10-2-1 Installing Stand Kit (sold separately) � 1. A 'Cover-Protector' is used to protect the hole at the bottom of the monitor, where the stand is inserted. Be sure to remove the 'Cover-Protector' when attaching the provided Semi Stand or stand kit (sold sepa rately) and cover the hole using the 'Cover-Hole' when attaching the wall mount kit. 2. Make sure you put the parts in the right direction and in the right place. (M4 � L15) 3. Put the stand into the hole at the bottom of the monitor. 4. Insert screw into the hole indicated and tighten. (M4 � L15) 11 Disassembly and Reassembly 11-1 11-1 Disassembly WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling these components. Cautions: 1. Disconnect the monitor from the power source before disassembly. 2. Follow these directions carefully; never use metal instruments to pry apart the cabinet. 11 Disassembly and Reassembly This section of the service manual describes the disassembly and reassembly procedures for the BE40TS LCD monitor. Description Picture Description 1. Place monitor face down on cushioned table. Remove 12 screws from the rear cover. Lift up the rear cover. 2. Remove 4 screws from the Wall Braket and lift up the BRKT.. 11 Disassembly and Reassembly 11-2 Description Picture Description 3. Remove 8 screws from the Shield and lift up the shield. 4. Remove screws from the boards and disconnect cables. 11 Disassembly and Reassembly 11-3 Description Picture Description 5. Remove 4 screws from the BRKT and lift up the BRKT. 6. Lift up the panel 11 Disassembly and Reassembly 11-4 11-2 Reassembly Reassembly procedures are in the reverse order of dissasembly procedures, place the lamp wire correctly in the locator groove so that the wire will not bind or interfere with rear cover. Description Picture Description 7. Remove screws from the side BRKT. 12 PCB layout 12-1 12 PCB layout 12-1 Main PCB layout Power Connector (Connect to the IP Board, 16P) LVDS Connector (Connect to the PANEL) Power Connector (Connect to the SMPS) Function PC (D-SUB/DVI/Audio) RS232 BNC/Component/Audio AV (Audio ,Video, S-Video), Speaker, Audio 12 PCB layout 12-2 12-2 Network PCB layout LAN / USB 12 PCB layout 12-3 12-3 IP board layout 12 PCB layout 12-4 12-4 Network Power board layout ����������������������� 13-1 13 Circuit Descriptions 13-1 Main board part 13-1-1 MST3383 - TMDS Receiver - Convert the DVI input to the TMDS signal and send to the scaler. 13-1-2 FLI8638 - GENESIS (Þä) Scaler IC - Video decoder, micom, Image enhancer, 3-D Comb filter function embedded - Supports OSD and PIP DVI input FLI8638 input HYB25D256 (DDR) LVDS input ����������������������� 13-2 13-1-3 HYB25D256 - 256M DDR Memory 13-1-4 STV8257 13-1-5 TPA3004D2 - Sound Processor - Supports the SRS Trusurround - Lip Sync. function - Sound Amp. - Receive the signal from the Sound Processor and amplify, then send to the speaker. Sound input Sound output ����������������������� 13-3 13-2 Network Board Part Network Board (option) -Supports the Network function using LAN 13-2-1 NX1500 - CPU - Supports 266 MHz BUS speed - OPGA (Organic Pin Grid Array ) package DDR memory ����������������������� 13-4 13-2-2 SIS741CX - North Bridge - Supports FSB(Front Side BUS) 333/266/200 MHz with CPU - Supports 1G MuTIOL interface with the South Bridge - Controls the graphic and memory data 13-2-3 SIS963L SIS963L input, 80 pin connecter Interface Ethernet PHY, USB input RTL8110 (Ethernet Controller) LAN Communications Interface with the 80 pin connecter (main board) - South Bridge - Supports FSB(Front Side BUS) 333/266/200 MHz with the CPU. - Supports 1G MuTIOL interface with the North Bridge. - Controls peripheral devices. ����������������������� 13-5 13-2-4 RTL8110 - Ethernet Controller - Supports 10/100/1000 Mbps LAN - Uses MAC (Media Access Controller) Address 13-2-5 ALC203 - AC¡¯97 Audio Codec of two channels - The digital signal from the South Bridge is the ALC203 input signal. - The Stereo L/R output signal is transferred to the Sound Processor IC on the main board. LAN Connector (10/100/1000 Mbps Transformer embedded) ����������������������� 13-6 Memo 14 Reference Infomation 14-1 14 Reference Infomation 14-1 Set UP 14-1-1 Connecting to a Computer 1. Connect the Power cord to 220V or 110V outlet. 2. There are 3 ways to connect the signal cable to your monitor. Choose one of the followings: 2-1.Using the D-sub (Analog) connector on the video card. - Connect the D-SUB port of the monitor and computer with the D-SUB cable. 2-2.Using the DVI (Digital) connector on the video card. - Connect the DVI port of the monitor and computer with the D-SUB cable. 2-3.Using the BNC(Analog) connector on the video card. - Connect the BNC cable to BNC/COMPONENT IN - R, G, B, H, and V port on the back of your monitor and the D-SUB port on the computer. 3. Connect the audio cable to the audio card speaker output port on the monitor and computer. 4. Turn on both your computer and the monitor. 14 Reference Infomation 14-2 14-1-2 Connecting to TV 1. Connect the CATV or antenna coaxial cable to the Antenna terminal on the rear of the monitor. There are 3 ways to connect the signal cable to your monitor. Choose one of the followings : 1-1. When using an interior antenna terminal - Check the antenna terminal on the wall first and connect the antenna cable. 1-2. When using an outdoor antenna - It is recommended to contact professionals for the antenna installation. 1-3. To connect the RF cable to the antenna input terminal - Connect directly with the copper wire part of the RF cable. 2. Turn on the monitor. 3. Select TV with the Source button. 4. Select the channel you want. 14 Reference Infomation 14-3 14-1-3 Connecting to VCR 1. Connect AV input devices like DVD, VCR, and Camcorder to AV IN [VIDEO] or AV IN [S-VIDEO] on the monitor with S-VHS or BNC cable. *S-VHS or BNC cable is sold separately. 2. Connect the port of VCR and Audio of VCR (L, R) to AV IN [L-AUDIO-R] of the monitor with audio cables. 3. Press the Source button on the front panel or remote control to select AV or S-Video. 4. Insert a tape and press the play button. � Reference for Camcorder also 14 Reference Infomation 14-4 14-1-4 Connecting to VCR 1. Connect the audio cable to the COMPONENT AUDIO IN [L-AUDIO-R] on the monitor and the Audio out put port on the DVD player. 2. Connect the component cable to BNC/COMPONENT IN - PR, Y, and PB Port on the monitor. * The component cable is sold separately. 3. Press the Source button on the front panel or remote control to select the Component mode. 4. Insert the DVD and press the play button. 14 Reference Infomation 14-5 14-1-5 Connecting to DTV Set Top Box 1. Connect the component cable to BNC/COMPONENT IN - PR, Y, and PB port on the monitor and PR, Y, and PB port on the Set-top box. 2. Connect the audio cable to COMPONENT AUDIO IN [L-AUDIO-R] on the monitor and the AUDIO OUT port on the Set-top box. 3. Press the Source button on the front panel or remote control to select the Component mode. Be sure to match the color of Y, Pb, Pr port when you connect the component of DVD or STB port to view the normal color on the screen. The input and output ports are separated for DVD or STB. Be sure to connect the output port to the monitor. 14 Reference Infomation 14-6 14-1-6 Connecting Speakers ������������������������������������������������������������������������������� ���������������������� ������������������������������������������������������������������������������������ ����������������������������������������������� �������������������������������������������������� * Mount the speakers to the set without speaker stands. 14 Reference Infomation 14-7 14-1-7 Connecting to an Audio System 14-1-8 Connecting the LAN Cable 1. Connect a set of audio cables between the AUX L, R jacks on the AUDIO SYSTEM and the MONITOR OUT [L-AUDIO-R] on the Monitor. ������������������������� ������������������������������������������ �������������������� 14-1-9 Connecting USB 14 Reference Infomation 14-8 14-2 Terms Sync Signal Sync (Synchronized) Signals refer to the standard signals that are required to display desired colors on the monitor. They are divided into Vertical and Horizontal Sync Signals. These signals display normal color images by the set resolution and frequency. Types of Sync Signals -Separate: This is a scheme of transmitting individual vertical sync signals to the monitor. -Composite :This is a scheme of combining vertical sync signals into one composite signal and transmitting it to the monitor. The monitor displays the color signals by separating the composite signal into original color signals. Dot Pitch The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the reso- lution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm Vertical Frequency The screen must be redrawn several times per second in order to create and display an image for the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate. Unit: Hz Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz. Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz Interlace and Non-Interlace Methods Showing the horizontal lines of the screen from the top to the bottom in order is called the Non-Interlace method while showing odd lines and then even lines in turn is called the Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is the same as that used in TVs. Plug & Play This is a function that provides the best quality screen for the user by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard VESA DDC for the Plug & Play function. 14 Reference Infomation 14-9 Resolution The number of horizontal and vertical dots used to compose the screen image is called 'resolution'. This num- ber shows the accuracy of the display. High resolution is good for performing multiple tasks as more image information can be shown on the screen. Example: If the resolution is 1360 X 768 , this means the screen is composed of 1360 horizontal dots (hori- zontal resolution) and 768 vertical lines (vertical resolution). Multiple Display Control (MDC) A Multiple Display Control (MDC) is an application allowing various displays to be easily and simultaneous- ly operated on a PC. RS-232C, a standard of serial communication, is used for the communication between a PC and a display. 14 Reference Infomation 14-10 Originator Mode Name Resolution (HxV) VESA 1360/60Hz 1360x768 HORIZONTAL Frequency Total time Active time Blank time Border (L / R) Data time Front porch Sync. width Back porch Sync. polarity 47.712kHz 20.959 15.973 5.053 0.000 15.906 0.749 1.310 2.994 Positive blank blank blank VERTICAL Frequency Total time Active time Blank time Border (T / B) Data time Front porch Sync. width Back porch Sync. polarity 60Hz 16.662ms 16.097ms 0.566ms 0.000ms 16.159ms 0.063ms 0.126ms 0.377ms Positive blank blank blank Dot Clock 85.500MHz Sync. Type Scan Type * Separate N/I 14-3 Timing Chart The timing no. is standardized by Samsung to apply the same signal to all monitors manufactured by Samsung. 14-3-1 LCD Panel Mode1 mode N/I : Non-Interlaced, I : Interlaced * 14 Reference Infomation 14-11 Originator Mode Name Resolution (HxV) IBM VGA1 640x350 IBM VGA2 720x400 IBM VGA3 640x480 VESA 640/72Hz 640x480 VESA 640/75Hz 640x480 HORIZONTAL Frequency Total time Active time Blank time Border (L / R) Data time Front porch Sync. width Back porch Sync. polarity 31.469kHz 31.778 26.058 5.720 0.318 25.422 0.318 3.813 1.589 Positive 31.469kHz 31.777 26.058 5.720 0.318 25.422 0.318 3.813 1.589 Negative 31.469kHz 31.778 26.058 5.720 0.318 25.422 0.318 3.813 1.589 Negative 37.861kHz 26.413 20.825 5.588 0.254 20.317 0.508 1.270 3.810 Negative 37.500kHz 26.667 20.317 6.350 0.000 20.317 0.508 2.032 3.810 Negative VERTICAL Frequency Total time Active time Blank time Border (T / B) Data time Front porch Sync. width Back porch Sync. polarity 70.086Hz 14.268ms 11.504ms 2.764ms 0.191ms 11.122ms 0.985ms 0.064ms 1.716ms Negative 70.087Hz 14.268ms 13.155ms 1.113ms 0.222ms 12.711ms 0.191ms 0.064ms 0.858ms Positive 59.940Hz 16.683ms 15.761ms 0.922ms 0.254ms 15.253ms 0.064ms 0.064ms 0.794ms Negative 72.809Hz 13.735ms 13.100ms 0.635ms 0.211ms 12.678ms 0.026ms 0.079ms 0.528ms Negative 75.000Hz 13.333ms 12.800ms 0.533ms 0.000ms 12.800ms 0.027ms 0.080ms 0.427ms Negative Dot Clock 25.175MHz 28.322MHz 25.175MHz 31.500MHz 31.500MHz Sync. Type Scan Type * Separate N/I Separate N/I Separate N/I Separate N/I Separate N/I 14-3-2 Supported Modes (1) 14 Reference Infomation 14-12 Originator Mode Name Resolution (HxV) VESA 640/85Hz 640x480 MAC 640/67Hz 640x480 VESA 800/56Hz 800x600 VESA 800/60Hz 800x600 VESA 800/72Hz 800x600 HORIZONTAL Frequency Total time Active time Blank time Border (L / R) Data time Front porch Sync. width Back porch Sync. polarity 43.269kHz 23.111 17.778 5.333 0.000 17.778 1.556 1.556 2.222 Negative 35.000kHz 28.571 21.164 7.407 0.000 21.164 2.116 2.116 3.175 Negative 35.156kHz 28.444 22.222 6.222 0.000 22.222 0.667 2.000 3.556 Positive or Negative 37.879kHz 26.400 20.000 6.400 0.000 20.000 1.000 3.200 2.200 Positive 48.077kHz 20.800 16.000 4.800 0.000 16.000 1.120 2.400 1.280 Positive VERTICAL Frequency Total time Active time Blank time Border (T / B) Data time Front porch Sync. width Back porch Sync. polarity 85.008Hz 11.764ms 11.093ms 0.671ms 0.000ms 11.093ms 0.023ms 0.069ms 0.578ms Negative 66.667Hz 15.000ms 13.714ms 1.286ms 0.000ms 13.714ms 0.086ms 0.086ms 1.114ms Negative 56.250Hz 17.778ms 17.067ms 0.711ms 0.000ms 17.067ms 0.028ms 0.057ms 0.626ms Positive or Negative 60.317Hz 16.579ms 15.840ms 0.739ms 0.000ms 15.840ms 0.026ms 0.106ms 0.607ms Positive 72.188Hz 13.853ms 12.480ms 1.373ms 0.000ms 12.480ms 0.770ms 0.125ms 0.478ms Positive Dot Clock 36.000MHz 30.240MHz 36.000MHz 40.000MHz 50.000MHz Sync. Type Scan Type * Separate N/I Separate N/I Separate N/I Separate N/I Separate N/I 14-3-3 Supported Modes (2) 14 Reference Infomation 14-13 Originator Mode Name Resolution (HxV) VESA 800/75Hz 800x600 VESA 800/85Hz 800x600 MAC 832/75Hz 832x624 VESA 1024/60Hz 1024x768 VESA 1024/70Hz 1024x768 HORIZONTAL Frequency Total time Active time Blank time Border (L / R) Data time Front porch Sync. width Back porch Sync. polarity 46.875kHz 21.333 16.162 5.171 0.000 16.162 0.323 1.616 3.232 Positive 53.674kHz 18.631 14.222 4.409 0.000 14.222 0.569 1.138 2.702 Positive 49.726kHz 20.110 14.524 5.171 0.000 14.524 0.559 1.117 3.910 Positive 48.363kHz 20.677 15.754 4.923 0.000 15.754 0.369 2.092 2.462 Negative 56.476kHz 17.707 13.653 4.053 0.000 13.653 0.320 1.813 1.920 Negative VERTICAL Frequency Total time Active time Blank time Border (T / B) Data time Front porch Sync. width Back porch Sync. polarity 75.000Hz 13.333ms 12.800ms 0.533ms 0.000ms 12.800ms 0.021ms 0.064ms 0.448ms Positive 85.000Hz 11.756ms 11.179ms 0.577ms 0.000ms 11.179ms 0.019ms 0.056ms 0.503ms Positive 74.551Hz 13.414ms 12.549ms 0.864ms 0.000ms 12.549ms 0.020ms 0.060ms 0.784ms Positive 60.004Hz 16.666ms 15.880ms 0.786ms 0.000ms 15.880ms 0.062ms 0.124ms 0.600ms Negative 70.069Hz 14.272ms 13.599ms 0.672ms 0.000ms 13.599ms 0.053ms 0.106ms 0.513ms Negative Dot Clock 49.500MHz 56.250MHz 49.500MHz 65.000MHz 75.000MHz Sync. Type Scan Type * Separate N/I Separate N/I Separate N/I Separate N/I Separate N/I 14-3-4 Supported Modes (3) 14 Reference Infomation 14-14 Originator Mode Name Resolution (HxV) VESA 1024/75Hz 1024x768 VESA 1024/85Hz 1024x768 VESA 1280/60Hz 1280x1024 HORIZONTAL Frequency Total time Active time Blank time Border (L / R) Data time Front porch Sync. width Back porch Sync. polarity 60.023kHz 16.660 13.003 3.777 0.000 13.003 0.323 1.219 2.235 Positive 68.677kHz 14.561 10.836 3.725 0.000 10.836 0.508 1.016 2.201 Positive 63.194kHz 15.824 14.066 1.758 0.000 14.066 0.527 0.352 0.879 Positive VERTICAL Frequency Total time Active time Blank time Border (T / B) Data time Front porch Sync. width Back porch Sync. polarity 75.029Hz 13.328ms 12.795ms 0.533ms 0.000ms 12.795ms 0.017ms 0.050ms 0.466ms Positive 85.997Hz 11.765ms 11.183ms 0.582ms 0.000ms 11.183ms 0.015ms 0.044ms 0.524ms Positive 59.957Hz 16.679ms 16.204ms 0.475ms 0.000ms 16.204ms 0.032ms 0.111ms 0.332ms Negative Dot Clock 78.750MHz 94.500MHz 91.000MHz Sync. Type Scan Type * Separate N/I Separate N/I Separate N/I 14-3-5 Supported Modes (4) 14 Reference Infomation 14-15 14-4 Preset Timing Modes ������������� ����� ����������� ����� �������� ��������� ���� ���������� ��������� ����� ������������ ��������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ���������������� ������� ������� ������� ���� ���������������� ������� ������� ������� ���� ���������������� ������� ������� ������� ���� ���������������� ������� ������� ������� �������� ���������������� ������� ������� ������� ���� ���������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ��������������� ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ������������������ ������� ������� ������� ���� ����������������� ������� ������� ������� ���� ������������� ����� ����������� ����� �������� ��������� ���� ���������� ��������� ����� ������������ ������������������ ������� ������� ������� ���� �������������������������������������������������������������������������������������� ������������������������������������������������������������������������������������� ���������������������������������������������������������������������������������������� ���������������������� Table 1. Preset Timing Table 2. Reduced Blanking Timing Mode(Available in analog Mode Only) 14 Reference Infomation 14-16 SEC LT140X1-002 BN07-00004A SA BN68-00239H - SEC LT150XS-L01 BN07-00009A SB - SEC LT150XS-L01-B BN07-00022A SC - SEC LTM150XS-L02 BN07-00005A SD - SEC LT181E2-132 BN07-00001A SE - SEC LT150XS-T01 BN07-00010A SF - SEC LTM181E3-132 BN07-00019A SG - SEC LT170E2-131 BN07-10001D SH - SEC LT181E2-131 BN07-10001E SJ - SEC LTM170E4-L01 BN07-00018A SK - SEC LTM240W1-L01 BN07-00015A SL - SEC LTM213U3-L01 BN07-00016A SM - SEC LTM150XH-L01 BN07-00026A SN - SEC LTM150XH-L03 BN07-00027A SP - SEC LTM150XS-L01 BN07-00032A SQ DELL(ZPD) SEC LTM181E4-L01 BN07-00034A SR PVA SEC LTM170EH-L01 BN07-00036A SS TN SEC LTM170E5-L01 BN07-00037A SU PVA SEC LTM150XH-L11 BN07-00041A SV - SEC LTM213U4-L01 BN07-00039A SW PVA SEC LTM150XH-L01(ZPD) BN07-00045A SX ZPD SEC LTM150XH-L04 BN07-00046A SY "New panel with high brightness" SEC LTM170W1-L01 BN07-00047A SZ Panel for TV SEC LTM150XH-L06 BN07-00053A EA Panel for TV/ High luminance for 450cd _ SONY&EOS Team Panel for TV SEC LTM153W1-L01 BN07-00054A EB Use NIKE MODEL SEC LTM170EH-L05 BN07-00055A EC Panel EOS proj. for high brightness of 17" EH-L05 SEC LTM170E5-L03 BN07-00056A ED Dell 1702FP pro. E4. EH mechanicalCompatible SEC LTM190E1-L01 BN07-00057A EE DELL 1900 FP SEC LTM181E5-L01 BN07-00061A EF 18" narrow bezel GH18PS SEC LTM150XP-L01 BN07-00065A EG AMLCD PVA PANEL SEC LTM240W1-L02 BN07-00062A EH Panel for 15" Wide TV SEC LTM170EU-L01 BN07-00071A EJ Slim design, TN SEC LTM170E5-L04 BN07-00072A EK E5-L04 6 bits FRC... for IBM SEC LTA220W1-L01 BN07-00074A EL Panel for 22" TV SEC LTM170E6-L02 BN07-00075A EM AMLCD Narrow & slim design 17" PVAmode SEC LTM170W1-L01 BN07-00082A EN LTM170W1-L01 ZPD panel SEC LTM170EH-L01 BN07-00080A EP LTM170EH-L01 ZPD panel SEC LTM170E5-L01 BN07-00081A EQ LTM170E5-L01 ZPD panel SEC LTM170EH-L05 BN07-00083A ER LTM170EH-L05 ZPD panel SEC LTM170E5-L03 BN07-00084A ES LTM170E5-L03 ZPD panel SEC LTM170EU-L01 BN07-00085A ET LTM170EU-L01 ZPD panel SEC LTM170E5-L04 BN07-00086A EU LTM170E5-L04 ZPD panel SEC LTM170E6-L02 BN07-00087A EV LTM170E6-L02 ZPD panel SEC LTM150XH-L06 BN07-00091A EW "Color coordinates change for LCD TV" SEC LTM153W1-L01 BN07-00092A EX AMLCD WIDE 15",9/10 SEC LTM170W1-L01 BN07-00100A EY "Color Coordinates change code management" SEC LTM170EH-L05 BN07-00097A EZ "LTM170E5-L05 Color Coordinates Change Panel Code" SEC LTA400W1-L01 BN07-00109A S1 "PANEL of AMLCD 40"" TV" SEC LTM153W1-L01 BN07-00110A S2 "Color coordinates change 0.280/0.290, 10000k & ZPD Panel" SEC LTM150XH-L06 BN07-00111A S3 "Color coordinates change 0.280/0.290, 10000k & ZPD Panel" SEC LTM170W1-L01 BN07-00112A S4 "Color coordinates change 0.280/0.290, 10000k & ZPD Panel" SEC LTM170EH-L05 BN07-00113A S5 "Color coordinates change 0.280/0.290, 10000k & ZPD Panel" SEC LTM220W1-L01 BN07-00114A S6 "ZPD Panel for AMLCD 22"" TV" Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks 14-5 Panel Description 14 Reference Infomation 14-17 Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks SEC LTM150XH-L06 BN07-00117A S7 "ZPD Panel code" SEC LTM153W1-L01 BN07-00118A S8 "ZPD Panel code" SEC LTM170WP-L01 BN07-00119A S9 "PVA Panel for NIKE" SEC LTM213U4-L01 BN07-00039A E1 21.3" NARROW SEC LTA260W1-L01 BN07-00121A E2 VENUS SEC LTA220W1-L01 BN07-00074B E3 "Panel B-level panel code for 22"" TV Panel " SEC LTA320W1-L01 BN07-00108A E4 "Panel for AMLCD 32"" TV" SEC LTM213U4-L01 BN07-00124A E5 NARROW BEZEL 21 " PANEL SEC LTM170E6-L04 BN07-00129A E6 "HIGHLAND 17"" LOW PANEL (Panel only for TCO03)" SEC LTM190E1-L01 BN07-00088A E7 LTM190E1-L01 ZPD panel SEC M150X4-L06 BN07-00137A E8 15" Narrow & Slim panel SEC LTA170V1 BN07-00139A E9 "17"" Panel for Muse 4:3 VGA TV" SEC LTM190E1-L02 BN07-00128A E10 "New Panel from AMLCDl, Specification : 6bit Driver IC" SEC LTM170EX-L01 BN07-00143A E11 "Development new Panel from AMLCD" SEC LTM170E8-L01 BN07-00144A E12 "Development new Panel from AMLCD" SEC LTM170E6-L04 BN07-00129B E13 "ZPD panel for AMLCD (Panel only for TCO03)" SEC LTA320W1-L02 BN07-00108B E14 "Creat B-level Panel code for AMLCD 32"" TV" SEC LTM190E1-L03 BN07-00151A E15 "Development new 19"" Panel form AMLCD (Panel only for TCO03)" SEC LTM240W1-L03 BN07-00134A E16 "AMLCD 24"" panel development" SEC LTM190E1-L02 BN07-00128B E17 "New Panel from AMLCD, Specification : 6bit Driver IC(ZPD)" SEC LTM190E4-L01 BN07-00145A E18 "AMLCD 24"" new panel development" SEC LTM170E8-L01 BN07-00158A E19 "ZPD code derivation" SEC LTM170EX-L01 BN07-00159A E20 "ZPD code derivation" SEC LTM190E1-L03 BN07-00151B E21 "Creat new panel code for AMLCD 19"" (Panel only for TCO03)" SEC LTA460H1-L01 BN07-00157A E22 "creat panel code for AMLCD 46"" TV " SEC LTM170EU-L11 BN07-00160A E23 "creat new panel code for AMLCD 17"" (Panel only for TCO03)" SEC LTM240W1-L03 BN07-00134B E24 "24"" panel ZPD code derivation" SEC LTM190E4-L01 BN07-00145B E25 "AMLCD 19"" ZPD Panel code derivation" SEC LTM240W1-L03 BN07-00134B E26 24" panel ZPD code derivation SEC LTM150XO-L01 BN07-00164A E27 AMLCD 15" XO-L01 new panel development SEC LTM150XO-L01 BN07-00164B E28 AMLCD 15" XO-L01 ZPD code derivation SEC LTM170EU-L11 BN07-00160B E29 AMLCD 17" NEW panel code derivation SEC LTA320W2-L01 BN07-00172A SPZ AMLCD 32" NEW panel SEC LTM213U4-L01 BN07-00124B SPZ 21.3" Narrow PANEL ZPD Panel derivation SEC LTM170EU-L11 BN07-00189A STH AMLCD EU-L11 Pb free panel code derivtion SEC LTM170EU-L11 BN07-00189B STZ AMLCD EU-L11 Pb free panel ZPD code derivation SEC LTM240W1-L04 BN07-00188A SPH 24" A-DCC new panel development SEC LTM190EX-L01 BN07-00191A STH AMLCD 19" TN new Panel SEC LTM190EX-L02 BN07-00191B STZ AMLCD 19" TN new Panel ZPD derivation SEC LTA230W1-L02 BN07-00184A SPZ AMLCD 23" 16:9 new Panel SEC LTA260W2-L01 BN07-00185A SPZ AMLCD 26" 16:9 new Panel SEC LTM240M1-L01 BN07-00195A SPH 24" panel with high brightness deveiopment SEC LTA400W2-L01 BN07-00186A SPZ AMLCD 40" 16:9 new Panel SEC LTM150XO-L01 BN07-00197A STH AMLCD 15" XO-L01 Pb free panel code SEC LTM150XO-L01 BN07-00197B STZ AMLCD 15" XO-L01 Pb free panel ZPD code SEC LTM170EU-L21 BN07-00202A STZ AMLCD EU-L21 ZPD new code derivation SEC LTA460W2-L03 BN07-00187A SPZ BEETOVEN 46"ZPD new Panel CPT CLAA150XG09 BN07-00141A PA CPT 15" Monitor new panel development CPT CLAA170EA02 BN07-00148A PB 17" CPT NEW development panel CPT CLAA170EA02 BN07-00148B PC 17" CPT ZPD panel code derivation CPT CLAA150XG09 BN07-00141B PTZ "CPT 15"" panel ZPD code derivation (GOYA-PJT)" CPT CLAA150XP01 BN07-00173A PTH CPT 15" PSWG code derivation CPT CLAA150XP01 BN07-00173B PTZ CPT 15" PSWG panel ZPD code 14 Reference Infomation 14-18 CPT CLAA170EA07 BN07-00174A PTH "CPT 17"" PSWG panel code derivation? CPT CLAA170EA07 BN07-00174B PTZ CPT 17"""" PSWG type new Panel code""" CPT CLAA170EA07 BN07-00174B PTZ CPT 17" PSWG type new Panel code TOSHIBA LTM15C419(A) BN07-00002A TA - TOSHIBA LTM15C423(B) BN07-00006A TB - TOSHIBA LTM18C161 BN07-00008A TC - TOSHIBA LTM15C443 BN07-00031A TD - TOSHIBA LTM15C458 BN07-00043A TE - TOSHIBA LTM15C458S BN07-00077A TF "TSB 15"" high brightness Panel" TOSHIBA LTM15C458 BN07-00078A TG Toshiba ZPD panel TOSHIBA LTM15C458S BN07-00099A TH TSB LTM15C458S ( ZPD ) HANNSTAR HSD150MX41A(A) BN07-00020A NA "TTL type" HANNSTAR HSD150MX12 BN07-00030A NB "TTL type" HANNSTAR HSD170ME13 BN07-00180A NTH Hannstar 17" TN new panel development HANNSTAR HSD170ME13 BN07-00180B NTZ Hannstar 17" TN new panel development ZPD code derivation TORISAN TM150XG-22L03(A) BN07-00021A RA - TORISAN TM150XG-26L06 BN07-00042A RB - TORISAN TM181SX-76N01 BN07-00048A RC - TORISAN TM150XG-26L06 BN07-00059A RD 15" XGA TN MODE(ZPD) TORISAN TM290WX-71N31 BN07-00063A RE "RS24NS (TORISAN 29"" NEW PANEL)" TORISAN TM396WX-71N31 BN07-00064A RF "RS24NS (TORISAN 40"" NEW PANEL)" TORISAN TM150XG-26L09 BN07-00073A RG "Panel for 15"" TV" TORISAN TM150XG-26L10 BN07-00089A RH "L10(change except D/IC) ZPD" TORISAN TM150XG-26L10 BN07-00090A RJ L10 NORMAL TORISAN TM190SX-70N01 BN07-00098A RK Torisan 19" Panel TORISAN TM181SX-76N01 BN07-00106A RL ZPD Panel code TORISAN TM190SX-70N01 BN07-00107A RM ZPD Panel code TORISAN TM290WX-71N31 BN07-00115A RN "Color Coordinates change panel for TORISAN 29"" TV" TORISAN TM396WX-71N31 BN07-00116A RP,Q "Color Coordinates change panel for TORISAN 40"" TV" TORISAN TM22OWX-71N31 BN07-00125A RR "Development TORISAN 22"" TV PANEL (ZPD)" TORISAN TM22OWX-71N31 BN07-00127A RS "Development TORISAN 22"" TV PANEL (HPD)" TORISAN TM396WX-71N32A BN07-00150A RT 120V inverter Exclusive panel TORISAN TM190SX-70N02 BN07-00154A RMH Torisan 6bit panel code Derivation TORISAN TM190SX-70N02 BN07-00154B RMZ Torisan 6bit panel code Derivation SHARP LQ181E1DG11(A) BN07-10001C PA - SHARP LQ150X1LW71 BN07-00067A PB SHARP 15" PVA PANEL HITACHI TX38D12VC0CAA(A) BN07-00003A HA - HITACHI TX43DVCOCAB BN07-00060A HB 17" SXGA PVA MODE HITACHI TX43D15VC0CAB BN07-00101A HC ZPD Panel HITACHI TX51D11VC0CAB BN07-00122A HD 20.1" NARROW HITACHI TX54D11VC0CAB BN07-00123A HE 21.3" NARROW HITACHI TX80D12VC0CAB BN07-00169A HIZ "Development new panel for Hitachi 32"" TV (ZPD)" HITACHI TX54D11VC0CAB BN07-00123B HIZ Hitachi 21.3"ZPD panel IBM ITSX94S BN07-00017A IA - UNIPAC UM170E0 BN07-00028A UA Loaded by cisdba HYUNDAI HT15X13 BN07-00035A DA - Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks 14 Reference Infomation 14-19 HYUNDAI HT17E11-200 BN07-00049A DB TN MODE HYUNDAI HT17E11-300 BN07-00093A DC HT17E11-300 ZPD panel HYUNDAI HT17E11-400 BN07-00094A DD HT17E11-400 normal panel HYUNDAI HT17E11-400 BN07-00095A DE HT17E11-400 ZPD panel code HYUNDAI HT17E12 BN07-00096A DF HT17E12 ( Narow & slim Design ) HYUNDAI HT17E12 BN07-00105A DG ZPD Panel code HYUNDAI HT15X15-D00 BN07-00146A DH "Development for Ares 15"" Hydis TV" HYUNDAI HT15X15-D01 BN07-00146B DJ "Derivation panel HPD for Ares 15"" Hydis TV " HYUNDAI HT17E13-100 BN07-00167A DTH "PINEHURST-2(IBM) PJT 17"" HYDIS PANEL Derivation" HYUNDAI HT17E13-100 BN07-00167B DTZ "PINEHURST-2(IBM) Hydis 17"" ZPD code Derivation" ACER L170E3 BN07-00044A AA TN(ADT) ACER M170EN05 BN07-00076A AB AU 17" Panel (Narrow & slim design) ACER M170EN05 BN07-00102A AC ZPD Panel code ACER M190EN02 BN07-00170A AMH "AU Monitor 19"" new panel development (P19- 1S)" ACER M190EN02 BN07-00170B AMZ "AU 19"" ZPD code derivation (ZPD)" ACER M170EN06 BN07-00171A ATH "AU Monitor 17"" New panel development" ACER T260XW01 BN07-00163A AMZ "AU 26"" new panel developm (NF26EO)" ACER A201SN01 BN07-00177A ATZ "AU TV panel 20.1"" TN SVGA new panel development" ACER M170EN06 BN07-00171B ATZ "AU Monitor 17"" ZPD code Derivation ACER T315XW01 BN07-00194A AMZ AU 32" new ACER M170EG01 BN07-00192A ATH AU TN PSWG type new Panel code ACER M170EG01 BN07-00192B ATZ AU TN PSWG type NEW panel code derivation CHIMEI M170E3-LO1 BN07-00050A CA TN PANEL CHIMEI M150X3-L01 BN07-00051A CB COMPATIBLE CHIMEI M170E4-L01 BN07-00052A CC MVA PANEL CHIMEI M150X2-L01 BN07-00066A CD CHIME 15"I PVA PANEL CHIMEI M150X3-L01 BN07-00079A CE Chimei ZPD panel CHIMEI M170E3-L01 BN07-00103A CF ZPD Panel code CHIMEI M170E4-L01 BN07-00104A CG ZPD Panel code CHIMEI V296W1-L01 BN07-00120A CH MVA CHIMEI M170E6-L02 BN07-00126A CJ HIGHLAND 17" LOW PANEL CHIMEI M190E2-L01 BN07-00131A CK GH19AS,BS CHIMEI PANEL CHIMEI M150X4-L06 BN07-00137A CL 15" Narrow & Slim panel CHIMEI M170E6-L01 BN07-00133A CM "2003-03-11 vendor change" CHIMEI M170E6-L01 BN07-00133B CN "ZPD derivation panel" CHIMEI V201V1-T01 BN07-00135A CP "CHIMEI 20.1"" panel development" CHIMEI M170E6-L02 BN07-00126B CQ "HIGHLAND 17"" LOW PANEL ZPD derivation panel" CHIMEI M170E6-L05 BN07-00152A CR "CMO 17"" new panel development code" CHIMEI M170E6-L05 BN07-00152B CS "CMO 17"" ZPD panel code derivation" CHIMEI M150X4-L06 BN07-00137B CT Chimei 15" Narrow & Slim panel ZPD derivation CHIMEI M170E5-L05 BN07-00165A CTH CMO 17" new panel development code (GOYA2-PJT) CHIMEI M170E5-L05 BN07-00165B CTZ CMO 17" ZPD panel(GOYA2-PJT) Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks 14 Reference Infomation 14-20 Memo
