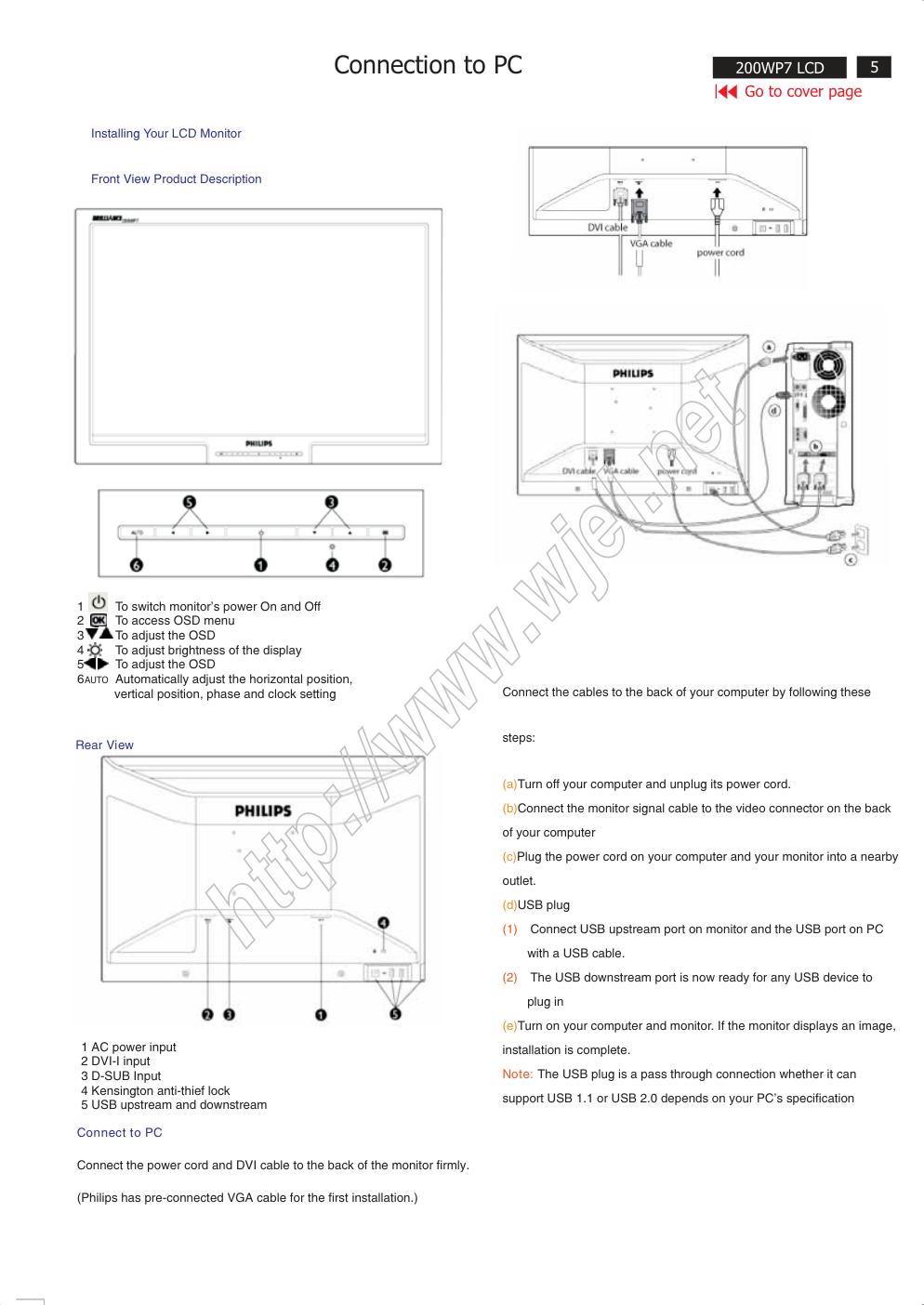

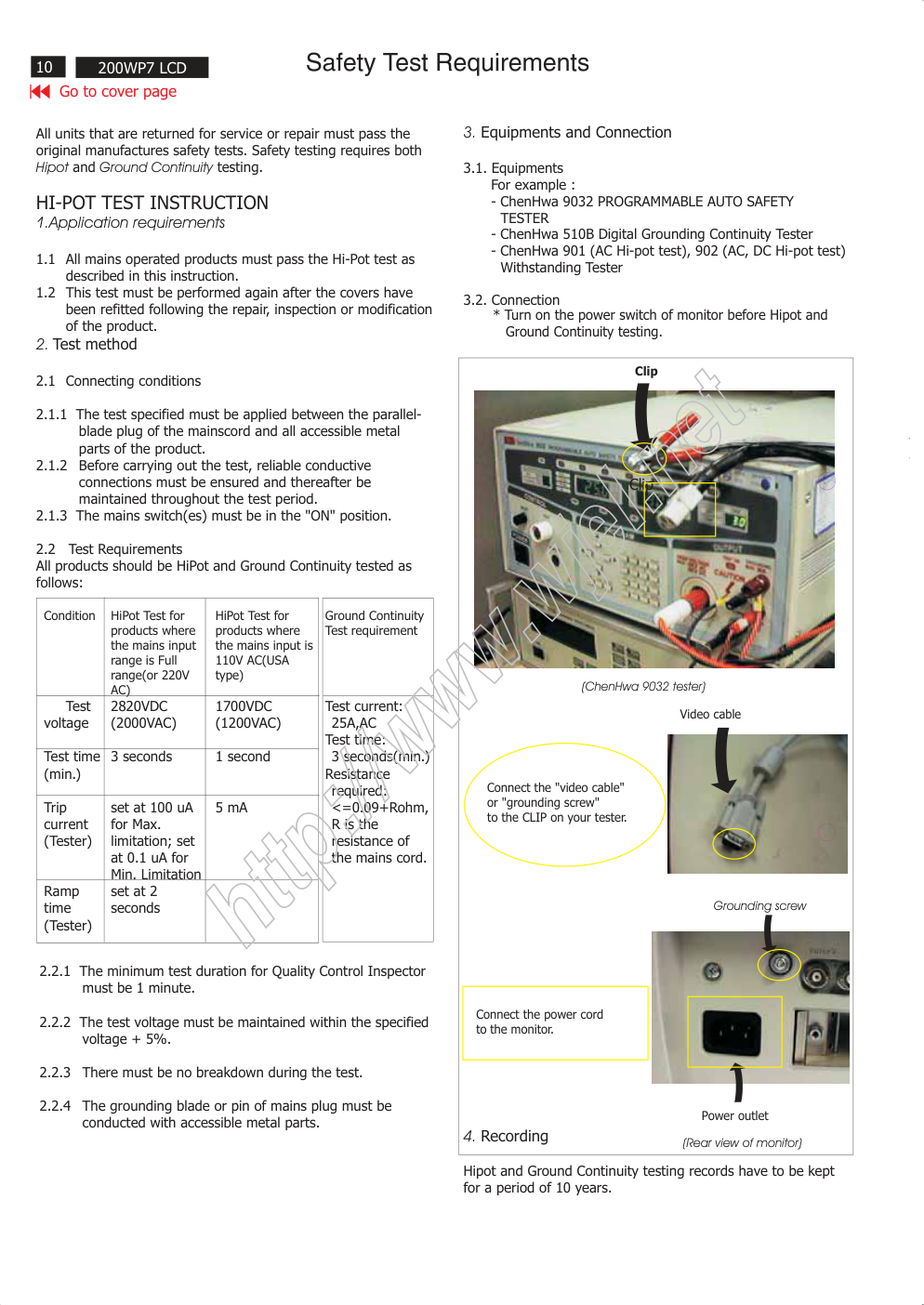

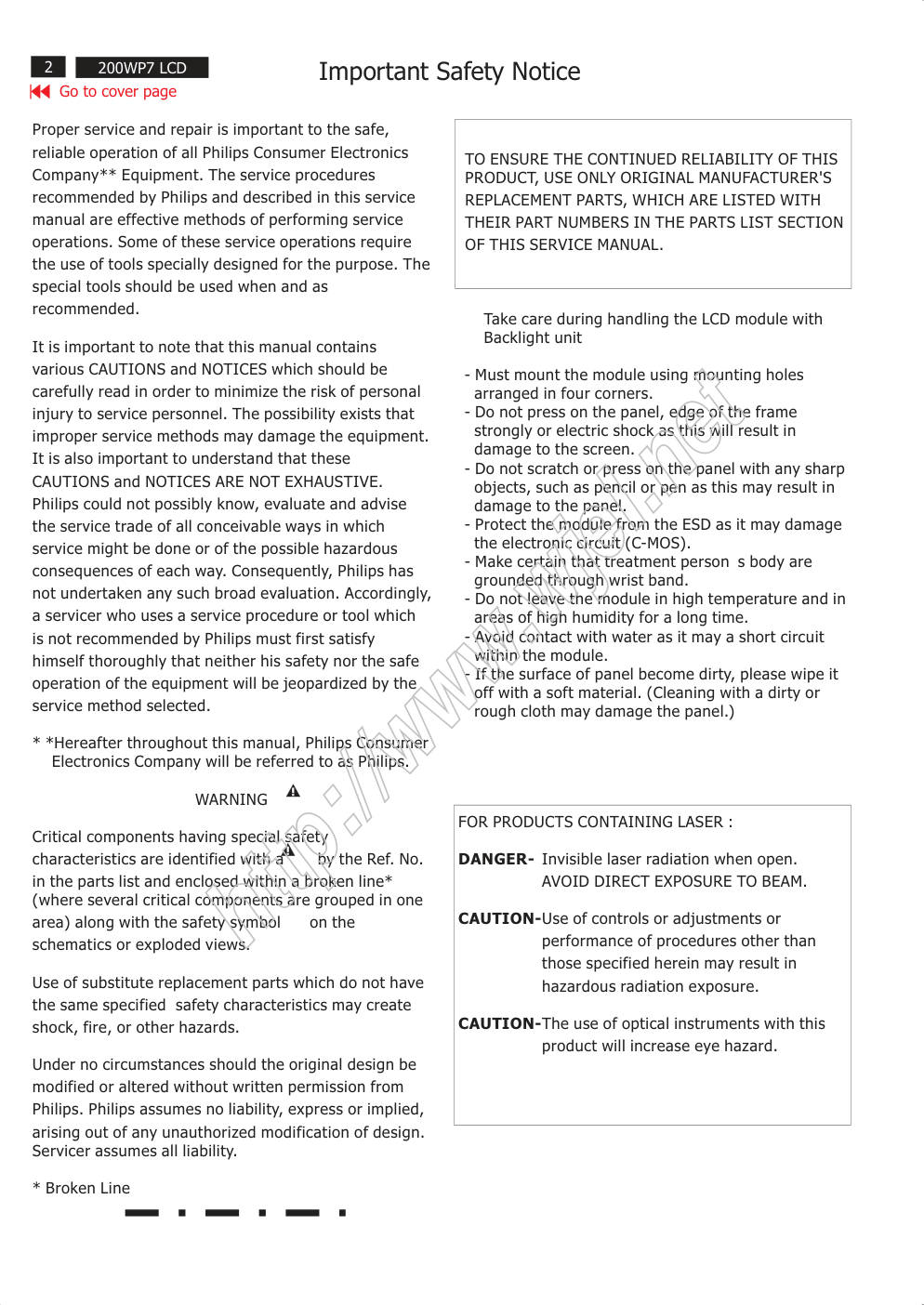

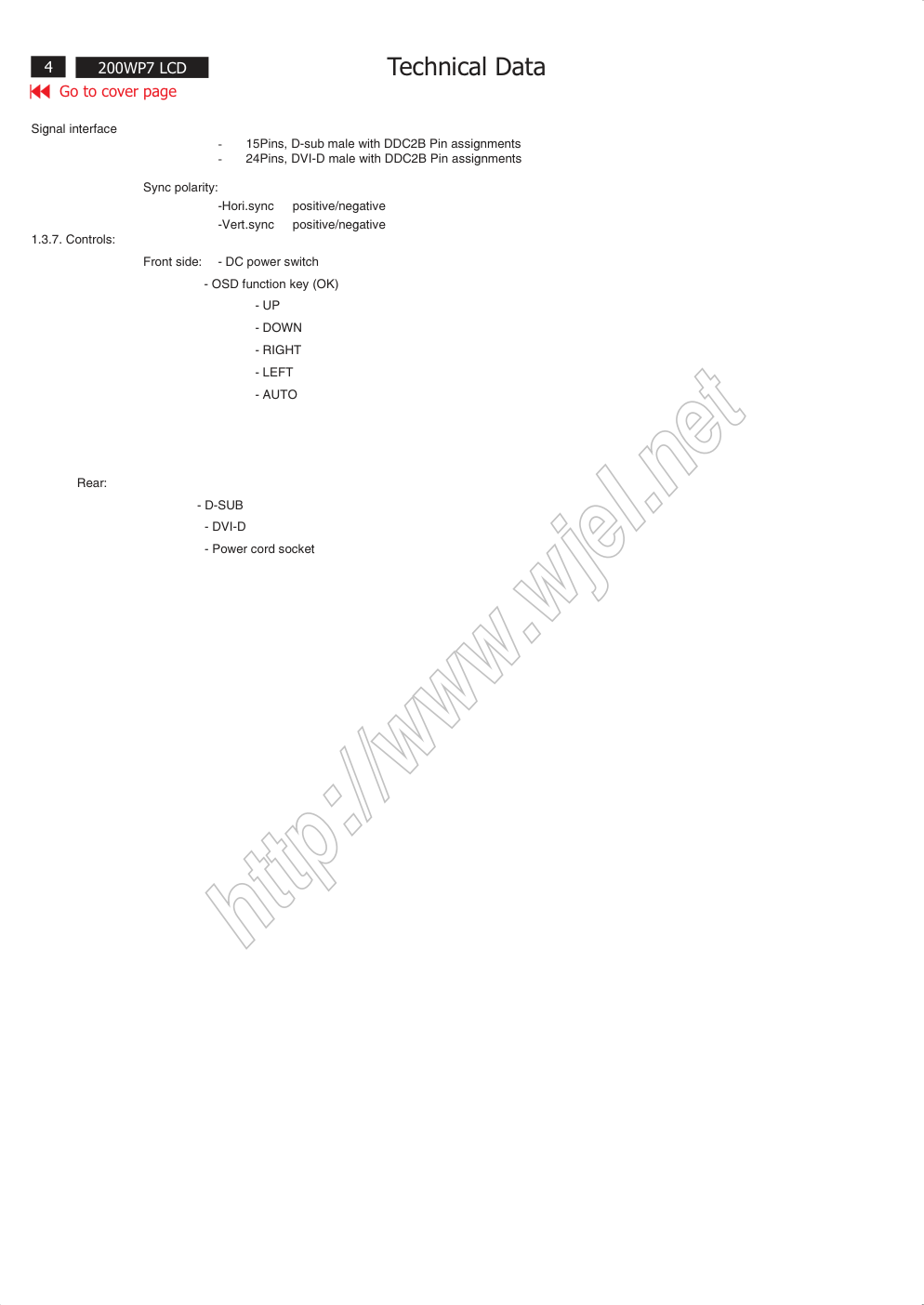

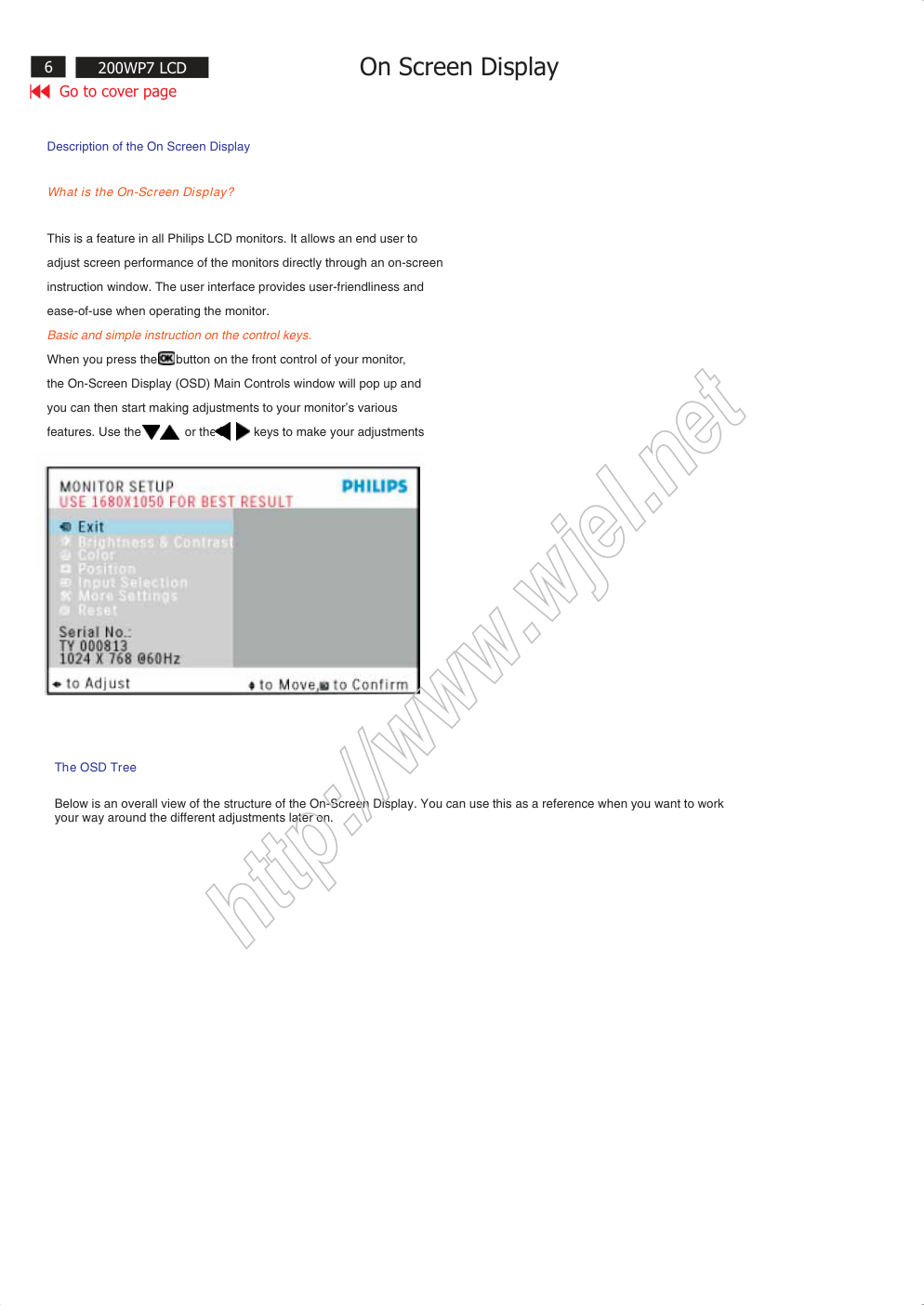

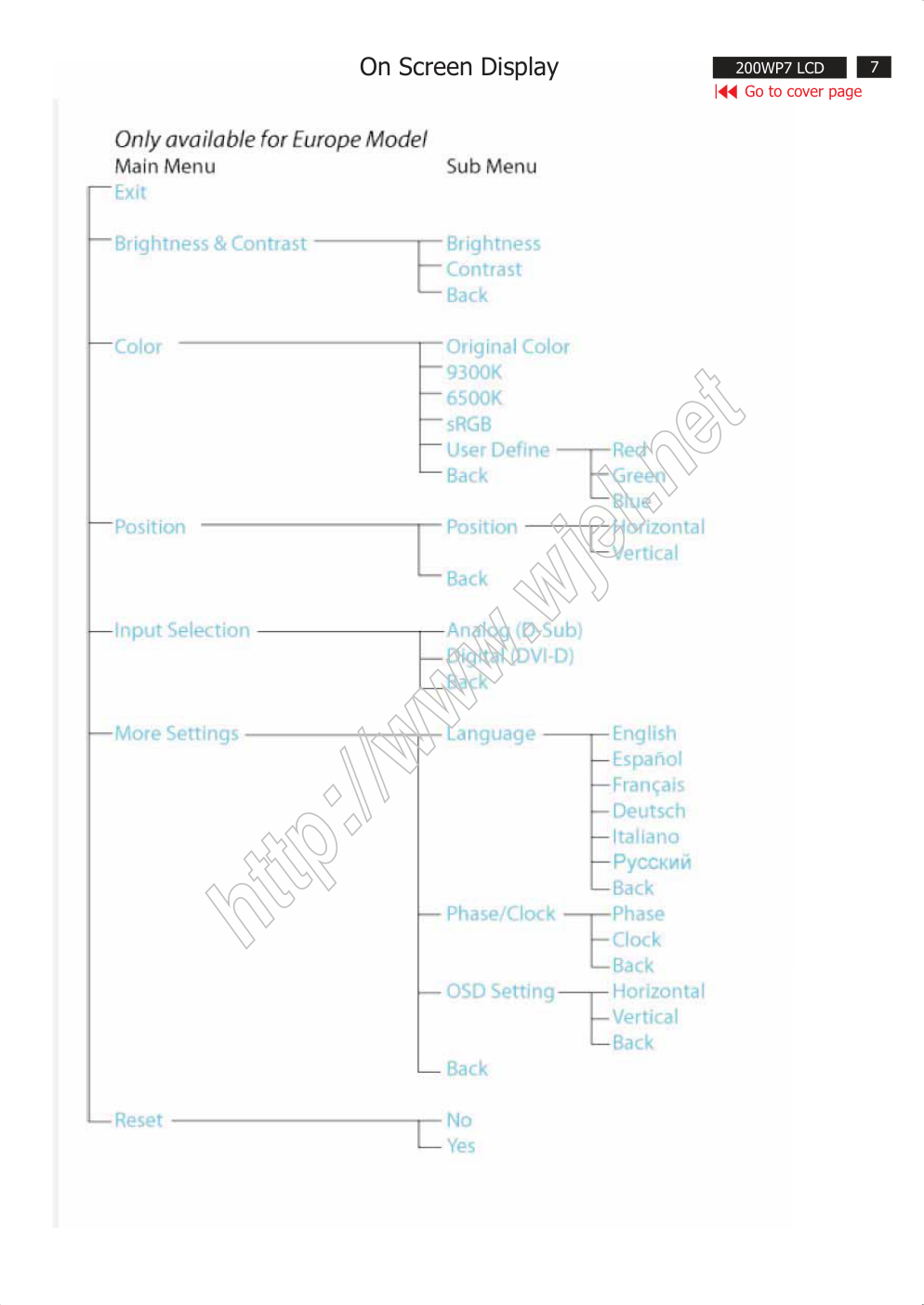

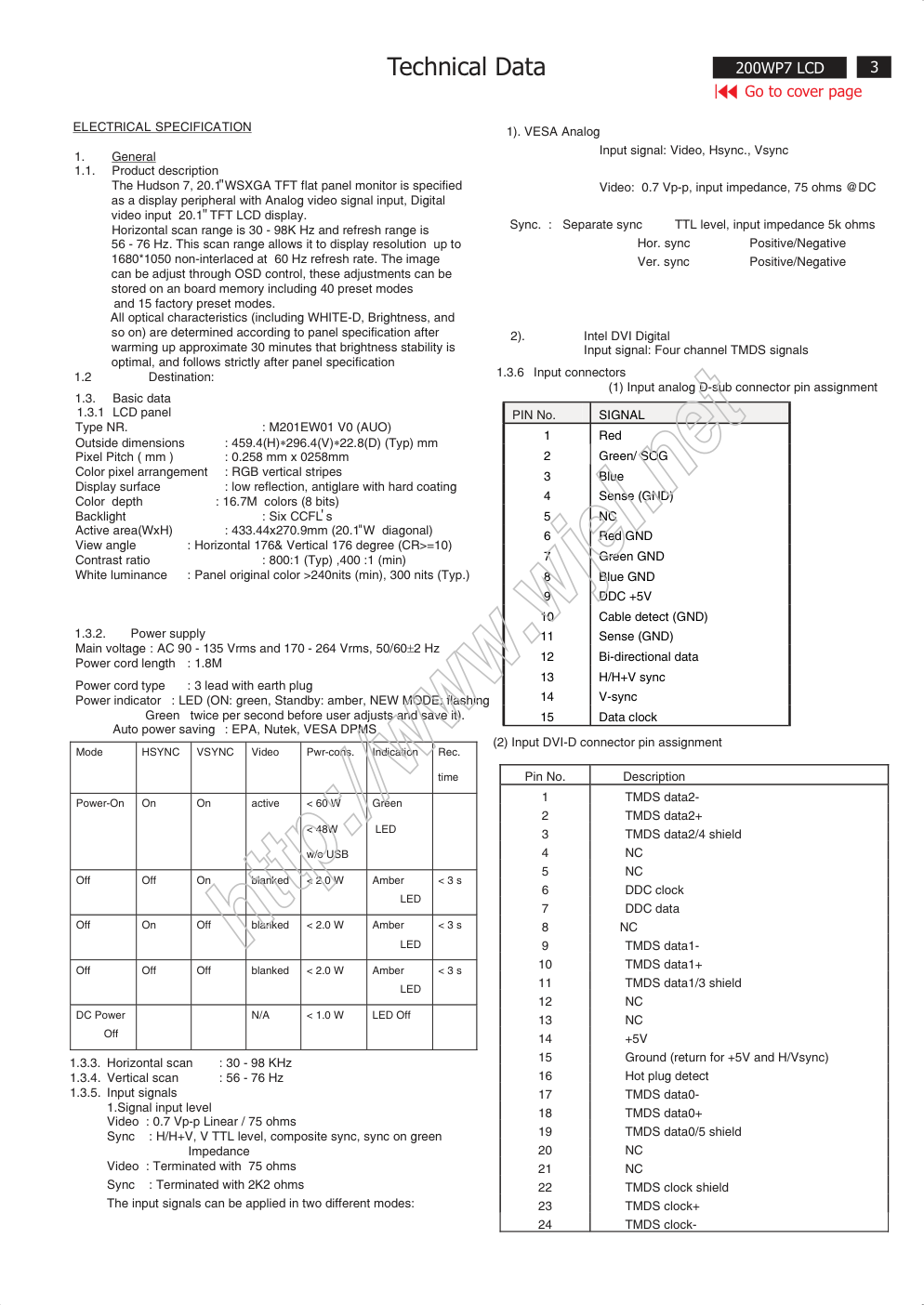

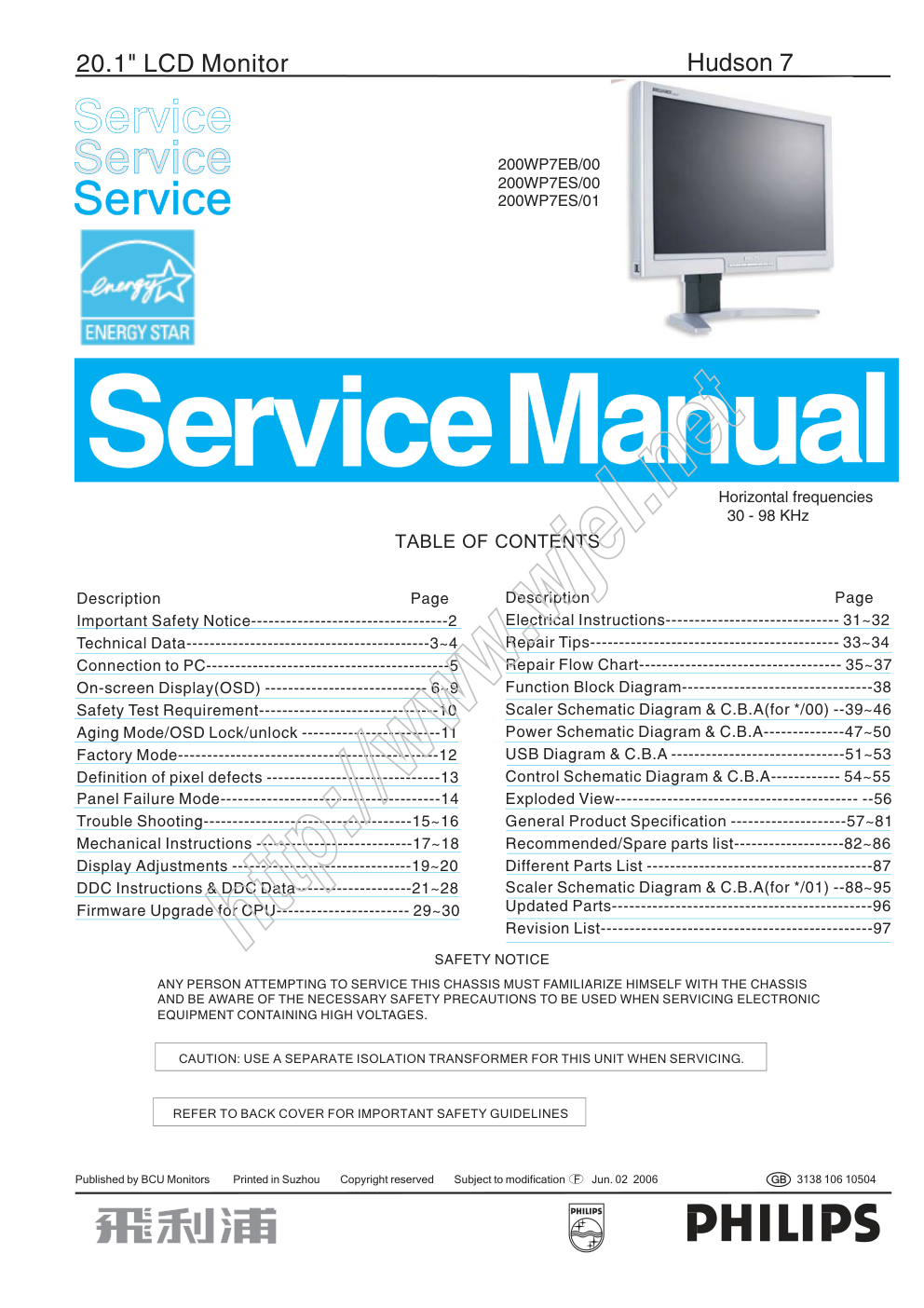

Service Service Service TABLE OF CONTENTS Published by BCU Monitors Printed in Suzhou Copyright reserved Subject to modification F Jun. 02 2006 Description Page Important Safety Notice----------------------------------2 Technical Data------------------------------------------3~4 Connection to PC------------------------------------------5 On-screen Display(OSD) ---------------------------- 6~9 Aging Mode/OSD Lock/unlock ------------------------11 Factory Mode---------------------------------------------12 Definition of pixel defects ------------------------------13 Trouble Shooting------------------------------------15~16 Mechanical Instructions ---------------------------17~18 Safety Test Requirement-------------------------------10 Panel Failure Mode--------------------------------------14 Display Adjustments -------------------------------19~20 DDC Instructions & DDC Data--------------------21~28 Firmware Upgrade for CPU----------------------- 29~30 Description Page Electrical Instructions------------------------------ 31~32 Repair Tips------------------------------------------- 33~34 Repair Flow Chart----------------------------------- 35~37 Function Block Diagram---------------------------------38 Scaler Schematic Diagram & C.B.A(for */00) --39~46 Power Schematic Diagram & C.B.A--------------47~50 USB Diagram & C.B.A ------------------------------51~53 Control Schematic Diagram & C.B.A------------ 54~55 Exploded View------------------------------------------ --56 General Product Specification --------------------57~81 Recommended/Spare parts list-------------------82~86 Different Parts List ---------------------------------------87 Revision List-----------------------------------------------97 Updated Parts---------------------------------------------96 Scaler Schematic Diagram & C.B.A(for */01) --88~95 REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING. ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES. SAFETY NOTICE GB GB 3138 106 10504 20.1" LCD Monitor « Hudson 7 200WP7EB/00 200WP7ES/00 200WP7ES/01 Horizontal frequencies 30 - 98 KHz http://www.wjel.net Important Safety Notice 2 FOR PRODUCTS CONTAINING LASER : Invisible laser radiation when open. AVOID DIRECT EXPOSURE TO BEAM. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard. DANGER- CAUTION- CAUTION- TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF THIS SERVICE MANUAL. 200WP7 LCD Proper service and repair is important to the safe, reliable operation of all Philips Consumer Electronics Company** Equipment. The service procedures recommended by Philips and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended. It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Philips could not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Philips has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Philips must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected. * *Hereafter throughout this manual, Philips Consumer Electronics Company will be referred to as Philips. WARNING Critical components having special safety characteristics are identified with a by the Ref. No. in the parts list and enclosed within a broken line* (where several critical components are grouped in one area) along with the safety symbol on the schematics or exploded views. Use of substitute replacement parts which do not have the same specified safety characteristics may create shock, fire, or other hazards. Under no circumstances should the original design be modified or altered without written permission from Philips. Philips assumes no liability, express or implied, arising out of any unauthorized modification of design. Servicer assumes all liability. * Broken Line Take care during handling the LCD module with Backlight unit - Must mount the module using mounting holes arranged in four corners. - Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. - Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. - Protect the module from the ESD as it may damage the electronic circuit (C-MOS). - Make certain that treatment person s body are grounded through wrist band. - Do not leave the module in high temperature and in areas of high humidity for a long time. - Avoid contact with water as it may a short circuit within the module. - If the surface of panel become dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.) Go to cover page http://www.wjel.net 3 200WP7 LCD Go to cover page Technical Data " " ' ELECTRICAL SPECIFICATION 1. General 1.1. Product description The Hudson 7, 20.1 WSXGA TFT flat panel monitor is specified as a display peripheral with Analog video signal input, Digital video input 20.1 TFT LCD display. Horizontal scan range is 30 - 98K Hz and refresh range is 56 - 76 Hz. This scan range allows it to display resolution up to 1680*1050 non-interlaced at 60 Hz refresh rate. The image can be adjust through OSD control, these adjustments can be stored on an board memory including 40 preset modes and 15 factory preset modes. All optical characteristics (including WHITE-D, Brightness, and so on) are determined according to panel specification after warming up approximate 30 minutes that brightness stability is optimal, and follows strictly after panel specification 1.2 Destination: 1.3. Basic data 1.3.1 LCD panel Type NR. : M201EW01 V0 (AUO) Outside dimensions : 459.4(H)�296.4(V)�22.8(D) (Typ) mm Pixel Pitch ( mm ) : 0.258 mm x 0258mm Color pixel arrangement : RGB vertical stripes Display surface : low reflection, antiglare with hard coating Color depth : 16.7M colors (8 bits) Backlight : Six CCFL s Active area(WxH) : 433.44x270.9mm (20.1 W diagonal) View angle : Horizontal 176& Vertical 176 degree (CR>=10) Contrast ratio : 800:1 (Typ) ,400 :1 (min) White luminance : Panel original color >240nits (min), 300 nits (Typ.) 1.3.2. Power supply Main voltage : AC 90 - 135 Vrms and 170 - 264 Vrms, 50/60�2 Hz Power cord length : 1.8M Power cord type : 3 lead with earth plug Power indicator : LED (ON: green, Standby: amber, NEW MODE: flashing Green twice per second before user adjusts and save it). Auto power saving : EPA, Nutek, VESA DPMS " Mode HSYNC VSYNC Video Pwr-cons. Indication Rec. time Power-On On On active < 60 W < 48W w/o USB Green LED Off Off On blanked < 2.0 W Amber LED < 3 s Off On Off blanked < 2.0 W Amber LED < 3 s Off Off Off blanked < 2.0 W Amber LED < 3 s DC Power Off N/A < 1.0 W LED Off 1.3.3. Horizontal scan : 30 - 98 KHz 1.3.4. Vertical scan : 56 - 76 Hz 1.3.5. Input signals 1.Signal input level Video : 0.7 Vp-p Linear / 75 ohms Sync : H/H+V, V TTL level, composite sync, sync on green Impedance Video : Terminated with 75 ohms Sync : Terminated with 2K2 ohms The input signals can be applied in two different modes: 1). VESA Analog Input signal: Video, Hsync., Vsync Video: 0.7 Vp-p, input impedance, 75 ohms @DC Sync. : Separate sync TTL level, input impedance 5k ohms Hor. sync Positive/Negative Ver. sync Positive/Negative 2). Intel DVI Digital Input signal: Four channel TMDS signals 1.3.6 Input connectors (1) Input analog D-sub connector pin assignment PIN No. SIGNAL 1 Red 2 Green/ SOG 3 Blue 4 Sense (GND) 5 NC 6 Red GND 7 Green GND 8 Blue GND 9 DDC +5V 10 Cable detect (GND) 11 Sense (GND) 12 Bi-directional data 13 H/H+V sync 14 V-sync 15 Data clock (2) Input DVI-D connector pin assignment Pin No. Description 1 TMDS data2- 2 TMDS data2+ 3 TMDS data2/4 shield 4 NC 5 NC 6 DDC clock 7 DDC data 8 NC 9 TMDS data1- 10 TMDS data1+ 11 TMDS data1/3 shield 12 NC 13 NC 14 +5V 15 Ground (return for +5V and H/Vsync) 16 Hot plug detect 17 TMDS data0- 18 TMDS data0+ 19 TMDS data0/5 shield 20 NC 21 NC 22 TMDS clock shield 23 TMDS clock+ 24 TMDS clock- http://www.wjel.net 4 200WP7 LCD Go to cover page Technical Data Signal interface - 15Pins, D-sub male with DDC2B Pin assignments - 24Pins, DVI-D male with DDC2B Pin assignments Sync polarity: -Hori.sync positive/negative -Vert.sync positive/negative 1.3.7. Controls: Front side: - DC power switch - OSD function key (OK) - UP - DOWN - RIGHT - LEFT - AUTO Rear: - D-SUB - DVI-D - Power cord socket http://www.wjel.net 5 200WP7 LCD Go to cover page Connect the cables to the back of your computer by following these steps: (a)Turn off your computer and unplug its power cord. (b)Connect the monitor signal cable to the video connector on the back of your computer (c)Plug the power cord on your computer and your monitor into a nearby outlet. (d)USB plug (1) Connect USB upstream port on monitor and the USB port on PC with a USB cable. (2) The USB downstream port is now ready for any USB device to plug in (e)Turn on your computer and monitor. If the monitor displays an image, installation is complete. Note: The USB plug is a pass through connection whether it can support USB 1.1 or USB 2.0 depends on your PC's specification Installing Your LCD Monitor Front View Product Description 1 To switch monitor's power On and Off 2 To access OSD menu 3 To adjust the OSD 4 To adjust brightness of the display 5 To adjust the OSD 6 Automatically adjust the horizontal position, vertical position, phase and clock setting AUTO Rear View 1 AC power input 2 DVI-I input 3 D-SUB Input 4 Kensington anti-thief lock 5 USB upstream and downstream Connect to PC Connect the power cord and DVI cable to the back of the monitor firmly. (Philips has pre-connected VGA cable for the first installation.) Connection to PC http://www.wjel.net 6 200WP7 LCD Go to cover page Description of the On Screen Display What is the On-Screen Display? This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the monitors directly through an on-screen instruction window. The user interface provides user-friendliness and ease-of-use when operating the monitor. Basic and simple instruction on the control keys. When you press the button on the front control of your monitor, the On-Screen Display (OSD) Main Controls window will pop up and you can then start making adjustments to your monitor's various features. Use the or the keys to make your adjustments The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. On Screen Display http://www.wjel.net 7 200WP7 LCD Go to cover page On Screen Display http://www.wjel.net 8 200WP7 LCD Go to cover page On Screen Display http://www.wjel.net 9 200WP7 LCD Go to cover page On Screen Display http://www.wjel.net 10 200WP7 LCD Go to cover page All units that are returned for service or repair must pass the original manufactures safety tests. Safety testing requires both and testing. Hipot Ground Continuity HI-POT TEST INSTRUCTION 1.Application requirements 2. 1.1 All mains operated products must pass the Hi-Pot test as described in this instruction. 1.2 This test must be performed again after the covers have been refitted following the repair, inspection or modification of the product. 2.1 Connecting conditions 2.1.1 The test specified must be applied between the parallel- blade plug of the mainscord and all accessible metal parts of the product. 2.1.2 Before carrying out the test, reliable conductive connections must be ensured and thereafter be maintained throughout the test period. 2.1.3 The mains switch(es) must be in the "ON" position. 2.2 Test Requirements All products should be HiPot and Ground Continuity tested as follows: Test 2820VDC 1700VDC Test current: voltage (2000VAC) (1200VAC) 25A,AC Test time: Test time 3 seconds 1 second 3 seconds(min.) (min.) Resistance required: Trip set at 100 uA 5 mA <=0.09+Rohm, current for Max. R is the (Tester) limitation; set resistance of at 0.1 uA for the mains cord. Min. Limitation Ramp set at 2 time seconds (Tester) Test method Condition HiPot Test for HiPot Test for Ground Continuity products where products where Test requirement the mains input the mains input is range is Full 110V AC(USA range(or 220V type) AC) 2.2.1 The minimum test duration for Quality Control Inspector must be 1 minute. 2.2.2 The test voltage must be maintained within the specified voltage + 5%. 2.2.3 There must be no breakdown during the test. 2.2.4 The grounding blade or pin of mains plug must be conducted with accessible metal parts. 3. Equipments and Connection 3.1. Equipments For example : - ChenHwa 9032 PROGRAMMABLE AUTO SAFETY TESTER - ChenHwa 510B Digital Grounding Continuity Tester - ChenHwa 901 (AC Hi-pot test), 902 (AC, DC Hi-pot test) Withstanding Tester 3.2. Connection 4. Recording Hipot and Ground Continuity testing records have to be kept for a period of 10 years. * Turn on the power switch of monitor before Hipot and Ground Continuity testing. Connect the "video cable" or "grounding screw" to the CLIP on your tester. Video cable (Rear view of monitor) Connect the power cord to the monitor. Grounding screw Power outlet (ChenHwa 9032 tester) Clip Clip http://www.wjel.net 11 200WP7 LCD Go to cover page Front View To Lock/Unlock OSD FUNCTION(User Mode) The OSD function can be locked by pressing"OK"button for more than 10 seconds, the screen shows following windows for 3 seconds. Everytime when you press"AUTO" or "OK" button, this message app- ears on the screen automatically. ATTENTION SIGNAL OSD MAIN CONTROLS UNLOCKED Unlock OSD function Locked OSD function can be released by pressing "OK" button for more than 10 seconds again ATTENTION SIGNAL OSD MAIN CONTROLS LOCKED NO VIDEO INPUT This screen appears if there is no video signal input. Please check that the signal is properly connected to the video card of PC and make sure PC is on ATTENTION SIGNAL CHECK CABLE CONNECTION WAIT FOR AUTOMATIC ADJUSTMENT This screen appears when you press the "AUTO" buttons at the same time. It will disappear when the monitor is properly adjusted ATTENTION SIGNAL WAITING FOR AUTOMATIC ADJUSTMENT Access Aging.. Mode Step 1 : Turn off LCD monitor, and disconnect Interface Cable between Monitor and PC. Step 2 : [Push " " & " " buttons at the same time and hold it]+[Press power " " button until comes out " AGING screen" ] => then release all buttons. Bring up: AGING... After 15 seconds, bring up: After 15 seconds, bring up: AGING... After 15 seconds, bring up: ---------- ---------- repeatly Connect Signal cable again=> go back to normal display http://www.wjel.net 12 200WP7 LCD Go to cover page Front Control Panel Access Factory Mode How to get into Factory Mode Menu Step1: Turn off monitor. Step2: [Push " " & " " buttons at the same time and hold it] +[Press power " " button untill comes out "Windows screen" ] => then release all buttons Step3: Press OK " " button, bring up Factory mode indication as shown in Fig2. Factory Mode indicator http://www.wjel.net 13 200WP7 LCD Go to cover page Philips' Flat Panel Monitors Pixel Defect Policy Pixels and Subpixels Types of Pixel Defects Philips strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practice stringent quality control. However, pixel or subpixel defects on the TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT LCD panel must exceed these acceptable levels. For example, no more than 0.0004% of the subpixels on a 15" XGA monitor may be defective. Furthermore, Philips sets even higher quality standards for certain types or combinations of pixel defects that are more noticeable than others. This policy is valid worldwide . A pixel, or picture element, is composed of three subpixels in the primary colors of red, green and blue. Many pixels together form an image. When all subpixels of a pixel are lit, the three colored subpixels together appear as a single white pixel. When all are dark, the three colored subpixels together appear as a single black pixel. Other combinations of lit and dark subpixels appear as single pixels of other colors. Pixel and subpixel defects appear on the screen in different ways. There are two categories of pixel defects and several types of subpixel defects within each category. Bright Dot Defects Bright dot defects appear as pixels or subpixels that are always lit or "on". These are the types of bright dot defects: One lit red, green or blue subpixel Two adjacent lit subpixels: - Red + Blue = Purple - Red + Green = Yellow - Green + Blue = Cyan (Light Blue) Three adjacent lit subpixels (one white pixel) Black Dot Defects Proximity of Pixel Defects Pixel Defect Tolerances Black dot defects appear as pixels or subpixels that are always dark or "off". These are the types of black dot defects: One dark subpixel Two or three adjacent dark subpixels Because pixel and subpixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or subpixel defects exceeding the tolerances listed in the following tables. Note: * 1 or 2 adjacent sub pixel defects = 1 dot defect Your Philips monitor is ISO13406-2 Compliant http://www.wjel.net 14 Go to cover page Failure Mode Of Panel 200WP7 LCD Failure description Phenomenon Vertical block defect Vertical dim lines Vertical lines defect (Always bright or dark) Horizontal block defect Horizontal dim lines Horizontal lines defect (Always bright or dark) Has bright or dark pixel Polarizer has bubbles Polarizer has bubbles Foreign material inside polarizer. It shows liner or dot shape. Concentric circle formed Bottom back light of LCD is brighter than normal Back light un-uniformity Backlight has foreign material. Black or white color, liner or circular type Quick reference for failure mode of LCD panel this page presents problems that could be made by LCD panel. It is not necessary to repair circuit board. Simply follow the mechanical instruction on this manual to eliminate failure by replace LCD panel. http://www.wjel.net Troubleshooting 15 Go to cover page 200WP7 LCD This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these solutions, contact Philips customer service representative. Common Problems Having this problem Check these items No Picture (Power LED not lit) � Make sure the power cord is plugged into the power outlet and into the back of the monitor. � First, ensure that the power button on the front of the monitor is in the OFF position, then press it to the ON position. No Picture (Power LED is amber or yellow) � Make sure the computer is turned on. � Make sure the signal cable is properly connected to your computer. � Check to see if the monitor cable has bent pins. � The Energy Saving feature may be activated Screen says � Make sure the monitor cable is properly connected to your computer. (Also refer to the Quick Set-Up Guide). � Check to see if the monitor cable has bent pins. � Make sure the computer is turned on. AUTO button not working properly � The Auto Function is designed for use on standard Macintosh or IBM-compatible PCs running Microsoft Windows. � It may not work properly if using nonstandard PC or video card. Imaging Problems Display position is incorrect � Press the Auto button. � Adjust the image position using the Phase/Clock of More Settings in OSD Main Controls. Image vibrates on the screen Check that the signal cable is properly connected to the graphics board or PC http://www.wjel.net 16 Go to cover page 200WP7 LCD Troubleshooting Vertical flicker appears � Press the Auto button. � Eliminate the vertical bars using the Phase/Clock of More Settings in OSD Main Controls. Horizontal flicker appears � Press the Auto button. � Eliminate the vertical bars using the Phase/Clock of More Settings in OSD Main Controls. The screen is too bright or too dark � Adjust the contrast and brightness on Monitor Setup. (The backlight of the LCD monitor has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer). An after-image appears � If an image remains on the screen for an extended period of time, it may be imprinted in the screen and leave an after-image. This usually disappears after a few hours An after-image remains after the power has been turned off. � This is characteristic of liquid crystal and is not caused by a malfunction or deterioration of the liquid crystal. The after-image will disappear after a peroid of time. Green, red, blue, dark, and white dots remains The remaining dots are normal characteristic of the liquid crystal used in today’s technology For further assistance, refer to the Consumer Information Centers list and contact Philips customer service representative http://www.wjel.net 17 Step 4: Pull out the foot from base as Fig 5 Fig.6. 200WP7 LCD Mechanical Instructions Go to cover page 1.Back view as Fig.1 Fig.1 3. Remove cable base as Fig7 and Fig.8 Fig.2 Fig.3 Fig.4 4.Remove back cover as Fig.9 and Fig.10 Fig.5 Fig.6 Fig.7 5.Remove the shielding Unscrew the screws Unscrew the 2 screws and open the clicks on the sides -Unscrew the screws and then pull down the shielding as Fig.11 Fig.12 Fig.8 Fig.9 Fig.10 2.remove the base -Step 1: Place the monitor face down on a smooth surface as Fig 2. Be carefully to prevent the scratch and injury during the uninstallation. Step 2: Unfasten one screw on the base stand as Fig 3. Step 3: Firmly insert the base removal tool into four-pronged clicks as Fig 4 Base Column Base stand Base Column Base stand Fig.12 http://www.wjel.net 18 Go to cover page 200WP7 LCD Mechanical Instructions Fig.11 6.Remove the power board and scaler board -unscrew the screws and disconnect the connectors as Fig.13,Fig.14 Fig.13 Fig.14 7.Reomve the USB board -Disconnect the connector and unscrew the screws as shown in Fig.15 Fig.15 8. Remove the control board -unscrew the screws and disconnect the connector as Fig.16 Fig.16 http://www.wjel.net 19 Go to cover page 200WP7 LCD TO access factory mode 1. Turn off monitor(do not turn off PC) 2. Press AUTO , OK and the power simultaneously on the frond control panel, then press OK wait till the OSD menu come on the screen of monitor. 3.If OSD menu disappears on the screen of monitor. press OK again(anytime), then the OSD menu comes on the screen again. 4. Use to select OSD menu. 5. Use to access/confirm the selection. Move the cursor to yellow area (see red circle on Fig.1) press OK button to access to factory mode.(see Fig.2) Fig.1 Fig.2 Fig.3 Fig.7 Fig.4 Fig.6 O-CAL PC mode WHITE-D adjustment (B) 1 Apply 1280X1024/60Hz mode with 64 gray level pattern as Fig 3. Set main controls brightness control at 100% and contrast to 50% on User mode. Set color setting at original panel color on User mode. Move cursor to "Auto-SUB" item on factory mode, press "OK" key to activate this function. 2.6 Switch light probe to Viewing position. 2.7 Move the Lens barrel forward or backward to get clear image as shown in Fig. 7 2.8 Switch light probe to Measuring position. It should be able to indicate colour value on the CA-110. 2. Apply a 1280x1024/60Hz signal with white pattern.Set brightness control at 100% and contrast control at 50%. Adjust the R.G.B gain to reach special color temperature on center ofscreen. 2.1 Aim the probe CA-A30 at the center of screen as Fig. 4 2.2 Remove the lens protective cover of probe CA-A30. 2.3 Set Measuring/viewing selector to Measuring position for reset analyzer. (Zero calibration) as Fig. 5 2.4 Turn on the colour analyzer (CA-110). 2.5 Press 0-CAL button to start reset analyzer. See Fig. 6 Display Adjustment http://www.wjel.net 20 Go to cover page 200WP7 LCD 2.9 Adjust the R, G, B Sub-Gain on factory mode for the screen center, the 1931 CIE chromaticity (X, Y) co-ordinates shall be as follows. Use Minolta CA-110 for colour coordinates and luminance check. Luminance is > 250 Nits in the center of the screen when brightness at 100% and contrast set to 100%. Factory Preset (B): After finished all the adjustment, set: OSD Default Setting: Brightness: 100% Contrast: 50% Adjust size: Full screen Language: English Colour: 6500K OSD position: middle of the LCD screen Input Selection: Default as PC VGA (D-sub) Signal cable: Connect to the monitor for user (VGA) 9300�K 6500�K x (center) 0.283 � 0.005 0.313 � 0.005 y (center) 0.297 � 0.005 0.329 � 0.005 sRGB x(center) 0.313 � 0.008 y(center) 0.329 � 0.008 Ynits 220 � 10 http://www.wjel.net PIN No. SIGNAL 1 Red 2 Green/ SOG 3 Blue 4 Sense (GND) 5 NC 6 Red GND 7 Green GND 8 Blue GND 9 DDC +5V 10 Cable detect (GND) 11 Sense (GND) 12 Bi-directional data 13 H/H+V sync 14 V-sync 15 Data clock 21 Go to cover page 200WP7 LCD To Monitor D-sub/DVI cable DC 8~12V To Printer port Power indicator To Monitor D-sub cable DC 8~12V To Printer port Power indicator General DDC Data Re-programming Analog DDC IC, & EEPROM Additional information In case the DDC data memory IC or main EEPROM which storage all factory settings were replaced due to a defect, the serial numbers have to be re-programmed" ". It is advised to re-soldered DDC IC and main EEPROM from the old board onto the new board if circuit board have been replaced, in this case the DDC data does not need to be re-programmed. Additional information about DDC (Display Data Channel) may be obtained from Video Electronics Standards Association (VESA). Extended Display Identification Data(EDID) information may be also obtained from VESA. 1. An i486 (or above) personal computer or compatible. 2. Microsoft operation system Windows 95/98 . Y o Install the EDID_PORT_Tool under Win2000/XP . As Fig. 1 . A. Copy the "UserPort.sys" to C:\WINNT\system32\drivers(win2000) C:\WINDOWS\system32\drivers(winXP) B. Running " io.exe" everytime, Before you start to programming edid data . 4. DDC 2BI-ISP TOOL: Inclusion : A. DDC2BI-ISP TOOL(3138 106 10396) x1 (as Fig. 2) B. Printer cable x1 c. (D-Sub) to (D-Sub) cable x2 D. D-SUB to DVI cable X1 Note: The EDID45.1EXE is a windows-based program, which cannot be run in MS-DOS. System and equipment requirements ou have t 3. EDID45.1exe program . Fig. 2 Fig. 2 Fig. 1 Fig. 1 Pin Assignment Fig. 3 Fig. 3 Fig. 4 Fig. 4 Input analog D-SUB connector pin assignment Fig.5 DDC Instructions Pin No. Description 1 TMDS data2- 2 TMDS data2+ 3 TMDS data2/4 shield 4 NC 5 NC 6 DDC clock 7 DDC data 8 NC 9 TMDS data1- 10 TMDS data1+ 11 TMDS data1/3 shield 12 NC 13 NC 14 +5V 15 Ground (return for +5V and H/Vsync) 16 Hot plug detect 17 TMDS data0- 18 TMDS data0+ 19 TMDS data0/5 shield 20 NC 21 NC 22 TMDS clock shield 23 TMDS clock+ 24 TMDS clock- Input DVI-D connector pin assignment http://www.wjel.net 22 Go to cover page 200WP7 LCD Step 3: Installation of EDID45.EXE Method 1: Start on DDC program Start Microsoft Windows. 1. The Program"EDID45.EXE" in service manual cd-rom be copyed to C:\ . 2. Click , choose Run at start menu of Windows as shown In Fig. 6. Fig. 6 4. Click button. The main menu appears (as shown in Fig. 8). OK This is for initialize alignment box. Fig. 8 Fig. 7 Fig. 9 Note 1: If the connection is improper, you will see the following error message (as shown in Fig. 9) before entering the main menu. Meanwhile, the (read EDID) function will be disable. At this time, please make sure all cables are connected correctly and 3. At the submenu, type the letter of your computer's hard disk drive followed by :EDID45 (for example, C:\EDID45, as shown in Fig. 7). Note 2: During the loading, EDID45 will verify the EDID data which just loaded from monitor before proceed any further function, once the data structure of EDID can not be recognized, the following error message will appear on the screen as below. Please confirm following steps to avoid this message. 1. The data structure of EDID was incorrect. 2. DDC IC that you are trying to load data is empty. 3. Wrong communication channel has set at configuration setup 1 Configuration and procedure There are 3 chips contained OSD string, serial number..etc on the circuit board, main EEPROM which storage all factory settings,OSD string. DDC IC which storage 128byte EDID data(serial number ..etc.). Following descirptions are the connection and procedure for Analog /Digital and main EEPROM can be re-programmed along with Analog/Digital IC by enable factory memory data write function on the DDC program (EDID45.EXE). Initialize alignment box In order to avoid that monitor entering power saving mode due to sync will cut off by alignment box, it is necessary to initialize alignment box before running programming software (EDID45.EXE). Following steps show you the procedures and connection. Step 1: Supply 8-12V DC power source to the Alignment box by plugging a DC power cord or using batteries. Step 2: Connecting printer cable and D-Sub cable of monitor as Fig. 5 Fig. 5 PC 1=Power connector 2=D-SUB/DVI connector To printer port (LTP1) DC Power 8-12 V Fig. 10 Printer Port To Monitor To PC 2 -----> 1 -----> Edid45.exe Edid45.1 DDC Instructions http://www.wjel.net 23 Go to cover page 200WP7 LCD To Monitor D-sub/DVI cable DC 8~12V To Printer port Power indicator To Monitor D-sub cable DC 8~12V To Printer port Power indicator DDC Instructions To Monitor D-sub/DVI cable DC 8~12V To Printer port Power indicator To Monitor D-sub cable DC 8~12V To Printer port Power indicator PC To printer port (LTP1) Printer Port To Monitor To PC To Monitor D-sub/DVI cable DC 8~12V To Printer port Re-programming Analog DDC IC Step 1: After initialize alignment box, connecting all cables and box as shown in Fig. 11 Fig. 12 Step 2: Read DDC data from monitor 1. Click icon as shown in Fig. 11 from the tool bar to bring up the Channels "Configuration Setup" windows as shown in Fig. 12. Step 3: Modify DDC data (verify EDID version, week, year) 1. Click (new function) icon from the tool bar, bring up Step 1 of 9 as shown in Fig. 15 . EDID45 DDC application provides the function selection and text change (select & fill out) from Step 1 to Step 9. Step 4: Modify DDC data (Monitor Serial No.) Next 1. Click to step7, bring up Fig. 16. - Serial number can be filled up or be changed at this moment. - Click Finish to exit the Step window. 3. Click OK button to confirm your selection. 4. Click icon (Read EDID function) to read DDC EDID data from monitor. The EDID codes will display on screen as shown in Fig. 14. Fig. 16 2. Select the DDC2Bi as the communication channel. As shown in Fig. 13. Fig. 11 1=Power connector 2=D-SUB connector Fig. 13 Fig. 14 Fig. 15 Fig. 17 Step 5: Write DDC data 1. Configuration should be as Fig. 17. And press OK. http://www.wjel.net 24 Go to cover page 200WP7 LCD DDC Instructions Step 6: Save DDC data Sometimes, you may need to save DDC data as a text file for using in other IC chip. To save DDC data, follow the steps below: 1. Click (Save) icon (or click "file"-> "save as") from the tool bar And give a file name as shown in Fig. 18. The file type is EDID45 file (*.ddc) which can be open in WordPad. By using WordPad, the texts of DDC data & table (128 bytes, hex code) can be modified. If DDC TEXTS & HEX Table are completely correct, it can be saved as .ddc flie to re-load it into DDC IC for DDC Data application. 2. Click . Save Step 7: Exit DDC program Pull down the File menu and select Exit as shown in Fig. 19. 3. Click (Write EDID) icon from the tool bar to write DDC data. Fig. 19 Fig. 25 2. Access Factory Mode [Push AUTO " " & OK " " buttons at the same time and hold it ] + [Press power " " button untill comes out "Windows screen"] => then release all button - Turn off monitor. - Edid45.1 Analog Fig.18 Step9: -1. Disconnect the monitor power cord and connect it again. -2. Press the OK button to bring up the OSD main manu. -3. Re-confirm the serial Number is updated as shown in Fig.23. Step : 8 Modify serial number in OSD -1. Unzip the serial number.zip to your computer, then open the folder as shown in Fig.20. -2. If use Win98 OS, you can execute SN.exe directly. If use Win2000 or XP OS, first, you must execute install.bat, then execute SN.exe -3. Set I2C bus(press the left-top button of operating window) as shown in Fig.21, then press " SET" button. -4. Set Block2 as shown in Fig.22 -5. key in new serial number, then press " Write" button as shown in Fig.22 , Click " WRITE" button. -6. It will appear" Serial Number Write OK" , Click" Enter" to finish it. Fig.20 Fig.21 Fig.22 Fig.23 200WP7 http://www.wjel.net 25 Go to cover page 200WP7 LCD To Monitor D-sub/DVI cable DC 8~12V To Printer port Power indicator To Monitor D-sub cable DC 8~12V To Printer port Power indicator DDC Instructions To Monitor D-sub/DVI cable DC 8~12V To Printer port Re-programming Digital DDC IC Step 1: After initialize alignment box, connecting all cables and box as shown in Fig. 24 Fig. 25 Step 2: Read DDC data from monitor 1. Click icon as shown in Fig. 25 from the tool bar to bring up the Channels "Configuration Setup" windows as shown in Fig. 26. Step 3: Modify DDC data (verify EDID version, week, year) 1. Click (new function) icon from the tool bar, bring up Step 1 of 9 as shown in Fig. 28 . EDID45 DDC application provides the function selection and text change (select & fill out) from Step 1 to Step 9. Step 4: Modify DDC data (Monitor Serial No.) Next 1. Click , bring up Fig. 29. Then select Digital Signal as below 3. Click OK button to confirm your selection. 4. Click icon (Read EDID function) to read DDC EDID data from monitor. The EDID codes will display on screen as shown in Fig. 27. Fig. 29 Fig. 30 2. Select the DDC2Bi as the communication channel. As shown in Fig. 26. Fig. 26 Fig. 27 Fig. 28 Fig.24 Printer Port To Monitor To PC 1=DVI connector 2=D-SUB connector 3=Power Plug 3 To Monitor D-sub/DVI cable DC 8~12V 2. Click to step7, bring up Fig. 30. Next - Serial number can be filled up or be changed at this moment. - Click Finish to exit the Step window. http://www.wjel.net 26 Go to cover page 200WP7 LCD DDC Instructions Step 6: Save DDC data Sometimes, you may need to save DDC data as a text file for using in other IC chip. To save DDC data, follow the steps below: 1. Click (Save) icon (or click "file"-> "save as") from the tool bar And give a file name as shown in Fig. 32. The file type is EDID46 file (*.ddc) which can be open in WordPad. By using WordPad, the texts of DDC data & table (128 bytes, hex code) can be modified. If DDC TEXTS & HEX Table are completely correct, it can be saved as .ddc flie to re-load it into DDC IC for DDC Data application. 2. Click . Save Step 7: Exit DDC program Pull down the File menu and select Exit as shown in Fig. 33. Step 5: Write DDC data 1. Configuration should be as Fig. 31. And press OK. 3. Click (Write EDID) icon from the tool bar to write DDC data. Fig. 31 Fig. 33 Fig. 32 2. Access Factory Mode [Push AUTO " " & OK " " buttons at the same time and hold it ] + [Press power " " button untill comes out "Windows screen"] => then release all button - Turn off monitor. - Edid45.1 200P7 BOM Code Panel Supplier CODE AUO 1 CPT 2 LPL(LG) 3 QDI 4 CMO 5 B Z 3 A 0 6 0 1 0 0 0 0 0 1 SERIAL NO YEAR/WEEK SERVICE VERSION CHANGE CODE BOM CODE(BILL OF MATERIAL)CODE SITE CODE(PRODUCTION CENTER) BZ CODE(AR-CZECH REPUBLIC VN-HUNGARY(SZR),BZ-SUZHOU DS-DONGGUAN) http://www.wjel.net 27 Go to cover page 200WP7 LCD To Monitor D-sub/DVI cable DC 8~12V To Printer port Power indicator To Monitor D-sub cable DC 8~12V To Printer port Power indicator DDC Data THE DISPLAY DATA CHANNEL (DDC 2B) CONTENT INCLUDING (FOR HUDSON 7-200WP7 Analog AUO panel) ********************************************************************** EDID log file for 200WP7 Analog ********************************************************************** Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : 0843 (HEX.) ID Serial Number : 123456 (DEC.) Week of Manufacture : 50 Year of Manufacture : 2005 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Analog Video Input 0.700V/0.300V (1.00Vpp) without Blank-to-Black Setup Separate Sync Composite Sync Sync on Green no Serration required Maximum H Image Size : 43 Maximum V Image Size : 27 Display Transfer Characteristic : 2.2 (gamma) Feature Support (DPMS) : Standby Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.64 Red Y coordinate : 0.352 Green X coordinate : 0.288 Green Y coordinate : 0.628 Blue X coordinate : 0.144 Blue Y coordinate : 0.076 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings : 1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #3 Horizontal active pixels : 1280 Aspect Ratio : 4:3 Refresh Rate : 60 Standard Timing Identification #4 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Standard Timing Identification #5 Horizontal active pixels : 1600 Aspect Ratio : 4:3 Refresh Rate : 60 Standard Timing Identification #6 Horizontal active pixels : 1680 Aspect Ratio : 16:10 Refresh Rate : 60 Standard Timing Identification #7 Horizontal active pixels : 1680 Aspect Ratio : 16:10 Refresh Rate : 75 Detailed Timing #1 Pixel Clock (MHz) : 146 H Active (pixels) : 1680 H Blanking (pixels) : 560 V Active (lines) : 1050 V Blanking (lines) : 39 H Sync Offset (F Porch) (pixels): 104 H Sync Pulse Width (pixels) : 176 V Sync Offset (F Porch) (lines) : 3 V Sync Pulse Width (lines) : 6 H Image Size (mm) : 433 V Image Size (mm) : 271 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY 123456 Monitor Descriptor #3 Monitor Name : Philips 200WP Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 98 Max. Supported Pixel : 210 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : 6C (HEX.) ********************************************************************** EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 43 11: 08 12: 40 13: e2 14: 01 15: 00 16: 32 17: 0f 18: 01 19: 03 20: 1e 21: 2b 22: 1b 23: 78 24: ee 25: cf 26: e5 27: a3 28: 5a 29: 49 30: a0 31: 24 32: 13 33: 50 34: 54 35: bf 36: ef 37: 80 38: 71 39: 4a 40: 71 41: 4f 42: 81 43: 40 44: 81 45: 80 46: a9 47: 40 48: b3 49: 00 50: a9 51: 4f 52: b3 53: 0f 54: 08 55: 39 56: 90 57: 30 58: 62 59: 1a 60: 27 61: 40 62: 68 63: b0 64: 36 65: 00 66: b1 67: 0f 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59 80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36 88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 32 104: 30 105: 30 106: 57 107: 50 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 62 117: 15 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 6c Standard Timing Identification #1 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 70 Standard Timing Identification #2 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 http://www.wjel.net 28 Go to cover page 200WP7 LCD DDC Data THE DISPLAY DATA CHANNEL (DDC 2B) CONTENT INCLUDING (FOR HUDSON7-200WP7 Digital QDI panel) ********************************************************************** EDID log file for 200WP7 Digital ********************************************************************** Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : 0843 (HEX.) ID Serial Number : 123456 (DEC.) Week of Manufacture : 50 Year of Manufacture : 2005 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Digital Video Input Compatible with VESA DFP 1.x Maximum H Image Size : 43 Maximum V Image Size : 27 Display Transfer Characteristic : 2.2 (gamma) Feature Support (DPMS) : no Standby no Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.64 Red Y coordinate : 0.352 Green X coordinate : 0.288 Green Y coordinate : 0.628 Blue X coordinate : 0.144 Blue Y coordinate : 0.076 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings : 1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #1 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 70 Standard Timing Identification #2 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 Standard Timing Identification #3 Horizontal active pixels : 1280 Aspect Ratio : 4:3 Refresh Rate : 60 Standard Timing Identification #4 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Standard Timing Identification #5 Horizontal active pixels : 1600 Aspect Ratio : 4:3 Refresh Rate : 60 Standard Timing Identification #6 Horizontal active pixels : 1680 Aspect Ratio : 16:10 Refresh Rate : 60 Detailed Timing #1 Pixel Clock (MHz) : 146 H Active (pixels) : 1680 H Blanking (pixels) : 560 V Active (lines) : 1050 V Blanking (lines) : 39 H Sync Offset (F Porch) (pixels): 104 H Sync Pulse Width (pixels) : 176 V Sync Offset (F Porch) (lines) : 3 V Sync Pulse Width (lines) : 6 H Image Size (mm) : 433 V Image Size (mm) : 271 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY 123456 Monitor Descriptor #3 Monitor Name : Philips 200WP Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 98 Max. Supported Pixel : 170 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : 83 (HEX.) ********************************************************************** EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 43 11: 08 12: 40 13: e2 14: 01 15: 00 16: 32 17: 0f 18: 01 19: 03 20: 81 21: 2b 22: 1b 23: 78 24: 2e 25: cf 26: e5 27: a3 28: 5a 29: 49 30: a0 31: 24 32: 13 33: 50 34: 54 35: bf 36: ef 37: 80 38: 71 39: 4a 40: 71 41: 4f 42: 81 43: 40 44: 81 45: 80 46: a9 47: 40 48: b3 49: 00 50: 01 51: 01 52: 01 53: 01 54: 08 55: 39 56: 90 57: 30 58: 62 59: 1a 60: 27 61: 40 62: 68 63: b0 64: 36 65: 00 66: b1 67: 0f 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59 80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36 88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 32 104: 30 105: 30 106: 57 107: 50 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 62 117: 11 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 83 http://www.wjel.net 29 Go to cover page 200WP7 LCD To Monitor D-sub/DVI cable DC 8~12V To Printer port Power indicator To Monitor D-sub cable DC 8~12V To Printer port Power indicator Step 5 :Copy the .hex code to C:\200WP7 as shown in Fig. 5 . 6. Run the Easywriter program Step 1 : Make a folder in your PC as shown in Fig. 3. For example : C:\easywrite Step 2 : Copy ISP Software Easywriter into your folder as shown in Fig.3. Step 3 : Unzip Easywriter.zip into your folder as shown in Fig. 3. Step 4 : Double click the EasywriterV2.09.exe icon to run the Application as Fig. 4. .zip Configuration and procedure "Easywriter " The software The tool (3138 106 10396) is provided by Novatek to upgrade the firmware of CPU. is for the interface between "Parallel Port of PC" and "15 pin-D-SUB connector of Monitor". It is a windows-based program, which cannot be run in MS-DOS. System and equipment requirements 1. An i486 (or above) personal computer or compatible. 2. Microsoft operation system Windows 95/98/2000/XP. 4. ISP as shown in Fig. 1 3. ISP Software " Easywrite " TOOL (3138 106 10396) 5 Connect and Mains cord to Monitor as shown in Fig. 2. . ISP TOOL Fig. 1 Fig. 4 Fig. 5 Fig. 6 Fig. 7 170S5 170S5 Update the firmware 1. Press the load hex then select the .hex code as shown in Fig.6 2. Press the AUTO to run the program,the firmware be updated as shown in Fig7`Fig.8 Fig.8 PC To printer port (LTP1) To video card Video cable Connect to Mains cord Monitor (A) 200WP7 LCD (B) D-Sub AC POWER Port To ToPC DC 8-12V 313810610396 + Double click the shortcut on the desktop ISP Instruction http://www.wjel.net 30 Go to cover page 200WP7 LCD If there is a warring message coming as shown in Fig 10. , you have to check the AC power, Video cable, or Novatek MCU. Press the file exit to end program, as shown in Fig.9 Fig.9 You can enter factory mode to confirm the CPU version ISP Instruction http://www.wjel.net 31 200WP7 LCD Go to cover page Electrical instructions 1. General points 1.1 During the test and measuring, supply a distortion free AC mains voltage to the apparatus via an isolated transformer with low internal resistance. 1.2 All measurements mentioned hereafter are carried out at a Normal mains voltage (90 - 132 VAC for USA version, 195 -264 VAC for EUROPEAN version, or 90 - 264 VAC for the model with full range power supply, unless otherwise stated.) 1.3 All voltages are to be measured or applied with respect to ground, unless otherwise stated. Note: don‘t use heat-sink as ground. 1.4 The test has to be done on a complete set including LCD panel in a room with temperature of 25 +/- 5 degree C. 1.5 All values mentioned in these test instruction are only applicable of a well aligned apparatus, with correct signal. 1.6 The letters symbols (B) and (S) placed behind the test instruction denotes (B): carried out 100% inspection at assembly line (S): carried out test by sampling 1.7 The white balance (color temperature), has to be tested in subdued lighted room. 1.8 Repetitive power on/ off cycle are allowed. The image can be displayed after 8 sec. 1.9 All optical characteristics (including WHITE-D, Brightness, and so on) are determined according to panel specification after warming up approximate 30 minutes that brightness stability is optimal, and follow strictly after panel specification. 2. Input signal Signal type 2.1.1 Analogue Video: 0.7 Vp-p linear, positive polarity Sync. : TTL level, separate, positive or negative polarity Signal source: pattern generator format as the SPEC. Reference generator: QuantumData 802G/ 802BT 2.1.2 Digital Video: 600mVp-p TMDS Signal 2.1.3 Audio Signal: PC line in 2.2 Input signal mode (1) Factory Preset Modes (15modes) Item H.Freq. (KHz) Mode Resolution V.Freq. (Hz) 1 31.469 IBM VGA 10H 640x350 70.086 2 31.469 IBM VGA 3H 720x400 70.087 3 31.469 IBM VGA 12H 640x480 59.940 4 35.000 MACINTOSH 640x480 67.000 5 37.500 VESA 640x480 75.000 6 35.156 VESA 800x600 56.250 7 37.879 VESA 800x600 60.317 8 46.875 VESA 800x600 75.000 Item H.Freq. (KHz) Mode Resolution V.Freq. (Hz) 9 48.363 VESA 1024x768 60.004 10 60.023 VESA 1024x768 75.029 11 68.700 MACINTOSH 1152x870 75.000 12 63.981 VESA 1280x1024 60.020 13 79.976 VESA 1280x1024 75.025 14 75.0 VESA 1600x1200 60 15 65.29 - 1680x1050 60.0 Preset Modes (40modes) Item H.Freq. (KHz) Mode Resolutio n V.Freq. (Hz) 1 31.469 IBM VGA 10H 640x350 70.086 2 31.469 IBM VGA 3H 720x400 70.087 3 31.469 IBM VGA 12H 640x480 59.940 4 35.000 MACINTOSH 640x480 67.000 5 37.861 VESA 640x480 72.809 6 37.500 VESA 640x480 75.000 7 43.269 VESA 640x480 85.008 8 35.156 VESA 800x600 56.250 9 37.879 VESA 800x600 60.317 10 48.077 VESA 800x600 72.188 11 46.875 VESA 800x600 75.000 12 53.674 VESA 800x600 85.061 13 49.700 MACINTOSH 832x624 75.000 14 56.4 - 960x720 75 15 44.75 - 960x720 60 16 48.363 VESA 1024x768 60.004 17 56.476 VESA 1024x768 70.069 18 60.023 VESA 1024x768 75.029 19 61.080 IBM XGA-2 1024x768 75.781 20 68.677 VESA 1024x768 84.997 21 47.776 CVT 2.3MA 1280 x768 60 Item H.Freq. (KHz) Mode Resolution V.Freq. (Hz) 22 60.289 CVT 2.3MA 1280 x768 75 23 54.1 1152x864 60 24 63.851 VESA 1152x864 70.012 http://www.wjel.net 32 200WP7 LCD Go to cover page Electrical instructions 25 67.500 VESA 1152x864 75.000 26 68.700 MACINTOSH 1152x870 75.000 27 61.845 SUN WS 1152x900 66.004 28 71.810 SUN WS 1152x900 76.150 29 60.000 VESA 1280x960 60.000 30 75.000 VESA 1280x960 75.000 31 63.981 VESA 1280x1024 60.020 32 71.691 SUN WS 1280x1024 67.189 33 76.000 DOS/V 1280x1024 72.000 34 79.976 VESA 1280x1024 75.025 35 81.130 SUN WS 1280x1024 76.110 36 91.1 VESA 1280x1024 85.0 37 78.36 CVT 2.3MA 1600x1000 75.0 (for D- Sub) 38 75.0 VESA 1600x1200 60.0 39 65.29 VESA 1680*1050 59.883 40 82.306 VESA 1680*1050 74.892 41 42 3. AC, DC power board 3.1 Setup the AC I/P at 90VAC, and Output DC 12V loading 1.1A (AU 0.6A), the DC output voltage is 12.0 +/-0 0.6 V DC, Adjusting is no need. and 5V loading 1.0A(AU 2.7A), the DC output voltage is 5V+/-0.25VDC. (B) 4. Display Adjustment 4.1 Access to factory mode (IIC) in auto-alignment system The communication protocol switch to IIC. 4.2 Auto color adjustment (B) Apply a 1280x1024/60Hz signal with Blackand white levels pattern, set brightness control at 100%, and contrast control at 50%. Adjust the R. G. B offset, and gain to calibrate the color smoothly and 64-gray level distinguishable. Check all factory pre-setting modes. 4.3 Adjustment of WHITE-D (B) Apply a 1280*1024 / 60Hz signal with white pattern, set brightness control at 100%, and contrast control at 50%. Adjust the R, G, B Sub-Gain, for the screen center, the 1931 CIE chromaticity (X, Y) co-ordinates shall be; Use Minolta CA-110 for colour coordinates and luminance check. Luminance is > 240 Nits in the center of the screen when brightness at 100% and contrast set to 100%. 4.4 Adjustment of sRGB Apply a 1280*1024 / 60Hz signal with white pattern, set brightness control at 100%, and contrast control at 50%. Adjust the R, G, B Sub-Gain, for the screen center, the 1931 CIE chromaticity (X, Y) co-ordinates shall be; 9300�K 6500�K x (center) 0.283 � 0.005 0.313 � 0.005 y (center) 0.297 � 0.005 0.329 � 0.005 sRGB x(center) 0.313 � 0.008 y(center) 0.329 � 0.008 Ynits 220 � 10 http://www.wjel.net 33 200WP7 LCD Go to cover page Repair Tips 0. Warning All ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the unit via a wrist wrap with resistance. Keep components and tools also at the same potential ! 1. Servicing of SMDs (Surface Mounted Devices) 1.1 General cautions on handling and storage - Oxidation on the terminals of SMDs results in poor soldering. Do not handle SMDs with bare hands. - Avoid using storage places that are sensitive to oxidation such as places with sulphur or chlorine gas, direct sunlight, high temperatures or a high degree of humidity. The capacitance or resistance value of the SMDs may be affected by this. - Rough handling of circuit boards containing SMDs may cause damage to the components as well as the circuit boards. Circuit boards containing SMDs should never be bent or flexed. Different circuit board materials expand and contract at different rates when heated or cooled and the components and/or solder connections may be damaged due to the stress. Never rub or scrape chip components as this may cause the value of the component to change. Similarly, do not slide the circuit board across any surface. 1.2 Removal of SMDs - Heat the solder (for 2-3 seconds) at each terminal of the chip. By means of litz wire and a slight horizontal force, small components can be removed with the soldering iron. They can also be removed with a solder sucker (see Fig. 1A) While holding the SMD with a pair of tweezers, take it off gently using the soldering iron's heat applied to each terminal (see Fig. 1 B). - Remove the excess solder on the solder lands by means of litz wire or a solder sucker (see Fig. 1C). 1.3 Caution on removal - When handling the soldering.iron. use suitable pressure and be careful. - When removing the chip, do not use undue force with the pair of tweezers. - The soldering iron to be used (approx. 30 W) should preferably be equipped with a thermal control (soldering temperature: 225 to 250 C). - The chip, once removed, must never be reused. 1.4 Attachment of SMDs - Locate the SMD on the solder lands by means of tweezers and solder the component on one side. Ensure that the component is positioned correctly on the solder lands (see Fig.2A). - Next complete the soldering of the terminals of the component (see Fiq. 2B). 2. Caution when attaching SMDs - When soldering the SMD terminals, do not touch them directly with the soldering iron. The soldering should be done as quickly as possible, care must be taken to avoid damage to the terminals of the SMDs themselves. - Keep the SMD's body in contact with the printed board when soldering. - The soldering iron to be used (approx. 30 W ) should preferably be equipped with a thermal control (soldering temperature: 225 to 250 C). - Soldering should not be done outside the solder land. - Soldering flux (of rosin) may be used, but should not be acidic. - After soldering, let the SMD cool down gradually at room temperature. - The quantity of solder must be proportional to the size of the solder land. If the quantity is too great, the SMD might crack or the solder lands might be torn loose from the printed board (see Fig. 3). Fig.3 Examples Right http://www.wjel.net 200WP7 LCD Go to cover page 34 Repair Tips 3. Lead-free product identification You can identify lead-free product by Philips-lead-free logo on PCB. 4. Lead-free product repair instruction 4.1 Use only lead-free Solder Alloy 0622 149 00106(1.2mm SAC305) or 0622 149 00108(1.0mm SAC305). Remark: For lead free soldering material, please visit www.alphametals.com website for details. This is recommended by Philips. 4.2 Use only adequate solder tools applicable for lead-free soldering-tin. The solder tool must be able to reach at least a solder-temperature of 400 , to stabilize the adjusted temperature at the solder-tip and to exchange solder-tips for different applications. Small Passives/Actives to be removed with thermal tweezers Automated system for IC and BGA repair (Microscope, Camera, Beam split optics, Computer, Programmer, Heat controllers, Vacuum system, Laser pointer) Solder Hand-Tool (Adjustable in temperature height, Temperature shall be held constant, Flexible tips) 4.3 Adjust your solder tool so that a temperature around 360 -380 is reached and stabilized at the solder joint. Heating-time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400 otherwise wear-out of tips will rise drastically and flux-fluid will be destroyed. Corrosion of Tool-Spikes can be avoided when using SAC305 and a temperature of less than 400 . 4.4 Mix of lead-free solder-tin/parts with leaded soldering-tin/parts is possible but not recommended. If not to avoid clean carefully the solder-joint from old tin and re-solder with new tin. 4.5 Use only original spare-parts listed in the Service-Manuals. Standard-material (consumables) can also be purchased at external companies. 4.6 Special information for lead-free BGA-ICs: this ICs will be delivered in so-called dry-packaging to protect the IC against moisture and with lead-free logo on it. This packaging may only be opened shortly before it is used (soldered). Otherwise the body of the IC gets wet inside and during the heating time the structure of the IC will be destroyed due to high (steam-)pressure. If the packaging was opened before usage the IC has to be heated up for some hours (around 90 ) for drying (Take attention for ESD-protection!) 5. Rework on BGA (Ball Grid Array) ICs General Although (LF)BGA assembly yields are very high, there may still be a requirement for component rework. By rework, we mean the process of removing the component from the PWB and replacing it with a new component. If an (LF)BGA is removed from a PWB, the solder balls of the component are deformed drastically so the removed (LF)BGA has to be discarded. Device Removal As is the case with any component that, it is essential when removing an (LF)BGA, the board, tracks, solder lands, or surrounding components are not damaged. To remove an (LF)BGA, the board must be uniformly heated to a temperature close to the reflow soldering temperature. A uniform temperature reduces the chance of warping the PWB. To do this, we recommend that the board is heated until it is certain that all the joints are molten. Then carefully pull the component off the board with a vacuum nozzle. For the appropriate temperature profiles, see the IC data sheet. Area Preparation When the component has been removed, the vacant IC area must be cleaned before replacing the (LF)BGA. Removing an IC often leaves varying amounts of solder on the mounting lands. This excessive solder can be removed with either a solder sucker or solder wick. The remaining flux can be removed with a brush and cleaning agent. After the board is properly cleaned and inspected, apply flux on the solder lands and on the connection balls of the(LF)BGA Note: Do not apply solder paste, as this has shown to result in problems during re-soldering. Device Replacement The last step in the repair process is to solder the new component on the board. Ideally, the (LF)BGA should be aligned under a microscope or magnifying glass. If this is not possible, try to align the (LF)BGA with any board markers. To reflow the solder, apply a temperature profile according to the IC data sheet. So as not to damage neighbouring components, it may be necessary to reduce some temperatures and times. More Information For more information on how to handle BGA devices, visit this URL: http://www.atyourservice.ce.philips.com (needs subscription). After login, select Magazine , then go to Workshop Information . Here you will find Information on how .to deal with BGA-ICs. " " " " " " P b http://www.wjel.net Repair Flow Chart 200WP7 LCD Go to cover page 35 AC IN Power Board Control Board Scaler Board LCD Panel No power (power indicator off) Check 12V/5V/3.3V NG Bad power board Check Control Board Check Control Wires Check Scaler Board OK NG OK Bad Scaler Board Check LCD Panel OK http://www.wjel.net X21 Repair Flow Chart 36 200WP7 LCD Go to cover page Power Board Bad Power Board OK NG OK OK Check Scaler Board Bad Scaler Board OK OK http://www.wjel.net 200WP7 LCD Repair Flow Chart Go to cover page 37 Check Power Board OK Check LCD Panel OK OK OK Control Board OK OK Board http://www.wjel.net 200WP7 Block Diagram • AC-DC Power supply Inverter and DC-DC converter (200mm x 150mm) Scalar(LVDS interface) Dual input (132 mm x 75mm) D_SUB AC input Connector Connector Connector Connector Connector 30 Pin wire harness(LVDS) RGB//DE/Hsync/Vsync Connector Connector DVI_D 30 pin wafer Panel PanelVcc (5V for QDI/AU) USB Hub Panel Backlight (3 CCFL) Panel Backlight (3 CCFL) Control Board Go to cover page 200WP7 LCD 38 Block Diagram http://www.wjel.net 39 200WP7 LCD Scaler Diagram-1 http://www.wjel.net 40 200WP7 LCD Scaler Diagram-2 http://www.wjel.net 41 200WP7 LCD Scaler Diagram-3 http://www.wjel.net 42 200WP7 LCD Scaler Diagram-4 http://www.wjel.net 43 200WP7 LCD Scaler Diagram-5 http://www.wjel.net 44 200WP7 LCD Scaler Board C.B.A.-1 http://www.wjel.net 45 200WP7 LCD Scaler Board C.B.A.-2 http://www.wjel.net 46 200WP7 LCD Scaler Board C.B.A.-3 http://www.wjel.net 47 200WP7 LCD Power Diagram-1 http://www.wjel.net 48 200WP7 LCD Power Diagram-2 http://www.wjel.net 49 200WP7 LCD Power Board C.B.A.-1 http://www.wjel.net 50 200WP7 LCD Power Board C.B.A.-2 http://www.wjel.net 51 200WP7 LCD http://www.wjel.net 52 200WP7 LCD http://www.wjel.net 53 200WP7 LCD http://www.wjel.net 54 200WP7 LCD http://www.wjel.net 55 200WP7 LCD http://www.wjel.net X21 56 200WP7 LCD Go to cover page http://www.wjel.net 200WP7 LCD 57 1 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION HUDSON7-200WP7 20.1 GENERAL PRODUCT SPECIFICATION . ANALOG AND DIGITAL DUAL INPUT . AUTO PICTURE ADJUSTMENT . 15 FACTORY PRESET MODES AND 40 PRESET MODES WHICH CAN BE RECOVERED TO PRESET MODES, 25 USER MODES . USER FRIENDLY OSD DISPLAY FOR MODE IDENTIFICATION /ADJUSTMENT . DDC 2B COMMUNICATION CAPABILITY . MAX. RESOLUTION 1680*1050 NON-INTERLACED AT 76 HZ . 20.1 COLOR TFT LCD FLAT PANEL . EASY TILT & FOLDABLE BASE . FULL RANGE POWER SUPPLY 90 - 264 VAC . CE ENVIRONMENTAL POLICY . ANTI-GLARE TO REDUCE LIGHT REFLECTION . POWER MANAGEMENT CAPABILITY . SOG SUPPORT . TCO 03 " " 8639 000 16908 http://www.wjel.net 58 200WP7 LCD 25 2 GENERAL PRODUCT SPECIFICATION(Continued) CONTENTS 1.0 Foreword 2.0 Product profile 2.1 LCD 2.2 Scanning frequencies 2.3 Video dot rate 2.4 Power input 2.5 Power consumption 2.6 Dimensions 2.7 Weight 2.8 Functions 2.9 Ambient temperature 2.10 Regulatory compliance 3.0 Electrical characteristics 3.1 Interface signals 3.1.1 Video 3.2 Interface 3.2.1 D-sub cable 3.2.2 DVI cable 3.2.3 OSD function control 3.3 Timing requirement 3.3.1 Mode storing capacity 3.3.2 Preset timings 3.3.3 Horizontal scanning 3.3.4 Vertical scanning 3.4 Power input connection 3.5 Power management 3.6 Display identification 3.6.1 Analog DDC 3.6.2 Digital DDC 4.0 Visual characteristics 4.1 Test conditions 4.2 Resolution 4.3 Brightness 4.4 Image size 4.4.1 Actual display size 4.4.2 Max. scan size 4.5 Brightness uniformity 4.6 Cross-talk 4.7 White color adjustment BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 59 3 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION 5.0 Mechanical characteristics 5.1 Controls 5.2 Unit dimension / weight 5.3 Tilt and swivel base 5.4 Transportation packages 5.4.1 Shipping dimension / weight 5.4.2 Block unit / palletization 6.0 Environmental characteristics 6.1 Susceptibility of display to external environment 6.2 Transportation tests 6.3 Display disturbances from external environment 6.4 Display disturbances to external environment 6.4.1 EMI 7.0 Reliability 7.1 Mean time between failures 8.0 Quality assurance requirements 8.1 Acceptance test 9.0 Serviceability 10.0 Lcd panel characteristics requirements 8639 000 16908 http://www.wjel.net 60 200WP7 LCD 25 4 GENERAL PRODUCT SPECIFICATION 1.0 FOREWORD This specification describes a 20.1" WSXGA multi-scan color TFT LCD monitor with max. resolution up to 1680*1050/ 60 Hz(digital) /1680*1050/75Hz(analog) non-interlaced. All optical characteristics (including WHITE-D, Brightness, and so on) are determined according to panel specification after warming up approximate 30 minutes that brightness stability is optimal, and follows strictly after panel specification. 2.0 PRODUCT PROFILE This display monitor unit is a color display monitor enclosed in PHILIPS global styling cabinet, which has an integrated tilt and swivel base. 2.1 LCD Type NR. : LM201W01 SLA1 (LG.PHILIPS) Outside dimensions : 459.4(H)�296.4(V)�22.8(D) (Typ) mm Pixel Pitch ( mm ) : 0.258 mm x 0258mm Color pixel arrangement : RGB vertical stripes Display surface : low reflection, antiglare with hard coating Color depth : 16.7M colors (8 bits) Backlight : Six CCFL‘s Active area(WxH) : 433.44x270.9mm (20.1”W diagonal) View angle : Horizontal & Vertical 178 degree (CR>=10) Contrast ratio : 600:1 (Typ) ,500 :1 (min) White luminance : Panel original color >250nits (min), 300 nits (Typ.) Type NR. : M201EW01 V0 (AUO) Outside dimensions : 459.4(H)�296.4(V)�22.8(D) (Typ.) mm Pixel Pitch ( mm ) : 0.258 mm x 0258mm Color pixel arrangement : RGB vertical stripes Display surface : low reflection, antiglare with hard coating Color depth : 16.7M colors (8 bits) Backlight : Six CCFL‘s Active area(WxH) : 433.44x270.9mm (20.1”W diagonal) View angle : Horizontal & Vertical 176 degree (CR>=10) Contrast ratio : 800:1 (Typ.) ,400 :1 (min) White luminance : Panel original color >240nits (min), 300 nits (Typ.) 2.2 Scanning frequencies Hor. : 30 - 98 K Hz Ver. : 56 - 76 Hz 2.3 Video dot rate : 210 MHz 2.4 Power input : 90-264 V AC, 50/60 � 2 Hz BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 61 5 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION 2.5 Power consumption : < 60W maximum with USB 2.6 Dimensions : 483(W) * 402(H) * 235(D) mm Weight : 8.6Kg 2.8 Functions : (1)D-SUB analog R/G/B separate inputs, H/V sync separated, Composite (H+V) TTL level, SOG sync (2)DVI digital Panel Link TMDS input (3) Audio Signal: PC line in 2.9 Ambient temperature: 0 �C - 35 �C 2.10 Regulatory compliance: Safety * Medical compliance only apply for dedicated models B (Poland), CCC (China), CE (Europe), CSA (Canada), DEMKO (Nordic), EZU (Czech), FIMKO (Nordic), Gost (Russia), IEC 950 CB Report, NOM NYCE (Mexico), PSB (Singapore), SEMKO (Nordic), SISIR CPA (Singapore), TUV (Germany), UL (USA) UL2601-1 (NAFTA), EN60601-1-1 (EU) and IEC60601-1 (WW) EMI C-tick, CE (Europe), FCC (USA), IC (Canada), VCCI (Japan), BSMI Ergonomics E2000, Nutek(Sweden), TCO2003 (T-color) & TCO95 (Black/Silver), TUV/GS Compatibility Windows2000, Windows 98/Me, Windows XP, NSTL 8639 000 16908 http://www.wjel.net 62 200WP7 LCD 25 6 GENERAL PRODUCT SPECIFICATION 3.0 Electrical characteristics 3.1 Interface signals The input signals can be applied in three different modes: 1). D-Sub Analog Input signal: Video, Hsync. , Vsync Video: 0.7 Vp-p, input impedance, 75 ohms @DC Sync. : Separate sync TTL level, input impedance 2.2k ohm terminate Hsync Positive/Negative Vsync Positive/Negative Composite sync TTL level, input impedance 5k ohm terminate (Positive/Negative) Sync on green video 0.3 Vp-p Negative (Video 0.7 Vp-p Positive) 2). Intel DVI Digital Input signal: Single channel TMDS signal 3.2 Interface 3.2.1 D-Sub Cable Length : 1.8 M +100/- 0 mm (fixed) Connector type : D-Sub male with DDC2B pin assignments. Blue connector thumb-operated jackscrews USB hub Input signal: Upstream input (VBUS, D+, D-, GND) via USB-B receptacle. Output signal: Downstream output (VBUS, D+, D-, GND) through USB-A receptacle BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 63 7 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION Pin assignment: 3.2.2 DVI Cable The input signals are applied to the display through DVI-D cable. Length : 1.8 M +/- 50 mm (fixed) Connector type : DVI-D male with DDC-2B pin assignments White connector thumb-operated jackscrews Pin assignment: Pin No. Description 1 TMDS data2- 2 TMDS data2+ 3 TMDS data2 shield 4 NC 5 NC 6 DDC clock 7 DDC data 8 Analog V-sync 9 TMDS data1- 10 TMDS data1+ 11 TMDS data1 shield 12 NC 13 NC 14 +5V 15 Ground (return for +5V and H/Vsync) 16 Hot plug detect 17 TMDS data0- PIN No. SIGNAL 1 Red 2 Green/ SOG 3 Blue 4 Sense (GND) 5 Cable detect 6 Red GND 7 Green GND 8 Blue GND 9 DDC +5V 10 GND 11 Sense (GND) 12 Bi-directional data 13 H/H+V sync 14 V-sync 15 Data clock 8639 000 16908 http://www.wjel.net 64 200WP7 LCD 25 8 GENERAL PRODUCT SPECIFICATION 18 TMDS data0+ 19 TMDS data0 shield 20 NC 21 NC 22 TMDS clock shield 23 TMDS clock+ 24 TMDS clock- 3.2.3 USB Cable (High Full Speed) Length. : 1.8 M +/- 50 mm (Max.) Connector type. : USB- B Plug (Input) USB- A Plug (Output) Pin Assignment: Pin No. Description 1 VBUS 2 Data+ 3 Data- 4 GND 3.2.5 Software control functions via OSD/control adjustable functions: (1) PC Analog only Signal Input Mode Adjustable functions: BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 65 9 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION Main Menu Sub Menu Sub Menu 2 Description Default Exit Default starting point Brightness & Contrast Brightness Sliding bar 100 Contrast Sliding bar 50 Color Original 9300K 6500K 6500K sRGB User define 8639 000 16908 http://www.wjel.net 66 200WP7 LCD 25 10 GENERAL PRODUCT SPECIFICATION R Sliding bar G Sliding bar B Sliding bar Position Position Horizontal Sliding bar Vertical Sliding bar More Settings Language English Left/right arrow to select English French German Italian Spanish Russian Phase Sliding bar Phase / Clock Clock Sliding bar OSD setting OSD position V OSD position H Sliding bar Reset (2) Digital interface OSD : Adjustable functions: 1st LEVEL 2nd LEVEL 3rd LEVEL MONITOR SETUP Exit Brightness & Contrast Brightness Contrast Color Original Color, 9300K,6500K, sRGB, User Define Input Selection Analog(D-Sub), Digital (DVI-D), Analog (DVI-A) BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 67 11 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION More Settings Language /00,/05 : English, Spanish, French, German, Italian and Russian Phase/ Clock Phase Clock OSD Settings Horizontal Vertical Reset No Yes Serial No.: (Serial No.) Timing Mode Up/Down to Move, ok to Confirm . 3.3 Timing requirement 3.3.1 Mode storing capacity 1.) Factory preset modes : 15 2.) Preset modes : 40 3.) User define modes : 24 3.3.2 Factory preset timings The factory settings of size and centering are according to the reference timing charts (See fig-4, fig-5) MODE NO. 1 2 3 4 RESOLUTION 640 x 350 720 x 400 640 x 480 640 x 480 Dot clock (MHz) 25.175 28.321 25.175 30.24 f h 31.469kHz 31.468kHz 31.5kHz 35 kHz H-total (us) 31.778(800 dots) 31.78(900dots) 31.778(800 dots) 28.571 (864 dots) H-sync width (us) 3.813(96 dots) 3.813(108dots) 3.813(96 dots) 2.116 (64 dots) H-back porch (us) 1.907(48 dots) 1.907(54dots) 1.907(48 dots) 3.175(96 dots) H-video width (us) 25.422(640 dots) 25.42(720dots) 25.422(640 dots) 21.164(640 dots) H-front porch (us) 0.636(16 dots) 0.636(18dots) 0.636(16 dots) 2.116(64 dots) 8639 000 16908 http://www.wjel.net 68 200WP7 LCD 25 12 GENERAL PRODUCT SPECIFICATION f v 70Hz(70.09) 70Hz(70.085) 60Hz(59.940) 67Hz V-total (ms) 14.27(449 lines) 14.27(449 lines) 16.683 (525 lines) 15 (525 lines) V-sync width (ms) 0.064(2 lines) 0.064(2 lines) 0.064 (2 lines) 0.086(3 lines) V-back porch (ms) 1.907(60 lines) 1.112(34 lines) 1.049 (33 lines) 1.114(39 lines) V-video width (ms) 11.12(350 lines) 12.71(400 lines) 15.253 (480 lines) 13.714(480 lines) V-front porch (ms) 1.175(37 lines) 0.381(13 lines) 0.317 (10 lines) 0.086(3 lines) SYNC. H/V +/- -/+ - / - - / - POLARITY SEP. SYNC Y Y Y Y MODE NO. 5 6 7 8 RESOLUTION 640 x 480 800 x 600 800 x 600 800 x 600 Dot clock (MHz) 31.500 36 40 49.498 f h 37.5kHz 35.156kHz 37.879kHz 46.875kHz H-total (us) 26.667 (840 dots) 28.444(1024 dots) 26.4 (1056 dots) 21.333 (1056 dots) H-sync width (us) 2.032 (64 dots) 2.000 (72 dots) 3.2 (128 dots) 1.616 (80 dots) H-back porch (us) 3.81 (120 dots) 3.556 (128 dots) 2.2 (88 dots) 3.232 (160 dots) H-video width (us) 20.317 (640 dots) 22.222(800 dots) 20 (800 dots) 16.162 (800 dots) H-front porch (us) 0.508 (16 dots) 0.666 (24 dots) 1 (40 dots) 0.323 (16 dots) f v 75Hz 56.250Hz 60.317Hz 75Hz V-total (ms) 13.333 (500 lines) 17.778 (625 lines) 16.579 (628 lines) 13.333 (625 lines) V-sync width (ms) 0.08 (3 lines) 0.057 (2 lines) 0.106 (4 lines) 0.064 (3 lines) V-back porch (ms) 0.427 (16 lines) 0.626 (22 lines) 0.607 (23 lines) 0.448 (21 lines) V-video width (ms) 12.8 (480 lines) 17.066 (600 lines) 15.84 (600lines) 12.8 (600 lines) V-front porch (ms) 0.026 (1 line) 0.029 (1 line) 0.026 (1 line) 0.021 (1 line) SYNC. H/V - / - + / + + / + + / + POLARITY SEP. SYNC Y Y Y Y MODE NO. 9 10 11 12 RESOLUTION 1024 x 768 1024 x 768 1152 x 870 1280 x 1024 Dot clock (MHz) 65 78.75 100 108 f h 48.363kHz 60.023kHz 68.7kHz 63.981kHz H-total (us) 20.677(1344 dots) 16.66 (1312dots) 14.56 (1456 dots) 15.63 (1688 dots) H-sync width (us) 2.092(136 dots) 1.219 (96 dots) 1.28 (128 dots) 1.037 (112 dots) H-back porch (us) 2.462(160 dots) 2.235 (176 dots) 1.44(144 dots) 2.296 (248 dots) H-video width (us) 15.754(1024 dots) 13.003 (1024 dots) 11.52 (1152 dots) 11.852 (1280 dots) H-front porch (us) 0.369(24 dots) 0.203 (16 dots) 0.32 (32 dots) 0.445 (48 dots) f v 60.004Hz 75Hz (75.000) 75Hz 60.020Hz V-total (ms) 16.666(806 lines) 13.328 (800 lines) 13.333 (916 lines) 16.661 (1066 lines) V-sync width (ms) 0.124(6 lines) 0.05(3 lines) 0.044 (3 lines) 0.047 (3 lines) V-back porch (ms) 0.600(29 lines) 0.446 (28 lines) 0.568(39 lines) 0.594 (38 lines) V-video width (ms) 15.880(768 lines) 12.80 (768 lines) 12.678 (870 lines) 16.005 (1024 lines) V-front porch (ms) 0.062(3 lines) 0.017 (1 line) 0.043 (4 line) 0.015 (1 line) SYNC. H/V - / - + / + - / - + / + POLARITY BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 69 13 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION SEP. SYNC Y Y Y Y MODE NO. 13 14 15 RESOLUTION 1280 x 1024 1600 x 1200 1680 x 1050 Dot clock (MHz) 135 162 146.249 f h (kHz) 79.976kHz 75 65.29 H-total (us) 12.504(1688 dots) 13.333(2160 dots) 15.316(2240 dots) H-sync width (us) 1.067(144 dots) 1.185(192 dots) 1.203(176 dots) H-back porch (us) 1.837(248 dots) 1.877(304 dots) 1.915(280 dots) H-video width (us) 9.481(1280 dots) 9.877(1600 dots) 11.487(1680 dots) H-front porch (us) 0.119(16 dots) 0.395(64 dots) 0.711(104 dots) f v (Hz) 75.025Hz 60.000 59.954 V-total (ms) 13.329(1066 lines) 16.667(1250 lines) 16.679(1089 lines) V-sync width (ms) 0.038(3 lines) 0.040(3 lines) 0.092(6 lines) V-back porch (ms) 0.475(38 lines) 0.613(46 lines) 0.459(30 lines) V-video width (ms) 12.804(1024 lines) 16.000(1200 lines) 16.082(1050 lines) V-front porch (ms) 0.012 (1 line) 0.013(1 lines) 0.046(3 lines) SYNC. H/V +/+ +/+ +/+ POLARITY SEP. SYNC Y Y Y 8639 000 16908 http://www.wjel.net 70 200WP7 LCD 25 14 GENERAL PRODUCT SPECIFICATION 3.3.3 Horizontal scanning Sync polarity : Positive or Negative Scanning frequency : 30 - 98 K Hz 3.3.4 Vertical scanning Sync polarity : Positive or Negative Scanning frequency : 56 - 76 Hz 3.4 Power input connection Power cord length : 1.8 M Power cord type : 3 leads power cord with protective earth plug. 3.5 Power management The monitor must comply with the Microsoft On Now specification, with two power management states, as defined by the VESA DPMS document. The monitor Mode HSYNC VSYNC Video Pwr-cons. Indication Rec. time Power-On On On active < 60 W Green LED With USB Power-On On On active < 48 W Green LED Without USB Off Off On blanked < 2 W Amber LED < 3 s Off On Off blanked <2 W Amber LED < 3 s Off Off Off blanked < 2 W Amber LED < 3 s DC Power Off N/A < 1W LED Off 3.6 Display identification 3.6.1 In accordance with VESA Display Channel Standard Ver.1.0 and having DDC 2B capability 3.6.2 In accordance with DVI requirement (DDWG digital Visual Interface revision 1.0) use DDC 2B and EDID 3.0 structure 2.0 4.0 Visual characteristics BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 71 15 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION 4.1 Test conditions Unless otherwise specified, this specification is defined under the following conditions. (1) Input signal : As defined in 3.3, 1600x 1200 non-interlaced mode (75K/60Hz), signal sources must have 75 ohm output impedance. (2) Luminance setting: controls to be set to 200 nits with full screen 70 % duty cycle white signal (3) Warm up: more than 30 minutes after power on with signal supplied. (4) Ambient light: 400 -- 600 lux. (5) Ambient temperature: 20 +/- 5 �C 4.2 Resolution: Factory preset modes (15 modes) Note: 1. Screen displays at 40 preset modes 2. Screen displays perfect picture at 15 factory-preset modes 3. Screen displays visible picture with OSD warning when input modes are other then 22 preset modes 4.3 Brightness: >=300 nits (at panel color temperature, at center of the screen, set contrast Item H.Freq. (KHz) Mode Resolution V.Freq. (Hz) Item H.Freq. (KHz) Mode Resolutio n V.Freq . (Hz) 1 31.469 IBM VGA 10H 640x350 70.086 9 48.363 VESA 1024x768 60.004 2 31.469 IBM VGA 3H 720x400 70.087 10 60.023 VESA 1024x768 75.029 3 31.469 IBM VGA 12H 640x480 59.940 11 68.700 MACINTOSH 1152x870 75.000 4 35.000 MACINTOSH 640x480 67.000 12 63.981 VESA 1280x102 4 60.020 5 37.500 VESA 640x480 75.000 13 79.976 VESA 1280x102 4 75.025 6 35.156 VESA 800x600 56.250 14 75.0 VESA 1600x120 0 60 7 37.879 VESA 800x600 60.317 15 65.29 - 1680x105 0 60.0 8 46.875 VESA 800x600 75.000 8639 000 16908 http://www.wjel.net 72 200WP7 LCD 25 16 GENERAL PRODUCT SPECIFICATION and brightness at maximum. ) 4.4 Image size 4.4.1 Actual display size 433.44 x 270.9mm 4.5 Brightness uniformity Set contrast at 100% and turn the brightness to get average above 250 nits (LPL), and 240 nits (AUO) nits at centre of the screen. Apply the Fig 1; it should comply with the following formula: Minimum luminance of nine points (brightness) X100% (Min.) Maximum luminance of nine points (brightness) LM201W01-SLA1 (LPL)-----70% (min.) M201EW01 v0 (AUO)-----70% (min.), 75% (typ.) 4.6 Check Cross talk (S) Apply Pattern 2. Set contrast and brightness at 100 %. Measure YA. Then output Pattern 3 and measure YB. the cross talk value : ABS (YA - YB) ��������� X 100% YA LM201W01-SLA1 (LPL)-----1.8% (max) M201EW01 v0 (AUO)----- 1.5% (max.) 4.7 White color adjustment There are three factory preset white color 9300K, 6500K, sRGB. Apply full gray64 pattern, with brightness in 100 % position and the contrast control at 50 % position. The 1931 CIE Chromaticity (color triangle) diagram (x,y) coordinate for the screen center should be: 9300K CIE coordinates X = 0.283 +/- 0.020 Y = 0.297 +/- 0.020 BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 73 17 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION 6500K/ sRGB CIE coordinates X = 0.313 +/- 0.020 Y = 0.329 +/- 0.020 5.0 Mechanical characteristics 5.1 Controls Front side: - DC power switch - OSD function key (OK) - UP - DOWN - RIGHT - LEFT - AUTO Rear: - D-SUB - DVI-D - Power cord socket 5.2 Unit dimension / Weight Set dimension (incl. pedestal): 483(W) * 402(H) * 235(D) mm Net weight : 8.6Kg (Including I/F cable 240 g) 5.3 Tilt and swivel base Tilt angle : -5 � to +25 � Swivel angle : +/- 45 � 5.4 Transportation packages 5.4.1 Shipping dimension/Weight Carton dimension : 579(W) X 267(H) X 513(D) mm 8639 000 16908 http://www.wjel.net 74 200WP7 LCD 25 18 GENERAL PRODUCT SPECIFICATION Gross weight : 10.7 KG 5.4.2 Block unit / Palletization layers/ block sets/ layer sets/ block unit 8 4 32 6.0 Environmental characteristics The following sections define the interference and susceptibility condition limits that might occur between external environment and the display device. 6.1 Susceptibility of display to external environment Operating - Temperature : 0 to 40 degree C - Humidity : 80% max - Altitude : 0-3658m - Air pressure : 600-1100 mBAR Storage - Temperature : -20 to 60 degree C - Humidity : 95% max ( < 40 ) - Altitude : 0-12192m - Air pressure : 300-1100 mBAR Note: recommend at 5 to 35�C, Humidity less than 60 % 6.2 Transportation tests 6.3 Standard Philips UAN-D1400 NSTA Height 76.2cm(1~9.52kg) 61 cm (9.53~18.59kg) 76.2cm(1~9.52kg) 61 cm (9.53~18.59kg) 1 corner 1 corner 3 faces 3 edge Sequence After -100C 6 face Electrical function ok Mechanical function ok No serious damage on set appearance Drop Test Test Result (Room temp. /-10° c, humidity 70 %) Packaging: Operating: 5-200 Hz 10-50-10 Hz 0.73 G 0.35 mm Sequence 30 min. for each axis 30 min. for each axis Electrical function ok Mechanical function ok Vibration Test Test Result No serious damage on set appearance For design evaluation only Shock Test Operating BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 75 19 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION 30 G, 16 m-sec, 6 cycles Temperature : 23 Humidity : 60 % Air pressure : 100 kpa (According to DSD draft standard UAN-D636) test 6.3 Display disturbances from external environment According to IEC 801-2 for ESD disturbances 6.4 Display disturbances to external environment 6.4.1 EMI EMI : C-tick, CE(Europe), FCC(USA), IC(Canada), VCCI(Japan), BSMI 7.0 Reliability 7.1 Mean Time Between Failures System MTBF (Excluding the LCD panel and CCFL): 50,000 hrs CCFL MTBF: 40,000 hrs 8.0 Quality assurance requirements 8.1 Acceptance test According to MIL-STD-105D Control II level AQL: 0.65 (major) 2.50 (minor) (Please also refer to annual quality agreement) Customer acceptance criteria: UAW0377/00 9.0 Serviceability The serviceability of this monitor should fulfill the requirements which are prescribed in UAW-0346 and must be checked with the check list UAT-0361. 8639 000 16908 http://www.wjel.net 76 200WP7 LCD 25 20 GENERAL PRODUCT SPECIFICATION 10. LCD PANEL CHARACTERISTICS REQUIREMENTS LCD Panel Pixel Defect Requirement Acceptable Level Bright Dot Defects 1 lit subpixel 3 2 adjacent lit subpixels 1 3 adjacent lit subpixels (one white pixel) 0 Distance between two bright dot defects 25mm or more Bright dot defects within 20mm circle 3 or fewer Total bright dot defects of all types 3 Dark Dot Defects 1 dark subpixel 5 2 adjacent dark subpixels 2 BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 77 21 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION 3 adjacent dark subpixels (one white pixel) 1 Distance between two black dot defects 15mm or more Total black dot defects of all types 5 Total bright or black dot defects of all types 5 *Note: 1 or 2 adjacent subpixel defects= 1 dot defect 8639 000 16908 http://www.wjel.net 78 200WP7 LCD 25 22 GENERAL PRODUCT SPECIFICATION Fig 1: Brightness Uniformity 1 2 3 7 8 W/10 L W L/10 L/2 W/2 4 5 6 9 BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 79 23 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION Fig 2: Cross talk pattern Gray level 46 (64 Gray level) YA 1/2 1/2 1/6 Fig 3: Cross-talk Pattern Center at Gray level 0 (Black) YB 1/2 1/2 1/6 1/3 1/3 1/3 1/3 1/3 8639 000 16908 http://www.wjel.net 80 200WP7 LCD 25 24 GENERAL PRODUCT SPECIFICATION D VIDEO C E SEPARATE SYNC. HORIZONTAL B A R VIDEO Q S P O D VIDEO C E B A VERTICAL HORIZONTAL COMPOSITE SYNC. FIG-4 TIMING CHART -1 BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 8639 000 16908 2006-02-16 2006-02-16 590 Jason Wang http://www.wjel.net 200WP7 LCD 81 25 25 2006-02-16 2006-02-16 590 Jason Wang BRAND : PHILIPS 20.1" TFT UXGA LCD Monitor (HUDSON 7-200WP7) TYPE : 200WP7ES/00 GENERAL PRODUCT SPECIFICATION D VIDEO C E B A VERTICAL COMPOSITE SYNC. FIG-5 TIMING CHART -2 O P Q R S & VIDEO B S P Q O R ( SYNC. ON GREEN ) HORIZONTAL VERTICAL 8639 000 16908 http://www.wjel.net 82 200WP7 LCD Go to cover page Recommended Parts List 0004 313815761011 SUPER ERGO BASE ASSY 0030 313815761221 BEZEL ASSY-SILVER 0031 313815418091 BEZEL-SLIVER 0032 313815417771 BEZEL- DECO 0033 313815417781 CONTROL KNOB 0040 313815761001 BACK COVER ASSY-S 0041 313815417791 BACK COVER 0042 313815417811 MIDDLE COVER-SILVER 0043 313815133511 VESA PLATE 0051 313815138241 METAL FRAME 7201 932214526668 IC SM M24C02-WMN6 (ST00) R 7202 932214526668 IC SM M24C02-WMN6 (ST00) R 7351 313815867291 CPU IC ASSY 7351 932222343682 IC SM NT68F631ALG (NOVA) L 7353 313815867301 EEPROM IC ASSY 7353 932214725682 IC M24C16-WBN6P (ST00) L 7401 823827737015 SCALER IC NT68563HFG 7403 932220099685 IC SM LD1117AS18 (ST00) R 7405 932216733668 IC SM LD1117S33 (ST00) R 7501 933769900215 TRA SIG SM BC857C (PHSE) R 7502 933769900215 TRA SIG SM BC857C (PHSE) R 7503 932217440685 TRA SIG SM KRC102S (KEC0) R 7504 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7505 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7506 932217440685 TRA SIG SM KRC102S (KEC0) R 7507 932216733668 IC SM LD1117S33 (ST00) R 7508 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7509 932217440685 TRA SIG SM KRC102S (KEC0) R 7622 932217440685 TRA SIG SM KRC102S (KEC0) R 7625 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7631 932222352668 IC SM TPS54357PWP (TI00) R 7651 932222162671 IC SM CY7C65640-LFXC (CYPR) Y 7671 932222269668 IC SM TPS2062DG4 (TI00) R 7675 932222269668 IC SM TPS2062DG4 (TI00) R http://www.wjel.net 83 200WP7 LCD Model:200WP7ES/00(AUO Panel) Mechanical Parts 0004 313815761011 SUPER ERGO BASE ASSY 0030 313815761221 BEZEL ASSY-SILVER 0031 313815418091 BEZEL-SLIVER 0032 313815417771 BEZEL- DECO 0033 313815417781 CONTROL KNOB 0040 313815761001 BACK COVER ASSY-S 0041 313815417791 BACK COVER 0042 313815417811 MIDDLE COVER-SILVER 0043 313815133511 VESA PLATE 0051 313815138241 METAL FRAME 0053 313815321301 INSULATE PLATE 0080 313815759083 SHIELDING ASSY 0090 313815136711 AC PLATE 0095 313815136721 DSUB PLATE 0126 313815569471 RATING LABEL 0280 313800991971 PROCESS BOX 0290 313800992071 PROCESS BOX 0340 313815136703 SHIELDING 0341 313815421312 INSULATING PLATE 0502 313815641931 SLEEVE 1057 313815867411 FRAME+WIRE ASSY LCD Panel 1050 823827720701 TFT-LCD MOD M201EW01 V.0 A Packing 0129 313810632613 PE BAG 0450 313815642281 CARTON-200WP 0451 313815642231 CUSHION - TOP 0452 313815642241 CUSHION - BUTTON 0453 313815641821 P.E. BAG 0508 313815642281 CARTON-200WP Accessory 0141 313815524341 QUICK SETUP GUIDE-200WP 0602 313811709411 E-D.F.U. 1056 823827732068 CBLE-130 30/115/30 334033AWG28 1060 313819871431 CORD SUB-D 15/1M8/15 D-SUB BK 1061 313818870471 MAINSCORD IEC 10A 1M8 DET BK 1063 313819872531 CORD USB A/1M8/USB B BK 1064 313819871471 CORD DVI 18+1/1M8/DVI 18+1 BK PCB ASSY 1051 313815867281 SCALER ASSY-200WP7 AUO 1052 313815865861 CONTROL ASSY 1054 313815867111 USB ASSY(200 WP7) 1055 823827732047 PSU OPENFR IPS60W(EADP-57BFAA Miscellanea 0138 313815555711 HI-POT LABEL 0280 313800991971 PROCESS BOX 0291 313815569531 LABEL 0292 313815569531 LABEL 0615 313811709541 HEX CODE OF F/W(NO MATE REQ) 1098 243803100435 SOC IC V 8P F 2.54 DIL L 1201 242203300521 SOC DVI H 24P F 1.91DVI-D Y 1202 242202518053 SOC SUBD H 15P F BU 1216 B 1351 243854300079 RES XTL SM 12MHZ 32P SMD-49 R 1352 242202518947 CON V 4P M 2.50 64834 B 1354 242202518947 CON V 4P M 2.50 64834 B 1401 242202518804 CON V 30P M 1.25 SM 60948 R 1501 242202518825 CON V 13P M 2.00 63393 B 1505 242202518824 CON V 11P M 2.00 63391 B 1601 242202518896 CON H 6P M 2.00 63366 B 1608 823827732071 CABLE RING TERM/45/FAST AWG18 1609 823827732069 CABLE RING TERM/85/FAST AWG18 1610 243854300085 RES XTL SM 24MHZ 20P SMD-49 R 1651 242202518953 SOC USB V 4P F 2.0/2.5 5401 Y 1652 242202518955 SOC USB V 4P F 2.5 5411 Y 1653 242202518957 SOC USB V 8P F 2.0/2.5 5402 R 1654 242202518953 SOC USB V 4P F 2.0/2.5 5401 Y 1951 243812800196 SWI TACT H=5 GY 160G SKHHAM B 1952 243812800196 SWI TACT H=5 GY 160G SKHHAM B 1953 243812800196 SWI TACT H=5 GY 160G SKHHAM B 1954 243812800196 SWI TACT H=5 GY 160G SKHHAM B 1955 243812800196 SWI TACT H=5 GY 160G SKHHAM B 1956 243812800196 SWI TACT H=5 GY 160G SKHHAM B 1957 243812800196 SWI TACT H=5 GY 160G SKHHAM B 1960 243812800196 SWI TACT H=5 GY 160G SKHHAM B 1961 242202518897 CON H 7P M 2.00 63367 B 4444 313810610503 CD ROM - SERVICE MANUAL 4444 313810610504 SERVICE MANUAL 8061 823827732072 CBLE-023 13/390/7+6-017-016 PCB ASSY 1051 313815867281 SCALER ASSY-200WP7 AUO 2201 223878615649 CER2 0603 X7R 16V 100N PM10 R 2202 223878615649 CER2 0603 X7R 16V 100N PM10 R 2203 223886715331 CER1 0603 NP0 50V 330P PM5 R 2204 223886715331 CER1 0603 NP0 50V 330P PM5 R 2205 223878615649 CER2 0603 X7R 16V 100N PM10 R 2214 223878615649 CER2 0603 X7R 16V 100N PM10 R 2215 223886715331 CER1 0603 NP0 50V 330P PM5 R 2216 223886715331 CER1 0603 NP0 50V 330P PM5 R 2217 223886715339 CER1 0603 NP0 50V 33P PM5 R 2218 223886715221 CER1 0603 NP0 50V 220P PM5 R 2219 223878615649 CER2 0603 X7R 16V 100N PM10 R 2221 223878615645 CER2 0603 X7R 16V 47N PM10 R 2222 223878615645 CER2 0603 X7R 16V 47N PM10 R 2224 223878615645 CER2 0603 X7R 16V 47N PM10 R 2225 223878615645 CER2 0603 X7R 16V 47N PM10 R 2227 223878615645 CER2 0603 X7R 16V 47N PM10 R 2228 223878615645 CER2 0603 X7R 16V 47N PM10 R 2229 223878615649 CER2 0603 X7R 16V 100N PM10 R 2241 223878615645 CER2 0603 X7R 16V 47N PM10 R 2351 223878615649 CER2 0603 X7R 16V 100N PM10 R 2353 223886715229 CER1 0603 NP0 50V 22P PM5 R 2354 223886715229 CER1 0603 NP0 50V 22P PM5 R 2356 223878615649 CER2 0603 X7R 16V 100N PM10 R 2358 223886715101 CER1 0603 NP0 50V 100P PM5 R 2359 823827736009 CHIP 4.7UF 25V X7R 1206 2360 223878615649 CER2 0603 X7R 16V 100N PM10 R 2361 223886715101 CER1 0603 NP0 50V 100P PM5 R 2364 223886715229 CER1 0603 NP0 50V 22P PM5 R 2401 202203100205 ELCAP SM RVS 25V 47U PM20 R 2402 223878615649 CER2 0603 X7R 16V 100N PM10 R 2404 223878615649 CER2 0603 X7R 16V 100N PM10 R 2406 223878615649 CER2 0603 X7R 16V 100N PM10 R 2413 202203100205 ELCAP SM RVS 25V 47U PM20 R 2414 223878615649 CER2 0603 X7R 16V 100N PM10 R 2416 223878615649 CER2 0603 X7R 16V 100N PM10 R 2417 223878615649 CER2 0603 X7R 16V 100N PM10 R 2419 223878615649 CER2 0603 X7R 16V 100N PM10 R 2420 823827736009 CHIP 4.7UF 25V X7R 1206 2422 223878615649 CER2 0603 X7R 16V 100N PM10 R 2423 823827736009 CHIP 4.7UF 25V X7R 1206 2424 223878615649 CER2 0603 X7R 16V 100N PM10 R 2425 202203100205 ELCAP SM RVS 25V 47U PM20 R 2427 223878615649 CER2 0603 X7R 16V 100N PM10 R 2428 223878615649 CER2 0603 X7R 16V 100N PM10 R 2431 223878615649 CER2 0603 X7R 16V 100N PM10 R 2443 223878615649 CER2 0603 X7R 16V 100N PM10 R 2444 223878615649 CER2 0603 X7R 16V 100N PM10 R 2446 223878615649 CER2 0603 X7R 16V 100N PM10 R 2451 223878615649 CER2 0603 X7R 16V 100N PM10 R 2452 223878615649 CER2 0603 X7R 16V 100N PM10 R 2455 823827736009 CHIP 4.7UF 25V X7R 1206 2457 223878615649 CER2 0603 X7R 16V 100N PM10 R 2458 823827736009 CHIP 4.7UF 25V X7R 1206 2459 223878615649 CER2 0603 X7R 16V 100N PM10 R 2501 223878615649 CER2 0603 X7R 16V 100N PM10 R 2502 223878615649 CER2 0603 X7R 16V 100N PM10 R 2503 202203100205 ELCAP SM RVS 25V 47U PM20 R 2504 223878615649 CER2 0603 X7R 16V 100N PM10 R 2505 223878615649 CER2 0603 X7R 16V 100N PM10 R 2506 202203100205 ELCAP SM RVS 25V 47U PM20 R 2510 223878615649 CER2 0603 X7R 16V 100N PM10 R 2511 223878615649 CER2 0603 X7R 16V 100N PM10 R 2515 223878615649 CER2 0603 X7R 16V 100N PM10 R 2516 223878615649 CER2 0603 X7R 16V 100N PM10 R 2517 223878615649 CER2 0603 X7R 16V 100N PM10 R 2518 223878615649 CER2 0603 X7R 16V 100N PM10 R 2519 223878615649 CER2 0603 X7R 16V 100N PM10 R 2520 223878615645 CER2 0603 X7R 16V 47N PM10 R 2521 202203100205 ELCAP SM RVS 25V 47U PM20 R 2522 223878615649 CER2 0603 X7R 16V 100N PM10 R 2523 223878615649 CER2 0603 X7R 16V 100N PM10 R 2524 223878615645 CER2 0603 X7R 16V 47N PM10 R 2525 202203100205 ELCAP SM RVS 25V 47U PM20 R 2526 223878615645 CER2 0603 X7R 16V 47N PM10 R 2527 202203100205 ELCAP SM RVS 25V 47U PM20 R 2529 823827736009 CHIP 4.7UF 25V X7R 1206 2530 223878615649 CER2 0603 X7R 16V 100N PM10 R 2531 823827736009 CHIP 4.7UF 25V X7R 1206 3201 232270260103 RST SM 0603 RC21 10K PM5 R 3202 212211805656 RST SM 0603 RC0603 1K PM5 R 3203 212211805656 RST SM 0603 RC0603 1K PM5 R 3207 232270260103 RST SM 0603 RC21 10K PM5 R 3208 232270260103 RST SM 0603 RC21 10K PM5 R 3209 232270260103 RST SM 0603 RC21 10K PM5 R 3210 232270260223 RST SM 0603 RC21 22K PM5 R 3211 232270260101 RST SM 0603 RC21 100R PM5 R 3212 232270260101 RST SM 0603 RC21 100R PM5 R 3213 232270260101 RST SM 0603 RC21 100R PM5 R 3214 232270260101 RST SM 0603 RC21 100R PM5 R 3229 232270260103 RST SM 0603 RC21 10K PM5 R 3230 232270260103 RST SM 0603 RC21 10K PM5 R 3231 232270260759 RST SM 0603 RC21 75R PM5 R 3233 232270260103 RST SM 0603 RC21 10K PM5 R 3234 232270260223 RST SM 0603 RC21 22K PM5 R 3235 232270260101 RST SM 0603 RC21 100R PM5 R 3236 232270260101 RST SM 0603 RC21 100R PM5 R 3237 232270260101 RST SM 0603 RC21 100R PM5 R 3238 232270260101 RST SM 0603 RC21 100R PM5 R 3239 232270260101 RST SM 0603 RC21 100R PM5 R 3240 232270260101 RST SM 0603 RC21 100R PM5 R 3241 212211805661 RST SM 0603 RC0603 2K2 PM5 R 3242 212211805661 RST SM 0603 RC0603 2K2 PM5 R 3243 212211805964 RST SM 0603 RC0603 75R PM1 R 3244 232270260759 RST SM 0603 RC21 75R PM5 R 3247 232270260471 RST SM 0603 RC21 470R PM5 R 3248 212211805964 RST SM 0603 RC0603 75R PM1 R 3249 232270260759 RST SM 0603 RC21 75R PM5 R 3251 232270260759 RST SM 0603 RC21 75R PM5 R 3252 232270260759 RST SM 0603 RC21 75R PM5 R 3253 212211805964 RST SM 0603 RC0603 75R PM1 R 3254 232270260759 RST SM 0603 RC21 75R PM5 R 3255 212211805656 RST SM 0603 RC0603 1K PM5 R 3256 232270260103 RST SM 0603 RC21 10K PM5 R 3258 232270260223 RST SM 0603 RC21 22K PM5 R 3259 232270260223 RST SM 0603 RC21 22K PM5 R 3261 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3262 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3263 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3351 212211805689 RST SM 0603 RC0603 1M PM5 R 3353 232270260103 RST SM 0603 RC21 10K PM5 R 3354 232270260101 RST SM 0603 RC21 100R PM5 R 3359 232270260101 RST SM 0603 RC21 100R PM5 R 3368 232270260101 RST SM 0603 RC21 100R PM5 R 3369 232270260101 RST SM 0603 RC21 100R PM5 R 3370 232270260103 RST SM 0603 RC21 10K PM5 R 3371 232270260103 RST SM 0603 RC21 10K PM5 R 3372 232270260103 RST SM 0603 RC21 10K PM5 R 3373 232270260101 RST SM 0603 RC21 100R PM5 R 3374 232270260101 RST SM 0603 RC21 100R PM5 R 3375 232270260101 RST SM 0603 RC21 100R PM5 R 3379 232270260101 RST SM 0603 RC21 100R PM5 R 3391 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3392 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3401 232270463901 RST SM 0603 RC22H 390R PM1 R 3413 232270260103 RST SM 0603 RC21 10K PM5 R 3416 232270260101 RST SM 0603 RC21 100R PM5 R 3419 232270260101 RST SM 0603 RC21 100R PM5 R 3501 232270260479 RST SM 0603 RC21 47R PM5 R 3502 232270260479 RST SM 0603 RC21 47R PM5 R 3503 232270260479 RST SM 0603 RC21 47R PM5 R 3504 232270260103 RST SM 0603 RC21 10K PM5 R 3506 232270260101 RST SM 0603 RC21 100R PM5 R 3507 232270260101 RST SM 0603 RC21 100R PM5 R 3508 232270260101 RST SM 0603 RC21 100R PM5 R 3509 232270260221 RST SM 0603 RC21 220R PM5 R 3510 232270260103 RST SM 0603 RC21 10K PM5 R 3511 232270260221 RST SM 0603 RC21 220R PM5 R 3512 232270260103 RST SM 0603 RC21 10K PM5 R 3515 232270260103 RST SM 0603 RC21 10K PM5 R 3516 232270260103 RST SM 0603 RC21 10K PM5 R 3517 212211805683 RST SM 0603 RC0603 100K PM5 R 3518 232270260103 RST SM 0603 RC21 10K PM5 R 3519 232270260103 RST SM 0603 RC21 10K PM5 R 3520 232270260103 RST SM 0603 RC21 10K PM5 R 3521 212211805683 RST SM 0603 RC0603 100K PM5 R 3522 232270260103 RST SM 0603 RC21 10K PM5 R 3523 232270260223 RST SM 0603 RC21 22K PM5 R 3524 232270260103 RST SM 0603 RC21 10K PM5 R 3525 232270260103 RST SM 0603 RC21 10K PM5 R 3526 232270260103 RST SM 0603 RC21 10K PM5 R 3527 232270260103 RST SM 0603 RC21 10K PM5 R 3528 212211805683 RST SM 0603 RC0603 100K PM5 R 3529 232270260103 RST SM 0603 RC21 10K PM5 R 3534 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3537 232270296001 RST SM 0603 JUMP. MAX 0R05 R http://www.wjel.net 3540 232270296001 RST SM 0603 JUMP. MAX 0R05 R 5201 242254944196 IND FXD 0805 EMI 100MHZ 120R R 5202 242254944196 IND FXD 0805 EMI 100MHZ 120R R 5204 242254944196 IND FXD 0805 EMI 100MHZ 120R R 5351 242254944196 IND FXD 0805 EMI 100MHZ 120R R 5401 242254944196 IND FXD 0805 EMI 100MHZ 120R R 5402 242254944196 IND FXD 0805 EMI 100MHZ 120R R 5403 242254944196 IND FXD 0805 EMI 100MHZ 120R R 5407 242254944196 IND FXD 0805 EMI 100MHZ 120R R 5409 242254944196 IND FXD 0805 EMI 100MHZ 120R R 5410 242254900113 IND FXD 0603 EMI 100MHZ 1K R 5413 242254945579 IND FXD 1206 EMI 100MHZ 100R R 5501 242254945579 IND FXD 1206 EMI 100MHZ 100R R 5502 242254945579 IND FXD 1206 EMI 100MHZ 100R R 6201 933913910115 DIO SIG SM BAS32L (PHSE) R 6202 933913910115 DIO SIG SM BAS32L (PHSE) R 6203 933913910115 DIO SIG SM BAS32L (PHSE) R 6204 933913910115 DIO SIG SM BAS32L (PHSE) R 6401 932220675682 DIO REC M100AL-5301-E3 (VISH)B 6402 932220675682 DIO REC M100AL-5301-E3 (VISH)B 6403 932220628682 DIO REC SB140AL-5301E3 (VISH)B 7201 932214526668 IC SM M24C02-WMN6 (ST00) R 7202 932214526668 IC SM M24C02-WMN6 (ST00) R 7351 313815867291 CPU IC ASSY 7351 932222343682 IC SM NT68F631ALG (NOVA) L 7353 313815867301 EEPROM IC ASSY 7353 932214725682 IC M24C16-WBN6P (ST00) L 7401 823827737015 SCALER IC NT68563HFG 7403 932220099685 IC SM LD1117AS18 (ST00) R 7405 932216733668 IC SM LD1117S33 (ST00) R 7501 933769900215 TRA SIG SM BC857C (PHSE) R 7502 933769900215 TRA SIG SM BC857C (PHSE) R 7503 932217440685 TRA SIG SM KRC102S (KEC0) R 7504 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7505 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7506 932217440685 TRA SIG SM KRC102S (KEC0) R 7507 932216733668 IC SM LD1117S33 (ST00) R 7508 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7509 932217440685 TRA SIG SM KRC102S (KEC0) R 1052 313815865861 CONTROL ASSY 2951 223858619812 CER2 0603 Y5V 50V 100N P8020 R 2952 223858619812 CER2 0603 Y5V 50V 100N P8020 R 3951 232270260101 RST SM 0603 RC21 100R PM5 R 3952 232270260473 RST SM 0603 RC21 47K PM5 R 3953 232270260103 RST SM 0603 RC21 10K PM5 R 3954 212211805656 RST SM 0603 RC0603 1K PM5 R 3955 232270260473 RST SM 0603 RC21 47K PM5 R 3956 232270260103 RST SM 0603 RC21 10K PM5 R 3957 212211805656 RST SM 0603 RC0603 1K PM5 R 6951 932214603682 LED VS L-3WYGW (KIEL) B 1054 313815867111 USB ASSY(200 WP7) 2601 223878615649 CER2 0603 X7R 16V 100N PM10 R 2603 202203100179 ELCAP SM HV 25V 10U PM20 R 2604 223858619812 CER2 0603 Y5V 50V 100N P8020 R 2621 223878615649 CER2 0603 X7R 16V 100N PM10 R 2623 223858615636 CER2 0603 X7R 50V 10N PM10 R 2625 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2631 202202000963 ELCAP SM LV 25V 100U PM20 R 2633 223878615649 CER2 0603 X7R 16V 100N PM10 R 2634 202202000963 ELCAP SM LV 25V 100U PM20 R 2635 223878615643 CER2 0603 X7R 16V 33N PM10 R 2636 222278015663 CER2 0805 X7R 16V 1U PM10 R 2651 202001293803 ELCAP SM RV2 16V 100U PM20 R 2652 223878615649 CER2 0603 X7R 16V 100N PM10 R 2655 202001293803 ELCAP SM RV2 16V 100U PM20 R 2656 223878615649 CER2 0603 X7R 16V 100N PM10 R 2661 202001293803 ELCAP SM RV2 16V 100U PM20 R 2662 223878615649 CER2 0603 X7R 16V 100N PM10 R 2665 202001293803 ELCAP SM RV2 16V 100U PM20 R 2666 223878615649 CER2 0603 X7R 16V 100N PM10 R 2671 223878615649 CER2 0603 X7R 16V 100N PM10 R 2675 223878615649 CER2 0603 X7R 16V 100N PM10 R 2680 223878615649 CER2 0603 X7R 16V 100N PM10 R 2681 223878615649 CER2 0603 X7R 16V 100N PM10 R 2682 223886715279 CER1 0603 NP0 50V 27P PM5 R 84 200WP7 LCD Go to cover page 2683 223886715279 CER1 0603 NP0 50V 27P PM5 R 2684 223878615649 CER2 0603 X7R 16V 100N PM10 R 2685 223878615649 CER2 0603 X7R 16V 100N PM10 R 2691 223878615649 CER2 0603 X7R 16V 100N PM10 R 2692 223878615649 CER2 0603 X7R 16V 100N PM10 R 2693 223878615649 CER2 0603 X7R 16V 100N PM10 R 2694 223878615649 CER2 0603 X7R 16V 100N PM10 R 2695 223878615649 CER2 0603 X7R 16V 100N PM10 R 2696 223878615649 CER2 0603 X7R 16V 100N PM10 R 2697 223878615649 CER2 0603 X7R 16V 100N PM10 R 2698 223878615649 CER2 0603 X7R 16V 100N PM10 R 2699 223878615649 CER2 0603 X7R 16V 100N PM10 R 3622 232270260103 RST SM 0603 RC21 10K PM5 R 3623 212211805683 RST SM 0603 RC0603 100K PM5 R 3634 232270260202 RST SM 0603 RC21 2K PM5 R 3681 212211805672 RST SM 0603 RC0603 15K PM5 R 3682 212211805683 RST SM 0603 RC0603 100K PM5 R 3683 212211805672 RST SM 0603 RC0603 15K PM5 R 3685 212211805672 RST SM 0603 RC0603 15K PM5 R 3687 212211805672 RST SM 0603 RC0603 15K PM5 R 3689 212211805672 RST SM 0603 RC0603 15K PM5 R 3691 212211805672 RST SM 0603 RC0603 15K PM5 R 3692 212211805672 RST SM 0603 RC0603 15K PM5 R 3693 212211805672 RST SM 0603 RC0603 15K PM5 R 4631 232270296001 RST SM 0603 JUMP. MAX 0R05 R 5601 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5602 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5603 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5621 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5622 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5634 313818875771 COI CHOKE 35UH 82M OHM DR10X8 5651 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5653 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5655 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5657 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5659 242254900126 IND FXD 0805 EMI 100MHZ 120R R 6634 932221745685 DIO REC SM SSA34-E3 (VISH) R 6635 932221745685 DIO REC SM SSA34-E3 (VISH) R 6662 933913910115 DIO SIG SM BAS32L (PHSE) R 7622 932217440685 TRA SIG SM KRC102S (KEC0) R 7625 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7631 932222352668 IC SM TPS54357PWP (TI00) R 7651 932222162671 IC SM CY7C65640-LFXC (CYPR) Y 7671 932222269668 IC SM TPS2062DG4 (TI00) R 7675 932222269668 IC SM TPS2062DG4 (TI00) R According to the ECO CA005895,the panel has been replaced by MOD M201EW01 V.3 ,the updated parts as below: Action Item 12NC Description From 1050 823827720701 TFT-LCD MOD M201EW01 V.0 A To 1050 823827720911 TFT-LCD MOD M201EW01 V.3 212211805631 RST SM 0603 JUMP. MAX 0R05 R 232270296001 RST SM 0603 JUMP. MAX 0R05 R 212211805631 RST SM 0603 JUMP. MAX 0R05 R 232270296001 RST SM 0603 JUMP. MAX 0R05 R New Del 3533 3537 http://www.wjel.net 85 200WP7 LCD Spare Parts List Model:200WP7ES/01(LPL Panel) 12NC: 8639 000 17096 Mechanical Parts 4 313815761011 SUPER ERGO BASE ASSY 30 313815761221 BEZEL ASSY-SILVER 31 313815418091 BEZEL-SLIVER 32 313815417771 BEZEL- DECO 33 313815417781 CONTROL KNOB 40 313815761001 BACK COVER ASSY-S 41 313815417791 BACK COVER 42 313815417811 MIDDLE COVER-SILVER 43 313815133511 VESA PLATE 44 313815162071 CONTACT SPRING 51 313815138241 METAL FRAME 80 313815759083 SHIELDING ASSY 116 313810440571 HOUSING COVER 340 313815136703 SHIELDING 450 313815642281 CARTON-200WP 1057 313815867411 FRAME+WIRE ASSY Packing Parts 450 313815642281 CARTON-200WP 451 313815642231 CUSHION - TOP 452 313815642241 CUSHION - BUTTON 453 313815641821 P.E. BAG Accessory 602 313811709571 E-D.F.U. 1060 313818873992 CORD SUB-D 15/1M8/15 SUB-D M/ 1061 313818870471 MAINSCORD IEC 10A 1M8 DET B 1063 313819872531 CORD USB A/1M8/USB B BK 1064 313819871471 CORD DVI 18+1/1M8/DVI 18+1 BK miscellanea 341 313815421312 INSULATING PLATE 1056 823827732068 CBLE-130 30/115/30 334033AWG2 8061 823827732072 CBLE-023 13/390/7+6-017-016 LCD Panel 1050 823827718711 LCD LM201W01-SLA1 PCB Assy 1051 313815865851 SCALER ASSY(200WP7) 1052 313815865861 CONTROL ASSY 1054 313815867111 USB ASSY(200 WP7) 1055 823827732047 PSU OPENFR IPS60W(EADP-57BFA PCB Assy 1051 313815865851 SCALER ASSY(200WP7) various 291 313815569901 LABEL 292 313815569901 LABEL 615 313811709701 HEX CODE OF F/W(NO MATL REQ) 1098 243803100435 SOC IC V 8P F 2.54 DIL 1099 243803100437 SOC IC V 44P F 1.27 PLCC 1201 242203300521 SOC DVI H 24P F 1.91DVI-D 1202 242202518053 SOC SUBD H 15P F BU 1216 1351 243854300079 RES XTL SM 12MHZ 32P SMD-49 1352 242202518947 CON V 4P M 2.50 64834 1401 243854300093 RES XTL SM 14M3181 18P SMD49 1402 242202518804 CON V 30P M 1.25 SM 60948 1501 242202518825 CON V 13P M 2.00 63393 1505 242202518824 CON V 11P M 2.00 63391 2201 223878615649 CER2 0603 X7R 16V 100N PM10 2202 223878615649 CER2 0603 X7R 16V 100N PM10 2203 223886715331 CER1 0603 NP0 50V 330P PM5 2204 223886715331 CER1 0603 NP0 50V 330P PM5 2205 223878615649 CER2 0603 X7R 16V 100N PM10 2214 223878615649 CER2 0603 X7R 16V 100N PM10 2215 223886715331 CER1 0603 NP0 50V 330P PM5 2216 223886715331 CER1 0603 NP0 50V 330P PM5 2217 223886715339 CER1 0603 NP0 50V 33P PM5 2218 223886715221 CER1 0603 NP0 50V 220P PM5 2219 223878615649 CER2 0603 X7R 16V 100N PM10 2221 223878615645 CER2 0603 X7R 16V 47N PM10 2222 223858615623 CER2 0603 X7R 50V 1N PM10 2224 223878615645 CER2 0603 X7R 16V 47N PM10 2225 223878615645 CER2 0603 X7R 16V 47N PM10 2227 223878615645 CER2 0603 X7R 16V 47N PM10 2228 223878615645 CER2 0603 X7R 16V 47N PM10 2229 223878615649 CER2 0603 X7R 16V 100N PM10 2241 223878615645 CER2 0603 X7R 16V 47N PM10 2302 223878615649 CER2 0603 X7R 16V 100N PM10 2303 202203100198 ELCAP SM HV 16V 22U PM20 2304 223878615649 CER2 0603 X7R 16V 100N PM10 2305 223878615649 CER2 0603 X7R 16V 100N PM10 2306 223878615649 CER2 0603 X7R 16V 100N PM10 2307 223878615649 CER2 0603 X7R 16V 100N PM10 2308 223878615649 CER2 0603 X7R 16V 100N PM10 2309 223878615649 CER2 0603 X7R 16V 100N PM10 2310 223878615649 CER2 0603 X7R 16V 100N PM10 2311 223878615649 CER2 0603 X7R 16V 100N PM10 2312 202203100198 ELCAP SM HV 16V 22U PM20 2313 223878615649 CER2 0603 X7R 16V 100N PM10 2314 223878615649 CER2 0603 X7R 16V 100N PM10 2315 223878615649 CER2 0603 X7R 16V 100N PM10 2316 223878615649 CER2 0603 X7R 16V 100N PM10 2317 223878615649 CER2 0603 X7R 16V 100N PM10 2318 223878615649 CER2 0603 X7R 16V 100N PM10 2319 223878615649 CER2 0603 X7R 16V 100N PM10 2320 223878615649 CER2 0603 X7R 16V 100N PM10 2321 223878615649 CER2 0603 X7R 16V 100N PM10 2322 223878615649 CER2 0603 X7R 16V 100N PM10 2323 223878615649 CER2 0603 X7R 16V 100N PM10 2324 223878615649 CER2 0603 X7R 16V 100N PM10 2325 223878615649 CER2 0603 X7R 16V 100N PM10 2326 223878615649 CER2 0603 X7R 16V 100N PM10 2327 223878615649 CER2 0603 X7R 16V 100N PM10 2328 223878615649 CER2 0603 X7R 16V 100N PM10 2329 223878615649 CER2 0603 X7R 16V 100N PM10 2330 223858615636 CER2 0603 X7R 50V 10N PM10 2332 823827736009 CHIP 4.7UF 25V X7R 1206 2333 823827736009 CHIP 4.7UF 25V X7R 1206 2334 223878615649 CER2 0603 X7R 16V 100N PM10 2351 223878615649 CER2 0603 X7R 16V 100N PM10 2353 223886715229 CER1 0603 NP0 50V 22P PM5 2354 223886715229 CER1 0603 NP0 50V 22P PM5 2356 223878615649 CER2 0603 X7R 16V 100N PM10 2358 223886715101 CER1 0603 NP0 50V 100P PM5 2359 823827736009 CHIP 4.7UF 25V X7R 1206 2360 223878615649 CER2 0603 X7R 16V 100N PM10 2361 223886715101 CER1 0603 NP0 50V 100P PM5 2401 202203100205 ELCAP SM RVS 25V 47U PM20 2402 223878615649 CER2 0603 X7R 16V 100N PM10 2403 823827736009 CHIP 4.7UF 25V X7R 1206 2404 223878615649 CER2 0603 X7R 16V 100N PM10 2405 823827736009 CHIP 4.7UF 25V X7R 1206 2406 223878615649 CER2 0603 X7R 16V 100N PM10 2407 823827736009 CHIP 4.7UF 25V X7R 1206 2408 223878615649 CER2 0603 X7R 16V 100N PM10 2409 823827736009 CHIP 4.7UF 25V X7R 1206 2410 223878615649 CER2 0603 X7R 16V 100N PM10 2411 823827736009 CHIP 4.7UF 25V X7R 1206 2412 223878615649 CER2 0603 X7R 16V 100N PM10 2413 202203100205 ELCAP SM RVS 25V 47U PM20 2414 223878615649 CER2 0603 X7R 16V 100N PM10 2415 823827736009 CHIP 4.7UF 25V X7R 1206 2416 223878615649 CER2 0603 X7R 16V 100N PM10 2417 223878615649 CER2 0603 X7R 16V 100N PM10 2419 223878615649 CER2 0603 X7R 16V 100N PM10 2420 823827736009 CHIP 4.7UF 25V X7R 1206 2421 823827736009 CHIP 4.7UF 25V X7R 1206 2422 223878615649 CER2 0603 X7R 16V 100N PM10 2423 823827736009 CHIP 4.7UF 25V X7R 1206 2424 223878615649 CER2 0603 X7R 16V 100N PM10 2425 223878615649 CER2 0603 X7R 16V 100N PM10 2426 223878615649 CER2 0603 X7R 16V 100N PM10 2427 223878615649 CER2 0603 X7R 16V 100N PM10 2428 223878615649 CER2 0603 X7R 16V 100N PM10 2429 223878615649 CER2 0603 X7R 16V 100N PM10 2430 223878615649 CER2 0603 X7R 16V 100N PM10 2431 223878615649 CER2 0603 X7R 16V 100N PM10 2432 823827736009 CHIP 4.7UF 25V X7R 1206 2433 823827736009 CHIP 4.7UF 25V X7R 1206 2434 223878615649 CER2 0603 X7R 16V 100N PM10 2435 223878615649 CER2 0603 X7R 16V 100N PM10 2436 223878615649 CER2 0603 X7R 16V 100N PM10 2437 223878615649 CER2 0603 X7R 16V 100N PM10 2438 223878615649 CER2 0603 X7R 16V 100N PM10 2439 223878615649 CER2 0603 X7R 16V 100N PM10 2440 223878615649 CER2 0603 X7R 16V 100N PM10 2441 223878615649 CER2 0603 X7R 16V 100N PM10 2442 223878615649 CER2 0603 X7R 16V 100N PM10 2443 223878615649 CER2 0603 X7R 16V 100N PM10 2444 223878615649 CER2 0603 X7R 16V 100N PM10 2445 223878615649 CER2 0603 X7R 16V 100N PM10 2446 223878615649 CER2 0603 X7R 16V 100N PM10 2447 223886715339 CER1 0603 NP0 50V 33P PM5 2448 223886715339 CER1 0603 NP0 50V 33P PM5 2451 223878615649 CER2 0603 X7R 16V 100N PM10 2452 223878615649 CER2 0603 X7R 16V 100N PM10 2453 223878615649 CER2 0603 X7R 16V 100N PM10 2454 223858615636 CER2 0603 X7R 50V 10N PM10 2455 823827736009 CHIP 4.7UF 25V X7R 1206 2456 823827736009 CHIP 4.7UF 25V X7R 1206 2457 223878615649 CER2 0603 X7R 16V 100N PM10 2458 823827736009 CHIP 4.7UF 25V X7R 1206 2459 223878615649 CER2 0603 X7R 16V 100N PM10 2501 223878615649 CER2 0603 X7R 16V 100N PM10 2502 223878615649 CER2 0603 X7R 16V 100N PM10 2503 202203100205 ELCAP SM RVS 25V 47U PM20 2504 223878615649 CER2 0603 X7R 16V 100N PM10 2505 223878615649 CER2 0603 X7R 16V 100N PM10 2506 202203100205 ELCAP SM RVS 25V 47U PM20 2510 223878615649 CER2 0603 X7R 16V 100N PM10 2511 223878615649 CER2 0603 X7R 16V 100N PM10 2515 223878615649 CER2 0603 X7R 16V 100N PM10 2516 223878615649 CER2 0603 X7R 16V 100N PM10 2517 223878615649 CER2 0603 X7R 16V 100N PM10 2518 223878615649 CER2 0603 X7R 16V 100N PM10 2519 223878615649 CER2 0603 X7R 16V 100N PM10 2520 223878615645 CER2 0603 X7R 16V 47N PM10 2521 202203100205 ELCAP SM RVS 25V 47U PM20 2522 223878615649 CER2 0603 X7R 16V 100N PM10 2523 223878615649 CER2 0603 X7R 16V 100N PM10 2524 823827736009 CHIP 4.7UF 25V X7R 1206 2525 823827736009 CHIP 4.7UF 25V X7R 1206 2526 223878615649 CER2 0603 X7R 16V 100N PM10 2529 823827736009 CHIP 4.7UF 25V X7R 1206 2530 223878615649 CER2 0603 X7R 16V 100N PM10 2531 823827736009 CHIP 4.7UF 25V X7R 1206 2538 223878615645 CER2 0603 X7R 16V 47N PM10 2539 223878615645 CER2 0603 X7R 16V 47N PM10 3202 212211805656 RST SM 0603 RC0603 1K PM5 3203 212211805656 RST SM 0603 RC0603 1K PM5 3204 232270260103 RST SM 0603 RC21 10K PM5 3207 232270260103 RST SM 0603 RC21 10K PM5 3208 232270260103 RST SM 0603 RC21 10K PM5 3209 232270260103 RST SM 0603 RC21 10K PM5 3210 232270260223 RST SM 0603 RC21 22K PM5 3211 232270260101 RST SM 0603 RC21 100R PM5 3212 232270260101 RST SM 0603 RC21 100R PM5 3213 232270260101 RST SM 0603 RC21 100R PM5 3214 232270260101 RST SM 0603 RC21 100R PM5 3215 212211805637 RST SM 0603 RC0603 22R PM5 3216 212211805637 RST SM 0603 RC0603 22R PM5 3217 212211805637 RST SM 0603 RC0603 22R PM5 3229 212211805665 RST SM 0603 RC0603 4K7 PM5 3230 212211805665 RST SM 0603 RC0603 4K7 PM5 3231 212211805641 RST SM 0603 RC0603 68R PM5 3233 232270260103 RST SM 0603 RC21 10K PM5 3234 232270260223 RST SM 0603 RC21 22K PM5 3235 232270260101 RST SM 0603 RC21 100R PM5 3236 232270260101 RST SM 0603 RC21 100R PM5 3237 232270260101 RST SM 0603 RC21 100R PM5 3238 232270260101 RST SM 0603 RC21 100R PM5 3239 232270260101 RST SM 0603 RC21 100R PM5 3240 232270260101 RST SM 0603 RC21 100R PM5 3241 212211805661 RST SM 0603 RC0603 2K2 PM5 3242 212211805661 RST SM 0603 RC0603 2K2 PM5 3243 212211805964 RST SM 0603 RC0603 75R PM1 3244 212211805638 RST SM 0603 RC0603 33R PM5 3247 232270260471 RST SM 0603 RC21 470R PM5 3248 212211805964 RST SM 0603 RC0603 75R PM1 3249 212211805638 RST SM 0603 RC0603 33R PM5 3251 212211805641 RST SM 0603 RC0603 68R PM5 3252 212211805638 RST SM 0603 RC0603 33R PM5 3253 212211805964 RST SM 0603 RC0603 75R PM1 3254 212211805641 RST SM 0603 RC0603 68R PM5 3255 212211805656 RST SM 0603 RC0603 1K PM5 3256 232270260103 RST SM 0603 RC21 10K PM5 3259 232270260223 RST SM 0603 RC21 22K PM5 3260 232270260223 RST SM 0603 RC21 22K PM5 3301 212211805656 RST SM 0603 RC0603 1K PM5 3302 212211805656 RST SM 0603 RC0603 1K PM5 3303 232270260151 RST SM 0603 RC21 150R PM5 3304 212211805637 RST SM 0603 RC0603 22R PM5 http://www.wjel.net 86 200WP7 LCD Go to cover page Spare Parts List 3305 212211805637 RST SM 0603 RC0603 22R PM5 3306 232270260101 RST SM 0603 RC21 100R PM5 3307 232270260101 RST SM 0603 RC21 100R PM5 3308 232270260101 RST SM 0603 RC21 100R PM5 3309 232270260101 RST SM 0603 RC21 100R PM5 3310 232270260101 RST SM 0603 RC21 100R PM5 3311 232270260101 RST SM 0603 RC21 100R PM5 3312 232270260101 RST SM 0603 RC21 100R PM5 3313 232270260101 RST SM 0603 RC21 100R PM5 3314 235003510101 RST NETW SM ARV24 4X100R PM5 3315 235003510101 RST NETW SM ARV24 4X100R PM5 3316 235003510101 RST NETW SM ARV24 4X100R PM5 3317 235003510101 RST NETW SM ARV24 4X100R PM5 3318 235003510101 RST NETW SM ARV24 4X100R PM5 3319 235003510101 RST NETW SM ARV24 4X100R PM5 3320 235003510101 RST NETW SM ARV24 4X100R PM5 3321 235003510101 RST NETW SM ARV24 4X100R PM5 3322 212211805637 RST SM 0603 RC0603 22R PM5 3323 212211805637 RST SM 0603 RC0603 22R PM5 3351 212211805689 RST SM 0603 RC0603 1M PM5 3352 232270260101 RST SM 0603 RC21 100R PM5 3353 232270260103 RST SM 0603 RC21 10K PM5 3354 232270260101 RST SM 0603 RC21 100R PM5 3358 232270260103 RST SM 0603 RC21 10K PM5 3359 232270260101 RST SM 0603 RC21 100R PM5 3360 232270260103 RST SM 0603 RC21 10K PM5 3361 232270260103 RST SM 0603 RC21 10K PM5 3364 232270260103 RST SM 0603 RC21 10K PM5 3365 232270260103 RST SM 0603 RC21 10K PM5 3366 232270260103 RST SM 0603 RC21 10K PM5 3367 232270260103 RST SM 0603 RC21 10K PM5 3368 232270260101 RST SM 0603 RC21 100R PM5 3369 232270260101 RST SM 0603 RC21 100R PM5 3370 232270260103 RST SM 0603 RC21 10K PM5 3371 232270260103 RST SM 0603 RC21 10K PM5 3372 232270260103 RST SM 0603 RC21 10K PM5 3373 232270260101 RST SM 0603 RC21 100R PM5 3374 232270260101 RST SM 0603 RC21 100R PM5 3379 232270260101 RST SM 0603 RC21 100R PM5 3380 232270260101 RST SM 0603 RC21 100R PM5 3382 232270260103 RST SM 0603 RC21 10K PM5 3391 232270296001 RST SM 0603 JUMP. MAX 0R05 3392 232270296001 RST SM 0603 JUMP. MAX 0R05 3401 232270463901 RST SM 0603 RC22H 390R PM1 3402 232270260101 RST SM 0603 RC21 100R PM5 3403 212211805637 RST SM 0603 RC0603 22R PM5 3405 232270260103 RST SM 0603 RC21 10K PM5 3408 212211805637 RST SM 0603 RC0603 22R PM5 3409 212211805637 RST SM 0603 RC0603 22R PM5 3410 212211805637 RST SM 0603 RC0603 22R PM5 3411 212211805637 RST SM 0603 RC0603 22R PM5 3412 212211805637 RST SM 0603 RC0603 22R PM5 3413 212211805656 RST SM 0603 RC0603 1K PM5 3414 232270260122 RST SM 0603 RC21 1K2 PM5 3416 232270260101 RST SM 0603 RC21 100R PM5 3501 232270260479 RST SM 0603 RC21 47R PM5 3502 232270260479 RST SM 0603 RC21 47R PM5 3503 232270260479 RST SM 0603 RC21 47R PM5 3504 232270260103 RST SM 0603 RC21 10K PM5 3506 232270260101 RST SM 0603 RC21 100R PM5 3507 232270260101 RST SM 0603 RC21 100R PM5 3508 232270260101 RST SM 0603 RC21 100R PM5 3509 232270260221 RST SM 0603 RC21 220R PM5 3510 232270260103 RST SM 0603 RC21 10K PM5 3511 232270260221 RST SM 0603 RC21 220R PM5 3512 232270260103 RST SM 0603 RC21 10K PM5 3515 232270260103 RST SM 0603 RC21 10K PM5 3516 232270260103 RST SM 0603 RC21 10K PM5 3517 212211805683 RST SM 0603 RC0603 100K PM5 3518 232270260103 RST SM 0603 RC21 10K PM5 3519 232270260103 RST SM 0603 RC21 10K PM5 3520 232270260103 RST SM 0603 RC21 10K PM5 3521 212211805683 RST SM 0603 RC0603 100K PM5 3522 232270260103 RST SM 0603 RC21 10K PM5 3523 232270260103 RST SM 0603 RC21 10K PM5 3524 212211805683 RST SM 0603 RC0603 100K PM5 3525 232270260103 RST SM 0603 RC21 10K PM5 3526 232270260103 RST SM 0603 RC21 10K PM5 3527 232270260223 RST SM 0603 RC21 22K PM5 3532 232270260103 RST SM 0603 RC21 10K PM5 3533 232270296001 RST SM 0603 JUMP. MAX 0R05 3539 232270260103 RST SM 0603 RC21 10K PM5 5201 242254945582 IND FXD 0805 EMI 100MHZ 300R 5202 242254945582 IND FXD 0805 EMI 100MHZ 300R 5204 242254945582 IND FXD 0805 EMI 100MHZ 300R 5301 242254945582 IND FXD 0805 EMI 100MHZ 300R 5302 242254945582 IND FXD 0805 EMI 100MHZ 300R 5351 242254945582 IND FXD 0805 EMI 100MHZ 300R 5401 242254945582 IND FXD 0805 EMI 100MHZ 300R 5402 242254945582 IND FXD 0805 EMI 100MHZ 300R 5403 242254945582 IND FXD 0805 EMI 100MHZ 300R 5404 242254945582 IND FXD 0805 EMI 100MHZ 300R 5405 242254945582 IND FXD 0805 EMI 100MHZ 300R 5406 242254945582 IND FXD 0805 EMI 100MHZ 300R 5407 242254945582 IND FXD 0805 EMI 100MHZ 300R 5409 242254945582 IND FXD 0805 EMI 100MHZ 300R 5410 242254945582 IND FXD 0805 EMI 100MHZ 300R 5412 242254945582 IND FXD 0805 EMI 100MHZ 300R 5413 242254945579 IND FXD 1206 EMI 100MHZ 100R 5414 242254945579 IND FXD 1206 EMI 100MHZ 100R 5416 242254945579 IND FXD 1206 EMI 100MHZ 100R 5501 242254945579 IND FXD 1206 EMI 100MHZ 100R 5502 242254945579 IND FXD 1206 EMI 100MHZ 100R 6201 933913910115 DIO SIG SM BAS32L (PHSE) 6202 933913910115 DIO SIG SM BAS32L (PHSE) 6203 933913910115 DIO SIG SM BAS32L (PHSE) 6204 933913910115 DIO SIG SM BAS32L (PHSE) 6401 932220675682 DIO REC M100AL-5301-E3 (VISH) 6402 932220675682 DIO REC M100AL-5301-E3 (VISH) 6403 932220628682 DIO REC SB140AL-5301E3 (VISH) 7201 932216972682 IC SM AT24C02N-10SC-2.7(ATME) 7202 932216972682 IC SM AT24C02N-10SC-2.7(ATME) 7301 932222292671 IC SM K4D263238G-VC36 (SMGK) 7302 932216732668 IC SM LD1117S25 (ST00) 7351 313815867041 CPU IC ASSY-LPL(7351) 7351 932222343682 IC SM NT68F631ALG (NOVA) 7353 313815867051 EEPROM IC ASSY-LPL(7353) 7353 932214725682 IC M24C16-WBN6P (ST00) 7401 823827716351 SCALER IC 7403 932220099685 IC SM LD1117AS18 (ST00) 7404 932216732668 IC SM LD1117S25 (ST00) 7405 932216733668 IC SM LD1117S33 (ST00) 7501 933769900215 TRA SIG SM BC857C (PHSE) 7502 933769900215 TRA SIG SM BC857C (PHSE) 7503 932217440685 TRA SIG SM KRC102S (KEC0) 7504 932216638668 FET POW SM SI5441DC-E3 (VISH) 7505 932216733668 IC SM LD1117S33 (ST00) 7507 932216733668 IC SM LD1117S33 (ST00) 7509 932216638668 FET POW SM SI5441DC-E3 (VISH) 7510 932216638668 FET POW SM SI5441DC-E3 (VISH) 7511 932217440685 TRA SIG SM KRC102S (KEC0) 7512 932217440685 TRA SIG SM KRC102S (KEC0) PCB Assy 1052 313815865861 CONTROL ASSY various 1951 243812800196 SWI TACT H=5 GY 160G SKHHAM 1952 243812800196 SWI TACT H=5 GY 160G SKHHAM 1953 243812800196 SWI TACT H=5 GY 160G SKHHAM 1954 243812800196 SWI TACT H=5 GY 160G SKHHAM 1955 243812800196 SWI TACT H=5 GY 160G SKHHAM 1956 243812800196 SWI TACT H=5 GY 160G SKHHAM 1957 243812800196 SWI TACT H=5 GY 160G SKHHAM 1960 243812800196 SWI TACT H=5 GY 160G SKHHAM 1961 242202518897 CON H 7P M 2.00 63367 2951 223858619812 CER2 0603 Y5V 50V 100N P8020 2952 223858619812 CER2 0603 Y5V 50V 100N P8020 3951 232270260101 RST SM 0603 RC21 100R PM5 3952 232270260473 RST SM 0603 RC21 47K PM5 3953 232270260103 RST SM 0603 RC21 10K PM5 3954 212211805656 RST SM 0603 RC0603 1K PM5 3955 232270260473 RST SM 0603 RC21 47K PM5 3956 232270260103 RST SM 0603 RC21 10K PM5 3957 212211805656 RST SM 0603 RC0603 1K PM5 6951 932214603682 LED VS L-3WYGW (KIEL) PCB Assy 1054 313815867111 USB ASSY(200 WP7) various 1601 242202518896 CON H 6P M 2.00 63366 1608 823827732071 CABLE RING TERM/45/FAST AWG18 1609 823827732069 CABLE RING TERM/85/FAST AWG18 1610 243854300085 RES XTL SM 24MHZ 20P SMD-49 1651 242202518953 SOC USB V 4P F 2.0/2.5 5401 1652 242202518955 SOC USB V 4P F 2.5 5411 1653 242202518957 SOC USB V 8P F 2.0/2.5 5402 1654 242202518953 SOC USB V 4P F 2.0/2.5 5401 2601 223878615649 CER2 0603 X7R 16V 100N PM10 2603 202203100179 ELCAP SM HV 25V 10U PM20 2604 223858619812 CER2 0603 Y5V 50V 100N P8020 2621 223878615649 CER2 0603 X7R 16V 100N PM10 2623 223858615636 CER2 0603 X7R 50V 10N PM10 2625 222224119876 CER2 1206 Y5V 10V 10U P8020 2631 202202000963 ELCAP SM LV 25V 100U PM20 2633 223878615649 CER2 0603 X7R 16V 100N PM10 2634 202202000963 ELCAP SM LV 25V 100U PM20 2635 223878615643 CER2 0603 X7R 16V 33N PM10 2636 222278015663 CER2 0805 X7R 16V 1U PM10 2651 202001293803 ELCAP SM RV2 16V 100U PM20 2652 223878615649 CER2 0603 X7R 16V 100N PM10 2655 202001293803 ELCAP SM RV2 16V 100U PM20 2656 223878615649 CER2 0603 X7R 16V 100N PM10 2661 202001293803 ELCAP SM RV2 16V 100U PM20 2662 223878615649 CER2 0603 X7R 16V 100N PM10 2665 202001293803 ELCAP SM RV2 16V 100U PM20 2666 223878615649 CER2 0603 X7R 16V 100N PM10 2671 223878615649 CER2 0603 X7R 16V 100N PM10 2675 223878615649 CER2 0603 X7R 16V 100N PM10 2680 223878615649 CER2 0603 X7R 16V 100N PM10 2681 223878615649 CER2 0603 X7R 16V 100N PM10 2682 223886715279 CER1 0603 NP0 50V 27P PM5 2683 223886715279 CER1 0603 NP0 50V 27P PM5 2684 223878615649 CER2 0603 X7R 16V 100N PM10 2685 223878615649 CER2 0603 X7R 16V 100N PM10 2691 223878615649 CER2 0603 X7R 16V 100N PM10 2692 223878615649 CER2 0603 X7R 16V 100N PM10 2693 223878615649 CER2 0603 X7R 16V 100N PM10 2694 223878615649 CER2 0603 X7R 16V 100N PM10 2695 223878615649 CER2 0603 X7R 16V 100N PM10 2696 223878615649 CER2 0603 X7R 16V 100N PM10 2697 223878615649 CER2 0603 X7R 16V 100N PM10 2698 223878615649 CER2 0603 X7R 16V 100N PM10 2699 223878615649 CER2 0603 X7R 16V 100N PM10 3622 232270260103 RST SM 0603 RC21 10K PM5 3623 212211805683 RST SM 0603 RC0603 100K PM5 3634 232270260202 RST SM 0603 RC21 2K PM5 3681 212211805672 RST SM 0603 RC0603 15K PM5 3682 212211805683 RST SM 0603 RC0603 100K PM5 3683 212211805672 RST SM 0603 RC0603 15K PM5 3685 212211805672 RST SM 0603 RC0603 15K PM5 3687 212211805672 RST SM 0603 RC0603 15K PM5 3689 212211805672 RST SM 0603 RC0603 15K PM5 3691 212211805672 RST SM 0603 RC0603 15K PM5 3692 212211805672 RST SM 0603 RC0603 15K PM5 3693 212211805672 RST SM 0603 RC0603 15K PM5 4631 232270296001 RST SM 0603 JUMP. MAX 0R05 5601 242254900126 IND FXD 0805 EMI 100MHZ 120R 5602 242254900126 IND FXD 0805 EMI 100MHZ 120R 5603 242254900126 IND FXD 0805 EMI 100MHZ 120R 5621 242254900126 IND FXD 0805 EMI 100MHZ 120R 5622 242254900126 IND FXD 0805 EMI 100MHZ 120R 5634 313818875771 COI CHOKE 35UH 82M OHM DR10X8 5651 242254900126 IND FXD 0805 EMI 100MHZ 120R 5653 242254900126 IND FXD 0805 EMI 100MHZ 120R 5655 242254900126 IND FXD 0805 EMI 100MHZ 120R 5657 242254900126 IND FXD 0805 EMI 100MHZ 120R 5659 242254900126 IND FXD 0805 EMI 100MHZ 120R 6634 932221745685 DIO REC SM SSA34-E3 (VISH) 6635 932221745685 DIO REC SM SSA34-E3 (VISH) 6662 933913910115 DIO SIG SM BAS32L (PHSE) 7622 932217440685 TRA SIG SM KRC102S (KEC0) 7625 932216638668 FET POW SM SI5441DC-E3 (VISH) 7631 932222352668 IC SM TPS54357PWP (TI00) 7651 932222162671 IC SM CY7C65640-LFXC (CYPR) 7671 932222269668 IC SM TPS2062DG4 (TI00) 7675 932222269668 IC SM TPS2062DG4 (TI00) http://www.wjel.net 87 200WP7 LCD Diversity of 200WP7EB/00 compared with 200P7ES/00 Item 12NC Description 863900017042 200WP7EB/00 0602 313811709571 E-D.F.U. 0130 313815569641 ENERGY STAR LABEL 0004 313815761131 SUPER ERGO BASE ASSY 0140 313800990651 PROCESS BOX 0300 282206240595 INK CARTRIDGE -EP-T 0030 313815761231 BEZEL ASSY 0031 313815418101 BEZEL 0032 313815417971 BEZEL-DECO 0033 313815417981 CONTROL KNOB 0040 313815761121 BACK COVER ASSY 0042 313815418001 MIDDLE COVER 0116 313810440571 HOUSING COVER http://www.wjel.net 88 200WP7 LCD Scaler Diagram-1 1 1 2 2 3 3 4 4 5 5 A A B B C C D D Position 4 Comments SHEET 1 CONTENTS Date Approval 04. SCALER SCHEMATIC Name 5 2 01. Contents 02. DSUB/DVI Ver 03. MCU Signature 05. DDR Author 6 REVISION HISTORY Date 3 A PHILIPS UH7 200P7 SCALER SEHEMATIC FOR PROTOTYPE 06. IO 2005-09-14 Jerry Chen 2005-11-23 Jerry Chen B PHILIPS UH7 200WP7 SCALER SEHEMATIC FOR 2nd MODEL 2006-02-09 Jerry Chen C 5205 /5206 /5207 change to 3215 /3216/3217 22R 1 200WP7ES/01 SCALER BOARD(Contents) A 1 6 December 01, 2006 CP NR. CL6xxxx 3138 158 65851(6319.1) (715G1789-1) Title Size Document Number Rev Date: Sheet of http://www.wjel.net 89 200WP7 LCD Scaler Diagram-2 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 A A B B C C D D E E F F G G H H 1201 A1 1202 F3 2201 A2 2202 A4 2203 B3 2204 B3 2205 B4 2214 D3 2215 E2 2216 E2 2217 G1 2218 G2 2219 D4 2220 F5 2221 E6 2222 F6 2223 F5 2224 F6 2225 F6 2226 G5 2227 G6 2228 G6 2229 H5 2230 A7 2231 A9 2232 B7 2233 B9 2234 C7 2235 C8 2236 C10 2237 D7 2238 D9 2239 E9 2240 F4 2241 F6 2242 F5 2243 G5 3202 B3 3203 B2 3204 B4 3205 D6 3207 A3 3208 A3 3209 A4 3210 B4 3211 A2 3212 A2 3213 B2 3214 B2 3215 E5 3216 F5 3217 G5 3229 D2 3230 D2 3231 F6 3233 D2 3234 E2 3235 F2 3236 F3 3237 F2 3238 G2 3239 G2 3240 G2 3241 G2 3242 G3 3243 G4 3244 E6 3247 F6 3248 G4 3249 F6 3251 F6 3252 G6 3253 G5 3254 G6 3255 H4 3256 H4 3259 H4 3260 B4 5201 A2 5202 D4 5204 G3 6201 A3 6202 A5 6203 D1 6204 D3 6210 A6 6211 A8 6212 A8 6213 A10 6214 B6 6215 B8 6216 B8 6217 B10 6219 C6 6220 C8 6221 C9 6222 D6 6223 D8 6224 D8 6225 D10 6226 E8 6227 E10 7201 A4 7202 E3 1 200WP7ES/01 SCALER BOARD(DSUB/DVI) C 2 6 December 01, 2006 CP NR. CL6xxxx 3138 158 65851 ( 6319.1) (715G1789-1) Title Size Document Number Rev Date: Sheet of R G DDCSDA HIN VIN DDCSCL RX1- RX2+ RX1+ RX2- RXC+ RX0- RX0+ RXC- G R DDCSCL VIN HIN DDCSDA_D DDCSCL_D B DDCSDA B RX1+ RX2- DDCSDA_D RX1- RX0- RX0+ DDCSCL_D RXC- RXC+ RX2+ VGA_SDA 3 HS_RGB 4 VS_RGB 4 VGA_SCL 3 RIN+ 4 RIN- 4 SOG 4 GIN+ 4 GIN- 4 BIN+ 4 BIN- 4 VGA_CABLE 3 DDC_WP 3 RX2+ 4 RXC- 4 DVI_SDA 3 RX1+ 4 RX2- 4 RXC+ 4 DVI_SCL 3 RX1- 4 RX0+ 4 DVI_CABLE 3 DDC_WP 3 RX0- 4 +5V +5V_ESD +5V_ESD +5V_ESD +5V_ESD +5V_ESD +5V +5V +5V +5V 3213 100 2223 5pF(NC) 6210 BAV99(NC) 3 1 2 3214 100 3256 10K 5202 120 OHM 1 2 6222 BAV99(NC) 3 1 2 3247 470 3259 22K 2214 0.1uF/16V 3205 10K (NC) 3217 22 1/16W 3202 1K 3204 10K 6225 BAV99(NC) 3 1 2 3242 2.2K 6203 BAS 32L 2243 5pF(NC) 3215 22 1/16W 3251 68 3216 22 1/16W 2232 0.1uF/16V(NC) 2229 0.1uF/16V 2242 5pF(NC) 2235 0.1uF/16V(NC) 1201 DVI_CON 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 32 31 25 26 27 28 29 RX2- RX2+ GND RX4- RX4+ SCL SDA VS RX1- RX1+ GND RX3- RX3+ 5V GND HP RX0- RX0+ GND RX5- RX5+ GND RXC+ RXC- 32 31 RED GRN BLU HS GND 3249 33 2238 0.1uF/16V(NC) 6214 BAV99(NC) 3 1 2 6201 BAS 32L 3260 22K 5201 120 OHM 1 2 2225 0.047uF 3208 10K 3209 10K 6221 BAV99(NC) 3 1 2 2216 330pF 6217 BAV99(NC) 3 1 2 3210 22K 2218 220pF 2224 0.047uF 2222 0.001uF 6224 BAV99(NC) 3 1 2 3229 4.7K 3211 100 3234 22K 2240 5pF(NC) 2226 5pF(NC) 2203 330pF 2215 330pF 2230 0.1uF/16V(NC) 3203 1K? 6227 BAV99(NC) 3 1 2 2204 330pF 7202 M24C02WMN6 1 2 3 4 5 6 7 8 NC/NC/NC/E0/E0 NC/NC/E1/E1/E1 NC/E2/E2/E2/E2 VSS SDA SCL WC VCC 1202 DB15 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 2231 0.1uF/16V(NC) 2217 33pF 2234 0.1uF/16V(NC) 6213 BAV99(NC) 3 1 2 2237 0.1uF/16V(NC) 6202 BAS 32L 3243 75 3248 75 6220 BAV99(NC) 3 1 2 6216 BAV99(NC) 3 1 2 3253 75 3244 33 3230 4.7K 3254 68 2221 0.047uF 6223 BAV99(NC) 3 1 2 3231 68 3252 33 2241 0.047uF 3212 100 7201 M24C02WMN6 1 2 3 4 5 6 7 8 NC/NC/NC/E0/E0 NC/NC/E1/E1/E1 NC/E2/E2/E2/E2 VSS SDA SCL WC VCC 2202 0.1uF/16V 6226 BAV99(NC) 3 1 2 2228 0.047uF 6204 BAS 32L 2220 5pF(NC) 3236 100 3207 10K 3235 100 3255 1K 2219 0.1uF/16V 3238 100 2205 0.1uF/16V 2227 0.047uF 3240 100 6212 BAV99(NC) 3 1 2 2233 0.1uF/16V(NC) 3239 100 5204 120 OHM 1 2 3233 10K 3241 2.2K 2236 0.1uF/16V(NC) 2239 0.1uF/16V(NC) 3237 100 2201 0.1uF/16V 6219 BAV99(NC) 3 1 2 6211 BAV99(NC) 3 1 2 6215 BAV99(NC) 3 1 2 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � http://www.wjel.net 90 200WP7 LCD Scaler Diagram-3 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 A A B B C C D D E E 1351 A3 1352 B5 1353 C1 2351 A4 2353 A2 2354 A3 2355 A3 2356 B2 2358 A5 2359 A4 2360 A1 2361 B3 2362 C2 2363 C1 3351 A3 3352 B3 3353 B2 3354 A4 3358 A6 3359 B3 3360 A6 3361 A5 3364 A5 3365 A5 3366 A5 3367 A5 3368 B5 3369 B5 3370 A2 3371 A2 3372 A1 3373 B1 3374 B1 3379 B3 3380 B3 3381 C2 3382 A3 3391 B3 3392 B3 5351 A5 7351 A4 7353 A1 1 200WP7ES/01 SCALER BOARD(MCU) B 3 6 December 01, 2006 CP NR. CL6xxxx 3138 158 65851 (6319.1) (715G1789-1) Title Size Document Number Rev Date: Sheet of 24C16_WP 24C16_WP SMARTBRIGHT SMARTBRIGHT HWRESET 4 KEY1 6 VGA_SCL 2 VGA_SDA 2 DVI_SCL 2 DVI_SDA 2 AD3 4 AD2 4 AD1 4 AD0 4 ALE 4 RDZ 4 WRZ 4 VGA_CABLE 2 DDC_WP 2 LED_R 6 LED_G 6 BRIGHTNESS_IDX 6 KEY2 6 BL_CONTROL 6 PANEL_PWR 6 DVI_CABLE 2 K_PWR 6 POWER_SAVING 6 INT 4 VCPU VCPU +3.3V VCPU VCPU VCPU VCPU 1351 12.000MHz 1 2 3371 10K? 7353 M24C16-WBN6P 1 2 3 4 5 6 7 8 NC NC NC VSS SDA SCL WC VCC 2354 22pF 1352 CONN 1 2 3 4 7351 NT68F631ALG 21 20 14 15 16 17 2 3 4 5 6 7 8 9 43 42 41 40 39 38 37 36 24 25 26 27 28 29 30 31 19 18 13 11 22 44 23 34 1 35 10 12 OSCI OSCO PB2/ADC2/INTE0 PB3/ADC3/INTE1 P34/T0 P35/T1 PA0/PWM2 PA1/PWM3 PA2/PWM4 PA3/PWM5 PA4*/PWM6* PA5*/PWM7* PA6*/PWM8* PA7*/PWM9* PC0* PC1* PC2 PC3/PWM0 PC4/PWM1 PC5 PC6 PC7 PB1/ADC1 PB4*/SCL0* PB5*/SDA0* PB6*/SCL1* PB7*/SDA1* PD5 PD4 PD3 PE1 PE0 P31/TXD P30/RXD GND VCC PB0/ADC0 PD2 PD0 PD1 RSTB PD6 2360 0.1uF/16V 3370 10K? 3354 100 3368 100 3379 100 3367 10K 2355 100pF(NC) 3353 10K ? 3365 10K 2363 0.1uF/16V (NC) 3361 10K 3369 100 2351 0.1uF/16V 3366 10K 3382 10K 3391 0 1353 conn (NC) 1 2 3358 10K 5351 120 OHM 1 2 3351 1M? 3364 10K 3359 100 3360 10K 3373 100 ? 2362 0.1uF/16V (NC) 3380 100 3392 0 3374 100 ? 2356 0.1uF/16V 2358 100pF 2361 100pF 3352 100 ? 3381 10K? (NC) 2353 22pF 2359 4.7uF/25V 3372 10K? � � � � � � � � � � � � � � � � � � � � � � � � � http://www.wjel.net 91 200WP7 LCD Scaler Diagram-4 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 A A B B C C D D E E F F G G H H 1401 F3 1402 B10 2401 A4 2402 A4 2403 A5 2404 A6 2405 A8 2406 A8 2407 D10 2408 D10 2409 E10 2410 E10 2411 E10 2412 E10 2413 B2 2414 B2 2415 G2 2416 B2 2417 B3 2419 B3 2420 E1 2421 E2 2422 E2 2423 H2 2424 H2 2425 H2 2426 H3 2427 G2 2428 G3 2429 H3 2430 H4 2431 G3 2432 H4 2433 H5 2434 H6 2435 H6 2436 H7 2437 H7 2438 H7 2439 H8 2440 H8 2441 H8 2442 H9 2443 D3 2444 D3 2445 E2 2446 F3 2447 F3 2448 F3 2451 A6 2452 A8 2453 G10 2454 G10 2455 A1 2456 A2 2457 A2 2458 B9 2459 B9 3401 C3 3402 E2 3403 E8 3405 E2 3408 D8 3409 D8 3410 D8 3411 D8 3412 C8 3413 F10 3414 G9 3416 F3 3417 B9 3418 B11 5401 A3 5402 A5 5403 A7 5404 D10 5405 D10 5406 E10 5407 B1 5409 G1 5410 H1 5412 H6 5413 A9 5414 A1 5415 C1 5416 C1 5417 A1 6401 D1 6402 D1 6403 D1 7401 B4 7403 D1 7404 H5 7405 A1 1 200WP7ES/01 SCALER BOARD(SCALER MST9251A) C 4 6 December 01, 2006 CP NR. CL6xxxx 3138 158 65851(6319.1) (715G1789-1) Title Size Document Number Rev Date: Sheet of TXOC- TXO0+ TXO1+ TXE2- TXO2+ TXO2- TXEC- TXO0- TXE1+ TXO1- TXOC+ TXE3+ TXE3- TXEC+ TXE1- TXE0- TXE0+ TXO3+ TXO3- TXE2+ TXO0- TXO0+ TXO1- TXO1+ TXO2- TXO2+ TXOC- TXOC+ TXO3- TXO3+ TXE0- TXE0+ TXE1- TXE1+ TXE2- TXEC- TXEC+ TXE2+ TXE3- TXE3+ RX2+ 2 RX2- 2 RX1+ 2 RX1- 2 RX0+ 2 RX0- 2 BIN- 2 BIN+ 2 GIN- 2 GIN+ 2 SOG 2 RIN- 2 RIN+ 2 HS_RGB 2 VS_RGB 2 BRIGHTNESS_RES 6 RXC- 2 RXC+ 2 HWRESET 3 ALE 3 RDZ 3 WRZ 3 AD0 3 AD1 3 AD2 3 AD3 3 DQS0 5 MDATA0 5 MDATA1 5 MDATA2 5 MDATA3 5 MDATA4 5 MDATA5 5 MDATA6 5 MDATA7 5 MDATA8 5 MDATA9 5 MDATA10 5 MDATA11 5 MDATA12 5 MDATA13 5 MDATA14 5 MDATA15 5 DQS1 5 DQM0 5 DQM1 5 DQS2 5 MDATA16 5 MDATA17 5 MDATA18 5 MDATA19 5 MDATA20 5 MDATA21 5 MDATA22 5 MDATA23 5 MDATA24 5 MDATA25 5 MDATA26 5 MDATA27 5 MDATA28 5 MDATA29 5 MDATA30 5 MDATA31 5 DQS3 5 AR11 5 AR10 5 AR9 5 AR8 5 AR7 5 AR6 5 AR5 5 AR4 5 AR3 5 AR2 5 AR1 5 AR0 5 WE 5 CAS 5 RAS 5 SBA0 5 SBA1 5 MCLK+ 5 MCLK- 5 CKE 5 INT 3 +3.3AVDD_D +3.3AVDD_P +2.5MVDD +3.3AVDD_M +1.8VDDC1 +3.3AVDD_P2 +3.3DV +3.3AVDD_D +3.3VMST +3.3VMST +3.3AVDD +3.3AVDD_A +3.3AVDD +3.3AVDD +3.3AVDD_D +3.3AVDD_P +3.3AVDD +3.3AVDD +3.3AVDD_M +3.3AVDD +3.3AVDD_P2 +3.3DV +3.3AVDD_A +1.8VDDC2 +2.5MVDD +1.8VDD +1.8VDD +1.8VDDC2 +1.8VDDC1 +5V_PWR +2.5MVDD PANEL_VCC +5V_PWR +5V +3.3VMST +5V_PWR +5V 2410 0.1uF/16V 3413 1K? 1/16W 2437 0.1uF/16V + 2401 47U/25V 5403 120 OHM 1 2 2408 0.1uF/16V 3409 22 ? 2436 0.1uF/16V 2443 0.1uF/16V 2454 0.01uF 2435 0.1uF/16V 3416 100? 1/16W LD1117S25 7404 3 2 1 4 VI VO GND Pad 2403 4.7uF/25V 3410 22 ? 2434 0.1uF/16V 2452 0.1uF/16V 5405 120 OHM 1 2 5409 120 OHM 1 2 2422 0.1uF/16V 2459 0.1uF/16V 2430 0.1uF/16V 2406 0.1uF/16V 2433 4.7uF/25V 5402 120 OHM 1 2 6402 M100-AL 2432 4.7uF/25V 2429 0.1uF/16V 2423 4.7uF/25V 2458 4.7uF/25V 2426 0.1uF/16V 2421 4.7uF/25V 2448 33pF 2451 0.1uF/16V 2447 33pF 5401 120 OHM 1 2 2425 0.1uF/16V 2445 0.1uF/16V 2419 0.1uF/16V 5413 100R 1 2 2404 0.1uF/16V 2456 4.7uF/25V 3417 0? (NC)) 2424 0.1uF/16V 3411 22 ? 2417 0.1uF/16V 2420 4.7uF/25V 3405 10K? 1/16W 3403 22 ? 2431 0.1uF/16V 2415 4.7uF/25V 2416 0.1uF/16V LD1117AS18 7403 3 2 1 4 VI VO GND Pad 2455 4.7uF/25V 2446 0.1uF/16V 5406 120 OHM 1 2 3418 0? (NC)) 2428 0.1uF/16V 2402 0.1uF/16V 2442 0.1uF/16V 2414 0.1uF/16V 2444 0.1uF/16V 5407 120 OHM 1 2 2411 4.7uF/25V 2441 0.1uF/16V 7401 MST9251A-LF-165 168 167 166 165 164 161 160 180 179 178 177 176 175 174 131 205 44 43 42 41 40 39 38 37 18 15 14 11 9 8 6 5 26 25 24 23 22 21 20 19 1 208 2 3 207 36 33 32 31 30 29 28 27 45 46 47 48 80 49 51 54 55 10 34 173 17 195 125 109 86 56 204 113 156 58 59 60 61 16 35 12 50 57 157 64 183 184 7 132 155 172 158 169 185 102 4 87 170 171 108 159 140 13 62 67 68 69 70 71 72 73 74 75 76 78 201 135 136 137 138 141 142 143 144 145 146 147 148 149 150 151 152 133 105 107 110 111 112 115 116 117 118 119 120 121 122 123 124 127 128 129 65 181 186 187 66 63 202 203 163 52 53 103 77 81 82 83 84 85 154 114 88 89 90 91 92 93 126 139 94 95 96 97 98 99 100 101 106 104 130 134 153 200 79 206 162 194 182 188 189 190 191 192 193 196 197 198 199 LVA1P LVA2M LVA2P LVACKM LVACKP LVA3M LVA3P LVB1P LVB2M LVB2P LVBCKM LVBCKP LVB3M LVB3P VDDC GND VI_DATA[11] VI_DATA[10] VI_DATA[9] VI_DATA[8] REFM REFP RMID VSYNC0 HSYNC1 DDCD_CK DDCD_DA REXT DVI_CK- DVI_CK+ DVI_B- DVI_B+ RIN1M RIN1 GIN1M GIN1 SOGIN1 BIN1M BIN1 VSYNC1 GND DVI_R- DVI_G+ DVI_G- DVI_R+ HSYNC0 RIN0 RIN0M SOGIN0 GIN0 GIN0M BIN0 BIN0M VI_DATA[12] VI_DATA[13] VI_DATA[14] VI_DATA[15] GND AVDD_APLL GPIO[5]/VHS VI_DATA[0] VI_DATA[1] AVDD_DVI AVDD_ADC VDDC AVDD_ADC VDDC VDDM AVDD_PLL2 VDDM VI_DATA[2] AVDD_MPLL VDDM VDDC VI_DATA[4] VI_DATA[5] VI_DATA[6] VI_DATA[7] GND GND AVDD_PLL GND VI_DATA[3] GND GND GND GND GND GND GND GND BYPASS LVA1M VDDC VDDM AVDD_DVI GND LVA0P LVA0M GND GND GND GND VCTRL HWRESET INT ALE RDZ WRZ DBUS[0] DBUS[1] DBUS[2] DBUS[3] GPIO[3]/VDE GPIO[1]/FIELD PWM1 MDATA[15] MDATA[14] MDATA[13] MDATA[12] MDATA[11] MDATA[10] MDATA[9] MDATA[8] MDATA[7] MDATA[6] MDATA[5] MDATA[4] MDATA[3] MDATA[2] MDATA[1] MDATA[0] DQM[0] MCLKE MCLK BADR[1] BADR[0] RASZ CASZ WEZ MADR[0] MADR[1] MADR[2] MADR[3] MADR[4] MADR[5] MADR[6] MADR[7] MADR[8] MADR[9] MADR[10] GND LVB1M LVB0P LVB0M VDDP VDDC XOUT XIN GND GPIO[4]/VCLK2 VI_CK GND GPIO[2]/VVS DQS[3] MDATA[31] MDATA[30] MDATA[29] MDATA[28] VDDM GND MDATA[27] MDATA[26] MDATA[25] MDATA[24] MDATA[23] MDATA[22] GND VDDM MDATA[21] MDATA[20] MDATA[19] MDATA[18] MDATA[17] MDATA[16] DQS[2] DQM[1] MCLKZ MVREF MADR[11] DQS[1] DQS[0] PWM0 VDDC GND VDDP GND VDDP NC NC NC NC NC NC NC NC NC NC 1401 14.31818MHz 1 2 5404 120 OHM 1 2 3402 100 ? 1/16W 2427 0.1uF/16V 5412 120 OHM 1 2 2409 4.7uF/25V 5416 120 OHM 1 2 5414 120 OHM 1 2 5415 120 OHM (NC) 1 2 2440 0.1uF/16V 5417 120 OHM (NC) 1 2 AP1117E33 7405 3 2 1 4 VI VO GND Pad 2407 4.7uF/25V + 2413 47U/25V 5410 120 OHM 1 2 2453 0.1uF/16V 3401 390? 1/16W 6403 SB140 2439 0.1uF/16V 3412 22? 2405 4.7uF/25V 2412 0.1uF/16V 6401 M100-AL 1402 CONN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 3408 22 ? 2438 0.1uF/16V 2457 0.1uF/16V 3414 1.2K? 1/16W � � � � � � � � � � � � � http://www.wjel.net 92 200WP7 LCD Scaler Diagram-5 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 A A B B C C D D E E F F G G H H 2302 A5 2303 A5 2304 A5 2305 A6 2306 A6 2307 A6 2308 A7 2309 A7 2310 A7 2311 B5 2312 B5 2313 B5 2314 B6 2315 B6 2316 B6 2317 B7 2318 B7 2319 B7 2320 B8 2321 B5 2322 B6 2323 B6 2324 B6 2325 B7 2326 B7 2327 B7 2328 B8 2329 D6 2330 D6 2332 B1 2333 B2 2334 B3 3301 D6 3302 D6 3303 F3 3304 F3 3305 G6 3306 F3 3307 F3 3308 F3 3309 F3 3310 F3 3311 F3 3312 F3 3313 F3 3314 C9 3315 D9 3316 E9 3317 E9 3318 D9 3319 E9 3320 F9 3321 F9 3322 F2 3323 F2 5301 A4 5302 B4 7301 E3 7302 A2 1 200WP7ES/01 SCALER BOARD(DDR) C 5 6 December 01, 2006 CP NR. CL6xxxx 3138 158 65851(6319.1) (715G1789-1) Title Size Document Number Rev Date: Sheet of DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 DATA8 DATA9 DATA10 DATA11 DATA13 DATA12 DATA15 DATA14 DATA23 DATA20 DATA17 DATA16 DATA19 DATA21 DATA18 DATA22 DATA31 DATA28 DATA25 DATA24 DATA27 DATA29 DATA26 DATA30 DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 DATA16 DATA17 DATA18 DATA19 DATA20 DATA21 DATA22 DATA23 DATA8 DATA9 DATA10 DATA11 DATA12 DATA13 DATA14 DATA15 DATA24 DATA25 DATA26 DATA27 DATA28 DATA29 DATA30 DATA31 MDATA1 4 MDATA0 4 MDATA2 4 MDATA3 4 MDATA4 4 MDATA5 4 MDATA6 4 MDATA7 4 MDATA10 4 MDATA8 4 MDATA11 4 MDATA9 4 MDATA14 4 MDATA12 4 MDATA15 4 MDATA13 4 MDATA18 4 MDATA16 4 MDATA19 4 MDATA17 4 MDATA22 4 MDATA20 4 MDATA23 4 MDATA21 4 MDATA26 4 MDATA24 4 MDATA27 4 MDATA25 4 MDATA30 4 MDATA28 4 MDATA31 4 MDATA29 4 AR0 4 AR1 4 MCLK+ 4 MCLK- 4 SBA0 4 SBA1 4 RAS 4 CAS 4 WE 4 CKE 4 AR2 4 AR3 4 AR4 4 AR5 4 AR6 4 AR7 4 AR8 4 AR9 4 AR10 4 AR11 4 DQM1 4 DQM0 4 DQM1 4 DQM0 4 DQS3 4 DQS1 4 DQS2 4 DQS0 4 +2.5VDDR +2.5VDDR +5V_PWR +2.5V_DMQ +2.5V_DMC +2.5V_DMQ +2.5V_DMQ +2.5V_DMC 2316 0.1uF/16V 2324 0.1uF/16V 2306 0.1uF/16V 3311 100? 2332 4.7uF/25V 2317 0.1uF/16V 3301 1K? 3320 100 ? 1/16W 1 2 3 4 8 7 6 5 2325 0.1uF/16V 2307 0.1uF/16V 3305 22? 2333 4.7uF/25V 3316 100 ? 1/16W 1 2 3 4 8 7 6 5 2318 0.1uF/16V 3312 100? 2326 0.1uF/16V 3304 22 ? 1/16W 2308 0.1uF/16V 128Mb GDDR SDRAM [ 1M x 32 bits x 4 banks 7301 K4D263238G-VC36 C3 E3 F4 G4 J4 K4 C5 C7 C8 C10 F11 G11 J11 K11 C12 E12 E4 L4 D7 L7 D8 L8 E11 L11 N13 N6 M6 N7 N8 M9 N9 N10 N11 M8 L6 M7 N5 N4 M5 B3 H12 H3 B12 B2 H13 H2 B13 M11 M12 N12 N2 M2 L2 L3 F6 G6 H6 J6 F7 G7 H7 J7 F8 G8 H8 J8 F9 G9 H9 J9 E5 L5 K6 E7 K7 E8 K8 K9 E10 L10 B4 D4 D5 F5 G5 H5 J5 K5 D6 E6 D9 E9 D10 F10 G10 H10 J10 K10 B11 D11 B7 C6 B6 B5 C2 D3 D2 E2 K13 K12 J13 J12 G13 G12 F13 F12 F3 F2 G3 G2 J3 J2 K2 K3 E13 D13 D12 C13 B10 B9 C9 B8 M3 N3 C4 H4 M4 C11 H11 L12 L13 L9 M10 M13 VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDD VDD VDD VDD VDD VDD VDD VDD VREF 1 2 3 4 5 6 7 8 9 10 11 0 0 1 0 1 2 3 0 1 2 3 CK CK CKE CS RAS CAS WE VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ VSSQ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 NC NC NC NC NC NC NC NC NC 1 2 MCL 2319 0.1uF/16V 2327 0.1uF/16V 3321 100 ? 1/16W 1 2 3 4 8 7 6 5 2309 0.1uF/16V 3313 100? 5301 120 OHM 1 2 3317 100 ? 1/16W 1 2 3 4 8 7 6 5 2320 0.1uF/16V 2328 0.1uF/16V 2310 0.1uF/16V 3322 22? 3306 100? 3307 100? 2329 0.1uF/16V 2311 0.1uF/16V 2321 0.1uF/16V 3308 100? LD1117S25 7302 3 2 1 4 VI VO GND Pad 2334 0.1uF/16V 2330 0.01uF 3318 100 ? 1/16W 1 2 3 4 8 7 6 5 2313 0.1uF/16V 5302 120 OHM 1 2 3302 1K? 2302 0.1uF/16V + 2312 22U/16V 3309 100? + 2303 22U/16V 3323 22? 2314 0.1uF/16V 3314 100 ? 1/16W 1 2 3 4 8 7 6 5 2322 0.1uF/16V 2304 0.1uF/16V 3303 150 ? 2315 0.1uF/16V 3319 100 ? 1/16W 1 2 3 4 8 7 6 5 2323 0.1uF/16V 3310 100? 2305 0.1uF/16V 3315 100 ? 1/16W 1 2 3 4 8 7 6 5 � � � � � � � � � � � � � � � � � � � � � � http://www.wjel.net 93 200WP7 LCD Scaler Diagram-6 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 A A B B C C D D E E F F G G H H 1501 B6 1505 A1 2501 B2 2502 B3 2503 B4 2504 B2 2505 B4 2506 B4 2510 B3 2511 B3 2515 B8 2516 C8 2517 C8 2518 D8 2519 E8 2520 E2 2521 D3 2522 A7 2523 B7 2524 G1 2525 G2 2526 G2 2529 G4 2530 G5 2531 G3 2532 G8 2533 G9 2534 G6 2535 G7 2536 G8 2537 B3 2538 E5 2539 F9 3501 A4 3502 A4 3503 A4 3504 A9 3506 B9 3507 B9 3508 C9 3509 D8 3510 D9 3511 D8 3512 D9 3515 A9 3516 A10 3517 E2 3518 D1 3519 B2 3520 E1 3521 E5 3522 D4 3523 E4 3524 E8 3525 E3 3526 E8 3527 F8 3529 G7 3530 G6 3531 G8 3532 E6 3533 D3 3534 D3 3535 B2 3536 E6 3537 D2 3538 E10 3539 F9 5501 B3 5502 B3 5503 G7 6501 G7 7501 D9 7502 D9 7503 E1 7504 E2 7505 G1 7507 G3 7508 G6 7509 E5 7510 E9 7511 E4 7512 F8 1 200WP7ES/01 SCALER BOARD(I/O) C 6 6 December 01, 2006 CP NR. CL6xxxx 3138 158 65851(6319.1) (715G1789-1) Title Size Document Number Rev Date: Sheet of +12V +5V LED_R 3 LED_G 3 KEY1 3 KEY2 3 K_PWR 3 PANEL_PWR 3 BRIGHTNESS_RES 4 BRIGHTNESS_IDX 3 BL_CONTROL 3 POWER_SAVING 3 POWER_SAVING 3 +12V +5V_AUO +3.3V +5V +3.3V_USB +12V_PWR +3.3V +3.3V +3.3V PANEL_VCC +12V_PWR +5V_AUO +3.3V_USB +5V_PWR +12V +5V +5V +5V_PWR +5V +12V +12V_PWR 3531 4.7K? (NC) 2534 0.1uF/(NC) 3504 10K? 3512 10K? 5503 Choke Coil 35uH(NC) 7509 SI5441DC 1 2 3 4 5 6 7 8 D D D G S D D D 5501 100R 1 2 7501 BC857 3 2 1 + 2532 470uF/25V(NC) 3527 22K? 1/16W 6501 SSA34-E3(NC) 2525 4.7uF/25V 3537 0? (NC) 3530 3.3K? (NC) 3521 100K? 1/16W 2519 0.1uF/16V 1501 CONN 1 2 3 4 5 6 7 8 9 10 11 12 13 + 2506 47U/25V 3536 0? (NC) 7503 MUN2211J 3529 10K? (NC) 3508 100? 1/16W 3507 100? 1/16W 3522 10K? 2505 0.1uF/16V 3501 47 ? 1/16W 3516 10K? 3520 10K? 2524 4.7uF/25V 2520 0.047uF 3534 0? (NC) 3509 220? 1/16W 1505 CONN 1 2 3 4 5 6 7 8 9 10 11 7508 L5972D013TR(NC) 8 5 2 3 6 7 1 4 VCC FB GND GND GND GND OUT COMP 2518 0.1uF/16V 7511 MUN2211J 2536 0.022uF 3523 10K? 2515 0.1uF/16V 7504 SI5441DC 1 2 3 4 5 6 7 8 D D D G S D D D 3519 10K? 3539 10K? 2502 0.1uF/16V 7502 BC857 3 2 1 3502 47 ? 1/16W 2539 0.047uF 3518 10K? 2510 0.1uF/16V 3525 10K? AP1117E33 7505 3 2 1 4 VI VO GND Pad 2511 0.1uF/16V 5502 100R 1 2 2517 0.1uF/16V 2523 0.1uF/16V 2537 0.1uF/16V(NC) 3517 100K? 1/16W + 2503 47U/25V 7510 SI5441DC 1 2 3 4 5 6 7 8 D D D G S D D D AP1117E33 7507 3 2 1 4 VI VO GND Pad 2522 0.1uF/16V 3515 10K? 3538 0? (NC) 2501 0.1uF/16V 2533 0.1uF(NC) 2535 220pF(NC) 3510 10K? 3524 100K? 1/16W 2504 0.1uF/16V 3503 47 ? 1/16W 3506 100? 1/16W 3532 10K? 3526 10K? 2529 4.7uF/25V + 2521 47U/25V 3533 0? 3535 0? (NC) 2516 0.1uF/16V 2538 0.047uF 3511 220? 1/16W 2526 0.1uF/16V 7512 MUN2211J 2530 0.1uF/16V 2531 4.7uF/25V � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � http://www.wjel.net 94 200WP7 LCD Scaler Board C.B.A.-1 1201 D2 2313 A2 2425 B1 2531 B4 3306 B2 3417 B1 5415 A3 1202 D3 2314 A2 2426 B1 2532 A4 3307 B2 3418 B1 5416 A3 1351 B3 2315 B2 2427 B2 2533 A4 3308 B2 3501 A4 5417 A1 1352 C4 2316 A3 2428 C2 2534 A4 3309 B2 3502 A4 5501 B4 1353 B4 2317 A2 2429 B1 2535 A3 3310 A2 3503 A4 5502 B4 1401 C1 2318 B2 2430 B2 2536 A3 3311 B2 3504 C4 5503 A4 1402 B1 2319 A2 2431 C2 2537 A4 3312 B2 3506 C4 6201 D2 1501 B4 2320 A2 2432 A1 2538 A3 3313 A3 3507 C4 6202 D2 1505 A4 2321 A2 2433 B1 2539 B4 3314 A2 3508 C4 6203 D2 2201 D2 2322 A2 2434 B2 3202 D2 3315 A2 3509 C4 6204 D2 2202 D2 2323 A2 2435 B2 3203 D2 3316 B2 3510 C4 6210 D1 2203 D2 2324 A2 2436 B1 3204 D2 3317 B2 3511 C4 6211 D1 2204 D2 2325 A2 2437 B2 3205 D3 3318 A2 3512 C4 6212 D1 2205 D2 2326 A2 2438 B2 3207 D2 3319 A2 3515 C4 6213 D1 2214 D2 2327 A2 2439 B2 3208 D2 3320 B3 3516 C4 6214 D1 2215 D2 2328 A2 2440 B2 3209 D2 3321 A3 3517 A3 6215 D1 2216 D2 2329 B2 2441 B2 3210 D2 3322 B2 3518 A3 6216 D1 2217 C2 2330 B2 2442 B2 3211 C2 3323 B2 3519 A4 6217 D1 2218 C2 2332 A3 2443 C2 3212 C2 3351 B3 3520 A3 6219 D3 2219 D2 2333 A3 2444 C2 3213 C2 3352 C4 3521 A3 6220 D3 2220 C2 2334 A3 2445 C2 3214 C2 3353 C3 3522 A3 6221 D3 2221 C2 2351 C3 2446 B1 3215 D3 3354 B3 3523 A3 6222 D3 2222 C2 2353 B3 2447 C1 3216 D3 3358 C3 3524 B4 6223 D3 2223 C2 2354 B3 2448 C1 3217 D3 3359 C4 3525 A3 6224 D2 2224 C2 2355 C3 2451 C2 3229 D2 3360 C3 3526 B4 6225 D2 2225 C2 2356 C3 2452 C1 3230 D2 3361 C4 3527 B4 6226 D2 2226 C2 2358 B3 2453 B2 3231 C2 3364 C3 3529 A4 6227 D2 2227 C2 2359 C3 2454 B2 3233 D2 3365 C3 3530 A4 6401 B3 2228 C2 2360 C3 2455 A1 3234 D2 3366 C3 3531 A3 6402 B3 2229 D2 2361 B3 2456 B1 3235 C2 3367 B3 3532 A3 6403 B3 2230 D1 2362 B4 2457 A1 3236 C2 3368 C3 3533 B4 6501 A3 2231 D1 2363 B4 2458 B1 3237 C2 3369 C3 3534 A4 7201 C2 2232 D1 2401 A1 2459 B1 3238 D3 3370 B3 3535 A4 7202 C2 2233 D1 2402 A1 2501 A4 3239 D3 3371 B4 3536 A3 7301 A2 2234 D3 2403 C1 2502 A4 3240 C2 3372 C3 3537 B4 7302 A3 2235 D3 2404 C2 2503 A4 3241 D3 3373 C4 3538 B4 7351 C3 2236 D3 2405 C1 2504 B4 3242 D3 3374 B3 3539 B4 7353 B4 2237 D3 2406 C2 2505 B4 3243 D3 3379 B3 5201 D2 7401 B2 2238 D2 2407 C1 2506 B4 3244 C2 3380 C4 5202 D2 7403 B3 2239 D2 2408 C2 2510 A4 3247 C2 3381 B4 5204 D3 7404 B1 2240 D3 2409 C1 2511 A4 3248 D3 3382 C4 5301 A3 7405 B1 2241 C2 2410 C1 2515 C4 3249 C2 3391 C3 5302 A3 7501 C4 2242 D3 2411 A1 2516 C4 3251 C2 3392 C3 5351 C3 7502 C4 2243 D3 2412 B2 2517 C4 3252 C2 3401 C2 5401 A1 7503 A3 2302 A3 2413 B1 2518 C4 3253 D3 3402 C2 5402 C1 7504 A3 2303 A3 2414 C2 2519 C4 3254 C2 3403 B2 5403 C1 7505 C4 2304 A2 2415 B3 2520 A3 3255 D2 3405 C2 5404 C1 7507 B4 2305 A2 2416 B1 2521 A3 3256 D2 3408 B2 5405 C1 7508 A3 2306 A2 2417 B1 2522 B4 3259 D2 3409 B2 5406 A1 7509 A3 2307 A3 2419 B1 2523 B4 3260 D2 3410 B2 5407 B1 7510 B4 2308 A2 2420 B3 2524 C4 3301 B2 3411 B2 5409 B3 7511 A3 2309 A2 2421 B3 2525 C4 3302 B2 3412 B1 5410 B3 7512 B4 2310 A2 2422 B3 2526 C4 3303 B2 3413 B2 5412 B1 2311 A3 2423 B3 2529 B4 3304 B2 3414 B2 5413 B1 2312 A3 2424 C1 2530 B4 3305 B2 3416 C1 5414 A1 http://www.wjel.net 95 200WP7 LCD Scaler Board C.B.A.-2 http://www.wjel.net 96 200WP7 LCD Go to cover page Updated Parts According to the ECO-CA005956,Add QSG-ergo base and Jig on P.E. bag for 200WP7,Following is the detail 1.Item 0129 Qty from 1to 2, and add new Item: 0142-313815524581- QUICK SET GUIDE-ERGO BASE REF 12NC Description 1 863900016908 200WP7ES/00 2 863900017042 200WP7EB/00 3 863900017096 200WP7ES/01 4 863900017104 200WP7EB/01 REF Action Item 12NC Description From 0004 313815761011 SUPER ERGO BASE ASSY 1, 3 To 0004 313815761012 SUPER ERGO BASE ASSY From 0004 313815761131 SUPER ERGO BASE ASSY 2, 4 To 0004 313815761132 SUPER ERGO BASE ASSY 2. According to the ECO-CA006109,designer changed the scaler board version of 200WP7-AUO to improve phase and tail noise problem, following is the detail REF Action Item 12NC Description From 0001 313810363221 SCALER PCB To 0001 313810363222 SCALER PCB 202203100205 ELCAP SM RVS 25V 47U PM20 R 202203100206 ELCAP SM HV 25V 47U PM20 R 823827736068 ELCAP 470UF 16V EB 823827736069 ELCAP 470UF 16V LZ 212211805642 RST SM 0603 RC0603 75R PM5 R 232270260759 RST SM 0603 RC21 75R PM5 R 212211805643 RST SM 0603 RC0603 100R PM5 R 232270260101 RST SM 0603 RC21 100R PM5 R 212211805642 RST SM 0603 RC0603 75R PM5 R 232270260759 RST SM 0603 RC21 75R PM5 R 212211805643 RST SM 0603 RC0603 100R PM5 R 232270260101 RST SM 0603 RC21 100R PM5 R 212211805642 RST SM 0603 RC0603 75R PM5 R 232270260759 RST SM 0603 RC21 75R PM5 R 212211805643 RST SM 0603 RC0603 100R PM5 R 232270260101 RST SM 0603 RC21 100R PM5 R 212211805631 RST SM 0603 JUMP. MAX 0R05 R 232270296001 RST SM 0603 JUMP. MAX 0R05 R 212211805631 RST SM 0603 JUMP. MAX 0R05 R 232270296001 RST SM 0603 JUMP. MAX 0R05 R 212211805631 RST SM 0603 JUMP. MAX 0R05 R 232270296001 RST SM 0603 JUMP. MAX 0R05 R 242254900601 IND FXD 0603 EMI 100MHZ 30R R 242254943769 IND FXD 0603 EMI 100MHZ 30R R 242254900601 IND FXD 0603 EMI 100MHZ 30R R 242254943769 IND FXD 0603 EMI 100MHZ 30R R 242254900601 IND FXD 0603 EMI 100MHZ 30R R 242254943769 IND FXD 0603 EMI 100MHZ 30R R ALL New 5207 ALL New 5206 ALL New 5205 ALL Del 3263 ALL Del 3262 ALL Del 3261 ALL From 3254 To 3254 ALL From 3251 To 3251 ALL From 3231 To 3231 From 2425 To 2425 ALL ALL http://www.wjel.net 97 200WP7 LCD Manual 12NC(VERSION) Release Date Change Instruction 3138 106 10503 Apr-7-06 Initial Release 3138 106 10503 Apr-20-06 Panel changed(P84) 3138 106 10503 3138 106 10503 Jun-02-06 Change scaler board version(P86) 3138 106 10504 Dec-04-06 Add 200WP7ES/01(P88~P95) Apr-28-06 Add QSG-ergo base and Jig on P.E. bag (P86) http://www.wjel.net
