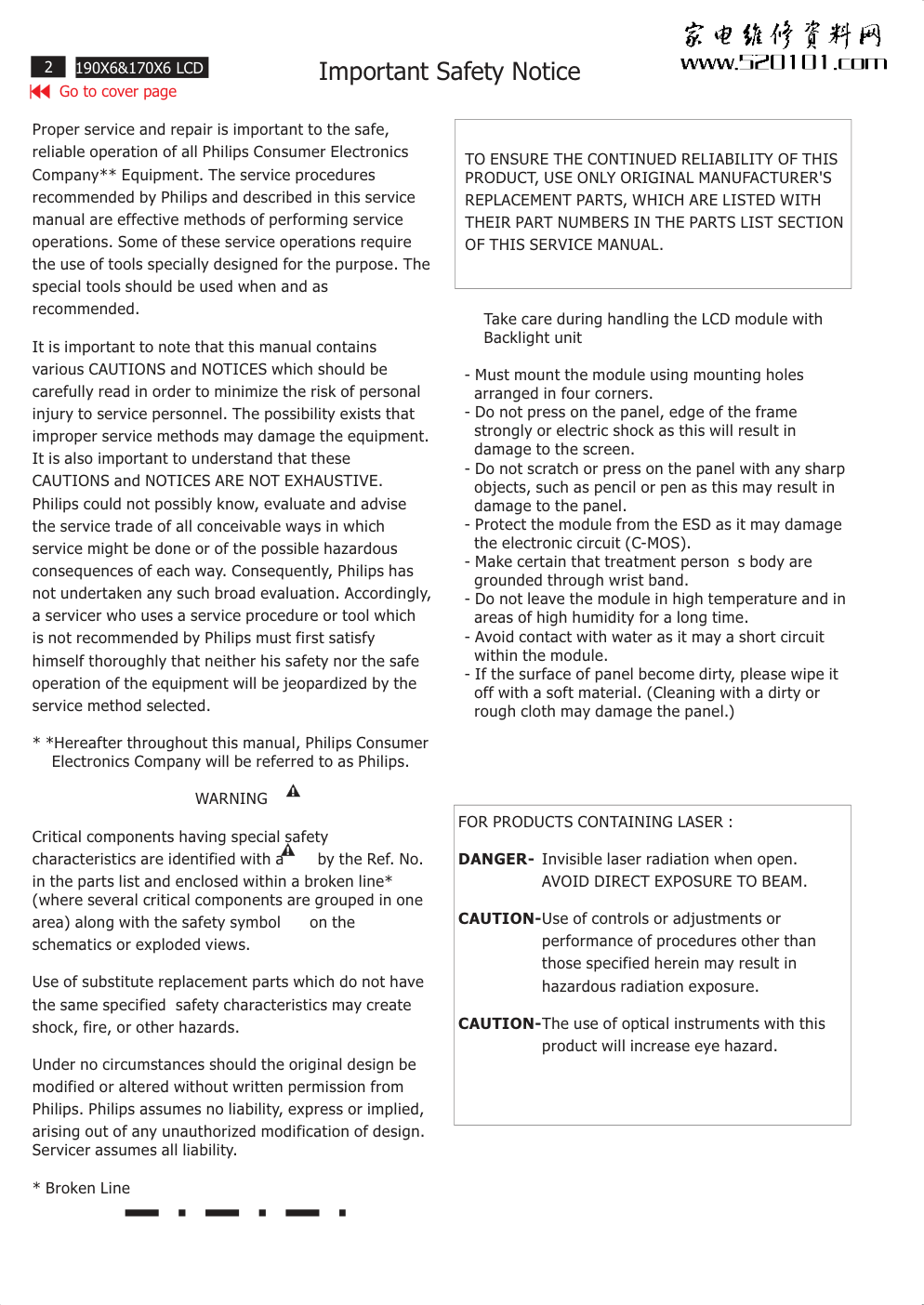

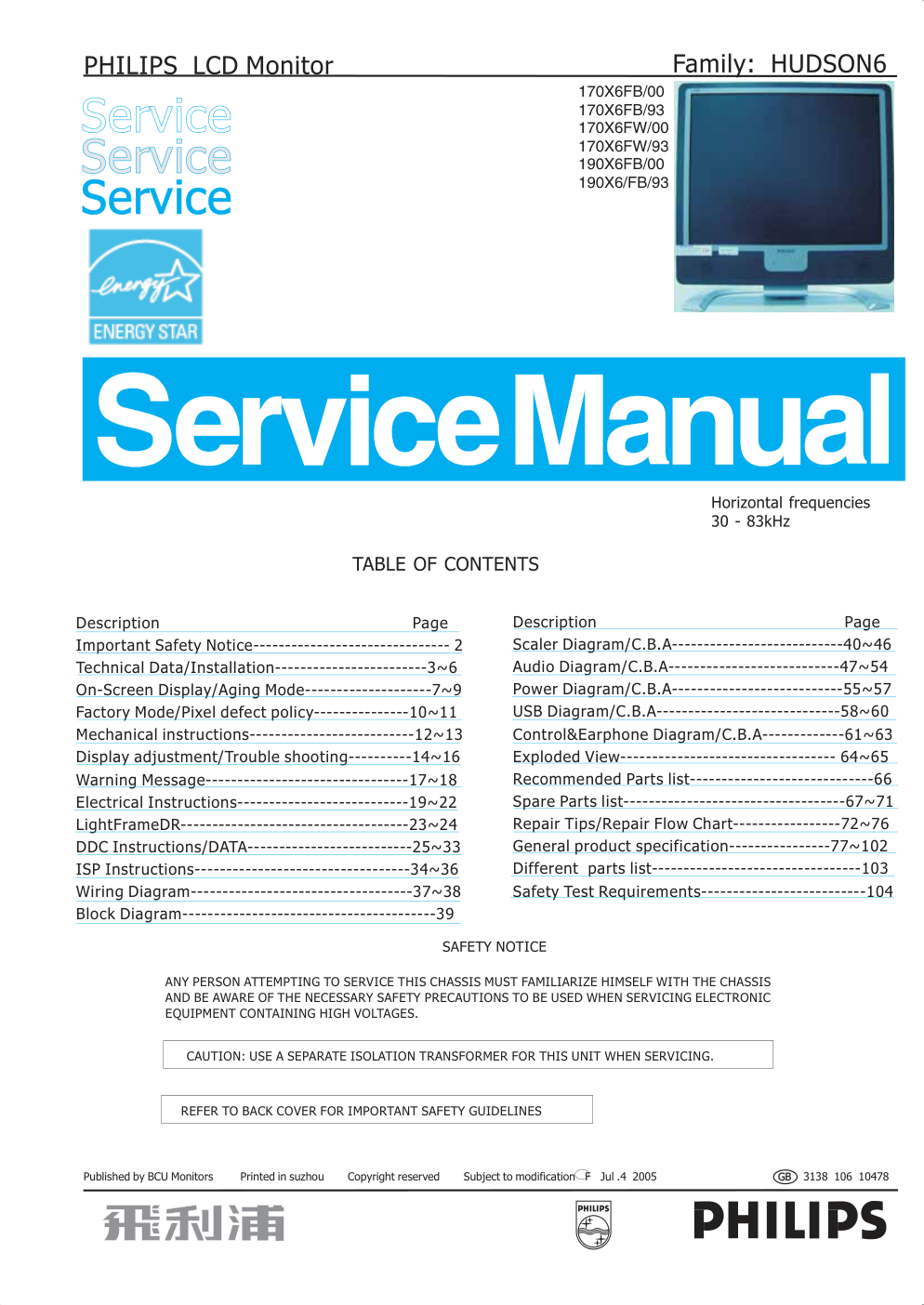

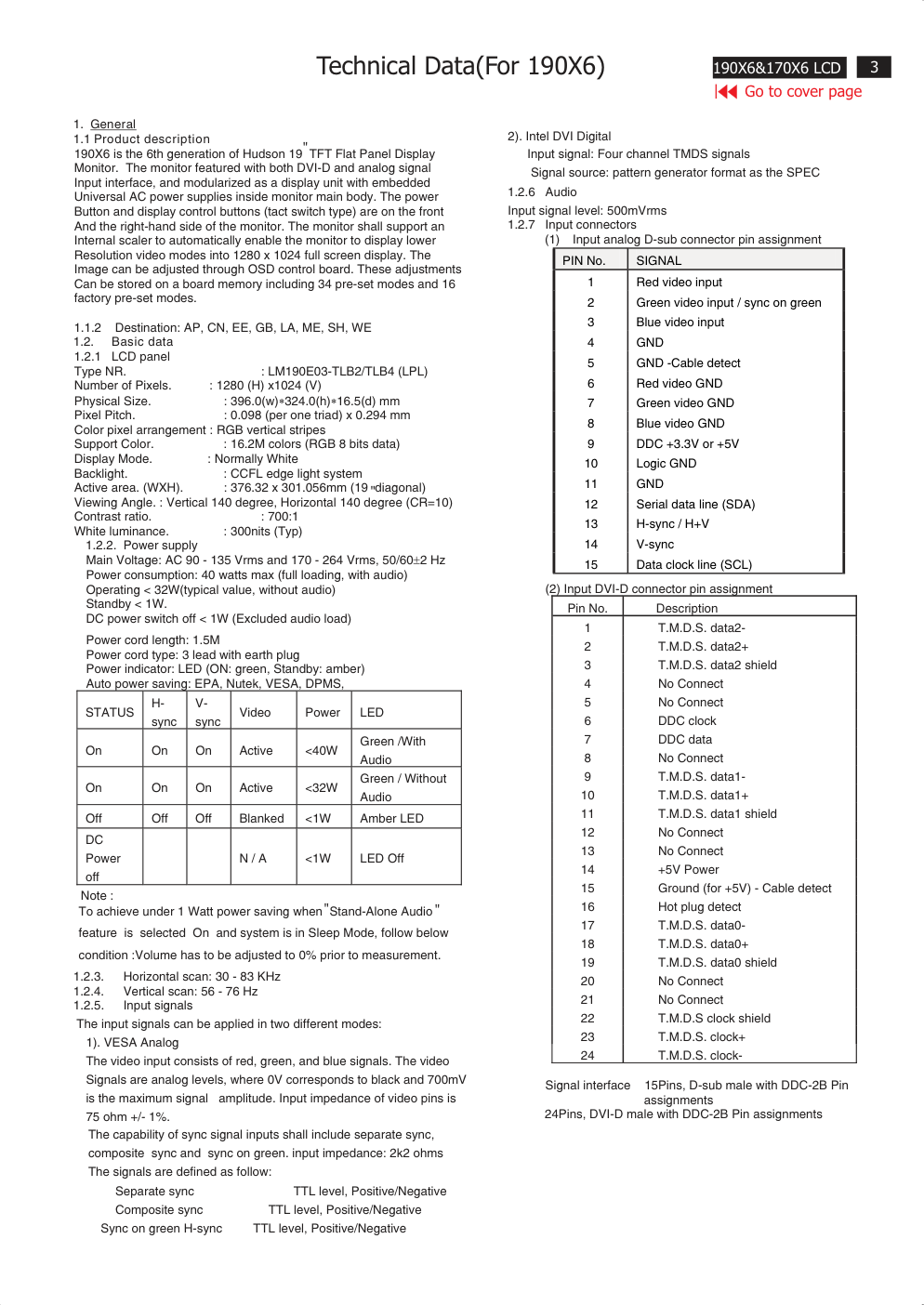

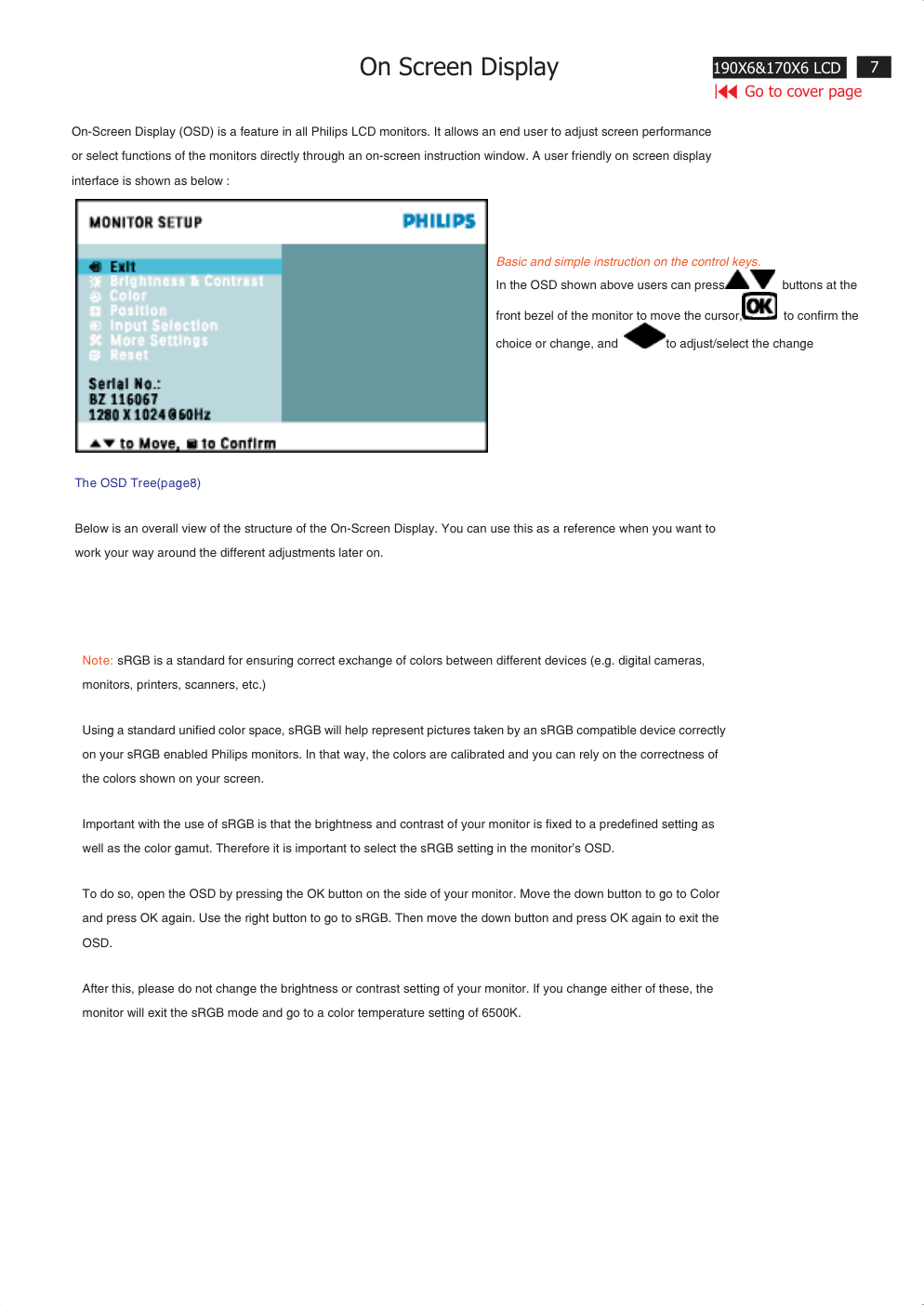

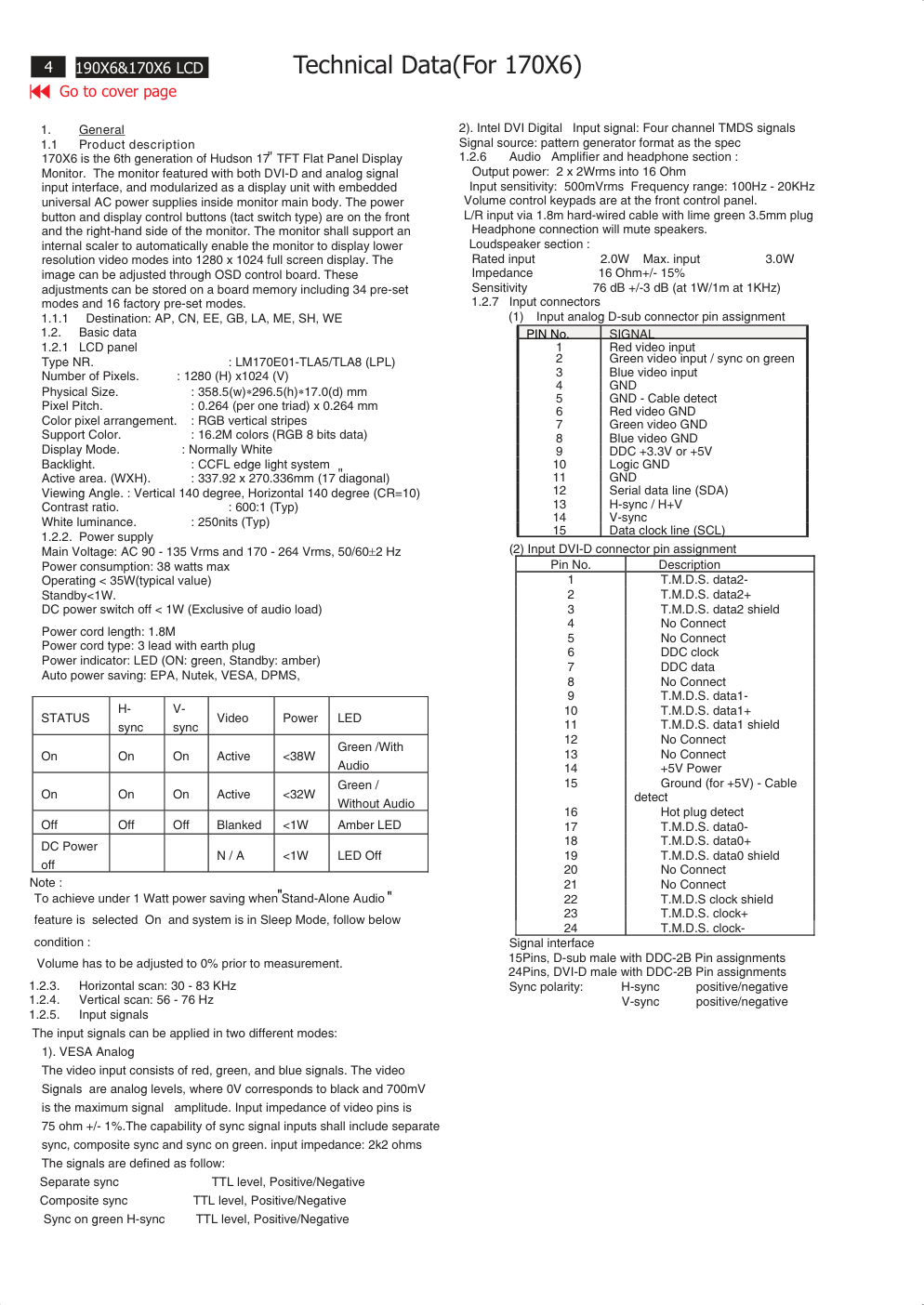

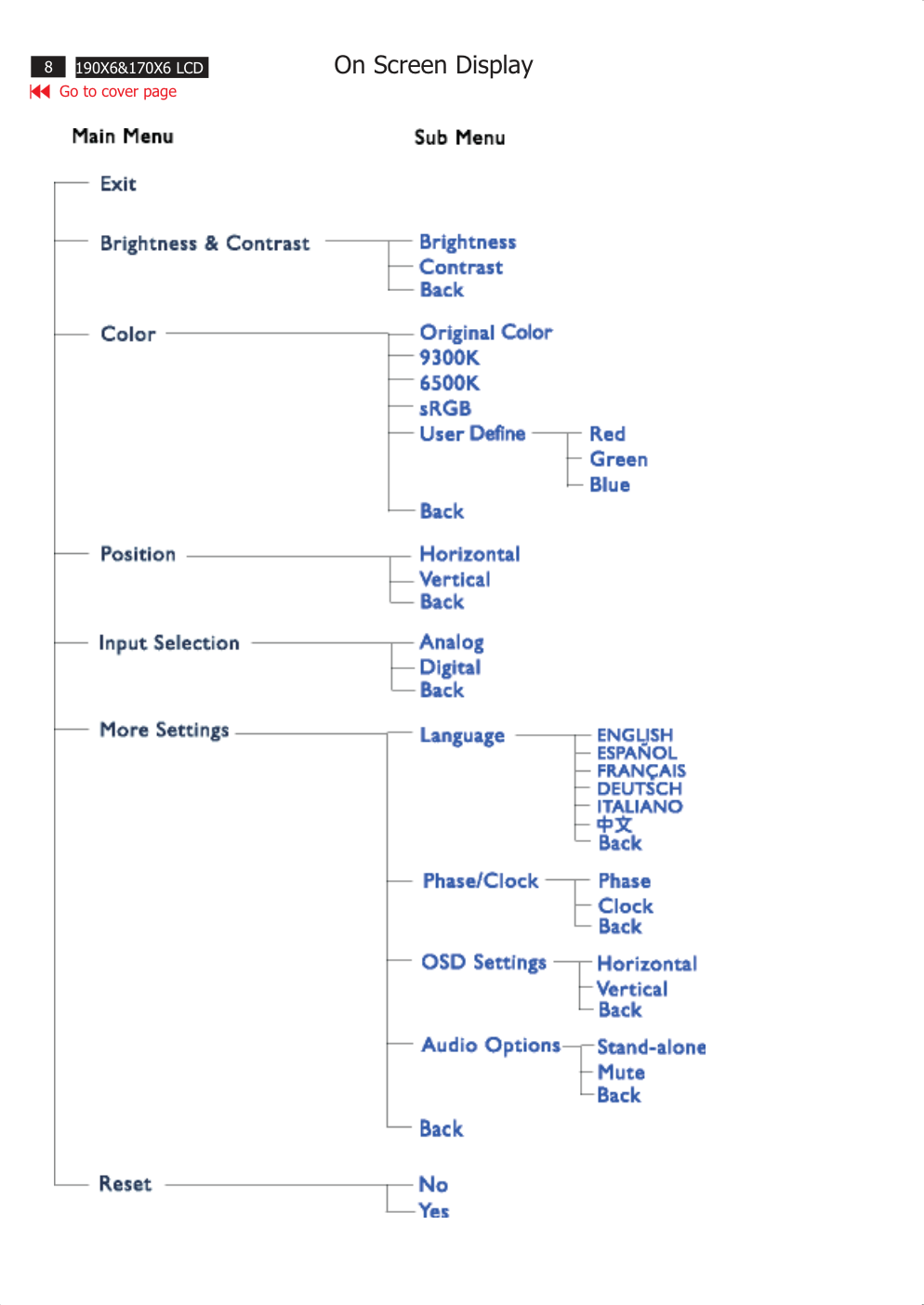

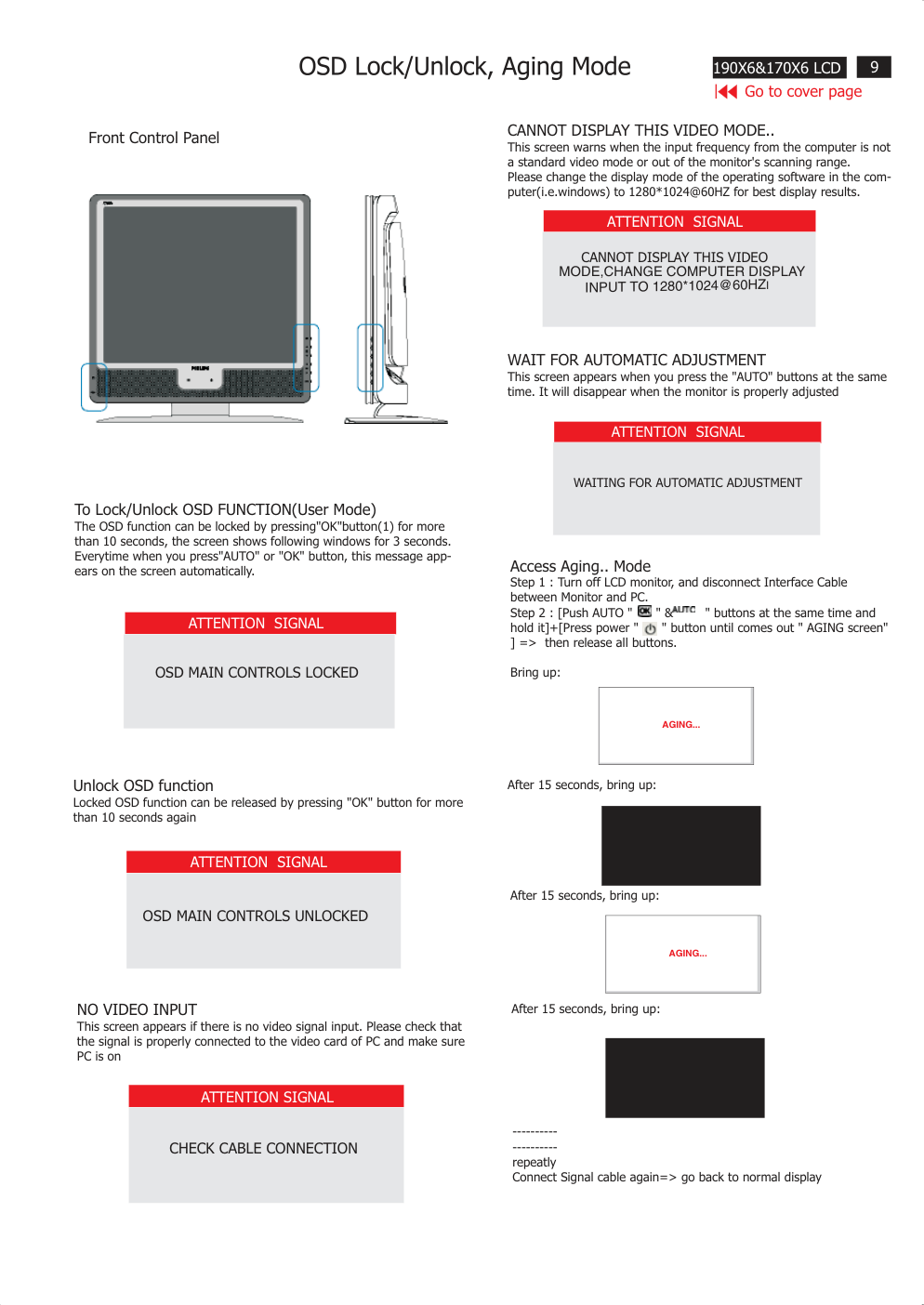

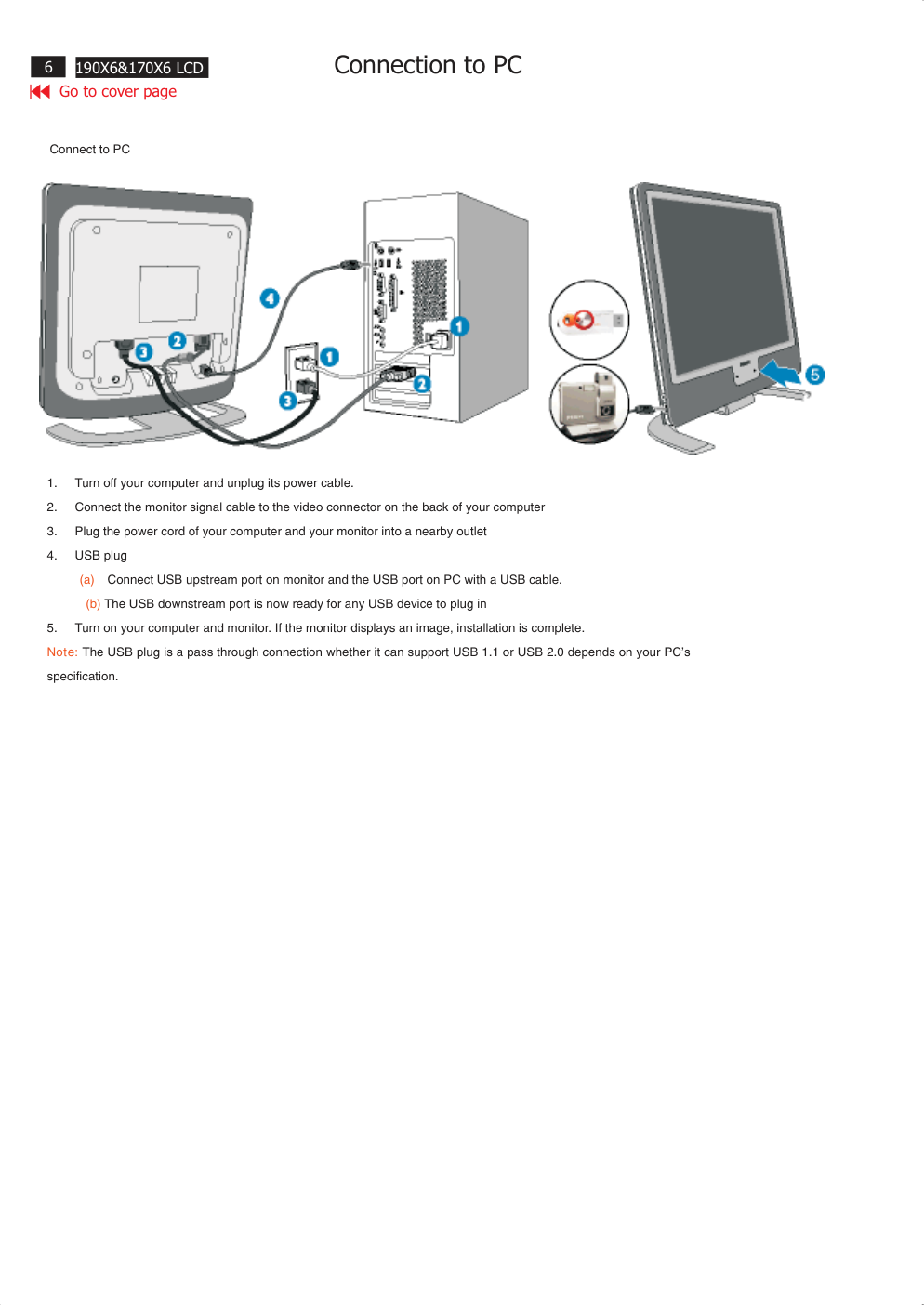

Service Service Service Published by BCU Monitors Printed in suzhou Copyright reserved Subject to modification F Jul .4 2005 Description Page Important Safety Notice------------------------------- 2 Technical Data/Installation------------------------3~6 On-Screen Display/Aging Mode--------------------7~9 Mechanical instructions--------------------------12~13 Warning Message--------------------------------17~18 Factory Mode/Pixel defect policy---------------10~11 Display adjustment/Trouble shooting----------14~16 Electrical Instructions---------------------------19~22 LightFrameDR------------------------------------23~24 DDC Instructions/DATA--------------------------25~33 ISP Instructions----------------------------------34~36 Wiring Diagram-----------------------------------37~38 Block Diagram----------------------------------------39 Description Page Scaler Diagram/C.B.A---------------------------40~46 Audio Diagram/C.B.A---------------------------47~54 Power Diagram/C.B.A---------------------------55~57 USB Diagram/C.B.A-----------------------------58~60 Control&Earphone Diagram/C.B.A-------------61~63 Exploded View---------------------------------- 64~65 Recommended Parts list-----------------------------66 Spare Parts list-----------------------------------67~71 Repair Tips/Repair Flow Chart-----------------72~76 General product specification----------------77~102 Different parts list---------------------------------103 Safety Test Requirements--------------------------104 REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING. ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES. GB 3138 106 10478 170X6FB/00 170X6FB/93 170X6FW/00 170X6FW/93 190X6FB/00 190X6/FB/93 Important Safety Notice 2 FOR PRODUCTS CONTAINING LASER : Invisible laser radiation when open. AVOID DIRECT EXPOSURE TO BEAM. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard. DANGER- CAUTION- CAUTION- TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF THIS SERVICE MANUAL. 190X6&170X6 LCD Proper service and repair is important to the safe, reliable operation of all Philips Consumer Electronics Company** Equipment. The service procedures recommended by Philips and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended. It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Philips could not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Philips has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Philips must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected. * *Hereafter throughout this manual, Philips Consumer Electronics Company will be referred to as Philips. WARNING Critical components having special safety characteristics are identified with a by the Ref. No. in the parts list and enclosed within a broken line* (where several critical components are grouped in one area) along with the safety symbol on the schematics or exploded views. Use of substitute replacement parts which do not have the same specified safety characteristics may create shock, fire, or other hazards. Under no circumstances should the original design be modified or altered without written permission from Philips. Philips assumes no liability, express or implied, arising out of any unauthorized modification of design. Servicer assumes all liability. * Broken Line Take care during handling the LCD module with Backlight unit - Must mount the module using mounting holes arranged in four corners. - Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. - Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. - Protect the module from the ESD as it may damage the electronic circuit (C-MOS). - Make certain that treatment person s body are grounded through wrist band. - Do not leave the module in high temperature and in areas of high humidity for a long time. - Avoid contact with water as it may a short circuit within the module. - If the surface of panel become dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.) Go to cover page 3 1. General 1.1 Product description 190X6 is the 6th generation of Hudson 19 TFT Flat Panel Display Monitor. The monitor featured with both DVI-D and analog signal Input interface, and modularized as a display unit with embedded Universal AC power supplies inside monitor main body. The power Button and display control buttons (tact switch type) are on the front And the right-hand side of the monitor. The monitor shall support an Internal scaler to automatically enable the monitor to display lower Resolution video modes into 1280 x 1024 full screen display. The Image can be adjusted through OSD control board. These adjustments Can be stored on a board memory including 34 pre-set modes and 16 factory pre-set modes. 1.1.2 Destination: AP, CN, EE, GB, LA, ME, SH, WE 1.2. Basic data 1.2.1 LCD panel Type NR. : LM190E03-TLB2/TLB4 (LPL) Number of Pixels. : 1280 (H) x1024 (V) Physical Size. : 396.0(w)�324.0(h)�16.5(d) mm Pixel Pitch. : 0.098 (per one triad) x 0.294 mm Color pixel arrangement : RGB vertical stripes Support Color. : 16.2M colors (RGB 8 bits data) Display Mode. : Normally White Backlight. : CCFL edge light system Active area. (WXH). : 376.32 x 301.056mm (19 diagonal) Viewing Angle. : Vertical 140 degree, Horizontal 140 degree (CR=10) Contrast ratio. : 700:1 White luminance. : 300nits (Typ) 190X6&170X6 LCD Go to cover page Technical Data(For 190X6) " " " " 1.2.2. Power supply Main Voltage: AC 90 - 135 Vrms and 170 - 264 Vrms, 50/60�2 Hz Power consumption: 40 watts max (full loading, with audio) Operating < 32W(typical value, without audio) Standby < 1W. DC power switch off < 1W (Excluded audio load) Power cord length: 1.5M Power cord type: 3 lead with earth plug Power indicator: LED (ON: green, Standby: amber) Auto power saving: EPA, Nutek, VESA, DPMS, STATUS H- sync V- sync Video Power LED On On On Active <40W Green /With Audio On On On Active <32W Green / Without Audio Off Off Off Blanked <1W Amber LED DC Power off N / A <1W LED Off Note : To achieve under 1 Watt power saving when Stand-Alone Audio feature is selected On and system is in Sleep Mode, follow below condition :Volume has to be adjusted to 0% prior to measurement. 1.2.3. Horizontal scan: 30 - 83 KHz 1.2.4. Vertical scan: 56 - 76 Hz 1.2.5. Input signals The input signals can be applied in two different modes: 1). VESA Analog The video input consists of red, green, and blue signals. The video Signals are analog levels, where 0V corresponds to black and 700mV is the maximum signal amplitude. Input impedance of video pins is 75 ohm +/- 1%. The capability of sync signal inputs shall include separate sync, composite sync and sync on green. input impedance: 2k2 ohms The signals are defined as follow: Separate sync TTL level, Positive/Negative Composite sync TTL level, Positive/Negative Sync on green H-sync TTL level, Positive/Negative 2). Intel DVI Digital Input signal: Four channel TMDS signals Signal source: pattern generator format as the SPEC 1.2.6 Audio Input signal level: 500mVrms 1.2.7 Input connectors (1) Input analog D-sub connector pin assignment (2) Input DVI-D connector pin assignment Pin No. Description 1 T.M.D.S. data2- 2 T.M.D.S. data2+ 3 T.M.D.S. data2 shield 4 No Connect 5 No Connect 6 DDC clock 7 DDC data 8 No Connect 9 T.M.D.S. data1- 10 T.M.D.S. data1+ 11 T.M.D.S. data1 shield 12 No Connect 13 No Connect 14 +5V Power 15 Ground (for +5V) - Cable detect 16 Hot plug detect 17 T.M.D.S. data0- 18 T.M.D.S. data0+ 19 T.M.D.S. data0 shield 20 No Connect 21 No Connect 22 T.M.D.S clock shield 23 T.M.D.S. clock+ 24 T.M.D.S. clock- Signal interface 15Pins, D-sub male with DDC-2B Pin assignments 24Pins, DVI-D male with DDC-2B Pin assignments PIN No. SIGNAL 1 Red video input 2 Green video input / sync on green 3 Blue video input 4 GND 5 GND -Cable detect 6 Red video GND 7 Green video GND 8 Blue video GND 9 DDC +3.3V or +5V 10 Logic GND 11 GND 12 Serial data line (SDA) 13 H-sync / H+V 14 V-sync 15 Data clock line (SCL) 4 190X6&170X6 LCD Go to cover page Technical Data(For 170X6) 1. General 1.1 Product description 170X6 is the 6th generation of Hudson 17 TFT Flat Panel Display Monitor. The monitor featured with both DVI-D and analog signal input interface, and modularized as a display unit with embedded universal AC power supplies inside monitor main body. The power button and display control buttons (tact switch type) are on the front and the right-hand side of the monitor. The monitor shall support an internal scaler to automatically enable the monitor to display lower resolution video modes into 1280 x 1024 full screen display. The image can be adjusted through OSD control board. These adjustments can be stored on a board memory including 34 pre-set modes and 16 factory pre-set modes. 1.1.1 Destination: AP, CN, EE, GB, LA, ME, SH, WE 1.2. Basic data 1.2.1 LCD panel Type NR. : LM170E01-TLA5/TLA8 (LPL) Number of Pixels. : 1280 (H) x1024 (V) Physical Size. : 358.5(w)�296.5(h)�17.0(d) mm Pixel Pitch. : 0.264 (per one triad) x 0.264 mm Color pixel arrangement. : RGB vertical stripes Support Color. : 16.2M colors (RGB 8 bits data) Display Mode. : Normally White Backlight. : CCFL edge light system Active area. (WXH). : 337.92 x 270.336mm (17 diagonal) Viewing Angle. : Vertical 140 degree, Horizontal 140 degree (CR=10) Contrast ratio. : 600:1 (Typ) White luminance. : 250nits (Typ) 1.2.2. Power supply Main Voltage: AC 90 - 135 Vrms and 170 - 264 Vrms, 50/60�2 Hz Power consumption: 38 watts max Operating < 35W(typical value) Standby<1W. DC power switch off < 1W (Exclusive of audio load) Power cord length: 1.8M Power cord type: 3 lead with earth plug Power indicator: LED (ON: green, Standby: amber) Auto power saving: EPA, Nutek, VESA, DPMS, STATUS H- sync V- sync Video Power LED On On On Active <38W Green /With Audio On On On Active <32W Green / Without Audio Off Off Off Blanked <1W Amber LED DC Power off N / A <1W LED Off Note : To achieve under 1 Watt power saving when Stand-Alone Audio feature is selected On and system is in Sleep Mode, follow below condition : Volume has to be adjusted to 0% prior to measurement. 1.2.3. Horizontal scan: 30 - 83 KHz 1.2.4. Vertical scan: 56 - 76 Hz 1.2.5. Input signals The input signals can be applied in two different modes: 1). VESA Analog The video input consists of red, green, and blue signals. The video Signals are analog levels, where 0V corresponds to black and 700mV is the maximum signal amplitude. Input impedance of video pins is 75 ohm +/- 1%.The capability of sync signal inputs shall include separate sync, composite sync and sync on green. input impedance: 2k2 ohms The signals are defined as follow: Separate sync TTL level, Positive/Negative Composite sync TTL level, Positive/Negative Sync on green H-sync TTL level, Positive/Negative " " " " 2). Intel DVI Digital Input signal: Four channel TMDS signals Signal source: pattern generator format as the spec 1.2.6 Audio Amplifier and headphone section : Output power: 2 x 2Wrms into 16 Ohm Input sensitivity: 500mVrms Frequency range: 100Hz - 20KHz Volume control keypads are at the front control panel. L/R input via 1.8m hard-wired cable with lime green 3.5mm plug Headphone connection will mute speakers. Loudspeaker section : Rated input 2.0W Max. input 3.0W Impedance 16 Ohm+/- 15% Sensitivity 76 dB +/-3 dB (at 1W/1m at 1KHz) 1.2.7 Input connectors (1) Input analog D-sub connector pin assignment (2) Input DVI-D connector pin assignment Pin No. Description 1 T.M.D.S. data2- 2 T.M.D.S. data2+ 3 T.M.D.S. data2 shield 4 No Connect 5 No Connect 6 DDC clock 7 DDC data 8 No Connect 9 T.M.D.S. data1- 10 T.M.D.S. data1+ 11 T.M.D.S. data1 shield 12 No Connect 13 No Connect 14 +5V Power 15 Ground (for +5V) - Cable detect 16 Hot plug detect 17 T.M.D.S. data0- 18 T.M.D.S. data0+ 19 T.M.D.S. data0 shield 20 No Connect 21 No Connect 22 T.M.D.S clock shield 23 T.M.D.S. clock+ 24 T.M.D.S. clock- Signal interface 15Pins, D-sub male with DDC-2B Pin assignments 24Pins, DVI-D male with DDC-2B Pin assignments Sync polarity: H-sync positive/negative V-sync positive/negative PIN No. SIGNAL 1 Red video input 2 Green video input / sync on green 3 Blue video input 4 GND 5 GND - Cable detect 6 Red video GND 7 Green video GND 8 Blue video GND 9 DDC +3.3V or +5V 10 Logic GND 11 GND 12 Serial data line (SDA) 13 H-sync / H+V 14 V-sync 15 Data clock line (SCL) 5 190X6&170X6 LCD Go to cover page Connection to PC Front view Power button switches your monitor on. Power LED OK button which when pressed will take you to the OSD controls UP and DOWN buttons are used when adjusting the OSD of your monitor. BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up. LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor. VOLUME hotkey. When the LEFT and RIGHT arrow buttons are pressed, the adjustment controls for VOLUME will show up. Automatically adjust the horizontal position, vertical position, phase and clock setting. LightFrameTM hotkey to select full-screen modes among Internet, Photo and Video-TV. Earphone jack (on side). USB port for versatile peripheral connections VOLUME Rear View 1.USB upstream port 2.VGA input 3.DVI-D input 4.AC power input 5.PC audio input 6.Kensington anti-thief lock Connecting to your PC If you use an Apple Macintosh, you need to connect the special Mac adapter to one end of the monitor signal cable. Cable management 6 190X6&170X6 LCD Go to cover page Connection to PC Connect to PC 1. Turn off your computer and unplug its power cable. 2. Connect the monitor signal cable to the video connector on the back of your computer 3. Plug the power cord of your computer and your monitor into a nearby outlet 4. USB plug (a) Connect USB upstream port on monitor and the USB port on PC with a USB cable. (b) The USB downstream port is now ready for any USB device to plug in 5. Turn on your computer and monitor. If the monitor displays an image, installation is complete. Note: The USB plug is a pass through connection whether it can support USB 1.1 or USB 2.0 depends on your PC's specification. 7 190X6&170X6 LCD Go to cover page On Screen Display On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. A user friendly on screen display interface is shown as below : Basic and simple instruction on the control keys. In the OSD shown above users can press buttons at the front bezel of the monitor to move the cursor, to confirm the choice or change, and to adjust/select the change Note: sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.) Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen. Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD. To do so, open the OSD by pressing the OK button on the side of your monitor. Move the down button to go to Color and press OK again. Use the right button to go to sRGB. Then move the down button and press OK again to exit the OSD. After this, please do not change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K. The OSD Tree(page8) Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. 8 190X6&170X6 LCD Go to cover page On Screen Display 9 190X6&170X6 LCD Go to cover page Front Control Panel To Lock/Unlock OSD FUNCTION(User Mode) The OSD function can be locked by pressing"OK"button(1) for more than 10 seconds, the screen shows following windows for 3 seconds. Everytime when you press"AUTO" or "OK" button, this message app- ears on the screen automatically. ATTENTION SIGNAL OSD MAIN CONTROLS UNLOCKED Unlock OSD function Locked OSD function can be released by pressing "OK" button for more than 10 seconds again ATTENTION SIGNAL OSD MAIN CONTROLS LOCKED NO VIDEO INPUT This screen appears if there is no video signal input. Please check that the signal is properly connected to the video card of PC and make sure PC is on ATTENTION SIGNAL CHECK CABLE CONNECTION CANNOT DISPLAY THIS VIDEO MODE.. This screen warns when the input frequency from the computer is not a standard video mode or out of the monitor's scanning range. Please change the display mode of the operating software in the com- puter(i.e.windows) to 1280*1024@60HZ for best display results. ATTENTION SIGNAL CANNOT DISPLAY THIS VIDEO MODE,CHANGE COMPUTER DISPLAY INPUT TO 1280*1024@60HZI WAIT FOR AUTOMATIC ADJUSTMENT This screen appears when you press the "AUTO" buttons at the same time. It will disappear when the monitor is properly adjusted ATTENTION SIGNAL WAITING FOR AUTOMATIC ADJUSTMENT Access Aging.. Mode Step 1 : Turn off LCD monitor, and disconnect Interface Cable between Monitor and PC. Step 2 : [Push AUTO " " & " " buttons at the same time and hold it]+[Press power " " button until comes out " AGING screen" ] => then release all buttons. Bring up: AGING... After 15 seconds, bring up: After 15 seconds, bring up: AGING... After 15 seconds, bring up: ---------- ---------- repeatly Connect Signal cable again=> go back to normal display 10 190X6&170X6 LCD Go to cover page Front Control Panel Access Factory Mode How to get into Factory Mode Menu Step1: Turn off monitor. Step2: [Push AUTO " " & OK " " buttons at the same time and hold it] +[Press power " " button untill comes out "Windows screen" ] => then release all buttons Step3: Press OK " " button, bring up Factory mode indication as shown in Fig2. Factory Mode indicator Factory Menu Cursor can move on gray color area Hot key function: by pressing " up " and " DOWN " key Simultaneously at User Mode (or Factory Mode) (PS: The Offset R G B function can be used on reduce or eliminate snowy noise on the background when the resolution of video signal is 1280*1024 vertical 60Hz. Slightly increase or decrease the value until snowy noise completely disappear BL : Blacklevel value SUB-BRI : Brightness value range (Min Max) SUB-CON : Contrast value range (Min Mid Max) SRGB-B : Brightness of sRGB SRGB-C : Contrast of sRGB Gain-m : Minimum value of User Gain Gain-M : Maximum value of User Gain AUTO-SUB: To do Auto color function when push Menu key in white pattern OSDTIMER : OSD time out control (sec) ANG1 : For analog only project control (0:Dual, 1:Analog only) IDX : Limit current of inverter, 170X6: 200, 190X6: 245 SCALER : Read/Write scaler register NVRAM : Read/Write eeprom address Panel : LG (LG.Philips panel) 11 190X6&170X6 LCD Go to cover page Philips' Flat Panel Monitors Pixel Defect Policy Pixels and Subpixels Types of Pixel Defects Philips strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practice stringent quality control. However, pixel or subpixel defects on the TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT LCD panel must exceed these acceptable levels. For example, no more than 0.0004% of the subpixels on a 15" XGA monitor may be defective. Furthermore, Philips sets even higher quality standards for certain types or combinations of pixel defects that are more noticeable than others. This policy is valid worldwide . A pixel, or picture element, is composed of three subpixels in the primary colors of red, green and blue. Many pixels together form an image. When all subpixels of a pixel are lit, the three colored subpixels together appear as a single white pixel. When all are dark, the three colored subpixels together appear as a single black pixel. Other combinations of lit and dark subpixels appear as single pixels of other colors. Pixel and subpixel defects appear on the screen in different ways. There are two categories of pixel defects and several types of subpixel defects within each category. Bright Dot Defects Bright dot defects appear as pixels or subpixels that are always lit or "on". These are the types of bright dot defects: One lit red, green or blue subpixel Two adjacent lit subpixels: - Red + Blue = Purple - Red + Green = Yellow - Green + Blue = Cyan (Light Blue) Three adjacent lit subpixels (one white pixel) Black Dot Defects Proximity of Pixel Defects Pixel Defect Tolerances Black dot defects appear as pixels or subpixels that are always dark or "off". These are the types of black dot defects: One dark subpixel Two or three adjacent dark subpixels Because pixel and subpixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or subpixel defects exceeding the tolerances listed in the following tables. BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL 170X6 190X6 1 lit subpixel 0 0 2 adjacent lit subpixels 0 0 3 adjacent lit subpixels (one white pixel) 0 0 Distance between two bright dot defects* 0 0 Total bright dot defects of all types 0 0 BLACK DOT DEFECTS ACCEPTABLE LEVEL MODEL 170X6 190X6 1 dark subpixel 0 0 2 adjacent dark subpixels 0 0 3 adjacent dark subpixels 0 0 Distance between two black dot defects* 0 0 Total black dot defects of all types 0 0 TOTAL DOT DEFECTS ACCEPTABLE LEVEL MODEL 170X6 190X6 Total bright or black dot defects of all types 0 0 Mechanical Instructions Fig. 3 Clip Front View Back View Step 3: -Unscrew the four screws as shown in Fig. 5. - Remove the base. Fig. 1 Step 4: Remove the front bezel - Use thin "l" type screwdriver to open 4 clicks on bottom side as shown in Fig. 6. - Use thin "l" type screwdriver to open 3 clicks on right and left side as shown in Fig. 7. - Use thin "l" type screwdriver to open 4 clicks on top side as shown in Fig. 8. Step 1: Use "l" type screwdriver to remove the Logo Cover as shown in Fig. 3. Step 2: Unscrew 3 screws as shown in Fig. 4. Fig. 4 Fig. 5 Fig. 6 ========> ========> ========> ========> 12 190X6&170X6 LCD Go to cover page Fig. 7 ======> ======> ======> Mechanical Instructions Go to cover page 190X6&170X6 LCD 13 *************************************************************************** In warranty, it is not allowed to disassembly the LCD panel, even the backlight unit defect. Out of warranty, the replacment of backlight unit is a correct way when the defect is cused by backlight (CCFL,Lamp). *************************************************************************** Fig. 8 ======> =======> ======> ======> Step 5: Remove the Back Cover Assy -Remove the Control Board from the Back Cover Assy -Unscrew 7 screws as shown in Fig. 9. -Remove Audio Assy, Earphone Assy and two LSP Box from the Back Cover Assy -Use thin "l" type screwdriver to open clicks on left side, right side and up side, Remove LCD Panel from Back Cover Assy shown in Fig. 9. as <=== CONTROL ASSY <====== AUDIO ASSY <====== EARPHONE ASSY Fig. 9 Step 6: Unscrew 12 screws as shown in Fig. 10. Remove Shielding Cover Fig. 10 Step 7: Unscrew 9 screws as shown in Fig. 11. Disconnect 7 connectors as shown in Fig. 11. Fig. 11 =======> =======> SCALER ASSY LIPS(T50P054.00) Fig. 12 14 190X6&170X6 LCD Go to cover page Alignment procedure 1. Turn on the LCD monitor. 2.Turn on the Timing/pattern generator. See Fig.1 Resolution :1280x1024(Use the best resolution) Timing : H= 31.47KHz V=60Hz 3. Preset LCD color Analyzer CA-110 -Remove the lens protective cover of probe CA-A30. -Set measuring/viewing selector to measuring position for reset analyzer.(zero calibration) as Fig.2 - Turn on the color analyzer (CA-110) -Press 0-CAL button to starting reset analyzer. See Fig.3 Fig. 1 Fig. 2 Cover (black) Cover (black) Measurement viewing selector Measurement viewing selector Note: after alignment, please reset OSD to user s mode for normal operation. Otherwise, the monitor won t entering power saving mode and showing full white picture all the time as no video signal supplied. To leave factory mode by restart the monitor. 5. Adjust OSD menu to lower position of screen (i.g. adjust V-position to value " 0 " at submenu of OSD Setting. 6. Setting Brightness and Contrast - Adjust Brightness to value " 90". - Adjust Contrast to value " 80" . 7. Switch light probe to Viewing position. 8. Move the Lens barrel forward or backward to get clear image as shown in Fig. 4 9. Switch light probe to Measuring position. It should be able to indicate Clear image Clear image Measurement/viewing selector Measurement/viewing selector Alignment hits: 1. R for x value, G for y value, B for Y value on the colour analyzer. 2. If the colour analyzer has been calibrated and preset colour temperature in it. Please switch to correct setting in accordance with colour settings. 4. Access Factory Mode How to get into Factory Mode Menu Step1: Turn off monitor. Step2: [Push AUTO " " & OK " " buttons at the same time and hold it] +[Press power " " button untill comes out "Windows screen" ] => then release all buttons Step3: Press OK " " button, bring up Factory mode indication as shown in Fig3. Fig. 3 10. Setting pattern to full white picture 11. Press button, then select factory mode indicator by " " " " button 12. Press" " button to bring up submenu windows as below: 13. Press " " or " " button to select R G B. Change the value by " " or " " key until the X,Y co-ordinates as below Fig.4 15. EEPROM presetting (B) After finishing all the adjustment, set: Brightness control to 100% Contrast control to 50% OSD position at middle of screen COLOR adjusts to 6500K color. 9300�K 6500�K x (center) 0.283 � 0.020 0.313 � 0.020 y (center) 0.297 � 0.020 0.329 � 0.020 sRGB x(center) 0.313 � 0.020 y(center) 0.329 � 0.020 Ynits 180 � 10 Display Adjustment 15 190X6&170X6 LCD Go to cover page Trouble Shooting Common Problems Having this problem Check these items No Picture (Power LED not lit) � Make sure the power cord is plugged into the power outlet and into the back of the monitor. � First, ensure that the power button on the front of the monitor is in the OFF position, then press it to the ON position. No Picture (Power LED is amber or yellow) � Make sure the computer is turned on. � Make sure the signal cable is properly connected to your computer. � Check to see if the monitor cable has bent pins. � The Energy Saving feature may be activated Screen says � Make sure the monitor cable is properly connected to your computer. (Also refer to the Quick Set-Up Guide). � Check to see if the monitor cable has bent pins. � Make sure the computer is turned on Screen says � Make sure the vertical sync of input signal is within the range of 56 ~ 75 Hz. � Change the refresh rate to 56~75Hz within 10 minutes. � Re-power on monitor to start over again if you failed to change the refresh rate within 10 minutes. AUTO button not working properly � The Auto Function is designed for use on standard Macintosh or IBM-compatible PCs running Microsoft Windows. � It may not work properly if using nonstandard PC or video card. � The AUTO adjustment does not function when digital input is used for display Imaging Problems Display position is incorrect � Press the Auto button. � Adjust the image position using the Horizontal Position and/or Vertical Position in OSD Main Controls. Image vibrates on the screen � Check that the signal cable is properly connected to the graphics board or PC. Vertical flicker appears � Press the Auto button. � Eliminate the vertical bars using the Phase/Clock of More Settings in OSD Main Controls. Horizontal flicker appears � Press the Auto button. � Eliminate the vertical bars using the Phase/Clock of More Settings in OSD Main Controls. The screen is too bright or too dark Adjust the contrast and brightness on OSD Main Controls. (The backlight of the LCD monitor has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer). An after-image appears � If an image remains on the screen for an extended period of time, it may be imprinted in the screen and leave an after-image. This usually disappears after a few hours An after-image remains after the power has been turned off. � This is characteristic of liquid crystal and is not caused by a malfunction or deterioration of the liquid crystal. The after-image will disappear after a peroid of time. Green, red, blue, dark, and white dots remains The remaining dots are normal characteristic of the liquid crystal used in today’s technology LightFrameTM doesn't work � Press the Auto button. � Activate the LightFrameTM software again. For further assistance, refer to the Consumer Information Centers list and contact your local Philips distributor 17 190X6&170X6 LCD Go to cover page Warning message Item Attention Signals Display Time Condition Attention off 1 Can not display this video mode, change computer display input to 1280x1024@60Hz 30 mins This warning appears when the input signal from your computer is not in a standard video mode or is out of the monitor s scanning range. After 30 mins, monitor enters sleeping mode. 2 NO VIDEO INPUT 30.mins This message appears when there is no signal input but with cable while AC or DC power on. After 30 mins, monitor enters sleeping mode 3 CHECK CABLE CONNECTION 30 mins This message appears when a signal cable is disconnected while monitor is working. After 30 mins, monitor enters sleeping mode. 4 Enter sleep mode 3secs This message appears when monitor is about to enter power saving mode 5 Waiting for automatic adjustment Till automatic adjustment finished This message is displayed when auto adjustment button is pressed. It disappears when auto adjustments are completed 6 Use 1280x1024 for best result On top of OSD main menu This message will show up at the top of the OSD main menu in red color when the input resolution is not the 1280x1024 7 OSD main controls locked 3secs/or till OSD main controls unlocked appear This message will appear 3 seconds to indicate the OSD MAIN CONTROLS status when to lock or un-lock it by pressing MENU(OK) button for more than 10 seconds while there is video input from PC. This function provides the alternative that user can lock all the OSD main control in case user don’t want the FOS performance setting to be changed, for instance, during commercial exhibition. 18 190X6&170X6 LCD Go to cover page Warning Message 8 OSD MAIN CONTROLS UNLOCKED 3 secs This message will appear 3 seconds to indicate the OSD MAIN CONTROLS status when to un-lock it by pressing MENU(OK) button for more than 10 seconds while there is video input from PC 9 THIS IS 85HZ OVERSCAN, CHANGE COMPUTER DISPLAY INPUT TO 1280X1024@60HZ 10 mins This message will appear 5 seconds in every 60 seconds for 10 minutes when the input of PC video timing is at 85Hz mode. Remark: AUTO is still functional in this mode 10 the window of MONITOR SETUP 60 secs This message will appear when the OK button is pressed. 11 the window of BRIGHTNESS 60 secs This message will appear when the BRIGHTNESS button is pressed. 12 SELECTED INPUT NOT AVAILABLE 3 secs When just one input (analog or digital), press input switch or hot key, then after show this warning message 3 sec, return to original input. 13 SECURITY PROTECTED, THIS MONITOR IS GOING TO ENTER POWER SAVING MODE IN 15 SECONDS 15 secs This warning appears when the security was set ON and someone takes out from the client PC 14 SECURITY PROTECTED, THIS MONITOR IS GOING TO ENTER POWER SAVING MODE IN 15 SECONDS 1 mins This warning appears when Asset management Server sends power saving command to client PC 15 the window of VOLUME 60 secs This message will appear when the VOLUME button is pressed. " " " " " " " " " " " " " " 19 190X6&170X6 LCD Go to cover page Electrical instructions(190X6) 1. General points 1.1 During the test and measuring, supply a distortion free AC mains voltage to the apparatus via an isolated transformer with low internal resistance. 1.2 All measurements mentioned hereafter are carried out at a normal mains voltage (90 - 132 VAC for USA version, 195 -264 VAC for EUROPEAN version, or 90 - 264 VAC for the model with full range power supply, unless otherwise stated.) 1.3 All voltages are to be measured or applied with respect to ground, unless otherwise stated. Note: don‘t use heat-sink as ground. 1.4 The test has to be done on a complete set including LCD panel After 30 minutes warm-up at least in a room with temperature of 25 +/- 5 degree C. 1.5 All values mentioned in these test instruction are only applicable of a well aligned apparatus, with correct signal. 1.6 The letters symbols (B) and (S) placed behind the test instruction denotes (B): carried out 100% inspection at assembly line (S): carried out test by sampling 1.7 The white balance (color temperature) has to be tested in subdued lighted room. 1.8 Repetitive power on / off cycle are allowed except it should be avoided within 6 sec. 2. Input signal 2.1 Signal type 2.1.1 Video signal input Signal source: pattern generator format as the Spec Reference generator: QuantumData 802G The input signals can be applied in two different modes: 1). VESA Analog The video input consists of red, green, and blue signals. The video signals are analog levels, where 0V corresponds to black and 700mV is the maximum signal amplitude. Input impedance of video pins is 75 ohm +/- 1%. 2). Intel DVI Digital Input signal: Four channel TMDS signals 2.1.2 Sync signal input The capability of sync signal inputs shall include separate sync, composite sync and sync on green. input impedance: 2k2 ohms The signals are defined as follow: Separate sync TTL level, Positive/Negative Composite sync TTL level, Positive/Negative Sync on green H-sync TTL level, Positive/Negative Signal source: pattern generator format as the Spec Reference generator: QuantumData 802G 2.2 Input signal mode Pre-set 34 modes PRESET VIDEO RESOLUTION # Resolution H- Frequency Pixel rate V- Frequency Comment 1 640X350 31.5K 25.175 70Hz IBM VGA 10h 2 720X400 31.5K 28.322 70Hz IBM VGA 3h 3 640X480 31.5K 25.175 60Hz 4 640X480 35.0K 30.24 67Hz 5 640X480 37.9K 31.5 72Hz 6 640X480 37.5K 31.501 75Hz 7 640X480 43.3K 36 85Hz 8 800X600 35.2K 36 56Hz 9 800X600 37.9K 40 60Hz 10 800X600 48.1K 50 72Hz 11 800X600 46.9K 49.498 75Hz 12 800X600 53.7K 56.251 85Hz 13 832X624 49.7K 57.28 75Hz MAC 14 1024X768 48.4K 65 60Hz 15 1024X768 56.5K 75 70Hz 16 1024X768 60.0K 78.75 75Hz 17 1024X768 61.1K 83.096 76Hz IBM XGA-2 18 1024X768 68.7K 94.5 85Hz 19 1152X864 54.0K 79.9 60Hz non-VESA 20 1152X864 67.5K 108 75Hz 21 1152X864 63.9K 94.5 70Hz non-VESA 22 1152X870 68.7K 100 75Hz MAC 23 1152X900 61.8K 92.94 66Hz SUN Mode IV 24 1152X900 71.8K 108 76Hz SUN Mode II 25 1280X960 60.0K 108 60Hz 26 1280X960 75.0K 129.895 75Hz non-VESA 27 1280X1024 64.0K 108 60Hz 28 1280X1024 71.7K 117 67Hz SUN Mode V 29 1280X1024 76.0K 130.223 72Hz DOS/V 30 1280X1024 80.0K 135 75Hz 31 1280X1024 81.1K 135.008 76Hz SUN Mode I 32 688X556 31.3K 27 50Hz TV-PAL 33 960X720 44.76K 57.58 60Hz 34 960X720 56.4K 72.42 75Hz 2.3 Allowed 85 Hz overscan signal mode specified Once the signal input of PC is 85Hz, this monitor is able to display at least for 10 minutes. An attention signal appears and shows THIS IS 85HZ OVERDRIVE, CHANGE COMPUTER DISPLAY INPUT TO 1280X1024 @ 60 HZ Dot rate (MHz) H. Freq (KHz) Mode Resolution V. Freq (Hz) 36.000 43.269 VESA 640 * 480 85.008 5 56.250 53.674 VESA 800 * 600 85.061 94.500 68.677 VESA 1024 * 768 84.997 3. Power Supply (S) Setup the AC I/P at 90VAC, and Output DC loading at 12V 3.7 Amp, 5V 2.1 Amp,The DC output voltages are 5V +/-0.25V and 12V+/-1.2V. 4. Display Adjustment 4.1 Access to factory mode (RS232) in auto-alignment system The communication protocol switch to RS232 . 4.2 Auto color adjustment (B) Apply a 640x480/31kHz/60Hz signal with 16 gray pattern, set Brightness to 100%, and contrast to 50%. Adjust the R. G. B offset, and gain to calibrate the color smoothly and 64-gray level distinguishable. Check all pre-setting 34 modes. 20 190X6&170X6 LCD Go to cover page Electrical instructions(190X6) 4.2 Auto color adjustment (B) Apply a 640x480/31kHz/60Hz signal with 16 gray pattern, set brightness to 100%,and contrast to 50%. Adjust the R. G. B offset, and gain to calibrate the color smoothly and 64-gray level distinguishable. Check all pre-setting 34 modes. 4.3 Adjustment of WHITE-D (B) Apply a 1280*1024 / 60Hz signal with white pattern, set brightness to 100%, and contrast to 50%. Adjust the R, G, B Sub-Gain, for the screen center, the 1931 CIE chromaticity (X, Y) co-ordinates shall be; Use Minolta CA-110 for color coordinates and luminance check. Luminance is > 200 Nits in the center of the screen in the panel color when brightness is set to 100% and contrast is set to 100%. 4.4 Adjustment of sRGB Apply a 1280*1024 / 60Hz signal with white pattern, set brightness to 100%, and contrast to 50%. Adjust the R, G, B Sub-Gain, for the screen center, the 1931 CIE chromaticity (X, Y) co-ordinates shall be; sRGB x(center) 0.313 � 0.020 y(center) 0.329 � 0.020 Ynits 180 � 10 4.5 EEPROM presetting (B) After finishing all the adjustment, set: Brightness to 100% Contrast to 50% OSD position at middle of screen COLOR ADJUST to 6500K color temperature. Stand-Alone set to Off 9300�K 6500�K x (center) 0.283 � 0.020 0.313 � 0.020 y (center) 0.297 � 0.020 0.329 � 0.020 21 190X6&170X6 LCD Go to cover page Electrical instructions(170X6) 1. General points 1.1 During the test and measuring, supply a distortion free AC mains voltage to the apparatus via an isolated transformer with low internal resistance. 1.2 All measurements mentioned hereafter are carried out at a normal mains voltage (90 - 132 VAC for USA version, 195 -264 VAC for EUROPEAN version, or 90 - 264 VAC for the model with full range power supply, unless otherwise stated.) 1.3 All voltages are to be measured or applied with respect to ground, unless otherwise stated. Note: do not use heat-sink as ground. 1.4 The test has to be done on a complete set including LCD panel after 30 minutes warm-up at least in a room with temperature of 25 +/- 5 degree C. 1.5 All values mentioned in these test instruction are only applicable of a well aligned apparatus, with correct signal. 1.6 The letters symbols (B) and (S) placed behind the test instruction denotes (B): carried out 100% inspection at assembly line (S): carried out test by sampling 1.7 The white balance (color temperature) has to be tested in subdued lighted room. 1.8 Repetitive power on / off cycle are allowed except it should be avoided within 6 sec. 2. Input signal 2.1 Signal type 2.1.1 Video signal input Signal source: pattern generator format as the SPEC Reference generator: QuantumData 802G The input signals can be applied in two different modes: 1). VESA Analog The video input consists of red, green, and blue signals. The video signals are analog levels, where 0V corresponds to black and 700mV is the maximum signal amplitude. Input impedance of video pins is 75 ohm +/- 1%. 2). Intel DVI Digital Input signal: Four channel TMDS signals 2.1.2 Sync signal input The capability of sync signal inputs shall include separate sync, composite sync sync on green. input impedance: 2k2 ohms The signals are defined as follow: Separate sync TTL level, Positive/Negative Composite sync TTL level, Positive/Negative Sync on green H-sync TTL level, Positive/Negative Signal source: pattern generator format as the spec Reference generator: QuantumData 802G 2.2 Input signal mode Pre-set 34 modes PRESET VIDEO RESOLUTION # Resolution H- Frequency Pixel rate V- Frequency Comment 1 640X350 31.5K 25.175 70Hz IBM VGA 10h 2 720X400 31.5K 28.322 70Hz IBM VGA 3h 3 640X480 31.5K 25.175 60Hz 4 640X480 35.0K 30.24 67Hz 5 640X480 37.9K 31.5 72Hz 6 640X480 37.5K 31.501 75Hz 7 640X480 43.3K 36 85Hz 8 800X600 35.2K 36 56Hz 9 800X600 37.9K 40 60Hz 10 800X600 48.1K 50 72Hz 11 800X600 46.9K 49.498 75Hz 12 800X600 53.7K 56.251 85Hz 13 832X624 49.7K 57.28 75Hz MAC 14 1024X768 48.4K 65 60Hz 15 1024X768 56.5K 75 70Hz 16 1024X768 60.0K 78.75 75Hz 17 1024X768 61.1K 83.096 76Hz IBM XGA-2 18 1024X768 68.7K 94.5 85Hz 19 1152X864 54.0K 79.9 60Hz non-VESA 20 1152X864 67.5K 108 75Hz 21 1152X864 63.9K 94.5 70Hz non-VESA 22 1152X870 68.7K 100 75Hz MAC 23 1152X900 61.8K 92.94 66Hz SUN Mode IV 24 1152X900 71.8K 108 76Hz SUN Mode II 25 1280X960 60.0K 108 60Hz 26 1280X960 75.0K 129.895 75Hz non-VESA 27 1280X1024 64.0K 108 60Hz 28 1280X1024 71.7K 117 67Hz SUN Mode V 29 1280X1024 76.0K 130.223 72Hz DOS/V 30 1280X1024 80.0K 135 75Hz 31 1280X1024 81.1K 135.008 76Hz SUN Mode I 32 688X556 31.3K 27 50Hz TV-PAL 33 960X720 44.76K 57.58 60Hz 34 960X720 56.4K 72.42 75Hz 2.3 Allowed 85 Hz overscan signal mode specified Once the signal input of PC is 85Hz, this monitor is able to display at least for10 minutes. An attention signal appears and shows THIS IS 85HZ OVERDRIVE, CHANGE COMPUTER DISPLAY INPUT TO 1280X1024 @ 60 HZ Dot rate (MHz) H. Freq (KHz) Mode Resolution V. Freq (Hz) 36.000 43.269 VESA 640 * 480 85.008 5 56.250 53.674 VESA 800 * 600 85.061 94.500 68.677 VESA 1024 * 768 84.997 3.power Supply (S) 3.1Setup the AC I/P at 90VAC, and Output DC loading at 12V 3.7 Amp, 5V 2.1 Amp,The DC output voltages are 5V +/- 0.25V and 12V+/-1.2V. 4. Display Adjustment 4.1 Access to factory mode (RS232) in auto-alignment system The communication protocol switch to RS232 . 4.2 Auto color adjustment (B) Apply a 640x480/31kHz/60Hz signal with 16 gray pattern, set brightness to 100%, and contrast to 50%. Adjust the R. G. B offset, and gain to calibrate the color smoothly and 64-gray level distinguishable. Check all pre-setting 34 modes. 22 190X6&170X6 LCD Go to cover page Electrical instructions(170X6) 4.3 Adjustment of WHITE-D (B) Apply a 1280*1024 / 60Hz signal with white pattern, set brightness to 100%, and contrast to 50%. Adjust the R, G, B Sub-Gain, for the screen center, the 1931 CIE chromaticity (X, Y) co-ordinates shall be; Use Minolta CA-110 for color coordinates and luminance check. Luminance is > 200 Nits in the center of the screen in the panel color when brightness is set to 100% and contrast is set to 100%. 4.4 Adjustment of sRGB Apply a 1280*1024 / 60Hz signal with white pattern, set brightness to 100%, and contrast to 50%. Adjust the R, G, B Sub-Gain, for the screen center, the 1931 CIE chromaticity (X, Y) co-ordinates shall be; sRGB x(center) 0.313 � 0.020 y(center) 0.329 � 0.020 Ynits 180 � 10 EEPROM presetting (B) After finishing all the adjustment, set: Brightness to 100% Contrast to 50% OSD position at middle of screen COLOR ADJUST to 6500K color temperature Stand-Alone set to Off 9300�K 6500�K x (center) 0.283 � 0.020 0.313 � 0.020 y (center) 0.297 � 0.020 0.329 � 0.020 23 190X6&170X6 LCD Go to cover page LightFrame DR TM LightFrameTM Digital Reality (LightFrameTM DR) for Windows Introduction Philips LightFrameTM DR feature enriches your photo and video experience with preset modes ideal for your favorite applications: Internet, TV/video viewing, photos and gaming. The LightFrameTM DR engine optimizes brightness, sharpness, contrast, color, JPG noise for photos and skin tone for videos. Installation First things first: Philips LightFrameTM DR only works with monitors specially built to use this software. Earlier Philips monitors or other manufacturers' monitors will not work with this special software. This software is only for use with Philips 170X6,170P6 and 190X6,190P6 monitors . You can identify compatible Philips monitors by the LightFrame logo on the front of the monitor. LightFrameTM DR works with true Windows-based programs and DOS-based programs that operate in a Windows environment. It does not work with DOS-based programs operating only in a DOS environment. To control the LightFrameTM DR feature in your monitor, you'll want install the LightFrameTM DR application found on this CD-ROM. To install LightFrameTM DR, place the CD in your CD-ROM drive. When the CD menu appears on your screen, 1) select preferred language 2) select model number (170X6 or 190X6) 3) click on Install LightFrameTM Digital Reality. Follow the on-screen prompts to properly install the program. The software checks to see if you have a compatible monitor. You must agree to the license terms in order to install the software. After installation, the LightFrameTM DR shortcut icon automatically Appears at your desktop, click it to load the control bar on screen. Use Tips 1. Cursor with a yellow light bulb versus a blue light bulb Your mouse pointer takes the shape of a light bulb to indicate that LightFrameTM DR is ready to activate or deactivate a target window that contains photos, videos or other content that can be enhanced. A yellow light bulb means that you are moving over a window where LightFrameTM DR can be activated. Click on the window to activate enhancement. A blue light bulb appears when moving over an activated window. Click on the window to de-activate LightFrameTM DR. Cursor examples Here is a list of LightFrameTM DR cursors. This is the default cursor displayed when you move over a non- LightFrameTM DR enhanced window or area. Clicking and dragging this cursor over a Window or area activates LightFrameTM DR enhancement. Your cursor becomes a yellow light bulb when it passes over a non-active window to indicate that LightFrameTM DR can be activated in the selected window. Click to activate LightFrameTM DR in the selected window. To activate LightFrameTM DR simultaneously in a total of up to eight windows, click on the selected windows one-by-one while pressing the Shift key. Your cursor becomes a blue light bulb when it passes over an active LightFrameTM DR window. Click to deactivate LightFrameTM DR in the selected window. The normal cursor is restored after you click on a target without pressing the shift key or after you drag a rectangle. 2. LightFrameTM DR control bar The LightFrameTM DR control bar appears at the top of screen after any LightFrameTM DR function is activated.The control bar is another upgrade that helps you run all LightFrameTM Digital Reality's neat, new features. The illustration below describes the tasks each button performs. To drag the control bar to any preferred area of your screen, left click the LightFrameTM DR logo. (See examples below) This area is not a button. Activate or deactivate LightFrameTM DR icon Turns LightFrameTM DR on and off. When LightFrameTM DR is active in a selected window, the icon changes from blue to yellow. Activate or deactivate the mode menu icon The default mode menu icon appears when no mode is selected. When you select the photo, Internet or other mode, the icon for the selected mode appears. Deactivate all LightFrameTM DR windows icon Deactivates all LightFrameTM DR windows. This function is only visible when LightFrameTM DR windows are active. Properties icon Provides access to the Properties menu, which includes these options: LightFrameTM DR auto start: Yes/no Position: LightFrameTM DR Always on top Warning messages: On/off Target selection: Automatic/manual Monitor selection: Chose among two monitors connected to the same PC Place LightFrameTM DR icon in the taskbar: Yes/no Info mode icon Activates and deactivates the Info mode, which provides information about toolbar and menu items as well as access to Help files. Exit icon Click to exit the LightFrameTM DR control bar 3. Optimizing LightFrameTM DR settings Here's how to optimize LightFrameTM DR settings to your personal preferences: 2.The settings menu 3. Optimizing LightFrameTM DR settings Here's how to optimize LightFrameTM DR settings to your personal preferences: 1.Select your desired mode from the mode Menu. Click to open the mode. 24 190X6&170X6 LCD Go to cover page LightFrame DR TM 3.Change settings by pulling the color bar or pressing the plus (+) or minus (-) button to move incrementally to the desired levels. When you're finished, click on the Mode icon to exit the menu. 4. LightFrameTM Hot Key The LightFrameTM Hot Key is located at front of LightFrameTM DR monitor. The blue LED is on when LightFrameTM is activated and off when the feature is deactivated. A touch on the Hot Key quickly provides full screen enhancement in your choice of the Internet, Photo or Video-TV mode. When you touch the front button, a small OSD window opens on your screen directly above the button location. Use this screen to select the best full screen mode for the application you're working with. Press continuously on the Hot Key to scroll through the available options. 1) When you touch the LightFrameTM Hot Key, an OSD window opens. Touch the button continually to scroll among the available Internet, Photo and Video-TV modes. As a mode becomes available for selection, its color changes from blue to yellow. Once you reach the desired mode, remove your finger from the Hot Key. After three seconds, the mode you have selected will be confirmed and the OSD window will automatically close. 2) Touch the LightFrameTM DR Hot Key for three seconds to enter the LightFrameTM demo mode. To exit the demonstration mode, press the hot key again. 5. Language While English is the default language of LightFrameTM DR, Dutch, French, German, Italian, Portuguese, Spanish, Simplified Chinese, Traditional Chinese and Korean are supported. LightFrameTM DR will detect the language of computer system OS and select the language automatically. Notes Philips LightFrameTM DR only works with monitors specially built to use this software. If LightFrameTM DR detects that your monitor is not LightFrameTM DR-compatible, a message appears on the monitor screen. If you see this message, you can abort or continue the installation; however, if you continue the installation, LightFrameTM DR will probably not work on the monitor. How to use LightFrameTM DR After installation, LightFrameTM DR shortcut icon appears on your screen whenever the computer is started. To learn more about using LightFrameTM Digital Reality, please refer to the help information, which is available after installation. Compatibility This version of LightFrameTM DR is compatible with: Windows XP Windows 2000 Professional Edition with Service Pack 2 How to download your upgraded LF DR Installation file Visit http://www.philips.com/support R R 25 Pin No. Description 1 T.M.D.S. data2- 2 T.M.D.S. data2+ 3 T.M.D.S. data2 shield 4 No Connect 5 No Connect 6 DDC clock 7 DDC data 8 No Connect 9 T.M.D.S. data1- 10 T.M.D.S. data1+ 11 T.M.D.S. data1 shield 12 No Connect 13 No Connect 14 +5V Power 15 Ground (for +5V) - Cable detect 16 Hot plug detect 17 T.M.D.S. data0- 18 T.M.D.S. data0+ 19 T.M.D.S. data0 shield 20 No Connect 21 No Connect 22 T.M.D.S clock shield 23 T.M.D.S. clock+ 24 T.M.D.S. clock- 190X6&170X6 LCD DDC Instructions Go to cover page To Monitor D-sub/DVI cable DC 8~12V To Printer port Power indicator To Monitor D-sub cable DC 8~12V To Printer port Power indicator General DDC Data Re-programming Analog DDC IC, & EEPROM Additional information In case the DDC data memory IC or main EEPROM which storage all factory settings were replaced due to a defect, the serial numbers have to be re-programmed" ". It is advised to re-soldered DDC IC and main EEPROM from the old board onto the new board if circuit board have been replaced, in this case the DDC data does not need to be re-programmed. Additional information about DDC (Display Data Channel) may be obtained from Video Electronics Standards Association (VESA). Extended Display Identification Data(EDID) information may be also obtained from VESA. 1. An i486 (or above) personal computer or compatible. 2. Microsoft operation system Windows 95/98 . Y o Install the EDID_PORT_Tool under Win2000/XP . As Fig. 1 . A. Copy the "UserPort.sys" to C:\WINNT\system32\drivers(win2000) C:\WINDOWS\system32\drivers(winXP) B. Running " io.exe" everytime, Before you start to programming edid data . 4. DDC 2BI-ISP TOOL: Inclusion : A. DDC2BI-ISP TOOL(3138 106 10396) x1 (as Fig. 2) B. Printer cable x1 c. (D-Sub) to (D-Sub) cable x2 D. D-SUB to DVI cable X1 Note: The EDID46.EXE is a windows-based program, which cannot be run in MS-DOS. System and equipment requirements ou have t 3. EDID45.exe program . Fig. 2 Fig. 2 Fig. 1 Fig. 1 Pin Assignment The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: Fig. 3 Fig. 3 Fig. 4 Fig. 4 Input analog D-sub connector pin assignment PIN No. SIGNAL 1 Red video input 2 Green video input / sync on green 3 Blue video input 4 GND 5 GND – Cable detect 6 Red video GND 7 Green video GND 8 Blue video GND 9 DDC +3.3V or +5V 10 Logic GND 11 GND 12 Serial data line (SDA) 13 H-sync / H+V 14 V-sync 15 Data clock line (SCL) 26 190X6&170X6 LCD DDC Instructions Go to cover page Step 3: Installation of EDID45.EXE Method 1: Start on DDC program Start Microsoft Windows. 1. The Program"EDID45.EXE" in service manual cd-rom be copyed to C:\ . 2. Click , choose Run at start menu of Windows as shown In Fig. 6. Fig. 6 4. Click button. The main menu appears (as shown in Fig. 8). OK This is for initialize alignment box. Fig. 8 Fig. 7 Fig. 9 Note 1: If the connection is improper, you will see the following error message (as shown in Fig. 9) before entering the main menu. Meanwhile, the (read EDID) function will be disable. At this time, please make sure all cables are connected correctly and 3. At the submenu, type the letter of your computer's hard disk drive followed by :EDID45 (for example, C:\EDID45, as shown in Fig. 7). Note 2: During the loading, EDID45 will verify the EDID data which just loaded from monitor before proceed any further function, once the data structure of EDID can not be recognized, the following error message will appear on the screen as below. Please confirm following steps to avoid this message. 1. The data structure of EDID was incorrect. 2. DDC IC that you are trying to load data is empty. 3. Wrong communication channel has set at configuration setup 1 Configuration and procedure There are 3 chips contained OSD string, serial number..etc on the circuit board, main EEPROM which storage all factory settings,OSD string. DDC IC which storage 128byte EDID data(serial number ..etc.). Following descirptions are the connection and procedure for Analog /Digital and main EEPROM can be re-programmed along with Analog/Digital IC by enable factory memory data write function on the DDC program (EDID45.EXE). Initialize alignment box In order to avoid that monitor entering power saving mode due to sync will cut off by alignment box, it is necessary to initialize alignment box before running programming software (EDID45.EXE). Following steps show you the procedures and connection. Step 1: Supply 8-12V DC power source to the Alignment box by plugging a DC power cord or using batteries. Step 2: Connecting printer cable and D-Sub cable of monitor as Fig. 5 Fig. 5 PC 1=Power connector 2=D-SUB/DVI connector To printer port (LTP1) DC Power 8-12 V Fig. 10 Printer Port To Monitor To PC 2 -----> 1 -----> Edid45.exe Edid45.1 27 190X6&170X6 LCD DDC Instructions Go to cover page To Monitor D-sub/DVI cable DC 8~12V To Printer port Power indicator To Monitor D-sub cable DC 8~12V To Printer port Power indicator PC To printer port (LTP1) Printer Port To Monitor To PC To Monitor D-sub/DVI cable DC 8~12V To Printer port Re-programming Analog DDC IC Step 1: After initialize alignment box, connecting all cables and box as shown in Fig. 11 Fig. 12 Step 2: Read DDC data from monitor 1. Click icon as shown in Fig. 11 from the tool bar to bring up the Channels "Configuration Setup" windows as shown in Fig. 12. Step 3: Modify DDC data (verify EDID version, week, year) 1. Click (new function) icon from the tool bar, bring up Step 1 of 9 as shown in Fig. 15 . EDID45 DDC application provides the function selection and text change (select & fill out) from Step 1 to Step 9. Step 4: Modify DDC data (Monitor Serial No.) Next 1. Click to step7, bring up Fig. 16. - Serial number can be filled up or be changed at this moment. - Click next,Finish to exit the Step window. 3. Click OK button to confirm your selection. 4. Click icon (Read EDID function) to read DDC EDID data from monitor. The EDID codes will display on screen as shown in Fig. 14. Fig. 16 2. Select the DDC2Bi as the communication channel. As shown in Fig. 13. Fig. 11 1=Power connector 2=D-SUB connector Fig. 13 Fig. 14 Fig. 15 Don't close this screen. ---> Select and fill out, If necessary. 28 190X6&170X6 LCD DDC Instructions Go to cover page To Monitor D-sub/DVI cable DC 8~12V To Printer port Re-programming Digital DDC IC Step 1: After initialize alignment box, connecting all cables and box as shown in Fig. 17 Fig. 18 Step 2: Read DDC data from monitor 1. Click icon as shown in Fig. 18 from the tool bar to bring up the Channels "Configuration Setup" windows as shown in Fig. 19. Step 3: Modify DDC data (verify EDID version, week, year) 1. Click (new function) icon from the tool bar, bring up Step 1 of 9 as shown in Fig. 21 . EDID45 DDC application provides the function selection and text change (select & fill out) from Step 1 to Step 9. Step 4: Modify DDC data (Monitor Serial No.) Next 1. Click , bring up Fig. 22. Then select Digital Signal as below 3. Click OK button to confirm your selection. 4. Click icon (Read EDID function) to read DDC EDID data from monitor. The EDID codes will display on screen as shown in Fig. 20. Fig. 22 Fig. 23 2. Select the DDC2Bi as the communication channel. As shown in Fig. 19. Fig. 19 Fig. 20 Fig. 21 Fig.17 Printer Port To Monitor To PC 1=DVI connector 2=D-SUB connector 3=Power Plug 3 Don't close this screen. ---> To Monitor D-sub/DVI cable DC 8~12V Select and fill out, If necessary. 2. Click to step7, bring up Fig. 23. Next - Serial number can be filled up or be changed at this moment. - Click Next, Finish to exit the Step window. 29 190X6&170X6 LCD DDC Instructions Go to cover page Step 6: Save DDC data Sometimes, you may need to save DDC data as a text file for using in other IC chip. To save DDC data, follow the steps below: 1. Click (Save) icon (or click "file"-> "save as") from the tool bar And give a file name as shown in Fig. 25. The file type is EDID46 file (*.ddc) which can be open in WordPad. By using WordPad, the texts of DDC data & table (128 bytes, hex code) can be modified. If DDC TEXTS & HEX Table are completely correct, it can be saved as .ddc flie to re-load it into DDC IC for DDC Data application. 2. Click . Save Step 7: Exit DDC program Pull down the File menu and select Exit as shown in Fig. 26. Step 5: Write DDC data 1. Configuration should be as Fig. 24. And press OK. 3. Click (Write EDID) icon from the tool bar to write DDC data. Fig. 24 Fig. 26 Fig. 25 2. Access Factory Mode [Push AUTO " " & OK " " buttons at the same time and hold it ] + [Press power " " button untill comes out "Windows screen"] => then release all button - Turn off monitor. - Step9: -1. Disconnect the monitor power cord and connect it again. -2. Press the OK button to bring up the OSD main manu. -3. Re-confirm the serial Number is updated as shown in Fig.31. Step : 8 Modify serial number in OSD -1. Unzip the serial number.zip to your computer, then open the folder as shown in Fig.28. -2. If use Win98 OS, you can execute SN.exe directly. If use Win2000 or XP OS, first, you must execute install.bat, then execute SN.exe -3. Set I2C bus(press the left-top button of operating window) as shown in Fig.28, then press " SET" button. -4. Set Block4 as shown in Fig.30 -5. key in new serial number, then press " Write" button as shown in Fig.30 , Click " WRITE" button. -6. It will appear" Serial Number Write OK" , Click" Enter" to finish it. Fig.28 Fig.29 Fig.30 Edid45.1 Fig.31 30 190X6&170X6 LCD DDC DATA(190X6) Go to cover page THE DISPLAY DATA CHANNEL (DDC_2B) CONTENT INCLUDING (FOR 190X6 ANALOG) ********************************************************************** EDID log file ********************************************************************* Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : C010 (HEX.) ID Serial Number : 1234 (HEX.) Week of Manufacture : 20 Year of Manufacture : 2005 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Analog Video Input 0.700V/0.300V (1.00Vpp) Blank-to-Black Setup Separate Sync Composite Sync Sync on Green Serration required Maximum H Image Size : 38 Maximum V Image Size : 30 Display Transfer Characteristic : 2.2(gamma) Feature Support (DPMS) : Standby Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.636 Red Y coordinate : 0.348 Green X coordinate : 0.292 Green Y coordinate : 0.618 Blue X coordinate : 0.142 Blue Y coordinate : 0.072 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings : 1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #1 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 70 Standard Timing Identification #2 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 Standard Timing Identification #3 Horizontal active pixels : 1280 Aspect Ratio : 4:3 Refresh Rate : 60 Standard Timing Identification #4 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Detailed Timing #1 Pixel Clock (MHz) : 135 H Active (pixels) : 1280 H Blanking (pixels) : 408 V Active (lines) : 1024 V Blanking (lines) : 42 H Sync Offset (F Porch) (pixels): 48 H Sync Pulse Width (pixels) : 112 V Sync Offset (F Porch) (lines) : 1 V Sync Pulse Width (lines) : 3 H Image Size (mm) : 376 V Image Size (mm) : 301 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY 123456 Monitor Descriptor #3 Monitor Name : Philips 190X Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 83 Max. Supported Pixel : 140 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : 61 (HEX.) ********************************************************************** EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 10 11: c0 12: 34 13: 12 14: 00 15: 00 16: 14 17: 0f 18: 01 19: 03 20: 1f 21: 26 22: 1e 23: 78 24: ee 25: cd 26: 65 27: a2 28: 59 29: 4a 30: 9e 31: 24 32: 12 33: 50 34: 54 35: bf 36: ef 37: 80 38: 71 39: 4a 40: 71 41: 4f 42: 81 43: 40 44: 81 45: 80 46: 01 47: 01 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: bc 55: 34 56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70 64: 13 65: 00 66: 78 67: 2d 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59 80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36 88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 39 105: 30 106: 58 107: 0a 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 53 117: 0e 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 61 31 190X6&170X6 LCD DDC DATA(190X6) Go to cover page THE DISPLAY DATA CHANNEL (DDC-2B) CONTENT INCLUDING (FOR 190X6 DIGITAL) ********************************************************************** EDID log file ********************************************************************** Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : C010 (HEX.) ID Serial Number : 1234 (HEX.) Week of Manufacture : 20 Year of Manufacture : 2005 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Digital Video Input Maximum H Image Size : 38 Maximum V Image Size : 30 Display Transfer Characteristic : 2.2 (gamma) Feature Support (DPMS) : Standby Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.636 Red Y coordinate : 0.348 Green X coordinate : 0.292 Green Y coordinate : 0.618 Blue X coordinate : 0.142 Blue Y coordinate : 0.072 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings : 1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #1 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 70 Standard Timing Identification #2 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 Standard Timing Identification #3 Horizontal active pixels : 1280 Aspect Ratio : 4:3 Refresh Rate : 60 Standard Timing Identification #4 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Detailed Timing #1 Pixel Clock (MHz) : 135 H Active (pixels) : 1280 H Blanking (pixels) : 408 V Active (lines) : 1024 V Blanking (lines) : 42 H Sync Offset (F Porch) (pixels): 48 H Sync Pulse Width (pixels) : 112 V Sync Offset (F Porch) (lines) : 1 V Sync Pulse Width (lines) : 3 H Image Size (mm) : 376 V Image Size (mm) : 301 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY 123456 Monitor Descriptor #3 Monitor Name : Philips 190X Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 83 Max. Supported Pixel : 140 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : 00 (HEX.) ********************************************************************** EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 10 11: c0 12: 34 13: 12 14: 00 15: 00 16: 14 17: 0f 18: 01 19: 03 20: 80 21: 26 22: 1e 23: 78 24: ee 25: cd 26: 65 27: a2 28: 59 29: 4a 30: 9e 31: 24 32: 12 33: 50 34: 54 35: bf 36: ef 37: 80 38: 71 39: 4a 40: 71 41: 4f 42: 81 43: 40 44: 81 45: 80 46: 01 47: 01 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: bc 55: 34 56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70 64: 13 65: 00 66: 78 67: 2d 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59 80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36 88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 39 105: 30 106: 58 107: 0a 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 53 117: 0e 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 00 32 190X6&170X6 LCD DDC DATA(170X6) Go to cover page THE DISPLAY DATA CHANNEL (DDC_2B) CONTENT INCLUDING (FOR 170X6 ANALOG): ********************************************************************** EDID log file ********************************************************************** Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : C00F (HEX.) ID Serial Number : 1234 (HEX.) Week of Manufacture : 16 Year of Manufacture : 2005 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Analog Video Input 0.700V/0.300V (1.00Vpp) Blank-to-Black Setup Separate Sync Composite Sync Sync on Green Serration required Maximum H Image Size : 34 Maximum V Image Size : 27 Display Transfer Characteristic : 2.2 (gamma) Feature Support (DPMS) : Standby Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.641 Red Y coordinate : 0.342 Green X coordinate : 0.292 Green Y coordinate : 0.611 Blue X coordinate : 0.147 Blue Y coordinate : 0.068 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings : 1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #1 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 70 Standard Timing Identification #2 Standard Timing Identification #3 Horizontal active pixels : 1280 Aspect Ratio : 4:3 Refresh Rate : 60 Standard Timing Identification #4 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Detailed Timing #1 Pixel Clock (MHz) : 108 H Active (pixels) : 1280 H Blanking (pixels) : 408 V Active (lines) : 1024 V Blanking (lines) : 42 H Sync Offset (F Porch) (pixels): 48 H Sync Pulse Width (pixels) : 112 V Sync Offset (F Porch) (lines) : 1 V Sync Pulse Width (lines) : 3 H Image Size (mm) : 338 V Image Size (mm) : 270 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY 123456 Monitor Descriptor #3 Monitor Name : Philips 170X Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 83 Max. Supported Pixel : 140 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : 6B (HEX.) ********************************************************************** EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 0f 11: c0 12: 34 13: 12 14: 00 15: 00 16: 10 17: 0f 18: 01 19: 03 20: 1f 21: 22 22: 1b 23: 78 24: ee 25: 2e 26: e5 27: a4 28: 57 29: 4a 30: 9c 31: 25 32: 11 33: 50 34: 54 35: bf 36: ef 37: 80 38: 71 39: 4a 40: 71 41: 4f 42: 81 43: 40 44: 81 45: 80 46: 01 47: 01 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 30 55: 2a 56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70 64: 13 65: 00 66: 52 67: 0e 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59 80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36 88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 37 105: 30 106: 58 107: 0a 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 53 117: 0e 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 6b Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 33 190X6&170X6 LCD DDC DATA(170X6) Go to cover page THE DISPLAY DATA CHANNEL (DDC-2B) CONTENT INCLUDING (FOR 170X6 DIGITAL) ********************************************************************** EDID log file ********************************************************************** Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : C00F (HEX.) ID Serial Number : 1234 (HEX.) Week of Manufacture : 16 Year of Manufacture : 2005 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Digital Video Input Maximum H Image Size : 34 Maximum V Image Size : 27 Display Transfer Characteristic : 2.2 (gamma) Feature Support (DPMS) : Standby Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.641 Red Y coordinate : 0.342 Green X coordinate : 0.292 Green Y coordinate : 0.611 Blue X coordinate : 0.147 Blue Y coordinate : 0.068 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings : 1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #1 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 70 Standard Timing Identification #2 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 Standard Timing Identification #3 Horizontal active pixels : 1280 Aspect Ratio : 4:3 Refresh Rate : 60 Standard Timing Identification #4 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Detailed Timing #1 Pixel Clock (MHz) : 108 H Active (pixels) : 1280 H Blanking (pixels) : 408 V Active (lines) : 1024 V Blanking (lines) : 42 H Sync Offset (F Porch) (pixels): 48 H Sync Pulse Width (pixels) : 112 V Sync Offset (F Porch) (lines) : 1 V Sync Pulse Width (lines) : 3 H Image Size (mm) : 338 V Image Size (mm) : 270 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY 123456 Monitor Descriptor #3 Monitor Name : Philips 170X Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 83 Max. Supported Pixel : 140 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : 0A (HEX.) ********************************************************************** EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 0f 11: c0 12: 34 13: 12 14: 00 15: 00 16: 10 17: 0f 18: 01 19: 03 20: 80 21: 22 22: 1b 23: 78 24: ee 25: 2e 26: e5 27: a4 28: 57 29: 4a 30: 9c 31: 25 32: 11 33: 50 34: 54 35: bf 36: ef 37: 80 38: 71 39: 4a 40: 71 41: 4f 42: 81 43: 40 44: 81 45: 80 46: 01 47: 01 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 30 55: 2a 56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70 64: 13 65: 00 66: 52 67: 0e 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59 80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36 88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 37 105: 30 106: 58 107: 0a 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 53 117: 0e 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 0a 34 190X6&170X6 LCD Go to cover page Go to cover page Configuration and procedure ISP ( In System Program) software is provided by Genesis to upgrade the firmware of CPU. ISP cable is for the interface between "Parallel port of PC" and "15 pin-D-SUB connector of monitor. System and equipment requirements: 1. An i386 (or above ) personal computer or compatible. 2. Microsoft operation system Win 95/98 or Win 2000 3. ISP software 4. ISP cable (3138 106 10213) as shown in Fig.1 Fig.1 ISP CABLE :12NC IS "3138 106 10213". 5.Connect ISP cable and main cord to monitor as shown in Fig.2. 6. Install and setup the Gprobe 4.5.0.5.exe program step 1. Create a folder in your PC .for example: D:\170X6 step 2. Copy ISP .Zip into your folder step 3. Unzip ISP.Zip into your folder as shown in Fig.3 step 4. Double click the Gprobe4.5.0.5.exe icon to install the application as shown Fig.4 Fig.3 Fig.4 Step 5 . Click the next till the setup finished. And creat a short cut on the desktop. 170X6 LCD ISP CABLE FOR CPU 35 190X6&170X6 LCD ISP CABLE FOR CPU Go to cover page Update the firmware 1. Double click the Gprobe 4 icon on the desktop ,then appears as shown in Fig.5 2. Press the options then choose configure Pin as shown in Fig.5 3. From the menu that appears, choose the number 17 in "output pin" and the number 12 in " input pin" as shown in Fig.6 window Fig.5 Fig.6 4. Press the options then choose connection setup as shown in Fig.7 5. From the menu that appears , choose the DDC2Bi3 in "protocol" and the LPT (0x378) in "port" as shown in Fig.8 Fig.7 6. click the "commands" and select the "Batch", as shown in Fig.9, Fig.10 Fig.8 Fig.10 7. Click the button as shown in Fig.10 to browse the Iicisp.txt file in the folder that you created. Note: you should pay attention to the described path in the Iicisp.txt file. It must be the same as the file's path that created. you Fig.9 36 190X6&170X6 LCD Go to cover page Go to cover page ISP CABLE for CPU Fig.11 click "OPEN" Shut off the AC power Click the "OK" button and then connect the AC power, after the follow window appears, the update is completed. The isp instructions between 170X6 and 190X6 is the same except the hex code 37 190X6&170X6 LCD Wiring Diagram(170X6) Go to cover page 38 190X6&170X6 LCD Go to cover page Go to cover page Wiring Diagram(190X6) Block Diagram 39 190X6&170X6 LCD Audio & ControlBoard USB UP Upstream From PC Downstream to USB Device Speaker Spec 170X6 2W x 2 190X6 3W x 3 Scaler Board GM5321LF + Pacific1SC VGA AC Power Inverter LVDS Interface + Panel Backlight Board Backlight DVI-I Audio & Control 13Pin Power I/F 11Pin Audio & Control 13Pin Earphone OSD key 3Pin 4Pin USB Down 5Pin Scaler Diagram Go to cover page 40 190X6&170X6 LCD Scaler Diagram 41 190X6&170X6 LCD Scaler Diagram Go to cover page 42 190X6&170X6 LCD Scaler Diagram 43 190X6&170X6 LCD Scaler Diagram Go to cover page 44 190X6&170X6 LCD Scaler Board C.B.A 45 190X6&170X6 LCD Scaler Board C.B.A Go to cover page 46 190X6&170X6 LCD AUDIO DIAGRAM(170X6) 47 190X6&170X6 LCD AUDIO DIAGRAM(170X6) Go to cover page 48 190X6&170X6 LCD Audio Board C.B.A(170X6) 49 190X6&170X6 LCD Audio Board C.B.A(170X6) Go to cover page 50 190X6&170X6 LCD AUDIO DIAGRAM(190X6) 51 190X6&170X6 LCD AUDIO DIAGRAM(190X6) Go to cover page 52 190X6&170X6 LCD Audio Board C.B.A(190X6) 53 190X6&170X6 LCD Audio Board C.B.A(190X6) Go to cover page 54 190X6&170X6 LCD POWER DIAGRAM 55 190X6&170X6 LCD POWER DIAGRAM Go to cover page 56 190X6&170X6 LCD Power Board C.B.A 57 190X6&170X6 LCD USB DIAGRAM Go to cover page 58 190X6&170X6 LCD USB Board C.B.A 59 190X6&170X6 LCD USB Board C.B.A Go to cover page 60 190X6&170X6 LCD CONTROL&EARPHONE DIAGRAM 61 190X6&170X6 LCD Control Board C.B.A Go to cover page 62 190X6&170X6 LCD EARPHONE BOARD C.B.A 63 190X6&170X6 LCD 31 42 50 43 97 44 313815417001 BEZEL 1050 823827718251 LCD LM170E01-TLA8 1051 313815863031 SCALER PCB ASSY(1SC) 313815137711 SHIELDING 350 313815417011 BACK COVER 41 313815413511 SKIN COVER 313815413521 LOGO COVER(B) 313815413491 OSD BUTTON 313815862951 USB UP ASSY 1054 313815757301 FOLDABLE BASE(S) 313815135811 HINGE-PLATE 313815862941 USB DOWN ASSY 1053 1055 823827717131 LIPS(EADP-43AF A)(POWER) 65 190X6&170X6 LCD EXPLODED VIEW(190X6) Go to cover page 313815760471 FRONT BEZEL ASSY 30 823827718231 LCD LM190E01-TLB2 1050 313815864331 SCALER PCB ASSY 1051 313815760491 SHIELDING 98 105 313815414531 GASKET 313815757401 FOLDABLE BASE 50 313815760481 BACK COVER ASSY 40 44 313815413621 SKIN COVER 97 313815413631 LOGO COVER 1055 823827717131 LIPS(EADP-43AF A) 190X6&170X6 LCD Go to cover page 66 Recommended Parts List 0030 313815760401 BEZEL ASSY 0031 313815417001 BEZEL 0033 313815567471 LIGHTFRAME STICKER 0040 313815760411 BACK COVER ASSY 0041 313815417011 BACK COVER 0042 313815135811 HINGE-PLATE 0043 313815413491 OSD BUTTON 0044 313815413511 SKIN COVER 0050 313815757301 FOLDABLE BASE(S) 0097 313815413521 LOGO COVER(B) 0098 313815760421 SHIELDING ASSY 0100 313815137701 AC BRACKET 0101 313810440571 HOUSING COVER 0350 313815137711 SHIELDING 0351 313815321131 INSULATE PLATE 1057 313815864371 FRAME+WIRE ASSY 7901 932219970668 IC SM TPA6030A4PWP (TI00) R 7941 823827715951 TOUCH SENSOR IC 7942 932209265685 TRA SIG SM MUN2211JG (ONSE) R 7943 932209265685 TRA SIG SM MUN2211JG (ONSE) R 8901 313819873811 CBLE FAST/100/FAST AWG18 8902 313819873811 CBLE FAST/100/FAST AWG18 7203 932216972682 IC SM AT24C02N-10SC-2.7(ATME)L 7204 932216972682 IC SM AT24C02N-10SC-2.7(ATME)L 7211 932217126668 IC SM 74LCX14T (ST00) R 7301 313815863051 CPU IC ASSY 7301 7301 823827715141 FLASH 7302 313815863061 EEPROM IC ASSY 7302 7302 932218650682 IC AT24C16A-10PU-2.7 (ATME) L 7403 932220099685 IC SM LD1117AS18 (ST00) R 7404 932220818671 IC SM GM5321-BC (GEMI) Y 7405 932222076668 IC SM AME1117CCGTZ (AME0) R 7501 932217439685 TRA SIG SM BC857C (KEC0) R 7502 932217439685 TRA SIG SM BC857C (KEC0) R 7503 932209265685 TRA SIG SM MUN2211JG (ONSE) R 7504 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7505 932217439685 TRA SIG SM BC857C (KEC0) R 7506 932209265685 TRA SIG SM MUN2211JG (ONSE) R 7507 932209265685 TRA SIG SM MUN2211JG (ONSE) R 7508 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7509 932217439685 TRA SIG SM BC857C (KEC0) R 7601 932219359668 IC SM AME8815AEGT150Z (AME0) R 7602 932218246668 IC SM AME8815AEGT250Z (AME0) R 7603 823827716651 LIGHT FRAME IC 7901 823827715951 TOUCH SENSOR IC 7902 932217440685 TRA SIG SM KRC102S (KEC0) R 7903 932217440685 TRA SIG SM KRC102S (KEC0) R 7931 932220946668 IC SM TPA6110A2DGN (TI00) R 7932 932220359668 IC SM TPA3002D2PHP (TI00) R 8901 313819873811 CBLE FAST/100/FAST AWG18 8902 313819873811 CBLE FAST/100/FAST AWG18 2608 223878615649 CER2 0603 X7R 16V 100N PM10 R 2609 202203100179 ELCAP SM HV 25V 10U PM20 R 2610 223878615649 CER2 0603 X7R 16V 100N PM10 R 2611 223878615649 CER2 0603 X7R 16V 100N PM10 R 2612 223878615649 CER2 0603 X7R 16V 100N PM10 R 2613 223878615649 CER2 0603 X7R 16V 100N PM10 R 2614 202203100179 ELCAP SM HV 25V 10U PM20 R 2615 202203100179 ELCAP SM HV 25V 10U PM20 R 2616 202203100179 ELCAP SM HV 25V 10U PM20 R 2617 223878615649 CER2 0603 X7R 16V 100N PM10 R 2618 202203100179 ELCAP SM HV 25V 10U PM20 R 2619 223878615649 CER2 0603 X7R 16V 100N PM10 R 2620 223878615649 CER2 0603 X7R 16V 100N PM10 R 2621 223878615649 CER2 0603 X7R 16V 100N PM10 R 2622 223878615649 CER2 0603 X7R 16V 100N PM10 R 2623 223878615649 CER2 0603 X7R 16V 100N PM10 R 2624 223878615649 CER2 0603 X7R 16V 100N PM10 R 2625 202203100179 ELCAP SM HV 25V 10U PM20 R 2626 223878615649 CER2 0603 X7R 16V 100N PM10 R 2627 223878615649 CER2 0603 X7R 16V 100N PM10 R 2628 223878615649 CER2 0603 X7R 16V 100N PM10 R 2629 223878615649 CER2 0603 X7R 16V 100N PM10 R 2630 202203100179 ELCAP SM HV 25V 10U PM20 R 2632 223878615649 CER2 0603 X7R 16V 100N PM10 R 2633 202203100179 ELCAP SM HV 25V 10U PM20 R 2634 223878615649 CER2 0603 X7R 16V 100N PM10 R 2636 223878615649 CER2 0603 X7R 16V 100N PM10 R 2637 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2638 223878615649 CER2 0603 X7R 16V 100N PM10 R 3202 212211805669 RST SM 0603 RC0603 10K PM5 R 3203 212211805669 RST SM 0603 RC0603 10K PM5 R 3204 212211805669 RST SM 0603 RC0603 10K PM5 R 3205 232270260223 RST SM 0603 RC21 22K PM5 R 3206 232270260101 RST SM 0603 RC21 100R PM5 R 3207 232270260101 RST SM 0603 RC21 100R PM5 R 3208 232270260102 RST SM 0603 RC21 1K PM5 R 3209 232270260104 RST SM 0603 RC21 100K PM5 R 3210 232270260101 RST SM 0603 RC21 100R PM5 R 3211 232270260101 RST SM 0603 RC21 100R PM5 R 3213 232270260102 RST SM 0603 RC21 1K PM5 R 3214 232270260472 RST SM 0603 RC21 4K7 PM5 R 3215 212211805669 RST SM 0603 RC0603 10K PM5 R 3216 232270260101 RST SM 0603 RC21 100R PM5 R 3217 232270260101 RST SM 0603 RC21 100R PM5 R 3219 212211805669 RST SM 0603 RC0603 10K PM5 R 3220 232270260223 RST SM 0603 RC21 22K PM5 R 3221 212211805669 RST SM 0603 RC0603 10K PM5 R 3222 212211805669 RST SM 0603 RC0603 10K PM5 R 3223 232270260101 RST SM 0603 RC21 100R PM5 R 3224 232270260101 RST SM 0603 RC21 100R PM5 R 3225 232270260101 RST SM 0603 RC21 100R PM5 R 3226 232270260101 RST SM 0603 RC21 100R PM5 R 3227 232270260222 RST SM 0603 RC21 2K2 PM5 R 3228 232270260222 RST SM 0603 RC21 2K2 PM5 R 3229 232270260104 RST SM 0603 RC21 100K PM5 R 3230 232270260102 RST SM 0603 RC21 1K PM5 R 3232 232270260101 RST SM 0603 RC21 100R PM5 R 3233 232270467509 RST SM 0603 RC22H 75R PM1 R 3234 232270260339 RST SM 0603 RC21 33R PM5 R 3235 232270467509 RST SM 0603 RC22H 75R PM1 R 3236 232270260101 RST SM 0603 RC21 100R PM5 R 3237 232270467509 RST SM 0603 RC22H 75R PM1 R 3238 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3239 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3240 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3241 232270260472 RST SM 0603 RC21 4K7 PM5 R 3242 212211805669 RST SM 0603 RC0603 10K PM5 R 3245 232270260101 RST SM 0603 RC21 100R PM5 R 3246 232270260101 RST SM 0603 RC21 100R PM5 R 3301 212211805669 RST SM 0603 RC0603 10K PM5 R 3302 212211805669 RST SM 0603 RC0603 10K PM5 R 3316 212211805669 RST SM 0603 RC0603 10K PM5 R 3321 212211805669 RST SM 0603 RC0603 10K PM5 R 3322 212211805669 RST SM 0603 RC0603 10K PM5 R 3325 212211805669 RST SM 0603 RC0603 10K PM5 R 3326 232270260101 RST SM 0603 RC21 100R PM5 R 3327 232270260101 RST SM 0603 RC21 100R PM5 R 3401 232270260101 RST SM 0603 RC21 100R PM5 R 3402 232270260101 RST SM 0603 RC21 100R PM5 R 3404 232270260121 RST SM 0603 RC21 120R PM5 R 3405 232270260121 RST SM 0603 RC21 120R PM5 R 3406 232270260121 RST SM 0603 RC21 120R PM5 R MODEL:190X6FB/00 Mechanical parts 0030 313815760471 FRONT BEZEL ASSY 0031 313815417021 BEZEL 0033 313815567471 LIGHTFRAME STICKER 0040 313815760481 BACK COVER ASSY 0041 313815417031 BACK COVER 0042 313815135871 HINGE PLATE 0043 313815414821 OSD BUTTON 0044 313815413621 SKIN COVER 0050 313815757401 FOLDABLE BASE 0097 313815413631 LOGO COVER 0098 313815760491 SHIELDING ASSY 0100 313815137701 AC BRACKET 0101 313810440571 HOUSING COVER 0105 313815414531 GASKET 0350 313815137721 SHIELDING 0351 313815320941 INSULATE PLATE 1057 313815864361 FRAME+WIRE ASSY LCD PANEL 1050 823827718231 LCD LM190E01-TLB2 Packing 0129 313810632613 PE BAG 0450 313815640921 CARTON 0451 313815637991 CUSHION-R 0452 313815638001 CUSHION-L 0453 313810656651 PE BAG PCB ASSY 1051 313815864331 SCALER PCB ASSY 1052 313815859671 AUDIO ASSY 1053 313815862941 USB DOWN ASSY 1054 313815862951 USB UP ASSY 1055 823827717131 LIPS(EADP-43AF A) 1056 313815859641 CONTROL ASSY 1065 313815863041 EAR PHONE PCB ASSY Accessory 0602 313811708651 E-D.F.U. 1059 313818875051 SPEAKER CABLE(BLACK) 1060 313818877821 CORD SUB-D 15/1M8/SUB-D 15 M/M 1061 313812874931 MAINSCORD 1062 313819871401 CBLE-030 30/135/30-012 AWG28 1063 313819872531 CORD USB A/1M8/USB B BK 1070 313819875811 LSP BOX 8R 3W-L(P6032B-L) 1071 313819875821 LSP BOX 8R 3W-R(P6032B-R) 1201 242203300521 SOC DVI H 24P F 1.91DVI-D Y 1203 242202518065 SOC SUBD H 15P F BU 900 Y 1302 243803100435 SOC IC V 8P F 2.54 DIL L 1410 243854300086 RES XTL SM 14M318 18P HC49/S R 1502 242202518824 CON V 11P M 2.00 63391 B 1503 242202518089 CON V 12P M 2.00 63392 B 1508 242202518814 CON V 2P M 2.00 63382 B 1603 242202505572 CON H 30P M 1.25 SM 60952 R Miscellanea 0291 313815567521 LABEL-CPU 0295 313815567531 LABEL-EEPROM-LPL 0615 313811708731 HEX CODE OF F/W(NO MATL REQ) 4444 313810610477 CD ROM - SERVICE MANUAL 4444 313810610478 SERVICE MANUAL 8061 313819875951 CBLE-023 13/240/12+2 AWG28 8062 313819875961 CBLE-385 5/150/5-385 AWG22 8063 313819873331 CBLE-263 3/170/3-263 AWG28 PCB ASSY 2402 202203100179 ELCAP SM HV 25V 10U PM20 R 2403 223878615649 CER2 0603 X7R 16V 100N PM10 R 2404 223878615649 CER2 0603 X7R 16V 100N PM10 R 2405 223878615649 CER2 0603 X7R 16V 100N PM10 R 2406 223878615649 CER2 0603 X7R 16V 100N PM10 R 2407 223878615649 CER2 0603 X7R 16V 100N PM10 R 2408 202203100179 ELCAP SM HV 25V 10U PM20 R 2409 223878615649 CER2 0603 X7R 16V 100N PM10 R 2410 223878615649 CER2 0603 X7R 16V 100N PM10 R 2411 223878615649 CER2 0603 X7R 16V 100N PM10 R 2412 223878615649 CER2 0603 X7R 16V 100N PM10 R 2413 223878615649 CER2 0603 X7R 16V 100N PM10 R 2414 223878615649 CER2 0603 X7R 16V 100N PM10 R 2415 223878615649 CER2 0603 X7R 16V 100N PM10 R 2416 223878615649 CER2 0603 X7R 16V 100N PM10 R 2417 223878615649 CER2 0603 X7R 16V 100N PM10 R 2418 202202000789 ELCAP SM LV 16V 10U PM20 R 2419 223878615649 CER2 0603 X7R 16V 100N PM10 R 2420 202202000789 ELCAP SM LV 16V 10U PM20 R 2421 223878615649 CER2 0603 X7R 16V 100N PM10 R 2422 202203100179 ELCAP SM HV 25V 10U PM20 R 2423 223878615649 CER2 0603 X7R 16V 100N PM10 R 2424 223878615649 CER2 0603 X7R 16V 100N PM10 R 2425 223878615649 CER2 0603 X7R 16V 100N PM10 R 2426 223878615649 CER2 0603 X7R 16V 100N PM10 R 2427 223878615649 CER2 0603 X7R 16V 100N PM10 R 2428 202203100179 ELCAP SM HV 25V 10U PM20 R 2429 202203100179 ELCAP SM HV 25V 10U PM20 R 2430 202203100179 ELCAP SM HV 25V 10U PM20 R 2431 223878615649 CER2 0603 X7R 16V 100N PM10 R 2432 223878615649 CER2 0603 X7R 16V 100N PM10 R 2433 223878615649 CER2 0603 X7R 16V 100N PM10 R 2434 223878615649 CER2 0603 X7R 16V 100N PM10 R 2435 202203100179 ELCAP SM HV 25V 10U PM20 R 2436 223878615649 CER2 0603 X7R 16V 100N PM10 R 2437 202203100179 ELCAP SM HV 25V 10U PM20 R 2438 223824619863 CER2 0603 Y5V 10V 1U P8020 R 2439 202203100179 ELCAP SM HV 25V 10U PM20 R 2440 223878615649 CER2 0603 X7R 16V 100N PM10 R 2441 223878615649 CER2 0603 X7R 16V 100N PM10 R 2442 223878615649 CER2 0603 X7R 16V 100N PM10 R 2443 223878615649 CER2 0603 X7R 16V 100N PM10 R 2444 223878615649 CER2 0603 X7R 16V 100N PM10 R 2445 223878615649 CER2 0603 X7R 16V 100N PM10 R 2446 223878615649 CER2 0603 X7R 16V 100N PM10 R 2450 223886715478 CER1 0603 NP0 50V 4P7 PM0P25 R 2451 223886715478 CER1 0603 NP0 50V 4P7 PM0P25 R 2453 223858615632 CER2 0603 X7R 50V 4N7 PM10 R 2454 223858615636 CER2 0603 X7R 50V 10N PM10 R 2455 223858615636 CER2 0603 X7R 50V 10N PM10 R 2456 223858615636 CER2 0603 X7R 50V 10N PM10 R 2457 223886715109 CER1 0603 NP0 50V 10P PM5 R 2460 223878615649 CER2 0603 X7R 16V 100N PM10 R 2461 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2462 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2501 223878615649 CER2 0603 X7R 16V 100N PM10 R 2502 223878615649 CER2 0603 X7R 16V 100N PM10 R 2503 202203100206 ELCAP SM HV 25V 47U PM20 R 2507 223878615649 CER2 0603 X7R 16V 100N PM10 R 2508 223878615649 CER2 0603 X7R 16V 100N PM10 R 2509 202203100206 ELCAP SM HV 25V 47U PM20 R 2510 223878615649 CER2 0603 X7R 16V 100N PM10 R 2511 223886715101 CER1 0603 NP0 50V 100P PM5 R 2512 223878615649 CER2 0603 X7R 16V 100N PM10 R 2514 223878615649 CER2 0603 X7R 16V 100N PM10 R 2515 223878615649 CER2 0603 X7R 16V 100N PM10 R 2516 223878615649 CER2 0603 X7R 16V 100N PM10 R 2517 223878615649 CER2 0603 X7R 16V 100N PM10 R 2518 223878615649 CER2 0603 X7R 16V 100N PM10 R 2519 223878615649 CER2 0603 X7R 16V 100N PM10 R 2520 223878615649 CER2 0603 X7R 16V 100N PM10 R 2521 202203100206 ELCAP SM HV 25V 47U PM20 R 2522 223878615649 CER2 0603 X7R 16V 100N PM10 R 2523 223878615649 CER2 0603 X7R 16V 100N PM10 R 2524 223858615636 CER2 0603 X7R 50V 10N PM10 R 2525 223878615649 CER2 0603 X7R 16V 100N PM10 R 2601 223878615649 CER2 0603 X7R 16V 100N PM10 R 2602 223878615649 CER2 0603 X7R 16V 100N PM10 R 2603 223878615649 CER2 0603 X7R 16V 100N PM10 R 2604 223878615649 CER2 0603 X7R 16V 100N PM10 R 2605 223878615649 CER2 0603 X7R 16V 100N PM10 R 2606 223878615649 CER2 0603 X7R 16V 100N PM10 R 2607 223878615649 CER2 0603 X7R 16V 100N PM10 R 67 190X6&170X6 LCD 1051 313815864331 SCALER PCB ASSY 2209 223878615649 CER2 0603 X7R 16V 100N PM10 R 2211 223886715331 CER1 0603 NP0 50V 330P PM5 R 2212 223886715331 CER1 0603 NP0 50V 330P PM5 R 2214 223878615649 CER2 0603 X7R 16V 100N PM10 R 2216 223886715331 CER1 0603 NP0 50V 330P PM5 R 2217 223886715331 CER1 0603 NP0 50V 330P PM5 R 2218 223886715339 CER1 0603 NP0 50V 33P PM5 R 2219 223886715221 CER1 0603 NP0 50V 220P PM5 R 2220 223878615649 CER2 0603 X7R 16V 100N PM10 R 2221 223878615649 CER2 0603 X7R 16V 100N PM10 R 2225 223858615636 CER2 0603 X7R 50V 10N PM10 R 2227 223858615636 CER2 0603 X7R 50V 10N PM10 R 2229 223858615636 CER2 0603 X7R 50V 10N PM10 R 2231 223858615636 CER2 0603 X7R 50V 10N PM10 R 2233 223878615649 CER2 0603 X7R 16V 100N PM10 R 2234 223878615649 CER2 0603 X7R 16V 100N PM10 R 2235 223878615649 CER2 0603 X7R 16V 100N PM10 R 2301 223878615649 CER2 0603 X7R 16V 100N PM10 R 2302 223878615649 CER2 0603 X7R 16V 100N PM10 R 2401 202002191778 ELCAP SM RVJ 16V 100U PM20 R 3408 232270461002 RST SM 0603 RC22H 1K PM1 R 3409 212211805639 RST SM 0603 RC0603 47R PM5 R 3410 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3411 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3412 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3413 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3414 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3415 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3416 212211805635 RST SM 0603 RC0603 10R PM5 R 3417 232270260101 RST SM 0603 RC21 100R PM5 R 3504 232270260102 RST SM 0603 RC21 1K PM5 R 3505 232270260222 RST SM 0603 RC21 2K2 PM5 R 3506 232270260222 RST SM 0603 RC21 2K2 PM5 R 3507 232270260222 RST SM 0603 RC21 2K2 PM5 R 3508 232270260222 RST SM 0603 RC21 2K2 PM5 R 3509 212211805647 RST SM 0603 RC0603 220R PM5 R 3510 212211805669 RST SM 0603 RC0603 10K PM5 R 3511 212211805647 RST SM 0603 RC0603 220R PM5 R 3512 212211805669 RST SM 0603 RC0603 10K PM5 R 3513 212211805669 RST SM 0603 RC0603 10K PM5 R 3514 212211805669 RST SM 0603 RC0603 10K PM5 R 3515 212211805669 RST SM 0603 RC0603 10K PM5 R 3516 212211805669 RST SM 0603 RC0603 10K PM5 R 3517 232270260104 RST SM 0603 RC21 100K PM5 R 3518 232270260101 RST SM 0603 RC21 100R PM5 R 3519 232270260473 RST SM 0603 RC21 47K PM5 R 3521 232270260101 RST SM 0603 RC21 100R PM5 R 3522 212211805669 RST SM 0603 RC0603 10K PM5 R 3523 212211805669 RST SM 0603 RC0603 10K PM5 R 3524 232270260473 RST SM 0603 RC21 47K PM5 R 3525 212211805669 RST SM 0603 RC0603 10K PM5 R 3526 232270260101 RST SM 0603 RC21 100R PM5 R 3527 212211805669 RST SM 0603 RC0603 10K PM5 R 3528 212211805669 RST SM 0603 RC0603 10K PM5 R 3529 212211805655 RST SM 0603 RC0603 820R PM5 R 3531 232270260222 RST SM 0603 RC21 2K2 PM5 R 3532 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3601 232270463901 RST SM 0603 RC22H 390R PM1 R 3602 232270463901 RST SM 0603 RC22H 390R PM1 R 3603 232270461622 RST SM 0603 RC22H 1K62 PM1 R 3604 232270461622 RST SM 0603 RC22H 1K62 PM1 R 3605 212211805669 RST SM 0603 RC0603 10K PM5 R 3607 212211805639 RST SM 0603 RC0603 47R PM5 R 3608 212211805639 RST SM 0603 RC0603 47R PM5 R 3609 212211805639 RST SM 0603 RC0603 47R PM5 R 3610 212211805637 RST SM 0603 RC0603 22R PM5 R 3615 212211805669 RST SM 0603 RC0603 10K PM5 R 3616 212211805669 RST SM 0603 RC0603 10K PM5 R 3620 212211805669 RST SM 0603 RC0603 10K PM5 R 3621 212211805669 RST SM 0603 RC0603 10K PM5 R 3623 212211805669 RST SM 0603 RC0603 10K PM5 R 3627 232270260101 RST SM 0603 RC21 100R PM5 R 3628 232270260101 RST SM 0603 RC21 100R PM5 R 3629 212211805639 RST SM 0603 RC0603 47R PM5 R 3630 232270260101 RST SM 0603 RC21 100R PM5 R 3631 212211805669 RST SM 0603 RC0603 10K PM5 R 3632 212211805647 RST SM 0603 RC0603 220R PM5 R 3633 232270260101 RST SM 0603 RC21 100R PM5 R 3634 212211805669 RST SM 0603 RC0603 10K PM5 R 3637 212211805647 RST SM 0603 RC0603 220R PM5 R 3639 212211805669 RST SM 0603 RC0603 10K PM5 R 4511 232273091002 RST SM 0805 JUMP. MAX 0R05 R 5201 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5202 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5301 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5401 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5402 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5403 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5404 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5405 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5406 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5407 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5408 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5409 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5501 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5503 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5504 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5506 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5507 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5508 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5511 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5512 242254900064 IND FXD 0805 EMI 100MHZ 220R R 190X6&170X6 LCD Go to cover page 68 5601 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5602 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5603 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5604 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5605 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5606 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5607 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5608 242254900451 IND FXD 1206 EMI 100MHZ 80R R 6220 933742280215 DIO SIG SM BAT54 (PHSE) R 6221 932205976685 DIO SIG SM LS4148 (VISH) R 6222 932205976685 DIO SIG SM LS4148 (VISH) R 6223 933742280215 DIO SIG SM BAT54 (PHSE) R 6601 932205042685 DIO SIG SM BAV99LG (ONSE) R 6602 932205042685 DIO SIG SM BAV99LG (ONSE) R 7203 932216972682 IC SM AT24C02N-10SC-2.7(ATME)L 7204 932216972682 IC SM AT24C02N-10SC-2.7(ATME)L 7211 935260739118 IC SM 74LVC14APW (PHSE) R 7301 313815864341 CPU IC ASSY(7301) 7301 823827715141 FLASH 7302 932218650682 IC AT24C16A-10PU-2.7 (ATME) L 7302 313815864351 EEPROM IC ASSY(7302) 7403 932220099685 IC SM LD1117AS18 (ST00) R 7404 932220818671 IC SM GM5321-BC (GEMI) Y 7405 932222076668 IC SM AME1117CCGTZ (AME0) R 7501 932217439685 TRA SIG SM BC857C (KEC0) R 7502 932217439685 TRA SIG SM BC857C (KEC0) R 7503 934036790115 TRA SIG SM PDTC114EK (PHSE) R 7504 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7505 932217439685 TRA SIG SM BC857C (KEC0) R 7506 934036790115 TRA SIG SM PDTC114EK (PHSE) R 7507 934036790115 TRA SIG SM PDTC114EK (PHSE) R 7508 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7509 932217439685 TRA SIG SM BC857C (KEC0) R 7601 932219359668 IC SM AME8815AEGT150Z (AME0) R 7602 932218246668 IC SM AME8815AEGT250Z (AME0) R 7603 823827716651 LIGHT FRAME IC 1052 313815859671 AUDIO ASSY 1056 313815859641 CONTROL ASSY 1901 313818873721 CON BM H 13P M 2.0 63373 1930 313816872091 CON BM H 3P (63363) 1931 242212803035 SWI TACT SM 1P 1POS SKQGAB R 1932 242212803035 SWI TACT SM 1P 1POS SKQGAB R 1932 313816872041 CON BM V 4P MM24264 1933 242212803035 SWI TACT SM 1P 1POS SKQGAB R 1934 242212803035 SWI TACT SM 1P 1POS SKQGAB R 1934 242202605588 SOC PHONE V 1P F 3.5 ST B 1935 242212803035 SWI TACT SM 1P 1POS SKQGAB R 1936 242212803035 SWI TACT SM 1P 1POS SKQGAB R 2901 223858615636 CER2 0603 X7R 50V 10N PM10 R 2902 223858615636 CER2 0603 X7R 50V 10N PM10 R 2903 223858619812 CER2 0603 Y5V 50V 100N P8020 R 2904 223858615636 CER2 0603 X7R 50V 10N PM10 R 2905 223858615636 CER2 0603 X7R 50V 10N PM10 R 2906 223878615649 CER2 0603 X7R 16V 100N PM10 R 2907 223858615636 CER2 0603 X7R 50V 10N PM10 R 2908 223858615636 CER2 0603 X7R 50V 10N PM10 R 2931 225232523224 CER2 ML X7R 50V S 220N PM10 B 2931 223858615636 CER2 0603 X7R 50V 10N PM10 R 2932 225232523224 CER2 ML X7R 50V S 220N PM10 B 2932 223858615636 CER2 0603 X7R 50V 10N PM10 R 2933 223891119858 CER2 1206 Y5V 25V 470N P8020 R 2934 222291219876 CER2 1210 Y5V 25V 10U P8020 R 2935 202202000964 ELCAP SS-H 10V S 330U PM20 B 2936 223878615649 CER2 0603 X7R 16V 100N PM10 R 2937 223878615649 CER2 0603 X7R 16V 100N PM10 R 2938 202202000964 ELCAP SS-H 10V S 330U PM20 B 2939 223858615636 CER2 0603 X7R 50V 10N PM10 R 2940 223858615636 CER2 0603 X7R 50V 10N PM10 R 2941 223824619863 CER2 0603 Y5V 10V 1U P8020 R 2942 222291019863 CER2 0805 Y5V 25V 1U P8020 R 2943 223824619863 CER2 0603 Y5V 10V 1U P8020 R 2944 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2946 223824619863 CER2 0603 Y5V 10V 1U P8020 R 2947 223886715101 CER1 0603 NP0 50V 100P PM5 R 2948 223824619863 CER2 0603 Y5V 10V 1U P8020 R 2950 223824619863 CER2 0603 Y5V 10V 1U P8020 R 2951 223878615649 CER2 0603 X7R 16V 100N PM10 R 2952 222291219876 CER2 1210 Y5V 25V 10U P8020 R 2953 223886715101 CER1 0603 NP0 50V 100P PM5 R 2954 223824619863 CER2 0603 Y5V 10V 1U P8020 R 2955 223824619863 CER2 0603 Y5V 10V 1U P8020 R 2956 223878615649 CER2 0603 X7R 16V 100N PM10 R 2957 223878615649 CER2 0603 X7R 16V 100N PM10 R 2958 223886715221 CER1 0603 NP0 50V 220P PM5 R 2959 222291019863 CER2 0805 Y5V 25V 1U P8020 R 2960 223878615649 CER2 0603 X7R 16V 100N PM10 R 2961 223878615649 CER2 0603 X7R 16V 100N PM10 R 2962 223858615636 CER2 0603 X7R 50V 10N PM10 R 2963 223858615636 CER2 0603 X7R 50V 10N PM10 R 2964 222291219876 CER2 1210 Y5V 25V 10U P8020 R 2965 223824619863 CER2 0603 Y5V 10V 1U P8020 R 2966 223891119858 CER2 1206 Y5V 25V 470N P8020 R 2967 225232523224 CER2 ML X7R 50V S 220N PM10 B 2968 225232523224 CER2 ML X7R 50V S 220N PM10 B 2969 202203100258 ELCAP EB 16V S 470U PM20 B 2970 202203100261 ELCAP LZ 16V S 2200U PM20 B 2971 223886715101 CER1 0603 NP0 50V 100P PM5 R 2972 223886715101 CER1 0603 NP0 50V 100P PM5 R 2973 223886715101 CER1 0603 NP0 50V 100P PM5 R 2974 223886715101 CER1 0603 NP0 50V 100P PM5 R 3901 232270260223 RST SM 0603 RC21 22K PM5 R 3902 232270260222 RST SM 0603 RC21 2K2 PM5 R 3904 232270260222 RST SM 0603 RC21 2K2 PM5 R 3905 232270260105 RST SM 0603 RC21 1M PM5 R 3906 232270260223 RST SM 0603 RC21 22K PM5 R 3907 232270260222 RST SM 0603 RC21 2K2 PM5 R 3910 232270260222 RST SM 0603 RC21 2K2 PM5 R 3911 232270260105 RST SM 0603 RC21 1M PM5 R 3912 232270260105 RST SM 0603 RC21 1M PM5 R 3913 232270467503 RST SM 0603 RC22H 75K PM1 R 3914 232270260102 RST SM 0603 RC21 1K PM5 R 3915 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3916 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3931 232270260102 RST SM 0603 RC21 1K PM5 R 3931 232270260102 RST SM 0603 RC21 1K PM5 R 3932 213811201124 RST SM 0805 RC05 120K PM5 R 3932 212211805669 RST SM 0603 RC0603 10K PM5 R 3933 232270260102 RST SM 0603 RC21 1K PM5 R 3933 232270260473 RST SM 0603 RC21 47K PM5 R 3934 212211805669 RST SM 0603 RC0603 10K PM5 R 3934 232270260102 RST SM 0603 RC21 1K PM5 R 3935 212211805669 RST SM 0603 RC0603 10K PM5 R 3936 212211805669 RST SM 0603 RC0603 10K PM5 R 3936 232270260473 RST SM 0603 RC21 47K PM5 R 3937 212211805669 RST SM 0603 RC0603 10K PM5 R 3939 232270260223 RST SM 0603 RC21 22K PM5 R 3940 232270260512 RST SM 0603 RC21 5K1 PM5 R 3941 232270260223 RST SM 0603 RC21 22K PM5 R 3942 232270260512 RST SM 0603 RC21 5K1 PM5 R 3943 212211805669 RST SM 0603 RC0603 10K PM5 R 3944 212211805669 RST SM 0603 RC0603 10K PM5 R 3945 212211805673 RST SM 0603 RC0603 18K PM5 R 3946 232270260104 RST SM 0603 RC21 100K PM5 R 3948 232270461204 RST SM 0603 RC22H 120K PM1 R 3949 212211805682 RST SM 0603 RC0603 82K PM5 R 3950 212211805672 RST SM 0603 RC0603 15K PM5 R 3953 232270461003 RST SM 0603 RC22H 10K PM1 R 3956 212211805972 RST SM 1206 JUMP. MAX 0R05 R 3957 232270461003 RST SM 0603 RC22H 10K PM1 R 5901 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5902 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5903 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5931 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5932 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5933 242253600782 IND FXD TSL0808 S 33U PM10 B 5934 242253600782 IND FXD TSL0808 S 33U PM10 B 5935 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5936 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5937 242253600782 IND FXD TSL0808 S 33U PM10 B 5938 242253600782 IND FXD TSL0808 S 33U PM10 B 5939 313819871121 FIL MAINS 16MH 1.0A LS-PH03C-0 5940 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5941 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5942 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5943 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5944 242254900126 IND FXD 0805 EMI 100MHZ 120R R 6903 932218082685 LED VS SM KAA-3528YSGC (KIEL)R 6904 933137390215 DIO REG SM BZX84-C5V1 (PHSE) R 6905 932219408682 LED VS SM KA-3528MBC (KIEL) B 6932 932220628682 DIO REC SB140AL-5301 (VISH) B 7901 823827715951 TOUCH SENSOR IC 7902 932217440685 TRA SIG SM KRC102S (KEC0) R 7903 932217440685 TRA SIG SM KRC102S (KEC0) R 7931 932220946668 IC SM TPA6110A2DGN (TI00) R 69 190X6&170X6 LCD 7932 932220359668 IC SM TPA3002D2PHP (TI00) R 8901 313819873811 CBLE FAST/100/FAST AWG18 8902 313819873811 CBLE FAST/100/FAST AWG18 1053 313815862941 USB DOWN ASSY 1811 242202518948 CON V 5P M 2.50 64835 B 1812 242202519115 SOC USB H 4P F 2.0/2.5 5409 Y 1813 313819875971 CBLE FAST/60/FAST AWG18 4811 232273091002 RST SM 0805 JUMP. MAX 0R05 R 5811 242254900126 IND FXD 0805 EMI 100MHZ 120R R 1054 313815862951 USB UP ASSY 1065 313815863041 EAR PHONE PCB ASSY 1821 242202518955 SOC USB V 4P F 2.5 5411 Y 1822 242202518948 CON V 5P M 2.50 64835 B 1823 313819875971 CBLE FAST/60/FAST AWG18 1831 313819873281 CBLE-014 4/180/4-914 AWG28 1832 242202605662 SOC PHONE H 1P F 3.5 ST BK B 2821 223886715478 CER1 0603 NP0 50V 4P7 PM0P25 R 2822 223886715478 CER1 0603 NP0 50V 4P7 PM0P25 R 5821 242254900126 IND FXD 0805 EMI 100MHZ 120R R 2610 223878615649 CER2 0603 X7R 16V 100N PM10 R 2611 223878615649 CER2 0603 X7R 16V 100N PM10 R 2612 223878615649 CER2 0603 X7R 16V 100N PM10 R 2613 223878615649 CER2 0603 X7R 16V 100N PM10 R 2614 202203100182 ELCAP SM RVS 25V 10U PM20 R 2615 202203100182 ELCAP SM RVS 25V 10U PM20 R 2616 202203100182 ELCAP SM RVS 25V 10U PM20 R 2617 223878615649 CER2 0603 X7R 16V 100N PM10 R 2618 202203100182 ELCAP SM RVS 25V 10U PM20 R 2619 223878615649 CER2 0603 X7R 16V 100N PM10 R 2620 223878615649 CER2 0603 X7R 16V 100N PM10 R 2621 223878615649 CER2 0603 X7R 16V 100N PM10 R 2622 223878615649 CER2 0603 X7R 16V 100N PM10 R 2623 223878615649 CER2 0603 X7R 16V 100N PM10 R 2624 223878615649 CER2 0603 X7R 16V 100N PM10 R 2625 202203100182 ELCAP SM RVS 25V 10U PM20 R 2626 223878615649 CER2 0603 X7R 16V 100N PM10 R 2627 223878615649 CER2 0603 X7R 16V 100N PM10 R 2628 223878615649 CER2 0603 X7R 16V 100N PM10 R 2629 223878615649 CER2 0603 X7R 16V 100N PM10 R 2630 202203100182 ELCAP SM RVS 25V 10U PM20 R 2632 223878615649 CER2 0603 X7R 16V 100N PM10 R 2633 202203100182 ELCAP SM RVS 25V 10U PM20 R 2634 223878615649 CER2 0603 X7R 16V 100N PM10 R 2636 223878615649 CER2 0603 X7R 16V 100N PM10 R 2637 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2638 223878615649 CER2 0603 X7R 16V 100N PM10 R 3202 212211805669 RST SM 0603 RC0603 10K PM5 R 3203 212211805669 RST SM 0603 RC0603 10K PM5 R 3204 212211805669 RST SM 0603 RC0603 10K PM5 R 3205 232270260223 RST SM 0603 RC21 22K PM5 R 3206 232270260101 RST SM 0603 RC21 100R PM5 R 3207 232270260101 RST SM 0603 RC21 100R PM5 R 3208 232270260102 RST SM 0603 RC21 1K PM5 R 3209 232270260104 RST SM 0603 RC21 100K PM5 R 3210 232270260101 RST SM 0603 RC21 100R PM5 R 3211 232270260101 RST SM 0603 RC21 100R PM5 R 3213 232270260102 RST SM 0603 RC21 1K PM5 R 3214 232270260472 RST SM 0603 RC21 4K7 PM5 R 3215 212211805669 RST SM 0603 RC0603 10K PM5 R 3216 232270260101 RST SM 0603 RC21 100R PM5 R 3217 232270260101 RST SM 0603 RC21 100R PM5 R 3219 212211805669 RST SM 0603 RC0603 10K PM5 R 3220 232270260223 RST SM 0603 RC21 22K PM5 R 3221 212211805669 RST SM 0603 RC0603 10K PM5 R 3222 212211805669 RST SM 0603 RC0603 10K PM5 R 3223 232270260101 RST SM 0603 RC21 100R PM5 R 3224 232270260101 RST SM 0603 RC21 100R PM5 R 3225 232270260101 RST SM 0603 RC21 100R PM5 R 3226 232270260101 RST SM 0603 RC21 100R PM5 R 3227 232270260222 RST SM 0603 RC21 2K2 PM5 R 3228 232270260222 RST SM 0603 RC21 2K2 PM5 R 3229 232270260104 RST SM 0603 RC21 100K PM5 R 3230 232270260102 RST SM 0603 RC21 1K PM5 R 3232 232270260101 RST SM 0603 RC21 100R PM5 R 3233 232270467509 RST SM 0603 RC22H 75R PM1 R 3234 232270260339 RST SM 0603 RC21 33R PM5 R 3235 232270467509 RST SM 0603 RC22H 75R PM1 R 3236 232270260101 RST SM 0603 RC21 100R PM5 R 3237 232270467509 RST SM 0603 RC22H 75R PM1 R 3238 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3239 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3240 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3241 232270260472 RST SM 0603 RC21 4K7 PM5 R 3242 212211805669 RST SM 0603 RC0603 10K PM5 R 3245 232270260101 RST SM 0603 RC21 100R PM5 R 3246 232270260101 RST SM 0603 RC21 100R PM5 R 3301 212211805669 RST SM 0603 RC0603 10K PM5 R 3302 212211805669 RST SM 0603 RC0603 10K PM5 R 3316 212211805669 RST SM 0603 RC0603 10K PM5 R 3321 212211805669 RST SM 0603 RC0603 10K PM5 R 3322 212211805669 RST SM 0603 RC0603 10K PM5 R 3325 212211805669 RST SM 0603 RC0603 10K PM5 R 3326 232270260101 RST SM 0603 RC21 100R PM5 R 3327 232270260101 RST SM 0603 RC21 100R PM5 R 3401 232270260101 RST SM 0603 RC21 100R PM5 R 3402 232270260101 RST SM 0603 RC21 100R PM5 R 3404 232270260121 RST SM 0603 RC21 120R PM5 R 3405 232270260121 RST SM 0603 RC21 120R PM5 R 3406 232270260121 RST SM 0603 RC21 120R PM5 R 3408 232270461002 RST SM 0603 RC22H 1K PM1 R 3409 212211805639 RST SM 0603 RC0603 47R PM5 R 3410 235003510479 RST NETW SM ARV24 4X 47R PM5 R 190X6&170X6 LCD Go to cover page 70 Model:170X6FB/00 Mechanical Parts 0030 313815760401 BEZEL ASSY 0031 313815417001 BEZEL 0033 313815567471 LIGHTFRAME STICKER 0040 313815760411 BACK COVER ASSY 0041 313815417011 BACK COVER 0042 313815135811 HINGE-PLATE 0043 313815413491 OSD BUTTON 0044 313815413511 SKIN COVER 0050 313815757301 FOLDABLE BASE(S) 0097 313815413521 LOGO COVER(B) 0098 313815760421 SHIELDING ASSY 0100 313815137701 AC BRACKET 0101 313810440571 HOUSING COVER 0350 313815137711 SHIELDING 0351 313815321131 INSULATE PLATE 1057 313815864371 FRAME+WIRE ASSY LCD PANEL 1050 823827718251 LCD LM170E01-TLA8 Packing 0450 313815640901 CARTON 0451 313815638251 CUSHION-R 0452 313815638261 CUSHION-L 0453 313815621491 P.E. BAG PCB ASSY 1051 313815863031 SCALER PCB ASSY(1SC) 1052 313815859651 AUDIO ASSY 1053 313815862941 USB DOWN ASSY 1054 313815862951 USB UP ASSY 1055 823827717131 LIPS(EADP-43AF A)(POWER) 1056 313815859641 CONTROL ASSY 1065 313815863041 EAR PHONE PCB ASSY Accessory 0602 313811708651 E-D.F.U. 1058 313815862911 SPEAKER BOX ASSY 1059 313818875051 SPEAKER CABLE(BLACK) 1060 313818877821 CORD SUB-D 15/1M8/SUB-D 15 M/M 1061 313812874931 MAINSCORD 1062 313819871401 CBLE-030 30/135/30-012 AWG28 1063 313819872531 CORD USB A/1M8/USB B BK 1070 313819875361 LSP BOX 16R 2W-L(PS-010017B) 1071 313819875371 LSP BOX 16R 2W-L(PS-010017C) 8061 313819875941 CBLE-023 13/215/12+2 AWG28 Miscellanea 0291 313815567551 LABEL-CPU 0295 313815567561 LABEL-EEPROM(L) 0615 313811708721 HEX CODE OF F/W(NO MATL REQ) 1201 242203300521 SOC DVI H 24P F 1.91DVI-D Y 1203 242202518065 SOC SUBD H 15P F BU 900 Y 1302 243803100435 SOC IC V 8P F 2.54 DIL L 1410 243854300086 RES XTL SM 14M318 18P HC49/S R 1502 242202518824 CON V 11P M 2.00 63391 B 1503 242202518089 CON V 12P M 2.00 63392 B 1508 242202518814 CON V 2P M 2.00 63382 B 1603 242202505572 CON H 30P M 1.25 SM 60952 R 4444 313810610477 CD ROM - SERVICE MANUAL 4444 313810610478 SERVICE MANUAL 8062 313819875961 CBLE-385 5/150/5-385 AWG22 PCB ASSY 1051 313815863031 SCALER PCB ASSY(1SC) 2209 223878615649 CER2 0603 X7R 16V 100N PM10 R 2211 223886715331 CER1 0603 NP0 50V 330P PM5 R 2212 223886715331 CER1 0603 NP0 50V 330P PM5 R 2214 223878615649 CER2 0603 X7R 16V 100N PM10 R 2216 223886715331 CER1 0603 NP0 50V 330P PM5 R 2217 223886715331 CER1 0603 NP0 50V 330P PM5 R 2218 223886715339 CER1 0603 NP0 50V 33P PM5 R 2219 223886715221 CER1 0603 NP0 50V 220P PM5 R 2220 223878615649 CER2 0603 X7R 16V 100N PM10 R 2221 223878615649 CER2 0603 X7R 16V 100N PM10 R 2225 223858615636 CER2 0603 X7R 50V 10N PM10 R 2227 223858615636 CER2 0603 X7R 50V 10N PM10 R 2229 223858615636 CER2 0603 X7R 50V 10N PM10 R 2231 223858615636 CER2 0603 X7R 50V 10N PM10 R 2233 223878615649 CER2 0603 X7R 16V 100N PM10 R 2234 223878615649 CER2 0603 X7R 16V 100N PM10 R 2235 223878615649 CER2 0603 X7R 16V 100N PM10 R 2301 223878615649 CER2 0603 X7R 16V 100N PM10 R 2302 223878615649 CER2 0603 X7R 16V 100N PM10 R 2401 202002191778 ELCAP SM RVJ 16V 100U PM20 R 2402 202203100182 ELCAP SM RVS 25V 10U PM20 R 2403 223878615649 CER2 0603 X7R 16V 100N PM10 R 2404 223878615649 CER2 0603 X7R 16V 100N PM10 R 2405 223878615649 CER2 0603 X7R 16V 100N PM10 R 2406 223878615649 CER2 0603 X7R 16V 100N PM10 R 2407 223878615649 CER2 0603 X7R 16V 100N PM10 R 2408 202203100182 ELCAP SM RVS 25V 10U PM20 R 2409 223878615649 CER2 0603 X7R 16V 100N PM10 R 2410 223878615649 CER2 0603 X7R 16V 100N PM10 R 2411 223878615649 CER2 0603 X7R 16V 100N PM10 R 2412 223878615649 CER2 0603 X7R 16V 100N PM10 R 2413 223878615649 CER2 0603 X7R 16V 100N PM10 R 2414 223878615649 CER2 0603 X7R 16V 100N PM10 R 2415 223878615649 CER2 0603 X7R 16V 100N PM10 R 2416 223878615649 CER2 0603 X7R 16V 100N PM10 R 2417 223878615649 CER2 0603 X7R 16V 100N PM10 R 2418 202202000789 ELCAP SM LV 16V 10U PM20 R 2419 223878615649 CER2 0603 X7R 16V 100N PM10 R 2420 202202000789 ELCAP SM LV 16V 10U PM20 R 2421 223878615649 CER2 0603 X7R 16V 100N PM10 R 2422 202203100182 ELCAP SM RVS 25V 10U PM20 R 2423 223878615649 CER2 0603 X7R 16V 100N PM10 R 2424 223878615649 CER2 0603 X7R 16V 100N PM10 R 2425 223878615649 CER2 0603 X7R 16V 100N PM10 R 2426 223878615649 CER2 0603 X7R 16V 100N PM10 R 2427 223878615649 CER2 0603 X7R 16V 100N PM10 R 2428 202203100182 ELCAP SM RVS 25V 10U PM20 R 2429 202203100182 ELCAP SM RVS 25V 10U PM20 R 2430 202203100182 ELCAP SM RVS 25V 10U PM20 R 2431 223878615649 CER2 0603 X7R 16V 100N PM10 R 2432 223878615649 CER2 0603 X7R 16V 100N PM10 R 2433 223878615649 CER2 0603 X7R 16V 100N PM10 R 2434 223878615649 CER2 0603 X7R 16V 100N PM10 R 2435 202203100182 ELCAP SM RVS 25V 10U PM20 R 2436 223878615649 CER2 0603 X7R 16V 100N PM10 R 2437 202203100182 ELCAP SM RVS 25V 10U PM20 R 2438 223824619863 CER2 0603 Y5V 10V 1U P8020 R 2439 202203100182 ELCAP SM RVS 25V 10U PM20 R 2440 223878615649 CER2 0603 X7R 16V 100N PM10 R 2441 223878615649 CER2 0603 X7R 16V 100N PM10 R 2442 223878615649 CER2 0603 X7R 16V 100N PM10 R 2443 223878615649 CER2 0603 X7R 16V 100N PM10 R 2444 223878615649 CER2 0603 X7R 16V 100N PM10 R 2445 223878615649 CER2 0603 X7R 16V 100N PM10 R 2446 223878615649 CER2 0603 X7R 16V 100N PM10 R 2450 223886715478 CER1 0603 NP0 50V 4P7 PM0P25 R 2451 223886715478 CER1 0603 NP0 50V 4P7 PM0P25 R 2453 223858615632 CER2 0603 X7R 50V 4N7 PM10 R 2454 223858615636 CER2 0603 X7R 50V 10N PM10 R 2455 223858615636 CER2 0603 X7R 50V 10N PM10 R 2456 223858615636 CER2 0603 X7R 50V 10N PM10 R 2457 223886715109 CER1 0603 NP0 50V 10P PM5 R 2460 223878615649 CER2 0603 X7R 16V 100N PM10 R 2461 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2462 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2501 223878615649 CER2 0603 X7R 16V 100N PM10 R 2502 223878615649 CER2 0603 X7R 16V 100N PM10 R 2503 202203100206 ELCAP SM HV 25V 47U PM20 R 2507 223878615649 CER2 0603 X7R 16V 100N PM10 R 2508 223878615649 CER2 0603 X7R 16V 100N PM10 R 2509 202203100206 ELCAP SM HV 25V 47U PM20 R 2510 223878615649 CER2 0603 X7R 16V 100N PM10 R 2511 223886715101 CER1 0603 NP0 50V 100P PM5 R 2512 223878615649 CER2 0603 X7R 16V 100N PM10 R 2514 223878615649 CER2 0603 X7R 16V 100N PM10 R 2515 223878615649 CER2 0603 X7R 16V 100N PM10 R 2516 223878615649 CER2 0603 X7R 16V 100N PM10 R 2517 223878615649 CER2 0603 X7R 16V 100N PM10 R 2518 223878615649 CER2 0603 X7R 16V 100N PM10 R 2519 223878615649 CER2 0603 X7R 16V 100N PM10 R 2520 223878615649 CER2 0603 X7R 16V 100N PM10 R 2521 202203100206 ELCAP SM HV 25V 47U PM20 R 2522 223878615649 CER2 0603 X7R 16V 100N PM10 R 2523 223878615649 CER2 0603 X7R 16V 100N PM10 R 2524 223858615636 CER2 0603 X7R 50V 10N PM10 R 2525 223878615649 CER2 0603 X7R 16V 100N PM10 R 2601 223878615649 CER2 0603 X7R 16V 100N PM10 R 2602 223878615649 CER2 0603 X7R 16V 100N PM10 R 2603 223878615649 CER2 0603 X7R 16V 100N PM10 R 2604 223878615649 CER2 0603 X7R 16V 100N PM10 R 2605 223878615649 CER2 0603 X7R 16V 100N PM10 R 2606 223878615649 CER2 0603 X7R 16V 100N PM10 R 2607 223878615649 CER2 0603 X7R 16V 100N PM10 R 2608 223878615649 CER2 0603 X7R 16V 100N PM10 R 2609 202203100182 ELCAP SM RVS 25V 10U PM20 R 71 190X6&170X6 LCD 1052 313815859651 AUDIO ASSY 1905 242202605588 SOC PHONE V 1P F 3.5 ST B 1941 313818873721 CON BM H 13P M 2.0 63373 2901 202203100261 ELCAP LZ 16V S 2200U PM20 B 2902 202203100258 ELCAP EB 16V S 470U PM20 B 2903 222278015663 CER2 0805 X7R 16V 1U PM10 R 2905 222278015663 CER2 0805 X7R 16V 1U PM10 R 2906 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2908 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2909 223886715101 CER1 0603 NP0 50V 100P PM5 R 2910 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2911 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2912 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2914 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2915 223886715101 CER1 0603 NP0 50V 100P PM5 R 2916 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2917 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2918 202202000964 ELCAP SS-H 10V S 330U PM20 B 2919 223886715101 CER1 0603 NP0 50V 100P PM5 R 2920 223886715101 CER1 0603 NP0 50V 100P PM5 R 2921 223886715101 CER1 0603 NP0 50V 100P PM5 R 2922 223878615649 CER2 0603 X7R 16V 100N PM10 R 2923 223886715101 CER1 0603 NP0 50V 100P PM5 R 2924 223878615649 CER2 0603 X7R 16V 100N PM10 R 2925 222278015663 CER2 0805 X7R 16V 1U PM10 R 2926 223878615645 CER2 0603 X7R 16V 47N PM10 R 2927 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2929 222278015663 CER2 0805 X7R 16V 1U PM10 R 2930 202202000964 ELCAP SS-H 10V S 330U PM20 B 2941 223858615636 CER2 0603 X7R 50V 10N PM10 R 2942 223858615636 CER2 0603 X7R 50V 10N PM10 R 2943 223858615636 CER2 0603 X7R 50V 10N PM10 R 2944 223858615636 CER2 0603 X7R 50V 10N PM10 R 2945 223878615649 CER2 0603 X7R 16V 100N PM10 R 2946 223858619812 CER2 0603 Y5V 50V 100N P8020 R 2947 223858615636 CER2 0603 X7R 50V 10N PM10 R 2948 223858615636 CER2 0603 X7R 50V 10N PM10 R 3903 212211805972 RST SM 1206 JUMP. MAX 0R05 R 3905 212211805972 RST SM 1206 JUMP. MAX 0R05 R 3908 212211805676 RST SM 0603 RC0603 33K PM5 R 3909 212211805681 RST SM 0603 RC0603 68K PM5 R 3914 212211805673 RST SM 0603 RC0603 18K PM5 R 3915 232270260512 RST SM 0603 RC21 5K1 PM5 R 3916 212211805673 RST SM 0603 RC0603 18K PM5 R 3917 232270260512 RST SM 0603 RC21 5K1 PM5 R 3921 232270260104 RST SM 0603 RC21 100K PM5 R 3922 232270260104 RST SM 0603 RC21 100K PM5 R 3923 212211805669 RST SM 0603 RC0603 10K PM5 R 3924 212211805669 RST SM 0603 RC0603 10K PM5 R 3926 212211805669 RST SM 0603 RC0603 10K PM5 R 3927 212211805682 RST SM 0603 RC0603 82K PM5 R 3928 212211805673 RST SM 0603 RC0603 18K PM5 R 3929 232270260102 RST SM 0603 RC21 1K PM5 R 3930 232270260102 RST SM 0603 RC21 1K PM5 R 3941 232270260222 RST SM 0603 RC21 2K2 PM5 R 3942 232270260223 RST SM 0603 RC21 22K PM5 R 3943 232270260222 RST SM 0603 RC21 2K2 PM5 R 3944 232270260223 RST SM 0603 RC21 22K PM5 R 3945 232270260222 RST SM 0603 RC21 2K2 PM5 R 3946 232270260105 RST SM 0603 RC21 1M PM5 R 3947 232270260222 RST SM 0603 RC21 2K2 PM5 R 3948 232270260105 RST SM 0603 RC21 1M PM5 R 3949 232270467503 RST SM 0603 RC22H 75K PM1 R 3950 232270260102 RST SM 0603 RC21 1K PM5 R 3951 232270260105 RST SM 0603 RC21 1M PM5 R 3955 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3956 232270296001 RST SM 0603 JUMP. MAX 0R05 R 5901 313819871121 FIL MAINS 16MH 1.0A LS-PH03C-0 5902 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5903 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5904 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5905 242254944197 IND FXD 0805 EMI 100MHZ 220R R 5906 242254944197 IND FXD 0805 EMI 100MHZ 220R R 5907 242254944197 IND FXD 0805 EMI 100MHZ 220R R 5908 242254944197 IND FXD 0805 EMI 100MHZ 220R R 5929 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5930 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5941 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5942 242254900126 IND FXD 0805 EMI 100MHZ 120R R 5943 242254900126 IND FXD 0805 EMI 100MHZ 120R R 6901 932220628682 DIO REC SB140AL-5301 (VISH) B 6941 932219408682 LED VS SM KA-3528MBC (KIEL) B 6942 932218082685 LED VS SM KAA-3528YSGC (KIEL)R 6945 933137390215 DIO REG SM BZX84-C5V1 (PHSE) R 7901 932219970668 IC SM TPA6030A4PWP (TI00) R 7941 823827715951 TOUCH SENSOR IC 7942 932209265685 TRA SIG SM MUN2211JG (ONSE) R 7943 932209265685 TRA SIG SM MUN2211JG (ONSE) R 8901 313819873811 CBLE FAST/100/FAST AWG18 8902 313819873811 CBLE FAST/100/FAST AWG18 1053 313815862941 USB DOWN ASSY 4811 232273091002 RST SM 0805 JUMP. MAX 0R05 R 5811 242254900126 IND FXD 0805 EMI 100MHZ 120R R 1811 242202518948 CON V 5P M 2.50 64835 B 1812 242202519115 SOC USB H 4P F 2.0/2.5 5409 Y 1813 313819875971 CBLE FAST/60/FAST AWG18 1054 313815862951 USB UP ASSY 1821 242202518955 SOC USB V 4P F 2.5 5411 Y 1822 242202518948 CON V 5P M 2.50 64835 B 1823 313819875971 CBLE FAST/60/FAST AWG18 2821 223886715478 CER1 0603 NP0 50V 4P7 PM0P25 R 2822 223886715478 CER1 0603 NP0 50V 4P7 PM0P25 R 5821 242254900126 IND FXD 0805 EMI 100MHZ 120R R 1056 313815859641 CONTROL ASSY 1930 313816872091 CON BM H 3P (63363) 1931 242212803035 SWI TACT SM 1P 1POS SKQGAB R 1932 242212803035 SWI TACT SM 1P 1POS SKQGAB R 1933 242212803035 SWI TACT SM 1P 1POS SKQGAB R 1934 242212803035 SWI TACT SM 1P 1POS SKQGAB R 1935 242212803035 SWI TACT SM 1P 1POS SKQGAB R 1936 242212803035 SWI TACT SM 1P 1POS SKQGAB R 2931 223858615636 CER2 0603 X7R 50V 10N PM10 R 2932 223858615636 CER2 0603 X7R 50V 10N PM10 R 3931 232270260102 RST SM 0603 RC21 1K PM5 R 3932 212211805669 RST SM 0603 RC0603 10K PM5 R 3933 232270260473 RST SM 0603 RC21 47K PM5 R 3934 232270260102 RST SM 0603 RC21 1K PM5 R 3935 212211805669 RST SM 0603 RC0603 10K PM5 R 3936 232270260473 RST SM 0603 RC21 47K PM5 R 1065 313815863041 EAR PHONE PCB ASSY 1831 313819873281 CBLE-014 4/180/4-914 AWG28 1832 242202605662 SOC PHONE H 1P F 3.5 ST BK B 3411 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3412 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3413 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3414 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3415 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3416 212211805635 RST SM 0603 RC0603 10R PM5 R 3417 232270260101 RST SM 0603 RC21 100R PM5 R 3504 232270260102 RST SM 0603 RC21 1K PM5 R 3505 232270260222 RST SM 0603 RC21 2K2 PM5 R 3506 232270260222 RST SM 0603 RC21 2K2 PM5 R 3507 232270260222 RST SM 0603 RC21 2K2 PM5 R 3508 232270260222 RST SM 0603 RC21 2K2 PM5 R 3509 212211805647 RST SM 0603 RC0603 220R PM5 R 3510 212211805669 RST SM 0603 RC0603 10K PM5 R 3511 212211805647 RST SM 0603 RC0603 220R PM5 R 3512 212211805669 RST SM 0603 RC0603 10K PM5 R 3513 212211805669 RST SM 0603 RC0603 10K PM5 R 3514 212211805669 RST SM 0603 RC0603 10K PM5 R 3515 212211805669 RST SM 0603 RC0603 10K PM5 R 3516 212211805669 RST SM 0603 RC0603 10K PM5 R 3517 232270260104 RST SM 0603 RC21 100K PM5 R 3518 232270260101 RST SM 0603 RC21 100R PM5 R 3519 232270260473 RST SM 0603 RC21 47K PM5 R 3521 232270260101 RST SM 0603 RC21 100R PM5 R 3522 212211805669 RST SM 0603 RC0603 10K PM5 R 3523 212211805669 RST SM 0603 RC0603 10K PM5 R 3524 232270260473 RST SM 0603 RC21 47K PM5 R 3525 212211805669 RST SM 0603 RC0603 10K PM5 R 3526 232270260101 RST SM 0603 RC21 100R PM5 R 3527 212211805669 RST SM 0603 RC0603 10K PM5 R 3528 212211805669 RST SM 0603 RC0603 10K PM5 R 3529 212211805655 RST SM 0603 RC0603 820R PM5 R 3531 232270260222 RST SM 0603 RC21 2K2 PM5 R 3532 232270296001 RST SM 0603 JUMP. MAX 0R05 R 3601 232270463901 RST SM 0603 RC22H 390R PM1 R 3602 232270463901 RST SM 0603 RC22H 390R PM1 R 3603 232270461622 RST SM 0603 RC22H 1K62 PM1 R 3604 232270461622 RST SM 0603 RC22H 1K62 PM1 R 3605 212211805669 RST SM 0603 RC0603 10K PM5 R 3607 212211805639 RST SM 0603 RC0603 47R PM5 R 3608 212211805639 RST SM 0603 RC0603 47R PM5 R 3609 212211805639 RST SM 0603 RC0603 47R PM5 R 3610 212211805637 RST SM 0603 RC0603 22R PM5 R 3615 212211805669 RST SM 0603 RC0603 10K PM5 R 3616 212211805669 RST SM 0603 RC0603 10K PM5 R 3620 212211805669 RST SM 0603 RC0603 10K PM5 R 3621 212211805669 RST SM 0603 RC0603 10K PM5 R 3623 212211805669 RST SM 0603 RC0603 10K PM5 R 3627 232270260101 RST SM 0603 RC21 100R PM5 R 3628 232270260101 RST SM 0603 RC21 100R PM5 R 3629 212211805639 RST SM 0603 RC0603 47R PM5 R 3630 232270260101 RST SM 0603 RC21 100R PM5 R 3631 212211805669 RST SM 0603 RC0603 10K PM5 R 3632 212211805647 RST SM 0603 RC0603 220R PM5 R 3633 232270260101 RST SM 0603 RC21 100R PM5 R 3634 212211805669 RST SM 0603 RC0603 10K PM5 R 3637 212211805647 RST SM 0603 RC0603 220R PM5 R 3639 212211805669 RST SM 0603 RC0603 10K PM5 R 4511 232273091002 RST SM 0805 JUMP. MAX 0R05 R 5201 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5202 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5301 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5401 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5402 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5403 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5404 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5405 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5406 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5407 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5408 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5409 242254945582 IND FXD 0805 EMI 100MHZ 300R R 5501 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5503 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5504 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5506 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5507 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5508 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5511 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5512 242254900064 IND FXD 0805 EMI 100MHZ 220R R 5601 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5602 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5603 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5604 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5605 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5606 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5607 242254900451 IND FXD 1206 EMI 100MHZ 80R R 5608 242254900451 IND FXD 1206 EMI 100MHZ 80R R 6220 933742280215 DIO SIG SM BAT54 (PHSE) R 6221 932205976685 DIO SIG SM LS4148 (VISH) R 6222 932205976685 DIO SIG SM LS4148 (VISH) R 6223 933742280215 DIO SIG SM BAT54 (PHSE) R 6601 932205042685 DIO SIG SM BAV99LG (ONSE) R 6602 932205042685 DIO SIG SM BAV99LG (ONSE) R 7203 932216972682 IC SM AT24C02N-10SC-2.7(ATME)L 7204 932216972682 IC SM AT24C02N-10SC-2.7(ATME)L 7211 932217126668 IC SM 74LCX14T (ST00) R 7301 313815863051 CPU IC ASSY 7301 7301 823827715141 FLASH 7302 313815863061 EEPROM IC ASSY 7302 7302 932218650682 IC AT24C16A-10PU-2.7 (ATME) L 7403 932220099685 IC SM LD1117AS18 (ST00) R 7404 932220818671 IC SM GM5321-BC (GEMI) Y 7405 932222076668 IC SM AME1117CCGTZ (AME0) R 7501 932217439685 TRA SIG SM BC857C (KEC0) R 7502 932217439685 TRA SIG SM BC857C (KEC0) R 7503 932209265685 TRA SIG SM MUN2211JG (ONSE) R 7504 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7505 932217439685 TRA SIG SM BC857C (KEC0) R 7506 932209265685 TRA SIG SM MUN2211JG (ONSE) R 7507 932209265685 TRA SIG SM MUN2211JG (ONSE) R 7508 932216638668 FET POW SM SI5441DC-E3 (VISH)R 7509 932217439685 TRA SIG SM BC857C (KEC0) R 7601 932219359668 IC SM AME8815AEGT150Z (AME0) R 7602 932218246668 IC SM AME8815AEGT250Z (AME0) R 7603 823827716651 LIGHT FRAME IC 190X6&170X6 LCD Go to cover page 72 Repair Tips 0. Warning All ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the unit via a wrist wrap with resistance. Keep components and tools also at the same potential ! 1. Servicing of SMDs (Surface Mounted Devices) 1.1 General cautions on handling and storage - Oxidation on the terminals of SMDs results in poor soldering. Do not handle SMDs with bare hands. - Avoid using storage places that are sensitive to oxidation such as places with sulphur or chlorine gas, direct sunlight, high temperatures or a high degree of humidity. The capacitance or resistance value of the SMDs may be affected by this. - Rough handling of circuit boards containing SMDs may cause damage to the components as well as the circuit boards. Circuit boards containing SMDs should never be bent or flexed. Different circuit board materials expand and contract at different rates when heated or cooled and the components and/or solder connections may be damaged due to the stress. Never rub or scrape chip components as this may cause the value of the component to change. Similarly, do not slide the circuit board across any surface. 1.2 Removal of SMDs - Heat the solder (for 2-3 seconds) at each terminal of the chip. By means of litz wire and a slight horizontal force, small components can be removed with the soldering iron. They can also be removed with a solder sucker (see Fig. 1A) While holding the SMD with a pair of tweezers, take it off gently using the soldering iron's heat applied to each terminal (see Fig. 1 B). - Remove the excess solder on the solder lands by means of litz wire or a solder sucker (see Fig. 1C). 1.3 Caution on removal - When handling the soldering.iron. use suitable pressure and be careful. - When removing the chip, do not use undue force with the pair of tweezers. - The soldering iron to be used (approx. 30 W) should preferably be equipped with a thermal control (soldering temperature: 225 to 250 C). - The chip, once removed, must never be reused. 1.4 Attachment of SMDs - Locate the SMD on the solder lands by means of tweezers and solder the component on one side. Ensure that the component is positioned correctly on the solder lands (see Fig.2A). - Next complete the soldering of the terminals of the component (see Fiq. 2B). 2. Caution when attaching SMDs - When soldering the SMD terminals, do not touch them directly with the soldering iron. The soldering should be done as quickly as possible, care must be taken to avoid damage to the terminals of the SMDs themselves. - Keep the SMD's body in contact with the printed board when soldering. - The soldering iron to be used (approx. 30 W ) should preferably be equipped with a thermal control (soldering temperature: 225 to 250 C). - Soldering should not be done outside the solder land. - Soldering flux (of rosin) may be used, but should not be acidic. - After soldering, let the SMD cool down gradually at room temperature. - The quantity of solder must be proportional to the size of the solder land. If the quantity is too great, the SMD might crack or the solder lands might be torn loose from the printed board (see Fig. 3). Fig.3 Examples Right 73 190X6&170X6 LCD Go to cover page Repair Tips 3. Lead-free product identification You can identify lead-free product by Philips-lead-free logo on PCB. 4. Lead-free product repair instruction 4.1 Use only lead-free Solder Alloy 0622 149 00106(1.2mm SAC305) or 0622 149 00108(1.0mm SAC305). Remark: For lead free soldering material, please visit www.alphametals.com website for details. This is recommended by Philips. 4.2 Use only adequate solder tools applicable for lead-free soldering-tin. The solder tool must be able to reach at least a solder-temperature of 400 , to stabilize the adjusted temperature at the solder-tip and to exchange solder-tips for different applications. Small Passives/Actives to be removed with thermal tweezers Automated system for IC and BGA repair (Microscope, Camera, Beam split optics, Computer, Programmer, Heat controllers, Vacuum system, Laser pointer) Solder Hand-Tool (Adjustable in temperature height, Temperature shall be held constant, Flexible tips) 4.3 Adjust your solder tool so that a temperature around 360 -380 is reached and stabilized at the solder joint. Heating-time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400 otherwise wear-out of tips will rise drastically and flux-fluid will be destroyed. Corrosion of Tool-Spikes can be avoided when using SAC305 and a temperature of less than 400 . 4.4 Mix of lead-free solder-tin/parts with leaded soldering-tin/parts is possible but not recommended. If not to avoid clean carefully the solder-joint from old tin and re-solder with new tin. 4.5 Use only original spare-parts listed in the Service-Manuals. Standard-material (consumables) can also be purchased at external companies. 4.6 Special information for lead-free BGA-ICs: this ICs will be delivered in so-called dry-packaging to protect the IC against moisture and with lead-free logo on it. This packaging may only be opened shortly before it is used (soldered). Otherwise the body of the IC gets wet inside and during the heating time the structure of the IC will be destroyed due to high (steam-)pressure. If the packaging was opened before usage the IC has to be heated up for some hours (around 90 ) for drying (Take attention for ESD-protection!) 5. Rework on BGA (Ball Grid Array) ICs General Although (LF)BGA assembly yields are very high, there may still be a requirement for component rework. By rework, we mean the process of removing the component from the PWB and replacing it with a new component. If an (LF)BGA is removed from a PWB, the solder balls of the component are deformed drastically so the removed (LF)BGA has to be discarded. Device Removal As is the case with any component that, it is essential when removing an (LF)BGA, the board, tracks, solder lands, or surrounding components are not damaged. To remove an (LF)BGA, the board must be uniformly heated to a temperature close to the reflow soldering temperature. A uniform temperature reduces the chance of warping the PWB. To do this, we recommend that the board is heated until it is certain that all the joints are molten. Then carefully pull the component off the board with a vacuum nozzle. For the appropriate temperature profiles, see the IC data sheet. Area Preparation When the component has been removed, the vacant IC area must be cleaned before replacing the (LF)BGA. Removing an IC often leaves varying amounts of solder on the mounting lands. This excessive solder can be removed with either a solder sucker or solder wick. The remaining flux can be removed with a brush and cleaning agent. After the board is properly cleaned and inspected, apply flux on the solder lands and on the connection balls of the(LF)BGA Note: Do not apply solder paste, as this has shown to result in problems during re-soldering. Device Replacement The last step in the repair process is to solder the new component on the board. Ideally, the (LF)BGA should be aligned under a microscope or magnifying glass. If this is not possible, try to align the (LF)BGA with any board markers. To reflow the solder, apply a temperature profile according to the IC data sheet. So as not to damage neighbouring components, it may be necessary to reduce some temperatures and times. More Information For more information on how to handle BGA devices, visit this URL: http://www.atyourservice.ce.philips.com (needs subscription). After login, select Magazine , then go to Workshop Information . Here you will find Information on how .to deal with BGA-ICs. " " " " " " P b X21 Repair Flow Chart 74 190X6&170X6 LCD Go to cover page AC IN Power Board Control Board Scaler Board LCD Panel No power (power indicator off) Check 12V/5V/3.3V NG Bad power board Check Control Board Check Control Wires Check Scaler Board OK NG OK Bad Scaler Board Check LCD Panel OK Repair Flow Chart 190X6&170X6 LCD Go to cover page 75 Power Board Bad Power Board OK NG OK OK Check Scaler Board Bad Scaler Board OK OK X21 Repair Flow Chart 76 190X6&170X6 LCD Go to cover page Check Scaler Board OK Check LCD Panel OK OK OK Control Board OK OK Board 190X6&170X6 LCD 77 1 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION HUDSON-6 190X6 GENERAL PRODUCT SPECIFICATION . ANALOG AND DIGITAL DUAL INPUT . AUTO PICTURE ADJUSTMENT . 16 FACTORY PRESET MODES AND 34 PRESET MODES WHICH CAN BE RECOVERED TO PRESET MODES . USER FRIENDLY OSD DISPLAY FOR MODE IDENTIFICATION /ADJUSTMENT . DDC-CI COMMUNICATION CAPABILITY . MAX. RESOLUTION 1280*1024 NON-INTERLACED AT 75 HZ . 19 COLOR TFT LCD FLAT PANEL . SUPER ERGO BASE . FULL RANGE POWER SUPPLY 90 - 264 VAC . CE ENVIRONMENTAL POLICY . ANTI-GLARE TO REDUCE LIGHT REFLECTION . POWER MANAGEMENT CAPABILITY . SOG SUPPORT . TCO 99/2003 . AUDIO . PROVIDE USB PLUG . WALL MOUNT KIT (OPTION) . PROTECTIVE COVER (OPTION) " 78 190X6&170X6 LCD 2 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen CONTENTS 1.0 Foreword 2.0 Product profile 2.1 LCD 2.2 Scanning frequencies 2.3 Video dot rate 2.4 Power input 2.5 Power consumption 2.6 Dimensions 2.7 Weight 2.8 Functions 2.9 Ambient temperature 2.10 Regulatory compliance 3.0 Electrical characteristics 3.1 Interface signals 3.2 Interface 3.2.1 D-sub cable 3.2.2 DVI cable 3.2.3 OSD function control 3.3 Timing requirement 3.3.1 Mode storing capacity 3.3.2 Factory preset timings 3.3.3 Horizontal scanning 3.3.4 Vertical scanning 3.4 Power input connection 3.5 Power management 3.6 Display identification 3.6.1 Analog DDC 3.6.2 Digital DDC 4.0 Visual characteristics 4.1 Test conditions 4.2 Resolution 4.3 Brightness 4.4 Image size 4.4.1 Actual display size 4.4.2 Max scan size 4.5 Brightness uniformity 4.6 Check cross talk 4.7 White color adjustment 4.8 Light frame features 190X6&170X6 LCD 79 3 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION " 5.0 Mechanical characteristics 5.1 Controls 5.2 Unit dimension / weight 5.3 Foldable base 5.4 Transportation packages 5.4.1 Shipping dimension / weight 5.4.2 Block unit / palletization 6.0 Environmental characteristics 6.1 Susceptibility of display to external environment 6.2 Transportation tests 6.3 Display disturbances from external environment 6.4 Display disturbances to external environment 6.4.1 EMI 7.0 Audio 7.1 Amplifier section 7.2 Speaker section 8.0 USB Plug 9.0 Reliability 9.1 Mean time between failures 10.0 Quality assurance requirements 10.1 Acceptance test 11.0 Serviceability 12.0 Philips Flat panel monitors pixel defect policy 80 190X6&170X6 LCD 4 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen 1.0 FOREWORD This specification describes a 19" SXGA multi-scan color TFT LCD monitor with max resolution up to 1280*1024 /76 Hz non-interlaced. 2.0 PRODUCT PROFILE This display monitor unit is a color display monitor enclosed in PHILIPS global styling cabinet, which has an integrated super ergo base. 2.1 LCD 2.1.1 Type NR. : LM190E03-TLB2/TLB4 (LPL) Number of Pixels. : 1280 (H) x1024 (V) Physical Size. : 396.0(w)�324.0(h)�16.5(d) mm Pixel Pitch. : 0.098 (per one triad) x 0.294 mm Color pixel arrangement : RGB vertical stripes Support Color. : 16.2M colors (RGB 8 bits data) Display Mode. : Normally White Backlight. : CCFL edge light system Active area. (WXH). : 376.32 x 301.056mm (19 diagonal) Viewing Angle. : Vertical 140 degree, Horizontal 140 degree (CR=10) Contrast ratio. : 700:1 White luminance. : 300nits (Typ) 2.2 Scanning frequencies H-Frequency. : 30K - 83 K Hz V-Frequency. : 56 - 76 Hz 2.3 Video dot rate. : < 140 MHz 2.4 Power input. : 90-264 V AC, 50/60 � 2 Hz 2.5 Power consumption. : < 32 maximum (without audio) < 40 maximum (with audio) 2.6 Dimensions. : 443.8(W) * 436.3(H)* 181.4(D) mm 2.7 Weight. : 7.2 kg 2.8 Functions: (1) D-Sub analog R/G/B separate inputs, H/V sync separated, Composite (H+V) TTL level, SOG sync. (2) DVI-D digital Panel Link TMDS input " 190X6&170X6 LCD 81 5 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION (1) USB Plug with one upstream port and one downstream port 2.9 Ambient temperature: 5 �C - 35 �C 2.10 Regulatory compliance: Safety B, CCIB / CCEE(China), CE(Europe), CSA(Canada), DEMKO(Nordic), EZU(Czech), FIMKO(Nordic), Gost(Russia), IEC 950 CB Report, NOM NYCE(Mexico), PSB(Singapore), SEMKO(Nordic),SISIR CPA(Singapore), TUV(Germany), UL(USA), UL2601-1(NAFTA), EN60601(EU) and IEC60601- 1(WW) EMI C-tick, CE(Europe), FCC(USA), IC(Canada), VCCI(Japan),BSMI Ergonomics E2000, MPRII(Sweden), Nutek(Sweden), TCO99/2003, TUV/GS Compatibility PC2001, Windows 2000, Windows 98/Me, Windows XP, NSTL 3.0 Electrical characteristics 3.1 Interface signals The input signals can be applied in two different modes: 1). D-shell Analog Input signal: Video, H-sync, V-sync, Video: 0.7 V p-p, input impedance, 75 ohm Sync. : Separate sync TTL level, input impedance 2k2 ohm terminate H-sync Positive/Negative V-sync Positive/Negative Composite sync TTL level, input impedance 2k2 ohm terminate (Positive/Negative) Sync on green video 0.3V p-p Negative. (Video 0.7 V p-p Positive) 2). Intel DVI Digital Input signal: Single channel TMDS signal 3.1.1 Audio Input signal level: 500mVrms Input signal connector: 3.5 mm mini jack (lime green) Loudspeaker (Impedance: 8 Ohm+/- 15%): 3W+3W stereo for RMS Power 82 190X6&170X6 LCD 6 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen Frequency range: 250Hz ~15KHz Headphone connector: 3.5mm mini jack (black) Headphone connection will mute speakers 3.2 Interface 3.2.1 D-Sub Cable Length : 1.8 M +/- 50 mm (fixed) Connector type : D-sub male with DDC-2B pin assignments. Blue connector thumb-operated jack screws Pin Assignment: 3.2.2 DVI Cable The input signals are applied to the display through DVI-D cable. Length : 1.8 M +/- 50 mm (fixed) Connector type : DVI-D male with DDC-2B pin assignments White connector thumb-operated jack screws Pin Assignment: Pin No. Description 1 T.M.D.S. data2- 2 T.M.D.S. data2+ 3 T.M.D.S. data2 shield 4 No Connect 5 No Connect 6 DDC clock 7 DDC data 8 No Connect 9 T.M.D.S. data1- 10 T.M.D.S. data1+ PIN No. SIGNAL 1 Red video input 2 Green video input / sync on green 3 Blue video input 4 GND 5 GND – Cable detect 6 Red video GND 7 Green video GND 8 Blue video GND 9 DDC +3.3V or +5V 10 Logic GND 11 GND 12 Serial data line (SDA) 13 H-sync / H+V 14 V-sync 15 Data clock line (SCL) 190X6&170X6 LCD 83 7 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION 11 T.M.D.S. data1 shield 12 No Connect 13 No Connect 14 +5V Power 15 Ground (for +5V) -Cable detect 16 Hot plug detect 17 T.M.D.S. data0- 18 T.M.D.S. data0+ 19 T.M.D.S. data0 shield 20 No Connect 21 No Connect 22 T.M.D.S clock shield 23 T.M.D.S. clock+ 24 T.M.D.S. clock- 3.2.3 Software control functions via OSD/control OSD (On Screen Display) function (1) Analog interface OSD: Adjustable functions: 1st LEVEL 2nd LEVEL 3rd LEVEL MONITOR SETUP Exit Brightness & Contrast Brightness Contrast Color Original Color, 9300K,6500K, sRGB, User Define Position Horizontal Vertical Input Selection Analog, Digital Language English, Espanol, Frencais, Deutsch, Italiano, Simplified Chinese Phase/ Clock Phase Clock More Settings OSD Settings Horizontal Vertical 84 190X6&170X6 LCD 8 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen Audio Options Stand-alone (On, Off) Mute (On, Off) Reset No Yes Serial No.: (Serial No.) Timing Mode Up/Down to Move, ok to Confirm (2) Digital interface OSD: Adjustable functions: 1st LEVEL 2nd LEVEL 3rd LEVEL MONITOR SETUP Exit Brightness & Contrast Brightness Contrast Color Original Color, 9300K,6500K, sRGB, User Define Position (Gray out) Input Selection Analog, Digital Language English, Espanol, Frencais, Deutsch, Italiano, Simplified Chinese Phase/ Clock (Gray out) Phase (Gray out) Clock (Gray out) OSD Settings Horizontal Vertical Audio Options Stand-alone (On, Off) Mute (On, Off) More Settings 190X6&170X6 LCD 85 9 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION Reset No Yes Serial No.: (Serial No.) Timing Mode Up/Down to Move, ok to Confirm 3.3 Timing requirement 3.3.1 Mode storing capacity (1) Factory preset modes : 16 (2) Preset modes : 34 3.3.2 Factory preset timings The factory settings of size and centering are according to the reference timing charts (See fig-4, fig-5) MODE NO. 1 2 3 4 RESOLUTION 640 x 350 720 x 400 640 x 480 640 x 480 Dot clock(MHz) 25.175 28.321 25.175 30.24 f h 31.469kHz 31.468kHz 31.5kHz 35 kHz A ( us ) 31.778(800 dots) 31.78(900dots) 31.778(800 dots) 28.571 (864 dots) B ( us ) 3.813(96 dots) 3.813(108dots) 3.813( 96 dots) 2.116 ( 64 dots) C ( us ) 1.907(48 dots) 1.907(54dots) 1.907( 48 dots) 3.175( 96 dots) D ( us ) 25.422(640 dots) 25.42(720dots) 25.422( 640 dots) 21.164( 640 dots) E ( us ) 0.636(16 dots) 0.636(18dots) 0.636( 16 dots) 2.116( 64 dots) f v 70Hz(70.09) 70Hz(70.085) 60Hz 67Hz O (ms ) 14.27(449 lines) 14.27(449 lines) 16.683 (525 lines) 15 (525 lines) P ( ms ) 0.064(2 lines) 0.064(2 lines) 0.064 ( 2 lines) 0.086( 3 lines) Q (ms ) 1.907(60 lines) 1.112(34 lines) 1.049 ( 33 lines) 1.114( 39 lines) R ( ms ) 11.12(350 lines) 12.71(400 lines) 15.253 (480 lines) 13.714(480 lines) S ( ms ) 1.175(37 lines) 0.381(13 lines) 0.317 ( 10 line ) 0.086( 3 line ) SYNC. H/V +/- -/+ - / - - / - POLARITY SEP . SYNC Y Y Y Y 86 190X6&170X6 LCD 10 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen MODE NO. 5 6 7 8 RESOLUTION 640 x 480 640 x 480 640x480 800 x 600 Dot clock(MHz) 31.500 31.501 36 36 f h 37.861kHz 37.5kHz 36kHz 35.2kHz A ( us ) 26.413(832 dots) 26.667 (840 dots) 23.111 (832 dots) 28.444(1024 dots) B ( us ) 1.270(40 dots) 2.032 ( 54 dots) 1.556 (56 dots) 2.000 ( 72 dots) C ( us ) 3.810(120 dots) 3.81 ( 120 dots) 2.222 ( 80 dots) 3.556 ( 128 dots) D ( us ) 20.317(640 dots) 20.317 (640 dots) 17.778 (640 dots) 22.222( 800 dots) E ( us ) 1.016(32 dots) 0.508 ( 26 dots) 1.555 (56 dots) 0.666 ( 24 dots) f v 72.809Hz 75Hz 85Hz 56Hz O (ms ) 13.735(520 lines) 13.333 (500 lines ) 11.763 (509 lines ) 17.778 (625 lines) P ( ms ) 0.079(3 lines) 0.08 ( 3 lines ) 0.069 ( 3 lines ) 0.057 ( 2 lines) Q (ms ) 0.528(20 lines) 0.427 ( 16 lines ) 0.578 ( 25 lines ) 0.626 ( 22 lines) R ( ms ) 12.678(480 lines) 12.8 (480 lines ) 11.093 (480 lines ) 17.066 (600 lines) S ( ms ) 0.45(17 lines) 0.026 ( 1 lines) 0.023 ( 1 lines) 0.029 ( 1 line ) SYNC. H/V -/- - / - -/- + / + POLARITY SEP . SYNC Y Y Y Y MODE NO. 9 10 11 12 RESOLUTION 800 x 600 800 x 600 800 x 600 800 x 600 Dot clock(MHz) 40 50 49.498 56.251 f h 37.9kHz 48.077kHz 46.9kHz 53.7kHz A ( us ) 26.4 (1056 dots) 20.80 (1040dots) 21.333 (1056 dots) 18.631 (1048 dots) B ( us ) 3.2 ( 128 dots) 2.400 ( 120 dots) 1.616 ( 80 dots) 1.138 ( 64 dots) C ( us ) 2.2 ( 88 dots) 1.280 ( 64 dots) 3.232 ( 160 dots) 2.702 ( 152 dots) D ( us ) 20 ( 800 dots) 16.00 ( 800 dots) 16.162 ( 800 dots) 14.222 ( 800 dots) E ( us ) 1 ( 40 dots) 1.120 ( 56 dots) 0.323 ( 16 dots) 0.569 ( 32 dots) f v 60Hz 72Hz ( 72.188) 75Hz 85Hz O (ms ) 16.579 (628 lines) 13.85 (666 lines) 13.333 (625 lines) 11.756(631 lines) P ( ms ) 0.106 ( 4 lines) 0.125 ( 6 lines) 0.064 ( 3 lines) 0.056 ( 3 lines) Q (ms ) 0.607 ( 23 lines) 0.478 ( 23 lines) 0.448 ( 21 lines) 0.503 ( 27 lines) R ( ms ) 15.84 (600lines) 12.48 (600 lines) 12.8 (600 lines) 11.179 (600 lines) S ( ms ) 0.026 ( 1 line ) 0.770 ( 37 line ) 0.021 ( 1 line ) 0.018 ( 1 lines) SYNC. H/V + / + + / + + / + + / + POLARITY SEP . SYNC Y Y Y Y 190X6&170X6 LCD 87 11 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION MODE NO. 13 14 15 16 RESOLUTION 832 x 624 1024 x 768 1024 x 768 1024 x 768 Dot clock(MHz) 57.28 65 75 78.75 f h 49.7kHz 48.363kHz 56.5kHz 60kHz A ( us ) 20.11(1152 dots) 20.677(1344 dots) 17.707(1328 dots) 16.66 (1312dots) B ( us ) 1.117(64 dots) 2.092(136 dots) 1.813(136 dots) 1.219 ( 96 dots) C ( us ) 3.91(224 dots) 2.462(160 dots) 1.920(144 dots) 2.235 ( 176 dots) D ( us ) 14.52(832 dots) 15.754(1024 dots) 13.653(1024 dots) 13.003 ( 1024 dots) E ( us ) 0.563(32 dots) 0.369(24 dots) 0.321 (24 dots) 0.203 ( 16 dots) f v 75Hz 60.004Hz 70.004Hz 75Hz ( 75.000) O (ms ) 13.41(667 lines) 16.666(806 lines) 14.272(806 lines) 13.328 (800 lines) P ( ms ) 0.06(3 lines) 0.124(6 lines) 0.106(6 lines) 0.05( 3 lines) Q (ms ) 0.784(39 lines) 0.600(29 lines) 0.514(29 lines) 0.446 ( 28 lines) R ( ms ) 12.55(624 lines) 15.880(768 lines) 13.599(768 lines) 12.80 (768 lines) S ( ms ) 0.016(1 lines) 0.062(3 lines) 0.053(3 lines) 0.017 ( 1 line ) SYNC. H/V +/+ - / - -/- + / + POLARITY SEP . SYNC Y Y Y Y MODE NO. 17 18 19 20 RESOLUTION 1024 x 768 1024 x 768 1152 x 864 1152 x 864 Dot clock(MHz) 83.096 94.5 79.9 94.5 f h 61.1kHz 68.7kHz 54.0kHz 63.9kHz A ( us ) 16.367 (1360dots) 14.561 (1376 dots) 18.523(1480 dots) 15.661(1480 dots) B ( us ) 1.348 ( 112 dots) 1.016 ( 96 dots) 1.952(156 dots) 1.016(96 dots) C ( us ) 2.022 ( 168 dots) 2.201 ( 208 dots) 1.352(108 dots) 1.116(105 dots) D ( us ) 12.323 ( 1024 dots) 10.836 ( 1024 dots) 14.418(1152 dots) 12.19(1152 dots) E ( us ) 0.674 ( 56 dots) 0.508 ( 48 dots) 0.801(64 dots) 1.339(127 dots) f v 76Hz 85Hz 60Hz 70Hz O (ms ) 13.142 (803 lines) 11.765 (808 lines) 16.671(900lines) 14.283(912lines) P ( ms ) 0.049 ( 3 lines) 0.044 ( 3 lines) 0.148(8 lines) 0.047(3lines) Q (ms ) 0.507 ( 31 lines) 0.524 ( 36 lines) 0.445(24 lines) 0.689(44 lines) R ( ms ) 12.57 (768 lines) 11.183 (768lines) 16.004(864 lines) 13.531(864 lines) S ( ms ) 0.016 ( 1 line ) 0.014 ( 1 line ) 0.074(4 lines) 0.016(1 lines) SYNC. H/V + / + + / + +/+ +/+ POLARITY SEP . SYNC Y Y Y Y 88 190X6&170X6 LCD 12 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen MODE NO. 21 22 23 24 RESOLUTION 1152 x 864 1152 x 870 1152 x 900 1152 x 900 Dot clock(MHz) 108 100 94.5 108 f h 67.5kHz 68.7kHz 61.8kHz 71.8kHz A ( us ) 14.815 (1600 dots) 14.56 (1456 dots) 16.169 (1528 dots) 13.926 (1054dots) B ( us ) 1.185 ( 128 dots) 1.28 ( 128 dots) 1.354 ( 128 dots) 1.185 ( 128 dots) C ( us ) 2.37 ( 256 dots) 1.44( 144 dots) 2.201 ( 208 dots) 1.778 ( 192 dots) D ( us ) 10.667 ( 1152 dots) 11.52 ( 1152 dots) 12.19 ( 1152 dots) 10.667 ( 1152 dots) E ( us ) 0.593 ( 64 dots) 0.32 ( 32 dots) 0.424 ( 40 dots) 0.296 ( 32 dots) f v 75Hz 75Hz 66Hz 76Hz O (ms ) 13.333 (900 lines) 13.333 (916 lines) 15.151 (937lines) 13.132 (943 lines) P ( ms ) 0.044 ( 3 lines) 0.044 ( 3 lines) 0.065 ( 4 lines) 0.111 ( 8 lines) Q (ms ) 0.474 ( 32 lines) 0.568( 39 lines) 0.501 ( 31 lines) 0.46 ( 33 lines) R ( ms ) 12.8 (864 lines) 12.678 (870 lines) 14.552 (900lines) 12.533 (900 lines) S ( ms ) 0.015 ( 1 lines) 0.043 ( 4 line ) 0.033 ( 2 line ) 0.028 ( 2 lines) SYNC. H/V - / - - / - Serr- + / + POLARITY SEP . SYNC Y Y Y Y MODE NO. 25 26 27 28 RESOLUTION 1280 x 960 1280 x 960 1280 x 1024 1280 x 1024 Dot clock(MHz) 108 129.895 108 117 f h 60kHz 75kHz 64kHz 71.7kHz A ( us ) 16.667(1800 dots) 13.307 (1728 dots) 15.63 (1688 dots) 13.949 (1632 dots) B ( us ) 1.037(112 dots) 1.047 ( 136 dots) 1.037 ( 112 dots) 0.957 (112 dots) C ( us ) 2.889(312 dots) 1.725 ( 224 dots) 2.296 ( 248 dots) 1.915 (224 dots) D ( us ) 11.852(1280 dots) 9.857 ( 1280 dots) 11.852 ( 1280 dots) 10.94 (1280 dots) E ( us ) 0.889(96 dots) 0.678 ( 88 dots) 0.445 ( 48 dots) 0.137 (16 dots) f v 60Hz 75Hz 60Hz 67Hz O (ms ) 16.667(1000 lines) 13.333 (1002 lines) 16.661 (1066 lines) 14.883 (1067lines) P ( ms ) 0.05(3 lines) 0.039 ( 3 lines) 0.047 ( 3 lines) 0.112 ( 8 lines) Q (ms ) 0.600(36 lines) 0.48 ( 36 lines) 0.594 ( 38 lines) 0.46 ( 33 lines) R ( ms ) 16(960 lines) 12.774 (960 lines) 16.005 (1024 lines) 14.283 (1024 lines) S ( ms ) 0.017(1 lines) 0.04 ( 3 lines ) 0.015 ( 1 line) 0.028 (2 lines ) SYNC. H/V +/+ + / + + / + + / + POLARITY SEP . SYNC Y Y Y Y MODE NO. 29 30 31 32 190X6&170X6 LCD 89 13 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION RESOLUTION 1280 x 1024 1280 x 1024 1280 x 1024 688 x 556 Dot clock(MHz) 130.223 135 138.008 27 F h 76kHz 80kHz 81.1kHz 31.25kHz A ( us ) 13.158 (1712 dots) 12.504(1688 dots) 12.326 (1664 dots) 32 (864 dots) B ( us ) 1.024 ( 133 dots) 1.067(144 dots) 0.474 (64 dots) 3.852 (104 dots) C ( us ) 1.905 ( 248 dots) 1.837(248 dots) 2.133 (288 dots) 1.778 (48 dots) D ( us ) 9.83 ( 1280 dots) 9.481(1280 dots) 9.481 (1280 dots) 25.481 (688 dots) E ( us ) 0.399( 51 dots) 0.119(16 dots) 0.238 (32 dots) 0.889 (24 dots) F v 72Hz 75Hz 76Hz 50Hz O (ms ) 14 (1064 lines) 13.329(1066 lines) 13.139 (1066 lines) 20 (625 lines) P ( ms ) 0.02 ( 2 lines) 0.038(3 lines) 0.099 ( 8 lines) 0.128 (4 lines) Q (ms ) 0.5 ( 38 lines) 0.475(38 lines) 0.394 ( 32 lines) 1.408 (44 lines) R ( ms ) 13.468 (1024 lines) 12.804(1024 lines) 12.622 (1024 lines) 17.972 (556 lines) S ( ms ) 0.012 ( 0 line) 0.012 (1 line) 0.024( 2 lines ) 0.672 ( 21 lines ) SYNC. H/V + / + +/+ - / - -/ + POLARITY SEP . SYNC Y Y Y Y MODE NO. 33 34 RESOLUTION 960X720 960X720 Dot clock(MHz) 57.58 72.42 F h 44.76kHz 56.4kHz A ( us ) 22.34(1286 dots) 17.73(1284 dots) B ( us ) 1.72(99 dots) 1.44(104 dots) C ( us ) 2.58(148 dots) 2.21(160 dots) D ( us ) 16.67(960 dots) 13.256(960 dots) E ( us ) 0.856(49 dots) 0.780(56 dots) F v 60Hz 75Hz O (ms ) 16.667(746 lines) 13.333(752 lines) P ( ms ) 0.067(2.9 lines) 0.053(3 lines) Q (ms ) 0.495(22 lines) 0.5(28 lines) R ( ms ) 16.081(720 lines) 12.766(720 lines) S ( ms ) 0.0228(1 lines) 0.0184(1 lines) SYNC. H/V -/ + -/ + POLARITY SEP . SYNC Y Y A : H-Total O : V-Total B : H- Sync width P : V- Sync width C : H- Back porch Q : V- Back porch D : H- Video width R : V- Video width E : H- Front porch S : V- Front porch 90 190X6&170X6 LCD 14 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen 3.3.3 Horizontal scanning Sync polarity : Positive or Negative Scanning frequency : 30 - 83 K Hz 3.3.4 Vertical scanning Sync polarity : Positive or Negative Scanning frequency : 56 - 76 Hz 3.4 Power input connection Power cord length : 1.5 M Power cord type : 3 leads power cord with protective earth plug. 3.5 Power management The power consumption and the status indication of the set with power management function are as follows, STATUS H-sync V-sync Video Power LED On On On Active <40W Green /With Audio On On On Active <32W Green / Without Audio Off Off Off Blanked <1W Amber LED DC Power off N / A <1W LED Off According to VESA power saving signal, TCO99 power saving requirement And EPA energy star requirement For digital input power consumption is less 1W (In non-DMPM recoverable off mode) Note: To achieve under 1 Watt power saving when Stand-Alone Audio feature is selected On and system is in Sleep Mode, follow below condition : Volume has to be adjusted to 0% prior to measurement. ' ' " " 190X6&170X6 LCD 91 15 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION 3.6 Display identification 3.6.1 In accordance with VESA Display Channel Standard V1.0 and having DDC-CI capability. 3.6.2 In accordance with DVI requirement (DDWG digital Visual Interface revision 1.0) use DDC-2B and EDID 3.0 structure 2.0 4.0 Visual characteristics 4.1 Test conditions Unless otherwise specified, this specification is defined under the following conditions. (1) Input signal: As defined in 3.3, 1280 x 1024 non-interlaced mode (80K/75Hz), signal sources must have 75 ohm output impedance. (2) Luminance setting: controls to be set to 200 nits with full white screen signal (3) Warm up: more than 30 minutes after power on with signal supplied. (4) Ambient light: 400 -- 600 lux. (5) Ambient temperature: 20 +/- 5 �C 4.2 Resolution Factory preset modes (16 modes) # Resolution H-Frequency Pixel rate V-Frequency Comment 1 640X350 31.5KHz 25.175 70Hz IBM VGA 10h 2 720X400 31.5KHz 28.322 70Hz IBM VGA 3h 3 640X480 37.5KHz 31.501 75Hz 4 640X480 35.0KHz 30.24 67Hz 5 640X480 31.5KHz 25.175 60Hz 6 800X600 35.2KHz 36 56Hz 7 800X600 46.9KHz 49.498 75Hz 8 800X600 37.9KHz 40 60Hz 9 832X624 49.7KHz 57.28 75Hz MAC 10 1024X768 60.0KHz 78.75 75Hz 11 1024X768 48.4KHz 65 60Hz 12 1152X870 68.7KHz 100 75Hz MAC 13 1152X900 71.8KHz 108 76Hz SUN Mode II 92 190X6&170X6 LCD 16 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen 14 1280X1024 64.0KHz 108 60Hz 15 1280X1024 80.0KHz 135 75Hz 16 688X556 31.3KHz 27 50Hz TV-PAL Note : 1. Screen displays perfect picture at 16 factory preset modes. 2. Screen displays visible picture with OSD warning when input modes are other than 34 preset modes 4.3 Brightness: 200 nits (at panel color temperature, Screen center point, Fig. 1) 4.4 Image size Actual display size 376x301mm 4.5 Brightness uniformity Set contrast at 50% and turn the brightness to get average above 200 nits at center of the screen. Apply the Fig 1. It should comply with the following formula: Minimum luminance of nine points (brightness) >= 0.75 (Min) Maximum luminance of nine points (brightness) 4.6 Check Cross talk Apply Pattern 2. Set contrast at 50 % and brightness at 100 %. Measure A. Then output Pattern 3 and measure A’. The cross talk value: ABS ( A - A ) ��������� X 100 % < 1.8 % (Max) A 4.7 White color adjustment There are three factory preset white color 9300K, 6500K and sRGB Apply full white pattern, with brightness in 100 % position and the contrast control at 50 % position. The 1931 CIE Chromaticity (color triangle) diagram (x,y) coordinate for the screen center should be: 9300K CIE coordinates X = 0.283 +/- 0.020 ' 190X6&170X6 LCD 93 17 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION Y = 0.297 +/- 0.020 6500K CIE coordinates X = 0.313 +/- 0.020 Y = 0.329 +/- 0.020 sRGB CIE coordinates X = 0.313 +/- 0.020 Y = 0.329 +/-0.020 4.8 Light Frame features 4.8.1 Full screen mode --- accessed by HOT-KEY at front of panel. Provide three options: Internet, Text and Graphics 4.8.2 Multi-window mode --- accessed by Light Frame application program Brightness control Sharpness enhancement Contrast enhancement Color boosting 5.0 Mechanical characteristics 5.1 Controls Front side: DC power switch LF Key Smart Bright Sensor Rear side: D-SUB signal connector DVI signal connector Power cord socket Audio In jack USB upstream port Left side: Headphone jack USB downstream ports Right side: OSD function key OK UP / DOWN (Brightness key) LEFT / RIGHT (Volume control) AUTO key 5.2 Unit dimension / Weight Set dimension (incl. pedestal): 443.8(W) * 436.3(H)* 181.4(D) mm 94 190X6&170X6 LCD 18 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen ' Net weight. : 7.2 kg 5.3 Foldable base Tilt angle : -5 � to +25 � 5.4 Transportation packages 5.4.1 Shipping dimension/Weight Carton dimension. : 477(W) * 498(D) * 150(H) mm Gross weight. : 8.5 Kg 5.4.2 Block unit / Palletization layers / block sets/layer sets/block unit 15 4 60 blocks/container 20 feet 40 feet 6 24 6.0 Environmental characteristics The following sections define the interference and susceptibility condition limits that might occur between external environment and the display device. 6.1 Susceptibility of display to external environment Operating - Temperature. : 5 to 35 degree C - Humidity. : 80% max - Altitude. : 0 to 12,000 feet Storage - Temperature. : -20 to 60 degree C - Humidity. : 100% max (< 40 ) - Altitude. : 0 to 30,000 feet Note: recommend at 5 to 35�C, Humidity less than 60 % 6.2 Transportation tests 190X6&170X6 LCD 95 19 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION A: all regions except China & India Standard Philips UAN-D1400 NSTA Height 55/25 cm 76.0 cm 1 face(btm-55cm) 1 corner Drop Sequence 5 faces(others-25cm) 3 edge Test Btm->Btm->Btm->L->F->Rt->Rr->Top (Room temp) 6 face Electrical function ok Test Mechanical function ok Result No serious damage on set appearance (Room temp 20 ~23 , humidity 40%~65%) (1) PACKAGING Sequence 7 Hz, 1.05 G, 30 min. for transport direction only (2) OPERATING Vibration 7 Hz, 10.6 mm, 30 min. for transport direction only Test Test Electrical function ok Result Mechanical function ok No serious damage on set appearance For design evaluation only Operating 10 G, 11 msec, 1000 cycles Bump Temperature : 23 Test Humidity : 60 % Air pressure : 100 kpa (According to DSD draft standard UAN-D636) 96 190X6&170X6 LCD 20 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen B: regions of China & India: Standard Philips UAN-D1400 NSTA Height a.80\b.60\c.70 cm 76.0 cm a.Face: Btm->F->L->Rr->Rt(80cm) 1 corner Drop Sequence b.Edge: F-Btm,Rt-Btm,F-Rt Corner:Rt-Btm-F(60cm) 3 edge Test c.Btm->Btm(70cm) (Room temp) 6 face Electrical function ok Test Mechanical function ok Result No serious damage on set appearance (Room temp 20 ~23 , humidity 40%~65%) (1) Sequence 10-30-10 Hz, 0.75mm,5cycles, 15 min. for X,Y,Z (2) Vibration 30-55-30 Hz, 0.25mm, 5cycles ,9 min. for X,Y,Z Test Test Electrical function ok Result Mechanical function ok No serious damage on set appearance For design evaluation only Operating 100m/s^2, 16 msec, 1000 pulses Bump Bump frequency: 60~80times/min Test Source:GB9384-97 6.3 Display disturbances from external environment According to IEC 801-2 for ESD disturbances 6.4 Display disturbances to external environment 190X6&170X6 LCD 97 21 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION 6.4.1 EMI EMI: FCC, VCCI, CE, C-Tick, MPRIII, BCIQ, 7.0 Audio Input signal level: 500mVrms Input signal connector: 3.5 mm mini jack (lime green) Loudspeaker (Impedance: 8 Ohm+/- 15%): 3W+3W stereo for RMS Power Frequency range: 250Hz ~15KHz Headphone connector: 3.5mm mini jack (black) Headphone connection will mute speakers 8.0 USB Plug Connect the upstream port of the monitor to Host PC s USB port via USB cable, then attach external device to the downstream port of the monitor. Check if the device can work properly. 9.0 Reliability 9.1 Mean Time Between Failures System MTBF (Excluding the LCD panel and CCFL): 50,000 hrs CCFL MTBF: 30,000 hrs (50% of original brightness) 10.0 Quality assurance requirements 10.1 Acceptance test According to MIL-STD-105D Control II level AQL: 0.65 (major) 2.50 (minor) (Please also refer to annual quality agreement) Customer acceptance criteria: UAW0377/00 11.0 Serviceability The serviceability of this monitor should fulfill the requirements, which are prescribed in UAW-0346 and must be checked with the check list UAT-0361. ' 98 190X6&170X6 LCD 22 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen 12.0 Philips’Flat Panel Monitors Pixel Defect Policy Philips’Flat Panel Monitors Pixel Defect Policy BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL 190P/X 190B 190S 1 lit sub-pixel 0 0 4 or fewer 2 adjacent lit sub-pixels 0 0 2 or fewer 3 adjacent lit sub-pixels (one white pixel) 0 0 0 Distance between two bright dot defects* 0 0 15mm or more Bright dot defects within 20 mm circle 0 0 3 or fewer Total bright dot defects of all type 0 0 4 or fewer BLACK DOT DEFECTS ACCEPTABLE LEVEL MODEL 190P/X 190B 190S 1 dark sub-pixel 0 0 4 or fewer 2 adjacent dark sub-pixels 0 0 2 or fewer 3 adjacent dark sub-pixels (one white pixel) 0 0 0 Distance between two black dot defects* 15mm or more 15mm or more 15mm or more Black dot defects within 20 mm circle* 0 0 3 or fewer Total black dot defects of all type 0 0 4 or fewer TOTAL DOT DEFECTS ACCEPTABLE LEVEL MODEL 190P/X 190B 190S Total bright or black dot defects of all type 0 0 5 or fewer * 1 or 2 adjacent sub-pixel defects = 1 dot defect 190X6&170X6 LCD 99 23 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION 100 190X6&170X6 LCD 24 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen Fig 2: Cross talk pattern Gray level 184 (256 Gray level) B 1/2 1/6 1/2 A 1/6 Fig 3: Cross talk pattern Center at Gray level 0 (Black) B’ 1/6 1/2 1/6 1/3 1/3 1/3 1/3 1/2 A’ 1/3 ' ' 190X6&170X6 LCD 101 25 BRAND : PHILIPS TYPE :190X6FB/00 8639 000 16427 2005-05-27 2005-05-27 26 19 Inch LCD Monitor ThomasChen Go to cover page GENERAL PRODUCT SPECIFICATION D VIDEO C E SEPARATE SYNC. HORIZONTAL B A R VIDEO Q S P O D VIDEO C E B A VERTICAL HORIZONTAL COMPOSITE SYNC. FIG-4 TIMING CHART -1 102 190X6&170X6 LCD 26 GENERAL PRODUCT SPECIFICATION Go to cover page 8639 000 16427 BRAND : PHILIPS 19 Inch LCD Monitor TYPE :190X6FB/00 2004-05-27 2005-05-27 26 Thomas chen D VIDEO C E B A VERTICAL COMPOSITE SYNC. FIG-5 TIMING CHART -2 O P Q R S & VIDEO B S P Q O R ( SYNC. ON GREEN ) HORIZONTAL VERTICAL 103 190X6&170X6 LCD Go to cover page Different Parts List Item 12NC Description 863900016426 170X6FB/93 1055 313819875861 PSU OPENFR IIPS 43W(AIP-0093) 1060 313819871451 CORD SUB-D 15/1M8/SUB-D 15 BK 1061 313818871651 MAINSCORD CCEE 10A 1M8 DET BK 0450 313815640911 CARTON Item 12NC Description 863900016431 170X6FW/00 1055 313819875861 PSU OPENFR IIPS 43W(AIP-0093) 1059 242207600735 CBLE PHONE 1M8 PHONE M/M BU B 1060 242207600734 CBLE SUB-D 15/1M8/SUB-D 15 BU 1061 242207000099 MAINSCORD IEC 10A 1M83 DET3P B 1063 242207600733 CBLE USB-A 1M8 USB-B M/M BU B 0030 313815760551 BEZEL ASSY(T) 0031 313815417181 BEZEL(T) 0040 313815760561 BACK COVER ASSY(BLUE) 0041 313815417191 BACK COVER(BLUE) 0043 313815417201 OSD BUTTON 0044 313815417211 SKIN COVER 0097 313815417221 LOGO COVER(T) 0602 313811708652 E-D.F.U. 0450 313815640671 CARTON Item 12NC Description 863900016432 170X6FW/93 1055 313819875861 PSU OPENFR IIPS 43W(AIP-0093) 1059 242207600735 CBLE PHONE 1M8 PHONE M/M BU B 1060 242207600734 CBLE SUB-D 15/1M8/SUB-D 15 BU 1061 242207000098 MAINSCORD CHN 10A 1M83 DET3P B 1063 242207600733 CBLE USB-A 1M8 USB-B M/M BU B 0030 313815760551 BEZEL ASSY(T) 0031 313815417181 BEZEL(T) 0040 313815760561 BACK COVER ASSY(BLUE) 0041 313815417191 BACK COVER(BLUE) 0043 313815417201 OSD BUTTON 0044 313815417211 SKIN COVER 0097 313815417221 LOGO COVER(T) 0490 313815682831 PACKING ASSY-CHINA 0450 313815641061 CARTON 0602 313811708652 E-D.F.U. Item 12NC Description 863900016428 190X6FB/93 1055 313819875861 PSU OPENFR IIPS 43W(AIP-0093) 1060 313819871451 CORD SUB-D 15/1M8/SUB-D 15 BK 1061 313818871651 MAINSCORD CCEE 10A 1M8 DET BK 0450 313815640931 CARTON 0451 313815640691 CUSHION-R 0452 313815640681 CUSHION-L Diversity of 170X6FB/93 Compared with 170X6FB/00 Diversity of 170X6FW/00 Compared with 170X6FB/00 Diversity of 170X6FW/93 Compared with 170X6FB/00 Diversity of 190X6FB/93 Compared with 190X6FB/00 104 190X6&170X6 LCD Go to cover page All units that are returned for service or repair must pass the original manufactures safety tests. Safety testing requires both and testing. Hipot Ground Continuity HI-POT TEST INSTRUCTION 1.Application requirements 2. 1.1 All mains operated products must pass the Hi-Pot test as described in this instruction. 1.2 This test must be performed again after the covers have been refitted following the repair, inspection or modification of the product. 2.1 Connecting conditions 2.1.1 The test specified must be applied between the parallel- blade plug of the mainscord and all accessible metal parts of the product. 2.1.2 Before carrying out the test, reliable conductive connections must be ensured and thereafter be maintained throughout the test period. 2.1.3 The mains switch(es) must be in the "ON" position. 2.2 Test Requirements All products should be HiPot and Ground Continuity tested as follows: Test 2820VDC 1700VDC Test current: voltage (2000VAC) (1200VAC) 25A,AC Test time: Test time 3 seconds 1 second 3 seconds(min.) (min.) Resistance required: Trip set at 100 uA 5 mA <=0.09+Rohm, current for Max. R is the (Tester) limitation; set resistance of at 0.1 uA for the mains cord. Min. Limitation Ramp set at 2 time seconds (Tester) Test method Condition HiPot Test for HiPot Test for Ground Continuity products where products where Test requirement the mains input the mains input is range is Full 110V AC(USA range(or 220V type) AC) 2.2.1 The minimum test duration for Quality Control Inspector must be 1 minute. 2.2.2 The test voltage must be maintained within the specified voltage + 5%. 2.2.3 There must be no breakdown during the test. 2.2.4 The grounding blade or pin of mains plug must be conducted with accessible metal parts. 3. Equipments and Connection 3.1. Equipments For example : - ChenHwa 9032 PROGRAMMABLE AUTO SAFETY TESTER - ChenHwa 510B Digital Grounding Continuity Tester - ChenHwa 901 (AC Hi-pot test), 902 (AC, DC Hi-pot test) Withstanding Tester 3.2. Connection 4. Recording Hipot and Ground Continuity testing records have to be kept for a period of 10 years. * Turn on the power switch of monitor before Hipot and Ground Continuity testing. Connect the "video cable" or "grounding screw" to the CLIP on your tester. Video cable (Rear view of monitor) Connect the power cord to the monitor. Grounding screw Power outlet (ChenHwa 9032 tester) Clip Clip Safety Checks Fire and Shock H azard Implosion X-radiation After the original swevice problem has been corrected,a complete safety check should be made. Be sure to check over the entire set, not just the areas where you have worked. Some previous servicer may have left an unsafe condition,which could be unknowingly passed on to your customer. Be sure to check all of the following: 1. Be sure all components are positioned in such a way as to avoid the possibility of adjacent component shorts. This is especially important on those chassis which are transported to and feom the service shop. 2. Never release a repaired unit unless all protective devices such as insulators, barries, covers, strain reliefs, and other hardware have been installed in accordance with the original design. 3. Soldering and wiring must be inspected to locate possible cold solder joints,solder splashes,sharp solder points, frayed leads, pinched leads, or damaged insulation ( including the ac cord).Be certain to remove loose solder balls and all other loose foreign particles. 4. Check across-the-line components and other components for physical evidence of damage or deteriortion and replace if necessary. Follow original layout,lead length, and dress. 5. No lead or component should touch a receiving tube or a resistor rated at 1 watt or more. Lead tension around protruding metal surfaces or edges must be avoided. 6. Critical components having special safety characteristics are identified with ans bythe Ref. No. in the parts list and enclosed within a broken line * (where seceral criticalcomponents are grouped in one area) along with the safety symbols on the schematic diagrams and/or exploded views. 7. When servicing any unit, always use a seoparate isolation transformer for the chassis Failure to use a separate isolation transformer may exopose you to possible shock hazard, and may cause damage to servicing instruments. 8. Many electronic products use a polarized ac line cord (one wide pin on the plug.) Defeating this safety feature may create a potential hazard to the service and the user. Extension cords which do not incorporate the polarizing feature should never be used. 9. After reassembly of the unit, always perform an leakage test or resistance test from the line cord to all exposed metal parts of the cabinet. Also check all metal control shafts(with knobs removed), antenna terminals, handles, screws, etc. to be sure the unit may be safety operted without danger of electrical shock. * Broken line 1. All picture tubes used in current model receivers are equipped with an intergral implosion system. Care should always be used, and safety glassesworn,whenever handling any picture tube. Avoid scratching or other rwise damaging the picture tube during installation. 2. Use only replacement tubes specified by the manufacturer. 1. Be sure procedures and instructions to all your service personnel cover the subject of X-radiation. Potential sources of X-rays in TV receivers are the picture tube and the high voltage circuits. The basic precaution which must be exercised is to keep the high voltage at the factory recommended level. 2. To avoid possible exposure to X-radiation and electrical shock, only the manufacturer's specified anode connectors must be used. 3. It is essential that the service technician has an accurate HV meter available at all times. The calibration of this meter should be checked periodically against a reference standard. 4. When the HV circuitry isoperating properly there is no possibility of an x- radiation problem. High voltage should always be kept at the anufacture,s rated value-no higher - for optimum performance. Every time a color set is serviced, the brightness should be run up and down while monitoring the HV with a meter to be certain that the HV is requlated correctlv and does not exceed the specified value. We suggest that you and your technicians review test procedures so that HV requation are always checked as a standard servicing procedure, and the reason for this prudent routine is cleary understood by everyone. It is important to use an accurate and reliable HV meter. It is recommended that the HV recorded on each customer's invoice, which will demonstrate a proper concern for the customer's safety. 5. When troubleshooting and making test measurements in a receiver with : : WARNING OFF SERVICE NOTE Before removing the CRT anode cap, turn the unit and short the HIGH VOLTAGE to the CRT DAG ground. The CRT DAG is not at chassis ground. TELEVISION/MONITOR SAFETY GUIDELINES FOR THE PROFESSIONAL SERVICE TECHNICIAN 6. New picture tubes are specifically designed to withstand higher operathng voltages without creating undesirable X-radiation. It is strongly recommended that any shop test fixture which is to be used with the new higher voltage chassis be equipped with one of the new type tubes designed for this service.Addition of a permanently connected HV meter to the shop test fixture is advisable. The CRT types used in these new sets should never be replaced with any other types,as this may result in excessive X-radiation. 7. It is essential to use the specified picture tube to avoid a possible X-diation problem. 8. Most TV receivers contain some type of emergency "Hold Down" circuit to pervent HV from rising to excessive levels in the presence of a failure mode. These various circuits should be understood by all technicians servicing them, especially since many hold down circuits are inoperative as long as the receiver performs normally. 1. Unplug the ac line cord and connect a jumper between the two prongs of the plug. 2. Turn on the power switch. 3. Measure the resistance value between the jumpered ac plug and all exposed cabinet parts of the receiver, such as screw heads, antennas, and control shafts.When the exposed metallic part has a return path to the chassis, the reading should be between 1 megohm and 5.2 megohms. When the exposed metal does not have a return path to thr chassis, the reading must be infinity.Remove the jumper from the ac line cord. 1. Do not use an isolation transformer for this test. Plug the completely reassembled receiver directly into the ac outlet. 2. Connect a 1.5k, 10w resistor paralleled by a 0.15uf. capacitor between each exposed metallic cabinet part and a good earth ground such as a water pipe, as shown above. 3. Use an ac voltmeter with at least 5000 ohmsy volt sensitivity to measure the potential across the resistor. 4. The potential at any point should not exceed 0.75 volts. A leakage current tester may be used to make this test; leakage current must not exceed 0.5 milliamps. If a measutement is outside of the specified limits, there is a possibility of shock hazard. The receiver should be repaired and rechecked before retutning it to the customer. 5. Repeat the above procedure with the ac plug reversed.( Note: An ac adapter is necessary when a polarized plug is used. Do not defeat the polarizing feature of the plug.) The primary source of X-radiation in this television receiver is the picture tube.The picturetube utilized in this chassis is specially constructed to limit X-radiation emissions. For continued X-radiation protection, the replacement tube must be the same type as the original, including suffix letter,or a Philips approved tupe. Many electrical and mechanical parts in Philips television sets have special safety related charcteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. The use of a substitute part which does not have the same safety characteristics as the Philips recommended replacement part shown in this service manual may create shock, fire, or other hazards Leakage Current Cold Check Leakage Current Hot Check Picture Tube Replacement Parts Replacement 1500 ohm, 10W 0.15 uF WATER PIPE EARTH GROUND TO INSTRUMENTS EXPOSED METAL PARTS Go to cover page
