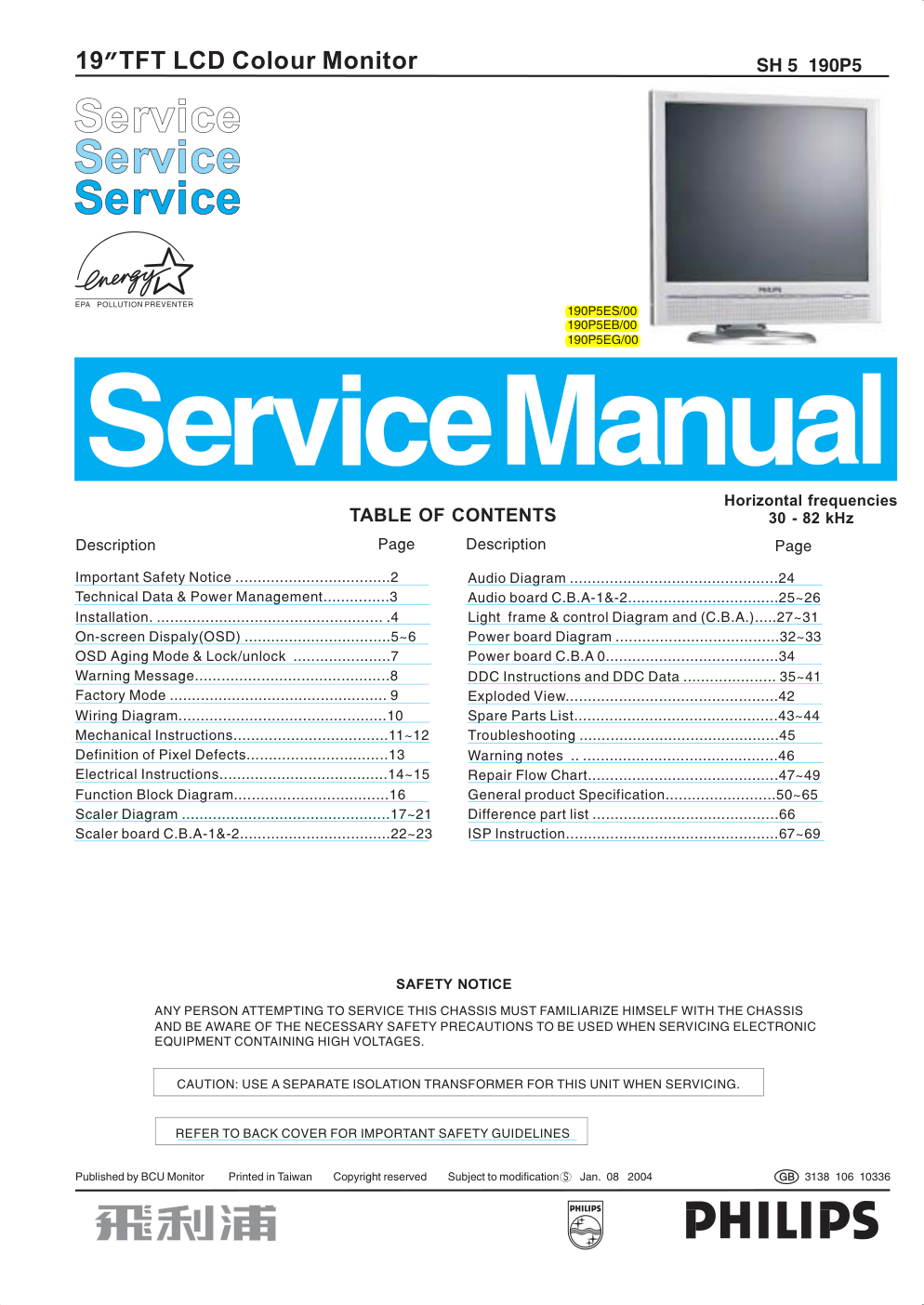

19 TFT LCD Colour Monitor ” Horizontal frequencies 30 - 82 kHz Service Service Service TABLE OF CONTENTS SAFETY NOTICE Published by BCU Monitor Printed in Taiwan Copyright reserved Subject to modification Jan. 08 2004 GB 3138 106 10336 SH 5 190P5 Important Safety Notice ...................................2 Technical Data & Power Management...............3 Installation. ................................................... .4 On-screen Dispaly(OSD) .................................5~6 OSD Aging Mode & Lock/unlock ......................7 Warning Message............................................8 Factory Mode ................................................. 9 Wiring Diagram...............................................10 Mechanical Instructions...................................11~12 Definition of Pixel Defects................................13 Electrical Instructions......................................14~15 Function Block Diagram...................................16 Scaler Diagram ...............................................17~21 Scaler board C.B.A-1&-2..................................22~23 Audio Diagram ...............................................24 Audio board C.B.A-1&-2..................................25~26 Light frame & control Diagram and (C.B.A.).....27~31 Power board Diagram .....................................32~33 Power board C.B.A 0.......................................34 DDC Instructions and DDC Data ..................... 35~41 Exploded View................................................42 Spare Parts List..............................................43~44 Troubleshooting .............................................45 Warning notes .. ............................................46 Repair Flow Chart...........................................47~49 General product Specification.........................50~65 Difference part list ..........................................66 ISP Instruction................................................67~69 Description Description Page Page REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING. ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES. S 190P5ES/00 190P5EB/00 190P5EG/00 Important Safety Notice 2 FOR PRODUCTS CONTAINING LASER : Invisible laser radiation when open. AVOID DIRECT EXPOSURE TO BEAM. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard. DANGER- CAUTION- CAUTION- TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF THIS SERVICE MANUAL. 190P5 Proper service and repair is important to the safe, reliable operation of all Philips Consumer Electronics Company** Equipment. The service procedures recommended by Philips and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended. It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Philips could not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Philips has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Philips must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected. * * Hereafter throughout this manual, Philips Consumer Electronics Company will be referred to as Philips. Critical components having special safety characteristics are identified with a by the Ref. No. in the parts list and enclosed within a broken line* (where several critical components are grouped in one area) along with the safety symbol on the schematics or exploded views. Use of substitute replacement parts which do not have the same specified safety characteristics may create shock, fire, or other hazards. Under no circumstances should the original design be modified or altered without written permission from Philips. Philips assumes no liability, express or implied, arising out of any unauthorized modification of design. Servicer assumes all liability. WARNING * Broken Line Take care during handling the LCD module with backlight unit - Must mount the module using mounting holes arranged in four corners. - Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. - Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. - Protect the module from the ESD as it may damage the electronic circuit (C-MOS). - Make certain that treatment person s body are grounded through wrist band. - Do not leave the module in high temperature and in areas of high humidity for a long time. - Avoid contact with water as it may a short circuit within the module. - If the surface of panel become dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.) ’ Go to cover page 190P5 3 Technical Specifications Technical Data LCD Type NR. : FLC48SXC8V-10-04A (Fujitsu) Number of Pixels. : 1280 (H) x 1024 (V) Physical Size. : 404.2(w)330(h)20(d) mm Pixel Pitch. : (0.098x3) x 0.294 mm Color pixel arrangement. : RGB vertical stripes Support Color. : 16,777,216 colors (RGB 8 bits data) Display Mode. : Normally Black Backlight. : CCFL edge light system Active area. (WXH). : 376.32 x 301.056mm (19 diagonal) Viewing Angle. : Vertical 85 degree(min), Horizontal 85 degree(min) (CR=10) Contrast ratio. : 700:1 (Typical), 400:1 (Minimum) Luminance. : 300 cd/m (Typical) Scanning frequencies H-Frequency. : 30K 82 K Hz V-Frequency. : 56 - 76 Hz Video dot rate. : < 140 MHz Power input. : 90-264 V AC, 50/60 2 Hz Power consumption. : < 50 W (typical) (with audio) Dimensions. : 399(W) * 398(H) * 197(D) mm Weight. : 4.7kg Functions: 1.D-Sub analog R/G/B separate inputs, H/V sync separated, Composite (H+V) TTL level, SOG sync 2.DVI-D digital Panel Link TMDS input Ambient temperature: 5 C - 35 C Audio Electrical Performance Input signal level: 500mVrms Input signal connector: 3.5 mm mini jack (lime green) Loudspeaker: 2W+2W stereo (Impedance: 16 Ohm+/- 15%) Frequency range: 300Hz - 13KHz Headphone connector: 3.5mm mini jack (black) Headphone connection will mute speakers Interface D-Sub Cable Length : 1.8 M +/- 50 mm Connector type : D-sub male with DDC-2B pin assignments. Blue connector thumb-operated jackscrews Pin Assignment: 2 Pin No. Description 1 T.M.D.S. data2- 2 T.M.D.S. data2+ 3 T.M.D.S. data2 shield 4 No Connect 5 No Connect 6 DDC clock 7 DDC data 8 No Connect 9 T.M.D.S. data1- 10 T.M.D.S. data1+ 11 T.M.D.S. data1 shield 12 No Connect 13 No Connect 14 +5V Power 15 Ground(for +5V)– Cable detect 16 Hot plug detect 17 T.M.D.S. data0- 18 T.M.D.S. data0+ 19 T.M.D.S. data0 shield 20 No Connect 21 No Connect 22 T.M.D.S clock shield 23 T.M.D.S. clock+ 24 T.M.D.S. clock- Power management The power consumption and the status indication of the set with power management function are as follows, Power On Pulse Pulse < 60 W Green Off No Pulse No Pulse < 1 W (Without audio) Amber According to VESA power saving signal. TCO'03 power saving requirement EPA energy star requirement (DC power Switch Off) Power consumption is less 1W (Without audio.) STATUS Horizontal Vertical Power Spec LED DVI Cable The input signals are applied to the display through DVI-D cable. Length : 1.8 M +/- 50 mm (fixed) Connector type : DVI-D male with DDC-2B pin assignments White connector thumb-operated jack screws Pin Assignment: Go to cover page 190P5 190P5 Go to cover page 4 Installation Front View Product Description Rear View Connecting your monitor UP and DOWN buttons are used when adjusting the OSD of your monitor. LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor. BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for theBRIGHTNESS will show up. VOLUME VOLUME hotkey. When the LEFT and RIGHT arrow buttons are pressed, the adjustment controls for VOLUME will show up. OK button which when pressed will take you to the OSD controls. POWER button switches your monitor on. Automatically adjust the horizontal position, vertical position, phase and clock setting. LightFrameTM hotkey for mode-switching between full-screen mode and multi-window mode. 1 Kensington anti-thief lock 2 VGA input 3 Earphone jack 4 DVI-D input 5 PC audio input 6 AC power input 1) Plug the cables into connectors. If you use an Apple Macintosh, you need to connect the special Mac adapter to one end of the monitor signal cable. 2) Connect to PC (a) Turn off your computer and unplug its power cable. (b) Connect the monitor signal cable to the video connector on the back of your computer. (c) Plug the power cord of your computer and your monitor into a nearby outlet. (d) Turn on your computer and monitor. If the monitor displays an image,installation is complete. 190P5 5 On Screen Display On-Screen Display This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the monitors directly through an on- screen instruction window. The user interface provides user-friendliness and ease-of-use when operating the monitor. Basic and simple instruction on the control keys. When you press the button on the front control of your monitor, the On-Screen Display (OSD) Main Controls window will pop up and you can then start making adjustments to your monitor's various features. Use the or the keys to make your adjustments. The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. Analog signal input: 190P5 Go to cover page 6 Digital signal input: On Screen Display 190P5 Go to cover page 7 OSD Lock/Unlock, Aging Mode ATTENTION OSD MAIN CONTROLS LOCKED ATTENTION OSD MAIN CONTROLS UNLOCKED To Lock/Unlock OSD function (User Mode) The OSD function can be locked by pressing "OK" button(1) for more than 10 seconds, the screen shows following windows for 3 seconds. Everytime when you press "AUTO" or "OK" button, this message appears on the screen automatically. Unlock OSD function: Locked OSD function can be released by pressing"OK" button for more than 10 seconds again. Step 1: Turn off LCD monitor, and disconnect Interface Cable between Monitor and PC. Fig. 2 Fig. 3 Bring up After 15 seconds, bring up : After 15 seconds, bring up : : After 15 seconds, bring up : ---------- ---------- repeatly Connect signal cable again => go back to normal display. Access Aging.. Mode Step 2 : [Push AUTO " " & OK " " buttons at the same time and hold it ] + [Press power " " button untill comes out "AGING screen" ] => then release all buttons. A G I N G ... A G I N G ... A G I N G ... A G I N G ... Front control panel Fig. 1 NO VIDEO INPUT This screen appears if there is no video signal input. Please check that the signal cable is properly connected to the video card of PC and make sure PC is on. ATTENTION NO VIDEO INPUT ATTENTION WAITING FOR AUTOMATIC ADJUSTMENT CANNOT DISPLAY THIS VIDEO MODE.. This screen warns when the input frequency from the computer is not a standard video mode or out of the monitor's scanning range. Please change the display mode of the operating software in the computer(i.e. Windows) to 1280x 1024@ 60Hz for best display results. WAIT FOR AUTOMATIC ADJUSTMENT This screen appears when you press the buttons at the same time . It will disappear when the monitor is properly adjusted. ”AUTO” ATTENTION CANNOT DISPLAY THIS VIDEO MODE, CHANGE COMPUTER DISPLAY INPUT TO 1280X1024@60HZ 190P5 Go to cover page 190P5 Go to cover page 8 Warning message table Warning message table Item Attention Signals Display Time Condition 9 Factory mode Access Factory Mode Step 2 : [Push AUTO " " & OK " " buttons at the same time and hold it ] + [Press power " " button untill comes out "Windows screen" ] => then release all buttons. How to Get into Factory Mode Menu Turn off monitor. Press OK " " button, bring up Factory mode indication as shown in Fig 2. Step 1 : Step 3 : Front control panel Fig. 2 Contrast adjustment (Sub-Contrast). Use this menu item to adjust the contrast gain of pre-amp ranges from 0 to 255. 9 3 0 0 K R G B 6 5 0 0 K R G B Color temperature gain adjustment. Use these menu items to adjust the RGB gains of pre-amp for different color temperatures, ranges from 0 to 255. OFFSET R G B Sub-Brightness adjustment. Use this menu item to adjust the brightness level (DC-level) of pre-amp range from 0 to 255.(R/G/B ANALOG DC -level). GAIN R G B R/G/B GAIN adjustment. Use this menu item to adjust the R/G/B (GAIN) of Amp. range from 0 to 255.(R/G/B ANALOG GAIN Values). (PS: The Offset R G B function can be used on reduce or eliminate snowy noise on the background when the resolution of video signal is 1280 X 1024 vertical 60Hz. Slightly increase or decrease the value until snowy noise completely disappear.) Hot key function: by pressing "UP" and "DOWN" key simultaneously at User mode (or Factory mode). - SUB CON: SUB CON: HUDSON 190P5 V016 2003-10-27 <------Factory mode indicator BL : Black Level value SUB-BRI : Brightness value range(Min , Max) SUB-CON : Contrast value range(Min , Mid , Max) SRGB-B : Brightness of sRGB SRGB-C : Contrast of sRGB Gain-m : Minimum value of User Gain Gain-M : Maximum value of User Gain AUTO-SUB: To do Auto color function when push Menu key in white pattern OSDTIMER : OSD time out control(sec) SCALER : Read/Write scaler register NVRAM : Read/Write EEPROM address Panel : Panel type display (FSC) Factory menu Cursor can move on gray color area Fig. 3 <---Mean : it is not 1280 x1024 resolution now. Fig. 1 190P5 Go to cover page 10 Wiring Diagram Power-Inverter AC-DC Scaler To Key pad AC inlet DVI-I D_Sub LVDS cable 330mm 150 mm 150 mm 125 mm 125 mm Embedded Audio Board 404.2mm 190P5 Go to cover page 11 Mechanical Instructions Front view Fig. 1 Fig. 2 Fig. 3 Step 1. Remove the base as shown in Fig .3 - Remover the four screws Fig. 4 Back view Fig.5 Step 2. Remove the Front Bezel - Remove the two screws as shown in Fig. 4 - Use the thin "I" type screw driver to open the clicks as shown in Fig.5~6. Fig.6 Fig.7 Fig.8 =====> =====> Botton view Right and Left view =====> =====> =====> Step 3.Remove the Use the thin "I" type screw driver to open the clicks as shown in Fig. 9. Back cover - Remove the one screw as shown in Fig, 7. - Remove the Control board as shown in Fig. 7~8. - Control board Fig.9 =====> =====> =====> Right and Left view 190P5 Go to cover page 12 Mechanical Instructions Step 5. Remove the scaler and power board . - Disconnect the 1411,1502 ,1503,1504 and 4 backlight cables as shown in Fig12 . - Remove the scaler and power board as shown in Fig13. - Remove the 9 screws as shown in Fig. 12. *************************************************************************** In warranty, it is not allowed to disassembly the LCD panel, even the backlight unit defect. Out of warranty, the replacment of backlight unit is a correct way when the defect is cused by backlight (CCFL,Lamp). *************************************************************************** Step 4.Remove the Scaler and Power board - Remove the 10 screws as shown in Fig. 10 . - Disconnect DVI and D-SUB hexagonal screws as shown in Fig. 10. - Remove the matel frame board as shown in Fig. 11. Fig.10 Fig.11 190P5 Go to cover page ======> ======> ======> ======> 4 Hexagonal screws Fig. 12 1503 to control 1504 to video 1502 to power 1411 to panel ======> ======> 4 backlight cables Fig. 13 Scaler Power Panel 1156 823827714551 TFT-LCD MOD FLC48XWC8V-10(FDT0 ==========> 13 Definition of Pixel Defects Philips' Flat Panel MonitorsPixel Defect Policy Philips strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practise stringent quality control. However, pixel or sub pixel defects on the TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT LCD panel must exceed these acceptable levels. For example, no more than 0.0004% of the sub pixels on a 15" XGA monitor may be defective. Furthermore, Philips sets even higher quality standards for certain types or combinations of pixel defects that are more noticeable than others. This policy is valid worldwide. Pixels and Sub pixels A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. Many pixels together form an image. When all sub pixels of a pixel are lit, the three colored subpixels together appear as a single white pixel. When all are dark, the three colored sub pixels together appear as a single black pixel. Other combinations of lit and dark sub pixels appear as single pixels of other colors. Types of Pixel Defects Pixel and sub pixel defects appear on the screen in different ways. There are two categories of pixel defects and several types of sub pixel defects within each category. Bright Dot Defects appear as pixels or sub pixels that are always lit or 'on'. These are the types of bright dot defects: -One lit red, green or blue sub pixel Two adjacent lit sub pixels: - Red + Blue = Purple - Red + Green = Yellow - Green + Blue = Cyan (Light Blue) -Three adjacent lit sub pixels (one white pixel) Black Dot Defects Appear as pixels or sub pixels that are always dark or 'off'. These are the types of black dot defects: One dark sub pixel Two or three adjacent dark sub pixels Proximity of Pixel Defects Pixel Defect Tolerances Because pixel and sub pixels defects of the same type that are near to one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables. Note: 1 or 2 adjacent sub pixel defects = 1 dot defect All Philips monitors are ISO13406-2 Compliant BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL 190P5 1 lit subpixel 4 or fewer 2 adjacent lit subpixels 2 or fewer 3 adjacent lit subpixels (one white pixel) 0 Distance between two bright dot defects* 15 mm or more Total bright dot defects of all types 4 or fewer BLACK DOT DEFECTS ACCEPTABLE LEVEL MODEL 190P5 1 dark subpixel 6 or fewer 2 adjacent dark subpixels 2 or fewer 3 adjacent dark subpixels 0 Distance between two black dot defects* 15 mm or more Total black dot defects of all types 6 or fewer TOTAL DOT DEFECTS ACCEPTABLE LEVEL MODEL 190P5 Total bright or black dot defects of all types 6 or fewer 190P5 Go to cover page 14 Electrical Instructions 1. 2. General points Input signal 1.1 During the test and measuring, supply a distortion free AC mains voltage to the apparatus via an isolated transformer with low internal resistance. 1.2 All measurements mentioned hereafter are carried out at a normal mains voltage (90 - 132 VAC for USA version, 195 - 264 VAC for EUROPEAN version, or 90 - 264 VAC for the model with full range power supply, unless otherwise stated.) 1.3 All voltages are to be measured or applied with respect to ground, unless otherwise stated. Note: don't use heat-sink as ground. 1.4 The test has to be done on a complete set including LCD panel after 30 minutes warm-up at least in a room with temperature of 25 +/- 5 degree C. 1.5 All values mentioned in these test instruction are only applicable of a well aligned apparatus, with correct signal. 1.6 The letters symbols (B) and (S) placed behind the test instruction denotes (B): carried out 100% inspection at assembly line (S): carried out test by sampling 1.7 The white balance (color temperature) has to be tested in subdued lighted room. 1.8 Repetitive power on / off cycle are allowed except it should be avoided within 6 sec. 2.1 Signal type 2.1.1 Video signal input Signal source: pattern generator format as attachment.(Table 1 to 34) Reference generator: QuantumData 802G The input signals can be applied via VESA analog: The video input consists of red, green, and blue signals. The video signals are analog levels, where 0V corresponds to black and 700mV is the maximum signal amplitude. Input impedance of video pins is 75 ohm +/- 1%. 2.1.2 Sync signal input The capability of sync signal inputs shall include separate sync, composite sync and sync on green. input impedance: 2k2 ohms The signals are defined as follow: Separate sync TTL level, Positive/Negative Composite sync TTL level, Positive/Negative Sync on green H-sync TTL level, Positive/Negative Signal source: pattern generator format as attachment Reference generator: QuantumData 802G 2.2 Input signal mode Pre-set 34 modes PRESET VIDEO RESOLUTION # Resolution H- Frequency Pixel rate V- Frequency Comment 1 640X350 31.5K 25.175 70Hz IBM VGA 10h 2 720X400 31.5K 28.322 70Hz IBM VGA 3h 3 640X480 31.5K 25.175 60Hz 4 640X480 35.0K 30.24 67Hz 5 640X480 37.9K 31.5 72Hz 6 640X480 37.5K 31.501 75Hz 7 640X480 43.3K 36 85Hz 8 800X600 35.2K 36 56Hz 9 800X600 37.9K 40 60Hz 10 800X600 48.1K 50 72Hz 11 800X600 46.9K 49.498 75Hz 12 800X600 53.7K 56.251 85Hz 13 832X624 49.7K/ 57.28 75Hz MAC 14 960X720 44.76K 57.58 60Hz 15 960X720 56.4K 72.42 75Hz 16 1024X768 48.4K 65 60Hz 17 1024X768 56.5K 75 70Hz 18 1024X768 60.0K 78.75 75Hz 19 1024X768 61.1K 83.096 76Hz IBM XGA-2 20 1024X768 68.7K 94.5 85Hz 21 1152X864 54.0K 79.9 60Hz Non-VESA 22 1152X864 63.9K 94.5 70Hz Non-VESA 23 1152X864 67.5K 108 75Hz 24 1152X870 68.7K 100 75Hz MAC 25 1152X900 61.8K 92.94 66Hz SUN Mode IV 26 1152X900 71.8K 108 76Hz SUN Mode II 27 1280X960 60.0K 108 60Hz 28 1280X960 75.0K 129.895 75Hz Non-VESA 29 1280X1024 64.0K 108 60Hz 30 1280X1024 71.7K 117 67Hz SUN Mode V 31 1280X1024 76.0K 130.223 72Hz DOS/V 32 1280X1024 80.0K 135 75Hz 33 1280X1024 81.1K 135.008 76Hz SUN Mode I 190P5 Go to cover page 15 Electrical Instructions 2.3 Allowed 85 Hz overscan signal mode specified Once the signal input of PC is 85Hz, this monitor is able to display at least for 10 minutes. An attention signal appears and shows This is 85Hz overscan for 5 seconds, change computer display input to 1280 x1024 @ 60 Hz . 4.1 Access to factory mode. 4.2 Auto color adjustment (B) Apply a 48.36kHz/60Hz signal with 'Black& white' pattern, set brightness control at 100%, and contrast control at 50%. Adjust the R. G. B offset, and gain to calibrate the color smoothly and 64-gray level distinguishable. Check all pre-setting 34 modes. 4.3 Adjustment of WHITE-D (B) Apply a 1024*768 / 60Hz signal with white pattern, set brightness control at 100%, and contrast control at 50%. Adjust the R, G, B Sub-Gain, for the screen central, the 1931 CIE chromaticity (X, Y) co-ordinates shall be; Use Minolta CA-110 for color coordinates and luminance check. Luminance is > 200 Nits in the center of the screen when brightness at 100% and Contrast set to 100% with original color. 4.4 EEPROM presetting (B) After finishing all the adjustment, set: Brightness control to 100% Contrast control to 50% Audio 50% Audio, stand-alone, default = off OSD position at middle of screen 'COLOR ADJUST' to 6500K color. 4.5 When adjustment is finished, monitor should be set to 6500K. 4. Display Adjustment 3. POWER SUPPLY Setup the AC I/P at 90VAC, add 2.4A loading to C2124 and DC O/P voltage is 12V +/- 1.2V; 1A loading to C2004 and DC O/P voltage is 3.3V +/- 0.165V.Or,1.5A loading to C2136 and DC O/P voltage is 5V +/- 0.25(S) Dot rate (MHz) H. Freq (KHz) Mode Resolution V. Freq (Hz) 36.000 43.269 VESA 640 * 480 85.008 5 56.250 53.674 VESA 800 * 600 85.061 94.500 68.677 VESA 1024 * 768 84.997 9300�K 6500�K sRGB x (center) 0.283 � 0.020 0.313 � 0.020 0.313 � 0.020 y (center) 0.297 � 0.020 0.329 � 0.020 0.329 � 0.020 190P5 Go to cover page 16 190P5 Function Block Diagram Scalar Board DSUB DSUB DVI-D DVI-D LVDS Connector LVDS Connector Pacific 1SB Pacific 1SB Flash Rom Flash Rom GM5120 TMDS ADC TTL RGB MCU GPIO GM5120 GM5120 TMDS TMDS ADC ADC TTL RGB TTL RGB MCU MCU GPIO GPIO D C C O N T R O L Audio 12V 5V 3.3V 190P5 Go to cover page 17 Schematic diagram(Scaler) C 6222 D4 6223 B4 7202 C4 7203 A4 7211 D8 I108 A1 I109 A3 gedeeltelijk, is niet toegestaan dan met schriftelijke 319801631290 10 1 B 6 3213 212211805669 10K 3218 5201 B2 5202 E4 6201 A3 6202 C5 6203 D5 6204 D6 6205 D7 A 933215370215 6211 933215370215 6210 933215370215 EXCEPT 1201,1203 WERE CHIP COMPONENTS. 319802190030 0R05 3219 232270461002 1K 3220 319802190030 0R05 3230 212211805669 10K I110 B3 I144 A4 6218 B8 6219 B9 6220 C3 6221 D4 3227 F3 3228 F3 3229 F4 3230 D3 3231 E4 3232 D5 3233 E5 3234 E5 3235 E5 933215370215 6219 933215370215 6218 933215370215 6217 is prohibited without the written consent of the copyright J E 3 12p 2230 319801631290 12p 3201 232270260103 10K 3237 F5 3238 F5 3239 B4 3240 B4 3218 D7 3219 A5 3220 E7 3221 C2 3222 C2 3223 E2 3224 E2 3225 E2 3226 E2 6209 933215370215 6208 933215370215 6207 933215370215 6206 D8 6207 D8 6208 D9 6209 D9 6210 B5 6211 B6 6212 B7 6213 B8 6214 B9 6215 C5 6216 B6 6217 B7 6203 933215370215 6204 933215370215 2225 D5 2226 E5 2227 E5 2228 E5 2229 F5 2230 F5 2231 E9 2232 E9 2233 C3 SCALER PCB 11 D 933215370215 6216 933215370215 6212 933215370215 6213 933215370215 6214 933215370215 6215 3236 E5 3214 A4 3215 C3 3216 D2 3217 E2 B C D E F A B C D 4 7 6206 933215370215 6205 E 8 2 13 G 8 I 2217 D2 2218 F2 2219 F3 2221 F4 6 7 8 9 1 2 3 4 5 NI NI 3201 C5 3202 A3 3203 A3 3204 A1 3205 E4 3206 A3 3207 B3 3208 A2 3209 A1 3210 A1 3211 E8 3212 E8 3213 B4 7 8 9 A 223878615649 100n 2208 223878615649 100n 2226 319801631290 12p 1 5 B 4 933137390215 BZX84-C5V1 6202 NI 12 F 13 All rights reserved. Reproduction in whole or in parts 1 2212 A3 2213 D8 2216 D2 2 3 4 5 2202 C6 2203 C7 2205 A6 2206 A7 2207 A8 2208 A9 2209 A3 2210 B2 2211 B3 toestemming van de auteursrechthebbende. 2228 D Ref Des 10 6 3 12 F NI NI 11 6 2206 223878615649 100n 2207 I256 F3 I257 E4 I258 F4 I259 D5 I260 E5 I261 F5 I262 D4 I266 E7 I267 E8 C 7 C G 2 5 H J owner. 9 Alle rechten voorbehouden. Verveelvuldiging, geheel of F 1201 A2 1203 D4 2201 C6 9 I NI A H E I145 A4 I146 A5 I147 C5 I251 C4 Reserved 2201 223878615649 100n 2202 223878615649 100n 2203 223878615649 100n 2205 223878615649 100n I252 D3 I253 D3 I254 D3 I255 F3 SB: 59371 x4 PB: 59381 NI 10K 3203 10K 21 22 23 24 3 4 5 6 7 8 9 3202 25 26 1 10 11 12 13 14 15 16 17 18 19 2 20 6211 1201 6214 6213 7202 E0 1 E1 2 E2 3 SCL 6 SDA 5 VCC 8 VSS 4 7 WC_ +12VCC M24C02 2212 10K 3213 3206 100R 330p 6202 BZX84-C5V1 I261 I262 I260 I259 10K 6206 100R 2233 100n 3215 6209 3232 +3.3V 10n 2227 +3.3V 10n 2229 3214 100R 3204 3228 2K2 10K 3208 10R 3223 100R 3233 75R 75R 3235 220p 2219 6212 6219 100R 3236 6208 6215 +3.3V WC_ 7 6218 7203 E0 1 E1 2 E2 3 6 SCL 5 SDA VCC 8 4 VSS 100R 3207 100R 3205 0R05 100n 2210 3218 100n 2206 100R 3234 10K 3222 6220 BAT42W 33p 2218 2208 100n 100n 2207 3224 6216 100n 2205 100R 3212 2201 100n 3211 100R 100R 5 9 11 13 2 4 6 8 10 12 74LVC14APW-T 7211 7 GND 14 VCC 1 3 10K 3238 3210 10K 6201 +3.3V +3.3V 3231 10R 6203 6217 330p 2232 3201 10K 6207 5202 100MHZ 6205 100R 3216 100R 3226 I253 I254 I252 2230 12p I251 2202 100n 3229 47K 12 13 14 15 2 3 4 5 6 7 8 9 1203 1216-004-15S-AAC 16 17 1 10 11 I110 I144 I109 2213 100n I108 2216 330p 3230 10K 6210 3237 75R 100R 330p 2217 12p 2226 3217 I267 I256 I266 6221 I257 100n 2203 BAS32L +3.3V 100R 3239 3240 100R 100n 2221 3209 47K 2209 100n 3225 100R I147 I258 I145 I146 330p 2211 CHN SETNAME SH5 ( HUDSON-190P5 ) 5 1 ******** 2003-11-28 KONINKLIJKE PHILIPS ELECTRONICS N.V. 2000 -------- TYT12- Alger Huang 2003-11-28 3 130 10 *** A3 DSUB/DVI 190P5ES/00 3138 158 5759 CHECK MGr DATE NAME 1 SUPERS. CLASS_NO 10n 2225 100MHZ 0R05 3220 5201 3227 2K2 I255 12p 2228 3221 10K 6222 6223 2231 33p 6204 3219 1K RXC- RXC+ RX2+ RX0+ RX0- RX1+ RX2- DSUB_CABLE DDC DVISDA DVISCL DDCSCL ASCL ASDA VSIN HSIN HS VS VS HS DVI_CABLE RX1- DDCSDA_D DDCSCL_D GIN BIN G RIN R ISPSDA ISPSCL DDCSDA VIN HIN DDCSCL DDCSDA B R G RXC+ RX0+ RX1+ RX2+ RXC- RX0- RX1- RX2- DDCSCL_D DDCSDA_D HIN VIN VSIN HSIN B 190P5 Go to cover page 18 190P5 Schematic Diagram (Scaler) C 3374 E2 3375 B9 3376 B9 5310 A2 5311 C8 4 5 6 7 8 9 A 3370 B6 3 4 5 1 2 G 10 J I 12 EXCEPT 1305,7311 WERE CHIP COMPONENTS. 11 F SCALER PCB 10 9 1 E 3 2 Ref Des Reserved 3362 232270260103 10K 3363 3373 C6 D E 1305 C9 2320 B2 2321 B5 7310 C3 7311 C7 NI (1311) (1310) I H 4 E D 9 B A 5 232270260103 10K 3372 C6 C 6 7 All rights reserved. Reproduction in whole or in parts 3 4 12 D 13 2 gedeeltelijk, is niet toegestaan dan met schriftelijke 7 8 9 A B C D 3364 232270260103 10K C 3367 E4 3368 B5 3369 C5 1 3371 B6 3360 D2 3361 D2 owner. 8 C B 11 J I207 A3 I208 C9 G H toestemming van de auteursrechthebbende. 1 RS232 PORT 3369 232270260103 10K is prohibited without the written consent of the copyright E B 2 A 6 7 Alle rechten voorbehouden. Verveelvuldiging, geheel of NI NI NI 13 8 3362 B3 3363 B4 3364 B4 3365 E3 3366 E4 100R 3373 SB: 59371 x4 PB: 59381 3 F 5 6 10K 3374 3372 100R 10K 3364 3367 10K +3.3V +3.3V +3.3V 47K 3375 +3.3V +3.3V +3.3V 100MHZ 5310 10K 10K 3369 3368 4K7 3361 +3.3V 10K 3366 1 2 3 4 100n 2320 NC1 30 OE 24 VCC 32 VSS 16 WE 31 +3.3V JFE63173 1305 5 A7 27 A8 26 A9 CE 22 13 DQ0 14 DQ1 15 DQ2 17 DQ3 18 DQ4 19 DQ5 20 DQ6 21 DQ7 NC0 1 7310 12 A0 11 A1 23 A10 25 A11 4 A12 28 A13 A14 29 3 A15 A16 2 10 A2 9 A3 8 A4 7 A5 6 A6 3371 10K M29W010B-90K1 3363 10K 1 SUPERS. CLASS_NO CHN SETNAME SH5 ( HUDSON-190P5 ) 5 2 ******** 2003-11-28 KONINKLIJKE PHILIPS ELECTRONICS N.V. 2000 -------- TYT12- Alger Huang 2003-11-28 3 130 10 *** A3 ROM 190P5ES/00 3138 158 5759 CHECK MGr DATE NAME +3.3V 2321 100n 3365 10K 10K 3360 10K 3362 M24C16-WBN6 7311 E0 1 E1 2 E2 3 SCL 6 SDA 5 VCC 8 VSS 4 WC 7 I208 I207 5311 100MHZ 4K7 3370 ADDR5 ADDR4 ADDR3 ADDR2 ADDR1 ADDR0 ADDR14 24C16_WP RXD TXD 3376 47K M29W_WE ROM_OE DATA7 DATA6 DATA5 DATA4 DATA3 DATA2 DATA1 DATA0 IICSCL IICSDA BANK ADDR15 ADDR13 ADDR12 ADDR11 ADDR10 ADDR9 ADDR8 ADDR7 ADDR6 190P5 Go to cover page 19 Schematic diagram(Scaler) R R R R R R R R ADJ R R R R R R R R C / GPIO14 / GPIO15 / TCON_TDIV / ROM_WEn NVRAM_SDA / NVRAM_SCL / ADJ R R R R R R R R EXCEPT 4301 WERE CHIP COMPONENTS. I049 D9 I050 D10 I051 E10 I052 E10 I053 E10 I060 F7 I061 F7 I062 F7 I063 F7 I064 F7 I065 F7 I066 F7 I067 F7 I068 G7 gedeeltelijk, is niet toegestaan dan met schriftelijke 6 3 4 I I069 G7 I070 A8 7304 A2 I001 C7 I002 D7 I003 D7 I004 D7 I005 D7 I006 D7 I071 A8 I072 A7 I073 A8 I047 D11 I048 D11 I012 D7 I013 D7 I014 D7 I015 E7 I016 E7 I017 E7 I018 E7 I019 E7 I020 E7 Treat R/G/B as differential pair 4 12 A I074 E3 I075 E3 I076 E3 I077 E3 I078 E3 I079 E3 I080 F3 3304 D2 3305 B1 3306 C2 3307 E2 3308 C2 3309 C2 3310 C2 I054 F10 I055 F10 I056 E7 I057 F7 I059 F7 3325 B10 3327 C9 3328 A9 3329 B9 4301 H5 5303 E10 5304 D10 5305 E10 5306 F10 2 H 9 2355 F2 2359 E2 2360 B2 2361 D2 2362 E2 2363 E2 2364 E2 I007 D7 I008 D7 I009 D7 I010 D7 I011 D7 2370 G8 2371 G8 2372 G8 2373 G8 2374 G8 2375 G8 2376 G8 2377 G9 2378 G9 12 H J 7 I041 C9 I042 C9 I043 D9 I044 D9 I045 C11 I046 C11 J All rights reserved. Reproduction in whole or in parts 1 2 3 4 3311 E8 3312 E8 3313 B7 3322 A10 3324 C10 10 11 12 1 2 3 4 5 6 13 7 7301 D5 7302 F9 7303 E9 2 H 1302 A2 2301 A2 2302 A2 2303 E10 2365 F11 2366 F11 2367 F11 2368 F11 2369 G7 2309 C2 2310 F9 2311 B2 2312 B2 2314 B8 2316 A1 2317 A2 2353 F8 2354 F8 toestemming van de auteursrechthebbende. owner. 5 11 is prohibited without the written consent of the copyright D I092 G3 I093 G3 I094 G3 I095 G3 I096 G3 I097 G3 I098 G3 5 6 7 8 9 I104 E3 I105 E3 I106 E3 I107 C3 I111 C3 I112 F7 I113 C3 I114 C3 I115 B3 NI 10 I 5 6 F 2390 G10 3303 E2 3302 A8 3301 F10 2398 G11 2397 G11 2396 G11 2304 E10 2305 E10 2306 F10 2307 C2 2308 C2 2381 G11 2382 G11 2383 G11 2384 G11 2385 G12 2386 G12 2387 G9 2388 G9 2389 G10 R A B C C C 10 E G G 1 1 11 8 B I099 D3 I100 D3 I101 E3 I102 E3 I103 E3 11 12 A B C D E F 4301 313815131961 I030 A11 I031 A11 I032 A11 I033 B9 I034 B9 I035 B9 I036 B9 D E F I026 A9 F A 9 2379 G9 2380 G9 Alle rechten voorbehouden. Verveelvuldiging, geheel of I021 E7 I022 E7 I023 E7 I024 E7 I025 A9 1p 3301 212211805972 0R 2391 G10 2392 G10 2393 G10 2394 G10 2395 G10 H G G I084 F3 I116 B3 I117 B3 I118 B3 I119 C3 I120 B3 I121 B3 7 8 9 10 I127 A3 I128 B1 I130 C3 I083 F3 I082 F3 I081 F3 Ref Des Reserved 2314 202055294503 I085 F3 I086 F3 I087 F3 I088 F3 I089 F3 I090 F3 I091 F3 I029 A11 I028 A9 I027 A9 B D 3 13 SCALER PCB E I040 B11 Heatsink 8 I010 SB: 59371 x4 PB: 59381 I037 B11 I038 B11 I039 B11 I122 B3 I123 B3 I124 A3 I125 B3 I126 A3 6 7 8 100n 2370 3322 47R 1 2 3 4 5 I096 I047 I048 I063 I046 2314 I062 I055 I084 1p 7 8 I111 47R 3324 1 2 3 4 5 6 I059 I061 2M 3306 100n 2389 I094 I098 10K 3307 2355 1n I002 100n 2376 I001 I027 I029 I045 +3.3_A 4301 R 1 2 0R 100n 2398 +2.5_D 100R 3308 3301 100n 2386 2354 1n I075 I072 I033 I034 I099 I032 I086 2303 3309 100R 10K +3.3V 47u 3329 1 2 3 4 5 6 7 8 3311 47R 1 2 3 4 5 6 7 8 47R I005 3325 I071 I028 7303 AME8815AEGT250 2 GND 4 MT1 1 Vi 3 Vo 100n 2385 22n 2317 I037 5306 100MHZ I065 I127 I128 I064 I126 I124 I125 3302 51R 1n 2361 199 VDD_RXPLL_2.5 139 VDD_SDDS 143 VSS_DDDS 147 VSS_RPLL 138 VSS_SDDS VSYNC 136 151 XTAL 100n 2383 152 TCLK 124 TCON_EINV 123 TCON_EPOL 122 TCON_ESP 121 TCON_OINV 120 TCON_OPOL 119 TCON_OSP TCON_RCLK 127 128 TCON_ROE 125 TCON_RSP2 126 TCON_RSP3 144 VDD_DDDS 148 VDD_RPLL 188 VDD_RX0_2.5 VDD_RX1_2.5 182 VDD_RX2_2.5 176 RVSS2 54 RVSS3 68 RVSS4 82 RVSS5 98 RVSS6 112 RVSS7 130 RVSS8 RX0+ 191 192 RX0- 185 RX1+ 186 RX1- 179 RX2+ 180 RX2- 194 RXC+ 195 RXC- 157 SGND_ADC ROM_DATA5 30 ROM_DATA6 29 ROM_DATA7 28 36 ROM_OEn 2 RVDD0 20 RVDD1 RVDD2 37 53 RVDD3 67 RVDD4 81 RVDD5 97 RVDD6 111 RVDD7 129 RVDD8 3 RVSS0 21 RVSS1 38 10 ROM_ADDR13 9 ROM_ADDR14 8 ROM_ADDR15 23 ROM_ADDR2 22 ROM_ADDR3 19 ROM_ADDR4 ROM_ADDR5 18 17 ROM_ADDR6 16 ROM_ADDR7 15 ROM_ADDR8 14 ROM_ADDR9 ROM_DATA0 35 ROM_DATA1 34 ROM_DATA2 33 ROM_DATA3 32 ROM_DATA4 31 PD6_ER6 61 PD7_ER7 62 PD8_EG0 63 PD9_EG1 64 113 PPWR 171 RED+ 170 RED- RESERVED0 131 RESERVED1 132 5 RESETn 174 REXT 25 ROM_ADDR0 24 ROM_ADDR1 13 ROM_ADDR10 12 ROM_ADDR11 11 ROM_ADDR12 PD36_OG4 99 PD37_OG5 100 PD38_OG6 101 PD39_OG7 102 PD3_ER3 58 PD40_OB0 103 PD41_OB1 104 105 PD42_OB2 PD43_OB3 106 PD44_OB4 107 PD45_OB5 108 PD46_OB6 109 PD47_OB7 110 PD4_ER4 59 PD5_ER5 60 PD21_EB5 78 PD22_EB6 79 PD23_EB7 80 PD24_OR0 83 PD25_OR1 84 PD26_OR2 85 PD27_OR3 86 87 PD28_OR4 PD29_OR5 90 PD2_ER2 57 PD30_OR6 91 PD31_OR7 92 PD32_OD0 93 PD33_OG1 94 PD34_OG2 95 PD35_OG3 96 NC0 142 NC1 200 114 PBIAS PD0_ER0 55 PD10_EG2 65 PD11_EG3 66 PD12_EG4 69 70 PD13_EG5 PD14_EG6 71 PD15_EG7 72 PD16_EB0 73 PD17_EB1 74 PD18_EB2 75 PD19_EB3 76 PD1_ER1 56 PD20_EB4 77 207 GPIO19 GPIO1_PWM1 41 206 GPIO20 4 GPIO21_IRQn 204 GPIO22_HCLK GPIO2_PWM2 42 GPIO3_TIMER1 43 GPIO4_UART_D1 44 GPIO5_UART_D0 45 GPIO6_TCON_SHC 46 47 GPIO7 GPIO8_IRQINn 39 48 GPIO9_TCON_ROE2 167 GREEN+ 166 GREEN- HSYNC 137 DHS_TCON_LP 117 DVS_TCON_FSYNC 156 GND1_ADC GND2_ADC 154 189 GND_RX0 183 GND_RX1 177 GND_RX2 GPIO0_PWM0 40 49 GPIO10_TCON_ROE3 GPIO11 50 51 GPIO12 GPIO13 52 205 GPIO16_HFS 1 GPIO17 208 GPIO18 163 162 BLUE- CLKOUT 201 26 CVDD_2.5_0 88 CVDD_2.5_1 134 CVDD_2.5_2 203 CVDD_2.5_3 27 CVSS0 89 CVSS1 133 CVSS2 135 CVSS3 CVSS4 202 118 DCLK_TCON_OCLK 6 DDC_SCL 7 DDC_SDA DEN_TCON_ECLK 115 116 153 160 AVDD_ADC 164 AVDD_BLUE 146 AVDD_DDDS 168 AVDD_GREEN 173 AVDD_IMB 172 AVDD_RED 150 AVDD_RPLL 193 AVDD_RX0 187 AVDD_RX1 181 AVDD_RX2 196 AVDD_RXC 141 AVDD_SDDS 145 AVSS_DDDS 149 AVSS_RPLL 140 AVSS_SDDS BLUE+ gm5125-BD 159 ADC_TEST 158 AGND_ADC 161 AGND_BLUE 165 AGND_GREEN 175 AGND_IMB 169 AGND_RED 190 AGND_RX0 184 AGND_RX1 178 AGND_RX2 197 AGND_RXC 198 AGND_RXPLL AVDD1_ADC_2.5 155 AVDD2_ADC_2.5 7301 47u 2305 I093 I115 I091 I092 -------- TYT12- Alger Huang 2003-11-28 3 3304 1K A3 SCALER 190P5ES/00 3138 158 5759 CHECK MGr DATE NAME 1 SUPERS. CLASS_NO CHN SETNAME SH5 ( HUDSON-190P5 ) 5 3 ******** 2003-11-28 KONINKLIJKE PHILIPS ELECTRONICS N.V. 2000 5304 100MHZ 130 10 *** I105 I106 I104 2316 I103 2311 1n 100n 2377 100n AME8815AEGT250 7302 GND 2 MT1 4 Vi 1 Vo 3 I081 10K 3313 I083 I082 I069 I087 I068 I020 I067 I024 I025 I023 I021 I022 10n 2307 I044 2373 100n I042 I043 +2.5_D I041 I074 3310 100R 3303 10K 1n 2362 3328 47R 1 2 3 4 5 6 7 8 I130 I039 2371 100n I038 100n 2372 I051 100n 2378 I066 I077 I076 +3.3_A 10K 3312 2394 100n 2380 100n 2392 100n +2.5_A 2374 100n 100n 2382 I102 2359 I097 1n 2353 1n I018 I019 I016 I017 +3.3_A I011 I060 2387 I090 100n 2368 100n SA56616-28 7304 5 CD 3 GND 4 NC OUT 1 2VDD 2393 100n 3327 47R 1 2 3 4 5 6 7 8 I107 +3.3_D I008 I009 I119 I120 I040 I122 I123 I073 I121 I101 +2.5_A I100 I030 I031 I054 I013 I095 I012 10n 2309 +3.3_D 100n 2367 I070 I079 I007 I050 I114 100n 2379 100n 2384 100n 2310 I003 100n 2366 2364 1n I006 1n 2363 1n 2312 100n 2397 100n 2395 +2.5_D 4p7 2302 47u 2304 1302 I004 2390 100n 14M31818HZ I014 I026 100n I113 2301 4p7 2381 I035 I112 U8 I085 +3.3_A I036 I056 I117 I118 3305 10R I116 2396 100n 100MHZ 5303 +3.3_A +3.3_A 100MHZ 5305 I053 2369 100n I052 +3.3V I078 100n 2375 10n 2308 I015 I049 1n 2360 100n 2391 100n 2365 47u 2306 I057 I080 100n 2388 I088 I089 K_LEFT K_DOWN K_OK K_LF VOLUME DE SHUTDOWN PANEL_PWR_CTL CLKH GPO2_MW_LED GIN DVS_FSYNC OB0 OB1 OB2 OB3 OB5 OB4 OR5 OR4 OG4 OG5 OR6 OR7 OB6 OB7 OG6 OG7 OG0 OG1 OG2 OG3 OR3 OR2 OR1 OR0 DHS_LP K_RIGHT K_UP B2 B3 R5 B0 B1 B1 B0 G1 G0 R1 R0 R6 R7 B6 B7 G6 G7 DVI_CABLE LF_RSTN LF_PWR K_AUTO K_PWR IICSCL IICSDA +3.3_A +2.5_A +2.5_D G7 G6 G5 G4 G3 G2 R7 R6 R5 R4 R3 R2 B6 B3 B4 B5 B2 B7 DSUB_CABLE DVISCL DDC +3.3_D RX0+ RXC- RXC+ VS HS BIN RIN RXD R4 R0 R1 R2 R3 G5 G4 G0 G1 G2 G3 B5 B4 TXD ADDR4 ADDR5 ADDR6 ADDR7 ADDR8 ADDR9 ADDR10 ADDR11 ADDR12 ADDR13 ADDR14 ADDR15 M29W_WE MINTN RX2- RX2+ RX1- RX1+ RX0- 24C16_WP GPO0_BL_CTL LED_O LED_B ISPSDA ISPSCL DVISDA BANK ROM_OE DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 ADDR0 ADDR1 ADDR2 ADDR3 190P5 Go to cover page 20 190P5 Schematic diagram(Scaler) FPD_ON2/ FPD_ON1/ FPD_ON0/ FPD_OP3/ FPD_OP2/ FPD_OP1/ FPD_OP0/ FPD_EN3/ FPD_EN2/ FPD_EN1/ FPD_EN0/ FPD_EP3/ FPD_EP2/ FPD_EP1/ FPD_EP0/ FPD_CLKON/ FPD_CLKOP/ FPD_CLKEN/ FPD_CLKEP/ FPD_ON3/ ADJ ADJ C B B NI 12V CRC&R near 7443 NI PIIN7 4 15" 17" PIIN3 1412 2 5 owner. gedeeltelijk, is niet toegestaan dan met schriftelijke 3445 F5 J H 8 9 10 12 1 2 3 4 5 3469 E4 3470 G10 3471 E4 3472 B11 AI 3455 3480 G3 NI 3479 G3 3478 F5 3477 F12 3476 F11 IIC PORT NI 6 7 8 9 10 11 12 2475 A10 2476 G10 2480 F10 A 2483 B3 3441 D5 3442 D5 3443 D5 3444 D5 9 2459 A4 2460 A4 2461 A4 2462 A4 2463 B3 2464 B3 2465 B4 2466 B4 2467 B4 1 1% SCALER PCB 8 J E 1 2 3 4 5 6 7 2N7002LT1 3460 E4 3461 E4 11 3463 A9 3464 A10 3465 B9 3466 B10 3467 F9 3468 F9 is prohibited without the written consent of the copyright NI NI C D E F G H A B 3473 B11 3474 G8 3475 G8 2468 C3 2469 C3 2472 D5 2474 A10 1410 G2 1411 F12 2482 B1 Vcom 3K3 2455 E3 2456 A3 2457 A3 2458 A4 2453 D3 2452 D3 2451 D3 2447 D3 2441 C3 2442 C3 2443 C3 2444 C3 2445 C3 4 2454 C3 232270260103 10K 3473 7447 932215686685 2N7002LT1 7448 932215686685 10K 3485 319802133320 3462 E4 3486 319802133320 NI NI 12 I181 E11 I182 E11 I184 E11 I185 E11 I186 E11 I188 E11 I211 F9 I212 F9 12V 3458 232273061103 10K 3459 232273061103 10K C D E F G H U1 B12 232270260103 10K 3471 1 10K 3472 2446 C3 2448 D3 2449 D3 2450 D3 3491 F5 3492 F2 3493 F3 5441 C2 5442 C3 5443 D3 5444 E3 5445 A3 5446 B3 EXCEPT 1410 WERE CHIP COMPONENTS. 11 H NI 7 232270260103 10K 3474 232270260103 10K 3477 232270260103 E Alle rechten voorbehouden. Verveelvuldiging, geheel of I 3K3 232273061103 10K I175 D11 I176 D11 I178 D11 I180 E11 10 toestemming van de auteursrechthebbende. D I152 A9 I153 A9 NI 15" NI NI 3462 232273061103 10K 3469 232273061103 10K 3470 D 10K 232273061103 232273061103 10K 3481 F9 3482 F11 3485 E2 3486 E3 I139 F4 I140 F4 I141 B3 I142 F4 I143 F3 I148 F5 I149 F5 I150 G3 I151 G3 7 6 10 C 2V5 F 11 3 C NI 3457 3455 232273061103 3450 D5 3451 D5 3452 D5 3453 D5 3454 D5 3455 D5 3456 E4 3457 E4 3458 E4 B NI F 5 2 NI I G 10K 3453 232273061103 3456 3454 232273061103 I135 D2 I136 C3 I137 D3 I138 E3 I155 B12 I158 B12 I159 D11 I160 C11 I161 C11 I162 C11 I163 C11 I166 C11 I167 C11 NI 1V5 9 I170 C11 NI 6 1% 17" 3V3 12 232273061103 10K 3450 10K 10K 3451 3446 F3 3447 F2 3448 D5 3449 D5 6442 G3 6443 H3 7441 C2 7442 A2 7443 D7 7447 F2 7448 F3 I131 A4 I132 B4 TO PANEL All rights reserved. Reproduction in whole or in parts G 1% A A 13 3459 E4 232273061103 10K 3452 232273061103 3 10K SB: 59371 x4 PB: 59381 Ref Des Reserved 2472 319801631090 10p 3446 319802131010 100R 3447 8 I174 D11 I171 D11 I154 B11 I134 C3 I133 B4 5447 B3 13 319802131010 100R 3448 232273061103 10K 3449 232273061103 I170 I171 I150 I151 I149 3456 10K 10u 2463 U1 VCCA I141 I139 2452 10u 100n 3460 10K 100n 2469 2455 I181 I182 I178 I180 I159 +3.3V I174 I175 +3.3VLF I143 10K 3481 VSS8 88 VSS9 VSSC0 11 VSSC1 19 VSSC2 34 125 VSSC3 144 VSSC4 164 VSSC5 WRN 174 3451 10K VDD_2V5 139 VSI VSS0 6 VSS1 13 89 VSS10 113 VSS11 VSS12 124 166 VSS13 176 VSS14 VSS2 22 VSS3 28 33 VSS4 VSS5 40 VSS6 45 VSS7 53 67 79 VCC_DS1_2V5 101 VCC_DS2_2V5 112 VCC_DS3_2V5 12 VDDC0_1V5 20 VDDC1_1V5 VDDC2_1V5 35 VDDC3_1V5 126 VDDC4_1V5 145 165 VDDC5_1V5 5 VDDS_PAD0_3V3 21 VDDS_PAD1_3V3 VDDS_PAD2_3V3 36 44 VDDS_PAD3_3V3 52 VDDS_PAD4_3V3 154 VDDS_PAD5_3V3 127 R4 167 R5 163 R6 162 R7 161 RSTN 137 SCL 172 SDA 173 46 ST_VERT T1 136 130 VCCA_PLL_2V5 VCCC_DS0_1V5 55 VCCC_DS1_1V5 72 102 VCCC_DS2_1V5 114 VCCC_DS3_1V5 128 VCCD_PLL_1V5 VCC_DS0_2V5 66 132 GPIO_00 GPIO_01 133 140 HSI 50 LD_PULSE MINTN 175 138 PCLKI POLARITY 49 PSEN 41 PWM0 135 PWM1 134 PWM2 42 171 R0 R1 170 R2 169 R3 168 51 F-SP G0 160 G1 159 G2 158 G3 157 G4 156 G5 155 G6 153 G7 152 GNDA_PLL 131 GNDD_PLL 129 GND_DS0 54 71 GND_DS1 103 GND_DS2 115 GND_DS3 GOE 43 68 F-RSGN0 73 F-RSGN1 75 F-RSGN2 77 F-RSGN3 69 F-RSGP0 74 F-RSGP1 76 F-RSGP2 78 F-RSGP3 56 F-RSRN0 58 F-RSRN1 60 F-RSRN2 64 F-RSRN3 57 F-RSRP0 F-RSRP1 59 61 F-RSRP2 65 F-RSRP3 32 D3 31 D4 30 D5 29 D6 27 D7 DEI_INV 141 80 F-RSBN0 82 F-RSBN1 84 F-RSBN2 86 F-RSBN3 81 F-RSBP0 83 F-RSBP1 85 F-RSBP2 87 F-RSBP3 62 F-RSCLKN 63 F-RSCLKP 100 B-RSRP3 B-SP 48 B0 151 B1 150 B2 149 B3 148 B4 147 B5 146 B6 143 B7 142 70 BIAS_1 BIAS_2 92 47 CLK_VERT 39 D0 D1 38 37 D2 98 B-RSCLKP B-RSGN0 104 B-RSGN1 106 B-RSGN2 108 B-RSGN3 110 105 B-RSGP0 B-RSGP1 107 B-RSGP2 109 B-RSGP3 111 90 B-RSRN0 B-RSRN1 93 B-RSRN2 95 B-RSRN3 99 B-RSRP0 91 94 B-RSRP1 96 B-RSRP2 23 A3 18 A4 17 A5 16 A6 15 A7 14 A8 10 A9 B-RSBN0 116 B-RSBN1 118 B-RSBN2 120 B-RSBN3 122 B-RSBP0 117 B-RSBP1 119 B-RSBP2 121 B-RSBP3 123 B-RSCLKN 97 26 A0 25 A1 9 A10 8 A11 7 A12 4 A13 3 A14 2 A15 1 A16 24 A2 10K 3462 7443 PACIFIC1Sb VDD I211 VCCC 2443 100n 2466 100n 3492 100R 3464 390R 3446 100R VDDC 100n 10K 3482 I148 2462 2454 100n 2475 220R 3479 100n BAV99 6442 100MHZ 5442 2459 100n 3449 10K 10u 2447 10K 3448 VCC 10K 3450 I152 3K3 3486 47R 3444 1 2 3 4 2458 100n I160 1410 JFE63173 5441 100MHZ I154 I186 I155 2465 100n I176 I137 5443 100MHZ VDDC I136 2441 10u +3.3VLF 100n 100n 2461 100n 2444 2445 I166 I167 100MHZ 5444 I158 390R 3463 VDDS U10 10u 2483 3485 3K3 100R 3445 100MHZ 5446 +3.3V 100n 2446 2482 10u I188 3465 1K62 6443 BAV99 3469 10K 100R 3493 7448 2N7002 LT1 100n 2464 I134 I184 3475 10K VCCD I163 VCCD I162 I161 10K 3454 3443 47R 3458 10K +3.3VLF 100n 2457 +3.3VLF I132 10K 3474 3441 47R 100n 2467 I135 2 GND 4 1 Vi 3 Vo 100n 2451 2476 100n AME8815AEGT250 7441 100n 2480 2468 10u VDD 3491 100R +3.3VLF 100n 2449 47R 3442 +3.3VLF 5447 100MHZ 3467 0R I142 I138 I140 +3.3VLF 3480 220R 3476 0R 5445 100MHZ 2448 100n 10K 3459 10K 3468 I153 VDDC I133 +3.3V 2474 100n +3.3V 10K 3472 I185 3478 10K 100n 2442 2472 10p U9 VDDS 100n 2453 2450 100n 3473 10K 1K62 3466 10K 3452 3453 10K 10K 3471 VCCA 3470 10K 3447 100R 2N7002 LT1 7447 I131 VCCC 3455 10K 10K 3457 3477 10K 2456 10u VDDC 100n 2460 VCC 3461 10K I212 25 26 27 28 29 3 30 4 5 6 7 8 9 31 32 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 ******** 2003-11-28 KONINKLIJKE PHILIPS ELECTRONICS N.V. 2000 -------- TYT12- Alger Huang 2003-11-28 3 1411 1 A3 LIGHT FRAME 190P5ES/00 3138 158 5759 CHECK MGr DATE NAME 1 SUPERS. CLASS_NO CHN SETNAME SH5 (HUDSON-190P5 ) 5 4 F_RSR_P2 DE 7442 AME8815AEGT150 GND 2 4 Vi 1 Vo 3 130 10 *** F_RSR_N3 MINTN LADDR15 LADDR13 LADDR11 LADDR10 LADDR9 LADDR8 LADDR16 CLKH S_RSR_N0 S_RSR_P0 S_RSR_N1 S_RSR_P1 S_RSCLK_N S_RSCLK_P S_RSR_N3 S_RSR_P3 F_RSR_N0 F_RSR_P0 F_RSR_N1 F_RSR_P1 F_RSCLK_N F_RSCLK_P F_RSR_N3 F_RSR_P3 S_RSR_P2 S_RSR_N2 F_RSR_N2 F_RSR_N2 F_RSR_P1 F_RSR_N1 F_RSR_N0 S_RSCLK_N PANEL_PWR LF_RSTN S_RSR_N2 S_RSR_N1 S_RSR_N0 S_RSCLK_P S_RSR_P3 S_RSR_N3 F_RSR_P0 F_RSCLK_N F_RSCLK_P PANEL_IDX BRIGHTNESS F_RSR_P3 OB0 OB1 OB2 OB3 OB4 OB5 OG0 OG1 OG2 OG3 OG4 OG5 OR0 OR1 OR2 OR3 OR4 OR5 IICSDA IICSCL IICSDA S_RSR_P0 S_RSR_P1 S_RSR_P2 F_RSR_P2 LADDR12 LADDR14 LADDR3 LADDR4 LADDR5 LADDR6 LADDR7 LADDR1 LADDR2 LADDR0 DVS_FSYNC DHS_LP IICSCL OB6 OB7 OG6 OG7 OR6 OR7 190P5 Go to cover page 21 Schematic diagram(Scaler) C EXCEPT 1502, 1503, 2540, 2542 WERE CHIP COMPONENTS. I228 B1 I229 C1 is prohibited without the written consent of the copyright 12 Alle rechten voorbehouden. Verveelvuldiging, geheel of 11 C 1 G 9 I231 F3 I232 F3 I233 F4 I234 F4 I239 C5 I242 B5 I244 B5 I245 C7 I250 B2 IXXX B7 F008 E1 F009 E1 F010 E1 F011 E1 F012 E1 F013 E1 FXXX F7 I216 A1 I217 A1 gedeeltelijk, is niet toegestaan dan met schriftelijke 4 3 13 owner. 10 B I218 A1 I219 A1 I221 A1 I222 B1 I223 B1 I224 B1 I225 B1 I226 B1 I227 B1 5505 B2 5506 B2 5507 C2 5508 D3 5509 A7 5510 A7 5511 E8 5512 F8 7501 E4 D 223858615623 2528 1n 4 2516 223858615623 H TO POWER BOARD 7502 F4 7503 C7 7504 C8 7505 B7 7506 B8 7513 C5 7514 B6 F001 D1 F002 C3 F003 C3 F004 D1 F005 D1 F006 D1 F007 D1 3521 D4 3522 D4 3523 D4 3526 D8 3527 F4 3528 F4 3532 B6 3533 B7 3537 A9 11 D I 8 Ref Des Reserved All rights reserved. Reproduction in whole or in parts 2 TO CONTROL BOARD 1712 6 I 6 3539 B5 3540 B5 3541 C5 5501 A2 5502 A2 5503 A2 2546 C2 3501 D3 3502 D3 3503 D3 3504 D3 3505 E3 3506 E3 3507 E3 3508 F2 J 3 E C G W =140mil toestemming van de auteursrechthebbende. 3509 F2 3510 A1 3511 C7 3516 D3 3517 D4 3518 D4 3519 D4 3520 D4 2523 E2 2525 E2 2527 E3 2528 F3 2529 F2 2530 F3 2531 F2 2534 D3 2536 D3 E F 2 SCALER PCB A J 2538 B1 2539 B2 2540 B2 2541 B1 2542 B2 2544 C1 2545 C2 4 5 6 7 8 9 1 2 3 5 5 12 B 8 2502 A2 2503 A2 2505 B7 2507 C7 2509 E8 2511 B9 2512 B9 2513 E8 2515 E2 2516 C4 2517 E2 2519 E2 2520 F8 2521 E2 2522 F8 U3 A8 U4 A9 U5 E7 U6 E7 U7 E7 1502 A1 1503 C1 1504 E7 2501 A2 100MHZ 313816874261 5510 BLM21 242254944195 5503 10 9 7 1 F 7 1n 2530 223858615623 1n 1 2 3 F003 SB: 59371 x4 PB: 59381 H A 13 4 5 6 7 8 9 A B C D E F A B C D E F U2 B2 1n 2516 3519 10K 1n 1n 2525 F013 2515 3 D3 6 D4 7 D5 D6 8 4 G 5 S I231 7504 SI5441DC 1 D1 2 D2 2542 470u I239 0R 3526 I245 +3.3V MUN2211J 7513 I244 U7 F006 +5V F005 U2 100MHZ 5508 3533 1 2 U4 1 100n 2538 10K F010 1 F001 U3 2517 1n 2519 FXXX 1n F008 3532 10K 1 2 5506 220n 2511 1 2 I250 100MHZ I229 I218 I228 BC857C 7501 I227 2536 1n I232 100n 2503 100MHZ 5512 3539 10K 10K 2522 47p 3517 7505 MUN2211J 3541 820R 3520 +3.3V 10K 2546 100n 2544 2545 100n 47u 5507 100MHZ +3.3V U5 +12VCC I217 I234 I216 7506 SI4835DY 8 D1 7 D2 6 D3 5 D4 4 G S1 1 S2 2 S3 3 10 11 12 13 2 3 4 5 6 7 8 9 1502 63393 1 I233 CHECK 3138 158 5759 190P5ES/00 POWER A3 130 2539 100n 3 2003-11-28 Alger Huang TYT12- -------- KONINKLIJKE PHILIPS ELECTRONICS N.V. 2000 2003-11-28 5 5 SH5 (HUDSON-190P5 ) SETNAME CHN CLASS_NO SUPERS. 1 NAME DATE 100n 2502 3502 100R 2501 100n 10K 2505 10u 1 2 470n 2520 3528 3508 220R 3518 2541 100n 10K 1 2 +12VCC +3.3V F011 5510 100MHZ 1 2 100MHZ 5509 10K 3516 3540 47K 100R 3501 100R 3507 I222 I226 10K 3522 2530 1n 3510 0R 100MHZ U6 2 1 +12VCC 5505 +5V 2512 47u 1 2 +3.3V 100R 3505 IXXX 3537 0R 5503 F002 BLM21 5502 BLM21 5501 BLM21 47u 2509 100n 2513 220R 3509 7503 MUN2211J F012 1n 2523 2527 1n F009 3523 10K +3.3VLF 3506 100R I219 2531 1n I221 3521 10K 5511 100MHZ +3.3V 470u 2540 1n 2521 3503 2534 1n 2528 1n F004 100R 10n 2507 I225 I223 I224 I242 3511 10K 10K 3527 7502 BC857C 7514 BC857C F007 2529 1n 3504 100R 3 4 5 6 7 8 9 6 JFE6339V 1503 1 10 11 12 13 14 2 +12VCC 1504 JFE6338V 1 2 3 4 5 K_LF PANEL_PWR PANEL_PWR_CTL VOLUME SHUTDOWN LED_O K_AUTO K_OK K_DOWN K_PWR K_UP LF_PWR BRIGHTNESS GPO0_BL_CTL PANEL_IDX LED_B K_RIGHT K_LEFT GPO2_MW_LED 190P5 Go to cover page 24 Schematic diagram(Audio) C E I901 A4 I902 A4 I903 C6 I904 C6 I905 C6 I906 C6 I907 C6 I908 D6 I909 D6 I910 D6 I911 D6 I912 D6 I913 E6 I914 E6 I916 B5 13 5 AUDIO BOARD I919 B7 I921 C8 I922 C8 I923 C8 I924 D8 I925 D8 I926 D8 1 6901 A3 6934 D9 7901 B6 8941 G11 F905 D3 F907 D3 F909 D3 F911 A11 F912 B11 F913 B11 F914 B11 F917 C11 F918 D11 F919 D11 F920 D11 I927 E8 I929 C9 I930 E9 J C SPEAKER 9 F935 F11 F936 F11 F941 G11 3925 E9 3926 D9 3927 D8 3928 D8 3929 C9 3930 E9 3934 D9 4901 F6 5903 B4 5905 D3 5909 C3 5915 D3 5929 C9 5930 E9 5931 F10 I917 C4 I918 D4 gedeeltelijk, is niet toegestaan dan met schriftelijke I 13 TO SCALER BOARD 1504 is prohibited without the written consent of the copyright PB : 59311 J 4 owner. H 8 9 10 11 12 A B C D E F G H F931 F11 F932 F11 9 6 8 G D F933 F11 F934 F11 3922 B8 3923 C9 3924 D9 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 5933 F10 5941 G10 7 G 11 6 SB : 59301 x 8 8 I NI A NI C D E F G H 1905 E2 1911 A11 1921 D11 1931 E11 2901 A3 2902 A4 A B 7 B 2 F TO PHONE JACK BD 3910 B5 3914 D4 3915 E4 3921 B8 12 1 2 2911 D5 2912 D4 2914 D4 2915 E4 2916 E5 2917 E5 2918 C9 2922 C8 2924 D8 2925 D8 2926 D8 2927 E8 2929 F7 Ref Des NI 6 7 toestemming van de auteursrechthebbende. 10 4 5 F E 2 AUDIO AMP 12 From PC Audio H STANDS FOR CHIP COMPONENTS. 10 All rights reserved. Reproduction in whole or in parts 3 1 3909 D4 3905 B5 3906 B5 3907 C4 3908 C4 2930 E9 3903 A4 3904 B4 2903 A5 2905 C5 2906 C4 2908 C4 2909 D4 2910 C5 C 11 D 3 Alle rechten voorbehouden. Verveelvuldiging, geheel of 3924 430K EXCEPT 1905,1911,1921,1931,2901,2902,2918,2930,4901,5903,6901,8941 WERE CHIP COMPONENTS. 3903 212211805972 0R 3904 212211805972 0R A B 3910 0R05 5K1 3909 3907 0R 5 7 8 5K1 3908 2SJ-0560-001 1905 1 2 3 4 0R 3904 I912 3915 5K1 NAME 1 SUPERS. CLASS_NO CHN SETNAME SH5 ( HUDSON-190P5 ) 1 1 ******** 2003-11-27 KONINKLIJKE PHILIPS ELECTRONICS N.V. 2000 -------- TYT12- Kurtz Ko/Stella Fann 2003-11-28 3 I919 130 10 *** A3 AUDIO AMP 190P5ES/00 3138 158 5753 CHECK MGr DATE I902 I905 2924 100n I922 2925 1u 3921 100K I917 I925 I926 I918 F941 2927 470n BLM21 100K 3922 F912 3928 18K 5931 3929 1K 3927 82K F932 F934 AUD_12V F931 F913 8941 46080 1 2909 F918 100p 1 2 3 4 5 6 1931 JFE6336H I913 I909 3923 10K I903 2906 470n F920 F917 1 5930 5903 16m 6 4 3 I906 I924 I923 AUD_12VC 1u 2903 5905 F909 F907 BLM21 3914 5K1 3903 0R I916 BZX84-B9V1 6934 1911 JFE6338V 1 2 3 4 F911 2926 47n 5941 BLM21 I921 1000u 2901 F933 R 4901 5915 BLM21 2918 330u I901 I907 BLM21 5933 F935 I911 I930 AUD_12VC SB140AL-5301 6901 33K 3905 2915 100p 2905 1u 1K 3930 620K 3925 F905 330u 2930 2200u 2922 100n 470R 3934 2902 F914 3906 68K I929 I904 3926 180K 24 SHUTDOWN 8 VCC 23 VOLUME F936 11 LIN2- 16 LOUT+ 14 LOUT- 13 NC 2 PVCC0 17 PVCC1 5 RIN1+ 4 RIN1- 7 RIN2+ 6 RIN2- 27 ROUT+ 1 ROUT- SEDIFF 22 3 SEMAX 26 SE_BTL TPA6030A4PWPR 7901 21 5VREF 18 BYPASS 20 CLK 15 GND0 19 GND1 28 GND2 IN2_IN1 25 LIN1+ 10 9 LIN1- 12 LIN2+ 470n 2908 F919 2929 1u 470n 2912 I914 AUD_12VC 2 3 4 5 7 8 2914 470n 2910 470n 1921 2SJ-05602N22 1 AUD_12V 5909 BLM21 470n 2916 470n 2911 I908 I927 2917 470n I910 HP_SENSE VOLUME VOLUME SHUTDOWN HP_SENSE SHUTDOWN 5929 190P5 Go to cover page 27 Schematic diagram(Control) C 5 6 D J 1 PB: 58851 LF-MW-LED K-LF H G F706 C1 F707 C1 A TO Key-Control Bd 1915 B C D E F 1701 B3 1702 C3 1703 C3 1704 D3 I 2 3 6 TO SCALER BOARD 1503 H B C D E 1 C 2 gedeeltelijk, is niet toegestaan dan met schriftelijke 1 2 3 1 2 3 A B C 4 3 D E F E LF-FS-LED 4 F705 C1 G 1705 D3 1706 E3 1711 B3 1712 B1 1713 F3 6711 A3 F701 B1 F702 B1 F703 B1 F704 B1 toestemming van de auteursrechthebbende. Alle rechten voorbehouden. Verveelvuldiging, geheel of SB: 58841 x10 I F708 C1 F709 C1 F710 C1 F711 C1 F712 D1 F713 D1 F714 D1 F715 F3 All rights reserved. Reproduction in whole or in parts is prohibited without the written consent of the copyright owner. A B 10 11 12 13 14 2 3 4 5 6 7 8 9 F A Control Board 5 J F SKHHAJ2410 1706 1 2 3 4 63374 1712 1 1 2 3 4 1 2 3 4 1705 SKHHAJ2410 SKHHAJ2410 1 2 3 4 1704 SKHHAJ2410 SKHHAJ2410 1701 1 2 3 4 1703 F707 F703 F706 1711 SKHHAJ2410 1 2 3 4 NAME 1 SUPERS. CLASS_NO CHN SETNAME SH5 ( HUDSON-190P5 ) 1 1 2003-11-24 KONINKLIJKE PHILIPS ELECTRONICS N.V. 2000 -------- TYT12- ALGER HUANG / STELLA FANN 2003-11-28 3 F713 130 A4 CONTROL BOARD 190P5ES/00 3138 158 5710 CHECK DATE F711 F712 4 1 2 3 4 JFE6336H 1713 1 2 3 K 1 Y SKHHAJ2410 1702 F705 6711 L-3WSYKPBW B 3 2 F704 F701 F702 F709 F710 F714 F715 LED_B K_AUTO LED_Y K_PWR K_RIGHT K_LEFT K_UP K_DOWN K_OK F708 C 3 4 5 A B Key-Control Board B C 6916 C2 All rights reserved. Reproduction in whole or in parts is prohibited without the written consent of the copyright owner. I H TO CONTROL BD 1713 F E 1 toestemming van de auteursrechthebbende. gedeeltelijk, is niet toegestaan dan met schriftelijke Alle rechten voorbehouden. Verveelvuldiging, geheel of A 6 J 6 1 2 3 4 5 SB : 59531 x 36 PB : 59541 A B C D E A B C 8915 B1 F915 B1 F916 C1 F917 C1 F918 C1 D C D E 1916 C3 J I H G F E D G 2 3 1 2 3 2 1 F918 F917 F915 F916 SKHHAJ2410 1916 6916 L-934MBD 46168 8915 1 2 3 4 CLASS_NO SUPERS. 1 NAME DATE CHECK 3138 158 5766 190P5ES/00 Key-Control Board A4 130 K-LF LF-MW-LED 3 2003-11-28 Alger Huang/Stella Fann TYT12- -------- KONINKLIJKE PHILIPS ELECTRONICS N.V. 2000 2003-11-25 1 1 SH5 ( HUDSON-190P5 ) SETNAME CHN 190P5 Go to cover page 1 2 3 4 5 6 7 8 A B C D 8 7 6 5 4 3 2 1 D C B A AMBIT SHEET File Name Title Doc.No. PREPARED BY REVIEWED BY APPROVED BY REV. DESCRIPTION REL. DATE 1 3 2 6114 D/STPR1020CT 3148 R/100/1206 2113 2/102K/1KV 1 2 5000 5/22uH 1 2 + 2117 C/470uF/25V 1 2 + 2124 2/470uF/25V 1 2 + 2004 2/1000uF/6.3V 3125 R/2.4K/1206 3126 R/2.4K/1206 +12VO +3.3V GND 1 2 6104 D/4148 1 2 6102 D/1N4937 1 2 3 1105 C/CN/20147 3107 R/100KF/1206 1 2 3115 R/51K(1/8W) 1 2 3111 R/47/(1/4W) 1 2 2105 C/102P/1KV 1 2 1101 1/NTC/SCK083 1 2 2103 C/100uF/450V 1 2 3114 R/47/(1/4W) 1 2 6101 D/1N4937 1 2 2110 C/102J/NPO 1 2 2101 C/1000p/250V/Y1 1 2 3118 R/0.82/1206 (L) (N) 3 4 7101B P/SFH615AGR 3 4 2 1 5101 L/UU16 1 2 2100 C/1000p/250V/Y1 1 2 2102 C/0.33uF/275V/X2 DRV 5 HV 8 ADJ 1 FB 2 NC 7 GND 4 VCC 6 CS 3 7100 U/NCP1203/SO-8 1 2 6103 D/RLZ16B 1 2 2111 C/100P/NOP 1 2 + 2107 C/22uF/35V 1 2 3119 R/10K 1 2 6105 D/GZ15-2 1 2 6106 D/GZ15-2 3 4 2 1 5100 * 1 2 3109 R/47/1206 1 2 2108 C/104K/X7R 1 3 2 7103 Q/2SK2843 1 2 3116 R/2K/1206 1 2 3102 R/1M/1206 1 2 3103 R/1M/1206 1 2 3104 R/1M/1206 1 2 2104 C/NC 2109 C/102P/1KV L N L_1 L_2 L_3 L_4 N_2 N_3 N_4 N05 N06 N07 N08 N09 N10 N11 N12 N13 N14 N15 N17 N20 N21 N22 N23 3100 R/1.5M/1206 3101 R/1.5M/1206 3117 R/0.82/1206 2112 C/1000p/250V/Y1 3110 R/1206 2146 2/CAP_1 3 4 7102B P/SFH615AGR 2125 2/CAP_1 2005 2/CAP_1 N28 N40 2 1 3 4 6100 B/GBP208 3105 R/100KF/1206 3106 R/100KF/1206 3108 R/100KF/1206 3 5 10 2 1 8 7 6 5102 5/TRANS12 3112 R/0/1206 3113 R/4.7K/1206 N44 BS 1 IN 2 SW 3 GND 4 FB 5 COMP 6 EN 7 7000 7/MP1410 3000 R/560K/(1/8W) 2003 C/103K/X7R 1 2 2002 C/200p 3002 R/16.9K/0603 3003 R/10K/0603 2000 C/103P/X7R 1 2 6000 D/B240 3158 R/(1/8W) 2119 C/104P/X7R N45 N46 N47 N49 N50 N04 1 2 3 4 1100 F/2A/250V N03 Schematic Drawing(1) P046V6-1 1 of 2 0 NEW RELEASE 6/19/2003 T50P046.00 1 2 9101 JUMP 1 2 9102 JUMP 1 2 9103 JUMP L_4 L_4 PGND 1 2 1103 1/HS-35*12/25.5 1 2 1104 1/HS60X7X20 1 2 9106 JUMP 1 2 9107 JUMP 1 2 9108 ICT 1 2 9109 JUMP 1 2 9110 JUMP N52 N52 +5V +5V N22 N22 GND GND GND PGND 1 2 9111 JUMP GND GND LABEL LABEL L/LABEL 1 2 6108 D/SB260 1 2 3 4 5 6 7 8 9 10 11 12 13 1102 1/CN/61249 +3.3V +12VO BL_CTL BRIGHTNESS PANEL_ID +5V 1 2 + 2114 1000U/25V N52 GND GND 1 2 3 7107 7/TL431 3141 R/NC/(1/8W) 2131 2/CAP_1 2132 C/104P/X7R 3140 R/1.2K 3139 R/3.9K 3137 R/2.7K 3136 R/10K/(1/8W) 3 1 2 7109 7/MCR100-6 3147 R/10K/0805 2134 C/103/0805 +5V 1 2 7101A P/SFH615AGR +12V 1 2 7102A P/SFH615AGR 1 2 6112 6/DIODE ZENER 3145 R/3.3K 3144 R/1K/(1/8W) 1 2 6113 6/DIODE ZENER 3 2 1 8 4 7106A 7/LM393 3127 R/120K/0805 3128 R/100K/0805 3129 R/100K/0805 3131 R/10K/0805 +12V 3133 R/12K/(1/8W) 3151 R/10K 3135 R/0/0805 3132 R/10K/(1/8W) 3146 R/2K 3130 R/10K/(1/8W) N16 N19 N24 N26 N27 N29 N30 N31 N32 N33 N34 N35 N36 N37 N42 N41 1 2 9112 JUMP GND GND +5V +5V 3152 R/100/1206 2135 2/102K/1KV 1 2 5104 5/4.5mH 3153 R/ 1 2 + 2136 2/470uF/25V 3149 R/2.4K/1206 3150 R/2.4K/1206 2137 2/CAP_1 +5V B B 3134 R/10K N53 1 2 3154 R/0.82/1206 1 2 3155 R/0.82/1206 3156 R/100/1206 1 2 9104 JUMP 1 2 9105 JUMP 1 2 6115 D/1N4007 1 2 2142 C/22uF/50V VBZ 1 2 5108 L/BEAD 2 1 3 1106 CN/SHD-2014 +12V 1 2 9124 JUMP 1 2 9115 JUMP 1 2 9113 JUMP GND GND GND GND +12V +12V 1 2 5105 L/BEAD 2141 C/1000p/250V/Y1 2116 C/1000p/250V/Y1 1 2 5106 L/BEAD 1 2 5107 L/BEAD N55 N56 N57 3004 R/16.9K/0603 3005 R/10K/0603 1 2 1002 CP 1 2 1001 CP N58 N59 1 2 2143 C/102P/1KV 2144 2/102K/1KV 2145 2/102K/1KV N17 N17 1 2 9119 JUMP 1 2 9116 YC1 +5V +5V 1 2 9121 JUMP 1 2 9123 JUMP GND GND N24 N24 3159 R/1206 2147 C/103/0603 2128 C/103/0603 3138 R/6.2M/0805 1 2 6111 D/4148 1 2 3 7110 7/TL431 2106 2/CAP_1 GND GND 1 2 9114 ICT B B 1 2 9118 JUMP 1 2 9117 YC1 N27 N27 Modify +12V 2148 C/103P/X7R 2149 C/103P/X7R 2150 C/10X 6 Modify 10/09/2003 2151 VARISTOR 5 6 7 7106B 7/LM393 +12V 1 2 3 7108 7/2907 3160 R/10K/0805 1 2 6117 D/LS4148 3161 R/10K/0805 3162 R/10k/0805 1 2 6119 D/RLZ5.6B +12V 1 2 6118 D/RLZ5.6B PGND 11/11/2003 鄭麗蓮 3157 R/4.7K/1206 3163 JUMP N37 N37 3120 0R 3165 R/1206 3164 R/1206 P046V7-2 P046V7-2.sch 5 7 Modify 11/22/2003 1 2 3166 R/47/(1/4W) 1 2 3167 R/47/1206 線路圖 T50P046.00 Rev : L2 Page : 1 of 2 1 2 3 4 5 6 7 8 A B C D 8 7 6 5 4 3 2 1 D C B A AMBIT SHEET File Name Title Doc.No. PREPARED BY REVIEWED BY APPROVED BY REV. DESCRIPTION REL. DATE CTIMR 1 OVP 2 ENA 3 SST 4 VDDA 5 AGND 6 REF 7 RT1 8 FB 9 CMP 10 NDR_D 11 PDR_C 12 LPWM 13 DIM 14 NDR_B 20 PDR_A 19 CT 18 RT 17 PGND 16 LCT 15 7807 U/OZ960/DIP-20 1 2 3840 R/1M 1 2 3822 R/NC 1 2 2816 C/105Z/16V/Y5V 1 2 2805 C/225K/X7R 1 2 2823 C/221J/NPO 1 2 2817 C/103K/X7R 1 2 2818 C/152K/X7R 1 2 2814 C/474K/10V/X7R 1 2 2813 C/225K/X7R/1206 1 2 2815 C/105Z/10V/X7R 1 2 9800 9/JUMPER RT 1 2 3835 R/34K 1 2 2828 C/18P/3KV 1 2 2830 C/103J/X7R 3 2 1 6824 D/BAV99 SST SGND SGND SGND 1 2 3820 R/10K 5V NDR-B NDR-D NDR-D PDR-C PDR-A NDR-B 3 2 1 7806 Q/BSS138 VREF SST 1 2 3821 R/33 1 2 2811 C/105Z/10V/Y5V SGND OVP 1 2 2806 C/225K/X7R 1 2 2829 C/682J/16V/NPO OVP LCT CT CMP RT1 VDDA CTIM RT VREF 2803 C/224K/25V/X7R 1 2 2819 C/104K/X7R SGND LPWM SGND 2 5 10 6 3 9 1 8 5800 T/XL-19125-1531 1 2 3819 R/1M 1 2 + 2800 C/220uF/16V 1 2 3801 R/10K(1/8W) 1 2 6800 D/RLZ5.6B 1 2 3802 R/33(1/8W) 1 2 2801 C/473K/25V/X7R PDR-A +12V 1 2 3804 R/10K(1/8W) 1 2 6801 D/RLZ5.6B 1 2 3805 R/33(1/8W) 1 2 2802 C/473K/25V/X7R PDR-C 1 2 2824 C/682J/X7R 3824 R/100F(1/8W) 1 2 6803 D/RLZ7.5B 1 2 6804 D/4148/SOD-80 1 2 3825 R/1KF 1 2 2820 C/104K/X7R SST Vin+ 1 2 2825 C/105K/6.3V/X5R Vin+ 3 2 1 7805 Q/2N7002 2812 C/104K/X7R 1 2 9801 9/C SGND 3818 R/1M(1/8W) 1 2 3833 R/100K SGND D2 5 D1 8 G1 2 S2 3 G2 4 S1 1 D2 6 D1 7 7801 Q/4600 P1-1 D2 5 D1 8 G1 2 S2 3 G2 4 S1 1 D2 6 D1 7 7800 Q/4600 2807 C/224K/25V/X7R 1 2 3803 R/33(1/8W) 1 2 3806 R/33(1/8W) Vin+ Vin+ P046V6-2 2 of 2 0 NEW RELEASE 7/14/2003 ENA SGND 1 2 2826 C/68p/3KV 1 2 2827 C/68p/3KV 1 2 1801 1/SM02(8.0)B-BHS-1-TB 1 2 1800 1/SM02(8.0)B-BHS-1-TB 1 2 2831 C/68p/3KV 1 2 2833 C/10p/3KV 1 2 2832 C/68p/3KV 1 2 1803 1/SM02(8.0)B-BHS-1-TB 1 2 1802 1/SM02(8.0)B-BHS-1-TB 1 4 2 3 5801 5/150mH 1 2 6807 D/BZM55B75 1 2 6809 D/BZM55B75 1 2 3837 R/1K(1/8W) IS 1 2 3836 R/510 1 2 6806 D/BZM55B75 1 2 6808 D/BZM55B75 FB 1 4 2 3 5802 5/150mH FB 1 2 6816 D/BZM55B75 1 2 6818 D/BZM55B75 1 2 3839 R/1K(1/8W) 1 2 3838 R/510(1/8W) 1 2 6815 D/BZM55B75 1 2 6817 D/BZM55B75 1 2 6814 D/1N4148 1 2 6819 D/1N4148 IS 1 2 3826 R/10K 1 2 3832 R/NC 1 2 CP502 C/CP 1 2 3831 R/324 1 2 3830 R/324 1 2 2821 C/NC 1 2 2822 C/NC FB 1 2 3828 R/86.6K PANEL_ID 1 2 CP501 C/CP 1 2 3827 R/NC 1 2 3829 R/NC 3823 R/100F 1 2 2804 C/225K/X7R 1 2 6805 D/4148/SOD-80 BRIGHTNESS P1-2 P1-2 D2 5 D1 8 G1 2 S2 3 G2 4 S1 1 D2 6 D1 7 7809 Q/4600 D2 5 D1 8 G1 2 S2 3 G2 4 S1 1 D2 6 D1 7 7808 Q/4600 1 2 3812 R/33(1/8W) N501 N502 N503 N504 N505 N506 N507 N508 N509 N510 N511 N512 N513 3 2 1 6833 6/BAV99 3 2 1 6822 6/BAV99 3 2 1 6821 6/BAV99 3 2 1 6820 6/BAV99 N514 N515 N516 N517 N518 N519 N520 N521 N522 N523 N524 N525 N526 N527 N528 N529 N530 N531 N532 N533 N534 N535 N536 N537 N538 N545 N546 1 2 9802 9/C 1 2 9803 9/C 1 2 9804 9/C 1 2 9805 9/C 1 2 9806 9/C VIN+ VIN+ GND FB GND FB 5V 5V N532 N532 1 2 CP503 C/CP 1 2 CP504 C/CP 1 2 2834 C/103J/X7R 1 2 9807 9/C ENA ENA 1 2 9808 9/C RT RT 1 2 9809 9/C OVP OVP SGND SGND N547 1 2 9810 9/C SGND SGND 1 2 2835 C/473K/25V/X7R 3834 R_1 3841 R_1 3842 R_1 SGND 1 4 2 3 5803 5/150mH FB IL1 IL1 IL2 IL2 1 2 2837 C/68p/3KV SGND SGND 1 2 9812 9/C IL2 IL2 1 2 9811 9/C IL2 IL2 1 2 9813 9/C FB FB SGND SGND 1 2 9815 9/C VIN+ VIN+ 1 2 9816 9/C +12V VIN+ N548 5 Modify 6 Modify 11/22/2003 7 Modify 10/09/2003 1 2 2810 C/104K/0805 1 2 3 7803 Q/3904 1 2 3 7804 Q/3906 1 2 2809 C/105K/0805 BL_CTL 1 2 3815 R/100K(1/8W) 1 2 3816 R/100K/0805 1 2 3811 R/220/1206 1 2 6802 D/RLZ5.6B 1 2 3 7802 Q/3904 1 2 3808 R/100K/0805 1 2 3807 R/51K/0805 1 2 3814 R/5.1K(1/8W) SGND Vin+ 1 2 3809 R/10K/1206 1 2 3817 R/10K/1206 SGND N539 N540 N541 N542 N543 N544 FBK 1 2 3844 R/1M/0805 3 2 1 7810 Q/2N7002 2838 C/103K/0805 3845 R/1M/0805 SGND IS 11/11/2003 Schematic Drawing(2) T50P046.00 鄭麗蓮 N549 1 2 1804 1/SM02(8.0)B-BHS-1-TB 1 2 1806 1/SM02(8.0)B-BHS-1-TB 1 2 1805 1/SM02(8.0)B-BHS-1-TB 1 2 1807 1/SM02(8.0)B-BHS-1-TB N509 N512 N510 N514 N531 N545 N530 N521 N550 3843 0R 3813 0R 1 2 6810 R/1M/0805 OVP 線路圖 T50P046.00 Rev : L2 Page : 2 of 2 To Monitor D-sub cable DC 8~12V To Printer port Power indicator Fig. 3 Fig. 3 35 DDC Instructions General Pin assignment A. 15-pin D-Sub Connector DDC Data Re-programming Analog DDC IC, & EEPROM Additional information In case the DDC data memory IC or main EEPROM which storage all factory settings were replaced due to a defect, the serial numbers have to be re-programmed" ". It is advised to re-soldered DDC IC and main EEPROM from the old board onto the new board if circuit board have been replaced, in this case the DDC data does not need to be re-programmed. Additional information about DDC (Display Data Channel) may be obtained from Video Electronics Standards Association (VESA). Extended Display Identification Data(EDID) information may be also obtained from VESA. 1. An i486 (or above) personal computer or compatible. 2. Microsoft operation system Windows 95/98 . Y o Install the EDID_PORT_Tool under Win2000/XP . As Fig. 1 . A. Cody the "UserPort.sys" to C:\WINNT\system32\drivers(win2000) C:\WINDOWS\system32\drivers(winXP) B. Running " io.exe" everytime, Before you start to programming edid data . 4. A/D Alignment kits (3138 106 10079): inclusion : a. Alignment box x1 (as Fig. 2) b. Printer cable x1 c. (D-Sub) to (D-Sub) cable x1 Note: The EDID45.EXE is a windows-based program, which cannot be run in MS-DOS. System and equipment requirements ou have t 3. EDID45.EXE program . Note: The alignment box has already build-in a batteries socket for using as power source. Pull out the socket by remove four screws at the rear of box. Please do not forget that remove batteries after programming. The energy of batteries can only drive circuits for a short period of time. batteries (8~12V) Fig. 2 Fig. 2 Fig. 1 Fig. 1 190P5 Go to cover page 36 DDC Instructions 190P5 Step 3: Installation of EDID45.EXE Method 1: Start on DDC program Start Microsoft Windows. 1. The Program"EDID45.EXE" in service manual cd-rom be copyed to C:\ . 2. Click , choose Run at start menu of Windows as shown In Fig. 4. Fig. 4 4. Click button. The main menu appears (as shown in Fig. 6). OK This is for initialize alignment box. Fig. 6 Fig. 5 Fig. 7 Note 1: If the connection is improper, you will see the following error message (as shown in Fig. 7) before entering the main menu. Meanwhile, the (read EDID) function will be disable. At this time, please make sure all cables are connected correctly and fixedly, and the procedure has been performed properly. 3. At the submenu, type the letter of your computer's hard disk drive followed by :EDID45 (for example, C:\EDID45, as shown in Fig. 5). Method 2: After create a shortcut of EDID45.EXE This is for initialize alignment box. : Double click EDID45 icon (as shown in Fig. 8) which is on the screen of Windows Wallpaper. Bring up main menu of EDID45 as shown in Fig. 9. Fig. 9 Note 2: During the loading, EDID45 will verify the EDID data which just loaded from monitor before proceed any further function, once the data structure of EDID can not be recognized, the following error message will appear on the screen as below. Please confirm following steps to avoid this message. 1. The data structure of EDID was incorrect. 2. DDC IC that you are trying to load data is empty. 3. Wrong communication channel has set at configuration setup windows. 4. Cables loosed or poor contact of connection. Fig. 8 1 Configuration and procedure There are 2 chips contained OSD string, serial number..etc on the circuit board, main EEPROM which storage all factory settings,OSD string. DDC IC which storage 128byte EDID data(serial number ..etc.). Following descirptions are the connection and procedure for Analog and main EEPROM can be re-programmed along with Analog/Digital IC by enable factory memory data write function on the DDC program (EDID45.EXE). Initialize alignment box In order to avoid that monitor entering power saving mode due to sync will cut off by alignment box, it is necessary to initialize alignment box before running programming software (EDID45.EXE). Following steps show you the procedures and connection. Step 1: Supply 8-12V DC power source to the Alignment box by plugging a DC power cord or using batteries. Step 2: Connecting printer cable and D-Sub cable of monitor as Fig. 3 Fig. 3 PC 1=Power connector 2=D-SUB connector ~~ To printer port (LTP1) DC Power 8-12 V Printer Port To Monitor To PC 1 2 -----> -----> Fig. 10 190P5 Go to cover page DDC Instructions 37 Re-programming Analog DDC IC Step 1: After initialize alignment box, connecting all cables and box as shown in Fig. 11 Fig. 12 Step 2: Read DDC data from monitor 1. Click icon as shown in Fig. 12 from the tool bar to bring up the Channels "Configuration Setup" windows as shown in Fig. 13. Step 3: Modify DDC data (verify EDID version, week, year) 1. Click (new function) icon from the tool bar, bring up Step 1 of 9 as shown in Fig. 15 . EDID45 DDC application provides the function selection and text change (select & fill out) from Step 1 to Step 9. Step 4: Modify DDC data (Monitor Serial No.) Next 1. Click , bring up Fig. 16. 2. Click , bring up Fig. 17. Next 3. Click OK button to confirm your selection. 4. Click icon (Read EDID function) to read DDC EDID data from monitor. The EDID codes will display on screen as shown in Fig. 14. Fig. 16 Fig. 17 2. Select the DDC2Bi as the communication channel. As shown in Fig. 13. Fig. 14 Fig. 15 Fig. 11 1=Power connector 2=D-SUB connector ~~ PC To printer port (LTP1) DC Power 8-12V Printer Port To Monitor To PC 1 2 -----> -----> Don't close this screen. ---> Fig. 13 To PC Video port (D-sub) Select and fill out, If necessary. 190P5 Go to cover page DDC Instructions Fig. 18 Fig. 22 Fig. 19 Fig. 20 3. Click , bring up Fig. 18. Next 7. Click , bring up Fig. 22. Next 4. Click , bring up Fig. 19. Next 5. Click , bring up Fig. 20. Next Fig. 23 8. Click , bring up Fig. 23. Next - Click to exit the Step window. Finish Fig. 21 6. Click , bring up Fig. 21. - Next Serial number can be filled up or be changed at this moment. 190P5 Go to cover page 38 X 21 DDC Instructions 39 Step 7: Save DDC data Sometimes, you may need to save DDC data as a text file for using in other IC chip. To save DDC data, follow the steps below: 1. Click (Save) icon (or click "file"-> "save as") from the tool bar And give a file name as shown in Fig. 25. The file type is EDID45 file (*.ddc) which can be open in WordPad. By using WordPad, the texts of DDC data & table (128 bytes, hex code) can be modified. If DDC TEXTS & HEX Table are completely correct, it can be saved as .ddc flie to re-load it into DDC IC for DDC Data application. 2. Click . Save Step 8: Exit DDC program Pull down the File menu and select Exit as shown in Fig. 26. Step 6: Write DDC data 1. Configuration should be as Fig. 24. And press OK. 2. Click (Write EDID) icon from the tool bar to write DDC data. Bring up "Writing 0%~100%, ready" a progressing bar on the left down corner. 3. Click (Read EDID) to confirm it. 4. Press the OK button to bring up the osd main manu. 5. Press the DOWN button to select PRODUCTION INFORMATION press the OK button to confirm our selection. 6. Re-confirm the serial Number is updated. Fig. 24 Fig. 26 Fig. 25 190P5-DDC C:\My documents\190P5-DDC Edid45 Files 190P5 Go to cover page 40 DDC Data THE DISPLAY DATA CHANNEL (DDC_2B) CONTENT INCLUDING ********************************************************************** EDID log file ********************************************************************** Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : 081B (HEX.) ID Serial Number : 1234 (HEX.) Week of Manufacture : 44 Year of Manufacture : 2003 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Analog Video Input 0.700V/0.300V (1.00Vpp) without Blank-to-Black Setup Separate Sync Composite Sync Sync on Green no Serration required Maximum H Image Size : 38 Maximum V Image Size : 30 Display Transfer Characteristic : 2.2 (gamma) Feature Support (DPMS) : Standby Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.642 Red Y coordinate : 0.349 Green X coordinate : 0.292 Green Y coordinate : 0.596 Blue X coordinate : 0.148 Blue Y coordinate : 0.125 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings:1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #1 Horizontal active pixels : 640 Aspect Ratio : 4:3 Refresh Rate : 75 Standard Timing Identification #2 Horizontal active pixels : 800 Aspect Ratio : 4:3 Refresh Rate : 75 Standard Timing Identification #3 Horizontal active pixels : 1024 Aspect Ratio : 4:3 Refresh Rate : 75 Standard Timing Identification #4 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 (FOR 190P5 ANALOG For Fujitsu Panel) Standard Timing Identification #5 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Detailed Timing #1 Pixel Clock (MHz) : 108 H Active (pixels) : 1280 H Blanking (pixels) : 408 V Active (lines) : 1024 V Blanking (lines) : 42 H Sync Offset (F Porch) (pixels) : 48 H Sync Pulse Width (pixels) : 112 V Sync Offset (F Porch) (lines) : 1 V Sync Pulse Width (lines) : 3 H Image Size (mm) : 376 V Image Size (mm) : 301 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY 123456 Monitor Descriptor #3 Monitor Name : Philips 190P Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 82 Max. Supported Pixel : 140 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : 25 (HEX.) ********************************************************************** EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 1b 11: 08 12: 34 13: 12 14: 00 15: 00 16: 2c 17: 0d 18: 01 19: 03 20: 0e 21: 26 22: 1e 23: 78 24: ee 25: 5e 26: 05 27: a4 28: 59 29: 4a 30: 98 31: 26 32: 20 33: 50 34: 54 35: bf 36: ef 37: 80 38: 31 39: 4f 40: 45 41: 4f 42: 61 43: 4f 44: 71 45: 4f 46: 81 47: 80 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 30 55: 2a 56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70 64: 13 65: 00 66: 78 67: 2d 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59 80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36 88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 39 105: 30 106: 50 107: 0a 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 52 117: 0e 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 25 Note : Address 78 & 79 factory code : Brazil HC (48h, 43h) Chungli TY (54h, 59h) Del ta GK (47h, 4Bh) Juarez YA (59h, 41h) Shenzshen CX (43h, 58h) same as Dongguan Suzhou BZ (42h, 5Ah) Szombathely HD (48h, 44h) Serial no. address : 82,83,84,85,86,87,88,89 190P5 Go to cover page 41 DDC Data (FOR 190P5 Digital For Fujitsu Panel) ********************************************************************** EDID log file ********************************************************************** Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : 081B (HEX.) ID Serial Number : 1234 (HEX.) Week of Manufacture : 44 Year of Manufacture : 2003 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Digital Video Input Maximum H Image Size : 38 Maximum V Image Size : 30 Display Transfer Characteristic : 2.2 (gamma) Feature Support (DPMS) : Standby Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.642 Red Y coordinate : 0.349 Green X coordinate : 0.292 Green Y coordinate : 0.596 Blue X coordinate : 0.148 Blue Y coordinate : 0.125 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings : 1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #1 Horizontal active pixels : 640 Aspect Ratio : 4:3 Refresh Rate : 75 Standard Timing Identification #2 Horizontal active pixels : 800 Aspect Ratio : 4:3 Refresh Rate : 75 Standard Timing Identification #3 Horizontal active pixels : 1024 Aspect Ratio : 4:3 Refresh Rate : 75 Standard Timing Identification #4 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 Standard Timing Identification #5 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Detailed Timing #1 Pixel Clock (MHz) : 108 H Active (pixels) : 1280 H Blanking (pixels) : 408 V Active (lines) : 1024 V Blanking (lines) : 42 H Sync Offset (F Porch) (pixels): 48 H Sync Pulse Width (pixels) : 112 V Sync Offset (F Porch) (lines) : 1 V Sync Pulse Width (lines) : 3 H Image Size (mm) : 376 V Image Size (mm) : 301 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY 123456 Monitor Descriptor #3 Monitor Name : Philips 190P Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 82 Max. Supported Pixel : 140 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : B3 (HEX.) ********************************************************************** EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 1b 11: 08 12: 34 13: 12 14: 00 15: 00 16: 2c 17: 0d 18: 01 19: 03 20: 80 21: 26 22: 1e 23: 78 24: ee 25: 5e 26: 05 27: a4 28: 59 29: 4a 30: 98 31: 26 32: 20 33: 50 34: 54 35: bf 36: ef 37: 80 38: 31 39: 4f 40: 45 41: 4f 42: 61 43: 4f 44: 71 45: 4f 46: 81 47: 80 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 30 55: 2a 56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70 64: 13 65: 00 66: 78 67: 2d 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59 80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36 88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 39 105: 30 106: 50 107: 0a 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 52 117: 0e 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: b3 Note : Address 78 & 79 factory code : Brazil HC (48h, 43h) Chungli TY (54h, 59h) Delta GK (47h, 4Bh) Juarez YA (59h, 41h) Shenzshen CX (43h, 58h) same as Dongguan Suzhou BZ (42h, 5Ah) Szombathely HD (48h, 44h) Serial no. address : 82,83,84,85,86,87,88,89 190P5 Go to cover page 42 Exploded View 30 313815756001 BEZEL ASSY(S) 33 313815411931 BUTTON-CONTROL 40 313815756011 BACK COVER ASSY(S) 43 313815411961 SPEAKER REAR COVER 1051 313815857591 SCALER ASSY 1052 823827714591 LIPS(T50P046.00) 1053 313815857101 CONTROL ASSY 1054 313815857531 AUDIO ASSY 1055 313815857661 KEY BOARD ASSY 1156 823827714551 TFT-LCD MOD FLC48XWC8V-10(FDT0 35 313815411251 LENS-LF 50 313815756401 SUPER ERGO BASE(B) 190P5 Go to cover page 43 Spare Parts List CTV : 190P5ES/00 863900015031 Mechanical Parts 30 313815756001 BEZEL ASSY(S) 33 313815411931 BUTTON-CONTROL 34 313815411231 LENS-POWER 35 313815411251 LENS-LF 40 313815756011 BACK COVER ASSY(S) 41 313815411941 BACK COVER(S) 43 313815411961 SPEAKER REAR COVER 50 313815756401 SUPER ERGO BASE(B) 91 313815756381 METAL SHIELDING ASSY 98 313815561991 PLASTIC COVER LCD-Panel 1156 823827714551 TFT-LCD MOD FLC48XWC8V-10(FDT0 Packing 450 313815637031 CARTON 451 313815637041 CUSHION-R 452 313815637051 CUSHION-L 453 313810656651 PE BAG Accessory 601 313811706581 E-D.F.U. ASSY 1158 823827714651 DSUB I/F CABLE 1.8M (BLACK) 1161 823827714631 DVI I/F CABLE 1.8M (BLACK) PCB assy 1051 313815857591 SCALER ASSY 1052 823827714591 LIPS(T50P046.00) 1053 313815857101 CONTROL ASSY 1054 313815857531 AUDIO ASSY 1055 313815857661 KEY BOARD ASSY Miscellanea 291 313815561951 LABEL 295 313815561951 LABEL 615 313811706341 HEX CODE OF F/W (NO MATL) 1157 313816874931 CBLE RING TERM/220/FAST AWG22 1159 313819870991 CBLE 300030 30/200/30 346012 1160 313815858891 METAL FRAME+WIRE ASSY 1162 313819870931 CBLE 3.55MM/1M8/3.5MM M/M BK 1163 313819870801 LSP BOX 16R 2W-L/R(PS-10015A) 1302 242254300999 RES XTL SM 14M318 20P SMD-49 R 1311 243803100435 SOC IC V 8P F 2.54 DIL L 4444 313810610335 CD ROM - SERVICE MANUAL 4444 313810610336 SERVICE MANUAL 7901 932219970668 IC SM TPA6030A4PWP (TI00) R PCB assy 1051 313815857591 SCALER ASSY 2209 223878615649 CER2 0603 X7R 16V 100N PM10 R 2210 223878615649 CER2 0603 X7R 16V 100N PM10 R 2211 223886715331 CER1 0603 NP0 50V 330P PM5 R 2212 223886715331 CER1 0603 NP0 50V 330P PM5 R 2213 223878615649 CER2 0603 X7R 16V 100N PM10 R 2216 223886715331 CER1 0603 NP0 50V 330P PM5 R 2217 223886715331 CER1 0603 NP0 50V 330P PM5 R 2218 223886715339 CER1 0603 NP0 50V 33P PM5 R 2219 223886715221 CER1 0603 NP0 50V 220P PM5 R 2221 223878615649 CER2 0603 X7R 16V 100N PM10 R 2225 223858615636 CER2 0603 X7R 50V 10N PM10 R 2227 223858615636 CER2 0603 X7R 50V 10N PM10 R 2229 223858615636 CER2 0603 X7R 50V 10N PM10 R 2231 223886715339 CER1 0603 NP0 50V 33P PM5 R 2232 223886715331 CER1 0603 NP0 50V 330P PM5 R 2233 223878615649 CER2 0603 X7R 16V 100N PM10 R 2301 223886715478 CER1 0603 NP0 50V 4P7 PM0P25 R 2302 223886715478 CER1 0603 NP0 50V 4P7 PM0P25 R 2303 202002191726 ELCAP SM RVS 16V 47U PM20 R 2304 202002191726 ELCAP SM RVS 16V 47U PM20 R 2305 202002191726 ELCAP SM RVS 16V 47U PM20 R 2306 202002191726 ELCAP SM RVS 16V 47U PM20 R 2307 223858615636 CER2 0603 X7R 50V 10N PM10 R 2308 223858615636 CER2 0603 X7R 50V 10N PM10 R 2309 223858615636 CER2 0603 X7R 50V 10N PM10 R 2310 223878615649 CER2 0603 X7R 16V 100N PM10 R 2311 223858615623 CER2 0603 X7R 50V 1N PM10 R 2312 223858615623 CER2 0603 X7R 50V 1N PM10 R 2316 223878615649 CER2 0603 X7R 16V 100N PM10 R 2317 223891615641 CER2 0603 X7R 25V 22N PM10 R 2320 223878615649 CER2 0603 X7R 16V 100N PM10 R 2321 223878615649 CER2 0603 X7R 16V 100N PM10 R 2353 223858615623 CER2 0603 X7R 50V 1N PM10 R 2354 223858615623 CER2 0603 X7R 50V 1N PM10 R 2355 223858615623 CER2 0603 X7R 50V 1N PM10 R 2359 223858615623 CER2 0603 X7R 50V 1N PM10 R 2360 223858615623 CER2 0603 X7R 50V 1N PM10 R 2361 223858615623 CER2 0603 X7R 50V 1N PM10 R 2362 223858615623 CER2 0603 X7R 50V 1N PM10 R 2363 223858615623 CER2 0603 X7R 50V 1N PM10 R 2364 223858615623 CER2 0603 X7R 50V 1N PM10 R 2365 223878615649 CER2 0603 X7R 16V 100N PM10 R 2366 223878615649 CER2 0603 X7R 16V 100N PM10 R 2367 223878615649 CER2 0603 X7R 16V 100N PM10 R 2368 223878615649 CER2 0603 X7R 16V 100N PM10 R 2369 223878615649 CER2 0603 X7R 16V 100N PM10 R 2370 223878615649 CER2 0603 X7R 16V 100N PM10 R 2371 223878615649 CER2 0603 X7R 16V 100N PM10 R 2372 223878615649 CER2 0603 X7R 16V 100N PM10 R 2373 223878615649 CER2 0603 X7R 16V 100N PM10 R 2374 223878615649 CER2 0603 X7R 16V 100N PM10 R 2375 223878615649 CER2 0603 X7R 16V 100N PM10 R 2376 223878615649 CER2 0603 X7R 16V 100N PM10 R 2377 223878615649 CER2 0603 X7R 16V 100N PM10 R 2378 223878615649 CER2 0603 X7R 16V 100N PM10 R 2379 223878615649 CER2 0603 X7R 16V 100N PM10 R 2380 223878615649 CER2 0603 X7R 16V 100N PM10 R 2381 223878615649 CER2 0603 X7R 16V 100N PM10 R 2382 223878615649 CER2 0603 X7R 16V 100N PM10 R 2383 223878615649 CER2 0603 X7R 16V 100N PM10 R 2384 223878615649 CER2 0603 X7R 16V 100N PM10 R 2385 223878615649 CER2 0603 X7R 16V 100N PM10 R 2386 223878615649 CER2 0603 X7R 16V 100N PM10 R 2387 223878615649 CER2 0603 X7R 16V 100N PM10 R 2388 223878615649 CER2 0603 X7R 16V 100N PM10 R 2389 223878615649 CER2 0603 X7R 16V 100N PM10 R 2390 223878615649 CER2 0603 X7R 16V 100N PM10 R 2391 223878615649 CER2 0603 X7R 16V 100N PM10 R 2392 223878615649 CER2 0603 X7R 16V 100N PM10 R 2393 223878615649 CER2 0603 X7R 16V 100N PM10 R 2394 223878615649 CER2 0603 X7R 16V 100N PM10 R 2395 223878615649 CER2 0603 X7R 16V 100N PM10 R 2396 223878615649 CER2 0603 X7R 16V 100N PM10 R 2397 223878615649 CER2 0603 X7R 16V 100N PM10 R 2398 223878615649 CER2 0603 X7R 16V 100N PM10 R 2441 202002191725 ELCAP SM RVS 16V 10U PM20 R 2442 223878615649 CER2 0603 X7R 16V 100N PM10 R 2443 223878615649 CER2 0603 X7R 16V 100N PM10 R 2444 223878615649 CER2 0603 X7R 16V 100N PM10 R 2445 223878615649 CER2 0603 X7R 16V 100N PM10 R 2446 223878615649 CER2 0603 X7R 16V 100N PM10 R 2447 202002191725 ELCAP SM RVS 16V 10U PM20 R 2448 223878615649 CER2 0603 X7R 16V 100N PM10 R 2449 223878615649 CER2 0603 X7R 16V 100N PM10 R 2450 223878615649 CER2 0603 X7R 16V 100N PM10 R 2451 223878615649 CER2 0603 X7R 16V 100N PM10 R 2452 202002191725 ELCAP SM RVS 16V 10U PM20 R 2453 223878615649 CER2 0603 X7R 16V 100N PM10 R 2454 223878615649 CER2 0603 X7R 16V 100N PM10 R 2455 223878615649 CER2 0603 X7R 16V 100N PM10 R 2456 202002191725 ELCAP SM RVS 16V 10U PM20 R 2457 223878615649 CER2 0603 X7R 16V 100N PM10 R 2458 223878615649 CER2 0603 X7R 16V 100N PM10 R 2459 223878615649 CER2 0603 X7R 16V 100N PM10 R 2460 223878615649 CER2 0603 X7R 16V 100N PM10 R 2461 223878615649 CER2 0603 X7R 16V 100N PM10 R 2462 223878615649 CER2 0603 X7R 16V 100N PM10 R 2463 202002191725 ELCAP SM RVS 16V 10U PM20 R 2464 223878615649 CER2 0603 X7R 16V 100N PM10 R 2465 223878615649 CER2 0603 X7R 16V 100N PM10 R 2466 223878615649 CER2 0603 X7R 16V 100N PM10 R 2467 223878615649 CER2 0603 X7R 16V 100N PM10 R 2468 202002191725 ELCAP SM RVS 16V 10U PM20 R 2469 223878615649 CER2 0603 X7R 16V 100N PM10 R 2474 223878615649 CER2 0603 X7R 16V 100N PM10 R 2475 223878615649 CER2 0603 X7R 16V 100N PM10 R 2476 223878615649 CER2 0603 X7R 16V 100N PM10 R 2480 223878615649 CER2 0603 X7R 16V 100N PM10 R 2482 202002191725 ELCAP SM RVS 16V 10U PM20 R 2483 202002191725 ELCAP SM RVS 16V 10U PM20 R 2501 223878615649 CER2 0603 X7R 16V 100N PM10 R 2502 223878615649 CER2 0603 X7R 16V 100N PM10 R 2503 223878615649 CER2 0603 X7R 16V 100N PM10 R 2505 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2507 223858615636 CER2 0603 X7R 50V 10N PM10 R 2509 202002191726 ELCAP SM RVS 16V 47U PM20 R 2511 223878619854 CER2 0603 Y5V 16V 220N P8020 R 2512 202002191726 ELCAP SM RVS 16V 47U PM20 R 2513 222258015649 CER2 0805 X7R 50V 100N PM10 R 2515 223858615623 CER2 0603 X7R 50V 1N PM10 R 2517 223858615623 CER2 0603 X7R 50V 1N PM10 R 2519 223858615623 CER2 0603 X7R 50V 1N PM10 R 2520 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2521 223858615623 CER2 0603 X7R 50V 1N PM10 R 2522 223886715479 CER1 0603 NP0 50V 47P PM5 R 2523 223858615623 CER2 0603 X7R 50V 1N PM10 R 2525 223858615623 CER2 0603 X7R 50V 1N PM10 R 2527 223858615623 CER2 0603 X7R 50V 1N PM10 R 2529 223858615623 CER2 0603 X7R 50V 1N PM10 R 2531 223858615623 CER2 0603 X7R 50V 1N PM10 R 2534 223858615623 CER2 0603 X7R 50V 1N PM10 R 2536 223858615623 CER2 0603 X7R 50V 1N PM10 R 2538 223878615649 CER2 0603 X7R 16V 100N PM10 R 2539 223878615649 CER2 0603 X7R 16V 100N PM10 R 2540 202203100068 ELCAP GL 25V S 470U PM20 B 2541 223878615649 CER2 0603 X7R 16V 100N PM10 R 2542 202203100068 ELCAP GL 25V S 470U PM20 B 2544 223878615649 CER2 0603 X7R 16V 100N PM10 R 2545 223878615649 CER2 0603 X7R 16V 100N PM10 R 2546 202002191726 ELCAP SM RVS 16V 47U PM20 R 3202 212211805669 RST SM 0603 RC0603 10K PM5 R 3203 212211805669 RST SM 0603 RC0603 10K PM5 R 3204 212211805643 RST SM 0603 RC0603 100R PM5 R 3205 212211805643 RST SM 0603 RC0603 100R PM5 R 3206 212211805643 RST SM 0603 RC0603 100R PM5 R 3207 212211805643 RST SM 0603 RC0603 100R PM5 R 3208 212211805635 RST SM 0603 RC0603 10R PM5 R 3209 212211805678 RST SM 0603 RC0603 47K PM5 R 3210 212211805669 RST SM 0603 RC0603 10K PM5 R 3211 212211805643 RST SM 0603 RC0603 100R PM5 R 3212 212211805643 RST SM 0603 RC0603 100R PM5 R 3214 212211805669 RST SM 0603 RC0603 10K PM5 R 3215 212211805669 RST SM 0603 RC0603 10K PM5 R 3216 212211805643 RST SM 0603 RC0603 100R PM5 R 3217 212211805643 RST SM 0603 RC0603 100R PM5 R 3221 212211805669 RST SM 0603 RC0603 10K PM5 R 3222 212211805669 RST SM 0603 RC0603 10K PM5 R 3223 212211805643 RST SM 0603 RC0603 100R PM5 R 3224 212211805643 RST SM 0603 RC0603 100R PM5 R 3225 212211805643 RST SM 0603 RC0603 100R PM5 R 3226 212211805643 RST SM 0603 RC0603 100R PM5 R 3227 212211805661 RST SM 0603 RC0603 2K2 PM5 R 3228 212211805661 RST SM 0603 RC0603 2K2 PM5 R 3229 212211805678 RST SM 0603 RC0603 47K PM5 R 3231 212211805635 RST SM 0603 RC0603 10R PM5 R 3232 212211805643 RST SM 0603 RC0603 100R PM5 R 3233 232273467509 RST SM 0805 RC12H 75R PM1 R 3234 212211805643 RST SM 0603 RC0603 100R PM5 R 3235 232273467509 RST SM 0805 RC12H 75R PM1 R 3236 212211805643 RST SM 0603 RC0603 100R PM5 R 3237 232273467509 RST SM 0805 RC12H 75R PM1 R 3238 212211805669 RST SM 0603 RC0603 10K PM5 R 3239 212211805643 RST SM 0603 RC0603 100R PM5 R 3240 212211805643 RST SM 0603 RC0603 100R PM5 R 3302 232270260519 RST SM 0603 RC21 51R PM5 R 3303 212211805669 RST SM 0603 RC0603 10K PM5 R 3304 212211805656 RST SM 0603 RC0603 1K PM5 R 3305 212211805635 RST SM 0603 RC0603 10R PM5 R 3306 212211805953 RST SM 0603 RC0603 2M PM5 R 3307 212211805669 RST SM 0603 RC0603 10K PM5 R 3308 212211805643 RST SM 0603 RC0603 100R PM5 R 3309 212211805643 RST SM 0603 RC0603 100R PM5 R 3310 212211805643 RST SM 0603 RC0603 100R PM5 R 3311 212211805669 RST SM 0603 RC0603 10K PM5 R 3312 212211805669 RST SM 0603 RC0603 10K PM5 R 3313 212211805669 RST SM 0603 RC0603 10K PM5 R 3322 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3324 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3325 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3327 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3328 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3329 235003510479 RST NETW SM ARV24 4X 47R PM5 R 3360 212211805669 RST SM 0603 RC0603 10K PM5 R 3361 212211805669 RST SM 0603 RC0603 10K PM5 R 3365 212211805669 RST SM 0603 RC0603 10K PM5 R 3366 212211805669 RST SM 0603 RC0603 10K PM5 R 3367 212211805669 RST SM 0603 RC0603 10K PM5 R 3368 212211805665 RST SM 0603 RC0603 4K7 PM5 R 3370 212211805665 RST SM 0603 RC0603 4K7 PM5 R 3371 212211805669 RST SM 0603 RC0603 10K PM5 R 3372 212211805643 RST SM 0603 RC0603 100R PM5 R 3373 212211805643 RST SM 0603 RC0603 100R PM5 R 3374 212211805669 RST SM 0603 RC0603 10K PM5 R 3375 212211805678 RST SM 0603 RC0603 47K PM5 R 3376 212211805678 RST SM 0603 RC0603 47K PM5 R 3441 212211805639 RST SM 0603 RC0603 47R PM5 R 3442 212211805639 RST SM 0603 RC0603 47R PM5 R 3443 212211805639 RST SM 0603 RC0603 47R PM5 R 3444 212211805639 RST SM 0603 RC0603 47R PM5 R 3445 212211805643 RST SM 0603 RC0603 100R PM5 R 3460 213811201103 RST SM 0805 RC05 10K PM5 R 3461 213811201103 RST SM 0805 RC05 10K PM5 R 3463 212211805651 RST SM 0603 RC0603 390R PM5 R 3464 232270463901 RST SM 0603 RC22H 390R PM1 R 3465 232270461622 RST SM 0603 RC22H 1K62 PM1 R 3466 232270461622 RST SM 0603 RC22H 1K62 PM1 R 3467 212211805631 RST SM 0603 JUMP. MAX 0R05 R 3468 212211805669 RST SM 0603 RC0603 10K PM5 R 3475 212211805669 RST SM 0603 RC0603 10K PM5 R 3476 212211805631 RST SM 0603 JUMP. MAX 0R05 R 3478 212211805669 RST SM 0603 RC0603 10K PM5 R 3479 212211805647 RST SM 0603 RC0603 220R PM5 R 3480 212211805647 RST SM 0603 RC0603 220R PM5 R 190P5 Go to cover page 1054 313815857531 AUDIO ASSY 2901 202203100245 ELCAP LZ 16V S 1000U PM20 B 2902 202203100257 ELCAP EB 16V S 2200U PM20 B 2903 222291019863 CER2 0805 Y5V 25V 1U P8020 R 2905 222291019863 CER2 0805 Y5V 25V 1U P8020 R 2906 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2908 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2909 223886715101 CER1 0603 NP0 50V 100P PM5 R 2910 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2911 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2912 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2914 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2915 223886715101 CER1 0603 NP0 50V 100P PM5 R 2916 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2917 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2918 202203100177 ELCAP RGA 16V S 330U PM20 B 2922 223878615649 CER2 0603 X7R 16V 100N PM10 R 2924 223878615649 CER2 0603 X7R 16V 100N PM10 R 2925 222291019863 CER2 0805 Y5V 25V 1U P8020 R 2926 223878615645 CER2 0603 X7R 16V 47N PM10 R 2927 223824619858 CER2 0603 Y5V 10V 470N P8020 R 2929 222291019863 CER2 0805 Y5V 25V 1U P8020 R 2930 202203100177 ELCAP RGA 16V S 330U PM20 B 3905 212211805676 RST SM 0603 RC0603 33K PM5 R 3906 212211805681 RST SM 0603 RC0603 68K PM5 R 3907 212211805972 RST SM 1206 JUMP. MAX 0R05 R 3908 232270260512 RST SM 0603 RC21 5K1 PM5 R 3909 232270260512 RST SM 0603 RC21 5K1 PM5 R 3910 213811291002 RST SM 0805 JUMP. MAX 0R05 R 3914 232270260512 RST SM 0603 RC21 5K1 PM5 R 3915 232270260512 RST SM 0603 RC21 5K1 PM5 R 3921 212211805683 RST SM 0603 RC0603 100K PM5 R 3922 212211805683 RST SM 0603 RC0603 100K PM5 R 3923 212211805669 RST SM 0603 RC0603 10K PM5 R 3924 232273464304 RST SM 0805 RC12H 430K PM1 R 3925 232273466204 RST SM 0805 RC12H 620K PM1 R 3926 232270260184 RST SM 0603 RC21 180K PM5 R 3927 212211805682 RST SM 0603 RC0603 82K PM5 R 3928 212211805673 RST SM 0603 RC0603 18K PM5 R 3929 212211805656 RST SM 0603 RC0603 1K PM5 R 3930 212211805656 RST SM 0603 RC0603 1K PM5 R 3934 213811201471 RST SM 0805 RC05 470R PM5 R 5903 313818877801 FIL MAINS 16MH 1A LS-PH03F-001 5905 242254942103 IND FXD 0805 EMI 100MHZ 2K2 R 5909 242254942103 IND FXD 0805 EMI 100MHZ 2K2 R 5915 242254942103 IND FXD 0805 EMI 100MHZ 2K2 R 5929 242254944195 IND FXD 0805 EMI 100MHZ 220R R 5930 242254944195 IND FXD 0805 EMI 100MHZ 220R R 5931 242254942103 IND FXD 0805 EMI 100MHZ 2K2 R 5933 242254942103 IND FXD 0805 EMI 100MHZ 2K2 R 5941 242254942103 IND FXD 0805 EMI 100MHZ 2K2 R 6901 932220628682 DIO REC SB140AL-5301 (VISH) B 6934 932220641685 DIO REG SM BZX84-B9V1 (VISH) R 8941 313819870981 CBLE RING TERM/90/FAST AWG18 44 Spare Parts List 3481 212211805669 RST SM 0603 RC0603 10K PM5 R 3482 212211805669 RST SM 0603 RC0603 10K PM5 R 3491 212211805643 RST SM 0603 RC0603 100R PM5 R 3492 212211805643 RST SM 0603 RC0603 100R PM5 R 3493 212211805643 RST SM 0603 RC0603 100R PM5 R 3501 212211805643 RST SM 0603 RC0603 100R PM5 R 3502 212211805643 RST SM 0603 RC0603 100R PM5 R 3503 212211805643 RST SM 0603 RC0603 100R PM5 R 3504 212211805643 RST SM 0603 RC0603 100R PM5 R 3505 212211805643 RST SM 0603 RC0603 100R PM5 R 3506 212211805643 RST SM 0603 RC0603 100R PM5 R 3507 212211805643 RST SM 0603 RC0603 100R PM5 R 3508 212211805647 RST SM 0603 RC0603 220R PM5 R 3509 212211805647 RST SM 0603 RC0603 220R PM5 R 3510 212211805631 RST SM 0603 JUMP. MAX 0R05 R 3511 212211805669 RST SM 0603 RC0603 10K PM5 R 3516 212211805669 RST SM 0603 RC0603 10K PM5 R 3517 212211805669 RST SM 0603 RC0603 10K PM5 R 3518 212211805669 RST SM 0603 RC0603 10K PM5 R 3519 212211805669 RST SM 0603 RC0603 10K PM5 R 3520 212211805669 RST SM 0603 RC0603 10K PM5 R 3521 212211805669 RST SM 0603 RC0603 10K PM5 R 3522 212211805669 RST SM 0603 RC0603 10K PM5 R 3523 212211805669 RST SM 0603 RC0603 10K PM5 R 3526 212211805631 RST SM 0603 JUMP. MAX 0R05 R 3527 212211805669 RST SM 0603 RC0603 10K PM5 R 3528 212211805669 RST SM 0603 RC0603 10K PM5 R 3532 212211805669 RST SM 0603 RC0603 10K PM5 R 3533 212211805669 RST SM 0603 RC0603 10K PM5 R 3537 212211805972 RST SM 1206 JUMP. MAX 0R05 R 3539 212211805669 RST SM 0603 RC0603 10K PM5 R 3540 212211805678 RST SM 0603 RC0603 47K PM5 R 3541 212211805655 RST SM 0603 RC0603 820R PM5 R 5201 313816874261 TI321611G800-SMD 5202 313816874261 TI321611G800-SMD 5303 313816874261 TI321611G800-SMD 5304 313816874261 TI321611G800-SMD 5305 313816874261 TI321611G800-SMD 5306 313816874261 TI321611G800-SMD 5310 313816874261 TI321611G800-SMD 5311 313816874261 TI321611G800-SMD 5441 313816874261 TI321611G800-SMD 5442 313816874261 TI321611G800-SMD 5443 313816874261 TI321611G800-SMD 5444 313816874261 TI321611G800-SMD 5445 313816874261 TI321611G800-SMD 5446 313816874261 TI321611G800-SMD 5447 313816874261 TI321611G800-SMD 5501 242254944195 IND FXD 0805 EMI 100MHZ 220R R 5502 242254944195 IND FXD 0805 EMI 100MHZ 220R R 5505 313816874261 TI321611G800-SMD 5506 313816874261 TI321611G800-SMD 5507 313816874261 TI321611G800-SMD 5508 242254944195 IND FXD 0805 EMI 100MHZ 220R R 5509 313816874261 TI321611G800-SMD 5511 242254942103 IND FXD 0805 EMI 100MHZ 2K2 R 5512 242254942103 IND FXD 0805 EMI 100MHZ 2K2 R 6201 932217973668 DIO REC SM BAT42W (PAJI) R 6220 932217973668 DIO REC SM BAT42W (PAJI) R 6221 933913910115 DIO SIG SM BAS32L (PHSE) R 6222 932217973668 DIO REC SM BAT42W (PAJI) R 6223 932217973668 DIO REC SM BAT42W (PAJI) R 6442 933215370215 DIO SIG SM BAV99 (PHSE) R 6443 933215370215 DIO SIG SM BAV99 (PHSE) R 7202 932214526668 IC SM M24C02-WMN6 (ST00) R 7203 932214526668 IC SM M24C02-WMN6 (ST00) R 7211 935260739118 IC SM 74LVC14APW (PHSE) R 7301 932219638671 IC SM GM5120-BD (GEMI) Y 7302 932218246668 IC SM AME8815AEGT250 (AME0) R 7303 932218246668 IC SM AME8815AEGT250 (AME0) R 7304 935270954115 IC SM SA56616-28D (PHSE) R 7310 932217946682 IC SM M29W010B-90K1 (ST00) L 7311 932214725682 IC M24C16-WBN6 (ST00) L 7441 932218246668 IC SM AME8815AEGT250 (AME0) R 7442 932219359668 IC SM AME8815AEGT150 (AME0) R 7443 823827714701 IC LF CHIP PACIFIC 1SB 7501 932200429685 TRA SIG SM BC857C (ONSE) R 7502 932200429685 TRA SIG SM BC857C (ONSE) R 7503 932209265685 TRA SIG SM MUN2211J (ONSE) R 7504 932216638668 FET POW SM SI5441DC (VISH) R 7505 932209265685 TRA SIG SM MUN2211J (ONSE) R 7506 932202899668 FET POW SM SI4835DY (VISH) R 7513 932209265685 TRA SIG SM MUN2211J (ONSE) R 7514 932200429685 TRA SIG SM BC857C (ONSE) R Cable 1053 313815857101 CONTROL ASSY 1701 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1702 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1703 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1704 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1705 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1706 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1711 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1712 242202518406 CON H 14P M 2.00 63374 B 6711 932219382682 LED VS L-3WSYKPBW (KIEL) B 1055 313815857661 KEY BOARD ASSY 6916 932219383682 LED VS L-934MBD (KIEL) B 8915 313819870491 CBLE 330524 4/40/4-014 AWG26 190P5 Go to cover page The screen is too bright or too dark Adjust the contrast and brightness in OSD Main Controls. (The backlight of the product has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer.) An after-image appears If an image remains on the screen for an extended period of time, it may be imprinted in the screen and leave an afterimage This usually disappears after a few hours. An afterimage remains after the power has been turned off. This is characteristic of liquid crystal and is not caused by a malfunction or deterioration of the liquid crystal. The afterimage will disappear after a period of time. Green, red, blue, dark and white dots remain. The remaining dots are normal characteristic of the liquid crystal used in today’s technology. Visible brighter spots in dark scenes The brighter spots are normal when the ambient light is very low. Increase the ambient light to make the spots invisible 45 Troubleshooting This page deals with problems that can be corrected by the user. If the problem still persists after you have tried these solutions, contact your nearest Philips dealer. Common Problems Having this problem? Check these items No Picture (Power LED not lit) Make sure the power cord is plugged into the power outlet and into the back of the monitor. No Picture (Power LED is amber) Make sure the computer is turned on. Make sure the signal cable is properly connected to your computer. Check to see if the monitor cable has bent pins. The Energy Saving feature may be activated Screen says Make sure the monitor cable is properly connected to your computer. (Also refer to the Quick Set-Up Guide). Check to see if the monitor cable has bent pins. Make sure the computer is turned on. Imaging Problems Display position is incorrect Press "MENU" key to select "ADJUST POSITION" control at PC mode or press "MENU" and "DOWN" hot keys at front control together to automatically adjust the position. Image vibrates on the screen Check that the signal cable is properly connected to the graphics board or PC. Vertical flicker appears Press "MENU" and "DOWN" hot keys at front control together to automatically adjust at PC mode. Press "MENU" key to select "AUTO". Horizontal flicker appears Press "MENU" and "DOWN" hot keys at front control together to automatically adjust at PC mode. Press "MENU" key to select "AUTO". 190P5 Go to cover page 46 Warning and Notes Fig.1 V Warnings 1 2 0 V 3 ESD 4 5 6 7 8 9 10. 11. . Safety regulations require that the unit should be returned in its original condition and that components identical to the original components are used. The safety components are indicated by the symbol . . In order to prevent damage to ICs and transistors, all high-voltage flash-overs must be avoided. In order to prevent damage to the picture tube, the method shown in Fig. 1 should be used to discharge the picture tube. Use a high-voltage probe and a multimeter (position DC-V). Discharge until the meter reading is (after approximately 30 seconds). . All ICs and many other semiconductors are sensitive to electrostatic discharges (ESD). Careless handling during repair can drastically shorten their life. Make sure that during repair you are connected by a pulse band with resistance to the same potential as the ground of the unit. Keep components and tools also at this same potential. . When repairing a unit, always connect it to the AC Power voltage via an isolating transformer. . Be careful when taking measurements in the high-voltage section and on the picture tube panel. . It is recommended that saferty goggles be worn when replacing the picture tube. . When making adjustments,use plastic rather than metal tools. This will prevent any short-circuit or the danger of a circuit becoming unstable. . Never replace modules or other components while the unit is switched on. . Together with the defleciton unit, the picture tube is used as an integrated unit. Adjustment of this unit during repair is not recommended. After repair, the wiring should be fastened in place with the cable clamps. All units that are returned for service or repair must pass the original manufactures safety tests. Notes The direct voltages and waveforms are average voltages. They have been measured using the Service test software and under the following conditions : - Mode : 640 * 480 (31.5kHz / 60Hz) - Signal pattern : grey scale - Adjust brightness and contrast control for the mechanical mid-position (click position) The picture tube panel has printed spark gaps. Each spark gap is connected between an electrode of the picture tube and the Aquadag coating. The semiconductors indicated in the circuit diagram(s) and in the parts lists are completely interchangeable per position with the semiconductors in the unit, irrespective of the type indication on these semiconductors. 1. 2. 3. (CRT ONLY) 190P5 Go to cover page 47 Repair Flow Chart AC IN Power supply board Main panel 625~765Vrms Inverter panel Fluorescent Lamp LCD panel 3.3V DC 12V DC 12V DC No power (power indicator off) Check 12V/3.3V DC Check control panel No Yes Yes Check control wires Check Main panel Check Main panel 190P5 Go to cover page 48 Repair Flow Chart Front control key does not work Check Front control panel (Key & SW) Yes Check Signal connectors Check main panel Yes No Display Check Mains cord & LED of monitor Check Power board 12V/3.3V DC Yes Check video signals input interface Check inverter panel No Video source Yes Check Inverter panel 625~765Vrms with load No OK Check fluorescent lamp Check main panel No 190P5 Go to cover page 49 Repair Flow Chart Bad brightness Check Inverter panel output 625~765Vrms No Yes Bad Inverter panel Check fluorescent lamp Bad image Check Video,fh/fv signals Yes Yes Check LCD panel No No Check LCD panel Check all connectors & LVDS cable No Check main panel Check components cold soldering 190P5 Go to cover page General Product Specification 50 CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19” TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 1 590 24 HUDSON-4 190P5 GENERAL PRODUCT SPECIFICATION . ANALOG SINGLE INPUT . AUTO PICTURE ADJUSTMENT . 15 FACTORY PRESET MODES AND 33 PRESET MODES WHICH CAN BE RECOVERED TO PRESET MODES . USER FRIENDLY OSD DISPLAY FOR MODE IDENTIFICATION /ADJUSTMENT . DDC 2B COMMUNICATION CAPABILITY . MAX. RESOLUTION 1280*1024 NON-INTERLACED AT 75 HZ . 19”COLOR TFT LCD FLAT PANEL . Super Ergo BASE . FULL RANGE POWER SUPPLY 90 – 264 VAC . CE ENVIRONMENTAL POLICY . ANTI-GLARE TO REDUCE LIGHT REFLECTION . POWER MANAGEMENT CAPABILITY . SOG SUPPORT . TCO 99/TCO2003 . AUDIO SUPPORT . PROVIDE USB HUB (OPTION) . WALL MOUNT KIT (OPTION) . PROTECTIVE COVER (OPTION) 190P5 Go to cover page 51 General Product Specification CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19” TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 2 590 24 CONTENTS 1.0 Foreword 2.0 Product profile 2.1 LCD 2.2 Scanning frequencies 2.3 Video dot rate 2.4 Power input 2.5 Power consumption 2.6 Dimensions 2.7 Weight 2.8 Functions 2.9 Ambient temperature 2.10 Regulatory compliance 3.0 Electrical characteristics 3.1 Interface signals 3.2 Interface 3.2.1 D-sub cable 3.2.2 OSD function control 3.3 Timing requirement 3.3.1 Mode storing capacity 3.3.2 Factory preset timings 3.3.3 Horizontal scanning 3.3.4 Vertical scanning 3.4 Power input connection 3.5 Power management 3.6 Display identification 3.6.1 Analog DDC 4.0 Visual characteristics 4.1 Test conditions 4.2 Resolution 4.3 Brightness 4.4 Image size 4.4.1 Actual display size 4.4.2 Max scan size 4.5 Brightness uniformity 4.6 Check cross talk 4.7 White color adjustment 4.8 Light frame features 5.0 Mechanical characteristics 5.1 Controls 5.2 Unit dimension / weight 5.3 Tilt and swivel base 5.4 Transportation packages 5.4.1 Shipping dimension / weight 5.4.2 Block unit / palletization 6.0 Environmental characteristics 6.1 Susceptibility of display to external environment 6.2 Transportation tests 6.3 Display disturbances from external environment 6.4 Display disturbances to external environment 6.4.1 EMI 7.0 Reliability 7.1 Mean time between failures 8.0 Quality assurance requirements 8.1 Acceptance test 9.0 Serviceability 10.0 Philips’Flat Panel Monitors Pixel Defect Policy 190P5 Go to cover page General Product Specification 52 CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19” TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 3 590 24 1.0 FOREWORD This specification describes a 19" SXGA multi-scan color TFT LCD monitor with max resolution up to 1280*1024 /76 Hz non-interlaced. 2.0 PRODUCT PROFILE This display monitor unit is a color display monitor enclosed in PHILIPS global styling cabinet, which has an integrated tilt and swivel base. 2.1 LCD 2.1.1 Type NR. : FLC48SXC8V-10-04A (Fujitsu) Number of Pixels. : 1280 (H) x 1024 (V) Physical Size. : 404.2(w)�330(h)�20(d) mm Pixel Pitch. : (0.098x3) x 0.294 mm Color pixel arrangement. : RGB vertical stripes Support Color. : 16,777,216 colors (RGB 8 bits data) Display Mode. : Normally Black Backlight. : CCFL edge light system Active area. (WXH). : 376.32 x 301.056mm (19”diagonal) Viewing Angle. : Vertical 85 degree(min), Horizontal 85 degree(min) (CR=10) Contrast ratio. : 700:1 (Typical), 400:1 (Minimum) Luminance. : 300 cd/m2 (Typical) 2.2 Scanning frequencies H-Frequency. : 30K – 82 K Hz V-Frequency. : 56 - 76 Hz 2.3 Video dot rate. : < 140 MHz 2.4 Power input. : 90-264 V AC, 50/60 � 2 Hz 2.5 Power consumption. : < 50 W (typical) (with audio) 2.6 Dimensions. : 399(W) * 398(H) * 197(D) mm 2.7 Weight. : 4.7kg 2.8 Functions: 1.D-Sub analog R/G/B separate inputs, H/V sync separated, Composite (H+V) TTL level, SOG sync 2.DVI-D digital Panel Link TMDS input 2.9 Ambient temperature: 5 �C - 35 �C 2.10 Regulatory compliance: Safety B (Poland), CCC(China), CE(Europe), CSA(Canada), Gost(Russia), IEC 950 CB Report, PSB(Singapore), NOM NYCE(Mexico), SEMKO(Nordic), TUV/GS TUV(Germany), UL(USA), KTL (Korea) EMI C-tick, CE(Europe), FCC(USA), IC(Canada), VCCI(Japan), BSMI, CCC(China), MIC (Korea) Ergonomics/Power management E2000, Nutek(Sweden), TCO03, TUV/GS, EPA, ISO13406-2 Compatibility PC2001, Windows2000, Windows Me, Windows XP, NSTL, 3.0 ELECTRICAL CHARACTERISTICS 3.1 .1 Interface signals D-shell Analog Input signal: Video, H-sync, V-sync, Video: 0.7 V p-p, input impedance, 75 ohm Sync. : Separate sync TTL level, input impedance 2k2 ohm terminate H-sync Positive/Negative V-sync Positive/Negative Composite sync TTL level, input impedance 2k2 ohm terminate (Positive/Negative) Sync on green video 0.3V p-p Negative. (Video 0.7 V p-p Positive) 190P5 Go to cover page General Product Specification 53 CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19inch TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 4 590 24 3.1.2 Audio Electrical Performance Input signal level: 500mVrms Input signal connector: 3.5 mm mini jack (lime green) Loudspeaker: 2W+2W stereo (Impedance: 16 Ohm+/- 15%) Frequency range: 300Hz - 13KHz Headphone connector: 3.5mm mini jack (black) Headphone connection will mute speakers 3.2 Interface 3.2.1 D-Sub Cable Length : 1.8 M +/- 50 mm Connector type : D-sub male with DDC-2B pin assignments.Blue connector thumb-operated jackscrews Pin Assignment: 3.2.1.1 DVI Cable The input signals are applied to the display through DVI-D cable. Length : 1.8 M +/- 50 mm (fixed) Connector type : DVI-D male with DDC-2B pin assignments.White connector thumb-operated jack screws Pin Assignment: Pin No. Description 1 T.M.D.S. data2- 2 T.M.D.S. data2+ 3 T.M.D.S. data2 shield 4 No Connect 5 No Connect 6 DDC clock 7 DDC data 8 No Connect 9 T.M.D.S. data1- 10 T.M.D.S. data1+ 11 T.M.D.S. data1 shield 12 No Connect 13 No Connect 14 +5V Power 15 Ground (for +5V) – Cable detect 16 Hot plug detect 17 T.M.D.S. data0- 18 T.M.D.S. data0+ 19 T.M.D.S. data0 shield 20 No Connect 21 No Connect 22 T.M.D.S clock shield 23 T.M.D.S. clock+ 24 T.M.D.S. clock- PIN No. SIGNAL 1 Red video input 2 Green video input / sync on green 3 Blue video input 4 GND 5 GND(Cable detect) 6 Red video GND 7 Green video GND 8 Blue video GND 9 DDC +3.3V or +5V 10 Logic GND 11 GND 12 Serial data line (SDA) 13 H-sync / H+V 14 V-sync 15 Data clock line (SCL) 190P5 Go to cover page General Product Specification 54 CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19inch TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 5 590 24 3.2.2 Software control functions via OSD/control OSD (On Screen Display) function Analog interface OSD: Adjustable functions: MAIN CONTROLS LANGUAGE ADJUST POSITION BRIGHTNESS & CONTRAST VIDEO NOISE ADJUST COLOR OSD SETTINGS PRODUCT INFORMATION RESET TO FACTORY SETTINGS INPUT SELECTION POWER SAVING EXIT MAIN CONTROLS MOVE SELECTION THEN ok LANGUAGE : ENGLISH, ESPANOL, FRANCAIS , DEUTSCH, ITALIANO, SIMPLE CHINSES, ADJUST POSITION : HORIZONTAL VERTICAL BRIGHTNESS & CONTRAST : brightness and contrast adjustment. VIDEO NOISE : Phase adjustment, Clock adjustment ADJUST COLOR : Original panel color, 9300K for CAD/CAM, 6500K for image management, sRGB, User Preset: Red Green Blue adjusts. OSD SETTING : OSD H-position, OSD V-position PRODUCT INFORMATION : Show Serial No./ Resolution / Video input. RESET TO FACTORY SETTING : recall to Factory preset settings. INPUT SELECTION :Select video source POWER SAVING :Power saving 3.2.3 Digital interface OSD: Adjustable functions: MAIN CONTROLS LANGUAGE BRIGHTNESS & CONTRAST ADJUST COLOR OSD SETTINGS PRODUCT INFORMATION RESET TO FACTORY SETTINGS INPUT SELECTION EXIT MAIN CONTROLS MOVE SELECTION THEN ok 190P5 Go to cover page 55 General Product Specification CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19inch TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 590 24 LANGUAGE : ENGLISH , ESPANOL , FRANCAIS , DEUTSCH, ITALIANO, SIMPLE CHINESE, BRIGHTNESS & CONTRAST : brightness and contrast adjustment. ADJUST COLOR : Original Panel color, 9300K for CAD/CAM , 6500K for image management, sRGB, User Preset: Red Green Blue adjust. OSD SETTING : OSD H-position, OSD V-position PRODUCT INFORMATION : Show Serial No./ Resolution / Video input. RESET TO FACTORY SETTING: return to Factory preset timings and settings. INPUT SELECTION : select Analog D-sub, Digital DVI-D. 3.3 Timing requirement 3.3.1 Mode storing capacity (1) Factory preset modes : 15 (2) Preset modes : 33 3.3.2 Factory preset timings The factory settings of size and centering are according to the reference timing charts (See fig-4, fig-5) MODE NO. 1 2 3 4 RESOLUTION 640 x 350 720 x 400 640 x 480 640 x 480 Dot clock(MHz) 25.175 28.321 25.175 30.24 f h 31.469kHz 31.468kHz 31.5kHz 35 kHz A (us) 31.778(800 dots) 31.78(900dots) 31.778(800 dots) 28.571 (864 dots) B (us) 3.813(96 dots) 3.813(108dots) 3.813(96 dots) 2.116 (64 dots) C (us) 1.907(48 dots) 1.907(54dots) 1.907(48 dots) 3.175(96 dots) D (us) 25.422(640 dots) 25.42(720dots) 25.422(640 dots) 21.164(640 dots) E (us) 0.636(16 dots) 0.636(18dots) 0.636(16 dots) 2.116(64 dots) f v 70Hz(70.09) 70Hz(70.085) 60Hz 67Hz O (ms) 14.27(449 lines) 14.27(449 lines) 16.683 (525 lines) 15 (525 lines) P (ms) 0.064(2 lines) 0.064(2 lines) 0.064 (2 lines) 0.086(3 lines) Q (ms) 1.907(60 lines) 1.112(34 lines) 1.049 (33 lines) 1.114(39 lines) R (ms) 11.12(350 lines) 12.71(400 lines) 15.253 (480 lines) 13.714(480 lines) S (ms) 1.175(37 lines) 0.381(13 lines) 0.317 (10 lines) 0.086(3 lines) SYNC. H/V +/- -/+ - / - - / - POLARITY SEP. SYNC Y Y Y Y MODE NO. 5 6 7 8 RESOLUTION 640 x 480 640 x 480 640x480 800 x 600 Dot clock (MHz) 31.500 31.501 36 36 f h 37.861kHz 37.5kHz 36kHz 35.2kHz A (us) 26.413(832 dots) 26.667 (840 dots) 23.111 (832 dots) 28.444(1024 dots) B (us) 1.270(40 dots) 2.032 (54 dots) 1.556 (56 dots) 2.000 (72 dots) C (us) 3.810(120 dots) 3.81 (120 dots) 2.222 (80 dots) 3.556 (128 dots) D (us) 20.317(640 dots) 20.317 (640 dots) 17.778 (640 dots) 22.222(800 dots) E (us) 1.016(32 dots) 0.508 (26 dots) 1.555 (56 dots) 0.666 (24 dots) f v 72.809Hz 75Hz 85Hz 56Hz O (ms) 13.735(520 lines) 13.333 (500 lines) 11.763 (509 lines) 17.778 (625 lines) P (ms) 0.079(3 lines) 0.08 (3 lines) 0.069 (3 lines) 0.057 (2 lines) Q (ms) 0.528(20 lines) 0.427 (16 lines) 0.578 (25 lines) 0.626 (22 lines) R (ms) 12.678(480 lines) 12.8 (480 lines) 11.093 (480 lines) 17.066 (600 lines) S (ms) 0.45(17 lines) 0.026 (1 lines) 0.023 (1 lines) 0.029 (1 line) SYNC. H/V -/- - / - -/- + / + POLARITY SEP. SYNC Y Y Y Y 190P5 Go to cover page General Product Specification 56 CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19inch TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 590 24 MODE NO. 9 10 11 12 RESOLUTION 800 x 600 800 x 600 800 x 600 800 x 600 Dot clock (MHz) 40 50 49.498 56.251 f h 37.9kHz 48.077kHz 46.9kHz 53.7kHz A (us) 26.4 (1056 dots) 20.80 (1040dots) 21.333 (1056 dots) 18.631 (1048 dots) B (us) 3.2 (128 dots) 2.400 (120 dots) 1.616 (80 dots) 1.138 (64 dots) C (us) 2.2 (88 dots) 1.280 (64 dots) 3.232 (160 dots) 2.702 (152 dots) D (us) 20 (800 dots) 16.00 (800 dots) 16.162 (800 dots) 14.222 (800 dots) E (us) 1 (40 dots) 1.120 (56 dots) 0.323 (16 dots) 0.569 (32 dots) f v 60Hz 72Hz (72.188) 75Hz 85Hz O (ms) 16.579 (628 lines) 13.85 (666 lines) 13.333 (625 lines) 11.756(631 lines) P (ms) 0.106 (4 lines) 0.125 (6 lines) 0.064 (3 lines) 0.056 (3 lines) Q (ms) 0.607 (23 lines) 0.478 (23 lines) 0.448 (21 lines) 0.503 (27 lines) R (ms) 15.84 (600lines) 12.48 (600 lines) 12.8 (600 lines) 11.179 (600 lines) S (ms) 0.026 (1 line) 0.770 (37 line) 0.021 (1 line) 0.018 (1 lines) SYNC. H/V + / + + / + + / + + / + POLARITY SEP. SYNC Y Y Y Y MODE NO. 13 14 15 16 RESOLUTION 832 x 624 960X720 960X720 1024 x 768 Dot clock (MHz) 57.28 57.58 72.42 65 f h 49.7kHz 44.76kHz 56.4kHz 48.363kHz A (us) 20.11(1152 dots) 22.34(1286 dots) 17.73(1284 dots) 20.677(1344 dots) B (us) 1.117(64 dots) 1.72(99 dots) 1.44(104 dots) 2.092(136 dots) C (us) 3.91(224 dots) 2.58(148 dots) 2.21(160 dots) 2.462(160 dots) D (us) 14.52(832 dots) 16.67(960 dots) 13.256(960 dots) 15.754(1024 dots) E (us) 0.563(32 dots) 0.856(49 dots) 0.780(56 dots) 0.369(24 dots) f v 75Hz 60Hz 75Hz 60.004Hz O (ms) 13.41(667 lines) 16.667(746 lines) 13.333(752 lines) 16.666(806 lines) P (ms) 0.06(3 lines) 0.067(2.9 lines) 0.053(3 lines) 0.124(6 lines) Q (ms) 0.784(39 lines) 0.495(22 lines) 0.5(28 lines) 0.600(29 lines) R (ms) 12.55(624 lines) 16.081(720 lines) 12.766(720 lines) 15.880(768 lines) S (ms) 0.016(1 lines) 0.0228(1 lines) 0.0184(1 lines) 0.062(3 lines) SYNC. H/V +/+ -/ + -/ + - / - POLARITY SEP. SYNC Y Y Y Y MODE NO. 17 18 19 20 RESOLUTION 1024 x 768 1024 x 768 1024 x 768 1024 x 768 Dot clock (MHz) 75 78.75 83.096 94.5 f h 56.5kHz 60kHz 61.1kHz 68.7kHz A (us) 17.707(1328 dots) 16.66 (1312dots) 16.367 (1360dots) 14.561 (1376 dots) B (us) 1.813(136 dots) 1.219 (96 dots) 1.348 (112 dots) 1.016 (96 dots) C (us) 1.920(144 dots) 2.235 (176 dots) 2.022 (168 dots) 2.201 (208 dots) D (us) 13.653(1024 dots) 13.003 (1024 dots) 12.323 (1024 dots) 10.836 (1024 dots) E (us) 0.321 (24 dots) 0.203 (16 dots) 0.674 (56 dots) 0.508 (48 dots) f v 70.004Hz 75Hz (75.000) 76Hz 85Hz O (ms) 14.272(806 lines) 13.328 (800 lines) 13.142 (803 lines) 11.765 (808 lines) P (ms) 0.106(6 lines) 0.05(3 lines) 0.049 (3 lines) 0.044 (3 lines) Q (ms) 0.514(29 lines) 0.446 (28 lines) 0.507 (31 lines) 0.524 (36 lines) R (ms) 13.599(768 lines) 12.80 (768 lines) 12.57 (768 lines) 11.183 (768lines) S (ms) 0.053(3 lines) 0.017 (1 line) 0.016 (1 line) 0.014 (1 line) SYNC. H/V -/- + / + + / + + / + POLARITY SEP. SYNC Y Y Y Y 190P5 Go to cover page 57 General Product Specification CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19inch TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 590 24 MODE NO. 21 22 23 24 RESOLUTION 1152 x 864 1152 x 864 1152 x 864 1152 x 870 Dot clock (MHz) 79.9 94.5 108 100 f h 54.0kHz 63.9kHz 67.5kHz 68.7kHz A (us) 18.523(1480 dots) 15.661(1480 dots) 14.815 (1600 dots) 14.56 (1456 dots) B (us) 1.952(156 dots) 1.016(96 dots) 1.185 (128 dots) 1.28 (128 dots) C (us) 1.352(108 dots) 1.116(105 dots) 2.37 (256 dots) 1.44(144 dots) D (us) 14.418(1152 dots) 12.19(1152 dots) 10.667 (1152 dots) 11.52 (1152 dots) E (us) 0.801(64 dots) 1.339(127 dots) 0.593 (64 dots) 0.32 (32 dots) f v 60Hz 70Hz 75Hz 75Hz O (ms) 16.671(900lines) 14.283(912lines) 13.333 (900 lines) 13.333 (916 lines) P (ms) 0.148(8 lines) 0.047(3lines) 0.044 (3 lines) 0.044 (3 lines) Q (ms) 0.445(24 lines) 0.689(44 lines) 0.474 (32 lines) 0.568(39 lines) R (ms) 16.004(864 lines) 13.531(864 lines) 12.8 (864 lines) 12.678 (870 lines) S (ms) 0.074(4 lines) 0.016(1 lines) 0.015 (1 lines) 0.043 (4 line) SYNC. H/V +/+ +/+ - / - - / - POLARITY SEP. SYNC Y Y Y Y MODE NO. 25 26 27 28 RESOLUTION 1152 x 900 1152 x 900 1280 x 960 1280 x 960 Dot clock (MHz) 94.5 108 108 129.895 f h 61.8kHz 71.8kHz 60kHz 75kHz A (us) 16.169 (1528 dots) 13.926 (1054dots) 16.667(1800 dots) 13.307 (1728 dots) B (us) 1.354 (128 dots) 1.185 (128 dots) 1.037(112 dots) 1.047 (136 dots) C (us) 2.201 (208 dots) 1.778 (192 dots) 2.889(312 dots) 1.725 (224 dots) D (us) 12.19 (1152 dots) 10.667 (1152 dots) 11.852(1280 dots) 9.857 (1280 dots) E (us) 0.424 (40 dots) 0.296 (32 dots) 0.889(96 dots) 0.678 (88 dots) f v 66Hz 76Hz 60Hz 75Hz O (ms) 15.151 (937lines) 13.132 (943 lines) 16.667(1000 lines) 13.333 (1002 lines) P (ms) 0.065 (4 lines) 0.111 (8 lines) 0.05(3 lines) 0.039 (3 lines) Q (ms) 0.501 (31 lines) 0.46 (33 lines) 0.600(36 lines) 0.48 (36 lines) R (ms) 14.552 (900lines) 12.533 (900 lines) 16(960 lines) 12.774 (960 lines) S (ms) 0.033 (2 line) 0.028 (2 lines) 0.017(1 lines) 0.04 (3 lines) SYNC. H/V Serr- + / + +/+ + / + POLARITY SEP. SYNC Y Y Y Y MODE NO. 29 30 31 32 RESOLUTION 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024 Dot clock (MHz) 108 117 130.223 135 f h 64kHz 71.7kHz 76kHz 80kHz A (us) 15.63 (1688 dots) 13.949 (1632 dots) 13.158 (1712 dots) 12.504(1688 dots) B (us) 1.037 (112 dots) 0.957 (112 dots) 1.024 (133 dots) 1.067(144 dots) C (us) 2.296 (248 dots) 1.915 (224 dots) 1.905 (248 dots) 1.837(248 dots) D (us) 11.852 (1280 dots) 10.94 (1280 dots) 9.83 (1280 dots) 9.481(1280 dots) E (us) 0.445 (48 dots) 0.137 (16 dots) 0.399(51 dots) 0.119(16 dots) f v 60Hz 67Hz 72Hz 75Hz O (ms) 16.661 (1066 lines) 14.883 (1067lines) 14 (1064 lines) 13.329(1066 lines) P (ms) 0.047 (3 lines) 0.112 (8 lines) 0.02 (2 lines) 0.038(3 lines) Q (ms) 0.594 (38 lines) 0.46 (33 lines) 0.5 (38 lines) 0.475(38 lines) R (ms) 16.005 (1024 lines) 14.283 (1024 lines) 13.468 (1024 lines) 12.804(1024 lines) S (ms) 0.015 (1 line) 0.028 (2 lines) 0.012 (0 line) 0.012 (1 line) SYNC. H/V + / + + / + + / + +/+ POLARITY SEP. SYNC Y Y Y Y 190P5 Go to cover page General Product Specification 58 CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19 TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 9 590 24 MODE NO. 33 RESOLUTION 1280 x 1024 Dot clock (MHz) 138.008 f h 81.1kHz A (us) 12.326 (1664 dots) B (us) 0.474 (64 dots) C (us) 2.133 (288 dots) D (us) 9.481 (1280 dots) E (us) 0.238 (32 dots) f v 76Hz O (ms) 13.139 (1066 lines) P (ms) 0.099 (8 lines) Q (ms) 0.394 (32 lines) R (ms) 12.622 (1024 lines) S (ms) 0.024(2 lines) SYNC. H/V - / - POLARITY SEP. SYNC Y A : H-Total O : V-Total B : H- Sync width P : V- Sync width C : H- Back porch Q : V- Back porch D : H- Video width R : V- Video width E : H- Front porch S : V- Front porch 3.3.3 Horizontal scanning Sync polarity : Positive or Negative Scanning frequency : 30 - 82 K Hz 3.3.4 Vertical scanning Sync polarity : Positive or Negative Scanning frequency : 56 - 76 Hz 3.4 Power input connection Power cord length : 1.8 M Power cord type : 3 leads power cord with protective earth plug. 3.5 Power management The power consumption and the status indication of the set with power management function are as follows, STATUS Horizontal Vertical Power Spec LED Power On Pulse Pulse < 60 W Green Off No Pulse No Pulse < 1 W (Without audio) Amber According to VESA power saving signal. TCO’03 power saving requirement EPA energy star requirement (DC power Switch Off) Power consumption is less 1W (Without audio.) 3.6 Display identification 3.6.1 In accordance with VESA Display Channel Standard V1.0 and having DDC-2B capability. 4.0 Visual characteristics 190P5 Go to cover page 59 General Product Specification CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19 TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 10 590 24 4.1 Test conditions Unless otherwise specified, this specification is defined under the following conditions. (1) Input signal: As defined in 3.3, 1280 x 1024 non-interlaced mode (80K/75Hz), signal sources must have 75 ohm output impedance. (2) Luminance setting: controls to be set to 200 nits with full white signal (3) Warm up: more than 30 minutes after power on with signal supplied. (4) Ambient light: 400 -- 600 lux. (5) Ambient temperature: 20 ± 5 �C 4.2 Resolution Factory preset modes (16 modes) # Resolution H-Frequency Pixel rate V-Frequency Comment 1 640X350 31.5KHz 25.175 70Hz IBM VGA 10h 2 720X400 31.5KHz 28.322 70Hz IBM VGA 3h 3 640X480 37.5KHz 31.501 75Hz 4 640X480 35.0KHz 30.24 67Hz 5 640X480 31.5KHz 25.175 60Hz 6 800X600 35.2KHz 36 56Hz 7 800X600 46.9KHz 49.498 75Hz 8 800X600 37.9KHz 40 60Hz 9 832X624 49.7KHz 57.28 75Hz MAC 10 1024X768 60.0KHz 78.75 75Hz 11 1024X768 48.4KHz 65 60Hz 12 1152X870 68.7KHz 100 75Hz MAC 13 1152X900 71.8KHz 108 76Hz SUN Mode II 14 1280X1024 64.0KHz 108 60Hz 15 1280X1024 80.0KHz 135 75Hz Note: 1. Screen displays perfect picture at 15 factory-preset modes. 2. Screen displays visible picture with OSD warning when input modes are other then 3 preset modes 4.3 Brightness: 200 nits (at panel color temperature, Screen center point, Fig. 1) 4.4 Image size 4.4.1 Actual display size 376.32 x 301.056 mm 4.5 Brightness uniformity Set contrast at 50% and turn the brightness to get average above 200 nits at center of the screen. Apply the Fig 1. It should comply with the following formula: Minimum luminance of nine points (brightness) >= 0.75 (Min) Maximum luminance of nine points (brightness) 190P5 Go to cover page General Product Specification 60 CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19 TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 11 590 24 4.6 Check Cross talk (S) Apply Pattern 2. Set contrast at 50 % and brightness at 100 %. Measure A. Then output Pattern 3 and measure A’. The cross talk value: ABS (A - A’) ��������� X 100 % < 1.5 % (Max) A 4.7 White color adjustment There are three factory preset white color 9300K, 6500K and sRGB. Apply full white pattern, with brightness in 100 % position and the contrast control at 50 % position. The 1931 CIE Chromaticity (color triangle) diagram (x, y) coordinate for the screen center should be: 9300K CIE coordinates X = 0.283 ± 0.020 Y = 0.297 ± 0.020 6500K CIE coordinates X = 0.313 ± 0.020 Y = 0.329 ± 0.020 sRGB CIE coordinates X = 0.313 ± 0.020 Y = 0.329 ± 0.020 4.8 Light Frame features 4.8.1 Full screen mode --- accessed by light frame key at front of panel. 4.8.2 Multi-window mode --- accessed by Light Frame application program Brightness control Sharpness enhancement Contrast enhancement Color boosting 5.0 Mechanical characteristics 5.1 Controls Right side: DC power switch OSD function key UP/DOWN (Brightness key) LEFT/RIGHT Auto key Volume(Audio chin) Front side: LF key Rear : Video signal cable DVI signal cable Power cord socket DC 12 V socket Audio In Jack Headphone Jack 5.2 Unit dimension / Weight Set dimension (incl. pedestal): 425(W) * 431(H) * 214(D) mm Net weight. : 8.56 kg 5.3 Tilt base Tilt angle: -5 � to +25 � 5.4 Transportation packages 5.4.1 Shipping dimension/Weight Carton dimension. : 480(W) * 271(H) * 484(D) mm Gross weight. : 9.8 kg 190P5 Go to cover page 61 General Product Specification CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19 TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 12 590 24 5.4.2 Block unit / Palletization layers/block sets/layer sets/block unit 7 4 28 blocks/container 20 feet 40 feet 12 24 6.0 Environmental characteristics The following sections define the interference and susceptibility condition limits that might occur between external environment and the display device. 6.1 Susceptibility of display to external environment Operating - Temperature. : 5 to 35 degree C - Humidity. : 80% max - Altitude. : 0 to 12,000 feet Storage - Temperature. : -20 to 60 degree C - Humidity. : 100% max (< 40 ) - Altitude. : 0 to 30,000 feet Note: recommend at 5 to 35�C, Humidity less than 60 % 6.2 Transportation tests Standard Philips UAN-D1400 NSTA Height 70 cm 61 cm 1 corner 1 corner Drop Sequence 3 faces 3 edge Test 6 face Electrical function ok Test Mechanical function ok Result No serious damage on set appearance (Room temp./-10°c, humidity 70 %) 5-200 Hz 10-50-10 Hz Sequence 0.73 G 0.35 mm 30 min. for 30 min. for Vibration Each axis Each axis Test Test Electrical function ok Result Mechanical function ok No serious damage on set appearance For design evaluation only Operating 10 G, 11 msec, 1000 cycles Bump Temperature. : 23°C Test Humidity. : 60 % Air pressure. : 100 kpa (According to DSD draft standard UAN-D636) 6.3 Display disturbances from external environment According to IEC 801-2 for ESD disturbances 6.4 Display disturbances to external environment 6.4.1 EMI EMI: FCC, VCCI, CE, C-Tick, MPRIII, BCIQ, 7.0 Reliability 7.1. Mean Time Between Failures System MTBF (Excluding the LCD panel and CCFL): 50,000 hrs CCFL MTBF: 30,000 hrs (50% of original brightness) 8.0 Quality assurance requirements 190P5 Go to cover page General Product Specification 62 CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19 TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 13 590 24 8.1 Acceptance test According to MIL-STD-105D Control II level AQL: 0.65 (major) 2.50 (minor) (Please also refer to annual quality agreement) Customer acceptance criteria: UAW0377/00 9.0 Serviceability The serviceability of this monitor should fulfill the requirements, which are prescribed in UAW-0346 and must be checked with the checklist UAT-0361. 10.0 Philips’Flat Panel Monitors Pixel Defect Policy BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit sub pixel 0 2 adjacent lit sub pixel 0 3 adjacent lit sub pixel (one white pixel) 0 Distance between two bright dot defects* 0 Bright dot defects within 20mm circle 0 Total bright dot defects of all types 0 BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark sub pixel 4 or fewer 2 adjacent dark sub pixel 2 or fewer 3 adjacent dark sub pixel (one white pixel) 0 Distance between two black dot defects* 15mm or more Black dot defects within 20mm circle Total black dot defects of all types 4 or fewer TOTAL DOT DEFECTS ACCEPTABLE LEVEL Total bright or block dot defects of all type 4 or fewer * 1 or 2 adjacent sub-pixel defects = 1 dot defect Fig 1: Brightness and Uniformity 1 2 3 7 8 W/10 L W L/10 L/2 W/2 4 5 6 9 Position 5 = Screen center point 190P5 Go to cover page 63 General Product Specification CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19 TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 14 590 24 Fig 2: Cross talk pattern Gray level 184 (256 Gray level) B 1/2 1/6 1/2 A 1/6 Fig 3: Cross talk pattern Center at Gray level 0 (Black) B’ 1/6 1/2 1/6 1/3 1/3 1/3 1/3 1/2 A’ 1/3 190P5 Go to cover page General Product Specification 64 CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19 TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 15 590 24 D VIDEO C E SEPARATE SYNC. HORIZONTAL B A R VIDEO Q S P O D VIDEO C E B A VERTICAL HORIZONTAL COMPOSITE SYNC. FIG-4 TIMING CHART -1 190P5 Go to cover page 65 General Product Specification CLASS NO. NAME 2838 100 05424 TY CHECK SUPERS. DATE Property of PHILIPS ELECTRONICS INDUSTRIES (TAIWAN) LTD.-B.E. 10 A4 2003-11-28 Alger Huang 19 TFT SXGA LCD CMTR TYPE: 190P5ES/00 BRAND: PHILIPS 2003-11-28 16 590 24 D VIDEO C E B A VERTICAL COMPOSITE SYNC. FIG-5 TIMING CHART -2 O P Q R S & VIDEO B S P Q O R ( SYNC. ON GREEN ) HORIZONTAL VERTICAL 190P5 Go to cover page 66 Different Parts List Diversity of 190P5EG/00 comparing with 190P5ES/00 Item 12NC Description 863900015028 190P5EG/00 32 313815411211 STRIP-DECORATION 33 313815411241 BUTTON-CONTROL 40 313815756051 BACK COVER ASSY(T) 41 313815411201 BACK COVER(T) 42 313815411271 PLATE-VENT 43 313815411221 SPEAKER REAR COVER 50 313815756391 SUPER ERGO BASE 96 313810040331 SCREW W/WASHER M4X12 1157 313816874231 MAINS CORD 1157 313818870461 MAINSCORD IEC 10A 1M8 DET TDS 1158 823827714641 D-SUB I/F CABLE 1.8M (T-COLOR) 1158 823827714681 DSUB I/F CABLE 1.8M(T-COLOR) 1158 313818877811 CORD SUB-D 15/1M8/SUB-D 15 M/M 1161 823827714621 DVI I/F CABLE 1.8M (T-COLOR) 1161 823827714661 DVI I/F CABLE 1.8M(T-COLOR) 1162 313819870941 CBLE 3.55MM/1M8/3.5MM M/M GY 1162 313819871011 CBLE 891184 1/1800/1 891184 Diversity of 190P5EB/00 comparing with 190P5ES/00 Item 12NC Description 863900015029 190P5EB/00 30 313815756021 BEZEL ASSY(B) 31 313815411851 BEZEL(B) 32 313815411211 STRIP-DECORATION 33 313815411871 BUTTON-CONTROL 40 313815756031 BACK COVER ASSY(B) 41 313815411881 BACK COVER(B) 42 313815411891 PLATE-VENT 43 313815411901 SPEAKER REAR COVER 126 313815562001 RATING LABEL 190P5 Go to cover page Step 5 :Copy the 190P5.txt to C:\Program files\genesis microchip\GProbe4 as shown in Fig. 5 . In desktop , Right-click the Gerobe4.4.0.2.exe icon to press the properties as shown in Fig. 6. From the menu that appears, choose windows 2000 (choose by the OS version) ,Then press OK as shown in Fig. 7. . ” ” 67 ISP CABLE for CPU GM5125BD 6. Install and setup the Gprobe4.4.0.2.exe program Step 1 : Make a folder in your PC as shown in Fig. 3. For example : C:\190P5 Step 2 : Copy ISP Software ( 3138 106 10353) into your folder as shown in Fig.3. Step 3 : Unzip isp.zip into your folder as shown in Fig. 3. Step 4 : Double click the Gprobe4.4.0.2.exe icon to install the Application as Fig. 4. 190P5.zip Configuration and procedure ISP (In System Program) software ISP cable is provided by Genesis to upgrade the firmware of CPU. is for the interface between "Parallel Port of PC" and "15 pin-D-SUB connector of Monitor". It is a DOS-based program, which cannot be run in MS-Windows. System and equipment requirements 1. An i486 (or above) personal computer or compatible. 2. Microsoft operation system Windows 95/98 => . 4. ISP Cable (3138 106 10148) as shown in Fig. 1 DOS environment 3. ISP Software Fig. 1 => ISP CABLE : 12nc is "3138 106 10148". 5 Connect ISP cable and Mains cord to Monitor as shown in Fig. 2. . Fig.2 PC To printer port (LTP1) To video card Video cable Connect to Mains cord Monitor (A) Monitor (B) ISP cable D-Sub Connect to Mains cord at this moment. -------------------------------> Fig. 3 Fig. 1 Fig. 4 Fig. 5 Fig. 6 Fig. 7 190P5 Go to cover page Update the firmware 1. Double click the Gprobe4.4.0.2.exe icon then appears window as shown in Fig.7 . 2. Press the Options then choose Configure Pin as shown in Fig. 7. 3. From the menu that appears, choose the number 17 in and the number 12 in as shown in Fig. 8 4 Press the Options then choose Connection setup as shown in Fig. 9. 5. From the menu that appears, choose the DDC2Bi3 in and the LPT1(0X378) in as shown in Fig. 10 ”Output Pin” ”Input Pin” . ”Protocol” ”Port” . 68 ISP CABLE for CPU GM5125BD Update the firmware 1. Choose 4. Press the enter to running program , the firmware be updated as shown in Fig. 12 . 5. . ” ” ” ” GM51xxBD as shown in Fig. 11. It should be red one and number as shown in Fig.11. 3. Key the batch 190P5.txt as shown in Fig.11. Please to unplug its power cable => then plut immediately ============> it should be red one ============================> ============> Error Fig. 7 Fig. 8 Fig. 9 Fig. 11 Fig. 10 190P5 Go to cover page 69 ISP CABLE for CPU GM5125BD Fig. 12 Check the firmware version Step 2 : [Push AUTO " " & OK " " buttons at the same time and hold it ] + [Press power " " button untill comes out "Windows screen" ] => then release all buttons. Get into Factory Mode , then check the firmware version. Turn off monitor. Press OK " " button, bring up Factory mode indication as shown in Fig 13. Step 1 : Step 3 : Fig. 13 HUDSON 190P5 V043 2003-12-23 <------Factory mode indicator 190P5 Go to cover page
