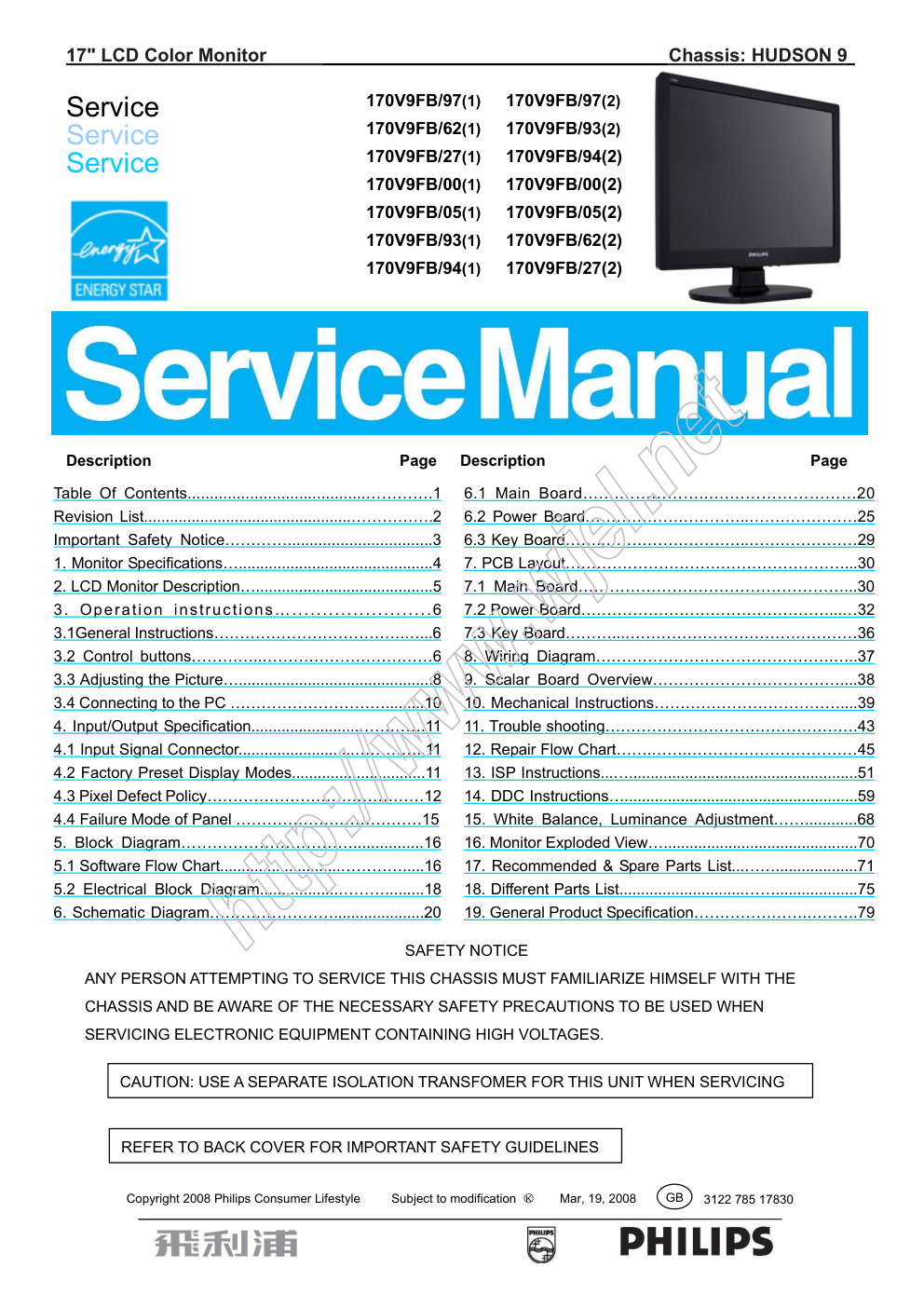

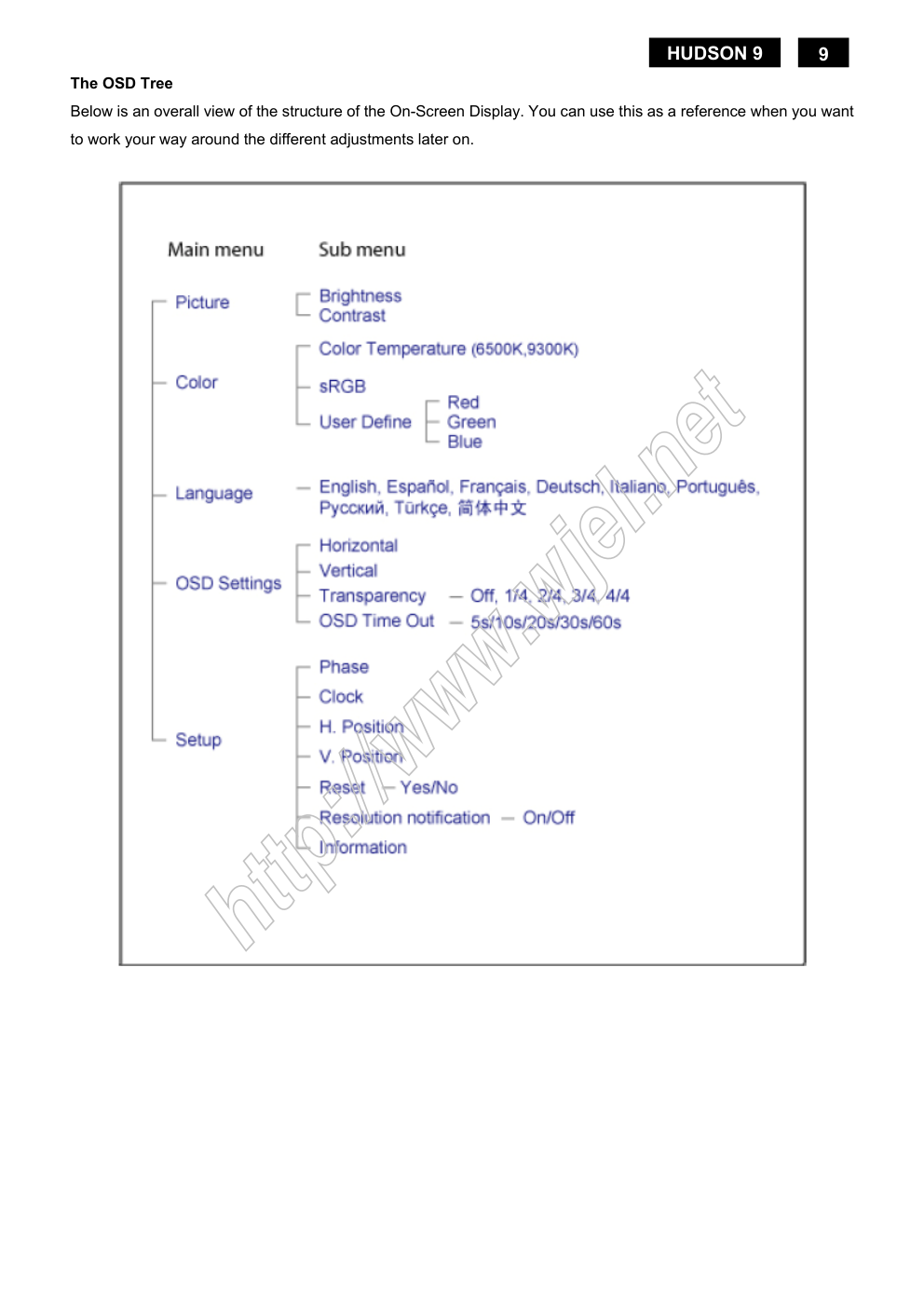

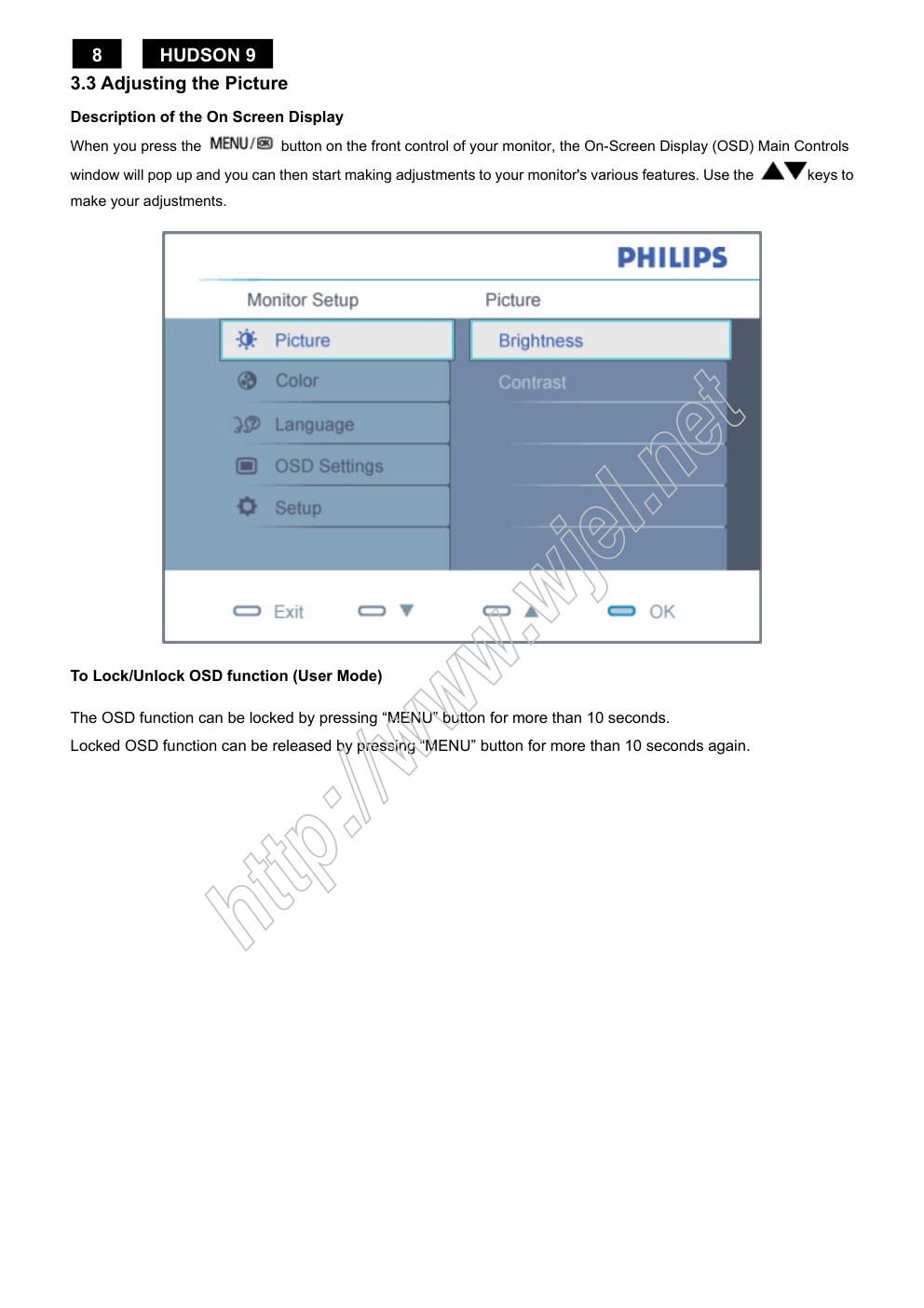

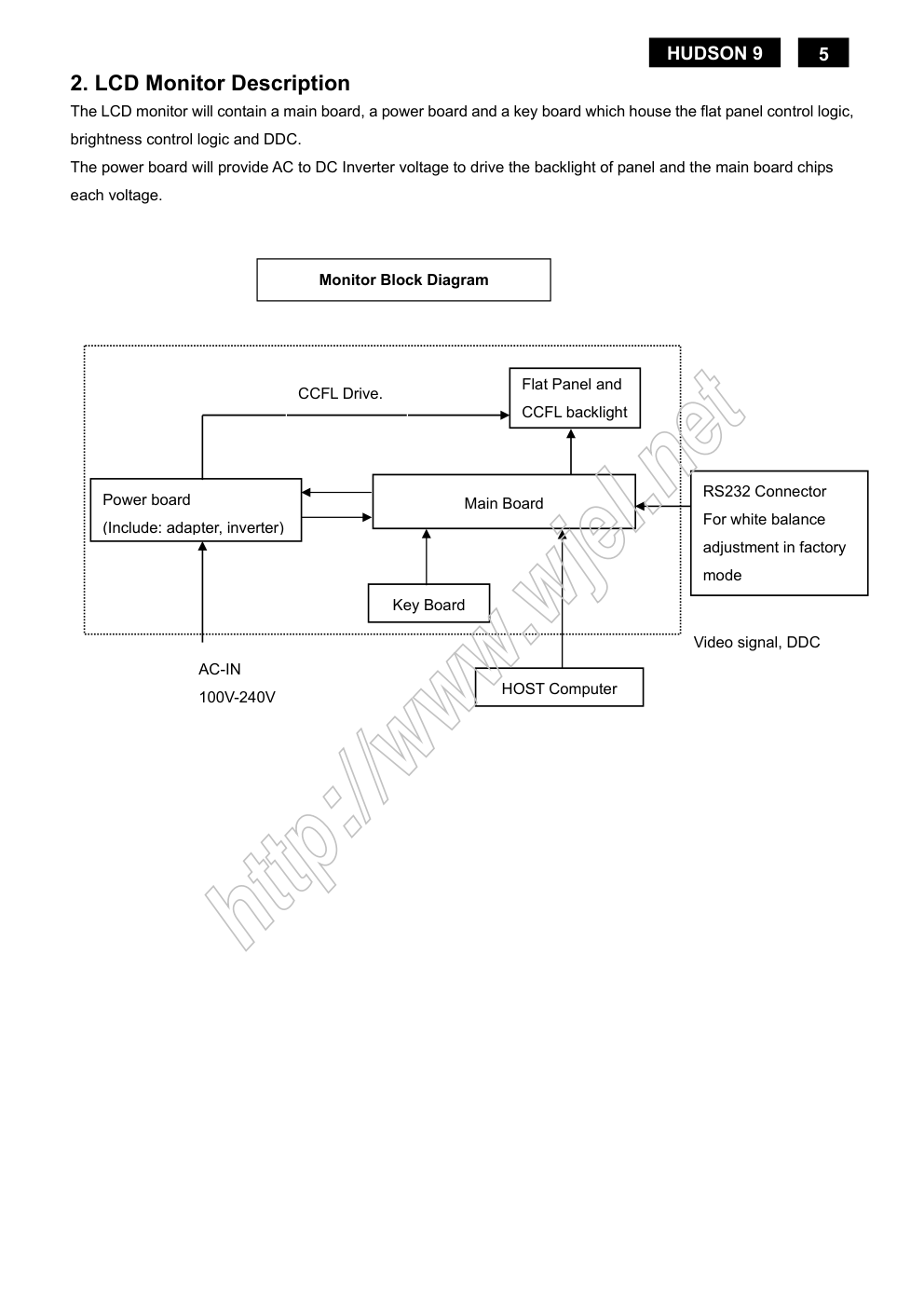

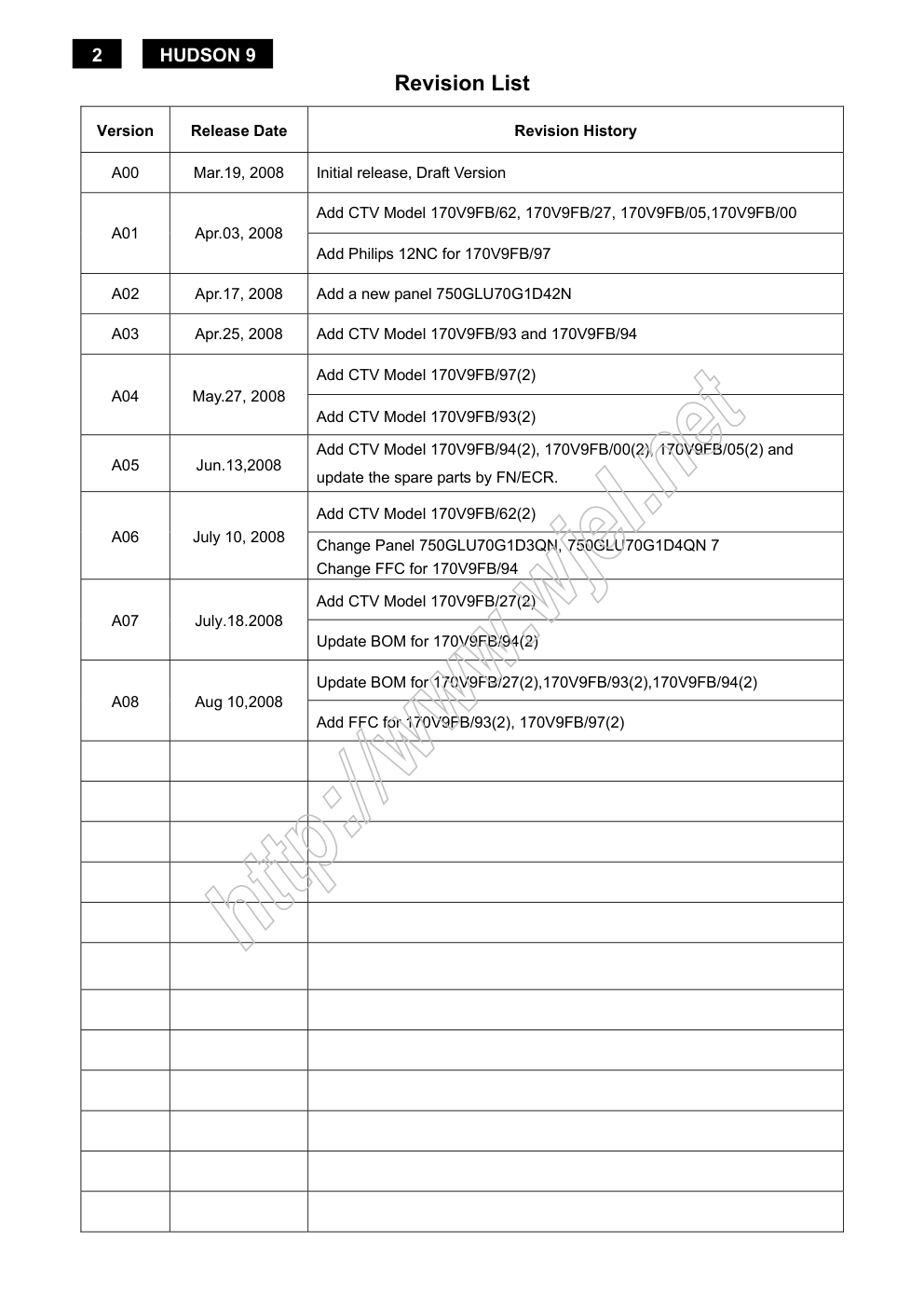

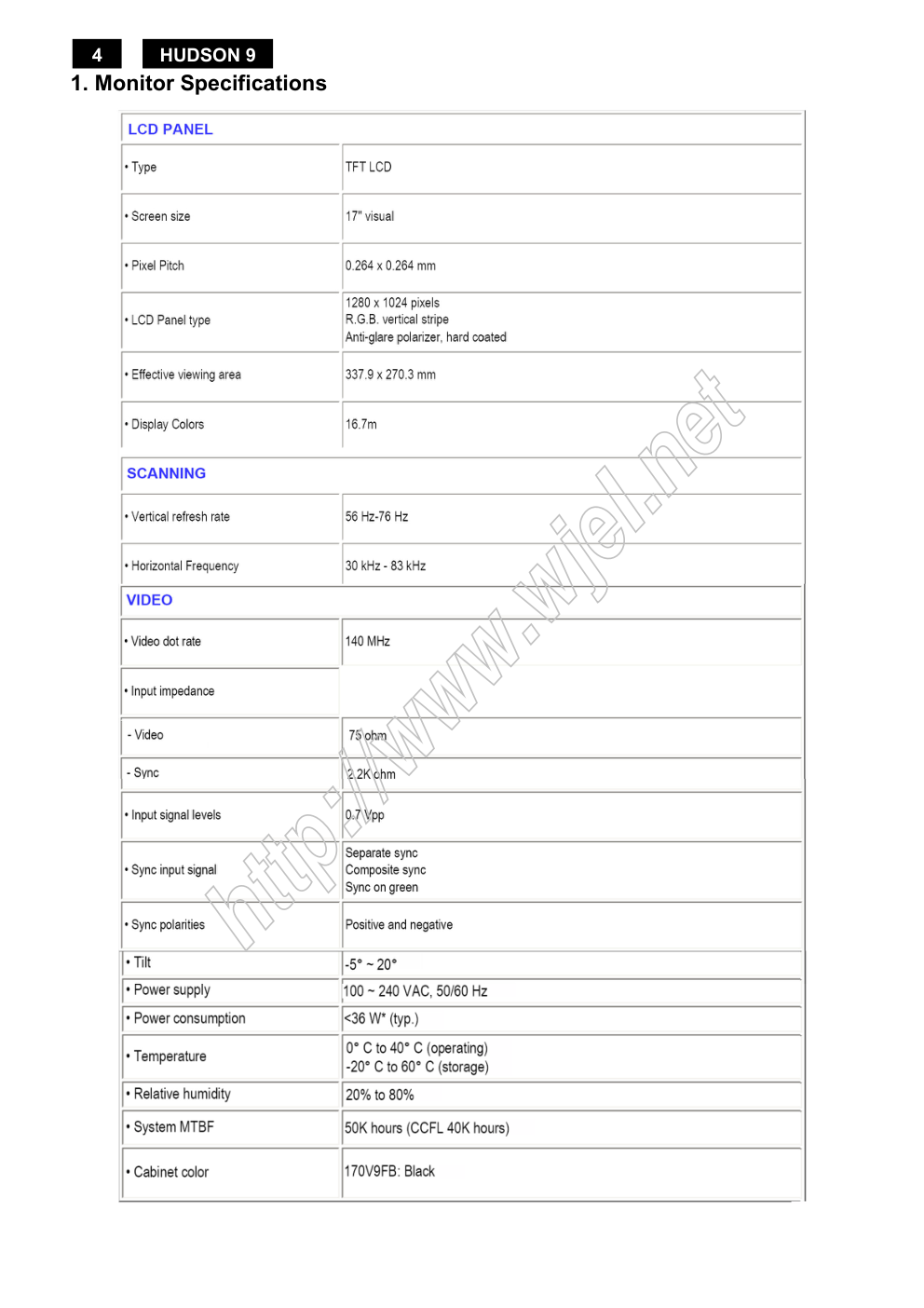

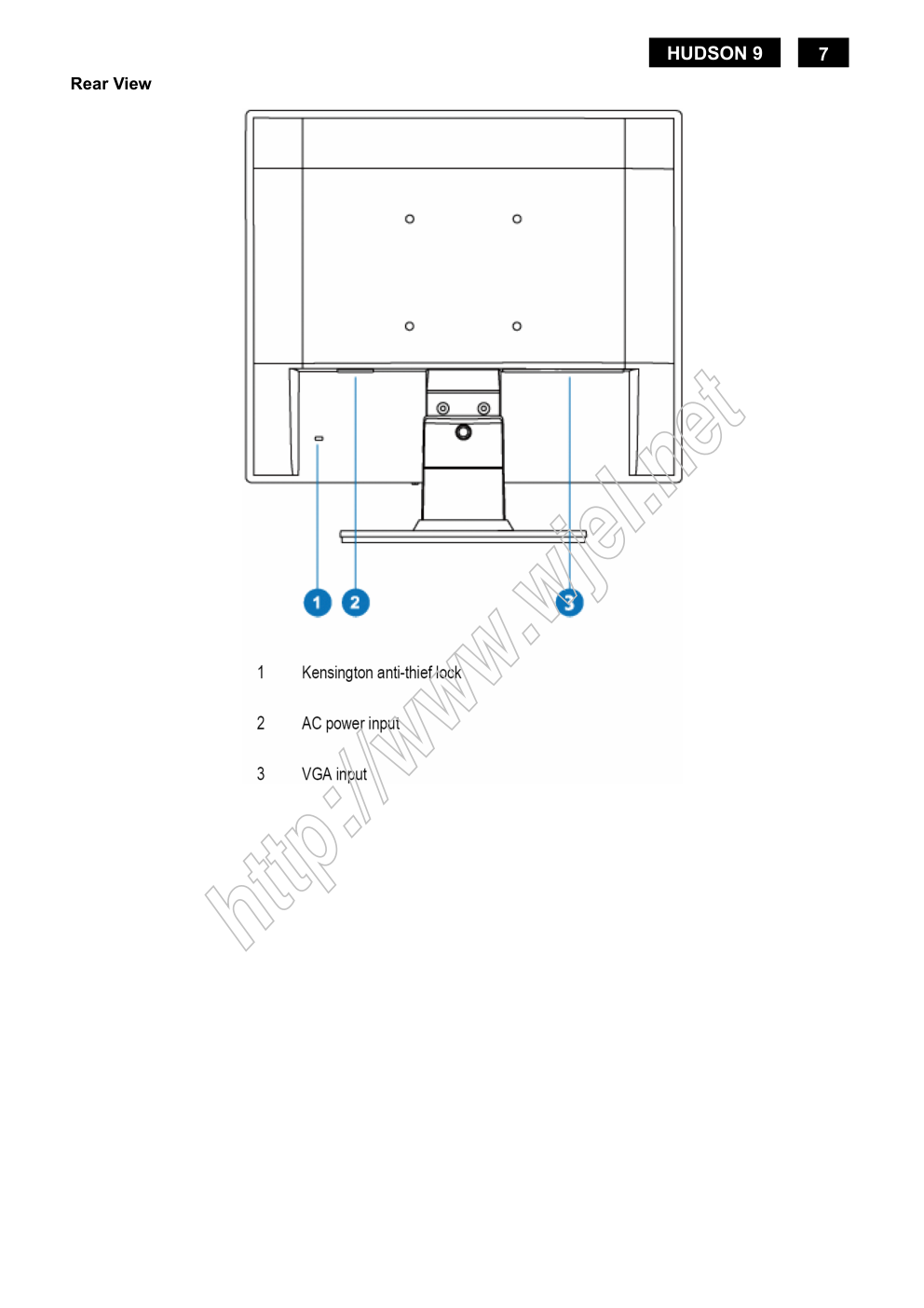

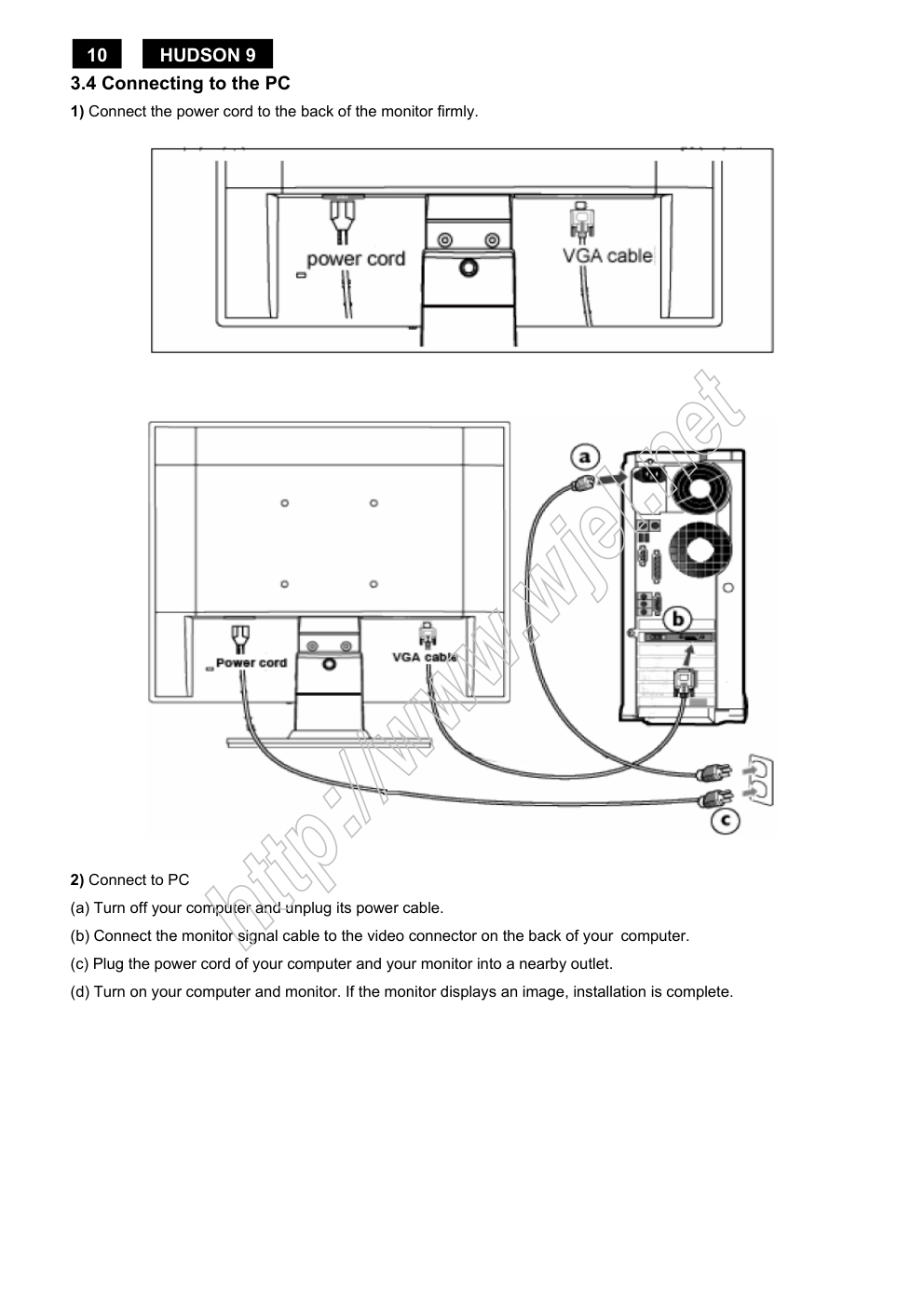

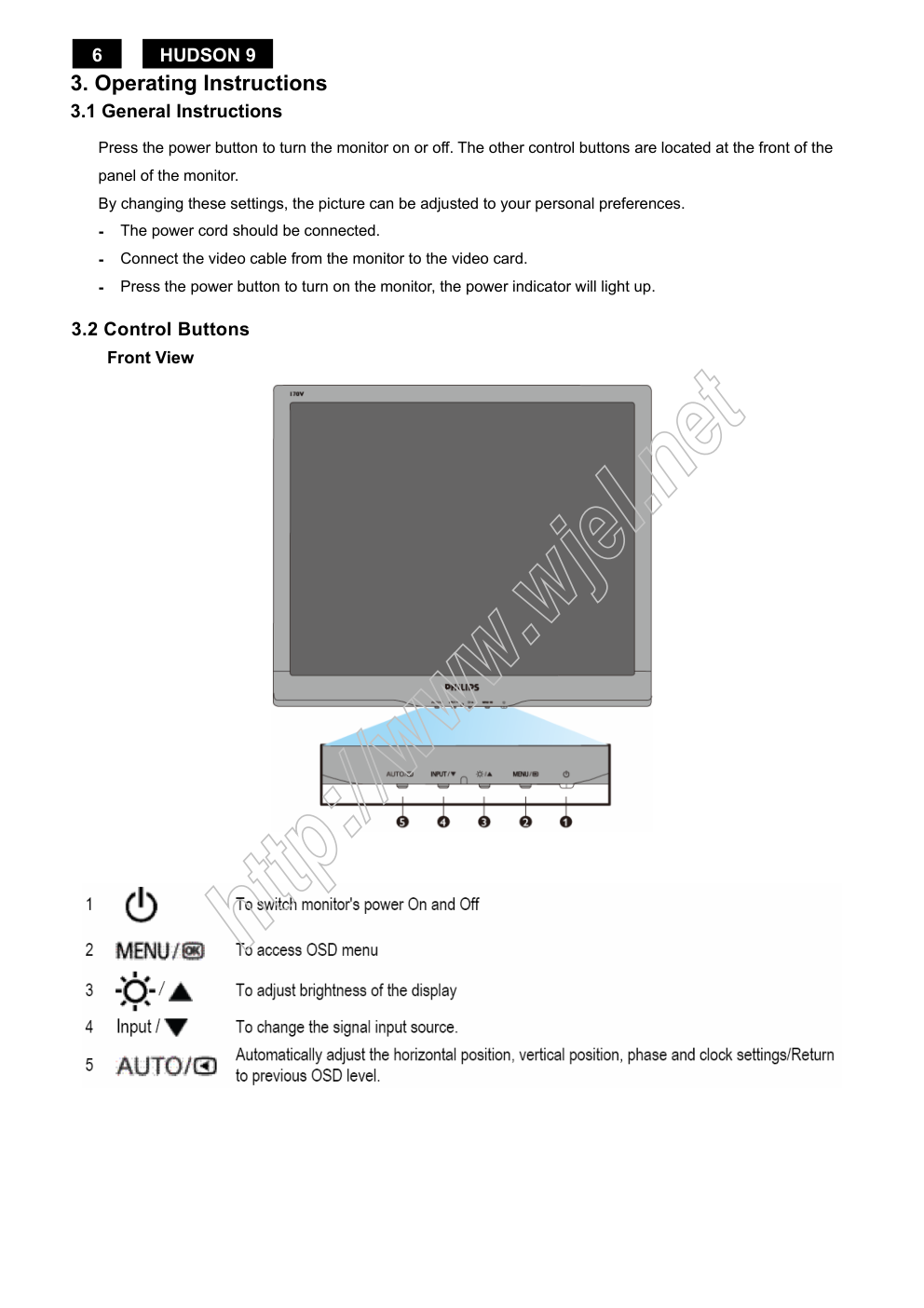

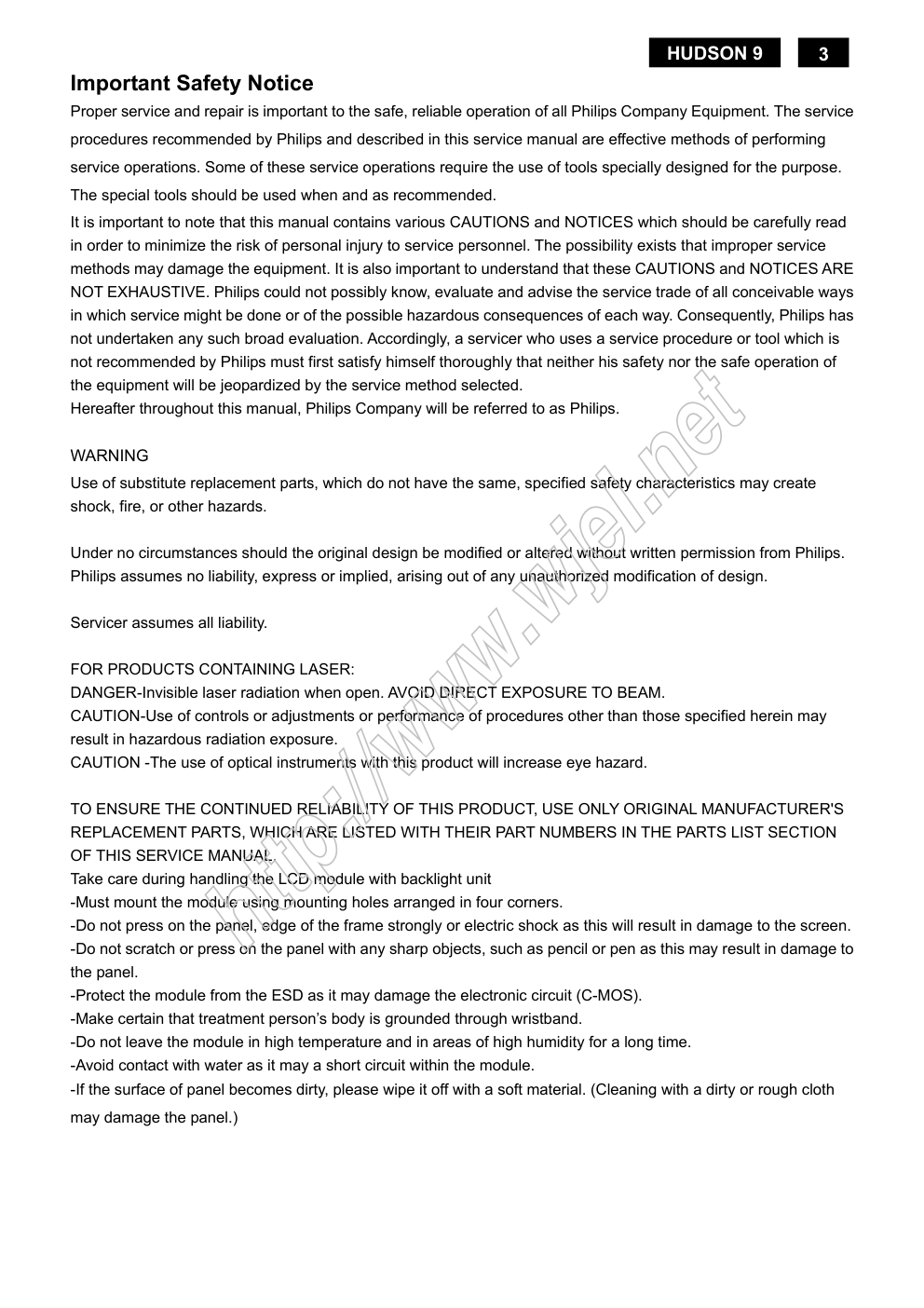

17" LCD Color Monitor Chassis: HUDSON 9 Service Service Service Description Page Description Page Page SAFETY NOTICE ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES. CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING Table Of Contents........................................………….1 Revision List................................................…………….2 Important Safety Notice………….................................3 1. Monitor Specifications….............................................4 2. LCD Monitor Description….........................................5 3. Operation instructions….......................6 3.1General Instructions……………………………….…...6 3.2 Control buttons…………..……………………………6 3.3 Adjusting the Picture….............................................8 3.4 Connecting to the PC ………………………….........10 4. Input/Output Specification.........................………….11 4.1 Input Signal Connector...........................…………..11 4.2 Factory Preset Display Modes...............................11 4.3 Pixel Defect Policy……………………………………12 4.4 Failure Mode of Panel ………………………………15 5. Block Diagram……………………………................16 5.1 Software Flow Chart............................………….....16 5.2 Electrical Block Diagram..................……….........18 6. Schematic Diagram…………………….....................20 6.1 Main Board…….……………..….……………………20 6.2 Power Board…………………………..…………………25 6.3 Key Board…….………………………..…………………29 7. PCB Layout………………………………………………...30 7.1 Main Board……………………………………………...30 7.2 Power Board…………………………………………...…32 7.3 Key Board………...………………………………………36 8. Wiring Diagram……………………………………….…..37 9. Scalar Board Overview………………………………....38 10. Mechanical Instructions………………………………....39 11. Trouble shooting………………………………………….43 12. Repair Flow Chart…….…….……………………………45 13. ISP Instructions...….....................................................51 14. DDC Instructions…......................................................59 15. White Balance, Luminance Adjustment……............68 16. Monitor Exploded View….............................................70 17. Recommended & Spare Parts List...……...................71 18. Different Parts List.............................……...................75 19. General Product Specification………………….……….79 3122 785 17830 GB REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES Copyright 2008 Philips Consumer Lifestyle Subject to modification ○ K Mar, 19, 2008 170V9FB/97(1) 170V9FB/62(1) 170V9FB/27(1) 170V9FB/00(1) 170V9FB/05(1) 170V9FB/93(1) 170V9FB/94(1) 170V9FB/97(2) 170V9FB/93(2) 170V9FB/94(2) 170V9FB/00(2) 170V9FB/05(2) 170V9FB/62(2) 170V9FB/27(2) http://www.wjel.net HUDSON 9 2 Revision List Version Release Date Revision History A00 Mar.19, 2008 Initial release, Draft Version Add CTV Model 170V9FB/62, 170V9FB/27, 170V9FB/05,170V9FB/00 A01 Apr.03, 2008 Add Philips 12NC for 170V9FB/97 A02 Apr.17, 2008 Add a new panel 750GLU70G1D42N A03 Apr.25, 2008 Add CTV Model 170V9FB/93 and 170V9FB/94 Add CTV Model 170V9FB/97(2) A04 May.27, 2008 Add CTV Model 170V9FB/93(2) A05 Jun.13,2008 Add CTV Model 170V9FB/94(2), 170V9FB/00(2), 170V9FB/05(2) and update the spare parts by FN/ECR. Add CTV Model 170V9FB/62(2) A06 July 10, 2008 Change Panel 750GLU70G1D3QN, 750GLU70G1D4QN 7 Change FFC for 170V9FB/94 Add CTV Model 170V9FB/27(2) A07 July.18.2008 Update BOM for 170V9FB/94(2) Update BOM for 170V9FB/27(2),170V9FB/93(2),170V9FB/94(2) A08 Aug 10,2008 Add FFC for 170V9FB/93(2), 170V9FB/97(2) http://www.wjel.net HUDSON 9 3 Important Safety Notice Proper service and repair is important to the safe, reliable operation of all Philips Company Equipment. The service procedures recommended by Philips and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended. It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Philips could not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Philips has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Philips must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected. Hereafter throughout this manual, Philips Company will be referred to as Philips. WARNING Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock, fire, or other hazards. Under no circumstances should the original design be modified or altered without written permission from Philips. Philips assumes no liability, express or implied, arising out of any unauthorized modification of design. Servicer assumes all liability. FOR PRODUCTS CONTAINING LASER: DANGER-Invisible laser radiation when open. AVOID DIRECT EXPOSURE TO BEAM. CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION -The use of optical instruments with this product will increase eye hazard. TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF THIS SERVICE MANUAL. Take care during handling the LCD module with backlight unit -Must mount the module using mounting holes arranged in four corners. -Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. -Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. -Protect the module from the ESD as it may damage the electronic circuit (C-MOS). -Make certain that treatment person’s body is grounded through wristband. -Do not leave the module in high temperature and in areas of high humidity for a long time. -Avoid contact with water as it may a short circuit within the module. -If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.) http://www.wjel.net HUDSON 9 4 1. Monitor Specifications http://www.wjel.net HUDSON 9 5 2. LCD Monitor Description The LCD monitor will contain a main board, a power board and a key board which house the flat panel control logic, brightness control logic and DDC. The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each voltage. Monitor Block Diagram AC-IN 100V-240V Power board (Include: adapter, inverter) Flat Panel and CCFL backlight Main Board RS232 Connector For white balance adjustment in factory mode CCFL Drive. Video signal, DDC Key Board HOST Computer http://www.wjel.net HUDSON 9 6 3. Operating Instructions 3.1 General Instructions Press the power button to turn the monitor on or off. The other control buttons are located at the front of the panel of the monitor. By changing these settings, the picture can be adjusted to your personal preferences. - The power cord should be connected. - Connect the video cable from the monitor to the video card. - Press the power button to turn on the monitor, the power indicator will light up. 3.2 Control Buttons Front View http://www.wjel.net HUDSON 9 7 Rear View http://www.wjel.net HUDSON 9 8 3.3 Adjusting the Picture Description of the On Screen Display When you press the button on the front control of your monitor, the On-Screen Display (OSD) Main Controls window will pop up and you can then start making adjustments to your monitor's various features. Use the keys to make your adjustments. To Lock/Unlock OSD function (User Mode) The OSD function can be locked by pressing “MENU” button for more than 10 seconds. Locked OSD function can be released by pressing “MENU” button for more than 10 seconds again. http://www.wjel.net HUDSON 9 9 The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. http://www.wjel.net HUDSON 9 10 3.4 Connecting to the PC 1) Connect the power cord to the back of the monitor firmly. 2) Connect to PC (a) Turn off your computer and unplug its power cable. (b) Connect the monitor signal cable to the video connector on the back of your computer. (c) Plug the power cord of your computer and your monitor into a nearby outlet. (d) Turn on your computer and monitor. If the monitor displays an image, installation is complete. http://www.wjel.net HUDSON 9 11 4. Input/ Output Specification 4.1 Input Signal Connector Analog connectors Pin No. Description Pin No. Description 1. Red video input 9. DDC+5V 2. Green video input/SOG 10. Logic Ground 3. Blue video input 11. Ground 4. Sense (GND) 12. Serial data line (SDA) 5. Cable detect (GND) 13. H. Sync/ H+ V.Sync 6. Red video ground 14. V. Sync 7. Green video ground 15. Data clock line (SCL) 8. Blue video ground VGA connector layout 4.2 Factory Preset Display Modes http://www.wjel.net HUDSON 9 12 4.3 Pixel Defect Policy http://www.wjel.net HUDSON 9 13 http://www.wjel.net HUDSON 9 14 http://www.wjel.net HUDSON 9 15 4.4 Failure Mode Of Panel �� Failure description Phenomenon Vertical block defect Vertical dim lines Vertical lines defect (Always bright or dark) Horizontal block defect Horizontal dim lines Horizontal lines defect (Always bright or dark) Has bright or dark pixel Polarizer has bubbles Polarizer has bubbles Foreign material inside polarizer. It shows liner or dot shape. Concentric circle formed Bottom back light of LCD is brighter than normal Back light un-uniformity Backlight has foreign material. Black or white color, liner or circular type Quick reference for failure mode of LCD panel this page presents problems that could be made by LCD panel. It is not necessary to repair circuit board. Simply follow the mechanical instruction on this manual to eliminate failure by replace LCD panel. http://www.wjel.net HUDSON 9 16 5. Block Diagram 5.1 Software Flow Chat 1 2 N Y 5 Y N 10 Y N 12 Y N 7 Y N 6 4 3 8 9 14 11 13 Y N 15 Y N 16 17 19 Y N 18 http://www.wjel.net HUDSON 9 17 1) MCU initialize. 2) Is the EPROM blank? 3) Program the EPROM by default values. 4) Get the PWM value of brightness from EPROM. 5) Is the power key pressed? 6) Clear all global flags. 7) Are the AUTO and SELECT keys pressed? 8) Enter factory mode. 9) Save the power key status into EPROM. Turn on the LED and set it to green color. Scalar initializes. 10) In standby mode? 11) Update the lifetime of back light. 12) Check the analog port, are there any signals coming? 13) Does the scalar send out an interrupt request? 14) Wake up the scalar. 15) Are there any signals coming from analog port? 16) Display "No connection Check Signal Cable" message. And go into standby mode after the message disappear. 17) Program the scalar to be able to show the coming mode. 18) Process the OSD display. 19) Read the keyboard. Is the power key pressed? http://www.wjel.net HUDSON 9 18 5.2 Electrical Block Diagram 5.2.1 Main Board Flash Memory SST25VF010A-33-4C (U402) Panel Interface (CN403) Crystal 14.31818MHZ (X401) Keypad Interface (CN401) Scalar TSUM1PFR-LF (Include MCU, ADC, OSD) (U401) D-Sub Connector (CN101) EEPROM AZC099-04S (U103) H sync V sync RGB VGA_SDA, VGA_SCL EEPROM M24C16 (U403) EEPROM AZC099-04S (U102) VGA_R+, VGA_G+, VGA_B+ http://www.wjel.net HUDSON 9 19 5.2.2 Inverter/Power Board DIM DIM EMI filter Start Circuit: R904、R905、R906 PWM Control IC Transformer AC input 16V ON/OFF Control PWM Control IC Feedback Circuit Output Circuit Transformer MOSFET Over Voltage Lamp ON/OFF 5V Bridge Rectifier and Filter Feedback Circuit Rectifier diodes http://www.wjel.net HUDSON 9 20 6. Schematic 6.1 Main Board 715G2904-1 1 1 2 2 3 3 4 4 5 5 A A B B C C D D XGA/SXGA TSUM16FWR SCHEMATIC LVDS OUTPUT Top 04.Output CMVCC PB[0..9] PA[0..1] PPWR_ON# PA[4..9] 02.Input DSUB_R+ DSUB_G+ DSUB_B+ DSUB_V DSUB_R- DSUB_G- DSUB_B- DET_CABLE DSUB_H DSUB_SOG DDC1_SDA DDC1_SCL DSUB_5V CMVCC1 VCC3.3 03.Scalar DSUB_R+ DSUB_G+ DSUB_SOG DSUB_B+ DSUB_R- DSUB_G- DSUB_B- DSUB_H DSUB_V Adj_BACKLIGHT VCC1.8 VCC3.3 PA[0..1] PB[0..9] DDC1_SDA DDC1_SCL DET_CABLE on_BACKLIGHT PPWR_ON# PANEL_ID# Volume# Mute CMVCC PA[4..9] CMVCC1 VCTRL 05.Power on_BACKLIGHT Adj_BACKLIGHT VCC1.8 CMVCC VCC3.3 Mute Volume# PANEL_ID# DSUB_5V CMVCC1 VCTRL PA[4..9] PA[0..1] PB[0..9] VCC3.3 CMVCC1 CMVCC1 VCC1.8 CMVCC CMVCC DSUB_5V DSUB_5V CMVCC VCC3.3 VCC1.8 CMVCC1 VCC3.3 http://www.wjel.net HUDSON 9 21 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 A A B B C C D D E E CN101 B3 C101 A7 C102 A4 C103 A4 C104 A6 C105 B7 C106 B7 C107 B7 C108 C6 C109 C7 C110 C7 C111 C6 C113 C7 C114 E3 C115 D3 FB101 C5 FB102 A5 FB103 B5 R101 A3 R102 A4 R103 A4 R104 A6 R105 A3 R106 A3 R107 A6 R108 B6 R109 B6 R110 B2 R111 B6 R112 B6 R113 B2 R114 C6 R115 C6 R116 C6 R117 C6 R118 D7 R120 B2 R121 B2 U102 D2 U103 D2 ZD103 B4 ZD104 B4 Input VGA_PLUG DSUB_SCL DSUB_SDA VGA_B+ VGA_R+ VGA_G+ V_Sync H_Sync V_Sync DSUB_5V VGA_R- VGA_R+ VGA_G- VGA_B+ DSUB_SCL VGA_PLUG VGA_G- VGA_G+ DDC1_SDA DSUB_SDA VGA_R- VGA_B- VGA_B- VGA_G+ VGA_B+ DDC1_SCL H_Sync VGA_R+ ESD_VCC ESD_VCC GND POWER DSUB_5V DGND VCC3.3 VCC3.3 ZD104 UDZSNP5.6B 1 2 U102 AZC099-04S 1 2 3 4 5 6 I/O1 GND I/O2 I/O3 VDD I/O4 R111 100R 1/16W 5% R121 10K 1/16W 5% R103 100R 1/16W 5% R104 100R 1/16W 5% C110 0.047uF R109 390 OHM 1/16W C111 5pF/50V C102 22pF U103 AZC099-04S 1 2 3 4 5 6 I/O1 GND I/O2 I/O3 VDD I/O4 C101 0.047uF FB102 BEAD 1 2 R106 2K2 1/16W 5% C115 NC R116 75R 1/16W 5% R120 10K 1/16W 5% R118 1K 1/16W 5% R112 75R 1/16W 5% C106 0.047uF FB103 BEAD 1 2 C105 0.047uF R107 75R 1/16W 5% R114 100R 1/16W 5% ZD103 UDZSNP5.6B 1 2 R110 100R 1/16W 5% C109 0.047uF R113 100R 1/16W 5% FB101 BEAD 1 2 R105 2K2 1/16W 5% C107 0.047uF R101 0R05 1/10W 5% C108 5pF/50V C103 22pF C104 5pF/50V C114 NC R102 100R 1/16W 5% R115 100R 1/16W 5% R117 100R 1/16W 5% R108 100R 1/16W 5% CN101 DB15 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 C113 0.047uF VCC3.3 7 DSUB_5V 5 DDC1_SCL 5 ESD_VCC 5 DDC1_SDA 5 DSUB_H 5 DSUB_V 5 DET_CABLE 5 DSUB_R- 5 DSUB_R+ 5 DSUB_G- 5 DSUB_G+ 5 DSUB_SOG 5 DSUB_B- 5 DSUB_B+ 5 http://www.wjel.net HUDSON 9 22 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 A A B B C C D D E E F F G G H H LVDS Max condition for LED: 1. Vcc = 3.3 V 2. Current = 12 mA FW need to be modified. For NVRAM Without NVRAM U403 C419 R433 R434 R435 R436 R437 NC NC NC NC NC NC NC M24C04-WMN6TP 0.22uF16V 10K 1/16W 5% 10K 1/16W 5% 10K 1/16W 5% 100R 1/16W 5% 100R 1/16W 5% When NVRAM is used, POWER_KEY# and PANEL_ID# will be used for I2C Bus. R424 NC 100R 1/16W 5% PANEL_ID# and POWER_KEY# could be optional. Near to Connect CN401 G1 CN402 G7 C401 C3 C403 A9 C404 A9 C406 B9 C407 B9 C408 C1 C409 D10 C410 D1 C411 D2 C412 D2 C413 H2 C414 H2 C415 H3 C416 H3 C417 H4 C418 C7 C429 E10 FB401 A9 R401 D3 R402 D3 R403 C3 R404 H3 R405 D3 R406 C9 R407 H4 R408 D1 R409 D9 R410 D5 R411 D5 R412 D5 R413 E5 R414 D5 R417 D2 R418 D5 R419 D5 R420 D7 R421 G2 R424 C5 R425 C6 R426 C7 R427 G2 R428 G3 R429 G6 R430 G6 R431 G6 R432 H6 R451 D7 R452 D7 R453 E8 R454 E8 R455 E9 R456 D3 R457 D3 U401 A3 U402 C2 U403 E9 X401 D3 Scalar KEY1 KEY2 POWER_KEY# EE_WP WP PA0 PA1 PA[0..1] PA4 PA5 PA[4..9] PA7 PA6 PA9 PA8 PB1 PB4 PB0 PB5 PB2 PB3 PB9 PB6 PB8 PB7 PB[0..9] LED_GRN/BLUE LED_ORANGE MSCL MSDA EE_WP MSCL MSDA POWER_KEY# LED_ORANGE LED_GRN/BLUE KEY1 KEY_AUTO KEY_LEFT LED_GRN/BLUE KEY_RIGHT KEY2 LED_ORANGE POWER_KEY# CMVCC VCC3.3 VCC3.3 VCC1.8 AVDD AVDD VDDC VDDC VDDP VDDP AVDD CMVCC1 VCC3.3 VCC3.3 R457 0R05 1/16W + C410 10uF/50V R426 NC/100R 1/16W 5% R455 10K 1/16W 5% U402 SST25VF010A-33-4C-SAE 1 2 3 4 5 6 7 8 CE# SO WP# VSS SI SCK HOLD# VDD R421 NC/10K 1/16W 5% C407 0.1uF/16V U403 M24C16 1 2 3 4 5 6 7 8 NC NC NC VSS SDA SCL WC VCC R402 0R05 1/16W R454 10K 1/16W 5% R429 NC TSUM1PFR-LF U401 13 10 11 8 12 9 7 16 17 4 15 14 21 23 22 24 27 56 1 2 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 34 33 5 6 32 31 52 30 18 19 62 20 28 55 58 59 60 61 63 64 25 26 54 51 53 29 57 3 RIN0P GIN0P SOGIN0 BIN0P RIN0M GIN0M BIN0M HSYNC0 VSYNC0 REXT REFP REFM SDO SCK SCZ SDI PWM2/GPIO_P24 PWM1/GPIO_P25 XIN XOUT LVA2P LVA2M LVA1P LVA1M LVA0P LVA0M LVB3P LVB3M LVBCKP LVBCKM LVB2P LVB2M LVB1P LVB1M LVB0P LVB0M LVA3M LVA3P GND AVDD_ADC MODE[1] MODE[0] VCTRL VDDC DDCA_SDA/RS232_TX DDCA_SCL/rs232_RX PWM0/GPIO_P26 GPIO_P15/PWM0 GPIO_P27/PWM1 GPIO_P12 GPIO_P00/SAR1 GPIO_P01/SAR2 GPIO_P06 GPIO_P07 GPIO_P13 GPIO_P14 GPIO_P11/I2C_MDA GPIO_P10/I2C_MCL RST VDDP VDDC GND RSTN GND R414 120R 1/16W 5% R403 390 OHM 1/16W X401 14.31818MHz 1 2 R432 NC R412 100R 1/16W 5% C411 22pF C413 NC/0.1uF/16V C429 0.22uF16V CN402 NC \ CONN 1 2 3 4 5 6 7 8 R406 10K 1/16W 5% C417 0.1uF/16V R405 100R 1/16W 5% R417 10K 1/16W 5% C418 NC R410 120R 1/16W 5% R418 NC/100R 1/16W 5% R419 NC/100R 1/16W 5% C409 0.1uF/16V C414 0.1uF/16V R424 100R 1/16W 5% R409 20K OHM 1/16W R451 100R 1/16W 5% R428 3.9K OHM 1% 1/16W C401 0.1uF/16V R407 10K 1/16W 5% C404 0.1uF/16V R456 0R05 1/16W R420 NC/100R 1/16W 5% R408 10K 1/16W 5% R413 100R 1/16W 5% C412 22pF R425 NC R404 10K 1/16W 5% R453 10K 1/16W 5% R431 NC C406 0.1uF/16V C408 0.22uF16V C416 0.1uF/16V C415 0.1uF/16V FB401 300OHM R430 NC R452 100R 1/16W 5% R411 100R 1/16W 5% R427 3.9K OHM 1% 1/16W CN401 CONN 1 2 3 4 5 6 R401 0R05 1/16W C403 0.1uF/16V DDC1_SDA 3 DDC1_SCL 3 DSUB_V 3 DSUB_G- 3 DSUB_H 3 DSUB_SOG 3 DSUB_B- 3 DSUB_G+ 3 DSUB_R+ 3 DSUB_R- 3 DSUB_B+ 3 PA[0..1] 5 PA[4..9] 5 PB[0..9] 5 PANEL_ID# 7 on_BACKLIGHT 7 adj_BACKLIGHT 7 Volume# 7 Mute 7 PPWR_ON# 6 DET_CABLE 4 VCC3.3 7 VCC1.8 7 CMVCC 7 CMVCC1 7 VCTRL 7 http://www.wjel.net HUDSON 9 23 1 1 2 2 3 3 4 4 5 5 A A B B C C D D S D 2 3 AO3401L 1 G CN403 A5 C419 C2 C420 A4 C421 C3 FB402 C3 Q404 C2 Q405 C3 R433 C2 R434 A4 R435 C1 R436 C2 Output PA1 PA8 PB2 PB6 PB2 PA9 PB3 PB5 PB8 PB8 PA0 PB2 PA5 PA6 PB6 PB9 PB[0..9] PA9 PB3 PA[0..1] PB1 PA1 PA7 PB5 PA[4..9] PA6 PA4 PB4 PA0 PB0 PA5 PB0 PA8 PB7 PA4 PB1 PB4 PA7 PB7 PB9 PB3 PPWR_ON# PANEL_VCC PANEL_VCC CMVCC FB402 120OHM R436 100K 1/16W 5% Q404 PMBS3906 CN403 CONN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Q405 AO3401 R434 330 OHM 1/4W C420 0.1uF/16V R435 4K7 1/16W 5% C419 0.1uF/16V + C421 100uF25V R433 10K 1/16W 5% PA[4..9] 5 PA[0..1] 5 PB[0..9] 5 PPWR_ON# 5 CMVCC 7 http://www.wjel.net HUDSON 9 24 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 A A B B C C D D E E BAV99 NC D401 LG OTHER NC 0Ohm 1/16W R458 Due to LG doen't request PC'99 Function. U404 can use package 232 or 252. CN404 B1 C422 D6 C423 B7 C425 B3 C426 D5 C427 D7 C428 D5 C432 B7 D401 A2 D402 B2 FB403 C6 Q406 B4 Q408 D3 Q409 B6 Q410 B6 R437 B4 R439 B4 R440 B4 R441 C1 R442 D1 R446 C3 R447 C4 R448 D4 R449 B3 R450 B2 R458 A2 U404 C6 Power Volume BKLT-EN BKLT-VBRI Mute C_PANEL_INDEX Volume BKLT-EN CMVCC BKLT-VBRI CMVCC MVCC CMVCC VCC3.3 VCC3.3 VCC3.3 VCC3.3 VCC3.3 VCC3.3 VCC1.8 CMVCC1 CMVCC1 DSUB_5V VCC3.3 R441 1K 1/16W 5% Q406 2N3904S-RTK/PS R442 100R 1/16W 5% Q408 NC/2N3904S-RTK/PS CN404 CONN 1 2 3 4 5 6 7 8 9 D401 BAV99 3 1 2 R447 NC/10K 1/16W 5% D402 SM340A C425 NC C432 0.1uF/16V R448 NC/4K7 1/16W 5% + C426 100uF25V C422 0.1uF/16V R458 NC + C423 100uF25V U404 AP1117D33LA 1 2 3 ADJ(GND) VOUT VIN R449 NC R440 4K7 1/16W 5% Q410 KN2907AS C428 0.1uF/16V + C427 100uF25V Q409 KN2907AS R437 10K 1/16W 5% R450 NC NC(R0402) FB403 NC R446 NC R439 10K 1/16W 5% VCC3.3 4, 5 Mute 5 adj_BACKLIGHT 5 Volume# 5 on_BACKLIGHT 5 PANEL_ID# 5 VCC1.8 5 CMVCC1 5 CMVCC 5, 6 DSUB_5V 2 VCTRL 5 ESD_VCC 2 http://www.wjel.net HUDSON 9 25 6.2 Power Board 715G2824-1 for 170V9FB/97(1) 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 A A B B C C D D E E ! ! ! ! ! ! ! ! ! ! ! ! 1500P/2KV ! BD901 A1 CN901 D1 CN902 D6 C900 D4 C901 D1 C902 D1 C903 C1 C904 B1 C905 B2 C906 B3 C907 B3 C908 B3 C909 C3 C912 A5 C915 B6 C917 B5 C918 B6 C920 D4 C921 C4 C924 C4 C928 C3 C929 B5 C931 E6 C932 B7 C939 B5 D900 B3 D901 B3 D903 C3 D906A B5 D907 B5 FB902 B3 FB903 B4 FB904 A2 F901 D2 F903 B7 IC901 C2 IC903 C4 IC904 C4 L901 B1 L903 B6 L904 A6 NR901 D2 Q901 C3 Q903 B7 R901 C1 R902 C1 R903 B3 R904 B2 R905 B2 R906 B2 R909 B4 R910 C3 R912 C3 R914 C3 R915 C2 R918 A5 R919 A5 R920 A5 R924 B6 R925 C5 R926 C5 R927 C7 R930 D7 R935 B5 R938 C3 R939 B7 R940 B7 R942 C6 R943 B7 R946 A7 R961 B5 R962 B5 T901 B4 ZD902 A7 ZD921 B6 ZD922 B7 Power +16V +5V +5V +5V1 DIM ON/OFF PID VOL MUTE FB903 BEAD 1 2 + C918 680uF25V C931 0.1uF C909 470pF/25V C928 1000pF R930 2.43K OHM 1% 1/10W R920 100 OHM 1/4W R901 1M 1/4W R962 100 OHM 1/4W C932 0.001uF C907 0.1uF R925 1K 1/8W R946 150OHM2W T901 POWER X'FMR 1 3 4 5 6 7 8 9 10 11 12 C920 1000pF 250V + C915 470uF/16V t NR901 NTCR 1 2 c938 NC ZD922 RLZ5.6B 1 2 C900 2200pF 250V D906A FCH10U15 1 2 3 CN902 CONN 1 2 3 4 5 6 7 8 9 10 11 12 13 F901 FUSE C912 0.001uF D901 FR103 R961 100 OHM 1/4W F903 FUSE FB902 80OHM 1 2 R909 5.1 OHM 1/4W R910 10R 1/4W R940 NC Q903 PMBS3904 CN901 SOCKET 1 2 3 R924 150R 1/8W 5% IC903 PC123X2YFZOF 1 2 4 3 R902 1M 1/4W R939 1K 1/8W D900 PR1007R C924 0.1uF R927 2.43K OHM 1% 1/10W R935 100 OHM 1/4W R918 100 OHM 1/4W R914 0.43 5% 2W D903 1N4148W R942 1K 1/10W 1% R926 1K 1/10W 1% R905 300K OHM 1/4W IC904 AZ431AZ-AE1 R903 100K OHM 2W ZD902 RLZ18B IC901 LD7552DPS 1 2 3 4 5 6 7 8 GND COMP VCC RT NC CS VCC OUT R904 300K OHM 1/4W L903 3.5uH C902 1000pF C921 NC + C908 22uF/50V R906 300K OHM 1/4W C903 0.47uF/275V C906 1500pF2KV R919 100 OHM 1/4W Q901 STP9NK65ZFP R912 220 OHM 1/4W FB904 BEAD 1 2 C929 0.001uF D907 31DQ06FC3 + C939 1000uF/25V + C917 680uF25V R915 0.047uF/25V R938 10K 1/8W L904 3.5uH C901 1000pF - + BD901 KBP208G 2 1 3 4 C904 NC L901 30.0mH 1 4 2 3 R943 470R 1/8W + C905 100uF450V ZD921 RLZ22B 1 2 http://www.wjel.net HUDSON 9 26 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 A A B B C C D D E E CN801 A7 CN802 A7 CN803 C7 CN804 C7 C801 B3 C802 B3 C803 C1 C804 C1 C805 C2 C806 C2 C807 C3 C808 C3 C809 C4 C810 C4 C811 B4 C812 B4 C813 D2 C814 D3 C815 D4 C816 A6 C817 B6 C818 B6 C819 A7 C820 A7 C821 C6 C822 C7 C823 D6 C824 B6 D801 A4 D802 A4 D803 B4 D804 B4 D805 D4 D806 C4 D807 C4 D808 D4 D809 D7 IC801 C3 L801 B6 L802 B6 PT801 A5 Q801 B2 Q802 D3 Q803 D3 Q804 E7 Q805 A5 Q806 B5 R801 B2 R802 B2 R803 A3 R804 A3 R805 A4 R806 A4 R807 B4 R808 B4 R813 B1 R814 B1 R815 C1 R816 C1 R817 C2 R818 C2 R819 C2 R820 C3 R821 C3 R822 C4 R823 D3 R824 D3 R825 D3 R826 E4 R827 B6 R828 B5 R829 C5 R830 C5 R836 C6 R837 C5 R838 C5 R839 C5 R840 D5 R841 D5 R842 D5 R843 D5 R844 D5 R845 D5 R846 D7 R847 C7 R848 D7 R849 E7 R850 D2 ZD801 B2 ZD802 A2 Inverter SST ON/OFF SST DIM CT LV2 LV3 +16V LV4 CT LV1 PID LV1 LV4 LV3 LV2 C818 220pF C817 2pF/3KV C813 33NF 25V C802 0.047uF R839 1M 1/10W 5% C823 NC R820 20K 1/10W 5% Q801 PMBS3904 D803 1N4148W ZD801 RLZ5.6B 1 2 R803 5K1 1/8W CN802 1 2 Q805 AM4502C-T1-PF 1 2 3 4 8 7 6 5 S G S G D D D D R842 10K 1/10W 5% R840 1M 1/10W 5% Q806 AM4502C-T1-PF 1 2 3 4 8 7 6 5 S G S G D D D D Q802 RK7002 C807 1uF R825 510R 1/10W 5% R818 100K 1/10W 5% D808 BAV70 3 1 2 R836 62K 1/10W 5% R804 5K1 1/8W R830 NC C811 0.1uF D805 1N4148W R841 1M 1/10W 5% D804 1N4148W R837 8K2 1/10W R819 100K 1/10W 5% CN803 1 2 R806 100R 1/8W L802 Line Filter 1 2 3 4 CN804 1 2 R827 NC C804 2.2uF/16V R801 2.4K OHM 1/10W IC801 OZ9938GN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 DRV1 VDDA TIMER DIM ISEN VSEN OVPT NC1 NC2 ENA LCT SSTCMP CT GNDA DRV2 PGND Q803 RK7002 R846 RST CHIP MAX 0R05 1/10W C808 180K 1/10W R808 100R 1/8W R817 1M 1/10W 5% D807 BAV70 3 1 2 R843 10K 1/10W 5% R813 470K 1/10W 5% D809 BAV99 3 1 2 R802 22R 1/8W R850 100K 1/10W 5% /NC + C812 1000uF 25V R826 1M 1/10W 5% R807 100R 1/10W 5% R822 20K OHM 1% 1/8W C815 0.047uF R828 6.2M OHM 1/2W C820 68pF/3KV L801 Line Filter 1 2 3 4 R844 10K 1/10W 5% R824 6.8K 1/10W C805 0.01uF Q804 NC C816 22pF/6KV R847 NC C803 NC R821 1M 1/10W 5% C819 68pF/3KV CN801 1 2 ZD803 RLZ5.6B 1 2 R805 100R 1/10W 5% C821 22pF/3KV R816 10K 1/10W 1% D801 1N4148W R823 510R 1/10W 1% C810 0.047uF R845 10K 1/10W 5% R815 NC C809 560pF50V PT801 POWER X'FMR 5 9 1 8 2 6 D806 BAV70 3 1 2 R848 NC C814 390P 50V C824 22pF/6KV C806 1uF/16V R829 6K8 1/8W R838 1M 1/10W 5% C822 22pF/3KV ZD802 RLZ5.6B 1 2 D802 1N4148W C801 0.047uF R814 NC R849 RST CHIP MAX 0R05 1/10W http://www.wjel.net HUDSON 9 27 715G2824-1-2 for 170V9FB/97(2) 1 1 2 2 3 3 4 4 5 5 A A B B C C D D E E +16V +5V1 +5V VOL MUTE ON/OFF +5V1 DIM +5V ! 2A(INVERTER) 1.5A(main PCB ) 3.5A(USB&AUDIO) JUMP JUMP 1206 0 ohm ! ! ! ! ! ! ! ! ! ! ! ! NC ZD906 NC/RLZ22B ZD906 NC/RLZ22B L903 L903 L904 L904 C928 1000pF C928 1000pF C909 470pF/25V C909 470pF/25V R920 100 OHM 1/4W R920 100 OHM 1/4W C935 0.001uF(NC) C935 0.001uF(NC) R962100 OHM 1/4W R962100 OHM 1/4W R901 1M 1/4W R901 1M 1/4W 1 2 3 4 5 6 7 8 9 10 11 12 13 CN902 CONN CN902 CONN 1 2 HS5 Heat-sink(Q90G6263-6) HS5 Heat-sink(Q90G6263-6) L906 NC L906 NC R925 1K 1/8W R925 1K 1/8W C932 0.001uF C932 0.001uF C907 0.1uF C907 0.1uF 2 1 3 4 - + BD901 NC/GBU408 - + BD901 NC/GBU408 1 3 4 5 6 7 8 9 10 11 12 T901 POWER X'FMR T901 POWER X'FMR 1 2 FB901 NC FB901 NC 1 2 ZD921 RLZ20B ZD921 RLZ20B + C905A 100uF450V + C905A 100uF450V Q901 STP10NK70ZFP Q901 STP10NK70ZFP + C915 470uF16V + C915 470uF16V R914 0.39 OHM 2W R914 0.39 OHM 2W C938 NC/1500pF2KV C938 NC/1500pF2KV 1 2 ZD922 RLZ5.6B ZD922 RLZ5.6B 1 2 3 D906 FCH10A15 D906 FCH10A15 + C916 NC + C916 NC C912 0.001uF C912 0.001uF F901 FUSE F901 FUSE R961100 OHM 1/4W R961100 OHM 1/4W D901 FR103 D901 FR103 F903 FUSE F903 FUSE 1 2 FB902 80OHM FB902 80OHM R910 10R 1/4W R910 10R 1/4W R909 5.1 OHM 1/4W R909 5.1 OHM 1/4W R940 NC R940 NC Q903 PMBS3904 Q903 PMBS3904 C930 NC C930 NC F902 NC F902 NC 1 2 3 CN901 SOCKET CN901 SOCKET 1 2 FB903 BEAD FB903 BEAD R924 150R 1/8W R924 150R 1/8W C902 1000pF C902 1000pF R930 2.43K OHM 1% 1/10W R930 2.43K OHM 1% 1/10W 1 2 4 3 IC903 PC123X2YFZOF IC903 PC123X2YFZOF R902 1M 1/4W R902 1M 1/4W R912 220 OHM 1/4W R912 220 OHM 1/4W + C917 680uF25V + C917 680uF25V 2 1 3 4 - + BD901A 2A 800V - + BD901A 2A 800V C924 0.1uF C924 0.1uF R939 1K 1/8W R939 1K 1/8W D900 FR107 D900 FR107 C910 0.047uF C910 0.047uF R935100 OHM 1/4W R935100 OHM 1/4W R918 100 OHM 1/4W R918 100 OHM 1/4W R926 1K 1/10W 1% R926 1K 1/10W 1% R942 1K 1/10W 1% R942 1K 1/10W 1% D903 1N4148W D903 1N4148W C931 0.1uF C931 0.1uF R905 300K OHM 1/4W R905 300K OHM 1/4W R927 2.43K OHM 1% 1/10W R927 2.43K OHM 1% 1/10W IC904 KIA431A-AT/P IC904 KIA431A-AT/P R903 100KOHM +-5% 2WS R903 100KOHM +-5% 2WS + C918 680uF25V + C918 680uF25V ZD902 RLZ18B ZD902 RLZ18B 1 2 HS3 Heat-sink(Q90G6263-6) HS3 Heat-sink(Q90G6263-6) + C934 NC + C934 NC GND 1 COMP 2 VCC 3 RT 4 NC 5 CS 6 VCC 7 OUT 8 U901 LD7552DPS U901 LD7552DPS R904 300K OHM 1/4W R904 300K OHM 1/4W R906 300K OHM 1/4W R906 300K OHM 1/4W + C908 22uF/50V + C908 22uF/50V C900 3300pF 250V C900 3300pF 250V C940 NC C940 NC C903 0.47uF/275V C903 0.47uF/275V R919 100 OHM 1/4W R919 100 OHM 1/4W 1 2 HS2 EMI shield (NC/H85G0002-1) HS2 EMI shield (NC/H85G0002-1) L905 L905 R949 NC R949 NC C929 0.001uF C929 0.001uF D907 31DQ06FC3 D907 31DQ06FC3 C906 1500pF2KV C906 1500pF2KV D909 NC/31DQ10FC D909 NC/31DQ10FC 1 2 HS4 Heat-sink(Q90G6263-6) HS4 Heat-sink(Q90G6263-6) C901 1000pF C901 1000pF R950 NC R950 NC + C939 1000uF25V + C939 1000uF25V 1 4 2 3 L901 L901 1 2 t NR901 NTCR t NR901 NTCR R938 10K 1/8W R938 10K 1/8W 1 2 3 D908 NC D908 NC R943 470R 1/8W R943 470R 1/8W R946 150 OHM 2W R946 150 OHM 2W R951 NC R951 NC 1 2 FB904 BEAD FB904 BEAD CN902 D3 C930 D5 HS3 D2 HS2 D2 C939 B4 HS5 D2 C915 B4 R914 C2 F901 C1 D901 B2 C910 B1 R918 A3 R904 B2 L904 A4 C909 C2 C932 B5 C907 B2 F903 B5 R919 A3 R939 B5 D900 B2 R905 B2 IC904 C3 C934 D4 C929 B4 C901 C1 L903 B4 C912 A4 C931 D3 C903 C1 R943 A5 R951 C3 BD901 A1 FB901 B3 C918 A4 ZD922 B5 R961 B3 D903 B2 R938 B2 R912 C2 L901 B1 NR901 C1 ZD906 B2 C935 C4 C916 D4 FB903 C2 R924 B4 R935 B3 R942 C4 C900 C3 R920 A3 R901 C1 C924 C3 HS4 D2 R950 C3 T901 B3 FB902 A2 CN901 D1 C917 A4 R926 C3 ZD902 A5 C940 D5 L906 C5 C905A B1 R909 B3 U901 B2 R940 B5 R927 B5 L905 C4 C906 B2 C928 C2 Q901 B2 C902 C1 BD901A A1 D907 B3 R946 A5 F902 C5 IC903 B3 C908 B2 R949 B3 D909 A3 R962 B3 R925 B3 ZD921 B4 C938 B2 D906 A3 R910 B2 R930 C5 R902 C1 R903 B2 R906 B2 Q903 B5 D908 C4 FB904 A1 http://www.wjel.net HUDSON 9 28 1 1 2 2 3 3 4 4 5 5 A A B B C C D D OLP4 FB OLP4 OLP1 OLP2 OLP2 DIM FB FB OLP3 DTC OLP1 ON/OFF DTC OLP3 +16V C822 1500PF/50V C822 1500PF/50V R811 1K5 1/8W R811 1K5 1/8W D813 NC/LL4148 D813 NC/LL4148 C 3 B 1 E 2 D808 BAW56 D808 BAW56 C810 0.1uF/25V C810 0.1uF/25V Q811 PMBS3904 Q811 PMBS3904 R850 15R 1/4W 5% R850 15R 1/4W 5% C820 1uF/16V C820 1uF/16V 3 1 2 D810 BAV99 D810 BAV99 C804 0.1uF/16V C804 0.1uF/16V R832 0R05 1/8W R832 0R05 1/8W R820 560K OHM 1/10W R820 560K OHM 1/10W C802 1uF/16V C802 1uF/16V R836 1M 1/10W 5% R836 1M 1/10W 5% R838 10K 1/10W 1% R838 10K 1/10W 1% R835 1K 1/8W R835 1K 1/8W C809 220pF C809 220pF C821 1500PF/50V C821 1500PF/50V 3 1 2 D809 BAV99 D809 BAV99 R804 0R05 1/8W R804 0R05 1/8W R842 47K 1/10W R842 47K 1/10W R808 10K 1/10W 1% R808 10K 1/10W 1% C815 0.0022uF C815 0.0022uF R845 68R 1/10W 5% R845 68R 1/10W 5% R830 0R05 1/8W R830 0R05 1/8W R826 221KOHM1/8W R826 221KOHM1/8W R827 1K 1/10W 1% R827 1K 1/10W 1% C814 0.1uF/16V C814 0.1uF/16V 3 1 2 D801 BAV99 D801 BAV99 R841 1K5 1/8W R841 1K5 1/8W R817 1M 1/10W 5% R817 1M 1/10W 5% C812 18pF/3KV C812 18pF/3KV R815 27K 1/10W R815 27K 1/10W R833 10K 1/10W 1% R833 10K 1/10W 1% C813 0.0022uF C813 0.0022uF 3 1 2 D802 BAV99 D802 BAV99 R821 1M 1/10W 5% R821 1M 1/10W 5% Q808 RK7002 Q808 RK7002 C827 1500PF/50V C827 1500PF/50V R844 22R 1/10W 5% R844 22R 1/10W 5% 1 2 4 3 L802 NC / L L802 NC / L C 3 B 1 E 2 D806 BAW56 D806 BAW56 Q807 PMBS3904 Q807 PMBS3904 R843 1M OHM 1% 1/8W R843 1M OHM 1% 1/8W C818 0.0022uF C818 0.0022uF Q806 PMBS3906 Q806 PMBS3906 R812 1K5 1/8W R812 1K5 1/8W R816 68K OHM 1% 1/10W R816 68K OHM 1% 1/10W C808 2.2uF/16V C808 2.2uF/16V R810 15R 1/4W 5% R810 15R 1/4W 5% Q801 PDTA144WK Q801 PDTA144WK 6 3 4 1 8 7 T802 POWER X'FMR T802 POWER X'FMR C817 0.0022uF C817 0.0022uF R848 1K 1/10W 1% R848 1K 1/10W 1% C825 18pF/3KV C825 18pF/3KV S 1 G 2 S 3 G 4 D 8 D 7 D 6 D 5 Q809 AM9945N-T1-PF Q809 AM9945N-T1-PF R831 10K 1/10W 1% R831 10K 1/10W 1% 1 2 D816 NC/SM260A 2A/60V D816 NC/SM260A 2A/60V R851 15R 1/4W 5% R851 15R 1/4W 5% Q805 PMBS3906 Q805 PMBS3906 R805 NC/4K7 1/10W 5% R805 NC/4K7 1/10W 5% C824 0.1uF/25V C824 0.1uF/25V R823 10K 1/10W 5% R823 10K 1/10W 5% R819 10K 1/10W 1% R819 10K 1/10W 1% R847 22R 1/10W 5% R847 22R 1/10W 5% C806 1uF/16V C806 1uF/16V C823 0.1uF/25V C823 0.1uF/25V R853 10K 1/10W 1% R853 10K 1/10W 1% R846 68R 1/10W 5% R846 68R 1/10W 5% 1 2 D817 NC/SM260A 2A/60V D817 NC/SM260A 2A/60V R822 47K 1/10W R822 47K 1/10W R813 100R 1/10W 5% R813 100R 1/10W 5% D812 1N4148W D812 1N4148W HV 1 LV 2 CN803 CONN CN803 CONN R837 15R 1/4W 5% R837 15R 1/4W 5% R839 1K5 1/8W R839 1K5 1/8W R828 47K 1/10W R828 47K 1/10W 1 2 D814 NC/SM260A 2A/60V D814 NC/SM260A 2A/60V C826 18pF/3KV C826 18pF/3KV R849 1K 1/10W 1% R849 1K 1/10W 1% R824 10K 1/10W 1% R824 10K 1/10W 1% S 1 G 2 S 3 G 4 D 8 D 7 D 6 D 5 Q804 AM9945N-T1-PF Q804 AM9945N-T1-PF Q803 PMBS3904 Q803 PMBS3904 + C805 470uF/25V + C805 470uF/25V + C811 470uF/25V + C811 470uF/25V R807 1K 1/8W R807 1K 1/8W R809 1M 1/10W 5% R809 1M 1/10W 5% R818 2M 1/10W R818 2M 1/10W 1 2 ZD801 NC/RLZ6.8C ZD801 NC/RLZ6.8C C801 18pF/3KV C801 18pF/3KV 1 2 D815 NC / SM260A 2A/60V D815 NC / SM260A 2A/60V R802 100R 1/8W R802 100R 1/8W C819 1uF/16V C819 1uF/16V R801 0R05 1/8W R801 0R05 1/8W 6 3 4 1 8 7 T801 POWER X'FMR T801 POWER X'FMR HV 1 LV 2 CN801 CONN CN801 CONN C807 0.1uF/16V C807 0.1uF/16V Q802 PDTC144WK Q802 PDTC144WK R840 10K 1/10W 1% R840 10K 1/10W 1% D811 1N4148W D811 1N4148W 1IN+ 1 1IN- 2 FEEDBACK 3 DTC 4 CT 5 RT 6 GND 7 C1 8 E1 9 E2 10 C2 11 VCC 12 OUTPUT CTRL 13 REF 14 2IN- 15 2IN+ 16 U801 TL494IDR U801 TL494IDR Q810 PMBS3904 Q810 PMBS3904 C803 1500PF/50V C803 1500PF/50V R825 51K OHM 1% 1/8W R825 51K OHM 1% 1/8W D807 1N4148W D807 1N4148W R834 1K 1/8W R834 1K 1/8W R829 68K OHM 1% 1/10W R829 68K OHM 1% 1/10W R814 56K OHM 1% 1/10W R814 56K OHM 1% 1/10W 1 2 4 3 L801 NC / L L801 NC / L Q812 NC/RK7002 Q812 NC/RK7002 HV 1 LV 2 CN804 CONN CN804 CONN C828 1500PF/50V C828 1500PF/50V C816 1500PF/50V C816 1500PF/50V HV 1 LV 2 CN802 CONN CN802 CONN R803 NC /1K 1/10W 5% R803 NC /1K 1/10W 5% R852 10K 1/10W 1% R852 10K 1/10W 1% D803 1N4148W D803 1N4148W R806 1K 1/8W R806 1K 1/8W C822 D4 R811 A5 D813 A3 D808 C1 C810 C3 Q811 B4 R850 A4 C820 C2 D810 D5 C804 B2 R832 C5 R820 B1 C802 A1 R836 C1 R838 C2 R835 C5 C809 C2 C821 A4 D809 D4 R804 A5 R842 B2 R808 A1 C815 C2 R845 B4 R830 C5 R826 C2 R827 C1 C814 C1 D801 A4 R841 D5 R817 A2 C812 C4 R815 A2 R833 C2 C813 C2 D802 A5 R821 B1 Q808 C1 C827 C3 R844 B3 L802 C5 D806 C1 Q807 C2 R843 C2 C818 D2 Q806 B4 R812 A5 R816 B1 C808 C2 R810 A4 Q801 A2 T802 C4 C817 D2 R848 C3 C825 A4 Q809 C3 R831 C2 D816 C4 R851 C4 Q805 B3 R805 A3 C824 C4 R823 C2 R819 B2 R847 B4 C806 B2 C823 B4 R853 B3 R846 B4 D817 C3 R822 C2 R813 A1 D812 B2 CN803 C5 R837 C4 R839 D5 R828 C1 D814 B4 C826 C4 R849 C4 R824 C2 Q804 B4 Q803 A2 C805 B4 C811 C4 R807 A5 R809 A1 R818 B2 ZD801 A3 C801 A4 D815 B3 R802 A2 C819 B1 R801 A5 T801 A4 CN801 A5 C807 B2 Q802 A1 R840 D2 D811 B1 U801 B3 Q810 B3 C803 A4 R825 C2 D807 C1 R834 C5 R829 C2 R814 A2 L801 A5 Q812 A3 CN804 C5 C828 C4 C816 C4 CN802 A5 R803 A3 R852 C3 D803 A2 R806 A5 http://www.wjel.net HUDSON 9 29 6.3 Key Board 715G3016-1 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 A A B B C C D D E E (OK) (UP) (DOWN) CONNECTOR (MENU) LED (Power) CN001 B1 C001 B2 C002 B2 C003 B3 C004 B3 C005 B4 C006 C7 C007 C5 C008 C5 C009 C6 C010 C8 LED001 A3 R001 B4 R002 B4 R004 B4 R005 B4 R007 C3 SW001 C7 SW002 C6 SW003 C8 SW004 C6 SW005 C5 ZD001 C7 ZD002 C5 ZD003 C8 ZD004 C5 OK LED_RED# LED_RED# LED_GRN# LED_GRN# LBADC1 LBADC2 DC_POWERON MENU POWER DOWN UP GND SGND SGND SGND SGND SGND SGND SGND SGND SGND SGND SGND ZD004 NC/UDZS5.6B C006 NC/0.1uF CN001 CONN 1 2 3 4 5 6 C007 NC/0.1uF R001 4.3K OHM 1% 1/8W R007 0R05 1/4W C004 NC/0.001uF C010 NC/0.1uF R003 910R 1/8W LED001 LED 1 3 2 C009 NC/0.1uF C001 NC/0.001uF SW001 SW 2 1 3 4 5 ZD003 NC/UDZS5.6B C005 NC/0.001uF ZD002 NC/UDZS5.6B C008 NC/0.1uF C002 NC/0.001uF C003 NC/0.001uF SW002 SW 2 1 3 4 5 SW004 SW 2 1 3 4 5 ZD005 NC/UDZS5.6B SW003 SW 2 1 3 4 5 R005 2.4K OHM 1% 1/8W R002 2.4K OHM 1% 1/8W SW005 SW 2 1 3 4 5 R004 4.3K OHM 1% 1/8W ZD001 NC/UDZS5.6B http://www.wjel.net HUDSON 9 30 7. PCB Layout 7.1 Main Board 715G2904-1 C101 B2 FB101 B2 R418 B1 C102 B2 FB102 B2 R419 B1 C103 B2 FB103 B2 R420 B1 C104 B2 FB401 B2 R421 B1 C105 B2 FB402 A2 R424 B2 C106 B2 FB403 A1 R425 B2 C107 B2 FDT2 ?1 R426 A2 C108 B2 FDT3 ?6 R427 B1 C109 B2 Q404 A2 R428 B1 C110 B2 Q405 A2 R429 B1 C111 B2 Q406 B1 R430 B1 C113 B2 Q408 B1 R431 B1 C114 B2 Q409 A1 R432 B1 C115 B2 Q410 A1 R433 A2 C401 B2 R101 B2 R434 A2 C403 B1 R102 B2 R435 A2 C404 B2 R103 B2 R436 A2 C406 A2 R104 B2 R437 B1 C407 A1 R105 B2 R439 B1 C408 A2 R106 B2 R440 A1 C409 A1 R107 B2 R441 A1 C410 A1 R108 B2 R442 A1 C411 B1 R109 B2 R446 B1 C412 B1 R110 B2 R447 B1 C413 B1 R111 B2 R448 B1 C414 B1 R112 B2 R449 B1 C415 B1 R113 B2 R450 B1 C416 B1 R114 B2 R451 B1 C417 B1 R115 B2 R452 A2 C418 B2 R116 B2 R453 B2 C419 A2 R117 B2 R454 B2 C420 A2 R118 B2 R455 B2 C427 B1 R404 B1 SEN3 A2 C428 B1 R405 B2 SEN4 B1 C429 B2 R406 A1 U102 B2 C432 A1 R407 B1 U103 B2 CN101 B2 R408 B2 U401 A2 CN401 B1 R409 B1 U402 A2 CN402 B1 R410 B1 U403 B2 CN403 A1 R411 B1 U404 B1 CN404 A1 R412 B1 X401 B1 D401 B2 R413 A2 ZD103 B2 D402 A1 R414 B1 ZD104 B2 D403 B1 R417 A1 http://www.wjel.net HUDSON 9 31 http://www.wjel.net HUDSON 9 32 7.2 Power Board 715G2824-1 for 170V9FB/97(1) BD901 D3 J821 B2 BD901A D3 J823 B1 BD901B D3 J824 B2 C604 D4 J825 C2 C812 B2 J826 D1 C816 C1 J829 C4 C817 B1 J830 D1 C819 A1 J831 D1 C820 B1 J832 D4 C821 C1 J833 D3 C822 C1 J834 D1 C824 C1 J835 D4 C900 B3 J836 C4 C901 D2 J837 D4 C902 D2 J838 D4 C903 D2 J901 C4 C905 C3 J902 C3 C905A C3 J903 C3 C906 B3 J904 B2 C908 C2 J905 B3 C915 A4 J906 B2 C916 A4 J907 A2 C917 A2 J908 A2 C918 A2 J909 A4 C920 B2 J910 A4 C921 B4 J911 B4 C934 B4 J912 B4 C938 C3 L801 A1 C939 B3 L802 D1 CN601 D3 L901 D2 CN602 D4 L903 A3 CN801 A1 L904 A3 CN802 B1 L905 B4 http://www.wjel.net HUDSON 9 33 C601 D3 R818 A2 C602 D4 R819 A2 C603 D4 R820 A2 C606 D3 R821 A2 C608 D3 R822 B2 C609 D3 R823 A2 C610 D3 R824 A2 C611 D3 R825 B2 C612 D3 R826 B2 C613 D3 R827 D1 C801 B2 R829 C1 C802 C2 R830 C1 C803 B2 R836 B1 C804 B2 R837 A1 C805 A2 R838 A1 C806 B2 R839 A1 C807 A2 R840 A1 C808 A2 R841 A1 C809 B2 R842 A1 C810 A2 R843 A1 C811 B2 R844 A1 C813 A2 R845 A1 C814 B2 R846 D1 C815 B2 R847 D1 C818 B1 R848 D1 C823 D1 R849 D1 C907 C3 R850 A2 C909 C3 R901 C2 C912 A2 R902 D2 C924 B2 R904 C3 C928 C3 R905 C3 C929 A3 R906 C3 C930 B4 R909 B3 C931 A4 R910 C3 C932 A3 R912 C3 C935 B4 R915 C3 C940 C4 R918 B2 D801 C2 R919 B2 D802 B2 R920 B2 D803 C2 R924 B2 D804 C2 R925 B2 D805 B2 R926 B2 D806 A2 R927 B2 D807 A1 R930 B2 D808 A2 R935 B3 D809 D1 R938 B4 D903 C3 R939 A3 FB902 C3 R940 B2 IC801 B2 R942 B2 IC901 C3 R943 A3 J802 A2 R949 B4 Q601 D3 R950 B4 Q801 A2 R951 B4 Q802 B2 R961 B3 Q803 B2 R962 A3 Q804 D1 RJ610 D3 Q805 B2 RJ801 A2 Q806 C2 RJ802 A2 Q903 A3 RJ804 D1 R601 C4 RJ805 A2 R602 D4 RJ901 C3 R603 D4 SG12 =4 R604 D3 SG13 D2 R605 D3 SG14 D2 R606 D3 SG15 D2 R607 D3 SG16 D2 R608 D3 SG18 D1 R609 D3 SG19 D2 R610 C4 SG20 D2 R801 A2 SG21 D2 R802 A2 SG22 D2 R803 C2 SG23 D2 R804 C2 SG24 D2 R805 C2 SG25 D2 R806 B2 SG26 C2 R807 C2 SG27 C2 R808 C2 ZD801 A2 R813 A2 ZD802 C2 R814 A2 ZD803 C2 R815 B2 ZD902 A3 R816 B2 ZD921 B2 R817 A2 ZD922 B2 http://www.wjel.net HUDSON 9 34 for 170V9FB/97(2) 715G2824-1-2 BD901 D3 BD901A D3 C1 B4 C2 C3 C3 E2 C4 E2 C5 E2 C6 E1 C7 D3 C8 E2 C9 E2 C10 D3 C11 C2 C604 D4 C605 E3 C801 B1 C805 C2 C811 C2 C812 C1 C825 C1 C826 D1 C900 B4 C901 E1 C902 E2 C903 D2 C905 C3 C905A D3 C906 C3 C908 C2 C915 A3 C916 A4 C917 A2 C918 A3 C934 B4 C938 D3 C939 B3 CN601 E3 CN602 E4 CN801 B1 CN802 A1 CN803 E1 CN804 D1 CN901 E2 CN902 A4 D900 C3 D901 C2 D906 B2 D907 A3 D908 B4 D909 A3 F901 E2 F902 C4 F903 A4 FB1 A1 FB602 E4 FB901 B4 FB903 D4 FB904 C3 IC601 E4 IC903 C3 IC904 B2 J1 D3 J2 D3 J3 E3 J4 A1 J22 D1 J23 D1 J24 D1 J25 C1 J27 E1 J28 D1 J29 B1 J30 C1 J31 B1 J32 B1 J34 A1 J35 A1 J36 D1 J601 E3 J602 E4 J603 E4 J604 D4 J605 E4 J606 E4 J801 E1 J802 E1 J803 D2 J804 C2 J806 B2 J807 C2 J809 C2 J810 C2 J811 B2 J812 B2 J813 B2 J814 B2 J815 A2 J816 A1 J817 A2 J818 A1 J819 A2 J820 A1 J821 E1 J822 D2 J823 C2 J901 D4 J902 D3 J903 D3 J904 B3 J905 B3 J906 C4 J907 A2 J910 A4 J911 B4 J912 B4 J915 C2 L801 A1 L802 E1 L901 D2 L903 A3 L904 A3 L905 B4 L906 A4 NR901 E2 Q901 C4 R903 C3 R914 D4 R946 A3 T801 B1 T802 C1 T901 B3 http://www.wjel.net HUDSON 9 35 C601 E4 C602 E4 C603 E4 C606 E4 C608 E4 C609 E4 C610 E3 C611 E3 C612 E4 C613 E4 C802 A2 C803 C1 C804 A2 C806 A2 C807 A2 C808 A2 C809 B2 C810 B2 C813 A1 C814 B1 C815 A1 C816 C1 C817 E1 C818 E1 C819 A2 C820 B2 C821 B1 C822 D1 C823 C2 C824 C2 C827 C2 C828 D2 C907 C3 C909 D3 C910 D3 C912 B3 C924 B3 C928 C3 C929 A3 C930 B4 C931 A4 C932 A3 C935 B4 C940 C4 D801 A1 D802 A1 D803 A2 D806 A1 D807 B1 D808 E1 D809 E1 D810 E1 D811 A2 D812 B2 D813 A2 D814 C2 D815 C2 D816 D2 D817 D2 D903 C4 FB902 C3 Q607 D4 Q608 E4 Q801 A2 Q802 A2 Q803 A2 Q804 C2 Q805 B2 Q806 C2 Q807 B2 Q808 B1 Q809 D2 Q810 B2 Q811 C2 Q812 A1 Q903 A3 R601 D4 R602 E4 R603 E4 R604 E3 R605 E3 R606 E3 R607 E3 R608 E3 R609 E4 R610 D4 R611 D4 R612 E4 R801 A1 R802 A2 R803 A2 R804 A1 R805 A2 R806 A1 R807 A1 R808 A2 R809 A2 R810 C1 R811 A1 R812 A1 R813 A2 R814 A2 R815 A2 R816 A2 R817 A2 R818 A2 R819 A2 R820 A1 R821 A2 R822 B2 R823 A2 R824 A2 R825 B2 R826 B2 R827 B1 R828 B1 R829 B2 R830 E1 R831 A1 R832 E1 R833 A1 R834 E1 R835 E1 R836 B1 R837 C1 R838 E1 R839 E1 R840 E1 R841 E1 R842 B2 R843 B2 R844 B2 R845 B2 R846 C2 R847 C2 R848 B2 R849 C2 R850 B1 R851 D1 R852 B2 R853 B2 R901 D2 R902 E2 R904 C3 R905 D3 R906 C3 R909 C3 R910 C4 R912 D3 R918 B3 R919 B3 R920 B3 R924 B3 R925 B3 R926 B3 R927 B2 R930 B3 R935 B3 R938 C4 R939 A3 R940 B2 R942 B3 R943 A3 R949 B4 R950 B4 R951 B4 R961 B3 R962 B3 RJ610 E3 RJ801 E1 RJ802 E1 RJ803 D2 RJ804 B2 RJ805 B2 RJ806 C2 RJ807 B1 RJ808 A1 RJ809 A2 RJ810 A1 RJ901 C3 U801 A2 U901 C3 ZD801 A2 ZD902 A3 ZD906 C3 ZD921 B2 ZD922 B2 http://www.wjel.net HUDSON 9 36 7.3 Key Board 715G3016-1 CN001 A3 GND1 A1 GND2 A3 LED001 A2 SW001 A1 SW002 A2 SW003 A1 SW004 A2 SW005 A3 C001 A3 C002 A2 C003 A2 C004 A3 C005 A1 C006 A1 C007 A3 C008 A2 C009 A2 C010 A1 R001 A1 R002 A1 R003 A2 R004 A2 R005 A2 R007 A3 ZD001 A1 ZD002 A3 ZD003 A1 ZD004 A2 ZD005 A2 http://www.wjel.net HUDSON 9 37 8. Wiring Diagram Note: The wiring diagram can be used for 170V9FB/97(1) and 170V9FB/97(2). The differences between 170V9FB/97(2) and 170V9FB/97(1) are the wire harness and FFC cable. Noted in the diagram are for 170V9FB/97(1). The FFC cable for 170V9FB/97(2) is 089G179J30N568. Main Board 9Pin 30 Pin Panel D-SUB TSUM1PFR-LF U401 CN403 89G179E30N568 FFC Cable 1 9 CN404 6 Pin 1 6 CN401 Power Board Key Board 6 Pin AC IN CN902 1 14 CN802 CN801 CN804 CN803 CN901 6 1 CN001 95G 82014X507 HARNESS 14P (SAN)-9P 1 30 14Pin CN101 HARNESS6P (SANW)-6P 95G820H 6X508 http://www.wjel.net HUDSON 9 38 9. Scalar Board Overview Morning Star chip Flash ROM EEPROM D-SUB D-SUB DC-DC Converters DC-DC Converters http://www.wjel.net HUDSON 9 39 10. Mechanical Instructions 1. Back View as Fig1 Place the monitor face down on a smooth surface as Fig 1. Be careful to avoid scratch and injury during the uninstallation. Fig1 2. Remove the hinge as Fig2. Remove the three screws remarked in red to remove the hinge as Fig2. Fig2 http://www.wjel.net HUDSON 9 40 3. Remove bezel and rear cover as Fig3~ Fig5. Fig3 Fig4 http://www.wjel.net HUDSON 9 41 Fig5 4. Remove main frame cover as Fig6~Fig7. a. Remove the two screws marked in red as Fig6. b. Disconnect the four connector marked in blue as Fig6. c. Remove the two screws marked in red as Fig7. Fig6 Fig7 http://www.wjel.net HUDSON 9 42 5. Remove power board as Fig8. a. Remove the two screws marked in red as Fig8. b. Disconnect the connector marked in blue as Fig8. Fig8 6. Remove scalar board as Fig9~Fig10. a. Remove the screw remarked in red as Fig9. b. Disconnect the two connectors marked in blue as Fig9. c. Remove the two screws remarked in red as Fig10. Fig9 Fig10 http://www.wjel.net HUDSON 9 43 11. Trouble Shooting This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these solutions, contact Philips customer service representative. http://www.wjel.net HUDSON 9 44 http://www.wjel.net HUDSON 9 45 12. Repair Flow Chart 12.1 Main Board (1). No Power No power Press power key and look if the picture is normal Please reinsert and make sure the AC of 100-240 is normal Reinsert or check the Adapter/Inverter section X401 oscillate waveforms are normal Check U404, Q409 and Q410 Replace U401 Replace X401 OK OK OK NG NG NG NG Measure U404 PIN2=3.3V Q409 Vcollector =1.8V http://www.wjel.net HUDSON 9 46 (2). No Picture No picture The button if under control Replace U401 Replace X401 Measure U404 PIN2=3.3V Q409 Vcollector =1.8V Check Correspondent component Replace U401 X401 oscillate waveform is normal Check U404, Q409 and Q410 OK OK OK OK OK NG NG NG NG Check reset circuit of U401 is normal Check HS VS from CN101 is normal Replace X401 Check Correspondent component NG NG OK Replace U401 X401 oscillate waveform is normal http://www.wjel.net HUDSON 9 47 (3). White screen White screen Check Q404, Q405 is broken or CN403 solder? Check Correspondent component. Replace Panel Check Correspondent component. Replace U401 OK OK Replace X401 OK NG NG NG NG Check reset circuit of U401 is normal OK X401 oscillate waveform is normal Measure Q404 base is low level? http://www.wjel.net HUDSON 9 48 11.2. Power/Inverter Board (1) No power Check ZD902 (-) = 16V Check AC line volt 110V or 220V Check AC input Check the voltage of C905 (+) Check bridge rectified circuit and F901 circuit Check start voltage for the pin3 of IC901 Check R904, R905, R906 and Change IC901 NG Check the auxiliary voltage is bigger than 10V and smaller than 20V 1) Check IC901 2) Check R909, D901 circuit OK OK NG Check Q901, D903, IC903, IC904, ZD921, ZD922 OK Check IC901 pin8 PWM wave OK Check IC901 NG NG NG OK NG http://www.wjel.net HUDSON 9 49 (2) W / LED, No Backlight Check CN902 pin4 = 16V NG OK Check adapter or MB Check ON/OFF signal Check Interface board NG OK Check IC801 PIN2=5V NG OK Check Q801 and ZD801 Check IC801 PIN1, 15 have the output of square wave at short NG OK Change IC801 Check Q805 and Q806 PIN5, 6, 7, 8 have the output of square wave at short time. NG OK Check Q805, Q806 Check the output of PT801 Check connecter & lamp OK NG Change PT801 http://www.wjel.net HUDSON 9 50 12.3 Key Board OSD is unstable or not working Is Key Pad Board connecting normally? Connect Key Pad Board Is Button Switch normally? Replace Button Switch Y N N Is Key Pad Board normally? Replace Key Pad Board Y N Y Check Main Board http://www.wjel.net HUDSON 9 51 13. ISP Instruction 1. When do the part, need the tools as follow: a. An i486 (or above) personal computer or compatible. b. Microsoft operation system Windows 95/98/2000/XP. c. “ PORT95NT.exe” program d. Software ISP SN Alignment kits The kit contents: a. ISP BOARD x1 b. Printer cablex1 c. VGA cable x1 2. Install the “PORT95NT.EXE”, and restart the computer. You must install the at the first. The processing as follows: http://www.wjel.net HUDSON 9 52 http://www.wjel.net HUDSON 9 53 http://www.wjel.net HUDSON 9 54 Click to complete the installation. http://www.wjel.net HUDSON 9 55 Note: After installation, you must restart the PC to take the setup to effect. 3. Connect the ISP board as follow: Connect to the PC LPT Connect to the Philips 170V9 http://www.wjel.net HUDSON 9 56 4. The process of ISP write is as follows. a. Double-click ，running the program as follows: http://www.wjel.net HUDSON 9 57 b. Click icon, search the program” 170V9_TSUM1PFR_LM170E03_Q2PowerBoard_20080520_V101”, and click open: c. Click icon. If connects success, it will show as the follow picture: http://www.wjel.net HUDSON 9 58 d. Click icon and click icon. If burn in success, it will show as the follow picture: http://www.wjel.net HUDSON 9 59 14. DDC Instruction General DDC Data Re-programming In case the main EEPROM with Software DDC which store all factory settings were replaced because a defect, repaired monitor’ the serial numbers have to be re-programmed. It is advised to re- soldered the main EEPROM with Software DDC from the old board onto the new board if circuit board have been replaced, in this case the DDC data does not need to be re-programmed. Additional information about DDC (Display Data Channel) may be obtained from Video Electronics Standards Association (VESA). Extended Display Identification Data (EDID) information may be also obtained from VESA. 1. An i486 (or above) personal computer or compatible. 2. Microsoft operation system Windows 95/98/2000/XP. 3. “ PORT95NT.exe, WinDDC_ setup” program. 4. Software OSD SN Alignment kits The kit contents: a. OSD SN BOARD x1 b. Printer cablex1 c. VGA cable x1 d. Digital cable x1 e. 12V DC power source 1. Install the “PORT95NT.EXE”, and restart the computer. The process of installing “PORT95NT” has been specified in Item12, so it will not be specified again. If you have any problem, please read it in Item12. http://www.wjel.net HUDSON 9 60 2. Install the “WinDDC_ setup” Second, you must install the . The processing as follows: http://www.wjel.net HUDSON 9 61 http://www.wjel.net HUDSON 9 62 Click to complete the installation. 3. Connect the DDC board as follow: Connect to the PC LPT When you write analog EDID, Connect this port to the Philips 170V9’s VGA port 12V Input http://www.wjel.net HUDSON 9 63 4. Take analog DDC write for example, as follow a. Double-click ，appear as follow Figs： http://www.wjel.net HUDSON 9 64 b. Click , then click “OK”. It will appear as follow. c. Double-click , appear as follow Figs： http://www.wjel.net HUDSON 9 65 d. Key “1”, press “Enter” key, and key 14 numbers after “Input Serial Number” as follow, e. Now analog DDC Write completes, as bellow, http://www.wjel.net HUDSON 9 66 170V9 EDID Analog 128 bytes EDID Data (Hex): x0 x1 x2 x3 x4 x5 x6 x7 x8 x9 xA xB xC xD xE xF 0: 00 FF FF FF FF FF FF 00 41 0C 1F C0 E0 D9 01 00 10: 17 0D 01 03 0E 22 1B 78 2A AD B0 A2 57 4A 9C 25 20: 11 50 54 BF EF 80 71 4F 81 40 81 80 01 01 01 01 30: 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70 40: 13 00 52 0E 11 00 00 1E 00 00 00 FF 00 31 32 33 50: 31 33 32 33 31 32 31 33 31 32 00 00 00 FC 00 50 60: 68 69 6C 69 70 73 20 31 37 30 56 0A 00 00 00 FD 70: 00 38 4C 1E 53 0E 00 0A 20 20 20 20 20 20 00 0D Decoded EDID data <---Header---> Header: 00 FF FF FF FF FF FF 00 <-x-Header-x-> <---Vendor/Product Identification---> ID Manufacturer Name: PHL ID Product Code: C01F ID Serial Number: e0d90100 Week of Manufacture: 23 Year of Manufacture: 2003 <-x-Vendor/Product Identification-x-> <---EDID Structure Version/Revision---> EDID Version#: 01 EDID Revision#: 03 <-x-EDID Structure Version/Revision-x-> <---Basic Display Parameters/Features---> Video i/p definition: Analog Signal Level Standard: 0.700V/0.300V(1.000Vpp) Setup: Blank-to-Black not expected Separate Sync Support: Yes Composite Sync Support: Yes Sync. on green video supported:Yes Serration of the Vsync.Pulse is not required. Max. H. Image Size : 34cm. Max. V. Image Size : 27cm. Display Gamma: 2.2 DPMS Features, Stand-by: No. DPMS Features, Suspend: No. DPMS Features, Active off: Yes. Display Type: R.G.B color display. Standard Default Color Space: R.G.B color. Preferred Timing Mode: In First Detailed Timing. GTF supported: No. <---Basic Display Parameters/Features---> <---Color Characteristics---> Red x: 0.6347656250 Red y: 0.3417968750 http://www.wjel.net HUDSON 9 67 Green x: 0.2929687500 Green y: 0.6103515625 Blue x: 0.1464843750 Blue y: 0.0693359375 White x: 0.3125000000 White y: 0.3281250000 <-x-Color Characteristics-x-> <---Established Timings---> Established Timings 1: BF -720x400 @70Hz VGA,IBM -640x480 @60Hz VGA,IBM -640x480 @67Hz Apple,Mac II -640x480 @72Hz VESA -640x480 @75Hz VESA -800x600 @56Hz VESA -800x600 @60Hz VESA Established Timings 2: EF -800x600 @72Hz VESA -800x600 @75Hz VESA -832x624 @75Hz Apple,Mac II -1024x768 @60Hz VESA -1024x768 @70Hz VESA -1024x768 @75Hz VESA -1280x1024 @75Hz VESA Established Timings 3: 80 -1152x870 @75Hz Apple,Mac II <-x-Established Timings-x-> <---Standard Timing Identification---> -1152x864 @75 Hz -1280x960 @60 Hz -1280x1024 @60 Hz <-x-Standard Timing Identification-x-> <---Detailed Timing Descriptions---> Detailed Timing: 1280x1024 @ 60Hz. <-x-Detailed Timing Descriptions-x-> <---Detailed Timing Descriptions---> Detailed Timing: FF (Monitor SN) '123132312131' Detailed Timing: FC (Monitor Name) 'Philips 170V' Detailed Timing: FD (Monitor limits) Min. V. rate: 56Hz Max. V. rate: 76Hz Min. H. rate: 30KHz Max. H. rate: 83KHz Max. Pixel Clock: 140MHz <-x-Detailed Timing Descriptions-x-> Extension Flag: 00 Checksum: 0D http://www.wjel.net HUDSON 9 68 15. White Balance, Luminance Adjustment 1. Apparatuses and program: analyzer CA-210, PC, tool, FGA adjustment program (PHILIPS170V9.DDCI), Pattern generator. 2. Equipment installation: a. Connect analyzer CA-210 to PC by USB connector, install drive program CA-SDK Ver4.00 for CA-210 and restart PC after finish installing. b. Install Port95NT drive program, set PC printer connector mode as ECP mode and restart PC after finish installing. c. Connect tools as follow: (Note: It is not necessary to connect Port2) 3. Adjustment Preparation before adjustment: (1) Monitor should be warmed up for more than half an hour. (2) Make sure that the tools are connected right and drive programs have been installed OK. Adjustment process: (1) Press the power of CA-210, shut off the lens, press 0-Cal and open the lens after analyzer reset. (2) Start white balance adjustment program, select the right parameter according with the program and click OK. (3) Make sure that the lens of CA-210 aims at the center of the screen, then click Start and start adjusting. (4) After finish adjusting, the adjustment program displays pass, and the Start Button is changed to Next, which means you can adjust another monitor. http://www.wjel.net HUDSON 9 69 4. Color Temp confirmation Connect the signal to the monitor, the monitor display white-picture, use CA-210 to measure the Color Temp of the screen center and select the OSD to make sure whether the Color Temps accord with the SPEC. http://www.wjel.net HUDSON 9 70 16. Monitor Exploded View 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 F E D C B A 170V9 8 7 6 5 4 3 2 1 A B C D E F Item Part No. 1 2 3 4 5 6 7 8 BEZEL PANEL SCALAR BOARD ASSY POWER BOARD ASSY REAR COVER 170V9 STAND_BASE ASS'Y KEY BOARD ASSY KEY PAD http://www.wjel.net HUDSON 9 71 17. Recommended & Spare Parts List 170V9FB/97(1) Item Location Philips 12NC PCM Codes Description Remark 1 FQ106 996510017733 Q34G0369ADTE1B0130 BEZEL L17-8QPH1(HUDSON9-170V) 2 E750 750GLU70G1D3QN PANEL M170EG01 VD0B FQ AUO 2 E750 750GLU70G1D4QN PANEL M170EG01 VD0C FQ AUO 3 FQ002 996510014909 CBPC7AM5P1Q1 SCALER BOARD ASSY AUO 4 FQ003 996510014911 PWPC7941MQAJ POWER BOARD ASSY(AUO) 5 FQ105 996510014904 Q34G0272ADT 2B0100 REAR COVER 170V9 6 FQ103 996510014906 705GQ834027 STAND_BASE ASS'Y 7 FQ004 996510014830 KEPC7QV9 KEY BOARD ASSY 8 FQ405 996510014903 Q33G0170ADT 1L0100 KEY PAD E08902 996510014810 089G 725HAA DB D-SUB CABLE(AUO) E08907 996510014899 089G179E30N568 FFC CABLE(AUO) E08901 996510015663 089G404A15N IS POWER CORD E08901 996510017347 089G404A15N YH POWER CORD 2nd source FQ201 996520034000 Q40G 17N81332A RATING LABEL FQ205 996510015862 705GQ8CS003 CUSHION ASSY FQ202 996510015867 Q44G7089813 1A 17"LCD CARTON FQ203 996510015864 Q45G 88609 96 EPE BAG FOR MONITOR FQ204 996510015865 Q70G170081318A CD MANUAL FQ108 996510014907 Q34G0267ADT 1B0100 STAND FQ107 996510014818 Q34G0266ADT 1B0100 STAND TOP FQ109 996510014820 Q34G0367ADT 1B0133 BASE FQ110 996510014908 Q37G0074011 HINGE IC801 996500036059 056G 608 10 0Z9938(AUO) IC901 996510014843 056G 379 98 IC LD7552DPS SOP-8(AUO) http://www.wjel.net HUDSON 9 72 IC903 996500036055 056G 139 3A PC123Y22FZOF IC904 996510002780 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC U102 996510014826 056G 662 13 IC AZC099-04S SOT23-6L U103 996510014826 056G 662 13 IC AZC099-04S SOT23-6L U401 996510014825 056G 562557 IC TSUM1PFR-LF U402 996510014910 705GQ756434 MCU ASS'Y AUO U403 996500037783 056G1133 56 M24C16-WMN6TP U404 996510005697 056G 563 52 IC AP1117D33LA TO252-3L ATC X401 996510014824 093G 22 53 J 14.31818MHZ/32PF/49US T901 996510014838 080GL22T 3 N XFMR 510uH YUVA-822 PT801 996510014840 S80GL19T32V TRANSFORMER ASSY PT801 996510014836 080GL19T 32 DN XFMR 787mH TK.2027R.101 F903 996510013724 084G 56 4 B FUSE 4A 250V F901 996510013724 084G 56 4 B FUSE 4A 250V http://www.wjel.net HUDSON 9 73 170V9FB/97(2) Item Location Philips 12NC PCM Codes Description Remark 1 FQ106 996510017733 Q34G0369ADTE1B0130 BEZEL L17-8QPH1(HUDSON9-170V) 2 E750 996510017346 750GLC170A7P13M0PH PANEL CLAA170EA07P 8H4 FZ CPT 2 E750 996510017345 750GLC170A7P12M0PH PANEL CLAA170EA07P 8H4 WJ CPT 2 E750 996510017349 750GLC170A7P23M0PH PANEL CLAA170EA07P 8J4 FZ CPT 2 E750 996510017348 750GLC170A7P22M0PH PANEL CLAA170EA07P 8J4 WJ CPT 2 E750 996510016076 750GLG170E3G23M0PH PANEL LM170E03-TLG2 GZ LPL 3rd source 2 E750 996510016077 750GLG170E3G43M0PH PANEL LM170E03-TLG4 GZ LPL 3rd source 3 FQ002 996510017353 CBPC7CM5P1Q1 SCALER BOARD ASSY CPT 3 FQ002 996510017838 CBPC8GM5P1Q1 SCALER BOARD ASSY LPL 4 FQ003 996510017350 PWPC8742CQA8 POWER BOARD ASSY 4 FQ003 996510017837 PWPC8742LQBY POWER BOARD ASSY 3rd source 5 FQ105 996510014904 Q34G0272ADT 2B0100 REAR COVER 170V9 6 FQ103 996510014906 705GQ834027 STAND_BASE ASSY 7 FQ004 996510014830 KEPC7QV9 KEY BOARD ASSY 8 FQ405 996510014903 Q33G0170ADT 1L0100 KEY PAD U401 996510014825 056G 562557 IC TSUM1PFR-LF 3rd source U402 996510017354 705GQ756071 MCU ASSY CPT U402 996510017840 705GQ856009 MCU ASS'Y LPL U403 996500037783 056G1133 56 M24C16-WMN6TP U404 996510005697 056G 563 52 IC AP1117D33LA TO252-3L ATC X401 996510014824 093G 22 53 J 14.31818MHZ/32PF/49US F901 996510017352 084G 56 3 B FUSE 3.15A 250V F903 996510017352 084G 56 3 B FUSE 3.15A 250V T801 996510017351 080GL20T510 DN XFMR INVERTER 142UH T802 996510017351 080GL20T510 DN XFMR INVERTER 142UH T901 996510014838 080GL22T 3 N XFMR 510UH YUVA-822 U801 996510006256 056G 379 22 IC TL494IDR SOIC-16 http://www.wjel.net HUDSON 9 74 U901 996510014843 056G 379 98 IC LD7552DPS SOP-8 IC903 996500036055 056G 139 3A PC123Y22FZOF IC904 996500036054 056G 158 12 KIA431A-AT/P TO-92 U102 996510014826 056G 662 13 IC AZC099-04S SOT23-6L 3rd source U103 996510014826 056G 662 13 IC AZC099-04S SOT23-6L 3rd source FQ107 996510014818 Q34G0266ADT 1B0100 STAND TOP FQ108 996510014907 Q34G0267ADT 1B0100 STAND FQ109 996510014820 Q34G0367ADT 1B0133 BASE 190VW FQ110 996510014908 Q37G0074011 HINGE FQ202 996510015867 Q44G7089813 1A 17"LCD CARTON FQ203 996510015864 Q45G 88609 96 EPE BAG FOR MONITOR FQ204 996510015865 Q70G170081318A CD MANUAL FQ205 996510015862 705GQ8CS003 CUSHION ASSY E08901 996510015663 089G404A15N IS POWER CORD E08902 996510014809 089G 725CAA DB D-SUB WIRE E08902 996510014810 089G 725HAA DB D-SUB CABLE 3rd source E08907 996510014900 089G179J30N568 FFC CABLE E08907 996510014899 089G179E30N568 FFC CABLE 3rd source E08907 996510017569 089G179W30N568 FFC CABLE Service Kit Description Philips 12NC PCM Codes Remark DDC KIT 9965 000 43197 715L2005C2 FOR ALL MODEL OSD SN KIT 9965 000 43252 715GT033 C FOR ALL MODEL FOR ALL HUDSON 7 NOVATEK ISP KIT 9965 000 43198 715LT035A FOR 170A8, 190B8, 150S8, 170S8,190S8, 170V8,190V8 MSTAR ISP KIT 996510010027 715GT039 A 200CW8 190VW9 170V9 REALTEK ISP KIT 996510010027 715GT039 A 170CW8 http://www.wjel.net HUDSON 9 75 18. Different Parts List The BOMS of 170V9FB/62(1) and 170V9FB/00(1) are the same as 170V9FB/97(1). Diversity of 170V9FB/27(1) compared with 170V9FB/97(1) 170V9FB/27(1) 170V9FB/97(1) Location Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description E08901 089G402A15N CX POWER CORD 996510015663 089G404A15N IS POWER CORD Diversity of 170V9FB/00(1) compared with 170V9FB/97(1) 170V9FB/00(1) 170V9FB/97(1) Location Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description E08901 089G410A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD Diversity of 170V9FB/05(1) compared with 170V9FB/97(1) 170V9FB/05(1) 170V9FB/97(1) Location Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description E08901 089G410A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD Diversity of 170V9FB/93(1) compared with 170V9FB/97(1) 170V9FB/93(1) 170V9FB/97(1) Location Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description FQ106 996510017836 Q34G0369ADTF1B0130 BEZEL 170V9 996510017733 Q34G0369ADTE1B0130 BEZEL L17-8QPH1(HUDSON9-170V) FQ202 996510015863 Q44G7089813 2A 17"LCD CARTON 996510015867 Q44G7089813 1A 17"LCD CARTON FQ301 996510015859 089G414A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD FQ206 996510015861 Q41G780081369A QSG http://www.wjel.net HUDSON 9 76 Diversity of 170V9FB/94(1) compared with 170V9FB/97(1) 170V9FB/94(1) 170V9FB/97(1) Location Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description FQ301 996510015866 089G417A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD Diversity of 170V9FB/05(2) compared with 170V9FB/97(2) 170V9FB/05(2) 170V9FB/97(2) Location Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description FQ301 089G410A15N IS POWER CORD WALL-OUT FOR UK 996510015663 089G404A15N IS POWER CORD Diversity of 170V9FB/27 (2) compared with 170V9FB/97(2) 170V9FB/27(2) 170V9FB/97(2) Location Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description E08901 089G402A15N CX POWER CORD 996510015663 089G404A15N IS POWER CORD FQ202 Q44G7089813 3A 17"LCD CARTON 996510015867 Q44G7089813 1A 17"LCD CARTON FQ002 CBPCRM5P1Q1 SCALER BOARD ASSY 996510017353 CBPC7CM5P1Q1 SCALER BOARD ASSY FQ002 KEPC7QV9 KEY BOARD ASSY 996510014830 KEPC7QV9 KEY BOARD ASSY E750 750GLU70G1D4QN PANEL M170EG01 VD0C FQ AUO E750 750GLV170G1D31N000 PANEL TPM170E5(EG01) VD0B FQ TPV Diversity of 170V9FB/62 (2) compared with 170V9FB/97(2) 170V9FB/62(2) 170V9FB/97(2) Location Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description FQ205 705GQ834027 STAND_BASE ASS'Y 996510014906 705GQ834027 STAND_BASE ASSY FQ002 CBPCRM5P1Q1 SCALER BOARD ASSY 996510017353 CBPC7CM5P1Q1 SCALER BOARD ASSY E750 750GLU70G1D4QN PANEL M170EG01 VD0C FQ AUO E750 750GLV170G1D31N000 PANEL TPM170E5(EG01) VD0B FQ TPV http://www.wjel.net HUDSON 9 77 Diversity of 170V9FB/93(2) compared with 170V9FB/97(2) 170V9FB/93(2) 170V9FB/97(2) Location Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description FQ106 996510015860 Q34G0369ADTD1B0130 BEZEL 170V9 FQ106 Q34G0369ADTF1B0130 BEZEL 170V9 996510017733 Q34G0369ADTE1B0130 BEZEL L17-8QPH1(HUDSON9-170V) FQ202 996510015863 Q44G7089813 2A 17"LCD CARTON 996510015867 Q44G7089813 1A 17"LCD CARTON E08901 996510015859 089G414A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD FQ002 CBPCRM5P1Q1 SCALER BOARD ASSY CBPC8GM5P1Q1 SCALER BOARD ASSY FQ206 996510015861 Q41G780081369A QSG E750 750GLV170G1D31N000 TPM170E5 VD0B FQ TPV Diversity of 170V9FB/94(2) compared with 170V9FB/97(2) 170V9FB/94(2) 170V9FB/97(2) Location Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description E750 996510017540 750GLC170A7P12N000 CLAA170EA07P 8H4 WJ CPT 996510017345 750GLC170A7P12M0PH CLAA170EA07P 8H4 WJ CPT E750 996510017541 750GLC170A7P13N000 CLAA170EA07P 8H4 FZ CPT 996510017346 750GLC170A7P13M0PH CLAA170EA07P 8H4 FZ CPT E750 996510017542 750GLC170A7P22N000 CLAA170EA07P 8J4 WJ CPT 996510017348 750GLC170A7P22M0PH CLAA170EA07P 8J4 WJ CPT E750 996510017543 750GLC170A7P23N000 CLAA170EA07P 8J4 FZ CPT 996510017349 750GLC170A7P23M0PH CLAA170EA07P 8J4 FZ CPT FQ106 996510014905 Q34G0369ADTC1B0130 BEZEL 996510017733 Q34G0369ADTE1B0130 BEZEL L17-8QPH1(HUDSON9-170V) FQ301 996510015866 089G417A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD http://www.wjel.net HUDSON 9 78 19. General Product Specification CONTENTS 1 FOREWORD 2 PRODUCT PROFILE 2.1 LCD 2.2 SCANNING FREQUENCIES 2.3 AMBIENT TEMPERATURE: 0 °C - 40 °C 3 ELECTRICAL CHARACTERISTICS 3.1 INTERFACE SIGNALS 3.2 INTERFACE 3.3 SOFTWARE CONTROL FUNCTIONS VIA OSD /CONTROL ADJUSTABLE FUNCTIONS 3.4 TIMING REQUIREMENT 3.4.1 Mode storing capacity 3.4.2 Factory preset modes (9 modes) 3.4.3 Software control functions via OSD / control adjustable functions 3.4 HORIZONTAL SCANNING 3.6 VERTICAL SCANNING 3.7 POWER INPUT CONNECTION 3.8 POWER MANAGEMENT 3.9 VGA DISPLAY IDENTIFICATION 3.10 DDC/ CI SUPPORT 3.11 EDID 3.12 HOT-KEY DEFINITION 4 VISUAL CHARACTERISTICS 4.1 TEST CONDITIONS 4.2 BRIGHTNESS 4.3 IMAGE SIZE 4.4 BRIGHTNESS UNIFORMITY 4.5 CHECK CROSS TALK (S) 4.6 WHITE COLOR ADJUSTMENT 5 MECHANICAL CHARACTERISTICS 5.1 COSMETIC PHILIPS ID 5.2 MECHANICAL DATA FILES PROE FILES REQUIRED 5.3 LOCATION OF PHILIPS LOGO PER PHILIPS MAKE-UP SHEET 5.4 GAP BETWEEN PANEL AND FRONT BEZEL 1.4MM (TYPE) 5.5 LOCATION OF CONTROL ICONS- PER PHILIPS GRAPHIC SHEET 5.6 COLOR FOR RESIN/PAINT PER PHILIPS MAKE-UP SHEET 5.7 RESINS 5.8 IF RAINT IS USED 5.9 PLASITIC MOLD TOOLING 5.10 PLASTICS FLAMMABILITY 5.11 TEXTURE/GLOSSING OF HOUSING 5.12 TILT BASE 5.13 KENNSINGTON LOCK http://www.wjel.net HUDSON 9 79 5.14 LABEL 5.15 PRODUCT DIMENSION/WEIGHT/ WEIGHT (REFER TO PHILIPS APPROVED SHT 191) 5.16 TRANSPORTATION 5.16.1 Transportation packages 5.16.2 Transportation Test 5.17 PALLET/CONTAINER LOADING (REFER TO PHILIPS APPROVED SHT 560) 6. ENVIRONMENTAL CHARACTERISTICS 6.1 SUSCEPTIBILITY OF DISPLAY TO EXTERNAL ENVIRONMENT 6.2 TRANSPORTATION TESTS 6.3 DISPLAY DISTURBANCES FROM EXTERNAL ENVIRONMENT 6.4 DISPLAY DISTURBANCES TO EXTERNAL ENVIRONMENT 7. RELIABILITY 7.1 MEAN TIME BETWEEN FAILURES 8. QUALITY ASSURANCE REQUIREMENTS 8.1 ACCEPTANCE TEST 9. PHILIPS’ FLAT PANEL MONITORS PIXEL DEFECT POLICY 10. REGULATORY COMPLIANCE 10.1 WORLDWIDE REGULATORY 10.2 EMC REQUIREMENTS 10.3 ROHS 10.4 WEEE 10.5 ONGOING REGULATORY http://www.wjel.net HUDSON 9 80 1. FOREWORD This specification describes a 17" SXGA multi-scan color TFT LCD monitor with maximum resolution up to 1280 x 1024 /76 Hz non-interlaced. All optical characteristics (including WHITE-D, Brightness, and so on) are determined according to panel specification after warming up approximate 30 minutes that brightness stability is optimal, and follow strictly after panel specification. 2. PRODUCT PROFILE This display monitor unit is a color display monitor enclosed in PHILIPS styling cabinet which has an integrated tilt base. 2.1 LCD Priority : AUO/CPT Type : TN + film AUO M170EG01 VD0B/VD0C Resolution : 1280 x 1024 (SXGA) Outside dimensions : Pitch ( mm ) : 0.264 mm x 0.264 mm Color pixel arrangement : RGB vertical stripes Display surface : Hard coating (3H), Anti-glare treatment of the front polarizer Color depth : 16.7M colors (RGB 6-bits+FRC data) Backlight : CCFL edge light system Active area(WxH) : 337.9*270.3 View angle (CR>10) : 170/160(Typ) Contrast ratio : 1000:1(typ) White luminance : 300nits(typ) Color gamut : NO Define Gate IC : Source IC : Response time : 5ms MTBF : 50000 hours CPT CLAA170EA07P-8H4/8J4 Resolution : 1280 x 1024 (SXGA) Outside dimensions : Pitch ( mm ) : 0.264 mm x 0.264 mm Color pixel arrangement : RGB vertical stripes Display surface : Anti-glare Color depth : 16.7M (6 Bit+Hi-FRC) Backlight : CCFL, 4 tables, edge-light(top*2/bottom*2) Active area(WxH) : 337.9*270.3 View angle (CR>10) : 160/160(Typ) Contrast ratio : 800:1(typ) White luminance : 300nits(typ) Color gamut : >=72% Response time : 5ms (typ.) MTBF : 40000 hours http://www.wjel.net HUDSON 9 81 2.2 Scanning frequencies Hor. : 30 – 83 K Hz Ver.: 56 - 76 Hz Video dot rate: < 140 MHz Power input: 90-264 V AC, 50/60 ± 2 Hz Power consumption : <40W maximum,< 36W ( Typ.) Functions: (1) D-SUB analog R/G/B separate inputs, H/V sync separated, Composite (H+V) TTL level, SOG sync 2.3 Ambient temperature: 0 °C - 40°C 3. Electrical characteristics 3.1 Interface signals 1). D-Sub Analog Input signal : Video, Hsync., Vsync Video : 0.7 Vp-p, input impedance, 75 ohm @DC Sync. : Separate sync TTL level , input impedance 2.2k ohm terminate Hsync Positive/Negative Vsync Positive/Negative Composite sync TTL level, input impedance 2.2k ohm terminate (Positive/Negative) Sync on green video 0.3 Vp-p Negative (Video 0.7 Vp-p Positive) 3.2 Interface 3.2.1 D-Sub Cable Length : 1.5 M +/- 50 mm Fix with monitor when packing, with transplant pin protective cover. Connector type : D-Sub male with DDC2B pin assignments. Blue connector thumb-operated jack screws Pin assignments: Pin No. Signal 1 Red 2 Green/ SOG 3 Blue 4 Sense (GND) 5 Cable Detect (GND) 6 Red GND 7 Green GND 8 Blue GND 9 DDC +3.3V or +5V 10 Logic GND 11 Sense (GND) 12 Bi-directional data 13 H/H+V sync 14 V-sync 15 Data clock http://www.wjel.net HUDSON 9 82 3.3 Software control functions via OSD / control adjustable functions: Please refer to following Hudson8 OSD definitions 3.4 Timing requirement Factory Preset mode definition : 1. Perfect FOS while presenting all required timings. 2. Required timings need to be specified in User's Manual User mode 1. Can be showed (not over scalar or Panel spec.) 2. It needs to reserve the 20 timings space in memory size. 3.4.1 Mode storing capacity Factory preset modes : 9 User modes : 20 Note: 1. Screen displays perfect picture at 9 factory-preset modes. 2. Screen displays visible picture with OSD warning when input modes are the 29 preset modes. 3.4.2 Factory preset modes (9 modes) Factory modes and preset modes are defined in the following timing table file. Resolution Pixel Rate ( MHz ) Horizontal ( KHz ) Vertical ( Hz ) V_total ( Line ) Polarity ( H / V ) DOS 640x350/70 25.18 31.47 70.09 449 p / n DOS 720x400/70 28.32 31.47 70.09 449 n / p DMT 4:3 640x480/60 25.18 31.47 59.94 525 n / n MAC 640x480/67 30.24 35.00 66.67 525 n / n DMT 4:3 640x480/72 31.50 37.86 72.81 520 n / n DMT 4:3 640x480/75 31.50 37.50 75.00 500 n / n DMT 4:3 800x600/56 36.00 35.16 56.25 625 p / p DMT 4:3 800x600/60 40.00 37.88 60.32 628 p / p DMT 4:3 800x600/72 50.00 48.08 72.19 666 p / p DMT 4:3 800x600/75 49.50 46.88 75.00 625 p / p MAC 832x624/75 57.28 47.73 74.55 667 n / n DMT 4:3 1024x768/60 65.00 48.36 60.00 806 n / n DMT 4:3 1024x768/70 75.00 56.48 70.07 806 n / n DMT 4:3 1024x768/75 78.75 60.02 75.03 800 p / p DMT 1152x864/75 108.00 67.50 75.00 900 p / p MAC 1152x870/75 100.00 68.68 75.06 915 n / n SUN 1152x900/66 92.94 61.80 65.95 937 p / p SUN 1152x900/76 105.56 71.71 76.05 943 p / p CVT 16:9 1280x720/60 74.50 44.77 59.86 748 n / p CVT 16:9 1280x720/75 95.75 56.46 74.78 755 n / p CVT 15:9 1280x768/60 79.50 47.78 59.87 798 n / p CVT 15:9 1280x768/75 102.25 60.29 74.89 805 n / p CVT 1280x800/60 83.50 49.70 59.81 831 n / p CVT 1280x800/75 106.50 62.80 74.93 838 n / p DMT 4:3 1280x960/60 108.00 60.00 60.00 1000 p / p DMT 5:4 1280x1024/60 108.00 63.89 60.02 1066 p / p SUN 5:4 1280x1024/66 117.00 71.70 67.00 1067 p / p DMT 5:4 1280x1024/75 135.00 79.98 75.03 1066 p / p SUN 5:4 1280x1024/76 138.01 81.10 76.00 1066 n / n http://www.wjel.net HUDSON 9 83 3.4.3 Software control functions via OSD / control adjustable functions: Any deviation, then refer to PVT Exit sample. Please refer to following Hudson8 OSD definitions Level 1 Level 2 Level 3 Default Picture Brightness (0~100) 100 Contrast (0~100) 50 Color Color Temp. (5000K,6500K,7500K,8200K,9300K,11500K) 6500K sRGB User Define (Red:0~100) 100 (Green:0~100) 100 (Blue:0~100) 100 Language English (English) Espanol Francais Deutsch Italiano Portugues Russia S.Chinese OSD Setting Horizontal (0~100) 50 Vertical (0~100) 50 Transparency (Off, 1, 2, 3, 4) Off OSD Time out (5, 10, 20, 30, 60) 20 Setup Phase (0~100) Clock (0~100) H.Position (0~100) V.Position (0~100) Reset (Yes, No) No Resolution Notification (On, Off) Off Information Power On Logo : Power On � show up Philips logo 3 seconds � change to input signal . http://www.wjel.net HUDSON 9 84 3.5 Horizontal scanning Sync polarity : Positive or Negative Scanning frequency : 30 – 83 K Hz 3.6 Vertical scanning Sync polarity : Positive or Negative Scanning frequency : 56 - 76 Hz 3.7 Power input connection Power cord length : 1.5 M Power cord type : 3 leads power cord with protective earth plug. 3.7 Power management The monitor must comply with the Microsoft on Now specification, and meet EPA requirements. Mode HSYNC VSYNC Video Power-cons. Indication Rec. time Power-On On On active < 40W Max. <36W Typ. Green LED -- off Off Off blanked < 1W Amber LED < 3 s DC Power Off N/A < 1W LED Off 3.9 VGA Display identification In accordance with VESA Display Channel Standard Ver.1.0 and DDC 2B capability 3.10 DDC/ CI Support In accordance with VESA DDC/CI and MCCS ver.2.0, the monitor should be workable with Protrait Display Tune at least. 3.11 EDID 1 User visible strings on .inf file Philips 170V (17inch WIDE LCD MONITOR 170V9) 2 Manufacturer ID ( EDID data) PHL 3 Product ID, "xxxx" 4 codes MSB(byte 12): C0 LSB (byte 11): 1F 4 maximum resolution 1280x1024 5 Horizontal Frequency Range 30~83 KHz 6 Vertical Frequency Range 55~76Hz 7 Monitor Name (13 characteries max.) Philips 170V 3.12 Hot-key definition Item Key Key press time OSD Timeout OSD Message Monitor Controls Lock [Menu] 6 sec 5 sec Monitor Controls Locked Monitor Controls Unlocked (default) Factory Mode [AUTO]+[Menu]+[Power] DDC/CI On/OFF for VISTA [MENU]+[DOWN] 5 sec 5 sec DDC/CI On (default) DDC/CI Off If any deviation, then refer to PVT Exit sample. http://www.wjel.net HUDSON 9 85 4. Visual characteristics 4.1 Test conditions Unless otherwise specified, this specification is defined under the following conditions. (1) Input signal : As defined in 3.3, 1280 x 1024 non-interlaced mode (1280 x 1024@60Hz 108MHz), signal sources must have 75 ohm output impedance. (2) Luminance setting : controls to be set to 300 nits (typical) with full screen 100 % duty cycle white signal (3) Warm up: more than 30 minutes after power on with signal supplied. (4) Ambient light: 400 -- 600 lux. (5) Ambient temperature: 20 ± 5 °C 4.2 Brightness Follow panel specification. 4.3 Image size Actual display size: Refer to 2.1 LCD PANEL spec. 4.4 Brightness uniformity Set contrast at 100% and turn the brightness at 100% Apply the Fig 1, it should comply with the following formula: B_min X 100% >75% B_max Where B_max =Maximum brightness, B_min = Minimum brightness 4.5 Check Cross talk (S) Apply Pattern 2. Set contrast and brightness at 100 %. Measure YA. Then output Pattern 3 and measure YB. the cross talk value : ABS ( YA - YB ) ⎯⎯⎯⎯⎯⎯⎯⎯⎯ X 100% < 1.5 % YA 4.6 White color adjustment There are three factory preset white color 9300K, 6500 and sRGB Align by FGA function. Apply full gray64 pattern, with brightness in 100 % position and the contrast control at 50 % position. The 1931 CIE Chromaticity (color triangle) diagram (x , y) coordinate for the screen center should be: Product specification CIE coordinates (x,y) 9300K x = 0.283 ± 0.02 y = 0.297 ± 0.02 6500K/sRGB x = 0.313 ± 0.02 y = 0.329 ± 0.02 sRGB x = 0.313 ± 0.02 y = 0.329 ± 0.02 http://www.wjel.net HUDSON 9 86 Production alignement specification CIE coordinates (x,y) 9300K x = 0.283 ± 0.005 y = 0.297 ± 0.005 6500K/sRGB x = 0.313 ± 0.005 y = 0.329 ± 0.005 sRGB x = 0.313 ± 0.005 y = 0.329 ± 0.005 Quality Inspection specification: CIE coordinates (x,y) 9300K x = 0.283 ± 0.015 y = 0.297 ± 0.015 6500K/sRGB x = 0.313 ± 0.015 y = 0.329 ± 0.015 sRGB x = 0.313 ± 0.015 y = 0.329 ± 0.015 5. Mechanical characteristics 5.1 Cosmetic - Philips ID 5.2 Mechanical data files - ProE files required 5.3 Location of Philips logo - Per Philips make-up sheet 5.4 Gap between panel and front bezel < 1.4mm (typ) 5.5 Location of Control icons - Per Philips Graphic sheet 5.6 Color for resin/paint - Per Philips make-up sheet 5.7 Resins � RoHS required � WEEE required. � Resin type/selection refer to Project Book Section 7.2 Plastic material. 5.8 If paint is used � RoHS required � WEEE require � If new painting type need to implement, refer to UN-D 1235. 5.9 Plastic mold tooling � Tooling to be designed to minimize cosmetic defects induced by molding process (sink, blush, weld lines, gate marks, ejector marks, etc.). Refer to “TYV61-90007”. � Painting to cover up cosmetic defects due to molding is strongly discouraged. � China RoHS mark requested 5.10 Plastics flammability � Bezel/Rear cover to be flame retardant UL 94-HB. � Base / Pedestal to be Flame Retardant UL 94-HB. � All major plastic parts (bezel, back cover) need to be molded from same resin. � Plastic resin type selection should be referred to “TY R83-2-9002-1”. http://www.wjel.net HUDSON 9 87 5.11 Texture/Glossing of housing � The texture area and texture no should follow Philips make-up sheet. � The exterior surfaces shall have a uniform texture. � Philips must approve the mold texturing. � Detail document for texture refer to “UN-D249”, “UN-D 600”. 5.12 Tilt and swivel base � Tilt angle : -5 ° +2/- 0 ° (forward) +20 °+0/-2 ° (backward) � Tilt for left and right: ︱A-B︱≤4.0MM � Black side and cut side： 1. Visual area H：｜L-R｜≤1. 5 ㎜ V：｜U-D｜≤1. 5 ㎜ 2.Black side on the left and right is symmetrical, not cut side. � Gap between bezel and rear cover 0.4 mm（Typ.） � Step between bezel and rear cover Left, right and top : ≤0.6mm Bottom and corner: ≤1.1mm � "Wobble", "Twist", etc (front to back or side to side) Whole monitor set shall retain stability within a short time after the applied external force disapear. 20NT , 6secs（typ.） back to stable. 5.13 Kensington Lock � Must meet Kensington_slot.spec “TYE-M0004”. 5.14 Label � Carton label should follow Philips requirement. � Regulatory label follow TPV OTS. � China RoHS label � Detail document refer to Philips Engineering Reference Book. A B L R U D http://www.wjel.net HUDSON 9 88 5.15 Product dimension / Weight (Refer to SHT 191 ) � Unit dimension : 371(W)*373(H)*191(D) � Packed unit dimension : 375(W)* 419(D)*145(H) � Net weight : 4.034Kg � Gross weight : 4.874Kg. 5.16 Transportation Transportation standards follow TPV standard. 5.16.1 Transportation packages Packaging and wrapping shall be sufficient to protect the product against damage or loss during shipment from the supplier to the destination specified in the purchase order. All packaging materials are subject to test and evaluation per TPV standard. The cushion material shall be constructed using EPS material. 5.16.2 Transportation Test Follow TPV standard 5.17 Pallet / Container loading Transportation standards refer to following TPV standard. • Air shipment - • Sea container 20'(pallet/slip sheet) • Sea container 40'(pallet/slip sheet) • Sea container 40' High Cube (pallet/slip sheet) • Land 53‘ MEGA Trailer (pallet/slip sheet) • Land 53‘ MEGA Trailer per HQ (pallet/slip sheet) • Truck shipment- 6. Environmental characteristics The following sections define the interference and susceptibility condition limits that might occur between external environment and the display device. 6.1 Susceptibility of display to external environment Operating - Temperature : 0 to 40 degree C - Humidity : 85% max - Altitude : 0-3658m - Air pressure : 600-1100m BAR Storage - Temperature : -20 to 60 degree C - Humidity : 95% max - Altitude : 0-12192m - Air pressure : 300-1100 mBAR Note: recommend at 5 to 35°C, Humidity less than 60 % 6.2 Transportation tests Refer to 5.15.2 6.3 Display disturbances from external environment According to IEC 801-2 for ESD disturbances 6.4 Display disturbances to external environment http://www.wjel.net HUDSON 9 89 7. Reliability 7.1 Mean Time Between Failures System MTBF (Including the LCD panel and CCFL) : Refer to 2.1 panel MTBF 8. Quality assurance requirements 8.1 Acceptance test According to MIL-STD-105D Control II level AQL: 0.4 (major) 1.5 (minor) (Please also refer to annual quality agreement) Customer acceptance criteria: UAW0377/00 9. Philips’ Flat Panel Monitors Pixel Defect Policy Philips’ Flat Panel Monitors Pixel Defect Policy BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL 170V9 1 lit sub-pixel 3 2 adjacent lit sub-pixels 1 3 adjacent lit sub-pixels (one white pixel) 0 Distance between two bright dots 15mm Bright dot defects within 20 mm circle 0 Total bright dot defects of all type 3 BLACK DOT DEFECTS ACCEPTABLE LEVEL MODEL 170V9 1 dark sub-pixel 5 2 adjacent dark sub-pixels 2 3 adjacent dark sub-pixels (one white pixel) 1 Distance between two black dots 15mm Black dot defects within 20 mm circle* 1 Total black dot defects of all type 5 TOTAL DOT DEFECTS ACCEPTABLE LEVEL MODEL 170V9 Total bright or black dot defects of all type 5 http://www.wjel.net HUDSON 9 90 Fig 1: Measurement locations of Brightness Uniformity Fig 2: Cross talk pattern Gray level 46 (64 Gray level) YA 1/2 1/2 1/6 Fig 3: Cross talk Pattern Center at Gray level 0 (Black) YB 1/2 1/2 1/6 1/3 1/3 1/3 1/3 1/3 http://www.wjel.net HUDSON 9 91 10. REGULATORY COMPLIANCE 10.1 Worldwide Regulatory Region (RSO) Country (NSO) Domain Safety / EMC / Ergonomics / Standards Documents Reference Logo Applicant Mandatory V-Line Sample Q'ty Remark World wide World wide Sa IEC60950-1:2001. Group and national differences of all countries listed in CB Bulletin No. 107A CB Report, certificate OEM Yes Yes Manufacture and Applicant is Philips Maximum ambient temperature:40°C Europe EUROPE Sa European Low Voltage Directives 73/23/EEC and 93/68/EEC, 2004/108/EC Declaration of Conformity and Identity declaration OEM Yes Yes http://www.wjel.net HUDSON 9 92 E European Electromagnetic Compatibility Directive 2004/108/EC EN55022:2006, EN55024:1998+A 1:2001+A2:2003, EN61000-3-2:200 6, EN61000-3-3:199 5+A1:2001+A2:20 05 EMC/CE test report OEM Yes Yes HDMI have to test PC mode and DVD mode Sa EN60950-1:2001 TUV certificate OEM Optional No Philips is OEM license holder O LCD: ISO13406-2, pr EN 50279:1998 TUV-ERG certificate and TUV ISO13406-2 report OEM Optional No Philips is OEM license holder O GS-Mark / EK1-ITB 2000 TUV-GS certificate OEM Optional No Philips is OEM license holder GERMANY O ISO13406-2 TUV ISO13406-2 certificate OEM Optional No Philips is OEM license holder http://www.wjel.net HUDSON 9 93 O TUV MPR-II TUV MPR-II certificate OEM Optional No Philips is OEM license holder Sa EN60950-1:2001 SEMKO certificate OEM Optional No Philips is license holder O TCO'99 TCO report and certificate OEM Optional No To add all sales name into certificate O TCO'03, or TCO'0x supersedes new standard TCO report and certificate OEM Optional No To add all sales name into certificate SWEDEN O TCO'06 TCO report and certificate OEM Optional No To add all sales name into certificate Sa EN60950-1:2001 S+ PZ1 certificate Yes No Switzerland E EN55020, EN55024, IEC61000-3-2, IEC61000-3-3 S+ PZ1 ce rtificate OEM Yes No Supplier to contact Philips NSO Heidi and apply for Switzerland certification. Supplier to pay approbation cost 2450 CHF each model and each extend model 300 CHF. To provide CB, EMC report, Identity Declaration, DFU, Label, Circuit diagram, PO, Power of Attorney. To add all sales name http://www.wjel.net HUDSON 9 94 and /00, /05, /69 into certificate. O EMF EN 50392 EN 50392 report Yes No 1 set Supplier ship out 1 samples to Netherlands and provide EN50392 report (test fee 750EU) Sa EN60950-1:2001 Certificate of Conformity Philips Yes Yes Eastern Europe E EN55022,EN5502 4, IEC61000-3-2 ,IE C61000-3-3 Certificate of Conformity Philips Yes Yes 3 sets Supplier ship out 3 samples to Hungary and pay transportation cost. Supplier to provide CB, EMC report, Identity Declaration, DFU, Label, Circuit diagram. RUSSIA Sa GOST R 50377-1992 GOST certificate Philips Yes Yes Supplier to provide CB, EMC, ISO13460-2 report and TCO certificate ISRAEL Sa IS 1121, IEC60950/IEC609 50-1 Certificate of Conformity OEM Yes No ISRAEL E CISPR22 Certificate of Conformity OEM Yes No Need to provide Israel user manual and Local representative http://www.wjel.net HUDSON 9 95 Sa Korean Safety Control law IEC 60950 EK certificate OEM Yes No NOT REQUIRED KOREA E Regulations laws: EMI 1996-78, 80. EMS 1996-79,81 MIC certificate OEM Yes No NOT REQUIRED SINGAPOR E Sa IEC60950 PSB certificate OEM Yes Yes Supplier to provide local representative Sa GB4943-2001 CCC certificate OEM Yes Yes E GB9254-1998; 17625.1-2003 CCC certificate OEM Yes Yes Supplier have to check regulation information on rating label, carter label, user manual to meet all mandatory regulation. Supplier to provide CCC permission of printing CHINA O CSC/G1205-2004 CECP certificate OEM Optional No Sa CNS-14336 (IEC 60950-1) BSMI certificate OEM Yes Yes E CNS-13438 (CISPR22) Class B BSMI certificate OEM Yes Yes To add all sales name into certificate AP TAIWAN O Criteria 18 ( Monitor ) ( LCD ) Green Mark / certificate OEM Optional No NOT REQUIRED http://www.wjel.net HUDSON 9 96 AUSTRALIA / NEW-ZEAL AND E AS/NZS3548:199 5 AS/NZS CISPR22: 2002 Class B CB, EMC report OEM Yes Yes 1 set Supplier ship out 1 sample to Australia and pay transportation cost, Supplier to apply for C-Tick through Philips NSO Saudi Arabia Sa EN60950-1:2001 SASO OEM Yes Yes Saudi Arabia Sa EN55022, EN61000-3-2, EN61000-3-3, EN55024 SASO OEM Yes Yes Japan E VCCI class B ( CISPR 22 ) VCCI Certificate OEM Yes No NOT REQUIRED Cambodia Sa EN60950-1:2001 ISC certificate OEM Yes No Kuwait Sa EN60950-1:2001, ‘Kuwait Conformity Assurance Scheme’ (KUCAS) KUCAS registration OEM Yes Yes NAFTA USA Sa UL 60950-1: 2003 UL certificate, CUL OEM Optional Yes http://www.wjel.net HUDSON 9 97 E FCC Part 15 Class B FCC report and DOC OEM Yes Yes To list manufacture in FCC report O Energy Star EPA test data OEM Optional No Sa CSA C22.2 No 60950 CSA certificate or CUL OEM Optional No CANADA E ICES-003 issue 3 Statement on label OEM Yes Yes MEXICO Sa NOM-019-SCFI-1 994 NOM certificate Philips Yes No 2 sets NOT REQUIRED Argentina Sa EN60950-1:2001 TUV S-mark or IRAM OEM Yes No Sa UL 60950-1: 2003 UL certificate or CUL OEM Optional No E FCC Part 15 Class B FCC report and DOC OEM Yes Yes O Energy Star EPA test data OEM Optional No O TCO'99 TCO report and certificate OEM Optional No To add all sales name into certificate O TCO'03 TCO report and certificate OEM Optional No To add all sales name into certificate LATAM Brazil O TCO'06 TCO report and certificate OEM Optional No To add all sales name into certificate http://www.wjel.net HUDSON 9 98 Sa SABS IEC 60950 and IEC 60950-1 Certificate of Conformity Philips Yes Yes South Africa SOUTH AFRICA E EN55022 or Crisper 22 Certificate of Conformity Philips Yes Yes Supplier to provide CB, EMC report Sa = Safety E = Electromagnetic Compatibility O = Other which including recycling, energy saving, ergonomics, Green Mark X=X-Ray Remark: 1. Supplier to provide all approbation documents, samples before CR 2. Supplier to pay approbation samples and transportation cost. 3. Suppliers to pay Switzerland approbation cost 2450 CHF and provide EN50392 report. 4. HDMI has to test PC mode if user manual have HDMI connect to PC function 5. Supplier to provide EMC, safety report if monitor with portrait and landscape function 6. AC/DC adaptors have to meet California Energy Commission requirement 7. Suppliers have to support Philips NSO to get local approbation. 8. Supplier have to check regulation information on rating label, carton label, user manual to meet all mandatory regulation 9. Suppliers need to add Philips sales name, model no into BSMI, TCO, EK, MIC certificate 10. Suppliers have to apply all mandatory regulation based on sales country. http://www.wjel.net HUDSON 9 99 10.2 EMC Requirements Supplier DVT EMI test result must be submitted prior to DVT samples delivery, and PVT EMI test result must be submitted again prior to PVT samples delivery, which also has to meet Philips' immunity testing specification. 10.3 RoHS Restriction on the use of certain hazardous substances. Lead, Cadmium, Mercury, Hexavalent Chromium, Polybrominated Bipheny1 (PBB) and Polybrominated Bipheny1 Ether (PBDE)(flame retardant). 10.4 WEEE Producer (Philips) responsible for retailer take back schemes and recycling. --System implemented. --Collection and recycle targets. 10.5 Ongoing Regulatory There's a possibility that other regulatory certificates will be required during the life of the product. It is the responsibility of the supplier to provide related documentation. http://www.wjel.net HUDSON 9 100 TELEVISION/MONITOR SAFFTY GUIDELINES FOR THE PROFESSIONAL SERVICE TECHNICIAN Safety Checks Fire and Shock Hazard Implosion X-radiation After the original service problem has been corrected,a complete safety check should be made. Be sure to check over the entire set, not just the areas where you have worked. Some previous servicer may have left an unsafe condition,which could be unknowingly passed on to your customer. Be sure to check all of the following: 1. Be sure all components are positioned in such a way as to avoid the possibility of adjacent component shorts. This is especially important on those chassis which are transported to and from the service shop. 2. Never release a repaired unit unless all protective devices such as insulators, barries, covers, strain reliefs, and other hardware have been installed in accordance with the original design. 3. Soldering and wiring must be inspected to locate possible cold solder joints,solder splashes,sharp solder points, frayed leads, pinched leads, or damaged insulation ( including the ac cord).Be certain to remove loose solder balls and all other loose foreign particles. 4. Check across-the-line components and other components for physical evidence of damage or deterioration and replace if necessary. Follow original layout,lead length, and dress. 5. No lead or component should touch a receiving tube or a resistor rated at 1 watt or more. Lead tension around protruding metal surfaces or edges must be avoided. 6. Critical components having special safety characteristics are identified with ans by the Ref. No. in the parts list and enclosed within a broken line * (where several critical components are grouped in one area) along with the safety symbols on the schematic diagrams and/or exploded views. 7. When servicing any unit, always use a separate isolation transformer for the chassis Failure to use a separate isolation transformer may expose you to possible shock hazard, and may cause damage to servicing instruments. 8. Many electronic products use a polarized ac line cord (one wide pin on the plug.) Defeating this safety feature may create a potential hazard to the service and the user. Extension cords which do not incorporate the polarizing feature should never be used. 9. After reassembly of the unit, always perform an leakage test or resistance test from the line cord to all exposed metal parts of the cabinet. Also check all metal control shafts(with knobs removed), antenna terminals, handles, screws, etc. to be sure the unit may be safety operated without danger of electrical shock. * Broken line 1. All picture tubes used in current model receivers are equipped with an integral implosion system. Care should always be used, and safety glasses worn,whenever handling any picture tube. Avoid scratching or otherwise damaging the picture tube during installation. 2. Use only replacement tubes specified by the manufacturer. 1. Be sure procedures and instructions to all your service personnel cover the subject of X-radiation. Potential sources of X-rays in TV receivers are the picture tube and the high voltage circuits. The basic precaution which must be exercised is to keep the high voltage at the factory recommended level. 2. To avoid possible exposure to X-radiation and electrical shock, only the manufacturer's specified anode connectors must be used. 3. It is essential that the service technician has an accurate HV meter available at all times. The calibration of this meter should be checked periodically against a reference standard. 4. When the HV circuitry is operating properly there is no possibility of an x- radiation problem. High voltage should always be kept at the manufacturer's rated value-no higher - for optimum performance. Every time a color set is serviced, the brightness should be run up and down while monitoring the HV with a meter to be certain that the HV is regulated correctly and does not exceed the specified value. We suggest that you and your technicians review test procedures so that HV and HV regulation are always checked as a standard servicing procedure, and the reason for this prudent routine is clearly understood by everyone. It is important to use an accurate and reliable HV meter. It is recommended that the HV recorded on each customer's invoice, which will demonstrate a proper concern for the customer's safety. 5. When troubleshooting and making test measurements in a receiver with a problem of excessive high voltage, reduce the line voltage by means of a Variac to bring the HV into acceptable limits while troubleshooting. Do not operate the chassis longer than necessary to locate the cause of the excessive HV. : : WARNING OFF SERVICE NOTE Before removing the CRT anode cap, turn the unit and short the HIGH VOLTAGE to the CRT DAG ground. The CRT DAG is not at chassis ground. 6. New picture tubes are specifically designed to withstand higher operathng voltages without creating undesirable X-radiation. It is strongly recommended that any shop test fixture which is to be used with the new higher voltage chassis be equipped with one of the new type tubes designed for this service. Addition of a permanently connected HV meter to the shop test fixture is advisable. The CRT types used in these new sets should never be replaced with any other types, as this may result in excessive X-radiation. 7. It is essential to use the specified picture tube to avoid a possible X-diation problem. 8. Most TV receivers contain some type of emergency "Hold Down" circuit to prevent HV from rising to excessive levels in the presence of a failure mode. These various circuits should be understood by all technicians servicing them, especially since many hold down circuits are inoperative as long as the receiver performs normally. 1. Unplug the ac line cord and connect a jumper between the two prongs of the plug. 2. Turn on the power switch. 3. Measure the resistance value between the jumpered ac plug and all exposed cabinet parts of the receiver, such as screw heads, antennas, and control shafts. When the exposed metallic part has a return path to the chassis, the reading should be between 1 megohm and 5.2 megohms. When the exposed metal does not have a return path to the chassis, the reading must be infinity. Remove the jumper from the ac line cord. 1. Do not use an isolation transformer for this test. Plug the completely reassembled receiver directly into the ac outlet. 2. Connect a 1.5k, 10w resistor paralleled by a 0.15uf. capacitor between each exposed metallic cabinet part and a good earth ground such as a water pipe, as shown above. 3. Use an ac voltmeter with at least 5000 ohms volt sensitivity to measure the potential across the resistor. 4. The potential at any point should not exceed 0.75 volts. A leakage current tester may be used to make this test; leakage current must not exceed 0.5 milliamps. If a measurement is outside of the specified limits, there is a possibility of shock hazard. The receiver should be repaired and rechecked before returning it to the customer. 5. Repeat the above procedure with the ac plug reversed.( Note: An ac adapter is necessary when a polarized plug is used. Do not defeat the polarizing feature of the plug.) The primary source of X-radiation in this television receiver is the picture tube. The picture tube utilized in this chassis is specially constructed to limit X-radiation emissions. For continued X-radiation protection, the replacement tube must be the same type as the original, including suffix letter, or a Philips approved type. Many electrical and mechanical parts in Philips television sets have special safety related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. The use of a substitute part which does not have the same safety characteristics as the Philips recommended replacement part shown in this service manual may create shock, fire, or other hazards Leakage Current Cold Check Leakage Current Hot Check Picture Tube Replacement Parts Replacement 1500 ohm, 10W 0.15 uF WATER PIPE EARTH GROUND TO INSTRUMENTS EXPOSED METAL PARTS http://www.wjel.net
