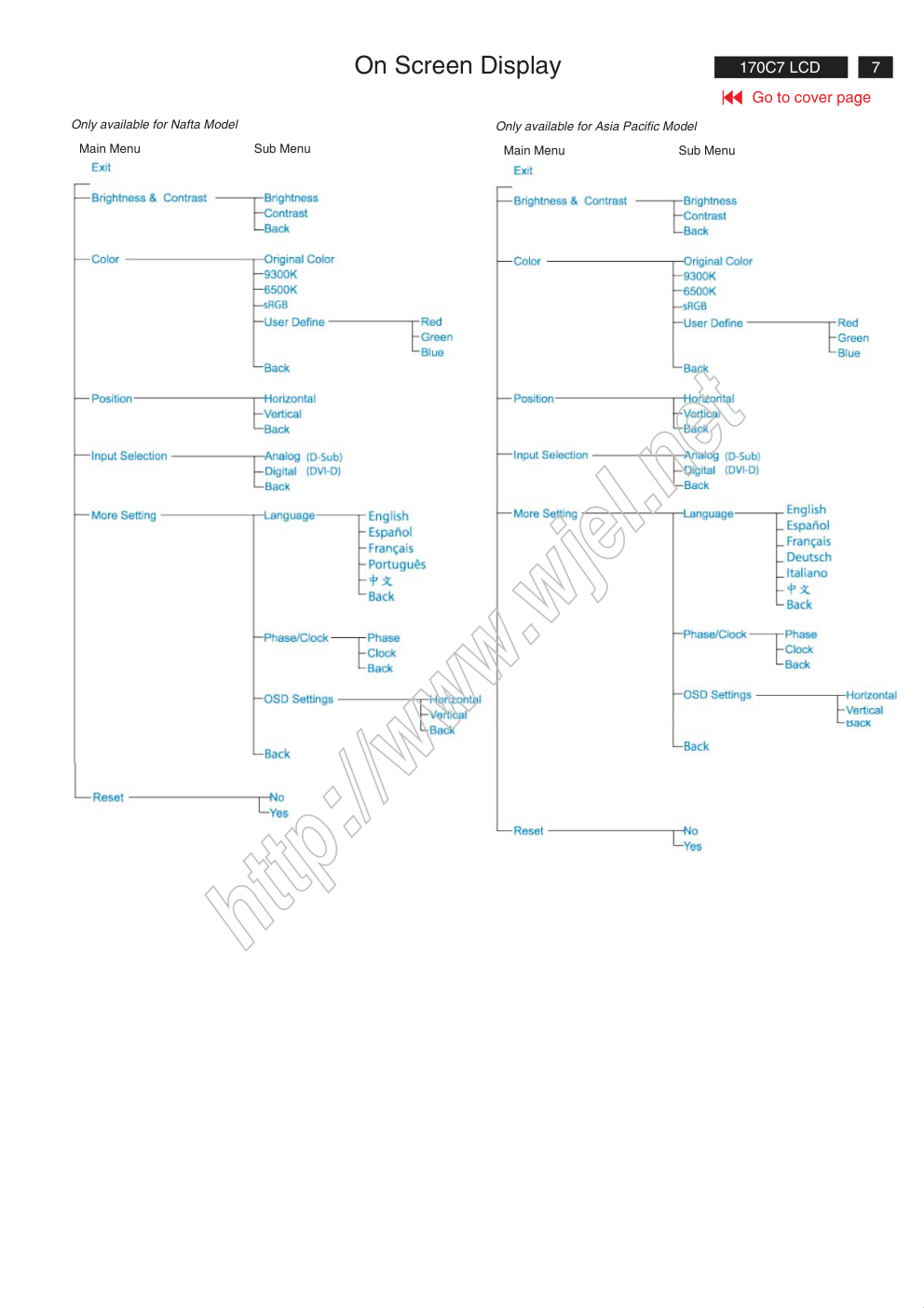

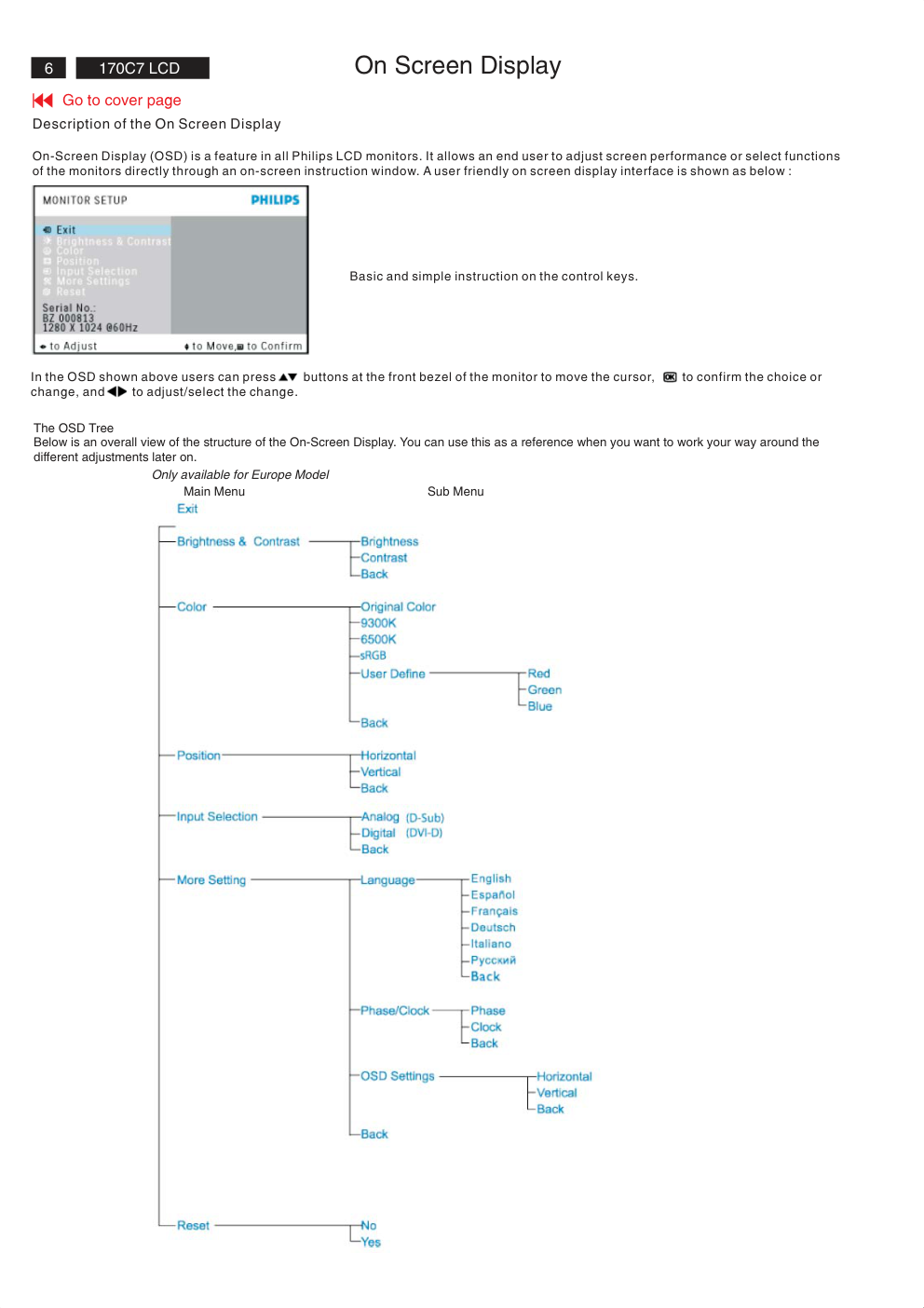

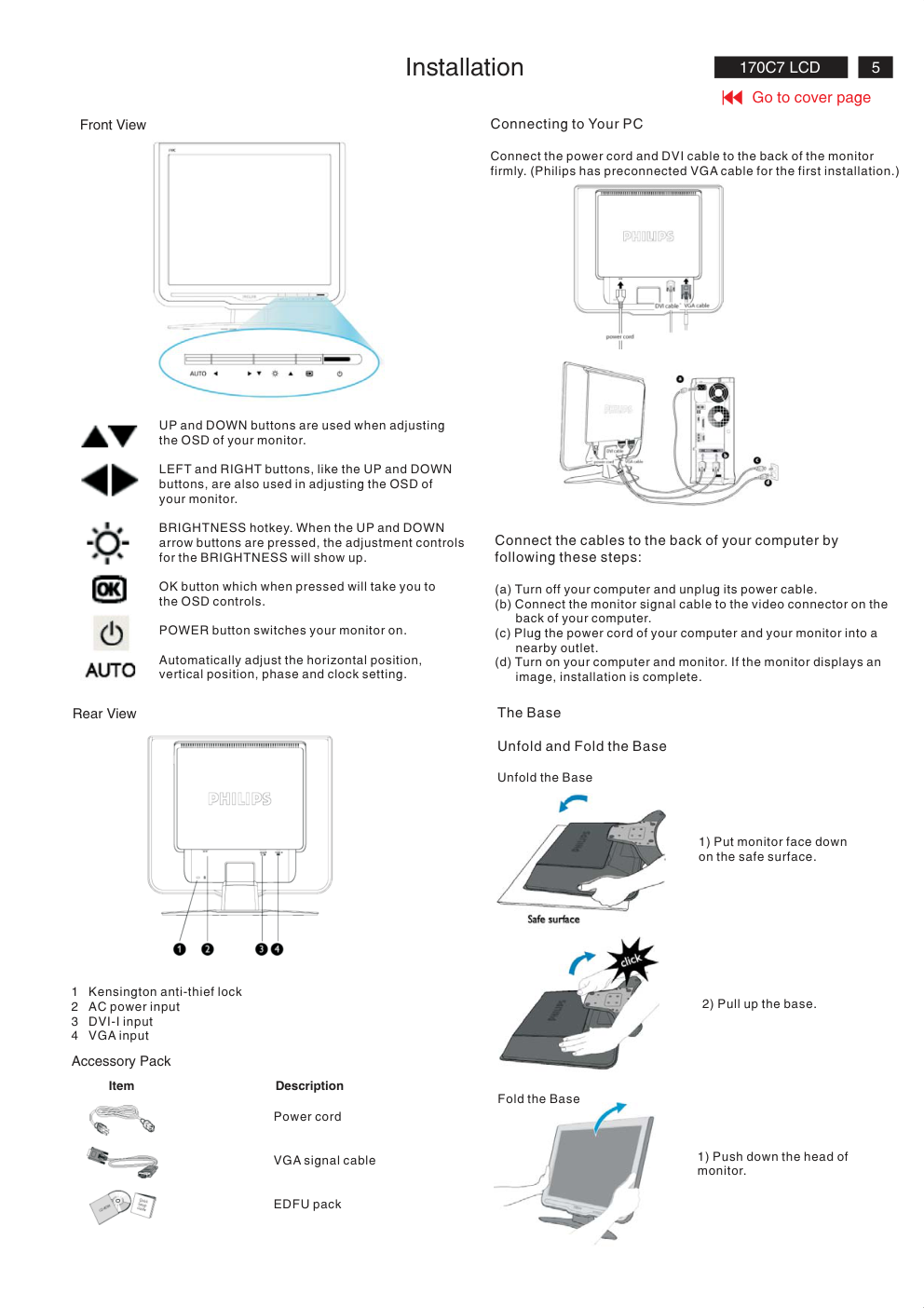

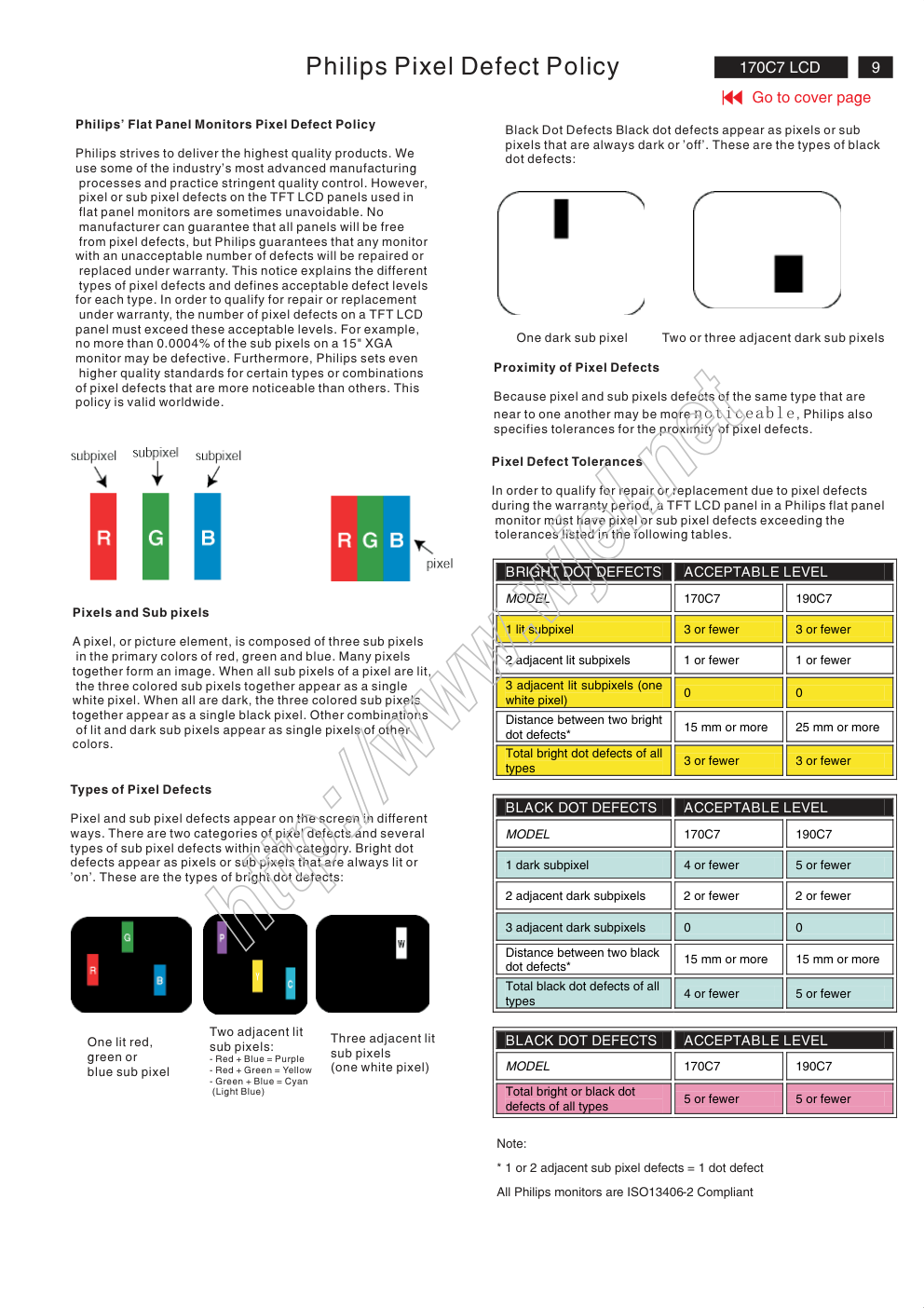

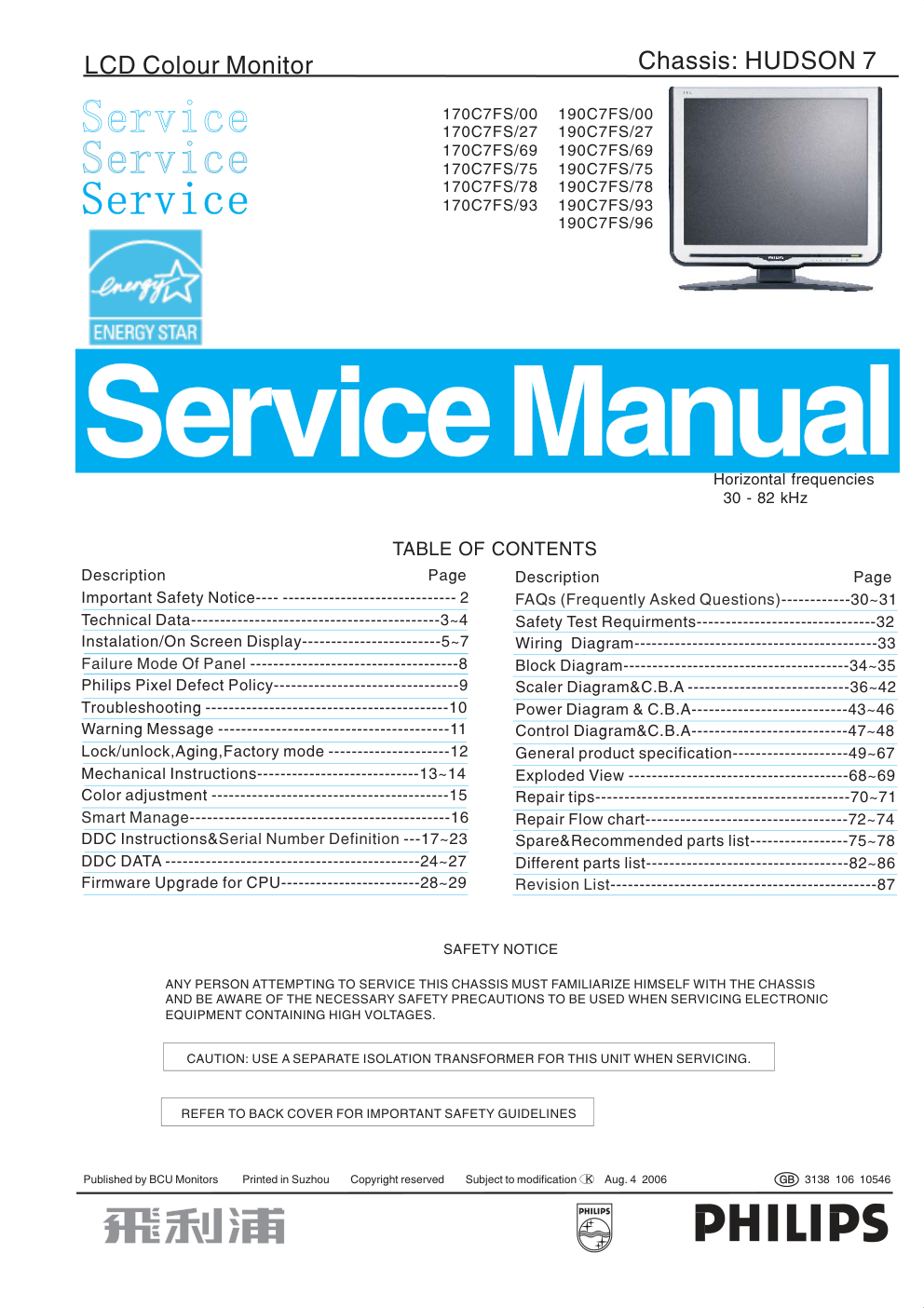

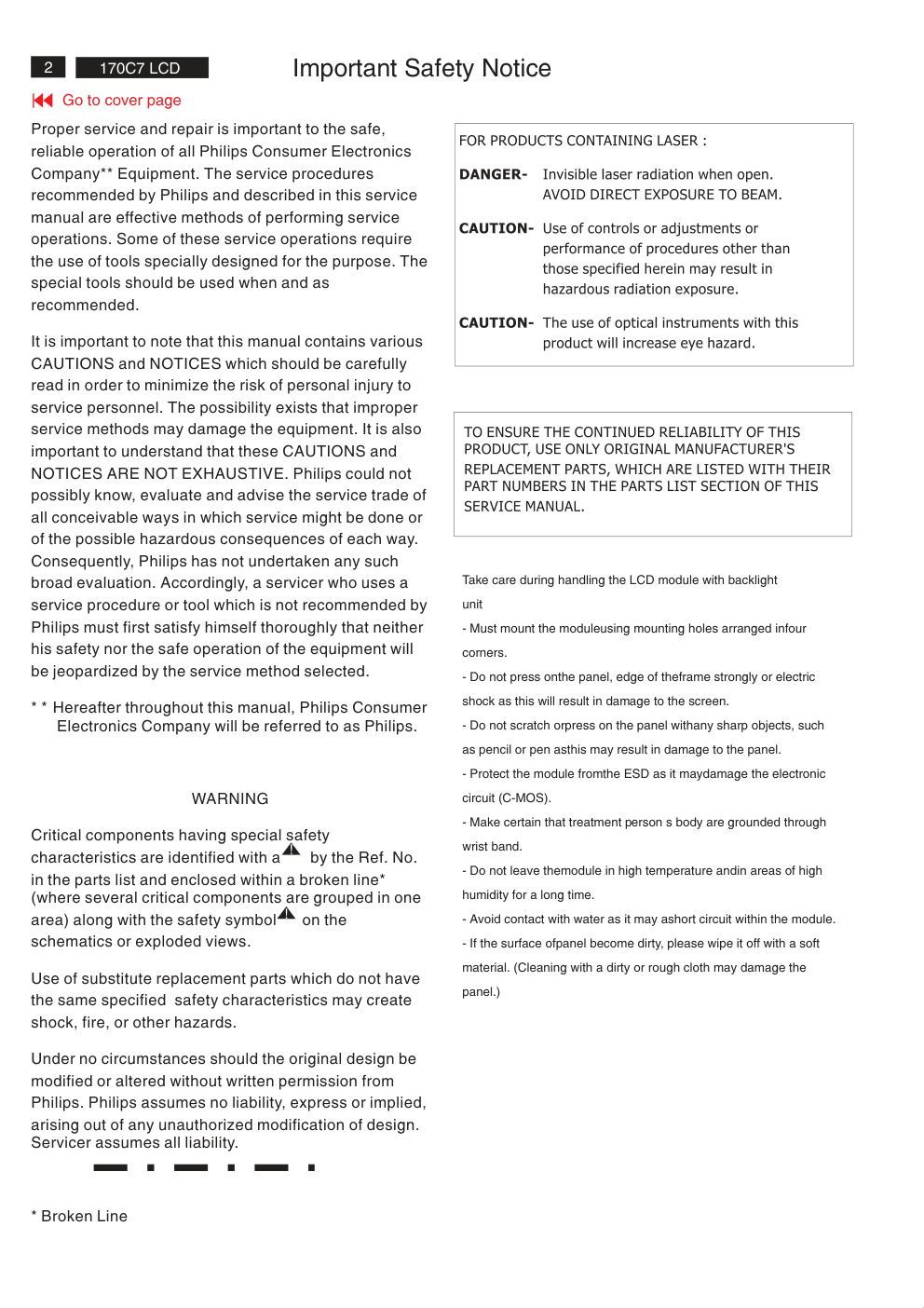

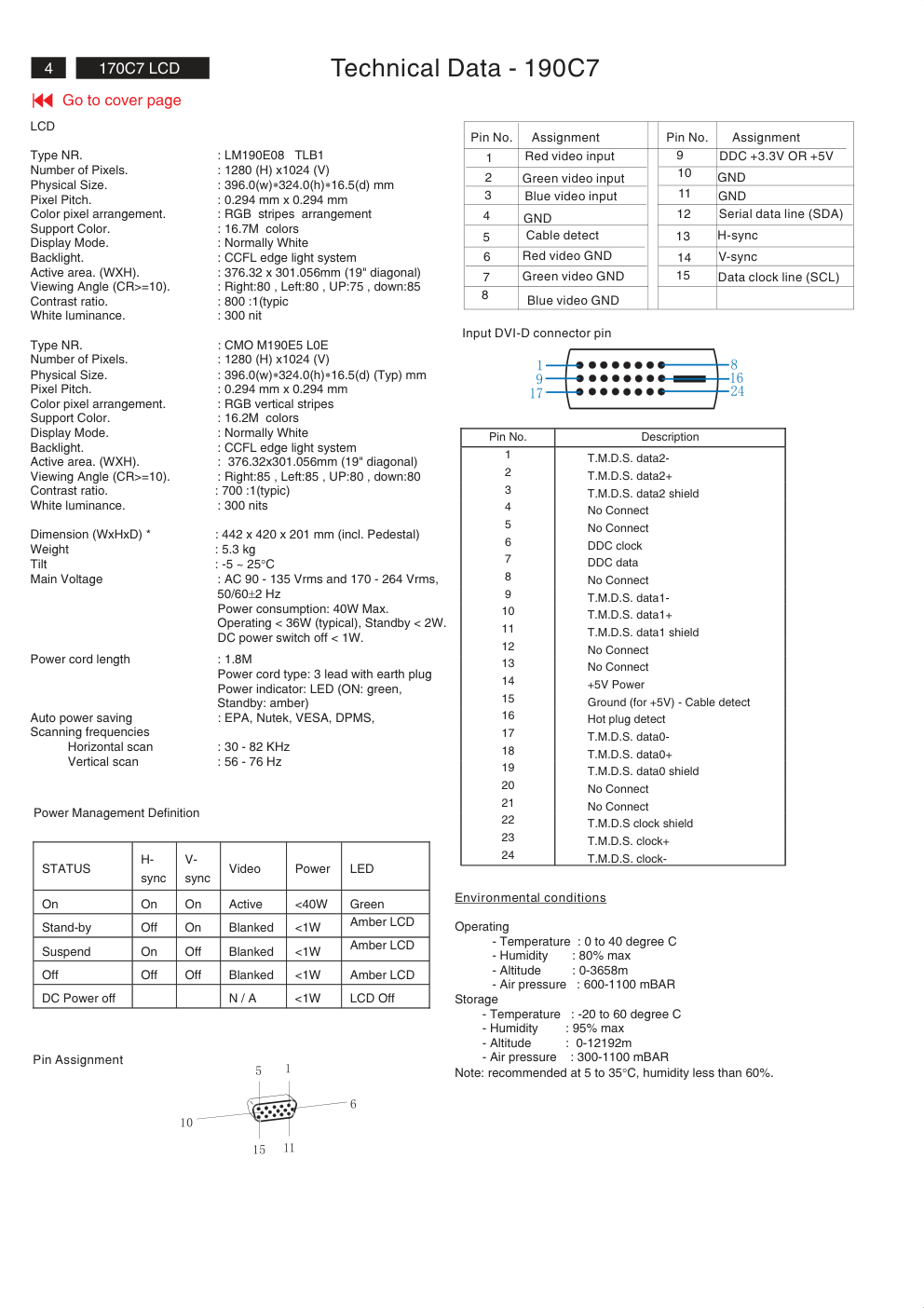

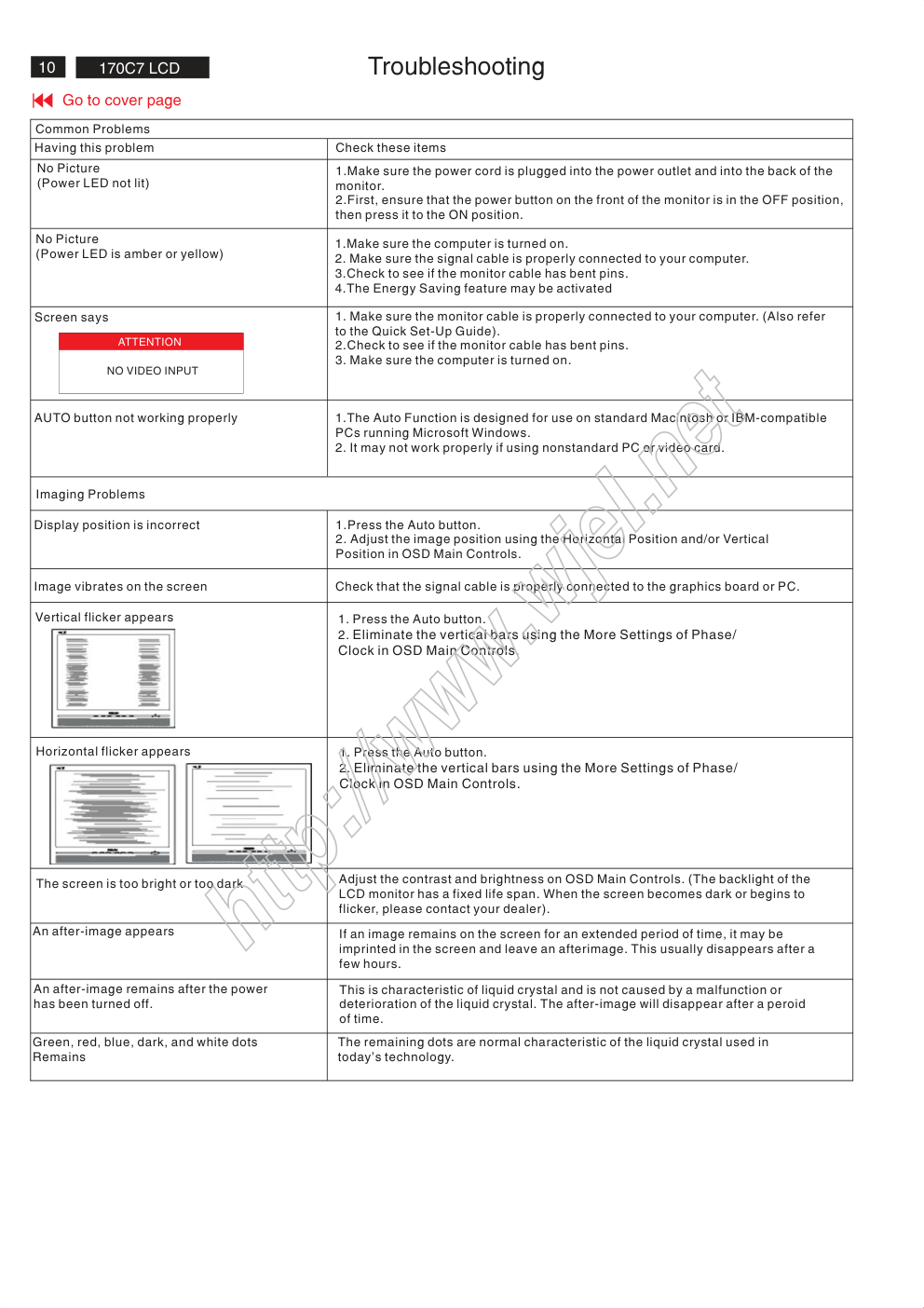

Description Page Important Safety Notice---- ------------------------------ 2 Technical Data-------------------------------------------3~4 Instalation/On Screen Display------------------------5~7 ------------------------------------8 --------------------------------9 Troubleshooting ------------------------------------------10 Warning Message ----------------------------------------11 Lock/unlock,Aging,Factory mode ---------------------12 Mechanical Instructions----------------------------13~14 Color adjustment -----------------------------------------15 ---------------------------------------------16 DDC Instructions& ---17~23 DDC DATA --------------------------------------------24~27 ------------------------28~29 Failure Mode Of Panel Smart Manage Serial Number Definition Philips Pixel Defect Policy Firmware Upgrade for CPU Horizontal frequencies 30 - 82 kHz Service Service Service TABLE OF CONTENTS Published by BCU Monitors Printed in Suzhou Copyright reserved Subject to modification K Aug. 4 2006 Description Page ------------30~31 Safety Test Requirments-------------------------------32 Wiring Diagram------------------------------------------33 Block Diagram---------------------------------------34~35 Scaler Diagram&C.B.A ----------------------------36~42 Power Diagram & C.B.A---------------------------43~46 Control Diagram&C.B.A---------------------------47~48 General product specification--------------------49~67 Exploded View --------------------------------------68~69 Repair tips--------------------------------------------70~71 Repair Flow chart-----------------------------------72~74 Spare&Recommended parts list-----------------75~78 Different parts list-----------------------------------82~86 ----------------------------------------------87 FAQs (Frequently Asked Questions) Revision List REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING. ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES. SAFETY NOTICE Chassis: HUDSON 7 GB 3138 106 10546 LCD Colour Monitor 170C7FS/00 170C7FS/27 170C7FS/69 170C7FS/75 170C7FS/78 170C7FS/93 190C7FS/00 190C7FS/27 190C7FS/69 190C7FS/75 190C7FS/78 190C7FS/93 190C7FS/96 Important Safety Notice 2 170C7 LCD Go to cover page Proper service and repair is important to the safe, reliable operation of all Philips Consumer Electronics Company** Equipment. The service procedures recommended by Philips and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended. It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Philips could not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Philips has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Philips must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected. * * Hereafter throughout this manual, Philips Consumer Electronics Company will be referred to as Philips. WARNING Critical components having special safety characteristics are identified with a by the Ref. No. in the parts list and enclosed within a broken line* (where several critical components are grouped in one area) along with the safety symbol on the schematics or exploded views. Use of substitute replacement parts which do not have the same specified safety characteristics may create shock, fire, or other hazards. Under no circumstances should the original design be modified or altered without written permission from Philips. Philips assumes no liability, express or implied, arising out of any unauthorized modification of design. Servicer assumes all liability. * Broken Line ! ! Take care during handling the LCD module with backlight unit - Must mount the moduleusing mounting holes arranged infour corners. - Do not press onthe panel, edge of theframe strongly or electric shock as this will result in damage to the screen. - Do not scratch orpress on the panel withany sharp objects, such as pencil or pen asthis may result in damage to the panel. - Protect the module fromthe ESD as it maydamage the electronic circuit (C-MOS). - Make certain that treatment person s body are grounded through wrist band. - Do not leave themodule in high temperature andin areas of high humidity for a long time. - Avoid contact with water as it may ashort circuit within the module. - If the surface ofpanel become dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.) 3 Technical Data - 170C7 Go to cover page 170C7 LCD Pin Assignment Input DVI-D connector pin Red video input Green video input Blue video input GND Cable detect Red video GND Green video GND Blue video GND DDC +3.3V OR +5V GND GND Serial data line (SDA) H-sync V-sync Data clock line (SCL) 7 8 6 5 4 3 2 1 9 10 11 12 13 14 15 Pin No. Pin No. Assignment Assignment Pin No. Description 1 T.M.D.S. data2- 2 T.M.D.S. data2+ 3 T.M.D.S. data2 shield 4 No Connect 5 No Connect 6 DDC clock 7 DDC data 8 No Connect 9 T.M.D.S. data1- 10 T.M.D.S. data1+ 11 T.M.D.S. data1 shield 12 No Connect 13 No Connect 14 +5V Power 15 Ground (for +5V) - Cable detect 16 Hot plug detect 17 T.M.D.S. data0- 18 T.M.D.S. data0+ 19 T.M.D.S. data0 shield 20 No Connect 21 No Connect 22 T.M.D.S clock shield 23 T.M.D.S. clock+ 24 T.M.D.S. clock- LCD Type NR. : LM170E03 TLB1 Number of Pixels. : 1280 (H) x1024 (V) Physical Size. : 358.5(w)�296.5(h)�17(d) mm Pixel Pitch. : 0.264 mm x 0.264 mm Color pixel arrangement. : RGB stripes arrangement Support Color. : 16.2M colors Display Mode. : Normally White Backlight. : CCFL edge light system Active area. (WXH). : 337.92 x 270.336mm (17" diagonal) Viewing Angle (CR>=10). : Right:80 , Left:80 , UP:75 , down:85 Contrast ratio. : 800 :1(typic White luminance. : 300 nit Type NR. : CLAA170EA07 P Number of Pixels. : 1280 (H) x1024 (V) Physical Size. : 358.5(w)�296.5(h)�17.5(d) mm Pixel Pitch. : 0.264 mm x 0.264 mm Color pixel arrangement . : RGB vertical stripes Support Color. : 16.2M colors Display Mode. : Normally White Backlight. : CCFL edge light system Active area. (WXH). : 337.9 x 270.3 mm (17" diagonal) Viewing Angle (CR>=10). : Right:80 , Left:80 , UP:80 , down:80 Contrast ratio. : 700 :1(typic) White luminance. : 300 nit Type NR. : M170E5-L0C Number of Pixels. : 1280 (H) x1024 (V) Physical Size. : 358.5(w)�296.5(h)�17.0(d) mm Pixel Pitch. : 0.264 mm x 0.264 mm Color pixel arrangement. : RGB vertical stripes Support Color. : 16.7M colors Display Mode. : Normally White Backlight. : CCFL edge light system Active area. (WXH). : 337.92 x 270.34 mm (17" diagonal) Viewing Angle (CR>=10). : Right :80; Left :80 ; Up : 80 ; Down: 80 White luminance. : 300 nit Video dot rate. : < 140 MHz Power input. : 90-264 V AC, 50/60 � 2 Hz Power consumption. : < 36 W maximum Operating < 31W (typical), Standby < 1W. DC power switch off < 1W. Power cord length : 1.8M Power cord type : 3 lead with earth plug Power indicator : LED (ON: green, Standby: amber) Auto power saving : EPA, Nutek, VESA, DPMS, Dimensions. : 403 x 392 x 171 mm (incl. Pedestal) Weight. : 4.6 kg Scanning frequencies H-Frequency. : 30K - 82 KHz V-Frequency. : 56 - 76 Hz Power Management Definition STATUS H- sync V- sync Video Power LED On On On Active <36W Green Stand-by Off On Blanked <1W Amber LCD Suspend On Off Blanked <1W Amber LCD Off Off Off Blanked <1W Amber LCD DC Power off N / A <1W LCD Off Environmental conditions Operating - Temperature : 0 to 35 degree C - Humidity : 80% max - Altitude : 0-3658m - Air pressure : 600-1100 mBAR Storage - Temperature : -20 to 60 degree C - Humidity : 85% max ( < 40 degree C ) - Altitude : 0-12192m - Air pressure : 300-1100 mBAR Note: recommend at 5 to 35�C, Humidity less than 60 % 4 Go to cover page 170C7 LCD Technical Data - 190C7 Pin Assignment Input DVI-D connector pin Red video input Green video input Blue video input GND Cable detect Red video GND Green video GND Blue video GND DDC +3.3V OR +5V GND GND Serial data line (SDA) H-sync V-sync Data clock line (SCL) 7 8 6 5 4 3 2 1 9 10 11 12 13 14 15 Pin No. Pin No. Assignment Assignment Pin No. Description 1 T.M.D.S. data2- 2 T.M.D.S. data2+ 3 T.M.D.S. data2 shield 4 No Connect 5 No Connect 6 DDC clock 7 DDC data 8 No Connect 9 T.M.D.S. data1- 10 T.M.D.S. data1+ 11 T.M.D.S. data1 shield 12 No Connect 13 No Connect 14 +5V Power 15 Ground (for +5V) - Cable detect 16 Hot plug detect 17 T.M.D.S. data0- 18 T.M.D.S. data0+ 19 T.M.D.S. data0 shield 20 No Connect 21 No Connect 22 T.M.D.S clock shield 23 T.M.D.S. clock+ 24 T.M.D.S. clock- LCD Type NR. : LM190E08 TLB1 Number of Pixels. : 1280 (H) x1024 (V) Physical Size. : 396.0(w)�324.0(h)�16.5(d) mm Pixel Pitch. : 0.294 mm x 0.294 mm Color pixel arrangement. : RGB stripes arrangement Support Color. : 16.7M colors Display Mode. : Normally White Backlight. : CCFL edge light system Active area. (WXH). : 376.32 x 301.056mm (19" diagonal) Viewing Angle (CR>=10). : Right:80 , Left:80 , UP:75 , down:85 Contrast ratio. : 800 :1(typic White luminance. : 300 nit Type NR. : CMO M190E5 L0E Number of Pixels. : 1280 (H) x1024 (V) Physical Size. : 396.0(w)�324.0(h)�16.5(d) (Typ) mm Pixel Pitch. : 0.294 mm x 0.294 mm Color pixel arrangement. : RGB vertical stripes Support Color. : 16.2M colors Display Mode. : Normally White Backlight. : CCFL edge light system Active area. (WXH). : 376.32x301.056mm (19" diagonal) Viewing Angle (CR>=10). : Right:85 , Left:85 , UP:80 , down:80 Contrast ratio. : 700 :1(typic) White luminance. : 300 nits Dimension (WxHxD) * : 442 x 420 x 201 mm (incl. Pedestal) Weight : 5.3 kg Tilt : -5 ~ 25�C Main Voltage : AC 90 - 135 Vrms and 170 - 264 Vrms, 50/60�2 Hz Power consumption: 40W Max. Operating < 36W (typical), Standby < 2W. DC power switch off < 1W. Power cord length : 1.8M Power cord type: 3 lead with earth plug Power indicator: LED (ON: green, Standby: amber) Auto power saving : EPA, Nutek, VESA, DPMS, Scanning frequencies Horizontal scan : 30 - 82 KHz Vertical scan : 56 - 76 Hz Power Management Definition STATUS H- sync V- sync Video Power LED On On On Active <40W Green Stand-by Off On Blanked <1W Amber LCD Suspend On Off Blanked <1W Amber LCD Off Off Off Blanked <1W Amber LCD DC Power off N / A <1W LCD Off Environmental conditions Operating - Temperature : 0 to 40 degree C - Humidity : 80% max - Altitude : 0-3658m - Air pressure : 600-1100 mBAR Storage - Temperature : -20 to 60 degree C - Humidity : 95% max - Altitude : 0-12192m - Air pressure : 300-1100 mBAR Note: recommended at 5 to 35�C, humidity less than 60%. 5 Go to cover page 170C7 LCD Installation Front View UP and DOWN buttons are used when adjusting the OSD of your monitor. LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor. BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up. OK button which when pressed will take you to the OSD controls. POWER button switches your monitor on. Automatically adjust the horizontal position, vertical position, phase and clock setting. Rear View 1 Kensington anti-thief lock 2 AC power input 3 DVI-I input 4 VGA input Power cord VGA signal cable EDFU pack Accessory Pack Item Description Connecting to Your PC Connect the power cord and DVI cable to the back of the monitor firmly. (Philips has preconnected VGA cable for the first installation.) Connect the cables to the back of your computer by following these steps: (a) Turn off your computer and unplug its power cable. (b) Connect the monitor signal cable to the video connector on the back of your computer. (c) Plug the power cord of your computer and your monitor into a nearby outlet. (d) Turn on your computer and monitor. If the monitor displays an image, installation is complete. The Base Unfold and Fold the Base Unfold the Base Fold the Base 1) Push down the head of monitor. 2) Pull up the base. 1) Put monitor face down on the safe surface. 6 Go to cover page 170C7 LCD Description of the On Screen Display On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. A user friendly on screen display interface is shown as below : Basic and simple instruction on the control keys. In the OSD shown above users can press buttons at the front bezel of the monitor to move the cursor, to confirm the choice or change, and to adjust/select the change. The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. Main Menu Sub Menu On Screen Display Only available for Europe Model 7 Go to cover page 170C7 LCD On Screen Display Main Menu Sub Menu Only available for Nafta Model Main Menu Sub Menu Only available for Asia Pacific Model http://www.wjel.net 8 Go to cover page 170C7 LCD Failure description Phenomenon Vertical block defect Vertical dim lines Vertical lines defect (Always bright or dark) Horizontal block defect Horizontal dim lines Horizontal lines defect (Always bright or dark) Has bright or dark pixel Polarizer has bubbles Polarizer has bubbles Foreign material inside polarizer. It shows liner or dot shape. Concentric circle formed Bottom back light of LCD is brighter than normal Back light un-uniformity Backlight has foreign material. Black or white color, liner or circular type Quick reference for failure mode of LCD panel this page presents problems that could be made by LCD panel. It is not necessary to repair circuit board. Simply follow the mechanical instruction on this manual to eliminate failure by replace LCD panel. Failure Mode Of Panel http://www.wjel.net 9 Go to cover page 170C7 LCD Philips' Flat Panel Monitors Pixel Defect Policy Philips strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT LCD panel must exceed these acceptable levels. For example, no more than 0.0004% of the sub pixels on a 15" XGA monitor may be defective. Furthermore, Philips sets even higher quality standards for certain types or combinations of pixel defects that are more noticeable than others. This policy is valid worldwide. Pixels and Sub pixels A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. Many pixels together form an image. When all sub pixels of a pixel are lit, the three colored sub pixels together appear as a single white pixel. When all are dark, the three colored sub pixels together appear as a single black pixel. Other combinations of lit and dark sub pixels appear as single pixels of other colors. Types of Pixel Defects Pixel and sub pixel defects appear on the screen in different ways. There are two categories of pixel defects and several types of sub pixel defects within each category. Bright dot defects appear as pixels or sub pixels that are always lit or 'on'. These are the types of bright dot defects: One lit red, green or blue sub pixel Two adjacent lit sub pixels: - Red + Blue = Purple - Red + Green = Yellow - Green + Blue = Cyan (Light Blue) Three adjacent lit sub pixels (one white pixel) Black Dot Defects Black dot defects appear as pixels or sub pixels that are always dark or 'off'. These are the types of black dot defects: One dark sub pixel Two or three adjacent dark sub pixels Proximity of Pixel Defects Because pixel and sub pixels defects of the same type that are near to one another may be more , Philips also specifies tolerances for the proximity of pixel defects. Pixel Defect Tolerances In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables. Note: * 1 or 2 adjacent sub pixel defects = 1 dot defect All Philips monitors are ISO13406-2 Compliant BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL 170C7 190C7 1 lit subpixel 3 or fewer 3 or fewer 2 adjacent lit subpixels 1 or fewer 1 or fewer 3 adjacent lit subpixels (one white pixel) 0 0 Distance between two bright dot defects* 15 mm or more 25 mm or more Total bright dot defects of all types 3 or fewer 3 or fewer BLACK DOT DEFECTS ACCEPTABLE LEVEL MODEL 170C7 190C7 1 dark subpixel 4 or fewer 5 or fewer 2 adjacent dark subpixels 2 or fewer 2 or fewer 3 adjacent dark subpixels 0 0 Distance between two black dot defects* 15 mm or more 15 mm or more Total black dot defects of all types 4 or fewer 5 or fewer BLACK DOT DEFECTS ACCEPTABLE LEVEL MODEL 170C7 190C7 Total bright or black dot defects of all types 5 or fewer 5 or fewer Philips Pixel Defect Policy http://www.wjel.net 10 Go to cover page 170C7 LCD Common Problems Having this problem Check these items No Picture (Power LED not lit) 1.Make sure the power cord is plugged into the power outlet and into the back of the monitor. 2.First, ensure that the power button on the front of the monitor is in the OFF position, then press it to the ON position. No Picture (Power LED is amber or yellow) 1.Make sure the computer is turned on. 2. Make sure the signal cable is properly connected to your computer. 3.Check to see if the monitor cable has bent pins. 4.The Energy Saving feature may be activated Screen says 1. Make sure the monitor cable is properly connected to your computer. (Also refer to the Quick Set-Up Guide). 2.Check to see if the monitor cable has bent pins. 3. Make sure the computer is turned on. AUTO button not working properly 1.The Auto Function is designed for use on standard Macintosh or IBM-compatible PCs running Microsoft Windows. 2. It may not work properly if using nonstandard PC or video card. Imaging Problems Display position is incorrect 1.Press the Auto button. 2. Adjust the image position using the Horizontal Position and/or Vertical Position in OSD Main Controls. Image vibrates on the screen Check that the signal cable is properly connected to the graphics board or PC. Vertical flicker appears 1. Press the Auto button. 2. Eliminate the vertical bars using the More Settings of Phase/ Clock in OSD Main Controls. Horizontal flicker appears 1. Press the Auto button. 2. Eliminate the vertical bars using the More Settings of Phase/ Clock in OSD Main Controls. The screen is too bright or too dark Adjust the contrast and brightness on OSD Main Controls. (The backlight of the LCD monitor has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer). An after-image appears If an image remains on the screen for an extended period of time, it may be imprinted in the screen and leave an afterimage. This usually disappears after a few hours. An after-image remains after the power has been turned off. This is characteristic of liquid crystal and is not caused by a malfunction or deterioration of the liquid crystal. The after-image will disappear after a peroid of time. Green, red, blue, dark, and white dots Remains The remaining dots are normal characteristic of the liquid crystal used in today's technology. ATTENTION NO VIDEO INPUT Troubleshooting http://www.wjel.net 11 Go to cover page 170C7 LCD Warning Message Item Attention Signals Display Time Condition 1 CANNOT DISPLAY THIS VIDEO MODE, CHANGE COMPUTER DISPLAY INPUT TO 1280X1024 @ 60HZ 30 mins This warning appears when the input signal from your computer is not in a standard video mode or is out of the monitor s scanning range. After 30 mins, monitor enters sleeping mode. 2 NO VIDEO INPUT 30 mins This message appears when there is no signal input but with cable while AC or DC power on. After 30 mins, monitor enters sleeping mode. 3 CHECK CABLE CONNECTION 30 mins This message appears when a signal cable is disconnected while monitor is working. After 30 mins, monitor enters sleeping mode. 4 ENTERING SLEEP MODE 3 secs This message appears when monitor is about to enter power saving mode. 5 WAITING FOR AUTOMATIC ADJUSTMENT till auto adjustment finished This message is displayed when the auto adjustment button is pressed. It disappears when automatic adjustments are completed. 6 USE 1280X 1024 FOR BEST RESULT On top of OSD main menu The message will show up at the top of the OSD main menu in red color when the input resolution is not the 1280x1024. 7 OSD MAIN CONTROLS LOCKED 3 secs / or Till "OSD MAIN CONTROLS UNLOCKED" appear This message will appear 3 seconds to indicate the OSD MAIN CONTROLS status when to lock or un-lock it by pressing "MENU(OK) " button for more than 10 seconds while there is video input from PC. This function provides the alternative that user can lock all the OSD main control in case user don t want the FOS performance setting to be changed, for instance, during commercial exhibition. 8 OSD MAIN CONTROLS UNLOCKED 3 secs This message will appear 3 seconds to indicate the OSD MAIN CONTROLS status when to un-lock it by pressing "MENU (OK) " button for more than 10 seconds while there is video input from PC. 9 the window of "VOLUME" 60 secs This message will appear when the VOLUME button is pressed. 10 THIS IS 85HZ OVERSCAN, CHANGE COMPUTER DISPLAY INPUT TO 1280X1024@60HZ 10 mins This message will appear 5 seconds in every 60 seconds for 10 minutes when the input of PC video timing is at 85Hz mode. Remark: AUTO is still functional in this mode 11 the window of OSD "MONITOR SETUP " 60 secs This message will appear when the "OK" button is pressed. 12 the window of "BRIGHTNESS" 60 secs This message will appear when the BRIGHTNESS button is pressed. 13 "SELECTED INPUT NOT AVAILABLE" 3 secs This message will appear 3 seconds to indicate the SIGNAL SOURCE status when change the signal source but it is not found while there is video input from PC. Warning message table http://www.wjel.net 12 Go to cover page 170C7 LCD Lock/Unlock,Aging,Factory Mode Front Control To Lock/Unlock OSD FUNCTION(User Mode) The OSD function can be locked by pressing"OK"button(1) for more than 10 seconds, the screen shows following windows for 4 seconds. Everytime when you press"OK" button, this message appears on the screen automatically. ATTENTION SIGNAL OSD MAIN CONTROLS LOCKED Unlock OSD function Unlocked OSD function can be released by pressing "OK" button for more than 10 seconds again. ATTENTION SIGNAL OSD MAIN CONTROLS UNLOCKED After 15 seconds, bring up: ---------- ---------- repeatly Connect Signal cable again=> go back to normal display After 15 seconds, bring up: After 30 seconds, bring up: AGING... Access Aging Mode Step 1 : D Step 2 : [Push "AUTO" & " OK " buttons at the same time and hold them]+[Press power " " button untill comes out " AGING screen"] => then release all buttons. Bring up: isconnect Interface Cable between Monitor and PC. Turn off LCD monitor.Then AGING... Access Factory Mode 1). Turn off monitor. 2). 3).Press "OK" button, wait until the OSD menu with Characters "HUDSON 170C7 V010 2006/06/29" (below OSD menu) come on the Screen of the monitor. [Push "AUTO" & "OK" buttons at the same time and hold them] +[Press "power" button untill comes out "Windows screen" ] => then release all buttons Factory Mode indicator Factory Menu Cursor can move on gray color area Hot key function: by pressing " UP " and " DOWN " key Simultaneously at User Mode (or Factory Mode) (PS: The Offset R G B function can be used on reduce or eliminate snowy noise on the background when the resolution of video signal is 1280*1024 vertical 60Hz. Slightly increase or decrease the value until snowy noise completely disappear. SUB-BRI : Brightness value range(Min Max) SUB-CON : Contrast value range(Min Mid Max) SRGB-B : Brightness of sRGB SRGB-C : Contrast of sRGB Gain-m : Minimum value of User Gain Gain-M : Maximum value of User Gain AUTO-SUB : To do Auto color function when push Menu key in white pattern IDX : Limit current of inverter SCALER : Read/Write scaler register NVRAM : Read/Write eeprom address Panel : HS, LG, AU, QDI, DEFAULT?. EXIT : Exit Factory Menu SAVE : Save the setup values of Factory Menu http://www.wjel.net 13 Go to cover page 170C7 LCD Mechanical Instruction Front View Back View Step1. Remove the base -Use two -Remove the screws as shown in Fig.4, then remove the base thin " " screw drivers to drive upon the cover simultaneously as shown in Fig.3 Step2. Remove the Front Bezel as shown in Fig.5~11 -Remove the one screw as shown in Fig.5 -Use the to open the front Bezel clicks at the top side as shown in Fig.6 -Pull the front away from the back cover from both left and right sides as shown in Fig.7 -Pull out the front from the back cover at the bottom side plastic putty knife Bezel Bezel as shown in Fig.8 Fig.1 Fig.2 Fig.4 Fig.5 Fig.9 Fig.3 Fig.11 Fig.10 Step3.Remove the Back cover - Remove the two screws as shown in Fig.12 ,then remove the Control board -Use the thin " " type screw driver to open the clicks as shown in Fig.13 Fig.6 Fig.8 Fig.7 http://www.wjel.net 14 Go to cover page 170C7 LCD Mechanical Instruction Step 5. Remove the sclar and power board. - Remove the eight screws as shown in Fig.16 - Disconnect the three cables as shown in Fig.16 - Remove the scaler and power board as shown in Fig.17 *********************************************************************************************************************************** *********************************************************************************************************************************** In warranty, it is not allowed to disassembly the LCD panel, even the backlight unit defect. Out of warranty, the replacement of backlight units is a correct way when the defect is caused by backlight (CCFL, Lamp). Fig.15 Fig.16 Fig.17 Step6. Remove the Metal Frame. - Remove the two screws as shown in Fig.18 - Remove the two screws as shown in Fig.19 - Disconnect the one cable as shown in Fig.19 Fig.18 Fig.19 Fig.20 Step4. Remove the Power and Scaler shielding. - Remove the eight screws as shown in Fig.14 - Remove the as shown in Fig.15 Power and Scaler shielding Fig.12 Fig.13 Fig.14 http://www.wjel.net 15 Go to cover page 170C7 LCD Color Adjustment Alignment procedure 1. Turn on the LCD monitor. 2.Turn on the Timing/pattern generator. See Fig.1 3. Preset LCD color Analyzer CA-110 -Remove the lens protective cover of probe CA-A30. -Set measuring/viewing selector to measuring position for reset analyzer.(zero calibration) as Fig.2 - Turn on the color analyzer (CA-110) -Press 0-CAL button to starting reset analyzer. Fig. 1 Fig. 2 Clear image Clear image Measurement/viewing selector Measurement/viewing selector Fig. 3 4). Press button, then select factory mode indicator by "OK" "UP" or "DOWN" button .Press"OK” button to bring up submenu windows as below: Fig.5 Cover (black) Cover (black) Measurement viewing selector Measurement viewing selector Fig. 4 Fig. 2 5.Display Press "UP" or "DOWN" button to select . Change the value by "LEFT" or "RIGHT" key until the X,Y co-ordinates as below 4. Access Factory Mode 1). Turn off monitor. 2). 3).Press "OK button, wait until the OSD menu with Characters" HUDSON 170C7 V010 2006/06/29" (below OSD menu) come on the Screen of the monitor. as shown in Fig3. [Push "AUTO" & "OK" buttons at the same time and hold them] +[Press "power" button untill comes out "Windows screen" ] => then release all buttons " Factory Mode indicator 6. Display Adjustment 6.1 Access to factory mode (RS232) in auto-alignment system. The communication protocol switches to RS232. 6.2 Auto color adjustment (B) Apply a 640*480/60Hz signal with 16 level grey test pattern, set brightness control at 100%, and contrast control at 50%. Adjust the R.G. B. offset, and gain to calibrate the color smoothly and 64-grey level distinguishable. 6.3 Adjustment of WHITE-D (B) Apply a 1280*1024 / 60Hz signal with white pattern, set brightness control at 100%, and contrast control at 50%. Adjust the R, G, B Sub-Gain, for the screen center, the 1931 CIE chromaticity (X, Y) co-ordinates shall be Use Minolta CA-210 for color coordinates and luminance check. Luminance is > 200 Nits in the center of the screen when brightness at 100% and contrast set to 100%. 6.4 Adjustment of sRGB (B) Apply a 1280*1024/ 60Hz signal with white pattern, set brightness control at 100%, and contrast control at 50%. Adjust the R, G, B Sub-Gain, for the screen center, the 1931 CIE chromaticity (X, Y) co-ordinates shall be; sRGB x(center) 0.313 � 0.008 y(center) 0.329 � 0.008 Ynits 180 � 10 9300�K 6500�K x (center) 0.283 � 0.020 0.313 � 0.020 y (center) 0.297 � 0.020 0.329 � 0.020 http://www.wjel.net 16 Go to cover page 170C7 LCD Smart Manage Introduction SmartManage Features and Benefits Philips SmartControl Philips SmartManage is an advanced solution for users, corporate/ institution IT administrator in particular, to manage their Philips monitors as part of the asset management environment. The solution includes three essential components, Philips SmartManage Administrator, and Philips SmarControl and Agent. Philips SmartManage is a solution joint developed by Philips and Altiris Inc. The Philips SmartManage is a working console for IT management to gather monitors assets information, run asset report, control assets security, monitor assets security, and issue instant messages to monitor users. Philips SmartManage includes the following major features: 1. Provides an additional security measure that helps corporate users safeguard their investment. 2. Power saving feature that reduces utility costs and manpower required to turn monitors on or off. 3. SmartControl provides an efficient means for adjusting monitor performance and settings. 4. Built-in asset reports reduce audit/maintenance manpower, cycle time and costs. A trial version of SmartManage can be downloaded from http://www.altiris.com/philips For more information of Philips SmartManage, please contact with Philips sales representatives in your country. Notes: SmartManage is a software dedicated to business environments. Personal users normally do not need to use SmartManage. The SmartControl and SmartManage Agent are deployed and installed in computers using Philips monitors. With SmartControl and SmartManage Agent, monitors and PCs can interact with the administrator's inquiries. Because SmartControl operates on individual PC, end users can also use SmartControl to adjust monitor's performance settings. 1. Requirement 1. Graphic cards with nVIDIA (TNT2, GeForce, Quadro, or newer) and ATI (Radeon or newer) graphic chipsets that support the DDC/CI interface 2.Microsoft Windows 2000 and XP operation systems. 3. Philips monitors supporting DDC/CI interface 2. Installation How to download "SmartControl Installation " file: 1. Visit http:// www.philips.com 2. Select "Your Country" 3. Click on "Support Center" 4. Click into "Monitors and PC Products" 5. Enter your model number 6. Enter "Software" page 7. Select "SmartControl Installation", and you can download SmartControl and its driver for installation. Please follow the guidance in the SmartControl installation program. 3. Accessing SmartControl 1. Right click on the desktop of your PC, and select Properties from the shortcut menu pops up. 2. Click on Settings tab, and click on Advanced button. 3. Click Philips SmartControl tab. 4. SmartControl Options 1.Display and Sound By moving the sliding bar toward left or right, users will be able to adjust brightness, contrast, audio volume (if applicable), video noise (not applicable when using DVI-D input), and color temperatures. 2.Position Users can adjust the horizontal and vertical position of the screen by moving the sliding bar left and right. This function is disabled when using DVI-D (digit) input. 3.Product Information Click Product Information in the left pane to view the product information stored in the monitor's memory. 4.General Click on General for general information including driver information, device information, and monitor control. Within monitor control, users can click on Auto Setup to achieve optimum performance or click on factory reset to reset the parameters of the monitor. Such choices are disabled when using DVI-D(digit) input. http://www.wjel.net 17 Go to cover page Pin No. Description 1 T.M.D.S. data2- 2 T.M.D.S. data2+ 3 T.M.D.S. data2 shield 4 No Connect 5 No Connect 6 DDC clock 7 DDC data 8 No Connect 9 T.M.D.S. data1- 10 T.M.D.S. data1+ 11 T.M.D.S. data1 shield 12 No Connect 13 No Connect 14 +5V Power 15 Ground (for +5V) - Cable detect 16 Hot plug detect 17 T.M.D.S. data0- 18 T.M.D.S. data0+ 19 T.M.D.S. data0 shield 20 No Connect 21 No Connect 22 T.M.D.S clock shield 23 T.M.D.S. clock+ 24 T.M.D.S. clock- General DDC Data Re-programming In case the DDC data memory IC or main EEPROM which storage all factory settings were replaced due to a defect, the serial numbers have to be re-programmed "Analog DDC IC, Digital DDC IC & EEPROM". It is advised to re-soldered DDC IC and main EEPROM from the old board onto the new board if circuit board have been replaced, in this case the DDC data does not need to be re-programmed. Additional information Additional information about DDC (Display Data Channel) may be obtained from Video Electronics Standards Association (VESA). Extended Display Identification Data(EDID) information may be also obtained from VESA. 1. An i486 (or above) personal computer or compatible. 2. Microsoft operation system Windows 95/98 . Y o Install the EDID_PORT_Tool under Win2000/XP . As Fig. 1 . A. Cody the "UserPort.sys" to C:\WINNT\system32\drivers(win2000) C:\WINDOWS\system32\drivers(winXP) B. Running " io.exe" everytime, Before you start to programming edid data . 4. A/D Alignment kits (12NC: 3138 106 10396): inclusion : a. Alignment box x1 (Fig. 2) b. Printer cable x1 c. (D-Sub) to (D-Sub) cable x1 D. (D-Sub) to (DVI) cable x1 System and equipment requirements ou have t 3. EDID46.EXE program Fig. 1 Fig. 1 Fig. 2 To Monitor D-sub/DVI cable DC 8~12V To Printer port Power indicator Note: The alignment box has already build-in a batteries socket for using batteries (8~12V) as power source. Pull out the socket by remove four screws at the rear of box. Please do not forget that remove batteries after programming. The energy of batteries can only drive circuits for a short period of time. PIN No. SIGNAL 1 Red video input 2 Green video input / sync on green 3 Blue video input 4 GND 5 GND - Cable detect 6 Red video GND 7 Green video GND 8 Blue video GND 9 DDC +3.3V or +5V 10 Logic GND 11 GND 12 Serial data line (SDA) 13 H-sync / H+V 14 V-sync 15 Data clock line (SCL) Pin assignment A. 15-pin D-Sub Connector B. Input DVI -D Connector pin Fig. 3 DDC Instructions 170C7 LCD http://www.wjel.net 18 Go to cover page Step 3: Installation of EDID46.EXE Method 1: Start on DDC program Start Microsoft Windows. 1. The Program"EDID46.EXE" in service manual cd-rom be copyed to C:\ . 2. Click , choose Run at start menu of Windows as shown In Fig. 5. Fig. 5 4. Click OK button. The main menu appears (as shown in Fig. 7). This is for initialize alignment box. Fig. 7 Fig. 6 3. At the submenu, type the letter of your computer's hard disk drive followed by :EDID46 (for example, C:\EDID46, as shown in Fig. 6). Note 2: During the loading, EDID46 will verify the EDID data which just loaded from monitor before proceed any further function, once the data structure of EDID can not be recognized, the following error message will appear on the screen as below. Please confirm following steps to avoid this message. 1. The data structure of EDID was incorrect. 2. DDC IC that you are trying to load data is empty. 3. Wrong communication channel has set at configuration setup windows. 4. Cables loosed or poor contact of connection. 1 Fig. 8 Note 1: If the connection is improper, you will see the following error message (as shown in Fig. 8) before entering the main menu. Meanwhile, the (read EDID) function will be disable. At this time, please make sure all cables are connected correctly and fixedly, and the procedure has been performed properly. Fig. 9 Configuration and procedure There is no Hardware DDC (DDC IC) anymore. Main EEPROM stores all factory settings and DDC data (EDID code) which is also called Software DDC. The following section describes the connection and procedure for Software DDC application. The main EEPROM can be re- programmed by enabling '' factory memory data write'' function on the DDC program (EDID46.EXE). Initialize alignment box In order to avoid that monitor entering power saving mode due to sync will cut off by alignment box, it is necessary to initialize alignment box before running programming software (EDID46.EXE). Following steps show you the procedures and connection. Step 1: Supply 8-12V DC power source to the Alignment box by plugging a DC power cord . Step 2: Connecting printer cable and D-Sub cable of monitor as Fig. 4 Fig. 4 PC 1=Power connector 2=D-SUB connector To printer port (LTP1) DC Power 8-12 V Printer Port To Monitor To PC 1 2 -----> -----> DDC Instructions 170C7 LCD http://www.wjel.net 19 Go to cover page DDC Instructions 170C7 LCD Step 3: Modify DDC data (verify EDID version, week, year) Click (new function) icon from the tool bar, bring up Step 1 of 9 as shown in Fig. 14 . EDID46 DDC application provides the function selection and Step 4: Modify DDC data (Monitor Serial No.) 1. Click Next , bring up Fig. 15. 3. Click OK button to confirm your selection. 4. Click icon (Read EDID function) to read DDC EDID data from monitor. The EDID codes will display on screen as shown in Fig. 13. Fig. 15 2. Select the DDC2Bi as the communication channel. As shown in Fig. 12. Fig. 12 Fig. 13 Fig. 14 Select and fill out, If necessary. Re-programming Analog DDC IC Step 1: After initialize alignment box, connecting all cables and box as shown in Fig. 10. Step 2: Read DDC data from monitor 1. Click icon as shown in Fig. 11 from the tool bar to bring up the Channels "Configuration Setup" windows as shown in Fig. 11. Fig. 10 1=Power connector 2=D-SUB connector PC To printer port (LTP1) DC Power 8-12V Printer Port To Monitor To PC 1 2 -----> -----> To PC Video port (D-sub) Click this button =====> Fig. 11 http://www.wjel.net 20 Go to cover page DDC Instructions 170C7 LCD Fig. 21 Fig. 18 Fig. 19 7. Click Next , bring up Fig. 21. 4. Click Next , bring up Fig.18. 5. Click Next , bring up Fig.19. 6. Click Next , bring up Fig. 20. Fig. 20 2. Click Next , bring up Fig.16. Fig. 16 Fig. 17 3. Click Next , bring up Fig.17. http://www.wjel.net 21 Go to cover page DDC Instructions 170C7 LCD 4). Click (Write EDID) icon from the tool bar to write DDC data. Then wait for 20-30 seconds ,DDC data will be finished Writing. Fig. 24 3) Push Menu to exit OSD menu. " " Fig. 22 Step 5: Write DDC data 1. Configuration should be as Fig. 23. And press OK. Fig. 23 2. Click Save. Step 7: Exit DDC program Pull down the File menu and select Exit as shown in Fig. 26. Step 6: Save DDC data Sometimes, you may need to save DDC data as a text file for using in other IC chip. To save DDC data, follow the steps below: 1. Click (Save) icon (or click "file"-> "save as") from the tool bar and give a file name as shown in Fig. 25. The file type is EDID46 file (*.ddc) which can be open in WordPad. By using WordPad, the texts of DDC data & table (128 bytes, hex code) can be modified. If DDC TEXTS & HEX Table ar completely correct, it can be saved as .ddc flie to re-load it into DDC IC for DDC Data application. Fig. 26 Fig. 25 2. Access Factory Mode 1). Turn off monitor. 2). 3).Press "OK" button, wait until the OSD menu with Characters "HUDSON 170C7 V010 2006/06-29" (below OSD menu) come on the Screen of the monitor. as shown in Fig24. [Push "AUTO" & "OK" buttons at the same time and hold them] +[Press "power" button untill comes out "Windows screen" ] => then release all buttons Factory Mode indicator Step9: 1. Disconnect the monitor power cord and connect it again. 2. Press the OK button to bring up the OSD main manu. 3. Re-confirm the serial Number is updated as shown in Fig.30. Step 8: Modify serial number in OSD 1. Unzip the serial number.zip to your computer, then open the folder as shown in Fig.27. 2. If use Win98 OS, you can execute SN.exe directly. If use Win2000 or XP OS, first, you must execute install.bat, then execute SN.exe 3. Set I2C bus(press the left-top button of operating window) as shown in Fig.28, then press " SET" button. 4. Set Block2 as shown in Fig.29 5. key in new serial number, then press " Write" button as shown in Fig.29 , Click " WRITE" button. 6. It will appear "Serial Number Write OK" , Click "Enter" to finish it. Fig.27 Fig.28 Fig.29 Fig.30 8. Click Next , bring up Fig. 22. - In this step, please confirm the Descriptor Data Type is Monitor Range Limits, and all the items are same as below. - Click Finish to exit the Step window. - Serial number can be filled up at this moment (for example, TY 123456). http://www.wjel.net 22 Go to cover page DDC Instructions 170C7 LCD Step 3: Modify DDC data (verify EDID version, week, year) Click (new function) icon from the tool bar, bring up Step 1 of 9 as shown in Fig. 35 . EDID46 DDC application provides the function selection and text change (select & fill out) from Step 1 to Step 9. Step 4: Modify DDC data (Monitor Serial No.) 1. Click Next , bring up Fig. 36. 3. Click OK button to confirm your selection. 4. Click icon (Read EDID function) to read DDC EDID data from monitor. The EDID codes will display on screen as shown in Fig. 34. Fig. 36 2. Select the DDC2Bi as the communication channel. As shown in Fig. 33. Fig. 33 Fig. 34 Fig. 35 Select and fill out, If necessary. Re-programming Digital DDC IC Step 1: After initialize alignment box, connecting all cables and box as shown in Fig. 31. Fig. 32 Step 2: Read DDC data from monitor 1. Click icon as shown in Fig. 11 from the tool bar to bring up the Channels "Configuration Setup" windows as shown in Fig. 32. Fig. 31 Click this button =====> D-sub to DVI-D cable 1=DVI-D connector 2=D-sub connector 3=Power Plug 2 1 3 D-sub cable DC Power 8 12V ~ PC To video card To printer port (LTP1) To Monitor Printer Port Fig. 42 Fig. 39 Fig. 40 7. Click Next , bring up Fig. 42. 4. Click Next , bring up Fig. 39. 5. Click Next , bring up Fig. 40. 6. Click Next , bring up Fig. 41. In this step, please confirm the Descriptor Data Type is Monitor Range Limits, and all the items are same as below. Fig. 41 2. Click Next , bring up Fig. 37. Fig. 37 Fig. 38 3. Click Next , bring up Fig. 38. http://www.wjel.net 23 170C7 LCD DDC Instructions 3. Click (Write EDID) icon from the tool bar to write DDC data. Then wait for 20-30 seconds ,DDC data will be finished Writing. Fig. 45 Fig. 43 Step 5: Write DDC data 1. Configuration should be as Fig. 40. And press OK. Fig. 44 2. Click Save. Step 7: Exit DDC program Pull down the File menu and select Exit as shown in Fig. 47. Step 8: Turn off the monitor, exit the factory mode. Fig. 47 3) Push Menu to exit OSD menu. " " Fig.46 Sometimes, you may need to save DDC data as a text file for using in other IC chip. To save DDC data, follow the steps below: 1. Click (Save) icon (or click "file"-> "save as") from the tool bar and give a file name as shown in Fig. 46. The file type is EDID46 file (*.ddc) which can be open in WordPad. By using WordPad, the texts of DDC data & table (128 bytes, hex code) can be modified. If DDC TEXTS & HEX Table ar completely correct, it can be saved as *.ddc flie to re-load it into DDC IC for DDC Data application. Step 6: Save DDC data Factory Mode indicator Serial Number Definition BOM Code Panel Supplier CODE AUO 1 CPT 2 LPL(LG) 3 QDI 4 CMO 5 B Z 1 A 0 6 2 5 0 0 0 0 0 1 SERIAL NO YEAR/WEEK SERVICE VERSION CHANGE CODE BOM CODE(BILL OF MATERIAL)CODE SITE CODE(PRODUCTION CENTER) BZ CODE(AR-CZECH REPUBLIC VN-HUNGARY(SZR),BZ-SUZHOU DS-DONGGUAN) 2. Access Factory Mode 1). Turn off monitor. 2). 3).Press "OK" button, wait until the OSD menu with Characters "HUDSON 170C7 V010 2006/06/29" (below OSD menu) come on the Screen of the monitor. as shown in Fig24. [Push "AUTO" & "OK" buttons at the same time and hold them] +[Press "power" button untill comes out "Windows screen" ] => then release all buttons 8. Click Next , bring up Fig. 43. - In this step, please confirm the Descriptor Data Type is Monitor Range Limits, and all the items are same as below. - Click Finish to exit the Step window. - Serial number can be filled up at this moment (for example, TY 123456). http://www.wjel.net 24 Go to cover page 170C7 LCD DDC DATA THE DISPLAY DATA CHANNEL (DDC_2B) CONTENT INCLUDING: (FOR 170C7 ANALOG FOR CPT PANEL) ********************************************************************** EDID log file ********************************************************************** Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : 0848 (HEX.) ID Serial Number : 123456 (HEX.) Week of Manufacture : 23 Year of Manufacture : 2006 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Analog Video Input 0.700V/0.300V (1.00Vpp) Blank-to-Black Setup Separate Sync Composite Sync Sync on Green Serration required Maximum H Image Size : 34 Maximum V Image Size : 27 Display Transfer Characteristic : 2.2 (gamma) Feature Support (DPMS) : no Standby no Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.645 Red Y coordinate : 0.335 Green X coordinate : 0.283 Green Y coordinate : 0.614 Blue X coordinate : 0.146 Blue Y coordinate : 0.07 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings : 1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #1 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Standard Timing Identification #2 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 Detailed Timing #1 Pixel Clock (MHz) : 108 H Active (pixels) : 1280 H Blanking (pixels) : 408 V Active (lines) : 1024 V Blanking (lines) : 42 H Sync Offset (F Porch) (pixels) : 48 H Sync Pulse Width (pixels) : 112 V Sync Offset (F Porch) (lines) : 1 V Sync Pulse Width (lines) : 3 H Image Size (mm) : 338 V Image Size (mm) : 270 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY10623123456 Monitor Descriptor #3 Monitor Name : Philips 170C Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 83 Max. Supported Pixel : 140 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : BD (HEX.) ********************************************************************** Analog EDID d ata (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 48 11: 08 12: 56 13: 34 14: 12 15: 00 16: 17 17: 10 18: 01 19: 03 20: 1f 21: 22 22: 1b 23: 78 24: 2e 25: 39 26: 85 27: a5 28: 55 29: 48 30: 9d 31: 25 32: 12 33: 50 34: 54 35: bf 36: ef 37: 80 38: 81 39: 80 40: 71 41: 4f 42: 01 43: 01 44: 01 45: 01 46: 01 47: 01 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 30 55: 2a 56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70 64: 13 65: 00 66: 52 67: 0e 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 54 78: 59 79: 31 80: 30 81: 36 82: 32 83: 33 84: 31 85: 32 86: 33 87: 34 88: 35 89: 36 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 37 105: 30 106: 43 107: 0a 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 53 117: 0e 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: bd http://www.wjel.net 25 Go to cover page 170C7 LCD DDC DATA THE DISPLAY DATA CHANNEL (DDC_2B) CONTENT INCLUDING: (FOR 170C7 DIGITAL FOR CPT PANEL) ********************************************************************** EDID log file ********************************************************************** Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : 0848 (HEX.) ID Serial Number : 123456 (HEX.) Week of Manufacture : 23 Year of Manufacture : 2006 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Digital Video Input Maximum H Image Size : 34 Maximum V Image Size : 27 Display Transfer Characteristic : 2.2 (gamma) Feature Support (DPMS) : no Standby no Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.645 Red Y coordinate : 0.335 Green X coordinate : 0.283 Green Y coordinate : 0.614 Blue X coordinate : 0.146 Blue Y coordinate : 0.07 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings : 1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #1 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Standard Timing Identification #2 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 Detailed Timing #1 Pixel Clock (MHz) : 108 H Active (pixels) : 1280 H Blanking (pixels) : 408 V Active (lines) : 1024 V Blanking (lines) : 42 H Sync Offset (F Porch) (pixels) : 48 H Sync Pulse Width (pixels) : 112 V Sync Offset (F Porch) (lines) : 1 V Sync Pulse Width (lines) : 3 H Image Size (mm) : 338 V Image Size (mm) : 270 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY10623123456 Monitor Descriptor #3 Monitor Name : Philips 170C Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 83 Max. Supported Pixel : 140 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : 5C (HEX.) ********************************************************************** Digital EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 48 11: 08 12: 56 13: 34 14: 12 15: 00 16: 17 17: 10 18: 01 19: 03 20: 80 21: 22 22: 1b 23: 78 24: 2e 25: 39 26: 85 27: a5 28: 55 29: 48 30: 9d 31: 25 32: 12 33: 50 34: 54 35: bf 36: ef 37: 80 38: 81 39: 80 40: 71 41: 4f 42: 01 43: 01 44: 01 45: 01 46: 01 47: 01 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 30 55: 2a 56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70 64: 13 65: 00 66: 52 67: 0e 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 54 78: 59 79: 31 80: 30 81: 36 82: 32 83: 33 84: 31 85: 32 86: 33 87: 34 88: 35 89: 36 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 37 105: 30 106: 43 107: 0a 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 53 117: 0e 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 5c http://www.wjel.net 26 Go to cover page 170C7 LCD DDC DATA THE DISPLAY DATA CHANNEL (DDC_2B) CONTENT INCLUDING: (FOR 190C7 ANALOG FOR LPL PANEL) ********************************************************************** EDID log file ********************************************************************** Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : 0849 (HEX.) ID Serial Number : 123456 (HEX.) Week of Manufacture : 23 Year of Manufacture : 2006 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Analog Video Input 0.700V/0.300V (1.00Vpp) Blank-to-Black Setup Separate Sync Composite Sync Sync on Green Serration required Maximum H Image Size : 38 Maximum V Image Size : 30 Display Transfer Characteristic : 2.2 (gamma) Feature Support (DPMS) : no Standby no Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.639 Red Y coordinate : 0.342 Green X coordinate : 0.297 Green Y coordinate : 0.615 Blue X coordinate : 0.146 Blue Y coordinate : 0.068 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings : 1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #1 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Standard Timing Identification #2 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 Detailed Timing #1 Pixel Clock (MHz) : 108 H Active (pixels) : 1280 H Blanking (pixels) : 408 V Active (lines) : 1024 V Blanking (lines) : 42 H Sync Offset (F Porch) (pixels) : 48 H Sync Pulse Width (pixels) : 112 V Sync Offset (F Porch) (lines) : 1 V Sync Pulse Width (lines) : 3 H Image Size (mm) : 376 V Image Size (mm) : 301 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY10623123456 Monitor Descriptor #3 Monitor Name : Philips 190C Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 83 Max. Supported Pixel : 140 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : E2 (HEX.) ********************************************************************** Analog EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 49 11: 08 12: 56 13: 34 14: 12 15: 00 16: 17 17: 10 18: 01 19: 03 20: 1f 21: 26 22: 1e 23: 78 24: 2e 25: a2 26: a5 27: a3 28: 57 29: 4c 30: 9d 31: 25 32: 11 33: 50 34: 54 35: bf 36: ef 37: 80 38: 81 39: 80 40: 71 41: 4f 42: 01 43: 01 44: 01 45: 01 46: 01 47: 01 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 30 55: 2a 56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70 64: 13 65: 00 66: 78 67: 2d 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 54 78: 59 79: 31 80: 30 81: 36 82: 32 83: 33 84: 31 85: 32 86: 33 87: 34 88: 35 89: 36 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 39 105: 30 106: 43 107: 0a 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 53 117: 0e 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: e2 http://www.wjel.net 27 Go to cover page 170C7 LCD DDC DATA(170C7) THE DISPLAY DATA CHANNEL (DDC_2B) CONTENT INCLUDING: (FOR 190C7 DIGITAL FOR LPL PANEL) ********************************************************************** EDID log file ********************************************************************** Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : 0849 (HEX.) ID Serial Number : 123456 (HEX.) Week of Manufacture : 23 Year of Manufacture : 2006 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Digital Video Input Maximum H Image Size : 38 Maximum V Image Size : 30 Display Transfer Characteristic : 2.2 (gamma) Feature Support (DPMS) : no Standby no Suspend Active Off Display Type : RGB color display Standard Default Color Space : Primary color space Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.639 Red Y coordinate : 0.342 Green X coordinate : 0.297 Green Y coordinate : 0.615 Blue X coordinate : 0.146 Blue Y coordinate : 0.068 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) 1280 x 1024 @75Hz (VESA) Manufacturer's timings : 1152 x 870 @75Hz (Apple,Mac II) Standard Timing Identification #1 Horizontal active pixels : 1280 Aspect Ratio : 5:4 Refresh Rate : 60 Standard Timing Identification #2 Horizontal active pixels : 1152 Aspect Ratio : 4:3 Refresh Rate : 75 Detailed Timing #1 Pixel Clock (MHz) : 108 H Active (pixels) : 1280 H Blanking (pixels) : 408 V Active (lines) : 1024 V Blanking (lines) : 42 H Sync Offset (F Porch) (pixels) : 48 H Sync Pulse Width (pixels) : 112 V Sync Offset (F Porch) (lines) : 1 V Sync Pulse Width (lines) : 3 H Image Size (mm) : 376 V Image Size (mm) : 301 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Positive Vertical Sync. : Positive Horizontal Sync. Monitor Descriptor #2 Serial Number : TY10623123456 Monitor Descriptor #3 Monitor Name : Philips 190C Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 83 Max. Supported Pixel : 140 No secondary GTF timing formula supported. Extension Flag : 0 Check sum : 81 (HEX.) ********************************************************************** Digital EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 49 11: 08 12: 56 13: 34 14: 12 15: 00 16: 17 17: 10 18: 01 19: 03 20: 80 21: 26 22: 1e 23: 78 24: 2e 25: a2 26: a5 27: a3 28: 57 29: 4c 30: 9d 31: 25 32: 11 33: 50 34: 54 35: bf 36: ef 37: 80 38: 81 39: 80 40: 71 41: 4f 42: 01 43: 01 44: 01 45: 01 46: 01 47: 01 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 30 55: 2a 56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70 64: 13 65: 00 66: 78 67: 2d 68: 11 69: 00 70: 00 71: 1e 72: 00 73: 00 74: 00 75: ff 76: 00 77: 54 78: 59 79: 31 80: 30 81: 36 82: 32 83: 33 84: 31 85: 32 86: 33 87: 34 88: 35 89: 36 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 39 105: 30 106: 43 107: 0a 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 53 117: 0e 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 81 http://www.wjel.net 28 Go to cover page 170C7 LCD Update the firmware 1. Double click the Easywriter.exe icon in desktop then appears window as shown in Fig.7 . Step 5 :Copy the hexcode 170C7 to C:\170C7 as shown in Fig. 5 . 6. Install and setup the Easywriter program Step 1 : Make a folder in your PC as shown in Fig. 3. For example : C:\170C7 Step 2 : Copy ISP Software Easywriter into your folder as shown in Fig.3. Step 3 : Unzip Easywriter.zip into your folder as shown in Fig. 3. Step 4 : Double click the EasyWriterV2.10p2 icon to install the Application as Fig. 4. .zip Configuration and procedure "Easywriter " The software is provided by Novatek to upgrade the firmware of CPU. DDC2BI_ISP TOOL (3138 149 53161) is for the interface between "Parallel Port of PC" and "15 pin-D-SUB connector of Monitor". It is a windows-based program, which cannot be run in MS-DOS. System and equipment requirements 1. An i486 (or above) personal computer or compatible. 2. Microsoft operation system Windows 95/98/2000/XP. 4. as shown in Fig. 1 3. ISP Software " Easywrite " DDC2BI_ISP TOOL (3138 106 10396) 5. Connect and Mains cord to Monitor as shown in Fig. 2. DDC2BI_ISP TOOL Fig. 1 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Parallel Port to Print Port in PC D-SUB to monitor Fig.2 PC To printer port (LTP1) To video card Video cable Connect to Mains cord Monitor (A) 170C7-Monitor (B) D-Sub Connect to Mains cord at this moment. -------------------------------> ISP box Fig. 3 2. Press the Load hex then select the hex as shown in Fig. 8. Firmware Upgrade for CPU http://www.wjel.net 29 Go to cover page 170C7 LCD Fig. 8 If there is a warring message coming as shown in Fig 12. , you have to check the AC power, Video cable, or Novatek MCU. Fig. 10 Fig. 11 Fig. 13 4 Press the file --> exit to end program , as shown in Fig. 11. 4) Turn off the monitor, exit the factory mode. Fig. 14 5 Check the firmware version 1). Turn off monitor. 2). 3).Press "MENU" button, wait until the OSD menu come on the Screen of the monitor.You will find, after upgrade, the version have already changed from The former"HUDSON 170C7 V010 2006/06/29" to the Present "HUDSON 170C7 V011 2006/07/19" as shown in Fig. 13 and Fig. 14. [Push "AUTO" & "OK" buttons at the same time and hold them] +[Press "power" button untill comes out "Windows screen" ] => then release all buttons. 3 Press the AUTO to running program , the firmware be updated as shown in Fig. 9~10. Fig. 12 Fig. 9 Factory Mode indicator Factory Mode indicator Firmware Upgrade for CPU http://www.wjel.net 30 Go to cover page 170C7 LCD General FAQs Q: When I install my monitor what should I do if the screen shows 'Cannot display this video mode'? A: Recommended video mode for Philips 17": 1280x1024 @60Hz. 1. Unplug all cables, then connect your PC to the monitor that you used previously. 2. In the Windows Start Menu, select Settings/Control Panel. In the Control Panel Window, select the Display icon. Inside the Display Control Panel, select the 'Settings' tab. Under the setting tab, in box labeled 'desktop area', move the slidebar to 1280x1024 pixels (17"). 3. Open 'Advanced Properties' and set the Refresh Rate to 60Hz, then click OK. 4. Restart your computer and repeat step 2 and 3 to verify that your PC is set at 1280x1024@60Hz (17"). 5. Shut down your computer, disconnect your old monitor and reconnect your Philips LCD monitor. 6. Turn on your monitor and then turn on your PC. Q: What does 'refresh rate' mean in connection with an LCD monitor? A: The refresh rate is of much less relevance for LCD monitors. LCD monitors display a stable, flicker-free image at 60Hz. There is no visible difference between 75Hz and 60Hz. Q: What are the .inf and .icm files on the CD-ROM? How do I install the drivers (.inf and .icm)? A: These are the driver files for your monitor. Follow the instructions in your user manual to install the drivers. Your computer may ask you for monitor drivers (.inf and . icm files) or a driver disk when you first install your monitor. Follow the instructions to insert the ( companion CD-ROM) included in this package. Monitor drivers (.inf and . icm files) will be installed automatically. Q: How do I adjust the resolution? A: Your video card/graphic driver and monitor together determine the available resolutions. You can select the desired resolution under Windows Control Panel with the "Display properties". Q: What if I get lost when I am making monitor adjustments? A: Simply press the OK button, then select 'Reset' to recall all of the original factory settings. Q: What is the Auto function? A: The AUTO adjustment key restores the optimal screen position, phase and clock settings by pressing of a single button – without the need to navigate through OSD (On Screen Display) menus and control keys. Note: Auto function is available in selected models only. Q: My Monitor has no power (Power LED does not light up). What should I do? A: Make sure the AC power cord is connected between the monitor and AC outlet, and click a key on keyboard/mouse to wake up the PC. Q: Will the LCD monitor accept an interlaced signal under PC models? A: No. If an Interlace signal is used, the screen displays both odd and even horizontal scanning lines at the same time, thus distorting the picture. Q: What does the Refresh Rate mean for LCD? A: Unlike CRT display technology, in which the speed of the electron beam is swept from the top to the bottom of the screen determines flicker, an active matrix display uses an active element (TFT) to control each individual pixel and the refresh rate is therefore not really applicable to LCD technology. Q: Will the LCD screen be resistant to scratches? A: A protective coating is applied to the surface of the LCD, which is durable to a certain extent (approximately up to the hardness of a 2H pencil). In general, it is recommended that the panel surface is not subject to any excessive shocks or scratches. Q: How should I clean the LCD surface? A: For normal cleaning, use a clean, soft cloth. For extensive cleaning, please use isopropyl alcohol. Do not use other solvents such as ethyl alcohol, ethanol, acetone, hexane, etc. Q:Can I change the color setting of my monitor? A:Yes, you can change your color setting through OSD control as the following procedures, 1. Press "OK" to show the OSD (On Screen Display) menu 2. Press "Down Arrow" to select the option "color" then press "OK" to enter color setting, there are five settings as below. a. 6500K; this setting features the panel closed to red-white color tone. b. 9300K; this setting features the panel closed to blue-white color tone. c. Original; this setting load the default panel setting in terms of color tone. (Note: different panel maker may feature a different color temperature*) d. SRGB; this is a standard setting for ensuring correct exchange of colors between different device (e.g. digital cameras, monitors, printers, scanners, etc.) e. User Define; the user can choose his/her preference color setting by adjusting red, green, blue color. Q: Can the Philips LCD Monitor be mounted on the wall? A: Yes. Philips LCD monitors have this optional feature. Four standard VESA mount holes on the rear cover allows the user to mount the Philips monitor on most of the VESA standard arms or accessories. We recommend to contact your Philips sales representative for more information. Screen Adjustments FAQs (Frequently Asked Questions) Q: What is the FPadjust program on the CD-ROM? A: The FPadjust program generates alignment patterns that help you adjust monitor settings such as Contrast, Brightness, Horizontal Position, Vertical Position, Phase and Clock for optimal performance. Q: When I install my monitor, how do I get the best performance from the monitor? A: 1. For best performance, make sure your display settings are set at 1280x1024@60Hz for 17". Note: You can check the current display settings by pressing the OSD OK button once. The current display mode is shown in OSD first page. 2. To install the Flat Panel Adjust (FPadjust) program located on the monitor setup CD-ROM, open the CD-ROM and double-click the FP_setup4.3.exe icon. This will install FP Adjust automatically and place a shortcut on your desktop. 3. Run FPadjust by double clicking the shortcut. Follow the instructions step by step to optimize image performance with your system's video controller. http://www.wjel.net 31 Go to cover page 170C7 LCD FAQs (Frequently Asked Questions) Q: How do LCDs compare to CRTs in terms of radiation? A: Because LCDs do not use an electron gun, they do not generate the same amount of radiation at the screen surface. Compatibility with other Peripherals Q: Can I connect my LCD monitor to any PC, workstation or Mac? A: Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs and workstations. You may need a cable adapter to connect the monitor to your Mac system. Please contact your dealer/retailer for more information. Q: Are Philips LCD monitors Plug-and-Play? A: Yes, the monitors are Plug-and-Play compatible with Windows 95, 98, 2000 and XP. Q: What is USB (Universal Serial Bus)? A: Think of USB as a smart plug for PC peripherals. USB automatically determines resources (like driver software and bus bandwidth) required by peripherals. USB makes necessary resources available without user intervention. There are three main benefits of USB. USB eliminates "case anxiety," the fear of removing the computer case to install circuit board cards -- that often requires adjustment of complicated IRQ settings -- for add-on peripherals. USB does away with "port gridlock." Without USB, PCs are normally limited to one printer, two Com port devices (usually a mouse and modem), one Enhanced Parallel Port add-on (scanner or video camera, for example), and a joystick. More and more peripherals for multimedia computers come on the market every day. With USB, up to 127 devices can run simultaneously on one computer. USB permits "hot plug-in." No need to shut down, plug in, reboot and run set up to install peripherals. No need to go through the reverse process to unplug a device. Bottom line: USB transforms today's "Plug-and-Pray" into true Plug-and-Play! Please refer to glossary for more information about USB. Q: What is a USB hub ? A: A USB hub provides additional connections to the Universal Serial Bus. A hub's upstream port connects a hub to the host, usually a PC. Multiple downstream ports in a hub allows connection to another hub or device, such as a USB keyboard, camera or printer. LCD Panel Technology Q: What is a Liquid Crystal Display? A: A Liquid Crystal Display (LCD) is an optical device that is commonly used to display ASCII characters and images on digital items such as watches, calculators, portable game consoles, etc. LCD is the technology used for displays in notebooks and other small computers. Like light-emitting diode and gas-plasma technologies, LCD allows displays to be much thinner than cathode ray tube (CRT) technology. LCD consumes much less power than LED and gas-displays because it works on the principle of blocking light rather than emitting it. Q: What differentiates passive matrix LCDs from active matrix LCDs? A: An LCD is made with either a passive matrix or an active matrix display grid. An active matrix has a transistor located at each pixel intersection, requiring less current to control the luminance of a pixel. For this reason, the current in an active matrix display can be switched on and off more frequently, improving the screen refresh time (your mouse pointer will appear to move more smoothly across the screen, for example). The passive matrix LCD has a grid of conductors with pixels located at each intersection in the grid. Q: What are the advantages of TFT LCD compared with CRT? A: In a CRT monitor, a gun shoots electrons and general light by colliding polarized electrons on fluorescent glass. Therefore, CRT monitors basically operate with an analog RGB signal. A TFT LCD monitor is a device that displays an input image by operating a liquid crystal panel. The TFT has a fundamentally different structure than a CRT: Each cell has an active matrix structure and independent active elements. A TFT LCD has two glass panels and the space between them is filled with liquid crystal. When each cell is connected with electrodes and impressed with voltage, the molecular structure of the liquid crystal is altered and controls the amount of inlet lighting to display images. A TFT LCD has several advantages over a CRT, since it can be very thin and no flickering occurs because it does not use the scanning method. Q: Why is vertical frequency of 60Hz optimal for an LCD monitor? A: Unlike a CDT monitor, the TFT LCD panel has a fixed resolution. For example, an XGA monitor has 1024x3 (R, G, B) x 768 pixels and a higher resolution may not be available without additional software processing. The panel is designed to optimize the display for a 65MHz dot clock, one of the standards for XGA displays. Since the vertical/horizontal frequency for this dot clock is 60Hz/48kHz, the optimum frequency for this monitor is 60Hz. Q: What kind of wide-angle technology is available? How does it work? A: The TFT LCD panel is an element that controls/displays the inlet of a backlight using the dual-refraction of a liquid crystal. Using the property that the projection of inlet light refracts toward the major axis of the liquid element, it controls the direction of inlet light and displays it. Since the refraction ratio of inlet light on liquid crystal varies with the inlet angle of the light, the viewing angle of a TFT is much narrower than that of a CDT. Usually, the viewing angle refers to the point where the contrast ratio is 10. Many ways to widen the viewing angle are currently being developed and the most common approach is to use a wide viewing angle film, which widens the viewing angle by varying the refraction ratio. IPS (In Plane Switching) or MVA (Multi Vertical Aligned) is also used to give a wider viewing angle. Q: Why is there no flicker on an LCD Monitor? A: Technically speaking, LCDs do flicker, but the cause of the phenomenon is different from that of a CRT monitor -- and it has no impact of the ease of viewing. Flickering in an LCD monitor relates to usually undetectable luminance caused by the difference between positive and negative voltage. On the other hand, CRT flickering that can irritate the human eye occurs when the on/off action of the fluorescent object becomes visible. Since the reaction speed of liquid crystal in an LCD panel is much slower, this troublesome form of flickering is not present in an LCD display. Q: Why is an LCD monitor virtually low of Electro Magnetic Interference? A: Unlike a CRT, an LCD monitor does not have key parts that generate Electro Magnetic Interference, especially magnetic fields. Also, since an LCD display utilizes relatively low power, its power supply is extremely quiet. Q: What is the CE mark? A: The CE (Conformite Europeenne) mark is required to be displayed on all regulated products offered for sale on the European market. This 'CE' mark means that a product complies with the relevant European Directive. A European Directive is a European 'Law' that relates to health, safety, environment and consumer protection, much the same as the U.S. National Electrical Code and UL Standards. Q: Does the LCD monitor conform to general safety standards? A: Yes. Philips LCD monitors conform to the guidelines of MPR-II and TCO 99/03 standards for the control of radiation, electromagnetic waves, energy reduction, electrical safety in the work environment and recyclability. The specification page provides detailed data on safety standards. http://www.wjel.net 32 170C7 LCD Safety Test Requirements All units that are returned for service or repair must pass the original manufactures safety tests. Safety testing requires both Hipot and Ground Continuity testing. HI-POT TEST INSTRUCTION 1.Application requirements 2. Test method 1.1 All mains operated products must pass the Hi-Pot test as described in this instruction. 1.2 This test must be performed again after the covers have been refitted following the repair, inspection or modification of the product. 2.1 Connecting conditions 2.1.1 The test specified must be applied between the parallel- blade plug of the mainscord and all accessible metal parts of the product. 2.1.2 Before carrying out the test, reliable conductive connections must be ensured and thereafter be maintained throughout the test period. 2.1.3 The mains switch(es) must be in the "ON" position. 2.2 Test Requirements All products should be HiPot and Ground Continuity tested as follows: Test 2820VDC 1700VDC Test current: voltage (2000VAC) (1200VAC) 25A,AC Test time: Test time 3 seconds 1 second 3 seconds(min.) (min.) Resistance required: Trip set at 100 uA 5 mA <=0.09+Rohm, current for Max. R is the (Tester) limitation; set resistance of at 0.1 uA for the mains cord. Min. Limitation Ramp set at 2 time seconds (Tester) Condition HiPot Test for HiPot Test for Ground Continuity products where products where Test requirement the mains input the mains input is range is Full 110V AC(USA range(or 220V type) AC) 2.2.1 The minimum test duration for Quality Control Inspector must be 1 minute. 2.2.2 The test voltage must be maintained within the specified voltage + 5%. 2.2.3 There must be no breakdown during the test. 2.2.4 The grounding blade or pin of mains plug must be conducted with accessible metal parts. 3. Equipments and Connection 3.1. Equipments For example : - ChenHwa 9032 PROGRAMMABLE AUTO SAFETY TESTER - ChenHwa 510B Digital Grounding Continuity Tester - ChenHwa 901 (AC Hi-pot test), 902 (AC, DC Hi-pot test) Withstanding Tester 3.2. Connection 4. Recording Hipot and Ground Continuity testing records have to be kept for a period of 10 years. * Turn on the power switch of monitor before Hipot and Ground Continuity testing. Connect the "video cable" or "grounding screw" to the CLIP on your tester. Video cable (Rear view of monitor) Connect the power cord to the monitor. Grounding screw Power outlet (ChenHwa 9032 tester) Clip Clip http://www.wjel.net 33 Go to cover page 170C7 LCD Wiring Diagram CN851 CN853 CN831 CN833 CN951 CN406 CN701 CN403 CN01 1 7 1 29 1 12 1 18 1 12 http://www.wjel.net Block Diagram 34 Go to cover page 170C7 LCD 190C7 / 170C7 System Block Diagram 190C7 / 170C7 System Block Diagram -- Platform Platform Scaler Board D-Sub Power Inverter + Panel Backlight Specification : SXGA 1 x Analog : 1280 x 1024 / 75Hz 1 x Digital : 1280 x 1024 / 75Hz Board SXGA : 4 lamps DVI-D LVDS interface LVDS or FFC connector W/ LVDS wire or FFC cable Backlight AC Control PCB http://www.wjel.net 35 Go to cover page 170C7 LCD Block Diagram LCD Panel ( TN ) Connector to panel Scaler + MCU NT 68663 64K CLK: 12Mhz DVI-D D-Sub R,G,B data and CLK (LVDS )interface R\G\B\Hs\Vs RXC+/- RX0+/- RX1+/- RX2+/- RX3+/- 24C02 24C02 DDC Eeprom 24C16 IIC LIPS(AC-DC + Inver Board) Switching Frequency 45K~55K line Inverter Connector to LIPS Panel power Regulator 5V 3.3V 1.8V XTAL 12MHz Brightness 5V, 12V 5V DDC Connector to Ctrl PCB http://www.wjel.net Scaler Diagram - 1 36 Go to cover page 170C7 LCD � � � � � � � � � � � � � � � � � � � � � http://www.wjel.net 37 Go to cover page 170C7 LCD Scaler Diagram - 2 � � � � � � � � � � � � � � � � � � � � � � http://www.wjel.net Scaler Diagram - 3 38 Go to cover page 170C7 LCD http://www.wjel.net 39 Go to cover page 170C7 LCD Scaler Diagram - 4 http://www.wjel.net Scaler Diagram - 5 40 Go to cover page 170C7 LCD http://www.wjel.net 41 Go to cover page 170C7 LCD Scaler Board C.B.A.-1 http://www.wjel.net 42 Go to cover page 170C7 LCD Scaler Board C.B.A.-2 http://www.wjel.net 43 Go to cover page 170C7 LCD Power Diagram-1 http://www.wjel.net 44 Go to cover page 170C7 LCD Power Diagram-2 http://www.wjel.net 45 Go to cover page 170C7 LCD Power Board C.B.A-1 http://www.wjel.net 46 Go to cover page 170C7 LCD Power Board C.B.A-2 http://www.wjel.net 47 Go to cover page 170C7 LCD Control Diagram http://www.wjel.net 48 Go to cover page 170C7 LCD Control Board C.B.A http://www.wjel.net 170C7 LCD 49 Go to cover page 1 19 GENERAL PRODUCT SPECIFICATION HUDSON-7 170C7 GENERAL PRODUCT SPECIFICATION . ANALOG AND DIGITAL DUAL INPUT . AUTO PICTURE ADJUSTMENT . 15 FACTORY PRESET MODES AND 34 PRESET MODES WHICH CAN BE RECOVERED TO PRESET MODES . NEW OSD STYLING DISPLAY FOR MODE IDENTIFICATION /ADJUSTMENT . DDC 2B & DDC/CI COMMUNICATION CAPABILITY . MAX. RESOLUTION 1280*1024 NON-INTERLACED AT 76 HZ . 17”COLOR TFT LCD FLAT PANEL . EASY TILT & SWIVEL BASE . FULL RANGE POWER SUPPLY 90 - 264 VAC . CE ENVIRONMENTAL POLICY . LEAD-FREE PRODUCT POLICY . ANTI-GLARE TO REDUCE LIGHT REFLECTION . POWER MANAGEMENT CAPABILITY . SOG SUPPORT . TCO'03 . BRAND : PHILIPS 17 inch LCD Monitor TYPE :170C7FS/00 8639 000 17066 2006-04-17 2006-04-17 590 GF Chien http://www.wjel.net Go to cover page 50 170C7 LCD 19 2 GENERAL PRODUCT SPECIFICATION(Continued) CONTENTS 1.0 Foreword 2.0 Product profile 2.1 LCD 2.2 Scanning frequencies 2.3 Video dot rate 2.4 Power input 2.5 Power consumption 2.6 Dimensions 2.7 Weight 2.8 Functions 2.9 Ambient temperature 2.10 Regulatory compliance 3.0 Electrical characteristics 3.1 Interface signals 3.2 Interface 3.2.1 D-Sub cable 3.2.2 DVI cable 3.2.3 Audio cable 3.2.4 USB cable 3.2.5 OSD function control 3.3 Timing requirement 3.3.1 Mode storing capacity 3.3.2 Factory/ preset timings 3.3.3 Horizontal scanning 3.3.4 Vertical scanning 3.4 Power input connection 3.5 Power management 3.6 Display identification 3.6.1 Analog DDC 3.6.2 Digital DDC 4.0 Visual characteristics 4.1 Test conditions 4.2 Resolution 4.3 Brightness 4.4 Image size 4.4.1 Actual display size 4.4.2 Max scan size 4.5 Brightness uniformity 4.6 Check cross talk 4.7 White color adjustment 5.0 Mechanical characteristics 5.1 Controls 5.2 Unit dimension / weight 5.3 Tilt and swivel base 5.4 Transportation packages 5.4.1 Shipping dimension / weight 5.4.2 Block unit / palletization 6.0 Environmental characteristics 6.1 Susceptibility of display to external environment 6.2 Transportation tests 6.3 Display disturbances from external environment 6.4 Display disturbances to external environment 6.4.1 EMI 7.0 Reliability 7.1 Mean time between failures 8.0 Quality assurance requirements 8.1 Acceptance test 9.0 Serviceability 10.0 Philips' Flat panel monitors pixel defect policy BRAND : PHILIPS 17 inch LCD Monitor TYPE : 170C7FS/00 8639 000 17066 2004-04-17 2004-04-17 590 GF Chien http://www.wjel.net 170C7 LCD 51 Go to cover page 3 19 GENERAL PRODUCT SPECIFICATION(Continued) 1.0 FOREWORD This specification describes a 17" SXGA multi-scan color TFT-LCD monitor with max resolution up to 1280*1024 /76 Hz non-interlaced. 2.0 PRODUCT PROFILE This display monitor unit is a color display monitor enclosed in PHILIPS global styling cabinet, which has an integrated tilt and swivel base. 2.1 LCD 2.1.1 Type NR. : LM170E03 TLB1 Number of Pixels. : 1280 (H) x1024 (V) Physical Size. : 358.5(w)�296.5(h)�17(d) mm Pixel Pitch. : 0.264 mm x 0.264 mm Color pixel arrangement. : RGB stripes arrangement Support Color. : 16.2M colors Display Mode. : Normally White Backlight. : CCFL edge light system Active area. (WXH). : 337.92 x 270.336mm (17" diagonal) Viewing Angle (CR>=10). : Right:80 , Left:80 , UP:75 , down:85 Contrast ratio. : 800 :1(typic White luminance. : 300 nit 2.1.2 Type NR. : CLAA170EA07 P Number of Pixels. : 1280 (H) x1024 (V) Physical Size. : 358.5(w)�296.5(h)�17.5(d) mm Pixel Pitch. : 0.264 mm x 0.264 mm Color pixel arrangement. : RGB vertical stripes Support Color. : 16.2M colors Display Mode. : Normally White Backlight. : CCFL edge light system Active area. (WXH). : 337.9 x 270.3 mm (17" diagonal) Viewing Angle (CR>=10). : Right:80 , Left:80 , UP:80 , down:80 Contrast ratio. : 700 :1(typic) White luminance. : 300 nit 2.1.3 Type NR. : M170E5-L0C Number of Pixels. : 1280 (H) x1024 (V) Physical Size. : 358.5(w)�296.5(h)�17.0(d) mm Pixel Pitch. : 0.264 mm x 0.264 mm Color pixel arrangement. : RGB vertical stripes Support Color. : 16.7M colors Display Mode. : Normally White Backlight. : CCFL edge light system Active area. (WXH). : 337.92 x 270.34 mm (17" diagonal) Viewing Angle (CR>=10). : Right :80; Left :80 ; Up : 80 ; Down: 80 Contrast ratio. : 800:1 White luminance. : 300 nit 2.2 Scanning frequencies H-Frequency. : 30K - 82 KHz V-Frequency. : 56 - 76 Hz 2.3 Video dot rate. : < 140 MHz 2.4 Power input. : 90-264 V AC, 50/60 � 2 Hz 2.5 Power consumption. : < 36 W maximum 2.6 Dimensions. : 2.7 Weight. BRAND : PHILIPS 17 inch LCD Monitor TYPE :170C7FS/00 8639 000 17066 2006-04-17 2006-04-17 590 GF Chien http://www.wjel.net Go to cover page 52 170C7 LCD 19 4 GENERAL PRODUCT SPECIFICATION(Continued) 2.8 Functions: (1) D-Sub analog R/G/B separate inputs, H/V sync separated, Composite (H+V) TTL level, SOG sync. (2) DVI-D digital Panel Link TMDS input 2.9 Ambient temperature: 0 �C - 40 �C 2.10 Regulatory compliance: Safety B, CCIB / CCEE(China), CE(Europe), CSA(Canada), DEMKO(Nordic), EZU(Czech), FIMKO(Nordic), Gost(Russia), IEC 950 CB Report, NOM NYCE(Mexico), PSB(Singapore), SEMKO(Nordic),SISIR CPA(Singapore), TUV(Germany), UL(USA), * UL2601-1(NAFTA), EN60601(EU) and IEC60601-1(WW) EMI C-tick, CE(Europe), FCC(USA), IC(Canada), VCCI(Japan),BSMI, *IEC60601-1-2 (EU) Ergonomics E2000, MPRII(Sweden), Nutek(Sweden), TCO99, TCO03, TUV/GS, TUV/ERG, EPA, ISO13406-2 Compatibility PC2001, Windows 2000, Windows 98/Me, Windows XP, NSTL * Medical compliance only applies for dedicated models. 3.0 Electrical characteristics 3.1 Interface signals There are two main display interface input signals (D-sub and DVI-D) 1). D-shell Analog Input signal: Video, H-sync, V-sync, Video: 0.7 V p-p, input impedance, 75 ohm Sync. : Separate sync TTL level, input impedance 2k2 ohm terminate H-sync Positive/Negative V-sync Positive/Negative Composite sync TTL level, input impedance 2k2 ohm terminate (Positive/Negative) Sync on green video 0.3V p-p Negative. (Video 0.7 V p-p Positive) 2). DVI-D Digital Input signal: Single TMDS link (Three channels: RX0-/+, RX1-/+, RX2-/+) 3.2 Interface 3.2.1 D-Sub Cable Length. : 1.8 M +/- 50 mm Connector type. : D-Sub male with DDC-2B pin assignments. Blue connector thumb-operated jackscrews Pin Assignment: BRAND : PHILIPS 17 inch LCD Monitor TYPE : 170C7FS/00 8639 000 17066 2004-04-17 2004-04-17 590 GF Chien http://www.wjel.net 170C7 LCD 53 Go to cover page 5 19 GENERAL PRODUCT SPECIFICATION(Continued) 3.2.2 DVI Cable The input signals are applied to the display through DVI-D cable. Length. : 1.8 M +/- 50 mm Connector type. : DVI-D male with DDC-2B pin assignments White connector thumb-operated jackscrews Pin Assignment: PIN No. SIGNAL 1 Red video input 2 Green video input / sync on green 3 Blue video input 4 GND 5 GND- Cable detect 6 Red video GND 7 Green video GND 8 Blue video GND 9 DDC +3.3V or +5V 10 Logic GND 11 GND 12 Serial data line (SDA) 13 H-sync / H+V 14 V-sync 15 Data clock line (SCL) BRAND : PHILIPS 17 inch LCD Monitor TYPE :170C7FS/00 8639 000 17066 2006-04-17 2006-04-17 590 GF Chien http://www.wjel.net Go to cover page 54 170C7 LCD 19 6 GENERAL PRODUCT SPECIFICATION(Continued) Pin No. Description 1 T.M.D.S. data2- 2 T.M.D.S. data2+ 3 T.M.D.S. data2 shield 4 No Connect 5 No Connect 6 DDC clock 7 DDC data 8 No Connect 9 T.M.D.S. data1- 10 T.M.D.S. data1+ 11 T.M.D.S. data1 shield 12 No Connect 13 No Connect 14 +5V Power 15 Ground (for +5V) – Cable detect 16 Hot plug detect 17 T.M.D.S. data0- 18 T.M.D.S. data0+ 19 T.M.D.S. data0 shield 20 No Connect 21 No Connect 22 T.M.D.S clock shield 23 T.M.D.S. clock+ 24 T.M.D.S. clock- 3.2.5 Software control functions via OSD/control OSD (On Screen Display) function (1) Analog interface OSD: Adjustable functions: 1. Main Menu 2.1 Sub Menu 2.2 Sub Menu 2 MONITOR SETUP Exit Brightness & Contrast Brightness, Contrast Color Original Color, 9300K,6500K, sRGB User Define Red, Green, Blue Position Horizontal, Vertical Input Selection Analog(D-Sub), Digital(DVI-D) More Settings Language English, Spanish, French, German, Italian, S. Chinese Phase/ Clock Phase, Clock OSD Setting Horizontal, Vertical Reset Yes, No Serial No.: (Serial No.) (Timing Mode) Move Selection Then ok BRAND : PHILIPS 17 inch LCD Monitor TYPE : 170C7FS/00 8639 000 17066 2004-04-17 2004-04-17 590 GF Chien http://www.wjel.net 170C7 LCD 55 Go to cover page 7 19 GENERAL PRODUCT SPECIFICATION(Continued) (2) Digital interface OSD: Adjustable functions: 1. Main Menu 2.1 Sub Menu 2.2 Sub Menu 2 MONITOR SETUP Exit Brightness & Contrast Brightness, Contrast Color Original Color, 9300K,6500K, sRGB User Define Red, Green, Blue Position (Gray out) Input Selection Analog(D-Sub), Digital(DVI-D) More Settings Language, English, Spanish, French, German, Italian, S.Chinese Phase/ Clock (Gray out) Phase, Clock (Gray out) OSD Setting Horizontal, Vertical Reset Yes, No Serial No.: (Serial No.) (Timing Mode) Move Selection Then ok Reset - Yes: Auto adjustment for displaying timing mode and recall factory preset No: Exit 3.3 Timing requirement 3.3.1 Mode storing capacity (1) Factory preset modes. : 19 (2) Preset modes. : 40 (3)User define modes : 24 3.3.2 Factory/ Preset timings The factory settings of size and centering are according to the reference timing charts(See as below) MODE NO. 1 2 3 4 RESOLUTION 640 x 350 720 x 400 640 x 480 640 x 480 Dot clock(MHz) 25.175 28.321 25.175 30.24 f h 31.469kHz 31.468kHz 31.5kHz 35 kHz A ( us ) 31.778(800 dots) 31.78(900dots) 31.778(800 dots) 28.571 (864 dots) B ( us ) 3.813(96 dots) 3.813(108dots) 3.813( 96 dots) 2.116 ( 64 dots) C ( us ) 1.907(48 dots) 1.907(54dots) 1.907( 48 dots) 3.175( 96 dots) D ( us ) 25.422(640 dots) 25.42(720dots) 25.422( 640 dots) 21.164( 640 dots) E ( us ) 0.636(16 dots) 0.636(18dots) 0.636( 16 dots) 2.116( 64 dots) f v 70Hz(70.09) 70Hz(70.085) 60Hz 67Hz O (ms ) 14.27(449 lines) 14.27(449 lines) 16.683 (525 lines) 15 (525 lines) P ( ms ) 0.064(2 lines) 0.064(2 lines) 0.064 ( 2 lines) 0.086( 3 lines) Q (ms ) 1.907(60 lines) 1.080(34 lines) 1.049 ( 33 lines) 1.114( 39 lines) R ( ms ) 11.12(350 lines) 12.71(400 lines) 15.253 (480 lines) 13.714(480 lines) S ( ms ) 1.175(37 lines) 0.381(13 lines) 0.317 ( 10 line ) 0.086( 3 line ) SYNC. H/V +/- -/+ - / - - / - POLARITY SEP . SYNC Y Y Y Y BRAND : PHILIPS 17 inch LCD Monitor TYPE :170C7FS/00 8639 000 17066 2006-04-17 2006-04-17 590 GF Chien http://www.wjel.net Go to cover page 56 170C7 LCD 19 8 GENERAL PRODUCT SPECIFICATION(Continued) MODE NO. 5 6 7 8 RESOLUTION 640 x 480 640 x 480 640x480 800 x 600 Dot clock(MHz) 31.500 31.501 36 36 f h 37.861kHz 37.5kHz 36kHz 35.2kHz A ( us ) 26.413(832 dots) 26.667 (840 dots) 23.111 (832 dots) 28.444(1024 dots) B ( us ) 1.270(40 dots) 2.032 ( 54 dots) 1.556 (56 dots) 2.000 ( 72 dots) C ( us ) 3.810(120 dots) 3.81 ( 120 dots) 2.222 ( 80 dots) 3.556 ( 128 dots) D ( us ) 20.317(640 dots) 20.317 (640 dots) 17.778 (640 dots) 22.222( 800 dots) E ( us ) 1.016(32 dots) 0.508 ( 26 dots) 1.555 (56 dots) 0.666 ( 24 dots) f v 72.809Hz 75Hz 85Hz 56Hz O (ms ) 13.735(520 lines) 13.333 (500 lines ) 11.763 (509 lines ) 17.778 (625 lines) P ( ms ) 0.079(3 lines) 0.08 ( 3 lines ) 0.069 ( 3 lines ) 0.057 ( 2 lines) Q (ms ) 0.528(20 lines) 0.427 ( 16 lines ) 0.578 ( 25 lines ) 0.626 ( 22 lines) R ( ms ) 12.678(480 lines) 12.8 (480 lines ) 11.093 (480 lines ) 17.066 (600 lines) S ( ms ) 0.45(17 lines) 0.026 ( 1 lines) 0.023 ( 1 lines) 0.029 ( 1 line ) SYNC. H/V -/- - / - -/- + / + POLARITY SEP . SYNC Y Y Y Y MODE NO. 9 10 11 12 RESOLUTION 800 x 600 800 x 600 800 x 600 800 x 600 Dot clock(MHz) 40 50 49.498 56.251 f h 37.9kHz 48.077kHz 46.9kHz 53.7kHz A ( us ) 26.4 (1056 dots) 20.80 (1040dots) 21.333 (1056 dots) 18.631 (1048 dots) B ( us ) 3.2 ( 128 dots) 2.400 ( 120 dots) 1.616 ( 80 dots) 1.138 ( 64 dots) C ( us ) 2.2 ( 88 dots) 1.280 ( 64 dots) 3.232 ( 160 dots) 2.702 ( 152 dots) D ( us ) 20 ( 800 dots) 16.00 ( 800 dots) 16.162 ( 800 dots) 14.222 ( 800 dots) E ( us ) 1 ( 40 dots) 1.120 ( 56 dots) 0.323 ( 16 dots) 0.569 ( 32 dots) f v 60Hz 72Hz ( 72.188) 75Hz 85Hz O (ms ) 16.579 (628 lines) 13.85 (666 lines) 13.333 (625 lines) 11.756(631 lines) P ( ms ) 0.106 ( 4 lines) 0.125 ( 6 lines) 0.064 ( 3 lines) 0.056 ( 3 lines) Q (ms ) 0.607 ( 23 lines) 0.478 ( 23 lines) 0.448 ( 21 lines) 0.503 ( 27 lines) R ( ms ) 15.84 (600lines) 12.48 (600 lines) 12.8 (600 lines) 11.179 (600 lines) S ( ms ) 0.026 ( 1 line ) 0.770 ( 37 line ) 0.021 ( 1 line ) 0.018 ( 1 lines) SYNC. H/V + / + + / + + / + + / + POLARITY SEP . SYNC Y Y Y Y MODE NO. 13 14 15 16 RESOLUTION 832 x 624 1024 x 768 1024 x 768 1024 x 768 Dot clock(MHz) 57.28 65 75 78.75 f h 49.7kHz 48.363kHz 56.5kHz 60kHz A ( us ) 20.11(1152 dots) 20.677(1344 dots) 17.707(1328 dots) 16.66 (1312dots) B ( us ) 1.117(64 dots) 2.092(136 dots) 1.813(136 dots) 1.219 ( 96 dots) C ( us ) 3.91(224 dots) 2.462(160 dots) 1.920(144 dots) 2.235 ( 176 dots) D ( us ) 14.52(832 dots) 15.754(1024 dots) 13.653(1024 dots) 13.003 ( 1024 dots) E ( us ) 0.563(32 dots) 0.369(24 dots) 0.321 (24 dots) 0.203 ( 16 dots) f v 75Hz 60.004Hz 70.004Hz 75Hz ( 75.000) O (ms ) 13.41(667 lines) 16.666(806 lines) 14.272(806 lines) 13.328 (800 lines) P ( ms ) 0.06(3 lines) 0.124(6 lines) 0.106(6 lines) 0.05( 3 lines) Q (ms ) 0.784(39 lines) 0.600(29 lines) 0.514(29 lines) 0.446 ( 28 lines) R ( ms ) 12.55(624 lines) 15.880(768 lines) 13.599(768 lines) 12.80 (768 lines) S ( ms ) 0.016(1 lines) 0.062(3 lines) 0.053(3 lines) 0.017 ( 1 line ) SYNC. H/V +/+ - / - -/- + / + POLARITY SEP . SYNC Y Y Y Y BRAND : PHILIPS 17 inch LCD Monitor TYPE : 170C7FS/00 8639 000 17066 2004-04-17 2004-04-17 590 GF Chien http://www.wjel.net 170C7 LCD 57 Go to cover page 9 19 GENERAL PRODUCT SPECIFICATION(Continued) MODE NO. 17 18 19 20 RESOLUTION 1024 x 768 1024 x 768 1152 x 864 1152 x 864 Dot clock(MHz) 83.096 94.5 79.9 94.5 f h 61.1kHz 68.7kHz 54.0kHz 63.9kHz A ( us ) 16.367 (1360dots) 14.561 (1376 dots) 18.523(1480 dots) 15.661(1480 dots) B ( us ) 1.348 ( 112 dots) 1.016 ( 96 dots) 1.952(156 dots) 1.016(96 dots) C ( us ) 2.022 ( 168 dots) 2.201 ( 208 dots) 1.352(108 dots) 1.116(105 dots) D ( us ) 12.323 ( 1024 dots) 10.836 ( 1024 dots) 14.418(1152 dots) 12.19(1152 dots) E ( us ) 0.674 ( 56 dots) 0.508 ( 48 dots) 0.801(64 dots) 1.339(127 dots) f v 76Hz 85Hz 60Hz 70Hz O (ms ) 13.142 (803 lines) 11.765 (808 lines) 16.671(900lines) 14.283(912lines) P ( ms ) 0.049 ( 3 lines) 0.044 ( 3 lines) 0.148(8 lines) 0.047(3lines) Q (ms ) 0.507 ( 31 lines) 0.524 ( 36 lines) 0.445(24 lines) 0.689(44 lines) R ( ms ) 12.57 (768 lines) 11.183 (768lines) 16.004(864 lines) 13.531(864 lines) S ( ms ) 0.016 ( 1 line ) 0.014 ( 1 line ) 0.074(4 lines) 0.016(1 lines) SYNC. H/V + / + + / + +/+ +/+ POLARITY SEP . SYNC Y Y Y Y MODE NO. 21 22 23 24 RESOLUTION 1152 x 864 1152 x 870 1152 x 900 1152 x 900 Dot clock(MHz) 108 100 94.5 108 f h 67.5kHz 68.7kHz 61.8kHz 71.8kHz A ( us ) 14.815 (1600 dots) 14.56 (1456 dots) 16.169 (1528 dots) 13.926 (1054dots) B ( us ) 1.185 ( 128 dots) 1.28 ( 128 dots) 1.354 ( 128 dots) 1.185 ( 128 dots) C ( us ) 2.37 ( 256 dots) 1.44( 144 dots) 2.201 ( 208 dots) 1.778 ( 192 dots) D ( us ) 10.667 ( 1152 dots) 11.52 ( 1152 dots) 12.19 ( 1152 dots) 10.667 ( 1152 dots) E ( us ) 0.593 ( 64 dots) 0.32 ( 32 dots) 0.424 ( 40 dots) 0.296 ( 32 dots) f v 75Hz 75Hz 66Hz 76Hz O (ms ) 13.333 (900 lines) 13.333 (916 lines) 15.151 (937lines) 13.132 (943 lines) P ( ms ) 0.044 ( 3 lines) 0.044 ( 3 lines) 0.065 ( 4 lines) 0.111 ( 8 lines) Q (ms ) 0.474 ( 32 lines) 0.568( 39 lines) 0.501 ( 31 lines) 0.46 ( 33 lines) R ( ms ) 12.8 (864 lines) 12.678 (870 lines) 14.552 (900lines) 12.533 (900 lines) S ( ms ) 0.015 ( 1 lines) 0.043 ( 4 line ) 0.033 ( 2 line ) 0.028 ( 2 lines) SYNC. H/V - / - - / - Serr- + / + POLARITY SEP . SYNC Y Y Y Y MODE NO. 25 26 27 28 RESOLUTION 1280 x 960 1280 x 960 1280 x 1024 1280 x 1024 Dot clock(MHz) 108 129.895 108 117 f h 60kHz 75kHz 64kHz 71.7kHz A ( us ) 16.667(1800 dots) 13.307 (1728 dots) 15.63 (1688 dots) 13.949 (1632 dots) B ( us ) 1.037(112 dots) 1.047 ( 136 dots) 1.037 ( 112 dots) 0.957 (112 dots) C ( us ) 2.889(312 dots) 1.725 ( 224 dots) 2.296 ( 248 dots) 1.915 (224 dots) D ( us ) 11.852(1280 dots) 9.857 ( 1280 dots) 11.852 ( 1280 dots) 10.94 (1280 dots) E ( us ) 0.889(96 dots) 0.678 ( 88 dots) 0.445 ( 48 dots) 0.137 (16 dots) f v 60Hz 75Hz 60Hz 67Hz O (ms ) 16.667(1000 lines) 13.333 (1002 lines) 16.661 (1066 lines) 14.883 (1067lines) P ( ms ) 0.05(3 lines) 0.039 ( 3 lines) 0.047 ( 3 lines) 0.112 ( 8 lines) Q (ms ) 0.600(36 lines) 0.48 ( 36 lines) 0.594 ( 38 lines) 0.46 ( 33 lines) R ( ms ) 16(960 lines) 12.774 (960 lines) 16.005 (1024 lines) 14.283 (1024 lines) S ( ms ) 0.017(1 lines) 0.04 ( 3 lines ) 0.015 ( 1 line) 0.028 (2 lines ) SYNC. H/V +/+ + / + + / + + / + POLARITY SEP . SYNC Y Y Y Y BRAND : PHILIPS 17 inch LCD Monitor TYPE :170C7FS/00 8639 000 17066 2006-04-17 2006-04-17 590 GF Chien http://www.wjel.net Go to cover page 58 170C7 LCD 19 10 GENERAL PRODUCT SPECIFICATION(Continued) MODE NO. 29 30 31 32 RESOLUTION 1280 x 1024 1280 x 1024 1280 x 1024 688 x 556 Dot clock(MHz) 130.223 135 138.008 27 F h 76kHz 80kHz 81.1kHz 31.25kHz A ( us ) 13.158 (1712 dots) 12.504(1688 dots) 12.326 (1664 dots) 32 (864 dots) B ( us ) 1.024 ( 133 dots) 1.067(144 dots) 0.474 (64 dots) 3.852 (104 dots) C ( us ) 1.905 ( 248 dots) 1.837(248 dots) 2.133 (288 dots) 1.778 (48 dots) D ( us ) 9.83 ( 1280 dots) 9.481(1280 dots) 9.481 (1280 dots) 25.481 (688 dots) E ( us ) 0.399( 51 dots) 0.119(16 dots) 0.238 (32 dots) 0.889 (24 dots) F v 72Hz 75Hz 76Hz 50Hz O (ms ) 14 (1064 lines) 13.329(1066 lines) 13.139 (1066 lines) 20 (625 lines) P ( ms ) 0.02 ( 2 lines) 0.038(3 lines) 0.099 ( 8 lines) 0.128 (4 lines) Q (ms ) 0.5 ( 38 lines) 0.475(38 lines) 0.394 ( 32 lines) 1.408 (44 lines) R ( ms ) 13.468 (1024 lines) 12.804(1024 lines) 12.622 (1024 lines) 17.972 (556 lines) S ( ms ) 0.012 ( 0 line) 0.012 (1 line) 0.024( 2 lines ) 0.672 ( 21 lines ) SYNC. H/V + / + +/+ - / - -/ + POLARITY SEP . SYNC Y Y Y Y MODE NO. 33 34 35 36 RESOLUTION 960X720 960X720 1280x720 1280x720 Dot clock(MHz) 57.58 72.42 74.5 89.04 F h 44.76kHz 56.4kHz 44.772KHz 52.5KHz A ( us ) 22.34(1286 dots) 17.73(1284 dots) 22.335 19.048 B ( us ) 1.72(99 dots) 1.44(104 dots) 1.718 1.527 C ( us ) 2.58(148 dots) 2.21(160 dots) 2.577 2.336 D ( us ) 16.67(960 dots) 13.256(960 dots) 17.181 14.376 E ( us ) 0.856(49 dots) 0.780(56 dots) 0.859 0.809 F v 60Hz 75Hz 59.855 70 O (ms ) 16.667(746 lines) 13.333(752 lines) 16.707 14.286 P ( ms ) 0.067(2.9 lines) 0.053(3 lines) 0.112 0.057 Q (ms ) 0.495(22 lines) 0.5(28 lines) 0.447 0.495 R ( ms ) 16.081(720 lines) 12.766(720 lines) 16.082 13.714 S ( ms ) 0.0228(1 lines) 0.0184(1 lines) 0.067 0.019 SYNC. H/V -/ + -/ + -/+ -/+ POLARITY SEP . SYNC Y Y Y Y MODE NO. 37 38 39 40 RESOLUTION 1280x720 1280 x 768 1280 x 768 1280 x 768 Dot clock(MHz) 95.75 79.5 94.976 102.25 F h 56.456KHz 47.776kHz 56kHz 60.289kHz A ( us ) 17.713 20.931 17.857 16.587 B ( us ) 1.337 1.61 1.432 1.252 C ( us ) 2.172 2.415 2.19 2.034 D ( us ) 13.368 16.101 13.477 12.518 E ( us ) 0.836 0.805 0.758 0.782 F v 74.777 59.87Hz 70Hz 74.893Hz O (ms ) 13.373 16.703 14.286 13.352 P ( ms ) 0.089 0.147 0.054 0.116 Q (ms ) 0.478 0.419 0.5 0.448 R ( ms ) 12.753 16.075 13.714 12.739 S ( ms ) 0.053 0.063 0.018 0.05 SYNC. H/V -/+ - / + -/+ -/ + POLARITY SEP . SYNC Y Y Y Y BRAND : PHILIPS 17 inch LCD Monitor TYPE : 170C7FS/00 8639 000 17066 2004-04-17 2004-04-17 590 GF Chien http://www.wjel.net 170C7 LCD 59 Go to cover page 11 19 GENERAL PRODUCT SPECIFICATION(Continued) 3.3.3 Horizontal scanning Sync polarity. : Positive or Negative Scanning frequency. : 30 - 82 KHz 3.3.4 Vertical scanning Sync polarity. : Positive or Negative Scanning frequency. : 56 - 76 Hz 3.4 Power input connection Power-cord length. : 1.8 M Power-cord type. : 3 leads power cord with protective earth plug. 3.5 Power management The power consumption and the status indication of the set with power management function are as below: Status H-sync V-sync Video Power LED On On On Active <36W Green Stand-by Off On Blanked <1W Amber Suspend On Off Blanked <1W Amber Off Off Off Blanked <1W Amber DC Power off N/A <1W LED Off According to VESA power saving signal. TCO'99 power saving requirement EPA energy star requirement (Power Switch Off) For digital input power consumption is less 1W (In non-DMPM recoverable off mode) 3.6 Display identification 3.6.1 In accordance with VESA Display Channel Standard V1.0 and having DDC-2B and DDC/CI capability. 3.6.2 In accordance with DVI requirement (DDWG digital Visual Interface revision 1.0) use DDC-2B, DDC/CI, and EDID 3.0 structure 2.0 4.0 Visual characteristics 4.1 Test conditions Unless otherwise specified, this specification is defined under the following conditions. (1) Input signal: As defined in 3.3, 1280 x 1024 non-interlaced mode (80K/75Hz), signal sources must have 75 ohm output impedance. (2) Luminance setting: controls to be set to 200 nits with full screen 100 % duty cycle white signal (3) Warm up: more than 30 minutes after power on with signal supplied. (4) Ambient light: 400 -- 600 lux. (5) Ambient temperature: 20 � 5 �C 4.2 Resolution Factory preset modes (19 modes) BRAND : PHILIPS 17 inch LCD Monitor TYPE :170C7FS/00 8639 000 17066 2006-04-17 2006-04-17 590 GF Chien http://www.wjel.net Go to cover page 60 170C7 LCD 19 12 GENERAL PRODUCT SPECIFICATION(Continued) Note: 1. Screen displays perfect picture at 15 factory-preset modes. Item H.Freq . (KHz) Mode Resolution V.Freq. (Hz) Item H.Freq. (KHz) Mode Resolution V.Freq. (Hz) 1 31.469 DOS 720x400 70.087 12 60.023 VESA 1024x768 75.029 2 31.469 VESA 640x480 59.940 13 67.500 VESA 1152x864 75.000 3 35.000 MACINTOSH 640x480 67.000 14 60.000 VESA 1280x960 60.000 4 37.861 VESA 640x480 72.809 15 63.981 VESA 1280x1024 60.020 5 37.500 VESA 640x480 75.000 16 79.976 VESA 1280x1024 75.025 6 35.156 VESA 800x600 56.250 17 49.700 MACINTOSH 832x624 75.000 7 37.879 VESA 800x600 60.317 18 68.7 MACINTOSH 1152x870 75 8 48.077 VESA 800x600 72.188 19 71.8 SUN Mode II 1152x900 76 9 46.875 VESA 800x600 75.000 10 48.363 VESA 1024x768 60.004 11 56.476 VESA 1024x768 70.069 2. Screen displays visible picture with OSD warning when input modes are other then 34 preset modes 4.3 Brightness: 200 nits (at panel color temperature, Screen center point, Fig. 1) 4.4 Image size 4.4.1 Actual display size 338x270mm 4.5 Brightness uniformity Set contrast at 50% and turn the brightness to get average above 200 nits at center of the screen. Apply the Fig 1. It should comply with the following formula: Minimum luminance of nine points (brightness) >= 0.75 (Min) Maximum luminance of nine points (brightness) 4.6 Check Cross talk (S) Apply Pattern 2. Set contrast at 100 % and brightness at 100 %. Measure A. Then output Pattern 3 and measure A’. The cross talk value: ABS ( YA - YB ) ��������� X 100 % < 2.0% (Max) YA 4.7 White color adjustment BRAND : PHILIPS 17 inch LCD Monitor TYPE : 170C7FS/00 8639 000 17066 2004-04-17 2004-04-17 590 GF Chien http://www.wjel.net 170C7 LCD 61 Go to cover page 13 19 GENERAL PRODUCT SPECIFICATION(Continued) There are three factory preset white color 9300K, 6500K, sRGB. Apply full white pattern, with brightness in 100 % position and the contrast control at 50 % position. The 1931 CIE Chromaticity (color triangle) diagram (x,y) coordinate for the screen center should be: 9300K CIE coordinates X = 0.283 � 0.020 Y = 0.297 � 0.020 6500K CIE coordinates X = 0.313 � 0.020 Y = 0.329 � 0.020 sRGB CIE coordinates X = 0.313 � 0.008 Y = 0.329 � 0.008 5.0 Mechanical characteristics 5.1 Controls Front. : DC power switch OSD function key UP/DOWN (Brightness key) LEFT/RIGHT Auto key Rear. : Video signal connector DVI signal connector Power cord socket 5.2 Unit dimension / Weight Set dimension (incl. pedestal). : 403(W) * 392(H) * 171(D) mm Net weight. : 4.63 Kg 5.3 Tilt and swivel base Basic base: Tilt angle: -5 � to +20 � Swivel rotation: 5.4 Transportation packages 5.4.1 Shipping dimension/Weight Carton dimension. : 482(W) * 488(D) * 189(H) mm Gross weight. : 6.0 Kg 5.4.2 Block unit / Palletization Basic Base: layers / block sets/layer sets/block unit pallet 11 4 44 slipsheet 12/11 4 48/44 Blocks/container 20 feet 40 feet pallet 12 24 slipsheet 10/2 22/2 6.0 Environmental characteristics The following sections define the interference and susceptibility condition limits that might occur between external Environment and the display device. BRAND : PHILIPS 17 inch LCD Monitor TYPE :170C7FS/00 8639 000 17066 2006-04-17 2006-04-17 590 GF Chien http://www.wjel.net Go to cover page 62 170C7 LCD 19 14 GENERAL PRODUCT SPECIFICATION(Continued) 6.1 Susceptibility of display to external environment Operating - Temperature : 0 to 35 degree C - Humidity : 80% max - Altitude : 0-3658m - Air pressure : 600-1100 mBAR Storage - Temperature : -20 to 60 degree C - Humidity : 85% max ( < 40 ) - Altitude : 0-12192m - Air pressure : 300-1100 mBAR Note: recommend at 5 to 35�C, Humidity less than 60 % Note: recommended at 5 to 35�C, Humidity less than 60 % 6.2 Transportation tests Standard NSTA Height 76.0 cm 1 corner Drop Sequence 3 edge Test (Room temp) 6 face Electrical function ok Test Mechanical function ok Result No serious damage on set appearance (Room temp 20�C ~23�C, humidity 40%~65%) (1) PACKAGING Sequence 0.73 Grms. Truck spectrum, 30 min /axis , 3 Axes. (2) OPERATING Vibration 10-55-10 Hz, 0.35 Ampl,30 min/axis, 3 Axes Test Test Electrical function ok Result Mechanical function ok No serious damage on set appearance For design evaluation only Operating 10 G, 11 msec, 1000 cycles Bump Temperature : 23�C Test Humidity : 60 % Air pressure : 100 kpa (According to DSD draft standard UAN-D636) 6.3 Display disturbances from external environment According to IEC 801-2 for ESD disturbances 6.4 Display disturbances to external environment 6.4.1 EMI EMI: FCC, VCCI, CE, C-Tick, MPRIII, BCIQ, IC, BSMI, *IEC60601-1-2 (EU) * Medical compliance only applies for dedicated models. BRAND : PHILIPS 17 inch LCD Monitor TYPE : 170C7FS/00 8639 000 17066 2004-04-17 2004-04-17 590 GF Chien http://www.wjel.net 170C7 LCD 63 Go to cover page 15 19 GENERAL PRODUCT SPECIFICATION(Continued) 7.0 Reliability 7.1. Mean Time Between Failures System MTBF (Excluding the LCD panel and CCFL): 50,000 hrs CCFL MTBF: 30,000 hrs (50% of original brightness) 8.0 Quality assurance requirements 8.1 Acceptance test According to MIL-STD-105D Control II level AQL: 0.4 (major) 1.5 (minor) (Please also refer to annual quality agreement) Customer acceptance criteria: UAW0377/00 9.0 Serviceability The serviceability of this monitor should fulfill the requirements, which are prescribed in UAW-0346 and must be checked with the checklist UAT-0361. 10.0 Philips' Flat Panel Monitors Pixel Defect Policy BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL 170C7 1 lit subpixels 3 2 adjacent lit subpixels 1 3 adjacent lit subpixels 0 Distance between two bright dot defects > 15 mm Total bright dot defects of all types 3 BLACK DOT DEFECTS MODEL 170C7 1 dark subpixels 4 2 adjacent dark subpixels 2 3 adjacent dark subpixels 0 Distance between two dark dot defects > 15 mm Total dark dot defects of all types 4 Total DOT DEFECTS MODEL 170C7 Total bright or dark dot defect of all type 5 * 1 or 2 adjacent sub-pixel defects = 1 dot defect BRAND : PHILIPS 17 inch LCD Monitor TYPE :170C7FS/00 8639 000 17066 2006-04-17 2006-04-17 590 GF Chien http://www.wjel.net Go to cover page 64 170C7 LCD 19 16 GENERAL PRODUCT SPECIFICATION(Continued) Fig 1: Brightness and Uniformity 1 2 3 7 8 W/10 L W L/10 L/2 W/2 4 5 6 9 Position 5 = Screen center point BRAND : PHILIPS 17 inch LCD Monitor TYPE : 170C7FS/00 8639 000 17066 2004-04-17 2004-04-17 590 GF Chien http://www.wjel.net 170C7 LCD 65 Go to cover page 17 19 GENERAL PRODUCT SPECIFICATION(Continued) Fig 2: Cross talk pattern Gray level 46 (64 Gray level) YA 1/2 1/2 1/6 Fig 3: Cross talk pattern Center at Gray level 0 (Black) YB 1/2 1/2 1/6 1/3 1/3 1/3 1/3 1/3 BRAND : PHILIPS 17 inch LCD Monitor TYPE :170C7FS/00 8639 000 17066 2006-04-17 2006-04-17 590 GF Chien http://www.wjel.net Go to cover page 66 170C7 LCD 19 18 GENERAL PRODUCT SPECIFICATION(Continued) D VIDEO C E SEPARATE SYNC. HORIZONTAL B A R VIDEO Q S P O D VIDEO C E B A VERTICAL HORIZONTAL COMPOSITE SYNC. FIG-4 TIMING CHART -1 BRAND : PHILIPS 17 inch LCD Monitor TYPE : 170C7FS/00 8639 000 17066 2004-04-17 2004-04-17 590 GF Chien http://www.wjel.net 170C7 LCD 67 Go to cover page 19 19 GENERAL PRODUCT SPECIFICATION(Continued) D VIDEO C E B A VERTICAL COMPOSITE SYNC. FIG-5 TIMING CHART -2 O P Q R S & VIDEO B S P Q O R ( SYNC. ON GREEN ) HORIZONTAL VERTICAL BRAND : PHILIPS 17 inch LCD Monitor TYPE :170C7FS/00 8639 000 17066 2006-04-17 2006-04-17 590 GF Chien http://www.wjel.net 68 Go to cover page 170C7 LCD Exploded View Type: 170C7FS/00 9965 000 40026 P37G00021VB FOLD-BASE 13 9965 000 40025 P33G0027 HINGE COVER 12 9965 000 40024 P34G0110 BACK COVER 9 9965 000 40035 CBPC6CNNPHPA1 SCALER ASSY 10 9965 000 40037 PWPC742CR1P POWER ASSY 3 9965 000 40027 705GZ-000042 MAIN FRAME ASSY 14 9965 000 40017 750GLC70A7P11N PANEL LCD 17" EA07P 000 CPT 6 9965 000 40018 705GZ-000040 BEZEL ASS'Y 7 9965 000 40036 KEPC6PA1 CONTROL ASSY 2 http://www.wjel.net 69 Go to cover page 170C7 LCD Exploded View Type: 190C7FS/00 P33G0057 POWER LENS 4 P33G0027 HINGE COVER 10 P37G0015 BASE 13 P34G0112 BACK_COVER 10 KEPC6PA2 CONTROL ASSY 11 P85G0036 Scaler Shielding 10 P85G0035 Power Shielding 9 PWPC942GR1P POWER ASSY 7 CBPC6GNNPHPA2 SCALER ASSY 8 705GZ-000048 MAIN_FRAME ASSY 6 750GLG90E8B11N PANEL LCD LM190E08-TLB1 LPL 5 705GZ-000047 BEZEL ASSY 2 P33G0056 BEZEL STRIP 1 P33G0055 FUNCTION KEY 3 http://www.wjel.net 70 Go to cover page 170C7 LCD Repair Tips 0. Warning All ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the unit via a wrist wrap with resistance. Keep components and tools also at the same potential ! 1. Servicing of SMDs (Surface Mounted Devices) 1.1 General cautions on handling and storage - Oxidation on the terminals of SMDs results in poor soldering. Do not handle SMDs with bare hands. - Avoid using storage places that are sensitive to oxidation such as places with sulphur or chlorine gas, direct sunlight, high temperatures or a high degree of humidity. The capacitance or resistance value of the SMDs may be affected by this. - Rough handling of circuit boards containing SMDs may cause damage to the components as well as the circuit boards. Circuit boards containing SMDs should never be bent or flexed. Different circuit board materials expand and contract at different rates when heated or cooled and the components and/or solder connections may be damaged due to the stress. Never rub or scrape chip components as this may cause the value of the component to change. Similarly, do not slide the circuit board across any surface. 1.2 Removal of SMDs - Heat the solder (for 2-3 seconds) at each terminal of the chip. By means of litz wire and a slight horizontal force, small components can be removed with the soldering iron. They can also be removed with a solder sucker (see Fig. 1A) While holding the SMD with a pair of tweezers, take it off gently using the soldering iron's heat applied to each terminal (see Fig. 1 B). - Remove the excess solder on the solder lands by means of litz wire or a solder sucker (see Fig. 1C). 1.3 Caution on removal - When handling the soldering.iron. use suitable pressure and be careful. - When removing the chip, do not use undue force with the pair of tweezers. - The soldering iron to be used (approx. 30 W) should preferably be equipped with a thermal control (soldering temperature: 225 to 250 C). - The chip, once removed, must never be reused. 1.4 Attachment of SMDs - Locate the SMD on the solder lands by means of tweezers and solder the component on one side. Ensure that the component is positioned correctly on the solder lands (see Fig.2A). - Next complete the soldering of the terminals of the component (see Fiq. 2B). 2. Caution when attaching SMDs - When soldering the SMD terminals, do not touch them directly with the soldering iron. The soldering should be done as quickly as possible, care must be taken to avoid damage to the terminals of the SMDs themselves. - Keep the SMD's body in contact with the printed board when soldering. - The soldering iron to be used (approx. 30 W ) should preferably be equipped with a thermal control (soldering temperature: 225 to 250 C). - Soldering should not be done outside the solder land. - Soldering flux (of rosin) may be used, but should not be acidic. - After soldering, let the SMD cool down gradually at room temperature. - The quantity of solder must be proportional to the size of the solder land. If the quantity is too great, the SMD might crack or the solder lands might be torn loose from the printed board (see Fig. 3). Fig.3 Examples Right http://www.wjel.net 71 Go to cover page 170C7 LCD 3. Lead-free product identification You can identify lead-free product by Philips-lead-free logo on PCB. 4. Lead-free product repair instruction 4.1 Use only lead-free Solder Alloy 0622 149 00106(1.2mm SAC305) or 0622 14900108(1.0mm SAC305). Remark: For lead free soldering material, please visit website for details. This is recommended by Philips. 4.2 Use only adequate solder tools applicable for lead-free soldering-tin. The solder tool must be able to reach at least a solder-temperature of 400 , to stabilize the adjusted temperature at the solder-tip and to exchange solder-tips for different applications. Small Passives/Actives to be removed with thermal tweezers Automated system for IC and BGA repair (Microscope, Camera, Beam split optics, Computer, Programmer, Heat controllers, Vacuum system, Laser pointer) Solder Hand-Tool (Adjustable in temperature height, Temperature shall be held constant,Flexible tips) 4.3 Adjust your solder tool so that a temperature around 360 -380 is reached and stabilized at the solder joint. Heating-time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400 otherwise wear-out of tips will rise drastically and flux-fluid will be destroyed.Corrosion of Tool-Spikes can be avoided when using SAC305 and a temperature of less than 400 . 4.4 Mix of lead-free solder-tin/parts with leaded soldering-tin/parts is possible but not recommended. If not to avoid clean carefully the solder-joint from old tin and re-solder with new tin. 4.5 Use only original spare-parts listed in the Service-Manuals. Standard-material(consumables) can also be purchased at external companies. 4.6 Special information for lead-free BGA-ICs: this ICs will be delivered in so-called dry-packaging to protect the IC against moisture and with lead-free logo on it. This packaging may only be opened shortly before it is used (soldered). Otherwise the body of the IC gets wet inside and during the heating time the structure of the IC will be destroyed due to high (steam-)pressure. If the packaging was opened before usage the IC has to be heated up for some hours (around 90 ) for drying (Take attention for ESD-protection!) 5. Rework on BGA (Ball Grid Array) ICs General Although (LF)BGA assembly yields are very high, there may still be a requirement for component rework. By rework, we mean the process of removing the component from the PWB and replacing it with a new component. If an (LF)BGA is removed from a PWB, the solder balls of the component are deformed drastically so the removed (LF)BGA has to be discarded. Device Removal As is the case with any component that, it is essential when removing an (LF)BGA, the board, tracks, solder lands, or surrounding components are not damaged. To remove an (LF)BGA, the board must be uniformly heated to a temperature close to the reflow soldering temperature. A uniform temperature reduces the chance of warping the PWB. To do this, we recommend that the board is heated until it is certain that all the joints are molten. Then carefully pull the component off the board with a vacuum nozzle. For the appropriate temperature profiles, see the IC data sheet. Area Preparation When the component has been removed, the vacant IC area must be cleaned before replacing the (LF)BGA. Removing an IC often leaves varying amounts of solder on the mounting lands. This excessive solder can be removed with either a solder sucker or solder wick. The remaining flux can be removed with a brush and cleaning agent. After the board is properly cleaned and inspected, apply flux on the solder lands and on the connection balls of the(LF)BGA Note: Do not apply solder paste, as this has shown to result in problems during re-soldering. Device Replacement The last step in the repair process is to solder the new component on the board. Ideally, the (LF)BGA should be aligned under a microscope or magnifying glass. If this is not possible, try to align the (LF)BGA with any board markers. To reflow the solder, apply a temperature profile according to the IC data sheet. So as not to damage neighbouring components, it may be necessary to reduce some tempera www.alphametals.com More Information For more information on how to handle BGA devices, visit this URL: http://www.atyourservice.ce.philips.com (needs subscription). After login, select Magazine , then go to Workshop Information . Here you will find Information on how .to deal with BGA-ICs. Repair Tips http://www.wjel.net 72 Go to cover page 170C7 LCD AC IN Power Board Control Board Scaler Board LCD Panel No power (power indicator off) Check 12V/5V NG Bad power board Check Control Board Check Control Wires Check Scaler Board OK NG OK Bad Scaler Board Check LCD Panel OK Repair Flow Chart http://www.wjel.net 73 Go to cover page 170C7 LCD Power Board Bad Power Board OK NG OK OK Check Scaler Board Bad Scaler Board OK OK Repair Flow Chart http://www.wjel.net 74 Go to cover page 170C7 LCD Repair Flow Chart Check Power Board OK Check LCD Panel OK NO OK Control Board OK OK Board 18V/12V/5V DC http://www.wjel.net 75 Go to cover page 170C7 LCD Recommended Parts List Recommended Parts List TYPE:170C7FS/00(CPT) Item TPV 18NC DESCRIPTION Philips 12NC 089G179E30C912 FFC CABLE 30P 180MM P1.0 9965 000 40014 089G1738WAA922 I/F CABLE 9965 000 40015 705GZ-000040 BEZEL ASS'Y 9965 000 40018 P33G0055 FUNCTION KEY 9965 000 40019 P33G0057 POWER LENS 9965 000 40020 P34G0109 BEZEL 9965 000 40021 705GZ-000041 BACK COVER ASS'Y 9965 000 40022 P15T0048 HINGE PLATE 9965 000 40023 P34G0110 BACK COVER 9965 000 40024 P33G0027 HINGE COVER 9965 000 40025 P37G00021VB FOLD-BASE 9965 000 40026 705GZ-000042 MAIN FRAME ASSY 9965 000 40027 P44G700 CARTON 9965 000 40028 P44G7001 CUSHION-RIGHT 9965 000 40029 P44G7002 CUSHION-LEFT 9965 000 40030 P40G7N0081310A RATING LABEL 9965 000 40032 P33G00581 HOUSING COVER 9965 000 40033 P45G46014 PE BAG FOR MONITOR 9965 000 40034 U401 705TP7K0 56001 MCU ASSY 9965 000 41344 U403 056G113324 AT24C16AN-10SU-2.7 9965 000 35964 U403 056L113356 M24C16-WMN6T/W SO-8 9965 000 40044 U404 056G113334 M24C02-WMN6TP 9965 000 35965 U405 056G113334 M24C02-WMN6TP 9965 000 35965 U701 056G5637 AIC1084-33PM 9965 000 37095 U701 056G56321 AP1084K33LA 9965 000 37330 U701 056G56363 MM1117DT33 TO-252 MMC 9965 000 36928 U701 056G563931 AME1085-3.3-TO263 9965 000 40043 U702 056G56331 AI1117D-1.8-EI 9965 000 35963 U702 056G563930 IC AIC1117A-18PE SOT-252 9965 000 40042 U811 056G60810 0Z9938 9965 000 36059 Recommended Parts List TYPE:190C7FS/00(LPL) Item TPV 18NC DESCRIPTION Philips 12NC 705GZ-000047 BEZEL ASSY 9965 000 41039 P33G0055 FUNCTION KEY 9965 000 40019 P33G0056 BEZEL STRIP 9965 000 41040 P33G0057 POWER LENS 9965 000 40020 P34G0111 BEZEL 9965 000 41041 705GZ-000048 MAIN_FRAME ASSY 9965 000 41042 P33G0027 HINGE COVER 9965 000 40025 P34G0112 BACK_COVER 9965 000 41044 P37G0015 BASE 9965 000 41045 089G179E30C913 FFC CABLE 30P 150MM P1.0 9965 000 41037 U401 705TP9K056001 MCU ASSY 9965 000 41052 U403 056L113356 M24C16-WMN6T/W SO-8 9965 000 40044 U404 056G113334 M24C02-WMN6TP 9965 000 35965 U405 056G113334 M24C02-WMN6TP 9965 000 35965 U701 056G5637 AIC1084-33PM 9965 000 37095 U701 056G56321 AP1084K33LA 9965 000 37330 U701 056G56363 MM1117DT33 TO-252 MMC 9965 000 36928 U701 056G563931 AME1085-3.3-TO263 9965 000 40043 U702 056G56331 AI1117D-1.8-EI 9965 000 35963 U702 056G563930 IC AIC1117A-18PE SOT-252 9965 000 40042 U811 056G60810 0Z9938 9965 000 36059 http://www.wjel.net 76 Go to cover page 170C7 LCD Spare Parts List C432 067G5154797C EC 4U7 50V GF 5*11MM 9965 000 40040 C432 067G215Y4797N LOW ESR EC 4.7 UF 50V NCC 9965 000 35959 C436 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C445 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C446 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C447 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C448 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C449 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C454 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C455 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C456 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C457 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C458 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C459 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C460 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C461 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C469 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C470 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C701 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C702 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C703 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C704 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C705 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C706 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C707 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C707 067G215P1014C 105 100UF M 25V 9965 000 37776 C708 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C708 067G215P1014C 105 100UF M 25V 9965 000 37776 C709 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C709 067G215P1014C 105 100UF M 25V 9965 000 37776 C710 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C710 067G215P1014C 105 100UF M 25V 9965 000 37776 C711 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C711 067G215P1014C 105 100UF M 25V 9965 000 37776 C712 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C712 067G215P1014C 105 100UF M 25V 9965 000 37776 R401 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R402 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R403 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 R404 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 R405 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R406 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R407 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R408 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R410 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R411 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R414 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 R416 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R417 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R418 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R419 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R420 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R421 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 R422 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R423 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 R424 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 R426 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R427 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R428 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R431 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R432 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R433 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R434 061L0603105 RST SM 0603 RC0603 1M PM5 R 9965 000 35973 R435 061L0603222 CHIPR 2.2K OHM -5% 1/16W 9965 000 35977 R436 061L0603222 CHIPR 2.2K OHM -5% 1/16W 9965 000 35977 R437 061G060382 CHIPR 82 OHM -5% 1/10W 9965 000 40047 R438 061G060382 CHIPR 82 OHM -5% 1/10W 9965 000 40047 R440 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R441 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R442 061L0603332 CHIP 3.3K OHM 1/10W 9965 000 35978 R443 061L0603332 CHIP 3.3K OHM 1/10W 9965 000 35978 R445 061L06033900F CHIP 390 OHM 1/10W 1% 9965 000 35979 R446 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R447 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 R451 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R452 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R453 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R454 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 R455 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 R456 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 R457 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R458 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R459 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R460 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 Model: 170C7FS/00(CPT) 12NC: 8639 000 17066 Item TPV 18NC Description Philips 12NC Mechanical Parts 705GZ-000040 BEZEL ASS'Y 9965 000 40018 P33G0055 FUNCTION KEY 9965 000 40019 P33G0057 POWER LENS 9965 000 40020 P34G0109 BEZEL 9965 000 40021 705GZ-000041 BACK COVER ASS'Y 9965 000 40022 P15T0048 HINGE PLATE 9965 000 40023 P34G0110 BACK COVER 9965 000 40024 P33G0027 HINGE COVER 9965 000 40025 P37G00021VB FOLD-BASE 9965 000 40026 705GZ-000042 MAIN FRAME ASSY 9965 000 40027 P33G00581 HOUSING COVER 9965 000 40033 Packing Parts P44G700 CARTON 9965 000 40028 P44G7001 CUSHION-RIGHT 9965 000 40029 P44G7002 CUSHION-LEFT 9965 000 40030 P45G46014 PE BAG FOR MONITOR 9965 000 40034 Accessory 089G404A18NLSI POWER CORD 9965 000 40016 P70G70058131A E-D.F.U 9965 000 40031 miscellanea 089G179E30C912 FFC CABLE 30P 180MM P1.0 9965 000 40014 089G1738WAA922 I/F CABLE 9965 000 40015 P40G7N0081310A RATING LABEL 9965 000 40032 LCD Panel 750GLC70A7P11N PANEL LCD 17" EA07P 000 CPT 9965 000 40017 PCB Assy CBPC6CNNPHPA1 SCALER ASSY 9965 000 40035 KEPC6PA1 CONTROL ASSY 9965 000 40036 PWPC742CR1P POWER ASSY 9965 000 40037 PCB Assy CBPC6CNNPHPA1 SCALER ASSY 9965 000 40035 Various CN202 088G35424FH DV1 CONNECTOR 24PIN 9965 000 36926 CN405 088G35315FH D-SUB 15PIN 9965 000 35960 CN406 033G801930FH FPC CONN. 1.0MM 30P 9965 000 36924 X401 093G2251 CRYSTAL 12MHZ HC-49US ARG6-120 9965 000 35961 X401 093G22901H CRYSTAL 12M000 20P AT-49 9965 000 40041 C401 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C402 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C403 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C404 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C405 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C406 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C407 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C408 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C412 065G060322415 CHIP 0.22UF 16VX5R 9965 000 36920 C413 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C414 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C416 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C417 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C418 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C419 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C420 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C421 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C422 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C423 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C424 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C425 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C426 067G5154713C EC 470UF 16V GF 10*12.5MM 9965 000 40039 C426 067G215L4713N KY16VB470M-L 10*12.5 9965 000 36922 C427 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 C428 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 C429 065G060310031 CHIP 10PF -0.5PF 50V NPO 9965 000 36916 C430 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 C431 067G5154704C EC 47UF 25V GF 5*11MM 9965 000 40038 C431 067G215V4704N KY25VB47-M-CC3.0 5*11MM 9965 000 36923 http://www.wjel.net 77 Go to cover page 170C7 LCD Spare Parts List U701 056G5637 AIC1084-33PM 9965 000 37095 U701 056G56321 AP1084K33LA 9965 000 37330 U701 056G56363 MM1117DT33 TO-252 MMC 9965 000 36928 U701 056G563931 AME1085-3.3-TO263 9965 000 40043 U702 056G56331 AI1117D-1.8-EI 9965 000 35963 U702 056G563930 IC AIC1117A-18PE SOT-252 9965 000 40042 PCB Assy KEPC6PA1 CONTROL ASSY 9965 000 40036 Various SW1 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW2 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW3 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW4 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW5 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW6 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW7 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 R101 061L0603473 RST SM 0603 RC0603 47K PM5 R 9965 000 36003 R102 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R103 061G0603102 RST CHIP 1K 1/10W 5% 9965 000 40053 R104 061L0603473 RST SM 0603 RC0603 47K PM5 R 9965 000 36003 R105 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R106 061G0603102 RST CHIP 1K 1/10W 5% 9965 000 40053 LED1 081G12900KB LED VS L-115WSYKCGKW-8.03LSF5/F 9965 000 40051 LED2 081G12900KB LED VS L-115WSYKCGKW-8.03LSF5/F 9965 000 40051 PCB Assy PWPC742CR1P POWER ASSY 9965 000 40037 Various CN901 087G50132S AC SOCKET 9965 000 36028 F901 084G557GP FUSE 3.15A 250V 9965 000 37006 F902 084G554 FOSE 382-5A 250V SICKMANN 9965 000 37005 PT801 080GL19T8DN1 X'FMR DARFONTK.2006M.101 9965 000 36093 PT802 080GL19T8DN1 X'FMR DARFONTK.2006M.101 9965 000 36093 T901 080GL17T900L XFMR FOR POWER LITAI 9965 000 40061 T901 080GL17T900N XFMR FOR POWER YUVA 9965 000 40062 T901 080GL17T900T X'FMR SRW28LEC-T93H016 9965 000 36950 T901 S80GL17T900V XFMR FOR POWER LITAI 9965 000 40065 071FPC2820105 PC40 EER28L A217 9965 000 37795 C801 065G6J1006ET 10PF 5% SL 6KV 9965 000 36942 C802 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 C803 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 C806 065G6J1006ET 10PF 5% SL 6KV 9965 000 36942 C807 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 C808 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 C811 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 C812 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C813 065G080556131 CHIP 560PF 50V NPO 0805 9965 000 36997 C819 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 C820 067G215D4714K ED 470UF 25V 9965 000 36007 C821 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 C822 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 C823 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 C831 065G080533132 CHIP 330P 50V X7R 0805 9965 000 36994 C832 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C838 065G080510231 1000PF 50V NPO 9965 000 36991 C840 067G215D4714K ED 470UF 25V 9965 000 36007 C841 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 C842 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 C843 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 C846 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 C847 065G080522322 CHIP 0.022UF 25V X7R 0805 9965 000 36043 C858 065G080539131 CHIP 390PF 50V 9965 000 36996 C860 065G080522122 CHIP 220PF 25V X7R 0805 9965 000 36993 C861 065G080510231 1000PF 50V NPO 9965 000 36991 C865 065G080533332 CHIP 0.033UF 50V 9965 000 36995 C874 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 C880 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C881 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 C883 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 C885 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 C887 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 C900 065G305M1022BP Y2 1000PF M 250VAC Y5P 9965 000 36943 C901 065G305M1022BP Y2 1000PF M 250VAC Y5P 9965 000 36943 C907 067G215S10115K 100UF 450V 9965 000 36086 C908 063G10747410S FILM CAPACITOR 9965 000 37794 C912 065G305M2222BP 2200PF -20% 9965 000 36944 C913 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C914 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 R461 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R462 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R463 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R464 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R465 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R466 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R467 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R468 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R469 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R470 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R471 061L06033900F CHIP 390 OHM 1/10W 1% 9965 000 35979 R472 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R473 061G1206103 10 KOHM 1/8W 9965 000 40048 R476 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R478 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 R479 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 R480 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 R481 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 R488 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R489 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R490 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R491 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R499 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R701 061L0603470 CHIPR 47 OHM -5% 1/16W 9965 000 35980 FB401 071G59B300K 9965 000 36934 FB402 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 FB403 071G59B300K 9965 000 36934 FB404 071G59B300K 9965 000 36934 FB405 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 FB406 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 FB407 071G56C102TA CHIP BEAD 1000R/400MA FCM2012KF- 9965 000 40050 FB407 071G56D102 B201209D102TT 9965 000 37332 FB408 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB408 071G56K121 CHIP BEAD 9965 000 35993 FB410 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB410 071G56K121 CHIP BEAD 9965 000 35993 FB411 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB411 071G56K121 CHIP BEAD 9965 000 35993 FB412 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB412 071G56K121 CHIP BEAD 9965 000 35993 FB413 071G59B121K CHIP BEAD 120 OHM 0603FBM-11-1 9965 000 36933 FB701 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB701 071G56K121 CHIP BEAD 9965 000 35993 FB702 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB702 071G56K121 CHIP BEAD 9965 000 35993 FB703 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB703 071G56K121 CHIP BEAD 9965 000 35993 FB704 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB704 071G56K121 CHIP BEAD 9965 000 35993 D416 093G6442PP BAV70 SOT-23 9965 000 35995 D417 093G6442PP BAV70 SOT-23 9965 000 35995 D701 093G1020PH DIODE S1D-E3 VISHAY 9965 000 37793 D701 093G20403F FA20-04 9965 000 36935 D702 093G1020PH DIODE S1D-E3 VISHAY 9965 000 37793 D702 093G20403F FA20-04 9965 000 36935 ZD401 093G39S34T UDZS5.6B 9965 000 35996 ZD402 093G39S34T UDZS5.6B 9965 000 35996 ZD403 093G39S34T UDZS5.6B 9965 000 35996 ZD404 093G39S34T UDZS5.6B 9965 000 35996 ZD405 093G39S34T UDZS5.6B 9965 000 35996 ZD406 093G39S34T UDZS5.6B 9965 000 35996 ZD407 093G39S34T UDZS5.6B 9965 000 35996 ZD408 093G39S34T UDZS5.6B 9965 000 35996 ZD409 093G39S34T UDZS5.6B 9965 000 35996 ZD410 093G39S34T UDZS5.6B 9965 000 35996 ZD411 093G39S34T UDZS5.6B 9965 000 35996 ZD414 093G39S34T UDZS5.6B 9965 000 35996 Q401 057G4174 PMBS3904/PHILIPS-SMT(04) 9965 000 35966 Q401 057G417903T TRA SIG SM MMBT3904 (PHSE) R 9965 000 40045 Q402 057G41713T KEC 2N3906S-RTK/PS 9965 000 35967 Q402 057G761900T BC857 SOT23 9965 000 40046 Q404 057G41713T KEC 2N3906S-RTK/PS 9965 000 35967 Q404 057G761900T BC857 SOT23 9965 000 40046 Q405 057G7631 A03401 SOT23 BY AOS(A1) 9965 000 35968 Q406 057G4174 PMBS3904/PHILIPS-SMT(04) 9965 000 35966 Q406 057G417903T TRA SIG SM MMBT3904 (PHSE) R 9965 000 40045 U401 705TP7K0 56001 MCU ASSY 9965 000 41344 U403 056G113324 AT24C16AN-10SU-2.7 9965 000 35964 U403 056L113356 M24C16-WMN6T/W SO-8 9965 000 40044 U404 056G113334 M24C02-WMN6TP 9965 000 35965 U405 056G113334 M24C02-WMN6TP 9965 000 35965 http://www.wjel.net 78 Go to cover page 170C7 LCD Spare Parts List C915 065G080512322 CHIP 12NF 25V X7R 0805 9965 000 36992 C917 065G080533422 0.33UF -10% 25V X7R 0805 9965 000 36074 C920 065G1K1025T 1000PF/1KV 9965 000 36999 C927 067G3056804KT ELCAP 68UF M 25V 105 KINGNICHI 9965 000 37001 C931 065G517K3322T 3.3NF 500V 9965 000 37000 C932 067G215S1024K ED1000UF 25V 9965 000 36946 C933 067G215S1024K ED1000UF 25V 9965 000 36946 C936 067G215D2222K 105 2200UF M 10V 9965 000 40057 C936 067G215D2222KV 105 2200UF M 10V 9965 000 36945 C941 065G080556221 5600PF/25V/NPO/J 9965 000 36998 C951 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C952 067G215B2214KT LOW E,S,R 220UF -20% 25V 9965 000 36076 C955 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C956 067G215B2214KT LOW E,S,R 220UF -20% 25V 9965 000 36076 R801 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 R802 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R804 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 R807 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 R811 061L0805335 3.3M 0805 9965 000 36978 R812 061L0805624 CHIP 620KOHM 5% 0805 1/8W 9965 000 36980 R813 061L08053302F CHIP 33KOHM 1/8W 1% 9965 000 36975 R815 061L0805303 CHIP 30K OHM 1/8W 9965 000 36974 R816 061L0805203 CHIPR 20KOHM -5% 1/8W 9965 000 36972 R819 061L0805105 CHIP 1M OHM 5% 1/8W 9965 000 36013 R822 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 R823 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 R825 061L0805752 CHIP 7.5K OHM 1/10W 9965 000 36981 R829 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 R831 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R833 061L0805122 1.2KOHM -5%,1/8W,0805 9965 000 36967 R835 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 R836 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 R837 061L0805752 CHIP 7.5K OHM 1/10W 9965 000 36981 R839 061G212Y625KT MGFR 6.2MOHM -5% 1/2W 9965 000 36083 R842 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 R843 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 R849 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 R851 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R853 061L0805122 1.2KOHM -5%,1/8W,0805 9965 000 36967 R855 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 R856 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 R859 061G212Y625KT MGFR 6.2MOHM -5% 1/2W 9965 000 36083 R861 061G20010452T 100K OHM 1/4W 1% 9965 000 36989 R863 061G20033352T 33KOHM 1% 1/4W 9965 000 36990 R865 061L08052320F CHIP 232OHM 9965 000 36973 R871 061G17210352T CFR 10KOHM -5% 1/4W 9965 000 36988 R872 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R873 061L0805202 CHIP 2KOHM 1/8W 9965 000 36971 R874 061L0805331 CHIP 330 OHM 5% 1/10W 9965 000 36976 R880 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 R881 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R882 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R883 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R884 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R885 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R886 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R887 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R888 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R900 061L1206684 CHIPR 680K OHM -5% 1/8W 9965 000 36024 R901 061L1206684 CHIPR 680K OHM -5% 1/8W 9965 000 36024 R902 061L1206684 CHIPR 680K OHM -5% 1/8W 9965 000 36024 R904 061L1206155 1.5M/0805 9965 000 36983 R905 061G152M10464 100KOHM 5% 2W 9965 000 36939 R907 061L1206103 CHIP 10KOHM 5% 1/4W 9965 000 36016 R910 061L1206155 1.5M/0805 9965 000 36983 R912 061L0805105 CHIP 1M OHM 5% 1/8W 9965 000 36013 R914 061L08051241F CHIP 1.24K OHM 1/10W 1% 9965 000 36969 R915 061G17210052T 100HM 5% 1/4W 9965 000 36987 R916 061L0805152 CHIPR 1.5K OHM -5% 1/10W 9965 000 36970 R917 061L0805333 CHIP 33KOHM 1% 1/8W 9965 000 36977 R918 061L1206000 CHIPR 0 OHM -5% 1/8W 9965 000 36067 R920 061G152M20864 0.20 OHM 2W 9965 000 36940 R923 061L0805123 CHIP 12KOHM 1/8W 9965 000 36968 R926 061L1206000 CHIPR 0 OHM -5% 1/8W 9965 000 36067 R927 061L1206472 CHIP 4.7KOHM 5% 1/4W 9965 000 36986 R931 061L1206229 CHIP 2.2OHM 5% 1/8W 9965 000 36985 R932 061L1206229 CHIP 2.2OHM 5% 1/8W 9965 000 36985 R937 061L1206182 CHIP 1.8KOHM 9965 000 36984 R941 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R943 061L08055101F CHIP 5.1K OHM 1/10W 1% 9965 000 36979 R944 061L08059101F CHIP 9.1K OHM 1/10W 1% 9965 000 36982 R945 061L08059101F CHIP 9.1K OHM 1/10W 1% 9965 000 36982 R946 061L08051103F 110KOHM 1% 1/10W 9965 000 36966 R952 061G17210052T 100HM 5% 1/4W 9965 000 36987 R954 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 RJ801 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 RJ804 061L1206000 CHIPR 0 OHM -5% 1/8W 9965 000 36067 RJ827 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 NR901 061G5810T 8 OHM 4A NTCR BY THINKING 9965 000 36938 FB901 071G5529 FERRITE BEAD 9965 000 36053 FB901 071G55901 FERRITE CORE 2.5*3*1 BF30TA-2 9965 000 40066 FB902 071G5523S BEAD 9965 000 37004 FB903 071G5523S BEAD 9965 000 37004 FB905 071G5523S BEAD 9965 000 37004 L901 073G17465H LINE FILTER 9965 000 36088 L901 073G17465LS LINE FILTER BY LISHIN 9965 000 36025 L902 071G5524 FERRITE BEAD 9965 000 36947 L903 071G5524 FERRITE BEAD 9965 000 36947 L951 073G253902H IND CHOKE 0.8UH MIN DADONG 9965 000 40058 L951 073G253902S IND CHOKE 0.8UH TAICHANG 9965 000 40059 L951 073G253902T CKOLE COIL 0.8UH 9965 000 36948 L951 073G253902YS IND CHOKE 0.8UH MIN TOP NATION 9965 000 40060 L955 073G253902H IND CHOKE 0.8UH MIN DADONG 9965 000 40058 L955 073G253902S IND CHOKE 0.8UH TAICHANG 9965 000 40059 L955 073G253902T CKOLE COIL 0.8UH 9965 000 36948 L955 073G253902YS IND CHOKE 0.8UH MIN TOP NATION 9965 000 40060 BD901 093G5046010 GBU405 9965 000 40054 BD901 093G5046016 U4KB80R 9965 000 36951 D831 093G6433 DIO SIG SM BAV99 (PHSE)R 9965 000 35994 D833 093G6442PP BAV70 SOT-23 9965 000 35995 D851 093G6433 DIO SIG SM BAV99 (PHSE)R 9965 000 35994 D853 093G6442PP BAV70 SOT-23 9965 000 35995 D881 093G6444S LL4148WP 9965 000 36035 D883 093G6444S LL4148WP 9965 000 36035 D885 093G6444S LL4148WP 9965 000 36035 D887 093G6444S LL4148WP 9965 000 36035 D901 093G6026T52T RECTIFIER DIODE FR107 9965 000 36030 D919 093G6038T52T FR103 9965 000 36095 D926 093G6038T52T FR103 9965 000 36095 D926 093G645152T RGP10-DO-204AL 9965 000 40067 D931 093G60267 SP10100 9965 000 36957 D931 093G60901 MBRF10H100CT ITO-220AB 9965 000 40064 D935 093G60240 YG802C06R TO-220F15 9965 000 37337 D935 093G15062 FMW-2156 9965 000 36958 ZD874 093G39S24T RLZ 5.6B LLDS 9965 000 36079 ZD951 093G3990352T ZD P6KE8.2A 9965 000 37335 ZD951 093G39A3552T ZENER DIODE P6KE8.2A ZOWIE 9965 000 37007 ZD975 093G39S25T RLZ5.1B LLDS 9965 000 37002 IC901 056G564911 IC TEA1532AT S08 9965 000 36960 IC902 056G1393A PC123Y22FZOF 9965 000 36055 IC902 056G1393B PC123 Y82FZ0F 9965 000 40055 IC902 056G1395A TCET1103G 9965 000 40056 IC941 056G1584T H431BA 9965 000 40068 IC941 056G15810T AZ431AZ-AE1 9965 000 36101 Q801 057G7592 RK7002 9965 000 36033 Q821 057G60055 P5506 HVG SO-8 9965 000 36032 Q821 057G7636 AO4828L 9965 000 39748 Q821 057G76314 AM9945N 9965 000 36100 Q841 057G60055 P5506 HVG SO-8 9965 000 36032 Q841 057G7636 AO4828L 9965 000 39748 Q841 057G76314 AM9945N 9965 000 36100 Q871 057G7592 RK7002 9965 000 36033 Q873 057G7604B PDTA144WK SOT346 9965 000 36962 Q874 057G41712T KEC 2N3904S-RTK/PS 9965 000 36961 Q880 057G7592 RK7002 9965 000 36033 Q881 057G7592 RK7002 9965 000 36033 Q883 057G7592 RK7002 9965 000 36033 Q885 057G7592 RK7002 9965 000 36033 Q886 057G7592 RK7002 9965 000 36033 Q901 057G60035 STP8NK80ZFP 9965 000 36959 Q901 057G66722 FQPF8N80C 9965 000 40063 U811 056G60810 0Z9938 9965 000 36059 http://www.wjel.net 79 Go to cover page 170C7 LCD Spare Parts List C455 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C456 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C457 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C458 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C459 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C460 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C461 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C469 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C470 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C701 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C702 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C703 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C704 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C705 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C706 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C707 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C707 067G215P1014C 105 100UF M 25V 9965 000 37776 C708 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C708 067G215P1014C 105 100UF M 25V 9965 000 37776 C709 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C709 067G215P1014C 105 100UF M 25V 9965 000 37776 C710 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C710 067G215P1014C 105 100UF M 25V 9965 000 37776 C711 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C711 067G215P1014C 105 100UF M 25V 9965 000 37776 C712 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 C712 067G215P1014C 105 100UF M 25V 9965 000 37776 FB402 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 FB405 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 FB406 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R401 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R402 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R403 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 R404 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 R405 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R406 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R407 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R408 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R410 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R411 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R414 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 R416 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R417 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R418 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R419 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R420 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R421 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 R422 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R423 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 R424 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 R426 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R427 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R428 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R431 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R432 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R433 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R434 061L0603105 RST SM 0603 RC0603 1M PM5 R 9965 000 35973 R435 061L0603222 CHIPR 2.2K OHM -5% 1/16W 9965 000 35977 R436 061L0603222 CHIPR 2.2K OHM -5% 1/16W 9965 000 35977 R437 061G060382 CHIPR 82 OHM -5% 1/10W 9965 000 40047 R438 061G060382 CHIPR 82 OHM -5% 1/10W 9965 000 40047 R440 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R441 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R442 061L0603332 CHIP 3.3K OHM 1/10W 9965 000 35978 R443 061L0603332 CHIP 3.3K OHM 1/10W 9965 000 35978 R445 061L06033900F CHIP 390 OHM 1/10W 1% 9965 000 35979 R446 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R447 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 R451 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R452 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R453 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R454 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 R455 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 R456 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 R457 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R458 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R459 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R460 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 R461 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R462 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R463 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R464 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R465 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R466 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R467 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 Model: 190C7FS/00(LPL) 12NC: 8639 000 17068 Item TPV 18NC Description Philips 12NC Mechanical Parts 705GZ-000047 BEZEL ASSY 9965 000 41039 P33G0055 FUNCTION KEY 9965 000 40019 P33G0056 BEZEL STRIP 9965 000 41040 P33G0057 POWER LENS 9965 000 40020 P34G0111 BEZEL 9965 000 41041 705GZ-000048 MAIN_FRAME ASSY 9965 000 41042 P33G0027 HINGE COVER 9965 000 40025 P34G0112 BACK_COVER 9965 000 41044 P37G0015 BASE 9965 000 41045 Accessory 089G1738WAA922 I/F CABLE 9965 000 40015 089G404A18NLS1 POWER CORD 9965 000 41038 P41G90128131A? MANUAL?? 9965 000 41047 P70G90048131A E-D.F.U 9965 000 41048 miscellanea 089G179E30C913 FFC CABLE 30P 150MM P1.0 9965 000 41037 LCD Panel 750GLG90E8B11N PANEL LCD LM190E08-TLB1 LPL 9965 000 41043 PCB Assy CBPC6GNNPHPA2 SCALER ASSY 9965 000 41049 KEPC6PA2 CONTROL ASSY 9965 000 41050 PWPC942GR1P POWER ASSY 9965 000 41051 PCB Assy CBPC6GNNPHPA2 SCALER ASSY 9965 000 41049 Various CN202 088G35424FH DV1 CONNECTOR 24PIN 9965 000 36926 CN405 088G35315FH D-SUB 15PIN 9965 000 35960 CN406 033G801930FH FPC CONN. 1.0MM 30P 9965 000 36924 X401 093G2251 CRYSTAL 12MHZ HC-49US ARG6-120 9965 000 35961 X401 093G22901H CRYSTAL 12M000 20P AT-49 9965 000 40041 040G4576241B LABEL-CPU 9965 000 35944 C401 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C402 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 C403 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C404 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C405 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C406 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C407 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C408 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 C412 065G060322415 CHIP 0.22UF 16VX5R 9965 000 36920 C413 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C414 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C416 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C417 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C418 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C419 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C420 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C421 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C422 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C423 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C424 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C425 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C426 067G5154713C EC 470UF 16V GF 10*12.5MM 9965 000 40039 C426 067G215L4713N KY16VB470M-L 10*12.5 9965 000 36922 C427 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 C428 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 C429 065G060310031 CHIP 10PF -0.5PF 50V NPO 9965 000 36916 C430 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 C431 067G5154704C EC 47UF 25V GF 5*11MM 9965 000 40038 C431 067G215V4704N KY25VB47-M-CC3.0 5*11MM 9965 000 36923 C432 067G5154797C EC 4U7 50V GF 5*11MM 9965 000 40040 C432 067G215Y4797N LOW ESR EC 4.7 UF 50V NCC 9965 000 35959 C436 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C445 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C446 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C447 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C448 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C449 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 C454 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 http://www.wjel.net 80 Go to cover page 170C7 LCD Spare Parts List R468 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R469 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R470 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 R471 061L06033900F CHIP 390 OHM 1/10W 1% 9965 000 35979 R472 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R473 061G1206103 10 KOHM 1/8W 9965 000 40048 R476 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R478 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 R479 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 R480 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 R481 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 R488 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R489 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 R490 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R491 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R499 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 R701 061L0603470 CHIPR 47 OHM -5% 1/16W 9965 000 35980 FB401 071G59B300K 9965 000 36934 FB403 071G59B300K 9965 000 36934 FB404 071G59B300K 9965 000 36934 FB407 071G56C102TA CHIP BEAD 1000R/400MA FCM2012KF- 9965 000 40050 FB407 071G56D102 B201209D102TT 9965 000 37332 FB408 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB408 071G56K121 CHIP BEAD 9965 000 35993 FB410 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB410 071G56K121 CHIP BEAD 9965 000 35993 FB411 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB411 071G56K121 CHIP BEAD 9965 000 35993 FB412 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB412 071G56K121 CHIP BEAD 9965 000 35993 FB413 071G59B121K CHIP BEAD 120 OHM 0603FBM-11-1 9965 000 36933 FB701 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB701 071G56K121 CHIP BEAD 9965 000 35993 FB702 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB702 071G56K121 CHIP BEAD 9965 000 35993 FB703 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB703 071G56K121 CHIP BEAD 9965 000 35993 FB704 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 FB704 071G56K121 CHIP BEAD 9965 000 35993 D416 093G6442PP BAV70 SOT-23 9965 000 35995 D417 093G6442PP BAV70 SOT-23 9965 000 35995 D701 093G1020PH DIODE S1D-E3 VISHAY 9965 000 37793 D701 093G20403F FA20-04 9965 000 36935 D702 093G1020PH DIODE S1D-E3 VISHAY 9965 000 37793 D702 093G20403F FA20-04 9965 000 36935 ZD401 093G39S34T UDZS5.6B 9965 000 35996 ZD402 093G39S34T UDZS5.6B 9965 000 35996 ZD403 093G39S34T UDZS5.6B 9965 000 35996 ZD404 093G39S34T UDZS5.6B 9965 000 35996 ZD405 093G39S34T UDZS5.6B 9965 000 35996 ZD406 093G39S34T UDZS5.6B 9965 000 35996 ZD407 093G39S34T UDZS5.6B 9965 000 35996 ZD408 093G39S34T UDZS5.6B 9965 000 35996 ZD409 093G39S34T UDZS5.6B 9965 000 35996 ZD410 093G39S34T UDZS5.6B 9965 000 35996 ZD411 093G39S34T UDZS5.6B 9965 000 35996 ZD414 093G39S34T UDZS5.6B 9965 000 35996 Q401 057G4174 PMBS3904/PHILIPS-SMT(04) 9965 000 35966 Q401 057G417903T TRA SIG SM MMBT3904 (PHSE) R 9965 000 40045 Q402 057G41713T KEC 2N3906S-RTK/PS 9965 000 35967 Q402 057G761900T BC857 SOT23 9965 000 40046 Q404 057G41713T KEC 2N3906S-RTK/PS 9965 000 35967 Q404 057G761900T BC857 SOT23 9965 000 40046 Q405 057G7631 A03401 SOT23 BY AOS(A1) 9965 000 35968 Q406 057G4174 PMBS3904/PHILIPS-SMT(04) 9965 000 35966 Q406 057G417903T TRA SIG SM MMBT3904 (PHSE) R 9965 000 40045 U401 705TP9K056001 MCU ASSY 9965 000 41052 U403 056L113356 M24C16-WMN6T/W SO-8 9965 000 40044 U404 056G113334 M24C02-WMN6TP 9965 000 35965 U405 056G113334 M24C02-WMN6TP 9965 000 35965 U701 056G5637 AIC1084-33PM 9965 000 37095 U701 056G56321 AP1084K33LA 9965 000 37330 U701 056G56363 MM1117DT33 TO-252 MMC 9965 000 36928 U701 056G563931 AME1085-3.3-TO263 9965 000 40043 U702 056G56331 AI1117D-1.8-EI 9965 000 35963 U702 056G563930 IC AIC1117A-18PE SOT-252 9965 000 40042 PCB Assy KEPC6PA2 CONTROL ASSY 9965 000 41050 Various SW1 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW2 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW3 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW4 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW5 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW6 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 SW7 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 R101 061L0603473 RST SM 0603 RC0603 47K PM5 R 9965 000 36003 R102 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R103 061G0603102 RST CHIP 1K 1/10W 5% 9965 000 40053 R104 061L0603473 RST SM 0603 RC0603 47K PM5 R 9965 000 36003 R105 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 R106 061G0603102 RST CHIP 1K 1/10W 5% 9965 000 40053 LED1 081G12900KB LED VS L-115WSYKCGKW-8.03LSF5/F 9965 000 40051 LED2 081G12900KB LED VS L-115WSYKCGKW-8.03LSF5/F 9965 000 40051 PCB Assy PWPC942GR1P POWER ASSY 9965 000 41051 Various CN901 087G50132S AC SOCKET 9965 000 36028 F901 084G557GP FUSE 3.15A 250V 9965 000 37006 F902 084G554 FOSE 382-5A 250V SICKMANN 9965 000 37005 NR901 061G5810T 8 OHM 4A NTCR BY THINKING 9965 000 36938 PT801 080GL19T8DN1 X'FMR DARFONTK.2006M.101 9965 000 36093 PT802 080GL19T8DN1 X'FMR DARFONTK.2006M.101 9965 000 36093 T901 S80GL17T900V XFMR FOR POWER LITAI 9965 000 40065 T901 080GL17T900L XFMR FOR POWER LITAI 9965 000 40061 T901 080GL17T900N XFMR FOR POWER YUVA 9965 000 40062 T901 080GL17T900T X'FMR SRW28LEC-T93H016 9965 000 36950 071FPC2820105 PC40 EER28L A217 9965 000 37795 C801 065G6J1006ET 10PF 5% SL 6KV 9965 000 36942 C802 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 C803 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 C806 065G6J1006ET 10PF 5% SL 6KV 9965 000 36942 C807 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 C808 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 C811 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 C812 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C813 065G080556131 CHIP 560PF 50V NPO 0805 9965 000 36997 C819 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 C820 067G215D4714K ED 470UF 25V 9965 000 36007 C821 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 C822 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 C823 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 C831 065G080533132 CHIP 330P 50V X7R 0805 9965 000 36994 C832 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C838 065G080510231 1000PF 50V NPO 9965 000 36991 C840 067G215D4714K ED 470UF 25V 9965 000 36007 C841 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 C842 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 C843 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 C846 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 C847 065G080522322 CHIP 0.022UF 25V X7R 0805 9965 000 36043 C858 065G080539131 CHIP 390PF 50V 9965 000 36996 C860 065G080522122 CHIP 220PF 25V X7R 0805 9965 000 36993 C861 065G080510231 1000PF 50V NPO 9965 000 36991 C865 065G080533332 CHIP 0.033UF 50V 9965 000 36995 C874 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 C880 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C881 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 C883 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 C885 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 C887 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 C900 065G305M1022BP Y2 1000PF M 250VAC Y5P 9965 000 36943 C901 065G305M1022BP Y2 1000PF M 250VAC Y5P 9965 000 36943 C907 067G215S10115K 100UF 450V 9965 000 36086 C908 063G10747410S FILM CAPACITOR 9965 000 37794 C912 065G305M2222BP 2200PF -20% 9965 000 36944 C913 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C914 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 C915 065G080512322 CHIP 12NF 25V X7R 0805 9965 000 36992 C917 065G080533422 0.33UF -10% 25V X7R 0805 9965 000 36074 C920 065G1K1025T 1000PF/1KV 9965 000 36999 C927 067G3056804KT ELCAP 68UF M 25V 105 KINGNICHI 9965 000 37001 C931 065G517K3322T 3.3NF 500V 9965 000 37000 C932 067G215S1024K ED1000UF 25V 9965 000 36946 C933 067G215S1024K ED1000UF 25V 9965 000 36946 C936 067G215D2222K 105 2200UF M 10V 9965 000 40057 C936 067G215D2222KV 105 2200UF M 10V 9965 000 36945 C941 065G080556221 5600PF/25V/NPO/J 9965 000 36998 C951 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C952 067G215B2214KT LOW E,S,R 220UF -20% 25V 9965 000 36076 C955 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 C956 067G215B2214KT LOW E,S,R 220UF -20% 25V 9965 000 36076 http://www.wjel.net 81 Go to cover page 170C7 LCD Spare Parts List R801 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 R802 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R804 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 R807 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 R811 061L0805335 3.3M 0805 9965 000 36978 R812 061L0805624 CHIP 620KOHM 5% 0805 1/8W 9965 000 36980 R813 061L08053302F CHIP 33KOHM 1/8W 1% 9965 000 36975 R815 061L0805303 CHIP 30K OHM 1/8W 9965 000 36974 R816 061L0805203 CHIPR 20KOHM -5% 1/8W 9965 000 36972 R819 061L0805105 CHIP 1M OHM 5% 1/8W 9965 000 36013 R822 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 R823 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 R825 061L0805752 CHIP 7.5K OHM 1/10W 9965 000 36981 R829 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 R831 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R833 061L0805122 1.2KOHM -5%,1/8W,0805 9965 000 36967 R835 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 R836 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 R837 061L0805752 CHIP 7.5K OHM 1/10W 9965 000 36981 R839 061G212Y625KT MGFR 6.2MOHM -5% 1/2W 9965 000 36083 R842 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 R843 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 R849 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 R851 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R853 061L0805122 1.2KOHM -5%,1/8W,0805 9965 000 36967 R855 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 R856 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 R859 061G212Y625KT MGFR 6.2MOHM -5% 1/2W 9965 000 36083 R861 061G20010452T 100K OHM 1/4W 1% 9965 000 36989 R863 061G20033352T 33KOHM 1% 1/4W 9965 000 36990 R865 061L08052320F CHIP 232OHM 9965 000 36973 R871 061G17210352T CFR 10KOHM -5% 1/4W 9965 000 36988 R872 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R873 061L0805202 CHIP 2KOHM 1/8W 9965 000 36971 R874 061L0805331 CHIP 330 OHM 5% 1/10W 9965 000 36976 R880 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 R881 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R882 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R883 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R884 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R885 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R886 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R887 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 R888 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R900 061L1206684 CHIPR 680K OHM -5% 1/8W 9965 000 36024 R901 061L1206684 CHIPR 680K OHM -5% 1/8W 9965 000 36024 R902 061L1206684 CHIPR 680K OHM -5% 1/8W 9965 000 36024 R904 061L1206155 1.5M/0805 9965 000 36983 R905 061G152M10464 100KOHM 5% 2W 9965 000 36939 R907 061L1206103 CHIP 10KOHM 5% 1/4W 9965 000 36016 R910 061L1206155 1.5M/0805 9965 000 36983 R912 061L0805105 CHIP 1M OHM 5% 1/8W 9965 000 36013 R914 061L08051241F CHIP 1.24K OHM 1/10W 1% 9965 000 36969 R915 061G17210052T 100HM 5% 1/4W 9965 000 36987 R916 061L0805152 CHIPR 1.5K OHM -5% 1/10W 9965 000 36970 R917 061L0805333 CHIP 33KOHM 1% 1/8W 9965 000 36977 R918 061L1206000 CHIPR 0 OHM -5% 1/8W 9965 000 36067 R920 061G152M20864 0.20 OHM 2W 9965 000 36940 R923 061L0805123 CHIP 12KOHM 1/8W 9965 000 36968 R926 061L1206000 CHIPR 0 OHM -5% 1/8W 9965 000 36067 R927 061L1206472 CHIP 4.7KOHM 5% 1/4W 9965 000 36986 R931 061L1206229 CHIP 2.2OHM 5% 1/8W 9965 000 36985 R932 061L1206229 CHIP 2.2OHM 5% 1/8W 9965 000 36985 R937 061L1206182 CHIP 1.8KOHM 9965 000 36984 R941 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 R943 061L08055101F CHIP 5.1K OHM 1/10W 1% 9965 000 36979 R944 061L08059101F CHIP 9.1K OHM 1/10W 1% 9965 000 36982 R945 061L08059101F CHIP 9.1K OHM 1/10W 1% 9965 000 36982 R946 061L08051103F 110KOHM 1% 1/10W 9965 000 36966 R952 061G17210052T 100HM 5% 1/4W 9965 000 36987 R954 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 RJ801 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 RJ804 061L1206000 CHIPR 0 OHM -5% 1/8W 9965 000 36067 RJ827 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 FB901 071G5529 FERRITE BEAD 9965 000 36053 FB901 071G55901 FERRITE CORE 2.5*3*1 BF30TA-2 9965 000 40066 FB902 071G5523S BEAD 9965 000 37004 FB903 071G5523S BEAD 9965 000 37004 FB905 071G5523S BEAD 9965 000 37004 L901 073G17465H LINE FILTER 9965 000 36088 L901 073G17465LS LINE FILTER BY LISHIN 9965 000 36025 L902 071G5524 FERRITE BEAD 9965 000 36947 L903 071G5524 FERRITE BEAD 9965 000 36947 L951 073G253902H IND CHOKE 0.8UH MIN DADONG 9965 000 40058 L951 073G253902S IND CHOKE 0.8UH TAICHANG 9965 000 40059 L951 073G253902T CKOLE COIL 0.8UH 9965 000 36948 L951 073G253902YS IND CHOKE 0.8UH MIN TOP NATION 9965 000 40060 L955 073G253902H IND CHOKE 0.8UH MIN DADONG 9965 000 40058 L955 073G253902S IND CHOKE 0.8UH TAICHANG 9965 000 40059 L955 073G253902T CKOLE COIL 0.8UH 9965 000 36948 L955 073G253902YS IND CHOKE 0.8UH MIN TOP NATION 9965 000 40060 BD901 093G5046010 GBU405 9965 000 40054 BD901 093G5046016 U4KB80R 9965 000 36951 D831 093G6433 DIO SIG SM BAV99 (PHSE)R 9965 000 35994 D833 093G6442PP BAV70 SOT-23 9965 000 35995 D851 093G6433 DIO SIG SM BAV99 (PHSE)R 9965 000 35994 D853 093G6442PP BAV70 SOT-23 9965 000 35995 D881 093G6444S LL4148WP 9965 000 36035 D883 093G6444S LL4148WP 9965 000 36035 D885 093G6444S LL4148WP 9965 000 36035 D887 093G6444S LL4148WP 9965 000 36035 D901 093G6026T52T RECTIFIER DIODE FR107 9965 000 36030 D919 093G6038T52T FR103 9965 000 36095 D926 093G6038T52T FR103 9965 000 36095 D926 093G645152T RGP10-DO-204AL 9965 000 40067 D931 093G60267 SP10100 9965 000 36957 D931 093G60901 MBRF10H100CT ITO-220AB 9965 000 40064 D935 093G60240 YG802C06R TO-220F15 9965 000 37337 D935 093G15062 FMW-2156 9965 000 36958 ZD874 093G39S24T RLZ 5.6B LLDS 9965 000 36079 ZD951 093G3990352T ZD P6KE8.2A 9965 000 37335 ZD951 093G39A3552T ZENER DIODE P6KE8.2A ZOWIE 9965 000 37007 ZD975 093G39S25T RLZ5.1B LLDS 9965 000 37002 IC901 056G564911 IC TEA1532AT S08 9965 000 36960 IC902 056G1393A PC123Y22FZOF 9965 000 36055 IC902 056G1393B PC123 Y82FZ0F 9965 000 40055 IC902 056G1395A TCET1103G 9965 000 40056 IC941 056G1584T H431BA 9965 000 40068 IC941 056G15810T AZ431AZ-AE1 9965 000 36101 Q801 057G7592 RK7002 9965 000 36033 Q821 057G60055 P5506 HVG SO-8 9965 000 36032 Q821 057G7636 AO4828L 9965 000 39748 Q821 057G76314 AM9945N 9965 000 36100 Q841 057G60055 P5506 HVG SO-8 9965 000 36032 Q841 057G7636 AO4828L 9965 000 39748 Q841 057G76314 AM9945N 9965 000 36100 Q871 057G7592 RK7002 9965 000 36033 Q873 057G7604B PDTA144WK SOT346 9965 000 36962 Q874 057G41712T KEC 2N3904S-RTK/PS 9965 000 36961 Q880 057G7592 RK7002 9965 000 36033 Q881 057G7592 RK7002 9965 000 36033 Q883 057G7592 RK7002 9965 000 36033 Q885 057G7592 RK7002 9965 000 36033 Q886 057G7592 RK7002 9965 000 36033 Q901 057G60035 STP8NK80ZFP 9965 000 36959 Q901 057G66722 FQPF8N80C 9965 000 40063 U811 056G60810 0Z9938 9965 000 36059 http://www.wjel.net 82 Go to cover page 170C7 LCD Different Parts List Diversity of 170C7FS/00(LPL) compared with 170C7FS/00(CPT) Item TPV 18nc Description Philips12nc 80 P33G0055 FUNCTION KEY 9965 000 40019 90 P33G0057 POWER LENS 9965 000 40020 100 P34G0109 BEZEL 9965 000 40021 120 P15T0048 HINGE PLATE 9965 000 40023 130 P34G0110 BACK COVER 9965 000 40024 2340 081G12900KB LED VS L-115WSYKCGKW-8.03LSF5/F 9965 000 40051 2350 081G12900KB LED VS L-115WSYKCGKW-8.03LSF5/F 9965 000 40051 2360 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 2370 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 2380 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 2390 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 2400 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 2410 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 2420 077G6051FD SWI TACT H=5 GY 160G SKHHAM B 9965 000 40052 2430 061G0603102 RST CHIP 1K 1/10W 5% 9965 000 40053 2440 061G0603102 RST CHIP 1K 1/10W 5% 9965 000 40053 2450 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 2460 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 2470 061L0603473 RST SM 0603 RC0603 47K PM5 R 9965 000 36003 2480 061L0603473 RST SM 0603 RC0603 47K PM5 R 9965 000 36003 2500 063G10747410S FILM CAPACITOR 9965 000 37794 2510 065G6J1006ET 10PF 5% SL 6KV 9965 000 36942 2520 065G6J1006ET 10PF 5% SL 6KV 9965 000 36942 2530 067G215D4714K ED 470UF 25V 9965 000 36007 2540 067G215D4714K ED 470UF 25V 9965 000 36007 2550 067G215S1024K ED1000UF 25V 9965 000 36946 2560 067G215S1024K ED1000UF 25V 9965 000 36946 2570 071G5524 FERRITE BEAD 9965 000 36947 2580 071G5524 FERRITE BEAD 9965 000 36947 2590 093G5046010 GBU405 9965 000 40054 2600 093G5046016 U4KB80R 9965 000 36951 2610 093G6026T52T RECTIFIER DIODE FR107 9965 000 36030 2620 056G1393A PC123Y22FZOF 9965 000 36055 2630 056G1393B PC123 Y82FZ0F 9965 000 40055 2640 056G1395A TCET1103G 9965 000 40056 2650 061G5810T 8 OHM 4A NTCR BY THINKING 9965 000 36938 2660 061G152M10464 100KOHM 5% 2W 9965 000 36939 2670 061G152M20864 0.20 OHM 2W 9965 000 36940 2680 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 2690 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 2700 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 2710 065G3J5096ET 5PF 5% SL 3KV 9965 000 36941 2720 065G305M1022BP Y2 1000PF M 250VAC Y5P 9965 000 36943 2730 065G305M1022BP Y2 1000PF M 250VAC Y5P 9965 000 36943 2740 065G305M2222BP 2200PF -20% 9965 000 36944 2750 067G215D2222K 105 2200UF M 10V 9965 000 40057 2760 067G215D2222KV 105 2200UF M 10V 9965 000 36945 2770 067G215S10115K 100UF 450V 9965 000 36086 2780 073G17465H LINE FILTER 9965 000 36088 2790 073G17465LS LINE FILTER BY LISHIN 9965 000 36025 2800 073G253902H IND CHOKE 0.8UH MIN DADONG 9965 000 40058 2810 073G253902H IND CHOKE 0.8UH MIN DADONG 9965 000 40058 2820 073G253902S IND CHOKE 0.8UH TAICHANG 9965 000 40059 2830 073G253902S IND CHOKE 0.8UH TAICHANG 9965 000 40059 2840 073G253902T CKOLE COIL 0.8UH 9965 000 36948 2850 073G253902T CKOLE COIL 0.8UH 9965 000 36948 2860 073G253902YS IND CHOKE 0.8UH MIN TOP NATION 9965 000 40060 2870 073G253902YS IND CHOKE 0.8UH MIN TOP NATION 9965 000 40060 2880 080GL17T900L XFMR FOR POWER LITAI 9965 000 40061 2890 080GL17T900N XFMR FOR POWER YUVA 9965 000 40062 2900 080GL17T900T X'FMR SRW28LEC-T93H016 9965 000 36950 2910 080GL19T8DN1 X'FMR DARFONTK.2006M.101 9965 000 36093 2920 080GL19T8DN1 X'FMR DARFONTK.2006M.101 9965 000 36093 2930 057G60035 STP8NK80ZFP 9965 000 36959 2940 057G66722 FQPF8N80C 9965 000 40063 2950 093G60267 SP10100 9965 000 36957 2960 093G60901 MBRF10H100CT ITO-220AB 9965 000 40064 2970 093G60240 YG802C06R TO-220F15 9965 000 37337 2980 093G15062 FMW-2156 9965 000 36958 2990 S80GL17T900V XFMR FOR POWER LITAI 9965 000 40065 3000 071FPC2820105 PC40 EER28L A217 9965 000 37795 3010 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 3020 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 3030 056G564911 IC TEA1532AT S08 9965 000 36960 3040 056G60810 0Z9938 9965 000 36059 3050 057G41712T KEC 2N3904S-RTK/PS 9965 000 36961 3060 057G60055 P5506 HVG SO-8 9965 000 36032 3070 057G60055 P5506 HVG SO-8 9965 000 36032 3080 057G7592 RK7002 9965 000 36033 3090 057G7592 RK7002 9965 000 36033 3100 057G7592 RK7002 9965 000 36033 3110 057G7592 RK7002 9965 000 36033 3120 057G7592 RK7002 9965 000 36033 3130 057G7592 RK7002 9965 000 36033 3140 057G7592 RK7002 9965 000 36033 3150 057G7604B PDTA144WK SOT346 9965 000 36962 3160 057G7636 AO4828L 9965 000 39748 3170 057G7636 AO4828L 9965 000 39748 3180 057G76314 AM9945N 9965 000 36100 3190 057G76314 AM9945N 9965 000 36100 3200 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 3210 061L0805000 CHIPR 0OHM -5% 1/10W 9965 000 35984 3220 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 3230 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 3240 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 3250 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 3260 061L0805100 CHIPR 10 OHM -5% 1/10W 9965 000 36012 3270 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 3280 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 3290 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 3300 061L08051002F CHIP 10K OHM 1/8W 1% 9965 000 36020 3310 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 3320 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 3330 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 3340 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 3350 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 3360 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 3370 061L0805102 CHIPR 1K OHM -5% 1/10W 9965 000 36963 3380 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 3390 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 3400 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 3410 061L0805103 CHIPR 10K OHM -5% 1/10W 9965 000 36964 3420 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 3430 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 3440 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 3450 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 3460 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 3470 061L0805104 CHIPR 100K OHM -5% 1/10W 9965 000 36965 3480 061L0805105 CHIP 1M OHM 5% 1/8W 9965 000 36013 3490 061L0805105 CHIP 1M OHM 5% 1/8W 9965 000 36013 3500 061L08051103F 110KOHM 1% 1/10W 9965 000 36966 3510 061L0805122 1.2KOHM -5%,1/8W,0805 9965 000 36967 3520 061L0805122 1.2KOHM -5%,1/8W,0805 9965 000 36967 3530 061L0805123 CHIP 12KOHM 1/8W 9965 000 36968 3540 061L08051241F CHIP 1.24K OHM 1/10W 1% 9965 000 36969 3550 061L0805152 CHIPR 1.5K OHM -5% 1/10W 9965 000 36970 3560 061L0805202 CHIP 2KOHM 1/8W 9965 000 36971 3570 061L0805203 CHIPR 20KOHM -5% 1/8W 9965 000 36972 3580 061L08052320F CHIP 232OHM 9965 000 36973 3590 061L0805303 CHIP 30K OHM 1/8W 9965 000 36974 3600 061L08053302F CHIP 33KOHM 1/8W 1% 9965 000 36975 3610 061L0805331 CHIP 330 OHM 5% 1/10W 9965 000 36976 3620 061L0805333 CHIP 33KOHM 1% 1/8W 9965 000 36977 3630 061L0805335 3.3M 0805 9965 000 36978 3640 061L08055101F CHIP 5.1K OHM 1/10W 1% 9965 000 36979 3650 061L0805624 CHIP 620KOHM 5% 0805 1/8W 9965 000 36980 3660 061L0805752 CHIP 7.5K OHM 1/10W 9965 000 36981 3670 061L0805752 CHIP 7.5K OHM 1/10W 9965 000 36981 3680 061L08059101F CHIP 9.1K OHM 1/10W 1% 9965 000 36982 3690 061L08059101F CHIP 9.1K OHM 1/10W 1% 9965 000 36982 3700 061L1206000 CHIPR 0 OHM -5% 1/8W 9965 000 36067 3710 061L1206000 CHIPR 0 OHM -5% 1/8W 9965 000 36067 3720 061L1206103 CHIP 10KOHM 5% 1/4W 9965 000 36016 3730 061L1206155 1.5M/0805 9965 000 36983 3740 061L1206155 1.5M/0805 9965 000 36983 3750 061L1206182 CHIP 1.8KOHM 9965 000 36984 3760 061L1206229 CHIP 2.2OHM 5% 1/8W 9965 000 36985 3770 061L1206229 CHIP 2.2OHM 5% 1/8W 9965 000 36985 3780 061L1206472 CHIP 4.7KOHM 5% 1/4W 9965 000 36986 3790 061L1206684 CHIPR 680K OHM -5% 1/8W 9965 000 36024 3800 061L1206684 CHIPR 680K OHM -5% 1/8W 9965 000 36024 3810 061L1206684 CHIPR 680K OHM -5% 1/8W 9965 000 36024 3820 065G080510231 1000PF 50V NPO 9965 000 36991 3830 065G080510231 1000PF 50V NPO 9965 000 36991 3840 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 3850 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 3860 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 3870 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 3880 065G080510322 CHIP 0.01UF 25V X7R 0805 9965 000 36039 3890 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 3900 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 3910 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 3920 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 3930 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 3940 065G080510422 0.1UF -10% 25V X7R 080 9965 000 36040 3950 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 3960 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 3970 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 3980 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 3990 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 4000 065G080510522 CHIP 1UF 25V X7R 0805 9965 000 36073 4010 065G080512322 CHIP 12NF 25V X7R 0805 9965 000 36992 4020 065G080522122 CHIP 220PF 25V X7R 0805 9965 000 36993 4030 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 4040 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 4050 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 4060 065G080522232 CHIP 2200PF 25V X7R 0805 9965 000 37334 4070 065G080522322 CHIP 0.022UF 25V X7R 0805 9965 000 36043 4080 065G080533132 CHIP 330P 50V X7R 0805 9965 000 36994 4090 065G080533332 CHIP 0.033UF 50V 9965 000 36995 4100 065G080533422 0.33UF -10% 25V X7R 0805 9965 000 36074 4110 065G080539131 CHIP 390PF 50V 9965 000 36996 4120 065G080556131 CHIP 560PF 50V NPO 0805 9965 000 36997 http://www.wjel.net 83 Go to cover page 170C7 LCD Different Parts List 4130 065G080556221 5600PF/25V/NPO/J 9965 000 36998 4140 093G6433 DIO SIG SM BAV99 (PHSE)R 9965 000 35994 4150 093G6433 DIO SIG SM BAV99 (PHSE)R 9965 000 35994 4160 093G6442PP BAV70 SOT-23 9965 000 35995 4170 093G6442PP BAV70 SOT-23 9965 000 35995 4180 093G6444S LL4148WP 9965 000 36035 4190 093G6444S LL4148WP 9965 000 36035 4200 093G6444S LL4148WP 9965 000 36035 4210 093G6444S LL4148WP 9965 000 36035 4220 093G39S24T RLZ 5.6B LLDS 9965 000 36079 4230 093G39S25T RLZ5.1B LLDS 9965 000 37002 4240 061G17210052T 100HM 5% 1/4W 9965 000 36987 4250 061G17210052T 100HM 5% 1/4W 9965 000 36987 4260 061G17210352T CFR 10KOHM -5% 1/4W 9965 000 36988 4270 061G20010452T 100K OHM 1/4W 1% 9965 000 36989 4280 061G20033352T 33KOHM 1% 1/4W 9965 000 36990 4290 061G212Y625KT MGFR 6.2MOHM -5% 1/2W 9965 000 36083 4300 061G212Y625KT MGFR 6.2MOHM -5% 1/2W 9965 000 36083 4310 061L1206000 CHIPR 0 OHM -5% 1/8W 9965 000 36067 4320 071G5523S BEAD 9965 000 37004 4330 071G5523S BEAD 9965 000 37004 4340 071G5523S BEAD 9965 000 37004 4350 071G5529 FERRITE BEAD 9965 000 36053 4360 071G55901 FERRITE CORE 2.5*3*1 BF30TA-2 9965 000 40066 4370 093G3990352T ZD P6KE8.2A 9965 000 37335 4380 093G39A3552T ZENER DIODE P6KE8.2A ZOWIE 9965 000 37007 4390 093G6038T52T FR103 9965 000 36095 4400 093G6038T52T FR103 9965 000 36095 4410 093G645152T RGP10-DO-204AL 9965 000 40067 4420 056G1584T H431BA 9965 000 40068 4430 056G15810T AZ431AZ-AE1 9965 000 36101 4440 065G1K1025T 1000PF/1KV 9965 000 36999 4450 065G517K3322T 3.3NF 500V 9965 000 37000 4460 067G3056804KT ELCAP 68UF M 25V 105 KINGNICHI 9965 000 37001 4470 067G215B2214KT LOW E,S,R 220UF -20% 25V 9965 000 36076 4480 067G215B2214KT LOW E,S,R 220UF -20% 25V 9965 000 36076 4490 084G554 FOSE 382-5A 250V SICKMANN 9965 000 37005 4500 084G557GP FUSE 3.15A 250V 9965 000 37006 10 089G179E30C912 FFC CABLE 30P 180MM P1.0 9965 000 40014 20 089G1738SAA922 D-SUB CABLE 1800MM BK RFS-921017 9965 000 42052 30 089G1738WAA922 I/F CABLE 9965 000 40015 40 089G404A18NLS1 POWER CORD 9965 000 41038 50 750GLG70E3B11N PANEL LM170E03 TLB1-LPL 9965 000 42195 60 705GZ-000040 BEZEL ASS'Y 9965 000 40018 110 705GZ-000041 BACK COVER ASS'Y 9965 000 40022 140 P33G0027 HINGE COVER 9965 000 40025 150 P37G00021VB FOLD-BASE 9965 000 40026 160 705GZ-000042 MAIN FRAME ASSY 9965 000 40027 170 P44G700 CARTON 9965 000 40028 230 P33G00581 HOUSING COVER 9965 000 40033 240 CBPC6GNNPHSA7 SCALER ASSY 9965 000 43231 2330 KEPC6PA1 CONTROL ASSY 9965 000 40036 2490 PWPC742CR1P POWER ASSY 9965 000 40037 SCALER ASSY 9965 000 43231 250 033G801930FH FPC CONN. 1.0MM 30P 9965 000 36924 260 067G5154704C EC 47UF 25V GF 5*11MM 9965 000 40038 270 067G5154713C EC 470UF 16V GF 10*12.5MM 9965 000 40039 280 067G5154797C EC 4U7 50V GF 5*11MM 9965 000 40040 290 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 300 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 310 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 320 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 330 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 340 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 350 067G215L4713N KY16VB470M-L 10*12.5 9965 000 36922 360 067G215P1014C 105 100UF M 25V 9965 000 37776 370 067G215P1014C 105 100UF M 25V 9965 000 37776 380 067G215P1014C 105 100UF M 25V 9965 000 37776 390 067G215P1014C 105 100UF M 25V 9965 000 37776 400 067G215P1014C 105 100UF M 25V 9965 000 37776 410 067G215P1014C 105 100UF M 25V 9965 000 37776 420 067G215V4704N KY25VB47-M-CC3.0 5*11MM 9965 000 36923 430 067G215Y4797N LOW ESR EC 4.7 UF 50V NCC 9965 000 35959 440 088G35315FH D-SUB 15PIN 9965 000 35960 450 088G35424FH DV1 CONNECTOR 24PIN 9965 000 36926 460 093G2251 CRYSTAL 12MHZ HC-49US ARG6-120 9965 000 35961 470 093G22901H CRYSTAL 12M000 20P AT-49 9965 000 40041 480 705TP9K056002 MCU ASSY 9965 000 43150 520 056G5637 AIC1084-33PM 9965 000 37095 530 056G56321 AP1084K33LA 9965 000 37330 540 056G56331 AI1117D-1.8-EI 9965 000 35963 550 056G56363 MM1117DT33 TO-252 MMC 9965 000 36928 560 056G563930 IC AIC1117A-18PE SOT-252 9965 000 40042 570 056G563931 AME1085-3.3-TO263 9965 000 40043 580 056G113324 AT24C16AN-10SU-2.7 9965 000 35964 590 056G113334 M24C02-WMN6TP 9965 000 35965 600 056G113334 M24C02-WMN6TP 9965 000 35965 610 056L113356 M24C16-WMN6T/W SO-8 9965 000 40044 620 057G4174 PMBS3904/PHILIPS-SMT(04) 9965 000 35966 630 057G4174 PMBS3904/PHILIPS-SMT(04) 9965 000 35966 640 057G41713T KEC 2N3906S-RTK/PS 9965 000 35967 650 057G41713T KEC 2N3906S-RTK/PS 9965 000 35967 660 057G417903T TRA SIG SM MMBT3904 (PHSE) R 9965 000 40045 670 057G417903T TRA SIG SM MMBT3904 (PHSE) R 9965 000 40045 680 057G761900T BC857 SOT23 9965 000 40046 690 057G761900T BC857 SOT23 9965 000 40046 700 057G7631 A03401 SOT23 BY AOS(A1) 9965 000 35968 710 061G060382 CHIPR 82 OHM -5% 1/10W 9965 000 40047 720 061G060382 CHIPR 82 OHM -5% 1/10W 9965 000 40047 730 061G1206103 10 KOHM 1/8W 9965 000 40048 740 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 750 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 760 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 770 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 780 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 790 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 800 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 810 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 820 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 830 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 840 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 850 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 860 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 870 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 880 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 890 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 900 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 910 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 920 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 930 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 940 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 950 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 960 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 970 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 980 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 990 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 1000 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 1010 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 1020 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 1030 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1040 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1050 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1060 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1070 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1080 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1090 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1100 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1110 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1120 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1130 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1140 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1150 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1160 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1170 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1180 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1190 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1200 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1210 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1220 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1230 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 1240 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 1250 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 1260 061L0603105 RST SM 0603 RC0603 1M PM5 R 9965 000 35973 1270 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 1280 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 1290 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 1300 061L0603222 CHIPR 2.2K OHM -5% 1/16W 9965 000 35977 1310 061L0603222 CHIPR 2.2K OHM -5% 1/16W 9965 000 35977 1320 061L0603332 CHIP 3.3K OHM 1/10W 9965 000 35978 1330 061L0603332 CHIP 3.3K OHM 1/10W 9965 000 35978 1340 061L06033900F CHIP 390 OHM 1/10W 1% 9965 000 35979 1350 061L06033900F CHIP 390 OHM 1/10W 1% 9965 000 35979 1360 061L0603470 CHIPR 47 OHM -5% 1/16W 9965 000 35980 1370 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 1380 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 1390 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 1400 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 1410 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 1420 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 1430 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 1440 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 1450 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 1460 065G060310031 CHIP 10PF -0.5PF 50V NPO 9965 000 36916 1470 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1480 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1490 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1500 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1510 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1520 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1530 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1540 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1550 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1560 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1570 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1580 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1590 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1600 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1610 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 http://www.wjel.net 84 Go to cover page 170C7 LCD Different Parts List 1620 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1630 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1640 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1650 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1660 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1670 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1680 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1690 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1700 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1710 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1720 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1730 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1740 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1750 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1760 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1770 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1780 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1790 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1800 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1810 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1820 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1830 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 1840 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 1850 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 1860 065G060322415 CHIP 0.22UF 16VX5R 9965 000 36920 1870 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 1880 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 1890 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 1900 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 1910 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 1920 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 1930 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 1940 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 1950 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 1960 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 1970 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 1980 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 1990 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 2000 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 2010 071G56C102TA CHIP BEAD 1000R/400MA FCM2012KF- 9965 000 40050 2020 071G56D102 B201209D102TT 9965 000 37332 2030 071G56K121 CHIP BEAD 9965 000 35993 2040 071G56K121 CHIP BEAD 9965 000 35993 2050 071G56K121 CHIP BEAD 9965 000 35993 2060 071G56K121 CHIP BEAD 9965 000 35993 2070 071G56K121 CHIP BEAD 9965 000 35993 2080 071G56K121 CHIP BEAD 9965 000 35993 2090 071G56K121 CHIP BEAD 9965 000 35993 2100 071G56K121 CHIP BEAD 9965 000 35993 2110 071G59B121K CHIP BEAD 120 OHM 0603FBM-11-1 9965 000 36933 2120 071G59B300K CHIP BEAD 9965 000 36934 2130 071G59B300K CHIP BEAD 9965 000 36934 2140 071G59B300K CHIP BEAD 9965 000 36934 2150 093G6442PP BAV70 SOT-23 9965 000 35995 2160 093G6442PP BAV70 SOT-23 9965 000 35995 2170 093G39S34T UDZS5.6B 9965 000 35996 2180 093G39S34T UDZS5.6B 9965 000 35996 2190 093G39S34T UDZS5.6B 9965 000 35996 2200 093G39S34T UDZS5.6B 9965 000 35996 2210 093G39S34T UDZS5.6B 9965 000 35996 2220 093G39S34T UDZS5.6B 9965 000 35996 2230 093G39S34T UDZS5.6B 9965 000 35996 2240 093G39S34T UDZS5.6B 9965 000 35996 2250 093G39S34T UDZS5.6B 9965 000 35996 2260 093G39S34T UDZS5.6B 9965 000 35996 2270 093G39S34T UDZS5.6B 9965 000 35996 2280 093G39S34T UDZS5.6B 9965 000 35996 2290 093G1020PH DIODE S1D-E3 VISHAY 9965 000 37793 2300 093G1020PH DIODE S1D-E3 VISHAY 9965 000 37793 2310 093G20403F FA20-04 9965 000 36935 2320 093G20403F FA20-04 9965 000 36935 MCU ASSY 9965 000 43150 490 056G562913 NT68663MEFG 9965 000 36927 500 PHANTOMHEX0000 CPU SOFTWARE (HEX CODE) 9965 000 43151 Diversity of 170C7FS/27 compared with 170C7FS/00 Item TPV 18NC Description Philips 12NC 30 089G402A18NIS5 MAINSCORD UL 10A 1M8 DET BK 9965 000 42361 40 089G402A18NLS2 MAINSCORD 9965 000 41575 50 750GLC70A7P11N PANEL LCD 17" EA07P 000 CPT 9965 000 40017 250 CBPC6CNNPHSA1 SCALER ASSY 9965 000 42362 2310 KEPC6PA1 CONTROL ASSY 9965 000 40036 2470 PWPC742CR1P POWER ASSY 9965 000 40037 260 033G801930FH FPC CONN. 1.0MM 30P 9965 000 36924 270 067G5154704C EC 47UF 25V GF 5*11MM 9965 000 40038 280 067G5154713C EC 470UF 16V GF 10*12.5MM 9965 000 40039 290 067G5154797C EC 4U7 50V GF 5*11MM 9965 000 40040 350 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 360 067G215L4713N KY16VB470M-L 10*12.5 9965 000 36922 420 067G215P1014C 105 100UF M 25V 9965 000 37776 430 067G215V4704N KY25VB47-M-CC3.0 5*11MM 9965 000 36923 480 088G35424FH DV1 CONNECTOR 24PIN 9965 000 36926 490 093G2251 CRYSTAL 12MHZ HC-49US ARG6-120 9965 000 35961 500 093G22901H CRYSTAL 12M000 20P AT-49 9965 000 40041 510 705TP9K056003 MCU ASSY 9965 000 43236 550 056G5637 AIC1084-33PM 9965 000 37095 560 056G56321 AP1084K33LA 9965 000 37330 570 056G56331 AI1117D-1.8-EI 9965 000 35963 580 056G56363 MM1117DT33 TO-252 MMC 9965 000 36928 590 056G563930 IC AIC1117A-18PE SOT-252 9965 000 40042 600 056G563931 AME1085-3.3-TO263 9965 000 40043 610 056G113324 AT24C16AN-10SU-2.7 9965 000 35964 620 056G113334 M24C02-WMN6TP 9965 000 35965 630 056G113334 M24C02-WMN6TP 9965 000 35965 640 056L113356 M24C16-WMN6T/W SO-8 9965 000 40044 650 057G4174 PMBS3904/PHILIPS-SMT(04) 9965 000 35966 660 057G4174 PMBS3904/PHILIPS-SMT(04) 9965 000 35966 670 057G41713T KEC 2N3906S-RTK/PS 9965 000 35967 680 057G41713T KEC 2N3906S-RTK/PS 9965 000 35967 690 057G417903T TRA SIG SM MMBT3904 (PHSE) R 9965 000 40045 700 057G417903T TRA SIG SM MMBT3904 (PHSE) R 9965 000 40045 710 057G761900T BC857 SOT23 9965 000 40046 720 057G761900T BC857 SOT23 9965 000 40046 730 057G7631 A03401 SOT23 BY AOS(A1) 9965 000 35968 740 061G060382 CHIPR 82 OHM -5% 1/10W 9965 000 40047 750 061G060382 CHIPR 82 OHM -5% 1/10W 9965 000 40047 760 061G1206103 10 KOHM 1/8W 9965 000 40048 920 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 440 067G215Y4797N LOW ESR EC 4.7 UF 50V NCC 9965 000 35959 450 088G35315FH D-SUB 15PIN 9965 000 35960 460 088G35424FH DV1 CONNECTOR 24PIN 9965 000 36926 470 093G2251 CRYSTAL 12MHZ HC-49US ARG6-120 9965 000 35961 480 093G22901H CRYSTAL 12M000 20P AT-49 9965 000 40041 490 705TP7K056002 MCU ASSY 9965 000 42363 500 056G5637 AIC1084-33PM 9965 000 37095 510 056G56321 AP1084K33LA 9965 000 37330 520 056G56331 AI1117D-1.8-EI 9965 000 35963 530 056G56363 MM1117DT33 TO-252 MMC 9965 000 36928 540 056G563930 IC AIC1117A-18PE SOT-252 9965 000 40042 550 056G563931 AME1085-3.3-TO263 9965 000 40043 560 056G113324 AT24C16AN-10SU-2.7 9965 000 35964 580 056G113334 M24C02-WMN6TP 9965 000 35965 590 056L113356 M24C16-WMN6T/W SO-8 9965 000 40044 610 057G4174 PMBS3904/PHILIPS-SMT(04) 9965 000 35966 630 057G41713T KEC 2N3906S-RTK/PS 9965 000 35967 650 057G417903T TRA SIG SM MMBT3904 (PHSE) R 9965 000 40045 670 057G761900T BC857 SOT23 9965 000 40046 680 057G7631 A03401 SOT23 BY AOS(A1) 9965 000 35968 700 061G060382 CHIPR 82 OHM -5% 1/10W 9965 000 40047 710 061G1206103 10 KOHM 1/8W 9965 000 40048 1240 061L0603105 RST SM 0603 RC0603 1M PM5 R 9965 000 35973 1290 061L0603222 CHIPR 2.2K OHM -5% 1/16W 9965 000 35977 1310 061L0603332 CHIP 3.3K OHM 1/10W 9965 000 35978 1330 061L06033900F CHIP 390 OHM 1/10W 1% 9965 000 35979 1340 061L0603470 CHIPR 47 OHM -5% 1/16W 9965 000 35980 1440 065G060310031 CHIP 10PF -0.5PF 50V NPO 9965 000 36916 1840 065G060322415 CHIP 0.22UF 16VX5R 9965 000 36920 1990 071G56C102TA CHIP BEAD 1000R/400MA FCM2012KF- 9965 000 40050 2000 071G56D102 B201209D102TT 9965 000 37332 2090 071G59B121K CHIP BEAD 120 OHM 0603FBM-11-1 9965 000 36933 2140 093G6442PP BAV70 SOT-23 9965 000 35995 2280 093G1020PH DIODE S1D-E3 VISHAY 9965 000 37793 2300 093G20403F FA20-04 9965 000 36935 10 089G1738SAA922 D-SUB CABLE 1800MM BK RFS-921017 9965 000 42052 30 089G179E30C912 FFC CABLE 30P 180MM P1.0 9965 000 40014 40 089G402A18NIS5 MAINSCORD UL 10A 1M8 DET BK 9965 000 42361 50 089G402A18NLS2 MAINSCORD 9965 000 41575 140 705GZ-000042 MAIN FRAME ASSY 9965 000 40027 150 705GZ7K0M15001 MAIN FRAME ASSY-CMO 9965 000 43232 160 750GLG70E3B11N PANEL LM170E03 TLB1-LPL 9965 000 42195 170 750GLM70E5C11N PANEL LCD 17" E5-L0C CMO 9965 000 43233 180 P33G0027 HINGE COVER 9965 000 40025 190 P33G00581 HOUSING COVER 9965 000 40033 200 P37G00021VB FOLD-BASE 9965 000 40026 260 Z40G7N008131A RATING LABEL 9965 000 42360 270 CBPC6GNNPHSA8 SCALER ASSY-LPL 9965 000 43234 2360 CBPC6MNNPHSA2 SCALER ASSY-CMO 9965 000 43235 2410 KEPC6PA1 CONTROL ASSY 9965 000 40036 2570 PWPC742CR1P POWER ASSY 9965 000 40037 280 033G801930FH FPC CONN. 1.0MM 30P 9965 000 36924 290 067G5154704C EC 47UF 25V GF 5*11MM 9965 000 40038 300 067G5154713C EC 470UF 16V GF 10*12.5MM 9965 000 40039 310 067G5154797C EC 4U7 50V GF 5*11MM 9965 000 40040 350 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 360 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 370 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 380 067G215L4713N KY16VB470M-L 10*12.5 9965 000 36922 420 067G215P1014C 105 100UF M 25V 9965 000 37776 430 067G215P1014C 105 100UF M 25V 9965 000 37776 440 067G215P1014C 105 100UF M 25V 9965 000 37776 450 067G215V4704N KY25VB47-M-CC3.0 5*11MM 9965 000 36923 460 067G215Y4797N LOW ESR EC 4.7 UF 50V NCC 9965 000 35959 470 088G35315FH D-SUB 15PIN 9965 000 35960 http://www.wjel.net 85 Go to cover page 170C7 LCD Different Parts List 930 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 940 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 1030 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 1040 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 1050 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 1120 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1130 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1140 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1230 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1240 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1250 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1260 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 1270 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 1280 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 1290 061L0603105 RST SM 0603 RC0603 1M PM5 R 9965 000 35973 1300 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 1310 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 1320 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 1330 061L0603222 CHIPR 2.2K OHM -5% 1/16W 9965 000 35977 1340 061L0603222 CHIPR 2.2K OHM -5% 1/16W 9965 000 35977 1350 061L0603332 CHIP 3.3K OHM 1/10W 9965 000 35978 1360 061L0603332 CHIP 3.3K OHM 1/10W 9965 000 35978 1370 061L06033900F CHIP 390 OHM 1/10W 1% 9965 000 35979 1380 061L06033900F CHIP 390 OHM 1/10W 1% 9965 000 35979 1390 061L0603470 CHIPR 47 OHM -5% 1/16W 9965 000 35980 1430 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 1440 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 1450 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 1460 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 1470 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 1480 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 1490 065G060310031 CHIP 10PF -0.5PF 50V NPO 9965 000 36916 1570 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1580 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1590 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1830 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1840 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1850 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1860 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 1870 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 1880 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 1890 065G060322415 CHIP 0.22UF 16VX5R 9965 000 36920 1930 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 1940 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 1950 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 2010 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 2020 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 2030 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 2040 071G56C102TA CHIP BEAD 1000R/400MA FCM2012KF- 9965 000 40050 2050 071G56D102 B201209D102TT 9965 000 37332 2110 071G56K121 CHIP BEAD 9965 000 35993 2120 071G56K121 CHIP BEAD 9965 000 35993 2130 071G56K121 CHIP BEAD 9965 000 35993 2140 071G59B121K CHIP BEAD 120 OHM 0603FBM-11-1 9965 000 36933 2150 071G59B300K 9965 000 36934 2160 071G59B300K 9965 000 36934 2170 071G59B300K 9965 000 36934 2180 093G6442PP BAV70 SOT-23 9965 000 35995 2190 093G6442PP BAV70 SOT-23 9965 000 35995 2290 093G39S34T UDZS5.6B 9965 000 35996 2300 093G39S34T UDZS5.6B 9965 000 35996 2310 093G39S34T UDZS5.6B 9965 000 35996 2320 093G1020PH DIODE S1D-E3 VISHAY 9965 000 37793 2330 093G1020PH DIODE S1D-E3 VISHAY 9965 000 37793 2340 093G20403F FA20-04 9965 000 36935 2350 093G20403F FA20-04 9965 000 36935 520 056G562913 NT68663MEFG 9965 000 36927 530 PHANTOMHEX0000 CPU SOFTWARE (HEX CODE) 9965 000 43151 2370 705GZ7K056002 MCU ASSY 9965 000 43238 2380 Z40G70008136AS CPU SOFTWARE (HEX CODE) 9965 000 43240 2390 056G562913 NT68663MEFG 9965 000 36927 Diversity of 170C7FS/69 compared with 170C7FS/00 Item TPV 18nc Description Philips 12NC 10 P44G70078131A CARTON 9965 000 41056 20 089G179E30C912 FFC CABLE 30P 180MM P1.0 9965 000 40014 40 089G410A18NLSB POWER CORD 1.8M PY8B1V6CC0A-060 9965 000 41057 50 750GLC70A7P11N PANEL LCD 17" EA07P 000 CPT 9965 000 40017 180 P44G7001 CUSHION-RIGHT 9965 000 40029 190 P44G7002 CUSHION-LEFT 9965 000 40030 200 P70G70058131A E-D.F.U 9965 000 40031 210 P40G7N0081310A RATING LABEL 9965 000 40032 230 CBPC6CNNPHSA2 SCALER ASSY 9965 000 41058 2310 KEPC6PA1 CONTROL ASSY 9965 000 40036 2470 PWPC742CR1P POWER ASSY 9965 000 40037 90 A34G0051VB1T REAR COVER 9965 000 39717 470 705TP7K056003 MCU ASSY 9965 000 41059 500 056G5637 AIC1084-33PM 9965 000 37095 510 056G56321 AP1084K33LA 9965 000 37330 520 056G56331 AI1117D-1.8-EI 9965 000 35963 530 056G56363 MM1117DT33 TO-252 MMC 9965 000 36928 540 056G563930 IC AIC1117A-18PE SOT-252 9965 000 40042 550 056G563931 AME1085-3.3-TO263 9965 000 40043 560 056G113324 AT24C16AN-10SU-2.7 9965 000 35964 580 056G113334 M24C02-WMN6TP 9965 000 35965 590 056L113356 M24C16-WMN6T/W SO-8 9965 000 40044 610 057G4174 PMBS3904/PHILIPS-SMT(04) 9965 000 35966 630 057G41713T KEC 2N3906S-RTK/PS 9965 000 35967 650 057G417903T TRA SIG SM MMBT3904 (PHSE) R 9965 000 40045 670 057G761900T BC857 SOT23 9965 000 40046 680 057G7631 A03401 SOT23 BY AOS(A1) 9965 000 35968 700 061G060382 CHIPR 82 OHM -5% 1/10W 9965 000 40047 710 061G1206103 10 KOHM 1/8W 9965 000 40048 1240 061L0603105 RST SM 0603 RC0603 1M PM5 R 9965 000 35973 1290 061L0603222 CHIPR 2.2K OHM -5% 1/16W 9965 000 35977 1310 061L0603332 CHIP 3.3K OHM 1/10W 9965 000 35978 1330 061L06033900F CHIP 390 OHM 1/10W 1% 9965 000 35979 1340 061L0603470 CHIPR 47 OHM -5% 1/16W 9965 000 35980 1440 065G060310031 CHIP 10PF -0.5PF 50V NPO 9965 000 36916 1840 065G060322415 CHIP 0.22UF 16VX5R 9965 000 36920 1990 071G56C102TA CHIP BEAD 1000R/400MA FCM2012KF- 9965 000 40050 2000 071G56D102 B201209D102TT 9965 000 37332 2090 071G59B121K CHIP BEAD 120 OHM 0603FBM-11-1 9965 000 36933 2140 093G6442PP BAV70 SOT-23 9965 000 35995 2280 093G1020PH DIODE S1D-E3 VISHAY 9965 000 37793 2300 093G20403F FA20-04 9965 000 36935 490 Z40G70008132A LABEL-CPU 9965 000 41060 40 089G410A18NLSB POWER CORD 1.8M PY8B1V6CC0A-060 9965 000 41057 60 750GLM70E5C11N PANEL LCD 17" E5-L0C CMO 9965 000 43233 80 705GZ-000040 BEZEL ASS'Y 9965 000 40018 120 705GZ-000041 BACK COVER ASS'Y 9965 000 40022 150 P33G0027 HINGE COVER 9965 000 40025 160 P37G00021VB FOLD-BASE 9965 000 40026 170 705GZ-000042 MAIN FRAME ASSY 9965 000 40027 180 705GZ7K0M15001 MAIN FRAME ASSY-CMO 9965 000 43232 250 P33G00581 HOUSING COVER 9965 000 40033 270 CBPC6GNNPHSA9 SCALER ASSY-LPL 9965 000 43241 4510 CBPC6MNNPHSA3 SCALER ASSY-CMO 9965 000 43242 280 067G5154704C EC 47UF 25V GF 5*11MM 9965 000 40038 290 067G5154713C EC 470UF 16V GF 10*12.5MM 9965 000 40039 300 067G5154797C EC 4U7 50V GF 5*11MM 9965 000 40040 350 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 360 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 370 067G215L4713N KY16VB470M-L 10*12.5 9965 000 36922 420 067G215P1014C 105 100UF M 25V 9965 000 37776 430 067G215P1014C 105 100UF M 25V 9965 000 37776 440 067G215V4704N KY25VB47-M-CC3.0 5*11MM 9965 000 36923 450 067G215Y4797N LOW ESR EC 4.7 UF 50V NCC 9965 000 35959 480 705TP9K056004 MCU ASSY 9965 000 43243 4520 705GZ7K056003 MCU ASSY 9965 000 43245 4530 Z40G70008137AS CPU SOFTWARE (HEX CODE) 9965 000 43246 4540 056G562913 NT68663MEFG 9965 000 36927 4550 Z40G70008137A LABEL-CPU 9965 000 43247 Diversity of 170C7FS/93 compared with 170C7FS/00 Item TPV 18nc Description Philips 12NC 10 P44G70078131A CARTON 9965 000 41056 20 089G179E30C912 FFC CABLE 30P 180MM P1.0 9965 000 40014 40 089G414A18NLSC MAINSCORD CCEE 10A 1M8 DET BK 9965 000 41562 50 750GLC70A7P11N PANEL LCD 17" EA07P 000 CPT 9965 000 40017 210 P70G70058131A E-D.F.U 9965 000 40031 220 P40G7N0081310A RATING LABEL 9965 000 40032 240 P45G46014 PE BAG FOR MONITOR 9965 000 40034 250 CBPC6CNNPHSA5 SCALER ASSY 9965 000 41566 260 033G801930FH FPC CONN. 1.0MM 30P 9965 000 36924 270 067G5154704C EC 47UF 25V GF 5*11MM 9965 000 40038 280 067G5154713C EC 470UF 16V GF 10*12.5MM 9965 000 40039 290 067G5154797C EC 4U7 50V GF 5*11MM 9965 000 40040 350 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 360 067G215L4713N KY16VB470M-L 10*12.5 9965 000 36922 420 067G215P1014C 105 100UF M 25V 9965 000 37776 430 067G215V4704N KY25VB47-M-CC3.0 5*11MM 9965 000 36923 440 067G215Y4797N LOW ESR EC 4.7 UF 50V NCC 9965 000 35959 450 088G35315FH D-SUB 15PIN 9965 000 35960 460 088G35424FH DV1 CONNECTOR 24PIN 9965 000 36926 470 093G2251 CRYSTAL 12MHZ HC-49US ARG6-120 9965 000 35961 480 093G22901H CRYSTAL 12M000 20P AT-49 9965 000 40041 490 705TP7K056006 MCU ASSY 9965 000 41568 590 056L113356 M24C16-WMN6T/W SO-8 9965 000 40044 610 056G113334 M24C02-WMN6TP 9965 000 35965 500 056G562913 NT68663MEFG 9965 000 36927 510 Z40G70008134A LABEL-CPU 9965 000 41569 40 089G414A18NLSC MAINSCORD CCEE 10A 1M8 DET BK 9965 000 41562 250 CBPC6GNNPHSB3 SCALER ASSY-LPL 9965 000 43248 2340 KEPC6PA1 CONTROL ASSY 9965 000 40036 2500 PWPC742CR1P POWER ASSY 9965 000 40037 4520 CBPC6MNNPHSA6 SCALER ASSY-CMO 9965 000 43249 4570 750GLM70E5C11N PANEL LCD 17" E5-L0C CMO 9965 000 43233 4580 705GZ7K0M15001 MAIN FRAME ASSY-CMO 9965 000 43232 260 033G801930FH FPC CONN. 1.0MM 30P 9965 000 36924 270 067G5154704C EC 47UF 25V GF 5*11MM 9965 000 40038 280 067G5154713C EC 470UF 16V GF 10*12.5MM 9965 000 40039 290 067G5154797C EC 4U7 50V GF 5*11MM 9965 000 40040 http://www.wjel.net 86 Go to cover page 170C7 LCD Different Parts List 350 067G215L1014N KY25VB100M-L 6.3*11 9965 000 35958 360 067G215L4713N KY16VB470M-L 10*12.5 9965 000 36922 420 067G215P1014C 105 100UF M 25V 9965 000 37776 430 067G215V4704N KY25VB47-M-CC3.0 5*11MM 9965 000 36923 440 067G215Y4797N LOW ESR EC 4.7 UF 50V NCC 9965 000 35959 450 088G35315FH D-SUB 15PIN 9965 000 35960 460 088G35424FH DV1 CONNECTOR 24PIN 9965 000 36926 470 093G2251 CRYSTAL 12MHZ HC-49US ARG6-120 9965 000 35961 480 093G22901H CRYSTAL 12M000 20P AT-49 9965 000 40041 490 705TP9K056007 MCU ASSY 9965 000 43169 530 056G5637 AIC1084-33PM 9965 000 37095 540 056G56321 AP1084K33LA 9965 000 37330 550 056G56331 AI1117D-1.8-EI 9965 000 35963 560 056G56363 MM1117DT33 TO-252 MMC 9965 000 36928 570 056G563930 IC AIC1117A-18PE SOT-252 9965 000 40042 580 056G563931 AME1085-3.3-TO263 9965 000 40043 590 056G113324 AT24C16AN-10SU-2.7 9965 000 35964 610 056G113334 M24C02-WMN6TP 9965 000 35965 620 056L113356 M24C16-WMN6T/W SO-8 9965 000 40044 640 057G4174 PMBS3904/PHILIPS-SMT(04) 9965 000 35966 660 057G41713T KEC 2N3906S-RTK/PS 9965 000 35967 680 057G417903T TRA SIG SM MMBT3904 (PHSE) R 9965 000 40045 700 057G761900T BC857 SOT23 9965 000 40046 710 057G7631 A03401 SOT23 BY AOS(A1) 9965 000 35968 730 061G060382 CHIPR 82 OHM -5% 1/10W 9965 000 40047 740 061G1206103 10 KOHM 1/8W 9965 000 40048 920 061L0603000 RST SM 0603 JUMP MAX 0R05 R 9965 000 36002 1030 061L0603101 CHIPR 100 OHM -5% 1/16W 9965 000 35969 1120 061L0603102 CHIPR 1K OHM -5% 1/16W 9965 000 35970 1230 061L0603103 CHIPR 10K OHM -5% 1/16W 9965 000 35971 1260 061L0603104 RST SM 0603 RC0603 100K PM5 R 9965 000 35972 1270 061L0603105 RST SM 0603 RC0603 1M PM5 R 9965 000 35973 1300 061L0603151 CHIPR 150 OHM -5% 1/16W 9965 000 35974 1320 061L0603222 CHIPR 2.2K OHM -5% 1/16W 9965 000 35977 1340 061L0603332 CHIP 3.3K OHM 1/10W 9965 000 35978 1360 061L06033900F CHIP 390 OHM 1/10W 1% 9965 000 35979 1370 061L0603470 CHIPR 47 OHM -5% 1/16W 9965 000 35980 1430 061L0603472 CHIPR 4.7K OHM -5% 1/16W 9965 000 35981 1460 061L0603750 CHIPR 75 OHM -5% 1/16W 9965 000 35982 1470 065G060310031 CHIP 10PF -0.5PF 50V NPO 9965 000 36916 1570 065G060310231 CHIP 1000PF 50V NPO 9965 000 36917 1830 065G060310412 CER2 0603 X7R 16V 100N PM10 R 9965 000 36918 1860 065G060322031 CER1 0603 NP0 50V 22P PM5 R 9965 000 36919 1870 065G060322415 CHIP 0.22UF 16VX5R 9965 000 36920 1930 065G060347332 CHIP 0.047UF 50V X7R 9965 000 36921 2010 071G56121TA IND FXD 0805 EMI 100MHZ 120R R 9965 000 40049 2020 071G56C102TA CHIP BEAD 1000R/400MA FCM2012KF- 9965 000 40050 2030 071G56D102 B201209D102TT 9965 000 37332 2110 071G56K121 CHIP BEAD 9965 000 35993 2120 071G59B121K CHIP BEAD 120 OHM 0603FBM-11-1 9965 000 36933 2150 071G59B300K 9965 000 36934 2170 093G6442PP BAV70 SOT-23 9965 000 35995 2290 093G39S34T UDZS5.6B 9965 000 35996 2310 093G1020PH DIODE S1D-E3 VISHAY 9965 000 37793 2330 093G20403F FA20-04 9965 000 36935 2490 056G562913 NT68663MEFG 9965 000 36927 2500 PHANTOMHEX0000 CPU SOFTWARE (HEX CODE) 9965 000 43151 500 056G562913 NT68663MEFG 9965 000 36927 510 PHANTOMHEX0000 CPU SOFTWARE (HEX CODE) 9965 000 43151 4530 705GZ7K056006 MCU ASSY 9965 000 43250 4540 Z40G700081310A CPU SOFTWARE (HEX CODE) 9965 000 43251 4550 056G562913 NT68663MEFG 9965 000 36927 Diversity of 190C7FS/69(LPL) compared with 190C7FS/00(LPL) Item TPV 18NC DESCRIPTION Philips 12NC 170C7FS/69 8639 000 17075 089G410A18NLSB POWER CORD 1.8M PY8B1V6CC0A-060 9965 000 41057 P45G?46041 EPE BAG FOR MONITOR 9965 000 41570 A34G0051VB1T REAR COVER 9965 000 39717 P15G0086 MAIN FRAME 9965 000 41571 Diversity of 190C7FS/93(LPL) compared with 190C7FS/00(LPL) Item TPV 18NC DESCRIPTION Philips 12NC 190C7FS/93 8639 000 17076 089G1738SAA922 D-SUB CABLE 1800MM BK RFS-921017 9965 000 42052 089G414A18NLSC MAINSCORD CCEE 10A 1M8 DET BK 9965 000 41562 P15G0086 MAIN FRAME 9965 000 41571 Item TPV 18 NC Description Philips P/N (12NC) 089G1738SAA922 D-SUB CABLE 1800MM BK RFS-921017 9965 000 42052 089G402A18NIS5 MAINSCORD UL 10A 1M8 DET BK 9965 000 42361 089G402A18NLS2 MAINSCORD 9965 000 41575 P40G9N0081313A RATING LABEL(/27) 9965 000 43148 P45G?46041 EPE BAG FOR MONITOR 9965 000 41570 CBPC6GNNPHSA1 SCALER ASSY 9965 000 43149 P15G0086 MAIN FRAME 9965 000 41571 U401 705TP9K056002 MCU ASSY 9965 000 43150 U403 056G113324 AT24C16AN-10SU-2.7 9965 000 35964 056G562913 NT68663MEFG 9965 000 36927 PHANTOMHEX0000 CPU SOFTWARE (HEX CODE) 9965 000 43151 Z40G90008139A LABLE-CPU 9965 000 43152 F901 84G557W 3.15A/250V FOR WICKMANN 9965 000 43135 Diversity of 190C7FS/27(LPL) compared with 190C7FS/00(LPL) Diversity of 190C7FS/96(LPL) compared with 190C7FS/00(LPL) Item TPV 18NC Description Philips 12NC 071FPC2820105 PC40 EER28L A217 9965 000 37795 F901 84G557W 3.15A/250V FOR WICKMANN 9965 000 43135 U401 705TP9K056007 MCU ASSY 9965 000 43169 U403 056G113324 AT24C16AN-10SU-2.7 9965 000 35964 056G562913 NT68663MEFG 9965 000 36927 PHANTOMHEX0000 CPU SOFTWARE (HEX CODE) 9965 000 43151 089G420A18NIS POWER CORD 9965 000 37565 P45G?46041 EPE BAG FOR MONITOR 9965 000 41570 089G1738SAA922 D-SUB CABLE 1800MM BK RFS-921017 9965 000 42052 089G420A18NIS1 MAINS CORD TWN 7A 1M8 BK 9965 000 43167 CBPC6GNNPHSA6 SCALER ASSY 9965 000 43168 http://www.wjel.net 87 Go to cover page 170C7 LCD Manual 3138 106 10546 -First release -ALL chapters Revision List 1.According to the CP-SZ00112,SH7 family 170C7 model is in the AutoAdj.c increase the ucR_ADC_Offset value to solve the horizontal noise in dark picture/60 Hz.Detail as following: REF Code number Item Action Component Code Description From PHANTOMHEX00000052 CPU software (hex code) To PHANTOMHEX00000053 CPU software (hex code) From 040G 457624 1C LABEL-CPU To 040G 457624 1D� LABEL-CPU From PHANTOMHEX00000072 CPU software (hex code) To PHANTOMHEX00000073�CPU software (hex code) From Z40G7000813 1B LABEL-CPU To Z40G7000813 1C LABEL-CPU From PHANTOMHEX00000062 CPU software (hex code) To PHANTOMHEX00000063 CPU software (hex code) From Z40G7000813 2B LABEL-CPU To Z40G7000813 2C LABEL-CPU From PHANTOMHEX00000062 CPU software (hex code) To PHANTOMHEX00000063 CPU software (hex code) From Z40G7000813 3B LABEL-CPU To Z40G7000813 3C LABEL-CPU From PHANTOMHEX00000082 CPU software To PHANTOMHEX00000083 CPU software From Z40G700081317B LABEL-CPU To Z40G700081317C LABEL-CPU From PHANTOMHEX00000062 CPU software (hex code) To PHANTOMHEX00000063 CPU software (hex code) From Z40G7000813 4B LABEL-CPU To Z40G7000813 4C LABEL-CPU 11 12 7 8 9 10 3 4 5 6 705TP7K0 56006 705TP7K0 56006 1300 705TP7K0 56005 705TP7K0 56005 1300 705TP7K0 56004 705TP7K0 56004 1300 705TP7K0 56003 705TP7K0 56003 1300 705TP7K0 56002 705TP7K0 56002 1300 1 705TP7K0 56001 705TP7K0 56001 1300 2 http://www.wjel.net TELEVISION/MONITOR SAFFTY GUIDELINES FOR THE PROFESSIONAL SERVICE TECHNICIAN Safety Checks Fire and Shock Hazard Implosion X-radiation After the original service problem has been corrected,a complete safety check should be made. Be sure to check over the entire set, not just the areas where you have worked. Some previous servicer may have left an unsafe condition,which could be unknowingly passed on to your customer. Be sure to check all of the following: 1. Be sure all components are positioned in such a way as to avoid the possibility of adjacent component shorts. This is especially important on those chassis which are transported to and from the service shop. 2. Never release a repaired unit unless all protective devices such as insulators, barries, covers, strain reliefs, and other hardware have been installed in accordance with the original design. 3. Soldering and wiring must be inspected to locate possible cold solder joints,solder splashes,sharp solder points, frayed leads, pinched leads, or damaged insulation ( including the ac cord).Be certain to remove loose solder balls and all other loose foreign particles. 4. Check across-the-line components and other components for physical evidence of damage or deterioration and replace if necessary. Follow original layout,lead length, and dress. 5. No lead or component should touch a receiving tube or a resistor rated at 1 watt or more. Lead tension around protruding metal surfaces or edges must be avoided. 6. Critical components having special safety characteristics are identified with ans by the Ref. No. in the parts list and enclosed within a broken line * (where several critical components are grouped in one area) along with the safety symbols on the schematic diagrams and/or exploded views. 7. When servicing any unit, always use a separate isolation transformer for the chassis Failure to use a separate isolation transformer may expose you to possible shock hazard, and may cause damage to servicing instruments. 8. Many electronic products use a polarized ac line cord (one wide pin on the plug.) Defeating this safety feature may create a potential hazard to the service and the user. Extension cords which do not incorporate the polarizing feature should never be used. 9. After reassembly of the unit, always perform an leakage test or resistance test from the line cord to all exposed metal parts of the cabinet. Also check all metal control shafts(with knobs removed), antenna terminals, handles, screws, etc. to be sure the unit may be safety operated without danger of electrical shock. * Broken line 1. All picture tubes used in current model receivers are equipped with an integral implosion system. Care should always be used, and safety glasses worn,whenever handling any picture tube. Avoid scratching or otherwise damaging the picture tube during installation. 2. Use only replacement tubes specified by the manufacturer. 1. Be sure procedures and instructions to all your service personnel cover the subject of X-radiation. Potential sources of X-rays in TV receivers are the picture tube and the high voltage circuits. The basic precaution which must be exercised is to keep the high voltage at the factory recommended level. 2. To avoid possible exposure to X-radiation and electrical shock, only the manufacturer's specified anode connectors must be used. 3. It is essential that the service technician has an accurate HV meter available at all times. The calibration of this meter should be checked periodically against a reference standard. 4. When the HV circuitry is operating properly there is no possibility of an x- radiation problem. High voltage should always be kept at the manufacturer's rated value-no higher - for optimum performance. Every time a color set is serviced, the brightness should be run up and down while monitoring the HV with a meter to be certain that the HV is regulated correctly and does not exceed the specified value. We suggest that you and your technicians review test procedures so that HV and HV regulation are always checked as a standard servicing procedure, and the reason for this prudent routine is clearly understood by everyone. It is important to use an accurate and reliable HV meter. It is recommended that the HV recorded on each customer's invoice, which will demonstrate a proper concern for the customer's safety. 5. When troubleshooting and making test measurements in a receiver with a problem of excessive high voltage, reduce the line voltage by means of a Variac to bring the HV into acceptable limits while troubleshooting. Do : : WARNING OFF SERVICE NOTE Before removing the CRT anode cap, turn the unit and short the HIGH VOLTAGE to the CRT DAG ground. The CRT DAG is not at chassis ground. 6. New picture tubes are specifically designed to withstand higher operathng voltages without creating undesirable X-radiation. It is strongly recommended that any shop test fixture which is to be used with the new higher voltage chassis be equipped with one of the new type tubes designed for this service. Addition of a permanently connected HV meter to the shop test fixture is advisable. The CRT types used in these new sets should never be replaced with any other types, as this may result in excessive X-radiation. 7. It is essential to use the specified picture tube to avoid a possible X-diation problem. 8. Most TV receivers contain some type of emergency "Hold Down" circuit to prevent HV from rising to excessive levels in the presence of a failure mode. These various circuits should be understood by all technicians servicing them, especially since many hold down circuits are inoperative as long as the receiver performs normally. 1. Unplug the ac line cord and connect a jumper between the two prongs of the plug. 2. Turn on the power switch. 3. Measure the resistance value between the jumpered ac plug and all exposed cabinet parts of the receiver, such as screw heads, antennas, and control shafts. When the exposed metallic part has a return path to the chassis, the reading should be between 1 megohm and 5.2 megohms. When the exposed metal does not have a return path to the chassis, the reading must be infinity. Remove the jumper from the ac line cord. 1. Do not use an isolation transformer for this test. Plug the completely reassembled receiver directly into the ac outlet. 2. Connect a 1.5k, 10w resistor paralleled by a 0.15uf. capacitor between each exposed metallic cabinet part and a good earth ground such as a water pipe, as shown above. 3. Use an ac voltmeter with at least 5000 ohms volt sensitivity to measure the potential across the resistor. 4. The potential at any point should not exceed 0.75 volts. A leakage current tester may be used to make this test; leakage current must not exceed 0.5 milliamps. If a measurement is outside of the specified limits, there is a possibility of shock hazard. The receiver should be repaired and rechecked before returning it to the customer. 5. Repeat the above procedure with the ac plug reversed.( Note: An ac adapter is necessary when a polarized plug is used. Do not defeat the polarizing feature of the plug.) The primary source of X-radiation in this television receiver is the picture tube. The picture tube utilized in this chassis is specially constructed to limit X-radiation emissions. For continued X-radiation protection, the replacement tube must be the same type as the original, including suffix letter, or a Philips approved type. Many electrical and mechanical parts in Philips television sets have special safety related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. The use of a substitute part which does not have the same safety characteristics as the Philips recommended replacement part shown in this service manual may create shock, fire, or other hazards Leakage Current Cold Check Leakage Current Hot Check Picture Tube Replacement Parts Replacement 1500 ohm, 10W 0.15 uF WATER PIPE EARTH GROUND TO INSTRUMENTS EXPOSED METAL PARTS http://www.wjel.net
