'Horizontal Frequency
30.0 - 82.0 KHz
Service
Service
Service

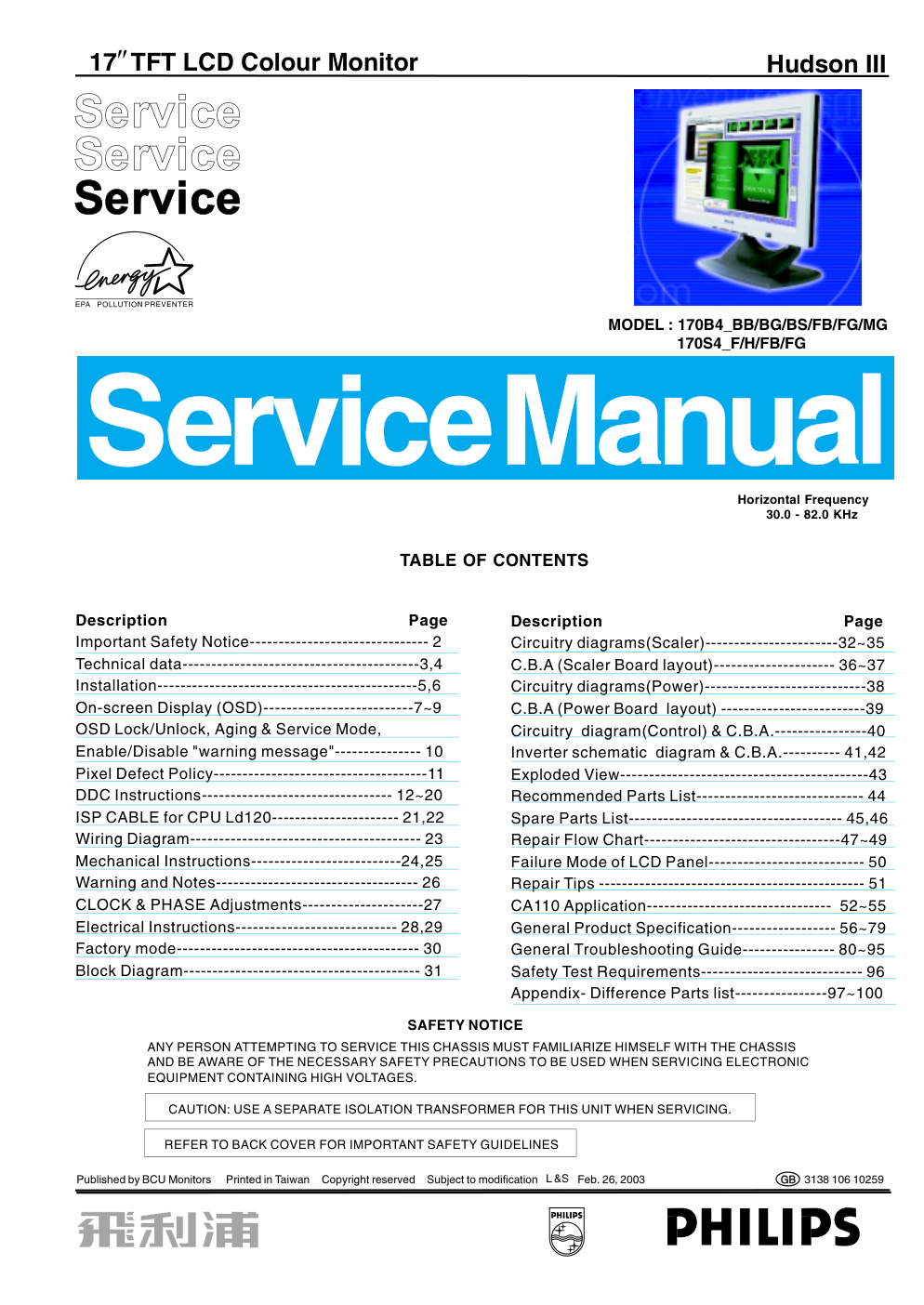

TABLE OF CONTENTS
CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING.
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC
EQUIPMENT CONTAINING HIGH VOLTAGES.
Published by BCU Monitors
Printed in Taiwan
Copyright reserved
Subject to modification
Feb. 26, 2003
GB 3138 106 10259
17 TFT LCD Colour Monitor
Hudson III
Description
Page
Important Safety Notice------------------------------- 2
Technical data-----------------------------------------3,4
Installation---------------------------------------------5,6
On-screen Display (OSD)--------------------------7~9

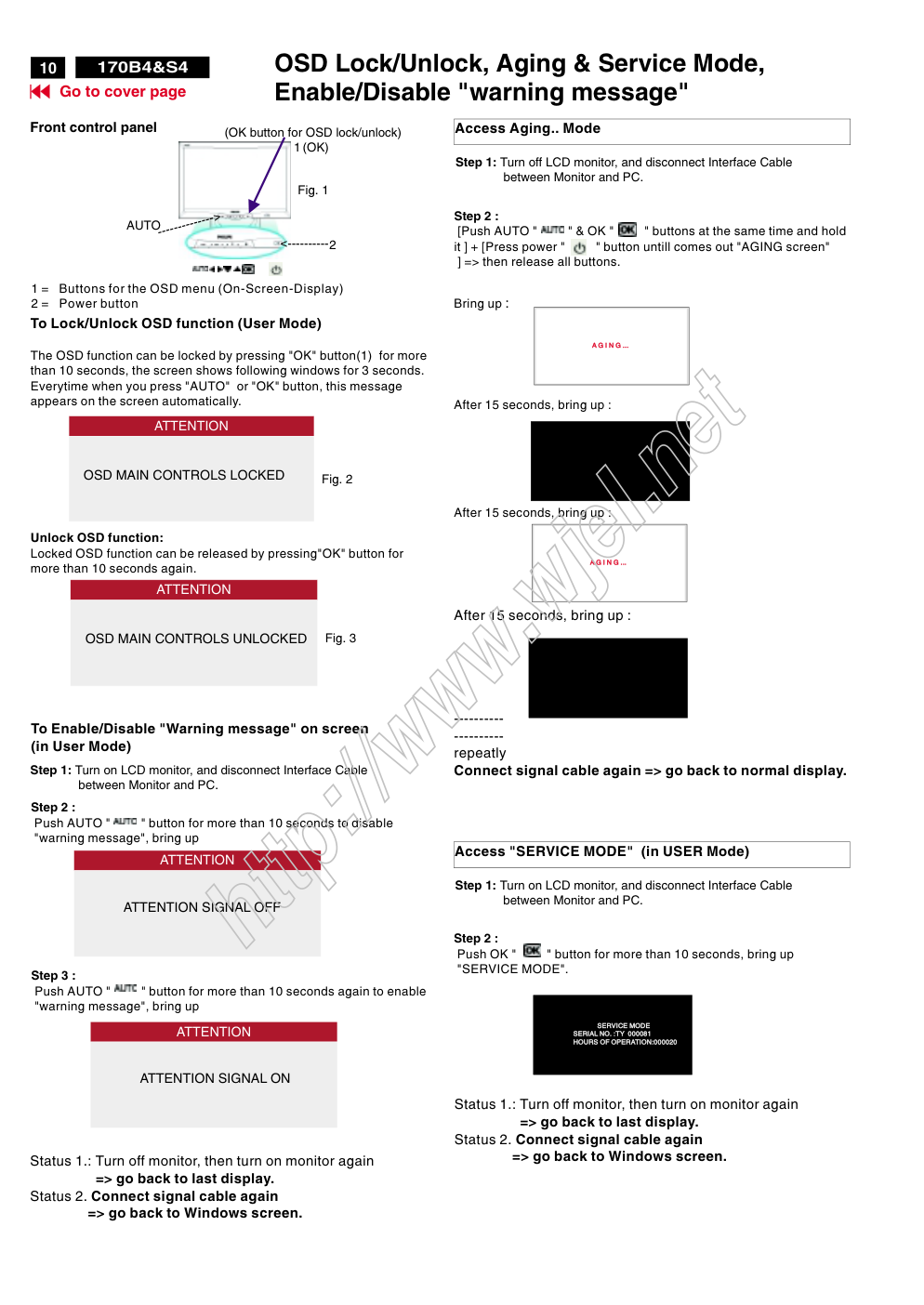

OSD Lock/Unlock, Aging & Service Mode,
Enable/Disable "warning message"--------------- 10
Pixel Defect Policy-------------------------------------11
DDC Instructions--------------------------------- 12~20
ISP CABLE for CPU Ld120---------------------- 21,22
Wiring Diagram---------------------------------------- 23
Mechanical Instructions--------------------------24,25
Warning and Notes----------------------------------- 26
CLOCK & PHASE Adjustments---------------------27
Electrical Instructions---------------------------- 28,29
Factory mode------------------------------------------ 30
Block Diagram----------------------------------------- 31
Description
Page
Circuitry diagrams(Scaler)-----------------------32~35
Circuitry diagrams(Power)----------------------------38
Circuitry diagram(Control) & C.B.A.----------------40
Inverter schematic diagram & C.B.A.---------- 41,42
Exploded View-------------------------------------------43
Recommended Parts List----------------------------- 44
Spare Parts List------------------------------------- 45,46
Failure Mode of LCD Panel--------------------------- 50
Repair Tips ---------------------------------------------- 51
CA110 Application-------------------------------- 52~55
Safety Test Requirements---------------------------- 96
Appendix- Difference Parts list----------------97~100
C.B.A (Scaler Board layout)--------------------- 36~37
C.B.A (Power Board layout) -------------------------39
General Product Specification------------------ 56~79
General Troubleshooting Guide---------------- 80~95
Repair Flow Chart----------------------------------47~49
REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES
MODEL : 170B4_BB/BG/BS/FB/FG/MG
170S4_F/H/FB/FG
L &S
�

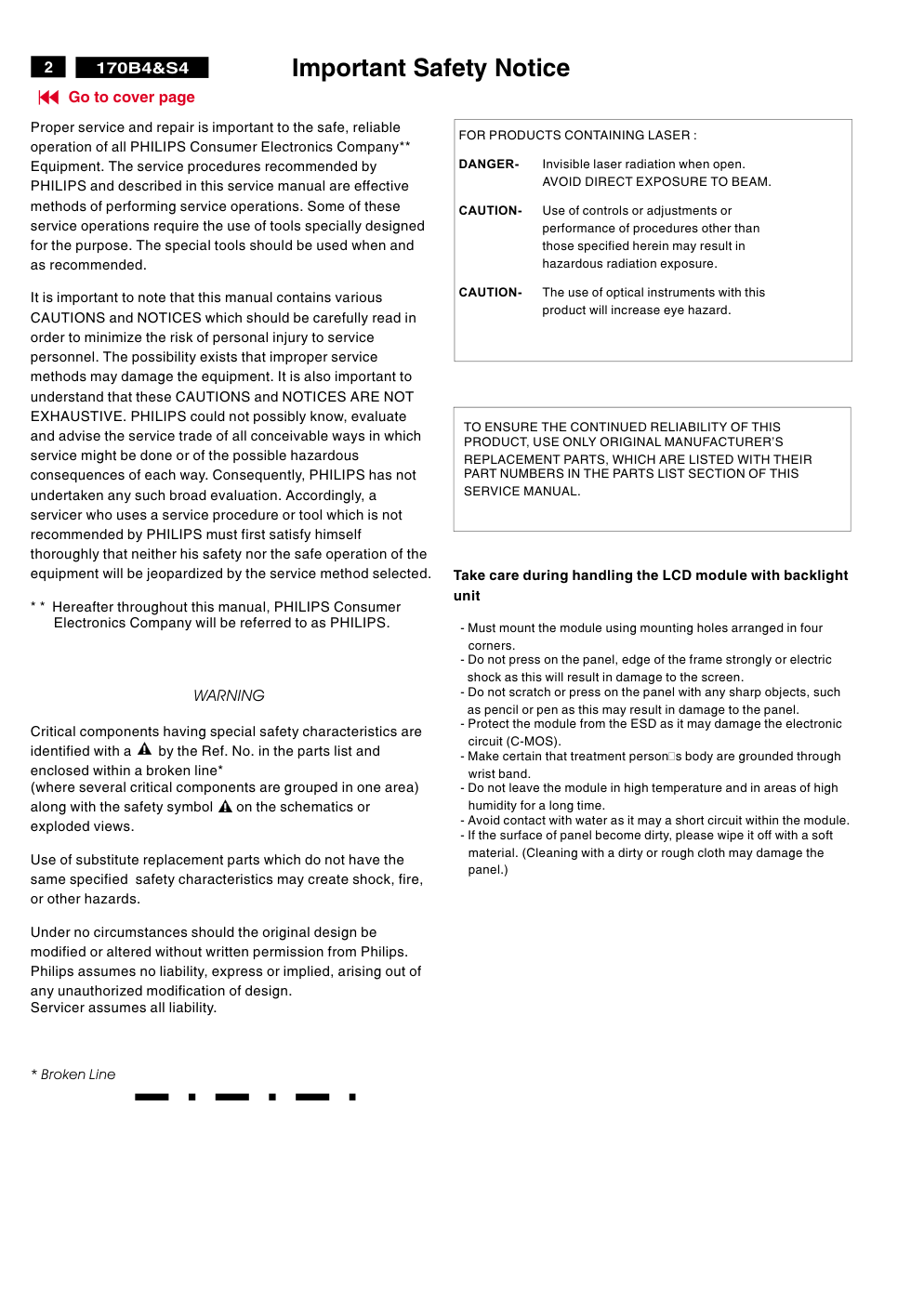

Important Safety Notice
2
FOR PRODUCTS CONTAINING LASER :
Invisible laser radiation when open.
AVOID DIRECT EXPOSURE TO BEAM.
Use of controls or adjustments or
performance of procedures other than
those specified herein may result in
hazardous radiation exposure.
The use of optical instruments with this
product will increase eye hazard.
DANGER-
CAUTION-
CAUTION-
TO ENSURE THE CONTINUED RELIABILITY OF THIS
PRODUCT, USE ONLY ORIGINAL MANUFACTURER\'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR
PART NUMBERS IN THE PARTS LIST SECTION OF THIS
SERVICE MANUAL.
Proper service and repair is important to the safe, reliable
operation of all PHILIPS Consumer Electronics Company**
Equipment. The service procedures recommended by
PHILIPS and described in this service manual are effective
methods of performing service operations. Some of these
service operations require the use of tools specially designed
for the purpose. The special tools should be used when and
as recommended.
It is important to note that this manual contains various
CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service
personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to
understand that these CAUTIONS and NOTICES ARE NOT
EXHAUSTIVE. PHILIPS could not possibly know, evaluate
and advise the service trade of all conceivable ways in which
service might be done or of the possible hazardous
consequences of each way. Consequently, PHILIPS has not
undertaken any such broad evaluation. Accordingly, a
servicer who uses a service procedure or tool which is not
recommended by PHILIPS must first satisfy himself
thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
* * Hereafter throughout this manual, PHILIPS Consumer
Electronics Company will be referred to as PHILIPS.
Critical components having special safety characteristics are
identified with a
by the Ref. No. in the parts list and
enclosed within a broken line*
(where several critical components are grouped in one area)
along with the safety symbol
on the schematics or
exploded views.
Use of substitute replacement parts which do not have the
same specified safety characteristics may create shock, fire,
or other hazards.
Under no circumstances should the original design be
modified or altered without written permission from Philips.
Philips assumes no liability, express or implied, arising out of
any unauthorized modification of design.
Servicer assumes all liability.
WARNING
* Broken Line
Take care during handling the LCD module with backlight
unit
- Must mount the module using mounting holes arranged in four
corners.
- Do not press on the panel, edge of the frame strongly or electric
shock as this will result in damage to the screen.
- Do not scratch or press on the panel with any sharp objects, such
as pencil or pen as this may result in damage to the panel.
- Protect the module from the ESD as it may damage the electronic
circuit (C-MOS).
- Make certain that treatment person’s body are grounded through
wrist band.
- Do not leave the module in high temperature and in areas of high
humidity for a long time.
- Avoid contact with water as it may a short circuit within the module.
- If the surface of panel become dirty, please wipe it off with a soft
material. (Cleaning with a dirty or rough cloth may damage the
panel.)
Go to cover page
170B4&S4

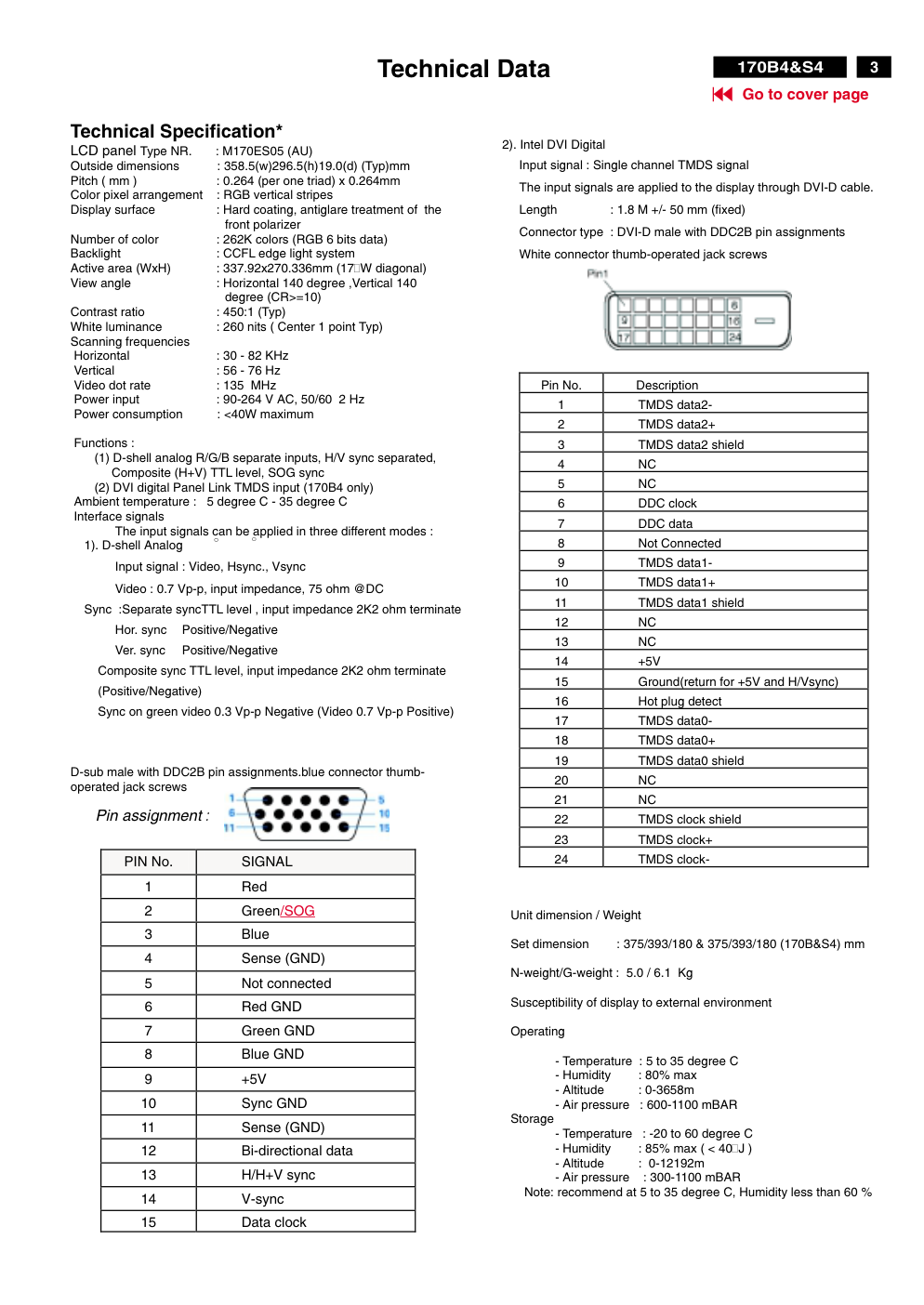

Technical Data
2). Intel DVI Digital
Input signal : Single channel TMDS signal
The input signals are applied to the display through DVI-D cable.
Length
: 1.8 M +/- 50 mm (fixed)
Connector type : DVI-D male with DDC2B pin assignments
White connector thumb-operated jack screws
Go to cover page
3
170B4&S4
D-sub male with DDC2B pin assignments.blue connector thumb-
operated jack screws
Pin assignment :
Technical Specification*
LCD panel Type NR.
: M170ES05 (AU)
Outside dimensions
: 358.5(w)296.5(h)19.0(d) (Typ)mm
Pitch ( mm )
: 0.264 (per one triad) x 0.264mm
Color pixel arrangement
: RGB vertical stripes
Display surface
: Hard coating, antiglare treatment of the
front polarizer
Number of color
: 262K colors (RGB 6 bits data)
Backlight
: CCFL edge light system
Active area (WxH)
: 337.92x270.336mm (17”W diagonal)
View angle
: Horizontal 140 degree ,Vertical 140
degree (CR>=10)
Contrast ratio
: 450:1 (Typ)
White luminance
: 260 nits ( Center 1 point Typ)
Scanning frequencies
Horizontal
: 30 - 82 KHz
Vertical
: 56 - 76 Hz
Video dot rate
: 135 MHz
Power input
: 90-264 V AC, 50/60 2 Hz
Power consumption
: <40W maximum
Functions :
(1) D-shell analog R/G/B separate inputs, H/V sync separated,
Composite (H+V) TTL level, SOG sync
(2) DVI digital Panel Link TMDS input (170B4 only)
Ambient temperature :
5 degree C - 35 degree C
Interface signals
The input signals can be applied in three different modes :
1). D-shell Analog
Input signal : Video, Hsync., Vsync
Video : 0.7 Vp-p, input impedance, 75 ohm @DC
Sync :Separate syncTTL level , input impedance 2K2 ohm terminate
Hor. sync
Positive/Negative
Ver. sync
Positive/Negative
Composite sync TTL level, input impedance 2K2 ohm terminate
(Positive/Negative)
Sync on green video 0.3 Vp-p Negative (Video 0.7 Vp-p Positive)
PIN No.
SIGNAL
1
Red
2
Green/SOG
3
Blue
4
Sense (GND)
5
Not connected
6
Red GND
7
Green GND
8
Blue GND
9
+5V
10
Sync GND
11
Sense (GND)
12
Bi-directional data
13
H/H+V sync
14
V-sync
15
Data clock
Pin No.
Description
1
TMDS data2-
2
TMDS data2+
3
TMDS data2 shield
4
NC
5
NC
6
DDC clock
7
DDC data
8
Not Connected
9
TMDS data1-
10
TMDS data1+
11
TMDS data1 shield
12
NC
13
NC
14
+5V
15
Ground(return for +5V and H/Vsync)
16
Hot plug detect
17
TMDS data0-
18
TMDS data0+
19
TMDS data0 shield
20
NC
21
NC
22
TMDS clock shield
23
TMDS clock+
24
TMDS clock-
Unit dimension / Weight
Set dimension
:
N-weight/G-
: 5.0 / 6.1 Kg
Susceptibility of display to external environment
Operating
- Temperature : 5 to 35 degree C
- Humidity
: 80% max
- Altitude
: 0-3658m
- Air pressure
: 600-1100 mBAR
Storage
- Temperature
: -20 to 60 degree C
- Humidity
: 85% max ( < 40¢J )
- Altitude
: 0-12192m
- Air pressure
: 300-1100 mBAR
Note: recommend at 5 to 35 degree C, Humidity less than 60 %
375/393/180 & 375/393/180 (170B&S4) mm
weight
4
Go to cover page
170B4&S4

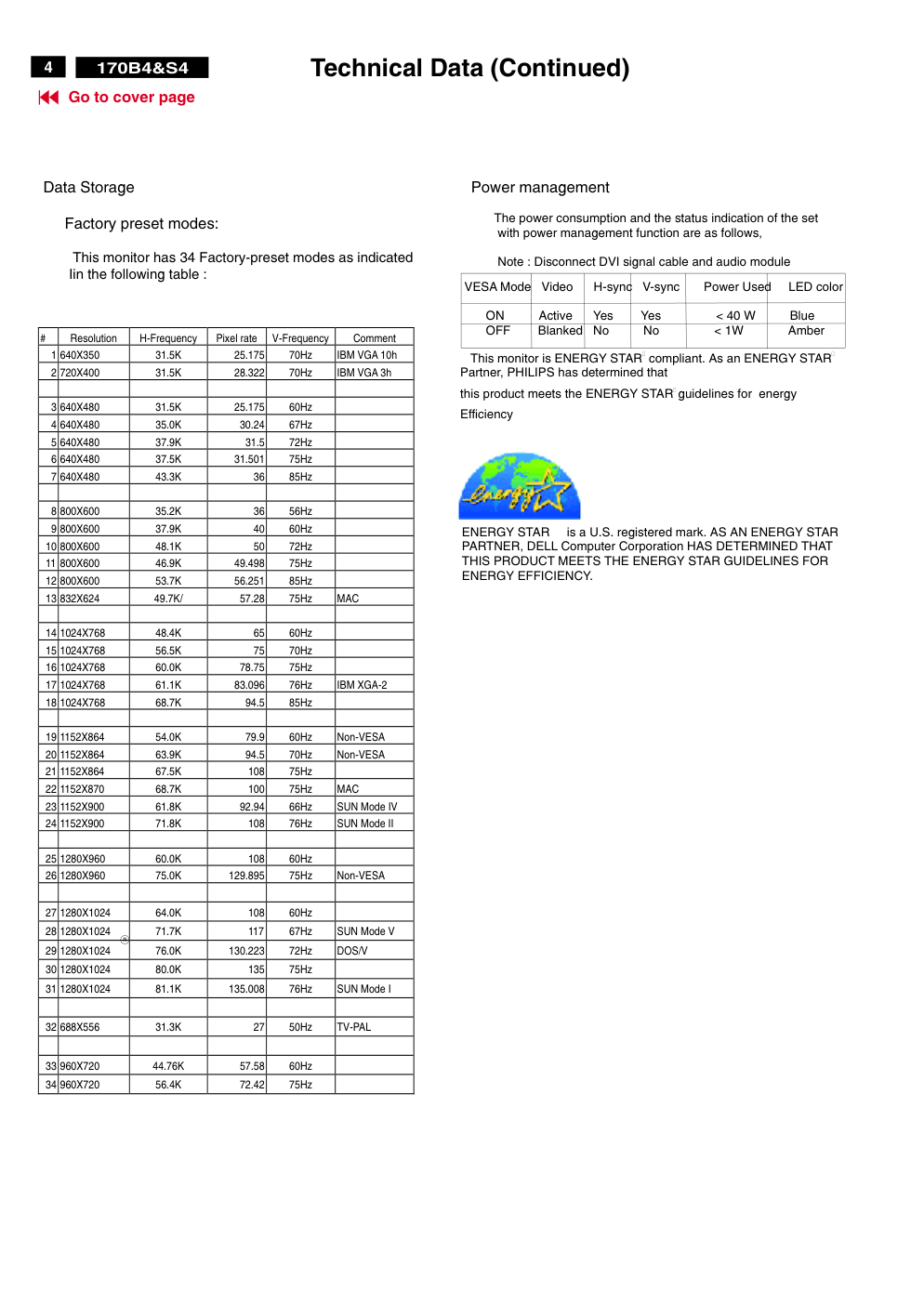

Technical Data (Continued)
Data Storage
Factory preset modes:
This monitor has 34 Factory-preset modes as indicated
Iin the following table :
ENERGY STAR
is a U.S. registered mark. AS AN ENERGY STAR
PARTNER, DELL Computer Corporation HAS DETERMINED THAT
THIS PRODUCT MEETS THE ENERGY STAR GUIDELINES FOR
ENERGY EFFICIENCY.
R
This monitor is ENERGY STAR compliant. As an ENERGY STAR
Partner, PHILIPS has determined that
this product meets the ENERGY STAR guidelines for energy
Efficiency
®
®
®
The power consumption and the status indication of the set
with power management function are as follows,
Note : Disconnect DVI signal cable and audio module
Power management
VESA Mode
Video
H-sync
V-sync
Power Used
LED color
ON
Active
Yes
Yes
< 40 W
Blue
OFF
Blanked
No
No
< 1W
Amber
#
Resolution
H-Frequency
Pixel rate
V-Frequency
Comment
1 640X350
31.5K
25.175
70Hz
IBM VGA 10h
2 720X400
31.5K
28.322
70Hz
IBM VGA 3h
3 640X480
31.5K
25.175
60Hz
4 640X480
35.0K
30.24
67Hz
5 640X480
37.9K
31.5
72Hz
6 640X480
37.5K
31.501
75Hz
7 640X480
43.3K
36
85Hz
8 800X600
35.2K
36
56Hz
9 800X600
37.9K
40
60Hz
10 800X600
48.1K
50
72Hz
11 800X600
46.9K
49.498
75Hz
12 800X600
53.7K
56.251
85Hz
13 832X624
49.7K/
57.28
75Hz
MAC
14 1024X768
48.4K
65
60Hz
15 1024X768
56.5K
75
70Hz
16 1024X768
60.0K
78.75
75Hz
17 1024X768
61.1K
83.096
76Hz
IBM XGA-2
18 1024X768
68.7K
94.5
85Hz
19 1152X864
54.0K
79.9
60Hz
Non-VESA
20 1152X864
63.9K
94.5
70Hz
Non-VESA
21 1152X864
67.5K
108
75Hz
22 1152X870
68.7K
100
75Hz
MAC
23 1152X900
61.8K
92.94
66Hz
SUN Mode IV
24 1152X900
71.8K
108
76Hz
SUN Mode II
25 1280X960
60.0K
108
60Hz
26 1280X960
75.0K
129.895
75Hz
Non-VESA
27 1280X1024
64.0K
108
60Hz
28 1280X1024
71.7K
117
67Hz
SUN Mode V
29 1280X1024
76.0K
130.223
72Hz
DOS/V
30 1280X1024
80.0K
135
75Hz
31 1280X1024
81.1K
135.008
76Hz
SUN Mode I
32 688X556
31.3K
27
50Hz
TV-PAL
33 960X720
44.76K
57.58
60Hz
34 960X720
56.4K
72.42
75Hz
Installation
Go to cover page
Front View Product Description
UP and DOWN buttons are used when adjusting
the OSD of your monitor
LEFT and RIGHT buttons, like the UP and DOWN
buttons, are also used in adjusting the OSD of your
monitor.
BRIGHTNESS hotkey. When the UP and DOWN
arrow buttons are pressed, the adjustment controls
for the BRIGHTNESS will show up.
OK button which when pressed will take you to the
OSD controls
POWER button switches your monitor on
Automatically adjust the horizontal position, vertical
position, phase and clock setting.
Signal inputs selective hotkeys. Allows user to
switch between two video connectors (D-Sub &
DVI-D), e.g. D-Sub <-> DVI-D digital inputs.
Connecting to Your PC
1) Thread power cord through the hole at the bottom of the base,
and plug onto monitor firmly.
2) Double check all cables\' connection closely. Make sure they are
all connected well.
Note: If you use an Apple Macintosh , you need to connect the
special Mac adapter to one end of the monitor signal cable.
3) Connect to PC
(A)
Turn off your computer and unplug its power cable.
(B)
Connect the monitor signal cable to the video connector
on the back of your computer.
(C)
Plug the power cord of your computer and your monitor
into a nearby outlet.
(D)
Turn on your computer and monitor. If the monitor
Displays an image, installation is complete.
TM
Remove the Base
1)
(a) Tilt monitor on certain angle.
(b) Pull cables out of the hole at the bottom of base.
2)
(a) Put monitor face down on the safe surface.
(b) Take off the cap of base
3)
Unscrew the four screws of the base
Performing auto-adjustment of the monitor
Adjusting the brightness
Press the AUTO button.
The picture quality (
,
) and picture position will be
optimally adjusted for your system.
Press the MENU button to save the settings.
The brightness of the monitor is adjusted directly with the arrow
buttons.
PHASE CLOCK
Press the button
or
.
BRIGHTNESS
Press the
or
button to adjust the brightness.
The setting window disappears after approximately 60 seconds if no
further setting is made.
All changes are stored automatically.
B R I G H T N E S S
50
The window
with a setting scale is visualised.
5
170B4&S4
6
Go to cover page
170B4&S4
1) Power Cord (socket may differ for
different countries)
12NC : 3138 149 77331
2) Macintosh Adapter (optional)
None
3) Interface Cable
12Nc : 3138 188 72742
4) E-DFU package with Quick Setup
Guide, Using Your Monitor Manual,
and CD-ROM.
12NC : 3138 117 04881
5) Pivot CD-ROM
12NC : 3138 117 03872

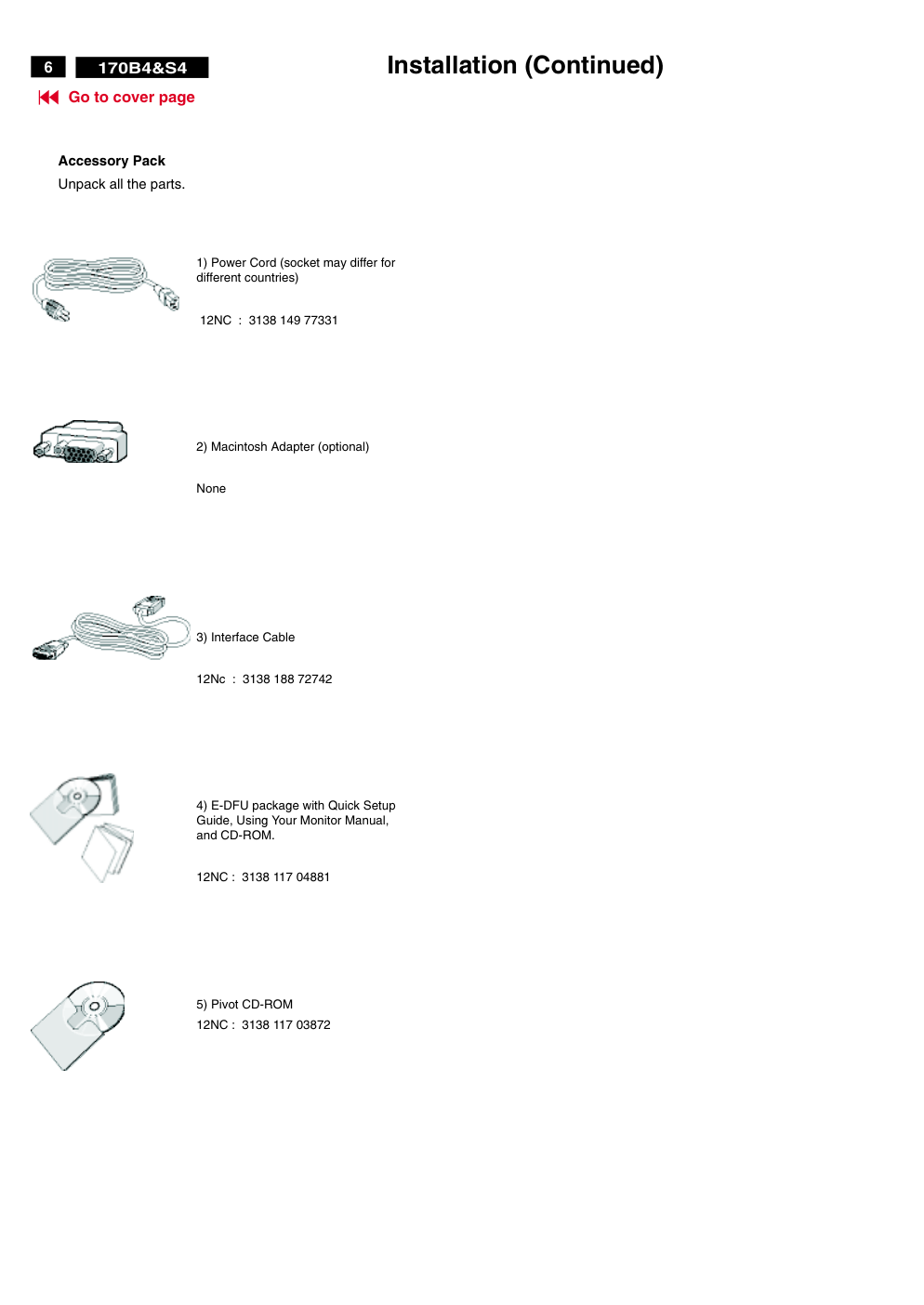

Accessory Pack
Unpack all the parts.
Installation (Continued)
OSD
Go to cover page
7
170B4&S4

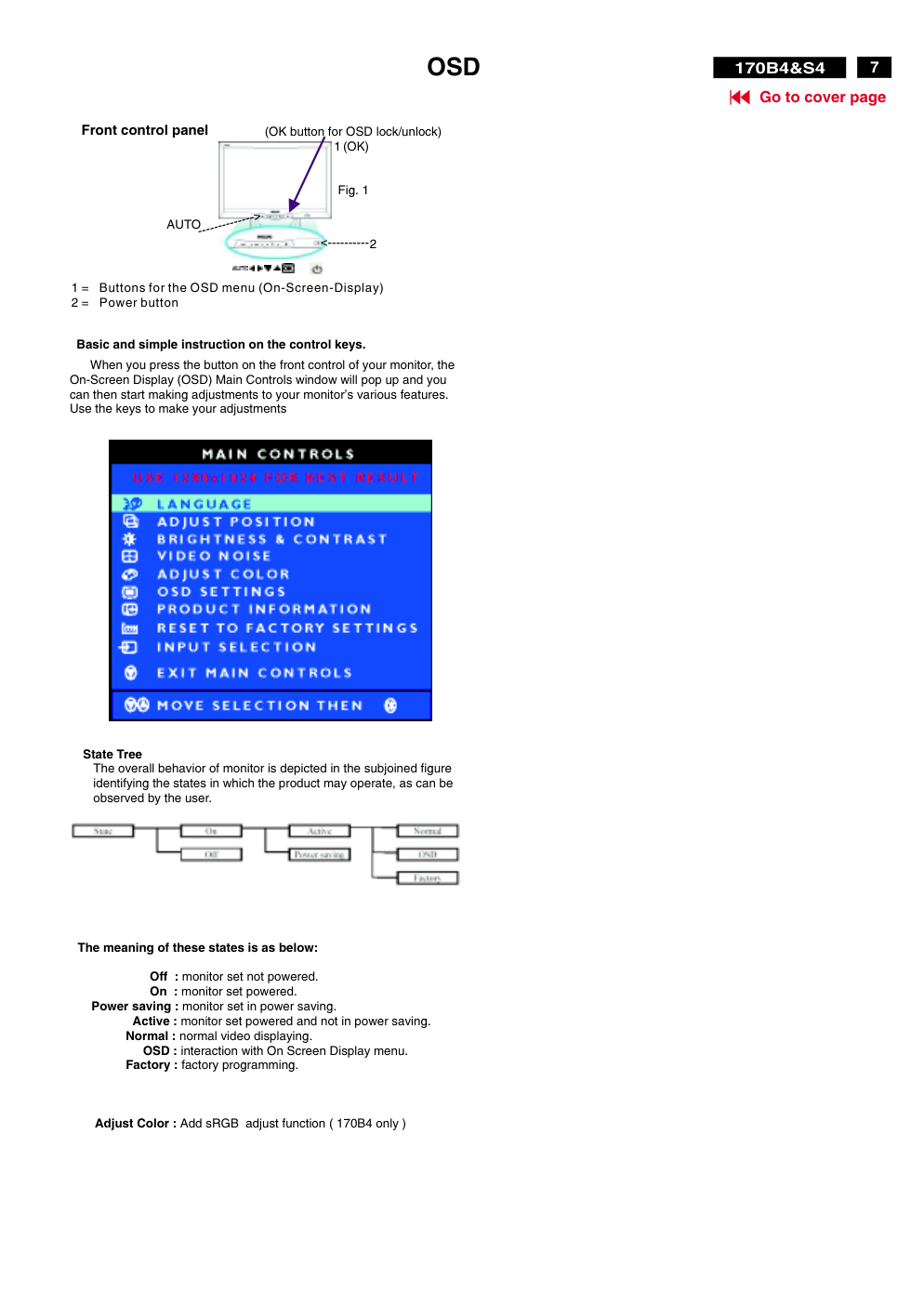

Basic and simple instruction on the control keys.
When you press the button on the front control of your monitor, the
On-Screen Display (OSD) Main Controls window will pop up and you
can then start making adjustments to your monitor\'s various features.
Use the keys to make your adjustments
State Tree
The overall behavior of monitor is depicted in the subjoined figure
identifying the states in which the product may operate, as can be
observed by the user.
The meaning of these states is as below:
Off :
On :
Power saving :
Active :
Normal :
OSD :
Factory :
Adjust Color :
monitor set not powered.
monitor set powered.
monitor set in power saving.
monitor set powered and not in power saving.
normal video displaying.
interaction with On Screen Display menu.
factory programming.
Add sRGB adjust function ( 170B4 only )
Front control panel
1 =
Buttons for the OSD menu (On-Screen-Display)
2 =
Power button
(OK button for OSD lock/unlock)
Fig. 1
-------------->
---------->
AUTO
(OK)
1
2
8
Go to cover page
170B4&S4
Analog
OSD (Continued)

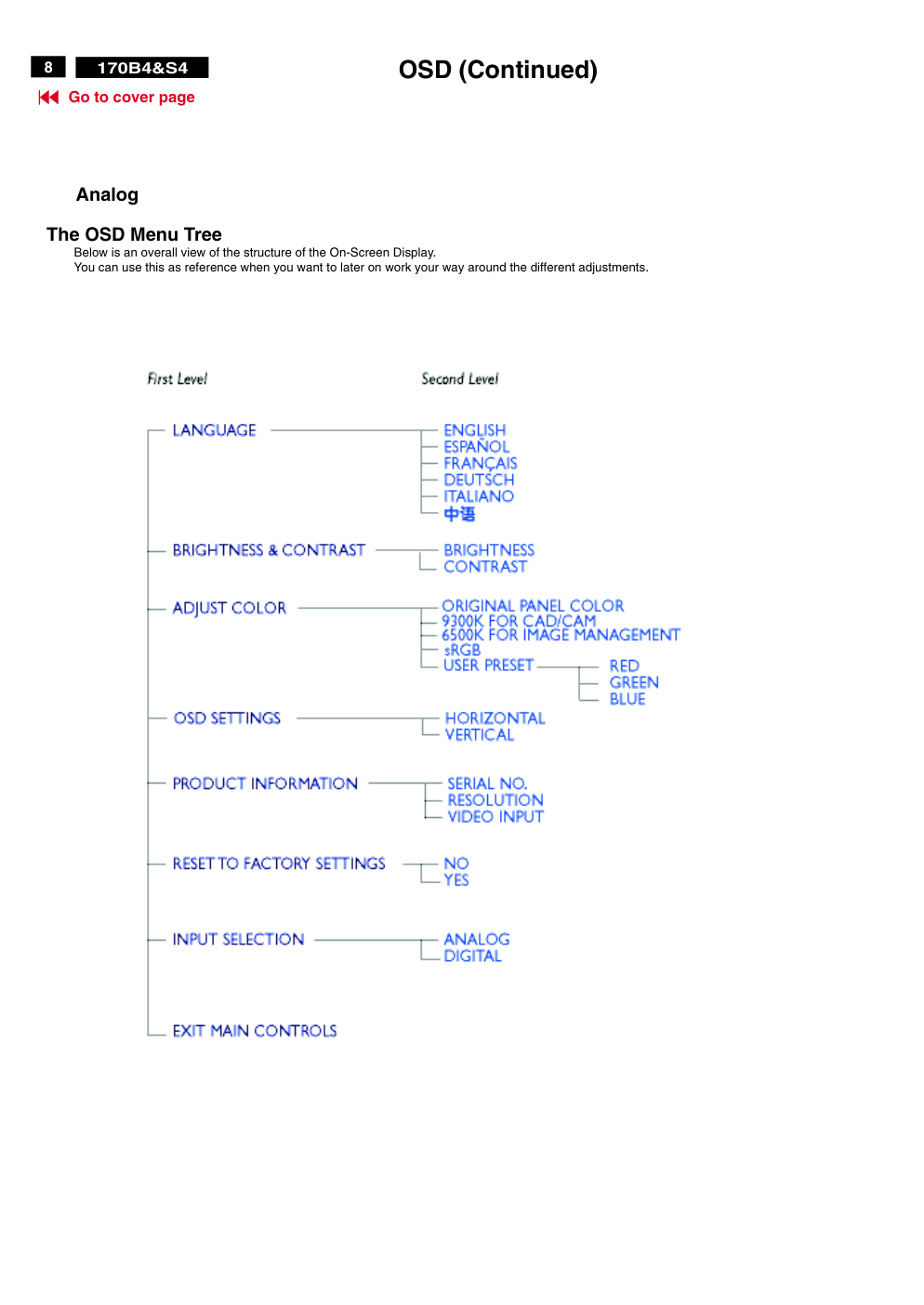

The OSD Menu Tree
Below is an overall view of the structure of the On-Screen Display.
You can use this as reference when you want to later on work your way around the different adjustments.
Go to cover page
9
170B4&S4
Digital
OSD (Continued)

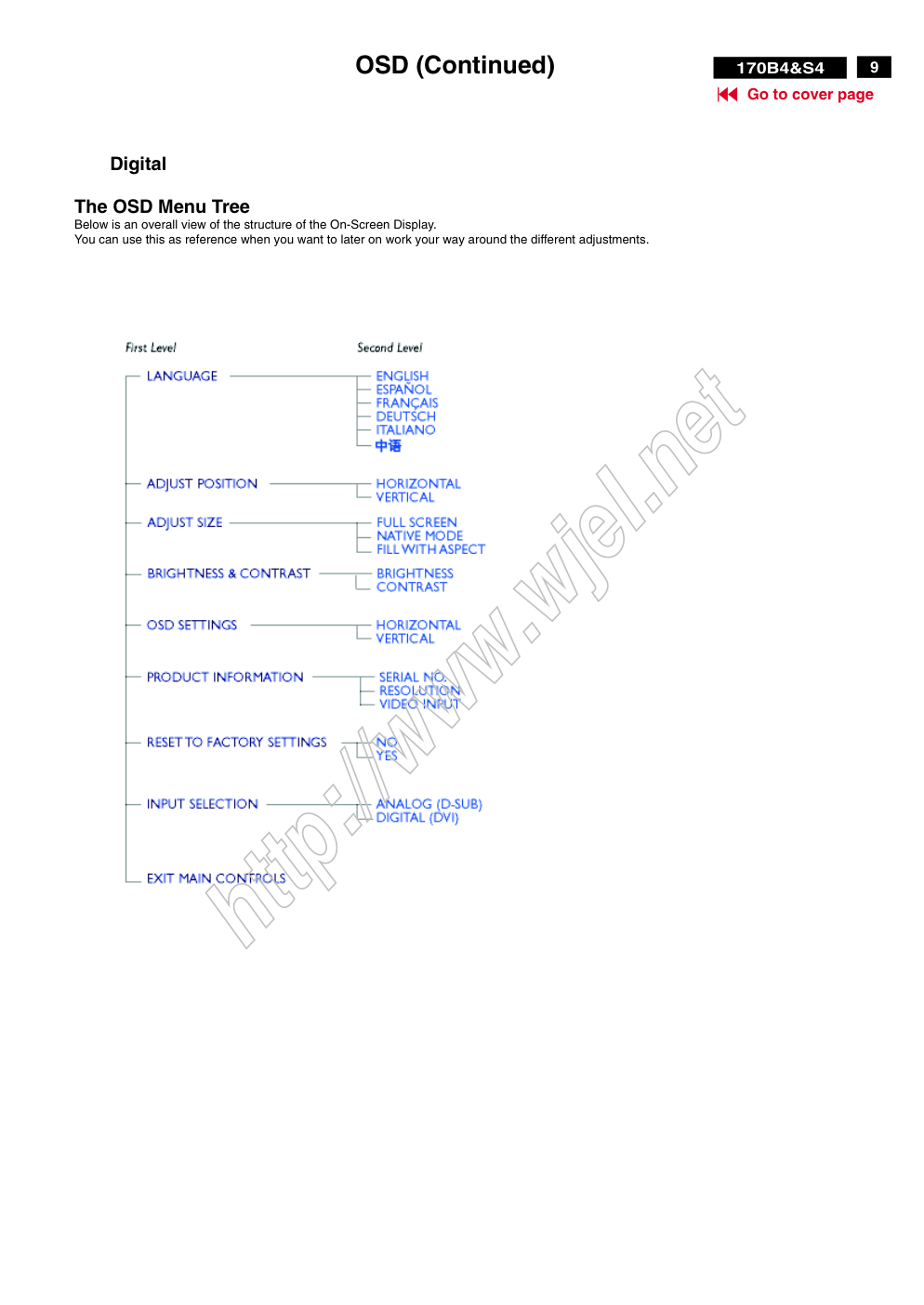

The OSD Menu Tree
Below is an overall view of the structure of the On-Screen Display.
You can use this as reference when you want to later on work your way around the different adjustments.
http://www.wjel.net
10
OSD Lock/Unlock, Aging & Service Mode,
Enable/Disable "warning message"
Go to cover page
170B4&S4
ATTENTION
OSD MAIN CONTROLS LOCKED
ATTENTION
OSD MAIN CONTROLS UNLOCKED
ATTENTION
ATTENTION SIGNAL OFF
ATTENTION
ATTENTION SIGNAL ON
To Lock/Unlock OSD function (User Mode)
The OSD function can be locked by pressing "OK" button(1) for more
than 10 seconds, the screen shows following windows for 3 seconds.
Everytime when you press "AUTO" or "OK" button, this message
appears on the screen automatically.
To Enable/Disable "Warning message" on screen
(in User Mode)
Unlock OSD function:
Locked OSD function can be released by pressing"OK" button for
more than 10 seconds again.
Step 1: Turn off LCD monitor, and disconnect Interface Cable
between Monitor and PC.
Step 1: Turn on LCD monitor, and disconnect Interface Cable
between Monitor and PC.
Step 1: Turn on LCD monitor, and disconnect Interface Cable
between Monitor and PC.
Fig. 2
Fig. 3
Bring up
After 15 seconds, bring up :
After 15 seconds, bring up :
:
After 15 seconds, bring up :
----------
----------
repeatly
Connect signal cable again => go back to normal display.
Status 1.: Turn off monitor, then turn on monitor again
=> go back to Windows screen.
=> go back to last display.
Connect signal cable again
Status 2.
Status 1.: Turn off monitor, then turn on monitor again
=> go back to Windows screen.
=> go back to last display.
Connect signal cable again
Status 2.
Access Aging.. Mode
Access "SERVICE MODE" (in USER Mode)
Step 2 :
[Push AUTO "
" & OK "
" buttons at the same time and hold
it ] + [Press power "
" button untill comes out "AGING screen"
] => then release all buttons.
Step 2 :
Push AUTO "
" button for more than 10 seconds to disable
"warning message", bring up
Step 3 :
Push AUTO "
" button for more than 10 seconds again to enable
"warning message", bring up
Step 2 :
Push OK "
" button for more than 10 seconds, bring up
"SERVICE MODE".
A G I N G ...
A G I N G ...
SERVICE MODE
SERIAL NO. :TY 000081
HOURS OF OPERATION:000020
SERVICE MODE
SERIAL NO. :TY 000081
HOURS OF OPERATION:000020
A G I N G ...
A G I N G ...
Front control panel
1 =
Buttons for the OSD menu (On-Screen-Display)
2 =
Power button
(OK button for OSD lock/unlock)
Fig. 1
-------------->
---------->
AUTO
(OK)
1
2
http://www.wjel.net
Pixel Defect Policy
11
Go to cover page
170B4&S4
Philips\' Flat Panel Monitors Pixel Defect Policy
Philips strives to deliver the highest quality products. We use some of
the industry\'s most advanced manufacturing processes and practice
stringent quality control. However, pixel or subpixel defects on the TFT
LCD panels used in flat panel monitors are sometimes unavoidable.
No manufacturer can guarantee that all panels will be free from pixel
defects, but Philips guarantees that any monitor with an unacceptable
number of defects will be repaired or replaced under warranty.
This notice explains the different types of pixel defects and defines
acceptable defect levels for each type. In order to qualify for repair or
replacement under warranty, the number of pixel defects on a TFT LCD
panel must exceed these acceptable levels.
For example, no more than 0.0004% of the subpixels on a 15" XGA
monitor may be defective. Additionally, because some types or
combinations of pixel defects are more noticeable than others, Philips
sets even higher quality standards for those.
Pixels and Subpixels
A pixel, or picture element, is composed of three subpixels in the
primary colors of red, green and blue. Many pixels together form an
image. When all subpixels of a pixel are lit, the three colored subpixels
together appear as a single white pixel. When all are dark, the three
colored subpixels together appear as a single black pixel.
Other combinations of lit and dark subpixels appear as single pixels of
other colors.
Types of Pixel Defects
Pixel and subpixel defects appear on the screen in different ways.
There are two categories of pixel defects and several types of subpixel
defects within each category.
Bright Dot Defects Bright dot defects appear as pixels or subpixels that
are always lit or "on".
These are the types of bright dot defects:
One lit red, green or blue subpixel
Two adjacent lit subpixels:
- Red + Blue = Purple
- Red + Green = Yellow
- Green + Blue = Cyan (Light Blue)
Three adjacent lit subpixels
(one white pixel)
Black Dot Defects
Black dot defects appear as pixels or subpixels that are always dark or
"off".
These are the types of black dot defects:
One dark subpixel
Two or three adjacent dark subpixels
Proximity of Pixel Defects
Because pixel and subpixels defects of the same type that are nearby
one another may be more noticeable, Philips also specifies tolerances
for the proximity of pixel defects.
Pixel Defect Tolerances
In order to qualify for repair or replacement due to pixel defects during
the warranty period, a TFT LCD panel in a Philips flat panel monitor
must have pixel or subpixel defects exceeding the tolerances listed in
the following tables.
MODEL
170B4&S4
1 lit subpixel
3 or fewer
2 adjacent lit subpixels
1 or fewer
3 adjacent lit subpixels (one white pixel)
0
Distance between two bright dot defects*
15 mm or more
Bright dot defects within 20 mm circle
-
Total bright dot defects of all types
3 or fewer
MODEL
170B4&S4
1 dark subpixel
4 or fewer
2 adjacent dark subpixels
2 or fewer
3 adjacent dark subpixels
1 or fewer
Distance between two black dot defects*
15 mm or more
Black dot defects within 20 mm circle*
-
Total black dot defects of all types
4 or fewer
MODEL
170B4&S4
Total bright or black dot defects of all types
4 or fewer
BRIGHT DOT DEFECTS
ACCEPTABLE LEVEL
BLACK DOT DEFECTS
ACCEPTABLE LEVEL
TOTAL DOT DEFECTS
ACCEPTABLE LEVEL
Note: 1 or 2 adjacent subpixel defects = 1 dot defect
http://www.wjel.net
12
170B4&S4
Go to cover page
DDC Instructions
General
Pin assignment
1
10
6
11
15
5
Assignment
Assignment
Pin No.
Pin No.
Ground
No Connected
Ground
Blue video input
2
7
6
8
4
5
3
1
9
12
11
14
13
15
10
Red video ground
Blue video ground
Green video ground
+5V
Ground
Data clock line(SCL)
V.Sync(VCLK for DDC)
H.Sync
Serial data line(SDA)
Green video input
Red video input
A. 15-pin D-Sub Connector
DDC Data Re-programming
Analog DDC IC, Digital DDC IC & EEPROM
Additional information
In case the DDC data memory IC or main EEPROM which storage all
factory settings were replaced due to a defect, the serial numbers have
to be re-programmed"
".
It is advised to re-soldered DDC IC and main EEPROM from the old
board onto the new board if circuit board have been replaced, in this
case the DDC data does not need to be re-programmed.
Additional information about DDC (Display Data Channel) may be
obtained from Video Electronics Standards Association (VESA).
Extended Display Identification Data(EDID) information may be also
obtained from VESA.
DDC EDID structure
For Analog interface: Standard Version
3.0
Structure Version
1.2
For Digital inferface:
Standard Version
3.0
Structure Version
1.3
1.
An i486 (or above) personal computer or compatible.
2.
Microsoft operation system Windows 95/98.
4.
A/D Alignment kits (3138 106 10079):
inclusion :
a. Alignment box x1 (as Fig. 2)
b. Printer cable x1
c. (D-Sub) to (D-Sub) cable x1
d. (DVI-D) to (D-Sub) cable x1 (as Fig. 3)
Note: The EDID301.EXE (Release Version 1.58 20000818)is a
windows-based program, which cannot be run in MS-DOS.
System and equipment requirements
3.
EDID301.EXE program (3138 106 10103) as shown in Fig. 1
Diskette with EDID301.EXE
EDID301.EXE
Ver:1.58
(DVI-D) to (D-Sub) cable
Note: The alignment box has already build-in a batteries socket for
using
as power source. Pull out the socket by
remove four screws at the rear of box. Please do not forget that
remove batteries after programming. The energy of batteries can
only drive circuits for a short period of time.
batteries (9V)
To Monitor
DC 8V~12V
Video Card
Video Card
To Printer
Power
indicator
A/D Alignment Kits - Analog connection
A/D Alignment Kits - Analog connection
A/D Alignment Kits - Digital connection
A/D Alignment Kits - Digital connection
Fig. 2
Fig. 2
Fig. 1
Fig. 1
Fig. 4
Fig. 4
Fig. 5
Fig. 5
Fig. 3
Fig. 3
To Monitor
(Digital port)
DC 8V~12V
To Printer
Power
indicator
http://www.wjel.net
Go to cover page
13
DDC Instructions (Continued)
170B4&S4
Step 3: Installation of EDID301.EXE
Method 1: Start on DDC program
Start Microsoft Windows.
1. Insert the disk containing EDID301.EXE program into floppy disk
drive.
2. Click
, choose Run at start menu of Windows 95/98 as
shown in Fig. 7.
Fig. 7
4. Click
button. The main menu appears (as shown in Fig. 9).
OK
This is for initialize alignment box.
Fig. 9
Fig. 8
Fig. 10
Note 1: If the connection is improper, you will see the following error
message (as shown in Fig. 10) before entering the main menu.
Meanwhile, the (read EDID) function will be disable. At this time,
please make sure all cables are connected correctly and fixedly,
and the procedure has been performed properly.
3. At the submenu, type the letter of your computer\'s floppy disk drive
followed by :EDID301 (for example, A:\\EDID301, as shown in Fig. 8).
Method 2: After create a shortcut of EDID301.EXE
This is for initialize alignment box.
: Double click EDID301 icon
(as shown in Fig. 11) which
is on the screen of Windows Wallpaper.
Bring up main menu of EDID301 as shown in Fig. 12.
Fig. 12
Note 2: During the loading, EDID301 will verify the EDID data which just
loaded from monitor before proceed any further function, once
the data structure of EDID can not be recognized, the following
error message will appear on the screen as below. Please
confirm following steps to avoid this message.
1. The data structure of EDID was incorrect.
2. DDC IC that you are trying to load data is empty.
3. Wrong communication channel has set at configuration setup
windows.
4. Cables loosed or poor contact of connection.
Fig. 11
1
Configuration and procedure
There are 2 chips contained OSD string, serial number..etc
on the circuit board, main EEPROM which storage all factory
settings,OSD string. DDC IC which storage 128byte EDID data(serial
number ..etc.). Following descirptions are the connection and procedure
for Analog and Digital DDC application, the main EEPROM can be
re-programmed along with Analog/Digital IC by enable “factory memory
data write” function on the DDC program (EDID301.EXE).
Initialize alignment box
In order to avoid that monitor entering power saving mode due
to sync will cut off by alignment box, it is necessary to initialize
alignment box before running programming software
(EDID301.EXE). Following steps show you the procedures and
connection.
Step 1: Supply 8~12V DC power source to the Alignment box by
plugging a DC power cord or using batteries.
Step 2: Connecting printer cable and video cable of monitor as Fig. 6
Fig. 6
PC
Rear view of 170B4&S4
1=Power connector
2=DVI-D connector
3=D-SUB connector
~~
To printer port (LTP1)
DC Power
8~12 V
Printer
Port
To video card
To
Monitor
To PC
1
2
3
----->
----->
Fig. 13
http://www.wjel.net
14
Go to cover page
DDC Instructions (Continued)
170B4&S4
Re-programming Analog DDC IC
Step 1: After initialize alignment box, connecting all cables and
box as shown in Fig. 14
Fig. 15
Step 2: Read DDC data from monitor
1.
Click
icon as shown in Fig. 15 from the tool bar to bring up
the Channels "Configuration Setup" windows as shown in Fig. 12.
Step 3: Modify DDC data (verify EDID version, week, year)
1.
Click
(new function) icon from the tool bar, bring up
Step 1 of 9 as shown in Fig. 18 .
EDID301 DDC application provides the function selection and
text change (select & fill out) from Step 1 to Step 9.
Step 4: Modify DDC data (Monitor Serial No.)
Next
1.
Click
, bring up Fig. 19.
2.
Click
, bring up Fig. 20.
Next
3. Click OK button to confirm your selection.
4. Click
icon (Read EDID function) to read DDC EDID data from
monitor. The EDID codes will display on screen as shown in Fig. 17.
Fig. 19
Fig. 20
2. Select the DDC2B as the communication channel.
(Disable "Factory memory data write")
as shown in Fig. 16.
Fig. 17
Fig. 18
Fig. 14
1=Power connector
2=DVI-D connector
3=D-SUB connector
~~
PC
To video card
To printer port (LTP1)
DC Power
8~12 V
Printer
Port
To
Monitor
To PC
Rear view of 170B4&S4
1
2
3
----->
----->
Don\'t close this screen. --->
select and fill out,
if necessary.
select and fill out,
if necessary.
http://www.wjel.net
Go to cover page
15
DDC Instructions (Continued)
170B4&S4
Fig. 21
Fig. 25
Fig. 22
Fig. 23
3.
Click
, bring up Fig. 21.
Next
6.
Click
, bring up Fig. 24.
(Serial number can be filled up or be changed at this moment.
Next
7.
Click
, bring up Fig. 25.
Next
4.
Click
, bring up Fig. 22.
Next
5.
Click
, bring up Fig. 23.
Next
Fig. 26
8.
Click
, bring up Fig. 26.
- Click
to exit the Step window.
Next
Finish
Definition of Serial Number (barcode format)
T Y 0 0 0 0 2 8 0 0 0 0 0 1
Serial Number (U.S.A: 8 digit)
Week
Year
TY Code
TY----Chungli
CX----Dong Guan
HD----Hungary
BZ----Suzhou
(Others regions: 6 digit)
Fig. 24
two space
(for example: change it from TY 001778
to
TY 123456)
------>
http://www.wjel.net
Step 9: Load DDC data
Open
1. Click from the tool bar.
2. Select the file you want to open as shown in Fig. 31.
3. Click
.
16
Go to cover page
DDC Instructions (Continued)
170B4&S4
Fig. 30
Fig. 31
Step 8: Save DDC data
Sometimes, you may need to save DDC data as a text file for using
in other IC chip. To save DDC data, follow the steps below:
1. Click
(Save) icon (or click "file"-> "save as") from the tool bar
And give a file name as shown in Fig. 30.
The file type is EDID301 file (*.ddc) which can be open in WordPad.
By using WordPad, the texts of DDC data & table (128 bytes,
hex
code) can be modified. If DDC TEXTS & HEX Table are completely
correct, it can be saved as .ddc flie to re-load it into DDC IC for DDC
Data application.
2.
Click
.
Save
Step 10: Exit DDC program
Pull down the File menu and select Exit as shown in Fig. 32.
Step 6: Write DDC data
1. Configuration should be as Fig. 27.
2. Access Factory mode
3. Click (Write EDID) icon from the tool bar to write DDC data.
Bring up "Writing 0%~100%, ready" a progressing bar on the left
down corner.
4. Click (Read EDID) to confirm it.
Step 7: Confirm Serial Number in User Mode
1. Press the POWER button to turn off the monitor. Press the button
again to turn on the monitor.
2. Press the OK button to bring up the OSD Main Menu.
3. Press the DOWN button to select PRODUCTION INFORMATION
, press the OK button to confirm your selection.
4. Re-confirm the Serial Number "123456" (example only) is updated
as shown in Fig. 29.
Access Factory Mode
Step 2 :
[Push AUTO "
" & OK "
" buttons at the same time and hold
it ] + [Press power "
" button untill comes out "Windows screen"
] => then release all buttons.
How to Get into Factory Mode Menu
Turn off monitor.
Press OK "
" button, bring up Factory mode indication as
shown in Fig 28.
Step 1 :
Step 3 :
<= Product
Information
HUDSON 3 170B4 T151 20021214
HUDSON 3 170B4 T151 20021214
http://www.wjel.net
17
Go to cover page
DDC Instructions (Continued)
170B4&S4
4. Click
icon (Read EDID function) to read DDC EDID data from
monitor. The EDID codes will display on screen as shown in Fig. 37.
Fig. 37
Step 4: Modify DDC data (verify EDID version, week, year)
1.
Click
(new function) icon from the tool bar, bring up
Step 1 of 9 (Digital) as shown in Fig. 38 .
EDID301 DDC application provides the function selection and
text change (select & fill out) from Step 1 to Step 9.
Fig. 39
Fig. 40
Re-programming Digital DDC IC
Connecting all cables and alignment box as shown in
Fig. 33.
Step 1:
After connection for Digital DDC application, if it is still in Analog DDC
application of EDID301.
Exit EDID301 program before Digital DDC application.
Fig. 34
Fig. 35
Step 2: Initialize alignment box
(Shortcut of EDID301.EXE on
Double click EDID301 icon
(as shown in Fig. 34) which is
on the screen of Windows Wallpaper.
Bring up main menu of EDID301 as shown in Fig. 35.
Windows Wallpaper already.)
Step 3: Read DDC data from monitor
1.
Click
icon from the tool bar to bring up the Channels
Configuration Setup windows as shown in Fig. 35.
2.
Select the DDC2B as the communication channel.
as shown in Fig. 36.
Disable "Factory memory data write" for Digital DDC
application
3.
Click OK button to confirm your selection.
1
1
~~
PC
To video card
To printer port (LTP1)
DC Power
8~12 V
To
Monitor
To PC
Printer
Port
1=Power connector
2=DVI-D connector
3=D-SUB connector
Rear view of 170B4&S4
1
2
3
----->
DVI
D-SUB
D-Sub connector
select and fill out,
if necessary.
select and fill out,
if necessary.
Fig. 38
http://www.wjel.net
Go to cover page
DDC Instructions (Continued)
18
170B4&S4
Step 6: Write DDC data
1.
Click
(Write EDID) icon from the tool bar to write DDC data.
2.
Click
(Read EDID) to re-confirm (check contents) it.
The 128bytes DDC data which had been written into DDC IC of
Digital Mode.
Fig. 47
Fig. 48
2.
Click
.
Save
Step 9: Exit DDC program
Pull down the File menu and select Exit
Step 7: Save DDC data
Sometimes, you may need to save DDC data as a text file for using
in other IC chip. To save DDC data, follow the steps below:
1.
Click
(Save) icon (or click "file"-> "save as") from the tool bar
and give a file name as shown in Fig. 47.
Step 8: Load DDC data
Open
1.
Click
from the tool bar.
2.
Select the file you want to open as shown in Fig 48.
3.
Click
.
Click
to exit the Step window as shown in Fig. 46.
Finish
Fig. 45
Fig. 46
Step 5: Modify DDC data (Monitor Serial No.)
Monitor S
as shown in Fig. 44.
erial No. can be filled up or be changed (for example,
TY 123456)
Fig. 41
Fig. 42
Fig. 43
Fig. 44
Definition of Serial Number (barcode format)
T Y 0 0 0 0 2 8 0 0 0 0 0 1
Serial Number (U.S.A: 8 digit)
Week
Year
TY Code
TY----Chungli
CX----Dong Guan
HD----Hungary
BZ----Suzhou
(Others regions: 6 digit)
two space
(for example: change it from TY 001778
to
TY 123456)
------>
http://www.wjel.net
19
Go to cover page
DDC Data of Analog
170B4&S4
EDID log file
Vendor/Product Identification
ID Manufacturer Name
: PHL
ID Product Code
: 0817 (HEX.)
ID Serial Number
: 6F2 (HEX.)
Week of Manufacture
: 46
Year of Manufacture
: 2002
EDID Version, Revision
Version
: 1
Revision : 3
Basic Display Parameters/Features
Video Input Definition
: Analog Video Input
0.700V/0.300V (1.00Vpp)
Blank-to-Black Setup
Separate Sync
Composite Sync
Sync on Green
Serration required
Maximum H Image Size
: 34
Maximum V Image Size
: 27
Display Transfer Characteristic : 2.2
(gamma)
Feature Support (DPMS)
: Standby
Suspend
Active Off
Display Type : RGB color display
Standard Default Color Space : Primary color space
Preferred Timing Mode : Detailed timing block 1
Color Characteristics
Red
X coordinate
: 0.64
Red
Y coordinate
: 0.34
Green X coordinate
: 0.29
Green Y coordinate
: 0.61
Blue X coordinate
: 0.14
Blue Y coordinate
: 0.07
White X coordinate
: 0.31
White Y coordinate
: 0.33
Established Timings I :
720 x 400 @70Hz (IBM,VGA)
640 x 480 @60Hz (IBM,VGA)
640 x 480 @67Hz (Apple,Mac II)
640 x 480 @72Hz (VESA)
640 x 480 @75Hz (VESA)
800 x 600 @56Hz (VESA)
800 x 600 @60Hz (VESA)
Established Timings II :
800 x 600 @72Hz (VESA)
800 x 600 @75Hz (VESA)
832 x 624 @75Hz (Apple,Mac II)
1024 x 768 @60Hz (VESA)
1024 x 768 @70Hz (VESA)
1024 x 768 @75Hz (VESA)
1280 x 1024 @75Hz (VESA)
Manufacturer\'s timings
: 1152 x 870 @75Hz (Apple,Mac II)
Standard Timing Identification #1
Horizontal active pixels
: 1152
Aspect Ratio
: 4:3
Refresh Rate
: 70
Standard Timing Identification #2
Horizontal active pixels
: 1152
Aspect Ratio
: 4:3
Refresh Rate
: 75
Standard Timing Identification #3
Horizontal active pixels
: 1280
Aspect Ratio
: 4:3
Refresh Rate
: 60
Standard Timing Identification #4
Horizontal active pixels
: 1280
Aspect Ratio
: 5:4
Refresh Rate
: 60
Detailed Timing #1
Pixel Clock (MHz)
: 108
H Active (pixels)
: 1280
H Blanking (pixels)
: 408
V Active (lines)
: 1024
V Blanking (lines)
: 42
H Sync Offset (F Porch) (pixels)
: 48
H Sync Pulse Width (pixels)
: 112
V Sync Offset (F Porch) (lines)
: 1
V Sync Pulse Width (lines)
: 3
H Image Size (mm)
: 338
V Image Size (mm)
: 270
H Border (pixels)
: 0
V Border (lines)
: 0
Flags
: Non-interlaced
: Normal Display, No stereo
: Digital Separate sync.
: Positive Vertical Sync.
: Positive Horizontal Sync.
Monitor Descriptor #2
Serial Number
:
TY 001778
Monitor Descriptor #3
Monitor Name
: Philips 170B4
Monitor Descriptor #4
Monitor Range Limits
Min. Vt rate Hz
: 56
Max. Vt rate Hz
: 76
Min. Horiz. rate kHz
: 30
Max. Horiz. rate kHz
: 82
Max. Supported Pixel
: 140
No secondary GTF timing formula supported.
Extension Flag
: 0
Check sum
: C4 (HEX.)
**********************************************************************
EDID data (128 bytes)
**********************************************************************
0: 00
1: ff
2: ff
3: ff
4: ff
5: ff
6: ff
7: 00
8: 41
9: 0c 10: 17 11: 08 12: f2 13: 06 14: 00 15: 00
16: 2e 17: 0c 18: 01 19: 03 20: 1f 21: 22 22: 1b 23: 78
24: ee 25: c5 26: c6 27: a3 28: 57 29: 4a 30: 9c 31: 23
32: 12 33: 4f 34: 54 35: bf 36: ef 37: 80 38: 71 39: 4a
40: 71 41: 4f 42: 81 43: 40 44: 81 45: 80 46: 01 47: 01
48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 30 55: 2a
56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70
64: 13 65: 00 66: 52 67: 0e 68: 11 69: 00 70: 00 71: 1e
72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59
80: 20 81: 20 82: 30 83: 30 84: 31 85: 37 86: 37 87: 38
88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50
96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31
104: 37 105: 30 106: 42 107: 34 108: 00 109: 00 110: 00 111: fd
112: 00 113: 38 114: 4c 115: 1e 116: 52 117: 0e 118: 00 119: 0a
120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: c4
http://www.wjel.net
Go to cover page
DDC Data of Digital
20
170B4&S4
EDID log file
Vendor/Product Identification
ID Manufacturer Name : PHL
ID Product Code
: 0817 (HEX.)
ID Serial Number
: 6F2 (HEX.)
Week of Manufacture
: 46
Year of Manufacture
: 2002
EDID Version, Revision
Version
: 1
Revision
: 3
Basic Display Parameters/Features
Video Input Definition
: Digital Video Input
Maximum H Image Size : 34
Maximum V Image Size : 27
Display Transfer Characteristic : 2.2
(gamma)
Feature Support (DPMS)
: Standby
Suspend
Active Off
Display Type
: RGB color display
Standard Default Color Space :
Primary color space
Preferred Timing Mode
:
Detailed timing block 1
Color Characteristics
Red
X coordinate
: 0.64
Red
Y coordinate
: 0.34
Green X coordinate : 0.29
Green Y coordinate : 0.61
Blue X coordinate
: 0.14
Blue Y coordinate
: 0.07
White X coordinate
: 0.31
White Y coordinate
: 0.33
Established Timings
Established Timings I :
720 x 400 @70Hz (IBM,VGA)
640 x 480 @60Hz (IBM,VGA)
640 x 480 @67Hz (Apple,Mac II)
640 x 480 @72Hz (VESA)
640 x 480 @75Hz (VESA)
800 x 600 @56Hz (VESA)
800 x 600 @60Hz (VESA)
Established Timings II :
800 x 600 @72Hz (VESA)
800 x 600 @75Hz (VESA)
832 x 624 @75Hz (Apple,Mac II)
1024 x 768 @60Hz (VESA)
1024 x 768 @70Hz (VESA)
1024 x 768 @75Hz (VESA)
1280 x 1024 @75Hz (VESA)
Manufacturer\'s timings
: 1152 x 870 @75Hz (Apple,Mac II)
Standard Timing Identification #1
Horizontal active pixels
: 1152
Aspect Ratio
: 4:3
Refresh Rate
: 70
Standard Timing Identification #2
Horizontal active pixels
: 1152
Aspect Ratio
: 4:3
Refresh Rate
: 75
Standard Timing Identification #3
Horizontal active pixels
: 1280
Aspect Ratio
: 4:3
Refresh Rate
: 60
Standard Timing Identification #4
Horizontal active pixels
: 1280
Aspect Ratio
: 5:4
Refresh Rate
: 60
Detailed Timing #1
Pixel Clock (MHz)
: 108
H Active (pixels)
: 1280
H Blanking (pixels)
: 408
V Active (lines)
: 1024
V Blanking (lines)
: 42
H Sync Offset (F Porch) (pixels) : 48
H Sync Pulse Width (pixels)
: 112
V Sync Offset (F Porch) (lines)
: 1
V Sync Pulse Width (lines)
: 3
H Image Size (mm)
: 338
V Image Size (mm)
: 270
H Border (pixels)
: 0
V Border (lines)
: 0
Flags
: Non-interlaced Normal Display, No stereo
: Digital Separate sync.
: Positive Vertical Sync.
: Positive Horizontal Sync.
Monitor Descriptor #2
Serial Number
:
TY 001778
Monitor Descriptor #3
Monitor Name
: Philips 170B4
Monitor Descriptor #4
Monitor Range Limits
Min. Vt rate Hz
: 56
Max. Vt rate Hz
: 76
Min. Horiz. rate KHz
: 30
Max. Horiz. rate KHz
: 82
Max. Supported Pixel
: 140
No secondary GTF timing formula supported.
Extension Flag
: 0
Check sum
: 63 (HEX.)
**********************************************************************
EDID data (128 bytes)
**********************************************************************
0: 00
1: ff
2: ff
3: ff
4: ff
5: ff
6: ff
7: 00
8: 41
9: 0c 10: 17 11: 08 12: f2 13: 06 14: 00 15: 00
16: 2e 17: 0c 18: 01 19: 03 20: 80 21: 22 22: 1b 23: 78
24: ee 25: c5 26: c6 27: a3 28: 57 29: 4a 30: 9c 31: 23
32: 12 33: 4f 34: 54 35: bf 36: ef 37: 80 38: 71 39: 4a
40: 71 41: 4f 42: 81 43: 40 44: 81 45: 80 46: 01 47: 01
48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 30 55: 2a
56: 00 57: 98 58: 51 59: 00 60: 2a 61: 40 62: 30 63: 70
64: 13 65: 00 66: 52 67: 0e 68: 11 69: 00 70: 00 71: 1e
72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59
80: 20 81: 20 82: 30 83: 30 84: 31 85: 37 86: 37 87: 38
88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50
96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31
104: 37 105: 30 106: 42 107: 34 108: 00 109: 00 110: 00 111: fd
112: 00 113: 38 114: 4c 115: 1e 116: 52 117: 0e 118: 00 119: 0a
120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 63
http://www.wjel.net
Step 1 : Make a folder in your PC as shown in Fig. 3.
For example : C:\\ISP_PC_170B4_S4
Step 2 : Copy ISP Software (isp120.zip) into your folder as shown in
Fig.3.
Step 3 : Unzip isp.zip into your folder as shown in Fig. 4.
21
Go to cover page
170B4&S4
ISP CABLE for CPU GM5126BC
Step 5 : Execute ISP Software in Monitor (A) as shown in Fig. 6 & 7.
Step 5-1.=> C:\\ISP_PC_170B4_S4 ( as shown in Fig. 6 )
Step 5-2.=> Press "Enter” key on keyboard, bring up Fig. 7.
Step 5-3.=> Press "Enter” key on keyboard again, bring up Fig.8.
(Remark: If it is necessary, press " + " to quit execution.)
Step 4 : Connect ISP cable and Mains cord to Monitor (B, 170B4&S4)
as shown in Fig. 5.
Fig. 6
Configuration and procedure
ISP (In System Program) software
ISP cable
is provided by Motorola to upgrade
the firmware of CPU.
is for the interface between "Parallel Port of PC" and
"15 pin-D-SUB connector of Monitor".
It is a DOS-based program, which cannot be run in MS-Windows.
System and equipment requirements
1.
An i486 (or above) personal computer or compatible.
2.
Microsoft operation system Windows 95/98
=>
.
4.
ISP Cable (3138 106 10148) as shown in Fig. 1
DOS environment
3.
ISP Software
Fig. 1 => ISP CABLE : 12nc is "3138 106 10148".
Rear view of the monitor
PC
To video card
Video cable
Connect to
Mains cord
Monitor (A)
Fig. 7
Fig. 8
Fig. 2
Fig. 5
PC
Rear view of 170B4&S4
To printer port (LTP1)
To video card
Video cable
Connect to
Mains cord
Monitor (A)
Monitor (B)
ISP cable
D-Sub
25 pins
Connect to Mains cord
at this moment.
------------------------------->
http://www.wjel.net
Step 7 : Press "/" on keyboard, bring up Fig. 13.
Step 8 : Disconnect Mains cord from Monitor (B),
10 seconds at least.
Now, Monitor (B) can be used for display again.
After finished,entering factory mode to check CPU version
as shown in Fig. 14.
Troubleshooting :
Monitor (B) : Monitor is on (LED is green.), or off,
but no display (black)
1. Make sure to disconnect the mains cord at Monitor (B),
then connect it again.
2. EEPROM size may be not correct.
(Press "AUTO" and "OK" and "POWER KNOB" at the same time
to access Factory mode.)
ISP CABLE for CPU GM5126BC (Continued)
In System Program (ISP) will be executed to upgrade the firmware
to Monitor (B).
When finished, Bring up Fig. 11=>12 on the screen of Monitor (A).
Step 6 : Disconnect mains cord between Electrical outlet (power source) and
Monitor (B) at this moment as shown in Fig. 9.
Step 6-1 : reconnect mains cord between Electrical outlet (power source) and
Monitor (B) again as shown in Fig. 10.
PC
Rear view of 170B4&S4
To printer port (LTP1)
To video card
Video cable
Connect to
Mains cord
Monitor (A)
Monitor (B)
ISP cable
D-Sub
25 pins
Connect to Mains cord
at this moment.
again
------------------------------->
PC
Rear view of 170B4&S4
To printer port (LTP1)
To video card
Video cable
Connect to
Mains cord
Monitor (A)
Monitor (B)
ISP cable
D-Sub
25 pins
Fig. 9
Fig. 13
Fig. 14
Fig. 10
Fig. 11
Fig. 12
Go to cover page
22
170B4&S4
HUDSON 3 170B4 T151 20021214
HUDSON 3 170B4 T151 20021214
http://www.wjel.net
23
Go to cover page
170B4&S4
Wiring Diagram
DVI-D
D-SUB
Scaler PCB
AC-IN
DC 12V
OUT
To Speaker DC IN
(for Audio Chin/MM Base only)
INVERT
PCB
CTRL PCB
http://www.wjel.net
Mechanical Instructions
Fig. 1
Fig. 2
Step ( 2 )
4 screws need to
unlock .
Fig. 3
Fig. 4
Fig. 7
Fig. 8
Fig. 9(Left side view)
Fig. 10
Go to cover page
24
170B4&S4
Step ( 3 )
The Interfce cable &
power cord need to
Unlock .
Step ( 4 )
Unlock the screw on
the back cover ..
Step ( 5 )
Turn the screen face
Up to .
Step ( 6 )
Unlock the frame and
control board .
Step ( 7 )
Unlock & take off
the back cover .
Step ( 8 )
Unlock & r
the control board .
emove
Step ( 9 )
Unlock & r
the power board,
take off the cable .
emove
Step ( 10 )
Unlock & r
the inverter board,
take off the cable ..
emove
Step ( 1 )
170B4 back-view.
http://www.wjel.net
Fig. 12
Fig. 13
Fig. 14
Fig. 16
****************************************************************************
In warranty, it is not allowed to disassembly the LCD panel,
even the “Backlight unit” defect.
Out of warranty, the replacemtne of Backlight Unit is a correct way
when the defect is caused by Backlight (CCFL,Lamp).
****************************************************************************
25
Go to cover page
170B4&S4
Mechanical Instructions (Continued)
Step ( 11 )
Unlock & r
the inverter & power
board; take off the
cable& cover ....
emove
Step ( 12 )
Unlock & r
the power board ....
emove
Step ( 13 )
Unlock & r
the power, scaler
Board....
emove
Step ( 14 )
Unlock & r
the back metal cover
on the LCD panel .
Done !.
emove
http://www.wjel.net
X
Go to cover page
26
170B4&S4
Warning and Notes
Fig.1 (CRT only)
V
Warnings
1
2
0 V
3
ESD
4
5
6
7
8
9
10.
11.
.
Safety regulations require that the unit should be returned
in its original condition and that components identical to
the original components are used. The safety components
are indicated by the symbol
.
.
In order to prevent damage to ICs and transistors, all
high-voltage flash-overs must be avoided. In order to
prevent damage to the picture tube, the method shown
in Fig. 1 should be used to discharge the picture tube.
Use a high-voltage probe and a multimeter (position DC-V).
Discharge until the meter reading is
(after approximately
30 seconds).
.
All ICs and many other semiconductors are sensitive to
electrostatic discharges (ESD). Careless handling during
repair can drastically shorten their life. Make sure that
during repair you are connected by a pulse band with
resistance to the same potential as the ground of the unit.
Keep components and tools also at this same potential.
.
When repairing a unit, always connect it to the AC Power
voltage via an isolating transformer.
.
Be careful when taking measurements in the high-voltage
section and on the picture tube panel.
.
It is recommended that saferty goggles be worn when
replacing the picture tube.
.
When making adjustments,use plastic rather than metal tools.
This will prevent any short-circuit or the danger of a
circuit becoming unstable.
.
Never replace modules or other components while the
unit is switched on.
.
Together with the defleciton unit, the picture tube is used
as an integrated unit. Adjustment of this unit during repair
is not recommended.
After repair, the wiring should be fastened in place with
the cable clamps.
All units that are returned for service or repair must pass
the original manufactures safety tests.
Notes
The direct voltages and waveforms are average voltages.
They have been measured using the Service test software
and under the following conditions :
-
Mode : 640 * 480 (31.5kHz / 60Hz)
-
Signal pattern : grey scale
-
Adjust brightness and contrast control for the
mechanical mid-position (click position)
The picture tube panel has printed spark gaps.
Each spark gap is connected between an electrode of the
picture tube and the Aquadag coating.
The semiconductors indicated in the circuit diagram(s)
and in the parts lists are completely interchangeable per
position with the semiconductors in the unit, irrespective
of the type indication on these semiconductors.
1.
2.
3.
http://www.wjel.net
CLOCK & PHASE Adjustments
27
Go to cover page
170B4&S4
Step 1 : Click on the Start button (Win95, Win98 or Win NT)
and choose " Shut Down...". as shown in Fig. 2.
Step 2 : The menu of " Shut Down Windows " is as shown in Fig. 3
Step 3 : Retain Shut Down Window on the screen , follow
the CLOCK and PHASE adjustment instructions for the
optimal video display.
PHASE phenomenon
Due to the different quality of video signal generated from graphics
cards. By press AUTO button for
t is necessary to adjust
CLOCK and PHASE functions for the optimal video display of LCD
monitor by manual. Following steps will guide you to make correct
adjustment of CLOCK and PHASE.
However, CLOCK and PHASE functions are only available while analog
video signal is supplied. Operating unit under digital signal state, the
video clock information can be obtained from graphics cards directly.
Therefor, it is unnecessary to adjust these functions.
CLOCK and PHASE adjustment
automatically. Sometimes, the deviation of video signal which generated
from graphics cards is out of control, then i
Manual adjustment
If the quility of display still poor or flicker, you may also improve it by
manual adjust CLOCK and PHASE functions to eliminate the flicker.
Step 4 : Press the OK
button to bring up MAIN CONTROLS
(OSD menu).
Step 8 : Press Left
or Right
to adjust PHASE.
The picture will be adjusted as following figure, adjust PHASE
and check the picture, stop at the point that without any vertical
jitter bar remaining on the screen.
button
Step 5 : Select Video Noise by press
button,
bring up it’s submenu.
Step 6 : Using UP or DOWN button to select "CLOCK" or "PHASE".
Step 7 : Press Left
or Right
to adjust CLOCK. The
picture will be adjusted as following figure, adjust CLOCK to
fine-tune the video until optimal display is obtained.
button
Step 9 : Quit OSD menu by press OK
button to save the settings.
CLOCK Phenomenon
Video Noise
The monitor has build-in a auto adjustment hotkey on the front panel,
you may obtained a optimal video display by simply press the
button and save the settings. CLOCK, PHASE, Vertical position, and
Horizontal position are adjusted automatically.
AUTO
Fig. 4
Fig. 2
(Before)
(Before)
(After)
(After)
Fig. 3 (Win 98)
Front control panel
1 =
Buttons for the OSD menu (On-Screen-Display)
2 =
Power button
(OK button for OSD lock/unlock)
Fig. 1
-------------->
---------->
AUTO
(OK)
1
2
USE 1280 x 768 FOR BEST RESULT
USE 1280 x 768 FOR BEST RESULT
http://www.wjel.net
#
Resolution
H-Frequency
Pixel rate
V-Frequency
Comment
1 640X350
31.5K
25.175
70Hz
IBM VGA 10h
2 720X400
31.5K
28.322
70Hz
IBM VGA 3h
3 640X480
31.5K
25.175
60Hz
4 640X480
35.0K
30.24
67Hz
5 640X480
37.9K
31.5
72Hz
6 640X480
37.5K
31.501
75Hz
7 640X480
43.3K
36
85Hz
8 800X600
35.2K
36
56Hz
9 800X600
37.9K
40
60Hz
10 800X600
48.1K
50
72Hz
11 800X600
46.9K
49.498
75Hz
12 800X600
53.7K
56.251
85Hz
13 832X624
49.7K/
57.28
75Hz
MAC
14 1024X768
48.4K
65
60Hz
15 1024X768
56.5K
75
70Hz
16 1024X768
60.0K
78.75
75Hz
17 1024X768
61.1K
83.096
76Hz
IBM XGA-2
18 1024X768
68.7K
94.5
85Hz
19 1152X864
54.0K
79.9
60Hz
Non-VESA
20 1152X864
63.9K
94.5
70Hz
Non-VESA
21 1152X864
67.5K
108
75Hz
22 1152X870
68.7K
100
75Hz
MAC
23 1152X900
61.8K
92.94
66Hz
SUN Mode IV
24 1152X900
71.8K
108
76Hz
SUN Mode II
25 1280X960
60.0K
108
60Hz
26 1280X960
75.0K
129.895
75Hz
Non-VESA
27 1280X1024
64.0K
108
60Hz
28 1280X1024
71.7K
117
67Hz
SUN Mode V
29 1280X1024
76.0K
130.223
72Hz
DOS/V
30 1280X1024
80.0K
135
75Hz
31 1280X1024
81.1K
135.008
76Hz
SUN Mode I
32 688X556
31.3K
27
50Hz
TV-PAL
33 960X720
44.76K
57.58
60Hz
34 960X720
56.4K
72.42
75Hz
Electrical Instructions
X
Go to cover page
28
170B4&S4
0. General
With normal VGA card:
AC/DC Measurement:
When carry-out the electrical settings in many cases a video signal
must be applied to the monitor. A computer with :
- ATI VGA 1024 V6-1.04/PH BETA4 interface card
- PGA 1024 (4822 212 30916), Mach 8.
- PGA 1280 (4822 212 30917), Mach 32.
- ATI GPT-1600 (4822 397 10065), Mach 64 (up to 107kHz)
are used as the video signal source. The signal patterns are
selected from the "service test software" package, see user
guide 4822 727 19896 (ATI1024),
or 4822 727 20273 (PGA 1280), or
4822 727 21046 (GPT-1600).
0.1
If not using the ATI card during repair or alignment, The service
engineer also can use this service test software adapting with
normal standard VGA adaptor and using standard VGA mode
640 x 480, 31.5 kHz/60 Hz (only) as signal source.
0.2
The measurements for AC waveform and DC figure is based on
640 x 480 31.5 kHz/60 Hz resolution mode with test pattern
"16 gray scale".
Power input: 110V AC
General points
1.1 During the test and measuring, supply a distortion free AC mains
voltage to the apparatus via an isolated transformer with low
internal resistance.
1.2 All measurements mentioned hereafter are carried out at a normal
mains voltage (90 - 132 VAC for USA version, 195 -264 VAC for
EUROPEAN version, or 90 - 264 VAC for the model with full range
power supply, unless otherwise stated.)
1.3 All voltages are to be measured or applied with respect to ground,
unless otherwise stated.
Note: don\'t use heat-sink as ground.
1.4 The test has to be done on a complete set including LCD panel
in a room with temperature of 25 +/- 5 degree C.
1.5 All values mentioned in these test instruction are only applicable
of a well aligned apparatus, with correct signal.
1.6 The letters symbols (B) and (S) placed behind the test instruction
denotes
(B): carried out 100% inspection at assembly line
(S): carried out test by sampling
1.7 The white balance (color temperature), has to be tested in subdued
lighted room.
1.8 Repetitive power on/off cycle are allowed.
(1)
Preset Modes (29 modes)
(2)
Factory Preset Modes (15 modes)
2.2 Input signal mode
2.
Signal type
2.1.1 Analog Video : 0.7 Vp-p linear, positive polarity
Sync. : TTL level, separate, positive or negative polarity
Signal source: pattern generator format as attachment.
(table 1 to 29) Reference generator : QuantumData 802G
Input signal
#
Resolution
H-Frequency
Pixel rate
V-Frequency
Comment
1
640X350
31.5KHz
25.175
70Hz
IBM VGA 10h
2
720X400
31.5KHz
28.322
70Hz
IBM VGA 3h
3
640X480
37.5KHz
31.501
75Hz
4
640X480
35.0KHz
30.24
67Hz
5
640X480
31.5KHz
25.175
60Hz
6
800X600
35.2KHz
36
56Hz
7
800X600
46.9KHz
49.498
75Hz
8
800X600
37.9KHz
40
60Hz
9
832X624
49.7KHz
57.28
75Hz
MAC
10
1024X768
60.0KHz
78.75
75Hz
11
1024X768
48.4KHz
65
60Hz
12
1152X870
68.7KHz
100
75Hz
MAC
13
1152X900
71.8KHz
108
76Hz
SUN Mode II
14
1280X1024
64.0KHz
108
60Hz
15
1280X1024
80.0KHz
135
75Hz
16
688X556
31.3KHz
27
50Hz
TV-PAL
http://www.wjel.net
29
Go to cover page
Electrical Instructions (Continued)
170B4&S4
3. Power Supply
3.1 Setup the AC I/P at 90VAC, add 2.6A loading to C2117 and
DC output voltage is 3.3V +/- 0.165V DC.
3.2 DC setting
3.01 Detach 8052 to the scaler board before testing the function.
3.02 Apply 12V DC voltage to 1105.
(B)
3.03 Connect inverter board to 8051
(B)
3.04 Check voltage at C2003 should be within the range
(B)
1A loading to C2119 and DC output voltage is 5V +/- 0.5V. (B).
3.3V +/- 0.165V DC.
4. Display Adjustment
4.1Input signals check
In factory mode, use 64 gray level and set the R,G,B gain to 100%.
4.2 Display quality test
Use timing mode as describe in 2.2, and use the pixel on / off
pattern to adjust the clock until no stripe and adjust the phase
until clear picture.
Check all pre-setting 29 modes.
4.2.1 SOG mode test : Use following timing for SOG test
4.3 Check of WHITE-D (B)
Apply a 1024*768 / 60Hz signal with white pattern, set brightness
control at 100%, and contrast control at 70%. Adjust the R,G,B sub_gain,
for the screen center,
the 1931 CIE chromaticity (X, Y) co-ordinates shall be;
Use Minolta CA-110 for color coordinates and luminance check.
Luminance : 380 Nits in the center of the screen when brightness at
100% and contrast set to 100%.
4.4 Check the digital interface
Check the 64 gray level color poor & noise condition.
9300�K
6500�K
x (center)
0.281 � 0.020
0.020
0.020
0.312 �
y (center)
0.311 � 0.020
0.338 �
2.3 Allowed 85 Hz overscan signal mode specified
Once the signal input of PC is 85Hz, this monitor is able to display
at least for 10 minutes . An attention signal appears and shows
“This is 85Hz overscan for 5 seconds, change computer display
input to 1280*768 @ 60 Hz
Dot rate (MHz)
H.freq (KHz)
Mode
Resolution
V.freq (Hz)
36.000
43.269
VESA
640 * 480
85.008
56.250
53.674
VESA
800 * 600
85.061
94.500
68.677
VESA
1024 * 768
84.997
47.7 KHz/60Hz, 1280 X 768, pixel=80.136 MHz
Horizontal
Vertical
Frame border =
0
Frame border =
0
Total size
=
20.964�s
Total size
=
16.667 ms
Display size
=
15.973�s
Display size
=
16.101 ms
Rear porch
=
2.496 �s
Rear porch
=
482.18 �s
Sync width
=
1.697 �s
Sync width
=
62.893�s
Sync polarity
=
-
Sync polarity
=
+
TIMING FOR 170B4 TFT SXGA COLOR LCD MONITOR
(VESA monitor timing standard Version 1.0 Release 0.7)
REFERENCE PATTERN GENERATOR : QuantumData 802G
Please refer to General product specification for detail timings.
http://www.wjel.net
Factory mode
30
170B4&S4
Access Factory Mode
Step 2 :
[Push AUTO "
" & OK "
" buttons at the same time and hold
it ] + [Press power "
" button untill comes out "Windows screen"
] => then release all buttons.
How to Get into Factory Mode Menu
Turn off monitor.
Press OK "
" button, bring up Factory mode indication as
shown in Fig 2.
Step 1 :
Step 3 :
Basic and simple instruction on the control keys.
When you press the button on the front control of your monitor, the On-
Screen Display (OSD) Main Controls window will pop up and you can
then start making adjustments to your monitor\'s various features.
Front control panel
1 =
Buttons for the OSD menu (On-Screen-Display)
2 =
Power button
(OK button for OSD lock/unlock)
Fig. 1
Fig. 2
Fig. 3
-------------->
---------->
AUTO
(OK)
1
2
Contrast adjustment (Sub-Contrast). Use this menu item to
adjust the contrast gain of pre-amp ranges from 0 to 255.
9 3 0 0 K
R
G
B
6 5 0 0 K
R
G
B
Color temperature gain adjustment. Use these menu items to
adjust the RGB gains of pre-amp for different color
temperatures, ranges from 0 to 255.
OFFSET
R
G
B
Sub-Brightness adjustment. Use this menu item to adjust
the brightness level (DC-level) of pre-amp range from 0 to
255.(R/G/B ANALOG DC -level).
GAIN
R
G
B
R/G/B GAIN adjustment. Use this menu item to adjust
the R/G/B (GAIN) of Amp. range from 0 to 255.(R/G/B
ANALOG GAIN Values).
It is for 1024x768/60Hz with special pattern only.
RESERVE1: NO FUNCTIONED, RESERVED ONLY.
RESERVE2: Default is "00". The others "01", "02" & "03".
RESERVE3: NO FUNCTIONED, RESERVED ONLY.
AUTO
SUB:
Do not use this function here.
AUTO
SUB:
(PS: The “Offset R G B” function can be used on reduce or eliminate
snowy noise on the background when the resolution of video signal is
1280 X 1024 vertical 60Hz. Slightly increase or decrease the value
until snowy noise completely disappear.)
RESERVE2:
00 : Stands for 1280x768/72Hz & 1280x768/75Hz
01 : Stands for 1024x768/72Hz & 1280x768/75Hz
02 : Stands for 1024x768/75Hz & 1280x768/72Hz
03 : Stands for 1024x768/72Hz & 1024x768/75Hz
Hot key function: by pressing "
" and "
" key
simultaneously at User mode (or Factory mode),
4 kinds (00, 01, 02, 03) of resolution can be
switched on screen.
LEFT
DOWN
SUB
BRI:
SUB
BRI:
-
-
OK
9300K
R
G
B
9300K
R
G
B
6500K
R
G
B
6500K
R
G
B
OFFSET
R
G
B
OFFSET
R
G
B
SUB
BRI:
SUB
BRI:
-
-
AUTO
SUB:
AUTO
SUB:
-
OK
GAIN
R
G
B
GAIN
R
G
B
RESERVE1:
RESERVE3:
RESERVE2:
HUDSON
170W
V2.02 02-11-15
00
00
SUB
CON:
SUB
CON:
70
-
SUB
CON:
SUB
CON:
NO FUNCTION.
<------Factory mode indicator
HUDSON 170W V2.02 02-11-15
USE 1280 x 768 FOR BEST RESULT
USE 1280 x 768 FOR BEST RESULT
Go to cover page
http://www.wjel.net
31
� Go to cover page
170B4&S4
170B4 & S4 Fuction Block Diagram & Chassis
Scaler
gm5126BC
R/G/B
ADDR0/15, Data0/15
Bank, ROM_OE/WE,
Panel_ID
Flash
ROM
50 Pin Connector to panel
POL
LP
CLKV
STV
GOE
BSTH
RSDS
D-SUB
Schmitter
gate
HS/VS
DSUB_CA
DDC
EEPROM
IIC
AC to DC
Power
Board
BL_EN, Brightness
Panel PWR
MOS
AU 5V
Control
Board
FSTH
3.3V
5V
12V
2.5V
Reg.
Panel ID
T-Con
F[RGB]0/1/2/
clk(N,P)
30 pin connector
B[RGB]0/1/2/
clk(N,P)
Inverter
12V
ISPSCL,SDA
Key
LEDR,G
DVI
R+-/G+-/B+-/CLK+-
Reset
IC
Scaler Board
Power
Board
Inverter
/Ambit
/TDK
/LC
14pin
/80mm
8pin
/100mm
30pin & 50pin
FFC/90mm
Control Board
11pin
/270mm
Dsub
AC inlet
12VDC
DVI
http://www.wjel.net
32
170B4&S4
� Go to cover page
D-sub / DVI Schematic Diagram
http://www.wjel.net
ROM Schematic Diagram
33
� Go to cover page
170B4&S4
http://www.wjel.net
34
170B4&S4
� Go to cover page
Scaler Board Schematic Diagram
http://www.wjel.net
35
� Go to cover page
170B4&S4
Power Schematic Diagram
http://www.wjel.net
36
� Go to cover page
170B4&S4
C.B.A. (Scaler Board )
http://www.wjel.net
36-1
� Go to cover page
170B4&S4
C.B.A. (Scaler Board )
http://www.wjel.net
37
� Go to cover page
170B4&S4
C.B.A. (Scaler Board )
http://www.wjel.net
37-1
� Go to cover page
170B4&S4
C.B.A. (Scaler Board )
http://www.wjel.net
38
170B4&S4
� Go to cover page
Power Shematic Diagram
http://www.wjel.net
� Go to cover page
170B4&S4
C.B. A. (Power Board )
4
39
http://www.wjel.net
39-1
� Go to cover page
170B4&S4
C.B. A. (Power Board )
http://www.wjel.net
40
� Go to cover page
170B4&S4
Schematic diagram(Control)
http://www.wjel.net
Inverter Schematic Diagram
41
� Go to cover page
170B4&S4
1
2
3
4
5
6
7
8
A
B
C
D
8
7
6
5
4
3
2
1
D
C
B
A
AMBIT
SHEET
File Name
Title
Doc.No.
PREPARED BY
REVIEWED BY
APPROVED BY
REV.
DESCRIPTION
REL. DATE
0
04/11/2002
1
2
R15
R/100/1206
I036V1
1
2
R16
R/100/1206
1
2
R20
R/100K/1%
T50I036.00
1
2
R21
R/34K
1/1
1
2
R23
R/2K
Initial
1
2
R24
R/2K/1206
1
2
C5
C/474K
1
2
C8
C/104Z
1
2
C13
C/0.15uF
1
2
F1
F/KE40/1206
1
2
+
C1
C/100uF/25V
1
2
3
Q4
Q/3904
1
2
L2
L/100uH
1
2
D6
D/RLZ13B
1
2
3
Q5
Q/2SD1804T
1
2
3
Q6
Q/2SD1804T
1
2
R28
R/100K/1%
1
2
R29
R/422/0805
1
2
D5
D/SR24
5VDC
1
2
D2
D/LS4148
1
2
C4
C/681J/0805
1
2
R11
R/15K/0805
1
2
R18
R/576K/1%
1
2
CP3
C/CP
1
2
CP4
C/CP
1
2
R19
R/7.5K
1
2
D7
D/LS4148
1
2
R42
R/390/1206
1
2
C16
C/22P/1808
1
2
C12
C/22P/1808
1
2
C20
C/22P/1808
1
2
C21
C/22P/1808
1
2
R57
R/1M/1206
1
2
R62
R/19.6K/1%
P1
P2
P4
P3
R61
R/45.3K
Vbri
1
2
C26
C/0.15uF
1
2
C22
C/474K
1
2
C18
C/474K/0805
OLSD
5VDC
OLSD
1
2
R9
R/NC
1
2
3
4.7k
4.7k
Q1
Q/DTA124EKA
1
2
R1
R/0
5VDC
1
2
R26
R/NC
1
2
3
Q2
Q/3906
1
2
3
Q8
Q/3904
1
2
R27
R/13K
1
2
C2
C/105Z
1
2
R22
R/22K
1
2
R49
R/220
1
2
R51
R/2M
1
2
D13
D/BZM55B
VIN
ON/OFF
3
4
2
5
6
1
7
8
Q3
Q/SI4435
1
2
+
C19
C/100uF/25V
1
2
3
Q12
Q/3904
1
2
R14
R/221/0805
1
2
R13
R/10K/0805
1
2
D1
D/RLZ5.6B
1
2
C11
C/105Z
1
2
R33
R/2.7M
1
2
C14
C/CAP/103k
3
2
1
8
4
U1A
U/LM393
5
6
7
U1B
U/LM393
1
2
R67
R/33
1
2
R65
R/NC
VIN
VIN
1
2
D8
D/LS4148
OVP
1
2
R64
R/3K
1
2
4
3
5
7
6
8
T1
T/EFD-20
1
2
D15
D/BZM55B
3
2
1
CR2
C/BAV99/SOT-23
1
2
R17
R/470 ohm
1
2
R12
R/10K
C
VIN
3
2
1
CR4
C/BAV99/SOT-23
1
2
R70
R/470 ohm
1
2
R71
R/10K
C
1
2
C27
C/105K/0805
1
2
R74
R/10K
OVP
1
2
R68
R/10K
1
2
R69
R/1M
1
2
3
Q14
Q/3904
1
2
3
Q16
Q/3904
1
2
R76
R/NC
1
2
R75
R/0
1
2
C28
C/105Z
C
1
2
4
3
5
7
6
8
T2
T/EFD-20
LABEL
LABEL
L/LABEL
1
2
3
4
CN3
C/SM04B-BHS-1
1
2
3
4
5
6
7
8
CN1
C/B8B-PH-SM3-TB
Vbri
ON/OFF
1
2
L1
L/100uH
1
2
D3
D/SR24
1
2
R4
R/2K/1206
1
2
C7
C/104Z
1
2
R5
R/3K
1
2
D4
D/LS4148
1
2
C6
C/682K//0805/NC
1
2
R2
R/100/1206
1
2
R3
R/100/1206
1
2
C3
C/474K
1
9/23/2002
Modify
P1
P2
P3
P4
VCC
N1
N2
N4
N5
N6
N7
N8
N9
N10
N11
N12
N13
N14
N15
N16
N17
N18
N19
N20
N21
N22
N23
N24
N25
N26
N27
N28
N29
N30
N31
N32
N33
N34
N35
N36
N37
N38
N39
N41
1
2
3
4
CN2
C/SM04B-BHS-1
Vdr1
Vdr
1
2
R7
R/10K
1
2
R6
R/2.2M
1
2
C9
C/474Z
3
2
1
Q11
Q/2N7002
2
1
3
Q10
Q/TP0610
1
2
R8
R/220/1206
Vdr
Vdr1
N3
VIN
N3
N40
N42
N43
I036V1-ICT
I036V1-ICT.Sch
3
2
1
Q13
Q/2N7002
3
2
1
Q9
Q/2N7002
2
1
3
Q7
Q/TP0610
N40
http://www.wjel.net
42
� Go to cover page
C. B. A. Inverter
170B4&S4
1.Top Layer
2. Bottom Layer:
3. Top Silk Screen Overlayer:
http://www.wjel.net
43
170B4&S4
Exploded View
� Go to cover page
30
313815754071
FRONT BEZEL ASSY-BLK
40
313815754031
BACK COVER ASSY-BLK
90
313815133231
SHIELDING-SCALER
91
313815133241
SHIELDING-INVERT
100
313815133001
SIDE STRIP-AU-L
101
313815132991
SIDE STRIP-AU-R
105
313815408011
GUIDE DC OUT(BLK)
106
313815133011
AC BRACKET
107
313815405691
CAP-BASE (BLK)
1051
313815855741
SCALER ASSY
1052
313815855921
POWER ASSY
1053
313815855761
CONTROL PCB ASSY
1085
823827712421
TFT-LCD MOD m170ES05 (AUO0)
1089
823827712771
DC-AC INVERTER
1090
313815855901
METAL FRAME+11P WIRE ASSY
1091
313815855891
BASIC BASE+WIRE ASSY-BLK
http://www.wjel.net
44
170B4&S4
Go to cover page
Recommended Parts List
Model: 170B4BB/00C
Item
Code number
Description
30
313815754071
FRONT BEZEL ASSY-BLK
40
313815754031
BACK COVER ASSY-BLK
450
313815634651
CARTON(170B4BB)
451
313815634251
CUSHION-R
452
313815634261
CUSHION-L
453
313815620801
P.E.BAG-STAT.
601
313811704881
E-D.F.U. ASSY-170B4B
1087
313812874931
MAINSCORD
1088
313818872742
CORD SUB-D 15/1M8/15 SUB-D M/M
1089
313818876941
DC-AC INVERTER(823827712771)
107
313815405691
CAP-BASE (BLK)
1091
313815855891
BASIC BASE+WIRE ASSY-BLK
1090
313815855901
METAL FRAME+11P WIRE ASSY
1103
242208610239
FUSE 5X20 HT 3A15 250V IEC B
8051
313818871691
CBLE 330018 8/105/8 330987
8052
313818875571
CBLE 330024 14/75/14 346924
8102
313818875591
CBLE 3P/75/FHOOK
7001
932219076668
IC SM L5972D
(ST00) R
7101
935270037112
IC TEA1533AP/N1
(PHSE) L
7103
933179600126
TRA SIG BC337-40
(PHSE) A
7105
932214014667
OPT CP TCET1103(G)
(VISH) L
7106
933771100686
IC TL431CLP
S (MOTA) R
7107
933967310685
TRA SIG SM BC848C
(ONSE) R
7109
933826850126
THYRIS BT169B
(PHSE) A
7202
932214526668
IC SM M24C02-WMN6
(ST00) R
7203
932214526668
IC SM M24C02-WMN6
(ST00) R
7210
935260739118
IC SM 74LVC14APW
(PHSE) R
7301
932217946682
IC SM M29W010B-90K1
(ST00) L
7302
932214725682
IC M24C16-WBN6
(ST00) L
7403
932218206685
IC SM IRU1206-25CY
(INR0) R
7404
932219353671
IC SM GM5126-BC
(GEMI) Y
7405
935270954115
IC SM SA56616-28D
(PHSE) R
7501
933967380685
TRA SIG SM BC858C
(ONSE) R
7506
932209265685
TRA SIG SM MUN2211J
(ONSE) R
7507
932216638668
FET POW SM SI5441DC
(VISH) R
http://www.wjel.net
170B4&S4
45
Go to cover page
Parts List
Model : 170B4BB/00C
Accessories
Main Panel
Scaler Panel
Various
1087
313812874931
MAINSCORD
1088
313818872742
CORD SUB-D 15/1M8/15 SUB-D M/M
30
313815754071
FRONT BEZEL ASSY-BLK
40
313815754031
BACK COVER ASSY-BLK
107
313815405691
CAP-BASE (BLK)
1091
313815855891
BASIC BASE+WIRE ASSY-BLK
1085
823827712421
TFT-LCD MOD m170ES05 (AUO0)
450
313815634651
CARTON(170B4BB)
451
313815634251
CUSHION-R
452
313815634261
CUSHION-L
453
313815620801
P.E.BAG-STAT.
601
313811704881
E-D.F.U. ASSY-170B4B
1051
313815855741
SCALER ASSY
1052
313815855921
POWER ASSY
1053
313815855761
CONTROL PCB ASSY
1089
823827712771
DC-AC INVERTER
1051
313815855741
SCALER ASSY
2209
223878615649
CER2 0603 X7R 16V 100N PM10 R
2211
223886715331
CER1 0603 NP0 50V 330P PM5 R
2212
223886715331
CER1 0603 NP0 50V 330P PM5 R
2214
223878615649
CER2 0603 X7R 16V 100N PM10 R
2216
223886715331
CER1 0603 NP0 50V 330P PM5 R
2217
223886715331
CER1 0603 NP0 50V 330P PM5 R
2218
223886715339
CER1 0603 NP0 50V
33P PM5 R
2219
223886715221
CER1 0603 NP0 50V 220P PM5 R
2220
223878615649
CER2 0603 X7R 16V 100N PM10 R
2221
223878615649
CER2 0603 X7R 16V 100N PM10 R
2225
223878615649
CER2 0603 X7R 16V 100N PM10 R
2227
223878615649
CER2 0603 X7R 16V 100N PM10 R
2229
223878615649
CER2 0603 X7R 16V 100N PM10 R
2231
223878615649
CER2 0603 X7R 16V 100N PM10 R
2233
223878615649
CER2 0603 X7R 16V 100N PM10 R
2304
223878615649
CER2 0603 X7R 16V 100N PM10 R
2313
223878615649
CER2 0603 X7R 16V 100N PM10 R
2403
202001293721
ELCAP SM RV2 16V 10U PM20 R
2404
223878615649
CER2 0603 X7R 16V 100N PM10 R
2405
223878615649
CER2 0603 X7R 16V 100N PM10 R
2406
223878615649
CER2 0603 X7R 16V 100N PM10 R
2407
223878615649
CER2 0603 X7R 16V 100N PM10 R
2408
223878615649
CER2 0603 X7R 16V 100N PM10 R
2409
202001293721
ELCAP SM RV2 16V 10U PM20 R
2410
223878615649
CER2 0603 X7R 16V 100N PM10 R
2411
223878615649
CER2 0603 X7R 16V 100N PM10 R
2412
223878615649
CER2 0603 X7R 16V 100N PM10 R
2413
223878615649
CER2 0603 X7R 16V 100N PM10 R
2414
223878615649
CER2 0603 X7R 16V 100N PM10 R
2415
223878615649
CER2 0603 X7R 16V 100N PM10 R
2416
223878615649
CER2 0603 X7R 16V 100N PM10 R
2417
223878615649
CER2 0603 X7R 16V 100N PM10 R
2418
223878615649
CER2 0603 X7R 16V 100N PM10 R
2419
223878615649
CER2 0603 X7R 16V 100N PM10 R
2420
223878615649
CER2 0603 X7R 16V 100N PM10 R
2421
223878615649
CER2 0603 X7R 16V 100N PM10 R
2422
223878615649
CER2 0603 X7R 16V 100N PM10 R
2423
223878615649
CER2 0603 X7R 16V 100N PM10 R
2424
223878615649
CER2 0603 X7R 16V 100N PM10 R
2425
223878615649
CER2 0603 X7R 16V 100N PM10 R
2426
202001293721
ELCAP SM RV2 16V 10U PM20 R
2427
202001293721
ELCAP SM RV2 16V 10U PM20 R
2428
223878615649
CER2 0603 X7R 16V 100N PM10 R
2429
223878615649
CER2 0603 X7R 16V 100N PM10 R
2430
223878615649
CER2 0603 X7R 16V 100N PM10 R
2431
202001293721
ELCAP SM RV2 16V 10U PM20 R
2432
223878615649
CER2 0603 X7R 16V 100N PM10 R
2433
223878615649
CER2 0603 X7R 16V 100N PM10 R
2434
223878615649
CER2 0603 X7R 16V 100N PM10 R
2435
223878615649
CER2 0603 X7R 16V 100N PM10 R
2436
223878615649
CER2 0603 X7R 16V 100N PM10 R
2437
202001293721
ELCAP SM RV2 16V 10U PM20 R
2438
223878615649
CER2 0603 X7R 16V 100N PM10 R
2439
223878615649
CER2 0603 X7R 16V 100N PM10 R
2440
223878615649
CER2 0603 X7R 16V 100N PM10 R
2441
223878615649
CER2 0603 X7R 16V 100N PM10 R
2442
223878615649
CER2 0603 X7R 16V 100N PM10 R
2443
223878615649
CER2 0603 X7R 16V 100N PM10 R
2444
223878615649
CER2 0603 X7R 16V 100N PM10 R
2445
223878615649
CER2 0603 X7R 16V 100N PM10 R
2446
223878615649
CER2 0603 X7R 16V 100N PM10 R
2447
223878615649
CER2 0603 X7R 16V 100N PM10 R
2450
223886715478
CER1 0603 NP0 50V 4P7 PM0P25 R
2451
223886715478
CER1 0603 NP0 50V 4P7 PM0P25 R
2453
223878615649
CER2 0603 X7R 16V 100N PM10 R
2454
202001293747
ELCAP SM RV2 25V 47U PM20 R
2455
202001293721
ELCAP SM RV2 16V 10U PM20 R
2457
223886715339
CER1 0603 NP0 50V
33P PM5 R
2458
202001293721
ELCAP SM RV2 16V 10U PM20 R
2461
223878615649
CER2 0603 X7R 16V 100N PM10 R
2462
223878619856
CER2 0603 Y5V 16V 330N P8020 R
2501
223878615649
CER2 0603 X7R 16V 100N PM10 R
2503
223878615649
CER2 0603 X7R 16V 100N PM10 R
2504
223878615649
CER2 0603 X7R 16V 100N PM10 R
2505
223878615649
CER2 0603 X7R 16V 100N PM10 R
2506
223878615649
CER2 0603 X7R 16V 100N PM10 R
2513
223858615636
CER2 0603 X7R 50V
10N PM10 R
2514
202001293747
ELCAP SM RV2 25V 47U PM20 R
2515
223878615649
CER2 0603 X7R 16V 100N PM10 R
2517
223878615649
CER2 0603 X7R 16V 100N PM10 R
2519
223878615649
CER2 0603 X7R 16V 100N PM10 R
2521
223878615649
CER2 0603 X7R 16V 100N PM10 R
2523
223878615649
CER2 0603 X7R 16V 100N PM10 R
2525
223878615649
CER2 0603 X7R 16V 100N PM10 R
2527
223878615649
CER2 0603 X7R 16V 100N PM10 R
2529
223878615649
CER2 0603 X7R 16V 100N PM10 R
2531
223878615649
CER2 0603 X7R 16V 100N PM10 R
2535
202001293747
ELCAP SM RV2 25V 47U PM20 R
2536
202001293747
ELCAP SM RV2 25V 47U PM20 R
2537
223878615649
CER2 0603 X7R 16V 100N PM10 R
2538
223878615649
CER2 0603 X7R 16V 100N PM10 R
2539
223878615649
CER2 0603 X7R 16V 100N PM10 R
2540
223878615649
CER2 0603 X7R 16V 100N PM10 R
3141
319802190020
RST SM 0805 JUMP.
0R05 COL R
3202
319802131030
RST SM 0603
10K PM5 COL
3203
319802131030
RST SM 0603
10K PM5 COL
3206
319802131010
RST SM 0603
100R PM5 COL
3207
319802131010
RST SM 0603
100R PM5 COL
3209
319802131040
RST SM 0603
100K PM5 COL
3216
319802131010
RST SM 0603
100R PM5 COL
3217
319802131010
RST SM 0603
100R PM5 COL
3221
319802131030
RST SM 0603
10K PM5 COL
3222
319802131030
RST SM 0603
10K PM5 COL
3223
319802131010
RST SM 0603
100R PM5 COL
3224
319802131010
RST SM 0603
100R PM5 COL
3225
319802131010
RST SM 0603
100R PM5 COL
3226
319802131010
RST SM 0603
100R PM5 COL
3227
319802132220
RST SM 0603
2K2 PM5 COL
3228
319802132220
RST SM 0603
2K2 PM5 COL
3229
319802131040
RST SM 0603
100K PM5 COL
3232
319802132290
RST SM 0603
22R PM5 COL
3233
232270467509
RST SM 0603 RC22H
75R PM1 R
3234
319802132290
RST SM 0603
22R PM5 COL
3235
232270467509
RST SM 0603 RC22H
75R PM1 R
3236
319802132290
RST SM 0603
22R PM5 COL
3237
232270467509
RST SM 0603 RC22H
75R PM1 R
3301
319802131030
RST SM 0603
10K PM5 COL
3302
319802131030
RST SM 0603
10K PM5 COL
3303
319802131030
RST SM 0603
10K PM5 COL
3304
319802131030
RST SM 0603
10K PM5 COL
3305
319802131030
RST SM 0603
10K PM5 COL
3306
319802131030
RST SM 0603
10K PM5 COL
3307
319802131030
RST SM 0603
10K PM5 COL
3308
319802131010
RST SM 0603
100R PM5 COL
3309
319802131010
RST SM 0603
100R PM5 COL
3311
319802131030
RST SM 0603
10K PM5 COL
3312
319802131030
RST SM 0603
10K PM5 COL
3313
319802131040
RST SM 0603
100K PM5 COL
3314
319802131040
RST SM 0603
100K PM5 COL
3401
232270260569
RST SM 0603 RC21
56R PM5 R
3402
232270260569
RST SM 0603 RC21
56R PM5 R
3403
232270260569
RST SM 0603 RC21
56R PM5 R
3406
319802131030
RST SM 0603
10K PM5 COL
3408
319802190030
RST SM 0603 JUMP.
0R05 COL
3409
319802131010
RST SM 0603
100R PM5 COL
3410
319802131010
RST SM 0603
100R PM5 COL
3411
319802131010
RST SM 0603
100R PM5 COL
3412
319802131010
RST SM 0603
100R PM5 COL
3413
319802131030
RST SM 0603
10K PM5 COL
3414
319802131030
RST SM 0603
10K PM5 COL
3419
232270461002
RST SM 0603 RC22H
1K PM1 R
3421
319802190020
RST SM 0805 JUMP.
0R05 COL R
3501
319802190030
RST SM 0603 JUMP.
0R05 COL
3502
319802190030
RST SM 0603 JUMP.
0R05 COL
3503
319802190030
RST SM 0603 JUMP.
0R05 COL
3504
319802190030
RST SM 0603 JUMP.
0R05 COL
3505
319802190030
RST SM 0603 JUMP.
0R05 COL
3506
319802190030
RST SM 0603 JUMP.
0R05 COL
3507
319802190030
RST SM 0603 JUMP.
0R05 COL
3508
319802132210
RST SM 0603
220R PM5 COL
3509
319802132210
RST SM 0603
220R PM5 COL
3511
319802131030
RST SM 0603
10K PM5 COL
3512
319802131030
RST SM 0603
10K PM5 COL
3513
235003510103
RST NETW SM ARV24 4X 10K PM5
3514
235003510103
RST NETW SM ARV24 4X 10K PM5
3523
319802131040
RST SM 0603
100K PM5 COL
3524
319802131040
RST SM 0603
100K PM5 COL
5201
242254945582
IND FXD 0805 EMI 100MHZ 300R R
5202
242254945582
IND FXD 0805 EMI 100MHZ 300R R
5203
242254945582
IND FXD 0805 EMI 100MHZ 300R R
5302
242254945582
IND FXD 0805 EMI 100MHZ 300R R
5401
242254945582
IND FXD 0805 EMI 100MHZ 300R R
5402
242254945582
IND FXD 0805 EMI 100MHZ 300R R
5403
242254945582
IND FXD 0805 EMI 100MHZ 300R R
5404
242254945582
IND FXD 0805 EMI 100MHZ 300R R
5405
242254945582
IND FXD 0805 EMI 100MHZ 300R R
5502
242254945579
IND FXD 1206 EMI 100MHZ 100R R
5503
242254945579
IND FXD 1206 EMI 100MHZ 100R R
6220
933742280215
DIO SIG SM BAT54
(PHSE) R
6221
933913910115
DIO SIG SM BAS32L
(PHSE) R
7202
932214526668
IC SM M24C02-WMN6
(ST00) R
7203
932214526668
IC SM M24C02-WMN6
(ST00) R
7210
935260739118
IC SM 74LVC14APW
(PHSE) R
7301
932217946682
IC SM M29W010B-90K1
(ST00) L
7302
932214725682
IC M24C16-WBN6
(ST00) L
7403
932218206685
IC SM IRU1206-25CY
(INR0) R
7404
932219353671
IC SM GM5126-BC
(GEMI) Y
7405
935270954115
IC SM SA56616-28D
(PHSE) R
7501
933967380685
TRA SIG SM BC858C
(ONSE) R
7502
933967380685
TRA SIG SM BC858C
(ONSE) R
7506
932209265685
TRA SIG SM MUN2211J
(ONSE) R
7507
932216638668
FET POW SM SI5441DC
(VISH) R
Power Panel
1052
313815855921
POWER ASSY
2001
202203100068
ELCAP GL
25V S 470U PM20 B
2002
202203100068
ELCAP GL
25V S 470U PM20 B
2003
202203100131
ELCAP LZ
10V S 820U PM20 B
2004
223858015641
CER2 0805 X7R 50V
22N PM10 R
2005
223886115221
CER1 0805 NP0 50V 220P PM5 R
2051
223858016627
CER2 0805 X7R 50V
10N PM10 R
2052
223858016627
CER2 0805 X7R 50V
10N PM10 R
2053
223858016627
CER2 0805 X7R 50V
10N PM10 R
2054
222278019763
CER2 0805 Y5V 16V
1U PM20 R
2055
222278019763
CER2 0805 Y5V 16V
1U PM20 R
http://www.wjel.net
170B4&S4
46
Go to cover page
Parts List
2056
222278019763
CER2 0805 Y5V 16V
1U PM20 R
2102
203830100314
CAP MPP
275V S 220N PM10 B
2106
202203100077
ELCAP KM
450V S 82U PM20 B
2107
223858015641
CER2 0805 X7R 50V
22N PM10 R
2108
223858015641
CER2 0805 X7R 50V
22N PM10 R
2109
225260108026
CER2 DC X7R 1KV S
1N PM10 A
2110
222278019763
CER2 0805 Y5V 16V
1U PM20 R
2112
203803513304
ELCAP RGA
25V S 100U PM20 A
2113
203803513704
ELCAP RGA 100V S 22U PM20 A
2114
202055490158
CERSAF CD
250V S 2N2 PM20 B
2115
225260108026
CER2 DC X7R 1KV S
1N PM10 A
2116
202203100132
ELCAP LZ
25V S 1000U PM20 B
2117
202203100132
ELCAP LZ
25V S 1000U PM20 B
2118
225260108026
CER2 DC X7R 1KV S
1N PM10 A
2119
202203100128
ELCAP LZ
16V S 1000U PM20 A
2121
202203100068
ELCAP GL
25V S 470U PM20 B
2122
223886115399
CER1 0805 NP0 50V
39P PM5 R
2123
223858015631
CER2 0805 X7R 50V
3N9 PM10 R
2124
223891015649
CER2 0805 X7R 25V 100N PM10 R
2125
202055490158
CERSAF CD
250V S 2N2 PM20 B
2126
202055490158
CERSAF CD
250V S 2N2 PM20 B
2127
222278019763
CER2 0805 Y5V 16V
1U PM20 R
3001
319802154720
RST SM 0805
4K7 PM5 COL R
3002
232273463302
RST SM 0805 RC12H
3K3 PM1 R
3003
232273465602
RST SM 0805 RC12H
5K6 PM1 R
3051
212211000329
RST MFLM MF1/2WS A 100R PM1 A
3052
212211000329
RST MFLM MF1/2WS A 100R PM1 A
3101
212261200061
NTC DC SCK-164
S 16R PM15 B
3102
232271161474
RST SM 1206 RC01
470K PM5 R
3103
232271161824
RST SM 1206 RC01
820K PM5 R
3104
232271161474
RST SM 1206 RC01
470K PM5 R
3105
232273461002
RST SM 0805 RC12H
1K PM1 R
3106
232271161108
RST SM 1206 RC01
1R PM5 R
3107
212211000315
RST MFLM MF1/2WS A 10R PM1 A
3109
319802151230
RST SM 0805
12K PM5 COL R
3110
319802151030
RST SM 0805
10K PM5 COL R
3111
212211000396
RST MFLM MF1/2WS A 33K PM1 A
3112
213811201134
RST SM 0805 RC05
130K PM5 R
3113
232273061333
RST SM 0805 RC11
33K PM5 R
3114
319802154720
RST SM 0805
4K7 PM5 COL R
3115
213811273472
RST CRB CFR-25
A 4K7 PM5 A
3116
212211000418
RST MFLM MF1/2WS A 220K PM1 A
3117
212211000455
RST MFLM MF1/2WS A 0R68 PM1 A
3118
212211000455
RST MFLM MF1/2WS A 0R68 PM1 A
3119
212211000455
RST MFLM MF1/2WS A 0R68 PM1 A
3120
212211000418
RST MFLM MF1/2WS A 220K PM1 A
3121
212211000315
RST MFLM MF1/2WS A 10R PM1 A
3122
319802154710
RST SM 0805
470R PM5 COL R
3123
212211000311
RST MFLM MF1/2WS A 4R7 PM1 A
3124
319802154710
RST SM 0805
470R PM5 COL R
3125
213811273821
RST CRB CFR-25
A 820R PM5 A
3126
232273463303
RST SM 0805 RC12H
33K PM1 R
3127
232273462404
RST SM 0805 RC12H 240K PM1 R
3129
319802154730
RST SM 0805
47K PM5 COL R
3131
319802152230
RST SM 0805
22K PM5 COL R
3132
319802154730
RST SM 0805
47K PM5 COL R
3133
319802156830
RST SM 0805
68K PM5 COL R
3134
319802151020
RST SM 0805
1K PM5 COL R
3139
319802151090
RST SM 0805
10R PM5 COL R
3140
213810113109
RST CRB CFR-12
A 10R PM5 A
5001
313818875691
COI CHOKE 35UH 82M OHM DR10X
5051
313810874951
CHOKE COIL 5.0UH PM10
5052
313810874951
CHOKE COIL 5.0UH PM10
5101
313818870151
LINE FILTER 9MH
5102
313818870151
LINE FILTER 9MH
5103
313818875791
TFM SMT LAYER LS-NB02P-013 WIR
5104
242254942026
IND FXD BEAD EMI 100MHZ 50R A
5105
243853598028
IND FXD BEAD EMI 100MHZ 75R R
5106
243853598028
IND FXD BEAD EMI 100MHZ 75R R
5107
243853598028
IND FXD BEAD EMI 100MHZ 75R R
6101
932213176671
BRIDGE GBU8J
(GI00) Y
6105
933952580685
DIO SIG SM BAV103
(TEG0) R
6106
934038700115
DIO REG SM BZX284-C12 (PHSE) R
6107
933653500113
DIO REC BYV26C
A (PHSE) R
6110
933117750133
DIO REG BZX79-C6V8 A (PHSE) A
6111
933723420133
DIO REC BYD33J
A (PHSE) A
6114
934038720115
DIO REG SM BZX284-C15 (PHSE) R
6115
932219207683
DIO REC 2EZ10
A (PAJI) R
6117
934038620115
DIO REG SM BZX284-C5V6 (PHSE)R
7001
932219076668
IC SM L5972D
(ST00) R
7101
935270037112
IC TEA1533AP/N1
(PHSE) L
7103
933179600126
TRA SIG BC337-40
(PHSE) A
7105
932214014667
OPT CP TCET1103(G)
(VISH) L
7106
933771100686
IC TL431CLP
S (MOTA) R
7107
933967310685
TRA SIG SM BC848C
(ONSE) R
7108
933967310685
TRA SIG SM BC848C
(ONSE) R
7109
933826850126
THYRIS BT169B
(PHSE) A
Cable
8051
313818871691
CBLE 330018 8/105/8 330987
8052
313818875571
CBLE 330024 14/75/14 346924
8102
313818875591
CBLE 3P/75/FHOOK
Control Panel
1053
313815855761
CONTROL PCB ASSY
6711
932214603682
LED VS L-3WYGW
(KIEL) B
LED
http://www.wjel.net
47
Go to cover page
170B4&S4
Repair Flow Chart
Front control key
does not work
Check
Front control panel
(Key & SW)
Yes
Check
Signal connectors
Check main panel
Yes
No Display
Check Mains cord
& LED of monitor
Check
Power board
12V/3.3V/5V DC
Yes
Check
video signals input
interface
Check inverter
panel
No
Video source
Yes
Check
Inverter panel
625~765Vrms with load
No
OK
Check fluorescent
lamp
Check main panel
No
http://www.wjel.net
48
170B4&S4
Go to cover page
Repair Flow Chart (Continued)
AC IN
Power supply
board
Main panel
625~765Vrms
Inverter panel
Fluorescent
Lamp
LCD panel
3.3V/5V DC
12V DC
12V DC
No power
(power indicator off)
Check
12V/3.3V/5V DC
Check
control panel
No
Yes
Yes
Check control
wires
Check Main panel
Check Main panel
http://www.wjel.net
49
170B4&S4
Go to cover page
Repair Flow Chart (Continued)
Bad brightness
Check
Inverter panel output
625~765Vrms
No
Yes
Bad Inverter
panel
Check fluorescent
lamp
Bad image
Check
Video,fh/fv
signals
Yes
Yes
Check LCD panel
No
No
Check LCD panel
Check
all connectors &
LVDS cable
No
Check main panel
Check components
cold soldering
http://www.wjel.net
50
Go to cover page
170B4&S4
Failure Mode of LCD panel
Quick reference for failure mode of LCD panel
This page presents problems that could be made by LCD panel. It is
not necessary to repair circuit board. Simply follow the “Mechanical
instruction” on this manual to eliminate failure by replace LCD panel
or backlight tubes.
Failure description
Phenomenon
Vertical dim lines
Vertical block defect
Vertical lines defect
(Always bright or dark)
Horizontal block defect
Horizontal dim lines
Horizontal lines defect
(Always bright or dark)
Has bright or dark pixel
.
..
.
..
.
..
.
..
Bright pixel
Dark pixel
.
. .
. .
Polarizer has bubbles
Polarizer has bubbles
Foreign material inside
polarizer. It shows linear or
dot shape.
. .
. .
Concentric circle formed
Bottom back light of LCD is
brighter than normal
Backlight un-uniformity
Backlight has foreign
material. Black or white
color, linear or circular type
http://www.wjel.net
51
0. Warning
1. Servicing of SMDs (Surface Mounted Devices)
All ICs and many other semi-conductors are susceptible to
electrostatic discharges (ESD). Careless handling during
repair can reduce life drastically. When repairing, make sure
that you are connected with the same potential as the mass
of the unit via a wrist wrap with resistance. Keep components
and tools also at the same potential !
- Oxidation on the terminals of SMDs results in poor soldering.
Do not handle SMDs with bare hands.
- Avoid using storage places that are sensitive to oxidation
such as places with sulphur or chlorine gas, direct sunlight,
high temperatures or a high degree of humidity. The
capacitance or resistance value of the SMDs may be
affected by this.
- Rough handling of circuit boards containing SMDs may
cause damage to the components as well as the circuit
boards. Circuit boards containing SMDs should never be
bent or flexed. Different circuit board materials expand and
contract at different rates when heated or cooled and the
components and/or solder connections may be damaged
due to the stress. Never rub or scrape chip components as
this may cause the value of the component to change.
Similarly, do not slide the circuit board across any surface.
- Heat the solder (for 2-3 seconds) at each terminal of the
chip. By means of litz wire and a slight horizontal force,
small components can be removed with the soldering iron.
They can also be removed with a solder sucker (see Fig.
1A)
- While holding the SMD with a pair of tweezers, take it off
gently using the soldering iron\'s heat applied to each
terminal (see Fig. 1 B).
- Remove the excess solder on the solder lands by means of
litz wire or a solder sucker (see Fig. 1C).
- When handling the soldering.iron. use suitable pressure and
be careful.
- When removing the chip, do not use undue force with the
pair of tweezers.
- The soldering iron to be used (approx. 30 W) should
1.1 General cautions on handling and storage
1.2 Removal of SMDs
1.3 Caution on removal
preferably be equipped with a thermal control (soldering
temperature: 225 to 250 C).
- The chip, once removed, must never be reused.
o
1.4 Attachment of SMDs
- Locate the SMD on the solder lands by means of tweezers
and solder the component on one side. Ensure that the
component is positioned correctly on the solder lands (see
Fig.2A).
- Next complete the soldering of the terminals of the
component (see Fiq. 2B).
- When soldering the SMD terminals, do not touch them
directly with the soldering iron. The soldering should be
done as quickly as possible, care must be taken to avoid
damage to the terminals of the SMDs themselves.
- Keep the SMD\'s body in contact with the printed board when
soldering.
- The soldering iron to be used (approx. 30 W ) should
preferably be equipped with a thermal control (soldering
temperature: 225 to 250 C).
- Soldering should not be done outside the solder land.
- Soldering flux (of rosin) may be used, but should not be
acidic.
- After soldering, let the SMD cool down gradually at room
temperature.
- The quantity of solder must be proportional to the size of the
solder land. If the quantity is too great, the SMD might
crack or the solder lands might be torn loose from the
printed board
(see Fig. 3).
2. Caution when attaching SMDs
o
SOLDERING
IRON
RIGHT
Fig. 3 Examples
DISMOUNTING
VACUUM PISTON
4822 395 10159
SOLDERING
IRON
e.g. WELLER
SOLDER TIP PT -H7
SOLDERING
IRON
SOLDER WICK
4822 321 40042
SOLDERING
IRON
SOLDER WICK
e.g. A PAIR OF TWEEZERS
HEATING
HEATING
Fig. 1
A
B
C
e.g. A PAIR OF TWEEZERS
SOLDER
0.5 - 0.8 mm
SOLDER
0.5 - 0.8 mm
SOLDERING
IRON
SOLDERING TIME
< 3 sec/side
SOLDERING
IRON
PRESURE
PRESURE
MOUNTING
Fig. 2
B
A
Repair Tips
Go to cover page
170B4&S4
http://www.wjel.net
CA110 Application
52
Go to cover page
170B4&S4
After installation of Chroma 2250, CA110 and LCD monitor.
- Turn on LCD monitor.
- Turn on Chroma 2250 as shown in Fig. 3.
- Provide CROSS-Hatch pattern at timing H=60.023KHz/1024 pixels
V=75.029Hz/768 lines
by Chroma 2250 (as shown in Fig.3 & Fig. 4.).
- Put on the cover (black) of Probe CA-A30 as shown in Fig.5.
- Set "Measurement/viewing selector" to
for zero calibration
of CA-110.
- Turn on CA-110 as shown in Fig. 6.
- Press "0-CAL" button as shown in Fig. 7.
LCD monitor & Chroma 2250 :
LCD Colour Analyzer CA-110 :
Step A: Access Factory Mode
Fig. 3
Chroma MODEL 2250
Chroma MODEL 2250
Measurement/viewing selector
Measurement/viewing selector
cover (black)
cover (black)
Fig.4
Fig. 5
Fig. 6
(TURN ON)
(Press
0-CAL)
Fig. 7
Access Factory Mode
Fig. 2
Factory Mode indication==>
Use
button to select factory adjustment indication (for
example: Hudson
170W
V2.02
02-11-15), which is the entrance
of the factory adjustment menu, press OK "
" button to access
it. The window shows as below.
Fig. 1
Access Factory Mode
Step 2 :
[Push AUTO "
" & OK "
" buttons at the same time and hold
it ] + [Press power "
" button untill comes out "Windows screen"
] => then release all buttons.
How to Get into Factory Mode Menu
Turn off monitor.
Press OK "
" button, bring up Factory mode indication as
shown in Fig 2.
Step 1 :
Step 3 :
http://www.wjel.net
CA110 Application (Continued)
53
Go to cover page
Probe CA-A30 :
- Remove the cover (black) of CA-A30 as shown in Fig.9.
- Move the "Lens barrel" back and forth to get the optimal image
as shown in Fig. 10 & Fig. 11.
- Then, turn the "Measurement/viewing selector" counterclockwise
as shown in Fig. 11.
- At this moment the indicator on CA-110 as shown in Fig. 12.
(example only)
Fig. 8
Fig. 9
Fig. 10
clear image
unclear image
Fig. 11
Fig. 12
----->
----->
Step B: Brightness & Contrast setting (pre-setting)
Brightness : at 100%
Contrast
: at 100%
Step C: Colour Temperature : Original Panel & 9300K & 6500K
White pattern & OSD position :
- Provide the "Full White" pattern by Chroma 2250
as shown in Fig. 13.
OSD position : Move to optimal position as shown in Fig. 14.
Fig. 13
Fig. 14
--->
--->
Measurement/viewing selector
Measurement/viewing selector
cover (black)
cover (black)
170B4&S4
http://www.wjel.net
CA110 Application (Continued)
54
Go to cover page
Fig. 18
Fig. 19
Fig. 16
Fig. 17
-->
- Select "HUDSON..." as shown in Fig. 16.
- Press OK button, bring up Fig. 18.
FACTORY :
Above 380 NITs in the center of the screen as shown in Fig. 15.
Luminance (Y) :
- select 9300K R G B.
- select value of R or G or B
- decrease or increase the value of 9300K R G B.
- confirm/save the value change.
- Adjust the colour temperature of 9300K of R,G,B to x,y value
as below.
R (as shown in Fig. 18), (for example, production value of R is 241)
G (as shown in Fig. 18), (for example, production value of G is 252)
B (as shown in Fig. 18), (for example, production value of B is 255)
x (center) = 0.281+/- 0.005
y (center) = 0.311 +/- 0.005
Luminance (Y) : above 380 Nits in the center of the screen.
(experience: the value of "Y" too low, increase the value of "y" firstly.)
(experience: the value of "y" too high, decrease the value of "G".
the value of "x" too low,
decrease the value of "R".)
9300K : As shown in Fig. 18 & 19.
Value of 9300K R
G
B.
ORIGINAL PANEL COLOR
- Select "
If the
:
ORIGINAL PANEL COLOR" by OSD as shown in Fig. 17.
- Measure Luminance (Y) as shown in Fig. 15.
Luminance (Y) is below 380 Nits in the center of the screen,
then adjust R,G,B Gain till the Luminance (Y) over 380Nits.
After that, check the 64 Gray Scale pattern, all the black and white
scale should be visible on the screen as shown in Fig. 19.
Fig. 15
Factory Mode==>
Panel color==>
9300K
R
G
B
9300K
R
G
B
6500K
R
G
B
6500K
R
G
B
OFFSET
R
G
B
OFFSET
R
G
B
SUB
CON:
SUB
CON:
SUB
BRI:
SUB
BRI:
-
-
AUTO
SUB:
AUTO
SUB:
-
OK
GAIN
R
G
B
GAIN
R
G
B
RESERVE1:
RESERVE3:
RESERVE2:
HUDSON
170W
V2.02
02-11-15
00
91
181
50
191
91
191
89
252
241
249
255
255
205
255
255
225
Y value>380 is OK
Y value>380 is OK
<----------------------->
HUDSON
170W
V2.02
02-11-15
170B4&S4
http://www.wjel.net
55
Go to cover page
Fig. 21
- select 6500K R G B.
- select value of R or G or B
- decrease or increase
the value of 6500K R G B.
- confirm/save the value change.
- Adjust the colour temperature of 6500K of R,G,B to x,y value
as below.
R (as shown in Fig. 18), (for example, production value of R is 255)
G (as shown in Fig. 18), (for example, production value of G is 249)
B (as shown in Fig. 18), (for example, production value of B is 225)
x (center) = 0.312+/- 0.005
y (center) = 0.338 +/- 0.005
Luminance (Y) : above 380 Nits in the center of
the screen.
(experience: the value of "Y" too low, increase the value of "y" firstly.)
(experience: the value of "y" too high, decrease the value of "G".
the value of "x" too low,
decrease the value of "R".)
6500K : As shown in Fig. 18 & 20.
Value of 6500K R
G
B.
Full white, Geometry,
Gray scale & Pixel on/off pattern check
64
- Provides the full white pattern by Chroma 2250.
- Check the image of each timing (total: 29 timings) to see if there is
any colour\'s difference on the screen.
For instance :
at timing 60K/64Hz 1024x768 --> as shown in Fig. 20.
Full White pattern check by eye :
- Provides the cross-hatch pattern by Chroma 2250.
- Check the geometry of each timing
to adjust the
geometry of image to optimal position.
For instance :
at timing 60K/64Hz 1024x768 --> as shown in Fig. 21.
Geometry check and setting by eye :
(total: 29 timings)
- Provides the 64 gray scale pattern by Chroma 2250.
- Check the image of each timing
to see if all the
black and white scale are visible on the screen or not.
For instance :
at timing 60K/64Hz 1024x768 --> as shown in Fig. 22.
32 Gray Scale pattern check by eye :
(total: 29 timings)
- Provides the cross talk pattern by Chroma 2250.
- Check the image of each timing
to see if there is
any Clock or/and Phase phenomenon on the screen.
For instance :
at timing 60K/64Hz 1024x768 --> as shown in Fig. 23.
Pixel on/off pattern check by eye :
(total: 29 timings)
Fig. 22
Fig. 23
Fig. 20
170B4&S4
CA110 Application (Continued)
http://www.wjel.net
56
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
1
24
Sophia Hsia
HUDSON-3
170B4
GENERAL PRODUCT
SPECIFICATION
. ANALOG AND DIGITAL DUAL INPUT
. AUTO PICTURE ADJUSTMENT
. 16 FACTORY PRESET MODES AND 34 PRESET MODES WHICH
CAN BE RECOVERED TO PRESET MODES
. USER FRIENDLY OSD DISPLAY FOR MODE IDENTIFICATION
/ADJUSTMENT
. DDC 2B COMMUNICATION CAPABILITY
. MAX. RESOLUTION 1280*1024 NON-INTERLACED AT 75 HZ
. 17” COLOR TFT LCD FLAT PANEL
. EASY TILT & SWIVEL BASE
. FULL RANGE POWER SUPPLY 90 264 VAC
. CE ENVIRONMENTAL POLICY
. ANTI-GLARE TO REDUCE LIGHT REFLECTION
. POWER MANAGEMENT CAPABILITY
. SOG SUPPORT
. TCO 99
. AUDIO SUPPORT (OPTION)
. PROVIDE USB HUB (OPTION)
. WALL MOUNT KIT (OPTION)
. PROTECTIVE COVER (OPTION)
http://www.wjel.net
57
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
2
24
Sophia Hsia
1.0
Foreword
2.0
Product profile
2.1
LCD
2.2
Scanning frequencies
2.3
Video dot rate
2.4
Power input
2.5
Power consumption
2.6
Dimensions
2.7
Weight
2.8
Functions
2.9
Ambient temperature
2.10
Regulatory compliance
3.0
Electrical characteristics
3.1
Interface signals
3.2
Interface
3.2.1
D-sub cable
3.2.2
DVI cable
3.2.3
OSD function control
3.3
Timing requirement
3.3.1
Mode storing capacity
3.3.2
Factory preset timings
3.3.3
Horizontal scanning
3.3.4
Vertical scanning
3.4
Power input connection
3.5
Power management
3.6
Display identification
3.6.1
Analog DDC
3.6.2
Digital DDC
4.0
Visual characteristics
4.1
Test conditions
4.2
Resolution
4.3
Brightness
4.4
Image size
4.4.1
Actual display size
4.4.2
Max scan size
4.5
Brightness uniformity
4.6
Check cross talk
4.7
White color adjustment
CONTENTS
http://www.wjel.net
58
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
3
24
Sophia Hsia
5.0
Mechanical characteristics
5.1
Controls
5.2
Unit dimension / weight
5.3
Tilt and swivel base
5.4
Transportation packages
5.4.1
Shipping dimension / weight
5.4.2
Block unit / palletization
6.0
Environmental characteristics
6.1
Susceptibility of display to external environment
6.2
Transportation tests
6.3
Display disturbances from external environment
6.4
Display disturbances to external environment
6.4.1
EMI
7.0
Reliability
7.1
Mean time between failures
8.0
Quality assurance requirements
8.1
Acceptance test
9.0
Serviceability
http://www.wjel.net
59
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
4
24
Sophia Hsia
1.0
FOREWORD
This specification describes a 17" SXGA multi-scan color TFT
LCD monitor with max resolution up to 1280*1024 /76 Hz non-interlaced.
2.0
PRODUCT PROFILE
This display monitor unit is a color display monitor enclosed in PHILIPS global styling
cabinet, which has an integrated tilt and swivel base.
2.1
LCD
2.1.1
Type NR.
:
M170ES05 (AU.)
Number of Pixels.
:
1280 (H) x1024 (V)
Physical Size
:
358.5(w)296.5(h)19(d) mm
Pixel Pitch.
:
0.264 (per one triad) x 0.264 mm
Color pixel arrangement
:
RGB vertical stripes
Support Color.
:
262k colors (RGB 6 bits data)
Display Mode
:
Normally White
Backlight
:
CCFL edge light system
Active area (WXH).
:
337.92 x 270.336mm (17” diagonal)
Viewing Angle
:
Vertical 140 degree, Horizontal 140 degree (CR=10)
Contrast ratio
:
450:1
White luminance
:
260nits (Typ)
2.1.2
Type NR.
:
CLAA170EA03 (CPT.)
Number of Pixels
:
1280 (H) x 1024 (V)
Physical Size
:
358.5(w)296.5(h)17(d) mm
Pixel Pitch.
:
0.264 (per one triad) x 0.264 mm
Color pixel arrangement
:
RGB vertical stripes
Support Color
:
262k colors (RGB 6 bits data)
Display Mode
:
Normally White
Backlight
:
CCFL edge light system
Active area. (WXH)
:
337.92 x 270.336mm (17” diagonal)
Viewing Angle
:
Vertical 130 degree, Horizontal 150 degree (CR=10)
Contrast ratio
:
400:1
Luminance
:
300 cd/m (Typ)
2.1.3
Type NR.
:
QD17ER01 (QDI.)
Number of Pixels
:
1280 (H) x 1024 (V)
Physical Size
:
358.5(w)296.5(h)16.5(d) mm
Pixel Pitch
:
0.264 (per one triad) x 0.264 mm
Color pixel arrangement
:
RGB vertical stripes
Support Color
:
262k colors (RGB 6 bits data)
Display Mode
:
Normally White
Backlight
:
CCFL edge light system
Active area. (WXH)
:
337.92 x 270.336mm (17” diagonal)
Viewing Angle
:
Vertical 130 degree, Horizontal 150 degree (CR=10)
Contrast ratio
:
400:1
Luminance
:
250 cd/m (Typ)
2
2
http://www.wjel.net
60
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
5
24
Sophia Hsia
Contrast ratio
: 400:1
Luminance
: 250 cd/m (Typ)
2.2
Scanning frequencies
H-Frequency
: 30 ~ 82 KHz
V-Frequency
: 56 ~ 76 Hz
2.3
Video dot rate
: < 140 MHz
2.4
Power input
: 90-264 V AC, 50/60 2 Hz
2.5
Power consumption
: < 35 W maximum (without audio)
2.6
Dimensions
: 375(W) * 393(H) * 180(D) mm (Basic Base)
: 375(W) * 413(H) * 184(D) mm (Multimedia Base)
2.7
Weight.
:
5 kg (Basic Base)
:
6.3 kg (Multimedia Base)
2.8
Functions:
(1) D-Sub analog R/G/B separate inputs, H/V sync separated, Composite (H+V)
TTL level, SOG sync.
(2) DVI-D digital Panel Link TMDS input
# ( Only for 170B4 Model )
2.9
Ambient temperature: 5 C - 35 C
2.10
Regulatory compliance:
2
Safety
B, CCIB / CCEE(China), CE(Europe), CSA(Canada),
DEMKO(Nordic), EZU(Czech), FIMKO(Nordic), Gost(Russia), IEC
950 CB Report, NOM NYCE(Mexico), PSB(Singapore),
SEMKO(Nordic),SISIR CPA(Singapore), TUV(Germany), UL(USA),
UL2601-1(NAFTA), EN60601(EU) and IEC60601-1(WW)
EMI
C-tick, CE(Europe), FCC(USA), IC(Canada), VCCI(Japan),BSMI
Ergonomics
E2000, MPRII(Sweden), Nutek(Sweden), TCO99, TUV/GS
Compatibility
PC2001, Windows 2000, Windows 98/Me, Windows XP, NSTL
http://www.wjel.net
61
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
6
24
Sophia Hsia
3.0
Electrical characteristics
3.1
Interface signals
The input signals can be applied in two different modes:
1). D-shell Analog
Input signal: Video, H-sync, V-sync,
Video : 0.7 V p-p, input impedance, 75 ohm
Sync. : Separate sync
TTL level, input impedance 2k2 ohm terminate
H-sync
Positive/Negative
V-sync
Positive/Negative
Composite sync TTL level, input impedance 2k2 ohm terminate
(Positive/Negative)
Sync on green video 0.3V p-p Negative. (Video 0.7 V p-p Positive)
2). Intel DVI Digital
Input signal: Single channel TMDS signal
# ( Only for 170B4 Model )
3.2
Interface
3.2.1
D-Sub Cable
Length
: 1.8 M +/- 50 mm (fixed)
Connector type
: D-sub male with DDC-2B pin assignments.
Blue connector thumb-operated jack screws
Pin Assignment:
PIN No.
SIGNAL
1
Red video input
2
Green video input / sync on green
3
Blue video input
4
GND
5
GND
6
Red video GND
7
Green video GND
8
Blue video GND
9
DDC +3.3V or +5V
10
Logic GND - Cable detect
11
GND
12
Serial data line (SDA)
13
H-sync / H+V
14
V-sync
15
Data clock line (SCL)
http://www.wjel.net
62
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
7
24
Sophia Hsia
3.2.2
DVI Cable
The input signals are applied to the display through DVI-D cable.
Length
: 1.8 M +/- 50 mm (fixed)
Connector type
: DVI-D male with DDC-2B pin assignments
White connector thumb-operated jack screws
Pin Assignment:
Pin No.
Description
1
T.M.D.S. data2-
2
T.M.D.S. data2+
3
T.M.D.S. data2 shield
4
No Connect
5
No Connect
6
DDC clock
7
DDC data
8
No Connect
9
T.M.D.S. data1-
10
T.M.D.S. data1+
11
T.M.D.S. data1 shield
12
No Connect
13
No Connect
14
+5V Power
15
Ground (for +5V) – Cable detect
16
Hot plug detect
17
T.M.D.S. data0-
18
T.M.D.S. data0+
19
T.M.D.S. data0 shield
20
No Connect
21
No Connect
22
T.M.D.S clock shield
23
T.M.D.S. clock+
24
T.M.D.S. clock-
http://www.wjel.net
63
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
8
24
Sophia Hsia
3.2.3
Software control functions via OSD/control
OSD (On Screen Display) function
(1) Analog interface OSD:
Adjustable functions:
Language
:
English , Espanol , Francais ,
Deutsch, Italiano, simple Chinese,
Adjust Position
:
Horiizontal / Vertical
Brightness & Contrast
:
Brightness and Contrast adjustment
Video Noise
:
Phase and Clock adjustment
Adjust Color
:
Origino panel colorR 9300K for CAD/CAM , 6500K for Imagine
management sRGB, user preset RGB adjustment
OSD Setting
:
OSD H-position, OSD V-position
MAIN CONTROLS
LANGUAGE
ADJUST POSITION
BRIGHTNESS & CONTRAST
VIDEO NOISE
ADJUST COLOR
OSD SETTINGS
PRODUCT INFORMATION
RESET TO FACTORY SETTINGS
INPUT SELECTION
EXIT MAIN CONTROLS
MOVE SELECTION THEN ok
http://www.wjel.net
64
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
9
24
Sophia Hsia
Product Information
: Show Serial No./ Resolution / Video input.
Reset to Factory Setting
: Recall to factory preset settings.
Input Selection
:
Select Analog D-sub, Digital DVI-D.
(2) Digital interface OSD
:
Table of adjust functions
Language
:
English , Espanol , Francais , Deutsch, Italiano, Simple Chinese.
Brightness & Contrast
:
Brightness and contrast adjustment.
Adjust Color
:
Original panel color , 9300K for CAD/CAM , 6500K for image
management, sRGB, User Preset: Red Green Blue adjust.
OSD Setting
:
OSD H-position, OSD V-position
Product Information
:
Show Serial No./ Resolution / Video input.
Reset to Factory Setting
: Return to factory preset timings and settings.
Input Selection
:
Select Analog D-sub, Digital DVI-D.
MAIN CONTROLS
LANGUAGE
BRIGHTNESS & CONTRAST
ADJUST COLOR
OSD SETTINGS
PRODUCT INFORMATION
RESET TO FACTORY SETTINGS
INPUT SELECTION
EXIT MAIN CONTROLS
MOVE SELECTION THEN ok
http://www.wjel.net
65
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
10
24
Sophia Hsia
3.3
Timing requirement
3.3.1
Mode storing capacity
(1) Factory preset modes
: 16
(2) Preset modes
: 34
3.3.2
Factory preset timings
The factory settings of size and centering are according to the reference
timing charts (See fig-4, fig-5)
Mode No.
1
2
3
4
Resolution
640 x 350
720 x 400
640 x 480
640 x 480
Dot
clock(MHz)
25.175
28.321
25.175
30.240
Fh (KHz)
31.469
31.468
31.500
35.000
A(us/dot)
31.778/800
31.78/900
31.778/800
28.571/864
B(us/dot)
3.813/96
3.813/108
3.813/96
2.116/64
C(us/dot)
1.907/48
1.907/54
1.907/48
3.175/96
D(us/dot)
25.422/640
25.42/720
25.422/640
21.164/640
E ( us )
0.636/16
0.636/18
0.636/16
2.116/64
Fv (Hz)
70.090
70.085
60.000
67.000
O(ms/line)
14.27/449
14.27/449
16.683/525
15/525
P(ms/line)
0.064/2
0.064/2
0.064/2
0.086/3
Q(ms/line)
1.907/60
1.112/34
1.049/33
1.114/39
R(ms/line)
11.12/350
12.71/400
15.253/480
13.714/480
S(ms/line)
1.175/37
0.381/13
0.317/10
0.086/3
Sync H/V
+/-
-/+
- / -
- / -
Polarity
Sep. Sync
Y
Y
Y
Y
http://www.wjel.net
66
170B4S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
11
24
Sophia Hsia
Mode No.
5
6
7
8
Resolution
640 x 480
640 x 480
640x480
800 x 600
Dot
clock(MHz)
31.500
31.501
36.000
36.000
Fh ( MKz)
37.861
37.500
36.000
35.200
A (us/dot )
26.413/832
26.667/840
23.111 /832
28.444/1024
B (us/dot )
1.270/40
2.032/54
1.556/56
2.000/72
C (us/dot )
3.810/120
3.81/120
2.222/80
3.556/128
D (us/dot )
20.317/640
20.317/640
17.778/640
22.222/800
E (us/dot )
1.016/32
0.508/26
1.555/56
0.666/24
Fv ( Hz)
72.809
75.000
85.000
56.000
O (ms/line )
13.735/520
13.333/500
11.763/509
17.778/625
P (ms/line )
0.079/3
0.08/3
0.069/3
0.057/2
Q (ms/line )
0.528/20
0.427/16
0.578/25
0.626/ 22
R (ms/line )
12.678/480
12.8/480
11.093/480
17.066/600
S (ms/line )
0.45/17
0.026/1
0.023/1
0.029/1
Sync H/V
-/-
- / -
-/-
+ / +
Polarity
Sep. Sync
Y
Y
Y
Y
Mode No.
9
10
11
12
Resolution
800 x 600
800 x 600
800 x 600
800 x 600
Dot
clock(MHz)
40.000
50.000
49.498
56.251
Fh (KHz)
37.900
48.077
46.900
53.00
A (us/dot )
26.4/1056
20.80/1040
21.333/1056
18.631/1048
B (us/dot )
3.2/128
2.400/120
1.616/80
1.138/64
C (us/dot )
2.2/88
1.280/64
3.232/160
2.702/152
D (us/dot )
20/800
16.00/800
16.162/800
14.222/800
E (us/dot )
1/40
1.120/56
0.323/16
0.569/32
Fv (Hz)
60.000
72.0 / 72.188
75.000
85.000
O (ms/line )
16.579/628
13.85/666
13.333/625
11.756/631
P (ms/line )
0.106/4
0.125/6
0.064/3
0.056/3
Q (ms/line )
0.607/23
0.478/23
0.448/21
0.503/27
R (ms/line )
15.84/600
12.48/600
12.8/600
11.179/600
S (ms/line )
0.026/1
0.770/37
0.021/1
0.018/1
Sync H/V
+ / +
+ / +
+ / +
+ / +
Polarity
Sep. Sync
Y
Y
Y
Y
http://www.wjel.net
67
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
12
24
Sophia Hsia
Mode No.
13
14
15
16
Resolution
832 x 624
1024 x 768
1024 x 768
1024 x 768
Dot
clock(MHz)
57.280
65.000
75.000
78.750
Fh (KHz)
49.700
48.363
56.500
60.000
A (us/dot )
20.11/1152
20.677/1344
17.707/1328
16.66/1312
B (us/dot )
1.117/64
2.092/136
1.813/136
1.219/96
C (us/dot )
3.91/224
2.462/160
1.920/144
2.235/176
D (us/dot )
14.52/832
15.754/1024
13.653/1024
13.003/1024
E (us/dot )
0.563/32
0.369/24
0.321/24
0.203/16
Hv (Hz)
75.000
60.004Hz
70.004
75.000
O (ms/line )
13.41/667
16.666/806
14.272/806
13.328/800
P (ms/line )
0.06/3
0.124/6
0.106/6
0.05/3
Q (ms/line )
0.784/39
0.600/29
0.514/29
0.446/28
R (ms/line )
12.55/624
15.880/768
13.599/768
12.80/768
S (ms/line )
0.016/1
0.062/3
0.053/3
0.017/1
Sync. H/V
+/+
- / -
-/-
+ / +
Polarity
Sep. SYNC
Y
Y
Y
Y
Mode No.
17
18
19
20
Resolution
1024 x 768
1024 x 768
1152 x 864
1152 x 864
Dot
clock(MHz)
83.096
94.500
79.900
94.500
Fh (KHz)
61.100
68.700
54.000
63.900
A(us/dot )
16.367/1360
14.561/1376
18.523/1480
15.661/1480
B(us/dot )
1.348/112
1.016/96
1.952/156
1.016/96
C(us/dot )
2.022/168
2.201/208
1.352/108
1.116/105
D(us/dot )
12.323/1024
10.836/1024
14.418/1152
12.19/1152
E(us/dot )
0.674/56
0.508/48
0.801/64
1.339/127
f v
76.000
85.000
60.000
70.000
O(ms/line)
13.142/803
11.765/808
16.671/900
14.283/912
P(ms/line)
0.049/3
0.044/3
0.148/8
0.047/3
Q(ms/line)
0.507/31
0.524/36
0.445/24
0.689/44
R(ms/line)
12.57/768
11.183/768
16.004/864
13.531/864
S(ms/line)
0.016/1
0.014/1
0.074/4
0.016/1
Sync H/V
+ / +
+ / +
+/+
+/+
Pplarity
Sep.Sync
Y
Y
Y
Y
http://www.wjel.net
68
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
13
24
Sophia Hsia
Mode No.
21
22
23
24
Resolution
1152 x 864
1152 x 870
1152 x 900
1152 x 900
Dot
clock(MHz)
108.000
100.000
94.500
108.000
Fh (KHz)
67.500
68.000
61.800
71.800
A(us/dot)
14.815/1600
14.56/1456
16.169/1528
13.926/1054
B(us/dot)
1.185/128
1.28/128
1.354/128
1.185/128
C(us/dot)
2.37/256
1.44/144
2.201/208
1.778/192
D(us/dot)
10.667/1152
11.52/1152
12.19/1152
10.667/1152
E(us/dot)
0.593/64
0.32/32
0.424/40
0.296/32
Fv (Hz)
75.000
75.000
66.000
76.000
O(ms/line)
13.333/900
13.333/916
15.151/937
13.132/943
P(ms/line)
0.044/3
0.044/3
0.065/4
0.111 /8
Q(ms/line)
0.474/32
0.568/39
0.501/ 31
0.46/33
R(ms/line)
12.8/864
12.678/870
14.552/900
12.533/900
S(ms/line)
0.015/1
0.043/4
0.033/2
0.028/2
Sync H/V
- / -
- / -
Serration
+ / +
Polarity
Sep. Sync
Y
Y
Y
Y
Mode No.
25
26
27
28
Resolution
1280 x 960
1280 x 960
1280 x 1024
1280 x 1024
Dot
clock(MHz)
108.000
129.895
108.000
117.000
Fh (KHz)
60.000
75.000
64.000
71.700
A ( us )
16.667/1800
13.307/1728
15.63/1688
13.949/1632
B ( us )
1.037/112
1.047/136
1.037/112
0.957/112
C ( us )
2.889/312
1.725/224
2.296/248
1.915/224
D ( us )
11.852/1280
9.857/1280
11.852/1280
10.94/1280
E ( us )
0.889/96
0.678/88
0.445/48
0.137/16
Fv (Hz)
60.000
75.000
60.000
67.000
O (ms )
16.667/1000
13.333/1002
16.661/1066
14.883/1067
P ( ms )
0.05/3
0.039/3
0.047/3
0.112/8
Q (ms )
0.600/36
0.48/36
0.594/38
0.46/33
R ( ms )
16/960
12.774/960
16.005/1024
14.283/1024
S ( ms )
0.017/1
0.04/3
0.015/1
0.028/2
Sync H/V
+/+
+ / +
+ / +
+ / +
Polarity
Sep. Sync
Y
Y
Y
Y
http://www.wjel.net
69
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
14
24
Sophia Hsia
Mode No.
29
30
31
32
Resolution
1280 x 1024
1280 x 1024
1280 x 1024
688 x 556
Dot
clock(MHz)
130.223
135.000
138.008
27.000
Fh (KHz)
76.000
80.000
81.100
31.250
A(us/dot)
13.158/1712
12.504/1688
12.326/1664
32/864
B(us/dot)
1.024/133
1.067/144
0.474/64
3.852/104
C(us/dot)
1.905/248
1.837/248
2.133/288
1.778/48
D(us/dot)
9.83/1280
9.481/1280
9.481/1280
25.481/688
E(us/dot)
0.399/51
0.119/16
0.238/32
0.889/24
Fv (Hz)
72.000
75.000
76.000
50.000
O(ms/line)
14/1064
13.329/1066
13.139/1066
20/625
P(ms/line)
0.02/2
0.038/3
0.099/8
0.128/4
Q(ms/line)
0.5/38
0.475/38
0.394/32
1.408/44
R(ms/line)
13.468/1024
12.804/1024
12.622/1024
17.972/556
S(ms/line)
0.012/0
0.012/1
0.024/2
0.672/ 21
Sync H/V
+ / +
+/+
- / -
-/ +
Polarity
Sep. Sync
Y
Y
Y
Y
Mode No.
33
34
Resolution
960X720
960X720
Dot
clock(MHz)
57.580
72.420
Fh (KHz)
44.760
56.400
A(us/dot)
22.34/1286
17.73/1284
B(us/dot)
1.72/99
1.44/104
C(us/dot)
2.58/148
2.21/160
D(us/dot)
16.67/960
13.256/960
E(us/dot)
0.856/49
0.780/56
Fv (Hz)
60.000
75.000
O(ms/line)
16.667/746
13.333/752
P(ms/line)
0.067/2.9
0.053/3
Q(ms/line)
0.495/22
0.5/28
R(ms/line)
16.081/720
12.766/720
S(ms/line)
0.0228/1
0.0184/1
Sync H/V
-/ +
-/ +
Polarity
Sep. Sync
Y
Y
http://www.wjel.net
70
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
15
24
Sophia Hsia
A
: H-Total
O
: V-Total
B
: H- Sync width
P
: V- Sync width
C
: H- Back porch
Q
: V- Back porch
D
: H- Video width
R
: V- Video width
E
: H- Front porch
S
: V- Front porch
3.3.3
Horizontal scanning
Sync polarity
:
Positive or Negative
Scanning frequency
:
30 - 82 K Hz
3.3.4
Vertical scanning
Sync polarity
: Positive or Negative
Scanning frequency
: 56 - 76 Hz
3.4
Power input connection
Power cord length
: 1.8 M
Power cord type
: 3 leads power cord with protective earth plug.
3.5
Power management
The power consumption and the status indication of the set with power
management
function are as follows,
Power On
Pulse
Pulse
< 35 W
Green
H-off V-on
No Pulse
ulse
<
1 W
Amber
H-on V-off
Pulse
No Pulse
<
1 W
Amber
Off
No Pulse
No Pulse
<
1 W
Amber
According to VESA power saving signal. TCO99 power saving requirement
EPA energy star requirement
(Power Switch Off)
For digital input power consumption is less 1W
(In non-DMPM recoverable off mode)
STATUS
Horizontal
Vertical
Power Spec
LED
http://www.wjel.net
3.6
Display identification
3.6.1
In accordance with VESA Display Channel Standard V1.0 and having DDC-2B capability.
3.6.2
In accordance with DVI requirement (DDWG digital Visual Interface revision 1.0 )
use DDC-2B and EDID 3.0 structure 2.0
4.0
Visual characteristics
4.1
Test conditions
Unless otherwise specified, this specification is defined under the following conditions.
(1) Input signal: As defined in 3.3, 1280 x 1024 non-interlaced mode (80K/75Hz),
signal sources must have 75 ohm output impedance.
(2) Luminance setting: controls to be set to 200 nits with full screen 70 % duty
cycle white signal
(3) Warm up: more than 30 minutes after power on with signal supplied.
(4) Ambient light: 400 -- 600 lux.
(5) Ambient temperature: 20 ± 5 C
4.2
Resolution
Factory preset modes (16 modes)
71
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
16
24
Sophia Hsia
#
Resolution
Frequency
Pixel rate
Sync
Comment
1
640X350
31.5K/70HZ
25.175
(+/-)
IBM VGA 10h
2
720X400
31.5K/70HZ
28.322
(-/+)
IBM VGA 3h
3
640X480
37.5K/75HZ
31.501
(-/-)
4
640X480
31.5K/60HZ
25.175
(-/-)
5
800X600
35.2K/56HZ
36
(+/+)
6
800X600
46.9K/75HZ
49.498
(+/+)
7
800X600
37.9K/60HZ
40
(+/+)
8
832X624
49.7K/75HZ
57.28
(+/+)
MAC
http://www.wjel.net
72
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
17
24
Sophia Hsia
#
Resolution
Frequency
Pixel rate
Sync
Comment
9
1024X768
48.4K/60HZ
65
(-/-)
10
1024X768
56.5K/70HZ
75
(-/-)
11
1152X870
68.7K/75HZ
100
(-/-)
MAC
12
1152X900
71.8K/76HZ
108
(+/+)
SUN Mode II
13
1280X1024
64.0K/60HZ
108
(+/+)
14
1280X1024
80.0K/75HZ
135
(+/+)
15
1280X1024
81.1K/76HZ
135.008
(-/-)
SUN Mode I
16
688X556
31.25K/50HZ
27
(-/+)
TV-PAL
Note
:
1. Screen displays perfect picture at 16 factory preset modes.
2. Screen displays visible picture with OSD warning when input modes
are other then 34 preset modes
4.3
Brightness: 200 nits (at panel color temperature, Screen center point, Fig. 1)
4.4
Image size
4.4.1 Actual display size
338 x 270mm
4.5
Brightness uniformity
Set contrast at 50% and turn the brightness to get average above 200 nits at
center of the screen.
Apply the Fig 1. It should comply with the following formula :
Minimum luminance of nine points (brightness)
---------------------------------------------------------------
>=
0.75 (Min)
Maximum luminance of nine points (brightness)
4.6
Check Cross talk (S)
Apply Pattern 2. Set contrast at 50 % and brightness at 100 %. Measure A.
Then output Pattern 3 and measure A\' .
The cross talk value :
ABS ( A - A\' )
---------------------------
X 100 %
<
1.5 % (Max)
A
http://www.wjel.net
73
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
18
24
Sophia Hsia
4.7
White color adjustment
There are two factory preset white color 9300K, 6500K.
Apply full white pattern, with brightness in 100 % position and the contrast control at 50
% position. The 1931 CIE Chromaticity (color triangle) diagram (x,y) coordinate for the
screen center should be:
9300K CIE coordinates
X = 0.283 ± 0.020
Y = 0.297 ± 0.020
6500K CIE coordinates
X = 0.313 ± 0.020
Y = 0.329 ± 0.020
5.0
Mechanical characteristics
5.1
Controls
Front side
:
DC power switch
OSD function key
UP/DOWN (Brightness key)
LEFT/RIGHT (Input Select)
Auto key
Rear
:
Video signal cable
DVI signal cable
Power cord socket
DC 12 V socket
5.2
Unit dimension / Weight
Basic Base :
Set dimension (incl. Pedestal) :
375(W) * 393(H) * 180(D) mm
Net weight
: 5.0 kg
Multimedia Base :
Set dimension (incl. Pedestal) : 375(W) * 413(H) * 184(D) mm
Net weight.
:
6.3 kg
5.3
Tilt and swivel base
Basic base:
tilt angle
: -5 to +35 degree C
swivel rotation :
175 degree
±
http://www.wjel.net
74
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
19
24
Sophia Hsia
5.4
Transportation packages
5.4.1
Shipping dimension/Weight
Basic Base :
Carton dimension : 443(W) * 450(H) * 232(H) mm
Gross weight
: 6.1 Kg
Multimedia Base :
Carton dimension
: 443(W) *517 (D) * 234(H) mm
Gross weight
:
7.4 Kg
5.4.2
Block unit / Palletization
Basic Base:
9
6
54
12
21
Multimedia Base:
9
4
36
12
26
6.0
Environmental characteristics
The following sections define the interference and susceptibility condition limits that
might occur between external environment and the display device.
6.1
Susceptibility of display to external environment
Operating
- Temperature
:
5 to 35 degree C
- Humidity
:
80% max
- Altitude
:
0 to 12,000 feet
Storage
- Temperature
: -20 to 60 degree C
- Humidity
: 100% max (< 40
)
- Altitude
: 0 to 30,000 feet
Note : recommend at 5 to 35 degree C, Humidity less than 60 %
layers / block
sets/layer
sets/block unit
blocks/container
20 feet
40 feet
layers / block
sets/layer
sets/block unit
blocks/container
20 feet
40 feet
¢J
http://www.wjel.net
75
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
20
24
Sophia Hsia
6.2
Transportation tests
6.3
Display disturbances from external environment
According to IEC 801-2 for ESD disturbances
6.4
Display disturbances to external environment
6.4.1
EMI
EMI: FCC, VCCI, CE, C-Tick, MPRIII, BCIQ,
7.0
Reliability
7.1.
Mean Time Between Failures
System MTBF (Excluding the LCD panel and CCFL): 50,000 hrs
CCFL MTBF: 30,000 hrs (50% of original brightness)
8.0
Quality assurance requirements
Standard
Philips UAN-D1400
NSTA
Height
70 cm
61 cm
1 corner
1 corner
Drop
Sequence
3 faces
3 edge
Test
6 face
Electrical function ok
Test
Mechanical function ok
Result
No serious damage on set appearance
(Room temp./-10°c, humidity 70 %)
5-200 Hz
10-50-10 Hz
Sequence
0.73 G
0.35 mm
30 min. for
30 min. for
Vibration
Each axis
Each axis
Test
Test
Electrical function ok
Result
Mechanical function ok
No serious damage on set appearance
For design evaluation
only
Operating
10 G,
11 msec, 1000 cycles
Bump
Temperature. :
23°C
Test
Humidity.
: 60 %
Air pressure. : 100 kpa
(According to DSD draft standard UAN-D636)
http://www.wjel.net
76
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
21
24
Sophia Hsia
8.1
Acceptance test
According to MIL-STD-105D
Control II level
AQL : 0.65 (major)
2.50 (minor)
( Please also refer to annual quality agreement )
Customer acceptance criteria: UAW0377/00
9.0
Serviceability
The serviceability of this monitor should fulfill the requirements, which are prescribed in
UAW-0346 and must be checked with the check list UAT-0361.
Fig 1: Brightness and Uniformity
Position 5 = Screen center point
1
2
L/2
http://www.wjel.net
77
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
22
24
Sophia Hsia
Fig 2:
Cross talk pattern
Gray level 184 ( 256 Gray level )
Fig 3:
Cross talk pattern
Center at Gray level 0 (Black)
1/3
1/3
http://www.wjel.net
78
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
23
24
Sophia Hsia
D
VIDEO
C
E
SEPARATE SYNC.
HORIZONTAL
B
A
R
VIDEO
Q
S
P
O
D
VIDEO
C
E
B
A
VERTICAL
HORIZONTAL
COMPOSITE SYNC.
FIG-4
TIMING CHART -1
http://www.wjel.net
79
170B4&S4
GENERAL PRODUCT SPECIFICATION
Go to cover page
17" TFT LCD MONITOR
TYPE
: 170B4BB/00C
BRAND : PHILIPS
8639 000 13815
02-11-27
02-11-27
590
24
24
Sophia Hsia
D
VIDEO
C
E
B
A
VERTICAL
COMPOSITE SYNC.
FIG-5
TIMING CHART -2
O
P
Q
R
S
& VIDEO
B
S
P
Q
O
R
( SYNC. ON GREEN )
HORIZONTAL
VERTICAL
http://www.wjel.net
170B4&S4
80
Go to cover page
General Troubleshooting Guide
General Troubleshooting Guide
No display, but LED is ON
or LED is amber ( yellow)
Monitor drivers
( inf file )
Picture too large or small
1
2
Screen size not correct
3
4
USB
6
7
9
8
10
Unstable picture/
Picture flickers
Out of H/ V Sync.
Picture too bright
Picture too dim
Missing color
OSD main
menu locked
11
12
No power/
LED is off
Jitter/Video Noise
14
5
13
Power management
function is not active
http://www.wjel.net
Go to cover page
General Troubleshooting Guide (Continued)
NO DISPLAY,
but LED is ON
or LED is amber(yellow)
LED
Amber? or
Green?
1
Checkpoint:
1. Click your mouse or type some word with your keyboard to wake up computer
from saving status.
2. Check that your video cable is plugged in and does not have bent pins.
Continued
If your PC in MS Win 98 and with lots of application software.
Do not set screen saver ->Wait -> at "14" minutes.
It will cause "no dispaly" problem as above mentioned.
Action : Restart PC and change timer setting of screen saver.
170B4&S4
81
http://www.wjel.net
General Troubleshooting Guide (Continued)
NO
Make sure of the state of the
computer (Turn on). Press the
keyboard or operate the mouse.
END
Is picture displayed
normally?
1. Check video cable for
bent pins, reseat it.
2. change resolution
(It may cause by PC.)
3. LCD monitor can not
display Vertical
Frequency setting at
76Hz & 85 Hz
Amber
Green
NO
Is the ATTENTION
picture displayed?
LED
Amber? or Green?
Power off the monitor and
then on.Restart PC.
END
Is picture displayed
normally?
YES
It is need to check
and repair the
monitor.
NO
YES
Make sure the correct signal is input.
Check contrast level
is not minimized.
(Press Contrast
button, increase
value to 100.)
END
Is picture displayed
normally?
YES
OK
NO
1. Make sure the correct signal is input.
2. Press the keyboard or operate the mouse.
3. Make sure of the range of the input
frequency and then set the computer.
END
Is picture displayed
normally?
YES
It is need to check and
repair the monitor.
NO
YES
YES
YES
It is need to check and
repair the monitor.
Is picture displayed
normally?
END
NO
1. Try system with
another monitor.
2. Try monitor with
another system.
unsuccessful
Continued
1
YES
170B4&S4
82
Go to cover page
http://www.wjel.net
Go to cover page
General Troubleshooting Guide (Continued)
Monitor drivers
(inf file)
for Windows 95/98/2000/Me or later
Philips\' monitors build in VESA DDC2B feature to support Plug & Play requirement for Windows 95/98/2000/Me .
You can install the information file ( .inf) in order to select your Philips monitor from "Monitor" dialog box in
Windows 95/98/2000/Me to activate Plug & Play application. The installation procedure based on
Windows \'95 OEM Release 2 , 98 , Me and 2000 is specified as follows, (In case of connecting the monitor to
the PC compliant with VESA standard with the designated signal cable, the PC reads display pixels, frequency,
and color feature of this monitor to optimise the picture for the monitor automatically.)
DDC : Abbreviation for Display Data Channel
** Windows NT 4.0 does not require driver (inf file) for monitors.**
For Windows Me
For Windows 2000
1. Start Windows \'95
2. Click the \'Start\' button,
point to \'Setting\', and
then click \'Control Panel\'.
3. Double Click the
\'Display\' Icon.
4. Choose the \'Settings\' tab
then click \'Advanced...\'.
5. Choose \'Monitor\' button,
point to \'Change...\'
then click \'Have Disk...\'.
6. Click \'Browse...\' button
then choose the
appropriate drive
F: ( CD-ROM Drive)
then click \'OK\' button.
7. Click the \'OK\' button then
choose your monitor
model and click the \'OK\'.
8. Click \'Close\' button.
1. Start Windows 98
2. Click the \'Start\' button,
point to \'Setting\', and then
click \'Control Panel\'.
3. Double Click the
\'Display\' Icon.
4. Choose the \'Settings\' tab
then click \'Advanced...\'.
5. Choose \'Monitor\' button,
point to \'Change...\'
then click \'Next\'
6. Choose "Display a list of
all the drivers in a specific
location, so you can elect
the driver you want.
" then click \'Next\' and
then click \'Have Disk...\'.
7. Click \'Browse...\' button
then choose the
appropriate drive
F: ( CD-ROM Drive)
then click \'OK\' button.
8. Click the \'OK\' button then
choose your monitor
model and click the
\'Next\' button
then click \'Next\' button.
9. Click \'Finish\' button
then the \'Close\' button.
1. Start Windows Me
2. Click the \'Start\' button,
point to \'Setting\',
and then click
\'Control Panel\'.
3. Double Click the
\'Display\' Icon.
4. Choose the \'Settings\' tab
then click \'Advanced...\'.
5. Choose \'Monitor\' button,
then click
\'Change...\' button.
6. Choose "Specify the
location of the driver
(Advanced)" and click
the \'Next\' button.
7. Choose "Display a list of
all the drivers in a specific
location, so you can
select the driver you
want." then click \'Next\'
and then click
\'Have Disk...\'.
8. Click \'Browse...\' button
then choose the
appropriate drive
F: ( CD-ROM Drive)
then click \'OK\' button.
9. Click the \'OK\' button then
choose your monitor model
and click the \'Next\' button
then click \'Next\' button.
10. Click \'Finish\' button
then the \'Close\' button.
1. Start Windows 2000
2. Click the \'Start\' button,
point to \'Setting\', and then
click \'Control Panel\'.
3. Double Click the
\'Display\' Icon.
4. Choose the \'Settings\' tab
then click \'Advanced...\'.
5. Choose \'Monitor\'
- If the \'Properties\' button
is inactive, it means your
monitor is properly configured.
Please stop installation.
- If the \'Properties\' button is
active. Click \'Properties\'
button.
Please follow next step
continually.
6. Click \'Driver\' and then
click on \'Update Driver...\'
then click on the \'Next\' button.
7. Choose "Display a list of the
known drivers for this device
so that I can choose a specific
driver" then click \'Next\' and
then click \'Have disk...\'.
8. Click \'Browse...\' button then
choose the appropriate
drive F: ( CD-ROM Drive).
9. Click the \'Open\' button,
then click the \'OK\' button.
10. Choose your monitor model
and click the \'Next\' button
then click \'Next\' button.
11. Click \'Finish\' button
then the \'Close\' button.
If you can see the "Digital
Signature Not Found" window
then click the \'Yes\' button.
For Windows 95
For Windows95 drivers ,
your monitor is listed
under manufacture name
"Philips Business
Electronics Co.".
For Windows 98
For Windows98 drivers, our monitors are
listed under 2 manufactures name "Philips",
and "Philips Consumer Electronics Co".
Please select "Philips" when you would like
to set up your monitor in Windows setting ,
if you can not find the right model name
just as the label indication on the back of set.
For those set that have been issued since
the release of Win98 , drivers can be found
in CDROM under the directory path of
" \\ pc\\ driver \\" or it may be downloaded at
"http: \\www.philips.com". Once you have
installed the new driver , Windows will add
a new manufacture name "Philips Business
Electronics" in your system.
2
170B4&S4
83
http://www.wjel.net
General Troubleshooting Guide (Continued)
Screen Size Not
Correct
END
Is the Screen Size
displayed correct?
YES
NO
Adjust Horizontal/ Vertical/ Shape Via
the monitor " On Screen Display " or "
Front Control Knob : Auto function
key".
* Reset the monitor via OSD manipulation.
(Select "Reset to Factory settings".)
END
Is picture displayed
normally?
YES
NO
3
Consult a service
center, the monitor
may be defective.
* Try the monitor with another computer
(Video card could be defective.)
170B4&S4
84
Go to cover page
http://www.wjel.net
General Troubleshooting Guide (Continued)
Please contact your
dealer/reseller for
more information.
OK
END
NO
Picture too Large
or Small
YES
4
Reset monitor via OSD menu manipulation.
Change monitor timing to work at the recommended resolution.
170B4&S4
85
Go to cover page
http://www.wjel.net
General Troubleshooting Guide (Continued)
USB
USB = Universal Serial Bus
USB is the simple way to connect peripherals to your computer. It can be used to attach a wide
variety of devices like scanners, cameras, keyboards, mice, speakers,printer ..etc.
Useing USB devices (Operating Systems support USB) :
It depends on two things: hardware and software.
Hardware : You need a USB port in your computer. This can either be built in (most PC\'s build in
1999 and Apple\'s iMac) or from a plug in card. A number of venders sell PCI and CardBus USB
adapters which can add USB capabilities to your older computer.
Software-wise for Wintel computers, you need either Windows 98, Windows 95 OSR 2.1
(although Windows 98 has better USB support than Windows 95), Windows 2000. For Apple
Macintosh computers you need MacOS 8.1 or later.
USB automatically determines resources (like driver software and bus bandwidth)
required by peripherals.
USB makes necessary resources available without user intervention.
It is designed to meet Microsoft Plug and Play (PnP) specification, meaning users can install,
and hot-swap devices without long installation procedures and reboots.
It allows 127 devices to run at the same time on the bus.
USB bus provides two types of data transfer speed -- 1.5Mbps and 12Mbps
and it can provide a maximum of 500mA of current to devices attached on the bus.
Universal means all peripherals share the same connector.
Serial simply defines devices can daisy chain together.
Universal Serial Bus 1.1, the de facto external connectivity standard for Mac and PC,
has picked up the speed after its slow adoption by peripheral manufacturers, users and PC OEMs.
USB 2.0 :
Drafted by Compaq, Hewlett Packard, Intel, Lucent, Microsoft, NEC and Philips,
USB Specification version 2.0 will increase device data throughout
up to 480Mbps, 40 times faster than USB 1.1 devices.
5
5
170B4&S4
86
Go to cover page
http://www.wjel.net
General Troubleshooting Guide (Continued)
Please contact your
dealer/reseller for
more information.
OK
END
NO
Unstable Picture/
Picture Flickers
YES
Vertical/ Horizontal flicker appears
Push the AUTO button. Eliminate the vertical/ horizontal bars using the Phase
Adjustment in the FIRST Window.
6
170B4&S4
87
Go to cover page
http://www.wjel.net
Go to cover page
General Troubleshooting Guide (Continued)
Out of H/V Sync.
NO
END
Video system
problem
NO
1. Turn off monitor.
2. Disconnect
signal cable.
3. Turn on monitor.
in the self test ?
(warning signal..)
YES
Check video cable for
bent pins, reseat to
system video and
power system.
Try to go into the
Dos Prompt.
It is need to check and
repair the monitor.
"H/V sync. out of
presetting timing
range" or "Sync.
problem"?
1. Try system with
another monitor.
2. Try monitor with
another system.
Monitor related ?
YES
It is need to check and
repair the monitor.
NO
Make sure that the Video
system doesn\'t select a
driver that is outside the
Monitor H/V scan range
out of presetting timing
range while going into
windows.
Run Windows by using
basic VGA mode
(Example 640 x 480)
"H/V out of
presetting timing
range" or "Sync.
problem" ?
NO
END
1. Try system with
another monitor.
2. Try monitor with
another system.
Monitor related ?
YES
It is need to check and
repair the monitor.
YES
YES
7
170B4&S4
88
http://www.wjel.net
General Troubleshooting Guide (Continued)
Picture too bright
Adjust Brightness and/or contrast
via the Monitor "On-Screen Display"
or "Front Control Knob".
END
Is picture displayed
normally?
YES
It is need to check and
repair the monitor.
NO
* Reset the monitor via OSD manipulation.
(Select "Reset to Factory settings".)
*(or => Change the color temperature settings
to be 9300 color coordination from OSD menu.)
* Try the monitor with another computer
(Video card could be defective.)
END
Is picture displayed
normally?
YES
NO
8
170B4&S4
89
Go to cover page
http://www.wjel.net
Go to cover page
General Troubleshooting Guide (Continued)
Picture too dim
Adjust Brightness and/or contrast
via the Monitor "On-Screen Display"
or "Front Control Knob".
END
Is picture displayed
normally?
YES
It is need to check and
repair the monitor.
NO
Is an external Anti-Glare screen
(like protective cover, touch
screen..etc.) being used ?
Remove any external
Anti-Glare screen.
NO
END
Is picture displayed
normally?
YES
* Reset the monitor via OSD manipulation.
(Select "Reset to Factory settings".)
*(or => Change the color temperature settings
to be 9300 color coordination from OSD menu.)
* Try the monitor with another computer
(Video card could be defective.)
END
Is picture displayed
normally?
YES
NO
NO
9
Note :
1. Sun light passing through a window is much brighter than monitor
luminance (Luminance is the measurable quantity which most
closely corresponds to brightness), therefore the two worst places
for a monitor is directly facing the window or directly behind
the window. Position the monitor away from these two areas.
170B4&S4
90
http://www.wjel.net
General Troubleshooting Guide (Continued)
NO POWER
/ LED is off
Is cabinet of
monitor damaged
by
being dropped?
The monitor may have
become faulty due to
excessive shock.
Insure that unit is plugged into
a known good power source
(Move a good radio to plug into
the power source to test it.)
Power off the monitor
and then on.
POWER LED
ON?
It is need to check and
repair the monitor.
It is need to check and
repair the monitor.
NO
YES
POWER LED
ON?
END
YES
NO
1. Is the correct AC power cord
connected?
2. Is AC power outlet active?
3. Is the power button in the
ON position ?
YES
YES
NO
10
YES
YES
END
170B4&S4
91
Go to cover page
http://www.wjel.net
Go to cover page
General Troubleshooting Guide (Continued)
Magenta or Purple Color means that
the green subpixel is missing.
Cyan Color means that the red
subpixel is missing.
Yellow Color means that the blue
subpixel is missing.
There are 2 easy ways to determine the Missing color problem.
1. View an image that is supposed to be "White".
If one of the colors (RGB) is not functioning.
White can not be produced.
2. View an image that supposed to contain Red, Green and Blue.
Color problems will be apparent when one or more of these
colors can not be displayed.
+
+
=
+
+
=
+
+
=
+
+
=
1. Turn off monitor.
2. Disconnect video
cable.
3. Turn on monitor.
Is picture displayed
normally?
It is need to check and
repair the monitor.
Colors on warning
signal OK ?
YES
Check video cable for
bent pins, reseat it.
END
YES
Signal cable pins
OK ?
YES
1. Try system with
another monitor.
2. Try monitor with
another system.
3. Try changing in
the application.
NO
11
RED
Green
Blue
White
RED
White
RED
RED
White
Missing Color
White
Green
Green
Blue
Blue
Blue
Green
170B4&S4
92
http://www.wjel.net
General Troubleshooting Guide (Continued)
Please contact your
dealer/reseller for
more information.
OK
END
NO
OSD MAIN MENU
LOCKED
YES
Press and hold the OSD menu key for about 10 seconds ,
until picture displays "OSD MAIN MENU UNLOCKED"
12
170B4&S4
93
Go to cover page
http://www.wjel.net
Go to cover page
General Troubleshooting Guide (Continued)
Jitter/Video Noise
Turn on monitor with a display or
image for 30 minutes (due to drift).
Jitter or Noise still present ?
YES
NO
NO
END
Try moving the monitor to another
location to see if problem goes away.
Jitter or Noise disappear.
Environment problem
END
YES
1. Try system with
another monitor.
2. Try monitor with
another system.
Monitor related ?
Jitter or Noise disappear.
END
YES
NO
Video system problem
It is need to check and
repair the monitor.
Power off any monitor that
is within 2 or 3 feet away.
Remove any unshielded
speakers away from the
monitor.
Make sure there are no
flourescent light fixtures
close to the monitor.
Try to keep monitor
away from large metal
structures, power poles,
fans and metal carts.
Check for other devices
that may be causing
magnetic interference.
END
Is picture displayed
normally?
YES
NO
13
170B4&S4
94
http://www.wjel.net
General Troubleshooting Guide (Continued)
OK
NO
Power management
function is not active
Verify the PC is compliant with VESA.
In case all of the video signals of PC are
not off, power management function is
not active normally. [Repeat to power on
and off (power management).]
There are accelerator boards not
complied with VESA.
YES
14
Consult a service
center, the monitor
may be defective.
END
170B4&S4
95
Go to cover page
http://www.wjel.net
Safety Test Requirements
2.2.1 The test with AC voltage is only for production purpose,
2.2.2 The minimum test duration for Quality Control Inspector
must be 1 minute. No breakdown during the test.
2.2.3 The test voltage must be maintained within the specified
voltage + 5%.
2.2.4
The grounding blade or pin of mains plug must be
conducted with accessible metal parts.
Service center shall use DC voltage.
All units that are returned for service or repair must pass the
original manufactures safety tests. Safety testing requires both
and
testing.
Hipot
Ground Continuity
HI-POT TEST INSTRUCTION
1. Application requirements
2. Test method
1.1 All mains operated products must pass the Hi-Pot test as
described in this instruction.
1.2 This test must be performed again after the covers have
been refitted following the repair, inspection or modification
of the product.
2.1 Connecting conditions
2.1.1 The test specified must be applied between the parallel-
blade plug of the mainscord and all accessible metal
parts of the product.
2.1.2
Before carrying out the test, reliable conductive
connections must be ensured and thereafter be
maintained throughout the test period.
2.1.3 The mains switch(es) must be in the "ON" position.
2.2
Test Requirements
All products should be HiPot and Ground Continuity tested as
follows:
Test
2820VDC
1700VDC
Test current:
voltage
(2000VAC)
(1200VAC)
25A,AC
Test time:
Test time 3 seconds
1 second
3 seconds(min.)
(min.)
Resistance
required:
Trip
set at 100 uA
5 mA
<=0.09+R ohm,
current
for Max.
R is the
(Tester)
limitation; set
resistance of
at 0.1 uA for
the mains cord.
Min. limitation
Ramp
set at 2
time
seconds
Condition
HiPot Test for
HiPot Test for
Ground Continuity
products where
products where
Test requirement
the mains input
the mains input is
range is Full
110V AC(USA
range(or 220V
type)
AC)
3. Equipments and Connection
4. Recording
3.1. Equipments
For example :
- ChenHwa 9032 PROGRAMMABLE AUTO SAFETY
TESTER
- ChenHwa 510B Digital Grounding Continuity Tester
- ChenHwa 901 (AC Hi-pot test), 902 (AC, DC Hi-pot test)
Withstanding Tester
3.2. Connection
Hipot and Ground Continuity testing records have to be kept for
a period of 10 years.
* Turn on the power switch of monitor before Hipot and
Ground Continuity testing.
Connect the "video cable"
or "grounding screw"
to the CLIP on your tester.
Video cable
(Rear view of monitor)
Connect the power cord
to the monitor.
Grounding screw
Power outlet
(ChenHwa 9032 tester)
Clip
Clip
170B4 & S4
96
Go to cover page
http://www.wjel.net
Difference parts list
Go to cover page
97
170B4&S4
863900013815(170B4BB/00C)
863900013838(170B4BB/74C)
Item
12NC
Description
12NC
Description
506
313815634651
CARTON(170B4BB)
1087
313812874931
MAINSCORD
313812874901
MAINSCORD
1087
313818870471
MAINSCORD IEC 10A 1M8 DET
BK
313818870491
MAINSCORD UL 10A 1M8 DET
BK
1092
242203300265
CON ACC ADP V 15P F MA-002 B
863900013815(170B4BB/00C)
863900013916(170B4BB/89H)
Item
12NC
Description
12NC
Description
450
313815634651
CARTON(170B4BB)
313815634731
CARTON(170B4BB/89H
1087
313812874931
MAINSCORD
313818871651
MAINSCORD CCEE 10A 1M8 DET BK
1087
313818870471
MAINSCORD IEC 10A 1M8 DET
BK
863900013726(170B4BG/00C)
863900013839(170B4BG/74C)
Item
12NC
Description
12NC
Description
506
313815634241
CARTON (170B4BG)
1087
313816874231
MAINS CORD
313812876071
MAINSCORD UL 10A 1M8 DET
GY
1087
313818870461
MAINSCORD IEC 10A 1M8 DET TDS
313818870481
MAINSCORD UL 10A 1M8 DET TDS
1092
242203300265
CON ACC ADP V 15P F MA-002 B
863900013726(170B4BG/00C)
863900014242(170B4BG/89H)
Item
12NC
Description
12NC
Description
450
313815634241
CARTON (170B4BG)
313815635191
CARTON(170B4BG/89H)
1087
313816874231
MAINS CORD
313818871651
MAINSCORD CCEE 10A 1M8 DET BK
1087
313818870461
MAINSCORD IEC 10A 1M8 DET TDS
863900013816(170B4BS/00C)
863900013841(170B4BS/74C)
Item
12NC
Description
12NC
Description
506
313815634661
CARTON(170B4BS)
1087
313812874931
MAINSCORD
313812874901
MAINSCORD
1087
313818870471
MAINSCORD IEC 10A 1M8 DET
BK
313818870491
MAINSCORD UL 10A 1M8 DET
BK
1092
242203300265
CON ACC ADP V 15P F MA-002 B
863900013816(170B4BS/00C)
863900014077(170B4BS/89H)
Item
12NC
Description
12NC
Description
450
313815634661
CARTON(170B4BS)
313815634921
CARTON (170B4BS/89H)
1087
313812874931
MAINSCORD
313818871651
MAINSCORD CCEE 10A 1M8 DET BK
1087
313818870471
MAINSCORD IEC 10A 1M8 DET
BK
863900013725(170B4MG/00C)
863900014076(170B4MG89H)
Item
12NC
Description
12NC
Description
450
313815634181
CARTON(170B4MG)
313815634911
CARTON(170B4MG/89H)
1087
313816874231
MAINS CORD
313818871651
MAINSCORD CCEE 10A 1M8 DET BK
1087
313818870461
MAINSCORD IEC 10A 1M8 DET TDS
863900013724(170S4FB/00C)
863900013842(170S4FB/74C)
Item
12NC
Description
12NC
Description
506
313815634671
CARTON-170S4FB
1087
313812874931
MAINSCORD
313812874901
MAINSCORD
1087
313818870471
MAINSCORD IEC 10A 1M8 DET
BK
313818870491
MAINSCORD UL 10A 1M8 DET
BK
1092
242203300265
CON ACC ADP V 15P F MA-002 B
863900013724(170S4FB/00C)
863900013927(170S4FB/89H)
Item
12NC
Description
12NC
Description
450
313815634671
CARTON-170S4FB
313815634741
CARTON
1087
313812874931
MAINSCORD
313818871651
MAINSCORD CCEE 10A 1M8 DET BK
1087
313818870471
MAINSCORD IEC 10A 1M8 DET
BK
863900013753(170S4FG/00C)
863900013843(170S4FG/74C)
Item
12NC
Description
12NC
Description
506
313815634211
CARTON-170S4FG
1087
313816874231
MAINS CORD
313812876071
MAINSCORD UL 10A 1M8 DET
GY
1087
313818870461
MAINSCORD IEC 10A 1M8 DET TDS
313818870481
MAINSCORD UL 10A 1M8 DET TDS
1092
242203300265
CON ACC ADP V 15P F MA-002 B
863900013753(170S4FG/00C)
863900014079(170S4FG/89H)
Item
12NC
Description
12NC
Description
450
313815634211
CARTON-170S4FG
313815634931
CARTON(170S4FG/89H)
1087
313816874231
MAINS CORD
313818871651
MAINSCORD CCEE 10A 1M8 DET BK
1087
313818870461
MAINSCORD IEC 10A 1M8 DET TDS
http://www.wjel.net
Difference parts list
Go to cover page
98
170B4&S4
8639 000 13815 (170B4BB/00C)
8639 000 13726 (170B4BG/00C )
Item
12NC
Description
12NC
Description
30
313815754071
FRONT BEZEL ASSY-BLK
313815754061
FRONT BEZEL ASSY
126
313815558751
RATING LABEL
313815558781
RATING LABEL
105
313815408011
GUIDE DC OUT(BLK)
313815407711
GUIDE DC OUT
107
313815405691
CAP-BASE (BLK)
313815403631
CAP-BASE
41
313815408432
BACK COVER-BLK
313815408422
BACK COVER
450
313815634651
CARTON(170B4BB)
313815634241
CARTON (170B4BG)
1087
313812874931
MAINSCORD
313816874231
MAINS CORD
1087
313818870471
MAINSCORD IEC 10A 1M8 DET
BK
313818870461
MAINSCORD IEC 10A 1M8 DET TDS
1088
313818872742
CORD SUB-D 15/1M8/15 SUB-D M/M
313818872732
CORD SUB-D 15/1M8/15 SUB-D M/M
1091
313815855891
BASIC BASE+WIRE ASSY-BLK
313815855911
BASIC BASE+WIRE ASSY
31
313815408451
BEZEL-BLK
313815408671
BEZEL
32
313815406172
BUTTON-POWERL(B)
313815406161
BUTTON-POWER(T)
33
313815406151
BUTTON-CONTROL(B)
313815406141
BUTTON-CONTROL(T)
51
313815405673
BASIC BASE (BLK)
313815403644
BASIC BASE
52
313815405681
FRONT COVER-BASE (BLK)
313815403621
FRONT COVER-BASE
8639 000 13815 (170B4BB/00C)
8639 000 13816 (170B4BS/00C)
Item
12NC
Description
12NC
Description
30
313815754071
FRONT BEZEL ASSY-BLK
313815754051
FRONT BEZEL ASSY-SILVE
126
313815558751
RATING LABEL
313815558771
RATING LABEL
450
313815634651
CARTON(170B4BB)
313815634661
CARTON(170B4BS)
31
313815408451
BEZEL-BLK
313815408441
BEZEL-SILVER
8639 000 13815 (170B4BB/00C)
863900013725
(170B4MG/00C )
Item
12NC
Description
12NC
Description
501
283880090312
PALLET(910X1339X120)
503
313815633261
CARD BOARD
504
313810600601
FAMILY SHEET - W/O ADH.
505
313815634271
SLIP SHEET(1290X860)
511
283880090309
PALLET(900X1050X120)
513
313810652592
CARD BOARD
514
313810600601
FAMILY SHEET - W/O ADH.
515
313815634121
SLIP SHEET(970X860)
30
313815754071
FRONT BEZEL ASSY-BLK
313815754061
FRONT BEZEL ASSY
131
313815520601
PIVOT SETUP GUIDE -HUDSON
601
313811704881
E-D.F.U. ASSY-170B4B
313811704871
E-D.F.U ASSY-170B4MG
605
313811703862
PIVOT SOFTWARE ASSY
105
313815408011
GUIDE DC OUT(BLK)
313815407711
GUIDE DC OUT
107
313815405691
CAP-BASE (BLK)
41
313815408432
BACK COVER-BLK
313815408422
BACK COVER
46
313815320711
PC PLATE
313815320711
PC PLATE
450
313815634651
CARTON(170B4BB)
313815634181
CARTON(170B4MG)
451
313815634251
CUSHION-R
313815634191
CUSHION-R
452
313815634261
CUSHION-L
313815634201
CUSHION-L
1087
313812874931
MAINSCORD
313816874231
MAINS CORD
1087
313818870471
MAINSCORD IEC 10A 1M8 DET
BK
313818870461
MAINSCORD IEC 10A 1M8 DET TDS
1088
313818872742
CORD SUB-D 15/1M8/15 SUB-D M/M
313818872732
CORD SUB-D 15/1M8/15 SUB-D M/M
1091
313815855891
BASIC BASE+WIRE ASSY-BLK
1095
313818873271
MULTIMEDIA BASE ASSY(TDS-10709
31
313815408451
BEZEL-BLK
313815408671
BEZEL
32
313815406172
BUTTON-POWERL(B)
313815406161
BUTTON-POWER(T)
33
313815406151
BUTTON-CONTROL(B)
313815406141
BUTTON-CONTROL(T)
141
313815521661
QUICK SETUP GUIDE-170B4B
313815521651
QUICK SETUP GUIDE-170BMG
http://www.wjel.net
Difference parts list
Go to cover page
99
170B4&S4
863900013815 (170B4BB/00C)
863900013724 (170S4FB/00C)
Item
12NC
Description
12NC
Description
501
283880090312 PALLET(910X1339X120)
283880090311 PALLET(880X1327X120)
1051
313815855741 SCALER ASSY
313815855371 SCALER ASSY
1051
313815855831 SCALER ASSY
313815855861 SCALER ASSY
1051
313815856081 SCALER ASSY
313815856091 SCALER ASSY
1060
313815855971 METAL FRAME+11P WIRE ASSY
313815855901 METAL FRAME+11P WIRE ASSY
1060
313815856061 METAL FRAME+11P+INVERT
313815856071 METAL FRAME+11P+INVERT
30
313815754071 FRONT BEZEL ASSY-BLK
313815753991 FRONT BEZEL ASSY-BLK
126
313815558751 RATING LABEL
313815558861 RATING LABEL
601
313811704881 E-D.F.U. ASSY-170B4B
313811704891 E-D.F.U. ASSY-170S4F
90
313815133231 SHIELDING-SCALER
92
313810041541 TAPPING SCREW M3 X 10
97
313815040191 SCREW PHM4-0.5X12
313815040161 SCREW M-0.7X8
99
313810322271 CABLE TIE
103
313815551062 PLASTIC COVER
104
122210002083 TAPE S-ADH PET TP 20MMX50MM
107
313815405691 CAP-BASE (BLK)
313815408401 CAP-BASE-BLK
41
313815408432 BACK COVER-BLK
313815408382 BACK COVER-BLK
44
313815408411 VESA COVER-BLK
450
313815634651 CARTON(170B4BB)
313815634671 CARTON-170S4FB
451
313815634251 CUSHION-R
313815634221 CUSHION-R
452
313815634261 CUSHION-L
313815634231 CUSHION-L
210
313800990691 PROCESS BOX
313800990701 PROCESS BOX
291
313815558761 LABEL-AU
313815558851 LABEL-AU
291
313815559141 LABEL-CPT
313815559151 LABEL-CPT
291
313815559271 LABEL-QDI
313815559281 LABEL-QDI
295
313815558761 LABEL-AU
313815558851 LABEL-AU
295
313815559141 LABEL-CPT
313815559151 LABEL-CPT
295
313815559271 LABEL-QDI
313815559281 LABEL-QDI
851
313811970691 CFB-SB
313811970731 CFB-SB
291
313815559141 LABEL-CPT
313815559151 LABEL-CPT
295
313815559141 LABEL-CPT
313815559151 LABEL-CPT
291
313815559271 LABEL-QDI
313815559281 LABEL-QDI
295
313815559271 LABEL-QDI
313815559281 LABEL-QDI
304
313815405541 GASKET (10X2X40)
305
313815408831 GASKET
31
313815408451 BEZEL-BLK
313815408371 BEZEL-BLK
141
313815521661 QUICK SETUP GUIDE-170B4B
313815521671 QUICK SETUP GUIDE-170S4F
174
313815133521 D-SUB PLATE
1201
313816877121 CON. MOLEX 74320-4004 DVI
2209
223878615649 CER2 0603 X7R 16V 100N PM10 R
2211
223886715331 CER1 0603 NP0 50V 330P PM5 R
2212
223886715331 CER1 0603 NP0 50V 330P PM5 R
2214
223878615649 CER2 0603 X7R 16V 100N PM10 R
2234
223878615649 CER2 0603 X7R 16V 100N PM10 R
3202
319802131030 RST SM 0603
10K PM5 COL
3203
319802131030 RST SM 0603
10K PM5 COL
3206
319802131010 RST SM 0603
100R PM5 COL
3207
319802131010 RST SM 0603
100R PM5 COL
3209
319802131040 RST SM 0603
100K PM5 COL
5201
242254945582 IND FXD 0805 EMI 100MHZ 300R R
6222
933913910115 DIO SIG SM BAS32L
(PHSE) R
6222
933952510685 DIO SIG SM LL4148
(VISH) R
6222
932205976685 DIO SIG SM LS4148
(VISH) R
6223
933742280215 DIO SIG SM BAT54
(PHSE) R
6223
932216672685 DIO SIG SM BAT54
(ONSE) R
7203
932214526668 IC SM M24C02-WMN6
(ST00) R
7203
932217232668 IC SM S524C20D21
(SMGK) R
7203
932216972682 IC SM AT24C02N-10SC-2.7(ATME)L
7404
932219353671 IC SM GM5126-BC
(GEMI) Y
932219370671 IC SM GM2126-BC
(GEMI) Y
http://www.wjel.net
Difference parts list
Go to cover page
100
170B4&S4
863900013815 (170B4BB/00C)
863900013753 (170S4FG/00C )
Item
12NC
Description
12NC
Description
501
283880090312 PALLET(910X1339X120)
283880090311 PALLET(880X1327X120)
504
313810600601 FAMILY SHEET - W/O ADH.
313810600601 FAMILY SHEET - W/O ADH.
1051
313815855741 SCALER ASSY
313815855371 SCALER ASSY
1051
313815855831 SCALER ASSY
313815855861 SCALER ASSY
1051
313815856081 SCALER ASSY
313815856091 SCALER ASSY
1060
313815855971 METAL FRAME+11P WIRE ASSY
313815855901 METAL FRAME+11P WIRE ASSY
1060
313815856061 METAL FRAME+11P+INVERT
313815856071 METAL FRAME+11P+INVERT
30
313815754071 FRONT BEZEL ASSY-BLK
313815753951 FRONT BEZEL ASSY
126
313815558751 RATING LABEL
313815558841 RATING LABEL
601
313811704881 E-D.F.U. ASSY-170B4B
313811704891 E-D.F.U. ASSY-170S4F
90
313815133231 SHIELDING-SCALER
92
313810041541 TAPPING SCREW M3 X 10
97
313815040191 SCREW PHM4-0.5X12
313815040161 SCREW M-0.7X8
99
313810322271 CABLE TIE
103
313815551062 PLASTIC COVER
104
122210002083 TAPE S-ADH PET TP 20MMX50MM
105
313815408011 GUIDE DC OUT(BLK)
313815407711 GUIDE DC OUT
107
313815405691 CAP-BASE (BLK)
313815407831 CAP-BASE
41
313815408432 BACK COVER-BLK
313815407812 BACK COVER
44
313815407841 VESA COVER
450
313815634651 CARTON(170B4BB)
313815634211 CARTON-170S4FG
451
313815634251 CUSHION-R
313815634221 CUSHION-R
452
313815634261 CUSHION-L
313815634231 CUSHION-L
210
313800990691 PROCESS BOX
313800990701 PROCESS BOX
851
313811970691 CFB-SB
313811970731 CFB-SB
1087
313812874931 MAINSCORD
313816874231 MAINS CORD
1087
313818870471 MAINSCORD IEC 10A 1M8 DET
B
313818870461 MAINSCORD IEC 10A 1M8 DET TDS
1088
313818872742 CORD SUB-D 15/1M8/15 SUB-D M/
313818872732 CORD SUB-D 15/1M8/15 SUB-D M/M
304
313815405541 GASKET (10X2X40)
305
313815408831 GASKET
31
313815408451 BEZEL-BLK
313815407801 BEZEL
32
313815406172 BUTTON-POWERL(B)
313815406161 BUTTON-POWER(T)
33
313815406151 BUTTON-CONTROL(B)
313815406141 BUTTON-CONTROL(T)
141
313815521661 QUICK SETUP GUIDE-170B4B
313815521671 QUICK SETUP GUIDE-170S4F
174
313815133521 D-SUB PLATE
1201
313816877121 CON. MOLEX 74320-4004 DVI
2209
223878615649 CER2 0603 X7R 16V 100N PM10
2211
223886715331 CER1 0603 NP0 50V 330P PM5
2212
223886715331 CER1 0603 NP0 50V 330P PM5
2214
223878615649 CER2 0603 X7R 16V 100N PM10
2234
223878615649 CER2 0603 X7R 16V 100N PM10
3202
319802131030 RST SM 0603
10K PM5 COL
3203
319802131030 RST SM 0603
10K PM5 COL
3206
319802131010 RST SM 0603
100R PM5 COL
3207
319802131010 RST SM 0603
100R PM5 COL
3209
319802131040 RST SM 0603
100K PM5 COL
5201
242254945582 IND FXD 0805 EMI 100MHZ 300R
6222
933913910115 DIO SIG SM BAS32L
(PHSE)
6222
933952510685 DIO SIG SM LL4148
(VISH)
6222
932205976685 DIO SIG SM LS4148
(VISH)
6223
933742280215 DIO SIG SM BAT54
(PHSE)
6223
932216672685 DIO SIG SM BAT54
(ONSE)
7203
932214526668 IC SM M24C02-WMN6
(ST00)
7203
932217232668 IC SM S524C20D21
(SMGK)
7203
932216972682 IC SM AT24C02N-10SC-2.7(ATME)
7404
932219353671 IC SM GM5126-BC
(GEMI)
932219370671 IC SM GM2126-BC
(GEMI) Y
http://www.wjel.net
Safety Checks
Fire and Shock Hazard
Implosion
X-radiation
After the original service problem has been corrected,a complete safety check
should be made. Be sure to check over the entire set, not just the areas
where you have worked. Some previous servicer may have left an unsafe
condition,which could be unknowingly passed on to your customer. Be sure
to check all of the following:
1. Be sure all components are positioned in such a way as to avoid the
possibility of adjacent component shorts. This is especially important
on those chassis which are transported to and from the service shop.
2. Never release a repaired unit unless all protective devices such as
insulators, barries, covers, strain reliefs, and other hardware have been
installed in accordance with the original design.
3. Soldering and wiring must be inspected to locate possible cold solder
joints,solder splashes,sharp solder points, frayed leads, pinched leads,
or damaged insulation ( including the ac cord).Be certain to remove
loose solder balls and all other loose foreign particles.
4. Check across-the-line components and other components for physical
evidence of damage or deterioration and replace if necessary. Follow
original layout,lead length, and dress.
5.
No lead or component should touch a receiving tube or a resistor rated
at 1 watt or more. Lead tension around protruding metal surfaces or
edges must be avoided.
6.
Critical components having special safety characteristics are identified
with ans by the Ref. No. in the parts list and enclosed within a broken line
* (where several critical components are grouped in one area) along with
the safety symbols on the schematic diagrams and/or exploded views.
7.
When servicing any unit, always use a separate isolation transformer
for the chassis Failure to use a separate isolation transformer may
expose you to possible shock hazard, and may cause damage to
servicing instruments.
8.
Many electronic products use a polarized ac line cord (one wide pin on
the plug.) Defeating this safety feature may create a potential hazard to
the service and the user. Extension cords which do not incorporate the
polarizing feature should never be used.
9. After reassembly of the unit, always perform an leakage test or resistance
test from the line cord to all exposed metal parts of the cabinet. Also check
all metal control shafts(with knobs removed), antenna terminals, handles,
screws, etc. to be sure the unit may be safety operated without danger of
electrical shock.
* Broken line
1. All picture tubes used in current model receivers are equipped with an
integral implosion system. Care should always be used, and safety
glasses worn,whenever handling any picture tube. Avoid scratching or
otherwise damaging the picture tube during installation.
2. Use only replacement tubes specified by the manufacturer.
1.
Be sure procedures and instructions to all your service personnel cover
the subject of X-radiation. Potential sources of X-rays in TV receivers are
the picture tube and the high voltage circuits. The basic precaution which
must be exercised is to keep the high voltage at the factory recommended
level.
2.
To avoid possible exposure to X-radiation and electrical shock, only the
manufacturer\'s specified anode connectors must be used.
3.
It is essential that the service technician has an accurate HV meter
available at all times. The calibration of this meter should be checked
periodically against a reference standard.
4.
When the HV circuitry is operating properly there is no possibility of an x-
radiation problem. High voltage should always be kept at the manufacturer\'s
rated value-no higher - for optimum performance. Every time a color set is
serviced, the brightness should be run up and down while monitoring the
HV with a meter to be certain that the HV is regulated correctly and does
not exceed the specified value. We suggest that you and your technicians
review test procedures so that HV and HV regulation are always checked as
a standard servicing procedure, and the reason for this prudent routine is
clearly understood by everyone. It is important to use an accurate and
reliable HV meter. It is recommended that the HV recorded on each
customer\'s invoice, which will demonstrate a proper concern for the
customer\'s safety.
5.
When troubleshooting and making test measurements in a receiver with
a problem of excessive high voltage, reduce the line voltage by means of
a Variac to bring the HV into acceptable limits while troubleshooting. Do
not operate the chassis longer than necessary to locate the cause of the
excessive HV.
:
:
WARNING
OFF
SERVICE NOTE
Before removing the CRT anode cap, turn the unit
and short the HIGH VOLTAGE to the CRT DAG ground.
The CRT DAG is not at chassis ground.
TELEVISION/MONITOR SAFETY GUIDELINES FOR THE PROFESSIONAL SERVICE TECHNICIAN
6.
New picture tubes are specifically designed to withstand higher operathng
voltages without creating undesirable X-radiation. It is strongly
recommended that any shop test fixture which is to be used with the new
higher voltage chassis be equipped with one of the new type tubes
designed for this service. Addition of a permanently connected HV meter
to the shop test fixture is advisable. The CRT types used in these new
sets should never be replaced with any other types, as this may result in
excessive X-radiation.
7.
It is essential to use the specified picture tube to avoid a possible X-diation
problem.
8.
Most TV receivers contain some type of emergency "Hold Down" circuit to
prevent HV from rising to excessive levels in the presence of a failure
mode. These various circuits should be understood by all technicians
servicing them, especially since many hold down circuits are inoperative
as long as the receiver performs normally.
1.
Unplug the ac line cord and connect a jumper between the two prongs of
the plug.
2.
Turn on the power switch.
3.
Measure the resistance value between the jumpered ac plug and all
exposed cabinet parts of the receiver, such as screw heads, antennas,
and control shafts. When the exposed metallic part has a return path to
the chassis, the reading should be between 1 megohm and 5.2 megohms.
When the exposed metal does not have a return path to the chassis, the
reading must be infinity. Remove the jumper from the ac line cord.
1.
Do not use an isolation transformer for this test. Plug the completely
reassembled receiver directly into the ac outlet.
2.
Connect a 1.5k, 10w resistor paralleled by a 0.15uf. capacitor between
each exposed metallic cabinet part and a good earth ground such as a
water pipe, as shown above.
3.
Use an ac voltmeter with at least 5000 ohms volt sensitivity to measure
the potential across the resistor.
4.
The potential at any point should not exceed 0.75 volts. A leakage current
tester may be used to make this test; leakage current must not exceed
0.5 milliamps. If a measurement is outside of the specified limits, there is
a possibility of shock hazard. The receiver should be repaired and
rechecked before returning it to the customer.
5.
Repeat the above procedure with the ac plug reversed.( Note: An ac
adapter is necessary when a polarized plug is used. Do not defeat the
polarizing feature of the plug.)
The primary source of X-radiation in this television receiver is the picture
tube. The picture tube utilized in this chassis is specially constructed to limit
X-radiation emissions. For continued X-radiation protection, the replacement
tube must be the same type as the original, including suffix letter, or a Philips
approved type.
Many electrical and mechanical parts in Philips television sets have special
safety related characteristics. These characteristics are often not evident from
visual inspection nor can the protection afforded by them necessarily be
obtained by using replacement components rated for higher voltage, wattage,
etc. The use of a substitute part which does not have the same safety
characteristics as the Philips recommended replacement part shown in this
service manual may create shock, fire, or other hazards
Leakage Current Cold Check
Leakage Current Hot Check
Picture Tube Replacement
Parts Replacement
1500 ohm, 10W
0.15 uF
WATER
PIPE
EARTH
GROUND
TO
INSTRUMENTS
EXPOSED
METAL PARTS
� Go to cover page
http://www.wjel.net
'

array (
  0 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/d32f35c03616055.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '31711',
    'title' => '飞利浦170B4液晶显示器维修手册和原理图-0',
    'description' => '飞利浦170B4液晶显示器维修手册和原理图-0',
  ),
  1 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/58fd31ec387ca08.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '31712',
    'title' => '飞利浦170B4液晶显示器维修手册和原理图-1',
    'description' => '飞利浦170B4液晶显示器维修手册和原理图-1',
  ),
  2 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/6e6e3470477ef38.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '31713',
    'title' => '飞利浦170B4液晶显示器维修手册和原理图-2',
    'description' => '飞利浦170B4液晶显示器维修手册和原理图-2',
  ),
  3 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/45fbc14addd2352.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '31714',
    'title' => '飞利浦170B4液晶显示器维修手册和原理图-3',
    'description' => '飞利浦170B4液晶显示器维修手册和原理图-3',
  ),
  4 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/ae3f5cb3436a3.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '31715',
    'title' => '飞利浦170B4液晶显示器维修手册和原理图-4',
    'description' => '飞利浦170B4液晶显示器维修手册和原理图-4',
  ),
  5 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/3c663c151be72.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '31716',
    'title' => '飞利浦170B4液晶显示器维修手册和原理图-5',
    'description' => '飞利浦170B4液晶显示器维修手册和原理图-5',
  ),
  6 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/39b5ac0d26b73c7.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '31717',
    'title' => '飞利浦170B4液晶显示器维修手册和原理图-6',
    'description' => '飞利浦170B4液晶显示器维修手册和原理图-6',
  ),
  7 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/a09f07b6f234e8e.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '31718',
    'title' => '飞利浦170B4液晶显示器维修手册和原理图-7',
    'description' => '飞利浦170B4液晶显示器维修手册和原理图-7',
  ),
  8 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/311b8a5a2f1996a.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '31719',
    'title' => '飞利浦170B4液晶显示器维修手册和原理图-8',
    'description' => '飞利浦170B4液晶显示器维修手册和原理图-8',
  ),
  9 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/e2718c7b9dc531c.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '31720',
    'title' => '飞利浦170B4液晶显示器维修手册和原理图-9',
    'description' => '飞利浦170B4液晶显示器维修手册和原理图-9',
  ),
)

'1679584949'

'1679584949'

'{"file":["31711","31712","31713","31714","31715","31716","31717","31718","31719","31720"],"title":["\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-0","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-1","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-2","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-3","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-4","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-5","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-6","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-7","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-8","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-9"],"description":["\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-0","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-1","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-2","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-3","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-4","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-5","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-6","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-7","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-8","\\u98de\\u5229\\u6d66170B4\\u6db2\\u6676\\u663e\\u793a\\u5668\\u7ef4\\u4fee\\u624b\\u518c\\u548c\\u539f\\u7406\\u56fe-9"]}'

'飞利浦,170B4,液晶,显示,显示器,维修,手册,和,原理,原理图'

array (
  '飞利浦' => '/index.php?s=wenku&c=search&keyword=%E9%A3%9E%E5%88%A9%E6%B5%A6',
  '170B4' => '/index.php?s=wenku&c=search&keyword=170B4',
  '液晶' => '/index.php?s=wenku&c=search&keyword=%E6%B6%B2%E6%99%B6',
  '显示' => '/index.php?s=wenku&c=search&keyword=%E6%98%BE%E7%A4%BA',
  '显示器' => '/index.php?s=wenku&c=search&keyword=%E6%98%BE%E7%A4%BA%E5%99%A8',
  '维修' => '/index.php?s=wenku&c=search&keyword=%E7%BB%B4%E4%BF%AE',
  '手册' => '/index.php?s=wenku&c=search&keyword=%E6%89%8B%E5%86%8C',
  '和' => '/index.php?s=wenku&c=search&keyword=%E5%92%8C',
  '原理' => '/index.php?s=wenku&c=search&keyword=%E5%8E%9F%E7%90%86',
  '原理图' => '/index.php?s=wenku&c=search&keyword=%E5%8E%9F%E7%90%86%E5%9B%BE',
)

array (
)

array (
  'id' => '7223',
  'catid' => '8',
  'title' => '飞利浦160E1SB97液晶显示器维修手册',
  'thumb' => '31700',
  'keywords' => '飞利浦,160E1SB97,液晶,显示,显示器,维修,手册',
  'description' => '',
  'hits' => '3',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a7223.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1679584914',
  'updatetime' => '1679584914',
  'displayorder' => '0',
  'xerhu_score' => '10',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '31699',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

array (
  'id' => '7225',
  'catid' => '8',
  'title' => '飞利浦170B5CB00液晶显示器维修手册',
  'thumb' => '31722',
  'keywords' => '飞利浦,170B5CB00,液晶,显示,显示器,维修,手册',
  'description' => '',
  'hits' => '1',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a7225.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1679584987',
  'updatetime' => '1679584987',
  'displayorder' => '0',
  'xerhu_score' => '10',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '31721',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

'飞利浦170B4液晶显示器维修手册和原理图_电子电工_行业资料_文汇知识网'

'飞利浦,170B4,液晶,显示,显示器,维修,手册,和,原理,原理图'

''

array (
  'id' => '8',
  'pid' => '5',
  'pids' => '0,5',
  'name' => '电子电工',
  'dirname' => 'dzdg',
  'pdirname' => 'hangye/',
  'child' => 0,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => 8,
  'thumb' => '',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => '',
  'index' => '2',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '8',
  ),
  'is_post' => 1,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/dzdg',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

1

array (
  'catid' => '8',
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  8 =>
  array (
    'id' => '8',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电子电工',
    'dirname' => 'dzdg',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 8,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '8',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dzdg',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  12 =>
  array (
    'id' => '12',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电脑手机',
    'dirname' => 'dnsj',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 12,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '12',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dnsj',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  13 =>
  array (
    'id' => '13',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '交通道路',
    'dirname' => 'jtdl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 13,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '13',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jtdl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  14 =>
  array (
    'id' => '14',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '机械设备',
    'dirname' => 'jixie',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 14,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '14',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jixie',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  15 =>
  array (
    'id' => '15',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '能源动力',
    'dirname' => 'nydl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 15,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '15',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/nydl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  16 =>
  array (
    'id' => '16',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电气工控',
    'dirname' => 'dqgk',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 16,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '16',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dqgk',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
)

'/index.php?s=wenku&c=show&id=7224&page=[page]'

''

'http://www.wenhuiw.com/wenku/a7224.html'

array (
  's' => 'wenku',
  'c' => 'show',
  'id' => '7224',
  'm' => 'index',
)
