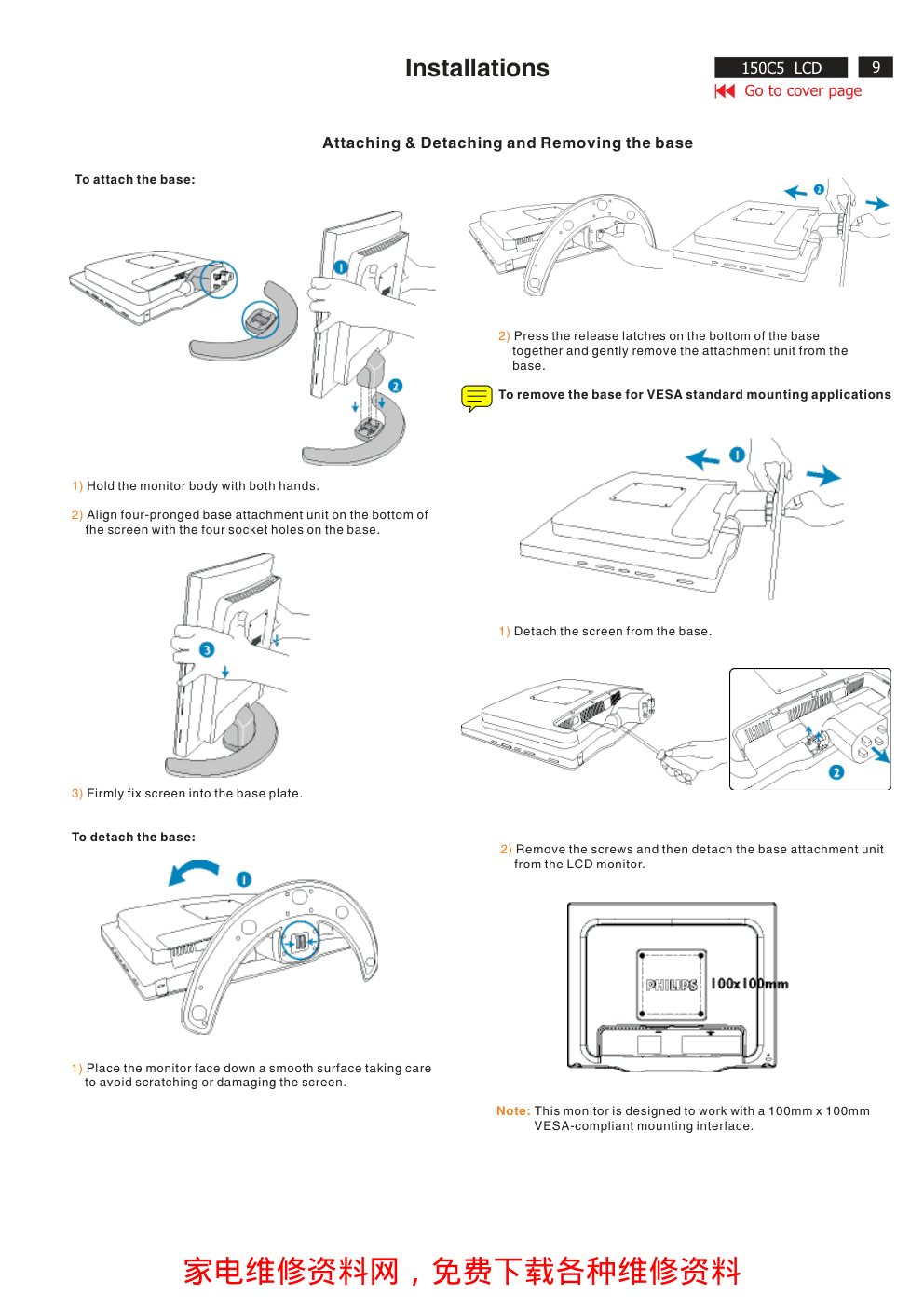

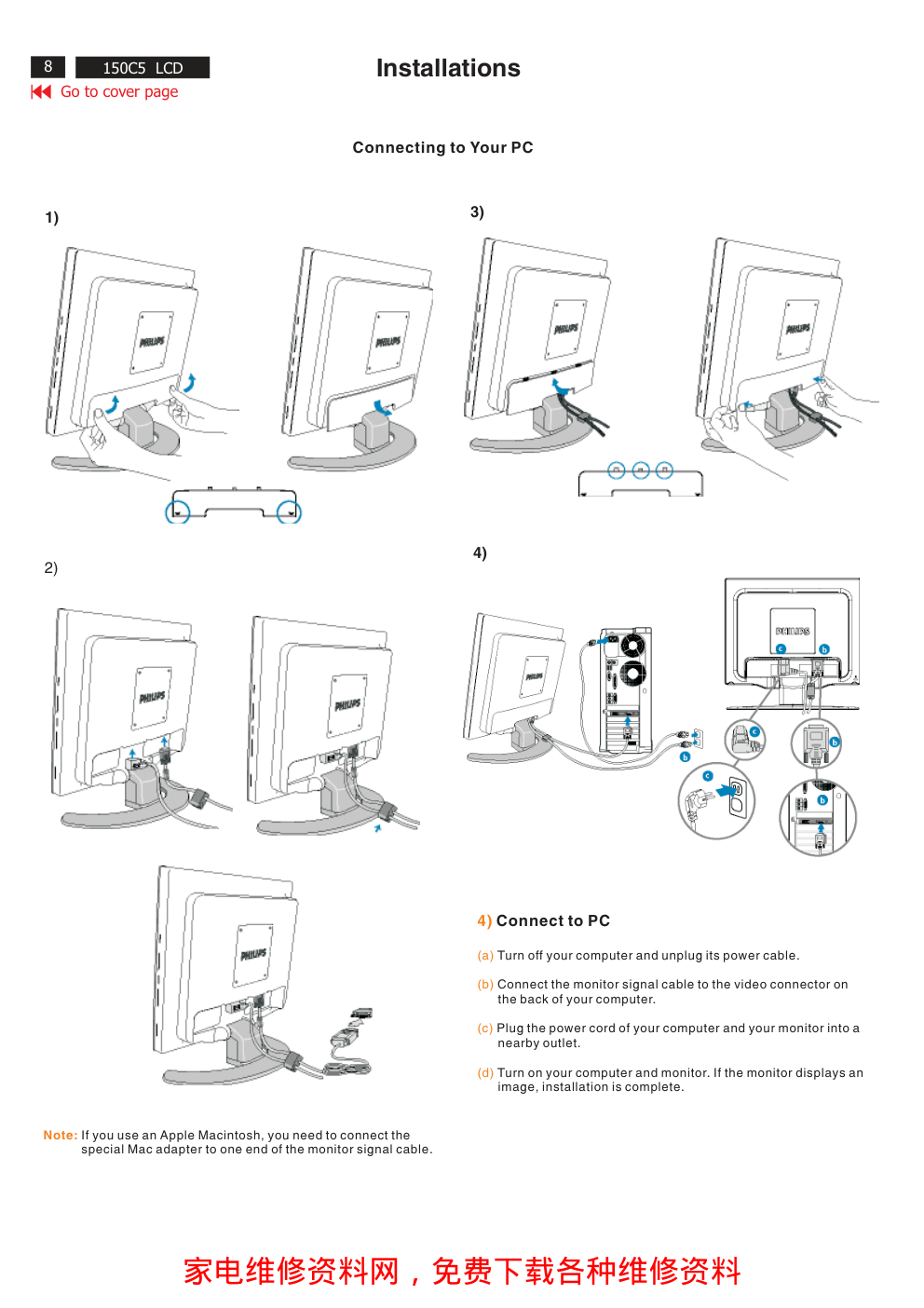

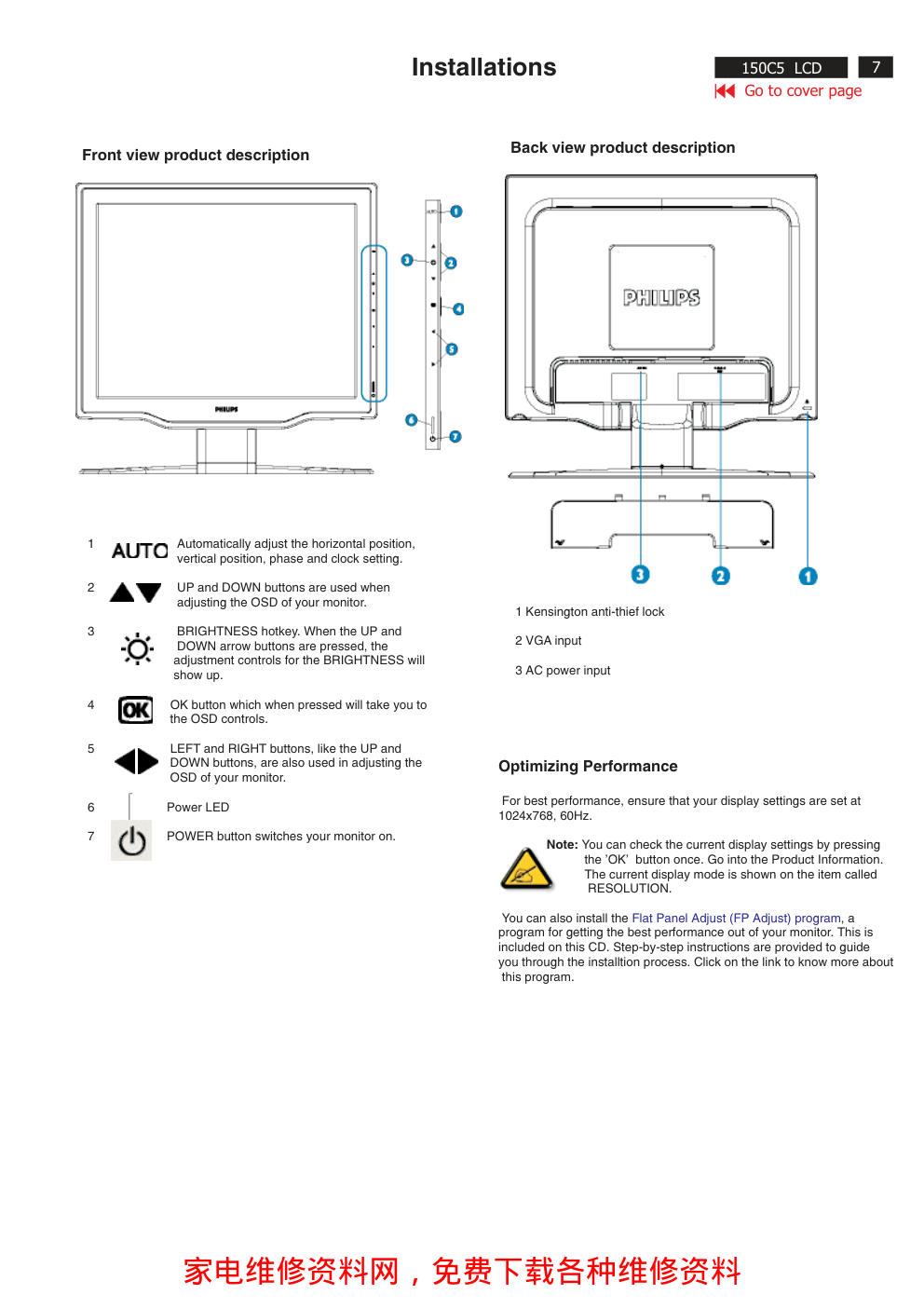

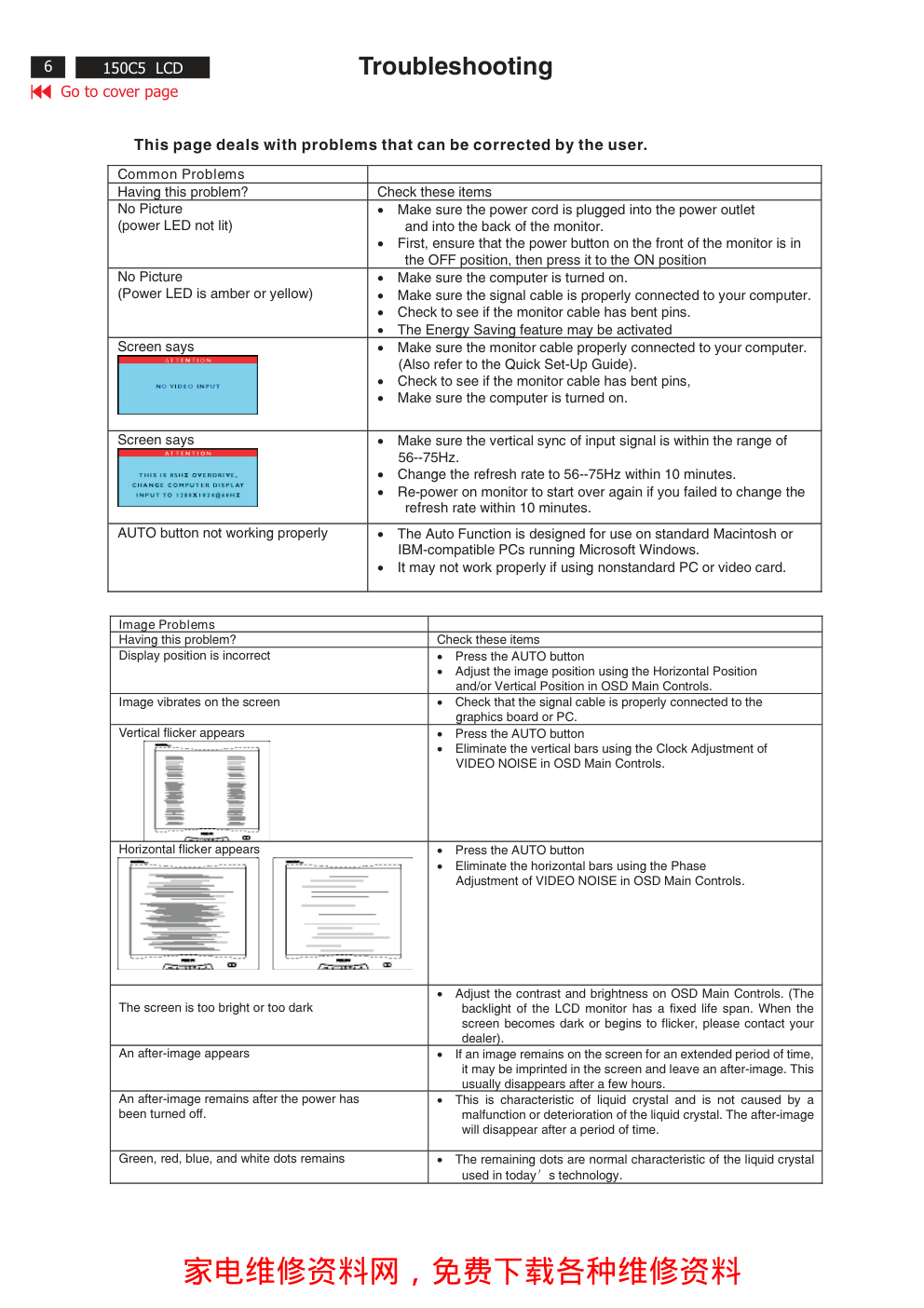

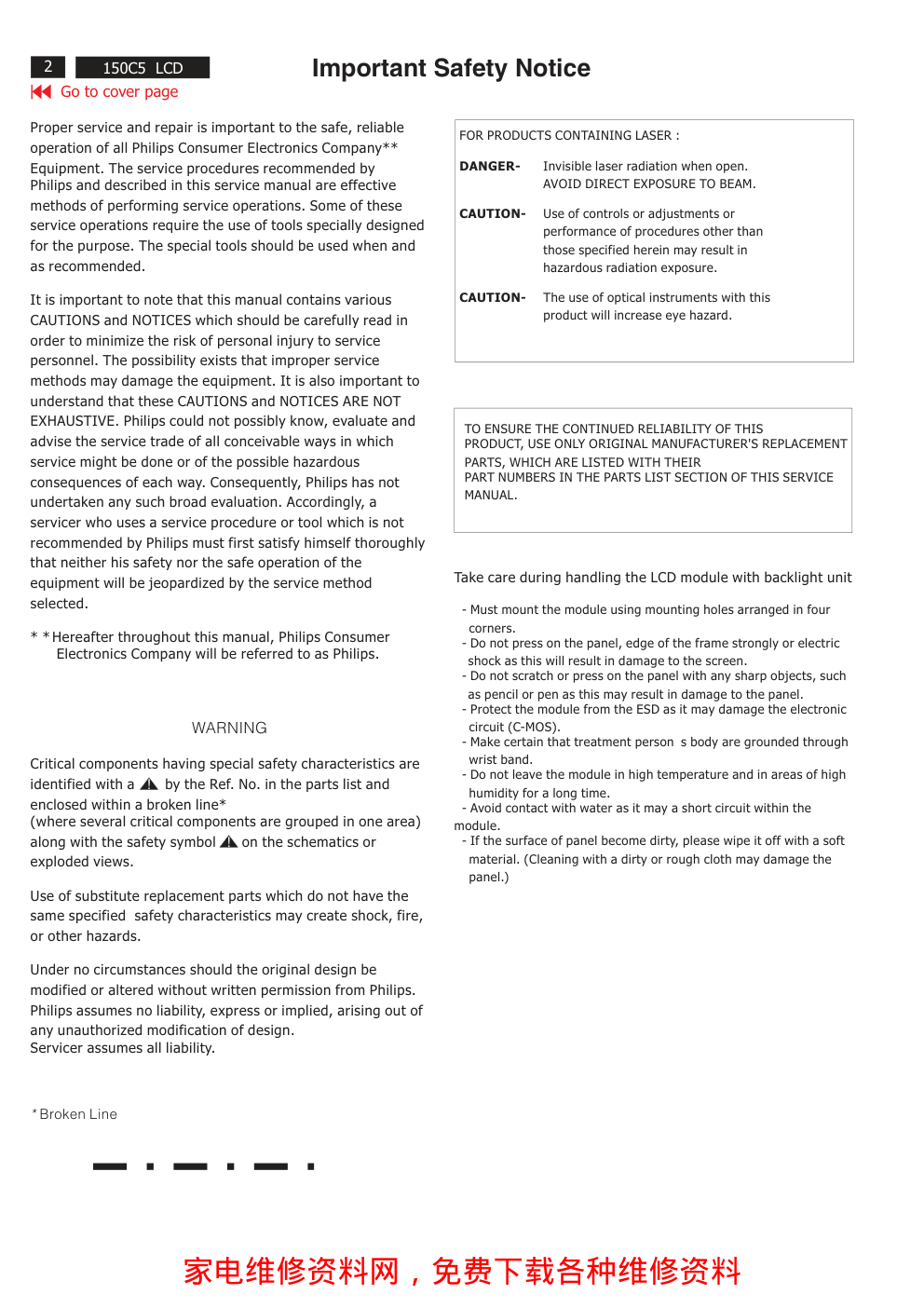

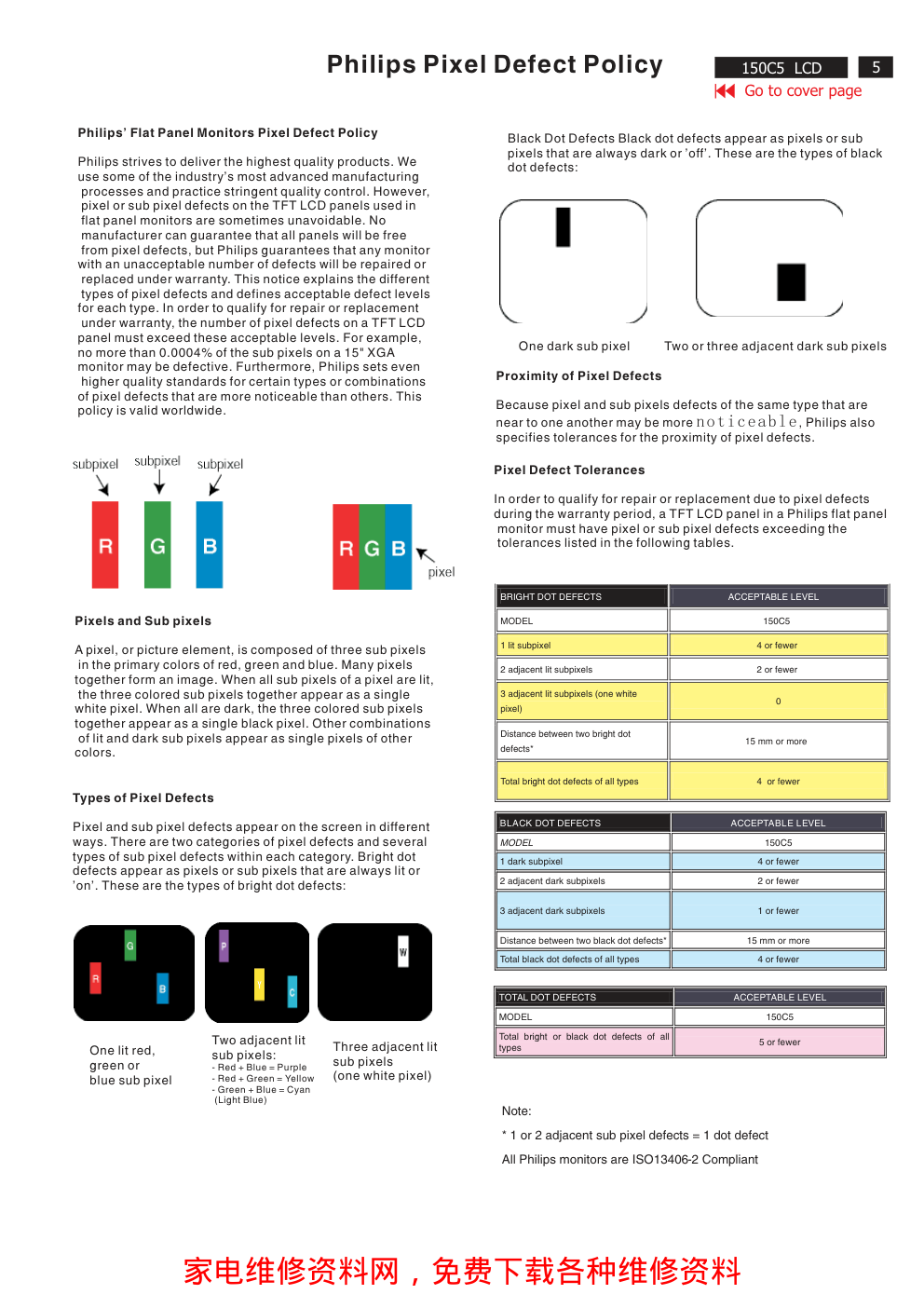

Horizontal Frequencies 30 - 61KHz Service Service Service TABLE OF CONTENTS Published by BCU Monitors Printed in Suzhou Copyright reserved Subject to modification H July. 9 2004 Description Page Important Safety Notice ---------------------------------- 2 Technical Data ------------------------------------------3~4 On Screen Display---------------------------------------10 Electrical Instructions------------------------------------11 Mechanical Instructions----------------------------13 Factory Mode & Aging Mode---------------------------15 Warning Message----------------------------------------16 Repair Flow Chart-----------------------------------18 ~14 ~20 Philips Pixel Defect Policy--------------------------------5 Troubleshooting--------------------------------------------6 Installation -----------------------------------------------7~9 Safety Test Requirement--------------------------------12 Repair Tips------------------------------------------------17 Wiring Diagram-------------------------------------------21 Description Page --------------------------------22 -------------------------------------------32 Function Block Diagram Scaler Schematic Diagram-----------------------23~26 Scaler Board C.B.A.--------------------------------27~28 Control Schematic Diagram & C.B.A.---------------29 Power Schematic Diagram------------------------30~31 Exploded View Failure Mode Of Panel----------------------------------36 34 Spare Parts List------------------------------------33~ Recommended Parts List -----------------------------35 General Product Specification-------------------37~58 DDC Instructions------------------------------------59~63 DDC Data-------------------------------------------------64 ~67 -----------------------65 Firmware Update For CPU HUDSON IV 150C5 REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING. ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES. SAFETY NOTICE GB GB 3138 106 10406 15" XGA TFT LCD Monitor « Model: 150C5BS/00 家电维修资料网，免费下载各种维修资料 Proper service and repair is important to the safe, reliable operation of all Philips Consumer Electronics Company** Equipment. The service procedures recommended by Philips and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended. It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Philips could not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Philips has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Philips must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected. * * Hereafter throughout this manual, Philips Consumer Electronics Company will be referred to as Philips. Critical components having special safety characteristics are identified with a by the Ref. No. in the parts list and enclosed within a broken line* (where several critical components are grouped in one area) along with the safety symbol on the schematics or exploded views. Use of substitute replacement parts which do not have the same specified safety characteristics may create shock, fire, or other hazards. Under no circumstances should the original design be modified or altered without written permission from Philips. Philips assumes no liability, express or implied, arising out of any unauthorized modification of design. Servicer assumes all liability. WARNING * Broken Line FOR PRODUCTS CONTAINING LASER : Invisible laser radiation when open. AVOID DIRECT EXPOSURE TO BEAM. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard. DANGER- CAUTION- CAUTION- TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF THIS SERVICE MANUAL. Take care during handling the LCD module with backlight unit - Must mount the module using mounting holes arranged in four corners. - Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. - Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. - Protect the module from the ESD as it may damage the electronic circuit (C-MOS). - Make certain that treatment person s body are grounded through wrist band. - Do not leave the module in high temperature and in areas of high humidity for a long time. - Avoid contact with water as it may a short circuit within the module. - If the surface of panel become dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.) Important Safety Notice ! ! 2 150C5 LCD Go to cover page 家电维修资料网，免费下载各种维修资料 Go to cover page 150C5 LCD 3 Technical Data Product Features Fast response time capable of handling fast moving pictures sRGB ensures color matching between display and printouts XGA 1024 x 768 resolution for sharper display Elegant, sleek design complements your home d cor Compact and slim design saves space and fits anywhere TCO guarantees the highest safety and ergonomics standards The lower power consumption than industry average Embedded power supply eliminates external power adaptors Auto adjustment for perfect picture display with one touch Easily adjust display settings with Philips SmartControl Cable clip manages cables for a tidy work space Detachable base for easy moving and storage Screen tilts for comfortable viewing from any angle Outstanding front of screen performance Design that complements any interior Best value for money Great convenience Technical Specifications* LCD PANEL SCANNING VIDEO Type TFT LCD Screen size 15" visual (38cm) Pixel Pitch 0.297 x 0.297 mm 1024 x 768 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated Ef fective viewing area 304.1 x 228.1 mm Display Colors 16M colors Vertical refresh rate 56 Hz-76 Hz Horizontal Frequency 30 kHz-61 kHz V ideo dot rate 80 Mhz Input impedance - Video 75 ohm - Sync 2K ohm Input signal levels 700m Vpp Sync input signal Sync polarities Positive and negative XGA Hsync 48- 61 kHz, Vsync 60 - 76 Hz (N.I.) VGA Hsync 31- 38 kHz, Vsync 60 - 76 Hz (N.I.) V ideo interface Analog (D-Sub) SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.) LCD Panel type Separate sync Composite sync Sync on green Input Frequency contrast ratio 400:1 (typ.) Brightness 250 cd/m (typ.) Optical characteristics Peak contrast angle 6 o'clock x: 0.283 y: 0.297 (at 9300 K) White Chromaticity x: 0.313 y: 0.329 (at 6500 K) x: 0.313 y: 0.329 (at sRGB) Upper 45 (typ.) Viewing Angle (C/R>=10) Lower 55 (typ.) Left 65 (typ.) Right 65 (typ.) Response time 16 ms (typ.) sRGB is a standard SRGB for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.) Using a standard unified color space, sRGB will help represent pictures taken by an sRGBcompatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen. Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD. To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Adjust Color and press OK again. Then move the down button to go to sRGB and press OK again. After this, please do not change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K. For more information on sRGB, please visit: www.srgb.com 2 O O O O O O Resolution & Preset Modes 15 user definable modes 14 factory preset modes: Maximum 1024 X 768 at 75Hz Recommended 1024 X 768 at 60 Hz 31.469 640*350 70.086 31.469 720*400 70.087 31.469 640*480 59.940 35.000 640*480 67.000 37.861 640*480 72.809 37.500 640*480 75.000 35.156 800*600 56.250 37.879 800*600 60.317 48.077 800*600 72.188 46.875 800*600 75.000 49.700 832*624 75.000 48.363 1024*768 60.004 56.476 1024*768 70.069 60.023 1024*768 75.029 H. Freq (kHz) Resolution V. freq (Hz) 家电维修资料网，免费下载各种维修资料 4 150C5 LCD Go to cover page Technical Data R R R Physical Specification Dimension (W X H X D) * 360 x 349 x173.5 mm (incl. Pedestal) Weight 2.97 Kg Tilt -5 --25 Power Supply 100 ---240VAC, 50/60 Hz Power consumption 18 W* (typ.) Temperature 5 C to 40 C (operating) -20 C to 60 C (storage) Relative humidity 20% to 80% System MTBF 50K hours (excluding CCFL 40K hours) *This data is subject to change without notice. *Resolution 1024 X 768, standard size, brightness max., Contrast 50%, full white pattern. O O O O O O Pin No. Assignment Pin No. Assignment 1 Red video input 9 +5V 2 Green video input/SOG 10 Logic ground 3 Blue video input 11 Ground 4 Sense (GND) 12 Serial data line (SDA) 5 Hot Plug Detect 13 H. Sync / H+V 6 Red video ground 14 V. Sync (VCLK for DDC) 7 Green video ground 15 Data clock line (SCL) 8 Blue video ground Pin Assignment The 15-pin D-sub connector(male) of the signal cable(IBM systmes): Physical Function Tilt Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes < 20 W Green OFF Blanked No No < 1 W Amber This monitor is ENERGY STAR compliant. As an ENERGY STAR Partner, PHILIPS has determined that this product meets the ENERGY STAR guidelines for energy efficiency. Power Management Definition This monitor is equipped with a function for saving energy which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer which supports VESA DPMS to fulfill the requirements in the NUTEK specification 803299/94. Time settings are adjusted from the system unit by software . NUTEK VESA State LED Indicator Power Consumption Normal operation ON Green < 20 W Power Saving Alternative 2 One step OFF Amber < 1 W As an ENERGY STAR Partner, PHILIPS has determined that this product meets the ENERGY STAR guidelines for energy efficiency. R R Energy Star Declaration 家电维修资料网，免费下载各种维修资料 Go to cover page 150C5 LCD 5 Philips Pixel Defect Policy Philips' Flat Panel Monitors Pixel Defect Policy Philips strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT LCD panel must exceed these acceptable levels. For example, no more than 0.0004% of the sub pixels on a 15" XGA monitor may be defective. Furthermore, Philips sets even higher quality standards for certain types or combinations of pixel defects that are more noticeable than others. This policy is valid worldwide. Pixels and Sub pixels A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. Many pixels together form an image. When all sub pixels of a pixel are lit, the three colored sub pixels together appear as a single white pixel. When all are dark, the three colored sub pixels together appear as a single black pixel. Other combinations of lit and dark sub pixels appear as single pixels of other colors. Types of Pixel Defects Pixel and sub pixel defects appear on the screen in different ways. There are two categories of pixel defects and several types of sub pixel defects within each category. Bright dot defects appear as pixels or sub pixels that are always lit or 'on'. These are the types of bright dot defects: One lit red, green or blue sub pixel Two adjacent lit sub pixels: - Red + Blue = Purple - Red + Green = Yellow - Green + Blue = Cyan (Light Blue) Three adjacent lit sub pixels (one white pixel) Black Dot Defects Black dot defects appear as pixels or sub pixels that are always dark or 'off'. These are the types of black dot defects: One dark sub pixel Two or three adjacent dark sub pixels Proximity of Pixel Defects Because pixel and sub pixels defects of the same type that are near to one another may be more , Philips also specifies tolerances for the proximity of pixel defects. Pixel Defect Tolerances In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables. BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL 150C5 1 lit subpixel 4 or fewer 2 adjacent lit subpixels 2 or fewer 3 adjacent lit subpixels (one white pixel) 0 Distance between two bright dot defects* 15 mm or more Total bright dot defects of all types 4 or fewer BLACK DOT DEFECTS ACCEPTABLE LEVEL MODEL 150C5 1 dark subpixel 4 or fewer 2 adjacent dark subpixels 2 or fewer 3 adjacent dark subpixels 1 or fewer Distance between two black dot defects* 15 mm or more Total black dot defects of all types 4 or fewer TOTAL DOT DEFECTS ACCEPTABLE LEVEL MODEL 150C5 Total bright or black dot defects of all types 5 or fewer Note: * 1 or 2 adjacent sub pixel defects = 1 dot defect All Philips monitors are ISO13406-2 Compliant 家电维修资料网，免费下载各种维修资料 Troubleshooting 6 150C5 LCD Go to cover page Common Problems Having this problem? Check these items No Picture (power LED not lit) � Make sure the power cord is plugged into the power outlet and into the back of the monitor. � First, ensure that the power button on the front of the monitor is in the OFF position, then press it to the ON position No Picture (Power LED is amber or yellow) � Make sure the computer is turned on. � Make sure the signal cable is properly connected to your computer. � Check to see if the monitor cable has bent pins. � The Energy Saving feature may be activated Screen says � Make sure the monitor cable properly connected to your computer. (Also refer to the Quick Set-Up Guide). � Check to see if the monitor cable has bent pins, � Make sure the computer is turned on. Screen says � Make sure the vertical sync of input signal is within the range of 56--75Hz. � Change the refresh rate to 56--75Hz within 10 minutes. � Re-power on monitor to start over again if you failed to change the refresh rate within 10 minutes. AUTO button not working properly � The Auto Function is designed for use on standard Macintosh or IBM-compatible PCs running Microsoft Windows. � It may not work properly if using nonstandard PC or video card. Image Problems Having this problem? Check these items Display position is incorrect � Press the AUTO button � Adjust the image position using the Horizontal Position and/or Vertical Position in OSD Main Controls. Image vibrates on the screen � Check that the signal cable is properly connected to the graphics board or PC. Vertical flicker appears � Press the AUTO button � Eliminate the vertical bars using the Clock Adjustment of VIDEO NOISE in OSD Main Controls. Horizontal flicker appears � Press the AUTO button � Eliminate the horizontal bars using the Phase Adjustment of VIDEO NOISE in OSD Main Controls. The screen is too bright or too dark � Adjust the contrast and brightness on OSD Main Controls. (The backlight of the LCD monitor has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer). An after-image appears � If an image remains on the screen for an extended period of time, it may be imprinted in the screen and leave an after-image. This usually disappears after a few hours. An after-image remains after the power has been turned off. � This is characteristic of liquid crystal and is not caused by a malfunction or deterioration of the liquid crystal. The after-image will disappear after a period of time. Green, red, blue, and white dots remains � The remaining dots are normal characteristic of the liquid crystal used in today s technology. This page deals with problems that can be corrected by the user. 家电维修资料网，免费下载各种维修资料 Go to cover page 150C5 LCD 7 Front view product description 1 Automatically adjust the horizontal position, vertical position, phase and clock setting. 2 UP and DOWN buttons are used when adjusting the OSD of your monitor. 3 BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up. 4 OK button which when pressed will take you to the OSD controls. 5 LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor. 6 Power LED 7 POWER button switches your monitor on. Back view product description 1 Kensington anti-thief lock 2 VGA input 3 AC power input Optimizing Performance For best performance, ensure that your display settings are set at 1024x768, 60Hz. You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION. You can also install the , a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program. Note: Flat Panel Adjust (FP Adjust) program Installations 家电维修资料网，免费下载各种维修资料 8 150C5 LCD Go to cover page 1) 2) 3) Note: If you use an Apple Macintosh, you need to connect the special Mac adapter to one end of the monitor signal cable. 4) 4) (a) (b) (c) (d) Connect to PC Turn off your computer and unplug its power cable. Connect the monitor signal cable to the video connector on the back of your computer. Plug the power cord of your computer and your monitor into a nearby outlet. Turn on your computer and monitor. If the monitor displays an image, installation is complete. Connecting to Your PC Installations 家电维修资料网，免费下载各种维修资料 Go to cover page 150C5 LCD 9 Attaching & Detaching and Removing the base Installations To attach the base: 1) 2) 3) Hold the monitor body with both hands. Align four-pronged base attachment unit on the bottom of the screen with the four socket holes on the base. Firmly fix screen into the base plate. To detach the base: 1) Place the monitor face down a smooth surface taking care to avoid scratching or damaging the screen. 2) 1) Press the release latches on the bottom of the base together and gently remove the attachment unit from the base. Detach the screen from the base. To remove the base for VESA standard mounting applications 2) Remove the screws and then detach the base attachment unit from the LCD monitor. Note: This monitor is designed to work with a 100mm x 100mm VESA-compliant mounting interface. 家电维修资料网，免费下载各种维修资料 10 150C5 LCD Go to cover page Description of the On Screen Display This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the monitors directly through an on-screen instruction window. The user interface provides user friendliness and ease-of-use when operating the monitor. When you press the button on the side control of your monitor, the On-Screen Display (OSD) Main Controls window will pop up and you can then start making adjustments to your monitor's various features. Use the or the keys to make your adjustments. What is the On-Screen Display? Basic and simple instruction on the control keys. The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. On-Screen Display 家电维修资料网，免费下载各种维修资料 Electrical Instructions Go to cover page 150C5 LCD 11 1. General points 1.1 During the test and measuring, supply a distortion free AC mains Voltage to the apparatus via an isolated transformer with low internal resistance. 1.2 All measurements mentioned hereafter are carried out at a Normal mains voltage (90 - 132 VAC for USA version, 195 -264 VAC for EUROPEAN version, or 90 - 264 VAC for the model with full range power supply, unless otherwise stated.) 1.3 All voltages are to be measured or applied with respect to ground, unless otherwise stated. Note: don t use heat-sink as ground. 1.4 The test has to be done on a complete set including LCD panel after 30 minutes warm-up at least in a room with temperature of 25 +/- 5 degree C. 1.5 All values mentioned in this test instruction are only applicable of a well aligned apparatus, with correct signal. 1.6 The letters symbols (B) and (S) placed behind the test instruction denotes(B): carried out 100% inspection at assembly line (S): carried out test by sampling 1.7 The white balance (color temperature), has to be tested in subdued lighted room. 1.8 Repetitive power on/off cycle are allowed except it should be avoided within 6 sec. 2. Input signal 2.1 Signal type Video: 0.7 Vp-p linear, positive polarity Sync. : TTL level, separate, positive or negative polarity Signal source: pattern generator format as attachment (table 1 to 14) Reference generator: Quantum 802BT or VTG 1250 2.2 Allowed signal mode specified PRESET VIDEO RESOLUTION Dot rate (MHz) H.freq (KHz) Mode Resolution V.freq (Hz) 25.175 31.469 VGA 640 * 350 70.087 28.322 31.469 VGA 720 * 400 70.087 25.175 31.469 VGA 640 * 480 59.940 30.240 35.000 MACINTOSH 640 * 480 66.667 31.500 37.861 VESA 640 * 480 72.809 31.500 37.500 VESA 640 * 480 75.000 36.000 35.156 VESA 800 * 600 56.250 40.000 37.879 VESA 800 * 600 60.317 50.000 48.077 VESA 800 * 600 72.188 49.500 46.875 VESA 800 * 600 75.000 57.300 49.700 MACINTOSH 832 * 624 75.000 65.000 48.363 VESA 1024 * 768 60.004 75.000 56.476 VESA 1024 * 768 70.069 78.750 60.023 VESA 1024 * 768 75.029 3. AC Adaptor 3.1 Setup the AC I/P at 90VAC, and Output DC loading at 12V 1.6 Amp, 3V3 1Amp, The DC output voltages are 3.3V +/- 0.16V DC, and 12VDC (+11V ~ 16 V) 4. Display Adjustment 4.1 Auto color adjustment (B) Apply a 640 * 480 / 60Hz signal with 16 level grey test pattern, set brightness control at 100%, and contrast control at 50%. Adjust the R. G. B offset, and gain to calibrate the color smoothly and 64-grey level distinguishable. 4.2 Color temperature adjustment (B) Apply a 1024 * 768, 48.36kHz / 60Hz signal with white pattern. Set brightness control at 100%, and contrast control at 50%. Adjust the R.G. B gain in factory setting to reach special color temperature on center of screen. The 1931 CIE chromaticity (X, Y) co-ordinates shall be: Use Minolta CA-110 for color coordinates and luminance check. Luminance is > 200 nits in the center of the screen at original panel color. 9300�K 6500�K x (center) 0.283 � 0.005 0.313 � 0.005 y (center) 0.297 � 0.005 0.329 � 0.005 4.3 Adjustment of sRGB Apply a 1024*768 / 60Hz signal with white pattern, set brightness control at 100%, and contrast control at 50%. Adjust the R, G, B Sub-Gain, for the screen center, the 1931 CIE chromaticity (X, Y) co-ordinates shall be: sRGB x(center) 0.313 � 0.005 y(center) 0.329 � 0.005 Ynits 180 � 10 4.4 EEPROM presetting (B) After finishing all the adjustment, set: Brightness control to 100% Contrast control to 50% OSD position at middle of screen COLOR ADJUST to 6500�K 家电维修资料网，免费下载各种维修资料 12 150C5 LCD Go to cover page All units that are returned for service or repair must pass the original manufactures safety tests. Safety testing requires both and testing. Hipot Ground Continuity HI-POT TEST INSTRUCTION 1.Application requirements Test method 1.1 All mains operated products must pass the Hi-Pot test as described in this instruction. 1.2 This test must be performed again after the covers have been refitted following the repair, inspection or modification of the product. 2.1 Connecting conditions 2.1.1 The test specified must be applied between the parallel- blade plug of the mainscord and all accessible metal parts of the product. 2.1.2 Before carrying out the test, reliable conductive connections must be ensured and thereafter be maintained throughout the test period. 2.1.3 The mains switch(es) must be in the "ON" position. 2.2 Test Requirements All products should be HiPot and Ground Continuity tested as follows: Test 2820VDC 1700VDC Test current: voltage (2000VAC) (1200VAC) 25A,AC Test time: Test time 3 seconds 1 second 3 seconds(min.) (min.) Resistance required: Trip set at 100 uA 5 mA <=0.09+Rohm, current for Max. R is the (Tester) limitation; set resistance of at 0.1 uA for the mains cord. Min. Limitation Ramp set at 2 time seconds (Tester) 2. Condition HiPot Test for HiPot Test for Ground Continuity products where products where Test requirement the mains input the mains input is range is Full 110V AC(USA range(or 220V type) AC) 2.2.1 The minimum test duration for Quality Control Inspector must be 1 minute. 2.2.2 The test voltage must be maintained within the specified voltage + 5%. 2.2.3 There must be no breakdown during the test. 2.2.4 The grounding blade or pin of mains plug must be conducted with accessible metal parts. 3. Equipments and Connection 3.1. Equipments For example : - ChenHwa 9032 PROGRAMMABLE AUTO SAFETY TESTER - ChenHwa 510B Digital Grounding Continuity Tester - ChenHwa 901 (AC Hi-pot test), 902 (AC, DC Hi-pot test) Withstanding Tester 3.2. Connection 4. Recording Hipot and Ground Continuity testing records have to be kept for a period of 10 years. * Turn on the power switch of monitor before Hipot and Ground Continuity testing. Connect the "video cable" or "grounding screw" to the CLIP on your tester. Video cable (Rear view of monitor) Connect the power cord to the monitor. Grounding screw Power outlet (ChenHwa 9032 tester) Clip Clip Safety Test Requirement ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Mechanical Instructions Go to cover page 150C5 LCD 13 Fig. 3 Front View Back View Step 1: -Unscrew the four screws as shown in Fig. 3. - Remove the base. - Unscrew the three screws as shown in Fig. 4. Fig. 2 Fig. 1 Step 2: Remove the front bezel - Use thin "l" type screwdriver to open 2 clicks on bottom side as shown in Fig. 5. - Use thin "l" type screwdriver to open 3 clicks on right and left side as shown in Fig. 6. - Use thin "l" type screwdriver to open 4 clicks on top side as shown in Fig. 7. Fig. 5 Fig. 6 Fig. 7 Fig. 4 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Mechanical Instructions 14 150C5 LCD Go to cover page Fig. 8 Step 3: Remove the Back Cover shown as Fig. 9 & Fig. 10. Fig. 9 Fig. 10 Step4: - Unscrew on screw, remove the shield inverter as shown in Fig.10. - Unscrew seven screws as shown in Fig. 11. - Unconnect 3 cables as shown in Fig. 11. Fig. 10 ==============> 100 313815135901 SHIELD INVERTER =========> 1051 313815860191 313815860201 SCALER ASSY =========> 1053 313815860081 CONTROL ASSY =========> 1052 313819872542 LIPS(ADP-23AF A) 1050 823827714731 TFT-LCD MOD LM150X08-A4 1050 932221135682 TFT-LCD CLAA150XP01 (CPT0) B LCD Panel *************************************************************************** In warranty, it is not allowed to disassembly the LCD panel, even the backlight unit defect. Out of warranty, the replacment of backlight unit is a correct way when the defect is cused by backlight (CCFL,Lamp). *************************************************************************** ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Front View HUDSON 150C5 V002 20040511 Factory Mode Indicator ----------> Factory Menu Cursor can move on gray color area AGING... After 15 seconds, bring up: After 15 seconds, bring up: AGING... After 15 seconds, bring up: ---------- ---------- repeatly Connect Signal cable again=> go back to normal display How to Access Aging Mode Step 1 : Turn off LCD monitor, and disconnect Interface Cable betwe- en Monitor and PC. Step 2 : [Push "AUTO" & " OK " buttons at the same time and hold it] +[Press power " " button untill comes out " AGING screen"] => then release all buttons. Bring up: Go to cover page 150C5 LCD 15 Factory Mode & Aging Mode How to enter Factory Mode 1. Turn off the monitor. 2. [Push "AUTO " & "OK" buttons at the same time and hold it ] + [Press power " " button until comes out "Windows screen"] => then release all button, then press , wait until the OSD menu with Characters HUDSON 150C5 V002 20040511 (below OSD menu) come on the Screen of the monitor (see Fig. 2). "OK" button BL : Black level value SUB- BRI : Brightness value range( Min Max) SUB- CON : Contrast value range( Min Mid Max ) SRGB- B : Brightness of sRGB SRGB- C : Contrast of sRGB Gain- m : Minimum value of User Gain Gain- M : Maximum value of User Gain AUTO- SUB : To do Auto color function when push Menu key in white pattern OSD TIMER: OSD time out control(sec) IDX : Limit current of inverter (CPT: 28) (LG:7) Panel TYPE :PLS reference section 2.9.6 SCALER : Read/Write scaler register Panel : HS (Hannstar panel) CPT (CPT panel) LG (LG. Philips panel) 7 HUDSON 150C5 V200 20040705 HS 1.LG (7) 2. CPT (28) 3. HS (28) 4. QDI (28) ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Warning Message 16 150C5 LCD Go to cover page Item Attention Signals Display Time Condition Active off 1 CANNOT DISPLAY THIS VIDEO MODE, CHANGE COMPUTER DISPLAY INPUT TO 1024 X 768 @60Hz 30 mins This warning appears when the input signal from your computer is not in a standard video mode or is out of the monitor's scanning range. After 30 mins, monitor enters sleeping mode. No 2 NO VIDEO INPUT 30 mins This message appears when there is no signal input but with cable while AC to DC while power on. After 30 mins, monitor enters sleeping mode. Yes show floating menu "ATTENTION SIGNAL OFF" 3 CHECK CABLE CONNECTION 30 mins This message appears when a signal cable is disconnected while monitor is working. After 30 mins, monitor enters sleeping mode Yes show floating menu "ATTENTION SIGNAL OFF" 4 ENTER SLEEP MODE 3 secs This message appears when monitor is about to enter power saving mode. No 5 WAITING FOR AUTOMATIC ADJUSTMENT Till auto adjustment finished This message is displayed when the auto adjustment button is pressed. It disappears when automatic adjustments are completed. No 6 USE 1024 x 768 FOR BEST RESULT On top of OSD main menu The message will show up at the top of the OSD main menu in red color when the input resolution is not the 1024 X 768. Yes 7 OSD MAIN CONTROLS LOCKED 3 secs / or till "OSD MAIN CONTROLS UNLOCKED" appear This message will appear 3 seconds to indicate the OSD MAIN CONTROLS status when to lock or un-lock it by pressing "MENU(OK)" button for more than 10 seconds while there is video input from PC. This function provides the alternative that user can lock all the OSD main control in case user don't want the OSD performance setting to be changed, for instance, during commercial exhibition. No function when push 10 secs (if OSD lock then attention off, not any message and only attention on) 8 OSD MAIN CONTROLS UNLOCKED 3 secs This message will appear 3 seconds to indicate the OSD MAIN CONTROLS status when to lock or un-lock it by pressing "MENU(OK)" button for more than 10 seconds while there is video input from PC. No function when push 10 secs. 9 ATTENTION SIGNAL ON 3 secs This message will appear 3 seconds to indicate the attention signals in ON or OFF status when to switch this function on or off by pressing the AUTO button for more than 10 seconds while at no video input from PC. Yes ATTENTION SIGNAL OFF 3 secs 10 THIS IS 85 Hz OVERSCAN, CHANGE COMPUTER DISPLAY INPUT TO 1024 X 768@60Hz 10 mins This message will appear 5 seconds in every 60 seconds for 10 minutes when the input of PC video timing is at 85 Hz mode. Remark: AUTO is still functional in this mode. No Yes Yes TBD 11 12 13 The window of " OSD MAIN CONTROLS" The window of "brightness" "SELECTED INPUT NOT AVAILABLE" 60 secs 60 secs 5 secs This message will appear when the "OK" button is pressed. This message will appear when the "BRIGHTNESS" button is pressed. When just on input(analog or digital), press"input switch" or hot key, then after show this warning message 5 sec, return to original input. ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Go to cover page 150C5 LCD 17 Repair Tips 0. Warning All ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the unit via a wrist wrap with resistance. Keep components and tools also at the same potential ! 1. Servicing of SMDs (Surface Mounted Devices) 1.1 General cautions on handling and storage - Oxidation on the terminals of SMDs results in poor soldering. Do not handle SMDs with bare hands. - Avoid using storage places that are sensitive to oxidation such as places with sulphur or chlorine gas, direct sunlight, high temperatures or a high degree of humidity. The capacitance or resistance value of the SMDs may be affected by this. - Rough handling of circuit boards containing SMDs may cause damage to the components as well as the circuit boards. Circuit boards containing SMDs should never be bent or flexed. Different circuit board materials expand and contract at different rates when heated or cooled and the components and/or solder connections may be damaged due to the stress. Never rub or scrape chip components as this may cause the value of the component to change. Similarly, do not slide the circuit board across any surface. 1.2 Removal of SMDs - Heat the solder (for 2-3 seconds) at each terminal of the chip. By means of litz wire and a slight horizontal force, small components can be removed with the soldering iron. They can also be removed with a solder sucker (see Fig. 1A) - While holding the SMD with a pair of tweezers, take it off gently using the soldering iron's heat applied to each terminal (see Fig. 1 B). - Remove the excess solder on the solder lands by means of litz wire or a solder sucker (see Fig. 1C). 1.3 Caution on removal - When handling the soldering.iron. use suitable pressure and be careful. - When removing the chip, do not use undue force with the pair of tweezers. - The soldering iron to be used (approx. 30 W) should Fig. 1 DISMOUNTING SOLDERING IRON E.g. WELLER SOLDER TIP PT-H7 VACUUM PISTON 4822 395 10159 SOLDER WICK 4822 321 40042 E.g. A PAIR OF TWEEZERS HEATING SOLDERING IRON SOLDER WICK C B A SOLDERING IRON HEATING Fig. 2 MONUTING E.g. A PAIR OF TWEEZERS SOLDER 0.5-0.8 mm PRESURE SOLDERING IRON SOLDERING TIME < 3 sec/side B A SOLDER 0.5-0.8 mm PRESURE SOLDERING IRON Fig. 3 Examples RIGHT SOLDERING IRON Preferably be equipped with a thermal control (soldering temperature: 225 degree V to 250 degree C. -The chip, once removed, must never be reused. -Locate the SMD on the solder lands by means of tweezers and solder the component on one side. Ensure that the component is positioned correctly on the solder lands (see Fig. 2A) -Next complete the soldering of the terminals of the component. (See Fig. 2B) 1.4 Attachment of SMDs 2. Caution when attaching SMDs - When soldering the SMDs terminals, do not touch them directly with the soldering iron. The soldering should be directly with the soldering iron. The soldering should be done as quickly as possible, care must be taken to avoid damage to the terminals of the SMDs themselves. - Keep the SMD's body in contact with the printed board when soldering. - The soldering iron to be used (approx. 30W) should preferably be equipped with a thermal control (soldering temperature: 225 degree C to 250 degree C). - Soldering should not be done outside the solder land. - Soldering flux (of rosin) may be used, but should not be acidic. - After soldering, let the SMDs cool down gradually at room temperature. - The quantity of solder must be proportional to the size of the solder land. If the quantity is too great, the SMD might crack or the solder lands might be torn loose from the printed board (See Fig. 3). ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 18 150C5 LCD Go to cover page Repair Flow Chart ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Go to cover page 150C5 LCD 19 No Display Check Mains cord & LED of Monitor Check Power board 12V/3.3V DC Yes No Check video signals input interface Video source Yes No No OK Check Inverter panel 625~765Vrms with load Check fluorescent lamp Check inverter panel Check main panel Front control key does not work Check Front control panel (Key & SW) Check Signal connectors Yes Yes Check main panel Repair Flow Chart-2 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 20 150C5 LCD Go to cover page Bad brightness No Check Inverter panel output 625~765Vrms Bad Inverter panel Yes Check fluorescent lamp No Check LCD panel Bad image Check Video, fh/fv signals Yes Check main panel Yes Check components cold soldering No Check all connectors & LVDS cable No Check LCD panel Repair Flow Chart-3 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 21 150C5 LCD Go to cover page Wiring Diagram ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 22 150C5 LCD Go to cover page Function Block Diagram ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 23 150C5 LCD Go to cover page Scaler Schematic Diagram-1 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 24 150C5 LCD Go to cover page Scaler Schematic Diagram-2 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 25 150C5 LCD Go to cover page Scaler Schematic Diagram-3 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 26 150C5 LCD Go to cover page Scaler Schematic Diagram-4 13 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 27 150C5 LCD Go to cover page Scaler Board C.B.A-1 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 28 150C5 LCD Go to cover page Scaler Board C.B.A-2 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 29 150C5 LCD Go to cover page Control Schematic Diagram & C.B.A ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 30 150C5 LCD Go to cover page Power Schematic Diagram-1 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 31 150C5 LCD Go to cover page Power Schematic Diagram-2 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Exploded View 32 150C5 LCD Go to cover page Go to cover page 30 313815757811 BEZEL ASSY 313815135112 MAIN FRAME 101 313815860191 313815860201 SCALER ASSY 1051 1052 313819872542 LIPS(ADP-23AF A) 313815135901 SHIELD INVERTER 100 313815757801 BACK COVER ASSY 40 313815413791 REAR COVER 103 313815414391 HINGE COVER-L 50 105 313815414401 HINGE COVER-R 106 1053 313815860081 CONTROL ASSY 1050 823827714731 TFT-LCD MOD LM150X08-A4 932221135682 TFT-LCD CLAA150XP01 (CPT0) B 313815757821 DETACHABLE BASE ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Spare Parts List Go to cover page 150C5 LCD 33 PCB Assy 1051 313815860191 SCALER ASSY 1051 313815860201 SCALER ASSY 1304 243854300093 RES XTL SM 14M31818 7P SMD49 R 2218 223886715339 CER1 0603 NP0 50V 33P PM5 R 2219 223886715221 CER1 0603 NP0 50V 220P PM5 R 2221 223878615649 CER2 0603 X7R 16V 100N PM10 R 2222 223858615636 CER2 0603 X7R 50V 10N PM10 R 2225 223858615636 CER2 0603 X7R 50V 10N PM10 R 2227 223858615636 CER2 0603 X7R 50V 10N PM10 R 2229 223858615636 CER2 0603 X7R 50V 10N PM10 R 2233 223878615649 CER2 0603 X7R 16V 100N PM10 R 2234 223878615649 CER2 0603 X7R 16V 100N PM10 R 2304 223878615649 CER2 0603 X7R 16V 100N PM10 R 2305 202001293721 ELCAP SM RV2 16V 10U PM20 R 2306 223886715229 CER1 0603 NP0 50V 22P PM5 R 2307 223886715229 CER1 0603 NP0 50V 22P PM5 R 2309 223878615649 CER2 0603 X7R 16V 100N PM10 R 2313 223878615649 CER2 0603 X7R 16V 100N PM10 R 2401 223878615649 CER2 0603 X7R 16V 100N PM10 R 2402 223878615649 CER2 0603 X7R 16V 100N PM10 R 2403 223878615649 CER2 0603 X7R 16V 100N PM10 R 2408 223878615649 CER2 0603 X7R 16V 100N PM10 R 2409 223878615649 CER2 0603 X7R 16V 100N PM10 R 2414 223858615636 CER2 0603 X7R 50V 10N PM10 R 2415 223858615636 CER2 0603 X7R 50V 10N PM10 R 2416 223858615636 CER2 0603 X7R 50V 10N PM10 R 2417 223878615649 CER2 0603 X7R 16V 100N PM10 R 2442 223878615649 CER2 0603 X7R 16V 100N PM10 R 2443 223878615649 CER2 0603 X7R 16V 100N PM10 R 2444 223878615649 CER2 0603 X7R 16V 100N PM10 R 2445 202001293721 ELCAP SM RV2 16V 10U PM20 R 2446 202001293721 ELCAP SM RV2 16V 10U PM20 R 2448 223878615649 CER2 0603 X7R 16V 100N PM10 R 2449 223878615649 CER2 0603 X7R 16V 100N PM10 R 2450 223878615649 CER2 0603 X7R 16V 100N PM10 R 2451 223878615649 CER2 0603 X7R 16V 100N PM10 R 2452 223878615649 CER2 0603 X7R 16V 100N PM10 R 2453 223878615649 CER2 0603 X7R 16V 100N PM10 R 2454 223878615649 CER2 0603 X7R 16V 100N PM10 R 2455 223878615649 CER2 0603 X7R 16V 100N PM10 R 2457 223878615649 CER2 0603 X7R 16V 100N PM10 R 2458 223878615649 CER2 0603 X7R 16V 100N PM10 R 2459 223878615649 CER2 0603 X7R 16V 100N PM10 R 2460 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2463 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2464 223878615649 CER2 0603 X7R 16V 100N PM10 R 2465 223878615649 CER2 0603 X7R 16V 100N PM10 R 2466 223878615649 CER2 0603 X7R 16V 100N PM10 R 2468 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2469 223878615649 CER2 0603 X7R 16V 100N PM10 R 2477 202001293721 ELCAP SM RV2 16V 10U PM20 R 2482 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2483 222224119876 CER2 1206 Y5V 10V 10U P8020 R 2501 223878615649 CER2 0603 X7R 16V 100N PM10 R 2502 223878615649 CER2 0603 X7R 16V 100N PM10 R 2505 223878615649 CER2 0603 X7R 16V 100N PM10 R 2506 223878615649 CER2 0603 X7R 16V 100N PM10 R 2509 223858615636 CER2 0603 X7R 50V 10N PM10 R 2516 223858615623 CER2 0603 X7R 50V 1N PM10 R 2518 223858615623 CER2 0603 X7R 50V 1N PM10 R 2522 223858615623 CER2 0603 X7R 50V 1N PM10 R 2524 223858615623 CER2 0603 X7R 50V 1N PM10 R 2530 223858615623 CER2 0603 X7R 50V 1N PM10 R 2532 223858615623 CER2 0603 X7R 50V 1N PM10 R 2533 223858615623 CER2 0603 X7R 50V 1N PM10 R 2534 202001293747 ELCAP SM RV2 25V 47U PM20 R 2536 202001293747 ELCAP SM RV2 25V 47U PM20 R 3216 212211805643 RST SM 0603 RC0603 100R PM5 R 3217 212211805643 RST SM 0603 RC0603 100R PM5 R 3221 212211805674 RST SM 0603 RC0603 22K PM5 R 3222 212211805674 RST SM 0603 RC0603 22K PM5 R 3223 212211805643 RST SM 0603 RC0603 100R PM5 R 3224 212211805643 RST SM 0603 RC0603 100R PM5 R 3225 212211805643 RST SM 0603 RC0603 100R PM5 R 3226 212211805643 RST SM 0603 RC0603 100R PM5 R 3227 212211805661 RST SM 0603 RC0603 2K2 PM5 R 3228 212211805661 RST SM 0603 RC0603 2K2 PM5 R 3229 212211805678 RST SM 0603 RC0603 47K PM5 R 3230 212211805674 RST SM 0603 RC0603 22K PM5 R 3231 212211805635 RST SM 0603 RC0603 10R PM5 R 3232 212211805639 RST SM 0603 RC0603 47R PM5 R 3233 232273467509 RST SM 0805 RC12H 75R PM1 R 3234 212211805635 RST SM 0603 RC0603 10R PM5 R 3235 232273467509 RST SM 0805 RC12H 75R PM1 R 3236 212211805639 RST SM 0603 RC0603 47R PM5 R 3237 232273467509 RST SM 0805 RC12H 75R PM1 R 3238 212211805665 RST SM 0603 RC0603 4K7 PM5 R 3239 212211805669 RST SM 0603 RC0603 10K PM5 R 3241 212211805669 RST SM 0603 RC0603 10K PM5 R 3242 212211805656 RST SM 0603 RC0603 1K PM5 R 3243 212211805631 RST SM 0603 JUMP. MAX 0R05 R 3244 212211805631 RST SM 0603 JUMP. MAX 0R05 R 3245 212211805631 RST SM 0603 JUMP. MAX 0R05 R 3302 212211805669 RST SM 0603 RC0603 10K PM5 R 3303 212211805669 RST SM 0603 RC0603 10K PM5 R 3304 212211805669 RST SM 0603 RC0603 10K PM5 R 3305 212211805669 RST SM 0603 RC0603 10K PM5 R 3306 212211805665 RST SM 0603 RC0603 4K7 PM5 R 3307 212211805665 RST SM 0603 RC0603 4K7 PM5 R 3308 212211805643 RST SM 0603 RC0603 100R PM5 R 3309 212211805643 RST SM 0603 RC0603 100R PM5 R 3311 212211805669 RST SM 0603 RC0603 10K PM5 R 3312 212211805669 RST SM 0603 RC0603 10K PM5 R 3314 212211805669 RST SM 0603 RC0603 10K PM5 R 3319 212211805669 RST SM 0603 RC0603 10K PM5 R 3320 232270462009 RST SM 0603 RC22H 20R PM1 R 3321 212211805689 RST SM 0603 RC0603 1M PM5 R 3322 212211805631 RST SM 0603 JUMP. MAX 0R05 R 3325 212211805665 RST SM 0603 RC0603 4K7 PM5 R 3326 212211805665 RST SM 0603 RC0603 4K7 PM5 R 3327 212211805643 RST SM 0603 RC0603 100R PM5 R 3328 212211805643 RST SM 0603 RC0603 100R PM5 R 3329 212211805643 RST SM 0603 RC0603 100R PM5 R 3330 212211805643 RST SM 0603 RC0603 100R PM5 R 3331 212211805631 RST SM 0603 JUMP. MAX 0R05 R 3332 212211805643 RST SM 0603 RC0603 100R PM5 R 3333 212211805631 RST SM 0603 JUMP. MAX 0R05 R 3334 212211805643 RST SM 0603 RC0603 100R PM5 R 3335 212211805643 RST SM 0603 RC0603 100R PM5 R 3336 212211805643 RST SM 0603 RC0603 100R PM5 R 3337 212211805643 RST SM 0603 RC0603 100R PM5 R 3338 212211805643 RST SM 0603 RC0603 100R PM5 R 3339 212211805643 RST SM 0603 RC0603 100R PM5 R 3340 212211805643 RST SM 0603 RC0603 100R PM5 R 3341 212211805669 RST SM 0603 RC0603 10K PM5 R 3342 212211805643 RST SM 0603 RC0603 100R PM5 R 3343 212211805643 RST SM 0603 RC0603 100R PM5 R 3344 212211805643 RST SM 0603 RC0603 100R PM5 R 3345 212211805643 RST SM 0603 RC0603 100R PM5 R 3346 212211805643 RST SM 0603 RC0603 100R PM5 R Model:150C5BS/00 12NC:863900015512 Mechanical Parts 0030 313815757811 BEZEL ASSY 0031 313815413681 BEZEL 0032 313815408971 LENS-POWER 0040 313815757801 BACK COVER ASSY 0041 313815413671 BACK COVER 0042 313815136161 GROUNDING PLATE 0043 313815414381 BUTTON-CONTROL 0050 313815757821 DETACHABLE BASE 0096 313815408011 GUIDE DC OUT(BLK) 0100 313815135901 SHIELD INVERTER 0101 313815135112 MAIN FRAME 0103 313815413791 REAR COVER 0105 313815414391 HINGE COVER-L 0106 313815414401 HINGE COVER-R 0210 313800991811 PROCESS BOX Packing Materials 0450 313815637931 CARTON 0451 313815637921 CUSHION-R 0452 313815637911 CUSHION-L 0453 313815621481 P.E.BAG PCB Assy 1051 313815860191 SCALER ASSY 1051 313815860201 SCALER ASSY 1052 313819872542 LIPS(ADP-23AF A) 1053 313815860081 CONTROL ASSY Accessory 0602 313811707271 E-D.F.U. 1157 313818878471 MAINSCORD IEC 10A 1M83 DET GY 1158 313819871191 CORD SUB-D 15/1M8/SUB-D 15GY LCD Panel 1050 823827714731 TFT-LCD MOD LM150X08-A4 1050 932221135682 TFT-LCD CLAA150XP01 (CPT0) B Miscellanea 0291 313815564341 LABEL-CPU 0295 313815564351 LABEL-EEPROM(L) 0295 313815564361 LABEL-EEPROM(C) 0615 313811707321 HEX CODE OF F/W 4444 313810610405 CD ROM - SERVICE MANUAL 4444 313810610406 SERVICE MANUAL 8161 313819873091 CBLE -017 7/260/7-017 AWG28 8163 313819871221 CBLE-104 20/85/20-032 AWG28 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Spare Parts List-2 34 150C5 LCD Go to cover page PCB Assy 1053 313815860081 CONTROL ASSY 1901 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1902 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1903 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1904 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1905 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1906 243812900043 SWI TACT H=4.3 BK 100G SKHH B 1907 243812900043 SWI TACT H=4.3 BK 100G SKHH B 3902 212211805678 RST SM 0603 RC0603 47K PM5 R 3903 212211805669 RST SM 0603 RC0603 10K PM5 R 3904 212211805656 RST SM 0603 RC0603 1K PM5 R 3905 212211805678 RST SM 0603 RC0603 47K PM5 R 3906 212211805669 RST SM 0603 RC0603 10K PM5 R 3907 212211805656 RST SM 0603 RC0603 1K PM5 R 6901 932219981682 LED VS L-3WYGW-8.03* (KIEL) B 3347 212211805643 RST SM 0603 RC0603 100R PM5 R 3348 212211805643 RST SM 0603 RC0603 100R PM5 R 3349 212211805643 RST SM 0603 RC0603 100R PM5 R 3350 212211805669 RST SM 0603 RC0603 10K PM5 R 3351 212211805669 RST SM 0603 RC0603 10K PM5 R 3352 212211805669 RST SM 0603 RC0603 10K PM5 R 3353 212211805669 RST SM 0603 RC0603 10K PM5 R 3401 212211805644 RST SM 0603 RC0603 120R PM5 R 3402 212211805644 RST SM 0603 RC0603 120R PM5 R 3403 212211805644 RST SM 0603 RC0603 120R PM5 R 3404 212211805643 RST SM 0603 RC0603 100R PM5 R 3405 212211805643 RST SM 0603 RC0603 100R PM5 R 3408 212211805669 RST SM 0603 RC0603 10K PM5 R 3409 212211805639 RST SM 0603 RC0603 47R PM5 R 3410 212211805689 RST SM 0603 RC0603 1M PM5 R 3501 212211805643 RST SM 0603 RC0603 100R PM5 R 3502 212211805643 RST SM 0603 RC0603 100R PM5 R 3504 212211805643 RST SM 0603 RC0603 100R PM5 R 3505 212211805643 RST SM 0603 RC0603 100R PM5 R 3506 212211805669 RST SM 0603 RC0603 10K PM5 R 3507 212211805669 RST SM 0603 RC0603 10K PM5 R 3508 212211805647 RST SM 0603 RC0603 220R PM5 R 3509 212211805647 RST SM 0603 RC0603 220R PM5 R 3510 212211805656 RST SM 0603 RC0603 1K PM5 R 3512 212211805678 RST SM 0603 RC0603 47K PM5 R 3527 212211805669 RST SM 0603 RC0603 10K PM5 R 3528 212211805669 RST SM 0603 RC0603 10K PM5 R 3532 212211805669 RST SM 0603 RC0603 10K PM5 R 3533 212211805669 RST SM 0603 RC0603 10K PM5 R 3537 212211805678 RST SM 0603 RC0603 47K PM5 R 5202 313816874261 TI321611G800-SMD 5302 313816874261 TI321611G800-SMD 5440 313816874261 TI321611G800-SMD 5441 313816874261 TI321611G800-SMD 5444 313816874261 TI321611G800-SMD 5445 313816874261 TI321611G800-SMD 5446 313816874261 TI321611G800-SMD 5449 313816874261 TI321611G800-SMD 5501 313816874261 TI321611G800-SMD 5503 313816874261 TI321611G800-SMD 5504 242254944196 IND FXD 0805 EMI 100MHZ 120R R 5505 242254944196 IND FXD 0805 EMI 100MHZ 120R R 5506 242254944196 IND FXD 0805 EMI 100MHZ 120R R 6220 932217973668 DIO REC SM BAT42W (PAJI) R 6221 933913910115 DIO SIG SM BAS32L (PHSE) R 7202 932214526668 IC SM M24C02-WMN6 (ST00) R 7301 932220582682 IC SM NT68F633L (NOVA) L 7302 932214725682 IC M24C16-WBN6 (ST00) L 7442 932220099685 IC SM LD1117AS18 (ST00) R 7443 932220859671 IC SM GMZAN3L-AD (GEMI) Y 7501 932200429685 TRA SIG SM BC857C (ONSE) R 7502 932200429685 TRA SIG SM BC857C (ONSE) R 7505 932209265685 TRA SIG SM MUN2211J (ONSE) R 7506 932216638668 FET POW SM SI5441DC (VISH) R ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Go to cover page 150C5 LCD 35 Recommended Parts List Model:150C5BS/00 12NC:863900015512 0030 313815757811 BEZEL ASSY 0031 313815413681 BEZEL 0032 313815408971 LENS-POWER 0040 313815757801 BACK COVER ASSY 0050 313815757821 DETACHABLE BASE 0096 313815408011 GUIDE DC OUT(BLK) 0100 313815135901 SHIELD INVERTER 0101 313815135112 MAIN FRAME 0103 313815413791 REAR COVER 0105 313815414391 HINGE COVER-L 0106 313815414401 HINGE COVER-R 0210 313800991811 PROCESS BOX 0291 313815564341 LABEL-CPU 0295 313815564351 LABEL-EEPROM(L) 0295 313815564361 LABEL-EEPROM(C) 0450 313815637931 CARTON 0451 313815637921 CUSHION-R 0452 313815637911 CUSHION-L 0453 313815621481 P.E.BAG 0602 313811707271 E-D.F.U. 0615 313811707321 HEX CODE OF F/W 1157 313818878471 MAINSCORD IEC 10A 1M83 DET GY 1158 313819871191 CORD SUB-D 15/1M8/SUB-D 15GY 6220 932217973668 DIO REC SM BAT42W (PAJI) R 6221 933913910115 DIO SIG SM BAS32L (PHSE) R 6901 932219981682 LED VS L-3WYGW-8.03* (KIEL) B 7202 932214526668 IC SM M24C02-WMN6 (ST00) R 7301 932220582682 IC SM NT68F633L (NOVA) L 7302 932214725682 IC M24C16-WBN6 (ST00) L 7442 932220099685 IC SM LD1117AS18 (ST00) R 7443 932220859671 IC SM GMZAN3L-AD (GEMI) Y 7501 932200429685 TRA SIG SM BC857C (ONSE) R 7505 932209265685 TRA SIG SM MUN2211J (ONSE) R 7506 932216638668 FET POW SM SI5441DC (VISH) R 8161 313819873091 CBLE -017 7/260/7-017 AWG28 8163 313819871221 CBLE-104 20/85/20-032 AWG28 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Failure Mode Of Panel Failure description Phenomenon Vertical block defect Vertical dim lines Vertical lines defect (Always bright or dark) Horizontal block defect Horizontal dim lines Horizontal lines defect (Always bright or dark) Has bright or dark pixel Polarizer has bubbles Polarizer has bubbles Foreign material inside polarizer. It shows liner or dot shape. Concentric circle formed Bottom back light of LCD is brighter than normal Back light un-uniformity Backlight has foreign material. Black or white color, liner or circular type Quick reference for failure mode of LCD panel this page presents problems that could be made by LCD panel. It is not necessary to repair circuit board. Simply follow the mechanical instruction on this manual to eliminate failure by replace LCD panel. 36 150C5 LCD Go to cover page ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 150C5 LCD 37 Go to cover page 8639 000 15512 2004-05-27 2004-05-27 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 590 General Product Specification PHILIPS - 150C5 GENERAL PRODUCT SPECIFICATION . ANALOG SIGNAL INPUT . AUTO PICTURE ADJUSTMENT . 14 FACTORY PRESET MODES AND 15 USER MODES WHICH CAN BE RECOVERED TO PRESET MODES . USER FRIENDLY OSD DISPLAY FOR MODE IDENTIFICATION /ADJUSTMENT . DDC2B COMMUNICATION CAPABILITY . MAX. RESOLUTION 1024 x 768 NON-INTERLACED AT 75 HZ . 15 COLOR TFT LCD FLAT PANEL . EASY TILT & DETACHABLE BASE . FULL RANGE POWER SUPPLY 90 -264 VAC . CE ENVIRONMENTAL POLICY . ANTI-GLARE TO REDUCE LIGHT REFLECTION . POWER MANAGEMENT CAPABILITY . TCO 99, TCO 2003 . PROTECTIVE COVER (Option) 1 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 General Product Specification 150C5 LCD 38 Go to cover page 150C5 LCD 2 CONTENTS 1.0 Foreword 2.0 Product profile 2.1 LCD 2.2 Scanning frequencies 2.3 Video dot rate 2.4 Power input 2.5 Power consumption 2.6 Dimensions 2.7 Weight 2.8 Functions 2.9 Ambient temperature 2.10 Safety and EMI requirements 3.0 Electrical characteristics 3.1 Interface signals 3.1.1 Video 3.1.2 Interface cable 3.1.3 Software control functions via OSD/control 3.2 OSD function control 3.3 Timing requirement 3.3.1 Mode storing capacity 3.3.2 Factory preset timings 3.3.3 Horizontal scanning 3.3.4 Vertical scanning 3.4 Power input connection 3.5 Power management 3.6 Display identification 4.0 Visual characteristics 4.1 Test conditions 4.2 Resolution 4.3 Brightness 4.4 Image size 4.4.1 Actual display size 4.5 Brightness uniformity 4.6 White color adjustment 4.7 Monitors pixel defect ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 150C5 LCD 39 Go to cover page 8639 000 15512 2004-05-27 2004-05-27 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 590 General Product Specification 3 5.0 Mechanical characteristics 5.1 Controls 5.2 Unit dimension / weight 5.3 Tilt and swivel base 5.4 Transportation packages 5.4.1 Shipping dimension / weight 5.4.2 Block unit / palletization 6.0 Environmental characteristics 6.1 Susceptibility of display to external environment 6.2 Transportation tests 6.3 Display disturbances from external environment 6.4 Display disturbances to external environment 6.4.1 EMI 7.0 Reliability 7.1 Mean time between failures 8.0 Quality assurance requirements 8.1 Acceptance test 9.0 Serviceability ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 150C5 LCD 40 Go to cover page 150C5 LCD 4 1.0 FOREWORD This specification describes a 15 XGA multi-scan color TFT LCD monitor with maximum resolution up to 1024x768/75Hz non-interlaced. 2.0 PRODUCT PROFILE HUDSON 15 TFT LCD flat panel monitor Analog interface Integrated tilt and Detachable base 2.1 LCD Type NR. : LG panel LM150*08 Outline Dimensions : 326.5(H) * 253.5(V) *11.2(D)mm Pitch (mm) : 0.297 x 0.297 mm Color pixel arrangement : RGB stripe arrangement Display surface : Anti-glare with hard coating(3H) Number of color : 6 bits with FRC, 16M colors Backlight : CCFL edge-light system Active area (W x H) : 304.1x228.1mm(15.0 diagonal) Viewing angle (CR 10) : Vertical 100 degree, Horizontal 130 degree typical. Contrast ratio : 400 typical. Luminance of white : 250 Nits typical Type NR. : CPT panel CLAA150XP01 Dimensions : 326.5(H)*253.5(V)*11.0(D) mm Pitch ( mm ) : 0.297 x 0.297 mm Color pixel arrangement : RGB stripe arrangement Display surface : Anti-glare with hard coating(3H) Number of color : 6 bits with FRC, 16M colors Backlight : CCFL edge-light system Active area(W x H) : 304.1 x 228.1mm (15.0 Diagonal) Viewing angle(CR 10) : Vertical 120 degree, Horizontal 140 degree typical. Contrast ratio : 500 typical. Luminance of white : 250 Nits typical General Product Specification ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 150C5 LCD 41 Go to cover page 8639 000 15512 2004-05-27 2004-05-27 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 590 General Product Specification 5 Type NR. : Hannstar panel HSD150MX17 Outline Dimensions : 326.5(H) * 253.5(V) *10.6(D)mm Pitch (mm) : 0.297 x 0.297 mm Color pixel arrangement : RGB stripe arrangement Display surface : Anti-glare with hard coating(3H) Number of color : 6 bits with FRC, 16M colors Backlight : CCFL edge-light system Active area (W x H) : 304.1x228.1mm(15.0 diagonal) Viewing angle (CR 10) : Vertical 100 degree, Horizontal 130 degree typical. Contrast ratio : 450 typical. Luminance of white : 250 Nits typical Type NR. : QDI panel QD15XL13 Dimensions : 326.5(H)*253.5(V)*10.8(D) mm Pitch ( mm ) : 0.297 x 0.297 mm Color pixel arrangement : RGB stripe arrangement Display surface : Anti-glare with hard coating(3H) Number of color : 6 bits with FRC, 16M colors Backlight : CCFL edge-light system Active area(W x H) : 304.1 x 228.1mm (15.0 Diagonal) Viewing angle(CR 10) : Vertical 100 degree, Horizontal 120 degree typical. Contrast ratio : 500 typical. Luminance of white : 250 Nits typical ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 150C5 LCD 42 Go to cover page 150C5 LCD 6 2.2 Scanning frequencies Hor.: 30 - 61KHz Ver.: 56 - 76 Hz 2.3 Video dot rate : 79 MHz 2.4 Power input : 90 - 264 Vac, 50/60 � 3 Hz 2.5 Power consumption : < 20 W, ( typ : 17W) : AC input power < 1W when DC switch is off. 2.6 Dimensions : 360W x 349H x 173.5D 2.7 Weight : 2.97kg(Net weight); 3.36kg (Gross weight) 2.8 Function: Signal input: Analog R/G/B separate inputs, H/V sync separated, Composite (H+V) TTL level, SOG sync 2.9 Ambient temperature: 5 - 40 �C 2.10 Safety and EMI requirements Safety requirement: CCIB/CCEE (China), CE (Europe), CSA (Canada), IEC60950 CB Report, NOMNYCE (Mexico), PSB (Singapore), SEMKO (Nordic), TUV (Germany), UL (USA) GOST (Russia), B-MARK (Poland), DEMKO (Nordic), FIMKO (Nordic), SISIR, CPA (Singapore), EZU (Czech) EMI requirement: BSMI (Taiwan), C-tick (Australia), CE (Europe), FCC (USA), IC (Canada), VCCI (Japan), CCC (China) Ergonomic Requirement: ISO13406-2, TUV/GS TCO99, MPRII (Sweden), Nutek (Sweden) Power management: EPA, Nutek, E2000. Environmental & Low Emission: MPRII, TCO99 , TCO 2003 3.0 Electrical characteristics Compatibility: PC2001, Windows 2000, Windows98/Me, Windows XP, NSTL General Product Specification ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 150C5 LCD 43 Go to cover page 8639 000 15512 2004-05-27 2004-05-27 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 590 General Product Specification 7 3.1 Interface signals 3.1.1 Video Input signal: Video, H-sync, V-sync Video: 0.7 Vp-p, input impedance, 75 ohm Sync. : Separate sync TTL level. Input impedance: 5k6 ohm Hor. Sync Positive/Negative Ver. Sync Positive/Negative 3.1.2 Interface Cable D-Sub Cable pin assignment: PIN No. SIGNAL 1 Red 2 Green/SOG 3 Blue 4 Sense (GND) 5 Test (GND) 6 Red GND 7 Green GND 8 Blue GND 9 +5V 10 Sync GND 11 Sense (GND) 12 Serial data (SDA) 13 H/H+V sync 14 V-sync 15 Data clock (SCL) ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 150C5 LCD 44 Go to cover page 150C5 LCD 8 3.2 OSD (On Screen Display) function Adjustable functions: MAIN CONTROLS LANGUAGE ADJUST POSITION BRIGHTNESS & CONTRAST VIDEO NOISE ADJUST COLOR OSD SETTINGS PRODUCT INFORMATION RESET TO FACTORY SETTINGS EXIT MAIN CONTROLS MOVE SELECTION THEN ok LANGUAGE: ENGLISH, ESPANOL, FRANCAIS, DEUTSCH, ITALIANO, S.CHINESE ADJUST POSITION: HORIZONTAL VERTICAL BRIGHTNESS & CONTRAST: Brightness and Contrast adjustment. VIDEO NOISE: Phase adjustment, Clock adjustment ADJUST COLOR: Original panel color, 9300K for general use, 6500k for image management, sRGB User red green blue adjustable OSD POSITION: OSD H-position, OSD V-position PRODUCT INFORMATION: show the product information RESET TO FACTORY SETTING: recall to Factory preset settings. General Product Specification ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 150C5 LCD 45 Go to cover page 8639 000 15512 2004-05-27 2004-05-27 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 590 General Product Specification 9 3.3 Timing requirement 3.3.1 Mode storing capacity (1) Factory preset modes : 14 (2) User modes : 15 3.3.2 Factory preset timings MODE NO. 1 2 3 4 RESOLUTION 640 x 350 720 x 400 640 x 480 640x480 Dot clock (MHz) 25.175 28.321 25.175 30.240 f h 31.469kHz 31.469kHz 31.469kHz 35.0kHz A ( us ) 31.78(800 dots) 31.78(900dots) 31.778 (800 dots) 28.571(864 dots) B ( us ) 3.813(96 dots) 3.813(108dots) 3.813 ( 96 dots) 2.116( 64 dots) C ( us ) 1.907(48 dots) 1.907(54dots) 1.907 ( 48 dots) 3.175( 96 dots) D ( us ) 25.42(640 dots) 25.42(720dots) 25.422 (640 dots) 21.164(640 dots) E ( us ) 0.636(16 dots) 0.636(18dots) 0.636 ( 16 dots) 2.116( 64 dots) f v 70Hz(70.09) 70Hz(70.087) 60Hz ( 59.940 ) 66.7 Hz( 66.667 ) O (ms ) 14.27(449 lines) 14.27(449 lines) 16.683 (525 lines ) 15.000(525 lines ) P ( ms ) 0.064(2 lines) 0.064(2 lines) 0.064 ( 2 lines ) 0.086( 3 lines ) Q (ms ) 1.907(60 lines) 1.112(35 lines) 1.049 ( 33 lines ) 1.114( 39 lines ) R ( ms ) 11.12(350 lines) 12.71(400 lines) 15.253 (480 lines ) 13.714(480 lines ) S ( ms ) 1.179(37 lines) 0.384(12 lines) 0.317 ( 10 lines) 0.086( 3 lines ) SYNC. H/V +/- -/+ - / - +/+ POLARITY Or -/- SEP . SYNC Y Y Y Y A : H-Total O : V-Total B : H- Sync width P : V- Sync width C : H- Back porch Q :.V- Back porch D : H- Video width R : V- Video width E : H- Front porch S :.V- Front porch ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 150C5 LCD 46 Go to cover page 150C5 LCD 10 MODE NO. 9 10 11 12 RESOLUTION 800 x 600 800 x 600 832 x 624 1024 x 768 Dot clock(MHz) 50.000 49.500 57.280 65.000 f h 48.077kHz 46.875kHz 49.722kHz 48.363kHz A ( us ) 20.80 (1040dots) 21.333 (1056dots) 20.11 (1152dots) 20.677(1344 dots) B ( us ) 2.400 (120 dots) 1.616 (80 dots) 1.117 (64 dots) 2.092(136 dots) C ( us ) 1.280 (64 dots) 3.232 (160 dots) 3.911 (224 dots) 2.462(160 dots) D ( us ) 16.00 (800 dots) 16.162 (800 dots) 14.52 (832 dots) 15.754(1024 dots) E ( us ) 1.120 (56 dots) 0.323 (16 dots) 0.559 (32 dots) 0.369(24 dots) f v 72Hz (72.188) 75Hz (75.000) 75Hz (74.546) 60.004Hz O (ms ) 13.85 (666 lines) 13.333 (625lines) 13.41 (667 lines) 16.666(806 lines) P ( ms ) 0.125 (6 lines) 0.064 (3 lines) 0.060 (3 lines) 0.124(6 lines) Q (ms ) 0.478 (23 lines) 0.448 (21 lines) 0.784 (39 lines) 0.600(29 lines) R ( ms ) 12.48 (600 lines) 12.80 (600lines) 12.55 (624 lines) 15.880(768 lines) S ( ms ) 0.770 (37 line ) 0.021 (1 line) 0.020 (1 lines) 0.062(3 lines) SYNC. H/V + / + + / + - / - -/- POLARITY SEP . SYNC Y Y Y Y MODE NO. 5 6 7 8 RESOLUTION 640 x 480 640 x 480 800 x 600 800 x 600 Dot clock(MHz) 31.500 31.500 36.000 40.000 f h 37.861kHz 37.500kHz 35.156kHz 37.879kHz A ( us ) 26.413(832 dots) 26.667 (840 dots) 28.44 (1024 dots) 26.40 (1056 dots) B ( us ) 1.270(40 dots) 2.032 ( 64 dots) 2.000 ( 72 dots) 3.200 ( 128 dots) C ( us ) 4.064(128 dots) 3.810 ( 120 dots) 3.556 ( 128 dots) 2.200 ( 88 dots) D ( us ) 20.317(640 dots) 20.317 ( 640 dots) 22.22 ( 800 dots) 20.00 ( 800 dots) E ( us ) 0.762(24 dots) 0.508 ( 16 dots) 0.667 ( 24 dots) 1.000 ( 40 dots) f v 72.809Hz 75Hz (75 ) 56Hz (56.25 ) 60Hz ( 60.316) O (ms ) 13.735(520 lines) 13.333 (500 lines) 17.78 (625 lines) 16.58 (628 lines) P ( ms ) 0.079(3 lines) 0.080 ( 3 lines) 0.057 ( 2 lines) 0.106 ( 4 lines) Q (ms ) 0.739(28 lines) 0.427 ( 16 lines) 0.626 ( 22 lines) 0.607 ( 23 lines) R ( ms ) 12.678(480 lines) 12.80 (480 lines) 17.07 (600 lines) 15.84 (600 lines) S ( ms ) 0.237(9 lines) 0.027 ( 1 line ) 0.028 ( 1 line ) 0.026 ( 1 line ) SYNC. H/V -/- - / - + / + + / + POLARITY SEP . SYNC Y Y Y Y General Product Specification ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 150C5 LCD 47 Go to cover page 8639 000 15512 2004-05-27 2004-05-27 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 590 General Product Specification 11 MODE NO. 13 14 RESOLUTION 1024 x 768 1024 x 768 Dot clock(MHz) 75.000 78.750 f h 56.476kHz 60.023kHz A ( us ) 17.707(1328 dots) 16.66 (1312dots) B ( us ) 1.813(136 dots) 1.219 ( 96 dots) C ( us ) 1.920(144 dots) 2.235 ( 176 dots) D ( us ) 13.653(1024 dots) 13.003 (1024dots) E ( us ) 0.320(24 dots) 0.203 ( 16 dots) f v 70.069Hz 75Hz ( 75.029) O (ms ) 14.272(806 lines) 13.328 (800 lines) P ( ms ) 0.106(6 lines) 0.050 ( 3 lines) Q (ms ) 0.513(29 lines) 0.466 ( 28 lines) R ( ms ) 13.599(768 lines) 12.795 (768 lines) S ( ms ) 0.053(3 lines) 0.017 ( 1 line ) SYNC. H/V -/- +/+ POLARITY SEP . SYNC Y Y ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 150C5 LCD 38 Go to cover page 150C5 LCD 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 150C5 LCD 48 Go to cover page 150C5 LCD 12 3.3.3 Horizontal scanning Sync polarity : Positive or Negative Scanning frequency : 30 - 61 KHz 3.3.4 Vertical scanning Sync polarity : Positive or Negative Scanning frequency : 56 - 76 Hz 3.4 Power input connection Power cord length : 1.8 M Power cord type : L-Style type (Right Facing) 3 leads power cord with protective earth plug. 3.5 Power management The power consumption and the status indication of the set with power management function are as follows, STATUS H-sync V-sync Video Power LED/Remark On On On Active <20 W Green / Without Audio Stand-by Off On Blanked <1W Amber Suspend On Off Blanked <1W Amber Off Off Off Blanked <1W Amber DC Power off N / A <1W LED Off 3.6 Display identification In accordance with DDC requirement, use DDC2B and EDID 3.0 structure 1.3. General Product Specification ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 150C5 LCD 49 Go to cover page 8639 000 15512 2004-05-27 2004-05-27 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 590 General Product Specification 13 4.0 Visual characteristics 4.1 Test conditions Unless otherwise specified, this specification is defined under the following conditions. (1) Input signal : As defined in 3.3, 1024 x 768/75Hz mode (60.023 KHz) Signal sources must have 75 ohms output impedance. (2) Luminance setting: Set contrast to 50 % and brightness to100 % with full white pattern. (3) Warm-up: more than 30 minutes after power on with signal supplied. (4) Ambient light: 400 -- 600 lux. (5) Ambient temperature: 25 +/- 5 �C 4.2 Resolution Factory preset modes (14 modes) Mode Resolution H. freq. / V. freq Standard 1. 640 x 350 31.469Khz/70.087Hz VGA 2. 720 x 400 31.469Khz/70.087Hz VGA 3. 640 x 480 31.469Khz/59.940Hz VGA 4. 640 x 480 35.000Khz/66.667Hz Macintosh 5. 640 x 480 37.861Khz/72.809Hz VESA 6. 640 x 480 37.500Khz/75.000Hz VESA 7. 800 x 600 35.156Khz/56.250Hz VESA 8. 800 x 600 37.879Khz/60.317Hz VESA 9. 800 x 600 48.077Khz/72.188Hz VESA 10. 800 x 600 46.875Khz/75.000Hz VESA 11. 832 x 624 49.700Khz/75.000Hz Macintosh 12. 1024 x 768 48.363Khz/60.004Hz VESA 13. 1024 x 768 56.476Khz/70.069Hz VESA 14. 1024 x 768 60.023Khz/75.029Hz VESA ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 150C5 LCD 50 Go to cover page 150C5 LCD 14 4.3 Brightness: 250 nits (typ.) at maximum contrast and maximum brightness (At center of the screen, Fig. 1) 4.4 Image size 4.4.1 Actual display size 304.1 x 228.1mm 4.5 Brightness uniformity Set contrast at 50% and turn the brightness to get above 200 nits. at center of the screen Apply the Fig 1, it should comply with the following formula: Minimum (B1, B2,.., B5) > 75 % Maximum (B1, B2,.., B5) 4.6 White color adjustment There are two factory preset white color 9300K and 6500K. Apply full white pattern, with brightness in 100 % position and the contrast control at 50 %. The 1931 CIE Chromaticity (color triangle) diagram (x, y) coordinate for the screen center should be: 9300K CIE coordinates X = 0.283 +/- 0.020 Y = 0.297 +/- 0.020 6500K CIE coordinates X = 0.313 +/- 0.020 Y = 0.329 +/- 0.020 4.7 Monitors pixel defect Refer to Philips Flat Panel Monitors Pixel Defect Policy General Product Specification ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 150C5 LCD 51 Go to cover page 8639 000 15512 2004-05-27 2004-05-27 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 590 General Product Specification 15 5.0 Mechanical characteristics 5.1 Controls Right side: - AC power switch -OSD function key Rear: -Video signal cable -Power cord socket 5.2 Unit dimension / Weight Set dimension (incl. pedestal): 360W x 349H x 173.5D Net weight: 2.97 Kg 5.3 Tilt and foldable base Tilt angle: -5 � to +25 � Foldable angle: 90� 5.4 Transportation packages 5.4.1 Shipping dimension/Weight Carton dimension: 389W x 387H x 115D Gross weight: 3.36Kg 5.4.2 Block unit / Palletization layers/block sets/laye sets/block unit 6 18 108 5 18 90 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 150C5 LCD 52 Go to cover page 150C5 LCD 16 6.0 Environmental characteristics The following sections define the interference and susceptibility condition limits that might occur between external environment and the display device. 6.1 Susceptibility of display to external environment Operating - Temperature : 5 to 40 degree C - Humidity : 20% ~ 80% - Altitude : 0-12,000 feet - Air pressure : 600-1100 mBAR Storage - Temperature : -20 to 60 degree C - Humidity : 5% ~ 95% ( < 40 ) - Altitude : 0-30,000 feet - Air pressure : 300-1100 mBAR Note: recommend at 5 to 35�C, Humidity less than 60 % 6.2 Transportation tests Standard Philips UAN-D1400 NSTA Height 67/25 cm 76.0 cm 1 face(btm-67cm) 1 corner Drop Sequence 5 faces(others-25cm) 3 edge Test Btm->Btm->Btm->L->F->Rt->Rr->Top (Room temp) 6 face Electrical function ok Test Mechanical function ok Result No serious damage on set appearance (Room temp 20 C~23 C, humidity 40%~65%) (1) PACKAGING Sequence 7 Hz, 1.05 G, 30 min. for transport direction only (2) OPERATING Vibration 7 Hz, 10.6 mm, 30 min. for transport direction only Test Test Electrical function ok Result Mechanical function ok No serious damage on set appearance For design evaluation only Operating 10 G, 11 msec, 1000 cycles Bump Temperature : 23 C Test Humidity : 60 % Air pressure : 100 kpa (According to DSD draft standard UAN-D636) O O O General Product Specification ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 150C5 LCD 53 Go to cover page 8639 000 15512 2004-05-27 2004-05-27 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 590 General Product Specification 17 B. regions of China & India Standard Philips UAN-D1400 NSTA Height a.80\b.60\c.70 cm 76.0 cm a.Face: Btm->F->L->Rr->Rt(80cm) 1 corner Drop Sequence b.Edge: F-Btm,Rt-Btm,F-Rt Corner:Rt-Btm-F(60cm) 3 edge Test c.Btm->Btm(70cm) (Room temp) 6 face Electrical function ok Test Mechanical function ok Result No serious damage on set appearance (Room temp 20 C~23 C, humidity 40%~65%) (1) Sequence 10-30-10 Hz, 0.75mm,5cycles, 15 min. for X,Y,Z (2) Vibration 30-55-30 Hz, 0.25mm, 5cycles ,9 min. for X,Y,Z Test Test Electrical function ok Result Mechanical function ok No serious damage on set appearance For design evaluation only Operating 100m/s^2, 16 msec, 1000 pulses Bump Bump frequency: 60~80times/min Test Source:GB9384-97 6.3 Display disturbances from external environment According to IEC 801-2 for ESD disturbances 6.4 Display disturbances to external environment 6.4.1 EMI EMI: FCC, IC, VCCI, CE, C-Tick, MPRII, BSMI, CCC (China) 7.0 Reliability 7.1 Mean time between failures (MTBF) System MTBF (Excluding the LCD panel and CCFL): 50,000 hrs CCFL MTBF: 30,000 hrs 8.0 Quality assurance requirements 8.1 Acceptance test O O ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 150C5 LCD 54 Go to cover page 150C5 LCD 18 According to MIL-STD-105D Control II level AQL : 0.65 (major) 1.5 (minor) (Please also refer to annual quality agreement) 9.0 Serviceability The serviceability of this monitor should fulfill the requirements which are prescribed in UAW-0346 and must be checked with the check list UAT-0361. General Product Specification ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 150C5 LCD 55 Go to cover page 8639 000 15512 2004-05-27 2004-05-27 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 590 General Product Specification 19 Fig 1: Brightness and Uniformity 1 2 3 4 5 1/4 1/4 Average: 5 points average ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 150C5 LCD 56 Go to cover page 150C5 LCD 20 D VIDEO C E SEPARATE SYNC. HORIZONTAL B A R VIDEO Q S P O D VIDEO C E B A VERTICAL HORIZONTAL COMPOSITE SYNC. FIG-2 TIMING CHART -1 General Product Specification ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 150C5 LCD 57 Go to cover page 8639 000 15512 2004-05-27 2004-05-27 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 590 General Product Specification 21 VIDEO VERTICAL FIG-3 TIMING CHART -2 O P Q R S ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 2004-05-27 2004-05-27 590 22 Jerry Chen/ Peter V 15" TFT XGA LCD CMTR TYPE: 150C5BS/00 BRAND: PHILIPS 8639 000 15512 150C5 LCD 58 Go to cover page 150C5 LCD 22 Philips Flat Panel Monitors Pixel Defect Policy Philips Flat Panel Monitors Pixel Defect Policy BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL 150C5 170C5 170X5 190X5 1 lit sub pixel 4 or fewer 4 or fewer 0 2 or fewer 2 adjacent lit sub pixels 2 or fewer 2 or fewer 0 1 or fewer 3 adjacent lit sub pixels (one white pixel) 0 0 0 0 Distance between two bright dot defects* 15 mm or more 15 mm or more 0 15 mm or more Total bright dot defects of all types 4 or fewer 4 or fewer 0 2 or fewer BLACK DOT DEFECTS ACCEPTABLE LEVEL MODEL 150C5 170C5 170X5 190X5 1 dark sub pixel 4 or fewer 4 or fewer 4 or fewer 4 or fewer 2 adjacent dark sub pixels 2 or fewer 2 or fewer 1 or fewer 2 or fewer 3 adjacent dark sub pixels 0 0 0 0 Distance between two black dot defects* 15 mm or more 15 mm or more 15 mm or more 5 mm or more Total black dot defects of all types 4 or fewer 4 or fewer 4 or fewer 4 or fewer TOTAL DOT DEFECTS ACCEPTABLE LEVEL MODEL 150C5 170C5 170X5 190X5 Total bright or black dot defects of all types 5 or fewer 5 or fewer 4 or fewer 5 or fewer General Product Specification ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Go to cover page 150C5 LCD 59 DDC Instructions General DDC Data Re-programming Analog DDC IC, & EEPROM Additional information In case the DDC data memory IC or main EEPROM which storage all factory settings were replaced due to a defect, the serial numbers have to be re-programmed" ". It is advised to re-soldered DDC IC and main EEPROM from the old board onto the new board if circuit board have been replaced, in this case the DDC data does not need to be re-programmed. Additional information about DDC (Display Data Channel) may be obtained from Video Electronics Standards Association (VESA). Extended Display Identification Data(EDID) information may be also obtained from VESA. 1. An i486 (or above) personal computer or compatible. 2. Microsoft operation system Windows 95/98 . Y o Install the EDID_PORT_Tool under Win2000/XP . As Fig. 1 . A. Cody the "UserPort.sys" to C:\WINNT\system32\drivers(win2000) C:\WINDOWS\system32\drivers(winXP) B. Running " io.exe" everytime, Before you start to programming edid data . 4. A/D Alignment kits (12NC: 3138 106 10079)(as Fig. 2): inclusion : a. Alignment box x1 b. Printer cable x1 c. (D-Sub) to (D-Sub) cable x1 D. (D-Sub) to (DVI) cable x1 Note: The EDID46.EXE is a windows-based program, which cannot be run in MS-DOS. System and equipment requirements ou have t 3. EDID46.EXE program Fig. 1 Fig. 1 PIN No. SIGNAL 1 Red video input 2 Green video input / sync on green 3 Blue video input 4 GND 5 GND -Cable detect 6 Red video GND 7 Green video GND 8 Blue video GND 9 DDC +3.3V or +5V 10 Logic GND 11 GND 12 Serial data line (SDA) 13 H-sync / H+V 14 V-sync 15 Data clock line (SCL) Pin assignment 15-pin D-Sub Connector Configuration and procedure There is no Hardware DDC (DDC IC) anymore. Main EEPROM stores all factory settings and DDC data (EDID code) which is also called Software DDC. The following section describes the connection and procedure for Software DDC application. The main EEPROM can be re- programmed by enabling '' factory memory data write'' function on the DDC program (EDID46.EXE). Initialize alignment box In order to avoid that monitor entering power saving mode due to sync will cut off by alignment box, it is necessary to initialize alignment box before running programming software (EDID46.EXE). Following steps show you the procedures and connection. Step 1: Supply 8-12V DC power source to the Alignment box by plugging a DC power cord . Step 2: Connecting printer cable and D-Sub cable of monitor as Fig. 3 Fig. 3 PC 1=Power connector 2=D-SUB connector ~~ To printer port (LTP1) DC Power 8-12 V Printer Port To Monitor To PC 1 2 -----> -----> Fig. 2 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 DDC Instructions 60 150C5 LCD Go to cover page Go to cover page Step 3: Installation of EDID46.EXE Method 1: Start on DDC program Start Microsoft Windows. 1. The Program"EDID46.EXE" in service manual cd-rom be copyed to C:\ . 2. Click , choose Run at start menu of Windows as shown In Fig. 4. Fig. 4 4. Click button. The main menu appears (as shown in Fig. 6). OK This is for initialize alignment box. Fig. 6 Fig. 5 Fig. 7 Note 1: If the connection is improper, you will see the following error message (as shown in Fig. 7) before entering the main menu. Meanwhile, the (read EDID) function will be disable. At this time, please make sure all cables are connected correctly and fixedly, and the procedure has been performed properly. 3. At the submenu, type the letter of your computer's hard disk drive followed by :EDID46 (for example, C:\EDID46, as shown in Fig. 5). Note 2: During the loading, EDID46 will verify the EDID data which just loaded from monitor before proceed any further function, once the data structure of EDID can not be recognized, the following error message will appear on the screen as below. Please confirm following steps to avoid this message. 1. The data structure of EDID was incorrect. 2. DDC IC that you are trying to load data is empty. 3. Wrong communication channel has set at configuration setup windows. 4. Cables loosed or poor contact of connection. 1 Fig. 8 Re-programming EEPROM(Software DDC IC) Step 1: After initialize alignment box, connecting all cables and box as shown in Fig. 9 Fig. 10 Step 2: Read DDC data from monitor 1. Click icon as shown in Fig. 10 from the tool bar to bring up the Channels "Configuration Setup" windows as shown in Fig. 11. Fig. 9 1=Power connector 2=D-SUB connector ~~ PC To printer port (LTP1) DC Power 8-12V Printer Port To Monitor To PC 1 2 -----> -----> To PC Video port (D-sub) Click this button =====> ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Go to cover page 150C5 LCD 61 DDC Instructions Step 3: Modify DDC data (verify EDID version, week, year) Click (new function) icon from the tool bar, bring up Step 1 of 9 as shown in Fig. 13 . EDID46 DDC application provides the function selection and text change (select & fill out) from Step 1 to Step 9. Step 4: Modify DDC data (Monitor Serial No.) Next 1. Click , bring up Fig. 14. 2. Click , bring up Fig. 15. Next 3. Click OK button to confirm your selection. 4. Click icon (Read EDID function) to read DDC EDID data from monitor. The EDID codes will display on screen as shown in Fig. 12. Fig. 14 Fig. 15 2. Select the DDC2Bi as the communication channel. As shown in Fig. 11. Fig. 11 Fig. 12 Fig. 13 Fig. 16 3. Click , bring up Fig. 16. Next Select and fill out, If necessary. Don't close this screen. ---> ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 62 150C5 LCD Go to cover page DDC Instructions Fig. 20 Fig. 17 Fig. 18 7. Click , bring up Fig. 20. Next 4. Click , bring up Fig. 17. Next 5. Click , bring up Fig. 18. Next Fig. 21 6. Click , bring up Fig. 19. Next In this step, please confirm the Descriptor Data Type is Monitor Range Limits, and all the items are same as below. Fig. 19 8. Click , bring up Fig. 21. Next - Click Finish to exit the Step window. - Serial number can be filled up at this moment (for example, TY 23456). NOTE: You must modify the Serial NO. In step 9, otherwise the Serial NO. In OSD Couldn't be modified correctly. Step 5: Write DDC data 1. Configuration should be as Fig. 22. And press OK. Fig. 22 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Go to cover page 150C5 LCD 63 DDC Instructions 2. Click . Save Step 7: Exit DDC program Pull down the File menu and select Exit as shown in Fig. 26. 4. Confirm Serial Number in User Mode 1) Press the button to turn off the monitor. Press the button again to turn on the monitor. 2) Press the" OK " button to bring up the OSD main menu. 3) Press the button to "PRODUCT INFORMATION", press the button to confirm your selection. 4) Confirm the Serial Number ''TY 23456'' is updated as shown in Fig. 25. Step 6: Save DDC data Sometimes, you may need to save DDC data as a text file for using in other IC chip. To save DDC data, follow the steps below: 1. Click (Save) icon (or click "file"-> "save as") from the tool bar and give a file name as shown in Fig. 26. The file type is EDID46 file (*.ddc) which can be open in WordPad. By using WordPad, the texts of DDC data & table (128 bytes, hex code) can be modified. If DDC TEXTS & HEX Table ar completely correct, it can be saved as .ddc flie to re-load it into DDC IC for DDC Data application. Fig. 26 2. Access Factory Mode 2). [Push "AUTO " & " OK " buttons at the same time and hold it ] + [Press power " " button untill comes out "Windows screen"] => then release all button, then press OK button, wait until the OSD menu with Characters HUDSON 150C5 V200 20040705 (below OSD menu) come on the Screen of the monitor (see Fig. 23). 1). Turn off monitor. 4). Click (Write EDID) icon from the tool bar to write DDC data. Bring up " ready" a progressing bar on the left, then bring up the Window as shown in Fig.24, click the " enter" button to finish Writing Fig.24 ENTER Step 8: Turn off the monitor, exit the factory mode. Fig. 23 Factory Mode Indicator =====> 3) Push OK to exit OSD menu. Fig. 26 PRODUCT INFORMATION SERIAL NO. : TY 23456 RESOLUTION : 1024 X 768 @ 74HZ VIDEO INPUT : ANALOG OK BACK TO MAIN CONTROLS Fig. 25 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 64 150C5 LCD Go to cover page DDC Data THE DISPLAY DATA CHANNEL (DDC) 2B CONTENT INCLUDING: (150C5 FOR LG/CPT/QDI/Hannstar PANEL ANALOG) ********************************************************************* EDID log file ********************************************************************* Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : C00A( ID Serial Number : 123456 (DEC.) Week of Manufacture : 17 Year of Manufacture : 2004 EDID Version, Revision Version : 1 Revision : 3 Basic Display Parameters/Features Video Input Definition : Analog Video Input 0.700V/0.300V (1.00 Vpp) Without Blank-to-Black Setup Separate Sync Composite Sync Sync on Green No Serration required Maximum H Image Size : 30 Maximum V Image Size : 23 Display Transfer Characteristic: 2.2 (gamma) Feature Support (DPMS) : Standby Suspend Active Off Display Type : RGB color display Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.636 Red Y coordinate : 0.343 Green X coordinate : 0.297 Green Y coordinate : 0.577 Blue X coordinate : 0.145 Blue Y coordinate : 0.082 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple, Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) Manufacturer's timings: Standard Timing Identification : Unused HEX.) 640 x 480 @67Hz (Apple, Mac ll) 800 x 600 @56Hz (VESA) Detailed Timing #1 Pixel Clock (MHz) : 65 H Active (pixels) : 1024 H Blanking (pixels) : 320 V Active (lines) : 768 V Blanking (lines) : 38 H Sync Offset (F Porch) (pixels): 24 H Sync Pulse Width (pixels) : 136 V Sync Offset (F Porch) (lines) : 3 V Sync Pulse Width (lines) : 6 H Image Size (mm) : 307 V Image Size (mm) : 230 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Negative Vertical Sync. : Negative Horizontal Sync. Standard Timing Identification #2 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 63 Max. Supported Pixel : 80 No secondary GTF timing formula supported. Monitor Descriptor #3 Monitor Name : Philips 150C5 Monitor Descriptor #4 Serial Number : TY 123456 Extension Flag : 0 Check sum : 10 (HEX.) ********************************************************************** EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 0a 11: c0 12: 40 13: e2 14: 01 15: 00 16: 11 17: 0e 18: 01 19: 03 20: 0e 21: 1e 22: 17 23: 78 24: ea 25: f3 26: 05 27: a2 28: 57 29: 4c 30: 93 31: 25 32: 15 33: 50 34: 54 35: bf 36: ee 37: 00 38: 01 39: 01 40: 01 41: 01 42: 01 43: 01 44: 01 45: 01 46: 01 47: 01 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 64 55: 19 56: 00 57: 40 58: 41 59: 00 60: 26 61: 30 62: 18 63: 88 64: 36 65: 00 66: 33 67: e6 68: 10 69: 00 70: 00 71: 18 72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59 80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36 88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 35 105: 30 106: 43 107: 35 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 3f 117: 08 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 10 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Step 5 :Copy the 313811707321_141_4902.hex to D:\150C5 shown As Fig. 6. 6. Install and setup the Easywriter program Step 1 : Make a folder in your PC as shown in Fig. 3. For example : D:\150C5 Step 2 : Copy ISP Software Easywriter into your folder as shown in Fig.4. Step 3 : Unzip Easywriter.zip into your folder as shown in Fig. 4. Step 4 : Double click the EasywriterV2.09.exe icon to install the Application as Fig. 5. .zip Configuration and procedure "Easywriter " The software DDC2BI_ISP TOOL (3138 106 10396) is provided by Novatek to upgrade the firmware of CPU. is for the interface between "Parallel Port of PC" and "15 pin-D-SUB connector of Monitor". It is a windows-based program, which cannot be run in MS-DOS. System and equipment requirements 1. An i486 (or above) personal computer or compatible. 2. Microsoft operation system Windows 95/98/2000/XP. 4. as shown in Fig. 1 3. ISP Software " Easywriter " DDC2BI_ISP TOOL (3138 106 10396) 5 Connect and Mains cord to Monitor as shown in Fig. 2. . DDC2BI_ISP TOOL Fig. 1 Parallel Port to Print Port in PC D-SUB to monitor Fig. 5 Fig. 4 Lenovo CK5S5 Firmware Update For CPU Novatek NT68F633L Fig.2 PC To printer port (LTP1) To video card Video cable Connect to Mains cord Monitor (A) 150C5 -Monitor (B) DDC2BI_ISP TOOL D-Sub Connect to Mains cord at this moment. -------------------------------> ====> 170S5 Fig. 6 Go to cover page 150C5 LCD 65 NOTE: You can use A/D alignment kits (12NC: 3138 106 10079) to perform this work also, the connection as shown in Fig. 3.All the perform steps are same as DDC2BI_ISP TOOL. PC To printer port (LTP1) To video card Video cable Connect to Mains cord Monitor (A) 150C5-Monitor (B) D-Sub AC POWER Port To ToPC DC 8~12V Fig. 3 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Firmware Update For CPU Novatek NT68F633L 66 150C5 LCD Go to cover page Update the firmware 1. Double click the Easywriter.exe icon in desktop then appears window as shown in Fig.7 . Fig. 7 Fig. 8 2. Press the "Load hex" button then select the 313811707321_141_4902 As shown in Fig. 8 and Fig. 9. Fig. 9 3. From the menu that appears, choose the "NT68F633(64K)" as shown in Fig. 10. Fig. 10 4 Press the AUTO to running program , the firmware be updated as shown in Fig. 11~12. Fig. 11 Fig. 12 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 5 Press the file --> exit to end program , as shown in Fig. 13. Firmware Update For CPU Novatek NT68F633L Go to cover page 150C5 LCD 67 Fig. 13 Factory Mode-------- Indicator Fig. 15 Before upgrade After upgrade Fig. 16 6. Check the firmware version 2). [Push " AUTO " & " OK " buttons at the same time and hold it ] + [Press power " " button untill comes out "Windows screen"] => then release all button, then press OK button, wait until the OSD menu You will find, after upgrade, the version have already changed from The former "HUDSON 150C5 V002 20040511" to the Present "HUDSON 150C5 V200 20040705 as shown in Fig. 15 and Fig. 16 1). Turn off monitor. 3) Turn off the monitor, exit the factory mode. If there is a warring message coming as shown in Fig 14. , you have to check the AC power, Video cable, or Novatek MCU. Fig. 14 2.09 Factory Mode-------- Indicator ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Go to cover page TELEVISION/MONITOR SAFETY GUIDELINES FOR THE PROFESSIONAL SERVICE TECHNICIAN Safety Checks Fire and Shock Hazard Implosion X-radiation After the original service problem has been corrected,a complete safety check should be made. Be sure to check over the entire set, not just the areas where you have worked. Some previous servicer may have left an unsafe condition,which could be unknowingly passed on to your customer. Be sure to check all of the following: 1. Be sure all components are positioned in such a way as to avoid the possibility of adjacent component shorts. This is especially important on those chassis which are transported to and from the service shop. 2. Never release a repaired unit unless all protective devices such as insulators, barries, covers, strain reliefs, and other hardware have been installed in accordance with the original design. 3. Soldering and wiring must be inspected to locate possible cold solder joints,solder splashes,sharp solder points, frayed leads, pinched leads, or damaged insulation ( including the ac cord).Be certain to remove loose solder balls and all other loose foreign particles. 4. Check across-the-line components and other components for physical evidence of damage or deterioration and replace if necessary. Follow original layout,lead length, and dress. 5. No lead or component should touch a receiving tube or a resistor rated at 1 watt or more. Lead tension around protruding metal surfaces or edges must be avoided. 6. Critical components having special safety characteristics are identified with ans by the Ref. No. in the parts list and enclosed within a broken line * (where several critical components are grouped in one area) along with the safety symbols on the schematic diagrams and/or exploded views. 7. When servicing any unit, always use a separate isolation transformer for the chassis Failure to use a separate isolation transformer may expose you to possible shock hazard, and may cause damage to servicing instruments. 8. Many electronic products use a polarized ac line cord (one wide pin on the plug.) Defeating this safety feature may create a potential hazard to the service and the user. Extension cords which do not incorporate the polarizing feature should never be used. 9. After reassembly of the unit, always perform an leakage test or resistance test from the line cord to all exposed metal parts of the cabinet. Also check all metal control shafts(with knobs removed), antenna terminals, handles, screws, etc. to be sure the unit may be safety operated without danger of electrical shock. * Broken line 1. All picture tubes used in current model receivers are equipped with an integral implosion system. Care should always be used, and safety glasses worn,whenever handling any picture tube. Avoid scratching or otherwise damaging the picture tube during installation. 2. Use only replacement tubes specified by the manufacturer. 1. Be sure procedures and instructions to all your service personnel cover the subject of X-radiation. Potential sources of X-rays in TV receivers are the picture tube and the high voltage circuits. The basic precaution which must be exercised is to keep the high voltage at the factory recommended level. 2. To avoid possible exposure to X-radiation and electrical shock, only the manufacturer's specified anode connectors must be used. 3. It is essential that the service technician has an accurate HV meter available at all times. The calibration of this meter should be checked periodically against a reference standard. 4. When the HV circuitry is operating properly there is no possibility of an x- radiation problem. High voltage should always be kept at the manufacturer's rated value-no higher - for optimum performance. Every time a color set is serviced, the brightness should be run up and down while monitoring the HV with a meter to be certain that the HV is regulated correctly and does not exceed the specified value. We suggest that you and your technicians review test procedures so that HV and HV regulation are always checked as a standard servicing procedure, and the reason for this prudent routine is clearly understood by everyone. It is important to use an accurate and reliable HV meter. It is recommended that the HV recorded on each customer's invoice, which will demonstrate a proper concern for the customer's safety. 5. When troubleshooting and making test measurements in a receiver with a problem of excessive high voltage, reduce the line voltage by means of a Variac to bring the HV into acceptable limits while troubleshooting. Do : : WARNING OFF SERVICE NOTE Before removing the CRT anode cap, turn the unit and short the HIGH VOLTAGE to the CRT DAG ground. The CRT DAG is not at chassis ground. 6. New picture tubes are specifically designed to withstand higher operathng voltages without creating undesirable X-radiation. It is strongly recommended that any shop test fixture which is to be used with the new higher voltage chassis be equipped with one of the new type tubes designed for this service. Addition of a permanently connected HV meter to the shop test fixture is advisable. The CRT types used in these new sets should never be replaced with any other types, as this may result in excessive X-radiation. 7. It is essential to use the specified picture tube to avoid a possible X-diation problem. 8. Most TV receivers contain some type of emergency "Hold Down" circuit to prevent HV from rising to excessive levels in the presence of a failure mode. These various circuits should be understood by all technicians servicing them, especially since many hold down circuits are inoperative as long as the receiver performs normally. 1. Unplug the ac line cord and connect a jumper between the two prongs of the plug. 2. Turn on the power switch. 3. Measure the resistance value between the jumpered ac plug and all exposed cabinet parts of the receiver, such as screw heads, antennas, and control shafts. When the exposed metallic part has a return path to the chassis, the reading should be between 1 megohm and 5.2 megohms. When the exposed metal does not have a return path to the chassis, the reading must be infinity. Remove the jumper from the ac line cord. 1. Do not use an isolation transformer for this test. Plug the completely reassembled receiver directly into the ac outlet. 2. Connect a 1.5k, 10w resistor paralleled by a 0.15uf. capacitor between each exposed metallic cabinet part and a good earth ground such as a water pipe, as shown above. 3. Use an ac voltmeter with at least 5000 ohms volt sensitivity to measure the potential across the resistor. 4. The potential at any point should not exceed 0.75 volts. A leakage current tester may be used to make this test; leakage current must not exceed 0.5 milliamps. If a measurement is outside of the specified limits, there is a possibility of shock hazard. The receiver should be repaired and rechecked before returning it to the customer. 5. Repeat the above procedure with the ac plug reversed.( Note: An ac adapter is necessary when a polarized plug is used. Do not defeat the polarizing feature of the plug.) The primary source of X-radiation in this television receiver is the picture tube. The picture tube utilized in this chassis is specially constructed to limit X-radiation emissions. For continued X-radiation protection, the replacement tube must be the same type as the original, including suffix letter, or a Philips approved type. Many electrical and mechanical parts in Philips television sets have special safety related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. The use of a substitute part which does not have the same safety characteristics as the Philips recommended replacement part shown in this service manual may create shock, fire, or other hazards Leakage Current Cold Check Leakage Current Hot Check Picture Tube Replacement Parts Replacement 1500 ohm, 10W 0.15 uF WATER PIPE EARTH GROUND TO INSTRUMENTS EXPOSED METAL PARTS ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料
