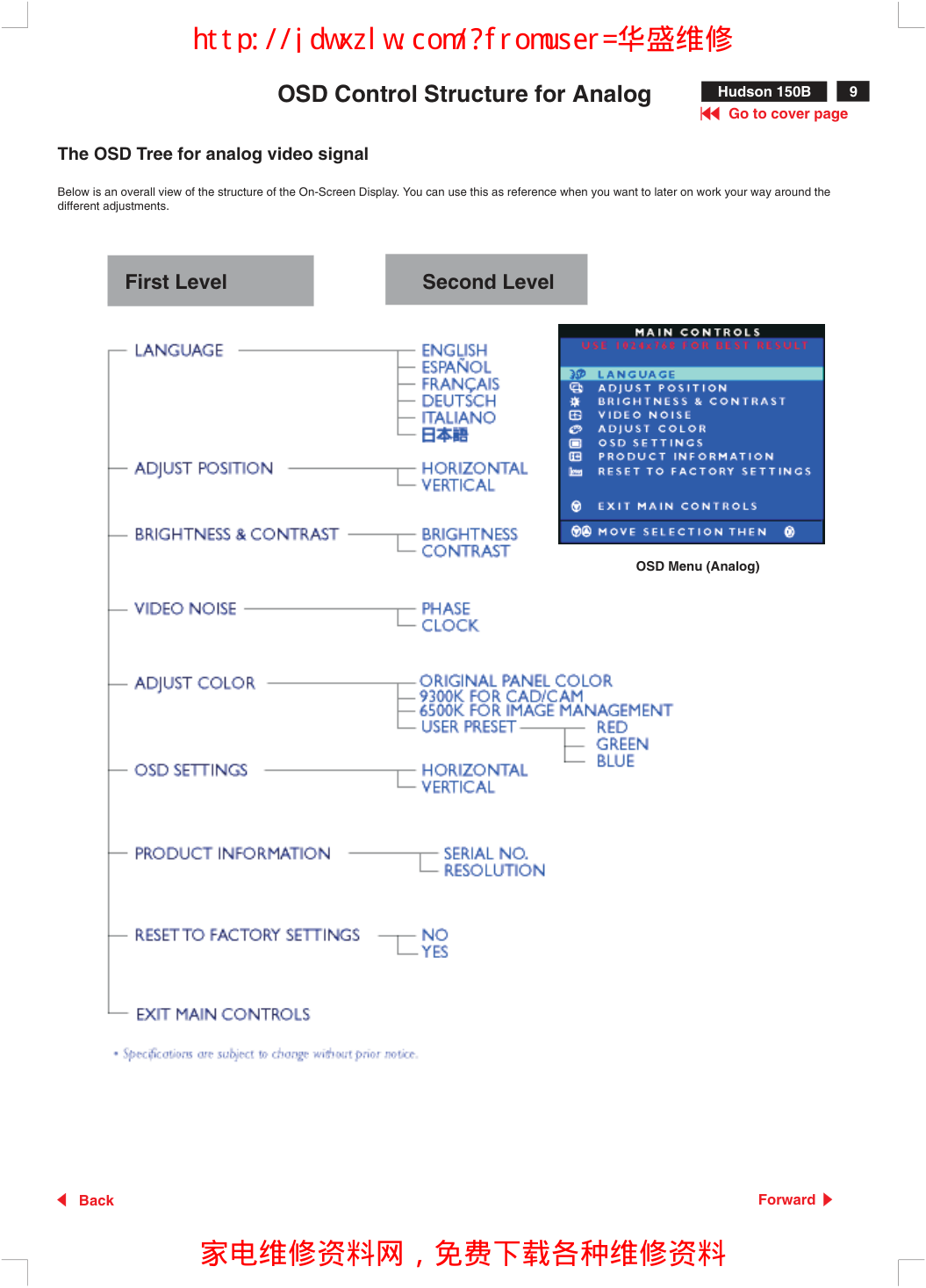

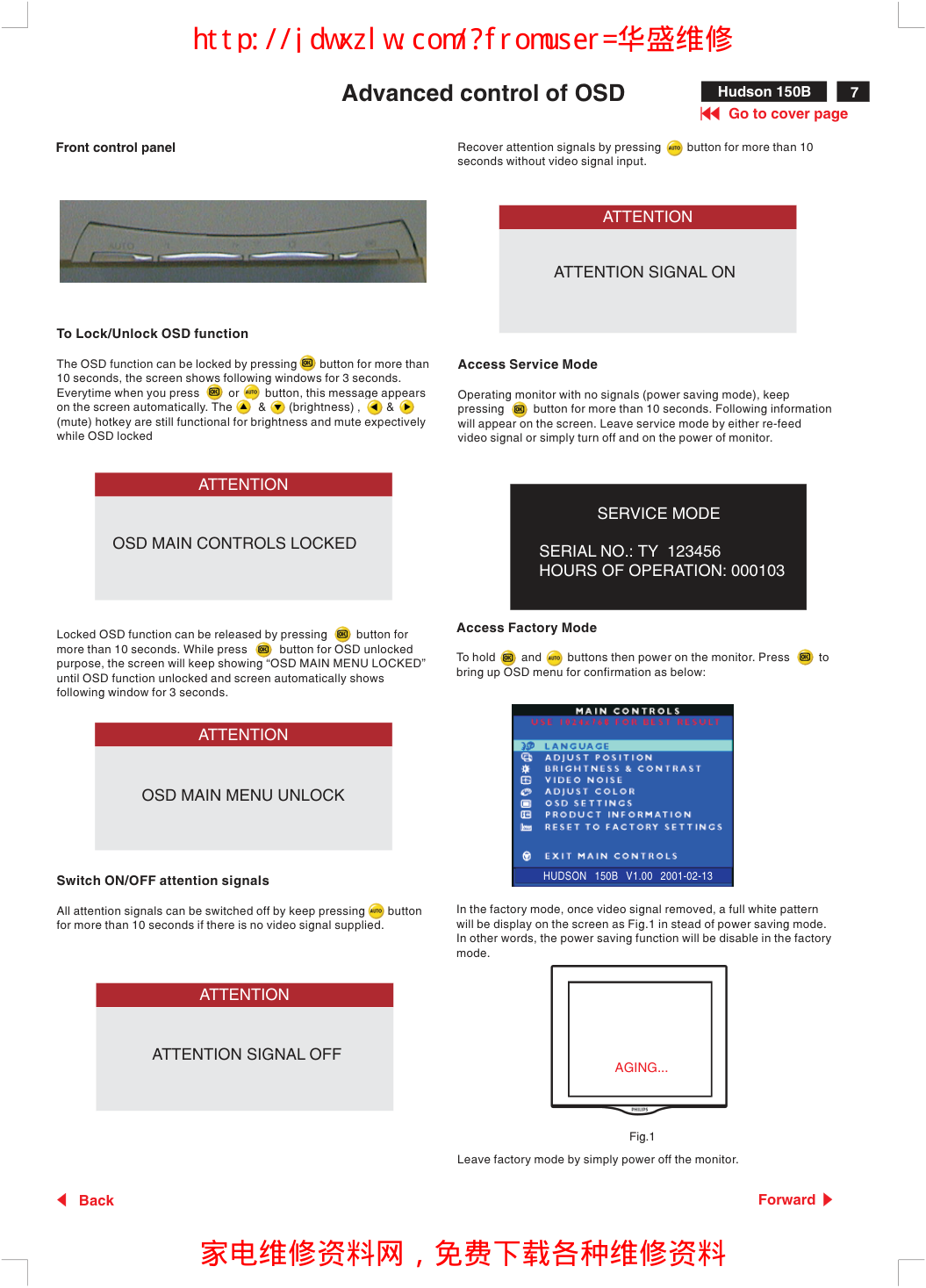

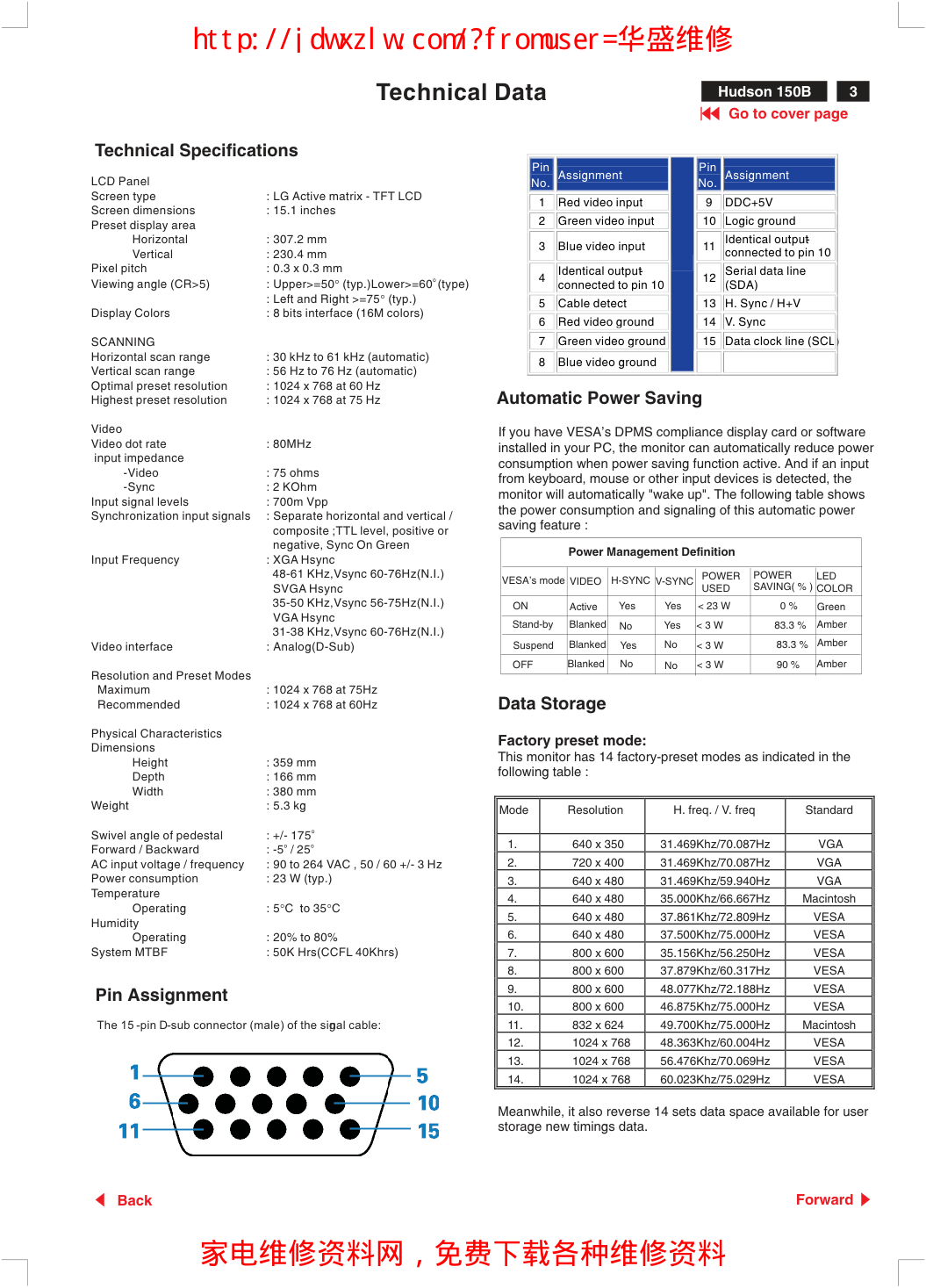

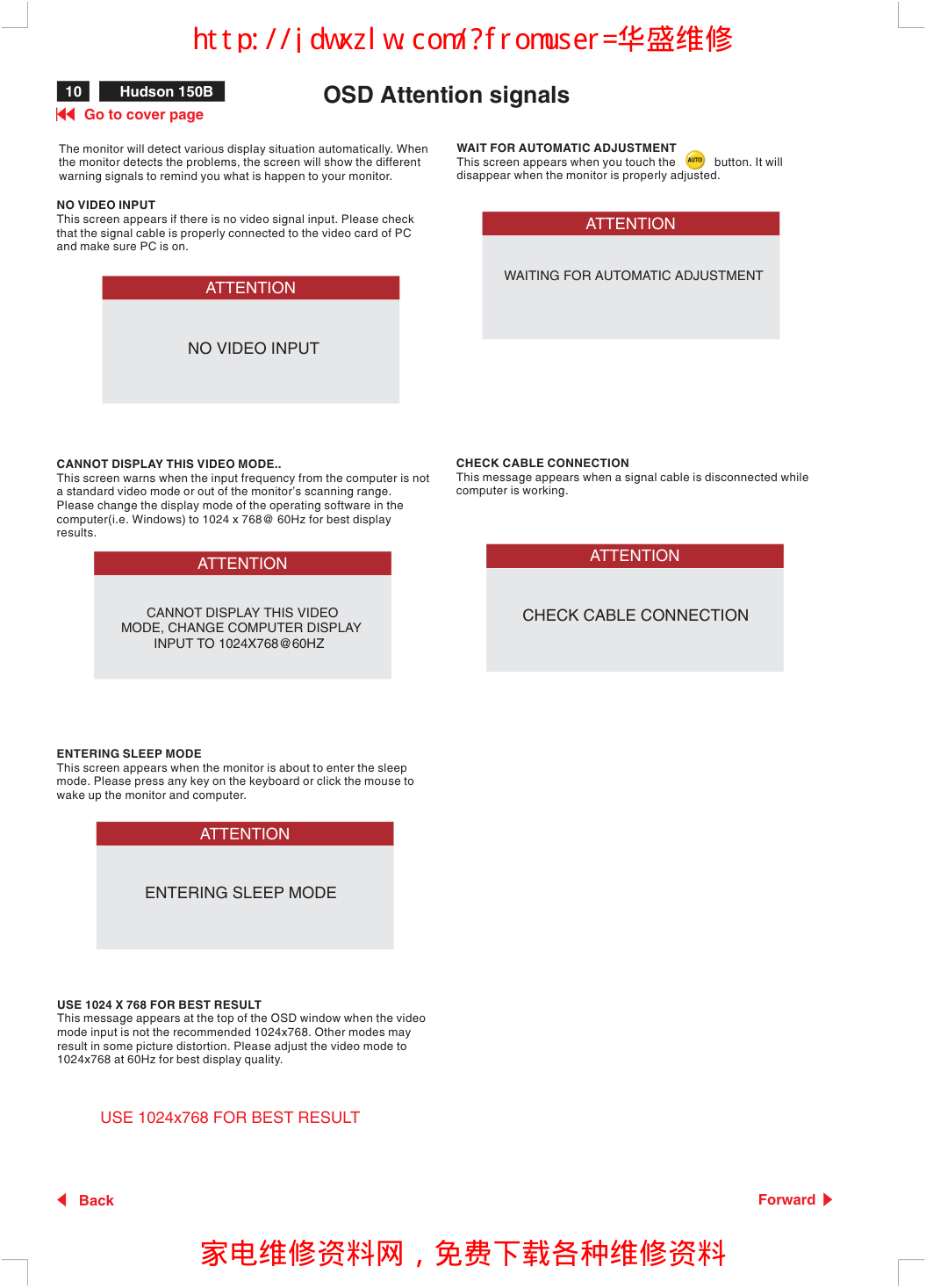

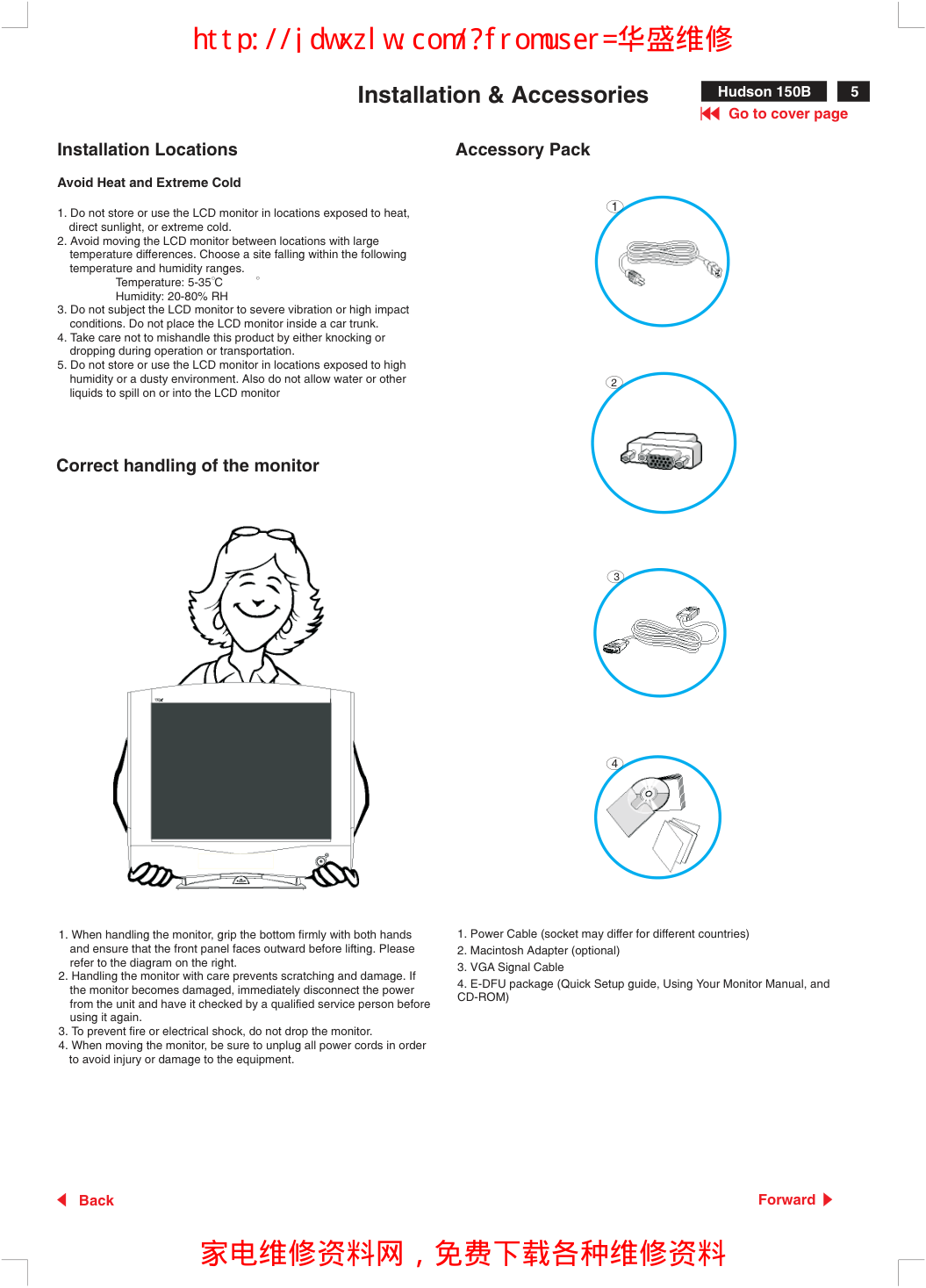

15" TFT LCD Colour Monitor Horizontal frequencies 30 - 61 kHz Service Service Service TABLE OF CONTENTS Published by BCU Monitor Printed in Taiwan Copyright reserved Subject to modification June 15 2001 © GB 3138 106 10138 /Auto Picture Adjustment DDC/Power Saving Important Safety Notice..................................2 Technical Data & Power Management .............3 Connection to PC...........................................4 Installation & Accessories...............................5 Description of Controls...................................6 Advanced Control of OSD...............................7 Clock & Phase Adjustments............................8 OSD Menu Control Level Structure.................9 OSD Attention Signal.....................................10 Troubleshooting............................................11 Failure Mode of LCD Panel.............................12 Flat Panel Adjust (FP Adjust)......................... 13 Definition of Pixel Defects..............................14 Wiring Diagram..............................................15 Mechanical Instructions.................................16~18 Electrical Instructions.....................................19 Factory Adjustment........................................20 Safety Test Requirements...............................21 DDC Instructions............................................22~26 DDC Data.......................................................27 Repair Flow Chart...........................................28~30 Scaler Diagram................................................38 Inverter Diagram and Recommended parts list...40 Repair tips........................................................46 General Product Specification ...........................47~64 Block Diagram and control pannelC.B.A...........31 Scaler board C.B.A..........................................32 Power baord C.B.A..........................................33 Input D-SUB Diagram......................................34 DC-DC converter Diagram...............................35 AC Adaptor Diagram .......................................36 MCU Diagram(B1)............................................37 O/P to panel Diagram(B2).................................39 Exploded View.................................................41 Recommended Parts List..................................42 Spare Parts List................................................43~45 Description Description Page Page CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING. ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES. 150B2B/00C(LG panel) Hudson 150B 家电维修资料网，免费下载各种维修资料 Important Safety Notice 2 FOR PRODUCTS CONTAINING LASER : Invisible laser radiation when open. AVOID DIRECT EXPOSURE TO BEAM. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard. DANGER- CAUTION- CAUTION- TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF THIS SERVICE MANUAL. Hudson 150B Proper service and repair is important to the safe, reliable operation of all Philips Consumer Electronics Company** Equipment. The service procedures recommended by Philips and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended. It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Philips could not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Philips has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Philips must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected. * * Hereafter throughout this manual, Philips Consumer Electronics Company will be referred to as Philips. Critical components having special safety characteristics are identified with a by the Ref. No. in the parts list and enclosed within a broken line* (where several critical components are grouped in one area) along with the safety symbol on the schematics or exploded views. Use of substitute replacement parts which do not have the same specified safety characteristics may create shock, fire, or other hazards. Under no circumstances should the original design be modified or altered without written permission from Philips. Philips assumes no liability, express or implied, arising out of any unauthorized modification of design. Servicer assumes all liability. WARNING * Broken Line Take care during handling the LCD module with backlight unit - Must mount the module using mounting holes arranged in four corners. - Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. - Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. - Protect the module from the ESD as it may damage the electronic circuit (C-MOS). - Make certain that treatment person’s body are grounded through wrist band. - Do not leave the module in high temperature and in areas of high humidity for a long time. - Avoid contact with water as it may a short circuit within the module. - If the surface of panel become dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.) Go to cover page Forward Back 家电维修资料网，免费下载各种维修资料 Hudson 150B 3 Technical Data Go to cover page Forward Back LCD Panel Screen type : LG Active matrix - TFT LCD Screen dimensions : 15.1 inches Preset display area Horizontal : 307.2 mm Vertical : 230.4 mm Pixel pitch : 0.3 x 0.3 mm Viewing angle (CR>5) : Upper>=50 (typ.)Lower>= : Left and Right >=75 (typ.) Display Colors : 8 bits interface (16M colors) SCANNING Horizontal scan range : 30 kHz to 61 kHz (automatic) Vertical scan range : 56 Hz to 76 Hz (automatic) Optimal preset resolution : 1024 x 768 at 60 Hz Highest preset resolution : 1024 x 768 at 75 Hz Video Video dot rate : 80MHz input impedance -Video : 75 ohms -Sync : 2 KOhm Input signal levels : 700m Vpp Synchronization input signals : Separate horizontal and vertical / composite ;TTL level, positive or negative, Sync On Green Input Frequency : XGA Hsync 48-61 KHz,Vsync 60-76Hz(N.I.) SVGA Hsync Physical Characteristics Swivel angle of pedestal : +/- 175 Forward / Backward : -5 / 25 Temperature Operating : 5 C to 35 C Humidity Operating : 20% to 80% System MTBF : 50K Hrs(CCFL 40Khrs) � � � � 60 (type) 35-50 KHz,Vsync 56-75Hz(N.I.) VGA Hsync 31-38 KHz,Vsync 60-76Hz(N.I.) Video interface : Analog(D-Sub) Resolution and Preset Modes Maximum : 1024 x 768 at 75Hz Recommended : 1024 x 768 at 60Hz Dimensions Height : 359 mm Depth : 166 mm Width : 380 mm Weight : 5.3 kg AC input voltage / frequency : 90 to 264 VAC , 50 / 60 +/- 3 Hz Power consumption : 23 W (typ.) o o o o Technical Specifications Pin Assignment The 15 -pin D-sub connector (male) of the signal cable: Pin No. Assignment Pin No. Assignment 1 Red video input 9 DDC+5V 2 Green video input 10 Logic ground 3 Blue video input 11 Identical output- connected to pin 10 4 Identical output- connected to pin 10 12 Serial data line (SDA) 5 Cable detect 13 H. Sync / H+V 6 Red video ground 14 V. Sync 7 Green video ground 15 Data clock line (SCL) 8 Blue video ground Data Storage Factory preset mode: This monitor has 14 factory-preset modes as indicated in the following table : Meanwhile, it also reverse 14 sets data space available for user storage new timings data. Mode Resolution H. freq. / V. freq Standard 1. 640 x 350 31.469Khz/70.087Hz VGA 2. 720 x 400 31.469Khz/70.087Hz VGA 3. 640 x 480 31.469Khz/59.940Hz VGA 4. 640 x 480 35.000Khz/66.667Hz Macintosh 5. 640 x 480 37.861Khz/72.809Hz VESA 6. 640 x 480 37.500Khz/75.000Hz VESA 7. 800 x 600 35.156Khz/56.250Hz VESA 8. 800 x 600 37.879Khz/60.317Hz VESA 9. 800 x 600 48.077Khz/72.188Hz VESA 10. 800 x 600 46.875Khz/75.000Hz VESA 11. 832 x 624 49.700Khz/75.000Hz Macintosh 12. 1024 x 768 48.363Khz/60.004Hz VESA 13. 1024 x 768 56.476Khz/70.069Hz VESA 14. 1024 x 768 60.023Khz/75.029Hz VESA Power Management Definition Active Amber Amber Green Amber Blanked Blanked Blanked < 3 W 90 % 83.3 % 83.3 % 0 % < 3 W < 3 W < 23 W Suspend ON OFF No No No No Yes Yes Yes Yes Stand-by V-SYNC POWER SAVING( % ) POWER USED LED COLOR H-SYNC VIDEO VESA's mode If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce power consumption when power saving function active. And if an input from keyboard, mouse or other input devices is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving feature : Automatic Power Saving ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Connection to PC Forward Back Please follow the steps to connect your LCD Monitor to PC. 5.Thread all cables through the hole at the bottom of the stand. 6.Locate the base and slide it into monitor body. 7.Pull back up the monitor body. 8.Connect to PC 1. Put monitor face down on the safe surface 2. Tilt the base fully away from the monitor body. (1) Turn off your computer and unplug its power cable. (2) Connect the monitor signal cable to the video connector on the back of your computer. (3) Plug the power cord of your computer and your monitor into a nearby outlet. (4) Turn on your computer and monitor. If the monitor displays an image, installation is complete. 3.Pull out and slide away the base from the monitor body. 4.After separate the base off the set,Then to plug in the cables into connectors.. 4 Hudson 150B Go to cover page ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Installation & Accessories Forward Back Installation Locations Avoid Heat and Extreme Cold 1. Do not store or use the LCD monitor in locations exposed to heat, direct sunlight, or extreme cold. 2. Avoid moving the LCD monitor between locations with large temperature differences. Choose a site falling within the following temperature and humidity ranges. Temperature: 5-35 C Humidity: 20-80% RH 3. Do not subject the LCD monitor to severe vibration or high impact conditions. Do not place the LCD monitor inside a car trunk. 4. Take care not to mishandle this product by either knocking or dropping during operation or transportation. 5. Do not store or use the LCD monitor in locations exposed to high humidity or a dusty environment. Also do not allow water or other liquids to spill on or into the LCD monitor Correct handling of the monitor 1. When handling the monitor, grip the bottom firmly with both hands and ensure that the front panel faces outward before lifting. Please refer to the diagram on the right. 2. Handling the monitor with care prevents scratching and damage. If the monitor becomes damaged, immediately disconnect the power from the unit and have it checked by a qualified service person before using it again. 3. To prevent fire or electrical shock, do not drop the monitor. 4. When moving the monitor, be sure to unplug all power cords in order to avoid injury or damage to the equipment. Accessory Pack 1. Power Cable (socket may differ for different countries) 2. Macintosh Adapter (optional) 3. VGA Signal Cable 4. E-DFU package (Quick Setup guide, Using Your Monitor Manual, and CD-ROM) 1 2 3 4 5 Hudson 150B Go to cover page ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Description of Controls Forward Back Front View UP and DOWN buttons are used when adjusting the OSD of your monitor LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor. BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up. OK button which when pressed will take you to the OSD controls. POWER button switches your monitor on. Automatically adjust the horizontal position, vertical position, phase and clock setting. Physical Function 1) Tilt 2) Swivel 6 Hudson 150B Go to cover page ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Advanced control of OSD Leave factory mode by simply power off the monitor. Forward Back Front control panel ATTENTION OSD MAIN CONTROLS LOCKED ATTENTION OSD MAIN MENU UNLOCK ATTENTION ATTENTION SIGNAL OFF ATTENTION ATTENTION SIGNAL ON SERVICE MODE SERIAL NO.: TY 123456 HOURS OF OPERATION: 000103 In the factory mode, once video signal removed, a full white pattern will be display on the screen as Fig.1 in stead of power saving mode. In other words, the power saving function will be disable in the factory mode. NO VIDEO INPUT AGING... To Lock/Unlock OSD function The OSD function can be locked by pressing button for more than 10 seconds, the screen shows following windows for 3 seconds. Everytime when you press or button, this message appears on the screen automatically. The & (brightness) , & (mute) hotkey are still functional for brightness and mute expectively while OSD locked Locked OSD function can be released by pressing button for more than 10 seconds. While press button for OSD unlocked purpose, the screen will keep showing “OSD MAIN MENU LOCKED” until OSD function unlocked and screen automatically shows following window for 3 seconds. Switch ON/OFF attention signals All attention signals can be switched off by keep pressing button for more than 10 seconds if there is no video signal supplied. Recover attention signals by pressing button for more than 10 seconds without video signal input. Access Service Mode Operating monitor with no signals (power saving mode), keep pressing button for more than 10 seconds. Following information will appear on the screen. Leave service mode by either re-feed video signal or simply turn off and on the power of monitor. Access Factory Mode To hold and buttons then power on the monitor. Press to bring up OSD menu for confirmation as below: Fig.1 WILD V0.18 2000-05-25 HUDSON 150B V1.00 2001-02-13 7 Hudson 150B Go to cover page ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 CLOCK & PHASE Adjustments The monitor has build-in a auto adjustment hotkey on the front panel, you may obtained a optimal video display by simply press the button and save the settings. CLOCK, PHASE, Vertical position, and Horizontal position are adjusted automatically. Step 1 : Click on the Start button (Win95, Win98 or Win NT) and choose " Shut Down...". as shown in Fig.1 Step 2 : The menu of " Shut Down Windows " is as shown in Fig. 2 Step 3 : Remaining Shut Down Window on the screen , follow The CLOCK and PHASE adjustment instructions for the optimal video display. Fig.1 Fig. 2 PHASE phenomenon Due to the different quality of video signal generated from graphics cards. It is necessary to adjust CLOCK and PHASE functions for the optimal video display of LCD monitor. Following steps will guide you to make correct adjustment of CLOCK and PHASE. However, CLOCK and PHASE functions are only available while analog video signal is supplied. Operating unit under digital signal state, the video clock information can be obtained from graphics cards directly. Therefor, it is unnecessary to adjust these functions Auto adjustment hotkey Manual adjustment If the quility of display still poor or flicker, you may also improve it by manual adjust CLOCK and PHASE functions to eliminate the flicker. Step 4 : Press the button to bring up OSD menu. Step 7 : Press or to adjust PHASE. The picture will be jitter as following figure, adjust PHASE and check the picture, stop at the point that without any vertical jitter bar remaining on the screen. button Step 5 : Select Video Noise by press button. Step 6 : Press for bring up it’s submenu. button Step 8 : Press or to adjust CLOCK. The picture will be jitter as following figure, adjust CLOCK to fine-tune the video until optimal display is obtained. button Step 9 : Quit OSD menu by press button to save the settings. AUTO button CLOCK Phenomenon Video Noise Forward Back 8 Hudson 150B Go to cover page ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 OSD Control Structure for Analog The OSD Tree for analog video signal Below is an overall view of the structure of the On-Screen Display. You can use this as reference when you want to later on work your way around the different adjustments. OSD Menu (Analog) First Level Second Level Forward Back 9 Hudson 150B Go to cover page ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 10 Hudson 150B OSD Attention signals Go to cover page Forward Back USE 1024 X 768 FOR BEST RESULT This message appears at the top of the OSD window when the video mode input is not the recommended 1024x768. Other modes may result in some picture distortion. Please adjust the video mode to 1024x768 at 60Hz for best display quality. NO VIDEO INPUT CANNOT DISPLAY THIS VIDEO MODE.. ENTERING SLEEP MODE This screen appears if there is no video signal input. Please check that the signal cable is properly connected to the video card of PC and make sure PC is on. This screen warns when the input frequency from the computer is not a standard video mode or out of the monitor's scanning range. Please change the display mode of the operating software in the computer(i.e. Windows) to 1024 x 768@ 60Hz for best display results. This screen appears when the monitor is about to enter the sleep mode. Please press any key on the keyboard or click the mouse to wake up the monitor and computer. ATTENTION The monitor will detect various display situation automatically. When the monitor detects the problems, the screen will show the different warning signals to remind you what is happen to your monitor. WAIT FOR AUTOMATIC ADJUSTMENT This screen appears when you touch the button. It will disappear when the monitor is properly adjusted. ATTENTION NO VIDEO INPUT CANNOT DISPLAY THIS VIDEO MODE, CHANGE COMPUTER DISPLAY INPUT TO 1024X768@60HZ ATTENTION ENTERING SLEEP MODE ATTENTION USE 1024x768 FOR BEST RESULT WAITING FOR AUTOMATIC ADJUSTMENT ATTENTION CHECK CABLE CONNECTION CHECK CABLE CONNECTION This message appears when a signal cable is disconnected while computer is working. ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 11 Hudson 150B Trouble Shooting Make sure the Power cable is plugged to the wall and back of the monitor. Make sure the DC power cord has been attached to the DC jack. First, power button in front of the monitor should be in the OFF position, then press it to ON position again. Make sure the computer is turned on. Make sure the signal cable is properly connected to your computer. Check to see if the monitor cable has bent pins. The Energy Saving Feature may be activated. Make sure the monitor cable is properly connected to your computer. Check to see if the monitor cable has bent pins. Make sure the computer is turned on. The Auto Function is designed for use on standard Macintosh or IBM-compatible PC running Microsoft Windows. It may not work properly if using non-standard PCs or video card. Push the AUTO button. Adjust the image position using the Horizontal Position & / or Vertical Position in the Second Window. Check that the signal cable is properly connected to the graphics board or PC. Push the Auto button. Eliminate the horizontal bars using the Phase Adjustment in the First Window. Adjust the contrast and brightness using the First Window. (The backlight of the LCD monitor has a fixed life span. When the screen becomes dark or begins to flicker,please contact your dealer.) If an image remains in the screen for an extended period of time,it may be imprinted in the screen and leave an after-image. This usually disappears after a few hours. This is characteristic of liquid crystal and is not caused by a malfunction or deterioration of the liquid crystal. The after-image will disappear after a set amount of time. The remaining dots are normal charactericstic of the liquid crystal used in today's technology. No Picture No Picture Screen says AUTO button not working properly Imaging Problems Display position is incorrect Image vibrates on the screen (Power LED not lit) (Power LED is Amber or Yellow in color) Horizontal flicker appears The screen is too bright or too dark An after-image appears An after-image remains after the power has been turned off Green, red, blue, dark and white dots remain on the screen TROUBLESHOOTING This page presents problems that can be corrected by the user. If the problem still exists after these possible solutions, a further action has to be take by authorized technicians. Vertical flicker appears Push the AUTO button. Eliminate the vertical bars using the Clock Adjustment in the FIRST Window. Go to cover page Forward Back ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 12 Hudson 150B Failure Mode of LCD panel Quick reference for failure mode of LCD panel This page presents problems that could be made by LCD panel. It is not necessary to repair circuit board. Simply follow the “Mechanical instruction” on this manual to eliminate failure by replace LCD panel or backlight tubes. Failure description Phenomenon Vertical dim lines Vertical block defect Vertical lines defect (Always bright or dark) Horizontal block defect Horizontal dim lines Horizontal lines defect (Always bright or dark) Has bright or dark pixel . .. . .. . .. . .. Bright pixel Dark pixel . . . . . Polarizer has bubbles Polarizer has bubbles Foreign material inside polarizer. It shows linear or dot shape. . . . . Concentric circle formed Bottom back light of LCD is brighter than normal Backlight un-uniformity Backlight has foreign material. Black or white color, linear or circular type Go to cover page Forward Back ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Hudson 150B 13 Go to cover page Forward Back Flat Panel Adjust (FP Adjust) Fpadjust program The Flat Panel Adjust (FPadjust) software helps you to find the best setting for your Philips LCD monitor. It allows you to adjust the image performance of LCD monitor, such as RESOLUTION, AUTO ADJUSTMENT, POSITION, CONTRAST, VIDEO CLOCK and VIDEO PHASE. Note: Video clock and phase functions are only available for analog video signals. In "MS Windows 95/98" environment : For example 1. Insert CD-DFU(3138 117 03111) to your CD-ROM driver. 2. Run "F:\pc\fpadjust\fp_setup01.exe" as Fig. 1. 3. Then follow the instructions to install the FPadjust program. When finish, double click FPadjust icon " ", then the description (can be moved by mouse) and background pattern come on the screen for image adjustment. FPadjust program is working as a pattern generator to provide the pattern display on the screen for the adjustment of CONTRAST, CLOCK, PHASE ...etc. Please follow the steps below to adjust your PHILIPS Flat Panel Monitor for best display quality. Install and Run FPadjust FPadjust.lnk Fig. 1 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 14 Hudson 150B Go to cover page Forward Back Definition of Pixel Defects 0. General This section explains the different types of pixel defects and defines acceptable defect levels of each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT LCD panel must exceed these acceptable levels. 1. Definition of Pixels and Subpixels A pixel, or picture element , is composed of three subpixels in the primary colors of red, green and blue. Many pixels together from an image. When all subpixels of a pixel are lit, the three colored subpixels together appear as a single white pixel. When all are dark, the three colored subpixels together appear as a single black pixel. Other combinations of lit and dark subpixels appear as single pixels of other colors. 2. Types of Pixel Defects Pixel and subpixel defects appear on the screen in different ways. Bright dot defects Bright dot defects appear as pixels or subpixels that are always lit or “On”. These are the types of bright dot defects:. One lit red, green or blue subpixel Two adjacent lit subpixels: - Red + Blue = Purple - Red + Green = Yellow - Green + Blue = Cyan (Light Blue) Three adjacent lit subpixels (One white pixel) Black dot defects Black dot defects appear as pixels or subpixels that are always dark or “off”. These are the types of black dot defects: One dark subpixel Two or three adjacent dark subpixels 3. Pixel Defect Tolerances In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a PHILIPS flat panel monitor must have pixel or subpixel defects exceeding the tolerances listed in the following tables. Pixel Subpixel Subpixel Subpixel BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL 150P2 150B2 150S2 1 lit subpixel None None 8 or fewer 2 adjacent lit subpixels None None 3 or fewer 3 adjacent lit subpixels (one white pixel) None None 1 or fewer Distance between two bright dot defects* None None 15 mm or more Bright dot defects within 20 mm circle None None 3 or fewer Total bright dot defects of all types None None 8 or fewer BLACK DOT DEFECTS ACCEPTABLE LEVEL MODEL 150P2 150B2 150S2 1 dark subpixel 4 or fewer 4 or fewer 8 or fewer 2 adjacent dark subpixels 1 or fewer 1 or fewer 3 or fewer 3 adjacent dark subpixels None None 1 or fewer Distance between two black dot defects* 15 mm or more 15 mm or more 15 mm or more Black dot defects within 20 mm circle* 3 or fewer 3 or fewer 3 or fewer Total black dot defects of all types 4 or fewer 4 or fewer 8 or fewer TOTAL DOT DEFECTS ACCEPTABLE LEVEL MODEL 150P2 150B2 150S2 Total bright or black dot defects of all types 4 or fewer 4 or fewer 10 or fewer Note: 1 or 2 adjacent subpixel defects = 1 dot defect ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Hudson 150B 15 Go to cover page Forward Back Wiring Diagram TO power Socket Connect to Panel's signal Input To BackLight of Panel To BackLight of Panel Panel Signal Input CN1 for TDK J1 for Ambit 1801 for LCE 1151 GND 1101 8052 1201 1203 1707 FPC LG PANEL ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 16 Hudson 150B Go to cover page Forward Back Mechanical instructions General To be able to perform measurements and repairs on the circuit boards, Spread a soft mat underneath to avoid damaging the LCD surface. 1) (a) (b) (a) To remove the bezel, Push the button located underneath the monitor and slide the bezel up at the same time. Repeat step for the other side. 2) Pull forward to remove the front bezel from the monitor. 3) Peel off the film from both sides of the protective cover. 4) Mount the protective cover by first aligning its clip onto the guide line on above of the control panel (A), then press on (B). 5) Push down the protective cover to mount it securely ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Hudson 150B 17 Go to cover page Forward Back Mechnical instructions Step 5 : Removal power board 5-1 Remove 2 screws,1101 connector, and 8101 grouding wire 5-2 The gasket(3138 154 03270) was found in Fig.6. Step 6 : Removal Scaler board 6-1 Remove 1 screw for fixed scaler- shield. 6-2 Remove D-SUB two screws. then pull out scaler- . shield Fig. 5 Fig.2 connector(1707) Fig. 1 Front bezel 1. Front bezel removal Hold lock bezel-right and lock bezel -left, then push the front Bezel from down to up see Fig. 1 2. Control panel removal (Fig.2) Step1. Remove the 7-pins connectors(1707) Step2. Release two screws 3. Back cover removal Step1. Release four screws see Fig.3 Step2. Pull out LG-frame panel then remove LG-frame to find out Scaler board,power board and inverter board Fig. 4 Fig. 6 Fig. 7 Gasket 3138 154 03270 Fig. 3 Fig. 4 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 18 Hudson 150B Go to cover page Forward Back Mechanical instructions 5. Pull out the left side 6. Repeat step 4 and 5 till half of the Panel is out of the frame 7. Counterclockwise the assembly. So the control wire on left side 8. Insert the driver in-between the flanges of frame to pull Panel out. On both right and left side same as step 4,5 9. Use hands to separate the Panel and frame when the Panel is totally goes out on this side 6-3 Remove four screws on scaler board see Fig.8 6-4 Disconnect 1201 , 1203 and 1204. Fig. 8 LG-X3 in Hudson metal frame disassembly procedure 1. Get a screw with "-" type. The thickness of the "-" is better not thicker than 1mm 2. Up side down the assembly - be ware the control wire is on top side 3. Insert the driver in be-tween the ground flanges of metal frame 4. Turn the driver upward to pull out the Panel. * Beware do'nt make the metal frame permanent deformed ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Hudson 150B 19 Go to cover page Forward Back Electrical instructions 0. General With normal VGA card: AC/DC Measurement: When carry-out the electrical settings in many cases a video signal must be applied to the monitor. A computer with : - ATI VGA 1024 V6-1.04/PH BETA4 interface card - PGA 1024 (4822 212 30916), Mach 8. - PGA 1280 (4822 212 30917), Mach 32. - ATI GPT-1600 (4822 397 10065), Mach 64 (up to 107kHz) are used as the video signal source. The signal patterns are selected from the "service test software" package, see user guide 4822 727 19896 (ATI1024), or 4822 727 20273 (PGA 1280), or 4822 727 21046 (GPT-1600). 0.1 If not using the ATI card during repair or alignment, The service engineer also can use this service test software adapting with normal standard VGA adaptor and using standard VGA mode 640 x 480, 31.5 kHz/60 Hz (only) as signal source. 0.2 The measurements for AC waveform and DC figure is based on 1024 x 768 48kHz/60 Hz resolution mode with test pattern "32 gray scale". 1.General points 1.1 During the test and measuring, supply a distortion free AC mains voltage to the apparatus via an isolated transformer with low internal resistance. 1.2 All measurements mentioned hereafter are carried out at a normal mains voltage (90 - 132 VAC for USA version, 195 -264 VAC for EUROPEAN version, or 90 - 264 VAC for the model with full range power supply, unless otherwise stated.) 1.3 All voltages are to be measurement or applied with respect to ground, unless otherwise stated. Note: don't use heat-sink as ground. 1.4 The test has to be done on a complete set including LCD panel in a room with temperature of 25 +/- 5 degree C. 1.5 All values mentioned in these test instruction are only applicable of a well aligned apparatus, with correct signal. 1.6 The letters symbols (B) and (S) placed behind the test instruction denotes (B): carried out 100% inspection at assembly line (S): carried out test by sampling 1.7 The white balance (color temperature), has to be tested in subdued lighted room. 1.8 Repetitive power on/off cycle are allowed except it should be avoided within 6 sec. 2. Input signal 2.1 Signal type Video : 0.7 Vp-p linear, positive polarity Sync. : TTL level, separate, positive or negative polarity and SYNC on green & composite SYNC. Signal source: pattern generator format as attachment. (table 1 to 14) Reference generator : CHROMA 2225 or 2250 2.2 Input signal mode Pre-set 14 modes PRESET VIDEO RESOLUTION 4. Display Adjustment 4.1Input signals check In factory mode, use 64 gray level and set the R,G,B sub gain to 100%. 4.2 Display quality test 4.3 Check of WHITE-D (B) Apply a 48.36kHz/60Hz signal with white pattern, set brightness control at 100%, and contrast control at 50%. Adjust the R, G, B sub_gain, for the screen center, the 1931 CIE chromaticity (X, Y) co-ordinates shall be; Use timing mode as decribe in 2.2, and use the POPO (pixel on pixel off) pattern.Push "AUTO" button to adjust picture size, clock and phase, or fine tune the clock and phase by manual. Check all pre-setting 14 modes. Factory preset video resolution 9300�K 6500�K x (center) 0.281 � 0.005 0.312 � y (center) 0.311 � 0.338 � 0.005 0.005 0.005 Dot rate (MHz) H.freq (KHz) Mode Resolution V.freq (Hz) 25.175 31.469 IBM VGA 10h 640 * 350 70.087 28.322 31.469 IBM VGA 3h 720 * 400 70.087 25.175 31.469 IBM VGA 12h 640 * 480 59.940 30.240 35.000 MACINTOSH 640 * 480 66.667 31.500 37.861 VESA 640 * 480 72.809 31.500 37.500 VESA 640 * 480 75.000 36.000 35.156 VESA 800 * 600 56.250 40.000 37.879 VESA 800 * 600 60.317 50.000 48.077 VESA 800 * 600 72.188 49.500 46.875 VESA 800 * 600 75.000 57.300 49.700 MACINTOSH 832 * 624 75.000 65.000 48.363 VESA 1024 * 768 60.004 75.000 56.476 VESA 1024 * 768 70.069 78.750 60.023 VESA 1024 * 768 75.029 Use Minolta CA-110 for color coordinates and luminance check. Luminance : : 4.4 250 nits( in the center of the screen.(typ) After finish all adjustment, the contrast control set to 50% and brightness control set to 100% as preset value. LG Panel) 200 nits(LG Panel) in the center of the screen.(min) 3. AC Adaptor 3.1Setup the AC I/P at 90VAC, and Output DC loading at 3.8 Amp, The DC output voltage is 12 +/- 0.5 V DC 3.2Adjustment is nothing to do ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 20 Hudson 150B Go to cover page Forward Back Factory Adjustment Use or buttons to select SUB-CON, 9300K R G B,..etc. Use or buttons to decrease/increase the value of each item Contrast adjustment (Sub-Contrast). Use this menu item to adjust the contrast gain of pre-amp ranges from 0 to 255. (For 9 3 0 0 K R G B 6 5 0 0 K R G B Color temperature gain adjustment. Use these menu items to adjust the RGB gains of pre-amp for different color temperatures, ranges from 0 to 255. OFFSET R G B Sub-Brightness adjustment. Use this menu item to adjust the brightness level (DC-level) of pre-amp range from 0 to 255.(R/G/B ANALOG DC -level). example: of Sub-Contrast in factory mode is preset for 100%(Maximum Value) of Contrast Value in user mode). GAIN R G B R/G/B GAIN adjustment. Use this menu item to adjust the R/G/B (GAIN) of Amp. range from 0 to 255.(R/G/B ANALOG GAIN Values). AUTO Colour to Adjust OFFSET R/G/B & GAIN R/G/B automatically by LCD MONITOR CPU. RESERVE1: NO FUNCTIONED, RESERVED ONLY. RESERVE2: NO FUNCTIONED, RESERVED ONLY. RESERVE3: NO FUNCTIONED, RESERVED ONLY. AUTO SUB: AUTO SUB: Factory Mode Adjustment Entering Factory Adjustment Menu Push & buttons then power on the monitor, release them after picture display normally. Press button to bring up OSD menu of factory mode as shown below. Use button to select factory adjustment indication (for example: HUDSON 150B V1.00 2001-02-13), which is the entrance of the factory adjustment menu, press button to access it. The window shows as below. (PS: The “Offset R G B” function can be used on reduce or eliminate snowy noise on the background when the resolution of video signal is 1024 X 768 vertical 60Hz. Slightly increase or decrease the value until snowy noise completely disappear.) 9300K R G B 9300K R G B 6500K R G B 6500K R G B OFFSET R G B OFFSET R G B SUB CON: SUB CON: SUB BRI: SUB BRI: - - AUTO SUB: AUTO SUB: - OK GAIN R G B GAIN R G B RESERVE1: RESERVE3: RESERVE2: HUDSON 150B V1.00 2001-02-13 SUB BRI: SUB BRI: - - OK 9300K R G B 9300K R G B 6500K R G B 6500K R G B OFFSET R G B OFFSET R G B SUB BRI: SUB BRI: - - AUTO SUB: AUTO SUB: - OK GAIN R G B GAIN R G B RESERVE1: RESERVE3: RESERVE2: HUDSON 150B V1.00 2001-02-13 127 128 127 128 127 128 149 233 205 255 255 00 255 SUB CON: SUB CON: 255 255 255 - SUB CON: SUB CON: HUDSON 150B V1.00 2001-02-13 NO FUNCTIONED,”DIGITAL DC-Level” RESERVED for LCD MONITOR 150P usage ONLY. ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 All units that are returned for service or repair must pass the original manufactures safety tests. Safety testing requires both and testing. Hipot Ground Continuity HI-POT TEST INSTRUCTION 1. Application requirements 2. Test method 1.1 All mains operated products must pass the Hi-Pot test as described in this instruction. 1.2 This test must be performed again after the covers have been refitted following the repair, inspection or modification of the product. 2.1 Connecting conditions 2.1.1 The test specified must be applied between the parallel- blade plug of the mainscord and all accessible metal parts of the product. 2.1.2 Before carrying out the test, reliable conductive connections must be ensured and thereafter be maintained throughout the test period. 2.1.3 The mains switch(es) must be in the "ON" position. 2.2 Test Requirements All products should be HiPot and Ground Continuity tested as follows: Test 2820VDC 1700VDC Test current: voltage (2000VAC) (1200VAC) 25A,AC Test time: Test time 3 seconds 1 second 3 seconds(min.) (min.) Resistance required: Trip set at 100 uA 5 mA <=0.09+R ohm, current for Max. R is the (Tester) limitation; set resistance of at 0.1 uA for the mains cord. Min. limitation Ramp set at 2 time seconds Condition HiPot Test for HiPot Test for Ground Continuity products where products where Test requirement the mains input the mains input is range is Full 110V AC(USA range(or 220V type) AC) 21 Hudson 150B Go to cover page Forward Back Safety Test Requirements 2.2.1 The test with AC voltage is only for production purpose, 2.2.2 The minimum test duration for Quality Control Inspector must be 1 minute. No breakdown during the test. 2.2.3 The test voltage must be maintained within the specified voltage + 5%. 2.2.4 The grounding blade or pin of mains plug must be conducted with accessible metal parts. Service center shall use DC voltage. 3. Equipments and Connection 4. Recording 3.1. Equipments For example : - ChenHwa 9032 PROGRAMMABLE AUTO SAFETY TESTER - ChenHwa 510B Digital Grounding Continuity Tester - ChenHwa 901 (AC Hi-pot test), 902 (AC, DC Hi-pot test) Withstanding Tester 3.2. Connection Hipot and Ground Continuity testing records have to be kept for a period of 10 years. * Turn on the power switch of monitor before Hipot and Ground Continuity testing. Connect the "video cable" or "grounding screw" to the CLIP on your tester. Video cable (Rear view of monitor) Connect the power cord to the monitor. Grounding screw Power outlet (ChenHwa 9032 tester) Clip Clip ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 22 Hudson 150B Go to cover page Forward Back DDC Instructions General Pin assignment 1 10 6 11 15 5 Assignment Assignment Pin No. Pin No. Ground Cable detect Ground Blue video input 2 7 6 8 4 5 3 1 9 12 11 14 13 15 10 Red video ground Blue video ground Green video ground DDC +5V Ground Data clock line(SCL) V.Sync(VCLK for DDC) H/H+V Sync Serial data line(SDA) Green video input Red video input A. 15-pin D-Sub Connector DDC Data Re-programming Additional information In case the DDC data memory IC or main EEPROM which storage all factory settings were replaced due to a defect, the serial numbers have to be re-programmed. It is advised to re-soldered DDC IC and main EEPROM from the old board onto the new board if circuit board have been replaced, in this case the DDC data does not need to be re-programmed. Additional information about DDC (Display Data Channel) may be obtained from Video Electronics Standards Association (VESA). Extended Display Identification Data(EDID) information may be also obtained from VESA. DDC EDID structure For Analog interface: Standard Version 3.0 Structure Version 1.2 1. An i486 (or above) personal computer or compatible. 2. Microsoft operation system Windows 95/98. 4. A/D Alignment kits (3138 106 10079) : inclusion : a. Alignment box x1 (as Fig. 2) b. Printer cable x1 c. (D-Sub) to (D-Sub) cable x1 Note: The EDID301.EXE (Release Version 1.58 20000818)is a windows-based program, which cannot be run in MS-DOS. System and equipment requirements 3. EDID301.EXE program (3138 106 10103) as shown in Fig. 1 as shown in Fig. 4 d. (DVI-D) to (D-Sub) cable x1 (as Fig. 3) Meanwhile, it is also fully compatible with previous programs DDCV2X.EXE series(MS-DOS based). Diskette with EDID301.EXE EDID301.EXE Ver:1.58 (DVI-D) to (D-Sub) cable Note: The alignment box has already build-in a batteries socket for using batteries (9V) as power source. Pull out the socket by remove four screws at the rear of box. Please do not forget that remove batteries after programming. The energy of batteries can only drive circuits for a short period of time. To Monitor DC 8V~12V Video Card Video Card To Printer Power indicator A/D Alignment Kits - Analog connection A/D Alignment Kits - Analog connection Fig. 2 Fig. 2 Fig. 4 Fig. 4 Fig. 1 Fig. 1 Fig. 3 Fig. 3 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 23 Hudson 150B Go to cover page Forward Back DDC Instructions Fig. 3 4. Configuration and procedure There are two chips contained serial number on the circuit board, Analog DDC IC (7205),and main EEPROM (7208) which storage all factory settings. Following descirptions are the connection and procedure for Analog DDC IC , the main EEPROM can be re- programmed along with Analog IC by enable “factory memory data write” function on the DDC program (EDID301.EXE). ~~ PC To video card To printer port (LTP1) DC Power 8~12 V 5. DDC re-programming instructions Start on DDC program Start Microsoft Windows. 1. Insert the disk containing EDID301.EXE program into floppy disk drive. 2. Click , choose Run at start menu of Windows 95/98. 3. At the submenu, type the letter of your computer's floppy disk drive followed by :EDID301 (for example, A:\EDID301, as shown in Fig. 5). Fig. 5 Printer Port Re-programming Analog DDC IC Step 1: After initialize alignment box, connecting all cables and box as Fig. 3 Step 2: Follow the steps on DDC re-programming instructions to staring re-programming. Initialize alignment box In order to avoid that monitor entering power saving mode due to sync will cut off by alignment box, it is necessary to initialize alignment box before running programming software (EDID301.EXE). Following steps show you the procedures and connection. Step 1: Supply 8~12V DC power source to the Alignment box by plugging a DC power cord or using batteries. Step 2: Connecting printer cable and video cable of monitor as Fig. A Step 3: Run the EDID301.EXE program until the main menu appears. This is for initialize alignment box. ~~ PC To printer port (LTP1) DC Power 8~12 V Fig. A Printer Port To video card Rear view Rear view To Monitor To PC To Monitor To PC ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 24 Hudson 150B Go to cover page Forward Back DDC Instructions Loading DDC data from monitor 1. Click icon on the tools bar to bring up the Configuration Setup windows as Fig.7 2. Select the DDC2B as the communication channel. 3. Enable Factory memory data write function and fill in page address “F0” to the block. 4. Disable “Software DDC” function. 5. Click button to confirm your selection. Note: The Factory memory data write function will allow EDID30 to rewrite serial numbers both Analog DDC IC and main EEPROM to make sure both S/N are exactly the same. You may confirm the function by checking the S/N at Product information of the OSD menu after restarting the monitor. 4. Click button. The main menu appears (as shown on Fig. 6). Fig. 6 Note: If the connection is improper, you will see the following error message before entering the main menu. Meanwhile, the (read EDID) function will be disable. At this time, please make sure all cables are connected correctly and fixedly, and the procedure has been performed properly. 6. Click icon to read DDC EDID data from monitor. The EDID codes will display on screen as following. (The EDID codes are depend on the model.) Meanwhile, The status bar will indicate 00% to 100% when reading. Fig. 7 Command bar Tools bar Status bar ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 25 Hudson 150B Go to cover page Forward Back DDC Instructions Modify Analog DDC data (Serial No.) 1. Click icon on the tools bar. 2. Click till the Step 7 of 9 window appears. 3. Type the new Serial No. (for example, TY 123456). 4. Click till the last step window appears, then click to exit the Step window. Load DDC data from file 1. Click from the tools bar. 2. Select the file you want to open. 3. Click . Button. Save DDC data as a file Sometimes, you maybe need to save DDC data as a text file for using on other DDC chip. To save DDC data, follow the steps below: 1. Click icon on the tools bar and type a file name you like. The file format is ddc type which can be open by Microsoft WordPad. 2. Click button. Note: During the loading, EDID301 will verify the EDID data which just loaded from monitor before proceed any further function, once the data structure of EDID can not be recognized, the following error message will appear on the screen (Fig. 8). Please confirm following steps to avoid this message. 1. The data structure of EDID was incorrect. 2. DDC IC that you are trying to load data is empty. 3. Wrong communication channel has set at configuration setup windows. 4. Cables loosed or poor contact of connection. Fig. 8 Analog DDC serial number Write DDC data to monitor 1. Click icon from the tools bar to starting rewrite DDC data. 2. Click for confirmation. 1 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 26 Hudson 150B Go to cover page Forward Back Exit DDC program 1. Click file command on the command bar then select Exit. Definition of Serial Number T Y 0 0 0 1 0 5 0 0 0 0 0 1 Serial Number (U.S.A: 8 digit) Week Year TY Code TY----Chungli CX----Dong Guan HD----Hungary BZ----Suzhou YA----Mexico IO---- Raleigh (Other regions: 6 digit) 4. Now you can re-programming DDC data which you just loaded from a file, please be confirmed that model and serial number are correct and match with the monitor you are trying to re-write. ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Hudson 150B 27 Go to cover page Forward Back DDC data of Analog THE DISPLAY DATA CHANNEL ( DDC ) 1/2B CONTENT INCLUDING (FOR LG ANALOG) Vendor/Product Identification ID Manufacturer Name : PHL ID Product Code : 0804 (HEX.) ID Serial Number : 123456 (DEC.) Week of Manufacture : 41 Year of Manufacture : 2000 EDID Version, Revision Version : 1 Revision : 2 Basic Display Parameters/Features Video Input Definition : Analog Video Input 0.714V/0.286V (1.00Vpp) without Blank-to-Black Setup Separate Sync Composite Sync Sync on Green no Serration required Maximum H Image Size : 30 Maximum V Image Size : 23 Display Transfer Characteristic : 2.7 (gamma) Feature Support (DPMS) :Standby Suspend Active Off Display Type : RGB color display Preferred Timing Mode : Detailed timing block 1 Color Characteristics Red X coordinate : 0.64 Red Y coordinate : 0.34 Green X coordinate : 0.305 Green Y coordinate : 0.61 Blue X coordinate : 0.14 Blue Y coordinate : 0.115 White X coordinate : 0.313 White Y coordinate : 0.329 Established Timings Established Timings I : 720 x 400 @70Hz (IBM,VGA) 640 x 480 @60Hz (IBM,VGA) 640 x 480 @67Hz (Apple,Mac II) 640 x 480 @72Hz (VESA) 640 x 480 @75Hz (VESA) 800 x 600 @56Hz (VESA) 800 x 600 @60Hz (VESA) Established Timings II : 800 x 600 @72Hz (VESA) 800 x 600 @75Hz (VESA) 832 x 624 @75Hz (Apple,Mac II) 1024 x 768 @60Hz (VESA) 1024 x 768 @70Hz (VESA) 1024 x 768 @75Hz (VESA) Manufacturer's timings : Standard Timing Identification : Unused Detailed Timing #1 Pixel Clock (MHz) : 65 H Active (pixels) : 1024 H Blanking (pixels) : 320 V Active (lines) : 768 V Blanking (lines) : 38 H Sync Offset (F Porch) (pixels) : 24 H Sync Pulse Width (pixels) : 136 V Sync Offset (F Porch) (lines) : 3 V Sync Pulse Width (lines) : 6 H Image Size (mm) : 307 V Image Size (mm) : 230 H Border (pixels) : 0 V Border (lines) : 0 Flags : Non-interlaced : Normal Display, No stereo : Digital Separate sync. : Negative Vertical Sync. : Negative Horizontal Sync. Monitor Descriptor #2 Serial Number : TY 123456 Monitor Descriptor #3 Monitor Name : PHILIPS 150B Monitor Descriptor #4 Monitor Range Limits Min. Vt rate Hz : 56 Max. Vt rate Hz : 76 Min. Horiz. rate kHz : 30 Max. Horiz. rate kHz : 61 Max. Supported Pixel : 80 Extension Flag : 0 Check sum : D7 (HEX.) ********************************************************************** EDID data (128 bytes) ********************************************************************** 0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00 8: 41 9: 0c 10: 04 11: 08 12: 40 13: e2 14: 01 15: 00 16: 29 17: 0a 18: 01 19: 02 20: 2e 21: 1e 22: 17 23: aa 24: ea 25: c1 26: e5 27: a3 28: 57 29: 4e 30: 9c 31: 23 32: 1d 33: 50 34: 54 35: bf 36: ee 37: 00 38: 01 39: 01 40: 01 41: 01 42: 01 43: 01 44: 01 45: 01 46: 01 47: 01 48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 64 55: 19 56: 00 57: 40 58: 41 59: 00 60: 26 61: 30 62: 18 63: 88 64: 36 65: 00 66: 33 67: e6 68: 10 69: 00 70: 00 71: 18 72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 54 79: 59 80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36 88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50 96: 68 97: 69 98: 6c 99: 69 100: 70 101: 73 102: 20 103: 31 104: 35 105: 30 106: 42 107: 0a 108: 00 109: 00 110: 00 111: fd 112: 00 113: 38 114: 4c 115: 1e 116: 3d 117: 08 118: 00 119: 0a 120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: d7 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 28 Hudson 150B Repair Flow Chart No Lightoutput Check Power board 12V/3.3V/5V DC No Yes (Bad AC adapter) Power Board Check video signals input interface Replace inverter panel No Video source Yes Check Inverter panel ~620VAC with load No OK Check fluorescent lamp Check main panel No Front control key does not work Check Front control panel (Key & SW) Yes Check Signal connectors 1707, 1202 Check main panel Yes Go to cover page Forward Back ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 29 Hudson 150B Repair Flow Chart Go to cover page Forward Back Block Diagram AC IN Power supply board Main panel ~620Vrms Inverter panel Fluorescent Lamp LCD panel 3.3V/5V DC 12V DC No power (power indicator off) Check 12V/3.3V/5V DC No Yes (Bad AC adapter) Power supply board Check Main panel Adapter fixed still no good ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Repair Flow Chart Bad brightness Check Inverter panel output 620VAC No Yes Bad Inverter panel Check fluorescent lamp Bad image Check Video,fh/fv signals Yes Check LCD panel No No Check LCD panel Check all connectors & flexible PCB No Check main panel Forward Back 30 Hudson 150B Go to cover page ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Block Diagram 31 Hudson 150B Control Panel Diagram and C.B.A. Go to cover page Forward Back DDC ANALOG 24C02 CPU BD48 ADC/ SCALER gmZAN1 Block diagram of scaler board for Hudson 150B D-SUB EEPROM M24C16 OSD MTV130P-15 80 Pin TTL interface DDC_SDA DDC_SCL R/G/B HS/VS LCD R/G/B HS/VS DCLK DE OSD R/G/B Switch SI9433DY B+ (3.3V) (5.0V) Panel VCC Switch SI9433DY B+ Key pad SOG Slicer Schmitt trigger Crystal Crystal Block diagram of Power supply for Hudson 150B Photo-coupler TCET1103G Protection & feedback network PWM control L5991 & STP6NC60FP AC Inlet AC to DC PG208 Transformer EQ30 AC to DC STPS20H 100CF DC to DC L4978 DC to DC L4978 12V/1.5A DC - Outlet 12V/1.0A Inverter +5V/1.6A +3.3V/2.0A AC Input 90 ~ 264V EMI FILTER 1701 A5 1702 A6 1703 A8 1704 A7 1705 A9 1706 A5 1707 A2 1711 A1 6711 A1 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 32 Hudson 150B Go to cover page Forward Back Scaler Board C.B.A.(Components side view) 1204 C2 2263 B3 3213 B1 3274 A2 6209 B1 1206 A2 2264 C2 3214 B1 3275 A2 6210 A3 1207 C2 2265 C2 3216 A3 3276 A2 6211 B1 2201 A2 2266 C2 3217 A3 3277 A1 6212 B1 2202 A3 2267 B1 3218 A3 3278 A2 6215 A2 2205 A3 2268 A1 3219 A3 3279 B1 7201 A3 2206 A3 2269 A1 3220 A3 3280 B1 7202 A3 2207 A3 2270 A1 3221 C2 3281 A3 7203 A3 2208 A3 2271 C1 3222 C2 3282 A3 7204 A3 2209 A3 2272 C1 3223 B1 3284 A2 7205 A1 2210 A3 2273 A1 3224 A1 3285 A2 7206 B1 2211 A3 2274 A3 3225 B1 3286 B1 7207 C1 2212 A3 2275 A3 3226 B1 3287 A1 7210 B1 2213 A3 2276 A2 3227 B1 3288 A1 7211 B1 2215 A3 2277 A2 3228 B1 3289 A1 7212 A1 2216 B1 2278 A2 3229 B1 3290 A1 7213 A1 2217 A1 2279 A2 3230 B1 3291 A1 7214 B1 2218 B1 2280 A1 3231 C1 3292 A1 7215 A1 2219 A1 2281 A2 3232 C1 3293 A1 7216 A1 2220 B1 2282 A2 3233 C1 3294 A1 7217 A1 2221 B1 2283 A2 3234 C1 3295 A1 7218 A1 2222 B1 2284 A2 3235 C1 3296 A1 7219 C2 2223 B1 2285 C3 3236 A1 3297 A1 7220 A3 2224 B1 2286 A2 3237 A3 3298 A1 7221 A3 2225 B1 2287 A2 3238 A3 3299 A1 7222 A3 2226 B1 2288 A2 3239 B1 3301 A3 2227 B1 2289 A2 3240 B1 3302 A3 2228 A3 2290 A2 3241 A2 3303 A3 2229 A3 2291 A2 3242 A2 3304 A3 2231 B1 2292 A2 3243 A3 3305 A3 2232 B1 2293 A2 3244 A2 3306 A3 2233 B1 2294 A2 3245 A2 3307 A3 2234 B1 2295 A2 3246 A2 3308 A3 2235 B1 2296 A1 3247 A1 3309 A3 2236 B1 2297 A1 3248 A2 3310 A3 2238 C2 2298 A2 3249 A2 3311 C2 2239 C2 2301 B2 3250 A2 3313 A3 2240 C1 2302 B2 3251 A1 3314 A2 2241 C2 2303 C1 3252 A2 3315 B2 2242 C2 2304 C3 3253 B2 3318 C1 2243 C1 2305 C3 3254 B2 5203 C1 2244 C2 2306 A2 3255 B2 5204 C2 2245 C2 2307 A2 3256 B2 5205 C2 2246 C2 2308 C1 3257 B2 5206 B2 2247 C2 2309 C2 3258 B3 5207 C1 2248 B1 2310 C2 3259 B3 5208 C1 2249 B1 2311 B1 3260 B3 5209 A2 2250 B1 2312 B1 3261 B3 5210 C3 2251 B1 2313 B1 3262 B3 5211 A2 2252 B1 3201 A3 3263 B3 5214 A2 2253 B3 3202 A3 3264 C3 5215 A3 2254 B3 3204 A3 3265 B2 5216 A3 2255 B2 3205 A3 3266 C3 6201 B1 2256 B1 3206 B1 3267 C3 6202 B1 2257 B2 3207 B1 3268 C3 6203 B1 2258 B2 3208 B1 3269 C3 6204 B1 2259 B2 3209 B1 3270 A2 6205 B1 2260 B2 3210 B1 3271 A2 6206 B1 2261 B3 3211 B1 3272 A2 6207 B1 2262 B2 3212 B1 3273 A2 6208 B1 1201 A3 1202 B1 1203 A2 2203 A3 2204 A3 2214 A3 5201 A2 5202 A3 5217 C3 7208 A1 7209 A2 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 33 Hudson 150B Go to cover page Forward Back 1051 C4 B 1052 A3 B 1101 C1 B 1102 C1 B 1105 A1 B 2044 B2 B 2045 A2 B 2061 A3 B 2067 A2 B 2071 A4 B 2077 A3 B 2082 A4 B 2101 C1 B 2102 C2 B 2103 B1 B 2104 B1 B 2105 B2 B 2111 C3 A 2112 B3 B 2113 C3 B 2115 C4 B 2116 B4 B 2117 B4 B 2118 A4 B 3041 A1 B 3042 A2 B 3063 A2 B 3101 C1 B 3112 C3 B 3113 C2 B 3114 C3 B 3115 C2 B 3117 C3 B 3121 C4 B 3127 C2 B 3181 A1 B 4101 B2 B 4102 B4 B 5061 A2 B 5071 A3 B 5101 C1 B 5103 C3 B 5104 A4 B 6061 A2 B 6071 A3 B 6109 B4 B 7061 A2 B 7071 A3 B 7101 C3 B 7102 B2 B 7104 C3 B 7106 C4 B 8101 B1 B 9002 A4 B 9005 A1 B 9012 B4 B 9014 A4 B 9015 B4 B 9016 A4 B 9017 A3 B 9018 A3 B 9019 A3 B 9020 A3 B 9021 A3 B 9022 A2 B 9023 A2 B 9024 A3 B 9025 A3 B 9027 B4 B 9028 A4 B 9029 A4 B 9030 A4 B 9033 A4 B 9034 A2 B 9101 A1 B 9103 A4 B 9104 C4 B 9106 C2 B 9107 C2 B 9108 B3 B 9109 C4 B 9110 C4 B 9111 C4 B 9113 B4 B 9126 B4 B 9131 C3 B 9132 C1 B 2041 A1 A 2042 A2 A 2043 B2 A 2051 C4 A 2052 C4 A 2053 C4 A 2054 C4 A 2055 C4 A 2056 C4 A 2062 A2 A 2063 A2 A 2064 A2 A 2065 A2 A 2066 A2 A 2068 A2 A 2072 A3 A 2073 A3 A 2074 A3 A 2075 A3 A 2076 A3 A 2078 A3 A 2081 A4 A 2085 A2 A 2086 A3 A 2106 C3 A 2107 C3 A 2108 C3 A 2109 C2 A 2110 C2 A 2114 C3 A 2119 C4 A 2120 C4 A 3043 A2 A 3044 A2 A 3045 A1 A 3046 B1 A 3047 A1 A 3048 A2 A 3051 A3 A 3052 A3 A 3053 A3 A 3054 A4 A 3055 A4 A 3056 A4 A 3057 A3 A 3067 A2 A 3068 A2 A 3069 A2 A 3071 A3 A 3072 A3 A 3075 A3 A 3076 A3 A 3077 A3 A 3078 A3 A 3079 A3 A 3080 A3 A 3082 A4 A 3083 A4 A 3084 A4 A 3085 A4 A 3086 A4 A 3090 A2 A 3091 C4 A 3092 C4 A 3093 A2 A 3094 A1 A 3102 C2 A 3103 C2 A 3104 C2 A 3105 C2 A 3106 C3 A 3107 C2 A 3108 C2 A 3109 C3 A 3110 C2 A 3111 C2 A 3116 C3 A 3118 C3 A 3119 C2 A 3120 C2 A 3122 C3 A 3123 C4 A 3124 C3 A 3125 C4 A 3126 C4 A 3128 C2 A 6041 A2 A 6042 A1 A 6107 B3 A 6108 B3 A Power Board C.B.A.(copper track & smc side view) ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Schematic Diagram (Input D- SUB) 34 Hudson 150B Conjuction Diagram Go to cover page Forward Back FROM POWER BOARD F001 100n 2206 +12V 5201 10u F016 2202 100n 0R 3302 2204 470u 100n 2207 0R 3303 3307 22K 22K 3306 0R 3305 F003 F009 F011 F010 10u 5202 F015 F012 100n 2210 100n 2211 3304 0R F013 F014 F005 F008 F006 2212 100n 22K 3308 F007 3309 22K F004 F002 +5V 2209 100n 100n 2201 470u 2203 2205 100n 3301 +3.3V 0R 7 8 9 1201 1 10 11 12 13 14 15 16 2 3 4 5 6 2208 100n BA_LI_BRI_CTL BA_LI_MAX BA_LI_FRE BA_LI_KICK BA_LI_PWR_CTL DC_SWITCH +5V_EN TO CONTROL BOARD 2291 1n 1n 2290 3271 2287 1n F017 F023 2296 1n F020 F019 1n 3277100R 2288 F022 F021 1n 2289 F018 +5V +3.3V 2295 1n 2297 1n 2292 1n 5211 3276100R 1n 2286 2293 1n 3274100R 1 2 3 4 5 6 7 1203 3284 2294 1n 3275100R 3278 5214 3272100R KEY1 LED_R LED_G DC_SWITCH PWR_SW KEY2 +5V 100n 2223 BAV99 6205 BAV99 6207 2220 100n BAV99 6203 6208 BAV99 6206 BAV99 6204 BAV99 2222 100n 100n 2221 BAS32L 6201 BAV99 6209 6202 BZX84-C5V1 R G B VSYNC HSYNC DDCSCL DDCSDA 3237 3221 6 7 8 9 17 1 10 11 12 13 14 15 2 3 4 5 1202 1285-15S 16 +3.3V TC7SH14F 7219 3 GND 2INA NC 1 4 OUTY 5 VCC 2313 10p 2311 10p 10p 2312 3223 4K7 3218 2K2 330p 2226 75R 3207 F033 2K2 3216 0R 3280 2227 100n 3208 75R +5V 47R 3209 3311 100R 100R 3225 3224 F032 F030 3206 75R F029 33p 2229 3217 0R +3.3V F031 2225 330p 3210 47R F024 7220 FN0 GND 3 INA 2 INB 1 OUTY 4 VCC 5 2274 3279 BAS32L 6211 3239 10K 6212 BAS32L 3229 470R 7210 BC848C 33p 2224 3240 2K2 4K7 3230 F028 F027 100R 0R 3238 2228 3219 2238 47R 3211 4 VSS 7 WC_ M24C02 7205 1 E0 2 E1 3 E2 6 SCL 5SDA 8 VCC F025 F026 3226 100R 3220 DDCSCL_O R G B HSYNC VSYNC PC+5V DDCSDA_O VS_IN HS_IN SOG_IP DSUB_DET DDCSDA DDCSDA DDCSCL To 2231 / 7206 PIN 95 To 2233 / 7206 PIN 87 To 2232 / 7206 PIN 91 TO 7206 pin 150 TO 7206 PIN 148 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Schematic Diagram (DC-DC Converter) 35 Hudson 150B Go to cover page Forward Back 10.1 1.8 1.4 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Schematic Diagram (AC Adapter) 36 Hudson 150B Go to cover page Forward Back 4.92. 1.4 147.5504. 6.704 3.404 2.504 5.04. 2.1 2.4 8.6 8.6 14.104. ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Schematic Diagram (MCU) 37 Hudson 150B Go to cover page Forward Back B78 7209-42 B79 7209-1 B80 7209-37 B75 7209-7 B77 7209-24 B76 7209-23 B74 7209-6 B81 7209-36 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 0.2 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 02 mS/div 1 V/div AC 5 uS/div R R R R 3290 1K8 +5V 3299 100R 3292 2K7 1K 3291 BC848C 7213 BC858C 7212 3K 3289 100n 2273 PMBT2369 7218 2268 100n 3294 15K 3295 910R 2270 3297 6K2 PMBT2369 7214 3286 2K2 +5V 8K2 3296 100n 2217 47u 2218 BC858C 7211 7216 BC858C +5V 10K 3298 3293 10K 3287 330R +5V 7217 BC858C 7215 PMBT2369 100n 2269 3288 1K 1 2 3 4 5 6 7 8 3 E2 6 SCL 5 SDA 8 VCC 4 VSS 7 WC 100R 3236 7208 M24C16-BN6 1 E0 2 E1 2216 100n 2219 100n SOG_IP SOG_OP IICSDA IICSCL EEPROM_WP F036 47K 3310 5215 SI5441DC 7221 D1 1 D2 2 D3 3 D4 6 D5 7 D6 8 G 4 S 5 3282 10R 5216 +5V 2214 470u 10R 3281 VCC_PANEL 7222 SI5441DC 1 D1 2 D2 3 D3 6 D4 7 D5 8 D6 G 4 5 S +5V 6210 BAV99 F034 10K +5V 3313 +3.3V 1 S1 2 S2 3 S3 7202 8 D1 7 D2 6 D3 5 D4 4 G 10n 2215 3204 +5V 7204 D1 8 D2 7 D3 6 D4 5 G 4 S1 1 S2 2 S3 3 10K 3202 +5VD 3201 10K 3205 10K 2213 10n BC858C 7201 BC848C 7203 PPWR_1 +5V_PWR_CTL PPWR 2277 GMZ_OSD_RST R R R R R R R R R R R R R R R R +5V 3273 10K 10K 3247 2280 100n 10K 3249 +5V +5V 1 2 3 4 5 6 7 8 10K 3245 2281 100n +5V +5V 3252 10R 100n2284 2M 3244 24MHZ 1206 6C24000066 1u 2275 VSS 8 VSS1 30 VSYNC 1 PTC1-ADC1 40 PTC2-ADC2 39 PTC3-ADC3 38 PTC4-ADC4 14 PTC5-ADC5 13 PTD2-DDCSDA 29 PTD3-DDCSCL 28 PTD4-CLAMP 27 PTD5-IICSCL 26 PTD6-IICSDA 25 PTE0-SOG-TCH0 16 PTE1-HSYNO 36 PTE2-VSYNO 37 RST 9 VDD 5 VDD3 2 PTA2-PWM10 22 PTA3-PWM11 21 PTA4-PWM12 20 PTA5-PWM13 19 PTA6-PWM14 18 PTA7-PWM15 17 PTB0-PWM0 35 PTB1-PWM1 34 PTB2-PWM2 33 PTB3-PWM3 32 PTB4-PWM4 31 PTB5-PWM5 12 PTB6-PWM6 11 PTB7-PWM7 10 PTC0-ADC0 41 7209 MC68HC908BD48 HSYNC 42 IRQ 15 OSC1 7 OSC2 6 PD0-D+ 4 PD1-D- 3 PTA0-PWM8 24 PTA1-PWM9 23 4 5 6 7 8 10K 3242 1 2 3 BAS32L 6215 2307 100n 100n 2306 +5V +5V 5209 15p 3 4 5 6 7 8 3250 10K 1 2 2282 100n 15p 2278 +5V 2283 2279 100n 0R 3246 2276 1u 3241 10K 10K 1 2 3 4 5 6 7 8 3248 2298 1n 100R 3243 3270 100R 331410K 3251 10K 15K 3285 PANEL_ID1 BA_LI_MAX BA_LI_BRI_CTL PPWR_1 PC+5V PWR_SW KEY1 KEY2 HSYNC VSYNC BA_LI_PWR_CTL BA_LI_FRE BA_LI_KICK DDCSCL_O IICSCL IICSDA HFS IRQ EEPROM_WP DSUB_DET LED_G FCLK HDATA2 +5V_PWR_CTL VS_IN HS_IN HDATA3 SOG_OP LED_R DDCSDA_O PANEL_ID2 HDATA0 HDATA1 78 79 1.5 74 75 80 81 3.2 3.2 3.2 3.2 77 76 3.2 3.2 B1 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Schematic Diagram (Scaler) 38 Hudson 150B Go to cover page Forward Back 232270260472 3232 3279 3278 232270296001 3220 232270260101 3222 2309 319801634790 232270260103 2270 223886775229 3204 3266 2274 223886775229 2310 223886775229 223886775229 2301 223886775229 232270260101 2303 232270260101 3219 3224 232270260205 2239 2302 223886775229 Ref Des NI 2228 223886775229 223878615649 223886715101 2238 2283 223886715339 232270260103 932211529668 FN0 932214106685 3271 232270260331 3221 7220 932211529668 7204 232270260472 3284 232271191032 319802131030 3268 232270260103 223886775229 2308 5216 313816874261 7202 R R R R R R R R R R R R 4K7 3234 10K 1 2 3 4 5 6 7 8 3231 6 7 8 3233 100R 1 2 3 4 5 +5VD 4 5 6 7 8 +5VD 100R 3235 1 2 3 3232 2272 1u 5208 +5VD 5207 1u 2271 8 SDA 7 SSB 6 VDD1 4 VDD2 9 VFLB 10 VSS1 1 VSS2 16 XIN 2 MTV130P-15 7207 BOUT 13 FBKG 12 GOUT 14 HFLB 5 INT 11 NC 3 ROUT 15 SCK OSD_CLK OSD_B OSD_R GMZ_OSD_RST OSD_FB OSD_G IICSDA IICSCL OSD_VS OSD_HS /CS /RESERVED12 2239 133 SUB_SGNDA 139 SVDD 140 SVSS 149 SYN_VDD 151 SYN_VSS 141 TCLK 148 VSYNC 142 XTAL 49 RVSS3 61 RVSS4 155 SCAN_IN1 157 SCAN_IN2 159 SCAN_OUT1 160 SCAN_OUT2 11 SRVDD1 21 SRVDD2 18 SRVSS1 158 SRVSS2 153 STI_TM1 154 STI_TM2 132 SUB_DGNDA 81 SUB_GNDA 146 SUB_RGNDA 152 RESERVED10 156 RESERVED11 5 RESERVED2 59 RESERVED3 60 RESERVED4 83 RESERVED5 130 RESERVED6 135 RESERVED7 145 RESERVED8 147 RESERVED9 100 RESETn 12 RVDD1 33 RVDD2 65 RVDD3 8 RVSS1 30 RVSS2 57 PD9 43 PDISPE 74 PHS 131 PLL_DGNDA 129 PLL_DVDDA 144 PLL_RGNDA 143 PLL_RVDDA 134 PLL_SGNDA 136 PLL_SVDDA 76 PPWR 3 PSCAN 73 PVS 95 RED+ 94 RED- 2 RESERVED0 4 RESERVED1 20 PD37 19 PD38 17 PD39 67 PD4 16 PD40 15 PD41 14 PD42 13 PD43 10 PD44 9 PD45 7 PD46 6 PD47 66 PD5 64 PD6 63 PD7 62 PD8 38 PD22 37 PD23 36 PD24 35 PD25 34 PD26 32 PD27 31 PD28 29 PD29 68 PD3 28 PD30 27 PD31 26 PD32 25 PD33 24 PD34 23 PD35 22 PD36 45 PCLKB 71 PD0 70 PD1 56 PD10 55 PD11 54 PD12 53 PD13 52 PD14 51 PD15 50 PD16 48 PD17 47 PD18 46 PD19 69 PD2 42 PD20 39 PD21 106 MFB6 105 MFB7 104 MFB8 102 MFB9 97 NC 117 OSD_CLK 118 OSD_DATA0 119 OSD_DATA1 120 OSD_DATA2 121 OSD_DATA3 122 OSD_FSW 115 OSD_HREF 116 OSD_VREF 75 PBIAS 44 PCLKA 126 DVSS 91 GREEN+ 90 GREEN- 103 HCLK 99 HDATA 98 HFS 150 HSYNC 101 IRQ 113 MFB0 112 MFB1 124 MFB10 123 MFB11 111 MFB2 110 MFB3 109 MFB4 107 MFB5 ADC_VDDA 87 BLUE+ 86 BLUE- 40 CVDD1 58 CVDD2 108 CVDD4 1 CVSS1 41 CVSS2 72 CVSS3 114 CVSS4 127 DAC_DGNDA 128 DAC_DVDDA 138 DAC_SGNDA 137 DAC_SVDDA 125 DVDD gmZAN1 7206 85 ADC_BGNDA 88 ADC_BVDDA 89ADC_GGNDA 80 ADC_GND1 78 ADC_GND2 82ADC_GNDA 92 ADC_GVDDA 93ADC_RGNDA 96 ADC_RVDDA 79 ADC_VDD1 77 ADC_VDD2 84 3228 10K 10u 2240 10K 3227 100n 2235 1207 14M31818HZ 2242 100n 2250 100n 100n 2231 100n 2262 2234 100n 2244 100n +3.3V 3222 2232 100n 100n 2249 100n 2241 100n 2256 2266 100n 2253 47u 2308 0R 3315 100n 2245 2309 2310 2263 100n 2243 10u 100n 2264 2246 10u 100n 2255 2259 100n 100n 2233 100n 2258 2251 100n 2260 100n 5205 100n 2265 100n 2252 2301 5203 5204 2254 100n 2257 100n 2267 100n 2302 100n 2261 5206 10u 2248 2247 100n 2236 100n PCLKA RVDDA RVDDA HDATA1 HDATA2 HDATA3 OD_R6 OD_R7 OD_G2 OD_G3 OD_G4 OD_G5 OD_G6 OD_G7 OD_B2 OD_B3 OD_B4 OD_B5 OD_B6 OD_B7 EV_R0 EV_R1 EV_G0 EV_G1 EV_B0 EV_B1 OD_R0 OD_R1 OD_G0 OD_G1 OD_B0 OD_B1 PPWR PHS PVS PDISPE OSD_R OSD_FB HFS FCLK HDATA0 GMZ_OSD_RST IRQ EV_R2 EV_R3 EV_R4 EV_R5 EV_R6 EV_R7 EV_G2 EV_G3 EV_G4 EV_G5 EV_G6 EV_G7 EV_B2 EV_B3 EV_B4 EV_B5 EV_B6 EV_B7 OD_R2 OD_R3 OD_R4 OD_R5 OSD_HS OSD_VS OSD_B OSD_G 47R 47R 47R 3214 3213 3212 2303 3318 0R OSD_CLK 3209 3211 3210 FROM FROM 7219 PIN 4 FROM 7220 PIN 1 FROM FROM ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Schematic Diagram (O/P to Panel) 39 Hudson 150B Waveforms Go to cover page Forward Back B64 3260-8 B65 3259-5 B66 3261-5 B67 3261-7 B68 3261-1 B69 3261-3 B70 3260-5 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div B22 3255-7 B29 3263-2 B36 3257-1 B8 3253-3 B50 3258-2 B15 3262-5 B57 3263-3 B23 3255-8 B30 3263-1 B2 3262-2 B44 3258-5 B9 3254-1 B51 3257-6 B16 3262-6 B58 3259-1 B24 3255-1 B31 3256-7 B38 3256-3 B3 3253-2 B45 3258-8 B52 3263-5 B17 3262-3 B59 3259-3 B25 3255-2 B26 3262-1 B33 3263-7 B40 3257-8 B54 3263-6 B61 3264-7 B27 3255-4 B28 3256-2 B35 3257-2 B42 3256-6 B7 3253-4 B49 3258-1 B14 3254-6 B56 3263-4 B34 3263-8 B41 3256-5 B6 3255-6 B48 3258-4 B13 3254-5 B55 3257-3 B20 3255-5 B62 3260-1 B32 3256-8 B39 3257-7 B4 3255-3 B46 3258-7 B53 3257-5 B18 3254-3 B60 3259-8 1 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 2 V/div AC 0.5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 0.5 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 52umS/div 1 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 0.5 uS/div 1 V/div AC 5 uS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 5 uS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 0.2 uS/div 15 V/div AC 5 mS/div 1 V/div AC 0.2 uS/div 1 V/div AC 5 mS/div 1 V/div AC 0.5 uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5uS/div 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div 1 V/div AC 5 uS/div 1 V/div AC 5 mS/div B5 3262-7 B19 3254-4 B21 3262-8 1 V/div AC 5 mS/div 0.5 V/div AC 5 mS/div B63 3259-4 B71 3260-6 B72 3264-5 1 V/div AC 5 mS/div 1 V/div AC 5 mS/div B73 3264-4 1 V/div AC 5 mS/div STAND FOR CHIP COMPONENT. NOTES: 100R 3269 VCC_PANEL 3266 3267 100R 3268 P_ID1 PANEL_ID1 P_ID2 PANEL_ID2 R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R 2305 100n 5217 10u F099 F066 47R 3259 1 2 3 4 5 6 7 8 F067 3 4 5 6 7 8 3261 47R 1 2 F085 F086 F048 F083 F051 F097 F098 3262 1 2 3 4 5 6 7 8 47R F100 F090 VCC_PANEL F095 47R 1 2 3 4 5 6 7 8 F094 3260 F078 F074 F058 F091 F089 F050 F101 F068 F096 100n 2304 8 3264 47R 1 2 3 4 5 6 7 F077 F055 F079 F080 F075 F092 F082 F046 F045 F042 F069 F064 F053 6 7 8 3253 47R 1 2 3 4 5 69 7 70 71 72 73 74 75 76 77 78 79 8 80 9 54 55 56 57 58 59 6 60 61 62 63 64 65 66 67 68 4 40 41 42 43 44 45 46 47 48 49 5 50 51 52 53 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 1204 1 10 F070 F071 F043 F065 5210 2285 47u F049 F072 F073 F054 F060 F056 F088 1 2 3 4 5 6 7 8 47R 3263 6 7 8 47R 3255 1 2 3 4 5 3257 47R 1 2 3 4 5 6 7 8 F047 F044 F062 F059 F057 7 8 3256 47R 1 2 3 4 5 6 F076 1 2 3 4 5 6 7 8 F063 47R 3265 F061 F081 F052 F041 8 47R 3258 1 2 3 4 5 6 7 F087 47R 3254 1 2 3 4 5 6 7 8 F084 F093 POD_R6 POD_R4 POD_R3 POD_R1 PEV_B6 PEV_B4 PEV_B3 PEV_B1 PEV_R6 PEV_R4 PEV_R3 PEV_R1 POD_B6 POD_B4 POD_B3 POD_B1 PEV_R4 PEV_R5 PEV_B2 PEV_B3 PEV_B4 PEV_B5 PEV_B6 PEV_B7 POD_R0 POD_R1 POD_R2 POD_R3 POD_R4 POD_R5 POD_R6 POD_R7 POD_G0 POD_G1 POD_G2 POD_G3 POD_G4 POD_G5 POD_G6 POD_G7 POD_B0 POD_B1 POD_B2 POD_B3 POD_B4 POD_B5 POD_B6 POD_B7 PEV_R2 PEV_R3 OD_B1 OD_B2 OD_B3 OD_B4 OD_B5 OD_B6 OD_B7 PCLKA PDISPE PHS PVS PEV_R0 PEV_R1 PEV_R6 PEV_R7 PEV_G0 PEV_G1 PEV_G2 PEV_G3 PEV_G4 PEV_G5 PEV_G6 PEV_G7 PEV_B0 PEV_B1 OD_R0 OD_R1 OD_R2 OD_R3 OD_R4 OD_R5 OD_R6 OD_R7 OD_G0 OD_G1 OD_G2 OD_G3 OD_G4 OD_G5 OD_G6 OD_G7 OD_B0 EV_R6 EV_R7 EV_G0 EV_G1 EV_G2 EV_G3 EV_G4 EV_G5 EV_G6 EV_G7 EV_B0 EV_B1 EV_B2 EV_B3 EV_B4 EV_B5 EV_B6 EV_B7 PDVS PDHS PDEN PDCLK EV_R0 EV_R1 EV_R2 EV_R3 EV_R4 EV_R5 PEV_B7 PEV_B5 PEV_B2 PEV_B0 PDCLK POD_G6 POD_G4 POD_G3 POD_G1 PEV_G6 PEV_G4 PEV_G3 PEV_G1 POD_R7 POD_R5 POD_R2 POD_R0 POD_G7 POD_G5 POD_G2 POD_G0 POD_B7 POD_B5 P_ID1 PDVS PDHS POD_B2 POD_B0 PEV_R7 PEV_R5 PEV_R2 PEV_R0 PEV_G7 PEV_G5 PEV_G2 PEV_G0 FRC_CTL P_ID2 PDEN 0 0 P_ID2 1 HITACHI 0 P_ID1 1 HANSTAR CPT 1 PANEL 0 1 LGX3 8 7 9 18 19 24 25 4 27 28 38 36 35 55 49 50 48 58 63 62 68 69 26 2 30 29 57 56 73 13 14 23 22 6 20 32 31 42 41 40 39 51 53 45 46 44 65 60 64 71 70 67 66 21 5 16 15 34 33 54 52 61 72 1.3 0.9 1.3 1.5 1.5 1.3 0.8 1.2 1.4 1.5 1.0 17 1.6 1.6 1.2 0.9 1.4 1.5 0.8 0.9 0.9 0.8 1.5 1.0 0.8 0.7 0.9 1.6 0.8 1.6 0.9 3 59 B2 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Inverter Diagram(AMBIT) 40 Hudson 150B Recommended Parts List for inverter board Go to cover page Forward Back Position Description Category Service Code C1 CAP 680JP 3KV NPO Capacitor 9965 000 08858 C2 CAP 25MV100SGX100UF/25V Capacitor 9965 000 08859 T1 X'FMR LL17 Transformer 9965 000 08860 F1 315A/DC24V FUSE 9965 000 08861 D1 SW 1SS355 SOD323 40V/100Ma Diode 4822 130 83649 D7 ZEN RL6.2B/TE-11LL-34 500Mw Diode 9965 000 08854 D9 BA V99 SOT-23 70V/216mA Diode 5322 130 34337 Q1 NPN MMBT3904LT1 SOT23 Transistor 9965 000 08855 Q2 NFET 2N7002(E) SOT23 Transistor 4822 130 11507 Q6 NPN DTC144EUR UMT3 Transistor 9965 000 08856 U3 FET SI4559EY SO8 N/P 4.7A Transistor 9965 000 08853 U1 OP BA10358F SO8 IC 4822 209 63785 U2 OZ965G SOP16 IC 9965 000 08857 U4 COMP LM393 SO8 IC 5322 209 70225 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 41 Hudson 150B Go to cover page Forward Back Exploded View 1 3138 157 51430 FRONT BEZEL ASSY-150B 2 3138 157 51410 BACK COVER ASSY 1052 8238 277 07360 LCD PANEL 15.1/0.3P/75HZ/TFT 1055 3138 188 70020 FPC CABLE(TP-D29C) 1061 3138 158 53040 SCALER PCB ASSY-5449 1062 3138 158 52510 POWER PCB ASSY 1058 3138 188 70270 INVERTER (HUDSON) 1063 3138 158 52530 CONTROL PCB ASSY 1053 3138 168 74230 MAINS CORD 1054 3138 168 78450 I/F CABLE (CE190261310) 1056 3138 158 53070 BASIC BASE + WIRE ASSY 3138 154 03080 CAP-BASIC 53 51 3138 154 03070 BASIC BASE 3138157 51440 CHIN ASSY 4 3138 153 20260 INSULATE PLATE 14 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 42 Hudson 150B Go to cover page Forward Back Recommended Parts List Model: 150B2B/00 Item Code number Description 1 313815751430 FRONT BEZEL ASSY-150B 2 313815751410 BACK COVER ASSY 4 313815751440 CHIN ASSY 31 313815402480 FRONT-BEZEL (BAYER-FR20) 33 313815550730 PLASTIC COVER 41 313815402490 BACK COVER (BAYER-FR20) 82 313815403120 CONTROL KNOB (BAYER-FR20) 450 313815630670 CARTON 451 313815630690 FORM SHEET-FRONT 452 313815630700 FORM SHEET-REAR 453 313815620610 P.E.BAG-ANTI-STAT. 601 313811703120 E-D.F.U. ASSY-HUDSON 150B 1053 313816874230 MAINS CORD 1054 313816878450 I/F CABLE (CE190261310) 1055 313818870020 FPC CABLE(TP-D29C) 1058 313818870270 INVERTER (HUDSON-150P) 1061 313815853040 SCALER PCB ASSY-5449 1062 313815852510 POWER PCB ASSY-5411 1063 313815852530 CONTROL PCB ASSY 1098 313815853060 CPU WITH PROGRAM ASSY(7209) 1099 313815853050 EEPROM IC ASSY(7208) 1102 242208610239 FUSE HRC T3.15AH/250V S 7061 932216562682 IC L4978 DC-DC CONTROLLER 7102 932215101687 TRANS STP6NC60FP 7104 932214014667 PHOTOCOUPLER TCET1103G 4P 7106 933771100686 IC TL431CLPRP 3P 7206 932216669671 IC GMZAN1 7221 932216638668 TRANS.SI5441DC 7101 932213028682 IC L5991 16P 1056 313815853070 BASIC BASE + WIRE ASSY 5103 313818870220 POWER TRANSFORMER EQ-30 5061 313816877220 DRUM CHOKE-68UH/3A ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 43 Hudson 150B CTV : 150B2B/00 1 313815751430 FRONT BEZEL ASSY-150B 2 313815751410 BACK COVER ASSY 4 313815751440 CHIN ASSY 18 313815402800 GUIDE-DC-OUT 31 313815402480 FRONT-BEZEL (BAYER-FR20) 32 313815403210 POWER KNOB (BAYER-PC-2407) 33 313815550730 PLASTIC COVER 41 313815402490 BACK COVER (BAYER-FR20) 43 313815402530 SLIDE-LOCK-BASE (BAYER-FR20) 44 313815402510 LOCK-BEZEL-LEFT (BAYER-FR20) 45 313815402520 LOCK-BEZEL-RIGHT (BAYER-FR20 46 313815403270 GASKET 51 313815403070 BASIC BASE(CHEIL-HR1360,LG-60H 53 313815403080 CAP-BASIC(CHEIL-HR1360,LG-60HR 70 313815630680 FIBRE BOARD-BASE 82 313815403120 CONTROL KNOB (BAYER-FR20) 130 283806290083 RUBBER BAND 141 313815520610 QUICK SETUP GUIDE-HUDSON 150B 142 313815520590 MANUAL-USING YOUR MONITOR 302 313815403270 GASKET 1050 313818805550 HUDSON-150B ALL CHAS. KIT-LG 1052 823827707360 LCD PANEL 15.1/0.3P/75HZ/TFT 1053 313816874230 MAINS CORD 1054 313816878450 I/F CABLE (CE190261310) 1055 313818870020 FPC CABLE(TP-D29C) 1058 313818870270 INVERTER (HUDSON-150P) 1059 313816879400 AC INLET ASSY(46018) 1061 313815853040 SCALER PCB ASSY-5449 1062 313815852510 POWER PCB ASSY-5411 1063 313815852530 CONTROL PCB ASSY 1095 243803100146 CON BM V 8P F 2.54 DIL B - FRA 1098 313815853060 CPU WITH PROGRAM ASSY(7209) 1099 313815853050 EEPROM IC ASSY(7208) 1101 313816876340 3-1p wafer 1102 242208610239 FUSE HRC T3.15AH/250V S 1105 243803100404 CON BM SUPPH 1P F 16V 3A B 1191 313815852540 FET POWER ASSY(7102) 1192 313815852560 SCHOTTKT DIODE ASSY(6109) 1201 313816879520 16P WAFER 61186-V 1202 243803100416 D-SUB RIGHT ANGLE 0.318 1206 243854300084 SMD XTL 24MHZ 20P 1207 243854300086 14.31818M 18PF 20PPM Various 450 313815630670 CARTON 451 313815630690 FORM SHEET-FRONT 452 313815630700 FORM SHEET-REAR 453 313815620610 P.E.BAG-ANTI-STAT. 456 313815630710 SLEEVE-INNER 601 313811703120 E-D.F.U. ASSY-HUDSON 150B 1062 313815852510 POWER PCB ASSY-5411 2051 223891015649 CER2 0805 X7R 25V 1N CO 2052 223891015649 CER2 0805 X7R 25V 1N CO 2053 223891015649 CER2 0805 X7R 25V 1N CO 2054 223891015649 CER2 0805 X7R 25V 1N CO 2055 223891015649 CER2 0805 X7R 25V 1N CO 2056 223891015649 CER2 0805 X7R 25V 1N CO 2061 203803500309 ELCAP 470U/25V/SC TYPE 2062 223858016618 CAP 2NF2 0805 SMD X7R T 2063 223891015649 CER2 0805 X7R 25V 1N CO 2064 223891015649 CER2 0805 X7R 25V 1N CO 2065 223858015641 SMD C0805 22N 63V PM10 X710 R 2066 223886115221 MLCC 0850 NPO 220PF J 4B 9 2067 203803500309 ELCAP 470U/25V/SC TYPE 2071 203803500309 ELCAP 470U/25V/SC TYPE 2072 223858016618 CAP 2NF2 0805 SMD X7R T 2073 223891015649 CER2 0805 X7R 25V 1N CO 2074 223891015649 CER2 0805 X7R 25V 1N CO 2075 223858015641 SMD C0805 22N 63V PM10 X710 R 2076 223886115221 MLCC 0850 NPO 220PF J 4B 9 2077 203803500309 ELCAP 470U/25V/SC TYPE 2085 223891019854 CER2 0805 Y5V 25V 220N 2086 223891019854 CER2 0805 Y5V 25V 220N 2101 203830100314 X2 CAP 250V 220N PM10 2102 203830100413 ACROSS LINE CAP 275V 680N PM20 2103 202055490139 CERSAF NSB 250V S 4N7 PM20 B 2104 202055490139 CERSAF NSB 250V S 4N7 PM20 B 2105 203803500319 ELCAP SH 4V 120U PM20 2106 223886115152 0805 NPO 1N5 J 50V P46 2107 223891015649 CER2 0805 X7R 25V 1N CO 2108 223886115102 SMD 0805 10PF T 2109 223858015641 SMD C0805 22N 63V PM10 X710 R 2110 223886115101 CER2 0805 NPO 50V 1P 2111 203855400008 CER2 DC Y5P 5V S 1N PM10 A 2112 202055490158 CERSAF CD 250V 2N2 PM20 2113 203803513506 ELECAP RGA 50V 22UF PM20 2E T 2114 223886115102 SMD 0805 10PF T 2115 203855400008 CER2 DC Y5P 5V S 1N PM10 A 2116 203803550313 ELCAP SM 470UF 25V PM20 2117 203803550313 ELCAP SM 470UF 25V PM20 2118 203803550313 ELCAP SM 470UF 25V PM20 2119 223886115399 SMD0805NPO 39P 50V +/-5% 2120 223858016525 SMD CAP 0805 6N8 PM1 3048 319802190020 RST SM 0805 JUMP. 0R COL R 3051 319802151030 RST SM 0805 10K PM5 COL R 3052 319802151010 RST SM 0805 1R PM5 COL R 3053 319802151010 RST SM 0805 1R PM5 COL R 3054 319802151010 RST SM 0805 1R PM5 COL R 3055 319802151010 RST SM 0805 1R PM5 COL R 3056 319802151010 RST SM 0805 1R PM5 COL R 3059 319802151030 RST SM 0805 10K PM5 COL R 3061 319802151030 RST SM 0805 10K PM5 COL R 3062 232273469102 RES 9K1 0805 SMD PM1 3063 213811612702 RST MFLM MF50S A 2K7 PM1 A 3064 232273465102 SMD RST 0805 5K1 PM1 3071 319802151030 RST SM 0805 10K PM5 COL R 3072 232273469102 RES 9K1 0805 SMD PM1 3080 319802151040 RES 1K RC-11 SMD 0805 T 3090 319802190020 RST SM 0805 JUMP. 0R COL R 3091 319802190020 RST SM 0805 JUMP. 0R COL R 3092 319802190020 RST SM 0805 JUMP. 0R COL R 3093 319802190020 RST SM 0805 JUMP. 0R COL R 3094 319802190020 RST SM 0805 JUMP. 0R COL R 3101 212261200058 NTC 10R PM15 N13SP010L-Y2B5A 3102 232271161274 RST SM 1206 RC01 270K PM5 R 3103 232271161274 RST SM 1206 RC01 270K PM5 R 3104 232271161184 RST SM 1206 RC01 180K PM5 R 3105 232271161184 RST SM 1206 RC01 180K PM5 R 3106 232273462703 SMD RES 0805 27K PM1 3107 319802151030 RST SM 0805 10K PM5 COL R 3108 319802151030 RST SM 0805 10K PM5 COL R 3109 319802151030 RST SM 0805 10K PM5 COL R 3110 232271161274 RST SM 1206 RC01 270K PM5 R 3111 232273462703 SMD RES 0805 27K PM1 3112 213811614709 RST MFLM MF50S A 47R PM1 A 3113 213811611002 RST MFLM MF50S A 1K PM1 A 3114 213811612204 RST MFLM MF50S A 220K PM1 A 3115 212010590713 MET FLM RNS 0R47 1W PM5 3116 232273462702 RES 2K7 0805 SMD PM1 3117 213811611009 RST MFLM MF50S A 10R PM1 A 3118 232273461503 SMD RST 0805 15K PM1 3119 232271161184 RST SM 1206 RC01 180K PM5 R 3120 232271161184 RST SM 1206 RC01 180K PM5 R 3121 213811611509 RST MFLM MF50S A 15R PM1 A 3122 319802151520 RST SM 0805 RC11 1K5 PM5 R 3123 232273469102 RES 9K1 0805 SMD PM1 3124 319802151020 RST SM 0805 1K PM5 COL R 3125 319802152240 RST SMD 0805 RC11 220K PM5 R 3126 232273462402 RST SM 0805 RC11 2K4 PM1 R 3127 213811611005 RST MFLM MF50S A 1M PM1 A 3128 232272461005 SMD RST 1206 1/4W 1M PM1 3181 212266000101 POLY SW RUE185-2 30V 1.85A 5061 313816877220 DRUM CHOKE-68UH/3A 5071 313816877220 DRUM CHOKE-68UH/3A 5101 313818870150 LINE FILTER 9mH 5103 313818870220 POWER TRANSFORMER EQ-30 6061 932216647682 DIO SB340-F5 3A SCHOTTKY 6071 932216647682 DIO SB340-F5 3A SCHOTTKY 6101 932216289683 DIO REC PG208 2A 6102 932216289683 DIO REC PG208 2A 6103 932216289683 DIO REC PG208 2A 6104 932216289683 DIO REC PG208 2A 6105 932216287683 DIODE PG47 6106 933497950683 DIODE RGP10J (GI) 6107 319801010530 SMD DIODE BAV103 6108 319801010530 SMD DIODE BAV103 6109 932214337687 DIODE 150V 20A Go to cover page Forward Back Spare Parts List ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 44 Hudson 150B Go to cover page Forward Back 7051 319801042080 TRANS BC848C (UAW) 7061 932216562682 IC L4978 DC-DC CONTROLLER 7071 932216562682 IC L4978 DC-DC CONTROLLER 7101 932213028682 IC L5991 16P 7102 932215101687 TRANS STP6NC60FP 7104 932214014667 PHOTOCOUPLER TCET1103G 4P 7106 933771100686 IC TL431CLPRP 3P 1061 313815853040 SCALER PCB ASSY-5449 2201 223878615649 SMD 0603 X7R 1N 16V PM10 2202 223878615649 SMD 0603 X7R 1N 16V PM10 2203 203803500309 ELCAP 470U/25V/SC TYPE 2204 203803500309 ELCAP 470U/25V/SC TYPE 2205 223878615649 SMD 0603 X7R 1N 16V PM10 2206 223878615649 SMD 0603 X7R 1N 16V PM10 2207 223878615649 SMD 0603 X7R 1N 16V PM10 2208 223878615649 SMD 0603 X7R 1N 16V PM10 2209 223878615649 SMD 0603 X7R 1N 16V PM10 2210 223878615649 SMD 0603 X7R 1N 16V PM10 2211 223878615649 SMD 0603 X7R 1N 16V PM10 2212 223878615649 SMD 0603 X7R 1N 16V PM10 2213 223858615636 0603 X7R 10NF +-10% 50V 2214 203803500309 ELCAP 470U/25V/SC TYPE 2215 223858615636 0603 X7R 10NF +-10% 50V 2216 223878615649 SMD 0603 X7R 1N 16V PM10 2217 223878615649 SMD 0603 X7R 1N 16V PM10 2218 202002490164 ELCAP SM WX 16V 47U 2219 223878615649 SMD 0603 X7R 1N 16V PM10 2220 223878615649 SMD 0603 X7R 1N 16V PM10 2221 223878615649 SMD 0603 X7R 1N 16V PM10 2222 223878615649 SMD 0603 X7R 1N 16V PM10 2223 223878615649 SMD 0603 X7R 1N 16V PM10 2224 223886715339 0603 NPO 33PF +-5% 50V 2225 223886715331 0603 NPO 330PF +-5% 50V 2226 223886715331 0603 NPO 330PF +-5% 50V 2227 223878615649 SMD 0603 X7R 1N 16V PM10 2229 223886715339 0603 NPO 33PF +-5% 50V 2231 223878615649 SMD 0603 X7R 1N 16V PM10 2232 223878615649 SMD 0603 X7R 1N 16V PM10 2233 223878615649 SMD 0603 X7R 1N 16V PM10 2234 223878615649 SMD 0603 X7R 1N 16V PM10 2235 223878615649 SMD 0603 X7R 1N 16V PM10 2236 223878615649 SMD 0603 X7R 1N 16V PM10 2240 202002490163 ELCAP SM WX 16V 10U 2241 223878615649 SMD 0603 X7R 1N 16V PM10 2242 223878615649 SMD 0603 X7R 1N 16V PM10 2243 202002490163 ELCAP SM WX 16V 10U 2244 223878615649 SMD 0603 X7R 1N 16V PM10 2245 223878615649 SMD 0603 X7R 1N 16V PM10 2246 202002490163 ELCAP SM WX 16V 10U 2247 223878615649 SMD 0603 X7R 1N 16V PM10 2248 202002490163 ELCAP SM WX 16V 10U 2249 223878615649 SMD 0603 X7R 1N 16V PM10 2250 223878615649 SMD 0603 X7R 1N 16V PM10 2251 223878615649 SMD 0603 X7R 1N 16V PM10 2252 223878615649 SMD 0603 X7R 1N 16V PM10 2253 202002490164 ELCAP SM WX 16V 47U 2254 223878615649 SMD 0603 X7R 1N 16V PM10 2255 223878615649 SMD 0603 X7R 1N 16V PM10 2256 223878615649 SMD 0603 X7R 1N 16V PM10 2257 223878615649 SMD 0603 X7R 1N 16V PM10 2258 223878615649 SMD 0603 X7R 1N 16V PM10 2259 223878615649 SMD 0603 X7R 1N 16V PM10 2260 223878615649 SMD 0603 X7R 1N 16V PM10 2261 223878615649 SMD 0603 X7R 1N 16V PM10 2262 223878615649 SMD 0603 X7R 1N 16V PM10 2263 223878615649 SMD 0603 X7R 1N 16V PM10 2264 223878615649 SMD 0603 X7R 1N 16V PM10 2265 223878615649 SMD 0603 X7R 1N 16V PM10 2266 223878615649 SMD 0603 X7R 1N 16V PM10 2267 223878615649 SMD 0603 X7R 1N 16V PM10 2268 223878615649 SMD 0603 X7R 1N 16V PM10 2269 223878615649 SMD 0603 X7R 1N 16V PM10 2271 222278019763 CMC 0805 Y5V 1U M 16V 2272 222278019763 CMC 0805 Y5V 1U M 16V 2273 223878615649 SMD 0603 X7R 1N 16V PM10 2275 222278019763 CMC 0805 Y5V 1U M 16V 2276 222278019763 CMC 0805 Y5V 1U M 16V 2277 223886715159 0603 NPO 15PF +-5% 50V 2278 223886715159 0603 NPO 15PF +-5% 50V 2279 223878615649 SMD 0603 X7R 1N 16V PM10 2280 223878615649 SMD 0603 X7R 1N 16V PM10 2281 223878615649 SMD 0603 X7R 1N 16V PM10 2282 223878615649 SMD 0603 X7R 1N 16V PM10 2284 223878615649 SMD 0603 X7R 1N 16V PM10 2285 202002490164 ELCAP SM WX 16V 47U 2286 223858615623 CER2 0603 X7R 50V 1N PM10 R 2287 223858615623 CER2 0603 X7R 50V 1N PM10 R 2288 223858615623 CER2 0603 X7R 50V 1N PM10 R 2289 223858615623 CER2 0603 X7R 50V 1N PM10 R 2290 223858615623 CER2 0603 X7R 50V 1N PM10 R 2291 223858615623 CER2 0603 X7R 50V 1N PM10 R 2292 223858615623 CER2 0603 X7R 50V 1N PM10 R 2293 223858615623 CER2 0603 X7R 50V 1N PM10 R 2294 223858615623 CER2 0603 X7R 50V 1N PM10 R 2295 223858615623 CER2 0603 X7R 50V 1N PM10 R 2296 223858615623 CER2 0603 X7R 50V 1N PM10 R 2297 223858615623 CER2 0603 X7R 50V 1N PM10 R 2298 223858615623 CER2 0603 X7R 50V 1N PM10 R 2304 223878615649 SMD 0603 X7R 1N 16V PM10 2305 223878615649 SMD 0603 X7R 1N 16V PM10 2306 223878615649 SMD 0603 X7R 1N 16V PM10 2307 223878615649 SMD 0603 X7R 1N 16V PM10 2311 223886715109 CER1 0603 NPO 50V 10P PM5 R 2312 223886715109 CER1 0603 NPO 50V 10P PM5 R 2313 223886715109 CER1 0603 NPO 50V 10P PM5 R 3201 319802131030 RES 10K RC-11 SMD 0603 T 3202 319802131030 RES 10K RC-11 SMD 0603 T 3205 319802131030 RES 10K RC-11 SMD 0603 T 3206 232270467509 RST SM 0603 75R PM1 R 3207 232270467509 RST SM 0603 75R PM1 R 3208 232270467509 RST SM 0603 75R PM1 R 3209 319802134790 RST SM 0603 47R PM5 R 3210 319802134790 RST SM 0603 47R PM5 R 3211 319802134790 RST SM 0603 47R PM5 R 3212 319802134790 RST SM 0603 47R PM5 R 3213 319802134790 RST SM 0603 47R PM5 R 3214 319802134790 RST SM 0603 47R PM5 R 3216 319802132220 RST SM 0603 2K2 PM5 R 3217 232270296001 RST SM 0603 RC21 OR PM5 R 3218 319802132220 RST SM 0603 2K2 PM5 R 3223 319802134720 RST SM 0603 RC21 4K7 PM5 R 3225 319802131010 RST SM 0603 1R PM5 R 3226 319802131010 RST SM 0603 1R PM5 R 3227 319802131030 RES 10K RC-11 SMD 0603 T 3228 319802131030 RES 10K RC-11 SMD 0603 T 3229 319802134710 RST SM 0603 RC21 470R PM5 R 3230 319802134720 RST SM 0603 RC21 4K7 PM5 R 3231 235003510103 RES 10K/ARV241 3233 235003510101 RES 1R/ARV241 3234 319802134720 RST SM 0603 RC21 4K7 PM5 R 3235 235003510101 RES 1R/ARV241 3236 235003510101 RES 1R/ARV241 3237 319802131010 RST SM 0603 1R PM5 R 3238 232270296001 RST SM 0603 RC21 OR PM5 R 3239 319802131030 RES 10K RC-11 SMD 0603 T 3240 319802132220 RST SM 0603 2K2 PM5 R 3241 319802131030 RES 10K RC-11 SMD 0603 T 3242 235003510103 RES 10K/ARV241 3243 319802131010 RST SM 0603 1R PM5 R 3244 232270260205 RST SM 0603 RC21 2M PM5 R 3245 235003510103 RES 10K/ARV241 3246 232270296001 RST SM 0603 RC21 OR PM5 R 3247 319802131030 RES 10K RC-11 SMD 0603 T 3248 235003510103 RES 10K/ARV241 3249 319802131030 RES 10K RC-11 SMD 0603 T 3250 235003510103 RES 10K/ARV241 3251 319802131030 RES 10K RC-11 SMD 0603 T 3252 319802131530 RST SM 0603 RC11 15K PM5 R 3253 235003510479 ARV241 47R PM5 3254 235003510479 ARV241 47R PM5 3255 235003510479 ARV241 47R PM5 3256 235003510479 ARV241 47R PM5 3257 235003510479 ARV241 47R PM5 3258 235003510479 ARV241 47R PM5 3259 235003510479 ARV241 47R PM5 3260 235003510479 ARV241 47R PM5 3261 235003510479 ARV241 47R PM5 3262 235003510479 ARV241 47R PM5 3263 235003510479 ARV241 47R PM5 Spare Parts List ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 45 Hudson 150B Go to cover page Forward Back 3264 235003510479 ARV241 47R PM5 3265 235003510479 ARV241 47R PM5 3267 319802131010 RST SM 0603 1R PM5 R 3269 319802131010 RST SM 0603 1R PM5 R 3270 319802131010 RST SM 0603 1R PM5 R 3272 319802131010 RST SM 0603 1R PM5 R 3273 319802131030 RES 10K RC-11 SMD 0603 T 3274 319802131010 RST SM 0603 1R PM5 R 3275 319802131010 RST SM 0603 1R PM5 R 3276 319802131010 RST SM 0603 1R PM5 R 3277 319802131010 RST SM 0603 1R PM5 R 3280 232270296001 RST SM 0603 RC21 OR PM5 R 3281 319802131090 RST SM 0603 10R PM5 R 3282 319802131090 RST SM 0603 10R PM5 R 3285 319802131530 RST SM 0603 RC11 15K PM5 R 3286 319802132220 RST SM 0603 2K2 PM5 R 3287 319802133310 RST SM 0603 RC21 330R PM5 R 3288 319802131020 RST SM 0603 1K PM5 R 3289 232270260302 RST SM 0603 RC21 3K PM5 R 3290 319802131820 RST SM 0603 RC21 1K8 PM5 R 3291 319802131020 RST SM 0603 1K PM5 R 3292 319802132720 RST SM 0603 RC21 2K7 PM5 R 3293 319802131030 RES 10K RC-11 SMD 0603 T 3294 319802131530 RST SM 0603 RC11 15K PM5 R 3295 232270260911 RST SM 0603 RC21 910R PM5 R 3296 319802138220 RST SM 0603 RC21 8K2 PM5 R 3297 232270260622 RST SM 0603 RC21 6K2 PM5 R 3298 319802131030 RES 10K RC-11 SMD 0603 T 3299 319802131010 RST SM 0603 1R PM5 R 3301 232270296001 RST SM 0603 RC21 OR PM5 R 3302 232270296001 RST SM 0603 RC21 OR PM5 R 3303 232270296001 RST SM 0603 RC21 OR PM5 R 3304 232270296001 RST SM 0603 RC21 OR PM5 R 3305 232270296001 RST SM 0603 RC21 OR PM5 R 3306 319802132230 RST SM 0603 RC21 22K PM5 R 3307 319802132230 RST SM 0603 RC21 22K PM5 R 3308 319802132230 RST SM 0603 RC21 22K PM5 R 3309 319802132230 RST SM 0603 RC21 22K PM5 R 3310 319802134730 RST SM 0603 RC21 47K PM5 R 3311 319802131010 RST SM 0603 1R PM5 R 3313 319802131030 RES 10K RC-11 SMD 0603 T 3314 319802131030 RES 10K RC-11 SMD 0603 T 3315 232270296001 RST SM 0603 RC21 OR PM5 R 3318 232270296001 RST SM 0603 RC21 OR PM5 R 5201 242253594969 3A CHOKE 5202 242253594969 3A CHOKE 5203 313816874260 TI321611G8-SMD 5204 313816874260 TI321611G8-SMD 5205 313816874260 TI321611G8-SMD 5206 313816874260 TI321611G8-SMD 5207 313816874260 TI321611G8-SMD 5208 313816874260 TI321611G8-SMD 5209 313816874260 TI321611G8-SMD 5210 313816874260 TI321611G8-SMD 5211 313816874260 TI321611G8-SMD 5214 313816874260 TI321611G8-SMD 5215 313816874260 TI321611G8-SMD 5217 242253594969 3A CHOKE 6201 933913910115 SMD DIODE BAS32L 6202 933137390215 SMD DIODE BZX84C5V1 6203 319801010620 SMD DIODE BAV99 6204 319801010620 SMD DIODE BAV99 6205 319801010620 SMD DIODE BAV99 6206 319801010620 SMD DIODE BAV99 6207 319801010620 SMD DIODE BAV99 6208 319801010620 SMD DIODE BAV99 6209 319801010620 SMD DIODE BAV99 6210 319801010620 SMD DIODE BAV99 6211 933913910115 SMD DIODE BAS32L 6212 933913910115 SMD DIODE BAS32L 6215 933913910115 SMD DIODE BAS32L 7201 319801042200 TRANS BC858C (UAW) 7203 319801042080 TRANS BC848C (UAW) 7205 932214526668 IC M24C02-WMN6T 7206 932216669671 IC GMZAN1 7207 932216299682 MTV130P-15 7209 932216866682 MC68HC908BD48 7210 319801042080 TRANS BC848C (UAW) 7211 319801042200 TRANS BC858C (UAW) 7212 319801042200 TRANS BC858C (UAW) 7213 319801042080 TRANS BC848C (UAW) 7214 319801043360 SMD TRANS PMBT2369 7215 319801043360 SMD TRANS PMBT2369 7216 319801042200 TRANS BC858C (UAW) 7217 319801042200 TRANS BC858C (UAW) 7218 319801043360 SMD TRANS PMBT2369 7219 932216721685 IC TC7SH14F 7221 932216638668 TRANS.SI5441DC 7222 932216638668 TRANS.SI5441DC 1063 313815852530 CONTROL PCB ASSY 2701 223878615649 SMD 0603 X7R 1N 16V PM10 2702 223878615649 SMD 0603 X7R 1N 16V PM10 3701 319802131520 RES 1K5 0603 SMD 3702 319802133320 RES 3K3 0603 SMD 3703 319802131030 RES 10K RC-11 SMD 0603 T 3704 319802131530 RST SM 0603 RC11 15K PM5 R 3705 319802133930 RES 39K RC-11 SMD 0603 T 3706 319802136830 RES 68K RC-11 SMD 0603 T 3707 232271191032 RST SM 1206 RC01 0R PM5 R 6711 932214603682 LED L-3WYGW Spare Parts List ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 46 Hudson 150B Go to cover page Forward Back 0. Warning 1. Servicing of SMDs (Surface Mounted Devices) All ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the unit via a wrist wrap with resistance. Keep components and tools also at the same potential ! - Oxidation on the terminals of SMDs results in poor soldering. Do not handle SMDs with bare hands. - Avoid using storage places that are sensitive to oxidation such as places with sulphur or chlorine gas, direct sunlight, high temperatures or a high degree of humidity. The capacitance or resistance value of the SMDs may be affected by this. - Rough handling of circuit boards containing SMDs may cause damage to the components as well as the circuit boards. Circuit boards containing SMDs should never be bent or flexed. Different circuit board materials expand and contract at different rates when heated or cooled and the components and/or solder connections may be damaged due to the stress. Never rub or scrape chip components as this may cause the value of the component to change. Similarly, do not slide the circuit board across any surface. - Heat the solder (for 2-3 seconds) at each terminal of the chip. By means of litz wire and a slight horizontal force, small components can be removed with the soldering iron. They can also be removed with a solder sucker (see Fig. 1A) - While holding the SMD with a pair of tweezers, take it off gently using the soldering iron's heat applied to each terminal (see Fig. 1 B). - Remove the excess solder on the solder lands by means of litz wire or a solder sucker (see Fig. 1C). - When handling the soldering.iron. use suitable pressure and be careful. - When removing the chip, do not use undue force with the pair of tweezers. - The soldering iron to be used (approx. 30 W) should 1.1 General cautions on handling and storage 1.2 Removal of SMDs 1.3 Caution on removal preferably be equipped with a thermal control (soldering temperature: 225 to 250 C). - The chip, once removed, must never be reused. o 1.4 Attachment of SMDs - Locate the SMD on the solder lands by means of tweezers and solder the component on one side. Ensure that the component is positioned correctly on the solder lands (see Fig.2A). - Next complete the soldering of the terminals of the component (see Fiq. 2B). - When soldering the SMD terminals, do not touch them directly with the soldering iron. The soldering should be done as quickly as possible, care must be taken to avoid damage to the terminals of the SMDs themselves. - Keep the SMD's body in contact with the printed board when soldering. - The soldering iron to be used (approx. 30 W ) should preferably be equipped with a thermal control (soldering temperature: 225 to 250 C). - Soldering should not be done outside the solder land. - Soldering flux (of rosin) may be used, but should not be acidic. - After soldering, let the SMD cool down gradually at room temperature. - The quantity of solder must be proportional to the size of the solder land. If the quantity is too great, the SMD might crack or the solder lands might be torn loose from the printed board (see Fig. 3). 2. Caution when attaching SMDs o SOLDERING IRON RIGHT Fig. 3 Examples DISMOUNTING VACUUM PISTON 4822 395 10159 SOLDERING IRON e.g. WELLER SOLDER TIP PT -H7 SOLDERING IRON SOLDER WICK 4822 321 40042 SOLDERING IRON SOLDER WICK e.g. A PAIR OF TWEEZERS HEATING HEATING Fig. 1 A B C e.g. A PAIR OF TWEEZERS SOLDER 0.5 - 0.8 mm SOLDER 0.5 - 0.8 mm SOLDERING IRON SOLDERING TIME < 3 sec/side SOLDERING IRON PRESURE PRESURE MOUNTING Fig. 2 B A Repair Tips ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 47 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 150B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 1 18 YIKUAN YU PHILIPS - 150B2B GENERAL PRODUCT SPECIFICATION . ANALOG INPUT . AUTO PICTURE ADJUSTMENT . 14 FACTORY PRESET MODES AND 14 USER MODES WHICH CAN BE RECOVERED TO PRESET MODES . USER FRIENDLY OSD DISPLAY FOR MODE IDENTIFICATION /ADJUSTMENT . DDC2B COMMUNICATION CAPABILITY . MAX. RESOLUTION 1024 x 768 NON-INTERLACED AT 75 HZ . 15” COLOR TFT LCD FLAT PANEL . EASY TILT & SWIVEL BASE . FULL RANGE POWER SUPPLY 90 – 264 VAC . CE ENVIRONMENTAL POLICY . ANTI-GLARE TO REDUCE LIGHT REFLECTION . POWER MANAGEMENT CAPABILITY . SOG SYNC SUPPORT . TCO95/TCO 99 (Option) . WALL MOUNT KIT (Option) . PROTECTIVE COVER (Option) Go to cover page Forward Back ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 48 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 15B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 2 18 Go to cover page Forward Back YIKUAN YU CONTENTS 1.0 Foreword 2.0 Product profile 2.1 LCD 2.2 Scanning frequencies 2.3 Video dot rate 2.4 Power input 2.5 Power consumption 2.6 Dimensions 2.7 Weight 2.8 Interface signal 2.9 Ambient temperature 2.10 Regulatory compliance 3.0 Electrical characteristics 3.1 Interface signals 3.1.1 Video 3.1.2 Software control 3.1.3 OSD function control 3.2 Interface cable 3.3 Timing requirement 3.3.1 Mode storing capacity 3.3.2 Factory preset timings 3.3.3 Horizontal scanning 3.3.4 Vertical scanning 3.4 Power input connection 3.5 Power management 3.6 Display identification 4.0 Visual characteristics 4.1 Test conditions 4.2 Resolution 4.3 Brightness ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 49 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 150B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 3 18 YIKUAN YU Go to cover page Forward Back 4.4 Image size 4.4.1 Actual display size 4.5 Brightness uniformity 4.6 White color adjustment 5.0 Mechanical characteristics 5.1 Controls 5.2 Unit dimension / weight 5.3 Tilt and swivel base 5.4 Transportation packages 5.4.1 Shipping dimension / weight 5.4.2 Block unit / palletization 6.0 Environmental characteristics 6.1 Susceptibility of display to external environment 6.2 Transportation tests 6.3 Display disturbances from external environment 6.4 Display disturbances to external environment 7.0 Reliability 7.1 Mean time between failures 8.0 Quality assurance requirements 8.1 Acceptance test 9.0 Serviceability ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 50 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 15B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 4 18 Go to cover page Forward Back YIKUAN YU 1.0 FOREWORD This specification describes a 15" XGA multiscan color TFT LCD monitor with max. resolution up to 1024x768/75Hz non-interlaced. 2.0 PRODUCT PROFILE HUDSON 15” IS TFT LCD flat panel monitor, analog interface, integrated tilt and swivel base 2.1 LCD panel (CPT) Type NR. :CPT panel CLAA150XA03 Dimensions : 350 w x 266.5 h x 14.5 t mm Pitch ( mm ) : 0.297 x 0.297 mm Color pixel arrangement : RGB vertical stripes Display surface : Antiglare with hard coating 3H Number of color : 256 gray levels(8 bits) Backlight : CCFL edgelight system Active area(WxH) : 304.1 x 228.1 mm (15.0” Diagonal) Viewing angle : Vertical 100 degree, Horizontal 120 degree. Contrast ratio : 350 typical. Luminance of white : 200 Nits typical LCD panel (LG) Type NR. : LG panel LM151X3-C3 Outsize Dimensions : 352.0(H)x263.5(V)x16.0(D) Pitch ( mm ) : 0.300 x 0.300 mm Color pixel arrangement : RGB stripes arrangement Display surface : Hard coating 3H anti-glare treatment of the front Polarizer Depth color : Color depth 8 bit 16,777.216 colors Backlight : CCFL edgelight system Active area(WxH) : 307.2x230.4mm 15.1 inches Viewing angle (CR 10) : Vertical 90 degree, Horizontal 120 degree. Contrast ratio : 300 typical. Luminance of white : 250 Nits typical 2.2 Scanning frequencies Hor. : 30 - 61KHz Ver. : 56 - 76 Hz 2.3 Video dot rate : 80 MHz 2.4 Power input : 90 - 264 Vac, 50/60 � 3 Hz 2.5 Power consumption : < 23 W typ. 2.6 Dimensions :380W x 359H x 166D(Incl.Pedestal) >= 2.7 Weight : 5.30Kg ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 51 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 150B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 5 18 YIKUAN YU Go to cover page Forward Back 2.8 Interface signal D-shell analog R/G/B separate inputs, H/V sync separated TTL level, Composite (H+V) TTL level, SOG sync 2.9 Ambient temperature : 0 - 40 �C 2.10 Safety and EMI requirements Safety requirement : CCIB/CCEE(China),CE(Europe),CSA(Canada), IEC60950 CB Report, NOMNYCE(Mexico), PSB (Singapore), SEMKO (Nordic), TUV(Germany),UL(USA) GOST (Russia), B-MARK (Poland), EMI requirement : BSMI(Taiwan),C-tick (Australia), CE(Europe), FCC (USA),IC (Canada) VCCI(Japan) Ergonomic Requirement : ISO13406-2, TUV/ERG TCO95, TCO99 (option) Power management : EPA, Nutek, E2000. Environmental & Low Emission : TCO95, TCO99, (option) Compatibility: PC99 Windows 2000 3.0 Electrical characteristics 3.1 Interface signals 3.1.1 Video D-shell Analog input signal : Video, Hsync., Vsync Video : 0.7 Vp-p, input impedance, 75 ohm +/- 2% @DC Sync. : Separate sync TTL level input, impedance 2k2 ohm Positive/Negative Composite sync TTL level input, impedance 2k2 ohm Positive/Negative Sync on green composite sync 0.286V pp Negative (Video 0.714Vpp positive) 3.1.2 Software control Software control via I I C bus ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 52 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 15B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 6 18 Go to cover page Forward Back YIKUAN YU MAIN CONTROLS LANGUAGE ADJUST POSITION BRIGHTNESS & CONTRAST VIDEO NOISE ADJUST COLOR OSD SETTINGS PRODUCT INFORMATION RESET TO FACTORY SETTINGS CLOSE MAIN CONTROLS MOVE SELECTION THEN ok 3.1.3 OSD (On Screen Display) function Software control functions via OSD control Analog interface OSD : Adjustable functions: LANGUAGE : ENGLISH , ESPANOL , FRANCAIS , DEUTSCH , ITALIANO JAPANESE ADJUST POSITION : horizontal and vertical picture position adjustment. BRIGHTNESS & CONTRAST: brightness and contrast adjustment. VIDEO NOISE : Phase adjustment, Clock adjustment ADJUST COLOR : original panel color , 9300K for general use , 6500k for image management, user red green blue adjustable. OSD POSITION : OSD H-position, OSD V-position PRODUCT INFORMATION : show the product information RESET TO FACTORY SETTING : recall to Factory preset settings. ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 53 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 150B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 7 18 YIKUAN YU Go to cover page Forward Back 3.2 Interface Cable D-Sub Cable pin assignment : 3.3 Timing requirement 3.3.1 Mode storing capacity (1) Factory preset modes : 14 (2) User modes : 14 3.3.2 Available timings ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 54 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 15B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 8 18 Go to cover page Forward Back YIKUAN YU MODE NO. 1 2 3 4 RESOLUTION 640 x 350 720 x 400 640 x 480 640x480 Dot clock(MHz) 25.175 28.321 25.175 30.240 f h 31.469kHz 31.469kHz 31.469kHz 35.0kHz A ( us ) 31.78(800 dots) 31.78(900dots) 31.778 (800dots) 28.571(864 dots) B ( us ) 3.813(96 dots) 3.813(108dots) 3.813 ( 96 dots) 2.116( 64 dots) C ( us ) 1.907(48 dots) 1.907(54dots) 1.907 ( 48 dots) 3.175( 96 dots) D ( us ) 25.42(640 dots) 25.42(720dots) 25.422 (640 dots) 21.164(640 dots) E ( us ) 0.636(16 dots) 0.636(18dots) 0.636 ( 16 dots) 2.116( 64 dots) f v 70Hz(70.09) 70Hz(70.087) 60Hz ( 59.940 ) 66.7HZ(66.667 ) O (ms ) 14.27(449 lines) 14.27(449 lines) 16.683 (525lines ) 15.000(525 lines ) P ( ms ) 0.064(2 lines) 0.064(2 lines) 0.064 ( 2 lines ) 0.086( 3 lines ) Q (ms ) 1.907(60 lines) 1.112(35 lines) 1.049 ( 33 lines ) 1.114( 39 lines ) R ( ms ) 11.12(350 lines) 12.71(400 lines) 15.253 (480lines ) 13.714(480 lines ) S ( ms ) 1.179(37 lines) 0.384(12 lines) 0.317 ( 10 lines) 0.086( 3 lines ) SYNC. H/V +/- -/+ - / - +/+ POLARITY Or -/- SEP . SYNC Y Y Y Y MODE NO. 5 6 7 8 RESOLUTION 640 x 480 640 x 480 800 x 600 800 x 600 Dot clock(MHz) 31.500 31.500 36.000 40.000 f h 37.500kHz 37.861kHz 35.156kHz 37.879kHz A ( us ) 26.667 (840 dots) 26.413(832 dots) 28.44 (1024 dots) 26.40 (1056 dots) B ( us ) 2.032 ( 64 dots) 1.270(40 dots) 2.000 ( 72 dots) 3.200 ( 128 dots) C ( us ) 3.810 ( 120 dots) 4.064(128 dots) 3.556 ( 128 dots) 2.200 ( 88 dots) D ( us ) 20.317 ( 640dots) 20.317(640 dots) 22.22 ( 800 dots) 20.00 ( 800 dots) E ( us ) 0.508 ( 16 dots) 0.762(24 dots) 0.667 ( 24 dots) 1.000 ( 40 dots) f v 75Hz (75 ) 72.809Hz 56Hz (56.25 ) 60Hz ( 60.316) O (ms ) 13.333 (500 lines) 13.735(520 lines) 17.78 (625lines) 16.58 (628 lines) P ( ms ) 0.080 ( 3 lines) 0.079(3 lines) 0.057 ( 2 lines) 0.106 ( 4 lines) Q (ms ) 0.427 ( 16 lines) 0.739(28 lines) 0.626 ( 22 lines) 0.607 ( 23 lines) R ( ms ) 12.80 (480 lines) 12.678(480 lines) 17.07 (600lines) 15.84 (600 lines) S ( ms ) 0.027 ( 1 line ) 0.237(9 lines) 0.028 ( 1 line ) 0.026 ( 1 line ) SYNC. H/V -/- - / - + / + + / + POLARITY SEP . SYNC Y Y Y Y A : H-Total O : V-Total B : H- Sync width P : V- Sync width C : H- Back porch Q :.V- Back porch D : H- Video width R : V- Video width E : H- Front porch S :.V- Front porch ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 55 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 150B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 9 18 YIKUAN YU Go to cover page Forward Back MODE NO. 9 10 11 12 RESOLUTION 800 x 600 800 x 600 832 x 624 1024 x 768 Dot clock(MHz) 49.500 50.000. 57.280 65.000 f h 46.875kHz 48.077kHz 49.722kHz 48.363kHz A ( us ) 21.333 (1056dots) 20.80 (1040dots) 20.11 (1152dots) 20.677(1344 dots) B ( us ) 1.616 ( 80 dots) 2.400 ( 120 dots) 1.117 ( 64 dots) 2.092(136 dots) C ( us ) 3.232 ( 160 dots) 1.280 ( 64 dots) 3.911 ( 224 dots) 2.462(160 dots) D ( us ) 16.162 ( 800 dots) 16.00 ( 800 dots) 14.52 ( 832 dots) 15.754(1024 dots) E ( us ) 0.323 ( 16 dots) 1.120 ( 56 dots) 0.559 ( 32 dots) 0.369(24 dots) f v 75Hz ( 75.000) 72Hz ( 72.188) 75Hz ( 74.546) 60.004Hz O (ms ) 13.333 (625lines) 13.85 (666 lines) 13.41 (667 lines) 16.666(806 lines) P ( ms ) 0.064 ( 3 lines) 0.125 ( 6 lines) 0.060 ( 3 lines) 0.124(6 lines) Q (ms ) 0.448 ( 21 lines) 0.478 ( 23 lines) 0.784 ( 39 lines) 0.600(29 lines) R ( ms ) 12.80 (600lines) 12.48 (600 lines) 12.55 (624 lines) 15.880(768 lines) S ( ms ) 0.021 ( 1 line ) 0.770 ( 37 line ) 0.020 ( 1 lines) 0.062(3 lines) SYNC. H/V + / + + / + - / - -/- POLARITY SEP . SYNC Y Y Y Y MODE NO. 13 14 15 RESOLUTION 1024 x 768 1024 x 768 864 x 625 (TV-PAL) Dot clock(MHz) 75.000 78.750 27.0 f h 56.476kHz 60.023kHz 31.250kHz A ( us ) 17.707(1328 dots) 16.66 (1312dots) 32 (864dots) B ( us ) 1.813(136 dots) 1.219 ( 96 dots) 3.852 ( 104 dots) C ( us ) 1.920(144 dots) 2.235 ( 176 dots) 1.778 ( 48 dots) D ( us ) 13.653(1024 dots) 13.003 (1024dots) 25.481 (688dots) E ( us ) 0.320(24 dots) 0.203 ( 16 dots) 0.89 ( 24 dots) f v 70.069Hz 75Hz ( 75.029) 50Hz O (ms ) 14.272(806 lines) 13.328 (800 lines) 20 (625 lines) P ( ms ) 0.106(6 lines) 0.050 ( 3 lines) 0.128 ( 4 lines) Q (ms ) 0.513(29 lines) 0.466 ( 28 lines) 1.408 ( 44 lines) R ( ms ) 13.599(768 lines) 12.795 (768 lines) 17.792 (556 lines) S ( ms ) 0.053(3 lines) 0.017 ( 1 line ) 0.672 ( 21 line ) SYNC. H/V -/- +/+ -/- POLARITY SEP . SYNC Y Y Y ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 56 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 15B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 10 18 Go to cover page Forward Back YIKUAN YU 3.3.3 Horizontal scanning Sync polarity : Positive or Negative Scanning frequency : 30 - 61 KHz 3.3.4 Vertical scanning Sync polarity : Positive or Negative Scanning frequency : 56 - 76 Hz 3.4 Power input connection Power cord length : 1.8 M Power cord type : 3 leads power cord with protective earth plug. 3.5 Power management The power consumption and the status indication of the set with power management function are as follows, STATUS Horizontal Vertical Power Spec LED On Pulse Pulse as normal on Green Stand-by No Pulse Pulse < 3 W Amber Suspend Pulse No Pulse < 3 W Amber off No Pulse No Pulse < 3 W Amber 3.6 Display identification In accordance with VESA display channel standard V 1.0 and having DDC 2B capability ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 57 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 150B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 11 18 YIKUAN YU Go to cover page Forward Back 4.0 Visual characteristics 4.1 Test conditions Unless otherwise specified, this specification is defined under the following conditions. (1) Input signal : As defined in 3.3, 1024 x 768 non-interlaced mode (48.363 KHz), signal sources must have 75 ohm output impedance. (2) Luminance setting : controls to be set to 150 nit with full screen 100 % duty cycle white signal. (3) Warm up: more than 30 minutes after power on with signal supplied. (4) Ambient light: 400 -- 600 lux. (5) Ambient temperature: 20 ± 5 �C 4.2 Resolution Factory preset modes ( 14 modes ) Mode Resolution H. freq. / V. freq Standard 1. 640 x 350 31.469Khz/70.087Hz VGA 2. 720 x 400 31.469Khz/70.087Hz VGA 3. 640 x 480 31.469Khz/59.940Hz VGA 4. 640 x 480 35.000Khz/66.667Hz Macintosh 5. 640 x 480 37.500Khz/75.000Hz VESA 6. 640 x 480 37.861Khz/72.809Hz VESA 7. 800 x 600 35.156Khz/56.250Hz VESA 8. 800 x 600 37.879Khz/60.317Hz VESA 9. 800 x 600 46.875Khz/75.000Hz VESA 10. 800 x 600 48.077Khz/72.188Hz VESA 11. 832 x 624 49.700Khz/75.000Hz Macintosh 12. 1024 x 768 48.363Khz/60.004Hz VESA 13. 1024 x 768 56.476Khz/70.069Hz VESA 14. 1024 x 768 60.023Khz/75.029Hz VESA ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 58 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 15B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 12 18 Go to cover page Forward Back YIKUAN YU 4.3 Brightness : at 50% Contrast at 100% Brightness LG : 250 (typ) / 200 (min) CPT: 200 (typ) /180 (min) (at center of the screen, Fig. 1 ) 4.4 Image size 4.4.1 Actual display size CPT panel 304.1x228.1mm LG panel 307.2x230.4mm 4.5 Brightness uniformity Set contrast at 50% and turn the brightness to get above 150 nits. at center of the screen Apply the Fig 1, it should comply with the following formula: Min luminance of five points X 100% 76% LG Panel Max luminance of five points 70% CPT Panel 4.6 White color adjustment There are two factory preset white color 9300K and 6500K. Apply full white pattern, with brightness in 100 % position and the contrast control at 50 %. The 1931 CIE Chromaticity (color triangle) diagram (x,y) coordinate for the screen center should be: 9300K CIE coordinates X = 0.281 ± 0.020 Y = 0.311 ± 0.020 6500K CIE coordinates X = 0.312 ± 0.020 Y = 0.338 ± 0.020 >= >= ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 59 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 150B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 13 18 YIKUAN YU Go to cover page Forward Back 5.0 Mechanical characteristics 5.1 Controls Front side : - DC power switch -OSD function key (Up, down, right, left,OK,) - auto adjust key Rear side : -Video signal cable - +12VDC Power out put plug - AC Inlet 5.2 Unit dimension / Weight Set dimension (incl. pedestal): 387W x 375H x 183D Net weight : : 5.3 Kg 5.3 Tilt and swivel base tilt angle : -5 � to +35 � swivel rotation : +/- 175� 5.4 Transportation packages 5.4.1 Shipping dimension/Weight Carton dimension : 486W x 516H x 220D Gross weight : 7.14 Kg 5.4.2 Block unit / Palletization layers/block sets/layer sets/block unit 6 4 24 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 60 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 15B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 14 18 Go to cover page Forward Back YIKUAN YU Standard Philips UAN-D1400 NSTA Height 79.0 cm 76.0 cm 1 corner 1 corner Drop Sequence 3 faces 3 edges Test (-10deg C x 16 hrs) (room temp) 6 faces electrical function ok Test Mechanical function ok Result no serious damage on set appearance (room temp./-10°c, humidity 70 %) (1) PACKAGING Sequence 5-200 Hz , 0.73 G , 30 min. for Each axis (2) OPERATING Vibration 10-50-10 Hz , 0.35 mm , 30 min. for Each axis Test Test electrical function ok Result Mechanical function ok no serious damage on set appearance For design evaluationonly Operating 10 G, 11 msec, 1000 cycles Bump temperature : 23°C Test humidity : 60 % air pressure : 100 kpa (according to DSD draft standard UAN-D636) 6.0 Environmental characteristics The following sections define the interference and susceptibility condition limits that might occur between external environment and the display device. 6.1 Susceptibility of display to external environment Operating - Temperature : 0 to 40 degree C - Humidity : 80% max,no condensation - Altitude : 0-3658m - Air pressure : 600-1100 mBAR Storage - Temperature : -20 to 60 degree C - Humidity : 95% max ( < 40 ) ,no condensation - Altitude : 0-12192m - Air pressure : 300-1100 mBAR Note: recommend at 0 to 40�C, Humidity less than 60 % 6.2 Transportation tests ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 61 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 150B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 15 18 YIKUAN YU Go to cover page Forward Back 6.3 Display disturbances from external environment According to IEC 801-2 for ESD disturbances 6.4 Display disturbances to external environment 7.0 Reliability 7.1 Mean Time Between Failures System MTBF (Excluding the LCD panel and CCFL) : 50,000 hrs CCFL MTBF : LG : 30,000 hrs CPT : 50,000 hrs 8.0 Quality assurance requirements 8.1 Acceptance test according to MIL-STD-105D Control II level AQL : 0.65 (major) 1.5 (minor) (please also refer to annual quality agreement) 9.0 Serviceability The serviceability of this monitor should fulfill the requirements which are prescribed in UAW-0346 and must be checked with the check list UAT-0361. ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 62 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 15B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 16 18 Go to cover page Forward Back YIKUAN YU Average: 5 points average ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 63 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 150B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 17 18 YIKUAN YU Go to cover page Forward Back D VIDEO C E SEPARATE SYNC. HORIZONTAL B A R VIDEO Q S P O D VIDEO C E B A VERTICAL HORIZONTAL COMPOSITE SYNC. FIG-2 TIMING CHART -1 ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 64 Hudson 150B GENERAL PRODUCT SPECIFICATION 15"TFT XGA LCD CMTR-150B1C TYPE : 15B2B/00C BRAND : PHILIPS 8639 000 11106 01-02-16 01-02-16 590 18 18 Go to cover page Back YIKUAN YU VIDEO VERTICAL FIG-3 TIMING CHART -2 O P Q R S ht t p: //j dwxzl w. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料
