飞利浦105G7显示器原理图

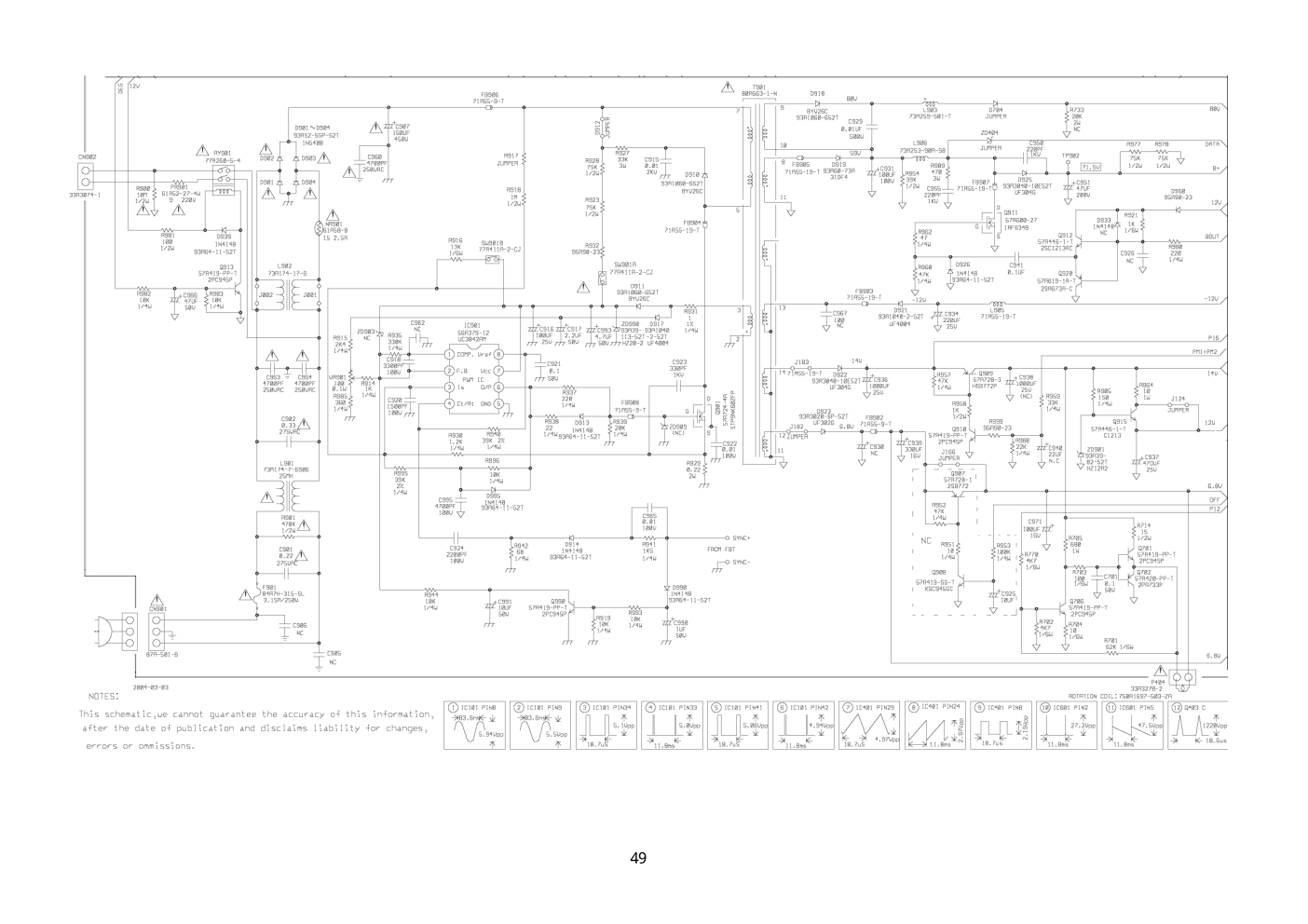

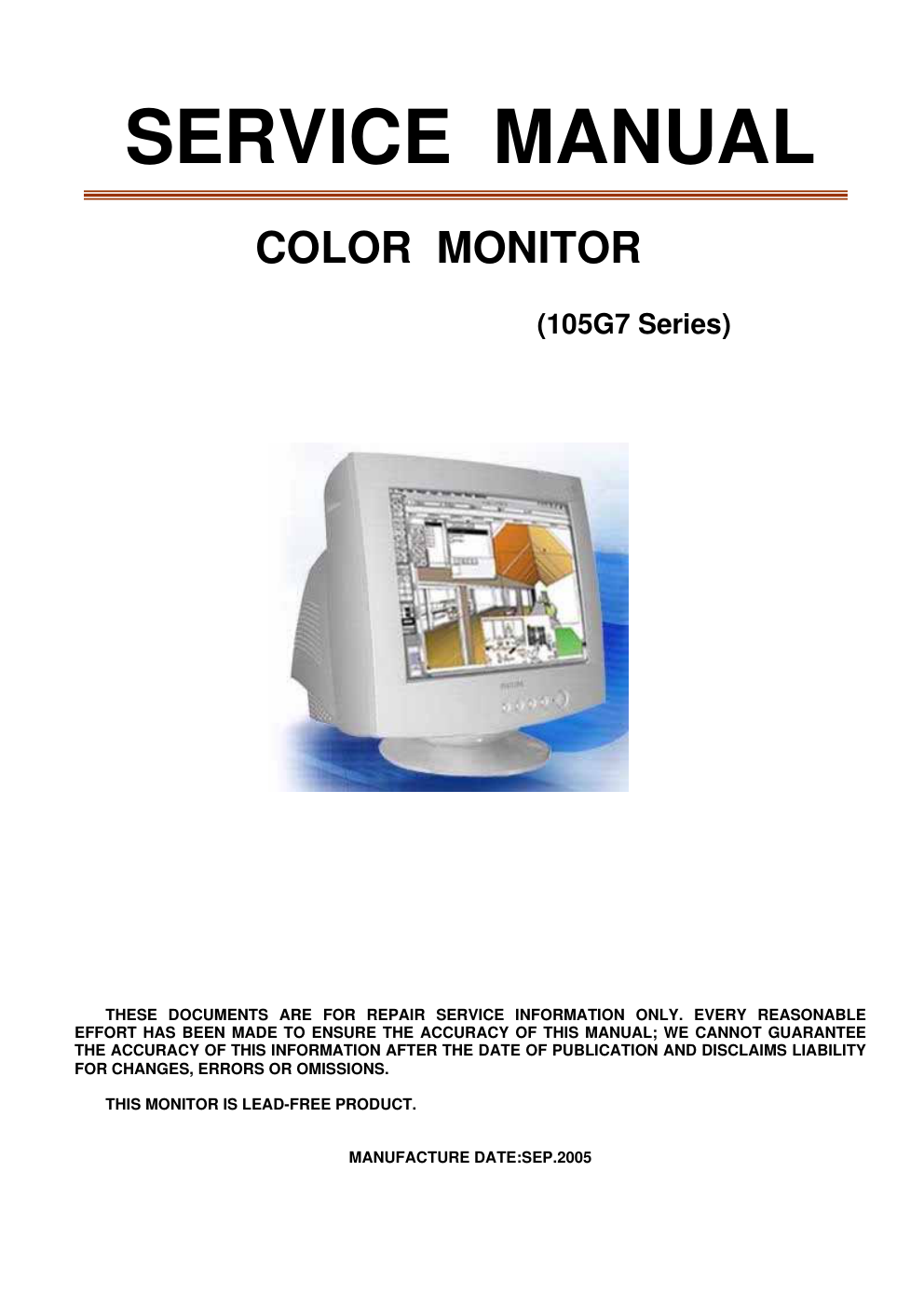

SERVICE MANUAL COLOR MONITOR (105G7 Series) THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY. EVERY REASONABLE EFFORT HAS BEEN MADE TO ENSURE THE ACCURACY OF THIS MANUAL; WE CANNOT GUARANTEE THE ACCURACY OF THIS INFORMATION AFTER THE DATE OF PUBLICATION AND DISCLAIMS LIABILITY FOR CHANGES, ERRORS OR OMISSIONS. THIS MONITOR IS LEAD-FREE PRODUCT. MANUFACTURE DATE:SEP.2005 48 11 SCHEMATIC DIAGRAM 49 50 51
