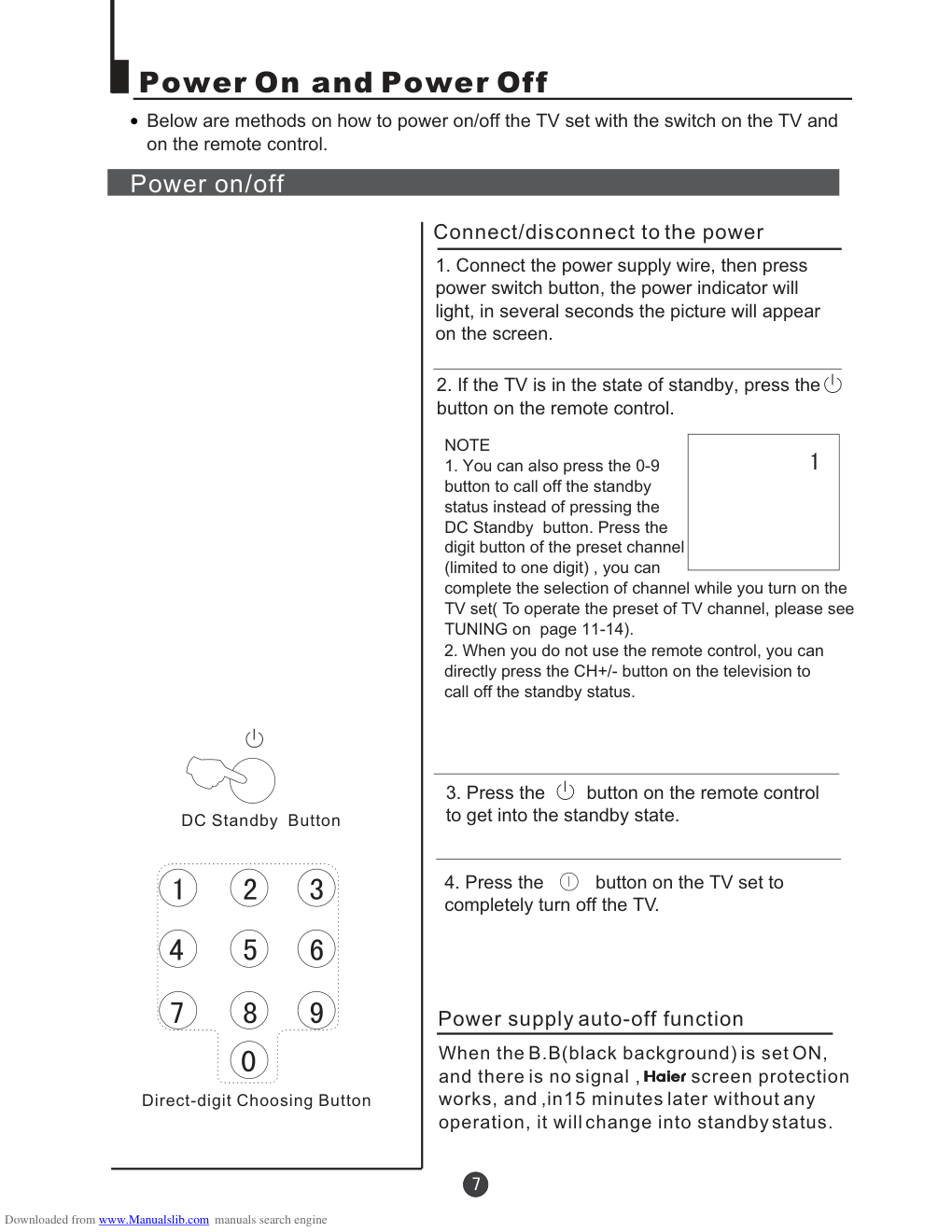

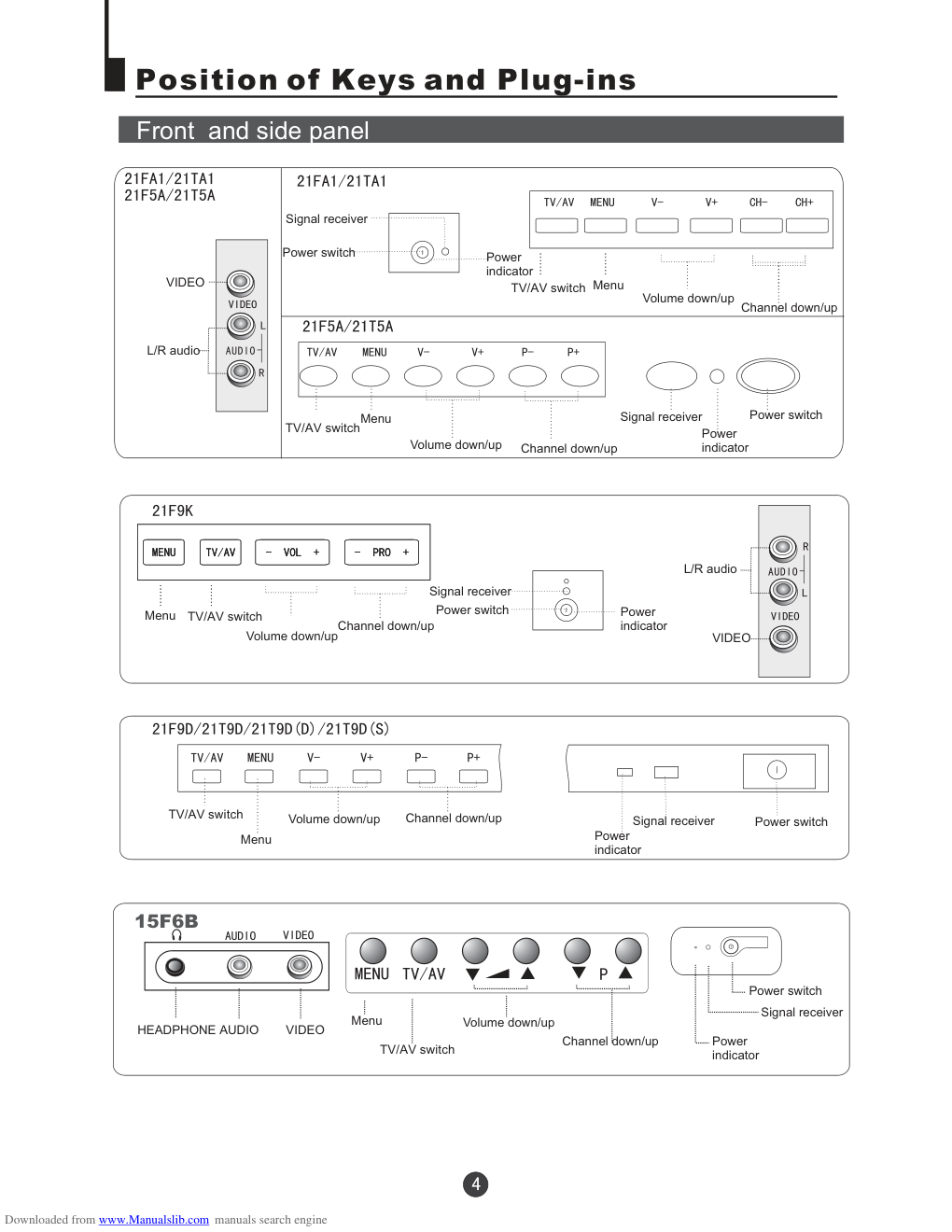

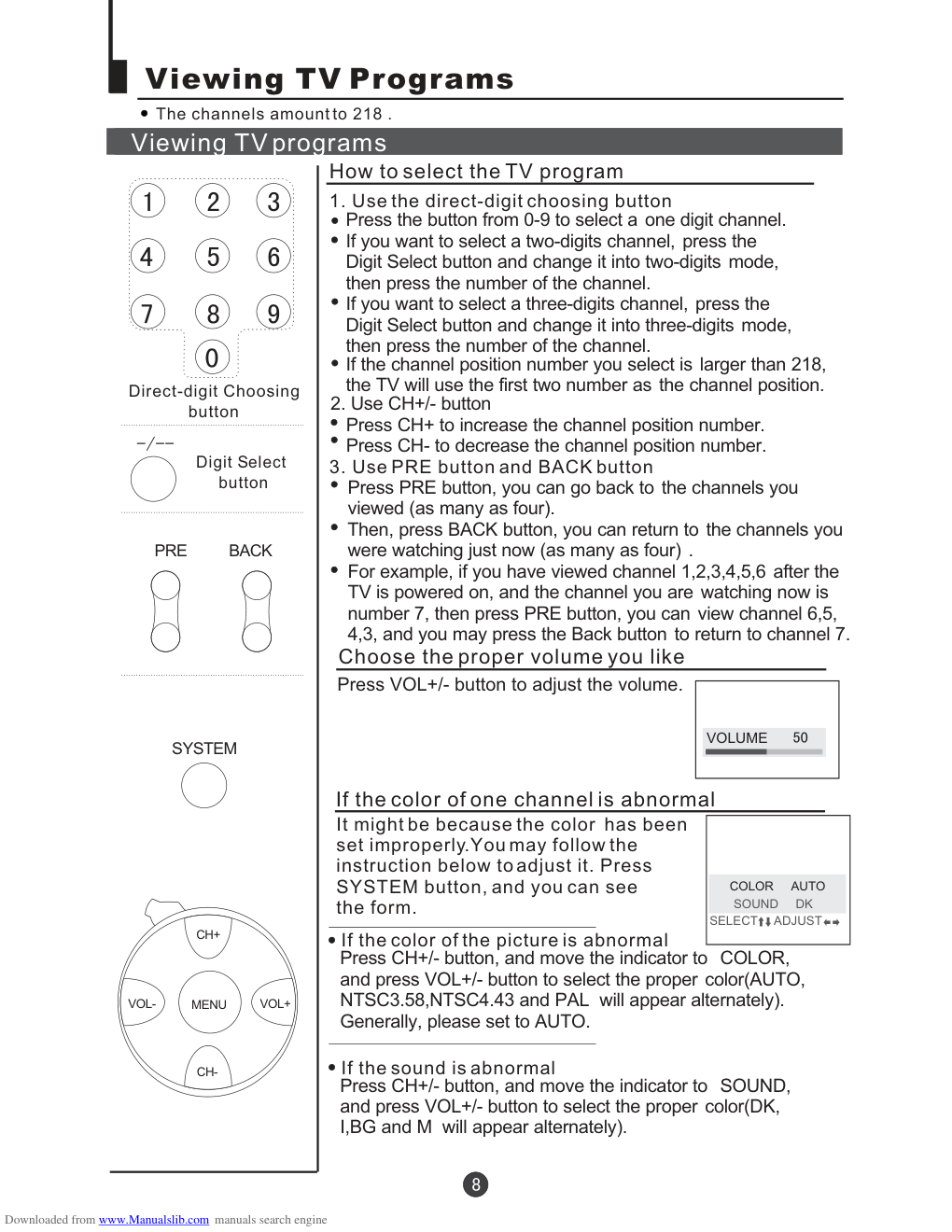

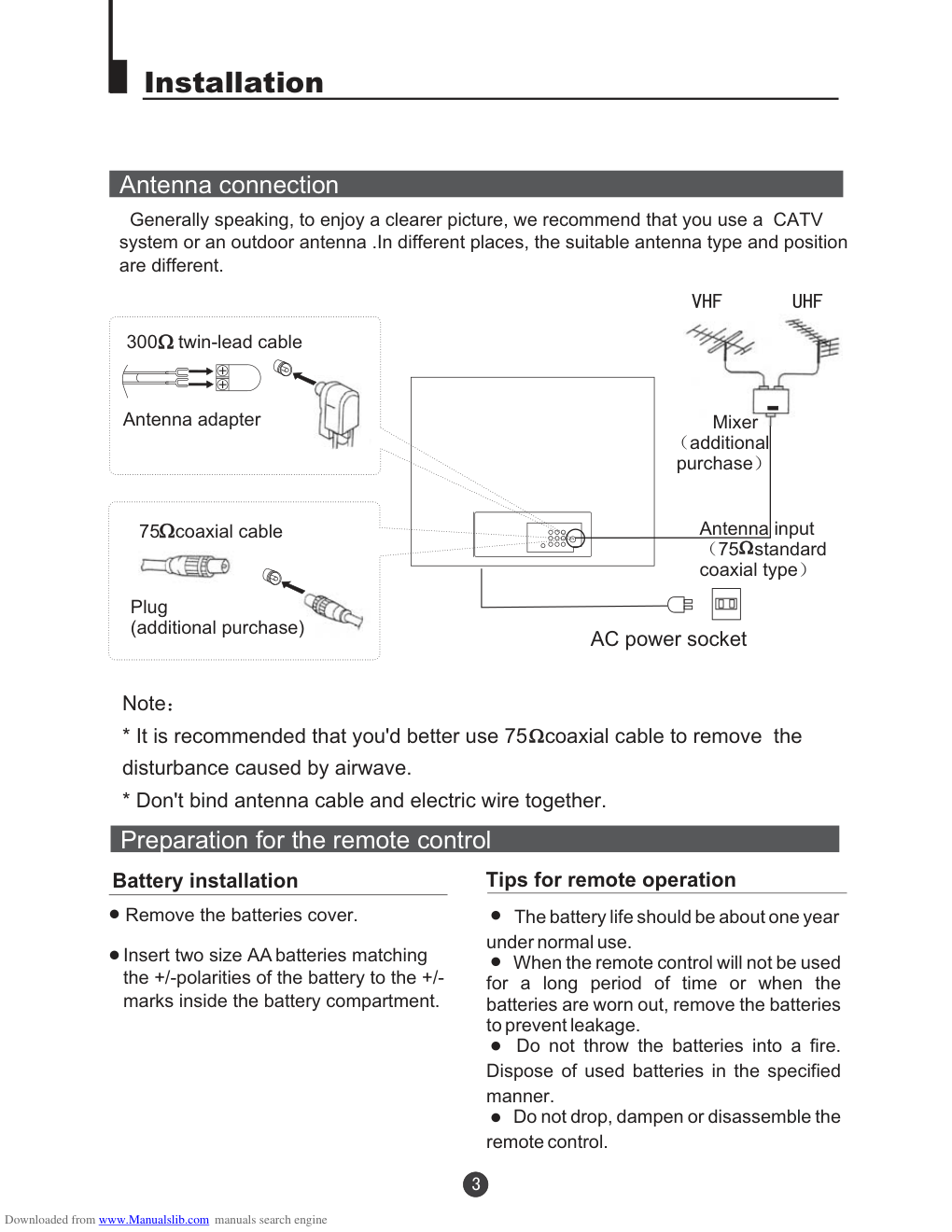

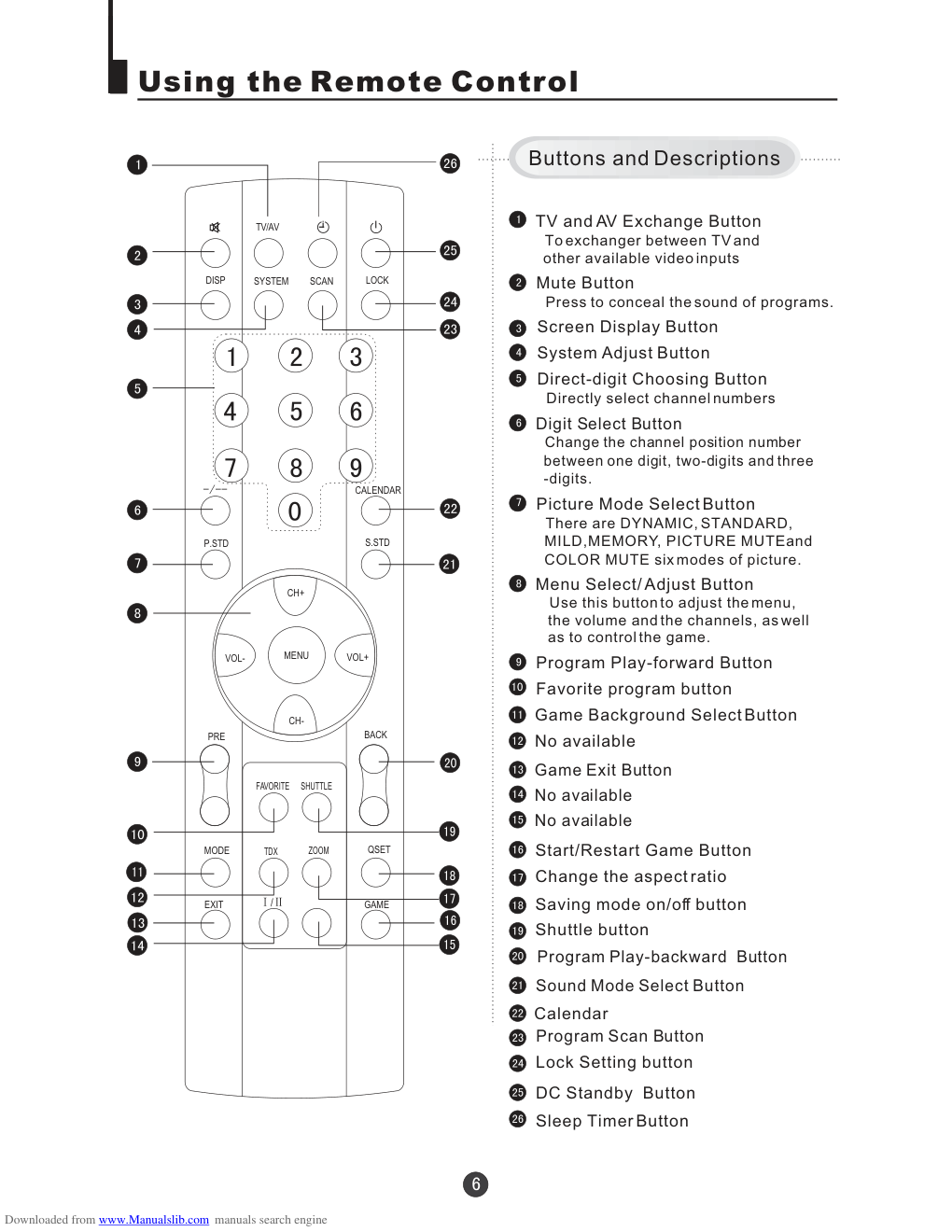

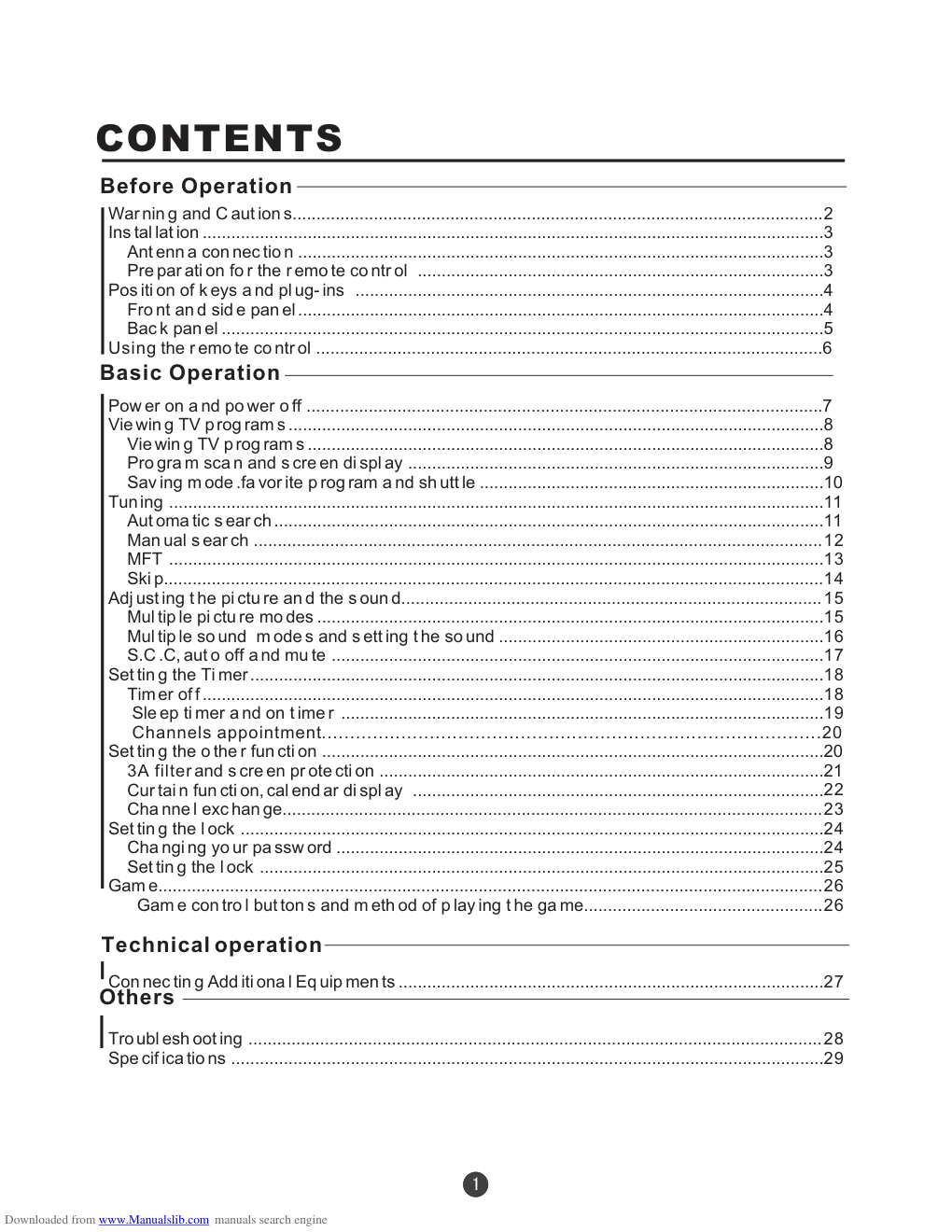

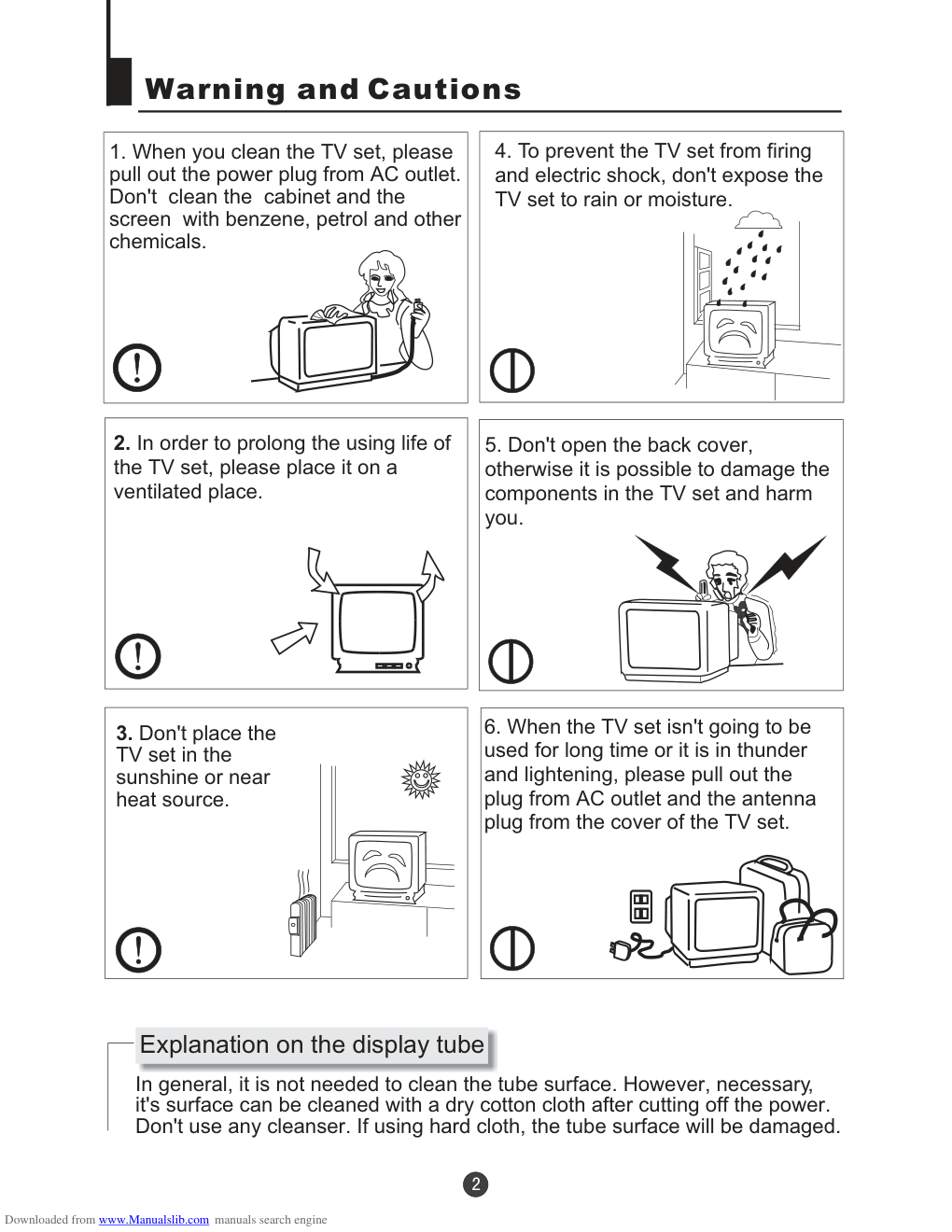

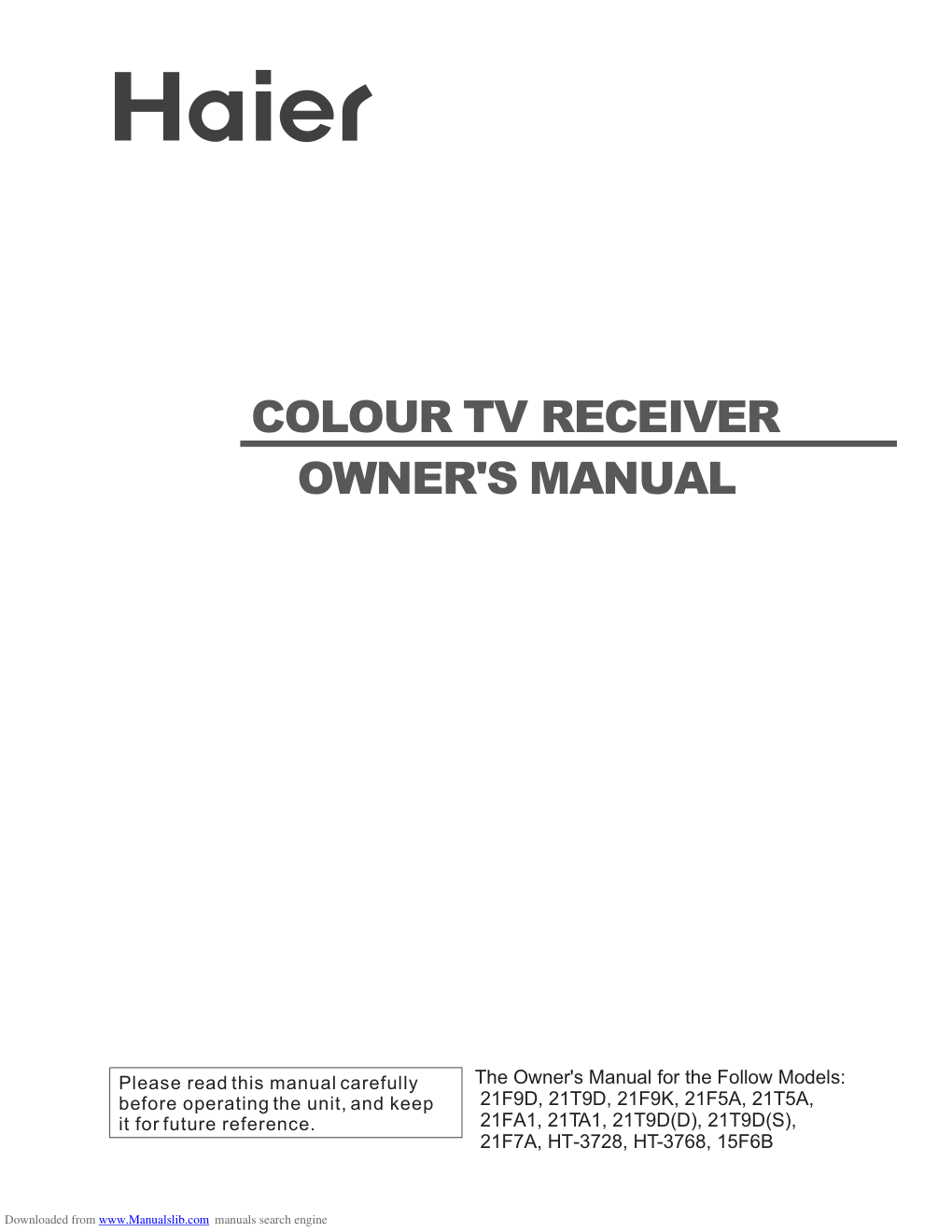

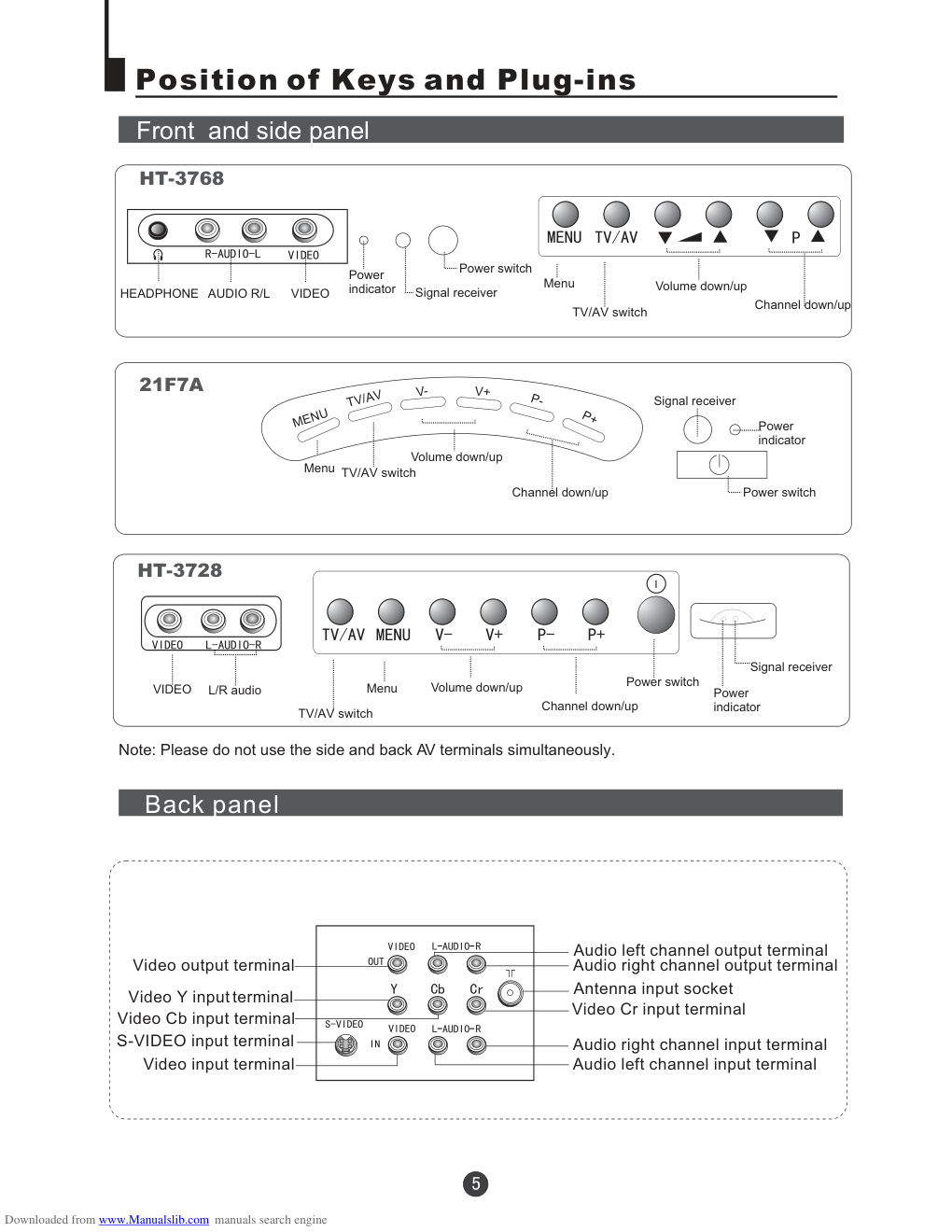

The Owner's Manual for the Follow Models: 21F9D, 21T9D, 21F9K, 21F5A, 21T5A, 21FA1, 21TA1, 21T9D(D), 21T9D(S), 21F7A, HT-3728, HT-3768, 15F6B COLOUR TV RECEIVER OWNER'S MANUAL Please read this manual carefully before operating the unit, and keep it for future reference. Downloaded from www.Manualslib.com manuals search engine Downloaded from www.Manualslib.com manuals search engine CONTENTS Before Operation Basic Operation Others Technical operation Warnin g and C aut ion s............................................................................................................... Ins tal lat ion .................................................................................................................................. Ant enn a con nec tio n .............................................................................................................. Pre par ati on fo r the r emo te co ntr ol ..................................................................................... Pos iti on of k eys a nd pl ug- ins .................................................................................................. Fro nt an d sid e pan el.............................................................................................................. Bac k pan el ..............................................................................................................................5 the r emo te co ntr ol ..........................................................................................................6 Pow er on a nd po wer o ff ............................................................................................................7 Viewin g TV prog ram s ................................................................................................................8 Viewin g TV prog ram s ............................................................................................................8 Pro gra m sca n and s cre en di spl ay .......................................................................................9 Tuning ......................................................................................................................................... Aut oma tic s ear ch................................................................................................................... Man ual s ear ch ....................................................................................................................... MFT ......................................................................................................................................... Ski p.......................................................................................................................................... Adj ust ing t he pi ctu re an d the s oun d........................................................................................ S.C .C, aut o off and mu te ....................................................................................................... Set tin g the Ti mer........................................................................................................................ Timer off.................................................................................................................................. Set tin g the o the r fun cti on .........................................................................................................20 and s cre en pr ote cti on .............................................................................................21 Cur tai n fun cti on, cal end ar di spl ay ...................................................................................... Cha nne l exc han ge................................................................................................................. Set tin g the l ock .......................................................................................................................... Cha ngi ng yo ur pa ssw ord ...................................................................................................... Con nec tin g Add iti ona l Eq uip men ts ......................................................................................... Troubl esh oot ing ........................................................................................................................ Spe cif ica tio ns ............................................................................................................................ 2 3 3 3 4 4 Using 11 11 12 13 14 15 Mul tip le pi ctu re mo des ..........................................................................................................15 Mul tip le so und m ode s and s ett ing t he so und ....................................................................16 17 18 18 Sle ep ti mer a nd on t ime r .....................................................................................................19 Channels appointment........................................................................................20 3A filter 22 23 24 24 Set tin g the l ock ......................................................................................................................25 Gam e...........................................................................................................................................26 Gam e con tro l but ton s and m eth od of p lay ing t he ga me..................................................26 27 28 29 Sav ing m ode .fa vor ite p rog ram a nd sh utt le ........................................................................10 Downloaded from www.Manualslib.com manuals search engine Warning and Cautions 1. When you clean the TV set, please pull out the power plug from AC outlet. Don't clean the cabinet and the screen with benzene, petrol and other chemicals. 4. To prevent the TV set from firing and electric shock, don't expose the TV set to rain or moisture. 2. In order to prolong the using life of the TV set, please place it on a ventilated place. 5. Don't open the back cover, otherwise it is possible to damage the components in the TV set and harm you. 3. Don't place the TV set in the sunshine or near heat source. 6. When the TV set isn't going to be used for long time or it is in thunder and lightening, please pull out the plug from AC outlet and the antenna plug from the cover of the TV set. Explanation on the display tube In general, it is not needed to clean the tube surface. However, necessary, it's surface can be cleaned with a dry cotton cloth after cutting off the power. Don't use any cleanser. If using hard cloth, the tube surface will be damaged. Downloaded from www.Manualslib.com manuals search engine Installation Antenna connection Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an outdoor antenna .In different places, the suitable antenna type and position are different. 300 twin-lead cable Antenna adapter 75 coaxial cable Plug (additional purchase) AC power socket Antenna input 75 standard coaxial type Mixer additional purchase Note * It is recommended that you'd better use 75 * Don't bind antenna cable and electric wire together. coaxial cable to remove the disturbance caused by airwave. Preparation for the remote control Battery installation Tips for remote operation Remove the batteries cover. The battery life should be about one year under normal use. When the remote control will not be used for a long period of time or when the batteries are worn out, remove the batteries to prevent leakage. Do not throw the batteries into a fire. Dispose of used batteries in the specified manner. Do not drop, dampen or disassemble the remote control. Insert two size AA batteries matching the +/-polarities of the battery to the +/- marks inside the battery compartment. Downloaded from www.Manualslib.com manuals search engine Position of Keys and Plug-ins Front and side panel Signal receiver Power switch Power indicator VIDEO L/R audio Menu Volume down/up Channel down/up TV/AV switch Power switch Power indicator Signal receiver Channel down/up Volume down/up Menu TV/AV switch Menu TV/AV switch Volume down/up Channel down/up Signal receiver Power switch Power indicator L/R audio VIDEO TV/AV switch Menu Volume down/up Channel down/up Power indicator Signal receiver Power switch 15F6B Signal receiver Power indicator Power switch VIDEO Menu TV/AV switch Volume down/up Channel down/up AUDIO HEADPHONE Downloaded from www.Manualslib.com manuals search engine Position of Keys and Plug-ins Front and side panel Menu TV/AV switch Volume down/up Channel down/up AUDIO R/L HEADPHONE VIDEO Power switch Signal receiver Power indicator HT-3768 Back panel Antenna input socket Video Cr input terminal Audio left channel input terminal Audio right channel input terminal Audio left channel output terminal Audio right channel output terminal Video Cb input terminal Video Y input terminal Video input terminal Video output terminal S-VIDEO input terminal Ò ô Æ µ × ó É ù µ À Ê ä ³ ö ¶ Ë × Ó Ò ô Æ µ Ó Ò É ù µ À Ê ä È ë ¶ Ë × Ó Ò ô Æ µ × ó É ù µ À Ê ä ³ ö ¶ Ë × Ó Ò ô Æ µ × ó É ù µ À Ê ä ³ ö ¶ Ë × Ó MENU TV/AV V- P- P+ V+ Menu TV/AV switch Volume down/up Channel down/up Power switch Power indicator Signal receiver 21F7A HT-3728 Signal receiver Power indicator Power switch VIDEO L/R audio TV/AV switch Menu Volume down/up Channel down/up Note: Please do not use the side and back AV terminals simultaneously. Downloaded from www.Manualslib.com manuals search engine Using the Remote Control TV/AV DISP SYSTEM SCAN S.STD P.STD LOCK PRE BACK CALENDAR EXIT QSET MODE Buttons and Descriptions TV and AV Exchange Button To exchanger between TV and other available video inputs Mute Button Press to conceal the sound of programs. Screen Display Button System Adjust Button Direct-digit Choosing Button Directly select channel numbers Lock Setting button Menu Select/ Adjust Button Use this button to adjust the menu, the volume and the channels, as well as to control the game. Program Play-forward Button Calendar Change the aspect ratio Start/Restart Game Button Game Exit Button Program Play-backward Button Sound Mode Select Button Digit Select Button Change the channel position number between one digit, two-digits and three -digits. Picture Mode Select Button There are DYNAMIC, STANDARD, MILD,MEMORY, PICTURE MUTEand COLOR MUTE six modes of picture. Program Scan Button DC Standby Button Sleep Timer Button GAME CH+ CH- VOL+ VOL- MENU FAVORITE Favorite program button SHUTTLE ZOOM TDX / Game Background Select Button No available No available No available Saving mode on/off button Shuttle button Downloaded from www.Manualslib.com manuals search engine Power On and Power Off Below are methods on how to power on/off the TV set with the switch on the TV and on the remote control. Power on/off Connect/disconnect to the power 1. Connect the power supply wire, then press power switch button, the power indicator will light, in several seconds the picture will appear on the screen. 2. If the TV is in the state of standby, press the button on the remote control. 3. Press the button on the remote control to get into the standby state. 4. Press the button on the TV set to completely turn off the TV. NOTE 1. You can also press the 0-9 button to call off the standby status instead of pressing the DC Standby button. Press the digit button of the preset channel (limited to one digit) , you can complete the selection of channel while you turn on the TV set( To operate the preset of TV channel, please see TUNING on page 11-14). 2. When you do not use the remote control, you can directly press the CH+/- button on the television to call off the standby status. Power supply auto-off function DC Standby Button Direct-digit Choosing Button When the is set ON, and there is no signal , screen protection works, and ,in15 minutes later without any operation, it will change into standby status. B.B(black background) Downloaded from www.Manualslib.com manuals search engine VOLUME COLOR AUTO SOUND DK SELECT ADJUST PRE BACK SYSTEM Viewing TV Programs The channels amount to 218 . Viewing TV programs How to select the TV program 1. Use the direct-digit choosing button 2. Use CH+/- button Press CH+ to increase the channel position number. Press CH- to decrease the channel position number. Press the button from 0-9 to select a one digit channel. If you want to select a two-digits channel, press the Digit Select button and change it into two-digits mode, then press the number of the channel. If you want to select a three-digits channel, press the Digit Select button and change it into three-digits mode, then press the number of the channel. 3. Use PRE button and BACK button Press PRE button, you can go back to the channels you viewed (as many as four). Then, press BACK button, you can return to the channels you were watching just now (as many as four) . For example, if you have viewed channel 1,2,3,4,5,6 after the TV is powered on, and the channel you are watching now is number 7, then press PRE button, you can view channel 6,5, 4,3, and you may press the Back button to return to channel 7. If the channel position number you select is larger than 218, the TV will use the first two number as the channel position. Choose the proper volume you like Press VOL+/- button to adjust the volume. If the color of one channel is abnormal It might be because the color has been set improperly.You may follow the instruction below to adjust it. Press SYSTEM button, and you can see the form. Press CH+/- button, and move the indicator to COLOR, and press VOL+/- button to select the proper color(AUTO, NTSC3.58,NTSC4.43 and PAL will appear alternately). Generally, please set to AUTO. If the color of the picture is abnormal MENU CH+ CH- VOL- VOL+ Direct-digit Choosing button Digit Select button Press CH+/- button, and move the indicator to SOUND, and press VOL+/- button to select the proper color(DK, I,BG and M will appear alternately). If the sound is abnormal Downloaded from www.Manualslib.com manuals search engine Screen display SCAN ½ Ú Ä ¿ ä ¯ À À ¼ ° Æ Á Ä » Ï Ô Viewing TV Programs (coutinued) Program scanning function is to let the television automatically scan all preconcerted channel program(about two seconds per channel). Program scan and screen display Program scanning function 1. If you want to scan the programs and select your favorite channel , just press the SCAN button, then the television will start scanning from the present channel with a rate of two seconds per channel and until all the preconcerted programs have been displayed once, the TV set will return to the starting channel. 2. If you want to terminate this function during the scanning, press the SCAN button again, and the program will stay at the present channel. DISP Usually, when you press the DISP button, the channel number will appear on the top right corner of the screen and press it again, the channel number will disappear or disappear automatically in about 5 seconds. Downloaded from www.Manualslib.com manuals search engine MENU CH+ CH- VOL- VOL+ Shuttle ½ Ú Ä ¿ ä ¯ À À ¼ ° Æ Á Ä » Ï Ô Viewing TV Programs (coutinued) Saving mode.favorite program and shuttle Saving mode 1. Using the QSET button Press FAVORITE button for long time to enter the menu as right figure. Press CH+/- to select the favorite program and VOL+/- to adjust the channel. You could set 8 favorite programs. After the setting, press FAVORITE button to select your favorite channel you have set . Press SHUTTLE for long time to set the program you are watching as the shuttle channel. If you want to back to this channel from the current channel, press SHUTTLE button once . Press the QSET button to switch the saving mode on/off. And the screen will display on/off at the same time. Press the QSET button more than 3 seconds to call the ENERGY SAVE menu . ENERGY SAVE AMBI-LUM BRI. AMBI-SND NOISE ADJUST SELECT ADJUST 2.Press VOL+/- and CH+/- to set the options of AMBI-LUM/ AMBI- SND, after this select the adjust option and press VOL+/- to adjust the bright/volumeetc to achieve the better picture and sound effect . Note: If the saving mode is on, the buttons P.STD and S.STD will not work. Favorite program setting FAV.POS QSET FAVORITE SHUTTLE Downloaded from www.Manualslib.com manuals search engine SEARCH U 0 STOP MENU CH+ CH- VOL- VOL+ MENU CH+ CH- VOL- VOL+ There are three ways of searching: automatic search, manual search and MFT (manual fine tune). You may operate it either on the TV or on the remote control. Here is mainly about the remote control. Automatic search Tuning Automatic search 1. Press MENU button continuously, until select TUNING menu. 2. Press CH+/- button to move the indicator to AUTO MEMORY. 3. Press VOL+, then AUTO MEMORYmode will work. The TV set will search automatically all available programs, after that, all available programs will be stored in turn and the TV set will return to the first channel. If you want to stop the search, just press VOL- button. The order of the automatic search is due to the frequency of the program, generally speaking, it is used only at the first time you search the program, and once the order of the program has been confirmed, you don't have to use this function, otherwise the order of the program will be changed. After searching Press CH+/- button to check the channels. If the color is abnormal in a certain channel, it may be the color system has not been set properly, so you should adjust it to the proper system (Reference to page 7). A B C TUNING POS EDIT POS EX. SEARCH UP AUTO MEMORY SELECT ADJUST A B C TUNING POS EDIT POS EX. SEARCH UP AUTO MEMORY SELECT ADJUST Downloaded from www.Manualslib.com manuals search engine MENU CH+ CH- VOL- VOL+ MENU CH+ CH- VOL- VOL+ Tuning(coutinued) Manual search Manual search 1. Press CH+/- button or the Direct-digit Choosing button to select a channel directly(take channel 1 for example). 3. Press CH+/- button and move the indicator to SEARCH. 4. Press VOL+/- button to start searching. VOL- button is used to search the lower frquency channel. VOL+ button is used to search the higher frequency channel. Repeat the steps until you find the channel you need. Direct-digit Choosing Button 2. Press MENU button continuously, until select TUNING menu. A B C TUNING POS EDIT POS EX. SEARCH UP AUTO MEMORY SELECT ADJUST A B C TUNING POS EDIT POS EX. SEARCH UP AUTO MEMORY SELECT ADJUST Downloaded from www.Manualslib.com manuals search engine MENU CH+ CH- VOL- VOL+ MENU CH+ CH- VOL- VOL+ Tuning(coutinued) MFT MFT(manual fine tune) When you can't get a satisfactory picture and audio effect, you can fine tune to obtain. 1. Press MENU button continuously, until select TUNING menu. 4. Press CH+/- button and move the indicator to MFT. 4. Press VOL+/- button repeatedly to fine tune, until the picture and the sound become satisfactory. VOL- button is used to search the lower frquency channel. VOL+ button is used to search the higher frequency channel. Direct-digit Choosing Button 2. Press CH+/- button to select POS EDIT and VOL+ to enter. A B C TUNING POS EDIT POS EX. SEARCH UP AUTO MEMORY SELECT ADJUST A B C TUNING POSITION 1 BAND VL SKIP ON MFT UP SELECT ADJUST 3. Press CH+/- button to select POSITION and VOL+/- to select the channel (Take channel 1 for example) Note: the same way to adjust the BAND, and VL/VH/U will appear alternatively.. A B C TUNING POSITION 1 BAND VL SKIP ON MFT UP SELECT ADJUST Downloaded from www.Manualslib.com manuals search engine MENU CH+ CH- VOL- VOL+ Tuning(coutinued) Skip After the programs are presetted, you can skip some programs so that to select your favorite channels only. 1. Press MENU button continuously, until select TUNING menu. 4. Press CH+/- button and move the indicator to SKIP. Skip 5. Press VOL+/- button to set it ON. 5. Press MENU button to close the menu. When you select channels with CH+/- button, this channel will be skipped. However, you can also use the Direct-digit Choosing button on the remote control to select this channel directly. If you want to recover the skipped channel 1. Use Direct-digit Choosing button to select the number of the channel to be recovered. 2. Do the above steps again. 3. Press VOL+/- button to set SKIP OFF. Direct-digit Choosing Button 2. Press CH+/- button to select POS EDIT and VOL+ to enter. 3.Press CH+/- button to select POSITION and VOL+/- to select the channel(Take channel 1 for example) A B C TUNING POS EDIT POS EX. SEARCH UP AUTO MEMORY SELECT ADJUST A B C TUNING POSITION 1 BAND VL SKIP ON MFT UP SELECT ADJUST A B C TUNING POSITION 1 BAND VL SKIP ON MFT UP SELECT ADJUST Downloaded from www.Manualslib.com manuals search engine MENU CH+ CH- VOL- VOL+ Adjusting the Picture and the Sound Multiple picture modes How to select the picture mode You may select the mode you want from the five preset modes and one individual mode. DYNAMIC STANDARD MILD MEMORY PICTURE MUTE COLOR MUTE Press the P. STD button to select a mode you like.DYNAMIC PICTURE, STANDARD PICTURE, MILD PICTURE, MEMORY, PICTURE MUTE and COLOR MUTE, totally six picture modes can be selected alternately. P.STD MODE PICTURE QUALITY DYNAMIC STANDARD MILD MEMORY PICTURE MUTE COLOR MUTE BRIGHT COLOR MEDIUM COLOR AND BRIGHTNESS LOW COLOR AND BRIGHTNESS SET BY YOURSELF NO PICTURES BLACK AND WHITE PICTURE If the picture mode is set to PICTURE MUTE or COLOR MUTE,it will autorenew to MEMORY mode when you restart your TV set with remote control. Set the parameter of MEMORY 2. Press CH+/- button, move the indicator to the option you want to adjust, then press VOL+/- button to do the adjustment. Then the parameter will be automatically stored in MEMORY option. *The item of TINT appears when the N system signal is received, and you can adjust it by VOL-/+ button. OPTION CONTRAST STRONG WEAK BRIGHT BRIGHT DARK COLOR THICK LIGHT SHARP SHARP SOFT VOL- VOL+ TINT PURPLE GREEN 1. Press MENU button continuously untilselect PICTURE menu,press CH+/- to select ADJUST and VOL+/- to enter. A B C PICTURE ADJUST 3A FILTER B.B ON SELECT ADJUST A B C PICTURE CONTRAST 100 BRIGHT 50 COLOR 50 SHARP 50 SELECT ADJUST Downloaded from www.Manualslib.com manuals search engine Multiple Sound Modes and Setting the Sound · ½ ± ã µ Ä Í ¼ Ï ñ º Í É ù Ò ô LOW VOL NORMAL VOL HIGH VOL MENU CH+ CH- VOL- VOL+ S.STD Adjusting the Picture and the Sound (coutinued) How to select the sound mode You can quickly select your most favored sound mode from the following three kinds of modes. Press the S.STD button to select the sound quality that you want.LOW VOL/ NORMAL VOL/ HIGH VOL can be selected in turn(their parameter may be adjusted due to your need). Setting the sound This function can let you regulate the volume to the preconcerted parameter quickly( such as the LOW VOL/ NORMAL VOL/ HIGH VOL). 2. Press CH+/- button, move the indicator to the HIGH VOL, then press VOL+/- button to adjust the parameter you expect. With the same method, you can adjust the parameter of the LOW VOL and NORMAL VOL Suppose the LOW VOL is A, NORMAL VOL is B, HIGH VOL is C, they should be: 0 A B C 100 3. Press the S.STD button repeatedly to select the different sound setting modes. S.STD 1. Press MENU button continuously until select SOUND menu. A B C SOUND LOW VOL 00 NORMAL VOL 00 HIGH VOL 00 BALANCE 50 SELECT ADJUST You should adjust them in the sequence of HIGH VOL, NORMAL VOL and LOW VOL . Downloaded from www.Manualslib.com manuals search engine Adjusting the Picture and the Sound (coutinued) S.C.C, auto off and mute How to use the MUTE function When you want to pay attention to the environment or answer a telephone, or to meet guests, using the mute function is very convenient. Auto off MENU CH+ CH- VOL- VOL+ How to use the S.C.C(soft change channel) This TV set provides you with the function of S.C. C. When it is set "ON", the picture will fade in and fade out when the channel is changed. 2. Press CH+/- button, move the indicator to the S.C.C, then press VOL+/- button to set it ON or OFF. To prevent from forgetting turning off the TV, this TV could turn off automatically. That is , if the off timer is set on and after two hours without any operation, this TV will switch into standby mode automatically to save your energy. 1. Press button, a sign will appear at the bottom center of the screen, and the sound of the TV set is cut off. 2. In order to recover the sound, press button again or press VOL+/-button. 1. Press MENU button continuously until select FUNCTION menu. A B C FUNCTION TIMER AUTO OFF ON S.C.C OFF SPECIAL LANG. ENGLISH SELECT ADJUST Note: LANG. option only appears in some models . Downloaded from www.Manualslib.com manuals search engine Setting the Timer Timer off Using this function can turn the TV set automatically into standby status at the preconcerted time. MENU CH+ CH- VOL- VOL+ MENU CH+ CH- VOL- VOL+ This TV set provides you with three timer functions such as timer on, timer off and sleep off. Timer off 2. Press CH+/- button, move the indicator to OFF TIMER, then press VOL+/- button to set the time. 3. Press CH+/- button, move the indicator to CLOCK, press VOL+/- button, and you can set the time(It will be the standard of the clock of timer on/off). 1. Press MENU button continuously until select FUNCTION menu, press CH+/- to select TIMER and VOL+/- to enter. A B C TIMER CLOCK 00:00 OFF TIMER 00:00 ON TIMER OFF ON POS 0 APP. TIME OFF APP. POS 0 SELECT ADJUST A B C FUNCTION TIMER AUTO OFF ON S.C.C OFF SPECIAL SELECT ADJUST A B C TIMER CLOCK 00:00 OFF TIMER 00:00 ON TIMER OFF ON POS 0 APP. TIME OFF APP. POS 0 SELECT ADJUST Downloaded from www.Manualslib.com manuals search engine Sleep timer and on timer On Timer Sleep timer 2. Press the button repeatedly, the screen will show in turn as the right form. MENU CH+ CH- VOL- VOL+ MENU CH+ CH- VOL- VOL+ Setting the Timer (coutinued) Using this function, the TV set can be changed into the standby status after a period of preset time from when this function is activated. 1. The utmost time for this function is 120 minutes, and the time interval is 10 minutes.There are totally 12 kinds of off-time. When this function is used, the TV set can automatically turn the power on at the preset time in the standby status and display the preset program. 2. Press CH- button, move the indicator to ON TIMER. Then, press VOL+/- button to set the time. 3. Press CH+/- button, move the indicator to ON POS, press VOL+/- button to set the channel with which the TV is turned on(take 5 for example). 4. Press CH+/- button, move the indicator to CLOCK, press VOL+/- button, and you can set the time(same as OFF TIMER and it will be the standard of the clock of ON/OFF TIMER ). 1. Press MENU button continuously until select FUNCTION menu, press CH+/- to select TIMER and VOL+/- to enter. A B C FUNCTION TIMER AUTO OFF ON S.C.C OFF SPECIAL SELECT ADJUST A B C TIMER CLOCK 00:00 OFF TIMER 00:00 ON TIMER OFF ON POS 0 APP. TIME OFF APP. POS 0 SELECT ADJUST A B C TIMER CLOCK 00:00 OFF TIMER 00:00 ON TIMER OFF ON POS 0 APP. TIME OFF APP. POS 0 SELECT ADJUST Downloaded from www.Manualslib.com manuals search engine Channels appointment Repeatedly press VOL+/- button, the time changes with a rate of one minute; Press the button without releasing, the time changes with a rate of ten minutes. MENU CH+ CH- VOL- VOL+ MENU CH+ CH- VOL- VOL+ DISP Setting the Timer (coutinued) The channels appointment function can help you conveniently preset as many as six programs at a time. At the preset time, the TV set will automatically change to the preconcerted channel. If two or more programs are set in a same time, the last channel number will be selected. 2. Press CH+/- button, move the indicator to CLOCK, press VOL+/- button, and you can set the time(same as OFF TIMER and it will be the standard of the clock of APP.TIME). 3. Press CH+/- button, move the indicator to APP.POS. 4. Press VOL+/- button to set the channel number you want (e.g. 100). 5. Press CH+/- button to enter the APP.TIME item. Press VOL+/- button to set the time. 6. Press the CH- button, and follow the instructions of step 4 and 5, you can do the setting of the next channel. 7. Press DISP button to exit the TIMER menu. At the preset time, the TV set will automatically change to the preconcerted channel; This function is available only when the TV set is on, and it cannot be used in the status of standby or power off. Channels appointment 1. Press MENU button continuously until select FUNCTION menu, press CH+/- to select TIMER and VOL+/- to enter. A B C FUNCTION TIMER AUTO OFF ON S.C.C OFF SPECIAL SELECT ADJUST A B C TIMER CLOCK 00:00 OFF TIMER 00:00 ON TIMER OFF ON POS 0 APP. TIME OFF APP. POS 0 SELECT ADJUST A B C TIMER CLOCK 00:00 OFF TIMER 00:00 ON TIMER OFF ON POS 0 APP. TIME OFF APP. POS 0 SELECT ADJUST A B C TIMER CLOCK 00:00 OFF TIMER 00:00 ON TIMER OFF ON POS 0 APP. TIME OFF APP. POS 0 SELECT ADJUST Downloaded from www.Manualslib.com manuals search engine Setting the other Function How to use the 3A filter function MENU CH+ CH- VOL- VOL+ 1.Press MENU button continuously until select the PICTURE menu. Then press CH+/- button to move the indicator to 3A FILTER, and press VOL+/- button to enter MENU CH+ CH- VOL- VOL+ Æ Á Ä » Ó ï Ñ Ô ¼ ° Æ Á Ä » ± £ Æ Á Ä » Ó ï Ñ Ô ¼ ° Æ Á Ä » ± £ 3A filter and screen protection A B C PICTURE ADJUST 3A FILTER B.B ON SELECT ADJUST How to activate the function of screen protection If no signal has been received by the TV set,when the B.B function is set ON, the screen will change into the form on the right shows if the screen protection is set ON . Press MENU button continuously until select the PICTURE menu. Then press CH+/- button to move the indicator to B.B, and press VOL+/- button to set it ON. A B C PICTURE ADJUST 3A FILTER B.B ON SELECT ADJUST SELECT ADJUST 2.Press CH+/- to move the indicator to the item you want to adjust and then VOL+/- to adjust it . Downloaded from www.Manualslib.com manuals search engine CALENDAR How to use the calendar function This TV set provides three types of Curtain function for you to select. This TV set has been designed to store the calendar from the year 1901 to 2050. 1. Press the CALENDAR button and then the calendar will appear on the screen(Press the CALENDAR button again to conceal the display). 2. Press CH+/- button to adjust the YEAR, press VOL+/- button to adjust the MONTH. MENU CH+ CH- VOL- VOL+ MENU CH+ CH- VOL- VOL+ Setting the other Function(continued) How to use the Curtain function 2. Press CH+/- button, and move the indicator to CURTAIN, then press VOL+/- button to select from I, II and III . I: curtain II : fade in and fade out III : mixed I and II OCT 2002 SU MO TU WE TH FR SA Curtain function,calendar display 1. Press MENU button until select FUNCTION menu,press CH+/- to select SPECIAL and VOL+/- to enter. A B C FUNCTION TIMER AUTO OFF ON S.C.C OFF SPECIAL SELECT ADJUST A B C SPECIAL SCR SAVER ON CURTAIN 3A OPT OFF SELECT ADJUST Downloaded from www.Manualslib.com manuals search engine for example, to change between channel1 and 9 MENU CH+ CH- VOL- VOL+ MENU CH+ CH- VOL- VOL+ Direct-digit Choosing Button Setting the other Function(continued) The function of channel exchange will enable you to exchange any two programs and you can conveniently adjust the order of the programs due to your own need. Channel exchange Channel Exchange 2. Press CH+/- button, move the indicator to POS.EX., Then press VOL+ button to enter the sub-menu. The number shown in EX.POS1 and EX.POS2 is the number of the present channel. 3. Press CH+/- button, move the indicator to EX.POS2, then press VOL+ button to set the channel number to 9. 4. Press CH+/- button, move the indicator to EXCHANGE, then press VOL+ button to confirm. Then the programs of the two channel will be exchanged. EX.POS2 1 EXCHANGE ? RETURN EX.POS1 1 1. Press MENU button continuously until select TUNING menu. A B C TUNING POS EDIT POS EX. SEARCH UP AUTO MEMORY SELECT ADJUST A B C TUNING SELECT ADJUST EX.POS2 9 EXCHANGE ? RETURN EX.POS1 1 A B C TUNING SELECT ADJUST Downloaded from www.Manualslib.com manuals search engine Setting the Lock This TV set can set a four digit password, the original one is 0000, if you want to reset it, please follow the instructions below. 3. Press the Direct-digit Choosing button and input a four-digits password. 4. After inputting the new password, return to the original status as shown on the right form, then, you can input the new password to enter the menu of LOCK setting. LOCK SET UP PASSWORD ---- CHANGE PW TUNING LOCK OFF PRESET PROG OFF AV LOCK OFF CHILD LOCK OFF MAX. VOLUME OFF UNLOCK LOCK MENU CH+ CH- VOL- VOL+ LOCK SET UP PASSWORD ---- Direct-digit Choosing Button This TV set provides you with the LOCK function, you can choose it due to your need to protect your TV set. Changing your password Changing your password 1. Press LOCK button, the screen will show as the form on the right. 2. Press the 0 button four times, and enter the menu of LOCK setting. Press CH+/- button and move the indicator to CHANGE PW. , and press VOL+ button to enter the sub-menu of change password. CHANGE PW. NEW PW. ---- LOCK SET UP PASSWORD ---- CHANGE PW TUNING LOCK OFF PRESET PROG OFF AV LOCK OFF CHILD LOCK OFF MAX. VOLUME OFF UNLOCK Downloaded from www.Manualslib.com manuals search engine MENU CH+ CH- VOL- VOL+ LOCK Direct-digit Choosing Button Setting the Lock(continued) Setting the Lock Setting the Lock There are TUNING LOCK, PRESET PROG. ,AV LOCK, CHILD LOCK and MAX.VOLUME five lock setting, you can set it due to your need. 1. Press the LOCK button, the screen will show as the form on the right. 2. Press the Direct-digit Choosing button 0 for four times( or input the password you set), and enter the menu of LOCK. 3. Press CH+/- button, move the indicator to TUNING LOCK, then press VOL+ button to set it ON or OFF. Note: 1.When the TUNING LOCK is set ON, if you want to enter the TUNING menu, you will have to type the password. 2.The PRESET PROG allows you to turn on the TV always with one channel. 3.When AV LOCK is set ON, AV cannot be used, hence the screen will change into black and indicate that it has been locked. The TV set will be in the state of mute. 4.When the CHILD LOCK is set ON, if the buttons on the TV are pressed, it will indicate that the TV set is in the status of CHILD LOCK, and the buttons won't work. 5.The MAX VOLUME allows you to set a figure of the top limit of volume. 6.The UNLOCK allows to you to set all the lock to OFF . LOCK SET UP PASSWORD ---- CHANGE PW TUNING LOCK OFF PRESET PROG OFF AV LOCK OFF CHILD LOCK OFF MAX. VOLUME OFF UNLOCK LOCK SET UP PASSWORD ---- CHANGE PW TUNING LOCK OFF PRESET PROG OFF AV LOCK OFF CHILD LOCK OFF MAX. VOLUME OFF UNLOCK Downloaded from www.Manualslib.com manuals search engine MENU CH+ CH- VOL- VOL+ Game Method of playing the game Game control buttons Game control buttons and method of playing the game Used to confirm the digits To select the background when playing game To start/restart the game To exit game GAME MODE EXIT 1. Press GAME button to start the game screen, then press VOL+ to select the score of BET(1-10)( the score will decrease as much as the value of BET). After these operation you could press VOL- to enter the game , the digits and flag will change quickly. 2. Press VOL+ to enter after select a digit(1-8), and then the selection of the second digit, press VOL+ again to start the second digit selection. REACH will display on the screen if 2 is also selected; and WIN will display on the screen if 2 is selected on the third position, and the score will also display on the screen. 3. You can press the GAME button to restart the game when it is game over or during the process of the game. Used to select the score This TV set provides you with the game, after entering the game, except the buttons that are appointed in the game( for example, the game button, CH+/-and MODE, etc.)and the DC Stand by button, the other buttons cannot be used. Note WIN displays on the screen on the following condition, and the score is as following The three position Score Two 7(7 appears on two position ) Two flags Three 7 Three flags Three other digits except 7 Downloaded from www.Manualslib.com manuals search engine Connecting Additional Equipments Connecting additional equipments You can connect the DVD,VCR and stereo system to the AV output to enjoy a higher quality of picture and sound effect. Signal flow White (Audio left channel) Red (Cr and audio right channel) Blue (Cb) Green (Y) Yellow (Video) To S-VIDEO input Laser DVD with output terminal To audio output To DVD output To audio input To video input DVD, VCD or other units Note: About the S-VIDEO DVD, VCD or other units Video output Audio output You should only connect S-VIDEO or VIDEO terminal when you use the first AV terminal . Do not connect the both at the same time . Downloaded from www.Manualslib.com manuals search engine Picture with snow Noise Color Spot Normal volume Scramble Normal or Weak Volume No color Normal volume No Picture No sound No sound Normal Normal Disturb Noise Double or Triple Image *To assist in location possible faults use help guide below. BREAKDOWN PHENOMENON PICTURE SOUND CHECKING The aerial direction and connection Volume Sound mute Ensure that the power supply is connected to the TV set and turned on. Also ensure that the TV set is not in "PICTURE MUTE" or that the brightness and contrast are not turned down Adjust color control Adjust channel again Note: 1.If the fault can not be repaired using the above guide consult with your local authorized service center. 2.The TV set must only be repaired by a qualified registered service person. Never attempt to remove the back cover as the TV set has dangerous voltages in side that may cause a fatality or fire. 3. The cabinet may produce the occasional "snapping sound". This is normal and caused by the materials in the cabinet expanding with room temperature changes. Electrical interference which can be caused by cars, motorbikes etc, Fluorescent lamps and dirty insulators on overhead power cables. This is called ghosting which can be minimized with an outside aerial, and good quality cable and terminations. Altering the aerial direction can also minimize this effect. Troubleshooting Colour Purity fault which can be caused by moving the TV set, placing magnets near the TV screen or turning on/off house hold appliances such as vacuumcleaners near the TV set. Turn the TV off with the mains power switch for 15 minutes. When the power is turn on again the TV set will automatically degauss the picture. In server cases leave the TV set turned off over night. Downloaded from www.Manualslib.com manuals search engine Specifications *The specifications offered you here are only for reference and, with the improvement of the products ,there may be some different between the description and the practicality. *Design and specifications are subject to change without notice. PAL AV NTSC3.58 NTSC4.43 14 color picture tube(the viewable dimension is 34cm) 2X3W 70W Picture tube Accessories Color system Sound system Sound output power Size mm DK(BG,I,M) Remote control X1 Owner's manual X1 Power consumption Power supply input list ~90V-250V, 50/60Hz ~150V-250V, 50Hz Country or Area Power supply input Saudi Arabia, Pakistan Mongolia, Moldova, Cyprus, Russia, Turkmenstan, Ukraine, Latvia, Bulgaria ~160V-250V, 50/60Hz Jordan, Oman, UAE, Lebann,India, Yemen, Kuwait, Bahrain Philippine ,Srilanka Bengal ~150V-240V, 50/60Hz New Zealand, Australia,Malaysia ~150V-250V, 50/60Hz Hong Kong, Algeria, Nepal, Turkey ~220V, 50Hz The actual voltage and frenquency of the TV set is for the country or area. different Indonisia ~150V-240V, 50Hz or ~150V-250V, 50/60Hz ~220V-230V, 50/60Hz Yugoslavia Warranty card is only for the special country or area. Warranty card X1 Battery(AA) X2 MODEL HT-3728 HT-3768 15F6B 15 color picture tube(the viewable dimension is 34cm) Other models21 color picture tube(the viewable dimension is 51cm) 70W 60W Downloaded from www.Manualslib.com manuals search engine 01 0090506298C Downloaded from www.Manualslib.com manuals search engine
