2
Need help?
www.sanyoctv.com 1-877-864-9604
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit fully into your outlet, consult an electri-
cian for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod,
bracket, or table specified by the manu-
facturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
15. If an outside antenna is connected to the television
equipment, be sure the antenna system is grounded so
as to provide some protection against voltage surges
and built up static charges. In the U.S. Selection 810-21
of the National Electrical Code provides information with
respect to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding elec-
trodes, and requirements for the grounding electrodes.
16. An outside antenna system should not be located in the
vicinity of overhead power lines or other electrical light
or power circuits, or where it can fall into such power
lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from
touching such power lines or circuits as contact with
them might be fatal.
EXAMPLE OF ANTENNA GROUNDING ACCORDING
TO NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
“Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the build-
ing, as close to the point of cable entry as practical.”
17. Wall or Ceiling Mounting—The product should be
mounted to a wall or ceiling only as recommended by
the manufacturer.
18. Apparatus shall not be exposed to dripping or splashing
and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
19. When the MAINS plug is used as the disconnect device,
the disconnect device shall remain readily operable.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SER-
VICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS
UNIT.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
3
Need help?
www.sanyoctv.com 1-877-864-9604

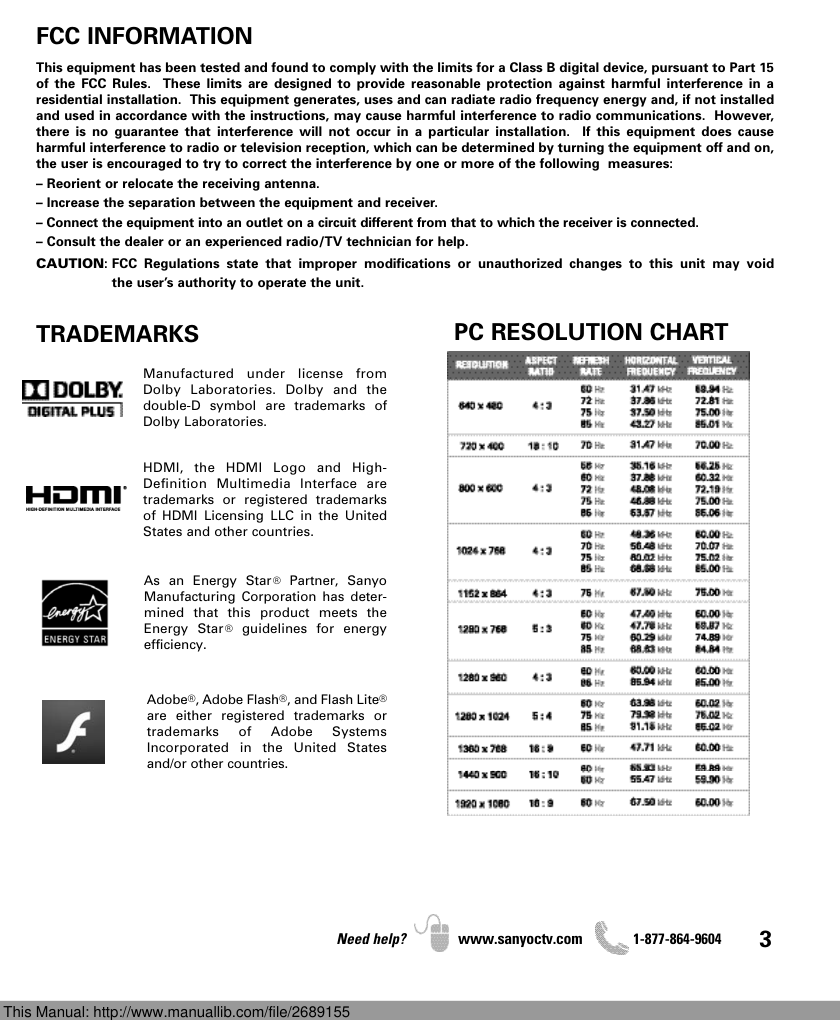

FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void
the user’s authority to operate the unit.
TRADEMARKS
PC RESOLUTION CHART
As an Energy Star® Partner, Sanyo
Manufacturing Corporation has deter-
mined that this product meets the
Energy Star® guidelines for energy
efficiency.
Manufactured under license from
Dolby Laboratories. Dolby and the
double-D symbol are trademarks of
Dolby Laboratories.
HDMI, the HDMI Logo and High-
Definition Multimedia Interface are
trademarks or registered trademarks
of HDMI Licensing LLC in the United
States and other countries.
Adobe®, Adobe Flash®, and Flash Lite®
are either registered trademarks or
trademarks
of
Adobe
Systems
Incorporated in the United States
and/or other countries.
4
Need help?
www.sanyoctv.com 1-877-864-9604
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . 2
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
PC RESOLUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PROTECTING THE SCREEN . . . . . . . . . . . . . . . . . . . . . . . . .4
POSITIONING THE HDTV . . . . . . . . . . . . . . . . . . . . . . . . . . .5
STAND REMOVAL/ASSEMBLY . . . . . . . . . . . . . . . . . . . . . .5
WALL MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
GETTING STARTED—
Remote Control Battery Installation . . . . . . . . . . . . . . . .5
Antenna Connections for off-air or cable . . . . . . . . . . .5

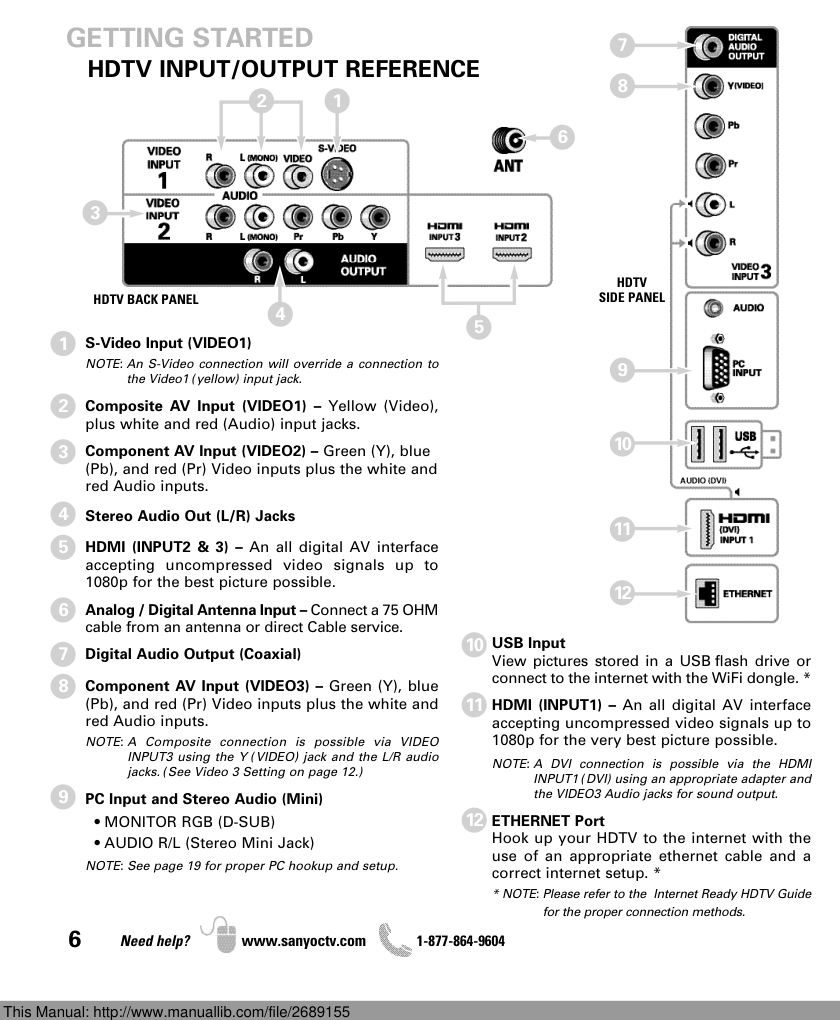

HDTV INPUT/OUTPUT REFERENCE . . . . . . . . . . . . . . . . . . .6

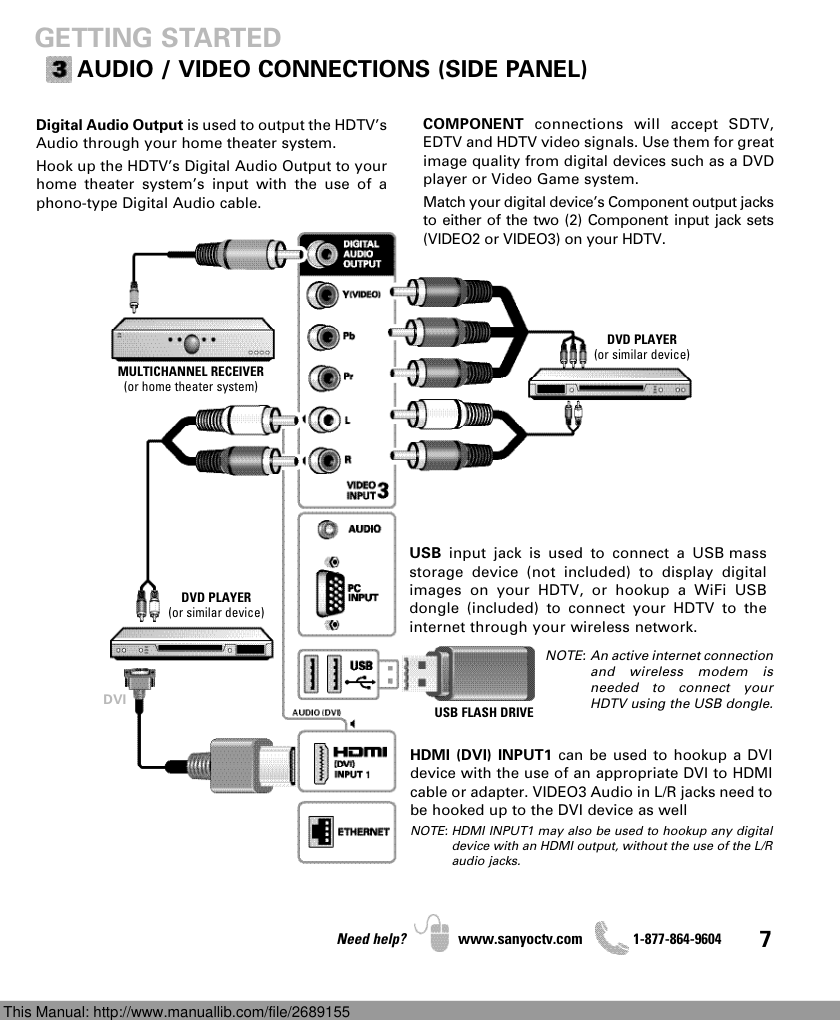

A/V CONNECTIONS (SIDE PANEL) . . . . . . . . . . . . . . . . . . .7

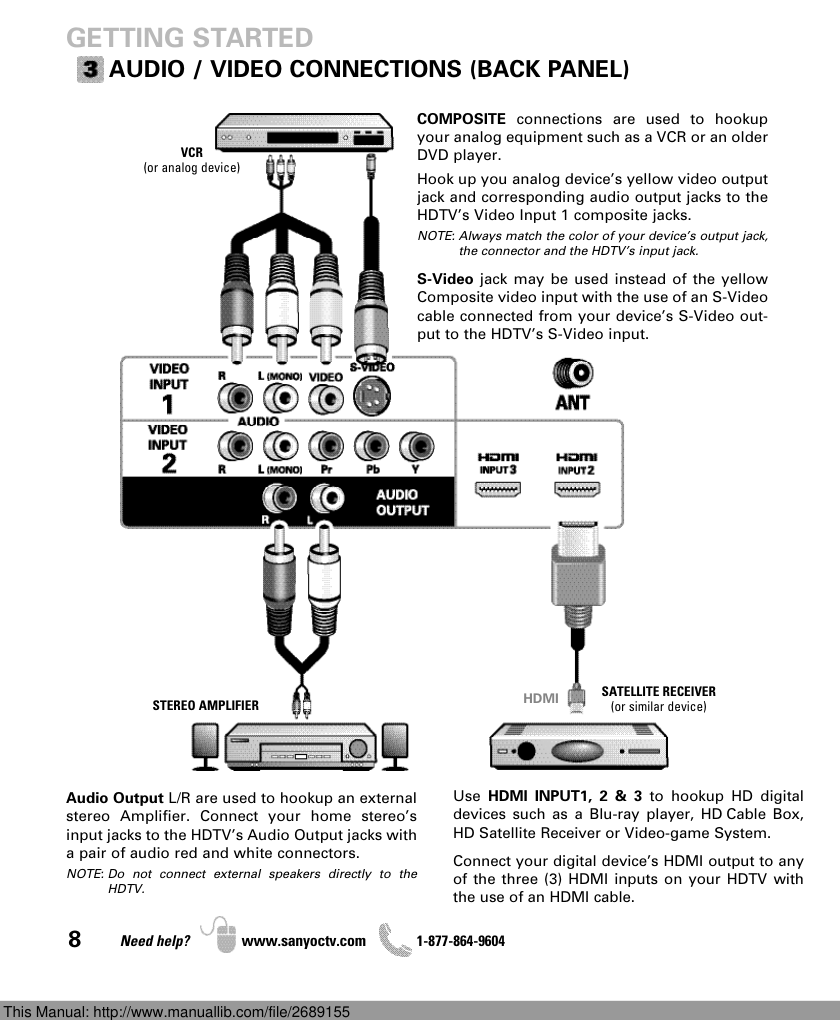

A/V CONNECTIONS (BACK PANEL) . . . . . . . . . . . . . . . . . .8

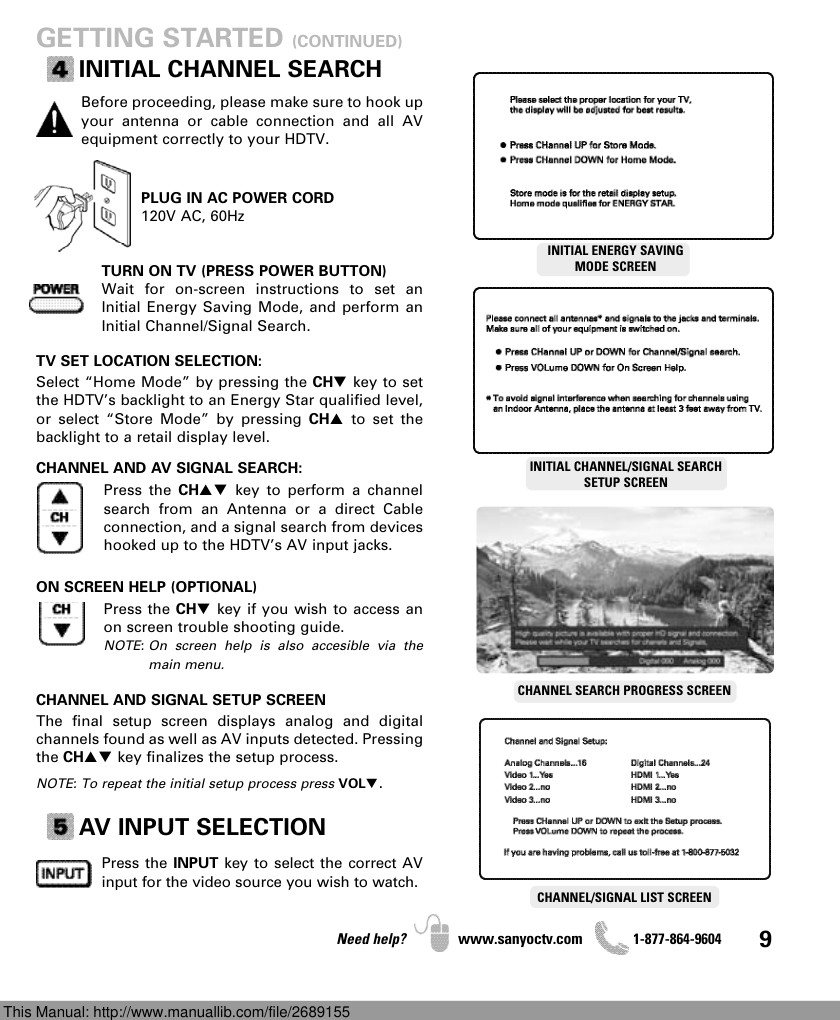

POWER CONNECTION / INITIAL CHANNEL SEARCH . . .9
REMOTE CONTROL OPERATION . . . . . . . . . . . . . . . . . . . .10
ON-SCREEN MENU OPERATION—
Channel / Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Channel Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Channel Scan Memory . . . . . . . . . . . . . . . . . . . . . . .11
Input Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Video3 Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HDMI Linking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Digital Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Energy Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Clock Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Motion Sync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
V-Chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Pix-Shape Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
PC CONNECTIONS & MENU OPERATION . . . . . . . . . . . .19
PHOTO VIEWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
GNU GENERAL PUBLIC LICENSE . . . . . . . . . . . . . . . . . . .22
PROTECTING THE SCREEN
CAUTION: The screen can be damaged if it is not
maintained properly.
• Do not use hard objects such as hard cloth or
paper to clean the screen.
• Do not use excessive pressure when cleaning
the screen; excessive pressure can cause
permanent discoloration or dark spots.
• NEVER spray liquids on the screen.
HANDLING PRECAUTIONS
• Handle by the cabinet only.
• Never touch the screen when handling.
• Handling damage is not covered under warranty.
SPECIFICATIONS
Power Requirement: Source: AC 120V, 60Hz
AC Power Consumption:
Weight:
221 watts
45 lbs.(w/stand)
Dimensions:
MODEL
WIDTH
HEIGHT
DEPTH
DP47460
44.6
29.4
12.7
w/o stand
27.2
4.6
NOTE: Dimensions are in inches
Please read before
operating your HDTV!
“The American Academy of Pediatrics discourages
television viewing for children younger than two
years of age”
CONTAINS MERCURY LAMPS,
DISPOSE OF PROPERLY
5
Need help?
www.sanyoctv.com 1-877-864-9604
GETTING STARTED
Install two (2) “AAA” batteries in the remote
control. (Not included)
To ensure safe operation, please observe the
following precautions:
• Replace both batteries at the same time. Do not use a
new battery with a used battery.
• There’s a risk of explosion if a battery is replaced by
an incorrect type.
• Do not expose the Remote Control unit to moisture
or heat.
• Be sure to match the “+” and “–” signs on the
batteries with marks inside the remote control.
ANTENNA CONNECTION FOR
OFF-AIR SIGNALS OR CABLE
ANTENNA
CABLE
ANALOG / DIGITAL
ANTENNA IN
BATTERY INSTALLATION
Hook up your antenna or your cable service to
the HDTV’s ANT terminal with the use of a 75
OHM coaxial cable.
NOTE: Keep your indoor antenna at least 3 ft. away
from the television set and any other electronic
equipment.
The tuner in this HDTV can receive:
• Digital and Analog off air signals from an antenna
• Analog or ClearQAM cable channels from a direct
Cable TV connection.
1
Place HDTV face down on a padded or
cushioned flat surface to protect the screen
and finish
2
Remove the four (4) screws securing the foot
stand. CAUTION: Hold the stand firmly as you
remove the last screw.
STAND REMOVAL ____________
POSITIONING THE HDTV
• Always use a firm and flat surface when
positioning your HDTV.
• Do not position the unit in a confined area.
• Allow adequate space for proper ventilation.
• Do not position the HDTV where it is easily
reachable by small children and may present
risk of injury.
1
Place HDTV face down on a padded or
cushioned flat surface to protect the screen
and finish
2
Carefully insert the stand base to the bottom
of the HDTV and secure the base by inserting
4 screws as indicated in the above diagram.
NOTE: If your HDTV came packed with the Stand Base
unassembled, these screws will be found in the
literature package.
STAND ASSEMBLY ___________
Wall mounting of the HDTV must be performed
by a skilled person.
Use the screws you would use to attach the stand
base to secure the HDTV to a wall mounting kit
(not included.)
VESA standard interface: 400 x 400
Mounting screws measurements:
M6 (6mm) Diameter, Length—12mm (maximum)
WALL MOUNTING ____________
6
Need help?
www.sanyoctv.com 1-877-864-9604
S-Video Input (VIDEO1)
NOTE: An S-Video connection will override a connection to
the Video1 (yellow) input jack.
Composite AV Input (VIDEO1) – Yellow (Video),
plus white and red (Audio) input jacks.
Component AV Input (VIDEO2) – Green (Y), blue
(Pb), and red (Pr) Video inputs plus the white and
red Audio inputs.
Stereo Audio Out (L/R) Jacks
HDMI (INPUT2 & 3) – An all digital AV interface
accepting uncompressed video signals up to
1080p for the best picture possible.
Analog / Digital Antenna Input – Connect a 75 OHM
cable from an antenna or direct Cable service.
Digital Audio Output (Coaxial)
Component AV Input (VIDEO3) – Green (Y), blue
(Pb), and red (Pr) Video inputs plus the white and
red Audio inputs.
NOTE: A Composite connection is possible via VIDEO
INPUT3 using the Y (VIDEO) jack and the L/R audio
jacks. (See Video 3 Setting on page 12.)
PC Input and Stereo Audio (Mini)
• MONITOR RGB (D-SUB)
• AUDIO R/L (Stereo Mini Jack)
NOTE: See page 19 for proper PC hookup and setup.
1
2
3
4
5
6
7
8
GETTING STARTED
HDTV INPUT/OUTPUT REFERENCE
1
4
2
6
USB Input
View pictures stored in a USB flash drive or
connect to the internet with the WiFi dongle. *
HDMI (INPUT1) – An all digital AV interface
accepting uncompressed video signals up to
1080p for the very best picture possible.
NOTE: A DVI connection is possible via the HDMI
INPUT1 (DVI) using an appropriate adapter and
the VIDEO3 Audio jacks for sound output.
ETHERNET Port
Hook up your HDTV to the internet with the
use of an appropriate ethernet cable and a
correct internet setup. *
* NOTE: Please refer to the Internet Ready HDTV Guide
for the proper connection methods.
9
10
11
12
HDTV BACK PANEL
HDTV
SIDE PANEL
5
7
8
9
10
11
12
3
7
Need help?
www.sanyoctv.com 1-877-864-9604
GETTING STARTED
AUDIO / VIDEO CONNECTIONS (SIDE PANEL)
DVD PLAYER
(or similar device)
MULTICHANNEL RECEIVER
(or home theater system)
NOTE: An active internet connection
and
wireless
modem
is
needed to connect your
HDTV using the USB dongle.
COMPONENT connections will accept SDTV,
EDTV and HDTV video signals. Use them for great
image quality from digital devices such as a DVD
player or Video Game system.
Match your digital device’s Component output jacks
to either of the two (2) Component input jack sets
(VIDEO2 or VIDEO3) on your HDTV.
USB FLASH DRIVE
USB input jack is used to connect a USB mass
storage device (not included) to display digital
images on your HDTV, or hookup a WiFi USB
dongle (included) to connect your HDTV to the
internet through your wireless network.
DVI
HDMI (DVI) INPUT1 can be used to hookup a DVI
device with the use of an appropriate DVI to HDMI
cable or adapter. VIDEO3 Audio in L/R jacks need to
be hooked up to the DVI device as well
NOTE: HDMI INPUT1 may also be used to hookup any digital
device with an HDMI output, without the use of the L/R
audio jacks.
Digital Audio Output is used to output the HDTV’s
Audio through your home theater system.
Hook up the HDTV’s Digital Audio Output to your
home theater system’s input with the use of a
phono-type Digital Audio cable.
DVD PLAYER
(or similar device)
8
Need help?
www.sanyoctv.com 1-877-864-9604
GETTING STARTED
AUDIO / VIDEO CONNECTIONS (BACK PANEL)
VCR
(or analog device)
STEREO AMPLIFIER
COMPOSITE connections are used to hookup
your analog equipment such as a VCR or an older
DVD player.
Hook up you analog device’s yellow video output
jack and corresponding audio output jacks to the
HDTV’s Video Input 1 composite jacks.
NOTE: Always match the color of your device’s output jack,
the connector and the HDTV’s input jack.
S-Video jack may be used instead of the yellow
Composite video input with the use of an S-Video
cable connected from your device’s S-Video out-
put to the HDTV’s S-Video input.
SATELLITE RECEIVER
(or similar device)
Audio Output L/R are used to hookup an external
stereo Amplifier. Connect your home stereo’s
input jacks to the HDTV’s Audio Output jacks with
a pair of audio red and white connectors.
NOTE: Do not connect external speakers directly to the
HDTV.
Use HDMI INPUT1, 2 & 3 to hookup HD digital
devices such as a Blu-ray player, HD Cable Box,
HD Satellite Receiver or Video-game System.
Connect your digital device’s HDMI output to any
of the three (3) HDMI inputs on your HDTV with
the use of an HDMI cable.
HDMI
9
Need help?
www.sanyoctv.com 1-877-864-9604
TURN ON TV (PRESS POWER BUTTON)
Wait for on-screen instructions to set an
Initial Energy Saving Mode, and perform an
Initial Channel/Signal Search.
PLUG IN AC POWER CORD
120V AC, 60Hz
GETTING STARTED (CONTINUED)
INITIAL CHANNEL SEARCH
Before proceeding, please make sure to hook up
your antenna or cable connection and all AV
equipment correctly to your HDTV.
Press the CHLM key to perform a channel
search from an Antenna or a direct Cable
connection, and a signal search from devices
hooked up to the HDTV’s AV input jacks.
AV INPUT SELECTION
Press the INPUT key to select the correct AV
input for the video source you wish to watch.
TV SET LOCATION SELECTION:
Select “Home Mode” by pressing the CHM key to set
the HDTV’s backlight to an Energy Star qualified level,
or select “Store Mode” by pressing CHL to set the
backlight to a retail display level.
CHANNEL AND AV SIGNAL SEARCH:
CHANNEL AND SIGNAL SETUP SCREEN
The final setup screen displays analog and digital
channels found as well as AV inputs detected. Pressing
the CHLM key finalizes the setup process.
NOTE: To repeat the initial setup process press VOLM.
Press the CHM key if you wish to access an
on screen trouble shooting guide.
NOTE: On screen help is also accesible via the
main menu.
ON SCREEN HELP (OPTIONAL)
INITIAL CHANNEL/SIGNAL SEARCH
SETUP SCREEN
CHANNEL SEARCH PROGRESS SCREEN
INITIAL ENERGY SAVING
MODE SCREEN
CHANNEL/SIGNAL LIST SCREEN
10
Need help?
www.sanyoctv.com 1-877-864-9604
REMOTE CONTROL OPERATION
• PIX SHAPE Key—Cycles through the available
aspect ratios. The different settings either
stretch, zoom, or fill the image on your screen.
Bars may appear on top and bottom of your
screen (or on left and right sides) depending on
the broadcasted signal or program. (See page
17)
• USB Key—Selects the USB input directly.
• RECALL Key—Switch between current channel
and last selected channel.
• MENU Key—Displays or hides the on-screen
menu.
• HELP Key—Displays on-screen Help menu.
• INFO Key—Displays the Channel Information
banner.
• EXIT Key—Exits the on-screen menu.
Return to the previous screen when navigating
the Net input.
• Cursor L (UP) M (DOWN) keys—Move the on-
screen cursor up and down.
• Cursor ◁ (LEFT) � (RIGHT) keys—Move the on-
screen cursor left and right.
• ENTER Key—Set or select the highlighted option
on the screen.
The PLAY, PAUSE, STOP, REW, FF, W, T, CAMERA,
and XACTI MENU keys control playback features
on a Sanyo Xacti digital camera when the HDMI-
CEC feature has been activated on both the HDTV
and the Xacti camera (see HDMI Linking feature
on page 12.)
NOTE: These playback keys may or may not react with
other devices other than the Xacti camera.
• POWER Key—Turns your HDTV On or Off.
• ECO Key—Modifies the Energy Saver level (see
page 13.)
• AUDIO Key—Selects the desired Audio mode.
Stereo, Mono, or SAP (when available.)
• ON TIMER Key—Displays the current switch on
time (see Clock Timer on page 14.)
• CAPTION Key—Cycles through the available
Caption modes.
• RESET Key—Pressing it twice restores your
HDTV to its factory settings. All user customized
settings will be cleared.
• SLEEP Key—Displays the “Off” Timer. While Off
Timer is on-screen, press the “0” key to Set the
amount of time (in 30 minute increments) at
which the HDTV will turn off.
• PICTURE Key—Cycle through the picture modes.
• SOUND Key—Cycle through the sound modes.
• NUMERICAL Keys—Select channels directly.
NOTE: For channels 100 and up, press and hold the
first number, then enter the remaining two numbers.
• – (sub ch) Key —Allows for the direct selection
of digital subchannels. For example: to select
channel 39.1 press the 3, 9, –, and 1 keys.
• INPUT Key—Selects the video source to view.
Holding down the key displays the Input List.
• Volume + – Keys—Increases or decreases the
audio level.
• Channel L M Keys—Scan through the channels
in the memory database.
• MUTE Key—Mute or restore the sound.
• NET@ Key—Opens the Sanyo Net Apps menu
screen.
CHANNEL / INPUT ____________
11
Need help?
www.sanyoctv.com 1-877-864-9604
Auto – Searches the detected mode, Cable or Air.
Cable –
Searches for analog and unscrambled
(ClearQAM) digital cable channels.
Air (Antenna) – Searches for analog and digital off-air
channels.
Digital Add-On – Searches digital off-air channels
adding newly found digital channels to the channel
map database.
Channel Search
Display the On Screen menu and use the
CURSOR LM keys to select Channel / Input.
Press ENTER.
NOTE: Digital Add-On option is not available when the
current mode is Cable.
ON-SCREEN MENU OPERATION
Channel Scan Memory lists all Analog and Digital
channels found. It also lists Analog channels that were
not found, which can be added.
Use the CURSOR LM keys to move the channel select
bar through all enabled and disabled channels, or use
the CH LM keys to skip all disabled channels.
Press ENTER to enable or disable the selected channel.
Channel Scan Memory
NOTE: For information on local digital channels, visit
www.antennaweb.org
IMPORTANT FACT: This HDTV maintains only one database of
digital channels. Therefore, when you search for cable chan-
nels, the database of antenna digital channels will be deleted.
You will only be able to receive those ClearQAM channels your
cable company provides.
Input Setting
CHANNEL SCAN MEMORY SCREEN
INPUT SETTING SCREEN
MAIN MENU SCREEN
CHANNEL/INPUT SCREEN
Input Setting feature allows the removal of unused
inputs from the AV input loop.
Use the CURSOR LM keys to select an AV input. Press
ENTER to disable (uncheck) or enable (check) the high-
lighted input.
NOTE: At least one input must and will remain enabled.
:Skip is for reference only.
12
Need help?
www.sanyoctv.com 1-877-864-9604
ON-SCREEN MENU OPERATION
Use this feature to establish either a Component or
Composite connection to the VIDEO INPUT 3 jacks on
your HDTV.
Use the CURSOR LM keys to select the type of hook up
that will be used in the Video3 input.
Press ENTER, a blue mark will appear next to the
selected option.
Video3 Setting
With a Sanyo Xacti Digital Video/Movie
Camera hooked up to your HDTV’s
HDMI input, setting the HDMI-CEC
Function to ON enables you the use of
keys on your GXEC remote to operate
your Xacti camera.
Xacti-LINK
NOTE: The HDMI-CEC function of the Xacti camera must also
be turned ON to enable the Xacti-Link.
NOTE: Designed for use with a Sanyo Xacti Digital
VIdeo/Movie Camera, and may not support all HDMI-
CEC functions of other equipment.
Use the HDMI-CEC Function to enable or disable all
available CEC functions.
HDMI Power ON Sync and Power OFF Sync enable
specific features including the automatic power ON
process and power OFF process.
HDMI Linking
HDMI LINKING SCREEN
VIDEO3 SETTING SCREEN
CHANNEL SETTING ___________
The CEC feature allows the control of multiple
CEC-enabled devices with one remote control,
and the interaction of devices with each other
without user intervention.
CEC (Consumer Electronics Control)
13
Need help?
www.sanyoctv.com 1-877-864-9604
MENU LANGUAGE SCREEN
Digital Caption
SETUP _________________________
Display the On Screen menu and use the
CURSOR LM keys to select Setup.
Press ENTER.
Captioning is textual information transmitted along
with the picture and sound. Turning Captioning ON (by
pressing the CAPTION key during normal TV viewing)
causes the HDTV to open these captions (digital or
analog) and superimpose them on the screen.
NOTE: Local broadcasters decide which caption signals to
transmit.
Use the CURSOR LM and ◁ � keys to modify Font,
Background, and Foreground of digital caption text.
Choose the language in which the On Screen menus
will be displayed.
• English
• Español
• Français
Press ENTER on the desired language.
ON-SCREEN MENU OPERATION
Energy Setting
Menu Language
Use the Energy Saver and Light Sensor features found
under Energy Setting to lower power comsumption by
controlling the LED backlight brightness levels.
Energy Saver – This settings control the LCD backlight
brightness to reduce power consumption.
• Level 1: Energy Saver feature is off.
• Level 2: Low power consumption.
• Level 3: Lowest power consumption.
Press ENTER on the desired level.
NOTE: ECO key may also be used as a shortcut to modify the
Energy Saver settings without accessing the menu.
ENERGY SAVER SCREEN
DIGITAL CAPTION SCREEN
MAIN MENU SCREEN
14
Need help?
www.sanyoctv.com 1-877-864-9604
This feature allows you to set a Current Time for your
HDTV and enable a Switch On Time for the HDTV to
turn on at a specific time of day.
When On Timer Function is set to ON, the TV will
automatically turn on at the previously set Switch on
Time.
Clock Timer
CLOCK TIMER SCREEN
ON-SCREEN MENU OPERATION
Your HDTV will display all signals at
the refresh rate of 120Hz. Motion Sync
is a special Frame Rate Converter fea-
ture that helps eliminate motion blur
and film judder in scenes with fast
action.
• On – Takes full advantage of your TV’s refresh rate
capabilities for the best picture quality.
• Off – Disables the Motion Sync feature.
Motion Sync
MOTION SYNC SCREEN
LIGHT SENSOR SCREEN
Light Sensor – Detects ambient room light brightness
and uses that reading to control the panel brightness
level and picture parameters to reduce the HDTV’s
power consumption.
NOTE: When room lighting is dark, the panel brightness
and/or the picture setting parameters such as bright-
ness and contrast are lowered. When room lighting is
bright, parameters are affected opposite.
15
Need help?
www.sanyoctv.com 1-877-864-9604
SETUP ________________________
ON-SCREEN MENU OPERATION
Use this feature to automatically block programs with
content you deem as inappropriate for viewing by
your children.
NOTE: This feature is designed to comply with the United
States of America’s FCC V-Chip regulations. Therefore,
it may not function with broadcasts that originate in
other countries.
ADJUSTING THE V-CHIP RATINGS
Select ON and press ENTER. Select Adjust (Standard)
and press ENTER.
NOTE: Blocking a rating will automatically block all higher
ratings. Unblocking a rating automatically unblocks
all lower ratings.
For V-Chip (Movie) ratings select Movie and press
ENTER, and then select the desired MPAA rating limit.
Press the EXIT key to close the V-Chip menu.
For V-Chip (TV) ratings select TV and press ENTER. Use
the CURSOR L M keys to select a rating and press
ENTER. Use the CURSOR L M keys to set the rating’s
status as Blocked or Viewable. Once ratings are set,
press the EXIT key to close the V-Chip menu.
NOTE: Some TV ratings offer more detailed settings such as
Dialogue, Language, Sexual, and Violence.
V – Chip (Parental Control)
ADVANCED V-CHIP SYSTEM (RRT5)
RRT5 (V-Chip Regional Ratings 5) is an advanced V-Chip
ratings system for over the air digital channels. When
the HDTV detects compatible RRT5 data, it’s down-
loaded & stored in memory, and the Setup
V-Chip screen is then modified to show the Adjust
(Advanced) option.
Use the CURSOR L M and ◁ � keys to highlight the
different options, and use the ENTER key to block or
unblock the selected rating.
NOTE:When vertical scroll bars appear, press CURSOR LM
to gain access to the additional ratings.
V-CHIP SETUP SCREEN
MOVIE RATING ADJUSTMENT SCREEN
RRT5 ADJUST (ADVANCED) SCREEN
TV RATING ADJUSTMENT SCREEN
MORE INFORMATION
Additional information about MPAA (Motion Picture
Association of America) and V-Chip rating can be found at:
www.mpaa.org and www.v-chip.org, respectively.
16
Need help?
www.sanyoctv.com 1-877-864-9604
PICTURE ____________________
ON-SCREEN MENU OPERATION
You may choose between Vivid, Mild, and Standard,
which have predetermined fixed picture parameter
values, or choose the Manual option for customized
personal settings.
NOTE: Each AV input can have its own picture mode (pre-
determined or manual.) Current input’s selected
option is indicated by a blue marker.
Manual parameters to adjust include:
• Color
• Tint
• Contrast
• Brightness
• Sharpness
• Dynamic Contrast
The Detailed Setting option allows for the adjustment
of 7 additional parameters such as:
• Signal Balancer
• Noise Reduction
• White Balance
• Vertical Sharpness
• Edge Enhancer
• H-Size
• V-Size
NOTE: Default Picture option returns all picture parameters to
their original factory settings.
MANUAL PICTURE SETTINGS
NOTE: CURSOR LM keys select the next/previous parame-
ter without returning to the previous menu screen.
Display the On Screen menu and use the
CURSOR LM keys to select Picture. Press ENTER.
Use the CURSOR LM keys to highlight the picture
parameter you wish to adjust. Press the ENTER key to
enter the value adjustment screen. Modify the selected
parameter’s value by pressing the CURSOR ◁ � keys.
ADJUSTING A PICTURE SETTING
Once adjustments are complete, press the EXIT key to
return to normal TV viewing.
MAIN MENU SCREEN
PICTURE SCREEN (MANUAL)
PARAMETER SELECTION SCREEN
VALUE ADJUSTMENT SCREEN EXAMPLES
17
Need help?
www.sanyoctv.com 1-877-864-9604
Pix1
Shows a standard definition 4:3 image
in its original format, a 16:9 wide image
is slightly compressed horizontally.
NOTE: Vertical bars are “attached” to the
sides of the screen.
Pix2
Fills the entire image on the screen.
NOTE: A standard definition 4:3 image is
stretched horizontally.
Pix3
Image is stretched vertically in compar-
isson with Pix2.
NOTE: Shows a proportional Zoom for a 4:3
image.
Pix4
Image is stretched horizontally in com-
parisson with Pix3.
NOTE: Shows a proportional Zoom for a
16:9 image.
Pix5
Similar to Pix2, image is enlarged hori-
zontally in a linear proportion in which
center portion of screen is stretched
less than the sides.
NOTE: Pix5 has almost no stretching effect
on a 16:9 image.
PIX SHAPE
NOTE: There are other possible aspect ratios that
may be transmitted besides the most
common 4:3 and 16:9.
Pix6 Similar to Pix1 with no Overscan*.
Pix7 Similar to Pix2 with no Overscan*.
* Overscan permits the image to slightly exceed bottom and top edge limitations.
NOTE: Pix6 and Pix7 are not optimal for Standard Definition content (a thin white line may appear near edge of
screen). Pix6 and Pix7 use is recommended only for PC signal through HDMI.
Pix-Auto (AFD) Active Format Description. Data carried in the video stream includes coded picture
frame information of the actual image, allowing the TV to adjust the Pix-Shape automatically.
NOTE: This Pix-Shape mode is available only for Digital-RF input.
4:3 TRANSMISSION
16:9 TRANSMISSION
18
Need help?
www.sanyoctv.com 1-877-864-9604
SOUND _____________________
Display the On Screen menu and use the
CURSOR LM keys to select Sound. Press ENTER.
ON-SCREEN MENU OPERATION
Choose an option for your sound settings:
Auto – Sound settings are linked to the current Picture
option and parameters are adjusted accordingly.
Dynamic, Mild, Standard – 3 different predetermined
sound parameters not linked with any Picture option.
MANUAL SOUND SETTINGS
The Manual option provides different parameters that
can be personally adjusted:
• Bass
• Treble
• Detailed Setting
– 4-Band Equalizer: Personalize audio highs and lows.
NOTE: Default Sound option returns all sound parameters to
their original factory settings.
NOTE: CURSOR LM keys select the next/previous parame-
ter without returning to the previous menu screen.
Use the CURSOR LM keys to highlight the sound
parameter you wish to adjust. Press the ENTER key to
enter the value adjustment screen. Modify the selected
parameter’s value by pressing the CURSOR ◁ � keys.
ADJUSTING A SOUND SETTING
Once adjustments are complete, press the EXIT key to
return to normal TV viewing.
MAIN MENU SCREEN
MANUAL PARAMETER SCREEN
DETAILED SETTING SCREEN
VALUE ADJUSTMENT SCREEN EXAMPLES
19
Need help?
www.sanyoctv.com 1-877-864-9604
PC OR LAPTOP
HDTV SIDE PANEL
RGB Monitor
cable
Stereo mini
audio cable
Sanyo recommends using a
monitor cable that includes
a Ferrite Core.
PC INPUT
PC Setting
Auto Adjustment – Automatically adjusts display
position, dot clock and phase.
Dot Clock – Adjust the Dot frequency to match
your computer’s Dot frequency.
Phase – Adjust this parameter when the picture
appears to flicker or is blurred.
H-Position – Move the image horizontally
V-Position – Move the image vertically
Power Saving – Enable the HDTV to turn to
Standby Mode when computer is not in use.
PC Picture and Sound
Standard – Sets predetermined values to the
Picture or Sound parameters.
Manual – Adjust Contrast, Brightness, and Color
Temperature screen settings, and the Bass and
Treble audio settings.
NOTE: These settings do not affect normal TV viewing.
Laptop Display
When using your Sanyo HDTV to display a
Laptop’s screen display, holding down the Fn (or
FN) key while pressing the appropriate function
key (F5, F7, F8, etc) should cycle through different
display modes between the laptop and the HDTV.
Modes may include displaying only on the laptop
screen, on both the laptop and the HDTV, or
displaying only on the HDTV.
NOTE: Fn key and function key symbols on the laptop’s
keyboard may vary from one brand to another.
Hold down
and press
Before connecting any cables, disconnect the
AC power cords of both the HDTV and PC from
the AC outlets.
Power on the HDTV and any other peripheral
equipment before powering on the computer.
To avoid an “Out of Range” condition please set
your PC’s output resolution to one compatible with
your HDTV. See PC Resolution chart on page 3.
DVI OUTPUT
JACK
RGB OUTPUT
JACK
Use your HDTV as a computer monitor by hooking
up your PC or Laptop to the TV with the use of an
appropriate monitor cable (not included.)
PC PICTURE AND SOUND SCREENS
PC SETTING SCREEN
NOTE: If computer has only DVI Output, a DVI to RGB
adapter will be required, or, a DVI to HDMI cable
and RCA audio cables (see HDMI (DVI) INPUT1 on
page 7.)
20
Need help?
www.sanyoctv.com 1-877-864-9604
PHOTO VIEWER __________________
USING THE PHOTO VIEWER
Press ENTER on a thumbnail photo to enable the
following menu options:
Rotate: Turns the picture 90º.
Full View: Displays the picture fully on the screen.
NOTE: Use the CURSOR ◁ �keys to change the picture.
Once in Full View, press ENTER to access the Full View
options menu, from where you may choose to Zoom In
and Pan the displayed picture, Start Slideshow or
return to the Thumbnail View screen.
Start Slideshow: Displays one picture after another
automatically in a timed and sequential manner.
Shuffle and Quick Change options may be turned ON or
OFF from the Slide Show setup menu.
JPEG VIEWER USB MENU
Press MENU when in Full View or Slideshow mode to
display the USB On screen menu.
Picture Setting –
Adjust Color, Tint, Contrast,
Brightness, Sharpness and Dynamic Contrast.
NOTE: Picture Settings are separate configurations from the
settings in TV and AV inputs.
View pictures on your HDTV with the use of a USB
mass storage device (not included.)
Any of the two USB inputs on your HDTV may be used.
NOTE: When two mass storage devices are hooked up, only
the first one is recognized and available as an input.
NOTE: The HDTV switches to USB
Input when a USB flash drive is
detected.
USB FLASH
DRIVE
USB INPUT
USB MAIN MENU SCREEN
THUMBNAIL VIEW SCREEN
NOTE: A thumbnail hide icon will appear if a
picture cannot be decoded or if no
thumbnail data is available.
SLIDE SHOW
SETUP MENU
FULL VIEW
OPTIONS MENU
21
Need help?
www.sanyoctv.com 1-877-864-9604
Your Sanyo HDTV is registered at the time of purchase, please keep sales receipt for future reference.
For your protection in the event of theft or loss of this product, please fill in the information requested
below and KEEP IN A SAFE PLACE FOR YOUR OWN PERSONAL RECORDS.
Model No.______________________________
Date of Purchase _________________________
Serial No.______________________________
Purchase Price___________________________
Where Purchased_________________________
(Located on back of unit)
Sanyo Manufacturing Corp.
3333 Sanyo Road, Forrest City, AR 72335
ONE-YEAR LIMITED PARTS AND LABOR WARRANTY
THIS LIMITED PARTS AND LABOR WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND USED IN
THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING ALL OTHER U.S. TERRITORIES AND
PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL PURCHASER, AND DOES NOT
APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.
WARRANTY APPLICATION
FOR ONE YEAR from the date of original retail purchase Sanyo Manufacturing Corporation (SMC) warrants this TV to
be free from manufacturing defects in materials and workmanship under normal use and conditions for parts and labor.
For the FIRST 90 DAYS from the date of original retail purchase, Sanyo Manufacturing Corporation will replace any
defective TV via exchange at the retailer. To ensure proper warranty application, keep the original-dated-sales receipt
for evidence of purchase. Return the defective TV to the retailer along with the receipt and the included accessories,
such as the remote control. The defective TV will be exchanged for the same model, or a replacement model of equal
value, if necessary. Replacement model will be contingent on availability and at the sole discretion of Sanyo
Manufacturing Corporation.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
OBLIGATIONS
For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free from
defects in material and workmanship under normal use and conditions. During the first 90 days under this warranty
for any manufacturing defect or malfunction Sanyo Manufacturing Corporation will provide a new TV via exchange at
the retailer.
HOW TO MAKE A CLAIM UNDER THIS WARRANTY
Please call 1-877-864-9604. Please be prepared to give us the television’s model number and serial number when you
call. The model number and serial number are printed on a label attached to the back of the unit.
For customer assistance, call toll free 1-877-864-9604.
Hours of operation: Monday – Friday 7:30 AM - 7:00 PM CST
This warranty expresses specific contractual rights; retail purchasers may have additional statutory rights which vary
from state to state.
(EFFECTIVE: March 1, 2007)
22
Need help?
www.sanyoctv.com 1-877-864-9604
This product incorporates the following software:
1. the software developed independently by or for
Sanyo Electric Co.,Ltd.,
2. the software owned by third party and licensed to
Sanyo Electric Co.,Ltd.,
3. the software licensed under the GNU General Public
License, Version 2 (GPL v2),
4. the software licensed under the GNU LESSER General
Public License (LGPL) and/or,
5. sourced software other than the software licensed
under the GPL and/or LGPL
For the software categorized as (3) and (4), please refer
to the terms and conditions of GPL v2 and LGPL, as the
case may be at:
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html
In addition, the software categorized as (3) and (4) are
copyrighted by several individuals. The copyright notice
of those individuals is written in the media to be provid-
ed upon request.
The GPL/LGPL software is distributed in the hope that it
will be useful, but WITHOUT ANY WARRANTY, without
even the implied warranty of MERCHANTABILITY or
FITNESS FOR A PARTICULAR PURPOSE.
At least three (3) years from delivery of products, Sanyo
Electric Co.,Ltd. will give to any third party who contact
us at the contact information provided below, for a
charge no more than our cost of physically performing
source code distribution, a complete machine-readable
copy of the corresponding source code covered under
GPL v2/LGPL.
Contact Information: GPL_Inquiries@SanyoTV.com
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51
Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim
copies of this license document, but changing it is not
allowed.
Preamble
The licenses for most software are designed to takaway
your freedom to share and change it. By contrast, the
GNU General Public License is intended to guarantee
your freedom to share and change free software--to
make sure the software is free for all its users. This
General Public License applies to most of the Free
Software
Foundation's software and to any other program whose
authors commit to using it. (Some other Free Software
Foundation software is covered by the GNU Lesser
General Public License instead.) You can apply it to your
programs, too.
When we speak of free software, we are referring to
freedom, not price. Our General Public Licenses are
designed to make sure that you have the freedom to dis-
tribute copies of free software (and charge for this ser-
vice if you wish), that you receive source code or can get
it if you want it, that you can change the software or use
pieces of it in new free programs; and that you know you
can do these things.
To protect your rights, we need to make restrictions
that forbid anyone to deny you these rights or to ask you
to surrender the rights. These restrictions translate to
certain responsibilities for you if you distribute copies of
the software, or if you modify it.
For example, if you distribute copies of such a program,
whether free or for a fee, you must give the recipients all
the rights that you have. You must make sure that they,
too, receive or can get the source code. And you must
show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the
software, and (2) offer you this license which gives you
legal permission to copy, distribute and/or modify the
software.
Also, for each author's protection and ours, we want to
make certain that everyone understands that there is no
warranty for this free software. If the software is modi-
fied by someone else and passed on, we want its recipi-
ents to know that what they have is not the original, so
that any problems introduced by others will not reflect
on the original authors' reputations.
Finally, any free program is threatened constantly by
software patents. We wish to avoid the danger that
redistributors of a free program will individually obtain
patent licenses, in effect making the program propri-
etary. To prevent this, we have made it clear that any
patent must be licensed for everyone's free use or not
licensed at all.
The precise terms and conditions for copying, distribu-
tion and modification follow.
23
Need help?
www.sanyoctv.com 1-877-864-9604
GNU GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING,
DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work
which contains a notice placed by the copyright holder
saying it may be distributed under the terms of this
General Public License. The "Program", below, refers to
any such program or work, and a "work based on the
Program" means either the Program or any derivative
work under copyright law: that is to say, a work containing
the Program or a portion of it, either verbatim or with
modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in
the term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modifica-
tion are not covered by this License; they are outside its
scope. The act of running the Program is not restricted,
and the output from the Program is covered only if its
contents constitute a work based on the Program (inde-
pendent of having been made by running the Program).
Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the
Program's source code as you receive it, in any medium,
provided that you conspicuously and appropriately pub-
lish on each copy an appropriate copyright notice and
disclaimer of warranty; keep intact all the notices that
refer to this License and to the absence of any warranty;
and give any other recipients of the Program a copy of
this License along with the Program.
You may charge a fee for the physical act of transferring
a copy, and you may at your option offer warranty pro-
tection in exchange for a fee.
2. You may modify your copy or copies of the Program
or any portion of it, thus forming a work based on the
Program, and copy and distribute such modifications or
work under the terms of Section 1 above, provided that
you also meet all of these conditions:
a) You must cause the modified files to carry promi-
nent notices stating that you changed the files and
the date of any change.
b) You must cause any work that you distribute or
publish, that in whole or in part contains or is
derived from the Program or any part thereof, to be
licensed as a whole at no charge to all third parties
under the terms of this License.
c) If the modified program normally reads com-
mands interactively when run, you must cause it,
when started running for such interactive use in
the most ordinary way, to print or display an
announcement including an appropriate copyright
notice and a notice that there is no warranty (or
else, saying that you provide a warranty) and that
users may redistribute the program under these
conditions, and telling the user how to view a copy
of this License. (Exception: if the Program itself is
interactive but does not normally print such an
announcement, your work based on the Program
is not required to print an announcement.)
These requirements apply to the modified work as a
whole. If identifiable sections of that work are not
derived from the Program, and can be reasonably con-
sidered independent and separate works in themselves,
then this License, and its terms, do not apply to those
sections when you distribute them as separate works.
But when you distribute the same sections as part of a
whole which is a work based on the Program, the distri-
bution of the whole must be on the terms of this License,
whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless
of who wrote it.
Thus, it is not the intent of this section to claim rights or
contest your rights to work written entirely by you;
rather, the intent is to exercise the right to control the
distribution of derivative or collective works based on
the Program.
In addition, mere aggregation of another work not based
on the Program with the Program (or with a work based
on the Program) on a volume of a storage or distribution
medium does not bring the other work under the scope
of this License.
3. You may copy and distribute the Program (or a work
based on it, under Section 2) in object code or exe-
cutable form under the terms of Sections 1 and 2 above
provided that you also do one of the following:
a) Accompany it with the complete corresponding
machine-readable source code, which must be dis-
tributed under the terms of Sections 1 and 2 above
on a medium customarily used for software inter-
change; or,
b) Accompany it with a written offer, valid for at least
three years, to give any third party, for a charge no
more than your cost of physically performing
source distribution, a complete machine-readable
copy of the corresponding source code, to be dis-
tributed under the terms of Sections 1 and 2 above
on a medium customarily used for software inter-
change; or,
c) Accompany it with the information you received as
to the offer to distribute corresponding source
code. (This alternative is allowed only for noncom-
mercial distribution and only if you received the
program in object code or executable form with
such an offer, in accord with Subsection b above.)
24
Need help?
www.sanyoctv.com 1-877-864-9604
The source code for a work means the preferred form of
the work for making modifications to it. For an exe-
cutable work, complete source code means all the
source code for all modules it contains, plus any associ-
ated interface definition files, plus the scripts used to
control compilation and installation of the executable.
However, as a special exception, the source code distrib-
uted need not include anything that is normally distrib-
uted (in either source or binary form) with the major
components (compiler, kernel, and so on) of the operat-
ing system on which the executable runs, unless that
component itself accompanies the executable.
If distribution of executable or object code is made by
offering access to copy from a designated place, then
offering equivalent access to copy the source code from
the same place counts as distribution of the source code,
even though third parties are not compelled to copy the
source along with the object code.
4. You may not copy, modify, sublicense, or distribute
the Program except as expressly provided under this
License. Any attempt otherwise to copy, modify, subli-
cense or distribute the Program is void, and will automat-
ically terminate your rights under this License. However,
parties who have received copies, or rights, from you
under this License will not have their licenses terminated
so long as such parties remain in full compliance.
5. You are not required to accept this License, since you
have not signed it. However, nothing else grants you
permission to modify or distribute the Program or its
derivative works. These actions are prohibited by law if
you do not accept this License. Therefore, by modifying
or distributing the Program (or any work based on the
Program), you indicate your acceptance of this License to
do so, and all its terms and conditions for copying, dis-
tributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work
based on the Program), the recipient automatically
receives a license from the original licensor to copy, dis-
tribute or modify the Program subject to these terms and
conditions. You may not impose any further restrictions
on the recipients' exercise of the rights granted herein.
You are not responsible for enforcing compliance by
third parties to this License.
7. If, as a consequence of a court judgment or allega-
tion of patent infringement or for any other reason (not
limited to patent issues), conditions are imposed on you
(whether by court order, agreement or otherwise) that
contradict the conditions of this License, they do not
excuse you from the conditions of this License. If you
cannot distribute so as to satisfy simultaneously your
obligations under this License and any other pertinent
obligations, then as a consequence you may not distrib-
ute the Program at all. For example, if a patent license
would not permit royalty-free redistribution of the
Program by all those who receive copies directly or indi-
rectly through you, then the only way you could satisfy
both it and this License would be to refrain entirely from
distribution of the Program.
If any portion of this section is held invalid or unenforce-
able under any particular circumstance, the balance of
the section is intended to apply and the section as a
whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to
infringe any patents or other property right claims or to
contest validity of any such claims; this section has the
sole purpose of protecting the integrity of the free soft-
ware distribution system, which is implemented by pub-
lic license practices. Many people have made generous
contributions to the wide range of software distributed
through that system in reliance on consistent application
of that system; it is up to the author/donor to decide if he
or she is willing to distribute software through any other
system and a licensee cannot impose that choice. This
section is intended to make thoroughly clear what is
believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is
restricted in certain countries either by patents or by
copyrighted interfaces, the original copyright holder
who places the Program under this License may add an
explicit geographical distribution limitation excluding
those countries, so that distribution is permitted only in
or among countries not thus excluded. In such case, this
License incorporates the limitation as if written in the
body of this License.
9. The Free Software Foundation may publish revised
and/or new versions of the General Public License from
time to time. Such new versions will be similar in spirit
to the present version, but may differ in detail to address
new problems or concerns.
Each version is given a distinguishing version number.
If the Program specifies a version number of this License
which applies to it and "any later version", you have the
option of following the terms and conditions either of
that version or of any later version published by the Free
Software Foundation. If the Program does not specify a
version number of this License, you may choose any
version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into
other free programs whose distribution conditions are
different, write to the author to ask for permission. For
software which is copyrighted by the Free Software
Foundation, write to the Free Software Foundation; we
sometimes make exceptions for this. Our decision will
be guided by the two goals of preserving the free status
of all derivatives of our free software and of promoting
the sharing and reuse of software generally.
25
Need help?
www.sanyoctv.com 1-877-864-9604
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,
THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT
PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER
PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY
OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE
PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFEC-
TIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING,
REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR
AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY
OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE
PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED
TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF
THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS),
EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of
the greatest possible use to the public, the best way to
achieve this is to make it free software which everyone
can redistribute and change under these terms. To do
so, attach the following notices to the program. It is
safest to attach them to the start of each source file to
most effectively convey the exclusion of warranty; and
each file should have at least the "copyright" line and a
pointer to where the full notice is found.
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
