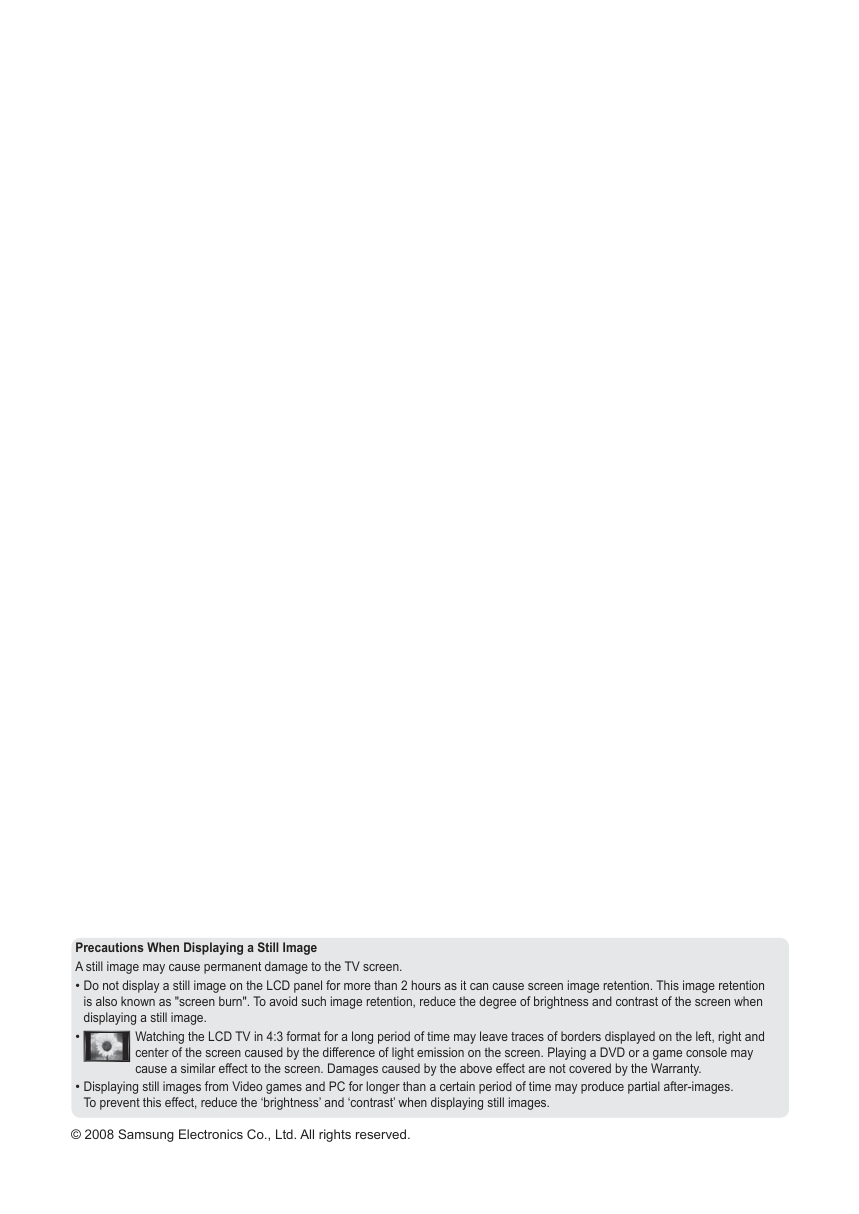

LCD TV user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register Model Serial No. © 2008 Samsung Electronics Co., Ltd. All rights reserved. Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen. Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty. Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. • • • Contents ConneCtIng anD PreParIng Your tV List of Parts ..........................................................................2 Viewing the Control Panel ....................................................3 Viewing the Connection Panel .............................................4 Viewing the Remote Control .................................................6 Mini Remote Control ............................................................7 Using the Remote Control Backlight Buttons .......................7 Installing Batteries in the Remote Control ............................8 Switching On and Off ...........................................................9 Placing Your Television in Standby Mode.............................9 Viewing the Menus ...............................................................9 Using the TOOLS Button ......................................................9 Plug & Play .........................................................................10 SettIng the ChannelS Storing Channels Automatically .........................................11 Storing Channels Manually ................................................12 Adding / Locking Channels ................................................13 Sorting the Stored Channels ..............................................14 Assigning Channels Names ...............................................14 Fine Tuning Channel Reception .........................................15 SettIng the PICture Changing the Picture Standard ..........................................16 Adjusting the Custom Picture .............................................16 Configuring Detailed Settings on the Picture .....................17 Configuring Picture Option .................................................18 Resetting the Picture Settings to the Factory Defaults .......19 Viewing the Picture In Picture (PIP) ...................................20 SettIng the SounD Sound Features ..................................................................21 Selecting the Sound Mode .................................................22 Connecting Headphones (Sold separately) .......................22 SettIng the tIme Setting and Displaying the Current Time ............................23 Setting the Sleep Timer ......................................................23 Switching the Television On and Off Automatically ............24 FunCtIon DeSCrIPtIon Choosing Your Language ...................................................24 Melody / Entertainment / Energy Saving ...........................25 Setting the Logo Lighting ...................................................26 Selecting the Source ..........................................................27 Editing the Input Source Names ........................................27                                    SettIng the PC Setting up Your PC Software (Based on Windows XP) ......28 Display Modes ....................................................................28 Setting up the TV with your PC ..........................................29 WISelInK Using the WISELINK Function ...........................................30 Using the WISELINK Menu ................................................31 Using the PHOTO (JPEG) List ...........................................32 Using the MP3 List .............................................................35 Using the Setup Menu ........................................................36 about anYnet+ What is Anynet+? ..............................................................37 Connecting Anynet+ Devices .............................................37 Setting Up Anynet+ ............................................................38 Scanning and Switching between Anynet+ Devices ..........39 Recording ...........................................................................40 Listening through a Receiver .............................................41 Check Points before Requesting Service ...........................41 reCommenDatIonS For uSe Teletext Feature .................................................................42 Troubleshooting: Before Contacting Service Personnel .....44 Technical and Environmental Specifications .....................45                   english - 1 Symbol Press Note One-Touch Button english -  list of Parts Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. Remote Control & Batteries (AA X 2ea) Mini Remote Control (2ea) & Batteries(3Vx2ea) Cleaning Cloth Power Cord RF Cable HDMI Cable (2ea) HDMI/DVI Cable D-Sub Cable PC Audio Cable Component Cables (2ea) Audio Cables (4ea) Video/Audio Cables Warranty card / Safety Guide / Registration Cards (Not available in all locations) You cannot use the cover at the back of the TV unless you use the cables supplied with the TV. However, since the cable to be connected to the Side panel is not supplied with the product, connect the Side panel using a general off-the-shelf cable. ➣ ➣ Owner’s Instructions • Warranty card • Safety Guide • Registration Cards • english -  Viewing the Control Panel 2 1 3 3 1 logo You can configure the ARMANI and SAMSUNG logo lights at the bottom of the TV as required. 2 remote Control SenSor Aim the remote control towards this spot on the TV. 3 SPeaKerS The product colour and shape may vary depending on the model. ➣ english -  Viewing the Connection Panel Whenever you connect an external device to your TV, make sure that power on the unit is turned off. When connecting an external device, match the colour of the connection terminal to the cable. 1 PC In [PC] / [auDIo] Connect to the video and audio output jack on your PC. 2 Connecting external a/V Devices (aV In 1) Connect RCA cable to an appropriate external A/V device such as VCR, DVD or Camcorder. Connect RCA audio cables to “R - AUDIO - L” on the rear of your set and the other ends to corresponding audio out connectors on the A/V device. 3 hDmI In 1, hDmI In , hDmI In  Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players) No additional Audio connection is needed for an HDMI to HDMI connection. When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. What is HDMI? “High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio. The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio. The TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/ Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/ Satellite receiver to confirm the HDMI version, then request a firmware update. HDMI cables that are not 1.3 may cause annoying flicker or no screen display. ➣ ➣ - - - - - - ➣ - - ➣ 1 2 3 4 5 3 6 7 8 9 0 AV IN 2 The product colour and shape may vary depending on the model. Power Input [Side Panel Jacks] english -  DVI In(hDmI) [r-auDIo-l] DVI audio outputs for external devices. Supported modes for HDMI/DVI and Component 480i 480p 576i 576p 720p 1080i 1080p HDMI/DVI 50Hz X X X O O O O HDMI/DVI 60Hz X O X X O O O Component O O O O O O O 4 ant In To view television channels correctly, a signal must be received by the set from one of the following sources: An outdoor aerial / A cable television network / A satellite network 5 SerVICe Connector for SERVICE only. 6 WISelInK Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3). 7 S-VIDeo or VIDeo / r-auDIo-l Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder. Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio out connectors on the A/V device. 8 heaDPhoneS JaCK Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled. 9 auDIo out [r-auDIo-l] Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theatre. 0 ComPonent In Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DVD. If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the DVD and connect the DVD to component connector ("PR", "PB", "Y") on your set. The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr. Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DVD. - ➣ - - - - - - - - - - - english -  Viewing the remote Control 1 Television Standby button 2 Selects the TV mode directly 3 Number buttons for direct channel access 4 One/Two-digit channel selection 5 + : Volume increase – : Volume decrease 6 Available source selection 7 It display “Channel List” on the screen. 8 Use to quickly select frequently used functions. 9 Use to see information on the current broadcast 0 Colour buttons : Use these buttons in the Channel list and WISELINK, etc. @ Press to select the optional display and sound modes for sports, cinema and games. # Use these buttons in the DMA, WISELINK and Anynet+. ( : This remote can be used to control recording on Samsung recorders with the Anynet+ feature) $ Press to backlight the buttons on the remote. This function is convenient for using at night or when the room is dark. (Using the remote control with the (ON/OFF) button set to On will reduce the battery usage time.) % Previous channel ^ Temporary sound switch-off & P : Next channel P : Previous channel * Displays the main on-screen menu ( This function enables you to view and play photo and music files from an external device. ) Returns to the previous menu a Control the cursor in the menu b Exit the on-screen menu c SRS TS XT selection d Picture size selection e Selects the HDMI mode directly. f Picture effect selection teletext Functions 2 Exit from the teletext display 6 Teletext mode selection (LIST/FLOF) 7 Teletext store 8 Teletext size selection 9 Teletext reveal 0 Fastext topic selection ! Alternately select Teletext, Double, or Mix. % Teletext sub page & P : Teletext next page P : Teletext previous page * Teletext index ) Teletext hold b Teletext cancel The performance of the remote control may be affected by bright light. ➣ english -  mini remote Control mini remote Control is a simplified remote control that consists of the power, channel and volume buttons only. 1 Infrared - LED (Light emitting diode) Use the Mini Remote Control with the Infrared - LED (Light emitting diode) pointing towards the TV. 2 Television Standby button This button only works when you press it for longer than 1.5 seconds. 3 : Next channel : Previous channel 4 + : Volume increase – : Volume decrease ➣ ➣ using the remote Control backlight buttons use this feature in dark surroundings and when you are unable to see the remote control buttons clearly. 1. Press the (ON/OFF) light button. Pressing the (ON/OFF) light button toggles between ON and OFF. When ON, the button backlight is turned on for a moment. Pressing a remote control button when the remote control is on turns the button backlight on for a moment. If you touch or move the remote control and the motion is detected by the sensor of the remote control, the button backlight will be turned on for a moment. The remote contains two small movement sensors that control the backlight function. If you shake or drop the remote, you may hear the sensors rattle. This is normal and is not a defect. The button backlight will not be turned on when the remote control is turned off. ➣ ➣ ➣ ➣ ➣ 3 3 4 4 1 2 english -  Installing batteries in the remote Control normal remote Control 1. Lift the cover at the back of the remote control upward as shown in the figure. . Install two AA size batteries. Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment. . Replace the cover. Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. Using the remote control with the (on/oFF) button set to On will reduce the battery usage time. mini remote Control 1. Press the left and right grooves of the remote control battery compartment cover inwards at the same time. The remote control battery compartment cover will be projected outwards slightly. . Pull the groove at the bottom of the remote control battery compartment cover forwards to separate the cover. . Insert the corresponding 3V(CR2450) Lithium battery. . Put the battery cover in. If the remote control doesn’t work, check the following: 1. Is the TV power on? 2. Are the plus and minus ends of the batteries reversed? 3. Are the batteries drained? 4. Is there a power outage, or is the power cord unplugged? 5. Is there a special fluorescent light or neon sign nearby? ➣ ➣ ➣ ➣ ➣ english -  Switching on and off the mains lead is attached to the rear of your set. 1. Plug the mains lead into an appropriate socket. . Press the PoWer button or the tV button on the remote control to turn the TV on. The programme that you were watching last is reselected automatically. . Press the numeric button (0~9) or channel up/down ( / ) button on the remote control. When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed. . To switch your set off, press the PoWer button again. ➣ ➣ Placing Your television in Standby mode Your set can be placed in standby mode in order to reduce the power consumption. the standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example). 1. Press the PoWer button on the remote control. The screen of the TV is turned off. . To switch your set back on, simply press the PoWer , numeric buttons (0~), tV button or channel up/down ( / ) button again. Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial. ➣ ➣ Viewing the menus 1. With the power on, press the menu button. The main menu appears on the screen. The menu’ s left side has icons: Picture, Sound, Channel, Setup, Input. . Press the ▲ or ▼ button to select one of the icons. Then press the enter button to access the icon’s sub-menu. . Press the eXIt button to exit. The on-screen menus disappear from the screen after about one minute. ➣ using the toolS button You can use the toolS button to select your frequently used functions quickly and easily. the “tools” menu change depending on which external input mode you are viewing. 1. Press the toolS button. The “Tools” menu will appear. . Press the ▲ or ▼ button to select a menu. . Press the ▲/▼/◄/►/enter buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page. Anynet+ (HDMI-CEC), see page 38 Picture Mode, see page 16 Sound Mode, see page 21 Sleep Timer, see page 23 SRS TS XT, see page 21 Energy Saving, see page 25 Dual l-ll, see page 22 PIP (Component, HDMI, PC mode), see page 20 Auto Adjustment (PC mode), see page 29 ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ tools anynet+ (hDmI-CeC) Picture mode : Standard Sound mode : Custom Sleep timer : off SrS tS Xt : off energy Saving : off Dual l-ll : mono move enter e exit Picture mode : Standard  backlight  Contrast  brightness  Sharpness 0 Colour 0 tint g0 r0 Detailed Settings  smore tV move enter return english - 10 Plug & Play When the tV is initially powered on, several basic settings proceed automatically and subsequently. the following settings are available. 1. Press the PoWer button on the remote control. The message "Start Plug & Play" is displayed with "OK" selected. . Select the appropriate language by pressing the ▲ or ▼ button. Press the enter button to confirm your choice. . Press the ◄ or ► button to select “Store Demo” or “Home Use”, then the enter button. We recommend setting the TV to "Home Use" mode for the best picture in your home environment. "Store Demo" mode is only intended for use in retail environments. . The message "Check antenna input." is displayed with "OK" selected. Press the enter button. Please check that the antenna cable is connected correctly. . Select the appropriate area by pressing the▲ or ▼ button. Press the enter button to confirm your choice. . The "Auto Store" menu is displayed with the "Start" selected. Press the enter button. The channel search will start and end automatically. Press the enter button at any time to interrupt the memorization process. After all the available channels are stored, the "Clock Set" menu appears. . Press the enter button. Select the "Month", "Day" , "Year", "Hour", "Minute", or "am/pm" by pressing the ◄ or ► button. Set the "Month", "Day" , "Year", "Hour", "Minute", or "am/pm" by pressing the ▲ or ▼ button. You can also set the “Month”, “Day”, “Year”, “Hour” and "Minute" by pressing the number buttons on the remote control. . Press the enter button to confirm your setting. The message “Enjoy your viewing” is displayed. When you have finished, press the enter button. Even if the enter button is not pressed, the message will automatically disappear after several seconds. language: Select your language. area: Select your area. auto Store: Automatically scans for and stores channels available in the local area. Clock Set: Sets the current time for the TV clock. ♦ ♦ ♦ ♦ ➣ ➣ ➣ ➣ ➣ ➣ ➣ ➣ If you want to reset this feature... 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the enter button. . Press the enter button again, to select "Plug & Play". For further details on setting up options, refer to the page 10. The “Plug & Play” feature is only available in the TV mode. ➣ Plug & Play Start Plug & Play. enter oK Plug & Play Start Plug & Play. enter return oK tV Setup Plug & Play  language : english  time  melody : off  entertainment : off  energy Saving : off  PIP  logo lighting : both on  move enter return english - 11 Storing Channels automatically You can scan for the frequency ranges available to you (and availability depends on your area). automatically allocated programme numbers may not correspond to actual or desired programme numbers. however, you can sort numbers manually and clear any channels you do not wish to watch. 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the enter button. . Press the enter button to select "Area". . Select the appropriate area by pressing the ▲ or ▼ button. Press the enter button to confirm your choice. . Press the ▲ or ▼ button to select "Auto Store", then press the enter button. . Press the enter button. The TV will begin memorizing all of the available channels. Press the enter button at any time to interrupt the memorization process and return to the "Channel" menu. . After all the available channels are stored, the "Sort" menu appears. (refer to page 14) ➣ ➣ tV Channel area : asia/W.europe  auto Store  manual Store  Channel manager  Sort  name  Fine tune  move enter return english - 1 Storing Channels manually You can store television channels, including those received via cable networks. When storing channels manually, you can choose: ♦ Whether or not to store each of the channels found. ♦ The programme number of each stored channel which you wish to identify. 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the enter button. . Press the ▲ or ▼ button to select "Manual Store", then press the enter button. . Select the required option by pressing the ▲ or ▼ button, then press the enter button. . When you are satisfied with your setting, press the enter button. . Press the eXIt button to exit. Programme (Programme number to be assigned to a channel) Press the ▲ or ▼ button until you find the correct number. You can also select the channel number directly by pressing the numeric buttons (0~9). Colour System: auto/Pal/SeCam/ntSC./ntSC. Press the ▲ or ▼ button to select the required colour standard. Sound System: bg/DK/I/m Press the ▲ or ▼ button to select the required sound standard.  Channel (When you know the number of the channel to be stored) Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). Press the ► button, then press the ▲ or ▼ button to select the required number. You can also select the channel number directly by pressing the numeric buttons (0~9). If there is abnormal sound or no sound, re-select the sound standard required. Search (When you do not know the channel numbers) Press the ▲ or ▼ button to start the search. The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen. Store (When you store the channel and associated programme number) Set to "OK" by pressing the enter button. Channel mode  P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.  C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode. S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode. ♦ - ➣ ♦ - ♦ - ♦ - - ➣ ➣ ♦ - - ♦ - ➣ - - - manual Store Programme : P  Colour System : auto  Sound System : bg  Channel : C  Search :  mhz Store : ? move enter return tV Channel area : asia/W.europe  auto Store  manual Store  Channel manager  Sort  name  Fine tune  tV move enter return english - 1 adding / locking Channels using the Channel manager, you can conveniently lock or add channels. 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the enter button. . Press the ▲ or ▼ button to select "Channel Manager", then press the enter button. ♦ adding channels Using the Channel List, you can add channels. . Select "Channel List" by pressing the enter button. . Move to the ( ) field by pressing the ▲, ▼, ◄ or ► button, select a channel to be added, and press the enter button to add the channel. If you press the enter button again, the ( ) symbol next to the channel disappears and the channel is not added. " " is active when "Child Lock" is selected to "On". ♦ Locking channels This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. . Press the ▲ or ▼ button to select "Child Lock", then press the enter button. . Select "On" by pressing the ▲ or ▼ button, then press the enter button. . Press the ▲ or ▼ button to select "Channel List", then press the enter button. . Move to the " " field by pressing the ▲, ▼, ◄ or ► button, select a channel to be locked, and press the enter button. If you press the enter button again, the ( ) symbol next to the channel disappears and the channel lock is cancelled. A blue screen is displayed when "Child Lock" is activated. . Press the eXIt button to exit. Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on " " to be active or inactive. You can select these options by simply pressing the Ch lISt button on the remote control. ➣ ➣ ➣ ➣ ➣ P1 C Channel list move enter Page return add lock 1 / 10 Prog. 0 C-- 1 C  bbC 1  C  C  C  S  S  S  S Channel area : asia/W.europe  auto Store  manual Store  Channel manager  Sort  name  Fine tune  move enter return tV tV Channel manager Channel list  Child lock : off  move enter return english - 1 Sorting the Stored Channels this operation allows you to change the programme numbers of the stored channels. this operation may be necessary after using the auto store. 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the enter button. . Press the ▲ or ▼ button to select "Sort", then press the enter button. . Select the channel number that you wish to change by pressing the ▲ or ▼ button. Press the enter button. The selected channel number and name are moved to right side. . Select the number of the programme to which the channel is to be moved by pressing the ▲ or ▼ button. . Press the enter button. The channel is moved to its new position and all other channels are shifted accordingly. . Repeat steps  to  for another channel to be sorted. . Press the eXIt button to exit. ➣ assigning Channels names Channel names will be assigned automatically when channel information is broadcast. these names can be changed, allowing you to assign new names. 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the enter button. . Press the ▲ or ▼ button to select "Name", then press the enter button. . If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the enter button The selection bar is displayed around the name box. . to... then... Select a letter, number or symbol Press the ▲ or ▼ button Move on the next letter Press the ► button Move back the previous letter Press the ◄ button Confirm the name Press the enter button The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters (+, -, *, /, space) . Repeat steps  to  for each channel to be assigned to a new name. . Press the eXIt button to exit. ➣ ➣ Sort Prog. Ch. name  0 C-- 1 C   C1  C  S1  tV move enter return Channel area : asia/W.europe  auto Store  manual Store  Channel manager  Sort  name  Fine tune  tV move enter return name move enter return Prog. Ch. name  0 C-- ----- 1 C -----  C1 -----  C -----  S1 -----  tV Channel area : asia/W.europe  auto Store  manual Store  Channel manager  Sort  name  Fine tune  move enter return tV english - 1 Fine tuning Channel reception use fine tuning to manually adjust a particular channel for optimal reception. 1. Use the number buttons to directly select the channel that you want to fine tune. . Press the menu button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the enter button. . Press the ▲ or ▼ button to select "Fine Tune", then press the enter button. . Press the ◄ or ► button to adjust the fine tuning. Press the enter button. . Press the eXIt button to exit. Fine tuned channels that have been saved are marked with an asterisk "*" on the right- hand side of the channel number in the channel banner. And the channel number turns red. To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the enter button. ➣ ➣ Channel area : asia/W.europe  auto Store  manual Store  Channel manager  Sort  name  Fine tune  tV move enter return Fine tune P 1 0 reset adjust Save return english - 1 Changing the Picture Standard You can select the type of picture which best corresponds to your viewing equirements. 1. Press the menu button to display the menu. Press the enter button, to select "Picture". . Press the enter button again, to select "Mode". . Press the ▲ or ▼ button to select the desired picture effect. Press the enter button. . Press the eXIt button to exit. Dynamic: Selects the picture for high-definition in a bright room. Standard: Selects the picture for optimum display in a normal environment. movie: Selects the picture for comfortable display in a dark room. ♦ ♦ ♦ The Picture mode must be adjusted separately for each input source. easy Setting 1. Press the toolS button on the remote control. . Press the ▲ or ▼ button to select “Picture Mode”. . Press the ◄ or ► button to select the desired picture mode. . Press the eXIt or toolS button to exit. You can also press the P.moDe button on the remote control to select one of the picture settings. ➣ adjusting the Custom Picture Your set has several settings which allow you to control picture quality. 1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3. (On page 16). . Press the ▲ or ▼ button to select a particular item. Press the enter button. . Press the ◄ or ► button to decrease or increase the value of a particular item. Press the enter button. . Press the eXIt button to exit. backlight: Adjusts the screen brightness by adjusting the LCD backlight brightness. (0~10) Contrast: Adjusts the lightness and darkness between objects and the background. brightness: Adjusts the brightness of the whole screen. Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull. Colour: Adjusts the colours, making them lighter or darker. tint: Adjusts the colour of objects, making them more red or green for a more natural look. ♦ ♦ ♦ ♦ ♦ ♦ The adjusted values are stored according to the selected Picture mode. In PC mode, you can only make changes to "Backlight”, “Contrast" and “Brightness”. TV, AV1, AV2, S-Video modes of the PAL system, you cannot use the "Tint" Function. You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 19) The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and then this will reduce the overall running cost. ➣ ➣ ➣ ➣ ➣ tools anynet+ (hDmI-CeC) Picture Mode ◄ Standard ► Sound mode : Custom Sleep timer : off SrS tS Xt : off energy Saving : off Dual l-ll : mono move adjust e exit Picture mode : Standard  backlight  Contrast  brightness  Sharpness 0 Colour 0 tint g0 r0 Detailed Settings  smore tV move enter return Picture mode : Standard backlight  Contrast  brightness  Sharpness 0 Colour 0 tint g0 r0 Detailed Settings smore tV move enter return Dynamic Standard movie  ▲ backlight ▼ move adjust return Picture mode : Standard  backlight  Contrast  brightness  Sharpness 0 Colour 0 tint g0 r0 Detailed Settings  smore tV move enter return english - 1 Configuring Detailed Settings on the Picture You can set detailed picture settings. 1. Press the menu button to display the menu. Press the enter button, to select "Picture". . Press the enter button to select “Mode”. Press the ▲ or ▼ button to select “Standard” or “Movie”, then press the enter button. . Press the ▲ or ▼ button to select "Detailed Settings", then press the enter button. . Select the required option by pressing the ▲ or ▼ button, then press the enter button. . When you are satisfied with your setting, press the enter button. . Press the eXIt button to exit. "Detailed Settings" is available in "Standard" or "Movie" mode. In PC mode, you can only make changes to “Dynamic Contrast”, “Gamma” and “White Balance” from among the “Detailed Settings” items. black adjust: off/low/medium/high You can directly select the black level on the screen to adjust the screen depth. Dynamic Contrast: off/low/medium/high You can adjust the screen contrast so that the optimal contrast is provided. gamma: - ~ + You can adjust the Primary Colour (Red, Green, Blue) Intensity. Press the ◄ or ► button until you reach the optimal setting. Colour Space: auto/native/Custom Colour space is a colour matrix composed of "Red", "Green" and "Blue" colours. Select your favourite Colour space to experience the most natural Colour. ♦ auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources. ♦ native: Native Colour Space offers deep and rich colour tone. ♦ Custom: Adjusts the colour range to suit your preference. Customizing the Colour Space Colour: red/green/blue/Yellow/Cyan/magenta Adjusts the Colour range to suit your preference. “Colour” is available when “Colour Space” is set to “Custom”. Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or “Magenta”. Press the enter button. red/green/blue: In “Colour”, you can adjust the RGB values for the selected colour. Press the ▲ or ▼ button to select "Red", "Green" or "Blue" to change it. Press the enter button. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the enter button. reset: Resets the colour space to the default values. White balance: r-offset/g-offset/b-offset/r-gain/g-gain/b-gain/reset You can adjust the colour temperature for more natural picture colours. r-offset/g-offset/b-offset/r-gain/g-gain/b-gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the enter button. Press the ◄ or ► button until you reach the optimal setting. reset: The previously adjusted white balance will be reset to the factory defaults. Flesh tone: -1 ~ +1 You can emphasize the pink 'flesh tone' in the picture. Press the ◄ or ► button until you reach the optimal setting. Changing the adjustment value will refresh the adjusted screen. edge enhancement: off/on You can emphasize object boundaries in the picture. xvYCC: off/on Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature. Only available in "HDMI" and "Component" on "Movie" mode. If xvYCC function is active, PIP cannot be selected. ➣ ➣ ♦ ♦ ♦ ♦ ➣ ♦ ♦ ➣ ♦ ♦ ➣ ➣ Detailed Settings black adjust : off  Dynamic Contrast : medium  gamma : 0  Colour Space : native  White balance  Flesh tone : 0  edge enhancement : on  xvYCC : off  move enter return tV Picture mode : Standard  backlight  Contrast  brightness  Sharpness 0 Colour 0 tint g0 r0 Detailed Settings  smore tV move enter return english - 1 Configuring Picture Option 1. Press the menu button to display the menu. Press the enter button, to select "Picture". . Press the ▲ or ▼ button to select "Picture Options", then press the enter button. . Select the required option by pressing the ▲ or ▼ button, then press the enter button. . When you are satisfied with your setting, press the enter button. . Press the eXIt button to exit. In PC mode, you can only make changes to the “Colour Tone” and “Size” from among the items in “Picture Options”. Colour tone: Cool/Cool1/normal/Warm1/Warm You can select the most comfortable colour tone to your eyes. The adjusted values are stored according to the selected "Picture" mode. “Warm1” or “Warm2” is only activated when the picture mode is "Movie". Size: 1:/Wide Zoom/Zoom/:/Just Scan You can select the picture size which best corresponds to your viewing requirements. 1:: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting. Wide Zoom: Magnify the size of the picture more than 4:3. Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size. :: This is the default setting for a video movie or normal broadcasting. Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/1080p) or Component (1080i/1080p) signals are input. ♦ ♦ ♦ ♦ ♦ In PC Mode, only "16:9" and "4:3" mode can be adjusted. Settings can be adjusted and stored for each external device you have connected to an input of the TV. Temporary image retention may occur when viewing a static image on the set for more than two hours. Wide Zoom: Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ► or enter button. Zoom: Select by pressing the ◄ or ►button. Use the ▲ or ▼ button to move the picture up and down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. When Double ( , ) mode has been set in PIP, the Picture Size cannot be set. after selecting “Just Scan” in hDmI (100i/100p) or Component (100i/100p) mode: Select by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture. reset: Press the ◄ or ► button to select “Reset”, then press the enter button. You can initialize the setting. If you use the “Just Scan” function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function. You can select these options by simply pressing the P.SIZe button on the remote control. Digital nr: off/low/medium/high/auto If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. When the signal is weak, select one of the other options until the best picture is displayed. DnIe: off/Demo/on This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. DNIe™ (Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIe™ technology will fit every signal into your eyes. This function is not available in "Movie" and "Standard" mode. ➣ ♦ ➣ ➣ ♦ ➣ ➣ ➣ ➣ ➣ ➣ ➣ ➣ ♦ ➣ ♦ ➣ ➣ Picture more Picture options  reset : oK  tV move enter return Picture options Colour tone : normal  Size : 1:  Digital nr : auto  DnIe : off  hDmI black level : normal  100hz motion Plus: off  blue only mode : off  move enter return tV english - 1 hDmI black level: normal/low You can directly select the black level on the screen to adjust the screen depth. This function is active only when the external input connects to HDMI(RGB signals). 100hz motion Plus: off/low/medium/high/Demo Removes drag from fast scenes with a lot of movement to provide a clearer picture. This function is not available in PC mode. If you enable "100 Hz Motion Plus", noise may appear on the screen. If this occurs, set "100Hz Motion Plus" to "off" or select one of the other options. blue only mode: off/on This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter. “Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”. ♦ ➣ ♦ ➣ ➣ ♦ ➣ resetting the Picture Settings to the Factory Defaults You can return to the factory defaults picture settings. 1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3 (On page 16). . Press the ▲ or ▼ button to select "Reset", then press the enter button. . Press the ▲ or ▼ button to select "OK" or "Cancel". Press the enter button. . Press the eXIt button to exit. The "Reset" will be set for each "Picture" mode. ➣ Picture more Picture options reset : oK tV move enter return oK Cancel english - 0 Viewing the Picture In Picture (PIP) You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture. Preset: Press the SourCe button to Select the required device(Main picture). 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the enter button. . Press the▲ or ▼ button to select "PIP", then press the enter button. . Press the enter button to select “PIP”. Press the▲ or ▼ button to select “On”, then press the enter button. . Select the required option by pressing the ▲ or ▼ button, then press the enter button. . When you are satisfied with your setting, press the enter button. . Press the eXIt button to exit. You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke. easy Setting 1. Press the toolS button on the remote control. . Press the ▲ or ▼ button to select “PIP”, then press the enter button. . Press the ◄ or ► button to select the “On”. . Press the ▲ or ▼ button to select a particular item. . Press the ◄ or ► button to select the required option. . Press the eXIt or toolS button to exit. PIP: on/off You can activate or deactivate the PIP function. Main picture Sub picture Component TV, AV1, AV2 HDMI 1, 2, 3 TV, AV1, AV2 PC TV, AV1, AV2 Source You can select a source of the sub-picture. Size: / / You can select a size of the sub-picture. If main picture is in "HDMI" mode, "Size" is available. Position: / / / You can select a position of the sub-picture. In Double ( , ) mode, "Position" cannot be selected. Programme You can select a channel of the sub-picture only when the "Source" is set to "TV" . ➣ ➣ ♦ ♦ ♦ ➣ ♦ ➣ ♦ tools anynet+ (hDmI-CeC) Picture mode : Standard Sound mode : Custom Sleep timer : off SrS tS Xt : off energy Saving : off PIP move enter e exit tV Setup Plug & Play  language : english  time  melody : off  entertainment : off  energy Saving : off  PIP  logo lighting : both on  move enter return mode : Custom  equalizer  SrS tS Xt : off  auto Volume : off  Internal mute : off  reset move enter return tV PIP PIP : on  Source : tV  Size :  Position :  Programme : P 1  move enter return PIP PIP : ◄ on ► Source : tV Programme : P 1 Size : Position : move adjust return english - 1 Sound Features 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the enter button. . Select the required option by pressing the ▲ or ▼ button, then press the enter button. . When you are satisfied with your setting, press the enter button. . Press the eXIt button to exit. mode: Standard/music/movie/Speech/Custom You can select the type of special sound effect to be used when watching a given broadcast. easy Setting 1. Press the toolS button on the remote control. . Press the ▲ or ▼ button to select "Sound Mode". . Press the ◄ or ► button to select the desired sound mode. . Press the eXIt or toolS button to exit. equalizer: balance/100hz/00hz/1khz/khz/10khz The sound settings can be adjusted to suit your personal preferences. If you make any changes to these settings, the sound mode is automatically switched to "Custom". SrS tS Xt: off/on TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. You can also set these options simply by pressing the SrS button on remote control. easy Setting 1. Press the toolS button on the remote control. . Press the ▲ or ▼ button to select “SRS TS XT”. . Press the ◄ or ► button to select the "Off" or "On". . Press the eXIt or toolS button to exit. truSurround Xt, SRS and Symbol are trademarks of SRS Labs, Inc.truSurround Xt technology is incorporated under license from SRS Labs, Inc. auto Volume: off/on Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low. tV Speaker: off/on If you want to hear the sound through separate speakers, cancel the internal amplifier. The volume and mute buttons do not operate when the "TV Speaker" is set to "Off". When “TV Speaker” is set to “Off”, you can operate only “Sound Select” (in PIP mode) in Sound menu. Sound Select: main/Sub When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture. − main: Used to listen to the sound of the main picture. − Sub: Used to listen to the sound of the sub picture. ♦ ♦ ➣ ♦ ♦ ♦ ➣ ➣ ♦ tV Sound mode : Custom  equalizer  SrS tS Xt : off  auto Volume : off  tV Speaker : on  Sound Select : main  move enter return equalizer balance 100hz 00hz 1khz khz 10khz move adjust return tV r l tV tools anynet+ (hDmI-CeC) Picture mode : Standard Sound Mode ◄ Custom ► Sleep timer : off SrS tS Xt : off energy Saving : off Dual l-ll : mono move adjust e exit tools anynet+ (hDmI-CeC) Picture mode : Standard Sound mode : Custom Sleep timer : off SRS TS XT ◄ Off ► energy Saving : off Dual l-ll : mono move adjust e exit english -  Connecting headphones (Sold separately) You can connect a set of headphones to your set if you wish to watch a tV programme without disturbing the other people in the room. When you insert the head set jack into the corresponding port, you can operate only "Auto Volume" and "Sound Select" (in PIP mode) in Sound menu. Prolonged use of headphones at a high volume may damage your hearing. You will not receive sound from the speakers when you connect headphones to the system. The headphone volume and TV volume are adjusted differently. ➣ ➣ ➣ ➣ Selecting the Sound mode You can set the sound mode in the "tools" menu. When you set to "Dual I-II", the current sound mode is displayed on the screen. 1. Press the toolS button on the remote control. . Press the ▲ or ▼ button to select “Dual I-II". . Press the ◄ or ► button to select required option. . Press the enter button. Audio Type Dual 1/2 Default A2 Stereo Mono MONO Automatic change Stereo STEREO ↔ MONO Dual DUAL 1 ↔ DUAL 2 DUAL 1 NICAM Stereo Mono MONO Automatic change Stereo MONO ↔ STEREO Dual MONO ↔ DUAL 1 DUAL 2 DUAL 1 If the stereo signal is weak and an automatic switching occurs, then switch to the Mono. This function is only activated in stereo sound signal. It is deactivated in mono sound signal. This function is only available in TV mode. ➣ ➣ ➣ tools anynet+ (hDmI-CeC) Picture mode : Standard Sound mode : Custom Sleep timer : off SrS tS Xt : off energy Saving : off Dual l-ll ◄ Mono ► move adjust e exit TV Side Panel english -  Setting and Displaying the Current time You can set the tV’s clock so that the current time is displayed when you press the InFo button. You must also set the time if you wish to use the automatic on/off timers. 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the enter button. . Press the ▲ or ▼ button to select "Time", then press the enter button. . Press the enter button to select "Clock Set". . . Press the eXIt button to exit. You can also set "Month", "Day", "Year", "Hour" and "Minute" by pressing the number buttons on the remote control. If you disconnect the power cord, you have to set the clock again. ➣ ➣ to... Press the.... Move to "Month", "Day", "Year", "Hour", "Minute" or "am/pm" ◄ or ► button. Set the "Month", "Day", "Year", "Hour", "Minute" or "am/pm" ▲ or ▼ button. Confirm the setting enter button Setting the Sleep timer You can select a time period of between 0 and 10 minutes after which the television automatically switches to standby mode. 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the enter button. . Press the ▲ or ▼ button to select "Time", then press the enter button. . Press the ▲ or ▼ button to select "Sleep Timer", then press the enter button. . Press the ▲ or ▼ button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180). Press the enter button. . Press the eXIt button to exit. The TV automatically switches to standby mode when the timer reaches 0. easy Setting 1. Press the toolS button on the remote control. . Press the ▲ or ▼ button to select “Sleep Timer”. . Press the ◄ or ► button to select the minute. . Press the eXIt or toolS button to exit. ➣ tools anynet+ (hDmI-CeC) Picture mode : Standard Sound mode : Custom Sleep timer ◄ off ► SrS tS Xt : off energy Saving : off Dual l-ll : mono move adjust e exit mode : Custom  equalizer  SrS tS Xt : off  auto Volume : off  Internal mute : off  reset move enter return tV Setup Plug & Play  language : english  time  melody : off  entertainment : off  energy Saving : off  PIP  logo lighting : both on  move enter return mode : Custom  equalizer  SrS tS Xt : off  auto Volume : off  Internal mute : off  reset move enter return tV Setup Plug & Play  language : english  time  melody : off  entertainment : off  energy Saving : off  PIP  logo lighting : both on  move enter return time Clock Set : 1:00 am Sleep timer : timer 1 : timer  : timer  : move enter return tV off 0 0 0 10 10 10 tV Clock Set month 01 Day   01 00 Year 00 hour 00 minute move adjust return am am/pm english -  Switching the television on and off automatically 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the enter button. . Press the ▲ or ▼ button to select "Time", then press the enter button. . Press the ▲ or ▼ button to select "Timer 1", "Timer 2", "Timer 3", then press the enter button. Three different On/Off Timer Settings can be made. You must set the clock first. . Press the ◄ or ► button to select the required item below. Press the ▲ or ▼ button to adjust to the setting satisfied. on time : Select hour, minute, am/pm and "Activate"/"Inactivate". (To activate timer with the setting satisfied, set to "Activate".) off time : Select hour, minute, am/pm and "Activate"/"Inactivate". (To activate timer with the setting satisfied, set to "Activate".) Volume : Select the desired turn on volume level. Programme : When the On Timer is active, you can turn on a specific channel. repeat : Select "Once", "Everyday", "Mon~Fri", "Mon~Sat" or "Sat~Sun". You can set the hour and minute directly by pressing the number buttons on the remote control. auto Power off When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time. ➣ ♦ ♦ ♦ ♦ ♦ ➣ ➣ Choosing Your language When you start using your set for the first time, you must select the language which will be used for displaying menus and indications. 1. Press the menu button to display the on-screen menu. Press the ▲ or ▼ button to select "Setup", then press the enter button. . Press the ▲ or ▼ button to select "Language", then press the enter button. . Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the enter button. . Press the eXIt button to exit. tV Setup Plug & Play  language : english  time  melody : off  entertainment : off  energy Saving : off  PIP  logo lighting : both on  move enter return tV Setup Plug & Play  language : english  time  melody : off  entertainment : off  energy Saving : off  PIP  logo lighting : both on  move enter return tV timer 1 on time repeat once 1 5 6 : off time 00 : ► move adjust return Inactivate Inactivate 10 Volume 00 00 1 Programme am am english -  melody / entertainment / energy Saving 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the enter button. . Select the required option by pressing the ▲ or ▼ button, then press the enter button. . When you are satisfied with your setting, press the enter button. . Press the eXIt button to exit. melody: off/low/medium/high The TV power on/off melody sound can be adjusted. the melody does not play − When no sound is output from the TV because the mute button has been pressed. − When no sound is output from the TV because the – (Volume) button has been pressed. − When the TV is turned off by the Sleep Timer function. entertainment: off/Sports/Cinema/game The “Entertainment” mode enables you to select the optimal display and sound for sports, cinema and games. − off: Switch the "Entertainment" function off. − Sports: Provides the optimal picture and sound quality for sports. You can enjoy more thrilling colour and sound. − Cinema: Provides the optimal picture and sound quality for cinema. You can experience a richer picture and enhanced sound. − game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV. If you set any of the three “Entertainment” modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the “Entertainment” mode must be turned off. The “Entertainment” settings are saved for each input source. If you set any of the three “Entertainment” modes to On, “SRS TS XT” and “Equalizer” functions are not available. You can press the e.moDe button on the remote control repeatedly to change the “Entertainment” setting. energy Saving: off/low/medium/high/auto This feature adjusts the screen brightness depending on the surrounding lighting conditions. − off: Turns off the energy saving function. − low: Sets the TV to low energy saving mode. − medium: Sets the TV to medium energy saving mode. − high: Sets the TV to high energy saving mode. − auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes. easy Setting 1. Press the toolS button on the remote control. . Press the ▲ or ▼ button to select “Energy Saving”. . Press the ◄ or ► button to select the "Off", "Low", "Medium", "High" or "Auto". . Press the eXIt or toolS button to exit. ♦ ➣ ♦ ➣ ➣ ➣ ♦ tools anynet+ (hDmI-CeC) Picture mode : Standard Sound mode : Custom Sleep timer : off SrS tS Xt : off Energy Saving ◄ Off ► Dual l-ll : mono move adjust e exit mode : Custom  equalizer  SrS tS Xt : off  auto Volume : off  Internal mute : off  reset move enter return tV Setup Plug & Play  language : english  time  melody : off  entertainment : off  energy Saving : off  PIP  logo lighting : both on  move enter return english -  Setting the logo lighting You can configure the armanI and SamSung logo lights at the bottom of the tV as required. 1. Press the menu button to display the on-screen menu. Press the ▲ or ▼ button to select "Setup", then press the enter button. . Press the ▲ or ▼ button to select "Logo Lighting", then press the enter button. . Select the required option by pressing the ▲ or ▼ button, then press the enter button. . Press the eXIt button to exit. off: Turns the logo lights off. one on: Turns on the Armani Symbol logo in standby mode and Armani/ Samsung logo while watching TV. both on: Turns on the Armani Symbol logo in standby mode and both logos while watching TV. on: Turns the logo lights on at all times. ♦ ♦ ♦ ♦ tV Setup Plug & Play  language : english  time  melody : off  entertainment : off  energy Saving : off  PIP  logo lighting : both on  move enter return tV Setup Plug & Play language : english time melody : off entertainment : off energy Saving : off PIP logo lighting : both on move enter return off one on both on on english -  editing the Input Source names name the device connected to the input jacks to make your input source selection easier. 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Input", then press the enter button. . Press the ▲ or ▼ button to select "Edit Name", then press the enter button. . Press the ▲ or ▼ button to select the device that you wish to edit. Press the enter button. . Press the ▲ or ▼ button to select the required device. Press the enter button. . Press the eXIt button to exit. When a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 2 port, you should set the "HDMI2" mode to "PC" in the "Edit Name" of the "Input" mode. ➣ Selecting the Source You can select among external sources connected to your tV’s input jacks. 1. Press the menu button to display the menu. Press the ▲ or ▼ button to select "Input", then press the enter button. . Press the enter button again, to select "Source List". When no external device is connected to your set, only "TV" is activated in the "Source List". "AV1", "AV2", "S-Video", "Component1", "Component2", "PC", "HDMI1", "HDMI2", "HDMI3" are activated only when they are connected to your set. . Select the required device by pressing the ▲ or ▼ button. Press the enter button. Press the SourCe button on the remote control to toggle between all the available source. TV mode can be selected by pressing the tV button, number buttons (0~9), and the P / button on the remote control. You can also watch HDMI mode simply by pressing the hDmI button on the remote control. ➣ mode : Custom  equalizer  SrS tS Xt : off  auto Volume : off  Internal mute : off  reset move enter return tV Input Source list : tV  edit name  anynet+(hDmI-CeC) WISelInK move enter return mode : Custom  equalizer  SrS tS Xt : off  auto Volume : off  Internal mute : off  reset move enter return tV Source list tV aV1 : ---- aV : ---- S-Video : ---- Component1 : ---- Component : ---- PC : ---- smore move enter return mode : Custom  equalizer  SrS tS Xt : off  auto Volume : off  Internal mute : off  reset move enter return tV Input Source list : tV  edit name  anynet+(hDmI-CeC) WISelInK move enter return mode : Custom  equalizer  SrS tS Xt : off  auto Volume : off  Internal mute : off  reset move enter return tV edit name aV1 : ---- aV : ---- S-Video : ---- Component1 : ---- Component : ---- PC : ---- hDmI1 : ---- hDmI : hDmI : move enter return ---- VCr DVD Cable Stb Satellite Stb PVr Stb aV receiver s english -  Display modes both screen position and size will vary depending on the type of PC monitor and its resolution. the resolutions in the table are recommended. D-Sub Input mode resolution horizontal Frequency (khz) Vertical Frequency (hz) Pixel Clock Frequency (mhz) Sync Polarity (h/V) Ibm 640 x 350 720 x 400 31.469 31.469 70.086 70.087 25.175 28.322 + / - - / + VeSa 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200 31.469 37.861 37.500 37.879 48.077 46.875 48.363 56.476 60.023 63.981 79.976 47.712 75.000 59.940 72.809 75.000 60.317 72.188 75.000 60.004 70.069 75.029 60.020 75.025 60.015 60.000 25.175 31.500 31.500 40.000 50.000 49.500 65.000 75.000 78.750 108.000 135.000 85.500 162.000 - / - - / - - / - + / + + / + + / + - / - - / - + / + + / + + / + + / + + / + CVt 1920 x 1080RB 66.587 59.934 138.500 + / - hDmI/DVI Input mode resolution horizontal Frequency (khz) Vertical Frequency (hz) Pixel Clock Frequency (mhz) Sync Polarity (h/V) VeSa 640 x 480 800 x 600 1024 x 768 1280 x 1024 1360 x 768 1600 x 1200 31.469 37.879 48.363 63.981 47.712 75.000 59.940 60.317 60.004 60.020 60.015 60.000 25.175 40.000 65.000 108.000 85.500 162.000 - / - + / + - / - + / + + / + + / + Cea 1920 x 1080p 67.500 60.000 148.500 + / + When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200). ➣ ➣ ➣ ➣ ➣ ➣ ➣ Setting up Your PC Software (based on Windows XP) the Windows display-settings for a typical computer are shown below. the actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1. First, click on "Control Panel" on the Windows start menu. . When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear. . When the control panel window appears, click on "Display" and a display dialog-box will appear. . Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum- 1920 X 1080 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box. english -  Setting up the tV with your PC Press the SourCe button to select PC mode. 1. Press the menu button to display the menu. Press the enter button, to select "Picture". . Select the required option by pressing the ▲ or ▼ button, then press the enter button. . When you are satisfied with your setting, press the enter button. . Press the eXIt button to exit. auto adjustment Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically. easy Setting 1. Press the toolS button on the remote control. . Press the ▲ or ▼ button to select “Auto Adjustment”, then press the enter button. Screen adjustment: Coarse/Fine The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, readjust the picture so that it is aligned on the center of screen. Press the ▲ or ▼ button to select "Coarse" or "Fine", then press the enter button. Press the ◄ or ► button to adjust the screen quality. Press the enter button. Position Adjust the PC’s screen positioning if it does not fit the TV screen. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position. Press the enter button. Image reset You can replace all image settings with the factory default values. ➣ ♦ ♦ auto adjustment in progress Please wait. tV Screen adjustment Coarse 0 Fine  Position  Image reset  move enter return tV Position move enter return tV Screen adjustment Coarse 0 Fine  Position  Image reset  move enter return Picture mode : Standard  backlight  Contrast  brightness  Sharpness 0 auto adjustment  Screen adjustment  Detailed Settings  smore tV move enter return tools anynet+ (hDmI-CeC) Picture mode : Standard Sound mode : Custom Sleep timer : off SrS tS Xt : off energy Saving : off PIP auto adjustment move enter e exit english - 0 using the WISelInK Function This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device. Press the PoWer button on the remote control. Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV. If you enter the WISELINK mode with no USB device connected the message “There is no device connected” will appear. In this case, insert the USB device, exit the screen by pressing the W.lInK button on the remote control and enter the WISELINK screen again. Only alphanumeric characters must be used as a folder name or filename (photo, music). The file system only supports FAT16/32 (The NTFS file system is not supported) Certain types of USB Digital camera and audio devices may not be compatible with this TV. Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem. Only MP3 and JPEG file formats are supported. The Wiselink mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz or 48 kHz). We recommend the sequential jpeg format. Do not disconnect the USB device while it is loading. MTP (Media Transfer Protocol) is not supported. The playing duration of an mp3 file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file. The higher the resolution of the image, the longer it takes to display on the screen. The Photo or Music List displays up to 300 folders or files. Loading may take some time depending on the size of the file. MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management (DRM) is a technology that supports the creation of content, the distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements. tV Side Panel uSb Drive english - 1 using the WISelInK menu 1. Press the menu button. Press the ▲ or ▼ button to select “Input”, then press the enter button. . Press the ▲ or ▼ button to select “WISELINK”, then press the enter button. . Press the ▲ or ▼ button to select the corresponding USB Memory Device, then press the enter button. The "WISELINK" menu differs depending on the USB Memory Device connected to TV. Some devices may not be supported due to compatibility problems. . Press the ◄ or ► button to move to an icon, then press the enter button. To exit "WISELINK" mode, press the W.lInK button on the remote control. Press the W.lInK button on the remote control to display a WISELINK menu. using the remote Control button in WISelInK menu button operations ▲/▼/◄/► Move the cursor and select an item. enter Select the currently selected item. Play the Slide Show or MP3 file. Pause the Slide Show or MP3 file. return Return to the previous menu. InFo Run various functions from the Photo and Music menus. Stop the current slide show or MP3 file. Page Up or Down (file list item) eXIt Stop the current function and return to the previous high-level menu. ➣ ➣ ➣ Input Source list : tV  edit name  anynet+ (hDmI-CeC) WISelInK tV move enter return move enter exit SUM Storage DeVICe Storage DeVICe Storage DeVICe Storage DeVICe move enter return SUM 861MB/994MBFree Photo Photo music Setup english -  using the Photo (JPeg) list This menu shows JPEG files and folders saved on an USB memory device. 1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 31) . Press the ◄ or ► button to move to “Photo”, then press the enter button. The saved file information is displayed as a folder or file. . Press the ▲, ▼, ◄ and ► buttons to select a file. • Pressing the enter button over a photo icon shows the currently selected photo in full screen. • Pressing the enter button over a folder icon shows the JPEG files included in the folder. To exit "WISELINK" mode, press the W.lInK button on the remote control. Moving to a photo may take a few seconds to load the file. At this point, the icon will appear at the top left of the screen. It takes time to show JPEG files as Thumbnail images. This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed. The files are displayed on a page. 15 thumbnail photos are displayed per page. The thumbnails are numbered from left to right and from top to bottom, from 1 to 15. Certain types of USB Digital camera and audio devices may not be compatible with this TV. Folders are displayed first and they are followed by all JPEG files in the current folder. The folders and JPEG files appear in the order of the time they were saved to the USB memory device. If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen. While a full screen is displayed, ◄ or ► button will let you see another photo image in the same folder. Press the button when a Photo icon is selected to start a Slide Show. Photos without EXIF information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution. Viewing a Slide Show . Press the InFo button to display the option("Start Slide Show", "Select All"). . Press the ▲ or ▼ button to select “Start Slide Show” then press the enter button. During the slide show, files are displayed in order from the currently shown file. MP3 files can be automatically played during the Slide Show if the Default Background Music is set to On. To enable this function, MP3 files and other photo files must be located in the same folder on the USB Memory Device. . Press the InFo button during the slide show to set the following options ("Slide Show Speed", "Background Music", "Background Music Setting", "List"). Press the ▲ or ▼ button to select the option, then press the enter button. • After setting the option press the enter button to make a change. ➣ ➣ ➣ ➣ ➣ ➣ ➣ ➣ ➣ ➣ ➣ ➣ ➣ ➣ Upper Folder Forder1 Photo 0001 Photo 0001 None File 4 File 5 File 6 File 7 File 8 File 9 File 10 File 11 File 12 File 13 Select move enter InFo option return Photo 1/10 Page 580*440 47KB Jun 1,2008 3/23 895MB/993MB SUM Upper Folder Forder1 Photo 0001 Photo 0001 None File 4 File 5 File 6 File 7 File 8 File 9 File 10 File 11 File 12 File 13 Select move enter InFo option return Photo 1/10 Page 580*440 47KB Jun 1,2008 3/23 895MB/993MB Start Slide Show Select all InFo exit move enter return SUM 861MB/994MBFree Photo Photo music Setup Slide Show Speed nomal► background music on ► background music Setting list InFo exit normal english -  using the menu in the Photo list Start Slide Show: You can start a Slide Show. Select all: Select all the files in the folder. Deselect all: Deselect all the files in the folder. using the menu during a Slide Show Slide Show Speed: Select to control the slide show speed. Press the ▲ or ▼ button to select the required option ("Fast", "Normal", "Slow"), then press the enter button. background music: Select to choose whether you want to play an MP3 file during a slide show. Press the ▲ or ▼ button to select the required option ("On", "Off"), then press the enter button. background music Setting: While the slide show is in progress, MP3 files and folders under the same directory are displayed. Press the ▲ or ▼ button to select a music file, then press the yellow button. The ( ) mark appears to the left of the selected music. Repeat the above operation to select multiple music files. Press the enter button. If you turn Off the Background Music, even if the Background Music Settings have been set up, the background music will not be played. list: The file information is displayed as a folder or JPEG file. To exit "WISELINK" mode, press the W.lInK button on the remote control. When selecting a photo file, the photo file information is displayed on the left side of the TV screen, such as the resolution, the date modified and the order of the file in the current directory (e.g. 10th out of 15). ➣ ➣ : Folder icon : Photo icon : Move to the previous folder stage icon upper Folder 01-001 0-00 0-00 0-00 0-00 Select move enter return ◄◄ 1/1 Page ►► background music Setting Choose files for background music Upper Folder Forder1 Photo 0001 Photo 0001 None File 4 File 5 File 6 File 7 File 8 File 9 File 10 File 11 File 12 File 13 Select move enter InFo option return Photo 1/10 Page 580*440 47KB Jun 1,2008 3/23 895MB/993MB SUM Photo 580*440 47KB Jun 1,2008 3/23 Such as the resolution Order of the file in the current directory Date modified File Size Slide Show Speed nomal background music on ► background music Setting list InFo exit Fast nomal Slow Slide Show Speed nomal► background music on background music Setting list InFo exit off on Upper Folder Forder1 Photo 0001 Photo 0001 None File 4 File 5 File 6 File 7 File 8 File 9 File 10 File 11 File 12 File 13 Select move enter InFo option return Photo 1/10 Page 580*440 47KB Jun 1,2008 3/23 895MB/993MB Start Slide Show Select all Deselect all InFo exit normal on english -  using the option menu 1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 31) . Press the ◄ or ► button to move to “Photo”, then press the enter button. The saved file information is displayed as a folder or file. . Press the ▲, ▼, ◄ and ► button to select a file, then press the enter button. Pressing the button over a photo thumbnail displays the photo in full screen. . Press the InFo button to display the option. ("Start Slide Show" , "Zoom", "Rotate", "List") Start Slide Show: Press the ▲ or ▼ button to select “Start Slide Show”, then press the enter button. You can start a Slide Show. Zoom: Press the ▲ or ▼ button to select “Zoom”, then press the enter button. Select the required option by pressing the ▲ or ▼ button, then press the enter button. (X1, X2, X4) To pan up/down/left/right in the zoomed-in photo, press the InFo button to exit option menu, then press the ▲, ▼, ◄ and ► buttons. "Start Slide Show" or "Rotate" is disabled when the "Zoom" option is selected. " x1 " : Restore a photo to its original size. ➣ " x2 " : Zoom-in to a photo x2. " x4" : Zoom-in to a photo x4. / / / : Move the zoomed-in photo up/down/right/left. rotate: • Press the ▲ or ▼ button to select “Rotate”, then press the enter button. • Select the required option by pressing the ▲ or ▼ button, then press the enter button. (0°, 90°, 180°, 270°) The rotated file is not saved. "Start Slide Show" or "Zoom" is disabled when the “Rotate” option is selected. "0°" : This rotates a photo to its original position ➣ "90°" : This rotates a photo by 90 degrees "180°" : This rotates a photo by 180 degrees "270°" : This rotates a photo by 270 degrees • • • ➣ ➣ ➣ ➣ Start Slide Show Zoom X1 rotate 0 ► list InFo exit X 1 x 1 x  x  0° Start Slide Show Zoom X1 ► rotate 0 list InFo exit 0 0 10 0 Start Slide Show Zoom X1 ► rotate 0 ► list InFo exit english -  using the mP list This menu shows MP3 files from among the files saved on a USB memory device. 1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 31) . Press the ◄ or ► button to move to “Music”, then press the enter button. The saved file information is displayed as a folder or file. . Press the ▲ or ▼ button to move to an icon, then press the enter button. Pressing the enter button over a musical note icon immediately plays the music file. Pressing the enter button over a folder icon shows the music files included in the folder. To select a file on the next page, press the or button to move to the next page. . To select all files or a file, press the InFo button to display the Music menus. Press the enter button to select “Play”, “Repeat Music” or “Select All”. To exit "WISELINK" mode, press the W.lInK button on the remote control. The folders and MP3 files appear in the order of the time they were saved to the USB memory device. using the option menu Play: Select to play MP3 files. Press the button while playing an MP3 file to pause the file. Press the button to exit Play mode. This menu only shows files with the MP3 file extension. Files with other file extensions are not displayed, even if they are saved on the same USB device. The selected file is displayed on the top with its playing time. To adjust the music volume, press the – + button on the remote control. To mute the sound, press the mute button on the remote control. If the sound is odd when playing MP3 files, exit WISELINK mode and adjust the “Equalizer” and “SRS TS XT” in the Sound menu. (An over-modulated MP3 file may cause a sound problem.) repeat music: Select to repeatedly play MP3 files in the current folder. You can select On or Off. Select all: Select all the files in the folder. Deselect all: Deselect all the files in the folder. music function information icon : When all music files in the folder (or the selected file) are repeated. “Repeat Music” is “On”. : When all music files in the folder (or the selected file) are played once. “Repeat Music” is “Off”. / : When pressing the / button on the remote control while music is playing. : When pressing the button on the remote control when music is stopped. • • • ➣ ➣ ➣ ➣ ➣ ➣ ➣ : Folder icon : Music icon : Move to the previous folder stage icon move enter return SUM 861MB/994MBFree music Photo music Setup upper Folder 00:0:01 00:0: 00:0:1 00:0: 00:0:0 00:0:0 00:0: 00:0: Folder 1 001-001 00-00 00-00 00-00 00-00 00-00 00-00 00-00 00-00 00:0:00 Select move enter InFo option return Music 1/10 Page 5MB Jun 1,2008 3/23 Play repeat music off ► Select all InFo exit english -  using the Setup menu Setup displays the user settings of the WISELINK menu. 1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 31) . Press the ◄ or ► button to move to “Setup”, then press the enter button. . Press the ▲ or ▼ button to select an item you want, then press the enter button. (“Slide Show Speed”, “Background Music”, “Background Music Setting”, “Repeat Music”, “Screen Saver”) . Press the ▲ or ▼ button to select the option, then press the enter button. To exit WISELINK mode, press the W.lInK button on the remote control. Slide Show Speed: Select to control the slide show speed. You can select “Fast”, “Normal” or “Slow”. background music: Select to determine whether to play an MP3 file during a slide show. You can select Music “On” or Music “Off”. background music Setting: While a slide show is in progress, use the "Background Music Setting" to select a music file to listen to. Select an MP3 file as the background music. repeat music: Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played. Screen Saver: Select to set the waiting time before the screen saver appears. The screensaver will appear when no button is pressed for 1, 5 or 10 minutes. Slide Show Speed normal background music on background music Setting repeat music off Screen Saver 1min. move enter return Setup Fast normal Slow upper Folder 01-001 0-00 0-00 0-00 0-00 Select move enter return ◄◄ 1/1 Page ►► background music Setting Choose files for background music Slide Show Speed normal background music on background music Setting repeat music off Screen Saver 1min. move enter return Setup off on Slide Show Speed normal background music on background music Setting repeat music off Screen Saver 1min. move enter return Setup 1min. min. 10min. Slide Show Speed normal background music on background music Setting repeat music off Screen Saver 1min. move enter return Setup off on english -  What is anynet+? anynet+ is an aV network system that enables an easy-to-use aV interface for users by controlling all connected aV devices through the anynet+ menu when Samsung electronics aV devices are connected. Connecting anynet+ Devices the anynet+ system supports aV devices supporting anynet+ only. Check if there is an anynet+ mark on the aV device to be connected to the tV. to directly connect to tV Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. to connect to home theater 1. Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. . Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. Connect only one receiver. You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 8 AV devices in total. ➣ ➣ ➣ ➣ tV anynet+ Device 1 hDmI 1. Cable hDmI 1. Cable hDmI 1. Cable home theatre anynet+ Device  anynet+ Device  hDmI 1. Cable anynet+ Device 1 tV hDmI 1. Cable anynet+ Device  anynet+ Device  hDmI 1. Cable hDmI 1. Cable english -  Setting up anynet+ the following settings are to use anynet+ functions. using the anynet+ Function 1. Press The toolS button. Then Press the enter button to select "Anynet+(HDMI- CEC)". Press the ▲ or ▼ button to select "Setup", then press the enter button. . Press the enter button to select "Anynet+ (HDMI-CEC)", then press the enter button. . Press the ▲ or ▼ button to select "On", then press the enter button. The "Anynet+ (HDMI-CEC)" function is enabled. If you select "Off", "Anynet+ (HDMI-CEC)" is disabled. When the "Anynet+ (HDMI-CEC)" function is disabled, all the Anynet+ related operations are deactivated. turning an anynet+ Device off automatically when the tV is turned off 1. Press the ▲ or ▼ button to select "Auto Turn Off", then press the enter button. . Press the ▲ or ▼ button to select "Yes", then press the enter button. The Auto turn off function is enabled. If you select "No", the Auto turn off function is cancelled. Press the eXIt button to exit. The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function. If you set "Auto Turn Off" to "Yes", connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off. ➣ ➣ ➣ ➣ ➣ ➣ ➣ Setup anynet+ (hDmI-CeC) : off auto turn off : off Searching Connections off on move enter return Setup anynet+ (hDmI-CeC) : on auto turn off : off Searching Connections no Yes move enter return View tV Select Device  record  menu on Device  Device operation  receiver :off  Setup  tV P move enter return tools anynet+ (hDmI-CeC) Picture mode : Standard Sound mode : Custom Sleep timer : off SrS tS Xt : off energy Saving : off Dual l-ll : mono move enter e exit english -  Scanning and Switching between anynet+ Devices 1. Press the toolS button. Then press the enter button to select "Anynet+(HDMI-CEC)". . Press the ▲ or ▼ button to select "Select Device", then press the enter button. . Press the ▲ or ▼ button to select to a particular device and press the enter button. It is switched to the selected device. . If you cannot find a device you want, press the ▲ or ▼ button to select "Setup", then press the enter button. . Press the ▲ or ▼ button to select "Searching Connections", then press the enter button. The message "Configuring Anynet+ connection..." is displayed. When searching devices completes, the connected devices are listed in the Anynet+ menu. Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation. The time required to scan for devices is determined by the number of connected devices. When the device scan is complete, the number of found devices is not displayed. Although the TV automatically scans devices when it is turned on using the PoWer button, devices connected when the TV is on or under a specific circumstance are not displayed in the device list. Therefore select "Searching Connections" menu to search devices. If you have selected external input mode by pressing the SourCe button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the toolS button. ➣ ➣ ➣ ➣ ➣ Setup anynet+ (hDmI-CeC) : on  auto turn off : Yes  Searching Connections  move enter return View tV Select Device  record  menu on Device  Device operation  receiver :off  Setup  tV P move enter return english - 0 anynet+ menu the anynet+ menu changes depending on the type and status of the anynet+ devices connected to the tV. anynet+ menu Description View tV Switches from Anynet+ to TV broadcast mode. Select Device Your TV connects to the corresponding device. record Starts a recording. (This menu works only for a device supporting recording.) menu on Device Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Device operation Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. receiver Sound is output through the receiver. Setup You can set the environment for using Anynet+. tV remote Control buttons available in anynet+ mode Device type operating Status available buttons anynet+ Device After switching to the device, when the menu of the corresponding device is displayed on the screen. Numeric buttons ▲/▼/◄/►/enter buttons Colour buttons eXIt button After switching to the device, while playing a file (Backward search)/ (Forward search)/ (Stop)/ (Play)/ (Pause) Device with built-in tuner After switching to the device, when you are watching a TV programme P / button audio Device When Receiver is activated + / – button mute button The Anynet+ function only works when the remote control is set to TV. The button works only while in the recordable state. You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control. The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device. The Anynet+ functions don’t operate for the products from other manufacturers. In Anynet+ mode, the colour buttons may not work properly. The , operations may differ depending on the device. ➣ ➣ ➣ ➣ ➣ ➣ ➣ recording You can make a recording of a tV programme using a recorder. Press the button. Recording begins. (Only when the Anynet+ enabled recording device is connected.) The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded. You can also record the source streams by selecting "Record" after pressing the toolS button. Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual. ➣ ➣ ➣ english - 1 listening through a receiver You can listen to sound through a receiver instead of the tV speaker. 1. Press the toolS button. Then Press the enter button to select "Anynet+(HDMI- CEC)". Press the ▲ or ▼ button to select "Receiver", then press the enter button. . Press the ◄ or ► button to select to "On", then press the enter button. Now you can listen to sound through the receiver. . Press the eXIt button to exit. When the receiver is set to On, you can listen to the TV sound through the 2-channel receiver. If the receiver is exclusively for a home theatre only (supporting audio only), it may not appear in the device list. In case of a content with copyright problem, listening through the receiver may not properly operate. If there is a power interruption to the TV when the “Receiver” is set to “On” (by disconnecting the power cord or a power failure), the “TV Speaker” may be set to “Off” when you turn the TV on again. (see page 21) ➣ ➣ ➣ ➣ Check Points before requesting Service Symptom Solution anynet+ does not work. ■ Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. ■ Connect only one receiver. ■ Check if the Anynet+ device power cord is properly connected. ■ Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections. ■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. ■ Check whether the TV remote control is in TV mode. ■ Check whether it is Anynet+ exclusive remote control. ■ Anynet+ doesn’t work at a certain condition. (Searching channels, Operating WISELINK, Plug & Play, etc.) ■ When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or restart your TV. ■ Check if the Anynet+ Function of Anynet+ device is set on. I want to start anynet+. ■ Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. ■ Press the tV button on the TV remote control to switch to TV. Then press the toolS button to show the Anynet+ menu and select a menu you want. I want to exit anynet+. ■ Select View tV in Anynet+ menu. ■ Press the SourCe button on the TV remote control and select a device other than Anynet+ devices. ■ Press any of P / and Pre-Ch such to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) the Configuring anynet+ connection message appears on the screen. ■ You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. ■ Use the remote control when the Anynet+ setting or switching to view mode is complete. the anynet+ device does not play. You cannot use the play function when Plug & Play is in progress. the connected device is not displayed. ■ Check whether or not the device supports Anynet+ functions. ■ Check whether or not the HDMI 1.3 cable is properly connected. ■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. ■ Search Anynet+ devices again. ■ You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions. ■ If it is terminated by an abnormal situation such as disconnecting the HDMI 1.3 cable or power cord or a power failure, please repeat the device scan. the tV programme cannot be recorded. Check whether the antenna jack on the recording device is properly connected. View tV Select Device  record  menu on Device  Device operation  receiver :off  Setup  tV P move enter return english -  teletext Feature most television stations provide written information services via teletext. the index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons. For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed. 1. tV (exit) Exit from the teletext display 2 6 (index) Used to display the index (contents) page at any time while you are viewing teletext. 3 8 (store) Used to store the teletext pages. 4 4 (size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again. 5 5 (reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again. 6 / (teletext on/mix) Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen. 7 1 (sub-page) Used to display the available sub-page. 8 2 (page up) Used to display the next teletext page. 9 3 (page down) Used to display the previous teletext page. 0 0 (mode) Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the 8(store) button. ! 9 (hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again. @ 7 (cancel) Used to display the broadcast when searching for a page. # Colour buttons (red/green/yellow/blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button. You can change teletext pages by pressing the numeric buttons on the remote control. ➣ ➣ 1 2 3 4 5 6 7 8 9 0 ! @ # english -  the teletext pages are organized according to six categories: Part Contents a b C D e F Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information. Teletext information is often divided between several pages displayed in sequence, which can be accessed by:   Entering the page number   Selecting a title in a list   Selecting a coloured heading (FASTEXT system) Press the tV button to exit from the teletext display. ➣ ➣ english -  troubleshooting: before Contacting Service Personnel No sound or picture Check that the mains lead has been connected to a wall socket. Check the picture contrast and brightness settings. Check the volume. ♦ ♦ ♦ Normal picture but no sound Check the volume. Check whether the mute button has been pressed on the remote control. Check if "TV Speaker" is "on" ♦ ♦ ♦ Screen is black and Logo light blinks steadily On your computer check; Power, Signal Cable. The TV is using its power management system. Move the computer’s mouse or press any key on the keyboard. ♦ ♦ ♦ No picture or black and white picture Adjust the colour settings. Check that the broadcast system selected is correct. ♦ ♦ Sound and picture interference Try to identify the electrical appliance that is affecting the set and move it further away. Plug your set into a different mains socket. ♦ ♦ Blurred or snowy picture, distorted sound Check the direction, location and connections of your aerial. This interference is often due to the use of an indoor aerial. ♦ Remote control malfunctions Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals. ♦ ♦ ♦ 'Check signal cable.' message is displayed Check that the signal cable is firmly connected to the PC or video sources. Check that the PC or video sources are turned on. ♦ ♦ On PC mode, 'Not Supported Mode.' message is displayed Check the maximum resolution and the frequency of the video adaptor. Compare these values with the data in the Display Modes. ♦ ♦ The damaged picture appears in the corner of the screen If "Just Scan" is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV. The 'Resets all settings to the default values.' message appears. This appears when you press and hold the eXIt button for a while. The product settings are reset to the factory defaults. The TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. english -  Technical and Environmental Specifications model name laa00 laa00 Screen Size (Diagonal) 46 inch 52 inch PC resolution 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz Sound Output 10W X 2 10W X 2 Dimensions (WxDxh) With stand 1157 x 382 x 761 mm 1300 x 382 x 854 mm Weight With stand 52kg 63Kg environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity 10 °C to 40 °C (50 °F to 104 °F) 10 % to 80 %, non-condensing -20 °C to 45 °C (-4 °F to 113 °F) 5 % to 95 %, non-condensing Stand Swivel (Left / Right) 0˚ Design and specifications are subject to change without prior notice. This device is a Class B digital apparatus. For the power supply and Power Consumption, refer to the label attached to the product. ➣ ➣ ➣ This page is intentionally left blank. This page is intentionally left blank. BN68-01625F-01 Contact SamSung WorlDWIDe If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Customer Care Centre Web Site AUSTRALIA 1300 362 603 www.samsung.com/au CHINA 800-810-5858 400-810-5858 010-6475 1880 www.samsung.com/cn HONG KONG:3698 - 4698 www.samsung.com/hk INDIA 3030 8282 1-800-3000-8282 1800 110011 www.samsung.com/in INDONESIA 0800-112-8888 www.samsung.com/id JAPAN 0120-327-527 www.samsung.com/jp MALAYSIA 1800-88-9999 www.samsung.com/my NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com/nz PHILIPPINES 1800-10-SAMSUNG(726-7864) www.samsung.com/ph SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com/sg THAILAND 1800-29-3232 02-689-3232 www.samsung.com/th TAIWAN 0800-329-999 www.samsung.com/tw VIETNAM 1 800 588 889 www.samsung.com/vn SOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.com/za U.A.E 800-SAMSUNG (726-7864) 8000-4726 www.samsung.com/ae
