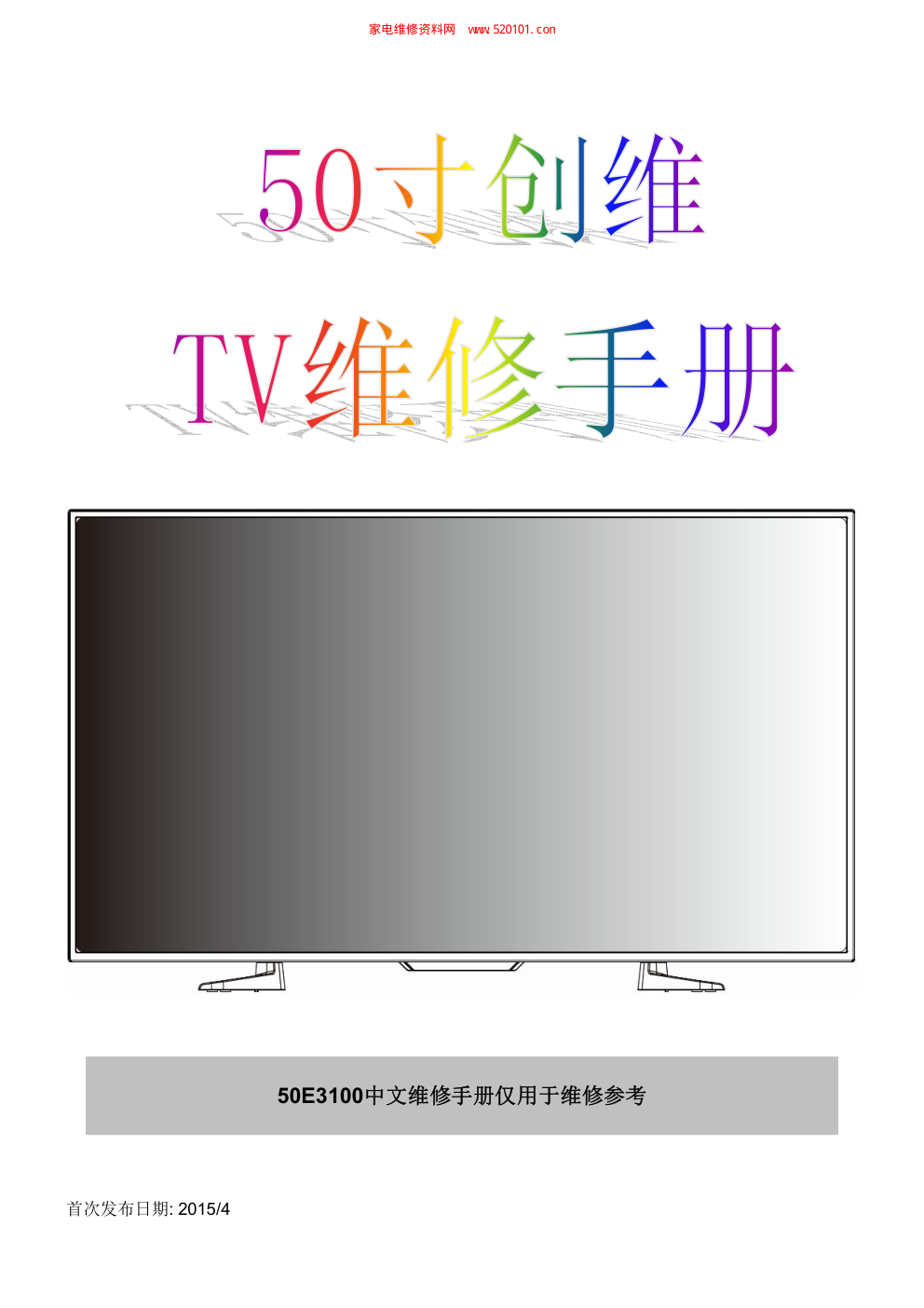

首次发布日期: 2015/4 50E3100中文维修手册仅用于维修参考 家电维修资料网 www. 520101. com 2 目录 1. 安全与注意事项……………..………………………………………………………………..... 3 1.1 安全注意点………………..……………………………………………………...………… 3 1.2 操作使用注意…………………..……………………………………...…………………… 3 1.3 存储注意事项…………………..……………………………………...…………………… 3 1.4 高压警告………………………..…………………………...……………………………… 3 2. 基本规格……………………..…………………………………………………………………. 4 3. 操作说明及调整…………………….………………………………………………………….. 5 3.1 遥控器说明……………………..……………...…………………………………………… 5 3.2 控制面板………………………..……………...…………………………………………… 7 3.3 后壳接口介绍…………………………..…...……………………………………………… 7 3.4 功能介绍…………………………..…………...…………………………………………… 8 4. 连接介绍………………………….…………………………………………………………….. 15 4.1 引脚介绍……………………….…………………...………………………………………. 15 5. 故障处理流程………………….……………………………………………………………….. 16 6. 拆卸流程图…………………….……………………………………………………………….. 21 7. 工厂模式调整.………………….………………………………………………………………. 24 8. 电路图…………………..……………………………………………………….…………….... 25 8.1 主板…………………………………………………………………….…………………… 25 8.2 电源板…………………………………………………………..…………………………... 33 8.3 遥控板…………………………………………………………...………………………….. 37 8.4 按键板……………………………………………………………….……………………… 38 9. BOM…………………………………………………………………….……………………… 39 家电维修资料网 www. 520101. com 3 1. 安全与注意事项 1.1 安装注意点 (1) 请不要用力压或擦、刮液晶表面，不要随意用手触摸显示器的表面。 (2) 当显示器表面被弄脏了，请用药棉或柔软的棉布轻轻擦拭。 (3) 当有水滴或其它带粘性污染屏幕时请立即擦拭，它可能造成显示器表面或显示器色彩的变化。 (4) 请不要使显示器受强烈的外力震动。 1.2 操作使用注意点 (1) 移动显示器之前请拔掉电源接线。 (2) 请不要改变主板的原先设置，如果被调整亮度不符合白平衡的规格。 (3) 请注意长时间的使用的辐射在常温比低温要大。 (4) 请注意在长时间显示同一个画面后关机原来的图像信息可能还保持在上面。 (5) 避免手机对TV影响，以免损坏TV。 1.3 存储注意事项 (1) 当你长时间存储时请保持在-20℃~+60℃之间，不要暴露在阳光下，湿度小于80％RH。 (2) 请不要将显示器放置在高湿度和高温环境下，例如温度：60℃，湿度：90%RH. (3) 请不要将显示器放置在低温环境下，例如低于-10℃以下。 1.4 高压警告 显示器高压是由电源升压板产生的，如果不注意接触到高压，可能被严重电击。 家电维修资料网 www. 520101. com 4 2. 基本规格 注：随着系统的不断完善与升级，实际显示和操作有可能会与说明书有细微差别。此现象属正常现象。 家电维修资料网 www. 520101. com 5 3. 操作说明及调整 3.1 遥控器说明 家电维修资料网 www. 520101. com 6 家电维修资料网 www. 520101. com 7 3.2 控制面板 说明： 下列示图只是方便你认识各个端子所在位置，并方便连接外部设备，由于产品的改进，可能与实际的标示 不一致，请以实物为准。 3.3 后壳接口介绍 家电维修资料网 www. 520101. com 8 3.4 功能介绍 若无特殊说明情况下，本说明书中描述的功能与菜单均指在信号源为TV 的状态下。 家电维修资料网 www. 520101. com 9 家电维修资料网 www. 520101. com 10 家电维修资料网 www. 520101. com 11 家电维修资料网 www. 520101. com 12 家电维修资料网 www. 520101. com 13 家电维修资料网 www. 520101. com 14 家电维修资料网 www. 520101. com 15 4. 连接介绍 4.1 引脚介绍 VGA 引脚号 功能描述 引脚号 功能描述 1. Red Video 9. No Pin! 2. Green Video 10. Sync Ground 3. Blue Video 11. RXD 4. TXD 12. Serial Data for DDC 5. Ground 13. H-Sync. 6. Red Ground 14. V-Sync. 7. Green Ground 15. Serial Clock for DDC 8. Blue Ground HDMI 引脚号 功能描述 引脚号 功能描述 1. TMDS Data2+ 11. TMDS Clock Shield 2. TMDS Data2 shield 12. TMDS Clock- 3. TDMS Data2- 13. CEC 4. TMDS Data1+ 14. Reserved (N.C. on device) 5. TMDS Data1 shield 15. SCL 6. TMDS Data1- 16. SDA 7. TMDS Data0+ 17. DDC/CEC Ground 8. TMDS Data0 shield 18. +5V Power 9. TMDS Data0- 19. Hot Plug Detect 10. TMDS Clock+ 家电维修资料网 www. 520101. com 16 5. 故障处理流程 无电（LED不亮） 检测电源板CN9101的PIN15/16是否有5V电压输出 无 有 更换电源板 检测IR板及LED灯 检测插座是否有电或硬开关是否打开 有 无 重插电源插座或开启硬开关 更换IR板 无法启动（LED灯红色） 检测电源板CN9101的PIN13/14是否有12V电压输出 有 无 更换电源板 检测按键板的POWER键是否失灵 是 更换按键板 否 检测IR板的红外接收器U201是否失灵 是 否 更换IR板 更换主板 家电维修资料网 www. 520101. com 17 彩条、水波纹、画抖、画闪、 鬼影、残影、拖影等干扰 检测信号源出 信号是否正常 重新设置 信号源 是 否 检测信号线 是否良好 更换信号线 画异 是 否 检测附近是否有干扰源 是 否 排除干扰源 先更换主板 检测是否OK 否 更换Panel TV画面雪花点、重 影、细线、条纹干扰 检测TV信号线 是否接触不良 是 否 重新连接 TV信号线 检测附近是否 有高频干扰源 是 否 排除干扰源 用场强仪检测信号强度 是否在45-100db之间， 65db左右为最佳值 是 否 更换主板 太弱：加装信号放大器 太强：减少信号放大器 或加装信号衰减器 间歇性画异加温 画异冷开机画异 检测软体版本是 否需要更新 是 否 升级软体 否 取回站内 加温检测 先更换主板 检测是否OK 家电维修资料网 www. 520101. com 18 无声或声音异常 检测信号源音频接口是否正确，或TV制式是否为DK制 是 否 重插音频接口或设置TV制式 检测TV是否被静音，调整音量大小， 或进入菜单进行复位看是否OK 否 检测主板到喇叭的连接线是否断路 是 否 更换连接线 检测喇叭阻抗是否变质 (喇叭阻抗值标在喇叭上) 是 否 更换喇叭 更换主板 收不到台或收台不全 检测软体版本是否需要更新 升级软体 是 否 用场强仪检测信号强度是否在45- 100db之间，65db左右为最佳值 是 否 用别的TV测试是否能收到此台 太弱:加装信号放大器 太强:减少信号放大器或加装信号衰减器 和客户说明当地TV信号未转播此台 检测此频道是否发生频 偏，尤其是使用卫星信号 是 否 是 否 建议客户重新 设置信号源 更换主板 家电维修资料网 www. 520101. com 19 异响 喇叭异响 （破音，滋滋声） 电源板，PANEL异响 检测喇叭是否变质 更换喇叭 主板功放异常 更换主板 是 否 更换电源板/PANEL 遥控失灵 检查遥控器电池是否未安置好或没电 重新安置或更换电池 用别的遥控器测试是否可用 是 否 是 否 更换遥控器 检测IR板是否异常 是 否 更换IR板 更换主板 家电维修资料网 www. 520101. com 20 OSD不稳定或无法正常工作 按键板连接正常吗？ 接好按键板 按键正常吗？ 更换按键 是 否 G 按键板有无故障？ 更换按键板 检查主板 否 G 是 否 G 是 家电维修资料网 www. 520101. com 21 6. 拆卸流程图 步骤 图片 描述 准备 把 LCD- TV 平放 在干净的 柔软的平 面上 拆底座 旋开红色 标志的螺 丝，去底 座。 拆后盖 旋开红色 标志的螺 丝，去后 盖。 家电维修资料网 www. 520101. com 22 拆主 板，电 源板 撕开蓝色 方框标记 的白胶布 和铝箔， 拔掉红色 方框标记 的接头， 旋开红色 圆圈标志 的螺丝， 拆主板， 电源板。 拆支撑 组件 旋开红色 圆圈标志 的螺丝， 拆支撑组 件。 拆喇叭 组件 旋开红色 标志的螺 丝，拆喇 叭组件。 家电维修资料网 www. 520101. com 23 取 panel 家电维修资料网 www. 520101. com 24 7. 工厂模式调整 此机种需要做Auto Color，白平衡免调。 Auto Color调整如下： 1. 进入工厂模式 按“菜单+1999+->回看（返回）”或者“菜单+1999+OK”。 2. ADC调整方法 第一步：进入工厂模式。 第二步：用遥控选择“Current Source”。 第三步：设置Timing和Source模式。 第四步：选择“Auto Color”。 3. 设置Timing和Source模式 请做VGA和YPbPr 的Auto white100%。 Timing和模式选择：YPbPr:Timing 311； pattern 185 YPbPr:Timing 314；pattern 185 VGA: Timing 137； pattern 42 家电维修资料网 www. 520101. com 8. 电路图 8.1 主板 715G7061M01001004T R743 10K 1/16W 5% 2.04A R1 R2 Vout=0.6(1+R1/R2)=1.1V CORE POWER 1.266V Power saving:1.17 Max 1.20 Power On:1.14 Max 1.16 PW_CTL R761 NC/10K R716 4K7 1/16W 5% C713 10uF 16V U707 SY8003ADFC NC 5 FB 1 PG 2 IN 3 PGND 4 LX 6 EN 7 SGND 8 PGND 9 R733 100K1/16W R727 4K7 1/16W 5% R728 10K CN701 CONN 2 4 6 8 10 12 1 3 5 7 9 11 C728 22UF 20% 6.3V Q706 MMBT3904 R726 100K 1% C712 1UF16V C725 1UF 10% 16V R742 0R05 1/16W R711 100K 1/16W P24V C704 22pF 50V R718 2.2R C730 22P 50V Q702 MMBT3904 R720 100K 1/16W R703 NC/10K L702 4.7uH R729 47K R712 1K FB703 300R 4A 1 2 R704 1K C727 22UF 20% 6.3V R741 10K R730 100K 1/16W Q705 MMBT3904 t TH701 PTCR 1 2 C726 0.1uF 50V C714 100NF 16V R715 0R05 1/10W R719 2K2 +-1% 1/16W R722 10K 1/16W 5% R709 1K Q704 MMBT3904 R721 1KOHM +-1% 1/16W C711 10UF 10V L703 2.2uH R734 62K 1/16W 1% R707 NC 4K7 1/16W 5% FB702 NC/300R 4A 1 2 R706 NC/10K U703 AZ1084D-ADJTRE1 VOUT 2 VIN 3 GND 1 C723 10UF 6.3V U706 SY8104ADC LX 5 FB 1 EN 2 GND 3 IN 4 BS 6 C721 10UF 10V R723 4K7 1/16W 5% C717 22UF 6.3V U702 AZ1117D VI 3 VO 2 GND 1 NC/4.7UF 10V C706 C715 NC/1UF 16V C724 100NF 16V R740 0R051/8W Q707 MMBT3904 C719 22UF 6.3V Q703 NC MMBT3904 R732 0R05 1/16W C716 10UF 10V C718 10UF 10V R714 10K 1/16W 5% R724 100K 1% C702 NC/10N 50V R725 13.3K 1% R702 1K R762 100OHM1/16W Q708 AO3401A R701 100R 1/16W 1% R713 10K 1/16W 5% R710 0R05 1/16W +5V_Standby +5V_Standby +5V_Normal +5V_Normal +5V_Normal +5V_Normal +5V_Normal +5V_Normal +3.3V_Standby +5V_Normal USB_5V +5V_Standby +3.3V_Standby +5V_Standby P12V P24V DGND DGND DGND DGND DGND +5V_Standby +5V_Standby DGND DGND DGND DGND DGND DGND DGND +5V_Standby VBL_CTRL 2 BRI_ADJ-PWM0 2,3 BL_PWM NORMAL_PWR-ON_OFF 7 P12V C720 22UF 16V P12V PW_CTL P12V R735 4K7 1/16W 5% BL_EN VBL_CTRL PS_ON +3.3V_Standby BL_PWM 3.3A Vout = 0.6x(1+100/13.3)=5.11V C722 22UF 16V BL_EN BL_PWM PS_ON R731 82K 1/16WR717 8.2K 1% DDR_Power VCC1.15V P12V 家电维修资料网 www. 520101. com 26 HDMI1-SCL HDMI1-SDA HDMI1-HPDIN HDMI1-CLKN HDMI1-RX1P HDMI1-RX2N HDMI1-RX1N HDMI1-RX2P HDMI1-RX0N HDMI1-RX0P HDMI1-CLKP HDMI-CEC HDMI-CEC 7 HDMI1-RX0P 7 HDMI1-RX0N 7 HDMI1-RX1P 7 HDMI1-RX1N 7 HDMI1-RX2P 7 HDMI1-RX2N 7 HDMI1-CLKP 7 SPDIF_OUT 5 HDMI1-CLKN 7 HDMI1-HPDIN 7 HDMI1-SCL 7 HDMI1-SDA 7 HDMI0-ARC 7 XTALO R427 0R05 OHM X401 24MHz 1 2 C430 27PF 50V R428 1M 1/16W C425 27PF 50V XTALI System XTAL VGA-AUR1 6 VGA-AUL1 6 +3.3V_Standby Y+ 4 C405 1UF 6.3V R401 0R05 OHM AVDD_MOD +3.3V_Standby AVDD_MOD1 FB416 0 1 2 VBL_CTRL 8 FB415 0 1 2 C461 10UF 6.3V 20% C465 100N 16V C462 100N 16V C464 100N 16V C463 100N 16V AV1_AUR4 4 AV1_AUL4 4 SERIAL FLASH AV-AUOUTL3 AV-AUOUTR3 AMP-AUOUTL0 AUVRM AMP-AUOUTR0 RXE3+ RXE3- RXEC- RXEC+ IFAGC VIFP VIFM XTALO XTALI MI2C-SDA MI2C-SCL AVDD_DMPLL VDDC AVDD_DDR_CMD AVDD_DADC AVDD_MOD USB0_DM USB0_DP VDDC R431 4.7K1/16W R406 10K+-5%1/16W R407 100OHM1/16W Sy stem-RST D401 BAV99 3 1 2 R408 4.7K 1/16W C404 1NF 50V H/W Reset C402 10UF 6.3V 20% Q402 MMBT3906 R409 47K 1/16W C403 10UF 6.3V 20% C415 1N 50V R429 200K R426 0R05 OHM CVBS_OUT0 4 GPIO46 C448 100N 16V VDDC VCC1.15V RXO3+ 3 RXO3- 3 AVDDL_DVI RXO2- 3 RXO2+ 3 C453 100N 16V RXO1- 3 RXO0+ 3 RXO1+ 3 RXO0- 3 C449 100N 16V RXO1+ RXO0- RXO2- Core Power 1.15V C451 100N 16V RXO3+ RXO2+ RXO3- RXO0+ RXO1- C452 100N 16V C443 100N 16V +3.3V_Standby C439 10UF 6.3V 20% FB411 0 1 2 GPIO5 AMP_AUOUTR0 5 +3.3V_Standby NORMAL_PWR-ON_OFF 1 GPIO4 SPI_DI RXE1- RXE1+ RXE2- RXE0+ RXE0- GPIO4 GPIO5 RXE2+ SPI_DO SPDIF_OUT RXO1+ RXO0- RXO1- RXO0+ RXO2+ RXO2- VDDC Sy stem-RST PWM1 BRI_ADJ-PWM0 IRIN SPI_CS0N NORMAL_PWR-ON_OFF SPI_WP0N RXO3- RXO3+ UART-TX AVDD_MOD UART-RX PANEL_ON_OFF HDMI0-SCL HDMI0-SDA KEY1-SAR1 KEY0-SAR0 SPI_CLK VDDC CHIP_CONFIG DVDD_DDR IRIN 7 IRIN LEDR 5 AUL3 AUR3 AUL0 AUR0 AVDD_DADC +3.3V_Standby FB418 0 1 2 +3.3V_Standby AVDD_DMPLL C466 100N 16V FB417 0 1 2 C467 100N 16V AVDD_DDR_CMD DDR_Power C457 1UF 10% 16V C456 10UF 6.3V 20% C458 1UF 6.3V FB413 0R05 1/10W AMP_AUOUTL0 5 IC DDR DATA power 143 independence VGA_HS 6 VGA_VS 6 VGA_RIN 6 VGA_BIN 6 VGA_GIN 6 VCC1.15V AV-AUOUTR3 DVDD_DDR FB412 0 1 2 C455 100N 16V C454 10UF 6.3V 20% {PWM1, PWM0} 0,0 / 0,1/1,0 Boot from SPI KEY 0-SAR0 KEY 1-SAR1 +3.3V_Standby AVDD_AU33 KEY0-SAR0 9 KEY1-SAR1 9 C468 100N 16V FB419 0 1 2 HDMI0-RX2N HDMI0-RX2P HDMI1-CLKN HDMI1-CLKP R418 200K C410 47nF 16V R415 180R 1/16W 5% HDMI0-RX1P HDMI0-RX1N HDMI0-CLKN HDMI0-RX0P HDMI0-RX0N C406 1N 50V HDMI0-CLKP ARC R416 0R05 OHM HDMI1-HPDIN HDMI0-HPDIN HDMI-CEC AVDD_DDR_CMD DVDD_DDR AVDD_DDR_DATA AVDD_MOD1 HDMI1-SCL HDMI1-SDA AVDDL_DVI AVDD_DDR_DATA DDR_Power FB414 0R05 1/10W R434 4.7K1/16W C459 1UF 10% 16V C460 10UF 6.3V 20% AUDIO_EN 8 GPIO46 AUDIO_EN BRI_ADJ-PWM0 PWM1 MI2C-SCL MI2C-SDA FLASH_WP0N R435 4K7 1/16W 5% R436 10K C436 22PF 50V R445 1K R448 51R C435 100N 16V U402 MX25L6406EM21-12G CS# 1 SO/SIO1 2 WP# 3 GND 4 SI/SIO0 5 SCLK 6 HOLD# 7 VCC 8 C434 100N 16V DGND DGND SERIAL FLASH WP active low close to IC SPI_DI SPI_CS0N SPI_CLK SPI_DO SPI_WP0N HDMI0-HPDIN HDMI0-SDA HDMI0-SCL HDMI0-CLKN HDMI0-RX1P HDMI0-RX2N HDMI0-RX1N HDMI0-RX2P HDMI0-RX0N HDMI0-RX0P HDMI0-CLKP HDMI0-RX0P 7 HDMI0-RX0N 7 HDMI0-RX1P 7 HDMI0-RX1N 7 HDMI0-RX2P 7 HDMI0-RX2N 7 HDMI0-CLKP 7 HDMI0-CLKN 7 HDMI0-HPDIN 7 HDMI0-SCL 7 HDMI0-SDA 7 AUR3 AUL3 BIN0 VGA_VS AVDD_MOD VIFP 10 VIFM 10 VGA_HS GIN0P GIN0M RIN0 RIN2 IC DDR CMD 59+ DDR power 144 BIN2 GIN2M GIN2P VCOM0 CVBS_OUT0 UART-TX AUR0 AUL0 AUVAG CVBS0P AVDD_AU33 UART-RX 6 UART-TX 6 HDMI1-RX1P HDMI1-RX2N HDMI1-RX1N UART-RX R422 4.7K1/16W HDMI1-RX2P HDMI1-RX0N HDMI1-RX0P +5V_Standby R421 4.7K1/16W AVDD3P3_ADC +3.3V_Standby C469 100N 16V FB420 0 1 2 LEDG 5 R423 0R05 OHM R425 200K C409 1N 50V VIFM VIFP ARC IFAGC SPDIF_OUT Normal Power 3.3V AMP-AUOUTR0 L402 1000 OHM 1 2 RXEC- 3 RXEC+ 3 RXE3- 3 RXE3+ 3 RXE1- 3 RXE2+ 3 RXE2- 3 RXE0- 3 RXE1+ 3 RXE0+ 3 RXE0- RXE1- RXE1+ RXE2+ RXE0+ RXE2- RXE3+ RXEC+ RXE3- RXEC- R410 68OHM 1/16W C407 47nF 16V R405 100OHM1/16W NORMAL_PWR-ON_OFF BRI_ADJ-PWM0 9 PANEL_ON_OFF 9 AVDD3P3_ADC PANEL_ON_OFF R404 100OHM1/16W TUNER_SDA TUNER_SCL BRI_ADJ-PWM0 AV1-CVBS0P 4 VCOM0 USB0_DP USB0_DM USB0_DP 6 USB0_DM 6 R402 4.7K 1/16W CVBS0P SPDIF_OUT 5 R411 68OHM 1/16W TUNER_SCL 10 PWM1 Pb+ 4 Pr+ 4 AV-AUOUTL3 SPDIF_OUT L403 1000 OHM 1 2 GIN0M MSD8314Z1(2) U401 MSD8314Z2-XZ B_ODD[0]/LVA3+ 61 BIN1P 23 GIN1M 25 GIN1P 24 CVBS0 27 AUL0 32 GIN0P 18 XOUT 49 XIN 48 AVDD3P3_DMPLL 47 AVDD_MOD 7 RIN1P 26 G_ODD[3]/LVB3- 72 B_ODD[1]/LVA3- 62 PWM0 86 GIN0M 19 AVDD_MOD 79 GPIO46/I2S_OUT_WS 53 B_ODD[4]/LVA2+ 65 B_ODD[5]/LVA2- 66 B_ODD[6]/LVA1+ 67 B_ODD[7]/LVA1- 68 G_ODD[0]/LVA0+ 69 G_ODD[6]/LVB1+ 75 B_ODD[3]/LVACLK- 64 SPI_DI 91 SPI_CZ 94 SAR0 101 LINEOUTR3 40 LINEOUTL0 41 LINEOUTL3 39 IFAGC 43 LINEOUTR0 42 VIFP 44 RX1N_B 3 RX1P_B 4 RX2N_B 5 RX2P_B 6 RXCN_A 8 RXCP_A 9 RX0N_A 10 RX0P_A 11 RX1N_A 12 RX1P_A 13 RX2N_A 14 RX2P_A 15 HSYNC0 16 BIN0P 17 RIN0P 20 AUVRM 34 AVDD3P3_ADC 22 VCOM 28 CVBS_OUT1 29 AVDD_AU33 30 AUL4 35 AUR4 36 AUL5 37 AUR5 38 VIFM 45 VDDC 55 GPIO44/TX1 51 GPIO45/RX1 52 VDDIO_CMD 54 B_ODD[2]/LVACLK+ 63 G_ODD[1]/LVA0- 70 G_ODD[2]/LVB3+ 71 G_ODD[4]/LVB2+ 73 G_ODD[7]/LVB1- 76 R_ODD[0]/LVB0+ 77 R_ODD[1]/LVB0- 78 G_ODD[5]/LVB2- 74 I2S_OUT_SD/GPIO2 83 GPIO1 84 GPIO3 82 I2S_OUT_MCK/GPIO5 80 I2S_OUT_BCK/GPIO4 81 HOTPLUG_A 114 DDCA_DA 95 MHL_VBUS/PWM1 87 SPDIF_OUT/GPIO0 85 SAR1 102 VSYNC0 21 AUR0 31 VAG 33 VDDC 50 DDCA_CK 96 MHL_DET 97 CEC 111 IRIN 88 DM_P0 59 DP_P0 60 RESET 89 DP_P1 58 DM_P1 57 GND 116 AVDD_5V 115 HOTPLUG_B 113 DDCDB_CL 108 DDCDB_DA 107 DDCDA_DA 109 DDCDA_CL 110 VDDC 100 RX0P_B 2 RX0N_B 1 E-PAD 129 ARC 117 AVDD3P3_DADC 46 AVDD_MOD 56 VDDC 90 SPI_CLK 92 SPI_DO 93 DVDD_DDR_DATA 103 AVDD_MOD 104 VDDIO_DATA 105 VDDIO_DRAM 106 DDCDD_CL 99 DDCDD_DA 98 HOTPLUG_D 112 RXCP_D 120 RXCN_D 119 RX0N_D 121 RX0P_D 122 RX1N_D 123 RX1P_D 124 RX2N_D 125 RX2P_D 126 AVDDL_DVI_VDDC 118 RXCN_B 127 RXCP_B 128 VGA_HS VGA_VS +3.3V_Standby CVBS_OUT0 C408 47nF 16V GIN2M AMP-AUOUTL0 R432 0R05 OHM R433 200K C416 1N 50V DDR Power BIN0 RIN0 RIN2 BIN2 FB402 300R 1 2 IFAGC 10 TUNER_SDA 10 GIN2P GIN0P AUVRM C412 100N 16V C413 10UF 6.3V 20% Audio FB403 60 OHM 1 2 AUVAG Close to IC with width trace R403 4.7K 1/16W 家电维修资料网 www. 520101. com 27 BL_PWM BL_PWM RXEC- RXE1- DGND R447 NC/0R05 OHM RXE2- RXE0- RXO1- R450 0R05 OHM RXO2- RXO0- SELLVDS R453 NC/4.7K R452 NC/4.7K RXO3- RXO3+ +3.3V_Standby RXE3- RXE3+ PANEL_VCC DGND CN403 CONN 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 RXEC1- RXEC1+ RXEC+ DGND RXE0+ RXE1+ R451 0R05 OHM RXE2+ RXO0+ RXO1+ RXO2+ R439 100K 1/16W C401 100N 50V R441 100K 1/16W 5% Q401 AO3407A R437 0oHM R443 10K 1/16W 5% R473 10K R442 4K7 1/16W 5% R440 2Kohm 1/4W +/-5% R438 NC/0oHM C437 100NF 16V P12V PANEL_VCC +5V_Standby Q403 MMBT3904 DGND DGND DGND RXO3- 2 RXO0+ 2 RXO0- 2 RXE2- 2 RXO2+ 2 RXE2+ 2 RXO1- 2 RXO3+ 2 RXE3+ 2 RXE3- 2 RXE0+ 2 RXO1+ 2 RXE1- 2 RXEC+ 2 RXEC- 2 RXE1+ 2 RXE0- 2 RXO2- 2 BL_PWM 1 PANEL_ON_OFF 2 RXO2+ RXEC- RXE2+ RXO3+ RXE1- RXE3- RXO3- RXE2- RXO1- RXEC+ RXE0- RXO0+ RXO1+ RXE3+ RXO2- RXO0- RXE0+ RXE1+ Panel Power + C438 NC/100UF 16V 家电维修资料网 www. 520101. com 28 C146 47nF 16V VGA_SDA VGA_VSY NC VGA_HSY NC VGA_SCL VGA-AUL1 R111 33 OHM 1/16W VGA_SDA Y 1 AVR1_IN_R1 AV1_IN_L1 AV1 IN VGA-AUR1 PR1 PB1 YPBPR Video/AV2 IN ZD20/ZD21 new component for 0.5 Cp Placement Near connect. 0.5pF C Placement Near IC CVBS_OUT1 Gain=1+ (Rf/Rg) C121 47nF 16V Rg 2Vp-p CVBS Out Rf CVBS_OUT VGA_R R147 75OHM 1/16W VGA_HSY NC VGA_VSY NC Close to MST IC USB IN USB0_DM USB0_DP VGA_G Pr+ Y+ Pb+ VGA IN Placement Near RCA. C126 22pF 50V AV1_AUR4 Close IC side Close IC side C103 NC/100N 16V ZD115 NC/MLVG0402 1 2 CN105 CONN 1 7 2 8 3 9 4 10 5 11 12 13 14 15 17 16 6 VGA_SCL A B C CN102 RCA JACK 2 1 4 3 5 6 CN103 CONN 3 1 2 ZD101 NC/MLVG0402 1 2 ZD119 NC/MLVG0402 1 2 ZD105 NC/MLVG0402 1 2 Q101 NC/MMBT3904 470pF 50V C119 R122 33R 1/16W 5% R132 100OHM R134 100OHM R115 NC/75 OHM ZD108 NC/MLVG0402 1 2 R148 150 OHM 1 2 3 4 CN106 USB CONN 1 2 3 4 6 5 470pF 50V C118 Q102 NC/MMBT3906 C112 2.2UF 10V R118 12K 1/16W ZD114 NC/MLVG0402 1 2 R114 NC/33K 1/16W 5% A B C CN107 RCA JACK 2 1 4 3 5 6 ZD120 NC/MLVG0402 1 2 R149 0R05 OHM R125 75 OHM +-1% 1/10W C122 47nF 16V R121 10K 1/16W 5% C111 2.2UF 10V R130 75 OHM +-1% 1/10W R104 33 OHM 1/16W R136 10K 1/16W 5% R105 NC/47K C104 NC/1uF 10V R139 4.99ohm 1/16W +/-1% R110 75 OHM R108 75 OHM ZD103 NC/MLVG0402 1 2 C106 47nF 16V R107 75 OHM R128 75 OHM +-1% 1/10W C109 NC/10UF 10V R109 75 OHM A B CN104 RCA JACK 2 1 4 3 R106 33 OHM 1/16W ZD121 NC/MLVG0402 1 2 R112 NC/75 OHM R119 12K 1/16W C117 47nF 16V 330pF 50V C114 C120 47nF 16V ZD106 NC/MLVG0402 1 2 R123 12K 1/16W R116 10K 1/16W 5% C115 2.2UF 10V 330pF 50V C113 ZD107 NC/MLVG0402 1 2 R135 33R 1/16W 5% R129 33R 1/16W 5% C116 2.2UF 10V ZD109 NC/MLVG0402 1 2 R126 33R 1/16W 5% R138 4.99ohm 1/16W +/-1% R120 10K 1/16W 5% ZD102 NC/MLVG0402 1 2 ZD113 NC/MLVG0402 1 2 R103 ％ NC/220 OHM +-5 1/16W ZD104 NC/MLVG0402 1 2 R124 12K 1/16W FB102 NC/300R 1 2 R137 10K 1/16W 5% ZD111 NC/MLVG0402 1 2 R133 33R 1/16W 5% R141 75 OHM C147 47nF 16V R117 10K 1/16W 5% ZD112 NC/MLVG0402 1 2 AGND AGND AGND AGND ZD110 NC/MLVG0402 1 2 AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND DGND DGND DGND DGND USB_Shield_GND USB_Shield_GND USB_Shield_GND USB_5V DGND AGND DGND AGND AGND +5V_Normal 0402 AGND AGND AV1_AUR4 2 AV1_AUL4 2 088G353GFF1ACL Y + 2 Pr+ 2 0402 AV1_AUL4 Pb+ 2 VGA_HS 2 VGA_VS 2 VGA_RIN 2 VGA_GIN 2 VGA_BIN 2 USB0_DP 2 USB0_DM 2 UART-TX 2,9 0603 0402 0402 UART-RX 2,9 CVBS_OUT0 2 AV1-CVBS0P 2 VGA-AUL1 2 VGA-AUR1 2 0603 0603 CVBS_OUT AV2/YPbPr/PC AUDIO IN SPDIF_OUT 4 R207 NC/240 OHM +-5% 1/16W 0402 VGA_HS VGA_VS Close to MST IC C145 100N 16V AV1-CVBS0P SPDIF Out R207=240 R110=0 R112=0 R115=75 VGA_B 家电维修资料网 www. 520101. com 29 HOTPLUG1 AC off EDID solution without EEPROM HDMI1_DDC_SCL# (180 degree connector) DGND HDMI-ARC HDMI1_D2+ HDMI1_D0+ HDMI1_D2- HDMI1_CLK- HDMI1_CLK+ HDMI1_D1- HDMI1_D0- HDMI0_D2+ DGND DGND HDMI1_D1+ HDMI0_DDC_SCL HDMI0_DDC_SDA# HDMI0_DDC_SDA U501 AOZ8804DI CH1 1 CH2 2 VN 3 CH3 4 CH4 5 NC 6 NC 7 VN 8 NC 9 NC 10 HDMI0_D2- HDMI0_D1+ HDMI1_D1+ HDMI1_D2+ HDMI1_D2- HDMI1_D1- HDMI1_D0- HDMI1_D0+ HDMI-CEC U502 AOZ8804DI CH1 1 CH2 2 VN 3 CH3 4 CH4 5 NC 6 NC 7 VN 8 NC 9 NC 10 HDMI1_DDC_SDA# HDMI1_DDC_SCL# HDMI1_DDC_SCL HDMI1_DDC_SDA HDMI0_D0+ HDMI0_D1- U503 AOZ8804DI CH1 1 CH2 2 VN 3 CH3 4 CH4 5 NC 6 NC 7 VN 8 NC 9 NC 10 U504 AOZ8804DI CH1 1 CH2 2 VN 3 CH3 4 CH4 5 NC 6 NC 7 VN 8 NC 9 NC 10 HDMI1_D1+ HDMI1_D0- HDMI1_D0+ HDMI1_D2- HDMI1_DDC_SDA HDMI1_DDC_SCL HDMI1_CLK- HDMI1_CLK+ HDMI1_D1- HDMI1_D2+ HOTPLUG1 HDMI0_CLK+ HDMI0_D0- HDMI0_DDC_SDA HDMI0_DDC_SCL HDMI0_D2+ HDMI0_D1+ HDMI0_D0- HDMI0_D0+ HDMI0_D2- HOTPLUG0 HDMI-CEC HDMI0_CLK- HDMI0_CLK+ HDMI0_D1- HDMI0_D1+ HDMI0_D2- HDMI0_D1- HDMI0_D2+ HDMI0_D0- HDMI0_D0+ HDMI0_CLK+ HDMI0_CLK- From Main Chip HDMI0_D2- HDMI0_D1- HDMI0_D2+ HDMI0_D1+ HDMI1_CON5V HDMI_CEC1 HDMI_CEC1 HOTPLUG0 AC off EDID solution without EEPROM HDMI0_DDC_SCL# HDMI0_CON5V HDMI0_DDC_SCL# HDMI0_CLK- HDMI1_CLK+ HDMI1_CLK- HDMI0_DDC_SDA# HDMI0_CLK- HDMI0_CLK+ HDMI0_D0- HDMI0_D0+ HDMI1_D1- HDMI1_D1+ HDMI1_D2+ HDMI1_D2- HDMI1_CLK+ HDMI1_CLK- HDMI1_D0- HDMI1_D0+ R501 100OHM1/16W R526 4.99R 1/16W R508 47K R510 100OHM1/16W R527 4.99R 1/16W R531 200OHM1/16W Q503 MMBT3904 R507 10K 1/16W 5% R528 4.99R 1/16W R514 100OHM1/16W ZD501 MLVG0402 1 2 R512 47K R503 1K 1/10W R505 1K 1/10W R529 4.99R 1/16W R506 10K 1/16W 5% ZD504 MLVG0402 1 2 R513 100OHM1/16W ZD506 MLVG0402 1 2 ZD507 MLVG0402 1 2 CN501 HDMI 19P SHELL1 20 SHELL2 21 D2+ 1 D2 Shield 2 D2- 3 D1+ 4 D1 Shield 5 D1- 6 D0+ 7 D0 Shield 8 D0- 9 CK+ 10 CK Shield 11 CK- 12 CE Remote 13 NC 14 DDC CLK 15 DDC DATA 16 GND 17 +5V 18 HP DET 19 SHELL4 23 SHELL3 22 HDMI-ARC R509 47K R502 47K CN502 HDMI 19P SHELL1 20 SHELL2 21 D2+ 1 D2 Shield 2 D2- 3 D1+ 4 D1 Shield 5 D1- 6 D0+ 7 D0 Shield 8 D0- 9 CK+ 10 CK Shield 11 CK- 12 CE Remote 13 NC 14 DDC CLK 15 DDC DATA 16 GND 17 +5V 18 HP DET 19 SHELL4 23 SHELL3 22 R523 4.99R 1/16W R530 4.99R 1/16W ZD505 MLVG0402 1 2 Q502 MMBT3904 R516 4.99R 1/16W R517 4.99R 1/16W ZD502 MLVG0402 1 2 R515 4.99R 1/16W DGND R524 4.99R 1/16W R518 4.99R 1/16W ZD503 MLVG0402 1 2 R519 4.99R 1/16W R520 4.99R 1/16W R511 47K R525 4.99R 1/16W R521 4.99R 1/16W R504 47K R522 4.99R 1/16W DGND DGND DGND DGND DGND DGND DGND DGND DGND DGND HDMI1_CON5V HDMI0_CON5V DGND DGND DGND DGND DGND HDMI0-RX2N 2 HDMI0-RX2P 2 HDMI0-HPDIN 2 HDMI0-RX0P 2 HDMI0-RX1N 2 HDMI0-RX1P 2 HDMI0-SCL 2 HDMI0-CLKN 2 HDMI0-CLKP 2 HDMI0-RX0N 2 HDMI1-SDA 2 HDMI-CEC 2 HDMI0-SDA 2 HDMI1-RX0N 2 HDMI1-RX0P 2 HDMI1-RX1N 2 HDMI1-CLKN 2 HDMI1-RX2P 2 HDMI1-CLKP 2 DGND HDMI1-SCL 2 HDMI1-RX2N 2 HDMI1-HPDIN 2 DGND HDMI0-ARC 2 HDMI1-RX1P 2 HDMI1_DDC_SDA# DGND DGND HDMI_CEC1 家电维修资料网 www. 520101. com 30 22NF 25V C140 C135 56pF 50V C132 4.7nF 1KV C732 NC/10PF 50V C134 100N 16V C143 NC/22PF 50V C137 100N 16V R131 1.8KOHM 5% 1/16W C123 100N 16V C124 4.7nF 1KV C107 330PF 50V C131 4.7nF 1KV Silicon Tuner R102 10K C127 4.7nF 1KV L105 180nH C108 100N 16V C110 4.7nF 1KV C129 4.7nF 1KV C105 100N 16V C125 4.7nF 1KV C138 4.7nF 1KV R146 0R05 OHM R144 10K C101 4700P 50V X101 16MHz 1 2 C142 10UF 6.3V 20% L107 1000R 1 2 C130 10UF 6.3V 20% C141 100NF 16V C136 56pF 50V U101 VIN 3 VOUT 2 GND 1 4 4 C128 1UF 10V C144 NC/22PF 50V L109 1000R 1 2 C102 100N 16V R145 0R05 OHM U102 R840 RFIN2 2 TF1 3 TF2 4 DECT1 5 SCL 6 SDA 7 AVDD 8 AVDD 18 VOP 17 VON 16 VAGC 15 DVSS 10 CP 9 RFIN 1 AVDD 24 TFH 23 TFL 22 GPIO 21 VBG 20 DET2 19 GND 25 DVDD 11 XTAL_I 12 VAGC2 14 XTAL_O 13 R101 10K+-5%1/16W L106 1000R 1 2 R140 470 OHM 1/16W FB101 1000OHM 1 2 RF CONN CN101 1 2 3 4 5 C133 4.7nF 1KV L108 68nH VDD3V DGND DGND DGND +5V_Normal AGND AGND DGND DGND AGND +3.3V_Standby RFGND AGND RFGND VIFP 2 VIFM 2 TUNER_SCL 2 TUNER_SDA 2 TUNER_SDA 2 TUNER_SCL 2 IFAGC 2 TUNER_SCL IFAGC C148 6.8nF 50V C150 22N 25V D101 BAV99 3 1 2 Tuner Power 3.3V_TUNER 300mA RF_IN C149 100N 16V IF_AGC R113 ％ 220 OHM +-5 1/16W R127 ％ 220 OHM +-5 1/16W C151 1.8pF 50V L114 3.3nH L115 2nH L110 1.8nH C152 1.8pF 50V close Tuner L need Q>15 IF_AGC Control Circuit To tuner Close to Tuner IF_AGC trace shielding by GND IF_AGC from IC C153 4700P 50V Close to Main chip 1K_100MHz/400_400MHz TUN_IF+ TUN_IF- R142 1 OHM TUN_I2C_SCL TUN_I2C_SDA TUN_IF+ TUN_IF- Main Chip <--> I2C for Tuner Close to Main chip C139 100N 16V R143 0R05 OHM AIF+ AIF- IF_AGC VDD3V VDD3V T_SCL VDD3V AIF+ AIF- VDD3V for GPIO purpose. R22=10kR for GPIO. R22=NC if no need this option. close to D403(BAV99) RF_IN TUNER_SCL T_SDA TUNER_SDA C731 NC/10PF 50V TUNER_SDA BPF_IN 家电维修资料网 www. 520101. com 31 AV_L_OUT# AV_R_OUT# PGND R+ AMP_MUTE POP PGND PGND AMP_MUTE C636 NC/220N 25V R630 4K7 1/16W 5% R612 10K 1/16W 5% C628 NC/220N 25V R623 10OHM1/16W PGND C620 NC/220N 25V R616 10OHM1/16W C627 NC/1UF 10% 16V R629 10K 1/16W 5% CN601 CONN 1 2 3 4 5 6 U601 AD52580 SDZ 1 FAULTZ 2 LINP 3 LINN 4 GAIN0 5 GAIN1 6 NC 7 AGND 8 GVDD 9 PLIMIT 10 RINN 11 RINP 12 NC 13 PBTL 14 PVCCL 28 PVCCL 27 NC 26 OUTPL 25 PGND 24 OUTNL 23 NC 22 NC 21 OUTNR 20 PGND 19 OUTPR 18 NC 17 PVCC 16 PVCC 15 Thermal Pad 29 C613 100N 50V C630 330pF 50V C619 1NF 50V R620 NC/10 OHM 1/4W R618 NC/10K C618 100N 50V R626 10OHM1/16W HS601 HEAT SINK 1 2 C637 330pF 50V R628 10K 1/16W 5% C626 330pF 50V FB603 300R 4A 1 2 R622 NC/0.05R C633 220NF 25V C641 1UF 10% 16V R601 0R05 OHM L601 22uH C634 1UF 10% 16V R611 10K 1/16W 5% R619 10K 1/16W 5% + C614 NC/100UF 35V C632 1UF 10% 16V L604 22uH R633 27K 1/16W 1% Q602 MMBT3906 R627 10K 1/16W 5% C624 1UF 10% 16V C623 330pF 50V R621 10OHM1/16W C617 10uF 16V L603 22uH Q601 MMBT3904 C629 1UF 10% 16V C635 220NF 25V C631 1UF 10% 16V C638 100N 50V L602 22uH C450 22UF 20% 6.3V R634 100K 1% C625 NC/220N 25V L+ C612 10uF 16V R625 100OHM R613 100OHM C616 220NF 25V C639 1NF 50V +5V_Normal + C615 NC/100UF 35V C622 220NF 25V +5V_Normal PVDD P24V PVDD PVDD PVDD +5V_Standby +3.3V_Standby PGND PGND PGND PGND PGND PGND PGNDPGND PGND PGND PGND PGND POP PGND PGND PGND PGND PGND PGND PGND PGND PGND AMP_AUOUTR0 2 AMP_AUOUTL0 2 AUDIO_EN 12 AC OFF POPO PGND AMP_MUTE Low: Mute disablde High: Mute enable R- L- 1.2A Max AV_L_OUT# AV_R_OUT# AMP_STB 家电维修资料网 www. 520101. com 32 POWER_KEY SW401 NC SW 1 2 3 4 R412 NC 750OHM +-1% 1/8W IRIN KEY0-SAR0 KEY1-SAR1 POWER DGND KEY_ADC1 LEDG POWER_KEY CN401 CONN 2 4 6 8 10 1 3 5 7 9 LED-G LED-R LEDG DGND KEY_ADC1 LEDR POWER_KEY IRRX1 KEY1-SAR1 POWER IRIN KEY0-SAR0 LEDR LED-R R460 100OHM ZD403 NC/MLVG0402 1 2 R458 100OHM C446 1N 50V R457 4K7 1/16W 1% FB409 120R/6000mA 1 2 C445 1N 50V R479 3.3K 1/16W R475 3K3 1/16W 5% R456 4K7 1/16W 1% R477 0R05 OHM Q404 NC/MMBT3906 R446 NC/10K 1/16W 5% R459 NC/4K7 1/16W 5% ZD401 NC/MLVG0402 1 2 R444 NC 10K+-5%1/16W R476 NC 0R05 OHM R464 100OHM ZD402 NC/MLVG0402 1 2 R462 200OHM1/16W Q405 NC/MMBT3906 C442 100NF 16V R461 NC 200OHM1/16W C444 100NF 16V LED-G R463 NC/4K7 1/16W 5% DGND DGND +3.3V_Standby +3.3V_Standby +3.3V_Standby +3.3V_Standby +3.3V_Standby +3.3V_Standby DGND DGND KEY0-SAR0 2 KEY1-SAR1 2 IRIN 2 LEDG 12 LEDR 12 From Main Chip IRRX1 家电维修资料网 www. 520101. com 33 8.2 电源板 715G6679P01003002S NC/T5AH/250V R9904 NC R9905 NC R9902 1M 1% 1/4W F9901 NC/5A 250V ! N SG9902 NC/DSPL-501N-A21F t NR9902 1.5R 1 2 IC9901 CAP004DG-TL NC 1 D1 2 D1 3 NC 4 NC 5 D2 6 D2 7 NC 8 C9908 47pF - + BD9901 KBJ1008G-FUC 2 1 3 4 T5AL/250V FB9902 BEAD 1 2 L9901 12mH 1 2 4 3 HS9901 HEAT SINK 1 2 3 4 ! L9902 12mH 1 2 4 3 SG9901 NC/DSPL-501N-A21F ! F9902 5A 250V CN9902 SOCKET 1 2 C9914 220PF 250V C9913 220PF 250V FB9901 BEAD 1 2 C9911 47PF 250V C9901 470NF 275V RV9901 680V C9902 470NF 275V CN9901 NC/CONN 1 2 C9912 47PF 250V Vsin ! ! ! ! ! ! ! ! ! ! ! ! ! ! L CN9903 NC/CONN L 1 N 2 BR R9907 1M 1% 1/4W R9906 1M 1% 1/4W N R9903 1M 1% 1/4W L t NR9901 1.5R 1 2 For BD9901 家电维修资料网 www. 520101. com 34 R9812 24K 1/8W 1% + C9802 68UF 450V HS9801 HEAT SINK 1 2 3 4 + C9801 68UF 450V HV Q9801 TK16A60W For Q9801, D9802 C9810 100P 50V D9802 S8KC R9807 10R 1/8W 5% R9806 2K4 +/-1% 1/8W R9810 1K 1/4W ! Vsin R9809 10K 1/8W C9805 47nF 50V C9803 100N 50V FB9801 BEAD 1 2 U9801 LD7591T INV 1 COMP 2 RAMP 3 CS 4 ZCD 5 GND 6 OUT 7 VCC 8 VCC_ON C9808 47PF D9801 FMNS-1106S R9808 33R 1/8W 5% R9813 10K 1/8W + C9804 10UF 50V R9805 20K 1/4W R9801 0.1R C9820 1UF 450V C9807 220pF 50V FB9802 BEAD 1 2 C9806 470NF 50V C9811 47P 50V R9802 1M 1% 1/4W R9803 1M 1% 1/4W R9817 1M 1% 1/4W C9809 330PF 50V VCC_ON L9801 240uH 1 3 4 5 R9815 NC/1K OHM +-5% 1/8W D9804 S8KC R9804 19K1 +-1% 1/8W R9814 NC R9816 NC/10K OHM +-5% 1/8W Q9802 AO3160 D9803 SS1060FL 家电维修资料网 www. 520101. com 35 D9109 SS1060FL R9124 33K +-1% 1/4W R9122 10K 1/4W +12V_A +12V_A Standby ぃ筿溃,э120R U9101 LD5532 BNO 1 FB 2 CS 3 GND 4 OUT 5 VCC 6 NC 7 VCC 8 R9117 5K1 +-5% 1/8W Q9102 NC/PMBT3906 1 2 3 Haier project 需加入12V switch C9104 NC/4.7nF 50V D9105 NC/1N4148W + C9138 10UF50V For Q9100 R9141 120KOHM +-1% 1/8W From AC N COLD HOT +VCC1 R9113 3.3M 1/4W R9105 750K +-5% 1/4W C9121 4.7UF R9111 750K +-5% 1/4W BR R9116 2K2 1/8W 1% C9134 4.7UF IC9104 NC/L78L12ABUTR IN 3 OUT 1 GND 2 R9407 100 OHM 1/4W For Q9102 R9119 1K5 +-1% 1/8W + C9126 470UF 25V C9120 2.2NF Q9101 TK11A65D R9125 4R7 1/4W 5% + C9110 470UF 25V Standby 筿溃. C9139 100N 50V Q9401 BTC4672M3 C9402 100N 50V R9108 27 OHM 1/4W R9134 27 OHM 1/4W Q9402 LMBT3906LT1G 1 2 3 C9115 47PF C9140 1N 50V + C9101 470UF 25V + C9107 470UF 25V R9115 6.8KOHM +-1% 1/8W C9922 220PF 250V R9107 10K OHM +-5% 1/8W U9111 AOZ3015AI PGND 1 VIN 2 AGND 3 VCC 4 FB 5 COMP 6 LX 7 EN 8 FB9101 127R 1 2 R9408 510K 1% 1/8W U9103 TL431G-AE2-R + C9106 NA/470UF 25V D9104 PG1010R R9152 100KOHM +-5% 1/8W R9112 4R7 1/4W 5% C9141 1uF U9104 SP6018ES8RGB Timing 1 Pred 2 VR 3 Adj 4 GND 5 MOSG-C 6 Vdd 7 SYNC 8 C9116 2.2nF 50V R9128 0 OHM +-5% 1/8W T9101 POWER X'FMR 1 2 3 4 5 6 7 9 10 R9138 0 OHM +-5% 1/8W ZD9107 BZT52-B5V1_R1_00001 1 2 L9105 3UH + C9105 470UF 25V C9117 1uF R9129 20K 1% 1/4W C9118 470NF 50V Q9403 2N7002K C9135 2N2 50V C9131 100P 50V + C9109 470UF 25V Q9105 TK22A10N1 R9403 1K 1/4W C9119 100N 50V C9123 1uF R9137 10K 1/8W 1% R9118 1K OHM +-5% 1/8W R9104 10R 1/8W 5% C9129 1N 50V R9142 22R R9133 27 OHM 1/4W R9131 100K 1/8W 1% FB9102 BEAD 1 2 R9406 10K 1/8W 1% HS9101 HEAT SINK 1 2 3 4 + C9108 470UF 25V R9151 100KOHM +-5% 1/8W R9154 510K 1% 1/8W ZD9401 BZT52-B16 1 2 ZD9106 BZT52-B15 1 2 C9113 1NF C9920 680PF 250V C9143 1uF C9125 2N2 50V R9123 5.1K 1/4W C9130 100N 50V C9127 1uF R9401 3K R9404 10K 1/4W R9161 30 OHM 1/4W Q9104 2N7002K L9106 3UH HS9102 HEAT SINK 1 2 3 4 C9111 NC/1NF L9102 47uH C9132 100N 50V R9147 82K 2W C9921 220PF 250V C9122 1uF R9135 20K 1/8W 1% C9142 1uF 50V R9153 100 OHM 1/4W + C9401 10UF 50V C9136 1N 50V R9121 1K 1/8W 1% R9130 100K 1% R9126 10 OHM 1/4W D9108 SK510C 1 2 CN9101 CONN 2 4 6 8 10 12 14 16 1 3 5 7 9 11 13 15 FB9904 127R 1 2 U9102 EL817M(X) 1 2 4 3 R9132 27 OHM 1/4W C9133 NC R9110 27 OHM 1/4W R9136 620R 1/8W 1% + C9112 470UF 25V R9402 100K 1/8W 1% C9137 1N 50V R9158 30 OHM 1/4W D9102 SARS01-V1 R9140 10.5K OHM 1% C9128 100N 50V R9139 3K3 1/8W 1% D9401 1N4148W R9405 10K OHM R9120 24KOHM +-1% 1/8W R9109 27 OHM 1/4W Q9106 2N7002K SYNC +12V_A +12V +12V +5V BL_ON/OFF +5V +VCC1 +12V DIM PS_ON 12VS 12VS 12VS 12VS SYNC DV5 DV5 PS_ON PS_ON 3D_DB 12VS BR HV VCC_ON ! ! ! ! ! ! new part(ER31) R9114 3.3M 1/4W R9127 3.3M 1/4W D9101 1N4148W R9102 750K +-5% 1/4W + C9145 100UF 50V C9144 1NF Haier project 需加入5V DC to DC Q9111 P1604ED R9103 1K 1/4W C9102 330P 50V GND1 NC/GND 1 R9106 100R 1/8W 5% FB9103 BEAD 1 2 GND2 NC/GND 1 R9101 0.27R 2W GND3 GND 1 GND4 GND 1 C9103 4.7nF 50V GND5 GND 1 3.5V/40mA癸郸: R9140:10.5K R9136:0ohm R9139:3K R9116:1.3K NR9901,NR9902:1.5R GND6 GND 1 GND7 NC/GND 1 D9103 SS1060FL GND8 NC/GND 1 D9106 SS1060FL U9401 EL817M(X) 1 2 4 3 家电维修资料网 www. 520101. com 36 HS8602 HEAT SINK 1 2 C8118 1N 50V D8606 SS1060FL HS8601 HEAT SINK 1 2 VCC_ON For D8106 R8152 100K + C8605 100UF 100V C8119 1N 50V R8172 0 OHM +-5% 1/8W R8153 100K VLED FB8601 BEAD 1 2 + C8606 100UF 100V R8119 0R05 1/4W ! C8101 1N 50V new part(PQ38) R8136 0R05 1/4W ! + C8608 47uF 100V R8601 0.18R 1% U8603 TL431G-AE2-R R8129 NC/510K 1% 1/8W R8128 NC/750K 1% R8110 3K9 1/8W 5% U8602 EL817M(X) 1 2 4 3 R8106 82KOHM +-5% 2WS R8109 1.5K OHM C8132 NC/2.2NF COLD 12VS R8154 0 OHM +-5% 1/8W VLED C8136 NC/100N 50V C8135 NC/100N 50V HOT HV C9114 1NF 3D_DB + C8609 47uF 100V HS9202 HEAT SINK 1 2 3 4 -VLED-2 + C8607 NC/2700UF 35V R8120 300 OHM 1/4W D8102 1N4148W U8605 TPV101D DIM 1 EN 2 VCC 3 LED 4 GND 5 ISET 6 GM 7 COMP 8 Q8101 LMBT3906LT1G 1 2 3 C8113 1uF U8606 TPV101D DIM 1 EN 2 VCC 3 LED 4 GND 5 ISET 6 GM 7 COMP 8 C8127 1uF R8107 510OHM +-5% 1/8W Q8601 TK11A65D 12VS R8121 300 OHM 1/4W C8128 1uF R8111 470K +-5% 1/8W HS9201 HEAT SINK 1 2 3 4 C8106 4.7nF 50V R8164 0R05 1/4W R8114 75KOHM +-1% 1/8W R8122 300 OHM 1/4W R8113 68KOHM +-1% 1/8W IC8101 TL431G-AE2-R R8116 330K 1/8W 1% R8137 300 OHM 1/4W R8144 200 OHM 1/4W R8146 200 OHM 1/4W R8138 300 OHM 1/4W R8145 200 OHM 1/4W R8123 300 OHM 1/4W R8112 270K +-1% 1/8W R8124 1.2R 1% R8142 200 OHM 1/4W R8141 200 OHM 1/4W R8143 200 OHM 1/4W R8155 300 OHM 1/4W R8157 300 OHM 1/4W C8131 NC/1NF 500V C8122 NC/100P 50V R8131 1.2R 1% +12V L8602 NC/3UH C8129 100N 50V + C8611 NC/2.2UF 50V R8171 0 OHM +-5% 1/8W 39.56 inch (1.5R/1.5/R/1.2R/1.2R) 40 inch (1.5R/1.5R/1.5R/1.2R) LED current setting R8130 47KOHM +-1% 1/8W R8135 43KOHM +-1% 1/8W R8140 39KOHM +-1% 1/8W For IC8103 C8134 NC/1NF 500V R8117 82KOHM +-5% 2WS VLED T8601 POWER X'FMR 3 4 5 7 10 11 6 R8139 13K 1/8W 1% C8123 1N 50V C8124 100P 50V For IC8105 R8161 NC/10K 1/4W C8125 NC/100P 50V For LPB function Q8102 2N7002K C8130 0.47UF 50V D8107 1N4148W R8149 1M 1/8W 5% D8108 1N4148W R8104 10K 1/4W C8111 100PF 500V C8120 NC/1NF C8114 1uF This block is for LPB function use, for PSU function all cancel. C8121 NC/10N 50V R8115 NC C8116 1uF R8125 1.2R 1% C8103 47PF R8126 1.5R R8150 510K +-5% 1/8W R8105 0.1R +VLED CN8601 CONN 1 2 3 4 5 6 7 8 9 10 11 12 R8156 0 OHM +-5% 1/8W +VLED -VLED-1 -VLED-2 ZD8103 BZT52-B30 1 2 R8127 1.5R C8133 NC IC_VCC IC_VCC C8126 NC +VLED R8132 1.2R 1% R8108 3.3K 1/4W -VLED-1 DIM R8133 1.5R R8147 200 OHM 1/4W R8148 200 OHM 1/4W R8134 1.5R ZD8104 BZT52-B16G 1 2 ZD8105 BZT52-B16G 1 2 ZD8106 BZT52-B16G 1 2 C8137 470P 50V R8103 470 OHM 1/4W D8101 SARS01-V1 C8112 100PF 500V R8101 22R R8102 47R +VLED +VLED U8601 PF6002AS CT 1 FB 2 CS 3 GND 4 OUT 5 VCC 6 NC 7 VCC 8 +24V for PSU function C8102 100N 50V CN9201 NC/CONN 2 4 6 8 10 12 14 1 3 5 7 9 11 13 C8104 2.2NF 3D_DB BL_ON/OFF C8105 470NF 50V BL_ON/OFF DIM IC_VCC +24V for PSU function D8602 FMNS-1106S C8115 1uF D8601 FMNS-1106S L8601 3UH For PSU function R8118 100KOHM +-5% 1/8W For Q8100 R8151 100K 家电维修资料网 www. 520101. com 37 8.3 遥控板 715G5704R0C002004M U201 IRM-H938M3/TR2 GND 1 GND 2 OUT 3 VCC 4 IR C201 0.1uF 50V VCC R201 15K 1/10W R203 220 OHM 1/10W LED_B LED_R R E D B L U E LED201 LED 1 2 3 4 R202 220 OHM 1/10W CN201 CONN 1 2 3 4 5 6 7 家电维修资料网 www. 520101. com 38 8.4 按键板 715G6316K01000004I R03 6K8 1/10W 1% F5 F3 F1 F4 F2 SW01 SW 6P 3 4 2 1 6 5 KEY1 Menu Right Left Down Up R04 2K2 1/10W 1% R01 1K2 1/10W 1% 6-5 short 2-5 short F1 3-5 short 1-5 short 4-5 short F2 F3 F4 F5 Direction switch ----><----| C06 100N 50V Joystick circuit diagram pin1 0V 0.495V 0.807V 1.65V 2.271V pin2 No function pin3 3.3V C04 NC/100N 50V pin4 C05 NC/100N 50V pin5 pin6 ----><----| C01 NC/100N 50V C02 NC/100N 50V C03 NC/100N 50V ----><----| ----><----| ----><----| Center Up Down ----><----| R02 0R05 1/10W 0R 2K2 Resistance Key function Center CH- CH+ 1K2 VOL+ VOL- Left 6K8 15K Right CN01 CONN 1 2 3 4 Voltage R05 15K 1/10W 1% 家电维修资料网 www. 520101. com 9. BOM 注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。 E50F41NDJXSKNNX 点位 组件 对象描述 备注 036T 600 18102 NONWOVEN FABRTC 036T 600 18106 NONWOVEN FABRTC 036T 600 18119 GP NONWOVEN FABRTC 041G 68508 A control card 0M1G 130 5 47 CR3 SCREW M3 5 0M1G 330 8 47 CR3 SCREW M3 8 0M1G1030 6 47 CR3 SCREW M3 6 0M1G1730 6120 SCREW M3 6 0M1G1730 10120 SCREW M3 10 0M1G1740 8120 SCREW M4 8 0Q1G 130 6120 SCREW (T3X6) 0Q1G 930 5120 SCREW 0Q1G 930 6 47 CR3 SCREW 0Q1G 930 6 47 CR3 SCREW SP01 378G0110567YEA 6 OHM 11W 132*34 0 UNIT ECN601 395G801404RD43 HARNESS 4P - 2P + 2P 1000 mm / 600 mm ECN601 395G801404WD43 HARNESS 4P - 2P + 2P 1000 mm / 600 mm 2nd-source ECN701 395G801416DC61 HARNESS 16P pitch2.0-12P pitch2.0 450mm 2nd-source ECN701 395G801416RC61 HARNESS 16P pitch2.0-12P pitch2.0 450mm ECN101 395GH20002DT006000 HARNESS 2P-2P 160MM ECN101 395GH20002WT006000 HARNESS 2P-2P 160MM 2nd-source ECN401 395GH20010DT016000 HARNESS 10p-5p+2p 600/1000 ECN401 395GH20010XT016000 HARNESS 10p-5p+2p 600/1000 2nd-source ECN403 395GLT5132D0040000 LVDS CABLE 51P-32P 450 2nd-source ECN403 395GLT5132X0040000 LVDS CABLE 51P-32P 450 E09801 398GR08BCSW00G REMOTE SKYWORTH TS-Y108-95 chinese 708GQB080WPX01 SKY 40(180 CH) Q50G 4 10 TIE (Y1900221) Q07G 2NMV 54 WOODEN PALLET Q52G 1285 6 Big tape for Skyworth Q44G9003156 CORNER PAPER 1560 Q50G060046502A00JY PACKAGE_BUCKLE Q44G6002126110 PAPER BOARD Q45G 77 5 PE PACKING 756TXFCB01D049000X MCU ASSY 2nd-source U402 056G2233 42 FLASH MX25L6406EM2I-12G 64Mb SOP-8 2nd-source SMTF-U402 100TWMVQ004DTX SKYWORTH 50E2100 Nor_FLASH V1.00 NA U402 356G22330420TR FLASH MX25L6406EM2I-12G 64Mb SOP-8 CBPFEMPDXD CONVERSION BOARD G7061-D-X-X-1-20140804 CN103 088G 78G114ACL RCA JACK R/A YELLOW H=10.5 CN104 088G 78G121ACL RCA JACK R/A 4P W/R 1*2 H=10.5 CN104 088G 78G121AYG RCA JACK R/A 4P W/R 1*2 H=10.5 2nd-source CN107 088G 78G134ACL RCA JACK R/A 6P G/BL/R 1*3 H=10.5 CN107 088G 78G134AYG RCA R/A 6P -- R/B/G 10.5 2nd-source CN102 088G 78G137ACL RCA JACK 6P Y/W/R 1*3 R/A CN102 088G 78G137AYG RCA JACK 6P Y/W/R 1*3 R/A 2nd-source CN106 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4 CN105 088G353GFF1ACL D-SUB CONN 15P BLUE R/A H=10mm 2nd-source CN105 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10 CN601 311GW200A04ABL CONN 2.0mm 4P R/A B2009W04HTK0 2nd-source CN601 311GW200A04ABX WAFER 2.0mm 4P 家电维修资料网 www. 520101. com 40 CN401 311GW200C10ABL WAFER 2.0mm 10P R/A B2000W10HTKB CN401 311GW200C10ABX CONN 2.0mm 10P R/A W2010-10RVA-S05 2nd-source CN701 311GW200C12BBL CONN 2.0mm 12P R/A B2000W12HTKE 2nd-source CN701 311GW200C12BBX CONN 2.0mm 12P R/A W2010-12RVA-S04 CN403 311GW200C32ABL 311GW200C32ABL311GW200C32ABL311GW200C32A CN403 311GW200C32ABX CONN 2.0mm 32P R/A W2010-32RVA-S05 2nd-source CN106 388G352F6B3AXH USB A TYPE R/A 6P 1*1 BLACK 8.4 2nd-source CN101 388G510H402ACL RF IFP-013 4P 1*1 W -- 2nd-source CN101 388G510H402AHC RF IFP-013 4P 1*1 W -- SMTFEMPDXD MAIN BOARD FOR SMT U702 056G 563 52 LDO AP1117D33G-13 2nd-source U703 056G 563143 C LDO G1084PT43U 5A ADJ TO-252 U101 056G 563149 IC G903T63UF 0.6A/3.3V SOT-223 U504 056G 662 21 ESD PROTECT AOZ8804DI DFN-10 U501 056G 662 21 ESD PROTECT AOZ8804DI DFN-10 U503 056G 662 21 ESD PROTECT AOZ8804DI DFN-10 U502 056G 662 21 ESD PROTECT AOZ8804DI DFN-10 U402 056G2233 42 FLASH MX25L6406EM2I-12G 64Mb SOP-8 2nd-source Q702 057G 417511 MMBT3904 Q502 057G 417511 MMBT3904 Q706 057G 417511 MMBT3904 Q704 057G 417511 MMBT3904 Q403 057G 417511 MMBT3904 Q601 057G 417511 MMBT3904 Q705 057G 417511 MMBT3904 Q707 057G 417511 MMBT3904 Q503 057G 417511 MMBT3904 Q402 057G 417512 MMBT3906 Q602 057G 417512 MMBT3906 Q708 057G 763940 MOSFET AO3401A SOT-23 TH701 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR R423 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R451 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R145 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R477 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R426 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R601 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R143 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R432 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R401 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R416 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R146 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R450 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R149 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R732 061G0402000 JT RST 0402 0.05R MAX 1/16W - R710 061G0402000 JT RST 0402 0.05R MAX 1/16W - R742 061G0402000 JT RST 0402 0.05R MAX 1/16W - R427 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R621 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R626 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R623 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R616 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R701 061G04021000FY RST CHIP 100R 1/16W 1% R721 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA R634 061G04021003FY RST CHIP 100K 1/16W 1% 家电维修资料网 www. 520101. com 41 R726 061G04021003FY RST CHIP 100K 1/16W 1% R724 061G04021003FY RST CHIP 100K 1/16W 1% R407 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R405 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R501 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R404 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R510 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R513 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R762 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R514 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R458 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R132 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R464 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R613 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R709 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R625 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R460 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R134 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R445 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R712 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R702 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R704 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R406 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R101 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R506 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R627 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R612 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R714 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R507 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R136 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R743 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R443 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R713 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R117 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R121 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R722 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R619 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R120 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R116 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R629 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R137 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R611 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R628 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R144 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R741 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R473 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R728 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R102 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R436 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R439 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R720 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R730 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R711 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R441 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN R733 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 家电维修资料网 www. 520101. com 42 R428 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA R142 061G0402109 JT RST CHIP 0402 1R 5% 1/16W TZAI YUAN R123 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R118 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R119 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R124 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R148 061G0402151 JF RST CHIPR 150 OHM +-5% 1/16W FENGHUA R415 061G0402181 JF RST CHIP 180R 1/16W 5% FENGHUA R131 061G0402182 JF RST CHIPR 1.8KOHM 5% 1/16W FENGHUA R531 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA R462 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA R429 061G0402204 JF RST 0402 200K 5% 1/16W FENGHUA R418 061G0402204 JF RST 0402 200K 5% 1/16W FENGHUA R425 061G0402204 JF RST 0402 200K 5% 1/16W FENGHUA R433 061G0402204 JF RST 0402 200K 5% 1/16W FENGHUA R719 061G04022201FT RST CHIPR 2K2 +-1% 1/16W TZAI YUAN R113 061G0402221 JF RST CHIPR 220 OHM £«-5£¥ 1/16W FENGHUA R127 061G0402221 JF RST CHIPR 220 OHM £«-5£¥ 1/16W FENGHUA R633 061G04022702FF RST CHIP 27K 1/16W 1% FENGHUA R104 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA R111 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA R106 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA R135 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN R122 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN R129 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN R126 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN R133 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN R475 061G0402332 JT RST CHIP 3K3 1/16W 5% TZAI YUAN R479 061G0402332 JY RST CHIPR 3.3KOHM 5% 1/16W YAGEO R456 061G04024701FF RST 0402 4.7K 1% 1/16W R457 061G04024701FF RST 0402 4.7K 1% 1/16W R140 061G0402471 JF ST CHIPR 470 OHM 5% 1/16W FENGHUA R408 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R403 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R402 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R716 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R435 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R723 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R735 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R630 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R727 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R442 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R431 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R434 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R422 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R421 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R409 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R512 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R502 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R729 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R511 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R504 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R508 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R509 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R523 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F 家电维修资料网 www. 520101. com 43 R527 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R529 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R521 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R515 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R522 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R526 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R139 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R519 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R138 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R516 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R528 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R524 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R530 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R517 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R525 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R518 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R520 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R448 061G0402510 JF RST CHIP 51R 1/16W 5% FENGHUA R734 061G04026202FF RST CHIP 62K 1/16W 1% FENGHUA R410 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R411 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R147 061G0402750 JF .ST CHIPR 75 OHM +-5% 1/16W FENGHUA R717 061G04028201FT RST 0402 8.2K 1% 1/16W TZAI YUAN R731 061G04028202FF RST CHIPR 82KOHM +-1% 1/16W FENGHUA FB418 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB416 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB411 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB420 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB419 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB415 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB412 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB413 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB414 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB417 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R715 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN R503 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO R505 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO R725 061G06031332FF RST 0603 13.3K 1% 1/10W FENGHUA R109 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R108 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R107 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R110 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R141 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R128 061G06037509FF ST CHIPR 75 OHM +-1% 1/10W FENGHUA R125 061G06037509FF ST CHIPR 75 OHM +-1% 1/10W FENGHUA R130 061G06037509FF ST CHIPR 75 OHM +-1% 1/10W FENGHUA R740 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO R437 061G08050004JT RST CHIPR 0805 0 OHM 4A R412 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA R718 061G12060004JY RST CHIPR MAX0R05 4A 1/4W YAGEO R440 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% C639 065G040210232K A CAP 0402 1NF 10% 50V X7R C404 065G040210232K A CAP 0402 1NF 10% 50V X7R C619 065G040210232K A CAP 0402 1NF 10% 50V X7R C446 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 家电维修资料网 www. 520101. com 44 C406 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C415 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C409 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C416 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C445 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C437 065G040210412K F CAP 0402 100NF 10% 16V X7R C714 065G040210412K F CAP 0402 100NF 10% 16V X7R C724 065G040210412K F CAP 0402 100NF 10% 16V X7R C141 065G040210412K F CAP 0402 100NF 10% 16V X7R C442 065G040210412K F CAP 0402 100NF 10% 16V X7R C444 065G040210412K F CAP 0402 100NF 10% 16V X7R C412 065G040210412K Y CAP 0402 100NF 10% 16V X7R C449 065G040210412K Y CAP 0402 100NF 10% 16V X7R C105 065G040210412K Y CAP 0402 100NF 10% 16V X7R C468 065G040210412K Y CAP 0402 100NF 10% 16V X7R C452 065G040210412K Y CAP 0402 100NF 10% 16V X7R C435 065G040210412K Y CAP 0402 100NF 10% 16V X7R C467 065G040210412K Y CAP 0402 100NF 10% 16V X7R C464 065G040210412K Y CAP 0402 100NF 10% 16V X7R C448 065G040210412K Y CAP 0402 100NF 10% 16V X7R C134 065G040210412K Y CAP 0402 100NF 10% 16V X7R C137 065G040210412K Y CAP 0402 100NF 10% 16V X7R C469 065G040210412K Y CAP 0402 100NF 10% 16V X7R C149 065G040210412K Y CAP 0402 100NF 10% 16V X7R C465 065G040210412K Y CAP 0402 100NF 10% 16V X7R C455 065G040210412K Y CAP 0402 100NF 10% 16V X7R C123 065G040210412K Y CAP 0402 100NF 10% 16V X7R C451 065G040210412K Y CAP 0402 100NF 10% 16V X7R C453 065G040210412K Y CAP 0402 100NF 10% 16V X7R C102 065G040210412K Y CAP 0402 100NF 10% 16V X7R C443 065G040210412K Y CAP 0402 100NF 10% 16V X7R C463 065G040210412K Y CAP 0402 100NF 10% 16V X7R C434 065G040210412K Y CAP 0402 100NF 10% 16V X7R C139 065G040210412K Y CAP 0402 100NF 10% 16V X7R C466 065G040210412K Y CAP 0402 100NF 10% 16V X7R C108 065G040210412K Y CAP 0402 100NF 10% 16V X7R C145 065G040210412K Y CAP 0402 100NF 10% 16V X7R C462 065G040210412K Y CAP 0402 100NF 10% 16V X7R C458 065G040210506K A CAP 0402 1UF 10% 6.3V X6S C405 065G040210506K A CAP 0402 1UF 10% 6.3V X6S C128 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R C436 065G040222031J A CAP 0402 22PF J 50V NPO C704 065G040222031J T CAP 0402 22pF 5% 50V NP0 UMK105 CG220JV C126 065G040222031J T CAP 0402 22pF 5% 50V NP0 UMK105 CG220JV C730 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5% C140 065G040222322K F CAP 0402 22NF 10% 25V X7R C150 065G040222322K Y CAP 0402 22NF 10% 25V X7R C425 065G040227031J F CAP 0402 27PF 5% 50V NP0 C430 065G040227031J F CAP 0402 27PF 5% 50V NP0 C626 065G040233131J T AP CHIP 0402 330PF 50V J NPO C637 065G040233131J T AP CHIP 0402 330PF 50V J NPO C623 065G040233131J T AP CHIP 0402 330PF 50V J NPO C630 065G040233131J T AP CHIP 0402 330PF 50V J NPO C107 065G040233131J Y 0402 330PF J 50V NPO C118 065G040247131J A CAP CHIP 0402 470PF J 50V NPO 家电维修资料网 www. 520101. com 45 C113 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C119 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C114 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C153 065G040247232K Y AP 0402 4.7NF 10% 50V X7R C101 065G040247232K Y AP 0402 4.7NF 10% 50V X7R C117 065G040247312K A CAP 0402 47NF 10% 16V X7R C408 065G040247312K A CAP 0402 47NF 10% 16V X7R C120 065G040247312K A CAP 0402 47NF 10% 16V X7R C410 065G040247312K A CAP 0402 47NF 10% 16V X7R C121 065G040247312K A CAP 0402 47NF 10% 16V X7R C407 065G040247312K A CAP 0402 47NF 10% 16V X7R C106 065G040247312K A CAP 0402 47NF 10% 16V X7R C146 065G040247312K A CAP 0402 47NF 10% 16V X7R C147 065G040247312K A CAP 0402 47NF 10% 16V X7R C122 065G040247312K A CAP 0402 47NF 10% 16V X7R C136 065G040256031J Y CAP CHIP 0402 56pF 50V NP0 +/-5% C135 065G040256031J Y CAP CHIP 0402 56pF 50V NP0 +/-5% C148 065G040268232K A CAP 0402 6.8NF 10% 50V X7R C401 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C726 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C618 065G060310432K Y CAP 0603 100NF 10% 50V X7R C613 065G060310432K Y CAP 0603 100NF 10% 50V X7R C638 065G060310432K Y CAP 0603 100NF 10% 50V X7R C634 065G060310512K A CAP 0603 1UF 10% 16V X7R C624 065G060310512K A CAP 0603 1UF 10% 16V X7R C632 065G060310512K A CAP 0603 1UF 10% 16V X7R C641 065G060310512K A CAP 0603 1UF 10% 16V X7R C629 065G060310512K A CAP 0603 1UF 10% 16V X7R C459 065G060310512K A CAP 0603 1UF 10% 16V X7R C631 065G060310512K A CAP 0603 1UF 10% 16V X7R C457 065G060310512K A CAP 0603 1UF 10% 16V X7R C712 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA C725 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA C454 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C460 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C402 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C439 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C130 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C456 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C142 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C461 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C413 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C403 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C635 065G060322422K T CAP CHIP0603 220NF K 25V X7R C633 065G060322422K T CAP CHIP0603 220NF K 25V X7R C616 065G060322422K T CAP CHIP0603 220NF K 25V X7R C622 065G060322422K T CAP CHIP0603 220NF K 25V X7R C111 065G0603225A5K A CAP 0603 2.2UF K 10V X5R C115 065G0603225A5K A CAP 0603 2.2UF K 10V X5R C116 065G0603225A5K A CAP 0603 2.2UF K 10V X5R C112 065G0603225A5K A CAP 0603 2.2UF K 10V X5R C706 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C723 065G080510602K A CAP 0805 10UF 10% 6.3V X7R CL21B106KQQNN C713 065G080510615K T CHIP 10uF 16V X5R 0805 C617 065G080510615K T CHIP 10uF 16V X5R 0805 家电维修资料网 www. 520101. com 46 C612 065G080510615K T CHIP 10uF 16V X5R 0805 C721 065G0805106A5K A CAP 0805 10UF 10% 10V X5R C711 065G0805106A5K A CAP 0805 10UF 10% 10V X5R C718 065G0805106A5K A CAP 0805 10UF 10% 10V X5R C716 065G0805106A5K A CAP 0805 10UF 10% 10V X5R C727 065G080522605M A CAP 0805 22UF 20% 6.3V X5R C450 065G080522605M A CAP 0805 22UF 20% 6.3V X5R C728 065G080522605M A CAP 0805 22UF 20% 6.3V X5R C719 065G080522605M T CAP 0805 22uF 20% 6.3V X5R JMK212 BJ226 C717 065G080522605M T CAP 0805 22uF 20% 6.3V X5R JMK212 BJ226 C720 065G120622615K A CAP 1206 22UF 10% 16V X5R C722 065G120622615K A CAP 1206 22UF 10% 16V X5R HDCP-U402 070GHDCP500HDC HDCP CODE FB101 071G 56D102 MA CHIP BEAD 1000ohm 0805 1A FB603 071G 56G301 DA CHIP BEAD 0805 300R 25% 4A 2nd-source FB703 071G 56G301 DA CHIP BEAD 0805 300R 25% 4A 2nd-source FB603 071G 56G301 MA CHIP BEAD 0805 300OHM 4A FB703 071G 56G301 MA CHIP BEAD 0805 300OHM 4A FB409 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L 2nd-source FB409 071G 56K121 TA HIP BEAD 120R/6000mA HCB2012KF-121T60 FB403 071G 59C600 M CHIP BEAD 60 OHM 0603 600mA 2nd-source FB403 071G 59C600 TA CHIP BEAD 0603 60R 25% 600mA FB402 071G 59G301 M CHIP BEAD 0603 300R 25% 200mA FB402 071G 59G301 TA CHIP BEAD 300OHM 200mA FCM1608KF-301T02 2nd-source CN501 088G 34019G AD HDMI HEADER 19P - - 2nd-source CN502 088G 34019G AD HDMI HEADER 19P - - 2nd-source CN501 088G 34019G AV HDMI HEADER 19P BLACK - CN502 088G 34019G AV HDMI HEADER 19P BLACK - D101 093G 6433L DIODE LBAV99LT1G SOT-23 LRC D401 093G 6433L DIODE LBAV99LT1G SOT-23 LRC X401 093G 22SX02 YC CRYSTAL YC 49U/SMD 24MHz 20PPM 18PF ZD503 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD504 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD506 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD507 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD505 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD501 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD502 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ U101 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223 2nd-source U702 356G056351500C00HF LDO AZ1117CD-3.3TRG1(cu) 1A 3.3V TO-252 U102 356G0566024601 Silicon Tuner R840 U401 356G0568128603 SCALER MSD8314Z2-Z1-TN S2EPLQFP-128 U601 356G0616028600 AUDIO AD52580-QG28NAR (AF) 15W E-TSSOP U402 356G22330420TR FLASH MX25L6406EM2I-12G 64Mb SOP-8 U706 356GD563006600 DC/DC SY8104ADC 4A 18V TSOT23-6 U707 356GD563008601 DC/DC SY8003ADFC 3A 5.5V DFN2x2-8 Q401 357G0763A06 MOSFET AO3407A -25A -30V 1.4W SOT23 C151 365G040218931C000F CAP 0402 1.8PF 0.25pF 50V NP0 0402CG1R8 C152 365G040218931C000F CAP 0402 1.8PF 0.25pF 50V NP0 0402CG1R8 C131 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C110 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C132 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C138 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C124 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C133 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 家电维修资料网 www. 520101. com 47 C129 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C127 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C125 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC L109 371G042Z102D00 CHIP BEAD 0402 1000 25% GZ1005D102CTF 0 L107 371G042Z102D00 CHIP BEAD 0402 1000 25% GZ1005D102CTF 0 L106 371G042Z102D00 CHIP BEAD 0402 1000 25% GZ1005D102CTF 0 L403 371G059Z102M00 CHIP BEAD 0603 1000ohm 25% MGGB1608M102 L402 371G059Z102M00 CHIP BEAD 0603 1000ohm 25% MGGB1608M102 L110 373G0402186FSM CHIP IND 1.8nh ±0.3nH 0.3 0.1 MGCI1005T L105 373G0402188FJY CHIP IND 0402 180nH 5% HK1005 R18J-T 0. L115 373G0402206FSD CHIP IND 2nh ±0.3nH 0.3 0.2 SDCL1005C2N L114 373G0402336FSD CHIP IND 3.3nH 0.3nH 0.3A 0.2R SDCL1005 L108 373G0603687GJM CHIP IND 68nH 5% 0.3A 0.75R MGCI1608H68 L603 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 L604 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 L602 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 L601 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 L702 373G253S198D00 SMD CHOKE 4.7UH 20% 3.3A 0.026R SWPG604 L703 373G253S256D00 SMD CHOKE 2.2uH 30% 2.95A 0.030R SWPG40 D101 393G006433P0HF HF BAV99_R1_00001 0.5A 100V SOT-23 2nd-source D401 393G006433P0HF HF BAV99_R1_00001 0.5A 100V SOT-23 2nd-source X101 393G022S60100J CRYSTAL NXH16.000AE18F-KAB8-PA 16MHz 18 E715 715G7061M01001004T MAIN PCB FR4 DS 182*100*1.6MM E715 715G7061M01001004Y MAIN PCB FR4 DS 182*100*1.6MM 2nd-source IRPFFXA6 IR BOARD G5704-R0A-002-0040 SMTIRPFFXA6 IR BOARD FOR SMT 040G 45762420A LABEL 25x6mm R201 061G0402153 JT RST CHIP 15K 1/16W 5% TZAI YUAN R206 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA R202 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN C202 065G0603225A5K M CAP MLCC 0603 2.2uF K 10V X5R LED201 081G 15 3 GP CHIP LED blue/red GPTD12048BRC1-AR CN202 311GW125D05ACX WAFER 1.25mm 5P V/T S1315-05SVB-S03-R U201 356GS927038006 SMD IR RECEIVER TSOP75438TR 38 KHz E715 715G5704R0C002004M IR PCB FR4 DS 36*9*1.6mm KEPFDXB6 KEY BOARD SMTKEPFDXB6 KEY BOARD FOR SMT 040G 45762420A LABEL 25x6mm R02 061G06031501FF RST CHIPR 1.5K OHM +-1% 1/10W FENGHUA R05 061G06031502FT RST CHIP 15K 1/10W 1% R04 061G06032551FF RST 0603 2.55K 1% 1/10W FENGHUA R01 061G06034301FF RST CHIPR 4.3KOHM +-1% 1/10W FENGHUA R03 061G06036801FT RST CHIP 6K8 1/10W 1% C06 065G060310432K Y CAP 0603 100NF 10% 50V X7R CN01 311GW125D02ADX WAFER 1.25mm 2P R/A S1315-02RVB-S03-K SW01 377G060902C0CJ CHIP TACT SW 6P 6mm 160g SMD SW01 377G060902C0HJ CHIP TACT SW 6P 6mm 160g SMD 2nd-source 709T63160XS001 COMSUMPTIVE ASSY 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 055G 23520 Cleaning Naphtha 055G 100610 Solder Paste Q05G6054 1 SHEET Q09G6012 1 PIN Q52G170100700B00XW MESH PRINTTING_PAPER E715 715G6316K01000004C KEY PCB FR4 SS 25*24.4*1.6mm 2nd-source 家电维修资料网 www. 520101. com 48 E715 715G6316K01000004I KEY PCB FR4 SS 25*24.4*1.6mm E715 715G6316K01000004S KEY PCB FR4 SS 25*24.4*1.6mm 2nd-source E750 LVA500HVN07AEG2X0X PANEL TPT500J1-HVN07.U S600P XM TPV 1 P33E0676XJT01R0100 Button P34E25060GM03G0100 REAR_COVER TV50W-14d-dad26-d2r PLTVFY701XXSK ADAPTER BOARD 715G6679 Z40G0002ALL01A OTHER LABEL GND4 009G6005 1 GND TERMINAL GND5 009G6005 1 GND TERMINAL CN8601 033G380212B YH wafer 12P 2.0 DIP U9401 056G 139 9 IC EL817M(X) photocoupler DIP-4 U8602 056G 139 9 IC EL817M(X) photocoupler DIP-4 U9102 056G 139 9 IC EL817M(X) photocoupler DIP-4 R9801 061G153M10859B SY RST MOF 0.1R 5% 3WS PITCH=20mm C9901 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M C9902 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M C8606 067G 5151019HZ EC 100UF 20% 100V 8*25 5000 hr C8605 067G 5151019HZ EC 100UF 20% 100V 8*25 5000 hr FB9801 071G 55906 FERRITE CORE 510R C8B R6H 6x9.2(A) FB9801 071G 55906 H BEAD 6.0*9.2 510R MIN BF-I60090C-794 2nd-source CN9902 087G 50147D HC HF AC R/A 2P 12.81mm FOR CN9902 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q x8.0 CN9101 311GW200C16AAX CONN 2.0mm 16P R/A W2010-16SVA-S03 U8605 356G0700008060 LED DRIVER TPV101D DIP-8 U8606 356G0700008060 LED DRIVER TPV101D DIP-8 RV9901 361G0046681KZW000U VARISTOR 680V 10% NR9901 361G0058259MYW008A NTCR 2.5R 20% 3.6W SCK152R58MTY503 NR9902 361G0058259MYW008A NTCR 2.5R 20% 3.6W SCK152R58MTY503 C9902 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L 2nd-source C9901 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L 2nd-source C9820 363G211K105GCE CAP MPP 1uF 10% 450V 18*7*12.5mm B32672 2nd-source C9820 363G211K105GCU CAP MPP 1uF 10% 450V 18*7*13mm MPHB105K C9802 367G215X560PKZ00CS EC 56UF 20% 450V 12.5*40 2000 hr 580mA C9801 367G215X560PKZ00CS EC 56UF 20% 450V 12.5*40 2000 hr 580mA FB9901 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815 FB9902 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815 L9902 373G0174314H00 LINE FILTER 12mH MIN 1.5 - L9902 373G0174314X00 LINE FILTER 12mH MIN 1.5A 3LFT18106-123 2nd-source L9801 373G0174352H00 PFC CHOKE 240uH 10% 2A - L9901 373G0174353H00 LINE FILTER 14mH MIN 1.5 LCL-11825 HA L9901 373G0174353X00 LINE FILTER 14mH MIN 1.5 3LFT18107-143M 2nd-source L9105 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 2nd-source L8601 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 2nd-source L9106 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 2nd-source L9106 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A L8601 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A L9105 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A T8601 380GL52P184L00 X'FMR 190uH 10% 5uH ER40 PT-018828 T9101 380GL52P185N00 X'FMR 310uH 10% 5uH ER31 YUVA-2133-27 BD9901 393G0050460A14 BRIDGE KBJ1008G-FUC 10A 800V KBJ 705TXF57447 Q9105 ASS'Y 051G 200 1 OIL FOR DISAPPEAR 0M1G1730 8120 SCREW M3 8 Q9105 357G0600100600 MOSFET TK22A10N1 22A 100V TO-220SIS HS9102 Q90G0219 4 HEAT SINK ÐͲÄ/Profile 家电维修资料网 www. 520101. com 49 705TXF57448 Q9801, D9801 ASS'Y 051G 200 1 OIL FOR DISAPPEAR D9801 093G 52905 DIODE FMNS-1106S TO-220 0M1G1730 8120 SCREW M3 8 Q9801 357G0667600002 MOSFET TK16A60W 16A 600V SC-67 HS9801 Q90G0219 3 HEAT SINK 705TXF57449 Q8601 ASS'Y 051G 200 1 OIL FOR DISAPPEAR 0M1G1730 8120 SCREW M3 8 Q8601 357G0667650006 MOSFET TK11A65D 11A 650V TO-220SIS HS9201 Q90G0236 7 HEAT SINK 705TXF57456 Q9101 ASS'Y 051G 200 1 OIL FOR DISAPPEAR 0M1G1730 8120 SCREW M3 8 Q9101 357G0667650006 MOSFET TK11A65D 11A 650V TO-220SIS HS9101 Q90G0219 4 HEAT SINK ÐͲÄ/Profile 705TXF84412 F9902 ASS"Y 084G 34 10 FUSE CLIP 2nd-source 084G 34 14 bSE -- -- -- F9902 084G 41 7 FUSE 5A 250V 0215005M LITTELFUSE 705TXF93436 D8601 ASS'Y 051G 200 1 OIL FOR DISAPPEAR D8601 093G 52905 DIODE FMNS-1106S TO-220 0M1G1730 8120 SCREW M3 8 HS9202 Q90G0219003A0000SY HEAT SINK PLFY701XXSKSMT ADAPTER BOARD FOR SMT IC9901 056G 665142 Others CAP004DG-TL SOP-8 Q8101 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC Q9402 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC R8171 061G0805000 JT RST 0805 0.05R MAX 1/8W R8172 061G0805000 JT RST 0805 0.05R MAX 1/8W R9128 061G0805000 JT RST 0805 0.05R MAX 1/8W R8156 061G0805000 JT RST 0805 0.05R MAX 1/8W R9138 061G0805000 JT RST 0805 0.05R MAX 1/8W R9807 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN R9104 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN R9121 061G08051001FT RST CHIP 1K 1/8W 1% R9406 061G08051002FT RST CHIP 10K 1/8W 1% R8114 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA R9131 061G08051003FT RST CHIP 100K 1/8W 1% R9402 061G08051003FT RST CHIP 100K 1/8W 1% R9106 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN R9815 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R9118 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R9809 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R9813 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R9107 061G0805103 JT RST 0805 10K 5% 1/8W R9816 061G0805103 JT RST 0805 10K 5% 1/8W R8118 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN R8149 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN R9141 061G08051203FT RST CHIPR 120KOHM +- 1% 1/8W TZAI YUAN R9119 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN R9804 061G08052002FF RST CHIPR 20KOHM +-1% 1/8W FENGHUA R8140 061G08052002FF RST CHIPR 20KOHM +-1% 1/8W FENGHUA R9804 061G08052002FT RST CHIP 20K 1/8W 1% 2nd-source 家电维修资料网 www. 520101. com 50 R8140 061G08052002FT RST CHIP 20K 1/8W 1% 2nd-source R8101 061G0805220 JY RST CHIPR 22R +-5% 1/8W YAGEO R9116 061G08052201FT CHIP 2K2 1/8W 1% R9806 061G08052401FT RST CHIP R 2K4 +/-1% 1/8W R9120 061G08052402FF RST CHIPR 24KOHM +-1% 1/8W FENGHUA R9812 061G08052402FT RST CHIP 24K 1/8W 1% R9808 061G0805330 JT RST CHIP 33R 1/8W 5% TZAI YUAN R8110 061G0805392 JT RST CHIP 3K9 1/8W 5% TZAI YUAN R8135 061G08054302FF RST CHIPR 43KOHM +-1% 1/8W FENGHUA R8102 061G0805470 JY RST CHIPR 47R +-5% 1/8W YAGEO R8130 061G08054702FF RST CHIPR 47KOHM +-1% 1/8W FENGHUA R8111 061G0805474 JT RST CHIPR 470K +-5% 1/8W TZAI YUAN R8139 061G08055101FF RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA R8139 061G08055101FT RST CHIP 5K1 1/8W 1% 2nd-source R9408 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN R8107 061G0805511 JT RST CHIPR 510OHM +-5% 1/8W TZAI YUAN R9117 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN R8150 061G0805514 JT RST CHIPR 510K +-5% 1/8W TZAI YUAN R8112 061G08056203FF RST CHIPR 620KOHM +-1% 1/8W FENGHUA R8112 061G08056203FT RST CHIP 620K 1/8W 1% 2nd-source R9115 061G08056801FT RST CHIP R 6.8KOHM +-1% 1/8W R8113 061G08056802FF RST 0805 68K 1% 1/8W R8116 061G08057503FT RST 0805 750K 1% 1/8W JR907 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR908 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR906 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR905 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR921 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR920 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR922 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR910 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR911 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA R8136 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN R8119 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN R8164 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN R9126 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN R9405 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206 R9130 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF R9907 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA R9903 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA R9906 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA R9902 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA R9802 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W R9803 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W R9407 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9403 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA R9810 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN R9103 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN R9404 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R8104 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R9122 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R8152 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN 家电维修资料网 www. 520101. com 51 R8153 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R8151 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R8109 061G12061501FT RST 1206 1.5K 1% 1/4W R9129 061G12062002FF RST CHIPR 20K OHM +-1% 1/4W FENGHUA R8142 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8148 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8146 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8147 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8145 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8141 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8143 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8144 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R9805 061G1206203 JF RST CHIPR 20KOHM +-5% 1/4W FENGHUA R9108 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9110 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9134 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9109 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9133 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9132 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R8138 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8122 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8157 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8120 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8121 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8123 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8155 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8137 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R9401 061G1206302 JT RST CHIP 3K 5% 1/4W R9102 061G1206304 JF RST CHIPR 300KOHM +-5% 1/4W FENGHUA R9105 061G1206304 JF RST CHIPR 300KOHM +-5% 1/4W FENGHUA R9111 061G1206304 JF RST CHIPR 300KOHM +-5% 1/4W FENGHUA R9111 061G1206304 JT RST CHIPR 300 KOHM +-5% 1/4W TZAI YUAN 2nd-source R9105 061G1206304 JT RST CHIPR 300 KOHM +-5% 1/4W TZAI YUAN 2nd-source R9102 061G1206304 JT RST CHIPR 300 KOHM +-5% 1/4W TZAI YUAN 2nd-source R9124 061G12063302FT RST CHIPR 33KOHM +-1% 1/4W TZAI YUAN R8108 061G1206332 JF RST CHIPR 3.3KOHM +-5% 1/4W FENGHUA R8108 061G1206332 JT RST CHIPR 3.3 KOHM +-5% 1/4W TZAI YUAN 2nd-source R9113 061G1206335 JT RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN R9127 061G1206335 JT RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN R9114 061G1206335 JT RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN R8103 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN R9112 061G1206479 JT RST 1206 4.7R 5% 1/4W R9125 061G1206479 JT RST 1206 4.7R 5% 1/4W R9123 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN C8124 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5% C9810 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5% C9131 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5% C9144 065G080510231J F CAP 0805 1NF 5% 50V NPO C8101 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C9136 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C8123 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C9140 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C9137 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C8119 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C8118 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 家电维修资料网 www. 520101. com 52 C9803 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9139 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9130 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9402 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C8102 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9132 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9143 065G080510532K M CAP 0805 1UF 10% 50V X7R C8113 065G080510532K M CAP 0805 1UF 10% 50V X7R C8114 065G080510532K M CAP 0805 1UF 10% 50V X7R C8127 065G080510532K M CAP 0805 1UF 10% 50V X7R C8115 065G080510532K M CAP 0805 1UF 10% 50V X7R C8128 065G080510532K M CAP 0805 1UF 10% 50V X7R C8116 065G080510532K M CAP 0805 1UF 10% 50V X7R C9141 065G080510532K M CAP 0805 1UF 10% 50V X7R C8129 065G080510532K M CAP 0805 1UF 10% 50V X7R C8129 065G080510532K T CAP 0805 1UF 10% 50V X7R 2nd-source C9807 065G080522131J F CAP CHIP 0805 220PF J 50V NPO C9809 065G080533131J Y CAP CHIP 0805 330P 50V NP0 +/-5% C9102 065G080533131J Y CAP CHIP 0805 330P 50V NP0 +/-5% C9811 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5% C8137 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5% C9103 065G080547232K F CAP 0805 4.7NF 10% 50V X7R C8106 065G080547232K F CAP 0805 4.7NF 10% 50V X7R C9805 065G080547332K F CAP CHIP 0805 47NF K 50V X7R C8130 065G080547432K F 0805 0.47UF K 50V X7R C9118 065G080547432K M CAP 0805 470NF 10% 50V X7R C9806 065G080547432K M CAP 0805 470NF 10% 50V X7R C8105 065G080547432K M CAP 0805 470NF 10% 50V X7R C9134 065G080547525K M CAP 0805 4.7UF 10% 25V X5R C9121 065G080547525K M CAP 0805 4.7UF 10% 25V X5R C8111 065G120610171J Y CAP 1206 100PF 5% 500V NP0 C8112 065G120610171J Y CAP 1206 100PF 5% 500V NP0 C9142 065G120610532K M AP CHIP 1206 1UF K 50V X7R D9108 093G 60S952 T SCHOTTKY SK510C R6 5A 100V SMC U9103 356G01585020HF Shunt Regu TL431G-AE2-R SOT23-3 U8603 356G01585020HF Shunt Regu TL431G-AE2-R SOT23-3 U8101 356G01585020HF Shunt Regu TL431G-AE2-R SOT23-3 U9801 356G0379008218 PFC LD7591T GS SOP-8 U8601 356G0379008228 AC/DC PF6002AS SOP-8 U9101 356G0379008605 AC/DC LD5532 GS SOP-8 U9104 356GD563008617 DC/DC SP6018ES8RGB 1A 16V SOP-8 Q9802 357G0667600602 MOSFET AO3160 0.04A 600V SOT23A Q9401 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89 Q8102 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V Q9106 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V Q9403 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V R9817 361G12061104FF RST 1206 1.1MR 1% 1/4W RS-06L115FT 2nd-source R9817 361G12061104FT RST 1206 1.1MR 1% 1/4W SMD12061M1F 2nd-source R9817 361G12061104FY .1MR 1% 1/4W RC1206FR-071M1L R8124 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8134 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8125 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8131 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8127 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8133 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source 家电维修资料网 www. 520101. com 53 R8132 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8126 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8126 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8132 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8133 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8127 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8124 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8134 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8125 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8131 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F D8107 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 D8108 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 D9101 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 D9401 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 D8102 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 ZD8105 393G039S64000T ZENER BZT52-B16G 16V 0.2mW SOD-123 ZD8104 393G039S64000T ZENER BZT52-B16G 16V 0.2mW SOD-123 ZD9401 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W ZD8103 393G039SA1500T ZENER BZT52-B30 30V 0.41W SOD-123 ZD8106 393G039SA2700T ZENER BZT52-B27 27V 0.41W SOD-123 ZD9106 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 D9802 393G052S800600 RECTIFIER S8KC 8A 800V SMC D9804 393G052S800600 RECTIFIER S8KC 8A 800V SMC D9803 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL D8606 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL D9106 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL D9103 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL PLFY701XXSKAI ADAPTER BOARD FOR AI BD9901 006G 31 4 1.7MM RIVET NR9901 006G 31 4 1.7MM RIVET NR9902 006G 31 4 1.7MM RIVET T9101 006G 31 4 1.7MM RIVET CN9901 006G 31500 EYELET L9801 006G 31500 EYELET T8601 006G 31500 EYELET C9801 006G 31502 EYELET C9902 006G 31502 EYELET C9802 006G 31502 EYELET RV9901 006G 31502 EYELET L9902 006G 31502 EYELET C9901 006G 31502 EYELET L9901 006G 31502 EYELET 040G 45762420A LABEL 25x6mm C9114 065G 1K10293T CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY C9113 065G 1K10293T CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY C9113 065G 1K1029WT CAP CER 1000PF 10% 1KV R CT81-1KV-08d-2R 2nd-source C9114 065G 1K1029WT CAP CER 1000PF 10% 1KV R CT81-1KV-08d-2R 2nd-source C9908 065G 1K470 2T6921 CAP CER 47pF K 1KV C9922 065G306K22123R CAP Y1 220PF 10% 250V Y5P C9913 065G306K22123R CAP Y1 220PF 10% 250V Y5P C9921 065G306K22123R CAP Y1 220PF 10% 250V Y5P C9914 065G306K22123R CAP Y1 220PF 10% 250V Y5P C9913 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 2nd-source C9914 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 2nd-source C9921 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 2nd-source 家电维修资料网 www. 520101. com 54 C9922 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 2nd-source C9401 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 hr C9145 067G 3154707KT EC 47UF 20% 50V ER1H470MPN1007RU C9804 067G 5151007KB EC 10UF 20% 50V 5*11 EY C9112 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9110 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9105 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9107 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9106 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9109 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9108 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9138 067G 5154797KB EC 4.7UF 20% 50V 5*11 EY FB9802 071G 55 23 BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 2nd-source FB9103 071G 55 23 BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 FB9103 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A 2nd-source FB9802 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A FB9904 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 FB9101 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 FB9904 071G 55 26 S BEAD 3.5*6 127R 25% LB3.5*0.8*6-2 2nd-source FB9101 071G 55 26 S BEAD 3.5*6 127R 25% LB3.5*0.8*6-2 2nd-source FB8601 071G 55 29 FERRITE BEAD ZD9113 093G 3995652T DIODE GDZJ30B DO-35 ZD8611 093G 3995652T DIODE GDZJ30B DO-35 ZD9111 093G 3995752T ZENER GDZJ24B 24V 0.5W DO-35 ZD9114 093G 3997752T ZENER GDZJ4.7B 4.7V 0.5W DO-35 ZD8612 093G 3997752T ZENER GDZJ4.7B 4.7V 0.5W DO-35 ZD9112 093G 3997752T ZENER GDZJ4.7B 4.7V 0.5W DO-35 D9104 093G 52916 RECTIFIER PG1010R 1A 1000V DO-41 D9102 093G1080 252T RECTIFIER SARS01-V1 1.2A 800V DO-41 D8101 093G1080 252T RECTIFIER SARS01-V1 1.2A 800V DO-41 J913 095G 90 23 JUMP WIRE - - J942 095G 90 23 JUMP WIRE - - J941 095G 90 23 JUMP WIRE - - J929 095G 90 23 JUMP WIRE - - J923 095G 90 23 JUMP WIRE - - J903 095G 90 23 JUMP WIRE - - J902 095G 90 23 JUMP WIRE - - J907 095G 90 23 JUMP WIRE - - J908 095G 90 23 JUMP WIRE - - J905 095G 90 23 JUMP WIRE - - J945 095G 90 23 JUMP WIRE - - J901 095G 90 23 JUMP WIRE - - J906 095G 90 23 JUMP WIRE - - J937 095G 90 23 JUMP WIRE - - J921 095G 90 23 JUMP WIRE - - J916 095G 90 23 JUMP WIRE - - J943 095G 90 23 JUMP WIRE - - J912 095G 90 23 JUMP WIRE - - J914 095G 90 23 JUMP WIRE - - J919 095G 90 23 JUMP WIRE - - J911 095G 90 23 JUMP WIRE - - J922 095G 90 23 JUMP WIRE - - J934 095G 90 23 JUMP WIRE - - J936 095G 90 23 JUMP WIRE - - J920 095G 90 23 JUMP WIRE - - 家电维修资料网 www. 520101. com 55 J938 095G 90 23 JUMP WIRE - - J928 095G 90 23 JUMP WIRE - - J918 095G 90 23 JUMP WIRE - - J910 095G 90 23 JUMP WIRE - - J935 095G 90 23 JUMP WIRE - - J915 095G 90 23 JUMP WIRE - - R8601 361G152F18852T00TZ RST MOF 0.18R 1% 2W MOF2WS0R18FT52 R9142 361G152M22052T00TZ RST MOF 22R 5% 2W MOF2WS22RJT52 R9142 361G152M22052T00YG RST MOF 22R 5% 2W RSF2VSJT-52-22R 2nd-source R9101 361G152M27852T00TZ RST MOF 0.27R 5% 2W MOF2WS0R27JT52 R8106 361G152M82352T00TZ RST MOF 82K 5% 2W MOF2WS82KJT52 R9147 361G152M82352T00TZ RST MOF 82K 5% 2W MOF2WS82KJT52 R8117 361G152M82352T00TZ RST MOF 82K 5% 2W MOF2WS82KJT52 R9147 361G152M82352T00YG RST MOF 82K 5% 2W RSF2VSJT-52-82K 2nd-source R8106 361G152M82352T00YG RST MOF 82K 5% 2W RSF2VSJT-52-82K 2nd-source R8117 361G152M82352T00YG RST MOF 82K 5% 2W RSF2VSJT-52-82K 2nd-source R8105 361G303A10852T00TZ RST FUSE 0R1 5% 1W TFUS1W0R1JT52 C9115 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G C8103 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G C9808 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G C9808 365G001J4706WT CAP CER 47PF 5% 1KV SL CC81-1KV-06d-SL- 2nd-source C8103 365G001J4706WT CAP CER 47PF 5% 1KV SL CC81-1KV-06d-SL- 2nd-source C9115 365G001J4706WT CAP CER 47PF 5% 1KV SL CC81-1KV-06d-SL- 2nd-source C8104 365G001K2229SS CAP CER 2.2NF 10% 1KV R 9RL222K102B76G C9120 365G001K2229SS CAP CER 2.2NF 10% 1KV R 9RL222K102B76G C8104 365G001K2229WS CAP CER 2.2NF 10% 1KV R CT81-1KV-12d-2R 2nd-source C9120 365G001K2229WS CAP CER 2.2NF 10% 1KV R CT81-1KV-12d-2R 2nd-source C9912 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA C9911 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA C9911 365G306J4706PR CAP Y1 47PF 5% 250V SL SL0AH470J07SXAMS 2nd-source C9912 365G306J4706PR CAP Y1 47PF 5% 250V SL SL0AH470J07SXAMS 2nd-source C9920 365G306K6812WR CAP Y1 680PF 10% 250V Y5P C8608 367G515X470JHT000S EC 47UF 20% 100V 10*12 5000 hr 800mA LLP C8609 367G515X470JHT000S EC 47UF 20% 100V 10*12 5000 hr 800mA LLP E715 715G6679P01003002S PWR PCB FR2 SS 195.5x241x1.6mm HS9802 Q85T0205101 SHIELD 13*30 HS8602 X90G070710100000BF HEAT SINK HS8601 X90G070710100000BF HEAT SINK HS9901 X90G201000800000BF HEAT SINK Q02G707105000100XL BOLT Q11G701016000L00ZL PCB-SUPPORT Q36T 600 31 5 NONWOVEN FABRIC Q36T 600 35 3 GP NONWOVEN FABRIC Q36T 600 37 14 GP NONWOVEN FABRIC Q36T 600 37 23 GP CLOTH_GRIDDING Q40G0001624 4A 产线需求的栈板 LABEL Q45G88010TV08500WN PROTECT BAG Q45G88010TV12000WN PROTECT BAG 1200*1600 Q49G 51500 HF panel 清洁剂 Q52G100204000A00ZA AL FOIL Q52G130118600000YY TAPE Q52G1501150523AWBK TAPE_INSULATING Q52G160119100A00YY TAPE Q52G2001 TV 1 TAPE X15T216310100000BL BKT_BASE 家电维修资料网 www. 520101. com 56 X15T216410100000BL BKT_BASE X15T218110100000YF BKT_SPEAKER X15T218210100000YF BKT_SPEAKER X15T965130500000Z1 BKT_STAND X15T965140500000Z1 BKT_STAND X15T980320100000BL BKT_IO X15T980420200000BL BKT_IO X15T990710100000NP BKT_CONNECTOR X33E0170ADT02L0100 DECO_BEZEL X34E0266ADT01L0100 BASE_RIGHT TV50W-14d-dad26-d2r X34E0267ADT01L0100 BASE_LEFT TV50W-14d-dad26-d2r X35T8322001A1C01DA DECO_SHEET TV50W-14d-dad26-d2r X40G050000101A RATING LABEL for 50E3100 X44GQB0800101A0TH1 ARTWORK CARTON 50E2100 CHINA X44GQB080FB0H1 DIE CUT CARTON X44GQB081010SY CUSHION-T N/A China(2002) X44GQB082010SY CUSHION-B N/A China(2002) X44GQB08301EPE CUSHION N/A China(2002) X52G18012650000ALF INSULATING SHEET E08901 089G214A15N HL AC POWER CORD 1500 E08901 089G214A15N IS AC POWER CORD 1500 2nd-source 0M1G1740 18225 CR3 SCREW M4 18 Q45G8801 TV004 PE PACKINGx290x195x0.04 Q45G88010TV08900X1 PROTECT BAG X41G50SV00101B QSG 50E3100 QSG 040G 58162435A MANUAL P/N LABEL Q40G000162492A CEL LABEL FOR TV MODEL G3/1.3/0.5 X40G0001624 2A Label for screw pe bag X40G000162411G SN LABEL 47.5*27 合成纸 Z40G0002ALL01A OTHER LABEL 家电维修资料网 www. 520101. com 57 E50F21NDJXSENNX 点位 组件 对象描述 备注 Q52G100204000A00JY AL FOIL 036T 600 18102 NONWOVEN FABRTC 036T 600 18106 NONWOVEN FABRTC 041G 68508 A control card 0M1G 130 5 47 CR3 SCREW M3 5 0M1G 330 8 47 CR3 SCREW M3 8 0M1G1030 6 47 CR3 SCREW M3 6 0M1G1730 6120 SCREW M3 6 0M1G1730 10120 SCREW M3 10 0M1G1740 8120 SCREW M4 8 0Q1G 130 6120 SCREW (T3X6) 0Q1G 930 5120 SCREW 0Q1G 930 6 47 CR3 SCREW 0Q1G 930 6 47 CR3 SCREW SP01 378G0110567YEA 6 OHM 11W 132*34 0 UNIT ECN601 395G801404RD43 HARNESS 4P - 2P + 2P 1000 mm / 600 mm ECN601 395G801404WD43 HARNESS 4P - 2P + 2P 1000 mm / 600 mm 2nd-source ECN701 395G801416DC61 HARNESS 16P pitch2.0-12P pitch2.0 450mm 2nd-source ECN701 395G801416RC61 HARNESS 16P pitch2.0-12P pitch2.0 450mm ECN101 395GH20002DT006000 HARNESS 2P-2P 160MM ECN101 395GH20002WT006000 HARNESS 2P-2P 160MM 2nd-source ECN401 395GH20010DT016000 HARNESS 10p-5p+2p 600/1000 ECN401 395GH20010XT016000 HARNESS 10p-5p+2p 600/1000 2nd-source ECN403 395GLT5132D0100000 LVDS CABLE 51P-32P 550mm 2nd-source ECN403 395GLT5132X0100000 LVDS CABLE 51P-32P 550mm E09801 398GR08BCSW00G REMOTE SKYWORTH TS-Y108-95 chinese 708GQB080WPX01 SKY 40(180 CH) 756TXFCB01D050000X MCU ASSY 2nd-source CBPFEMPDXD CONVERSION BOARD G7061-D-X-X-1-20140804 IRPFFXA6 IR BOARD G5704-R0A-002-0040 KEPFDXB6 KEY BOARD E750 LVM500J1PE8AEC2X0X PANEL TPT500J1-LE8 SC3G XM TPV P33E0676XJT01R0100 Button P34E25060GM03G0200 REAR_COVER NA PLTVFY701XXSK ADAPTER BOARD 715G6679 Q02G707105000100XL BOLT Q16G0001 10 12 EVA WASHER Q16G0001010065GPZA EVA WASHER Q36T 600 28 1 GP NON-WOVEN FABRIC Q36T 600 30 1 NONWOVEN FABRIC Q36T 600 30 8 NONWOVEN FABRIC Q36T 600 30 18 ONWOVEN FABRIC Q36T 600 31 1 NONWOVEN FABRIC Q36T 600 31 5 NONWOVEN FABRIC Q36T 600 35 3 GP NONWOVEN FABRIC Q36T 600 36 5 GP NONWOVEN FABRIC Q36T 600 37 14 GP NONWOVEN FABRIC Q36T 600 37 23 GP CLOTH_GRIDDING Q40G0001624 4A 产线需求的栈板 LABEL Q44T3231 21 18 CUSHION Q44T3231 21 36 EVA WASHER Q45G88010TV08500WN PROTECT BAG Q45G88010TV12000WN PROTECT BAG 1200*1600 家电维修资料网 www. 520101. com 58 Q49G 51500 HF panel 清洁剂 Q52G130118600000YY TAPE Q52G1501150523AWBK TAPE_INSULATING Q52G160119100A00YY TAPE Q52G2001 TV 1 TAPE X15T216310100000BL BKT_BASE X15T216410100000BL BKT_BASE X15T218110100000YF BKT_SPEAKER X15T218210100000YF BKT_SPEAKER X15T965130500000Z1 BKT_STAND X15T965140500000Z1 BKT_STAND X15T980320100000BL BKT_IO X15T980420200000BL BKT_IO X15T990710100000NP BKT_CONNECTOR X33E0170ADT02L0100 DECO_BEZEL X34E0266ADT01L0100 BASE_RIGHT TV50W-14d-dad26-d2r X34E0267ADT01L0100 BASE_LEFT TV50W-14d-dad26-d2r X35T8322001A1C01DA DECO_SHEET TV50W-14d-dad26-d2r X40G050000101A RATING LABEL for 50E3100 X44GQB0800101B0TH1 ARTWORK CARTON 50E3100 CHINA X44GQB080FB0H1 DIE CUT CARTON X44GQB081010SY CUSHION-T N/A China(2002) X44GQB082010SY CUSHION-B N/A China(2002) X44GQB08301EPE CUSHION N/A China(2002) X52G18012650000ALF INSULATING SHEET E08901 089G214A15N HL AC POWER CORD 1500 E08901 089G214A15N IS AC POWER CORD 1500 2nd-source 0M1G1740 20225 CR3 SCREW M4 20 Q45G8801 TV004 PE PACKINGx290x195x0.04 X41G50SV00101B QSG 50E3100 QSG X52G200124700000BK TAPE 040G 58162435A MANUAL P/N LABEL Q40G000162492A CEL LABEL FOR TV MODEL G3/1.3/0.5 X40G0001624 2A Label for screw pe bag X40G000162411G SN LABEL 47.5*27 合成纸 Z40G0002ALL01A OTHER LABEL Q11G701016000L00ZL PCB-SUPPORT 708GQB080WPX01 SKY 40(180 CH) Q44G6002126110 PAPER BOARD Q50G 4 10 TIE (Y1900221) Q07G 8 5234 COMPOUND PALLET Q52G 1285 6 Big tape for Skyworth Q44G9003156 CORNER PAPER 1560 Q50G060046502A00JY PACKAGE_BUCKLE Q45G 77 5 PE PACKING 756TXFCB01D050000X MCU ASSY U402 056G2233 42 FLASH MX25L6406EM2I-12G 64Mb SOP-8 2nd-source SMTF-U402 100TWMMQ001DTX SKYWORTH 50E3100 Nor_FLASH V1.00 NA U402 356G22330420TR FLASH MX25L6406EM2I-12G 64Mb SOP-8 CBPFEMPDXD CONVERSION BOARD G7061-D-X-X-1-20140804 CN103 088G 78G114ACL RCA JACK R/A YELLOW H=10.5 CN104 088G 78G121ACL RCA JACK R/A 4P W/R 1*2 H=10.5 CN104 088G 78G121AYG RCA JACK R/A 4P W/R 1*2 H=10.5 2nd-source CN107 088G 78G134ACL RCA JACK R/A 6P G/BL/R 1*3 H=10.5 CN107 088G 78G134AYG RCA R/A 6P -- R/B/G 10.5 2nd-source 家电维修资料网 www. 520101. com 59 CN102 088G 78G137ACL RCA JACK 6P Y/W/R 1*3 R/A CN102 088G 78G137AYG RCA JACK 6P Y/W/R 1*3 R/A 2nd-source CN106 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4 CN105 088G353GFF1ACL D-SUB CONN 15P BLUE R/A H=10mm 2nd-source CN105 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10 CN601 311GW200A04ABL CONN 2.0mm 4P R/A B2009W04HTK0 2nd-source CN601 311GW200A04ABX WAFER 2.0mm 4P CN401 311GW200C10ABL WAFER 2.0mm 10P R/A B2000W10HTKB 2nd-source CN401 311GW200C10ABX CONN 2.0mm 10P R/A W2010-10RVA-S05 CN701 311GW200C12BBL CONN 2.0mm 12P R/A B2000W12HTKE 2nd-source CN701 311GW200C12BBX CONN 2.0mm 12P R/A W2010-12RVA-S04 CN403 311GW200C32ABL 311GW200C32ABL311GW200C32ABL311GW200C32A CN403 311GW200C32ABX CONN 2.0mm 32P R/A W2010-32RVA-S05 2nd-source CN106 388G352F6B3AXH USB A TYPE R/A 6P 1*1 BLACK 8.4 2nd-source CN101 388G510H402ACL RF IFP-013 4P 1*1 W -- 2nd-source CN101 388G510H402AHC RF IFP-013 4P 1*1 W -- SMTFEMPDXD MAIN BOARD FOR SMT IRPFFXA6 IR BOARD G5704-R0A-002-0040 SMTIRPFFXA6 IR BOARD FOR SMT KEPFDXB6 KEY BOARD SMTKEPFDXB6 KEY BOARD FOR SMT PLTVFY701XXSK ADAPTER BOARD 715G6679 Z40G0002ALL01A OTHER LABEL GND5 009G6005 1 GND TERMINAL GND4 009G6005 1 GND TERMINAL CN8601 033G380212B YH wafer 12P 2.0 DIP U9102 056G 139 9 IC EL817M(X) photocoupler DIP-4 U8602 056G 139 9 IC EL817M(X) photocoupler DIP-4 U9401 056G 139 9 IC EL817M(X) photocoupler DIP-4 C9902 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M C9901 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M C8605 067G 5151019HZ EC 100UF 20% 100V 8*25 5000 hr C8606 067G 5151019HZ EC 100UF 20% 100V 8*25 5000 hr FB9801 071G 55906 FERRITE CORE 510R C8B R6H 6x9.2(A) FB9801 071G 55906 H BEAD 6.0*9.2 510R MIN BF-I60090C-794 2nd-source CN9902 087G 50147D HC HF AC R/A 2P 12.81mm FOR CN9902 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q x8.0 CN9101 311GW200C16AAX CONN 2.0mm 16P R/A W2010-16SVA-S03 U8605 356G0700008060 LED DRIVER TPV101D DIP-8 U8606 356G0700008060 LED DRIVER TPV101D DIP-8 RV9901 361G0046681KZW000U VARISTOR 680V 10% NR9901 361G0058259MYW008A NTCR 2.5R 20% 3.6W SCK152R58MTY503 NR9902 361G0058259MYW008A NTCR 2.5R 20% 3.6W SCK152R58MTY503 C9902 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L 2nd-source C9901 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L 2nd-source C9820 363G211K105GCE CAP MPP 1uF 10% 450V 18*7*12.5mm B32672 2nd-source C9820 363G211K105GCU CAP MPP 1uF 10% 450V 18*7*13mm MPHB105K C9802 367G215X560PKZ00CS EC 56UF 20% 450V 12.5*40 2000 hr 580mA C9801 367G215X560PKZ00CS EC 56UF 20% 450V 12.5*40 2000 hr 580mA FB9901 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815 FB9902 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815 L9902 373G0174314H00 LINE FILTER 12mH MIN 1.5 - L9902 373G0174314X00 LINE FILTER 12mH MIN 1.5A 3LFT18106-123 2nd-source L9801 373G0174352H00 PFC CHOKE 240uH 10% 2A - L9901 373G0174353H00 LINE FILTER 14mH MIN 1.5 LCL-11825 HA 家电维修资料网 www. 520101. com 60 L9901 373G0174353X00 LINE FILTER 14mH MIN 1.5 3LFT18107-143M 2nd-source L9105 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 2nd-source L8601 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 2nd-source L9106 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 2nd-source L9105 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A L8601 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A L9106 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A T8601 380GL52P184L00 X'FMR 190uH 10% 5uH ER40 PT-018828 T9101 380GL52P185N00 X'FMR 310uH 10% 5uH ER31 YUVA-2133-27 BD9901 393G0050460A14 BRIDGE KBJ1008G-FUC 10A 800V KBJ 705TXF57447 Q9105 ASS'Y 705TXF57448 Q9801, D9801 ASS'Y 705TXF57449 Q8601 ASS'Y 705TXF57456 Q9101 ASS'Y 705TXF84412 F9902 ASS"Y 705TXF93436 D8601 ASS'Y PLFY701XXSKSMT ADAPTER BOARD FOR SMT HS9802 Q85T0205101 SHIELD 13*30 HS8602 X90G070710100000BF HEAT SINK HS8601 X90G070710100000BF HEAT SINK HS9901 X90G201000800000BF HEAT SINK SMTFEMPDXD MAIN BOARD FOR SMT U702 056G 563 52 LDO AP1117D33G-13 2nd-source U703 056G 563143 C LDO G1084PT43U 5A ADJ TO-252 U101 056G 563149 IC G903T63UF 0.6A/3.3V SOT-223 U501 056G 662 21 ESD PROTECT AOZ8804DI DFN-10 U503 056G 662 21 ESD PROTECT AOZ8804DI DFN-10 U502 056G 662 21 ESD PROTECT AOZ8804DI DFN-10 U504 056G 662 21 ESD PROTECT AOZ8804DI DFN-10 U402 056G2233 42 FLASH MX25L6406EM2I-12G 64Mb SOP-8 2nd-source Q706 057G 417511 MMBT3904 Q502 057G 417511 MMBT3904 Q704 057G 417511 MMBT3904 Q403 057G 417511 MMBT3904 Q707 057G 417511 MMBT3904 Q503 057G 417511 MMBT3904 Q705 057G 417511 MMBT3904 Q702 057G 417511 MMBT3904 Q601 057G 417511 MMBT3904 Q602 057G 417512 MMBT3906 Q402 057G 417512 MMBT3906 Q708 057G 763940 MOSFET AO3401A SOT-23 TH701 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR R451 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R423 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R149 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R450 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R146 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R416 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R401 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R432 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R143 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R601 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R426 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R477 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 家电维修资料网 www. 520101. com 61 R145 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R742 061G0402000 JT RST 0402 0.05R MAX 1/16W - R710 061G0402000 JT RST 0402 0.05R MAX 1/16W - R732 061G0402000 JT RST 0402 0.05R MAX 1/16W - R427 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R621 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R626 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R623 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R616 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R701 061G04021000FY RST CHIP 100R 1/16W 1% R721 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA R634 061G04021003FY RST CHIP 100K 1/16W 1% R726 061G04021003FY RST CHIP 100K 1/16W 1% R724 061G04021003FY RST CHIP 100K 1/16W 1% R514 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R762 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R513 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R510 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R404 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R501 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R405 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R407 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R134 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R460 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R625 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R709 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R613 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R464 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R132 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R458 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R445 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R712 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R702 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R704 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R406 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R101 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R506 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R627 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R612 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R714 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R507 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R136 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R743 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R443 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R713 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R117 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R121 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R722 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R619 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R120 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R116 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R629 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R137 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R611 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R628 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 家电维修资料网 www. 520101. com 62 R436 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R102 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R728 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R473 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R741 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R144 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R439 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R720 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R730 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R711 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R441 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN R733 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO R428 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA R142 061G0402109 JT RST CHIP 0402 1R 5% 1/16W TZAI YUAN R124 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R119 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R118 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R123 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R148 061G0402151 JF RST CHIPR 150 OHM +-5% 1/16W FENGHUA R415 061G0402181 JF RST CHIP 180R 1/16W 5% FENGHUA R131 061G0402182 JF RST CHIPR 1.8KOHM 5% 1/16W FENGHUA R531 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA R462 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA R429 061G0402204 JF RST 0402 200K 5% 1/16W FENGHUA R418 061G0402204 JF RST 0402 200K 5% 1/16W FENGHUA R425 061G0402204 JF RST 0402 200K 5% 1/16W FENGHUA R433 061G0402204 JF RST 0402 200K 5% 1/16W FENGHUA R719 061G04022201FT RST CHIPR 2K2 +-1% 1/16W TZAI YUAN R113 061G0402221 JF RST CHIPR 220 OHM £«-5£¥ 1/16W FENGHUA R127 061G0402221 JF RST CHIPR 220 OHM £«-5£¥ 1/16W FENGHUA R633 061G04022702FF RST CHIP 27K 1/16W 1% FENGHUA R104 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA R111 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA R106 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA R133 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN R126 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN R129 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN R122 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN R135 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN R475 061G0402332 JT RST CHIP 3K3 1/16W 5% TZAI YUAN R479 061G0402332 JY RST CHIPR 3.3KOHM 5% 1/16W YAGEO R456 061G04024701FF RST 0402 4.7K 1% 1/16W R457 061G04024701FF RST 0402 4.7K 1% 1/16W R140 061G0402471 JF ST CHIPR 470 OHM 5% 1/16W FENGHUA R408 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R403 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R402 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R442 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R727 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R630 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R735 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R723 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R435 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R716 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R421 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 家电维修资料网 www. 520101. com 63 R422 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R434 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R431 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L R409 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R512 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R502 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R729 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R511 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R504 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R508 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R509 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R523 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R527 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R529 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R521 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R515 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R522 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R526 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R139 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R519 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R138 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R516 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R528 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R524 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R530 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R517 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R525 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R518 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R520 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F R448 061G0402510 JF RST CHIP 51R 1/16W 5% FENGHUA R734 061G04026202FF RST CHIP 62K 1/16W 1% FENGHUA R411 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R410 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R147 061G0402750 JF .ST CHIPR 75 OHM +-5% 1/16W FENGHUA R717 061G04028201FT RST 0402 8.2K 1% 1/16W TZAI YUAN R731 061G04028202FF RST CHIPR 82KOHM +-1% 1/16W FENGHUA FB418 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB416 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB411 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB420 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB419 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB415 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB412 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB413 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB414 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB417 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R715 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN R503 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO R505 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO R725 061G06031332FF RST 0603 13.3K 1% 1/10W FENGHUA R109 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R108 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R107 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R110 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R141 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO 家电维修资料网 www. 520101. com 64 R130 061G06037509FF ST CHIPR 75 OHM +-1% 1/10W FENGHUA R125 061G06037509FF ST CHIPR 75 OHM +-1% 1/10W FENGHUA R128 061G06037509FF ST CHIPR 75 OHM +-1% 1/10W FENGHUA R740 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO R437 061G08050004JT RST CHIPR 0805 0 OHM 4A R412 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA R718 061G12060004JY RST CHIPR MAX0R05 4A 1/4W YAGEO R440 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% C639 065G040210232K A CAP 0402 1NF 10% 50V X7R C404 065G040210232K A CAP 0402 1NF 10% 50V X7R C619 065G040210232K A CAP 0402 1NF 10% 50V X7R C445 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C416 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C409 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C415 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C406 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C446 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB C437 065G040210412K F CAP 0402 100NF 10% 16V X7R C714 065G040210412K F CAP 0402 100NF 10% 16V X7R C724 065G040210412K F CAP 0402 100NF 10% 16V X7R C141 065G040210412K F CAP 0402 100NF 10% 16V X7R C442 065G040210412K F CAP 0402 100NF 10% 16V X7R C444 065G040210412K F CAP 0402 100NF 10% 16V X7R C451 065G040210412K Y CAP 0402 100NF 10% 16V X7R C123 065G040210412K Y CAP 0402 100NF 10% 16V X7R C455 065G040210412K Y CAP 0402 100NF 10% 16V X7R C465 065G040210412K Y CAP 0402 100NF 10% 16V X7R C149 065G040210412K Y CAP 0402 100NF 10% 16V X7R C469 065G040210412K Y CAP 0402 100NF 10% 16V X7R C137 065G040210412K Y CAP 0402 100NF 10% 16V X7R C134 065G040210412K Y CAP 0402 100NF 10% 16V X7R C448 065G040210412K Y CAP 0402 100NF 10% 16V X7R C464 065G040210412K Y CAP 0402 100NF 10% 16V X7R C467 065G040210412K Y CAP 0402 100NF 10% 16V X7R C435 065G040210412K Y CAP 0402 100NF 10% 16V X7R C452 065G040210412K Y CAP 0402 100NF 10% 16V X7R C468 065G040210412K Y CAP 0402 100NF 10% 16V X7R C105 065G040210412K Y CAP 0402 100NF 10% 16V X7R C434 065G040210412K Y CAP 0402 100NF 10% 16V X7R C139 065G040210412K Y CAP 0402 100NF 10% 16V X7R C466 065G040210412K Y CAP 0402 100NF 10% 16V X7R C108 065G040210412K Y CAP 0402 100NF 10% 16V X7R C145 065G040210412K Y CAP 0402 100NF 10% 16V X7R C462 065G040210412K Y CAP 0402 100NF 10% 16V X7R C449 065G040210412K Y CAP 0402 100NF 10% 16V X7R C412 065G040210412K Y CAP 0402 100NF 10% 16V X7R C453 065G040210412K Y CAP 0402 100NF 10% 16V X7R C102 065G040210412K Y CAP 0402 100NF 10% 16V X7R C443 065G040210412K Y CAP 0402 100NF 10% 16V X7R C463 065G040210412K Y CAP 0402 100NF 10% 16V X7R C405 065G040210506K A CAP 0402 1UF 10% 6.3V X6S C458 065G040210506K A CAP 0402 1UF 10% 6.3V X6S C128 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R C436 065G040222031J A CAP 0402 22PF J 50V NPO C704 065G040222031J T CAP 0402 22pF 5% 50V NP0 UMK105 CG220JV 家电维修资料网 www. 520101. com 65 C126 065G040222031J T CAP 0402 22pF 5% 50V NP0 UMK105 CG220JV C730 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5% C140 065G040222322K F CAP 0402 22NF 10% 25V X7R C150 065G040222322K Y CAP 0402 22NF 10% 25V X7R C430 065G040227031J F CAP 0402 27PF 5% 50V NP0 C425 065G040227031J F CAP 0402 27PF 5% 50V NP0 C630 065G040233131J T AP CHIP 0402 330PF 50V J NPO C623 065G040233131J T AP CHIP 0402 330PF 50V J NPO C637 065G040233131J T AP CHIP 0402 330PF 50V J NPO C626 065G040233131J T AP CHIP 0402 330PF 50V J NPO C107 065G040233131J Y 0402 330PF J 50V NPO C114 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C119 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C113 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C118 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C101 065G040247232K Y AP 0402 4.7NF 10% 50V X7R C153 065G040247232K Y AP 0402 4.7NF 10% 50V X7R C117 065G040247312K A CAP 0402 47NF 10% 16V X7R C408 065G040247312K A CAP 0402 47NF 10% 16V X7R C120 065G040247312K A CAP 0402 47NF 10% 16V X7R C410 065G040247312K A CAP 0402 47NF 10% 16V X7R C121 065G040247312K A CAP 0402 47NF 10% 16V X7R C407 065G040247312K A CAP 0402 47NF 10% 16V X7R C106 065G040247312K A CAP 0402 47NF 10% 16V X7R C146 065G040247312K A CAP 0402 47NF 10% 16V X7R C147 065G040247312K A CAP 0402 47NF 10% 16V X7R C122 065G040247312K A CAP 0402 47NF 10% 16V X7R C136 065G040256031J Y CAP CHIP 0402 56pF 50V NP0 +/-5% C135 065G040256031J Y CAP CHIP 0402 56pF 50V NP0 +/-5% C148 065G040268232K A CAP 0402 6.8NF 10% 50V X7R C401 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C726 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C618 065G060310432K Y CAP 0603 100NF 10% 50V X7R C613 065G060310432K Y CAP 0603 100NF 10% 50V X7R C638 065G060310432K Y CAP 0603 100NF 10% 50V X7R C634 065G060310512K A CAP 0603 1UF 10% 16V X7R C624 065G060310512K A CAP 0603 1UF 10% 16V X7R C632 065G060310512K A CAP 0603 1UF 10% 16V X7R C641 065G060310512K A CAP 0603 1UF 10% 16V X7R C629 065G060310512K A CAP 0603 1UF 10% 16V X7R C459 065G060310512K A CAP 0603 1UF 10% 16V X7R C631 065G060310512K A CAP 0603 1UF 10% 16V X7R C457 065G060310512K A CAP 0603 1UF 10% 16V X7R C712 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA C725 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA C454 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C460 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C402 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C439 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C130 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C456 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C142 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C461 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C413 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C403 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% 家电维修资料网 www. 520101. com 66 C635 065G060322422K T CAP CHIP0603 220NF K 25V X7R C633 065G060322422K T CAP CHIP0603 220NF K 25V X7R C616 065G060322422K T CAP CHIP0603 220NF K 25V X7R C622 065G060322422K T CAP CHIP0603 220NF K 25V X7R C112 065G0603225A5K A CAP 0603 2.2UF K 10V X5R C116 065G0603225A5K A CAP 0603 2.2UF K 10V X5R C115 065G0603225A5K A CAP 0603 2.2UF K 10V X5R C111 065G0603225A5K A CAP 0603 2.2UF K 10V X5R C706 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C723 065G080510602K A CAP 0805 10UF 10% 6.3V X7R CL21B106KQQNN C713 065G080510615K T CHIP 10uF 16V X5R 0805 C617 065G080510615K T CHIP 10uF 16V X5R 0805 C612 065G080510615K T CHIP 10uF 16V X5R 0805 C721 065G0805106A5K A CAP 0805 10UF 10% 10V X5R C711 065G0805106A5K A CAP 0805 10UF 10% 10V X5R C718 065G0805106A5K A CAP 0805 10UF 10% 10V X5R C716 065G0805106A5K A CAP 0805 10UF 10% 10V X5R C727 065G080522605M A CAP 0805 22UF 20% 6.3V X5R C450 065G080522605M A CAP 0805 22UF 20% 6.3V X5R C728 065G080522605M A CAP 0805 22UF 20% 6.3V X5R C719 065G080522605M T CAP 0805 22uF 20% 6.3V X5R JMK212 BJ226 C717 065G080522605M T CAP 0805 22uF 20% 6.3V X5R JMK212 BJ226 C720 065G120622615K A CAP 1206 22UF 10% 16V X5R C722 065G120622615K A CAP 1206 22UF 10% 16V X5R HDCP-U402 070GHDCP500HDC HDCP CODE FB101 071G 56D102 MA CHIP BEAD 1000ohm 0805 1A FB603 071G 56G301 DA CHIP BEAD 0805 300R 25% 4A 2nd-source FB703 071G 56G301 DA CHIP BEAD 0805 300R 25% 4A 2nd-source FB603 071G 56G301 MA CHIP BEAD 0805 300OHM 4A FB703 071G 56G301 MA CHIP BEAD 0805 300OHM 4A FB409 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L 2nd-source FB409 071G 56K121 TA HIP BEAD 120R/6000mA HCB2012KF-121T60 FB403 071G 59C600 M CHIP BEAD 60 OHM 0603 600mA 2nd-source FB403 071G 59C600 TA CHIP BEAD 0603 60R 25% 600mA FB402 071G 59G301 M CHIP BEAD 0603 300R 25% 200mA FB402 071G 59G301 TA CHIP BEAD 300OHM 200mA FCM1608KF-301T02 2nd-source CN501 088G 34019G AD HDMI HEADER 19P - - 2nd-source CN502 088G 34019G AD HDMI HEADER 19P - - 2nd-source CN502 088G 34019G AV HDMI HEADER 19P BLACK - CN501 088G 34019G AV HDMI HEADER 19P BLACK - D101 093G 6433L DIODE LBAV99LT1G SOT-23 LRC D401 093G 6433L DIODE LBAV99LT1G SOT-23 LRC X401 093G 22SX02 YC CRYSTAL YC 49U/SMD 24MHz 20PPM 18PF ZD503 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD502 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD501 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD505 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD507 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD506 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD504 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ U101 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223 2nd-source U702 356G056351500C00HF LDO AZ1117CD-3.3TRG1(cu) 1A 3.3V TO-252 U102 356G0566024601 Silicon Tuner R840 U401 356G0568128603 SCALER MSD8314Z2-Z1-TN S2EPLQFP-128 U601 356G0616028600 AUDIO AD52580-QG28NAR (AF) 15W E-TSSOP 家电维修资料网 www. 520101. com 67 U402 356G22330420TR FLASH MX25L6406EM2I-12G 64Mb SOP-8 U706 356GD563006600 DC/DC SY8104ADC 4A 18V TSOT23-6 U707 356GD563008601 DC/DC SY8003ADFC 3A 5.5V DFN2x2-8 Q401 357G0763A06 MOSFET AO3407A -25A -30V 1.4W SOT23 C151 365G040218931C000F CAP 0402 1.8PF 0.25pF 50V NP0 0402CG1R8 C152 365G040218931C000F CAP 0402 1.8PF 0.25pF 50V NP0 0402CG1R8 C132 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C138 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C124 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C133 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C129 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C127 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C110 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C131 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC C125 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC L109 371G042Z102D00 CHIP BEAD 0402 1000 25% GZ1005D102CTF 0 L107 371G042Z102D00 CHIP BEAD 0402 1000 25% GZ1005D102CTF 0 L106 371G042Z102D00 CHIP BEAD 0402 1000 25% GZ1005D102CTF 0 L403 371G059Z102M00 CHIP BEAD 0603 1000ohm 25% MGGB1608M102 L402 371G059Z102M00 CHIP BEAD 0603 1000ohm 25% MGGB1608M102 L110 373G0402186FSM CHIP IND 1.8nh ±0.3nH 0.3 0.1 MGCI1005T L105 373G0402188FJY CHIP IND 0402 180nH 5% HK1005 R18J-T 0. L115 373G0402206FSD CHIP IND 2nh ±0.3nH 0.3 0.2 SDCL1005C2N L114 373G0402336FSD CHIP IND 3.3nH 0.3nH 0.3A 0.2R SDCL1005 L108 373G0603687GJM CHIP IND 68nH 5% 0.3A 0.75R MGCI1608H68 L601 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 L602 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 L604 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 L603 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 L702 373G253S198D00 SMD CHOKE 4.7UH 20% 3.3A 0.026R SWPG604 L703 373G253S256D00 SMD CHOKE 2.2uH 30% 2.95A 0.030R SWPG40 D101 393G006433P0HF HF BAV99_R1_00001 0.5A 100V SOT-23 2nd-source D401 393G006433P0HF HF BAV99_R1_00001 0.5A 100V SOT-23 2nd-source X101 393G022S60100J CRYSTAL NXH16.000AE18F-KAB8-PA 16MHz 18 E715 715G7061M01001004T MAIN PCB FR4 DS 182*100*1.6MM E715 715G7061M01001004Y MAIN PCB FR4 DS 182*100*1.6MM 2nd-source SMTIRPFFXA6 IR BOARD FOR SMT 040G 45762420A LABEL 25x6mm R201 061G0402153 JT RST CHIP 15K 1/16W 5% TZAI YUAN R206 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA R202 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN C202 065G0603225A5K M CAP MLCC 0603 2.2uF K 10V X5R LED201 081G 15 3 GP CHIP LED blue/red GPTD12048BRC1-AR CN202 311GW125D05ACX WAFER 1.25mm 5P V/T S1315-05SVB-S03-R U201 356GS927038006 SMD IR RECEIVER TSOP75438TR 38 KHz E715 715G5704R01002004M IR PCB FR4 DS 36*9*1.6mm SMTKEPFDXB6 KEY BOARD FOR SMT 040G 45762420A LABEL 25x6mm R02 061G06031501FF RST CHIPR 1.5K OHM +-1% 1/10W FENGHUA R05 061G06031502FT RST CHIP 15K 1/10W 1% R04 061G06032551FF RST 0603 2.55K 1% 1/10W FENGHUA R01 061G06034301FF RST CHIPR 4.3KOHM +-1% 1/10W FENGHUA R03 061G06036801FT RST CHIP 6K8 1/10W 1% C06 065G060310432K Y CAP 0603 100NF 10% 50V X7R CN01 311GW125D02ADX WAFER 1.25mm 2P R/A S1315-02RVB-S03-K 家电维修资料网 www. 520101. com 68 SW01 377G060902C0CJ CHIP TACT SW 6P 6mm 160g SMD SW01 377G060902C0HJ CHIP TACT SW 6P 6mm 160g SMD 2nd-source 709T63160XS001 COMSUMPTIVE ASSY E715 715G6316K01000004C KEY PCB FR4 SS 25*24.4*1.6mm 2nd-source E715 715G6316K01000004I KEY PCB FR4 SS 25*24.4*1.6mm E715 715G6316K01000004S KEY PCB FR4 SS 25*24.4*1.6mm 2nd-source 705TXF57447 Q9105 ASS'Y 051G 200 1 OIL FOR DISAPPEAR 0M1G1730 8120 SCREW M3 8 Q9105 357G0600100600 MOSFET TK22A10N1 22A 100V TO-220SIS HS9102 Q90G0219 4 HEAT SINK ÐͲÄ/Profile 705TXF57448 Q9801, D9801 ASS'Y 051G 200 1 OIL FOR DISAPPEAR D9801 093G 52905 DIODE FMNS-1106S TO-220 0M1G1730 8120 SCREW M3 8 Q9801 357G0667600002 MOSFET TK16A60W 16A 600V SC-67 HS9801 Q90G0219 3 HEAT SINK 705TXF57449 Q8601 ASS'Y 051G 200 1 OIL FOR DISAPPEAR 0M1G1730 8120 SCREW M3 8 Q8601 357G0667650006 MOSFET TK11A65D 11A 650V TO-220SIS HS9201 Q90G0236 7 HEAT SINK 705TXF57456 Q9101 ASS'Y 051G 200 1 OIL FOR DISAPPEAR 0M1G1730 8120 SCREW M3 8 Q9101 357G0667650006 MOSFET TK11A65D 11A 650V TO-220SIS HS9101 Q90G0219 4 HEAT SINK ÐͲÄ/Profile 705TXF84412 F9902 ASS"Y 084G 34 10 FUSE CLIP 2nd-source 084G 34 14 bSE -- -- -- F9902 084G 41 7 FUSE 5A 250V 0215005M LITTELFUSE 705TXF93436 D8601 ASS'Y 051G 200 1 OIL FOR DISAPPEAR D8601 093G 52905 DIODE FMNS-1106S TO-220 0M1G1730 8120 SCREW M3 8 HS9202 Q90G0219003A0000SY HEAT SINK PLFY701XXSKSMT ADAPTER BOARD FOR SMT Q9402 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC Q8101 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC R8156 061G0805000 JT RST 0805 0.05R MAX 1/8W R9138 061G0805000 JT RST 0805 0.05R MAX 1/8W R9128 061G0805000 JT RST 0805 0.05R MAX 1/8W R8172 061G0805000 JT RST 0805 0.05R MAX 1/8W R8171 061G0805000 JT RST 0805 0.05R MAX 1/8W R9104 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN R9807 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN R9121 061G08051001FT RST CHIP 1K 1/8W 1% R9406 061G08051002FT RST CHIP 10K 1/8W 1% R8114 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA R9131 061G08051003FT RST CHIP 100K 1/8W 1% R9402 061G08051003FT RST CHIP 100K 1/8W 1% R9106 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN R9118 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R9815 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R9813 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA 家电维修资料网 www. 520101. com 69 R9809 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R9107 061G0805103 JT RST 0805 10K 5% 1/8W R9816 061G0805103 JT RST 0805 10K 5% 1/8W R8118 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN R8149 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN R9141 061G08051203FT RST CHIPR 120KOHM +- 1% 1/8W TZAI YUAN R9119 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN R9804 061G08052002FF RST CHIPR 20KOHM +-1% 1/8W FENGHUA R8140 061G08052002FF RST CHIPR 20KOHM +-1% 1/8W FENGHUA R9804 061G08052002FT RST CHIP 20K 1/8W 1% 2nd-source R8140 061G08052002FT RST CHIP 20K 1/8W 1% 2nd-source R8101 061G0805220 JY RST CHIPR 22R +-5% 1/8W YAGEO R9116 061G08052201FT CHIP 2K2 1/8W 1% R9806 061G08052401FT RST CHIP R 2K4 +/-1% 1/8W R9120 061G08052402FF RST CHIPR 24KOHM +-1% 1/8W FENGHUA R9812 061G08052402FT RST CHIP 24K 1/8W 1% R9808 061G0805330 JT RST CHIP 33R 1/8W 5% TZAI YUAN R8110 061G0805392 JT RST CHIP 3K9 1/8W 5% TZAI YUAN R8135 061G08054302FF RST CHIPR 43KOHM +-1% 1/8W FENGHUA R8102 061G0805470 JY RST CHIPR 47R +-5% 1/8W YAGEO R8130 061G08054702FF RST CHIPR 47KOHM +-1% 1/8W FENGHUA R8111 061G0805474 JT RST CHIPR 470K +-5% 1/8W TZAI YUAN R8139 061G08055101FF RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA R8139 061G08055101FT RST CHIP 5K1 1/8W 1% 2nd-source R9408 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN R8107 061G0805511 JT RST CHIPR 510OHM +-5% 1/8W TZAI YUAN R9117 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN R8150 061G0805514 JT RST CHIPR 510K +-5% 1/8W TZAI YUAN R8112 061G08056203FF RST CHIPR 620KOHM +-1% 1/8W FENGHUA R8112 061G08056203FT RST CHIP 620K 1/8W 1% 2nd-source R9115 061G08056801FT RST CHIP R 6.8KOHM +-1% 1/8W R8113 061G08056802FF RST 0805 68K 1% 1/8W R8116 061G08057503FT RST 0805 750K 1% 1/8W JR907 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA R9126 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR911 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR910 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR922 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR920 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR921 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR905 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR906 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR908 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA JR902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA R8164 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN R8119 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN R8136 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN R9405 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206 R9130 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF R9802 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W R9803 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W R9407 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9403 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA 家电维修资料网 www. 520101. com 70 R9103 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN R9810 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN R9122 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R8104 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R9404 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN R8152 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R8153 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R8151 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN R8109 061G12061501FT RST 1206 1.5K 1% 1/4W R9129 061G12062002FF RST CHIPR 20K OHM +-1% 1/4W FENGHUA R8142 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8148 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8146 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8147 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8145 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8141 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8143 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R8144 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN R9805 061G1206203 JF RST CHIPR 20KOHM +-5% 1/4W FENGHUA R9108 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9110 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9134 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9109 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9133 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R9132 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN R8138 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8122 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8157 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8120 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8121 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8123 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8155 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R8137 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN R9401 061G1206302 JT RST CHIP 3K 5% 1/4W R9102 061G1206304 JF RST CHIPR 300KOHM +-5% 1/4W FENGHUA R9105 061G1206304 JF RST CHIPR 300KOHM +-5% 1/4W FENGHUA R9111 061G1206304 JF RST CHIPR 300KOHM +-5% 1/4W FENGHUA R9102 061G1206304 JT RST CHIPR 300 KOHM +-5% 1/4W TZAI YUAN 2nd-source R9105 061G1206304 JT RST CHIPR 300 KOHM +-5% 1/4W TZAI YUAN 2nd-source R9111 061G1206304 JT RST CHIPR 300 KOHM +-5% 1/4W TZAI YUAN 2nd-source R9124 061G12063302FT RST CHIPR 33KOHM +-1% 1/4W TZAI YUAN R8108 061G1206332 JF RST CHIPR 3.3KOHM +-5% 1/4W FENGHUA R8108 061G1206332 JT RST CHIPR 3.3 KOHM +-5% 1/4W TZAI YUAN 2nd-source R9114 061G1206335 JT RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN R9127 061G1206335 JT RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN R9113 061G1206335 JT RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN R8103 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN R9112 061G1206479 JT RST 1206 4.7R 5% 1/4W R9125 061G1206479 JT RST 1206 4.7R 5% 1/4W R9123 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN R9903 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA 2nd-source R9907 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA 2nd-source R9904 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA 2nd-source R9905 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA 2nd-source R9902 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA 2nd-source 家电维修资料网 www. 520101. com 71 R9906 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA 2nd-source R9903 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN R9907 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN R9904 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN R9905 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN R9902 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN R9906 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN C9131 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5% C9810 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5% C8124 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5% C9144 065G080510231J F CAP 0805 1NF 5% 50V NPO C8101 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C9136 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C8123 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C9140 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C9137 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C8119 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C8118 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C9803 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9139 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9130 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9402 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C8102 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9132 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9143 065G080510532K M CAP 0805 1UF 10% 50V X7R C8113 065G080510532K M CAP 0805 1UF 10% 50V X7R C8114 065G080510532K M CAP 0805 1UF 10% 50V X7R C8127 065G080510532K M CAP 0805 1UF 10% 50V X7R C8115 065G080510532K M CAP 0805 1UF 10% 50V X7R C8128 065G080510532K M CAP 0805 1UF 10% 50V X7R C8116 065G080510532K M CAP 0805 1UF 10% 50V X7R C9141 065G080510532K M CAP 0805 1UF 10% 50V X7R C8129 065G080510532K M CAP 0805 1UF 10% 50V X7R C8105 065G080510532K M CAP 0805 1UF 10% 50V X7R C8129 065G080510532K T CAP 0805 1UF 10% 50V X7R 2nd-source C9807 065G080522131J F CAP CHIP 0805 220PF J 50V NPO C9809 065G080533131J Y CAP CHIP 0805 330P 50V NP0 +/-5% C9102 065G080533131J Y CAP CHIP 0805 330P 50V NP0 +/-5% C9811 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5% C8137 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5% C9103 065G080547232K F CAP 0805 4.7NF 10% 50V X7R C8106 065G080547232K F CAP 0805 4.7NF 10% 50V X7R C9805 065G080547332K F CAP CHIP 0805 47NF K 50V X7R C8130 065G080547432K F 0805 0.47UF K 50V X7R C9806 065G080547432K M CAP 0805 470NF 10% 50V X7R C9118 065G080547432K M CAP 0805 470NF 10% 50V X7R C9121 065G080547525K M CAP 0805 4.7UF 10% 25V X5R C8112 065G120610171J Y CAP 1206 100PF 5% 500V NP0 C8111 065G120610171J Y CAP 1206 100PF 5% 500V NP0 C9142 065G120610532K M AP CHIP 1206 1UF K 50V X7R D9108 093G 60S952 T SCHOTTKY SK510C R6 5A 100V SMC U9103 356G01585020HF Shunt Regu TL431G-AE2-R SOT23-3 U8603 356G01585020HF Shunt Regu TL431G-AE2-R SOT23-3 U8101 356G01585020HF Shunt Regu TL431G-AE2-R SOT23-3 U9801 356G0379008218 PFC LD7591T GS SOP-8 家电维修资料网 www. 520101. com 72 U8601 356G0379008228 AC/DC PF6002AS SOP-8 U9101 356G0379008605 AC/DC LD5532 GS SOP-8 U9104 356GD563008617 DC/DC SP6018ES8RGB 1A 16V SOP-8 Q9802 357G0667600602 MOSFET AO3160 0.04A 600V SOT23A Q9401 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89 Q8102 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V Q9106 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V Q9403 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V R9817 361G12061104FF RST 1206 1.1MR 1% 1/4W RS-06L115FT 2nd-source R9817 361G12061104FT RST 1206 1.1MR 1% 1/4W SMD12061M1F 2nd-source R9817 361G12061104FY .1MR 1% 1/4W RC1206FR-071M1L R8131 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8125 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8134 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8124 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8127 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8133 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8132 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8126 361G12062408FF RST 1206 2.4R 1% 1/4W RS-06L2R40FT 2nd-source R8126 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8132 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8133 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8127 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8124 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8134 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8125 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F R8131 361G12062408FT RST 1206 2R4 1% 1/4W SMD12062R4F D8107 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 D8108 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 D9101 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 D9401 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 D8102 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 ZD8105 393G039S64000T ZENER BZT52-B16G 16V 0.2mW SOD-123 ZD8104 393G039S64000T ZENER BZT52-B16G 16V 0.2mW SOD-123 ZD9401 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W ZD8103 393G039SA1500T ZENER BZT52-B30 30V 0.41W SOD-123 ZD8106 393G039SA2700T ZENER BZT52-B27 27V 0.41W SOD-123 ZD9106 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 D9802 393G052S800600 RECTIFIER S8KC 8A 800V SMC D9804 393G052S800600 RECTIFIER S8KC 8A 800V SMC D9803 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL D8606 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL D9106 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL D9103 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL PLFY701XXSKAI ADAPTER BOARD FOR AI 709T63160XS001 COMSUMPTIVE ASSY 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 055G 23520 Cleaning Naphtha 055G 100610 Solder Paste Q05G6054 1 SHEET Q09G6012 1 PIN Q52G170100700B00XW MESH PRINTTING_PAPER PLFY701XXSKAI ADAPTER BOARD FOR AI BD9901 006G 31 4 1.7MM RIVET NR9901 006G 31 4 1.7MM RIVET 家电维修资料网 www. 520101. com 73 NR9902 006G 31 4 1.7MM RIVET T9101 006G 31 4 1.7MM RIVET CN9901 006G 31500 EYELET L9801 006G 31500 EYELET T8601 006G 31500 EYELET C9801 006G 31502 EYELET C9902 006G 31502 EYELET C9802 006G 31502 EYELET RV9901 006G 31502 EYELET L9902 006G 31502 EYELET C9901 006G 31502 EYELET L9901 006G 31502 EYELET 040G 45762420A LABEL 25x6mm C9113 065G 1K10293T CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY 2nd-source C9114 065G 1K10293T CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY 2nd-source C9114 065G 1K1029WT CAP CER 1000PF 10% 1KV R CT81-1KV-08d-2R C9113 065G 1K1029WT CAP CER 1000PF 10% 1KV R CT81-1KV-08d-2R C9913 065G306K22123R CAP Y1 220PF 10% 250V Y5P 2nd-source C9914 065G306K22123R CAP Y1 220PF 10% 250V Y5P 2nd-source C9921 065G306K22123R CAP Y1 220PF 10% 250V Y5P 2nd-source C9922 065G306K22123R CAP Y1 220PF 10% 250V Y5P 2nd-source C9913 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 C9914 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 C9921 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 C9922 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 C9401 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000H ER C9145 067G 3154707KT EC 47UF 20% 50V ER1H470MPN1007RU C9804 067G 5151007KB EC 10UF 20% 50V 5*11 EY C9109 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9106 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9107 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9105 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9110 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9112 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV C9138 067G 5154797KB EC 4.7UF 20% 50V 5*11 EY FB9802 071G 55 23 BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 2nd-source FB9103 071G 55 23 BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 FB9103 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A 2nd-source FB9802 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A FB9904 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 FB9101 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 FB9904 071G 55 26 S BEAD 3.5*6 127R 25% LB3.5*0.8*6-2 2nd-source FB9101 071G 55 26 S BEAD 3.5*6 127R 25% LB3.5*0.8*6-2 2nd-source FB8601 071G 55 29 FERRITE BEAD ZD9113 093G 3995652T DIODE GDZJ30B DO-35 ZD8611 093G 3995652T DIODE GDZJ30B DO-35 ZD9111 093G 3995752T ZENER GDZJ24B 24V 0.5W DO-35 ZD9114 093G 3997752T ZENER GDZJ4.7B 4.7V 0.5W DO-35 ZD8612 093G 3997752T ZENER GDZJ4.7B 4.7V 0.5W DO-35 ZD9112 093G 3997752T ZENER GDZJ4.7B 4.7V 0.5W DO-35 D9104 093G 52916 RECTIFIER PG1010R 1A 1000V DO-41 D8101 093G1080 252T RECTIFIER SARS01-V1 1.2A 800V DO-41 D9102 093G1080 252T RECTIFIER SARS01-V1 1.2A 800V DO-41 J913 095G 90 23 JUMP WIRE - - J942 095G 90 23 JUMP WIRE - - 家电维修资料网 www. 520101. com 74 J941 095G 90 23 JUMP WIRE - - J929 095G 90 23 JUMP WIRE - - J923 095G 90 23 JUMP WIRE - - J903 095G 90 23 JUMP WIRE - - J902 095G 90 23 JUMP WIRE - - J907 095G 90 23 JUMP WIRE - - J908 095G 90 23 JUMP WIRE - - J905 095G 90 23 JUMP WIRE - - J945 095G 90 23 JUMP WIRE - - J901 095G 90 23 JUMP WIRE - - J906 095G 90 23 JUMP WIRE - - J937 095G 90 23 JUMP WIRE - - J921 095G 90 23 JUMP WIRE - - J916 095G 90 23 JUMP WIRE - - J943 095G 90 23 JUMP WIRE - - J912 095G 90 23 JUMP WIRE - - J914 095G 90 23 JUMP WIRE - - J919 095G 90 23 JUMP WIRE - - J911 095G 90 23 JUMP WIRE - - J922 095G 90 23 JUMP WIRE - - J934 095G 90 23 JUMP WIRE - - J936 095G 90 23 JUMP WIRE - - J920 095G 90 23 JUMP WIRE - - J938 095G 90 23 JUMP WIRE - - J928 095G 90 23 JUMP WIRE - - J918 095G 90 23 JUMP WIRE - - J910 095G 90 23 JUMP WIRE - - J935 095G 90 23 JUMP WIRE - - J915 095G 90 23 JUMP WIRE - - R8601 361G152F18852T00TZ RST MOF 0.18R 1% 2W MOF2WS0R18FT52 R9801 361G152F18852T00TZ RST MOF 0.18R 1% 2W MOF2WS0R18FT52 R9142 361G152M22052T00TZ RST MOF 22R 5% 2W MOF2WS22RJT52 R9142 361G152M22052T00YG RST MOF 22R 5% 2W RSF2VSJT-52-22R 2nd-source R9101 361G152M27852T00TZ RST MOF 0.27R 5% 2W MOF2WS0R27JT52 R8106 361G152M82352T00TZ RST MOF 82K 5% 2W MOF2WS82KJT52 R9147 361G152M82352T00TZ RST MOF 82K 5% 2W MOF2WS82KJT52 R8117 361G152M82352T00TZ RST MOF 82K 5% 2W MOF2WS82KJT52 R8117 361G152M82352T00YG RST MOF 82K 5% 2W RSF2VSJT-52-82K 2nd-source R8106 361G152M82352T00YG RST MOF 82K 5% 2W RSF2VSJT-52-82K 2nd-source R9147 361G152M82352T00YG RST MOF 82K 5% 2W RSF2VSJT-52-82K 2nd-source R8105 361G303A10852T00TZ RST FUSE 0R1 5% 1W TFUS1W0R1JT52 C9808 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G C8103 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G C9115 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G C9115 365G001J4706WT CAP CER 47PF 5% 1KV SL CC81-1KV-06d-SL- 2nd-source C8103 365G001J4706WT CAP CER 47PF 5% 1KV SL CC81-1KV-06d-SL- 2nd-source C9808 365G001J4706WT CAP CER 47PF 5% 1KV SL CC81-1KV-06d-SL- 2nd-source C9120 365G001K2229SS CAP CER 2.2NF 10% 1KV R 9RL222K102B76G C8104 365G001K2229SS CAP CER 2.2NF 10% 1KV R 9RL222K102B76G C9120 365G001K2229WS CAP CER 2.2NF 10% 1KV R CT81-1KV-12d-2R 2nd-source C8104 365G001K2229WS CAP CER 2.2NF 10% 1KV R CT81-1KV-12d-2R 2nd-source C9912 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA 2nd-source C9911 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA 2nd-source C9911 365G306J4706PR CAP Y1 47PF 5% 250V SL SL0AH470J07SXAMS C9912 365G306J4706PR CAP Y1 47PF 5% 250V SL SL0AH470J07SXAMS 家电维修资料网 www. 520101. com 75 C9920 365G306K6812WR CAP Y1 680PF 10% 250V Y5P C8608 367G515X470JHT000S EC 47UF 20% 100V 10*12 5000 hr 800mA LLP E715 715G6679P02003002S PWR PCB FR2 SS 195.5x241x1.6mm 家电维修资料网 www. 520101. com
