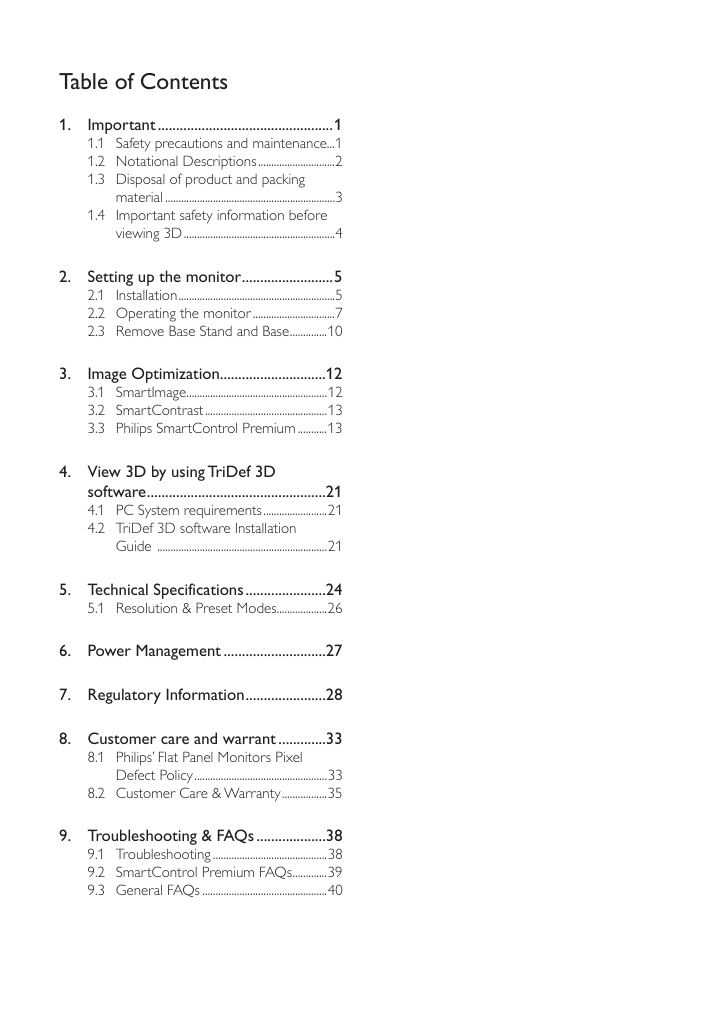

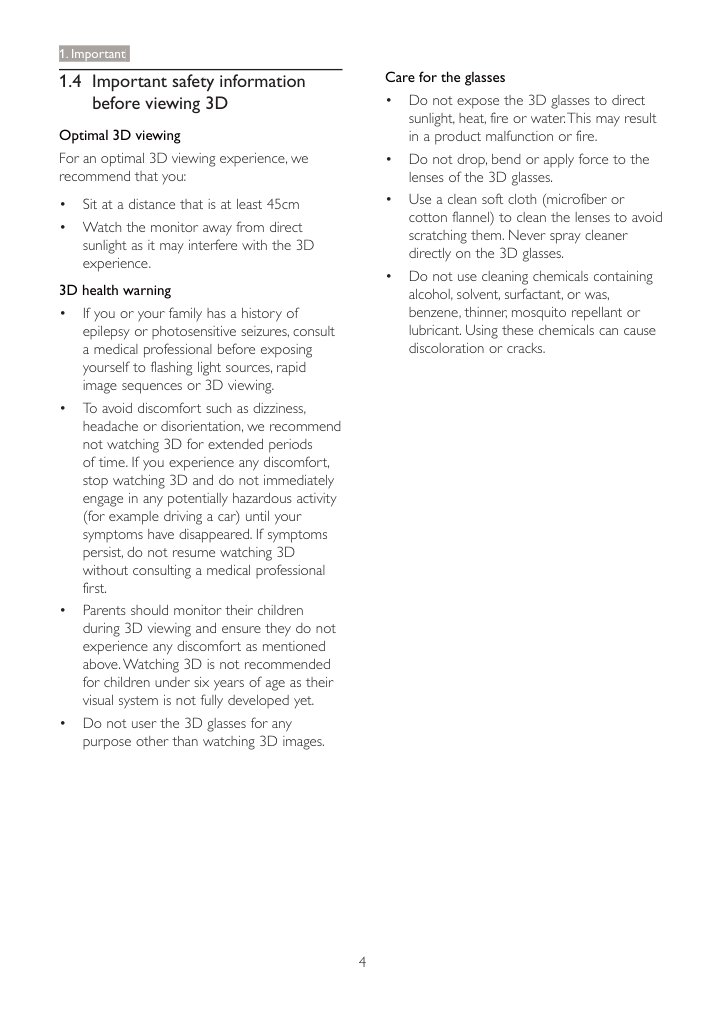

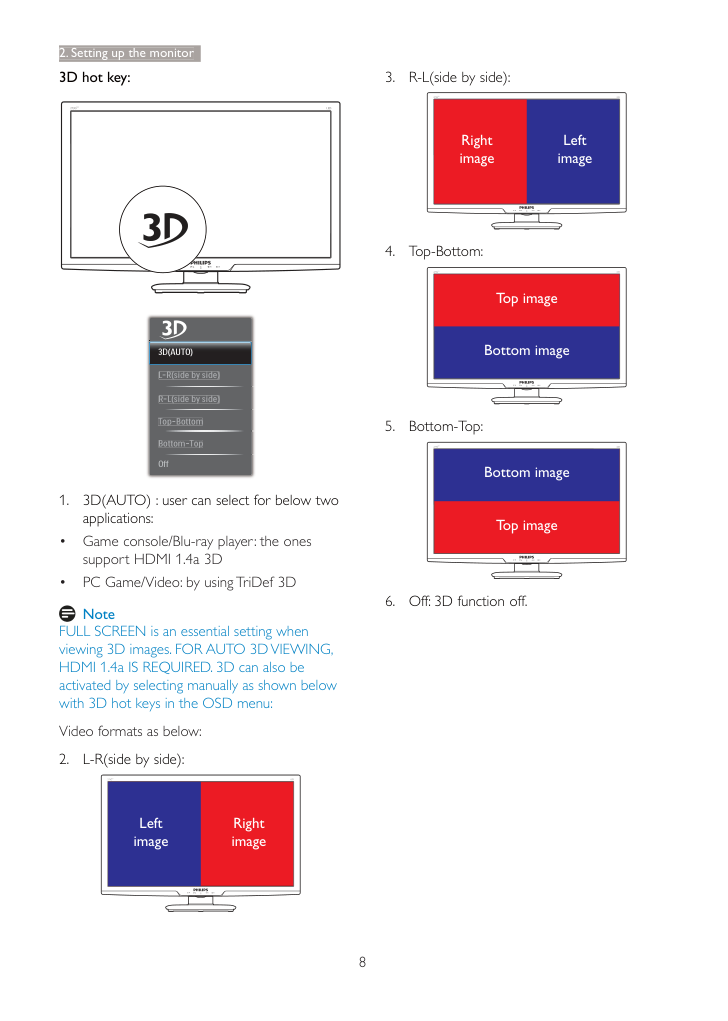

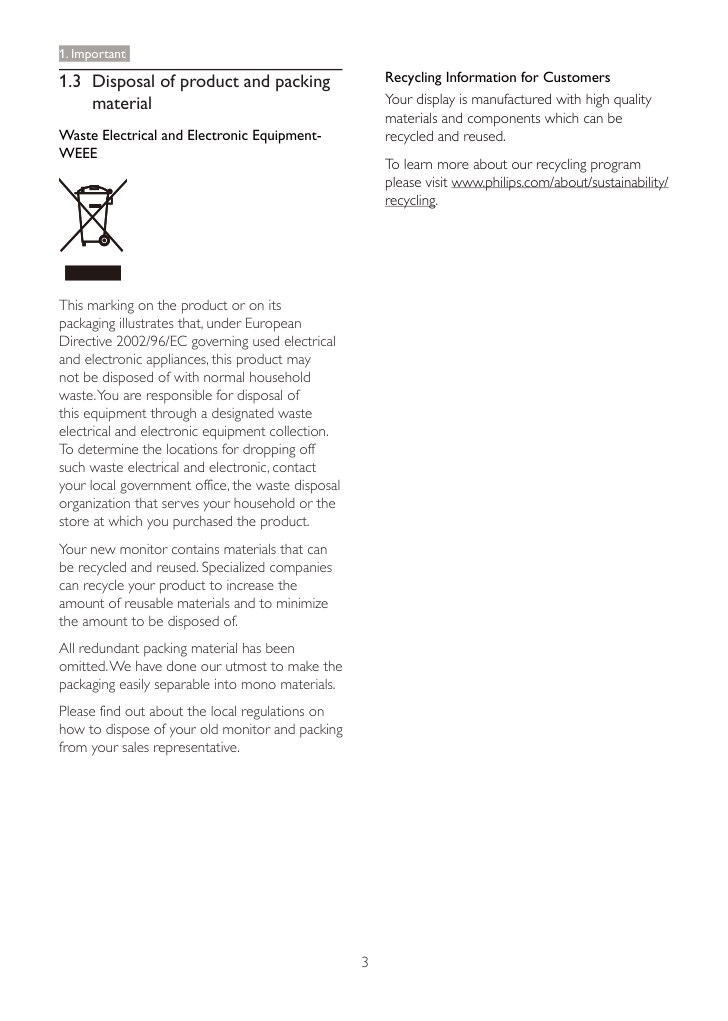

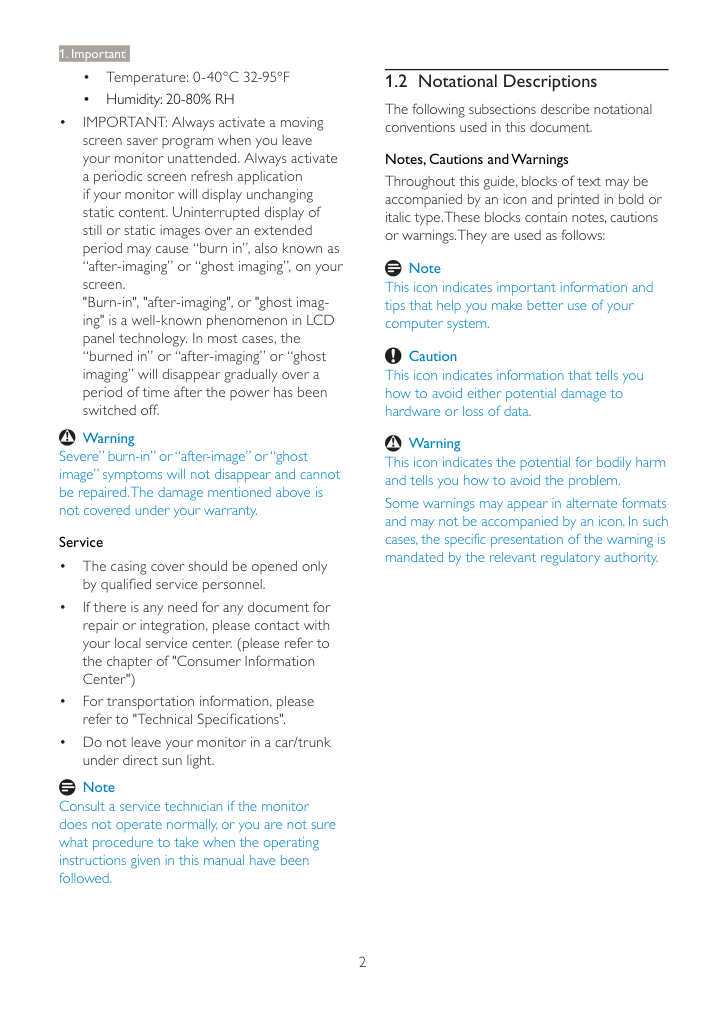

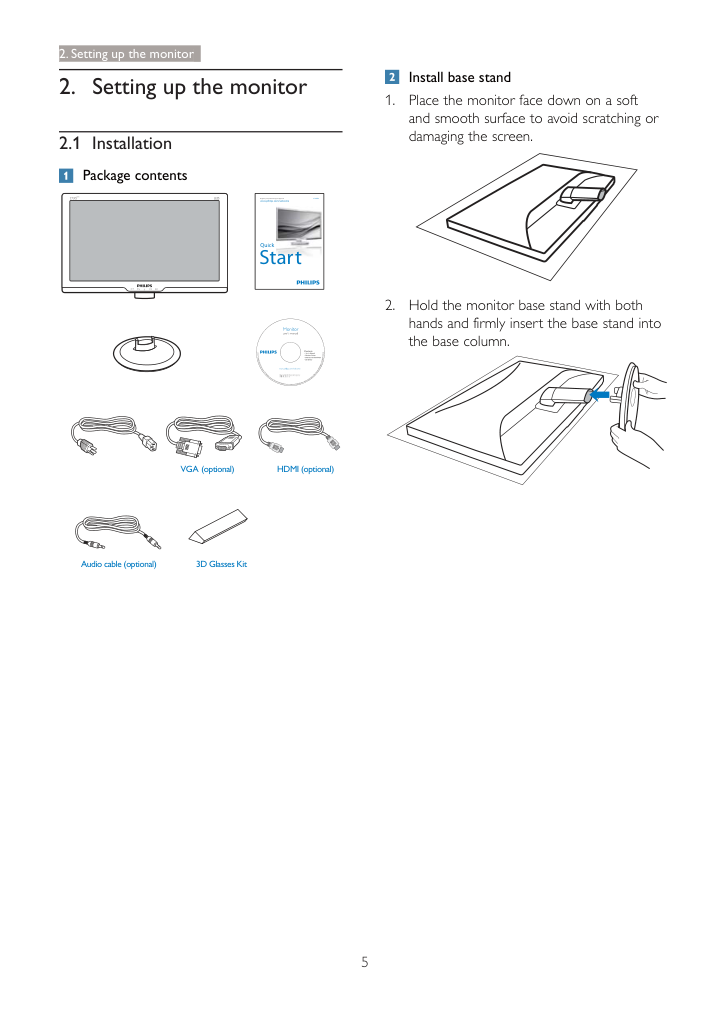

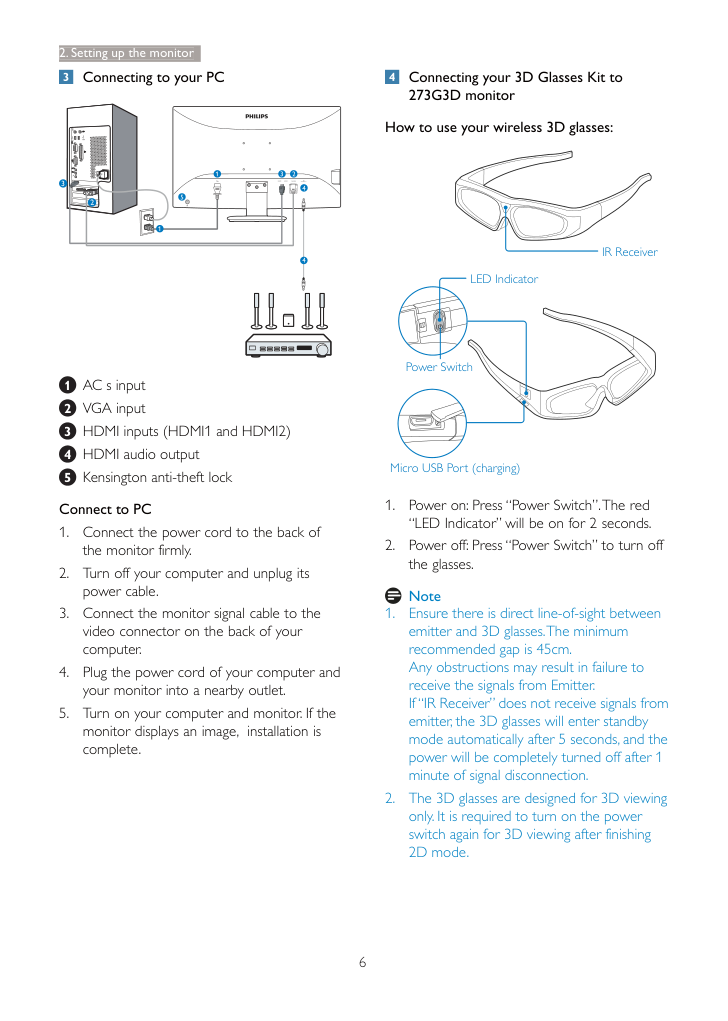

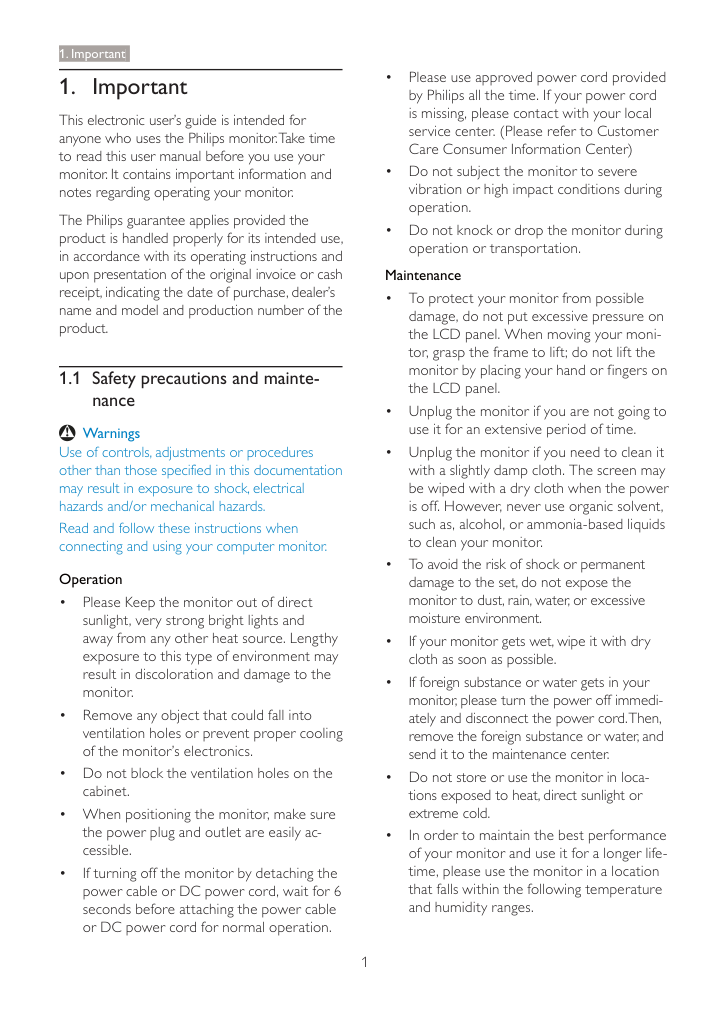

www.philips.com/welcome 273G3D EN User manual 1 Customer care and warranty 33 Troubleshooting & FAQs 38 Table of Contents 1. Important ................................................1 1.1 Safety precautions and maintenance ...1 1.2 Notational Descriptions .............................2 1.3 Disposal of product and packing material ................................................................3 1.4 Important safety information before viewing 3D .........................................................4 2. Setting up the monitor .........................5 2.1 Installation ...........................................................5 2.2 Operating the monitor ...............................7 2.3 Remove Base Stand and Base ..............10 3. Image Optimization .............................12 3.1 SmartImage .....................................................12 3.2 SmartContrast ..............................................13 3.3 Philips SmartControl Premium ...........13 4. View 3D by using TriDef 3D software .................................................21 4.1 PC System requirements ........................21 4.2 TriDef 3D software Installation Guide ................................................................21 5. Technical Specifications ......................24 5.1 Resolution & Preset Modes...................26 6. Power Management ............................27 7. Regulatory Information ......................28 8. Customer care and warrant .............33 8.1 Philips’ Flat Panel Monitors Pixel Defect Policy ..................................................33 8.2 Customer Care & Warranty .................35 9. Troubleshooting & FAQs ...................38 9.1 Troubleshooting ...........................................38 9.2 SmartControl Premium FAQs .............39 9.3 General FAQs ...............................................40 1 1. Important 1. Important This electronic user’s guide is intended for anyone who uses the Philips monitor. Take time to read this user manual before you use your monitor. It contains important information and notes regarding operating your monitor. The Philips guarantee applies provided the product is handled properly for its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase, dealer’s name and model and production number of the product. 1.1 Safety precautions and mainte- nance Warnings Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards. Read and follow these instructions when connecting and using your computer monitor. Operation • Please Keep the monitor out of direct sunlight, very strong bright lights and away from any other heat source. Lengthy exposure to this type of environment may result in discoloration and damage to the monitor. • Remove any object that could fall into ventilation holes or prevent proper cooling of the monitor’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the monitor, make sure the power plug and outlet are easily ac- cessible. • If turning off the monitor by detaching the power cable or DC power cord, wait for 6 seconds before attaching the power cable or DC power cord for normal operation. • Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care Consumer Information Center) • Do not subject the monitor to severe vibration or high impact conditions during operation. • Do not knock or drop the monitor during operation or transportation. Maintenance • To protect your monitor from possible damage, do not put excessive pressure on the LCD panel. When moving your moni- tor, grasp the frame to lift; do not lift the monitor by placing your hand or fingers on the LCD panel. • Unplug the monitor if you are not going to use it for an extensive period of time. • Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off. However, never use organic solvent, such as, alcohol, or ammonia-based liquids to clean your monitor. • To avoid the risk of shock or permanent damage to the set, do not expose the monitor to dust, rain, water, or excessive moisture environment. • If your monitor gets wet, wipe it with dry cloth as soon as possible. • If foreign substance or water gets in your monitor, please turn the power off immedi- ately and disconnect the power cord. Then, remove the foreign substance or water, and send it to the maintenance center. • Do not store or use the monitor in loca- tions exposed to heat, direct sunlight or extreme cold. • In order to maintain the best performance of your monitor and use it for a longer life- time, please use the monitor in a location that falls within the following temperature and humidity ranges. 2 1. Important • Temperature: 0-40°C 32-95°F • Humidity: 20-80% RH • IMPORTANT: Always activate a moving screen saver program when you leave your monitor unattended. Always activate a periodic screen refresh application if your monitor will display unchanging static content. Uninterrupted display of still or static images over an extended period may cause “burn in”, also known as “after-imaging” or “ghost imaging”, on your screen. "Burn-in", "after-imaging", or "ghost imag- ing" is a well-known phenomenon in LCD panel technology. In most cases, the “burned in” or “after-imaging” or “ghost imaging” will disappear gradually over a period of time after the power has been switched off. Warning Severe” burn-in” or “after-image” or “ghost image” symptoms will not disappear and cannot be repaired. The damage mentioned above is not covered under your warranty. Service • The casing cover should be opened only by qualified service personnel. • If there is any need for any document for repair or integration, please contact with your local service center. (please refer to the chapter of "Consumer Information Center") • For transportation information, please refer to "Technical Specifications". • Do not leave your monitor in a car/trunk under direct sun light. Note Consult a service technician if the monitor does not operate normally, or you are not sure what procedure to take when the operating instructions given in this manual have been followed. 1.2 Notational Descriptions The following subsections describe notational conventions used in this document. Notes, Cautions and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows: Note This icon indicates important information and tips that help you make better use of your computer system. Caution This icon indicates information that tells you how to avoid either potential damage to hardware or loss of data. Warning This icon indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases, the specific presentation of the warning is mandated by the relevant regulatory authority. 3 1. Important 1.3 Disposal of product and packing material Waste Electrical and Electronic Equipment- WEEE This marking on the product or on its packaging illustrates that, under European Directive 2002/96/EC governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such waste electrical and electronic, contact your local government office, the waste disposal organization that serves your household or the store at which you purchased the product. Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into mono materials. Please find out about the local regulations on how to dispose of your old monitor and packing from your sales representative. Recycling Information for Customers Your display is manufactured with high quality materials and components which can be recycled and reused. To learn more about our recycling program please visit www.philips.com/about/sustainability/ recycling. 4 1. Important 1.4 Important safety information before viewing 3D Optimal 3D viewing For an optimal 3D viewing experience, we recommend that you: • Sit at a distance that is at least 45cm • Watch the monitor away from direct sunlight as it may interfere with the 3D experience. 3D health warning • If you or your family has a history of epilepsy or photosensitive seizures, consult a medical professional before exposing yourself to flashing light sources, rapid image sequences or 3D viewing. • To avoid discomfort such as dizziness, headache or disorientation, we recommend not watching 3D for extended periods of time. If you experience any discomfort, stop watching 3D and do not immediately engage in any potentially hazardous activity (for example driving a car) until your symptoms have disappeared. If symptoms persist, do not resume watching 3D without consulting a medical professional first. • Parents should monitor their children during 3D viewing and ensure they do not experience any discomfort as mentioned above. Watching 3D is not recommended for children under six years of age as their visual system is not fully developed yet. • Do not user the 3D glasses for any purpose other than watching 3D images. Care for the glasses • Do not expose the 3D glasses to direct sunlight, heat, fire or water. This may result in a product malfunction or fire. • Do not drop, bend or apply force to the lenses of the 3D glasses. • Use a clean soft cloth (microfiber or cotton flannel) to clean the lenses to avoid scratching them. Never spray cleaner directly on the 3D glasses. • Do not use cleaning chemicals containing alcohol, solvent, surfactant, or was, benzene, thinner, mosquito repellant or lubricant. Using these chemicals can cause discoloration or cracks. 5 2. Setting up the monitor 2. Setting up the monitor 2.1 Installation Package contents VGA (optional) Audio cable (optional) 3D Glasses Kit HDMI (optional) Register your product and get support at www.philips.com/welcome 273G3D Quick Start Install base stand 1. Place the monitor face down on a soft and smooth surface to avoid scratching or damaging the screen. 2. Hold the monitor base stand with both hands and firmly insert the base stand into the base column. 6 2. Setting up the monitor Connecting to your PC 4 4 5 1 AC s input 2 VGA input 3 HDMI inputs (HDMI1 and HDMI2) 4 HDMI audio output 5 Kensington anti-theft lock Connect to PC 1. Connect the power cord to the back of the monitor firmly. 2. Turn off your computer and unplug its power cable. 3. Connect the monitor signal cable to the video connector on the back of your computer. 4. Plug the power cord of your computer and your monitor into a nearby outlet. 5. Turn on your computer and monitor. If the monitor displays an image, installation is complete. Connecting your 3D Glasses Kit to 273G3D monitor How to use your wireless 3D glasses: IR Receiver LED Indicator Micro USB Port (charging) Power Switch 1. Power on: Press “Power Switch”. The red “LED Indicator” will be on for 2 seconds. 2. Power off: Press “Power Switch” to turn off the glasses. Note 1. Ensure there is direct line-of-sight between emitter and 3D glasses. The minimum recommended gap is 45cm. Any obstructions may result in failure to receive the signals from Emitter. If “IR Receiver” does not receive signals from emitter, the 3D glasses will enter standby mode automatically after 5 seconds, and the power will be completely turned off after 1 minute of signal disconnection. 2. The 3D glasses are designed for 3D viewing only. It is required to turn on the power switch again for 3D viewing after finishing 2D mode. 7 2. Setting up the monitor Before viewing 3D: Emitter Connection 3D Glasses Charging USB Cable green red A B A B A Connect emitter to monitor. B Charge your 3D glasses before using. 3D glasses LED indicator: 1. Red light blinks every 2 sec: Battery is running out of power. 2. Red light is on: Battery is charging. 3. Green light is on: Charging is complete. Note It takes about 2 hours to complete charging. The 3D glasses can be used continuously for about 40 hours. 2.2 Operating the monitor Front view product description 5 6 4 2 3 7 Access the OSD menu. Confirm the OSD adjustment. Return to previous OSD level. Change the signal input source. Switch monitor’s power ON and OFF. Adjust the OSD menu. 3D hot key. SmartImage hot key. There are 6 modes to select: Office, Photo, Movie, Game, Economy, Off. 8 2. Setting up the monitor 3D hot key: ��� ����������������� ����������������� ���������� ���������� ��������������� 1. 3D(AUTO) : user can select for below two applications: • Game console/Blu-ray player: the ones support HDMI 1.4a 3D • PC Game/Video: by using TriDef 3D Note FULL SCREEN is an essential setting when viewing 3D images. FOR AUTO 3D VIEWING, HDMI 1.4a IS REQUIRED. 3D can also be activated by selecting manually as shown below with 3D hot keys in the OSD menu: Video formats as below: 2. L-R(side by side): Left image Right image 3. R-L(side by side): Right image Left image 4. Top-Bottom: Top image Bottom image 5. Bottom-Top: Bottom image Top image 6. Off: 3D function off. 9 2. Setting up the monitor When 3D turn on, 3D mark will show on the screen of the upper right corner for 5 seconds. And a white point on the screen of the upper left corner. VGA (D-sub) for 3D application: please select “SetupAuto (auto adjustment)” function in OSD menu, to make sure correct operation for 3D function. It will encounter picture flicking if you do not execute “Auto”. Description of the On Screen Display What is On-Screen Display (OSD)? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. A user friendly on screen display interface is shown as below: ����� ����� ������� ��� ����� ����� ��� ����� �������� Basic and simple instruction on the control keys In the OSD shown above, you can press buttons at the front bezel of the monitor to move the cursor, and press OK button to confirm the choice or change. The OSD Menu Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. Main menu Sub menu Picture Wide Screen, 4:3 0~100 0~100 Picture Format Brightness Contrast OSD Settings 0~100 0~100 Off, 1, 2, 3, 4 5s, 10s, 20s, 30s, 60s Horizontal Vertical Transparency OSD Time Out Setup 0~100 On, Off Yes, No 0~100 0~100 0~100 H.Position Auto V.Position Phase Clock Resolution Notification Reset Information Language English Español, Français, Deutsch, Italiano, Português, Русский ���� � Color 5000K, 6500K, 7500K, 8200K, 9300K, 11500K Red: 0~100 Green: 0~100 Blue: 0~100 Color Temperature sRGB User Define Audio 0~100 On, Off Volume Stand-Alone On, Off Mute VGA HDMI1 HDMI2 Input On, Off SmartResponse On, Off SmartContrast On, Off Over Scan 10 2. Setting up the monitor Resolution notification This monitor is designed for optimal performance at its native resolution, 1920 × 1080 @ 60 Hz. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 1920 × 1080 @ 60 Hz for best results. Display of the native resolution alert can be switched off from Setup in the OSD (On Screen Display) menu. Physical Function Tilt 2.3 Remove Base Stand and Base Remove the Base Stand Before you start disassembling the monitor base, please follow the instructions below to avoid any possible damage or injury. 1. Place the monitor face down on a soft and smooth surface to avoid scratching or damaging the screen. 2. Press the locking clips to detach the base stand away from the base column. 11 2. Setting up the monitor Remove the base Application condition: For standard VESA mounting . 1. Place the monitor face down on a soft and smooth surface to avoid scratching or damaging the screen. 2. Remove 3 screws and then remove the base from the monitor. Note This monitor accepts a 100mm x 100mm VESA-Compliant mounting interface. 100mm 100mm 12 3. Image Optimization 3. Image Optimization 3.1 SmartImage What is it? SmartImage provides presets that optimize display for different types of content, dynamically adjusting brightness, contrast, color and sharpness in real time. Whether you're working with text applications, displaying images or watching a video, Philips SmartImage delivers great optimized monitor performance. Why do I need it? You want a monitor that delivers optimized display all your favorite types of content, SmartImage software dynamically adjust brightness, contrast, color and sharpness in real time to enhance your monitor viewing experience. How does it work? SmartImage is an exclusive, leading edge Philips technology that analyzes the content displayed on your screen. Based on a scenario you select, SmartImage dynamically enhances the contrast, color saturation and sharpness of images to enhance the contents being displayed - all in real time with the press of a single button. How to enable SmartImage? 1. Press to launch the SmartImage on screen display. 2. Keep pressing to toggle between Office, Photo, Movie, Game, Economy and Off. 3. The SmartImage on screen display will remain on screen for 5 seconds, or you can also press "OK" to make confirmation. 4. When SmartImage is enabled, the sRGB scheme is disabled automatically. To use sRGB, you need to disable SmartImage with the button at the front bezel of your monitor. Except using key to scroll down, you can also press buttons to choose and press “OK” to confirm selection and close the SmartImage OSD. There are six modes to select: Office, Photo, Movie, Game, Economy and Off. ���������� ��� ����� ����� ���� ������� ������������������� • Office: Enhances text and dampens brightness to increase readability and reduce eye strain. This mode significantly enhances readability and productivity when you’re working with spreadsheets, PDF files, scanned articles or other general office applications. • Photo: This profile combines color saturation, dynamic contrast and sharpness enhancement to display photos and other images with outstanding clarity in vibrant colors - all without artifacts and faded colors. • Movie: Ramped up luminance, deepened color saturation, dynamic contrast and razor sharpness displays every details in darker areas of your videos without color washout in brighter areas maintaining a dynamic natural values for the ultimate video display. 13 3. Image Optimization • Game: Turn on over drive circuit for best response time, reduce jaggy edges for fast moving objects on screen, enhance contrast ratio for bright and dark scheme, this profile delivers the best gaming experience for gamers. • Economy: Under this profile, brightness, contrast are adjusted and backlighting finetuned for just right display of everyday office applications and lower power consumption. • Off: No optimization by SmartImage. 3.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds. Why do I need it? You want the very best visual clarity and viewing comfort for every type of content. SmartContrast dynamically controls contrast and adjusts backlighting for clear, crisp, bright gaming and video images or displays clear, readable text for office work. By reducing your monitor's power consumption, you save on energy costs and extend the lifetime of your monitor. How does it work? When you activate SmartContrast, it will analyse the content you are displaying in real time to adjust colors and control backlight intensity. This function will dynamically enhance contrast for a great entertainment experience when viewing videos or playing games. 3.3 Philips SmartControl Premium The new SmartControl Premium software by Phillips allows you to control your monitor via an easy to use on-screen graphic interface. Complicated adjustments are a thing of the past as this user friendly software guides you through fine-tuning resolution, Color calibration, Clock/Phase adjustments, RGB White point adjustment, etc. Equipped with latest technology in core algorithm for fast processing and response, this Windows 7 compliant eye catching animated Icon based software is ready to enhance your experience with Philips monitors! Installation • Follow the instruction and complete the installation. • You can launch after installation is completed. • If you want to launch later, you can either click the shortcut on desktop or toolbar. First launch -Wizard • The first time after installation of Smart- Control Premium, it will automatically go to Wizard for first time launch. • The wizard will guide you through adjust- ment your monitor performance step by step. 14 3. Image Optimization • You can go to Plug-in menu to launch wizard later on as well. • You can adjust more options without wizard by Standard pane. Start with Standard pane Adjust menu • Adjust Menu allow you to adjust Bright- ness, Contrast, Focus, Position and Reso- lution. • You can follow the instruction and do the adjustment. • Cancel prompts user if you want to cancel installation. 15 3. Image Optimization Color menu • Color Menu allow you to adjust RGB, Black Level, White Point, Color Calibra- tion, and SmartImage (Please refer to SmartImage section). • You can follow the instruction and do the adjustment. • Refer to below table for sub-menu item base on your input. • Example for Color Calibration. 1. "Show Me" starts color calibration tutorial. 2. Start - starts the 6-step color calibration sequence. 16 3. Image Optimization 3. Quick View loads the before/after images. 4. To return to Color home pane, click the Cancel button. 5. Enable color calibration - by default is on. If unchecked, does not allow for color calibration to happen, dimes out start and quick view buttons. 6. Must have patent info in calibration screen. First color Calibration Screen • Previous button is disabled until the sec- ond color screen. • Next goes to the succeeding target (6-targets). • Finally go to File > Presets pane. • Cancel closes the UI and returns to the plug in page. SmartImage Allows user to change setting for better display setting based on content. When Entertainment is set, SmartContrast and SmartResponse are enabled. ECO menu 17 3. Image Optimization Options menu Theft Deterrence Pane will only be active when selecting Theft Deterrence Mode from the drop-down Plug Ins menu. To enable Theft Deterrence, clicking Enable Theft Deterrence Mode button brings up the following screen: • User can enter PIN between 4 and 9 digits numbers only. • After entering PIN, Accept button takes user to the pop-up dialog box on the fol- lowing page. • Minimum minutes set to 5. Slider set to 5 by default. • Does not require the display be attached to a different host to go into Theft Deter- rence mode. After creating PIN, the Theft Deterrence pane will indicate Theft Deterrence Enabled and provide PIN Options button: • Theft Deterrence Enabled is displayed. • Disable Theft Deterrence Mode opens pane screen on next page. • PIN Options button only available after user creates PIN, button opens secure PIN web site. Options>Preferences - Will only be active when selecting Preferences from the drop- down Options menu. On a non-supported display capable of DDC/CI, only the Help and Options tabs are available. • Displays current preference settings. • A checked box enables the feature. The check box is a toggle. • Enable Context Menu on desktop is checked (On) by default. Enable Context menu displays SmartControl Premium se- lections for Select Preset and Tune Display in the desktop right-click context menu. Disabled removes SmartControl Premium from the right click context menu. • Enable Task Tray icon is checked (On) by default. Enable context menu shows the task tray menu for SmartControl Pre- mium. A right click on the task tray icon displays the menu options for Help, Tech- nical Support. Check for Update, About, and Exit. When Enable task tray menu is disabled, the task tray icon will only display EXIT. • Run at Startup is checked (On) by default. When disabled, SmartControl Premium will not launch at start or be in the task tray. The only way to launch SmartControl Premium is either from the desktop short cut or from the program file. Any preset 18 3. Image Optimization set to run at startup will not load when this box is unchecked (Disabled). • Enable transparency mode (Windows 7, Vista, XP). Default is 0% Opaque. Options>Input - Will only be active when selecting Input from the drop-down Options menu. On a non-supported display capable of DDC/CI, only the Help and Options tabs are available. All other SmartControl Premium tabs are not available. • Display the Source instruction pane and current input source setting. • On single input displays, this pane will not be visible. Options>Audio - Will only be active when selecting Audio from the drop-down Options menu. On a non-supported display capable of DDC/ CI, only the Help and Options tabs are available. Option>Auto Pivot 19 3. Image Optimization Help menu Help>User Manual - Will only be active when selecting User Manual from the drop-down Help menu. On a non-supported display capable of DDC/CI, only the Help and Options tabs are available. Help>Version - Will only be active when selecting Version from the drop- down Help menu. On a non-supported display capable of DDC/CI, only the Help and Options tabs are available. Context Sensitive menu The Context Sensitive menu is Enabled by default. If Enable Context Menu has been checked in the Options>Preferences pane, then the menu will be visible. The Context Menu has four entries: • SmartControl Premium - When selected the About Screen is displayed. • Select Preset - Provides a hierarchical menu of saved presets for immediate use. A check mark shows the currently selected preset. Facoty Preset can also be called from the drop down menu. • Tune Display - Opens the SmartControl Premium control panel. • SmartImage - Check current settings, Of- fice, Photo, Movie, Game, Economy, Off. Task Tray Menu Enabled The task tray menu can be displayed by right- clicking on the SmartControl Premium icon from the task tray. Left Click will launch the application. The task tray has five entries: • Help - Access to User Manual file: Open User Manual file using the default browser window. 20 3. Image Optimization • Technical Support - displays the tech sup- port page. • Check for Update - takes the user to PDI Landing and checks the user’s version against the most current available. • About - Displays detailed reference infor- mation: product version, release informa- tion, and product name. • Exit - Close SmartControl Premium. To run SmartControl Premium again, either select SmartControl Premium from Program menu, double-click the desktop PC icon, or restart the system. Task Tray Menu Disabled When the Task Tray is disabled in the preference folder, only the EXIT selection is available. To completely remove SmartControl Premium from the task tray, disable Run at Startup in Options>Preferences. 21 4. View 3D by using TriDef 3D software 4. View 3D by using TriDef 3D software 4.1 PC System requirements Minimum requirements: • Intel Core 2 Duo or AMD Athlon 64 X2 Dual-Core CPU or better • 1GB RAM • ATI X1650 XT • 500MB free disk space • Windows XP (SP2) (32 bit only), Windows Vista (32 bit only) or Windows 7 (32 or 64 bit) • DirectX 9.0c compatible cards • DVD-ROM drive • DirectX 9.0c Recommended requirements: • Intel Core i5 or AMD Phenom II X4 CPU or better • 2GB RAM • AMD Radeon HD5750 or better • 500MB free disk space • Windows XP (SP2) (32 bit only), Windows Vista (32 bit only) or Windows 7 (32 or 64 bit) • DirectX 9.0c compatible cards • DVD-ROM drive • Network card • DirectX 9.0c 4.2 TriDef 3D software Installation Guide Insert CD of “Monitor user’s manual”. Click and run it's execution file (TriDef-3D XXX.exe). 1. Click on "Next". 2. Click on "Install". 3. Click on "Finish": the TriDef driver is installed complete. 22 4. View 3D by using TriDef 3D software 4. There is icon shown on Windows OS desktop. 5. Click “TriDef 3D” icon, you will see below picture on screen, select the frequency for your local system (By pressing A or B button). And then click “OK” and turn on your 3D glasses to see if it is on 3D mode, please also make sure emitter is connected to monitor. 6. You can watch 3D videos by clicking left icon. 7. You can watch 2D to 3D conversion video with DVD playback by clicking second-left icon. Note This function doesn’t support PC Blu-ray playback and only support 2CH audio. 8. You can view 3D Photos by clicking third- left icon. 9. You can play 3D games by clicking right icon. 10. You can see user guide in lower right icon. 11. When you enter “ Play 3D Games”, you can click “Scan” to show all your 3D games in PC. You can start to play games by clicking “Launch”, please turn on your 3D glasses and you can start to play. For 3D game support list, see http://www. tridef.com/ignition/3d-games.html. 23 4. View 3D by using TriDef 3D software 12. The hot key combinations for “Play 3D Games” are illustrated below. Please refer to the "TriDef User Guide" to learn more. Hot key combination Function Alt + Shift + F1 Show List of Hotkeys Alt + Shift + - 3D On/Off Alt + Shift + [ Decrease scene depth Alt + Shift + ] Increase scene depth Alt + Shift + , Decrease percentage in front Alt + Shift + . Increase percentage in front Alt + Shift + = Focus speed Alt + Shift + \ Laser sight On/Off PrtScn (SysReq) 3D screenshot Alt + Shift + ' Increase image stretch Alt + Shift + ; Decrease image stretch Alt + Shift + L Increase image overscan Alt + Shift + K Decrease image overscan Alt + Shift + V Virtual 3D On/Off 13. Control panel of “Watch 3D Videos and View 3D Photos”: 1. Back 2. 3D file format 3. Toggle playback repeat mode 4. Adjust volume, toggle mute/unmute (popup slider) 5. Prvious Item/Chapter 6. Move Progress/Seek Bar 7. Toggle Play/Pause 8. Next Item/Chapter 9. Adjust 3D screen depth (popup slider) 10. Adjust percentage in front (popup slider) 11. Minimize Window 12. Switch to Windowed Mode 13. Exit 14. Pin/unpin control bar Note All the screenshots illustrated above are for reference only. 24 5. Technical Specifi cations 5. Technical Specifications Picture/Display Monitor Panel Type TFT-LCD Backlight LED Panel Size 27" W (68.6cm) Aspect Ratio 16:9 Pixel Pitch 0.3114 x 0.3114 mm Brightness 300 cd/m² SmartContrast 20,000,000:1 Contrast Ratio (typ.) 1000:1 Response Time (typ.) 5ms SmartResponse Time (typ.) 2ms Optimum Resolution 1920 x 1080 @ 60Hz Viewing Angle 170° (H) / 160° (V) @ C/R > 10 Display Colors 16.7M Vertical Refresh Rate 24Hz - 63Hz Horizontal Frequency 26kHz - 83kHz sRGB YES Connectivity Signal Input HDMI1, HDMI2 (Digital), VGA (Analog) Input Signal Separate Sync, Sync on Green Convenience User Convenience OSD Languages English, French, German, Spanish, Italian, Russian, Simplified Chinese, Portuguese Other Convenience Kensington Lock Plug & Play Compatibility DDC/CI, sRGB, Windows 7/Vista/XP, Mac OSX, Linux Stand Tilt -5 / +20 Power On Mode 31.88W (typ.), 36.90W (max.) Energy Consumption (EnergyStar 5.0 test method) AC Input Voltage at 100VAC +/-5VAC, 50Hz +/-3Hz AC Input Voltage at 115VAC +/-5VAC, 60Hz +/-3Hz AC Input Voltage at 230VAC +/-5VAC, 50Hz +/-3Hz Normal Operation (typ.) 24.54W 24.47W 24.79W Sleep (Standby) 0.5W 0.5W 0.5W Off 0.3W 0.3W 0.3W Heat Dissipation* AC Input Voltage at 100VAC +/-5VAC, 50Hz +/-3Hz AC Input Voltage at 115VAC +/-5VAC, 60Hz +/-3Hz AC Input Voltage at 230VAC +/-5VAC, 50Hz +/-3Hz Normal Operation 83.75 BTU/hr 83.52 BTU/hr 84.61 BTU/hr Sleep (Standby) 1.706 BTU/hr 1.706 BTU/hr 1.706 BTU/hr 25 5. Technical Specifi cations Off 1.023 BTU/hr 1.023 BTU/hr 1.023 BTU/hr Power LED indicator On mode: White, Standby/Sleep mode: White (blinking) Power Supply Built-in, 100-240VAC, 50/60Hz Dimension Product with stand (WxHxD) 642 x 440 x 227 mm Product without stand (WxHxD) 642 x 391 x 65 mm Weight Product with stand 6.0kg Product without stand 5.5kg Product with packaging 8.2kg Operating Condition Temperature range (operation) 0°C to 40 °C Temperature range (Non-operation) -20°C to 60°C Relative humidity 20% to 80% Altitude Operation: + 12,000ft (3,658m) Non-operation: + 40,000ft (12,192m) MTBF 30,000hrs Environmental ROHS YES EPEAT Silver (www.epeat.net) Packaging 100% recyclable Compliance and standards Regulatory Approvals CE Mark, FCC Class B, SEMKO, UL/cUL, BSMI, GOST, ISO9241-307 Cabinet Color Black or White Finish Texture Note 1. EPEAT Gold or Silver is valid only where Philips registers the product. Please visit www.epeat.net for registration status in your country. 2. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. 26 5. Technical Specifi cations 5.1 Resolution & Preset Modes Maximum Resolution 1920 x 1080 @ 60 Hz (analog input) 1920 x 1080 @ 60 Hz (digital input) Recommended Resolution 1920 x 1080 @ 60 Hz (digital input) H. freq (kHz) Resolution V. freq (Hz) 31.47 720 x 400 70.09 31.47 640 x 480 59.94 35.00 640 x 480 66.67 37.86 640 x 480 72.81 37.50 640 x 480 75.00 37.88 800 x 600 60.32 46.88 800 x 600 75.00 48.36 1024 x 768 60.00 60.02 1024 x 768 75.03 63.89 1280 x 1024 60.02 79.98 1280 x 1024 75.03 55.94 1440 x 900 59.89 70.64 1440 x 900 74.98 65.29 1680 x 1050 59.95 67.50 1920 x 1080 60.00 Recommended Resolution to Enable 3D 1920 x 1080 @ 60 Hz (digital input) Supported timing to view 3D: H. freq (kHz) Resolution V. freq (Hz) 27 1920 x 1080 24* 56.25 1920 x 1080 50 67.5 1920 x 1080 60 66.59 1920 x 1080 59.93 67.16 1920 x 1080 59.96 37.5 1280 x 720 50 45 1280 x 720 60 44.77 1280 x 720 59.86 * HDMI only Note Please notice that your display works best at native resolution of 1920 x 1080 @ 60Hz. For best display quality,please follow this resolution recommendation. 27 6. Power Management 6. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: Power Management Definition VESA Mode Video H-sync V-sync Power Used LED Color Active ON Yes Yes 31.88W (typ.) 36.90W (max.) White Sleep (Standby) OFF No No < 0.5W (typ.) White (blink) Switch Off OFF - - < 0.3W (typ.) OFF The following setup is used to measure power consumption on this monitor. • Native resolution: 1920 x 1080 • Contrast: 50% • Brightness: 300 nits • Color temperature: 6500k with full white pattern Note This data is subject to change without notice. 28 7. Regulatory Infomation 7. Regulatory Information Lead-free Product Lead free display promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment. Toxic substances like Lead has been eliminated and compliance with European community’s stringent RoHs directive mandating restrictions on hazardous substances in electrical and electronic equipment have been adhered to in order to make Philips monitors safe to use throughout its life cycle. EPEAT (www.epeat.net) The EPEAT (Electronic Product Environmental Assessment Tool) program evaluates computer desktops, laptops, and monitors based on 51 environmental criteria developed through an extensive stakeholder consensus process supported by US EPA. EPEAT system helps purchasers in the public and private sectors evaluate, compare and select desktop computers, notebooks and monitors based on their environmental attributes. EPEAT also provides a clear and consistent set of performance criteria for the design of products, and provides an opportunity for manufacturers to secure market recognition for efforts to reduce the environmental impact of its products. Benefits of EPEAT Reduce use of primary materials Reduce use of toxic materials Avoid the disposal of hazardous waste EPEAT’S requirement that all registered products meet ENERGY STAR’s energy efficiency specifications, means that these products will consume less energy throughout their life. CE Declaration of Conformity This product is in conformity with the following standards • EN60950-1:2006 (Safety requirement of Information Technology Equipment). • EN55022:2006 (Radio Disturbance requirement of Information Technology Equipment). • EN55024:1998+A1:2001+A2:2003 (Immunity requirement of Information Technology Equipment). • EN61000-3-2:2006 (Limits for Harmonic Current Emission). • EN61000-3-3:1995+A1:2001+A2:2005 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable. • 2006/95/EC (Low Voltage Directive). • 2004/108/EC (EMC Directive). • 2005/32/EC (EuP Directive, EC No. 1275/2008 mplementing Directive for Standby and Off mode power consumption) and is produced by a manufacturing organization on ISO9000 level. The product also comply with the following standards • ISO9241-307:2008 (Ergonomic requirement, Analysis and compliance test methods for electronic visual displays). • GS EK1-2000:2009 (GS mark requirement). • prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display). • MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields). 29 7. Regulatory Infomation Energy Star Declaration (www.energystar.gov) As an ENERGY STAR ® Partner, we have determined that this product meets the ENERGY STAR ® guidelines for energy efficiency. Note We recommend you switch off the monitor when it is not in use for a long time. Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. FCC Declaration of Conformity Declaration of Conformity for Products Marked with FCC Logo, United States Only This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Commission Federale de la Communication (FCC Declaration) Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. 30 7. Regulatory Infomation Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: • Réorienter ou déplacer l’antenne de réception. • Augmenter la distance entre l’équipement et le récepteur. • Brancher l’équipement sur un autre circuit que celui utilisé par le récepteur. • Demander l’aide du marchand ou d’un technicien chevronné en radio/télévision. Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement. N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. EN 55022 Compliance (Czech Republic Only) Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, monitor, printer, and so on) should have the same power supply source. The phasing conductor of the room's electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A). To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible. A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/E-06251. 31 7. Regulatory Infomation North Europe (Nordic Countries) Information Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. Plassering/Ventilasjon ADVARSEL: NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å NÅ. BSMI Notice (Taiwan Only) Ergonomie Hinweis (nur Deutschland) Der von uns gelieferte Farbmonitor entspricht den in der "Verordnung über den Schutz vor Schäden durch Röntgenstrahlen" festgelegten Vorschriften. Auf der Rückwand des Gerätes befindet sich ein Aufkleber, der auf die Unbedenklichkeit der Inbetriebnahme hinweist, da die Vorschriften über die Bauart von Störstrahlern nach Anlage III ¤ 5 Abs. 4 der Röntgenverordnung erfüllt sind. Damit Ihr Monitor immer den in der Zulassung geforderten Werten entspricht, ist darauf zu achten, daß 1. Reparaturen nur durch Fachpersonal durchgeführt werden. 2. nur original-Ersatzteile verwendet werden. 3. bei Ersatz der Bildröhre nur eine bauartgleiche eingebaut wird. Aus ergonomischen Gründen wird empfohlen, die Grundfarben Blau und Rot nicht auf dunklem Untergrund zu verwenden (schlechte Lesbarkeit und erhöhte Augenbelastung bei zu geringem Zeichenkontrast wären die Folge). Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger. ACHTUNG: BEIM AUFSTELLEN DIESES GERÄTES DARAUF ACHTEN, DAß NETZSTECKER UND NETZKABELANSCHLUß LEICHT ZUGÄNGLICH SIND. 32 7. Regulatory Infomation China RoHS The People's Republic of China released a regulation called "Management Methods for Controlling Pollution by Electronic Information Products" or commonly referred to as China RoHS. All products including CRT and Monitor which are produced and sold for China market have to meet China RoHS request. 环保使用期限 此标识指期限(十年),电子信息产品中含有 的有毒有害物质或元素在正常使用的条件 下不会发生外泄或突变, 电子信息产品用户 使用该电子信息产品不会对环境造成严重 污染或对其人身、 财产造成严重损害的期 限． 《废弃电器电子产品回收处理管理条例》提示性 说明 为了更好地关爱及保护地球，当用户不再需要此 产品或产品寿命终止时，请遵守国家废弃电器电 子产品回收处理相关法律法规，将其交给当地具 有国家认可的回收处理资质的厂商进行回收处 理。 33 8. Customer care and warranty 8. Customer care and warrant 8.1 Philips’ Flat Panel Monitors Pixel Defect Policy Philips strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT Monitor panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT Monitor panel must exceed these acceptable levels. For example, no more than 0.0004% of the sub pixels on a monitor may be defective. Furthermore, Philips sets even higher quality standards for certain types or combinations of pixel defects that are more noticeable than others. This policy is valid worldwide. subpixel pixel Pixels and Sub pixels A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. Many pixels together form an image. When all sub pixels of a pixel are lit, the three colored sub pixels together appear as a single white pixel. When all are dark, the three colored sub pixels together appear as a single black pixel. Other combinations of lit and dark sub pixels appear as single pixels of other colors. Types of Pixel Defects Pixel and sub pixel defects appear on the screen in different ways. There are two categories of pixel defects and several types of sub pixel defects within each category. Bright Dot Defects Bright dot defects appear as pixels or sub pixels that are always lit or 'on'. That is, a bright dot is a sub-pixel that stands out on the screen when the monitor displays a dark pattern. There are the types of bright dot defects. One lit red, green or blue sub pixel. Two adjacent lit sub pixels: - Red + Blue = Purple - Red + Green = Yellow - Green + Blue = Cyan (Light Blue) Three adjacent lit sub pixels (one white pixel). 34 8. Customer care and warranty Note A red or blue bright dot must be more than 50 percent brighter than neighboring dots while a green bright dot is 30 percent brighter than neighboring dots. Black Dot Defects Black dot defects appear as pixels or sub pixels that are always dark or 'off'. That is, a dark dot is a sub-pixel that stands out on the screen when the monitor displays a light pattern. These are the types of black dot defects. Proximity of Pixel Defects Because pixel and sub pixels defects of the same type that are near to one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. Pixel Defect Tolerances In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT Monitor panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables. BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 3 2 adjacent lit subpixels 1 3 adjacent lit subpixels (one white pixel) 0 Distance between two bright dot defects* >15mm Total bright dot defects of all types 3 BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer 2 adjacent dark subpixels 2 or fewer 3 adjacent dark subpixels 0 Distance between two black dot defects* >15mm Total black dot defects of all types 5 or fewer TOTAL DOT DEFECTS ACCEPTABLE LEVEL Total bright or black dot defects of all types 5 or fewer Note 1. 1 or 2 adjacent sub pixel defects = 1 dot defect 2. This monitor is ISO9241-307 compliant (ISO9241-307: Ergonomic requirement,analysis and compliance test methods for electronic visual displays) 35 8. Customer care and warranty 8.2 Customer Care & Warranty For warranty coverage information and additional support requirement valid for your region, please visit www.philips.com/support website for details. You may also contact your local Philips Customer Care Center number listed below. Contact Information for WESTERN EUROPE region: Country ASC Consumer care number Price Germany Siemens I&S +49 01803 386 853 € 0.09 United Kingdom Invec Scotland +44 0207 949 0069 Local call tariff Ireland Invec Scotland +353 01 601 1161 Local call tariff Spain Eatsa Spain +34 902 888 785 € 0.10 Finland A-novo +358 09 2290 1908 Local call tariff France A-novo +33 082161 1658 € 0.09 Greece Allman Hellas +30 00800 3122 1223 Free of charge Italy A-novo +39 840 320 041 € 0.08 Netherlands E Care +31 0900 0400 063 € 0.10 Denmark A-novo +45 3525 8761 Local call tariff Norway A-novo +47 2270 8250 Local call tariff Sweden A-novo +46 08 632 0016 Local call tariff Poland Zolter +48 0223491505 Local call tariff Austria Siemens I&S +43 0810 000206 € 0.07 Belgium E Care +32 078 250851 € 0.06 Luxembourg E Care +352 26 84 30 00 Local call tariff Portugal Eatsa Spain +351 2 1359 1440 Local call tariff Switzerland A-novo +41 02 2310 2116 Local call tariff 36 8. Customer care and warranty Contact Information for CENTRAL AND EASTERN EUROPE region: Country Call center ASC Consumer care number Belarus NA IBA +375 17 217 3386 Bulgaria NA LAN Service +359 2 960 2360 Croatia NA Renoprom +385 1 333 0974 Estonia NA FUJITSU +372 6519900 Latvia NA “ServiceNet LV” Ltd. +371 7460399 Lithuania NA UAB "Servicenet" +370 7400088 Romania NA Blue Ridge Intl. +40 21 2101969 Serbia & Montenegro NA Kim Tec d.o.o. +381 11 20 70 684 Slovenia NA PC H.and +386 1 530 08 24 Ukraine NA Comel +380 562320045 NA Topaz-Service Company +38 044 245 73 31 Russia NA CPS +7 (495) 645 6746 (for repair) NA CEEE Partners +7 (495) 645 3010 (for sales) Slovakia NA Datalan Service +421 2 49207155 Turkey NA Techpro +90 212 444 4 832 Czech Rep. NA Asupport 800 100 697 Hungary NA Serware +36 1 2426331 NA Profi Service +36 1 814 8080 Contact Information for LATIN AMERICA region: Country Call center Consumer care number Brazil Vermont 0800-7254101 Argentina 0800 3330 856 Contact Information for China: China Consumer care number : 4008 800 008 Contact Information for NORTH AMERICA : Country Call center ASC Consumer care number U.S.A. TOS Teleplan (877) 835-1838 Canada Supercom Supercom (800)479-6696 37 8. Customer care and warranty Contact Information for APMEA region: Country Call center ASC Consumer care number Australia NA AGOS NETWORK PTY LTD 1300 360 386 New Zealand NA Visual Group Ltd. 0800 657447 Hong Kong / Macau NA Smart Pixels Technology Ltd. Hong Kong:Tel: +852 2619 9639 Macau:Tel: (853)-0800-987 India NA REDINGTON INDIA LTD Tel: 1 800 425 6396 SMS: PHILIPS to 56677 Indonesia NA PT. Gadingsari elektronika Prima Tel: 62 21 75909053, 75909056, 7511530 South Korea NA PCS One Korea Ltd. 080-600-6600 Malaysia NA After Market Solutions (CE) Sdn Bhd 603 7953 3370 Pakistan NA Philips Consumer Service (9221) 2737411-16 Singapore NA Philips Electronics Singapore Pte Ltd (Philips Consumer Care Center) (65) 6882 3999 Taiwan PCCW Teleservices Taiwan FETEC.CO 0800-231-099 Thailand NA Axis Computer System Co., Ltd. (662) 934-5498 South Africa NA Sylvara Technologies Pty Ltd 086 0000 888 United Arab Emirates NA AL SHAHD COMPUTER L.L.C 00971 4 2276525 Israel NA Eastronics LTD 1-800-567000 Vietnam NA FPT Service Informatic Company Ltd. +84 8 38248007 Ho Chi Minh City +84 5113.562666 Danang City +84 5113.562666 Can tho Province Philippines NA Glee Electronics, Inc. (02) 633-4533 to 34, (02) 637-6559 to 60 Sri Lanka NA no distributor and/or service provider currently Bangladesh NA Distributor: Computer Source Ltd (warranty buy-out) 880-2-9141747, 9127592 880-2-8128848 / 52 Nepal NA Distributor: Syakar Co. Ltd (warranty buy-out) 977-1-4222395 Cambodia NA Distributor: Neat Technology Pte Ltd (Singapore) (warranty buy-out) 855-023-999992 38 9. Troubleshooting & FAQs 9. Troubleshooting & FAQs 9.1 Troubleshooting This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these solutions, contact Philips customer service representative. Common Problems No Picture (Power LED not lit) • Make sure the power cord is plugged into the power outlet and into the back of the monitor. • First, ensure that the power button on the front of the monitor is in the OFF position, then press it to the ON position. No Picture (Power LED is White) • Make sure the computer is turned on. • Make sure the signal cable is properly connected to your computer. • Make sure the monitor cable has no bent pins on the connect side. If yes, repair or replace the cable. • The Energy Saving feature may be activated Screen says Attention Check cable connection • Make sure the monitor cable is properly connected to your computer. (Also refer to the Quick Start Guide). • Check to see if the monitor cable has bent pins. • Make sure the computer is turned on. AUTO button doesn't function • The auto function is applicable only in VGA-Analog mode. If the result is not satisfactory, you can do manual adjustments via the OSD menu. Note The Auto Function is not applicable in DVI- Digital mode as it is not necessary. Visible signs of smoke or sparks • Do not perform any troubleshooting steps • Disconnect the monitor from mains power source immediately for safety • Contact with Philips customer service representative immediately. Imaging Problems Image is not centered • Adjust the image position using the “Auto” function in OSD Main Controls. • Adjust the image position using the Phase/ Clock of Setup in OSD Main Controls. It is valid only in VGA mode. Image vibrates on the screen • Check that the signal cable is properly securely connected to the graphics board or PC. Vertical flicker appears • Adjust the image using the “Auto” function in OSD Main Controls. • Eliminate the vertical bars using the Phase/ Clock of Setup in OSD Main Controls. It is valid only in VGA mode. Horizontal flicker appears • Adjust the image using the “Auto” function in OSD Main Controls. 39 9. Troubleshooting & FAQs • Eliminate the vertical bars using the Phase/ Clock of Setup in OSD Main Controls. It is valid only in VGA mode. Image appears blurred, indistinct or too dark • Adjust the contrast and brightness on On-Screen Display. An "after-image", "burn-in" or "ghost image" remains after the power has been turned off. • Uninterrupted display of still or static images over an extended period may cause "burn in", also known as "after-imaging " or "ghost imaging", on your screen. "Burn- in", "after-imaging", or "ghost imaging" is a well-known phenomenon in LCD panel technology. In most cases, the "burned in" or "after-imaging" or "ghost imaging" will disappear gradually over a period of time after the power has been switched off. • Always activate a moving screen saver program when you leave your monitor unattended. • Always activate a periodic screen refresh application if your LCD monitor will display unchanging static content. • Severe” burn-in” or “after-image” or “ghost image” symptoms will not disappear and cannot be repaired. The damage mentioned above is not covered under your warranty. Image appears distorted. Text is fuzzy or blurred. • Set the PC’s display resolution to the same mode as monitor’s recommended screen native resolution. Green, red, blue, dark, and white dots appears on the screen • The remaining dots are normal characteristic of the liquid crystal used in today’s technology, Please refer the pixel policy for more detail. The "power on" light is too strong and is disturbing • You can adjust “power on” light using the power LED Setup in OSD main Controls. For further assistance, refer to the Consumer Information Centers list and contact Philips customer service representative. 9.2 SmartControl Premium FAQs Q1. I change the monitor on a PC to a different one and the SmartControl Premium becomes un-usable, what do I do? Ans.: Restart your PC and see if SmartControl Premium can work. Otherwise, you will need to remove and re-install SmartControl Premium to ensure proper driver is installed. Q2. The SmartControl Premium functions worked well before, but it does not work anymore, what can I do? Ans.: If the following actions were executed, the monitor driver may need to be re- installed. • Changed video graphic adapter to another one • Updated video driver • Activities on OS, such as service pack or patch • Run Windows Update and updated monitor and/or video driver • Windows was booted with the monitor power off or disconnected. • To find out, please right click My Computer and click on Properties->Hardware-> Device Manager. • If you see “Plug and Play Monitor” shows under Monitor, then you need to re-install. Simply remove SmartControl Premium and re-install it. Q3. After installing SmartControl Premium, when clicking on SmartControl Premium tab, nothing shows up after a while or a failure message shows, what happened? 40 9. Troubleshooting & FAQs Ans.: It might be your graphic adaptor is not compatible with the SmartControl Premium. If your graphic adaptor is one of the above mentioned brands, try to download the most updated graphic adaptor driver from corresponding companies’ web site. Install the driver. Remove SmartControl Premium, and re-install it once more. If it is still not working, we are sorry that the graphic adaptor is not supported. Please visit Philips website and check if an updated SmartControl Premium driver is available. Q4. When I click on Product Information, only partial information is shown, what happened? Ans.: It might be your graphic card adaptor driver is not the most updated version which fully supporting DDC/ CI interface. Please try to download the most updated graphic adaptor driver from corresponding companies’ web site. Install the driver. Remove SmartControl Premium and re-install it once more. Attention Theft mode enabled Q5. I forgot my PIN for Theft Deterrence Function. How can I do? Ans.: Philips Service center has a right to ask for legitimate identification and authorization, in order to establish ownership of the monitor. 9.3 General FAQs Q1: When I install my monitor what should I do if the screen shows 'Cannot display this video mode'? Ans.: Recommended resolution for this monitor: 1920 x 1080 @ 60 Hz. • Unplug all cables, then connect your PC to the monitor that you used previously. • In the Windows Start Menu, select Settings/ Control Panel. In the Control Panel Window, select the Display icon. Inside the Display Control Panel, select the 'Settings' tab. Under the setting tab, in box labelled 'desktop area', move the sidebar to 1920 x 1080 pixels. • Open 'Advanced Properties' and set the Refresh Rate to 60 Hz, then click OK. • Restart your computer and repeat step 2 and 3 to verify that your PC is set at 1920 x 1080 @ 60 Hz. • Shut down your computer, disconnect your old monitor and reconnect your Philips LCD monitor. • Turn on your monitor and then turn on your PC. Q2: What is the recommended refresh rate for LCD monitor? Ans.: Recommended refresh rate in LCD monitors is 60 Hz, In case of any disturbance on screen, you can set it up to 75 Hz to see if that removes the disturbance. Q3: What are the .inf and .icm files on the CD-ROM? How do I install the drivers (.inf and .icm)? Ans.: These are the driver files for your monitor. Follow the instructions in your user manual to install the drivers. Your computer may ask you for monitor drivers (.inf and .icm files) or a driver disk when you first install your monitor. Follow the instructions to insert the ( 41 9. Troubleshooting & FAQs companion CD-ROM) included in this package. Monitor drivers (.inf and .icm files) will be installed automatically. Q4: How do I adjust the resolution? Ans.: Your video card/graphic driver and monitor together determine the available resolutions. You can select the desired resolution under Windows® Control Panel with the "Display properties". Q5: What if I get lost when I am making monitor adjustments via OSD? Ans.: Simply press the OK button, then select 'Reset' to recall all of the original factory settings. Q6: Is the LCD screen resistant to scratches? Ans.: In general it is recommended that the panel surface is not subjected to excessive shocks and is protected from sharp or blunt objects. When handling the monitor, make sure that there is no pressure or force applied to the panel surface side. This may affect your warranty conditions. Q7: How should I clean the LCD surface? Ans.: For normal cleaning, use a clean, soft cloth. For extensive cleaning, please use isopropyl alcohol. Do not use other solvents such as ethyl alcohol, ethanol, acetone, hexane, etc. Q8: Can I change the color setting of my monitor? Ans.: Yes, you can change your color setting through OSD control as the following procedures, • Press "OK" to show the OSD (On Screen Display) menu • Press "Down Arrow" to select the option "Color" then press "OK" to enter color setting, there are three settings as below. 1. Color Temperature; The six settings are 5000K, 6500K, 7500K, 8200K, 9300K and 11500K. With settings in the 5000K range the panel appears "warm, with a red-white color tone", while a 11500K temperature yields "cool, bluewhite toning". 2. sRGB; this is a standard setting for ensuring correct exchange of colors between different device (e.g. digital cameras, monitors, printers, scanners, etc) 3. User Define; the user can choose his/ her preference color setting by adjusting red, green blue color. Note A measurement of the color of light radiated by an object while it is being heated. This measurement is expressed in terms of absolute scale, (degrees Kelvin). Lower Kevin temperatures such as 2004K are red; higher temperatures such as 9300K are blue. Neutral temperature is white, at 6504K. Q9: Can I connect my LCD monitor to any PC, workstation or Mac? Ans.: Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs and workstations. You may need a cable adapter to connect the monitor to your Mac system. Please contact your Philips sales representative for more information. Q10: Are Philips LCD monitors Plug-and- Play? Ans.: Yes, the monitors are Plug-and-Play compatible with Windows 7/Vista/XP/ NT, Mac OSX, Linux Q11: What is Image Sticking, or Image Burn- in, or After Image, or Ghost Image in LCD panels? Ans.: Uninterrupted display of still or static images over an extended period 42 9. Troubleshooting & FAQs may cause "burn in", also known as "after-imaging" or "ghost imaging", on your screen. "Burn-in", "after-imaging", or "ghost imaging" is a well-known phenomenon in LCD panel technology. In most cases, the "burned in" or "atter-imaging" or "ghost imaging" will disappear gradually over a period of time after the power has been switched off. Always activate a moving screen saver program when you leave your monitor unattended. Always activate a periodic screen refresh application if your LCD monitor will display unchanging static content. Warning Severe"burn-in" or "after-image" or "ghost image" symptoms will not disappear and cannot be repaired. The damage mentioned above is not covered under your warranty. Q12: Why is my Display not showing sharp text, and is displaying jagged characters? Ans.: Your LCD monitor works best at its native resolution of 1920 x 1080 @ 60 Hz. For best display, please use this resolution. 2011 © Koninklijke Philips Electronics N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips Electronics N.V. and are used under license from Koninklijke Philips Electronics N.V. Specifi cations are subject to change without notice. Version: M3273GDE1T 家电维修资料网    www.520101.com                    免费下载各类电器说明书  www.520101.com
