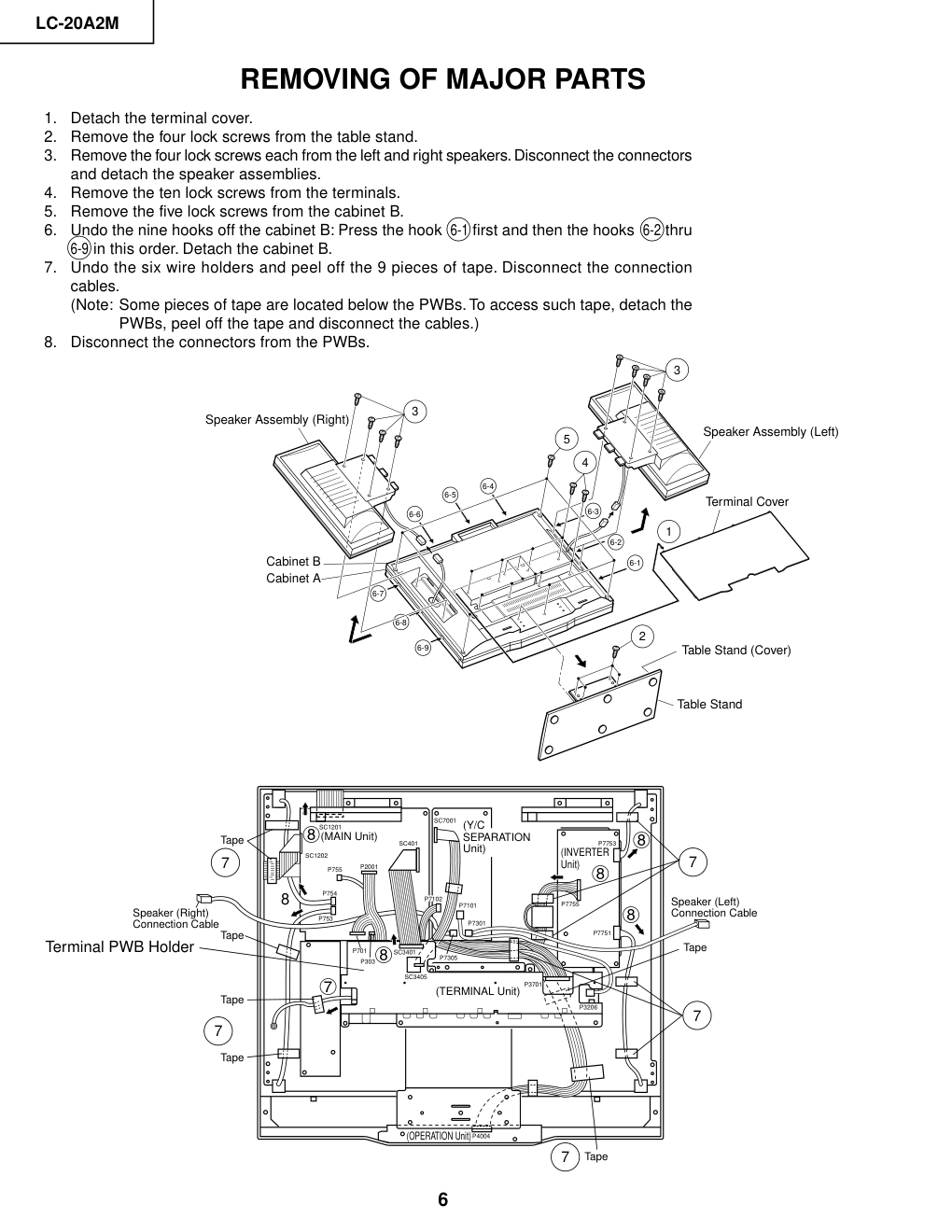

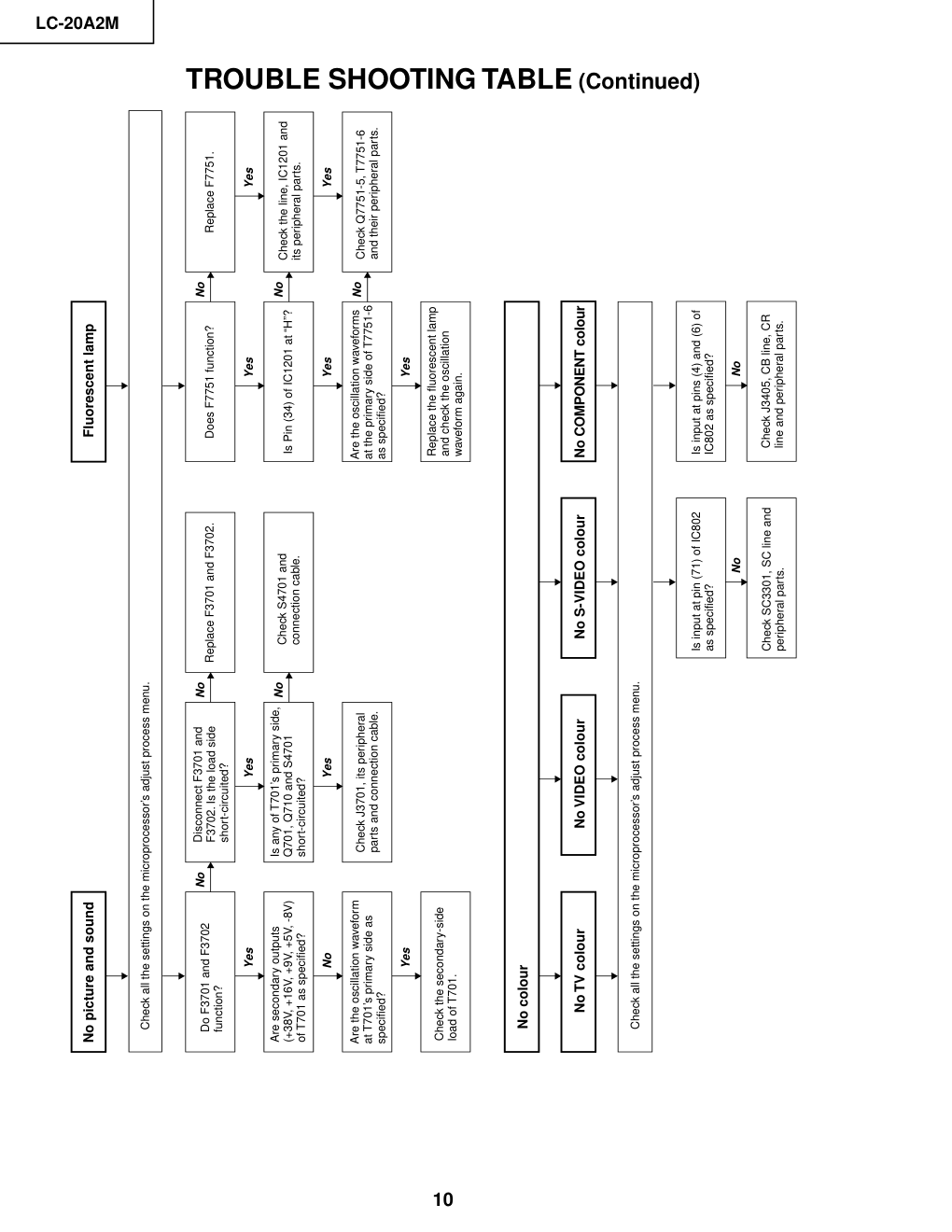

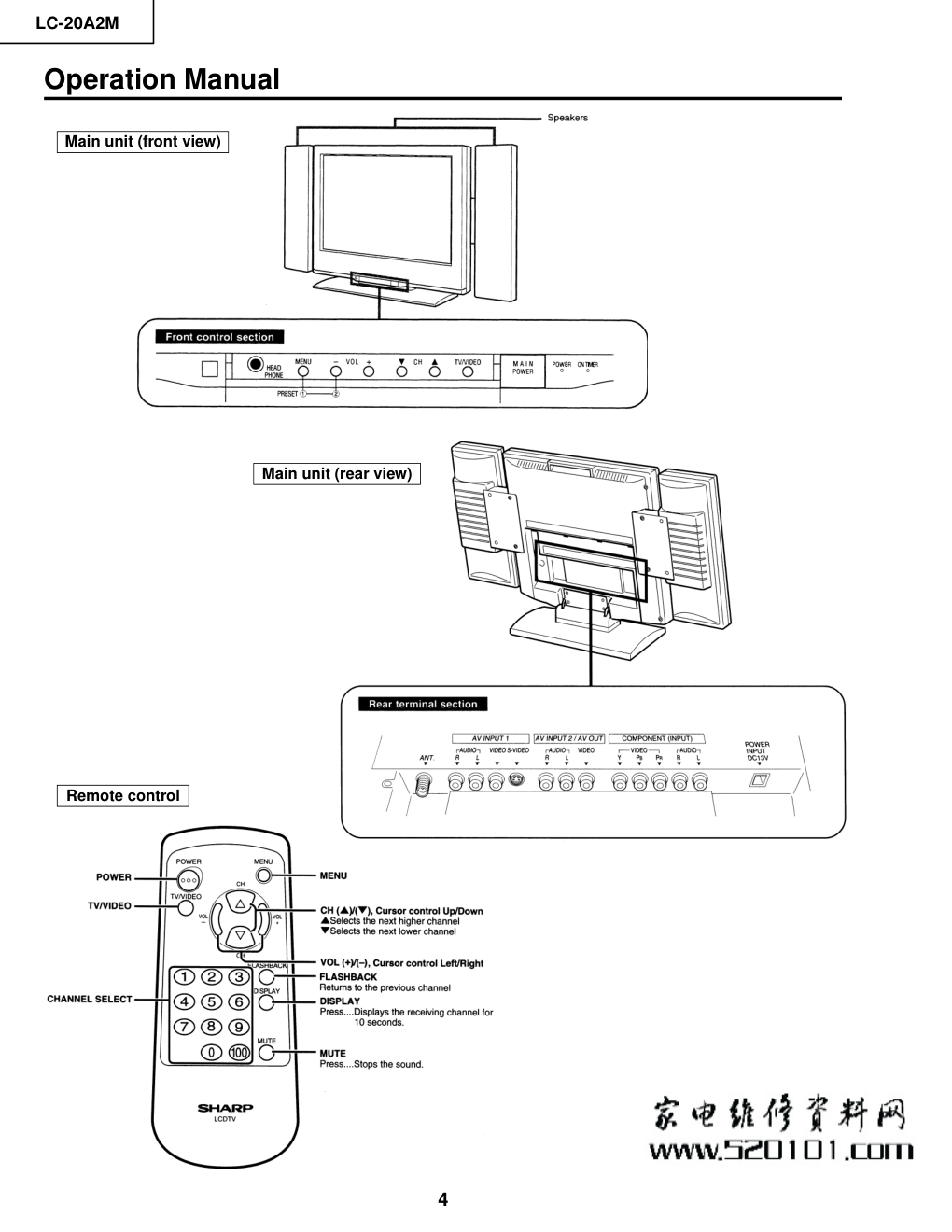

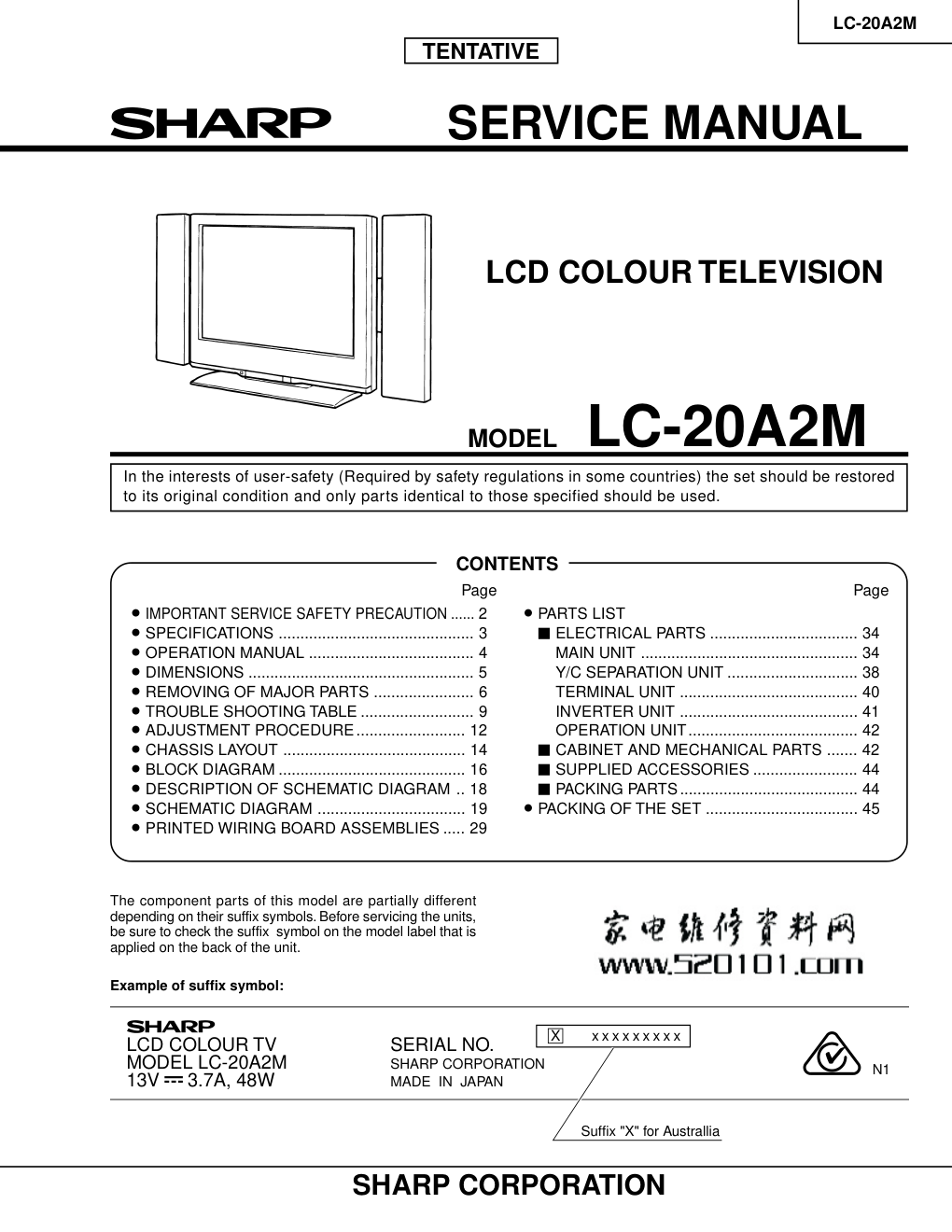

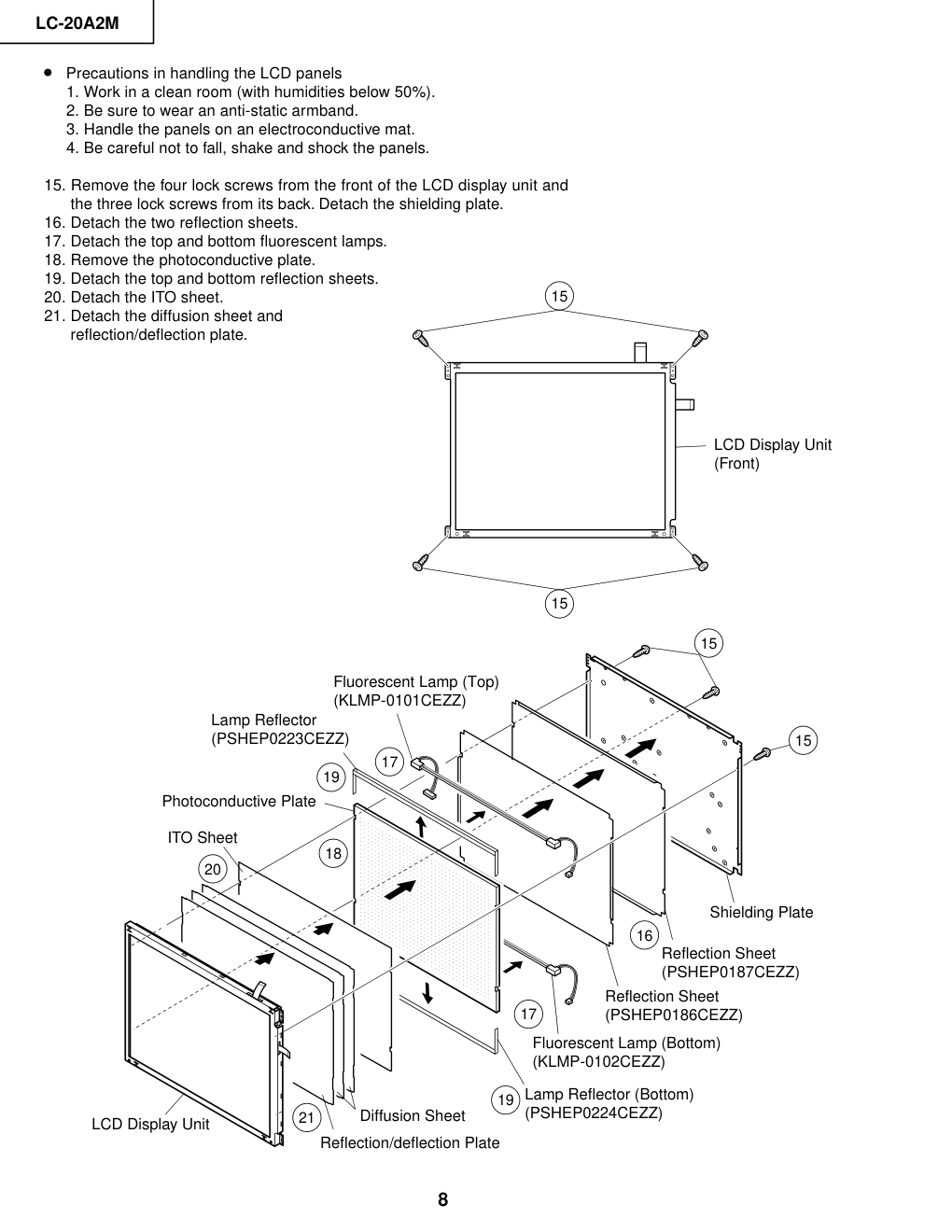

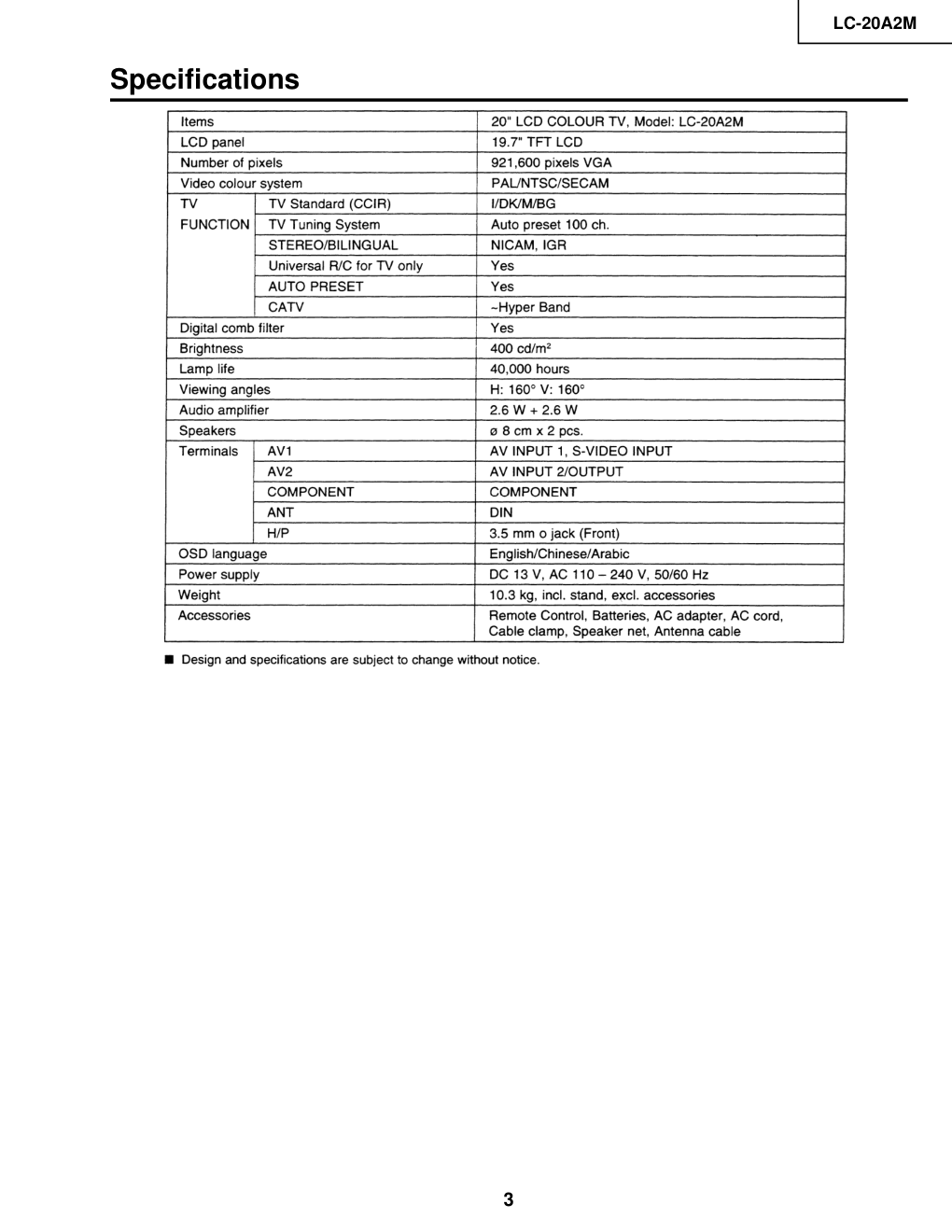

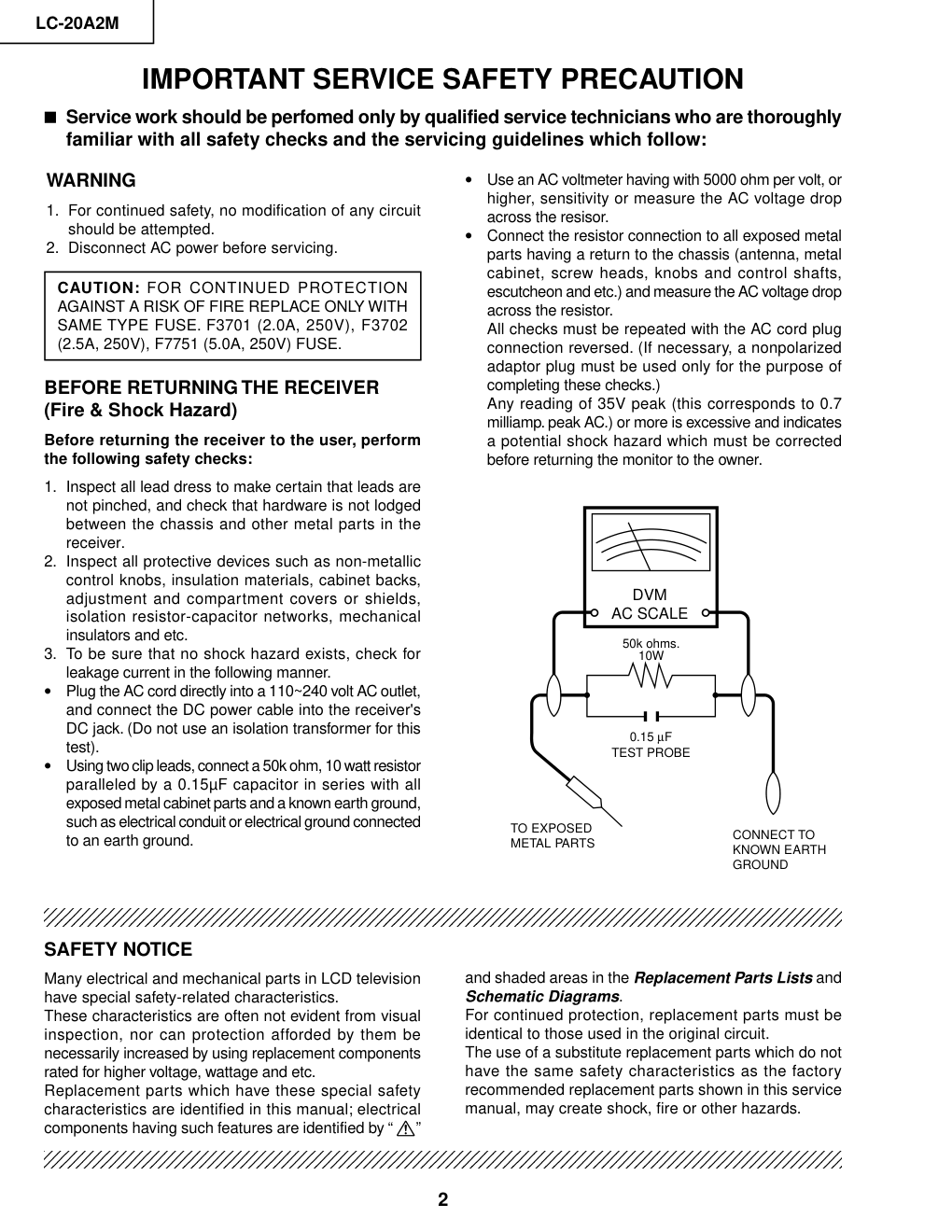

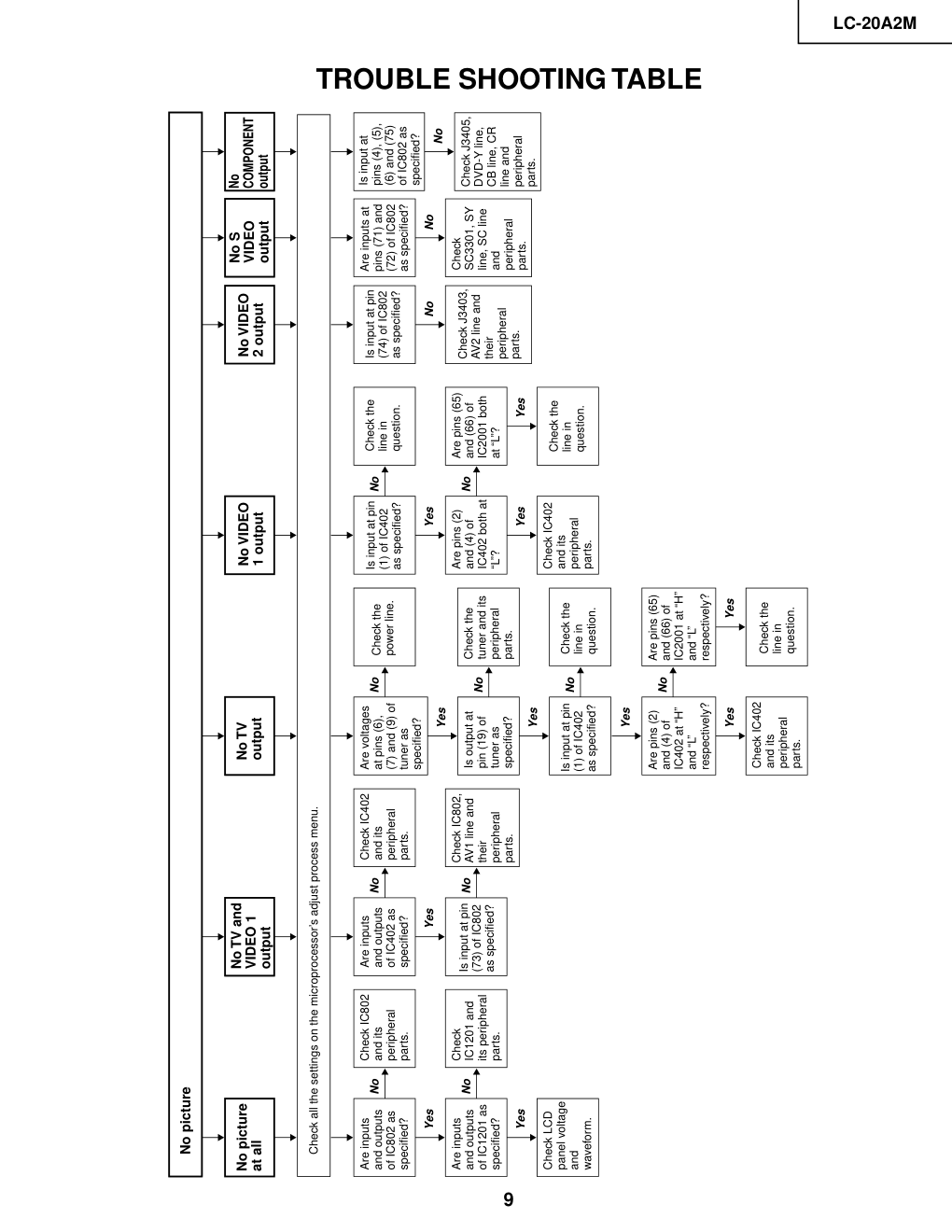

1 LC-20A2M LCD COLOUR TELEVISION CONTENTS Page Page » IMPORTANT SERVICE SAFETY PRECAUTION ...... 2 » SPECIFICATIONS ............................................. 3 » OPERATION MANUAL ...................................... 4 » DIMENSIONS .................................................... 5 » REMOVING OF MAJOR PARTS ....................... 6 » TROUBLE SHOOTING TABLE .......................... 9 » ADJUSTMENT PROCEDURE......................... 12 » CHASSIS LAYOUT .......................................... 14 » BLOCK DIAGRAM ........................................... 16 » DESCRIPTION OF SCHEMATIC DIAGRAM .. 18 » SCHEMATIC DIAGRAM .................................. 19 » PRINTED WIRING BOARD ASSEMBLIES ..... 29 SHARP CORPORATION SERVICE MANUAL S00K2LC-20A2H In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used. MODEL LC-20A2M Example of suffix symbol: The component parts of this model are partially different depending on their suffix symbols. Before servicing the units, be sure to check the suffix symbol on the model label that is applied on the back of the unit. LCD COLOUR TV MODEL LC-20A2M 13V 3.7A, 48W SERIAL NO. SHARP CORPORATION MADE IN JAPAN N1 X x x x x x x x x x Suffix "X" for Australlia » PARTS LIST Ë ELECTRICAL PARTS .................................. 34 MAIN UNIT .................................................. 34 Y/C SEPARATION UNIT .............................. 38 TERMINAL UNIT ......................................... 40 INVERTER UNIT ......................................... 41 OPERATION UNIT....................................... 42 Ë CABINET AND MECHANICAL PARTS ....... 42 Ë SUPPLIED ACCESSORIES ........................ 44 Ë PACKING PARTS......................................... 44 » PACKING OF THE SET ................................... 45 TENTATIVE 2 LC-20A2M CAUTION: FOR CONTINUED PROTECTION AGAINST A RISK OF FIRE REPLACE ONLY WITH SAME TYPE FUSE. F3701 (2.0A, 250V), F3702 (2.5A, 250V), F7751 (5.0A, 250V) FUSE. 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212 SAFETY NOTICE Many electrical and mechanical parts in LCD television have special safety-related characteristics. These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage, wattage and etc. Replacement parts which have these special safety characteristics are identified in this manual; electrical components having such features are identified by “ å” IMPORTANT SERVICE SAFETY PRECAUTION Ë Service work should be perfomed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow: and shaded areas in the Replacement Parts Lists and Schematic Diagrams. For continued protection, replacement parts must be identical to those used in the original circuit. The use of a substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire or other hazards. WARNING 1. For continued safety, no modification of any circuit should be attempted. 2. Disconnect AC power before servicing. BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard) Before returning the receiver to the user, perform the following safety checks: 1. Inspect all lead dress to make certain that leads are not pinched, and check that hardware is not lodged between the chassis and other metal parts in the receiver. 2. Inspect all protective devices such as non-metallic control knobs, insulation materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators and etc. 3. To be sure that no shock hazard exists, check for leakage current in the following manner. • Plug the AC cord directly into a 110~240 volt AC outlet, and connect the DC power cable into the receiver's DC jack. (Do not use an isolation transformer for this test). • Using two clip leads, connect a 50k ohm, 10 watt resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to an earth ground. • Use an AC voltmeter having with 5000 ohm per volt, or higher, sensitivity or measure the AC voltage drop across the resisor. • Connect the resistor connection to all exposed metal parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon and etc.) and measure the AC voltage drop across the resistor. All checks must be repeated with the AC cord plug connection reversed. (If necessary, a nonpolarized adaptor plug must be used only for the purpose of completing these checks.) Any reading of 35V peak (this corresponds to 0.7 milliamp. peak AC.) or more is excessive and indicates a potential shock hazard which must be corrected before returning the monitor to the owner. TO EXPOSED METAL PARTS CONNECT TO KNOWN EARTH GROUND DVM AC SCALE 50k ohms. 10W 0.15 µF TEST PROBE 3 LC-20A2M Specifications 4 LC-20A2M Operation Manual Main unit (front view) Remote control Main unit (rear view) 5 LC-20A2M Dimensions (Unit: mm) 6 LC-20A2M REMOVING OF MAJOR PARTS 1. Detach the terminal cover. 2. Remove the four lock screws from the table stand. 3. Remove the four lock screws each from the left and right speakers. Disconnect the connectors and detach the speaker assemblies. 4. Remove the ten lock screws from the terminals. 5. Remove the five lock screws from the cabinet B. 6. Undo the nine hooks off the cabinet B: Press the hook 6-1 first and then the hooks 6-2 thru 6-9 in this order. Detach the cabinet B. 7. Undo the six wire holders and peel off the 9 pieces of tape. Disconnect the connection cables. (Note: Some pieces of tape are located below the PWBs. To access such tape, detach the PWBs, peel off the tape and disconnect the cables.) 8. Disconnect the connectors from the PWBs. 2 Table Stand Table Stand (Cover) Cabinet B Cabinet A 5 4 1 Terminal Cover 6-7 6-8 6-9 6-6 6-5 6-4 6-3 6-2 6-1 3 3 Speaker Assembly (Left) Speaker Assembly (Right) SC1201 SC1202 P753 P701 P7305 P303 P754 P755 P2001 P7102 P7101 P7301 SC3401 SC3405 SC7001 SC401 P3701 P7751 P7753 P7755 P4004 P3206 (INVERTER Unit) (TERMINAL Unit) (OPERATION Unit) 8 8 8 7 8 8 8 7 7 7 Tape Speaker (Right) Connection Cable Tape Tape Tape Tape Tape (MAIN Unit) 7 7 Terminal PWB Holder Speaker (Left) Connection Cable (Y/C SEPARATION Unit) 7 LC-20A2M LCD Display Unit MAIN Unit TERMINAL PWB Assembly OPERATION Unit Cabinet A INVERTER Unit Y/C SEPARATION Unit 14 13 12 9 11 10 12 13 Reinforcement Plate 9. Remove the four lock screws from the MAIN PWB. 10. Remove the four lock screws from the Y/C SEPARATION PWB. 11. Remove the three lock screws from the INVERTER PWB. 12. Remove the lock screw from the TERMINAL PWB and the lock screw from the grounding terminal. Detach the reinforcement plate too. 13. Remove the two lock screws from the LCD display unit. 14. Remove the three lock screws from the OPERATION PWB. 8 LC-20A2M » Precautions in handling the LCD panels 1. Work in a clean room (with humidities below 50%). 2. Be sure to wear an anti-static armband. 3. Handle the panels on an electroconductive mat. 4. Be careful not to fall, shake and shock the panels. 15. Remove the four lock screws from the front of the LCD display unit and the three lock screws from its back. Detach the shielding plate. 16. Detach the two reflection sheets. 17. Detach the top and bottom fluorescent lamps. 18. Remove the photoconductive plate. 19. Detach the top and bottom reflection sheets. 20. Detach the ITO sheet. 21. Detach the diffusion sheet and reflection/deflection plate. Fluorescent Lamp (Top) (KLMP-0101CEZZ) Lamp Reflector (PSHEP0223CEZZ) LCD Display Unit Fluorescent Lamp (Bottom) (KLMP-0102CEZZ) Lamp Reflector (Bottom) (PSHEP0224CEZZ) Diffusion Sheet Photoconductive Plate Reflection/deflection Plate Reflection Sheet (PSHEP0186CEZZ) 15 15 16 17 21 19 17 19 18 20 Reflection Sheet (PSHEP0187CEZZ) Shielding Plate ITO Sheet LCD Display Unit (Front) 15 15 9 LC-20A2M TROUBLE SHOOTING TABLE No picture at all Yes No Are inputs and outputs of IC802 as specified? Check all the settings on the microprocessor’s adjust process menu. No picture Check IC802 and its peripheral parts. Yes No Are inputs and outputs of IC1201 as specified? Check IC1201 and its peripheral parts. Check LCD panel voltage and waveform. No TV and VIDEO 1 output Yes No Are inputs and outputs of IC402 as specified? Check IC402 and its peripheral parts. No Is input at pin (73) of IC802 as specified? Check IC802, AV1 line and their peripheral parts. No TV output Yes No Are voltages at pins (6), (7) and (9) of tuner as specified? Check the power line. Yes No Is output at pin (19) of tuner as specified? Check the tuner and its peripheral parts. No Is input at pin (1) of IC402 as specified? Check the line in question. Yes Check IC402 and its peripheral parts. Yes No Are pins (2) and (4) of IC402 at “H” and “L” respectively? Are pins (65) and (66) of IC2001 at “H” and “L” respectively? No VIDEO 1 output Yes No Is input at pin (1) of IC402 as specified? Check the line in question. Yes No Are pins (2) and (4) of IC402 both at “L”? No VIDEO 2 output No Is input at pin (74) of IC802 as specified? Check J3403, AV2 line and their peripheral parts. No S VIDEO output No Are inputs at pins (71) and (72) of IC802 as specified? Check SC3301, SY line, SC line and peripheral parts. No COMPONENT output No Is input at pins (4), (5), (6) and (75) of IC802 as specified? Check J3405, DVD-Y line, CB line, CR line and peripheral parts. Are pins (65) and (66) of IC2001 both at “L”? Check IC402 and its peripheral parts. Yes Check the line in question. Yes Check the line in question. 10 LC-20A2M TROUBLE SHOOTING TABLE (Continued) No picture and sound No colour No TV colour No S-VIDEO colour Yes No Do F3701 and F3702 function? Check all the settings on the microprocessor’s adjust process menu. No Are secondary outputs (+38V, +16V, +9V, +5V, -8V) of T701 as specified? Yes Are the oscillation waveform at T701’s primary side as specified? Yes No Disconnect F3701 and F3702. Is the load side short-circuited? Yes No Is any of T701’s primary side, Q701, Q710 and S4701 short-circuited? Check J3701, its peripheral parts and connection cable. Replace F3701 and F3702. Check S4701 and connection cable. Check the secondary-side load of T701. Fluorescent lamp Yes No Does F7751 function? Yes No Is Pin (34) of IC1201 at “H”? Yes No Are the oscillation waveforms at the primary side of T7751-6 as specified? Yes Replace F7751. No Is input at pin (71) of IC802 as specified? Check SC3301, SC line and peripheral parts. Yes Check the line, IC1201 and its peripheral parts. Check Q7751-5, T7751-6 and their peripheral parts. Replace the fluorescent lamp and check the oscillation waveform again. No VIDEO colour Check all the settings on the microprocessor’s adjust process menu. No COMPONENT colour No Is input at pins (4) and (6) of IC802 as specified? Check J3405, CB line, CR line and peripheral parts. 11 LC-20A2M TROUBLE SHOOTING TABLE (Continued) No sound from speakers Yes No Is pin (53) of IC2001 at “L”? Check all the settings on the microprocessor’s adjust process menu. No sound No Are outputs at pins (1) and (7) of IC903 as specified? Yes No Are inputs and outputs of IC303 as specified? Yes No Are inputs at pins (11) and (16) as well as outputs at pins (3) and (5), all of IC7305, as specified? Muting effect is on. Check the FSMU line. Check IC901, IC903 and their peripheral parts. Check IC303 and its peripheral parts. Check the line in question, IC7305 and its peripheral parts. Yes Check the speakers and their peripheral parts. No sound from headphone Yes No Is pin (55) of IC2001 at “L”? Check the headphone and its peripheral parts. Check Q306, J4001 and their peripheral parts. No sound from output line Yes No Is pin (52) of IC2001 at “L”? No Are outputs at pins (1) and (7) of IC902 as specified? Yes Check the line in question. Check the LMUTE line. Check IC902 and its peripheral parts. TV sound failure Yes No Is output at pin (16) of tuner as specified? No Is input at pin (60) of IC901 as specified? Check the tuner and its peripheral parts. Check IC901, Q3301, Q3204, Q3205 and their peripheral parts. 12 LC-20A2M ADJUSTMENT PROCEDURES The product has been factory-adjusted to optimum settings. If by any chance any of the settings gets out of position or when a part has been replaced, take the following procedures. Preparations Use the specific AC adaptor or a regulated DC power supply. AC adaptor: UADP-0219CEZZ DC power supply: 13 V, 4.2 A (monitor power 3.6 A, audio amplifier power 1.0 A) 1. Adjustment Procedures 1-1. Adjusting the checker Turning on the power (getting initialized) → Selecting the model number and screen size (inches) → Transferring the model-specified data to the setting EEPROM (I2C) → Calling the adjustment process mode → +B adjustment 1-2. Making finish process adjustments Turning on the power → Calling the adjustment process mode (with the remote controller) → Adjusting the counter bias, TV contrast and white balance 2. Calling the Adjustment Process Mode There are two ways to enter this mode. » Set the KEY4 (pin (81) of IC2001) and KEY5 (pin (82) of IC2001) to the L level and turn on the power. » Hold down both the “TV/VIDEO” and “MENU” keys at once and turn on the main power. (Make sure “K” appears at the top left of the screen, which means the set is in the inspection process mode.) Then press the “CH "” and “VOL –” keys at once. To quit this mode, just turn off the main power. (The mode can be turned off with the power switch either on the set or the remote controller.) 3. Key Operation in the Adjustment Process Mode Selecting a receiving channel » Select an actual receiving channel with the “CH "/'” keys. Short push-in : Channels are selected one after another. Long push-in : Channels are skipped up to the next receivable channel. » Adjustments All the items can be adjusted one by one with the “MENU”, “CH "/'” and “VOL (+)/(–)” keys (on the set and the remote controller). » The “MENU” key serves to toggle between adjustment items (the next item is selected). Let’s suppose that the item at the bottom line is now selected. Press the “MENU” key and the item at the top line on the next page will be selected. » The “TV/VIDEO” key is also used to toggle between adjustment items. Let’s suppose that the item at the top line is now selected. Press the “TV/VIDEO” key and the item at the bottom line on the previous page will be selected. » Whichever item is selected, pressing the “AUTO PRESET” key selects the item at the top line on the next page. Page 1 → Page 2 → ... → Page 16 → Page 1 ... » Whichever item is selected, pressing the “MANUAL MEMORY” key selects the item at the top line on the same page. Using the “VOL (+)/(–)” keys, the setting of a selected item can be modified. » Let’s suppose that the PAL/NTSC is selected on pages 11 and 12. By pressing the “VOL (+)/(–)” keys, the register selection mode is brought on and the cursor moves to the address 01. » Using the “CH "/'” and “VOL (+)/(–)” keys, move the cursor vertically and horizontally, respectively. Use the “12” key to enter the setting. With an item selected, the cursor moves to its setting. Using the “VOL (+)/(–)” keys, the setting of the item selected can be changed first for the left side. A new setting is now entered with the “12” key. Using the “VOL (+)/(–)” keys again, the right-side setting can also be changed. 0 ←→ 1 ←→ ...←→ 9 ←→ A ←→ ... ←→ F ←→ 0 ←→ ... Enter the setting with the “12” key. Go back to the address selection and go to the next item with the “MENU” key. The cursor moves for address selection as follows using the “VOL (+)/(–)” keys. Example : 01←→ 02 ←→ 03 ←→ 01 ←→ ... Similarly the cursor moves as follows with the “CH "/'” keys. Example : 02 ←→ 05 ←→ ... ←→ F6 ←→ 02 ←→ ... 13 LC-20A2M 4. Getting Initialized 4-1. Connect pins (81) and (82) of IC2001 to GND. Turn on the power. 4-2. Select the model number (A2H). 4-3. Select the screen size (20 inches). 5. Adjustments 5-1. +B adjustment (+B ADJ. on page 1) 1) Receive the colour bar signal. 2) Adjust the voltage at pin (8) of P303 to 5.00 ±0.02 V. Note: The 5.00 V level is used as reference to the supply voltage. Make an exact adjustment to 5.00 V. 5-2. Counter bias adjustment ...... “COM BIAS” on page 2 1) Receive the monoscope pattern signal. 2) Adjust the “COM BIAS” setting so that the contrast at the staircase wave is maximum. 5-3. TAMP adjustment 1) Receive the colour bar signal. 2) See if the “Y” reading on page 2 of the adjustment process is somewhere between BB and CA. If not, make the “NTSC TAMP” adjustment to get the “Y” reading in the range of BB thru CA. 3) Then enter the above setting, if made in the “NTSC TAMP” adjustment, in the following items in the manual mode. “PAL TAMP”, “SECAM TAMP”, “PAL-M TAMP” and “PAL-N TAMP”. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 0 1 2 2 C N P S P P T R G B G G 3 O T A E A A V C C C 3 1 4 M S L C L L U U U 5 C A - - H T T T 6 B T M M N - O O O B B 7 I T A P F F F 3 4 8 A A M T T T E F F F 9 S M P A A A A 10 P M M M K R 11 P P P I 3 Y 12 N 13 G 14 15 16 0 0 17 0 0 18 19 20 0 0 21 0 0 22 23 1 24 1 1 2 2 2 2 0 B 25 7 9 7 7 7 7 4 0 0 0 0 5 26 (Adjustment process menu on-screen display on page 2) Y data (75% white) 5-4. White balance adjustment 1) Receive the monoscope pattern signal. 2) Adjust so that the “RCUTOFF” and “BCUTOFF” settings on page 2 of the adjustment process are optimum. Note: The “RCUTOFF” and “BCUTOFF” settings in the adjustment process should be in the range of -10 thru +10. If without this range, the variable user control range will be reduced. 15 14 LC-20A2M 12 11 10 9 8 7 6 5 4 3 2 1 A B C D E F G H CHASSIS LAYOUT MAIN Unit (Side A) Y/C SEPARATION Unit (Side A) MAIN Unit (Side B) Y/C SEPARATION Unit (Side B) OPERATION Unit INVERTER Unit TERMINAL Unit 17 16 LC-20A2M 12 11 10 9 8 7 6 5 4 3 2 1 A B C D E F G H BLOCK DIAGRAM 18 LC-20A2M DESCRIPTION OF SCHEMATIC DIAGRAM VOLTAGE MEASUREMENT CONDITION: 1. When the exclusive-use AC adapter is used, the colour bar signal of colour bar generator for service is input to get the normal screen. When the audio is minimized, the voltage value is measured with the 20 kΩ/V tester. WAVEFORM MEASUREMENT CONDITION: 1. When the exclusive-use AC adapter is used, the colour density, lightness and colour hue are set to the center position, and the signal of colour bar generator for service is observed to get waveform. INDICATION OF RESISTOR & CAPACITOR: RESISTOR 1. The unit of resistance “Ω” is omitted. (K=kΩ=1000 Ω, M=MΩ). 2. All resistors are ± 5%, unless otherwise noted. (J= ± 5%, F= ± 1%, D= ± 0.5%) 3. All resistors are Carbon type, unless otherwise noted. C : Solid W : Cement S : Oxide Film T : Special N : Metal Coating CAPACITOR 1. All capacitors are mF, unless otherwise noted. (P=pF=mmF). 2. All capacitors are Ceramic type, unless otherwise noted. (ML) : Mylar (TA) : Tantalum (PF) : Polypro Film (ST) : Styrol CAUTION: This circuit diagram is original one, therefore there may be a slight difference from yours. IMPORTANT SAFETY NOTICE: PARTS MARKED WITH “å” ( )ARE IMPORTANT FOR MAINTAINING THE SAFETY OF THE SET. BE SURE TO REPLACE THESE PARTS WITH SPECIFIED ONES FOR MAINTAINING THE SAFETY AND PERFORMANCE OF THE SET. 19 6 5 4 3 2 1 A B C D E F G H LC-20A2M Ë OPERATION Unit 21 20 LC-20A2M 12 11 10 9 8 7 6 5 4 3 2 1 A B C D E F G H Ë MAIN Unit -1/2 23 22 LC-20A2M 12 11 10 9 8 7 6 5 4 3 2 1 A B C D E F G H Ë MAIN Unit -2/2 25 24 LC-20A2M 12 11 10 9 8 7 6 5 4 3 2 1 A B C D E F G H Ë TERMINAL Unit 27 26 LC-20A2M 12 11 10 9 8 7 6 5 4 3 2 1 A B C D E F G H Ë Y/C SEPARATION Unit 28 6 5 4 3 2 1 A B C D E F G H LC-20A2M Ë INVERTER Unit 29 6 5 4 3 2 1 A B C D E F G H LC-20A2M Y/C SEPARATION Unit (Side-A) Y/C SEPARATION Unit (Side-B) PRINTED WIRING BOARD ASSEMBLIES 30 6 5 4 3 2 1 A B C D E F G H LC-20A2M MAIN Unit (Side-A) 31 6 5 4 3 2 1 A B C D E F G H LC-20A2M MAIN Unit (Side-B) 32 6 5 4 3 2 1 A B C D E F G H LC-20A2M OPERATION Unit (Wiring Side) TERMINAL Unit (Wiring Side) 33 6 5 4 3 2 1 A B C D E F G H LC-20A2M INVERTER Unit (Wiring Side) Ref. No. Part No. # Description Code Ref. No. Part No. # Description Code 34 LC-20A2M PARTS LIST PARTS REPLACEMENT Replacement parts which have these special safety characteristics identified in this manual: electrical components having such features are identified by "å" in the Replacement Parts Lists. The use of a substitute replacement part which does not have the same safety characteristics as the factory recommended replace- ment parts shown in this service manual may create shock, fire or other hazards. "HOW TO ORDER REPLACEMENT PARTS" To have your order filled promptly and correctly, please furnish the following informations. 1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION 5. CODE 6. QUANTITY MARK #: SPARE PARTS-DELIVERY SECTION Ref. No. Part No. # Description Code PRINTED WIRING BOARD ASSEMBLIES (NOT REPLACEMENT ITEM) DUNTKA177FE05 – MAIN Unit — DUNTKA194DE05 – Y/C SEPARATION Unit — DUNTKA331DE01 – TERMINAL Unit — DUNTKA332DE01 – INVERTER Unit — DUNTKA333DE01 – OPERATION Unit — DUNTKA177FE05 MAIN UNIT INTEGRATED CIRCUITS IC201 VHiNJM2147M-1 J NJM2147M-TE1 AF IC301 VHiLA4227//-1 J LA4227 AG IC303 VHiNJM2283F-1 J NJM2283M AF IC402 VHiNJM2235M-1 J NJM2235M AE IC701 VHiAN8005M/-1 J AN8005M AD IC702 VHiNJM2377M-1 J NJM2377M AK IC704 VHiBA033FP/-1 J BA033FP-E2 AG IC802 VHiVPC3230D-1 J VPC3230D-QA-B2 BG IC901 RH-iX3371CEZZ J MSP3410G-QA-B5 BD IC902 VHiNJM4560M-1 J NJM4560M AG IC903 VHiNJM4560M-1 J NJM4560M AG IC1101 VHiMB8346BV-1 J MB88346BPFV AN IC1102 VHiNJM4565V-1 J NJM4565V AF IC1103 VHiNJM4565V-1 J NJM4565V AF IC1104 VHiNJM4565V-1 J NJM4565V AF IC1105 VHiBU4053V/-1 J BU4053BCFV-E2 AE IC1106 VHiNJM4580V-1 J NJM4580V AE IC1107 VHiNJM4580V-1 J NJM4580V AE IC1108 VHiNJM4580V-1 J NJM4580V AE IC1109 VHiNJM353M/-1 J NJM353M AG IC1110 VHiBU4053V/-1 J BU4053BCFV-E2 AE IC1201 RH-iX3378CEZZ J LR38797 AY IC1202 VHiPD485505-2 J UPD485505G-25 AY IC1204 VHiTC4W53U/-1 J TC4W53FU AF IC1205 VHiTC4024BF1E J TC4024BF AG IC1206 VHiTC4052BF1E J TC4052BF AF IC2001 RH-iX3477CEZZ J I.C. BA IC2002 VHiPST529DM-1 J PST529DMT AE IC2003 VHiTC4W66F/-1 J TC4W66F AE IC2004 VHiBR24C08F-1 J BR24C08F-E2 AF IC2005 VHiBA7046F/-1 J BA7046F AF TRANSISTORS Q201 VS2SC2712Y/-1 J 2SC2712Y AB Q202 VS2SC2712Y/-1 J 2SC2712Y AB Q203 VSFMY3/////-1 J FMY3 AB Q204 VS2SC2712Y/-1 J 2SC2712Y AB Q302 VS2SA1162Y/-1 J 2SA1162Y AB Q303 VSDTC314TK/-1 J DTC314TK AC Q304 VSDTC314TK/-1 J DTC314TK AC Q306 VSDTC144EE/-1 J DTC144EE AA Q308 VSDTC144EE/-1 J DTC144EE AA Q701 VS2SA1162Y/-1 J 2SA1162Y AB Q702 VS2SK2503//-1 J 2SK2503 AE Q703 VS2SC2712Y/-1 J 2SC2712Y AB Q707 VSDTC144EE/-1 J DTC144EE AA Q708 VSFMMT718//-1 J FMMT718 AE Q709 VSDTC144EE/-1 J DTC144EE AA Q710 VS2SA1162Y/-1 J 2SA1162Y AB Q754 VSDTC114YE/-1 J DTC114YE AB Q757 VSUPA606T//-1 J UPA606T AD Q758 VSUPA606T//-1 J UPA606T AD Q759 VSUPA606T//-1 J UPA606T AD Q1101 VS2SA1729S/-1 J 2SA1729S AE Q1102 VS2SC4520S/-1 J 2SC4520S AF Q1201 VSDTC144EE/-1 J DTC144EE AA Q1202 VSDTC144EE/-1 J DTC144EE AA Q2003 VS2SC2712Y/-1 J 2SC2712Y AB Q2004 VSDTC144EE/-1 J DTC144EE AA Q2005 VSDTA144EE/-1 J DTC144EE AA Q2006 VSDTC144EE/-1 J DTC144EE AA DIODES D201 VHDDAN222//-1 J Diode AA D702 VHDSFPB56//2E J Diode AC D703 VHD1SS250//1E J Diode AB D704 VHD1SS250//1E J Diode AB D705 VHDDAN222//-1 J Diode AA D706 VHDSFPB74//2E J Diode AD D707 VHDDAN222//-1 J Diode AA D709 VHDDAN222//-1 J Diode AA D710 VHDDAN222//-1 J Diode AA D712 VHDDAN222//-1 J Diode AA D752 VHDiMN10///-1 J Diode AB D753 VHDiMN10///-1 J Diode AB D754 VHDiMN10///-1 J Diode AB D755 VHDiMN10///-1 J Diode AB D1101 VHD1SS250//1E J Diode AB D1201 VHDDAN222//-1 J Diode AA PACKAGED CIRCUITS X801 RCRSC0012CEZZ J Crystal AH X901 RCRSB0250GEZZ J Crystal AG X2001 RCRSB0138GEN1 J Crystal AD X2002 RFiLA0107CEZZ J Filter AD COILS L701 RCiLC0130CEZZ J Coil AG L705 RCiLC0057CEZZ J Coil AD L706 RCiLC0130CEZZ J Coil AG L801 VP-1M3R3JR93N J Peaking 3.3µH AB L802 VP-1M3R3JR93N J Peaking 3.3µH AB L803 VP-1M3R3JR93N J Peaking 3.3µH AB L804 RCiLC0055CEZZ J Coil AD L805 RCiLC0055CEZZ J Coil AD L807 VP-1M4R7J1R2N J Peaking 4.7µH AB L901 VP-1M4R7J1R2N J Peaking 4.7µH AB L902 VP-1M101J7R7N J Peaking 100µH AC L1201 VP-1M470J5R4N J Peaking 47µH AC L1202 VP-1M470J5R4N J Peaking 47µH AC L1203 VP-1M220J2R9N J Peaking 22µH AC L1204 VP-1M220J2R9N J Peaking 22µH AC L1205 VP-1M220J2R9N J Peaking 22µH AC TRANSFORMER å T701 RTRNZ0778CEZZ J Transformer AM Ref. No. Part No. # Description Code Ref. No. Part No. # Description Code 35 LC-20A2M DUNTKA177FE05 MAIN UNIT (Continued) CAPACITORS C201 VCKYTV1HF104Z J 0.1 50V Ceramic AA C202 VCKYCY1EF104Z J 0.1 25V Ceramic AA C203 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C204 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C205 VCKYCY1EF104Z J 0.1 25V Ceramic AA C206 VCKYCY1HF103Z J 0.01 50V Ceramic AA C301 VCEAPF1CN106M J 10 16V Electrolytic AD C302 VCEAPF1CN107M J 100 16V Electrolytic AD C303 VCKYCY1EF104Z J 0.1 25V Ceramic AA C304 VCEAPF1CN476M J 47 16V Electrolytic AD C305 VCKYCY1HB102K J 1000p 50V Ceramic AA C306 VCEAPW1CN477M J 470 16V Electrolytic AE C307 VCEAPF1HN225M J 2.2 50V Electrolytic AD C308 VCEAPF1HN225M J 2.2 50V Electrolytic AD C309 VCKYCY1HB102K J 1000p 50V Ceramic AA C310 VCEAPF1CN476M J 47 16V Electrolytic AD C311 VCKYCY1EF104Z J 0.1 25V Ceramic AA C312 VCEAPF1CN107M J 100 16V Electrolytic AD C313 VCKYTV1CF105Z J 1.0 16V Ceramic AB C314 VCEA4U1CN228M J 2200 16V Electrolytic AE C316 VCKYCY1EF104Z J 0.1 25V Ceramic AA C317 VCEAPF1HN105M J 1.0 50V Electrolytic AD C318 VCEAPF1HN105M J 1.0 50V Electrolytic AD C319 VCEAPF0JN226M J 22 6.3V Electrolytic AD C403 VCKYTV1AB105K J 1.0 10V Ceramic AD C404 VCKYTV1AB105K J 1.0 10V Ceramic AD C406 VCKYCY1EF104Z J 0.1 25V Ceramic AA C701 VCCCCY1HH471J J 470p 50V Ceramic AA C702 VCKYTV1CF105Z J 1.0 16V Ceramic AB C703 VCEAPF1CN226M J 22 16V Electrolytic AD C704 VCKYTV1CF105Z J 1.0 16V Ceramic AB C706 VCKYCY1HB562K J 5600p 50V Ceramic AA C707 VCKYCY1CF334Z J 0.33 16V Ceramic AA C708 VCEAPF0JN226M J 22 6.3V Electrolytic AD C710 VCKYTV1CF105Z J 1.0 16V Ceramic AB C711 VCKYCY1EB103K J 0.01 25V Ceramic AA C712 VCEAPT1CN226M J 22 16V Electrolytic AC C713 RC-EZ1176CEZZ J 100 16V Electrolytic AK C716 VCKYTV1CF105Z J 1.0 16V Ceramic AB C719 RC-EZ0420CEZZ J 100 25V Electrolytic AE C721 RC-EZ1340CEZZ J 33 50V Electrolytic AD C722 VCKYTV1HF104Z J 0.1 50V Ceramic AA C728 VCKYTV1HF104Z J 0.1 50V Ceramic AA C729 VCKYTV1CF105Z J 1.0 16V Ceramic AB C731 VCCCCY1HH181J J 180p 50V Ceramic AA C733 RC-EZ0538CEZZ J 330 16V Electrolytic AE C734 VCKYTV1CF105Z J 1.0 16V Ceramic AB C735 RC-EZ0416CEZZ J 330 6.3V Electrolytic AD C736 RC-EZ0416CEZZ J 330 6.3V Electrolytic AD C737 RC-EZ1339CEZZ J 220 16V Electrolytic AD C738 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C740 VCEAPF1EN475M J 4.7 25V Electrolytic AC C741 VCKYTV1CF105Z J 1.0 16V Ceramic AB C746 VCKYCY1EF104Z J 0.1 25V Ceramic AA C747 VCKYTV1HB562K J 5600p 50V Ceramic AA C748 RC-EZ1339CEZZ J 220 16V Electrolytic AD C749 RC-EZ1177CEZZ J 150 6.3V Electrolytic AH C759 VCEAPF0JW107M J 100 6.3V Electrolytic AC C764 VCKYTV1CF105Z J 1.0 16V Ceramic AB C765 VCKYTV1CF105Z J 1.0 16V Ceramic AB C766 VCKYTV1CF105Z J 1.0 16V Ceramic AB C767 VCKYTV1CF105Z J 1.0 16V Ceramic AB C768 VCKYTV1CF105Z J 1.0 16V Ceramic AB C769 VCKYTV1CF105Z J 1.0 16V Ceramic AB C801 VCEAPF1CN106M J 10 16V Electrolytic AD C802 VCKYCY1EF104Z J 0.1 25V Ceramic AA C803 VCCCCY1HH7R0D J 7.0p 50V Ceramic AA C804 VCCCCY1HH7R0D J 7.0p 50V Ceramic AA C805 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C806 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C807 VCKYCY1HB331K J 330p 50V Ceramic AA C808 VCKYCY1HB331K J 330p 50V Ceramic AA C809 VCEAPK1CN107M J 100 16V Electrolytic AD C810 VCKYCY1EF104Z J 0.1 25V Ceramic AA C811 VCKYCY1HB331K J 330p 50V Ceramic AA C812 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C813 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C814 VCKYCY1HB102K J 1000p 50V Ceramic AA C815 VCKYTV1CF684Z J 0.68 16V Ceramic AB C816 VCKYTV1CF684Z J 0.68 16V Ceramic AB C817 VCKYTV1CF684Z J 0.68 16V Ceramic AB C818 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C819 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C820 VCKYCY1EF104Z J 0.1 25V Ceramic AA C821 VCEAPW1CN477M J 470 16V Electrolytic AE C822 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C825 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C826 VCKYCY1CF224Z J 0.22 16V Ceramic AA C827 VCKYCY1CF224Z J 0.22 16V Ceramic AA C830 VCEAPF0GW107M J 100 4.0V Electrolytic AC C831 VCKYCY1EF104Z J 0.1 25V Ceramic AA C836 VCE9PF1CN475M J 4.7 16V Elect. (N.P) AD C839 VCKYCY1CF224Z J 0.22 16V Ceramic AA C840 VCKYCY1CF224Z J 0.22 16V Ceramic AA C841 VCKYCY1CF224Z J 0.22 16V Ceramic AA C842 VCEAPF0GW107M J 100 4.0V Electrolytic AC C844 VCKYCY1EF104Z J 0.1 25V Ceramic AA C848 VCEAPF0JW107M J 100 6.3V Electrolytic AC C874 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C875 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C876 VCEAPF0GW107M J 100 4.0V Electrolytic AC C878 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C879 VCKYTV1CF684Z J 0.68 16V Ceramic AB C902 VCKYCY1EF104Z J 0.1 25V Ceramic AA C905 VCEAPF1CW106M J 10 16V Electrolytic AB C906 VCEAPF1CW106M J 10 16V Electrolytic AB C909 VCKYCY1HB682K J 6800p 50V Ceramic AA C910 VCKYCY1HB682K J 6800p 50V Ceramic AA C911 VCEAPF1CW106M J 10 16V Electrolytic AB C912 VCEAPF1CW106M J 10 16V Electrolytic AB C913 VCKYCY1EF104Z J 0.1 25V Ceramic AA C914 RC-EZ0417CEZZ J 150 16V Electrolytic AD C915 VCEAPF0JW336M J 33 6.3V Electrolytic AB C916 VCKYCY1EF104Z J 0.1 25V Ceramic AA C919 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C920 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C921 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C922 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C923 VCKYCY1EF104Z J 0.1 25V Ceramic AA C924 VCEAPF1CW106M J 10 16V Electrolytic AB C925 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C927 VCCCCY1HH560J J 56p 50V Ceramic AA C928 VCCCCY1HH560J J 56p 50V Ceramic AA C929 VCCCCY1HH560J J 56p 50V Ceramic AA C930 VCCCCY1HH5R0C J 5.0p 50V Ceramic AA C931 VCCCCY1HH5R0C J 5.0p 50V Ceramic AA C932 VCKYCY1EF104Z J 0.1 25V Ceramic AA C933 RC-EZ0417CEZZ J 100 16V Electrolytic AD C935 VCEAPF1CW226M J 22 16V Electrolytic AB C937 RC-EZ0417CEZZ J 100 16V Electrolytic AD C938 RC-EZ0417CEZZ J 100 16V Electrolytic AD C939 VCKYCY1HB561K J 560p 50V Ceramic AA C940 VCKYCY1HB152K J 1500p 50V Ceramic AA C941 VCKYCY1HB152K J 1500p 50V Ceramic AA C942 VCKYCY1HB561K J 560p 50V Ceramic AA C943 VCKYCY1EF104Z J 0.1 25V Ceramic AA C944 VCEAPF1CW106M J 10 16V Electrolytic AB C945 VCEAPF1HW225M J 2.2 50V Electrolytic AB C946 VCEAPF1HW225M J 2.2 50V Electrolytic AB C954 VCEAPF1CW106M J 10 16V Electrolytic AB C955 VCKYTV1CF105Z J 1.0 16V Ceramic AB C956 VCKYTV1CF105Z J 1.0 16V Ceramic AB C957 VCEAPF1EW475M J 4.7 25V Electrolytic AB C958 VCEAPF1EW475M J 4.7 25V Electrolytic AB C961 VCKYCY1HB102K J 1000p 50V Ceramic AA Ref. No. Part No. # Description Code Ref. No. Part No. # Description Code 36 LC-20A2M DUNTKA177FE05 MAIN UNIT (Continued) C962 VCKYCY1HB102K J 1000p 50V Ceramic AA C963 VCKYCY1HB102K J 1000p 50V Ceramic AA C964 VCKYCY1HB102K J 1000p 50V Ceramic AA C1101 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1102 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1103 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1104 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1105 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1106 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1107 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1108 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1109 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1110 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1111 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1112 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1113 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1114 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1115 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1116 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1117 VCCCCY1HH560J J 56p 50V Ceramic AA C1118 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1119 VCKYTV1CF105Z J 1.0 16V Ceramic AB C1120 VCKYTV1EF104Z J 0.1 25V Ceramic AB C1122 VCKYTV1CF105Z J 1.0 16V Ceramic AB C1123 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1124 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1202 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1203 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1204 VCCCCY1HH220J J 22p 50V Ceramic AA C1205 VCCCCY1HH220J J 22p 50V Ceramic AA C1206 VCEAPF1HN106M J 10 50V Electrolytic AD C1207 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1208 VCKYTV1HF104Z J 0.1 50V Ceramic AA C1209 VCEAPF0JW107M J 100 6.3V Electrolytic AC C1210 VCEAPF0GW107M J 100 4.0V Electrolytic AC C1211 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1212 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1213 VCEAPF0JW107M J 100 6.3V Electrolytic AC C1214 VCEAPF0GW107M J 100 4.0V Electrolytic AC C1215 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C1216 VCEAPF1VW226M J 22 35V Electrolytic AB C1218 VCEAPF1CN106M J 10 16V Electrolytic AD C1220 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1221 VCKYCY1EF104Z J 0.1 25V Ceramic AA C1222 VCKYCY1EF104Z J 0.1 25V Ceramic AA C2001 VCKYCY1HB102K J 1000p 50V Ceramic AA C2002 VCCCCY1HH221J J 220p 50V Ceramic AA C2003 VCEAPF1HW105M J 1.0 50V Electrolytic AB C2004 VCCCCY1HH220J J 22p 50V Ceramic AA C2005 VCCCCY1HH220J J 22p 50V Ceramic AA C2006 VCKYCY1EF104Z J 0.1 25V Ceramic AA C2007 VCKYCY1EF104Z J 0.1 25V Ceramic AA C2009 VCKYCY1EF104Z J 0.1 25V Ceramic AA C2010 VCKYCY1EF104Z J 0.1 25V Ceramic AA C2015 VCKYCY1HB561K J 560p 50V Ceramic AA C2016 VCKYCY1EF104Z J 0.1 25V Ceramic AA C2017 VCKYCY1EF104Z J 0.1 25V Ceramic AA C2018 VCCCCY1HH101J J 100p 50V Ceramic AA C2019 VCKYTV1AB105K J 1.0 10V Ceramic AD C2020 VCKYCY1HB102K J 1000p 50V Ceramic AA C2021 VCEAPF1AW476M J 47 10V Electrolytic AB C2022 VCKYCY1EF104Z J 0.1 25V Ceramic AA C2023 VCKYTV1AB105K J 1.0 10V Ceramic AD C2024 VCKYCY1HB222K J 2200p 50V Ceramic AA RESISTORS R201 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R202 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA R203 VRS-CY1JF102F J 1.0k 1/16W Metal Oxide AA R204 VRS-CY1JF473F J 47k 1/16W Metal Oxide AA R205 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R206 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA R207 VRS-CY1JF622F J 6.2k 1/16W Metal Oxide AA R208 VRS-CY1JF473F J 47k 1/16W Metal Oxide AA R209 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA R210 VRS-CY1JF242F J 2.4k 1/16W Metal Oxide AA R211 VRS-CY1JF332F J 3.3k 1/16W Metal Oxide AA R212 VRS-CY1JF332F J 3.3k 1/16W Metal Oxide AA R213 VRS-CY1JF682F J 6.8k 1/16W Metal Oxide AA R214 VRS-CY1JF122F J 1.2k 1/16W Metal Oxide AA R215 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R216 VRS-CY1JF153J J 15k 1/16W Metal Oxide AA R217 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R218 VRS-CY1JF391J J 390 1/16W Metal Oxide AA R219 VRS-TV1JD103J J 10k 1/16W Metal Oxide AA R220 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R301 VRS-CY1JF000J J 00 1/16W Metal Oxide AA R302 VRS-TX2HF8R2J J 8.2 1/2W Metal Oxide AA R303 VRS-CY1JF121J J 120 1/16W Metal Oxide AA R304 VRS-CY1JF121J J 120 1/16W Metal Oxide AA R305 VRS-TX2HF8R2J J 8.2 1/2W Metal Oxide AA R308 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R309 VRS-TW2ED222J J 2.2k 1/4W Metal Oxide AA R310 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R311 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R312 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R314 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R315 VRS-CY1JF122J J 1.2k 1/16W Metal Oxide AA R316 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R317 VRS-CY1JF122J J 1.2k 1/16W Metal Oxide AA R324 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R326 VRS-CA1JF000J J 0 1/16W Metal Oxide AB R327 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R328 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R329 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R333 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA R335 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA R337 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R338 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R401 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R402 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R403 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R404 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R405 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R406 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R407 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R408 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R409 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R410 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R411 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R412 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R413 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R414 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R415 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R419 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R420 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R430 VRS-CA1JF101J J 100 1/16W Metal Oxide AA R434 VRS-CY1JF105J J 1.0M 1/16W Metal Oxide AA R435 VRS-CY1JF105J J 1.0M 1/16W Metal Oxide AA R436 VRS-CY1JF105J J 1.0M 1/16W Metal Oxide AA R437 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R454 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R456 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R459 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R460 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R701 VRS-CY1JF1R0J J 1.0 1/16W Metal Oxide AA R702 VRS-CY1JF154J J 150k 1/16W Metal Oxide AA R703 VRS-CY1JF274J J 270k 1/16W Metal Oxide AA R704 VRS-TQ2BD000J J 0 1/8W Metal Oxide AA R705 VRS-TX2HF000J J 0 1/2W Metal Oxide AA R706 VRS-CR3AD821J J 820 1W Metal Oxide AC R707 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R708 VRS-CY1JF272F J 2.7k 1/16W Metal Oxide AA R709 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA R711 VRS-CY1JF184J J 180k 1/16W Metal Oxide AA R712 VRS-CY1JF683F J 68k 1/16W Metal Oxide AA Ref. No. Part No. # Description Code Ref. No. Part No. # Description Code 37 LC-20A2M DUNTKA177FE05 MAIN UNIT (Continued) R713 VRS-CY1JF133F J 13k 1/16W Metal Oxide AA R715 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R716 VRS-TX2HF000J J 0 1/2W Metal Oxide AA R717 VRS-CY1JF152F J 1.5k 1/16W Metal Oxide AA R718 VRS-CY1JF274J J 270k 1/16W Metal Oxide AA R719 VRS-CY1JF563F J 56k 1/16W Metal Oxide AA R720 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA R721 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R722 VRS-CY1JF105J J 1.0M 1/16W Metal Oxide AA R723 VRS-CY1JF682J J 6.8k 1/16W Metal Oxide AA R725 VRS-CY1JF1R0J J 1.0 1/16W Metal Oxide AA R726 VRS-CY1JF1R0J J 1.0 1/16W Metal Oxide AA R729 VRS-TQ2BD000J J 0 1/8W Metal Oxide AA R731 VRS-TQ2BD000J J 0 1/8W Metal Oxide AA R732 VRS-TW2ED222J J 2.2k 1/4W Metal Oxide AA R733 VRS-TQ2BD683J J 68k 1/8W Metal Oxide AA R734 VRS-CY1JF393J J 39k 1/16W Metal Oxide AA R735 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R736 VRS-CY1JF1R0J J 1.0 1/16W Metal Oxide AA R737 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA R738 VRS-TW2ED102J J 1.0k 1/4W Metal Oxide AA R739 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R740 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R741 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R742 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R747 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R748 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R756 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R765 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R766 VRS-CA1JF332J J 3.3k 1/16W Metal Oxide AB R767 VRS-CB1JF332J J 3.3k 1/16W Metal Oxide AC R768 VRS-CA1JF104J J 100k 1/16W Metal Oxide AA R769 VRS-CB1JF104J J 100k 1/16W Metal Oxide AA R770 VRS-CA1JF562J J 5.6k 1/16W Metal Oxide AA R771 VRS-CB1JF562J J 5.6k 1/16W Metal Oxide AC R772 VRS-CY1JF563J J 56k 1/16W Metal Oxide AA R774 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R801 VRS-CB1JF221J J 220 1/16W Metal Oxide AC R802 VRS-CB1JF220J J 22 1/16W Metal Oxide AC R803 VRS-CB1JF220J J 22 1/16W Metal Oxide AC R804 VRS-CA1JF101J J 100 1/16W Metal Oxide AA R806 VRS-CY1JF221J J 220 1/16W Metal Oxide AA R807 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R808 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R809 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R810 VRS-CB1JF220J J 22 1/16W Metal Oxide AC R811 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA R812 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R813 VRS-CB1JF220J J 22 1/16W Metal Oxide AC R814 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA R815 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R816 VRS-CA1JF470J J 47 1/16W Metal Oxide AB R819 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R826 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R831 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R832 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R833 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R834 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R852 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R860 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R861 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R901 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R902 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R903 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R905 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R909 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R910 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R913 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R914 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R915 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R916 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R917 VRS-CY1JF105J J 1.0M 1/16W Metal Oxide AA R918 VRS-CY1JF822F J 8.2k 1/16W Metal Oxide AA R919 VRS-CY1JF822F J 8.2k 1/16W Metal Oxide AA R920 VRS-CY1JF822F J 8.2k 1/16W Metal Oxide AA R921 VRS-CY1JF822F J 8.2k 1/16W Metal Oxide AA R922 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R923 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R924 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA R925 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA R951 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R954 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R958 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R959 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R960 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R961 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R962 VRS-CY1JF153J J 15k 1/16W Metal Oxide AA R963 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R964 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA R965 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA R966 VRS-CY1JF152J J 1.5k 1/16W Metal Oxide AA R967 VRS-CY1JF152J J 1.5k 1/16W Metal Oxide AA R968 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA R969 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA R1101 VRS-CA1JF333J J 33k 1/16W Metal Oxide AA R1102 VRS-CA1JF103J J 10k 1/16W Metal Oxide AA R1103 VRS-CA1JF103J J 10k 1/16W Metal Oxide AA R1104 VRS-CA1JF333J J 33k 1/16W Metal Oxide AA R1105 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R1106 VRS-CA1JF333J J 33k 1/16W Metal Oxide AA R1107 VRS-CA1JF103J J 10k 1/16W Metal Oxide AA R1108 VRS-CA1JF103J J 10k 1/16W Metal Oxide AA R1109 VRS-CA1JF333J J 33k 1/16W Metal Oxide AA R1110 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R1111 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R1112 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA R1113 VRS-CA1JF333J J 33k 1/16W Metal Oxide AA R1114 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA R1115 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R1116 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R1117 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R1118 VRS-CY1JF823F J 82k 1/16W Metal Oxide AA R1119 VRS-CY1JF472F J 4.7k 1/16W Metal Oxide AA R1120 VRS-TW2ED1R5J J 1.5 1/4W Metal Oxide AB R1121 VRS-CY1JF391J J 390 1/16W Metal Oxide AA R1122 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R1123 VRS-CY1JF391J J 390 1/16W Metal Oxide AA R1124 VRS-CY1JF472F J 4.7k 1/16W Metal Oxide AA R1125 VRS-TW2ED101J J 100 1/4W Metal Oxide AA R1126 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R1127 VRS-TX2HF3R9J J 3.9 1/2W Metal Oxide AB R1128 VRS-CY1JF105J J 1.0M 1/16W Metal Oxide AA R1129 VRS-CY1JF563F J 56k 1/16W Metal Oxide AA R1130 VRS-TW2ED1R5J J 1.5 1/4W Metal Oxide AB R1131 VRS-CY1JF105J J 1.0M 1/16W Metal Oxide AA R1132 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R1133 VRS-CY1JF223F J 22k 1/16W Metal Oxide AA R1134 VRS-CY1JF822F J 8.2k 1/16W Metal Oxide AA R1135 VRS-CY1JF561J J 560 1/16W Metal Oxide AA R1136 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R1137 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R1138 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R1202 VRS-CB1JF220J J 22 1/16W Metal Oxide AC R1203 VRS-CA1JF220J J 22 1/16W Metal Oxide AA R1204 VRS-CB1JF220J J 22 1/16W Metal Oxide AC R1205 VRS-CA1JF220J J 22 1/16W Metal Oxide AA R1206 VRS-CB1JF220J J 22 1/16W Metal Oxide AC R1207 VRS-CA1JF220J J 22 1/16W Metal Oxide AA R1208 VRS-CY1JF560J J 56 1/16W Metal Oxide AA R1209 VRS-CA1JF220J J 22 1/16W Metal Oxide AA R1210 VRS-CY1JF220J J 22 1/16W Metal Oxide AA R1211 VRS-CY1JF221J J 220 1/16W Metal Oxide AA R1212 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R1214 VRS-CB1JF101J J 100 1/16W Metal Oxide AA R1217 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R1218 VRS-CA1JF101J J 100 1/16W Metal Oxide AA Ref. No. Part No. # Description Code Ref. No. Part No. # Description Code 38 LC-20A2M DUNTKA177FE05 MAIN UNIT (Continued) R1220 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA R1221 VRS-CB1JF332J J 3.3k 1/16W Metal Oxide AC R1222 VRS-CB1JF101J J 100 1/16W Metal Oxide AA R1223 VRS-CA1JF101J J 100 1/16W Metal Oxide AA R1225 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA R1228 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R1230 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA R1231 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R1232 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R1233 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R1234 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA R1235 VRS-CB1JF473J J 47k 1/16W Metal Oxide AC R1236 VRS-CB1JF473J J 47k 1/16W Metal Oxide AC R1238 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R1240 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R1241 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R2001 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R2002 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R2003 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R2004 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R2005 VRS-CY1JF106J J 10M 1/16W Metal Oxide AA R2006 VRS-CY1JF394J J 390k 1/16W Metal Oxide AA R2007 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R2008 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R2009 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R2010 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R2011 VRS-CB1JF101J J 100 1/16W Metal Oxide AA R2014 VRS-CA1JF103J J 10k 1/16W Metal Oxide AA R2016 VRS-CA1JF223J J 22k 1/16W Metal Oxide AA R2018 VRS-CA1JF101J J 100 1/16W Metal Oxide AA R2019 VRS-CB1JF331J J 330 1/16W Metal Oxide AC R2025 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R2028 VRS-CB1JF102J J 1.0k 1/16W Metal Oxide AA R2031 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R2032 VRS-CY1JF471J J 470 1/16W Metal Oxide AA R2033 VRS-CY1JF105J J 1.0M 1/16W Metal Oxide AA R2035 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R2041 VRS-CA1JF101J J 100 1/16W Metal Oxide AA R2042 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R2043 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R2044 VRS-CB1JF103J J 10k 1/16W Metal Oxide AA R2045 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R2047 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R2048 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA R2049 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA R2050 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA R2051 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R2052 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R2053 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R2054 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA R2055 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R2056 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R2057 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R2058 VRS-CY1JF474J J 470k 1/16W Metal Oxide AA R2059 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R2060 VRS-CB1JF101J J 100 1/16W Metal Oxide AA R2061 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R2062 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA R2063 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA R2067 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R2068 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R2069 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R2074 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R2075 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R2076 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R2078 VRS-CY1JF000J J 0 1/16W Metal Oxide AA MISCELLANEOUS PARTS FB702 RBLN-0051TAZZ J Ferrite Bead AC FB703 RBLN-0051TAZZ J Ferrite Bead AC FB704 RBLN-0051TAZZ J Ferrite Bead AC FB705 RBLN-0095CEZZ J Ferrite Bead AD FB706 RBLN-0051TAZZ J Ferrite Bead AC FB708 RBLN-0095CEZZ J Ferrite Bead AD FB709 RBLN-0090CEZZ J Ferrite Bead AD FB710 RBLN-0095CEZZ J Ferrite Bead AD FB801 RBLN-0090CEZZ J Ferrite Bead AD FB802 RBLN-0090CEZZ J Ferrite Bead AD FB901 RBLN-0006TAZZ J Ferrite Bead AB FB1201 RBLN-0090CEZZ J Ferrite Bead AD FB1203 RBLN-0076TAZZ J Ferrite Bead AC P303 QPLGN0841CEZZ J Plug, 8-pin AB P701 QPLGN1178GEZZ J Plug, 11-pin AC P753 QPLGN0378GEZZ J Plug, 3-pin AB P754 QPLGN0378GEZZ J Plug, 3-pin AB P755 QPLGN0278GEZZ J Plug, 2-pin AA P2001 QPLGN1320REZZ J Plug, 13-pin AC P2002 QPLGN1320REZZ J Plug, 13-pin AC SC401 QSOCN0464FJZZ J Socket, 50-pin AH SC1201 QSOCN0461FJZZ J Socket, 53-pin AH SC1202 QSOCN0206FJZZ J Socket, 30-pin AF LHLDW1077GEZZ J Holder AA DUNTKA194DE05 Y/C SEPARATION UNIT INTEGRATED CIRCUITS IC7001 VHiPD64082/-1 J UPD64082GF-3BA BC IC7002 RH-iX3420CEZZ J MSM5416258B-28 AT IC7003 VHiMC14577F-1 J MC14577BF AG IC7005 VHiPQ20VZ11-1 J PQ20VZ11 AH IC7006 VHiPST600iM-1 J IC-PST600IMT AE IC7101 VHiBA09T/FP-1 J BA09FP-E2 AG IC7102 VHiPQ05TZ11-1 J PQ05TZ11 AH IC7103 VHiNJM2283F-1 J NJM2283M AF IC7305 VHiTA8218AH-1 J TA8218AH AP TRANSISTORS Q7001 VS2SA1037KQ-1 J 2SA1037KQ AA Q7002 VS2SC2412KQ-1 J 2SC2412KQ AA Q7003 VS2SA1037KQ-1 J 2SA1037KQ AA Q7004 VS2SC2412KQ-1 J 2SC2412KQ AA Q7005 VS2SA1037KQ-1 J 2SA1037KQ AA Q7012 VS2SA1037KQ-1 J 2SA1037KQ AA Q7013 VS2SA1037KQ-1 J 2SA1037KQ AA Q7014 VS2SA1037KQ-1 J 2SA1037KQ AA Q7015 VS2SA1037KQ-1 J 2SA1037KQ AA Q7016 VS2SA1037KQ-1 J 2SA1037KQ AA Q7017 VS2SC2712Y/-1 J 2SC2712Y AB Q7018 VS2SC2712Y/-1 J 2SC2712Y AB Q7307 VSDTC314TK/-1 J DTC314TK AC Q7308 VS2SB1182//2E J 2SB1182 AE Q7309 VSDTC144EE/-1 J DTC144EE AA DIODES D7001 VHDDAN202K/-1 J Diode AB D7301 RH-EX1283CEZZ J Zener Diode AB D7302 RH-EX1283CEZZ J Zener Diode AB PACKAGED CIRCUIT X7001 RCRSB0258CEZZ J Crystal AG COILS AND FILTERS FL7001 RCiLF0306CEZZ J Coil AH FL7002 RCiLV0108GEZZ J Coil AG FL7003 RFiLN0097GEZZ J Filter AF FL7004 RFiLN0097GEZZ J Filter AF FL7011 RFiLN0079GEZZ J Filter AC FL7012 RFiLN0079GEZZ J Filter AC FL7101 RFiLN0097GEZZ J Filter AF L7002 VP-1M4R7J1R2N J Peaking 4.7µH AB L7050 VP-1M220J2R9N J Peaking 22µH AC L7051 VP-1M220J2R9N J Peaking 22µH AC Ref. No. Part No. # Description Code Ref. No. Part No. # Description Code 39 LC-20A2M DUNTKA194DE05 Y/C SEPARATION UNIT (Continued) CAPACITORS C7001 VCCCCY1HH220J J 22p 50V Ceramic AA C7002 VCCCCY1HH220J J 22p 50V Ceramic AA C7003 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7004 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7005 VCEAPF1CW106M J 10 16V Electrolytic AB C7006 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7007 VCCCCY1HH1R0C J 1.0p 50V Ceramic AA C7008 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7009 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7010 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7012 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7013 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7014 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7015 VCEAPF1CW106M J 10 16V Electrolytic AB C7016 VCKYCY1EF104Z J 0.1 25V Ceramic AA C7017 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7018 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7019 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7020 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7021 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7022 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7023 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7024 VCKYCY1EF104Z J 0.1 25V Ceramic AA C7025 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7026 VCCCCY1HH471J J 470p 50V Ceramic AA C7027 VCEAPF1HW105M J 1.0 50V Electrolytic AB C7028 VCKYCY1EF104Z J 0.1 25V Ceramic AA C7029 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7030 VCEAPF1CW476M J 47 16V Electrolytic AC C7031 VCE9PF1HW105M J 1.0 50V Elect. (N.P) AC C7032 VCCCCY1HH101J J 100p 50V Ceramic AA C7033 VCKYCY1HB103K J 0.01 50V Ceramic AA C7035 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7036 VCEAPF1CW476M J 47 16V Electrolytic AC C7037 VCCCCY1HH100D J 10p 50V Ceramic AA C7038 VCCCCY1HH270J J 27p 50V Ceramic AA C7041 VCCCCY1HH120J J 12p 50V Ceramic AA C7042 VCCCCY1HH100D J 10p 50V Ceramic AA C7043 VCCCCY1HH270J J 27p 50V Ceramic AA C7045 VCEAPF0JW476M J 47 6.3V Electrolytic AB C7046 VCEAPF1CN476M J 47 16V Electrolytic AD C7047 VCEAPF0JW476M J 47 6.3V Electrolytic AB C7048 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7050 VCCCCY1HH270J J 27p 50V Ceramic AA C7053 VCKYCY1HB103K J 0.01 50V Ceramic AA C7054 VCKYCY1HB103K J 0.01 50V Ceramic AA C7055 VCEAPF0JW107M J 100 6.3V Electrolytic AC C7056 VCEAPF0JW107M J 100 6.3V Electrolytic AC C7057 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7058 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7059 VCEAPF1HW474M J 0.47 50V Electrolytic AB C7060 VCCCCY1HH391J J 390p 50V Ceramic AA C7061 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7062 VCCCCY1HH120J J 12p 50V Ceramic AA C7072 VCCCCY1HH1R0C J 1.0p 50V Ceramic AA C7085 VCKYCY1HB103K J 0.01 50V Ceramic AA C7101 VCKYCY1CF334Z J 0.33 16V Ceramic AA C7102 VCEAPF1CN226M J 22 16V Electrolytic AD C7103 VCKYTV1CF105Z J 1.0 16V Ceramic AB C7104 VCEAPF1CW107M J 100 16V Electrolytic AD C7105 VCKYCY1HB103K J 0.01 50V Ceramic AA C7111 VCCCCY1HH680J J 68p 50V Ceramic AA C7112 VCCCCY1HH330J J 33p 50V Ceramic AA C7114 VCE9PF1HW105M J 1.0 50V Elect. (N.P) AC C7115 VCE9PF1HW105M J 1.0 50V Elect. (N.P) AC C7116 VCE9PF1HW105M J 1.0 50V Elect. (N.P) AC C7117 VCE9PF1HW105M J 1.0 50V Elect. (N.P) AC C7118 VCEAPF1CW107M J 100 16V Electrolytic AD C7119 VCKYCY1EF104Z J 0.1 25V Ceramic AA C7334 VCEAPH1CN106M J 10 16V Electrolytic AD C7341 VCEAPH1CN106M J 10 16V Electrolytic AD C7343 VCEAPF1CN476M J 47 16V Electrolytic AD C7344 VCEAPF1CN476M J 47 16V Electrolytic AD C7345 VCEAPH1CN106M J 10 16V Electrolytic AD C7347 VCEAPK1CN107M J 100 16V Electrolytic AD C7348 VCEA4A1CN228M J 2200 16V Electrolytic AF C7349 VCKYTV1CF105Z J 1.0 16V Ceramic AB C7350 VCKYTV1CF104Z J 0.1 16V Ceramic AA C7351 VCKYTV1CF104Z J 0.1 16V Ceramic AA C7352 VCKYCY1CF104Z J 0.1 16V Ceramic AA C7353 VCEAPF0JN107M J 100 6.3V Electrolytic AD C7356 VCKYCY1EB223K J 0.022 25V Ceramic AA C7357 VCKYCY1EB223K J 0.022 25V Ceramic AA C7384 VCKYCY1HB102K J 1000p 50V Ceramic AA C7386 VCKYCY1HB102K J 1000p 50V Ceramic AA C7387 VCKYCY1CB273K J 0.027 16V Ceramic AA C7388 VCKYCY1CB273K J 0.027 16V Ceramic AA RESISTORS R7000 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R7003 VRS-CY1JF471J J 470 1/16W Metal Oxide AA R7004 VRS-CY1JF471J J 470 1/16W Metal Oxide AA R7009 VRS-CY1JF182J J 1.8k 1/16W Metal Oxide AA R7010 VRS-CY1JF182J J 1.8k 1/16W Metal Oxide AA R7020 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA R7021 VRS-CY1JF471J J 470 1/16W Metal Oxide AA R7022 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R7023 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA R7024 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R7025 VRS-CY1JF224J J 220k 1/16W Metal Oxide AA R7026 VRS-CY1JF221J J 220 1/16W Metal Oxide AA R7027 VRS-CY1JF561J J 560 1/16W Metal Oxide AA R7028 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R7029 VRS-CY1JF391J J 390 1/16W Metal Oxide AA R7030 VRS-CY1JF561J J 560 1/16W Metal Oxide AA R7031 VRS-CY1JF561J J 560 1/16W Metal Oxide AA R7032 VRS-CY1JF911J J 910 1/16W Metal Oxide AA R7033 VRS-CY1JF561J J 560 1/16W Metal Oxide AA R7034 VRS-CY1JF911J J 910 1/16W Metal Oxide AA R7036 VRS-CY1JF132J J 1.3k 1/16W Metal Oxide AA R7037 VRS-CY1JF682J J 6.8k 1/16W Metal Oxide AA R7038 VRS-CB1JF101J J 100 1/16W Metal Oxide AA R7039 VRS-CB1JF101J J 100 1/16W Metal Oxide AA R7040 VRS-CB1JF101J J 100 1/16W Metal Oxide AA R7041 VRS-CB1JF101J J 100 1/16W Metal Oxide AA R7042 VRS-CB1JF101J J 100 1/16W Metal Oxide AA R7043 VRS-CB1JF101J J 100 1/16W Metal Oxide AA R7044 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R7045 VRS-CY1JF122J J 1.2k 1/16W Metal Oxide AA R7046 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R7047 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R7048 VRS-CY1JF100J J 10 1/16W Metal Oxide AA R7049 VRS-CY1JF471J J 470 1/16W Metal Oxide AA R7050 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA R7051 VRS-CY1JF911J J 910 1/16W Metal Oxide AA R7052 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R7053 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA R7054 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R7055 VRS-CY1JF152J J 1.5k 1/16W Metal Oxide AA R7056 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA R7058 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R7059 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R7060 VRS-CY1JF911J J 910 1/16W Metal Oxide AA R7062 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA R7066 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA R7067 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA R7068 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA R7069 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA R7071 VRS-CY1JF182J J 1.8k 1/16W Metal Oxide AA R7072 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R7078 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R7079 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA R7080 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R7081 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R7084 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA Ref. No. Part No. # Description Code Ref. No. Part No. # Description Code 40 LC-20A2M DUNTKA194DE05 Y/C SEPARATION UNIT (Continued) R7085 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R7108 VRS-TX2HF000J J 0 1/2W Metal Oxide AA R7109 VRS-TX2HF000J J 0 1/2W Metal Oxide AA R7110 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R7111 VRS-TX2HF2R2J J 2.2 1/2W Metal Oxide AB R7112 VRS-TX2HF2R2J J 2.2 1/2W Metal Oxide AB R7309 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R7313 VRS-TX2HF000J J 0 1/2W Metal Oxide AA R7314 VRS-TX2HF000J J 0 1/2W Metal Oxide AA R7330 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA R7331 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA R7332 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA R7333 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA R7334 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R7335 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R7337 VRS-TX2HF8R2J J 8.2 1/2W Metal Oxide AA R7338 VRS-TX2HF8R2J J 8.2 1/2W Metal Oxide AA R7371 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R7379 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R7384 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R7385 VRS-CR3AD391J J 390 1W Metal Oxide AC MISCELLANEOUS PARTS FB7050 RBLN-0061TAZZ J Ferrite Bead AD FB7051 RBLN-0061TAZZ J Ferrite Bead AD FB7052 RBLN-0061TAZZ J Ferrite Bead AD FB7055 RBLN-0059CEZZ J Ferrite Bead AB FB7056 RBLN-0059CEZZ J Ferrite Bead AB FB7057 RBLN-0059CEZZ J Ferrite Bead AB FB7058 RBLN-0059CEZZ J Ferrite Bead AB P7101 QPLGN0241CEZZ J Plug, 2-pin AA P7102 QPLGN0841CEZZ J Plug, 8-pin AB P7301 QPLGN0278GEZZ J Plug, 2-pin AA P7305 QPLGN0278GEZZ J Plug, 2-pin AA SC7001 QSOCN0484FJZZ J Socket, 16-pin AE PRDAR3229CEFW J Heat Sink AG PSLDM0132CEZZ J Shield AE PSLDM4639CEFW J Shield AE QCNW-5767CEZZ J Connecting Cord AC XBPSD30P10JS0 J Screw AA DUNTKA331DE01 TERMINAL UNIT TUNER NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN ASSEMBLY BUT NOT INDEPENDENTLY. TU3201 VTUVT2U5CD553 J Tuner BD INTEGRATED CIRCUITS IC3401 VHiTC4053BF1E TC4053BF AF IC3451 VHiNJM2283F-1 J NJM2283M AF IC3452 VHiNJM2235M-1 J NJM2235M AE IC3453 VHiBA09T/FP-1 J BA09FP-E2 AG IC3454 VHiMM1031XM-1 J MM1031XMR AF TRANSISTORS Q3201 VSDTC144EE/-1 J DTC144EE AA Q3202 VSDTC144EE/-1 J DTC144EE AA Q3203 VSDTC144EE/-1 J DTC144EE AA Q3204 VS2SC2712Y/-1 J 2SC2712Y AB Q3205 VS2SC2712Y/-1 J 2SC2712Y AB Q3301 VS2SC2712Y/-1 J 2SC2712Y AB Q3401 VS2SC2712Y/-1 J 2SC2712Y AB Q3402 VS2SC2712Y/-1 J 2SC2712Y AB Q3403 VSDTC144EE/-1 J DTC144EE AA Q3404 VS2SK1467//-1 J 2SK1467 AE Q3405 VS2SK1467//-1 J 2SK1467 AE Q3420 VSDTC314TK/-1 J DTC314TK AC Q3421 VSDTC314TK/-1 J DTC314TK AC Q3422 VSUMG4/////-1 J UMG4 AC Q3451 VSDTC144EE/-1 J DTC144EE AA Q3452 VSFMMT718//-1 J FMMT718 AE DIODES D3401 RH-EX1271CEZZ J Zener Diode AB D3402 RH-EX1271CEZZ J Zener Diode AB D3451 VHDDAN222//-1 J Diode AA COILS L3201 VP-1M220J2R9N J Peaking 22µH AC L3202 RCiLC0141CEZZ J Coil AF L3401 VP-1M101J7R7N J Peaking 100µH AC CAPACITORS C3201 VCKYCY1CF104Z J 0.1 16V Ceramic AA C3202 VCEA4U0JN338M J 3300 6.3V Electrolytic AE C3203 VCKYCY1HB103K J 0.01 50V Ceramic AA C3204 VCKYCY1HB102K J 1000p 50V Ceramic AA C3205 VCCCCY1HH330J J 33p 50V Ceramic AA C3207 VCCCCY1HH330J J 33p 50V Ceramic AA C3208 VCKYCY1CF104Z J 0.1 16V Ceramic AA C3209 VCCCCY1HH560J J 56p 50V Ceramic AA C3301 VCEAPH1CW106M J 10 16V Electrolytic AB C3302 VCEAPH1CW106M J 10 16V Electrolytic AB C3303 VCKYCY1CF104Z J 0.1 16V Ceramic AA C3306 VCKYCY1HB102K J 1000p 50V Ceramic AA C3402 VCKYCY1EF104Z J 0.1 25V Ceramic AA C3403 VCEAPW1CN477M J 470 16V Electrolytic AE C3404 VCKYCY1CF104Z J 0.1 16V Ceramic AA C3405 VCEAPF0JW336M J 33 6.3V Electrolytic AB C3406 VCKYCY1AF105Z J 1.0 10V Ceramic AC C3407 VCEAPF0JW226M J 22 6.3V Electrolytic AB C3411 VCEAPH1CW106M J 10 16V Electrolytic AB C3412 VCEAPH1CW106M J 10 16V Electrolytic AB C3420 VCEAPF1CW106M J 10 16V Electrolytic AB C3421 VCEAPF1CW106M J 10 16V Electrolytic AB C3422 VCKYCY1EF104Z J 0.1 25V Ceramic AA C3423 VCEAPF1CW107M J 100 16V Electrolytic AD C3451 VCEAPF1CW107M J 100 16V Electrolytic AD C3452 VCKYCY1EF104Z J 0.1 25V Ceramic AA C3453 VCKYCY1EF104Z J 0.1 25V Ceramic AA C3454 VCEAPF0JW336M J 33 6.3V Electrolytic AB C3455 VCEAPF0JW336M J 33 6.3V Electrolytic AB C3456 VCKYCY1CF104Z J 0.1 16V Ceramic AA C3457 VCEAPF0JW336M J 33 6.3V Electrolytic AB Ref. No. Part No. # Description Code Ref. No. Part No. # Description Code 41 LC-20A2M DUNTKA318DE01 TERMINAL UNIT (Continued) C3458 VCEAPF1CN226M J 22 16V Electrolytic AD C3459 VCKYCY1CF334Z J 0.33 16V Ceramic AA C3462 VCEAPF1CW106M J 10 16V Electrolytic AB C3463 VCKYCY1EF104Z J 0.1 25V Ceramic AA C3464 VCCCCY1HH471J J 470p 50V Ceramic AA C3465 RC-KZ1025CEZZ J 1.0 10V Ceramic AB C3474 VCKYTV1CB105K J 1.0 16V Ceramic AC C3475 VCKYTV1CB105K J 1.0 16V Ceramic AC C3476 VCKYTV1CB105K J 1.0 16V Ceramic AC RESISTORS R3201 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R3202 VRS-CA1JF101J J 100 1/16W Metal Oxide AA R3203 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R3204 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R3205 VRS-CY1JF153J J 15k 1/16W Metal Oxide AA R3206 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA R3207 VRS-CY1JF152J J 1.5k 1/16W Metal Oxide AA R3208 VRS-CY1JF331J J 330 1/16W Metal Oxide AA R3209 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R3301 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R3302 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R3303 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R3304 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R3305 VRS-TQ2BD750J J 75 1/8W Metal Oxide AA R3306 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R3308 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R3310 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R3313 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R3314 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R3315 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R3319 VRS-TQ2BD750J J 75 1/8W Metal Oxide AA R3321 VRS-CY1JF822J J 8.2k 1/16W Metal Oxide AA R3323 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R3324 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R3401 VRS-TQ2BD750J J 75 1/8W Metal Oxide AA R3402 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R3404 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R3409 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R3410 VRS-TQ2BD750J J 75 1/8W Metal Oxide AA R3411 VRS-CY1JF680J J 68 1/16W Metal Oxide AA R3412 VRS-CY1JF680J J 68 1/16W Metal Oxide AA R3413 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA R3414 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R3415 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA R3416 VRS-CY1JF272J J 2.7k 1/16W Metal Oxide AA R3420 VRS-TQ2BD750J J 75 1/8W Metal Oxide AA R3421 VRS-TQ2BD750J J 75 1/8W Metal Oxide AA R3422 VRS-TQ2BD750J J 75 1/8W Metal Oxide AA R3423 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R3424 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R3425 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R3426 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R3427 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R3428 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R3429 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R3431 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R3432 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R3435 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA R3461 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R3462 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA R3463 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R3464 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA R3465 VRS-TV1JD1R0J J 1.0 1/16W Metal Oxide AA R3466 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA R3467 VRS-TW2ED102J J 1.0k 1/4W Metal Oxide AA R3469 VRS-CY1JF000J J 0 1/16W Metal Oxide AA R3470 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA MISCELLANEOUS PARTS å F3701 QFS-C2023CEZZ J Fuse 2.0A AD å F3702 QFS-C2521CEZZ J Fuse 2.5A AD FH3701 QFSHD1002CEZZ J Fuse Holder AA FH3702 QFSHD1002CEZZ J Fuse Holder AA FH3703 QFSHD1002CEZZ J Fuse Holder AA FH3704 QFSHD1002CEZZ J Fuse Holder AA J3402 QJAKG0060CEZZ J Jack, AV INPUT 1 AH J3403 QJAKG0060CEZZ J Jack, AV INPUT 2/AV OUT AH J3404 QJAKF0056CEZZ J Jack, COMPONENT AG (INPUT), AUDIO J3405 QJAKG0059CEZZ J Jack, COMPONENT (INPUT), VIDEO AH J3701 QJAKE0193CEZZ J Jack, POWER INPUT AK DC13V P3206 QPLGN0268GEZZ J Plug, 2-pin AB P3701 QPLGN1178GEZZ J Plug, 11-pin AC SC3301 QSOCD0430CEZZ J Socket, S-VIDEO AE SC3401 QSOCN0464FJZZ J Socket, 50-pin AH SC3405 QSOCN0484FJZZ J Socket, 16-pin AE DUNTKA332DE01 INVERTER UNIT TRANSFORMERS Q7751 VSFZT1053A/-1 J FZT1053A AG Q7752 VSFZT1053A/-1 J FZT1053A AG Q7753 VSFZT1053A/-1 J FZT1053A AG Q7754 VSFZT1053A/-1 J FZT1053A AG Q7755 VS2SA1037KQ-1 J 2SA1037KQ AA COILS L7752 RCiLC0153CEZZ J Coil AG L7753 RCiLC0153CEZZ J Coil AG L7755 RCiLC0153CEZZ J Coil AG L7756 RCiLC0153CEZZ J Coil AG TRANSFORMERS å T7751 RTRNZ0776CEZZ J Transformer AM å T7752 RTRNZ0776CEZZ J Transformer AM å T7753 RTRNZ0776CEZZ J Transformer AM å T7754 RTRNZ0776CEZZ J Transformer AM å T7755 RTRNZ0776CEZZ J Transformer AM å T7756 RTRNZ0776CEZZ J Transformer AM CAPACITORS C7752 RC-FZ0175CEZZ J 0.15 100V Mylar AG C7756 RC-FZ0175CEZZ J 0.15 100V Mylar AG C7759 VCKYCY1HF393Z J 0.039 50V Ceramic AB C7760 VCKYCY1HF393Z J 0.039 50V Ceramic AB C7761 VCEAPW1CN477M J 470 16V Electrolytic AE C7762 VCEAPW1CN477M J 470 16V Electrolytic AE C7763 VCEAPW1CN477M J 470 16V Electrolytic AE C7764 RC-FZ0175CEZZ J 0.15 100V Mylar AG C7765 RC-FZ0175CEZZ J 0.15 100V Mylar AG RESISTORS R7751 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB R7752 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB R7753 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB R7754 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB R7755 VRS-CY1JF822J J 8.2k 1/16W Metal Oxide AA R7756 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA MISCELLANEOUS PARTS å F7751 QFS-C5022CEZZ J Fuse 5.0A AD FH7751 QFSHD1002CEZZ J Fuse Holder AA FH7752 QFSHD1002CEZZ J Fuse Holder AA P7751 QPLGN0447FJZZ J Plug, 3-pin (HV) AE P7753 QPLGN0447FJZZ J Plug, 3-pin (HV) AE P7755 QPLGN0578GEZZ J Plug, 5-pin AB Ref. No. Part No. # Description Code Ref. No. Part No. # Description Code 42 LC-20A2M DUNTKA333DE01 OPERATION UNIT TRANSISTORS Q4003 VSDTC144EE/-1 J DTC144EE AA Q4005 VSDTC144EE/-1 J DTC144EE AA Q4006 VS2SC2712Y/-1 J 2SC2712Y AB Q4007 VS2SC2712Y/-1 J 2SC2712Y AB Q4008 VSUPA606T//-1 J UPA606T AD DIODES D4008 RH-EX0891CEZZ J Zener Diode AC D4009 RH-EX0879CEZZ J Zener Diode AD D4010 RH-EX0879CEZZ J Zener Diode AD D4012 RH-EX0879CEZZ J Zener Diode AD D4013 RH-PX0421CEZZ J LED, POWER AD D4014 RH-PX0421CEZZ J LED, POWER AD D4015 RH-PX0419CEZZ J LED, ON TIMER AC D4022 RH-EX0879CEZZ J Zener Diode AD CAPACITORS C4001 VCEAPF1CW476M J 47 16V Electrolytic AC C4003 VCEAPF1CW476M J 47 16V Electrolytic AC C4018 VCKYCY1AF105Z J 1.0 10V Ceramic AC RESISTORS R4005 VRS-CY1JF123J J 12k 1/16W Metal Oxide AA R4006 VRS-CY1JF822J J 8.2k 1/16W Metal Oxide AA R4011 VRS-CY1JF123J J 12k 1/16W Metal Oxide AA R4012 VRS-CY1JF822J J 8.2k 1/16W Metal Oxide AA R4013 VRS-TX2HF331J J 330 1/2W Metal Oxide AB R4014 VRS-CY1JF392J J 3.9k 1/16W Metal Oxide AA R4015 VRS-TX2HF331J J 330 1/2W Metal Oxide AB R4016 VRS-CY1JF392J J 3.9k 1/16W Metal Oxide AA R4020 VRS-CY1JF182J J 1.8k 1/16W Metal Oxide AA R4021 VRS-CY1JF101J J 100 1/16W Metal Oxide AA R4022 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA R4023 VRS-CY1JF183J J 18k 1/16W Metal Oxide AA R4024 VRS-CY1JF183J J 18k 1/16W Metal Oxide AA R4025 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA R4026 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA R4027 VRS-CY1JF820J J 82 1/16W Metal Oxide AA R4028 VRS-CY1JF331J J 330 1/16W Metal Oxide AA R4029 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA SWITCHES S4701 QSW-P0614CEZZ J MAIN POWER AF SW4002 QSW-K0087GEZZ J CH-DOWN AC SW4003 QSW-K0087GEZZ J CH-UP AC SW4004 QSW-K0087GEZZ J MENU AC SW4006 QSW-K0087GEZZ J TV/VIDEO AC SW4007 QSW-K0087GEZZ J VOL-UP AC SW4008 QSW-K0087GEZZ J VOL-DOWN AC MISCELLANEOUS PARTS FB4020 RBLN-0062CEZZ J Ferrite Bead AC FB4021 RBLN-0062CEZZ J Ferrite Bead AC J4001 QJAKJ0063CEZZ J Headphone Jack AF P4004 QPLGN1320REZZ J Plug, 13-pin AC RMC4002 RRMCU0239CEZZ J R/C Receiver AG PSLDM4647CEFW J Shield AD QEARZ0043CEZZ J Electrostatic Earth AC CABINET PARTS LOCATION 1 CCABA2380CE07 J Front Cabinet Ass’y BX 1-1 Not Available – Cabinet — 1-2 GCOVA1808CEZZ J Cover, LED AE 1-3 GCOVA1798CESA J Cover, Front (L) AF 1-4 GCOVA1917CEKA J Cover, Front (R) AG 1-5 GCOVA1932CESA J Cover, IR Filter AC 1-6 GDORF2048CEKA J Front Door AF 1-7 HDECA0759CESA J Decoration Panel BW 1-8 HiNDP5645CESA J Indication Plate AD (Cabinet Side) 1-9 HiNDP5666CESA J Indication Plate AD (Door Side) 1-10 JBTN-2057CEKA J Power Button AF 1-11 LX-HZ3111CEFN J Screw, x4 AB 1-12 MSPRC0203CEFW J Spring for Power Button AC 1-13 MSPRP0204CEFW J Spring, for Door AD 1-14 PMLT-0356CEZZ J Light Shielding Plate AB 1-15 PSHEP0027CEZZ J Sheet AA 1-16 PSPAH0623CEZZ J Spacer, x7 AB 1-17 PSPAH0624CEZZ J Spacer, x2 AB 1-18 PSPAZ0315CEZZ J Spacer AD 1-19 PSPAZ0316CEZZ J Spacer, x2 AD 1-20 QEARZ0026CEZZ J Grounding Part AC 1-21 XEBSD30P08000 J Screw AA 2 CCABB2294CE04 J Rear Cabinet Ass’y 2-1 Not Available – Rear Cabinet — 2-3 JHNDP0102CEKA J Handle AT 2-4 LANGU9046CEFW J Fixing Angle AF 2-5 LANGU9047CEFW J Fixing Angle, x2 AP 2-6 PMLT-0355CEZZ J Light Shielding Spacer AC 2-7 PSPAG0342CE00 J Spacer AD 2-8 PSPAG0343CE00 J Spacer, x2 AC 2-9 PSPAH0621CEZZ J Spacer, x3 AB 2-10 PSPAH0624CEZZ J Spacer AB 2-11 PSPAH0632CEZZ J Spacer, x2 AC 2-12 TCAUH1190CEZZ J Caution Label AD 2-13 XEBSD30P08000 J Screw, x6 AA 2-14 XEBSD40P10000 J Screw, x5 AA 2-15 HiNDP5820CESA J Model Label 3 CCOVA1800CE02 J Terminal Cover Ass’y AT 4 CCOVA1811CE01 J Stand Ass’y BR å 5 KLMP-0101CEZZ J Lamp, Upper BB å 6 KLMP-0102CEZZ J Lamp, Lower BB 7 LANGQ9206CEFW J Fixing Angle, x4 AF 8 PGiDM0058CEZZ J Lamp Guide Plate BK 9 PSHEP0179CEZZ J Diffusion Sheet, x2 AS 10 PSHEP0180CEZZ J Reflection Polarizing Sheet BR 11 PSHEP0186CEZZ J Reflection Sheet-1 AN 12 PSHEP0187CEZZ J Reflection Sheet-2 AN 13 PSHEP0222CEZZ J ITO Sheet AZ 14 PSHEP0223CEZZ J Lamp Reflection Sheet-1 AL 15 PSHEP0224CEZZ J Lamp Reflection Sheet-2 AL 16 PSLDM4620CEFW J Shield Panel AT 17 PSPAG0338CEZZ J Spacer AB 18 PSPAK0003CEZZ J Spacer-3, x2 AG 19 PSPAK0004CEZZ J Spacer-4, x4 AB 20 PSPAZ0311CEZZ J Spacer-2 AF 21 PSPAZ0381CEZZ J Spacer-1, x2 AF 22 QCNW-5299CEZZ J Connecting Cord AH 23 QCNW-5673CEZZ J Connecting Cord AG 24 RLCDT0060CEZZ J 20” LCD Panel EP 25 XBBSD30P06000 J Screw, x7 AA 26 GCOVA1919CEKA J Terminal PWB Holder AM 28 LANGU9042CEFW J Reinforcing Angle AN 29 LHLDW1060CEZZ J Wire Holder AB 30 LHLDW1173CEZZ J Wire Holder, x4 AD 31 LX-BZ0120CEFF J Screw, for Stand AD 32 PRDAR1552CEFW J Heat Sink, x2 AH 33 PSHEG0031TAZZ J Radiation Sheet AN 34 PSPAT0003CEZZ J Tape AA 43 LC-20A2M 6 5 4 3 2 1 A B C D E F G H CABNET AND MECHANICAL PARTS 55 48 55 61 49 61 30 30 57 39 38 28 46 60 32 35 53 2 2-4 2-15 2-3 2-14 59 54 54 60 42 40 53 32 12 16 11 21 5 14 25 15 6 17 58 25 62 36 47 52 50 2-11 2-11 2-10 2-17 2-1 47 52 33 45 41 44 3 52 52 34 50 56 39 22 19 19 19 19 21 13 9 10 8 24 7 7 2-13 23 26 2-6 2-6 2-5 2-13 2-5 2-8 2-7 2-13 2-12 18 2-9 52 20 29 Terminal Unit Inverter Unit Y/C Separation Unit Main Unit Operation Unit 1-11 1-12 1-8 1-14 1-20 1-4 1-15 1-2 1-3 1-1 1-11 1-9 1-6 1-7 1-5 1-10 1 4 31 52 37 46 1-17 1-16 1-19 1-19 1-18 1-13 1-21 Ref. No. Part No. # Description Code Ref. No. Part No. # Description Code 44 LC-20A2M CABINET PARTS LOCATION (Continued) 35 PZETK0065CEZZ J Insulating Sheet AH 36 PZETK0094CEZZ J Insulating Sheet AE 37 QCNW-5153CEZZ J Connecting Cord AM 38 QCNW-5372CEZZ J Connecting Cord AC 39 QCNW-5672CEZZ J Connecting Cord AG 40 QCNW-5674CEZZ J Connecting Cord AK 41 QCNW-5714CEZZ J Connecting Cord AG 42 QCNW-5717CEZZ J Connecting Cord AD 43 QCNW-5777CEZZ J Connecting Cord AP 44 QCNW-5764CEZZ J Connecting Cord AQ 45 QCNW-5779CEZZ J Connecting Cord, x2 AD 46 QEARZ0017CEZZ J Ground-Part AC 47 QEARZ0039CEZZ J Ground-Part AD 48 RSP-Z0107CEN7 J Speaker (L) BN 49 RSP-Z0107CEN8 J Speaker (R) BN 50 RCORF0100CEZZ J Core AF 51 RCORF0106CEZZ J Core AH 52 XBBSD30P06000 J Screw, x12 AA 53 XBBSF30P04000 J Screw, x4 AA 54 XBBSF30P08000 J Screw, x6 AA 55 XBBSF40P25000 J Screw, x4 AA 56 XBPSD30P06JS0 J Screw AA 57 XEBSD30P08000 J Screw, x8 AA 58 XEBSD40P10000 J Screw, x2 AA 59 XEBSF30P08000 J Screw, x4 AA 60 XEBSF40P16000 J Screw, x5 AA 61 XTBSF30P12000 J Screw, x4 AA 62 CZETK0093CE02 J Insulating Sheet AN SUPPLIED ACCESSORIES CPNLS1031CE03 J Speaker Net BG LHLDW1028GEZZ J Cable Clamp, x2 AB å QACCL0020TAZZ AC Cord RRMCG1558CESA J Wireless Remote Control AV TCAUZ1039CEZZ J Caution Card for Carrying AD TiNS-7189CEZZ J Operation Manual AX TLABN0356CEZZ J No. Label å UADP-0218CEZZ J AC Adaptor PACKING PARTS (NOT REPLACEMENT ITEM) SPAKC5477CEZZ – Packing Case — SPAKF0421CEZZ – Reinforcing Pad — SPAKF0484CEZZ – Reinforcing Pad — SPAKP0856CEZZ – Wrapping Paper — SPAKX2940CEZZ – Buffer Material — SSAKA0160CEZZ – Polyethylene Bag — TLABN0157CEZZ – No. Label — TLABK0001TAZZ – Label — 45 LC-20A2M PACKING OF THE SET Packing Case AC Cord AC Adaptor Buffer Material Reinforcing Pad Speaker Net Reinforcing Pad Wireless Remote Conrol Antenna Cable Wrapping Paper Caution Card Accessories Operation Manual Cable Clamp Batteries 46 LC-20A2M COPYRIGHT © 2001 BY SHARP CORPORATION ALL RIGHTS RESERVED. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher. SHARP CORPORATION AV Systems Group Quality & Reliability Control Center Yaita, Tochigi 329-2193, Japan D JAPAN P JAPAN TQ0000-S May. 2001 Printed in Japan NA. KG
