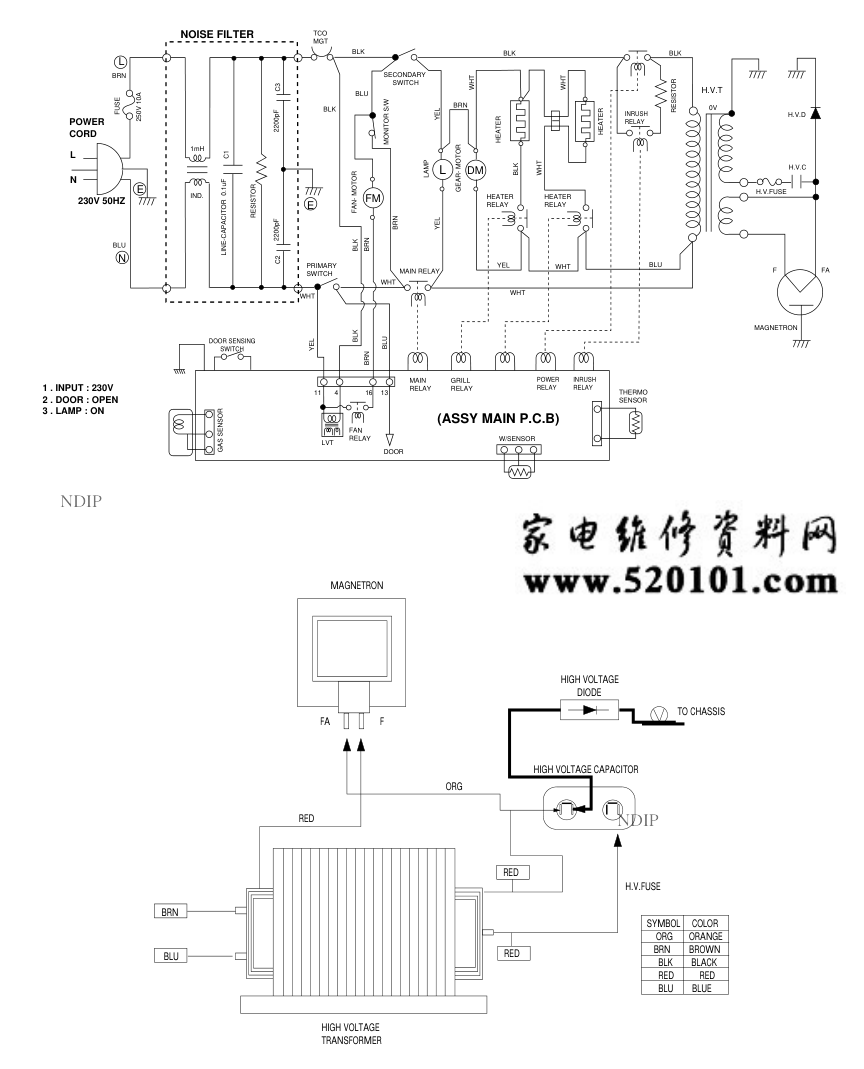

三星CE08R微波炉电路图
NDIP NDIP POWER CORD L N 1 . INPUT : 230V 2 . DOOR : OPEN 3 . LAMP : ON 230V 50HZ BRN BLK BLU BRN YEL YEL WHT BLK WHT WHT BRN YEL BRN BLU BLK BLK BLK 250V 10A 2200pF C1 C2 C3 2200pF LINE-CAPACITOR 0.1uF RESISTOR BLU L N E E NOISE FILTER TCO MGT MAIN RELAY MONITOR S/W F FA MAGNETRON 0V GEAR- MOTOR HEATER HEATER RELAY HEATER RELAY HEATER RESISTOR FAN- MOTOR LAMP H.V.T H.V.D H.V.C H.V.FUSE FUSE 1mH IND. BLK BRN BLK WHT WHT 11 4 16 13 WHT WHT BLU YEL PRIMARY SWITCH SECONDARY SWITCH L DM FM (ASSY MAIN P.C.B) MAIN RELAY LVT FAN RELAY DOOR GRILL RELAY POWER RELAY DOOR SENSING SWITCH INRUSH RELAY INRUSH RELAY THERMO SENSOR W/SENSOR GAS SENSOR RED RED BRN BLU FA F HIGH VOLTAGE TRANSFORMER H.V.FUSE HIGH VOLTAGE CAPACITOR HIGH VOLTAGE DIODE TO CHASSIS MAGNETRON SYMBOL COLOR ORG ORANGE BRN BROWN BLK BLACK RED RED BLU BLUE ORG RED NDIP NDIP
