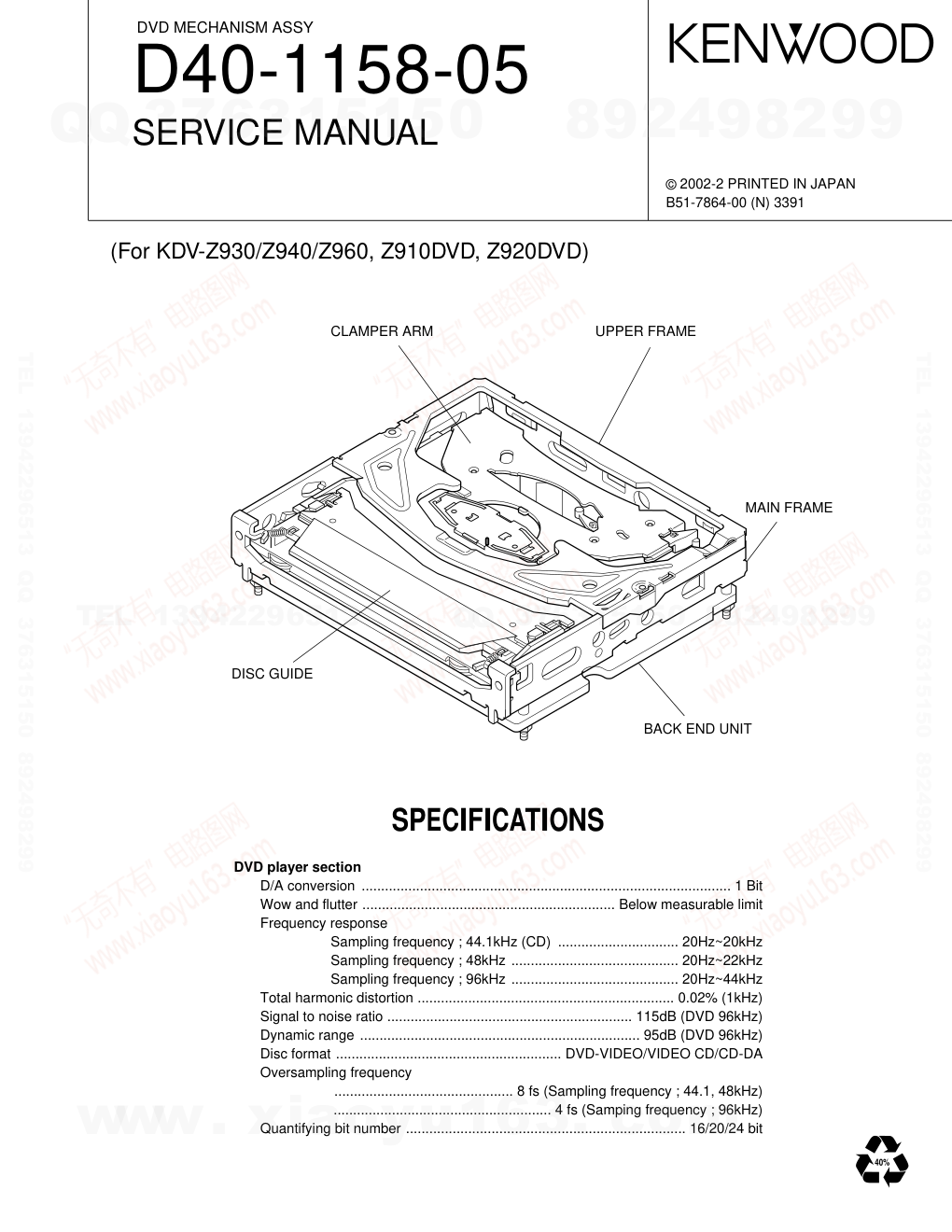

DVD MECHANISM ASSY D40-1158-05 SERVICE MANUAL © 2002-2 PRINTED IN JAPAN B51-7864-00 (N) 3391 (For KDV-Z930/Z940/Z960, Z910DVD, Z920DVD) SPECIFICATIONS DVD player section D/A conversion ............................................................................................... 1 Bit Wow and flutter ................................................................. Below measurable limit Frequency response Sampling frequency ; 44.1kHz (CD) ............................... 20Hz~20kHz Sampling frequency ; 48kHz ........................................... 20Hz~22kHz Sampling frequency ; 96kHz ........................................... 20Hz~44kHz Total harmonic distortion .................................................................. 0.02% (1kHz) Signal to noise ratio ............................................................... 115dB (DVD 96kHz) Dynamic range ........................................................................ 95dB (DVD 96kHz) Disc format .......................................................... DVD-VIDEO/VIDEO CD/CD-DA Oversampling frequency .............................................. 8 fs (Sampling frequency ; 44.1, 48kHz) ........................................................ 4 fs (Samping frequency ; 96kHz) Quantifying bit number ........................................................................ 16/20/24 bit CLAMPER ARM UPPER FRAME MAIN FRAME BACK END UNIT DISC GUIDE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 BLOCK DIAGRAM 2 LASER MODULE POWER SUPPLY IC102,103 SPINDLE MOTOR DRIVER IC602 ACTUATOR TRAVERSE MOTOR SPINDLE MOTOR HEAD AMP DISC SERVO CONTROLLER • SERVO CONTROLLER • AUDIO OUTPUT IC401 ATAPI/UDE SWITHOVER INPUT (UDE FIXATION) OPTICAL DISC CONTROLLER • DEMODULATE/ • ERROR REVISION • ATAPI I/F IC101 SYSTEM CONTROL u-COM IC201 ACTUATOR DRIVER TRAVERSE MOTOR DRIVER IC601 SWITCHING BUFFER IC501 UDE I/F FRONT-END PROCESSOR •ANALOG SIGNAL PROCESSOR •SERVO AMP IC701 Front-End unit POWER SUPPLY UDE I/F UDE I/F BUFFER SDRAM DAC GND CONNECTION (UDE SELECTION) POWER SUPPLY IC11 IC10 +B IC5 IC15 IC16 IC1-3 IC18 IC23 IC401 u-COM MPEG-2 DECODER DRAM FLASH ROM SDRAM AV OUTPUT SERIAL I/F Back-End unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 CAUTION FOR OPTICAL PICKUP REPLACEMENT / DISASSEMBLY AND ASSEMBLY OF MECHANISM 1. Do not turn adjustment screws 1 to 5. (If any of them is turned by mistake, their adjustment is required. This should be performed on the Mechanism ass'y.) 2. Remove completely the shorting solder from the LD of the FPC. 3. Wear a grounding band during work. 1. Removing the upper frame (1) Remove the two screws. (2) Take out the Upper board upward. 2. Removing the traverse block (1) Remove the two balance springs. (2) Pull the traverse block straight upward to remove. DISASSEMBLY AND ASSEMBLY OF MECHANISM CAUTION FOR OPTICAL PICKUP REPLACEMENT Remove shorting solder from LD. Disassembly 1. Capacity : 30W 2. Temperature : 320±20°C 3. Time : 3 sec. or less Adjustment screw 1 Adjustment screw 2 Adjustment screw 3 Adjustment screw 4·5 Screw Screw Balance spring Balance spring 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 DISASSEMBLY AND ASSEMBLY OF MECHANISM 4 3. Removing the Servo PB ass'y (1) Disconnect the FPC from the optical pickup and attach a shorting pin to the terminal. (2) Disconnect the sensor FPC, motor FPC and motor wire from the connectors. (3) Remove the screw. (4) Move the optical pickup position in the direction of the arrow (this prevents the SW from damage when taking out the Servo PB ass'y). (5) Lift section A slightly and, while releasing the engagement of the hook of the traverse block, take out the Servo PB ass'y. 4. Removing the Optical Pickup ass'y (1) Remove the screw. (2) Take out the Power Motor ass'y. (3) Move the optical pickup position in the direction of arrow 1, lift it upward and remove it in the direction of arrow 2. 5. Removing the drive shaft (1) Remove the screw. (2) Take out the Nut Piece ass'y. (3) Pull out the drive shaft. 6. Removing the clamper arm (1) Push the spring hook in the direction of arrow q to disengage it. (2) Lift the clamper arm in the direction of arrow e, and then move its position in the direction of arrow w and pull out the left boss of the Traverse board from the clamper arm. (3) While maintaining the current overall positioning, slide the clamper arm in the direction of arrow q and pull out the right boss of the Traverse board. 7. Removing the spindle motor (1) Remove the two screws. (2) Take out the spindle motor upward (taking care not to damage the FPC). A Hook Motor wire Screw Optical pickup FPC Sensor FPC Motor FPC Power Motor ass'y Screw Screw Nut Piece ass'y Optical pickup Drive shaft Screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 DISASSEMBLY AND ASSEMBLY OF MECHANISM 5 1. Attaching the spindle motor (1) Attach the spindle motor on the Traverse board by engaging the spindle motor frame from the bottom, and tighten the screws in the order of a then b. (Caution) • When attaching the spindle motor, place the FPC outside the Traverse board in advance. • Do not use screws that have been used before. (If debris of the adhesive agent penetrates inside the screw sections, the loosening prevention effect of the screws will be lost.) 2. Attaching the clamper arm (1) Apply grease on the clamper arm (on the areas indicated as hashed areas in the figure above). (2) Fit the clamper arm spring around the clamper arm shaft. (3) Insert the clamper arm shaft into the hole on the right of the clamper arm. Then slide the clamper arm toward the left to insert the shaft of the Traverse board into the hole on the left. (4) Lift the L side of the clamper arm spring as shown in the figure below (Arrow A), and hook it on the hashed area on the Traverse board. 3. Attaching the Optical Pickup ass'y (1) Apply grease on the drive shaft (on the areas indicated as hashed areas in the figure above). (2) Pass the drive shaft through the optical pickup and clamp the Nut Piece ass'y using the screw. (Caution) • The optical pickup should be attached so that it is positioned near the center of the drive shaft. (This is to prevent damage due to running up onto SW2.) • Pay attention not to touch the optical pickup lens. • Do not apply grease to other areas than specified. Screw Claw A Claw A FPC Clamper arm Clamper arm spring L side R side Spring Hooking Method Greasing Specification Clamper arm shaft Greasing Specification Screw Nut Piece ass'y Optical pickup Drive shaft Arrow A Assembly www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 DISASSEMBLY AND ASSEMBLY OF MECHANISM 6 4. Attaching the Optical Pickup ass'y (1) Apply grease to the two positions (hashed areas) shown above. (2) Insert the Optical Pickup ass'y into the hole on section A by catching the rail of the Traverse board as shown in "Side View of Section B." (3) Insert the Power Motor ass'y in section E. (4) Tighten the screw. (Caution) • When attaching the Optical pickup ass'y, take care against deformation of the plate spring. • Do not apply grease to other areas than specified. 5. Attaching the Servo PB ass'y (1) Insert the motor wire connector into the Servo PB ass'y. (2) Insert the projection on the Servo PB ass'y into the hole on section B, then insert it below the hook and insert into the positioning pin. (3) Tighten the screw. (4) Insert the spindle motor FPC and sensor FPC all the way into their connectors. (The sensor FPC should be passed below the PB ass'y.) (5) Remove the shorting pin and insert the optical pickup FPC all the way into the connector to lock it firmly. C Greasing Specification Apply using a cotton swab, etc. Side View of Section B Apply grease. Top of Traverse board Traverse board Hole on Traverse board Plate spring Optical pickup A Optical Pickup ass'y Apply grease. B E Power Motor ass'y Screw Motor wire connector Screw Wire treatment hook Hook Lock Lock Spindle motor FPC Servo PB ass'y Positioning pin Pass below the PB ass'y. Sensor FPC B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 DISASSEMBLY AND ASSEMBLY OF MECHANISM 6. Attaching the traverse block (1) Fit the two floating springs F and floating spring R according to the profile of the insulator. (2) Drop alcohol in holes A, B and C of the insulator as shown in the figure. (3) Before the alcohol dries up, insert the shafts A, B and C into holes A, B and C respectively. (Make sure that each shaft is inserted all the way as shown in "Cross-Section of Insulator" on the right. (4) After inserting the shafts, lift the Traverse board by about 3 mm to ensure that the shafts do not easily slip out of the insulator. (See figure on the bottom right.) (5) Hook the two balance springs across claws A1 and A2 and across claws B1 and B2. 7. Attaching the upper frame (1) Attach the upper frame by engaging the claws on the left and right of the upper frame into the holes on the left and right of the main frame as shown by the arrow in the figure on the right. (2) Tighten the two screws. Shaft C Insulator hole C Floating spring R (Black) Insulator hole B Insulator hole A Floating spring F (White) Floating spring F (White) Claw A1 Claw A2 Claw B1 Balance spring Shaft A Shaft B Claw B2 Balance spring Alcohol Insulator Shaft Cross-Section of Insulator 7 Main frame Hole Hole Screw Screw Upper frame Main frame Claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 OPERATION DESCRIPTION 8 ✽ With PSs (photosensors), ON refers to the condition in which the light to it is blocked by the disc and OFF refers to the condition in which the light is not blocked. ✽ With switches, ON refers to the condition the switch is pressed and OFF refers to the condition in which it is not pressed. Appearance of Mechanism Description of Sensors and Switches 1) Disc loading When a disc is inserted through the insertion slot, the disc is detected by PS1 or PS3 turning ON, and the power motor starts rotation in the loading direction. Completion of disc loading activates a trigger for moving the control slider toward the front. This turns the Loading completion SW ON and the loading operation is completed. 2) Disc size detection After SW1 (Loading completion SW) goes ON; the disc is a 12 cm disc if PS4 is ON; the disc is a 8 cm disc if PS4 is OFF. 3) Disc play mode The following operations are performed before playing a disc. (1) Initialization of the optical pickup position (2) Detection of disc presence/absence (3) Activation of spindle motor (4) Automatic adjustment of servo characteristics (5) Reading of TOC information (6) Skip to the track to be played (7) Disc playback 4) Disc ejection 8 cm disc: The power motor is rotated in the disc ejecting direction. It is stopped when the disc has been ejected until both PS3 and PS4 go OFF. 12 cm disc: The power motor is rotated in the disc ejecting direction. It is stopped when the disc has been ejected until PS2 goes OFF. 5) Disc ejection detection The ejection of disc from the mechanism is detected when PS1 goes OFF after completion of disc ejection. Is PS1 remains ON after completion of disc ejection, the unit loads the disc automatically in about 10 seconds and enters the standby mode after it. (Self-loading) Mechanism Operation Description 1 Item PS1 PS2 PS3 PS4 SW1 SW2 Purpose Disc insertion detection Disc ejection detection 12 cm disc ejection completion detection 12 cm disc re-insertion detection Disc insertion detection, 8 cm disc ejection completion detection 8 cm disc re-insertion detection 8 cm disc ejection completion detection 8 cm disc re-insertion detection Disc size detection Loading completion detection Optical pickup position detection ON Inserting ejecting Disc inserted Disc inserted Disc inserted, 12 cm disc playing Playing Optical pickup at innermost position OFF Disc absent Other conditions Other conditions Other conditions Other conditions Pickup in other positions Power motor Optical pickup SW2 SW1 Spindle motor PS3 PS1 PS4 PS2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 OPERATION DESCRIPTION 9 1. Loading a. 12 cm disc Mechanism Operation Description 2 b. 8 cm disc (when the disc is inserted from the center) 1. Disc detection mechanism When a disc is inserted, PS1 or PS2 goes ON, the power motor starts rotation and the rubber rollers carry the disc inside the mechanism. 2. 8 cm/12 cm loading mechanism When a 12 cm disc is inserted, the rubber rollers pushes it against the disc guide surface and transport it inside the mechanism. During the transport, the disc comes above the Mechanism Description 12 cm disc 8 cm disc 12 cm disc disc selection lever and tilted downward. As a result, it passes below the 8 cm disc stopper bosses, hits the 12 cm disc stoppers on the Traverse board and stops there. PS1 PS2 PS3 PS4 SW1 SW2 Power motor µCOM judgment Disc insertion detection Loading completion detection 8/12 cm detection Disc insertion PS1 PS2 PS3 PS4 SW1 SW2 Power motor µCOM judgment Disc insertion detection Loading completion detection 8/12 cm detection Disc insertion PS1 PS2 PS1 PS2 12 cm disc stoppers Disc guide Disc selection lever 12 cm disc 8 cm stopper bosses Disc selection lever Tilted downward by the disc selection lever. Clamper arm 8 cm stopper bosses www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 OPERATION DESCRIPTION 10 When a 8 cm disc is inserted, the rubber rollers pushes it against the disc guide surface and transport it inside the mechanism. The disc stops when it hits the two 8 cm stopper bosses on the clamper arm. 8 cm disc If the disc is inserted from the edge, it hits one of the bosses, is guided toward the center by the boss and stops when it hits both of the bosses. 3. Loading/ejection mechanism (Drive of loading gear train and movement of slider) (1) The rotation of the power motor is transmitted to the loading gear train. (2) When the disc reaches the specified position, it hits the trigger lever on the clamper arm. When it is transported Loading further, it turns the trigger lever, moving the rack base on the control slider in the direction of arrow A. (3) The moved rack base is meshed with reduction gear C that is already rotating, and the rack base is moved further in the direction of arrow A to move the control slider. (Roller arm escaping operation) (1) During the movement of the control slider, the cam groove on it pushes up the R-side arm. This rotation also rotates and pushes down the roller arm linked with the R-side arm. (Disc clamping operation) (1) When the control slider moves, the projection on the control slider, which supports the clamper arm from the bottom, is also moved. When the projection moves away from the clamper arm, it lowers and clamps the disc. 8 cm stopper bosses Disc guide 8 cm disc 8 cm stopper boss Clamper arm 12 cm disc Clamper arm Trigger lever Control slider Rack base Trigger lever Reduction gear C Arrow A R-side arm Control slider Roller arm Cam groove Clamper arm Control slider Projection on the control slider Guided toward the center by the 8 cm stopper bosses. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 OPERATION DESCRIPTION 11 Completion of loading operation (1) When the control slider moves further in the direction of the arrow, it pushes the Loading completion SW, which results in the detection of loading completion. (From loading gear train to Pickup drive gear train) (1) After the loading completion detection, the power motor is rotated further. (2) When the control slider reaches the specified position, it pushes the loading hook, which then starts rotation. (Fig. a) (3) The rotation of the loading hook unlocks the switching lever, which has been locked by it so that the lever meshes with the loading gear train. The switching lever is then rotated by the loading hook in the direction of the arrow and is meshed with the TR bevel gear. (4) The switching lever is locked by the traverse hook, so the rotation of the power motor is transmitted to the pickup drive gear train, making it possible to move the pickup. (From pickup drive gear train to Loading gear train) (1) The rotation of the power motor is transmitted to the traverse gear train. (2) The pickup is moved to the innermost position. (3) At the innermost position, the pickup pushes the traverse hook, which then starts rotation. (Fig. b) (4) The traverse hook unlocks the switching lever, which has been locked so that it meshes with the traverse gear train. The switching lever is then rotated by the traverse gear in the direction of arrow (2) and is meshed with the reduction gear. (5) The switching lever is locked by the loading hook, so the rotation of the power motor is transmitted to the loading gear train, making it possible to move the slider. Drive system switching Fig. a Fig. b Power motor Loading completion SW Control slider Loading hook Loading hook Switching lever Switching lever Reduction gear Arrow (1) Arrow (2) Traverse hook TR bevel Optical pickup Traverse hook www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 OPERATION DESCRIPTION 12 (Upward movement of roller arm) (1) After the optical pickup has moved to the inner position, the drive mechanism switching as described above occurs and the control slider is moved. (2) During the movement of the control slider, the cam groove on the slider pushes the R-side arm downward, thereby moving up the roller arm that is linked with the R-side arm. (Disc unclamping operation) (1) When the control slider moves, the projection on the slider pushes up the clamper arm to unclamp the disc. (Disc ejection operation) (1) When the roller arm is moved up and disc is unclamped, the disc is caught between the rubber rollers and disc guide and the disc ejection starts. (Election completion) (1) The control slider moves until it hits the stopper on the Traverse board. (2) The power motor rotation ejects the disc further and; 12 cm disc: The power motor stops when PS2 is turned OFF. 8 cm disc: The power motor stops when both PS3 and PS4 are turned ON. Ejection R-side arm Control slider Roller arm Cam groove Clamper arm Projection Control slider PS2 PS3 PS4 12 cm disc 8 cm disc www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 OPERATION DESCRIPTION 13 4. Floating lock mechanism (Floating unlocking operation) (1) The movement of the control slider pushes down the roller arm. This rotates the L-side arm and releases the locking with the main frame. (2) When the L-side link, which is linked with the L-side arm, moves toward the front, the L-lock cam is rotated. This causes the projection on the lock cam to escape from the upper frame and releases the locking. Left side Right side (1) The movement of the control slider after disc loading causes the projections on the control slider to escape from the projections on the upper frame. This unlocks the traverse mechanism, which is moved up by the force of springs and puts the mechanism in the floating condition. Right side (Floating locking) (1) The movement of the control slider pushes up the roller arm. This rotates the L-side arm and its engagement with the main frame restricts the front-rear movement of the traverse block. (2) The rotation of the L-side arm moves the L-side link, which is linked with the L-side arm, toward the rear and rotates the L-lock cam. This brings the projection on the lock cam in contact with the main frame and pushes down the traverse block to restrict its up-down movement. Left side (1) The movement of the control slider due to ejection causes the projections on the control slider to contact the projections on the upper frame. This pushes down the traverse mechanism and restricts its up-down movement. Right side 5. Play mode Insulators F and R, floating springs F and R, and balance springs (two of which are provided on the front of the mechanism but not shown in the figures) floats the traverse block for disc playback. Upper frame Projections on upper frame Projections on control slider Unlock Lock Insulator R Floating spring F 12 cm disc 8 cm disc Insulator F Floating springs F Left side Unlocking Locking Upper frame L-side side arm L-side link Main frame L-lock cam www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 A B C D E 1 2 3 4 5 6 7 14 PC BOARD (COMPONENT SIDE VIEW) Refer to the schematic diagram for the values of resistors and capacitors. R208 C204 FG RST DVCC C504 C506 R210 CLKOUT1 C107 R429 R428 X101 R420 C441 C436 RA401 RA403 R430 C411 R402 C410 R433 R432 R431 R434 C708 C702 C707 R427 C125 R104 C103 R601 3.3V P2 RA201 C203 R204 R581 R501 R502 R507 R530 R508 R509 R510 R511 R518 R522 R523 RA506 R207 C201 C205 C503 L501 R211 TRVM- TRVM+ C113 SPDRV FR BRAK M1 M3 VH+ M2 M1+ M2+ H3+ H3- VH- TEHLD IDGT NRSTING TRON LG IDHOLD JMPINH DATA LRCK BD0 H2- H1- R105 C114 C124 DACCLK TDGT DTRD SPDET2 D2.7V CLOSE MONI1 MONI2 MONI0 SCLOCK SDATA MONI3 PLLOK SPDET1 TPFLG R102 C108 C102 C437 C438 R212 R424R425 R426 R423 C442 R421 R422 C435 C434 C444 C421 R712 C714 C704 C413 R406 C414 R707 C720 C721 R708 C712 C701 C705 C742 L703 R713 C741 C439 C440 R106 C106 R103 C201 R205 R206 R213 C507 F501 F502 R209 R529 R530 R528 R202 FEPRES SB DGND1 EJECT R201 R214 R503 R520 R524 R526 R525 R514 R513 R517 R527 R521 7V R519 R516 R515 R512 C504 L502 R110 B E D202 D201 D204 D203 Q501 S202 B E Q201 B E Q702 CN501 CN701 5 4 1 1 5 8 IC202 11 10 1 1 45 20 IC501 50 26 1 1 11 5 25 1 51 75 100 76 IC201 FRONT-END IC203 3 4 CN201 CN601 25 1 1 20 100 26 50 76 75 51 IC401 144 OFTR DGND RF F+ F- LD1 LD2 VREF1 ARF- JITOUT TE AS FE MA FDR MC MB TVDR CLKOUT2 DAT0 DAT2 DAT3 SUBC DAT1 CLDCK CHCK40 TDR ARF+ VIN4 VIN1 AGND 109 108 73 1 36 72 37 IC101 Ref. No address IC101 4B IC201 2C IC202 2D IC203 2C IC401 5B IC501 2D Q201 2B Q501 2D Q702 6C FRONT-END www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 F G H I J 1 2 3 4 5 6 7 15 PC BOARD (FOIL SIDE VIEW) C713 C709 C715 C731 C426 C443 C101 C508 C122 C505 C501 C502 R602 R603 RA202 RA501 RA502 RA504 RA503 RA505 R401 R715 C734 R403 C401 C402 R413 C409 C412 C405 R408 C422 C416 C408 C406 C407 C424 R615 C614 R612 R611 C613 C432 R418 C431 R417 C602 R607 C606 C202 C602 C601 C104 R706 C119 C118 R108 R614 R613 C115 R109 C112 C728 R720 R718 C732 C727 C404 C403 C425 R409 R410 R419 R610 R609 C610 C612 C604 C605 C110 C611 C608 R609 R608 R605 R604 C430 C433 R112 RA101 R111 C607 R606 R101 C105 C109 C123 L102 C120 C121 C717 R711 R710 R709 C427 C729 R405 R404 R705 R714 C711 C716 C726 R719 R733 C735 C739 C722 R716 C718 C719 R717 C736 C730 D101 B E Q701 48 33 16 1 64 49 17 32 IC701 15 14 1 28 IC601 1 28 15 14 IC602 CN602 1 4 5 8 IC102 1 2 1 4 5 8 IC103 FRONT-END Ref. No address IC102 4I IC103 3I IC601 5J IC602 3I IC701 6H Q701 3I FRONT-END Refer to the schematic diagram for the values of resistors and capacitors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 K L M N O 1 2 3 4 5 6 7 16 PC BOARD (COMPONENT SIDE VIEW) Refer to the schematic diagram for the values of resistors and capacitors. C126 C61 C253 R10 R100 L68 L450 R174 C254 C40 R54 C32 C252 L64 R172 R175 R171 R130 C7 R460 R461 R162 R163 R164 R165 R166 R167 R168 R34 C11 R32 R33 R31 C19 C125 R30 R35 R26 R170 L50 L49 L48 L47 L46 L59 L45 L44 L43 L61 L53 L55 L79 L60 L57 L51 L56 L54 TP55 TP48 TP36 TP32 TP47 TP53 TP51 TP50 TP54 TP52 TP56 TP57 R224 R29 R229 C31 C27 R251 R46 R45 R51 R230 R27 R25 R22 R21 R24 R20 R19 C123 R36 C87 C8 . C261 R141 R150 R151 C262 C77 R153 R152 R147 R148 C5 C268 C269 C270 C271 C272 C267 L22 L21 C266 C265 C264 C263 C4 C78 R221 R38 R55 C33 R50 L69 C129 R88 R90 R453 R92 R94 R96 R93 R95 R97 R98 R145 R146 R142 R143 R144 R84 R81 R86 R91 R85 C41 C42 R79 R77 C301 C72 C237 L73 C260 L72 L74 C73 C74 C69 C94 R114 R113 R112 C300 C88 C258 C79 R39 R40 R41 R42 C17 C101 L24 C134 R7 L58 R173 R169 R161 C20 R47 R48 R49 R255 R254 R53 C89 C25 R250 C250 R253 C275 C24 C28 L66 C273 C34 C37 L67 R231 C16 R16 R15 C18 R12 R14 R176 R131 R417 R427 C128 C22 C257 R82 R78 L75 J452 B E Q455 B E Q454 B E D453 Q453 8 1 16 9 IC12 8 1 16 9 IC13 23 22 1 44 9 1 IC11 8 1 16 9 IC7 25 1 50 26 IC18 BACK-END 25 1 50 26 IC16 8 1 16 9 IC8 11 1 44 34 12 22 33 23 IC9 Ref. No address IC7 5K IC8 5K IC9 6L IC11 6L IC12 4L IC13 5L IC16 4L IC18 3L BACK-END www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 P Q R S T 1 2 3 4 5 6 7 17 PC BOARD (FOIL SIDE VIEW) R252 R70 R133 R52 R68 R66 R64 R60 R59 R67 R65 C80 C81 C82 R104 C63 C57 C58 R101 L71 C68 C71 DG1 DG2 R87 R83 C75 C232 C259 C59 R11 C45 C53 C47 C54 C48 C55 C50 R115 R106 C38 R43 C21 R37 R23 R132 R57 C39 R58 C122 R6 R8 R9 R455 R241 R102 R414 R415 R400 R401 R159 TP24 TP20 TP21 R157 R155 R158 R156 R154 R183 R184 R69 C132 C43 C51 C14 L23 C135 C86 C401 C400 C414 C115 C442 C274 C52 C255 C251 C29 L65 C30 R56 C35 C36 C23 C99 R182 R181 R180 R179 R178 R177 C93 C84 R138 X1 C83 C92 C91 C90 R135 R134 R136 R111 DG6 DG3 DG5 DG4 R116 C49 R242 R102 R103 R110 C85 C2 C13 C404 R416 C113 R123 R127 R410 R413 R402 C415 C425 R103 C133 C100 R99 C67 R454 C70 C56 C66 R80 R226 C219 C220 C230 R451 C225 R225 C214 R456 R227 C224 R457 R228 C229 C76 C12 C15 C46 R139 C44 R140 C1 TP59 TP60 TP46 TP41 TP58 TP49 TP44 TP45 TP43 TP42 TP40 TP38 TP30 TP26 TP31 TP33 TP35 TP27 TP23 TP7 TP3 TP14 TP15 TP16 TP63 TP64 TP8 TP11 TP13 TP62 TP10 TP12 TP17 TP2 TP4 TP6 TP22 TP19 TP5 TP18 TP1 TP9 TP29 TP37 TP39 TP25 TP28 TP34 J502 J450 J455 J454 J451 J459 J503 L101 R423 C421 R421 R420 J458 D36 BE Q450 BE Q451 BE Q452 8 7 1 14 IC2 C130 8 7 O G I IC19 I G FG10 FG11 O IC17 IC1 10 11 1 1 10 20 11 IC401 1 1 8 1 20 1 9 L6 L11 L13 14 8 C410 C411 C412 R412 C413 C420 R425 R426 C231 L98 C228 L96 L92 C216 L94 C221 L80 C114 R424 R450 C215 C423 C424 C405 R411 R422 7 20 IC23 1 14 IC6 8 7 1 1 14 IC3 25 1 1 1 3 3 5 5 4 4 100 81 31 D20 CN2 D27 D28 D26 D25 D24 D23 CN5 D21 CN4 D13 D14 D11 D12 D6 D7 D8 D9 50 1 45 30 80 51 48 24 1 IC10 IC5 IC42 IC14 CN1 53 52 105 156 104 208 157 IC15 BACK-END Ref. No address IC1 3R IC2 4R IC3 3R IC5 5R IC6 4R IC10 6S IC14 4R IC17 6P IC15 2S IC19 4P IC23 3Q IC42 4S IC401 3Q BACK-END Refer to the schematic diagram for the values of resistors and capacitors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 A B C D E 1 2 3 4 5 6 7 FRONT-END UNIT (1/4) (BOTTOM VIEW) CN601 CN701 CN602 Q701 Q702 CN201 D201 D202 D203 D204 to SP MOTOR to PICKUP DR to MOTOR ACTUATOR DRIVER TR MOTOR DRIVER FRONT-END PROCESSOR SP MOTOR DRIVER Q12 Q14 Q11 Q13 10K IC602 IC601 IC701 FRONT-END UNIT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 NC1 A3 NC2 A2 NC3 NC4 A1 GND H1+ H1- H2+ H2- H3+ H3- 28 27 26 25 24 23 22 21 20 19 18 17 16 15 RNF VM GSW VCC FG PS EC ECR FR FG2 SB CNF BR VH 29 FIN1 FIN2 30 28 27 26 25 24 23 22 21 20 19 18 17 16 15 STBY BIAS VINTK CTKERR1 CTKERR2 VINLD PREGND FIN2 VNFTK PGND2 VOLD- VOLD+ VOTK- VOTK+ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 VINFC CFCERR1 CFCERR2 VINSL+ VINSL- VOSL VNFFC FIN1 PVCC1 PGND1 VOSL- VOSL+ VOFC- VOFC+ PVCC2 VCC 29 30 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 HDTYPE VIN12 VIN11 GND1 VIN4 VIN3 VIN2 VIN1 VREF1 VCC1 VIN10 VIN9 VIN8 VIN7 VIN6 VIN5 RFINN RFINP TESTSG AGCO AGCG PEAK BOTTOM RFENV BD0 OFTR DCRF RFC VCC3 RFOUT RFDIFO GND3 TEN TEOUT ASN ASOUT FEN FEOUT VSS TG/DPDEQ VDD GND2 VREF2 VCC2 VHALF DFLTON DFLTOP DSFLT LPC1 LPCO1 LPC2 LPCO2 TGBAL TBAL FBAL POFLT DTRD IDGT STANBY SEN SCK STDIO RSEL JLINE 11 10 9 8 7 6 5 4 3 2 1 M3 M1 M2 VH+ H1+ H1- H2+ H2- H3+ H3- VH- 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 GND PIN GND LD+ LD GND 5V VCC SW H/L F1 F2 T2+T4 T1+T3 GND 2.2V VREF GND 3.3V HFM GND T- F- T+ F+ H3- H3+ H2- H2+ H1- H1+ VH- M1 M2 M3 VH+ 330 R601 7V AVCC R603 2.2 R602 2.2 FG 48 C606 0.01 C607 0.01 10K R607 10K R606 SPDRV ECR 53 FR SB 62 C602 0.1 BRAK 49 0.1 C601 F- F+ T+ T- F+ T+ F- 1 R613 1 R614 2 TRVM+ 1 TRVM- TRVM- TRVM+ 12 11 12 11 C611 0.1 15K R611 180P C613 R612 10K R610 15K 51 58 0.01 C614 C612 390P 22K R609 5 1000P C610 FDR 1000P C609 TDR 390P C608 0.1 C605 0.1 C604 R605 1 R604 1 T- R706 3.9 + C740 2.2u10 0.1 C708 0.1 C701 C707 0.1 1 53 54 2 60 59 F- F+ 0.1 C702 0.1 C705 22u6.3 + C709 10 R705 VREF1 D3.3V AVCC 7V 6 560P C712 L703 2 1 10 R708 1 C711 + C713 120u4 LD2 R707 10 LD1 R709 18K R710 27K R711 27K 44 43 42 C717 220P IDGT 79 78 64 FEPRES 10 88 89 R714 22K 0.15 C714 47K R712 3.9K R713 37 39K R715 2 1 12K R716 22P 3 56P R717 22K 99 C736 C721 0.1 0.1 ARF- ARF+ 9 8 C722 0.033 60 59 VIN4 VIN1 54 53 0.1 C720 1 2 3 4 5 PS2 PS4 GND PS3 PS1 85 84 86 87 52 2 6 DVCC 150 R211 R212 150 59 58 57 55 54 53 75 AVCC 64 AVCC 55 56 50 10 TVDR R615 4.7K 0.1 C603 C742 1 C718 C719 C730 0.1 C729 0.1 + C731 47u6.3 0.1 C204 7V AVCC D3.3V D3.3V AVCC 7V A3.3V AVCC AVCC AVCC 7V 7V 7V 7V DVCC DVCC 22K R608 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 F G H I J FRONT-END UNIT (2/4) Q501 S201 S202 Q201 D201 D203 SYSTEM u-COM 2.7V AVR 3.3V AVR SW BUFF 47K 10K 10K 4.7K IC201 IC203 IC102 IC501 IC202 IC103 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 RFINN RFINP TESTSG AGCO AGCG PEAK BOTTOM RFENV BD0 OFTR DCRF RFC VCC3 RFOUT RFDIFO GND3 DSFLT 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 P017D15 P016D14 P015D13 P014D12 P013D11 P012D10 P011D9 P010D8 VSS4 P07 P06 P05.SW2 P04.SW1 P03.PS4 P02.PS3 P01.PS2 P00.PS1 VDD6 RST PA5/ADSEP PA4/IRQ4 PA3.FG PA2.IRQ INT1 INT0 NM1 P.UP2 P.UP1 P75DTIN P74TOUT P73SCK P72SBO0 P71SBI0 P70/LDR VDD(VPP) P97ENC P96/RES P95/RST P94 VSS3 P93 P92EJECT P91LDADM P90DI P87HAGUP P86HFM3.3 VDD4 P85FR P84 P83 A4P24 A5P25 A6P26 A7P27 A8P30 A9P31 A10P32 A11P33 VDD3 A12P34 A13P35 A14P36 A15P37 A16P40 A17P41 DSELP42 HSELP43 VSS2 CS3P44 UDEEP45 CSP46 SKP47 STSPP80 BRAKP81 STBYP82 WAITP60 RDP61 LEDP62 WRP63 P50 CSP51 P52 P53 ENSP54 FESENP55 P56 P57 A0P20 A1P21 A2P22 A3P23 VDD1 SYSCLK VSS1 XI XO VDD2 OSC1 OSC0 MODE 1 2 3 IN B IN A GND 5 4 VCC OUT GND1 NC GND2 3 4 VOUT 1 2 GND4 INHIBIT GND3 6 5 VIN 8 7 1 2 3 4 5 6 7 8 9 10 GND 20 19 18 17 16 15 14 13 12 11 VCC R509 33 R510 33 R511 33 13 14 15 17 12 132 129 135 144 140 10K R507 45 1 10K R508 67 69 41 42 R502 10K R531 10K 68 R503 10K C104 0.1 0.1 C102 + C101 120u4 D2.7V 42 43 44 45 NC NC 7V 7V A3.3V AVCC C722 0.033 26 0.1 C739 RF C726 0.047 C727 0.027 R718 1M C732 560P C733 560P R719 1M AVCC 100 47 OFTR C734 0.1 R720 C735 12P 2.2K AVCC 0.1 C716 + C715 47u6.3 70 69 68 63 62 73 74 72 2.2K RA202 RA201 47K 47K R207 R208 47K 87 86 84 85 DVCC 26 28 25 RST 27 60 150 R211 R212 150 59 58 57 10K R209 55 54 53 10K R210 52 51 50 49 48 47 46 45 43 42 41 40 38 37 C203 0.1 42 41 128 45 46 47 49 48 50 DVCC R205 4.7K R206 4.7K 88 89 R213 33 67 68 69 86 R202 10K 10K R201 84 53 55 56 58 62 EJECT 10K R214 87 90 NC1 SK VCC CS 2 4 3 46 47 1 5.6K R204 7 GND DO DI 5 6 NC2 8 1 2 3 8 9 10 C R40 C414 1 9 88 89 R530 220 40 R528 100 R533 0 47u16 + C502 C503 0.1 7V PGND 7V 7V D3.3V DVCC DVCC DVCC 7 C120 GND 0.1 8 CD RESET NC1 L102 C123 + 0.1 56u4 C122 C121 D3.3V A3.3V VOUT NC2 5 6 0.1 VIN CF 3.3V 4.7K 4.7K R108 R109 C118 C119 2 1 0.1 0.1 4 3 D2.7V 85 C728 0.1 0.1 C507 100u4 + C508 0.1 C204 DGND1 0.1 C201 0.1 C202 C205 0.1 0.1 C425 0.1 C416 0.1 C422 7V 7V AVCC DVCC AVCC AVCC D2.7V D3.3V AVCC A3.3V AVCC A3.3V DVCC DVCC DVCC A3.3V DVCC A3.3V DVCC DVCC DVCC DVCC DVCC DVCC DVCC DVCC DVCC DVCC DVCC AVCC A3.3V D3.3V D3.3V 7V AVCC DVCC D2.7V A3.3V A3.3V A3.3V DGND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 K L M N O FRONT-END UNIT (3/4) CN501 to BACK END DISC SERVO CONTROLLER IC401 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 AD3 AD4 AD5 AD6 VDD25-2 VSS25-2 PBAL MONC MONB MONA CPUDTOUT CPUDTIN CPUCLK CPUIRQ ENC ENS NRESET TX VDD33-3 VSS33-3 DAT0 DAT1 DAT2 DAT3 CHCK40 VDD33-2 VSS33-2 TEST MINTEST NCLDCK/JUMP SUBC IPFLAG DACCLK NTRON DACDATA/LG DACLRCK/JMPINH IDHOLD SBCK/PLLOK BLKCK/CPDET1 LRCK/CPDET2 IDGT/TEMUTE DTRD VDD25-1 VSS25-1 NC3 NC2 NC1 FG SPDRV TRSDRV VFOSHORT AVDD3 HPFIN HPFOUT AVSS3 LPFIN LPFOUT CMPIN TRCRS VCOF DBAL0 JLINE AVDD4 LOUT ROUT AVSS4 GBAL TBAL FBAL VSS33-1 VDD33-1 OFTR SYSCLK BD0 TSTSG AD2 AD1 AD0 AVDD1 DA1 DA0 AVSS1 ARF NARF IREF1 IREF2 DSLF1 DSLF2 AVDD2 VHALF PLPG PLFG VREFH RV1 AVSS2 PLFLT1 PLFLT2 JITOUT RFDIF CSLFLT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 HRST DGND SDD0 SDD1 SDD2 SDD3 SDD4 SDD5 SDD6 SDD7 DGND LDRRDY RXD STVALID HOSTSEL DECSEL ERROR STCLK DGND TXD HDSTRDY STRMREQ 5V 5V NC AGND PGND PGND NC NC 7V 7V UDEEN IOCS16 DMA3 DIOR DIOW DD1 DD0 DD2 DD3 DD4 DD5 DD6 DD7 AS R432 47K C408 470P 1 R401 2 C412 390P 12K TE C409 R433 3 47K FE 100P 6 5 C410 1000P 8 C411 1000P 9 R409 27K R413 12K R408 5.6K R410 27K C401 5600P C402 1000P R402 1M R403 15K C404 0.047 47P C403 JITOUT 1000P C413 R406 47K C414 4700P R430 100 47K C406 RFENV 330P TG R431 99 560P C407 47K D2.7V D3.3V MC MB MA 90 89 88 87 86 85 84 220 RA401 115 114 113 112 0.1 C437 0.1 C436 110 111 220 RA403 109 70 71 70 71 96 95 92 93 94 89 88 82 81 79 79 78 78 180K R428 100K R429 51 52 C432 0.1 R419 0 0.01 C421 R434 0 C435 0.1 R423 1K C434 0.01 12K C431 C442 26 D3.3V 40 39 R427 27K 0.15 4.7K R422 C441 0.01 18K R426 4.7K R421 C440 0.1 27K R425 4.7K R420 C439 0.1 27K R424 10 R417 C430 0.1 + C426 47u6.3 100u4 + C443 47 44 43 42 37 33 RA501 17 19 20 21 33 RA502 14 12 13 16 RA503 33 9 6 7 11 5 2 3 1 RA504 33 141 139 RA505 82 12 143 R525 33 R512 82 R526 33 R513 82 R514 82 R527 82 R518 82 R517 82 150 R515 82 R524 82 23 R520 10K R519 82 10K RA506 24 23 26 23 24 26 137 136 R516 131 17 15 14 DVCC R521 10K 24 13 128 1 128 R532 0 R530 220 R529 220 39 40 L502 L501 100u6.3 + C501 C504 0.1 0.1 C506 100u6.3 C505 + DVCC AVCC R528 100 5V AGND DGND0 R533 0 47u16 + C502 C503 0.1 7V PGND 7V 87 85 0.1 C425 0.1 C416 0.1 C422 0.1 C427 0.1 C433 0.1 C438 0.1 C424 DVCC V V V D3.3V D3.3V D2.7V A3.3V D2.7V D2.7V D3.3V D2.7V D3.3V D2.7V D3.3V D2.7V A3.3V A3.3V A3.3V A3.3V A3.3V D3.3V 0.1 R418 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 P Q R S T 1 2 3 4 5 6 7 CAUTION : For continued safety, replace safety critical components only with manufacturer's recommended parts (refer to parts list). Indicates safety critical components. To reduce the risk of electric shock, leakage-current or resistance measurements shall be carried out (exposed parts are acceptably insulated from the supply circuit) before the appliance is returned to the customer. • DC voltages are as measured with a high impedance voltmeter. Values may vary slightly due to variations between individual instruments or/and units. ! FRONT-END UNIT (4/4) CN501 IC101 : MN103S13BDA IC102 : L4931CD27 IC103 : MM1482BFBE IC201 : MN102LF25ZCA IC202 : BR93LC46FW IC401 : MN67706ZY IC501 : HD74ACT244TE IC601 : BA5954AFP-E2 IC602 : BA6679FM-E2 IC701 : AN8702NFH Q201 : UN211F Q501 : UN5214 Q701 : DTA114TK D201-204 : DNP1111R-2-TR B LINE GND LINE 2SB7100RL Q702 : TC7SET08FU IC203 : OPTICAL DISC CONTROLLER PS1191R-1-TR Q11-14 : IC101 D40-1158-05 (1/2) 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 DMARQ NIOWR VSS-12 NIORD IORDY NDMACK VDD3-9 INTRQ NIOCS16 DA1 VSS-11 NPDIAG DA0 DA2 VDD3-8 NCS1FX NCS3FX NDASP NTRYCL VDD-4 NEJECT VSS-10 MOB10 MONI1 MONI2 MONI3 SDATA SCLOCK VDD3-7 DAT0 DAT1 DAT2 DAT3 CHCK4 XCLDCK SUBC SBCK VSS-9 P0 P1 PVDD PVSS VDD3-6 OSC01 OSC11 VSS-8 LRCK BLKCK IPFLG SHPCLK SHPLRCK SHPDATA NTRON LG JMPINH IDHOLD PLLOK CLKOUT2 VDD-3 NRST MMOD VSS-7 CPDET1 CPDET2 BD0 IDGT DTRD TEHLD VDD3-5 CLKOUT1 CPUDT0 CPUDT1 CPUADR17 CPUADR16 PVSSDRAM2 CPUADR15 CPUADR14 CPUADR13 CPUADR12 PVDDDRAM2 CPUADR11 CPUADR10 CPUADR9 CPUADR8 CPUADR7 CPUADR6 COUADR5 CPUADR4 CPUADR3 CPUADR2 CPUADR1 VSS-4 CPUADR0 NCS NWR NRD VDD-3-4 CPUDT7 CPUDT6 PTESTDRAM0 PTESTDRAM1 VDD-2 VSS-5 CPUDT5 CPUDT4 CPUDT3 VSS-6 CPUDT2 HDD15 HDD0 HDD14 VDD3-1 HDD1 HDD13 HDD2 VSS-1 HDD12 VDD-1 HDD3 HDD11 HDD4 HDD10 VDD3-2 HDD5 HDD9 VSS-2 HDD6 HDD8 HDD7 VDDH NRESET MASTER NINT0 NINT1 WAITODC NMRST DASPST VDD3-3 NC P2 UATASEL VSS-3 PVSSDRAM1 PVDDDRAM1 1 HRST D2.7V D3.3V 2 9 7 6 5 3 1 11 12 13 14 16 17 19 20 21 R101 0 10K RA101 24 23 28 27 25 26 R110 1K IPFLG P2 0.1 C109 0.1 C105 0.1 C107 0.1 C103 DVCC DVCC D3.3V D2.7V D2.7V D3.3V 37 38 40 41 42 43 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 62 63 69 68 70 72 73 74 0.1 C113 0.1 C112 D2.7V D3.3V D2.7V D3.3V D3.3V 0.1 C115 5P C124 5P C125 1M R104 X101 16.89MHz DACCLK LRCK DATA LG TRON JMPINH IDHOLD PLLOK 220 R105 CLKOUT2 0.1 C114 NRSTIN 87 89 88 92 93 94 95 96 CPDET1 82 CPDET2 81 BD0 79 TDGT 78 DTRD TEHLD C106 1000P D3.3V DVCC D2.7V D2.7V DVCC D3.3V 143 144 140 135 132 129 141 139 137 136 131 128 R111 10K 10K R112 R102 47K CLOSE MONI0 MONI1 MONI2 MONI3 SDATA SCLOCK DAT0 115 DAT1 114 DAT2 113 DAT3 112 CHCK40 111 CLDCK 110 SUBC 109 0.1 C108 0.1 C110 R524 82 23 10K 85 85 75 +B CLKOUT1 D2.7V D3.3V D2.7V D3.3V D3.3V D2.7V D3.3V DVCC D3.3V D2.7V D3.3V D3.3V D3.3V D2.7V D3.3V D2.7V D2.7V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 U V W X Y 1 2 3 4 5 6 7 BACK-END UNIT (1/5) CN1 IC1 : TC74VHCT574AFT IC2 : TC74VHC74FT IC3 : 74HCT125D,653 IC5 : AM186EM-25KC/W IC6 : 74HCT14D,653 IC7,12,13 : TVSA0453 IC8 : 74HCT175D,653 IC9 : M4A532/3210VC5 IC11 : MSM514260C60TS IC14 : MAX6316LUK46CY IC15 : ZIVA-4.1-PB0 IC16,18 : HY57V161610DTC8 IC23 : PCM1720E/2K IC42 : TC7SHU04FU IC401 : NJM2112V-TE1 D8,9 : MA111 D20 : MA8091-M IC10 C3FBLD000047 : IC17 BA033FP-E2 : IC19 LM1117DTX-ADJ : 1/2 END CN501 FRONT UNIT INVERTER u-COM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 HRST GND DO7 SDO0 DO6 SDO1 DO5 SDO2 DO4 SDO3 DO3 SDO4 DO2 SDO5 DO1 SDO6 DO0 SDO7 GND LDRRDY DIOW DIOR RXD DMA3 STVALID IOCS16 HOSTSEL DECSEL ERROR STCLK GND TXD HOSTRDY UDEEN STRMREQ +50 +50 AGND PGND PGND NC +7V +7V 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 SDATA RXD TXD UZI S6/CLKDIV2 AD15 AD7 AD14 VCC AD6 AD13 GND AD5 AD12 AD4 AD11 AD3 AD10 AD2 TM TMR TMR T MCS3/ PC PC INT1/SE INT2/ INT3/INTA A8 A7 A6 A5 A4 A3 A2 VCC A1 A0 GND WRB WLB HLDA HDLD SRDY NMI TD/R DEN MCS0 SDEN1 SDEN0 SCLK BHE/ADEN WR RD ALE ARDY S2 S1 S0 GND X1 X2 VCC CLKOUTA CLKOUTB GND A19 A18 VCC A17 A16 A15 A14 A13 A12 A11 A10 A9 TP25 TP26 TP28 TP27 TP32 TP31 TP30 TP29 TP40 TP37 TP38 TP39 TP36 TP35 TP34 TP33 TP51 TP49 TP50 TP48 TP47 TP46 TP45 TP43 TP44 TP41 TP42 TP58 TP56 TP57 TP54 TP55 TP53 TP52 R177 R178 R179 R180 R181 R182 R183 R184 R161 L50 R162 L49 R163 L48 R164 L47 R165 L46 R166 L45 R167 L44 R168 L43 R169 L61 R170 L59 R171 L79 33 220uH R173 L56 R174 L53 R175 L54 R8 33 L60 220uH R6 33 L57 220uH R176 33 L51 47K 47K 47K 47K 47K 47K 47K 47K 21 3 10 L55 R172 33 220uH 220uH 33 220uH 33 220uH 220uH 33 33 220uH 220uH 33 33 220uH 220uH 33 33 220uH 220uH 33 33 220uH 33 220uH 33 SDO0 SDO1 SDO3 SDO2 SDO6 SDO7 SDO5 SDO4 220uH R9 33 220uH 33 ID 174 8 11 6 R11 1K L24 C12 0.1 C15 0.1 C14 10 C13 0.1 R130 1K 3 1 2 4 5 VCC GND AD2 AD10 AD3 AD4 AD5 AD6 AD7 AD11 AD12 AD13 AD14 AD15 C18 0.1 73 98 R221 100 R19 33 R20 75 R22 33 R21 75 R24 33 R25 100 R27 100 R16 47K 2 3 4 WR RD 7 9 R14 75 100 R12 4.7K R15 47K 16 R29 100 C16 0.1 C20 0.1 A19 A18 A17 A16 A15 A14 A13 A12 A11 A10 A9 16P 22P TP60 TP59 X1 C1 C2 A8 A7 A6 A5 A4 A3 A2 A1 A0 R38 100 R39 100 R40 100 R41 100 R42 100 R37 1K 0 D36 0.1 C99 100 R23 100 46 44 45 R43 100 R224 TP62 33 R104 159 CP DE CP DE SDO1 SDO0 11 12 13 CP 10 9 8 11 AD0 AD1 CP DE CP DE CP S O SDO3 SDO2 14 15 16 7 6 AD2 AD3 5 GND CS R131 10K 6 33 220uH 98 73 L58 R7 CS DQ DQ 8 31 11 GND GND VCC VCC 1 14 2 3 4 5 6 7 13 12 11 10 9 8 4 6 7 5 2 3 1 9 8 10 13 12 11 14 C101 0.1 +7V +7V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V NC NC IC5 IC42 IC3 IC2 BACK-END UNIT A B LINE GND LINE SIGNAL LINE LINE SIGNAL VIDEO +B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 Z AA AB AC AD BACK-END UNIT (2/5) INVERTER RST UDE I/F BUFF SD RAM RAM CONTROLLER SW SW SW 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 47 48 49 50 AD4 AD11 AD3 AD10 AD2 AD9 AD1 AD8 AD0 DRQ0 DRQ1 TMRIN0 TMROUT0 TMROUT1 TMRIN1 RST GND MCS3/RFSH MCS2 VCC PCS0 PCS1 GND PCS2 PCS3 VCC PCS5/A1 PCS6/A2 LCS UCS INT0 INT1/SELECT INT2/INTA0 INT3/INTA1/IRQ INT4 MCS1 SRDY NMI TD/R DEN MCS0 8 9 10 11 12 13 14 VCC 7 6 5 4 3 2 1 GND 1 2 3 5 4 AD9 AD2 AD10 AD3 AD4 AD1 AD8 AD0 AD11 R37 1K R23 100 46 R43 100 52 53 C122 1000P R34 33 R33 33 R32 75 R31 33 R30 33 63 62 CS 58 57 68 L64 72 75 1000P C123 RST 77 33 R241 R26 33 5 R36 1K 1K R35 0.1 C11 0.1 C21 0.1 C130 0.1 C19 RST R58 22K C38 0.1 C132 10 33 R132 1 C39 R57 33 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 12 13 14 15 16 17 18 19 20 21 22 1 2 3 4 5 6 7 8 9 10 11 I/O4 I/O3 I/O2 I/O1 I/O0 GND VCC I/O31 I/O30 I/O29 I/O28 I/O27 I/O26 I/O25 I/O24 TD0 GND CLK1/I1 TMS I/O23 I/O22 I/O21 I/O12 I/O13 I/O14 I/O15 VCC GND I/O16 I/O17 I/O18 I/O19 I/O20 I/O5 I/O6 I/O7 TDI CLK0/I0 GND TCK I/O8 I/O9 I/O10 I/O11 1 2 3 4 5 6 7 8 MA GND VCC CP 1 2 3 4 5 6 7 8 SELECT 1A 1B 1Y 2A 2B 2Y GND 1 1 1 1 1 1 1 9 VCC ST 4A 4B 4Y 3A 3B 3Y 16 1 1A SELECT 2A 1Y 1B GND 2Y 2B 8 7 6 5 4 3 2 3A 3Y 3B 9 10 4A 4Y 4B 11 12 13 VCC ST 14 15 SELECT 1 2B 7 8 2Y GND 1B 4 5 6 1Y 2A 2 3 1A 16 3A 3B 3Y 10 9 4A 4B 4Y 13 12 11 ST VCC 15 14 C17 10 10 C252 C125 VCC PC3 CP DE CP DE CP DE DE CP SDO4 SDO3 15 SDO6 SDO5 16 17 18 AD4 6 AD3 5 4 3 AD5 AD6 CP DE SDO7 DE 19 20 2 1 AD7 11 172 16 WR CS R45 100 R51 100 R46 75 8 MA6 MA5 MA8 MA7 A6 A15 A7 A16 A17 A8 A18 A9 MA1 MA2 MA4 MA3 A13 A4 A14 A5 A2 A11 A3 A12 7 ID 100 45 A0 MA0 9 10 62 58 3 44 R253 1.5K R252 4.7K C250 18P R250 10K A1 A10 31 77 RD 46 R254 4.7K R229 33 33 R48 100 R255 4.7K R47 100 R49 100 21 4 19 30 RD RST 34 36 12 173 4 33 33 C275 10 C24 10 C25 0.1 C28 0.1 C27 0.1 R54 0.1 C32 C33 1K 0.1 1K 57 1A 1 2A 48 A16 A17 R53 R231 R230 R251 MA Q Q CP O MA CP Q Q O O O CP Q CP Q MA Q MA Q 1A 2A R55 AD0 AD1 63 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 VSS DQ16 DQ15 VSSQ DQ14 DQ13 VCCQ DQ12 DQ11 VSSQ DQ10 DQ9 VCCQ NC UDQM CLK CKE NC A9 A8 A7 A6 A5 A4 VSS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 VCC DQ1 DQ2 VSSQ DQ3 DQ4 VCCQ DQ5 DQ6 VSSQ DQ7 DQ8 VCCQ LDQM CAS WE RAS CS A11 A10 A0 A1 A2 A3 VCC MA11 MA10 MA0 MA1 MA2 MA3 MA9 MA8 MA7 MA6 MA5 MA4 M6 M4 M5 M7 M3 M0 M1 M2 M14 M15 M12 M13 M10 M11 M9 M8 CS0 RAS WE CAS 77 C9 C9 C9 C9 C9 C2 C8 C82 0.1 C81 0.1 C80 0.1 C84 0.1 C85 0.1 C79 10 C258 10 C83 0.1 C9 CLK 77 1000P +7V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V IC6 IC14 IC9 IC8 IC7 IC12 IC13 IC1 IC16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 AE AF AG AH AI BACK-END UNIT (3/5) SD RAM SW DRAM FLASH ROM 33 32 31 30 29 28 27 26 25 24 23 1 MA GND 16 15 14 13 12 11 10 9 VCC CP 1 2 3 4 5 6 7 8 SELECT 1A 1B 1Y 2A 2B 2Y GND 16 15 14 13 12 11 10 9 VCC ST 4A 4B 4Y 3A 3B 3Y 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 VCC DQ1 DQ2 DQ3 DQ4 VCC DQ5 DQ6 DQ7 DQ8 NC NC WE RAS NC A0 A1 A2 A3 VCC 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 VSS DQ16 DQ15 DQ14 DQ13 VSS DQ12 DQ11 DQ10 DQ9 NC LCAS UCAS OE A8 A7 A6 A5 A4 VSS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 A15 A14 A13 A12 A11 A10 A9 A8 NC NC WE RESET NC NC RY/BY A18 A17 A7 A6 A5 A4 A3 A2 A1 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 A16 BYTE VSS DQ15/A-1 DQ7 DQ14 DQ6 DQ13 DQ5 DQ12 DQ4 VCC DQ11 DQ3 DQ10 DQ2 DQ9 DQ1 DQ8 DQ0 OE VSS CE A0 A15 A14 A13 A12 A11 A10 A9 A1 A2 A3 A4 A5 A6 A7 A8 AD15 AD7 AD6 AD14 AD5 AD13 AD4 AD12 AD0 AD2 AD9 AD8 AD1 AD10 AD3 AD11 R70 22K R69 22K R68 22K R67 22K R66 47K R64 47K R60 47K R59 47K L65 1000P C30 C31 0.1 10 C251 C29 10 AD8 AD9 AD11 AD10 AD15 AD14 AD13 AD12 MA4 MA5 MA7 MA6 MA8 R56 1K AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 MA3 MA2 MA1 MA0 L67 L66 A1 A10 31 77 RD R254 4.7K R229 33 R48 100 R255 4.7K R47 100 R49 100 36 30 RD 19 19 30 RD 34 1000P C34 10 C37 0.1 10 1000P 1000P 4A 16 3A 17 A19 A18 MA Q Q CP O MA CP Q Q O O O CP Q CP Q MA Q MA Q 4A 3A AD3 AD2 R50 1K C35 C36 C89 C273 C22 0.1 C23 0.1 48 1 16 17 0 R52 5.6K R133 30 29 28 27 26 A7 A6 A5 A4 VSS 21 22 23 24 25 A0 A1 A2 A3 VCC MA0 MA1 MA2 MA3 MA7 MA6 MA5 MA4 C94 0.1 C90 0.1 C92 0.1 C91 0.1 C95 0.1 C257 10 C88 10 30 21 DQ13 DQ14 DQ15 DQ16 VSSQ DQ10 DQ12 DQ11 VSSQ VCCQ VCCQ UDQM 10 4 3 2 5 6 7 8 9 M0 M1 M5 M4 M2 M3 VCC 1 DQ1 DQ2 DQ4 DQ3 VSSQ DQ6 DQ5 VCCQ 18 15 13 14 16 17 19 20 11 12 CAS M6 M7 77 WE MA11 CS1 RAS MA10 CAS DQ8 DQ7 VSSQ VCCQ LDQM CS WE RAS A11 A10 41 47 VSS 50 48 49 M15 M14 44 46 45 43 42 M12 M13 M10 M11 77 CLK DQ9 40 39 36 37 NC 38 M8 M9 NC 33 CLK 34 CKE 35 A9 31 A8 32 MA9 MA8 22 24 25 23 MA3 MA1 MA2 MA0 A2 A1 A0 VCC A3 27 A5 29 A6 28 A7 26 VSS A4 MA5 MA6 MA7 MA4 220uH C93 0.1 156 155 154 153 152 151 150 149 148 147 146 145 144 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 VDD RREF RREF VSS RREF VDD VIDEO VDD DAC C/R/V VSS VIDEO VSS DAC NC VDD VIDEO VDD DAC Y/B/U VSS VIDEO RD BMR VDD 3.3 WAIT RESET VSS VDD 3.3 INT NC NC NC NC VDD 2.5 VSS NC A VSS SYSCLK VCLK A VDD DVD DATA0 DVD DATA1 DVD DATA2 DVD DATA3 DVD DATA4 VSS VDD 3.3 DVD DATA5 DVD DATA6 DVD DATA7 VDACK VREQUEST VSTROBE ERROR VDD 3.3 RESERVED VDD 3.3 VSS NC RESERVED NC HADOR0 HADOR1 HADOR2 RESERVED RESERVED RESERVED VSS VDD 2.5 RESERVED VSS VDD 3.3 RESERVED RESERVED RESERVED RESERVED HDATA7 VSS HDATA6 HDATA5 HDATA4 HDATA3 HDATA2 VDD 3.3 VSS HDATA1 HDATA0 CS SDO0 SDO1 SDO2 SDO3 SDO4 SDO5 SDO6 SDO7 A3 A2 A1 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0 L68 220uH 1K 159 ID 174 173 172 R101 4.7K R99 0.1 C59 RD CS 12 4 5 8 R139 1K 4.7K R100 4.7K C53 0.1 C54 0.1 C63 0.1 C76 0.1 C57 0.1 C58 0.1 0.1 C60 220uH L74 C42 1000P 0.1 10 10 C254 C259 10 C232 10 220uH L73 L71 L72 220uH C67 0.1 R90 1.18K C237 10 C69 0.1 C260 10 C40 C41 L69 R140 +7V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V +2.5V +2.5V +2.5V +5V +5V V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V D3.3V C128 0.1 C129 0.1 +2.5V 52 IC7 IC11 IC10 IC18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 AJ AK AL AM AN BACK-END UNIT (4/5) MPEG DECODER 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 VSS DAC NC VDD VIDEO VDD DAC Y/B/U VSS VIDEO VSS DAC NC VDD VIDEO VDD DAC CVBS/G/Y VSS VIDEO VSS DAC NC VDD VIDEO VDD DAC CVBS VSS VIDEO VSS DAC NC VSS VDD 2.5 IEC958 DA BCK DA XCK VSS VDD 3.3 DA LRCK DAI DATA0 DAI DATA1 DAI DATA2 DAI DATA3 DAI DATA VSS VDD 3.3 DAI BCK DAI LRCK RESERVED RESERVED RESERVED NC RESERVED NC NC RESERVED MADOR3 MADOR2 MADOR1 VSS VDD 3.3 MADOR0 MADOR10 MADOR11 SD CS1 SD CS0 SD RAS VSS VDD 3.3 SD CAS MWE MADOR4 VSS VDD 2.5 MADOR5 MADOR6 MADOR7 VSS VDD 3.3 MADOR8 MADOR9 CLKSEL SD CLK LDQM MDATA8 VSS VDD 3.3 MDATA9 MDATA10 MDATA11 MDATA12 MDATA13 VSS VDD 2.5 MDATA14 VSS VDD 3.3 MDATA15 MDATA7 MDATA6 MDATA5 MDATA4 MDATA3 MDATA2 VSS VDD 3.3 MDATA1 MDATA0 NC VDD 2.5 VSS NC NC NC NC VSS VDD 3.3 VDATA0 VDATA1 VDATA2 VDATA3 VDATA4 VDATA5 VDATA6 VDATA7 VSYNC RSYNC VSS VDD 3.3 NC NC NC VDD 2.5 VSS NC NC NC NC NC PIO0 VSS VDD 3.3 PIO1 PIO2 PIO3 PIO4 PIO5 PIO6 PIO7 R135 22K R77 33 R78 33 R79 33 R82 33 R84 33 R81 33 R87 33 R83 33 R85 33 R92 33 R91 33 R86 33 R95 33 R93 33 R94 33 R96 33 R97 33 R88 100 R98 100 33 R113 33 R112 33 R115 33 R116 33 33 R108 33 R110 33 R105 33 R106 33 MA3 MA2 MA1 MA11 MA10 MA0 MA7 MA6 MA5 MA4 MA8 MA9 CS1 CS0 RAS WE CAS CLK 77 M8 M9 M10 M11 M4 M5 M6 M7 M12 M14 M13 M15 M3 M2 M1 M0 R114 R111 10 10 C256 C46 0.1 C44 0.1 C48 0.1 C43 10 C45 0.1 C255 10 C47 0.1 C53 0.1 C54 0.1 R242 22K R134 33 50 5 52 10K 10P C300 C301 10P C66 0.1 C52 10 C274 10 C50 0.1 C49 0.1 10K R80 C71 0.1 122 126 127 125 C62 0.1 C56 0.1 C61 10 C64 0.1 C65 0.1 C70 0.1 C75 0.1 C126 1000P C127 1000P PD+3.3V 33 R146 0.1 0.1 0.1 0.1 C259 10 C232 10 L101 C72 C73 C74 C68 121 1 2 3 4 5 6 7 8 9 10 100 3 68 125 33 R144 270P C421 4.7K R425 2.2K R421 R420 C423 C420 10 R423 47K 10 C401 1K 52 50 5 127 C405 10 R402 0 133 C77 10 C262 10 C134 0.1 C135 10 C133 0.1 C86 10 R102 L75 220uH J458 +7V +7V +7V +7V +7V +7V D3.3V D3.3V D3. D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V +2.5V +2.5V +2.5V +2.5V +2.5V +2.5V +2.5V +2.5V +2.5V +5V +5V +5V +5V +5V +5V D3.3V D3.3V D3.3V D3.3V D3.3V D3.3V 0.1 C100 C55 0.1 C253 10 +2.5V +2.5V C51 R136 +2.5V +2.5V 133 IC15 I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 AO AP AQ AR AS 1 2 3 4 5 6 7 CAUTION : For continued safety, replace safety critical components only with manufacturer's recommended parts (refer to parts list). Indicates safety critical components. To reduce the risk of electric shock, leakage-current or resistance measurements shall be carried out (exposed parts are acceptably insulated from the supply circuit) before the appliance is returned to the customer. • DC voltages are as measured with a high impedance voltmeter. Values may vary slightly due to variations between individual instruments or/and units. ! DTA114TK UN5214 TC7SHU04FU TC7SET08FU BACK-END UNIT (5/5) CN4 CN5 D9 D8 D20 CN700 UNIT MAIN CN703 MAIN UNIT 2.5V AVR 3.3V AVR OUT BUFF DAC to to 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 +7V V MUTE Y/G PB/B/Y RR/R/C COMP2 VGND VDD5A AUDIO +7V GND IEC958 DV MUTE L OUT2 AGND R OUT2 +5V GND +5V GND D MUTE +5V +5V 1 2 3 4 5 6 7 8 RDY FM ATN FM SCK D FM D HOST GND GND HOST RST 20 19 18 17 16 15 14 13 12 11 DGND VDD RESERVED TEST LPCIN DIN BCIN CAP VOUTL VCC 1 2 3 4 5 6 7 8 9 10 NC SCK1 RESERVED ML MC MD RSTB ZERO VOUTR AGND 270P C219 75 R226 330P C220 L94 1.5uH C221 22P NTSC/PAL R154 33 R155 33 R157 33 R156 33 R158 33 R159 33 TP18 TP19 TP21 TP20 TP22 TP23 TP24 72 53 2 75 RST 100 3 68 125 R145 33 R143 33 R127 126 121 122 33 R144 L80 0 R123 0 220 10 C115 C114 0.1 0.1 C113 1 2 3 4 5 6 7 V+ 14 13 12 11 10 9 8 V- C410 10 1K 2.2K R411 820P C413 4.99K R412 270P C421 560P C412 1.5K R414 4.7K R415 R410 1.5K R424 4.7K R425 4.99K R422 2.2K R421 R420 820P C423 C420 10 560P C422 C411 270P R413 47K R423 47K 10 C414 33K R416 10 C401 1K 52 TP1 TP2 TP3 TP4 TP14 TP6 TP7 TP8 TP9 TP17 TP10 TP61 TP11 TP12 TP13 TP15 TP16 5 127 330 R417 1000P C415 10 C424 R426 33K 330 R427 1000P C425 J454 J455 R142 33 J451 C404 0.1 C405 10 R400 R402 100K 0 100K 10 C400 R401 133 L23 L21 IN OUT COM C77 10 C262 10 C134 0.1 C4 10 C7 0.1 C263 10 C264 10 C267 10 C266 10 C265 10 C135 10 C133 0.1 C86 10 OUT IN COM C272 10 C269 10 C268 10 C5 10 C261 10 C8 0.1 C270 10 L22 C271 10 R152 68 1/2W R153 68 1/2W 270 R103 270 R102 4.7 1/2W R147 R148 4.7 1/2W 4.7 1/2W R141 L6 0 L11 0 L13 0 +7V +7V D3.3V D3.3V +5V +5V +5V +5V +5V +5V +5V +5V 0.1 C124 .1 100 MUTE TP5 0 0 0 IC23 IC401 IC17 IC19 D40-1158-05 (2/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 EXPLODED VIEW (MECHANISM) Parts with the exploded numbers larger than 700 are not supplied. A B 1 2 3 Bottom View Top View B B 60 58 62 61 59 47 16 14 15 VFC1 65 68 69 1 70 2 (805) VPU1 13 10 10 12 9 8 8 53 54 54 46 45 VFPC1 6 38 D D 30 57 11 805 VM1 55 35 56 44 31 37 66 67 50 63 40 36 26 25 43 64 41 24 34 27 28 29 42 23 20 22 39 21 51 VM2 N N N N A K H H L L C F E Gx2 J M BACK END FRONT END 27 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 28 C251-274 ✽ C93-1235-08 CHIP C 10UF Z C275 ✽ C93-1235-08 CHIP C 10UF Z C300,301 CC73GCH1H100D CHIP C 10PF D C400,401 ✽ C93-1235-08 CHIP C 10UF Z C404 CK73GB1C104K CHIP C 0.10UF K C405 ✽ C93-1235-08 CHIP C 10UF Z C410 ✽ C93-1235-08 CHIP C 10UF Z C411 CC73GCH1H271J CHIP C 270PF J C412 CC73GCH1H561J CHIP C 560PF J C413 CC73GCH1H821J CHIP C 820PF J C414 ✽ C93-1235-08 CHIP C 10UF Z C415 CK73GB1H102K CHIP C 1000PF K C420 ✽ C93-1235-08 CHIP C 10UF Z C421 CC73GCH1H271J CHIP C 270PF J C422 CC73GCH1H561J CHIP C 560PF J C423 CC73GCH1H821J CHIP C 820PF J C424 ✽ C93-1235-08 CHIP C 10UF Z C425 CK73GB1H102K CHIP C 1000PF K CN1 ✽ E41-0327-08 FLAT CABLE CONNECTOR CN4 ✽ E41-0326-08 FLAT CABLE CONNECTOR CN5 ✽ E41-0325-08 FLAT CABLE CONNECTOR FG11 ✽ E23-0758-05 TERMINAL J454,455 ✽ L33-1880-08 SMALL FIXED INDUCTOR L21-24 ✽ L33-1885-08 SMALL FIXED INDUCTOR L25,26 ✽ L33-1882-08 SMALL FIXED INDUCTOR L36 ✽ L33-1883-08 SMALL FIXED INDUCTOR L43-51 ✽ L33-1884-08 SMALL FIXED INDUCTOR L53-61 ✽ L33-1884-08 SMALL FIXED INDUCTOR L64-67 ✽ L33-1885-08 SMALL FIXED INDUCTOR L68,69 ✽ L33-1884-08 SMALL FIXED INDUCTOR L71 ✽ L33-1885-08 SMALL FIXED INDUCTOR L72-75 ✽ L33-1884-08 SMALL FIXED INDUCTOR L79 ✽ L33-1884-08 SMALL FIXED INDUCTOR L94 ✽ L33-1881-08 SMALL FIXED INDUCTOR X1 ✽ L77-2827-08 CRYSTAL RESONATOR D7 R92-1252-05 CHIP R 0 OHM J 1/16W D12 R92-1252-05 CHIP R 0 OHM J 1/16W D14 R92-1252-05 CHIP R 0 OHM J 1/16W D36 R92-2052-05 CHIP R 0 OHM J 1/10W D101 R92-2052-05 CHIP R 0 OHM J 1/10W J123 R92-1252-05 CHIP R 0 OHM J 1/16W J402 R92-1252-05 CHIP R 0 OHM J 1/16W J451,452 R92-1252-05 CHIP R 0 OHM J 1/16W J457,458 R92-1252-05 CHIP R 0 OHM J 1/16W JAC1 R92-1252-05 CHIP R 0 OHM J 1/16W L6 R92-1252-05 CHIP R 0 OHM J 1/16W L11 R92-1252-05 CHIP R 0 OHM J 1/16W L13 R92-1252-05 CHIP R 0 OHM J 1/16W L80 R92-1252-05 CHIP R 0 OHM J 1/16W L450 R92-2053-05 CHIP R 0 J 1/8W L451 R92-1252-05 CHIP R 0 OHM J 1/16W R2 ✽ R92-3367-08 CHIP R 1.0K D 1/16W R6-9 RK73GB1J330J CHIP R 33 J 1/16W R11 RK73GB1J102J CHIP R 1.0K J 1/16W PARTS LIST Dest inati on ∗New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No. A d d N e w Parts No. Description Dest inati on C1 ✽ C93-1237-08 CHIP C 16PF J C2 CC73GCH1H220J CHIP C 22PF J C3 CC73GCH1H100D CHIP C 10PF D C4,5 ✽ C93-1235-08 CHIP C 10UF Z C6 CC73GCH1H050C CHIP C 5.0PF C C7,8 CK73GB1C104K CHIP C 0.10UF K C11-13 CK73GB1C104K CHIP C 0.10UF K C14 ✽ C93-1235-08 CHIP C 10UF Z C15,16 CK73GB1C104K CHIP C 0.10UF K C17 ✽ C93-1235-08 CHIP C 10UF Z C18 -23 CK73GB1C104K CHIP C 0.10UF K C24 ✽ C93-1235-08 CHIP C 10UF Z C25 CK73GB1C104K CHIP C 0.10UF K C27,28 CK73GB1C104K CHIP C 0.10UF K C29 ✽ C93-1235-08 CHIP C 10UF Z C30 CK73GB1H102K CHIP C 1000PF K C31-33 CK73GB1C104K CHIP C 0.10UF K C34 ✽ C93-1235-08 CHIP C 10UF Z C35,36 CK73GB1H102K CHIP C 1000PF K C37,38 CK73GB1C104K CHIP C 0.10UF K C39 CK73GB0J105K CHIP C 1.0UF K C40 ✽ C93-1235-08 CHIP C 10UF Z C41 CK73GB1C104K CHIP C 0.10UF K C42 CK73GB1H102K CHIP C 1000PF K C43 ✽ C93-1235-08 CHIP C 10UF Z C44-50 CK73GB1C104K CHIP C 0.10UF K C51,52 ✽ C93-1235-08 CHIP C 10UF Z C53-60 CK73GB1C104K CHIP C 0.10UF K C61 ✽ C93-1235-08 CHIP C 10UF Z C62-76 CK73GB1C104K CHIP C 0.10UF K C77 ✽ C93-1235-08 CHIP C 10UF Z C79 ✽ C93-1235-08 CHIP C 10UF Z C80-85 CK73GB1C104K CHIP C 0.10UF K C86 ✽ C93-1235-08 CHIP C 10UF Z C88 ✽ C93-1235-08 CHIP C 10UF Z C89 CK73GB1H102K CHIP C 1000PF K C90-95 CK73GB1C104K CHIP C 0.10UF K C99-101 CK73GB1C104K CHIP C 0.10UF K C113,114 CK73GB1C104K CHIP C 0.10UF K C115 ✽ C93-1235-08 CHIP C 10UF Z C122,123 CK73GB1H102K CHIP C 1000PF K C124 CK73GB1C104K CHIP C 0.10UF K C125-127 CK73GB1H102K CHIP C 1000PF K C128-130 CK73GB1C104K CHIP C 0.10UF K C132 ✽ C93-1235-08 CHIP C 10UF Z C133,134 CK73GB1C104K CHIP C 0.10UF K C135 ✽ C93-1235-08 CHIP C 10UF Z C219 CC73GCH1H271J CHIP C 270PF J C220 CC73GCH1H331J CHIP C 330PF J C221 CC73GCH1H220J CHIP C 22PF J C232 ✽ C93-1235-08 CHIP C 10UF Z C237 ✽ C93-1235-08 CHIP C 10UF Z C250 ✽ C93-1238-08 CHIP C 18PF J Ref. No. A d d N e w Parts No. Description indicates safety critical components. ! BACK END UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 29 PARTS LIST Dest inati on ∗New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No. A d d N e w Parts No. Description Dest inati on R12 RK73GB1J472J CHIP R 4.7K J 1/16W R14 RK73GB1J750J CHIP R 75 J 1/16W R15,16 RK73GB1J473J CHIP R 47K J 1/16W R19 RK73GB1J330J CHIP R 33 J 1/16W R20,21 RK73GB1J750J CHIP R 75 J 1/16W R22 RK73GB1J330J CHIP R 33 J 1/16W R23 RK73GB1J101J CHIP R 100 J 1/16W R24 RK73GB1J330J CHIP R 33 J 1/16W R25 RK73GB1J101J CHIP R 100 J 1/16W R26 RK73GB1J330J CHIP R 33 J 1/16W R27 RK73GB1J101J CHIP R 100 J 1/16W R29 RK73GB1J101J CHIP R 100 J 1/16W R30,31 RK73GB1J330J CHIP R 33 J 1/16W R32 RK73GB1J750J CHIP R 75 J 1/16W R33,34 RK73GB1J330J CHIP R 33 J 1/16W R35-37 RK73GB1J102J CHIP R 1.0K J 1/16W R38-43 RK73GB1J101J CHIP R 100 J 1/16W R45 RK73GB1J101J CHIP R 100 J 1/16W R46 RK73GB1J750J CHIP R 75 J 1/16W R47-49 RK73GB1J101J CHIP R 100 J 1/16W R50 RK73GB1J102J CHIP R 1.0K J 1/16W R51 RK73GB1J101J CHIP R 100 J 1/16W R53 RK73GB1J330J CHIP R 33 J 1/16W R54-56 RK73GB1J102J CHIP R 1.0K J 1/16W R57 RK73GB1J330J CHIP R 33 J 1/16W R58 RK73GB1J223J CHIP R 22K J 1/16W R59,60 RK73GB1J473J CHIP R 47K J 1/16W R64 RK73GB1J473J CHIP R 47K J 1/16W R66 RK73GB1J473J CHIP R 47K J 1/16W R67-70 RK73GB1J223J CHIP R 22K J 1/16W R77-79 RK73GB1J330J CHIP R 33 J 1/16W R80 RK73GB1J103J CHIP R 10K J 1/16W R81-87 RK73GB1J330J CHIP R 33 J 1/16W R88 RK73GB1J101J CHIP R 100 J 1/16W R90 ✽ R92-3371-08 CHIP R 1.18K F 1/16W R91-97 RK73GB1J330J CHIP R 33 J 1/16W R98 RK73GB1J101J CHIP R 100 J 1/16W R99 RK73GB1J102J CHIP R 1.0K J 1/16W R100,101 RK73GB1J472J CHIP R 4.7K J 1/16W R102,103 ✽ R92-3373-08 CHIP R 270K F 1/16W R105,106 RK73GB1J330J CHIP R 33 J 1/16W R107 RK73GB1J561J CHIP R 560 J 1/16W R108 RK73GB1J330J CHIP R 33 J 1/16W R110 RK73GB1J330J CHIP R 33 J 1/16W R111 ✽ R90-1517-08 MULTI-COMP 33 X4 R112,113 RK73GB1J330J CHIP R 33 J 1/16W R114 ✽ R90-1517-08 MULTI-COMP 33 X4 R115 RK73GB1J330J CHIP R 33 J 1/16W R116 RK73FB2A330J CHIP R 33 J 1/10W R127 RK73GB1J221J CHIP R 220 J 1/16W R130 RK73GB1J102J CHIP R 1.0K J 1/16W R131 RK73GB1J103J CHIP R 10K J 1/16W R132 RK73GB1J330J CHIP R 33 J 1/16W R133 RK73GB1J562J CHIP R 5.6K J 1/16W R134,135 RK73GB1J223J CHIP R 22K J 1/16W Ref. No. A d d N e w Parts No. Description R136 RK73GB1J103J CHIP R 10K J 1/16W R139 RK73GB1J102J CHIP R 1.0K J 1/16W R140 RK73GB1J472J CHIP R 4.7K J 1/16W R141 ✽ R92-3368-08 CHIP R 4.7 J 1/2W R142-146 RK73GB1J330J CHIP R 33 J 1/16W R147,148 ✽ R92-3368-08 CHIP R 4.7 J 1/2W R152,153 ✽ R92-3369-08 CHIP R 68 J 1/2W R154-159 RK73GB1J330J CHIP R 33 J 1/16W R161-176 RK73GB1J330J CHIP R 33 J 1/16W R177-184 RK73GB1J473J CHIP R 47K J 1/16W R221 RK73GB1J101J CHIP R 100 J 1/16W R224 RK73GB1J101J CHIP R 100 J 1/16W R226 ✽ R92-3375-08 CHIP R 75K F 1/16W R229,230 RK73GB1J330J CHIP R 33 J 1/16W R231 RK73GB1J101J CHIP R 100 J 1/16W R241,242 RK73GB1J330J CHIP R 33 J 1/16W R250 RK73GB1J103J CHIP R 10K J 1/16W R251 RK73GB1J330J CHIP R 33 J 1/16W R252 RK73GB1J472J CHIP R 4.7K J 1/16W R253 RK73GB1J152J CHIP R 1.5K J 1/16W R254,255 RK73GB1J472J CHIP R 4.7K J 1/16W R400,401 R92-2153-05 METAL GLAZE 100K F R410 ✽ R92-3370-08 CHIP R 1K F 1/16W R411 ✽ R92-3372-08 CHIP R 2.2K F 1/16W R412 ✽ R92-3374-08 CHIP R 4.99K F 1/16W R413 RK73GB1J473J CHIP R 47K J 1/16W R414 ✽ R92-2150-05 CHIP R 1.5K F 1/16W R415 R92-2164-05 CHIP R 4.7K F 1/16W R416 RK73GB1J333J CHIP R 33K J 1/16W R417 RK73GB1J331J CHIP R 330 J 1/16W R420 ✽ R92-3370-08 CHIP R 1K F 1/16W R421 ✽ R92-3372-08 CHIP R 2.2K F 1/16W R422 ✽ R92-3374-08 CHIP R 4.99K F 1/16W R423 RK73GB1J473J CHIP R 47K J 1/16W R424 ✽ R92-2150-05 CHIP R 1.5K F 1/16W R425 R92-2164-05 CHIP R 4.7K F 1/16W R426 RK73GB1J333J CHIP R 33K J 1/16W R427 RK73GB1J331J CHIP R 330 J 1/16W D8,9 MA111 DIODE D20 MA8091-M ZENER DIODE IC1 ✽ TC74VHCT574AFT MOS-IC IC2 TC74VHC74FT MOS-IC IC3 ✽ 74HCT125D,653 MOS-IC IC5 ✽ AM186EM-25KC/W MOS-IC IC6 ✽ 74HCT14D,653 MOS-IC IC7 ✽ TVSA0453 MOS-IC IC8 ✽ 74HCT175D,653 MOS-IC IC9 ✽ M4A532/3210VC5 MOS-IC IC10 ✽ C3FBLD000047 MEMORY IC IC11 ✽ MSM514260C60TS MOS-IC IC12,13 ✽ TVSA0453 MOS-IC IC14 ✽ MAX6316LUK46CY MOS-IC IC15 ✽ ZIVA-4.1-PB0 MOS-IC IC16 ✽ HY57V161610DTC8 IC indicates safety critical components. ! BACK END UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 30 PARTS LIST Dest inati on ∗New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No. A d d N e w Parts No. Description Dest inati on IC17 ✽ BA033FP-E2 ANALOGUE IC IC18 ✽ HY57V161610DTC8 IC IC19 ✽ LM1117DTX-ADJ ANALOGUE IC IC23 ✽ PCM1720E/2K MOS-IC IC42 TC7SHU04FU ANALOGUE IC IC401 ✽ NJM2112V-TE1 ANALOGUE IC C101 ✽ C92-1747-08 ELECTRO 120UF 4WV C102-105 CK73GB1C104K CHIP C 0.10UF K C106 CK73GB1H102K CHIP C 1000PF K C107-110 CK73GB1C104K CHIP C 0.10UF K C112-115 CK73GB1C104K CHIP C 0.10UF K C118-121 CK73GB1C104K CHIP C 0.10UF K C122 ✽ C92-1745-08 ELECTRO 56UF 4WV C123 CK73GB1C104K CHIP C 0.10UF K C124,125 CC73GCH1H050C CHIP C 5.0PF C C201-204 CK73GB1C104K CHIP C 0.10UF K C401 CK73GB1H562K CHIP C 5600PF K C402 CK73GB1H102K CHIP C 1000PF K C403 CC73GCH1H471J CHIP C 470PF J C404 CK73GB1E473K CHIP C 0.047UF K C406 CC73GCH1H331J CHIP C 330PF J C407 CC73GCH1H561J CHIP C 560PF J C408 CC73GCH1H471J CHIP C 470PF J C409 CC73GCH1H101J CHIP C 100PF J C410,411 CK73GB1H102K CHIP C 1000PF K C412 CC73GCH1H391J CHIP C 390PF J C413 CK73GB1H102K CHIP C 1000PF K C414 CK73GB1H472K CHIP C 4700PF K C416 CK73GB1C104K CHIP C 0.10UF K C421 CK73GB1H103K CHIP C 0.010UF K C422 CK73GB1C104K CHIP C 0.10UF K C424,425 CK73GB1C104K CHIP C 0.10UF K C426 ✽ C92-1751-08 ELECTRO 47UF 6.3WV C427 CK73GB1C104K CHIP C 0.10UF K C430-433 CK73GB1C104K CHIP C 0.10UF K C434 CK73GB1H103K CHIP C 0.010UF K C435-440 CK73GB1C104K CHIP C 0.10UF K C441 CK73GB1H103K CHIP C 0.010UF K C442 CK73FB1E154K CHIP C 0.15UF K C443 ✽ C92-1748-08 ELECTRO 100UF 4WV C501 ✽ C92-1749-08 ELECTRO 100UF 6.3WV C502 ✽ C92-1752-08 ELECTRO 47UF 16WV C503,504 CK73GB1C104K CHIP C 0.10UF K C505 ✽ C92-1749-08 ELECTRO 100UF 6.3WV C506,507 CK73GB1C104K CHIP C 0.10UF K C508 ✽ C92-1748-08 ELECTRO 100UF 4WV C601-605 CK73GB1C104K CHIP C 0.10UF K C606,607 CK73GB1H103K CHIP C 0.010UF K C608 CC73GCH1H391J CHIP C 390PF J C609,610 CK73GB1H102K CHIP C 1000PF K C611 CK73GB1C104K CHIP C 0.10UF K C612 CC73GCH1H391J CHIP C 390PF J C613 CC73GCH1H181J CHIP C 180PF J Ref. No. A d d N e w Parts No. Description C614 CK73GB1H103K CHIP C 0.010UF K C701,702 CK73GB1C104K CHIP C 0.10UF K C705 CK73GB1C104K CHIP C 0.10UF K C707,708 CK73GB1C104K CHIP C 0.10UF K C709 ✽ C92-1750-08 ELECTRO 22UF 6.3WV C711 ✽ C93-1239-08 CHIP C 1.0UF K C712 CC73GCH1H561J CHIP C 560PF J C713 ✽ C92-1747-08 ELECTRO 120UF 4WV C714 CK73FB1E154K CHIP C 0.15UF K C715 ✽ C92-1746-08 ELECTRO 47UF 6.3WV C716 CK73GB1C104K CHIP C 0.10UF K C717 CC73GCH1H221J CHIP C 220PF J C718 CC73GCH1H220J CHIP C 22PF J C719 CC73GCH1H560J CHIP C 56PF J C720,721 CK73GB1C104K CHIP C 0.10UF K C722 CK73GB1E333K CHIP C 0.033UF K C726 CK73GB1E473K CHIP C 0.047UF K C727 ✽ C93-1240-08 CHIP C 0.027UF K C728-730 CK73GB1C104K CHIP C 0.10UF K C731 ✽ C92-1751-08 ELECTRO 47UF 6.3WV C732,733 CC73GCH1H561J CHIP C 560PF J C734 CK73GB1C104K CHIP C 0.10UF K C735 CC73GCH1H120J CHIP C 12PF J C736 CK73GB1C104K CHIP C 0.10UF K C739 CK73GB1C104K CHIP C 0.10UF K C740 ✽ C92-1753-08 ELECTRO 2.2UF 16WV CN201 ✽ E41-0330-08 FLAT CABLE CONNECTOR CN501 ✽ E41-0328-08 FLAT CABLE CONNECTOR CN601 ✽ E41-0332-08 FLAT CABLE CONNECTOR CN602 ✽ E41-0329-08 PIN ASSY CN701 ✽ E41-0331-08 FLAT CABLE CONNECTOR L102 ✽ L33-1886-08 SMALL FIXED INDUCTOR L501,502 ✽ L33-1886-08 SMALL FIXED INDUCTOR L703 ✽ L33-1887-08 SMALL FIXED INDUCTOR X101 ✽ L77-2828-08 CRYSTAL RESONATOR R101 R92-1252-05 CHIP R 0 OHM J 1/16W R102 RK73GB1J473J CHIP R 47K J 1/16W R104 RK73GB1J105J CHIP R 1.0M J 1/16W R105 RK73GB1J221J CHIP R 220 J 1/16W R108,109 ✽ R92-3377-08 CHIP R 4.7K G 1/16W R110 ✽ R92-3376-08 CHIP R 1.0K G 1/16W R111,112 RK73GB1J103J CHIP R 10K J 1/16W R201,202 RK73GB1J103J CHIP R 10K J 1/16W R204 RK73GB1J562J CHIP R 5.6K J 1/16W R205,206 ✽ R92-3377-08 CHIP R 4.7K G 1/16W R207,208 RK73GB1J473J CHIP R 47K J 1/16W R209,210 RK73GB1J103J CHIP R 10K J 1/16W R211,212 ✽ R92-3379-08 CHIP R 150 G 1/16W R213 RK73GB1J330J CHIP R 33 J 1/16W R214 RK73GB1J103J CHIP R 10K J 1/16W R401 RK73GB1J123J CHIP R 12K J 1/16W R402 RK73GB1J105J CHIP R 1.0M J 1/16W R403 RK73GB1J153J CHIP R 15K J 1/16W R406 RK73GB1J473J CHIP R 47K J 1/16W indicates safety critical components. ! BACK END UNIT FRONT END UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 31 PARTS LIST Dest inati on ∗New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No. A d d N e w Parts No. Description Dest inati on R408 RK73GB1J562J CHIP R 5.6K J 1/16W R409,410 RK73GB1J273J CHIP R 27K J 1/16W R413 RK73GB1J123J CHIP R 12K J 1/16W R417 RK73GB1J100J CHIP R 10 J 1/16W R418 RK73GB1J123J CHIP R 12K J 1/16W R419 R92-1252-05 CHIP R 0 OHM J 1/16W R420-422 ✽ R92-3377-08 CHIP R 4.7K G 1/16W R423 ✽ R92-3376-08 CHIP R 1.0K G 1/16W R424,425 RK73GB1J273J CHIP R 27K J 1/16W R426 RK73GB1J183J CHIP R 18K J 1/16W R427 RK73GB1J273J CHIP R 27K J 1/16W R428 RK73GB1J184J CHIP R 180K J 1/16W R429 RK73GB1J104J CHIP R 100K J 1/16W R430-433 RK73GB1J473J CHIP R 47K J 1/16W R434 R92-1252-05 CHIP R 0 OHM J 1/16W R502,503 RK73GB1J103J CHIP R 10K J 1/16W R507,508 RK73GB1J103J CHIP R 10K J 1/16W R509-511 RK73GB1J330J CHIP R 33 J 1/16W R512-515 RK73GB1J820J CHIP R 82 J 1/16W R516 RK73GB1J151J CHIP R 150 J 1/16W R517-519 RK73GB1J820J CHIP R 82 J 1/16W R520,521 RK73GB1J103J CHIP R 10K J 1/16W R524 RK73GB1J820J CHIP R 82 J 1/16W R525,526 RK73GB1J330J CHIP R 33 J 1/16W R527 RK73GB1J820J CHIP R 82 J 1/16W R528 RK73GB1J101J CHIP R 100 J 1/16W R529,530 RK73GB1J221J CHIP R 220 J 1/16W R531 RK73GB1J103J CHIP R 10K J 1/16W R532,533 R92-1252-05 CHIP R 0 OHM J 1/16W R601 RK73GB1J331J CHIP R 330 J 1/16W R602,603 RK73GB1J2R2J CHIP R 2.2 J 1/16W R604,605 ✽ R92-3380-08 CHIP R 1.0 J 1/16W R606,607 RK73GB1J103J CHIP R 10K J 1/16W R608,609 RK73GB1J223J CHIP R 22K J 1/16W R610,611 RK73GB1J153J CHIP R 15K J 1/16W R612 RK73GB1J103J CHIP R 10K J 1/16W R613,614 ✽ R92-3380-08 CHIP R 1.0 J 1/16W R615 ✽ R92-3377-08 CHIP R 4.7K G 1/16W R705 RK73GB1J100J CHIP R 10 J 1/16W R706 ✽ R92-3378-08 CHIP R 3.9 J 1/16W R707,708 RK73GB1J100J CHIP R 10 J 1/16W R709 RK73GB1J183J CHIP R 18K J 1/16W R710,711 RK73GB1J273J CHIP R 27K J 1/16W R712 RK73GB1J473J CHIP R 47K J 1/16W R713 RK73GB1J392J CHIP R 3.9K J 1/16W R714 RK73GB1J223J CHIP R 22K J 1/16W R715 RK73GB1J393J CHIP R 39K J 1/16W R716 RK73GB1J123J CHIP R 12K J 1/16W R717 RK73GB1J223J CHIP R 22K J 1/16W R718,719 RK73GB1J105J CHIP R 1.0M J 1/16W R720 RK73GB1J222J CHIP R 2.2K J 1/16W RA101 R90-0714-05 MULTI-COMP 10K X4 RA201 R90-0748-05 MULTI-COMP 47K X4 RA202 R90-0722-05 MULTI-COMP 2.2K X4 RA401 ✽ R90-1518-08 MULTI-COMP 220 X4 Ref. No. A d d N e w Parts No. Description RA403 ✽ R90-1518-08 MULTI-COMP 220 X4 RA501-504 ✽ R90-1519-08 MULTI-COMP 33 X4 RA505 R90-1018-05 MULTI-COMP 82 X4 RA506 R90-0714-05 MULTI-COMP 10K X4 S201,202 ✽ S68-0873-08 PUSH SWITCH D201-204 ✽ DNP1111R-2-TR PHOTO DIODE IC101 ✽ MN103S13BDA MOS-IC IC102 ✽ L4931CD27 ANALOGUE IC IC103 ✽ MM1482BFBE ANALOGUE IC IC201 ✽ MN102LF25ZCA MI-COM IC IC202 ✽ BR93LC46FW MOS-IC IC203 TC7SET08FU MOS-IC IC401 ✽ MN67706ZY MOS-IC IC501 ✽ HD74ACT244TE MOS-IC IC601 ✽ BA5954AFP-E2 ANALOGUE IC IC602 ✽ BA6679FM-E2 ANALOGUE IC IC701 ✽ AN8702NFH ANALOGUE IC Q11 -14 ✽ PS1191R-1-TR PHOTO TRANSISTOR Q201 UN211F DIGITAL TRANSISTOR Q501 UN5214 DIGITAL TRANSISTOR Q701 DTA114TK DIGITAL TRANSISTOR Q702 ✽ 2SB7100RL TRANSISTOR 1 3B G02-1417-08 FLAT SPRING ASSY 2 3B D19-0643-08 LEAD SCREW 6 2A D14-0767-08 ROLLER ASSY 8 1B G01-3103-08 COMPRESSION SPRING 9 1B G01-3104-08 COMPRESSION SPRING 10 1B G01-3105-08 EXTENSION SPRING 11 2A G01-3106-08 TORSION COIL SPRING 12 1B D39-0252-08 DAMPER 13 1B D39-0253-08 DAMPER 14 1B D39-0257-08 DAMPER 15 1B A13-2011-08 FRAME 16 1B A13-2012-08 FRAME 20 3A D13-2203-08 GEAR 21 2A D13-2204-08 GEAR 22 3A D13-2205-08 GEAR 23 3A D13-2206-08 GEAR 24 2A D13-2207-08 GEAR 25 2A D13-2208-08 GEAR 26 2A D13-2209-08 GEAR 27 3A D13-2210-08 GEAR 28 3A D13-2211-08 GEAR 29 3A D13-2212-08 GEAR 30 2A D13-2213-08 GEAR 31 2A D12-0634-08 CAM 34 2A D32-0643-08 LOCK PLATE 35 2B G01-3107-08 TORSION COIL SPRING 36 3A G01-3108-08 TORSION COIL SPRING 37 2A G01-3109-08 TORSION COIL SPRING 38 2A G01-3110-08 EXTENSION SPRING 39 3A J21-9778-08 MOUNTING HARDWARE indicates safety critical components. ! FRONT END UNIT DVD MECHANISM ASSY (D40-1158-05) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 PARTS LIST Dest inati on ∗New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No. A d d N e w Parts No. Description Dest inati on 40 3A D10-4623-08 LEVER 41 3A D10-4624-08 LEVER 42 3A D10-4625-08 LEVER 43 3A D10-4626-08 LEVER 44 2A D10-4627-08 ARM 45 2A D10-4628-08 ARM 46 1A D10-4629-08 ARM 47 1A F09-1706-08 SHEET 50 3A J19-5105-08 HOLDER 51 2B E39-0427-08 WIRING HARNESS 53 1A J90-1029-08 GUIDE 54 1A D10-4630-08 LEVER 55 2B D13-2214-08 RACK (GEAR) 56 2B G01-3111-08 EXTENSION SPRING 57 2B D10-4631-08 SLIDER 58 1A D10-4632-08 ARM 59 1B D10-4633-08 ARM 60 1A G11-1975-08 CUSHION 61 1A J11-0644-08 CLAMPER 62 1A G02-1418-08 FLAT SPRING 63 3A D10-4692-08 LEVER 64 3A G01-3143-08 TORSION COIL SPRING 65 3B J21-9898-08 MOUNTING HARDWARE 66 3B G02-1442-08 FLAT SPRING 67 3A J19-5162-08 HOLDER Ref. No. A d d N e w Parts No. Description 68 3B J21-9899-08 MOUNTING HARDWARE 69 3B G02-1443-08 FLAT SPRING 70 3B D21-2411-08 SHAFT VFC1 2B E39-0473-08 FLAT CABLE VFPC1 2A J84-0137-08 FLEXIBLE PRINTED WIRING BOARD A 2B N09-4484-08 MACHINE SCREW B 1B N09-6045-08 MACHINE SCREW C 3B N09-6046-08 MACHINE SCREW D 2A N09-4485-08 MACHINE SCREW E 2A N09-4486-08 TAPTITE SCREW F 2B N09-4487-08 TAPTITE SCREW G 3A N09-6040-08 MACHINE SCREW H 3B N09-6041-08 ADJUSTABLE SCREW J 3B N09-6042-08 SET SCREW K 3B N09-6043-08 MACHINE SCREW L 3B N09-6044-08 TAPTITE SCREW M 2B N09-6047-08 TAPTITE SCREW N 2B N09-6048-08 STEPPED SCREW VM1 1A T42-1064-08 MOTOR ASSY (SP) VM2 3B T42-1052-08 MOTOR ASSY (DR) VPU1 3B T25-0226-08 OPTICAL PICKUP HEAD indicates safety critical components. ! DVD MECHANISM ASSY (D40-1158-05) KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice. KENWOOD CORPORATION 14-6, Dogenzaka 1-chome, Shibuya-ku, Tokyo 150-8501 Japan KENWOOD SERVICE CORPORATION P.O. BOX 22745, 2201 East Dominguez Street, Long Beach, CA90801-5745, U.S.A. KENWOOD ELECTRONICS CANADA INC. 6070 Kestrel Road, Mississauga, Ontario, Canada L5T 1S8 KENWOOD ELECTRONICS LATIN AMERICA S.A. P.O. Box 55-2791 Paitilla, Plaza Credicorp Bank Panama, Piso 9, Oficina 901, Calle 50, Panama, Rep. de Panama KENWOOD ELECTRONICS BRASIL LTDA. Alameda Ministro Rocha Azevedo No. 456, Edificio Jaú, 10o Andar, Cerqueira César, Cep 0140-001, São Paulo-SP-Brasil KENWOOD ELECTRONICS UK LIMITED Kenwood House, Dwight Road, Watford, Herts, WD1 8EB, United Kingdom KENWOOD ELECTRONICS DEUTSCHLAND GMBH Rembrücker-Str. 15, 63150 Heusenstamm, Germany KENWOOD ELECTRONICS FRANCE S.A. 13, Boulevard Ney, 75018 Paris, France KENWOOD ELECTRONICS BELGIUM N.V. Leuvensesteenweg 248 J, 1800 Vilvoorde, Belgium KENWOOD ELECTRONICS ITALIA S.p.A. Via G. Sirtori 7/9, 20129 Milano, Italy KENWOOD IBÉRICA S.A. Bolivia, 239-08020 Barcelona, Spain KENWOOD ELECTRONICS AUSTRALIA PTY. LTD. (A.C.N. 001 499 074) 16 Giffnock Avenue, Centrecourt Estate, North Ryde, N.S.W. 2113, Australia KENWOOD ELECTRONICS (HONG KONG) LTD. Unit 3712-3724, Level 37, Tower 1, Metroplaza, 223 Hing Fong Road, Kwai Fong, N.T., Hong Kong KENWOOD ELECTRONICS GULF FZE P.O. Box 61318, Jebel Ali, Dubai, U.A.E. KENWOOD ELECTRONICS (THAILAND) CO., LTD. 2019 New Pechburi Road, Bangkapi, Huaykwang, Bangkok, 10320 Thailand KENWOOD ELECTRONICS SINGAPORE PTE. LTD. 1 Genting Lane, #07-00, Kenwood Building, Singapore, 349544 KENWOOD ELECTRONICS (MALAYSIA) SDN BHD #4.01 Level 4, Wisma Academy Lot 4A, Jalan 19/1, 46300 Petaling Jaya, Selangor Darul Ehsan, Malaysia www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
