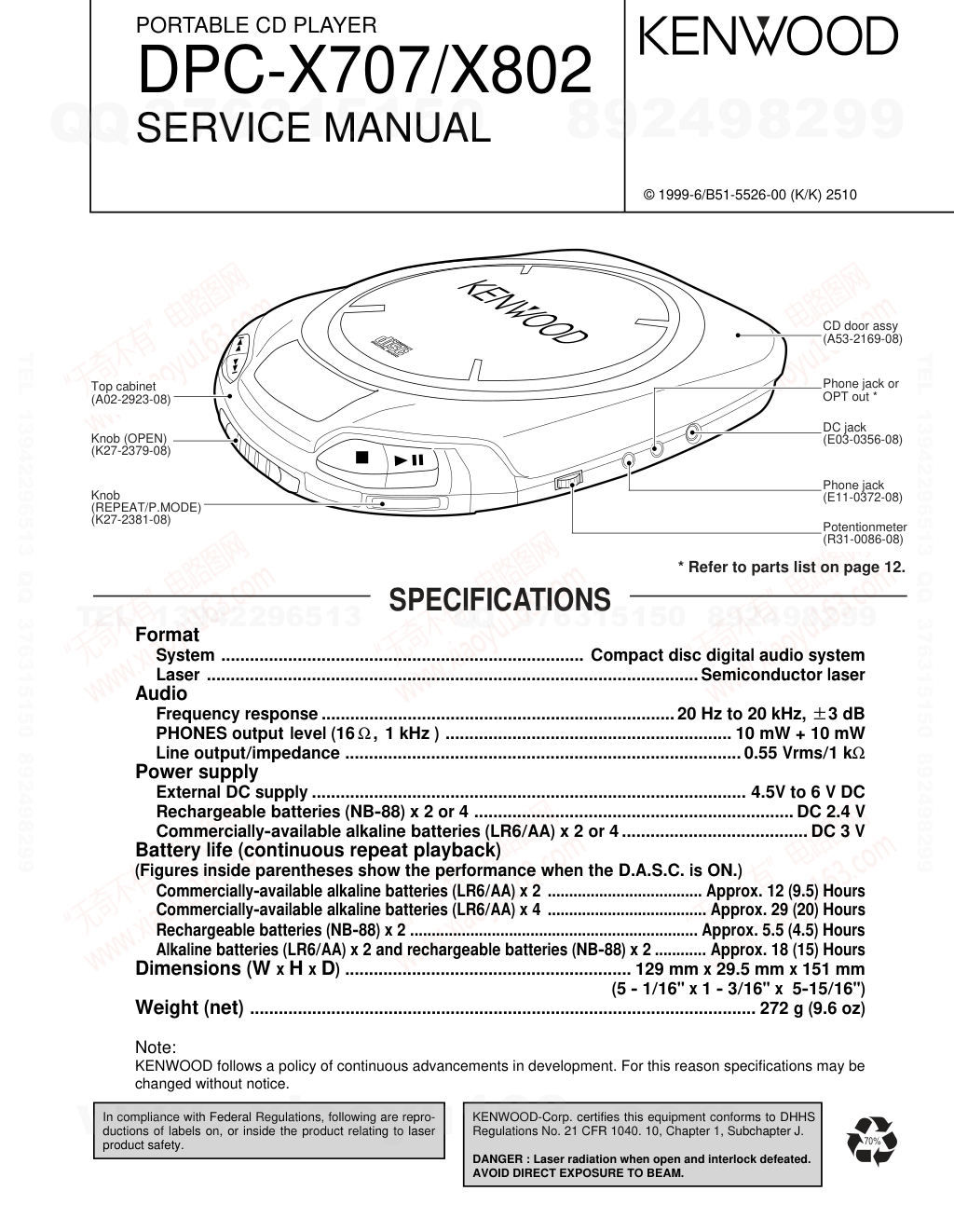

PORTABLE CD PLAYER DPC-X707/X802 SERVICE MANUAL © 1999-6/B51-5526-00 (K/K) 2510 SPECIFICATIONS * Refer to parts list on page 12. In compliance with Federal Regulations, following are repro- ductions of labels on, or inside the product relating to laser product safety. KENWOOD-Corp. certifies this equipment conforms to DHHS Regulations No. 21 CFR 1040. 10, Chapter 1, Subchapter J. DANGER : Laser radiation when open and interlock defeated. AVOID DIRECT EXPOSURE TO BEAM. Format System ............................................................................ Compact disc digital audio system Laser ....................................................................................................... Semiconductor laser Audio Frequency response .......................................................................... 20 Hz to 20 kHz, 3 dB PHONES output level (16 Ω, 1 kHz ) ............................................................ 10 mW + 10 mW Line output/impedance ................................................................................... 0.55 Vrms/1 kΩ Power supply External DC supply ........................................................................................... 4.5V to 6 V DC Rechargeable batteries (NB-88) x 2 or 4 ................................................................... DC 2.4 V Commercially-available alkaline batteries (LR6/AA) x 2 or 4 ....................................... DC 3 V Battery life (continuous repeat playback) (Figures inside parentheses show the performance when the D.A.S.C. is ON.) Commercially-available alkaline batteries (LR6/AA) x 2 .................................... Approx. 12 (9.5) Hours Commercially-available alkaline batteries (LR6/AA) x 4 ..................................... Approx. 29 (20) Hours Rechargeable batteries (NB-88) x 2 ................................................................... Approx. 5.5 (4.5) Hours Alkaline batteries (LR6/AA) x 2 and rechargeable batteries (NB-88) x 2 ............ Approx. 18 (15) Hours Dimensions (W x H x D) ............................................................ 129 mm x 29.5 mm x 151 mm (5 - 1/16" x 1 - 3/16" x 5-15/16") Weight (net) .......................................................................................................... 272 g (9.6 oz) Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice. Top cabinet (A02-2923-08) DC jack (E03-0356-08) Phone jack or OPT out * CD door assy (A53-2169-08) Phone jack (E11-0372-08) Potentionmeter (R31-0086-08) Knob (REPEAT/P.MODE) (K27-2381-08) Knob (OPEN) (K27-2379-08) 70% www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 2 CONTENTS / ACCESSORIES SPECIFICATIONS .........................................Top cover CONTENTS / ACCESSORIES ....................................2 CIRCUIT DESCRIPTION .............................................3 PC BOARD ..................................................................5 SCHEMATIC DIAGRAM ..............................................7 EXPLODED VIEW .....................................................11 PARTS LIST...............................................................12 Contents Car cassette adapter (1) (W01-0922-05): X802 Model Car battery adapter (1) (W01-0921-05): X802 Model AC adapter (1) (W08-0658-08): E8E7 (W08-0675-08): M7M8 (W08-0679-08): X8X7 (W09-1251-05): K8P8 (W08-0678-08): T7T8 AC plug adaptor (1) (E03-0115-05): M7M8 Rechargeable battery (2) (W09-1240-05): M7E7X7 M8T7T8 Innerphone (1) (W01-0923-05): M7X7 (W01-0925-05): X8E8E7M8 (W01-0975-08): T7T8 Headphone (1) (W01-0924-05): K8P8 LCD remocon (1) (A70-1171-05): M7X7 Accessories www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 3 CIRCUIT DESCRIPTION Pin No. Name I/O Description 1 BEEP O NOT USED 2 PE6 - NOT USED 3 SENS2 I SENSITIVITY INPUT 4 FOK I FOCUS OK SIGNAL L: FOCUS DOWN H:FOCUS OK 5 SQCK O SUB Q SIGNAL READ TIMING CLOCK (TO CXD3009Q) 6 SQSO I CD SUB CODE INPUT (FROM CXD3009Q) 7 DATA O DATA TO CXD3009Q 8 YMCLK O SIGNAL OUTPUT (TO SM5903AF) 9 ZSENSE I SENSITIVE SIGNAL INPUT(FROM SM5903AF) 10 YMDATA O DATA SIGNAL OUTPUT (TO SM5903AF) 11 AMUTE O AUDIO MUTE L: MUTE OFF H: MUTE ON 12 MIX O NOT USED 13 SOUND O NOT USED 14 BBS O NOT USED 15 REM-DATA O REMOCON DATA OUTPUT 16 OPT O NOT USED 17 LIGHT O BACK LIGHT SIGNAL OUTPUT L: ON H: OFF 18 POWER O POWER OUTPUT L: OFF H: ON 19 DIG-OUT I DIGITAL OUTPUT ON/OFF CONTROL L: OFF H: ON 20 BATT I BATTERY POWER SUPPLY MONITOR 1.4V~3.0V :OUTSIDE P.S 0V~1.4V :INSIDE BATT. 21 RECHG I RECHARGEABLE MONITOR 1.5V~3.0V :NON RECHARGEABLE 0V~1.5V :EXIST RECHARGEABLE 22 KEY I KEY INPUT 23 REKEY I REMOCON KEY INPUT 24 HOLD I HOLD SW INPUT 25 DRAM I DRAM SET UP INPUT 26,27 DASC1,2 I DASC SW1(HI)/SW2(ST) INPUT L: HI H: OFF H: ST 28 NRESET I SYSTEM RESET 29 EXTAL - SYSTEM CLOCK 30 XTAL - SYSTEM CLOCK 31 VSS - GND 32 VL - LCD POWER SUPPLY 33~35 VLC3~1 - LCD POWER SUPPLY 36~39 COM0~3 O COMMON SIGNAL(0~3) TO LCD 40~54 L SEG0~14 O SEGMENT SIGNAL (SEG0~14) TO LCD 55 L SEG15 O NOT USED 56 PDO O NOT USED 57 CHG-OUT O RECHARGEABLE ACTIVE OUTPUT L: OFF H: ON 58 B.B/P.GE O NOT USED 59 TIMER O NOT USED 60 PD4 O NOT USED 61 DBB O DBB SIGNAL OUTPUT H: DSP B.B OFF L: DSP B.B MID or MAX 62 REM-LGH O NOT USED 63 REM-DAT O REMOCON DATA OUTPUT L: OUTPUT DATA H: OFF 64 PFO O EMPHASIS TO CXD3009Q L: OFF H: ON 65 PF1 O LATCH TO CXD3009Q 66 YMLD O LATCH TO SM5902 67 YDMUTE O MUTE TO SM5902 L: OFF H: ON 68 RESET O RESET TO CXD3009Q/CXA2542/SM5903AF L: RESET 69 PF5 O NOT USED 70 VDD - POWER SUPPLY 71 TX - NOT USED 72 TEX - NOT USED 73 NC - NOT USED 74 PF6 - NOT USED 75 PF7 - NOT USED 76 SCOR I SUB CODE SYNCHRO INPUT FROM CXD3009Q 77 DOOR I CD DOOR OPEN DETECT INPUT/OUTPUT L: CLOSE H: OPEN 78 EMP I DECREASE VOLTAGE DETECT L: EMP H: FULL 79 SENSE I SENSITIVITY SIGNAL INPUT FROM CXD3009Q 80 BB/P.GEIN I CONNECT TO GND 1. Microprocessor:CXP83517Q(IC3) 1-1Pin Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 4 CIRCUIT DESCRIPTION SSP/CXA2542AQ SENS SENS2 FOK XRST XLT DATA DATA SENS XLAT CLOK SCOR SQSO SQCK XRST EMPHI ZSENSE NRESET YDMUTE YMLD YMDATA YMCLK PB6/SI1 PB4/SO0 RST Power ON OUTPUT INPUT 4MHz INT EMP RST CLK PB2/SCK0 PE0/INT0 PB3/SI0 PB7/SO1 PB5/SCK1 XLON SPOA CLK C.OUT IC101 IC201 16.9MHz (DASC on/off) SERVO GAIN SELECT LIMIT SW on/off CHECK DSP/CXD3009Q SEIN CNIN FOK Back light power supply OPT output on/off Power supply monitor Rechargeable battery check HOLD/NORMAL/TEST mode DOOR SW open/close check DRAM DASC ON/OFF or HI/OFF/ST Operation key Remocon key Recharge on/off OPT power supply Remote control data Mute BEEP ATT Remocon Back light power supply IC401 D.RAM cout./ SM5903AF TRV DRIVER/ BA5901K IC301 uCOM IC3 V(IC3,22PIN) KEY 0.00~0.74 PLAY/PAUSE 0.75~0.98 STOP 0.99~1.21 UP 1.22~1.42 B.BOOST V(IC3,22PIN) KEY 1.43~1.68 DOWN 1.69~2.11 REPEAT/P.MODE 2.12~2.53 MUTE 2.54~3.00 KEY OFF 1-2 VOLTAGE of A/D KEY 1-3 Microprocessor periphery block diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 A C E G I B D F H J 2 1 3 5 7 4 6 1 12 11 1 23 22 44 34 37 48 24 13 12 1 1 20 60 41 40 21 61 80 1 20 60 41 40 21 61 80 1 11 33 34 44 22 12 23 1 13 26 14 25 36 33 4 8 5 DC IN LINE OUT PHONES CONTROL VOLUME REPEAT STOP P.MODE SW P.GE B B DOOR OFF ON HOLD ST OFF HI DASC REMOTE 1 12 11 1 23 22 44 34 37 48 24 13 12 1 1 20 60 41 40 21 61 80 1 20 60 41 40 21 61 80 1 11 33 34 44 22 12 23 1 13 26 14 25 36 33 4 8 5 DC IN LINE OUT PHONES CONTROL VOLUME REPEAT STOP P.MODE SW P.GE B B DOOR OFF ON HOLD ST OFF HI DASC REMOTE Refer to the schematic diagram for the value of resistors and capacitors. PC BOARD(Component side view) PC BOARD(Foil side view) 5 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 A B D F H J C E G I 2 1 3 5 7 4 6 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 VDD3 XRST AVSS4 AVDD2 AOUT2 AIN2 LOUT2 AVSS3 XVSS XTAI XVDD AVSS2 LOUT1 AIN1 AOUT1 AVDD1 AVSS1 SYSM VDD2 VSS3 EXCK S8SO SCOR WFCK EMPHI EMPH DOUT C4M XTSL C2PO GFS XPCK XUGF VDD1 VSS2 BCKI BCK PCNDI PCND MDP PWMI TEST TES1 VPCO VCKI V16M VCTL PCO FILO FILI AVSS CLTV AVDD RF BIAS ASYI ASYO LRCK LRCKI VSS LMUT RMUT SQCK SQSD SENS DATA XLAT CLOK SEIN CNIN DAT0 XLT0 CLK0 SPOA SPOB XLON FOK VDD VSS1 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 BATT DIG-OUT POWER LIGHT OPT REM-DATA BBS SOUND MIX AMUTE YMDATA ZSENSE YMCLK DATA SQSO SQCK FOK SENS2 PE6 BEEP BB/P.GEIN SENSE EMP DOOR SCOR PF7 PF6 NC TEX TX VDD PF5 RESET YDMUTE YMLD PF1 PF0 REM-DAT REM-LGT DBB TIMER LSEG1 LSEG2 LSEG3 LSEG4 LSEG5 LSEG6 LSEG7 LSEG8 LSEG9 LSEG10 LSEG11 LSEG12 LSEG13 LSEG14 LSEG15 PDO CHG-OUT BB/P.GE PD4 RECHG KEY REMKEY HOLD DRAM DASC1 DASC2 NRESET EXTAL XTAL VSS VL VLC3 VLC2 VLC1 COM0 COM1 COM2 COM3 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 37 38 39 40 41 42 43 44 45 46 47 48 PD1 PD LO RFTC RF M RF O RF I CP CB CC1 CC2 FOK SENS2 SENS1 C.OUT XRST DATA XLT CLK VCC XSET SL O SL M SL P FEI FDFCT FGD FLD FE O FE M SRCH TGU TG2 FSET TA N TA O F E VEE TEO LPFI ATSC TZC TDFCT VC FZC FEO 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 1 2 3 4 5 6 7 8 9 10 11 34 35 36 37 38 39 40 41 42 43 44 RCHG OUT1R OUT1F OUT2R OUT2F POWGND OUT3F OUT3R OUT4F OUT4R BREAK1 IN1 MUTE2 IN2 MUTE34 IN4 IN3 VREF VSYS2 OP+ OPOUT VSYS1 BSEN BATT RESET DEAD SW EO EI SPRT CT NC OP- AMUTE EMP HVCC PSW CLK START OFF CHGVCC SEL PREGND PD2 XTA0 PWMFIL 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 AL F PDIC VC PDIC VCC LD LD PDIC LD GND VR LD PD E PDIC PD1 PDIC PD2 NC TRK- FCS+ FCS- TRK+ 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 AL F PDIC VC PDIC VSS LD LD PDIC LD GND VR LD PD E PDIC PD1 PDIC PD2 NC TRK- FCS+ FCS- TRK+ 6 5 4 3 2 1 SPINDLE- SPINDLE+ PU-IN GND SLED- SLED+ R130A 39K R131A 39K R133A 820K R134A 820K 120K R132A 120K R135A 100K 150K 0.1 0.1 C124A C126A R124A R125A 0.1 C130A 0.1 C129A 10K R102A 0.1 C102A 10K R101A 2200P C101A R123A 100 C103A 0.1 C104A 0.1 680K R103A C105A 0.068 33K R105A 100K R104A C106 4.7u50 + C107A 0.1 R106A 510K C108A 0.01 56k R128A 220K R107A 0.047 C113A 100K R108A R110A 15K 22u10 C109 + C110 + 3.3u50 68K R112A 0.015 C111A 8.2K R111A 120K R114A 100u6.3 C112 + 14 13 12 11 10 1000P C133A 47u10 C123 + 4.7 R119A 47u10 C122 + 18K R116A 22K R117A 10K R118A C118A 0.01 C117A 4700P C116A 0.01 C115A 0.068 30 29 31 32 47 R305A L301 33uH 47u10 C311 + 42 18 10P C309A 100K R306A 1000P C310A 0.22 C318 25 26 27 24 C306 0.1 0.022 C305 8.2K R304A 1u50 C304 + 470P C303 6.8K R323A 10K R324A 22K R113A 47K R320A 0.1 C301A 33K R321A 8.2K R301A 32 31 29 30 1 2 3 0.1 C330A 100u16 C313 + C319A 1000P R322A 100 0.1 C314A 10 R311A 47P C315A 1K R312A 330 R315A L304 33uH 220u6.3 C316 + 10K R3A R1A 6.8K R4A 6.8K R5A 47K 47K R2A 47K ST OFF HI X1 4.0MHz 22K R16A 1K R15A 22K R18A 22K R17A L101 10uH L1 10uH 36 37 38 39 40 53 52 51 49 48 44 45 46 47 43 42 41 50 54 47u10 C5 + 0.01 12K R213A 820P C212A 180P C213A 12K R214A 12K R215A X201 16.93MHz 39P C222A C223A 20P 10P C218A 0.01 C219A 330 R219A 12K R216A C216A 180P 12K R218A 820P C217A 12K R217A R224A 120 100u6.3 C211 + 470K R202A R201A 1M 0.1 C201A 3.3K R203A C209 100u6.3 + 0.047 C202A 3.3K R204A 3300P C204A R205A 10K 1500P C203A R207A 1M 220P C205A 10 R226A 100K R209A 0.01 C206A 10K R208A 0.47u50 C207 + 3 18 PICKUP VCC VC + T.C F.C C210A 40 39 5 7 6 65 7 79 6 18 17 14 13 12 11 10 ON OFF R6A 47K R325A 1.5K R327A 10K R211A 68 5 3 4 100K R328A 39 33K R329A 1 C320A 78 34 57 L201 10uH 47K R223A 1 C321A 17 4 26 24 25 27 11 15 17 9 10 8 19 22 23 21 L302 +B 100u6.3 C127 + C120A 15P C134A 0.1 R115A 4.7 R109A 24K 4.7K R319A 10K R326A LSEG0 10K R9A C220 100u6.3 + VCC +3V +3V +3V +2V +2V +6V +6V +6V +6V 6.1V +6V +6V +6V +6V +7V +7V +7V +7V +7V +7V +7V +3V +3V +3V +3V +3V +3V +2V +2V +2V +3V +3V +3V +3V +3V +3V +7V +7V +7V +7V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +B 220u6.3 C317 + 6.8K R332A 560 R330A 22u10 C322 + 100K R333A R331A 22K R220A 1K C225A 0.01 R227A 10 C226A 0.047 0.047 C224A + C227 22u10 22 R225A 100K R136A 95uH IC201 IC3 IC101 IC301 CN101 CN300 RF/SERVO Q102 Q101 LD ON/OFF BTL DRIVER D301 D303 Q303 Q305 D302 Q302 D.S.P. u-COM SW108 E B A C D F LD PD MECHA. ASS’Y KSM-620AAA M M DISC MOTOR SW LMT. FEED MOTOR Q306 Q304 SW107 HOLD Q301 D.D.CON. TRANS. IC3 : CXP83517-501Q IC101 : CXA2542AQ IC201 : CXD3009Q IC301 : BA5901K IC401 : SM5903AF IC402 : MN41V17400CTT6 IC501 : TDA1308T Q101,306 : 2SC4048-AC Q102,602,113,114,508 : 2SA1317 Q109,116,301,304, : 2SC3330 Q302 : 2SC4481T Q303 : 2SB598F Q305 : 2SD1805G Q501,502 : 2SD1936T D1-4,112,113,302,303 : GMB01-BT D70-73 : B30-2561-08 D111,114 : 1N4001 DIGITAL LINE GND LINE SIGNAL LINE B LINE 509,601 Q307,503-506 : 2SC3860 D305A D304A Q307 Q310 Q309 Q308 Q310 Q308,309 : : 2SC3400 2SA1497 D304A,305A : 1SS355 D5,301 : SB10-03A3-BT DASC 2.9V 1.4V 0V ON : 2.2V 1.5V 1.5V 3.0V 1.4V 1.4V 1.4V 1.5V 1.4V 1.4V 1.4V 1.4V 1.4V 1.4V 1.4V 1.5V 1.5V 1.7V 1.4V 1.7V 1.4V 1.4V 1.4V 0.7V 1.4V 1.4V 1.4V 1.4V 1.4V 2.9V 3.0V 3.0V 3.0V 2.8V 0V 2.8V 0.8V 1.8V 1.4V 2.1V 1.5V 1.8V 1.5V 2.9V 1.8V 2.3V 0V 0.7V 6.1V 6.1V 0.4V 0.8V 3.0V 0.6V 0V 1.2V 3.0V 0V 0V 6.3V 3.3V 1.5V 1.4V 1.4V 1.5V 1.4V 3.0V 0.6V 3.0V 2.9V 3.0V 3.0V 2.9V 3.0V 3.0V 3.0V 2.8V 0V 3.0V 2.9V 1.5V 1.4V 1.5V 0V 0V 0V 1.6V 1.4V 1.5V 1.5V 1.5V 1.5V 1.5V 0.3V 3.0V 0.9V 0.9V 3.0V 0.9V 0.9V 0.9V 0.9V 3.0V 3.0V 0V 3.0V 3.0V 2.6V 2.5V 2.9V 3.0V 2.9V 2.8V 2.4V 3.0V 1.5V 1.5V 1.5V 1.5V 1.5V 2.0V 1.0V 0V 0V 1.4V 1.2V 3.0V ST: 0V HI: 0V 3.0V 3.0V 2.3V ON: 0V OFF: 300V HOLD 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 0V 0V 3.0V 3.0V 0V 3.0V 3.0V 0V 3.0V 0V 3.0V 0V 3.0V 6.5V 3.0V 7.0V 6.3V 2.9V 2.1V 3.0V 1.4V 1.9V 1.5V PLAY :6.0V 6.3V 3.0V 1.6V 1.9V 0V ST/HI :2.3V OFF :0V DASC ON :1.5V DASC w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 T K M O Q S L N P R DPC-X707/X802 Y22-8160-10 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 34 35 36 37 38 39 40 41 42 43 44 23 24 25 26 27 28 29 30 31 32 33 VDD1 NRESET YBLKCK YFCLK YFLAG ZSRDATA ZLRCK ZSCK YSCK YLRCK YSRDATA VSS CLK NTEST DIT UC5 UC4 UC3 UC2 UC1 VDD2 A9 A8 A7 A6 A5 A4 A0 A1 A2 A3 YMLD YMDATA YMCLK NCAS2 NCAS1 D2 D3 D0 D1 NWE 26 25 24 23 22 21 20 19 18 17 16 15 14 VSS D3 D2 XCAS XOE A9 NC3 A8 A7 A6 A5 A4 VSS1 1 2 3 4 5 6 7 8 9 10 11 12 13 VCC1 D0 D1 WE- RAS- NC1 NC2 A10 A0 A1 A2 A3 VCC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 47K R8A 47K R7A NRAS ZSENSE YDMUTE 28 30 29 32 31 33 330 R402A 330 R401A 49 42 40 44 43 39 57 8 66 10 67 10K R82A 10K R81A 1.5K R31A 1.5K R32A 1.8K R33A 2.2K R34A 5.6K R35A 10K R75A R77A 22K 10K R74A 3.3K R76A R531A C519 + 4.7u50 + 2.2K 1000P C535 2.2K R515A 2.2K R516A 1000P C536 0.1 C505 R514A 22K VR501 50KAx2 5 6 7 8 VCC 4 3 2 1 GND 22K R525A 220u6.3 C501 + 10 R527A R517A 180K 15K R521A 3.3K 22K R526A 3.3K R522A 100u6.3 C532 + R528A + 220u6.3 C502 10 220u6.3 C531 + R524A 15K R518A 180K R523A 10K R530A 10K R529A 10K R60A 100K R533A 4.7K R534A 47K R536A 4.7u50 C508 + 4.7K R535A 4 5 2 3 1 2 3 1 2 3 1 1 2 3 2 3 1 8 9 7 2 1 L401 39 28 29 30 38 37 36 35 40 37 36 35 39 40 41 42 43 38 44 34 27 67 64 66 68 43 41 42 44 57 41 9 64 65 79 49 77 76 76 61 63 C601 100u4 + 47K R601A 1 3 2 C520 R532A 2.2K 4.7u50 22 23 15 63 61 3 57 42 9 10 11 12 4 6 8 5 7 3 2 No. 1 COM.0 COM.3 COM.2 COM.1 17 18 16 15 14 13 19 17 77 34 11 46 52 54 53 50 48 47 49 51 43 42 41 44 45 39 37 36 38 40 31 27 34 32 33 44 43 42 41 19 R519A 4.7K 39 100u6.3 C404 + 0.1 C406A 68 R70A 68 R71A 68 R72A 68 R73A 4.7K R48A 4.7 R520A 10K R10A 1u50 C504 + 1u50 C503 + 10uH +6V +7V +6V +7V +7V +7V +7V +7V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V +3V 22K R513A 21 R57A 100K 100P C522A 100P C521A 680 R537A R538A 680 2.2K R602A 0.01 C60A C61A 0.01 78 18 IC401 IC402 IC501 LCD1: B38-0186-08 DPC-X707/X802 (K,P)TYPE ONLY DPC-X802 DPC-X802 (K,P)TYPE ONLY (K8,P8)TYPE ONLY EXCEPT ONLY (J,M7,X7)TYPE SHOCK PROOF D70 D71 D72 D73 Q109 D1 SW101 SW102 SW103 SW105 SW104 SW106 P.CE B.B P.MOOD REPEAT D2 D3 Q113 Q114 D4 Q506 Q505 Q503 Q504 (BOTTOM VIEW) Q502 Q501 Q116 J101 BATTERY BATTERY DC-IN LINE OUT J501 REMOTE J103 OPT OUT PHONE JACK J502 Q508 Q509 LIGHT DRIVER 16M DRAM VOLUME MUTING MUTING A.MUTE DRIVER (B/2) (A/2) SW109 DOOR SW Q601 J104 D5 D111 D114 D112 D113 Q602 PGM D.A.S.C. B.BOOST C B.BOOST D.A.S.C. PGM C 1f 3f 5f 4f 4b 3b 2b 5b 1b 2f 5a 4a 3a 2a 1a 4e 4g 5d 4d 5e 5c 4c 5g 3e 2d 3d 1e 2e 1d 3g 2c 3c 1g 2g 1c L5 L9 L6 L7 L1 L2 L3 L4 L8 COM.1 L10 COM.2 COM.3 L11 L12 6a 6b 6f 6c 6g 6d 6e COM.0 b f c e a g d 1 2 3 4 5 6 L6 L5 L4 L3 L2 L1 L7 L8 L11 L12 L10 L9 1.5V 1.5V 1.0V 1.5V 1.5V 3.0V 0V 0V 3.0V 3.0V 0V 3.0V 0V 3.0V 3.0V 0V 1.0V 3.0V 0V 3.0V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 0V 3.0V 0V 0V 0V 0V 3.0V 0V 0V 0V 0V 3.0V 3.0V 3.0V 3.0V 3.6V 2.9V OFF: 0V ON: 3.0V MUTE OFF: 3.0V ON: 2.3V ON: 0.6V OFF: 0V 1.5V 1.5V 1.5V 3.0V 1.5V 1.5V 1.5V 0.5V 3.0V 6.1V 0.8V MUTE 3.0V MUTE 2.9V 3.0V 2.4V 1.5V 1.4V 6.3V 2.3V 7.1V 6.5V CAUTION: For continued safety, replace safety critical components only with manufacturer's recommended parts (refer to parts list). indicates safety critical components. For continued protection against risk of fire, replace only with same type and rating fuse(s). To reduce the risk of electric shock, leakage-current or resistance measurements shall be car- ried out (exposed parts are acceptably insulated from the supply circuit) before the appliance is returned to the customer. The DC voltage is an actual reading measured with a high impedance type voltmeter. The measurement value may vary depending on the measuring instruments used or on the product. Refer to the voltage dur- ing PLAY with DASC OFF(at the normal speed) unless otherwise speci- fied; The value shown in ( ) is the voltage measured at the moment of STOP. CXD3009Q SM5903AF 2SA1497 TDA1308T w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 11 EXPLODED VIEW (UNIT) DOOR B.BOOST (SUB) (SUB) (MAIN) (MAIN) SW104 SW107 SW108 SW105 SW103 HOLD OFF ON SW102 SW109 DC IN J101 PHONES J104/J105 REMOTE J103 (OPT) LINE OUT J502 D.A.S.C OFF ON A ø2X10 (BLK) : N09-3363-08 Ax7 718 SW101 SW106 VR501 REPEAT/ P.MODE VOLUME OPEN DPC-X802(K) 605 662 661 663 665 664 660 604 624 708 636 601 629 625 626 645 750 706 751 752 753 646 602 603 649 637x2 647 628 627 635 648 640x3 620 707 709 1 2 3 A B Parts with exploded view numbers larger than 700 are not supplied. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 12 PARTS LIST 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. - 8 H50-3462-08 GIFT BOX 151-07073-0266 X7 - 8 H50-3463-08 GIFT BOX 151-07074-0266 T7 - 8 H50-3464-08 GIFT BOX 151-07072-0266 E7 - 8 H50-3466-08 GIFT BOX 151-08022-0266 M8 - 8 H50-3467-08 GIFT BOX 151-08023-0266 X8 - 8 H50-3468-08 GIFT BOX 151-08024-0266 T8 - 8 H50-3469-08 GIFT BOX 151-08025-0266 E8 640 3A J02-1185-08 CD RUBBER CSHN,161-05847-001 645 2B 8 K27-2377-08 KNOB A,DASC 127-07076-1910 646 2B 8 K27-2378-08 KNOB B,HOLD 127-07076-2910 647 3A 8 K27-2379-08 KNOB ,OPEN 127-07077-0910 648 3A 8 K27-2380-08 KNOB E,B.BOOST 128-07072-5910 649 3B 8 K27-2381-08 KNOB F,REPEAT/P.MODE,128-07072 A N09-3363-08 SCREW 2X10 660 1A W01-0923-05 HEADPHONE 053-21519-101 M7X7 660 1A W01-0925-05 HEADPHONE 053-21519-301 M8 660 1A W01-0925-05 HEADPHONE 053-21519-301 X8E8E7 660 1A W01-0975-08 HEADPHONE 053-21532-303 T7T8 661 1A W08-0658-08 AC ADAPTER 059-96184-202 E8E7 661 1A W08-0675-08 AC ADAPTER 059-01814-602 M7M8 661 1A W08-0678-08 AC ADAPTER 059-96184-302 T7T8 661 1A W08-0679-08 AC ADAPTER 059-96184-404 X8X7 661 1A W09-1251-05 AC ADAPTER 059-01914-201 K8P8 662 1A W09-1240-05 RECAHGEABLE BAT,998-00000-016 M7E7X7 662 1A W09-1240-05 RECAHGEABLE BAT,998-00000-016 M8T7T8 663 1A W01-0922-05 CAR CASSETT ADP,067-29618-304K8E8X8 663 1A W01-0922-05 CAR CASSETT ADP,067-29618-304M8P8T8 664 1A W01-0921-05 CAR BATTERY ADP,067-10802-601K8E8X8 664 1A W01-0921-05 CAR BATTERY ADP,067-10802-601M8P8T8 665 1A W01-0924-05 HEADPHONE 053-22716-301 K8P8 D70 -73 8 B30-2561-08 LED,SEL-2310G 019-15000-310 K8P8 LCD1 8 B38-0186-08 LCD 049-74311-001 C5 C90-3220-05 ELECTRO 47UF 10WV C60A, 61A CK73FB1E103K CHIP C 0.010UF K C101A CK73FB1H222K CHIP C 2200PF K C102A-104A CK73FB1E104Z CHIP C 0.10UF Z C105A CK73FB1H683K CHIP C 0.068UF K C106 C90-3256-05 ELECTRO 4.7UF 50WV C107A CK73FB1E104Z CHIP C 0.10UF Z C108A CK73FB1E103K CHIP C 0.010UF K C109 C90-3218-05 ELECTRO 22UF 10WV C110 C90-3255-05 ELECTRO 3.3UF 50WV C111A CK73FB1E153K CHIP C 0.015UF K C112 C90-3214-05 ELECTRO 100UF 6.3WV C113A CK73FB1H473K CHIP C 0.047UF K C115A CK73FB1H683K CHIP C 0.068UF K C116A CK73FB1E103K CHIP C 0.010UF K C117A CK73FB1H472K CHIP C 4700PF K C118A CK73FB1E103K CHIP C 0.010UF K C120A CC73FSL1H150J CHIP C 15PF J C122,123 C90-3220-05 ELECTRO 47UF 10WV 601 2B 8 A02-2923-08 TOP CAB ASSY 602 3B 8 A02-2926-08 BOTTOM CABINET,104-07070-001 E7X7M7 602 3B 8 A02-2926-08 BOTTOM CABINET,104-07070-001 T7T8 602 3B 8 A02-2926-08 BOTTOM CABINET,104-07070-001 X8E8M8 602 3B 8 A02-2927-08 BOTTOM CABINET,104-07070-002 K8P8 603 3B 8 A09-1157-08 BATTERY COVER 111-07070-0910 604 1B 8 A53-2168-08 CD DOOR ASSY E7M7X7 604 1B 8 A53-2168-08 CD DOOR ASSY T7 604 1B 8 A53-2169-08 CD DOOR ASSY K8E8X8 604 1B 8 A53-2169-08 CD DOOR ASSY M8T8 605 1A A70-1171-05 REMOCON 182-07950-001 M7X7 - B46-0100-50 WARRANTY CARD 155-01711-0266 K8X7T7 - B46-0100-50 WARRANTY CARD 155-01711-0266 T8 - B46-0100-50 WARRANTY CARD 155-01711-0266 X8E8E7 - B46-0336-03 WARRANTY CARD 155-11811-2266 P8 - B58-1519-08 HOLD CARD 155-00000-1266 M7X7 - B58-1611-08 CARTON CARD PAPER,155-01830-10 E7X7M8 - B58-1611-08 CARTON CARD PAPER,155-01830-10 E8X8M7 - B58-1611-08 CARTON CARD PAPER,155-01830-10 T7T8 - 8 B60-4379-08 INST MANUAL 152-08020-0266 K8P8M8 - 8 B60-4380-08 INST MANUAL 152-07071-0266 T7T8 - 8 B60-4380-08 INST MANUAL 152-07071-0266 X8X7M8 - 8 B60-4381-08 INST MANUAL 152-07072-0266 E8E7M7 - 8 B60-4381-08 INST MANUAL 152-07072-0266 P8 - 8 B60-4382-08 INST MANUAL 152-07073-0266 E8M7M8 - 8 B60-4383-08 INST MANUAL 152-07074-0266 E7E8 - 8 B60-4384-08 INST MANUAL 152-07075-0266 E7E8 - 8 B60-4385-08 INST MANUAL 152-07076-0266 E7E8 - 8 B60-4386-08 INST MANUAL 152-07077-0266 M7M8 620 2A D40-1631-08 CD MECHA ASSY KSM-620AAA 624 1A E03-0115-05 AC PLAG ADAPTER024-30000-001 M7M8 625 2B E23-1773-08 RECHAGE TERMI 133-03935-106 626 2B 8 E23-1804-08 BAT TER,MAIN + 041-07071-002 627 3B 8 E23-1805-08 BAT TER,MAIN - 041-07072-002 628 3B 8 E23-1806-08 BAT TER,SUB + 041-07071-102 629 2B 8 E23-1807-08 BAT TER,SUB - 041-07072-202 635 3A G01-4075-08 OPEN KNOB SPR 133-03930-303 636 2B 8 G01-4158-08 DOOR SPRING 162-07071-308 637 3B G13-0542-08 RUBBER CUSHION,136-10010-100 - 8 H13-0323-08 CHAMPHELL CARD,155-08020-0266 K8P8 - 8 H20-0611-08 BLISTER FRONT 156-08021-000 K8P8 - 8 H20-0612-08 BLISTER BOTTOM,156-08022-000 K8 - 8 H21-0378-08 POLYFOAM SHEET 149-01835-000 E8X8E7 - 8 H21-0378-08 POLYFOAM SHEET 149-01835-000 M7X7 - 8 H21-0378-08 POLYFOAM SHEET 149-01835-000 M8T7T8 - 8 H21-0379-08 POLYFOAM SHEET 149-03015-001 K8P8 - H25-1603-08 EPE BAG 150-07009-203 - H25-1649-08 POLY BAG 150-06010-210 - 8 H25-1660-08 POLY BAG 150-06020-510 K8P8 - 8 H50-3461-08 GIFT BOX 151-07071-0266 M7 L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. 1 2 DPC-X707/X802 ELECTRIC PARTS www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 13 PARTS LIST 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. C532 C90-3214-05 ELECTRO 100UF 6.3WV C535,536 C91-0757-05 CERAMIC 1000PF K C601 C90-3205-05 ELECTRO 100UF 4WV E7M7X7 C601 C90-3205-05 ELECTRO 100UF 4WV E8X8M8 C601 C90-3205-05 ELECTRO 100UF 4WV T7T8 CN101 E60-0008-08 16P ZIP R/A 025-20016-301 J101 2B E03-0356-08 DC JACK 021-34505-100 J103 3B E11-0355-08 REMOTE JACK 021-22603-101 M7X7 J104 2B 8 W02-2713-08 OPT OUT JACK 021-23608-100 E7M7X7 J104 2B 8 W02-2713-08 OPT OUT JACK 021-23608-100 E8X8M8 J104 2B 8 W02-2713-08 OPT OUT JACK 021-23608-100 T7T8 J105 3B E11-0354-08 PHONE JACK 021-23605-102 K8P8 J502 3B E11-0372-08 PHONE JACK 021-23605-103 L1 L40-1001-17 INDUCTOR(10UH) 015-00100-008 L101 L40-1001-17 INDUCTOR(10UH) 015-00100-008 L201 L40-1001-17 INDUCTOR(10UH) 015-00100-008 L301 L33-0564-08 INDUCTOR(33UH) 015-00330-001 L302 L33-0565-08 INDUCTOR(95UH) 015-00950-001 L304 L33-0564-08 CHOKE COIL(33UH),015-00330-001 L401 L40-1001-17 INDUCTOR(10H) 015-00100-008 X1 8 L77-2266-08 CRYSTAL 052-04000-102 X201 L77-2240-08 CRYSTAL 052-16934-003 R1A RK73FB2A682J CHIP R 6.8K J 1/10W R2A RK73FB2A473J CHIP R 47K J 1/10W R3A RK73FB2A103J CHIP R 10K J 1/10W R4A RK73FB2A682J CHIP R 6.8K J 1/10W R5A -8A RK73FB2A473J CHIP R 47K J 1/10W R9A ,10A RK73FB2A103J CHIP R 10K J 1/10W R15A RK73FB2A102J CHIP R 1.0K J 1/10W R16A-18A RK73FB2A223J CHIP R 22K J 1/10W R31A,32A RK73FB2A152J CHIP R 1.5K J 1/10W R33A RK73FB2A182J CHIP R 1.8K J 1/10W R34A RK73FB2A222J CHIP R 2.2K J 1/10W R35A RK73FB2A562J CHIP R 5.6K J 1/10W R48A RK73FB2A472J CHIP R 4.7K J 1/10W R57A RK73FB2A104J CHIP R 100K J 1/10W R60A RK73FB2A103J CHIP R 10K J 1/10W R70A-73A RK73FB2A680J CHIP R 68 J 1/10W K8P8 R74A RK73FB2A103J CHIP R 10K J 1/10W R75A RK73FB2A103J CHIP R 10K J 1/10W M7X7 R76A RK73FB2A332J CHIP R 3.3K J 1/10W M7X7 R77A RK73FB2A223J CHIP R 22K J 1/10W M7X7 R81A,82A RK73FB2A103J CHIP R 10K J 1/10W K8P8 R101A,102A RK73FB2A103J CHIP R 10K J 1/10W R103A RK73FB2A684J CHIP R 680K J 1/10W R104A RK73FB2A104J CHIP R 100K J 1/10W R105A RK73FB2A333J CHIP R 33K J 1/10W R106A RK73FB2A514J CHIP R 510K J 1/10W R107A RK73FB2A224J CHIP R 220K J 1/10W R108A RK73FB2A104J CHIP R 100K J 1/10W R109A RK73FB2A243J CHIP R 24K J 1/10W R110A RK73FB2A153J CHIP R 15K J 1/10W R111A RK73FB2A822J CHIP R 8.2K J 1/10W R112A RK73FB2A683J CHIP R 68K J 1/10W C124A CK73FB1E104Z CHIP C 0.10UF Z C126A CK73FB1E104Z CHIP C 0.10UF Z C127 C90-3214-05 ELECTRO 100UF 6.3WV C129A,130A CK73FB1E104Z CHIP C 0.10UF Z C133A CK73FB1H102K CHIP C 1000PF K C134A CK73FB1E104Z CHIP C 0.10UF Z C201A CK73FB1E104Z CHIP C 0.10UF Z C202A CK73FB1H473K CHIP C 0.047UF K C203A CK73FB1H152K CHIP C 1500PF K C204A CK73FB1H332K CHIP C 3300PF K C205A CK73FB1H221J CHIP C 220PF J C206A CK73FB1E103K CHIP C 0.010UF K C207 C90-3251-05 ELECTRO 0.47UF 50WV C209 C90-3214-05 ELECTRO 100UF 6.3WV C210A CK73FB1E103K CHIP C 0.010UF K C211 C90-3215-05 ELECTRO 220UF 6.3WV C212A CK73FB1H821J CHIP C 820PF J C213A CK73FB1H181J CHIP C 180PF J C216A CK73FB1H181J CHIP C 180PF J C217A CK73FB1H821J CHIP C 820PF J C218A CC73FCH1H100D CHIP C 10PF D C219A CK73FB1E103K CHIP C 0.010UF K C220 C90-3214-05 ELECTRO 100UF 6.3WV C222A CC73FSL1H200J CHIP C 20PF J C223A CC73FSL1H390J CHIP C 39PF J C224A CK73FB1H473K CHIP C 0.047UF K C225A CK73FB1E103K CHIP C 0.010UF K C226A CK73FB1H473K CHIP C 0.047UF K C227 C90-3218-05 ELECTRO 22UF 10WV C301A CK73FB1E104Z CHIP C 0.10UF Z C303 CK45FB1H471K CERAMIC 470PF K C304 C90-3253-05 ELECTRO 1.0UF 50WV C305 CK45FB1H223Z CERAMIC 0.022UF Z C306 CK45FB1E104Z CERAMIC 0.10UF Z C309A CC73FCH1H100D CHIP C 10PF D C310A CK73FB1H102K CHIP C 1000PF K C311 C90-3220-05 ELECTRO 47UF 10WV C313 C90-3230-05 ELECTRO 100UF 16WV C314A CK73FB1E104Z CHIP C 0.10UF Z C315A CC73FSL1H470J CHIP C 47PF J C316,317 C90-3215-05 ELECTRO 220UF 6.3WV C318 CK45FB1H224Z CERAMIC 0.22UF Z C319A CK73FB1H102K CHIP C 1000PF K C320A,321A CK73FB1H105Z CHIP C 1.0UF Z C322 C90-3218-05 ELECTRO 22UF 10WV C330A CK73FB1E104Z CHIP C 0.10UF Z C404 C90-3214-05 ELECTRO 100UF 6.3WV C406A CK73FB1E104Z CHIP C 0.10UF Z C501,502 C90-3215-05 ELECTRO 220UF 6.3WV C503,504 C90-3253-05 ELECTRO 1.0UF 50WV C505 CK45FB1E104Z CERAMIC 0.10UF Z C508 C90-3256-05 ELECTRO 4.7UF 50WV C519,520 C90-3256-05 ELECTRO 4.7UF 50WV C521A,522A CC73FSL1H101J CHIP C 100PF J C531 C90-3215-05 ELECTRO 220UF 6.3WV L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. 3 4 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 14 PARTS LIST 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. R515A,516A RK73FB2A222J CHIP R 2.2K J 1/10W R517A,518A RK73FB2A184J CHIP R 180K J 1/10W R519A RK73FB2A472J CHIP R 4.7K J 1/10W R520A RK73FB2A4R7J CHIP R 4.7 J 1/10W R521A,522A RK73FB2A332J CHIP R 3.3K J 1/10W R523A,524A RK73FB2A153J CHIP R 15K J 1/10W R525A,526A RK73FB2A223J CHIP R 22K J 1/10W R527A,528A RK73FB2A100J CHIP R 10 J 1/10W R529A,530A RK73FB2A103J CHIP R 10K J 1/10W R531A,532A RK73FB2A222J CHIP R 2.2K J 1/10W R533A RK73FB2A104J CHIP R 100K J 1/10W R534A,535A RK73FB2A472J CHIP R 4.7K J 1/10W R536A RK73FB2A473J CHIP R 47K J 1/10W R537A,538A RK73FB2A681J CHIP R 680 J 1/10W R601A RK73FB2A473J CHIP R 47K J 1/10W M7E7X7 R601A RK73FB2A473J CHIP R 47K J 1/10W T7T8 R601A RK73FB2A473J CHIP R 47K J 1/10W X8E8M8 R602A RK73FB2A222J CHIP R 2.2K J 1/10W M7E7X7 R602A RK73FB2A222J CHIP R 2.2K J 1/10W T7T8 R602A RK73FB2A222J CHIP R 2.2K J 1/10W X8E8M8 VR501 3A R31-0086-08 POTENTIOMETER 010-20503-168 SW101-103 2A,3A S70-0061-08 TACT SWITCH 020-31100-156 SW104 2A S70-0062-08 TACT SWITCH 020-31100-159 SW105 2A S70-0061-08 TACT SWITCH 020-31100-156 SW106 3A S70-0062-08 TACT SWITCH 020-31100-159 SW107 2A S62-0081-08 SLIDE SWITCH 020-21203-147 SW108 2A S62-0085-08 SLIDE SWITCH 020-21303-147 SW109 3A S74-0084-08 SWITCH 020-31100-054 D1 ,2 GMB01-BT DIODE D3 ,4 GMB01-BT DIODE M7X7 D5 SB10-03A-BT DIODE M7X7 D111 1N4001 DIODE D112,113 GMB01-BT DIODE D114 1N4001 DIODE D301 SB10-03A3-BT DIODE D302,303 GMB01-BT DIODE D304A,305A 1SS355 DIODE IC3 8 CXP83517-501Q IC IC101 8 CXA2542AQ IC IC201 CXD3009Q IC(DSP DAC) IC301 8 BA5901K IC IC401 SM5903AF IC(SHOCK PROOF) IC402 MN41V17400CTT6 IC IC501 TDA1308T IC(HEADPHONE DRIVER) Q101 2SC4048-AC TRANSISTOR Q102 2SA1317 TRANSISTOR Q109 2SC3330 TRANSISTOR K8P8 Q113,114 2SA1317 TRANSISTOR M7X7 Q116 2SC3330 TRANSISTOR Q301 2SC3330 TRANSISTOR Q302 2SC4481T TRANSISTOR Q303 2SB598F TRANSISTOR Q304 2SC3330 TRANSISTOR R113A RK73FB2A223J CHIP R 22K J 1/10W R114A RK73FB2A124J CHIP R 120K J 1/10W R115A RK73FB2A4R7J CHIP R 4.7 J 1/10W R116A RK73FB2A183J CHIP R 18K J 1/10W R117A RK73FB2A223J CHIP R 22K J 1/10W R118A RK73FB2A103J CHIP R 10K J 1/10W R119A RK73FB2A4R7J CHIP R 4.7 J 1/10W R123A RK73FB2A101J CHIP R 100 J 1/10W R124A RK73FB2A104J CHIP R 100K J 1/10W R125A RK73FB2A154J CHIP R 150K J 1/10W R128A RK73FB2A563J CHIP R 56K J 1/10W R130A,131A RK73FB2A393J CHIP R 39K J 1/10W R132A RK73FB2A124J CHIP R 120K J 1/10W R133A,134A RK73FB2A824J CHIP R 820K J 1/10W R135A RK73FB2A124J CHIP R 120K J 1/10W R136A RK73FB2A683J CHIP R 68K J 1/10W R201A RK73FB2A105J CHIP R 1.0M J 1/10W R202A RK73FB2A474J CHIP R 470K J 1/10W R203A,204A RK73FB2A332J CHIP R 3.3K J 1/10W R205A RK73FB2A103J CHIP R 10K J 1/10W R207A RK73FB2A105J CHIP R 1.0M J 1/10W R208A RK73FB2A103J CHIP R 10K J 1/10W R209A RK73FB2A104J CHIP R 100K J 1/10W R211A RK73FB2A103J CHIP R 10K J 1/10W R213A-218A RK73FB2A123J CHIP R 12K J 1/10W R219A RK73FB2A331J CHIP R 330 J 1/10W R220A RK73FB2A102J CHIP R 1.0K J 1/10W R223A RK73FB2A473J CHIP R 47K J 1/10W R224A RK73FB2A121J CHIP R 120 J 1/10W R225A RK73FB2A220J CHIP R 22 J 1/10W R226A,227A RK73FB2A100J CHIP R 10 J 1/10W R301A RK73FB2A822J CHIP R 8.2K J 1/10W R304A RK73FB2A822J CHIP R 8.2K J 1/10W R305A RK73FB2A470J CHIP R 47 J 1/10W R306A RK73FB2A104J CHIP R 100K J 1/10W R311A RK73FB2A100J CHIP R 10 J 1/10W R312A RK73FB2A102J CHIP R 1.0K J 1/10W R315A RK73FB2A331J CHIP R 330 J 1/10W R319A RK73FB2A472J CHIP R 4.7K J 1/10W R320A RK73FB2A473J CHIP R 47K J 1/10W R321A RK73FB2A333J CHIP R 33K J 1/10W R322A RK73FB2A101J CHIP R 100 J 1/10W R323A RK73FB2A682J CHIP R 6.8K J 1/10W R324A RK73FB2A103J CHIP R 10K J 1/10W R325A RK73FB2A473J CHIP R 47K J 1/10W R326A RK73FB2A103J CHIP R 10K J 1/10W R327A RK73FB2A152J CHIP R 1.5K J 1/10W R328A RK73FB2A104J CHIP R 100K J 1/10W R329A RK73FB2A333J CHIP R 33K J 1/10W R330A RK73FB2A561J CHIP R 560 J 1/10W R331A RK73FB2A223J CHIP R 22K J 1/10W R332A RK73FB2A682J CHIP R 6.8K J 1/10W R333A RK73FB2A104J CHIP R 100K J 1/10W R401A,402A RK73FB2A331J CHIP R 330 J 1/10W R513A,514A RK73FB2A223J CHIP R 22K J 1/10W L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. 5 6 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 15 PARTS LIST 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. Q305 2SD1805G TRANSISTOR Q306 2SC4048-AC TRANSISTOR Q307 2SC3860 TRANSISTOR Q308,309 2SA1497 TRANSISTOR Q310 2SC3400 TRANSISTOR Q501,502 2SD1936T TRANSISTOR Q503-506 2SC3860 TRANSISTOR Q508 2SA1317 TRANSISTOR Q509 2SC3330 TRANSISTOR Q601 2SC3330 TRANSISTOR E7M7X7 Q601 2SC3330 TRANSISTOR E8X8M8 Q601 2SC3330 TRANSISTOR T7T8 Q602 2SA1317 TRANSISTOR E7M7X7 Q602 2SA1317 TRANSISTOR E8X8M8 Q602 2SA1317 TRANSISTOR T7T8 L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. 7 HOW TO READ THE PARTS LIST Destination column has the abbreviation for sale country and model. Alphabets mean the country. Numerals do the model. Example: X8 shows DPC-X802 for Australia market. "X" does all models for Australia. "8" does DPC-X802. ABBREVIATION OF MODEL AND MASS PRODUCTION'S DESTNATIONS MODEL CNT Australia Canada China England Europe Germany Korea Malaysia ABB. X P C T E G H I DPC-X707 7 -X7 - - -T7 E7 - - - DPC-X802 8 -X8 P8 - -T8 E8 - - - MODEL CNT Mexico PX/AAFES Russia Scandinavia Shanghai USA Other area Other area(M2) ABB. R Y Q L V K M M 2 DPC-X707 7 - - - - - - M7 - DPC-X802 8 - - - - - K8 M8 - www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 14-6,Dogenzaka 1-chome, Shibuya-ku, Tokyo, 150-8501 Japan KENWOOD SERVICE CORPORATION P.O BOX 22745, 2201 East Dominguez St., Long Beach, CA 90801-5745, U.S.A. KENWOOD ELECTRONICS CANADA INC. 6070 Kestrel Road, Mississauga, Ontario, Canada L5T 1S8 KENWOOD ELECTRONICS LATIN AMERICA S.A. P.O BOX 55-2791, Piso 6 plaza Chase, Cl. 47 y Aquilino de la Guardia Panama, Republic de Panama KENWOOD ELECTRONICS BRASIL LTDA. Av. Moema, 170-17˚, Andar-Cobertura “B”, Ed. Maximum Service Center, 04077-020 Moema, São Paulo-SP-Brasil KENWOOD ELECTRONICS U.K. LIMITED KENWOOD House, Dwight Road, Watford, Herts., WD1 8EB., United Kingdom KENWOOD ELECTRONICS BELGUM N.V. Meachelsesteenweg 418, B-1930 Zaventem, Belgium KENWOOD ELECTRONICS DEUTSCHLAND GMBH Rembrücker Str. 15, 63150 Heusenstamm, Germany KENWOOD ELECTRONICS FRANCE S.A. 13 Boulevard Ney, 75018 Paris, France KENWOOD ELECTRONICS ITALIA S.p.A. Via G. Sirtori, 7/9 20129, Milano, ltaly KENWOOD IBÉRICA S.A. Bolivia, 239-08020 Barcelona, Spain KENWOOD ELECTRONICS AUSTRALIA PTY. LTD. (A.C.N. 001499 074) P.O Box 504, 8 Figtree Drive, Australia Centre, Homebush, N.S.W. 2140, Australia KENWOOD & LEE ELECTRONICS, LTD. Unit 3712-3724, Level 37, Tower 1, Metroplaza, 223 Hing Fong Road, Kwai Fong N.T., Hong Kong KENWOOD ELECTRONICS GULF FZE P.O.Box 61318, Jebel Ali, Dubai, U.A.E. KENWOOD ELECTRONICS SINGAPORE PTE LTD. No. 1 Genting Lane #02-02, KENWOOD Building, Singapore, 349544 KENWOOD ELECTRONICS (MALAYSIA) SDN BHD. #4.01 Level 4, Wisma Academy Lot 4A, Jalan 19/1 46300 Petaling Jaya Selangor Darul Ehsan Malaysia KENWOOD ELECTRONICS (THAILAND) CO., LTD. 2019 New Pechburi Road, Bangkapi, Huaykwang, Bangkok, 10320 Thailand Note: Component and circuit are subject to modification to insure best operation under differing local conditions. This manual is based on Europe (E) standard, and provides information on regional circuit modification through use of alter- nate schematic diagrams, and information on regional component variations through use of parts list. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
