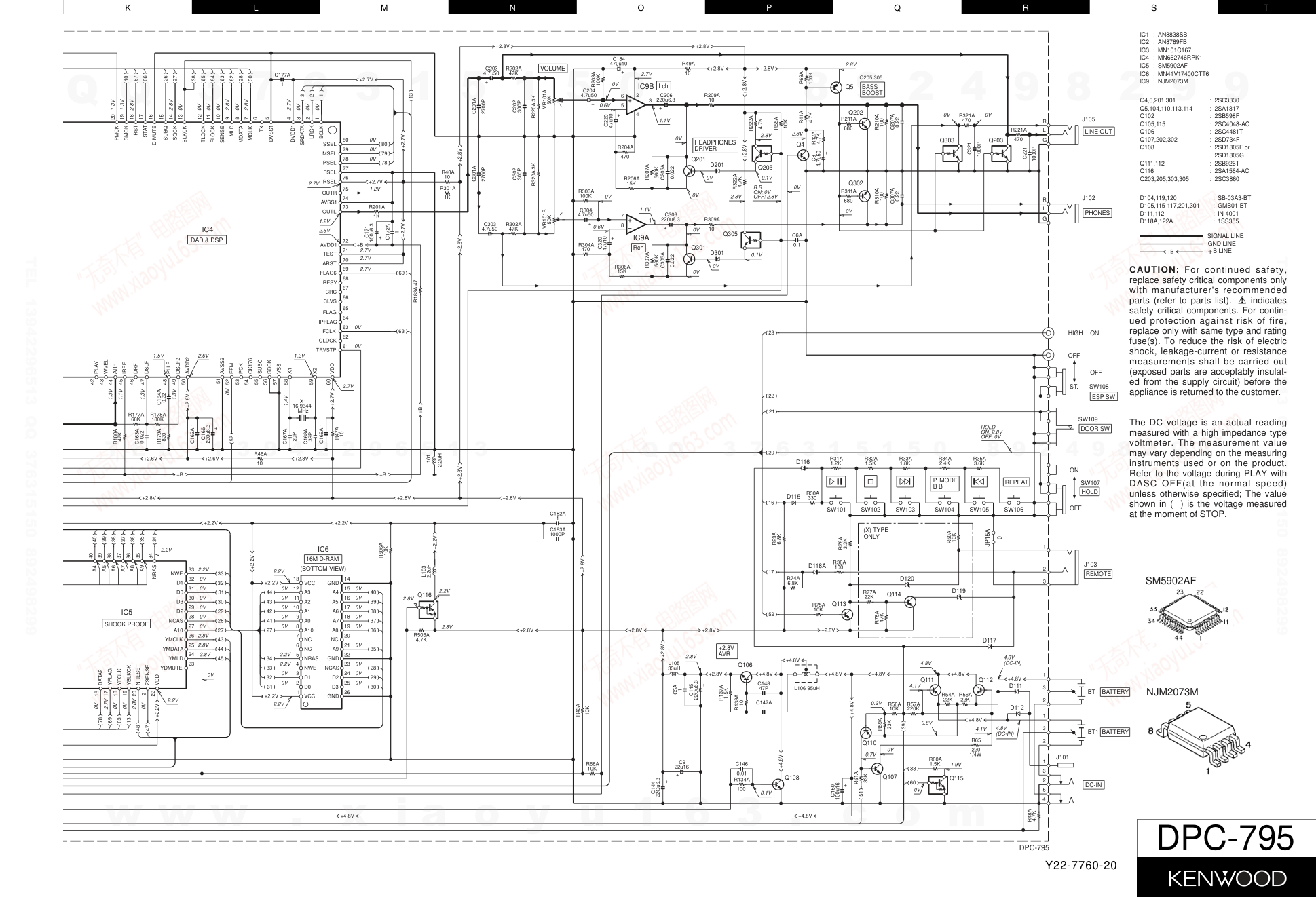

建伍KENWOOD DPC-795 便携式CD播放机电路图

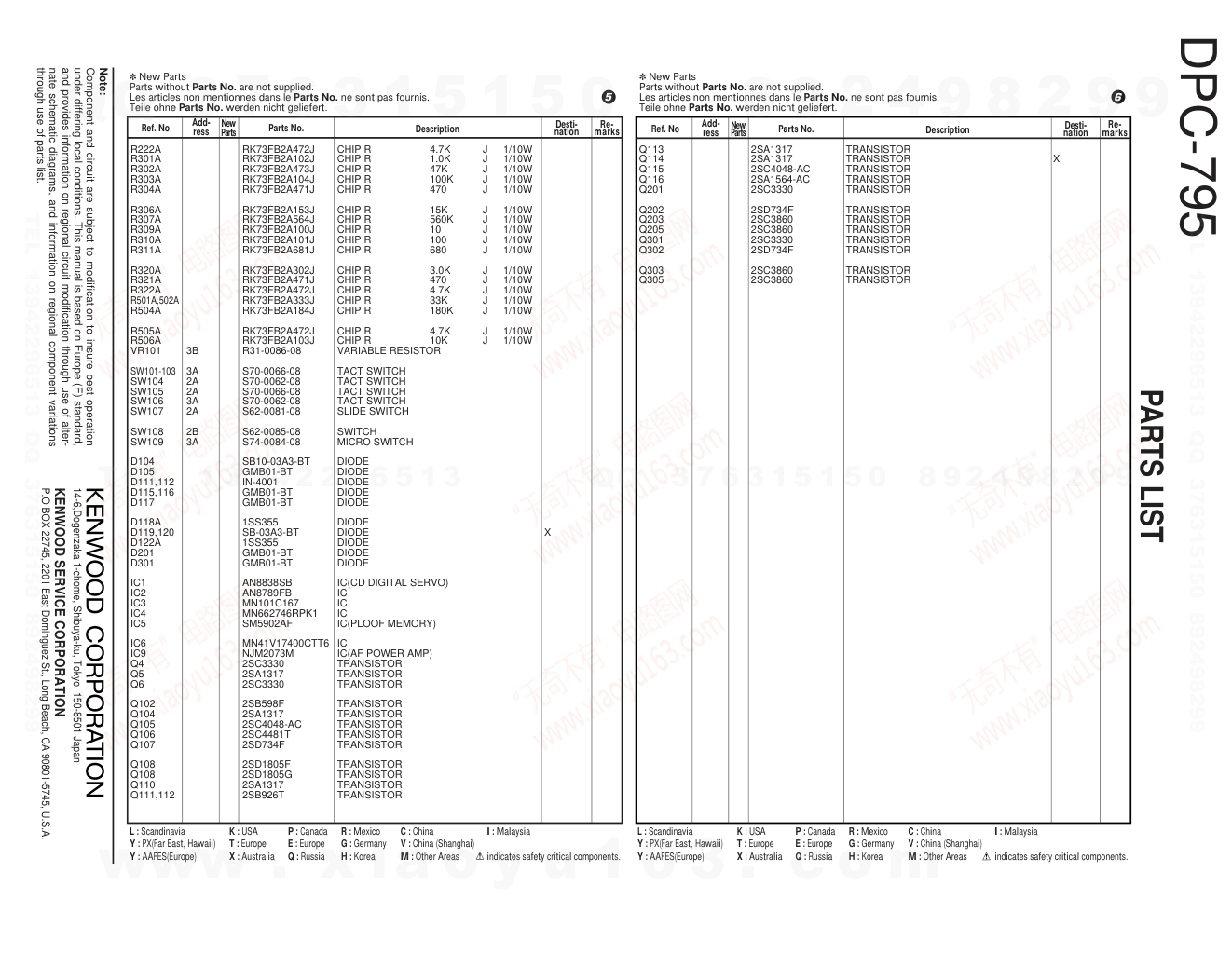

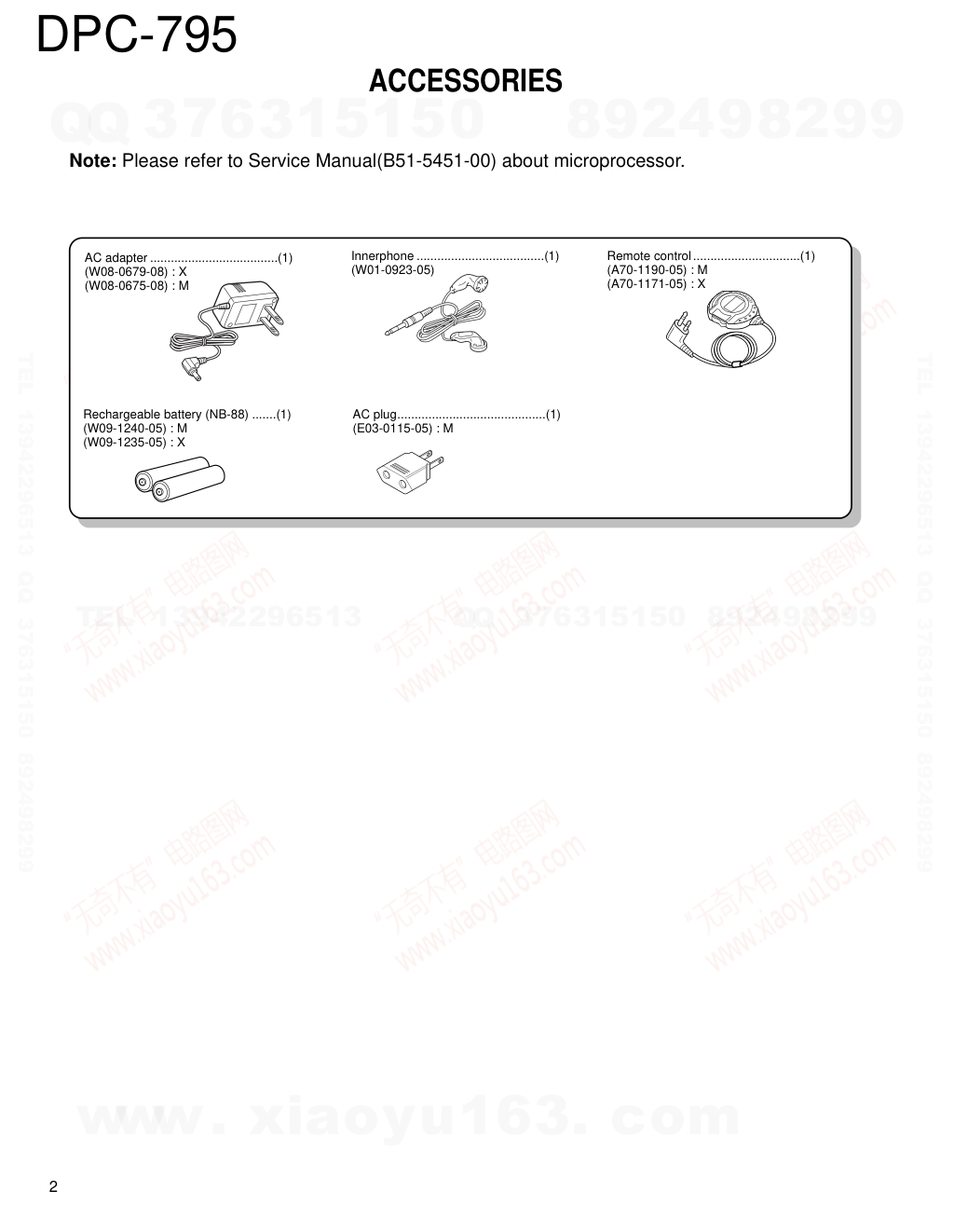

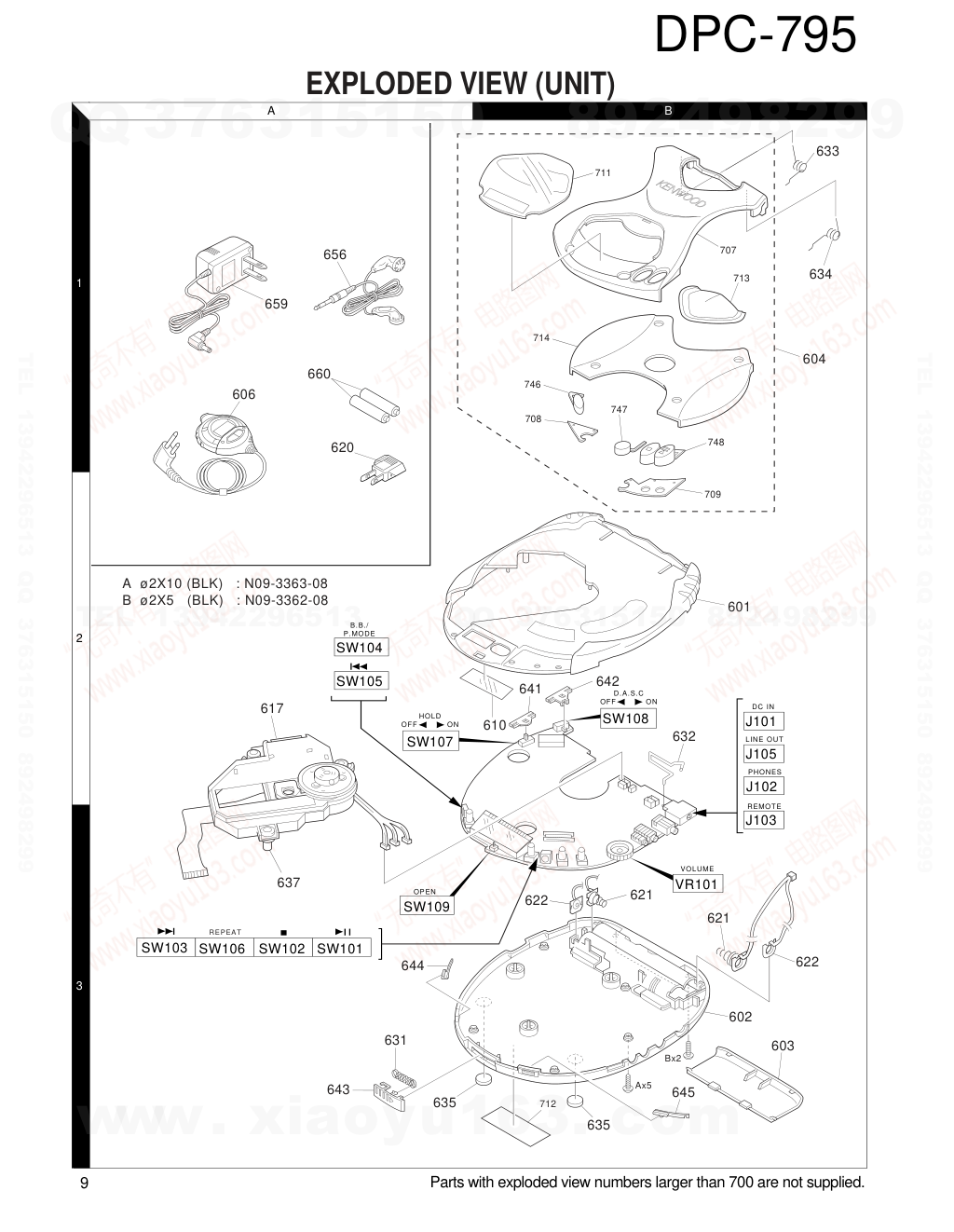

SPECIFICATIONS In compliance with Federal Regulations, following are reproduc- tions of labels on, or inside the product relating to laser product safety. KENWOOD-Corp. certifies this equipment conforms to DHHS Regulations No. 21 CFR 1040. 10, Chapter 1, Subchapter J. DANGER : Laser radiation when open and interlock defeated. AVOID DIRECT EXPOSURE TO BEAM. PORTABLE CD PLAYER DPC-795 SERVICE MANUAL © 1999-3/B51-5515-00 (K/K) 477 Format System ....................................................................................................Compact disc digital audio system Laser ............................................................................................................................. Semiconductor laser Audio Frequency response ................................................................................................. 20 Hz to 20 kHz, ±3 dB PHONES outpuyt level (16Ω, 1 kHz ) ...................................................................................10 mW + 10 mW Line output/impedance ............................................................................................................0.6 Vrms/1 kΩ Power supply External DC supply .................................................................................................................. 4.5V to 6 V DC Rechargeable batteries (NB-88 or NB-130) x 2 or 4 ....................................................................... DC 2.4 V Commercially-available alkaline batteries (LR6/AA) x 2 or 4 ..............................................................DC 3 V Battery life (continuous repeat playback) (Figures inside parentheses show the performance when the D.A.S.C. is ON.) Commercially-available alkaline batteries (LR6/AA) x 2 ............................................................ Approx. 12 (9.5) Hours Commercially-available alkaline batteries (LR6/AA) x 4 ............................................................. Approx. 25 (20) Hours Rechargeable batteries (NB-88) x 2 .......................................................................................... Approx. 5.5 (4.5) Hours Alkaline batteries (LR6/AA) x 2 and rechargeable batteries (NB-88) x 2 ................................... Approx. 18 (15) Hours Dimensions (W x H x D) ................................................................................... 132 mm x 32.5 mm x 153 mm (5 - 3/16" x 1 - 1/4" x 6") Weight (net) ................................................................................................................................. 272 g (9.6 oz) Notes Notes 1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice. 2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature). VOLUME PHONES LINE OUT DC-IN Top cabinet (A02-2841-08) DC jack (E03-0356-08) Line out phone jack (E11-0354-08) Stereo phone jack (E11-0355-08) Phone jack (E11-0372-08) Variable resistor (R31-0086-08) Knob (REPEAT) (K27-2339-08) CD door ASSY (A52-0363-08) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 2 ACCESSORIES AC plug...........................................(1) (E03-0115-05) : M Rechargeable battery (NB-88) .......(1) (W09-1240-05) : M (W09-1235-05) : X Remote control...............................(1) (A70-1190-05) : M (A70-1171-05) : X AC adapter .....................................(1) (W08-0679-08) : X (W08-0675-08) : M Innerphone .....................................(1) (W01-0923-05) Note: Please refer to Service Manual(B51-5451-00) about microprocessor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 4 1 5 IC9 8 22 12 14 1 25 1 51 75 100 76 26 50 60 41 1 22 12 34 44 11 1 14 26 13 1 23 33 20 40 21 61 80 15 28 34 44 1 IC2 IC1 IC3 IC4 IC5 IC6 11 33 23 REPEAT REMOTE VOLUME LINE OUT PHONES OPT OUT DC IN DOOR SW P.MODE B.B 1 19 ON OFF HOLD ON OFF ESP SW IC7 1 26 13 14 4 1 5 IC9 8 22 12 14 1 25 1 51 75 100 76 26 50 60 41 1 22 12 34 44 11 1 14 26 13 1 23 33 20 40 21 61 80 15 28 34 44 1 IC2 IC1 IC3 IC4 IC5 IC6 11 33 23 REPEAT REMOTE VOLUME LINE OUT PHONES OPT OUT DC IN DOOR SW P.MODE B.B 1 19 ON OFF HOLD ON OFF ESP SW IC7 1 26 13 14 A C E G I B D F H J 2 1 3 5 7 4 6 Refer to the schematic diagram for the value of resistors and capacitors. PC BOARD (Component side view) PC BOARD (Foil side view) 3 4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 AMP RF L4 L5 L3 L2 L1 L6 L7 L8 L9 L10 1 2 3 4 5 6 a g d b c f e C D104 SW LMT. FEED MOTOR MOTOR DISC LD PD BTL DRIVER CN4 SP1 SL1 Q102 Q6 E A D B C PICKUP F D105 Q105 M M D122A u-COM Q104 LD CONTROL D.A.S.C CONTROL 28 27 26 25 24 23 22 21 20 19 18 17 16 15 PDF PDE VREF TEOUT TEN TBAL FBAL FEN FE OUT ENV LDON OFTR PDW REDET 1 2 3 4 5 6 7 8 9 10 11 12 13 14 VCC PDA PDC PDB PDD FB RF RFIN LPD LD CSBRT CEA BDO GND 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 SEG0 SUBQ SQCK MDATA PO4 MCLK PO6 RESET PI0 PI1 PI2 PI3 PI4 BLKCK P21 REM IN P23 P24 YMCLK YMDATA YMLD YD MUTE ZSENSE NRESET P53 P54 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 COM4 COM3 COM2 COM1 VLC3 VLC2 VLC1 VDD OSC2 SMCK X1 X0 MMODO VREF- VSS KEY1 KEY2 RECHARGE OUT BATT. HOLD DOOR DASC ST. DASC HI VREF+ POD SEG25 P80 P81 DIGITAL OUT P83 P84 P85 P86 RST STAT TLOCK FLOCK SENSE MLD LIGHT OUT RECHARGE P70 P67 P66 EMP LMT BBS CONT. REM DATA POWER SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 1 2 3 4 5 6 7 8 9 COM1 SEG0 13 11 10 12 14 15 16 17 18 19 COM2 COM3 COM4 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 4 3 2 1 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 No. PIN No. L6 L7 L4 L5 6a 5a 4a B.BOOST 3a REPEAT 2a PGM 1a COM1 COM1 DASC L8 L3 6b 6f 5b 5f 4b 4f 3b 3f 2b 2f 1b 1f COM2 COM2 ST L9 L2 6c 6g 5c 5g 4c 4g 3c 3g 2c 2g 1c 1g COM3 COM3 HI L10 L1 6d 6e 5d 5e 4d 4e 3d 3e 2d 2e 1d 1e COM4 COM4 PIN u-COM 22 21 20 19 18 17 16 15 14 13 12 34 35 36 37 38 39 40 41 42 43 44 IN TV PC IN SP LDON IN TR IN FO VREF DRVCC AVDD SVCC EMP VC TB CLK START POWER PVCC2 IOUT SGND PWMG 23 24 25 26 27 28 29 30 31 32 33 11 10 9 8 7 6 5 4 3 2 1 TR- TR+ FO- FO+ PGND SP+ SP- TV+ TV- ICONT CRIP AREF CT SPRO IN FB OUT DED RESET PVCC VSEN 44 43 42 41 12 13 14 15 A3 A2 A1 A0 YLRCK YSCK ZSCK ZLRCK 1 2 3 4 5 6 7 8 9 10 11 VDD UC1 UC2 UC3 UC4 UC5 DIT NTEST CLK VSS YSR DATA 41 TES 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 TRV TVD PC ECM ECS KICK TRD FOD VREF FBAL TBAL FE TE RFENV V DET OFT TRCRS RF DET BDO LDON 1 2 3 4 5 6 7 8 9 10 13 15 14 12 11 15 12 14 13 11 10 7 9 8 6 5 2 4 3 1 1.2K R174A 6.8K R168A C140 22u16 + + 4.7u50 R123A 0.022 4.7K C139 R119A C128A C502A 1 33K R501A C130 22K C131 47P R122A R502A 33K C124A C123A 0.1 C121A C125A 1 47u10 C127 + 100u6.3 C126 + PD2 PD1 E PD LDVR GND LD VCC VC F AL TRK- TRK+ FCS- FCS+ + F.C T.C 33uH L102 0.1 0.1 47K R184A R125A 20K 22u16 + SP+ SP- SL+ SL- 1K R166A 1000P C161A 0.1 C122A 47 55 0.01 C136 22K R124A 100u6.3 C133 + 0.1 C132 1 10K R169A 33K R170A 5.6K R175A VCC VC C501 R171A 100K +2.8V +2.8V +2.8V +4.8V +4.8V +2.8V +2.8V STOP TRV 24 25 26 27 MRST 56 22 23 25 27 28 29 NC C135 0.1 390P C134 470K R140A 2.2K R141A 0.1 C137A 100u6.3 C138 + R504A 180K +4.8V 39 27 28 29 23 25 22 36 38 39 31 32 33 34 30 2 1 80 79 3 52 44 43 42 41 C180A 0.022 C103A 0.022 C104A R112A 150K C115A 150P R109A 120K R110A 33K R8A 47K R7A 47K 100K R111A 470P C116A R116A 15K C106A 47P 6.8K R114A 3.3K R115A 0.1 C111A 4.7K 2P C107A 0.022 C112A 0.027 C113A 1 C120A 33 31 30 36 38 32 34 TP 24 25 27 26 1 2 3 4 10K R3A R1A 10K R2A 10K 1K R21A 0.1 C3A 26 27 28 30 38 43 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 JP11A JP13A R22A 4.7K 0.1 C2A 100u C1 + 55 53 56 62 63 64 65 66 67 10 44 45 47 48 +2.6V +2.6V +2.6V +2.6V 40 C114A 0.027 39 C152 47u10 + R136A 4.7 1 C118A 100u6.3 C117 + +B +B R121A 0 10K R189A 10K R67A +4.8V +4.8V 53 17 21 23 22 20 16 +2.8V +2.8V +2.8V +2.8V +2.8V +2.8V +2.8V 52 51 40 +B +B +B +2.6V +2.6V +2.6V +2.6V +2.6V +2.6V +2.8V +2.8V 60 +2.2V +2.2V +2.2V +2.2V +4.8V +4.8V +4.8V 33 +2.8V 0.022 C11A 56K R23A 88 87 86 90 89 91 92 93 94 96 95 99 98 97 1 100 3 2 4 R172A 0 +B +B 10K R100A 10K R99A +2.8V 68K R142A 1 47u10 C185 + 33K R167A 0 R173A R113A 2.2K R182A +2.2V 6.3 IC1 IC3 IC2 LC101 (KSM-542A) MECHA. ASS'Y PGM REPEAT B.BOOST C D.A.S.C. ST HI 4.8V 1.1V 0.8V 2.8V 2.5V 0V 1.3V 2.6V 1.3V 1.3V 1.3V 0V 0V 0V 0V 0V 0V 0.2V 0V 2.8V 0V 1.3V 4.8V 4.8V 4.8V 2.8V 0.3V 4.6V 1.3V 1.3V 1.3V 1.3V 1.3V 0V 0V 1.5V 2.6V 0V 0V 0V 1.3V 1.3V 1.2V 0V 0.6V 2.8V 1.3V 2.5V 0.4V 0.2V 0.7V 2.8V 4.5V 1.0V 0V 0V 0V 0V 0V 1.3V 1.3V 1.4V 0V 2.6V 1.3V 1.3V 1.3V 1.3V 1.3V 1.4V 2.6V 1.3V 0.7V 0.1V 1.9V 1.5V 1.1V 0V 1.9V 4.8V 1.4V 2.8V 1.4V 1.4V 1.4V 0.9V 1.9V 1.3V 2.8V 2.8V 2.8V 2.8V 0V 0V 0V 2.8V 1.4V 0V 0V 2.8V 0V 2.8V 2.8V 0V 0V 0V 2.8V 2.8V 2.8V 0V 2.8V 2.8V 2.8V 0V 2.2V 0V 1.3V 2.6V 1.9V 1.8V OFF: 0V ST/HI: 2.9V D.A.S.C OFF: 2.7V 0V ST/HI: 0V 0V 0V A B D F H J C E G I 2 1 3 5 7 4 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 DAD & DSP SHOCK PROOF 16M D-RAM J103 REMOTE (X) TYPE ONLY REPEAT OFF SW107 HOLD ON SW109 DOOR SW ST. ESP SW OFF (BOTTOM VIEW) SW108 VOLUME HEADPHONES Rch D301 Q301 Q305 D201 DRIVER Q201 Lch Q202 Q302 Q4 Q205 Q5 Q203 Q303 J102 PHONES LINE OUT J105 Q116 Q108 J101 DC-IN BATTERY BT1 Q106 BATTERY BT Q110 Q107 Q115 D112 D111 Q111 Q112 D115 D116 SW101 SW102 SW103 SW104 SW105 SW106 P. MODE B B D118A D117 Q113 HIGH ON OFF BASS BOOST IC1 : AN8838SB IC2 : AN8789FB IC3 : MN101C167 IC4 : MN662746RPK1 IC5 : SM5902AF IC6 : MN41V17400CTT6 IC9 : NJM2073M Q4,6,201,301 : 2SC3330 Q5,104,110,113,114 : 2SA1317 Q102 : 2SB598F Q105,115 : 2SC4048-AC Q106 : 2SC4481T Q107,202,302 : 2SD734F Q108 : 2SD1805F or Q111,112 : 2SB926T Q116 : 2SA1564-AC Q203,205,303,305 : 2SC3860 D104,119,120 : SB-03A3-BT D105,115-117,201,301 : GMB01-BT D111,112 : IN-4001 D118A,122A : 1SS355 +2.8V AVR Q114 D119 D120 JP15A 0 GND LINE SIGNAL LINE B LINE 2SD1805G 40 39 38 37 36 35 34 16 17 18 19 20 21 22 A4 A5 A6 A7 A8 A9 NRAS DATA2 YFLAG YFCLK YBLKCK NRESET ZSENSE VDD 33 32 31 30 29 28 27 26 25 24 23 NWE D1 D0 D3 D2 NCAS A10 YMCLK YMDATA YMLD YDMUTE 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 PMCK SMCK RST STAT D MUTE SUBQ SQCK BLKCK TLOCK FLOCK SENSE MLD MDATA MCLK TX DVSS1 DVDD1 SRDATA LRCK BCLK PLAY WVEL ARF IREF DRF DSLF PLLF DSLF2 AVDD2 AVSS2 EFM PCK CK176 SUBC SBCK VSS X1 X2 VDD 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 SSEL MSEL PSEL FSEL RSEL OUTR AVSS1 OUTL AVDD1 TEST ARST FLAG6 RESY CRC CLVS FLAG IPFLAG FCLK CLDCK TRVSTP 220u6.3 + 0.022 C162A 1 R201A 1 100u6.3 + 47K R301A C163A C166 1K 1K C171 C172A R183A 47 3 2 1 38 63 64 65 30 62 28 26 67 10 66 27 80 79 78 C177A 1 63 69 13 68K R177A 0.22 C164A 820 R179A 180K R178A R180A MHz 16.9344 C167A 20P 39P C168A X1 C169A 1 10 +2.8V +2.8V 0.022 C305A 560K R307A R306A 15K 47K R202A C202 C302 R302A 47K 4.7u50 + C303 C301A C201A 4.7u50 + C203 15K R206A R204A VR101B 50K 300P R320A 3K C304 R304A 470 C320 4.7u50 + + 47u10 8 7 100K R303A 470 VR101A 300P R220A 3K 50K + 4.7u50 6 + 5 C220 47u10 C204 R203A 100K + C184 470u10 1 C306 + 220u6.3 560K R207A C205A 0.022 R309A 10 R322A 4.7K 10 R49A 220u6.3 2 4 3 C206 + R209A 10 +2.8V 4.7u50 + 4.7K R42A C8 R311A 680 R222A 4.7K 10K R55A R41A 4.7K R211A 680 100K R69A 100 R310A 0.22 C307A 100 R210A C207A 0.22 C321 1000P 1000P C221 R321A 470 470 R221A L G R R L G 48 47 78 69 63 13 45 27 28 29 30 31 32 33 44 43 A8 VCC 13 A1 10 12 A3 11 A2 A0 9 A5 15 14 A4 18 A6 17 16 A7 GND D1 6 7 8 3 NRAS 4 5 NWE D0 1 2 VCC D2 21 20 19 24 GND 23 22 NCAS D3 26 25 40 39 38 37 36 35 34 A10 GND A9 NC NC NC 31 30 27 32 41 42 43 44 29 28 35 36 37 38 39 40 33 34 4.7K R505A 22Ou6.3 + + 1.5K + 22u16 22Ou6.3 C145 L105 33uH 1 100 3 2 5 4 3 2 L106 95uH C147A 47P 1 R138A 10 C146 0.01 R134A C148 C150 100u16 + 3 2 +4.8V R137A +2.8V +4.8V C9 33K R61A R59A 33K 220K R57A 10K R58A 1.5K 39 60 33 51 22K R54A 22K R56A 1 1 +4.8V +4.8V +4.8V +4.8V +4.8V 220 R65 1/4W 4.7K R48A 330 R30A 1.2K R31A R32A 1.5K R33A 1.8K R34A 2.4K R35A 3.6K R38A 10K R75A 1 3 2 10 R46A +2.6V +2.6V +2.6V +2.8V +2.8V +2.8V +2.7V 52 +2.2V +2.2V +2.2V +2.2V +2.2V C182A 1 R43A 10K 10K R66A 2700P 2700P +2.8V +2.8V +2.8V +2.7V +2.7V +2.7V +2.8V +2.8V +2.7V C6A 0.1 +2.8V +2.8V 16 20 21 17 52 6.8K R29A 6.8K R74A 22 23 1 C5A +2.8V +2.8V +2.8V +2.8V +4.8V +4.8V R60A +4.8V Q205,305 R40A +B +B +B +B R47A 10 C183A 1000P L101 +4.8V 100 3.3K R76A 47K R78A 22K R77A 10K R50A C144 +B +2.8V +2.8V L103 2.2uH R506A 10K +2.2V +2.2V 2.2uH IC5 IC4 IC6 IC9A IC9B DPC-795 0V 1.2V 0V 0V 0V 1.3V 1.3V 2.8V 2.8V 0V 0V 0V 0V 2.8V 0V 2.8V 0V 0V 0V 1.3V 1.1V 1.3V 0V 2.8V 2.8V 0V 0V 0V 2.2V 0V 0V 2.8V 2.7V 1.2V 2.5V 2.7V 2.7V 1.3V 1.4V 1.5V 2.7V 0V 0V 0.6V 0V 0.6V 0V 1.1V 0V 0V 2.8V 0V 1.1V 0V 2.7V ON: 0V OFF: 2.8V 0.1V 0V B.B. 0.1V 0V 2.8V 2.8V 2.8V 0V 2.7V 0V 0V 2.8V 0V 2.2V 0.1V 0.7V 0.2V 0V 0.8V 0V 1.9V ON: 2.8V OFF: 0V HOLD 2.2V 2.2V 0V 0V 2.6V 2.7V 2.7V 0V 0V 2.8V (DC-IN) 4.8V 4.8V (DC-IN) 4.1V 4.1V 0V 0V 2.2V 2.2V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 2.2V 2.2V 0V 4.8V 1.2V 2.8V 2.8V T K M O Q S L N P R DPC-795 Y22-7760-20 CAUTION: For continued safety, replace safety critical components only with manufacturer's recommended parts (refer to parts list). indicates safety critical components. For contin- ued protection against risk of fire, replace only with same type and rating fuse(s). To reduce the risk of electric shock, leakage-current or resistance measurements shall be carried out (exposed parts are acceptably insulat- ed from the supply circuit) before the appliance is returned to the customer. The DC voltage is an actual reading measured with a high impedance type voltmeter. The measurement value may vary depending on the measuring instruments used or on the product. Refer to the voltage during PLAY with DASC OFF(at the normal speed) unless otherwise specified; The value shown in ( ) is the voltage measured at the moment of STOP. NJM2073M SM5902AF w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 VOLUME OPEN SW103 VR101 SW108 HOLD OFF ON SW107 SW105 B.B./ P.MODE SW104 SW106 SW102 SW101 SW109 DC IN J101 LINE OUT J105 PHONES J102 REMOTE J103 D.A.S.C OFF ON A ø2X10 (BLK) : N09-3363-08 B ø2X5 (BLK) : N09-3362-08 Ax5 Bx2 REPEAT 659 656 604 634 633 601 642 610 641 621 621 622 622 602 645 631 635 635 643 644 603 617 637 632 620 660 606 711 713 707 714 746 747 748 709 712 708 1 2 3 A B Parts with exploded view numbers larger than 700 are not supplied. 9 EXPLODED VIEW (UNIT) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 10 PARTS LIST 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. C113A,114A CK73FB1E273K CHIP C 0.027UF K C115A CC73FSL1H151J CHIP C 150PF J C116A CK73FB1H471K CHIP C 470PF K C117 CE04CW0J101M ELECTRO 100UF 6.3WV C118A CK73FB1H105Z CHIP C 1.0UF Z C120A CK73FB1H105Z CHIP C 1.0UF Z C121A-124A CK73FB1E104K CHIP C 0.10UF K C125A CK73FB1H105Z CHIP C 1.0UF Z C126 CE04CW0J101M ELECTRO 100UF 6.3WV C127 CE04CW1A470M ELECTRO 47UF 10WV C128A CK73FB1H105Z CHIP C 1.0UF Z C130 CC45FSL1H470J CERAMIC 47PF J C131 CK45FB1H103Z CERAMIC 0.010UF Z C132 CK45FB1C104K CERAMIC 0.10UF K C133 CE04CW0J101M ELECTRO 100UF 6.3WV C134 CC45FSL1H391J CERAMIC 390PF J C135 CK45FB1C104K CERAMIC 0.10UF K C136 CE04CW1H4R7M ELECTRO 4.7UF 50WV C137A CK73FB1E104K CHIP C 0.10UF K C138 CE04CW0J101M ELECTRO 100UF 6.3WV C139 CE04CW1C220M ELECTRO 22UF 16WV C140 CK45FB1H223Z CERAMIC 0.022UF Z C144,145 CE04CW0J221M ELECTRO 220UF 6.3WV C146 CK45FB1H103Z CERAMIC 0.010UF Z C147A CK73FB1H105Z CHIP C 1.0UF Z C148 CC45FSL1H470J CERAMIC 47PF J C150 CE04CW1C101M ELECTRO 100UF 16WV C152 CE04CW1A470M ELECTRO 47UF 10WV C161A CK73FB1H102K CHIP C 1000PF K C162A CK73FB1H105Z CHIP C 1.0UF Z C163A CK73FB1E223K CHIP C 0.022UF K C164A CK73FB1H224Z CHIP C 0.22UF Z C166 CE04CW0J221M ELECTRO 220UF 6.3WV C167A CC73FSL1H200J CHIP C 20PF J C168A CC73FSL1H390J CHIP C 39PF J C169A CK73FB1H105Z CHIP C 1.0UF Z C171 CE04CW0J101M ELECTRO 100UF 6.3WV C172A CK73FB1H105Z CHIP C 1.0UF Z C177A CK73FB1H105Z CHIP C 1.0UF Z C180A CK73FB1H105Z CHIP C 1.0UF Z C182A CK73FB1H105Z CHIP C 1.0UF Z C183A CK73FB1H102K CHIP C 1000PF K C184 CE04CW1A471M ELECTRO 470UF 10WV C185 CE04CW1A470M ELECTRO 47UF 10WV C201A CK73FB1H272K CHIP C 2700PF K C202 CK45FB1H301J CERAMIC 300PF J C203,204 CE04CW1H4R7M ELECTRO 4.7UF 50WV C205A CK73FB1E223K CHIP C 0.022UF K C206 CE04CW0J221M ELECTRO 220UF 6.3WV C207A CK73FB1H224Z CHIP C 0.22UF Z C220 CE04CW1A470M ELECTRO 47UF 10WV C221 CK45FB1H102K CERAMIC 1000PF K C301A CK73FB1H272K CHIP C 2700PF K C302 CK45FB1H301J CERAMIC 300PF J C303,304 CE04CW1H4R7M ELECTRO 4.7UF 50WV 601 2B A02-2841-08 TOP CABIMET 602 3B A02-2928-08 BOTTOM CABINET 603 3B 8 A09-1111-08 BATTERY DOOR 604 1B 8 A52-0363-08 CD DOOR ASSY 606 1A A70-1171-05 REMOTE CONTROL X 606 1A A70-1190-05 REMOTE CONTROL M 610 2B B10-3454-08 INNER DISPLAY LENS M - B46-0100-50 WARRANTY CARD X - B60-3948-08 INST MANUAL(EN) - B60-3949-08 INST MANUAL(SP) M - B60-3950-08 INST MANUAL(TA) M 617 2A D40-1547-08 CD MECHANISM KSM-542AAA 620 1A E03-0115-05 AC PLAG ADAPTER M 621 3B E23-1737-08 BATTERY CONTACT PLATE(-) 622 3B E23-1758-08 BATTERY CONTACT PLATE(+) 631 3A G01-4075-08 OPEN KNOB SPRING(FOR HOOK) 632 2B E23-1773-08 RECHARGE CONTACT SPRING 633 1B G01-4077-08 CD DOOR SPRING (L) 634 1B G01-4076-08 CD DOOR SPRING (R) 635 3A,3B G13-0562-08 RUBBER FOOT - 8 H50-3054-08 ITEM CARTON CASE M - 8 H50-3055-08 ITEM CARTON CASE X 637 3A J02-1185-08 CUSHION(MECHA) 641 2B K27-2320-08 KNOB SIDE A 642 2B K27-2321-08 KNOB SIDE B 643 3A K27-2322-08 KNOB DOOR OPEN 644 3A K27-2375-08 KNOB CD BUTTON D 645 3B K27-2376-08 KNOB CD BUTTON E A N09-3363-08 SCREW 2X10 BLACK 144-62010-112 B N09-3362-08 SCREW 2X5 BLACK 656 1A W01-0923-05 INNER H/P(SHORT) 659 1A W08-0675-08 AC-DC ADAPTOR M 659 1A W08-0679-08 AC-DC ADAPTOR X 660 1A W09-1235-05 RECHARGEBLE BATTERY X 660 1A W09-1240-05 RECHARGEBLE BATTERY M LC101 B38-0171-08 LCD DISPLAY C1 CE04CW0J101M ELECTRO 100UF 6.3WV C2A ,3A CK73FB1E104K CHIP C 0.10UF K C5A CK73FB1H105Z CHIP C 1.0UF Z C6A CK73FB1E104K CHIP C 0.10UF K C8 CE04CW1H4R7M ELECTRO 4.7UF 50WV C9 CE04CW1C220M ELECTRO 22UF 16WV C11A CK73FB1E223K CHIP C 0.022UF K C103A,104A CK73FB1E223K CHIP C 0.022UF K C106A CC73FSL1H470J CHIP C 47PF J C107A CC73FSL1H020C CHIP C 2.0PF C C111A CK73FB1E104K CHIP C 0.10UF K C112A CK73FB1E223K CHIP C 0.022UF K L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. 1 2 DPC-795 ELECTRONICS PARTS www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 11 PARTS LIST 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. R74A RK73FB2A682J CHIP R 6.8K J 1/10W R75A RK73FB2A103J CHIP R 10K J 1/10W R76A RK73FB2A332J CHIP R 3.3K J 1/10W R77A RK73FB2A223J CHIP R 22K J 1/10W X R78A RK73FB2A473J CHIP R 47K J 1/10W X R99A,100A RK73FB2A103J CHIP R 10K J 1/10W R109A RK73FB2A124J CHIP R 120K J 1/10W R110A RK73FB2A333J CHIP R 33K J 1/10W R111A RK73FB2A104J CHIP R 100K J 1/10W R112A RK73FB2A154J CHIP R 150K J 1/10W R113A RK73FB2A472J CHIP R 4.7K J 1/10W R114A RK73FB2A682J CHIP R 6.8K J 1/10W R115A RK73FB2A332J CHIP R 3.3K J 1/10W R116A RK73FB2A153J CHIP R 15K J 1/10W R119A RK73FB2A470J CHIP R 47 J 1/10W R121A RK73FB2A000J CHIP R 0 J 1/10W R122A RK73FB2A223J CHIP R 22K J 1/10W R123A RK73FB2A472J CHIP R 4.7K J 1/10W R124A RK73FB2A223J CHIP R 22K J 1/10W R125A RK73FB2A203J CHIP R 20K J 1/10W R134A RK73FB2A101J CHIP R 100 J 1/10W R136A RK73FB2A4R7J CHIP R 4.7 J 1/10W R137A RK73FB2A152J CHIP R 1.5K J 1/10W R138A RK73FB2A100J CHIP R 10 J 1/10W R140A RK73FB2A474J CHIP R 470K J 1/10W R141A RK73FB2A222J CHIP R 2.2K J 1/10W R142A RK73FB2A683J CHIP R 68K J 1/10W R166A RK73FB2A102J CHIP R 1.0K J 1/10W R167A RK73FB2A333J CHIP R 33K J 1/10W R168A RK73FB2A103J CHIP R 10K J 1/10W R169A RK73FB2A333J CHIP R 33K J 1/10W R170A RK73FB2A562J CHIP R 5.6K J 1/10W R171A RK73FB2A104J CHIP R 100K J 1/10W R172A,173A RK73FB2A000J CHIP R 0 J 1/10W R174A RK73FB2A682J CHIP R 6.8K J 1/10W R175A RK73FB2A122J CHIP R 1.2K J 1/10W R177A RK73FB2A683J CHIP R 68K J 1/10W R178A RK73FB2A184J CHIP R 180K J 1/10W R179A RK73FB2A821J CHIP R 820 J 1/10W R180A RK73FB2A473J CHIP R 47K J 1/10W R182A RK73FB2A222J CHIP R 2.2K J 1/10W R183A RK73FB2A470J CHIP R 47 J 1/10W R184A RK73FB2A473J CHIP R 47K J 1/10W R189A RK73FB2A103J CHIP R 10K J 1/10W R201A RK73FB2A102J CHIP R 1.0K J 1/10W R202A RK73FB2A473J CHIP R 47K J 1/10W R203A RK73FB2A104J CHIP R 100K J 1/10W R204A RK73FB2A471J CHIP R 470 J 1/10W R206A RK73FB2A153J CHIP R 15K J 1/10W R207A RK73FB2A564J CHIP R 560K J 1/10W R209A RK73FB2A100J CHIP R 10 J 1/10W R210A RK73FB2A101J CHIP R 100 J 1/10W R211A RK73FB2A681J CHIP R 680 J 1/10W R220A RK73FB2A302J CHIP R 3.0K J 1/10W R221A RK73FB2A471J CHIP R 470 J 1/10W C305A CK73FB1E223K CHIP C 0.022UF K C306 CE04CW0J221M ELECTRO 220UF 6.3WV C307A CK73FB1H224Z CHIP C 0.22UF Z C320 CE04CW1A470M ELECTRO 47UF 10WV C321 CK45FB1H102K CERAMIC 1000PF K C501 CE04CW1C220M ELECTRO 22UF 16WV C502A CK73FB1H105Z CHIP C 1.0UF Z BT E35-1995-08 2P J.WIRE(BLACK/GREY) BT1 E35-1994-08 2P J.WIRE(ORANGE/BLUE) CN4 E60-0005-08 FILM CONNECTOR,15P J101 2B E03-0356-08 DC JACK J102 2B E11-0372-08 PHONE JACK 3.6MM GREEN J103 3B E11-0355-08 STEREO PHONE JACK J105 2B E11-0354-08 LINE OUT(PHONE JACK) L101 L33-0587-08 CHOKE COIL 2.2UH L102 L33-0564-08 CHOKE COIL 33UH L103 L33-0587-08 CHOKE COIL 2.2UH L105 L33-0564-08 CHOKE COIL 33UH L106 L33-0565-08 CHOKE COIL 95UH X1 L77-2240-08 CRYSTAL RESONATOR 16.9344MHZ JP11A RK73FB2A000J CHIP R 0 J 1/10W JP13A RK73FB2A000J CHIP R 0 J 1/10W JP15A RK73FB2A000J CHIP R 0 J 1/10W R1A -3A RK73FB2A103J CHIP R 10K J 1/10W R7A ,8A RK73FB2A473J CHIP R 47K J 1/10W R21A RK73FB2A102J CHIP R 1.0K J 1/10W R22A RK73FB2A472J CHIP R 4.7K J 1/10W R23A RK73FB2A563J CHIP R 56K J 1/10W R29A RK73FB2A682J CHIP R 6.8K J 1/10W R30A RK73FB2A331J CHIP R 330 J 1/10W R31A RK73FB2A122J CHIP R 1.2K J 1/10W R32A RK73FB2A152J CHIP R 1.5K J 1/10W R33A RK73FB2A182J CHIP R 1.8K J 1/10W R34A RK73FB2A242J CHIP R 2.4K J 1/10W R35A RK73FB2A362J CHIP R 3.6K J 1/10W R38A RK73FB2A101J CHIP R 100 J 1/10W R40A RK73FB2A100J CHIP R 10 J 1/10W R41A,42A RK73FB2A472J CHIP R 4.7K J 1/10W R43A RK73FB2A103J CHIP R 10K J 1/10W R46A,47A RK73FB2A100J CHIP R 10 J 1/10W R48A RK73FB2A472J CHIP R 4.7K J 1/10W R49A RK73FB2A100J CHIP R 10 J 1/10W R50A RK73FB2A103J CHIP R 10K J 1/10W X R54A RK73FB2A223J CHIP R 22K J 1/10W R55A RK73FB2A103J CHIP R 10K J 1/10W R56A RK73FB2A223J CHIP R 22K J 1/10W R57A RK73FB2A224J CHIP R 220K J 1/10W R58A RK73FB2A103J CHIP R 10K J 1/10W R59A RK73FB2A333J CHIP R 33K J 1/10W R60A RK73FB2A152J CHIP R 1.5K J 1/10W R61A RK73FB2A333J CHIP R 33K J 1/10W R66A,67A RK73FB2A103J CHIP R 10K J 1/10W R69A RK73FB2A104J CHIP R 100K J 1/10W L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. 3 4 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. 8 New Parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Ref. No Add- ress New Parts Description Desti- nation Re- marks Parts No. Q113 2SA1317 TRANSISTOR Q114 2SA1317 TRANSISTOR X Q115 2SC4048-AC TRANSISTOR Q116 2SA1564-AC TRANSISTOR Q201 2SC3330 TRANSISTOR Q202 2SD734F TRANSISTOR Q203 2SC3860 TRANSISTOR Q205 2SC3860 TRANSISTOR Q301 2SC3330 TRANSISTOR Q302 2SD734F TRANSISTOR Q303 2SC3860 TRANSISTOR Q305 2SC3860 TRANSISTOR R222A RK73FB2A472J CHIP R 4.7K J 1/10W R301A RK73FB2A102J CHIP R 1.0K J 1/10W R302A RK73FB2A473J CHIP R 47K J 1/10W R303A RK73FB2A104J CHIP R 100K J 1/10W R304A RK73FB2A471J CHIP R 470 J 1/10W R306A RK73FB2A153J CHIP R 15K J 1/10W R307A RK73FB2A564J CHIP R 560K J 1/10W R309A RK73FB2A100J CHIP R 10 J 1/10W R310A RK73FB2A101J CHIP R 100 J 1/10W R311A RK73FB2A681J CHIP R 680 J 1/10W R320A RK73FB2A302J CHIP R 3.0K J 1/10W R321A RK73FB2A471J CHIP R 470 J 1/10W R322A RK73FB2A472J CHIP R 4.7K J 1/10W R501A,502A RK73FB2A333J CHIP R 33K J 1/10W R504A RK73FB2A184J CHIP R 180K J 1/10W R505A RK73FB2A472J CHIP R 4.7K J 1/10W R506A RK73FB2A103J CHIP R 10K J 1/10W VR101 3B R31-0086-08 VARIABLE RESISTOR SW101-103 3A S70-0066-08 TACT SWITCH SW104 2A S70-0062-08 TACT SWITCH SW105 2A S70-0066-08 TACT SWITCH SW106 3A S70-0062-08 TACT SWITCH SW107 2A S62-0081-08 SLIDE SWITCH SW108 2B S62-0085-08 SWITCH SW109 3A S74-0084-08 MICRO SWITCH D104 SB10-03A3-BT DIODE D105 GMB01-BT DIODE D111,112 IN-4001 DIODE D115,116 GMB01-BT DIODE D117 GMB01-BT DIODE D118A 1SS355 DIODE D119,120 SB-03A3-BT DIODE X D122A 1SS355 DIODE D201 GMB01-BT DIODE D301 GMB01-BT DIODE IC1 AN8838SB IC(CD DIGITAL SERVO) IC2 AN8789FB IC IC3 MN101C167 IC IC4 MN662746RPK1 IC IC5 SM5902AF IC(PLOOF MEMORY) IC6 MN41V17400CTT6 IC IC9 NJM2073M IC(AF POWER AMP) Q4 2SC3330 TRANSISTOR Q5 2SA1317 TRANSISTOR Q6 2SC3330 TRANSISTOR Q102 2SB598F TRANSISTOR Q104 2SA1317 TRANSISTOR Q105 2SC4048-AC TRANSISTOR Q106 2SC4481T TRANSISTOR Q107 2SD734F TRANSISTOR Q108 2SD1805F TRANSISTOR Q108 2SD1805G TRANSISTOR Q110 2SA1317 TRANSISTOR Q111,112 2SB926T TRANSISTOR L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia Y : PX(Far East, Hawaii) T : Europe E : Europe G : Germany V : China (Shanghai) Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components. 5 6 PARTS LIST 14-6,Dogenzaka 1-chome, Shibuya-ku, Tokyo, 150-8501 Japan KENWOOD SERVICE CORPORATION P.O BOX 22745, 2201 East Dominguez St., Long Beach, CA 90801-5745, U.S.A. Note: Component and circuit are subject to modification to insure best operation under differing local conditions. This manual is based on Europe (E) standard, and provides information on regional circuit modification through use of alter- nate schematic diagrams, and information on regional component variations through use of parts list. www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
