建伍KENWOOD CKDC-MP695V CD播放机维修手册

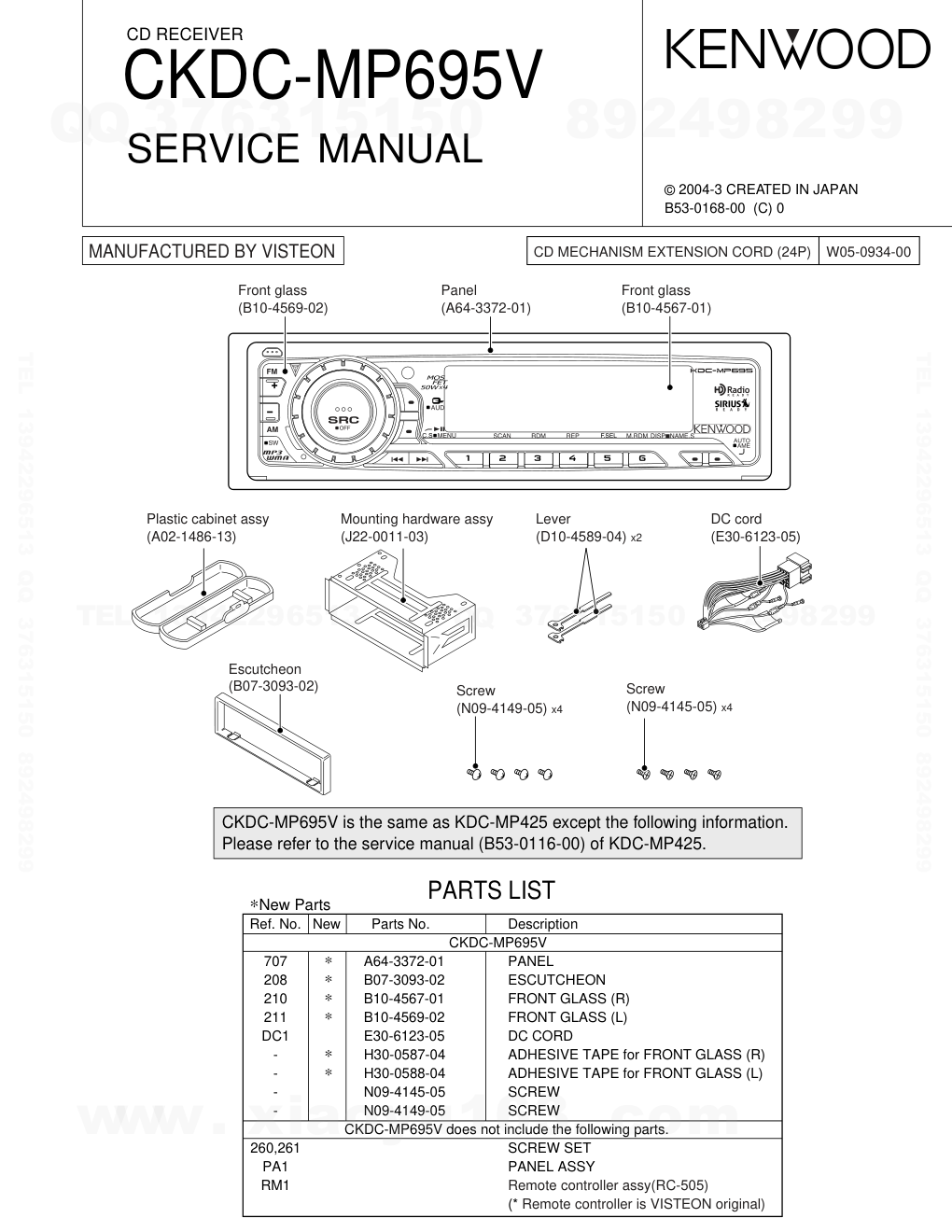

© 2004-3 CREATED IN JAPAN B53-0168-00 (C) 0 CD RECEIVER CKDC-MP695V SERVICE MANUAL Plastic cabinet assy (A02-1486-13) Lever (D10-4589-04) x2 Screw (N09-4149-05) x4 Escutcheon (B07-3093-02) Mounting hardware assy (J22-0011-03) Panel (A64-3372-01) DC cord (E30-6123-05) MANUFACTURED BY VISTEON CD MECHANISM EXTENSION CORD (24P) W05-0934-00 Front glass (B10-4569-02) Front glass (B10-4567-01) Screw (N09-4145-05) x4 ∗New Parts Ref. No. New Parts No. Description CKDC-MP695V 707 ∗ A64-3372-01 PANEL 208 ∗ B07-3093-02 ESCUTCHEON 210 ∗ B10-4567-01 FRONT GLASS (R) 211 ∗ B10-4569-02 FRONT GLASS (L) DC1 E30-6123-05 DC CORD - ∗ H30-0587-04 ADHESIVE TAPE for FRONT GLASS (R) - ∗ H30-0588-04 ADHESIVE TAPE for FRONT GLASS (L) - N09-4145-05 SCREW - N09-4149-05 SCREW CKDC-MP695V does not include the following parts. 260,261 SCREW SET PA1 PANEL ASSY RM1 Remote controller assy(RC-505) (* Remote controller is VISTEON original) PARTS LIST CKDC-MP695V is the same as KDC-MP425 except the following information. Please refer to the service manual (B53-0116-00) of KDC-MP425. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
