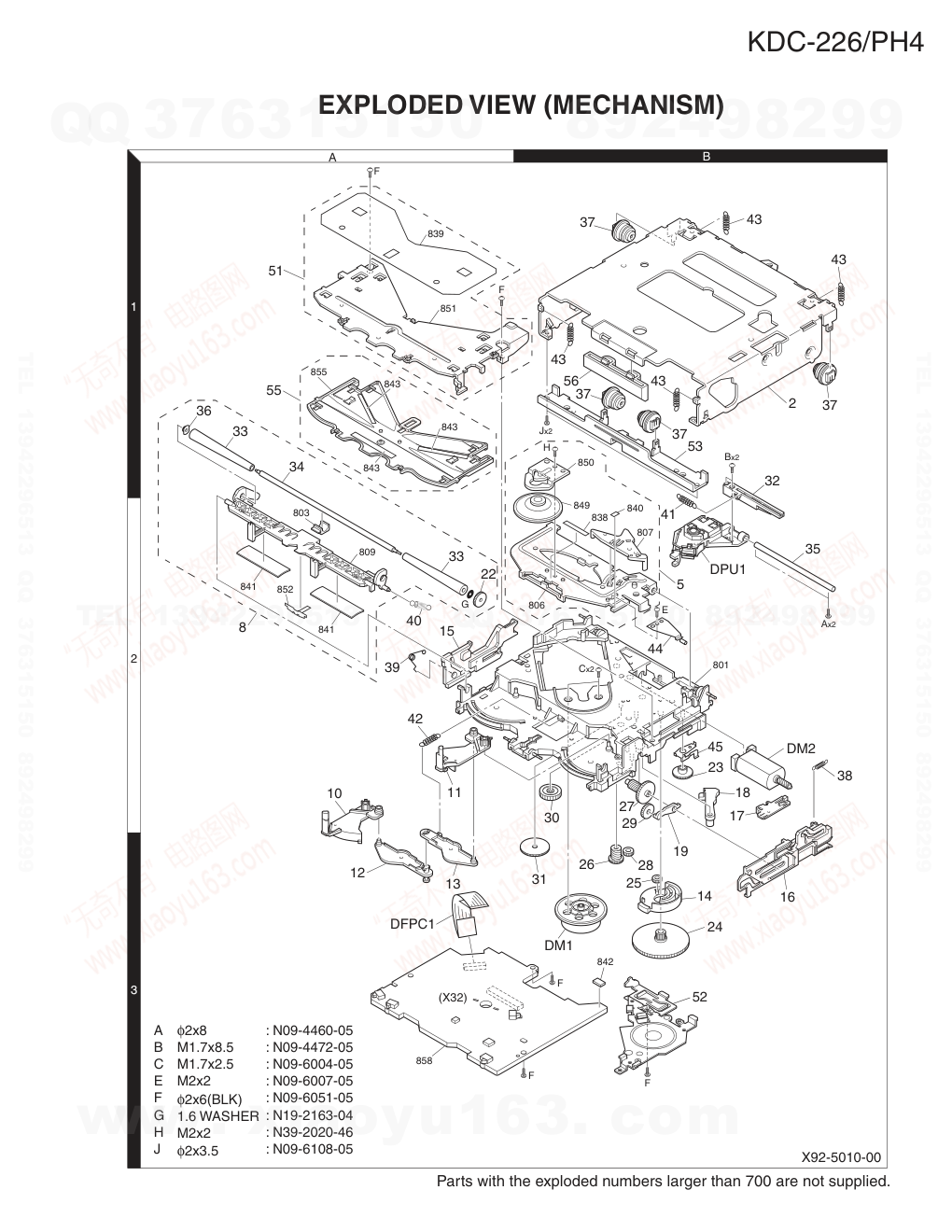

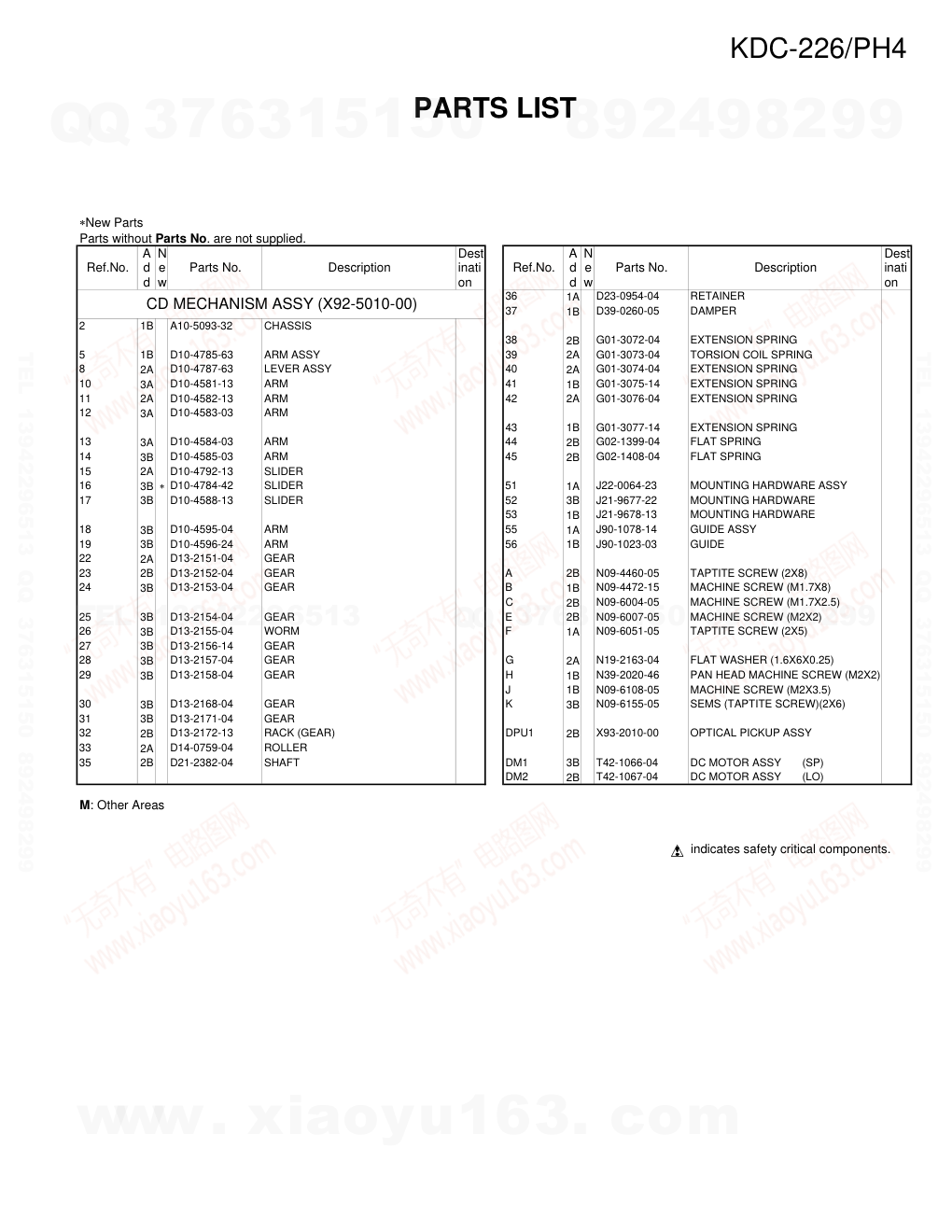

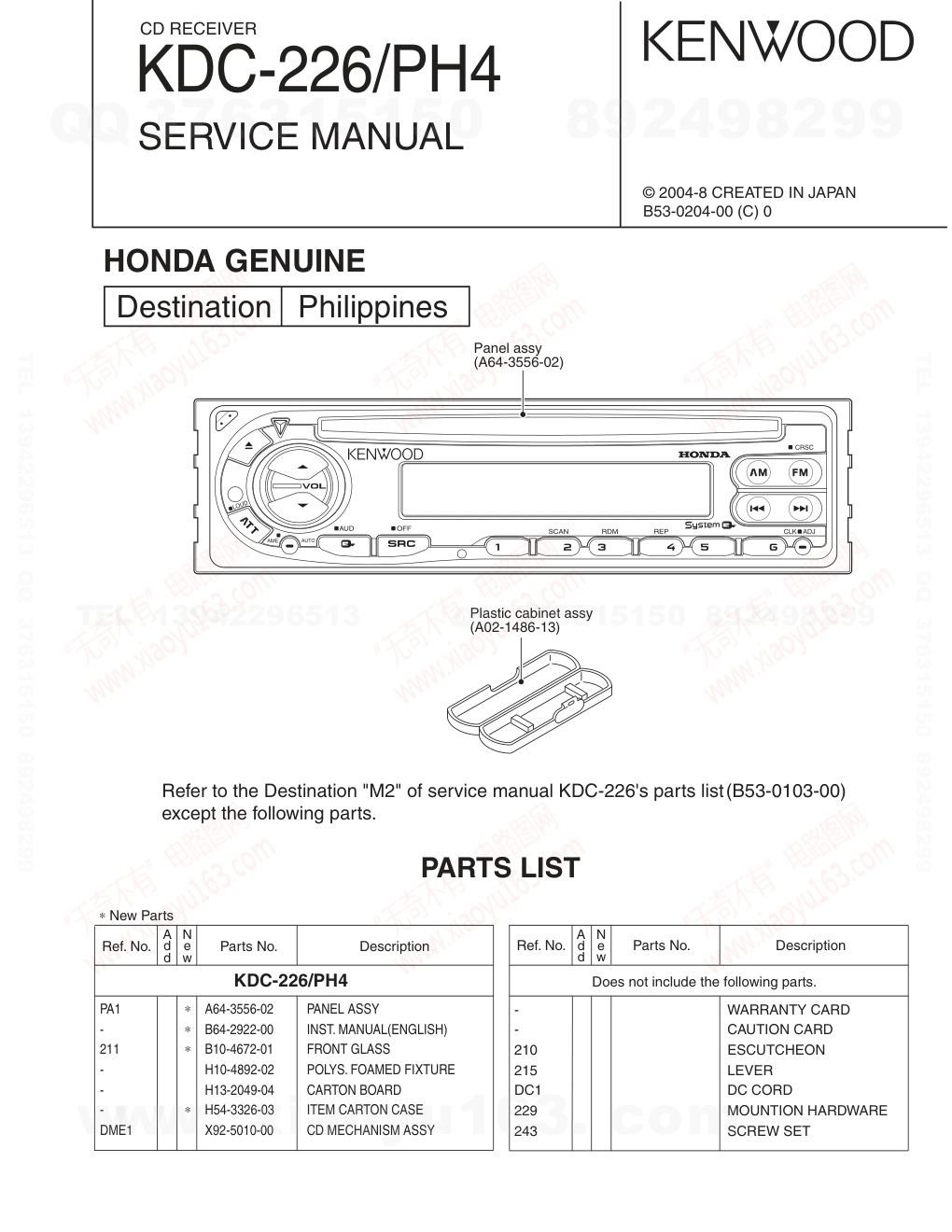

KDC-226/PH4 CD RECEIVER © 2004-8 CREATED IN JAPAN B53-0204-00 (C) 0 SERVICE MANUAL HONDA GENUINE Destination Philippines Refer to the Destination "M2" of service manual KDC-226's parts list (B53-0103-00) except the following parts. Panel assy (A64-3556-02) Plastic cabinet assy (A02-1486-13) PARTS LIST Ref. No. Parts No. Description Ref. No. Parts No. Description KDC-226/PH4 ∗ New Parts PA1 ∗ A64-3556-02 PANEL ASSY - ∗ B64-2922-00 INST. MANUAL(ENGLISH) 211 ∗ B10-4672-01 FRONT GLASS - H10-4892-02 POLYS. FOAMED FIXTURE - H13-2049-04 CARTON BOARD - ∗ H54-3326-03 ITEM CARTON CASE DME1 X92-5010-00 CD MECHANISM ASSY Does not include the following parts. - WARRANTY CARD - CAUTION CARD 210 ESCUTCHEON 215 LEVER DC1 DC CORD 229 MOUNTION HARDWARE 243 SCREW SET d A d e N w d A d e N w www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 KDC-226/PH4 ∗New Parts Parts without Parts No. are not supplied. A N Dest A N Dest Ref.No. d e Parts No. Description inati Ref.No. d e Parts No. Description inati d w on d w on 36 1A D23-0954-04 RETAINER 37 1B D39-0260-05 DAMPER 2 1B A10-5093-32 CHASSIS 38 2B G01-3072-04 EXTENSION SPRING 5 1B D10-4785-63 ARM ASSY 39 2A G01-3073-04 TORSION COIL SPRING 8 2A D10-4787-63 LEVER ASSY 40 2A G01-3074-04 EXTENSION SPRING 10 3A D10-4581-13 ARM 41 1B G01-3075-14 EXTENSION SPRING 11 2A D10-4582-13 ARM 42 2A G01-3076-04 EXTENSION SPRING 12 3A D10-4583-03 ARM 43 1B G01-3077-14 EXTENSION SPRING 13 3A D10-4584-03 ARM 44 2B G02-1399-04 FLAT SPRING 14 3B D10-4585-03 ARM 45 2B G02-1408-04 FLAT SPRING 15 2A D10-4792-13 SLIDER 16 3B ∗ D10-4784-42 SLIDER 51 1A J22-0064-23 MOUNTING HARDWARE ASSY 17 3B D10-4588-13 SLIDER 52 3B J21-9677-22 MOUNTING HARDWARE 53 1B J21-9678-13 MOUNTING HARDWARE 18 3B D10-4595-04 ARM 55 1A J90-1078-14 GUIDE ASSY 19 3B D10-4596-24 ARM 56 1B J90-1023-03 GUIDE 22 2A D13-2151-04 GEAR 23 2B D13-2152-04 GEAR A 2B N09-4460-05 TAPTITE SCREW (2X8) 24 3B D13-2153-04 GEAR B 1B N09-4472-15 MACHINE SCREW (M1.7X8) C 2B N09-6004-05 MACHINE SCREW (M1.7X2.5) 25 3B D13-2154-04 GEAR E 2B N09-6007-05 MACHINE SCREW (M2X2) 26 3B D13-2155-04 WORM F 1A N09-6051-05 TAPTITE SCREW (2X5) 27 3B D13-2156-14 GEAR 28 3B D13-2157-04 GEAR G 2A N19-2163-04 FLAT WASHER (1.6X6X0.25) 29 3B D13-2158-04 GEAR H 1B N39-2020-46 PAN HEAD MACHINE SCREW (M2X2) J 1B N09-6108-05 MACHINE SCREW (M2X3.5) 30 3B D13-2168-04 GEAR K 3B N09-6155-05 SEMS (TAPTITE SCREW)(2X6) 31 3B D13-2171-04 GEAR 32 2B D13-2172-13 RACK (GEAR) DPU1 2B X93-2010-00 OPTICAL PICKUP ASSY 33 2A D14-0759-04 ROLLER 35 2B D21-2382-04 SHAFT DM1 3B T42-1066-04 DC MOTOR ASSY (SP) DM2 2B T42-1067-04 DC MOTOR ASSY (LO) M: Other Areas indicates safety critical components. CD MECHANISM ASSY (X92-5010-00) PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 X92-5010-00 A B 3 2 1 A B C E F G H J : N09-4460-05 : N09-4472-05 : N09-6004-05 : N09-6007-05 : N09-6051-05 : N19-2163-04 : N39-2020-46 : N09-6108-05 φ2x8 M1.7x8.5 M1.7x2.5 M2x2 φ2x6(BLK) 1.6 WASHER M2x2 φ2x3.5 858 842 F F 52 F (X32) DM1 14 24 DFPC1 28 25 16 29 19 31 26 13 12 10 30 27 42 11 17 18 23 45 38 DM2 801 838 850 849 806 841 843 851 839 855 843 843 803 841 852 840 807 44 39 40 15 22 G 34 55 51 8 33 809 36 33 Jx2 H 41 5 DPU1 35 Ax2 37 53 32 2 37 Bx2 43 43 56 37 F F 37 43 43 E Cx2 EXPLODED VIEW (MECHANISM) KDC-226/PH4 Parts with the exploded numbers larger than 700 are not supplied. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
