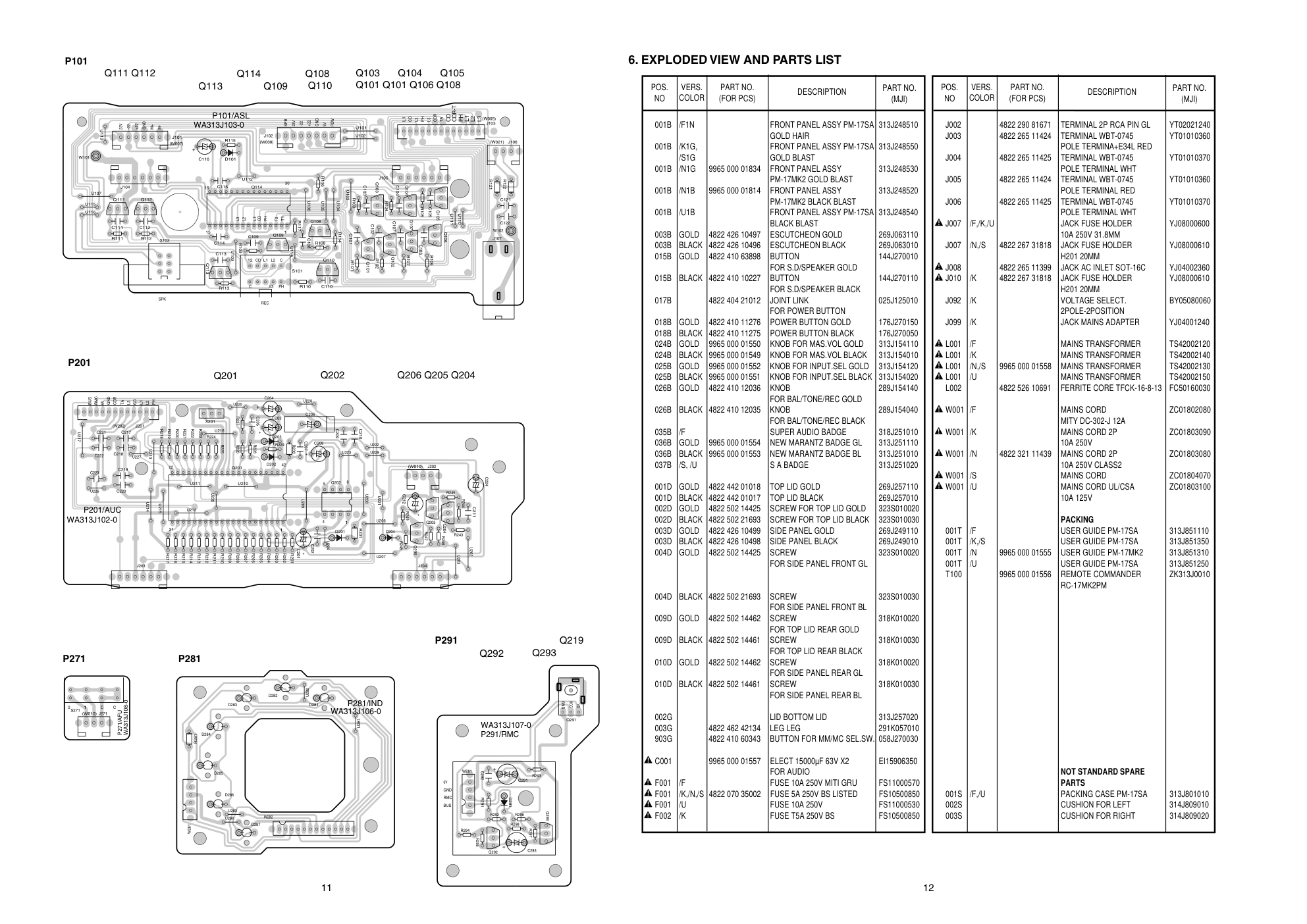

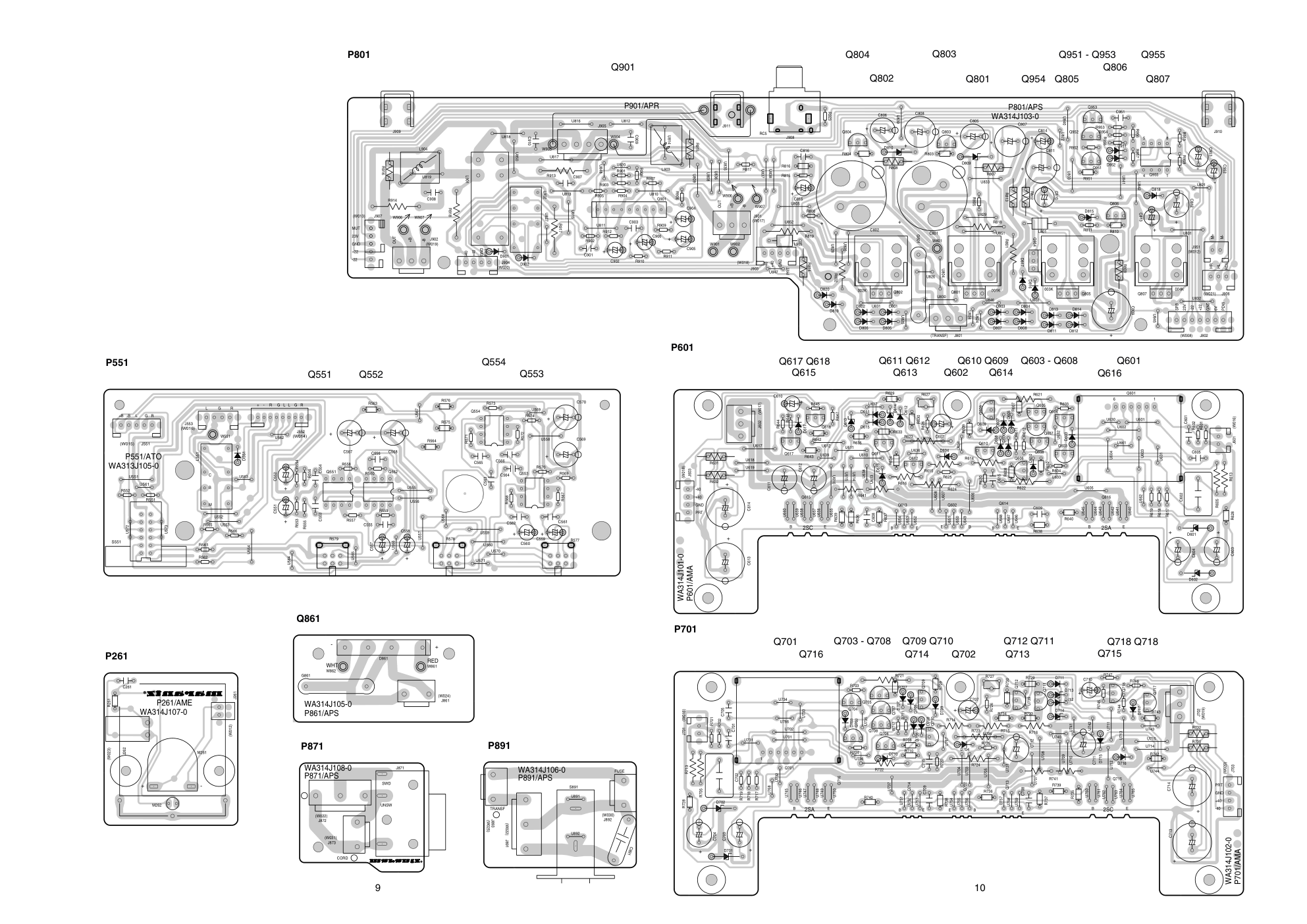

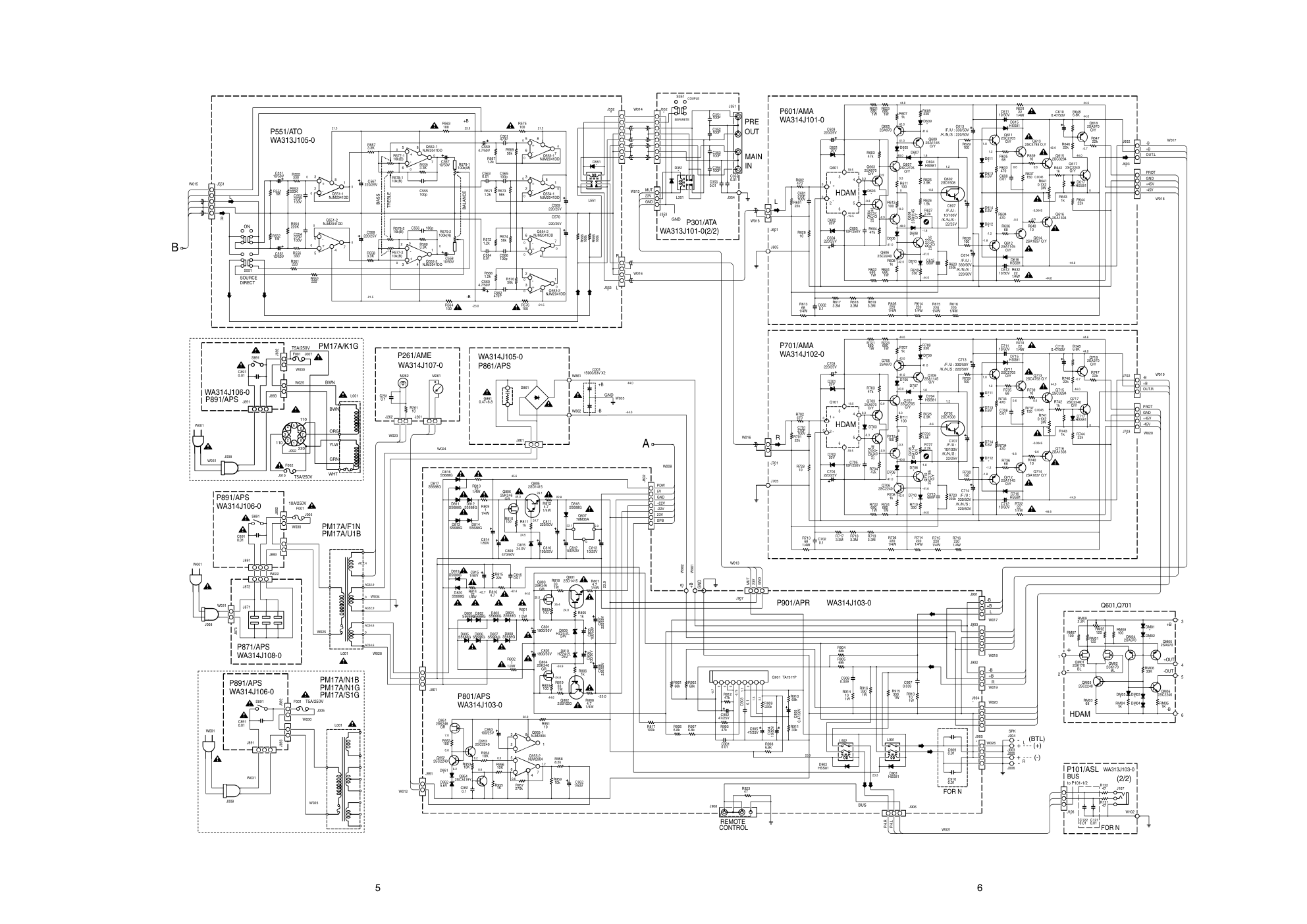

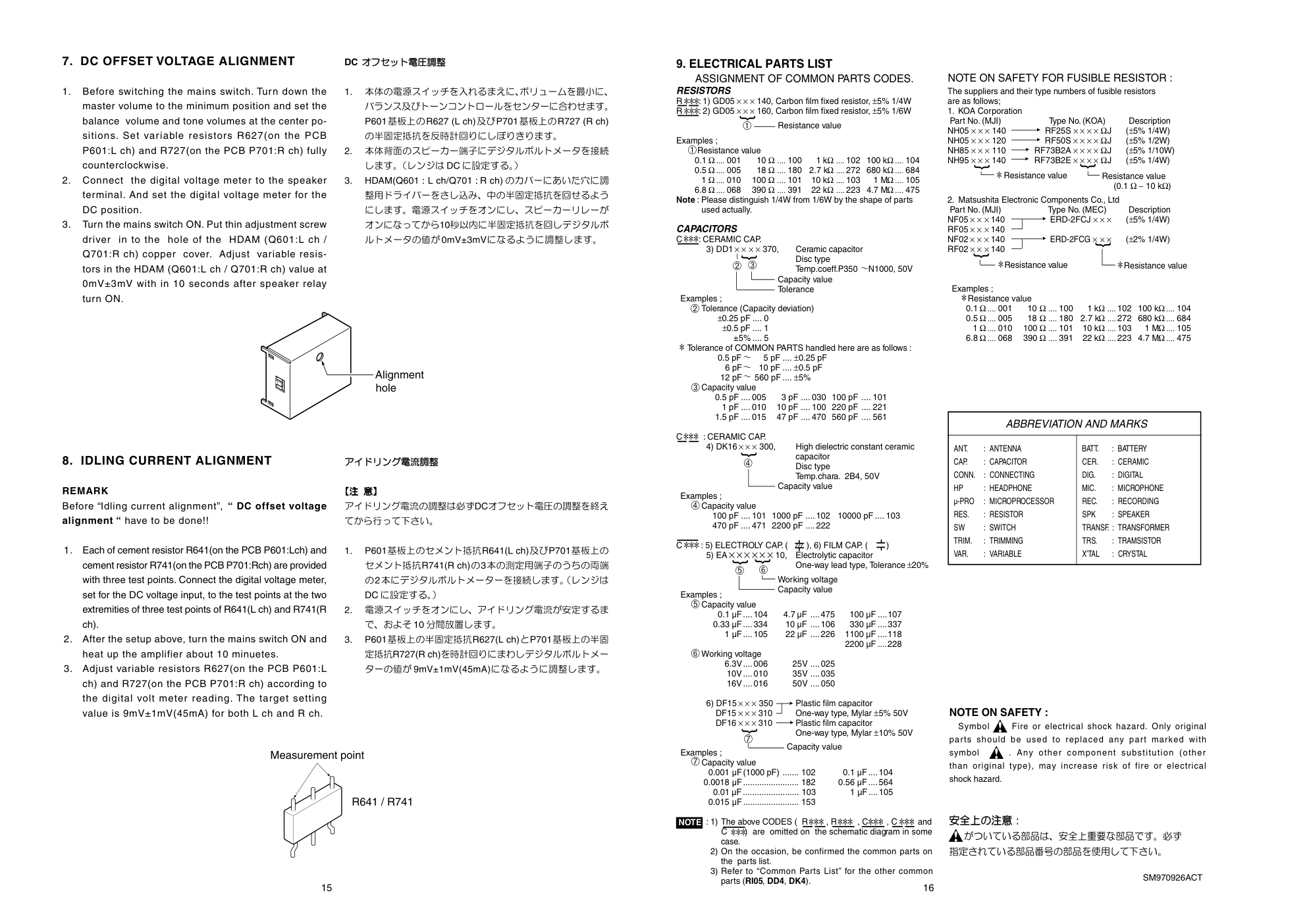

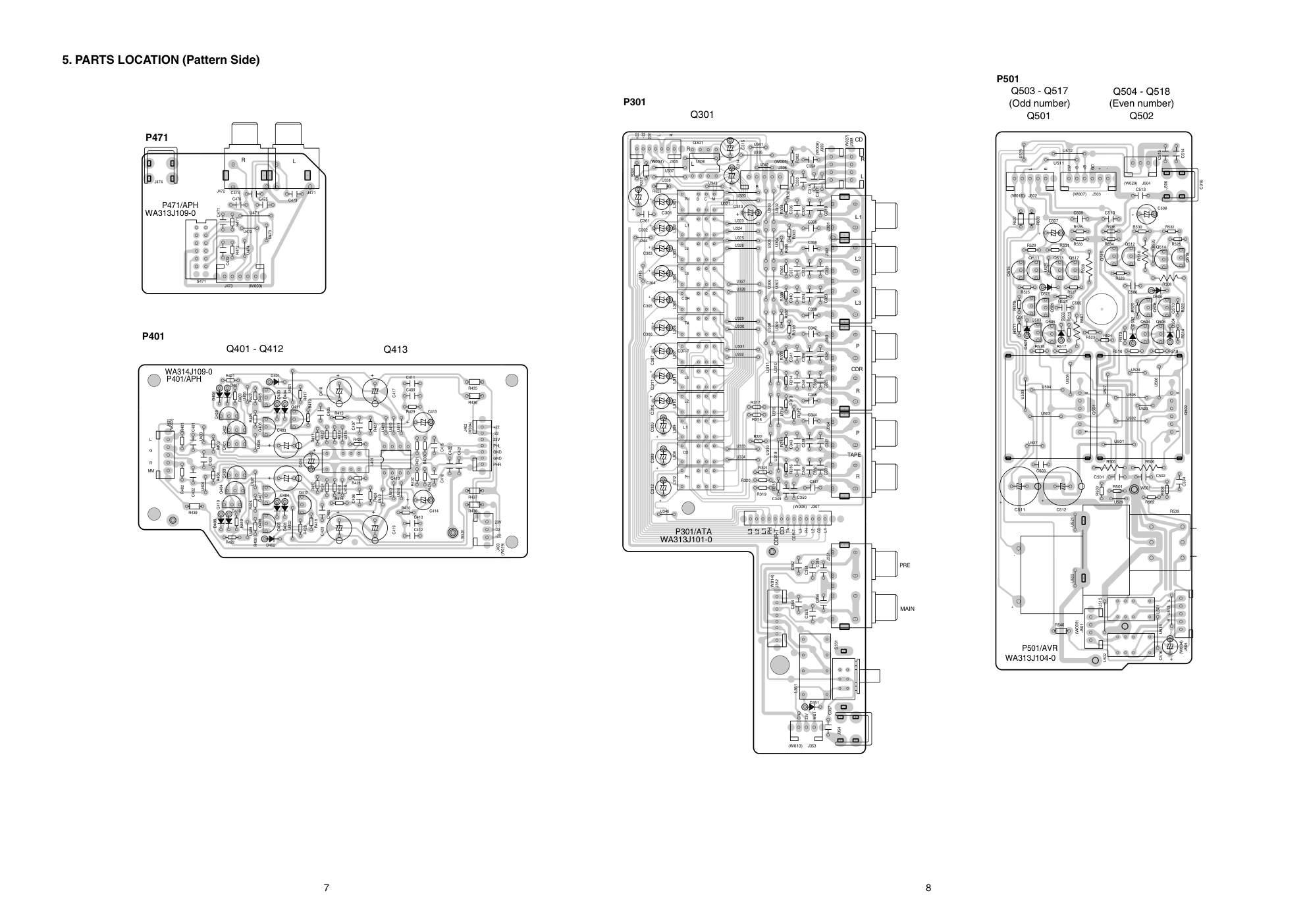

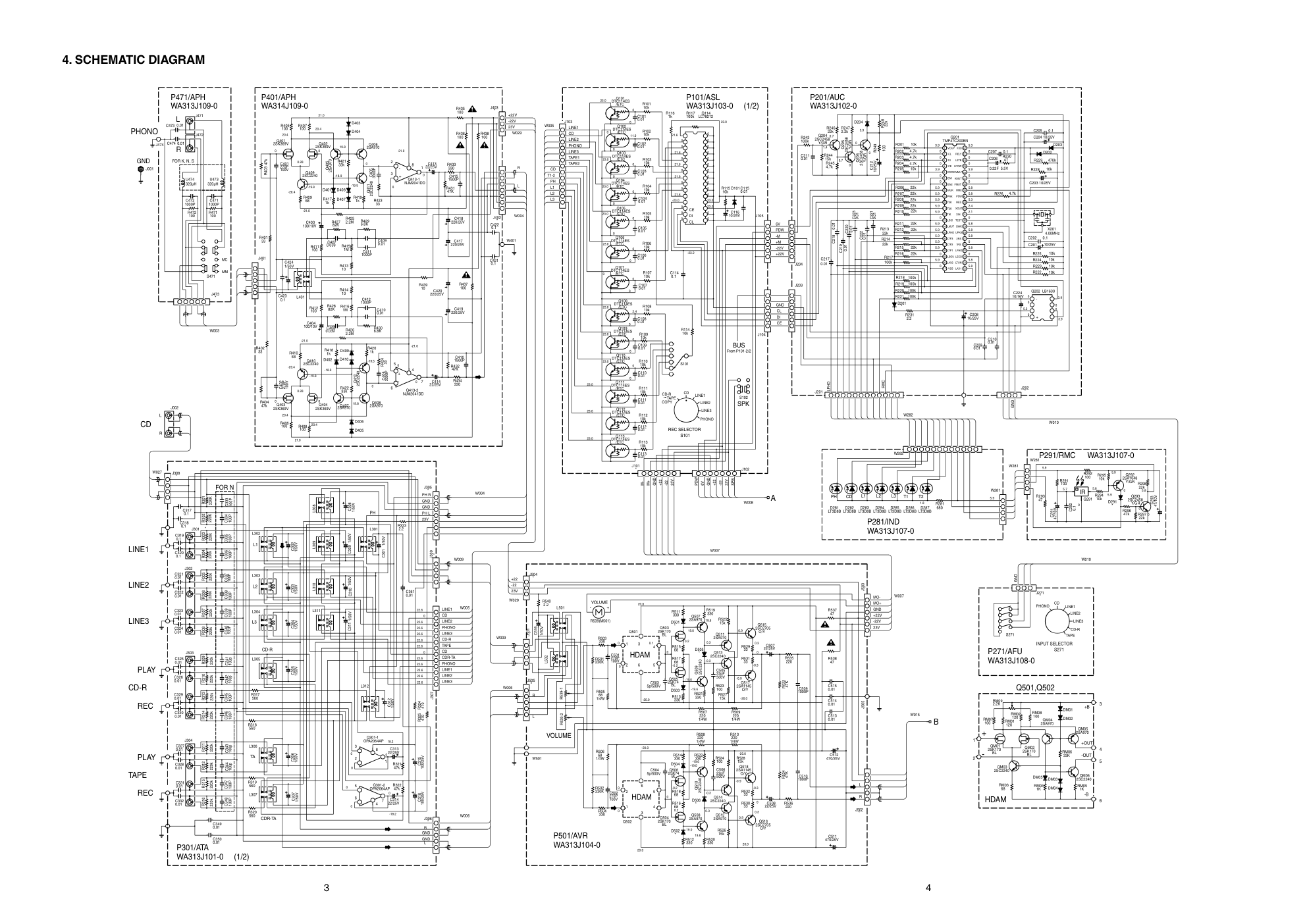

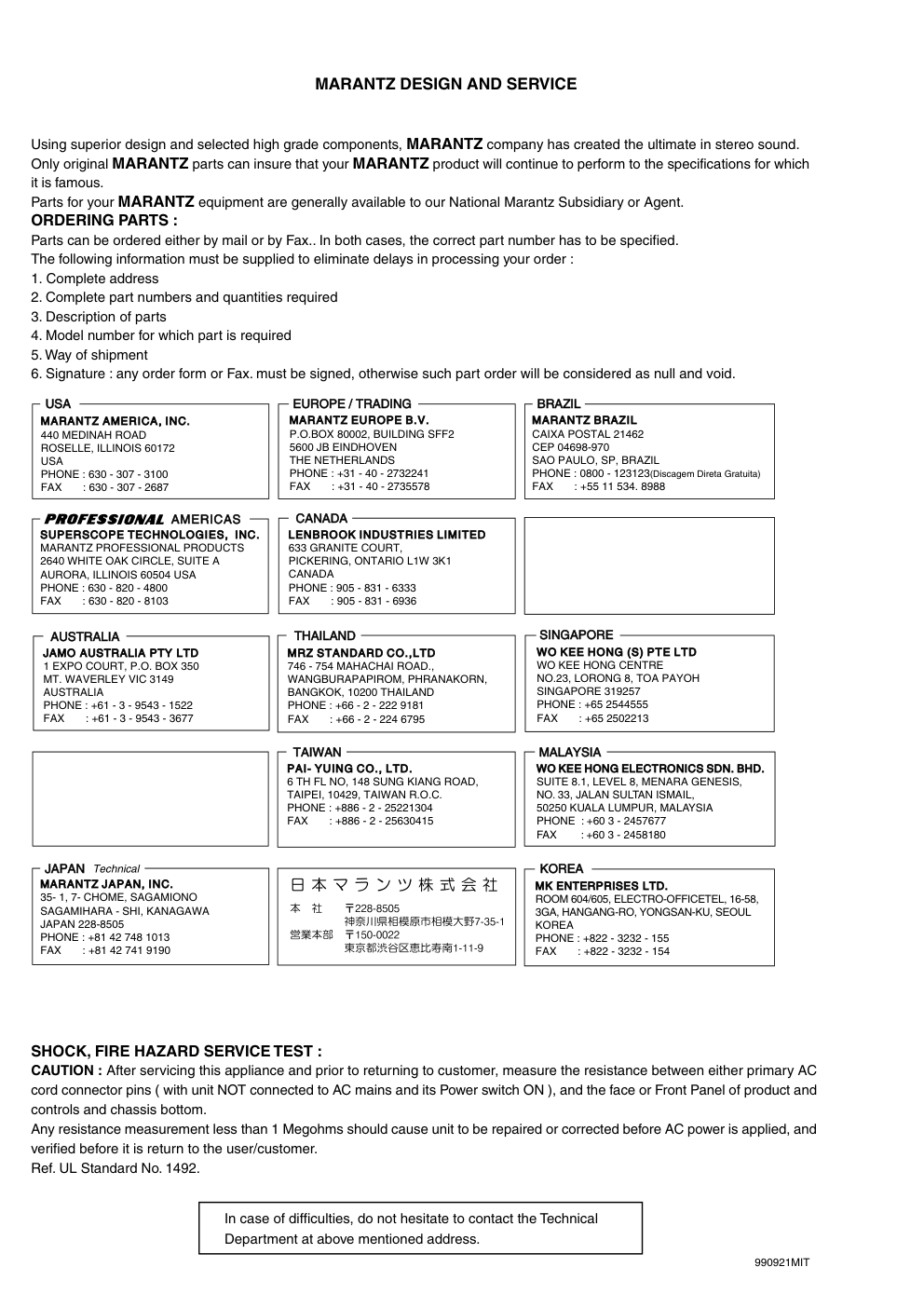

Integrated amplifier PM-17SA / PM-17mkII 313J855010 MIT 3120 785 22180 First Issue 1999.10 TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ................................................................................................................. 1 2. BLOCK DIAGRAM....................................................................................................................................... 2 3. TEST EQUIPMENT REQUIRED FOR SERVICING.................................................................................... 2 4. SCHEMATIC DIAGRAM.............................................................................................................................. 3 5. PARTS LOCATION (Pattern Side) .............................................................................................................. 7 6. EXPLODED VIEW AND PARTS LIST....................................................................................................... 12 7. DC OFFSET VOLTAGE ALIGNMENT ...................................................................................................... 15 8. IDLING CURRENT ALIGNMENT .............................................................................................................. 15 9. ELECTRICAL PARTS LIST ....................................................................................................................... 16 Service Manual PM17A /F1N, /K1G, /N1G, /S1G /N1B, /U1B R PM-17SA / mkII Please use this service manual with referring to the user guide ( D.F.U. ) without fail. OFF CD SPEAKERS REC SELECTOR LINE 3 PHONO TAPE CD-R COPY LINE 1 TEMP INTEGRATED AMPLIFIER PM-17SA LINE 2 LINE 1 TAPE PHONO CD INPUT SELECTOR 6 + 4 2 0 2 4 - 6 (dB) OFF ON (-dB) 6 + - 6 0 2 4 2 4 (dB) LEFT RIGHT BASS LINE 3 POWER VOLUME BALANCE PHONES TREBLE 8 43 4 13 27 35 10 DIRECT SOURCE 15 20 58 0 CD-R LINE 2 ON OFF CD SPEAKERS REC SELECTOR LINE 3 PHONO TAPE CD-R COPY LINE 1 TEMP INTEGRATED AMPLIFIER PM-17mkII LINE 2 LINE 1 TAPE PHONO CD INPUT SELECTOR 6 + 4 2 0 2 4 - 6 (dB) OFF ON (-dB) 6 + - 6 0 2 4 2 4 (dB) LEFT RIGHT BASS LINE 3 POWER VOLUME BALANCE PHONES TREBLE 8 43 4 13 27 35 10 DIRECT SOURCE 15 20 58 0 CD-R LINE 2 ON OFF CD SPEAKERS REC SELECTOR LINE 3 PHONO TAPE CD-R COPY LINE 1 TEMP INTEGRATED AMPLIFIER PM-17SA LINE 2 LINE 1 TAPE PHONO CD INPUT SELECTOR 6 + 4 2 0 2 4 - 6 (dB) OFF ON (-dB) 6 + - 6 0 2 4 2 4 (dB) LEFT RIGHT BASS LINE 3 POWER VOLUME BALANCE PHONES TREBLE 8 43 4 13 27 35 10 DIRECT SOURCE 15 20 58 0 CD-R LINE 2 ON /F /N /K /S /U MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 990921MIT USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 440 MEDINAH ROAD ROSELLE, ILLINOIS 60172 USA PHONE : 630 - 307 - 3100 FAX : 630 - 307 - 2687 BRAZIL MARANTZ BRAZIL CAIXA POSTAL 21462 CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA JAMO AUSTRALIA PTY LTD 1 EXPO COURT, P.O. BOX 350 MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - 3 - 9543 - 1522 FAX : +61 - 3 - 9543 - 3677 THAILAND MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG (S) PTE LTD WO KEE HONG CENTRE NO.23, LORONG 8, TOA PAYOH SINGAPORE 319257 PHONE : +65 2544555 FAX : +65 2502213 1 2 Rated power output (20 Hz to 20 kHz, 2CH simultaneous drive)............................................... 60 W x 2 (8 Ω load) 80 W x 2 (6 Ω load) 100 W x 2 (4 Ω load) Total harmonic distortion (20 Hz to 20 kHz, 2CH drive, 8 Ω load) ................................................................. 0.01 % Cross-modulation distortion (SMPTE) ............................................................................................................. 0.01 % Output bandwidth (8 Ω load, 0.04 %). ............................................................................................... 10 Hz to 50 kHz Frequency response (CD, SOURCE DIRECT) ................................................................... 5 Hz to 70 kHz, +0/-1 dB Damping factor (8 Ω load, 20 Hz to 20 kHz) .......................................................................................................... 100 Input sensitivity/input impedance PHONE (MC) ..................................................................................................................................... 230 µV/100 Ω PHONE (MM) ..................................................................................................................................... 2.5 mV/47 kΩ HIGH LEVEL ..................................................................................................................................... 220 mV/22 kΩ MAIN IN................................................................................................................................................. 1.6 V/22 kΩ Output voltage/output impedance PRE OUT .............................................................................................................................................. 1.6 V/250 Ω Maximum allowable PHONE input (1 kHz) MC .................................................................................................................................................................. 15 mV MM................................................................................................................................................................ 150 mV RIAA deviation (20 Hz to 20 kHz) .................................................................................................................... ±0.2 dB S/N (IHF A network, input shorted) PHONE (MC) .................................................................................................................................................. 76 dB PHONE (MM) .................................................................................................................................................. 90 dB HIGH LEVEL ................................................................................................................................................. 112 dB Tone control BASS (100 Hz) ............................................................................................................................................... ±8 dB TREBLE (10 kHz) ........................................................................................................................................... ±8 dB Supply voltage F version ................................................................................................................................... 100 V AC, 50/60 Hz /K1 version ..................................................................................................................... 110 V/220 V AC, 50/60 Hz /N1, /S1 version ............................................................................................................................. 230 V AC, 50 Hz /U1 version ..................................................................................................................................... 120 V AC, 60 Hz Power consumption ............................................................................................................................................. 180 W Dimensions ( Maximum ) Width ............................................................................................................................................................ 458 mm Height ........................................................................................................................................................... 110 mm Depth ............................................................................................................................................................ 429 mm Weight.................................................................................................................................................................... 16 kg Accessories Remote control unit (RC-17mkIIPM) ....................................................................................................................... x 1 Dimensions Width ........................................................................................................................................................... 44 mm Height........................................................................................................................................................ 239 mm Depth ....................................................................................................................................................... 17.5 mm Weight (without batteries)........................................................................................................................... 189 g SUM-4 (R6/ "AA" size) dry cell battery ................................................................................................................... x 2 Design and specifications are subject to change without notice. 1. TECHNICAL SPECIFICATIONS 3. TEST EQUIPMENT REQURED FOR SERVICING 2. BLOCK DIAGRAM REC PLAY CD LINE1 LINE2 LINE3 PHONO PRE OUT MAIN IN µ-COM PHONO AMP RIAA MM MC + - + - CD LINE1 LINE2 LINE3 PHONO COPY REC SELECTOR INPUT SELECTOR PHONO CD LINE1 LINE2 LINE3 4.0MHz TONE AMP BALANCE + - POWER AMP HDAM HDAM V/I HEAD PHONES + - + + - - + - METER WARMING-UP SOURCE DIRECT BASS TREBLE X201 S281 S291 SPK. MASTER VOL. V/I AMP PRE (BTL) CD-R TAPE CD-R TAPE CD-R TAPE CD-R TAPE AMP BUFFER + - L401 L301 S471 L551 R539 L901 L902 S551 R579 M261 Q201 Q291 R577 R578 L501/L502 L307 J107 4. SCHEMATIC DIAGRAM 3 4 Q405 Q406 Q407 Q408 Q409 Q410 Q411 Q412 D401 D402 D403 D404 D405 D406 D407 D408 D409 D410 J402 J403 C301 L301 J302 J303 J304 J305 J306 J502 J503 J504 D201 X201 Q404 Q403 Q402 Q401 J001 R301 R302 R303 R304 R305 R306 R307 R308 R309 R310 R311 R312 R313 R314 R315 R316 R317 R318 R319 R320 C333 C334 C335 C336 C337 C338 C339 C340 C345 C346 C347 C348 R101 R102 R103 R104 R105 Q101 Q102 Q103 Q104 Q105 C101 C102 C103 C104 C105 R106 C106 Q106 Q107 R107 C107 Q108 R108 C108 Q109 R109 C109 Q110 R110 C110 D101 S101 J104 J105 J102 J101 J103 R201 R202 R203 R204 R205 R206 R207 R208 R209 R210 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R228 D202 D203 R231 R230 C206 C207 C202 Q201 C205 R243 R244 R245 R246 R247 D204 R249 C211 J201 J202 Q202 C217 C218 C219 C220 C221 C222 C223 R539(M501) R501 R502 Q501 Q502 DM01 RM06 QM04 QM05 QM03 QM06 RM09 C208 C201 C203 C204 C212 Q204 Q205 Q206 C210 C209 J301 J308 J002 C224 C505 C506 R229 R248 S102 J471 J472 S471 U473 U474 C472 C471 R471 R472 C473 C474 L401 J401 J474 J473 W401 R401 R403 R405 R407 R409 R411 R413 R415 R417 R419 R421 R423 R425 R427 R429 R431 R433 R402 R404 R406 R408 R410 R412 R414 R416 R418 R420 R422 R424 R426 R428 R430 R432 R434 C405 C407 C409 C411 C413 C415 C406 C408 C410 C412 C414 C416 C417 C418 C419 C420 C111 C112 C113 Q111 Q112 Q113 R111 R112 R113 R114 R115 R116 C114 C115 C116 R117 D501 D502 R503 R504 R507 R508 R509 R510 R511 R512 R513 R514 R515 R516 R517 R518 R519 R520 R521 R522 R523 R524 R526 R525 R527 R528 R529 R530 R531 R532 R533 R534 R535 R536 R537 R538 R539-1 R539-2 D503 C503 C504 Q503 Q504 Q507 Q508 Q509 Q510 Q511 Q512 Q513 Q514 Q515 Q516 Q517 Q518 C509 C510 C511 C512 W501 C513 C514 C515 J505 W281 R281 D281 D282 D283 D284 D285 D286 D287 W281 C291 C292 C293 R291 R292 R293 R294 R295 R296 R297 R298 Q291 Q292 Q293 D291 S271 J271 J307 C422 C421 C423 R439 D504 D505 D506 W282 J203 J204 C507 C508 DM02 DM03 DM04 DM05 QM01 QM02 J501 L501 L502 J505 C516 C315 C316 R321 R322 C313 Q301-1 Q301-2 J309 L302 C302 C303 L303 L304 C304 L305 C305 L306 C306 L307 C307 L308 C308 L309 C309 L310 C310 L311 C311 L312 C312 RM01 RM02 RM07 RM08 RM03 RM04 RM05 R323 Q505 Q506 R540 C501 C502 Q114 C314 R325 R324 C401 C402 R505 R506 C321 C322 C323 C324 C325 C326 C329 C330 C327 C328 C331 C332 C341 C342 C343 C344 C349 C350 C361 C424 C403 C404 C317 C318 C319 C320 Q413-1 Q413-2 R435 R436 R438 R437 1/50V * * * * * * * * * * 2SA970 2SA970 2SA970 2SA970 2SC2240 2SC2240 2SC2240 2SC2240 4.00MHz 220K 220K 220k 220k 220k 220k 220k 220k 220k 220k 220k 220k 220k 220k 220k 220k 560 560 560 560 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k * 10k 4.7k 4.7k 4.7k 10k 22k 22k 22k 22k 22k 22k 22k 22k 22k 22k 22k 100k 100k 100k 100k 100k 10k 10k 10k 10k 4.7k 10k 2.2 47 0.22F 5.5V 0.1 0.1 TMP47C200BN 0.1 100k 15k 4.7k 22k 2.2k * 100 LB1630 220K 220K * 33K 2SA970 2SA970 2SC2240 2SC2240 10/25V 10/25V 10/25V 10/25V 10/25V 2SC2458 Y/GR 2SC2458 Y/GR 2SC2458 Y/GR * * * * * * * 2SK369V 2SK369V 2SK369V 2SK369V 2.2K 100P 100P 100P 100P 100P 100P 100P 100P 100P 100P 100P 100P 10/16V 22pF 500V 22pF 500V 470k 22k 320µH 320µH 100 100 0.01 0.01 33 47k 68 10 1M 1k 1k 33k 33 2.2M 330 33 47k 68 10 1M 1k 1k 33k 33 2.2M 330 220/25V 220/25V 220/25V 220/25V 10k 10k 10k 10k 10k 1k 0.1 10/25V 100k * * 220 1/4W 220 1/4W 220 1/4W 220 1/4W 330 330 330 330 68 68 68 68 330 330 330 330 100 100 15k 15k 15k 15k 220 220 47 47 5p/500V 5p/500V 2SK170 BL 2SK170 BL 2SA970 2SA970 2SC2240 2SC2240 2SA970 2SA970 2SC2240 2SC2240 2SC2705 O/Y 2SC2705 O/Y 2SA1145 O/Y 2SA1145 O/Y 470/25V 470/25V 0.01 0.01 0.01 LT3D8B LT3D8B LT3D8B LT3D8B LT3D8B LT3D8B LT3D8B 0.1 47/10V 100 47 10k 10k 47k 22k 22k 2SA1048 Y/GR 2SC2458 Y/GR * 10 * * * 22/25V 22/25V 1000P 1000P 1000P 1000P * * * * * * DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC 100 100 100 100 330 330 47K 47K 0.1 0.1 0.1 82K 82K 6.8K 6.8K 47K 47K * * * * 2SK170 BL 2SK170 BL 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 47/10V 3300P 3300P 0.039 0.039 1000P 1000P 1500P 1500P 22/25V 22/25V 100 * 1/50V 47k 47k 22/25V OPA2064AP OPA2064AP * 1/50V 1/50V 1/50V 1/50V 1/50V 1/50V 1/50V 1/50V 1/50V 1/50V 1/50V 120 120 100 100 68 1K 1K 100/25V 100/25V 0.01 0.01 * * * 100 100 33 33 33 33 2.2 2.2 LC78212 22/25V 470 470 68 1/4W 68 1/4W 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 100p 100p 100p 100p 0.01 0.01 0.01 1/50V 100/10V 100/10V 0.1 0.1 0.1 0.1 270P 100V 270P 100V 270P 100V 270P 100V * * 2SK74 BL 2SK74 BL 680 NJM2041DD NJM2041DD 100 100 100 100 * A P401/APH P301/ATA INPUT SELECTOR - + - + PHONO CD PLAY REC PLAY REC + - VDD 1 42 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 VSS TEST XIN XOUT RES PDW RMC PHONO CD MO+ MO- REC SELECTOR GND 1 2 3 8 5 6 4 7 0 0 0 0 0 0 0 0 0 0 0 0 0.7 0.7 0 0 CL DI CE PH CD T1 T2 RELY LSTB LPOW MMUT KMUT FMUT DWK UPKK 2RS 1RS LPHO LECD LTUN LAX1 LAX2 LSOU LTP1 LTP2 LTP3 LPHO LMUT LDIS TIK T2K T3K PRK MUK EN2 EN1 VODW CE DI CL VOUP GND LINE1 LINE2 LINE3 L1 L2 L3 SPK P101/ASL P201/AUC P501/AVR + - HDAM HDAM 1 2 3 4 5 6 1 2 3 4 5 6 S271 P271/AFU + - 3 +B +OUT 4 -OUT 5 -B 6 2 1 HDAM LINE1 LINE2 LINE3 W010 W015 W027 W029 W029 5.9 0 1.4 5.3 0 0 5.8 5.8 5.3 5.8 5.8 5.8 0 5.8 0 5.8 5.8 3.9 3.9 0 0 0 0 0 5.2 5.9 5.8 5.8 5.9 0 0 0 0 0 0 0.1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 23.0 23.0 23.0 23.0 23.0 23.0 23.0 23.0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -23.2 0 0 0 0 0 0 0 0 0 0 6V CL DI CE -M +M LPHO RMC GND Q501,Q502 GND L R L R VOLUME GND M+ M- SPB GND 6V PDW LINE1 CD LINE2 PHONO LINE3 TAPE1 TAPE2 L R L R L R PH L GND GND PH R 23V L GND GND R L3 L2 L1 PH IR CD PHONO LINE1 LINE2 LINE3 CD T1-2 PH L1 L2 L3 BUS From P101-2/2 LINE3 CD-R TAPE LINE2 LINE1 CD PHONO LINE1 PHONO CD COPY CD-R TAPE CD-R TAPE B PDW CD-R TA P471/APH WA313J109-0 WA314J109-0 FOR K, N, S WA313J103-0 WA313J102-0 WA313J101-0 WA313J104-0 P291/RMC WA313J107-0 P281/IND WA313J107-0 WA313J108-0 S101 23V +22V -22V (1/2) (1/2) +22 -22 +22 -22 -22V +22V TAPE CDR-TA CD-R +22V -22V 23V LINE2 LINE3 GND 23V -22 +22 MC MM W003 W004 W004 W005 W005 W007 W008 W007 W281 W282 W006 W009 W006 W009 W010 1 2 3 4 5 6 7 8 CDR-TA 5.9 5.7 5.9 1.8 3.9 3.9 0 5.9 5.9 5.9 5.9 5.9 0 5.9 5.9 5.9 5.9 5.9 5.9 5.9 2.4 2.1 23.0 23.0 23.0 21.6 21.6 0 21.6 21.6 21.6 -23.0 11.0 0 2.4 23.0 23.0 23.0 0 0 0 0 0 0 18.2 -18.2 22.6 0 22.6 22.6 22.6 22.6 22.6 0 22.6 22.6 22.6 22.6 20.0 -20.0 0 -0.2 0.2 19.0 20.0 0.9 0.3 0 -0.3 -0.9 -20.0 0.3 -19.0 -19.6 -20.0 20.0 0 -0.2 -19.0 19.6 0.2 19.0 -0.3 0.3 -19.6 -20.0 -0.9 -0.3 0 0.3 0.9 19.6 23V 23V -0.3 22.6 21.0 21.0 19.8 -19.5 -18.9 -19.8 -21.0 -20.4 0.28 20.4 20.4 -21.0 -19.5 19.8 -18.9 -19.8 -21.0 -20.4 0.28 20.4 20.4 21.0 VOLUME FOR N 5 6 R551 R552 R553 R554 R555 R556 R557 R558 R559 R560 C551 C552 S551 J551 D801 D802 D803 D804 D805 D806 D807 D808 C805 C806 J801 L901 L902 J601 J602 J603 J605 R565 R566 R567 R569 R571 R573 R572 R574 R568 R570 R561 R562 W001 R801 R802 R577-1 R578-1 R579-1 R579-2 R577-2 R578-2 J701 J705 J703 J702 QM06 RM06 QM05 DM01 QM04 QM03 Q803 Q804 R803 R804 R805 R806 R809 R810 R811 Q806 D811 D812 D813 D814 D815 D816 R813 C814 D818 C811 C810 C812 C813 C809 D820 R814 C815 R815 R816 C816 C902 C903 C904 C905 C906 R913 R914 Q901 R901 R902 R908 R909 R910 R911 R912 D901 D902 Q607 Q610 Q606 D609 D605 D606 D610 Q611 D613 D614 D611 D612 Q613 Q615 D615 D616 C611 C612 C608 C602 D617 Q617 R603 R604 D603 Q604 R602 R609 R628 Q605 Q608 Q609 R610 R627 C607 R629 Q612 R630 R635 R639 R636 R640 Q614 Q616 R632 R631 R643 D607 D608 R617 R618 R619 R621 R624 R644 Q618 R646 R645 R647 R623 R622 Q603 Q601 Q707 Q710 Q706 D709 D705 D706 D710 Q711 D713 D714 D711 D712 Q713 Q715 D715 D716 C711 C712 C708 C702 D717 Q717 R703 R704 D703 Q704 R702 R709 R728 Q705 Q708 Q709 R710 R727 C707 R729 Q712 R730 R735 R739 R736 R740 Q714 Q716 R732 R731 R743 D707 D708 R717 R718 R719 R721 R724 R744 Q718 R746 R745 R747 R723 R722 Q703 Q701 C603 C604 C605 C613 C614 C703 C704 C705 C713 C714 RM09 R807 R808 D809 D810 C807 C808 D701 D702 C710 R742 D601 D602 R642 C610 C001 C557 C558 C555 C556 C559 C560 C561 C562 C563 C564 C565 C566 C567 C568 C569 C570 J802 R812 R633 R634 R733 R734 R625 R725 W102 F001 W001 F001 R923 W901 W902 J901 J903 J902 J904 J905 J906 J907 L001 L001 C801 C802 J107 Q807 R620 R720 J552 D861 G861 S351 L351 D351 C351 C352 C353 C354 J351 J352 J353 D551 L551 S891 C891 J891 J893 J892 J871 J872 J873 Q951 Q952 Q953 R951 R952 D951 C953 S891 C891 J891 J892 J893 J861 W861 W862 J908 J951 D952 C951 Q954 Q955-1 Q955-2 R641 R741 Q805 Q801 Q802 R904 R905 R953 R954 R956 R955 R959 R903 C901 R915 R916 R121 R122 C121 C122 J106 J003 J005 J004 J006 J553 DM02 DM03 DM04 DM05 M261 M262 C261 R261 J262 J261 QM01 QM02 C909 C910 C907 C908 RM01 RM02 RM07 RM08 RM03 RM04 RM05 Q602 R607 R611 R612 R608 R626 Q702 R726 R707 R711 R712 R708 C553 C554 C601 C701 R817 R601 R701 C355 C356 J354 R613 R605 R614 R615 R616 R713 R705 R714 R715 R716 J008 J008 D604 D704 R637 R737 R818 R819 C615 C715 D817 D819 R906 R907 C952 R957 R958 Q553-1 Q553-2 Q554-1 Q554-2 Q552-1 Q552-2 Q551-1 Q551-2 R563 R564 R575 R576 /F./U : 330/50V /K./N,/S : 220/50V /F./U : 330/50V /K./N,/S : 220/50V /F./U : 10/100V /K./N,/S : 22/25V 10/50V 10/50V S5688GS5688G S5688G S5688G S5688G S5688G S5688G S5688G * 1M 1M 220K 220K 330 330 3.3K 3.3K 3.3K 3.3K 100k 100k 1.2k 56k 1.2k 56k 1.2k 56k 1.2k 56k 1 1/2W 1 1/2W 10k(B) 10k(B) 100k(M) 100k(N) 10k(B) 10k(B) * 2SC2240 33K 2SA970 * 2SA970 2SC2240 2SK246 GR 2SK246 GR 1k 1k 1 1/4W 1k 2SK246 GR S5688G S5688G S5688G S5688G 24.0V S5688G 1/50V S5688G 100/25V 10/25V 470/50V S5688G 1/50V 22k 4.7 47/25V 0.1 10/50V 47/25V 0.47/50V 10 1W 10 1W TA7317P 68k 68k 6.8k 220k 68k 33k 47k HSS81 HSS81 2SC2705 O/Y 2SC2705 O/Y 2SC2240 * * * * 2SC2705 O/Y * * 2SC4793 O,Y 2SC3284 HSS81 HSS81 10/50V 10/50V 0.1 HSS81 2SC2240 O/Y 47k 47k * 2SC2240 O/Y 470 10 2SA970 2SA1145 O/Y 2SA1145 O/Y 2.2k 100 2SA1145 O/Y 100 68 10 68 10 2SA1837 O,Y 2SA1303 22 1/4W 22 1/4W 1k * * 3.3M 3.3M 3.3M 22k 2SA970 O/Y 22k 22k 2SA970 O/Y 2SC2705 O/Y 2SC2705 O/Y 2SC2240 * * * * 2SC2705 O/Y * * 2SC4793 O,Y 2SC3284 HSS81 HSS81 10/50V 10/50V 0.1 HSS81 2SC2240 O/Y 47k 47k * 2SC2240 O/Y 470 10 2SA970 2SA1145 O/Y 2SA1145 O/Y 2.2k 100 2SA1145 O/Y 100 68 10 68 10 2SA1837 O,Y 2SA1303 22 1/4W 22 1/4W 1k * * 3.3M 3.3M 3.3M 22k 2SA970 O/Y 22k 22k 2SA970 O/Y 220/25V 220/25V 220/25V 220/25V 4.7 1/4W 4.7 1/4W 0.47/50V 1k 1k 0.47/50V 15000/63V X2 10/50V 10/50V 100p 100p 4.7/50V 4.7/50V 100p 100p 220/25V 220/25V 220/25V 220/25V 4.7 1/4W 470 470 470 470 20V 20V 20V 20V * * 680 1W 680 1W 680 1W 680 1W 6.8K 680 1W 680 1W 680 1W 680 1W 6.8K 2.2K 10P/250V 10P/250V HZ24-2L 24V HZ24-2L 24V 3.9K 3.9K 100/50V 100/50V 220/50V 220/50V 220/50V 100/50V 5.6V 5.6V 5.6V 5.6V 330 330 330 330 100 100 100 22 1/4W 22 1/4W 47 1800/50V 1800/50V 78M06A 220k 220k * 0.47+6.8 * * 0.01 2SK246 GR 2SC2240 2SC2240 10 * 100/25V 0.01 5.6V 0.1 2SC3419Y NJM2904 NJM2904 0.1X2 3W 0.1X2 3W 2SD1415 2SD1415 2SB1020 68k 68k 10k 47k 330 1W 330 1W 47 47 * * * * * * * 220 220 100 10K 10K 1K 10K * * * * 0.1 10 2SK170 BL 2SK170 BL 0.01 0.01 0.01 0.01 0.01 0.039 0.039 120 120 100 100 68 1K 1K 2SD1508 1k 100 100 1k 1.5k 2SD1508 1.5k 1k 100 100 1k 0.01 0.01 0.01 0.01 0.01 100k 22k 22k 0.01 0.01 68 1/4W 220 1/4W 220 1/4W 220 1/4W 220 1/4W 68 1/4W 220 1/4W 220 1/4W 220 1/4W 220 1/4W HSS81 HSS81 150 150 33 1W 33 1W S5688G S5688G 6.8k 6.8k 1/50V 270k 8.2k 100P 100P 100P 100P 270P 100V 680P 270P 100V 270P 100V 470P 470P 270P 100V 680P * NJM2041DD NJM2041DD NJM2041DD NJM2041DD NJM2041DD NJM2041DD NJM2041DD NJM2041DD 100 100 100 100 /F./U : 330/50V /K./N,/S : 220/50V /F./U : 330/50V /K./N,/S : 220/50V /F./U : 10/100V /K./N,/S : 22/25V (BTL) R L + - + - SPK (+) (-) * * * * * +B GND -B +B GND -B P801/APS P901/APR P551/ATO + - + - - - - - - - + + + + + + +B -B OUT.L GND PROT +B -B OUT.R PROT GND PH.R PH.L PDW 5V GND 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 4 1 2 3 8 5 6 7 8 1.1 -0.75 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 + - 3 +B +OUT 4 -OUT 5 -B 6 2 1 HDAM SPB P601/AMA 2 3 1 4 5 6 + - HDAM 2 3 4 6 + - P701/AMA 1 5 HDAM A B W015 W017 W018 W019 W020 W017 W018 W019 W020 W023 W025 +22V -22V J005 J005 W035 W026 W021 W034 W031 W022 FOR N 23.3 23.3 3.1 1.3 -0.7 24.7 5.9 0 25.0 25.4 24.8 -24.9 -24.8 AC32.9 AC32.9 0 0 AC34.6 AC34.6 0 0 0 0 0 0 0 0 0 0 0 0 23.0 42.6 0 1.8 1.2 -1.2 -1.8 -1.8 1.8 0.3 -0.3 19.5 0 0 19.5 0 0 0.3 -0.3 1.8 -1.8 1.8 1.2 -1.8 -1.2 0 R +B -B L +B -B L R REMOTE CONTROL Q601,Q701 L R +B -B L R ON SOURCE DIRECT BALANCE TREBLE BASS GND PRE OUT MAIN IN SEPARETE COUPLE 10A/250V WA314J101-0 WA314J102-0 WA314J103-0 WA314J103-0 WA313J105-0 P861/APS WA314J105-0 P301/ATA WA313J101-0(2/2) WA314J107-0 WA313J103-0 P101/ASL (2/2) BUS to P101-1/2 WA314J106-0 P891/APS P871/APS WA314J108-0 P891/APS WA314J106-0 +45V -45V +45V -45V MUT 23V GND 23V MUT GND 23V 1 2 3 4 5 6 7 8 P261/AME W008 W014 W013 W016 W016 W016 W013 W024 W028 W031 W030 W030 W012 PM17A/N1B PM17A/S1G PM17A/N1G T5A/250V 44.6 44.0 -0.7 44.0 -44.0 -44.6 -0.6 -0.0045 -0.6 0.0045 0.6 0.6 44.0 42.0 41.6 41.0 40.0 1.2 -0.6 0.3 0.9 -0.3 -0.9 -41.0 -42.0 -41.6 -44.0 -19.5 44.6 44.0 -0.7 44.0 44.0 0.6 0.0045 0.6 -0.0045 -0.6 -0.6 -44.0 -44.6 44.0 42.0 41.6 41.0 40.0 1.2 0.9 0.3 0 -0.6 -0.3 -40.0 -41.0 -42.0 -44.0 -41.6 -0.9 -19.5 44.0 -44.0 AC 7.4 45.6 23.1 22.8 45.0 24.5 22.1 -42.7 -42.4 44.6 -44.6 22.0 7.0 6.8 6.2 6.2 0.6 0.6 0.6 1.2 -40.0 0 23.0 -23.0 21.5 -21.5 -23.0 -21.5 21.5 BUS FOR N W025 PM17A/U1B PM17A/F1N C891 S891 J892 J893 J891 F001 W001 J008 L001 F002 J092 0.01 W025 T5A/250V WA314J106-0 P891/APS W030 W031 1 2 3 4 5 6 7 8 T5A/250V BWN BWN WHT GRN YLW ORG PM17A/K1G J010 J007 110 110 220 7 8 (W003) P471/APH WA313J109-0 R L J473 U471 U472 U474 U473 C475 J472 J471 C474 C473 J474 S471 R472 R471 C472 C471 C476 P471 + MM (W004) (W029) (W003) -22 +22 + + + + + + + + WA314J109-0 P401/APH L G R GND 23V PHL PHR GND +22 -22 23V C404 C403 U416 U415 L401 C424 C409 C410 C411 C412 C408 C407 J402 J401 C416 C415 C406 C405 R435 C420 C419 C418 C417 C401 C402 D402 D406 D405 D404 D403 D401 D410 D409 D407 D408 R439 W401 C423 C422 C421 R434 R433 C414 C413 Q413 Q412 Q411 Q410 Q409 Q408 Q407 Q406 Q405 Q404 Q403 Q402 Q401 R438 R437 R436 R432 R431 R430 R429 R428 R427 R426 R425 R424 R423 R422 R421 R420 R419 R418 R417 R416 R415 R414 R413 R412 R411 R410 R409 R408 R407 R406 R405 R404 R403 R402 R401 J403 U414 U413 U412 U411 U410 U409 U408 U407 U406 U405 U404 U403 U402 U401 P401 Q401 - Q412 Q413 (W006) R L (W009) (W004) (W005) (W013) (W014) + + + +22 -22 + TAPE CDR + PH + C B + TA CDR + L3 L2 L1 + + + CDR-T + L3 L2 L1 CD PH + + + + GND 23V MUT CDR-T TA CDR-T WA313J101-0 MAIN PRE L2 L3 L1 CD PH (W027) L R 23V L3 PH L2 CD L1 R L M P301/ATA R P R P L3 L2 L R L1 CD C350 C349 C361 C357 J306 C313 C328 C327 C331 C332 C312 L312 C308 L308 L309 C309 C310 L310 C330 C329 C326 C325 C311 L311 C307 L307 C306 L306 C305 L305 C324 C323 C321 C322 C320 C319 C304 L304 L303 L302 C303 C302 C301 L301 C314 C315 C318 C317 J309 Q301 R325 R324 R323 U335 U338 U337 U336 U334 U333 R322 R321 J305 C356 C355 U343 U344 U345 U320 U342 U341 U332 U331 U330 U329 U328 U327 U326 U325 U324 U323 U321 U346 S351 J354 D351 L351 C354 C353 C352 C351 J353 J352 J351 J307 J308 J301 J302 J303 J304 C347 C348 C343 C344 C346 C345 C341 C342 C339 C340 C337 C338 C335 C336 C333 C334 R320 R319 R318 R317 R316 R315 R314 R313 R312 R311 R310 R309 R308 R307 R306 R305 R304 R303 R302 R301 U319 U318 U315 U314 U311 U310 U309 U308 U307 U306 U305 U304 U303 U302 P301 Q301 (W029) (W007) (W015) (W004) (W009) + + + + + R L GD - 23V -B +B + 6 6 1 1 WA313J104-0 P501/AVR W501 R L - + U529 U515 R540 J505 L502 C516 U514 U513 L501 R539 U527 J506 U528 C316 Q506 Q505 Q504 Q503 C514 C515 C513 C508 C507 U522 D503 U526 C510 C509 C506 C505 C504 C503 C512 C511 R538 R537 R536 R535 R534 R533 R532 R531 R530 R529 R528 R527 R526 R525 R524 R523 R522 R521 R520 R519 Q518 Q517 Q516 Q515 Q514 Q513 Q512 Q511 Q510 Q509 Q508 Q507 R518 R517 R516 R515 R514 R513 R512 R511 R510 R509 R508 R507 D506 D505 D504 D502 D501 R506 R505 U525 U524 U523 U512 U511 J502 J504 U521 U509 U503 U504 U508 U507 U506 U505 U502 U501 Q502 Q501 C502 C501 R504 R503 R502 R501 J503 J501 Q503 - Q517 (Odd number) Q504 - Q518 (Even number) P501 Q501 Q502 5. PARTS LOCATION (Pattern Side) 9 10 (W016) (W014) (W015) + + + + + + + + + + WA313J105-0 P551/ATO - + G G L L R R G R L +B -B G L R M B C W551 R563 R564 R575 R576 C564 C563 C567 C570 C569 C568 C566 C565 C560 C559 C562 C561 C558 C557 R560 C556 C555 R579 R578 R577 R574 R573 R572 R571 R570 R569 R568 R567 R566 R565 R562 R561 R559 R558 R557 R556 R555 R554 R553 C554 C553 C552 C551 R552 R551 U573 S551 U572 Q554 Q553 Q552 Q551 L551 D551 J553 J552 J551 U571 U570 U569 U568 U567 U566 U565 U564 U563 U562 U561 U560 U559 U558 U557 U556 U555 U554 U553 U552 U551 Q551 Q552 Q554 Q553 P551 -40 +40 GND PRT WA314J101-0 2SA 2SC (W016) (W017) (W018) P601/AMA E Q615 + + + + + + Q616 Q614 Q613 Q602 E E B B B B E 1 6 B E D604 C609 C608 C602 R620 J601 U662 C615 C601 R638 R637 R610 R609 R608 R607 R626 R625 D602 D601 R605 U661 U638 U613 U633 U630 U601 U602 U631 U603 U604 U640 U641 U642 U643 U644 U605 U645 U632 U646 U647 U648 U634 U606 U649 U650 U651 U607 U608 U652 U653 U654 U609 U636 U637 U611 U610 U614 U615 U612 U639 U616 U655 U656 U657 U658 U659 U660 U617 U618 U619 D615 D611 R641 R640 R634 R633 R630 R629 R628 R624 R623 R622 R621 R619 R618 R617 R616 R615 R614 R613 R612 R611 R604 R603 R602 R601 Q612 Q611 Q610 Q609 Q608 Q607 Q606 Q605 Q604 Q603 Q601 D616 D614 D612 D610 D609 D608 D607 D606 D605 D603 C607 C605 C604 C603 R627 R647 R646 R645 R644 R643 R642 R639 R636 R635 R632 R631 Q618 Q617 D617 D613 C612 C611 C610 J602 J603 C614 C613 Q617 Q618 Q611 Q612 Q610 Q609 Q603 - Q608 Q601 P601 Q615 Q613 Q602 Q614 Q616 -40 +40 GND PRT WA314J102-0 2SA 2SC (W016) (W020) (W019) P701/AMA Q715 + + + + + + Q713 Q702 E E B B Q716 Q714 E B B E 1 6 B E D704 J702 C709 C708 C702 R723 R720 U768 J701 C715 U767 C701 R738 R737 R710 R709 R708 R707 R726 R725 D701 D702 R714 R715 R716 R705 U766 U744 U731 U734 U733 U702 U701 U732 U745 U746 U747 U748 U749 U750 U735 U736 U753 U752 U751 U737 U755 U754 U704 U703 U756 U739 U705 U706 U738 U757 U758 U759 U707 U708 U709 U710 U740 U741 U742 U760 U761 U762 U763 U764 U765 U712 U711 U713 U714 U715 U743 R741 R739 R736 R734 R733 R730 R729 R727 R724 C712 C707 D714 D713 D712 D711 D709 Q712 Q711 R740 R728 R722 R721 R719 R718 R717 R713 R712 R711 R704 R703 R702 R701 C705 C704 C703 D710 D708 D707 D706 D705 D703 Q710 Q709 Q708 Q707 Q706 Q705 Q704 Q703 Q701 R747 R746 R745 R744 R743 R742 R735 R732 R731 J703 C714 C713 C711 C710 D717 D716 D715 Q718 Q717 P701 Q701 Q703 - Q708 Q709 Q710 Q712 Q711 Q718 Q718 Q715 Q713 Q702 Q714 Q716 (W008) (W021) (W012) (W019) (W013) M- M+ RC5 HR HL 8 5 4 1 + + P901/APR P801/APS WA314J103-0 -40 +40 -40 +40 -22 +22 23V MUT GND -B +B OUT PRT GND PRT PDW 6V GND +22 -22 23V SPB (TRANSF) (W020) (W017) (W018) 004K 003K 001K 002K + + + + + + + + + + + + + + + + + W907 W906 OUT +B -B GND RC5 U851 R818 R819 U852 U850 W905 W801 R915 L903 U814 W904 J905 J911 C910 C909 C908 C907 C901 C816 U847 U845 U846 U848 U842 U841 U840 U839 U838 U837 U836 U835 U808 J906 J951 J909 J908 J907 C953 C952 C951 R959 R958 R957 R956 R955 R954 R953 D952 D951 Q953 Q952 Q951 R952 R951 Q955 U822 U803 Q954 R814 R813 R810 R804 R803 C812 C811 C808 C807 C806 C805 U802 U829 L801 L905 D816 U832 U833 U830 U834 U828 U831 C801 C802 R812 R807 R808 R918 R917 R913 R914 R811 J903 J904 R906 R907 R908 R909 R911 R910 R912 R903 R901 R904 R905 R902 C904 C902 C905 C906 C903 D902 D901 R916 R923 R817 R816 R815 R809 R806 R805 D818 D815 D809 D810 C810 C815 C814 Q806 C813 D817 D819 D820 D814 D812 D811 D813 D804 D808 D807 D803 D805 D801 D806 D802 Q804 Q803 U820 W907 W906 Q901 L904 L902 L901 W902 W901 J910 J902 J901 J802 J801 R802 R801 G801 Q807 Q805 Q802 Q801 C809 U827 U826 U825 U824 U821 U819 U818 U817 U816 U815 U813 U812 U811 U810 U809 U806 U805 U804 U801 P801 Q901 Q804 Q803 Q802 Q801 Q954 Q805 Q807 Q806 Q951 - Q953 Q955 (W012) (W023) P261/AME M261 WA314J107-0 - + C261 M262 R261 J262 J261 P261 (W024) WHT RED P861/APS WA314J105-0 - + D861 G861 W862 W861 J861 Q861 (W030) (W025) (W022) WA314J106-0 P891/APS TRANSF FUSE U892 S891 J892 C891 U891 J891 J893 P891 (W031) (W022) J871 P871/APS WA314J108-0 SWD CORD UNSW J873 J872 P871 11 12 (W021) (W005) (W008) (W007) 15 30 16 1 L3 L2 L1 CD PH T2 T1 12 CDR-T TA CDR P101/ASL WA313J103-0 CD PH L2 L1 L3 L3 PH L2 L1 CD 23V 23V -22 +22 -22 +22 L1 CD L2 PH L3 + GND M- M+ SPB GND 6V PDW C C REC SPK J106 U109 U115 U116 C122 C121 C115 C112 C111 C113 C110 C109 C108 C107 C106 C105 C104 C103 C102 C101 R115 C116 R114 R122 R121 R116 Q114 R117 Q109 U112 Q113 R113 U114 Q112 Q111 R112 R111 C114 S102 U107 J103 J101 D101 W102 W101 S101 R110 R109 R108 R107 R106 R105 R104 R103 R102 R101 J107 J105 J104 J102 Q110 Q108 Q107 Q106 Q105 Q104 Q103 Q102 Q101 U113 U111 U110 U106 U105 U104 U103 U102 U101 Q111 Q112 Q113 Q109 Q108 Q110 Q103 Q104 Q105 Q101 Q101 Q106 Q108 P101 Q114 (W010) (W282) 1 4 5 8 1 21 42 22 TA CDR P201/AUC WA313J102-0 RMC 6V GND L3 CD L1 L2 PH BUS + + + + + C223 C222 C221 C220 C219 C218 C217 C211 C210 C209 J203 J202 U229 J201 U217 U216 U227 U230 J204 C203 C204 U228 R231 U208 R230 R227 R226 R229 R228 R208 R207 R206 R204 R203 R202 R205 R201 C207 C202 C208 C201 D203 D202 D201 Q202 Q201 U224 U223 U222 U221 U211 U210 U209 R243 R244 R245 R246 R247 R248 R249 C212 D204 Q206 Q205 Q204 C224 U207 U206 U203 U202 R225 R224 R223 R222 R221 R220 R219 R218 R217 R216 R215 R214 R213 R212 R211 R210 R209 X201 C205 C206 U226 U225 U215 U214 U213 U212 Q201 Q202 Q206 Q205 Q204 P201 P281/IND WA313J106-0 U284 U283 U282 D287 D286 D285 D284 D283 D282 R281 W281 W282 D281 U281 P281 + + BUS RMC 6V GND P291/RMC WA313J107-0 GND VCC VO C291 Q291 Q293 Q292 D291 R298 R297 R296 R295 R294 R293 R292 R291 C292 C293 W281 P291 Q219 Q292 Q293 (W010) WA313J108-0 P271/AFU 2 1 C C J271 S271 P271 6. EXPLODED VIEW AND PARTS LIST POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) 001B /F1N FRONT PANEL ASSY PM-17SA GOLD HAIR 313J248510 001B /K1G, /S1G FRONT PANEL ASSY PM-17SA GOLD BLAST 313J248550 001B /N1G 9965 000 01834 FRONT PANEL ASSY PM-17MK2 GOLD BLAST 313J248530 001B /N1B 9965 000 01814 FRONT PANEL ASSY PM-17MK2 BLACK BLAST 313J248520 001B /U1B FRONT PANEL ASSY PM-17SA BLACK BLAST 313J248540 003B GOLD 4822 426 10497 ESCUTCHEON GOLD 269J063110 003B BLACK 4822 426 10496 ESCUTCHEON BLACK 269J063010 015B GOLD 4822 410 63898 BUTTON FOR S.D/SPEAKER GOLD 144J270010 015B BLACK 4822 410 10227 BUTTON FOR S.D/SPEAKER BLACK 144J270110 017B 4822 404 21012 JOINT LINK FOR POWER BUTTON 025J125010 018B GOLD 4822 410 11276 POWER BUTTON GOLD 176J270150 018B BLACK 4822 410 11275 POWER BUTTON BLACK 176J270050 024B GOLD 9965 000 01550 KNOB FOR MAS.VOL GOLD 313J154110 024B BLACK 9965 000 01549 KNOB FOR MAS.VOL BLACK 313J154010 025B GOLD 9965 000 01552 KNOB FOR INPUT.SEL GOLD 313J154120 025B BLACK 9965 000 01551 KNOB FOR INPUT.SEL BLACK 313J154020 026B GOLD 4822 410 12036 KNOB FOR BAL/TONE/REC GOLD 289J154140 026B BLACK 4822 410 12035 KNOB FOR BAL/TONE/REC BLACK 289J154040 035B /F SUPER AUDIO BADGE 318J251010 036B GOLD 9965 000 01554 NEW MARANTZ BADGE GL 313J251110 036B BLACK 9965 000 01553 NEW MARANTZ BADGE BL 313J251010 037B /S, /U S A BADGE 313J251020 001D GOLD 4822 442 01018 TOP LID GOLD 269J257110 001D BLACK 4822 442 01017 TOP LID BLACK 269J257010 002D GOLD 4822 502 14425 SCREW FOR TOP LID GOLD 323S010020 002D BLACK 4822 502 21693 SCREW FOR TOP LID BLACK 323S010030 003D GOLD 4822 426 10499 SIDE PANEL GOLD 269J249110 003D BLACK 4822 426 10498 SIDE PANEL BLACK 269J249010 004D GOLD 4822 502 14425 SCREW FOR SIDE PANEL FRONT GL 323S010020 004D BLACK 4822 502 21693 SCREW FOR SIDE PANEL FRONT BL 323S010030 009D GOLD 4822 502 14462 SCREW FOR TOP LID REAR GOLD 318K010020 009D BLACK 4822 502 14461 SCREW FOR TOP LID REAR BLACK 318K010030 010D GOLD 4822 502 14462 SCREW FOR SIDE PANEL REAR GL 318K010020 010D BLACK 4822 502 14461 SCREW FOR SIDE PANEL REAR BL 318K010030 002G LID BOTTOM LID 313J257020 003G 4822 462 42134 LEG LEG 291K057010 903G 4822 410 60343 BUTTON FOR MM/MC SEL.SW. 058J270030 C001 9965 000 01557 ELECT 15000µF 63V X2 FOR AUDIO EI15906350 F001 /F FUSE 10A 250V MITI GRU FS11000570 F001 /K,/N,/S 4822 070 35002 FUSE 5A 250V BS LISTED FS10500850 F002 /K FUSE T5A 250V BS FS10500850 F001 /U FUSE 10A 250V FS11000530 J002 4822 290 81671 TERMINAL 2P RCA PIN GL YT02021240 J003 4822 265 11424 TERMINAL WBT-0745 POLE TERMINA+E34L RED YT01010360 J004 4822 265 11425 TERMINAL WBT-0745 POLE TERMINAL WHT YT01010370 J005 4822 265 11424 TERMINAL WBT-0745 POLE TERMINAL RED YT01010360 J006 4822 265 11425 TERMINAL WBT-0745 POLE TERMINAL WHT YT01010370 J007 /F,/K,/U JACK FUSE HOLDER 10A 250V 31.8MM YJ08000600 J007 /N,/S 4822 267 31818 JACK FUSE HOLDER H201 20MM YJ08000610 J008 4822 265 11399 JACK AC INLET SOT-16C YJ04002360 J010 /K 4822 267 31818 JACK FUSE HOLDER H201 20MM YJ08000610 J092 /K VOLTAGE SELECT. 2POLE-2POSITION BY05080060 J099 /K JACK MAINS ADAPTER YJ04001240 L001 /F MAINS TRANSFORMER TS42002120 L001 /K MAINS TRANSFORMER TS42002140 L001 /N,/S 9965 000 01558 MAINS TRANSFORMER TS42002130 L001 /U MAINS TRANSFORMER TS42002150 L002 4822 526 10691 FERRITE CORE TFCK-16-8-13 FC50160030 W001 /F MAINS CORD MITY DC-302-J 12A ZC01802080 W001 /K MAINS CORD 2P 10A 250V ZC01803090 W001 /N 4822 321 11439 MAINS CORD 2P 10A 250V CLASS2 ZC01803080 W001 /S MAINS CORD ZC01804070 W001 /U MAINS CORD UL/CSA 10A 125V ZC01803100 PACKING 001T /F USER GUIDE PM-17SA 313J851110 001T /K,/S USER GUIDE PM-17SA 313J851350 001T /N 9965 000 01555 USER GUIDE PM-17MK2 313J851310 001T /U USER GUIDE PM-17SA 313J851250 T100 9965 000 01556 REMOTE COMMANDER RC-17MK2PM ZK313J0010 NOT STANDARD SPARE PARTS 001S /F,/U PACKING CASE PM-17SA 313J801010 002S CUSHION FOR LEFT 314J809010 003S CUSHION FOR RIGHT 314J809020 13 14 0 0 1 B F RONT PANEL ASSY. ( 0 0 3 B) ( 0 0 5 B) x 7 ( 0 0 7 B) x 2 ( 0 0 8 B) x 2 0 2 5 B 0 2 6 Bx 4 0 2 4 B ( 0 1 0 B) x 2 ( 0 0 3 B) 0 1 7 B 0 1 8 B 0 0 9 B 0 1 2 B P2 6 1 0 1 1 K 0 3 2 B 0 0 6 B 035B(F) 037B(S,U) 0 0 8 Gx 3 0 1 1 Gx 5 0 0 9 Gx 2 0 1 6 Gx 2 0 2 2 G 0 2 2 G 0 3 7 Gx 3 0 2 4 G 0 3 0 Gx 4 0 2 9 G 0 1 5 G 0 1 4 G ( 0 1 1 B) ( 0 0 2 B) P4 0 1 J 0 0 7 0 0 1 G 0 3 9 G 0 3 6 B 0 0 6 L 0 0 1 L 0 0 2 L x 5 0 0 6 L P7 0 1 C0 0 1 0 0 6 L 0 0 1 L 0 0 2 L x 5 L 0 0 1 0 3 5 G P6 0 1 0 1 8 G 0 2 5 G x 1 0 PM0 1 P8 6 1 0 3 5 G N, K, S ONL Y 0 0 6 L 9 0 1 G 0 0 4 K 0 0 2 K P8 0 1 P3 0 1 U, F VERSION N VERSION 0 0 3 K 0 0 1 K W0 0 1 W0 0 1 9 0 3 G P4 7 1 P8 7 1 K VERSI ON J 0 9 2 J 0 1 0 J 0 0 8 J 0 0 8 W 0 0 1 J 0 0 8 0 3 4 G 0 3 8 Gx 2 0 1 0 K 0 1 1 K 0 1 0 Dx 2 0 0 4 Dx 2 P5 0 1 0 0 2 G 0 0 3 Gx 2 0 0 8 D 0 0 3 D 0 1 0 Dx 2 0 0 4 Dx 2 0 0 8 D 0 0 9 Dx 3 0 0 1 D 0 0 6 Dx 8 0 0 7 Dx 8 0 0 2 Dx 5 0 0 3 D 0 1 2 D 0 0 3 G 0 0 3 G PM0 1 0 1 2 G 0 1 2 G U ONL Y N, K, S ONL Y 0 0 5 D U ONL Y 0 0 5 D N, K, S ONL Y 0 1 9 B 0 1 3 B 0 1 5 Bx 4 0 2 8 B P2 7 1 P1 0 1 0 2 1 Bx 2 0 2 8 B 0 2 9 Bx 2 P2 9 1 P8 9 1 0 2 7 B P2 0 1 0 2 4 G 0 2 0 Bx 8 0 2 9 Bx 2 0 0 1 F P5 5 1 P2 8 1 0 2 3 G T 1 0 0 SYMBOL 5 1 1 0 + B. H. M. SCREW 5 1 2 6 + B. H. T AP T I T E SCREW W/ WASHER 5 1 2 7 + B. H. T AP T I T E SCREW( W/ ) 5 1 2 8 + B. H. T AP T I T E SCREW( B T YPE) 5 1 2 9 5 1 3 0 + P. H. T AP T I T E SCREW( B T YPE) 5 1 4 8 5 1 5 0 + F . H. T AP T I T E SCREW( B T YPE) 5 4 0 5 +H. H. TAPT. BOL TS WI TH FL ANGE( S TI TE) 5 2 0 4 J 0 0 4 J 0 0 3 J 0 0 5 J 0 0 6 S VERSION W001 0 4 2 G 15 16 7. DC OFFSET VOLTAGE ALIGNMENT 1. Before switching the mains switch. Turn down the master volume to the minimum position and set the balance volume and tone volumes at the center po- sitions. Set variable resistors R627(on the PCB P601:L ch) and R727(on the PCB P701:R ch) fully counterclockwise. 2. Connect the digital voltage meter to the speaker terminal. And set the digital voltage meter for the DC position. 3. Turn the mains switch ON. Put thin adjustment screw driver in to the hole of the HDAM (Q601:L ch / Q701:R ch) copper cover. Adjust variable resis- tors in the HDAM (Q601:L ch / Q701:R ch) value at 0mV±3mV with in 10 seconds after speaker relay turn ON. 8. IDLING CURRENT ALIGNMENT REMARK Before “Idling current alignment”, “ DC offset voltage alignment “ have to be done!! 1. Each of cement resistor R641(on the PCB P601:Lch) and cement resistor R741(on the PCB P701:Rch) are provided with three test points. Connect the digital voltage meter, set for the DC voltage input, to the test points at the two extremities of three test points of R641(L ch) and R741(R ch). 2. After the setup above, turn the mains switch ON and heat up the amplifier about 10 minuetes. 3. Adjust variable resistors R627(on the PCB P601:L ch) and R727(on the PCB P701:R ch) according to the digital volt meter reading. The target setting value is 9mV±1mV(45mA) for both L ch and R ch. Alignment hole Measurement point R641 / R741 SM970926ACT 9. ELECTRICAL PARTS LIST The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) RF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 C : CERAMIC CAP. 4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRAMSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. 17 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) P101-SW & HP CIRCUIT BOARD P101-CAPACITORS C101 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C113 C114 4822 122 40617 CER. 0.1µF +80-20% DC50V DD38104010 C115 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C116 4822 124 41534 ELECT. 10µF M 25V RA-2 OA10602520 C121 /K,/S 4822 124 12276 FILM 0.01µF ± 5% OF15103540 C122 /N 4822 124 12276 FILM 0.01µF ± 5% OF15103540 P101-RESISTORS R121 4822 052 10479 47Ω ±5%1/6W GG05470160 R122 4822 052 10479 47Ω ±5%1/6W GG05470160 P101-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R101-R117 P101-SEMICONDUCTORS D101 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 Q101 4822 130 60588 DIG.TRS. BA20001000 Q113 DTC114ES UN4211 10k 10k Q114 4822 209 32553 IC LC7822N HC10309030 P101-MISCELLANEOUS J107 GOLD 4822 267 31692 JACK HLJ0540-01-410 GRY YJ01003880 J107 BLACK 9965 000 11662 JACK HLJ0540-01-410 BLK YJ01003870 S101 9965 000 01579 ROTARY SW. SRBM16N-F1020 SR01060100 S102 9965 000 01580 PUSH SW. SPUP12-2N-*W2 SP02012290 P201-U-COM CIRCUIT BOARD P201-CAPACITORS C201 4822 124 41534 ELECT. 10µF M 25V RA-2 OA10602520 C202 4822 122 40617 CER. 0.1µF +8%-20% DC50V DD38104010 C203 4822 124 41534 ELECT. 10µF M 25V RA-2 OA10602520 C204 4822 124 41534 ELECT. 10µF M 25V RA-2 OA10602520 C205 4822 122 40617 CER. 0.1µF +8%-20% DC50V DD38104010 C206 4822 124 90406 BIG ELECT FMOH223ZTP16 EX22300530 C207 4822 122 40617 CER. 0.1µF +8%-20% DC50V DD38104010 C208 4822 124 41534 ELECT. 10µF M 25V RA-2 OA10602520 C209 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C210 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C211 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C212 4822 124 41534 ELECT. 10µF M 25V RA-2 OA10602520 C217 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C223 C224 4822 124 11947 ELECT 10µF 16V EQ10601630 P201-RESISTORS R230 4822 052 10479 47Ω ±5%1/6W GG05470160 R231 4822 052 10228 2.2Ω ±5%1/6W GG05022160 P201-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R201-R227 R228 R229 R246-249 R291-R298 P201-SEMICONDUCTORS D201 D203 4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000 D204 30V 0.1A Q201 9965 000 01584 MICROPROCESSOR 4BIT 2K TMP47C200BN-1A68(Z) HU313JT000 Q202 4822 209 73287 IC LB1630 HC10235030 Q204 4822 130 60839 TRS. 2SC2458 Y OR GR HT324582B0 Q205 4822 130 60839 TRS. 2SC2458 Y OR GR HT324582B0 Q206 4822 130 60839 TRS. 2SC2458 Y OR GR HT324582B0 P201-MISCELLANEOUS X201 4822 242 72527 CERAMIC VIB. CERALOCK CST4.00MGW FQ04004030 P261-METER & LAMP CIRCUIT BOARD C261 4822 122 40617 CER. 0.1µF +8%-20% DC50V DD38104010 M261 4822 344 14034 D.C METER MG-28 IM11030030 M262 4822 134 40925 LAMP 8V 100mA DC IGN.BLUE IN10080680 R261 4822 052 10109 10Ω ±5%1/6W GG05100160 P271-FUNCTION SELECTOR CIRCUIT BOARD R271 4822 050 21021 100Ω ±5%1/4W GG05101140 S271 4822 273 20368 ROTARY SW. SRRSIC SR01120070 P281-INDICATOR LED CIRCUIT BOARD D281 4822 130 80326 L.E.D. LT3D8B RED 3O HI10062320 D282 4822 130 80326 L.E.D. LT3D8B RED 3O HI10062320 D283 4822 130 80326 L.E.D. LT3D8B RED 3O HI10062320 D284 4822 130 80326 L.E.D. LT3D8B RED 3O HI10062320 D285 4822 130 80326 L.E.D. LT3D8B RED 3O HI10062320 D286 4822 130 80326 L.E.D. LT3D8B RED 3O HI10062320 D287 4822 130 80326 L.E.D. LT3D8B RED 3O HI10062320 R281 4822 052 10681 680Ω ±5%1/6W GG05681160 P291-IR SENSOR CIRCUIT BOARD C291 9965 000 00603 ELECT 47µF 10V EG47601050 C292 4822 122 40617 CER. 0.1µF +8%-20% DC50V DD38104010 C293 9965 000 00603 ELECT 47µF 10V EG47601050 D291 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 Q291 4822 209 16735 PHOTO UNIT PNA4655M00HB IR SENSOR HW10006020 Q292 4822 130 60107 TRS. 2SA1048 Y OR GR HT110482B0 Q293 4822 130 60839 TRS. 2SC2458 Y OR GR HT324582B0 P301-INPUT JACK CIRCUIT BOARD P301-CAPACITORS C301 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 C312 C313 9965 000 01581 ELECT. 22µF M 25V RA-2 OA22602520 C314 9965 000 01581 ELECT. 22µF M 25V RA-2 OA22602520 C315 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 C316 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 C317 C319 4822 122 40617 CER. 0.1µF +80%-20% DC50V DD38104010 C320 C333 /K,/N,/S 9965 000 01344 FILM 100pF ±5%100V OF15101540 C348 /K,/N,/S C349 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 18 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) C350 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C351 9965 000 01344 FILM 100pF ±5%100V OF15101540 C354 C355 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C361 P301-RESISTORS R323 4822 052 10228 2.2Ω ±5%1/6W GG05022160 R324 4822 052 10471 470Ω ±5%1/6W GG05471160 R325 4822 052 10471 470Ω ±5%1/6W GG05471160 P301-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R301-R322 P301-SEMICONDUCTORS D351 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 Q301 4822 209 16926 IC OPA2604AP BURR-BROWN HC10008610 P301-MISCELLANEOUS J301 4822 290 81598 TERMINAL 2P RCA JACK YKC21-3255 GOLD YT02021130 J302 4822 290 81599 TERMINAL YKC21-3269 GOLD YT02040970 J303 4822 290 81599 TERMINAL YKC21-3269 GOLD YT02040970 J304 4822 290 81599 TERMINAL YKC21-3269 GOLD YT02040970 J351 4822 290 81599 TERMINAL YKC21-3269 GOLD YT02040970 L301 9965 000 01570 RELAY ED2-24 LY20240470 L312 L351 9965 000 01576 RELAY MR82-24USR LY20240480 S351 9965 000 01582 SLIDE SW. SSSU12 SS02020950 P401-PHONO AMP CIRCUIT BOARD P401-CAPACITORS C401 9965 000 01560 FILM 270pF ±5%100V OFC OF55271540 C402 9965 000 01560 FILM 270pF ±5%100V OFC OF55271540 C403 9965 000 01567 ELECT. 100µF 10V ARA OA10701050 C404 9965 000 01567 ELECT. 100µF 10V ARA OA10701050 C409 4822 124 12276 FILM 0.01µF ± 5% OF15103540 C410 4822 124 12276 FILM 0.01µF ± 5% OF15103540 C411 4822 121 70437 FILM 1000pF ±5%100V APSV OF15102540 C412 4822 121 70437 FILM 1000pF ±5%100V APSV OF15102540 C413 4822 124 81151 ELECT. 22µF 25V ARA OA22602550 C414 4822 124 81151 ELECT. 22µF 25V ARA OA22602550 C415 9965 000 01568 FILM 1500pF ±5%100V APSV OF15152540 C416 9965 000 01568 FILM 1500pF ±5%100V APSV OF15152540 C417 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C420 C421 4822 122 40617 CER. 0.1µF DC50V +80 -20% DD38104010 C422 4822 122 40617 CER. 0.1µF DC50V +80 -20% DD38104010 C423 4822 122 40617 CER. 0.1µF DC50V +80 -20% DD38104010 C424 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 P401-CAPACITORS (COMMON) PLASTIC FILM CAPACITOR ±5% 50V : C504-C408 P401-RESISTORS R405 9965 000 01571 100Ω ± 1% 1/6W GM11610000 R408 R435 4822 052 10101 100Ω ±5%1/6W GG05101160 R438 R439 4822 052 10109 10Ω ±5%1/6W GG05100160 P401-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R401-R404 R409-R434 R471 R472 P401-SEMICONDUCTORS D401 4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000 D410 30V 0.1A Q401 4822 130 43547 F.E.T. 2SK369 V HF203691V0 Q404 VGDS-40V PD0.4W Q405 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q408 Q409 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q412 Q413 4822 209 81565 IC NJM-2041-DD HC10026090 P401-MISCELLANEOU L401 9965 000 01570 RELAY ED2-24 LY20240470 P471-PHONO RCA JACK CIRCUIT BOARD P471-CAPACITORS C471 4822 121 70437 FILM 1000pF ±5%100V APSV OF15102540 C472 4822 121 70437 FILM 1000pF ±5%100V APSV OF15102540 C473 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C474 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 P471-MISCELLANEOUS J471 4822 290 81638 TERMINAL 14X14 RA 1L1P BLK AU FLM-GND YT02010790 J472 4822 290 81638 TERMINAL 14X14 RA 1L1P BLK AU FLM-GND YT02010790 S471 4822 276 13409 PUSH SW. SPUP19-4N-W2.0 SP04010660 U473 /K,/N,/S 4822 158 60606 CHOKE COIL 22µH 5R200PN LC12030050 U474 /K,/N,/S 4822 158 60606 CHOKE COIL 22µH 5R200PN LC12030050 P501-MASTER VOL. & AMP CIRCUIT BOARD P501-CAPACITORS C501 9965 000 01560 FILM 270pF ±5%100V OFC OF55271540 C502 9965 000 01560 FILM 270pF ±5%100V OFC OF55271540 C503 9965 000 01585 MICA 5pF 500V FE922H DF31050520 C504 9965 000 01585 MICA 5pF 500V FE922H DF31050520 C505 9965 000 01586 MICA 22pF ±5%500V FE DF35220520 C506 9965 000 01586 MICA 22pF ±5%500V FE DF35220520 C507 /F,/U ELECT. 22µF 25V ARA OA22602550 C507 /K,/N,/S 9965 000 02015 ELECT. 22µF 25V ARS OA22602540 C508 /F,/U ELECT. 22µF 25V ARA OA22602550 C508 /K,/N,/S 9965 000 02015 ELECT. 22µF 25V ARS OA22602540 C511 4822 124 90051 ELECT. 220µF M 25V ARA OA22702550 C512 4822 124 90051 ELECT. 220µF M 25V ARA OA22702550 C513 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C514 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C515 9965 000 01569 CER. 0.01µF +80%-20% DC50V DD38103010 C516 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 P501-RESISTORS R505 9965 000 01565 68Ω ± 1% 1/4W ERD NR01680140 R506 9965 000 01565 68Ω ± 1% 1/4W ERD NR01680140 19 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) R507 4822 111 20413 220Ω ± 1% 1/4W ERD NR01221140 R510 R537 4822 052 10479 47Ω ±5%1/6W GG05470160 R538 4822 052 10479 47Ω ±5%1/6W GG05470160 R539 9965 000 01587 VAR. RK18112MC-30K DX2 RM03030050 R540 4822 052 10228 2.2Ω ±5%1/6W GG05022160 P501-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R501-R505 R511-R536 P501-SEMICONDUCTORS D501 4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000 D506 30V 0.1A Q501 IC NEW HDAM KH313J1010 Q502 IC NEW HDAM KH313J1010 Q503 4822 130 62649 F.E.T. 2SJ74 BL HF100741G0 Q506 VGDS=25V PD=24W Q507 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q508 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q509 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q510 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q511 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q512 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q513 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q514 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q515 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q516 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q517 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q518 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 P501-MISCELLANEOUS L501 9965 000 01570 RELAY ED2-24 LY20240470 L502 9965 000 01570 RELAY ED2-24 LY20240470 P551-TONE AMP CIRCUIT BOARD P551-CAPACITORS C551 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 C552 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 C553 9965 000 01560 FILM 270pF ±5%100V OFC OF55271540 C554 9965 000 01560 FILM 270pF ±5%100V OFC OF55271540 C555 9965 000 01344 FILM 100pF ±5%100V OF15101540 C556 9965 000 01344 FILM 100pF ±5%100V OF15101540 C557 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 C558 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 C559 4822 124 80067 ELECT. 4.7µF M 50V RA-2 OA47505020 C560 4822 124 80067 ELECT. 4.7µF M 50V RA-2 OA47505020 C561 9965 000 01583 FILM 0.047µF ±5%50V MTFV OF15473040 C562 9965 000 01583 FILM 0.047µF ±5%50V MTFV OF15473040 C563 4822 124 12276 FILM 0.01µF ± 5% OF15103540 C564 4822 124 12276 FILM 0.01µF ± 5% OF15103540 C565 9965 000 01344 FILM 100pF ±5%100V OF15101540 C566 9965 000 01344 FILM 100pF ±5%100V OF15101540 C567 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C570 P551-RESISTORS R563 4822 052 10101 100Ω ±5%1/6W GG05101160 R576 R577 4822 101 30735 VAR. 10kΩ X2 B RM01030720 R578 4822 101 30735 VAR. 10kΩ X2 B RM01030720 R579 4822 100 30138 VAR. 100kΩ MN FOR BALANCE VOLUME RM01041310 P551-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R551-R562 R565-R574 P551-SEMICONDUCTORS D551 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 Q551 4822 209 81565 IC NJM-2041-DD HC10026090 Q554 P551-MISCELLANEOUS L551 9965 000 01576 RELAY MR82-24USR LY20240480 S551 4822 276 13065 PUSH SW. SPUP24V1A STROK=2MM NON-SHORT SP04010650 P601-POWER AMP L CIRCUIT BOARD P601-CAPACITORS C601 9965 000 01560 FILM 270pF ±5%100V OFC OF55271540 C602 4822 121 10867 FILM 0.1µF ±5%100V OFC OF55104540 C603 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C604 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C605 9965 000 01561 MICA 10pF ± 0.5pF 500V FE DF31100520 C607 /F,/U ELECT. 10µF M 100V RA-2 OA10610020 C607 /K,/N,/S 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 C608 4822 124 12276 FILM 0.01µF ± 5% OF15103540 C610 4822 124 22273 ELECT. 0.47µF M 50V RA-2 OA47405020 C611 9965 000 01562 ELECT 10µF M 50V RA2BP EQ10605090 C612 9965 000 01562 ELECT 10µF M 50V RA2BP EQ10605090 C613 /F,/U ELECT. 330µF M 50V RA-2 OA33705020 C613 /K,/N,/S 9965 000 02014 ELECT. 220µF M 50V ARS OA22705040 C614 /F,/U ELECT. 330µF M 50V RA-2 OA33705020 C614 /K,/N,/S 9965 000 02014 ELECT. 220µF M 50V ARS OA22705040 C615 9965 000 01564 FILM 680pF ±5%100V OFC OF55681540 P601-RESISTORS R605 4822 111 20413 220Ω ± 1% 1/4W ERD NR01221140 R607 4822 052 10102 1kΩ ±5%1/6W GG05102160 R608 4822 052 10102 1kΩ ±5%1/6W GG05102160 R609 4822 111 31001 330Ω ±5%1/6W GG05331160 R610 4822 111 31001 330Ω ±5%1/6W GG05331160 R613 9965 000 01565 68Ω ± 1% 1/4W ERD NR01680140 R614 4822 111 20413 220Ω ± 1% 1/4W ERD NR01221140 R615 4822 111 20413 220Ω ± 1% 1/4W ERD NR01221140 R616 4822 111 20413 220Ω ± 1% 1/4W ERD NR01221140 R617 4822 050 23308 3.3MΩ ±5%1/6W GD05335160 R618 4822 050 23308 3.3MΩ ±5%1/6W GD05335160 R619 4822 050 23308 3.3MΩ ±5%1/6W GD05335160 R621 4822 053 10681 680Ω ±5%1W GA05681010 R624 R627 9965 000 01566 TRIM. VARIABLE 2.2kΩ RA02220760 R628 4822 052 10109 10Ω ±5%1/6W GG05100160 R629 4822 052 10101 100Ω ±5%1/6W GG05101160 R630 4822 052 10101 100Ω ±5%1/6W GG05101160 R631 4822 050 22209 22Ω ±5%1/4W GG05220140 R632 4822 050 22209 22Ω ±5%1/4W GG05220140 R633 4822 052 10471 470Ω ±5%1/6W GG05471160 R634 4822 052 10471 470Ω ±5%1/6W GG05471160 R635 4822 050 26809 68Ω ±5%1/6W GG05680160 R636 4822 050 26809 68Ω ±5%1/6W GG05680160 R637 4822 052 10151 150Ω ±5%1/6W GG05151160 R638 JUMPER JUMPER WIRE 5MM 75060501P0 R639 4822 052 10109 10Ω ±5%1/6W GG05100160 20 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) R640 4822 052 10109 10Ω ±5%1/6W GG05100160 R641 4822 111 91402 FIXED 0.10Ω x 2 3W BZ10102010 R642 4822 052 10102 1kΩ ±5%1/6W GG05102160 R643 4822 052 10102 1kΩ ±5%1/6W GG05102160 P601-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R601-R604 R611 R612 R620 R625 R626 R644-R647 P601-SEMICONDUCTORS D601 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D602 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D603 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D604 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D605 4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000 D612 30V 0.1A D613 4822 130 33948 ZENER DIODE 5.6V HD30561000 D614 4822 130 33948 ZENER DIODE 5.6V HD30561000 D615 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D616 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D617 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 K601 TRS. KIT 2SA1837 & 2SC4793 HFE SELECTED RANK HK183719C0 Q601 IC NEW HDAM KH313J1010 Q602 4822 130 60526 TRS. 2SD1508 DARLINGTON TR.HFE>4000 HT415080A0 Q603 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q604 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q605 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q606 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q607 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q608 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q609 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q610 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q611 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q612 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q613 4822 130 63635 TRS. 2SC4793 O Y HT347932A0 Q614 4822 130 63634 TRS. 2SA1837 O Y HT118372A0 Q615 4822 130 60741 TRS. 2SC3284 O P Y 125W FMG112 HT332843D0 Q616 4822 130 63674 TRS. 2SA1303 O P Y 125W FMG112 HT113033D0 Q617 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q618 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 P701-POWER AMP R CIRCUIT BOARD P701-CAPACITORS C701 9965 000 01560 FILM 270pF ±5%100V OFC OF55271540 C702 4822 121 10867 FILM 0.1µF ±5%100V OFC OF55104540 C703 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C704 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C705 9965 000 01561 MICA 10pF ± 0.5pF 500V FE DF31100520 C707 /F,/U ELECT. 10µF M 100V RA-2 OA10610020 C707 /K,/N,/S 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 C708 4822 124 12276 FILM 0.01µF ± 5% OF15103540 C710 4822 124 22273 ELECT. 0.47µF M 50V RA-2 OA47405020 C711 9965 000 01562 ELECT 10µF M 50V RA2BP EQ10605090 C712 9965 000 01562 ELECT 10µF M 50V RA2BP EQ10605090 C713 /F,/U ELECT. 330µF M 50V RA-2 OA33705020 C713 /K,/N,/S 9965 000 02014 ELECT. 220µF M 50V ARS OA22705040 C714 /F,/U ELECT. 330µF M 50V RA-2 OA33705020 C714 /K,/N,/S 9965 000 02014 ELECT. 220µF M 50V ARS OA22705040 C715 9965 000 01564 FILM 680pF ±5%100V OFC OF55681540 P701-RESISTORS R705 4822 111 20413 220Ω ± 1% 1/4W ERD NR01221140 R707 4822 052 10102 1kΩ ±5%1/6W GG05102160 R708 4822 052 10102 1kΩ ±5%1/6W GG05102160 R709 4822 111 31001 330Ω ±5%1/6W GG05331160 R710 4822 111 31001 330Ω ±5%1/6W GG05331160 R713 9965 000 01565 68Ω ± 1% 1/4W ERD NR01680140 R714 4822 111 20413 220Ω ± 1% 1/4W ERD NR01221140 R715 4822 111 20413 220Ω ± 1% 1/4W ERD NR01221140 R716 4822 111 20413 220Ω ± 1% 1/4W ERD NR01221140 R717 4822 050 23308 3.3MΩ ±5%1/6W GD05335160 R718 4822 050 23308 3.3MΩ ±5%1/6W GD05335160 R719 4822 050 23308 3.3MΩ ±5%1/6W GD05335160 R721 4822 053 10681 680Ω ±5%1W GA05681010 R724 R727 9965 000 01566 TRIM. VARIABLE 2.2kΩ RA02220760 R728 4822 052 10109 10Ω ±5%1/6W GG05100160 R729 4822 052 10101 100Ω ±5%1/6W GG05101160 R730 4822 052 10101 100Ω ±5%1/6W GG05101160 R731 4822 050 22209 22Ω ±5%1/4W GG05220140 R732 4822 050 22209 22Ω ±5%1/4W GG05220140 R733 4822 052 10471 470Ω ±5%1/6W GG05471160 R734 4822 052 10471 470Ω ±5%1/6W GG05471160 R735 4822 050 26809 68Ω ±5%1/6W GG05680160 R736 4822 050 26809 68Ω ±5%1/6W GG05680160 R737 4822 052 10151 150Ω ±5%1/6W GG05151160 R738 JUMPER WIRE 5MM 75060501P0 R739 4822 052 10109 10Ω ±5%1/6W GG05100160 R740 4822 052 10109 10Ω ±5%1/6W GG05100160 R741 4822 111 91402 0.10OHMX2 3W BZ10102010 R742 4822 052 10102 1kΩ ±5%1/6W GG05102160 R743 4822 052 10102 1kΩ ±5%1/6W GG05102160 P701-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R701-R704 R711 R712 R720 R725 R726 R744-R747 P701-SEMICONDUCTORS D701 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D702 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D703 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D704 4822 130 80837 DIODE HSS81TD 150V 150MA HD20027010 D705 4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000 D712 30V 0.1A D713 4822 130 33948 ZENER DIODE 5.6V HD30561000 D714 4822 130 33948 ZENER DIODE 5.6V HD30561000 D715 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D716 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D717 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 K701 TRS. KIT 2SA1837 & 2SC4793 HFE SELECTED RANK HK183719C0 Q701 IC NEW HDAM KH313J1010 Q702 4822 130 60526 TRS. 2SD1508 DARLINGTON TR.HFE>4000 HT415080A0 Q703 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q704 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q705 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q706 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q707 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q708 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q709 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q710 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q711 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q712 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 21 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) Q713 4822 130 63635 TRS. 2SC4793 O Y HT347932A0 Q714 4822 130 63634 TRS. 2SA1837 O Y HT118372A0 Q715 4822 130 60741 TRS. 2SC3284 O P Y 125W FMG112 HT332843D0 Q716 4822 130 63674 TRS. 2SA1303 O P Y 125W FMG112 HT113033D0 Q717 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q718 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 P801-POWER SUPPLY & PROTECTOR CIRCUIT BOARD P801-CAPACITORS C801 9965 000 01577 ELECT 1800µF 50V FOR AUDIO EB18805020 C802 9965 000 01577 ELECT 1800µF 50V FOR AUDIO EB18805020 C805 4822 124 90355 ELECT. 100µF M 50V RA-2 OA10705020 C806 4822 124 90355 ELECT. 100µF M 50V RA-2 OA10705020 C807 4822 124 90366 ELECT. 220µF M 50V RA-2 OA22705020 C808 4822 124 90366 ELECT. 220µF M 50V RA-2 OA22705020 C809 4822 124 41542 ELECT. 470µF M 50V RA-2 OA47705020 C810 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 C811 4822 124 90366 ELECT. 220µF M 50V RA-2 OA22705020 C812 4822 124 90355 ELECT. 100µF M 50V RA-2 OA10705020 C813 4822 124 41534 ELECT. 10µF M 25V RA-2 OA10602520 C814 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 C815 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 C816 4822 124 12276 FILM 0.01µF ± 5% OF15103540 C901 4822 124 12276 FILM 0.01µF ± 5% OF15103540 C902 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 C903 4822 122 40617 CER. 0.1µF +8%-20% DC50V DD38104010 C904 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 C905 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 C906 4822 124 22273 ELECT. 0.47µF M 50V RA-2 OA47405020 C907 9965 000 01575 FILM 0.039µF ±5%100V OFC OF55393540 C908 9965 000 01575 FILM 0.039µF ±5%100V OFC OF55393540 C909 /K,/N,/S 4822 124 12276 FILM 0.01µF ± 5% OF15103540 C910 /K,/N,/S 4822 124 12276 FILM 0.01µF ± 5% OF15103540 C951 4822 122 40617 CER. 0.1µF +8%-20% DC50V DD38104010 C952 4822 124 41543 ELECT. 1µF M 50V OA10505020 C953 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 P801-RESISTORS R801 4822 050 21108 1Ω ±5%1/2W GG05010120 R802 4822 050 21108 1Ω ±5%1/2W GG05010120 R803 4822 052 10101 100Ω ±5%1/6W GG05101160 R804 4822 052 10101 100Ω ±5%1/6W GG05101160 R807 4822 050 24708 4.7Ω ±5%1/4W GG05047140 R808 4822 050 24708 4.7Ω ±5%1/4W GG05047140 R809 4822 117 10158 1Ω ±5%1/4W GG05010140 R810 4822 052 10101 100Ω ±5%1/6W GG05101160 R812 4822 050 24708 4.7Ω ±5%1/4W GG05047140 R813 4822 113 90119 FUSE 22Ω G 1/4W NF02220140 R814 4822 113 90119 FUSE 22Ω G 1/4W NF02220140 R816 4822 052 10478 4.7Ω ±5%1/6W GG05047160 R818 4822 053 10339 33Ω ±5%1W GA05330010 R819 4822 053 10339 33Ω ±5%1W GA05330010 R913 4822 053 10109 10Ω ±5%1W GA05100010 R914 4822 053 10109 10Ω ±5%1W GA05100010 R917 4822 053 10331 330Ω ±5%1W GA05331010 R918 4822 053 10331 330Ω ±5%1W GA05331010 R951 4822 052 10109 10Ω ±5%1/6W GG05100160 P801-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R805 R806 R811 R815 R817 R901-R912 R923 R952-R959 P801-SEMICONDUCTORS D801 4822 130 80839 DIODE S5688G HD20029050 D808 VRM=400V I0=1A D809 4822 130 10851 ZENER DIODE HZ24-2L HD30012010 D810 4822 130 10851 ZENER DIODE HZ24-2L HD30012010 D811 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D812 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D813 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D814 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D815 4822 130 80116 ZENER DIODE 24V EQUIVALENT HD32401000 D816 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D817 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D818 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D819 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D820 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D901 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D902 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D951 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D952 4822 130 33948 ZENER DIODE 5.6V EQUIVALENT HD30561000 Q801 4822 130 11605 TRS. 2SD1415 HT41415100 Q802 4822 130 11604 TRS. 2SB1020 HT21020100 Q803 4822 130 42836 F.E.T. 2SK246 GR HF202461C0 Q804 4822 130 42836 F.E.T. 2SK246 GR HF202461C0 Q805 4822 130 11605 TRS. 2SD1415 HT41415100 Q806 4822 130 42836 F.E.T. 2SK246 GR HF202461C0 Q807 4822 209 83821 IC NJM78M06FA HC38506090 Q901 4822 209 83312 IC TA7317P HC10042050 Q951 4822 130 42836 F.E.T. 2SK246 GR HF202461C0 Q952 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q953 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q954 4822 130 60117 TRS. 2SC3419 Y 40V 0.8A PC=1.2W 5W HT334191Y0 Q955 4822 209 83679 IC NJM2904 DUAL OP-AMP HC10030090 P801-MISCELLANEOUS G801 4822 121 20263 CAP.COMP. 0.47µF + 6.8Ω NOISE KILLER BF47400010 J908 4822 267 41009 TERMINAL 2P RCA PIN JACK YT02020890 L801 4822 158 60605 FERRIT BEADS B-01-RT FC90050060 L901 4822 280 70354 RELAY VB 24MBU-510 5A/240VAC LY20240310 L902 9965 000 01576 RELAY MR82-24USR LY20240480 L905 4822 158 60605 FERRIT BEADS B-01-RT FC90050060 U804 4822 158 60605 FERRITE BEADS B-01-RT FC90050060 P861-RECTIFIER CIRCUIT BOARD D861 9965 000 01578 DIODE D25XB60 600V 25A BRIDGE-DI HE20029290 G861 4822 121 20263 CAP.COMP. 0.47µF + 6.8Ω NOISE KILLER BF47400010 22 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) P871-AC-OUTLET CIRCUIT BOARD [/F,/U VERSION] J871 /F,/U 482226731417 JACK AC OUTLET CCT1306-0212 YJ04001840 P891-POWER SW CIRCUIT BOARD C891 4822 121 43732 FILM 0.1µF M 250V AC DF77103500 S891 4822 276 12647 PUSH SW. POWER ESB-99753V-4 TV-8 SP01011470 PM01-HDAM CIRCUIT BOARD FOR Q501 Q502 Q601 Q701 PM01-RESISTOR RM09 4822 100 20681 TRIM. 2.2kΩ RH0638C14R RA02220780 PM01-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RM01-RM08 PM01-SEMICONDUCTORS DM01 4822 130 32362 DIODE 1SS176 A165 1SS254 HD20002000 DM05 30V 0.1A QM01 5322 130 41844 F.E.T. 2SK170 BL VGDS=-40V PD=0.4V HF201701G0 QM02 5322 130 41844 F.E.T. 2SK170 BL VGDS=-40V PD=0.4V HF201701G0 QM03 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 QM04 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 QM05 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 QM06 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0
