马兰士MARANTZ PM-15S1N1G音响电路图

分类：电子电工日期：2023-04-09 点击：0

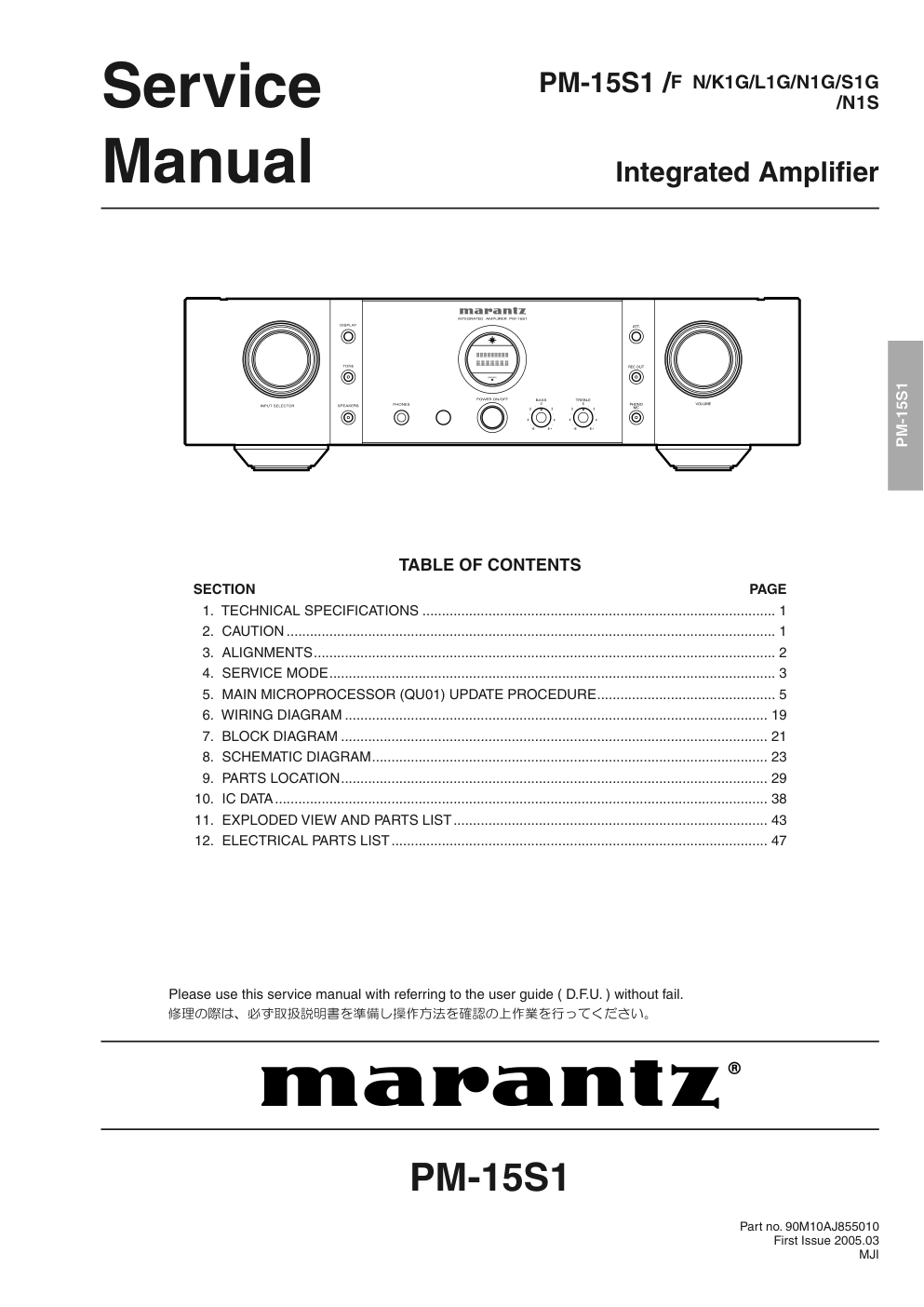

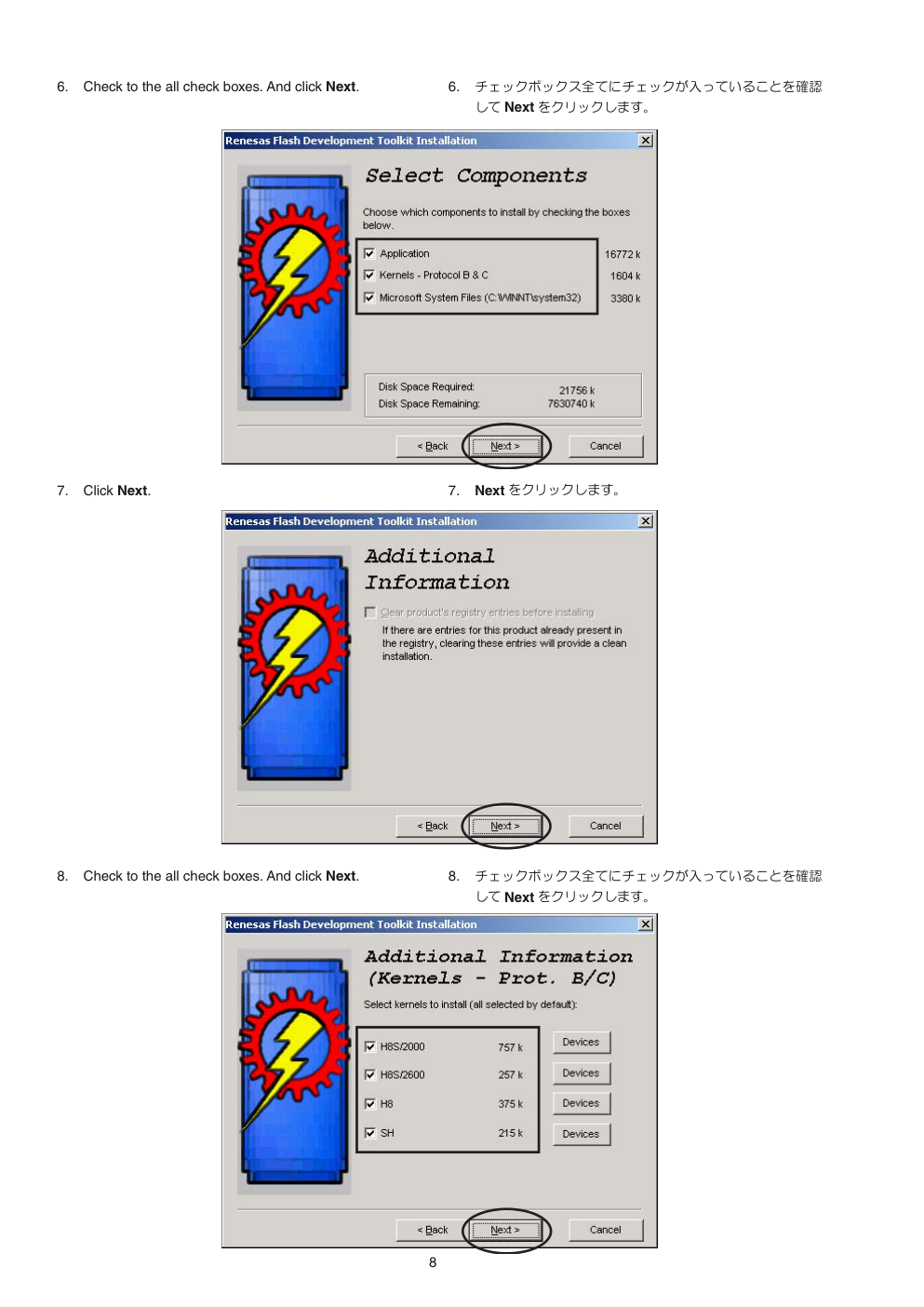

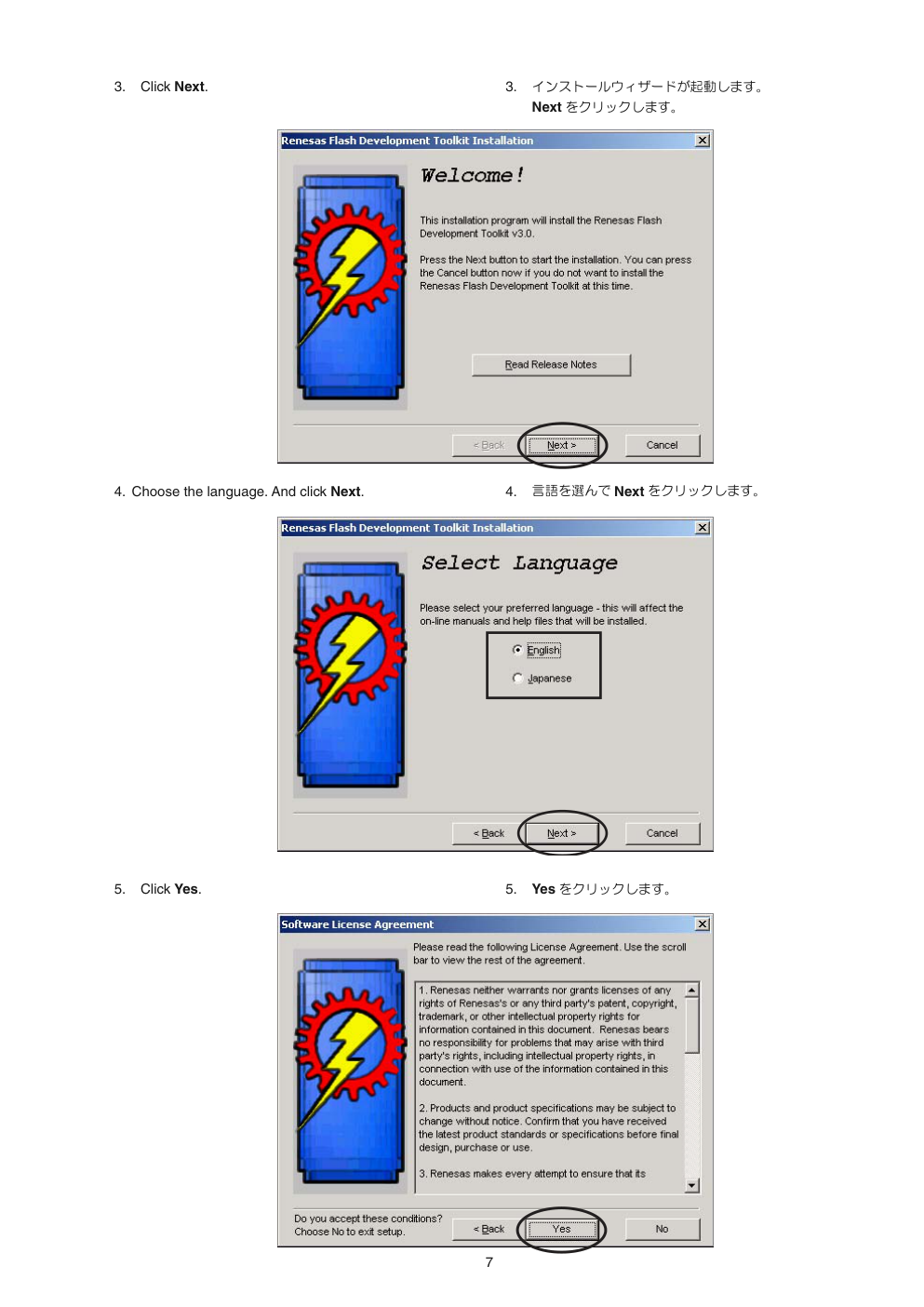

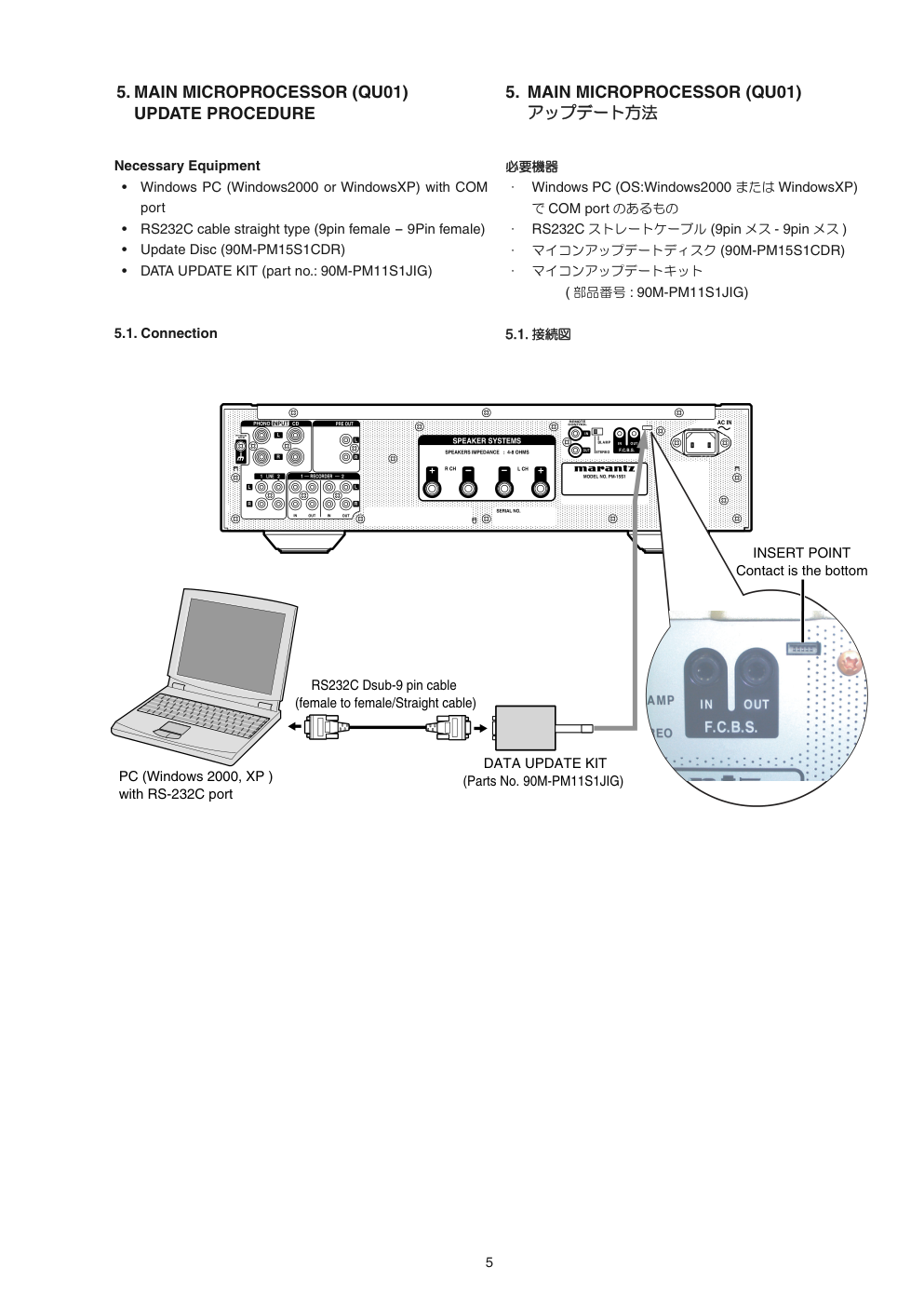

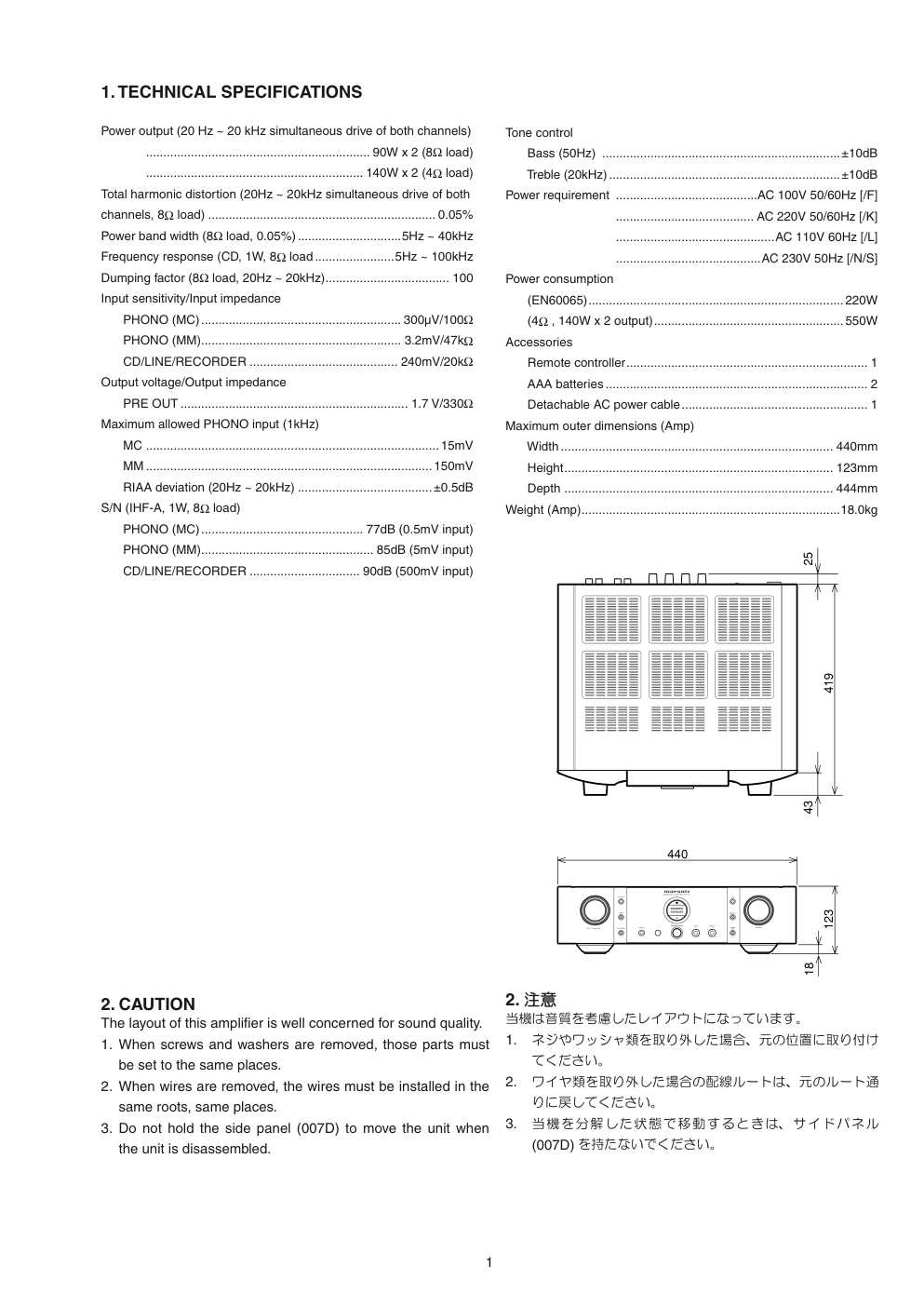

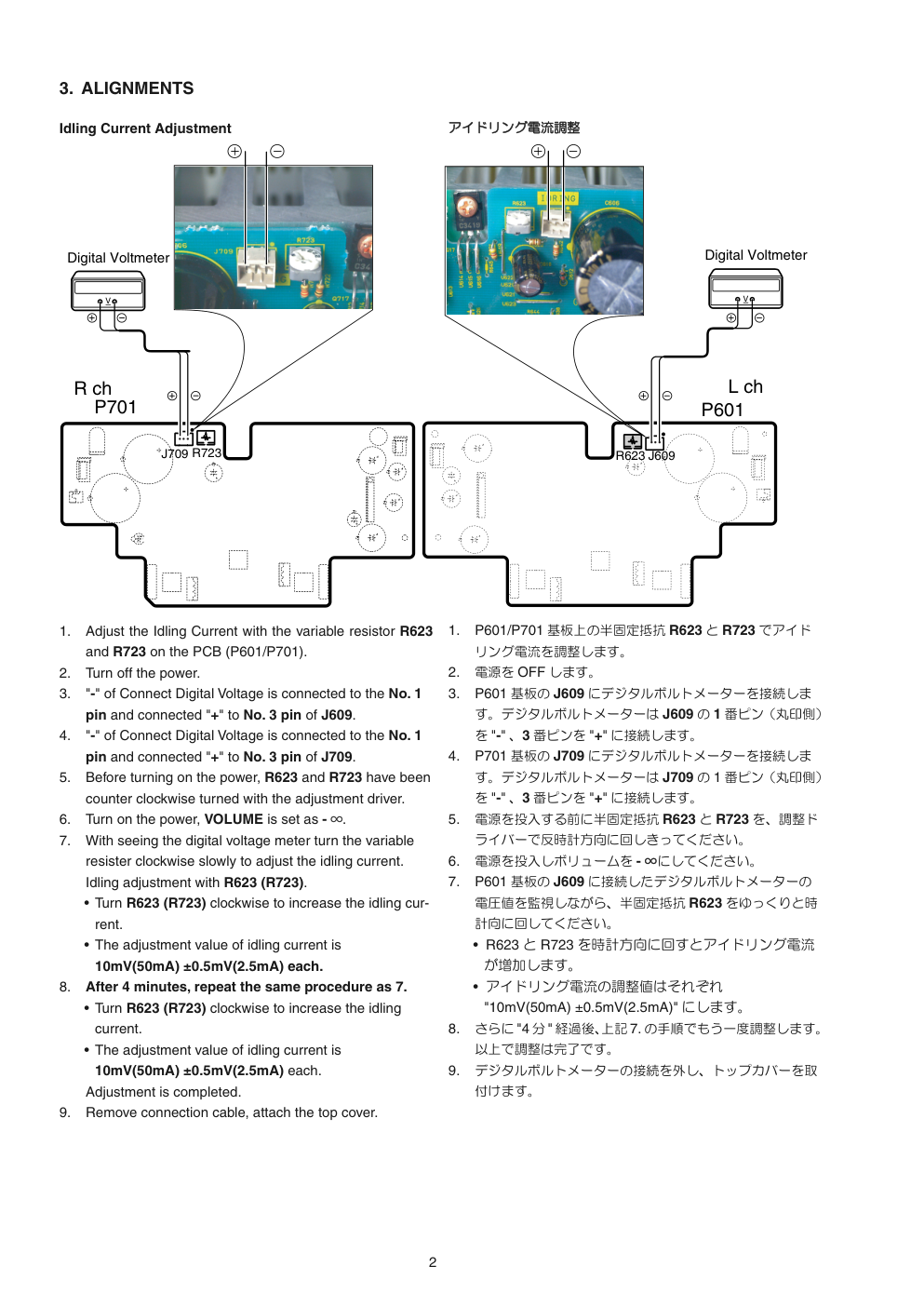

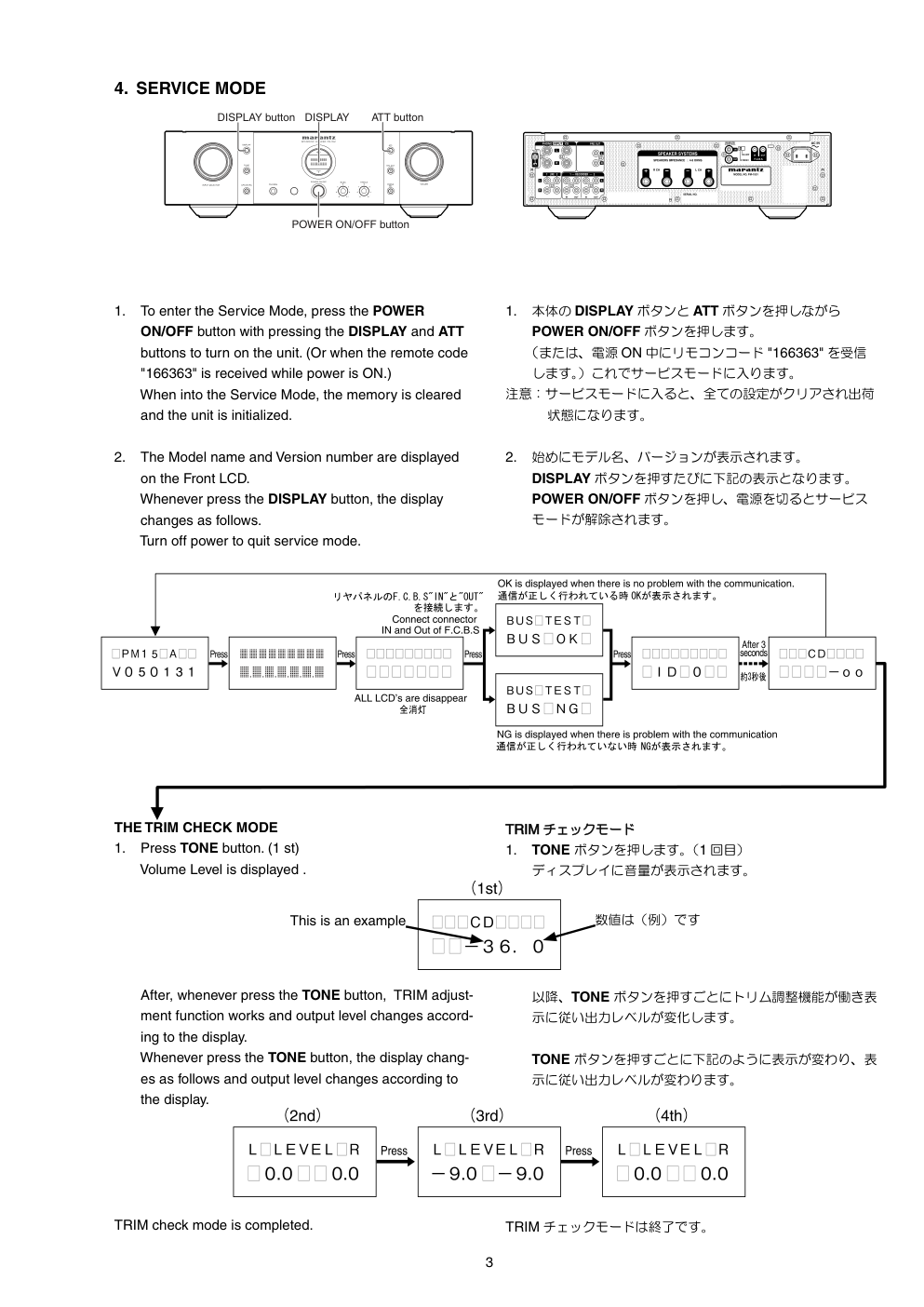

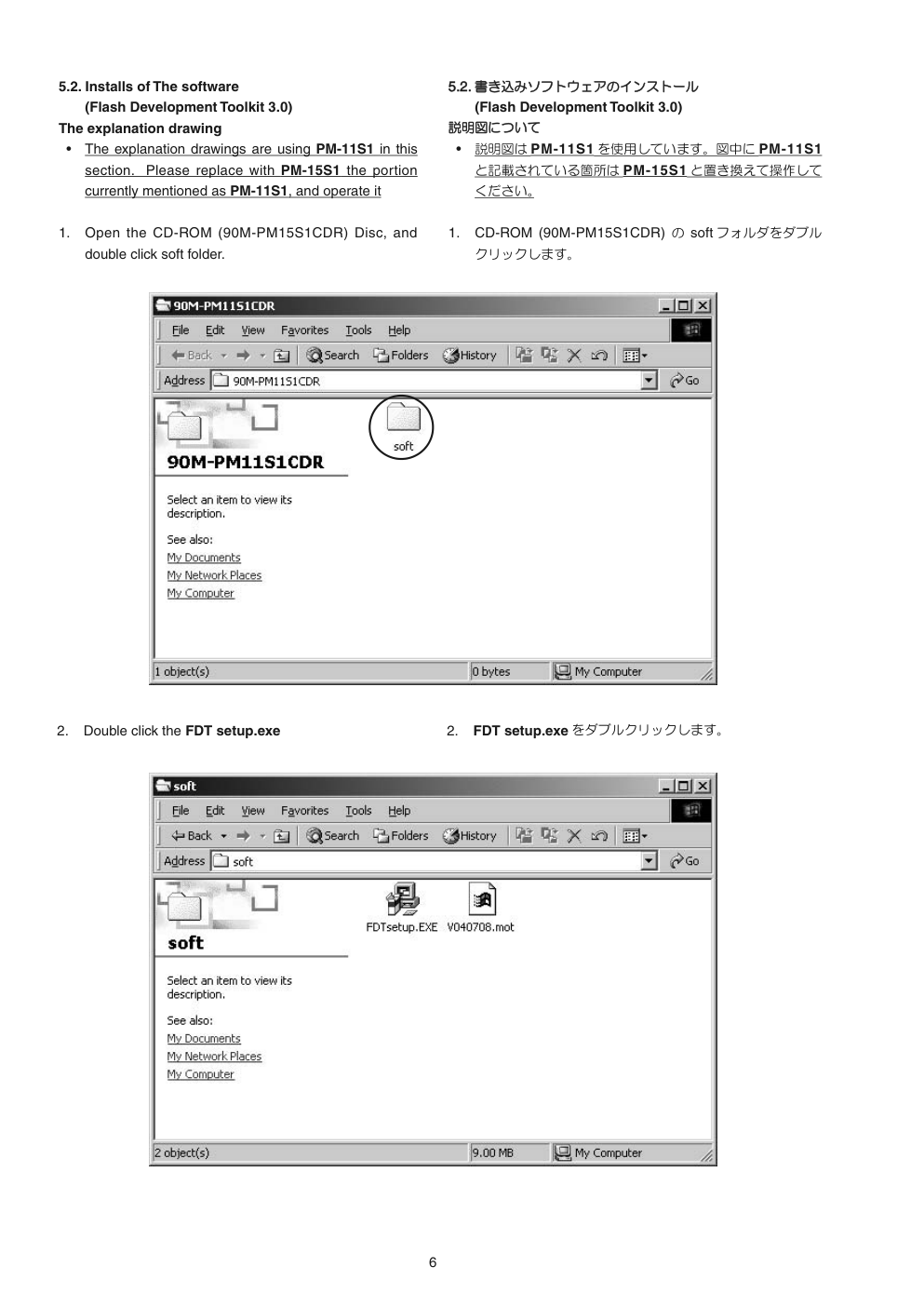

PM-15S1 Please use this service manual with referring to the user guide ( D.F.U. ) without fail. Service Manual PM-15S1 Integrated Amplifier PM-15S1 /F N/K1G/L1G/N1G/S1G /N1S Part no. 90M10AJ855010 First Issue 2005.03 MJI TABLE OF CONTENTS SECTION PAGE 1. TECH NI CAL SPEC I FI CA TIONS ........................................................................................... 1 2. CAUTION .............................................................................................................................. 1 3. ALIGNMENTS....................................................................................................................... 2 4. SERVICE MODE................................................................................................................... 3 5. MAIN MICROPROCESSOR (QU01) UPDATE PROCEDURE.............................................. 5 6. WIRING DIAGRAM ............................................................................................................. 19 7. BLOCK DIAGRAM .............................................................................................................. 21 8. SCHEMATIC DIAGRAM...................................................................................................... 23 9. PARTS LOCATION.............................................................................................................. 29 10. IC DATA............................................................................................................................... 38 11. EXPLODED VIEW AND PARTS LIST................................................................................. 43 12. ELECTRICAL PARTS LIST................................................................................................. 47 MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the speciﬁ cations for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be speciﬁ ed. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and veriﬁ ed before it is return to the user/customer. In case of difﬁ culties, do not hesitate to contact the Technical Department at above mentioned address. 050224MJI USA MARANTZ AMERICA, INC 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO., LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. 2ND FLOOR BANGUNAN INFINITE CENTRE LOT 1, JALAN 13/6, 46200 PETALING JAYA SELANGOR DARUL EHSAN, MALAYSIA PHONE : +60 - 3 - 7954 8088 FAX : +60 - 3 - 7954 7088 CHINA MARANTZ SHANGHAI TRADING LTD. ROOM.506 SHANGHAI LIGHT INDUSTRY MANSION 1578 NANJING (WEST) ROAD SHANGHAI CHINA TEL : 021 - 6248 - 1064 FAX : 021 - 6248 - 3565 KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD No.1 JALAN KILANG TIMOR #08-03 PACIFIC TECH CENTRE SINGAPORE 159303 PHONE : +65 6376 0338 FAX : +65 6376 0166 CANADA MARANTZ CANADA INC. 5-505 APPLE CREEK BLVD. MARKHAM, ONTARIO L3R 5B1 CANADA PHONE : 905 - 415 - 9292 FAX : 905 - 475 - 4159 1 1. TECHNICAL SPECIFICATIONS Power output (20 Hz ~ 20 kHz simultaneous drive of both channels) ................................................................. 90W x 2 (8Ω load) ............................................................... 140W x 2 (4Ω load) Total harmonic distortion (20Hz ~ 20kHz simultaneous drive of both channels, 8Ω load) .................................................................. 0.05% Power band width (8Ω load, 0.05%)..............................5Hz ~ 40kHz Frequency response (CD, 1W, 8Ω load .......................5Hz ~ 100kHz Dumping factor (8Ω load, 20Hz ~ 20kHz).................................... 100 Input sensitivity/Input impedance PHONO (MC).......................................................... 300µV/100Ω PHONO (MM).......................................................... 3.2mV/47kΩ CD/LINE/RECORDER ........................................... 240mV/20kΩ Output voltage/Output impedance PRE OUT .................................................................. 1.7 V/330Ω Maximum allowed PHONO input (1kHz) MC .....................................................................................15mV MM ...................................................................................150mV RIAA deviation (20Hz ~ 20kHz) .......................................±0.5dB S/N (IHF-A, 1W, 8Ω load) PHONO (MC)............................................... 77dB (0.5mV input) PHONO (MM).................................................. 85dB (5mV input) CD/LINE/RECORDER ................................ 90dB (500mV input) Tone control Bass (50Hz) .....................................................................±10dB Treble (20kHz)...................................................................±10dB Power requirement .........................................AC 100V 50/60Hz [/F] ........................................ AC 220V 50/60Hz [/K] ..............................................AC 110V 60Hz [/L] ..........................................AC 230V 50Hz [/N/S] Power consumption (EN60065)..........................................................................220W (4Ω , 140W x 2 output).......................................................550W Accessories Remote controller...................................................................... 1 AAA batteries ............................................................................ 2 Detachable AC power cable...................................................... 1 Maximum outer dimensions (Amp) Width ............................................................................... 440mm Height.............................................................................. 123mm Depth .............................................................................. 444mm Weight (Amp)...........................................................................18.0kg 419 43 123 440 25 18 2. CAUTION The layout of this ampliﬁ er is well concerned for sound quality. 1. When screws and washers are removed, those parts must be set to the same places. 2. When wires are removed, the wires must be installed in the same roots, same places. 3. Do not hold the side panel (007D) to move the unit when the unit is disassembled. 2. �� 1. �� 2. �� 3. �� (007D) �� 2 P701 P601 R723 J709 R623 J609 Digital Voltmeter R ch V Digital Voltmeter L ch V 3. ALIGNMENTS Idling Current Adjustment 1. Adjust the Idling Current with the variable resistor R623 and R723 on the PCB (P601/P701). 2. Turn off the power. 3. "-" of Connect Digital Voltage is connected to the No. 1 pin and connected "+" to No. 3 pin of J609. 4. "-" of Connect Digital Voltage is connected to the No. 1 pin and connected "+" to No. 3 pin of J709. 5. Before turning on the power, R623 and R723 have been counter clockwise turned with the adjustment driver. 6. Turn on the power, VOLUME is set as - . 7. With seeing the digital voltage meter turn the variable resister clockwise slowly to adjust the idling current. �� Idling adjustment with R623 (R723). • Turn R623 (R723) clockwise to increase the idling cur- rent. • The adjustment value of idling current is 10mV(50mA) ±0.5mV(2.5mA) each. 8. After 4 minutes, repeat the same procedure as 7. • Turn R623 (R723) clockwise to increase the idling current. • The adjustment value of idling current is 10mV(50mA) ±0.5mV(2.5mA) each. Adjustment is completed. 9. Remove connection cable, attach the top cover. �� 1. P601/P701 �� R623 � R723 �� 2. �� OFF �� 3. P601 �� J609 �� J609 � 1 �� "-" �3 �� "+" �� 4. P701 �� J709 �� J709 � 1 �� "-" �3 �� "+" �� 5. �� R623 � R723 �� 6. �� - �� 7. P601 �� J609 �� R623 �� • R623 � R723 �� • �� "10mV(50mA) ±0.5mV(2.5mA)" �� 8. �� "4 � " �� 7. �� 9. �� 3 �� This is an example DISPLAY button DISPLAY ATT button POWER ON/OFF button 4. SERVICE MODE 1. To enter the Service Mode, press the POWER ON/OFF button with pressing the DISPLAY and ATT buttons to turn on the unit. (Or when the remote code "166363" is received while power is ON.) When into the Service Mode, the memory is cleared and the unit is initialized. 2. The Model name and Version number are displayed on the Front LCD. Whenever press the DISPLAY button, the display changes as follows. Turn off power to quit service mode. THE TRIM CHECK MODE 1. Press TONE button. (1 st) Volume Level is displayed . After, whenever press the TONE button, TRIM adjust- ment function works and output level changes accord- ing to the display. Whenever press the TONE button, the display chang- es as follows and output level changes according to the display. TRIM check mode is completed. 1. �� DISPLAY �� ATT �� POW ER ON/OFF �� ON �� "166363" �� 2. �� DISPLAY �� POWER ON/OFF �� TRIM TRIM �� 1.��TONE ��1 �� TONE �� TONE �� TRIM �� 4 ID No.: 0 INPUT SELECTOR: CD VOLUME: - SIDE ILLUMINATION: ON DISPLAY: ON ATT: OFF LEVEL TRIM: 0.0 (L/R) TONE: OFF SPEAKER : OFF ATT: -20dB REC OUT: OFF PHONO MC:OFF �� 1 ERROR 02 ID �� 2 �� 2 ERROR 03 ID �� 3 �� 3 ERROR 04 ID �� 4 �� 4 ERROR 11 ID � � 2 � 4 � � �� ID �� 1 � �� 5 ERROR 12 ID �� 1 �� ID �� 2 � 4 � �� ID �� ID �� • ID �� 1 �� • �� • ID �� 1 �� ID �� • �� ERROR MESSAGES Error Contents 1 ERROR 02 The units of ID No.2 overlaps. 2 ERROR 03 The unit of ID No.3 over laps. 3 ERROR 04 The unit of ID No.4 overlaps. 4 ERROR 11 The unit of ID No.2 to No.4 cannot com- mu ni cate with the unit of ID No.1. 5 ERROR 12 The unit of ID No.1 c a n n o t c o m m u - ni cate with the unit of ID No.2 to No.4 Measure ID number is changed into the ID No. not over- lap ping. • If the unit ID number 1 is not turn on, turn on the unit ID No.1. • Check the remote cable is connected correctly. • ID No. is changed into ID No. not overlapping. • Check the remote cable is connected correctly. �� 2. Press DISPLAY button, the display will be the following. 3. Press DISPLAY button, the display will be the following. 4. Turn off power to quit service mode. Service mode can be ended if turn off power from every procedure. The memory is cleared and the unit is initialized. Initial settings Be sure to set up manually. MODE SW on Rear panel: STEREO POWER ON/OFF SW: OFF 2.��DISPLAY �� 3.��DISPLAY �� 4.��POWER ON/OFF �� 5 �� Windows PC (OS:Windows2000 �� WindowsXP) � COM port �� RS232C �� (9pin �� - 9pin �� ) � �� (90M-PM15S1CDR) � �� ( �� : 90M-PM11S1JIG) 5.1. 5.1. �� Necessary Equipment • Windows PC (Windows2000 or WindowsXP) with COM port • RS232C cable straight type (9pin female - 9Pin female) • Update Disc (90M-PM15S1CDR) • DATA UPDATE KIT (part no.: 90M-PM11S1JIG) 5.1. Connection RS232C Dsub-9 pin cable (female to female/Straight cable) DATA UPDATE KIT (Parts No. 90M-PM11S1JIG) PC (Windows 2000, XP ) with RS-232C port INSERT POINT Contact is the bottom 5. MAIN MICROPROCESSOR (QU01) UPDATE PROCEDURE 5. MAIN MICROPROCESSOR (QU01) �� 6 5.2. Installs of The software (Flash Development Toolkit 3.0) The explanation drawing • The explanation drawings are using PM-11S1 in this section. Please replace with PM-15S1 the portion currently mentioned as PM-11S1, and operate it 1. Open the CD-ROM (90M-PM15S1CDR) Disc, and double click soft fold er. 2. Double click the FDT setup.exe 5.2. 5.2. �� (Flash Development Toolkit 3.0) �� • �� PM-11S1 �� PM-11S1 �� PM-15S1 �� 1. CD-ROM (90M-PM15S1CDR) � soft �� 2. FDT setup.exe �� 7 3. �� Next �� 3. Click Next. 4. Choose the language. And click Next. 5. Click Yes. 4. �� Next �� 5. Yes �� 8 6. Check to the all check boxes. And click Next. 7. Click Next. 8. Check to the all check boxes. And click Next. 6. �� Next �� 7. Next �� 8. �� Next �� 9 9. Click Next. 9. Next �� 10. Next �� 11. Next �� 10. Click Next. 11. Click Next. 10 12. Install �� 13. �� 14. Finish �� 12. Click Install. 13. The status bar appears. 14. Click Finish. 11 5.3. �� 1. Start / Programs / Renesas / Flash Development Toolkit 3.0 / Flash Development Toolkit 3.0 �� 5.3. The writing software setup procedure. Launch up the writing software. 1. Click Start / Programs / Renesas / Flash De vel - op ment Toolkit 3.0 / Flash Development Toolkit 3.0. 2. OK ��( �� OK ��) 2. Click OK. (This window appears at every starting.) 12 3. Create a new project workspace �� OK �� 3. Check Create a new project workspace, and click OK. 4. Workspace Name � PM-15 �� ( �� Project Name ��) OK �� 5. Select Device �� H8/3687F �� Next �� 4. PM-15 is inputted into the Workspace name. (It is si mul ta neous ly inputted into Project Name.) Click OK. 5. Choose the H8/3687F in Select Device. Click Next. 13 6. Select Port �� Serial Port �� Next �� 7. "Enter the CPU crystal frequency for the selected de- vice:" � 8.0 ��Next �� 8. Select Connection: �� BOOT Mode �� Select Baud rate: �� 19200 ��Next �� : Use Default Baud Rate � � � � � � � � � � � � Baud Rate �� 6. Choose the Serial port No. in the Select Port. Click Next. 7. 8.0 is inputted into the "Enter the CPU crystal frequency for the selected device:". Click Next. 8. Check the BOOT Mode in Select Connection. Choose the 19200 in Select Baud rate. Click Next. Remark : Please remove check mark, if it is contained in Use Default Baud Rate. 14 9. Protection �� Automatic �� Messaging �� Advanced �� Finish �� 9. Check the Automatic in Pro tec tion. Check the Advanced in Messaging. Click Finish. �� 15 5.4. �� 1. Start / Programs / Renesas / Flash Development Toolkit3.0 / Flash Development Toolkit3.0 �� 2. OK �� OK �� 5.4. Writing procedure 1. Click Start / Programs / Renesas / Flash Develop- ment Toolkit3.0 / Flash Development Toolkit3.0. 2. Click OK. (This window appears at every starting) 3. Open a recent project workspace �� OK �� 4. ��2 �� PM-15 �� Add Files... �� 3. Check Open a recent project workspace, and click OK. 4. The right click PM-15, and Click Add Files.... 16 5. Open the CD-ROM (90M-PM15S1CDR) and double click soft folder. 5. ��90M-PM15S1CDR�� soft �� 6. V040708.mot ��Add �� 7. V040708.mot �� 6. Select V040708.mot, and Click Add. 7. The holder of V040708.mot is made. 17 8. It checks that PM-15S1 and the COM port are connect- ed by RS232C cable. 9. Press POWER Button to turn on the unit. The unit is in the boot mode.( LED and LCD display on the front panel disappear.) 10. The right click V040708.mot, and Click Download File. 8. PM-15S1 � Windows PC � COM �� 9. POWER ��Power On �� ( �� LED �� LCD ��) 10. 4 �� V040708.mot �� "Download File" �� 11. �� 11. The screen becomes the uploading condition. When writing is Finished, the below message ap pears on the screen. 18 12. �� 12. The Main microprocessor (QU01) has been Update. 13. Turn off Power switch, then disconnect FFC cable from PM-15S1. 14. Check the version number of the ﬁ rmware Refer to "4. SERVICE MODE" on page 3. 13. PM-15S1 ��FFC �� 14. VERSION �� 3 �� "4. SERVICE MODE" �� 19 20 6. WIRING DIAGRAM �� 1�� 22 21 7. BLOCK DIAGRAM �� 23 24 8. SCHEMATIC DIAGRAM � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �� 26 25 �� 27 28 AD2 AD1 AVCC X2 X1 VC1 RES TEST GND OSC2 OSC1 VCC VOL_A VOL_B RSV_1 RSV_2 RSV_3 RSV_4 SEL_A SEL_B MUTE AD_INT MUTE_VOL RSV_5 RSV_6 SDA SCL VOL_CS RSV_7 KILL_IR RC_OUT L_DATA BL_ON OPR_ON ICE4 NC1 RC_IN VOL_CLK VOL_DAT NC2 ICE1 ICE2 ICE3 S_DE RXD TXD BI S_CLK S_CE S_DATA RSV_8 P_DOWN PROT_2 PROT_1 L_CS L_SCL L_RS L_RES TEST1 TEST2 D_SET AD_3 HP_DET NC3 QS CLK CE OE CLK DATA KILL_IR MC_ON TONE_ON REC_ON DISP_ON SPK_ON DATA TXD RC_IN QS CLK CE MC_ON REC_ON VOL_B VOL_A TONE_ON SPK_ON OE L_RS L_SCL L_CS L_RES BI TXD L_RES L_SCL L_DATA L_CS L_RS KILL_IR CE BL_ON RC_OUT RXD BL_ON OPR_ON L_DATA OPR_ON AD_3 SEL_B SEL_A AD_2 DISP_ON DISP_ON AD_3 BI VOL_B VOL_A SEL_A SEL_B AD_2 OE RC_IN RXD RC_OUT 1 CE 2 DATA 3 CLK 4 Q1 5 Q2 6 Q3 7 Q4 8 GND 9 QS 10 Q.S 11 Q8 12 Q7 13 Q6 14 Q5 15 OE 16 VCC 1 2 1 2 1 2 1 2 3 4 1 2 1 2 1 2 1 2 3 1 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 8 1 7 6 5 2 3 4 1 2 4 1 2 4 1 2 3 4 1 5V_B 2 GND 3 TXD 4 RXD 5 ICE4 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC 1 3 2 4 5 1 2 3 2 1 1 2 SEL_B SEL_A GND 1 3 2 1 RS 2 SC 3 SI 4 SCL 5 VDD 6 VSS 7 V4 8 V3 9 V2 10 V1 11 V0 12 VR 13 VOUT 14 RESET 1 2 3 SEL_B SEL_A GND 1 2 3 1 2 3 4 5 6 7 8 9 GND BL 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 +3.3V GND VOL_B VOL_A 1 2 3 4 +3.3V GND VOL_B VOL_A 4 3 6 5 8 7 GND BL +3.3V L_RES L_SCL L_DATA L_CS L_RS OE OPR_ON IR +5V NC GND +15V GND +3.3V L_RES L_SCL L_DATA L_CS L_RS OE OPR_ON IR +5V NC GND +15V GND RC_IN RXD TXD BI ICE4 3.3V P_DOWN 5V PROT D_GND 15V RC_IN RXD TXD BI ICE4 3.3V P_DOWN 5V PROT D_GND 15V OE QS CLK CE V_MUTE V_CE V_DI V_CL MUTE 24V LGND 15V DGND PROT 5V P_DOWN 3.3V 1 1 1 2 3 4 5 6 0V 3.4V 0V 3.4V 3.4V 0V 1.1V 2.3V 3.5V 4.7V 6.0V 7.5V AD3 ATT REC_OUT MC_ON DISPLAY AD2 SPK TONE 1.6V 3.4V 2.7V 2.2V 2.2V 2.7V 3.4V 3.4V 3.4V 3.4V 3.4V 1.6V 1.7V 0V 3.4V 3.4V/0V 3.4V/0V 3.4V/0V 3.4V/0V 0V 3.4V 0V 3.4V 3.4V 0V 2.1V 0V 0V 3.4V 3.4V 3.4V 3.4V 3.4V 3.4V 3.4V 3.4V 0V 0V 0V 0V 0V 3.4V/0V 3.2V 3.4V 0V 3.4V 0V 0V 3.4V 0V 0V 0V 3.4V 3.4V 3.4V 3.4V 3.4V 3.4V 0V 0V 0V 3.4V/0V 3.4V/0V 3.4V/0V 3.1V/0V 0V 3.1V/0V 14.0V 14.0V/3.0V 14.0V/3.5V 14.0V/3.5V 3.4V/0V 3.4V/0V 3.4V/0V 14.0V 14.0V/3.0V 14.0V/3.5V 14.0V/3.5V 3.4V/0V 3.4V/0V 3.4V/0V 3.4V/0V 3.4V/0V 3.4V/0V 3.4V/0V 3.4V 14.0V 3.5V 1.9V 5.0V 4.9V 4.9V 22.4V 0V 14.0V 0V 0V 5.0V 2.5V 3.4V 0V 4.0V 0V 3.4V/0V 0V 3.0V 0V 13.6V 12.6V 13.3V 3.4V 3.4V 1000p 1000p 0.01u 0.01u 0.01u 0.1u 0.1u 0.1u 0.1u 0.1u 100k 0.1u 47k 47k RN1303 10k RN1303 2.2k 10k 0.01u 10k 1000p 0.1u 0.01u 0.01u 220u 6.3V RN2303 0.1u 47k RN2303 RN2303 18k 47k 100 100u/10 100 10k SELU2E10C 0.01u SEL6E10C 0.01u 10k 2.2k SEL6E10C 0.01u 10k 2.2k 1.2k 0.01u 0.01u 10k SELU2E10C 10k 1.2k 0.01u 0.01u 2.2k RN1303 10k SEL6E10C 0.01u SEL6E10C 2.2k 10k RN2303 RN1303 2.2k 0.1u 10u/16 7.5V 1u 82k 82k 47k 0.1u 10u/16 1000p 0.1u 0.01u 0.01u 0.1u 1SS301 RN1303 47 0.1u 10u/16 0.1u PC817C 22 0.1u 47k 0.1u 10k RN1303 1k 4.7k 560 100 1000p 1000p 1000p 0.1u 47k 100 1SS301 BD4727G 2.7V 2SC4081 8MHz 0.1u 10k 10k 10k 10k 10k (NC) (NC) 1u 1u 1u 1u 22 RN2303 10k 10k 100u/10 RPM-6936 10u/16 10u/16 10u/16 10u/16 10u/16 10u/16 10u/16 10u/16 330 220u 6.3V 47k 10k RN1303 RN1303 47k 47k 0.01u 0.01u 0.01u KTA1268 33 22k 1SS302 1.2k 1.2k 4.7k 4.7k (NC) (NC) (NC) (NC) 1.0k 820 820 1.0k RN1303 RN1303 (NC) 47k (NC) (NC) (NC) 3300p 1/4W 150 0.1u RN1303 RN1303 RN1303 RN1303 (NC) (NC) (NC) RN1303 10k (NC) (NC) (NC) (NC) (NC) 0.01u 4.7k 2SC4081 15k 4.7k 22k 100k 2SA1586 4.7k 0.1u RN1303 RN1303 RN1303 RN1303 RN1303 (NC) 47k (NC) 47k 47k 0.01u 47k 0.01u 3300p 47k 47k 47k (NC) 47k 47k CU17 CU16 LU04 LU01 LU03 LU02 LU05 LU06 LU07 LU08 CU02 CU03 CU04 CU05 CU06 CU07 CU08 CU09 RU01 CU12 RU14 RU13 QU05 RU09 QU06 RU10 QU03 RU03 CU11 RU12 CU13 CU21 LU10 CU18 CU19 LU13 LU11 LU12 CU20 LU16 LU17 QU12 CU23 RU32 QU10 QU13 RU30 RU31 RU34 CU24 RU33 RU87 DU71 CU75 DU72 CU76 RU88 RU85 DU73 CU77 RU89 RU86 SU73 SU72 SU71 RU83 CU71 JU82 CU61 SU63 SU62 RU68 DU61 RU69 RU63 CU66 CU67 RU65 QU63 RU67 DU62 CU65 SU61 DU63 RU66 JU62 RU71 QD31 QD30 RD01 CD02 CD09 DD01 JD03 CD07 RD07 RD06 RD05 CD10 CD01 CD12 CD13 QU01 CU82 CU81 CU22 LB01 DB01 QB01 RB51 CB51 CB03 JB12 JB11 CB52 QB21 RB02 CB02 RB03 CB01 RB05 QB05 RB06 RB08 RB12 RB04 CB12 CB13 CB14 JB13 JB06 CB16 RU21 RU29 DU01 DU02 DU03 QU02 QU04 QU09 XU01 SU82 DD11 CD11 RD11 JD11 W030 RU57 SU81 RU59 RU60 RU58 JD02 WD02 LU18 CD06 CD05 CD04 CD03 RB11 QB02 RU70 RU11 CU25 QU11 CU64 CU63 CU62 CU74 CU73 CU72 CU27 CU26 JU31 JU01 LU09 LU14 W029 RU08 LU15 CU10 RU25 RU02 QU15 QU16 RU36 RU37 CU28 CU29 CU30 JB01 LB02 LB03 JB02 JU02 JD01 JD04 JB51 QD01 RD02 RD04 W034 JU21 W028 W027 W026 W024 DD02 RU62 RU82 RU61 RU81 CU32 CU33 RU40 RU39 RU84 RU90 RU72 RU64 JU03 JU04 QU17 QU18 WD01 RB01 RU41 CU39 CU41 CU42 CU40 WD03 SB01 RU99 CB15 QU19 QU20 QU21 QU22 CU43 CU45 CU46 QU14 RU35 CU35 CU38 CU34 CU37 CU36 CU15 RU19 QU08 RU20 RU16 RU17 RU18 QU07 RU15 CU14 QU62 QU61 QU73 QU72 QU71 RU04 RU05 RU07 RU06 RU26 CU31 RU28 CU01 CU44 RU22 RU23 RU38 CU47 RU24 RU27 GND GND +3.3V GND +3.3V GND GND GND 74HC4094D_653 GND +3.3V GND GND GND +5V +3.3V GND GND +3.3V GND GND GND GND GND GND GND GND GND GND GND GND HD64F3687H FLASH +15V GND GND MR82-24USR LGY6501-0600:JACK LGY6501-0600:JACK EARTH +3.3V SELU2E10C-P AT24C08AN-10SI-2.7 GND 14FMN-BTK EARTH GND +3.3V +15V +3.3V GND GND +15V +5V GND +15V +15V +3.3V +3.3V GND GND +5V GND GND GND GND GND GND 14FMN-BTK 14FMN-BTK GND +3.3V EARTH EARTH +5V GND GND EARTH GND GND EARTH GND GND GND GND GND GND GND GND GND GND GND +3.3V GND +3.3V +3.3V GND +3.3V GND GND GND GND DISP SPK TONE TONE REC_OUT MC_ON MC_ON REC_OUT ATT SPK DISP PB01 BI-AMP STEREO IN OUT PD61 PD41 VD01 LCD MODULE PD01 PD71 00MWG10AJ303- 00MWG10AJ304- 00MWG10AJ305- 00MWG10AJ301- 00MWG10AJ306- VOLUME POWER BLUE OPERATE RED MODEL SEL LCD MODE SEL TO J106 TO J806 PD31 00MWG10AJ302- INPUT SELECTOR DISP PD81 00MWG10AJ308- 00MWG10AJ309- APU ABS F.C.B.S. REMOTE CONT. 30 29 鉛フリー半田半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). 9. PARTS LOCATION P101A C103 B15 C104 A16 C105 C15 C106 B15 C107 C15 C108 C15 C109 E15 C110 E15 C111 D15 C112 D15 C113 F15 C114 E15 C115 B13 C121 E13 C122 C13 C123 E12 C124 C12 C125 E11 C126 C11 C127 E11 C128 C11 C129 C11 C130 D11 C140 A9 C141 A10 C142 A11 C143 A11 C144 A10 C145 A9 C146 A10 C147 B16 C148 B16 C149 B16 C150 B16 C151 C16 C152 C16 C153 D16 C154 D16 C155 E16 C156 E16 C157 E16 C158 E16 C201 B6 C202 A6 C203 B6 C204 A6 C205 B6 C206 B6 C207 B7 C208 A7 C209 B7 C210 B7 C501 D8 C502 C8 C503 E8 C504 C8 C505 D5 C506 C5 C507 E5 C508 C5 C509 E8 C510 C8 C511 D5 C512 C5 C513 D7 C514 D7 C515 D9 C516 D9 C517 C9 C518 B9 C519 C8 C521 C8 C522 C8 C523 C8 C524 C8 C551 B4 C552 B4 C553 C4 C554 C3 C555 D4 C556 D3 C557 D4 C558 D3 C851 B4 C852 B5 C853 E2 C854 C3 C855 C3 C856 B3 C857 A2 D101 A14 D102 B14 D103 C14 D104 D14 D105 D14 D106 D13 D107 D10 D108 B10 D109 C13 D201 B9 D501 E6 D502 C6 D503 D6 D504 D6 D505 D7 D506 C7 D507 D7 D508 C7 D509 D9 D510 C9 D514 D3 D851 E2 D852 C1 D853 D2 D854 C2 J101 B17 J102 D17 J103 E17 J104 A15 J105 E10 J106 A8 J107 A3 J108 E9 J109 B1 J110 A4 J201 A5 J551 E3 J552 E3 J553 D3 L101 A14 L102 B14 L103 C14 L104 C14 L105 D14 L106 D13 L107 C13 L110 D10 L111 C10 L201 B8 L202 B8 L551 D3 Q101 D11 Q102 C11 Q103 A12 Q104 A12 Q105 B12 Q106 B13 Q107 A13 Q108 A13 Q109 B12 Q110 B11 Q111 A10 Q112 B10 Q113 B13 Q201 B6 Q202 B10 Q501 D7 Q502 C7 Q503 E6 Q504 C6 Q505 D6 Q506 D6 Q507 E6 Q508 C6 Q509 D6 Q510 D6 Q511 D7 Q512 C7 Q513 D5 Q514 C5 Q515 D8 Q551 C3 Q553 B5 Q851 D1 Q852 B1 Q853 D2 Q854 C2 R101 A16 R102 A15 R103 B15 R104 B15 R105 C15 R106 B15 R107 C15 R108 C15 R109 E15 R110 E15 R111 D15 R112 D15 R113 F15 R114 E15 R115 D13 R116 D13 R117 E13 R118 D13 R121 E12 R122 C12 R123 E12 R124 C12 R125 D10 R126 C11 R131 A9 R132 A9 R133 A9 R134 A9 R135 A8 R136 B13 R140 B12 R141 B13 R142 B13 R143 B10 R144 D10 R201 B7 R202 B7 R203 B6 R204 A6 R205 B6 R206 B6 R207 B6 R208 A6 R209 C6 R210 A6 R211 B7 R212 A7 R213 C9 R503 D8 R504 D8 R505 E7 R506 C7 R507 D7 R508 C7 R509 D6 R510 C6 R511 D6 R512 C6 R513 D6 R514 C6 R515 D5 R516 D5 R517 D5 R518 D5 R519 E8 R520 C8 R521 D8 R522 D8 R523 D7 R524 C7 R525 D8 R526 C8 R529 D7 R530 C7 R531 B7 R532 C7 R535 C9 R536 C9 R537 C9 R538 C9 R539 D9 R540 B9 R551 C4 R552 C3 R553 C4 R554 C3 R555 D4 R556 D3 R557 D4 R558 D3 R559 D4 R560 D4 R561 A4 R851 E1 R852 C1 R853 E2 R854 C2 R855 D1 R856 C1 R857 D1 R858 C1 R859 C2 R860 B2 U1 B15 U10 D14 U100 A5 U101 A4 U104 E4 U105 D4 U106 A2 U107 A2 U108 E4 U109 E4 U11 D14 U110 B3 U111 B3 U112 C11 U113 C4 U114 C3 U115 E12 U116 D9 U117 D9 U118 D9 U119 A5 U12 C14 U120 D5 U121 D5 U13 B14 U14 B14 U15 B13 U16 B13 U17 A13 U18 A13 U19 D13 U2 D15 U20 D13 U21 C13 U22 B13 U23 B13 U24 D13 U25 B13 U26 D13 U27 D13 U28 C13 U29 D13 U3 C15 U30 C13 U31 C13 U32 C13 U33 D12 U34 B12 U35 D13 U36 D13 U37 D11 U38 A12 U39 D12 U4 B15 U40 C10 U41 A12 U43 D10 U44 D13 U45 A12 U46 A12 U47 A12 U48 A11 U49 D12 U5 D15 U50 C12 U51 B11 U52 B11 U53 D11 U54 D11 U55 C11 U56 B10 U57 C11 U58 B10 U59 B10 U6 C15 U60 E9 U61 C10 U62 B10 U63 C10 U64 B9 U65 C9 U67 A9 U68 D9 U69 B9 U7 B15 U70 E9 U71 D9 U72 D6 U73 D6 U74 C9 U75 C8 U76 C6 U77 C6 U78 C6 U79 D8 U8 A15 U80 D4 U81 C8 U82 A9 U83 A7 U84 A7 U85 B7 U86 B7 U87 B7 U88 B7 U89 C6 U9 C14 U90 B7 U91 B7 U92 D5 U93 C5 U94 B6 U95 D8 U96 D5 U97 B9 U98 A5 U99 E10 U994 A16 U995 A16 W501 C9 W502 A10 W502 A12 W503 A16 W503 B16 W504 B3 W504 E9 W505 A12 C251 A3 C252 A2 C253 A3 C254 B1 C255 A3 C256 B2 C257 B3 C258 B2 C259 A2 C260 B2 C261 A2 C262 B2 J251 C3 Q251 B3 Q252 B2 R251 A3 R252 A1 R253 B3 R254 B1 R255 B3 R256 B2 R257 B3 R258 B2 R259 B3 R260 B2 R261 B2 R262 B2 P251A 31 32 鉛フリー半田半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). C351 A3 C352 A3 C355 A3 J351 B3 J352 A2 J353 B1 L351 B2 C191 F4 C192 F4 C193 F4 C194 G4 C401 F1 C402 F3 C403 E2 C404 E3 C405 D1 C406 D4 C407 E2 C408 E4 C409 C2 C410 C3 C413 C2 C414 C3 C415 C2 C416 C3 C417 D2 C418 D3 C419 B2 C420 B3 C421 B2 C422 B3 C423 B4 C424 B2 C425 E4 C426 F1 C427 F2 C429 F1 C430 F3 C431 D2 C432 D3 D401 B2 D402 C4 D403 C1 D404 C4 D405 D1 D406 D4 D407 C2 D408 C3 J191 G3 J401 G2 J402 A3 J403 F2 J404 F3 L401 F2 L402 F3 L403 E1 L404 F4 Q401 E2 Q402 E3 Q403 D2 Q404 D3 Q405 E1 Q406 E4 Q407 D2 Q408 D4 Q409 C1 Q410 C4 Q411 C2 Q412 C4 Q413 C2 Q414 C4 Q415 C2 Q416 C3 Q417 B4 R401 F1 R402 F3 R403 E2 R404 E3 R405 E2 R406 E3 R407 E2 R408 E3 R409 E1 R410 E4 R411 D1 R412 D4 R413 E1 R414 E4 R415 E1 R416 E4 R417 D1 R418 D4 R419 D2 R420 D3 R421 D2 R422 D3 R423 D1 R424 D4 R425 B1 R426 C4 R427 B1 R428 C4 R429 C1 R430 C4 R431 C1 R432 C4 R433 C2 R434 C3 R435 C2 R436 C3 R437 B2 R438 B3 R439 B2 R440 B3 R441 C2 R442 C3 R443 D2 R444 D3 R445 D2 R446 D3 R447 E2 R448 E3 R449 E2 R450 E3 R451 B2 R452 B3 R453 B2 R454 B3 R455 B4 R456 B1 R457 A3 U401 D1 U402 C2 U403 B2 U405 F2 U406 F2 U407 E3 U408 B2 U409 B2 U410 E3 U411 F3 U413 C4 U414 B4 U415 D4 U416 F2 U417 F2 W191 G4 C601 C2 C602 D2 C603 D1 C604 C2 C605 C8 C606 D7 C607 D2 C608 B2 C609 D4 C610 D6 C611 B5 C612 B7 C613 D8 C614 D8 D601 D2 D602 B3 D603 D4 D604 C4 D605 D4 D606 C4 D607 B5 D608 B4 D609 B6 D610 B6 D611 B4 J601 D1 J602 A6 J603 A3 J604 B5 J606 D8 J607 B7 J608 A3 J609 D6 J610 C9 J611 E8 Q601 D2 Q602 D3 Q603 D3 Q604 C3 Q605 D3 Q606 C3 Q607 D4 Q608 C3 Q609 D4 Q610 C4 Q611 B6 Q612 B3 Q613 A6 Q614 A4 Q617 D5 Q618 C6 Q619 B7 R601 D1 R602 C2 R603 C2 R604 C1 R605 D2 R606 D2 R607 C1 R608 B3 R609 E2 R610 B2 R611 C2 R612 D3 R613 C4 R614 C1 R615 D3 R616 C3 R617 D4 R618 D4 R619 D3 R620 C4 R621 D5 R622 D6 R623 D6 R624 D4 R625 B6 R626 C5 R627 B6 R628 B4 R629 B6 R630 B4 R631 A5 R632 A4 R633 C5 R634 A5 R635 B4 R636 B6 R637 B6 R638 C6 R639 B6 R640 B7 R641 C7 R642 D6 R643 C7 R644 C6 R645 D5 U601 C5 U602 C3 U603 D2 U604 C2 U605 C3 U606 D3 U607 D3 U608 B3 U609 D4 U610 B4 U611 A4 U612 B4 U613 C4 U614 D5 U615 D5 U616 D5 U617 B5 U618 A5 U619 D5 U620 D5 U621 C5 U622 D5 U623 C5 U624 A6 U625 B6 U626 A7 U627 D8 U628 C4 U629 D6 W601 B1 P351A P661A P401A P601A R661 A1 W661 A1 34 33 P761A 鉛フリー半田半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). C701 C7 C702 C8 C703 D9 C704 C8 C705 C2 C706 D3 C707 D8 C708 B8 C709 D6 C710 D4 C711 B5 C712 B3 C713 D2 C714 D2 D701 D7 D702 B7 D703 D6 D704 D6 D705 E6 D706 C6 D707 B4 D708 B5 D709 B4 D710 B5 D711 B6 J701 D8 J702 A3 J703 A6 J704 B5 J706 D1 J707 A3 J708 B7 J709 E3 J710 C1 J711 E2 Q701 D8 Q702 D7 Q703 D6 Q704 D6 Q705 D7 Q706 C6 Q707 D6 Q708 C6 Q709 D6 Q710 D6 Q711 B3 Q712 B6 Q713 A4 Q714 A6 Q717 D5 Q718 C4 Q719 C4 R701 D8 R702 C8 R703 C8 R704 C8 R705 C8 R706 D7 R707 C9 R708 C6 R709 E7 R710 C7 R711 C7 R712 D7 R713 C6 R714 C8 R715 E6 R716 C7 R717 D5 R718 D6 R719 E6 R720 C6 R721 D5 R722 D4 R723 D4 R724 D6 R725 B5 R726 B5 R727 B4 R728 B6 R729 B4 R730 B6 R731 A4 R732 A6 R733 C5 R734 B4 R735 A5 R736 B3 R737 C4 R738 C4 R739 C4 R740 B2 R741 C4 R742 D4 R743 C3 R744 C4 R745 D5 U701 C4 U702 B3 U703 B3 U705 C4 U706 D7 U707 A4 U708 B4 U710 A4 U711 C4 U712 D5 U713 C5 U714 D5 U715 C4 U716 C4 U717 D5 U718 C5 U719 B5 U720 A5 U721 C5 U722 C5 U723 C5 U724 B6 U725 C8 U726 B7 U727 C7 U729 E6 U730 C7 U731 C3 U732 C3 U733 D5 W701 B9 C901 A2 C902 E2 C903 B1 C904 D2 C905 F2 C906 F2 C907 G2 C908 F3 C909 E3 C910 F3 C911 C1 C912 D1 C913 F1 C914 G2 C915 F1 D901 D3 D902 B3 D903 C2 D904 E2 J901 B1 J902 E1 J903 C1 J904 D1 J905 C1 J906 D1 J907 A3 J908 F1 J909 B4 J910 F4 J911 C4 J912 E4 L901 C3 L902 B2 Q901 F2 Q902 D2 Q903 E3 Q904 E4 Q905 E3 R901 B2 R902 D2 R903 A2 R904 A3 R905 D3 R906 E2 R907 G3 R908 F2 R909 F2 R910 F3 R911 F2 R912 F2 R913 E3 R914 E3 R915 E4 R916 E4 C891 A3 J891 A1 S891 B2 P701A P801A P891A R917 B2 R919 E3 R921 F2 R922 E1 R923 E1 U901 F1 U902 F1 U903 F2 U904 E2 U905 E2 U906 C2 U907 C2 U908 D2 U909 D2 U910 E2 U911 D2 U912 E2 U913 B2 U914 D3 U915 E3 U916 B3 U917 D3 U918 F3 U919 E3 U920 E3 U921 D2 R761 A1 W761 A1 35 36 鉛フリー半田半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). C901 A2 C902 E2 C903 B1 C904 D2 C905 F2 C906 F2 C907 G2 C908 F3 C909 E3 C910 F3 C911 C1 C912 D1 C913 F1 C914 G2 C915 F1 D901 D3 D902 B3 D903 C2 D904 E2 J901 B1 J902 E1 J903 C1 J904 D1 J905 C1 J906 D1 J907 A3 J908 F1 J909 B4 J910 F4 J911 C4 J912 E4 L901 C3 L902 B2 Q901 F2 Q902 D2 Q903 E3 Q904 E4 Q905 E3 R901 B2 R902 D2 R903 A2 R904 A3 R905 D3 R906 E2 R907 G3 R908 F2 R909 F2 R910 F3 R911 F2 R912 F2 R913 E3 R914 E3 R915 E4 R916 E4 R917 B2 R919 E3 R921 F2 R922 E1 R923 E1 U901 F1 U902 F1 U903 F2 U904 E2 U905 E2 U906 C2 U907 C2 U908 D2 U909 D2 U910 E2 U911 D2 U912 E2 U913 B2 U914 D3 U915 E3 U916 B3 U917 D3 U918 F3 U919 E3 U920 E3 U921 D2 C951 A1 C952 A1 J951 A3 J952 A1 R951 A2 R952 A2 W951 A2 CB01 A4 CB02 B4 CB03 B4 CB12 B3 CB13 B2 CB14 A3 CB15 B3 CB16 B4 CB51 A1 CB52 A1 DB01 B1 JB01 A4 JB02 A3 JB06 B5 JB11 C3 JB12 C4 JB13 B4 JB51 B1 LB01 A1 LB02 A1 LB03 B5 QB01 A3 QB02 A3 QB05 A3 QB21 B3 RB01 A4 RB02 A5 RB03 B4 RB04 B3 RB05 A3 RB06 A3 RB08 A3 RB11 A4 RB12 A2 RB51 A1 SB01 B2 CU01 D9 CU02 D9 CU03 D11 CU04 D11 CU05 C10 CU06 D11 CU07 C11 CU08 C11 CU09 C10 CU10 C4 CU11 C9 CU12 D9 CU13 C5 CU14 C9 CU15 B9 CU16 D11 CU17 D11 CU18 D3 CU19 D4 CU20 D4 CU21 C6 CU22 D5 CU25 D6 CU28 B9 CU29 C10 CU30 C5 CU31 D10 CU32 E9 CU33 E10 CU34 D10 CU35 D10 CU36 D10 CU37 D10 CU38 D10 CU39 C9 CU40 D6 CU41 C10 CU42 C10 CU43 D10 CU44 D10 CU45 D9 CU46 D9 CU47 D9 CU61 C2 CU62 C3 CU63 B3 CU64 D3 CU65 D3 CU66 B3 CU67 D3 CU71 C13 CU72 C11 CU73 C12 CU74 B12 CU75 C11 CU76 D12 CU77 C11 DD02 D11 DU03 D5 DU61 C3 DU62 A2 DU63 C2 DU71 C12 DU72 C12 DU73 A12 JD03 D11 JD04 E5 JU01 D11 JU02 D4 JU62 C1 JU82 D13 LU01 D11 LU02 D11 LU03 D11 LU04 D11 LU05 D10 LU06 D10 LU07 D10 LU08 D10 LU09 D10 LU10 D4 LU11 D4 LU12 D3 LU13 D3 LU14 D3 LU15 D3 LU16 D4 LU17 D4 LU18 D10 QD01 D11 QD30 D11 QD31 D11 QU01 C10 QU02 D9 QU03 D5 QU04 C11 QU07 C9 QU08 C9 QU09 D5 QU10 E6 QU12 D5 QU13 E6 QU14 D4 QU15 D4 QU16 C4 QU17 D9 QU18 D9 QU19 D10 QU20 D10 QU21 D9 QU22 D9 QU61 D3 QU62 B3 QU63 D3 QU71 C11 QU72 D12 QU73 C11 RD02 D11 RD04 D11 RU01 C11 RU02 B10 RU03 C10 RU04 C10 RU05 C10 RU06 C10 RU07 C10 RU12 C5 RU13 D9 RU14 D9 RU15 C9 RU16 C9 RU17 C9 RU18 B9 RU19 B9 RU20 C9 RU21 C9 RU22 C9 RU23 C9 RU24 C9 RU25 B10 RU26 B9 RU27 C9 RU28 D10 RU29 D4 RU30 D5 RU31 D5 RU32 D9 RU33 D5 RU35 C5 RU36 D4 RU37 D4 RU38 C5 RU39 E9 RU40 E9 RU41 E6 RU61 C2 RU62 C2 RU63 B1 RU64 B3 RU65 B3 RU66 D3 RU67 C3 RU68 B3 RU69 D3 RU70 C2 RU71 C2 RU72 C3 RU81 C12 RU82 C12 RU83 B13 RU84 B12 RU85 C11 RU86 B12 RU87 C11 RU88 C11 RU89 B12 RU90 C12 SU61 D2 SU62 C2 SU63 A2 SU71 D13 SU72 C13 SU73 A13 WD01 D10 WD02 D11 WD03 D6 XU01 D10 PD01A P901A P951A PB01A 38 37 PD31A PD41A PD61A PD71A 鉛フリー半田半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). CD01 B5 CD02 B4 CD03 B4 CD04 B4 CD05 A4 CD06 A4 CD07 A4 CD09 C5 CD10 A4 CD12 B4 CD13 A4 CU23 C2 CU24 C2 CU26 B2 CU27 B5 DD01 C4 DU01 B2 DU02 B5 JD01 C4 JD02 B4 QU05 B2 QU06 B5 QU11 C1 RD01 C5 RD05 A4 RD06 A4 RD07 A4 RU08 B2 RU09 B2 RU10 B5 RU11 B5 RU34 C2 CD11 B1 DD11 A1 JD11 B1 RD11 B1 CU81 A1 CU82 B1 JU31 A2 SU82 B2 JU21 A2 RU57 A2 RU58 A2 RU59 A2 RU60 A2 SU81 B2 10. IC DATA PD01 / QU01 : H8/3687 39 PD01 / QU01 : H8/3687 Pin PORT SIGNAL NAME I/O Functions Description 1 PB6_AN6 AD2 I Left key A/D pin 2 PB7_AN7 AD1 I Model select H: PM-15A 3 AVcc AVCC I Analog power supply 4 X2 X2 O Sub clock output NC 5 X1 X1 I Sub clock input NC 6 VCL VCl I Internal step-down power supply 7 /RES RES I Reset pin 8 TEST TEST I Test pin Connect to GND 9 Vss GND I GND 10 OSC2 OSC2 O Main clock output 11 OSC1 OSC1 I Main clock input 8MHz 12 Vcc VCC I +3.4V Power supply 13 P50_/WKP0 VOLA I Volume A External trigger(Active H) 14 P51_/WKP1 VOLB I Volume B External trigger(Active H) 15 P34 Rsv_1 - - NC 16 P35 Rsv_2 - - NC 17 P36 Rsv_3 - - NC 18 P37 Rsv_4 - - NC 19 P52_/WKP2 SEL_A I Input selector A External trigger(Active H) 20 P53_/WKP3 SEL_B I Input selector B External trigger(Active H) 21 P54_/WKP4 MUTE_D O MUTE relay ON/OFF Active L(MUTE ON) 22 P55_/WKP5_/ADTRG AD_INT I No use (Pull up) 23 P10_TMOW MUTE_VOL O WM8816 MUTE Active H (MUTE ON) 24 P11_PWM Rsv_5 - - NC 25 P12 Rsv_6 - - NC 26 P56_SDA SDA I/O AT24C08 serial data I2C_DATA 27 P57_SCL SCL O AT24C08 clock I2C_CLOCK 28 P74_TMRIV VOL_CS O WM8816 chip select 29 P75_TMCIV Rsv_7 - - NC 30 P76_TMOV KILL_IR O IR sensor ON/OFF Active L(SENSOR off) 31 P24 RC_OUT O IR capture output 32 P63_FTIOD0 L_DATA O LCD data out 33 P62_FTIOC0 BL_ON O LCD back light ON/OFF H/L = ON/OFF 34 P61_FTIOB0 OPR_ON O Operate LED ON H/L = ID0,ID1/ID2,ID3 35 /NMI ICE4 I ICE connect pin4 ICE brake control 36 P60_FTIOA0 NC_1 - - NC 37 P64_FTIOA1 RC_IN I IR capture input IR capture input(Active L) 38 P65_FTIOB1 VOL_CLK O WM8816 clock 39 P66_FTIOC1 VOL_DAT I/O WM8816 serial data 40 P67_FTIOD1 NC_2 - - 41 P85 ICE1 - ICE connect pin1 42 P86 ICE2 - ICE connect pin2 43 P87 ICE3 - ICE connect pin3 44 P20_SCK3 S_OE O 74HC4094 output enable Active H 45 P21_RXD RXD I System bus serial data input 46 P22_TXD TXD O System bus serial data output 47 P23 BI I BI-AMP/Stereo select H/L = STEREO/BI_AMP 48 P70_SCK3-2 S_CLK O 74HC4094 clock 49 P71_RXD-2 S_CE O 74HC4094 chip select Active L 50 P72_TXD-2 S_DATA O 74HC4094 serial data output 51 P14_/IRQ0 Rsv_8 - NC 52 P15_/IRQ1_TMIB1 P_DOWN I Power down detect External trigger(Active H) 53 P16_/IRQ2 PROT_2 I Power supply error detect Active L(POW_OFF) 54 P17_/IRQ3_TRGV PROT_1 I DC/over current/Temp detect Active H(VOL - ) 55 P33 L_CS O LCD-Controler(SPLC093C) chip select Active L 56 P32 L_SCL O LCD-Controler(SPLC093C) Serial cloc out 57 P31 L_RS O LCD-Controler(SPLC093C) register setting H/L = Data/Instruction 58 P30 L_RES O LCD-Controler(SPLC093C) reset Active L(Reset) 59 PB3_AN3 TEST_1 I PCB mode setting 1 Port check 1 60 PB2_AN2 TEST_2 I PCB mode setting 2 Port check 2 61 PB1_AN1 D-SET I LCD-Controler(SPLC093C) mode setting H/L 100msec, each time 62 PB0_AN0 AD3 I Right key A/D pin 63 PB4_AN4 HP_DET I Head phone jack detect Active L(Head phone jack detect) 64 PB5_AN5 NC_3 - - NC 40 PD01 / QU02 : AT24C08 PD01 / QU04 : 74HC4094 P101 / Q121, Q122 : 74HC4094 Q121 74HC4094 I/O Name Function Description 1 CE IN STOROBE 2 DATA IN DATA 3 CLK IN CLOCK 4 Q1 OUT LINE_2 Line_2 input relay ON Active H 5 Q2 OUT REC_1 Recorder_1input relay ON Active H 6 Q3 OUT REC_2 Recorder_2 input relay ON Active H 7 Q4 OUT BI-AMP Bi-amp relay ON Active H 8 GND GND 9 QS OUT - - - 10 Q'S OUT - 11 Q8 OUT LINE_1 Line_1 input relay ON Active H 12 Q7 OUT CD CD input relay ON Active H 13 Q6 OUT BAL Balanced input relay ON Active H 14 Q5 OUT PHONO Phono input relay ON Active H 15 OE IN OUTOUT ENABLE 16 VCC VCC Q122 74HC4094 I/O name Function Description 1 CE IN STROBE 2 DATA IN DATA 3 CLK IN CLOCK 4 Q1 OUT TONE Tone relay ON Active H 5 Q2 OUT SPK1 Speaker output relay ON Active H 6 Q3 OUT SPK2 Speaker output relay ON Active H 7 Q4 OUT HP Headphone output relay ON Active H 8 GND GND 9 QS OUT - - 10 Q'S OUT SERIAL OUTPUT - 11 Q8 IN - - 12 Q7 OUT RO_2 Recorder_2 output relay ON Active H 13 Q6 OUT RO_1 Recorder_1 output relay ON Active H 14 Q5 OUT MM Phono MM relay ON Active H 15 OE IN OUTPUT ENABLE 16 VCC VCC Port Port 41 42 1 2 4 3 Anode Cathode Emitter Collector 1 1 2 3 4 2 4 3 PD01 / QB21 : PC817 P101 / Q515 : WM8816 P901 / Q901 : TA7317P 44 43 � � � � �� 11. EXPLODED VIEW AND PARTS LIST NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION 001B /F N nsp 99M10AJ248410 PANEL ASSY FRONT PANEL ASSY GL 001B /K1G nsp 99M10AJ248410 PANEL ASSY FRONT PANEL ASSY GL 001B /L1G nsp 99M10AJ248410 PANEL ASSY FRONT PANEL ASSY GL 001B /N1G 99M10AJ248410 99M10AJ248410 PANEL ASSY FRONT PANEL ASSY GL 001B /N1S 99M10AJ248420 99M10AJ248420 PANEL ASSY FRONT PANEL ASSY SL 001B /S1G nsp 99M10AJ248410 PANEL ASSY FRONT PANEL ASSY GL 011B 00M256J355030 00M256J355030 LENS IR LENS 012B 00M10AJ105050 00M10AJ105050 CHASSIS FRONT MOLD CHASSIS 016B /F N nsp 00M10AJ265110 INDICATOR LCD ESC (GL) 016B /K1G nsp 00M10AJ265110 INDICATOR LCD ESC (GL) 016B /L1G nsp 00M10AJ265110 INDICATOR LCD ESC (GL) 016B /N1G 00M10AJ265110 00M10AJ265110 INDICATOR LCD ESC (GL) 016B /N1S 00M10AJ265210 00M10AJ265210 INDICATOR LCD ESC (SL) 016B /S1G nsp 00M10AJ265110 INDICATOR LCD ESC (GL) 024B 00M18AK355010 00M18AK355010 LENS SIDE LENS 027B /F N nsp 00M10AJ063110 ESCUTCHEON SIDE ESC. (L/GL) 027B /K1G nsp 00M10AJ063110 ESCUTCHEON SIDE ESC. (L/GL) 027B /L1G nsp 00M10AJ063110 ESCUTCHEON SIDE ESC. (L/GL) 027B /N1G 00M10AJ063110 00M10AJ063110 ESCUTCHEON SIDE ESC. (L/GL) 027B /N1S 00M10AJ063210 00M10AJ063210 ESCUTCHEON SIDE ESC. (L/SL) 027B /S1G nsp 00M10AJ063110 ESCUTCHEON SIDE ESC. (L/GL) 029B /F N nsp 00M10AJ063120 ESCUTCHEON SIDE ESC. (R/GL) 029B /K1G nsp 00M10AJ063120 ESCUTCHEON SIDE ESC. (R/GL) 029B /L1G nsp 00M10AJ063120 ESCUTCHEON SIDE ESC. (R/GL) 029B /N1G 00M10AJ063120 00M10AJ063120 ESCUTCHEON SIDE ESC. (R/GL) 029B /N1S 00M10AJ063220 00M10AJ063220 ESCUTCHEON SIDE ESC. (R/SL) 029B /S1G nsp 00M10AJ063120 ESCUTCHEON SIDE ESC. (R/GL) 034B /F N nsp 00M04AJ259210 BUSHING FUNCTION BUTTON BUSH GOLD 034B /K1G nsp 00M04AJ259210 BUSHING FUNCTION BUTTON BUSH GOLD 034B /L1G nsp 00M04AJ259210 BUSHING FUNCTION BUTTON BUSH GOLD 034B /N1G 00M04AJ259210 00M04AJ259210 BUSHING FUNCTION BUTTON BUSH GOLD 034B /N1S 00M04AJ259110 00M04AJ259110 BUSHING FUNCTION BUTTON BUSH SILVER 034B /S1G nsp 00M04AJ259210 BUSHING FUNCTION BUTTON BUSH GOLD 035B /F N nsp 00M04AJ270120 BUTTON FUNCTION BUTTON LIGHTING (GL) 035B /K1G nsp 00M04AJ270120 BUTTON FUNCTION BUTTON LIGHTING (GL) 035B /L1G nsp 00M04AJ270120 BUTTON FUNCTION BUTTON LIGHTING (GL) 035B /N1G 00M04AJ270120 00M04AJ270120 BUTTON FUNCTION BUTTON LIGHTING (GL) 035B /N1S 00M04AJ270220 00M04AJ270220 BUTTON FUNCTION BUTTON LIGHTING (SL) 035B /S1G nsp 00M04AJ270120 BUTTON FUNCTION BUTTON LIGHTING (GL) 036B /F N nsp 00M04AJ270130 BUTTON FUNCTION BUTTON (GL) 036B /K1G nsp 00M04AJ270130 BUTTON FUNCTION BUTTON (GL) 036B /L1G nsp 00M04AJ270130 BUTTON FUNCTION BUTTON (GL) 036B /N1G 00M04AJ270130 00M04AJ270130 BUTTON FUNCTION BUTTON (GL) 036B /N1S 00M04AJ270230 00M04AJ270230 BUTTON FUNCTION BUTTON (SL) 036B /S1G nsp 00M04AJ270130 BUTTON FUNCTION BUTTON (GL) 038B /F N nsp 00M10AJ154110 KNOB MASTER KNOB (GL) 038B /K1G nsp 00M10AJ154110 KNOB MASTER KNOB (GL) 038B /L1G nsp 00M10AJ154110 KNOB MASTER KNOB (GL) 038B /N1G 00M10AJ154110 00M10AJ154110 KNOB MASTER KNOB (GL) 038B /N1S 00M10AJ154210 00M10AJ154210 KNOB MASTER KNOB (SL) 038B /S1G nsp 00M10AJ154110 KNOB MASTER KNOB (GL) 039B /F N nsp 00M04AJ353110 RING MASTER KNOB RING (GL) 039B /K1G nsp 00M04AJ353110 RING MASTER KNOB RING (GL) 039B /L1G nsp 00M04AJ353110 RING MASTER KNOB RING (GL) 039B /N1G 00M04AJ353110 00M04AJ353110 RING MASTER KNOB RING (GL) 039B /N1S 00M04AJ353210 00M04AJ353210 RING MASTER KNOB RING (SL) 039B /S1G nsp 00M04AJ353110 RING MASTER KNOB RING (GL) 040B /F N nsp 00M10AJ154120 KNOB KNOB AL CAP (GL) 040B /K1G nsp 00M10AJ154120 KNOB KNOB AL CAP (GL) 040B /L1G nsp 00M10AJ154120 KNOB KNOB AL CAP (GL) 040B /N1G 00M10AJ154120 00M10AJ154120 KNOB KNOB AL CAP (GL) 040B /N1S 00M10AJ154220 00M10AJ154220 KNOB KNOB AL CAP (SL) 040B /S1G nsp 00M10AJ154120 KNOB KNOB AL CAP (GL) 046B /F N nsp 00M04AJ270110 BUTTON POWER BUTTON (GL) 046B /K1G nsp 00M04AJ270110 BUTTON POWER BUTTON (GL) 046B /L1G nsp 00M04AJ270110 BUTTON POWER BUTTON (GL) 45 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION 046B /N1G 00M04AJ270110 00M04AJ270110 BUTTON POWER BUTTON (GL) 046B /N1S 00M04AJ270210 00M04AJ270210 BUTTON POWER BUTTON (SL) 046B /S1G nsp 00M04AJ270110 BUTTON POWER BUTTON (GL) 001D /F N nsp 00M04AJ257520 LID TOP COVER ASSY (GL) 001D /K1G nsp 00M04AJ257520 LID TOP COVER ASSY (GL) 001D /L1G nsp 00M04AJ257520 LID TOP COVER ASSY (GL) 001D /N1G 00M04AJ257520 00M04AJ257520 LID TOP COVER ASSY (GL) 001D /N1S 00M04AJ257530 00M04AJ257530 LID TOP COVER ASSY (SL) 001D /S1G nsp 00M04AJ257520 LID TOP COVER ASSY (GL) 007D /F N nsp 00M18AK249110 SIDE PANEL SIDE PANEL AL GL 007D /K1G nsp 00M18AK249110 SIDE PANEL SIDE PANEL AL GL 007D /L1G nsp 00M18AK249110 SIDE PANEL SIDE PANEL AL GL 007D /N1G 00M18AK249110 00M18AK249110 SIDE PANEL SIDE PANEL AL GL 007D /N1S 00M18AK249210 00M18AK249210 SIDE PANEL SIDE PANEL AL SL 007D /S1G nsp 00M18AK249110 SIDE PANEL SIDE PANEL AL GL 006G /F N nsp 00M04AJ057510 LEG LEGS (GOLD) 006G /K1G nsp 00M04AJ057510 LEG LEGS (GOLD) 006G /L1G nsp 00M04AJ057510 LEG LEGS (GOLD) 006G /N1G 00M04AJ057510 00M04AJ057510 LEG LEGS (GOLD) 006G /N1S 00M04AJ057520 00M04AJ057520 LEG LEGS (SILVER) 006G /S1G nsp 00M04AJ057510 LEG LEGS (GOLD) C001 00MOB15906380 00MOB15906380 ELECT. CAP. 15000UF/63V NICHICON PB-FREE C002 00MOB15906380 00MOB15906380 ELECT. CAP. 15000UF/63V NICHICON PB-FREE J001 00MYL03010300 00MYL03010300 TERMINAL GLD GND TERMINAL W/M3 TAP TIGHT J002 00MYJ04002550 00MYJ04002550 JACK ! MAINS CORD INLET TYPE HF-301 J003 00MYT01010360 00MYT01010360 TERMINAL WBT-0765 POLE TERMINAL RED J004 00MYT01010360 00MYT01010360 TERMINAL WBT-0765 POLE TERMINAL RED J005 00MYT01010370 00MYT01010370 TERMINAL WBT-0765 POLE TERMINAL WHT J006 00MYT01010370 00MYT01010370 TERMINAL WBT-0765 POLE TERMINAL WHT L001 /F N nsp 00MTS42003080 TRANSF. # FOR F L001 /K1G nsp 00MTS42003100 TRANSF. # FOR K L001 /L1G nsp 00MTS42003110 TRANSF. # FOR L L001 /N1G 00MTS42003090 00MTS42003090 TRANSF. # FOR N, S L001 /N1S 00MTS42003090 00MTS42003090 TRANSF. # FOR N, S L001 /S1G nsp 00MTS42003090 TRANSF. # FOR N, S L002 00MFC50160030 00MFC50160030 FERRITE CORE FERRITE CORE TFCK-16-8-13 L003 00MFC50160030 00MFC50160030 FERRITE CORE FERRITE CORE TFCK-16-8-13 VD01 00MHQ22901990 00MHQ22901990 DISPLAY LCD MODULE FOR PM-11S1 W028 nsp 00MYU14100520 FPC 14P P1.0 PACKING 001T /F N nsp 00M10AJ851110 USER GUIDE USER GUIDE (F) 001T /K1G nsp 00M10AJ851350 USER GUIDE USER GUIDE (K+S+L) 001T /L1G nsp 00M10AJ851350 USER GUIDE USER GUIDE (K+S+L) 001T /N1G 00M10AJ851310 00M10AJ851310 USER GUIDE USER GUIDE (N) 001T /N1S 00M10AJ851310 00M10AJ851310 USER GUIDE USER GUIDE (N) 001T /S1G nsp 00M10AJ851350 USER GUIDE USER GUIDE (K+S+L) W001 /F N nsp 00MZC01802080 MAINS CORD # MAINS CORD MITY DC-302-J 125V 12A W001 /K1G nsp 00MZC01808030 MAINS CORD # MAINS CORD CHINA 250V 10A W001 /L1G nsp 00MZC01807030 MAINS CORD # MAINS CORD TAIWAN 10A 125V W001 /N1G 00MZC01803080 00MZC01803080 MAINS CORD # 2P MAINS CORD 10A 250V CLASS2 W001 /N1S 00MZC01803080 00MZC01803080 MAINS CORD # 2P MAINS CORD 10A 250V CLASS2 W001 /S1G nsp 00MZC01804100 MAINS CORD # MAINS CORD AC 250V 10A FOR UK Z001 00MZK04AJ0010 00MZK04AJ0010 UNIT KIT REMOTE CONTROLLER RC-11PMS1 NOT STANDARD SPARE PARTS 001S nsp 00M10AJ801010 PACKING CASE PACKING CASE 002S /N1G nsp 00M10AJ805010 MASS CARTON MASTER CARTON 002S /N1S nsp 00M10AJ805010 MASS CARTON MASTER CARTON 003S nsp 00M10AJ809010 CUSHION CUSHION (L/R) 46 47 The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description 00MNH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) 00MNH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) 00MNH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) 00MNH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description 00MNF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) 00MRF05 × × × 140 00MNF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) 00MRF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 PARTS INFORMATION RESISTORS 1) 00MGD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W 2) 00MGD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS CERAMIC CAP. 3) 00MDD1 × × × × 370 Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 CERAMIC CAP. 4) 00MDK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 ELECTROLY CAP. ( ) . 5) 00MEA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) 00MDF15 × × × 350 Plastic film capacitor 00MDF15 × × × 310 One-way type, Mylar ±5% 50V 00MDF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { FILM CAP. ( ) { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. NOTE ON FUSE : Regarding to all parts of parts code 00MFS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse. 040623ecm 12. ELECTRICAL PARTS LIST NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION PRE AMP PCB (00MWA10AJ101-) P101 C101 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C101 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C101 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C101 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C101 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C102 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C102 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C102 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C102 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C102 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C103 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C103 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C103 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C103 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C103 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C104 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C104 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C104 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C104 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C104 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C105 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C105 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C105 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C105 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C105 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C106 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C106 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C106 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C106 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C106 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C107 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C107 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C107 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C107 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C107 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C108 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C108 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C108 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C108 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C108 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C109 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C109 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C109 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C109 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C109 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C110 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C110 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C110 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C110 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C110 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C111 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C111 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C111 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C111 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C111 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C112 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C112 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C112 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C112 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C112 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C113 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C113 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C113 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C113 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C113 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV 48 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION P101 C114 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C114 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C114 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C114 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C114 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C115 00MOA227025R0 00MOA227025R0 ELECT. CAP. ROA-25V 221M -H5#PE - T2 (220UF 25V) P101 C121 00MOA106035Z0 00MOA106035Z0 ELECT. CAP. ROS-35V 100M - F3#PE - T2 (10UF 35V) P101 C122 00MOA106035Z0 00MOA106035Z0 ELECT. CAP. ROS-35V 100M - F3#PE - T2 (10UF 35V) P101 C123 00MOF55331580 00MOF55331580 FILM CAP. 330PF 100V +- 5% FNS P101 C124 00MOF55331580 00MOF55331580 FILM CAP. 330PF 100V +- 5% FNS P101 C125 00MOA106035Z0 00MOA106035Z0 ELECT. CAP. ROS-35V 100M - F3#PE - T2 (10UF 35V) P101 C126 00MOA106035Z0 00MOA106035Z0 ELECT. CAP. ROS-35V 100M - F3#PE - T2 (10UF 35V) P101 C129 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P101 C130 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P101 C140 00MDF15332350 00MDF15332350 FILM CAP. 0.0033UF,J,M,50V P101 C141 00MDF15102350 00MDF15102350 FILM CAP. 0.001UF,J,M,50V P101 C145 00MOF15103540 00MOF15103540 FILM CAP. APSV 103J,0.01UF(TP) 100V PP P101 C146 00MOA33701020 00MOA33701020 ELECT. CAP. 330 UF M 10V RA-2 P101 C201 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C202 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C203 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C204 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P101 C205 00MOA47602520 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2 P101 C206 00MOA47602520 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2 P101 C207 00MOA227025R0 00MOA227025R0 ELECT. CAP. ROA-25V 221M -H5#PE - T2 (220UF 25V) P101 C208 00MOA227025R0 00MOA227025R0 ELECT. CAP. ROA-25V 221M -H5#PE - T2 (220UF 25V) P101 C209 00MOA10605020 00MOA10605020 ELECT. CAP. 10 UF M 50V RA-2 P101 C210 00MOA10605020 00MOA10605020 ELECT. CAP. 10 UF M 50V RA-2 P101 C501 00MOA226025Z0 00MOA226025Z0 ELECT. CAP. ROS-25V 220M - F3#PE - T2 (22UF 25V) P101 C502 00MOA226025Z0 00MOA226025Z0 ELECT. CAP. ROS-25V 220M - F3#PE - T2 (22UF 25V) P101 C503 00MOA226025Z0 00MOA226025Z0 ELECT. CAP. ROS-25V 220M - F3#PE - T2 (22UF 25V) P101 C504 00MOA226025Z0 00MOA226025Z0 ELECT. CAP. ROS-25V 220M - F3#PE - T2 (22UF 25V) P101 C505 00MOF55331580 00MOF55331580 FILM CAP. 330PF 100V +- 5% FNS P101 C506 00MOF55331580 00MOF55331580 FILM CAP. 330PF 100V +- 5% FNS P101 C507 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) P101 C508 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) P101 C509 00MOA106025R0 00MOA106025R0 ELECT. CAP. ROA-25V 100M - E3#PE - T2 (10UF 25V) P101 C510 00MOA106025R0 00MOA106025R0 ELECT. CAP. ROA-25V 100M - E3#PE - T2 (10UF 25V) P101 C511 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P101 C512 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P101 C513 00MOA226025R0 00MOA226025R0 ELECT. CAP. ROA-25V 220M - F3#PE - T2 (22UF 25V) P101 C514 00MOA226025R0 00MOA226025R0 ELECT. CAP. ROA-25V 220M - F3#PE - T2 (22UF 25V) P101 C515 00MOF55103580 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P101 C516 /F N nsp 00MOA22702520 ELECT. CAP. 220 UF M 25V RA-2 P101 C516 00MOA227025R0 00MOA227025R0 ELECT. CAP. ROA-25V 221M -H5#PE - T2 (220UF 25V) P101 C517 /F N nsp 00MOA22702520 ELECT. CAP. 220 UF M 25V RA-2 P101 C517 00MOA227025R0 00MOA227025R0 ELECT. CAP. ROA-25V 221M -H5#PE - T2 (220UF 25V) P101 C518 00MOF55103580 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P101 C521 00MOF15103540 00MOF15103540 FILM CAP. APSV 103J,0.01UF(TP) 100V PP P101 C524 00MOF15103540 00MOF15103540 FILM CAP. APSV 103J,0.01UF(TP) 100V PP P101 C551 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) P101 C552 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) P101 C553 00MOF55220590 00MOF55220590 FILM CAP. 22PF 200V +- 5% FAS P101 C554 00MOF55220590 00MOF55220590 FILM CAP. 22PF 200V +- 5% FAS P101 C555 00MOA106035Z0 00MOA106035Z0 ELECT. CAP. ROS-35V 100M - F3#PE - T2 (10UF 35V) P101 C556 00MOA106035Z0 00MOA106035Z0 ELECT. CAP. ROS-35V 100M - F3#PE - T2 (10UF 35V) P101 C557 00MOF55331580 00MOF55331580 FILM CAP. 330PF 100V +- 5% FNS P101 C558 00MOF55331580 00MOF55331580 FILM CAP. 330PF 100V +- 5% FNS P101 C851 00MOA108035R0 00MOA108035R0 ELECT. CAP. ROA-35V 102M -K8#PE - S1 (1000UF 35V) P101 C852 00MOA108035R0 00MOA108035R0 ELECT. CAP. ROA-35V 102M -K8#PE - S1 (1000UF 35V) P101 C853 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) P101 C854 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) P101 C855 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P101 C856 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P101 D101 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D102 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A 49 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION P101 D103 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D104 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D105 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D106 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D107 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D108 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D109 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D201 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D501 00MHI10005340 00MHI10005340 L.E.D. HLMF-K200 #2UL RED H=9 3MM P101 D502 00MHI10005340 00MHI10005340 L.E.D. HLMF-K200 #2UL RED H=9 3MM P101 D503 00MHI10005340 00MHI10005340 L.E.D. HLMF-K200 #2UL RED H=9 3MM P101 D504 00MHI10005340 00MHI10005340 L.E.D. HLMF-K200 #2UL RED H=9 3MM P101 D505 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D506 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D507 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D508 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D509 00MHD30511000 00MHD30511000 ZENER DIODE 5.1V ZENER EQUIVALENT P101 D510 00MHD30511000 00MHD30511000 ZENER DIODE 5.1V ZENER EQUIVALENT P101 D514 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D515 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D851 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D852 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P101 D853 00MHD32401000 00MHD32401000 ZENER DIODE 24V ZENER EQUIVALENT P101 D854 00MHD32401000 00MHD32401000 ZENER DIODE 24V ZENER EQUIVALENT P101 J101 00MYT02040970 00MYT02040970 TERMINAL YKC21-3269 GOLD P101 J102 00MYT02040970 00MYT02040970 TERMINAL YKC21-3269 GOLD P101 J103 00MYT02040970 00MYT02040970 TERMINAL YKC21-3269 GOLD P101 L101 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 L102 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 L103 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 L104 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 L105 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 L106 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 L107 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 L110 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 L111 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 L201 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 L202 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 L551 00MLY20240480 00MLY20240480 RELAY MR82-24USR P101 Q101 00MKH04AJ1020 00MKH04AJ1020 UNIT & H-IC HDAM-SA2 MODULE WITHOUT COATING P101 Q102 00MKH04AJ1020 00MKH04AJ1020 UNIT & H-IC HDAM-SA2 MODULE WITHOUT COATING P101 Q103 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P101 Q104 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P101 Q105 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P101 Q106 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P101 Q107 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P101 Q108 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P101 Q109 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P101 Q110 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P101 Q111 00MHC709449B0 00MHC709449B0 IC 74HC4094 16PIN DIP PHILIPS P101 Q112 00MHC709449B0 00MHC709449B0 IC 74HC4094 16PIN DIP PHILIPS P101 Q113 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P101 Q201 00MHC10053090 00MHC10053090 IC IC NJM2068DD:MONO P101 Q202 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P101 Q501 00MHC12263090 00MHC12263090 IC NJM5532LD P101 Q502 00MHC12263090 00MHC12263090 IC NJM5532LD P101 Q503 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P101 Q504 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P101 Q505 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P101 Q506 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P101 Q507 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P101 Q508 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P101 Q509 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P101 Q510 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P101 Q511 00MKH04AJ1020 00MKH04AJ1020 UNIT & H-IC HDAM-SA2 MODULE WITHOUT COATING P101 Q512 00MKH04AJ1020 00MKH04AJ1020 UNIT & H-IC HDAM-SA2 MODULE WITHOUT COATING 50 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION P101 Q513 00MKH04AJ1020 00MKH04AJ1020 UNIT & H-IC HDAM-SA2 MODULE WITHOUT COATING P101 Q514 00MKH04AJ1020 00MKH04AJ1020 UNIT & H-IC HDAM-SA2 MODULE WITHOUT COATING P101 Q515 00MHC10211990 00MHC10211990 IC WM8816 VOLUME CONTROL IC P101 Q551 00MHC12263090 00MHC12263090 IC NJM5532LD P101 Q553 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P101 Q851 00MHT41415100 00MHT41415100 TRS. TRANSISTOR 2SD1415 P101 Q852 00MHT21020100 00MHT21020100 TRS. 2SB1020 P101 Q853 00MHT600111B0 00MHT600111B0 TRS. KTA1267 PNP TRANSISTOR RANK=Y P101 Q854 00MHT800921B0 00MHT800921B0 TRS. KTC3199 NPN TRANSISTOR RANK=Y P101 R101 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R102 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R103 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R104 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R105 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R106 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R107 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R108 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R109 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R110 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R111 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R112 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R113 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R114 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R115 nsp 00MGD05102160 RES. 1K OHM +- 5% 1/6W P101 R116 nsp 00MGD05102160 RES. 1K OHM +- 5% 1/6W P101 R117 nsp 00MGD05102160 RES. 1K OHM +- 5% 1/6W P101 R118 nsp 00MGD05102160 RES. 1K OHM +- 5% 1/6W P101 R121 nsp 00MGD05223160 RES. 22K OHM +- 5% 1/6W P101 R122 nsp 00MGD05223160 RES. 22K OHM +- 5% 1/6W P101 R123 nsp 00MGD05221160 RES. 220 OHM +- 5% 1/6W P101 R124 nsp 00MGD05221160 RES. 220 OHM +- 5% 1/6W P101 R125 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R126 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R131 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P101 R132 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P101 R133 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P101 R134 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P101 R135 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P101 R201 nsp 00MGD05272160 RES. 2.7K OHM +- 5% 1/6W P101 R202 nsp 00MGD05272160 RES. 2.7K OHM +- 5% 1/6W P101 R203 nsp 00MGD05272160 RES. 2.7K OHM +- 5% 1/6W P101 R204 nsp 00MGD05272160 RES. 2.7K OHM +- 5% 1/6W P101 R205 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R206 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R207 nsp 00MGD05470160 RES. 47 OHM +- 5% 1/6W P101 R208 nsp 00MGD05470160 RES. 47 OHM +- 5% 1/6W P101 R211 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R212 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R503 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R504 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R505 nsp 00MGD05331160 RES. 330 OHM +- 5% 1/6W P101 R506 nsp 00MGD05331160 RES. 330 OHM +- 5% 1/6W P101 R507 nsp 00MGD05331160 RES. 330 OHM +- 5% 1/6W P101 R508 nsp 00MGD05331160 RES. 330 OHM +- 5% 1/6W P101 R509 nsp 00MGD05151160 RES. 150 OHM +- 5% 1/6W P101 R510 nsp 00MGD05151160 RES. 150 OHM +- 5% 1/6W P101 R511 nsp 00MGD05151160 RES. 150 OHM +- 5% 1/6W P101 R512 nsp 00MGD05151160 RES. 150 OHM +- 5% 1/6W P101 R513 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P101 R514 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P101 R515 nsp 00MGD05225160 RES. 2.2M OHM +- 5% 1/6W P101 R516 nsp 00MGD05225160 RES. 2.2M OHM +- 5% 1/6W P101 R517 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R518 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R519 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P101 R520 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W 51 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION P101 R521 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P101 R522 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P101 R523 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P101 R524 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P101 R525 nsp 00MGD05100160 RES. 10 OHM +- 5% 1/6W P101 R526 nsp 00MGD05100160 RES. 10 OHM +- 5% 1/6W P101 R529 nsp 00MGD05221160 RES. 220 OHM +- 5% 1/6W P101 R530 nsp 00MGD05221160 RES. 220 OHM +- 5% 1/6W P101 R531 nsp 00MGD05470160 RES. 47 OHM +- 5% 1/6W P101 R532 nsp 00MGD05470160 RES. 47 OHM +- 5% 1/6W P101 R535 nsp 00MGD05472160 RES. 4.7K OHM +- 5% 1/6W P101 R536 nsp 00MGD05472160 RES. 4.7K OHM +- 5% 1/6W P101 R537 nsp 00MGD05472160 RES. 4.7K OHM +- 5% 1/6W P101 R538 nsp 00MGD05472160 RES. 4.7K OHM +- 5% 1/6W P101 R551 nsp 00MGD05472160 RES. 4.7K OHM +- 5% 1/6W P101 R552 nsp 00MGD05472160 RES. 4.7K OHM +- 5% 1/6W P101 R553 nsp 00MGD05682160 RES. 6.8K OHM +- 5% 1/6W P101 R554 nsp 00MGD05682160 RES. 6.8K OHM +- 5% 1/6W P101 R555 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R556 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P101 R557 nsp 00MGD05331160 RES. 330 OHM +- 5% 1/6W P101 R558 nsp 00MGD05331160 RES. 330 OHM +- 5% 1/6W P101 R559 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P101 R560 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P101 R851 nsp 00MGD05102160 RES. 1K OHM +- 5% 1/6W P101 R852 nsp 00MGD05102160 RES. 1K OHM +- 5% 1/6W P101 R853 nsp 00MGD05153160 RES. 15K OHM +- 5% 1/6W P101 R854 nsp 00MGD05153160 RES. 15K OHM +- 5% 1/6W P101 R855 nsp 00MGD05681160 RES. 680 OHM +- 5% 1/6W P101 R856 nsp 00MGD05681160 RES. 680 OHM +- 5% 1/6W TONE VOL, (00MWG10AJ307-) P251 C251 00MOA22505020 00MOA22505020 ELECT. CAP. 2.2 UF M 50V RA-2 P251 C252 00MOA22505020 00MOA22505020 ELECT. CAP. 2.2 UF M 50V RA-2 P251 C253 00MOF15683040 00MOF15683040 FILM CAP. 0.068UF +-5% 50V MTFV P251 C254 00MOF15683040 00MOF15683040 FILM CAP. 0.068UF +-5% 50V MTFV P251 C255 00MOF15103540 00MOF15103540 FILM CAP. APSV 103J,0.01UF(TP) 100V PP P251 C256 00MOF15103540 00MOF15103540 FILM CAP. APSV 103J,0.01UF(TP) 100V PP P251 C257 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P251 C258 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P251 C259 00MOA10702520 00MOA10702520 ELECT. CAP. 100 UF M 25V RA-2 P251 C260 00MOA10702520 00MOA10702520 ELECT. CAP. 100 UF M 25V RA-2 P251 C261 00MOA10702520 00MOA10702520 ELECT. CAP. 100 UF M 25V RA-2 P251 C262 00MOA10702520 00MOA10702520 ELECT. CAP. 100 UF M 25V RA-2 P251 Q251 00MHC10053090 00MHC10053090 IC IC NJM2068DD:MONO P251 Q252 00MHC10053090 00MHC10053090 IC IC NJM2068DD:MONO P251 R251 00MRM01031280 00MRM01031280 VAR. RES. 10K(B)X2 K09G0A0C P251 R252 00MRM01031280 00MRM01031280 VAR. RES. 10K(B)X2 K09G0A0C P251 R253 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W P251 R254 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W P251 R255 nsp 00MNN05563610 CHIP RES. 56K OHM +- 5% 1/16W P251 R256 nsp 00MNN05563610 CHIP RES. 56K OHM +- 5% 1/16W P251 R257 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W P251 R258 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W P251 R259 nsp 00MNN05563610 CHIP RES. 56K OHM +- 5% 1/16W P251 R260 nsp 00MNN05563610 CHIP RES. 56K OHM +- 5% 1/16W PREOUT/MAININ SW (00MWA10AJ102-) P351 C351 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P351 C351 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P351 C351 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P351 C351 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P351 C351 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P351 C352 /K1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P351 C352 /L1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV P351 C352 /N1G 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P351 C352 /N1S 00MOF15101540 00MOF15101540 FILM CAP. 100PF J 100V APSV P351 C352 /S1G nsp 00MOF15101540 FILM CAP. 100PF J 100V APSV 52 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION P351 J351 00MYT02021130 00MYT02021130 TERMINAL 2P CINCH JACK YKC21-3255 (GOLD) P351 L351 00MLY20240480 00MLY20240480 RELAY MR82-24USR PHONO AMP (00MWA10AJ203-) P401 C401 00MOF55102580 00MOF55102580 FILM CAP. 1000PF 100V FNS P401 C402 00MOF55102580 00MOF55102580 FILM CAP. 1000PF 100V FNS P401 C403 00MOF55101590 00MOF55101590 FILM CAP. 100PF 200V +- 5% FAS P401 C404 00MOF55101590 00MOF55101590 FILM CAP. 100PF 200V +- 5% FAS P401 C405 00MOF55102580 00MOF55102580 FILM CAP. 1000PF 100V FNS P401 C406 00MOF55102580 00MOF55102580 FILM CAP. 1000PF 100V FNS P401 C407 00MOA107025R0 00MOA107025R0 ELECT. CAP. ROA-25V 101M -H4#PE - T2 (100UF 25V) P401 C408 00MOA107025R0 00MOA107025R0 ELECT. CAP. ROA-25V 101M -H4#PE - T2 (100UF 25V) P401 C409 00MOF55681580 00MOF55681580 FILM CAP. 680PF 100V +-5% FNS P401 C410 00MOF55681580 00MOF55681580 FILM CAP. 680PF 100V +-5% FNS P401 C413 00MOF55103580 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P401 C414 00MOF55103580 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P401 C417 00MOF55393580 00MOF55393580 FILM CAP. 0.039UF 100V +- 5% FAS P401 C418 00MOF55393580 00MOF55393580 FILM CAP. 0.039UF 100V +- 5% FAS P401 C419 00MOF55102580 00MOF55102580 FILM CAP. 1000PF 100V FNS P401 C420 00MOF55102580 00MOF55102580 FILM CAP. 1000PF 100V FNS P401 C421 00MOA106035Z0 00MOA106035Z0 ELECT. CAP. ROS-35V 100M - F3#PE - T2 (10UF 35V) P401 C422 00MOA106035Z0 00MOA106035Z0 ELECT. CAP. ROS-35V 100M - F3#PE - T2 (10UF 35V) P401 C423 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P401 C424 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P401 C425 00MOA47602520 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2 P401 C429 /K1G nsp 00MOF15221540 FILM CAP. APSV 221J,220PF(TP) 100V PP P401 C429 /L1G nsp 00MOF15221540 FILM CAP. APSV 221J,220PF(TP) 100V PP P401 C429 /N1G 00MOF15221540 00MOF15221540 FILM CAP. APSV 221J,220PF(TP) 100V PP P401 C429 /N1S 00MOF15221540 00MOF15221540 FILM CAP. APSV 221J,220PF(TP) 100V PP P401 C429 /S1G nsp 00MOF15221540 FILM CAP. APSV 221J,220PF(TP) 100V PP P401 C430 /K1G nsp 00MOF15221540 FILM CAP. APSV 221J,220PF(TP) 100V PP P401 C430 /L1G nsp 00MOF15221540 FILM CAP. APSV 221J,220PF(TP) 100V PP P401 C430 /N1G 00MOF15221540 00MOF15221540 FILM CAP. APSV 221J,220PF(TP) 100V PP P401 C430 /N1S 00MOF15221540 00MOF15221540 FILM CAP. APSV 221J,220PF(TP) 100V PP P401 C430 /S1G nsp 00MOF15221540 FILM CAP. APSV 221J,220PF(TP) 100V PP P401 C431 00MOF55101590 00MOF55101590 FILM CAP. 100PF 200V +- 5% FAS P401 C432 00MOF55101590 00MOF55101590 FILM CAP. 100PF 200V +- 5% FAS P401 D401 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P401 D402 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P401 D403 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P401 D404 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P401 D405 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P401 D406 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P401 D407 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P401 D408 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P401 J191 00MYT02021390 00MYT02021390 TERMINAL 2P CINCH PIN JACK (T6743 BLK/BLK) P401 J401 00MYT02021390 00MYT02021390 TERMINAL 2P CINCH PIN JACK (T6743 BLK/BLK) P401 L401 /K1G nsp 00MLC13240010 CHOKE COIL 320 MH CHOKE COIL (TOROIDAL) P401 L401 /L1G nsp 00MLC13240010 CHOKE COIL 320 MH CHOKE COIL (TOROIDAL) P401 L401 /N1G 00MLC13240010 00MLC13240010 CHOKE COIL 320 MH CHOKE COIL (TOROIDAL) P401 L401 /N1S 00MLC13240010 00MLC13240010 CHOKE COIL 320 MH CHOKE COIL (TOROIDAL) P401 L401 /S1G nsp 00MLC13240010 CHOKE COIL 320 MH CHOKE COIL (TOROIDAL) P401 L402 /K1G nsp 00MLC13240010 CHOKE COIL 320 MH CHOKE COIL (TOROIDAL) P401 L402 /L1G nsp 00MLC13240010 CHOKE COIL 320 MH CHOKE COIL (TOROIDAL) P401 L402 /N1G 00MLC13240010 00MLC13240010 CHOKE COIL 320 MH CHOKE COIL (TOROIDAL) P401 L402 /N1S 00MLC13240010 00MLC13240010 CHOKE COIL 320 MH CHOKE COIL (TOROIDAL) P401 L402 /S1G nsp 00MLC13240010 CHOKE COIL 320 MH CHOKE COIL (TOROIDAL) P401 L403 00MLY20240480 00MLY20240480 RELAY MR82-24USR P401 L404 00MLY20240480 00MLY20240480 RELAY MR82-24USR P401 Q401 00MHF203691B0 00MHF203691B0 F.E.T. 2SK369 BL VGDS-40V PD0.4W P401 Q402 00MHF203691B0 00MHF203691B0 F.E.T. 2SK369 BL VGDS-40V PD0.4W P401 Q403 00MHF203691B0 00MHF203691B0 F.E.T. 2SK369 BL VGDS-40V PD0.4W P401 Q404 00MHF203691B0 00MHF203691B0 F.E.T. 2SK369 BL VGDS-40V PD0.4W P401 Q405 00MHT327052A0 00MHT327052A0 TRS. 2SC2705 O OR Y TAPING TOSHIBA P401 Q406 00MHT327052A0 00MHT327052A0 TRS. 2SC2705 O OR Y TAPING TOSHIBA P401 Q407 00MHC10027090 00MHC10027090 IC NJM5534D P401 Q408 00MHC10027090 00MHC10027090 IC NJM5534D 53 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION P401 Q409 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P401 Q410 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P401 Q411 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P401 Q412 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P401 Q413 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P401 Q414 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P401 Q415 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P401 Q416 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P401 Q417 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P401 R401 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P401 R402 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P401 R403 nsp 00MGD05330160 RES. 33 OHM +- 5% 1/6W P401 R404 nsp 00MGD05330160 RES. 33 OHM +- 5% 1/6W P401 R405 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P401 R406 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P401 R407 nsp 00MGD05155160 RES. 1.5M OHM +- 5% 1/6W P401 R408 nsp 00MGD05155160 RES. 1.5M OHM +- 5% 1/6W P401 R409 nsp 00MGD05393160 RES. 39K OHM +- 5% 1/6W P401 R410 nsp 00MGD05393160 RES. 39K OHM +- 5% 1/6W P401 R411 nsp 00MGD05222160 RES. 2.2K OHM +- 5% 1/6W P401 R412 nsp 00MGD05222160 RES. 2.2K OHM +- 5% 1/6W P401 R413 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P401 R414 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P401 R415 nsp 00MGD05222160 RES. 2.2K OHM +- 5% 1/6W P401 R416 nsp 00MGD05222160 RES. 2.2K OHM +- 5% 1/6W P401 R417 nsp 00MGD05222160 RES. 2.2K OHM +- 5% 1/6W P401 R418 nsp 00MGD05222160 RES. 2.2K OHM +- 5% 1/6W P401 R419 nsp 00MGD05391160 RES. 390 OHM +- 5% 1/6W P401 R420 nsp 00MGD05391160 RES. 390 OHM +- 5% 1/6W P401 R421 nsp 00MGD05335160 RES. 3.3M OHM +- 5% 1/6W P401 R422 nsp 00MGD05335160 RES. 3.3M OHM +- 5% 1/6W P401 R423 nsp 00MGD05331160 RES. 330 OHM +- 5% 1/6W P401 R424 nsp 00MGD05331160 RES. 330 OHM +- 5% 1/6W P401 R425 nsp 00MGD05221160 RES. 220 OHM +- 5% 1/6W P401 R426 nsp 00MGD05221160 RES. 220 OHM +- 5% 1/6W P401 R427 nsp 00MGD05221160 RES. 220 OHM +- 5% 1/6W P401 R428 nsp 00MGD05221160 RES. 220 OHM +- 5% 1/6W P401 R429 nsp 00MGD05471160 RES. 470 OHM +- 5% 1/6W P401 R430 nsp 00MGD05471160 RES. 470 OHM +- 5% 1/6W P401 R431 nsp 00MGD05471160 RES. 470 OHM +- 5% 1/6W P401 R432 nsp 00MGD05471160 RES. 470 OHM +- 5% 1/6W P401 R433 nsp 00MGD05331160 RES. 330 OHM +- 5% 1/6W P401 R434 nsp 00MGD05331160 RES. 330 OHM +- 5% 1/6W P401 R435 nsp 00MGD05105160 RES. 1M OHM +- 5% 1/6W P401 R436 nsp 00MGD05105160 RES. 1M OHM +- 5% 1/6W P401 R437 nsp 00MGD05150160 RES. 15 OHM +- 5% 1/6W P401 R438 nsp 00MGD05150160 RES. 15 OHM +- 5% 1/6W P401 R439 nsp 00MGD05150160 RES. 15 OHM +- 5% 1/6W P401 R440 nsp 00MGD05150160 RES. 15 OHM +- 5% 1/6W P401 R441 nsp 00MGD05682160 RES. 6.8K OHM +- 5% 1/6W P401 R442 nsp 00MGD05682160 RES. 6.8K OHM +- 5% 1/6W P401 R443 nsp 00MGD05124160 RES. 120K OHM +- 5% 1/6W P401 R444 nsp 00MGD05124160 RES. 120K OHM +- 5% 1/6W P401 R447 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P401 R448 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P401 R449 nsp 00MGD05100160 RES. 10 OHM +- 5% 1/6W P401 R450 nsp 00MGD05100160 RES. 10 OHM +- 5% 1/6W P401 R451 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P401 R452 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P401 R453 nsp 00MGD05221160 RES. 220 OHM +- 5% 1/6W P401 R454 nsp 00MGD05221160 RES. 220 OHM +- 5% 1/6W POWER AMP L (00MWA10AJ201-) P601 C601 00MOA106035Z0 00MOA106035Z0 ELECT. CAP. ROS-35V 100M - F3#PE - T2 (10UF 35V) P601 C602 00MOF55220590 00MOF55220590 FILM CAP. 22PF 200V +- 5% FAS P601 C603 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) P601 C604 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) 54 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION P601 C605 00MOB47708050 00MOB47708050 ELECT. CAP. 470UF/80V NICHICON PB-FREE P601 C606 00MOB47708050 00MOB47708050 ELECT. CAP. 470UF/80V NICHICON PB-FREE P601 C607 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P601 C608 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P601 C609 00MOF55331580 00MOF55331580 FILM CAP. 330PF 100V +- 5% FNS P601 C610 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) P601 C611 00MOF55103580 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P601 C612 00MOA47405020 00MOA47405020 ELECT. CAP. 0.47UF M 50V RA-2 P601 D601 00MHD32001000 00MHD32001000 ZENER DIODE 20V ZENER EQUIVALENT P601 D602 00MHD32001000 00MHD32001000 ZENER DIODE 20V ZENER EQUIVALENT P601 D603 00MHI10005340 00MHI10005340 L.E.D. HLMF-K200 #2UL RED H=9 3MM P601 D604 00MHI10005340 00MHI10005340 L.E.D. HLMF-K200 #2UL RED H=9 3MM P601 D605 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P601 D606 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P601 D609 00MHD20027010 00MHD20027010 DIODE HSS81TD 150V 150MA AXIAL. P601 J607 00MYP07001960 00MYP07001960 PLUG IMSA-1068-06Z042 6P P601 J608 00MYP07001960 00MYP07001960 PLUG IMSA-1068-06Z042 6P P601 Q601 00MHC12263090 00MHC12263090 IC NJM5532LD P601 Q602 00MKH04AJ1020 00MKH04AJ1020 UNIT & H-IC HDAM-SA2 MODULE WITHOUT COATING P601 Q603 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P601 Q604 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P601 Q605 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P601 Q606 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P601 Q607 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P601 Q608 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P601 Q609 00MHT111452A0 00MHT111452A0 TRS. 2SA1145 O OR Y TAPING TOSHIBA P601 Q610 00MHT327052A0 00MHT327052A0 TRS. 2SC2705 O OR Y TAPING TOSHIBA P601 Q611 00MHT327052A0 00MHT327052A0 TRS. 2SC2705 O OR Y TAPING TOSHIBA P601 Q612 00MHT111452A0 00MHT111452A0 TRS. 2SA1145 O OR Y TAPING TOSHIBA P601 K603 00MHK185919C0 00MHK185919C0 TRS. KIT 2SA1859/C4883 PAIR FOR Q614/Q613 P601 Q613 nsp nsp TRS. 2SC4883 O OR Y PAIR WITH Q614 P601 Q614 nsp nsp TRS. 2SA1859 O OR Y PAIR WITH Q613 P601 Q615 00MHT332843D0 00MHT332843D0 TRS. 2SC3284 O,P,Y 125W FMG112 P601 Q616 00MHT113033D0 00MHT113033D0 TRS. 2SA1303 O,P,Y 125W FMG112 P601 Q617 00MHT334191Y0 00MHT334191Y0 TRS. TRANSISTOR C3419 Y 40V 0.8A PC=1.2W (5W) P601 Q618 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P601 Q619 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P601 R601 nsp 00MGD05105160 RES. 1M OHM +- 5% 1/6W P601 R602 nsp 00MGD05472160 RES. 4.7K OHM +- 5% 1/6W P601 R603 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P601 R604 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P601 R605 nsp 00MGD05123160 RES. 12K OHM +- 5% 1/6W P601 R606 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P601 R607 nsp 00MGD05100160 RES. 10 OHM +- 5% 1/6W P601 R608 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P601 R612 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P601 R614 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P601 R617 nsp 00MGD05105160 RES. 1M OHM +- 5% 1/6W P601 R618 nsp 00MGD05105160 RES. 1M OHM +- 5% 1/6W P601 R621 nsp 00MGD05472160 RES. 4.7K OHM +- 5% 1/6W P601 R622 nsp 00MGD05102160 RES. 1K OHM +- 5% 1/6W P601 R623 00MRA02220760 00MRA02220760 TRIM. RES. VARIABLE RESISTOR 2.2KOHM P601 R624 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P601 R634 00MGO05001050 00MGO05001050 RES. 0.1 OHMS +-5% 5W PBR58 P601 R635 00MGO05001050 00MGO05001050 RES. 0.1 OHMS +-5% 5W PBR58 P601 R638 nsp 00MGD05223160 RES. 22K OHM +- 5% 1/6W P601 R639 nsp 00MGD05223160 RES. 22K OHM +- 5% 1/6W P601 R640 nsp 00MGD05682160 RES. 6.8K OHM +- 5% 1/6W P601 R641 nsp 00MGD05223160 RES. 22K OHM +- 5% 1/6W P601 R642 nsp 00MGD05222160 RES. 2.2K OHM +- 5% 1/6W P601 U629 00MHD20027010 00MHD20027010 DIODE HSS81TD 150V 150MA AXIAL. POSISTOR L (00MWA10AJ206-) P661 R661 00MHP00033240 00MHP00033240 VARISTOR VARISTOR PTH9M04BC222TS2F333 (MURATA) POWER AMP R (00MWA10AJ202-) P701 C701 00MOA106035Z0 00MOA106035Z0 ELECT. CAP. ROS-35V 100M - F3#PE - T2 (10UF 35V) P701 C702 00MOF55220590 00MOF55220590 FILM CAP. 22PF 200V +- 5% FAS 55 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION P701 C703 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) P701 C704 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) P701 C705 00MOB47708050 00MOB47708050 ELECT. CAP. 470UF/80V NICHICON PB-FREE P701 C706 00MOB47708050 00MOB47708050 ELECT. CAP. 470UF/80V NICHICON PB-FREE P701 C707 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P701 C708 00MOA477025R0 00MOA477025R0 ELECT. CAP. ROA-25V 471M -I6#PE - S13 (470UF 25V) P701 C709 00MOF55331580 00MOF55331580 FILM CAP. 330PF 100V +- 5% FNS P701 C710 00MOA476025Z0 00MOA476025Z0 ELECT. CAP. ROS-25V 470M - G3#PE - T2 (47UF 25V) P701 C711 00MOF55103580 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P701 C712 00MOA47405020 00MOA47405020 ELECT. CAP. 0.47UF M 50V RA-2 P701 D701 00MHD32001000 00MHD32001000 ZENER DIODE 20V ZENER EQUIVALENT P701 D702 00MHD32001000 00MHD32001000 ZENER DIODE 20V ZENER EQUIVALENT P701 D703 00MHI10005340 00MHI10005340 L.E.D. HLMF-K200 #2UL RED H=9 3MM P701 D704 00MHI10005340 00MHI10005340 L.E.D. HLMF-K200 #2UL RED H=9 3MM P701 D705 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P701 D706 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P701 D709 00MHD20027010 00MHD20027010 DIODE HSS81TD 150V 150MA AXIAL. P701 J707 00MYP07001960 00MYP07001960 PLUG IMSA-1068-06Z042 6P P701 J708 00MYP07001960 00MYP07001960 PLUG IMSA-1068-06Z042 6P P701 Q701 00MHC12263090 00MHC12263090 IC NJM5532LD P701 Q702 00MKH04AJ1020 00MKH04AJ1020 UNIT & H-IC HDAM-SA2 MODULE WITHOUT COATING P701 Q703 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P701 Q704 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P701 Q705 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P701 Q706 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P701 Q707 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P701 Q708 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P701 Q709 00MHT111452A0 00MHT111452A0 TRS. 2SA1145 O OR Y TAPING TOSHIBA P701 Q710 00MHT327052A0 00MHT327052A0 TRS. 2SC2705 O OR Y TAPING TOSHIBA P701 Q711 00MHT327052A0 00MHT327052A0 TRS. 2SC2705 O OR Y TAPING TOSHIBA P701 Q712 00MHT111452A0 00MHT111452A0 TRS. 2SA1145 O OR Y TAPING TOSHIBA P701 K703 00MHK185919C0 00MHK185919C0 TRS. KIT 2SA1859/C4883 PAIR FOR Q714/Q713 P701 Q713 nsp nsp TRS. 2SC4883 O OR Y PAIR WITH Q714 P701 Q714 nsp nsp TRS. 2SA1859 O OR Y PAIR WITH Q713 P701 Q715 00MHT332843D0 00MHT332843D0 TRS. 2SC3284 O,P,Y 125W FMG112 P701 Q716 00MHT113033D0 00MHT113033D0 TRS. 2SA1303 O,P,Y 125W FMG112 P701 Q717 00MHT334191Y0 00MHT334191Y0 TRS. TRANSISTOR C3419 Y 40V 0.8A PC=1.2W (5W) P701 Q718 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P701 Q719 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR P701 R701 nsp 00MGD05105160 RES. 1M OHM +- 5% 1/6W P701 R702 nsp 00MGD05472160 RES. 4.7K OHM +- 5% 1/6W P701 R703 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P701 R704 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P701 R705 nsp 00MGD05123160 RES. 12K OHM +- 5% 1/6W P701 R706 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P701 R707 nsp 00MGD05100160 RES. 10 OHM +- 5% 1/6W P701 R708 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P701 R712 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P701 R714 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P701 R717 nsp 00MGD05105160 RES. 1M OHM +- 5% 1/6W P701 R718 nsp 00MGD05105160 RES. 1M OHM +- 5% 1/6W P701 R721 nsp 00MGD05472160 RES. 4.7K OHM +- 5% 1/6W P701 R722 nsp 00MGD05102160 RES. 1K OHM +- 5% 1/6W P701 R723 00MRA02220760 00MRA02220760 TRIM. RES. VARIABLE RESISTOR 2.2KOHM P701 R724 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P701 R734 00MGO05001050 00MGO05001050 RES. 0.1 OHMS +-5% 5W PBR58 P701 R735 00MGO05001050 00MGO05001050 RES. 0.1 OHMS +-5% 5W PBR58 P701 R738 nsp 00MGD05223160 RES. 22K OHM +- 5% 1/6W P701 R739 nsp 00MGD05223160 RES. 22K OHM +- 5% 1/6W P701 R740 nsp 00MGD05682160 RES. 6.8K OHM +- 5% 1/6W P701 R741 nsp 00MGD05223160 RES. 22K OHM +- 5% 1/6W P701 R742 nsp 00MGD05222160 RES. 2.2K OHM +- 5% 1/6W P701 U733 00MHD20027010 00MHD20027010 DIODE HSS81TD 150V 150MA AXIAL. POSISTOR R (00MWA10AJ207-) P761 R761 00MHP00033240 00MHP00033240 VARISTOR VARISTOR PTH9M04BC222TS2F333 (MURATA) 56 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION POWER SUPPLY (00MWA10AJ205-) P801 C803 00MOC33805040 00MOC33805040 ELECT. CAP. 3300UF/50V NICHICON UFW1H332MHDIAA P801 C804 00MOC33805040 00MOC33805040 ELECT. CAP. 3300UF/50V NICHICON UFW1H332MHDIAA P801 C807 00MOA47802520 00MOA47802520 ELECT. CAP. 4700UF/25V RA-2 P801 C808 00MOA106025R0 00MOA106025R0 ELECT. CAP. ROA-25V 100M - E3#PE - T2 (10UF 25V) P801 C809 00MOA47702520 00MOA47702520 ELECT. CAP. 470UF 25V M RA-2 P801 C810 00MOA10505020 00MOA10505020 ELECT. CAP. 1 UF M 50V RA-2 P801 C811 00MOA10505020 00MOA10505020 ELECT. CAP. 1 UF M 50V RA-2 P801 C812 00MOA47701020 00MOA47701020 ELECT. CAP. 470 UF M 10V RA-2 P801 C813 00MOA10605020 00MOA10605020 ELECT. CAP. 10 UF M 50V RA-2 P801 C814 00MOA47701020 00MOA47701020 ELECT. CAP. 470 UF M 10V RA-2 P801 D801 00MHD20045290 00MHD20045290 DIODE D1NJ10 100V 1A SBD TAPING P801 D802 00MHD20045290 00MHD20045290 DIODE D1NJ10 100V 1A SBD TAPING P801 D803 00MHD20045290 00MHD20045290 DIODE D1NJ10 100V 1A SBD TAPING P801 D804 00MHD20045290 00MHD20045290 DIODE D1NJ10 100V 1A SBD TAPING P801 D806 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P801 D807 00MHD31601000 00MHD31601000 ZENER DIODE 16V ZENER EQUIVALENT P801 D808 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P801 D809 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P801 D811 00MHE10005100 00MHE10005100 DIODE SBD UNIT FCH20A15 TO-220 P801 D812 00MHE10006100 00MHE10006100 DIODE SBD UNIT FRH20A15 TO-220 P801 D813 00MHD20045290 00MHD20045290 DIODE D1NJ10 100V 1A SBD TAPING P801 D814 00MHD20045290 00MHD20045290 DIODE D1NJ10 100V 1A SBD TAPING P801 D815 00MHD20045290 00MHD20045290 DIODE D1NJ10 100V 1A SBD TAPING P801 D816 00MHD20045290 00MHD20045290 DIODE D1NJ10 100V 1A SBD TAPING P801 F881 /F N nsp 00MFS10800960 FUSE # LF.8A/125V 0233008. 233 PSE UL CSA P P801 F881 /K1G nsp 00MFS10400850 FUSE # 4 A 250V BS LISTED P801 F881 /L1G nsp 00MFS10800960 FUSE # LF.8A/125V 0233008. 233 PSE UL CSA P P801 F881 /N1G 00MFS10400850 00MFS10400850 FUSE # 4 A 250V BS LISTED P801 F881 /N1S 00MFS10400850 00MFS10400850 FUSE # 4 A 250V BS LISTED P801 F881 /S1G nsp 00MFS10400850 FUSE # 4 A 250V BS LISTED P801 F882 /F N nsp 00MFS10125350 FUSE # 1.25A 125V UL,CSA,MITI P801 G801 00MBF47400020 00MBF47400020 CAP.COMP. 0.47UF+6.8OHM RFD2B474K P801 G802 00MBF47400020 00MBF47400020 CAP.COMP. 0.47UF+6.8OHM RFD2B474K P801 G803 00MBF47400020 00MBF47400020 CAP.COMP. 0.47UF+6.8OHM RFD2B474K P801 J881 /F N nsp 00MYJ04001590 JACK AC OUTLET 1P P801 L802 00MFC90050130 00MFC90050130 FERRITE CORE BL02RN2-R62T2 FERRITE BEAD P801 L803 00MFC90050130 00MFC90050130 FERRITE CORE BL02RN2-R62T2 FERRITE BEAD P801 L804 00MFC90050130 00MFC90050130 FERRITE CORE BL02RN2-R62T2 FERRITE BEAD P801 L805 00MLC21060720 00MLC21060720 CHOKE COIL 10MH SL1923-103KR33 P801 L806 00MLC21060720 00MLC21060720 CHOKE COIL 10MH SL1923-103KR33 P801 L807 00MFC90050130 00MFC90050130 FERRITE CORE BL02RN2-R62T2 FERRITE BEAD P801 Q804 00MHT800931A0 00MHT800931A0 TRS. KTC3200 NPN TRANSISTOR RANK=GR P801 Q805 00MHT41415100 00MHT41415100 TRS. TRANSISTOR 2SD1415 P801 Q806 00MHT600111B0 00MHT600111B0 TRS. KTA1267 PNP TRANSISTOR RANK=Y P801 Q807 00MHC38505090 00MHC38505090 IC NJM78M05FA P801 R801 00MNK05010120 00MNK05010120 METAL RES. 1.0 OHM +-5% 1/2W ERG12SJW-E P801 R802 00MNK05010120 00MNK05010120 METAL RES. 1.0 OHM +-5% 1/2W ERG12SJW-E P801 R803 nsp 00MGD05682160 RES. 6.8K OHM +- 5% 1/6W P801 R804 00MNK05010120 00MNK05010120 METAL RES. 1.0 OHM +-5% 1/2W ERG12SJW-E P801 R805 nsp 00MGD05102160 RES. 1K OHM +- 5% 1/6W P801 R806 nsp 00MGD05153160 RES. 15K OHM +- 5% 1/6W P801 R807 nsp 00MGD05681160 RES. 680 OHM +- 5% 1/6W P801 R808 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W P801 R810 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P801 R811 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P801 R812 nsp 00MGD05222160 RES. 2.2K OHM +- 5% 1/6W P801 R813 nsp 00MGD05183160 RES. 18K OHM +- 5% 1/6W P801 R814 nsp 00MGD05183160 RES. 18K OHM +- 5% 1/6W P801 R815 nsp 00MGD05101160 RES. 100 OHM +- 5% 1/6W POWER SW (00MWA10AJ104-) P891 S891 00MSP01012500 00MSP01012500 PUSH SW ESB92S13B TV-5 STROKE=1.5MM SPK, PROTECTION (00MWA10AJ204-) P901 C901 00MOF55393580 00MOF55393580 FILM CAP. 0.039UF 100V +- 5% FAS P901 C902 00MOF55393580 00MOF55393580 FILM CAP. 0.039UF 100V +- 5% FAS P901 C903 /K1G nsp 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS 57 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION P901 C903 /L1G nsp 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P901 C903 /N1G 00MOF55103580 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P901 C903 /N1S 00MOF55103580 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P901 C903 /S1G nsp 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P901 C904 /K1G nsp 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P901 C904 /L1G nsp 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P901 C904 /N1G 00MOF55103580 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P901 C904 /N1S 00MOF55103580 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P901 C904 /S1G nsp 00MOF55103580 FILM CAP. 0.01UF 100V +- 5% FNS P901 C905 00MOA47602520 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2 P901 C908 00MOA47602520 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2 P901 C909 00MOA47602520 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2 P901 C910 00MOA47405020 00MOA47405020 ELECT. CAP. 0.47UF M 50V RA-2 P901 D901 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P901 D902 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P901 D903 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P901 D904 00MHD20002000 00MHD20002000 DIODE 1SS176,MA165,1SS254 30V 0.1A P901 L901 00MLY20240310 00MLY20240310 RELAY VB 24MBU-510 5A/240VAC P901 L902 00MLY20240480 00MLY20240480 RELAY MR82-24USR P901 Q901 00MHC10042050 00MHC10042050 IC IC TA7317P P901 Q902 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P901 Q903 00MBA20001000 00MBA20001000 TRS. DTC114ES/UN4211 10K,10K P901 Q904 00MHT600111B0 00MHT600111B0 TRS. KTA1267 PNP TRANSISTOR RANK=Y P901 Q905 00MHT600111B0 00MHT600111B0 TRS. KTA1267 PNP TRANSISTOR RANK=Y P901 R905 nsp 00MGD05683160 RES. 68K OHM +- 5% 1/6W P901 R906 nsp 00MGD05683160 RES. 68K OHM +- 5% 1/6W P901 R907 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P901 R908 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P901 R909 nsp 00MGD05332160 RES. 3.3K OHM +- 5% 1/6W P901 R910 nsp 00MGD05224160 RES. 220K OHM +- 5% 1/6W P901 R911 nsp 00MGD05683160 RES. 68K OHM +- 5% 1/6W P901 R912 nsp 00MGD05333160 RES. 33K OHM +- 5% 1/6W P901 R913 nsp 00MGD05103160 RES. 10K OHM +- 5% 1/6W P901 R914 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P901 R916 nsp 00MGD05473160 RES. 47K OHM +- 5% 1/6W P901 R919 nsp 00MGD05103160 RES. 10K OHM +- 5% 1/6W P901 R921 nsp 00MGD05103160 RES. 10K OHM +- 5% 1/6W P901 R922 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W P901 R923 nsp 00MGD05104160 RES. 100K OHM +- 5% 1/6W HEAD PHONE (00MWA10AJ103-) P951 J951 00MYJ01003880 00MYJ01003880 JACK H.P. JACK HLJ0540-01-430 GREY LINK(00MWG10AJ306-) PB01 CB01 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PB01 CB02 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PB01 CB12 nsp 00MDK96102300 CER. CAP. 1000 PF +- 10 % B 50V GR36 PB01 CB13 nsp 00MDK96102300 CER. CAP. 1000 PF +- 10 % B 50V GR36 PB01 CB14 nsp 00MDK96102300 CER. CAP. 1000 PF +- 10 % B 50V GR36 PB01 CB15 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PB01 CB16 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PB01 CB51 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PB01 CB52 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PB01 DB01 00MHZ21005000 00MHZ21005000 CHIP DIODE 1SS301,DAN202U UMT TYPE PB01 JB11 00MYJ01004670 00MYJ01004670 JACK LGY6501-0600 3.5 MINI JACK PB01 JB12 00MYJ01004670 00MYJ01004670 JACK LGY6501-0600 3.5 MINI JACK PB01 JB51 00MYT02020890 00MYT02020890 TERMINAL 2P CINCH PIN JACK PB01 LB01 00MLY20240480 00MLY20240480 RELAY MR82-24USR PB01 LB02 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PB01 LB03 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PB01 QB01 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PB01 QB02 00MBA10013050 00MBA10013050 TRS. RN2303(PNPX1(22K+22K)) PB01 QB05 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PB01 QB21 00MHW10006320 00MHW10006320 PHOTO UNIT !PC-817 PHOTO COUPLER 1PAIR PB01 RB03 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PB01 RB04 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W PB01 RB05 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PB01 RB06 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W 58 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION PB01 RB08 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W PB01 RB12 nsp 00MNN05561610 CHIP RES. 560 OHM +- 5% 1/16W PB01 RB51 nsp 00MNN05470610 CHIP RES. 47 OHM +- 5% 1/16W PB01 SB01 00MSS02021150 00MSS02021150 SLIDE SW SLIDE SWITCH INT/EXT U COM (00MWG10AJ301-) PD01 CU01 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU02 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU03 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU04 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU05 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD01 CU06 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD01 CU07 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD01 CU08 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD01 CU09 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD01 CU11 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU12 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD01 CU13 nsp 00MDK96102300 CER. CAP. 1000 PF +- 10 % B 50V GR36 PD01 CU14 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD01 CU15 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU16 nsp 00MDK96102300 CER. CAP. 1000 PF +- 10 % B 50V GR36 PD01 CU17 nsp 00MDK96102300 CER. CAP. 1000 PF +- 10 % B 50V GR36 PD01 CU18 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU19 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU21 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD01 CU22 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD01 CU28 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU29 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU30 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU31 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU40 nsp 00MDK96332300 CER. CAP. 3300PF (GR39) PD01 CU44 nsp 00MDK96332300 CER. CAP. 3300PF (GR39) PD01 CU61 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU65 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU66 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU67 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU71 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU75 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU76 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 CU77 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD01 DD02 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302 (TOSHIBA) PD01 DU03 00MHZ21005000 00MHZ21005000 CHIP DIODE 1SS301,DAN202U UMT TYPE PD01 DU61 00MHI10046080 00MHI10046080 L.E.D. BLUE LED SELU2E10C-P-E/F � 3 PD01 DU62 00MHI10047080 00MHI10047080 L.E.D. SEL6E10C BLUE LED PD01 DU63 00MHI10047080 00MHI10047080 L.E.D. SEL6E10C BLUE LED PD01 DU71 00MHI10046080 00MHI10046080 L.E.D. BLUE LED SELU2E10C-P-E/F � 3 PD01 DU72 00MHI10047080 00MHI10047080 L.E.D. SEL6E10C BLUE LED PD01 DU73 00MHI10047080 00MHI10047080 L.E.D. SEL6E10C BLUE LED PD01 LU01 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU02 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU03 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU04 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU05 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU06 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU07 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU08 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU09 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU10 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU11 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU12 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU13 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU14 00MFC90090010 00MFC90090010 FERRITE CORE ZBF503D-00TA (NATIONAL) PD01 LU15 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU16 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 LU17 00MFC90020210 00MFC90020210 FERRITE CORE MLB-1608-1000A-N2 PD01 QD01 00MHT600121A0 00MHT600121A0 TRS. KTA1268 PNP TRANSISTOR RANK=GR PD01 QD30 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE 59 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION PD01 QD31 00MBA10013050 00MBA10013050 TRS. RN2303(PNPX1(22K+22K)) PD01 QU01 90M-HS10AJH0R 90M-HS10AJH0R IC HD64F3687H FLASH PD01 QU02 00MHC10433990 00MHC10433990 IC AT24C08AN-10SI-2.7 PD01 QU03 00MHC809449R0 00MHC809449R0 IC 74HC4094BT PD01 QU04 00MHC10229210 00MHC10229210 IC BD4727G 2.7V RESET IC PD01 QU07 00MHX100012A0 00MHX100012A0 CHIP TRS. 2SA1586 (Y,GR) TE85L / 2SA1576A (Q,R) PD01 QU08 00MHX300012A0 00MHX300012A0 CHIP TRS. 2SC4081 (Q,R) 2SC4116 (Y,GR) PD01 QU09 00MHX300012A0 00MHX300012A0 CHIP TRS. 2SC4081 (Q,R) 2SC4116 (Y,GR) PD01 QU10 00MBA10013050 00MBA10013050 TRS. RN2303(PNPX1(22K+22K)) PD01 QU12 00MBA10013050 00MBA10013050 TRS. RN2303(PNPX1(22K+22K)) PD01 QU13 00MBA10013050 00MBA10013050 TRS. RN2303(PNPX1(22K+22K)) PD01 QU14 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU15 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU16 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU17 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU18 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU19 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU20 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU21 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU22 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU61 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU62 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU63 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU71 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU72 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 QU73 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD01 RD02 nsp 00MNN05330610 CHIP RES. 33 OHM +- 5% 1/16W PD01 RD04 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W PD01 RU01 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W PD01 RU02 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU03 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU05 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU06 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU12 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU13 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU14 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU15 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W PD01 RU16 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W PD01 RU17 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W PD01 RU18 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W PD01 RU19 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W PD01 RU20 nsp 00MNN05153610 CHIP RES. 15K OHM +- 5% 1/16W PD01 RU21 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU22 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU23 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU24 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU25 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU26 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU27 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU28 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU29 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W PD01 RU30 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W PD01 RU31 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU32 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU33 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W PD01 RU35 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU36 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU37 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU38 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU41 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD01 RU61 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W PD01 RU62 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W PD01 RU63 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W PD01 RU64 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W PD01 RU65 nsp 00MNN05222610 CHIP RES. 2.2K OHM +- 5% 1/16W PD01 RU66 nsp 00MNN05222610 CHIP RES. 2.2K OHM +- 5% 1/16W 60 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PCB NAME POS. NO. VERS. COLOR PART NO. (FOR EUR) PART NO. (MJI) PART NAME DESCRIPTION PD01 RU67 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU68 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU69 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU70 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU71 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU72 nsp 00MNN05821610 CHIP RES. 820 OHM +- 5% 1/16W PD01 RU81 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W PD01 RU82 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W PD01 RU83 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W PD01 RU84 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W PD01 RU85 nsp 00MNN05222610 CHIP RES. 2.2K OHM +- 5% 1/16W PD01 RU86 nsp 00MNN05222610 CHIP RES. 2.2K OHM +- 5% 1/16W PD01 RU87 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU88 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU89 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD01 RU90 nsp 00MNN05821610 CHIP RES. 820 OHM +- 5% 1/16W PD01 SU61 00MSP01013370 00MSP01013370 PUSH SW EVQ11L05R H/5MM,160GF PD01 SU62 00MSP01013370 00MSP01013370 PUSH SW EVQ11L05R H/5MM,160GF PD01 SU63 00MSP01013370 00MSP01013370 PUSH SW EVQ11L05R H/5MM,160GF PD01 SU71 00MSP01013370 00MSP01013370 PUSH SW EVQ11L05R H/5MM,160GF PD01 SU72 00MSP01013370 00MSP01013370 PUSH SW EVQ11L05R H/5MM,160GF PD01 SU73 00MSP01013370 00MSP01013370 PUSH SW EVQ11L05R H/5MM,160GF PD01 XU01 00MFQ08004060 00MFQ08004060 CER. VIB. CSTS MG 8MHZ TAPING(15PF) IR SENSOR (00MWG10AJ302-) PD31 CD02 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD31 CD03 nsp 00MDK98105200 CER. CAP. 1UF 10V F PD31 CD04 nsp 00MDK98105200 CER. CAP. 1UF 10V F PD31 CD05 nsp 00MDK98105200 CER. CAP. 1UF 10V F PD31 CD06 nsp 00MDK98105200 CER. CAP. 1UF 10V F PD31 CD07 nsp 00MDK98105200 CER. CAP. 1UF 10V F PD31 CD10 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD31 CD12 nsp 00MDK96102300 CER. CAP. 1000 PF +- 10 % B 50V GR36 PD31 CD13 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD31 CU23 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD31 DD01 00MHZ30751000 00MHZ30751000 CHIP DIODE 7.5V ZENER MA8075-M,UDPS7.5B PD31 DU01 00MHI10005340 00MHI10005340 L.E.D. HLMF-K200 #2UL RED H=9 3MM PD31 DU02 00MHI10046080 00MHI10046080 L.E.D. BLUE LED SELU2E10C-P-E/F � 3 PD31 QU05 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD31 QU06 00MBA21303000 00MBA21303000 TRS. DTC124EU,RN1303 UMT TYPE PD31 QU11 00MHW10004210 00MHW10004210 PHOTO UNIT RPM6936-V4 (IR SENSOR) PD31 RD01 nsp 00MNN05222610 CHIP RES. 2.2K OHM +- 5% 1/16W PD31 RD05 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W PD31 RD06 nsp 00MNN05823610 CHIP RES. 82K OHM +- 5% 1/16W PD31 RD07 nsp 00MNN05823610 CHIP RES. 82K OHM +- 5% 1/16W PD31 RU08 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W PD31 RU09 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD31 RU10 nsp 00MNN05222610 CHIP RES. 2.2K OHM +- 5% 1/16W PD31 RU11 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD31 RU34 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W BACKLIGHT(00MWG10AJ305-) PD41 CD11 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF MURATA PD41 DD11 00MHI10005980 00MHI10005980 L.E.D. NSPW515BS-S-CO PD41 RD11 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W SELECTOR ENCODER (00MWG10AJ304-) PD61 CU81 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD61 CU82 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K PD61 SU82 00MSR01120070 00MSR01120070 ROTARY SW SRRSIC VOL, ENCODER (00MWG10AJ303-) PD71 RU57 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD71 RU58 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD71 RU59 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD71 RU60 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W PD71 SU81 00MSR02010120 00MSR02010120 ROTARY SW EC12E2430804 61
