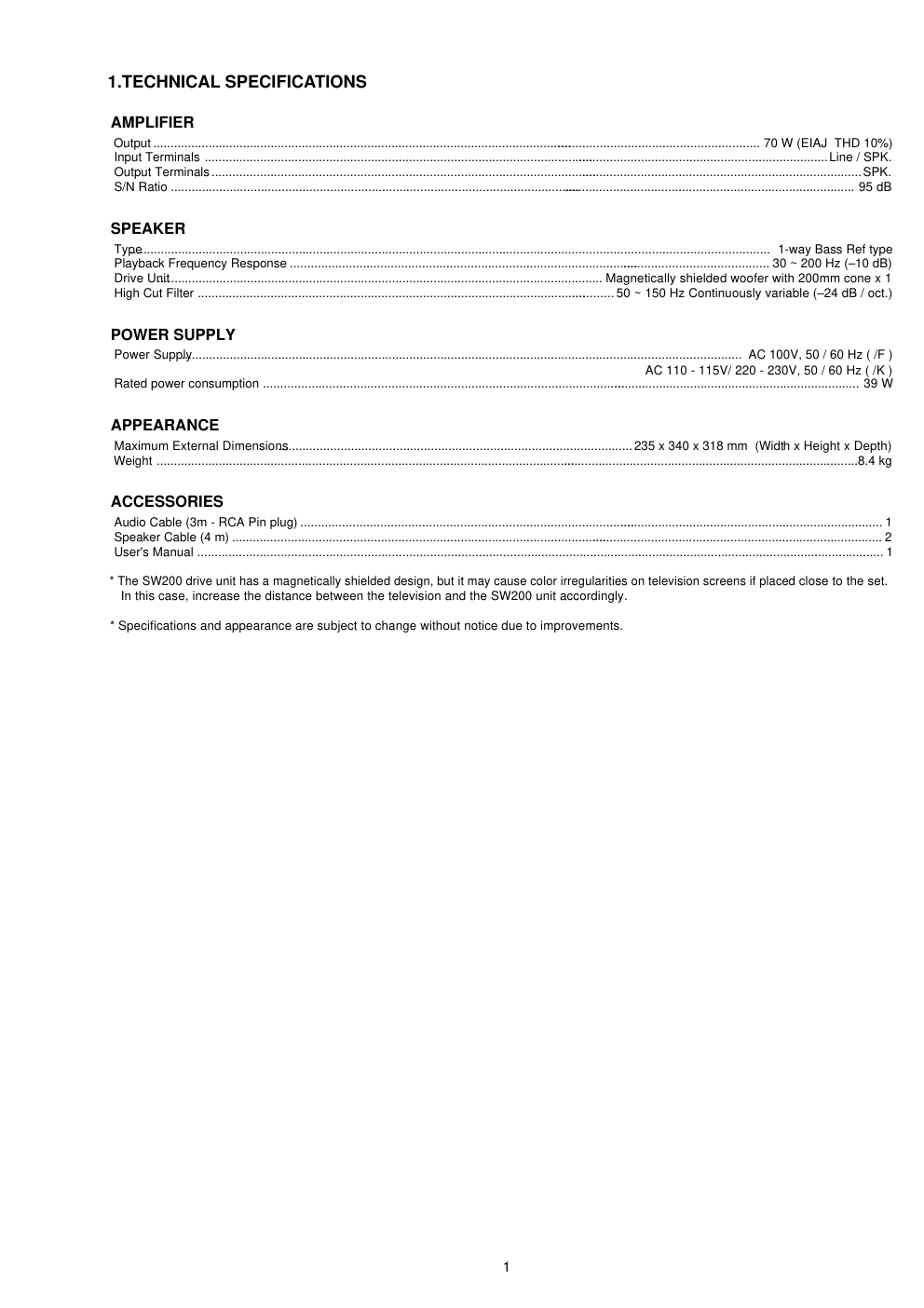

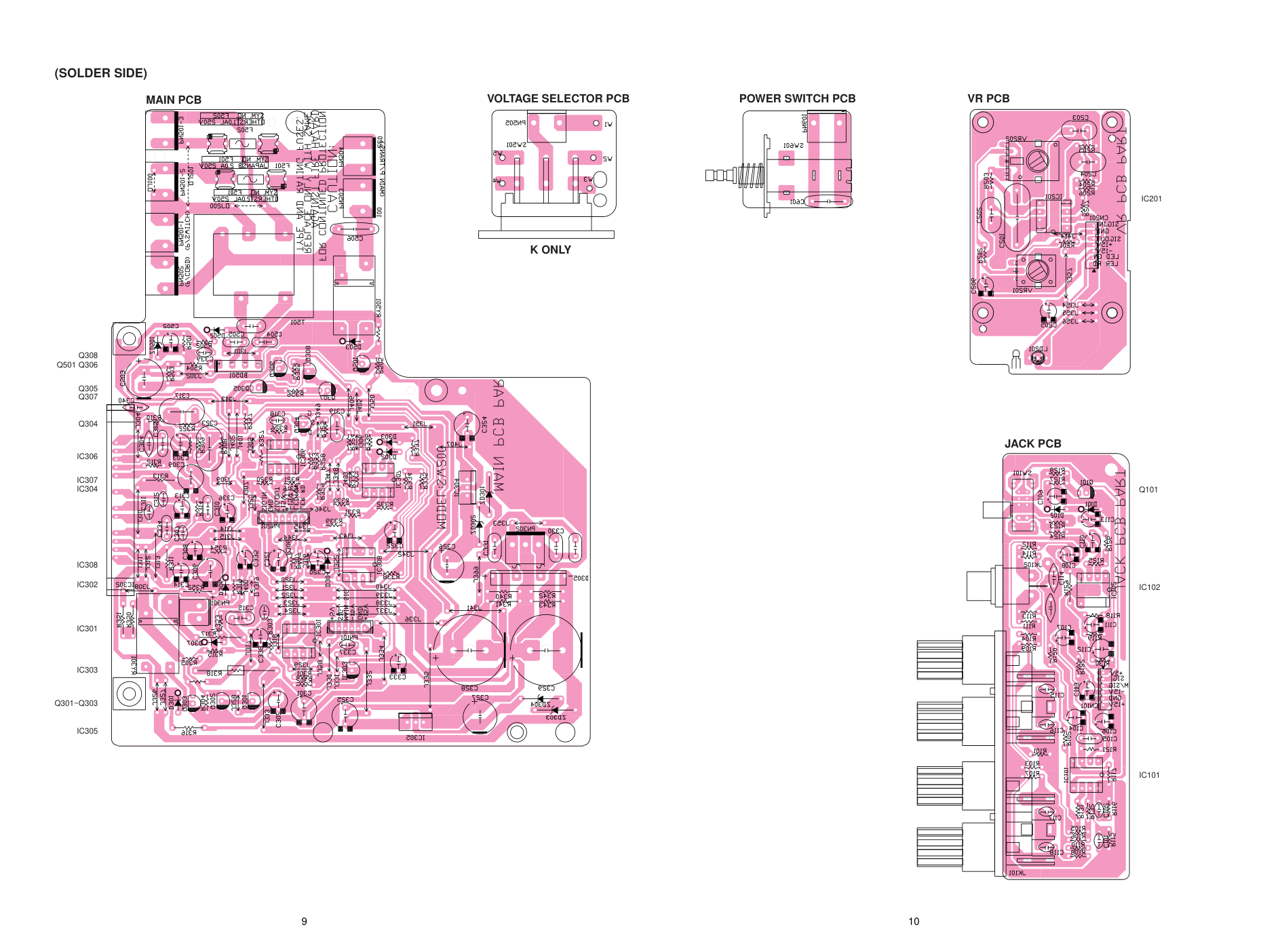

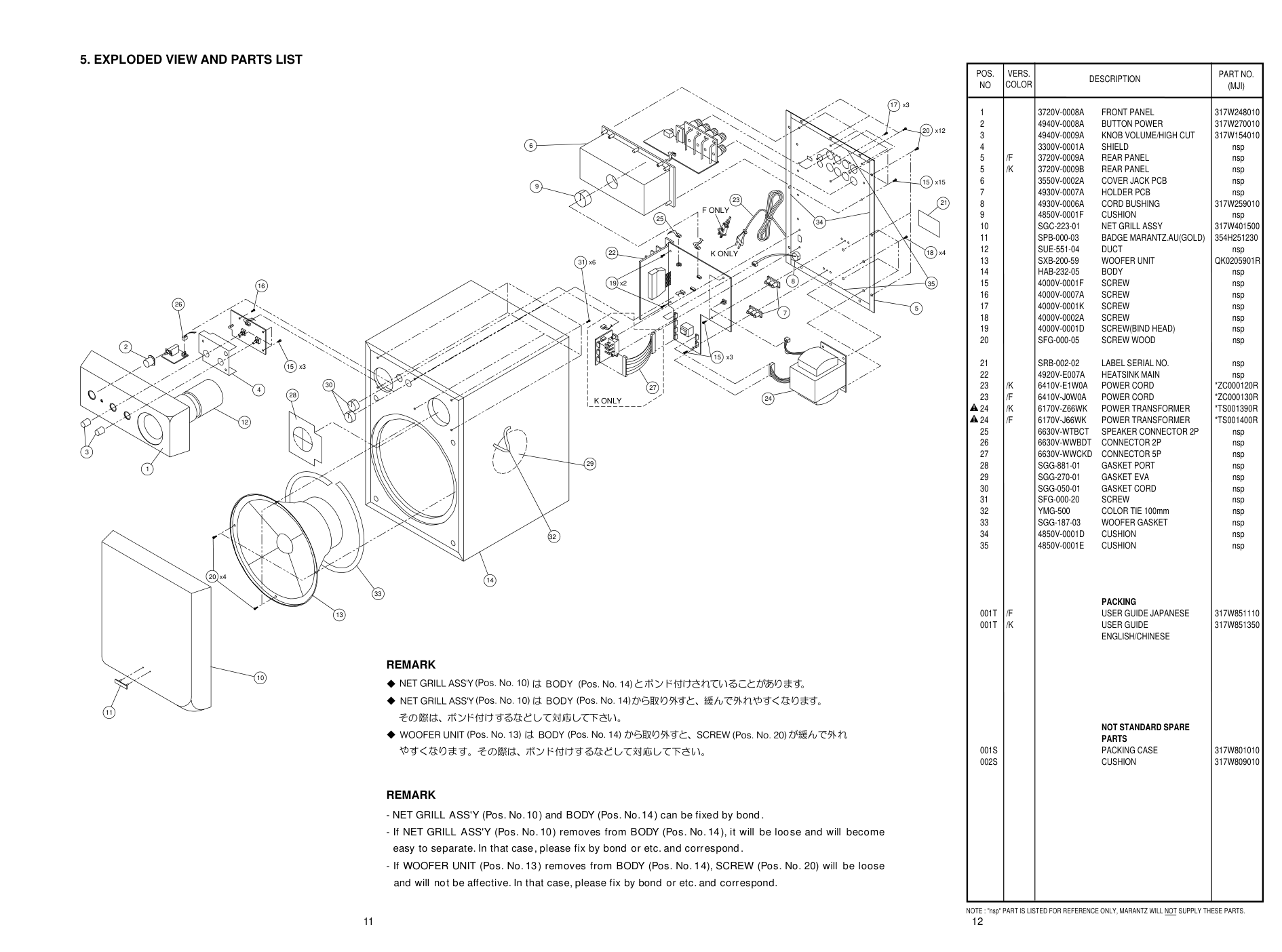

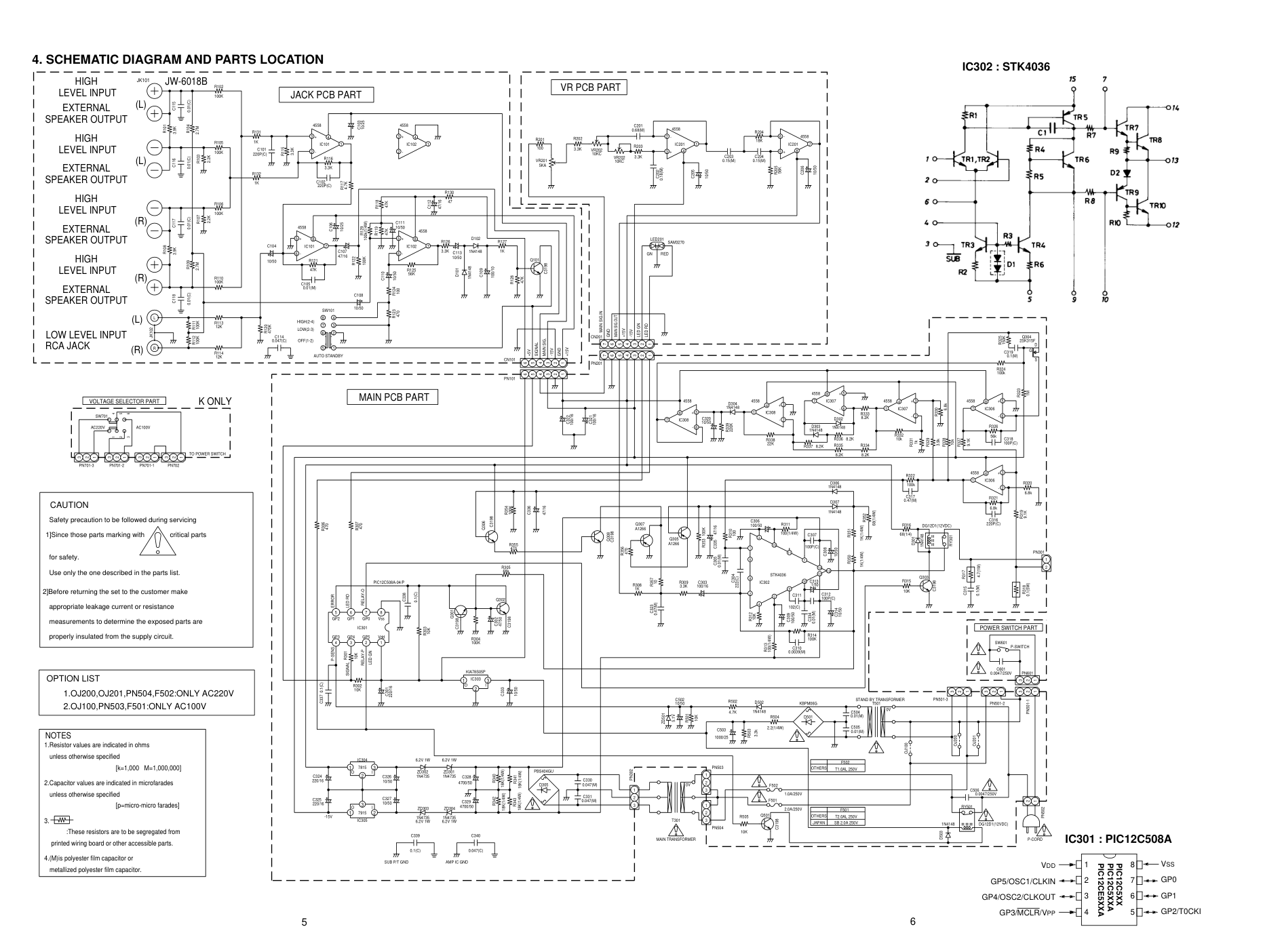

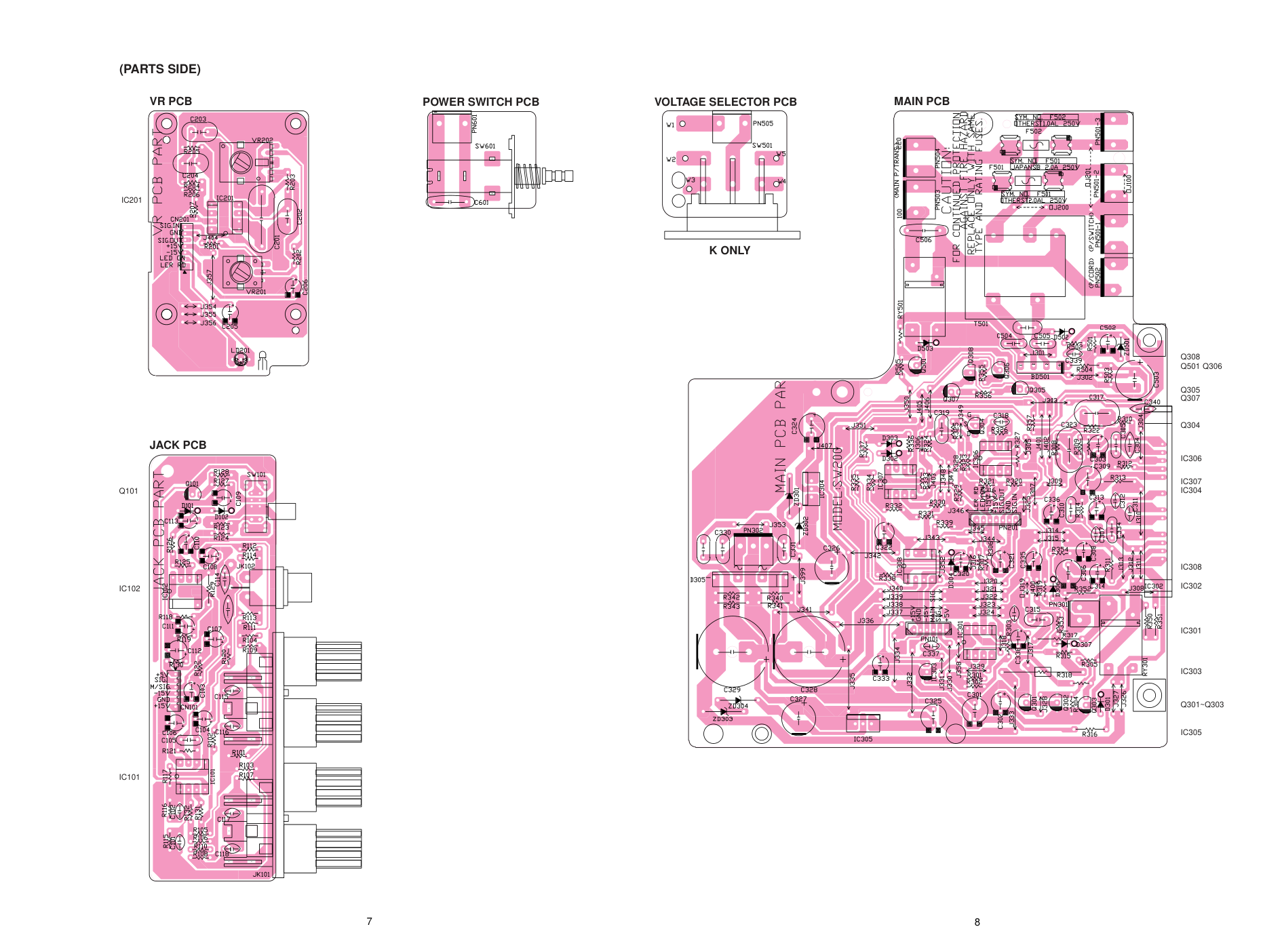

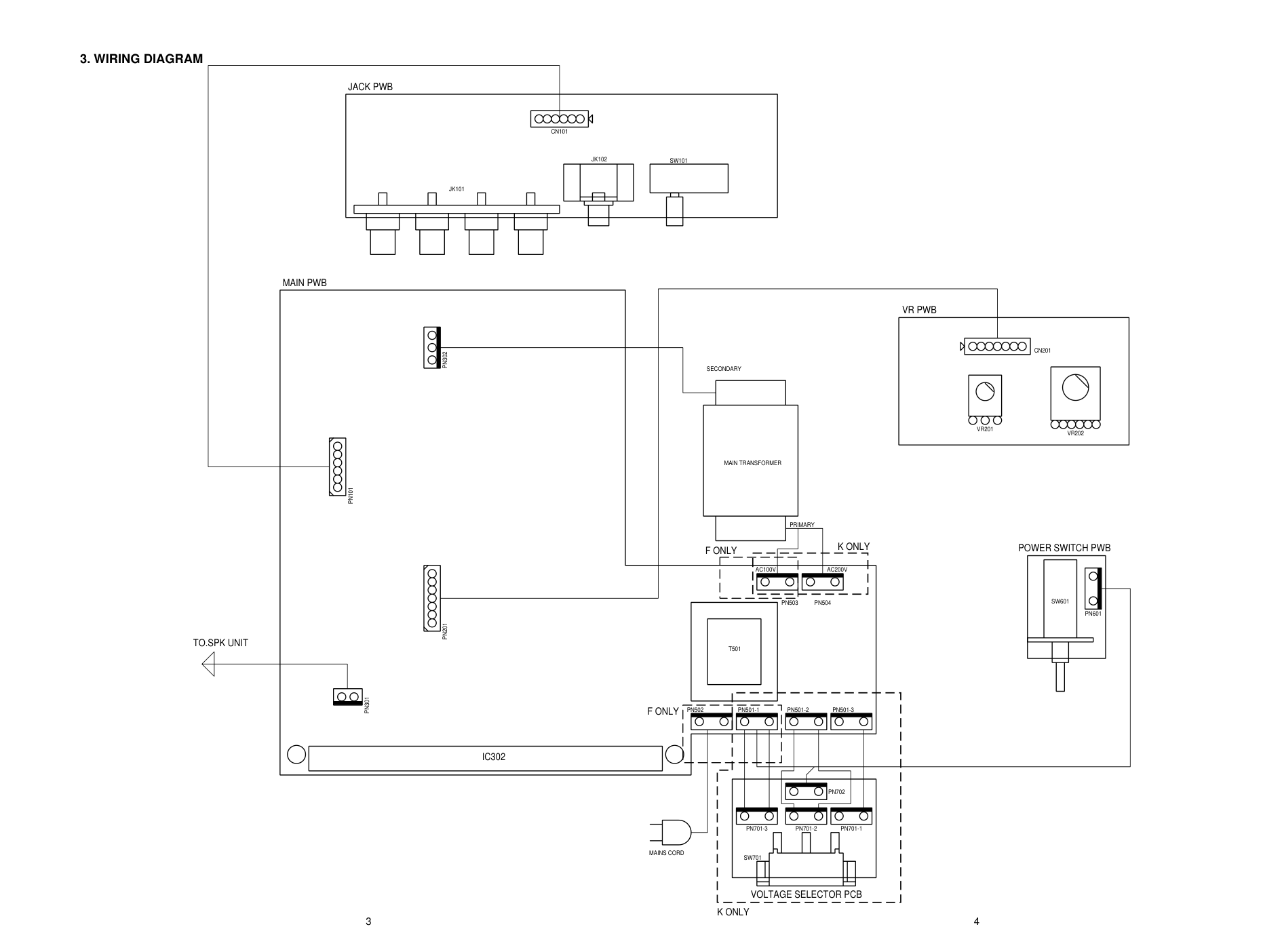

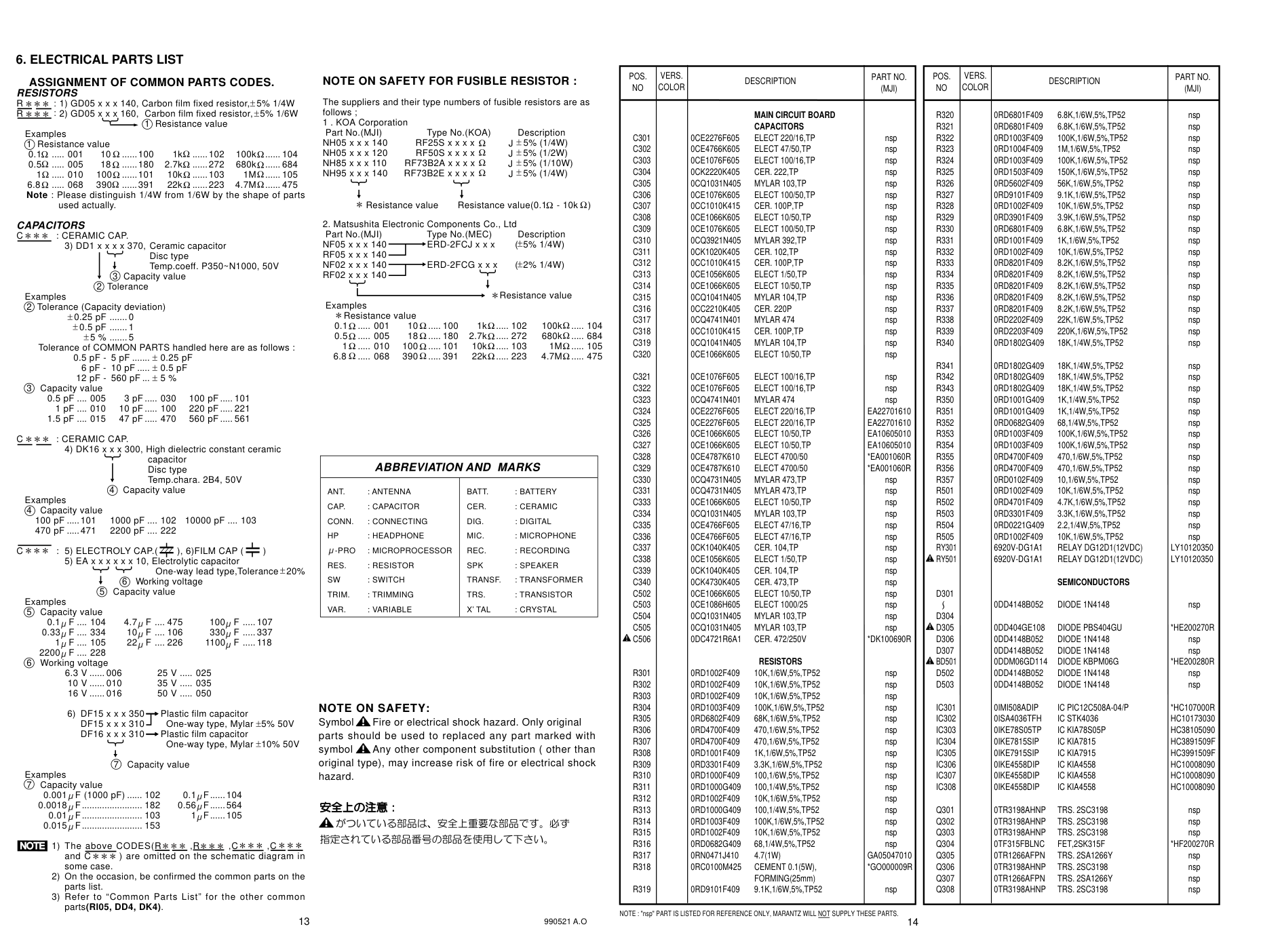

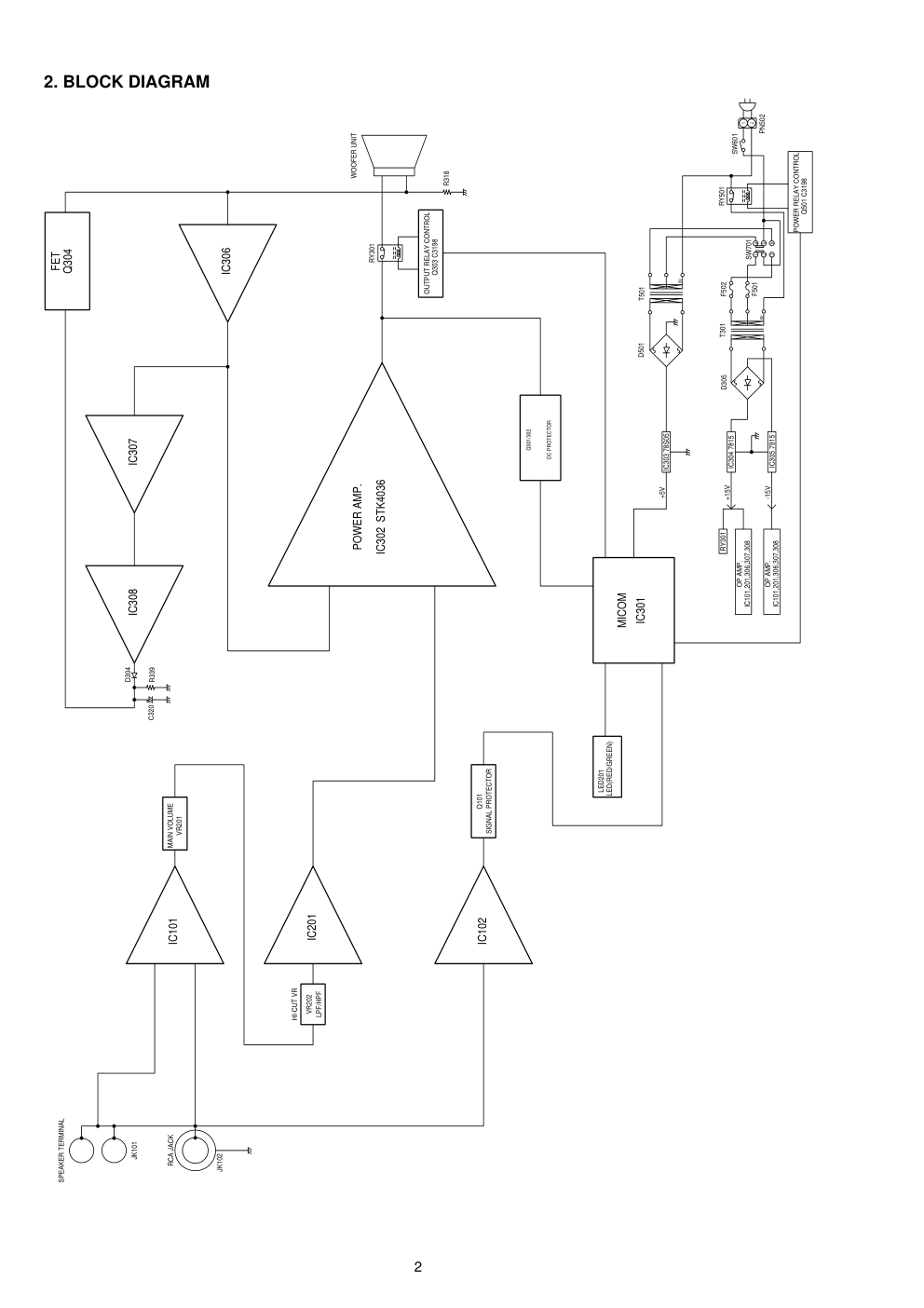

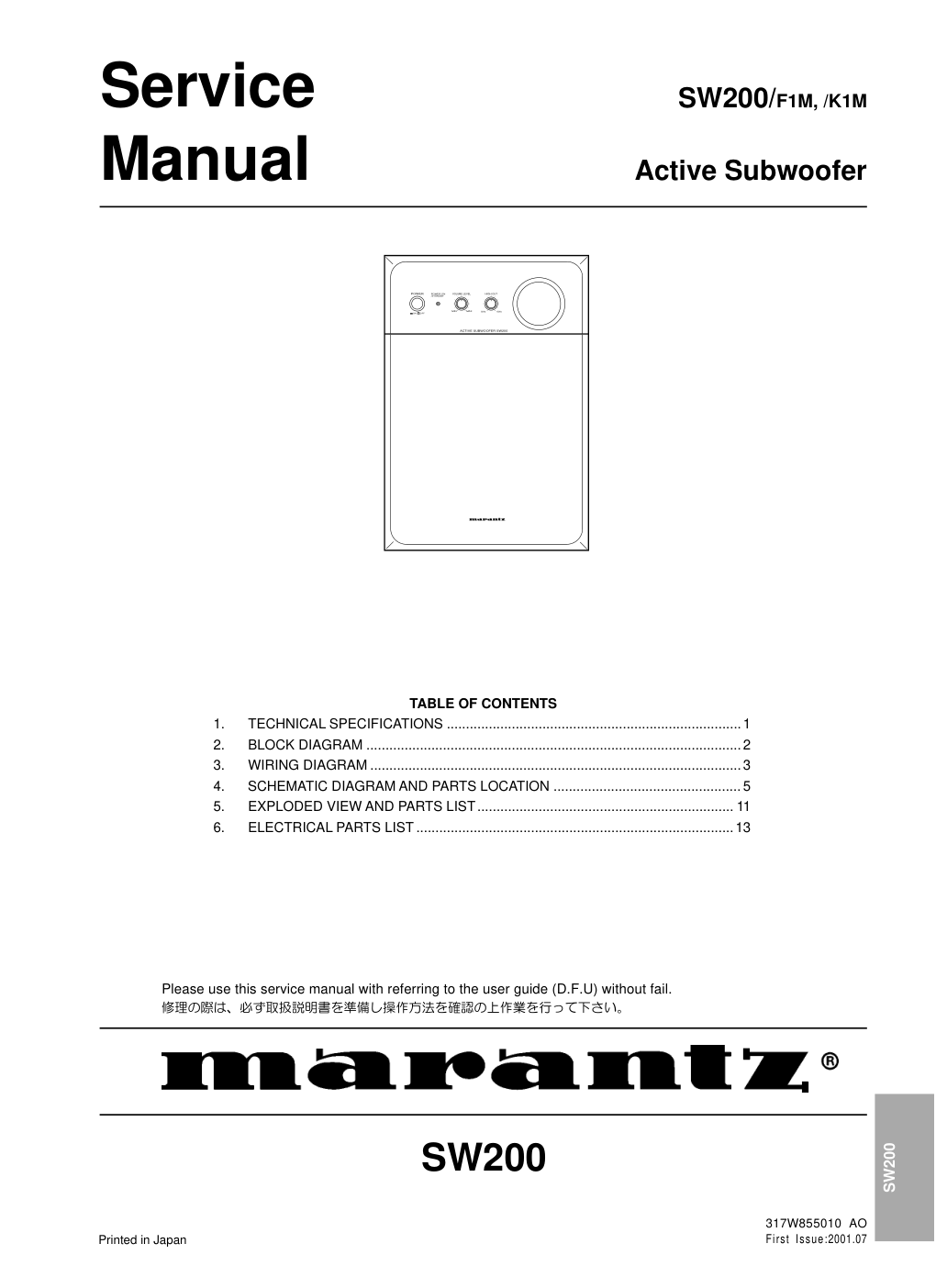

Service Manual Please use this service manual with referring to the user guide (D.F.U) without fail. 317W855010 AO First Issue:2001.07 SW200/F1M, /K1M Active Subwoofer SW200 Printed in Japan TABLE OF CONTENTS 1. TECHNICAL SPECIFICATIONS .............................................................................1 2. BLOCK DIAGRAM ..................................................................................................2 3. WIRING DIAGRAM .................................................................................................3 4. SCHEMATIC DIAGRAM AND PARTS LOCATION ................................................. 5 5. EXPLODED VIEW AND PARTS LIST................................................................... 11 6. ELECTRICAL PARTS LIST ...................................................................................13 OFF ON POWER VOLUME LEVEL HIGH CUT MAX MIN POWER ON 150Hz 50Hz /STANDBY ACTIVE SUBWOOFER SW200 SW200 MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 010620 A.O USA USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 BRAZIL BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN JAPAN Technical MARANTZ JAPAN, INC. MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING EUROPE / TRADING MARANTZ EUROPE B.V. MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA CANADA LENBROOK INDUSTRIES LIMITED LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA AUSTRALIA QualiFi Pty Ltd, QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND NEW ZEALAND WILDASH AUDIO SYSTEMS NZ WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND THAILAND MRZ STANDARD CO.,LTD MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN TAIWAN PAI- YUING CO., LTD. PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS AMERICAS SUPERSCOPE TECHNOLOGIES, INC. SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA AUSTRALIA KOREA KOREA MK ENTERPRISES LTD. MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078 1.TECHNICAL SPECIFICATIONS 1 AMPLIFIER Output ......................................................................................................................... .......................................................... 70 W (EIAJ THD 10%) Input Terminals ................................................................................................................ ........................................................................Line / SPK. Output Terminals............................................................................................................... .................................................................................SPK. S/N Ratio ...................................................................................................................... .................................................................................... 95 dB SPEAKER Type ......................................................................................................................................................................................... 1-way Bass Ref type Playback Frequency Response .................................................................................................... .......................................... 30 ~ 200 Hz (–10 dB) Drive Unit ................................................................................................................................. Magnetically shielded woofer with 200mm cone x 1 High Cut Filter ................................................................................................................ ............ 50 ~ 150 Hz Continuously variable (–24 dB / oct.) POWER SUPPLY Power Supply .................................................................................................................................................................. AC 100V, 50 / 60 Hz ( /F ) AC 110 - 115V/ 220 - 230V, 50 / 60 Hz ( /K ) Rated power consumption ........................................................................................................ ........................................................................ 39 W APPEARANCE Maximum External Dimensions ......................................................................................................235 x 340 x 318 mm (Width x Height x Depth) Weight ......................................................................................................................... .....................................................................................8.4 kg ACCESSORIES Audio Cable (3m - RCA Pin plug) ................................................................................................ ............................................................................ 1 Speaker Cable (4 m) ............................................................................................................ .................................................................................... 2 User's Manual ...................................................................................................................................................................................................... 1 * The SW200 drive unit has a magnetically shielded design, but it may cause color irregularities on television screens if placed close to the set. In this case, increase the distance between the television and the SW200 unit accordingly. * Specifications and appearance are subject to change without notice due to improvements. 2 2. BLOCK DIAGRAM +15V -15V +5V 1 2 3 4 5 6 0V 0V 1 2 Q501 C3198 POWER RELAY CONTROL IC304 7815 IC305 7915 RY301 OP AMP. OP AMP. IC101,201,306,307,308 IC101,201,306,307,308 IC303 78S05 MICOM IC301 OUTPUT RELAY CONTROL Q303 C3198 WOOFER UNIT IC306 FET Q304 IC307 IC308 IC302 POWER AMP. STK4036 LED(RED/GREEN) LED201 Q301/302 DC PROTECTOR JK102 IC101 MAIN VOLUME VR201 IC201 VR202 LPF/HPF HI-CUT VR JK101 SPEAKER TERMINAL RCA JACK IC102 Q101 SIGNAL PROTECTOR SW701 F501 R339 C320 D304 R318 RY301 RY501 D305 D501 F502 T501 T301 SW601 PN502 TO.SPK UNIT MAINS CORD MAIN TRANSFORMER SECONDARY PRIMARY AC100V AC200V CN101 JK101 JK102 SW101 PN302 PN101 PN201 PN301 IC302 PN503 PN504 T501 PN502 PN601 SW601 CN201 VR201 VR202 PN501-1 PN501-2 PN501-3 PN702 PN701-3 PN701-2 PN701-1 SW701 JACK PWB MAIN PWB VR PWB POWER SWITCH PWB F ONLY F ONLY K ONLY K ONLY VOLTAGE SELECTOR PCB 3. WIRING DIAGRAM 3 4 S G D 8 7 6 5 4 3 2 1 `3 `2 `1 6 8 13 15 1 2 4 5 9 10 12 14 7 11 3 3 2 1 8 5 6 7 8 5 6 7 4 3 2 1 4 3 2 1 8 5 6 7 4 3 2 1 8 5 6 7 4 3 2 1 8 5 6 7 8 5 6 7 4 3 2 1 3 2 1 6 5 4 3 2 1 4 3 2 1 ERROR RELAY-O SIGNAL P-SENS RELAY-P LED RD LED GN Vdd GP5 GP4 GP2 GP1 GP0 Vss GP3 3 1 2 3 1 2 3 1 2 3 1 2 3 2 1 O I 3 4 2 1 5 6 7 8 1 2 - + 7 4 5 6 3 1 2 3 1 2 3 1 2 - + - + 7 4 5 6 3 1 2 0V R L 0V 4 5 6 3 1 2 4 5 6 3 1 2 - + - + - + - + - + - + - + - + 3 2 1 O I 3 1 2 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 2 1 I O - + SUB P/T GND AMP IC GND F501 T2.0AL 250V SB 2.0A 250V JAPAN F502 T1.0AL 250V OTHERS OTHERS MAIN TRANSFORMER STAND BY TRANSFORMER AC220V AC100V TO POWER SWITCH -15V R341 C302 Q302 R305 IC301 PN503 C311 VR202 IC302 C315 R304 D301 PN504 PN601 R316 C301 PN302 IC303 C322 R301 R302 SW101 C321 R129 VR201 C312 Q301 C205 PN502 F502 C506 Q101 R128 C109 R127 D102 D101 R126 IC101 C106 R121 R120 R122 R308 OJ100 RY501 PN201 R205 C114 C206 C203 C204 R204 PN501-2 PN501-3 IC201 C333 OJ200 C202 C334 IC102 R203 OJ201 CN201 SW601 T301 Q303 R317 R117 R119 JK102 ZD501 R502 R501 C303 D502 R118 C502 T501 D305 R342 R340 C328 R315 F501 R303 CN101 PN101 C323 C329 C331 R306 C111 R309 R307 R130 C112 R350 R351 R201 R352 D306 C330 C307 C313 R314 C310 R312 D307 RY301 R503 C306 C308 R311 C314 R313 C309 R504 C503 D503 Q501 R505 R318 IC306 R319 R321 R320 C316 C304 C305 R310 C317 R322 IC306 R327 C318 R326 R328 Q304 R325 C319 R323 R324 IC307 IC307 IC308 IC308 R329 R330 R332 R331 R333 D302 R336 D303 R337 R334 R335 R338 D304 R339 C320 R104 C105 R110 R108 R109 C107 R105 C326 C327 C504 R115 R106 IC102 R111 R112 C102 R125 R101 D501 R124 R357 Q306 R103 Q308 LED201 R123 Q305 R202 Q307 IC201 R343 C110 R353 C335 VR202 R356 R354 C336 C113 IC304 R355 ZD301 C324 ZD302 PN501-1 R107 ZD303 C339 R116 C337 PN301 C338 R113 C340 PN702 C201 PN701-1 PN701-2 SW701 R131 PN701-3 R132 C115 ZD304 C116 C117 C118 C601 IC305 C103 R102 R114 C104 C108 IC101 C101 C325 C505 JK101 P-SWITCH P-CORD 6.2V 1W 6.2V 1W 6.2V 1W 6.2V 1W 18K(1/4W) 47/50 C3198 68k PIC12C508A-04/P 102(C) 10KC STK4036 0.1(M) 100K 1N4148 68(1/4) 220/16 KIA78S05P 100/16 10K 10K 100/16 100k(1/4W) 5KA 100P(C) C3198 10/50 1.0A/250V 0.0047/250V C3198 47K 100/10 1K 1N4148 1N4148 3.3K 4558 10/25 47K 470K 100K 1K DG12D1(12VDC) 56K 0.047(C) 10/50 0.15(M) 0.15(M) 18K 4558 10/50 0.18(M) 0.01(M) 4558 3.3K C3198 4.7(1W) 4.7K 47K 5.1V 4.7K 10K 100/16 1N4148 47K 10/50 PBS404GU 18K(1/4W) 18K(1/4W) 4700/50 10K 2.0A/250V 10K 0.47(M) 4700/50 0.047(M) 470 10/50 3.3K 470 47 47/16 1K(1/4W) 1K(1/4W) 100 68(1/4W) 1N4148 0.047(M) 100P(C) 1/50 100K 0.0039(M) 10K 1N4148 DG12D1(12VDC) 3.3k 100/50 10/50 100(1/4W) 10/50 100(1/4W) 100/50 2.2(1/4W) 1000/25 1N4148 C3198 10K 0.1(5W) 4558 9.1K 6.8k 6.8k 220P(C) 222(C) 0.01(M) 100 0.47(M) 100k 4558 9.1K 100P(C) 56k 10k 2SK315F 150K 0.1(M) 1M 100k 4558 4558 4558 4558 3.9k 6.8k 10k 1k 8.2K 1N4148 8.2K 1N4148 8.2K 8.2K 8.2K 22K 1N4148 220K 10/50 2.7M 0.01(M) 100K 3.9K 2.7M 47/16 100K 10/50 10/50 0.01(M) 3.3K 100K 4558 100K 100K 220P(C) 56K 3.9K KBPM06G 100 10 C3198 2.2K C3198 SAM3270 470 A1266 3.3K A1266 4558 18K(1/4W) 10/50 100K 47/16 10KC 470 100K 47/16 10/50 7815 470 1N4735 220/16 1N4735 2.2K 1N4735 0.1(C) 3.3K 0.1(C) 0.1(C) 12K 0.047(C) 0.68(M) 1K 1K 0.01(C) 1N4735 0.01(C) 0.01(C) 0.01(C) 0.0047/250V 7915 10/25 100K 12K 10/50 10/50 4558 220P(C) 220/16 0.01(M) LOW LEVEL INPUT HIGH HIGH HIGH HIGH LEVEL INPUT LEVEL INPUT LEVEL INPUT LEVEL INPUT (L) (L) (L) (R) (R) (R) K ONLY EXTERNAL EXTERNAL EXTERNAL EXTERNAL SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT RCA JACK MAIN PCB PART VR PCB PART JACK PCB PART AUTO STANDBY POWER SWITCH PART SIGNAL -15V -15V GND GND +15V +15V MAIN SIG. LED RD LED GN JW-6018B RED GN MAIN SIG.OUT MAIN SIG.IN +5V OFF(1-2) LOW(2-3) HIGH(2-4) OPTION LIST 2.OJ100,PN503,F501:ONLY AC100V 1.Resistor values are indicated in ohms unless otherwise specified unless otherwise specified [k=1,000 M=1,000,000] [p=micro-micro farades] 3. :These resistors are to be segregated from printed wiring board or other accessible parts. Safety precaution to be followed during servicing 1]Since those parts marking with critical parts for safety. 2]Before returning the set to the customer make appropriate leakage current or resistance measurements to determine the exposed parts are properly insulated from the supply circuit. Use only the one described in the parts list. CAUTION NOTES 4.(M)is polyester film capacitor or metallized polyester film capacitor. 2.Capacitor values are indicated in microfarades VOLTAGE SELECTOR PART 1.OJ200,OJ201,PN504,F502:ONLY AC220V 4. SCHEMATIC DIAGRAM AND PARTS LOCATION 5 6 8 7 6 5 1 2 3 4 VDD GP5/OSC1/CLKIN GP4/OSC2/CLKOUT GP3/MCLR/VPP VSS GP0 GP1 GP2/T0CKI PIC12C5XX PIC12C5XXA PIC12CE5XXA IC302 : STK4036 IC301 : PIC12C508A 7 8 VR PCB (PARTS SIDE) IC201 Q101 Q501 Q308 Q306 Q307 Q305 Q304 IC306 IC307 IC304 IC308 IC302 IC301 IC303 Q301~Q303 IC305 IC102 IC101 JACK PCB MAIN PCB POWER SWITCH PCB VOLTAGE SELECTOR PCB K ONLY 9 10 VR PCB JACK PCB MAIN PCB (SOLDER SIDE) POWER SWITCH PCB VOLTAGE SELECTOR PCB IC201 Q101 Q501 Q308 Q306 Q307 Q305 Q304 IC306 IC307 IC304 IC308 IC302 IC301 IC303 Q301~Q303 IC305 IC102 IC101 K ONLY 11 12 5. EXPLODED VIEW AND PARTS LIST 29 6 9 16 15 x3 28 30 14 2 26 4 12 1 20 x4 3 11 10 13 8 23 19 x2 22 25 17 x3 5 7 24 15 x3 27 K ONLY K ONLY F ONLY 31 x6 34 35 32 33 20 x12 15 x15 21 18 x4 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) 1 3720V-0008A FRONT PANEL 317W248010 2 4940V-0008A BUTTON POWER 317W270010 3 4940V-0009A KNOB VOLUME/HIGH CUT 317W154010 4 3300V-0001A SHIELD nsp 5 /F 3720V-0009A REAR PANEL nsp 5 /K 3720V-0009B REAR PANEL nsp 6 3550V-0002A COVER JACK PCB nsp 7 4930V-0007A HOLDER PCB nsp 8 4930V-0006A CORD BUSHING 317W259010 9 4850V-0001F CUSHION nsp 10 SGC-223-01 NET GRILL ASSY 317W401500 11 SPB-000-03 BADGE MARANTZ.AU(GOLD) 354H251230 12 SUE-551-04 DUCT nsp 13 SXB-200-59 WOOFER UNIT QK0205901R 14 HAB-232-05 BODY nsp 15 4000V-0001F SCREW nsp 16 4000V-0007A SCREW nsp 17 4000V-0001K SCREW nsp 18 4000V-0002A SCREW nsp 19 4000V-0001D SCREW(BIND HEAD) nsp 20 SFG-000-05 SCREW WOOD nsp 21 SRB-002-02 LABEL SERIAL NO. nsp 22 4920V-E007A HEATSINK MAIN nsp 23 /K 6410V-E1W0A POWER CORD *ZC000120R 23 /F 6410V-J0W0A POWER CORD *ZC000130R 24 /K 6170V-Z66WK POWER TRANSFORMER *TS001390R 24 /F 6170V-J66WK POWER TRANSFORMER *TS001400R 25 6630V-WTBCT SPEAKER CONNECTOR 2P nsp 26 6630V-WWBDT CONNECTOR 2P nsp 27 6630V-WWCKD CONNECTOR 5P nsp 28 SGG-881-01 GASKET PORT nsp 29 SGG-270-01 GASKET EVA nsp 30 SGG-050-01 GASKET CORD nsp 31 SFG-000-20 SCREW nsp 32 YMG-500 COLOR TIE 100mm nsp 33 SGG-187-03 WOOFER GASKET nsp 34 4850V-0001D CUSHION nsp 35 4850V-0001E CUSHION nsp PACKING 001T /F USER GUIDE JAPANESE 317W851110 001T /K USER GUIDE ENGLISH/CHINESE 317W851350 NOT STANDARD SPARE PARTS 001S PACKING CASE 317W801010 002S CUSHION 317W809010 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. REMARK REMARK - NET GRILL ASS'Y (Pos. No. 10) and BODY (Pos. No. 14) can be fixed by bond . - If NET GRILL ASS'Y (Pos. No. 10) removes from BODY (Pos. No. 14), it will be loose and will become easy to separate. In that case, please fix by bond or etc. and correspond . - If WOOFER UNIT (Pos. No. 13) removes from BODY (Pos. No. 14), SCREW (Pos. No. 20) will be loose and will not be affective. In that case, please fix by bond or etc. and correspond. ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R 1) GD05 x x x 140, Carbon film fixed resistor, 5% 1/4W R 2) GD05 x x x 160, Carbon film fixed resistor, 5% 1/6W 1 Resistance value Examples 1 Resistance value 0.1 ..... 001 10 ......100 1k ......102 100k ...... 104 0.5 ..... 005 18 ......180 2.7k ......272 680k ...... 684 1 ..... 010 100 ......101 10k ......103 1M ...... 105 6.8 ..... 068 390 ......391 22k ......223 4.7M ...... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 x x x x 370, Ceramic capacitor Disc type Temp.coeff. P350~N1000, 50V 3 Capacity value 2 Tolerance Examples 2 Tolerance (Capacity deviation) 0.25 pF ....... 0 0.5 pF ....... 1 5 % ....... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF - 5 pF ....... 0.25 pF 6 pF - 10 pF ..... 0.5 pF 12 pF - 560 pF ... 5 % 3 Capacity value 0.5 pF .... 005 3 pF ..... 030 100 pF ..... 101 1 pF .... 010 10 pF ..... 100 220 pF ..... 221 1.5 pF .... 015 47 pF ..... 470 560 pF ..... 561 C : CERAMIC CAP. 4) DK16 x x x 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V 4 Capacity value Examples 4 Capacity value 100 pF .....101 1000 pF .... 102 10000 pF .... 103 470 pF .....471 2200 pF .... 222 C : 5) ELECTROLY CAP.( ), 6)FILM CAP ( ) 5) EA x x x x x x 10, Electrolytic capacitor One-way lead type,Tolerance 20% 6 Working voltage 5 Capacity value Examples 5 Capacity value 0.1 F .... 104 4.7 F .... 475 100 F ..... 107 0.33 F .... 334 10 F .... 106 330 F ..... 337 1 F .... 105 22 F .... 226 1100 F ..... 118 2200 F .... 228 6 Working voltage 6.3 V ...... 006 25 V ..... 025 10 V ...... 010 35 V ..... 035 16 V ...... 016 50 V ..... 050 6) DF15 x x x 350 Plastic film capacitor DF15 x x x 310 One-way type, Mylar 5% 50V DF16 x x x 310 Plastic film capacitor One-way type, Mylar 10% 50V 7 Capacity value Examples 7 Capacity value 0.001 F (1000 pF) ...... 102 0.1 F......104 0.0018 F........................ 182 0.56 F......564 0.01 F........................ 103 1 F......105 0.015 F........................ 153 1) The above CODES(R ,R ,C ,C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts(Rl05, DD4, DK4). NOTE NOTE ON SAFETY: Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol Any other component substitution ( other than original type), may increase risk of fire or electrical shock hazard. 990521 A.O NOTE ON SAFETY FOR FUSIBLE RESISTOR : The suppliers and their type numbers of fusible resistors are as follows ; 1 . KOA Corporation Part No.(MJI) Type No.(KOA) Description NH05 x x x 140 RF25S x x x x J J J J 5% (1/4W) NH05 x x x 120 RF50S x x x x 5% (1/2W) NH85 x x x 110 RF73B2A x x x x 5% (1/10W) NH95 x x x 140 RF73B2E x x x x 5% (1/4W) Resistance value Resistance value(0.1 - 10k ) 2. Matsushita Electronic Components Co., Ltd Part No.(MJI) Type No.(MEC) Description NF05 x x x 140 ERD-2FCJ x x x ( 5% 1/4W) RF05 x x x 140 NF02 x x x 140 ERD-2FCG x x x ( 2% 1/4W) RF02 x x x 140 Resistance value Examples Resistance value 0.1 ..... 001 10 ..... 100 1k ..... 102 100k ..... 104 0.5 ..... 005 18 ..... 180 2.7k ..... 272 680k ..... 684 1 ..... 010 100 ..... 101 10k ..... 103 1M ..... 105 6.8 ..... 068 390 ..... 391 22k ..... 223 4.7M ..... 475 ABBREVIATION AND MARKS ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE -PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’ TAL : CRYSTAL : : 13 14 6. ELECTRICAL PARTS LIST POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) MAIN CIRCUIT BOARD CAPACITORS C301 0CE2276F605 ELECT 220/16,TP nsp C302 0CE4766K605 ELECT 47/50,TP nsp C303 0CE1076F605 ELECT 100/16,TP nsp C304 0CK2220K405 CER. 222,TP nsp C305 0CQ1031N405 MYLAR 103,TP nsp C306 0CE1076K605 ELECT 100/50,TP nsp C307 0CC1010K415 CER. 100P,TP nsp C308 0CE1066K605 ELECT 10/50,TP nsp C309 0CE1076K605 ELECT 100/50,TP nsp C310 0CQ3921N405 MYLAR 392,TP nsp C311 0CK1020K405 CER. 102,TP nsp C312 0CC1010K415 CER. 100P,TP nsp C313 0CE1056K605 ELECT 1/50,TP nsp C314 0CE1066K605 ELECT 10/50,TP nsp C315 0CQ1041N405 MYLAR 104,TP nsp C316 0CC2210K405 CER. 220P nsp C317 0CQ4741N401 MYLAR 474 nsp C318 0CC1010K415 CER. 100P,TP nsp C319 0CQ1041N405 MYLAR 104,TP nsp C320 0CE1066K605 ELECT 10/50,TP nsp C321 0CE1076F605 ELECT 100/16,TP nsp C322 0CE1076F605 ELECT 100/16,TP nsp C323 0CQ4741N401 MYLAR 474 nsp C324 0CE2276F605 ELECT 220/16,TP EA22701610 C325 0CE2276F605 ELECT 220/16,TP EA22701610 C326 0CE1066K605 ELECT 10/50,TP EA10605010 C327 0CE1066K605 ELECT 10/50,TP EA10605010 C328 0CE4787K610 ELECT 4700/50 *EA001060R C329 0CE4787K610 ELECT 4700/50 *EA001060R C330 0CQ4731N405 MYLAR 473,TP nsp C331 0CQ4731N405 MYLAR 473,TP nsp C333 0CE1066K605 ELECT 10/50,TP nsp C334 0CQ1031N405 MYLAR 103,TP nsp C335 0CE4766F605 ELECT 47/16,TP nsp C336 0CE4766F605 ELECT 47/16,TP nsp C337 0CK1040K405 CER. 104,TP nsp C338 0CE1056K605 ELECT 1/50,TP nsp C339 0CK1040K405 CER. 104,TP nsp C340 0CK4730K405 CER. 473,TP nsp C502 0CE1066K605 ELECT 10/50,TP nsp C503 0CE1086H605 ELECT 1000/25 nsp C504 0CQ1031N405 MYLAR 103,TP nsp C505 0CQ1031N405 MYLAR 103,TP nsp C506 0DC4721R6A1 CER. 472/250V *DK100690R RESISTORS R301 0RD1002F409 10K,1/6W,5%,TP52 nsp R302 0RD1002F409 10K,1/6W,5%,TP52 nsp R303 0RD1002F409 10K,1/6W,5%,TP52 nsp R304 0RD1003F409 100K,1/6W,5%,TP52 nsp R305 0RD6802F409 68K,1/6W,5%,TP52 nsp R306 0RD4700F409 470,1/6W,5%,TP52 nsp R307 0RD4700F409 470,1/6W,5%,TP52 nsp R308 0RD1001F409 1K,1/6W,5%,TP52 nsp R309 0RD3301F409 3.3K,1/6W,5%,TP52 nsp R310 0RD1000F409 100,1/6W,5%,TP52 nsp R311 0RD1000G409 100,1/4W,5%,TP52 nsp R312 0RD1002F409 10K,1/6W,5%,TP52 nsp R313 0RD1000G409 100,1/4W,5%,TP52 nsp R314 0RD1003F409 100K,1/6W,5%,TP52 nsp R315 0RD1002F409 10K,1/6W,5%,TP52 nsp R316 0RD0682G409 68,1/4W,5%,TP52 nsp R317 0RN0471J410 4.7(1W) GA05047010 R318 0RC0100M425 CEMENT 0.1(5W), FORMING(25mm) *GO000009R R319 0RD9101F409 9.1K,1/6W,5%,TP52 nsp R320 0RD6801F409 6.8K,1/6W,5%,TP52 nsp R321 0RD6801F409 6.8K,1/6W,5%,TP52 nsp R322 0RD1003F409 100K,1/6W,5%,TP52 nsp R323 0RD1004F409 1M,1/6W,5%,TP52 nsp R324 0RD1003F409 100K,1/6W,5%,TP52 nsp R325 0RD1503F409 150K,1/6W,5%,TP52 nsp R326 0RD5602F409 56K,1/6W,5%,TP52 nsp R327 0RD9101F409 9.1K,1/6W,5%,TP52 nsp R328 0RD1002F409 10K,1/6W,5%,TP52 nsp R329 0RD3901F409 3.9K,1/6W,5%,TP52 nsp R330 0RD6801F409 6.8K,1/6W,5%,TP52 nsp R331 0RD1001F409 1K,1/6W,5%,TP52 nsp R332 0RD1002F409 10K,1/6W,5%,TP52 nsp R333 0RD8201F409 8.2K,1/6W,5%,TP52 nsp R334 0RD8201F409 8.2K,1/6W,5%,TP52 nsp R335 0RD8201F409 8.2K,1/6W,5%,TP52 nsp R336 0RD8201F409 8.2K,1/6W,5%,TP52 nsp R337 0RD8201F409 8.2K,1/6W,5%,TP52 nsp R338 0RD2202F409 22K,1/6W,5%,TP52 nsp R339 0RD2203F409 220K,1/6W,5%,TP52 nsp R340 0RD1802G409 18K,1/4W,5%,TP52 nsp R341 0RD1802G409 18K,1/4W,5%,TP52 nsp R342 0RD1802G409 18K,1/4W,5%,TP52 nsp R343 0RD1802G409 18K,1/4W,5%,TP52 nsp R350 0RD1001G409 1K,1/4W,5%,TP52 nsp R351 0RD1001G409 1K,1/4W,5%,TP52 nsp R352 0RD0682G409 68,1/4W,5%,TP52 nsp R353 0RD1003F409 100K,1/6W,5%,TP52 nsp R354 0RD1003F409 100K,1/6W,5%,TP52 nsp R355 0RD4700F409 470,1/6W,5%,TP52 nsp R356 0RD4700F409 470,1/6W,5%,TP52 nsp R357 0RD0102F409 10,1/6W,5%,TP52 nsp R501 0RD1002F409 10K,1/6W,5%,TP52 nsp R502 0RD4701F409 4.7K,1/6W,5%,TP52 nsp R503 0RD3301F409 3.3K,1/6W,5%,TP52 nsp R504 0RD0221G409 2.2,1/4W,5%,TP52 nsp R505 0RD1002F409 10K,1/6W,5%,TP52 nsp RY301 6920V-DG1A1 RELAY DG12D1(12VDC) LY10120350 RY501 6920V-DG1A1 RELAY DG12D1(12VDC) LY10120350 SEMICONDUCTORS D301 0DD4148B052 DIODE 1N4148 nsp D304 D305 0DD404GE108 DIODE PBS404GU *HE200270R D306 0DD4148B052 DIODE 1N4148 nsp D307 0DD4148B052 DIODE 1N4148 nsp BD501 0DDM06GD114 DIODE KBPM06G *HE200280R D502 0DD4148B052 DIODE 1N4148 nsp D503 0DD4148B052 DIODE 1N4148 nsp IC301 0IMI508ADIP IC PIC12C508A-04/P *HC107000R IC302 0ISA4036TFH IC STK4036 HC10173030 IC303 0IKE78S05TP IC KIA78S05P HC38105090 IC304 0IKE7815SIP IC KIA7815 HC3891509F IC305 0IKE7915SIP IC KIA7915 HC3991509F IC306 0IKE4558DIP IC KIA4558 HC10008090 IC307 0IKE4558DIP IC KIA4558 HC10008090 IC308 0IKE4558DIP IC KIA4558 HC10008090 Q301 0TR3198AHNP TRS. 2SC3198 nsp Q302 0TR3198AHNP TRS. 2SC3198 nsp Q303 0TR3198AHNP TRS. 2SC3198 nsp Q304 0TF315FBLNC FET,2SK315F *HF200270R Q305 0TR1266AFPN TRS. 2SA1266Y nsp Q306 0TR3198AHNP TRS. 2SC3198 nsp Q307 0TR1266AFPN TRS. 2SA1266Y nsp Q308 0TR3198AHNP TRS. 2SC3198 nsp NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 15 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) Q501 0TR3198AHNP TRS. 2SC3198 nsp MISCELLANEOUS F501 0FT2000T503 FUSE 5*20,50T 2.0A/250V VDE FS10200800 F502 /K 0FT1000T503 FUSE 5*20,50T 1.0A/250V VDE FS10100950 PM502 6602V-D02ST WAFER 2P,P=7.92,HANLIM, LWP1143-02 nsp PM504 /K 6602V-D02ST WAFER 2P,P=7.92,HANLIM, LWP1143-02 nsp PN101 6602V-A06ST WAFER 6P,P=2.0,53014-06 nsp PN201 6602V-A07ST WAFER 7P,P=2.0,53014-07 nsp PN301 6602V-C02ST WAFER 2P,P=3.96,HANLIM LW1143-02 nsp PN302 6602V-C03ST WAFER 3P,P=3.96,HANLIM LW1143-03 nsp PN501-1 6602V-D02ST WAFER 2P,P=7.92,HANLIM LWP1143-02 nsp PN503 6602V-D02ST WAFER 2P,P=7.92,HANLIM LWP1143-02 nsp T501 /F 6170V-J35IK POWER TRS. ANS FORMER SUB 35*14 *TS001450R T501 /K 6170V-Z35IK POWER TRS. ANS FORMER SUB 35*15 AC115/230V *TS001460R ZD301 ZD304 0DZ6210JA09 ZENER DIODE 6.2V,1W,1N4735 *HD301960R ZD501 0DZ5110HA09 ZENER DIODE 5.1V HD30511000 JACK CIRCUIT BOARD CAPACITORS C101 0CC2210K405 CER. 220P,TP nsp C102 0CC2210K405 CER. 220P,TP nsp C103 0CE1066H605 ELECT 10/25,TP nsp C104 0CE1066K605 ELECT 10/50,TP nsp C105 0CQ2231N405 MYLAR 103,TP nsp C106 0CE1066H605 ELECT 10/25,TP nsp C107 0CE4766F605 ELECT 47/16,TP nsp C108 0CE1066K605 ELECT 10/50,TP nsp C109 0CE1076D605 ELECT 100/10,TP nsp C110 0CE1066K605 ELECT 10/50,TP nsp C111 0CE1066K605 ELECT 10/50,TP nsp C112 0CE4766F605 ELECT 47/16,TP nsp C113 0CE1066K605 ELECT 10/50,TP nsp C114 0CK4730K405 CER. 0.047(C),TP nsp C115 0CK1030K405 CER. 0.01(C),TP nsp C116 0CK1030K405 CER. 0.01(C),TP nsp C117 0CK1030K405 CER. 0.01(C),TP nsp C118 0CK1030K405 CER. 0.01(C),TP nsp RESISTORS R101 0RD3901F409 3.9K,1/6W,5%,TP52 nsp R102 0RD1003F409 100K,1/6W,5%,TP52 nsp R103 0RD2201F409 2.2K,1/6W,5%,TP52 nsp R104 0RD1004F409 2.7M,1/6W,5%,TP52 nsp R105 0RD1003F409 100K,1/6W,5%,TP52 nsp R106 0RD1003F409 100K,1/6W,5%,TP52 nsp R107 0RD2201F409 2.2K,1/6W,5%,TP52 nsp R108 0RD3901F409 3.9K,1/6W,5%,TP52 nsp R109 0RD1004F409 2.7M,1/6W,5%,TP52 nsp R110 0RD1003F409 100K,1/6W,5%,TP52 nsp R111 0RD1003F409 100K,1/6W,5%,TP52 nsp R112 0RD1003F409 100K,1/6W,5%,TP52 nsp R113 0RD1202F409 12K,1/6W,5%,TP52 nsp R114 0RD1202F409 12K,1/6W,5%,TP52 nsp R115 0RD3301F409 3.3K,1/6W,5%,TP52 nsp R116 0RD3301F409 3.3K,1/6W,5%,TP52 nsp R117 0RD4701F409 4.7K,1/6W,5%,TP52 nsp R118 0RD4702F409 47K,1/6W,5%,TP52 nsp R119 0RD4702F409 47K,1/6W,5%,TP52 nsp R120 0RD4703F409 470K,1/6W,5%,TP52 nsp R121 0RD4702F409 47K,1/6W,5%,TP52 nsp R122 0RD1003F409 100K,1/6W,5%,TP52 nsp R123 0RD4700F409 470,1/6W,5%,TP52 nsp R124 0RD1000F409 100,1/6W,5%,TP52 nsp R125 0RD5602F409 56K,1/6W,5%,TP52 nsp R126 0RD3301F409 3.3K,1/6W,5%,TP52 nsp R127 0RD1001F409 1K,1/6W,5%,TP52 nsp R128 0RD4702F409 47K,1/6W,5%,TP52 nsp R129 0RD1003G409 100K,1/4W,5%,TP52 nsp R130 0RD0472F409 47,1/6W,5%,TP52 nsp R131 0RD1001F409 1K,1/6W,5%,TP52 nsp R132 0RD1001F409 1K,1/6W,5%,TP52 nsp SEMICONDUCTORS D101 0DD4148B052 DIODE 1N4148 nsp D102 0DD4148B052 DIODE 1N4148 nsp IC101 0IKE4558DIP IC KIA4558 HC10008090 IC102 0IKE4558DIP IC KIA4558 HC10008090 Q101 0TR3198AHNP TRS. C3198 nsp MISCELLANEOUS CN101 6630V-WPFAJ CONNECTOR ASSY 6p nsp JK101 6800V-SRR08 JACK JW-6018B YT01080120 JK102 6612V-RWR02 JACK RCA-2P WH/RD JW-1609DR(4PIN) *YT002420R SW101 6600V-S2C3P SWITCH AUTO-STANDBY CSS-2307A *SS000670R VR CIRCUIT BOARD CAPACITORS C201 0CM6841N403 MYLAR ME 684,100V nsp C202 0CQ1841N401 MYLAR 184,TP nsp C203 0CQ1541N401 MYLAR 154,TP nsp C204 0CQ1541N401 MYLAR 154,TP nsp C205 0CE1066K605 ELECT 10/50,TP nsp C206 0CE1066K605 ELECT 10/50,TP nsp RESISTORS R201 0RD1000F409 100,1/6W,5%,TP52 nsp R202 0RD3301F409 3.3K,1/6W,5%,TP52 nsp R203 0RD3301F409 3.3K,1/6W,5%,TP52 nsp R204 0RD1802F409 18K,1/6W,5%,TP52 nsp R205 0RD5602F409 56K,1/6W,5%,TP52 nsp SEMICONDUCTORS IC201 0IKE4558DIP IC KIA4558 HC10008090 LED201 0DL3R25S04D LED SAM3270 DUAL COLOR HI10096300 LED201H 4930V-0008A HOLDER LED SW-200,H=11mm nsp MISCELLANEOUS CN201 6630V-SLGAS CONNECTOR ASSY 7P nsp VR201 6610V-AS530 VR ROTARY A5kOHM *RB000010R VR202 6610V-DD140 VR ROTARY C10kOHMx2 *RM000430R NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 16 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POWER SWITCH CIRCUIT BOARD C601 0DC4721R6A1 CER.CAP 472/250V *DK100690R PN601 6602V-D02ST WAFER 2P,P=7.92 nsp SW601 6600V-A2WHS SWITCH POWER TV-3, CLASS Ι, UL/CSA/BSI/VDE SP01010650 VOLTAGE SELECTOR CIRCUIT BOARD PN701-1 6602V-D02ST WAFER 2P,P=7.92,HANLIM LWP1143-02 nsp PN701-2 6602V-D02ST WAFER 2P,P=7.92,HANLIM LWP1143-02 nsp PN701-3 6602V-D02ST WAFER 2P,P=7.92,HANLIM LWP1143-02 nsp PN702 6602V-D02AN WAFER 2P,P=7.92 HANLIM,LAP1143-02 nsp SW701 6600V-V6LSS SWITCH,VOLTAGE SEL SDKGA43001,5A/250V *SS000680R NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
